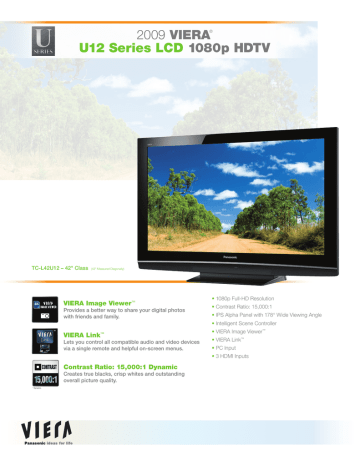

2009 viera
U12 Series LCD 1080p HDTV
®
TC-L42U12 – 42" Class
(42" Measured Diagonally)
VIERA Image Viewer™
Provides a better way to share your digital photos
with friends and family.
• 1080p Full-HD Resolution
• Contrast Ratio: 15,000:1
• IPS Alpha Panel with 178° Wide Viewing Angle
• Intelligent Scene Controller
VIERA Link™
Lets you control all compatible audio and video devices
via a single remote and helpful on-screen menus.
• VIERA Image Viewer™
• VIERA Link™
• PC Input
• 3 HDMI Inputs
Contrast Ratio: 15,000:1 Dynamic
Creates true blacks, crisp whites and outstanding
overall picture quality.
* Dynamic.
2009 viera U12 Series LCD 1080p HDTV Specifications
®
VIDEO
Screen Size Diagonal (inches)
Aspect Ratio
Panel
Filter
Number of Pixels
Contrast (Dynamic)
Brightness (Panel Luminance)
Response Time
Viewing Angle
Motion Adaptive 3D Y/C Digital Comb Filter
HDTV Display Capability (1080p, 1080i, 720p)
EDTV Display Capability (480p)
Aspect Control
Progressive Scan
Intelligent Scene Controller
Motion Focus Technology
x.v.Color™
3D Color Management (Vivid Mode)
Sub Pixel Control
TC-L42U12
42.0
16:9
IPS 1080p (WSXGA)
Fine Black Panel
2,073,600 (1,920 x 1,080)
15,000:1
500 cd/m2
8 msec
178 degrees
Y
Y
Y
480i/p: FULL, JUST, 4:3, ZOOM
1080i/p: FULL, H-FILL, JUST, 4:3, ZOOM
Y
Y
Y
Y
Y
Y
AUDIO
Speakers
Number of Speakers
Audio Output
Surround Sound
Full-range x 2 (L, R)
2
20 W (10% THD)
(8 ohms, 80 Hz -17kHz)
Y
JACKS
Integrated ATSC Tuner
VIERA Image Viewer™
HDMI Input
Composite Video Input
S-Video Input
Analog Audio Input (for HDMI/DVI)
Audio Input (for Video)
PC Input
Y
Y (JPEG playback)
3 (1 side)
2 (1 side)
1 (side)
Y
2 (1 side)
1
Component Video Input (Y, PB, PR)
1
Audio Input (for Component Video)
Composite Video Output
Analog Audio Output
Digital Audio Output
Headphone Jack
1
—
—
1 (5.1 ch)
1
CONVENIENCE
VIERA Link™
Y
VIERA® Tools
Y
Game Mode
Trilingual Menu (English/Spanish/French)
V-Chip Program Lock Out
Built-In Closed Caption Decoder
Sleep Off-Timers and Programable Timer (5 programs)
Video Picture Memory
Video Input Labeling
Y
Y
Y
Y
Y
Y
Y
GENERAL
Power Supply
Rated Power Consumption
Standby Power Consumption
Energy Star
Receiving System
Dimensions with stand
Height [inches (mm)]
Width [inches (mm)]
Depth [inches (mm)]
Dimensions W/O stand Height [inches (mm)]
Width [inches (mm)]
Depth [inches (mm)]
Mass Weight [lbs (kg)]
VESA Compatible
Carton Dimensions
Height [inches (mm)]
Width [inches (mm)]
Depth [inches (mm)]
Gross Weight [lbs (kg)]
Optional Wall-mounting Bracket Model Numbers
UPC
AC 110 - 127 V, 60 Hz
217 W
0.3 W
Y
ATSC/QAM/NTSC
28.0" (710 mm)
40.5" (1,027 mm)
11.7" (295 mm)
26.3" (668 mm)
40.5" (1,027 mm)
4.4" (110 mm)
54.1 lbs. (24.5 kg)
Y
30.6" (776 mm)
51.5" (1,306 mm)
10.2" (258 mm)
64.0 lbs. (29.0 kg)
TY-WK3L2RW
037988-108657
Notice: VIERA Link™ is a new name for EZ Sync.™ Not all VIERA Link™ features are usable with earlier VIERA Link™ and EZ Sync™ compatibile products. Design and specifications are subject to change without notice. All pictures are simulated.
