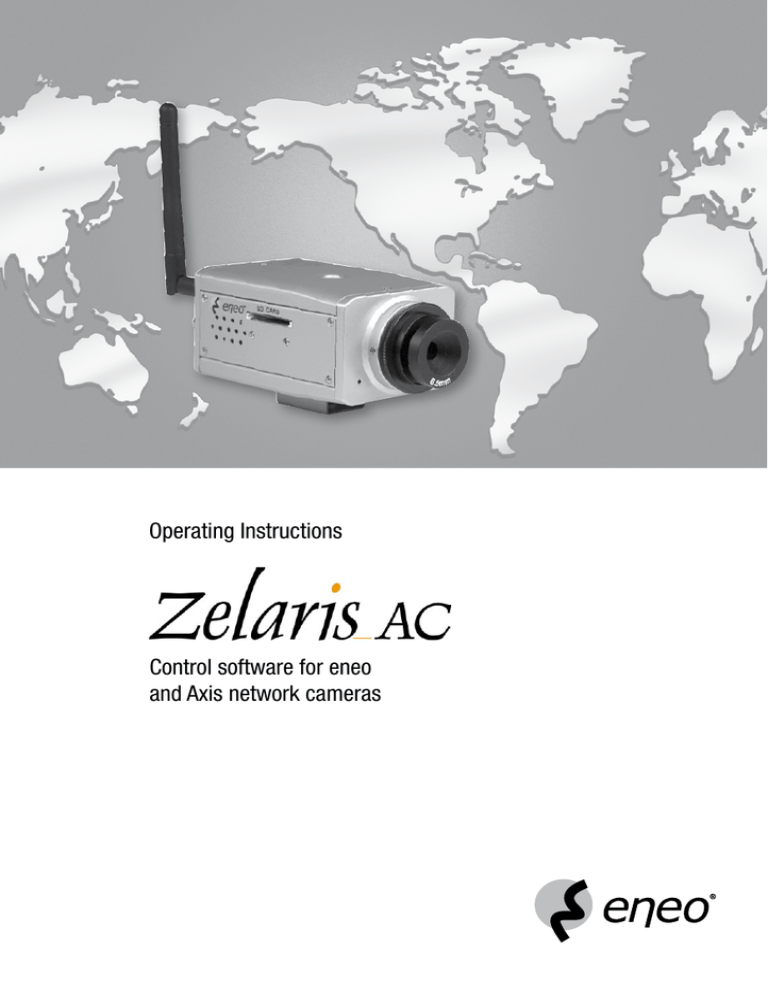

OperatingInstructions
Controlsoftwareforeneo
andAxisnetworkcameras
1
Contents
1.
General Description............................................................................................................................................ 3
2.
Presentation....................................................................................................................................................... 4
3.
Protocols............................................................................................................................................................ 4
4.
Description......................................................................................................................................................... 5
5.
Technical Specifications.................................................................................................................................... 23
1. General Description
Zelaris AS is a programme for use in the field of access control.
The combination of eneo network cameras and/or AXIS components and the Zelaris AC Server software emulate a video and two-way voice door control system. The network cameras/servers use the Ethernet in order to transmit
video, audio, and control data in the network. In combination with the Zelaris AC server they enable the building
entrance area or similar to be monitored from a PC workplace. When a visitor presses the door bell button, which is connected to the alarm input contact, the PC presents the video image as a pop-up. The audio button integrated
into the software can activate the integral microphone in the connected components. A door-opener or similar device
can be operated by actuating the alarm output contact via the action button in the software.
The Zelaris AC enlarges the Zelaris AS by one workplace in each case.
• Client Version of the Zelaris control programme (only 76012)
• For the automatic surveillance of doors / vehicle barriers (only 76011)
• For the use of NW components from eneo and Axis
• Expansion to additional workstations (only 76012)
• Unlimited number of workstations (only 76012)
• Triggered by alarm contacts or Motion Alarm (only 76011)
• Pure software system
• Automatic switch-on and recording on PC
• Bi-directional audio transmission
• Available protocols: TCP/IP, FTP and SMTP
• Single workplace licence (only 76012)
Cameras and web servers supported
• eneo ENC1001L
• eneo ENC1001W
• eneo ENC1002L
• eneo ENC1002W
• eneo ENC1003L
• eneo ENC1003W
• eneo ENC1004L / GLC1401
• eneo ENC501L
• eneo ENC501W
• eneo ECS-01
• Axis MJPEG (complete product range)
• Axis MPEG4 (complete product range)
• Axis MPEG2 (complete product range)
2. Presentation
As can be seen from the foregoing, various different formats and compression procedures can be displayed with the Zelaris AS:
• MJPEG
• MPEG-4
• MPEG-2
Selection:
MJPEG
MPEG4
or
MPEG2
3. Protocols
In addition to this, three different IP protocols are supported:
• TCP
Transmission Control Protocol
• FTP
File Transport Protocol
(Axis, eneo)
• SMTP
Simple Mail Transport Protocol
(Axis)
(Axis)
Selection:
TCP
SMTP
or
FTP
Pre-set macros
for port addresses or free port
settings
The port addresses for the individual protocols are stored as macros but can also be freely selected:
• TCP Port: 1500
• FTP
Port: 21
• SMTP
Port: 25
4. Description
The Zelaris AS works with the Active-X components provided by the manufacturers. In addition to this it also offers the possibility of incorporating other devices in which no Active-X is available.
If these devices have their own applications, or can be accessed via the Internet Explorer, they can be started by
means of a „shell”. This is done very simply by placing a tick against only the „Shell” option in the application.
Activate the
„Shell” function in order to
call up another
provider’s
software.
Acoustic signals can also be incorporated. This is done by placing a tick against the „Sound” option. Some examples
of sounds are included in the programme as delivered, but of course users can also use sounds of their own choice.
Activate
sounds when
certain events
occur.
The protocols can be adjusted in order to trigger the Zelaris AS. This means that, all according to the preset protocol,
the Zelaris AS is switched from its standby mode to its active mode and the live pictures are displayed.
As an additional function, if the SMTP or FTP protocol has been pre-set the current images are stored on the internal
hard disc of the PC. In the case of the SMTP protocol a small eMail server is activated, or with the FTP protocol it is an FTP server. The drive and the paths can be set or selected accordingly in the configuration part of the Zelaris AS.
SMTP
Enter user ID and
password
Select the drive or file
and sub-folder
FTP
Enter user ID and
password
Select the drive or file
and sub-folder
The Zelaris AS documents each event in a log file, which can be given the appropriate name in the configuration part
of the software. In addition to this, when the maximum file size has been reached a back-up file is created in which
all the information in the log file is mirrored. After that a new log file is opened.
The back-up file can of course also be given its own name in the configuration part of the Zelaris AS.
Give a name to the log
file.
Give a name to the back-up file.
Define the maximum
number of entries in the
log file (between 100 and
32,000)
The Zelaris AS also possesses language options with which one can choose between four languages (German, English, French and Spanish). The language setting is accepted immediately in all the Zelaris AS menus.
Select language:
German
English
French
Spanish
Italian in preparation
If an event is triggered, the connection to the network cameras and/or video server is created immediately. The position of the video image display on the PC screen can likewise be defined in the configuration part of the Zelaris AS.
Select the position on
the screen of the video
image.
Sending alarm images to a PDA-2003:
The Zelaris AC #76011 is able to send alarm images to an available PDA within the network. The Zelaris-AC PDA
option #76024 must be installed on the PDA.
Select PDA option
Enter the IP Address of
the PDA and the port
number to be used
Determine directory for
the alarm images
Specify values for
network timeout and
packet size. Values are
dependent on the available network.
Activation instructions:
write additional infor-
mation into the log file.
If information is to be sent to an e-mail server following the activation of the alarm, these functions can be activated
accordingly:
Select e-mail function
Insert number of retries
to be performed in the
event that the mail server
cannot be obtained.
Insert the file directory
where the alarm images
to be sent by email are to
be saved
Open the mail client
Save the input data and
end the configuration
10
The opened video image viewer provides various options:
• Automatic connection
• Automatic closing of the video image after a preset length of time
• Stopping the live stream in order to be able to store individual images on the internal hard disc of the PC (to examine suspicious persons or circumstances)
• Actuating the alarm output contact of the network camera or the video server in order to access external devices such as door-openers or vehicle barriers
• Audio function of the cameras and video servers. In the case of Axis equipment with bidirectional audio support, speech to the visitor is automatically activated as well (PC sound card).
• Full-screen display of the video image (return to standard size with the „Esc” key).
Live image is switched off if
Autoconnect is not
selected.
Stop the live stream
in order to be able
to store individual
pictures on the hard
disc.
Automatic connection
Video image closes
automatically.
Full-screen
display
Store individual
image. The target folder can
be defined in
the software.
Button for activating
the alarm output
contact of the camera
or video server
Operate the
loudspeaker and
volume of the Axis
devices.
Operate
microphone
and adjust
microphone
level.
11
Switch audio
function of camera
on and off.
The Zelaris AS also offers tools for such tasks as checking the devices connected to it for their function in the network. These include:
• Pinging IP addresse
• Tracing IP addresse
Set packet size
Number of transmission packets
Enter IP address
or camera name
Start „ping”
command
Expected
response in „x”
seconds
Response from video server
or network camera
„Ping” command
The „ping” command is used to check the availability of a device in the network. The response comes back with
information on the time the data packets took to return from the device.
„Trace” command
The „trace” command is used to locate individual routers installed between the transmitter and the receiver. If a data
packet fails to reach a receiver, this command obtains a response listing all the routers through which it was possible
to send the data packet. The last response shows the router at which the data stream was broken off.
Start „Trace route” command
12
The Zelaris AS can be configured in two different operating modes. These are:
• Single-licence application (server)
• Multiple-licence application (client/server)
The single-licence application, as the name shows, is used when the system consists of only one workplace. In this case the Zelaris AS stores and visualises all events. When used as a multi-licence application the Zelaris AS is configures as a client/server application, and the way in which it works is this:
When an event is received the programme stores the alarm images on the internal hard disc of the PC. In parallel with this a data packet is sent with a multicast address into the internal network and informs all the workstations on which the Zelaris AC #76012 is installed that a video request has been received. This means that all the clients, after receiving this data packet, open a small window panel in which the video image can be called up. If the „open video image” button is selected, a direct link to the source that activates the alarm will be generated. The control panel will then close automatically.
If this button is not selected, the control panel will automatically close after three minutes.
Select the network card
or the extended network
address to be used
Choose between
server and server/
client functionality.
Store inputs
Discard inputs (without saving them).
13
Up to 16 clients can be registered in the server application #76011. These can be set up as both internal and external
LAN clients. A connection via a fixed external IP address or as a DynDns client is also possible.
Active/inactive client
connection
Save settings and exit the configuration
Name, IP address and
port number of the
client to be registered
Client server client configuration:
Determine own IP
address to be used
Determine server
address in order to be
able to activate the
Unicast connection
Determine port
address for the client
server connection.
Each client has its
own port address.
Save input data and exit the configuration
14
The Zelaris AS and also the Zelaris AC can be configured as a standard or as a background application. The decision as to how the programme is to work can also be set in the configuration part. If you click on the „TrayIcon” option the application will run in the background and will be shown on the Windows desktop as an icon in the bottom right-hand corner.
Select standard or background application.
A password is always needed in order to configure or close the Zelaris AS or the Zelaris AC. When the programme is delivered the user name is „admin” and the password is „9999”.
These can of course be changed in the configuration part.
User name and password
to configure and exit
from Zelaris AS/AC.
15
The configuration of the Zelaris AC #76012 is almost identical with that of the Zelaris AS #76011 described above.
The differences can be described as follows:
Set up connection to video image.
Switch audible warning on/off
Status display for open Client panel. This is closed automatically after two minutes
if the workstation is unmanned.
In the Appendix you will find instructions on the setup (installation) of the Zelaris AS / AC.
Step 1
Start setup
Select folder
for programme
installation.
Terminate setup
16
Step 2
Select
programme
name for
start menu.
Step 3
Status display
during programme
installation
Terminate installation
Step 4
The completion
of the installation
is confirmed with
„OK”.
17
Instructions on setting the configuration of the network camera or video server
AXIS
Create an event server for FTP
events
18
19
Eneo LAN cameras ENC1001, ENC1002, ENC1003, ENC1004, ENC501 and GLC1401
Define destination for
alarm images.
Define the total length of the recording. 0 seconds = 1 image
Confirm input
Define number of
images before and
after alarm
Confirm input
20
When the FTP
protocol is being
used, enter the
address, port, user
ID, password, and
memory path.
Confirm input
Activate image transfer for FTP events.
Confirm input
21
When the eMail protocol is being used,
enter the server
address and eMail
address.
Confirm input
22
5. Technical Specifications
Model
Description
ZELARIS_AC S
ZELARIS_AC C
Control software for network cameras
from eneo and Axis
Client software for Zelaris_AC S
76011
76012
EDP No.
Hard Disc Capacity
40GB and upwards; depends on number of components connected
Screen Output
VGA card for displaying live image
Interface
NIC 10/100MBit, fast Ethernet, RJ-45
Memory Capacity
Internal memory, minimum 512MB
Processor Type
Pentium III: 1.8GHz
System Requirements
PC platform: Windows 2000 SP.4, Windows XP Home or XP Prof. SP.2 At least 2GHz, 256MB RAM hard disc capacity depending on requirements. High-performance graphics card recommended.
Currently Supports
AXIS, eneo, JVC, JPEG generally, MJPEG
Accessories
EDP No.
Type
Description
76023
ZELARIS_AC SMO
Site Map Option for Zelaris_AC S (only for # 76011)
76027
ZELARIS_AC VIEW
Alarm Playback Option for Zelaris_AC
76024
ZELARIS_AC PDA
PDA Client Option for Zelaris_AC S (only for # 76011)
Accessories for
EDP No.
Type
Description
91423
ENC-501L
1/3” Network colour camera with CS Mount, int. Web Server, 5VDC/230VAC, 340TVL
91434
AXIS 241Q
Video Network Server with 4 inputs, 768x 576 pixels, 7-20VDC
91433
AXIS 241S
Video Network Server with 1 input, 768x 576 pixels, 7-20VDC
91523
ENC-1004L
1/3” Network colour camera with CS Mount, int. Web Server, 5VDC/230VAC, 480TVL
91534
GLC-0501
1/3” Network colour camera with CS Mount, int. Web Server, 5VDC/230VAC, 340TVL
91535
GLC-1401
1/3” Network colour camera with CS Mount, int. Web Server, 5VDC/230VAC, 480TVL
23
WEEE (Waste Electrical & Electronic Equipment)
Correct Disposal of This Product
(Applicable in the European Union and other European countries with separate
collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent
possible harm to the environment or human health from uncontrolled waste disposal,
please separate this from other types of wastes and recycle it responsibly to promote
the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product,
or their local government office, for details of where and how they can take this item
for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions
of the purchase contract. This product should not be mixed with other commercial
wastes for disposal.
eneo® is a registered trademark of Videor E. Hartig GmbH
Exclusive distribution through specialised trade channels only.
VIDEOR E. Hartig GmbH
Carl-Zeiss-Straße 8 · 63322 Rödermark/Germany
Tel. +49 (0) 6074 / 888-0 · Fax +49 (0) 6074 / 888-100
# 991213
www.videor.com
© Copyright by VIDEOR E. Hartig GmbH 09/2009
Technical changes reserved
24
