Interfacing DDR SDRAM with

Stratix II Devices

September 2008 ver. 3.2

Application Note 327

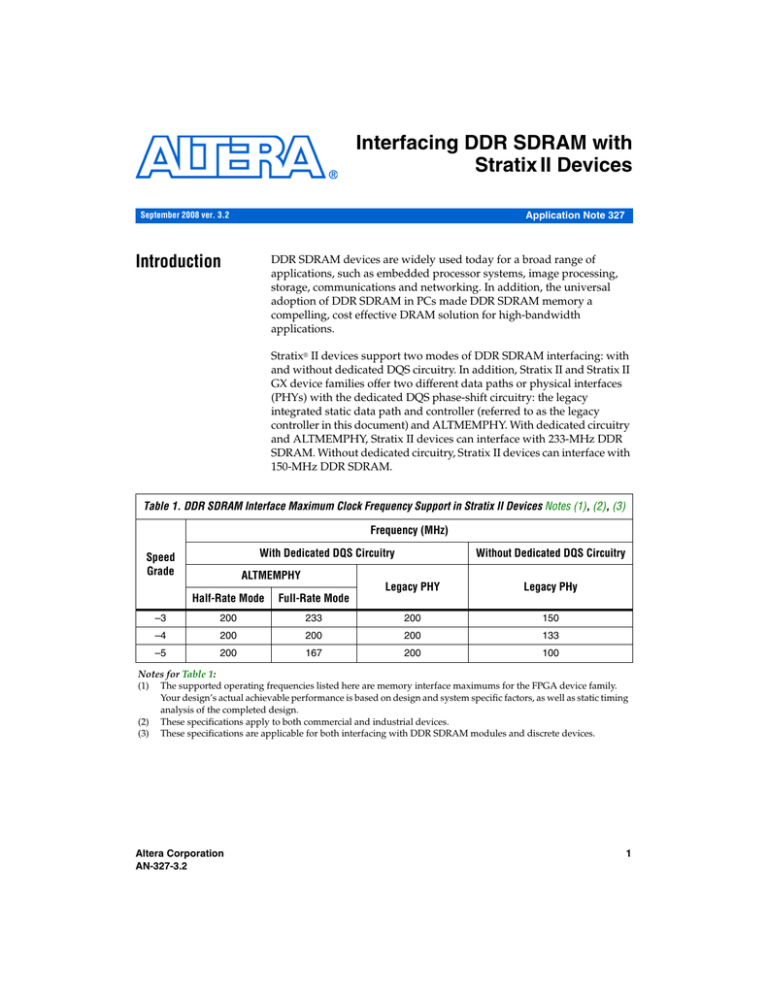

Introduction

DDR SDRAM devices are widely used today for a broad range of applications, such as embedded processor systems, image processing, storage, communications and networking. In addition, the universal adoption of DDR SDRAM in PCs made DDR SDRAM memory a compelling, cost effective DRAM solution for high-bandwidth applications.

Stratix

®

II devices support two modes of DDR SDRAM interfacing: with and without dedicated DQS circuitry. In addition, Stratix II and Stratix II

GX device families offer two different data paths or physical interfaces

(PHYs) with the dedicated DQS phase-shift circuitry: the legacy integrated static data path and controller (referred to as the legacy controller in this document) and ALTMEMPHY. With dedicated circuitry and ALTMEMPHY, Stratix II devices can interface with 2

33-MHz DDR

SDRAM. Without dedicated circuitry, Stratix II devices can interface with

150-MHz DDR SDRAM.

Table 1. DDR SDRAM Interface Maximum Clock Frequency Support in Stratix II Devices

Notes (1)

,

(2)

,

(3)

Speed

Grade

–3

–4

–5

Frequency (MHz)

With Dedicated DQS Circuitry

ALTMEMPHY

Half-Rate Mode Full-Rate Mode

200

200

200

233

200

167

Legacy PHY

200

200

200

Without Dedicated DQS Circuitry

Legacy PHy

150

133

100

Notes for

Table 1

:

(1) The supported operating frequencies listed here are memory interface maximums for the FPGA device family.

Your design’s actual achievable performance is based on design and system specific factors, as well as static timing analysis of the completed design.

(2) These specifications apply to both commercial and industrial devices.

(3) These specifications are applicable for both interfacing with DDR SDRAM modules and discrete devices.

Altera Corporation

AN-327-3.2

1

Preliminary

Interfacing DDR SDRAM with Stratix II Devices

f

This application note describes several systems which interface DDR

SDRAM memory with a Stratix II FPGA. It details the electrical and timing analysis for the interface with a Stratix II device.

Use this application note together with the

External Memory Interfaces in

Stratix II and Stratix II GX Devices

chapter of the Stratix II Device

Handbook.

DDR SDRAM

Overview

f

DDR SDRAM is a 2n prefetch architecture with two data transfers per clock cycle. It uses a strobe, DQS, which is associated with a group of data pins (DQ) for read and write operations. Both the DQS and DQ ports are bidirectional. Address ports are shared for write and read operations.

Write and read operations are sent in bursts, and DDR SDRAM supports burst lengths of 2, 4, and 8. This means that you need to provide 2, 4, or

8 groups of data for each write transaction, and you will receive 2, 4, or

8 groups of data each read transaction. The time between when the read command is clocked into the memory and when the data is presented at the memory pins is called the column address strobe (CAS) latency. DDR

SDRAM supports CAS latencies of 2, 2.5, and 3, depending on the operating frequency. Both the burst length and CAS latency are set in the

DDR SDRAM mode register.

DDR SDRAM devices use the SSTL-2 I/O standard and can hold between

64 Mb to 1 Gb of data. Each device is divided into four banks, and each bank has a fixed number of rows and columns. Only one row per bank can be accessed at one time. The ACTIVE command opens a row and the

PRECHARGE command closes a row.

A DLL inside the DDR SDRAM device edge-aligns the DQ and DQS signals with respect to CK. The DLL must be turned on for normal operation and can be turned off to save power or for debugging purposes.

All timing analyses in this document assume that the DLL is on. Some

DDR SDRAM devices also have adjustable data-output drive strength.

Altera recommends using the highest drive strength for maximum performance.

For more information on the DDR SDRAM specifications, go to

www.jedec.org

.

2

Preliminary

Altera Corporation

ALTMEMPHY and Legacy PHY Brief Overview

ALTMEMPHY and Legacy PHY

Brief Overview

The legacy PHY uses a resynchronization clock with a static phase shift that is determined before design compilation, while the ALTMEMPHY implementation features a dynamic resynchronization clock that is calibrated for process (P) variations during initialization and tracks voltage and temperature (VT) variations. The ALTMEMPHY megafunction is available as a stand-alone PHY for use with third-party memory controllers. The ALTMEMPHY is also instantiated by Altera’s

DDR and DDR2 SDRAM High Performance Controller MegaCore

® function. The legacy PHY is embedded in the DDR and DDR2 SDRAM

Controller MegaCore function. Unlike ALTMEMPHY, the legacy PHY must be extracted manually from the DDR and DDR2 SDRAM Controller

MegaCore function when using a third-party controller. Use the

ALTMEMPHY megafunction for all new designs to achieve high performance and optimal resynchronization phase shift. All new device families after Stratix II GX support ALTMEMPHY and may not support legacy PHY. Use legacy PHY when you need a lower latency interface or when you are not using dedicated phase shift circuitry.

f

For more information on whether to use the legacy PHY or the

ALTMEMPHY megafunction, refer to

TB 091: External Memory Interface

Options for Stratix II Devices

. f

For more information on the ALTMEMPHY megafunction, refer to the

ALTMEMPHY Megafunction User Guide .

f

For more information on the DDR and DDR2 SDRAM High Performance

Controller MegaCore function, refer to the

DDR and DDR2 SDRAM High

Performance Controller MegaCore Function User Guide

. f

For more information on the legacy PHY and controller, refer to the

DDR and DDR2 SDRAM Controller Compiler User Guide

, respectively.

Altera Corporation 3

Preliminary

Interfacing DDR SDRAM with Stratix II Devices

Interface

Description

This section describes the interface between the FPGA and DDR SDRAM devices. It describes the interface signals and how Altera FPGA pins should be configured to meet the DDR SDRAM electrical and timing requirements. It also lists the number of DQS/DQ pins available in the

FPGA. In addition, this section also describes the architecture of the interface between the FPGA and the DDR SDRAM.

Understanding how complicated the interface can be, Altera offers a complete solution that will create the memory controller within minutes.

The Altera DDR SDRAM Controller MegaCore

®

function has two components: a clear text data path block and an encrypted controller logic block. This license-free data path block is the recommended physical layer interface that can be used with your own controller or the Altera controller. When you use this provided data path, you are ensured a working system as the DDR SDRAM IP ToolBench constrains your interface pins and data path logic for optimal operation.

Figure 1

shows the block diagram for the FPGA to DDR SDRAM interface.

Figure 1. DDR SDRAM Controller MegaCore System Level Block Diagram

Stratix II Device

DDR SDRAM Controller

Local

Interface

Control

Logic

(Encrypted)

Pass or Fail Example Driver

DDR SDRAM

Interface

DDR SDRAM

Input

Clock

PLL

DLL (1)

Data Path

(Clear Text)

Note to Figure 1

:

(1) When using the dedicated DQS circuitry, the DLL center-aligns the DQS strobe to the DQ data bus during read operations. When not using the dedicated DQS circuitry, a PLL implements this phase shift.

4

Preliminary

Altera Corporation

Altera Corporation

Interface Description

Interface Signals

Table 2 shows the DDR SDRAM interface pins and how to connect them

to Stratix II device pins.

Table 2. DDR SDRAM Interface Pins

Pin Type

DQ

DQS

CK

CK#

FB_CLK

DM

All other

Description

Bidirectional read and write data

Bidirectional read and write data strobe

System clock

Stratix II Pin Utilization

DQ

DQS

User I/O pin

System clock User I/O pin

Copy of

CK

output clock signal fed back to PLL for resynchronization or

DLL-based read capture

PLL clock input pin

Write data mask, edge-aligned to

DQ during write

User I/O pin

Addresses and commands User I/O pin

This section provides a description of the clock, command, address, and data signals of a DDR SDRAM memory interface.

Clocks Signals

The DDR SDRAM device uses CK and CK# to clock commands and addresses into the memory. The memory also uses these clock signals to generate the DQS signal during a read operation via a DLL inside the memory. The skew between CK or CK# and the SDRAM-generated DQS signal is specified as t

DQSCK

in the DDR SDRAM data sheet.

The DDR SDRAM has a write requirement t

DQSS

, which states the positive edge of DQS on writes must be within ±25% (±90°) of the positive edge of the DDR SDRAM clock input. Because of this, you should use the I/O element’s (IOE’s) DDR register to generate the CK and CK# signals to match with the DQS signal and reduce any process, voltage, and temperature variations.

5

Preliminary

Interfacing DDR SDRAM with Stratix II Devices

To improve resynchronization for the 200-MHz DDR SDRAM interfaces, you can route a copy of the CK signal from the memory pin back to the

Stratix II device. Refer to

“Round Trip Delay Calculation” on page 35

for resynchronization details.

Strobes, Data, DM and Optional ECC Signals

Both DQ and DQS are bidirectional (the same signals are used for both writes and reads). A group of DQ pins is associated with one DQS pin.

In ×8 and ×16 DDR SDRAM devices, one DQS pin is associated with 8 DQ pins (Stratix II ×8/×9 mode). Use the DQS pins and their associated DQ pins listed in the Stratix II pin table when interfacing with DDR SDRAM from Stratix II I/O banks 3, 4, 7, or 8. These I/O banks also offer DQSn pins, but these pins are not necessary for DDR SDRAM interfaces. Refer

to “Data Path Architecture Using Dedicated DQS Circuitry” on page 11

for more information. With dedicated circuitry, Stratix II devices can support up to 200-MHz DDR SDRAM.

Any of the user I/O pins in I/O banks 1, 2, 5, or 6 can also interface with

DDR SDRAM memory. However, since these I/O banks do not have dedicated DQS circuitry, they can only support up to 150-MHz DDR

SDRAM interfaces. The DQS signal is ignored during reads in this scheme. For more information, refer to

“Data Path Architecture Without

Using Dedicated DQS Circuitry” on page 14 .

The width of the memory data bus supported by Stratix II devices is only limited by the number of DQ/DQS pins available in the device.

Stratix II devices offer DQ/DQS pins on all sides of the device, however the VIO banks support DLL-based higher performance interfaces. For interfaces running at lower speeds a PLL-based implementation is supported on all Stratix II I/O banks.

For high-performance interfaces, use all DQ groups on one VIO side of the device. When all DQ groups on that side are used up, use the DQ groups on the opposite VIO side. Note that the DQS/DLL signals may not be shared between the top and bottom. Hence, each VIO side should have its own DLL instantiation.

6

Preliminary

Altera Corporation

Altera Corporation

Interface Description

If the your interface performance requirements can be met by the Stratix

II PLL-based implementation, use DQ groups on one side of the device.

When your interface width requirements exceed the number of groups supported on that side, allocate DQ groups on one of the remaining banks. Note that PLLs used for read capture must be placed on the same side as the DQ input pins for best source-synchronous compensation and timing margins.

Refer to Table 3 for the number of DQS/DQ groups supported in Stratix II

devices.

Table 3. Number of DQS and DQ Groups in Stratix II Devices

Package

484-pin FineLine BGA

672-pin FineLine BGA

484-pin Hybrid FineLine BGA

780-pin FineLine BGA

1,020-pin FineLine BGA

1,508-pin FineLine BGA

Number of ×8/×9 Groups

4

8

4

8

18

18

The data signals (DQ) are edge-aligned with the DQS signal during a read from the memory and are center-aligned with the DQS signal during a write to the memory. The memory controller shifts the DQS signal by 90° during a write to center align the DQ and DQS and shifts the DQS during a read, so that DQ and DQS are center-aligned at the capture register.

Stratix II devices use a PLL to center-align the DQS signal with respect to the DQ signals during writes, and use either the dedicated DQS phase-shift circuitry or a PLL to shift the incoming DQS signal during

reads based on the implementation you chose. Figure 2 shows an

example where the DQS signal is shifted by 90° during a burst-of-two

read. Figure 3

shows an example of the relationship between the data and data strobe during a burst-of-two write.

7

Preliminary

Interfacing DDR SDRAM with Stratix II Devices

Figure 2. DQ & DQS Relationship During a DDR SDRAM Read

Note (1)

Pin to register delay

(2)

DQS at

FPGA Pin

Preamble

Postamble

DQ at

FPGA Pin

DQS at DQ

IOE registers

DQ at DQ

IOE registers

90 degree shift Pin to register delay

(2)

Notes to

Figure 2 :

(1) This is an example of a 90° shift. The shift value read for your system should be based on your timing analysis and may not be 90°.

(2) The delay from the DQS pin to the capture register and DQ pin to the capture register can be configured to minimize additional skew between these signals at the IOE registers.

Figure 3. DQ & DQS Relationship During a DDR SDRAM Write

DQS at

FPGA Pin

DQ at

FPGA Pin

The memory device's setup (t

DS

) and hold times (t

DH

) for the DQ and DM pins during a write are relative to the edges of DQS write signals and not the CK or CK# clock. These times are equal (t

DS

= t

DH

) and typically 0.4 ns for a 200-MHz DDR SDRAM device.

The DQS signal is normally generated on the positive edge of system clock (because of the t

DQSS

requirement described shortly). The DQ and data mask (DM) signals are clocked using a –90° shifted clock from the system clock. The edges of DQS are centered on the DQ and DM signals when they arrive at the DDR SDRAM.

8

Preliminary

Altera Corporation

Altera Corporation

Interface Description

The DQS, DQ, and DM board trace lengths should be tightly matched.

The DDR SDRAM uses the data mask (DM) pins during a write. Driving the DM pins low marks that the write is valid. The memory will mask the

DQ signals if the DM pins are driven high. You can use any of the I/O pins in the same bank as the associated DQS and DQ pins to generate the

DM signal.

The DM timing requirements at the DDR SDRAM input are identical to those for DQ data. The DDR registers, clocked by the –90° shifted clock, create the DM signals.

Some DDR SDRAM devices support error correction coding (ECC), to detect and automatically correct error in data transmission. The 72-bit

DDR SDRAM modules contain eight ECC pins in addition to 64 data pins.

Connect the DDR SDRAM ECC pins to a Stratix II device DQS and DQ group. You should create a 72-bit DDR SDRAM memory controller and add logic to decode/encode the ECC bits on the local interface of the controller.

Commands & Addresses

Commands and addresses in DDR SDRAM devices are clocked into the memory using the CK and CK# signal at single data rate using only one clock edge. DDR SDRAM devices have twelve to fourteen address pins, depending on the device capacity. The address pins are multiplexed, so two clock cycles are required to send the row, column, and bank addresses. The CS, RAS, CAS, and CKE pins are DDR SDRAM command pins.

The DDR SDRAM address and command inputs both require the same setup and hold times with respect to the DDR SDRAM clock. The

Stratix II device address and command signals change at the same time as the DQS write signal since they are both generated from the system clock.

The positive edge of the DDR SDRAM clock, CK, is aligned with DQS to satisfy t

DQSS

. If the command and address outputs are generated on the clock's positive edge, they may not meet the setup and hold time

requirements (see Figure 4 ). Therefore, you should use the negative edge

of the system clock or a phase-shifted version of the system clock for the commands and addresses to the DDR SDRAM. This clock edge selection is made based on timing analysis with accurate pin loading information.

The timing analysis methodology for address and command signals is very similar to the write timing paths described on

page 31

. You can use any of the I/O pins for the commands and addresses.

9

Preliminary

Interfacing DDR SDRAM with Stratix II Devices

Figure 4 shows the address and command timing and the DDR SDRAM

t

DQSS

, t

IS

, t

IH

timing requirements.

Figure 4. DQS vs CK, Address & Command Timing

Notes (1)

,

(2)

System Clock

CK at Stratix II

Device Pin

SDRAM Write Requirement

DQS Write (at FPGA Pin)

SDRAM Address/Command

Input Timing to the DDR

SDRAM Device

Address/Command Pins

(positive edge)

Address/Command Pins

(negative edge)

t

CO t

DQSS(max.) t

DQSS(min.) t

IS t

IH t

CO

Notes to

Figure 4 :

(1) The address and command timing shown in

Figure 4 is applicable for both reads and writes.

(2) If the board trace lengths for the DQS, CK, address, and command pins are the same, the signal relationships at the

Stratix II device pins are maintained at the DDR SDRAM pins.

f f

Interface Architecture

There are two data paths or physical interface (PHY) available in Stratix

II and Stratix II GX devices; the legacy PHY and the ALTMEMPHY megafunction. For highest performance, use the ALTMEMPHY megafunction.

For more information about this implementation, refer to the

ALTMEMPHY Megafunction User Guide

. This section only describes the legacy PHY architecture.

If you are not sure which PHY to use, refer to

Technical Brief 091; External

Memory Interface Options for Stratix II Devices

.

10

Preliminary

Altera Corporation

Altera Corporation

Interface Description

In addition, the legacy PHY offers two read-side implementations. There are DLL-based mode implementation and PLL-based mode implementation .The DLL-based mode implementation always gives a higher performance than the PLL-based implementation. This is because the PLL-based implementation ignores the DQS strobes during reads. In the DLL-based mode implementation, the Stratix II DLL-based dedicated

DQS circuitry to phase-shift the strobe signals (DQS) and center-align the strobe signal with the read data (DQ). While there are up to 144 DQ pins available in the dedicated DQS mode, users who require additional support have the option to generate the phase-shifted clock from a PLL instead of using the dedicated strobe signal (DQS) to capture the read data.

The write-side implementation suggested requires a PLL output two clocks; one to generate the write data and one to generate the write clock using DDR I/Os. This implementation results in matched propagation delays for clock and data signals from the FPGA to the DDR SDRAM, minimizing skew.

Data Path Architecture Using Dedicated DQS Circuitry

The DDR SDRAM interface implementation using dedicated DQS circuitry uses the following:

A write-side PLL to generate CK and CK# system clocks and clock out address, command, strobe and data signals.

A read-side DLL-based phase-shift circuitry to register read data from the memory using strobe signals, DQS.

This implementation is also called DQS mode or DLL-based read implementation.

11

Preliminary

Interfacing DDR SDRAM with Stratix II Devices

There is one DQS phase-shift circuit available on the top of the device and one on the bottom of the device. Each DQS phase-shift circuit requires an input reference clock. The DQS phase-shift circuitry shifts the DQS signal to center-align the signal with the DQ signal at the IOE register, ensuring the data will get latched at the IOE register. The DQS signal is then inverted before going to the DQ IOE clock ports as described in the

External Memory Interfaces in Stratix II and Stratix II GX

chapter of the

Stratix II Device Family Handbook.

1

The areset signal of the read PLL must be toggled after power up and the system PLL is locked.

1

If the PLL loses lock, you need to reset the PLL.

Figure 5 shows how the Stratix II device generates the DQ, DQS, CK, and

CK# signals. The write PLL generates the system clock and –90° shifted clock (write clock). If the write PLL input clock and the DDR SDRAM frequencies are different, you must provide the input reference clock to the DQS phase-shift circuitry either from another input clock pin or from either PLL 5 or 6 (see the

External Memory Interfaces in Stratix II and Stratix

II GX Devices

chapter of the Stratix II Device Family Handbook for details).

The system clock and write clock have the same frequency as the DQS frequency. The write clock is –90° shifted from the system clock.

Figure 5 also shows a feedback clock (FB_CLK) and a second (read) PLL

for resynchronization. This feedback clock is optional and is only used for

DDR SDRAM interfaces at 200 MHz. The board trace length for the feedback clock from the memory should be the sum of the board trace

lengths for the DQ/DQS and CK/CK# signals. In Figure 5

, FB_CLK mirrors the DDR SDRAM CK pin and routed back to the Stratix II device with a board trace length of l

2

, which is the same length as the DQS or DQ board trace.

12

Preliminary

Altera Corporation

Interface Description

Figure 5. Stratix II DDR SDRAM Interface Data Path for DLL-Based Read

LE

IOE

DDR

DM length = l

2

Shifted

90˚ input_clk

(2)

Write PLL

(6)

Write

Clock

System

Clock

Read PLL

(6)

Input

Reference

Clock (3)

DQS Phase-

Shift Circuitry

DFF

(5)

DFF

(4)

DDR

DDR

DQ "Write" (1) length = l

2

CK and CK# length = l

1

DDR

DQS "Write" (1) length = l

2

DDR

FB_CLK length = I

1

+l

2

DQS Logic

Block

DQS "Read" (1) length = l

2

DQ "Read" (1) length = l

2

DDR

DDR SDRAM

Notes to

Figure 5 :

(1) DQ and DQS signals are bidirectional. One DQS signal is associated with a group of DQ signals.

(2) The feedback clock implementation is optional to help ease resynchronization for 200-MHz interfaces.

(3) The input reference clock can either be from the input_clk, another clock pin, or the PLL 5 or 6 output.

(4) The clock to the resynchronization register can be from the system clock, write clock, an extra clock output from the write PLL or from a second (read) PLL in the feedback clock implementation. The figure shows this to be from the read PLL when the feedback clock is used.

(5) The clock to this register can either be the system clock or another clock output of the write PLL. If the design needs another write PLL clock output, another register is needed to transfer the data back to the system clock domain.

(6) The read and write PLLs are configured in normal mode.

Altera Corporation 13

Preliminary

Interfacing DDR SDRAM with Stratix II Devices

Data Path Architecture Without Using Dedicated DQS Circuitry

When using the PLL-based read implementation, Stratix II can support up to 150-MHz DDR SDRAM where each interface uses two PLLs for best performance (see

Figure 6 on page 16

).

The DDR SDRAM interface implementation without using dedicated

DQS circuitry uses the following:

A write-side PLL to generate CK and CK# system clocks and clock out address, command, strobe and data signals.

A read-side PLL-based phase-shift to register read data from the memory using a feedback clock, FB_CLK.

This implementation is also called PLL-based read implementation (or non-DQS mode).

Refer to the Stratix II pin table for the recommended DQS and DQ pins in this mode. The board trace lengths for the DQ, DQS, and DM pins should be tightly matched.

The write PLL generates the system clock, the –90° shifted clock

(write_clk), and the feedback clock (FB_CLK). The feedback clock is routed outside the FPGA and back into the FPGA. This board trace length should equal the clock trace length from FPGA to the memory plus the

DQ trace length from the memory to the FPGA. In Figure 6 , assuming that

clock trace length = l

1

and DQ trace length = l

2

, the FB_CLK needs to have a trace length of l

3

= (l

1

+ l

2

). Matched trace lengths minimize skew across process, voltage, and temperature variations.

14

Preliminary

Altera Corporation

Altera Corporation

Interface Description

The read PLL uses the feedback clock as the input clock and generates the clock needed to capture the DQ during reads. The Stratix II device ignores the DQS signal in this scheme. The read PLL is in source synchronous mode to the IOE register and is matched to the data propagation through the input pin, PLL, and clock network. Because the trace length of the feedback clock is the same as the CK or CK# and DQS trace, FB_CLK coming into the FPGA will look like the DQS signal with a little bit of skew. The read PLL can then be shifted to compensate for the skew and implement the 90° PLL phase shift required to capture the DQ signals during reads.

You need to ensure that the read PLL is in the same side of the device as the data pins are in because the Quartus II software associates a particular

PLL with a particular I/O bank for source synchronous operation. The clock delay to the worst case I/O registers in this I/O bank are fully compensated and result in closely matched data delays and clock delays from the pin to the I/O registers across PVT. When using I/O registers in the non-compensated I/O banks, clock delays, and data delays are less closely matched. Use a Fast PLL for implementing the interface on side

I/O banks, and use an Enhanced PLL for implementing the interface on top or bottom I/O banks for best clock and data delay matching. You also need to set the input pin delay to register option to 0 in the Quartus II software.

Since the DQS signal is ignored during reads, the DQS-DQ relationship from the DDR SDRAM device no longer applies. The skew and timing variations on the interface determines the maximum data rate you can achieve with this method.

Figure 6 shows a summary of how Stratix II devices generate the DQ,

DQS, CK, and CK# signals. The write PLL generates system clock and write clock. The read clock FB_CLK from the DDR SDRAM device goes to a PLL input pin which generates the proper phase shift to capture read data.

15

Preliminary

Interfacing DDR SDRAM with Stratix II Devices

Figure 6. Stratix II DDR SDRAM Interface Data Path Without Using Dedicated DQS Circuitry

LE

IOE

DQ "Write" (1) length = l

2

DDR input_clk

Shifted

90˚

Write PLL

(3)

Write

Clock

System

Clock

DDR

CK or CK# length = l

1

DDR

DQS (2) length = l

2

DDR SDRAM

DDR

FB_CLK length = l

3

= l

1

+ l

2

Read PLL

(3)

DFF

(5)

DFF

(4)

DDR

DQ "Read" (1) length = l

2

Notes to

Figure 6 :

(1) DQ is actually a bidirectional line.

(2) DQS is ignored during reads.

(3) The read PLL is configured in the source synchronous mode, while the write PLL is configured in the normal mode.

(4) The clock to the resynchronization register is either from the system clock, write clock, or an extra clock output from the write PLL.

(5) The clock to this register is either from the system clock or another clock output of the write PLL. If another clock output of the write PLL is needed, another register is needed to transfer the data back to the system clock domain.

Interface Timing

Analysis

When designing an external memory interface for your FPGA, you will analyze timing margins for several paths. All memory interfaces require analysis of the read and write capture timing paths. Additionally, some interfaces might require analysis of the resynchronization timing paths and other memory-specific paths (such as postamble timing).

16

Preliminary

Altera Corporation

Altera Corporation

Interface Timing Analysis

This application note describes Altera's recommended timing analysis methodology using write and read capture timing paths as examples. You should use this methodology for analyzing timing for all applicable timing paths (including address/command, resynchronization, postamble, etc.). To ensure successful operation, the Altera DDR SDRAM

Controller MegaCore function performs timing analysis on the read capture, resynchronization, and postamble paths. While these analyses account for all FPGA related timing effects, you should design in adequate margin to account for board level effects such as crosstalk, inter-symbol interference and other noise effects. These effects and their impact on timing margins are best analyzed by performing board level simulations. Simulation results can be used to adjust the board timing requirement parameter, t

EXT

, for use in margin calculations.

The following presents an analysis of the read and write capture timing margins for the Micron MT9VDDT3272AG-40B DDR SDRAM interface with a EP2S60F1020C3 FPGA. This sample interface shows you the proper methodology for this timing analysis. You will need to include the appropriate timing specifications for your preferred FPGA and memory device.

Methodology Overview

Timing paths are analyzed by considering the data and clock arrival times

at the destination register. In Figure 7 and

Figure 8

, the setup margin is defined as the time between “earliest clock arrival time” and “latest valid data arrival time” at the register ports. Similarly, hold margin is defined as the time between “earliest invalid data arrival time” and the “latest clock arrival time” at the register ports. These arrival times are calculated based on propagation delay information with respect to a common reference point (such as a DQS edge or system clock edge).

Figure 7. Simplified Block Diagram for Timing Analysis

Data Delay

D Q

CLK

Clock Delay

17

Preliminary

Interfacing DDR SDRAM with Stratix II Devices

Figure 8. Data Valid Window Timing Waveform

Clock Arrival Time

Clock

Uncertainties

Earliest Data Invalid t

H t

SU

18

Preliminary

Latest Data Valid

Data Valid Window

FPGA Timing Information

Since your design needs to work under all conditions, timing margins should be evaluated at all process, voltage, and temperature (PVT) conditions. To facilitate this, Altera provides two device timing models in the Quartus II software: slow corner model and fast corner model.

The slow corner model provides timing delays between two nodes within the FPGA with slow silicon, high temperature, and low voltage. In other words, the model provides the slowest possible delay for that timing path on any device for that particular speed grade.

The fast corner model provides timing delays between two nodes within the FPGA with fast silicon, low temperature, and high voltage. In other words, the model provides the fastest possible delay for that timing path on any device.

Note that while almost all FPGA timing delays and uncertainties are modeled in the Quartus II software, a limited number of uncertainties that cannot be modeled are published in the FPGA handbook for use in margin calculations. These data sheet specifications are based on device characterization and account for device level effects such as on-chip variation, rise/fall mismatch, and noise. Some examples include clock skew and jitter on PLL and DLL outputs. These timing uncertainties or adder terms, when used in conjunction with the reported timing data reported Quartus II software, provides the most accurate device timing information. The following analysis will detail the use of these timing adder terms.

Altera Corporation

Interface Timing Analysis

Read Timing Margins for DLL-Based Implementation

During read operations, the DDR SDRAM provides a clock strobe (DQS) that is edge-aligned with the data bus (DQ). The memory controller (in the FPGA) is required to shift the clock edge to the center of the data valid

window and capture the DQ input data. Figure 2 on page 8 illustrates the

timing relationship between the DQS and DQ signals during a read

operation. Figure 9 shows a more detailed picture of the Stratix II device

read data path for ×8 mode. The DQS signal goes to the DQS logic block and is phase-shifted. The DQS local bus then inverts the shifted DQS signal before it clocks the DQ at the input registers. The DQ input register outputs then go to the resynchronization register in the logic array. The resynch

_clock signal clocks the resynchronization register. The resynch

_clock signal can come from the system clock, the write clock, the write PLL clock, or the second (read) PLL (if you use the feedback clock scheme).

Figure 9. DDR SDRAM Read Data Path in Stratix II Devices

IOE dq_oe (1) dq_out

LE

A

D Q

E

Q D resynch_clock

D Q

D

C latch

Q D ena

B

Q D dataout[15..0] dqs_oe (1) dqs_out

DQ[7..0]

DQS (2)

DQS

Local

Bus

DQS Logic

Block

Notes to

Figure 9 :

(1) The output enable registers are not shown here, but dqs_oe and dq_oe are active low in silicon. However, the

Quartus II software implements it as active high and adds the inverter automatically during compilation.

(2)

Figure 9 does not show the DQS postamble circuitry.

f

For more information on the DQ and DQS paths, refer to

External

Memory Interfaces in Stratix II and Stratix II GX Devices

chapter in volume

2 of the Stratix II Device Handbook.

Altera Corporation 19

Preliminary

Interfacing DDR SDRAM with Stratix II Devices

f

Table 5 displays a sample DDR SDRAM read timing margin analysis for

the EP2S60F1020C3 over worst case conditions. The board trace variations for the DQ and DQS pins is ±20 ps. You can perform a similar timing analysis for your interface with another DDR SDRAM memory by replacing the t

HP

, t

QHS

, and t

DQSQ

values in

Table 5

with those from your memory data sheet.

Memory Timing Parameters

You would start the read timing analysis by obtaining the timing relationship between the DQ and DQS outputs from the DDR SDRAM memory device. Since this example analyzes timing for 200 MHz clock speeds or 400 Mbps data rates, the half clock period is 2250 ps after accounting for duty cycle distortion on the DQS strobe. This is specified as t

HP

in the memory data sheet and is 45% of the 5000 ps clock period.

Apart from t

HP

, the memory also specifies t

DQSQ

and t

QHS

. The former specifies the maximum time from a DQS edge to the last DQ bit valid and the latter specifies the data hold skew factor.

With these memory timing parameters, the data valid window at the memory can be calculated to be t

HP

– t

QHS

– t

DQSQ

= 1350 ps. Assuming the board trace length variations amongst all DQ and DQS traces are not more than ± 20 ps, the data valid window present at the FPGA input pins is 1310 ps.

FPGA Timing Parameters

FPGA timing parameters are obtained from two sources: Quartus II software timing analyzer and the Stratix II data sheet. The Quartus II software provides all clock and data propagation delays, and the data sheet specifies all clock uncertainties and skew adder terms.

Stratix II features dedicated DQS phase shift circuitry in the top/bottom

IO banks of the device, which will center-align the DQS edge with respect the DQ input signals. This phase shift circuitry has a coarse and fine delay resolution. The coarse delay feature is self-compensating over PVT and has a resolution of 22.5°, 30°, or 36° of the reference clock frequency

(based on the DLL mode of operation).

For detailed information on DLL operations, refer to

External Memory

Interfaces in Stratix II and Stratix II GX Devices

chapter in volume 2 of the

Stratix II Device Handbook.

20

Preliminary

Altera Corporation

Altera Corporation

Interface Timing Analysis

Since the target memory speed is 200 MHz, you can select between DLL modes 1 (medium) and 2 (high). DLL mode 2 provides a coarse phase resolution of 30°, while mode 1 provides a 22.5° resolution. You can further fine tune this phase shift with a DLL offset implemented using uncompensated delay chains.

This analysis assumes a 67.5° phase shift on the DQS strobe (DLL mode 1), knowing that the phase shift (and DLL mode) can always be adjusted at the end of this timing analysis for balanced setup and hold margins on the read capture register.

The DQS phase shift circuitry uses a DLL to provide the self-compensating coarse delay shift. Hence, you have to account for any phase jitter and phase shift error on the DQS signal. The data sheet specifies the t

DQS

_PHASE_JITTER

(± 45 ps) and t

DQS

_PSERR

(± 38 ps) timing parameters for three DLL delay stages.

After encountering the phase shift circuitry, the DQS signal travels on a dedicated local clock bus to the DQ capture registers. The fanout of this local clock bus could range from ×4 to ×36. While Quartus II software provides clock propagation delays to each of these DQ register clock, un-modeled uncertainties are accounted with the t

DQS

_SKEW_ADDER

skew adder term listed in the data sheet. For the ×8 mode used in this example, the skew adder is ± 35 ps.

To obtain Quartus II software timing data for the target device, you should instantiate and compile the DDR SDRAM Controller MegaCore.

If you are using your own controller logic, you should instantiate the clear-text DDR SDRAM data path instead to obtain timing delays. For the read interface, the MegaCore function extracts and reports timing delays associated with each DQ and DQS pin in the

<core_instance_name>_extraction_data.txt file located in your project directory. Using this data file and the extract.tcl utility, minimum and maximum propagation delays on the clock and data path are extracted and presented in

Table 4

. This timing extraction is done with both device timing models (fast corner and slow corner). Observe that the difference between minimum and maximum delays is minimal due to the matched routing paths within the die and package.

21

Preliminary

Interfacing DDR SDRAM with Stratix II Devices

Table 4. FPGA Timing Delays for EP2S60F1020C3 from the Quartus II

Software

Note (1)

Data Delay (min.)

Data Delay (max.)

Clock Delay (min.)

Clock Delay (max.)

Micro Setup

(2)

Micro Hold

(2)

Fast Corner (ns)

1.074

1.134

1.992

2.012

0.068

0.037

Slow Corner (ns)

(-3 Speed Grade)

1.618

1.678

2.532

2.552

0.122

0.072

Notes to

Table 4

:

(1) These delays are reported in the

<

core

_

instance

_

name

>_

extraction

_

data

.txt

file located in your project directory. Data Delay is the propagation delay from the each DQ pin to the input DDR register and is reported as dq_2_ddio . Clock Delay is the propagation delay to the DDR input registers from the corresponding DQS pin, and is the calculated as dqspin_2_dqsclk + dqsclk_2_ddio_resync .

(2) The micro setup and micro hold times are specified in the

DC & Switching

Characteristics

chapter in volume 1 of the Stratix II Device Handbook.

Setup & Hold Margins Calculations

After obtaining all relevant timing information from the memory, FPGA, and board you can calculate the setup and hold margins at the DQ capture register during read operations.

With extracted timing information from the FPGA slow corner model:

Earliest clock arrival time

(t

EARLY

_CLOCK

)

= Minimum clock delay within

FPGA – DQS uncertainties

= Clock delay (min.)– t

DQS

_PHASE_JITTER

– t

DQS

_PSERR

– t

DQSQINT

= 2532 – 45– 37.5 – 35

= 2414.5 ps

Latest data valid time

(t

LATE

_DATA_VALID

)

= Memory DQS-to-DQ valid + max.

data delay in FPGA

= t

DQSQ

+ Data delay (max.)

= 400 + 1678

= 2078 ps

22

Preliminary

Altera Corporation

Altera Corporation

Interface Timing Analysis

Setup margin = Earliest clock arrival – latest data valid – micro setup – board uncertainty

= t

EARLY

_CLOCK

– t

LATE

_DATA_VALID

μt

SU

– t

EXT

= 2414.5 – 2078 – 122 – 20

= 194.5 ps

Hence, the setup margin with the slow corner timing model is 195 ps.

Repeating these calculations with the fast corner timing model, the setup margin is calculated to be 253 ps.

Latest clock arrival time

(t

LATE

_CLOCK

)

= Max. clock delay within

FPGA + DQS uncertainties

= Clock delay (max.)+ t

DQS

_PHASE_JITTER

+ t

DQS

_PSERR

+t

DQSQINT

= 2552 + 45 + 37.5 + 35

= 2669.5 ps

Earliest data invalid time

(t

EARLY

_DATA_INVALID

Hold margin

)

= Memory DQS-to-DQ invalid + minimum data delay in FPGA

= (t

HP

– t

QHS

) + Data delay (min.)

= (2250 – 500) + 1618

= 3368 ps

= Latest clock arrival time – earliest data invalid time – micro hold – board uncertainty

= t

EARLY

_DATA_INVALID

– t

LATE

_CLOCK

– μt

H

–t

EXT

= 3368 – 2669.5 – 72 – 20

= 606.5 ps

Hence, hold margin with the slow corner timing model is 607 ps.

Repeating these calculations with the fast corner model, the hold margin is calculated to be 638 ps. The setup and hold margins can be balanced by using positive delay offset.

23

Preliminary

Interfacing DDR SDRAM with Stratix II Devices

Table 5. Read Timing Analysis for 200-MHz DDR SDRAM Interface in EP2S60F1020C3 using Dedicated

DQS Circuitry (Part 1 of 2)

Parameter

Memory specifications

(1)

t

HP t

DQSQ t

QHS

Specification

FPGA

specifications

(2)

,

(4)

,

(5)

t

DQS _ PHASE _ JITTER t

DQS _ PSERR

Board specifications t

DQS _ SKEW _ ADDER

Minimum Clock Delay

(Input)

Max. Clock Delay

(Input)

Min. Data Delay

(Input)

Max. Data Delay

(Input)

µt

SU

µt

H t

EXT

Fast

Corner

Model

2.250

0.400

0.500

0.045

0.038

0.035

1.992

2.012

1.074

1.134

0.068

0.037

0.020

Slow

Corner

Model

Description

2.250

Half period as specified by the memory data sheet (including memory clock duty cycle distortion)

0.400

Skew between DQS and DQ from the memory

0.500

Data hold skew factor as specified by the memory data sheet

0.045

Phase jitter on DQS output delayed by DLL

(three delay stages = +/- 3 × 15)

0.038

Phase Shift Error on DQS output delayed by

DLL (three delay stages)

0.035

Clock Delay Skew Adder for × 8

2.532

Minimum DQS pin to IOE register delay from

Quartus II software (with 67.5° DLL-based phase shift)

2.552

Max. DQS pin to IOE register delay from

Quartus II software (with 67.5° DLL-based phase shift)

1.618

Min. DQ pin to IOE register delay from

Quartus II software

1.678

Max. DQ pin to IOE register delay from

Quartus II software

0.122

Intrinsic setup time of the IOE register

0.072

Intrinsic hold time of the IOE register

0.020

Board trace variations on the DQ and DQS lines

24

Preliminary

Altera Corporation

Interface Timing Analysis

Table 5. Read Timing Analysis for 200-MHz DDR SDRAM Interface in EP2S60F1020C3 using Dedicated

DQS Circuitry (Part 2 of 2)

Parameter

Timing calculations

Specification

t

EARLY _ CLOCK t

LATE _ CLOCK t

EARLY

_

DATA

_

INVALID t

LATE

_

DATA

_

VALID

Fast

Corner

Model

1.875

2.130

2.824

1.534

Slow

Corner

Model

Description

2.415

Earliest possible clock edge after DQS phase-shift circuitry and uncertainties (Min. clock delay – t

DQS _ JITTER

– t

DQS _ PSERR

– t

DQS _ SKEW _ ADDER

)

2.670

Latest possible clock edge after DQS phase-shift circuitry and uncertainties (Max clock delay + t

DQS _ JITTER

+ t

DQS _ PSERR

+ t

DQS

_

SKEW

_

ADDER

)

3.368

Time for earliest data to become invalid for sampling at FPGA flop (t

HP

– t

QHS

+ Min. data delay)

2.078

Time for latest data to become valid for sampling at FPGA flop (t

DQSQ

+ Max data delay)

0.195

t

EARLY _ CLOCK

– t

LATE _ DATA _ VALID

– µt

SU

– t

EXT

Results Read setup timing margin

(3)

Read hold timing margin

(3)

Total margin

0.253

0.638

0.607

t

EARLY _ DATA _ INVALID

– t

LATE _ CLOCK

– µt

H

– t

EXT

0.890

0.801

Setup margin + Hold margin

Notes for

Table 5

:

(1) The memory numbers referenced in this table are from a Micron MT9VDDT3272AG-40B clocked at 200 MHz.

(2) This analysis is performed with FPGA timing parameters for an EP2S60F1020C3. You should use this template to analyze timing for your preferred Stratix II density-package combination. For FPGA specifications, see the External

Memory Interfaces section in the

DC & Switching Characteristics

chapter in volume 1 of the Stratix II Handbook.

(3) DLL phase shift is adjustable if you need to balance the setup and hold time margin.

(4) These numbers are from the Quartus II software, version 5.0 using the DDR SDRAM Controller MegaCore 3.3.0.

(5) Package trace skews are modeled by Quartus II software.

Altera Corporation 25

Preliminary

Interfacing DDR SDRAM with Stratix II Devices

Read Timing Margins for PLL-Based Implementation

Timing margin analysis for a PLL-based implementation is very similar to the previously described DLL-based implementation. The only differences are the capture clock used and related clock uncertainties. In this mode, a copy of the CK clock signal is fed-back to a PLL inside the

FPGA.

In this example we analyze margins for a DDR SDRAM memory device for a 150 MHz read operation using a PLL.

Figure 10

shows the PLL-based read data path from the Stratix II device.

The FB_CLK signal goes to the PLL and the PLL generates a phase shifted read clock to capture the read data. The outputs of the DQ registers then go to the LE resynchronization registers. You may need multiple resynchronization registers before data is synchronized with the system clock.

Figure 10. PLL-Based Read Data Path from the Stratix II Device

IOE dq_oe (1) dq_out

LE

B

Q

E

D Q D dq[7..0] resynch_clk

D Q

D

C latch

Q D ena

A

Q D dataout[15..0]

PLL FB_CLK

Global Clock

Network

Note to Figure 10

:

(1) The dq_oe signals are active low in silicon. However, the Quartus II software adds the inverter automatically during compilation.

26

Preliminary

Altera Corporation

Interface Timing Analysis

f

Memory Timing Parameters

The timing relationship of data (DQ) with respect to the CK clock is governed by the t

AC

parameter. For the DDR-333 memory device under consideration, this timing parameter is ± 700 ps. This memory parameter replaces the t

DQSQ

and t

QHS

parameters used in the DLL based implementation.

FPGA Timing Parameters

When the CK clock is fed-back into the PLL for read capture, uncertainties introduced on this clock include jitter, phase shift error, and compensation error. While jitter and phase shift error parameters have been defined before, the compensation error is a measure of the PLL's ability to regenerate an clock output that tracks the input reference. For the source synchronous mode of the PLL, this parameter is typically t

PLL

_COMP_ERROR

= ± 100 ps.

For more information on PLL specifications, refer to

PLLs in Stratix II and

Stratix II GX Devices

chapter in volume 2 of the Stratix II Handbook.

PLL-based read implementation uses a single global clock network to distribute the phase shifted clock signal to DQ capture registers in the

IOE. Differences in clock arrival times to these registers (clock skew) is modeled in Quartus II software, and is reflected in the minimum or maximum propagation delays for the clock. Additionally, Quartus II software models the package trace delays for every pin in the device.

Hence, this analysis does not account for such skews separately in the timing margin analysis. The extracted minimum or maximum clock and data delays account for these uncertainties.

To obtain the Quartus II software timing data for the target device, instantiate and compile the DDR Controller MegaCore function. If you are using your own controller logic, you should instantiate the clear text

DDR data path instead to obtain timing delays. For the read interface, the

Quartus II software reports individual setup and hold times for each DQ pin. Select the “List Paths” option in the timing report to get the data and clock propagation delays for that DQ pin. Select the worst case setup and hold DQ registers to extract the minimum and maximum propagation delays.

Altera Corporation 27

Preliminary

Interfacing DDR SDRAM with Stratix II Devices

A List Paths example on the setup time for DQ[4] is shown below. This path shows propagation delays of 0.979 ns on the DQ pin to register path, and 2.491 ns (-0.419 + 2.910) on the DQS clock pin to register path. Using this approach, minimum and maximum propagation delays on the clock and data path are extracted and presented in

Table 6

. This timing extraction is done twice, once with each device model (fast model and slow model.)

Info: tsu for register

"my_ddr_core:my_ddr_core_ddr_sdram|...|dq_captured_falling[4]" (data pin =

"ddr_dq[4]", clock pin = "fedback_clk_in") is -1.390 ns

Info: + Longest pin to register delay is 0.979 ns

Info: + Micro setup delay of destination is 0.122 ns

Info: - Offset between input clock "fedback_clk_in" and output clock

"ddr_pll_fb_stratixii:g_stratixpll_ddr_fedback_pll_inst|altpll:altpll_component

|_clk0" is -0.419 ns

Info: - Shortest clock path from clock

"ddr_pll_fb_stratixii:g_stratixpll_ddr_fedback_pll_inst|altpll:altpll_component

|_clk0" to destination register is 2.910 ns f

Other than the “List Paths” for the read interface, the MegaCore function also extracts and reports timing delays associated with each DQ and DQS pin in the

<

core

_

instance

_

name

>_

extraction

_

data

.txt

file located in your project directory. Using this data file and the extract.tcl utility, minimum and maximum propagation delays on the clock and data path are extracted and presented in

Table 7 . These timing extraction data are

data delay(min.), data delay(max.), clock delay(min.), and clock delay(max.) for both device timing models (fast corner and slow corner).

Observe that the difference between minimum and maximum delays is minimal due to the matched routing paths within the die and package.

For the determining of data delay and clock delay, refer to

Note (1)

of

Table 5. FPGA Timing Delays for EP2S60F1020C3 from the Quartus II

Software.

Table 6 shows the calculated data valid window at the FPGA pins based

on 150 MHz for the timing analysis.The IP ToolBench utility performs a similar timing margin analysis for your DDR SDRAM Controller

MegaCore instance.

28

Preliminary

Altera Corporation

Interface Timing Analysis

Table 6. Read Timing Analysis for 150-MHz DDR SDRAM interface in EP2S60F1020C3 Without Using

Dedicated DQS Circuitry (Part 1 of 2)

Parameter Specification

150-MHz

Fast

Model

(1)

3.000

Memory specifications t

HP t

AC

FPGA specifications

PLL phase shift

(2)

t

PLL _ JITTER

(5)

t

PLL _ COMP _ ERROR t

PLL _ PSERR

(5)

t

CO

_

SKEW

( CK a n d FB _ CLK )

Min. Clock Delay

(3)

Max. Clock Delay

(3)

Min. Data Delay

(3)

Max. Data Delay

(3)

µt

SU

µt

H

Board specifications t

EXT

0.700

1.458

0.125

0.100

0.015

0.045

0.546

0.567

0.579

0.673

0.068

0.037

0.020

150-MHz

Slow

Model

(1)

3.000

0.700

1.458

0.125

0.100

0.015

0.046

1.033

1.076

0.883

0.979

0.122

0.072

0.020

Description

Half period as specified by the memory data sheet

Data (DQ) output access time from memory clock (CK) for DDR 333Mbps device

PLL phase shift to capture data (this is using 79°)

Stratix II PLL jitter

PLL Compensation Error (high bandwidth)

PLL Phase Shift Error

Variations of the CK and feedback clock signals clock-to-out times from the Quartus

II software.

(4)

Min. feedback clock pin to IOE register delay from Quartus II software

Max. feedback clock pin to IOE register delay from Quartus II software

Min. DQ pin to IOE register delay from

Quartus II software

Max. DQ pin to IOE register delay from

Quartus II software

Intrinsic setup time of the IOE register

Intrinsic hold time of the IOE register

Board trace variations on the DQ and DQS lines

Altera Corporation 29

Preliminary

Interfacing DDR SDRAM with Stratix II Devices

Table 6. Read Timing Analysis for 150-MHz DDR SDRAM interface in EP2S60F1020C3 Without Using

Dedicated DQS Circuitry (Part 2 of 2)

Parameter

Timing calculations

Results

Specification

t

EARLY _ CLOCK t

LATE _ CLOCK t

EARLY

_

DATA

_

INVALID t

LATE

_

DATA

_

VALID

Read setup timing margin

Read hold timing margin

Total margin

150-MHz

Fast

Model

(1)

1.764

2.265

2.834

1.418

0.258

0.512

150-MHz

Slow

Model

(1)

2.251

2.774

3.137

1.725

0.384

0.271

0.655

Description

Earliest possible clock edge after DQS phase-shift circuitry and uncertainties (Min clock delay + PLL phase shift – t

PLL _ PSERR

– t

PLL _ JITTER

– t

PLL _ COMP _ ERROR

)

Latest possible clock edge after DQS phase-shift circuitry and uncertainties

(Max. clock delay + PLL phase shift + t

PLL _ PSERR

+ t

PLL _ JITTER

+ t

PLL _ COMP _ ERROR

)

Time for earliest data to become invalid for sampling at FPGA flop (t

HP

– t

AC

+ Min. data delay – t co

_ skew

)

Time for latest data to become valid for sampling at FPGA flop (t

AC

+ Max Data

Delay + t co _ skew

) t

EARLY _ CLOCK

– t

LATE _ DATA _ VALID

μt

SU

– t

EXT t

EARLY _ DATA _ INVALID

– t

LATE _ CLOCK

μt

H

– t

EXT

Setup + hold time margin 0.770

Notes for

Table 6

:

(1) The memory numbers referenced in this table are from a Micron MT9VDDT3272AG-335 clocked at 150 MHz.

(2) PLL phase shift is adjustable if you need to balance the setup and hold time margin.

(3) These numbers are from the Quartus II software, version 5.1 using the DDR SDRAM Controller MegaCore 3.3.0.

IOE capture registers are clocked by source synchronous mode PLL output.

(4) This number represents the difference between the Quartus II software reported t co

for your CK and feedback clocks. The value used in your analysis can be minimized by choosing pins with closely matched t co

such as adjacent pins.

(5) For FPGA PLL specifications, see the PLL Timing Specifications section of the

DC Switching Characteristics

chapter in volume 1 of the Stratix II Device Handbook.

30

Preliminary

Altera Corporation

Interface Timing Analysis

Write Data Timing Analysis

Whether you are using the DQS phase-shift circuitry or the PLL to capture data during a read operation from the DDR SDRAM device, there is only one implementation for the write operation. Timing margin analysis for write data and address/command signals are very similar. This section analyzes timing for the write data signals. You should use the same approach to repeat this for the address/command signals.

For write operations, the DDR SDRAM memory requires the clock strobe

(DQS) to be center-aligned with the data bus (DQ). This is implemented in Stratix II using the PLL phase shift feature. Two output clocks are created from the PLL, with a relative 90° phase offset. The leading (–90°) clock edge is used to clock out the DQ write data output pins to the memory, while the lagging (0°) clock edge is used to generate the DQS

clock strobe and CK/CK# memory output clocks. Figure 2 on page 8

illustrates the timing relationship between the DQS and DQ inputs required by the memory during a write operation.As shown in

Figure 5

, the write side uses a PLL to generate the clocks listed in

Table 7

.

Table 7. PLL Clock Outputs

Clock Description

System clock

Write clock (–90° shifted from system clock) This is used in the data path to generate the DQ write signals.

Feedback clock This optional clock is used if you are not using the DQS phase-shift circuitry when reading from the DDR SDRAM device or if you are using the feedback clock scheme for resynchronization.

Resynchronization clock

This is used for the memory controller and to generate the DQS write, CK, and CK# signals.

This optional clock is only used if you are using the DQS phase-shift circuitry and need a different clock phase shift than available for resynchronization.

Altera Corporation 31

Preliminary

Interfacing DDR SDRAM with Stratix II Devices

Figure 11 shows the data path for DDR SDRAM write operations.

Figure 11. Stratix II DDR SDRAM Write Data Path

LE IOE dqs_oe (1)

D Q

D Q

D

Q D Q

DQS

Gnd

D Q clk dqs_in dq_oe (1)

D Q datain[15..0]

D Q

[15..8]

D Q

DQ[7..0]

D Q

[7..0]

D Q

Write Clock dq_in

Note to Figure 11 :

(1) The dqs_oe and dq_oe signals are active low in silicon. However, the Quartus II software implements it as active high and adds the inverter automatically during compilation.

32

Preliminary

Altera Corporation

Altera Corporation

Interface Timing Analysis

Memory Timing Parameters

When writing to a memory, the FPGA needs to ensure that setup and hold times are met. These specifications (t

DS

and t

DH

) are obtained from the data sheet (4000 ps each). Additionally, the FPGA needs to provide a memory clock (CK/CK#) that meets the clock high/low time specifications. And finally, the skew between the DQS output strobe and CK output clock cannot exceed limits set by the memory. While the last parameter does not directly affect timing margins, it needs to be met for successful memory operation.

FPGA Timing Parameters

The timing paths within the FPGA for the DQ and DQS outputs to memory are matched by data path design. Dedicated clock networks drive DDR IO structures to generate DQ and DQS. This results in minimal skew between these outputs. These skew parameters include: phase-shift error, clock skew, and package skew.

The two clock networks used are driven by the same PLL, however with a 90° relative phase shift. The 0° clock is used to generate DQS, while a – 90° clock is used to generate DQ. Typical PLL uncertainties such as jitter and compensation error, affect both clock networks equally. Hence, these timing parameters do not affect write timing margins. As the clock generating DQ is phase shifted, the PLL phase shift uncertainty (t

PLL

_PSERR

= ± 30 ps, listed in the

DC & Switching Characteristics

chapter in volume 1 of the Stratix II Device Handbook) affects DQ arrival times at the memory pins.

Quartus II software models intra-clock skew, that is skew between nodes driven by the same dedicated clock network. However, skew between two such clock networks is not modeled and specified in the data sheet as an adder term. You should add this skew component to the propagation delays extracted from Quartus II software.

For a 72-bit DDR SDRAM interface that spans two IO banks in the top or bottom of the device, the clock skew adder between two clock networks is specified as ± 50 ps (t

CLOCK

_SKEW_ADDER

). This uncertainty is used while calculating DQS arrival times at the memory pins.

33

Preliminary

Interfacing DDR SDRAM with Stratix II Devices

The final skew component is package skew. As noted earlier, Quartus II software models package trace delay for each pin on the device. Extracted propagation delays reflect any skew between output signals to the memory.

Table 8 shows a sample 200MHz DDR SDRAM write timing margin

analysis for an EP2S60F1020C3. The board trace variations allotted for your DQ and DQS pins is ±20 ps. You should use this as a template to perform a similar timing analysis for your specific FPGA and DDR

SDRAM.

Table 8. Write Timing Analysis for 200-MHz DDR SDRAM Interface to an EP2S60F1020C3 (Part 1 of 2)

Parameter

Board specifications

Specification

Memory specifications

(1)

t

DS t

DH

FPGA specifications

(2)

,

(4)

,

(5)

t t

HP

PLL _ JITTER t

PLL _ PSERR t

CLOCK _ SKEW _ ADDER

Min. Clock Delay

(Output)

Max. Clock Delay

(Output)

Min. Data Delay

(Output)

Max. Data Delay

(Output) t

EXT

Fast

Corner

Model

0.400

0.400

2.050

0.000

0.015

0.050

0.938

0.973

-0.321

-0.167

0.020

Slow

Corner

Model

Description

0.400

Memory data setup requirement

0.400

Memory data hold requirement

2.050

Ideal half period minus 5% duty cycle distortion and half-period jitter

0.000

Does not affect margin as the same PLL generates both write clocks (0° and –90°)

0.015

PLL phase shift error (On –90° clock output)

0.050

Clock skew between two dedicated clock networks feeding IO banks on same side of the

FPGA

1.748

Min. DQS t

CO

from Quartus II software (0° PLL output clock)

1.793

Max. DQS t

CO

from Quartus II software (0° PLL output clock)

0.489

Min. DQ t

CO

from Quartus II software (–90°

PLL output clock)

0.822

Max. DQ t

CO

from Quartus II software (–90°

PLL output clock)

0.020

Board trace variations on the DQ and DQS lines

34

Preliminary

Altera Corporation

Interface Timing Analysis

Table 8. Write Timing Analysis for 200-MHz DDR SDRAM Interface to an EP2S60F1020C3 (Part 2 of 2)

Parameter

Timing calculations

Specification

t

EARLY

_

CLOCK t

LATE _ CLOCK t

EARLY _ DATA _ INVALID t

LATE

_

DATA

_

VALID

Fast

Corner

Model

0.888

1.023

1.714

-0.152

Slow

Corner

Model

Description

1.698

Earliest possible clock edge seen by Memory device (Min. clock delay – t

PLL

_

JITTER

– t

CLOCK

_

SKEW

_

ADDER

)

1.843

Latest possible clock edge seen by Memory device (Max. clock delay + t

PLL _ JITTER

+ t

CLOCK _ SKEW _ ADDER

)

2.524

Time for earliest data to become invalid for sampling at the Memory input pins (t

HP

+ Min. data delay – t

PLL _ PSERR

)

0.837

Time for latest data to become valid for sampling at the Memory input pins (Max. data delay + t

PLL _ PSERR

)

0.441

t

EARLY

_

CLOCK

– t

LATE

_

DATA

_

VALID

– t

DS

– t

EXT

Results Read setup timing

margin

(3)

Read hold timing

margin

(3)

Total margin

0.620

0.271

0.261

t

EARLY

_

DATA

_

INVALID

– t

LATE

_

CLOCK

– t

DH

– t

EXT

0.891

0.702

Setup margin + Hold Margin

Notes for

Table 8

:

(1) The memory numbers referenced in this table are from a Micron MT9VDDT3272AG-40B clocked at 200 MHz.

(2) This analysis is performed with FPGA timing parameters for an EP2S60F1020C3. You should use this template to analyze timing for your preferred Stratix II density-package combination. For more information on FPGA specifications, see the PLL Timing Specifications and Clock Network Skew Adders sections of the

DC & Switching

Characteristics

chapter in Volume 1 of the Stratix II Handbook.

(3) PLL phase shift is adjustable if you need to balance the setup and hold time margin.

(4) These numbers are from the Quartus II software, version 5.1 using the Altera IP core 3.3.0.

(5) Package trace skews are modeled by Quartus II software.

Round Trip Delay Calculation

Read data is sent into the FPGA DDR registers using the DQS signal as a clock. Therefore, data must be transferred from the DQS clock domain to the system clock domain. This transfer of memory read data from DQS clock domain to the FPGA system clock domain is called resynchronization. You can resynchronize the data with the system clock either with or without a feedback clock. The optional feedback clock requires an extra pin and PLL. Altera recommends using the optional feedback clock for 200-MHz interfaces. If your DDR SDRAM design is running slower than 200 MHz, you do not need a feedback clock.

Altera Corporation 35

Preliminary

Interfacing DDR SDRAM with Stratix II Devices

Analyzing timing for the resynchronization path requires round-trip delay (RTD) calculations for clock and data signals across PVT. When calculating RTD using the fast and slow timing models, a safe resynchronization window might not exist at higher speeds when using the single stage resynchronization implementation. A feedback clock implementation increases timing margins by using delay matching and multi-stage resynchronization. A typical RTD path includes delay components such as t

CO

of FPGA CK output pin, board trace delay for CK clock, memory propagation delay from CK to DQS, DQS phase shift delay inside the FPGA, and DQ propagation delay from capture register to resynchronization register. Each of these delay components can vary significantly across PVT and result in a data valid window that is severely diminished or non-existent. A feedback clock architecture uses two register stages between the memory clock domain and the system clock to split uncertainties. The clock and data delay paths to the first stage register have matched delays through the FPGA clock output pin, board trace, and FPGA input pin to register. In addition, a PLL-compensated clock network eliminates delay variation across PVT. Therefore, this

2-PLL feedback clock implementation is recommended for higher speeds.

The DDR SDRAM MegaCore IP ToolBench provides timing margin analysis for resynchronization paths for both implementations. Review the timing analysis output from Quartus II software or perform a paper analysis (as described below) to select the best resynchronization implementation for your design.

Round Trip Delay with the Optional Feedback Clock

The feedback clock and the second PLL shown in Figure 5

ease the data resynchronization. This feedback clock is taken from the CK signal at the memory and routed back to the Stratix II FPGA to feed a second PLL, called the read PLL. This read PLL needs to be in normal mode so that the output is in phase with the PLL input (if there is no phase-shifting). The

PLL input is then offset by ±t

DQSCK

value from the DDR SDRAM plus any board trace skew between DQS, CK, and the FB_CLK traces. The PLL can then compensate for the delay between IOE register to the LE register and synchronize the data from the DQS clock domain to the feedback clock domain.

The board trace lengths cause the feedback clock to lag behind the system clock. This causes a delay on the CK and DQS signals (l

1

+ l

2

). You can calculate whether the registers outputs clocked by the feedback clock need another resynchronization stage before getting to the system clock domain. In this calculation, you need to have the maximum and minimum values for the following delays:

Clock-to-out delays for the CK signal from the Stratix II device

CK board trace lengths

36

Preliminary

Altera Corporation

Interface Timing Analysis

DQS board trace lengths

Register to register delays between the registers in the feedback clock domain and the registers in the system clock domain

Figure 12

shows an example timing waveform when using the optional feedback clock for resynchronization.

Figure 12. Round Trip Delay Diagram with Feedback Clock Example

System clock

t

CO

CK at FPGA pin

CK Board

Trace Length

CK at SDRAM pin

FB_CLK Board

Trace Length

FB_CLK at FPGA pin (1)

±t

DQSCK

±t

EXT

DQS at FPGA pin

DQ at FPGA pin (max)

Shifted and inverted DQS (min)

DQ at IOE registers (min)

DQ to IOE

Register Delay (min)

Shifted and inverted DQS (max)

DQ at IOE registers (max)

DQ to IOE

Register Delay (max)

DQ at resynchronization registers (min)

DQ at resynchronization registers (max)

DQ IOE t

CO

(min) +

IOE to LE delay (min)

DQ IOE t

CO

(max) +

IOE to LE delay (max)

SRW (2)

FB_CLK edge is near to the middle of the SRW

Notes to

Figure 12 :

(1) The FB_CLK goes to a PLL whose output can be shifted so that it is centered in the SRW.

(2) SRW: safe resynchronization window.

Altera Corporation 37

Preliminary

Interfacing DDR SDRAM with Stratix II Devices

Round Trip Delay Calculation without the Optional Feedback Clock

Figure 13

shows the timing analysis and illustration of the round trip delay when the feedback clock is not used. The round trip delay is the delay from the FPGA clock to the DDR SDRAM and back to the FPGA

(input to register B). This analysis is required to reliably transfer data from register A (in the IOE) to register B (in the LE).

Figure 13. Round Trip Delay Illustration without a Feedback Clock

Note (1)

dqs_ref_clk(2)

FPGA

DQS Phase

Shift

Circuit clock_source e1 c2 resynch_clk(3)

PLL c1 write_clk (4) c0 clk (5)

t

PD

(clk to pin)

DDR

SDRAM

D Q

t

PD

(clk_ext to pin) t

PD

(Clock Trace)

(B) clk_to _sdram

FPGA CLK CLK

(C)

t

DQSS

(Write)

(A)

DQS Write (6)

D Q

t

CQ

(DQS Write) t

DQSCK

(Read)

D Q

Address/

Command Pins

(7)

D Q data_out

Q

B

D

(I)

Note 8 t

PD

(Routing)

(H)

Q

A

D

(G)

t

CQ

(Capture)

DQ Read

Note 9

(F)

DQS

Logic Block

DQS Read

(E)

t

PD

(DQS Trace) t

PD

(Capture)

DQ

(D)

t

SU

(Resynchronization) t

H

(Resynchronization)

Notes to

Figure 13 :

(1) The nodes for the round trip delay (RTD) analysis are marked with letters (A) through (I).

(2) The dqs_ref_clk input for Stratix II devices can be either from an output of the PLL or directly from an input clock pin.

(3) The resynch_clk is optional based on the round trip delay of the system.

(4) The write_clk signal is shown for completeness, but it is not needed in the timing analysis for round-trip delay or address/command timing.

(5) clk

is the system clock.

(6) The DQS signal is bidirectional. DQS write and DQS read are shown as two separate pins for this timing analysis.

(7) You can clock the address/command register with either a rising edge or falling edge of the clk signal.

(8) Register Be’s clock input can be clk, write_clk, or resynch_clk. The clk and write_clk signals can also be inverted at Register B if needed.

(9) The DQS phase-shift reference circuit controls the 90° phase shift dynamically. The control path is not shown and its operation is user transparent.

38

Preliminary

Altera Corporation

Altera Corporation

Interface Timing Analysis

Register A in

Figure 13

represents the DDR SDRAM capture logic. The Q output from register A represents the point at which the read data has been converted from DDR SDRAM to single data rate (SDR). At the output of register A, the data is already at single data rate, but is still in the DQS clock domain. DQ

H

(DQ data during DQS high) is sampled on the positive edge of the 90° phase-shifted DQS pulse, but re-sampled on the negative edge of the 90° phase-shifted DQS pulse, to align it with DQ

L

(DQ data during DQS low).

Once sampled by the negative edge of the 90° phase-shifted DQS pulse,

DQ

L

and DQ

H

are available for resynchronization.

To sample the Q output of register A into register B, you need the time relationship between register B's clock input and the D input, which depends on the phase relationship between the DQS and clk signals and involves the following steps:

1.

Calculate the systems round trip delay.

2.

Select a resynchronization phase of the system clock or other available clock that reliably samples the Q output of register A, based on the calculated safe resynchronization window (SRW).

3.

Apply the correct clock edge for your resynchronization logic in your memory controller.

You can use the clk, write_clk or resynch_clk signals as the register

B clock input. You can also invert clk and write_clk if needed. To determine the timing of data at the D input of register B relative to clk, consider the following timing-path dependencies:

The DDR SDRAM clock input arrives (a delayed version of clk).

DQS

strobe from the DDR SDRAM arrives at the clock input of register A.

Data arrives at the Q output of register A.

Data arrives at the D input of register B.

There are therefore three main parts to this path:

Clock delays—between the FPGA global clock net and the DDR

SDRAM clock input.

DQS strobe delays—between the DDR SDRAM clock input and dqs's arrival at the FPGA capture registers.

Read data delays—between the output of register A and the input of register B.

39

Preliminary

Interfacing DDR SDRAM with Stratix II Devices

Figure 14

shows the timing relationship of the signals for the delays between points (A) to (I) for a CAS latency of 2.5 clock cycles.

Figure 14. RTD Calculation without a Feedback Clock

Note (1)

Round-Trip Delay

Resynchronization

Phase clk (A) t

PD

(clk to pin)

Clock

FPGA CLK Pin (B) t

PD

(Clock Trace)

SDRAM CLK Pin (C) t

DQSCK

SDRAM DQS Pin (D)

(during Read

CL = 2.5)

(2) t

PD

(DQS Trace)

FPGA DQS Pin (E)

DQS

Strobe

90˚

90˚ DQS phase shift (F) t

PD

(Capture)

Clock input at Register A (G) (3) t

CQ

(Capture)

Q Output of Register A (H)

(4)

Captured

DQ Data t

PD

(Routing)

D Input of Register B (I)

Notes to

Figure 14 :

(1)

The letters in parenthesis refer to the letters in Figure 13 .

(2) The DQS strobe edge can be anywhere within ±t

DQSCK

of the DDR SDRAM clock pin edge. For calculating the maximum round trip delay the diagram assumes the strobe occurs t

DQSCK

after the clock. For calculating the minimum it has to be assumed it occurs t

DQSCK

before.

(3) The delays in the DQS path from FPGA pin to capture register are matched to those for the DQ path with the exception of the DQS delay chain.

(4) Although data is initially sampled at a capture register on the positive edge of DQS, it is only on the negative edge that both DQ

H

and DQ

L

are available at the Q outputs of the DDR SDRAM capture logic. At this point they are then single data rate.

To determine the point at which the data can be reliably resynchronized, calculate the minimum and maximum round trip delay. You can then determine what resynchronization logic to use for your system.

Remember to take into account PVT variations.

40

Preliminary

Altera Corporation

Altera Corporation

Interface Timing Analysis

Delay (A) to (B) is the clock-to-out time to generate the clock signals to the

DDR SDRAM device.

Delay (B) to (C) is the trace delay for the clock. If there are multiple

DIMMs or devices in the system, the one furthest away from the FPGA should be used for the maximum calculation; the closest for the minimum.

Delay (C) to (D) is the relationship between the clock and the DQS strobe timing during reads. This is t

DQSCK

in DDR SDRAM specifications, nominally 0, but typically varies by ±0.75 ns depending on the DDR

SDRAM device-speed grade. The DQS output strobe is only guaranteed to be within ±t

DQSCK

of the clock input. So use t

DQSCK

(maximum), typically

+0.75 ns, for calculating the maximum round trip delay; t

DQSCK

(minimum), typically –0.75 ns, for calculating the minimum delay.

Delay (D) to (E) is the trace delay for dqs, which typically matches the trace delay for the dq signals in the same byte group. To calculate the maximum RTD, use the byte group with the longest trace lengths; for the minimum use the shortest. Similarly, if there are multiple DIMMs or devices in the system, use the one furthest from the FPGA for the maximum calculation and the one closest to the FPGA for the minimum.

Trace lengths between different byte groups do not have to be tightly matched, but a difference between the longest and shortest decreases the safe resynchronization window. This increase reduces the window size within which the data can be reliably resynchronized.

PLL jitter and clock duty cycle also affect the RTD. Add each of these delays to the maximum value and subtract from the minimum. PLL jitter

and clock duty cycle are not shown in Figure 13 on page 38

, but are

included in Table 9 on page 45 which shows example RTD calculations.

Resynchronization Selections

When the DQS signal arrives at the Stratix II device, the dedicated phase-shift circuitry shifts the signal by 90° to capture the DQ signals. The

DQ signals are then ready to be synchronized with the system clock. The round trip delay numbers vary depending on the board delay and the device internal delay. Complete a timing analysis to decide whether to use the falling edge or the rising edge of the system clock of the write clock for the synchronization registers. After calculating the maximum and minimum RTD, determine the equivalent number of system clock cycles at your operating frequency to find the point at which the data becomes valid relative to clk. The example maximum delay in

Table 9 on page 45 represents 1.8 cycles at 200 MHz; the minimum represents 0.9

41

Preliminary

Interfacing DDR SDRAM with Stratix II Devices

cycles. If the CAS latency is included, which is equal to three in Figure 9 on page 19

, the example represents a minimum delay of 3.9 cycles and a maximum delay of 4.8 cycles.

The overlap of the minimum and maximum data valid windows defines the data valid window, which comprises the safe resynchronization window and t

SU

and t

H

of register B.

Figure 15

shows an example timing waveform of the RTD analysis in

Table 9 on page 45

.

Figure 15. RTD Diagram without a Feedback Clock Example 1

Note (1)

time = 0 s time = 3.9T

time = 4.8T

time = 4.9T

System clock

CK at the

FPGA

CK at the memory

DQS at the memory

DQS at the

FPGA

DQS at the

IOE input ports

DQ at the

IOE input ports

DQ at the IOE output ports (minimum)

DQ at the

IOE output ports

DQ after the resynchronization

Read Command

Latched Here

Minimum RTD + CAS Latency

Maximum RTD + CAS Latency

SRW

Note to Figure 15

:

(1) T refers to the clock period of the system, which is 5 ns in this example.

The RTD helps you determine the safe resynchronization window (SRW) and how you need to resynchronize the data. Since the shifted DQS signal can go into the LEs, you can use the shifted DQS signal for resynchronization within the LE. This may mean that the DQS clock domain to system clock domain transfer will happen between two LE registers. The timing analysis in this section assumes that the clock domain transfer happens from the IOE register to the LE register.

42

Preliminary

Altera Corporation

Altera Corporation

Interface Timing Analysis

Assume that time 0 is the time of the clock rising edge. Once the DDR

SDRAM device receives this rising edge from the Stratix II device, the read command is clocked into the SDRAM upon receiving this positive edge, and you can calculate the SRW valid time is as follows:

Minimum SRW valid time = maximum RTD + CAS latency × clock period + µt

SU

Maximum SRW valid time = minimum RTD + (CAS latency + 1) × clock period – µt

H

From the example in

Table 9 on page 45

, the minimum SRW valid time is

4.8 cycles and the maximum SRW valid time is 4.9 cycles (ignoring µt

SU and µt

H

).

The size of the SRW in the example is then 0.1 cycles, calculated by the following equation:

SRW size = maximum SRW valid time – minimum SRW valid time

The SRW size should be large enough to accommodate the worst-case clock skew between two PLL output clocks (150 ps).

Next, determine how many half clock cycles elapse from time 0 to the minimum SRW valid time (numcycle) by calculating the ceiling function of the minimum SRW valid time divided by half a clock cycle. To find out whether the SRW falls within a clock edge, multiply numcycle by half a clock cycle. If the result is less than the maximum SRW valid time, then a system clock edge falls within the SRW. Otherwise you need an extra PLL output for your resynchronization clock.

The example in

Table 9 on page 45

shows that numcycle is equal to 10 and that the SRW does not fall within a system clock edge.

If you do not need a resynchronization clock and numcycle is an even number, the active system clock edge for resynchronization is the positive edge. If numcycle is odd, the resynchronization system clock edge is the negative edge, and you must determine the resynchronization phase selection.

43

Preliminary

Interfacing DDR SDRAM with Stratix II Devices

Figure 16

illustrates an example where the SRW is within a system clock edge. In that example, numcycle is equal to 9 (time = 4.5T) and the negative edge of the system clock is used for the resynchronization clock.

Figure 16. RTD Diagram without a Feedback Clock Example 2

time = 0 s time = 3.8T

time = 4.2T

time = 4.8T

time = 4.5T

System Clock Edge

Used for Resynchronization

System clock

CK at the

FPGA

CK at the memory

DQS at the memory

DQS at the

FPGA

DQS at the

IOE input ports

DQ at the

IOE input ports

DQ at the IOE output ports (minimum)

DQ at the

IOE output ports

DQ after the resynchronization

Read Command

Latched Here

Minimum RTD + CAS Latency

Maximum RTD + CAS Latency

Note to Figure 16

:

(1) T refers to the clock period of the system, which is 5 ns in this example.

SRW

If there is no clock edge available within the safe resynchronization window, you need an extra resynchronization clock, you can shift the system clock from either edge. If numcycle is even in this case, the closest system clock edge to the SRW is negative and if numcycle is odd, the closest clock edge is positive.

You can calculate the needed phase shift for the resynchronization clock from the following equations:

Minimum phase shift = minimum SRW valid time + PLL clock skew

(150 ps) – (numcycle – 1) × t

CK

/2

Maximum phase shift = minimum SRW valid time – PLL clock skew

(150 ps) – (numcycle – 1) × t

CK

/2

44

Preliminary

Altera Corporation

Interface Timing Analysis

The phase-shift calculation example in

Table 9 on page 45 shows that the

minimum phase shift is 1.61 ns and the maximum phase shift is 1.52 ps.

This is because the SRW is less than 300 ps. You can still choose the median (1.565 ns) for the phase shift of the resynchronization clock.

You then need to convert the results to the equivalent degree phase shifts.

If the closest clock edge to the SRW is negative, add or subtract 180° after the conversion to shift the clock from the positive edge. For example, in

Table 9 , the phase-shift range is between 1.52 to 1.61 ns based on the

negative edge clock. The median of this number is 1.565 ns which equates to ~113° (from 200-MHz clock). If you want this clock to be shifted from the positive edge of system clock, you can either use 293° (113° + 180°) or

–67° (113° – 180°).

Table 9. Example RTD Calculation

Note (1)

t t

PD

(

Delay

clk to pin) t

PD

(clock trace) t

DQSCK

PD

(dqs trace)

90° phase-shift t

PD

(capture) t

CQ

(capture) t

PD

(routing)

PLL jitter

Clock duty cycle

Round-trip total

Numbers in

Figure 13

&

Figure 14

(A) to (B)

(B) to (C)

(C) to (D)

(D) to (E)

(E) to (F)

(F) to (G)

(G) to (H)

(H) to (I)

(A) to (I)

Example Minimum

Values (ns)

2.00

0.33

–0.60

0.33

1.133

0.50

0

1.00

–0.10

–0.25

4.343

Example Maximum

Values (ns)

3.00

0.50

+ 0.60

0.50

1.333

1.00

0.16

1.50

+ 0.10

+ 0.25

8.943

Comments

Equal to t

CQ

(DQS write)

2 to 3 inches at 166 ps per inch

(2)

See DDR SDRAM specifications

2 to 3 inches @166 ps per inch

(2)

Includes Stratix II DLL jitter and phase-shift error

PLL jitter specification

45-55% duty at 200 MHz

Notes to

Table 9

:

(1) Numbers quoted here are not taken from a specific system or a specific device.

(2) To know the exact delay for your system, perform a time domain reflectrometry (TDR) analysis on your system.

Altera Corporation 45

Preliminary

Interfacing DDR SDRAM with Stratix II Devices

DQS Postamble

The DDR SDRAM DQ and DQS pins use the SSTL-2 class II I/O standard.

When neither the Stratix II nor DDR SDRAM device drives the DQ and

DQS pins, the signals go to a high-impedance state. Since a pull-up resistor terminates both DQ and DQS to V

TT

(1.25 V), the effective voltage on the high-impedance line is 1.25 V. According to the JEDEC JESD 8-9 specification for the SSTL-2 class II I/O standard, this is an indeterminate logic level and the input buffer can interpret this as either a logic high or logic low. If there is any noise on the DQS line, the input buffer may interpret that noise as actual strobe edges. Therefore, when the DQS signal goes to tri-state after a read postamble, you should disable the clock to the input registers so that erroneous data does not get latched in and all the data from the memory is resynchronized properly.

Figure 17

shows a read operation example when the DQS postamble

could be a problem. Figure 9

shows definitions of A, B, C, D and E.

Waveform A shows the output of the active high IOE input register.

Waveform B shows the active low register output of the Stratix II IOE input register. The active low register output goes into the latch whose output is illustrated in Waveform C. Waveforms D and E illustrate the output signals after the resynchronization registers.

Figure 17. Read Example with a DQS Postamble Issue

0 ns 5 ns 10 ns 15 ns

DQS at the pin

DQ at the pin

D0H D0L D1H D1L

DQS at the IOE

DQ at the IOE

D0H D0L D1H D1L

20 ns

A

D0L D1L

D0H D1H B

C resynch_clock

D0H D1H

D0H

D

E D0L

25 ns

46

Preliminary

Altera Corporation

Interface Timing Analysis

The first falling edge of the DQS at the IOE register occurs at 10 ns. At this point, data D0H is clocked in by the active low register (waveform B). At

12.5 ns, data D0L is sampled in by the active high register (waveform A) and data D0H passes through the latch (waveform C). In this example, the positive edge of the resynch_clock occurs at 16.5 ns, where both D0H and D0L are sampled by the logic element’s (LE’s) resynchronization registers. Similarly, data D1H is clocked in by the active low register at 15 ns, while data D1L is clocked in by the active high register and data D1H passes through the latch at 17.5 ns. At 20 ns, assume that noise on the DQS line causes a valid clock edge at the IOE registers such that it changes the value of waveforms A, B, and C. The next rising edge of the resynch

_clock signal does not occur until 21.5 ns, but data D1L and

D1H are not valid anymore at the output of the latch and the active-high input register, so the resynchronization registers do not sample D1L and

D1H and may sample the wrong data instead.

Stratix II devices have circuitry to prevent false edge trigger at the end of the DQS postamble. Each Stratix II DQS logic block is connected to a

postamble circuitry that consists of an AND gate (see Figure 18 ). This

register is clocked by the shifted DQS signal. Its SCLRD port is connected to GND. The controller needs to include extra logic to tell the reset signal to release the preset signal on the falling DQS edge at the start of the postamble. This disables any glitches that happen right after the postamble.

Figure 18. Stratix II DQS Postamble Circuitry Connection

Preset

Postamble Circuitry

DQS'

Enable

DFF

Q

PRE

D

CLRN

GND

DQS

DQS bus

Altera Corporation 47

Preliminary

Interfacing DDR SDRAM with Stratix II Devices

Figure 19

shows the timing waveform for

Figure 18

.

Figure 20

shows the read timing waveform when the Stratix II DQS postamble circuitry is used.

Figure 19. Stratix II DQS Postamble Circuitry Control Timing Waveform

DQS

DQS'

Preset

Enable

Figure 20. Stratix II DQS Postamble Circuitry Read Timing Waveform

0 ns 5 ns 10 ns 15 ns 20 ns

DQS at the pin

DQ at the pin

D0H D0L D1H D1L

DQS at the IOE

DQ at the IOE

A

D0H D0L D1H D1L

D0L D1L

25 ns

B D0H D1H

D0H D1H C resynch_clock

D

E

Preset

Enable

D0H

D0L

D1H

D1L

48

Preliminary

Altera Corporation

Stratix-Series Memory Board I

f

The Altera DDR SDRAM controller MegaCore function calculates the resynchronization cycle and phase but allows you to override these settings.

For more information on Stratix II DQS postamble circuitry, refer to

DDR

MegaFunction User Guide

.

Stratix-Series

Memory Board I

Altera produces the Stratix II memory board I and Stratix memory board I to demonstrate DDR SDRAM and RLDRAM II interfaces with the

Stratix-series device family. The Stratix II memory board I includes a

Stratix II EP2S60F1020C4 device interfacing with the following external memory devices:

Four DDR SDRAM ×16 devices connected to the Stratix II side I/O banks of banks 1 and 2. The boards will use one of the following third-party memory devices: Micron MT46V16M16TG-5B, Infineon

HYB25D25616OBT-5A, or Samsung K4H561638F-TCCC.

One DDR SDRAM module connected to the Stratix II I/O banks 7 and 8. The boards will use one of the following third-party memory devices: Micron MT9VDDT3272AG-40B, Infineon

HYS72D32300GU-5-B, or Samsung M381L3223ETM-CCC.

One RLDRAM-II SIO ×18 device connected to the Stratix II I/O bank 3. The boards will use the Micron MT49H16M18CFM-2.5 thirdparty memory device.

Two RLDRAM-II CIO ×18 devices connected to the Stratix II I/O bank 4 that support 400 MHz double data rate (DDR). The boards will use one of the following third-party memory devices: Micron

MT49H16M18FM-2.5 or Infineon HYB18RL28818AC-2.5.

Altera Corporation 49

Preliminary

Interfacing DDR SDRAM with Stratix II Devices

Figure 21

shows the Stratix II memory board I.

Figure 21. Stratix II Memory Board I

50

Preliminary

The Stratix-series memory board I is powered by a a single DC input with on-board regulators generating the other required lower voltages. In addition to the on-board regulators, fuse-isolated banana jacks will be provided for all unique voltages for characterization purposes. The incoming DC voltage will be regulated down to 3.3-V and 1.2-V using a dual switching power supply in order to efficiently support the fairly large DC drop from the input to the output. All other board voltages are generated from this 3.3-V rail. There are fuse sockets to isolate planes from regulators to allow bench supplies to power these sections using banana jacks.

Altera Corporation

Stratix-Series Memory Board I

The following regulators are available on the Stratix II memory board:

Linear Technology LTC3728—Dual-output regulator for generating the Stratix II device’s V

CCINT

and 3.3-V outputs.

Micrel Semiconductor MIC29502BU—High-current low-dropout regulator for generating the power for the memory devices and the

Stratix PLL.

National Semiconductor LP2996MR—DDR SDRAM and

RLDRAM II termination regulator for generating the termination voltage (V

TT

) and reference voltage (V

REF

).

Micrel Semiconductor MIC94300—Low-voltage low-dropout regulator for generating the Stratix II PLL power.

Linear Technology LTC1872B—Step-up DC/DC controller for generating power for the fan circuit.

Figure 22

shows the Stratix-series memory board I block diagram.

Figure 22. Stratix-Series Memory Board I Block Diagram

RLDRAM II

CIO Devices

(1)

RLDRAM II

SIO Device

CE

Header

SRAM CPLD

16 16

16

JTAG

32

1,020-Pin

FineLine BGA

Stratix-Series

Device

DDR

Devices

(1)

MAC/

PHY

16-MB

Flash

Memory

72

RJ45

Clocks

RS-232

Debug Header

Buttons

Switches

LEDs

DDR DIMM

Note to Figure 22

:

(1) The Stratix-series memory board I has multiple RLDRAM II CIO and DDR SDRAM devices.

Altera Corporation 51

Preliminary

Interfacing DDR SDRAM with Stratix II Devices

Conclusion

Referenced

Documents

DDR SDRAM is widely used in FPGA designs and is the most popular architecture of DRAM technology. Stratix II devices offer a proven, flexible, and high-performance interface to DDR SDRAM with consistent timing margins to meet your design needs. A compelling DRAM solution for a wide range of end applications, DDR SDRAM interfaces quickly and easily with Altera's Stratix II devices.

This chapter references the following documents:

JEDEC Standard Publication JESD79C, DDR SDRAM Specification,

JEDEC Solid State Technology Association.

MT9VDDT3272AG-40B, 184-Pin DDR SDRAM DIMMs Data Sheet,

Micron Technology, Inc.

www.jedec.org.

External Memory Interfaces in Stratix II and Stratix II GX Devices

chapter in volume 2 of the Stratix II Device Handbook.

PLLs in Stratix II and Stratix II GX Devices

chapter in volume 2 of the

Stratix II Handbook.

DDR MegaFunction User Guide

.

TB 091: External Memory Interface Options for Stratix II Devices

.

ALTMEMPHY Megafunction User Guide .

DDR and DDR2 SDRAM High Performance Controller MegaCore

Function User Guide

.

DDR and DDR2 SDRAM Controller Compiler User Guide

52

Preliminary

Altera Corporation

Document Revision History

Document

Revision History

Table 10

shows the revision history for this document.

Table 10. Document Revision History

Date &

Document

Version

Changes Made

September

2008 v3.2

May 2006 v3.1

● v3.0

Updated "Interface Description" ,

"Interface Architecture" ,

"Setup & Hold Margins Calculations" ,

"DQS Postamble" , and

"Referenced Documents" sections.

Updated Table 5 ,

Table 6 , and

Table 8

.

Updated Figure 18

,

Figure 19 , and Figure 20

.

Updated

Figure 18

and

Figure 20

.

Updated "Interface Description" ,

"Interface Signals"

"Interface Timing Analysis" ,

"Methodology Overview" ,

"Read

Timing Margins for PLL-Based Implementation"

, and "Round

Trip Delay Calculation" sections.

Updated Table 3 ,

Table 5 ,

Table 5 ,

Table 6 , and

Table 8

.

Updated Figure 4 ,

Figure 6

,

Figure 10

, and Figure 11

.

Summary of Changes

Altera Corporation 53

Preliminary

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
