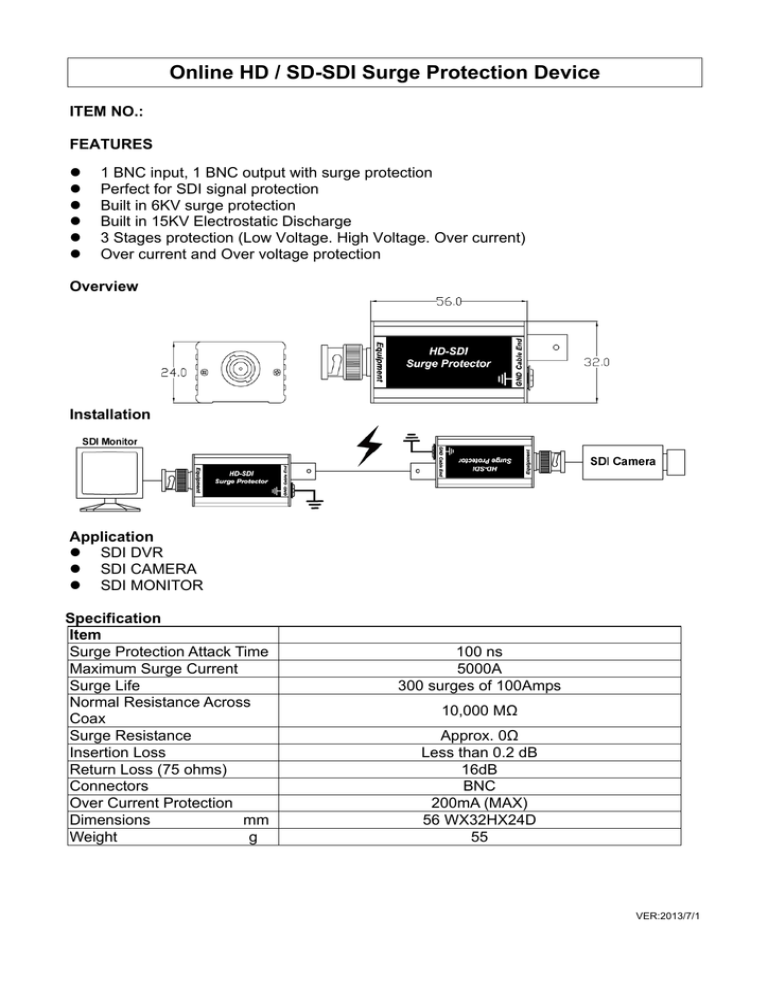

Online HD / SD-SDI Surge Protection Device
ITEM NO.:
FEATURES
z
z
z
z
z
z
1 BNC input, 1 BNC output with surge protection
Perfect for SDI signal protection
Built in 6KV surge protection
Built in 15KV Electrostatic Discharge
3 Stages protection (Low Voltage. High Voltage. Over current)
Over current and Over voltage protection
Overview
Installation
Application
z SDI DVR
z SDI CAMERA
z SDI MONITOR
Specification
Item
Surge Protection Attack Time
Maximum Surge Current
Surge Life
Normal Resistance Across
Coax
Surge Resistance
Insertion Loss
Return Loss (75 ohms)
Connectors
Over Current Protection
Dimensions
mm
Weight
g
100 ns
5000A
300 surges of 100Amps
10,000 MΩ
Approx. 0Ω
Less than 0.2 dB
16dB
BNC
200mA (MAX)
56 WX32HX24D
55
VER:2013/7/1
