Using the Node Management Services (NMS) Utilities

Using the Node Management Services (NMS) Utilities

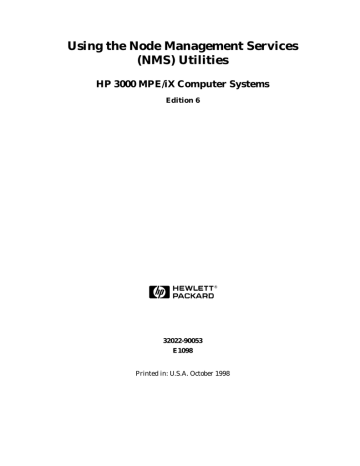

Using the Node Management Services
(NMS) Utilities
HP 3000 MPE/iX Computer Systems
Edition 6
32022-90053
E1098
Printed in: U.S.A. October 1998
Notice
The information contained in this document is subject to change
without notice.
Hewlett-Packard makes no warranty of any kind with regard to this
material, including, but not limited to, the implied warranties of
merchantability or fitness for a particular purpose. Hewlett-Packard
shall not be liable for errors contained herein or for direct, indirect,
special, incidental or consequential damages in connection with the
furnishing or use of this material.
Hewlett-Packard assumes no responsibility for the use or reliability of
its software on equipment that is not furnished by Hewlett-Packard.
This document contains proprietary information which is protected by
copyright. All rights reserved. Reproduction, adaptation, or translation
without prior written permission is prohibited, except as allowed under
the copyright laws.
Restricted Rights Legend
Use, duplication, or disclosure by the U.S. Government is subject to
restrictions as set forth in subparagraph (c) (1) (ii) of the Rights in
Technical Data and Computer Software clause at DFARS 252.227-7013.
Rights for non-DOD U.S. Government Departments and Agencies are
as set forth in FAR 52.227-19 (c) (1,2).
Acknowledgments
UNIX is a registered trademark of The Open Group.
Hewlett-Packard Company
3000 Hanover Street
Palo Alto, CA 94304 U.S.A.
© Copyright 1988–1990, 1992, 1994, and 1998 by Hewlett-Packard
Company
Contents
1. Introduction
NMMGR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The Configuration File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The Backup Configuration File . . . . . . . . . . . . . . . . . . . . . . . . . . .
The Sample Configuration File . . . . . . . . . . . . . . . . . . . . . . . . . . .
The Network Directory File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NMMAINT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NMDUMP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tracing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Logging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NMMGRVER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NMMGRVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16
16
17
17
17
18
19
20
20
20
21
22
2. Basics of NMMGR
NMMGR Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Common Screen Elements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Header . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Program Name and Version Number. . . . . . . . . . . . . . . . . . . . . . .
Screen Number and Title . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Data Flag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Message Field . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Command Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Path Name. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Data Fields and Menu Choices . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuration File Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Function Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Prior Screen Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Help Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Save Data Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
“Go To” Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Next Page/Prev Page Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Refreshing the Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Entering Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Moving Between Screens. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Moving with Function Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Branching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Direct Path Branching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brother Branching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Getting Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Getting Help on Screens. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Entering Help Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Getting Help on Specific Topics . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Getting Help with Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The Error Information Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NMMGR Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
24
25
25
26
26
26
26
27
28
29
29
29
29
30
30
31
31
31
31
32
33
33
33
33
33
35
35
35
35
37
37
38
3
Contents
4
3. Using NMMGR in Screen Mode
Before You Start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting NMMGR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Opening a Configuration or Directory File. . . . . . . . . . . . . . . . . . . . . .
Creating a New Configuration File . . . . . . . . . . . . . . . . . . . . . . . . . .
Copying a Configuration Files . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing the Backup File Name . . . . . . . . . . . . . . . . . . . . . . . . . .
Opening an Existing Configuration File . . . . . . . . . . . . . . . . . . . . . .
Creating a Network Directory File . . . . . . . . . . . . . . . . . . . . . . . . . .
Opening an Existing Network Directory. . . . . . . . . . . . . . . . . . . . . .
Selecting a Configuration Path . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuring Terminals, Printers, and Other Serial Devices . . . . . .
Configuring NS 3000/iX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Guided HP Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Unguided Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuring HP-IBM Connections . . . . . . . . . . . . . . . . . . . . . . . . . . .
40
41
42
43
43
44
44
45
45
47
48
50
51
52
53
4. Using NMMGR Utility Screens
The Utility Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Output Configuration File Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Display Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Print Tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Print Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Print Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Print Subtree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Compress Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Validate Configuration File Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuration Subtree Copy Screen . . . . . . . . . . . . . . . . . . . . . . . . . . .
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
56
57
58
59
59
61
62
63
63
65
67
67
5. Using NMMGR in Maintenance Mode
Using Maintenance Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Entering Maintenance Mode from Screen Mode . . . . . . . . . . . . . . .
Running Maintenance Mode from a Batch Job. . . . . . . . . . . . . . . . .
Updating Remote Directories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance Mode Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ADDCONF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ADDLDEV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ADDLU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ADDNODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ADDVC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CARDCONF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
COMPRESSCONF. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CONTINUE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
COPYCONF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DELETECONF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DELETENODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
74
74
75
75
77
80
81
83
84
87
90
91
92
93
95
96
Contents
EXIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
EXITVALIDATE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
EXITWARN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
EXPANDDIR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
HELP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
LISTLDEV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
LISTDIR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
LISTLU. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
MAKESTREAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
MERGEDIR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
NICONF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
OPENCONF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
OPENDIR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
PAGECONF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
PASSWORD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
PATHCONF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
PURGECONF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
PURGELDEV. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
PURGELU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
PURGENI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
PURGEVC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
READALLCONF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
READCONF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
SUMMARYCONF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
UPDATECONF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
VALIDATECONF. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
VERSIONCONF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
WRITECONF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
6. NMMAINT
Software Version ID Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Running NMMAINT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NMMAINT Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Explanation of NMMAINT Output . . . . . . . . . . . . . . . . . . . . . . . . .
Running NMMAINT With Subsystem ID . . . . . . . . . . . . . . . . . . . .
134
135
135
139
140
7. NMDUMP
To Run NMDUMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Formatting Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Link Subsystem Formatting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
8. NMMGRVER
Using the Conversion Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
ConvertingFromthePreviousMPEXLVersiontotheCurrentMPE/iXVersion
154
Converting From MPE/V to MPE/iX . . . . . . . . . . . . . . . . . . . . . . . . 155
Merging MPE/V With MPE/iX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
5
Contents
A. NMS Error Messages
Resolving Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Invalid Software Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Version Incompatibilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Insufficient MPE Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Corrupt Configuration Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
File System Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Submitting an SR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NMCN Error and Warning Messages. . . . . . . . . . . . . . . . . . . . . . . . .
NMDUMP Error and Warning Messages. . . . . . . . . . . . . . . . . . . . . .
NM Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NMFS Error and Warning Messages . . . . . . . . . . . . . . . . . . . . . . . . .
NMGR Error and Warning Messages . . . . . . . . . . . . . . . . . . . . . . . . .
NMMGRVER Messages, Errors and Warnings . . . . . . . . . . . . . . . . .
ND Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FMT Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glossary
Index
6
160
160
160
161
161
161
162
164
172
179
205
211
265
280
294
Figures
Figure 2-1 . Common Screen Elements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Figure 2-2 . Error Information Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Figure 3-1 . Open Configuration/Directory File Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Figure 3-2 . Main Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Figure 3-3 . Host Configuration Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Figure 3-4 . NS Configuration Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Figure 3-5 . Network Transport Configuration Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Figure 3-6 . Unguided Configuration Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Figure 3-7 . HP-IBM Configuration Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Figure 4-1 . Utility Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Figure 4-2 . Output Configuration File Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Figure 4-3 . Display Tree Listing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Figure 4-4 . Print Data Output Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Figure 4-5 . Sample Page of Critical Summary Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Figure 4-6 . Compress Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Figure 4-7 . Validate Configuration File Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Figure 4-8 . Validate Configuration File Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Figure 4-9 . Specified Subtree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Figure 4-10 . Results of Copy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Figure 7-1 . NMDUMP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142
7
Figures
8
Tables
Table 2-1. NMMGR Screen Mode Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Table 5-1. NMMGR Maintenance Mode Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Table 7-1. General Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .145
Table 7-2. Log Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .146
Table 7-3. X.25 Trace Formatter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147
Table 7-4. Trace Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .148
Table 7-5. Filter Sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150
Table A-1. Subsystem Numbers for NMCNERR Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .169
Preface
This manual documents functionality for the MPE/iX 6.0 Release.
This is the reference manual for users of the Node Management
Services Utilities. These utilities are:
• The Node Management Services Configuration Manager (NMMGR).
• The Node Management Maintenance Utility (NMMAINT).
• The Node Management Services Trace/Log File Analyzer
(NMDUMP).
• The Node Management Services Conversion Utility (NMMGRVER).
• The Node Management Services Validation Utility (NMMGRVAL).
The major part of this manual covers the NMMGR program. It includes
information common to all the subsystems that use NMMGR to create
or modify a configuration file. Information that is subsystem-specific is
located in the manuals for that subsystem. NMMGR is used to
configure any or all of the following subsystems on a network:
• SNA (for HP 3000-IBM data communications)
• BSC (for HP 3000-IBM data communications)
• NS 3000/iX (for HP 3000-HP 3000 data communications)
• Distributed terminal subsystem (for HP 3000-terminal
communications)
Special Note
MPE/iX, Multiprogramming Executive with Integrated POSIX, is the
latest in a series of forward-compatible operating systems for the
HP 3000 line of computers.
In HP documentation and in talking with HP 3000 users, you will
encounter references to MPE XL, the direct predecessor of MPE/iX.
MPE/iX is a superset of MPE XL. All programs written for MPE XL will
run without change under MPE/iX. You can continue to use MPE XL
system documentation, although it may not refer to features added to
the operating system to support POSIX (for example, hierarchical
directories).
Finally, you may encounter references to MPE V, which is the operating
system for HP 3000s, not based on the PA-RISC architecture. MPE V
software can be run on the PA-RISC HP 3000s (Series 900) in what is
known as compatibility mode.
Chapter 1, “Introduction,” provides a brief description of each of the
NMS utilities.
11
Chapter 2, “Basics of NMMGR,” describes the basic functions of the
Node Management Configuration Manager (NMMGR) in detail. Use
this chapter to gain an understanding of how NMMGR works and how
to navigate through NMMGR screens.
Chapter 3, “Using NMMGR in Screen Mode,” tells you how to use
NMMGR’s screen mode interface to begin the configuration process for
your system’s terminal connections or networking products. It includes
step-by-step instructions for getting started in NMMGR and for
navigating the top-level screens.
Chapter 4, “Using NMMGR Utility Screens,” describes how to use the
NMMGR utility screens to list, maintain, and validate configuration
files.
Chapter 5, “Using NMMGR in Maintenance Mode,” tells you how to use
NMMGR’s maintenance mode interface to manage network directory
and configuration files and to generate stream jobs to update remote
network directory and configuration files. Each command is described
along with its purpose, syntax, parameters, and an example.
Chapter 6, “NMMAINT,” describes the Node Management Services
Maintenance Utility (NMMAINT), used to display version numbers for
software modules.
Chapter 7, “NMDUMP,” describes the Node Management Services
Trace/Log File Analyzer, which provides a means of decoding and
formatting logging records and trace messages. Information on running
NMDUMP is included.
Chapter 8, “NMMGRVER,” describes the Node Management Services
Conversion Utility (NMMGRVER), which enables earlier versions of
subsystems to be used with the current version of NMMGR.
Appendix A, “NMS Error Messages,” provides a listing of error
messages that may be returned while running NMMGR. Each message
includes probable causes and actions.
Related Publications
The following manuals may be of interest to you when working with
products that use the Node Management Services.
For the Distributed Terminal Subsystem
Configuring Systems for Terminals, Printers, and Other Serial Devices
Troubleshooting Terminals, Printers, and Serial Device Connections
Customizing Terminal and Printer Type Files With the Workstation
Configurator
Using HP OpenView DTC Manager
12
For NS 3000/iX Links and Services
HP 3000/iX Network Planning and Configuration Guide
NS 3000/iX NMMGR Screens Reference Manual
NS 3000/iX Operations and Maintenance Reference Manual
Using NS 3000/iX Network Services
NS 3000/iX Error Messages Reference Manual
NetIPC 3000/XL Programmer’s Reference Manual
LAN Cable and Accessories Installation Manual
Central Bus Programmable Serial Interface Installation and Reference
Manual
13
14
1
Introduction
This chapter introduces you to the Node Management Services Utilities
for MPE/iX systems. These programs, installed on your HP 3000
Series 900 system as part of the fundamental operating system
(FOS), allow you to perform various functions related to the
configuration of networking and terminal communications.
A brief overview of each of the following is provided in this chapter:
• The Node Management Configuration Manager (NMMGR), used to
create or modify configuration and network directory files for a
system.
• NMMAINT, used to list individual modules and version numbers of
networking software
• NMDUMP, used to format log and trace files.
• NMMGRVER, used to upgrade a configuration file for use with a
later version of the operating system.
• NMMGRVAL, used to check if the configuration file has been
validated.
15
Introduction
NMMGR
NMMGR
The Node Management Configuration Manager (NMMGR) is the
utility you use to create or update configuration and network directory
files. These files define the configuration for terminal and serial printer
connections and networked connections for HP 3000 Series 900
computers. You use NMMGR to configure each of the following
subsystems:
• The distributed terminal subsystem (DTS), which defines
connections for terminals, printers, and other serial devices that will
be able to communicate with the system.
• The Network Services (NS) subsystem, which defines the operation
of NS links and services between HP 3000 systems.
• The BSC subsystem, which defines BSC communication links
between HP 3000 and IBM systems.
• The SNA subsystem, which defines SNA communication links
between HP 3000 and IBM systems.
The Configuration File
NMMGR stores configuration information in a special MPE
configuration file that contains the data needed by the system for
networking and terminal-to-system communications. The file has the
MPE file code NCONF and may contain three kinds of data:
• Standard software operating parameters, such as limits on using
MPE resources.
• Node-specific information, such as the name of the local computer
and its network address.
• Information needed by the network software in order to
communicate with other nodes to which the local node is connected.
The configuration file must be named NMCONFIG.PUB.SYS in order to
be recognized and used by the system. You may, however, create a
configuration file using any valid MPE file name and rename it as
NMCONFIG.PUB.SYS when you are ready for the system to use the
configuration information it contains.
NMCONFIG.PUB.SYS must reside on LDEV1 in order to be recognized.
The system does not have access to other LDEVs at startup and the
configuration file is needed at that time.
With a few exceptions, the changes you make to the
NMCONFIG.PUB.SYS file take effect only when the system is rebooted.
In most cases, you should avoid making changes to an active
configuration file (one that the system is currently using). There are
16
Chapter 1
Introduction
NMMGR
some changes, however, that you may make while the network is
operating. Refer to your product-specific manuals for details on changes
that can be made online.
The Backup Configuration File
You specify a backup configuration file name whenever you open or
create a configuration file. The default backup configuration file name is
NMCBACK.group.account, where group and account are the logon
group and account. You may change the name of the file by typing a new
name in place of the default. The backup file also has the file type
NCONF. Each time a subsystem is successfully validated, the backup
file is automatically updated with the configuration information. In the
event that something should occur to cause your active configuration
file to be corrupted, you can rename the backup file and avoid having to
recreate NMCONFIG.PUB.SYS from scratch.
The Sample Configuration File
Hewlett-Packard provides a sample configuration file with every
HP 3000 Series 900 system. This file contains some basic configuration
information for the link, NRJE, SNANODE, IMF, DTS and logging
subsystems. It can be used as a template to help you when you are
creating a new system configuration. The sample file is named
NMSAMP1.PUB.SYS. To use the sample file, make sure you copy it to a
new name, then run NMMGR and modify the copy that you just created
so that it contains your system’s configuration information.
NOTE
Check “Copying a Configuration File” in Chapter 3, “Using NMMGR in
Screen Mode,” for important information about this procedure.
The Network Directory File
NMMGR stores network directory information for the NS subsystem in
a second special file called the network directory file. This file, of file
type NDIR, contains information required for one node to communicate
with another node in an internetwork (network of networks).
The network directory file must be named NSDIR.NET.SYS but, like
the configuration file, you may create a directory file under another
name and rename it when you are ready for the system to use the
directory information it contains.
NOTE
A network directory uses a KSAM file pair. Therefore, if copying a
directory, be sure to copy both the data file and the key file. If the file
name you create is NSDIR.NET.SYS, the KSAM pair of the file will be
named NSDIRK.NET.SYS, and its file type will be KSAMK.
Chapter 1
17
Introduction
NMMGR
Operating Modes
NMMGR includes two interfaces that you can use to enter or modify
data:
• The screen interface, a VPLUS block-mode interface, presents a
series of screens that you can use to display or modify existing
configuration data or enter new data. When using this interface, you
are operating NMMGR in screen mode.
• The maintenance interface, a character interface, is used
primarily from within batch jobs to update configuration data. This
interface may also be run interactively from within NMMGR. The
maintenance interface includes commands that let you manage
network directories and configuration files. When using this
interface to run NMMGR, you are operating in maintenance mode.
18
Chapter 1
Introduction
NMMAINT
NMMAINT
The Node Management Services Maintenance Utility
(NMMAINT), lists individual modules and version numbers of the NS
and SNA links and services installed on the HP 3000 Series 900 system
on which it is run.
Each software module within a subsystem has its own version ID
number. If the version, update, and fix levels of these modules do not
match, the subsystem will not work correctly. NMMAINT helps
diagnose system problems by detecting missing or invalid software
modules. The information provided by NMMAINT must be included in
any service request (SR) submitted to HP.
See Chapter 6, “NMMAINT,” of this manual for details on the function
and use of NMMAINT.
Chapter 1
19
Introduction
NMDUMP
NMDUMP
The Node Management Services Trace/Log File Analyzer
(NMDUMP) is the NMS utility that you use to format files created by
the logging and tracing facilities. NMDUMP translates the log and
trace files into a format that is easier to read.
Logging and tracing are diagnostic and debugging services provided by
NMS.
Tracing
Tracing records subsystem calls and/or the sequences of module
execution. Tracing is provided at both the user level and at an internal
level. User-level tracing provides a record of data communications
subsystem intrinsic calls. Internal level tracing records internal state
transitions and the sequences of module execution within data
communications subsystems. It should only be used on the
recommendation of an HP service representative.
Logging
Logging records subsystem events for all data communications links. It
records the usage of the communications network resources and serves
as a tool in resolving network problems.
Logging can be performed at three levels: network logging, event
logging, and link level logging. You choose the level of logging for a
particular system through the NMMGR configuration for that system.
For information on using logging and tracing for NS 3000/iX products,
see the NS 3000/iX Operations and Maintenance Reference Manual.
For information on using logging and tracing for HP-to-IBM products,
see the Node Manager’s Guide for each product. For more information
on NMDUMP, see Chapter 7, “NMDUMP,” of this manual.
20
Chapter 1
Introduction
NMMGRVER
NMMGRVER
The Node Management Services Conversion Utility
(NMMGRVER) is a program that converts configuration files created
with NMMGR from an earlier version to the latest format.
NMMGRVER helps provide a migration path for configuration files
developed using one version of the software so that you can more easily
move to a later version. The ability to convert the major part of network
configuration files eliminates the need for you to reenter sometimes
complex configuration and network directory values.
See Chapter 8, “NMMGRVER,” of this manual for more information on
NMMGRVER and its use in the migration process.
Chapter 1
21
Introduction
NMMGRVAL
NMMGRVAL
This utility checks to see if the configuration file has been validated. It
can be included in a shutdown UDC or command script to check
whether the DTC subsystem has been validated before attempting to
shut down the system.
The syntax is:
:RUN NMMGRVAL; PARM=1
This sets the JCWs; DTC_VAL, IBM_VAL, NETXPORT_VAL, and
OSI_VAL as follows:
1 not valid
0 valid
22
Chapter 1
2
Basics of NMMGR
This chapter describes the basic functions of the Node Management
Configuration Manager (NMMGR) in detail. Use this chapter to gain an
understanding of how the utility works and how to navigate through
NMMGR screens.
The following topics are discussed:
• NMMGR screens, including a discussion of common screen elements
and function keys.
• Moving between screens in NMMGR.
• Getting help about the function of NMMGR, the use of individual
screens, or the specific configuration values to be entered at a
particular screen.
• Getting information about error messages generated by the
NMMGR utility.
23
Basics of NMMGR
NMMGR Screens
NMMGR Screens
Each NMMGR screen may have multiple purposes. Some screens
provide menus of items for selecting a subbranch of screens that you
will be moving through. Some screens present a selection of configured
items and allow you to either choose items you want to modify or add
new items to the list. Still other NMMGR screens allow you to enter
data to define configuration values for a selected item. If running the
latest version of NMMGR, some screens serve more than one of these
purposes.
It is not important that you be able to distinguish one type of screen
from another. There are, however, certain basic elements that are
common to all screens that it is helpful to understand.
24
Chapter 2
Basics of NMMGR
Common Screen Elements
Common Screen Elements
The screen shown in Figure 2-1 illustrates the common elements found
in NMMGR screens. Each of these elements are described here.
Figure 2-1
Common Screen Elements
Header
The screen header is located at the top of the screen (the top three
lines), and contains five elements, each of which is described here. The
five elements are:
• Program name (NMMGR/3000) and version number
• Screen number and title
• Data flag
• Message field
• Command window
Chapter 2
25
Basics of NMMGR
Common Screen Elements
Program Name and Version Number
The program name and version number are always displayed in a
protected field at the top of the screen. (Protected means that
information cannot be typed into the field.)
Screen Number and Title
To the right of the program name and version number is the screen
number followed by the screen title. Each screen number is unique for
that screen. There is no significance to the order of the numbers. They
are strictly for convenience in referencing information about a screen in
various reference documents.
Screen titles are also unique for each screen and will generally indicate
the purpose and content of the screen.
Data Flag
The data flag is a Yes or No indicator located in the upper-right corner
of screens that contain data entry fields. The data flag indicates
whether or not a data record has already been created for the screen.
The data flag is an important indicator in cases where default
information is supplied in the fields of a screen when a new
configuration file is created. The information in the fields has not yet
been saved, even though it may appear that the information on the
screen is complete. If you want the information on the screen to become
a part of the configuration, you must press the [Save Data] function key
to create the actual data record. The data flag will change from N to Y,
verifying that the data has been made part of the configuration file.
Once a data record has been created for a screen, the data flag is set to
Y whenever you return that screen.
Message Field
The message field is the second line of the header and may contain one
of two types of information:
• The action that this screen requires
• An NMMGR error message
This line is a full-bright inverse video line that is used only for
displaying information. You can obtain more information about the
errors that may appear in this field by using the Error Information
screen, which is described later in this chapter.
26
Chapter 2
Basics of NMMGR
Common Screen Elements
Command Window
Each screen includes a field labeled Command: that is located below the
message field. This field, called the command window, accepts
commands rather than accepting data. This is an unprotected field and
is displayed in half-bright inverse video. You can enter the following
types of commands in this window:
• NMMGR commands. The valid screen mode commands and their
meanings are shown in Table 2-1. You can enter each command
using the full command name or you can abbreviate the command by
entering only the portion to the left of the bracket as shown in the
table.
• MPE commands.
• NMMGR path commands. Direct path branching and brother
branching are described in this chapter.
To enter a command, position the cursor at the Command: window by
pressing the [Home] key (the key on your terminal with the diagonal
arrow or the word “Home” on it). You can also use the [TAB] or cursor
(arrow) keys to move the cursor to the command window. Once you are
there, type in the command and press [ENTER].
NOTE
You must press [ENTER], not [RETURN], to execute the command.
When there is a command in the command window, pressing [ENTER]
executes only the command in the window. It will not send other data
on the screen to the computer.
Some NMMGR commands transfer you directly to other screens.
The NMMGR command set includes the colon (:). You can execute any
programmatically executable MPE command from the command
window by prefacing it with a colon. For example, you could type
:LISTF and press [ENTER]. When MPE is finished processing your
command, it prompts you to press [RETURN] to return to the screen
interface.
You can process only one command in the command window at a time.
Table 2-1
NMMGR Screen Mode Commands
NMMGR Command
Action
@path
Branches to the screen whose path name is given in path.
:MPECommand
Executes MPECommand. MPECommand must be a
programmatically executable MPE command.
COM[PRESS]
Transfer to the Compress screen.
CON[FIGURATION]
or @
Transfers to the Main screen.
Chapter 2
27
Basics of NMMGR
Common Screen Elements
NMMGR Command
Action
COP[YSUB]
Transfers to the Configuration Subtree Copy screen.
ER[RORS]
Displays the Error Information screen.
EX[IT]
Exits from NMMGR (same as QUIT).
H[ELP] or ?
Calls up help function. (See “Getting Help” in this chapter.)
M[AIN]
Transfers to the Main screen.
NET[DIR](NS Only)
Transfers to the Network Directory Main screen. (You must
already have opened the network directory file.) Refer to the
NS manuals for more information.
NEX[T]
Transfers to a brother screen. (See “Branching” in this
chapter.)
NIG[UIDE] (NS Only)
Transfers to the Guided HP Configuration screen. Refer to the
NS manuals for more information.
NIU[PDATE] (NS Only)
Transfers to the Guided HP Configuration screen. Refer to the
NS manuals for more information.
NM[MGRCMD]
Transfers to the maintenance mode interface.
OP[EN]
Transfers to the Open Configuration/Directory File screen.
OU[TPUT]
Transfers to the Output Configuration File screen.
P[RIOR]
Returns to the previous screen. Same as pressing [Prior
Screen].
Q[UIT]
Exits from NMMGR (same as EXIT).
R[EFRESH]
Refreshes the current screen.
ST[OP]
Stops the guided configuration process.
SU[BGUIDE] (NS Only)
Transfers to the Guided HP Configuration screen. Refer to the
NS manuals for more information.
U[TILITY]
Transfers to the Utility screen.
VA[LIDATE]
Transfers to the Validate Configuration File screen.
VE[RSION]
Displays version information.
Main Window
The major portion of each screen lists menu choices, displays
information and selection choices, and presents fields for entering or
displaying information. With the exception of data entry fields, the
information on the screen is protected against modification.
28
Chapter 2
Basics of NMMGR
Common Screen Elements
Path Name
On most screens that can be reached by direct path branching, the
path name used to reach the screen is displayed in the upper-left
corner of the main screen window. The path name consists of all the
screen names between the root (top of the structure) and the current
screen, with the names separated by periods.
Data Fields and Menu Choices
Data can be entered only into unprotected fields. For screens with more
than one unprotected field, the cursor automatically moves to the next
unprotected field when you reach the end of the present field or if you
press [TAB].
Generally, you use the [TAB] key to step through the fields from the top
of the screen to the bottom. If you need to back up to a previous field,
use the [SHIFT][TAB] key combination. For more information, consult
you Terminal Reference Manual.
When menu choices are presented on the screen, they are usually
associated with one of the function keys at the bottom of the screen. To
select the menu item, press the function key that corresponds to the
item.
Other screens, sometimes referred to as select screens, present a list
of configured items in protected data fields. They also contain a data
entry field into which you can type the name of one of the configured
items and select it for modification. Alternatively, you can type in a new
name for an item to be added to the list. You then press a function key
that lets you perform an action on the selected item (add, modify, delete,
rename). Pressing the function key will cause the action to be
performed and often will cause a new screen to be displayed, allowing
you to modify or define the selected item.
Configuration File Name
NMMGR displays the name of the configuration file that you are
working on in the area called File: at the bottom of each screen. This
name is shown as filename.group.acct in Figure 2-1. On an actual
screen, the name of the file you created or opened at the Open
Configuration/Directory File screen is displayed at this location on the
screen. The file name is not an input field; to change your working file,
you must use the Open Configuration/Directory File screen.
Function Keys
Each NMMGR screen has a set of eight softkeys, or function keys,
which vary in function from screen to screen. Some screens may use
only a few function keys, while others have functions assigned to all
eight keys. The [Prior Screen] and [Help] function keys are present in
nearly all screens. Other softkeys are also present, depending on the
Chapter 2
29
Basics of NMMGR
Common Screen Elements
purpose of the screen you are viewing. Some of the more common
function keys are described here. For many screens, you can find
information on that screen’s function keys in the Help information
associated with the screen.
Prior Screen Key
Except for a limited number of screens, such as the Error Information
screen and the Guided Configuration screen, the [Prior Screen] key is
the right-most function key, [f8].
With a few exceptions (as listed), the screen displayed when
[Prior Screen] is pressed will always be the screen most recently visited
prior to the current screen, regardless of the manner in which you
reached the current screen. In order to show the correct screen,
NMMGR maintains a prior screen list, which is a sequential list of
the screens that have been displayed. Pressing [Prior Screen] displays
the most recent screen in the prior screen list and removes that screen
from the list.
The most recent screen in the list is the screen that was visited just
prior to the current screen, with five exceptions:
• When you display the Error Information screen, NMMGR does not
put this screen in your prior screen list. Thus, pressing [Prior Screen]
never transfers you to the Error Information screen, even if it was
the latest screen you displayed.
• After reaching the Validate screen in guided configuration, the prior
screen becomes the screen with which you began the guided
configuration.
• If you use the command window to return to a screen already visited,
NMMGR drops any screens visited after this screen from the prior
screen list.
• If you use the [Help] key to display a help information screen, the
help screen will not appear in the prior screen list.
• Using the NEXT command does not update the prior screen list.
Help Key
Most NMMGR screens have a [Help] key as the second key from the
right. Pressing this key displays a help information screen. The help
information relates specifically to the screen from which you pressed
the [Help] key. It describes screen usage, parameters, and function key
operation for that screen. See “Getting Help” in this chapter for more
information on the NMMGR Help system.
30
Chapter 2
Basics of NMMGR
Common Screen Elements
Save Data Key
Screens with data entry fields have a [Save Data] key, usually as the
third key from the right-hand side. Pressing this key creates or modifies
the data record and causes the data entered in the screen to be
transferred to the configuration file. If the Data Flag is “N”, pressing
[Save Data] will cause the Data Flag to change to “Y”.
“Go To” Keys
Some keys take you to a specific screen. There may be one or more keys
on the screen that tell NMMGR to “go to” a new screen. For example,
the [Go to OUTPUT] key on the Utility screen takes you directly to the
Output Configuration File screen.
Next Page/Prev Page Keys
Some NMMGR screens contain data or display sets of items that will
not fit in a single screen. When this occurs, the screen data is continued
on one or more “pages”. The screens will include function keys that
allow you to move back and forth between the pages of the screen.
[Next Page] moves you to the subsequent page of data. [Prev Page] moves
you to the prior page of data. Some multiple page screens also include
[First Page] and [Last Page] keys, that take you to the first or last page of
the data.
Refreshing the Screen
If you have entered data or changed values on a data screen and decide
not to make the changes before you have entered them into the
configuration file, you can refresh the screen to return it to the state it
was in before you made the changes. Simply enter REFRESH (or the
abbreviation R) in the command window and press [ENTER]. NMMGR
will warn you that the screen has changed since you last updated it.
Enter REFRESH again; NMMGR refreshes the screen and shows its
current configuration file data. In addition, refreshing the screen resets
the terminal strap settings.
You can also use the REFRESH command to “clean up” the screen after a
“TELL” message or other interference has appeared on the screen.
Chapter 2
31
Basics of NMMGR
Entering Data
Entering Data
You enter data into NMMGR by typing the appropriate information in
the data entry fields on a screen and pressing the [Save Data] key. (You
can also use the [ENTER] key, if the command window is blank.) This
causes the data in the fields to be included in the configuration file, as a
data record. NMMGR confirms that you have updated the configuration
file by printing the following message in the message field:
Configuration data updated.
NOTE
The data from the screen is immediately included into the configuration
file. NMMGR does not wait until you exit the program to save the new
information. You should be very careful to change only certain
information in an active configuration file.
If you enter data in a field and then try to transfer to another screen (by
pressing a function key or by using the command window) before saving
the data, NMMGR will print the following message:
Warning: Screen changed. Use UPDATE to save data. (NMGRWARN7)
This warning cautions you against unintentionally leaving a data
screen before you have updated the configuration file. If you decide you
do not want to update the configuration file with the data on the screen,
you can ignore the warning and repeat the action to transfer to another
screen.
If you enter the wrong type of data in any field and try to update the
configuration file, NMMGR prints an error message that corresponds to
the first field with invalid data. NMMGR highlights and underlines the
fields with invalid data and positions the cursor at the first field with
invalid data. For example, suppose you enter an alphabetic character in
a location that must contain an integer. When you try to update the file,
NMMGR may print:
The field can contain only digits.
32
Chapter 2
Basics of NMMGR
Moving Between Screens
Moving Between Screens
There are two ways to move from one NMMGR screen to another. One
way is to use the function keys present on one screen to select and move
to another screen in a progression. The second way is to enter a path
name in the command window to move directly to a specified screen.
Moving with Function Keys
When you are creating a configuration file, you will generally traverse
downward on one of the configuration branches until you have
completed configuration for a subsystem.
Normally, you will make selections or enter data into the lowest level
data screens of a branch before moving to another branch. You may
need to transfer only to screens directly above or below your current
screen in the structure. This is generally accomplished by pressing the
appropriate function key.
Branching
Branching is a method you can use to go directly to a particular
screen, rather than traveling through every screen in a branch to get to
that screen.
Direct Path Branching
You can use direct path branching to transfer from any NMMGR
screen to any screen having a path name in one of the subsystem
branches. To use this feature, you must be familiar with the tree
structure of the configuration file. You enter @pathname in the
command window to cause NMMGR to transfer you to the screen at the
end of the specified path name. For example, when configuring SNA,
you could enter @SNANODE.PU3000E in the command window to see the
LUs configured for the node PU3000E. The path name for each
subsystem configuration screen is displayed in the Path field of each
screen.
Brother Branching
Screens that share a common parent screen are referred to as brothers.
If you are working in a screen with one or more brothers, you can use
the NEXT command to transfer to the next brother screen. This feature
is called brother branching.
For example, the unguided NS configuration screen called NETXPORT
Configuration has three subscreens, or children, referred to here by
their path names:
NETXPORT.GLOBAL,
Chapter 2
33
Basics of NMMGR
Moving Between Screens
NETXPORT.GPROT, and
NETXPORT.NI.
These three screens are brothers. To transfer directly from one of
these screens to its brother without going back through the parent
screen you would simply type NEXT in the command window and press
[ENTER].
The command would look like this:
Command: NEXT
The screens are visited in the order their names appear on the parent
screen. Typing NEXT in the command window will transfer you to the
next brother as long as one exists. When the last brother screen is
reached, typing NEXT will transfer you to the first brother screen.
Typing NEXT has no effect on the prior screen list.
34
Chapter 2
Basics of NMMGR
Getting Help
Getting Help
Help is available for many of the NMMGR screens you will be using. It
is available for all unguided NS configuration screens. It is also
available for the screens used to configure the distributed terminal
subsystem and those used for guided NS configuration. You can also get
help on general topics and NMMGR commands.
Getting Help on Screens
The simplest way to use the help facility is to press the [Help] function
key while at the screen for which you need information. (Entering HELP
in the command window also presents you with the help information for
the current screen.) You will immediately be presented with text that
describes the screen, each parameter configured using the screen, and
the operation associated with each of the screen’s function keys.
Help messages are provided as an aid to configuration and are not
intended to be a complete reference. They provide only the information
that is immediately needed to understand how to use a screen. If you
need more detailed information than is provided by a help message,
refer to the configuration guide for the link you are configuring.
Entering Help Mode
You can also access the NMMGR help system by entering a ? in the
command window. This puts you into help mode, and presents you with
a list of available help topics. One of these topics, Index, provides a list
of parameters and the screens on which they are configured. Path
branching information is included where appropriate. You can browse
through the topics until you terminate help mode by typing end, exit,
or :. Terminating help mode returns you to the screen where you
entered help mode.
Getting Help on Specific Topics
You can use the HELP command followed by a keyword to get help on a
list of specific topics. The following are the available help keywords:
• Enter HELP OVERVIEW to see a brief explanation of the operation of
NMMGR.
• Enter HELP ROADMAP to see a map of the screen structure of
NMMGR. You will also receive a list of additional keywords,
consisting of the subsystems supported by NMMGR. Each of these
subsystem names, such as LINKCONF, can be used as a help message
qualifier to obtain a map of the screens pertaining to the listed
subsystem. A qualifier, which also is considered a keyword, must
follow the main keyword with a comma separating the two
Chapter 2
35
Basics of NMMGR
Getting Help
keywords. For example, if you wanted to see a map of LINKCONF
screens, you would enter HELP ROADMAP,LINKCONF in the
command window. Every screen name shown in these screen maps is
also a keyword and can be used with the HELP command and the
FIELDS qualifier. For example, if you wanted to see field
descriptions for the screen called LAN, you would enter HELP
LAN,FIELDS in the command window.
• Enter HELP COMMANDS to obtain a list of commands available from
within the screen interface. For information about a specific
command, enter the name of the command as a keyword following
the word HELP in the command window.
• Enter HELP MAINT to see a list of commands available within
maintenance mode. For information about a specific command, enter
the name of the command as a keyword following the word HELP in
the command window. When you obtain information about a specific
command, the help text will list any qualifiers, such as PARMS,
OPERATION, EXAMPLE, and ALL. You then could enter the command
again, this time followed by a comma and a qualifier, to obtain even
more information.
36
Chapter 2
Basics of NMMGR
Getting Help with Errors
Getting Help with Errors
When NMMGR encounters an error, it displays a brief message in the
message field of the current screen. In most cases, these messages
provide enough information for you to correct the error and continue
operation. Occasionally, however, you may encounter a more serious
error or the cause of an error may not be readily apparent. You may
then need additional information to understand the cause of the error.
The Error Information Screen
The Error Information screen displays the latest error that NMMGR
encountered and associated error messages, if any. To display the Error
Information screen, type ERRORS in the command window of any screen
and press [ENTER].
Note that as many as five levels of error messages can be displayed in
the Error Information screen, depending on where the error occurred in
the software. However, it does not display the prompts that are a result
of entering invalid data types in fields.
Figure 2-2 shows an example of the error messages displayed on the
Error Information screen. In this case, a user who was not the creator of
the configuration file, tried to compress the file. This action is not
allowed. Note the hierarchy of the errors returned as shown in the
example. The top level is the NMMGR error message; the other levels
come from software accessed by NMMGR.
Chapter 2
37
Basics of NMMGR
Getting Help with Errors
Figure 2-2
Error Information Screen
NMMGR Error Messages
Error messages associated with the NMMGR program are listed in
Appendix A, “NMS Error Messages,” of this manual. Each error
message is listed with at least one possible cause and a recommended
action for each cause. You also may need to refer to the MPE file system
and operating system manuals for explanations of any MPE error
messages that may appear on the Error Information screen.
38
Chapter 2
3
Using NMMGR in Screen Mode
This chapter tells you how to use NMMGR’s screen mode interface to
begin the configuration process for your system’s terminal connections
or networking products. It includes step-by-step instructions for getting
started in NMMGR and for navigating the top-level screens. Those
screens are described here along with their purpose.
This chapter describes the following topics in detail:
• What you need before you start NMMGR.
• How to start NMMGR in screen mode.
• How to open or create a configuration file or a directory file.
• How to choose a subsystem for configuration from the Main screen,
NMMGR’s top-level menu. An overview of the configuration tasks
performed for each subsystem is included.
NOTE
This chapter does not take you through the configuration process. For
detailed information on configuring a specific subsystem, refer to the
configuration guide for that subsystem. For detailed information on the
unguided configuration screens for the Network Services subsystem,
refer to the NS 3000/iX NMMGR Screens Reference Manual.
39
Using NMMGR in Screen Mode
Before You Start
Before You Start
There are a number of requirements that you need to be aware of before
you attempt to run NMMGR:
• You must have MPE Node Manager (NM) or Network Administrator
(NA) capability to run NMMGR.
• Your terminal must have block mode capability to run NMMGR in
screen mode. All terminals supported by MPE/iX have this
capability.
• An NMMGR screen is 24 lines long. If your terminal screen is longer
than 24 lines, the NMMGR function key labels on some (older)
screens appear to be four lines tall with blank labels on the bottom
two lines. These lines are blank because the functions assigned by
NMMGR clear any existing functions, although blank labels may
still appear on the screen. The function keys on more recently added
NMMGR screens, which store their function key information in a
different way, will appear as normal softkeys, on two lines.
40
Chapter 3
Using NMMGR in Screen Mode
Starting NMMGR
Starting NMMGR
To start NMMGR’s screen mode interface, enter the following command
at the MPE prompt:
:RUN NMMGR.PUB.SYS
After MPE accepts the run command, NMMGR displays the following
banner:
NM Configuration Manager 32098-20016 V.uu.ff (C) Hewlett Packard Co. 1994
NMMGR then clears the terminal screen and displays the Open
Configuration/Directory File screen.
Chapter 3
41
Using NMMGR in Screen Mode
Opening a Configuration or Directory File
Opening a Configuration or Directory File
The Open Configuration/Directory File screen shown in Figure 3-1 is
the first screen you see when you start NMMGR in screen mode.
Figure 3-1
Open Configuration/Directory File Screen
From this screen you can:
• create a new configuration file
• open an existing configuration file
• create a new network directory file
• open an existing network directory file
• specify a name for the backup configuration file
The instructions that follow describe how to do each of these tasks. See
Chapter 1, “Introduction,” for more information about configuration
files and network directory files.
42
Chapter 3
Using NMMGR in Screen Mode
Opening a Configuration or Directory File
Creating a New Configuration File
If you want to create a new configuration file (one that does not exist),
follow these steps. At the Open Configuration/Directory File screen:
Step 1. Enter the name of the file you want to create in the Configuration file
name field.
The name must be a valid MPE file name. If you do not specify a group
or account, NMMGR will qualify the file name with your logon group
and account.
The default file name is NMCONFIG.PUB.SYS. You may use the default
if no NMCONFIG.PUB.SYS file currently exists.
Step 2. If a write access password has been assigned, you must enter the
password in the Write access password field in order to create a new
file. If no write access password has been enabled, leave this field blank.
Step 3. Press the [Open Config] key. NMMGR will ask you to press the key
again to verify that you want to create a new file. Press the key again.
The Main screen will appear and you can proceed with subsystem
configuration.
NOTE
Instead of creating a new, and therefore empty, configuration file, you
may want to use the sample configuration file provided by
Hewlett-Packard for use as a configuration template. To do so, see the
instructions that follow for “Copying a Configuration File”.
Copying a Configuration Files
Most new configuration files are created from existing ones, rather than
from scratch. You can copy an existing file from the same system or
from a different system on your network. Note that if you are copying
the file to NMCONFIG.PUB.SYS there are certain rules which must be
followed or the new file may not be found or run when the system is
booted.
The steps that follow show how to copy the sample configuration file
provided by Hewlett-Packard, NMSAMP1.PUB.SYS, to
NMCONFIG.PUB.SYS. The sample file is provided for use as a template
when you are configuring a system with no existing configuration.
1. Purge or rename any existing NMCONFIG.PUB.SYS. (Take care when
doing this that you do not destroy useful configuration information.)
2. Create a file equation similar to the following example:
:FILE CONFIG = NMCONFIG.PUB.SYS; DEV = 1; DISC = 2048,1,1
The configuration file must reside on LDEV1, because the system
does not have access to other LDEVs at startup and the
configuration file is needed at that time. Only one file extent is
allowed.
Chapter 3
43
Using NMMGR in Screen Mode
Opening a Configuration or Directory File
3. Copy the appropriate sample file into the empty CONFIG file. The
following is a sample “copy” command:
FCOPY FROM = NMSAMP1.PUB.SYS; TO = *CONFIG; NEW; NOUSER LABELS
4. When you are ready to proceed with configuration, run NMMGR and
open the configuration file you just created. See the instructions that
follow for “Opening a Configuration File.”
You may choose to copy your source file to a name other than
NMCONFIG.PUB.SYS first, modify that file using NMMGR, then rename
the file as NMCONFIG.PUB.SYS when you are ready for it to be used by
the system.
Changing the Backup File Name
NMMGR automatically generates a backup configuration file that is
updated each time the configuration is successfully validated. By
default, the backup file name is NMCBACK.group.account. You can
change the name that will be used for the backup file by typing a new
name in the Backup configuration file name field on the Open
Configuration/Directory File screen.
The file name you enter must be a valid MPE file name. If you do not
enter a group or account name, NMMGR will qualify the file name with
your logon group and account.
It is a good idea to change the name that will be used for the backup file
if you are modifying an alternate configuration or one that will be used
on a different system. By changing the backup file name you can avoid
writing over a backup file that you want to maintain.
Opening an Existing Configuration File
If you want to open an existing configuration file to modify the
configuration, follow these steps.
At the Open Configuration/Directory File screen:
Step 1. Enter the name of the file you want to open in the Configuration file
name field.
In most cases, you want to make sure that the file you plan to open is
not the active configuration file.
If you do not specify a group or account, NMMGR will assume that the
file resides in your logon group and account.
Step 2. If a write access password has been assigned, you must enter the
password in the Write access password field in order to open the file in
write mode. (If you do not enter an assigned password, you can still
access the file in read-only mode.) If no write access password has been
enabled, leave this field blank.
44
Chapter 3
Using NMMGR in Screen Mode
Opening a Configuration or Directory File
Step 3. Press the [Open Config] key. The Main screen will appear and you can
proceed with subsystem configuration. The fields on each screen show
the values currently entered for the configuration file you opened.
Creating a Network Directory File
If you want to create a new network directory file (one that does not
exist), follow these steps.
At the Open Configuration/Directory File screen:
Step 1. Enter the name of the file you want to create in the Network directory
file name field.
The name must be a valid MPE file name. If you do not specify a group
or account, NMMGR will qualify the file name with your logon group
and account.
The default file name is NSDIR.NET.SYS. You may use the default if no
NSDIR.NET.SYS file currently exists.
Step 2. If a write access password has been assigned, you must enter the
password in the Write access password field in order to create a new
file. If no write access password has been enabled, leave this field blank.
Step 3. Press the [Open Directry] key. NMMGR will ask you to press the key
again to verify that you want to create a new file. Press the key again.
The Network Directory Main screen displays and you can proceed with
directory configuration. (See the Configuration Guide for the subsystem
you are configuring for more information on configuring the network
directory.)
Opening an Existing Network Directory
If you want to open an existing network directory file to modify its
directory information, follow these steps.
At the Open Configuration/Directory File screen:
Step 1. Enter the name of the file you want to open in the Network directory
file name field. If you do not specify a group or account, NMMGR will
assume that the file resides in your logon group and account.
Step 2. If a write access password has been assigned, you must enter the
password in the Write access password field in order to open the file in
write mode. (If you do not enter an assigned password, you can still
access the file in read-only mode.) If no write access password has been
enabled, leave this field blank.
Step 3. Press the [Open Directry] key. The Network Directory Main screen
appears and you can proceed to modify the network directory
information. The fields on each screen will show the values currently
Chapter 3
45
Using NMMGR in Screen Mode
Opening a Configuration or Directory File
entered for the network directory file you have opened. (See the
Configuration Guide for the subsystem you are configuring for more
information on configuring the network directory.)
46
Chapter 3
Using NMMGR in Screen Mode
Selecting a Configuration Path
Selecting a Configuration Path
Once a configuration file is successfully opened or created, NMMGR
displays the Main screen, shown in Figure 3-2. This screen presents a
menu from which you select the group of NMMGR screens you need to
configure the appropriate subsystem.
Figure 3-2
Main Screen
NOTE
NS/SNA is no longer offered as a product and has been removed from
the Corporate Price List. The product is obsolete with no plans for
support.
The main screen also contains three data fields that you must complete
in order to configure the local node name and determine which type of
network configuration is appropriate for the node.
The following steps describe the action you should take at the Main
screen:
Step 1. Enter the node name of the system you are configuring in the local node
name field (if it is not already present).
Chapter 3
47
Using NMMGR in Screen Mode
Selecting a Configuration Path
Step 2. In the field next to the question Are you using OpenView DTC
Manager?, enter a “Y” if you are using PC-based network management
for this node, enter an “N” if you are using host-based network
management. If you are using PC-based network management, an
OpenView workstation must be present on the network.
Step 3. In the field next to the question Do you have X.25
system-to-system or PAD connections?, enter a “Y” to indicate
you will be configuring a DTC/X.25 Network Access card for this node,
otherwise, enter an “N”.
Step 4. Press the [Save Data] key to save the node name in the configuration file
(create the data record). The Data flag will be set to “Y” when the data
record exists.
Step 5. Proceed to one of the NMMGR configuration subbranches by pressing
the appropriate function key.
Each of the configuration subbranches are described.
Configuring Terminals, Printers, and Other Serial
Devices
Terminals, printers, and other serial devices are connected to HP 3000
Series 900 computers through a device called the Datacommunications
and Terminal Controller (DTC). In order to connect to a device, the
system’s configuration file must contain information that makes it
possible for the DTC, as well as the devices attached to the DTC, to
establish communications with the system. DTCs and their devices are
configured through NMMGR’s distributed terminal subsystem (DTS)
configuration.
If you press the key labeled [DTS] at the Main screen, you will be taken
to the Host Configuration screen (Figure 3-3), the first screen in a
progression that lets you configure DTS for PC-based network
management only. The Host-based management screen will vary
slightly.
48
Chapter 3
Using NMMGR in Screen Mode
Selecting a Configuration Path
Figure 3-3
Host Configuration Screen
You will perform a number of tasks using these screens, including the
following:
• Define the DTS link configuration for the system.
• Define connection capabilities for terminals, printers, and other
serial devices that will be able to communicate with the system.
• Define terminal, printer, and other serial device profiles specifying
sets of characteristics that can be applied to various terminals,
printers, or other serial devices connected to the system and
associate the profiles with individual devices. The screen in Figure
3-4 reflects PC-based network management only. The Host-based
management screen will vary slightly.
See the following manuals for more information on configuring DTCs
and serial devices:
• Configuring Systems for Terminals, Printers, and Other Serial
Devices.
• (Host-based X.25 configuration only) Configuring and Managing
Host-Based X.25 Links.
• (PC-based configuration only) Using the OpenView DTC Manager.
Chapter 3
49
Using NMMGR in Screen Mode
Selecting a Configuration Path
Configuring NS 3000/iX
The NS 3000/iX product consists of NS 3000/iX Network Services and
NS 3000/iX links. NS 3000/iX Network Services contain software that
allows you to access data, initiate processes, and exchange information
between all the systems on a network. NS 3000/iX links provide
connections between systems (either HP 3000s or personal computers)
in a network. To use NS 3000/iX Network Services, the systems must be
connected by an NS 3000/iX link and each link must be properly
configured through NMMGR.
If you press the key labeled [NS] at the Main screen, you are taken to
the NS Configuration screen (Figure 3-4), the first screen in a
progression that lets you configure NS.
Figure 3-4
NS Configuration Screen
NMMGR provides two methods of creating or updating configuration
information for an NS link. The methods are referred to as guided HP
configuration and unguided HP configuration respectively. You
determine which method you will use by making a choice at the NS
Configuration screen.
You also use this screen to configure a domain name for the node you
are configuring if using domain names for network access. To configure
a domain name, replace the local node name in the field at the bottom of
the screen and press the [Save Data] key. (If you are not using domain
names, leave the local node name as is.)
50
Chapter 3
Using NMMGR in Screen Mode
Selecting a Configuration Path
• To perform guided configuration, press the key labeled
[Guided Config] and refer to the HP 3000/iX Network Planning and
Configuration Guide for information.
• To perform unguided (manual) configuration, press the key labeled
[Unguided Config] and refer to the NS 3000/iX NMMGR Screens
Reference Manual for information.
NOTE
Hewlett-Packard strongly recommends using guided configuration
whenever you need to initially configure a network interface. You can
also take advantage of its convenience later for most network
maintenance and updating. Guided configuration supplies many
default values for your configuration and requires that you visit a
minimal number of screens. Use unguided configuration only if you
need to modify configuration values that are not available on the guided
screens.
Guided HP Configuration
If you press the key labeled [Guided Config] at the NS Configuration
screen, you will be taken to the Network Transport Configuration
screen shown in Figure 3-5. From this screen, you choose the specific
task you want to perform using guided NS configuration. These tasks
include configuring or modifying a network interface, modifying logging
parameters, and fine tuning global or network transport configuration
parameters.
Figure 3-5
Network Transport Configuration Screen
Chapter 3
51
Using NMMGR in Screen Mode
Selecting a Configuration Path
Guided configuration is a procedure that automates part of the
configuration process. It “guides” you through the configuration screens
for a specific task. It assumes and supplies default values wherever
possible to furnish most of the configuration file’s data.
When you run guided configuration, you use only a minimal number of
configuration screens. You will normally use fewer screens than you
would if you were performing the same task using unguided
configuration. Many of these screens are different from those used for
unguided configuration.
NOTE
NS/SNA is no longer offered as a product and has been removed from
the Corporate Price List. The product is obsolete with no plans for
support.
Unguided Configuration
If you press the key labeled [Unguided Config] at the NS Configuration
screen (#166), you will be taken to the Unguided Configuration screen
shown in Figure 3-6.
Figure 3-6
Unguided Configuration Screen
From this screen, you can move to the screens that let you:
• Configure or modify a network interface.
• Configure or modify an NS link.
• Configure or modify logging parameters.
52
Chapter 3
Using NMMGR in Screen Mode
Selecting a Configuration Path
• Configure or modify a network interface.
If you choose to create or modify an NS configuration using unguided
(manual) configuration, you must take care that you know which
screens you need to use to completely create or modify a configuration.
The unguided nature of manual configuration makes it possible to get
“lost” or to miss some necessary screens entirely.
Under most circumstances, HP recommends that you use guided
configuration. Unguided configuration can be useful, however, if you
only need to use a few screens and you know exactly which screens you
need.
Refer to the NS 3000/iX Screens Reference Manual for information on
the unguided NS configuration screens.
Configuring HP-IBM Connections
Hewlett-Packard provides a number of networking products that make
it possible to establish communication links between HP 3000
Series 900 and IBM mainframe computers.
If you press the key labeled [IBM] at the Main screen, you are sent to the
HP-IBM Configuration screen shown in Figure 3-7.
Figure 3-7
HP-IBM Configuration Screen
Chapter 3
53
Using NMMGR in Screen Mode
Selecting a Configuration Path
From this screen, you can choose any of the IBM subsystems for
configuration by pressing the appropriate function key. You can also
choose to configure logging for all of the IBM subsystems, or you can
choose SNANODE configuration (SNA node, SDLC link, X.25 link, and
token ring link).
The HP-IBM Configuration screen presents you with more choices than
there are available function keys. For this reason, the screen includes a
[Next Key Labels] function key that lets you toggle between two sets of
function key choices. If the choice you want does not currently appear
on any of the [Go to] function keys, press the [Next Key Labels] key. You
can then make the choice you need to configure the HP-IBM subsystem
you want to configure.
For more information on configuring any of the HP-IBM products, see
the Node Manager’s Guide for that product. For information on HP-IBM
subsystem logging or SNANODE configuration, see the SNA Link/iX
Node Manager’s Guide.
54
Chapter 3
4
Using NMMGR Utility Screens
This chapter describes how to use the NMMGR utility screens to list,
maintain, and validate configuration files. The following topics are
discussed in detail:
• Displaying or printing the configuration file tree structure or the
data screens associated with a configuration file using the Output
screen.
• Compressing or expanding a configuration file using the Compress
screen.
• Validating a configuration file using the Validate screen.
• Copying a configuration subtree using the Configuration Subtree
Copy screen.
55
Using NMMGR Utility Screens
The Utility Screen
The Utility Screen
The Utility screen shown in Figure 4-1 lets you select the utility
function that you want to perform. To display the Utility screen, press
[Go To Utility] from the Main screen or type UTILITY in the command
window of any screen and press [ENTER].
Figure 4-1
Utility Screen
Select the utility function you want to perform and press the
corresponding function key.
56
Chapter 4
Using NMMGR Utility Screens
Output Configuration File Screen
Output Configuration File Screen
The Output Configuration File screen shown in Figure 4-2 allows you to
list or print the configuration file tree structure, to print the NMMGR
data screens associated with a configuration file, and to print a critical
summary of the configuration file data. You reach this screen by
pressing [Go To OUTPUT] at the Utility screen.
Figure 4-2
Output Configuration File Screen
By default, the printed output for each of this screen’s print functions is
sent directly to the line printer. You may want to redirect the output by
issuing a file equation for the output file FORMLIST (the formal file
designator of the output file). You can do so by entering the file equation
in the command window of the screen. For example, you could type the
following:
:FILE FORMLIST;DEV=PP
and then press [ENTER]
If you then pressed [Print Data], the output would be sent to the device PP.
If you wanted to send the output to a disk file, you could enter:
:FILE FORMLIST;DEV=DISC;SAVE
If you then pressed [Print Data], the output would be stored on disk under
the file name FORMLIST.
Chapter 4
57
Using NMMGR Utility Screens
Output Configuration File Screen
Display Tree
If you press the [Display Tree] key, NMMGR will display the tree structure
of the configuration file at your terminal. Figure 4-3 shows a section of a
listing obtained by pressing [Display Tree] at the Output Configuration File
screen.
The tree structure shows the identifiers for each screen that contains
configured data but does not show any of the actual data that is
configured. The level of each screen (how far down it is in the tree
structure) is printed on the left, in square brackets. The listing shows
the names of the screens and items configured, indented according to
their level in the tree structure.
This listing is useful for finding out which identifiers are already
configured in a file. You can also refer to it for guidance in direct path
branching.
To generate a printout of the actual data screens, use the [Print Data] or
the [Print Summary] key to print just a listing of all the data. Both are
described later in this chapter.
58
Chapter 4
Using NMMGR Utility Screens
Output Configuration File Screen
Figure 4-3
Display Tree Listing
NM Configuration Manager 32022-20016 V.uu.ff (C) Hewlett Packard Co. 1990
MON, APR 9, 1990, 3:48 PM
CONFIGURATION FILE NAME: NMCONFIG.PUB.SYS
[1]
[2]
[2]
[1]
.
.
.
[1]
[2]
[2]
[1]
.
.
.
[1]
[2]
[2]
[1]
[1]
[1]
[1]
[1]
[1]
[2]
[3]
[3]
[2]
[3]
[3]
[4]
[5]
[5]
[5]
[4]
[5]
.
.
.
LINK
DTSLINK
LANLINK
LOGGING
SNADS
CLUSTER
MAPPER
LOGGING
SNADS
CLUSTER
MAPPER
SNANODE
IMF
DHCF
APPC
NODENAME
NETXPORT
GPROT
PXP
TCP
NI
LOOP
LANNI
PROTOCOL
IP
PROBE
ARP
LINK
LANLINK
Print Tree
The [Print Tree] key generates a printed listing of the tree structure as
displayed by the [Display Tree] key (Figure 4-3). By default, output is sent
to the device LP. You can redirect the output by using a file equation for
the formal file designator FORMLIST.
Print Data
The [Print Data] key generates a printed copy of the data screens
associated with the configuration file. By default, output is sent to the
device LP. You can redirect the output by using a file equation for the
formal file designator FORMLIST.
Chapter 4
59
Using NMMGR Utility Screens
Output Configuration File Screen
You can select the data screens you want to list by entering one or more
selections in the print data subsystem selection fields on the Output
Configuration File screen. These are four data entry fields that allow
you to enter a number corresponding to the configurable subsystems, as
listed on the screen (see Figure 4-2).
For example, to obtain a printed listing of the configured screens for
both logging and for NETXPORT configuration, enter a 2 (for logging) in
one of the fields and a 3 (for NETXPORT) in another of the fields. If these
are the only screens you want printed, leave the other two fields blank.
When you have made your selections, press the [Print Data] key.
If you want all screens to print, enter a 0 in one of the selection fields
(the default).
Figure 4-4 is an example of a data screen as printed by the [Print Data]
key. Because data has been entered for this screen in the configuration
file, the actual data is shown and the data flag is set to Y. If no data had
been entered, the printout would show the default values and the data
flag would be set to N.
Figure 4-4
Print Data Output Example
60
Chapter 4
Using NMMGR Utility Screens
Output Configuration File Screen
Print Summary
The [Print Summary] key allows you to print all the configuration data for
the chosen subsystem on the Output Configuration File menu. This is a
listing of information that is contained in your configuration file. By
default, output is sent to the device LP. You can redirect the output by
using a file equation for the formal file designator FORMLIST.
To print a critical summary, choose the number corresponding to the
subsystem for which you want the report. Enter the number in the field
to the right of “Print Summary” and press the [Print Summary] key. (The
numbers for the subsystems are the same as those that you would use
to select subsystems for the [Print Data] key.)
The example shown in Figure 4-5 is the first part of a critical summary
for a full-gateway node that has been configured with a point-to-point
(router) network interface (NI) and a LAN NI.
Figure 4-5
Sample Page of Critical Summary Report
NM Configuration Manager 32098-20016 V.uu.ff (C) Hewlett Packard Co. 1990
CRITICAL SUMMARY - NETXPORT CONFIGURATION
TUE, APR 10, 1990, 11:07 AM
CONFIGURATION FILE NAME: NMCONFIG.PUB.SYS
NODE NAME: FLAGSTAFF.ROUTE66.USA
TRANSPORT GLOBAL CONFIGURATION:
name Search Method: 1. Probe
2. Probe Proxy
3. Network Directory
Maximum Directly Connected Nodes: 1024
Maximum Outbound Destinations:
360
Maximum Inbound Destinations:
360
PACKET EXCHANGE PROTOCOL (PXP) CONFIGURATION:
Retransmission Interval (Secs):
10
Maximum Retransmissions Per Request: 4
TRANSMISSION CONTROL PROTOCOL (TCP) CONFIGURATION:
Maximum Numbre of Connections:
Retransmission Interval Upper Bound (Secs):
Retransmission Interval Lower Bound (Secs):
Initial Retransmission Interval:
Maximum Number of Retransmissions:
Connection Assurance Interval:
Maximum Connection Assurance Retransmissions:
.
.
.
Chapter 4
128
180
4
5
4
600
4
61
Using NMMGR Utility Screens
Output Configuration File Screen
Print Subtree
The [Print Subtree] key allows you to print the NMMGR data screens for a
specified subtree. By default, output is sent to the device LP. You can
redirect the output by using a file equation for the formal file designator
FORMLIST.
To define the subset of screens that you want to print, enter the path
name of the topmost screen of the subtree you are selecting in the field
provided under “Print Subtree.” Press the [Print Subtree] key.
62
Chapter 4
Using NMMGR Utility Screens
Compress Screen
Compress Screen
The Compress screen shown in Figure 4-6 allows you to compress or
expand the configuration file. To perform these functions, you must be
the creator of the file. (You can also use the COMPRESSCONF
maintenance mode command to perform these functions. See Chapter 5,
“Using NMMGR in Maintenance Mode,” for more information on
maintenance mode commands.)
You reach this screen by pressing the [Go To Compress] key at the Utility
screen.
Figure 4-6
Compress Screen
Description
As your configuration grows, you may find it necessary to compress or
expand your configuration file.
Configuration files initially contain 2,048 32-byte records. As you
configure items in a file, records are used sequentially from the
beginning of the file. As the file size increases, the number of free
records at the end of the file decreases.
If you delete items from a configuration file, the records are not
immediately recovered, so the middle of your file may contain some
unused records. Unused records in the middle of the file are not
reflected in the number of free records count and are not available for
Chapter 4
63
Using NMMGR Utility Screens
Compress Screen
reuse. By compressing the file, you cause all data to be stored in a
contiguous block of records and all unused records to be located at the
end of the file. Thus, compressing a file enables you to determine the
actual number of free records in a file before adding or deleting records.
To compress a file, enter a 0 in the Number of Additional Records field
and press [Compress File]
You can also use this function to add records to the file or to delete
unused records from the file. To do so, enter a number in the Number of
Additional Records field. A positive number causes records to be added
(up to the file size limit of 65,535 records). A negative number causes
that number of free records to be deleted from the file. After you have
entered the number of records to be added or deleted, press the
[Compress File] key.
When you press [Compress File], NMMGR begins compressing the file
immediately. The terminal is locked to indicate that NMMGR is not
available until finished. When the compression is completed, NMMGR
prints the following message in the message field:
Configuration file compressed.
NOTE
Compress time depends on the number of entries in the file. For a file
that contains a small amount of data, compression usually takes fewer
than 30 seconds. However, compressing a file that contains a lot of data
can take several minutes.
Fields
Current File
Size
(Display only.) Size of the file, in 32-byte records.
Number of
Free Records (Display only.) Number of free records at the end of the
configuration file.
Number of
Additional
Records
64
Enter the number of records that you want to add to the
file (positive integer) or the number of unused records
that you want to delete from the file (negative integer).
To simply compress the file, enter 0 (zero). If you are
adding records, the file cannot end up containing more
than 65,535 records.
Default:
0
Range:
-32768 to 32767
Chapter 4
Using NMMGR Utility Screens
Validate Configuration File Screen
Validate Configuration File Screen
The Validate Configuration File screen shown in Figure 4-7 vallows you
to test the validity of a specified subsystem configuration. (You can also
use the VALIDATECONF maintenance mode command to perform this
function. See Chapter 5, “Using NMMGR in Maintenance Mode,” for
more information on the maintenance mode commands.)
You reach this screen by pressing the [Go To VALIDATE] key at the Utility
screen.
Figure 4-7
Validate Configuration File Screen
The purpose of the validation process is to ensure that your
configuration data is syntactically and logically correct before you
activate the node.
NOTE
The distributed terminal subsystem (DTS) cannot be brought up and
configured unless validation is complete. The link configuration must
be complete before you attempt to validate the network transport
configuration. This is because the network transport validation process
uses link configuration data.
To begin validation for a subsystem, press the function key that
corresponds to the subsystem you wish to validate. For example, to
validate your NS network transport configuration, press the
[Validate NETXPORT] function key. After checking various aspects of your
configuration, the validation process creates a listing of error messages
Chapter 4
65
Using NMMGR Utility Screens
Validate Configuration File Screen
to help you pinpoint invalid items. One possible message, for instance,
states that a phone number has not been configured for a dial-type link
in your NS configuration.
When you press one of the validation function keys, you enter character
mode. Any validation error messages are listed at your terminal. If you
want the error message listing to be sent to a device in addition to your
terminal, enter a Y in the box next to “Output to line printer or
FORMLIST in addition to terminal” on the Validate Configuration File
screen. You can have the listing sent to disk or a printer by setting a file
equation or you can have it routed to the default device, which is
$STDLIST.
After viewing the validation messages, if any, press [RETURN] to return to
the Validate Configuration File screen. The message in the message
line of the screen tells you if the validation process completed and, if so,
whether the configuration is valid. You must see the following message
to be sure that your configuration file is valid:
Validation completed; configuration of the selected subsystem is valid.
When validated, the contents of the configuration are automatically
copied to thge backup file specified on the open screen.
If a message other than the one above appears, refer to the MPE/iX
Error Messages Manual (for DTS errors) or to the manual that contains
error messages for the subsystem you are configuring or the
Configuring Systems for Terminals, Printers and Other Serial Devices
Manual for DTS errors. If you encounter errors that you cannot resolve,
notify your HP representative.
66
Chapter 4
Using NMMGR Utility Screens
Configuration Subtree Copy Screen
Configuration Subtree Copy Screen
The Configuration Subtree Copy screen in Figure 4-8 allows you to copy
specified parts of a configuration subtree into either the same
configuration file or a different configuration file. This feature can save
you a lot of time when you are configuring multiple nodes or
subsystems in the same way. Note that the source or target file can be
on a remote node in the network. (You can also use the COPYCONF
maintenance mode command to perform this function. See Chapter 5,
“Using NMMGR in Maintenance Mode,” for more information on the
maintenance mode commands.)
You reach this screen by pressing the [Go To COPY SUB] key at the Utility
screen.
Figure 4-8
Validate Configuration File Screen
Description
You use the Configuration Subtree Copy screen to copy a contiguous set
of screens called a subtree from one configuration file to another or
within the same configuration file. To copy a subtree, enter the name of
the source file and path and the destination file and path in the fields
provided and press the [Subtree Copy] key.
Chapter 4
67
Using NMMGR Utility Screens
Configuration Subtree Copy Screen
The source file is the name of the file that the data will be copied from.
If you are copying a subtree from the current configuration file to
another location within the same file, you can leave both the Source file
and the Destination file fields blank.
The source path specifies the path name of the topmost screen in the
subtree that you want to copy. All screens below the top screen will be
copied.
The destination file is the name of the file that data will be copied to.
This can be the same file that you are copying from, which provides a
convenient way to configure two links that are very similar. After
configuring the first link, you can simply copy all the screens in the
link’s configuration and modify the new link configuration as needed.
The destination path specifies the point in the destination file below
which the copied screens will be added.
Fields
Source file This field contains the name of the file that
configuration data will be copied from. If left blank, the
current configuration file is assumed.
If the file is on a remote node, you must use a file
equation and prefix the file name with an asterisk (*).
You may use an MPE command from the command
window to set a file equation without having to leave
NMMGR.
Source path (Required field.) The source path contains the path
name associated with the topmost screen in the subtree
being copied. The field is composed of eight NMMGR
path identifier slots. Enter one path identifier in each
slot, leaving blanks at the end of each identifier. Leave
any unused identifier slots empty. For example, the
source path “NETXPORT.NI.LAN1.INTERNET” would
be entered as:
NETXPORT.NI
.LAN1
.INTERNET.
.
.
.
Destination
file
This field contains the name of the file the
configuration data will be copied to. If this field is left
blank, the current configuration file is assumed.
If the file is on a remote node, you must use a file
equation and prefix the file name with an asterisk (*).
Destination
path
Like the source path, the destination path is composed
of eight path identifiers. You need to enter only those
identifiers that are different from the source path. To
copy data from the source file to the identical location
in the destination file, leave this field blank. If, for
68
Chapter 4
Using NMMGR Utility Screens
Configuration Subtree Copy Screen
example, you wish to change the fifth path identifier,
then the fifth slot in the destination path should
contain data. Only those parts of the path name that
were designated by the user can differ among
corresponding identifiers in the source and destination
paths. User-selected types must match. For example, if
the source file includes a direct connect link, the
corresponding identifier in the destination path must
also be a direct connect link.
Overwrite
existing
subtree
(Required field.) This field indicates whether or not
existing data in the destination configuration file is to
be overwritten when the copy is performed. A Y will
purge all the existing data in the destination subtree
and insert the data from the source subtree; an N will
not allow the copy to continue if data exists where the
destination subtree starts. The default is N.
In this example, a subtree copy is being performed from node A to
node B. Since the copy is being made to a remote node, the user must
make a DSLINE connection to node B and set up a file equation to
represent node B’s configuration file. This is done by entering the
commands shown below:
Example
:REMOTE HELLO MGR.PUB.SYS;DSLINE=B
:FILE CONFIG=NMCONFIG.PUB.SYS;B,OLD
The source file and path on node A are entered into the source file and
Source path fields. They appear here:
Source file:
[NMCONFIG.PUB.SYS]
Source path:
NETXPORT.NI
.LAN1
.INTERNET.
.
.
.
The diagram in Figure 4-9 shows the subtree specified by this path.
Chapter 4
69
Using NMMGR Utility Screens
Configuration Subtree Copy Screen
Figure 4-9
Specified Subtree
For this copy, the destination file and path were specified as:
Destination file:
Destination path:
[*CONFIG
.
]
.LAN2
.
<~>
.
.
.
.
The diagram in Figure 4-10 illustrates the results of the copy.
Figure 4-10
Results of Copy
70
Chapter 4
Using NMMGR Utility Screens
Configuration Subtree Copy Screen
NOTE
When subtrees contain several records, copies that occur over DSLINE
connections will take considerably longer than copies between two local
configuration files. It is several times faster to DSCOPY the
configuration file to the destination node, then perform the subtree copy
between two local configuration files.
Chapter 4
71
Using NMMGR Utility Screens
Configuration Subtree Copy Screen
72
Chapter 4
5
Using NMMGR in Maintenance
Mode
This chapter tells you how to use NMMGR’s maintenance mode
interface to manage network directory and configuration files. It allows
you to also generate stream jobs to update remote network directory
and configuration files. It includes descriptions of the following:
• Entering NMMGR maintenance mode from the screen mode
interface or from a batch job.
• Each of the maintenance mode commands, including:
• The purpose and syntax of the command.
• A description of each of the command’s parameters.
• An example of using the command.
73
Using NMMGR in Maintenance Mode
Using Maintenance Mode
Using Maintenance Mode
NMMGR’s maintenance mode is a character mode interface used to
manage both network directory and configuration files. It can be used
interactively, from within the screen mode interface, or as a set of
commands entered via a batch job.
Maintenance mode can generate a job stream to sequentially update
directories on a list of NS nodes. This feature saves you from manually
changing the network directory files of every node on a network when
you make a configuration change. You define the list of nodes to be
updated by this automated process. Additionally, the process provides
logging information and is recoverable.
Maintenance mode commands are read from the formal file designator
NMMGRCMD, which defaults to $STDINX. You can redirect the input to
come from a standard ASCII file by using a file equation for NMMGRCMD.
Entering Maintenance Mode from Screen Mode
You can access maintenance mode from within screen mode, execute
one or more maintenance mode commands, and return to screen mode.
There are two methods you can use to enter the maintenance interface
from screen mode. The two methods are as follows:
• Enter the screen mode command NM[MGRCMD] in the command
window of any screen and press [ENTER].
• Press the [Maint Mode] function key from the Network Directory
Main screen.
When you use either method, a screen appears with the maintenance
mode prompt:
NMMGR>
When you enter maintenance mode from screen mode the interface is
interactive. You can enter any appropriate maintenance mode
commands at the prompt. In some cases, a command will prompt you
for additional input which you can enter by typing a response to the
new command prompt. When each command has completed execution,
you will be returned to the maintenance mode prompt shown above.
When you are finished entering maintenance mode commands, type
EXIT at the prompt to leave the maintenance mode interface and
return to screen mode.
74
Chapter 5
Using NMMGR in Maintenance Mode
Using Maintenance Mode
Running Maintenance Mode from a Batch Job
You can also access maintenance mode directly from a batch job by
running NMMGR from a stream job or by running NMMGR with a file
equation for the formal designator NMMGRCMD set to a command file. An
example of such an equation is:
:FILE NMMGRCMD=CMDFILE
Command input is echoed to $STDLIST if you are running NMMGR
from within a stream job or when the input is read from a command
file.
You can run NMMGR in the maintenance mode interactively. Enter the
file equation NMMGRCMD= $STDINX. You will get the banner for
NMMGR and the prompt: MMGR>
You can create a command file using any editor that is capable of
generating straight ASCII output. Blank command lines may be
entered freely.
Updating Remote Directories
You can use the maintenance mode MAKESTREAM command to generate
a stream job that, when executed, logs on to a list of selected nodes and
executes the set of commands contained in a command file. In this way,
you can update the network directory of every node in a network
without having to manually log on to every node and run NMMGR.
Two files must be generated before using the MAKESTREAM command.
One is a list of node names of the nodes to be updated, the other is a list
of commands to be executed. Both can be generated with any ASCII
text editor.
As NMMGR logs onto each node named in the node list and applies the
commands contained in the command file, the success or failure status
of each nodal update is recorded in the node list file, along with the date
and time of the event. The node list “control” file may be used again to
retry updates of failed nodes, after the source of the failure has been
determined and corrected.
In order for NMMGR maintenance mode to log onto each remote node,
the local node’s network directory must contain an entry for the node
whose directory you wish to update. Without an entry, it is not possible
to log on to the remote node because there is no connection information
for the node. For this reason, the MAKESTREAM process is generally used
for updating directories on existing nodes rather than to create a
directory on a new node. However, it is possible to use these commands
to create a new directory. To accomplish this, the node manager of the
new node would have to verbally notify you of the node’s existence. You
then would have to enter the new node’s connection information into
Chapter 5
75
Using NMMGR in Maintenance Mode
Using Maintenance Mode
your network directory. Once this information is entered into your
directory, you will be able to log on to the new node and merge your
entire directory to create a version of this directory on the new node.
76
Chapter 5
Using NMMGR in Maintenance Mode
Maintenance Mode Commands
Maintenance Mode Commands
Table 5-1 lists the NMMGR maintenance mode commands and the
actions they perform. Each of these commands is described in detail
later in this chapter.
Table 5-1
NMMGR Maintenance Mode Commands
Command
Action
:MPECommand
Executes MPECommand. MPECommand must be a
programmatically executable MPE command.
ADDCONF
Adds subtree of empty records to the configuration
file.
ADDLDEV
Adds LDEVs to a DTC card.
ADDLU
Adds LUs to the SNA node transport screen.
ADDNODE
Adds or updates a node in the current network
directory.
ADDVC
Adds a virtual circuit address key to the network
directory and to the configuration file.
CARDCONF
Sets the current DTC card number for the
READALLCONF, READCONF, UPDATECONF, and
WRITECONF commands.
COMPRESSCONF
Compresses or expands the current configuration
file.
CONTINUE
Prevents NMMGR from terminating in a job
because of a maintenance mode error
COPYCONF
Copies a configuration subtree.
DELETECONF
Deletes a subtree from the current configuration
file.
DELETENODE
Deletes an entry from the network directory.
EXIT
Exits from maintenance mode.
EXITVALIDATE
Validates a subsystem’s configuration, if needed,
when exiting from NMMGR.
EXITWARN
Warns the user that a subsystem needs to be
validated before exiting NMMGR.
EXPANDDIR
Increases the capacity of a network directory file.
HELP
Calls up the help function.
Chapter 5
77
Using NMMGR in Maintenance Mode
Maintenance Mode Commands
Command
Action
LISTDIR
Lists the contents of a network directory.
LISTLDEV
Lists LDEVs for a DTC card in a format compatible
with ADDLDEV.
LISTLU
Lists LUs in a format compatible with ADDLU.
MAKESTREAM
Creates a job stream used to perform network
directory or configuration file updates on remote
nodes.
MERGEDIR
Merges entries from another network directory or
configuration file into the current network directory.
NICONF
Sets up paths to add or update NETXPORT NI
configurations.
OPENCONF
Opens a nodal configuration file and makes it the
current configuration file.
OPENDIR
Opens a network directory file and makes it the
current directory.
PAGECONF
Sets the page number for multipage data screens.
PASSWORD
Sets the password. Validates the NETXPORT
subsystem configuration. Changes the password to
allow write access on the OPEN screen.
PATHCONF
Sets the current path in the current configuration
file.
PURGECONF
Deletes the subtrees of records from the
configuration file.
PURGELDEV
Purges LDEVs from the DTC card.
PURGELU
Purges LUs from the SNA node transport screen
PURGENI
Purges a network interface from the configuration
file and performs cleanup.
PURGEVC
Deletes a virtual circuit address key from the
network directory and the configuration file.
READALLCONF
Reads all data from the current configuration
record.
READCONF
Reads selected data from the current configuration
record.
SUMMARYCONF
Prints a report for one or more communications
subsystems.
78
Chapter 5
Using NMMGR in Maintenance Mode
Maintenance Mode Commands
Command
NOTE
Action
UPDATECONF
Updates the current path in the configuration file.
VALIDATECONF
Validates subsystem configuration.
VERSIONCONF
Checks whether the specified version number
matches NMMGR’s current version number.
WRITECONF
Writes data to individual fields of the current path
in the configuration file.
Subsystem break ([CTRL]Y) may be used to interrupt the operation of
the COPYCONF, DELETENODE, HELP, LISTDIR, MAKESTREAM and
MERGEDIR commands. The EXPANDDIR command cannot be
interrupted.
The VERSIONCONF command must be used before the PATHCONF
command, which must be used before the READCONF, READALLCONF,
WRITECONF, and UPDATECONF commands to define the current path.
Chapter 5
79
Using NMMGR in Maintenance Mode
ADDCONF
ADDCONF
Adds subtree of empty records to the configuration file.
Syntax
ADDCONF pathname [type]
Parameters
pathname
The name of a path in the configuration file that
describes the location of the desired subtree. It is
composed of one to eight path identifiers separated by
periods. The format for the pathname is:
pathid.pathid.pathid...
The last pathid specified must not exist in the
configuration file. The second to last pathid must exist.
type
Description
A one to eight character path type identifier. This
identifier must match one of the selections on the “type
select” screen for the “pathname”. For example, the
type “LAN” is a valid choice for the path
“NETXPORT.NI.MYLAN”.
ADDCONF is used to add a tree of empty records to the configuration file.
It is used in conjunction with PATHCONF, WRITECONF, and UPDATECONF
to create and update configuration records. ADDCONF functions exactly
like the ADD function key on screens (like the NETXPORT.NI screen)
which allow you to select or create a configuration subtree, then take
you to the top screen for that subtree. Note that ADDCONF sets the
current record to the root node (named by the supplied pathname) of
the tree it creates. A PATHCONF command to modify this record
immediately after the ADDCONF is not required.
See also READCONF, READALLCONF, PURGECONF, VERSIONCONF,
WRITECONF, and UPDATECONF.
Example
NMMGR> ADDCONF netxport.ni.newname lan
NMMGR> WRITECONF outbuf,256
NMMGR> UPDATECONF
80
Chapter 5
Using NMMGR in Maintenance Mode
ADDLDEV
ADDLDEV
Adds LDEVs to a DTC card.
Syntax
{dtcname}
ADDLDEV
{dtc-nodename}
[filename]
{station-address}
Parameters
dtcname
The NMMGR nametag for the DTC being accessed. The
nametag is the last name in the pathname of the DTC.
For example, the dtcname is DTC01 in the pathname
DTS.DTC.SELECT.DTC01. The dtcname in a one to
eight character alphanumeric string.
dtc-nodename The nodename of the DTC that has been configured at
the DTC nametag path. The name must conform to the
NODENAME.ORGANIZATION.DOMAIN format. The name
is a five to fifty character alphanumeric string.
station- address
The hexadecimal station of the DTC being accessed.
filename
A text file that contains the LDEVs to be added or
purged. The file name’s format is:
filename[.groupname[.accountname]]
A file lockword may not be specified. The contents of the
file must be formatted as described here.
Description
This command adds LDEVs to the cards in the DTC’s configuration.
The first DTC found that matches the selection criteria will be operated
on. For example, this could occur if more than one DTC is configured
with the same station-address.
LDEVs for one of more cards can be entered on each invocation of this
command. If the filename is not specified you will be prompted with the
ADDLDEV> prompt. The format for each entry depends on the card type.
The formats for these card types are as follows:
• For direct connect or modem cards:
LDEV[,] cardno[,] portno[,] profilename[,]
• For X.25 PAD cards:
LDEV[,] cardno[,] profilename[,] device-name[,]
x25address[,] [CUG] [;]
All text following the number sign “#” will be interpreted as a comment.
Chapter 5
81
Using NMMGR in Maintenance Mode
ADDLDEV
For X.25 cards the LDEV will be added to the first available line on the
first available page of LDEVs shown on the PAD screen mode.
See also LISTLDEV and PURGELDEV.
Example
NMMGR> ADDLDEV dtc01.ind.hp
Enter LDEVs;
For M or D type cards: ldev#, card#, port#, profile#;
For x type cards: ldev#, card#, profile, device, address [, CUG];
ADDLDEV> 100, 1, 1, tr10d96;
#jack’s terminal
ADDLDEV> 101, 1, 2, tr10d96;
#jill’s terminal
ADDLDEV> 102, 1, 3, tr10d96;
#building 43U,R6
ADDLDEV> 201, 2, tr10d96, pad1, 123456789012301
#building 41U,A7
NMMGR>
82
Chapter 5
Using NMMGR in Maintenance Mode
ADDLU
ADDLU
Adds LUs to the SNA node transport screen.
Syntax
ADDLU SNAnodename [filename]
Parameters
SNAnodename A one to eight character alphanumeric name that
identifies the SNA node to be modified.
filename
A text file that contains the LU name and number for
each LU to be added to the configuration file. The file
name’s format is:
filename[.groupname[.accountname]]
A file lockword may not be specified. The contents of the
file must be formatted as described below.
Description
If the filename is not specified you will be prompted with the ADDLU>
prompt. The format for each interactive or filename is:
LUName [,] [[LUNumber]] [;]
The LUName is a one to eight character alphanumeric name that must
be unique for the SNA node.
The LUNumber must be a number from 1–256 as defined on the SNA
node screen. The LUNumber must be left blank if the SNA node is a type
2.1 node. If specified, the LUNumber must be unique.
See also LISTLU and PURGELU.
Example
NMMGR> ADDLU SNAnode1
Enter LU names (luname [, lunumber]:)
ADDLU> lu1,1;
ADDLU> lu2,2;
ADDLU> lu3,3;
ADDLU> lu4,4;
ADDLU>
NMMGR>
Chapter 5
83
Using NMMGR in Maintenance Mode
ADDNODE
ADDNODE
Adds or updates a node in the current network directory.
Syntax
ADDNODE [filename]
Parameters
filename
The name of a text file that contains node name and
address information for each node to be added or
updated in the network directory. The format for the
file name is:
filename[.groupname[.accountname]]
A file lockword may not be specified. The contents of the
file must be formatted as described here.
Description
ADDNODE adds or updates nodes in the network directory. New nodes
are automatically created when they are entered. New path reports (IP
address/additional address pairs) can be added to new or existing
nodes. Path reports on existing nodes can be modified.
The directory file must be opened either via the Open
Configuration/Directory File screen or via the OPENDIR maintenance
mode command before ADDNODE can be used.
This command can be run interactively, by entering maintenance mode
from screen mode and typing the command, or it can be run from a
batch job.
When the command is run interactively and no filename is specified,
you are prompted to enter parameters for each node. When the
command is run interactively and a filename is specified, or when the
command is run from a job, parameters for each node name entry are
formatted as follows:
nodename[,] “IP address”[,] [additional address type[,][additional address]] [;]
The description of each parameter that must be defined when the
command is run from a job or with a filename specified is as follows:
nodename
The name of a node to be added or updated with new
path report data. The format is:
nodename.domain.organization
Each of the three names may be from one to sixteen
characters long, must begin with a letter, and may
contain letters, digits, underscores, or dashes.
If the nodename does not exist, it will be created. If it
does exist, the IP address and additional address (if
any) will be added to its path report list in the directory.
84
Chapter 5
Using NMMGR in Maintenance Mode
ADDNODE
IP address
The IP address of the remote node. A node may have
several IP addresses, one for each path report. The
format of the address is the same as the IP address in
the Network Directory Data screen. It must be enclosed
in quotes (“ ”) if it is not entered interactively.
additional
address type The numerical type associated with each type of
additional address on the Network Directory Data
screen. If there is no additional address associated with
the node you are adding, enter a 1 (the default). If there
is an additional address, enter the number
corresponding to the type of the address. The types are
as follows:
additional
address
Example
1
No additional address (default, IP
address only)
2
LAN/IEEE802.3
3
X.25
4
NS/SNA
5
LAN/ETHERNET
The additional address, if any, to be associated with the
IP address specified for the node name. If the address is
of type LAN/IEEE802.3 or LAN/ETHERNET, then the
additional address is an IEEE802.3 or ETHERNET
address with the format xx-xx-xx-xx-xx-xx, where x is a
hexadecimal digit (0–9, or A–F). If the address type is
X.25, then an X.25 address key name must be specified
here.
To interactively add a path report for the node named
NODE1.XLNET.ACCTG (user input is italicized):
NMMGR> OPENDIR NSDIR.NET.SYS
NMMGR> ADDNODE
Enter node name (or press return to exit):
ADDNODE> NODE1.XLNET.ACCTG
Enter IP address:
ADDNODE> C 192.000.001 002
Enter additional address type,
(1-IP, 2-LAN/IEEE802.3, 3-X.25, 4-NS/SNA,
5-LAN/ETHERNET, (default is 1):
Chapter 5
85
Using NMMGR in Maintenance Mode
ADDNODE
ADDNODE> 2
Enter additional address:
ADDNODE> 11-22-33-44-55-66
NODE1.XLNET.ACCTG saved.
Enter node name (or press return to exit):
ADDNODE> [RETURN]
NMMGR>
86
Chapter 5
Using NMMGR in Maintenance Mode
ADDVC
ADDVC
Adds an X.25 virtual circuit address key to the network directory and to
the configuration file.
Syntax
ADDVC [filename]
Parameters
filename
The name of a text file that contains X.25 address
information for each remote node to be added to the
configuration file and directory. The format for the file
name is:
filename[.groupname[.accountname]]
A file lockword may not be specified. The contents of the
file must be formatted as described below.
Description
ADDVC updates both the local network directory and the configuration
file with X.25 address information. It uses the address key specified for
the network directory to relate the remote node name to an IP address,
local NI name, and an X.25 address.
The directory and configuration files must be opened either via the
Open Configuration/Directory File screen or via the OPENDIR and
OPENCONF maintenance mode command before ADDVC is invoked.
This command can be run interactively, by entering maintenance mode
from screen mode and typing the command, or it can be run from a
batch job.
When ADDVC is used interactively and no filename is specified, the user
is prompted to enter address parameters for each remote node. When
ADDVC is run interactively and a filename is specified, or when the
command is run from a job, each entry is defined as a set of positional
parameters delimited by spaces or a comma. An unspecified parameter
must be delimited by a comma, or by a semicolon if it occurs at the end
of the entry.
For switched virtual circuits, the format is:
nodename[,] “IP address”[,] address key[,] NI name[,] Y[,] svc address[,]
[facility set][,] [security class][;]
For permanent virtual circuits, the format is:
nodename[,] “IP address”[,] address key[,] NI name[,] N[,] circuit number[;]
The description of each parameter that must be defined when the
command is run from a job or with a filename specified is as follows:
nodename
Chapter 5
The name of a node to which the address key is to be
added. The format is:
87
Using NMMGR in Maintenance Mode
ADDVC
nodename.domain.organization
Each of the three names may be from one to sixteen
characters long, must begin with a letter, and may
contain letters, digits, underscores, or dashes.
If the nodename does not exist, it will be created. If it
does exist, the IP address and additional address (if
any) will be added to its path report list in the directory.
IP address
The IP address of the remote node whose X.25 address
is to be added to the configuration. The format of the
address is the same as the IP address in the Network
Directory Data screen. It must be enclosed in quotes
(“ ”) if it is not entered interactively.
address key The name tag used to relate a node name and IP
address from the network directory, with a switched or
permanent virtual circuit address, configured under an
X.25 NI in the local configuration file. The name may
contain a maximum of eight alphanumeric characters.
NI name
The name of the local X.25 NI. The name may contain a
maximum of eight alphanumeric characters.
Y or N
A Y or an N must be entered after the NI name
parameter to indicated whether the virtual circuit
being added is a switched virtual circuit (Y) or a
permanent virtual circuit (N).
svc address The address associated with an X.25 node. The address
can be a maximum of 15 digits and is supplied with the
network subscription or assigned by the network
administrator.
facility set The name of the facility set to be used when the
switched virtual circuit connection is created with the
remote node. The name may contain a maximum of
eight alphanumeric characters. The default is
STDSFSET, which is supplied when the NI is created
using NS guided configuration.
security
class
88
The security class to be associated with switched
virtual circuit connections established with the remote
node. The choices are:
IO
Initiate outbound and accept inbound
connections.
IN
Accept inbound connections only.
OU
Initiate outbound connections only.
Chapter 5
Using NMMGR in Maintenance Mode
ADDVC
LK
circuit
number
Example
Do not permit inbound or outbound
connections (placeholder entry).
The permanent virtual circuit number supplied with
your network subscription or assigned by your network
administrator.
To interactively add a switched virtual circuit for the node named
NODE1.XLNET.ACCTG to the NI named X25 (user input is italicized):
NMMGR> OPENCONF NMCONFIG
NMMGR> OPENDIR NSDIR.NET.SYS
NMMGR> ADDVC
Enter node name (or press return to exit):
ADDVC> NODE1.XLNET.ACCTG
Enter IP address:
ADDVC> C 192.000.001 001
Enter address key:
ADDVC> NODE1
Enter NI name:
ADDVC> X25
Is the X.25 address a switch VC (Y/N)?
ADDVC> Y
Enter X.25 address:
ADDVC> 123456789O12345
Enter facility set name (press return for STDSFSET):
ADDVC> [RETURN]
Enter security class (IO,IN,OU,LK):
ADDVC> IO
Address key NODE1 added.
Enter node name (or press return to exit):
ADDVC> [RETURN]
NMMGR>
Chapter 5
89
Using NMMGR in Maintenance Mode
CARDCONF
CARDCONF
Sets the current DTC card number so that the correct card is displayed
or updated by the READALLCONF, READCONF, UPDATECONF, and
WRITECONF commands.
Syntax
CARDCONF cardno
Parameters
cardno
Description
CARDCONF sets the current card number for a path referencing a DTC
card screen. If the current path identifies a DTC configuration, the
commands READALLCONF, READCONF, UPDATECONF, and WRITECONF
operate on data associated with a specific card in the DTC, as identified
by the CARDCONF command.
A number corresponding to the slot number of the DTC
that contains the DTC card to be acted on. The number
must be between 0 and 5.
The CARDCONF command must be specified before a PATHCONF
command for a DTC card screen.
Example
NMMGR> CARDCONF 1
(Sets the current DTC card number to 1.)
NMMGR> PATHCONF DTS.DTCPC.SELECT.DTC01.CARD012
(Sets the current path to the data screen that contains data for cards 0,
1, and 2 of DTC01.)
90
Chapter 5
Using NMMGR in Maintenance Mode
COMPRESSCONF
COMPRESSCONF
Compresses or expands the current configuration file.
Syntax
COMPRESSCONF numrecs
Parameters
numrecs
Description
COMPRESSCONF increases or decreases the capacity of the currently
opened configuration file and regains unused but not “free” records.
(You can also compress a configuration file and alter the file’s capacity
using the NMMGR Compress screen in screen mode.)
Example
NMMGR> COMPRESSCONF 500
The number of additional records to be added to or
subtracted from the configuration file. A positive value
causes records to be added and a negative value causes
records to be subtracted. The value must be from
-32768 to 32767. A zero will remove unused records
(compress them down to 0 bytes).
(Increases the current configuration file by 500 records.)
NMMGR> COMPRESSCONF -500
(Decreases the current configuration file by 500 records.)
NMMGR> COMPRESSCONF 0
(Compresses the current configuration without affecting its size.)
Chapter 5
91
Using NMMGR in Maintenance Mode
CONTINUE
CONTINUE
Prevents NMMGR from terminating in a job because of a maintenance
mode error.
Syntax
CONTINUE [ON or OFF]
Parameters
ON
Turn on continue so the NMMGR will not terminate for
the rest of this job if a maintenance mode command
returns a bad status.
OFF
Turn off continue mode.
Description
Stops NMMGR from terminating abnormally in a job because a single
maintenance mode command terminated with an error. If no
parameters are provided, the CONTINUE will be in effect for the next
command only.
Example
NMMGR> ADDCONFnetxport.ni.newname lan
NMMGR> WRITECONF outbuf,256
NMMGR> UPDATECONF
NMMGR> CONTINUE
NMMGR> PURGECONF netxport.ni.oldname
92
Chapter 5
Using NMMGR in Maintenance Mode
COPYCONF
COPYCONF
Copies a configuration subtree.
Syntax
COPYCONF srcpath[:srcfile][,[destpath][:destfile]] [;KEEP][;NOVERS]
Parameters
srcpath
The name of a configuration path in the source file that
describes the location of the subtree to copy (source
path). It is composed of one to eight path identifiers
separated by periods:
pathid.pathid.pathid...
srcfile
The name of an NMMGR configuration file (NCONF
file) that contains the subtree to be copied (source file).
The format is:
filename[.groupname[.accountname]]
A file lockword may not be specified. A file equation
may be employed through explicit use of the
back-reference:
*DESIGNATOR
destpath
The name of the path that describes where the subtree
is to be placed in the destination file (destination path),
in the same format as srcpath. Select and type-select
path identifiers may be changed from the
corresponding identifier in srcpath as long as the new
identifier is type-compatible. If this parameter is not
specified, the destination path is assumed to be the
same as the path specified in srcpath.
destfile
The name of an NMMGR configuration file that is to
receive the copied data (destination file). The format is
the same as srcfile. This file name may be the same
as that specified in srcfile, which allows you to copy
data from one location within a file to another location
in the same file. If this parameter is not specified, the
destination file is assumed to be the same as the source
file.
KEEP
Designates that if the destpath already exists in
destfile, the operation will not be performed. The
default (when KEEP is not specified) is to replace the
destination subtree with the source path.
NOVERS
Designates that no version check will be performed on
the source or destination paths. The default is to
perform version checks.
Chapter 5
93
Using NMMGR in Maintenance Mode
COPYCONF
Description
COPYCONF allows data to be copied from one configuration file into
another file, or into the same file in a different location. Source and
destination paths are used to direct where a subtree is to come from
and where it is to be copied to. (You can also copy a configuration
subtree using the NMMGR Configuration Subtree Copy screen in
screen mode.)
Example
To copy data from one file into another file using the same path (the
command must be entered in one line):
NMMGR> COPYCONF
NETXPORT.NI.LAN1.INTERNET:FILEA,NETXPORT.NI.LAN1.INTERNET;FILEB
To copy data to a different path in the same file:
NMMGR> COPYCONF LINKCONF.LINK1:FILEA, LINKCONF.LINK2:FILEA
94
Chapter 5
Using NMMGR in Maintenance Mode
DELETECONF
DELETECONF
Deletes a subtree from the current configuration file.
Syntax
DELETECONF path
Parameters
path
The name of a configuration path in the configuration
file that describes the location of the subtree to delete.
It is composed of one to eight path identifiers separated
by periods, as follows:
pathid.pathid.pathid...
The last identifier in the path must be a select or type
select identifier.
Description
DELETECONF deletes the subtree of the specified path. All
configuration records in the subtrees below the specified path are
deleted. The configuration record identified by the specified path is also
deleted.
Example
To delete all configuration records in the NETXPORT.NI.LAN subtree:
NMMGR> DELETECONF NETXPORT.NI.LAN
Chapter 5
95
Using NMMGR in Maintenance Mode
DELETENODE
DELETENODE
Deletes an entry from the network directory.
Syntax
DELETENODE [nodename] [;LOCAL]
[;GLOBAL]
Parameters
nodename
The name of a node to delete from the directory in the
format:
nodename.domain.organization
Each of the three names may be from one to sixteen
characters long, must begin with a letter, and may
contain letters, digits, underscores, or dashes.
If omitted, then all entries of the selected class in the
directory will be deleted.
LOCAL
Designates that only local entries in the directory are to
be deleted.
GLOBAL
Designates that only global entries in the directory are
to be deleted. This is the default class if neither
keyword is specified.
Description
DELETENODE deletes a single entry or all entries from the currently
opened network directory. If you issue this command from a session,
and do not specify nodename, then you are prompted with a delete
confirmation message and a yes/no response is solicited to verify that
you really want to delete all entries from the directory.
Example
To delete a single node entry:
NMMGR> DELETENODE NODE2.XLNET.ACCTG ;LOCAL
To delete all global entries from a directory:
NMMGR> [RETURN]
Are you sure (Y/N)? Y
96
Chapter 5
Using NMMGR in Maintenance Mode
EXIT
EXIT
Exits from maintenance mode.
Syntax
EXIT
Parameters
None.
Description
If you are running maintenance mode interactively, type EXIT at the
NMMGR> prompt to return to screen mode. If you are running
maintenance mode from a job, EXIT terminates the job.
Example
NMMGR> EXIT
Chapter 5
97
Using NMMGR in Maintenance Mode
EXITVALIDATE
EXITVALIDATE
Validates a subsystem’s configuration, if needed, upon exit from
NMMGR.
Syntax
EXITVALIDATE subsystem
Parameters
subsystem
Description
[ON or OFF]
The name of a configuration subsystem that is to be
validated. Currently NETXPORT, DTS, or IBM is
allowed.
ON
This is the default and need not be
specified. It indicates that exit
validation is to be enabled for the
specified subsystem.
OFF
Indicates that exit validation is to be
disabled for the specified subsystem.
Automatically validates the selected configuration (if needed) when you
attempt to exit NMMGR. NMMGR will note that validation is needed
whenever a configuration is changed without being validated. Output is
directed to the formal designator FORMLIST, which defaults to
$STDLIST.
If the configuration is not valid NMMGR will return you back to screen
mode instead of exiting. If you want to exit, use the EXIT command or
press the [EXIT] function key (on the OPEN screen) again.
By default, exit validation is enabled for the DTS subsystem.
Example
NMMGR> EXITVALIDATE DTS
98
Chapter 5
Using NMMGR in Maintenance Mode
EXITWARN
EXITWARN
Warns that a subsystem needs to be validated before exiting NMMGR.
Syntax
EXITWARN subsystem
Parameters
subsystem
Description
[ON or OFF]
The name of a configuration subsystem to which
messages will be issued. Currently NETXPORT, DTS,
or IBM is allowed.
ON
This is the default and need not be
specified. It indicates that an exit
message is to be enabled for the
specified subsystem.
OFF
Indicates that an exit message is to be
disabled for the specified subsystem.
Automatically warns you that validation needs to be performed for the
selected subsystem(s) when you attempt to exit NMMGR. NMMGR will
note that validation is needed whenever a configuration is changed
without being validated. Output is directed to the formal designator
FORMLIST, which defaults to $STDLIST.
If the configuration is not validated, NMMGR will return you back to
screen mode instead of exiting. If you want to exit, use the EXIT
command or press the [EXIT] function key (on the OPEN screen) again.
By default, exit warning is enabled for the all subsystems.
Example
NMMGR> EXITWARN DTS
Chapter 5
99
Using NMMGR in Maintenance Mode
EXPANDDIR
EXPANDDIR
Increases the capacity of a network directory file.
Syntax
EXPANDDIR numrecs
Parameters
numrecs
Description
EXPANDDIR increases the capacity of the currently opened directory
file to allow additional entries to be added. Each entry in the directory
requires one record, plus one for each network address referenced in
the entry.
NOTE
You can use the EXPANDDIR command only if you have exclusive access
to the network directory. Therefore, the network transport must be shut
down. In addition, to enter this command you must be logged onto the
same account where the directory file resides.
Example
To increase the current directory file by 500 records:
The number of additional records to be added to the
directory. The value must be from 0 through 32767.
NMMGR> EXPANDDIR 500
100
Chapter 5
Using NMMGR in Maintenance Mode
HELP
HELP
Calls up the help function.
Syntax
HELP [keyword]
Parameters
keyword
The NMMGR topic about which you are seeking help
information. Help is available on the following topics:
COMMANDS
A list of the commands available.
MAINT
General help on the maintenance mode
interface.
OVERVIEW
Overview of NMMGR operation.
ROADMAP
A map of NMMGR screens.
INDEX
An index of configuration parameters
ALL
All NMMGR help topics.
Description
If you are running maintenance mode interactively, type HELP to enter
the NMMGR help mode. If you entered a keyword, you will be
presented with the help information for that keyword. If you did not
enter a keyword, you will be presented with the list of available help
topics and allowed to select a topic. You can browse through the topics
until you terminate help mode by typing end, exit, or :.
Example
To get an overview of NMMGR operation:
NMMGR> HELP OVERVIEW
Chapter 5
101
Using NMMGR in Maintenance Mode
LISTLDEV
LISTLDEV
Lists LDEVs for a DTC card in a format compatible with ADDLDEV.
Syntax
(dtcname)
LISTLDEV
(dtc-nodename)
[filename]
(station-address)
Parameters
dtcname
The NMMGR nametag for the DTC being accessed. The
nametag is the last name in the pathname of the DTC.
For example, the dtcname is DTC01 in the pathname
DTS.DTC.SELECT.DTC01. The dtcname in a one to
eight character alphanumeric string.
dtc-nodename The nodename of the DTC that has been configured at
the DTC nametag path. The name must conform to the
NODENAME.ORGANIZATION.DOMAIN format. The name
is a five to fifty character alphanumeric string.
stationaddress
filename
The hexadecimal station of the DTC being accessed.
A text file that contains the LDEVs to be listed. The file
name’s format is:
filename[.groupname[.accountname]]
A file lockword may not be specified. The contents of the
file must be formatted as described below.
Description
If the filename parameter is specified, the file is created and opened. If
the file exists, its contents are purged before it is opened. When the
filename is supplied, the file is updated with a list of all the LDEVs
configured for the selected DTC in a format compatible with ADDLDEV.
If the filename parameter is not supplied, the LDEVs are printed on the
$STDLIST.
See also ADDLDEV and PURGELDEV.
Example
NMMGR> LISTLDEV dtc01.ind.hp
LISTLDEV> 100, 1, 1, tr10d96;
LISTLDEV> 101, 1, 2, tr10d96;
LISTLDEV> 102, 1, 3, tr10d96;
LISTLDEV> 201, 2, tr10d96, pad1, 123456789012301
NMMGR>
102
Chapter 5
Using NMMGR in Maintenance Mode
LISTDIR
LISTDIR
Lists the contents of a network directory.
Syntax
LISTDIR [nodename]
Parameters
nodename
The name of a node to display from the directory in the
format:
nodename.domain.organization
Each of the three names may be from one to sixteen
characters long, must begin with a letter, and may
contain letters, digits, underscores, or dashes.
If omitted, then all entries in the directory will be
listed.
When both global and local entries exist with the same
name, both will be listed.
Description
LISTDIR displays zero or more entries in the current network directory.
A summary of information about the directory file itself is listed first,
followed by individual entry listings sorted alphabetically by node
name within entry class. Local entries precede global entries.
The summary includes the name of the network directory file, the date
and time of last modification, the number of records available and used,
and the directory’s capacity shown as a percentage.
For each entry listed, the node name and classification is shown
(LOCAL entries are followed by “(L)”). Next is a list of one to eight
network addresses associated with the entry. For each network address,
the type, additional address, and transport services (TCP, TCP
Checksum setting, PXP) are shown where applicable.
The list file is directed to the formal designator FORMLIST, which
defaults to $STDLIST.
Example
NMMGR> LISTDIR
GLOBAL NETWORK DIRECTORY INFORMATION
Directory File:
Modification Date:
Modification Node:
Records Used:
Records Available:
Capacity:
Chapter 5
NSDIR.PUB.SYS
FRI, APR 20, 1990, 10:04 AM
CECIL.DCL.IND
9
991
1% full
103
Using NMMGR in Maintenance Mode
LISTDIR
Node Name
IP Address
POGO.DCL.IND (L)
C 194.107.213 017 IP X
NONE
ASTRO.MKTG.IND
C 194.107.213 009 IP
NONE
X
X
VENUS.FIN.IND
C 194.107.213 017 IP
NONE
X
X X
B 145.140 062.193 IP/IEEE802.3 F1-B3-58-73-A3-09
X
X X
C 194.107.213 086 IP
X
X
ZIGGY.LAB.IND
104
Net Type
Additional Addr
NONE
T
C
P
C P
H X
X P
X
Chapter 5
Using NMMGR in Maintenance Mode
LISTLU
LISTLU
Lists LUs in a format compatible with ADDLU.
Syntax
LISTLU SNAnodename [filename]
Parameters
SNAnodename A one to eight character alphanumeric name that
identifies the SNA node to be listed.
filename
A text file that contains the LU name and number for
each LU to be read from the configuration file. The file
name’s format is:
filename[.groupname[accountname]]
A file lockword may not be specified. The contents of the
file must be formatted as described below.
Description
If the filename parameter is specified, the file is created and opened. If
the file exists, its contents are purged before it is opened. If the filename
is not specified the data will be printed to the $STDLIST.
See also ADDLU and PURGELU.
Example
NMMGR> LISTLU SNAnode1
LISTLU> lu1,1;
LISTLU> lu2,2;
LISTLU> lu3,3;
LISTLU> lu4,4;
LISTLU>
NMMGR>
Chapter 5
105
Using NMMGR in Maintenance Mode
MAKESTREAM
MAKESTREAM
Creates a job stream that can then be used to perform network
directory or configuration file updates on remote nodes.
Syntax
MAKESTREAM streamfile, nodefile, commandfile
Parameters
streamfile
The name of a file to be created that will contain the job
stream commands. The format is:
filename[.groupname[.accountname]]
The file must not already exist. The default allocation
of 5000 variable length records may be overridden
through a file equation.
nodefile
The name of the file that contains a list of nodes to be
updated. The format is the same as that for
streamfile. This file may be generated by redirecting
the output of the LISTDIR command into a file, which
may then be submitted directly to MAKESTREAM or
edited with a text editor such as TDP/3000. All node
name entries must begin with an alphabetic character.
commandfile The name of a file that contains NMMGR maintenance
mode commands. The format is the same as that for
streamfile. The commands in this file are applied to
each node listed in nodefile.
Description
MAKESTREAM generates a text file of job stream commands suitable
for updating a group of nodes. The job stream is created based on a list
of nodenames contained in the nodefile supplied. The nodefile acts
as a control file. The update status of each node is recorded for review in
the event of update failures such as transport problems or a network
being inaccessible.
The standard logon is NETADMIN.SYS,PUB. Progress messages are sent
to OPERATOR.SYS. These and other parts of the job stream may be
customized using a text editor once the stream file is created. The
commands executed on each node in the nodefile are taken from
commandfile. Commands may be any NMMGR maintenance mode
commands and are executed on the remote side of the connection
established for each node being updated.
Only lines that begin with an alphabetic character in column one of the
nodefile are considered node name entries.
Example
nodefile NLIST contains the following:
ASTRO.MKT.IND
POGO.DCL.IND
106
Chapter 5
Using NMMGR in Maintenance Mode
MAKESTREAM
commandfile CMDS contains the following:
OPENDIR NSDIR.PUB.SYS
:FILE SRCDIR=NSDIR.PUB.SYS:$BACK
MERGEDIR *SRCDIR;NOKEEP
LISTDIR
EXIT
To generate and run a job stream, use the following commands:
NMMGR> MAKESTREAM SFILE, NLIST, CMDS
Generating job statements for node ASTRO.MKT.IND
Generating job statements for node POGO.DCL.IND
NMMGR> :STREAM SFILE
#J1072
After job completion, file NLIST contains the
following:
ASTRO.MKT.IND
UPDATED
04/20/90 11:09 AM
POGO.DCL.IND
UPDATED
04/20/90 11:14 AM
Chapter 5
107
Using NMMGR in Maintenance Mode
MERGEDIR
MERGEDIR
Merges entries from another network directory or configuration file into
the current network directory.
Syntax
{otherdir
MERGEDIR {configfile
[,nodename]} [;LOCAL] [;KEEP
}
[;NOKEEP
]
]
[;GLOBAL][;TIMESTAMP ]
Parameters
otherdir
The name of another network directory file to merge
one or more entries from. The format is:
filename[.groupname[.accountname]]
A file lockword may not be specified.
nodename
The name of a single node entry to merge when the
source file is a network directory. This parameter may
not be specified if the source is a configuration file. The
format is:
nodename.domain.organization
Each of the three names may be from one to sixteen
characters long, must begin with a letter, and may
contain letters, digits, underscores, or dashes.
configfile
The name of an NMMGR configuration file (NCONF file)
from which a single entry is to be extracted. The format
of this filename is the same as that for otherdir.
LOCAL
When the source file is a network directory, LOCAL
indicates that only those entries classified as “local”
will be merged into the current directory.
When the source is a configuration file, LOCAL specifies
that the extracted entry will be classified as “local” in
the current directory.
GLOBAL
When the source file is a network directory, GLOBAL
indicates that only those entries classified as “global”
will be merged into the current directory.
When the source is a configuration file, GLOBAL
specifies that the extracted entry will be classified as
“global” in the current directory.
GLOBAL is the default classification when neither
LOCAL nor GLOBAL is specified.
108
Chapter 5
Using NMMGR in Maintenance Mode
MERGEDIR
KEEP
Indicates that entries in the current directory are to be
retained when duplicate entries exist in the source
directory.
This keyword is not applicable when the source is a
configuration file.
NOKEEP
Indicates that entries in the current directory are to be
overwritten with duplicate entries found in the source
directory.
This keyword is not applicable when the source is a
configuration file.
TIMESTAMP
Indicates that duplicate entries found in both
directories are to be compared, and the one that was
created most recently will be stored in the current
directory.
This is the default action taken when neither KEEP,
NOKEEP, nor TIMESTAMP is specified.
This keyword is not applicable when the source is a
configuration file.
Description
MERGEDIR takes entries from either another network directory or an
NMMGR configuration file and merges them into the current directory.
Entries that do not exist in the current directory are unconditionally
added to the current directory. Duplicate entries are handled differently
depending upon the source file type. If the source file is a network
directory, then duplicate entries are either ignored or replaced in the
current directory depending on the KEEP, NOKEEP, or TIMESTAMP
keyword used. If the source file is an NMMGR configuration file, then
the duplicate entry is replaced in the current directory.
Example
To merge an entry from the system configuration file and store it as a
local entry, enter the following command:
NMMGR> MERGEDIR NMCONFIG.PUB.SYS ;LOCAL
To merge all global entries from another network directory, overwriting
any duplicates in the current directory, enter the following command:
NMMGR> MERGEDIR RMOTEDIR ;NOKEEP
Chapter 5
109
Using NMMGR in Maintenance Mode
NICONF
NICONF
Sets up paths to add or update NETXPORT NI configurations.
Syntax
NICONF niname [nitype]
Parameters
niname
A one to eight alphanumeric character name that
identifies the network interface to be added or modified.
nitype
The type of the network interface to be added. Valid
types are: LAN, TOKEN, X25, SNA, GATEHALF, or
ROUTER.
Description
NICONF is used in place of the PATHCONF command to set up internal
data structures in NMMGR. Subsequent WRITECONF, READCONF,
READALLCONF, and UPDATECONF commands will access the
configuration file in a similar way to the guided configuration screen
corresponding to the NI type for the NI name.
Example
NMMGR> NICONF lanni
NMMGR> WRITECONF ipaddress, “C 192.001.001.001”
NMMGR> UPDATECONF
110
Chapter 5
Using NMMGR in Maintenance Mode
OPENCONF
OPENCONF
Opens a nodal configuration file and makes it the current configuration
file.
Syntax
OPENCONF fileref
Parameters
fileref
The name of a configuration file to access in the format:
filename[.groupname[.accountname]]
A file lockword may not be specified.
Description
OPENCONF closes any previously opened configuration file and opens
the file named in fileref for shared, read/write access. If the
configuration file does not exist, then a new file is created and opened.
Example
NMMGR> OPENCONF NMCONFIG.PUB.SYS
Chapter 5
111
Using NMMGR in Maintenance Mode
OPENDIR
OPENDIR
Opens a network directory file and makes it the current directory.
Syntax
OPENDIR fileref
Parameters
fileref
The name of a network directory file to access in the
format:
filename[.groupname[.accountname]]
A file lockword may not be specified.
Description
OPENDIR closes any previously opened directory and opens the
directory file named in fileref for shared, read/write access. If the
directory file does not exist, than a new directory is created and opened.
Example
NMMGR> OPENDIR NSDIR.PUB.SYS
112
Chapter 5
Using NMMGR in Maintenance Mode
PAGECONF
PAGECONF
Sets the page number for multipage data screens.
Syntax
PAGECONF pageno
Parameters
pageno
Description
PAGECONF sets the current page number for a path referencing a
multipaged data screen. A multipaged data screen is used to store lists
of data that cannot be entered on a single screen. If the current path
identifies a multipaged data screen, the commands READCONF,
READALLCONF, WRITECONF, and UPDATECONF operate on data in the
current page, as set by the PAGECONF command. Otherwise, the page
number is ignored.
A positive integer identifying the page number to be
accessed when the screen being accessed is a multipage
data screen.
The current page number is set to 1 when maintenance mode is
entered.
The PAGECONF command may be specified before or after a PATHCONF
command for a multipaged data screen.
Example
NMMGR> PAGECONF 9
Chapter 5
113
Using NMMGR in Maintenance Mode
PASSWORD
PASSWORD
Changes the password to allow write access on the OPEN screen.
Validates the NETXPORT subsystem configuration.
Syntax
PASSWORD [password]
Parameters
password
Description
The password you supply on the OPEN screen is compared with the
password string supplied here (or the default if no password command
has been issued). If the user password does not match, you are only
permitted to access the network directory or configuration file in
BROWSE MODE.
Example
NMMGR> PASSWORD guess
114
This sets a password. You must supply a maximum 16
alphanumeric character string on the OPEN screen to
gain write access. When no password is supplied, the
default is the null string. If a password is set up before
the configuration file, you will need to enter the
password at the open screen or you won’t be able to
create (write to) the configuration file.
Chapter 5
Using NMMGR in Maintenance Mode
PATHCONF
PATHCONF
Sets the current path in the current configuration file.
Syntax
PATHCONF[=]path
Parameters
path
The name of a path in the configuration file that
describes the location of the desired record. It is
composed of one to eight path identifiers separated by
periods:
pathid.pathid.pathid...
The last identifier in the path must be a data identifier
(must refer to a data screen).
Description
PATHCONF sets the current path in the configuration file; that is, it
points to the specified configuration record. The current data in the
current path is operated on by the READCONF, READALLCONF,
WRITECONF, and UPDATECONF commands. You must call the
VERSIONCONF command before using this command. The
VERSIONCONF command needs to be called only once in a session.
Example
To set the current path in the configuration file to
NETXPORT.NI.niname where niname=LANNI:
NMMGR> PATHCONF NETXPORT.NI.LANNI
Chapter 5
115
Using NMMGR in Maintenance Mode
PURGECONF
PURGECONF
Deletes subtrees of records from the configuration file.
Syntax
PURGECONF [pathname]
Parameters
pathname
The name of a path in the configuration file that
describes the location of the desired subtree. It is
composed of one to eight path identifiers separated by
periods. The format for the pathname is:
pathid.pathid.pathid...
The last pathid specified must not exist in the
configuration file. The second to last pathid must exist.
Description
PURGECONF purges records from the configuration file. It functions in
the same way as the DELETE function key on screens (like the
NETXPORT.NI screen) that require you to delete, rename, add, or
modify a configuration subtree. Note that the subtree will be purged
whether or not it contains data.
See also ADDCONF, READCONF, READALLCONF, VERSIONCONF,
WRITECONF, and UPDATECONF.
Example
NMMGR> ADDCONF netxport.ni.newname lan
NMMGR> WRITECONF outbuf,256
NMMGR> UPDATECONF
NMMGR> PURGECONF netxport.ni.oldname
116
Chapter 5
Using NMMGR in Maintenance Mode
PURGELDEV
PURGELDEV
Purges LDEVs from a DTC card.
Syntax
{dtcname}
PURGELDEV
{dtc-nodename}
[filename]
{station-address}
Parameters
dtcname
The NMMGR nametag for the DTC being accessed. The
nametag is the last name in the pathname of the DTC.
For example, the dtcname is DTC01 in the pathname
DTS.DTC.SELECT.DTC01. The dtcname in a one to
eight character alphanumeric string.
dtc-nodename The nodename of the DTC that has been configured at
the DTC nametag path. The name must conform to the
NODENAME.ORGANIZATION.DOMAIN format. The name
is a five to fifty character alphanumeric string.
station- address
The hexadecimal station of the DTC being accessed.
filename
A text file that contains the LDEVs to be added or
purged. The file name’s format is:
filename[.groupname[.accountname]]
A file lockword may not be specified. The contents of the
file must be formatted as described below.
Description
This command purges the selected LDEVs from the cards in the DTC’s
configuration. The first DTC found that matches the selection criteria
will be operated on. For example, this could occur if more that one DTC
is configured with the same station-address.
LDEVs for one of more cards can be entered on each invocation of this
command. If you don’t specify a filename you will be prompted with the
ADDLDEV> prompt. The format or each entry depends on the card type.
The format for each entry is:
LDEV[,] cardno[,] [# my comment ]
All text following the options number sign “#” will be interpreted as a
comment.
See also ADDLDEV and LISTLDEV.
Example
NMMGR> PURGELDEV dtc01.ind.hp
Enter LDEVs; (ldev, cardno)
Chapter 5
117
Using NMMGR in Maintenance Mode
PURGELDEV
PURGELDEV> 100, 1,;
PURGELDEV> 101, 1;
PURGELDEV> 102, 1;
PURGELDEV> 201, 2,
NMMGR>
118
Chapter 5
Using NMMGR in Maintenance Mode
PURGELU
PURGELU
Purges LUs from the SNA node transport screen.
Syntax
PURGELU SNAnodename [filename]
Parameters
SNAnodename A one to eight character alphanumeric name that
identifies the SNA node to be purged.
filename
A text file that contains the LU names to be purged
from the configuration file. The file name’s format is:
filename[.groupname[accountname]]
A file lockword may not be specified. The contents of the
file must be formatted as described here.
Description
If the filename is not specified you will be prompted with the PURGELU>
prompt. The format for each interactive or filename is:
LUName [;]
The SNA node name must be a one to eight character alphanumeric
name. It identifies the SNA node to be purged. If SNA node name is not
specified the current (last used) name will be used. If no current name
exists then the first name configured will be selected.
The LUName is a one to eight character alphanumeric name that must
be unique for the SNA node.
See also ADDLU and LISTLU.
Example
NMMGR> PURGELU SNAnode1
Enter LU names (luname [;]):
PURGELU> lu1;
PURGELU> lu2;
PURGELU> lu3;
PURGELU>
NMMGR>
Chapter 5
119
Using NMMGR in Maintenance Mode
PURGENI
PURGENI
Purges a network interface from the configuration file and performs
cleanup.
Syntax
PURGENI [niname]
Parameters
niname
Description
Purges a network interface from the configuration file and purges all
the links it refers to from under the LINK path.
Example
NMMGR> PURGENI lanni
120
A one to eight character alphanumeric name that
identifies the network interface to be purged.
Chapter 5
Using NMMGR in Maintenance Mode
PURGEVC
PURGEVC
Purges an X.25 virtual circuit address key from the network directory
and the configuration file.
Syntax
PURGEVC [filename]
Parameters
filename
The name of a text file that contains X.25 address
information for each remote node to be deleted from the
configuration file and directory. The format for the file
name is:
filename[.groupname[.accountname]]
A file lockword may not be specified. The contents of the
file must be formatted as described below.
Description
PURGEVC removes an address key from both the local network directory
and the configuration file. If there are multiple occurrences of the same
address key under a single NI, all occurrences are purged. The
directory node associated with the address key to be purged will be
purged itself if it contains no other addresses.
The directory and configuration files must be opened either via the
Open Configuration/Directory File screen or via the OPENDIR and
OPENCONF maintenance mode command before ADDVC is invoked.
PURGEVC can be run interactively, by entering maintenance mode from
screen mode and typing the command, or it can be run from a batch job.
When PURGEVC is used interactively and no filename is specified, the
user is prompted to enter address parameters for each remote node.
When PURGEVC is run interactively and a filename is specified, or when
the command is run from a job, entries must be made in the following
format:
nodename[,] address key[,] NI name [;]
The description of each address key parameter is as follows:
nodename
The name of a node for which the address key is to be
purged. The format is:
nodename.domain.organization
Each of the three names may be from one to sixteen
characters long, must begin with a letter, and may
contain letters, digits, underscores, or dashes.
Chapter 5
121
Using NMMGR in Maintenance Mode
PURGEVC
address key The name tag used to relate a node name and IP
address from the network directory with a switched or
permanent virtual circuit address configured under an
X.25 NI in the local configuration file. The name may
contain a maximum of eight alphanumeric characters.
NI name
Example
The network interface name. The name of the local
X.25 NI, (configured under the path NETXPORT.NI).
The name may contain a maximum of eight
alphanumeric characters.
To purge a virtual circuit associated with the NI named X25 for the
node named NODE1.XLNET.ACCTG:
NMMGR> OPENCONF NMCONFIG
NMMGR> OPENDIR NSDIR.NET.SYS
NMMGR> PURGEVC
Enter the node name (or press return to exit):
PURGEVC> NODE1.XLNET.ACCTG
Enter address key:
PURGEVC> NODE1
Enter NI name:
PURGEVC> X25
Address key NODE1 deleted.
Enter node name (or press return to exit):
NMMGR>
122
Chapter 5
Using NMMGR in Maintenance Mode
READALLCONF
READALLCONF
Reads all data from the current configuration record.
Syntax
READALLCONF [;FORMAT]
Parameters
FORMAT
Description
READALLCONF reads and displays all the fields in the configuration
record identified by the current path. If the current path is associated
with a multipaged data screen, then all the pages of data associated
with the screen are displayed, unless PAGECONF was used to set the
current page.
Designates output formatting. Output is formatted in a
WRITECONF format so that it can be re-entered into
NMMGR’s maintenance mode. If the format option is
omitted, data will be formatted with one field per line
when writing to a file.
Output is directed to the file defined in the file equation FORMLIST. If
FORMLIST is not defined, output is sent to $STDLIST.
You must enter the CARDCONF, then the PATHCONF command before
using the READALLCONF command. This defines the pathname of the
record from which the data will be read. If you want READALLCONF to
display the data written in the previous WRITECONF commands, you
must first enter the UPDATECONF command.
If you are referencing a DTC card screen, you must use the CARDCONF
command to set the current card number before issuing the
READALLCONF command.
Example
To display all the fields in the NETXPORT.NI.GLOBAL screen:
NMMGR> PATHCONF NETXPORT.GLOBAL
(Sets the path to the screen.)
NMMGR> READALLCONF
Displays all the fields in the screen.)
NMMGR> PATHCONF NETXPORT.GLOBAL
(Sets the path to the screen.)
NMMGR> READALLCONF;FORMAT
(Displays all the fields in the screen.)
PATHCONF NETXPORT.GLOBAL
WRITECONF
WRITECONF
Chapter 5
HOMENET,
F,
“NETNAME”
“2”
123
Using NMMGR in Maintenance Mode
READALLCONF
WRITECONF
G,
“3”
WRITECONF
H,
“1”
WRITECONF
INBUF,
“256”
UPDATECONF
NMMGR
124
Chapter 5
Using NMMGR in Maintenance Mode
READCONF
READCONF
Reads selected data from the current configuration record.
Syntax
READCONF fieldname [;FORMAT]
Parameters
fieldname
The field name associated with the current path.
Use READALLCONF;FORMAT to find the fieldnames in
the current path.
FORMAT
Description
Designates output formatting. Output is formatted in a
WRITECONF format so that it can be re-entered into
NMMGR’s maintenance mode. If the format option is
omitted, data will be formatted with one field per line
when writing to a file.
READCONF reads and displays the selected field in the configuration
record identified by the current path. If the current path is associated
with a multipaged data screen, then the displayed value is from the
current page set by PAGECONF.
You must enter the CARDCONF, then the PATHCONF command before
using the READCONF command. This defines the pathname of the record
from which the data will be read. If you want READCONF to display the
data written in the previous WRITECONF commands, you must first
enter the UPDATECONF command.
If you are referencing a DTC card screen, you must use the CARDCONF
command to set the current card number before issuing the READCONF
command.
Output is directed to the file defined in the file equation FORMLIST. If
FORMLIST is not defined, output is sent to $STDLIST.
CAUTION
The output should first be sent to a file, then the entire file should be
printed. Otherwise, if output is sent directly to a printer, each
READCONF command will generate a separate spool file, resulting in
only one field printed per page.
Example
To display the first field in the NETXPORT.NI.GLOBAL screen:
NMMGR> PATHCONF NETXPORT.GLOBAL
(Sets the path to the screen.)
NMMGR> READCONF HOMENET;FORMAT
(Reads and displays the named field.)
WRITECONF
nmmgr
Chapter 5
homenet,
“netname”
125
Using NMMGR in Maintenance Mode
SUMMARYCONF
SUMMARYCONF
Prints a summary report for one or more communications subsystems.
Syntax
SUMMARYCONF subsystem[, subsystem[, ...]]
Parameters
subsystem
Description
SUMMARYCONF displays a summary report for a particular
subsystem. This command is identical to the Print Summary function
in the NMMGR Output Configuration screen.
The name of the subsystem(s) for which the report will
be generated. If more than one subsystem is entered, a
report will be printed for each subsystem in the order
given. If ALL is entered, a report will be printed for
every subsystem. Valid entries are ALL, DTS,
NETXPORT, SNANODE, NRJE, IMF, DHCF, APPC, and RJE.
Output is directed to the file defined in the file equation FORMLIST. If
FORMLIST is not defined, output is sent to $STDLIST.
When you use SUMMARYCONF to print a summary report for the
distributed terminal subsystem (DTS), you can also specify a summary
option to designate additional items in the DTS subsystem you wish to
have reported. You do so in one of two ways. The first way is to enter the
option on the same line as the command. For example:
SUMMARYCONF DTS,LINK
will cause a report to be generated for the DTS link configuration. You
can use this method regardless of whether you entered maintenance
mode from screen mode you are running a job to generate output.
You can use the second way to specify a summary option for the DTS
subsystem only if you have entered maintenance mode from screen
mode. This method is to enter SUMMARYCONF DTS at the NMMGR
maintenance mode prompt, with no option specified. A new prompt will
appear, as follows:
DTS Summary>
You can enter the DTS print option at this prompt. If you do not want to
generate any additional DTS reports, enter E[XIT] at the prompt. You
will be returned to the maintenance mode prompt.
The following DTS print summary options are available:
ALL
Displays all DTS configuration information.
DTC [dtcname]
Displays the configuration for all DTCs or for the DTC
whose name is specified in dtcname.
DTS
Displays the DTS subsystem configuration parameters.
126
Chapter 5
Using NMMGR in Maintenance Mode
SUMMARYCONF
E[XIT]
Leaves DTS Summary and returns you to the
maintenance mode prompt.
HELP
Displays the available DTS summary options.
LDEV
[ldev[/ldev]] Displays the configuration for all ldevs (logical
devices), a single ldev, or a range of ldevs.
LINK
Displays the link configuration for the DTS.
PORT [dtcname
[card [port]]] Displays the configuration for all configured ports,
all ports on a specified DTC, all ports on a specified
DTC and card, or for a specific DTC, card, and port.
PROFILE
[profile]
Displays the configuration for all profiles or for a
specified profile.
X.25 Card
[card#[,option]]
Displays the information about the Host-Based X.25
Card configuration.
OPTIONS:
Example
-LEVEL12
Display the level 1 and 2 configuration.
-LEVEL14
Display the level 3 configuration miscellaneous
configuration data.
-PAD
Display the Nailed PAD data.
-SEC
Display the PAD security data.
-SYS
Display the System to System configuration data.
To display the summary report for NETXPORT:
NMMGR> SUMMARYCONF NETXPORT
To display the summary report for profiles defined in the DTS
subsystem:
NMMGR> SUMMARYCONF DTS,PROFILE
Or:
NMMGR> SUMMARYCONF DTS
DTS Summary> PROFILE
Chapter 5
127
Using NMMGR in Maintenance Mode
UPDATECONF
UPDATECONF
Updates the current path in the configuration file.
Syntax
UPDATECONF
Parameters
No parameters.
Description
UPDATECONF updates the current page of data for the current path
in the configuration file. Data entered via previous WRITECONF
commands is checked for VPLUS field edit errors. If all fields are correct,
the data is stored.
The CARDCONF then the PATHCONF command must be issued before
UPDATECONF to define the current path.
If you are referencing a DTC card screen, you must use the CARDCONF
command to set the current card number before issuing the
UPDATECONF command.
Example
NMMGR> OPENCONF NMCONFIG.PUB.SYS
(Opens the configuration file.)
NMMGR> VERSIONCONF OVERRIDE
(Checks the version number of NMMGR.)
NMMGR> PATHCONF NETXPORT.NODE.NAME
(Sets the path to the screen.)
NMMGR> WRITECONF 1, MY.LOCL.NODE
(Enters the data into the field.)
NMMGR> UPDATECONF
(Updates the configuration file.)
128
Chapter 5
Using NMMGR in Maintenance Mode
VALIDATECONF
VALIDATECONF
Validates subsystem configuration.
Syntax
VALIDATECONF subsystem
Parameters
subsystem
The name of a configuration subsystem to be validated.
Valid subsystem names are:
NETXPORT
DTS/LINK
HP-IBM
Description
Validates the subsystem configuration. Output is directed to the formal
designator FORMLIST, which defaults to $STDLIST.
Example
To validate the NETXPORT subsystem configuration:
NMMGR> VALIDATECONF NETXPORT
Chapter 5
129
Using NMMGR in Maintenance Mode
VERSIONCONF
VERSIONCONF
Checks whether the specified version number matches NMMGR’s
current version number.
Syntax
VERSIONCONF version
Parameters
version
Description
VERSIONCONF matches the specified version number with the
current number for NMMGR. NMMGR’s version number is displayed in
the banner line on the first line of the screen and when NMMGR is
started. This command is required only if the user is also planning to
issue a PATHCONF command. However, VERSIONCONF must be issued
prior to PATHCONF.
Example
NMMGR> VERSIONCONF B.04.07
130
The NMMGR version number that you are checking
against the current version of NMMGR. The version
string may be enclosed in double quotes (“ ”). The value
“OVERRIDE” matches any version of NMMGR.
Chapter 5
Using NMMGR in Maintenance Mode
WRITECONF
WRITECONF
Writes data to individual fields of the current path in the configuration
file.
Syntax
WRITECONF fieldname, data
Parameters
fieldname
The field name associated with the current path.
data
The data to be written to the field. If the data contains
embedded blanks, it must be enclosed in double quotes
(“ ”).
Description
WRITECONF writes data to an internal buffer that initially contains
the data associated with the current page of the current path in the
configuration file. The file is updated when the UPDATECONF command
is performed.
The CARDCONF command (used to set the current card values) must be
specified before a PATHCONF command for any DTC card screen.
Once these commands are specified, the WRITECONF and UPDATECONF
commands can be performed.
Example
To update the value of field 1 for the current path:
NMMGR> OPENCONF NMCONFIG.PUB.SYS
(Opens the configuration file.)
NMMGR> VERSIONCONF V.uu.ff
(Checks the version number of NMMGR.)
NMMGR> PATHCONF NODENAME
(Sets the path to the screen.)
NMMGR> WRITECONF NODENAME, “MY.LOCAL.NODE”
(Enters the data into the field.)
NMMGR> UPDATECONF
(Updates the configuration file.)
Chapter 5
131
Using NMMGR in Maintenance Mode
WRITECONF
132
Chapter 5
6
NMMAINT
This chapter describes the Node Management Services Maintenance
Utility (NMMAINT). NMMAINT is a utility program you can use to
display the individual and overall version numbers for the software
modules and network link products configured through the node
management services.
The following information is included in this chapter:
• An explanation of version numbers and how they work.
• How to run the NMMAINT utility.
• An example of the output provided by NMMAINT.
• An explanation of the features of the output provided by NMMAINT.
133
NMMAINT
Software Version ID Numbers
Software Version ID Numbers
Each data communications product consists of a variety of software
modules. Each software module has an individual version number.
The software modules of all HP data communications products use a
standard version stamp. This stamp has the format:
vuuffiii
where values represent the following:
v
The version number of the software. This corresponds
to a major revision or a version for a new or revised
system environment.
u
The update level of the software. This corresponds to a
significant revision in product functionality.
f
The fix level of the software. This corresponds to a new,
supported revision of the software.
i
The internal fix level of the software. This is for
differentiating special releases of software that do not
correspond to a normal release cycle. Under normal
circumstances, you do not need to concern yourself with
this field when you are determining the compatibility of
a product.
A subsystem is a grouping of software modules. The software modules
within each subsystem usually have a common or similar function.
Each software module within a subsystem has its own version ID
number. If the version, update, and fix levels of these modules do not
match, the subsystem will not work correctly. You can use NMMAINT
to determine if your software installation is valid. The information
provided by NMMAINT must be included in any service request
submitted to HP. Refer to the NS 3000/iX Error Message and Recovery
Manual or to the Node Manager’s Guide for any HP-IBM product for
information about submitting service requests (SRs).
134
Chapter 6
NMMAINT
Running NMMAINT
Running NMMAINT
To run NMMAINT, enter the command:
:RUN NMMAINT.PUB.SYS
NMMAINT responds with the following:
NMS Maintenance Utility 32099-11018v.uu.ff (C) Hewlett Packard Co. 1985
NMMAINT then lists the version identification numbers for each
software module and information for each subsystem. As shown in the
example below, the NMMAINT utility displays version information for
the subsystems of the products actually installed on your system. The
node management services, link services, and network transport
subsystems are displayed if an NS 3000/iX link product is installed.
The Network Services subsystem is displayed if the NS 3000/iX services
product is installed. The SNA Transport, SNA NRJE, RJE, SNA DHCF,
APPC, HP SNADS, SNA/X.25, NS Over SNA, HP SNADS, and SNA IMF
subsystems are displayed if the appropriate HP-to-IBM data
communications products are installed on your system.
NMMAINT Output
This example of NMMAINT output shows a system with NS 3000/iX
services and an IEEE 802.3 link installed. (The IPCVERSION module is
port software. This is not part of the NetworkIPC user service, nor does
it form a subsystem, but its individual version ID number is displayed
by NMMAINT for your information.)
Notice that version ID numbers include version, update, fix levels, and
an internal fix level in the format vuuffiii. For NMVERS00, the version ID
number is A0103023. A is the version level, the next two digits
represent the update level, and the next two digits are the fix level. The
remaining numbers, 023, show the internal fix level, which is used only
within Hewlett-Packard.
NOTE
The version numbers shown in this example are not intended to be the
same as the version numbers of your software.
Example
:RUN
NMMAINT.PUB.SYS
NMS Maintenance Utility 32098-20014B.00.08
(C) Hewlett Packard Co.
Subsystem version ID’s
Node Management Services 32098-20014 module versions:
Chapter 6
135
NMMAINT
Running NMMAINT
SL procedure:
SL procedure:
SL procedure:
SL procedure:
SL procedure:
SL procedure:
SL procedure:
CM program file:
CM program file:
CM program file:
NM program file:
NM program file:
CM program file:
CM program file:
Catalog file:
NM program file:
SL procedure:
SL procedure:
SL procedure:
NL procedure:
NL procedure:
NL procedure:
NL procedure:
NL procedure:
NL procedure:
NL procedure:
NMVERS00
NMVERSCSL
NMVERS01
NMLOGSLVERS
NMLOGDATAVERS
NMVERS04
MWRITEVERS
NMMAINT.PUB.SYS
NMFILE.PUB.SYS
NMTRCMON.PUB.SYS
NMLOGMON.PUB.SYS
NMCONSOL.PUB.SYS
NMINIT.PUB.SYS
NMDUMP.PUB.SYS
NMCAT.PUB.SYS
NMLOGICS.PUB.SYS
SUBSYS0FMTVERS
NMINTERVERS
BFM’MOD’54’VERS
BMGR_MOD_51_VERS
BMGR_MOD_52_VERS
BMGR_MOD_53_VERS
NMVERS30
NMVERS33
NMVERS34
NMVERS32
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
B0008037
B0008039
B0008008
B0008034
B0008023
B0008011
B0008013
B0008011
B0008009
B0008062
B0008021
B0008019
B0008006
B0008064
B0008035
B0008005
B0008013
B0008003
B0008009
B0008067
B0008070
B0008028
B0008010
B0008018
B0008024
B0008018
Node Management Services 32098-20014 overall version = B.00.08
@COMPUTERTEXTW = Network Transport 32098-20023 module versions:
136
Chapter 6
NMMAINT
Running NMMAINT
NM program file:
NL procedure:
NL procedure:
NL procedure:
NL procedure:
NL procedure:
NL procedure:
NL procedure:
Catalog file:
CM program file:
NL procedure:
NL procedure:
NM program file:
Catalog file:
SL procedure:
SL procedure:
NL procedure:
SL procedure:
NL procedure:
SL procedure:
NM program file:
SL procedure:
NL procedure:
NL procedure:
NL procedure:
SL procedure:
SL procedure:
NL procedure:
SL procedure:
NL procedure:
SL procedure:
NL procedure:
NL procedure:
NL procedure:
NL procedure:
SL procedure:
SL procedure:
NL procedure:
NL procedure:
NL procedure:
NL procedure:
NL procedure:
NL procedure:
SL procedure:
NL procedure:
SL procedure:
SL procedure:
SL procedure:
SL procedure:
SL procedure:
NL procedure:
NM program file:
NM program file:
NL procedure:
NETCP.NET.SYS
NET_CF_VERS
NET_IPC_VERS
NET_IPC_VERS2
NET_IPC_VERS3
NET_IPC_VERS4
PIVERS
SIVERS
SOCKCAT.NET.SYS
SOCKREG.NET.SYS
NWTMVERS
TI_T1_VERS
PT2PNSTN.NET.SYS
NETMSG.NET.SYS
NET’UI’VERS
NET’SL’VERS
NET_NI_VERS
NET’PROBE’VERS
NET_ARP_VERS
NET’DIAL’VERS
TCPSIP.NET.SYS
NET’STUB’VERS
NET_TCP_VERS
NET_UDP_VERS
NET_DICT_VERS
NET’PXP0’VERS
NET’PXP1’VERS
NET_IP_VERS
NET’IPU’VERS
NET_X25_VERS
NET’PD’VERS
NET_PD_VERS
NET_MAP_VERS
NET_GLBL_VERS
NET_REG_VERS
NET’REG’CM’VERS
DCLDM_FMT_VERS
DCLDM_PS_VERS
DCLDM_CONF_VERS
NSLOPENLINK_VERS
RLM_SERVER_VERS
RLM_CONFIG_VERS
RLM_LOAD_TABLE_VERS
RLM_FMT_VERS
NET_FC_VERS
SOCKIOVERS
SOCKACCESSVERS
SOCKMISC1VERS
SUBSYS3FMTVERS
SUBSYS5FMTVERS
LEVEL2_RESOLVE_VERS
ICMPSERV.NET.SYS
NETTOOL.NET.SYS
NETTMRVERS
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
B0507013
B0507006
B0507014
B0507013
B0507012
B0507011
B0507010
B0507009
B0507000
B0507001
B0507011
B0507004
B0507004
B0507003
B0507004
B0507002
B0507008
B0507001
B0507015
B0507000
B0507000
B0507001
B0507062
B0507012
B0507001
B0507001
B0507000
B0507007
B0507000
B0507002
B0507100
B0507002
B0507008
B0507013
B0507001
B0507001
B0507001
B0507002
B0507002
B0507004
B0507000
B0507000
B0507000
B0507000
B0507000
B0507000
B0507000
B0507002
B0507006
B0507001
B0507001
B0507001
B0507012
B0507000
Network Transport 32098-20033 overall version = B.05.07
Network Services individual module versions:
Chapter 6
137
NMMAINT
Running NMMAINT
NM program file:
SL procedure:
SL procedure:
SL procedure:
SL procedure:
SL procedure:
Catalog file:
SL procedure:
NL procedure:
NL procedure:
CM program file:
CM program file:
CM program file:
NL procedure:
NL procedure:
CM program file:
CM program file:
NL procedure:
NL procedure:
NL procedure:
NL procedure:
NM program file:
NM program file:
CM program file:
SL procedure:
SL procedure:
CM program file:
NL procedure:
Catalog file:
SL procedure:
NL procedure:
CM program file:
NL procedure:
DSDAD.NET.SYS
ASCXVERS
ASBUFVERS
ASENVVERS
DSUTILVERS
SUBSYS6FMTVERS
ASCAT.NET.SYS
VTSRVTVER
VTS_LDMVER
VTS_UTILVER
LOOPBACK.NET.SYS
LOOPINIT.NET.SYS
NSSTATUS.NET.SYS
NSSTATUSNMVERS
NSINFONMVERS
CONFPROG.NET.SYS
MASTMAKE.NET.SYS
VTS_SMVER
NSUTILNMVERS
ASCXNMVERS
ASENVNMVERS
RASERVER.NET.SYS
VTSERVER.NET.SYS
DSSERVER.NET.SYS
ASRFAVERS
ASPTOPVERS
NFT.NET.SYS
NFTNMVERS
NFTCAT2.NET.SYS
ASRPMVERS
RPMNMVERS
RPMDAD.NET.SYS
RFANMVERS
Network Services overall subsystem version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
B0010007
B0010008
B0010000
B0010005
B0010007
B0010001
B0010001
B0010000
B0010005
B0010005
B0010000
B0010000
B0010002
B0010001
B0010002
B0010000
B0010000
B0010005
B0010001
B0010001
B0010001
B0010003
B0010005
B0010000
B0010002
B0010001
B0010018
B0010001
B0010002
B0010001
B0010001
B0010003
B0010001
B.00.10
Link Support Services 32098-20015 module versions:
NL
NM
NL
SL
XL
XL
NL
SL
NL
NL
procedure:
program file:
procedure:
procedure:
procedure:
procedure:
procedure:
procedure:
procedure:
procedure:
TRACE_INT_VERS
TRACEMGR.PUB.SYS
TVPGEN00VERS
SUBSYS18FMTVERS
LSSLINKCONTROLVERS
LSSLINKCONTROLVERS01
LSSLKTBLVERS
LSSVERS00
DCC_VERSION
DCC_VALID
XL procedure: Version:
C0104014
NL procedure: Version:
C0104008
SL procedure: Version:
C0104012
NL procedure: Version:
C0104506
NL procedure: Version:
C0104503
138
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
C0104016
C0104039
C0104007
C0104008
C0104145
C0104014
C0104008
C0104016
C0104006
C0104003
Chapter 6
NMMAINT
Running NMMAINT
Link Support Services 32098-20015 overall version = C.01.04
Node Management Configurator 32098-20016 module versions:
SL procedure:
SL procedure:
SL procedure:
NL procedure:
NM program file:
CM program file:
CM program file:
CM program file:
V+ forms file:
Catalog file:
Catalog file:
NM conf file:
NM conf file:
NM conf file:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
Version:
NMCVERS
NMVERS06
NETDIRVERS
NMNETDIRVERS
NMMGR.PUB.SYS
NMMGRVER.PUB.SYS
NMMGRVAL.PUB.SYS
NMSIG.PUB.SYS
NMMGRF.PUB.SYS
NMMGRCAT.PUB.SYS
NMMGRHLP.PUB.SYS
NMSAMP1.PUB.SYS
NMAUX1
NMNOVA.PUB.SYS
B0407000
B0407000
B0407000
B0407000
B0407035
B0407003
B0407000
B0407000
B0407026
B0407012
B0407013
B0407004
B0407014
B0407003
Node Management Configurator 32098-20015 overall version = B.04.00
Explanation of NMMAINT Output
The first group of numbers in the above example are the version ID
numbers of the modules of the Node Management Services subsystem.
Notice that the first five characters of the version for each module listed
in this group are the same. This means that all the software modules in
the subsystem match. It is necessary for all the modules of a given
subsystem to be the same version. If a subsystem module does not
match, NMMAINT prints the following error message:
Program file:
NMMAINT.PUB.SYS
** MODULE ERROR **
ONE OR MORE SUBSYSTEM MODULES ARE INVALID.
(NMERR 105)
This message indicates that the modules of the subsystem are not
compatible.
Because the module version ID numbers match, NMMAINT displays
the overall subsystem version number for the node management
services; for the above example, it is A.01.03. The rest of the
subsystems are handled in a similar fashion.
NMMAINT also checks that all the modules that belong with a
particular subsystem are present. If a module is missing, NMMAINT
displays the name of the module with the following error message in
place of the version number.
SL procedure:
NMVERS01
**
REQ’D MODULE MISSING **
ONE OR MORE REQUIRED SUBSYSTEM MODULES ARE MISSING.
(NMERR 104)
If an optional module is not present, NMMAINT displays a message
similar to the following:
Program file:
NMDUMP.PUB.SYS
Chapter 6
**NOT INSTALLED**
139
NMMAINT
Running NMMAINT
If the modules were correct when installed, only unusual circumstances
such as a reload, a disk problem, or a system failure would result in
missing or invalid modules. Restore a known valid version of the
modules in error.
Question marks displayed for the overall version number indicate that
the fix levels of the individual modules do not match. Remember that
the internal fix level, represented by the last three numbers of the
version ID, does not need to match between modules for the software to
be compatible. Fix numbers are requested in service requests for HP to
use when troubleshooting.
As each subsystem is displayed, NMMAINT checks that all the modules
are present and compatible. However, NMMAINT does not perform any
cross-subsystem version verification. When a system has HP-to-IBM
products as well as HP-to-HP products installed, the Node
Management Services, link services and the port software are used by
both types of data communications products. Therefore, it is important
to check that the version numbers of these common subsystems and
port software module are correct. It is possible for the HP-to-IBM
products to use previous versions of the common software that are not
compatible with the HP-to-HP products.
NMMAINT displays information on only the subsystems for the
products installed on your system. In the example above, none of the
HP-IBM products were installed, so their subsystems were not
displayed.
Running NMMAINT With Subsystem ID
NMMAINT can also be executed to display the version information for
just one subsystem, by entering a command: NMMAINT, Subsystem
number, where the subsystem number can be obtained from running
NMDUMP.
For example, NMMAINT,3 displays the version information for Network
Transport 32098-20033.
The only exception for using the subsystem number found from running
NMDUMP is for the NMS, Node Management Services, which would be 0.
Use NMMAINT, 10000 to display NMS version information.
140
Chapter 6
7
NMDUMP
This chapter describes the Node Management Services Trace/Log File
Analyzer, commonly known as NMDUMP. NMDUMP allows you to decode
and format the logging records and trace messages that are created in
coded form.
The following describes information contained in this chapter.
• Running the NMS Trace/Log File Analyzer (NMDUMP).
• General options.
These options include two, ? and 0, that are used for menu display
and are provided on all menus. Options 1–4 reflect the common
structure of log and trace files.
• 802.3, 802.5, SDLC, LAP-B, RJE/BSC, NETXPORT, NetIPC, and
Network Services logging options.
These options are log options and the number varies according to the
subsystem used.
• 802.3, 802.5, NETXPORT, NetIPC, Network Services, SDLC, LAP-B,
and RJE/BSC trace options.
These options are trace options and the number used relates to the
subsystem used.
• SDLC, LAP-B, and RJE Filter sets.
Some of the options allow you to also add additional filters to make
more precise selections for formatting.
For information on using logging and tracing for NS 3000/iX products,
see the NS 3000/iX Operations and Maintenance Reference Manual.
For information on using logging and tracing for HP-to-IBM products,
see the Node Manager’s Guide for each product.
See the flow for NMDUMP in Figure 7-1.
141
NMDUMP
Figure 7-1
NMDUMP
142
Chapter 7
NMDUMP
To Run NMDUMP
To Run NMDUMP
Step 1. Type
:RUN NMDUMP.PUB.SYS
Step 2. Enter either (1) logging or (2) tracing.
Step 3. Enter the ID number for each subsystem you want to format. Use a
comma to separate each number. (Default = ALL.)
NOTE
ID numbers can be used as parameters with NMMAINT.
Step 4. Change the default (NO) to (YES) if you would like to enter subsystem
options. (NMDUMP will set the default options if (NO) is entered.)
a. Enter the subsystem ID for the options you want to change.
b. Enter the number of the option or <CR> to select the current options.
Step 5. Enter the input log or trace file name. (Must already exist on the
system.)
FILENAME.GROUP.ACCOUNT
Step 6. Enter the output log or trace file name. Default = $STDLIST. (Must
not yet exist on the system.)
FILENAME.GROUP.ACCOUNT
Step 7. Change the default (NO) to (YES) if you want to specify a time range.
a. Enter the starting time.
Respond Y or N if the displayed time is correct.
b. Enter the finishing time.
Respond Y or N if the displayed time is correct.
Step 8. Press [CTRL]Y when you have completed your responses. (NMDUMP will
then give you a chance to re-enter the values.)
Step 9. Use the default (NO) if you are satisfied with your entered values.
NMDUMP then formats the logging or tracing information you specified.
Chapter 7
143
NMDUMP
Formatting Options
Formatting Options
NMDUMP allows you to modify formatting options for specified
subsystem IDs. There are three ways to change the formatting menu
options.
• Most options toggle between two possible values, like YES or NO and
ON or OFF.
• Some require you to enter an option number which then displays an
additional menu and prompt.
• Several options prompt you to enter the numbers of certain items.
The following tables show the options for logging and tracing. Some
logging and tracing options also have filters you can specify. Table 7-5
shows these filters.
You may type // at any of the main NMDUMP prompts to exit the
program. If NMDUMP is displaying a subsystem menu, you must press
[RETURN] to exit the menu and return to the main NMDUMP prompt
before typing // to exit the program.
You may also type “Help” at any of the main NMDUMP prompts for help
text.
See Table 7-1 for a description of general options.
144
Chapter 7
NMDUMP
Formatting Options
Table 7-1
Subsystem
802.3, 802.5,
SDLC, LAP-B,
RJE/BSC, FDDI.
100VG-AnyLAN,
100Base-T, X25
NETXPORT,
NetIPC,
Network Services
General Options
Option
Meaning
Description
?
Redisplay Options
Displays current options. Additional
input OK.
0
Set Defaults
Set all options back to default values.
1
ASCII ON or OFF
ON = ASCII representation of data
(OCTAL). OFF = Hexadecimal
representation. Default = ON.
2
Output Format
Automatically changes output format to
HEX if currently in OCTAL or OCTAL
if currently in HEX.
3
Maximum Number
Allows a limit to the amount of data
printed in the information and data
sections by reducing the number of
bytes per record to output.
4
Verbosity
LOW = Summary, gives the formatted
header and raw messages only. HIGH =
Detail. Automatically changes LOW to
HIGH or HIGH to LOW.
Chapter 7
145
NMDUMP
Formatting Options
See Table 7-2 for a description of logging options.
Table 7-2
Subsystem
Log Options
Option
802.3, 802.5,
FDDI,
100VG-AnyLAN,
100Base-T
SDLC, LAP-B,
RJE/BSC
NetIPC,
Network Services,
NETXPORT
NETXPORT Only
Link
Meaning
Description
1
Linknames
Select logging options by Linknames. @
= ALL
2
Excluded Linknames
Select Linkname to be excluded from
logging.
3
Log Classes
Error message options (ERRORS,
WARNINGS, INFO, ALL)
4
Set Output Level
Toggle between Terse and Verbose.
Verbose = Detail report, Terse =
Summary.
1
Linknames
Select logging options by Linknames. @
= ALL
2
Class Selection
10 = Errors, 12 = Informational, 99 =
ALL
5
Class Selection
Show LOG formatter memo with LOG
classes configured within NMMGR.
6
Entity or Module
Select specific entities (NETXPORT) or
modules (NS) to format for logging.
7
Event or PIN
Select event (NETXPORT) or PIN
(NetIPC, NS) where error occurred.
8
Port ID or PIN
Select a Port ID or PIN in hexadecimal
format. Default = OFF.
9
Display Summary
Output
Allows a summary report of log entries
either in additions to or instead of the
normal formatting of log entries.
Default = OFF.
10
Save or Use Filter
File
Allows saving of the filter option
definitions to a file for later use or using
previously saved filter file. 1= Use filter
file, 2= Save filter file.
No options
146
Chapter 7
NMDUMP
Formatting Options
See Table 7-3 for information on the trace formatter options.
Table 7-3
X.25 Trace Formatter
Options
Actual Settings
0
– Set Default Values
3
– Display Mode
Terse or Lab
4
– Layer
Level2_3 or Level 2 or Level 3
5
– Dump Packet
No or Yes
6
– Full or Header
Header Only or Full Packet with Data
8
– Packet Type
All, or Select Combination of 9 Level or Packet
Types
9
– Full or Header
Header or Full Packet with Data
10
– Display Length
Amount of Data to Display
11
– Q bit
Both, or Value of Q-bit 0, 1, or Both
12
– VC Number
All, or Select Virtual Circuit Number
13
– Packet Type
All, o Select From 17 Level 3 Packet Types in
any Combination
Level 2:
Level 3:
Enter the number or <CR> to select the current option: packet types in any combination.
Chapter 7
147
NMDUMP
Formatting Options
See Table 7-4 for a description of trace options.
Table 7-4
Subsystem
Trace Options
Option
Meaning
Description
802.3, 802.5,
FDDI,
100VG-AnyLAN,
100Base-T
1
Change Filters
Allows definition of what characters
each packet must match before it will be
formatted.
2
Change Output Flags
Allows reduction of output by selecting
which parts of filtered packets to format
NETXPORT,
NetIPC,
Network Services
5
Type or Descriptor
Format events for a particular type
(NETXPORT) or descriptor number
(NetIPC, NS).
6
Entity or Service
Format events for a particular entity
(NETXPORT) or service (NS).
7
Event or PIN
Format events for a particular event
(NETXPORT) or PIN (NetIPC, NS).
Call for network services displayed.
8
Port ID or PIN
Select a Port ID or PIN in hexadecimal
format. Default = OFF.
9
Display Summary
Output
Allows a summary report of log entries
either in additions to or instead of the
normal formatting of log entries.
Default = OFF.
10
Save or Use Filter
File
Allows saving of the filter option
definitions to a file for later use or using
previously saved filter file. 1= Use filter
file, 2= Save filter file.
11
Source IP Address
Allows specification of a source IP
address for header trace messages.
Default = OFF.
12
Destination IP
Address
Allows specification of a destination IP
address for header trace messages.
13
Source TCP Port
Allows specification of a source TCP
address for header trace messages.
14
Destination IPC Port
NS Messages
Allows specification of a destination
TCP address for header trace messages.
ON = NS messages displayed. OFF =
NetIPC intrinsic calls for Network
services displayed.
8
Format NS Messages
Only
Toggle ON and OFF. ON = Only Disply
NS Protocols, (VT, NFT, RFA, PTOP)
OFF = Also Display NetIPC Intrinsic
Level Activity
Network Services
Only
148
Chapter 7
NMDUMP
Formatting Options
Subsystem
SDLC, LAP-B,
RJE/BSC 802.3,
802.5, FDDI,
100VG-AnyLAN,
100Base-T
Option
Meaning
Description
1
Output Limit
Allow input of maximum bytes in
line-data frames to reduce the amount
of formatted data. Affects only
line-data-frames.
2
Filter Sets
Allows selection of filters for output
data. All filter sets are displayed when
selected.
3
Show Raw Data
Allows printing of unformatted trace
data along with the same data in
decoded form. Default = YES.
4
Show Decoded Data
Used with option 3, will disable printing
of decoded data. (Prints only raw data.)
Default = YES.
LAP-B, SDLC
7
Data Representation
Tells formatter what type of bit
encoding is used. (ASCII or EBCDIC)
LAP-B Only
8
MODOLO Count
Tells formatter whether frame data in
trace file was a modolo-128 format
rather than default modolo-8 format.
802.3, 802.5
5
Select Linknames
FDDI,
100VG-AnyLAN,
100Base-T
6
Exclude Linknames
7
Select Character
Representation
Toggle between ASCII and EBCDIC
representation.
802.3, 802.5,
FDDI
9
Filter ON Station
Address
Select MAC or station address for
filtering Source and Destination.
10
Filter ON SAP
Select filtering for both SSAP and
BSAP.
11
Generate HP-UX
Trace Site
Create trace output file or format, that
8.0 HP-UX formatter can use.
8
Filter ON Station
Address
Select MAC or station address for
filtering Source and Destination.
9
Filter ON SAP
Select filtering for both SSAP and
BSAP.
100VG-AnyLAN,
100Base-T
Chapter 7
149
NMDUMP
Formatting Options
See Table 7-5 for a description of filter sets.
Table 7-5
Subsystem
SDLC
X25
Filter Sets
Number
Filter
Description
1
Data frames sent/rcvd
Enables printing of frames sent and frames
received on the datacomm link.
2
Driver message
sent/rcvd
Enables printing of all port messages sent
to the driver by SNA Transport and other
entities, or sent to them by the driver.
3
Driver state-changes
Enables printing of changes in internal
state within the SDLC driver modules.
4
Driver intervals
Enables printing of details related to
internal processing of internal driver
requests, mainly those related to utility
functions (not datacomm I/O).
55
Card footprint
Enables printing of large blocks of footprint
information from the downloaded SDLC
firmware.
99
ALL
Produces a full trace.
0
Errors Only
Disables all filter sets and produces a
listing of error only.
0
Set Defaults
Set all options bact to default.
1
VC Number
Select Virtual Circuit numbers
2
Packet Type
Select Packet types.
3
Q-Bit
Toggles between ON and OFF selection of
Q-bit (Control bit)
150
Chapter 7
NMDUMP
Formatting Options
Subsystem
LAP-B
Number
Filter
Description
2
Driver messages
sent/rcvd
Enables printing of all port messages sent
to the driver by NS Transport and other
entities, or sent to them by the driver.
3
Driver state-changes
Enables printing of changes in internals
state within the LAP-B driver modules.
4
Driver internals
Enables printing of details related to
internal processing of internal driver
requests, mainly those related to utility
functions (not datacomm I/O).
51
Card frames sent/rcvd
Enables printing of frames sent and frames
received on the datacomm link.
53
Card state-changes
Enables printing of the individual state
changes traced by the downloaded LAP-B
firmware.
99
ALL
Produces a full trace.
0
Errors
Disables all filter sets and produces a
listing of error only.
Chapter 7
151
NMDUMP
Formatting Options
Subsystem
RJE
Number
Filter
Description
1
Enables printing of frames sent and frames
received on the datacomm line.
2
Enables printing of all port messages sent
to the driver by the RJERCS intrinsics and
other entities, or sent to them by the driver.
3
Enables printing of changes in internal
state within the RJE driver modules.
4
Enables printing of details related to
internal processing of internal driver
requests, mainly those related to utility
functions (not datacomm I/O).
5
Enables printing of all calls to all RJERCS
intrinsics (such as ROPEN) and all buffer
data written to or read from the RJE
driver.
51
Enables printing of frames sent and frames
received on the datacomm link.
52
Enables printing of all state changes not
already shown under set 51, and any other
information traced by the downloaded
Bisync firmware.
99
Produces a full trace.
0
Disables all filter sets and produces a
listing of error only.
Link Subsystem Formatting
The link manager subsystem does not call any menus. NMDUMP formats
logging messages only. The first line labels the error as a link manager
error, and shows whether it is fatal or non-fatal. The next line contains
the time and date of the event. This line is followed by the log message,
the requestor ID, the link name, and the logical device (LDEV) of the
link.
The requestor ID is for internal use only. Any underlying errors are
reported below the LDEV field. Many messages correspond to NMERR
messages that are documented in Appendix A, “NMS Error Messages,”
of this manual.
152
Chapter 7
8
NMMGRVER
This chapter describes NMMGRVER, a conversion program that
enables earlier versions of subsystems to be used with the current
version of NMMGR.
This version of NMMGRVER will convert configuration files from
MPE/V format and previous versions of MPE/iX to the current MPE/iX
release format.
You can also perform the conversion procedure for a network running a
combination of MPE/V X.25 (release V-delta 3 or later) and NS 3000/XL
1.0, 1.1 or 1.2. However, in this case, only the X.25 information from the
NS 3000/V configuration file will be merged with the MPE/iX
information. Therefore, if you also have LAN or point-to-point
information in the MPE/V configuration file, this information would
have to be reconfigured on your iX machines.
This chapter includes discussions of the following:
• Using the NMMGRVER conversion program.
• Converting configuration files from previous versions of MPE XL
format to the current version of MPE/iX format.
• Converting configuration files from MPE/V format to the current
version of MPE/iX format.
• Merging MPE/V configuration files with the current version of
MPE/iX configuration files.
153
NMMGRVER
Using the Conversion Program
Using the Conversion Program
You need to convert files if you open an existing configuration file while
using NMMGR and receive this message:
Version mismatch found on specified subsystem. Please
run NMMGRVER. (NMGRERR 53)
You also need to convert files if you are performing NETCONTROL and
receive the following class 2 logging message at the console:
Bad CONFIG File Version
NMMGRVER will create backup copies of your configuration files for
you, and will name them NMBACKA, NMBACKB, NMBACKC, and so on.
Therefore, you can go back to a source file if necessary.
The following three subsections describe the different conversion
scenarios, which are:
• Converting a file from the previous version of MPE XL to the current
version of MPE/iX.
• Converting a file from MPE/V to the current version of MPE/iX.
• Combining the above two conversions for the purpose of merging
MPE/V X.25 (V-delta 3 or later) information with previous versions
of MPE/iX for use with the current version of MPE/iX.
NOTE
If you are converting files from MPE/V to MPE/iX, you must first
transport the files to a system running MPE/iX and this version of
NMMGRVER.
Converting From the Previous MPE XL Version to
the Current MPE/iX Version
Step 1. Execute NMMGRVER by entering:
:RUN NMMGRVER.PUB.SYS
After displaying a banner, the system prompts you for the name of the
configuration file to be converted.
Fileset to be scanned?
Step 2. Enter one of the following filesets, or press the [RETURN] key to end the
conversion program.
filename[.groupname[.acctname]]
file [email protected][.groupname[.acctname]]
@[.groupname[.acctname]]
154
Chapter 8
NMMGRVER
Using the Conversion Program
@@[email protected][.acctname]
@@[email protected]@
NOTE
When converting from an earlier release of MPE XL to the current
version of MPE/iX, the configuration file can have any valid MPE file
name. If you have used another name instead of NMCONFIG, NMMGRVER
will use that name as the final name for your conversion file. For
example, if your configuration file is called MYCONFIG, NMMGRVER will
convert it and save it under the same name, overwriting the original
MYCONFIG. When the conversion is finished, you must rename or purge
the existing NMCONFIG and then rename MYCONFIG to NMCONFIG,
replacing the old NMCONFIG.
Step 3. NMMGRVER searches for files of type NCONF in the specified fileset.
For each file found, it asks:
OK to convert filename.groupname.acctname?
where filename.groupname.acctname is the name of a
configuration file. Enter Y for yes or either N or [RETURN] for no.
Step 4. NMMGRVER checks the configuration file to determine whether it is
an MPE/V or an MPE/iX configuration file. If it is an MPE/iX file the
conversion proceeds without further user input.
After each file is converted NMMGRVER will display the following
message:
Conversion Completed Successfully (NMMGRVERMSG 0)
Step 5. Continue to enter either Y, N, or [RETURN] until you have converted all
files.
Step 6. Run NMMGR and modify any of the configuration files, as needed.
Converting From MPE/V to MPE/iX
Step 1. Follow the instructions in steps one through four of the “Converting
From the Previous MPE XL Version to the Current MPE/iX Version”
subsection, then continue below.
Step 2. If the file is an MPE/V file, NMMGRVER prompts you for the type of
MPE/V file you are converting, as follows:
What is the type of this file?
1) MPE V NSCONF
2) MPE V NMCONFIG
3) skip this file
Enter a value between 1 and 3.
Chapter 8
155
NMMGRVER
Using the Conversion Program
Step 3. If you are converting only an NMCONFIG file, enter 2.
Step 4. If you are converting NS transport data as well as configuration data,
enter 1. NMMGRVER will combine the MPE/V NSCONF file containing
the transport data with the MPE/V NMCONFIG.PUB.SYS, convert the
file and save it under the same name as the source NSCONF file.
NOTE
The NSCONF file can have any valid MPE file name. If you have used
another name instead of NSCONF, NMMGRVER will use that name as the
final name for your conversion file. For example, if you have two files,
MYCONF and NMCONFIG.PUB.SYS, NMMGRVER will combine the files into
a file called MYCONF and then convert it, overwriting the original
MYCONF. When the conversion is finished, you must rename or purge
the existing NMCONFIG.PUB.SYS and then rename MYCONF to
NMCONFIG.PUB.SYS replacing the old NMCONFIG.PUB.SYS.
After each file is converted NMMGRVER will display the following
message:
Conversion Completed Successfully (NMMGRVERMSG 0)
Step 5. Continue to enter either Y, N, or [RETURN] until you have converted all
files.
Step 6. Run NMMGR and modify any of the configuration files, as needed.
Merging MPE/V With MPE/iX
This conversion procedure is for networks running a combination of
NS 3000/V X.25 (release V-delta 3 or later) and NS 3000/XL 1.0, 1.1 or
1.2. Only the X.25 configuration information from NS 3000/V will be
merged. If you also had LAN or point-to-point information in the
MPE/V configuration file, you will have to reconfigure this information
on your iX machines after using NMMGRVER.
The basic steps for this merge procedure are given in this section, but
you also must refer to the migration information in the HP 3000/iX
network Planning and Configuration Guide. That manual describes the
process in detail and includes all X.25-specific considerations you must
know about.
NOTE
Restore the NS 3000/V NSCONF configuration file to the NS 3000/iX
system. Name the NS 3000/V file with the same name it had on the
NS 3000/V node. This procedure assumes that there already is an
NS 3000/iX NMCONFIG.PUB.SYS vers. 1.x configuration on the
NS 3000/iX node. Do not overwrite it with the NS 3000/V version.
Step 1. At the MPE/iX prompt, type RUN NMMGRVER.PUB.SYS.
156
Chapter 8
NMMGRVER
Using the Conversion Program
Step 2. Merge your NS 3000/V file with the existing NS 3000/iX NMCONFIG
file, and convert it for use with NS 3000/iX by entering the MPE/V
NSCONF file name. Enter Y to proceed when prompted.
Step 3. Next, you receive this prompt:
What is the type of this file?
1) MPE V NSCONF
2) MPE V NMCONFIG
3) skip this file
Enter a value between 1 and 3.
Step 4. Select type 1 for an NSCONF type file. NMMGRVER will merge the
contents of the existing NMCONFIG file with the X.25 information in the
NSCONF file you specified. It will be saved in the NSCONF file you
specified.
Step 5. If you converted more than one NSCONF file, decide which one will be
the network configuration you want on the NS 3000/iX system. Rename
the file to NMCONFIG.PUB.SYS.
Chapter 8
157
NMMGRVER
Using the Conversion Program
158
Chapter 8
A
NMS Error Messages
This appendix includes listings of Node Management Services error
messages, grouped in sets as shown below. The error messages in each
set are listed numerically. Each error message listed includes at least
one possible cause of the error and a recommended action for each
cause.
Some of the messages, as shown in this manual, include an exclamation
point (!), which is a substitution character that represents variable
information. When the actual message is displayed, this substitution
character will be replaced by appropriate information.
The following sets of messages are included in this appendix:
Message Set
Message Code
NMCN Error and Warning Messages
NMCNERR
NMCNWARN
NMDUMP Error and Warning Messages
NMDUMPERR
NMDUMPWARN
NM Error Messages
NMERR
NMFS Error and Warning Messages
NMFSERR
NMFSWARN
NMGR Error and Warning Messages
NMGRERR
NMGRWARN
NMMGRVER Messages, Errors and
Warnings
NMMGRVERMSG
NMMGRVERERR
NMMGRVERWARN
ND Error Messages
NDIERR
FMT Error Messages
FMTERR
159
NMS Error Messages
Resolving Problems
Resolving Problems
There are problems that are common to many situations, such as
invalid software installation, version incompatibilities, insufficient
MPE resources, corrupt configuration files, and file system errors. This
section describes some of the resolutions for these problems. In many
cases, you can use these descriptions to help you resolve these problems
yourself. In addition, if you are running NMMGR, you can use the Error
Information screen to help determine what the problem is. See Chapter
2, “Basics of NMMGR,” of this manual for more information on the
Error Information screen.
Note that you may get an error which is caused by an internal
procedure. Some internal errors can be remedied only by qualified HP
representatives. The causes and actions listed with the error messages
will tell you which ones these are. In such cases, you should file a
service request (SR) to get help. To enable HP to solve you problem in
an efficient manner, please follow the guidelines listed on the following
pages.
Invalid Software Installation
A software installation may be invalid. Run NMMAINT to get a listing
of all software modules and their version IDs. Check that all required
modules are present and that the first five characters of the version ID
numbers of these modules are the same within each subsystem (these
are the v.uu.ff fields). Finally, check these version ID numbers with the
System Status Bulletin or other HP source to be sure the versions of
software you have are supported with the version of MPE you have. If
there is a problem found with any of these checks, you have an incorrect
software version installed. Locate a known valid version of the suspect
software (perhaps from one of your system backup tapes) and install it
correctly.
Version Incompatibilities
There may be version incompatibilities between NMS software and
other subsystem software. Run NMMAINT to get a listing of version ID
numbers for NMS and for all of the NMS-dependent subsystems. Locate
the overall version ID numbers for NMS and for each subsystem.
Compare the first five characters of these version ID numbers with
those listed as compatible with each other in the System Status Bulletin
or other HP sources. If a discrepancy is found, locate a known set of
compatible software and install it.
160
Appendix A
NMS Error Messages
Resolving Problems
Insufficient MPE Resources
There may be insufficient MPE resources, such as configured table
sizes. Check if the MPE configuration has enough DST and PCB entries
configured. (If possible, use the HP Glance/XL product to check MPE
table utilization.) Reconfigure MPE to fix any problems found and
restart the system.
Corrupt Configuration Files
The configuration file is possibly corrupt. If the error persists, use
NMMGR to manually check the configuration file (if possible). If bad
records seem to be localized to a particular item, delete that item and
reconfigure it. If necessary, restore a backup copy of the file.
File System Errors
An NM and/or MPE file system error (NMFSERR, NMFSWARN, FSERR)
may have occurred while attempting to access the configuration file.
Try to access the configuration file under the same user ID using
NMMGR. Use the NMMGR Error Information screen to find out what
the underlying error is. Correct the problem and try again.
Appendix A
161
NMS Error Messages
Submitting an SR
Submitting an SR
The messages that refer you to this section can indicate an internal
error. For further assistance from HP, submit an SR. Include the
following information where applicable:
• A characterization of the problem. Describe the events leading up to
and including the problem. Attempt to describe the source of the
problem. Describe the symptoms of the problem.
• Your characterization should include: MPE commands,
communication subsystem commands, job streams, result codes and
messages, and data that can reproduce the problem.
• Illustrate as clearly as possible the context of any message(s).
Prepare copies of information displayed at the system console and
user terminal.
• Obtain the version, update and fix information for all software. Use
NMMAINT to obtain this information for NS, DTS, NRJE, SNA and
Node Management. This allows Hewlett-Packard to determine if the
problem is already known and if the correct software is installed at
your site.
• Record all result messages and numbers that appear at the user
terminal and the system console.
• Run NMDUMP to format the NM log file (NMGLnnnn.PUB.SYS) that
was active when the problem occurred. You may need to issue the
MPE command SWITCHNMLOG to free the NM log file.
Using NMDUMP, format the log file for your NMS subsystem
information. Inspect the formatted output and try to locate errors.
Prepare the formatted output and a copy of the log file for your
Hewlett-Packard representative to further analyze.
• Prepare a listing of the configuration file and the MPE configuration
you are using for your Hewlett-Packard representative to further
analyze. Inspect the output and try to locate errors.
• Try to determine the general area within the software where you
think the problem exists. If you think the problem is caused by an
NMS subsystem, refer to the manual(s) for that subsystem and try
to resolve the problem by following the information-gathering
guidelines in those manuals.
• Issue the LINKCONTROLlinkname;STATUS= command for each link.
Retain the output for your Hewlett-Packard representative to
further analyze.
162
Appendix A
NMS Error Messages
Submitting an SR
• Document your interim, or “workaround” solution. The cause of the
problem can sometimes be found by comparing the circumstances in
which it occurs with the circumstances in which it does not occur.
• Create copies of any trace files that were active when the problem
occurred for your Hewlett-Packard representative to analyze.
• In the event of a system failure, a full memory dump must be
taken. Always send the unformatted memory dump, a listing of the
configuration file, a copy of the file LOADMAP.PUB.SYS, and the I/O
configuration.
Appendix A
163
NMS Error Messages
NMCN Error and Warning Messages
NMCN Error and Warning Messages
The first seven NMCNERR messages are written to the console by the
NMMON process. The remainder of NMCNERR messages are written
by one of the NMLOGMON processes to the console. “NM log Monitor”
messages are returned by the “Main type Log Monitor:” this is the first
NMLOGMON process created and later handles most tracing. “NM Log
Process” messages are returned by the “Log type Monitor,” which is the
NMLOGMON process that handles logging.
MESSAGE: NMMON: Unable to allocate area for port table.
(NMCNERR 1)
NMCNERR 1
CAUSE: NMMON is unable to expand the DL-DB area in its stack.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: NMMON: Unable to obtain port data segment.
(NMCNERR 2)
NMCNERR 2
CAUSE: INITPORTDST returned a DST number of 0. The system is
unable to allocate any extra data segments.
ACTION: See “Insufficient MPE Resources” at the beginning of this
appendix.
MESSAGE: NMMON: Unable to create port in data segment.
(NMCNERR 3)
NMCNERR 3
CAUSE: CREATEPORT returned a PORTID of 0.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: NMMON: Unable to add port dictionary entry.
(NMCNERR 4)
NMCNERR 4
CAUSE: DICTADD returned a non-zero result.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: NMMON: CREATEPROCESS error n on NMFILE.PUB.SYS.
(NMCNERR 5)
NMCNERR 5
CAUSE: CREATEPROCESS failed for NMFILE. The NMFILE.PUB.SYS
program file might not be present, or might not be Load-able. This
could happen if the NMS software is not correctly installed, or if there
is a mismatch between NMFILE and SL module versions. Also, there
could be other MPE limitations such as insufficient table space.
ACTION: Look up the CREATEPROCESS error number in the
Intrinsics Reference Manual. Correct this error. See also “Invalid
Software Installation” and “Insufficient MPE Resources” at the
beginning of this appendix.
164
Appendix A
NMS Error Messages
NMCN Error and Warning Messages
MESSAGE: NMMON: CREATEPROCESS error n on
NMLOGMON.PUB.SYS. (NMCNERR 6)
NMCNERR 6
CAUSE: CREATEPROCESS failed for NMLOGMON. The
NMLOGMON.PUB.SYS program file might not be present, or might not be
Load-able. This could happen if the NMS software is not correctly
installed, or if there is a mismatch between NMLOGMON and SL
module versions. Also, there could be other MPE limitations such as
insufficient table space.
ACTION: Look up the CREATEPROCESS error number in the
Intrinsics Reference Manual. Correct this error. See also “Invalid
Software Installation” and “Insufficient MPE Resources” at the
beginning of this appendix.
MESSAGE: NMMON: NMS version mismatch. NMS-based datacomm
unavailable. (NMCNERR 7)
NMCNERR 7
CAUSE: Version mismatch detected in the Node Management Services
subsystem software modules installed on the system.
ACTION: See “Invalid Software Installation” at the beginning of this
appendix.
MESSAGE: NMMON: Restart request rejected; not in proper state [!].
(NMCNERR 8)
NMCNERR 8
CAUSE: User attempted to perform an unsupported function.
ACTION: Use method supported by Hewlett Packard to achieve your
goal. If uncertain, contact your HP representative.
MESSAGE: NMMON: Programmatic shutdown request rejected; not in
proper state [!]. (NMCNERR 9)
NMCNERR 9
CAUSE: User attempted to perform an unsupported function.
ACTION: Use method supported by Hewlett Packard to achieve your
goal. If uncertain, contact your HP representative.
MESSAGE: NMMON: CREATEPROCESS error n on NMINIT.PUB.SYS.
(NMCNERR 11)
NMCNERR 11
CAUSE: CREATEPROCESS failed for NMINIT. The NMINIT.PUB.SYS
program file might not be present, or might not be Load-able. This
could happen if the NMS software is not correctly installed, or if there
is a mismatch between NMFILE and SL module versions. Also, there
could be other MPE limitations such as insufficient table space.
ACTION: Look up the CREATEPROCESS error number in the
Intrinsics Reference Manual. Correct this error. See also “Invalid
Software Installation” and “Insufficient MPE Resources” at the
beginning of this appendix.
Appendix A
165
NMS Error Messages
NMCN Error and Warning Messages
MESSAGE: NM Log Monitor: Another MainLogMonitor exists. This
one terminating. (NMCNERR 16)
NMCNERR 16
CAUSE: A Main Log Monitor process has found its entry already exists
in the port dictionary.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: NM Log Monitor: Unable to obtain port data segment.
(NMCNERR 17)
NMCNERR 17
CAUSE: INITPORTDST returned a DST number of 0. The system is
unable to allocate any extra data segments.
ACTION: See “Insufficient MPE Resources” at the beginning of this
appendix.
MESSAGE: NM Log Monitor: Unable to create port in data segment.
(NMCNERR 18)
NMCNERR 18
CAUSE: CREATEPORT returned a PORTID of 0.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: NM Log Monitor: Unable to add port in dictionary entry.
(NMCNERR 19)
NMCNERR 19
CAUSE: DICTADD returned a non-zero result.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: NM Log Monitor: Unable to add to NM Monitor port table.
(NMCNERR 20)
NMCNERR 20
CAUSE: NMMONADDID failed for MainLogMonitor.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: NM Log Monitor: Unable to create user logging data
segment. (NMCNERR 21)
NMCNERR 21
CAUSE: Main Log Monitor is unable to acquire an extra data segment.
ACTION: See “Insufficient MPE Resources” at the beginning of this
appendix.
MESSAGE: NM Log Monitor: Unable to create trace dictionary data
segment. (NMCNERR 22)
NMCNERR 22
CAUSE: Main Log Monitor is unable to acquire an extra data segment.
ACTION: See “Insufficient MPE Resources” at the beginning of this
appendix.
166
Appendix A
NMS Error Messages
NMCN Error and Warning Messages
MESSAGE: NM Log Monitor: Input/Output error in accessing the
system disc cold load area. (NMCNERR 23)
NMCNERR 23
CAUSE: An error occurred trying to access the area of disk where the
next NMLGnnnn, and NMTCnnnn, file name numbers are stored. Check for
other error indications that may affect the system disks, including I/O
errors.
ACTION: Correct any situation that may cause disk I/O errors. If the
problem persists, see “Submitting an SR” at the beginning of this
appendix.
MESSAGE: NM Log Monitor: Illegal parameter passed; create failed.
(NMCNERR 24)
NMCNERR 24
CAUSE: The user has attempted to enter a parameter which is not
valid.
ACTION: Check input parameters and try again.
MESSAGE: NM Log Monitor: CREATEPROCESS error n on
NMLOGMON.PUB.SYS. (NMCNERR 25)
NMCNERR 25
CAUSE: CREATEPROCESS failed for NMLOGMON. The
NMLOGMON.PUB.SYS program file might not be present, or might not be
Load-able. This could happen if the NMS software is not correctly
installed, or if there is a mismatch between NMLOGMON and SL
module versions. Also, there could be other MPE limitations such as
insufficient table space.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: NM Log Process: Internal error trying to set up NMS
logging. (NMCNERR 26)
NMCNERR 26
CAUSE: An unexpected error has occurred.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: NM Log Process: Unable to obtain port data segment.
(NMCNERR 30)
NMCNERR 30
CAUSE: INITPORTDST returned a DST number of 0. The system is
unable to allocate any extra data segments.
ACTION: See “Insufficient MPE Resources” at the beginning of this
appendix.
MESSAGE: NM Log Process: Unable to create port data segment.
(NMCNERR 31)
NMCNERR 31
CAUSE: CREATEPORT returned a PORTID of 0.
ACTION: See “Submitting an SR” at the beginning of this appendix.
Appendix A
167
NMS Error Messages
NMCN Error and Warning Messages
MESSAGE: NM Log Process: Unable to add port dictionary entry.
(NMCNERR 32)
NMCNERR 32
CAUSE: DICTADD returned a non-zero result.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: NM Log Process: Unable to add to NM Monitor port table.
(NMCNERR 33)
NMCNERR 33
CAUSE: NMMONADDID failed for MainLogMonitor.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: NM Log Process: Unable to create logging buffer data
segment. (NMCNERR 34)
NMCNERR 34
CAUSE: NM Log Process is unable to acquire an extra data segment.
ACTION: See “Insufficient MPE Resources” at the beginning of this
appendix.
MESSAGE: NMLG FILE NUMBER nnnn ERROR #nnn. NM LOGGING
STOPPED. (NMCNERR 36)
NMCNERR 36
CAUSE: If the error number is greater than 1, this is the file system
error that occurred when accessing file NMLGnnnn, where nnnn is the file
number specified. If the error number is 1, then see the comments to
NMCNERR 23.
ACTION: Correct this problem, then type RESUMENMLOG.
MESSAGE: NMLG FILE NUMBER nnnn ERROR #nnn. NM LOGGING
SUSPENDED. (NMCNERR 38)
NMCNERR 38
CAUSE: If the error number is greater than 1, this is the file system
error that occurred when accessing file NMLGnnnn, where nnnn is the file
number specified. If the error number is 1, refer to message
NMCNERR 23.
ACTION: Correct this problem, then type RESUMENMLOG.
MESSAGE: UNABLE TO ACCESS NMLG FILE NUMBER nnnn.
(NMCNERR 42)
NMCNERR 42
CAUSE: The log buffer indicates the logging state is normal or
suspended, but it contains a current file number of zero, or FFILEINFO
returned a < > condition on the file.
ACTION: Try typing RESUMENMLOG. If SHOWNMLOG after this gives this
message again, try rebooting the system to force logging to open a new
NMLGnnnn file.
MESSAGE: NM Log Process: Unable to create log dictionary data
segment. (NMCNERR 44)
NMCNERR 44
CAUSE: NM Log Process is unable to acquire an extra data segment.
168
Appendix A
NMS Error Messages
NMCN Error and Warning Messages
ACTION: See “Insufficient MPE Resources” at the beginning of this
appendix.
MESSAGE: NM Log Process: Cannot format log msg. Cannot access
formatter for subsystem !. Encountered LOADPROC error !.
(NMCNERR 45)
NMCNERR 45
CAUSE: A request to write a formatted log message specifies an NMS
subsystem number where formatter Log Process was unable to
LOADPROC.
ACTION: The SUBSYSnLOGFORMA procedure, where n is the subsystem
number specified in the message, either did not exist in SL.PUB.SYS or
could not be loaded when NM Log Process started. Look up the
LOADPROC error number in the MPE Intrinsics Reference Manual.
Correct this error. Check that NMS subsystem n is completely, correctly
installed. See “Invalid Software Installation” and “Insufficient MPE
Resources” at the beginning of this appendix.
Table A-1
Subsystem Numbers for NMCNERR Messages
Subsystem
nn
0
Node Management Services (30299-11017)
1
SNA Transport (32099-11015)
2
SNA/NRJE (Product #30245)
3
Network Transport (Product #30242)
4
Port Translator (30299-11017)
5
Sockets
6
Network Services (Product #32344)
7
Buffer Manager (30299-11016)
8
Link Manager (part of Node Management Services)
9
Reserved for future use
10
Reserved for future use
11
SNA/IMF
12/15
Reserved for future use
MESSAGE: NM Log Process: Cannot format log msg. Unknown
subsystem nn. (NMCNERR 46)
NMCNERR 46
CAUSE: A request to write a formatted log message specifies an
unknown NMS subsystem number.
ACTION: This is an internal error. See “Submitting an SR” at the
beginning of this appendix.
Appendix A
169
NMS Error Messages
NMCN Error and Warning Messages
MESSAGE: NMLG FILES mmmm THRU nnnn SKIPPED. (NMCNERR 47)
NMCNERR 47
CAUSE: NM log files mmmm through nnnn were skipped over when NMS
Logging tried to open a new disk log file. Files NMLGmmmm.PUB.SYS
through NMLGnnnn.PUB.SYS already exist. This is an information
message only; no error occurred.
ACTION: None.
MESSAGE: NMLG FILES 0000 THRU 9999 ALL USED, NONE
AVAILALBLE FOR NEXT LOGFILE. (NMCNERR 48)
NMCNERR 48
CAUSE: NMS Logging finds that files NMLG0000 through NMLG9999 all
already exist. It is more likely that a directory problem or an internal
problem exists.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: MainLogMon: NMGLOBAL file found, purged (not needed
for this version). (NMCNMSG 49)
NMCNMSG 49
CAUSE: Privileged file NMGLOBAL.PUB.SYS was found. This file is not
needed in this version of NMS software. The file information is
transferred to the Cold Load area of disk, and the file is purged.
ACTION: None. Informative message.
MESSAGE: NM Log Process: Cannot access NMCAT.PUB.SYS to
format a log msg. (NMCNERR 50)
NMCNERR 50
CAUSE: NM Log Process could not open the message catalog and so
could not format a logging message.
ACTION: See “Invalid Software Installation” at the beginning of this
appendix.
MESSAGE: NM Log Process: Logging class ! not configured for
subsystem ! in !. (NMCNERR 51)
NMCNERR 51
CAUSE: A logging message was received from NMS subsystem m that
specified log class n. However, log class n is not configured. The log
message is discarded.
ACTION: Use NMMGR to configure logging class n under subsystem m
in the specified configuration file. The NMMGR subtree is LOGGING.
SUBmmmm.CLASnnnn, where mmmm is the subsystem number m with
leading zeros, and nnnn is the class number n with leading zeros.
MESSAGE: Link Manager unable to open NM logging.
(NMCNWARN 70)
NMCNWARN 70
CAUSE: A Link Manager process encountered an error from
NMOPENLOG.
170
Appendix A
NMS Error Messages
NMCN Error and Warning Messages
ACTION: The specific NMERR will be reported in a console message
immediately following this message. The Link Manager process will
continue to execute, but will be unable to log any errors, including I/O
errors.
MESSAGE: Trace Manager unable to open NM logging.
(NMCNWARN 71)
NMCNWARN 71
CAUSE: NMCONFIG does not have logging subsystem 18 configured.
ACTION: None required.
MESSAGE: Linkname Table creation error, subsys=! info=!.
(NMCNERR 80)
NMCNERR 80
CAUSE: System call failure.
ACTION: Reboot the system.
Appendix A
171
NMS Error Messages
NMDUMP Error and Warning Messages
NMDUMP Error and Warning Messages
MESSAGE: Unable to retrieve text of message #! of set #! from the
message catalog. (NMDUMPERR 0)
NMDUMPERR 0
CAUSE: This message is actually not returned by the message catalog,
but by the program, if the error message requested to be returned
cannot be retrieved by the program. It will be displayed when there is
no message catalog, NMCAT.PUB.SYS, or the message catalog is not
valid (corrupt).
ACTION: Verify that the message catalog exists and is valid.
CAUSE: The version of the NMS message catalog on the system is not
compatible with the current NMS software.
ACTION: Verify that the version of NMCAT.PUB.SYS on the system is
compatible with the current NMS software.
CAUSE: File system error, a problem accessing and retrieving
information from message catalog, or an internal error in the
NMDUMP program.
ACTION: File an SR. Refer to “Submitting an SR” at the beginning of
this appendix.
MESSAGE: Data type must be 1 or 2. (NMDUMPERR 1)
NMDUMPERR 1
CAUSE: User responded incorrectly to prompt for data type.
ACTION: Correct input and re-enter.
MESSAGE: Invalid subsystem ID entered. (NMDUMPERR 2)
NMDUMPERR 2
CAUSE: User responded incorrectly to prompt for subsystem ID.
ACTION: Correct input and re-enter.
MESSAGE: Input must be YES or NO. (NMDUMPERR 3)
NMDUMPERR 3
CAUSE: User responded incorrectly to a prompt requiring a Y or N
answer. “Y”, “YES”, “y’, or “yes” are allowed for Y. “N”, “NO”, “n”, or “no”
are allowed for N.
ACTION: Correct input and re-enter.
MESSAGE: Error — File is not of log type. (NMDUMPERR 4)
NMDUMPERR 4
CAUSE: User specified that he wanted to format a log file, but the input
file specified was not type NLOG.
ACTION: Check spelling of filename. Check file’s type code. Correct
input and re-enter.
172
Appendix A
NMS Error Messages
NMDUMP Error and Warning Messages
MESSAGE: Error — File is not of trace type. (NMDUMPERR 5)
NMDUMPERR 5
CAUSE: User specified that he wanted to format a trace file, but the
input file specified was not type NTRAC.
ACTION: Check spelling of filename. Check file’s type code. Correct
input and re-enter.
MESSAGE: Invalid date and time string entered. (NMDUMPERR 6)
NMDUMPERR 6
CAUSE: User entered an invalid date and/or time. User entered the
date and/or time in improper format. Type “Help” for a list of allowed
formats.
ACTION: Correct input and re-enter.
MESSAGE: Time not within time range of file. (NMDUMPERR 7)
NMDUMPERR 7
CAUSE: User entered a date and/or time that is beyond the time range
of the input file.
ACTION: Correct input and re-enter.
MESSAGE: Finishing time earlier than starting time. (NMDUMPERR 8)
NMDUMPERR 8
CAUSE: User entered a finishing date and time that was earlier than
the starting date and time.
ACTION: Correct input and re-enter.
MESSAGE: LOADPROC failed on procedure !, LOADPROC error !. Will
output this subsystemid’s entries in dump format. (NMDUMPWARN 9)
NMDUMPWARN
9
CAUSE: NMDUMP was unable to LOADPROC (via MODCAL ADDR
function) the trace or log formatter procedure for the specified
subsystemid number. The procedure name is SUBSYSnLOGFORMAT
or SUBSYSnTRACEFORMAT, for log or trace files, for subsystemid = n.
NMDUMP will continue and will print out data for this subsystemid,
but it will be in a raw dump (hex and ASCII) format. The procedure is
not in an SL accessible to NMDUMP. Normally it should be present in
SL.PUB.SYS on those systems that have installed the NMS software.
Either the initial installation of these procedures was faulty, or these
procedures have been deleted since their initial installation.
ACTION: Get a known good copy of these procedures and install them
in SL.PUB.SYS.
MESSAGE: LOADPROC failed on procedure !, LOADPROC error !.
Default formatting options will be assumed for this subsystemid.
(NMDUMPWARN 13)
NMDUMPWARN
13
CAUSE: Similar to NMDUMPWARN 9, except the procedure that failed
to load was a menu procedure.
ACTION: Get a known good copy of these procedures and install them
in SL.PUB.SYS.
Appendix A
173
NMS Error Messages
NMDUMP Error and Warning Messages
MESSAGE: Error — unexpected end of input data file.
(NMDUMPERR 20)
NMDUMPERR 20 CAUSE: There was a system failure while tracing/logging was enabled
and the file was closed improperly.
ACTION: Attempt to re-log or re-trace the error situation.
CAUSE: An internal error in the NMS trace/log facility or the
NMDUMP facility.
ACTION: File an SR. Refer to “Submitting an SR” at the beginning of
this appendix.
CAUSE: Data file has become corrupt.
ACTION: Attempt to recreate the trace or log file.
MESSAGE: Error occurred during output of file header.
(NMDUMPERR 21)
NMDUMPERR 21 CAUSE: A file system error occurred.
ACTION: Attempt to find out what file system error occurred: Re-run
NMDUMP and see if error occurs.
CAUSE: An internal error in NMWRITE.
ACTION: Re-run NMDUMP. File an SR if the same problem occurs.
Refer to “Submitting an SR” at the beginning of this appendix.
MESSAGE: No data records, from the subsystems selected, were
found in the input file. (NMDUMPWARN 22)
NMDUMPWARN
22
CAUSE: No records were logged/traced to the file from the selected
subsystems.
ACTION: None.
CAUSE: If the input file is a log file, logging for the subsystems selected
may not be enabled.
ACTION: Check the logging configuration portion of
NMCONFIG.PUB.SYS to ensure that logging to disk is enabled for the
subsystem(s) and log class(es) desired. If it is not, make the appropriate
changes to the configuration file through NMMGR.PUB.SYS.
CAUSE: An internal error in the NMS trace/log facility or the
NMDUMP facility.
ACTION: File an SR. Refer to “Submitting an SR” at the beginning of
this appendix.
MESSAGE: No data records, from the subsystems selected, were
found within the time selected. (NMDUMPWARN 23)
NMDUMPWARN
23
CAUSE: No records were logged/traced to the file from the selected
subsystems during the time range specified.
174
Appendix A
NMS Error Messages
NMDUMP Error and Warning Messages
ACTION: None.
CAUSE: If the input file is a log file, logging for the subsystems selected
may not be enabled.
ACTION: Check the logging configuration portion of
NMCONFIG.PUB.SYS to ensure that logging to disk is enabled for the
subsystem(s) and log class(es) desired. If it is not, make the appropriate
changes to the configuration file through NMMGR.PUB.SYS.
CAUSE: An internal error in the NMS trace/log facility or the
NMDUMP facility.
ACTION: File an SR. Refer to “Submitting an SR” at the beginning of
this appendix.
MESSAGE: Error — invalid data record in trace file. (NMDUMPERR 24)
NMDUMPERR 24 CAUSE: There was a system failure while tracing was enabled and the
file was closed improperly.
ACTION: Attempt to re-trace the error situation.
CAUSE: An internal error in the NMS trace facility or the NMDUMP
facility.
ACTION: File an SR. Refer to “Submitting an SR” at the beginning of
this appendix.
CAUSE: Data file has become corrupt.
ACTION: Attempt to recreate the trace file.
MESSAGE: Error — invalid data record in log file. (NMDUMPERR 25)
NMDUMPERR 25 CAUSE: There was a system failure while logging was enabled and the
file was closed improperly.
ACTION: Attempt to re-trace the error situation.
CAUSE: An internal error in the NMS log facility or the NMDUMP
facility.
ACTION: File an SR. Refer to “Submitting an SR” at the beginning of
this appendix.
CAUSE: Data file has become corrupt.
ACTION: Attempt to recreate the logfile.
MESSAGE: Error — invalid trace data file. (NMDUMPERR 26)
NMDUMPERR 26 CAUSE: There was a system failure while tracing was enabled and the
file was closed improperly.
ACTION: Attempt to re-trace the error situation.
CAUSE: An internal error in the NMS trace facility or the NMDUMP
facility.
Appendix A
175
NMS Error Messages
NMDUMP Error and Warning Messages
ACTION: File an SR. Refer to “Submitting an SR” at the beginning of
this appendix.
CAUSE: Data file has become corrupt.
ACTION: Attempt to recreate the trace file.
MESSAGE: Error — invalid log data file. (NMDUMPERR 27)
NMDUMPERR 27 CAUSE: There was a system failure while logging was enabled and the
file was closed improperly.
ACTION: Attempt to re-trace the error situation.
CAUSE: An internal error in the NMS log facility or the NMDUMP
facility.
ACTION: File an SR. Refer to “Submitting an SR” at the beginning of
this appendix.
CAUSE: Data file has become corrupt.
ACTION: Attempt to recreate the log file.
MESSAGE: EOF was reached on the output file. The output listing is
incomplete. (NMDUMPWARN 28)
NMDUMPWARN
28
CAUSE: The output disk file was not built large enough to hold the full
dump listing.
ACTION: Redirect the output to a non-disk file, or increase the number
of records in the output file with a FILE equation or BUILD command.
MESSAGE: Error occurred during output of formatted data record.
(NMDUMPERR 29)
NMDUMPERR 29 CAUSE: A file system error occurred when NMWRITE was trying to
write to the output file. (A probable file system error in this case would
be “out of disk space.”)
ACTION: Verify that the system is at least not “out of space”: Re-run
NMDUMP and see if the same error occurs.
CAUSE: An internal error in NMWRITE.
ACTION: Re-run NMDUMP. File an SR if the same problem occurs.
Refer to “Submitting an SR” at the beginning of this appendix.
MESSAGE: Invalid trace destination specified in global header.
Reassigned according to file characteristics. (NMDUMPWARN 30)
NMDUMPWARN
30
CAUSE: An internal error in the NMS trace facility which caused bad
data to be written to the data file.
ACTION: No action is actually needed. NMDUMP recovers from such
an error in the data file. However, an SR may be filed against the trace
facility. Refer to “Submitting an SR” at the beginning of this appendix.
CAUSE: Data file has become corrupt.
176
Appendix A
NMS Error Messages
NMDUMP Error and Warning Messages
ACTION: No action is actually needed. NMDUMP recovers from such
an error in the data file. However, you may attempt to recreate the data
file.
MESSAGE: No data records are in the input file. (NMDUMPWARN 31)
NMDUMPWARN
31
CAUSE: No data records were logged/traced to the data file.
ACTION: None.
CAUSE: An internal error in the NMS trace/log facility or the
NMDUMP facility.
ACTION: File an SR. Refer to “Submitting an SR” at the beginning of
this appendix.
CAUSE: Data file has become corrupt.
ACTION: Attempt to recreate the data file.
MESSAGE: No additional data records are in the input file.
(NMDUMPWARN 32)
NMDUMPWARN
32
CAUSE: It is the end of the file.
ACTION: None.
CAUSE: An internal error in the NMS trace/log facility or the
NMDUMP facility.
ACTION: File an SR. Refer to “Submitting an SR” at the beginning of
this appendix.
CAUSE: Data file has become corrupt.
ACTION: Attempt to recreate the data file.
MESSAGE: An out-of-range block length was found. It was
reassigned the maximum allowable value, 1024. (NMDUMPWARN 33)
NMDUMPWARN
33
CAUSE: An internal error in the NMS log facility which caused bad
data to be written to the log data file.
ACTION: No action is actually needed. NMDUMP recovers from such
an error in the data file. However, an SR may be filed against the log
facility. Refer to “Submitting an SR” at the beginning of this appendix.
CAUSE: Log data file has become corrupt.
ACTION: No action is actually needed. NMDUMP recovers from such
an error in the data file. However, you may attempt to recreate the data
file.
MESSAGE: An out-of-range data record length was found. It was
reassigned the maximum allowable value, 2046. (NMDUMPWARN 34)
NMDUMPWARN
34
CAUSE: An internal error in the NMS log facility which caused bad
data to be written to the log data file.
Appendix A
177
NMS Error Messages
NMDUMP Error and Warning Messages
ACTION: No action is actually needed. NMDUMP recovers from such
an error in the data file. However, an SR may be filed against the log
facility. Refer to “Submitting an SR” at the beginning of this appendix.
CAUSE: Log data file has become corrupt.
ACTION: No action is actually needed. NMDUMP recovers from such
an error in the data file. However, you may attempt to recreate the data
file.
MESSAGE: An out-of-range start data record length was found. It was
reassigned the maximum allowable value, 8192. (NMDUMPWARN 34)
NMDUMPWARN
35
CAUSE: An internal error in the NMS trace facility which caused bad
data to be written to the trace data file.
ACTION: No action is actually needed. NMDUMP recovers from such
an error in the data file. However, an SR may be filed against the log
facility. Refer to “Submitting an SR” at the beginning of this appendix.
CAUSE: Trace data file has become corrupt.
ACTION: No action is actually needed. NMDUMP recovers from such
an error in the data file. However, you may attempt to recreate the data
file.
MESSAGE: An out-of-range continuation data record length was
found. It was reassigned the maximum allowable value.
(NMDUMPWARN 36)
NMDUMPWARN
36
CAUSE: An internal error in the NMS trace facility which caused bad
data to be written to the trace data file.
ACTION: No action is actually needed. NMDUMP recovers from such
an error in the data file. However, an SR may be filed against the log
facility. Refer to “Submitting an SR” at the beginning of this appendix.
CAUSE: Trace data file has become corrupt.
ACTION: No action is actually needed. NMDUMP recovers from such
an error in the data file. However, you may attempt to recreate the data
file.
178
Appendix A
NMS Error Messages
NM Error Messages
NM Error Messages
MESSAGE: Invalid parameter specified. (NMERR 1)
NMERR 1
CAUSE: The caller of an NMS procedure has passed an invalid value for
one or more of the parameters.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Invalid SubsystemID parameter. (NMERR 2)
NMERR 2
CAUSE: The caller of an NMS procedure has passed an invalid value for
the parameter SubsystemID. Returned by NMOPENTRACE,
NMOPENLOG, NMGETTRACEID, NMVERSCHECK. This is usually
an internal error in the calling subsystem.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Invalid UserID parameter. (NMERR 3)
NMERR 3
CAUSE: The caller of an NMS procedure has passed an invalid value for
the parameter UserID. Returned by NMOPENTRACE,
NMGETTRACEID. This is usually an internal error in the calling
subsystem.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Invalid TraceElement parameter. (NMERR 5)
NMERR 5
CAUSE: The caller of an NMS procedure passed an invalid value to the
TraceElement parameter. Returned by NMOPENTRACE,
NMGETTRACE. This is usually an internal error in the calling
subsystem.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Invalid Dest parameter. (NMERR 6)
NMERR 6
CAUSE: The caller of an NMS procedure passed an invalid value to the
Dest parameter. Returned by NMOPENTRACE. This is usually an
internal error in the calling subsystem.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Invalid TraceID parameter. (NMERR 7)
NMERR 7
CAUSE: The caller of an NMS procedure passed an invalid value to the
TraceID parameter. Returned by NMWRITETRACE,
NMCLOSETRACE. This is usually an internal error in the calling
subsystem.
ACTION: See “Submitting an SR” at the beginning of this appendix.
Appendix A
179
NMS Error Messages
NM Error Messages
MESSAGE: Invalid InfoMode parameter. (NMERR 8)
NMERR 8
CAUSE: The caller of an NMS procedure passed an invalid value to the
InfoMode parameter. Returned by NMWRITETRACE. This is usually
an internal error in the calling subsystem.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Invalid Mode parameter. (NMERR 9)
NMERR 9
CAUSE: The caller of an NMS procedure passed an invalid value to the
Mode parameter. Returned by NMWRITETRACE, NMCLOSETRACE,
NMOPENLOG, NMWRITELOG, NMCLOSELOG. This is usually an
internal error in the calling subsystem.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Invalid FileName, RecordSize, and/or FileSize parameter.
(NMERR 10)
NMERR 10
CAUSE: The caller of an NMS procedure passed an invalid value to the
FileName, RecordSize, and/or FileSize parameters. Returned by
NMOPENTRACE, NMCONFOPEN. An invalid file name, record size,
or filesize was specified by the user in a CI command, subsystem
command, or NMMGR screen or in a configuration file.
ACTION: Correct and retry.
CAUSE: One or more of these parameters are being passed incorrectly
by the calling subsystem.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Invalid LogID parameter. (NMERR 11)
NMERR 11
CAUSE: The caller of an NMS procedure passed an invalid value to the
LogID parameter. Returned by NMWRITELOG, NMCLOSELOG. This
is usually an internal error in the calling subsystem.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Invalid LogClass parameter. (NMERR 12)
NMERR 12
CAUSE: The caller of an NMS procedure passed an invalid value to the
LogClass parameter. Returned by NMWRITELOG. This is usually an
internal error in the calling subsystem.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Invalid LogDataMode parameter. (NMERR 13)
NMERR 13
CAUSE: The caller of an NMS procedure passed an invalid value to the
LogDataMode parameter. Returned by NMWriteLog. This is usually an
internal error in the calling subsystem.
ACTION: See “Submitting an SR” at the beginning of this appendix.
180
Appendix A
NMS Error Messages
NM Error Messages
MESSAGE: Unable to create new datafile. (NMERR 15)
NMERR 15
CAUSE: Returned by NMCONFOPEN. NMCONFOPEN detected an
error on MIDASOPEN, attempted on the user’s stack, on a new file that
was to be created. A File System error occurred. (Normal File System
restrictions apply when creating NM files.)
ACTION: See “File System Error” at the beginning of this appendix.
MESSAGE: Unable to open the datafile. (NMERR 16)
NMERR 16
CAUSE: Returned by NMCONFOPEN. A File System error occurred.
(Normal File System restrictions apply when accessing NM files.)
ACTION: See “File System Error” at the beginning of this appendix.
CAUSE: An internal error occurred.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Unable to close the datafile. (NMERR 17)
NMERR 17
CAUSE: Returned by NMCONFCLOSE. NMFILE detected an error on
MIDASCLOSE.
ACTION: See “Submitting an S” at the beginning of this appendix.
MESSAGE: Unable to write to datafile. (NMERR 18)
NMERR 18
CAUSE: Returned by NMCONFGETDATA, NMCONFUPDATEDATA.
NMFILE detected an error on MIDASGETDATA, besides NMFSERR 9
or 18.
ACTION: See “File System Error” and “Submitting an SR” at the
beginning of this appendix.
CAUSE: Returned by NMOPENTRACE, NMWRITETRACE,
NMCLOSETRACE, NMWRITELOG, and NMCLOSELOG. NMS
Tracing or Logging could not write to a trace or log file. Check for File
System errors such as out of file, group, account, or system disk space,
or I/O errors.
ACTION: If error persists and no File System error is detectable, then
see “Submitting an SR” at the beginning of this appendix.
MESSAGE: Unable to read from datafile. (NMERR 19)
NMERR 19
CAUSE: Returned by NMCONFGETDATA. NMFILE detected an error
on MIDASGETDATA, besides NMFSERR 9 or NMFSERR 18. A File
System error occurred. (Normal File System restrictions apply when
accessing NM files.)
ACTION: See “File System Error” at the beginning of this appendix.
CAUSE: An internal error occurred.
ACTION: See “Submitting an SR” at the beginning of this appendix.
Appendix A
181
NMS Error Messages
NM Error Messages
MESSAGE: Unable to obtain data segment for tracing. (NMERR 20)
NMERR 20
CAUSE: Main NMLogMon was unable to get an extra data segment, or
if internal tracing was specified, was unable to lock the extra data
segment it did get.
ACTION: See “Insufficient MPE Resources” and “Submitting an SR” at
the beginning of this appendix.
MESSAGE: Must have 1 <= data length <= 8192 bytes. (NMERR 21)
NMERR 21
CAUSE: A call to NMCONFadddata or NMCONFupdatedata cannot
send more than 8192 bytes of data. This is probably an internal error in
the calling subsystem.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Multiple accesses to a trace entity are not supported.
(NMERR 25)
NMERR 25
CAUSE: The trace entity passed to NMOPENTRACE is a duplicate
trace entry. NMS tracing will not support multiple NMOPENTRACE
calls for the same trace entity. A trace entity is a unique combination of
the parameters SubSystemID, TraceElement, and TraceType. A user
entered a command requesting a particular kind of trace when this
trace is already active.
ACTION: Do not request a trace when that trace is already active.
CAUSE: An internal error has occurred.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Trace entity is not currently being traced. (NMERR 26)
NMERR 26
CAUSE: A request was made for the TraceID of a trace entity that is not
currently active. Returned by NMGETTRACEID. (A trace entity is
composed of a SubSystemID, TraceElement, and TraceType).
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Request can not be completed immediately. (NMERR 27)
NMERR 27
CAUSE: A nowait type request cannot be processed immediately.
Returned by some of the NMnnTRACE and NMnnLOG procedures
when the MODE parameter is set to 1 (nowait mode) and NMS Tracing
or NMS Logging cannot process the request immediately.
ACTION: Normally this is not an error condition.
MESSAGE: Subsystem not configured in logging configuration.
(NMERR 28)
NMERR 28
CAUSE: The SubSystemID passed to NMOPENLOG cannot be found in
the LOGGING subtree of the NMCONFIG.PUB.SYS configuration file.
The subsystem has not been configured for logging, or the entry is
spelled wrong, or the configuration file has been corrupted.
182
Appendix A
NMS Error Messages
NM Error Messages
ACTION: Manually check the configuration using NMMGR and ensure
the logging entry for that subsystem is configured properly. Refer to the
appropriate reference manual for assistance.
MESSAGE: LogClass not configured in configuration file.
(NMERR 29)
NMERR 29
CAUSE: NMS logging cannot find the specified log class in the
configuration file NMCONFIG.PUB.SYS. Returned by NMWRITELOG.
The log class specified for the calling subsystem is not configured
correctly in NMCONFIG.PUB.SYS.
ACTION: Use NMMGR to manually check and correct the logging
configuration in CONFIG.PUB.SYS. Make sure that the class name is
spelled correctly. Refer to the appropriate reference manual for
assistance.
MESSAGE: Unable to repetition trace to beginning of file. (NMERR 31)
NMERR 31
CAUSE: FCONTROL 5 failed.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: This program may not be run as a user process.
(NMERR 32)
NMERR 32
CAUSE: User attempted to :RUN one of the NMS program files that are
not allowed to be :RUN. These program files include
LINKMGR.PUB.SYS, NMFILE.PUB.SYS, NMLOGMON.PUB.SYS,
PCMANAGE.PUB.SYS, NMLOGICS.PUB.SYS.
ACTION: None.
MESSAGE: Unable to access logging configuration file. (NMERR 33)
NMERR 33
CAUSE: An unexpected error occurred while NMS logging was trying to
read the logging configuration data in NMCONFIG.PUB.SYS. Returned
by NMOPENLOG.
ACTION: See “Corrupt Configuration File” at the beginning of this
appendix.
MESSAGE: Invalid reference parameter specified. (NMERR 34)
NMERR 34
CAUSE: Condition code “>” returned from an internal data segment
move routine. One of the parameters, passed by reference, would cause
a bounds violation if written to. This message is returned if a bad
condition code is received after call of one of the move routines between
data segments: MBFDS, MFDS, MBTDS, MTDS. This is an internal
error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
Appendix A
183
NMS Error Messages
NM Error Messages
MESSAGE: Internal error: Invalid data segment number. (NMERR 35)
NMERR 35
CAUSE: Condition code “>” returned from an internal data segment
move routine. An invalid DST number was specified. This message is
returned if a bad condition code is received after call of one of the move
routines between data segments: MBFDS, MFDS, MBTDS. This is an
internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Unable to find port for NM Monitor process. (NMERR 36)
NMERR 36
CAUSE: Returned by NMMONADDID and NMMONMAINTREQ.
NMMON does not have an entry in Port Dictionary. Cause: internal
problem, or bad software installation.
ACTION: See “Version Incompatibilities” and “Submitting an SR” at the
beginning of this appendix.
MESSAGE: Calls from split stack are not supported. (NMERR 37)
NMERR 37
CAUSE: Returned by NMMONADDID, NMMONSTARTREQ,
NMMONMAINTREQ, NMOPENLINK, NMCLOSELINK,
NMMANAGELINK, NMLINKINFO and NMLINKDIAL. Attempt to
call above procedures in Split stack. Caused by an internal problem, or
bad software installation.
ACTION: See “Invalid Software Installation” and “Submitting an SR” at
the beginning of this appendix.
MESSAGE: Parameter length out of range. (NMERR 38)
NMERR 38
CAUSE: Returned by NMMONSTARTREQ, NMOPENLINK, and
NMOPENLOG2. Length given for string parameter negative or too
long. Caused by an internal problem, or bad software installation.
ACTION: See “Invalid Software Installation” and “Submitting an SR” at
the beginning of this appendix.
MESSAGE: System shutdown in progress. Can’t complete request.
(NMERR 39)
NMERR 39
CAUSE: Returned by NMMONADDID, NMMONSTARTREQ,
NMMONMAINTREQ, NMOPENLINK, NMCLOSELINK,
NMMANAGELINK, NMLINKINFO and NMLINKDIAL. NMMON and
Link Manager are in the process of shutting down.
ACTION: This is normally not an error condition.
MESSAGE: Port table full. Unable to expand capacity. (NMERR 40)
NMERR 40
CAUSE: Returned by NMMONADDID. NMMON cannot expand its DL
DB area. Caused by an internal problem, or bad software installation.
ACTION: See “Invalid Software Installation” and “Submitting an SR”’
at the beginning of this appendix.
184
Appendix A
NMS Error Messages
NM Error Messages
MESSAGE: Port identifier not found in port table. (NMERR 41)
NMERR 41
CAUSE: Returned by NMMONDELETEID. Port ID to be deleted does
not exist in NMMON’s table, NMMONADDID was not called for this
ID. Caused by an internal problem, or bad software installation.
ACTION: See “Invalid Software Installation” and “Submitting an SR”’
at the beginning of this appendix.
MESSAGE: Unable to create specified system process. (NMERR 42)
NMERR 42
CAUSE: Returned by NMMONSTARTREQ. Error calling
CREATEPROCESS intrinsic. Caused by not enough MPE resources in
system, an internal error, a loader error, or bad software installation.
ACTION: See “Insufficient MPE Resources,” “Invalid Software
Installation,” and “Submitting an SR” at the beginning of this
appendix.
MESSAGE: Unable to obtain data segment for port. (NMERR 43)
NMERR 43
CAUSE: Returned by NMOPENLINK. Link Manager found an error
calling procedure INITPORTDST.
ACTION: See “Insufficient MPE Resources,” “Invalid Software
Installation,” and “Submitting an SR” at the beginning of this
appendix.
MESSAGE: Unable to create IPC port. (NMERR 44)
NMERR 44
CAUSE: Returned by NMOPENLINK. Link Manager found an error
calling CREATEPORT.
ACTION: See “Submitting an SR’” at the beginning of this appendix.
MESSAGE: Add to NM Monitor port table failed. (NMERR 45)
NMERR 45
CAUSE: Returned by NMOPENLINK. Error calling procedure
NMMONADDID (see message NMERR 40). Caused by an internal
error, or bad software installation.
ACTION: See “Invalid Software Installation” and “Submitting an SR” at
the beginning of this appendix.
MESSAGE: Add to port dictionary failed. (NMERR 46)
NMERR 46
CAUSE: Returned by NMOPENLINK. Error calling procedure
DICTADD to add Link Manager in Port Dictionary. Caused by an
internal error, or bad software installation.
ACTION: See “Invalid Software Installation” and “Submitting an SR” at
the beginning of this appendix.
MESSAGE: Unable to access message catalog NMCAT.PUB.SYS.
(NMERR 47)
NMERR 47
CAUSE: Returned by Version Checking Routines. Unable to FOPEN file
NMCAT.PUB.SYS. Caused by a bad software installation.
Appendix A
185
NMS Error Messages
NM Error Messages
ACTION: See “Invalid Software Installation” at the beginning of this
appendix.
MESSAGE: Unable to open $STDIN for process. (NMERR 48)
NMERR 48
CAUSE: Returned by NMOPENLINK. Unable to FOPEN $STDIN for
Link Manager process. Caused by an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Unable to open $STDLIST for process. (NMERR 49)
NMERR 49
CAUSE: Returned by NMOPENLINK. Unable to FOPEN $STDIN for
Link Manager process. Caused by an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Unable to find port for Link Manager process. (NMERR 50)
NMERR 50
CAUSE: Returned by NMOPENLINK. Link Manager does not have an
entry in Port Dictionary. Caused by an internal problem, or bad
software installation.
ACTION: See “Invalid Software Installation” and “Submitting an SR” at
the beginning of this appendix.
MESSAGE: Length of data to be logged not in range 1 <= logDataSize
<= max allowed (ICS, =58 bytes; non-ICS =2034 bytes. (NMERR 51)
NMERR 51
CAUSE: Caller of NMWRITELOG has requested either too much or too
little data to be logged.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Invalid NMCONF pathname. Non-printable characters not
allowed. (NMERR 53)
NMERR 53
CAUSE: Returned by most NMCONF intrinsics. Caller has sent
NMCONF intrinsic a pathname with non-printable character(s). May
be a subsystem problem.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Invalid transaction number. (NMERR 54)
NMERR 54
CAUSE: Returned by most of the NMCONF procedures.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: NMTC FILES 0000 THRU 9999 ALL USED, NONE
AVAILABLE FOR NEXT TRACEFILE. (NMERR 55)
NMERR 55
CAUSE: NMS Trace finds that files NMTC0000 through NMTC9999 all
already exist. It is more likely that a directory problem or an internal
problem exists.
ACTION: See “Submitting an SR” at the beginning of this appendix.
186
Appendix A
NMS Error Messages
NM Error Messages
MESSAGE: Invalid infolen, must be in range: 1 <= infolen <= 8.
(NMERR 56)
NMERR 56
CAUSE: Returned by: NMCONFFILEINFO.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Duplicate identifier already exists. (NMERR 57)
NMERR 57
CAUSE: Returned by NMCONFADDPATH, NMCONFRENAMEPATH.
NMFILE detected NMFSERR 21 on MIDASADDPATH. User of
configuration program entered erroneous information.
ACTION: Enter correct data specifications.
CAUSE: Configuration database has internal error.
ACTION: See “Corrupt Configuration File” at the beginning of this
appendix.
CAUSE: Internal software error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Unable to find identifier in path name. (NMERR 58)
NMERR 58
CAUSE: Returned by NMCONFGETDATA, NMCONFADDPATH,
NMCONFPURGEPATH, NMCONFNEXTPATH, NMCONFADDDATA,
NMCONFUPDATEDATA NMCONFDATALENGTH,
NMCONFRENAMEPATH, NMCONFPURGEDATA. NMFILE detected
message NMFSERR 9. User of configuration program or caller of
procedure entered erroneous pathname.
ACTION: Enter correct pathname.
CAUSE: Configuration file internal error.
ACTION: See “Corrupt Configuration File” at the beginning of this
appendix.
CAUSE: Internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Path depth < minimum or > maximum allowed.
(NMERR 59)
NMERR 59
CAUSE: Returned by NMCONFNEXTPATH. Procedure received a path
depth < 0, or > 256. Returned by: NMCONFADDDATA,
NMCONFUPDATEDATA, NMCONFGETDATA,
NMCONFDATALENGTH, NMCONFPURGEDATA,
NMCONFRENAMEPATH, NMCONFPURGEPATH,
NMCONFADDPATH. Procedure received a path depth < 1, or > 256.
Internal error in the calling program
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Unable to find NM Log Monitor. (NMERR 60)
Appendix A
187
NMS Error Messages
NM Error Messages
NMERR 60
CAUSE: An NM Trace or Logging procedure is unable to locate the
server trace or log process (NMLogMon). Returned by
NMOPENTRACE, NMGETTRACEID, NMCLOSETRACE,
NMOPENLOG, NMCLOSELOG, and by the SHOWNMLOG CI
command. The trace or log server process creation failed at system
startup due to a bad software installation, a loader error, or an internal
error.
ACTION: See “Invalid Software Installation” and “Submitting an SR” at
the beginning of this appendix.
CAUSE: An =SHUTDOWN or NMMAINT,SHUTDOWN has been
executed prior to the Trace or Logging procedure call. The server
process has already shut down. This is not an error condition.
ACTION: None.
MESSAGE: DB register at absolute. (NMERR 61)
NMERR 61
CAUSE: Caller’s DB register is at an absolute DB location
(WHERES’DB returned a < condition code). This is not allowed in the
called procedure. Returned by those trace and log procedures that can
otherwise be called in split stack mode. This is probably an internal
error by the calling subsystem.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: NM trace dictionary table is full. (NMERR 62)
NMERR 62
CAUSE: An unexpectedly large number of NMOPENTRACE calls have
been made, each specifying a different combination of SubSystemID,
TraceType, and TraceElement. If this is being done by user request,
turn off some of the traces, then retry. If this is not being done by user
request, then this is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: NM log table is full. (NMERR 63)
NMERR 63
CAUSE: An unexpectedly large number of NMOPENTRACE calls have
been made, each specifying internal memory tracing or a different
destination filename. If this is being done by user request, turn off some
of the traces, then retry. If this is not being done by user request, then
this is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Specified file is a system file. (NMERR 64)
NMERR 64
CAUSE: The file name (FileName) parameter of the NMOPENTRACE
procedure contains a system file name (the first ASCII character is “$”).
User specified an incorrect filename either in the command that starts
tracing, or in the configuration file.
ACTION: Specify a valid file name and retry.
188
Appendix A
NMS Error Messages
NM Error Messages
MESSAGE: Specified file is a back reference file. (NMERR 65)
NMERR 65
CAUSE: The file name (FileName) parameter of the NMOPENTRACE
procedure contains a back referenced file name (the first ASCII
character is “*”). User specified an incorrect filename either in the
command that starts trace for that subsystem, or in the configuration
file for that subsystem.
ACTION: Specify a valid file name and retry.
MESSAGE: User logging entries are not available. (NMERR 67)
NMERR 67
CAUSE: The LogBuf XDS used for a particular NMS trace file or for
NMS logging has no more available entries to add one more user. An
additional entry is used for tracing whenever additional traces are
requested to go to an existing open trace file. An additional entry is
used for logging whenever a subsystem opens a log file. The user has
requested an unexpectedly large number of concurrent traces to go to
the same trace file.
ACTION: Turn off some of the traces and retry.
CAUSE: An internal error has occurred.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Unable to create the trace process. (NMERR 69)
NMERR 69
CAUSE: The tracing subsystem is unable to create a trace server
process for the NMOPENTRACE request (NMMONSTARTREQ failed).
ACTION: See “Invalid Software Installation,” “Insufficient MPE
Resources,” and “Submitting an SR” at the beginning of this appendix.
MESSAGE: Unable to initialize the trace process. (NMERR 70)
NMERR 70
CAUSE: The tracing subsystem is unable to initialize the trace server
process for the NMOPENTRACE request (unable to create a port or
acquire a data segment).
ACTION: See “Invalid Software Installation,” “Insufficient MPE
Resources,” and “Submitting an SR” at the beginning of this appendix.
MESSAGE: Logging has stopped. (NMERR 71)
NMERR 71
CAUSE: An I/O error or File System error occurred earlier and logging
is not currently taking place. Returned by NMOPENLOG.
ACTION: Enter the SHOWLOG command to find out the status of the log
file and the type of error. Correct the error, and restart logging with a
RESUMENMLOG or a SWITCHNMLOG command. Then retry the action that
led to this error.
Appendix A
189
NMS Error Messages
NM Error Messages
MESSAGE: This command has no parameter. (NMERR 72)
NMERR 72
CAUSE: Parameters were specified for an NMS command that does not
require any parameters. Returned by SHOWNMLOG,
RESUMENMLOG, and SWITCHNMLOG. User entered parameters for
an NMS CI command SHOWNMLOG, SWITCHNMLOG, or RESUMENMLOG.
ACTION: Enter the command name alone without any other text on the
$STDIN or $STDINX record.
MESSAGE: Invalid logging configuration file. (NMERR 73)
NMERR 73
CAUSE: NMCONFIG.PUB.SYS contains invalid logging configuration
data. Returned by NMOPENLOG, NMWRITELOG.
ACTION: See “Corrupt Configuration File” at the beginning of this
appendix.
MESSAGE: NM Log dictionary table is full. (NMERR 74)
NMERR 74
CAUSE: Network management logging facility has a log dictionary
table with a fixed number of available entries. If no free entries are
available to complete the caller request this error message is returned.
Incompatible software versions installed.
ACTION: See “Invalid Software Installation” and “Version
Incompatibilities” at the beginning of this appendix. If this does not
resolve the problem, then see “Submitting an SR” at the beginning of
this appendix.
MESSAGE: Data is already associated with this identifier. (NMERR 75)
NMERR 75
CAUSE: Returned by: NMCONFADDDATA. NMFILE detected
NMFSERR 12. User attempted to add data to a path location where
data already exists. This may not necessarily be an error if the calling
program is trying to determine if data already exists at that location.
This could also be caused by database corruption, or by an internal
error.
ACTION: If data base corruption is suspected, then see “File System
Error” at the beginning of this appendix. If an internal error is
suspected, then see “Submitting an SR” at the beginning of this
appendix.
MESSAGE: File associated with this transaction is not locked.
(NMERR 76)
NMERR 76
CAUSE: Returned by: NMCONFUNLOCKFILE. NMFILE determined
that an NMCONFUNLOCKFILE was attempted on a transaction
without a corresponding NMCONFLOCKFILE. This is not necessarily
an error if the intent of the caller was to determine the lock status of
the file. This could also be caused by an internal error.
ACTION: If an internal error is suspected, see “Submitting an SR” at
the beginning of this appendix.
190
Appendix A
NMS Error Messages
NM Error Messages
MESSAGE: File associated with this transaction is locked.
(NMERR 77)
NMERR 77
CAUSE: Returned by: NMCONFADDDATA, NMCONFUPDATEDATA,
NMCONFPURGEDATA, NMCONFADDPATH,
NMCONFPURGEPATH, NMCONFRENAMEPATH. Some other
process has the NMCONF type file locked.
ACTION: Wait until the file is unlocked by the other user(s) before
proceeding.
MESSAGE: No data associated with this identifier. (NMERR 78)
NMERR 78
CAUSE: Returned by: NMCONFGETDATA, NMCONFDATALENGTH,
NMCONFPURGEDATA, NMCONFUPDATEDATA. NMFILE detected
NMFSERR 18. This may not be an error if the call to these procedures
was using this return to test if data was associated with the identifier.
If it was an error, it could be due to corruption of the database.
ACTION: If file corruption is suspected, see “Corrupt Configuration
File” at the beginning of this appendix.
MESSAGE: Buffer length parameter out of allowable range.
(NMERR 82)
NMERR 82
CAUSE: Returned by NMCONFGETDATA. Length parameter is longer
than 8192 or less than 7. Probable internal error by caller.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Transaction table is full. (NMERR 83)
NMERR 83
CAUSE: Returned if the maximum number of transactions via
NMCONF are already opened, and a call to NMCONFOPEN is made.
ACTION: See “Corrupt Configuration File” at the beginning of this
appendix.
MESSAGE: Data structures internal error in NMFILE. (NMERR 85)
NMERR 85
CAUSE: Returned by most NMCONF procedures.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Switch to CM failed. (NMERR 86)
NMERR 86
CAUSE: Returned by native mode NMS procedures if an error is
returned by SWITCH.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: CM data segment improperly mapped to NM object.
(NMERR 87)
NMERR 87
CAUSE: Returned by native mode NMWRITETRACE if an error is
returned by wrap-dst.
ACTION: See “Submitting an SR” at the beginning of this appendix.
Appendix A
191
NMS Error Messages
NM Error Messages
MESSAGE: Parameter not aligned properly. (NMERR 88)
NMERR 88
CAUSE: Internal error by the calling subsystem.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Invalid path type value, must be 1 or 2. (NMERR 90)
NMERR 90
CAUSE: Returned by NMCONFNEXTPATH. NMCONFNEXTPATH
detected invalid path type value. Internal error by the calling
subsystem.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Unable to purge datafile. (NMERR 92)
NMERR 92
CAUSE: Returned by NMCONFPURGE NMOPENTRACE. File system
error.
ACTION: Try to purge the file from a CI session, and note the error.
Correct this and retry.
MESSAGE: No identifiers beyond this point in datafile. (NMERR 94)
NMERR 94
CAUSE: Returned by NMCONFNEXTPATH. NMFILE detected
warning NMFSWARN 23, in MIDASNEXTPATH. This may not be an
error if the caller’s intention is to search the data file. Otherwise it
might indicate corruption of the file.
ACTION: If file corruption is suspected, see “Corrupt Configuration
File” at the beginning of this appendix. If this is not a problem, it may
be due to incompatible software modules, or an internal error by the
calling subsystem. See “Version Incompatibilities” and “Submitting an
SR” at the beginning of this appendix.
MESSAGE: Read truncated to capacity of buffer. (NMERR 95)
NMERR 95
CAUSE: Returned by NMCONFGETDATA. NMFILE detected
NMFWARN 19 on MIDASGETDATA. This is probably an internal error
by the calling subsystem.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: File code mismatch. (NMERR 96)
NMERR 96
CAUSE: Returned by NMCONFOPEN. NMFILE detected
NMFSWARN 6 on MIDASOPEN. The file is not a valid configuration
file.
ACTION: Type LISTF <filename>, 1 on the file. The file type should be
type NCONF.
CAUSE: Internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
192
Appendix A
NMS Error Messages
NM Error Messages
MESSAGE: Unable to find port for NMFILE process. (NMERR 97)
NMERR 97
CAUSE: Returned by all NMCONF procedures. Error detected on
DICTSEND.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Subsystem does not support version checking.
(NMERR 100)
NMERR 100
CAUSE: Returned by NMVERSCHECK. Coding error by caller of
NMVERSCHECK. The SUBSYSID parameter must refer to a
subsystem number that has a second level version cross check routine.
ACTION: See “Invalid Software Installation” at the beginning of this
appendix.
MESSAGE: Fix levels differ in one or more modules. (NMERR 101)
NMERR 101
CAUSE: There is a version mismatch between the various modules of
the subsystem. Incorrect installation of the subsystem software.
ACTION: See “Invalid Software Installation” at the beginning of this
appendix.
MESSAGE: Update levels differ in one or more modules. (NMERR 102)
NMERR 102
CAUSE: There is a version mismatch between the various modules of
the subsystem. Incorrect installation of the subsystem software.
ACTION: See “Invalid Software Installation” at the beginning of this
appendix.
MESSAGE: Version levels differ in one or more modules.
(NMERR 103)
NMERR 103
CAUSE: There is a version mismatch between the various modules of
the subsystem. Incorrect installation of the subsystem.
ACTION: See “Invalid Software Installation” at the beginning of this
appendix.
MESSAGE: One or more subsystem modules are missing.
(NMERR 104)
NMERR 104
CAUSE: A module required for normal operation of the subsystem is
missing.
ACTION: See “Invalid Software Installation” at the beginning of this
appendix.
MESSAGE: One or more subsystem modules are invalid.
(NMERR 105)
NMERR 105
CAUSE: An error has occurred trying to read the version ID of one or
more of the subsystem’s modules. An I/O error, disk error, or similar has
prevented reading the version stamp correctly.
Appendix A
193
NMS Error Messages
NM Error Messages
ACTION: Correct this problem and retry. If necessary see “Invalid
Software Installation” at the beginning of this appendix.
CAUSE: Some of the program files and data files have the version stamp
located in the last user label record. Perhaps the file was copied without
copying its user label records properly.
ACTION: See “Invalid Software Installation” at the beginning of this
appendix.
MESSAGE: MODULE FLAGS parameter invalid. (NMERR 106).
NMERR 106
CAUSE: The MODULE FLAGS MODE field (bits 7:6) is not in the range
0 to 5, or the TYPE field (bits 13:3) is not in the range 0 to 2. Returned
by NMSUBSYSVERS, SUBSYSOVERS, and other subsystem level 2
version check procedures. Probable internal error by caller.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: FLAGS options are incompatible. (NMERR 107)
NMERR 107
CAUSE: Some mutually incompatible option bits were set in the FLAGS
parameter. Returned by NMSUBSYSVERS, SUBSYSOVERS, and
other subsystem level 2 version check procedures.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Unable to create the link manager process. (NMERR 130)
NMERR 130
CAUSE: A non-zero result code was returned by NMMONSTARTREQ
to NMOPENLINK.
Returned by NMOPENLINK. Loader error trying to load
LINKMGR.PUB.SYS program file.
ACTION: Try to ALLOCATE LINKMGR.PUB.SYS. If this fails, correct the
problem according to the error messages given. If this succeeds, retry
the action that led to the problem. If this error occurs again, this is not
the problem.
CAUSE: Out of MPE resources.
ACTION: See “Insufficient MPE Resources” at the beginning of this
appendix.
CAUSE: A non-zero result code was returned by NMMONSTARTREQ
to NMOPENLINK. Returned by NMOPENLINK. Internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Invalid item detected in configuration record.
(NMERR 131)
NMERR 131
CAUSE: Error reading and/or interpreting data from configuration file.
Returned by NMOPENLINK.
ACTION: See “Corrupt Configuration File” at the beginning of this
appendix.
194
Appendix A
NMS Error Messages
NM Error Messages
MESSAGE: Link in exclusive use by another subsystem.
(NMERR 132)
NMERR 132
CAUSE: Link has already been opened by another process. Returned by
NMOPENLINK. Another process has this link opened.
ACTION: Shut down the other process to free the link.
CAUSE: A LINKMGR process which had this link previously did not
close it when expected. This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix. If
possible, include a memory dump with the SR.
MESSAGE: Startparm length error in Link Manager. (NMERR 133)
NMERR 133
CAUSE: Either a software version mismatch, or an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: A successful NMOPENLINK for this link must occur
before executing this function. (NMERR 134)
NMERR 134
CAUSE: NMOPENLINK has not yet been called successfully. Returned
by NMCLOSELINK, NMMANAGELINK, NMLINKINFO, and
NMLINKDIAL. This is usually an internal error in the calling
subsystem.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Required items missing in configuration record.
(NMERR 135)
NMERR 135
CAUSE: Error reading data from configuration file. Returned by
NMOPENLINK. Configuration file is not valid.
ACTION: See “Corrupt Configuration File” at the beginning of this
appendix.
MESSAGE: Parameter information exceeds permissible length.
(NMERR 136)
NMERR 136
CAUSE: Information buffer given by caller exceeds 128 words in length.
Returned by NMMANAGELINK and NMLINKDIAL. This is usually
an internal error in the calling subsystem.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: A successful NMOPENLINK for this link must occur
before executing this function. (NMERR 137)
NMERR 137
CAUSE: NMOPENLINK has not been executed successfully for this
link. Returned by NMCLOSELINK, NMMANAGELINK,
NMLINKINFO and NMLINKDIAL. This is usually an internal error in
the calling subsystem.
ACTION: See “Submitting an SR” at the beginning of this appendix.
Appendix A
195
NMS Error Messages
NM Error Messages
MESSAGE: Unable to find DC/LDM in system I/O tables. (NMERR 138)
NMERR 138
CAUSE: The NSLINK ldev was not configured for the link in
NMCONFIG.PUB.SYS when the system was started.
ACTION: Ensure the NSLINK ldev is configured for the link used by
NS, and re-boot. More information may be found in the NMLG log file.
MESSAGE: Unable to find the specified linkname in system I/O tables.
(NMERR 139)
NMERR 139
CAUSE: The specified linkname is not configured in the LINK subtree
of the configuration file.
ACTION: Check that the linkname specified to the subsystem has a
matching linkname configured under the LINK configuration subtree.
MESSAGE: Status request to communication board failed.
(NMERR 142)
NMERR 142
CAUSE: Call to procedure TRAN’GETINFO failed. Returned by
NMLINKINFO and LINKCONTROL. Bad software installation.
ACTION: Make sure that the versions of NMS software and port
translator software are compatible. See “Invalid Software Installation”
at the beginning of this appendix.
CAUSE: An internal error occurred.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: User specified buffer inadequate for request.
(NMERR 146)
NMERR 146
CAUSE: Caller did not supply a buffer large enough for returned data.
Returned by NMLINKINFO. Bad software installation.
ACTION: Make sure that the versions of NMS software and port
translator software are compatible. See “Invalid Software Installation”
at the beginning of this appendix.
CAUSE: An internal error occurred.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Link manager buffer area inadequate for request.
(NMERR 147)
NMERR 147
CAUSE: Link Manager’s internal buffer is not large enough to handle
this request. Returned by NMLINKINFO. Bad software installation.
ACTION: Make sure that the versions of NMS software and port
translator software are compatible. See “Invalid Software Installation”
at the beginning of this appendix.
CAUSE: An internal error occurred.
ACTION: See “Submitting an SR” at the beginning of this appendix.
196
Appendix A
NMS Error Messages
NM Error Messages
MESSAGE: Specified item code is out of range. (NMERR 148)
NMERR 148
CAUSE: No information item corresponds to the given item code.
Returned by NMLINKINFO. Bad software installation.
ACTION: Make sure that the versions of NMS software and port
translator software are compatible. See “Invalid Software Installation”
at the beginning of this appendix.
CAUSE: An internal error occurred.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Dial request to communication board failed. (NMERR 149)
NMERR 149
CAUSE: Error calling procedure TRAN’CONFIGDIAL. Returned by
NMLINKDIAL. Bad software installation.
ACTION: Make sure that the versions of NMS software and port
translator software are compatible. See “Invalid Software Installation”
at the beginning of this appendix.
CAUSE: An internal error occurred.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Dial facility is not supported. (NMERR 154)
NMERR 154
CAUSE: Call to LINKDIALREQ failed. Returned by NMLINKDIAL.
Bad software installation.
ACTION: Make sure that the versions of NMS software and port
translator software are compatible. See “Invalid Software Installation”
at the beginning of this appendix.
CAUSE: An internal error occurred.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Multicast address downloading is not supported.
(NMERR 155)
NMERR 155
CAUSE: Call to NMLINKDOWNMC is not supported. Bad software
installation.
ACTION: Make sure that the versions of NMS software and port
translator software are compatible. See “Invalid Software Installation”
at the beginning of this appendix.
CAUSE: An internal error occurred.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Invalid ParmArray code. (NMERR 156)
NMERR 156
CAUSE: The caller of an NMOPENLINK2 procedure has passed an
invalid item code in the parameter ParmArray.
ACTION: Returned by NMOPENLINK2.
Appendix A
197
NMS Error Messages
NM Error Messages
CAUSE: An internal error occurred.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: DS/LDM open request failed. (NMERR 157)
NMERR 157
CAUSE: The request to open the DC/LDM failed. Returned by
NMOPENLINK. Bad software installation.
ACTION: Make sure that the versions of NMS software and port
translator software are compatible. See “Invalid Software Installation”
at the beginning of this appendix.
CAUSE: An internal error occurred.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: DS/LDM close request failed. (NMERR 158)
NMERR 158
CAUSE: The request to close the DC/LDM failed. Returned by
NMCLOSELINK. Bad software installation.
ACTION: Make sure that the versions of NMS software and port
translator software are compatible. See “Invalid Software Installation”
at the beginning of this appendix.
CAUSE: An internal error occurred.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Unable to lock the Link Manager port DST. (NMERR 159)
NMERR 159
CAUSE: Returned by NMOPENLINK.
ACTION: Call to procedure failed.
CAUSE: Bad software installation.
ACTION: Make sure that the versions of NMS software are compatible.
CAUSE: An internal error occurred.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Number of parameters exceeds maximum of 20.
(NMERR 160)
NMERR 160
CAUSE: Returned after entering LINKCONTROL command incorrectly.
ACTION: Check the parameters against the LINKCONTROL syntax. Try
again.
MESSAGE: Expects link name parameter. (NMERR 161)
NMERR 161
CAUSE: Returned after entering LINKCONTROL command incorrectly.
ACTION: Specify the link name parameter and try again.
198
Appendix A
NMS Error Messages
NM Error Messages
MESSAGE: Expects a name from one to eight characters long.
(NMERR 162)
NMERR 162
CAUSE: Returned after entering LINKCONTROL command incorrectly.
ACTION: Check the spelling and try again.
MESSAGE: Expects alphanumeric name starting with alphabetic.
(NMERR 163)
NMERR 163
CAUSE: Returned after entering LINKCONTROL command incorrectly.
ACTION: Check the spelling and try again.
MESSAGE: Expects a semicolon after link name parameter.
(NMERR 164)
NMERR 164
CAUSE: Returned after entering LINKCONTROL command incorrectly.
ACTION: Check the spelling and try again.
MESSAGE: Expects TRACE keyword. (NMERR 165)
NMERR 165
CAUSE: Returned after entering LINKCONTROL command incorrectly.
ACTION: Specify keyword and try again.
MESSAGE: Expects an equals sign after keyword. (NMERR 166)
NMERR 166
CAUSE: Returned after entering LINKCONTROL command incorrectly.
ACTION: Correct and try again.
MESSAGE: Specified linkname is not an active datacomm device.
(NMERR 171)
NMERR 171
CAUSE: The specified linkname does not exist.
ACTION: Check the spelling of your entry and try again.
CAUSE: The device specified is not configured.
ACTION: Check the list of configured devices and try again.
MESSAGE: Specified pathname is not a datacomm device.
(NMERR 172)
NMERR 172
CAUSE: The specified pathname is not a valid datacomm device
address.
ACTION: Check the pathname in the configuration file and re-enter.
MESSAGE: Unexpected internal error accessing configuration data.
(NMERR 175)
NMERR 175
CAUSE: An unexpected error has occurred.
ACTION: See “Submitting an SR” at the beginning of this appendix.
Appendix A
199
NMS Error Messages
NM Error Messages
MESSAGE: Locked(!) HW Recover(!) HW Sick(!) HW Dead(!)
Resource(!). Run diagnostics for more information. (NMERR 177)
NMERR 177
CAUSE: This message is likely caused by a hardware problem, and is a
generic status request to the I/O manager returned with the specified
bits set. One particular example is that the user has entered the
LINKCONTROL command while the system is in power fail recovery.
ACTION: Correct the problem and try again.
MESSAGE: Link H/W device indicates self test failure. Run
diagnostics for more information. (NMERR 178)
NMERR 178
CAUSE: A failure has occurred in the datacomm hardware.
ACTION: Run diagnostics and replace the defective hardware as
necessary.
MESSAGE: Unexpected internal error accessing I/O manager.
(NMMERR 179)
NMERR 179
CAUSE: The I/O Manager is an unknown state.
ACTION: Run diagnostics for more information.
MESSAGE: Trace buffer size must be in the range 1 to 16.
(NMERR 181)
NMERR 181
CAUSE: The user has entered a number that is not in the acceptable
range. The current buffer sizes supported are within the ranges of 1K to
16K. Returned by the LINKCONTROL command parsing routine.
ACTION: Enter a valid number (1 through 16).
MESSAGE: HPE status : info =!, subsystem ID = !. (NMERR 182)
NMERR 182
CAUSE: Status information reported by each individual module.
ACTION: Look at “DHPESTAT.HPESTD.OFFICIAL” for the definitions
of subsystem constants. Find out the error information by checking the
status reporting file for that particular module.
MESSAGE: Only the LANIC link is supported. (NMERR 185)
NMERR 185
CAUSE: No link other than LAN is currently supported.
ACTION: Specify only the LANIC for this application.
MESSAGE: Trace request for linkname failed due to : HPE status:
INFO = ! subsystem ID = !.
NMERR 186
CAUSE: You attempted to start or stop tracing, but tracing was already
enabled or disabled.
ACTION: None.
CAUSE: An improper value was specified in the LINKCONTROL
command.
200
Appendix A
NMS Error Messages
NM Error Messages
ACTION: Reissue the LINKCONTROL command with the correct value.
CAUSE: An error occurred while accessing the specific I/O manager.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Trace for linkname has been initiated with some
exceptions : HPE status: INFO = ! subsystem ID = !.
NMERR 187
CAUSE: This error is often returned even though tracing has been
enabled.
ACTION: None. If this error occurs frequently, submit an SR. See
“Submitting an SR” at the beginning of this appendix.
MESSAGE: Invalid length for a trace file name.
NMERR 189
CAUSE: MPE/iX trace file names are in the format of
filename.group.account and must contain a maximum of eight
characters in the filename, group, and account fields.
ACTION: Reissue the command using a valid trace file name which
contains no more than eight characters in the filename, group, and
account field.
MESSAGE: Trace buffer size for a LAPB, SDLC or RJE link must be
between 5 & 16. (NMERR 193)
NMERR 193
CAUSE: The current buffer sizes supported for LAPB and SDLC are 5K
to 16K.
ACTION: Configure values in the correct range.
MESSAGE: Unable to access ! subsystem message catalog !.
(NMERR 200)
NMERR 200
CAUSE: The first parameter is the subsystem name or subsysid. The
second parameter is the message catalog file name. This is returned by
a datacomm subsystem message-generating routine. The specified
subsystem encountered an error trying to access an error message in
the specified message catalog file.
ACTION: Something is wrong with the specified message catalog file.
Either it does not exist, or is the wrong version, or is inaccessible due to
someone else either storing it or accessing it exclusively, or some other
I/O error has occurred. Correct the problem with the message catalog
and retry.
MESSAGE: Error accessing NMCAT.PUB.SYS set=! msg=!.
(NMERR 201)
NMERR 201
CAUSE: Returned by NMPRINTERRMSG and usually followed by one
or more of messages 202 through 205 below, which further clarifies the
error. NOTE: This message is actually hard-coded in
NMPRINTERRMSG and is included here only for documentation
purposes.
Appendix A
201
NMS Error Messages
NM Error Messages
ACTION: Look for one or more of NMERR 202 through 205 following
this message, and take the remedial action as suggested. Read the text
and comments for the original message specified in the message, and
take the suggested actions.
MESSAGE: OPEN FSERR ! on NMCAT.PUB.SYS. (NMERR 202)
NMERR 202
CAUSE: Returned by NMPRINTERRMSG and usually followed by the
text of the FSError message.
ACTION: Correct the FOPEN problem and retry.
MESSAGE: Encountered GENMESSAGE error !. (NMERR 203)
NMERR 203
CAUSE: Returned by NMPRINTERRMSG. If error number is 1 or 2,
NMERR 204 follows with a further description. Otherwise the error is
described in the MPE Intrinsics Manual under GENMESSAGE.
ACTION: If the error number is 1 or 2, see the NMERR 204 message
and comments. If the error number is not 1 or 2, look up the error
number in the MPE Intrinsics Manual under GENMESSAGE. It is
likely the problem is due to a bad software installation. If this is
consistent with the GENMESSAGE error, see “Getting Help” at the
beginning of this appendix. Otherwise, correct the problem causing the
GENMESSAGE error and try again.
MESSAGE: GENMESSAGE encountered FSERR !. (NMERR 204)
NMERR 204
CAUSE: Returned by NMPRINTERRMSG. This message follows
NMERR 203 message, and is usually followed with the text of the
FSError message as well.
ACTION: Correct the File System error and retry.
MESSAGE: FCLOSE FSERR ! NMCAT.PUB.SYS. (NMERR 205)
NMERR 205
CAUSE: Returned by NMPRINTERRMSG after printing a message
from NMCAT.PUB.SYS. The FCLOSE of NMCAT.PUB.SYS failed.
ACTION: Correct the File System error and retry.
MESSAGE: !: Error trying to access ! msgnum ! setnum !.
(NMERR 206)
NMERR 206
CAUSE: Returned by a subsystem message-generating routine when it
was unable to access the specified message catalog. The first parameter
is the Subsys (module) name. The second parameter is the Subsys
message catalog name. The third parameter is the message number.
The fourth parameter is the set number. Note that this message is
usually followed by one or more of messages NMERR 207 through 210.
ACTION: Check to see that the names entered actually exist and are
spelled correctly. Read any other error messages which are also
displayed, and take the action(s) recommended to correct the
problem(s) described by those messages.
202
Appendix A
NMS Error Messages
NM Error Messages
MESSAGE: Encountered FOPEN FSERR ! on !. (NMERR 207)
NMERR 207
CAUSE: Returned by a subsystem message-generating routine when it
was unable to FOPEN the specified message catalog. The first
parameter is the FSERR number. The second parameter is the message
catalog name. This message is usually preceded by message
NMERR 206.
ACTION: Correct the FOPEN error and retry.
MESSAGE: Encountered GENMESSAGE error !. (NMERR 208)
NMERR 208
CAUSE: Returned by a subsystem message-generating routine, usually
following NMERR 206. The parameter is the GENMESSAGE errnum.
If the error number is 1 or 2, NMERR 209 follows with a further
description. Otherwise, the error is described in the MPE Intrinsics
Manual under GENMESSAGE.
ACTION: If the error number is 1 or 2, see message NMERR 209. If the
error number is not 1 or 2, look up the error number in the
MPE Intrinsics Manual under GENMESSAGE. It is likely the problem
is due to a bad software installation. If this is consistent with the
GENMESSAGE error, the configuration file may be corrupted. Run
NMMGR and verify that the configuration file is okay. Otherwise,
correct the problem causing the GENMESSAGE error and try again.
MESSAGE: GENMESSAGE encountered FSERR !. (NMERR 209)
NMERR 209
CAUSE: Returned by a subsystem message-generating routine. The
parm is the FSERR number. This message usually follows NMERR 208,
and is usually followed with the text of the FSError message as well (by
calling the intrinsic FErrMsg).
ACTION: Correct the FS error and retry.
MESSAGE: Encountered FCLOSE FSERR ! on !. (NMERR 210)
NMERR 210
CAUSE: Returned by a subsystem message-generating routine after
reading a message from the specified message catalog. The first
parameter is the FSERR number. The second parameter is the message
catalog name. The FCLOSE of the message catalog failed.
ACTION: Correct the File System error and retry.
MESSAGE: Config file internal error detected and recovery failed.
(NMERR 220)
NMERR 220
CAUSE: The configuration file is possibly corrupted.
ACTION: See “Corrupt Configuration Files” at the beginning of this
appendix.
Appendix A
203
NMS Error Messages
NM Error Messages
MESSAGE: Total data length too large to return as integer.
(NMERR 221)
NMERR 221
CAUSE: Returned by NMCONFSONINFO. The total data length
associated with the path name and all its first level sons was greater
than 32767 and could not be returned to caller. It is possible that the
configuration file is corrupt. It is also possible that there is no error at
all. It is theoretically possible, although unlikely, to have more than
32767 bytes of data associated with a path and its first level sons.
ACTION: See “Corrupt Configuration Files” at the beginning of this
appendix.
CAUSE: Possible internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Son count too large to return as integer. (NMERR 222)
NMERR 222
CAUSE: Returned by NMCONFSONINFO. The number of first level
sons linked to the path name sent by the calling subsystem exceeds
32767. It is possible that the configuration file is corrupt. It is also
possible that an internal error occurred.
ACTION: See “Getting Help” at the beginning of this appendix.
MESSAGE: Request type out of bounds — error in port msg to
NMFILE. (NMERR 223)
NMERR 223
CAUSE: Returned if NMFILE receives a request type that it does not
recognize as being a valid NMCONF intrinsic request on its NMCONF
subqueue.
ACTION: Internal error. See “Getting Help” at the beginning of this
appendix.
MESSAGE: Will use LOGGING configuration for this subsystem that
is already active. (NMERR 301)
NMERR 301
CAUSE: Returned by NMOPENLOG, NMOPENLOG2. The open log
was successful and logging may proceed. Note that there is another
openlog outstanding for the same subsystem id, so the configuration
information already in use will continue to be used. This result code is
returned as a negative number (-301) to indicate it is not an error and
that the openlog was in fact successful.
ACTION: None.
204
Appendix A
NMS Error Messages
NMFS Error and Warning Messages
NMFS Error and Warning Messages
NMFSERR and NMFSWARN messages are produced by the NMS File
Server (NMFILE.PUB.SYS). In most cases, they are accompanied by
other messages (NMGRERRs or MPE File System errors). You should
take the action recommended for the accompanying messages first.
MESSAGE: Unable to create new datafile. (NMFSERR 1)
NMFSERR 1
CAUSE: This error occurs when NMFILE cannot create a new file that
is requested by a call to NMCONFOPEN, because of an error in an
FOPEN. It could be due to a faulty call to NMCONFOPEN or an error
due to specific problems on the system itself, such as insufficient disk
space or an I/O error on the file label.
ACTION: See “File System Error” and “Submitting an SR” at the
beginning of this appendix.
MESSAGE: Unable to write root directory entry to datafile.
(NMFSERR 2)
NMFSERR 2
CAUSE: This error occurs when NMFILE calls MIDASBUILDROOT
when processing an NMCONFOPEN.
ACTION: See “File System Error” and “Submitting an SR” at the
beginning of this appendix.
MESSAGE: Unable to close datafile. (NMFSERR 3)
NMFSERR 3
CAUSE: FCLOSE failure in MIDASCLOSE, called by NMFILE when
processing an NMCONFCLOSE or NMCONFPURGE.
ACTION: See “File System Error” and “Submitting an SR” at the
beginning of this appendix.
MESSAGE: Unable to open datafile. (NMFSERR 4)
NMFSERR 4
CAUSE: FOPEN failure in MIDASOPEN called by NMFILE when
processing an NMCONFOPEN, or an FOPEN failure in
MIDASCOMPRESS. File does not exist.
ACTION: Create file first.
CAUSE: FOPEN failure in MIDASOPEN called by NMFILE when
processing an NMCONFOPEN, or an FOPEN failure in
MIDASCOMPRESS. File system error.
ACTION: See “File System Error” and “Submitting an SR” at the
beginning of this appendix.
MESSAGE: Unable to retrieve filecode from datafile. (NMFSERR 5)
NMFSERR 5
CAUSE: This error occurs when NMFILE calls MIDASOPEN which
fails on FGETINFO after an NMCONFOPEN was called. This may
indicate that the file label has been corrupted.
Appendix A
205
NMS Error Messages
NMFS Error and Warning Messages
ACTION: See “File System Error” at the beginning of this appendix.
MESSAGE: Datafile does not match user specified filecode.
(NMFSWARN 6)
NMFSWARN 6
CAUSE: This warning occurs when a caller of NMCONFOPEN tries to
open a file that does not have a CONF file code either because the data
file specified is not a configuration file (most likely), or because the data
file label has been corrupted in some way.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Unable to read root directory entry in datafile.
(NMFSERR 7)
NMFSERR 7
CAUSE: NMFILE called MIDASFILEINFO which failed on FREADDIR
after NMCONFFILEINFO was called; or MIDASFINDENTRY was
called by NMFILE, and FREADDIR failed. Most NMCONF procedures
result in a call to MIDASFINDENTRY.
ACTION: See “File System Error” and “Corrupt Configuration File” at
the beginning of this appendix.
MESSAGE: Unable to find root directory entry in datafile.
(NMFSERR 8)
NMFSERR 8
CAUSE: This error occurs when the root of the file cannot be found in
either MIDASFILEINFO or MIDASFINDENTRY. The first is called as
a result of a call to NMCONFFILEINFO. The latter is called by many
other MIDAS procedures.
ACTION: See “File System Error” and “Corrupt Configuration File” at
the beginning of this appendix.
MESSAGE: Unable to find identifier in pathname. (NMFSERR 9)
NMFSERR 9
CAUSE: This error happens when MIDASFINDENTRY cannot find an
entry with the given path name. This procedure is called internally by
several MIDAS procedures. It also results for the same reason in
MIDASRENAMEPATH (from a call to NMCONFRENAMEPATH) and
MIDASPURGEPATH (from a call to NMCONFPURGEPATH). This is a
user error. Make sure the pathname requested was previously entered
into the file.
ACTION: Check spelling.
CAUSE: This error happens when MIDASFINDENTRY cannot find an
entry with the given path name. This procedure is called internally by
several MIDAS procedures. It also results for the same reason in
MIDASRENAMEPATH (from a call to NMCONFRENAMEPATH) and
MIDASPURGEPATH (from a call to NMCONFPURGEPATH). The file
might be corrupt
ACTION: See “Corrupt Configuration File” at the beginning of this
appendix
206
Appendix A
NMS Error Messages
NMFS Error and Warning Messages
MESSAGE: Directory linkage error in datafile. (NMFSERR 10)
NMFSERR 10
CAUSE: This error occurs when there is a failure in an FREADDIR in
the MIDAS procedures shown in the table when the next link or the
root cannot be found. Specifically, an unexpected end of file was found.
ACTION: See “Corrupt Configuration File” at the beginning of this
appendix.
MESSAGE: Unable to read directory entry in datafile. (NMFSERR 11)
NMFSERR 11
CAUSE: This error is similar to message NMFSERR 10 except that the
end of file was not the error when FREADDIR was called.
ACTION: See “File System Error” and “Corrupt Configuration File” at
the beginning of this appendix.
MESSAGE: Data is already associated with this identifier.
(NMFSERR 12)
NMFSERR 12
CAUSE: This error is returned by MIDASADDDATA when data already
exists at the location where it was to be added.
ACTION: See “Corrupt Configuration File,” “Invalid Software
Installation,” and “Submitting an SR” at the beginning of this
appendix.
MESSAGE: Unable to retrieve freespace pointer from datafile.
(NMFSERR 13)
NMFSERR 13
CAUSE: This error is returned by the MIDAS procedures listed in the
table when there is an FGETINFO to find the last record and there is a
failure of that call.
ACTION: See “File System Error” and “Corrupt Configuration” at the
beginning of this appendix.
MESSAGE: Filespace exhausted. Unable to add entry. (NMFSERR 14)
NMFSERR 14
CAUSE: This is caused when FGETINFO returns insufficient file space
left for an additional entry in the configuration file.
ACTION: Compress configuration file. If this does not resolve the error,
add records to the configuration file.
MESSAGE: Unable to write data record to datafile. (NMFSERR 15)
NMFSERR 15
CAUSE: This is due to an FWRITEDIR failure.
ACTION: See “File System Error” and “Submitting an SR” at the
beginning of this appendix.
MESSAGE: Unable to write directory entry to datafile. (NMFSERR 16)
NMFSERR 16
CAUSE: This is due to an FWRITEDIR failure.
ACTION: See “File System Error” at the beginning of this appendix.
Appendix A
207
NMS Error Messages
NMFS Error and Warning Messages
MESSAGE: No data associated with this identifier. (NMFSERR 18)
NMFSERR 18
CAUSE: In all MIDAS procedures returning this, there is a failure of
MIDASFINDENTRY.
ACTION: See “File System Error” and “Corrupt Configuration File” at
the beginning of this appendix.
MESSAGE: Read truncated to capacity of data buffer.
(NMFSWARN 19)
NMFSWARN 19
CAUSE: This error occurs when caller of NMCONFGETDATA specifies
a buffer length smaller than the actual data entry size.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Unable to read data record from datafile. (NMFSERR 20)
NMFSERR 20
CAUSE: This error results from a failure of FREADDIR in those MIDAS
procedures that call it. (The failure is not an end-of-file found.)
ACTION: See “File System Error” at the beginning of this appendix.
MESSAGE: Duplicate identifier already exists. (NMFSERR 21)
NMFSERR 21
CAUSE: This error is returned when trying to add a path that already
exists.
ACTION: See “File System Error” and “Submitting an SR” at the
beginning of this appendix.
MESSAGE: Resultant file size beyond permissible range.
(NMFSERR 22)
NMFSERR 22
CAUSE: This error results in MIDASCOMPRESS when the spacebias +
maximum file size is greater than 64K. Check the spacebias of
MIDASCOMPRESS call in user interface. The file might also be too
large or the file label might be corrupt.
ACTION: See “File System Error” and “Submitting an SR” at the
beginning of this appendix.
MESSAGE: No identifiers exist beyond this path. (NMFSWARN 23)
NMFSWARN 23
CAUSE: This happens when NMCONFnextpath is called and no further
path identifiers exist. This may not be an error. Applications calling
NMCONFnextpath may use this to find the end of a data branch.
Otherwise, it may indicate file corruption.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Pathname exceeds user specified maximum depth.
(NMFSERR 24)
NMFSERR 24
CAUSE: This is returned by MIDASPARSEPATH when the
user-specified pathname is longer than the path depth. No NMCONF
procedure calls this intrinsic.
208
Appendix A
NMS Error Messages
NMFS Error and Warning Messages
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Identifier exceeds maximum permissible length.
(NMFSERR 25)
NMFSERR 25
CAUSE: This is returned by MIDASPARSEPATH when the pathname
is too long. No NMCONF procedure calls this intrinsic.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Pathname length exhausted user specified buffer.
(NMFSERR 26)
NMFSERR 26
CAUSE: This is returned by MIDASTRAVERSE when the maxlevel
parameter is exceeded by the pathlevel parameter. This is probably
caused by an excessive pathdepth parameter in NMCONF procedure
calls.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Unable to rename old datafile prior to replacement.
(NMFSERR 27)
NMFSERR 27
CAUSE: This is caused by an FRENAME failure in MIDASCOMPRESS,
and is currently only returned by the user interface.
ACTION: See “File System Error” at the beginning of this appendix.
MESSAGE: Unable to purge old datafile prior to replacement.
(NMFSWARN 28)
NMFSWARN 28
CAUSE: This is due to an FCLOSE failure in MIDAScompress, and is
currently returned only by the user interface.
ACTION: See “Corrupt Configuration File” at the beginning of this
appendix.
MESSAGE: Datafile is empty. (NMFSWARN 29)
NMFSWARN 29
CAUSE: This is returned by MIDAScompress when existing data file
has no data in it. This might not be an error if compress is called from
the user interface but no data was put into the file.
ACTION: If you suspect that there should have been data, then see
“Corrupt Configuration File” at the beginning of this appendix.
MESSAGE: Parameter out of range. (NMFSERR 30)
NMFSERR 30
CAUSE: This is a generic error returned from several MIDAS
procedures. Check parameters in calls to NMCONF procedures to see if
they are in permissible range.
ACTION: See “Submitting an SR” at the beginning of this appendix.
Appendix A
209
NMS Error Messages
NMFS Error and Warning Messages
MESSAGE: Unable to open message catalog NMCAT.PUB.SYS.
(NMFSERR 31)
NMFSERR 31
CAUSE: Returned by MIDASERRMSG if there is a failure to open
NMCAT.PUB.SYS. See if this file is on the system. If it is, it might be
corrupt.
ACTION: See “Invalid Software Installation” at the beginning of this
appendix.
MESSAGE: Unable to read message catalog NMCAT.PUB.SYS.
(NMFSERR 32)
NMFSERR 32
CAUSE: Returned by MIDASERRMSG. The file might be corrupted.
ACTION: See “Invalid Software Installation” at the beginning of this
appendix.
MESSAGE: Unable to close message catalog NMCAT.PUB.SYS.
(NMFSERR 33)
NMFSERR 33
CAUSE: Returned by MIDASERRMSG. FCLOSE failure on the file.
ACTION: See “Submitting an SR” at the beginning of this appendix.
210
Appendix A
NMS Error Messages
NMGR Error and Warning Messages
NMGR Error and Warning Messages
MESSAGE: Terminal is of incorrect type or cannot be opened.
(NMGRERR 1)
NMGRERR 1
CAUSE: The user’s terminal is not a block mode terminal supported by
VPLUS/3000.
ACTION: Check the terminal type and strap settings.
CAUSE: The user is attempting to run NMMGR from a batch job. Batch
operation is not supported.
ACTION: None.
CAUSE: A terminal I/O or internal VPLUS/3000 error occurred.
ACTION: Check the version of VPLUS/3000 and repeat VPLUS/3000
installation if necessary.
MESSAGE: Form file is missing or cannot be opened. (NMGRERR 2)
NMGRERR 2
CAUSE: NMMGR was unable to open the forms file NMMGRF.PUB.SYS
at program startup. The file NMMGRF.PUB.SYS is missing.
ACTION: See “Invalid Software Installation” at the beginning of this
appendix.
CAUSE: A file equation exists for NMMGRF.PUB.SYS.
ACTION: Check for file equations using LISTEQ5.PUB.SYS and RESET
if necessary.
CAUSE: File NMMGRF.PUB.SYS is not a valid VFAST or VFORM forms
file, or it has become corrupted.
ACTION: Restore a back-up copy of NMMGRF.PUB.SYS.
CAUSE: An internal VPLUS/3000 error occurred.
ACTION: Check the version of VPLUS/3000 and repeat VPLUS/3000
installation if necessary.
MESSAGE: That type is not defined for this class of items.
(NMGRERR 3)
NMGRERR 3
CAUSE: The user entered a type name in the TYPE field of a
typed-select screen that is not defined for this screen.
ACTION: Check the subsystem manual for correct type names and try
again.
Appendix A
211
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: That function is not implemented. (NMGRERR 4)
NMGRERR 4
CAUSE: The user pressed an invalid function key (with a blank label),
or pressed the [ENTER] in a screen without a command window
(currently only the OPEN FILE screen).
ACTION: None.
MESSAGE: Not a valid <NMMGR cmd> or @<pathname or :
<MPE cmd>. (NMGRERR 5)
NMGRERR 5
CAUSE: The user typed an unrecognizable command in the command
window and pressed [ENTER].
ACTION: Check the spelling of the command, and check the list of valid
commands in your subsystem node management or configuration
manual.
MESSAGE: End of file on $STDINX. Cannot accept further input.
(NMGRERR 6)
NMGRERR 6
CAUSE: The user typed :EOF or :EOD in response to the prompt:
“Press Return when done viewing screen contents.”
ACTION: This error is irrecoverable since the terminal is closed for
further input. Run NMMGR again to continue configuration.
MESSAGE: Warning: Screen changed. Use Save Data key to save
data. (NMGRWARN 7)
NMGRWARN 7
CAUSE: The user changed information on a data screen and pressed a
key other than UPDATE. This warning prevents accidental exit from
the screen without saving changes.
ACTION: The user may ignore the warning by pressing a key other
than UPDATE, or may save changes by pressing UPDATE.
MESSAGE: There are no entries at this level to display.
(NMGRWARN 8)
NMGRWARN 8
CAUSE: The user pressed the PREV PAGE or NEXT PAGE key in a
selection screen when there are no items to be displayed on this select
screen. Scrolling with these keys is only necessary when there are
already items configured.
ACTION: None.
MESSAGE: Internal NM configuration file error. (NMGRERR 9)
NMGRERR 9
CAUSE: NMMGR has encountered an unexpected condition in the
configuration file.
ACTION: Check the NMCONF error (if one is reported) for further
information.
212
Appendix A
NMS Error Messages
NMGR Error and Warning Messages
CAUSE: NMMGR has encountered an unexpected condition in the
configuration file. Two or more users are updating the same
configuration file concurrently, and one renames or deletes a path which
another is configuring.
ACTION: Coordinate activity between users.
CAUSE: NMMGR has encountered an unexpected condition in the
configuration file. An internal error occurred. Submit a Service
Request. See “Submitting an SR” at the beginning of this appendix.
ACTION: Check the version of NMCONF.
MESSAGE: Unexpected type: NM config file corrupt or bad version.
(NMGRERR 10)
NMGRERR 10
CAUSE: NMMGR has encountered a link data record with a type code
(word #1) that is not currently supported. The configuration file may
have been corrupted by a file system or disk error.
ACTION: Restore an old version of the configuration file if possible, or
delete and reconstruct the corrupt link data record.
MESSAGE: Type must be present. (NMGRERR 11)
NMGRERR 11
CAUSE: The user attempted to add a new LINK without specifying a
link type.
ACTION: The type for a new link must be specified.
MESSAGE: Unexpected data: NM config file corrupt or bad version.
(NMGRERR 12)
NMGRERR 12
CAUSE: NMMGR has encountered unrecognizable data in the
configuration file. A file system or disc error may have corrupted the
configuration file. Possible situations which may cause this error
include: 1) A data record does not match the expected format. 2) A link
data record has an unexpected type code (word #1). 3) A link exists
without a data record to indicate its type.
ACTION: Restore an old version of the configuration file if possible, or
delete and reconstruct the corrupt link data record.
MESSAGE: Maximum number of allowed items already configured.
(NMGRERR 13)
NMGRERR 13
CAUSE: The user attempted to add more items than the maximum
allowed at this level.
ACTION: Check the NMMGR manual for these maximum values.
MESSAGE: Cannot build command table; NMCAT.PUB.SYS corrupt.
(NMGRERR 14)
NMGRERR 14
CAUSE: The file NMCAT.PUB.SYS is not a valid message file, does not
exist, or is corrupt.
Appendix A
213
NMS Error Messages
NMGR Error and Warning Messages
ACTION: See “Invalid Software Installation” at the beginning of this
appendix.
CAUSE: A file equation exists for NMMGRCAT.PUB.SYS.
ACTION: Check for file equations using LISTEQ2.PUB.SYS and RESET
if necessary.
CAUSE: The table of commands in the NM catalog file NMCAT.PUB.SYS
is corrupt or missing. File NMCAT.PUB.SYS is not a valid catalog file, or
it has become corrupted.
ACTION: Restore a back-up copy of NMMGRF.PUB.SYS.
CAUSE: The table of commands in the NM catalog file NMCAT.PUB.SYS
is corrupt or missing. Set 7 of NMCAT.PUB.SYS (the command set) is
missing, or some commands have been deleted from this set.
ACTION: Restore a back-up copy of NMMGRF.PUB.SYS.
MESSAGE: Missing data: NM config file corrupt or bad version.
(NMGRERR 15)
NMGRERR 15
CAUSE: NMMGR was unable to locate type code in data record.
ACTION: Restore an old version of the configuration file if possible, or
delete and reconstruct the corrupt link data record.
MESSAGE: Cannot set up form for next screen. (NMGRERR 16)
NMGRERR 16
CAUSE: The forms file NMMGRF.PUB.SYS may be missing or corrupt.
ACTION: Go to the Errors screen and check any other errors which are
displayed. See “Invalid Software Installation” at the beginning of this
appendix.
CAUSE: A terminal I/O error may have occurred. A user may have
entered :EOF or :EOD in response to the prompt “Press RETURN when
done viewing contents,” thereby closing the terminal for further input.
ACTION: Check the state of the terminal. Run NMMGR again if the
terminal is closed for input.
CAUSE: A data record may be corrupted, making it impossible for
NMMGR to display it.
ACTION: Go to the Errors screen and check any other errors which are
displayed. See “Invalid Software Installation” at the beginning of this
appendix.
CAUSE: NMMGR was unable to display the form for the screen which
the user selected. An internal VPLUS/3000 or NMCONF error may
have occurred.
ACTION: Check the version of VPLUS/3000 and NMCONF and restore
back-up copies if necessary.
214
Appendix A
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: No errors have yet occurred. (NMGRWARN 17)
NMGRWARN 17
CAUSE: The user has gone to the ERRORS screen to check the last
error, but no errors have occurred.
ACTION: None.
MESSAGE: MPE command error. (NMGRERR 19)
NMGRERR 19
CAUSE: The user executed an MPE command (by entering the
command preceded by a colon and pressing ENTER), and the command
terminated in an error state.
ACTION: Use the Error Information screen and check the Command
Interpreter error for further information.
MESSAGE: Item does not exist: use the ADD key to create a new item.
(NMGRERR 20)
NMGRERR 20
CAUSE: The user tried to DELETE, RENAME, or UPDATE an item in
a select screen, but the item does not exist in the configuration file.
ACTION: Use the ADD key if you intend to add the new item; otherwise
check the spelling of the item name.
MESSAGE: Item already exists. (NMGRERR 21)
NMGRERR 21
CAUSE: The user tried to ADD an item in a select screen, but the item
already exists.
ACTION: Check the spelling of the item name.
MESSAGE: Cannot open NM configuration file. (NMGRERR 22)
NMGRERR 22
CAUSE: A file system error occurred.
ACTION: Go to the Errors screen and check for a file system error
(FSERR). Correct the error and try again.
CAUSE: The NMFILE.PUB.SYS process of the Node Management
Services is not running.
ACTION: Go to the Errors screen and check for FSERR 97. If this error
occurred, the problem may be due to a version mismatch in the NMS
subsystem. See “Invalid Software Installation” at the beginning of this
appendix.
MESSAGE: Cannot reopen NM configuration file. (NMGRERR 23)
NMGRERR 23
CAUSE: NMMGR was unable to reopen the configuration file after
closing it for compression.
ACTION: Check the NMCONF or File System error (if one is reported)
for further information. This error is fatal and cannot be recovered
except by running NMMGR again. See message NMGRERR 22.
MESSAGE: Cannot compress NM configuration file. (NMGRERR 24)
NMGRERR 24
CAUSE: A file system error occurred.
Appendix A
215
NMS Error Messages
NMGR Error and Warning Messages
ACTION: Go to the Errors screen and check for a file system error
(FSERR). Correct the error and try again.
CAUSE: You are not the creator of the configuration file.
ACTION: Go to the Errors screen and check for FSERR 94. If this error
occurred, you can copy the file and then compress it, or ask the creator
to compress the file.
CAUSE: NMMGR was unable to compress the configuration file because
at least one other user is currently accessing the file.
ACTION: COMPRESS requires exclusive access to the configuration
file. Use LISTF,2 to check whether other users are accessing this file.
Wait until the file is not being accessed and try again.
CAUSE: The absolute value of the number of records to add or remove is
too large. The resulting file would not have been able to contain all the
records in the file, or, if a positive number was specified, the resulting
file would have exceeded the 64,000 record limit.
ACTION: Enter a different value.
MESSAGE: NA or NM capability is needed to run NMMGR.
(NMGRERR 25)
NMGRERR 25
CAUSE: The user does not have the Node Manager or Network
Administrator capability required to run NMMGR.
ACTION: Check user capability with program LISTDIR5.PUB.SYS,
and contact the account manager or system manager if an additional
capability is needed.
MESSAGE: File already exists. Use OPEN FILE (f1). (NMGRERR 26)
NMGRERR 26
CAUSE: The user tried to CREATE a file in the OPEN FILE screen
when the file already exists.
ACTION: Delete the file to create a new, empty configuration file, or use
the OPEN key to open an existing file.
MESSAGE: Must specify new name for rename. (NMGRERR 27)
NMGRERR 27
CAUSE: The user tried to RENAME an item in a select screen without
specifying the new name.
ACTION: Enter a name in the rename field and try again.
MESSAGE: File does not exist. Use CREATE FILE (f2). (NMGRERR 28)
NMGRERR 28
CAUSE: The user tried to OPEN a file in the OPEN FILE screen when
the file does not exist.
ACTION: Use the CREATE key to create a new file.
216
Appendix A
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: That command is ambiguous — use more letters.
(NMGRERR 31)
NMGRERR 31
CAUSE: The user typed an ambiguous command prefix in the command
window and hit ENTER.
ACTION: Make the prefix unambiguous by using more letters of the
command. Check the NMMGR manual for unambiguous command
prefixes.
MESSAGE: Maximum path depth exceeded. (NMGRERR 32)
NMGRERR 32
CAUSE: This error in an internal NMMGR error. NMMGR has created
a path whose depth exceeds the maximum allowable depth for paths.
ACTION: Submit a Service Request. See “Submitting an SR” at the
beginning of this appendix.
MESSAGE: Path name format is invalid. (NMGRERR 33)
NMGRERR 33
CAUSE: NMMGR encountered a path name whose format is not
recognized. A possible situation which may cause this error is that the
user has entered an incorrect path name in the command window.
ACTION: Check your subsystem node management or configuration
manual for correct format of a path name and check the subsystem
manual for valid paths.
CAUSE: An internal NMMGR error has occurred.
ACTION: Submit a Service Request. See “Submitting an SR” at the
beginning of this appendix.
MESSAGE: Error occurred while listing configuration file.
(NMGRERR 34)
NMGRERR 34
CAUSE: An error occurred during output of the tree structure or data
records of a configuration file.
ACTION: Check the NMCONF or File System error to determine the
specific error.
CAUSE: The configuration file may have corrupt data records or invalid
paths.
ACTION: Delete and reconstruct the corrupt link data record, or restore
a backup copy of the configuration file if possible and run NMMGRVER
again. If the error still occurs, submit a Service Request. See
“Submitting an SR” at the beginning of this appendix.
CAUSE: If the file FORMLIST is equated to a disk file, the file may be
too small to accommodate the output listing.
ACTION: Check the size of the file and change the file size specification
if necessary.
Appendix A
217
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: Invalid syntax for file name. (NMGRERR 36)
NMGRERR 36
CAUSE: The user attempted to OPEN or CREATE a configuration file
with an invalid file name.
ACTION: Check the spelling and syntax of the file name.
MESSAGE: ENTER executes commands: the command field is blank.
(NMGRERR 37)
NMGRERR 37
CAUSE: The user pressed [ENTER] without putting a command in the
command window. NMMGR uses [ENTER] ONLY for commands.
Modifications to the configuration file are all made using function keys.
ACTION: Make modifications to the configuration file by using the
function keys.
MESSAGE: MPE command warning. (NMGRERR 38)
NMGRERR 38
CAUSE: The user executed an MPE command (by entering the
command preceded by a colon and pressing ENTER), and the command
terminated in a warning state.
ACTION: Use the Error Information screen and check the Command
Interpreter error for further information.
MESSAGE: Unable to set termination trap handler. (NMGRERR 39)
NMGRERR 39
CAUSE: The termination trap handling procedure for program aborts
cannot be set. This error indicates an internal MPE problem in the
procedure XDSNTRAP, which places a termination procedure PLABEL
in the process context for use by MPE during process termination.
ACTION: Check the MPE installation to see that XDSNTRAP is present
and working.
MESSAGE: Must open a file before using this command.
(NMGRERR 40)
NMGRERR 40
CAUSE: The user is trying to view a configuration screen without first
opening a configuration file.
ACTION: Open the configuration file and enter the command again.
MESSAGE: Internal error: Unexpected screen length. (NMGRERR 41)
NMGRERR 41
CAUSE: The configuration file is corrupted.
ACTION: Restore a backup copy of the configuration file if possible and
run NMMGRVER again. If the error still occurs, submit a Service
Request. See “Submitting an SR” at the beginning of this appendix.
CAUSE: The forms file is corrupted or is a bad version.
ACTION: See “Invalid Software Installation” at the beginning of this
appendix.
218
Appendix A
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: Internal error: Unexpected screen contents.
(NMGRERR 42)
NMGRERR 42
CAUSE: This is an internal NMMGR error. NMMGR has encountered
unexpected data from the screen.
ACTION: Check to see that the correct version of NMMGR is installed.
See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Internal error: Unexpected data record length.
(NMGRERR 43)
NMGRERR 43
CAUSE: This is an internal NMMGR error. NMMGR cannot properly
create a data record from the input from the screen.
ACTION: Submit a Service Request. See “Submitting an SR” at the
beginning of this appendix.
MESSAGE: Internal error: Unexpected data record contents.
(NMGRERR 44)
NMGRERR 44
CAUSE: NMMGR cannot properly display a data field in the
configuration file on the screen. The configuration file is corrupted.
ACTION: Restore a back-up copy of the configuration file if possible.
MESSAGE: Internal error: Unexpected status code from procedure.
(NMGRERR 45)
NMGRERR 45
CAUSE: This is an internal NMMGR error. An unknown status code is
returned from a procedure.
ACTION: Submit a Service Request. See “Submitting an SR” at the
beginning of this appendix.
MESSAGE: Specified path is not in this configuration file.
(NMGRERR 46)
NMGRERR 46
CAUSE: The user has entered a path name in the command field that is
not in the configuration file.
ACTION: Check the path name entered and try again.
MESSAGE: Internal error: No child with this type is in schema.
(NMGRERR 47)
NMGRERR 47
CAUSE: This is an internal NMMGR error. NMMGR cannot match a
path name and a type code to an internal table.
ACTION: Submit a Service Request. See “Submitting an SR” at the
beginning of this appendix.
MESSAGE: Internal error: Can’t find this path in the schema.
(NMGRERR 48)
NMGRERR 48
CAUSE: This is an internal NMMGR error. NMMGR cannot match a
path name to an internal table.
Appendix A
219
NMS Error Messages
NMGR Error and Warning Messages
ACTION: Submit a Service Request. See “Submitting an SR” at the
beginning of this appendix.
MESSAGE: Internal error: The root node has parent node.
(NMGRERR 49)
NMGRERR 49
CAUSE: This is an NMMGR internal error. NMMGR is scanning the
configuration file off the boundary.
ACTION: Submit a Service Request. See “Submitting an SR” at the
beginning of this appendix.
MESSAGE: Internal error: The schema has an invalid format.
(NMGRERR 50)
NMGRERR 50
CAUSE: This is an internal NMMGR error. NMMGR cannot locate a
node in an internal table describing the configuration file structure.
ACTION: Submit a Service Request. See “Submitting an SR” at the
beginning of this appendix.
MESSAGE: No screen for this path. (NMGRERR 51)
NMGRERR 51
CAUSE: There is no screen to display that is associated with this path
name. A path exists in the configuration file but is not recognized by
NMMGR.
ACTION: This path is for internal use only. Check the pathname and
try again.
MESSAGE: Internal error: Cannot create version stamps.
(NMGRERR 52)
NMGRERR 52
CAUSE: NMMGR creates version stamps for each subsystem in
configuration file at file creation time, and in some cases at file open
time. This is an internal NMMGR error. NMMGR cannot create version
stamps in the configuration file due to an NMCONF error. Check the
NMCONF error number for detail.
ACTION: Purge this new file and try to recreate it. If an error still
occurs, see “Submitting an SR” at the beginning of this appendix.
MESSAGE: Version mismatch found on specified subsystem. Please
run NMMGRVER. (NMGRERR 53)
NMGRERR 53
CAUSE: NMMGR checks version stamps of each subsystem in the
configuration file at file open time. Version checking results show that
there is configuration data for at least one subsystem in the
configuration file that is not supported by this version of NMMGR.
ACTION: Run the version control program NMMGRVER to update the
file, or open another file, or create a new file.
220
Appendix A
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: Internal error: Version checking routine failed.
(NMGRERR 54)
NMGRERR 54
CAUSE: NMMGR checks version stamps of each subsystem in the
configuration file at file open time. An error has occurred in the version
checking routine. The configuration file may have corrupt data records
or invalid paths.
ACTION: Restore a back-up copy of the configuration file if possible.
MESSAGE: Internal error: Version-flag checking failed.
(NMGRERR 55)
NMGRERR 55
CAUSE: An internal NMMGR error has occurred: unable to get vsflag
status. The possible causes include: internal error in
vsflag_check_driver, or the parameters file_num, file_type_column, or
vsflag_path do not match those stored in vsflag array at open time.
ACTION: Submit a Service Request. See “Submitting an SR” at the
beginning of this appendix.
MESSAGE: Version mismatch found on specified subsystem.
(NMGRERR 56)
NMGRERR 56
CAUSE: NMMGR checks version stamps of each subsystem in the
configuration file at accessing time. The version checking result shows
that the specified subsystem has a mismatched version stamp in the
configuration file that is not supported by this version of NMMGR.
ACTION: Since this version stamp is greater than what NMMGR
supports, use NMMGR to create a new file. In this case, the
NMMGRVER conversion utility will not help.
MESSAGE: Internal error: Unable to get info on VPLUS field.
(NMGRERR 70)
NMGRERR 70
CAUSE: NMMGR was unable to retrieve information on the screen field
via VPLUS utilities.
ACTION: Go to the Errors screen and check the VPLUS error message
to determine the specific error. Correct the error and try again.
CAUSE: NMMGR was unable to retrieve information on the screen field
via VPLUS utilities. The forms file NMMGRF.PUB.SYS and NMMGR are
different versions, or the forms file is corrupt.
ACTION: See “Invalid Software Installation” at the beginning of this
appendix.
MESSAGE: Internal error: Unable to get info on VPLUS form.
(NMGRERR 71)
NMGRERR 71
CAUSE: NMMGR was unable to retrieve information on the screen field
via VPLUS utilities.
Appendix A
221
NMS Error Messages
NMGR Error and Warning Messages
ACTION: Go to the Errors screen and check the VPLUS error messages
to determine the specific error. Correct the error and try again.
CAUSE: NMMGR was unable to retrieve information on the screen field
via VPLUS utilities. The forms file NMMGRF.PUB.SYS and NMMGR are
different versions, or the forms file is corrupt.
ACTION: See “Invalid Software Installation” at the beginning of this
appendix.
MESSAGE: Internal error: Data field alignment error. (NMGRERR 72)
NMGRERR 72
CAUSE: This is an NMMGR internal conversion table error.
ACTION: Submit a Service Request. See “Submitting an SR” at the
beginning of this appendix.
MESSAGE: Internal error: Data field extraction is out of bounds.
(NMGRERR 73)
NMGRERR 73
CAUSE: This is an NMMGR internal conversion table error. NMMGR
cannot locate data for a field to display on this screen.
ACTION: Submit a Service Request. See “Submitting an SR” at the
beginning of this appendix.
MESSAGE: Internal error: Conversion code not yet implemented.
(NMGRERR 74)
NMGRERR 74
CAUSE: This is an NMMGR internal conversion table error. NMMGR
encountered an unknown conversion code.
ACTION: Submit a Service Request. See “Submitting an SR” at the
beginning of this appendix.
MESSAGE: Internal error: String overflow. (NMGRERR 75)
NMGRERR 75
CAUSE: This is an internal NMMGR error. A character string passed to
one of the conversion routines is too long.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Internal error: Screen conversion ptr is out of bounds.
(NMGRERR 76)
NMGRERR 76
CAUSE: This is an internal NMMGR error.
ACTION: Go to the Errors screen and check for a VPLUS error message
to determine the specific error. Correct any errors and try again.
CAUSE: This is an internal NMMGR error. The forms file
NMMGRF.PUB.SYS and NMMGR are not the same version, or the forms
file is corrupt.
ACTION: Restore a back-up copy of NMMGRF.PUB.SYS.
222
Appendix A
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: Internal error: Data conversion ptr is out of bounds.
(NMGRERR 77)
NMGRERR 77
CAUSE: This is an internal NMMGR conversion table error.
ACTION: Submit a Service Request. See “Submitting an SR” at the
beginning of this appendix.
MESSAGE: Internal error: Missing description for this screen.
(NMGRERR 78)
NMGRERR 78
CAUSE: This is an NMMGR internal table error. The screen name is not
in an internal conversion table.
ACTION: Submit a Service Request. See “Submitting an SR” at the
beginning of this appendix.
MESSAGE: Internal error: Invalid scr field position from VPLUS.
(NMGRERR 79)
NMGRERR 79
CAUSE: This is an internal NMMGR error. NMMGR cannot properly
locate field data from this screen.
ACTION: Submit a Service Request. See “Submitting an SR” at the
beginning of this appendix.
MESSAGE: Internal error: Data field not on proper unit boundary.
(NMGRERR 80)
NMGRERR 80
CAUSE: This is an internal NMGRR conversion table error.
ACTION: Submit a Service Request. See “Submitting an SR” at the
beginning of this appendix.
MESSAGE: Cannot lock NM configuration file. (NMGRERR 81)
NMGRERR 81
CAUSE: NMMGR was unable to successfully lock the configuration file.
ACTION: Go to the Errors screen and check for any NMERR or FSERR
error messages to determine the specific error. Correct the error and try
again. If necessary, submit a Service Request. See “Submitting an SR”
at the beginning of this appendix.
MESSAGE: Cannot unlock NM configuration file. (NMGRERR 82)
NMGRERR 82
CAUSE: NMMGR was unable to successfully unlock the configuration
file.
ACTION: Go to the Errors screen and check for any NMERR or FSERR
error messages to determine the specific error. Correct the error and try
again. If necessary, submit a Service Request. See “Submitting an SR”
at the beginning of this appendix.
MESSAGE: Press Delete again to confirm deletion. (NMGRERR 83)
NMGRERR 83
CAUSE: The Delete key needs to be pressed twice to accomplish the
deletion.
Appendix A
223
NMS Error Messages
NMGR Error and Warning Messages
ACTION: Press the Delete key a second time to confirm the deletion.
MESSAGE: Cannot access the NMMGR help catalog. (NMGRERR 84)
NMGRERR 84
CAUSE: NMMGR was unable to open the NMMGR help catalog,
NMMGRHLP.PUB.SYS.
ACTION: Restore the NMMGR help catalog.
MESSAGE: Incomplete summary printed. (NMGRERR 85)
NMGRERR 85
CAUSE: Some configuration data could not be found or printed in the
summary.
ACTION: Check the summary to ensure that all required fields are
configured.
CAUSE: The data that could not be found or printed is replaced with
asterisks in the summary printout.
ACTION: Check the summary to ensure that all required fields are
configured.
MESSAGE: Cannot invoke subsystem summary routine.
(NMGRERR 86)
NMGRERR 86
CAUSE: The subsystem summary output routine cannot be load
processed from the group, account, or system SL.
ACTION: Stream the install job I00INMAC.NMA.HPPL87 to add the
routine to system SL.
MESSAGE: Invalid SNA LU Name Format. Must be
XXXXXXXX.XXXXXXXX. (NMGRERR 87)
NMGRERR 87
CAUSE: The additional address in the Network Directory data screen
must be in the format of AXXXXXXX.AXXXXXXX, where A is any
alpha char and X is any alphanumeric character.
ACTION: Use correct format.
MESSAGE: Error in NMMGR help catalog. (NMGRERR 88)
NMGRERR 88
CAUSE: The MPE HELP subsystem could not use the help file
NMMGRHLP.PUB.SYS.
ACTION: Make sure that the file NMMGRHLP.PUB.SYS is properly
formatted (RUN MAKECAT.PUB.SYS,HELP).
CAUSE: The MPE HELP subsystem could not use the help file
NMMGRHLP.PUB.SYS.
ACTION: RESTORE the file NMMGRHLP.PUB.SYS.
224
Appendix A
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: Warning: Incompatible selection. Press key again to
confirm. (NMGRWARN 89)
NMGREWARN 89 CAUSE: The user pressed a GO TO type function key on the DTS screen
that was not compatible with the type of DTS subsystem specified on
that screen.
ACTION: Press the correct key or, to force selection of the incompatible
subsystem, press the incompatible key a second time.
MESSAGE: Invalid IP Address; press Help for more information.
(NMGRERR 90)
NMGRERR 90
CAUSE: The user entered an IP address that failed IP address edits
(address was invalid).
ACTION: Enter a valid IP address; check the class letter (A, B, C, or E
accepted). (Press the Help key for more information on entering a valid
IP address.)
MESSAGE: Must be xx-xx-xx-xx-xx-xx where x is a hex number.
(NMGRERR 91)
NMGRERR 91
CAUSE: The user entered a LAN station address that failed station
address edits (address was invalid).
ACTION: Enter a valid LAN station address; must be six pairs of hex
digits. (Press the Help key for more information on entering a valid
LAN station address.)
MESSAGE: Reachable Net IP Addr can’t be the same as the Gateway
IP Addr. (NMGRERR 92)
NMGRERR 92
CAUSE: A reachable network IP address is the same as the gateway IP
address. The network portion of these addresses must be different.
ACTION: Correct either the reachable network IP address or the
gateway IP address and re-enter.
MESSAGE: Enter the required Reachable Net IP Address with Hops.
(NMGRERR 93)
NMGRERR 93
CAUSE: User attempted to update information without entering
required data. At least one Reachable Net IP Address/Hop pair is
required on page 1 of the Reachable Networks screen.
ACTION: Enter the required information and continue.
MESSAGE: Maximum page count exceeded. (NMGRERR 94)
NMGRERR 94
CAUSE: User attempted to go to next page at the maximum page count
(256).
ACTION: Use CONDENSE PAGE.
Appendix A
225
NMS Error Messages
NMGR Error and Warning Messages
CAUSE: User attempted to do “LAST PAGE” or “CONDENSE PAGE”.
The configuration file may have Reachable Network paths in excess of
the maximum page count.
ACTION: Restore the configuration file with Reachable Network paths
within the maximum page count.
MESSAGE: You must enter a configuration file name to open or
create. (NMGRERR 95)
NMGRERR 95
CAUSE: The user pressed “Open Config” or “Create Config” but did not
enter the configuration file name on the OPEN screen.
ACTION: Supply the configuration file name.
MESSAGE: You must enter a directory file name to open or create.
(NMGRERR 96)
NMGRERR 96
CAUSE: The user pressed “Open Directory” or “Create Directory”, but
did not fill in the Network Directory File Name field on the OPEN
screen.
ACTION: Supply the network directory file name.
MESSAGE: You must enter a directory file name to open or create.
(NMGRERR 97)
NMGRERR 97
CAUSE: The user entered the NEXT command but there is no next
screen.
ACTION: None.
MESSAGE: There is no entry to be condensed. (NMGRERR 98)
NMGRERR 98
CAUSE: No reachable networks exist in the file to be condensed.
ACTION: None.
MESSAGE: Condense Page function failed. (NMGRERR 99)
NMGRERR 99
CAUSE: Error occurs during “CONDENSE PAGE” while doing an
“nmconfgetdata” or “nmconfrenamepath”. It can be caused by a
corrupted configuration file. Another possibility is that an internal
error is occurring with NMCONF intrinsics.
ACTION: Restore a back up copy of the configuration file and try again.
If the error still occurs, see “Submitting an SR” at the beginning of this
appendix.
MESSAGE: Internal error: Nmconf file number not in file table.
(NMGRERR 100)
NMGRERR 100
CAUSE: The file number was changed in NMMGR but not entered in
the table.
ACTION: Exit NMMGR, then rerun it and try to observe what damage
has been done. Repair if possible or restore the configuration file.
226
Appendix A
NMS Error Messages
NMGR Error and Warning Messages
CAUSE: The file number was changed in NMMGR but not entered in
the table.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Internal error: Midas file number not in file table.
(NMGRERR 101)
NMGRERR 101
CAUSE: The file number was not located in a search through the table.
It is likely that a file number was changed in NMMGR but not entered
in the table.
ACTION: Exit NMMGR, and rerun NMMGR and try to observe what
damage has been done. Repair if possible or restore the configuration
file. If the problem still exists, see “Submitting an SR” at the beginning
of this appendix.
MESSAGE: Internal error: Unable to remove closed file from file table.
(NMGRERR 102)
NMGRERR 102
CAUSE: An attempt to clear the file table of a closed file failed.
ACTION: Exit NMMGR. It is possible that no damage occurred. Rerun
NMMGR. If the problem still exists, see “Submitting an SR” at the
beginning of this appendix.
MESSAGE: Internal error: NMMGR file table inconsistent.
(NMGRERR 103)
NMGRERR 103
CAUSE: On trying to access the file table, an error was found in the
table. This will happen at open time if an attempt is made to put a file
into the file table and if the slot in the table is already occupied.
ACTION: Exit NMMGR. It is possible that no damage occurred. Rerun
NMMGR. If the problem still exists, see “Submitting an SR” at the
beginning of this appendix.
MESSAGE: Netxport has locked the file; cannot begin guided task;
wait. (NMGRERR 104)
NMGRERR 104
CAUSE: The network transport is being started using the file that
NMMGR has open as the active configuration file. A guided dynamic
update cannot be started until the transport has been started.
ACTION: Wait until the transport is started and then try again.
MESSAGE: The file has been locked; type ‘STOP’ to abort, or wait.
(NMGRERR 105)
NMGRERR 105
CAUSE: Either the transport is being started using the file NMMGR
has open as the active configuration file, or NMMGR is processing a
guided dynamic update which cannot continue until the transport has
been started.
ACTION: Wait until the transport is started and then try again.
Appendix A
227
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: The file has been locked; cannot begin guided task.
(NMGRERR 106)
NMGRERR 106
CAUSE: The transport is using the file NMMGR has open as the active
configuration file. Guided configuration cannot be performed on an
active configuration file (only guided dynamic updates can).
ACTION: None.
MESSAGE: The file has been locked; Type ‘STOP’ to abort.
(NMGRERR 107)
NMGRERR 107
CAUSE: The transport is being started using the file NMMGR has open
as the active configuration file. NMMGR is performing a guided
configuration which cannot continue while the transport is up. The file
cannot be modified except with guided dynamic updates until the
transport is brought down.
ACTION: Type ‘STOP’ in the command window and press ENTER to
stop guided configuration.
MESSAGE: The file has been locked; cannot make any modifications.
(NMGRERR 108)
NMGRERR 108
CAUSE: Transport is using the file NMMGR has open as the active
configuration file. The file cannot be changed except with guided
configuration.
ACTION: Enter guided configuration to perform this function.
MESSAGE: This file has been locked; subtree copy aborted.
(NMGRERR 109)
NMGRERR 109
CAUSE: The transport is being initiated using the file that NMMGR
has open as the active configuration file, and NMMGR was in the
middle of a subtree copy.
ACTION: When the transport is no longer running, purge the subtree
you were copying into and restart the subtree copy.
MESSAGE: Internal error: Cannot check file lock status; data not
saved. (NMGRERR 110)
NMGRERR 110
CAUSE: NMMGR cannot determine whether or not the transport is
using this file.
ACTION: If the transport is being started or shut down, wait until it is
finished and then try again. If the problem still exists, see “Submitting
an SR” at the beginning of this appendix.
MESSAGE: NETXPORT not validated. Type exit again to leave
NMMGR. (NMGRERR 111)
NMGRERR 111
CAUSE: Data in the NETXPORT subsystem was changed and
NETXPORT was not successfully validated afterwords.
228
Appendix A
NMS Error Messages
NMGR Error and Warning Messages
ACTION: Go to the validation screen and validate NETXPORT or type
exit again, this leaves the file unvalidated.
MESSAGE: DTS/LINK not validated. Type exit again to leave NMMGR.
(NMGRERR 112)
NMGRERR 112
CAUSE: Data in the DTS or LINK subsystems was changed and
DTS/LINK was not successfully validated afterwords.
ACTION: Go to the validation screen and validate DTS/LINK or type
exit again, this leaves the file unvalidated.
MESSAGE: HP-IBM not validated. Type exit again to leave NMMGR.
(NMGRERR 113)
NMGRERR 113
CAUSE: Data in the SNANODE, NRJE, or IMF subsystems was
changed and HP-IBM was not successfully validated afterwards.
ACTION: The user can go to the validation screen and validate
HP-IBM. The user can type exit again and leave the file unvalidated.
MESSAGE: Cannot find validation program NMMGRVAL.PUB.SYS.
(NMGRERR 114)
NMGRERR 114
CAUSE: File does not exist.
ACTION: Check to see what happened to the file NMMGRVAL.PUB.SYS.
If it has been inadvertently purged, try restoring it from a backup tape.
MESSAGE: Cannot send mail to validation program. (NMGRERR 115)
NMGRERR 115
CAUSE: Internal error.
ACTION: Contact your Hewlett-Packard representative.
MESSAGE: Cannot activate validation program
NMMGRVAL.PUB.SYS. (NMGRERR 116)
NMGRERR 116
CAUSE: Internal error.
ACTION: Contact your Hewlett-Packard representative.
MESSAGE: Cannot receive mail from validation program.
(NMGRERR 117)
NMGRERR 117
CAUSE: Internal error.
ACTION: Contact your Hewlett-Packard representative.
MESSAGE: LU Number “!” on page ! is a duplicate. (NMGRERR 118)
NMGRERR 118
CAUSE: The user entered two LU’s with the same LU Numbers. The
duplicate numbers may be on the same page of LU data, or one may be
on page 1 of LU data and the other on page 2 of LU data.
ACTION: Make sure all LU’s have unique numbers.
Appendix A
229
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: LU Number “!” on page ! is a duplicate. (NMGRERR 119)
NMGRERR 119
CAUSE: You have entered two LUs with the same LU name. These
names may be on the same page (1 or 2) of LU data, or one name may
be on page 1 and the other on page 2.
ACTION: Make sure all LUs have unique names.
MESSAGE: If the Node Type is “2.0”, then the LU # is required.
(NMGRERR 120)
NMGRERR 120
CAUSE: The user entered an LU Number out of the acceptable range of
1–255.
ACTION: Enter an LU Number that is in the range 1–255.
MESSAGE: IP Address with node portion of zeros is reserved for
broadcast. (NMGRERR 121)
NMGRERR 121
CAUSE: You entered an IP address with the node portion of the IP
address equal to zero.
ACTION: Modify the node portion of the IP address to a valid IP
address.
MESSAGE: LU Name must be a letter followed by letters for digits.
(NMGRERR 122)
NMGRERR 122
CAUSE: The user entered a string that contained some non
alpha-numeric characters.
ACTION: Re-enter the string with alpha-numeric characters only.
MESSAGE: IP Mask can only contain digits separated by periods or
spaces. (NMGRERR 123)
NMGRERR 123
CAUSE: The IP mask was entered incorrectly. Each octet (XXX) can only
contain digits. The octets can be separated by periods or blank spaces.
ACTION: Enter a mask in the correct format.
MESSAGE: IP Mask octets can only contain values between 0 and
255. (NMGRERR 124)
NMGRERR 124
CAUSE: One or more of the octets entered in the IP mask contains a
number less than 0 or greater than 255.
ACTION: Enter a mask with octets within the range 0 to 255.
MESSAGE: IP Mask must contain exactly four octets. (NMGRERR 125)
NMGRERR 125
CAUSE: More or less than four octets (XXX) were entered.
ACTION: Re-enter the mask with exactly four octets.
230
Appendix A
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: IP Subnet Mask of 255.255.255 is not allowed.
(NMGRERR 126)
NMGRERR 126
CAUSE: An IP Subnet Mask of 255.255.255 was entered. This is not a
legal mask.
ACTION: Re-enter the mask with a different value.
MESSAGE: If Node 2.1 Dependent LU Support, then LU #’s must be
blank. (NMGRERR 127)
NMGRERR 127
CAUSE: If the PU Type is 2.1 and the PU Dependent Support is N, then
there cannot be any LU Numbers associated with the LU names.
ACTION: Make all the LU Numbers blank and try again.
MESSAGE: Invalid SNA LU Name Format. Must be
XXXXXXXX.XXXXXXXX. (NMGRERR 128)
NMGRERR 128
CAUSE: The user entered an invalid SNA LU name. The SNA LU Name
must be in the format of AXXXXXXX.AXXXXXXX, where A is any alpha
character and X in any alphanumeric character.
ACTION: Make all the LU Numbers blank and try again.
MESSAGE: No previous page. (NMGRERR 130)
NMGRERR 130
CAUSE: The user pressed the PREV PAGE function key on a paged
data screen and there was no previous page of data.
ACTION: None.
MESSAGE: Ldev of ! is not valid. Valid range is -1 to 4679.
(NMGRERR 131)
NMGRERR 131
CAUSE: The user entered an Ldev that is out of range.
ACTION: Re-enter an Ldev within the allowed range.
MESSAGE: Names can only be 16 characters long. (NMGRERR 132)
NMGRERR 132
CAUSE: The user entered a name in a field that allows more characters
than a valid name allows. This field is usually used for more than one
type of entry. The program believes that the user is trying to store a
name that is too long.
ACTION: Enter a new name 16 characters or shorter.
MESSAGE: Allowed name chars are “A”..“Z”, “0”..“9”, “_” and “-”.
(NMGRERR 133)
NMGRERR 133
CAUSE: The user has tried to enter a name with invalid characters in
it.
ACTION: Enter a name with valid characters.
Appendix A
231
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: IP Address with node portion of zero’s reserved.
(NMGRERR 134)
NMGRERR 134
CAUSE: The node portion of the IP address is all zeros.
ACTION: Check the IP address and make sure that the node portion is
not all zeros. Enter a valid IP address. (Press the Help key for more
information on entering a valid IP address.)
MESSAGE: IP Address with network portion of zero’s reserved.
(NMGRERR 135)
NMGRERR 135
CAUSE: The network portion of the IP address is all zeros.
ACTION: Check the IP address and make sure that the network portion
is not all zeros. Enter a valid IP address. (Press the Help key for more
information on entering a valid IP address.)
MESSAGE: IP Address A 127 XXX.XXX.XXX is reserved for Loopback.
(NMGRERR 136)
NMGRERR 136
CAUSE: The IP address entered has a network address of 127. This
network address with any node address is reserved for loopback.
ACTION: Check the IP address and make sure that the network
address is not 127. Enter a valid IP address. (Press the Help key for
more information on entering a valid IP address.)
MESSAGE: IP Address E 255.255.255.255 is reserved for Broadcast.
(NMGRERR 137)
NMGRERR 137
CAUSE: The IP address the user entered is a reserved address.
ACTION: Enter a different IP address. (Press the Help key for more
information on entering a valid IP address.)
MESSAGE: Bad LAN address. Format is xx-xx-xx-xx-xx-xx; x is 0–9 or
A–F. (NMGRERR 138)
NMGRERR 138
CAUSE: The user entered an invalid LAN address on a screen or in a
maintenance mode command.
ACTION: Correct the LAN address and repeat the last command or
action. (Press the Help key for more information on entering a valid
LAN address.)
MESSAGE: Invalid response. you must enter ON or OFF.
(NMGRERR 139)
NMGRERR 139
CAUSE: The user, while using the DTSDYNCONF command in maint
mode, they entered in invalid char. The only valid response is either ON
or OFF.
ACTION: Enter either ON or OFF.
232
Appendix A
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: SNA/DS not validated. Type exit again to leave NMMGR.
(NMGRERR 140)
NMGRERR 140
CAUSE: Data in the SNA.DS subsystem was changed and SNA/DS was
not successfully validated afterwords.
ACTION: Go to the validation screen and validate SNA/DS or type exit
again to leave the file unvalidated.
MESSAGE: Subsystem(s) are not validated. Type ERR for more
information. (NMGRERR 141)
NMGRERR 141
CAUSE: One or more of the subsystems in NMMGR have not been
validated.
ACTION: To see which subsystems have not been validated, type
ERRORS in the command line and press the Enter key. Go to the
validation screen to validate the unvalidated subsystems or type exit
again to leave the file unvalidated.
MESSAGE: Error in build statement table. (NMGRERR 200)
NMGRERR 200
CAUSE: This is an internal NMMGR error. The number of statements
in an internal table does not match the number expected by NMMGR.
ACTION: Restore the file NMMGRCAT.PUB.SYS. Then run
NMMAINT.PUB.SYS to make sure the version of NMMGR is correct.
MESSAGE: Internal error in Guided config scanner. (NMGRERR 201)
NMGRERR 201
CAUSE: This is an internal guided configuration error caused by a
corrupt NMMGRCAT.PUB.SYS file.
ACTION: Restore NMMGRCAT and retry. If this fails see “Submitting
an SR” at the beginning of this appendix.
MESSAGE: Aux NCONF file already open. (NMGRERR 202)
NMGRERR 202
CAUSE: This is an internal guided configuration error caused when
more than one NMCONF file is opened by the guided configuration
open statement.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Cannot open source, destination, or Aux NCONF file.
(NMGRERR 203)
NMGRERR 203
CAUSE: This is caused when the source/destination file or the file
NMAUX1.PUB.SYS is either missing, is the wrong version, is locked for
exclusive access, or was corrupted during a subtree copy.
ACTION: If doing a subtree copy, check to see that the source and
destination files really exist. If performing a guided configuration task,
copy NMAUX1.PUB.SYS from backup tape, and run NMMAINT.PUB.SYS
to make sure that you have the correct version.
Appendix A
233
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: Aux NCONF file not opened. (NMGRERR 204)
NMGRERR 204
CAUSE: This is an internal guided configuration error caused when
data is copied from the auxiliary file to the user file and the auxiliary
file was not opened.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Aux file does not contain specified path. (NMGRERR 205)
NMGRERR 205
CAUSE: This is a guided configuration error caused when NMMGRCAT
specifies a path in the auxiliary file that does not exist.
ACTION: Copy NMAUX1.PUB.SYS from back-up tape, and run
NMAINT.PUB.SYS to make sure that the version of NMAUX1 is the
same as the version of NMMGR.
MESSAGE: Path to subtree in user file does not exist.
(NMGRERR 206)
NMGRERR 206
CAUSE: This problem could be caused by a corrupt file or by an old
configuration file that needs to be updated.
ACTION: Run NMMGRVER.PUB.SYS. If needed, restore a known good
configuration file from a back-up tape, or create a new configuration file
with NMMGR.
MESSAGE: Internal error; Guided token overflow. (NMGRERR 207)
NMGRERR 207
CAUSE: This is an internal guided configuration error.
ACTION: Restore NMMGRCAT.PUB.SYS from a back-up tape. If this fails
see “Submitting an SR” at the beginning of this appendix.
MESSAGE: Unexpected Guided Config error. (NMGRERR 208)
NMGRERR 208
CAUSE: An unexpected or internal guided configuration error occurred.
ACTION: Type the “ERROR” command after this message is displayed
for clarification of the error(s). A PC value is specified at the end of this
error message. If you are unable to include the value problem, submit
an SR. See “Submitting an SR” at the beginning of this appendix. Be
sure to include the value of the PC with the SR.
MESSAGE: Cannot Stop Guided Configuration. (NMGRERR 209)
NMGRERR 209
CAUSE: The STOP command is allowed only on screens which contain a
“path.” This is most likely to occur when the user types the command
“STOP” on the errors screen during guided configuration.
ACTION: Move to a screen which contains a “path” at the top of the
menu and retype the stop command.
MESSAGE: Cannot perform NEXT function. (NMGRERR 211)
NMGRERR 211
CAUSE: This error occurs when the user attempts to use the NEXT
command when no selection screen has been encountered.
234
Appendix A
NMS Error Messages
NMGR Error and Warning Messages
ACTION: There is no need to use this function at this time.
MESSAGE: Function is not allowed during Guided configuration.
(NMGRERR 214)
NMGRERR 214
CAUSE: The user has pressed a function key that is not allowed during
guided configuration. If the user is on a data screen, it is possible to
advance by pressing the Update function key.
ACTION: Press a labeled function key.
MESSAGE: Illegal vplus field specified in Guided config.
(NMGRERR 215)
NMGRERR 215
CAUSE: This is an internal guided configuration error that is caused by
missing information in the forms file.
ACTION: Restore NMMGRF.PUB.SYS from back-up tape, and run
NMMAINT.PUB.SYS. If this fails see “Submitting an SR” at the
beginning of this appendix.
MESSAGE: Illegal Guided config variable name. (NMGRERR 216)
NMGRERR 216
CAUSE: This is an internal guided configuration error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Illegal path iden name in Guide config. (NMGRERR 217)
NMGRERR 217
CAUSE: This is an internal guided configuration error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Max num of items that can be put to a screen exceeded.
(NMGRERR 218)
NMGRERR 218
CAUSE: This is an internal guided configuration error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: String overflow. (NMGRERR 219)
NMGRERR 219
CAUSE: This is an internal guided configuration error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Boolean logic error. (NMGRERR 220)
NMGRERR 220
CAUSE: This is an internal guided configuration error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Missing ENDIF statement. (NMGRERR 221)
NMGRERR 221
CAUSE: This is an internal guided configuration error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Select loops nested too deep. (NMGRERR 222)
NMGRERR 222
CAUSE: This is an internal guided configuration error.
Appendix A
235
NMS Error Messages
NMGR Error and Warning Messages
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Select stack underflow probably missing SELECT.
(NMGRERR 223)
NMGRERR 223
CAUSE: This is an internal guided configuration error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Missing ENDSELECT statement. (NMGRERR 224)
NMGRERR 224
CAUSE: This is an internal guided configuration error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Unknown statement in Guided Configuration driver.
(NMGRERR 226)
NMGRERR 226
CAUSE: This is an internal guided configuration error.
ACTION: Restore NMMGRCAT.PUB.SYS from back-up tape. If this fails
see “Submitting an SR” at the beginning of this appendix.
MESSAGE: Command not allowed on error or version screen.
(NMGRERR 227)
NMGRERR 227
CAUSE: Certain commands are only allowed on states which contain a
path. This is likely to occur when the user types STOP on the errors
screen or the version screen during guided configuration.
ACTION: Move to a state which contains a path and retype the stop
command.
MESSAGE: The network interface data and the topology key must
match. (NMGRERR 228)
NMGRERR 228
CAUSE: The type of the network interface does not match the topology
key which you selected.
ACTION: Make sure you pressed the correct topology key and have the
correct network interface name. Check the type of the network interface
name by going to NEXPORT.NI (do a direct branch).
MESSAGE: The Network interface must of type POINT-TO-POINT.
(NMGRERR 229)
NMGRERR 229
CAUSE: The Network Interface must be of type POINT-TO-POINT.
ACTION: Check the type of the network interface name by going to
NETXPORT.NI (do a direct branch).
MESSAGE: The Network interface may not be of type LOOPBACK.
(NMGRERR 230)
NMGRERR 230
CAUSE: There is no Internet data to configure under the loopback
network interface.
ACTION: Do not use this function with loopback.
236
Appendix A
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: No network interface found, or unknown type.
(NMGRERR 231)
NMGRERR 231
CAUSE: You may have spelled the name incorrectly.
ACTION: Check the spelling and reenter.
CAUSE: The type may be unknown.
ACTION: Check the type of the network interface name by going to
NETXPORT.NI (do a direct branch). File an SR if the type is labeled as
UNKNOWN. (See “Submitting an SR” at the beginning of this
appendix). Delete the unknown type and retry.
MESSAGE: Unable to open source NCONF file for copy.
(NMGRERR 232)
NMGRERR 232
CAUSE: File does not exist or is the wrong version.
ACTION: If in guided configuration, then NMAUXI.PUB.SYS could not
be opened. If performing a copy subtree, check the source file to make
sure it exists and is the correct version.
MESSAGE: Unable to open destination NCONF file for copy.
(NMGRERR 233)
NMGRERR 233
CAUSE: File does not exist or is the wrong version.
ACTION: If in guided configuration, then NMCONFIG.PUB.SYS or the
user file does not exist, or is corrupt. You may check the version by
running NMMAINT.PUB.SYS. You may also run NMMGRVER to
determine if your file is corrupt.
If performing a copy subtree, check the destination file to make sure it
exists. Check the version and check to see if the file is corrupt (as
above).
MESSAGE: No PC return value is on the Gosub stack.
(NMGRERR 234)
NMGRERR 234
CAUSE: There is an internal G-code error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Illegal PC value specified in statement. (NMGRERR 235)
NMGRERR 235
CAUSE: There is an internal G-code error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: The Gosub stack is full. (NMGRERR 236)
NMGRERR 236
CAUSE: There is an internal G-code error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
Appendix A
237
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: The Network interface must be of type X.25.
(NMGRERR 237)
NMGRERR 237
CAUSE: The operation is illegal if the NI is not an X.25 link.
ACTION: Check to make sure that the NI is an X.25 link.
MESSAGE: Data must be entered and Saved before continuing.
(NMGRERR 240)
NMGRERR 240
CAUSE: While running guided configuration, the user tried to press
Next Screen without first pressing Update Data while at the path
SNANODE.nodename.
ACTION: Enter the correct data and press Update Data.
MESSAGE: The NI Name must be specified. (NMGRERR 250)
NMGRERR 250
CAUSE: At the Guided HP Configuration screen, the user attempted to
fine tune the parameters for an NI configuration without specifying the
NI name in the NI Name field.
ACTION: Enter a valid NI name in the NI Name field and press the
FineTune Parms key again.
MESSAGE: The NI Name does not exist in the configuration file.
(NMGRERR 251)
NMGRERR 251
CAUSE: The user attempted to perform an operation on an non-existent
NI. Either the NI is not configured or the specified NI name is incorrect.
ACTION: Specify the correct NI name of a configured NI and try again.
MESSAGE: The NI Name already exists and is of another type.
(NMGRERR 253)
NMGRERR 253
CAUSE: The user attempted to create an NI using an NI name that has
already been configured for another NI of a different type.
ACTION: Specify an NI name that has not already been used and try
again.
MESSAGE: This link name is used by another NI; select another
name. (NMGRERR 254)
NMGRERR 254
CAUSE: While configuring an NI, the user specified a link name that
has already been configured for a different NI and cannot be shared.
ACTION: Specify a different link name and try again.
MESSAGE: A link name must be entered. (NMGRERR 255)
NMGRERR 255
CAUSE: The user attempted to update the configuration file without
specifying a link name, which is required for this screen.
ACTION: Enter a link name in the Link name field and try again.
238
Appendix A
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: This link cannot be renamed. It is used by another NI.
(NMGRERR 256)
NMGRERR 256
CAUSE: The user attempted to change the name of a link that is used
by more than one NI.
ACTION: Leave the link name as it is or reconfigure one or the other of
the NIs to use a different link.
MESSAGE: The NI name does not exist. Please specify a type to
create it. (NMGRERR 257)
NMGRERR 257
CAUSE: At the Guided HP Configuration screen, the user entered a new
NI name and pressed the Config Network key without specifying a type
in the NI type field. The type must be specified if the NI does not
already exist.
ACTION: If you are configuring a new NI, enter the type of the new NI
in the NI type field and press Config Network. If you are updating an
existing NI and entered the wrong name in the NI name field, enter the
correct NI name and press Config Network.
MESSAGE: Data saved, but profile doesn’t exist. Use GoToProfiles
command to create it. (NMGRERR 258)
NMGRERR 258
CAUSE: At the DTS Configuration screen or at one of the DTC card
configuration screens, the user specified the name of a profile that is not
configured and then pressed the save data key.
ACTION: Press the Go To Profiles key if one exists for the screen. If not,
type GoToProfiles in the command line and press Enter. This will take
you to the profile configuration screens. Configure the nonexisting
profile(s) and save the information in the configuration file. When you
are finished, press the Prior Screen key until NMMGR returns you to
the screen you were at when you originally entered the nonexisting
profile name. There is no need to re-enter the data on this screen, since
it has already been saved. Continue with the next configuration task.
MESSAGE: A DTC name must be specified. (NMGRERR 259)
NMGRERR 259
CAUSE: At the DTC Configuration screen, the user pressed the Read
DTC function key without specifying a DTC name.
ACTION: Enter a valid DTC name and try again.
MESSAGE: The DTC name does not exist; enter data and press Save
Data to create it. (NMGRERR 260)
NMGRERR 260
CAUSE: At the DTC Configuration screen, the user specified a
nonexisting DTC name and pressed either the Config Card key or the
Read DTC key.
Appendix A
239
NMS Error Messages
NMGR Error and Warning Messages
ACTION: If an incorrect DTC name was entered, enter the correct DTC
name and try again. If the DTC name is correct but the DTC has not yet
been configured, enter the information for the DTC and press the Save
Data key, then try again.
MESSAGE: The DTS Link does not exist. Enter a Link name and press
Sate Data. (NMGRERR 261)
NMGRERR 261
CAUSE: At the DTS Configuration screen, the user entered a
nonexisting link name and pressed the Tune DTS Link key.
ACTION: If an incorrect link name was entered, enter the correct link
name and try again. If the link name is correct but the link has not yet
been configured, enter the information for the link and press the Save
Data key, then try again.
MESSAGE: Must be a number from 0 to 5. (NMGRERR 262)
NMGRERR 262
CAUSE: At the DTC Configuration screen, the user entered an invalid
character in the field specifying the card to be configured and pressed
the Config Card key.
ACTION: Enter the number of the card to be configured and press
Config Card again. The number must be between 0 and 5 and must
correspond to the DTC slot number of the card being configured.
MESSAGE: Data saved, but the home Network Interface does not
exist. (NMGRERR 263)
NMGRERR 263
CAUSE: The user specified a nonexisting NI name as the home network
interface and saved the data on the screen.
ACTION: If an incorrect NI name was specified, correct the NI name
and press Save Data again. If the NI name is correct but the NI has not
yet been configured, configure the NI. There is no need to re-enter the
information on the current screen since it has already been saved.
MESSAGE: Data saved, but the SNA does not exist. (NMGRERR 264)
NMGRERR 264
CAUSE: The user specified a nonexisting SNA node and saved the data
on the screen.
ACTION: If an incorrect SNA node was specified, correct the SNA node
name and press Save Data again. If the SNA node name is correct but
the SNA node has not yet been configured, configure the SNA node.
There is no need to re-enter the information on the current screen since
it has already been saved.
MESSAGE: This link name does not exist for this router NI.
(NMGRERR 265)
NMGRERR 265
CAUSE: The user entered a nonexisting link name and pressed the Link
Routing key.
240
Appendix A
NMS Error Messages
NMGR Error and Warning Messages
ACTION: If an incorrect link name was specified, correct the link name
and try again. If link name is correct but the link has not yet been
configured, configure the link.
MESSAGE: The path report for the node is full; no new address can
be added. (NMGRERR 266)
NMGRERR 266
CAUSE: The user attempted to add an address to the network directory
for a node whose path report is already full. No additional addresses
can be added.
ACTION: Go to the Network Directory Data screen for the node and
delete some of the addresses assigned to the node name.
MESSAGE: The node name must be configured first. (NMGRERR 267)
NMGRERR 267
CAUSE: The node name was not configured.
ACTION: Go to the Main screen and configure the node name.
MESSAGE: Missing IP address. (NMGRERR 268)
NMGRERR 268
CAUSE: The user neglected to enter the IP address in the appropriate
field.
ACTION: Enter the IP address and try again.
MESSAGE: You must enter a backup configuration file name.
(NMGRERR 269)
NMGRERR 269
CAUSE: The user pressed the Open Config or Create Config key with no
file name specified in the backup configuration file name field.
ACTION: Enter a valid file name in the backup configuration file name
field and press Open Config or Create Config again.
MESSAGE: Cannot open node information file for ADDVC or
PURGEVC. (NMGRERR 270)
NMGRERR 270
CAUSE: NMMGR was unable to open the file whose name was specified
in the ADDVC or PURGEVC command, either because the file does not
exist or because a more serious file system error occurred.
ACTION: 1. The file name specified may not exist. Try the command
again with a file that exists.
ACTION: 2. A more serious file system error may have occurred. See the
accompanying file system error message for resolution.
MESSAGE: You must open the configuration and directory files first.
(NMGRERR 271)
NMGRERR 271
CAUSE: The user attempted to perform an ADDVC or PURGEVC
command without first opening the configuration and/or directory files.
ACTION: Open a configuration file with the OPENCONF command and a
directory file with the OPENDIR command.
Appendix A
241
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: The link exists, but its type is not correct for this NI.
(NMGRERR 272)
NMGRERR 272
CAUSE: The user specified an existing link name on one of the custom
NI update screens. The selected link’s type was not correct; that is, a
LAPB type link was specified for an X.25 NI.
ACTION: Enter the name of a link with the correct type or delete the
link configuration.
MESSAGE: The selected card number is not configured with a card
type. (NMGRERR 273)
NMGRERR 273
CAUSE: At the DTC Configuration screen, the user selected a card
number and pressed the Config Card key. No type was entered in the
Type field associated with the selected card.
ACTION: Fill in a card type in the Type field for the selected card and
press the Save Data key. Type must be “D” for direct connect, “M” for
modem, or “P” for PAD. Once the data has been saved, select the card
and press the Config Card key again.
MESSAGE: The config is valid, but could not be backed up; Type ERR
for info. (NMGRERR 274)
NMGRERR 274
CAUSE: The user pressed the validate key and the configuration
validated correctly, but NMMGR could not back up the configuration
file because an error occurred while writing the backup file.
ACTION: Type ERR on the command line and view the errors that
occurred. After correcting the errors, retry the validate operation.
MESSAGE: You must specify either a switched or permanent virtual
circuit address. (NMGRERR 275)
NMGRERR 275
CAUSE: The user failed to enter either a valid switched virtual circuit
address or a valid permanent virtual circuit address. One or the other
must be entered.
ACTION: Enter a valid address as appropriate for the VC, either
switched or permanent.
MESSAGE: The NI name exists, but its type is not X.25.
(NMGRERR 276)
NMGRERR 276
CAUSE: The user entered the name of an existing NI and specified the
type as X.25. The NI exists but its type is not X.25.
ACTION: If you are updating an existing NI, enter the correct NI name
and the correct type and try again. If you are configuring a new NI,
enter a name that has not already been used and try again.
242
Appendix A
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: Duplicate address key; it must be unique for the X.25 NI.
(NMGRERR 277)
NMGRERR 277
CAUSE: The user specified an address key that was not unique for the
NI specified at the VC Configuration screen or through the ADDVC
command.
ACTION: Go to the SVC and PVC paths screens for the NI to see the
names that are already configured. Choose an address key that is not
used in either of these screens.
MESSAGE: Missing quote; the IP address must be enclosed in
quotes. (NMGRERR 278)
NMGRERR 278
CAUSE: While using the ADDVC command in maintenance mode, the
user forgot to enter the IP address with either an opening or a closing
quote.
ACTION: Re-issue the command with the correct IP address enclosed in
quotes.
MESSAGE: The source path was not found. (NMGRERR 280)
NMGRERR 280
CAUSE: The path to the subtree to copy was not found.
ACTION: Check to make sure you have the correct file and check the
source path spelling.
MESSAGE: The destination path was not found. (NMGRERR 281)
NMGRERR 281
CAUSE: The destination path, which is created by substituting any
destination IDs into the source path, was not accessible. The path in the
file was not an exact match, or the destination path was missing.
ACTION: Check the source and destination path spelling and make
sure you have the correct file.
MESSAGE: The destination path exists. Use the overwrite option to
replace. (NMGRERR 282)
NMGRERR 282
CAUSE: The destination path already exists in the file.
ACTION: Enter ‘Y’ in the overwrite option.
MESSAGE: Source and destination do not map with each other
correctly. (NMGRERR 283)
NMGRERR 283
CAUSE: The source and destination paths must start at the same spot
in the NMMGR schema. Most likely the user attempted to change the
name of an item in the destination of a subtree copy.
ACTION: Check to see if the item that was changed was a select or type
select identifier. If not, that will cause the subcopy to fail.
Check to make sure that any destination type select items, if changed,
were changed to items of the same type (as in LAN to LAN, instead of
LAN to router).
Appendix A
243
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: Internal ERROR in subtree copy. (NMGRERR 284)
NMGRERR 284
CAUSE: Internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: A non select screen id was changed in the destination
path. (NMGRERR 285)
NMGRERR 285
CAUSE: Incorrect ids in the destination path.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Illegal path name identifier in destination path name.
(NMGRERR 286)
NMGRERR 286
CAUSE:A path id in the destination pathname is not legal.
ACTION: Check the destination path id for typing mistakes.
MESSAGE: Invalid destination path — path too long. (NMGRERR 287)
NMGRERR 287
CAUSE: The source and destination paths must be the same length.
When entering data on the subtree copy screen, the source path may
appear longer, but should this be the case, the destination path uses
IDs from the source path. This error is generated in the other case
when the destination path is longer than the source path.
ACTION: Check to make sure that you are not missing path ids in the
source path.
MESSAGE: Source path contains empty path identifiers.
(NMGRERR 288)
NMGRERR 288
CAUSE: This occurs when the user leaves path IDs empty in the middle
of the source path field on the copy subtree screen.
ACTION: Check the source path, and fix the path, so that none of the
source path IDs in the middle of the source path are blank.
MESSAGE: The source and destination may not be the same file and
path. (NMGRERR 289)
NMGRERR 289
CAUSE: The user is attempting to copy over the source data, which is
not allowed.
ACTION: Select another file or path to copy into.
MESSAGE: The file does not exist or cannot be opened.
(NMGRERR 290)
NMGRERR 290
CAUSE: An NMCONF file to be opened for a copy could not be accessed.
ACTION: Check the spelling of the filename. Do a “listf <filename>“ to
see if file exists.
244
Appendix A
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: Source path is not allowed to be copied. (NMGRERR 291)
NMGRERR 291
CAUSE: The source path is not permitted to be copied by the subtree
command.
ACTION: None.
MESSAGE: Internal NMMGR error: cannot close current Network
Directory. (NMGRERR 300)
NMGRERR 300
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Internal NMMGR error: corrupt file likely. (NMGRERR 301)
NMGRERR 301
CAUSE: This is an internal error.
ACTION: The directory file is probably corrupt and should be replaced
by a copy from a back-up tape. Restore both data and key files. See
“Submitting an SR” at the beginning of this appendix.
MESSAGE: No next page of node names. (NMGRERR 302)
NMGRERR 302
CAUSE: This is an informative message that is issued when the user
hits NEXT PAGE and there are no subsequent names in the directory, or
when the name supplied does not exist.
ACTION: None.
MESSAGE: No previous page of node names. (NMGRERR 303)
NMGRERR 303
CAUSE: This is an informative message that is issued when the user
hits PREV PAGE and there are none, or when the name supplied does
not exist.
ACTION: None.
MESSAGE: A node with the same name and global/local setting
already exists. (NMGRERR 304)
NMGRERR 304
CAUSE: This is an informative message that is issued when the user
tries to add a node name that already exists into the directory. The
name is probably misspelled, or the wrong global/local setting was
given.
ACTION: Correct the node name, the global/local setting, the type,
and/or the enable flag.
MESSAGE: Cannot find a node with this name and global/local
setting. (NMGRWARN 305)
NMGRWARN 305 CAUSE: This is an informative message that is issued when the user
tries to delete or update a node name that does not exist. The name is
probably misspelled, or the wrong global/local setting was given.
ACTION: Correct the node name, the global/local setting, the type,
and/or the enable flag.
Appendix A
245
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: RENAME requires a new node name and/or new
global/local setting. (NMGRERR 306)
NMGRERR 306
CAUSE: This is an informative message that is issued when the user
tries to rename a node name (global/local setting), but both the new
node name and new global/local setting were omitted.
ACTION: Specify the missing information.
MESSAGE: The current node name entry has been deleted by another
user. (NMGRERR 307)
NMGRERR 307
CAUSE: The user attempted to delete or update a network address, or
path data, but another user who is modifying the same directory file
has just deleted the entry.
ACTION: Coordinate update activities with other user(s).
MESSAGE: Duplicate IP address. (NMGRERR 308)
NMGRERR 308
CAUSE: The user attempted to add a network address that already
exists in the current path report.
ACTION: Either choose a different network address, or make sure you
are updating the correct node name global/local setting.
MESSAGE: Not enough room in the path report list for this addition.
(NMGRERR 321)
NMGRERR 321
CAUSE: This is an informative message that is issued when the user
attempts to add or update a path in a very large path report list. This
can happen only on very large gateway nodes, such as a node with more
than 15 network addresses.
ACTION: See “Submitting an SR” at the beginning of this appendix.
(Request an expansion on the limit on path reports.)
MESSAGE: Internal NMMGR error — corrupt path report list data.
(NMGRERR 322)
NMGRERR 322
CAUSE: Severe error indicating an internal logic error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: No directory file open. (NMGRERR 323)
NMGRERR 323
CAUSE: Maintenance mode interface: An informative message that is
issued when a user gives a command prior to completing a successful
OPENDIR command.
ACTION: Open or create a directory file using OPENDIR, then reissue
the command.
246
Appendix A
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: Cannot find this entry in the directory. (NMGRWARN 324)
NMGRWARN 324 CAUSE: Maintenance mode interface: An informative message that is
issued when no directory entry (either global, local, or neither — if no
;GLOBAL or ;LOCAL keyword given) could be found in the directory
matching the specified node name.
ACTION: Correct the node name.
MESSAGE: Cannot open source file / wrong file type. (NMGRERR 325)
NMGRERR 325
CAUSE: Maintenance mode interface: An informative message issued
when an invalid file was specified in a MERGEDIR command. Possible
causes are:
• Nonexistent file
• Wrong type of file (not directory or configuration file)
• Security violation
• A system file name was given
• Other file system problem
ACTION: Correct the filename.
MESSAGE: Cannot specify a node name when source is a
configuration file. (NMGRERR 326)
NMGRERR 326
CAUSE: Maintenance mode interface: Informative message issued
when a user specified a node name in conjunction with a configuration
file in a MERGEDIR command.
ACTION: Omit the node name from the command or use a directory file
as the source and retain the node name.
MESSAGE: Local and global entries exist for this node name; choose
one. (NMGRERR 327)
NMGRERR 327
CAUSE: Maintenance mode interface: An informative message issued
when the user has given a DELETENODE command, specifying a node
name that is not unique. For example, both a local and global entry
could exist for the node name.
ACTION: Explicitly state the entry to be deleted using ;LOCAL or
;GLOBAL.
MESSAGE: The node name must be of the form NAME.DOMAIN.ORG.
(NMGRERR 328)
NMGRERR 328
CAUSE: A node name was expected, however, the data present did not
conform to the node name format.
ACTION: Correct the node name.
CAUSE: The node name is more than 50 characters long.
ACTION: Correct the node name.
Appendix A
247
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: The catalog file has an error in the Batch Command list.
(NMGRERR 329)
NMGRERR 329
CAUSE: An internal error in NMMGR has occurred.
ACTION: Run NMMAINT.PUB.SYS to make sure that you have the
correct version of NMMGR. If necessary, restore the file
NMMGRCAT.PUB.SYS from a back-up tape. If the problem still exists, see
“Submitting an SR” at the beginning of this appendix.
MESSAGE: Extra data was specified for this command.
(NMGRERR 330)
NMGRERR 330
CAUSE: The user specified too much data.
ACTION: Check syntax of command or type “help” for more
information.
MESSAGE: A key operator was already specified. (NMGRERR 332)
NMGRERR 332
CAUSE: The user specified both a ;LOCAL and ;GLOBAL key operator.
ACTION: Retype the command with only a ;LOCAL or ;GLOBAL key
operator.
MESSAGE: A merge operator was already specified. (NMGRERR 333)
NMGRERR 333
CAUSE: The user specified more than one merge operator (KEEP,
NOKEEP, TIMESTAMP).
ACTION: Retype the command with only one merge operator.
MESSAGE: Unknown command encountered. (NMGRERR 334)
NMGRERR 334
CAUSE: The user typed in an incorrect command.
ACTION: If the command is an MPE command, the command must
start with a ‘:’. Check the spelling of the command name and reenter as
needed.
MESSAGE: Parameter length overflow. (NMGRERR 335)
NMGRERR 335
CAUSE: A parameter’s length in characters exceeds the maximum
length permitted.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Unexpected semicolon encountered. (NMGRERR 336)
NMGRERR 336
CAUSE: A semicolon was encountered before other expected data was
entered.
OPENDIR: no options (no semicolon) are allowed.
MERGEDIR: no filename was specified.
LISTDIR: no options (no semicolon) are allowed.
EXPANDDIR: no options (no semicolon) are allowed.
ACTION: Check syntax of the command or type “help” for more
information.
248
Appendix A
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: Expected parameter after command. (NMGRERR 337)
NMGRERR 337
CAUSE: A parameter is needed after certain commands. This error
occurs if the user does not specify that parameter. OPENDIR: needs a
filename. MERGEDIR: needs a filename. EXPANDDIR: needs an
integer.
ACTION: Check syntax of the command or type “help” for more
information.
MESSAGE: Unknown or extra keyword parameter specified.
(NMGRERR 338)
NMGRERR 338
CAUSE: This occurs in DELETENODE or MERGEDIR when the
keyword local, global, keep, nokeep, or timestamp is spelled incorrectly
or you have a duplicate type of keyword. DELETENODE only allows
local or global keywords.
ACTION: Check spelling of keywords. Check for duplicate keyword
types. Type “help” for correct syntax.
MESSAGE: Illegal configuration file name. (NMGRERR 339)
NMGRERR 339
CAUSE: Configuration file name is invalid.
ACTION: Check the file name for validity. Also, make sure the name is
not too long.
MESSAGE: Illegal directory file name. (NMGRERR 340)
NMGRERR 340
CAUSE: Directory name may be too long, or contains illegal characters.
ACTION: Recheck file name specified.
MESSAGE: No keywords are allowed for this command.
(NMGRERR 341)
NMGRERR 341
CAUSE: This command does not allow keywords.
ACTION: Check syntax of the command or type “help” for more
information.
MESSAGE: Node Name length must be from 5 to 50 chars in length.
(NMGRERR 342)
NMGRERR 342
CAUSE: The node name length is wrong.
ACTION: Check the length of each segment in the node name. Each
segment (name,domain,org) must be 1–16 characters in length.
MESSAGE: Name segment in node name must be from 1 to 16 chars
in length. (NMGRERR 343)
NMGRERR 343
CAUSE: The name portion of the node name is the incorrect length.
ACTION: Fix the length of the name in NAME.domain.org.
Appendix A
249
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: Domain segment in node name must be from 1 to 16 chars
in length. (NMGRERR 344)
NMGRERR 344
CAUSE: The domain portion of the node name is the incorrect length.
ACTION: Fix the length of the domain in name.DOMAIN.org.
MESSAGE: org segment in node name must be from 1 to 16 chars in
length. (NMGRERR 345)
NMGRERR 345
CAUSE: The org portion of the node name is the incorrect length.
ACTION: Fix the length of the org in name.domain.org.
MESSAGE: Each segment in the node name must begin with an
alphabetic char. (NMGRERR 346)
NMGRERR 346
CAUSE: Each segment in node name (name,domain, and org) must
begin with an alphabetic character.
ACTION: Check to see that the first char in each segment is in the set
[‘A’ .. ‘Z’].
MESSAGE: Node names may only be composed of alpha, numeric
and _, “-”. (NMGRERR 347)
NMGRERR 347
CAUSE: Illegal character specified.
ACTION: Check each segment for an illegal character.
MESSAGE: Expected the destination path anf file to be formatted as
PATH:FILE. (NMGRERR 348)
NMGRERR 348
CAUSE: Incorrect format specified.
ACTION: Check to make sure that the three components—path, colon,
and file—are present.
MESSAGE: Expected three filename parameters : streamfile, nodefile,
cmdfile. (NMGRERR 349)
NMGRERR 349
CAUSE: Incorrect format specified.
ACTION: File name parameters incorrectly specified.
MESSAGE: Missing or invalid source file name. (NMGRERR 350)
NMGRERR 350
CAUSE: Missing or invalid source file name specified.
ACTION: Check to make sure that an MPE file name was specified
after the : delimiter to the copyconf command.
MESSAGE: Missing comma. (NMGRERR 351)
NMGRERR 351
CAUSE: The syntax of the command requires a comma.
ACTION: Reissue the command using a comma.
250
Appendix A
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: Need to save data on previous screen before adding
domain name. (NMGRERR 352)
NMGRERR 352
CAUSE: Data was not updated for this node.
ACTION: Update the data for this node.
MESSAGE: The path specified does not point to a paged data screen.
(NMGRERR 353)
NMGRERR 353
CAUSE: You did not access a paged data screen which has only one
page.
ACTION: Check the path specified in the PATHCONF command.
MESSAGE: Entry selected is empty. (NMGRERR 354)
NMGRERR 354
CAUSE: User selected an empty selection from the entry selection
window.
ACTION: Select an existing entry.
MESSAGE: Domain labels can only end in an alphabetic character or
digit. (NMGRERR 355)
NMGRERR 355
CAUSE: User entered a name which contained a label that terminated
with an invalid character. Valid terminating characters are A..Z..,a..z,
or 0..9.
ACTION: Enter the name correctly.
MESSAGE: Domain labels can only begin with an alphabetic
character. (NMGRERR 356)
NMGRERR 356
CAUSE: User entered a domain name which began with an invalid
character. Domain name labels can only begin with an alphabetic
character.
ACTION: Enter the name correctly.
MESSAGE: Domain labels can only consist of A..Z, a..z, 0..9, or -.
(NMGRERR 357)
NMGRERR 357
CAUSE: User entered an invalid domain name. Valid characters consist
of A..Z, a..z, 0..9 or -.
ACTION: Enter the name correctly.
MESSAGE: Domain label lengths cannot exceed 63 characters.
(NMGRERR 358)
NMGRERR 358
CAUSE: Valid label length is 1 to 63 characters. User entered more than
63 characters.
ACTION: Enter the name correctly.
Appendix A
251
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: Domain name is empty. (NMGRERR 359)
NMGRERR 359
CAUSE: The user selected an operation which required a domain, yet
neglected to enter a domain.
ACTION: Re-enter the information with the domain name specified.
MESSAGE: Domain screen can be accessed only after an NS
nodename addition. (NMGRERR 360)
NMGRERR 360
CAUSE: User can access the domain screen only after using the add
function key to add an NS nodename.
ACTION: Follow the instructions in “Cause.”
MESSAGE: Select an entry between 1 and 8, or enter the full node
name. (NMGRERR 361)
NMGRERR 361
CAUSE: User pressed a key which required that an entry selection be
provided.
ACTION: User must either select an entry via the entry field, or enter
the full node name in the nodename field.
MESSAGE: User cannot add a domain name to a record already
containing one.
NMGRERR 362
CAUSE: User attempted to go to the domain screen after having just
added a domain entry.
ACTION: None.
MESSAGE: Entry field must contain a value between 1 and 8.
(NMGRERR 363)
NMGRERR 363
CAUSE: The entry field was empty or contained a value not in the range
1 to 8.
ACTION: Enter a value in the correct range.
MESSAGE: Nodename too long. Max for NS is 50; Max for Domain
name is 255. (NMGRERR 364)
NMGRERR 364
CAUSE: User entered a name that exceeded 255 characters for DDN
name, or user entered a name that exceeded 50 characters for NS name.
ACTION: Re-enter the name correctly.
MESSAGE: File name entered is invalid; max length is 36 characters.
(NMGRERR 365)
NMGRERR 365
CAUSE: User entered a file name that exceeded 36 characters.
ACTION: Enter a filename of correct length.
MESSAGE: Domain name entered already exists. (NMGRERR 366)
NMGRERR 366
CAUSE: User entered a domain name that already existed in the
directory.
252
Appendix A
NMS Error Messages
NMGR Error and Warning Messages
ACTION: None.
MESSAGE: User is not allowed to merge individual domain entries.
(NMGRERR 367)
NMGRERR 367
CAUSE: The MERGEDIR command not permit the merging of a single
domain entry. However, you can merge domain entries as a group, such
as all the global domains or all the local domains.
ACTION: None.
MESSAGE: User must enter: Node Name, Type, Global, and Enable
settings. (NMGRERR 368)
NMGRERR 368
CAUSE: User has selected a function that needs the above information.
ACTION: Enter the above information.
MESSAGE: User cannot select using both Entry Name Field and
Name Field. (NMGRERR 369)
NMGRERR 369
CAUSE: User has entered a name into the node name field and data
into the entry number field. User can only specify one at a time for the
operation selected (update, delete).
ACTION: Re-try with the correct information.
MESSAGE: The options when merging from a config file are LOCAL
and GLOBAL. (NMGRERR 370)
NMGRERR 370
CAUSE: The user is using the merged command and is attempting to
merge from a configuration file. In this case, the only valid options that
can be specified are LOCAL and GLOBAL.
ACTION: Specify correct options.
MESSAGE: User must save data prior to using NEXT function.
(NMGRERR 371)
NMGRERR 371
CAUSE: User is on the directory data screen and wants to use NEXT
branching. User cannot do so until the current data is updated.
ACTION: Press UPDATE; then NEXT can be used.
MESSAGE: Problem accessing the existing directory file.
(NMGRERR 380)
NMGRERR 380
CAUSE: Maintenance mode interface: An operation on the existing
directory file could not be performed. The possible operations are:
FOPEN the file as a KSAM file exclusively, FGETINFO and
FGETKEYINFO on the file, or FCLOSE the file with the delete option.
ACTION: Check the accompanying file system error for more
information. If the error reflects an exclusive access violation, correct
the multiple access and/or the user capabilities.
Appendix A
253
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: Problem accessing the new (expanded) directory file.
(NMGRERR 381)
NMGRERR 381
CAUSE: Maintenance mode interface: An operation on a COPY of the
existing directory file could not be performed. The possible operations
are:
• FOPEN the file (new) as a KSAM file (opened with a temporary file
name “ZTMPxxxx”).
• FWRITE to the file.
• FCLOSE with the save option on.
• FOPEN the data file in copy mode.
• FREADLABEL the data file.
• FWRITELABEL the data file.
• FOPEN the key file in copy mode.
• FREAD from the key file.
• FUPDATE the key file.
• FCLOSE the key file.
ACTION: Check the accompanying file system error for more
information. If the error reflects a security violation, then you are most
likely (a) trying to access a file for read/write access for which you do
not have adequate capabilities, or (b) trying to expand the file in a
different account than your logon account.Since the expand operation
involves a RENAME, you MUST be logged into the same account as the
directory file that you are trying to expand. If the original directory file
does not exist, but the temporary files (“ZTMPxxxx” and “ZTMPxxxK”)
do exist, then the directory can be recovered by building a new KSAM
file manually (use KSAMUTIL) with attributes identical to that of the
original file. Use FCOPY to copy the data and key files SEPARATELY
into the newly built KSAM data and key files. Be sure to use the
“;NOKSAM” option of FCOPY. If the temporary files do not exist, then
the original directory must be restored from a back-up tape.
MESSAGE: Incompatible version of KSAM for file rename operation.
(NMGRERR 382)
NMGRERR 382
CAUSE: Maintenance mode interface: The location of internal KSAM
data and key information has changed and thus cannot be updated with
this version of the NMC software.
ACTION: For an intermediate solution, use KSAMUTIL to build a
larger (expanded) file and use FCOPY to copy the directory to the new
file. If the problem still exists, see “Submitting an SR” at the beginning
of this appendix.
254
Appendix A
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: Cannot specify a negative number for expansion.
(NMGRERR 383)
NMGRERR 383
CAUSE: Maintenance mode interface: The user gave a negative number
of records to expand the file.
ACTION: Supply a positive number of records.
MESSAGE: Cannot open command file “NMMGRCMD”.
(NMGRERR 384)
NMGRERR 384
CAUSE: The command file NMMGRCMD could not be opened.
ACTION: Check for any file equations set for “NMMGRCMD”. See the
accompanying file system error message for problem resolution.
MESSAGE: An NMMGR configuration file name must be specified.
(NMGRERR 385)
NMGRERR 385
CAUSE: Maintenance mode interface: An error message is issued when
the configuration file argument for the OPENCONF command is missing.
ACTION: Reissue the command with the configuration file name.
MESSAGE: Invalid subsystem name, enter valid name (ie, NETXPORT,
SNANODE). (NMGRERR 386)
NMGRERR 386
CAUSE: Maintenance mode interface: An error message is issued when
an invalid subsystem name is entered.
ACTION: Reissue the command with a correct subsystem name.
MESSAGE: Unable to OPEN, and unable to CREATE config file.
(NMGRERR 387)
NMGRERR 387
CAUSE: File system error.
ACTION: Check to see if user is allowed to access file. Check to see if
user and account capabilities of NA or NM are set.
MESSAGE: Attempted to access non data or page data screen with
PATHCONF. (NMGRERR 388)
NMGRERR 388
CAUSE: Incorrect use of PATHCONF command.
ACTION: Make sure that the screen you are trying to access is data or
paged data. This can be checked by looking at the screen and seeing if
there is a data flag in the upper right corner of the screen. If not, you
are trying to access a screen which has no data fields.
MESSAGE: Attempt to access field which does not exist.
(NMGRERR 389)
NMGRERR 389
CAUSE: You are trying to access a field N+k when there are only N
fields on the form.
Appendix A
255
NMS Error Messages
NMGR Error and Warning Messages
ACTION: Use NMMGR to go to the path which you specified in the
PATHCONF command. Make sure that your field count matches the field
number you are trying to access. Make sure you are not trying to use
Vplus field numbers to access the field.
MESSAGE: Path not specified, or path specified does not exist.
(NMGRERR 390)
NMGRERR 390
CAUSE: PATHCONF was not previously issued.
ACTION: Check to see if you set the path with the PATHCONF
command. Check to see if the path that you specified exists in the
configuration file
MESSAGE: Version stamp in VERSIONCONF does not match NMMGR
version. (NMGRERR 391)
NMGRERR 391
CAUSE: Version stamp must match NMMGR version.
ACTION: Change the version stamp in your batch file to match the
version displayed on the NMMGR banner line.
MESSAGE: VERSIONCONF must be called before this command may
be called. (NMGRERR 392)
NMGRERR 392
CAUSE: Tried to perform OPENCONF before VERSIONCONF.
ACTION: Call VERSIONCONF with the version stamp which NMMGR
displays on the banner line.
MESSAGE: Missing or invalid destination path name. (NMGRERR 393)
NMGRERR 393
CAUSE: The copyconf command will not operate without a valid
destination path.
ACTION: Check to make sure an NMCONF path name was specified
for the copyconf command.
MESSAGE: Missing or invalid destination file name. (NMGRERR 394)
NMGRERR 394
CAUSE: The copyconf command will not operate without a valid
destination file name.
ACTION: Check to make sure that an MPE file name was specified
after the colon (:) delimiter in the copyconf command.
MESSAGE: Invalid option specified for copyconf command.
(NMGRERR 395)
NMGRERR 395
CAUSE: An option other than KEEP was specified.
ACTION: Retry with valid option.
MESSAGE: Cannot open the nodelist file. (NMGRERR 400)
NMGRERR 400
CAUSE: The nodelist file could not be opened for read/write access.
ACTION: See the accompanying file system error message for
resolution.
256
Appendix A
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: Record size of nodelist file too small; must be
>= 80 bytes. (NMGRERR 401)
NMGRERR 401
CAUSE: The record size of the nodelist file is too small to be used.
ACTION: If creating the nodelist file using the LISTDIR command,
then do not include a ;REC= parameter in the file equation. Copy the
nodelist file into a file with a larger record width.
MESSAGE: Filecode of nodelist file non zero. (NMGRERR 402)
NMGRERR 402
CAUSE: The nodelist file supplied did not have a 0 filecode—it was not a
standard EDITOR-type file.
ACTION: If creating the nodelist file using the LISTDIR command,
then do not include a ;CODE= parameter in the file equation. Copy the
nodelist file into a file created with no file code.
MESSAGE: FREADDIR failed trying to read from nodelist file.
(NMGRERR 403)
NMGRERR 403
CAUSE: Could not issue a directed read to the nodelist file. The file most
likely has a variable-length record structure.
ACTION: See the accompanying file system error message for
resolution.
MESSAGE: FWRITEDIR failed trying to write to nodelist file.
(NMGRERR 404)
NMGRERR 404
CAUSE: Could not issue a directed write against the nodelist file.
ACTION: See the accompanying file system error message for
resolution.
MESSAGE: Cannot close nodelist file. (NMGRERR 405)
NMGRERR 405
CAUSE: Could not close the nodelist file.
ACTION: See the accompanying file system error message for
resolution.
MESSAGE: FCONTROL failed trying to set EOF marker on nodelist
file. (NMGRERR 406)
NMGRERR 406
CAUSE: Internal error.
MESSAGE: FPOINT failed on nodelist file. (NMGRERR 407)
NMGRERR 407
CAUSE: Could not set the record pointer in the nodelist file.
ACTION: See the accompanying file system error message for
resolution.
MESSAGE: FGETINFO failed on nodelist file. (NMGRERR 408)
NMGRERR 408
CAUSE: Internal error.
Appendix A
257
NMS Error Messages
NMGR Error and Warning Messages
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: FREAD failed trying to read from nodelist file.
(NMGRERR 409)
NMGRERR 409
CAUSE: Could not read sequentially from the nodelist file.
ACTION: See the accompanying file system error message for
resolution.
MESSAGE: Cannot gain access to the stream file. (NMGRERR 410)
NMGRERR 410
CAUSE: A check to verify that the stream file does not already exist
could not be completed.
ACTION: See the accompanying file system error message for
resolution.
MESSAGE: The stream file already exists; choose another name.
(NMGRERR 411)
NMGRERR 411
CAUSE: The stream file given already exists as a permanent file. The
MAKESTREAM command requires that this file not exist.
ACTION: Choose another file name or rename the existing file to
another name.
MESSAGE: Cannot gain access to the command file. (NMGRERR 412)
NMGRERR 412
CAUSE: A check to verify that the command file does exist could not be
completed.
ACTION: See the accompanying file system error message for
resolution.
MESSAGE: The command file does not exist. (NMGRERR 413)
NMGRERR 413
CAUSE: The command file given does not exist.
ACTION: Supply the name of an existing command file.
MESSAGE: Internal catalog error: job text identifier table overflow.
(NMGRERR 414)
NMGRERR 414
CAUSE: Message catalog NMMGRCAT.PUB.SYS is incorrect.
ACTION: RESTORE NMMGRCAT.PUB.SYS from a backup tape. If the
problem still exists, see “Submitting an SR” at the beginning of this
appendix.
MESSAGE: Internal catalog error: incorrect format for job text ID
entry. (NMGRERR 414)
NMGRERR 415
CAUSE: Message catalog NMMGRCAT.PUB.SYS is incorrect.
ACTION: RESTORE NMMGRCAT.PUB.SYS from a backup tape. If the
problem still exists, see “Submitting an SR” at the beginning of this
appendix.
258
Appendix A
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: Error converting a catalog entry into a numeric value.
(NMGRERR 416)
NMGRERR 416
CAUSE: Internal error.
ACTION: RESTORE NMMGRCAT.PUB.SYS from a backup tape. If the
problem still exists, see “Submitting an SR” at the beginning of this
appendix.
MESSAGE: Catalog entry value not in range -32768..32767.
(NMGRERR 417)
NMGRERR 417
CAUSE: Message catalog NMMGRCAT.PUB.SYS is incorrect.
ACTION: RESTORE NMMGRCAT.PUB.SYS from a backup tape. If the
problem still exists, see “Submitting an SR” at the beginning of this
appendix.
MESSAGE: Cannot read an entry from the message catalog.
(NMGRERR 418)
NMGRERR 418
CAUSE: Message catalog NMMGRCAT.PUB.SYS is incorrect.
ACTION: RESTORE NMMGRCAT.PUB.SYS from a backup tape. If the
problem still exists, see “Submitting an SR” at the beginning of this
appendix.
MESSAGE: Cannot open the stream file. (NMGRERR 419)
NMGRERR 419
CAUSE: The stream file could not be opened.
ACTION: See the accompanying file system error message for
resolution.
MESSAGE: FWRITE failed trying to write to the stream file.
(NMGRERR 420)
NMGRERR 420
CAUSE: Could not write to the stream file. Most likely, the end-of-file
has been reached and the file is full.
ACTION: See the accompanying file system error message for
resolution. If end-of-file has been reached, issue a file equation for the
stream file: FILE yourfile;DISC=nnnn,32,1 where “yourfile” is the name
of the stream file, and “nnnn” is the number of records needed in the
file. Approximately 150 records should be allocated for each node in the
nodelist file. Note that the stream file is created as a variable-length
file, so fewer records should be required per node. The file is opened
with a default of 5000 records. Retry the MAKESTREAM command with
the new file equation.
MESSAGE: Cannot close the stream file. (NMGRERR 421)
NMGRERR 421
CAUSE: The stream file could not be closed.
ACTION: See the accompanying file system error message for
resolution.
Appendix A
259
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: Missing equal sign. (NMGRERR 500)
NMGRERR 500
CAUSE: An equal sign was missing in the command syntax.
ACTION: Re-enter the command with the proper syntax.
MESSAGE: Missing or invalid pathname parameter. (NMGRERR 501)
NMGRERR 501
CAUSE: The syntax of the command requires a pathname parameter.
ACTION: Check pathname and reissue the command.
MESSAGE: Missing or invalid field number. (NMGRERR 502)
NMGRERR 502
CAUSE: Either the field number parameter was not specified or the
field number was not terminated with a comma.
ACTION: Check the field number on the screen.
MESSAGE: Missing data. Data follows a comma. (NMGRERR 503)
NMGRERR 503
CAUSE: WRITECONF command did not list data to be stored.
ACTION: The syntax of the command requires a data parameter. The
data may be enclosed in quotes.
MESSAGE: Invalid option specified. (NMGRERR 504)
NMGRERR 504
CAUSE: An invalid option was specified for the command.
ACTION: Use help to enter correct option.
MESSAGE: Missing or invalid version string. (NMGRERR 505)
NMGRERR 505
CAUSE: Did not specify version correctly.
ACTION: The syntax of the command requires a valid version string
parameter.
MESSAGE: Missing or invalid page number. (NMGRERR 506)
NMGRERR 506
CAUSE: The syntax of the command requires a page number.
ACTION: The page number must be a positive integer.
MESSAGE: Invalid path, a select or type select path is required.
(NMGRERR 507)
NMGRERR 507
CAUSE: The path must be for a select or type select screen.
ACTION: Check the path and reissue.
MESSAGE: Unable to open Formlist as OLD or NEW. (NMGRERR 508)
NMGRERR 508
CAUSE: File system error.
ACTION: Check the file equation. See if the file is locked open or cannot
be accessed. Check to see if there is disk space.
MESSAGE: The new data is larger than the field size. (NMGRERR 509)
NMGRERR 509
CAUSE: WRITECONF error.
260
Appendix A
NMS Error Messages
NMGR Error and Warning Messages
ACTION: Check to see that you are accessing the correct field, or
reduce the size of the data you are entering.
MESSAGE: There are Vplus field edit errors. (NMGRERR 510)
NMGRERR 510
CAUSE: UPDATECONF error.
ACTION: Examine all WRITECONF statements before the screen
associated with the UPDATECONF which caused the error. One or
more of these fields does not match the edits which are associated with
this field. Go to the NMMGR screen which corresponds to the path for
further explanation of the Vplus error.
MESSAGE: Field number must be a positive integer. (NMGRERR 511)
NMGRERR 511
CAUSE: A READCONF or WRITECONF error occurred.
ACTION: Check to see if the field number entered is greater than zero.
MESSAGE: Missing closing quote. (NMGRERR 512)
NMGRERR 512
CAUSE: A closing quote is needed.
ACTION: Retype the erroneous string with a closing quote.
MESSAGE: Must open config file before executing this command.
(NMGRERR 514)
NMGRERR 514
CAUSE: The user tried to perform some maint mode command like
SUMMARYCONF, COMPRESSCONF, PATHCONF, etc. that requires an open
file.
ACTION: Open a config file with the OPENCONF command first.
MESSAGE: Unexpected parameter encountered. (NMGRERR 550)
NMGRERR 550
CAUSE: You specified an invalid LDEV range while using the
SUMMARYCONF command to obtain a DTS critical summary report on a
range of logical devices.
ACTION: Reenter the SUMMARYCONF command with a correctly
specified LDEV range. The LDEV range must be separated by a slash.
(Example: SUMMARYCONF DTS,LDEV 35/83)
MESSAGE: The parameters for this command must be an integer.
(NMGRERR 551)
NMGRERR 551
CAUSE: While using the SUMMARYCONF command to obtain a DTS
critical summary report, you specified one or more of the parameters as
a non-integer. The correct format for the LDEV specification is LDEV
[xxx[/yyy]], where xxx and yyy are integers.
ACTION: Reenter the command with the parameters specified as
integers.
Appendix A
261
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: Extra data was specified in the command line.
(NMGRERR 552)
NMGRERR 552
CAUSE: While using the SUMMARYCONF command to obtain a DTS
critical summary report on a range of logical devices, you entered more
data than was expected in the command line.
ACTION: Reenter the command with the parameters specified in the
correct format (LDEV [xxx[/yyy]], where xxx and yyy are integers).
MESSAGE: The lower LDev # must be less than the upper LDev #.
(NMGRERR 553)
NMGRERR 553
CAUSE: While using the SUMMARYCONF command to obtain a DTS
critical summary report on a range of logical devices, the first LDEV
number you specified was higher than the second LDEV number you
specified. This is an invalid range specification.
ACTION: Reenter the command with the LDEV range specified
correctly, with the first number in the range lower than the second
number in the range.
MESSAGE: There are no LDevs within the specified range.
(NMGRERR 554)
NMGRERR 554
CAUSE: While using the SUMMARYCONF command to obtain a DTS
critical summary report on a range of logical devices, you specified a
valid range; however, there are no LDEVs within that range.
ACTION: Reenter the command with a correct range of logical devices
specified (one that includes LDEVS).
MESSAGE: The DTC Name specified is not configured.
(NMGRERR 555)
NMGRERR 555
CAUSE: You specified an incorrect DTC name while using the
SUMMARYCONF command to obtain a DTS critical summary report on a
specific DTC. Either the DTC does not exist or no data has been
configured for that DTC.
ACTION: If the name was entered incorrectly, reenter the
SUMMARYCONF command with the correct DTC name specified. If the
DTC exists but is not correctly configured, use NMMGR to configure the
data for the DTC, then reenter the SUMMARYCONF command.
MESSAGE: The Card specified is not configured in the specified DTC.
(NMGRERR 556)
NMGRERR 556
CAUSE: You specified an incorrect card number while using the
SUMMARYCONF command to obtain a DTS critical summary report on a
specific DTC. Either the DTC does not exist or the card specified is not
configured for that DTC.
262
Appendix A
NMS Error Messages
NMGR Error and Warning Messages
ACTION: Reenter the command with the correct card number and DTC
specified. If the card exists but is not properly configured, use NMMGR
to correct the card configuration, then reenter the SUMMARYCONF
command.
MESSAGE: That Port is not configured in the DTC and Card specified.
(NMGRERR 557)
NMGRERR 557
CAUSE: You specified an incorrect port number while using the
SUMMARYCONF command to obtain a DTS critical summary report on a
specific card in a specific DTC. Either the DTC does not exist, the card
specified is not configured for that DTC, or the port is not configured for
that card.
ACTION: Reenter the command with the correct port number, card
number, and DTC specified. If the port exists but is not properly
configured, use NMMGR to correct the configuration, then reenter the
SUMMARYCONF command.
MESSAGE: The DTC subsystem has not been configured.
(NMGRERR 558)
NMGRERR 558
CAUSE: You entered a SUMMARYCONF DTS command on a system
where no distributed terminal subsystem is configured (the HOST/PC
flag has not been set).
ACTION: Configure the distributed terminal subsystem, then reenter
the SUMMARYCONF DTS command.
MESSAGE: Illegal delimiter given. Type HELP for command syntax.
(NMGRERR 559)
NMGRERR 559
CAUSE: While using the SUMMARYCONF command to obtain a DTS
critical summary report, you entered an illegal delimiter.
ACTION: Type HELP at the prompt to access the HELP messages for
the SUMMARYCONF command. Study these messages to determine the
proper syntax to obtain the desired information. Reenter the command
using the correct delimiters.
MESSAGE: The card number must be an integer from 0 to 5.
(NMGRERR 560)
NMGRERR 560
CAUSE: While using the SUMMARYCONF command to obtain a DTS
critical summary report on a specific card in a DTC, you entered an
invalid card number. Card numbers must be entered as integers, from 0
to 5.
ACTION: Reenter the command with a card number specified in the
valid range, 0 through 5.
Appendix A
263
NMS Error Messages
NMGR Error and Warning Messages
MESSAGE: The port number must be an integer from 0 to 7.
(NMGRERR 561)
NMGRERR 561
CAUSE: While using the SUMMARYCONF command to obtain a DTS
critical summary report on a specific port, you entered an invalid port
number. Port numbers must be entered as integers, from 0 to 7.
ACTION: Reenter the command with a port number specified in the
valid range, 0 through 7.
MESSAGE: Expected a parameter after the delimiter. (NMGRERR 562)
NMGRERR 562
CAUSE: You entered a SUMMARYCONF DTS command that ended in
a delimiter when another parameter could have been entered. For
example, you may have entered “LDEV 23/” instead of “LDEV 23”.
ACTION: Reenter the command correctly. Type HELP to access the
help messages if you do not know the correct syntax for the command
you are trying to enter.
MESSAGE: Cannot end a command with a delimiter. (NMGRERR 563)
NMGRERR 563
CAUSE: You entered a SUMMARYCONF DTS command that ended in
a delimiter (“,”, “/”, etc.)
ACTION: Reenter the command correctly. Type HELP to access the
help messages if you do not know the correct syntax for the command
you are trying to enter.
264
Appendix A
NMS Error Messages
NMMGRVER Messages, Errors and Warnings
NMMGRVER Messages, Errors and
Warnings
The following messages may be returned from the NMMGRVER utility
(n represents the message number). Note that NMMGRVER may also
provide you with messages which tell you that the operation has
completed successfully.
(NMMGRVERWARN n) messages are displayed when conversion failed and
the file is not changed.
(NMMGRVERERR n) messages are displayed when conversion has failed
and the file may be changed. These warning messages are listed and
described together at the end of the following error messages.
MESSAGE: CONVERSION completed successfully.
(NMMGRVERMSG 0)
NMMGRVERMSG CAUSE: Successful completion.
0
ACTION: None.
MESSAGE: NO NEED TO CONVERT. (NMMGRVERMSG 1)
NMMGRVERMSG CAUSE: Configuration file version is correct; file does not require
1
conversion.
ACTION: None.
MESSAGE: OPEN FILE ERROR: Cannot convert file.
(NMMGRVERWARN 2)
NMMGRVER
WARN 2
CAUSE: NMMGRVER was unable to open the configuration file during
conversion. More than one user is accessing the file.
ACTION: Execute the LISTDIR5 subsystem and type LISTF to check
whether other users are accessing or storing this file. NMMGERVER
needs exclusive access to the configuration file. Run NMMGRVER when
file is freed.
CAUSE: Internal file system unable to LOCK and OPEN the file with
write access due to file system security.
ACTION: Resolve the MPE security restriction and retry. Run
LISTDIR5 and type LISTSEC configFileName to determine the security
restrictions of the file.
CAUSE: Internal file system unable to OPEN the file if incorrect
LOCKWORD was provided.
ACTION: Rerun NMMGRVER with correct LOCKWORD.
CAUSE: Another internal error has occurred when opening the file.
Appendix A
265
NMS Error Messages
NMMGRVER Messages, Errors and Warnings
ACTION: An internal file system error has occurred. See “Submitting
an SR” at the beginning of this appendix.
MESSAGE: INTERNAL ERROR: cannot convert file.
(NMMGRVERWARN 3)
NMMGRVER
WARN 3
CAUSE: The configuration file is corrupted. One or more of the following
situations were detected in the file.
• Paths are missing.
• Version stamps are missing or are incorrect.
• A LINKCONF detail data record has unexpected record length.
NOTE: This corrupted configuration file is not changed.
ACTION: Restore an old configuration file if possible and rerun
NMMGRVER. If the error still occurs, see “Submitting an SR” at the
beginning of this appendix.
MESSAGE: FILE CORRUPT: Conversion Failed, file might be changed.
(NMMGRVERERR 4).
NMMGRVERERR CAUSE: NMMGRVER was unable to complete the configuration file
4
conversion because a LINKCONF detail data record has the incorrect
item identification number. Note: The configuration file may have been
changed.
ACTION: The configuration file may be corrupted. Restore a backup
copy of the configuration file if possible and run NMMGRVER again. If
the error still occurs, submit a Service Request. See “Submitting an SR”
at the beginning of this appendix.
CAUSE: NMMGRVER was unable to complete the configuration file
conversion because a data record has incorrect record length.
ACTION: The configuration file may be corrupted. Restore a backup
copy of the configuration file if possible and run NMMGRVER again. If
the error still occurs, submit a Service Request. See “Submitting an SR”
at the beginning of this appendix.
CAUSE: NRJE has the wrong previous version stamp. Note that the
configuration file may have been changed.
ACTION: The configuration file may be corrupted. Restore a backup
copy of the configuration file if possible and run NMMGRVER again. If
the error still occurs, submit a Service Request. See “Submitting an SR”
at the beginning of this appendix.
MESSAGE: INTERNAL ERROR: Conversion Failed, file might be
changed. (NMMGRVERERR 5).
NMMGRVERERR CAUSE: Disk file space is used up.
5
266
Appendix A
NMS Error Messages
NMMGRVER Messages, Errors and Warnings
ACTION: Purge unnecessary files from disk to recover some space.
Restore a backup copy of the configuration file if possible and run
NMMGRVER again. If the error still occurs, submit a Service Request.
See “Submitting an SR” at the beginning of this appendix.
CAUSE: An internal error occurred with intrinsics, midasgetdata,
midasnextpath, midasupdatedata, or midasaddpath.
ACTION: The configuration file may be corrupted. Restore a backup
copy of the configuration file if possible and run NMMGRVER again. If
the error still occurs, submit a Service Request. See “Submitting an SR”
at the beginning of this appendix.
CAUSE: An unexpected internal error has occurred.
ACTION: Restore a backup copy of the configuration file if possible and
run NMMGRVER again. If the error still occurs, submit a Service
Request. See “Submitting an SR” at the beginning of this appendix.
MESSAGE: CLOSE FILE ERROR: File may have been changed.
(NMMGRVERERR 6).
NMMGRVERERR CAUSE: An internal NMMGRVER error has occurred when attempting
6
to close the configuration file.
ACTION: Note that the configuration file may have been changed.
Restore a backup copy of the configuration file if possible and run
NMMGRVER again. If the error still occurs, submit a Service Request.
See “Submitting an SR” at the beginning of this appendix.
MESSAGE: User has Insufficient Capability to Run NMMGRVER.
(NMMGRVERWARN 7)
NMMGRVER
WARN 7
CAUSE: The user is required to have NM or NA capability to run
NMMGRVER. However, the current user does not have sufficient
capability.
ACTION: Check user capability with program LISTDIR5.PUB.SYS,
and modify the capability list. Contact the account manager or system
manager, if needed.
MESSAGE: ACCESS VIOLATION: Cannot convert file.
(NMMGRVERWARN 8)
NMMGRVER
WARN 8
CAUSE: NMMGRVER was unable to write (update or add data) to the
existing configuration file due to inconsistent access type (FSERR 40).
Usually occurs when updating a file across account boundary. The
WRITE, SAVE access types of the GROUP or ACCOUNT for this
configuration file are limited to ACCOUNT only. The file is SECURED.
NOTE: The configuration file is not changed.
ACTION: Release file security and rerun NMMGRVER, or run NMMGRVER
in the GROUP and ACCOUNT where the configuration file is stored.
Appendix A
267
NMS Error Messages
NMMGRVER Messages, Errors and Warnings
MESSAGE: Config File Version Is Newer than NMMGRVER can
support (NMMGRVERWARN 9).
NMMGRVER
WARN 9
CAUSE: At least one version stamp of the configuration file is newer
than NMMGRVER can support. NMMGRVER cannot convert this file. This
configuration file is not changed.
ACTION: Check the module version of NMMGRVER and overall NMC.
Install the newer version of NMC and run the newer NMMGRVER if
needed or, restore an old configuration file if possible and rerun
NMMGRVER.
MESSAGE: File NMCONFIG.PUB.SYS couldn’t be opened.
(NMMGRVERWARN 12)
NMMGRVER
WARN 12
CAUSE: NMCONFIG was already open for exclusive access, or
MIDASOPEN detected an error.
ACTION: Check NMCONFIG and retry.
MESSAGE:
Error during merge of configuration files.
Path: !
Midasstat = !
(NMMGRVERERR 13)
NMMGRVERERR CAUSE: There is an error in one of the cells in the file hierarchy. This
13
error has been detected as an error in the configuration file.
ACTION: Check the midasstat value to determine what the problem is.
It may be necessary to use some other tool to determine which cell has
the problem. If possible, manually edit the data in this cell and verify it
manually. If this is not possible, delete the cell and run NMMGRVER
again.
CAUSE: The configuration file is corrupted.
ACTION: Since the destination file has been changed, recovery is not
possible. Restore a backup copy of the configuration file if possible and
run NMMGRVER again. If the error still occurs, submit a Service
Request. See “Submitting an SR” at the beginning of this appendix.
MESSAGE:
Path not found in the config file.
Path: !
(NMMGRVERERR 14)
NMMGRVERERR CAUSE: This may be a normal condition if the user does not have NS on
14
the system. However, it may also indicate that you are trying to convert
NMCONFIG.PUB.SYS on a non-XL system, when you should actually be
converting an NSCONF-like file.
ACTION: The conversion will operate correctly. The user is being
warned to be sure that the correct file is being converted.
268
Appendix A
NMS Error Messages
NMMGRVER Messages, Errors and Warnings
MESSAGE:
Invalid data length.
Path: !
Length: !
(NMMGRVERERR 15)
NMMGRVERERR CAUSE: The length of the data array which was read from the cell was
15
incorrect. This could indicate that an incorrect cell was accessed or that
the user is trying to convert an invalid configuration file. The cell is not
converted.
ACTION: Verify that the original file was a valid version. Using
another tool, examine the cell data and verify the data. Since the cell
was not touched, the data may have to be entered manually.
MESSAGE:
Conversion failure.
PATH: !
MIDASSTAT: !
(NMMGRVERERR 16)
NMMGRVERERR CAUSE: This is a generic message which allows the path name and
16
status to be output.
ACTION: Depends on status and user needs.
MESSAGE:
Path not allowed for this version. Path purged.
Path: !
(NMMGRVERERR 17)
NMMGRVERERR CAUSE: Certain paths are not supported on the current version of the
17
configuration file, even though they were supported on previous
versions.
ACTION: None necessary. You may want to verify which paths have
been deleted.
MESSAGE: File type has not been defined. (NMMGRVERERR 18)
NMMGRVERERR CAUSE: Internal error. User entered valid data but it somehow has
18
been corrupted. The type of the file passed to NMMGRVER is not
within the valid range of: 1= MPE V NSCONF type; 2= MPE V
NMCONF type.
ACTION: Run NMMGRVER again. If the error still occurs, submit a
Service Request. See “Submitting an SR” at the beginning of this
appendix.
MESSAGE: Unable to create LINK subtree (NMMGRERR 19)
NMMGRVER
ERR 19
CAUSE: You specified that the configuration file was an MPE V file.
Therefore, NMMGRVER checked to make sure the LINK subtree did
not exist. Since it did not exist, NM tried to create it because iX
Appendix A
269
NMS Error Messages
NMMGRVER Messages, Errors and Warnings
configuration files need it. However, the NM intrinsic failed during this
process. One possible reason for this is that the configuration file may
be full.
ACTION: Run NMMGRVER again. If the error still occurs, submit a
Service ReRun NMMGR and expand the size of the configuration file.
Then run NMMGRVER again.
MESSAGE: Unable to purge LINKCONF subtree (NMMGRVERERR 20)
NMMGRVERERR CAUSE: Internal error. File has been converted. However, in the
20
attempt to purge the subtree LINKCONF, the NM intrinsic failed.
ACTION: The configuration file may be corrupted. Restore a backup
copy of the configuration file if possible and run NMMGRVER again. If
the error still occurs, see “Submitting an SR” at the beginning of this
appendix.
MESSAGE: Error accessing NMMGRCAT.PUB.SYS set=! msg=!.
(NMMGRVERERR 21)
NMMGRVERERR CAUSE: Returned by NMCPRINTERRMSG. Usually followed by one or
21
more of messages 22 through 25 below, which further clarifies the error.
ACTION: Look for one or more of NMMGRVERERR 22 through 25
following this message, and take the remedial action suggested below.
Look up the text and comments for the original message specified in the
message, and take the suggested actions.
MESSAGE: FOPEN FSERR ! on NMMGRCAT.PUB.SYS.
(NMMGRVERERR 22)
NMMGRVERERR CAUSE: Returned by NMCPRINTERRMSG and usually followed by the
22
text of the FSError message.
ACTION: If the error number is 1 or 2, NMMGRVERERR 24 will also
be displayed. See the NMMGRVERERR 24 causes and actions for
further information. Returned by NMCPRINTERRMSG.
MESSAGE: Encountered GENMESSAGE error !. (NMMGRVERERR 23)
NMMGRVERERR CAUSE: Possible bad software installation (NMMGRCAT.PUB.SYS).
23
ACTION: If the error number is not 1 or 2, look up the error number in
the MPE Intrinsics Manual under GENMESSAGE. The problem may
be due to a corrupt NMMGRCAT.PUB.SYS. Restore NMMGRCAT.PUB.SYS
and run NMMGRVER again. Otherwise, correct the problem causing
the GENMESSAGE error and run NMMGRVER again.
MESSAGE: GENMESSAGE encountered FSERR !.
(NMMGRVERERR 24)
NMMGRVERERR CAUSE: Returned by NMCPRINTERRMSG. This message follows
24
NMMGRVERERR 23 message, and is usually followed with the text of
the file system error message as well.
270
Appendix A
NMS Error Messages
NMMGRVER Messages, Errors and Warnings
ACTION: Correct the file system error and run NMMGRVER again.
MESSAGE: FCLOSE FSERR ! on NMMGRCAT.PUB.SYS.
(NMMGRVERERR 25)
NMMGRVERERR CAUSE: Returned by NMCPRINTERRMSG after printing a message
25
from NMMGRCAT.PUB.SYS. The FCLOSE of NMMGRCAT.PUB.SYS failed.
ACTION: Correct the file system error and run NMMGRVER again.
MESSAGE: Merge failed. Error in NMCONFIG.PUB.SYS
(NMMGRVERR 26)
NMMGRVERERR CAUSE: During the merge of NMCONFIG and the file to be converted,
26
an error was found in one of the paths in NMCONFIG.
ACTION: The configuration file may have been changed. Restore a
backup copy of the configuration file if possible and run NMMGRVER
again. If the error still occurs, submit a Service Request. See
“Submitting an SR” at the beginning of this appendix.
CAUSE: The file NMCONFIG.PUB.SYS is not valid.
ACTION: The configuration file may be corrupted. Restore a backup
copy of the configuration file if possible and run NMMGRVER again. If
the error still occurs, submit a Service Request. See “Submitting an SR”
at the beginning of this appendix
CAUSE: Depth of paths exceed max_path_depth.
ACTION: The configuration file may be corrupted. Restore a backup
copy of the configuration file if possible and run NMMGRVER again. If
the error still occurs, submit a Service Request. See “Submitting an SR”
at the beginning of this appendix.
MESSAGE: File full; no conversion done. (NMMGRVERWARN 27)
NMMGRVER
WARN 27
CAUSE: The configuration file to be converted is full. There must be at
least two (and possibly more than two) records available in the
configuration file to do a conversion.
ACTION: Go to the Compress utility screen in NMMGR and expand
the file.
MESSAGE: Cannot copy configuration file to NMTEMP; no conversion
done. (NMMGRVERR 40)
NMMGRVERERR CAUSE: The configuration file could not be copied to NMTEMPa.
40
ACTION: Check if there is any disk space left on LDEV 1.
MESSAGE: Could not rename config file; no conversion done.
(NMMGRVERR 41)
NMMGRVERERR CAUSE: Could not rename or copy the configuration file to NMMGBAK,
41
or could not rename or copy NMMGRTMP to the configuration file.
ACTION: Check if there is any disc space left on LDEV 1.
Appendix A
271
NMS Error Messages
NMMGRVER Messages, Errors and Warnings
MESSAGE: File not converted NMMGRVERMSG 56.
NMMGRVERMSG CAUSE: You selected the skip option when asked for a file type during
56
the configuration file conversion.
ACTION: None. This is an informative message.
MESSAGE:
Unable to add path.
Path: !
Midasstat = !
(NMMGRVERERR 60)
NMMGRVERERR CAUSE: An internal error occurred while adding the displayed path.
60
ACTION: Restore a backup copy of the configuration file if possible and
run NMMGRVER again. If the error still occurs, submit a Service
Request. See “Submitting an SR” at the beginning of this appendix.
Note: not user solvable. A qualified HP representative should check the
midasstat value to determine what the problem is and take appropriate
action.
MESSAGE:
Unable to add data.
Path: !
Midasstat = !
(NMMGRVERERR 61)
NMMGRVERERR CAUSE: Internal error occurred while adding data to the displayed
61
path.
ACTION: Restore a backup copy of the configuration file if possible and
run NMMGRVER again. If the error still occurs, submit a Service
Request. See “Submitting an SR” at the beginning of this appendix.
Note: not user solvable. A qualified HP representative should check the
midasstat value to determine what the problem is and take appropriate
action.
MESSAGE:
Unable to purge path.
Path: !
Midasstat = !
(NMMGRVERERR 62)
NMMGRVERERR CAUSE: Internal error occurred while purging displayed path.
62
ACTION: Restore a backup copy of the configuration file if possible and
run NMMGRVER again. If the error still occurs, submit a Service
Request. See “Submitting an SR” at the beginning of this appendix.
Note: not user solvable. A qualified HP representative should check the
midasstat value to determine what the problem is and take appropriate
action.
272
Appendix A
NMS Error Messages
NMMGRVER Messages, Errors and Warnings
MESSAGE:
Unable to purge data.
Path: !
Midasstat = !
(NMMGRVERERR 63)
NMMGRVERERR CAUSE: Internal error occurred while purging data at displayed path.
63
ACTION: Restore a backup copy of the configuration file if possible and
run NMMGRVER again. If the error still occurs, submit a Service
Request. See “Submitting an SR” at the beginning of this appendix.
Note: not user solvable. A qualified HP representative should check the
midasstat value to determine what the problem is and take appropriate
action.
MESSAGE:
Unable to get son path.
Path: !
Midasstat = !
(NMMGRVERERR 64)
NMMGRVERERR CAUSE: Internal error, could not get the son of the displayed path.
64
ACTION: Restore a backup copy of the configuration file if possible and
run NMMGRVER again. If the error still occurs, submit a Service
Request. See “Submitting an SR” at the beginning of this appendix.
Note: not user solvable. A qualified HP representative should check the
midasstat value to determine what the problem is and take appropriate
action.
MESSAGE:
Unable to get data.
Path: !
Midasstat = !
(NMMGRVERERR 65)
NMMGRVERERR CAUSE: Internal error occurred while attempting to get data from the
65
displayed path.
ACTION: Restore a backup copy of the configuration file if possible and
run NMMGRVER again. If the error still occurs, submit a Service
Request. See “Submitting an SR” at the beginning of this appendix.
Note: not user solvable. A qualified HP representative should check the
midasstat value to determine what the problem is and take appropriate
action.
MESSAGE:
Unable to get brother path.
Path: !
Midasstat = !
(NMMGRVERERR 66)
NMMGRVERERR CAUSE: Internal problem accessing path in the configuration file.
66
Brother of displayed path could not be obtained.
Appendix A
273
NMS Error Messages
NMMGRVER Messages, Errors and Warnings
ACTION: Restore a backup copy of the configuration file if possible and
run NMMGRVER again. If the error still occurs, submit a Service
Request. See “Submitting an SR” at the beginning of this appendix.
Note: not user solvable. A qualified HP representative should check the
midasstat value to determine what the problem is and take appropriate
action.
MESSAGE:
Unable to update data.
Path: !
Midasstat = !
(NMMGRVERERR 67)
NMMGRVERERR CAUSE: Internal problem updating data in configuration file.
67
ACTION: Restore a backup copy of the configuration file if possible and
run NMMGRVER again. If the error still occurs, submit a Service
Request. See “Submitting an SR” at the beginning of this appendix.
Note: not user solvable. A qualified HP representative should check the
midasstat value to determine what the problem is and take appropriate
action.
MESSAGE: Error in MPE-V Phase I file. (NMMGRVERR 70)
NMMGRVERERR CAUSE: An error occurred in the converting of the file from MPE V
70
phase I to MPE V phase II. The process of converting an MPE V
configuration file to an MPE/iX file includes checking whether the file is
NS I or NS II. If the file is NS I, NMMGR first converts it to NS II and
then to MPE/iX. This error message was generated because NMMGR
detected an error during the conversion from NS I to NS II.
ACTION: The configuration file may be corrupted. Restore a backup
copy of the configuration file if possible and run NMMGRVER again. If
the error still occurs, submit a Service Request. See “Submitting an SR”
at the beginning of this appendix.
MESSAGE: ** Converting MPE V Nsconf file to MPE/iX file **
NMMGRVERERR CAUSE: This is an informative message.
72
ACTION: None.
MESSAGE: ** Converting MPE V Nmconfig file to MPE/iX file **
NMMGRVERERR CAUSE: This is an informative message.
73
ACTION: None.
MESSAGE: ** Converting MPE/iX config file **
NMMGRVERERR CAUSE: This is an informative message.
74
ACTION: None.
274
Appendix A
NMS Error Messages
NMMGRVER Messages, Errors and Warnings
MESSAGE:
Invalid path found in source file.
Path: !
(NMMGRVERERR 75)
NMMGRVERERR CAUSE: An invalid path was found in the source configuration file. The
75
path may have been created by an unofficial NMMGR tool. Conversion
will continue if possible. NMMGRVERERR 76 will usually be displayed
along with this message.
ACTION: Note that the configuration file may have been changed.
Depending on which subsystem is involved, the invalid path may or
may not be deleted from the converted file. Restore a backup copy of the
configuration file if possible and run NMMGRVER again. If the error
still occurs, submit a Service Request. See “Submitting an SR” at the
beginning of this appendix.
MESSAGE: Attempting to continue conversion. (NMMGRVERERR 76)
NMMGRVERERR CAUSE: This is used to inform the user that NMMGRVER is continuing
76
the conversion process.
ACTION: None.
MESSAGE: The default NS LINK physical path is 6/4.2; User
modification may be needed. (NMMGRVERERR 77)
NMMGRVERERR CAUSE: The default physical path has been set to 6/4.2.
77
ACTION: Confirm that this value is correct for your system and modify
it with NMMGR if needed.
MESSAGE: The default DTS LINK physical path is 2/4.2; User
modification may be needed. (NMMGRVERERR 78)
NMMGRVERERR CAUSE: The default physical path has been set to 2/4.2.
78
ACTION: Confirm that this value is correct for your system and modify
it with NMMGR if needed.
MESSAGE: An error has occurred during LINKCONF CONVERSION.
(NMMGRVERERR 80)
NMMGRVERERR CAUSE: An error occurred during the LINKCONF part of the
80
conversion process. The actual error is listed in an error message which
should be displayed along with this one.
ACTION: Restore a backup copy of the configuration file if possible. Use
the version of NMMGR that created the configuration file to make sure
that each data screen in the configuration file has data associated with
it and that its data flag is set to Y. Run NMMGRVER again. If the same
error occurs again, check any accompanying error message and take the
action listed for it in this appendix. If this fails, submit a Service
Request. See “Submitting an SR” at the beginning of this appendix.
Appendix A
275
NMS Error Messages
NMMGRVER Messages, Errors and Warnings
MESSAGE: An error has occurred during IMF CONVERSION.
(NMMGRVERERR 81)
NMMGRVERERR CAUSE: An error occurred during the IMF part of the conversion
81
process. The actual error is listed in an error message which should be
displayed along with this one.
ACTION: Restore a backup copy of the configuration file if possible. Use
the version of NMMGR that created the configuration file to make sure
that each data screen in the configuration file has data associated with
it and that its data flag is set to Y. Run NMMGRVER again. If the same
error occurs again, check any accompanying error message and take the
action listed for it in this appendix. If this fails, submit a Service
Request. See “Submitting an SR” at the beginning of this appendix.
MESSAGE: An error has occurred during SNA CONVERSION.
(NMMGRVERERR 82)
NMMGRVERERR CAUSE: An error occurred during the SNA part of the conversion
82
process. The actual error is listed in an error message which should be
displayed along with this one.
ACTION: Restore a backup copy of the configuration file if possible. Use
the version of NMMGR that created the configuration file to make sure
that each data screen in the configuration file has data associated with
it and that its data flag is set to Y. Run NMMGRVER again. If the same
error occurs again, check any accompanying error message and take the
action listed for it in this appendix. If this fails, submit a Service
Request. See “Submitting an SR” at the beginning of this appendix.
MESSAGE: An error has occurred during NRJE CONVERSION.
(NMMGRVERERR 83)
NMMGRVERERR CAUSE: An error occurred during the NRJE part of the conversion
83
process. The actual error is listed in an error message which should be
displayed along with this one.
ACTION: Restore a backup copy of the configuration file if possible. Use
the version of NMMGR that created the configuration file to make sure
that each data screen in the configuration file has data associated with
it and that its data flag is set to Y. Run NMMGRVER again. If the same
error occurs again, check any accompanying error message and take the
action listed for it in this appendix. If this fails, submit a Service
Request. See “Submitting an SR” at the beginning of this appendix.
MESSAGE: An error has occurred during LOGGING CONVERSION.
(NMMGRVERERR 84)
NMMGRVERERR CAUSE: An error occurred during the LOGGING part of the conversion
84
process. The actual error is listed in an error message which should be
displayed along with this one.
276
Appendix A
NMS Error Messages
NMMGRVER Messages, Errors and Warnings
ACTION: Restore a backup copy of the configuration file if possible. Use
the version of NMMGR that created the configuration file to make sure
that each data screen in the configuration file has data associated with
it and that its data flag is set to Y. Run NMMGRVER again. If the same
error occurs again, check any accompanying error message and take the
action listed for it in this appendix. If this fails, submit a Service
Request. See “Submitting an SR” at the beginning of this appendix.
MESSAGE: An error has occurred during NETXPORT CONVERSION.
(NMMGRVERERR 85)
NMMGRVERERR CAUSE: An error occurred during the NETXPORT part of the
85
conversion process. The actual error is listed in an error message which
should be displayed along with this one.
ACTION: Restore a backup copy of the configuration file if possible. Use
the version of NMMGR that created the configuration file to make sure
that each data screen in the configuration file has data associated with
it and that its data flag is set to Y. Run NMMGRVER again. If the same
error occurs again, check any accompanying error message and take the
action listed for it in this appendix. If this fails, submit a Service
Request. See “Submitting an SR” at the beginning of this appendix.
MESSAGE: An error has occurred during LAPB LINK CONVERSION.
(NMMGRVERERR 86)
NMMGRVERERR CAUSE: An error occurred during the LAPB LINK part of the
86
conversion process. The actual error is listed in an error message which
should be displayed along with this one.
ACTION: Restore a backup copy of the configuration file if possible. Use
the version of NMMGR that created the configuration file to make sure
that each data screen in the configuration file has data associated with
it and that its data flag is set to Y. Run NMMGRVER again. If the same
error occurs again, check any accompanying error message and take the
action listed for it in this appendix. If this fails, submit a Service
Request. See “Submitting an SR” at the beginning of this appendix.
MESSAGE: An error has occurred during DTS CONVERSION.
(NMMGRVERERR 87)
NMMGRVERERR CAUSE: An error occurred during the DTS part of the conversion
87
process. The actual error is listed in an error message which should be
displayed along with this one.
ACTION: Restore a backup copy of the configuration file if possible. Use
the version of NMMGR that created the configuration file to make sure
that each data screen in the configuration file has data associated with
it and that its data flag is set to Y. Run NMMGRVER again. If the same
error occurs again, check any accompanying error message and take the
action listed for it in this appendix. If this fails, submit a Service
Request. See “Submitting an SR” at the beginning of this appendix.
Appendix A
277
NMS Error Messages
NMMGRVER Messages, Errors and Warnings
MESSAGE: An error has occurred during LAN LINK CONVERSION.
(NMMGRVERERR 88)
NMMGRVERERR CAUSE: An error occurred during the LAN LINK part of the conversion
88
process. The actual error is listed in an error message which should be
displayed along with this one.
ACTION: Restore a backup copy of the configuration file if possible. Use
the version of NMMGR that created the configuration file to make sure
that each data screen in the configuration file has data associated with
it and that its data flag is set to Y. Run NMMGRVER again. If the same
error occurs again, check any accompanying error message and take the
action listed for it in this appendix. If this fails, submit a Service
Request. See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Duplicate host luname (!) found in node !.
(NMMGRVERERR 89)
NMMGRVERERR CAUSE: The configuration file contains an SNANODE that contains
89
two or more lus that have the same name. Only the first lu found is
converted. The other names are skipped, and the conversion will
continue.
ACTION: Use the same version of NMMGR that created it to modify
the unconverted configuration file. Delete the duplicate lu names or
change them to unique names and then convert the configuration file.
MESSAGE: Can’t find host luname. Nau = !, Node = !.
(NMMGRVERERR 90)
NMMGRVERERR CAUSE: The host luname is not configured in the configuration file.
90
Therefore, this nau is not converted.
ACTION: Use the same version of NMMGR that created it to modify
the unconverted configuration file. Either delete the host luname or add
the host lu and then convert the configuration file.
MESSAGE: An error has occurred during LINK CONVERSION.
(NMMGRVERERR 91)
NMMGRVERERR CAUSE: An error occurred during the LINK part of the conversion
91
process. The actual error is listed in an error message which should be
displayed along with this one.
ACTION: Restore a backup copy of the configuration file if possible. Use
the version of NMMGR that created the configuration file to make sure
that each data screen in the configuration file has data associated with
it and that its data flag is set to Y. Run NMMGRVER again. If the same
error occurs again, check any accompanying error message and take the
action listed for it in this appendix. If this fails, submit a Service
Request. See “Submitting an SR” at the beginning of this appendix.
278
Appendix A
NMS Error Messages
NMMGRVER Messages, Errors and Warnings
MESSAGE: The default SNA/SDLC LINK physical path is 24; User
modification may be needed. (NMMGRVERERR 92)
NMMGRVERERR CAUSE: The default physical path has been set to 24, which may be
92
correct for the given system.
ACTION: Run NMMGR, confirm this value, and modify it as needed.
MESSAGE: The default LAPB LINK physical path is 24; User
modification may be needed. (NMMGRVERERR 93)
NMMGRVERERR CAUSE: The default physical path has been set to 24, which may be
93
correct for the given system.
ACTION: Run NMMGR, confirm this value, and modify it as needed.
MESSAGE: An error has occurred during APPC CONVERSION.
(NMMGRVERERR 94)
NMMGRVERERR CAUSE: During the APPC conversion process an error occurred.
94
ACTION: User should restore file with backup copy and use the version
of NMMGR that had created it to confirm that each data screen has
data associated with it. Each data screen should have its data flag set to
Y. If this does not solve the problem, consult your Hewlett-Packard
representative.
Appendix A
279
NMS Error Messages
ND Error Messages
ND Error Messages
NDIERR messages are produced by errors from the Network Directory
intrinsics. In most cases, they are accompanied by other messages
(NMGRERRs or MPE File System errors). You should take the action
recommended for the accompanying messages first.
MESSAGE: Directory file not open. (NDIERR 001)
NDIERR 001
CAUSE: No directory file was opened.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Directory is not open for write access. (NDIERR 002)
NDIERR 002
CAUSE: The currently opened directory was not opened with write
access.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: FLOCK failed — internal error. (NDIERR 003)
NDIERR 003
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Requires Network Administrator capability. (NDIERR 004)
NDIERR 004
CAUSE: User does not have network Administrator capabilities.
ACTION: Change user capabilities.
MESSAGE: Not enough room in directory for new entry. (NDIERR 006)
NDIERR 006
CAUSE: The directory file is full.
ACTION: Expand the directory file capacity using the NMMGR
maintenance mode EXPANDDIR command.
MESSAGE: FCONTROL/FUNLOCK failed — internal error.
(NDIERR 007)
NDIERR 007
CAUSE: The directory file is full.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Name type invalid; must be 1 (NS node name).
(NDIERR 008)
NDIERR 008
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Name length invalid for name type. (NDIERR 009)
NDIERR 009
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
280
Appendix A
NMS Error Messages
ND Error Messages
MESSAGE: Path report list length cannot be negative. (NDIERR 010)
NDIERR 010
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Path report list length > than ND’CREATE maximum.
(NDIERR 011)
NDIERR 011
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Duplicate node name in directory — cannot add new
entry. (NDIERR 012)
NDIERR 012
CAUSE: An entry with the same node name and global/local flag setting
already exists in the directory.
ACTION: Supply a different node name and/or global/local setting.
MESSAGE: FFINDBYKEY failed — corrupt file likely. (NDIERR 013)
NDIERR 013
CAUSE: Possible corrupt network directory file.
ACTION: Restore the data and key files from a back-up tape. If this
fails, see “Submitting an SR” at the beginning of this appendix.
MESSAGE: Directory file not open. (NDIERR 020)
NDIERR 020
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Cannot close directory file — internal error. (NDIERR 021)
NDIERR 021
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Requires Node Manager or Network Administrator
capability. (NDIERR 022)
NDIERR 022
CAUSE: User does not have Node Manager or Network Administrator
capabilities.
ACTION: Change user capabilities.
MESSAGE: Directory size too small; must be > 0. (NDIERR 040)
NDIERR 040
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Directory size too large; must be <= 10,000 records.
(NDIERR 041)
NDIERR 041
CAUSE: Directory size parameter too large.
Appendix A
281
NMS Error Messages
ND Error Messages
ACTION: If a larger file is really desired, create one at the maximum
size, then use NMMGR maintenance mode EXPANDDIR command to
increase the file to desired size. If this fails, see “Submitting an SR” at
the beginning of this appendix.
MESSAGE: Maximum path report list length negative; must be > 0.
(NDIERR 042)
NDIERR 042
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Maximum path report list length too large; must be
<= 500. (NDIERR 043)
NDIERR 043
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Cannot create directory file. (NDIERR 044)
NDIERR 044
CAUSE: The network directory file could not be opened.
ACTION: See the accompanying file system error message for problem
resolution.
MESSAGE: FWRITE of header record failed — internal error.
(NDIERR 045)
NDIERR 045
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: FCLOSE failed — internal error. (NDIERR 046)
NDIERR 046
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Directory name cannot contain a lockword. (NDIERR 047)
NDIERR 047
CAUSE: Directory file names may not be lockword protected.
ACTION: Resubmit the file name with no lockword or a null lockword.
MESSAGE: Requires Network Administrator capability. (NDIERR 048)
NDIERR 048
CAUSE: User does not have Node Manager or Network Administrator
capabilities.
ACTION: Change user capabilities.
MESSAGE: ND’FSERR called when no file system error had occurred.
(NDIERR 060)
NDIERR 060
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
282
Appendix A
NMS Error Messages
ND Error Messages
MESSAGE: Directory file not open. (NDIERR 080)
NDIERR 080
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Item number invalid; must be 1, 2, 3, 4, 5, or 6.
(NDIERR 081)
NDIERR 081
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Requires Node Manager or Network Administrator
capability. (NDIERR 082)
NDIERR 082
CAUSE: User does not have Node Manager or Network Administrator
capabilities.
ACTION: Change user capabilities.
MESSAGE: FGETINFO failed — internal error. (NDIERR 083)
NDIERR 083
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: FLOCK failed — internal error. (NDIERR 084)
NDIERR 084
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: FCONTROL/FUNLOCK failed — internal error.
(NDIERR 085)
NDIERR 085
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Cannot open directory file. (NDIERR 100)
NDIERR 100
CAUSE: Could not open the directory file due to various MPE file
system errors.
ACTION: Consult accompanying file system error message for problem
resolution.
MESSAGE: FGETINFO failed — internal error. (NDIERR 101)
NDIERR 101
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Wrong filecode for directory file; expected 1211.
(NDIERR 102)
NDIERR 102
CAUSE: The file name specified is not a network directory file.
ACTION: Correct filename to refer to a network directory file.
Appendix A
283
NMS Error Messages
ND Error Messages
MESSAGE: Access mode invalid; must be 0 or 1. (NDIERR 103)
NDIERR 103
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Share option invalid; must be 0, 1, 2 or 3. (NDIERR 104)
NDIERR 104
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: FLOCK failed — internal error. (NDIERR 105)
NDIERR 105
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Incompatible directory version — outdated directory.
(NDIERR 106)
NDIERR 106
CAUSE: The current level of software does not support the format of the
directory file.
ACTION: Install correct versions of NMC software or restore correct
version of the network directory file.
MESSAGE: FCONTROL/FUNLOCK failed — internal error.
(NDIERR 107)
NDIERR 107
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: FCLOSE failed — internal error. (NDIERR 108)
NDIERR 108
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Directory name cannot contain a lockword. (NDIERR 109)
NDIERR 109
CAUSE: The network directory file cannot be lockword protected.
ACTION: Remove the lockword from the filename, or replace it with a
null lockword.
MESSAGE: Requires Node Manager or Network Administrator
capability. (NDIERR 110)
NDIERR 110
CAUSE: User does not have Node Manager or Network Administrator
capabilities.
ACTION: Change user capabilities.
MESSAGE: File is not a Network Directory. (NDIERR 111)
NDIERR 111
CAUSE: User calling ND’OPEN passed a file that is not a network
directory file. The most likely CAUSE is that the file is not a KSAM file.
ACTION: Correct the filename.
284
Appendix A
NMS Error Messages
ND Error Messages
MESSAGE: One or more required parameters are missing.
(NDIERR 120)
NDIERR 120
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Directory file not open. (NDIERR 121)
NDIERR 121
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Relop parameter invalid; must be 0, 1 or 2. (NDIERR 122)
NDIERR 122
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Name type invalid; must be 1 (NS node name).
(NDIERR 123)
NDIERR 123
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Name length invalid for name type. (NDIERR 124)
NDIERR 124
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: FFINDBYKEY failed — corrupt file likely. (NDIERR 125)
NDIERR 125
CAUSE: Possible corrupt network directory file.
ACTION: Restore the data and key files from a back-up tape. If this
fails, see “Submitting an SR” at the beginning of this appendix.
MESSAGE: Cannot find a matching node name in the directory.
(NDIERR 126)
NDIERR 126
CAUSE: In the directory, no entry could be found with the requested
nodename and global/local flag setting, or a partial nodename (generic
key) was requested and no match could be found.
ACTION: Supply the nodename of an existing entry, or a generic key to
satisfy the match.
MESSAGE: FREAD failed — corrupt file likely. (NDIERR 127)
NDIERR 127
CAUSE: Possible corrupt network directory file.
ACTION: Restore the data and key files from a back-up tape. If this
fails, see “Submitting an SR” at the beginning of this appendix.
MESSAGE: FLOCK failed — internal error. (NDIERR 128)
NDIERR 128
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
Appendix A
285
NMS Error Messages
ND Error Messages
MESSAGE: FCONTROL/FUNLOCK failed — internal error.
(NDIERR 129)
NDIERR 129
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Requires Node Manager or Network Administrator
capability. (NDIERR 130)
NDIERR 130
CAUSE: User does not have Node Manager or Network Administrator
capabilities.
ACTION: Change user capabilities.
MESSAGE: Select parameter invalid; must be 0, 1 or 2. (NDIERR 131)
NDIERR 131
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: FSPACE failed — corrupt file likely. (NDIERR 132)
NDIERR 132
CAUSE: Probable corrupt directory file.
ACTION: Restore the data and key files from a back-up tape. If this
fails, see “Submitting an SR” at the beginning of this appendix.
MESSAGE: Directory is not open. (NDIERR 140)
NDIERR 140
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Directory is not open for write access. (NDIERR 141)
NDIERR 141
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: FLOCK failed — internal error. (NDIERR 142)
NDIERR 142
CAUSE: Internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Cannot remove node name — internal error. (NDIERR 143)
NDIERR 143
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Requires Network Administrator capability. (NDIERR 144)
NDIERR 144
CAUSE: User does not have Network Administrator capabilities.
ACTION: Change user capabilities.
MESSAGE: FREAD failed — corrupt file likely. (NDIERR 145)
NDIERR 145
CAUSE: Possible corrupt network directory file.
286
Appendix A
NMS Error Messages
ND Error Messages
ACTION: Restore the data and key files from a back-up tape. If this
fails, see “Submitting an SR” at the beginning of this appendix.
MESSAGE: FCONTROL/FUNLOCK failed — internal error.
(NDIERR 146)
NDIERR 146
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Name type invalid; must be 1 (NS node name).
(NDIERR 147)
NDIERR 147
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Name length invalid for name type. (NDIERR 148)
NDIERR 148
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: FFINDBYKEY failed — corrupt file likely. (NDIERR 149)
NDIERR 149
CAUSE: Possible corrupt network directory file.
ACTION: Restore the data and key files from a back-up tape. If this
fails, see “Submitting an SR” at the beginning of this appendix.
MESSAGE: No such name in directory — cannot remove it.
(NDIERR 150)
NDIERR 150
CAUSE: The name does not exist in the directory file.
ACTION: Correct the nodename and/or global/local setting.
MESSAGE: Directory file not open. (NDIERR 160)
NDIERR 160
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Requires Node Manager or Network Administrator
capability. (NDIERR 161)
NDIERR 161
CAUSE: User does not have Node Manager or Network Administrator
capabilities.
ACTION: Change user capabilities.
MESSAGE: Request parameter invalid; must be 1 or 2. (NDIERR 162)
NDIERR 162
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: FREADBYKEY failed — corrupt file likely. (NDIERR 163)
NDIERR 163
CAUSE: Possible corrupt network directory file.
Appendix A
287
NMS Error Messages
ND Error Messages
ACTION: Restore the data and key files from a back-up tape. If this
fails, see “Submitting an SR” at the beginning of this appendix.
MESSAGE: FREAD failed — corrupt file likely. (NDIERR 164)
NDIERR 164
CAUSE: Possible corrupt network directory file.
ACTION: Restore the data and key files from a back-up tape. If this
fails, see “Submitting an SR” at the beginning of this appendix.
MESSAGE: FLOCK failed — internal error. (NDIERR 165)
NDIERR 165
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: FCONTROL/FUNLOCK failed — internal error.
(NDIERR 166)
NDIERR 166
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Cannot read node name backreference record — corrupt
file likely. (NDIERR 167)
NDIERR 167
CAUSE: Possible corrupt network directory file.
ACTION: Restore the data and key files from a back-up tape. If this
fails, see “Submitting an SR” at the beginning of this appendix.
MESSAGE: FOPEN of message catalog failed. (NDIERR 180)
NDIERR 180
CAUSE: The message catalog NMMGRCAT.PUB.SYS could not be opened.
Possible CAUSEs and solutions include incorrect software installation,
insufficient user access rights to the file, or incorrect version of
software.
ACTION: Restore NMMGRCAT.PUB.SYS from a back-up tape, increase
user’s access rights, or reinstall the product.
MESSAGE: GENMESSAGE failed. (NDIERR 181)
NDIERR 181
CAUSE: A message could not be read from the message catalog. A
possible CAUSE is incorrect version of the software.
ACTION: Reinstall the product.
MESSAGE: Error in NMCONF Intrinsic; check for error status.
(NDIERR 190)
NDIERR 190
CAUSE: A problem was encountered when calling an NMCONF
procedure.
ACTION: Refer to the accompanying NMCONF error message.
MESSAGE: Error in Network Directory intrinsic; check for error
status. (NDIERR 191)
NDIERR 191
CAUSE: This is an internal error.
288
Appendix A
NMS Error Messages
ND Error Messages
ACTION: Refer to the accompanying NMCONF error message. If the
associated error is number 58, then the configuration file to merge from
does not have any directory data in it. The file must first be read by the
network transport by bringing up the transport in order to extract the
directory data.
MESSAGE: Requires Network Administrator capability. (NDIERR 192)
NDIERR 192
CAUSE: User does not have Network Administrator capabilities.
ACTION: Change user capabilities.
MESSAGE: File recovery: cannot open message catalog.
(NDIERR 200)
NDIERR 200
CAUSE: The message catalog NMMGRCAT.PUB.SYS could not be opened.
Possible CAUSEs include: improper product installation, insufficient
user access rights to the catalog file, or an incorrect version of the
software installed.
ACTION: Reinstall the product, increase the user’s access rights, or
restore NMMGRCAT.PUB.SYS from a back-up tape.
MESSAGE: File recovery: FOPEN of temporary command file failed.
(NDIERR 201)
NDIERR 201
CAUSE: MPE could not open a scratch file to write file recovery
commands into. This could be CAUSEd by one or more of the following
reasons:
• Duplicate file name. BeCAUSE the file name generated is random,
this CAUSE is very unlikely.
• User does not have Save Files capability.
• Other file system error.
ACTION: 1. Consult the associated file system error for problem
resolution.
ACTION: 2. Attempt manual recovery of the directory file using
KSAMUTIL.PUB.SYS.
MESSAGE: File recovery: GEMMESSAGE failed. (NDIERR 202)
NDIERR 202
CAUSE: Could not read a message from the catalog
NMMGRCAT.PUB.SYS. A possible CAUSE is that an incorrect version of
the software is installed.
ACTION: Reinstall the product, restore NMMGRCAT.PUB.SYS, or
attempt manual recovery of the directory file using
KSAMUTIL.PUB.SYS.
MESSAGE: File recovery: FWRITE to temporary command file failed.
(NDIERR 203)
NDIERR 203
CAUSE: This is an internal error.
Appendix A
289
NMS Error Messages
ND Error Messages
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: File recovery: FCLOSE of temporary command file failed.
(NDIERR 204)
NDIERR 204
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: File recovery: CREATEPROCESS of KSAMUTIL.PUB.SYS
failed. (NDIERR 205)
NDIERR 205
CAUSE: Problem encountered trying to create a son process to run
KSAM.PUB.SYS. It is possible that the program file
KSAMUTIL.PUB.SYS is missing.
ACTION: Restore KSAMUTIL.PUB.SYS
CAUSE: Out of some type of system resource — check SYSDUMP
configuration.
ACTION: Consult CREATEPROCESS errors in the MPE Intrinsics
Reference Manual.
MESSAGE: File recovery: cannot open directory file exclusively.
(NDIERR 206)
NDIERR 206
CAUSE: The network directory file could not be opened exclusively in
order to recover the file.
ACTION: See the accompanying file system error message. If
FSERR 192 is displayed, recover the network directory file.
MESSAGE: File recovery: FCLOSE failed — internal error.
(NDIERR 207)
NDIERR 207
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: File recovery: FFINDBYKEY failed — internal error.
(NDIERR 208)
NDIERR 208
CAUSE: Network directory file is irrecoverable.
ACTION: Attempt manual recovery of the file using
KSAMUTIL.PUB.SYS or restore the data and key files from a back-up
tape.
MESSAGE: File recovery: FREAD failed — internal error.
(NDIERR 209)
NDIERR 209
CAUSE: Network directory file is irrecoverable.
ACTION: Attempt manual recovery of the file using
KSAMUTIL.PUB.SYS or restore the data and key files from a back-up
tape.
290
Appendix A
NMS Error Messages
ND Error Messages
MESSAGE: FPOINT to header record failed — corrupt file likely.
(NDIERR 220)
NDIERR 220
CAUSE: The file is corrupt, empty, or is not a network directory file.
ACTION: Restore the data and key files from a back-up tape.
MESSAGE: FREADC of header record failed — corrupt file likely.
(NDIERR 221)
NDIERR 221
CAUSE: The file is not a KSAM file (and thus not a network directory
file), or is a corrupt network directory.
ACTION: Restore the proper KSAM file from a back-up tape (data and
key files) or attempt manual recovery on the file using
KSAMUTIL.PUB.SYS.
MESSAGE: Length of header record incorrect — corrupt file likely.
(NDIERR 222)
NDIERR 222
CAUSE: Possible corrupt network directory file.
ACTION: Restore the data and key files from a back-up tape. If this
fails, see “Submitting an SR” at the beginning of this appendix.
MESSAGE: FPOINT to header record failed. (NDIERR 230)
NDIERR 230
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: FUPDATE of header record failed. (NDIERR 231)
NDIERR 231
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: FUPDATE of existing record failed. (NDIERR 240)
NDIERR 240
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: FWRITE of new record failed. (NDIERR 241)
NDIERR 241
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Actual path report list length differs from passed length.
(NDIERR 250)
NDIERR 250
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Path report list length too small to support minimal
report. (NDIERR 251)
NDIERR 251
CAUSE: This is an internal error.
Appendix A
291
NMS Error Messages
ND Error Messages
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Domain report in path report list too short (< 6 bytes).
(NDIERR 252)
NDIERR 252
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Version of domain report in path report list <> 0.
(NDIERR 253)
NDIERR 253
CAUSE: The version number (1st octet) of a domain indicates an
unsupported version.
ACTION: Possible version mismatch; reinstall the product. If this fails,
see “Submitting an SR” at the beginning of this appendix.
MESSAGE: Domain number of domain report in path report list 1.
(NDIERR 254)
NDIERR 254
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: Cannot read a node name back reference record —
corrupt file likely. (NDIERR 260)
NDIERR 260
CAUSE: Possible corrupt network directory file.
ACTION: Restore the data and key files from a back-up tape. If this
fails, see “Submitting an SR” at the beginning of this appendix.
MESSAGE: A required node name record is not in dir — corrupt file
likely. (NDIERR 261)
NDIERR 261
CAUSE: Possible corrupt network directory file.
ACTION: Restore the data and key files from a back-up tape. If this
fails, see “Submitting an SR” at the beginning of this appendix.
MESSAGE: FUPDATE failed — internal error. (NDIERR 262)
NDIERR 262
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: FGETINFO failed — internal error. (NDIERR 270)
NDIERR 270
CAUSE: This is an internal error.
ACTION: See “Submitting an SR” at the beginning of this appendix.
MESSAGE: FFINDBYKEY failed — corrupt file likely. (NDIERR 271)
NDIERR 271
CAUSE: Possible corrupt network directory file.
ACTION: Restore the data and key files from a back-up tape. If this
fails, see “Submitting an SR” at the beginning of this appendix.
292
Appendix A
NMS Error Messages
ND Error Messages
MESSAGE: FREAD failed — corrupt file likely. (NDIERR 272)
NDIERR 272
CAUSE: Possible corrupt network directory file.
ACTION: Restore the data and key files from a back-up tape. If this
fails, see “Submitting an SR” at the beginning of this appendix.
Appendix A
293
NMS Error Messages
FMT Error Messages
FMT Error Messages
Listed are the messages that are generated by the Link Trace
Formatter. They are displayed on the user terminal when running
NMDUMP.
If you must submit an SR or call your HP representative, please copy
the error exactly as it appears on the terminal; it will make determining
the CAUSE of the problem easier. These messages are not logged.
The messages are listed in numerical order according to the error
number.
MESSAGE: SUBSYSxxTRACEFORMAT CM STUB ERROR (nnn,sss)
FROM HPLOADNMPROC
UNABLE TO CALL NM TRACE FORMATTER ROUTINE (FMTERR 995)
FMTERR 995
CAUSE: The CM Stub could not load an NM WAN Trace Formatter
routine for subsystem “xx” from the system library XL.PUB.SYS.
ACTION: Incorrect software installation to run Native-Mode Trace
Formatters. The SWITCH error number is “nnn” and the subsystem
reporting the error is “sss”. Call your HP representative.
MESSAGE: SUBSYSTEM_xx_MENU CM STUB ERROR (nnn,sss)
FROM HPSWTONMNAME
UNABLE TO CALL NM MENU ROUTINE (FMTERR 996)
FMTERR 996
CAUSE: The CM Stub could not call the named NM WAN Trace
Formatter options menu routine for subsystem “xx” from the system
library XL.PUB.SYS.
ACTION: Incorrect software installation to run Native-Mode Trace
Formatters. This could also be CAUSEd by incorrect privilege levels.
The SWITCH error number is “nnn” and the subsystem reporting the
error is “sss”. Call your HP representative.
MESSAGE: SUBSYSxxTRACEFORMAT CM STUB ERROR (nnn,sss)
FROM HPSWTONMPLABEL
UNABLE TO CALL NM TRACE FORMATTER ROUTINE (FMTERR 998)
FMTERR 998
CAUSE: The CM stub successfully loaded the NM WAN Trace
Formatter routine for subsystem “xx” from the system library
XL.PUB.SYS, but could not call it.
ACTION: Incorrect software installation to run Native-Mode Trace
Formatters. This could also be CAUSEd by incorrect privilege levels or
a bug in the NM WAN Trace Formatter CM Stub. The SWITCH error
number is “nnn” and the subsystem reporting the error is “sss”. Call
your HP representative.
294
Appendix A
NMS Error Messages
FMT Error Messages
MESSAGE: SUBSYSxxTRACEFORMAT CM STUB ERROR (nnn,sss)
FROM HPSWTONMNAME
UNABLE TO CALL NM TRACE FORMATTER ROUTINE (FMTERR 999)
FMTERR 999
CAUSE: The CM Stub could not call the named NM WAN Trace
Formatter routine for subsystem “xx” in the system library
XL.PUB.SYS.
ACTION: Incorrect software installation to run Native-Mode Trace
Formatters. This could also be CAUSEd by incorrect privilege levels.
The SWITCH error number is “nnn” and the subsystem reporting the
error is “sss”. Call your HP representative.
MESSAGE: ALL overrides other selections entered at the same time
4024
CAUSE: Among the filter-set numbers you entered, you also specified
the number for ALL. This is a warning.
ACTION: Check your input. Unless you mistyped one of the other
set-numbers, it does not make sense to specify ALL along with other
items, beCAUSE ALL would include the other sets anyway. To retype
your input after this warning you must first return to the filter-set
selection menu.
MESSAGE: Warning: Errors always print; for Errors only don’t include
other sets
4025
CAUSE: Among the filter-set numbers you entered, you also specified
the number for ERRORS-ONLY. This is a warning.
ACTION: Check your input. Unless you mistyped one of the other
set-numbers, it does not make sense to specify ERRORS-ONLY along
with other items, beCAUSE including the other items would defeat the
meaning of ERRORS-ONLY. To retype your input after this warning
you must first return to the filter-set selection menu.
MESSAGE: Input truncated to 80 characters
4026
CAUSE: The input file to the user menu was given more than
80 characters of input, but the menu can only accept 80. This is a
warning.
ACTION: If the extra characters are just extra blanks, ignore this
message or reduce the width of the input file. But if the extra
characters are non-blank, you must edit the input file, finding a way to
reduce the width of the input data to no more than 80 characters.
MESSAGE: Extra input ignored
4027
CAUSE: Only one number was expected, but you entered more than one,
and the extra number(s) were ignored. This is a warning.
ACTION: Check your input and, if necessary, return to that prompt and
retype the input.
Appendix A
295
NMS Error Messages
FMT Error Messages
MESSAGE: Range error at position shown; other values accepted if
allowed
4028
CAUSE: One of the numbers you entered was out of range; a “^^”
indicator appears below the illegal number. The number entered was
probably much too large.
ACTION: The bad value was not accepted. You may press the Return
key to keep the other values on the same line, or else retype the entire
input using only legal values.
MESSAGE: Syntax error at position shown; other values accepted if
allowed
4029
CAUSE: Some of the numbers on the input line contained illegal
characters, or were separated by illegal characters. Legal inputs are
digits 0–9 and the question mark “?”. Legal separators for a list are the
comma “,” and the blank “ ”.
ACTION: Retype the input.
MESSAGE: Invalid set number NN; reenter all or hit RETURN to keep
others
4030
CAUSE: One of the filter-set numbers you selected is not one of the valid
filter sets for this formatter.
ACTION: Check your input against the available sets shown in the
menu. You may press the Return key to keep the other number(s) you
entered on the same line, or you may retype the entire input. You may
also return to the main menu and “set all options back to their default
values.”
MESSAGE: Output limit out of range; enter another number or hit
RETURN
4031
CAUSE: You have selected a value which is less than the lower output
limit or greater than the upper output limit.
ACTION: The value you selected was not accepted. Reenter a value
which is within the range shown in the prompt. The prompt is meant as
a reminder; values up to 4096 are also legal.
MESSAGE: Invalid option number NN ignored; others accepted
4032
CAUSE: One of the option numbers you selected at the main menu was
not a valid option number for this formatter.
ACTION: The illegal option number was ignored, but any other options
on the same line were executed. Check your input and retype if
necessary.
MESSAGE: Number of inputs exceeds storage capacity, rest ignored
4033
CAUSE: Bug in Trace-Formatter numeric input processing. The
formatter could not process all the numbers entered by the user.
296
Appendix A
NMS Error Messages
FMT Error Messages
ACTION: Check your input and retype if necessary. If the problem
continues to occur, submit an HP Service Request form against the
Trace Formatter, specifying the input you tried and the subsystem you
were trying to format. A temporary solution might be to type fewer
numbers.
MESSAGE: CIERROR NNNN while executing MPE command
4034
CAUSE: The MPE command you tried encountered an error. MPE
returned error number NNNN to the Formatter (MPE warnings are
ignored).
ACTION: Check your input. If necessary, retype the MPE command.
You may look up the Command Interpreter error number in the
NS 3000/iX Error Messages Reference Manual.
MESSAGE: MISSING OPT EXECUTOR #NN; PLEASE SUBMIT HP
SERVICE REQUEST
4035
CAUSE: Bug in Trace-Formatter option-execution processing. The
formatter recognized an option you typed, but could not find processing
for the option.
ACTION: Submit an HP Service Request form against the Formatter,
specifying what input you typed and what subsystem you were trying to
format.
MESSAGE: MISSING MESSAGE #NNNN
none
CAUSE: Bug in Trace-Formatter error message processing. The
explanatory text for error number NNNN is missing from the formatter.
ACTION: Submit an HP Service Request form against the Formatter,
specifying what input you typed and what subsystem you were trying to
format.
Appendix A
297
NMS Error Messages
FMT Error Messages
298
Appendix A
Glossary
A
access port A special interface
card in the system cabinet
through which the system console
is connected.
address A numerical identifier
defined and used by a particular
protocol and associated software
to distinguish one node from
another.
address key See X.25 address
key.
address resolution In NS
networks, the mapping of node
names to IP addresses and the
mapping of IP addresses to
subnet addresses.
irrespective of time coincidence
with any event. Devices that are
directly accessible by people (for
example, terminal keyboards)
operate in this manner.
attachment unit interface The
cable that runs between each
node (host, DTC, or other device)
and the Medium Attachment
Unit (MAU) that connects it to
the LAN in a ThickLAN
configuration.
AUI See attachment unit
interface.
autodial A dial link in which the
remote node’s telephone number
is automatically dialed by a
modem or other device with this
capability.
address resolution protocol
ARP. A protocol used by LAN
links with Ethernet enabled that
provides a means of exchanging
addressing information between
Ethernet nodes.
adjacent A node on a
point-to-point network that is
connected to another node by a
single link with no intervening
nodes.
ASCII American Standards
Committee on Information
Interchange. A standard used by
computers for interpreting binary
numbers as characters.
asynchronous Term used to
describe a device’s mode of
operation whereby a sequence of
operations are executed
Glossary
B
backbone LAN A thick LAN
cable conforming to the IEEE
802.3 Type 10 BASE 5 standard.
back-to-back configuration A
DTC configuration whereby MPE
users connected to one DTC can
communicate with a non-MPE/iX
system connected to another DTC
via the LAN. (See also local
switching)
backup configuration file A
file that contains a copy of the
information contained in the
configuration file. The backup file,
called NMCBACK.group.account
by default, is updated each time
the configuration file is
successfully validated.
299
Glossary
banner A welcome message
displayed on your screen. On the
local OpenView workstation a
banner appears when a remote
connection is established with the
OpenView DTC Manager. A
banner also can appear when you
log on to MPE.)
baud Measure of the speed at
which information travels
between devices, most commonly
used in reference to terminal
speed settings. Baud represents
signal events per second. When
one bit represents each signal
change, baud is the same as “bits
per second”.
binary mode Data transfer
scheme in which no special
character processing is
performed. All characters are
considered to be data and are
passed through with no control
actions being taken.
bit Binary digit. A unit of
information that designates one
of two possible states, which are
represented by either 1 or 0.
block mode Terminal processing
mode in which groups, or “blocks,”
of data are transmitted all at
once.
BNC T-Connector Connector
used to connect a computer or a
component such as a DTC to the
LAN in a ThinLAN configuration.
boundry See network
boundary.
bps Bits per second. The number
of bits passing a point per second
broadcast Communication
method of sending a message to
all devices on a link
simultaneously.
byte A sequence of eight
consecutive bits operated on as a
unit.
C
call In X.25, a call is an attempt
to set up communication between
two DTEs using a virtual circuit.
Also known as a virtual call.
call collision A conflict that
occurs at a DTE/DCE interface
when there is a simultaneous
attempt by the DTE and DCE to
set up a call using the same
logical channel identifier.
called address When a node
sends out a call request packet,
the packet contains the address of
the destination node. The address
of the destination node is the
called address.
calling address When a node
receives an incoming call packet,
the packet contains the address of
the sending node. The address of
the sending node is the calling
address.
carrier A continuous wave that
is modulated by an information
bearing signal.
catenet See internetwork.
300
Glossary
Glossary
CCITT Consultative Committee
for International Telephony and
Telegraphy. An international
organization of communication
carriers, especially government
telephone monopolies, responsible
for developing telecommunication
standards by making
recommendations. No carrier is
required to adhere to a CCITT
recommendation, although most
do so in their own interest.
configuration 1) The way in
which computer equipment is
physically interconnected and set
up to operate as a system.
circuit-switching network A
type of data communications
network wherein a physical and
exclusive link is maintained
between two communicating
devices for the call duration. An
all-digital, circuit-switching
network is often referred to as an
X.21 network.
3) The process of defining the
characteristics of a network in
software. For MPE/iX-based
computers, the operating systems
are configured through use of the
SYSGEN utility. Next, the
distributed terminal subsystem
(DTS) link is configured by using
NMMGR (running on the host)
and may, in addition, be
configured using the OpenView
DTC Manager software (running
on the OpenView Windows
Workstation) depending on the
type of network management you
use. If any of the NS link products
are installed on the system,
network configuration is
accomplished through use of
NMMGR and, if PC-based X.25
connections are required, through
the OpenView DTC Manager.
closed user group An X.25 user
facility that allows
communication to and from a
pre-specified group of users and
no one else.
compatibility mode Processing
mode on HP 3000 Series 900
computers that allows
applications written for MPE
V/E-based systems to be ported
and run without changes or
recompilation.
computer network A group of
computer systems connected in
such a way that they can
exchange information and share
resources.
Glossary
2) The layout of the computer
system, including the MPE table,
memory, and buffer sizes, that
tells which peripheral devices are
(or can be) connected to the
computer and how they can be
accessed.
configuration file The
configuration file, which you
create and update using the
NMMGR utility, contains:
1) the information that the
network needs in order to
operate.
301
Glossary
2) Information necessary for
link-level and NetIPC logging.
CSN See circuit-switching
network.
3) Information required to
connect terminals and printers to
the system through one or more
DTC.
CTB The cache transfer bus in
the backplane of an HP 3000.
The only file name that the
system recognizes as the
configuration file is
NMCONFIG.PUB.SYS.
D
control-X echo Three
exclamation marks (!!!) output
to the terminal screen when the
cancel character (normally
[CTRL]-X) is entered.
control-Y trap User-written
procedure to which control is
passed when the subsystem break
character (normally [CTRL]-Y) is
entered during execution of a
program with subsystem break
enabled.
cross-validate The process of
assuring that information
contained in two locations is
consistent where it is imperative
that it be consistent. For example,
an automatic cross-validation
occurs when you enter SYSGEN
to assure that information
contained in NMCONFIG.PUB.SYS
agrees with system configuration
data
CSMA/CD Carrier Sense
Multiple Access with Collision
Detect, transmission access
method used by the IEEE 802.3
LAN standard.
302
CUG See closed user group.
data Basic elements of
information that can be processed
or produced by a computer.
Datacommunications and
Terminal Controller See DTC.
data overrun Transmitted data
that is sent faster than the
equipment on the receiving end is
capable of receiving it. The
resulting overflow data is lost. See
also flow control.
Datapac The national public
PSN of Canada.
Datex-P The national public
PSN of West Germany.
D bit Delivery confirmation bit.
Used in the X.25 protocol, the
setting of the D bit in DATA
packets indicates whether
delivery acknowledgment of the
packet is required from the local
DCE or from the remote DTE. It
therefore allows the choice
between local and end-to-end
acknowledgment.
DCE Data circuit-terminating
equipment. The interfacing
equipment required in order to
interface to data terminal
equipment (DTE) and its
Glossary
Glossary
transmission circuit. Synonyms:
data communications equipment,
dataset.
classes are assigned through use
of the NMMGR configuration
utility.
DDX The national public PSN of
Japan.
device-dependent
characteristic A file
specification for which
modifications are restricted
because of the type of device on
which the file is opened. For
example, data directed to
terminals must have a blocking
factor of one.
dedicated printer A printer
that can be used by only one host
on the LAN; the one specified in
the Destination Node Name in
that printer’s configuration
screen.
default gateway One (and only
one) gateway accessible by a
system may be designated as a
default gateway. The network will
then send any transmitted
messages for which it is unable to
locate a destination through
normal means to the default
gateway in a final effort to
determine a transmission route.
device driver Software module
that controls a specific type of
input/output device including
NS 3000/iX links.
demodulation The process by
which the information-bearing
signal is retrieved from a
modulated carrier wave. The
inverse of modulation.
device independence A
characteristic of the operating
system that allows users to
selectively redirect input/output
from a program, session, or job
without regard to the nature of
the device.
destination node name In DTS
configuration, it is either 1) the
name of a host that a user can be
connected to by default (if
switching is not enabled for that
user, or if automatic modem
connection is enabled), or 2) the
name of the only host that can
access a dedicated printer.
device class A collection of
devices that have some
user-defined relation. Device
Glossary
devicefile A file being input to or
output from any peripheral device
except a disc. MPE allows
operations to be performed on the
device itself as if it were a file.
device name See PAD name.
Dial ID protocol A proprietary
Hewlett-Packard protocol that
provides security checking and
address exchange for dial links.
dial link A connection made
through public telephone lines.
303
Glossary
direct-connect device
Asynchronous device that is
connected directly to a DTC
through an RS-232-C or RS-422
cable, with no intervening
communications equipment. Also
referred to as a “local connection.”
direct connection A leased line,
private line, or other
non-switched link in a network.
direct dial A dial link through
which only one remote node can
be reached.
direct-path branching The
process of directly accessing any
screen in NMMGR by entering
path names in the Command:
field. The path name must be
preceded by an at sign (@).
domain name A name
designated for a system in
ARPANET standard format. This
name can be used by other nodes
on the network to access the host
for which it is configured.
download The process of loading
operating code and configuration
files into the DTC’s memory. The
DTC is downloaded by the host
computer for LANs using
host-based network management,
and by the PC for DTCs managed
by the OpenView DTC Manager.
driver See device driver.
DTC Datacommunications and
Terminal Controller. The DTC is
a hardware device, configured as
a node on a LAN, that enables
304
asynchronous devices to access
HP 3000 Series 900 computers.
Terminals can either be directly
connected to the DTC, or they can
be remotely connected through
modem or through a Packet
Assembler Disassembler (PAD).
DTC identifier An identifier
used only within NMMGR to
define the branch of the
configuration file containing
information about a particular
DTC. The identifier must begin
with a letter and can be up to
eight characters long
DTC Manager See OpenView
DTC Manager.
DTC node name Unique name
used to identify a DTC on the
LAN. Node name format is
nodename.domain.organization,
with each of the three parts
having up to 16 characters and
beginning with either a letter or a
digit.
DTC station address (802.3
address) 12-digit hexadecimal
number used to identify the DTC
as a node belonging to the
network configuration. Also called
the LAN address.
DTC switching A facility
enabling terminal users to select
any host system that they want to
connect to. DTC switching is
available only when the
OpenView DTC Manager is used
for network management.
Glossary
Glossary
DTC/X.25 Network Access The
X.25 software that resides on the
Datacommunications and
Terminal Controller (DTC). To
configure access to an X.25
network, you must configure two
software components: the X.25 iX
System Access (residing on the
HP 3000 host), and the DTC/X.25
Network Access. DTC/X.25
Network Access is configured
through use of the OpenView
DTC Manager software for
systems using PC-based network
management or through NMMGR
for systems using host-based
network management.
DTC/X25 Network Access
card This is the hardware card
and channel adapter that
provides X.25 Network Access. It
resides in the
Datacommunications and
Terminal Controller (DTC).
DTS Distributed terminal
subsystem. This consists of all the
Datacommunications and
Terminal Controllers (DTCs) on a
LAN, their LANIC cards
(attached to the host), the LAN
cable, and the host and DTC
software that controls all related
DTS hardware.
duplex Transmission method
that allows two-way
communication. If both ends of
the transmission link can
transmit simultaneously, it is
called full duplex. If only one end
can transmit at a time, it is
half-duplex transmission.
E
entry priority The ranking that
identifies the most desirable
route used to reach a given
remote node from a given local
node in a point-to-point network.
DTC/X25 iX Network Link
Software and hardware that
provides access to private and
public X.25 networks. The X.25 iX
System Access software resides
on an HP 3000 host and is
configured through use of
NMMGR.
DTE Data terminal equipment.
Equipment that converts user
information into
data-transmission signals or
reconverts received data signals
into user information. Data
terminal equipment operates in
conjunction with data
circuit-terminating equipment.
Glossary
environment A session that is
established on a remote node.
escape from data transfer
character A character that
allows a user who is connected to
a host system through the DTC to
break that connection and return
to the DTC switching user
interface. The default is [CTRL]-K.
This character is used only on
networks managed by the
OpenView Windows Workstation
escape sequence A sequence of
characters beginning with the
escape character and followed by
305
Glossary
one or more other characters,
used to convey control directives
to printers, plotters, or terminals.
Ethernet A Local Area Network
system that uses baseband
transmission at 10 Mbps over
coaxial cable. Ethernet is a
trademark of Xerox Corporation.
event log One of three circular
files stored on the OpenView
workstation containing lists of all
significant events reported by the
DTCs for which it is the owner;
that is, whose operating
software/configuration it has
downloaded.
extended packet sequence
numbering One of the optional
network subscribed facilities that
provides packet sequence
numbering using modulo 128. If
not subscribed, modulo 8 is used.
F
facility An optional service
offered by a packet switching
network’s administration and
requested by the user either at
the time of subscription for
network access or at the time a
call is made. Also known as user
facility.
facility set A facility set defines
the various X.25 connection
parameters and X.25 facilities
that can be negotiated for each
virtual circuit on a per-call basis.
306
fast select An optional
packet-switching network facility
by which user data may be
transmitted as part of the control
packets that establish and clear a
virtual connection.
FCS Frame check sequence. A
sequence of bits generated by
X.25 at level 2 that forms part of
the frame and guarantees the
integrity of its frame’s content.
The FCS is also used by the
IEEE 802.3 protocol to check the
validity of frames.
file equation Assignment
statement used to associate a file
with a specific device or type of
device during execution of a
program
file number Unique number
associated with a file when the
file is opened. The file number is
returned in the FOPEN or
HPFOPEN call used to open the
file. It can be used to access that
file until the file is closed.
file specification The name and
location of a file. The full
specification for a file includes the
file name, group, and account.
file system The part of the
operating system that handles
access to input/output devices
(including those connected
through the DTC), data blocking,
buffering, data transfers, and
deblocking.
Glossary
Glossary
flow control A means of
regulating the rate at which data
transfer takes place between
devices to protect against data
overruns.
flow control negotiation One
of the network subscribed
facilities, selected at subscription
time. This facility allows the flow
control parameter to be
negotiated at call set-up time, as
opposed to having a predefined
value.
formal file designator Name
that can be used
programmatically or in a file
equation to refer to a file.
FOS Fundamental operating
system. The programs, utilities,
and subsystems supplied on the
master installation tape that
form the basic core of the
operating system.
full gateway A full gateway is a
node that belongs to more than
one network and has one IP
address for each network. It uses
store and forward to transfer
packets between each network
that it belongs to.
G
gateway A node that connects
two dissimilar network
architectures. A gateway can be
either a single node (full gateway)
or two gateway halves.
Glossary
gateway half A node that works
in conjunction with another node
on another network to form an
internetwork. The only protocol
used by gateway halves is the NS
Point-to-Point 3000/iX Link. See
also full gateway.
gateway-half link A link
between the two nodes of a
gateway-half pair. Each of the two
nodes of a gateway-half pair has a
configured link (hardware
interface card) that is used for the
gateway half network interface.
The NS Point-to-Point 3000/iX
Link is the only link that can be
used as a gateway-half link.
gateway-half pair A set of two
nodes that are joined by a
gateway-half link. Each node in
the pair must have a
gateway-half network interface
configured, using the link.
guided configuration A method
of configuring a node in which a
subset of the complete NMMGR
interface is presented and
defaults of configurable values
are used automatically.
H
handshaking A communications
protocol between devices or
between a device and the CPU.
Provides a method of determining
that each end of a
communications link is ready to
transmit or receive data and that
transmission has occurred
without error.
307
Glossary
hop count See internet hop
count and intranet hop count
host-based network
management Method of
managing asynchronous
communications for HP 3000
Series 900 computers. All of the
control software is configured on a
single host and is downloaded to
the DTCs that are managed by
that host. With host-based
management, there is a
permanent relationship between
each DTC and the host, and
terminal users can access only
the single system that owns the
DTC their terminal is connected
to.
host-based X.25 The
management of X.25 network
connections from a host computer.
Host-based X.25 network
connections are made through a
DTC Network Access card
installed in a DTC managed by
the host. All configuration is
accomplished using the NMMGR
utility. It is not necessary for a PC
to be part of the LAN when you
are using host-based X.25.
host computer The primary or
controlling computer on a
network. The computer on which
the network control software
resides. For HP purposes, it may
also be used to distinguish the
HP 3000 Series 900 system (host)
from the DTC.
HP block mode Block mode
transmission method employed
by HP computers where the
308
system controls the block mode
handshake. When HP block mode
is used, the user program need
not concern itself with data
transfer protocol.
HP PPN Hewlett-Packard
Private Packet Network.
Hewlett-Packard’s own
packet-switching X.25 network,
which gives users full control over
the administration and security
of their data communications.
HP TSS A terminal server that
can support up to eight
asynchronous serial connections.
When used in back-to-back
configuration, users can access
HP 3000 MPE/V systems on it via
a DTC.
I
idle device timeout Timeout
defined by the Configure:CPU
command. When the timer lapses,
a device connected to the DTC
user interface that is still inactive
will be disconnected.
IEEE 802.3 A standard for a
broadcast local area network
published by the Institute for
Electrical and Electronics
Engineers (IEEE). This standard
is used for both the ThinLAN and
ThickLAN implementations of
the LAN.
IEEE 802.3 multicast address
A hexadecimal number that
identifies a set of nodes. This
address is used for multicast
delivery.
Glossary
Glossary
IEEE 802.3 nodal address A
unique hexadecimal number that
identifies a node on an
IEEE 802.3 LAN.
IEEE 802.5 A standard for a
token ring network published by
the Institute for Electrical and
Electronics Engineers (IEEE).
This standard is used for the
Token Ring 3000/iX Network
Link.
initialization string A sequence
of control characters used to
initialize a terminal, printer, or
plotter when a connection is
established from a host on the
network.
interactive communications
Processing that allows users to
enter commands and data at the
terminal and receive an
immediate response.
internet communication
Communication that occurs
between networks.
internet hop count The
number of full gateways plus the
number of gateway-half links that
a packet must pass through in
moving from source node to
destination.
internet protocol A protocol
used to provide routing between
different local networks in an
internetwork, as well as among
nodes in the same local network.
The internet protocol corresponds
Glossary
to layer 3, the network layer, of
the OSI model. See also IP
address.
internet routing Internet
routing involves all the processes
required to route a packet from a
node on one network to a
destination node on another
network.
internetwork Two or more
networks joined by gateways,
bridges, or routers
intranet communication
Communication that occurs
between nodes in a single
network.
intranet hop count The
number of intermediate nodes
that lie between a source and
destination node on the same
point-to-point network.
intranet routing Intranet
routing involves all the processes
required to route a packet from
one node in a network to another
node in the same network.
intrinsic System routine
accessible by user programs
which provides an interface to
operating system resources and
functions. Intrinsics perform
common tasks such as file access
and device control.
IP See internet protocol.
IP address Internet protocol
address. An address used by the
Internet Protocol to perform
309
Glossary
internet routing. A complete IP
address comprises a network
portion and a node portion. The
network portion of the IP address
identifies a network, and the node
portion identifies a node within
the network.
IP subnet mask See subnet
mask.
ISO International Standards
Organization. An international
federation of national standards
organizations involved in
developing international
standards, including
communication standards.
L
LAN Local Area Network. A
collection of data communication
systems sharing a common cable
whereby each system can
communicate directly with
another.
LAN address See station
address.
LANIC See Local Area
Network Interface Controller.
LANIC physical path The
physical location (slot number) of
the LANIC within the SPU.
LANIC self-test A ROM-based
program on a LANIC card that
tests and reports the status of the
LANIC hardware.
LAP Link access protocol. The
data link protocol specified by
older versions (prior to 1980) of
310
X.25 at level 2 but still permitted
and therefore usable. All new
implementations of X.25 must use
LAP-B, and all old
implementations must migrate to
LAP-B at a future date.
LAP-B Link access protocol balanced. The data link protocol
specified by the 1980 version of
X.25 at level 2 that determines
the frame exchange procedures.
LAP-B must also be used over
direct-connect NS Point-to-Point
3000/iX Links.
LCI Logical channel identifier.
Local value on a network node
which identifies the channel used
to establish a virtual circuit (SVC
or PVC) through an X.25
network.
ldev See logical device
number.
leased line Data-grade
telephone line leased directly to a
subscriber and allocated
specifically for the subscriber’s
needs.
line speed Speed at which data
is transferred over a specific
physical link (usually measured
in bits or kilobits per second).
link name The name that
represents a hardware interface
card. The link name can contain
as many as eight characters. All
characters except the first can be
alphanumeric; the first character
must be alphabetic.
Glossary
Glossary
Local Area Network Interface
Controller (LANIC) A
hardware card that fits into the
backplane of the HP 3000
Series 900 computer and provides
a physical layer interface for local
area networks.
local connection See direct
connection.
local node The computer that
you are configuring or that you
are logged on to.
local switching Feature of the
DTC which permits back-to-back
configuration (for connections to
an HP 3000 MPE/V host), using
two ports of the same DTC.
local user group A list defined
for a particular DTC and card
that specifies which remote nodes
this DTC can send data to and
also which remote nodes this DTC
can receive data from. (See also
Closed User Group).
logging The process of recording
the usage of network resources.
Events can be logged to both the
OpenView workstation and to the
MPE host.
logging class A number defining
the severity of any given event
logged. An operator uses the
logging classes to specify which
events are to be logged. Class 1
(catastrophic event) is always
logged.
Glossary
logical device number (ldev)
A value by which the operating
system recognizes a specific
device. All DTC devices that are
configured as nailed devices
through the NMMGR
configuration have ldev numbers
permanently assigned. The DTC
devices can then be accessed
programmatically through use of
their ldev number. Non-nailed
devices have ldev numbers that
are assigned from a pool of
available ldev numbers for the
life of their connection to a
system. You cannot access
non-nailed devices
programmatically.
log off The termination of a job
or session.
log on The process of initiating a
job or session.
logon device See
session-accepting device.
loopback The routing of
messages from a node back to
itself.
LUG See local user group.
M
map, network A drawing that
shows the topology of the
network. For networks managed
by the OpenView DTC Manager, a
network map must be created
through use of the OVDraw
capability provided with the
management software. A network
map is also a hardcopy drawing
311
Glossary
used when planning a network. It
shows network topology, node and
network names, addresses,
network boundaries (for an
internetwork map), and link
types.
mapping A set of characteristics
that describe a route taken by
messages to reach a destination
node. This set of characteristics is
configured with NMMGR at every
node on a point-to-point network.
One mapping is configured at
each node for every other node on
the network to which messages
will be sent.
MAU See medium attachment
unit.
M bit More data bit. Setting this
bit in a DATA packet indicates
that at least one more DATA
packet is required to complete a
message of contiguous data.
medium attachment unit A
device attached to a ThickLAN
coaxial cable that provides the
physical and electrical connection
from the AUI cable to the coaxial
cable.
MIT Master installation tape.
Magnetic tape containing the
fundamental operating system for
a HP 3000 Series 900 computer.
modem Modulator/demodulator.
A device that modulates and
demodulates signals. Primarily
used for modulating digital
signals onto carriers for
transmission and for performing
312
the inverse function at the
receiving end. Modems are
essential for transmitting and
receiving digital signals over
telephone lines.
modulo Value used as the
counting cycle for determining
the send sequence number (N(S))
of frames sent across an X.25
network.
modulation Process in which
certain characteristics of a carrier
signal are altered in accordance
with the changes of an
information-bearing signal.
MPE/iX MultiProgramming
Executive/integrated POSIX. The
operating system of HP 3000
Series 900 computers. The
NS 3000/iX network services
operate in conjunction with the
MPE/iX operating system.
multiplexer MUX. A device that
allows multiple communication
links to use a single channel.
N
nailed device A device with a
permanently associated ldev that
was assigned through the
NMMGR configuration of the host
system on which the association
is established. Nailed devices can
be accessed programmatically
through their ldev number. In
contrast, non-nailed devices have
ldev numbers that are assigned
from a pool of available ldev
numbers for the life of their
connection to a system.
Glossary
Glossary
native mode The run-time
environment of MPE/iX. In
Native Mode, source code has
been compiled into the native
instruction set of the HP 3000
Series 900 computer.
neighbor gateway A gateway
that is in the same network as a
given node.
NetIPC Network Interprocess
Communication. Software that
enables programs to access
network transport protocols.
network A group of computers
connected so that they can
exchange information and share
resources.
network address This can be
either 1) the network portion of
an IP address as opposed to the
node portion, or 2) when referring
to X.25 networks, it is a node’s
X.25 address.
network boundary The logical
division between networks in an
internetwork.
network directory A file
containing information required
for one node to communicate with
other nodes in 1) an internetwork,
2) an X.25 network, or 3) a
network that contains non-HP
nodes. The active network
directory on a node must be
named NSDIR.NET.SYS.
possesses one or more network
interfaces for each of the
networks to which it belongs.
Network interface types are LAN,
point-to-point (router), X.25,
token ring, SNA, loopback, and
gateway half. The maximum
number of supported NIs is 12,
one of which is reserved for
loopback.
network management The
collective tasks required to
design, install, configure,
maintain, and if necessary,
change a network.
network map A drawing that
shows the topology of the
network. For networks managed
by the OpenView DTC Manager, a
network map must be created
through use of the OVDraw
capability provided with the
management software. A network
map is also a hardcopy drawing
used when planning a network. It
shows network topology, node and
network names, addresses,
network boundaries (for an
internetwork map), and link
types.
Network Services NS. Software
application products that can be
used to access data, initiate
processes, and exchange
information among nodes in the
network. The NS 3000/iX
Network Services include RPM,
VT, RFA, RDBA, and NFT.
network interface (NI). The
collective software that enables
data communication between a
system and a network. A node
Glossary
313
Glossary
network subscribed facilities
A set of parameters that the user
chooses when he subscribes to the
X.25 network; they include flow
control negotiation, use of D-bit,
throughput class negotiation and
extended packet sequence
numbering.
network transport Software
that corresponds to layers 4 and 3
of the OSI network architecture
model. The function of this
software is to send data out over
the appropriate communications
link, to receive incoming data,
and to route incoming or outgoing
data to the appropriate
destination node.
NFT Network File Transfer. The
network service that transfers
disc files between nodes on a
network.
NI See network interface.
NMCBACK.PUB.SYS The
default file name for the file that
contains a copy of the information
contained in the configuration file
(NMCONFIG.PUB.SYS). The
backup file is updated each time
the configuration file is
successfully validated.
NMCONFIG.PUB.SYS A file
that contains all the network
configuration data for the
HP 3000 Series 900 computer on
which it resides. It includes
information about the DTCs that
can access the system as well as
information about any Network
314
Services (NS) products running
on the system. This is the only file
name allowed.
NMDUMP Node management
services trace/log file analyzer. A
utility used to format log and
trace files.
NMMAINT Node management
services maintenance utility. A
utility that lists the software
module version numbers for all
HP AdvanceNet products,
including NS 3000/iX. It detects
missing or invalid software
modules.
NMMGR Node management
services configuration manager. A
software subsystem that enables
you to configure DTC connectivity
and network access parameters
for a HP 3000 Series 900
computer.
NMMGRVER Node
management services conversion
utility. A conversion program that
converts configuration files
created with NMMGR from an
earlier version to the latest
format.
NMSAMP1.PUB.SYS Sample
configuration file supplied with
FOS that can be used as a
template for DTS configuration.
node A computer that is part of a
network. The DTC is also
considered to be a node and has
its own address.
Glossary
Glossary
node address The node portion
of an IP address, which consists of
a node portion and a network
portion.
node management services
configuration manager See
NMMGR.
node name A character string
that uniquely identifies each
system in a network or
internetwork. Each node name in
a network or internetwork must
be unique; however, a single node
can be identified by more than
one node name.
node names list List defined on
the OpenView workstation and
subsequently downloaded to all
DTCs for which it is the “owner.”
The list specifies all the HP 3000
Series 900 hosts on the LAN that
are accessible from the DTCs.
non-adjacent Describes a node
on an NS Point-to-Point 3000/iX
network that is separated from a
given node by intervening or
intermediate node.
non-nailed device A session
accepting device that is not
permanently associated with an
ldev number at configuration
time. When the user at such a
device logs on to a HP 3000
Series 900, an ldev is assigned
from a pool of ldevs set aside for
this purpose at configuration
time. The association between a
non-nailed device and this
temporarily assigned ldev exists
only for the duration of the
Glossary
session. One advantage of the use
of non-nailed device connections
is that configuration is simplified,
since it is not required that each
non-nailed device be individually
configured.
NS 3000/iX A Hewlett-Packard
data communication product that
provides networking capabilities
for HP 3000 Series 900
minicomputers. NS 3000/iX
consists of one or more links and
network services.
NS 3000/iX Link Software and
hardware that provides the
connection between nodes on a
network. Some of the NS 3000/iX
links available are the ThinLAN
3000/iX Link and its ThickLAN
option, the DTC/X.25 iX Network
Link, the NS Point-to-Point
3000/iX Link, and the Token Ring
3000/iX Network Link.
NS 3000/iX Network Services
Software applications that can be
used to access data, initiate
processes, and exchange
information among nodes in a
network. The services are RPM,
VT, RFA, RDBA, and NFT
NS Point-to-Point 3000/iX
Link Hardware and software
necessary to create networks in
which data is transmitted from
node to node over a defined route
until it reaches its destination.
This technique is referred to as
store and forward. Systems in a
point-to-point network are
connected by means of leased or
dial-up telephone lines. HP 3000
315
Glossary
systems attach to the
point-to-point network via
HP 3000 Programmable Serial
Interface (PSI) cards that fit into
the back of each system’s SPU.
NSDIR.NET.SYS Name of the
active network directory file. See
also network directory.
O
octet An eight-bit byte operated
upon as an entity.
OpenView DTC Manager
OpenView Windows application
that enables you to configure,
control, monitor, and troubleshoot
the operation of the
datacommunications and
terminal subsystems on the LAN
OpenView Admin An
OpenView windows program that
enables you to configure how your
OpenView Windows applications
will function. For example, it
enables you to set a default map
for the OpenView DTC Manager.
OpenView Draw An OpenView
windows program that enables
you to draw the network map,
and to label the components on it.
OpenView Run An OpenView
windows program that covers
most of the control features used
by the DTC Manager, including
monitoring and diagnostic
functions.
316
OpenView Windows The set of
three programs: OV Admin, OV
Draw and OV Run, running on
the OpenView workstation under
MS Windows, that acts as the
platform for all OpenView
applications, such as DTC
Manager.
OpenView Windows
Workstation The personal
computer that provides software
downloads to enable operation of
the Datacommunications and
Terminal Controller (DTC). The
configuration software that runs
on this workstation is called the
OpenView DTC Manager
software.
OSI model Open Systems
Interconnection model. A model of
network architecture devised by
the International Standards
Organization (ISO). The OSI
model defines seven layers of a
network architecture, with each
layer performing specified
functions.
P
packet A block of data whose
maximum length is fixed. The
unit of information exchanged by
X.25 at level 3. There are DATA
packets and various control
packets. A packet type is
identified by the encoding of its
header.
Glossary
Glossary
packet exchange protocol
PXP. A transport layer protocol
used in NS 3000/iX links to
initially establish communication
between nodes when NetIPC
socket registry is used.
packet-switched network
name The name of a data
communication network adhering
to the CCITT X.25
recommendation. This can be a
PDN or a private network, such
as the HP PPN.
PAD (packet assembler/
disassembler) A device that
converts asynchronous character
streams into packets that can be
transmitted over a packet
switching network (PSN).
PAD name A name of up to eight
characters that is associated with
a configured PAD device. The
PAD name is known to both the
DTC and the host systems that
the device can access.
PAD profile Terminal or printer
profile that specifies the
configuration characteristics for
PAD-connected devices.
another screen. Each screen has a
unique path name that
corresponds to its location in the
hierarchy of configuration screens
presented by NMMGR.
PDN Public data network. A data
communication network whose
services are available to any user
willing to pay for them. Most
PDNs use packet switching
techniques.
point-to-point A link that
connects either two nodes in an
NS Point-to-Point 3000/iX
network or two gateway halves.
port An outlet through which a
device can be connected to a
computer, consisting of a physical
connection point and controlling
hardware, controlling software,
and configurable port
characteristics. Ports can be
thought of as data paths through
which a device communicates
with the computer.
Precision Architecture The
hardware design structure for the
HP 3000 Series 900 computer
family.
partner gateway half When
gateway halves are used, two
gateway halves are required in
order to provide communication
between two networks. Each is
the partner of the other.
printer name Character string
of up to 16 characters specified in
the DTC Manager configuration
(for networks using OpenView
Network Management) to define
a printer by name. Can be shared
by several printers (port pool).
path name When configuring
with NMMGR, you can type a
string in the COMMAND: field on
display screens to branch to
printer profile A set of
configuration characteristics that
can be associated with one or
Glossary
317
Glossary
more printers through the
NMMGR configuration. Printer
profile specifications include the
printer type, line speed, device
class assignment, and other
values relevant to printers
connected through a DTC.
printer type A collection of
characteristics that cause a
printer connected to a HP 3000
Series 900 system to act and react
in a specified manner. You can
configure a printer to use one of
the system-supplied printer types
or you can create custom printer
types using workstation
configurator.
privileged mode A capability
assigned to accounts, groups, or
users allowing unrestricted
memory access, access to
privileged CPU instructions, and
the ability to call privileged
procedures.
probe protocol An HP protocol
used by NS 3000/iX IEEE 802.3
networks to obtain information
about other nodes on the network.
probe proxy server A node on
an IEEE 802.3 network that
possesses a network directory. A
probe proxy server can provide a
node with information about
other nodes on the same or other
networks of an internetwork.
profile A method of grouping
device connection specifications
and characteristics so that the set
of characteristics can be easily
318
associated with groups of like
devices. See also printer profile,
terminal profile.
program captive device See
programmatic device.
Programmable Serial
Interface PSI. A hardware card
that fits into the backplane of the
HP 3000 Series 900 computer. It
provides a physical layer
interface for NS Point-to-Point
3000/iX Links.
programmatic device A device
operating under control of a
program running on a computer.
Programmatic devices can be
used for input, output, or both,
depending on the device and how
it is opened by the controlling
program.
protocol A set of rules that
enables two or more data
processing entities to exchange
information. In networks,
protocols are the rules and
conventions that govern each
layer of network architecture.
They define what functions are to
be performed and how messages
are to be exchanged.
PSN Packet-Switching Network.
Any data communication network
using packet-switching
techniques wherein data is
disassembled into packets at a
source interface and reassembled
into a data stream at a
destination interface. A public
PSN offers the service to any
paying customer.
Glossary
Glossary
PSS Packet-Switching System.
The national public PSN of the
United Kingdom.
PVC Permanent Virtual Circuit.
A permanent logical association
between two physically separate
DTEs that does not require call
set-up or clearing procedures.
PXP See packet exchange
protocol.
Q
Q bit Qualified bit. When set in
DATA packets the Q bit signifies
that the packet’s user data is a
control signal for the remote
device, not a message for its user.
QuickVal A software program
that tests whether Network
Services are operating correctly
between nodes.
R
RDBA Remote Data Base Access.
A network service that allows
users to access data bases on
remote nodes.
reachable network A network
that can be accessed (with
additional internet hops possibly
required) by a particular gateway.
remote connect device
Asynchronous device that is
connected to a DTC indirectly,
using a modem and telephone
hook-up, or a PAD.
Glossary
remote node A node on an
internetwork other than the node
you are currently using or
referring to.
retransmission count (N2) The
maximum number of times a
frame will be retransmitted
following the expiration of the
retransmission timer, T1.
retransmission timer (T1)
Length of time the transmitter
will wait for an acknowledgment
from the destination address
before attempting to retransmit
the frame. When choosing this
value, factors like the line speed
and maximum frame size should
be taken into account.
RFA Remote File Access. A
network service that allows users
to access files and devices on
remote nodes.
router network See
point-to-point.
routing The path that packets,
or fragments of a message, take
through a network to reach a
destination node.
RPM Remote Process
Management. A network service
that allows a process to
programmatically initiate and
terminate other processes
throughout a network from any
node on the network.
RS-232-C Electronic Industries
Association (EIA) level 1 protocol
specification that defines
319
Glossary
electrical circuit functions for 25
connector pins. HP provides two
implementations of this standard:
a 3-pin version for direct
connections up to a distance of
15 meters (50 feet), and a version
which makes use of additional
circuits and can be used for either
modem or direct connections.
RS-422 Electronic Industries
Association (EIA) level 1 protocol
specification implemented by HP
in a 5-pin version which can be
used for direct device connection
up to a distance of 1500 meters
(4000 feet).
S
security string An
alphanumeric character string
that functions as a password for
dial links. The security string is
used by the dial IP protocol.
session-accepting device A
terminal or personal computer
running in terminal-emulation
mode that is able to establish an
interactive (conversational)
session with an HP 3000
computer. Also referred to as a
logon device.
shared dial A dial link that
provides connection to more than
one remote system, although to
only one at a time.
shared-line access Feature that
allows two or more HP 3000
Series 900 hosts to use the same
DTC/X.25 Network Access card
on a DTC to access an X.25
network.
SIC Serial interface card. Card
installed in the front of the DTC
that acts as an interface between
a corresponding connector card
(CC) and the DTC’s processor.
serial device Any device that is
attached to and communicates
with a computer by means of a
serial transmission interface.
Terminals, printers, and plotters
are among the devices that
communicate serially with
HP 3000 Series 900 computers.
slaved device A device that
shares the same DTC port as
another device and is connected
to the other device, referred to as
its master, by a cable. The actions
of the slaved device are controlled
by the master device.
serial transmission Method of
transferring data in which
characters are transmitted one
bit at a time and received one bit
at a time in the order of
transmission. This transmission
scheme is employed by devices
connected to the system via the
DTC.
spooled device A printer that is
accessed through the spooling
facility. The spooling facility
allows a nonsharable device to be
shared among several users by
temporarily storing output data
on disc and managing the
selection of output spool files
destined for the spooled device.
320
Glossary
Glossary
start bit Data bit used to signal
the start of a character being
transmitted in an asynchronous
communication mode.
station address A 12-digit
hexadecimal link-level address
used by the IEEE 802.3 protocol.
Every node on an IEEE 802.3
network has its own station
address.
stop bit Data bit used to signal
the end of a character being
transmitted in an asynchronous
communication mode.
store and forward A technique
in which messages are passed
from one node to another in a
network to reach their
destination. Point-to-point
networks use the store and
forward technique to transmit
messages.
subnet Another name for a
network, especially if the network
is part of an internetwork. The
word subnet is also a synonym for
intranet.
subnet mask Grouping of bits
that determines which bits of the
IP address will be used to define a
subnetwork. The subnet mask is
configured using the NMMGR
utility and specified in the same
format as an IP address.
SVC Switched Virtual Circuit.
Path through an X.25 network
that is established at call set-up
time.
Switching user interface User
interface available when DTC
switching is enabled that allows
terminal users to choose the 900
Series HP 3000 computer with
which they want to establish a
communication link.
synchronous A mode of
operation or transmission
whereby a continuous data
stream is generated without
intervals between characters. The
data stream is synchronized by
clock signals at the receiver and
transmitter. As a result, fast
transmission speeds (above
9600 bps) are attainable.
SYSGEN The software program
that allows you to configure the
operating system on HP 3000
Series 900 computers.
system configuration The way
you tell the operating system
what peripheral I/O devices are
attached and what parameters
are required for system operation.
T
TCP See transmission control
protocol.
Telenet A proprietary public
data network in the USA.
TermDSM Terminal online
Diagnostic Support Manager. A
utility that provides diagnostic
services for DTC connections by
means of a series of commands
accessible through the SYSDIAG
switching See DTC switching.
Glossary
321
Glossary
utility. TermDSM is used only
when DTCs are managed by a
host system.
terminal name Character string
of up to 16 characters specified in
the Openview DTC Manager
configuration (for networks using
OpenView Network
Management) to define a
terminal by name. May be shared
by several terminals (pool port).
terminal profile A set of
configuration characteristics that
can be associated with one or
more terminals through the
NMMGR configuration. Terminal
profile specifications include the
terminal type, line speed, device
class assignment, and other
values relevant to terminals
connected through a DTC.
terminal type A collection of
characteristics that cause a
terminal connected to an MPE
system to act and react in a
specified manner. You may
configure a terminal to use one of
the system-supplied terminal
types, or you may create custom
terminal types using the
workstation configurator.
ThinLAN A LAN media that
conforms to the IEEE 802.3
Type 10 BASE 2 standard LAN.
ThinLAN 3000/iX Link
Hardware and software necessary
to create a broadcast network,
which uses the IEEE 802.3 LAN
cable to transmit messages to all
the nodes on the network. The
322
messages are then accepted only
by the node or nodes to which
they are addressed. Also includes
the ThickLAN and StarLAN 10
options.
throughput class A value
assigned to a given virtual circuit
that defines how many network
resources should be assigned to a
given call. It is determined by the
access line speed, packet and
window sizes, and the local
network’s internal mechanisms.
throughput class negotiation
One of the network subscribed
facilities defined at subscription
time. This allows the user to
negotiate the throughput class at
call set-up time.
timer (T3) Length of time that a
link can remain in an idle state.
After the expiration of the timer,
the link is considered to be in a
non-active, non-operational state
and is automatically reset. The
value should be chosen carefully.
In particular, it must be
sufficiently greater than the
retransmission timer (T1) so that
no doubt exists about the link’s
state.
token ring A collection of data
communication systems sharing a
common cable and
communicating by means of the
IEEE 802.5 protocol. In a token
ring network, access is controlled
by the passing of a token from
node to node. Outgoing messages
are attached to the token and
Glossary
Glossary
passed with the token until they
arrive at the node to which they
are addressed.
Token Ring 3000/iX Network
Link Hardware and software
required to connect a HP 3000
Series 900 system to a token ring
network.
topology The physical
arrangement of nodes in a
network. Some common
topologies are bus, star, and ring.
the appropriate communications
link, to receive incoming data,
and to route incoming or outgoing
data to the appropriate
destination node.
Tymnet A proprietary public
data network in the USA.
typeahead A facility that allows
terminal users to enter data
before a read is actually posted to
the terminal.
U
transmission control protocol
A network protocol that
establishes and maintains
connections between nodes. TCP
regulates the flow of data, breaks
messages into smaller fragments
if necessary (and reassembles the
fragments at the destination),
detects errors, and retransmits
messages if errors have been
detected.
Transpac The national public
PSN of France.
transparent mode Data
transfer scheme in which only a
limited number of special
characters retain their meaning
and are acted on by the system.
All other characters are
considered to be data and are
passed through with no control
actions being taken.
transport, network Software
that corresponds to layers 4 and 3
of the OSI network architecture
model. The function of this
software is to send data out over
Glossary
unacknowledged frame
number (K) The number of
frames that can be transmitted
without receiving an
acknowledgment from the
destination address. When this
number (K) frame is reached, the
same K frames are retransmitted.
unedited mode See
transparent mode.
V
V.24 The CCITT recommendation
that defines the function of the
interchange circuits between a
DTE and a DCE.
validation The process of
ascertaining whether the network
transport configuration file has
been correctly configured. In
guided NMMGR, you do this by
pressing the Validate Netxport
key.
323
Glossary
VAN Value-Added Network. A
data communication network that
uses and pays for facilities
belonging to another carrier. The
value-added package is then sold
to a user.
VC See virtual circuit.
virtual circuit A logical
association between two
physically separate DTEs.
virtual terminal A network
service that allows a user to
establish interactive sessions on a
node.
VPLUS Software used to
generate screens such as those
displayed by NMMGR.
V-Series (V.##) CCITT A set of
CCITT recommendations related
to data communication over a
voice-grade telephone network.
VT See virtual terminal.
W
workstation configurator A
utility (TTUTIL) that allows
users to create customized
terminal and printer types by
entering data through a series of
VPLUS screens.
X
X.3 Defines the user facilities
that should be internationally
available from the packet
324
assembler/disassembler (PAD)
facility when this is offered by a
public data network.
X.21 Defines the physical
interface between a DTE and a
DCE of a public data network
where the access to the network
is made over synchronous digital
lines.
X.25 Defines the interface
between a DTE and a DCE for
packet mode operation on a public
data network (PDN).
X.25 address The X.25 address
provided by the network
administration if you are
connected to a public data
network (PDN).
X.25 address key An X.25
address key is a label that maps a
node’s IP address to its X.25
address and its associated X.25
parameters. You have a combined
maximum of 1024 X.25 address
keys in the SVC and PVC path
tables.
X.25 LUG address X.25 address
of a node belonging to a local user
group (LUG).
X.25 iX System Access The
software that works in
conjunction with the DTC/X.25
Network Access software to
provide access to X.25. The
software resides on an HP 3000
host and is configured through
use of NMMGR. To configure
access to an X.25 network, you
must configure two software
Glossary
Glossary
components: the X.25 iX System
Access (residing on the HP 3000
host), and the DTC/X.25 Network
Access. DTC/X.25 Network Access
is configured through use of the
OpenView DTC Manager
software for systems using
PC-based network management
or through NMMGR for systems
using host-based network
management.
X.29 Defines the interface for
data exchange between a
packet-mode DTE and a remote
packet assembly/disassembly
(PAD) facility over a packet
switching network.
XON/XOFF protocol Flow
control used by MPE/iX systems
to protect against data overruns.
XON/XOFF protocol is controlled
by the data recipient who sends
an XOFF character (ASCII DC3)
to the sender if it is unable to
continue to receive data. The
sender suspends transmission
until it receives an XON
character (ASCII DC1).
X.Series (X.##) CCITT
recommendations A set of
recommendations for data
communication networks
governing their services,
facilities, and the operation of
terminal equipment and
interfaces.
Glossary
325
Glossary
326
Glossary
Index
A
abbreviations for screen mode
commands, 27
ADDCONF command, 80
adding records to a file, 64
ADDLDEV command, 81
ADDLU command, 83
ADDNODE command, 84
ADDVC command, 87
B
backup configuration file, 17
block mode, 40
branching, 33
brother branching, 33
brother screens, 33
brothers, 34
BSC subsystem, 16
C
capabilities required, 40
CARDCONF command, 90
changing the backup file name, 44
command
ADDCONF, 80
ADDLDEV, 81
ADDLU, 83
ADDNODE, 84
ADDVC, 87
CARDCONF, 90
COMPRESS, 27
COMPRESSCONF, 91
CONFIGURATION, 27
CONTINUE, 92
COPYCONF, 93
COPYSUB, 28
DELETECONF, 95
DELETENODE, 96
ERRORS, 28
EXIT, 28, 97
EXITVALIDATE, 98
EXITWARN, 99
EXPANDDIR, 100
HELP, 28, 35, 101
LISTDIR, 103
LISTLDEV, 102
LISTLU, 105
MAIN, 28
MAKESTREAM, 75, 106
MERGEDIR, 108
NETDIR, 28
NEXT, 28, 33
NICONF, 110
NIGUIDE, 28
NIUPDATE, 28
NMMGRCMD, 28
Index
OPEN, 28
OPENCONF, 111
OPENDIR, 112
OUTPUT, 28
PAGECONF, 113
PASSWORD, 114
PATHCONF, 115
PRIOR, 28
PURGECONF, 116
PURGELDEV, 117
PURGELU, 119
PURGENI, 120
PURGEVC, 121
QUIT, 28
READALLCONF, 123
READCONF, 125
REFRESH, 28, 31
STOP, 28
SUBGUIDE, 28
SUMMARYCONF, 126
UPDATECONF, 128
UTILITY, 28
VALIDATE, 28
VALIDATECONF, 129
VERSION, 28
VERSIONCONF, 130
WRITECONF, 131
command list, 75
command window, 27
common screen elements, 25
COMPRESS command, 27
Compress screen, 63
COMPRESSCONF command, 91
compressing a file, 64, 91
configuration
DTS, 48
guided, 51
HP-IBM, 53
NS3000/iX, 50
printing data, 57
terminals and printers, 48
unguided, 52
CONFIGURATION command, 27
configuration file, 16
configuration file name, 29, 43, 44
Configuration Subtree Copy
screen, 67
configuring HP-IBM connections,
53
configuring NS3000/iX, 50
CONTINUE command, 92
COPYCONF command, 93
copying a configuration subtree,
67, 93
COPYSUB command, 28
creating a configuration file, 43
creating a directory on a remote
node, 76
creating a network directory file,
45
D
data fields, 29
data flag, 26
data record, 32
Datacommunications and
Terminal Controller, 48
default configuration file name,
43
default network directory file
name, 45
DELETECONF command, 95
DELETENODE command, 96
deleting a configuration subtree,
95
deleting a node from the
directory, 96
deleting records from a file, 64
direct path branching, 27, 33
display tree, 58
distributed terminal subsystem,
16, 48
DTC, 48
DTC configuration, 48
DTS, 16, 48
E
entering maintenance mode from
a batch job, 75
entering maintenance mode from
screen mode, 74
Error Information screen, 37
error messages, 26
ERRORS command, 28
executing commands, 27
executing MPE commands, 27
EXIT command, 28, 97
exiting maintenance mode, 97
exiting validation, 98
EXITVALIDATE command, 98
EXITVWARN command, 99
EXPANDDIR command, 100
expanding a network directory
file, 100
F
file name
backup configuration file, 44
configuration, 29
network directory file, 45
FOS, 15
function key labels, 40
327
Index
function keys
definition of, 30
labels, 40
fundamental operating system,
15
G
getting help, 35
go to keys, 31
guided configuration, 51
guided HP configuration, 50
H
HELP command, 28, 35, 101
help facility, 35, 101
Help key, 30
help mode, 35, 101
home key, 27
HP-IBM configuration, 53
L
LISTDIR command, 103
listing directory contents, 103
LISTLDEV command, 102
LISTLU command, 105
local node name, 47
logging, 20
M
MAIN command, 28
Main screen, 47
maintenance interface, 18, 74
transferring to, 28, 74
maintenance mode, 18, 74
entering, 28, 74, 75
maintenance mode commands, 77
MAKESTREAM command, 75,
106
manual configuration, 53
menu choices, 29
MERGEDIR command, 108
merging directory entries, 108
message field, 26
moving between screens, 33
MPE commands
entering, 27, 77
N
NETDIR command, 28
network directory file, 17, 45
network directory file name, 45
Network Services, 16
NEXT command, 28, 33
next key labels, 54
Next Page key, 31
328
NICONF command, 110
NIGUIDE command, 28
NIUPDATE command, 28
NMDUMP
definition of, 20
NMMAINT
definition of, 19
output, 135, 139
running, 135
NMMGR, 15
definition of, 16
entering data, 32
getting help, 35
operating modes, 18
requirements for running, 40
running, 41
screens, 24
tree structure, 58
NMMGR commands
entering, 27
maintenance mode, 77
screen mode, 27
NMMGR screens, 24
NMMGRCMD command, 28
NMMGRVAL
definition of, 22
NMMGRVER, 21
definition of, 21
node list, 75
Node Management Configuration
Manager, 15
Node Management Services
Conversion Utility, 21
Node Management Services
Maintenance Utility, 19
Node Management Services
Trace/Log Formatter, 20
non-guided configuration, 52
NS subsystem, 16
NS3000/iX configuration, 50
number
screen, 26
O
OPEN command, 28
Open Configuration/Directory
File screen, 42
OPENCONF command, 111
OPENDIR command, 112
opening a configuration file
maintenance mode, 111
screen mode, 44
opening a network directory file
maintenance mode, 112
screen mode, 45
operating modes, 18
OUTPUT command, 28
Output Configuration File screen,
57
P
PAGECONF command, 113
PASSWORD command, 114
path commands
entering, 27
path name, 29
PATHCONF command, 115
Prev Page key, 31
print data, 59
print data screens, 60
print subtree, 62
print summary, 61
print tree, 59
printer configuration, 48
printing configuration data, 57
PRIOR command, 28
Prior Screen key, 30
prior screen list, 30
program name, 26
protected field, 26
PURGECONF command, 116
PURGELDEV command, 117
PURGELU command, 119
PURGENI command, 120
PURGEVC command, 121
Q
QUIT command, 28
R
READALLCONF command, 123
READCONF command, 125
redirecting printed output, 57
REFRESH command, 28, 31
refreshing the screen, 31
running maintenance mode from
a batch job, 75
running NMMAINT, 135
running NMMGR, 41
running NMMGRVER, 154
S
sample configuration file, 43
Save Data key, 31
screen
Compress, 63
Error Information, 37
Open Configuration/Directory
File, 42
Output Configuration File, 57
Utility, 56
Validate Configuration File, 65
screen interface, 18
Index
Index
screen mode, 18
screen number, 26
screen title, 26
screens, 24
select screens, 29
selecting a configuration path, 47
selecting data screens to print, 60
selecting menu items, 29
serial device configuration, 48
service request, 19, 134
SNA subsystem, 16
softkeys, 30
software version ID number, 134
SR, 19, 134
starting NMMGR, 41
STOP command, 28
SUBGUIDE command, 28
subsystem
definition of, 134
SUMMARYCONF command, 126
T
terminal configuration, 48
terminal requirements, 40
title
screen, 26
tracing, 20
tree structure, 58
U
unguided configuration, 52
unguided HP configuration, 50
UPDATECONF command, 128
updating directories in
maintenance mode, 75
updating remote directories, 75
UTILITY command, 28
Utility screen, 56
V
VALIDATE command, 28
Validate Configuration File
screen, 65
VALIDATECONF command, 129
validating a configuration, 65
validation messages, 66
verifying a configuration, 65
VERSION command, 28
version ID number, 134
version number, 26
version stamp, 134
VERSIONCONF command, 130
W
WRITECONF command, 131
Index
329
