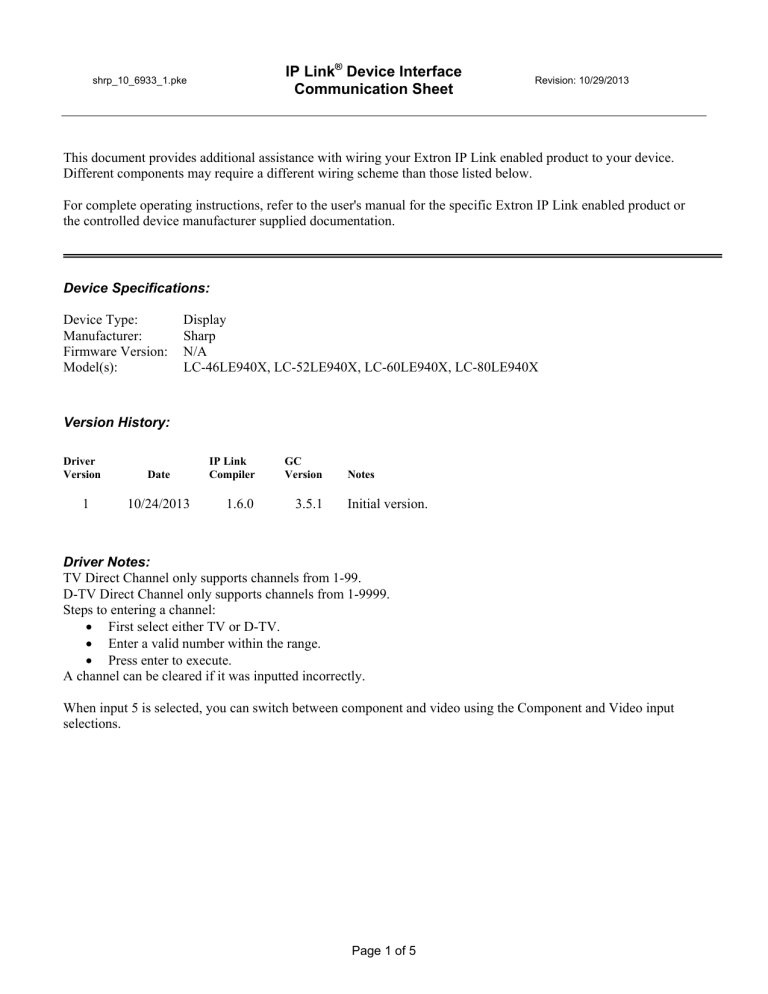

IP Link® Device Interface
Communication Sheet
shrp_10_6933_1.pke
Revision: 10/29/2013
This document provides additional assistance with wiring your Extron IP Link enabled product to your device.
Different components may require a different wiring scheme than those listed below.
For complete operating instructions, refer to the user's manual for the specific Extron IP Link enabled product or
the controlled device manufacturer supplied documentation.
Device Specifications:
Device Type:
Manufacturer:
Firmware Version:
Model(s):
Display
Sharp
N/A
LC-46LE940X, LC-52LE940X, LC-60LE940X, LC-80LE940X
Version History:
Driver
Version
1
Date
10/24/2013
IP Link
Compiler
GC
Version
1.6.0
3.5.1
Notes
Initial version.
Driver Notes:
TV Direct Channel only supports channels from 1-99.
D-TV Direct Channel only supports channels from 1-9999.
Steps to entering a channel:
 First select either TV or D-TV.
 Enter a valid number within the range.
 Press enter to execute.
A channel can be cleared if it was inputted incorrectly.
When input 5 is selected, you can switch between component and video using the Component and Video input
selections.
Page 1 of 5
IP Link® Device Interface
Communication Sheet
shrp_10_6933_1.pke
Revision: 10/29/2013
Control Commands & States:
2D to 3D
SBS
TAB
3D to 2D
3D Auto
2D Auto
Normal (AV)
Zoom 14:9
Panorama
Full (AV)
Cinema 16:9
Cinema 14:9
Normal (PC)
Cinema
Full (PC)
Dot by Dot
Underscan
Toggle
Channel DTV (Step)
Up
Down
Channel Number
1
2
3
4
5
6
7
8
9
0
Enter
Clear
Channel TV (Step)
Up
Down
Input
TV
DTV
HDMI1
HDMI2
HDMI3
HDMI4
Input 5
PC
Input 6
Component
Video
Toggle
Mute
On
Off
Toggle
Power Control
On
Off
Volume (Discrete)
0 to 100 in steps of 1
3D Mode
Off
Aspect Ratio
Page 2 of 5
IP Link® Device Interface
Communication Sheet
shrp_10_6933_1.pke
Revision: 10/29/2013
Status Available:
Normal (AV)
Zoom 14:9
Panorama
Full (AV)
Cinema 16:9
Cinema 14:9
Normal (PC)
Cinema
Full (PC)
Dot by Dot
Underscan
Connection Status
Connected
Disconnected
Input
HDMI1
HDMI2
HDMI3
HDMI4
Input 5
Input 6
Aspect Ratio
PC
Mute
On
Off
Power Control
On
Off
Volume (Discrete)
0 to 100 in steps of 1
Page 3 of 5
IP Link® Device Interface
Communication Sheet
shrp_10_6933_1.pke
Revision: 10/29/2013
MLC60 Series Supported Commands:
2D to 3D
SBS
TAB
3D to 2D
3D Auto
2D Auto
Normal (AV)
Zoom 14:9
Panorama
Full (AV)
Cinema 16:9
Cinema 14:9
Normal (PC)
Cinema
Full (PC)
Dot by Dot
Underscan
Toggle
Channel DTV (Step)
Up
Down
Channel TV (Step)
Up
Down
Input
TV
DTV
HDMI1
HDMI2
HDMI3
HDMI4
Input 5
PC
Input 6
Component
Video
Toggle
Mute
On
Off
Toggle
Power Control
On
Off
Volume (Discrete)
0 to 100 in steps of 1
3D Mode
Off
Aspect Ratio
Page 4 of 5
shrp_10_6933_1.pke
IP Link® Device Interface
Communication Sheet
Revision: 10/29/2013
Cable and Adapter Requirements:
F/F RS-232 DB9 Null Modem Cable.
Notes for the Device:
Serial communication:
Port Type: RS-232
Baud Rate: 9600
Data Bits: 8
Parity: None
Stop Bits: 1
Flow Control: None
Pin Assignments Diagram:
Note: Captive screw connector may also be used as a serial connection.
General Notes:
