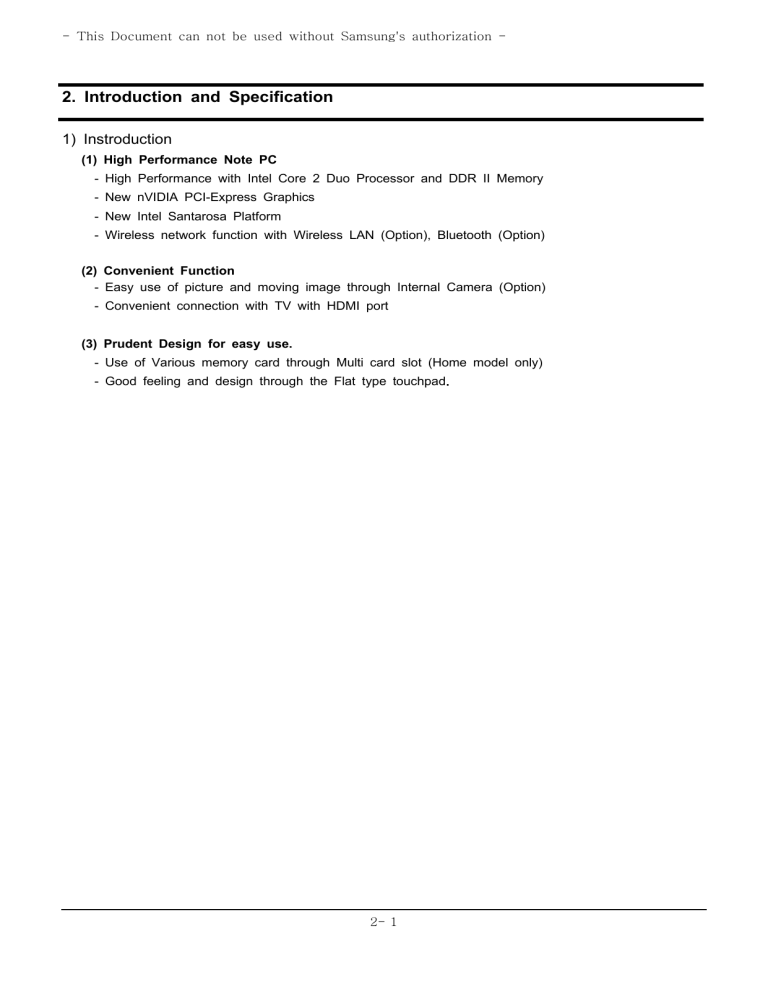

2. Introduction and Specification
1) Instroduction
(1) High Performance Note PC
- High Performance with Intel Core 2 Duo Processor and DDR II Memory
- New nVIDIA PCI-Express Graphics
- New Intel Santarosa Platform
- Wireless network function with Wireless LAN (Option), Bluetooth (Option)
(2) Convenient Function
- Easy use of picture and moving image through Internal Camera (Option)
- Convenient connection with TV with HDMI port
(3) Prudent Design for easy use.
- Use of Various memory card through Multi card slot (Home model only)
- Good feeling and design through the Flat type touchpad.
2- 1
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
2) Specification
Processor and Motherboard
CPU
Description
Intel® Core 2 Duo T7100 (1.86GHz) ~ T7700 (2.4G) and All CPU at
Q4'07.35W (64bit)
T7100 : 1.86GHz
Speed
T7300 : 2.0GHz
T7500 : 2.2GHz
T7700 : 2.4GHz
Cache
4MB/2MB L2 Cache in Merom
Chipset
Intel PM965+ ICH8M
BIOS
8 Mbit, Flash upgradable, SPI type
Thermal Design Performance MAX. 35W
Memory
Memory / Max. Memory
512MB ~ 4GB
Memory type
PC2-4200(533MHz) / PC2-5300(667MHz) DDR2 SODIMM
Memory Modules
512MB, 1GB, 2GB SODIMM
Sockets
2-slot SODIMM's
Display and Graphics
LCD
15.4" WXGA / WSXGA+ (200nits 이상, Glare only)
LCD Vendor
Samsung AMLCD WXGA (LTN154X3-L03-C)
Samsung AMLCD WSXGA+ (LTN154P4-L02-G)
15.4" WXGA
LCD Viewable Area
331.2 x 207.0mm (HxV)
LCD Resolution
1280 x 800 x 262,144 color ( 18 bit )
Dot Pitch
0.25875 x 0.25875mm (HxV)
Viewing angle
Hor. +45/-45,Ver. +15/-30
Contrast Ratio
min.300 (CR)
Brightness
min.175, typ.200(cd/m2)
Response time
(Rising + Falling) typ.25ms / max.35ms
15.4" WSXGA+
LCD Viewable Area
331.38 x 207.1125mm (HxV)
LCD Resolution
1680 x 1050 x 262,144 color ( 18 bit )
Dot Pitch
0.19725 x 0.19725mm (HxV)
Viewing angle
Hor. +65/-65,Ver. +50/-50
Contrast Ratio
typ.300 (CR)
Brightness
min.170, typ.200(cd/m2)
Response time
(Rising + Falling) typ.25ms / max.35ms
2- 2
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
Graphics Controller
NVIDIA External GFx
Video Memory
Max.Resolution for LFP
LVDS
Max.Resolution for External
Monitor
Factory option
NVIDIA GeForce 8600M GS (Physical 256MB + TurboCache )
NVIDIA GeForce 8400M GS (Physical 128MB + TurboCache)
NVIDIA GeForce 8400M GS, 8600M GS.
NVIDIA GeForce 8600M GS (Physical 256MB + TurboCache )
NVIDIA GeForce 8400M GS (Physical 128MB + TurboCache)
1680 * 1050 x 18Bits color (WSXGA+)
2048 x 1536 @85HZ (CRT)
Audio
Sound
High Definition Audio
Controller
HD Audio Codec, ALC262
Conversion
Built-in high performance 20-bit ADC & 24-bit DAC
Internal Interfaces
Embedded 2 stereo speakers, Internal microphone
Speaker Power Rating
2 Speakers x 2 Watt with enclosure each
External Interfaces
Microphone, Headphone, S/PDIF for HDMI
Controls
Keyboard volume control, SRS enable / disable
Microphone
Mono Microphone
Microphone
Mono
Sensitivity
-44dB
Output Impedance
2.2KΩ
Storage
Hard Disk Drive
9.5mmH 2.5" HDD, Removable
Supports
SMART Ultra DMA 33/66/100, DMA Mode 2/4 ; SATA
Average Access Time
13m sec.
Speed
5400 / 7200 RPM , Hybrid HDD, TMR/PMR Type
80GB / 100GB / 120GB / 160GB / 2000GB / 250GB : HGST, Hitachi,
Samsung
Capacity
- 80 ~ 250 GB SATA 5400rpm
- 80 ~ 200 GB SATA 7200rpm
- 80 ~ 160GB SATA 5400rpm, Hybride + 256MB
- 120 ~ 250GB SATA 5400rpm, Hybride + 5126MB
2- 3
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
Optical Disk Drive
DVD / Combo / Super Multi DL & w/LightScribe (12.7mm/PATA)
Blueray / HD-DVD
Type
Fixed type (Factory Option)
S/W supplied
Cyberlink DVD Solution
Security
RPC-II Regional Encoding
Optical Driver Modules
Combo Drive 1
Factory Option
Module type
Fixed 12.7mm Slim
Speed
8x DVD-ROM, 24x RW, 24x CD-R : TSST, TS-L332A
Average Access Time
DVD 130ms Typ, CD 130ms Typ
Weight
176g or less
S/W Supplied
Cyberlink DVD Solution
Security
RPC-II Regional Encoding
Combo Drive 2
Factory Option
Module type
Fixed 12.7mm Slim
Speed
8x DVD-ROM, 24x RW, 24x CD-R, 24x CD : TSST, TS-L462D
Average Access Time
DVD 130ms Typ, CD 130ms Typ,.
Weight
176g or less
S/W supplied
Cyberlink DVD Solution
Security
RPC-II Regional Encoding
Super Multi Dual Layer 1
Factory Option
Module type
Fixed 12.7mm Slim
Speed
5x DVD-RAM, 8x DVD±R 2.4x DVD+R DL, 4x DVD±RW, 24x CD-R,
16x CD-RW, 8x DVD, 24x CD : Panasonic UJ-850
Average Access Time
DVD 130ms Typ., CD 130ms Typ.
Weight
190g or less
S/W supplied
Cyberlink DVD Solution
Security
RPC-II Regional Encoding
Super Multi Dual Layer 2
Factory Option
Module type
Fixed 12.7mm Slim
Speed
5x DVD-RAM, 8x DVD±R, 6x DVD±R DL, 8x DVD+RW, 6x DVD-RW,
24x CD-R/RW, 8x DVD, 24x CD : TSSTTS-L632D
Average Access Time
DVD 130ms Typ., CD 130ms Typ.
Weight
180g or less
S/W supplied
Cyberlink DVD Solution
Security
RPC-II Regional Encoding
2- 4
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
Super MultiDual Layer 3
Factory Option
Module type
Fixed 12.7mm Slim
Speed
5x DVD-RAM, 8x DVD±R, 6x DVD±R DL, 8x DVD+RW, 6x DVD-RW,
24x CD-R/RW, 8x DVD, 24x CD : TeacDV-W28EC
Average Access Time
DVD 130ms Typ., CD 130ms Typ.
Weight
180g or less
S/W supplied
Cyberlink DVD Solution
Security
RPC-II Regional Encoding
Super MultiDual Layer
Lightscribe
Module type
Speed
Factory Option
Fixed 12.7mm Slim
5x DVD-RAM, 8x DVD±R, 6x DVD±R DL, 8x DVD+RW, 6x DVD-RW,
24x CD-R/RW, 8x DVD, 24x CD : TSST TS-L632M
Average Access Time
DVD 130ms Typ., CD 130ms Typ.
Weight
180g or less
S/W supplied
Cyberlink DVD Solution
Security
RPC-II Regional Encoding
Network Tools
Fax/Modem
56Kbps / V.92 Azalia Modem, DELPHI (D40) (Factory Opeion)
Chipset
CSP1040 AGR A3 & A3 5V1
Features
RJ11 Output
LAN
10/100 Ethernet (Factory option)
Chipset
Marvell 88E8039
Features
RJ45 Output
LAN
1Gb Ethernet (Factory option)
Chipset
Marvell 88E8055
Features
RJ45 Output
802.11g Wireless LAN
Intel PRO/Wireless 3945BG:Intel 802.11b/g
Type
Mini card (Factory Option)
Chipset
Golan
Antenna
Integrated 2 Antenna
802.11a/g Wireless LAN
Intel PRO/Wireless 3945ABG:Intel 802.11a/b/g
Type
Mini card (Factory Option)
Chipset
Golan
Antenna
Integrated 2 Antenna
802.11a/g/n Wireless LAN
Intel PRO/Wireless 3945ABGN:Intel 802.11a/b/g/n
Type
Mini card (Factory Option)
Chipset
Kedron
Antenna
Integrated 3 Antenna
2- 5
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
Bluetooth
BCM92045NMD : Factory Option
Type
USB daughter card with integrated PIFA antenna
Chipset
Broadcom BCM2045
Standard
version 2.0
I/O Interface
PC CardBus Slots
1 PCMCIA Type II slot
Controller
Ricoh R5C843
Support
32bit CardBus cards
I/O Ports
USB Port
3 (USB2.0)
Video (CRT) Port
1
Audio Jacks
HeadPhone-out, MIC-in
Modem / LAN
RJ11, RJ45
Power
1(5pie)
HDMI Port (New)
1 (High Definition Multimedia Interface)
Input Devices
Key board
88key : US,KOR,RUSSIA,UKRINA,THAI
89KEY : UK FRA, GER, SPAIN,SWISS,PORTUGAL
Travel length 2.6mm/ Key Pitch 19.05mm
Touchpad
Synaptics Touchpad (Plat type with Scroll area)
Easy Button
Vista : Hot start, XP : AVS
Multi Memory Card Slot
Controller
R5C843
Type
Memory stick / Memory stick pro / SD / xD / MMC (High speed MMC)
2- 6
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
Power and Power
Management
Battery
3UR18650F-2-SDN-12(6cells, Smart Li-Ion Battery)
Dimension
204x48.05x21.4mm
Weight
330g (max)
Recharge Time
2 hours to 100% with Windows on & off
Battery Life
over 2.5hour ( Battery mark 4.01)
Details of Cell
6cells (2Parallel 3Serial)
Voltage
11.1Vdc
Battery Capacity
2600mAh/cell
Battery Rating
11.1V / 5200mAh (57.72Wh)
Battery (Option)
AA-PL2NC9B (9cells, Smart Li-Ion Battery)
Dimension
204x67.0x21.4mm
Weight
470g (max)
Recharge Time
3 hours to 100% with Windows on & off
Battery Life
over 9.0hour ( Battery mark 4.01)
Details of Cell
9cells (3Parallel 3Serial)
Voltage
11.1Vdc
Battery Capacity
2600mAh/cell
Battery Rating
11.1V / 7800mAh (86.58Wh)
AC Adapter
AD-9019S
Output Power
90Watts
Dimension
133 X 58 X 30.5mm
Weight (AC Adapter)
420g (typ)
Worldwide Compatibility
Auto-sensing 100 - 240VAC
Line Frequency
50 / 60Hz
Adapter Rating - Input
100V - 240V, 1.4A
Adapter Rating - Output
19.0VDC / 4.74A
Power Management
Features
ACPI 3.0 support, Standby(S3), Hibernate(S4)
System Dimensions
Dimensions (W X D X H)
358 x 264 x 28.6 ~ 36.6 mm
Weight (Full system w/ 6cell
Battery)
2.7kg
Status : No options, 6cell battery, 15.4" LCD
Materials
LCD back / Front : PC/ABS
Bottom / Top : PC/ABS
2- 7
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
3) Specification comparison between R55 and R70
R55
R70
CPU
Intel Core Solo T1300, T1400
Intel Core Duo T2300~2700.
667/800MHz Intel Core 2 Duo
Processor (Merom)
Chipset
945GM/PM (Calistoga)
PM965(Crestline)
Memory
DDR2 533 / 667MHz
DDR2 533 / 667MHz
Graphic
Intel 950 GMA Solution
nVIDIA GF 7600, 7400
nVIDIA Geforce 8600M GS
nVIDIA Geforce 8400M GS
LCD
15.4" WXGA Glare
15.4” WXGA, WSXGA+ Glare
HDD
PATA
SATA
ODD
12.7mm
12.7mm
Port
4USB, CRT, SVHS, 1394(6pin), 3USB, CRT, Headphone/MIC, RJ45,
Headphone/MIC, RJ45, RJ11, PCRJ11(Option), HDMI, PC-Card,
Card, 6-in-1
6-in-1
Battery
6cell / 9cell
6cell / 9cell(Option)
Design
Proto type
2nd Proto type
2- 8
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
4) Option List
HDD
BA59-01999A
HTS541660J9SA00
5400rpm, , 60G, SATA, 8M
BA59-01946A
MHV2060BH-PL
5400rpm, , 60G, SATA, 8M
BA59-02084A
MHW2060BH
5400rpm, , 60G, SATA, 8M
BA59-02038A
HM060HI
5400rpm, , 60G, SATA, 8M
BA59-02001A
HTS541680J9SA00
5400rpm, , 80G, SATA, 8M
BA59-01947A
MHV2080BH-PL
5400rpm, , 80G, SATA, 8M
BA59-02085A
MHW2080BH
5400rpm, , 80G, SATA, 8M
BA59-02009A
ST980815AS
5400rpm, , 80G, SATA, 8M
BA59-01742A
HTS541010G9SA00
5400rpm, , 100G,SATA , 8M
BA59-01948A
MHV2100BH-PL
5400rpm, , 100G, SATA, 8M
BA59-02086A
MHW2100BH
5400rpm, , 100G, SATA, 8M
BA59-02014A
HM101JI
5400rpm, , 100G, SATA, FFS
BA59-02010A
ST9100828AS
5400rpm, , 100G, SATA, 8M
BA59-02002A
HTS541612J9SA00
5400rpm, , 120G, SATA, 8M
BA59-01957A
MHV2120BH-PL
5400rpm, , 120G, SATA, 8M
BA59-02087A
MHW2120BH
5400rpm, , 120G, SATA, 8M
BA59-02013A
hm121JI
5400rpm, , 120G, SATA, FFS
BA59-02039A
HM120JI
5400rpm, , 120G, SATA, 8M
BA59-02011A
ST9120822AS
5400rpm, , 120G, SATA, 8M
BA59-02003A
HTS541616J9SA00
5400rpm, , 160G, SATA, 8M
BA59-02012A
ST9160821AS
5400rpm, , 160G, SATA, 8M
BA59-02110A
MHW2160BH-PL
5400rpm, , 160G, SATA, 8M
BA59-01814A
15.4" WXGA
LTN154X3-L03-C
BA59-02105A
15.4"WSXGA+
LTN154P4-L02
LCD
2- 9
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
MEMORY
1105-001683
DDR2 667Mhz 512MB
M470T6554CZ3-CE6
1105-001684
DDR2 667Mhz 1GB
M470T2953CZ3-CE6
1105-001783
DDR2 667MHz 512MB
NT512T64UH8B0FN-3C
1105-001790
DDR2 667MHz 1GB
NT1GT64U8HB0BN-3C
CPU
0902-002196
T_T7100(Merom Dual Core ) 1.8Ghz(FSB800) 2MB
0902-002197
T_T7300(Merom Dual Core ) 2.0Ghz(FSB800) 4MB
0902-002198
T_T7500(Merom Dual Core ) 2.2Ghz(FSB800) 4MB
0902-002199
T_T7700(Merom Dual Core ) 2.4Ghz(FSB800) 4MB
BATTERY
BA43-00150A
BATTERY
3UR18650F-2-SDN-12,Sedona,Li-ion,2P3S,5200mAh
BA43-00149A
BATTERY
P32R07-02-H01,SEDONA,LI-ION,2P3S,5200mAh
BLUETOOTH
BA59-01691A
MODULE-BLUETOOTH Bluetooth V2.0,T60H928.01,Bluetooth Module,USB I/F,V2.0,C
BA59-01916A
MODULE-BLUETOOTH Bluetooth Version 2.0,BTO2P0B2SA,Bluetooth Module,
ROBSON
0904-002253
ROBSON 512MB
NVCPEMW0512M1,-,52P,30x50.95mm
0904-002254
ROBSON 1G
NVCPEMWR001G1,-,52P,30x50.95mm
2- 10
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
ODD
BA96-03223A
S_MULTI(DV228EC)
TEAC
BA96-03241A
S_MULTI(UJ-850)
MATSUHITA
BA96-03242A
S_MULTI(TS-L632D)
TSST
BA96-03243A
S_MULT ScriveI(TS-L632M)TSST
BA96-03222A
COMBO(DW-224E-R)
TEAC
BA96-03239A
COMBO(TS-L462D)
TSST
BA96-03245A
DVD(TS-L332A)
TS-L332A
BA59-01723A
802.11a/b/g
WM3B3945AGKOR
BA59-01722A
802.11a/b/g
WM3B3945AGROW
BA59-01721A
802.11a/b/g
WM3B3945AGMOW1
BA59-01724A
802.11a/b/g
WM3B3945AGMOW2
BA59-02065A
802.11a/b/g/n
4965AGN KOR
BA59-02064A
802.11a/b/g/n
4965AGN ROW
BA59-02062A
802.11a/b/g/n
4965AGN MOW1
BA59-02063A
802.11a/b/g/n
4965AGN MOW2
WLAN_GOLAN
WLAN_MIMO
2- 11
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
5) New added function
5)-1. Camera (Option)
Easy use of taking a picture and moving image..
5)-2. HDMI Port
Convenient connection with TV through HDMI port.
2- 12
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
5)-3. HD-DVD, Blue-Ray
HD-DVD is a next generation storage media that can save more data than the existing DVD
format. Users can record and play better quality HD movies than the existing SD-grade DVD
fomat
Blu-ray is a next generation storage media that can save approximately 5 to 10 times more data
than the existing DVD format. Users can record and play better quality HD movies than the existing
SD-grade DVD format.
2- 13
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
5)-4. New Keyboard
2- 14
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
2- 15
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
2- 16
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
6)
System Setup (BIOS Setup)
워크시트
MAIN
Primary Master
=> Applied HDD information.
Secondary Master
=> Applied ODD device information.
Total Memory
=> System total Memory.
Slot1 Memory
=> Applied Memory Capacity at the Slot1.
Slot2 Memory
=> Applied Memory Capacity at the Slot2.
Main
Phoenix BIOS Setup Utility
Advanced
Security
Boot
Exit
System Time
[11:13:57]
Item Specific Help
System Date
[08/01/2006]
Primary Master Disk
FUJITSUM20280
<Tap>,<Shift-Tap>, or
Secondary Master Disk
CD-ROM/DVD
<Enter>selects field.
CPU Type
Intel® Pentium® M
CPU Speed
2.2 GHz
Total Memory
512 MB
Slot1 Memory
512 MB
Slot2 Memory
Not Installed
BIOS Version
D0AB
MICOM Version
D0AB
F1Help
↑↓Select Item
F5/F6Change Values
F9Setup Defaults
ESCExit
←→Select Menu
EnterSelect▶ Sub-Menu
F10 Save and Exit
2- 17
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
Advanced
Core Multi-Processing
=> If this function is diabled, one of the core can be disabled.
Touch Pad Mouse
=> Touchpad function can be enabled/disabled with this option. If this is disabled, the setting is
maintained in next booting. For reference, If touchpad function is disabled with Fn+F10, the setting
is enabled in next booting.
Legacy USB Support
=> Legacy USB Device can support or not with this option. If this functionis enabled the system
can boot to USB device.
Large Disk Access Mode
=> Should be set "[DOS]".
EDB (Execute Disable Bit)
=> If this option is enabled, the system can use Intel Execute Enable Bit.
Internal LAN Device
=> Can decide use of Internal LAN with this option.
CPU Power Saving Mode
=> If this option is enabled, the system can be entered to C3 state, so users can save their
power consumption,
but can happen a little performance drop.
Purchased Date
=> The date 10 times boot since user have bought.
2- 18
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
Main
Phoenix BIOS Setup Utility
Advanced
Security
Boot
Exit
Item Specific Help
Core Multi-Processing
[Enabled]
This selects whether
Intel (R) SpeedStep(TM)
[Enabled]
Touch Pad Mouse
[Enabled]
Legacy USB Support
[Enabled]
Technology is enabled
Large Disk Access Mode
[DOS]
or not.
EDB(Execute Disable Bit)
[Disabled]
Internal LAN
[Enabled]
system does not support
CPU Power Saving Mode
[Enabled]
AMD Cool & Quiet
Technology.
Purchased Date
2006/08
F1Help
↑↓Select Item
F5/F6Change Values
F9Setup Defaults
ESCExit
←→Select Menu
EnterSelect▶ Sub-Menu
F10 Save and Exit
Intel (R) SpeedStep (TM)
Disabled' means that
2- 19
Enabled' is recommened
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
Security
set Supervisor Password
=> Can set Supervisor Password.
set User Password
=> Can set User Password.
set HDD Password
=> Can set HDD Password.
Password on Boot
=> If users use this function, the users need the password when they boot the system.
Supervisor Password should be set before use of this function.
Fixed Disk Boot Sector
=> If [Write Protect] is selected, users can't use the Boot sector of HDD.
Main
Phoenix BIOS Setup Utility
Advanced
Security
Boot
Exit
Item Specific Help
Supervisor Password
Clear
User Password
Clear
HDD Password
Clear
Supervisor Password
controls access to the
Set Supervisor Password
[Enter]
setup utility.
Set User Password
[Enter]
Set HDD Password
[Enter]
Password on Boot
[Enabled]
Fixed disk boot sector
[Normal]
F1Help
↑↓Select Item
F5/F6Change Values
F9Setup Defaults
ESCExit
←→Select Menu
EnterSelect▶ Sub-Menu
F10 Save and Exit
2- 20
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
Boot
Boot Device Priority
=> Can set the boot device priority.
NumLock
=> Can set the use of NumLock key when booting.
Enable Keypad
=>
[Only By Fn Key] : Numeric key can be recognized, only case the Fn key is pressed simultaneously.
[By NumLock] : Numeric key can be recognized when Numlock is on state.
Summary Screen
=> Can set whether the system information is shown or not when booting.
Boot-time Diagnostic Screen
=> Can set Samsung logo screen.
PXE Oprom
=> Can set whether the PXE Oprom is always initialized or not.
General Users will not use of network boot, so [Only with F12] option is recommended.
Brightness Control Mode
=> [Auto] The brightness level is "1" in case battery state when resume from S3 or booting, and
when adapter is de-inserted from system.
=>[User Control] : Remember the setting by users.
Wireless Device Control
=> [Always On] : Wireless LAN is always on.
=> [Last Status] : Remember the last status.
Smart Battery Calibration
=> Battery Calibration.
2- 21
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
Main
Phoenix BIOS Setup Utility
Advanced
Security
Boot
Exit
Item Specific Help
▶
Boot Device Priority
NumLock
[Off]
Select system boot
Enable Keypad
[By NumLock]
options
Summary screen
[Disabled]
Boot-time Diagnostic Screen
[Disabled]
PXE OPROM
[Only with F12]
Brightness Mode Control
[Auto]
Wireless Device Control [Always On] Smart Battery Calibration
F1Help
↑↓Select Item
F5/F6Change Values
F9Setup Defaults
ESCExit
←→Select Menu
EnterSelect▶ Sub-Menu
F10 Save and Exit
2- 22
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
Exit
Exit Saving changes
=> Exit after save the change.
Exit Discarding Changes
=> Exit without any save.
Load Setup Defaults
=> Set the all setting to default value.
Discard Changes
=> Recovery the change option to previous setting.
Save Changes
=> Save changes.
Main
Phoenix BIOS Setup Utility
Advanced
Security
Boot
Exit
Item Specific Help
Exit Saving Changes
Exit Discarding Changes
Load Setup Defaults
Exit System Setup and
Discard Changes
save your changes to
Save Changes
CMOS.
F1Help
↑↓Select Item
F5/F6Change Values
F9Setup Defaults
ESCExit
←→Select Menu
EnterSelect▶ Sub-Menu
F10 Save and Exit
2- 23
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
BIOS Vendor
- BIOS Vendor : Phoenix
2- 24
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
7) Mainboard Part Description.
7)-1. Top
3
4
5
2
6
1
7
8
9
10
11
19
22
12
21
14
20
15
18
13
17
16
1
CRT connector (J504)
2
1-stack USB connector (J502)
3
DC-Jack (J500)
4
RJ45 connector (J501)
5
2-stack USB connector (J503)
6
LCD connector (J1)
7
Camera connector (J2)
8
Power & Hot start switch (SW1,2)
9
MDC cable connector (J4, Option)
10
Debug connector (J5)
11
MDC cable (on board, Option)
12
KBD connector (J9)
13
RTC battery
14
Bluetooth connector (J10)
15
ICH8M (U11)
16
Touchpad button (SW3,4)
17
MICOM (U516)
18
MDC modem (Option)
19
Touchpad FFC connector (J9)
20
PCMCIA Frame (J12)
21
MIC connector (J8)
22
Speaker connector (J7)
2- 25
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
7)-1. Bottom
19
4
1
2
5
3
7
10
6
17
8
11
9
15
16
12
18
14
13
1
LAN controller (U505)
2
FAN connector (J505)
3
CPU socket (J508)
4
Battery connector (J506)
5
Minicard connector (WLAN, J507)
6
MCH (U510)
7
DDR2 connector (DDR500, 501)
8
GFx controller (U513)
9
GDDR3 Memory (U519,520,508,512)
10
HDMI connector (J509)
11
Headphone, MIC jack (J512, J511)
12
Clock generator (U524)
13
Cardbus controller (U529)
14
6in1 connector (J514)
15
Minicard connector (DVB-T or Robson, J513)
16
SATA connector (JHDD500)
17
ODD connector (J510)
18
SPI ROM (U528)
19
LAN transformer (LT500)
20
2- 26
Download PDF
