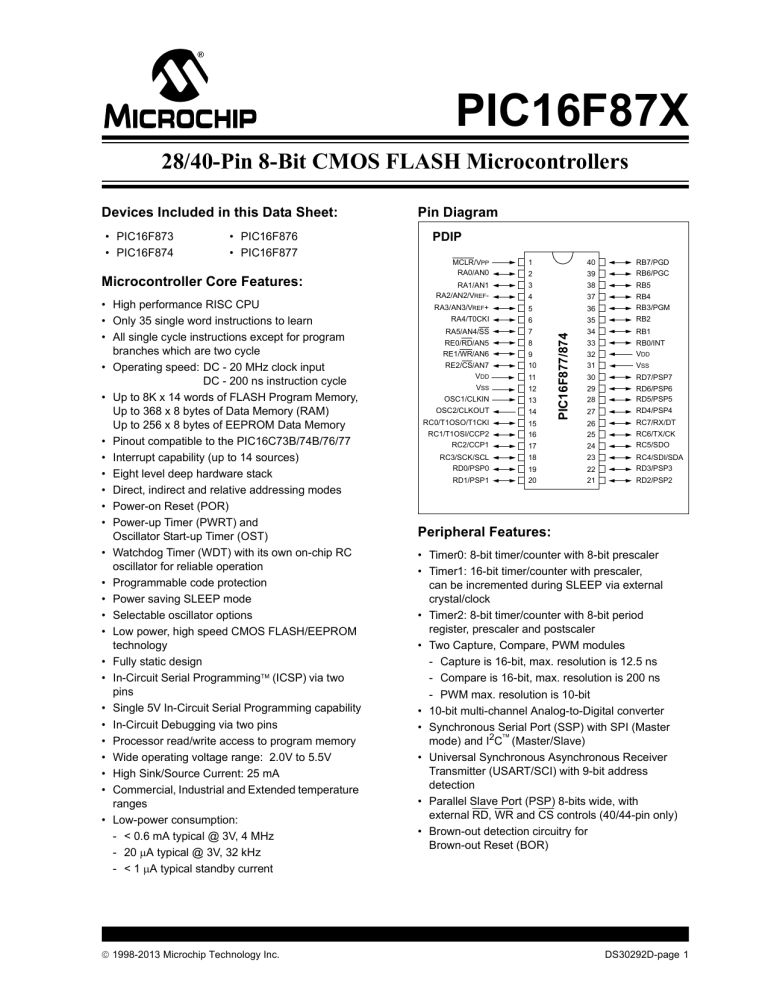

PIC16F87X

28/40-Pin 8-Bit CMOS FLASH Microcontrollers

Devices Included in this Data Sheet:

• PIC16F873

• PIC16F874

• PIC16F876

• PIC16F877

Microcontroller Core Features:

• High performance RISC CPU

• Only 35 single word instructions to learn

• All single cycle instructions except for program branches which are two cycle

• Operating speed: DC - 20 MHz clock input

DC - 200 ns instruction cycle

• Up to 8K x 14 words of FLASH Program Memory,

Up to 368 x 8 bytes of Data Memory (RAM)

Up to 256 x 8 bytes of EEPROM Data Memory

• Pinout compatible to the PIC16C73B/74B/76/77

• Interrupt capability (up to 14 sources)

• Eight level deep hardware stack

• Direct, indirect and relative addressing modes

• Power-on Reset (POR)

• Power-up Timer (PWRT) and

Oscillator Start-up Timer (OST)

• Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation

• Programmable code protection

• Power saving SLEEP mode

• Selectable oscillator options

• Low power, high speed CMOS FLASH/EEPROM technology

• Fully static design

• In-Circuit Serial Programming



(ICSP)

 via two pins

• Single 5V In-Circuit Serial Programming capability

• In-Circuit Debugging via two pins

• Processor read/write access to program memory

• Wide operating voltage range: 2.0V to 5.5V

• High Sink/Source Current: 25 mA

• Commercial, Industrial and Extended temperature ranges

• Low-power consumption:

- < 0.6 mA typical @ 3V, 4 MHz

- 20

A typical @ 3V, 32 kHz

- < 1

A typical standby current

Pin Diagram

PDIP

MCLR/V

PP

RA0/AN0

RA1/AN1

RA2/AN2/V

REF

-

RA3/AN3/V

REF

+

RA4/T0CKI

RA5/AN4/SS

RE0/RD/AN5

RE1/WR/AN6

RE2/CS/AN7

V

DD

V

SS

OSC1/CLKIN

OSC2/CLKOUT

RC0/T1OSO/T1CKI

RC1/T1OSI/CCP2

RC2/CCP1

RC3/SCK/SCL

RD0/PSP0

RD1/PSP1

9

10

11

5

6

7

8

3

4

1

2

12

13

14

15

16

17

18

19

20

32

31

30

36

35

34

33

40

39

38

37

29

28

27

26

25

24

23

22

21

Peripheral Features:

• Timer0: 8-bit timer/counter with 8-bit prescaler

• Timer1: 16-bit timer/counter with prescaler, can be incremented during SLEEP via external crystal/clock

• Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler

• Two Capture, Compare, PWM modules

- Capture is 16-bit, max. resolution is 12.5 ns

- Compare is 16-bit, max. resolution is 200 ns

- PWM max. resolution is 10-bit

• 10-bit multi-channel Analog-to-Digital converter

• Synchronous Serial Port (SSP) with SPI (Master mode) and I

2

C



(Master/Slave)

• Universal Synchronous Asynchronous Receiver

Transmitter (USART/SCI) with 9-bit address detection

• Parallel Slave Port (PSP) 8-bits wide, with external RD, WR and CS controls (40/44-pin only)

• Brown-out detection circuitry for

Brown-out Reset (BOR)

RB7/PGD

RB6/PGC

RB5

RB4

RB3/PGM

RB2

RB1

RB0/INT

V

DD

V

SS

RD7/PSP7

RD6/PSP6

RD5/PSP5

RD4/PSP4

RC7/RX/DT

RC6/TX/CK

RC5/SDO

RC4/SDI/SDA

RD3/PSP3

RD2/PSP2

1998-2013 Microchip Technology Inc.

DS30292D-page 1

PIC16F87X

Pin Diagrams

PDIP, SOIC

MCLR/V

PP

RA0/AN0

RA1/AN1

RA2/AN2/V

REF

-

RA3/AN3/V

REF

+

RA4/T0CKI

RA5/AN4/SS

V

SS

OSC1/CLKIN

OSC2/CLKOUT

RC0/T1OSO/T1CKI

RC1/T1OSI/CCP2

RC2/CCP1

RC3/SCK/SCL

10

11

12

6

7

8

9

13

14

3

4

5

1

2

28

27

26

25

24

23

22

21

20

19

18

17

16

15

RB7/PGD

RB6/PGC

RB5

RB4

RB3/PGM

RB2

RB1

RB0/INT

V

DD

V

SS

RC7/RX/DT

RC6/TX/CK

RC5/SDO

RC4/SDI/SDA

PLCC

RA4/T0CKI

RA5/AN4/SS

RE0/RD/AN5

RE1/WR/AN6

RE2/CS/AN7

V

DD

V

SS

OSC1/CLKIN

OSC2/CLKOUT

RC0/T1OSO/T1CK1

NC

7

8

9

14

15

16

17

10

11

12

13

PIC16F877

PIC16F874

39

38

37

36

35

34

33

32

31

30

29

23 24

RB3/PGM

RB2

RB1

RB0/INT

V

DD

V

SS

RD7/PSP7

RD6/PSP6

RD5/PSP5

RD4/PSP4

RC7/RX/DT

QFP

RC7/RX/DT

RD4/PSP4

RD5/PSP5

RD6/PSP6

RD7/PSP7

V

SS

V

DD

RB0/INT

RB1

RB2

RB3/PGM

1

6

7

8

9

10

11

4

5

2

3

PIC16F877

PIC16F874

27

26

25

24

23

33

32

31

30

29

28

NC

RC0/T1OSO/T1CKI

OSC2/CLKOUT

OSC1/CLKIN

V

SS

V

DD

RE2/AN7/CS

RE1/AN6/WR

RE0/AN5/RD

RA5/AN4/SS

RA4/T0CKI

1998-2013 Microchip Technology Inc.

DS30292D-page 2

PIC16F87X

Key Features

PIC

®

MCU Mid-Range Reference

Manual (DS33023)

Operating Frequency

RESETS (and Delays)

FLASH Program Memory

(14-bit words)

Data Memory (bytes)

EEPROM Data Memory

Interrupts

I/O Ports

Timers

Capture/Compare/PWM Modules

Serial Communications

Parallel Communications

10-bit Analog-to-Digital Module

Instruction Set

PIC16F873 PIC16F874 PIC16F876 PIC16F877

DC - 20 MHz

POR, BOR

(PWRT, OST)

4K

DC - 20 MHz

POR, BOR

(PWRT, OST)

4K

DC - 20 MHz

POR, BOR

(PWRT, OST)

8K

DC - 20 MHz

POR, BOR

(PWRT, OST)

8K

192

128

13

Ports A,B,C

192

128

14

Ports A,B,C,D,E

368

256

13

Ports A,B,C

368

256

14

Ports A,B,C,D,E

3

2

3

2

3

2

3

2

MSSP, USART MSSP, USART MSSP, USART MSSP, USART

— PSP — PSP

5 input channels 8 input channels 5 input channels 8 input channels

35 instructions 35 instructions 35 instructions 35 instructions

1998-2013 Microchip Technology Inc.

DS30292D-page 3

PIC16F87X

Table of Contents

1.0

Device Overview ................................................................................................................................................... 5

2.0

Memory Organization.......................................................................................................................................... 11

3.0

I/O Ports .............................................................................................................................................................. 29

4.0

Data EEPROM and FLASH Program Memory.................................................................................................... 41

5.0

Timer0 Module .................................................................................................................................................... 47

6.0

Timer1 Module .................................................................................................................................................... 51

7.0

Timer2 Module .................................................................................................................................................... 55

8.0

Capture/Compare/PWM Modules ....................................................................................................................... 57

9.0

Master Synchronous Serial Port (MSSP) Module ............................................................................................... 65

10.0 Addressable Universal Synchronous Asynchronous Receiver Transmitter (USART) ........................................ 95

11.0 Analog-to-Digital Converter (A/D) Module......................................................................................................... 111

12.0 Special Features of the CPU............................................................................................................................. 119

13.0 Instruction Set Summary................................................................................................................................... 135

14.0 Development Support ....................................................................................................................................... 143

15.0 Electrical Characteristics................................................................................................................................... 149

16.0 DC and AC Characteristics Graphs and Tables................................................................................................ 177

17.0 Packaging Information ...................................................................................................................................... 189

Appendix A: Revision History .................................................................................................................................... 197

Appendix B: Device Differences ................................................................................................................................ 197

Appendix C: Conversion Considerations ................................................................................................................... 198

Index .......................................................................................................................................................................... 199

On-Line Support ......................................................................................................................................................... 207

Reader Response ...................................................................................................................................................... 208

PIC16F87X Product Identification System ................................................................................................................. 209

TO OUR VALUED CUSTOMERS

It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and enhanced as new volumes and updates are introduced.

If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via

E-mail at

[email protected]

or fax the

Reader Response Form

in the back of this data sheet to (480) 792-4150.

We welcome your feedback.

Most Current Data Sheet

To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at: http://www.microchip.com

You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page.

The last character of the literature number is the version number, (e.g., DS30000A is version A of document DS30000).

Errata

An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for current devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the revision of silicon and revision of document to which it applies.

To determine if an errata sheet exists for a particular device, please check with one of the following:

• Microchip’s Worldwide Web site; http://www.microchip.com

• Your local Microchip sales office (see last page)

• The Microchip Corporate Literature Center; U.S. FAX: (480) 792-7277

When contacting a sales office or the literature center, please specify which device, revision of silicon and data sheet (include literature number) you are using.

Customer Notification System

Register on our web site at

www.microchip.com/cn

to receive the most current information on all of our products.

DS30292D-page 4

1998-2013 Microchip Technology Inc.

PIC16F87X

1.0

DEVICE OVERVIEW

This document contains device specific information.

Additional information may be found in the PIC

®

MCU

Mid-Range Reference Manual (DS33023), which may be obtained from your local Microchip Sales Representative or downloaded from the Microchip website. The

Reference Manual should be considered a complementary document to this data sheet, and is highly recommended reading for a better understanding of the device architecture and operation of the peripheral modules.

There are four devices (PIC16F873, PIC16F874,

PIC16F876 and PIC16F877) covered by this data sheet. The PIC16F876/873 devices come in 28-pin packages and the PIC16F877/874 devices come in

40-pin packages. The Parallel Slave Port is not implemented on the 28-pin devices.

The following device block diagrams are sorted by pin number; 28-pin for Figure 1-1 and 40-pin for Figure 1-2.

The 28-pin and 40-pin pinouts are listed in Table 1-1 and Table 1-2, respectively.

FIGURE 1-1: PIC16F873 AND PIC16F876 BLOCK DIAGRAM

Device

PIC16F873

PIC16F876

Program

FLASH

4K

8K

Data Memory

192 Bytes

368 Bytes

13

Program Counter

Data

EEPROM

128 Bytes

256 Bytes

Data Bus

8

FLASH

Program

Memory

8 Level Stack

(13-bit)

RAM

File

Registers

Program

Bus

14

Instruction reg

8

Direct Addr

7

RAM Addr

(1)

9

Addr MUX

8

Indirect

Addr

FSR reg

STATUS reg

PORTA

PORTB

RA0/AN0

RA1/AN1

RA2/AN2/V

REF

-

RA3/AN3/V

REF

+

RA4/T0CKI

RA5/AN4/SS

RB0/INT

RB1

RB2

RB3/PGM

RB4

RB5

RB6/PGC

RB7/PGD

PORTC

Instruction

Decode &

Control

OSC1/CLKIN

OSC2/CLKOUT

Timing

Generation

Power-up

Timer

Oscillator

Start-up Timer

Power-on

Reset

Watchdog

Timer

Brown-out

Reset

In-Circuit

Debugger

Low Voltage

Programming

8

3

ALU

W reg

MUX

RC0/T1OSO/T1CKI

RC1/T1OSI/CCP2

RC2/CCP1

RC3/SCK/SCL

RC4/SDI/SDA

RC5/SDO

RC6/TX/CK

RC7/RX/DT

Timer1

MCLR

V

DD

, V

SS

Timer2 Timer0 10-bit A/D

Data EEPROM

CCP1,2

Synchronous

Serial Port

Note 1:

Higher order bits are from the STATUS register.

1998-2013 Microchip Technology Inc.

USART

DS30292D-page 5

PIC16F87X

FIGURE 1-2: PIC16F874 AND PIC16F877 BLOCK DIAGRAM

Device

PIC16F874

PIC16F877

Program

FLASH

4K

8K

Data Memory

192 Bytes

368 Bytes

Data

EEPROM

128 Bytes

256 Bytes

13

Program Counter

Data Bus

8

FLASH

Program

Memory

8 Level Stack

(13-bit)

RAM

File

Registers

Program

Bus

14

Instruction reg

8

Direct Addr

7

RAM Addr

(1)

9

Addr MUX

8

Indirect

Addr

FSR reg

STATUS reg

3

MUX

Instruction

Decode &

Control

OSC1/CLKIN

OSC2/CLKOUT

Timing

Generation

Power-up

Timer

Oscillator

Start-up Timer

Power-on

Reset

Watchdog

Timer

Brown-out

Reset

In-Circuit

Debugger

Low-Voltage

Programming

8

ALU

W reg

Parallel Slave Port

MCLR V

DD

, V

SS

PORTA

PORTB

PORTC

PORTD

PORTE

RA0/AN0

RA1/AN1

RA2/AN2/V

REF

-

RA3/AN3/V

REF

+

RA4/T0CKI

RA5/AN4/SS

RB0/INT

RB1

RB2

RB3/PGM

RB4

RB5

RB6/PGC

RB7/PGD

RC0/T1OSO/T1CKI

RC1/T1OSI/CCP2

RC2/CCP1

RC3/SCK/SCL

RC4/SDI/SDA

RC5/SDO

RC6/TX/CK

RC7/RX/DT

RD0/PSP0

RD1/PSP1

RD2/PSP2

RD3/PSP3

RD4/PSP4

RD5/PSP5

RD6/PSP6

RD7/PSP7

RE0/AN5/RD

RE1/AN6/WR

RE2/AN7/CS

Timer0 Timer1 Timer2 10-bit A/D

Data EEPROM

CCP1,2

Synchronous

Serial Port

Note 1:

Higher order bits are from the STATUS register.

USART

1998-2013 Microchip Technology Inc.

DS30292D-page 6

PIC16F87X

TABLE 1-1: PIC16F873 AND PIC16F876 PINOUT DESCRIPTION

Pin Name

DIP

Pin#

SOIC

Pin#

I/O/P

Type

Buffer

Type

Description

OSC1/CLKIN

OSC2/CLKOUT

MCLR/V

PP

RA0/AN0

RA1/AN1

RA2/AN2/V

RA3/AN3/V

RA4/T0CKI

REF

REF

RA5/SS/AN4

RB0/INT

RB1

RB2

RB3/PGM

RB4

RB5

RB6/PGC

RB7/PGD

-

+

9

10

1

2

3

4

5

6

7

21

22

23

24

25

26

27

28

9

10

1

2

3

4

5

6

7

21

22

23

24

25

26

27

28

I

O

I/P

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

ST/CMOS

(3)

Oscillator crystal input/external clock source input.

Oscillator crystal output. Connects to crystal or resonator in crystal oscillator mode. In RC mode, the OSC2 pin outputs

CLKOUT which has 1/4 the frequency of OSC1, and denotes the instruction cycle rate.

ST

TTL

TTL

TTL

TTL

ST

TTL

Master Clear (Reset) input or programming voltage input. This pin is an active low RESET to the device.

PORTA is a bi-directional I/O port.

RA0 can also be analog input0.

RA1 can also be analog input1.

RA2 can also be analog input2 or negative analog reference voltage.

RA3 can also be analog input3 or positive analog reference voltage.

RA4 can also be the clock input to the Timer0 module. Output is open drain type.

RA5 can also be analog input4 or the slave select for the synchronous serial port.

PORTB is a bi-directional I/O port. PORTB can be software programmed for internal weak pull-up on all inputs.

RB0 can also be the external interrupt pin.

TTL/ST

(1)

TTL

TTL

TTL

TTL

TTL

TTL/ST

(2)

TTL/ST

(2)

RB3 can also be the low voltage programming input.

Interrupt-on-change pin.

Interrupt-on-change pin.

Interrupt-on-change pin or In-Circuit Debugger pin. Serial programming clock.

Interrupt-on-change pin or In-Circuit Debugger pin. Serial programming data.

RC0/T1OSO/T1CKI

RC1/T1OSI/CCP2

RC2/CCP1

RC3/SCK/SCL

RC4/SDI/SDA

RC5/SDO

RC6/TX/CK

RC7/RX/DT

11

12

13

14

15

16

17

18

11

12

13

14

15

16

17

18

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

ST

ST

ST

ST

ST

ST

ST

ST

PORTC is a bi-directional I/O port.

RC0 can also be the Timer1 oscillator output or Timer1 clock input.

RC1 can also be the Timer1 oscillator input or Capture2 input/Compare2 output/PWM2 output.

RC2 can also be the Capture1 input/Compare1 output/

PWM1 output.

RC3 can also be the synchronous serial clock input/output for both SPI and I

2

C modes.

RC4 can also be the SPI Data In (SPI mode) or data I/O (I

2

C mode).

RC5 can also be the SPI Data Out (SPI mode).

RC6 can also be the USART Asynchronous Transmit or

Synchronous Clock.

RC7 can also be the USART Asynchronous Receive or

Synchronous Data.

Ground reference for logic and I/O pins.

V

SS

8, 19 8, 19 P —

V

DD

20 20 P — Positive supply for logic and I/O pins.

Legend: I = input O = output

— = Not used

I/O = input/output

TTL = TTL input

P = power

ST = Schmitt Trigger input

Note 1:

This buffer is a Schmitt Trigger input when configured as the external interrupt.

2:

This buffer is a Schmitt Trigger input when used in Serial Programming mode.

3:

This buffer is a Schmitt Trigger input when configured in RC oscillator mode and a CMOS input otherwise.

1998-2013 Microchip Technology Inc.

DS30292D-page 7

PIC16F87X

TABLE 1-2: PIC16F874 AND PIC16F877 PINOUT DESCRIPTION

Pin Name

DIP

Pin#

PLCC

Pin#

QFP

Pin#

I/O/P

Type

Buffer

Type

Description

OSC1/CLKIN

OSC2/CLKOUT

MCLR/V

PP

RA0/AN0

RA1/AN1

RA2/AN2/V

REF

-

RA3/AN3/V

REF

+

13

14

1

2

3

4

5

14

15

2

3

4

5

6

30

31

18

19

20

21

22

I

O

I/P

I/O

I/O

I/O

I/O

ST/CMOS

ST

TTL

TTL

TTL

TTL

(4)

Oscillator crystal input/external clock source input.

Oscillator crystal output. Connects to crystal or resonator in crystal oscillator mode. In RC mode, OSC2 pin outputs

CLKOUT which has 1/4 the frequency of OSC1, and denotes the instruction cycle rate.

Master Clear (Reset) input or programming voltage input.

This pin is an active low RESET to the device.

PORTA is a bi-directional I/O port.

RA0 can also be analog input0.

RA1 can also be analog input1.

RA2 can also be analog input2 or negative analog reference voltage.

RA3 can also be analog input3 or positive analog reference voltage.

RA4/T0CKI

RA5/SS/AN4

6

7

7

8

23

24

I/O

I/O

ST

TTL

RA4 can also be the clock input to the Timer0 timer/ counter. Output is open drain type.

RA5 can also be analog input4 or the slave select for the synchronous serial port.

PORTB is a bi-directional I/O port. PORTB can be software programmed for internal weak pull-up on all inputs.

RB0 can also be the external interrupt pin.

RB0/INT

RB1

RB2

33

34

35

36

37

38

8

9

10

I/O

I/O

I/O

TTL/ST

(1)

TTL

TTL

RB3/PGM

RB4

RB5

RB6/PGC

36

37

38

39

39

41

42

43

11

14

15

16

I/O

I/O

I/O

I/O

TTL

TTL

TTL

TTL/ST

(2)

RB3 can also be the low voltage programming input.

Interrupt-on-change pin.

Interrupt-on-change pin.

RB7/PGD 40 44 17 I/O TTL/ST

(2)

Interrupt-on-change pin or In-Circuit Debugger pin.

Serial programming clock.

Interrupt-on-change pin or In-Circuit Debugger pin.

Serial programming data.

Legend: I = input O = output

— = Not used

I/O = input/output

TTL = TTL input

P = power

ST = Schmitt Trigger input

Note 1:

This buffer is a Schmitt Trigger input when configured as an external interrupt.

2:

This buffer is a Schmitt Trigger input when used in Serial Programming mode.

3:

This buffer is a Schmitt Trigger input when configured as general purpose I/O and a TTL input when used in the Parallel

Slave Port mode (for interfacing to a microprocessor bus).

4:

This buffer is a Schmitt Trigger input when configured in RC oscillator mode and a CMOS input otherwise.

1998-2013 Microchip Technology Inc.

DS30292D-page 8

PIC16F87X

TABLE 1-2: PIC16F874 AND PIC16F877 PINOUT DESCRIPTION (CONTINUED)

Pin Name

DIP

Pin#

PLCC

Pin#

QFP

Pin#

I/O/P

Type

Buffer

Type

Description

RC0/T1OSO/T1CKI

RC1/T1OSI/CCP2

RC2/CCP1

15

16

17

16

18

19

32

35

36

I/O

I/O

I/O

ST

ST

ST

PORTC is a bi-directional I/O port.

RC0 can also be the Timer1 oscillator output or a

Timer1 clock input.

RC1 can also be the Timer1 oscillator input or

Capture2 input/Compare2 output/PWM2 output.

RC2 can also be the Capture1 input/Compare1 output/PWM1 output.

RC3/SCK/SCL

RC4/SDI/SDA

RC5/SDO

RC6/TX/CK

RC7/RX/DT

18

23

24

25

26

20

25

26

27

29

37

42

43

44

1

I/O

I/O

I/O

I/O

I/O

ST

ST

ST

ST

ST

RC3 can also be the synchronous serial clock input/ output for both SPI and I

2

C modes.

RC4 can also be the SPI Data In (SPI mode) or data I/O (I

2

C mode).

RC5 can also be the SPI Data Out (SPI mode).

RC6 can also be the USART Asynchronous Transmit or Synchronous Clock.

RC7 can also be the USART Asynchronous Receive or Synchronous Data.

PORTD is a bi-directional I/O port or parallel slave port when interfacing to a microprocessor bus.

RD0/PSP0

RD1/PSP1

RD2/PSP2

RD3/PSP3

RD4/PSP4

RD5/PSP5

RD6/PSP6

RD7/PSP7

19

20

21

22

27

28

29

30

21

22

23

24

30

31

32

33

38

39

40

41

2

3

4

5

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

ST/TTL

(3)

ST/TTL

(3)

ST/TTL

(3)

ST/TTL

(3)

ST/TTL

(3)

ST/TTL

(3)

ST/TTL

(3)

ST/TTL

(3)

RE0/RD/AN5

RE1/WR/AN6

8

9

9

10

25

26

I/O

I/O

ST/TTL

ST/TTL

(3)

(3)

PORTE is a bi-directional I/O port.

RE0 can also be read control for the parallel slave port, or analog input5.

RE1 can also be write control for the parallel slave port, or analog input6.

RE2/CS/AN7

V

SS

V

DD

NC

10 11

12,31 13,34

11,32 12,35

— 1,17,28,

40

27

6,29

7,28

12,13,

33,34

I/O

P

P

ST/TTL

(3)

RE2 can also be select control for the parallel slave port, or analog input7.

Ground reference for logic and I/O pins.

Positive supply for logic and I/O pins.

These pins are not internally connected. These pins should be left unconnected.

Legend: I = input O = output

— = Not used

I/O = input/output

TTL = TTL input

P = power

ST = Schmitt Trigger input

Note 1:

This buffer is a Schmitt Trigger input when configured as an external interrupt.

2:

This buffer is a Schmitt Trigger input when used in Serial Programming mode.

3:

This buffer is a Schmitt Trigger input when configured as general purpose I/O and a TTL input when used in the Parallel

Slave Port mode (for interfacing to a microprocessor bus).

4:

This buffer is a Schmitt Trigger input when configured in RC oscillator mode and a CMOS input otherwise.

1998-2013 Microchip Technology Inc.

DS30292D-page 9

PIC16F87X

NOTES:

DS30292D-page 10

1998-2013 Microchip Technology Inc.

2.0

MEMORY ORGANIZATION

There are three memory blocks in each of the

PIC16F87X MCUs. The Program Memory and Data

Memory have separate buses so that concurrent access can occur and is detailed in this section. The

EEPROM data memory block is detailed in Section 4.0.

Additional information on device memory may be found in the PIC

®

MCU Mid-Range Reference Manual,

(DS33023).

FIGURE 2-1: PIC16F877/876 PROGRAM

MEMORY MAP AND

STACK

CALL, RETURN

RETFIE, RETLW

PC<12:0>

13

Stack Level 1

Stack Level 2

Stack Level 8

RESET Vector

0000h

PIC16F87X

2.1

Program Memory Organization

The PIC16F87X devices have a 13-bit program counter capable of addressing an 8K x 14 program memory space. The PIC16F877/876 devices have 8K x 14 words of FLASH program memory, and the

PIC16F873/874 devices have 4K x 14. Accessing a location above the physically implemented address will cause a wraparound.

The RESET vector is at 0000h and the interrupt vector is at 0004h.

FIGURE 2-2: PIC16F874/873 PROGRAM

MEMORY MAP AND

STACK

CALL, RETURN

RETFIE, RETLW

PC<12:0>

13

Stack Level 1

Stack Level 2

Stack Level 8

RESET Vector

0000h

On-Chip

Program

Memory

Interrupt Vector

Page 0

Page 1

Page 2

Page 3

0004h

0005h

07FFh

0800h

0FFFh

1000h

17FFh

1800h

1FFFh

On-Chip

Program

Memory

Interrupt Vector

Page 0

Page 1

0004h

0005h

07FFh

0800h

0FFFh

1000h

1FFFh

1998-2013 Microchip Technology Inc.

DS30292D-page 11

PIC16F87X

2.2

Data Memory Organization

The data memory is partitioned into multiple banks which contain the General Purpose Registers and the

Special Function Registers. Bits RP1 (STATUS<6>) and RP0 (STATUS<5>) are the bank select bits.

RP1:RP0

00

01

10

11

Bank

2

3

0

1

Each bank extends up to 7Fh (128 bytes). The lower locations of each bank are reserved for the Special

Function Registers. Above the Special Function Registers are General Purpose Registers, implemented as static RAM. All implemented banks contain Special

Function Registers. Some frequently used Special

Function Registers from one bank may be mirrored in another bank for code reduction and quicker access.

Note:

EEPROM Data Memory description can be found in Section 4.0 of this data sheet.

2.2.1

GENERAL PURPOSE REGISTER

FILE

The register file can be accessed either directly, or indirectly through the File Select Register (FSR).

DS30292D-page 12

1998-2013 Microchip Technology Inc.

PIC16F87X

FIGURE 2-3:

Indirect addr.

(*)

TMR0

PCL

STATUS

FSR

PORTA

PORTB

PORTC

PORTD

(1)

PORTE

(1)

PCLATH

INTCON

PIR1

PIR2

TMR1L

TMR1H

T1CON

TMR2

T2CON

SSPBUF

SSPCON

CCPR1L

CCPR1H

CCP1CON

RCSTA

TXREG

RCREG

CCPR2L

CCPR2H

CCP2CON

ADRESH

ADCON0

12h

13h

14h

15h

16h

17h

18h

19h

1Ah

0Dh

0Eh

0Fh

10h

11h

1Bh

1Ch

1Dh

1Eh

1Fh

06h

07h

08h

09h

0Ah

0Bh

0Ch

00h

01h

02h

03h

04h

05h

20h

PIC16F877/876 REGISTER FILE MAP

Indirect addr.

(*)

OPTION_REG

PCL

STATUS

FSR

TRISA

TRISB

TRISC

TRISD

(1)

TRISE

(1)

PCLATH

INTCON

PIE1

PIE2

PCON

File

Address

SSPCON2

PR2

SSPADD

SSPSTAT

TXSTA

SPBRG

ADRESL

ADCON1

89h

8Ah

8Bh

8Ch

8Dh

8Eh

8Fh

90h

91h

92h

93h

80h

81h

82h

83h

84h

85h

86h

87h

88h

99h

9Ah

9Bh

9Ch

9Dh

9Eh

9Fh

94h

95h

96h

97h

98h

A0h

File

Address

Indirect addr.

(*)

TMR0

PCL

STATUS

FSR

PORTB

PCLATH

INTCON

EEDATA

EEADR

EEDATH

EEADRH

General

Purpose

Register

16 Bytes

109h

10Ah

10Bh

10Ch

10Dh

10Eh

10Fh

110h

111h

112h

113h

114h

100h

101h

102h

103h

104h

105h

106h

107h

108h

115h

116h

117h

118h

119h

11Ah

11Bh

11Ch

11Dh

11Eh

11Fh

120h

File

Address

Indirect addr.

(*)

OPTION_REG

PCL

STATUS

FSR

TRISB

PCLATH

INTCON

EECON1

EECON2

Reserved

Reserved

General

Purpose

Register

16 Bytes

(2)

(2)

18Ch

18Dh

18Eh

18Fh

190h

191h

192h

193h

194h

195h

180h

181h

182h

183h

184h

185h

186h

187h

188h

189h

18Ah

18Bh

196h

197h

198h

199h

19Ah

19Bh

19Ch

19Dh

19Eh

19Fh

1A0h

General

Purpose

Register

96 Bytes

7Fh

General

Purpose

Register

80 Bytes accesses

70h-7Fh

Bank 1

EFh

F0h

FFh

General

Purpose

Register

80 Bytes accesses

70h-7Fh

Bank 2

Bank 0

Unimplemented data memory locations, read as '0'.

* Not a physical register.

Note 1:

These registers are not implemented on the PIC16F876.

2:

These registers are reserved, maintain these registers clear.

16Fh

170h

17Fh

General

Purpose

Register

80 Bytes accesses

70h - 7Fh

Bank 3

1EFh

1F0h

1FFh

1998-2013 Microchip Technology Inc.

DS30292D-page 13

PIC16F87X

FIGURE 2-4:

Indirect addr.

(*)

TMR1H

T1CON

TMR2

T2CON

SSPBUF

SSPCON

CCPR1L

CCPR1H

CCP1CON

RCSTA

TXREG

RCREG

CCPR2L

CCPR2H

CCP2CON

ADRESH

TMR0

PCL

STATUS

FSR

PORTA

PORTB

PORTC

PORTD

(1)

PORTE

(1)

PCLATH

INTCON

PIR1

PIR2

TMR1L

ADCON0

File

Address

0Fh

10h

11h

12h

13h

0Ah

0Bh

0Ch

0Dh

0Eh

05h

06h

07h

08h

09h

00h

01h

02h

03h

04h

19h

1Ah

1Bh

1Ch

1Dh

1Eh

1Fh

14h

15h

16h

17h

18h

20h

PIC16F874/873 REGISTER FILE MAP

Indirect addr.

(*)

OPTION_REG

PCL

STATUS

FSR

TRISA

TRISB

TRISC

TRISD

(1)

TRISE

(1)

PCLATH

INTCON

PIE1

PIE2

PCON

File

Address

SSPCON2

PR2

SSPADD

SSPSTAT

TXSTA

SPBRG

ADRESL

ADCON1

87h

88h

89h

8Ah

8Bh

8Ch

8Dh

8Eh

8Fh

90h

91h

80h

81h

82h

83h

84h

85h

86h

92h

93h

94h

95h

96h

97h

98h

99h

9Ah

9Bh

9Ch

9Dh

9Eh

9Fh

A0h

Indirect addr.

(*)

TMR0

PCL

STATUS

FSR

PORTB

PCLATH

INTCON

EEDATA

EEADR

EEDATH

EEADRH

File

Address

109h

10Ah

10Bh

10Ch

10Dh

10Eh

10Fh

110h

100h

101h

102h

103h

104h

105h

106h

107h

108h

120h

File

Address

Indirect addr.

(*)

OPTION_REG

PCL

STATUS

FSR

TRISB

PCLATH

INTCON

EECON1

EECON2

Reserved

Reserved

(2)

(2)

180h

181h

182h

183h

184h

185h

186h

187h

188h

189h

18Ah

18Bh

18Ch

18Dh

18Eh

18Fh

190h

1A0h

General

Purpose

Register

96 Bytes

General

Purpose

Register

96 Bytes accesses

20h-7Fh

7Fh FFh

Bank 0 Bank 1 Bank 2

Unimplemented data memory locations, read as '0'.

* Not a physical register.

Note 1:

These registers are not implemented on the PIC16F873.

2:

These registers are reserved, maintain these registers clear.

16Fh

170h

17Fh accesses

A0h - FFh

1EFh

1F0h

1FFh

Bank 3

1998-2013 Microchip Technology Inc.

DS30292D-page 14

PIC16F87X

2.2.2

SPECIAL FUNCTION REGISTERS

The Special Function Registers are registers used by the CPU and peripheral modules for controlling the desired operation of the device. These registers are implemented as static RAM. A list of these registers is given in Table 2-1.

The Special Function Registers can be classified into two sets: core (CPU) and peripheral. Those registers associated with the core functions are described in detail in this section. Those related to the operation of the peripheral features are described in detail in the peripheral features section.

TABLE 2-1: SPECIAL FUNCTION REGISTER SUMMARY

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR,

BOR

Details on page:

Bank 0

00h

01h

05h

06h

0Dh

0Eh

0Fh

10h

11h

12h

13h

14h

15h

16h

17h

18h

19h

1Ah

1Bh

1Ch

1Dh

1Eh

(3)

02h

(3)

03h

(3)

04h

(3)

07h

08h

(4)

09h

(4)

0Ah

(1,3)

0Bh

(3)

0Ch

INDF

TMR0

PCL

STATUS

FSR

PORTA

PORTB

PORTC

PORTD

PORTE

PCLATH

INTCON

PIR1

PIR2

TMR1L

TMR1H

T1CON

TMR2

T2CON

SSPBUF

SSPCON

CCPR1L

CCPR1H

CCP1CON

RCSTA

TXREG

RCREG

CCPR2L

CCPR2H

CCP2CON

ADRESH

Addressing this location uses contents of FSR to address data memory (not a physical register)

Timer0 Module Register

Program Counter (PC) Least Significant Byte

IRP

PSPIF

(3)

— —

RBIE

SSPIF

RE2

T0IF

CCP1IF

(5)

— EEIF BCLIF —

Holding register for the Least Significant Byte of the 16-bit TMR1 Register

Holding register for the Most Significant Byte of the 16-bit TMR1 Register

SPEN

RP1

GIE PEIE

ADIF

RX9

RP0

Indirect Data Memory Address Pointer

T0IE

RCIF

T1CKPS1

Capture/Compare/PWM Register1 (LSB)

CCP1X

SREN

TO

INTE

TXIF

T1CKPS0

Capture/Compare/PWM Register1 (MSB)

CCP1Y

CREN

USART Transmit Data Register

USART Receive Data Register

Capture/Compare/PWM Register2 (LSB)

Capture/Compare/PWM Register2 (MSB)

— — CCP2X

A/D Result Register High Byte

CCP2Y

PD

PORTC Data Latch when written: PORTC pins when read

PORTD Data Latch when written: PORTD pins when read

T1OSCEN

Synchronous Serial Port Receive Buffer/Transmit Register

WCOL SSPOV SSPEN CKP SSPM3

CCP1M3

ADDEN

CCP2M3

Z

T1SYNC

SSPM2

CCP1M2

FERR

CCP2M2

DC

— — PORTA Data Latch when written: PORTA pins when read

PORTB Data Latch when written: PORTB pins when read

RE1

Write Buffer for the upper 5 bits of the Program Counter

INTF

TMR2IF

TMR1CS

C

RE0

RBIF

CCP2IF

TMR1ON

SSPM0

CCP1M0

RX9D

CCP2M0

0000 0000 xxxx xxxx

0000 0000

0001 1xxx xxxx xxxx

--0x 0000 xxxx xxxx xxxx xxxx xxxx xxxx

---- -xxx

---0 0000

0000 000x

TMR1IF

0000 0000

-r-0 0--0 xxxx xxxx xxxx xxxx

--00 0000

Timer2 Module Register

— TOUTPS3 TOUTPS2 TOUTPS1 TOUTPS0 TMR2ON T2CKPS1 T2CKPS0

0000 0000

-000 0000

SSPM1

CCP1M1

OERR

CCP2M1 xxxx xxxx

0000 0000 xxxx xxxx xxxx xxxx

--00 0000

0000 000x

0000 0000

0000 0000 xxxx xxxx xxxx xxxx

--00 0000 xxxx xxxx

1Fh ADCON0 ADCS1 ADCS0 CHS2 CHS1 CHS0 GO/DONE — ADON

0000 00-0

Legend: x

= unknown, u

= unchanged, q

= value depends on condition, - = unimplemented, read as '0', r = reserved.

Shaded locations are unimplemented, read as ‘0’.

Note 1:

The upper byte of the program counter is not directly accessible. PCLATH is a holding register for the PC<12:8> whose contents are transferred to the upper byte of the program counter.

2:

Bits PSPIE and PSPIF are reserved on PIC16F873/876 devices; always maintain these bits clear.

3:

These registers can be addressed from any bank.

4:

PORTD, PORTE, TRISD, and TRISE are not physically implemented on PIC16F873/876 devices; read as ‘0’.

5:

PIR2<6> and PIE2<6> are reserved on these devices; always maintain these bits clear.

27

47

26

18

27

29

31

33

35

36

26

20

22

24

52

52

51

55

55

70, 73

67

57

57

58

96

99

101

57

57

58

116

111

1998-2013 Microchip Technology Inc.

DS30292D-page 15

PIC16F87X

TABLE 2-1: SPECIAL FUNCTION REGISTER SUMMARY (CONTINUED)

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR,

BOR

Details on page:

Bank 1

80h

(3)

81h

82h

(3)

83h

(3)

84h

(3)

85h

86h

87h

88h

(4)

89h

(4)

8Ah

(1,3)

8Bh

(3)

8Ch

8Dh

8Eh

8Fh

INDF Addressing this location uses contents of FSR to address data memory (not a physical register)

OPTION_REG RBPU INTEDG T0CS T0SE PSA PS2 PS1 PS0

PCL

STATUS

Program Counter (PC) Least Significant Byte

IRP RP1 RP0 TO PD Z DC C

FSR

TRISA

TRISB

TRISC

Indirect Data Memory Address Pointer

— — PORTA Data Direction Register

PORTB Data Direction Register

PORTC Data Direction Register

TRISD

TRISE

PCLATH

INTCON

PIE1

PIE2

PCON

PORTD Data Direction Register

IBF OBF IBOV

GIE

PSPIE

(2)

PEIE

ADIE

(5)

T0IE

RCIE

Unimplemented

— —

PSPMODE

TXIE

EEIE

Write Buffer for the upper 5 bits of the Program Counter

INTE RBIE T0IF INTF RBIF

SSPIE

BCLIE

PORTE Data Direction Bits

CCP1IE

TMR2IE

POR

TMR1IE

CCP2IE

BOR

0000 0000

1111 1111

0000 0000

0001 1xxx xxxx xxxx

--11 1111

1111 1111

1111 1111

1111 1111

0000 -111

---0 0000

0000 000x

0000 0000

-r-0 0--0

---- --qq

90h

91h

92h

93h

94h

95h

96h

97h

98h

99h

9Ah

9Bh

9Ch

9Dh

SSPCON2

PR2

SSPADD

SSPSTAT

TXSTA

SPBRG

Unimplemented

GCEN

SMP

ACKSTAT

CKE

Unimplemented

ACKDT

D/A

ACKEN

P

RCEN

Timer2 Period Register

Synchronous Serial Port (I

2

C mode) Address Register

S

Unimplemented

Unimplemented

CSRC TX9 TXEN

Baud Rate Generator Register

Unimplemented

Unimplemented

Unimplemented

Unimplemented

SYNC —

PEN

R/W

BRGH

RSEN

UA

TRMT

SEN

BF

TX9D

0000 0000

0000 0000

68

1111 1111

55

0000 0000

73, 74

0000 -010

0000 0000

66

95

97

9Eh

9Fh

ADRESL

ADCON1

A/D Result Register Low Byte

ADFM — — — PCFG3 PCFG2 PCFG1 xxxx xxxx

116

PCFG0

0--- 0000

112

Legend: x

= unknown, u

= unchanged, q

= value depends on condition, - = unimplemented, read as '0', r = reserved.

Shaded locations are unimplemented, read as ‘0’.

Note 1:

The upper byte of the program counter is not directly accessible. PCLATH is a holding register for the PC<12:8> whose contents are transferred to the upper byte of the program counter.

2:

Bits PSPIE and PSPIF are reserved on PIC16F873/876 devices; always maintain these bits clear.

3:

These registers can be addressed from any bank.

4:

PORTD, PORTE, TRISD, and TRISE are not physically implemented on PIC16F873/876 devices; read as ‘0’.

5:

PIR2<6> and PIE2<6> are reserved on these devices; always maintain these bits clear.

27

29

31

33

27

19

26

18

21

23

25

35

37

26

20

1998-2013 Microchip Technology Inc.

DS30292D-page 16

PIC16F87X

TABLE 2-1: SPECIAL FUNCTION REGISTER SUMMARY (CONTINUED)

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR,

BOR

Details on page:

Bank 2

100h

(3)

101h

102h

(3)

103h

(3)

104h

(3)

105h

106h

107h

108h

109h

10Ah

(1,3)

10Bh

(3)

10Ch

10Dh

10Eh

10Fh

INDF

TMR0

PCL

STATUS

FSR

PORTB

PCLATH

INTCON

EEDATA

EEADR

EEDATH

EEADRH

Addressing this location uses contents of FSR to address data memory (not a physical register)

Timer0 Module Register

Program Counter's (PC) Least Significant Byte

IRP RP1 RP0

Indirect Data Memory Address Pointer

Unimplemented

TO PD

PORTB Data Latch when written: PORTB pins when read

Unimplemented

Unimplemented

Unimplemented

GIE PEIE

T0IE

EEPROM Data Register Low Byte

EEPROM Address Register Low Byte

Z DC C

Write Buffer for the upper 5 bits of the Program Counter

INTE RBIE T0IF INTF RBIF

EEPROM Data Register High Byte

EEPROM Address Register High Byte

0000 0000 xxxx xxxx

0000 0000

0001 1xxx xxxx xxxx

— xxxx xxxx

---0 0000

0000 000x xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx

Bank 3

180h

(3)

181h

182h

(3)

183h

(3)

184h

(3)

185h

186h

187h

188h

189h

18Ah

(1,3)

18Bh

(3)

18Ch

18Dh

18Eh

INDF

OPTION_REG

PCL

STATUS

FSR

TRISB

PCLATH

INTCON

EECON1

EECON2

Addressing this location uses contents of FSR to address data memory (not a physical register)

RBPU

Program Counter (PC) Least Significant Byte

IRP

INTEDG

RP1

Indirect Data Memory Address Pointer

Unimplemented

PORTB Data Direction Register

Unimplemented

Unimplemented

Unimplemented

— —

GIE

EEPGD

PEIE

T0CS

RP0

T0IE

T0SE

TO

PSA

PD

PS2

Z

PS1

DC

Write Buffer for the upper 5 bits of the Program Counter

INTE

EEPROM Control Register2 (not a physical register)

Reserved maintain clear

RBIE

WRERR

T0IF

WREN

INTF

WR

PS0

C

RBIF

RD

0000 0000

1111 1111

0000 0000

0001 1xxx xxxx xxxx

1111 1111

---0 0000

27

19

26

18

27

31

26

0000 000x

20 x--- x000

41, 42

---- ----

0000 0000

18Fh — Reserved maintain clear

0000 0000

Legend: x

= unknown, u

= unchanged, q

= value depends on condition, - = unimplemented, read as '0', r = reserved.

Shaded locations are unimplemented, read as ‘0’.

Note 1:

The upper byte of the program counter is not directly accessible. PCLATH is a holding register for the PC<12:8> whose contents are transferred to the upper byte of the program counter.

2:

Bits PSPIE and PSPIF are reserved on PIC16F873/876 devices; always maintain these bits clear.

3:

These registers can be addressed from any bank.

4:

PORTD, PORTE, TRISD, and TRISE are not physically implemented on PIC16F873/876 devices; read as ‘0’.

5:

PIR2<6> and PIE2<6> are reserved on these devices; always maintain these bits clear.

41

18

27

27

47

26

31

41

41

41

41

26

20

1998-2013 Microchip Technology Inc.

DS30292D-page 17

PIC16F87X

2.2.2.1

STATUS Register

The STATUS register contains the arithmetic status of the ALU, the RESET status and the bank select bits for data memory.

The STATUS register can be the destination for any instruction, as with any other register. If the STATUS register is the destination for an instruction that affects the Z, DC or C bits, then the write to these three bits is disabled. These bits are set or cleared according to the device logic. Furthermore, the TO and PD bits are not writable, therefore, the result of an instruction with the

STATUS register as destination may be different than intended.

REGISTER 2-1:

For example,

CLRF STATUS

will clear the upper three bits and set the Z bit. This leaves the STATUS register as

000u u1uu

(where u

= unchanged).

It is recommended, therefore, that only

BCF, BSF,

SWAPF

and

MOVWF

instructions are used to alter the

STATUS register, because these instructions do not affect the Z, C or DC bits from the STATUS register. For other instructions not affecting any status bits, see the

“Instruction Set Summary."

Note:

The C and DC bits operate as a borrow and digit borrow bit, respectively, in subtraction. See the

SUBLW

and

SUBWF instructions for examples.

STATUS REGISTER (ADDRESS 03h, 83h, 103h, 183h)

R/W-0

IRP bit 7

R/W-0

RP1

R/W-0

RP0

R-1

TO

R-1

PD

R/W-x

Z

R/W-x

DC

R/W-x

C bit 0 bit 7 bit 6-5 bit 4 bit 3 bit 2 bit 1 bit 0

IRP:

Register Bank Select bit (used for indirect addressing)

1

= Bank 2, 3 (100h - 1FFh)

0

= Bank 0, 1 (00h - FFh)

RP1:RP0

: Register Bank Select bits (used for direct addressing)

11

= Bank 3 (180h - 1FFh)

10

= Bank 2 (100h - 17Fh)

01

= Bank 1 (80h - FFh)

00

= Bank 0 (00h - 7Fh)

Each bank is 128 bytes

TO

: Time-out bit

1

= After power-up,

CLRWDT

instruction, or

SLEEP

instruction

0

= A WDT time-out occurred

PD

: Power-down bit

1

= After power-up or by the

CLRWDT

instruction

0

= By execution of the

SLEEP

instruction

Z

: Zero bit

1

= The result of an arithmetic or logic operation is zero

0

= The result of an arithmetic or logic operation is not zero

DC

: Digit carry/borrow bit (

ADDWF

,

ADDLW,SUBLW,SUBWF

instructions)

(for borrow, the polarity is reversed)

1

= A carry-out from the 4th low order bit of the result occurred

0

= No carry-out from the 4th low order bit of the result

C

: Carry/borrow bit (

ADDWF

,

ADDLW,SUBLW,SUBWF instructions)

1

= A carry-out from the Most Significant bit of the result occurred

0

= No carry-out from the Most Significant bit of the result occurred

Note:

For borrow, the polarity is reversed. A subtraction is executed by adding the two’s complement of the second operand. For rotate (

RRF, RLF

) instructions, this bit is loaded with either the high, or low order bit of the source register.

Legend:

R = Readable bit

- n = Value at POR

W = Writable bit

’1’ = Bit is set

U = Unimplemented bit, read as ‘0’

’0’ = Bit is cleared x = Bit is unknown

1998-2013 Microchip Technology Inc.

DS30292D-page 18

PIC16F87X

2.2.2.2

OPTION_REG Register

The OPTION_REG Register is a readable and writable register, which contains various control bits to configure the TMR0 prescaler/WDT postscaler (single assignable register known also as the prescaler), the External

INT Interrupt, TMR0 and the weak pull-ups on PORTB.

REGISTER 2-2:

Note:

To achieve a 1:1 prescaler assignment for the TMR0 register, assign the prescaler to the Watchdog Timer.

OPTION_REG REGISTER (ADDRESS 81h, 181h)

R/W-1

RBPU bit 7

R/W-1

INTEDG

R/W-1

T0CS

R/W-1

T0SE

R/W-1

PSA

R/W-1

PS2

R/W-1

PS1

R/W-1

PS0 bit 0 bit 7 bit 6 bit 5 bit 4 bit 3 bit 2-0

RBPU:

PORTB Pull-up Enable bit

1

= PORTB pull-ups are disabled

0

= PORTB pull-ups are enabled by individual port latch values

INTEDG

: Interrupt Edge Select bit

1

= Interrupt on rising edge of RB0/INT pin

0

= Interrupt on falling edge of RB0/INT pin

T0CS

: TMR0 Clock Source Select bit

1

= Transition on RA4/T0CKI pin

0

= Internal instruction cycle clock (CLKOUT)

T0SE

: TMR0 Source Edge Select bit

1

= Increment on high-to-low transition on RA4/T0CKI pin

0

= Increment on low-to-high transition on RA4/T0CKI pin

PSA

: Prescaler Assignment bit

1

= Prescaler is assigned to the WDT

0

= Prescaler is assigned to the Timer0 module

PS2:PS0

: Prescaler Rate Select bits

Bit Value TMR0 Rate WDT Rate

000

001

010

011

100

101

110

111

1 : 2

1 : 4

1 : 8

1 : 16

1 : 32

1 : 64

1 : 128

1 : 256

1 : 1

1 : 2

1 : 4

1 : 8

1 : 16

1 : 32

1 : 64

1 : 128

Legend:

R = Readable bit

- n = Value at POR

W = Writable bit

’1’ = Bit is set

U = Unimplemented bit, read as ‘0’

’0’ = Bit is cleared x = Bit is unknown

Note:

When using low voltage ICSP programming (LVP) and the pull-ups on PORTB are enabled, bit 3 in the TRISB register must be cleared to disable the pull-up on RB3 and ensure the proper operation of the device

1998-2013 Microchip Technology Inc.

DS30292D-page 19

PIC16F87X

2.2.2.3

INTCON Register

The INTCON Register is a readable and writable register, which contains various enable and flag bits for the

TMR0 register overflow, RB Port change and External

RB0/INT pin interrupts.

REGISTER 2-3:

Note:

Interrupt flag bits are set when an interrupt condition occurs, regardless of the state of its corresponding enable bit or the global enable bit, GIE (INTCON<7>). User software should ensure the appropriate interrupt flag bits are clear prior to enabling an interrupt.

INTCON REGISTER (ADDRESS 0Bh, 8Bh, 10Bh, 18Bh)

R/W-0

GIE bit 7

R/W-0

PEIE

R/W-0

T0IE

R/W-0

INTE

R/W-0

RBIE

R/W-0

T0IF

R/W-0

INTF

R/W-x

RBIF bit 0 bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0

GIE:

Global Interrupt Enable bit

1

= Enables all unmasked interrupts

0

= Disables all interrupts

PEIE

: Peripheral Interrupt Enable bit

1

= Enables all unmasked peripheral interrupts

0

= Disables all peripheral interrupts

T0IE

: TMR0 Overflow Interrupt Enable bit

1

= Enables the TMR0 interrupt

0

= Disables the TMR0 interrupt

INTE

: RB0/INT External Interrupt Enable bit

1

= Enables the RB0/INT external interrupt

0

= Disables the RB0/INT external interrupt

RBIE

: RB Port Change Interrupt Enable bit

1

= Enables the RB port change interrupt

0

= Disables the RB port change interrupt

T0IF

: TMR0 Overflow Interrupt Flag bit

1

= TMR0 register has overflowed (must be cleared in software)

0

= TMR0 register did not overflow

INTF

: RB0/INT External Interrupt Flag bit

1

= The RB0/INT external interrupt occurred (must be cleared in software)

0

= The RB0/INT external interrupt did not occur

RBIF

: RB Port Change Interrupt Flag bit

1

= At least one of the RB7:RB4 pins changed state; a mismatch condition will continue to set the bit. Reading PORTB will end the mismatch condition and allow the bit to be cleared

(must be cleared in software).

0

= None of the RB7:RB4 pins have changed state

Legend:

R = Readable bit

- n = Value at POR

W = Writable bit

’1’ = Bit is set

U = Unimplemented bit, read as ‘0’

’0’ = Bit is cleared x = Bit is unknown

1998-2013 Microchip Technology Inc.

DS30292D-page 20

PIC16F87X

2.2.2.4

PIE1 Register

The PIE1 register contains the individual enable bits for the peripheral interrupts.

REGISTER 2-4:

Note:

Bit PEIE (INTCON<6>) must be set to enable any peripheral interrupt.

PIE1 REGISTER (ADDRESS 8Ch)

R/W-0

PSPIE

(1)

bit 7

R/W-0

ADIE

R/W-0

RCIE

R/W-0

TXIE

R/W-0

SSPIE

R/W-0 R/W-0 R/W-0

CCP1IE TMR2IE TMR1IE bit 0 bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0

PSPIE

(1)

:

Parallel Slave Port Read/Write Interrupt Enable bit

1

= Enables the PSP read/write interrupt

0

= Disables the PSP read/write interrupt

ADIE

: A/D Converter Interrupt Enable bit

1

= Enables the A/D converter interrupt

0

= Disables the A/D converter interrupt

RCIE

: USART Receive Interrupt Enable bit

1

= Enables the USART receive interrupt

0

= Disables the USART receive interrupt

TXIE

: USART Transmit Interrupt Enable bit

1

= Enables the USART transmit interrupt

0

= Disables the USART transmit interrupt

SSPIE

: Synchronous Serial Port Interrupt Enable bit

1

= Enables the SSP interrupt

0

= Disables the SSP interrupt

CCP1IE

: CCP1 Interrupt Enable bit

1

= Enables the CCP1 interrupt

0

= Disables the CCP1 interrupt

TMR2IE

: TMR2 to PR2 Match Interrupt Enable bit

1

= Enables the TMR2 to PR2 match interrupt

0

= Disables the TMR2 to PR2 match interrupt

TMR1IE

: TMR1 Overflow Interrupt Enable bit

1

= Enables the TMR1 overflow interrupt

0

= Disables the TMR1 overflow interrupt

Note 1:

PSPIE is reserved on PIC16F873/876 devices; always maintain this bit clear.

Legend:

R = Readable bit

- n = Value at POR

W = Writable bit

’1’ = Bit is set

U = Unimplemented bit, read as ‘0’

’0’ = Bit is cleared x = Bit is unknown

1998-2013 Microchip Technology Inc.

DS30292D-page 21

PIC16F87X

2.2.2.5

PIR1 Register

The PIR1 register contains the individual flag bits for the peripheral interrupts.

REGISTER 2-5: PIR1 REGISTER (ADDRESS 0Ch)

R/W-0

PSPIF

(1)

bit 7

R/W-0

ADIF

R-0

RCIF

R-0

TXIF

Note:

Interrupt flag bits are set when an interrupt condition occurs, regardless of the state of its corresponding enable bit or the global enable bit, GIE (INTCON<7>). User software should ensure the appropriate interrupt bits are clear prior to enabling an interrupt.

R/W-0

SSPIF

R/W-0 R/W-0 R/W-0

CCP1IF TMR2IF TMR1IF bit 0 bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0

PSPIF

(1)

:

Parallel Slave Port Read/Write Interrupt Flag bit

1

= A read or a write operation has taken place (must be cleared in software)

0

= No read or write has occurred

ADIF

: A/D Converter Interrupt Flag bit

1

= An A/D conversion completed

0

= The A/D conversion is not complete

RCIF

: USART Receive Interrupt Flag bit

1

= The USART receive buffer is full

0

= The USART receive buffer is empty

TXIF

: USART Transmit Interrupt Flag bit

1

= The USART transmit buffer is empty

0

= The USART transmit buffer is full

SSPIF

: Synchronous Serial Port (SSP) Interrupt Flag

1

= The SSP interrupt condition has occurred, and must be cleared in software before returning from the Interrupt Service Routine. The conditions that will set this bit are:

• SPI

• I

- A transmission/reception has taken place.

2

C Slave

- A transmission/reception has taken place.

• I

2

C Master

- A transmission/reception has taken place.

- The initiated START condition was completed by the SSP module.

- The initiated STOP condition was completed by the SSP module.

- The initiated Restart condition was completed by the SSP module.

- The initiated Acknowledge condition was completed by the SSP module.

- A START condition occurred while the SSP module was idle (Multi-Master system).

- A STOP condition occurred while the SSP module was idle (Multi-Master system).

0

= No SSP interrupt condition has occurred.

CCP1IF

: CCP1 Interrupt Flag bit

Capture mode:

1

= A TMR1 register capture occurred (must be cleared in software)

0

= No TMR1 register capture occurred

Compare mode:

1

= A TMR1 register compare match occurred (must be cleared in software)

0

= No TMR1 register compare match occurred

PWM mode:

Unused in this mode

TMR2IF

: TMR2 to PR2 Match Interrupt Flag bit

1

= TMR2 to PR2 match occurred (must be cleared in software)

0

= No TMR2 to PR2 match occurred

TMR1IF

: TMR1 Overflow Interrupt Flag bit

1

= TMR1 register overflowed (must be cleared in software)

0

= TMR1 register did not overflow

Note 1:

PSPIF is reserved on PIC16F873/876 devices; always maintain this bit clear.

Legend:

R = Readable bit

- n = Value at POR

W = Writable bit

’1’ = Bit is set

U = Unimplemented bit, read as ‘0’

’0’ = Bit is cleared x = Bit is unknown

1998-2013 Microchip Technology Inc.

DS30292D-page 22

PIC16F87X

2.2.2.6

PIE2 Register

The PIE2 register contains the individual enable bits for the CCP2 peripheral interrupt, the SSP bus collision interrupt, and the EEPROM write operation interrupt.

REGISTER 2-6:

bit 7 bit 6 bit 5 bit 4 bit 3 bit 2-1 bit 0

PIE2 REGISTER (ADDRESS 8Dh)

U-0 bit 7

R/W-0

Reserved

U-0

R/W-0

EEIE

R/W-0

BCLIE

U-0

U-0

R/W-0

CCP2IE bit 0

Unimplemented:

Read as '0'

Reserved

: Always maintain this bit clear

Unimplemented:

Read as '0'

EEIE

: EEPROM Write Operation Interrupt Enable

1

= Enable EE Write Interrupt

0

= Disable EE Write Interrupt

BCLIE

: Bus Collision Interrupt Enable

1

= Enable Bus Collision Interrupt

0

= Disable Bus Collision Interrupt

Unimplemented:

Read as '0'

CCP2IE

: CCP2 Interrupt Enable bit

1

= Enables the CCP2 interrupt

0

= Disables the CCP2 interrupt

Legend:

R = Readable bit

- n = Value at POR

W = Writable bit

’1’ = Bit is set

U = Unimplemented bit, read as ‘0’

’0’ = Bit is cleared x = Bit is unknown

1998-2013 Microchip Technology Inc.

DS30292D-page 23

PIC16F87X

2.2.2.7

PIR2 Register

The PIR2 register contains the flag bits for the CCP2 interrupt, the SSP bus collision interrupt and the

EEPROM write operation interrupt.

.

Note:

Interrupt flag bits are set when an interrupt condition occurs, regardless of the state of its corresponding enable bit or the global enable bit, GIE (INTCON<7>). User software should ensure the appropriate interrupt flag bits are clear prior to enabling an interrupt.

REGISTER 2-7:

bit 7 bit 6 bit 5 bit 4 bit 3 bit 2-1 bit 0

PIR2 REGISTER (ADDRESS 0Dh)

U-0 bit 7

R/W-0

Reserved

U-0

R/W-0

EEIF

R/W-0

BCLIF

U-0

U-0

R/W-0

CCP2IF bit 0

Unimplemented:

Read as '0'

Reserved

: Always maintain this bit clear

Unimplemented:

Read as '0'

EEIF

: EEPROM Write Operation Interrupt Flag bit

1

= The write operation completed (must be cleared in software)

0

= The write operation is not complete or has not been started

BCLIF

: Bus Collision Interrupt Flag bit

1

= A bus collision has occurred in the SSP, when configured for I2C Master mode

0

= No bus collision has occurred

Unimplemented:

Read as '0'

CCP2IF

: CCP2 Interrupt Flag bit

Capture mode:

1

= A TMR1 register capture occurred (must be cleared in software)

0

= No TMR1 register capture occurred

Compare mode:

1

= A TMR1 register compare match occurred (must be cleared in software)

0

= No TMR1 register compare match occurred

PWM mode:

Unused

Legend:

R = Readable bit

- n = Value at POR

W = Writable bit

’1’ = Bit is set

U = Unimplemented bit, read as ‘0’

’0’ = Bit is cleared x = Bit is unknown

1998-2013 Microchip Technology Inc.

DS30292D-page 24

PIC16F87X

2.2.2.8

PCON Register

The Power Control (PCON) Register contains flag bits to allow differentiation between a Power-on Reset

(POR), a Brown-out Reset (BOR), a Watchdog Reset

(WDT), and an external MCLR Reset.

Note:

BOR is unknown on POR. It must be set by the user and checked on subsequent

RESETS to see if BOR is clear, indicating a brown-out has occurred. The BOR status bit is a “don’t care” and is not predictable if the brown-out circuit is disabled (by clearing the BODEN bit in the configuration word).

REGISTER 2-8:

bit 7-2 bit 1 bit 0

PCON REGISTER (ADDRESS 8Eh)

U-0 bit 7

U-0

U-0

U-0

U-0

U-0

R/W-0

POR

R/W-1

BOR bit 0

Unimplemented:

Read as '0'

POR

: Power-on Reset Status bit

1

= No Power-on Reset occurred

0

= A Power-on Reset occurred (must be set in software after a Power-on Reset occurs)

BOR

: Brown-out Reset Status bit

1

= No Brown-out Reset occurred

0

= A Brown-out Reset occurred (must be set in software after a Brown-out Reset occurs)

Legend:

R = Readable bit

- n = Value at POR

W = Writable bit

’1’ = Bit is set

U = Unimplemented bit, read as ‘0’

’0’ = Bit is cleared x = Bit is unknown

1998-2013 Microchip Technology Inc.

DS30292D-page 25

PIC16F87X

2.3

PCL and PCLATH

The program counter (PC) is 13-bits wide. The low byte comes from the PCL register, which is a readable and writable register. The upper bits (PC<12:8>) are not readable, but are indirectly writable through the

PCLATH register. On any RESET, the upper bits of the

PC will be cleared. Figure 2-5 shows the two situations for the loading of the PC. The upper example in the figure shows how the PC is loaded on a write to PCL

(PCLATH<4:0>

PCH). The lower example in the figure shows how the PC is loaded during a

CALL

or

GOTO instruction (PCLATH<4:3>

PCH).

FIGURE 2-5: LOADING OF PC IN

DIFFERENT SITUATIONS

PCH PCL

PC

12

5

8 7

PCLATH<4:0>

8

0

Instruction with

PCL as

Destination

ALU

PCLATH

PC

PCH

12 11 10

2

8 7

PCLATH<4:3>

PCL

11

0

GOTO,CALL

Opcode <10:0>

PCLATH

2.3.1

COMPUTED GOTO

A computed

GOTO

is accomplished by adding an offset to the program counter (

ADDWF PCL

). When doing a table read using a computed

GOTO

method, care should be exercised if the table location crosses a PCL memory boundary (each 256 byte block). Refer to the application note,

“Implementing a Table Read"

(AN556).

2.3.2

STACK

The PIC16F87X family has an 8-level deep x 13-bit wide hardware stack. The stack space is not part of either program or data space and the stack pointer is not readable or writable. The PC is PUSHed onto the stack when a

CALL

instruction is executed, or an interrupt causes a branch. The stack is POPed in the event of a

RETURN,RETLW

or a

RETFIE

instruction execution.

PCLATH is not affected by a PUSH or POP operation.

The stack operates as a circular buffer. This means that after the stack has been PUSHed eight times, the ninth push overwrites the value that was stored from the first push. The tenth push overwrites the second push (and so on).

DS30292D-page 26

Note 1:

There are no status bits to indicate stack overflow or stack underflow conditions.

2:

There are no instructions/mnemonics called PUSH or POP. These are actions that occur from the execution of the

CALL, RETURN, RETLW

and

RETFIE instructions, or the vectoring to an interrupt address.

2.4

Program Memory Paging

All PIC16F87X devices are capable of addressing a continuous 8K word block of program memory. The

CALL

and

GOTO

instructions provide only 11 bits of address to allow branching within any 2K program memory page. When doing a

CALL

or

GOTO

instruction, the upper 2 bits of the address are provided by

PCLATH<4:3>. When doing a

CALL

or

GOTO

instruction, the user must ensure that the page select bits are programmed so that the desired program memory page is addressed. If a return from a

CALL

instruction

(or interrupt) is executed, the entire 13-bit PC is popped off the stack. Therefore, manipulation of the

PCLATH<4:3> bits is not required for the return instructions (which POPs the address from the stack).

Note:

The contents of the PCLATH register are unchanged after a

RETURN

or

RETFIE instruction is executed. The user must rewrite the contents of the PCLATH register for any subsequent subroutine calls or

GOTO

instructions.

Example 2-1 shows the calling of a subroutine in page 1 of the program memory. This example assumes that PCLATH is saved and restored by the Interrupt

Service Routine (if interrupts are used).

EXAMPLE 2-1: CALL OF A SUBROUTINE

IN PAGE 1 FROM PAGE 0

ORG 0x500

BCF PCLATH,4

BSF PCLATH,3 ;Select page 1

;(800h-FFFh)

CALL SUB1_P1 ;Call subroutine in

: ;page 1 (800h-FFFh)

:

ORG 0x900 ;page 1 (800h-FFFh)

SUB1_P1

: ;called subroutine

;page 1 (800h-FFFh)

:

RETURN ;return to

;Call subroutine

;in page 0

;(000h-7FFh)

1998-2013 Microchip Technology Inc.

2.5

Indirect Addressing, INDF and

FSR Registers

The INDF register is not a physical register. Addressing the INDF register will cause indirect addressing.

Indirect addressing is possible by using the INDF register. Any instruction using the INDF register actually accesses the register pointed to by the File Select Register, FSR. Reading the INDF register itself, indirectly

(FSR = '0') will read 00h. Writing to the INDF register indirectly results in a no operation (although status bits may be affected). An effective 9-bit address is obtained by concatenating the 8-bit FSR register and the IRP bit

(STATUS<7>), as shown in Figure 2-6.

FIGURE 2-6: DIRECT/INDIRECT ADDRESSING

RP1:RP0

Direct Addressing

6

From Opcode

0

PIC16F87X

A simple program to clear RAM locations 20h-2Fh using indirect addressing is shown in Example 2-2.

EXAMPLE 2-2:

NEXT

INDIRECT ADDRESSING

MOVLW 0x20

MOVWF FSR

;initialize pointer

;to RAM

CLRF INDF ;clear INDF register

INCF FSR,F ;inc pointer

BTFSS FSR,4 ;all done?

GOTO NEXT ;no clear next

CONTINUE

: ;yes continue

IRP

7

Indirect Addressing

FSR register

0

Bank Select Location Select

00h

00 01

80h

10

100h

11

180h

Bank Select

Location Select

Data

Memory

(1)

7Fh

Bank 0

FFh

Bank 1

17Fh

Bank 2

1FFh

Bank 3

Note 1:

For register file map detail, see Figure 2-3.

1998-2013 Microchip Technology Inc.

DS30292D-page 27

PIC16F87X

NOTES:

DS30292D-page 28

1998-2013 Microchip Technology Inc.

3.0

I/O PORTS

Some pins for these I/O ports are multiplexed with an alternate function for the peripheral features on the device. In general, when a peripheral is enabled, that pin may not be used as a general purpose I/O pin.

Additional information on I/O ports may be found in the

PIC

®

MCU Mid-Range Reference Manual, (DS33023).

3.1

PORTA and the TRISA Register

PORTA is a 6-bit wide, bi-directional port. The corresponding data direction register is TRISA. Setting a

TRISA bit (= 1) will make the corresponding PORTA pin an input (i.e., put the corresponding output driver in a

Hi-Impedance mode). Clearing a TRISA bit (= 0) will make the corresponding PORTA pin an output (i.e., put the contents of the output latch on the selected pin).

Reading the PORTA register reads the status of the pins, whereas writing to it will write to the port latch. All write operations are read-modify-write operations.

Therefore, a write to a port implies that the port pins are read, the value is modified and then written to the port data latch.

Pin RA4 is multiplexed with the Timer0 module clock input to become the RA4/T0CKI pin. The RA4/T0CKI pin is a Schmitt Trigger input and an open drain output.

All other PORTA pins have TTL input levels and full

CMOS output drivers.

Other PORTA pins are multiplexed with analog inputs and analog V

REF

input. The operation of each pin is selected by clearing/setting the control bits in the

ADCON1 register (A/D Control Register1).

Note:

On a Power-on Reset, these pins are configured as analog inputs and read as '0'.

The TRISA register controls the direction of the RA pins, even when they are being used as analog inputs.

The user must ensure the bits in the TRISA register are maintained set when using them as analog inputs.

EXAMPLE 3-1: INITIALIZING PORTA

BCF

BCF

CLRF

STATUS, RP0 ;

STATUS, RP1 ; Bank0

PORTA ; Initialize PORTA by

; clearing output

BSF STATUS, RP0

MOVLW 0x06

; data latches

; Select Bank 1

; Configure all pins

MOVWF ADCON1

MOVLW 0xCF

; as digital inputs

; Value used to

MOVWF TRISA

; initialize data

; direction

; Set RA<3:0> as inputs

; RA<5:4> as outputs

; TRISA<7:6>are always

; read as '0'.

PIC16F87X

FIGURE 3-1:

Data

Bus

Data Latch

D Q

BLOCK DIAGRAM OF

RA3:RA0 AND RA5 PINS

V

DD

WR

Port

CK

Q

P

I/O pin

(1)

TRIS Latch

D Q

N

WR

TRIS

CK Q

Analog

Input

Mode

V

SS

RD

TRIS

TTL

Input

Buffer

Q D

EN

RD Port

To A/D Converter

Note 1:

I/O pins have protection diodes to V

DD

and V

SS

.

FIGURE 3-2:

Data

Bus

WR

Port

Data Latch

D Q

BLOCK DIAGRAM OF

RA4/T0CKI PIN

CK Q

N

I/O pin

(1)

TRIS Latch

D Q

V

SS

WR

TRIS

CK

Q

Schmitt

Trigger

Input

Buffer

RD

TRIS

Q D

RD Port

TMR0 Clock Input

Note 1:

I/O pin has protection diodes to V

SS

only.

1998-2013 Microchip Technology Inc.

DS30292D-page 29

PIC16F87X

TABLE 3-1: PORTA FUNCTIONS

Name Bit# Buffer Function

RA0/AN0

RA1/AN1 bit0 bit1

TTL Input/output or analog input.

TTL Input/output or analog input.

RA2/AN2

RA3/AN3/V

RA4/T0CKI

REF

RA5/SS/AN4 bit2 bit3 bit4 bit5

TTL Input/output or analog input.

TTL Input/output or analog input or V

REF.

ST Input/output or external clock input for Timer0. Output is open drain type.

TTL Input/output or slave select input for synchronous serial port or analog input.

Legend: TTL = TTL input, ST = Schmitt Trigger input

TABLE 3-2: SUMMARY OF REGISTERS ASSOCIATED WITH PORTA

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR,

BOR

Value on all other

RESETS

05h PORTA

85h TRISA

— RA5 RA4 RA3 RA2

— PORTA Data Direction Register

RA1 RA0

--0x 0000 --0u 0000

--11 1111 --11 1111

9Fh ADCON1 ADFM — — — PCFG3 PCFG2 PCFG1 PCFG0

--0- 0000 --0- 0000

Legend: x

= unknown, u

= unchanged,

-

= unimplemented locations read as '0'.

Shaded cells are not used by PORTA.

Note:

When using the SSP module in SPI Slave mode and SS enabled, the A/D converter must be set to one of the following modes, where PCFG3:PCFG0 =

0100,0101, 011x, 1101, 1110, 1111

.

DS30292D-page 30

1998-2013 Microchip Technology Inc.

3.2

PORTB and the TRISB Register

PORTB is an 8-bit wide, bi-directional port. The corresponding data direction register is TRISB. Setting a

TRISB bit (= 1) will make the corresponding PORTB pin an input (i.e., put the corresponding output driver in a

Hi-Impedance mode). Clearing a TRISB bit (= 0) will make the corresponding PORTB pin an output (i.e., put the contents of the output latch on the selected pin).

Three pins of PORTB are multiplexed with the Low

Voltage Programming function: RB3/PGM, RB6/PGC and RB7/PGD. The alternate functions of these pins are described in the Special Features Section.

Each of the PORTB pins has a weak internal pull-up. A single control bit can turn on all the pull-ups. This is performed by clearing bit RBPU (OPTION_REG<7>). The weak pull-up is automatically turned off when the port pin is configured as an output. The pull-ups are disabled on a Power-on Reset.

FIGURE 3-3:

RBPU

(2)

Data Bus

WR Port

WR TRIS

BLOCK DIAGRAM OF

RB3:RB0 PINS

V

DD

P

Weak

Pull-up

Data Latch

D Q

I/O pin

(1)

CK

TRIS Latch

D Q

CK

TTL

Input

Buffer

RD TRIS

Q D

RD Port

EN

RB0/INT

RB3/PGM

Schmitt Trigger

Buffer

RD Port

Note 1:

I/O pins have diode protection to V

DD

and V

SS

.

2:

To enable weak pull-ups, set the appropriate TRIS bit(s) and clear the RBPU bit (OPTION_REG<7>).

Four of the PORTB pins, RB7:RB4, have an interrupton-change feature. Only pins configured as inputs can cause this interrupt to occur (i.e., any RB7:RB4 pin configured as an output is excluded from the interrupton-change comparison). The input pins (of RB7:RB4) are compared with the old value latched on the last read of PORTB. The “mismatch” outputs of RB7:RB4 are OR’ed together to generate the RB Port Change

Interrupt with flag bit RBIF (INTCON<0>).

PIC16F87X

This interrupt can wake the device from SLEEP. The user, in the Interrupt Service Routine, can clear the interrupt in the following manner: a) Any read or write of PORTB. This will end the mismatch condition.

b) Clear flag bit RBIF.

A mismatch condition will continue to set flag bit RBIF.

Reading PORTB will end the mismatch condition and allow flag bit RBIF to be cleared.

The interrupt-on-change feature is recommended for wake-up on key depression operation and operations where PORTB is only used for the interrupt-on-change feature. Polling of PORTB is not recommended while using the interrupt-on-change feature.

This interrupt-on-mismatch feature, together with software configureable pull-ups on these four pins, allow easy interface to a keypad and make it possible for wake-up on key depression. Refer to the Embedded

Control Handbook,

“Implementing Wake-up on Key

Strokes”

(AN552).

RB0/INT is an external interrupt input pin and is configured using the INTEDG bit (OPTION_REG<6>).

RB0/INT is discussed in detail in Section 12.10.1.

FIGURE 3-4:

RBPU

(2)

Data Bus

WR Port

BLOCK DIAGRAM OF

RB7:RB4 PINS

V

DD

P

Weak

Pull-up

Data Latch

D Q

I/O pin

(1)

CK

TRIS Latch

D Q

WR TRIS

CK

TTL

Input

Buffer ST

Buffer

RD TRIS

Q

Latch

D

RD Port

Set RBIF

EN

Q1

Q D

From other

RB7:RB4 pins

EN

RD Port

Q3

RB7:RB6

In Serial Programming Mode

Note 1:

I/O pins have diode protection to V

DD

and V

SS

.

2:

To enable weak pull-ups, set the appropriate TRIS bit(s) and clear the RBPU bit (OPTION_REG<7>).

1998-2013 Microchip Technology Inc.

DS30292D-page 31

PIC16F87X

TABLE 3-3: PORTB FUNCTIONS

Name Bit# Buffer Function

RB0/INT

RB1

RB2

RB3/PGM

(3)

bit0 bit1 bit2 bit3

TTL/ST

TTL

TTL

TTL

(1)

Input/output pin or external interrupt input. Internal software programmable weak pull-up.

Input/output pin. Internal software programmable weak pull-up.

Input/output pin. Internal software programmable weak pull-up.

RB4

RB5

RB6/PGC

RB7/PGD bit4 bit5 bit6 bit7

TTL

TTL

TTL/ST

TTL/ST

(2)

(2)

Input/output pin or programming pin in LVP mode. Internal software programmable weak pull-up.

Input/output pin (with interrupt-on-change). Internal software programmable weak pull-up.

Input/output pin (with interrupt-on-change). Internal software programmable weak pull-up.

Input/output pin (with interrupt-on-change) or In-Circuit Debugger pin.

Internal software programmable weak pull-up. Serial programming clock.

Input/output pin (with interrupt-on-change) or In-Circuit Debugger pin.

Internal software programmable weak pull-up. Serial programming data.

Legend: TTL = TTL input, ST = Schmitt Trigger input

Note 1:

This buffer is a Schmitt Trigger input when configured as the external interrupt.

2:

This buffer is a Schmitt Trigger input when used in Serial Programming mode.

3:

Low Voltage ICSP Programming (LVP) is enabled by default, which disables the RB3 I/O function. LVP must be disabled to enable RB3 as an I/O pin and allow maximum compatibility to the other 28-pin and

40-pin mid-range devices.

TABLE 3-4: SUMMARY OF REGISTERS ASSOCIATED WITH PORTB

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR,

BOR

Value on all other

RESETS

06h, 106h PORTB

86h, 186h TRISB

RB7 RB6 RB5 RB4 RB3 RB2 RB1 RB0 xxxx xxxx uuuu uuuu

PORTB Data Direction Register

1111 1111 1111 1111

81h, 181h OPTION_REG RBPU INTEDG T0CS T0SE PSA PS2 PS1 PS0

1111 1111 1111 1111

Legend: x

= unknown, u

= unchanged. Shaded cells are not used by PORTB.

DS30292D-page 32

1998-2013 Microchip Technology Inc.

3.3

PORTC and the TRISC Register

PORTC is an 8-bit wide, bi-directional port. The corresponding data direction register is TRISC.

Setting a

TRISC bit (= 1) will make the corresponding PORTC pin an input (i.e., put the corresponding output driver in a Hi-Impedance mode). Clearing a TRISC bit (= 0) will make the corresponding PORTC pin an output (i.e., put the contents of the output latch on the selected pin).

PORTC is multiplexed with several peripheral functions

(Table 3-5). PORTC pins have Schmitt Trigger input buffers.

When the I

2

C module is enabled, the PORTC<4:3> pins can be configured with normal I

2

C levels, or with

SMBus levels by using the CKE bit (SSPSTAT<6>).

When enabling peripheral functions, care should be taken in defining TRIS bits for each PORTC pin. Some peripherals override the TRIS bit to make a pin an output, while other peripherals override the TRIS bit to make a pin an input. Since the TRIS bit override is in effect while the peripheral is enabled, read-modifywrite instructions (

BSF, BCF, XORWF

) with TRISC as destination, should be avoided. The user should refer to the corresponding peripheral section for the correct

TRIS bit settings.

FIGURE 3-5:

Port/Peripheral Select

(2)

Peripheral Data Out

Data Bus

WR

Port

D

CK

Q

Q

Data Latch

D Q

WR

TRIS

CK

Q

TRIS Latch

RD

TRIS

PORTC BLOCK DIAGRAM

(PERIPHERAL OUTPUT

OVERRIDE) RC<2:0>,

RC<7:5>

0

1

V

DD

P

I/O pin

(1)

N

V

SS

Schmitt

Trigger

Peripheral

OE

(3)

Q D

EN

RD

Port

Peripheral Input

Note 1:

I/O pins have diode protection to V

DD

and V

SS

.

2:

Port/Peripheral select signal selects between port data and peripheral output.

3:

Peripheral OE (output enable) is only activated if peripheral select is active.

PIC16F87X

FIGURE 3-6: PORTC BLOCK DIAGRAM

(PERIPHERAL OUTPUT

OVERRIDE) RC<4:3>

Port/Peripheral Select

(2)

Peripheral Data Out

Data Bus

WR

Port

WR

TRIS

D Q

CK Q

Data Latch

D Q

CK

Q

TRIS Latch

RD

TRIS

0

1

V

P

N

DD

I/O pin

(1)

Vss

Schmitt

Trigger

Peripheral

OE

(3)

RD

Port

SSPl Input

Q D

EN

0

Schmitt

Trigger with

SMBus levels

1

CKE

SSPSTAT<6>

Note 1:

I/O pins have diode protection to V

DD

and V

SS

.

2:

Port/Peripheral select signal selects between port data and peripheral output.

3:

Peripheral OE (output enable) is only activated if peripheral select is active.

1998-2013 Microchip Technology Inc.

DS30292D-page 33

PIC16F87X

TABLE 3-5: PORTC FUNCTIONS

Name

RC0/T1OSO/T1CKI

RC1/T1OSI/CCP2

RC2/CCP1

RC3/SCK/SCL

RC4/SDI/SDA

RC5/SDO

RC6/TX/CK

RC7/RX/DT

Bit# Buffer Type

bit0 bit1

ST

ST bit2 bit3 bit4 bit5 bit6 bit7

ST

ST

ST

ST

ST

ST

Function

Input/output port pin or Timer1 oscillator output/Timer1 clock input.

Input/output port pin or Timer1 oscillator input or Capture2 input/

Compare2 output/PWM2 output.

Input/output port pin or Capture1 input/Compare1 output/

PWM1 output.

RC3 can also be the synchronous serial clock for both SPI and I

2

C modes.

RC4 can also be the SPI Data In (SPI mode) or data I/O (I

2

C mode).

Input/output port pin or Synchronous Serial Port data output.

Input/output port pin or USART Asynchronous Transmit or

Synchronous Clock.

Input/output port pin or USART Asynchronous Receive or

Synchronous Data.

Legend: ST = Schmitt Trigger input

TABLE 3-6: SUMMARY OF REGISTERS ASSOCIATED WITH PORTC

Address

07h

87h

Name

PORTC

TRISC

Bit 7

RC7

Bit 6

RC6

Legend: x

= unknown, u

= unchanged

Bit 5

RC5

Bit 4

RC4

PORTC Data Direction Register

Bit 3

RC3

Bit 2

RC2

Bit 1

RC1

Bit 0

Value on:

POR,

BOR

Value on all other

RESETS

RC0 xxxx xxxx uuuu uuuu

1111 1111 1111 1111

DS30292D-page 34

1998-2013 Microchip Technology Inc.

3.4

PORTD and TRISD Registers

PORTD and TRISD are not implemented on the

PIC16F873 or PIC16F876.

PORTD is an 8-bit port with Schmitt Trigger input buffers. Each pin is individually configureable as an input or output.

PORTD can be configured as an 8-bit wide microprocessor port (parallel slave port) by setting control bit

PSPMODE (TRISE<4>). In this mode, the input buffers are TTL.

PIC16F87X

FIGURE 3-7:

Data

Bus

Data Latch

D Q

PORTD BLOCK DIAGRAM

(IN I/O PORT MODE)

I/O pin

(1)

WR

Port

CK

TRIS Latch

D Q

WR

TRIS

CK

Schmitt

Trigger

Input

Buffer

RD

TRIS

Q D

RD Port

Note 1:

I/O pins have protection diodes to V

DD

and V

SS

.

TABLE 3-7: PORTD FUNCTIONS

Name Bit# Buffer Type Function

RD0/PSP0

RD1/PSP1

RD2/PSP2

RD3/PSP3

RD4/PSP4

RD5/PSP5

RD6/PSP6

RD7/PSP7 bit0 bit1 bit2 bit3 bit4 bit5 bit6 bit7

ST/TTL

(1)

ST/TTL

(1)

ST/TTL

(1)

ST/TTL

(1)

ST/TTL

(1)

ST/TTL

(1)

ST/TTL

(1)

ST/TTL

(1)

Input/output port pin or parallel slave port bit0.

Input/output port pin or parallel slave port bit1.

Input/output port pin or parallel slave port bit2.

Input/output port pin or parallel slave port bit3.

Input/output port pin or parallel slave port bit4.

Input/output port pin or parallel slave port bit5.

Input/output port pin or parallel slave port bit6.

Input/output port pin or parallel slave port bit7.

Legend: ST = Schmitt Trigger input, TTL = TTL input

Note 1:

Input buffers are Schmitt Triggers when in I/O mode and TTL buffers when in Parallel Slave Port mode.

TABLE 3-8: SUMMARY OF REGISTERS ASSOCIATED WITH PORTD

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR,

BOR

Value on all other

RESETS

08h

88h

PORTD RD7 RD6 RD5 RD4

TRISD PORTD Data Direction Register

RD3 RD2 RD1 RD0 xxxx xxxx uuuu uuuu

1111 1111 1111 1111

89h TRISE IBF OBF IBOV PSPMODE — PORTE Data Direction Bits

0000 -111 0000 -111

Legend: x

= unknown, u

= unchanged,

-

= unimplemented, read as '0'. Shaded cells are not used by PORTD.

1998-2013 Microchip Technology Inc.

DS30292D-page 35

PIC16F87X

3.5

PORTE and TRISE Register

PORTE and TRISE are not implemented on the

PIC16F873 or PIC16F876.

PORTE has three pins (RE0/RD/AN5, RE1/WR/AN6, and RE2/CS/AN7) which are individually configureable as inputs or outputs. These pins have Schmitt Trigger input buffers.

The PORTE pins become the I/O control inputs for the microprocessor port when bit PSPMODE (TRISE<4>) is set. In this mode, the user must make certain that the

TRISE<2:0> bits are set, and that the pins are configured as digital inputs. Also ensure that ADCON1 is configured for digital I/O. In this mode, the input buffers are TTL.

Register 3-1 shows the TRISE register, which also con-

trols the parallel slave port operation.

PORTE pins are multiplexed with analog inputs. When selected for analog input, these pins will read as '0's.

TRISE controls the direction of the RE pins, even when they are being used as analog inputs. The user must make sure to keep the pins configured as inputs when using them as analog inputs.

Note:

On a Power-on Reset, these pins are configured as analog inputs, and read as ‘0’.

FIGURE 3-8:

Data

Bus

WR

Port

Data Latch

D Q

PORTE BLOCK DIAGRAM

(IN I/O PORT MODE)

I/O pin

(1)

CK

TRIS Latch

D Q

WR

TRIS

CK

Schmitt

Trigger

Input

Buffer

RD

TRIS

RD Port

Q D

Note 1:

I/O pins have protection diodes to V

DD

and V

SS

.

TABLE 3-9: PORTE FUNCTIONS

Name Bit# Buffer Type Function

RE0/RD/AN5

RE1/WR/AN6 bit0 bit1

ST/TTL

ST/TTL

(1)

(1)

I/O port pin or read control input in Parallel Slave Port mode or analog input:

RD

1

= Idle

0

= Read operation. Contents of PORTD register are output to PORTD

I/O pins (if chip selected)

I/O port pin or write control input in Parallel Slave Port mode or analog input:

WR

1

= Idle

0

= Write operation. Value of PORTD I/O pins is latched into PORTD register (if chip selected)

RE2/CS/AN7 bit2 ST/TTL

(1)

I/O port pin or chip select control input in Parallel Slave Port mode or analog input:

CS

1

= Device is not selected

0

= Device is selected

Legend: ST = Schmitt Trigger input, TTL = TTL input

Note 1:

Input buffers are Schmitt Triggers when in I/O mode and TTL buffers when in Parallel Slave Port mode.

TABLE 3-10: SUMMARY OF REGISTERS ASSOCIATED WITH PORTE

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR, BOR

Value on all other

RESETS

09h

89h

9Fh

PORTE —

TRISE IBF

ADCON1 ADFM

— — —

OBF IBOV PSPMODE

— — —

— RE2 RE1 RE0

---- -xxx ---- -uuu

— PORTE Data Direction Bits

0000 -111 0000 -111

PCFG3 PCFG2 PCFG1 PCFG0

--0- 0000 --0- 0000

Legend: x

= unknown, u

= unchanged,

-

= unimplemented, read as '0'. Shaded cells are not used by PORTE.

1998-2013 Microchip Technology Inc.

DS30292D-page 36

PIC16F87X

REGISTER 3-1:

bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0

TRISE REGISTER (ADDRESS 89h)

R-0

IBF bit 7

R-0

OBF

R/W-0

IBOV

R/W-0

PSPMODE

U-0

R/W-1

Bit2

R/W-1

Bit1

Parallel Slave Port Status/Control Bits:

IBF:

Input Buffer Full Status bit

1

= A word has been received and is waiting to be read by the CPU

0

= No word has been received

OBF

: Output Buffer Full Status bit

1

= The output buffer still holds a previously written word

0

= The output buffer has been read

IBOV

: Input Buffer Overflow Detect bit (in Microprocessor mode)

1

= A write occurred when a previously input word has not been read (must be cleared in software)

0

= No overflow occurred

PSPMODE

: Parallel Slave Port Mode Select bit

1

= PORTD functions in Parallel Slave Port mode

0

= PORTD functions in general purpose I/O mode

Unimplemented

: Read as '0'

PORTE Data Direction Bits:

Bit2

: Direction Control bit for pin RE2/CS/AN7

1

= Input

0

= Output

Bit1

: Direction Control bit for pin RE1/WR/AN6

1

= Input

0

= Output

Bit0

: Direction Control bit for pin RE0/RD/AN5

1

= Input

0

= Output

Legend:

R = Readable bit

- n = Value at POR

W = Writable bit

’1’ = Bit is set

U = Unimplemented bit, read as ‘0’

’0’ = Bit is cleared

R/W-1

Bit0 bit 0 x = Bit is unknown

1998-2013 Microchip Technology Inc.

DS30292D-page 37

PIC16F87X

3.6

Parallel Slave Port

The Parallel Slave Port (PSP) is not implemented on the PIC16F873 or PIC16F876.

PORTD operates as an 8-bit wide Parallel Slave Port or microprocessor port, when control bit PSPMODE

(TRISE<4>) is set. In Slave mode, it is asynchronously readable and writable by the external world through RD control input pin RE0/RD and WR control input pin

RE1/WR.

The PSP can directly interface to an 8-bit microprocessor data bus. The external microprocessor can read or write the PORTD latch as an 8-bit latch. Setting bit

PSPMODE enables port pin RE0/RD to be the RD input, RE1/WR to be the WR input and RE2/CS to be the CS (chip select) input. For this functionality, the corresponding data direction bits of the TRISE register

(TRISE<2:0>) must be configured as inputs (set). The

A/D port configuration bits PCFG3:PCFG0

(ADCON1<3:0>) must be set to configure pins

RE2:RE0 as digital I/O.

There are actually two 8-bit latches: one for data output, and one for data input. The user writes 8-bit data to the PORTD data latch and reads data from the port pin latch (note that they have the same address). In this mode, the TRISD register is ignored, since the external device is controlling the direction of data flow.

A write to the PSP occurs when both the CS and WR lines are first detected low. When either the CS or WR lines become high (level triggered), the Input Buffer Full

(IBF) status flag bit (TRISE<7>) is set on the Q4 clock cycle, following the next Q2 cycle, to signal the write is complete (Figure 3-10). The interrupt flag bit PSPIF

(PIR1<7>) is also set on the same Q4 clock cycle. IBF can only be cleared by reading the PORTD input latch.

The Input Buffer Overflow (IBOV) status flag bit

(TRISE<5>) is set if a second write to the PSP is attempted when the previous byte has not been read out of the buffer.

A read from the PSP occurs when both the CS and RD lines are first detected low. The Output Buffer Full

(OBF) status flag bit (TRISE<6>) is cleared immediately (Figure 3-11), indicating that the PORTD latch is waiting to be read by the external bus. When either the

CS or RD pin becomes high (level triggered), the interrupt flag bit PSPIF is set on the Q4 clock cycle, following the next Q2 cycle, indicating that the read is complete. OBF remains low until data is written to

PORTD by the user firmware.

When not in PSP mode, the IBF and OBF bits are held clear. However, if flag bit IBOV was previously set, it must be cleared in firmware.

An interrupt is generated and latched into flag bit

PSPIF when a read or write operation is completed.

PSPIF must be cleared by the user in firmware and the interrupt can be disabled by clearing the interrupt enable bit PSPIE (PIE1<7>).

FIGURE 3-9: PORTD AND PORTE

BLOCK DIAGRAM

(PARALLEL SLAVE

PORT)

Data Bus

WR

Port

D Q

CK

Q

RD

Port

One bit of PORTD

Set Interrupt Flag

PSPIF(PIR1<7>)

D

TTL

RDx pin

Read

TTL

Chip Select

TTL

Write

TTL

Note 1:

I/O pins have protection diodes to V

DD

and V

SS

.

RD

CS

WR

1998-2013 Microchip Technology Inc.

DS30292D-page 38

FIGURE 3-10:

PIC16F87X

PARALLEL SLAVE PORT WRITE WAVEFORMS

Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4

CS

WR

RD

PORTD<7:0>

IBF

OBF

PSPIF

FIGURE 3-11: PARALLEL SLAVE PORT READ WAVEFORMS

Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4

CS

WR

RD

PORTD<7:0>

IBF

OBF

PSPIF

TABLE 3-11: REGISTERS ASSOCIATED WITH PARALLEL SLAVE PORT

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR, BOR

Value on all other

RESETS

08h

09h

89h

0Ch

8Ch

9Fh

PORTD Port Data Latch when written: Port pins when read

PORTE — — — — —

TRISE

PIR1

PIE1

IBF

PSPIF

(1)

PSPIE

(1)

ADCON1 ADFM

OBF IBOV PSPMODE

ADIF RCIF TXIF

ADIE

RCIE

TXIE

RE0 xxxx xxxx

---- -xxx uuuu uuuu

---- -uuu

SSPIF CCP1IF TMR2IF TMR1IF

0000 0000 0000 0000

SSPIE

PCFG3

RE2

PORTE Data Direction Bits

CCP1IE

PCFG2

RE1

TMR2IE

PCFG1

TMR1IE

PCFG0

0000 -111

0000 0000

0000 -111

0000 0000

--0- 0000 --0- 0000

Legend: x

= unknown, u

= unchanged,

-

= unimplemented, read as '0'. Shaded cells are not used by the Parallel Slave Port.

Note 1:

Bits PSPIE and PSPIF are reserved on the PIC16F873/876; always maintain these bits clear.

1998-2013 Microchip Technology Inc.

DS30292D-page 39

PIC16F87X

NOTES:

DS30292D-page 40

1998-2013 Microchip Technology Inc.

4.0

DATA EEPROM AND FLASH

PROGRAM MEMORY

The Data EEPROM and FLASH Program Memory are readable and writable during normal operation over the entire V

DD

range. These operations take place on a single byte for Data EEPROM memory and a single word for Program memory. A write operation causes an erase-then-write operation to take place on the specified byte or word. A bulk erase operation may not be issued from user code (which includes removing code protection).

Access to program memory allows for checksum calculation. The values written to program memory do not need to be valid instructions. Therefore, up to 14-bit numbers can be stored in memory for use as calibration parameters, serial numbers, packed 7-bit ASCII, etc. Executing a program memory location containing data that form an invalid instruction, results in the execution of a

NOP

instruction.

The EEPROM Data memory is rated for high erase/ write cycles (specification D120). The FLASH program memory is rated much lower (specification D130), because EEPROM data memory can be used to store frequently updated values. An on-chip timer controls the write time and it will vary with voltage and temperature, as well as from chip to chip. Please refer to the specifications for exact limits (specifications D122 and

D133).

A byte or word write automatically erases the location and writes the new value (erase before write). Writing to EEPROM data memory does not impact the operation of the device. Writing to program memory will cease the execution of instructions until the write is complete. The program memory cannot be accessed during the write. During the write operation, the oscillator continues to run, the peripherals continue to function and interrupt events will be detected and essentially “queued” until the write is complete. When the write completes, the next instruction in the pipeline is executed and the branch to the interrupt vector will take place, if the interrupt is enabled and occurred during the write.

Read and write access to both memories take place indirectly through a set of Special Function Registers

(SFR). The six SFRs used are:

• EEDATA

• EEDATH

• EEADR

• EEADRH

• EECON1

• EECON2

PIC16F87X

The EEPROM data memory allows byte read and write operations without interfering with the normal operation of the microcontroller. When interfacing to EEPROM data memory, the EEADR register holds the address to be accessed. Depending on the operation, the EEDATA register holds the data to be written, or the data read, at the address in EEADR. The PIC16F873/874 devices have 128 bytes of EEPROM data memory and therefore, require that the MSb of EEADR remain clear. The

EEPROM data memory on these devices do not wrap around to 0, i.e., 0x80 in the EEADR does not map to

0x00. The PIC16F876/877 devices have 256 bytes of

EEPROM data memory and therefore, uses all 8-bits of the EEADR.

The FLASH program memory allows non-intrusive read access, but write operations cause the device to stop executing instructions, until the write completes.

When interfacing to the program memory, the

EEADRH:EEADR registers form a two-byte word, which holds the 13-bit address of the memory location being accessed. The register combination of

EEDATH:EEDATA holds the 14-bit data for writes, or reflects the value of program memory after a read operation. Just as in EEPROM data memory accesses, the value of the EEADRH:EEADR registers must be within the valid range of program memory, depending on the device: 0000h to 1FFFh for the PIC16F873/874, or

0000h to 3FFFh for the PIC16F876/877. Addresses outside of this range do not wrap around to 0000h (i.e.,

4000h does not map to 0000h on the PIC16F877).

4.1

EECON1 and EECON2 Registers

The EECON1 register is the control register for configuring and initiating the access. The EECON2 register is not a physically implemented register, but is used exclusively in the memory write sequence to prevent inadvertent writes.

There are many bits used to control the read and write operations to EEPROM data and FLASH program memory. The EEPGD bit determines if the access will be a program or data memory access. When clear, any subsequent operations will work on the EEPROM data memory. When set, all subsequent operations will operate in the program memory.

Read operations only use one additional bit, RD, which initiates the read operation from the desired memory location. Once this bit is set, the value of the desired memory location will be available in the data registers.

This bit cannot be cleared by firmware. It is automatically cleared at the end of the read operation. For

EEPROM data memory reads, the data will be available in the EEDATA register in the very next instruction cycle after the RD bit is set. For program memory reads, the data will be loaded into the

EEDATH:EEDATA registers, following the second instruction after the RD bit is set.

1998-2013 Microchip Technology Inc.

DS30292D-page 41

PIC16F87X

Write operations have two control bits, WR and WREN, and two status bits, WRERR and EEIF. The WREN bit is used to enable or disable the write operation. When

WREN is clear, the write operation will be disabled.

Therefore, the WREN bit must be set before executing a write operation. The WR bit is used to initiate the write operation. It also is automatically cleared at the end of the write operation. The interrupt flag EEIF is used to determine when the memory write completes. This flag must be cleared in software before setting the WR bit.

For EEPROM data memory, once the WREN bit and the WR bit have been set, the desired memory address in EEADR will be erased, followed by a write of the data in EEDATA. This operation takes place in parallel with the microcontroller continuing to execute normally.

When the write is complete, the EEIF flag bit will be set.

For program memory, once the WREN bit and the WR bit have been set, the microcontroller will cease to exe-

REGISTER 4-1:

cute instructions. The desired memory location pointed to by EEADRH:EEADR will be erased. Then, the data value in EEDATH:EEDATA will be programmed. When complete, the EEIF flag bit will be set and the microcontroller will continue to execute code.

The WRERR bit is used to indicate when the

PIC16F87X device has been reset during a write operation. WRERR should be cleared after Power-on

Reset. Thereafter, it should be checked on any other

RESET. The WRERR bit is set when a write operation is interrupted by a MCLR Reset, or a WDT Time-out

Reset, during normal operation. In these situations, following a RESET, the user should check the WRERR bit and rewrite the memory location, if set. The contents of the data registers, address registers and EEPGD bit are not affected by either MCLR Reset, or WDT Timeout Reset, during normal operation.

EECON1 REGISTER (ADDRESS 18Ch)

R/W-x

EEPGD bit 7

U-0

U-0

U-0

R/W-x

WRERR

R/W-0

WREN

R/S-0

WR

R/S-0

RD bit 0 bit 7 bit 6-4 bit 3 bit 2 bit 1 bit 0

EEPGD

: Program/Data EEPROM Select bit

1

= Accesses program memory

0

= Accesses data memory

(This bit cannot be changed while a read or write operation is in progress)

Unimplemented:

Read as '0'

WRERR

: EEPROM Error Flag bit

1

= A write operation is prematurely terminated

(any MCLR Reset or any WDT Reset during normal operation)

0

= The write operation completed

WREN

: EEPROM Write Enable bit

1

= Allows write cycles

0

= Inhibits write to the EEPROM

WR

: Write Control bit

1

= Initiates a write cycle. (The bit is cleared by hardware once write is complete. The WR bit can only be set (not cleared) in software.)

0

= Write cycle to the EEPROM is complete

RD

: Read Control bit

1

= Initiates an EEPROM read. (RD is cleared in hardware. The RD bit can only be set (not cleared) in software.)

0

= Does not initiate an EEPROM read

Legend:

R = Readable bit

- n = Value at POR

W = Writable bit

’1’ = Bit is set

U = Unimplemented bit, read as ‘0’

’0’ = Bit is cleared x = Bit is unknown

1998-2013 Microchip Technology Inc.

DS30292D-page 42

4.2

Reading the EEPROM Data

Memory

Reading EEPROM data memory only requires that the desired address to access be written to the EEADR register and clear the EEPGD bit. After the RD bit is set, data will be available in the EEDATA register on the very next instruction cycle. EEDATA will hold this value until another read operation is initiated or until it is written by firmware.

The steps to reading the EEPROM data memory are:

1.

Write the address to EEDATA. Make sure that the address is not larger than the memory size of the PIC16F87X device.

2.

Clear the EEPGD bit to point to EEPROM data memory.

3.

Set the RD bit to start the read operation.

4.

Read the data from the EEDATA register.

EXAMPLE 4-1: EEPROM DATA READ

BSF STATUS, RP1 ;

BCF STATUS, RP0 ;Bank 2

MOVF ADDR, W ;Write address

MOVWF EEADR ;to read from

BSF STATUS, RP0 ;Bank 3

BCF EECON1, EEPGD ;Point to Data memory

BSF EECON1, RD ;Start read operation

BCF STATUS, RP0 ;Bank 2

MOVF EEDATA, W ;W = EEDATA

4.3

Writing to the EEPROM Data

Memory

There are many steps in writing to the EEPROM data memory. Both address and data values must be written to the SFRs. The EEPGD bit must be cleared, and the

WREN bit must be set, to enable writes. The WREN bit should be kept clear at all times, except when writing to the EEPROM data. The WR bit can only be set if the

WREN bit was set in a previous operation, i.e., they both cannot be set in the same operation. The WREN bit should then be cleared by firmware after the write.

Clearing the WREN bit before the write actually completes will not terminate the write in progress.

Writes to EEPROM data memory must also be prefaced with a special sequence of instructions, that prevent inadvertent write operations. This is a sequence of five instructions that must be executed without interruptions. The firmware should verify that a write is not in progress, before starting another cycle.

PIC16F87X

The steps to write to EEPROM data memory are:

1.

If step 10 is not implemented, check the WR bit to see if a write is in progress.

2.

Write the address to EEADR. Make sure that the address is not larger than the memory size of the PIC16F87X device.

3.

Write the 8-bit data value to be programmed in the EEDATA register.

4.

Clear the EEPGD bit to point to EEPROM data memory.

5.

Set the WREN bit to enable program operations.

6.

Disable interrupts (if enabled).

7.

Execute the special five instruction sequence:

• Write 55h to EECON2 in two steps (first to W, then to EECON2)

• Write AAh to EECON2 in two steps (first to

W, then to EECON2)

• Set the WR bit

8.

Enable interrupts (if using interrupts).

9.

Clear the WREN bit to disable program operations.

10. At the completion of the write cycle, the WR bit is cleared and the EEIF interrupt flag bit is set.

(EEIF must be cleared by firmware.) If step 1 is not implemented, then firmware should check for EEIF to be set, or WR to clear, to indicate the end of the program cycle.

EXAMPLE 4-2: EEPROM DATA WRITE

BSF STATUS, RP1 ;

BSF STATUS, RP0 ;Bank 3

BTFSC EECON1, WR ;Wait for

GOTO $-1 ;write to finish

BCF STATUS, RP0 ;Bank 2

MOVF ADDR, W ;Address to

MOVWF EEADR ;write to

MOVF VALUE, W ;Data to

MOVWF EEDATA ;write

BSF STATUS, RP0 ;Bank 3

BCF EECON1, EEPGD ;Point to Data memory

BSF EECON1, WREN ;Enable writes

;Only disable interrupts

BCF INTCON, GIE ;if already enabled,

;otherwise discard

MOVLW 0x55 ;Write 55h to

MOVWF EECON2 ;EECON2

MOVLW 0xAA ;Write AAh to

MOVWF EECON2 ;EECON2

BSF EECON1, WR ;Start write operation

;Only enable interrupts

BSF INTCON, GIE ;if using interrupts,

;otherwise discard

BCF EECON1, WREN ;Disable writes

1998-2013 Microchip Technology Inc.

DS30292D-page 43

PIC16F87X

4.4

Reading the FLASH Program

Memory

Reading FLASH program memory is much like that of

EEPROM data memory, only two

NOP

instructions must be inserted after the RD bit is set. These two instruction cycles that the

NOP

instructions execute, will be used by the microcontroller to read the data out of program memory and insert the value into the

EEDATH:EEDATA registers. Data will be available following the second

NOP

instruction. EEDATH and

EEDATA will hold their value until another read operation is initiated, or until they are written by firmware.

The steps to reading the FLASH program memory are:

1.

Write the address to EEADRH:EEADR. Make sure that the address is not larger than the memory size of the PIC16F87X device.

2.

Set the EEPGD bit to point to FLASH program memory.

3.

Set the RD bit to start the read operation.

4.

Execute two

NOP

instructions to allow the microcontroller to read out of program memory.

5.

Read the data from the EEDATH:EEDATA registers.

EXAMPLE 4-3: FLASH PROGRAM READ

BSF STATUS, RP1 ;

BCF STATUS, RP0 ;Bank 2

MOVF ADDRL, W ;Write the

MOVWF EEADR ;address bytes

MOVF ADDRH,W ;for the desired

MOVWF EEADRH ;address to read

BSF STATUS, RP0 ;Bank 3

BSF EECON1, EEPGD ;Point to Program memory

BSF EECON1, RD ;Start read operation

NOP ;Required two NOPs

NOP ;

BCF STATUS, RP0 ;Bank 2

MOVF EEDATA, W ;DATAL = EEDATA

MOVWF DATAL ;

MOVF EEDATH,W ;DATAH = EEDATH

MOVWF DATAH ;

4.5

Writing to the FLASH Program

Memory

Writing to FLASH program memory is unique, in that the microcontroller does not execute instructions while programming is taking place. The oscillator continues to run and all peripherals continue to operate and queue interrupts, if enabled. Once the write operation completes (specification D133), the processor begins executing code from where it left off. The other important difference when writing to FLASH program memory, is that the WRT configuration bit, when clear,

prevents any writes to program memory (see Table 4-1).

Just like EEPROM data memory, there are many steps in writing to the FLASH program memory. Both address and data values must be written to the SFRs. The

EEPGD bit must be set, and the WREN bit must be set to enable writes. The WREN bit should be kept clear at all times, except when writing to the FLASH Program memory. The WR bit can only be set if the WREN bit was set in a previous operation, i.e., they both cannot be set in the same operation. The WREN bit should then be cleared by firmware after the write. Clearing the

WREN bit before the write actually completes will not terminate the write in progress.

Writes to program memory must also be prefaced with a special sequence of instructions that prevent inadvertent write operations. This is a sequence of five instructions that must be executed without interruption for each byte written. These instructions must then be followed by two

NOP

instructions to allow the microcontroller to setup for the write operation. Once the write is complete, the execution of instructions starts with the instruction after the second

NOP

.

The steps to write to program memory are:

1.

Write the address to EEADRH:EEADR. Make sure that the address is not larger than the memory size of the PIC16F87X device.

2.

Write the 14-bit data value to be programmed in the EEDATH:EEDATA registers.

3.

Set the EEPGD bit to point to FLASH program memory.

4.

Set the WREN bit to enable program operations.

5.

Disable interrupts (if enabled).

6.

Execute the special five instruction sequence:

• Write 55h to EECON2 in two steps (first to W, then to EECON2)

• Write AAh to EECON2 in two steps (first to W, then to EECON2)

• Set the WR bit

7.

Execute two

NOP

instructions to allow the microcontroller to setup for write operation.

8.

Enable interrupts (if using interrupts).

9.

Clear the WREN bit to disable program operations.

1998-2013 Microchip Technology Inc.

DS30292D-page 44

At the completion of the write cycle, the WR bit is cleared and the EEIF interrupt flag bit is set. (EEIF must be cleared by firmware.) Since the microcontroller does not execute instructions during the write cycle, the firmware does not necessarily have to check either

EEIF, or WR, to determine if the write had finished.

EXAMPLE 4-4: FLASH PROGRAM WRITE

BSF STATUS, RP1 ;

BCF STATUS, RP0 ;Bank 2

MOVF ADDRL, W ;Write address

MOVWF EEADR ;of desired

MOVF ADDRH, W ;program memory

MOVWF EEADRH ;location

MOVF VALUEL, W ;Write value to

MOVWF EEDATA ;program at

MOVF VALUEH, W ;desired memory

MOVWF EEDATH ;location

BSF STATUS, RP0 ;Bank 3

BSF EECON1, EEPGD ;Point to Program memory

BSF EECON1, WREN ;Enable writes

;Only disable interrupts

BCF INTCON, GIE ;if already enabled,

;otherwise discard

MOVLW 0x55 ;Write 55h to

MOVWF EECON2 ;EECON2

MOVLW 0xAA ;Write AAh to

MOVWF EECON2 ;EECON2

BSF EECON1, WR ;Start write operation

NOP ;Two NOPs to allow micro

NOP ;to setup for write

;Only enable interrupts

BSF INTCON, GIE ;if using interrupts,

;otherwise discard

BCF EECON1, WREN ;Disable writes

4.6

Write Verify

The PIC16F87X devices do not automatically verify the value written during a write operation. Depending on the application, good programming practice may dictate that the value written to memory be verified against the original value. This should be used in applications where excessive writes can stress bits near the specified endurance limits.

PIC16F87X

4.7

Protection Against Spurious

Writes

There are conditions when the device may not want to write to the EEPROM data memory or FLASH program memory. To protect against these spurious write conditions, various mechanisms have been built into the

PIC16F87X devices. On power-up, the WREN bit is cleared and the Power-up Timer (if enabled) prevents writes.

The write initiate sequence, and the WREN bit together, help prevent any accidental writes during brown-out, power glitches, or firmware malfunction.

4.8

Operation While Code Protected

The PIC16F87X devices have two code protect mechanisms, one bit for EEPROM data memory and two bits for

FLASH program memory. Data can be read and written to the EEPROM data memory, regardless of the state of the code protection bit, CPD. When code protection is enabled and CPD cleared, external access via ICSP is disabled, regardless of the state of the program memory code protect bits. This prevents the contents of EEPROM data memory from being read out of the device.

The state of the program memory code protect bits,

CP0 and CP1, do not affect the execution of instructions out of program memory. The PIC16F87X devices can always read the values in program memory, regardless of the state of the code protect bits. However, the state of the code protect bits and the WRT bit will have different effects on writing to program memory. Table 4-1 shows the effect of the code protect bits and the WRT bit on program memory.

Once code protection has been enabled for either

EEPROM data memory or FLASH program memory, only a full erase of the entire device will disable code protection.

1998-2013 Microchip Technology Inc.

DS30292D-page 45

PIC16F87X

4.9

FLASH Program Memory Write

Protection

The configuration word contains a bit that write protects the FLASH program memory, called WRT. This bit can only be accessed when programming the PIC16F87X device via ICSP. Once write protection is enabled, only an erase of the entire device will disable it. When enabled, write protection prevents any writes to FLASH program memory. Write protection does not affect program memory reads.

TABLE 4-1: READ/WRITE STATE OF INTERNAL FLASH PROGRAM MEMORY

CP1

1

1

1

1

1

0

0

0

0

0

1

Configuration Bits

CP0

0

0

0

1

1

0

1

1

1

1

0

WRT

0

1

1

0

1 x

0

0

1

1

0

Memory Location

All program memory

Unprotected areas

Protected areas

Unprotected areas

Protected areas

Unprotected areas

Protected areas

Unprotected areas

Protected areas

All program memory

All program memory

Internal

Read

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Internal

Write

No

Yes

No

No

Yes

No

No

No

Yes

No

No

ICSP Read ICSP Write

No

Yes

No

Yes

Yes

No

Yes

No

Yes

No

Yes

No

No

No

Yes

Yes

No

No

No

No

No

No

TABLE 4-2: REGISTERS ASSOCIATED WITH DATA EEPROM/PROGRAM FLASH

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR,

BOR

Value on

all other

RESETS

0000 000x 0000 000u

0Bh, 8Bh,

10Bh, 18Bh

10Dh

INTCON GIE PEIE T0IE INTE

EEADR EEPROM Address Register, Low Byte

RBIE

10Fh

10Ch

10Eh

18Ch

EEADRH —

EEDATA EEPROM Data Register, Low Byte

EEDATH

EECON1 EEPGD

T0IF

EEPROM Address, High Byte

EEPROM Data Register, High Byte

— — WRERR WREN

INTF

WR

18Dh

8Dh

EECON2 EEPROM Control Register2 (not a physical register)

PIE2 —

(1)

— EEIE BCLIE — —

0Dh PIR2 —

(1)

— EEIF BCLIF — —

Legend: x

= unknown, u

= unchanged, r

= reserved,

-

= unimplemented, read as '0'.

Shaded cells are not used during FLASH/EEPROM access.

Note 1:

These bits are reserved; always maintain these bits clear.

RBIF xxxx xxxx uuuu uuuu xxxx xxxx uuuu uuuu xxxx xxxx uuuu uuuu xxxx xxxx uuuu uuuu

RD x--- x000 x--- u000

— —

CCP2IE

-r-0 0--0 -r-0 0--0

CCP2IF

-r-0 0--0 -r-0 0--0

1998-2013 Microchip Technology Inc.

DS30292D-page 46

PIC16F87X

5.0

TIMER0 MODULE

The Timer0 module timer/counter has the following features:

• 8-bit timer/counter

• Readable and writable

• 8-bit software programmable prescaler

• Internal or external clock select

• Interrupt on overflow from FFh to 00h

• Edge select for external clock

Figure 5-1 is a block diagram of the Timer0 module and the prescaler shared with the WDT.

Additional information on the Timer0 module is available in the PIC

®

MCU Mid-Range Family Reference

Manual (DS33023).

Timer mode is selected by clearing bit T0CS

(OPTION_REG<5>). In Timer mode, the Timer0 module will increment every instruction cycle (without prescaler). If the TMR0 register is written, the increment is inhibited for the following two instruction cycles. The user can work around this by writing an adjusted value to the TMR0 register.

FIGURE 5-1:

Counter mode is selected by setting bit T0CS

(OPTION_REG<5>). In Counter mode, Timer0 will increment either on every rising, or falling edge of pin

RA4/T0CKI. The incrementing edge is determined by the Timer0 Source Edge Select bit, T0SE

(OPTION_REG<4>). Clearing bit T0SE selects the rising edge. Restrictions on the external clock input are

discussed in detail in Section 5.2.

The prescaler is mutually exclusively shared between the Timer0 module and the Watchdog Timer. The pres-

caler is not readable or writable. Section 5.3 details the

operation of the prescaler.

5.1

Timer0 Interrupt

The TMR0 interrupt is generated when the TMR0 register overflows from FFh to 00h. This overflow sets bit

T0IF (INTCON<2>). The interrupt can be masked by clearing bit T0IE (INTCON<5>). Bit T0IF must be cleared in software by the Timer0 module Interrupt Service Routine before re-enabling this interrupt. The

TMR0 interrupt cannot awaken the processor from

SLEEP, since the timer is shut-off during SLEEP.

BLOCK DIAGRAM OF THE TIMER0/WDT PRESCALER

CLKOUT (= F

OSC

/4)

Data Bus

8

RA4/T0CKI pin

0

M

U

X

1

1

0

M

U

X

SYNC

2

Cycles

TMR0 Reg

T0SE

T0CS

PSA

PRESCALER

Set Flag Bit T0IF on Overflow

Watchdog

Timer

0

1

M

U

X

8-bit Prescaler

8

8 - to - 1MUX PS2:PS0

PSA

WDT Enable bit

0

M U X

1

PSA

WDT

Time-out

Note:

T0CS, T0SE, PSA, PS2:PS0 are (OPTION_REG<5:0>).

1998-2013 Microchip Technology Inc.

DS30292D-page 47

PIC16F87X

5.2

Using Timer0 with an External

Clock

When no prescaler is used, the external clock input is the same as the prescaler output. The synchronization of T0CKI with the internal phase clocks is accomplished by sampling the prescaler output on the Q2 and

Q4 cycles of the internal phase clocks. Therefore, it is necessary for T0CKI to be high for at least 2Tosc (and a small RC delay of 20 ns) and low for at least 2Tosc

(and a small RC delay of 20 ns). Refer to the electrical specification of the desired device.

5.3

Prescaler

There is only one prescaler available, which is mutually exclusively shared between the Timer0 module and the

Watchdog Timer. A prescaler assignment for the

REGISTER 5-1: OPTION_REG REGISTER

R/W-1

RBPU bit 7

R/W-1

INTEDG

R/W-1

T0CS

R/W-1

T0SE

Timer0 module means that there is no prescaler for the

Watchdog Timer, and vice-versa. This prescaler is not readable or writable (see Figure 5-1).

The PSA and PS2:PS0 bits (OPTION_REG<3:0>) determine the prescaler assignment and prescale ratio.

When assigned to the Timer0 module, all instructions writing to the TMR0 register (e.g.

CLRF 1, MOVWF 1,

BSF 1,x

....etc.) will clear the prescaler. When assigned to WDT, a

CLRWDT

instruction will clear the prescaler along with the Watchdog Timer. The prescaler is not readable or writable.

Note:

Writing to TMR0, when the prescaler is assigned to Timer0, will clear the prescaler count, but will not change the prescaler assignment.

R/W-1

PSA

R/W-1

PS2

R/W-1

PS1

R/W-1

PS0 bit 0 bit 7 bit 6 bit 5 bit 4 bit 3 bit 2-0

RBPU

INTEDG

T0CS

: TMR0 Clock Source Select bit

1

= Transition on T0CKI pin

0

= Internal instruction cycle clock (CLKOUT)

T0SE

: TMR0 Source Edge Select bit

1

= Increment on high-to-low transition on T0CKI pin

0

= Increment on low-to-high transition on T0CKI pin

PSA

: Prescaler Assignment bit

1

= Prescaler is assigned to the WDT

0

= Prescaler is assigned to the Timer0 module

PS2:PS0

: Prescaler Rate Select bits

Bit Value TMR0 Rate WDT Rate

000

001

010

011

100

101

110

111

1 : 2

1 : 4

1 : 8

1 : 16

1 : 32

1 : 64

1 : 128

1 : 256

1 : 1

1 : 2

1 : 4

1 : 8

1 : 16

1 : 32

1 : 64

1 : 128

Legend:

R = Readable bit

- n = Value at POR

W = Writable bit

’1’ = Bit is set

U = Unimplemented bit, read as ‘0’

’0’ = Bit is cleared x = Bit is unknown

Note:

To avoid an unintended device RESET, the instruction sequence shown in the PIC

®

MCU Mid-Range Family Reference Manual (DS33023) must be executed when changing the prescaler assignment from Timer0 to the WDT. This sequence must be followed even if the WDT is disabled.

1998-2013 Microchip Technology Inc.

DS30292D-page 48

PIC16F87X

TABLE 5-1: REGISTERS ASSOCIATED WITH TIMER0

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR,

BOR

Value on all other

RESETS

01h,101h TMR0

0Bh,8Bh,

10Bh,18Bh

INTCON

Timer0 Module’s Register

GIE PEIE T0IE INTE RBIE T0IF INTF RBIF xxxx xxxx uuuu uuuu

0000 000x 0000 000u

81h,181h OPTION_REG RBPU INTEDG T0CS T0SE PSA PS2 PS1 PS0

1111 1111 1111 1111

Legend: x

= unknown, u

= unchanged,

-

= unimplemented locations read as '0'.

Shaded cells are not used by Timer0.

1998-2013 Microchip Technology Inc.

DS30292D-page 49

PIC16F87X

NOTES:

DS30292D-page 50

1998-2013 Microchip Technology Inc.

PIC16F87X

6.0

TIMER1 MODULE

The Timer1 module is a 16-bit timer/counter consisting of two 8-bit registers (TMR1H and TMR1L), which are readable and writable. The TMR1 Register pair

(TMR1H:TMR1L) increments from 0000h to FFFFh and rolls over to 0000h. The TMR1 Interrupt, if enabled, is generated on overflow, which is latched in interrupt flag bit TMR1IF (PIR1<0>). This interrupt can be enabled/disabled by setting/clearing TMR1 interrupt enable bit TMR1IE (PIE1<0>).

Timer1 can operate in one of two modes:

• As a timer

• As a counter

The operating mode is determined by the clock select bit, TMR1CS (T1CON<1>).

REGISTER 6-1:

In Timer mode, Timer1 increments every instruction cycle. In Counter mode, it increments on every rising edge of the external clock input.

Timer1 can be enabled/disabled by setting/clearing control bit TMR1ON (T1CON<0>).

Timer1 also has an internal “RESET input”. This

RESET can be generated by either of the two CCP

modules (Section 8.0). Register 6-1 shows the Timer1

control register.

When the Timer1 oscillator is enabled (T1OSCEN is set), the RC1/T1OSI/CCP2 and RC0/T1OSO/T1CKI pins become inputs. That is, the TRISC<1:0> value is ignored, and these pins read as ‘0’.

Additional information on timer modules is available in the PIC

®

MCU Mid-Range Family Reference Manual

(DS33023).

T1CON: TIMER1 CONTROL REGISTER (ADDRESS 10h)

U-0

— bit 7

U-0

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

T1CKPS1 T1CKPS0 T1OSCEN T1SYNC TMR1CS TMR1ON bit 0 bit 7-6 bit 5-4 bit 3 bit 2 bit 1 bit 0

Unimplemented:

Read as '0'

T1CKPS1:T1CKPS0

: Timer1 Input Clock Prescale Select bits

11

= 1:8 Prescale value

10

= 1:4 Prescale value

01

= 1:2 Prescale value

00

= 1:1 Prescale value

T1OSCEN

: Timer1 Oscillator Enable Control bit

1

= Oscillator is enabled

0

= Oscillator is shut-off (the oscillator inverter is turned off to eliminate power drain)

T1SYNC

: Timer1 External Clock Input Synchronization Control bit

When TMR1CS = 1:

1

= Do not synchronize external clock input

0

= Synchronize external clock input

When TMR1CS = 0:

This bit is ignored. Timer1 uses the internal clock when TMR1CS = 0.

TMR1CS

: Timer1 Clock Source Select bit

1

= External clock from pin RC0/T1OSO/T1CKI (on the rising edge)

0

= Internal clock (F

OSC

/4)

TMR1ON

: Timer1 On bit

1

= Enables Timer1

0

= Stops Timer1

Legend:

R = Readable bit

- n = Value at POR

W = Writable bit

’1’ = Bit is set

U = Unimplemented bit, read as ‘0’

’0’ = Bit is cleared x = Bit is unknown

1998-2013 Microchip Technology Inc.

DS30292D-page 51

PIC16F87X

6.1

Timer1 Operation in Timer Mode

Timer mode is selected by clearing the TMR1CS

(T1CON<1>) bit. In this mode, the input clock to the timer is F

OSC

/4. The synchronize control bit T1SYNC

(T1CON<2>) has no effect, since the internal clock is always in sync.

FIGURE 6-1:

T1CKI

(Default High)

TIMER1 INCREMENTING EDGE

6.2

Timer1 Counter Operation

Timer1 may operate in either a Synchronous, or an

Asynchronous mode, depending on the setting of the

TMR1CS bit.

When Timer1 is being incremented via an external source, increments occur on a rising edge. After Timer1 is enabled in Counter mode, the module must first have a falling edge before the counter begins to increment.

T1CKI

(Default Low)

Note:

Arrows indicate counter increments.

6.3

Timer1 Operation in Synchronized

Counter Mode

Counter mode is selected by setting bit TMR1CS. In this mode, the timer increments on every rising edge of clock input on pin RC1/T1OSI/CCP2, when bit

T1OSCEN is set, or on pin RC0/T1OSO/T1CKI, when bit T1OSCEN is cleared.

If T1SYNC is cleared, then the external clock input is synchronized with internal phase clocks. The synchronization is done after the prescaler stage. The prescaler stage is an asynchronous ripple-counter.

In this configuration, during SLEEP mode, Timer1 will not increment even if the external clock is present, since the synchronization circuit is shut-off. The prescaler, however, will continue to increment.

FIGURE 6-2: TIMER1 BLOCK DIAGRAM

Set Flag bit

TMR1IF on

Overflow

RC0/T1OSO/T1CKI

RC1/T1OSI/CCP2

(2)

TMR1H

TMR1

TMR1L

T1OSC

0

TMR1ON

On/Off

1

T1SYNC

T1OSCEN

Enable

Oscillator

(1)

F

OSC

/4

Internal

Clock

1

Prescaler

1, 2, 4, 8

0

2

T1CKPS1:T1CKPS0

TMR1CS

Synchronized

Clock Input

Synchronize det

Q Clock

Note 1:

When the T1OSCEN bit is cleared, the inverter is turned off. This eliminates power drain.

1998-2013 Microchip Technology Inc.

DS30292D-page 52

6.4

Timer1 Operation in

Asynchronous Counter Mode

If control bit T1SYNC (T1CON<2>) is set, the external clock input is not synchronized. The timer continues to increment asynchronous to the internal phase clocks.

The timer will continue to run during SLEEP and can generate an interrupt-on-overflow, which will wake-up the processor. However, special precautions in soft-

ware are needed to read/write the timer (Section 6.4.1).

In Asynchronous Counter mode, Timer1 cannot be used as a time-base for capture or compare operations.

6.4.1

READING AND WRITING TIMER1 IN

ASYNCHRONOUS COUNTER

MODE

Reading TMR1H or TMR1L while the timer is running from an external asynchronous clock, will guarantee a valid read (taken care of in hardware). However, the user should keep in mind that reading the 16-bit timer in two 8-bit values itself, poses certain problems, since the timer may overflow between the reads.

For writes, it is recommended that the user simply stop the timer and write the desired values. A write contention may occur by writing to the timer registers, while the register is incrementing. This may produce an unpredictable value in the timer register.

Reading the 16-bit value requires some care. Examples 12-2 and 12-3 in the PIC

®

MCU Mid-Range Family

Reference Manual (DS33023) show how to read and write Timer1 when it is running in Asynchronous mode.

6.5

Timer1 Oscillator

A crystal oscillator circuit is built-in between pins T1OSI

(input) and T1OSO (amplifier output). It is enabled by setting control bit T1OSCEN (T1CON<3>). The oscillator is a low power oscillator, rated up to 200 kHz. It will continue to run during SLEEP. It is primarily intended for use with a 32 kHz crystal. Table 6-1 shows the capacitor selection for the Timer1 oscillator.

The Timer1 oscillator is identical to the LP oscillator.

The user must provide a software time delay to ensure proper oscillator start-up.

PIC16F87X

TABLE 6-1: CAPACITOR SELECTION FOR

THE TIMER1 OSCILLATOR

Osc Type Freq.

C1 C2

LP 32 kHz

100 kHz

33 pF

15 pF

33 pF

15 pF

200 kHz 15 pF 15 pF

These values are for design guidance only.

Crystals Tested:

32.768 kHz Epson C-001R32.768K-A ± 20 PPM

100 kHz

200 kHz

Epson C-2 100.00 KC-P

STD XTL 200.000 kHz

± 20 PPM

± 20 PPM

Note 1:

Higher capacitance increases the stability of oscillator, but also increases the start-up time.

2:

Since each resonator/crystal has its own characteristics, the user should consult the resonator/crystal manufacturer for appropriate values of external components.

6.6

Resetting Timer1 using a CCP

Trigger Output

If the CCP1 or CCP2 module is configured in Compare mode to generate a “special event trigger”

(CCP1M3:CCP1M0 =

1011

), this signal will reset

Timer1.

Note:

The special event triggers from the CCP1 and CCP2 modules will not set interrupt flag bit TMR1IF (PIR1<0>).

Timer1 must be configured for either Timer or Synchronized Counter mode to take advantage of this feature.

If Timer1 is running in Asynchronous Counter mode, this RESET operation may not work.

In the event that a write to Timer1 coincides with a special event trigger from CCP1 or CCP2, the write will take precedence.

In this mode of operation, the CCPRxH:CCPRxL register pair effectively becomes the period register for

Timer1.

1998-2013 Microchip Technology Inc.

DS30292D-page 53

PIC16F87X

6.7

Resetting of Timer1 Register Pair

(TMR1H, TMR1L)

TMR1H and TMR1L registers are not reset to 00h on a

POR, or any other RESET, except by the CCP1 and

CCP2 special event triggers.

T1CON register is reset to 00h on a Power-on Reset, or a Brown-out Reset, which shuts off the timer and leaves a 1:1 prescale. In all other RESETS, the register is unaffected.

6.8

Timer1 Prescaler

The prescaler counter is cleared on writes to the

TMR1H or TMR1L registers.

TABLE 6-2: REGISTERS ASSOCIATED WITH TIMER1 AS A TIMER/COUNTER

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR,

BOR

Value on

all other

RESETS

0Bh,8Bh,

10Bh, 18Bh

0Ch

8Ch

0Eh

INTCON

PIR1

PIE1

0Fh

10h

GIE

PSPIF

(1)

PSPIE

(1)

PEIE

ADIF

ADIE

T0IE

RCIF

RCIE

INTE

TXIF

TXIE

RBIE

SSPIF

SSPIE

T0IF

CCP1IF

CCP1IE

INTF

TMR2IF

TMR2IE

RBIF

TMR1IF

TMR1IE

0000 000x

0000 0000

0000 0000

0000 000u

0000 0000

0000 0000

TMR1L Holding Register for the Least Significant Byte of the 16-bit TMR1 Register

TMR1H Holding Register for the Most Significant Byte of the 16-bit TMR1 Register

T1CON — — xxxx xxxx uuuu uuuu xxxx xxxx uuuu uuuu

T1CKPS1 T1CKPS0 T1OSCEN T1SYNC TMR1CS TMR1ON

--00 0000 --uu uuuu

Legend: x = unknown, u = unchanged, = unimplemented, read as '0'. Shaded cells are not used by the Timer1 module.

Note 1:

Bits PSPIE and PSPIF are reserved on the PIC16F873/876; always maintain these bits clear.

DS30292D-page 54

1998-2013 Microchip Technology Inc.

7.0

TIMER2 MODULE

Timer2 is an 8-bit timer with a prescaler and a postscaler. It can be used as the PWM time-base for the PWM mode of the CCP module(s). The TMR2 register is readable and writable, and is cleared on any device RESET.

The input clock (F

OSC

/4) has a prescale option of 1:1,

1:4, or 1:16, selected by control bits

T2CKPS1:T2CKPS0 (T2CON<1:0>).

The Timer2 module has an 8-bit period register, PR2.

Timer2 increments from 00h until it matches PR2 and then resets to 00h on the next increment cycle. PR2 is a readable and writable register. The PR2 register is initialized to FFh upon RESET.

The match output of TMR2 goes through a 4-bit postscaler (which gives a 1:1 to 1:16 scaling inclusive) to generate a TMR2 interrupt (latched in flag bit

TMR2IF, (PIR1<1>)).

Timer2 can be shut-off by clearing control bit TMR2ON

(T2CON<2>), to minimize power consumption.

PIC16F87X

Register 7-1 shows the Timer2 control register.

Additional information on timer modules is available in the PIC

®

MCU Mid-Range Family Reference Manual

(DS33023).

FIGURE 7-1:

Sets Flag bit TMR2IF

TMR2

Output

(1)

TIMER2 BLOCK DIAGRAM

Postscaler

1:1 to 1:16

RESET

EQ

TMR2 Reg

Comparator

Prescaler

1:1, 1:4, 1:16

2

T2CKPS1:

T2CKPS0

F

OSC

/4

4

T2OUTPS3:

T2OUTPS0

PR2 Reg

Note 1:

TMR2 register output can be software selected by the

SSP module as a baud clock.

REGISTER 7-1: T2CON: TIMER2 CONTROL REGISTER (ADDRESS 12h)

U-0

— bit 7

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

TOUTPS3 TOUTPS2 TOUTPS1 TOUTPS0 TMR2ON T2CKPS1 T2CKPS0 bit 0 bit 7 bit 6-3 bit 2 bit 1-0

Unimplemented:

Read as '0'

TOUTPS3:TOUTPS0

: Timer2 Output Postscale Select bits

0000

= 1:1 Postscale

0001

= 1:2 Postscale

0010

= 1:3 Postscale

1111

= 1:16 Postscale

TMR2ON

: Timer2 On bit

1

= Timer2 is on

0

= Timer2 is off

T2CKPS1:T2CKPS0

: Timer2 Clock Prescale Select bits

00

= Prescaler is 1

01

= Prescaler is 4

1x

= Prescaler is 16

Legend:

R = Readable bit

- n = Value at POR

W = Writable bit

’1’ = Bit is set

U = Unimplemented bit, read as ‘0’

’0’ = Bit is cleared x = Bit is unknown

1998-2013 Microchip Technology Inc.

DS30292D-page 55

PIC16F87X

7.1

Timer2 Prescaler and Postscaler

The prescaler and postscaler counters are cleared when any of the following occurs:

• a write to the TMR2 register

• a write to the T2CON register

• any device RESET (POR, MCLR Reset, WDT

Reset, or BOR)

TMR2 is not cleared when T2CON is written.

7.2

Output of TMR2

The output of TMR2 (before the postscaler) is fed to the

SSP module, which optionally uses it to generate shift clock.

TABLE 7-1: REGISTERS ASSOCIATED WITH TIMER2 AS A TIMER/COUNTER

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR,

BOR

Value on

all other

RESETS

0Bh,8Bh,

10Bh,18Bh

0Ch

8Ch

11h

12h

INTCON

PIR1

PIE1

TMR2

T2CON

GIE

PSPIF

PSPIE

(1)

(1)

PEIE

ADIF

ADIE

Timer2 Module’s Register

TOUTPS3

T0IE

RCIF

RCIE

TOUTPS2

INTE

TXIF

TXIE

TOUTPS1

RBIE

SSPIF

SSPIE

TOUTPS0

T0IF

CCP1IF

CCP1IE

INTF

TMR2IF

TMR2IE

TMR2ON T2CKPS1

RBIF

TMR1IF

TMR1IE

T2CKPS0

0000 000x

0000 0000

0000 0000

0000 0000

-000 0000

0000 000u

0000 0000

0000 0000

0000 0000

-000 0000

92h PR2 Timer2 Period Register

Legend: x

= unknown, u

= unchanged,

-

= unimplemented, read as '0'. Shaded cells are not used by the Timer2 module.

Note 1:

Bits PSPIE and PSPIF are reserved on the PIC16F873/876; always maintain these bits clear.

1111 1111 1111 1111

DS30292D-page 56

1998-2013 Microchip Technology Inc.

8.0

CAPTURE/COMPARE/PWM

MODULES

Each Capture/Compare/PWM (CCP) module contains a 16-bit register which can operate as a:

• 16-bit Capture register

• 16-bit Compare register

• PWM Master/Slave Duty Cycle register

Both the CCP1 and CCP2 modules are identical in operation, with the exception being the operation of the special event trigger. Table 8-1 and Table 8-2 show the resources and interactions of the CCP module(s). In the following sections, the operation of a CCP module is described with respect to CCP1. CCP2 operates the same as CCP1, except where noted.

CCP1 Module:

Capture/Compare/PWM Register1 (CCPR1) is comprised of two 8-bit registers: CCPR1L (low byte) and

CCPR1H (high byte). The CCP1CON register controls the operation of CCP1. The special event trigger is generated by a compare match and will reset Timer1.

PIC16F87X

CCP2 Module:

Capture/Compare/PWM Register2 (CCPR2) is comprised of two 8-bit registers: CCPR2L (low byte) and

CCPR2H (high byte). The CCP2CON register controls the operation of CCP2. The special event trigger is generated by a compare match and will reset Timer1 and start an A/D conversion (if the A/D module is enabled).

Additional information on CCP modules is available in the PIC

®

MCU Mid-Range Family Reference Manual

(DS33023) and in application note AN594, “Using the

CCP Modules” (DS00594).

TABLE 8-1:

CCP Mode

Capture

Compare

PWM

CCP MODE - TIMER

RESOURCES REQUIRED

Timer Resource

Timer1

Timer1

Timer2

TABLE 8-2: INTERACTION OF TWO CCP MODULES

CCPx Mode CCPy Mode

Capture

Capture

Compare

PWM

PWM

PWM

Capture

Compare

Compare

PWM

Capture

Compare

Same TMR1 time-base

Interaction

The compare should be configured for the special event trigger, which clears TMR1

The compare(s) should be configured for the special event trigger, which clears TMR1

The PWMs will have the same frequency and update rate (TMR2 interrupt)

None

None

1998-2013 Microchip Technology Inc.

DS30292D-page 57

PIC16F87X

REGISTER 8-1: CCP1CON REGISTER/CCP2CON REGISTER (ADDRESS: 17h/1Dh)

U-0

— bit 7

U-0

R/W-0

CCPxX

R/W-0

CCPxY

R/W-0 R/W-0 R/W-0 R/W-0

CCPxM3 CCPxM2 CCPxM1 CCPxM0 bit 0 bit 7-6 bit 5-4 bit 3-0

Unimplemented:

Read as '0'

CCPxX:CCPxY

: PWM Least Significant bits

Capture mode:

Unused

Compare mode:

Unused

PWM mode:

These bits are the two LSbs of the PWM duty cycle. The eight MSbs are found in CCPRxL.

CCPxM3:CCPxM0

: CCPx Mode Select bits

0000

= Capture/Compare/PWM disabled (resets CCPx module)

0100

= Capture mode, every falling edge

0101

= Capture mode, every rising edge

0110

= Capture mode, every 4th rising edge

0111

= Capture mode, every 16th rising edge

1000

= Compare mode, set output on match (CCPxIF bit is set)

1001

= Compare mode, clear output on match (CCPxIF bit is set)

1010

= Compare mode, generate software interrupt on match (CCPxIF bit is set, CCPx pin is unaffected)

1011

= Compare mode, trigger special event (CCPxIF bit is set, CCPx pin is unaffected); CCP1 resets TMR1; CCP2 resets TMR1 and starts an A/D conversion (if A/D module is enabled)

11xx

= PWM mode

Legend:

R = Readable bit

- n = Value at POR

W = Writable bit

’1’ = Bit is set

U = Unimplemented bit, read as ‘0’

’0’ = Bit is cleared x = Bit is unknown

DS30292D-page 58

1998-2013 Microchip Technology Inc.

8.1

Capture Mode

In Capture mode, CCPR1H:CCPR1L captures the

16-bit value of the TMR1 register when an event occurs on pin RC2/CCP1. An event is defined as one of the following:

• Every falling edge

• Every rising edge

• Every 4th rising edge

• Every 16th rising edge

The type of event is configured by control bits

CCP1M3:CCP1M0 (CCPxCON<3:0>). When a capture is made, the interrupt request flag bit CCP1IF

(PIR1<2>) is set. The interrupt flag must be cleared in software. If another capture occurs before the value in register CCPR1 is read, the old captured value is overwritten by the new value.

8.1.1

CCP PIN CONFIGURATION

In Capture mode, the RC2/CCP1 pin should be configured as an input by setting the TRISC<2> bit.

Note:

If the RC2/CCP1 pin is configured as an output, a write to the port can cause a capture condition.

FIGURE 8-1: CAPTURE MODE

OPERATION BLOCK

DIAGRAM

RC2/CCP1 pin

Prescaler

1, 4, 16

Set Flag bit CCP1IF

(PIR1<2>)

CCPR1H CCPR1L and edge detect

CCP1CON<3:0>

Capture

Enable

TMR1H

Qs

TMR1L

PIC16F87X

8.1.2

TIMER1 MODE SELECTION

Timer1 must be running in Timer mode, or Synchronized Counter mode, for the CCP module to use the capture feature. In Asynchronous Counter mode, the capture operation may not work.

8.1.3

SOFTWARE INTERRUPT

When the Capture mode is changed, a false capture interrupt may be generated. The user should keep bit

CCP1IE (PIE1<2>) clear to avoid false interrupts and should clear the flag bit CCP1IF, following any such change in operating mode.

8.1.4

CCP PRESCALER

There are four prescaler settings, specified by bits

CCP1M3:CCP1M0. Whenever the CCP module is turned off, or the CCP module is not in Capture mode, the prescaler counter is cleared. Any RESET will clear the prescaler counter.

Switching from one capture prescaler to another may generate an interrupt. Also, the prescaler counter will not be cleared, therefore, the first capture may be from a non-zero prescaler. Example 8-1 shows the recommended method for switching between capture prescalers. This example also clears the prescaler counter and will not generate the “false” interrupt.

EXAMPLE 8-1: CHANGING BETWEEN

CAPTURE PRESCALERS

CLRF CCP1CON ; Turn CCP module off

MOVLW NEW_CAPT_PS ; Load the W reg with

; the new prescaler

; move value and CCP ON

MOVWF CCP1CON ; Load CCP1CON with this

; value

1998-2013 Microchip Technology Inc.

DS30292D-page 59

PIC16F87X

8.2

Compare Mode

In Compare mode, the 16-bit CCPR1 register value is constantly compared against the TMR1 register pair value. When a match occurs, the RC2/CCP1 pin is:

• Driven high

• Driven low

• Remains unchanged

The action on the pin is based on the value of control bits CCP1M3:CCP1M0 (CCP1CON<3:0>). At the same time, interrupt flag bit CCP1IF is set.

FIGURE 8-2: COMPARE MODE

OPERATION BLOCK

DIAGRAM

Special event trigger will: reset Timer1, but not set interrupt flag bit TMR1IF (PIR1<0>), and set bit GO/DONE (ADCON0<2>).

Special Event Trigger

Set Flag bit CCP1IF

(PIR1<2>)

RC2/CCP1 pin

Q S

R

TRISC<2>

Output Enable

Output

Logic

Match

CCP1CON<3:0>

Mode Select

CCPR1H CCPR1L

Comparator

TMR1H TMR1L

8.2.1

CCP PIN CONFIGURATION

The user must configure the RC2/CCP1 pin as an output by clearing the TRISC<2> bit.

Note:

Clearing the CCP1CON register will force the RC2/CCP1 compare output latch to the default low level. This is not the PORTC I/O data latch.

8.2.2

TIMER1 MODE SELECTION

Timer1 must be running in Timer mode, or Synchronized Counter mode, if the CCP module is using the compare feature. In Asynchronous Counter mode, the compare operation may not work.

8.2.3

SOFTWARE INTERRUPT MODE

When Generate Software Interrupt mode is chosen, the

CCP1 pin is not affected. The CCPIF bit is set, causing a CCP interrupt (if enabled).

8.2.4

SPECIAL EVENT TRIGGER

In this mode, an internal hardware trigger is generated, which may be used to initiate an action.

The special event trigger output of CCP1 resets the

TMR1 register pair. This allows the CCPR1 register to effectively be a 16-bit programmable period register for

Timer1.

The special event trigger output of CCP2 resets the

TMR1 register pair and starts an A/D conversion (if the

A/D module is enabled).

Note:

The special event trigger from the

CCP1and CCP2 modules will not set interrupt flag bit TMR1IF (PIR1<0>).

DS30292D-page 60

1998-2013 Microchip Technology Inc.

8.3

PWM Mode (PWM)

In Pulse Width Modulation mode, the CCPx pin produces up to a 10-bit resolution PWM output. Since the

CCP1 pin is multiplexed with the PORTC data latch, the TRISC<2> bit must be cleared to make the CCP1 pin an output.

Note:

Clearing the CCP1CON register will force the CCP1 PWM output latch to the default low level. This is not the PORTC I/O data latch.

Figure 8-3 shows a simplified block diagram of the

CCP module in PWM mode.

For a step-by-step procedure on how to set up the CCP

module for PWM operation, see Section 8.3.3.

FIGURE 8-3:

Duty Cycle Registers

CCPR1L

SIMPLIFIED PWM BLOCK

DIAGRAM

CCP1CON<5:4>

CCPR1H (Slave)

RC2/CCP1

Comparator

R

Q

TMR2

(Note 1)

S

Comparator

TRISC<2>

Clear Timer,

CCP1 pin and latch D.C.

PR2

Note 1:

The 8-bit timer is concatenated with 2-bit internal Q clock, or 2 bits of the prescaler, to create 10-bit timebase.

A PWM output (Figure 8-4) has a time-base (period) and a time that the output stays high (duty cycle). The frequency of the PWM is the inverse of the period

(1/period).

FIGURE 8-4:

Period

PWM OUTPUT

Duty Cycle

TMR2 = PR2

TMR2 = Duty Cycle

TMR2 = PR2

PIC16F87X

8.3.1

PWM PERIOD

The PWM period is specified by writing to the PR2 register. The PWM period can be calculated using the following formula:

PWM period = [(PR2) + 1] • 4 • T

OSC

(TMR2 prescale value)

PWM frequency is defined as 1 / [PWM period].

When TMR2 is equal to PR2, the following three events occur on the next increment cycle:

• TMR2 is cleared

• The CCP1 pin is set (exception: if PWM duty cycle = 0%, the CCP1 pin will not be set)

• The PWM duty cycle is latched from CCPR1L into

CCPR1H

Note:

The Timer2 postscaler (see Section 7.1) is

not used in the determination of the PWM frequency. The postscaler could be used to have a servo update rate at a different frequency than the PWM output.

8.3.2

PWM DUTY CYCLE

The PWM duty cycle is specified by writing to the

CCPR1L register and to the CCP1CON<5:4> bits. Up to 10-bit resolution is available. The CCPR1L contains the eight MSbs and the CCP1CON<5:4> contains the two LSbs. This 10-bit value is represented by

CCPR1L:CCP1CON<5:4>. The following equation is used to calculate the PWM duty cycle in time:

PWM duty cycle =(CCPR1L:CCP1CON<5:4>) •

T

OSC

• (TMR2 prescale value)

CCPR1L and CCP1CON<5:4> can be written to at any time, but the duty cycle value is not latched into

CCPR1H until after a match between PR2 and TMR2 occurs (i.e., the period is complete). In PWM mode,

CCPR1H is a read-only register.

The CCPR1H register and a 2-bit internal latch are used to double buffer the PWM duty cycle. This double buffering is essential for glitch-free PWM operation.

When the CCPR1H and 2-bit latch match TMR2, concatenated with an internal 2-bit Q clock, or 2 bits of the

TMR2 prescaler, the CCP1 pin is cleared.

The maximum PWM resolution (bits) for a given PWM frequency is given by the formula:

Resolution

= log

( F

OSC

F

PWM

) log(2) bits

Note:

If the PWM duty cycle value is longer than the PWM period, the CCP1 pin will not be cleared.

1998-2013 Microchip Technology Inc.

DS30292D-page 61

PIC16F87X

8.3.3

SETUP FOR PWM OPERATION

The following steps should be taken when configuring the CCP module for PWM operation:

1.

Set the PWM period by writing to the PR2 register.

2.

Set the PWM duty cycle by writing to the

CCPR1L register and CCP1CON<5:4> bits.

3.

Make the CCP1 pin an output by clearing the

TRISC<2> bit.

4.

Set the TMR2 prescale value and enable Timer2 by writing to T2CON.

5.

Configure the CCP1 module for PWM operation.

TABLE 8-3: EXAMPLE PWM FREQUENCIES AND RESOLUTIONS AT 20 MHz

PWM Frequency

Timer Prescaler (1, 4, 16)

PR2 Value

Maximum Resolution (bits)

1.22 kHz 4.88 kHz 19.53 kHz 78.12kHz

156.3 kHz 208.3 kHz

16

0xFFh

10

4

0xFFh

10

1

0xFFh

10

1

0x3Fh

8

1

0x1Fh

7

1

0x17h

5.5

TABLE 8-4: REGISTERS ASSOCIATED WITH CAPTURE, COMPARE, AND TIMER1

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR,

BOR

Value on all other

RESETS

0Bh,8Bh,

10Bh, 18Bh

INTCON

0Ch

0Dh

8Ch

8Dh

87h

0Eh

0Fh

10h

15h

GIE PEIE T0IE INTE RBIE T0IF INTF RBIF

0000 000x 0000 000u

PIR1

PIR2

PIE1

PIE2

PSPIF

PSPIE

(1)

(1)

ADIF

ADIE

RCIF

RCIE

PORTC Data Direction Register

TXIF

TXIE

SSPIF

SSPIE

CCP1IF

CCP1IE

TMR2IF

TMR2IE

TMR1IF

CCP2IF

TMR1IE

CCP2IE

0000 0000 0000 0000

---- ---0 ---- ---0

0000 0000 0000 0000

---- ---0 ---- ---0

TRISC

TMR1L

TMR1H

T1CON

Holding Register for the Least Significant Byte of the 16-bit TMR1 Register

Holding Register for the Most Significant Byte of the 16-bit TMR1 Register

— —

1111 1111 1111 1111 xxxx xxxx uuuu uuuu xxxx xxxx uuuu uuuu

T1CKPS1 T1CKPS0 T1OSCEN T1SYNC TMR1CS TMR1ON

--00 0000 --uu uuuu

CCPR1L Capture/Compare/PWM Register1 (LSB) xxxx xxxx uuuu uuuu

16h

17h

CCPR1H

CCP1CON

Capture/Compare/PWM Register1 (MSB)

— — CCP1X CCP1Y CCP1M3 CCP1M2 CCP1M1 CCP1M0 xxxx xxxx uuuu uuuu

--00 0000 --00 0000

1Bh

1Ch

CCPR2L Capture/Compare/PWM Register2 (LSB)

CCPR2H Capture/Compare/PWM Register2 (MSB) xxxx xxxx uuuu uuuu xxxx xxxx uuuu uuuu

1Dh CCP2CON — — CCP2X CCP2Y CCP2M3 CCP2M2 CCP2M1 CCP2M0

--00 0000 --00 0000

Legend: x

= unknown, u

= unchanged,

-

= unimplemented, read as '0'. Shaded cells are not used by Capture and Timer1.

Note 1:

The PSP is not implemented on the PIC16F873/876; always maintain these bits clear.

1998-2013 Microchip Technology Inc.

DS30292D-page 62

PIC16F87X

TABLE 8-5: REGISTERS ASSOCIATED WITH PWM AND TIMER2

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR,

BOR

Value on all other

RESETS

11h

92h

12h

15h

16h

17h

0Bh,8Bh,

10Bh, 18Bh

INTCON

0Ch

0Dh

8Ch

8Dh

87h

PIR1

PIR2

PIE1

PIE2

TRISC

TMR2

PR2

T2CON

GIE PEIE

PSPIF

(1)

PSPIE

(1)

ADIF

RCIF

ADIE RCIE

— — —

PORTC Data Direction Register

Timer2 Module’s Register

T0IE INTE

TXIF

TXIE

RBIE

SSPIF

SSPIE

T0IF

CCP1IF

INTF

TMR2IF

RBIF

TMR1IF

CCP2IF

CCP2IE

0000 000x 0000 000u

0000 0000 0000 0000

---- ---0 ---- ---0

CCP1IE TMR2IE TMR1IE

0000 0000 0000 0000

---- ---0 ---- ---0

1111 1111 1111 1111

0000 0000 0000 0000

Timer2 Module’s Period Register

— TOUTPS3 TOUTPS2 TOUTPS1 TOUTPS0 TMR2ON T2CKPS1 T2CKPS0

1111 1111 1111 1111

-000 0000 -000 0000

CCPR1L Capture/Compare/PWM Register1 (LSB) xxxx xxxx uuuu uuuu

CCPR1H Capture/Compare/PWM Register1 (MSB)

CCP1CON — — CCP1X CCP1Y CCP1M3 CCP1M2 CCP1M1 CCP1M0 xxxx xxxx uuuu uuuu

--00 0000 --00 0000

1Bh

1Ch

1Dh

CCPR2L Capture/Compare/PWM Register2 (LSB) xxxx xxxx uuuu uuuu

CCPR2H Capture/Compare/PWM Register2 (MSB)

CCP2CON — — CCP2X CCP2Y CCP2M3 CCP2M2 CCP2M1 CCP2M0 xxxx xxxx uuuu uuuu

--00 0000 --00 0000

Legend: x

= unknown, u

= unchanged,

-

= unimplemented, read as '0'. Shaded cells are not used by PWM and Timer2.

Note 1:

Bits PSPIE and PSPIF are reserved on the PIC16F873/876; always maintain these bits clear.

1998-2013 Microchip Technology Inc.

DS30292D-page 63

PIC16F87X

NOTES:

DS30292D-page 64

1998-2013 Microchip Technology Inc.

9.0

MASTER SYNCHRONOUS

SERIAL PORT (MSSP)

MODULE

The Master Synchronous Serial Port (MSSP) module is a serial interface, useful for communicating with other peripheral or microcontroller devices. These peripheral devices may be serial EEPROMs, shift registers, display drivers, A/D converters, etc. The MSSP module can operate in one of two modes:

• Serial Peripheral Interface (SPI)

• Inter-Integrated Circuit (I

2

C)

Figure 9-1 shows a block diagram for the SPI mode,

while Figure 9-5 and Figure 9-9 show the block dia-

grams for the two different I

2

C modes of operation.

The Application Note AN734, “Using the PIC

®

MCU

SSP for Slave I

2

C TM Communication” describes the slave operation of the MSSP module on the

PIC16F87X devices. AN735, “Using the PIC

®

MCU

MSSP Module for I

2

C

TM

Communications” describes the master operation of the MSSP module on the

PIC16F87X devices.

PIC16F87X

1998-2013 Microchip Technology Inc.

DS30292D-page 65

PIC16F87X

REGISTER 9-1:

bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit

SSPSTAT: SYNC SERIAL PORT STATUS REGISTER (ADDRESS: 94h)

R/W-0

SMP bit 7

R/W-0

CKE

R-0

D/A

R-0

P

R-0

S

R-0

R/W

R-0

UA

R-0

BF bit 0

SMP

:

Sample bit

SPI Master mode:

1

= Input data sampled at end of data output time

0

= Input data sampled at middle of data output time

SPI Slave mode:

SMP must be cleared when SPI is used in slave mode

In I C Master or Slave mode:

1

= Slew rate control disabled for standard speed mode (100 kHz and 1 MHz)

0

= Slew rate control enabled for high speed mode (400 kHz)

CKE

: SPI Clock Edge Select (Figure 9-2, Figure 9-3 and Figure 9-4)

SPI mode:

For CKP = 0

1

= Data transmitted on rising edge of SCK

0

= Data transmitted on falling edge of SCK

For CKP = 1

1

= Data transmitted on falling edge of SCK

0

= Data transmitted on rising edge of SCK

In I C Master or Slave mode:

1

= Input levels conform to SMBus spec

0

= Input levels conform to I

2

C specs

D/A

: Data/Address bit (I

2

C mode only)

1

= Indicates that the last byte received or transmitted was data

0

= Indicates that the last byte received or transmitted was address

P

: STOP bit

(I

2

C mode only. This bit is cleared when the MSSP module is disabled, SSPEN is cleared.)

1

= Indicates that a STOP bit has been detected last (this bit is '0' on RESET)

0

= STOP bit was not detected last

S

: START bit

(I

2

C mode only. This bit is cleared when the MSSP module is disabled, SSPEN is cleared.)

1

= Indicates that a START bit has been detected last (this bit is '0' on RESET)

0

= START bit was not detected last

R/W

: Read/Write bit Information (I

2

C mode only)

This bit holds the R/W bit information following the last address match. This bit is only valid from the address match to the next START bit, STOP bit or not ACK bit.

In I C Slave mode:

1

= Read

0

= Write

In I C Master mode:

1

= Transmit is in progress

0

= Transmit is not in progress

Logical OR of this bit with SEN, RSEN, PEN, RCEN, or ACKEN will indicate if the MSSP is in IDLE mode.

UA

: Update Address (10-bit I

2

C mode only)

1

= Indicates that the user needs to update the address in the SSPADD register

0

= Address does not need to be updated

BF

: Buffer Full Status bit

Receive (SPI and I C modes):

1

= Receive complete, SSPBUF is full

0

= Receive not complete, SSPBUF is empty

Transmit (I C mode only):

1

= Data transmit in progress (does not include the ACK and STOP bits), SSPBUF is full

0

= Data transmit complete (does not include the ACK and STOP bits), SSPBUF is empty

Legend:

R = Readable bit

- n = Value at POR

W = Writable bit

’1’ = Bit is set

U = Unimplemented bit, read as ‘0’

’0’ = Bit is cleared x = Bit is unknown

1998-2013 Microchip Technology Inc.

DS30292D-page 66

PIC16F87X

REGISTER 9-2:

bit 7 bit 6 bit 5 bit 4 bit 3-0

SSPCON: SYNC SERIAL PORT CONTROL REGISTER (ADDRESS 14h)

R/W-0

WCOL bit 7

R/W-0

SSPOV

R/W-0

SSPEN

R/W-0

CKP

R/W-0

SSPM3

R/W-0

SSPM2

R/W-0

SSPM1

R/W-0

SSPM0 bit 0

WCOL

: Write Collision Detect bit

Master mode:

1

= A write to SSPBUF was attempted while the I2C conditions were not valid

0

= No collision

Slave mode:

1

= SSPBUF register is written while still transmitting the previous word (must be cleared in

software)

0

= No collision

SSPOV

: Receive Overflow Indicator bit

In SPI mode:

1

= A new byte is received while SSPBUF holds previous data. Data in SSPSR is lost on overflow. In Slave mode, the user must read the SSPBUF, even if only transmitting data, to avoid overflows. In Master mode, the overflow bit is not set, since each operation is initiated by writing to the SSPBUF register.

(Must be cleared in software.)

0

= No overflow

In I C mode:

1

= A byte is received while the SSPBUF is holding the previous byte. SSPOV is a "don’t care" in Transmit mode. (Must be cleared in software.)

0

= No overflow

SSPEN

: Synchronous Serial Port Enable bit

In SPI mode,

When enabled, these pins must be properly configured as input or output

1

= Enables serial port and configures SCK, SDO, SDI, and SS as the source of the serial port pins

0

= Disables serial port and configures these pins as I/O port pins

In I C mode,

When enabled, these pins must be properly configured as input or output

1

= Enables the serial port and configures the SDA and SCL pins as the source of the serial port pins

0

= Disables serial port and configures these pins as I/O port pins

CKP

: Clock Polarity Select bit

In SPI mode:

1

= Idle state for clock is a high level

0

= Idle state for clock is a low level

In I C Slave mode:

SCK release control

1

= Enable clock

0

= Holds clock low (clock stretch). (Used to ensure data setup time.)

In I C Master mode:

Unused in this mode

SSPM3:SSPM0

: Synchronous Serial Port Mode Select bits

0000

= SPI Master mode, clock = F

OSC

/4

0001

= SPI Master mode, clock = F

OSC

/16

0010

= SPI Master mode, clock = F

OSC

/64

0011

= SPI Master mode, clock = TMR2 output/2

0100

= SPI Slave mode, clock = SCK pin. SS pin control enabled.

0101

= SPI Slave mode, clock = SCK pin. SS pin control disabled. SS can be used as I/O pin.

0110

= I

2

C Slave mode, 7-bit address

0111

= I

2

C Slave mode, 10-bit address

1000

= I

2

1011

= I

2

1110

= I

C Firmware Controlled Master mode (slave idle)

2

C Firmware Controlled Master mode, 7-bit address with START and STOP bit interrupts enabled

1111

= I

2

C Master mode, clock = F

OSC

/ (4 * (SSPADD+1))

C Firmware Controlled Master mode, 10-bit address with START and STOP bit interrupts enabled

1001, 1010, 1100, 1101

= Reserved

Legend:

R = Readable bit

- n = Value at POR

W = Writable bit

’1’ = Bit is set

U = Unimplemented bit, read as ‘0’

’0’ = Bit is cleared x = Bit is unknown

1998-2013 Microchip Technology Inc.

DS30292D-page 67

PIC16F87X

REGISTER 9-3:

bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0

SSPCON2: SYNC SERIAL PORT CONTROL REGISTER2 (ADDRESS 91h)

R/W-0 R/W-0 R/W-0

GCEN ACKSTAT ACKDT bit 7

R/W-0

ACKEN

R/W-0

RCEN

R/W-0

PEN

R/W-0

RSEN

R/W-0

SEN bit 0

GCEN

: General Call Enable bit (In I

2

C Slave mode only)

1

= Enable interrupt when a general call address (0000h) is received in the SSPSR

0

= General call address disabled

ACKSTAT

: Acknowledge Status bit (In I

2

C Master mode only)

In Master Transmit mode:

1

= Acknowledge was not received from slave

0

= Acknowledge was received from slave

ACKDT

: Acknowledge Data bit (In I

2

C Master mode only)

In Master Receive mode:

Value that will be transmitted when the user initiates an Acknowledge sequence at the end of a receive.

1

= Not Acknowledge

0

= Acknowledge

ACKEN

: Acknowledge Sequence Enable bit (In I

2

C Master mode only)

In Master Receive mode:

1

= Initiate Acknowledge sequence on SDA and SCL pins and transmit ACKDT data bit.

Automatically cleared by hardware.

0

= Acknowledge sequence idle

RCEN

: Receive Enable bit (In I

2

C Master mode only)

1

= Enables Receive mode for I

2

C

0

= Receive idle

PEN

: STOP Condition Enable bit (In I

2

C Master mode only)

SCK Release Control:

1

= Initiate STOP condition on SDA and SCL pins. Automatically cleared by hardware.

0

= STOP condition idle

RSEN

: Repeated START Condition Enable bit (In I

2

C Master mode only)

1

= Initiate Repeated START condition on SDA and SCL pins. Automatically cleared by hardware.

0

= Repeated START condition idle

SEN

: START Condition Enable bit (In I

2

C Master mode only)

1

= Initiate START condition on SDA and SCL pins. Automatically cleared by hardware.

0

= START condition idle

Note:

For bits ACKEN, RCEN, PEN, RSEN, SEN: If the I

2

C module is not in the IDLE mode, this bit may not be set (no spooling), and the SSPBUF may not be written (or writes to the SSPBUF are disabled).

Legend:

R = Readable bit

- n = Value at POR

W = Writable bit

’1’ = Bit is set

U = Unimplemented bit, read as ‘0’

’0’ = Bit is cleared x = Bit is unknown

1998-2013 Microchip Technology Inc.

DS30292D-page 68

9.1

SPI Mode

The SPI mode allows 8 bits of data to be synchronously transmitted and received simultaneously. All four modes of SPI are supported. To accomplish communication, typically three pins are used:

• Serial Data Out (SDO)

• Serial Data In (SDI)

• Serial Clock (SCK)

Additionally, a fourth pin may be used when in a Slave mode of operation:

• Slave Select (SS)

When initializing the SPI, several options need to be specified. This is done by programming the appropriate control bits (SSPCON<5:0> and SSPSTAT<7:6>).

These control bits allow the following to be specified:

• Master mode (SCK is the clock output)

• Slave mode (SCK is the clock input)

• Clock Polarity (Idle state of SCK)

• Data input sample phase

(middle or end of data output time)

• Clock edge

(output data on rising/falling edge of SCK)

• Clock Rate (Master mode only)

• Slave Select mode (Slave mode only)

Figure 9-4 shows the block diagram of the MSSP module when in SPI mode.

To enable the serial port, MSSP Enable bit, SSPEN

(SSPCON<5>) must be set. To reset or reconfigure SPI mode, clear bit SSPEN, re-initialize the SSPCON registers, and then set bit SSPEN. This configures the

SDI, SDO, SCK and SS pins as serial port pins. For the pins to behave as the serial port function, some must have their data direction bits (in the TRIS register) appropriately programmed. That is:

• SDI is automatically controlled by the SPI module

• SDO must have TRISC<5> cleared

• SCK (Master mode) must have TRISC<3> cleared

• SCK (Slave mode) must have TRISC<3> set

• SS must have TRISA<5> set and register

ADCON1 (see Section 11.0: A/D Module) must be

set in a way that pin RA5 is configured as a digital

I/O

PIC16F87X

Any serial port function that is not desired may be overridden by programming the corresponding data direction (TRIS) register to the opposite value.

FIGURE 9-1:

Read

MSSP BLOCK DIAGRAM

(SPI MODE)

Write

Internal

Data Bus

SSPBUF Reg

SDI

SDO

SS

SCK bit0

SSPSR Reg

Shift

Clock

SS Control

Enable

Edge

Select

2

Clock Select

SSPM3:SSPM0

SMP:CKE

2

4

Edge

Select

TMR2 Output

Prescaler

4, 16, 64

2

T

OSC

Data to TX/RX in SSPSR

Data Direction bit

1998-2013 Microchip Technology Inc.

DS30292D-page 69

PIC16F87X

9.1.1

MASTER MODE

The master can initiate the data transfer at any time because it controls the SCK. The master determines

when the slave (Processor 2, Figure 9-5) is to broad-

cast data by the software protocol.

In Master mode, the data is transmitted/received as soon as the SSPBUF register is written to. If the SPI module is only going to receive, the SDO output could be disabled (programmed as an input). The SSPSR register will continue to shift in the signal present on the

SDI pin at the programmed clock rate. As each byte is received, it will be loaded into the SSPBUF register as if a normal received byte (interrupts and status bits appropriately set). This could be useful in receiver applications as a “line activity monitor”.

The clock polarity is selected by appropriately programming bit CKP (SSPCON<4>). This then, would give waveforms for SPI communication as shown in

Figure 9-6, Figure 9-8 and Figure 9-9, where the MSb is transmitted first. In Master mode, the SPI clock rate (bit rate) is user programmable to be one of the following:

• F

OSC

/4 (or T

CY

)

• F

OSC

/16 (or 4 • T

CY

)

• F

OSC

/64 (or 16 • T

CY

)

• Timer2 output/2

This allows a maximum bit clock frequency (at 20 MHz) of 5.0 MHz.

Figure 9-6 shows the waveforms for Master mode.

When CKE = 1, the SDO data is valid before there is a clock edge on SCK. The change of the input sample is shown based on the state of the SMP bit. The time when the SSPBUF is loaded with the received data is shown.

FIGURE 9-2:

SCK (CKP = 0,

CKE = 0)

SCK (CKP = 0,

CKE = 1)

SCK (CKP = 1,

CKE = 0)

SCK (CKP = 1,

CKE = 1)

SDO

SDI (SMP = 0)

SPI MODE TIMING, MASTER MODE

bit7 bit6 bit5 bit4 bit7

SDI (SMP = 1) bit7

SSPIF bit3 bit2 bit1 bit0 bit0 bit0

1998-2013 Microchip Technology Inc.

DS30292D-page 70

9.1.2

SLAVE MODE

In Slave mode, the data is transmitted and received as the external clock pulses appear on SCK. When the last bit is latched, the interrupt flag bit SSPIF (PIR1<3>) is set.

While in Slave mode, the external clock is supplied by the external clock source on the SCK pin. This external clock must meet the minimum high and low times as specified in the electrical specifications.

PIC16F87X

While in SLEEP mode, the slave can transmit/receive data. When a byte is received, the device will wake-up from SLEEP.

Note 1:

When the SPI module is in Slave mode with SS pin control enabled

(SSPCON<3:0> =

0100

), the SPI module will reset if the SS pin is set to V

DD

.

2:

If the SPI is used in Slave mode with

CKE = '1', then SS pin control must be enabled.

FIGURE 9-3:

SS (optional)

SPI MODE TIMING (SLAVE MODE WITH CKE = 0)

SCK (CKP = 0)

SCK (CKP = 1)

SDO

SDI (SMP = 0)

SSPIF bit7 bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 bit0

FIGURE 9-4:

SS

SPI MODE TIMING (SLAVE MODE WITH CKE = 1)

SCK (CKP = 0)

SCK (CKP = 1)

SDO

SDI (SMP = 0)

SSPIF bit7 bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0 bit0

1998-2013 Microchip Technology Inc.

DS30292D-page 71

PIC16F87X

TABLE 9-1: REGISTERS ASSOCIATED WITH SPI OPERATION

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR, BOR

Value on:

MCLR, WDT

0Bh, 8Bh,

10Bh,18Bh

0Ch

8Ch

13h

14h

INTCON GIE PEIE T0IE INTE RBIE T0IF INTF RBIF

0000 000x 0000 000u

PIR1

PIE1

PSPIF

(1)

PSPIE

(1)

ADIF

ADIE

RCIF TXIF SSPIF CCP1IF TMR2IF TMR1IF

0000 0000 0000 0000

RCIE TXIE SSPIE CCP1IE TMR2IE TMR1IE

0000 0000 0000 0000

SSPBUF Synchronous Serial Port Receive Buffer/Transmit Register xxxx xxxx uuuu uuuu

SSPCON WCOL SSPOV SSPEN CKP SSPM3 SSPM2 SSPM1 SSPM0

0000 0000 0000 0000

94h SSPSTAT SMP CKE D/A P S R/W UA BF

0000 0000 0000 0000

Legend: x

= unknown, u

= unchanged,

-

= unimplemented, read as '0'. Shaded cells are not used by the SSP in SPI mode.

Note 1:

These bits are reserved on PCI16F873/876 devices; always maintain these bits clear.

DS30292D-page 72

1998-2013 Microchip Technology Inc.

9.2

MSSP I

2

C Operation

The MSSP module in I

2

C mode, fully implements all master and slave functions (including general call support) and provides interrupts on START and STOP bits in hardware, to determine a free bus (multi-master function). The MSSP module implements the standard mode specifications, as well as 7-bit and 10-bit addressing.

Refer to Application Note AN578,

"Use of the SSP

Module in the I

2

C Multi-Master Environment."

A "glitch" filter is on the SCL and SDA pins when the pin is an input. This filter operates in both the 100 kHz and

400 kHz modes. In the 100 kHz mode, when these pins are an output, there is a slew rate control of the pin that is independent of device frequency.

FIGURE 9-5:

Read

I

2

C SLAVE MODE BLOCK

DIAGRAM

Internal

Data Bus

Write

SCL

SDA

SSPBUF Reg

Shift

Clock

MSb

SSPSR Reg

LSb

Match Detect

Addr Match

SSPADD Reg

START and

STOP bit Detect

Set, Reset

S, P bits

(SSPSTAT Reg)

Two pins are used for data transfer. These are the SCL pin, which is the clock, and the SDA pin, which is the data. The SDA and SCL pins are automatically configured when the I

2

C mode is enabled. The SSP module functions are enabled by setting SSP Enable bit

SSPEN (SSPCON<5>).

The MSSP module has six registers for I

2

C operation.

They are the:

• SSP Control Register (SSPCON)

• SSP Control Register2 (SSPCON2)

• SSP Status Register (SSPSTAT)

• Serial Receive/Transmit Buffer (SSPBUF)

• SSP Shift Register (SSPSR) - Not directly accessible

• SSP Address Register (SSPADD)

PIC16F87X

The SSPCON register allows control of the I

2

C operation. Four mode selection bits (SSPCON<3:0>) allow one of the following I

2

C modes to be selected:

• I

2

C Slave mode (7-bit address)

• I

2

C Slave mode (10-bit address)

• I

2

C Master mode, clock = OSC/4 (SSPADD +1)

• I

2

C firmware modes (provided for compatibility to other mid-range products)

Before selecting any I

2

C mode, the SCL and SDA pins must be programmed to inputs by setting the appropriate TRIS bits. Selecting an I

2

C mode by setting the

SSPEN bit, enables the SCL and SDA pins to be used as the clock and data lines in I

2

C mode. Pull-up resistors must be provided externally to the SCL and SDA pins for the proper operation of the I

2

C module.

The CKE bit (SSPSTAT<6:7>) sets the levels of the

SDA and SCL pins in either Master or Slave mode.

When CKE = 1, the levels will conform to the SMBus specification. When CKE = 0, the levels will conform to the I

2

C specification.

The SSPSTAT register gives the status of the data transfer. This information includes detection of a

START (S) or STOP (P) bit, specifies if the received byte was data or address, if the next byte is the completion of 10-bit address, and if this will be a read or write data transfer.

SSPBUF is the register to which the transfer data is written to, or read from. The SSPSR register shifts the data in or out of the device. In receive operations, the

SSPBUF and SSPSR create a doubled buffered receiver. This allows reception of the next byte to begin before reading the last byte of received data. When the complete byte is received, it is transferred to the

SSPBUF register and flag bit SSPIF is set. If another complete byte is received before the SSPBUF register is read, a receiver overflow has occurred and bit

SSPOV (SSPCON<6>) is set and the byte in the

SSPSR is lost.

The SSPADD register holds the slave address. In

10-bit mode, the user needs to write the high byte of the address (

1111 0 A9 A8 0

). Following the high byte address match, the low byte of the address needs to be loaded (A7:A0).

1998-2013 Microchip Technology Inc.

DS30292D-page 73

PIC16F87X

9.2.1

SLAVE MODE

In Slave mode, the SCL and SDA pins must be configured as inputs. The MSSP module will override the input state with the output data, when required (slavetransmitter).

When an address is matched, or the data transfer after an address match is received, the hardware automatically will generate the Acknowledge (ACK) pulse, and then load the SSPBUF register with the received value currently in the SSPSR register.

There are certain conditions that will cause the MSSP module not to give this ACK pulse. These are if either

(or both): a) The buffer full bit BF (SSPSTAT<0>) was set before the transfer was received.

b) The overflow bit SSPOV (SSPCON<6>) was set before the transfer was received.

If the BF bit is set, the SSPSR register value is not loaded into the SSPBUF, but bit SSPIF and SSPOV are set. Table 9-2 shows what happens when a data transfer byte is received, given the status of bits BF and

SSPOV. The shaded cells show the condition where user software did not properly clear the overflow condition. Flag bit BF is cleared by reading the SSPBUF register, while bit SSPOV is cleared through software.

The SCL clock input must have a minimum high and low time for proper operation. The high and low times of the I

2

C specification, as well as the requirement of the MSSP module, is shown in timing parameter #100 and parameter #101 of the electrical specifications.

9.2.1.1

Addressing

Once the MSSP module has been enabled, it waits for a START condition to occur. Following the START condition, the 8-bits are shifted into the SSPSR register. All incoming bits are sampled with the rising edge of the clock (SCL) line. The value of register SSPSR<7:1> is compared to the value of the SSPADD register. The address is compared on the falling edge of the eighth clock (SCL) pulse. If the addresses match, and the BF and SSPOV bits are clear, the following events occur: a) The SSPSR register value is loaded into the

SSPBUF register on the falling edge of the 8th

SCL pulse.

b) The buffer full bit, BF, is set on the falling edge of the 8th SCL pulse.

c) An ACK pulse is generated.

d) SSP interrupt flag bit, SSPIF (PIR1<3>), is set

(interrupt is generated if enabled) on the falling edge of the 9th SCL pulse.

In 10-bit address mode, two address bytes need to be received by the slave. The five Most Significant bits

(MSbs) of the first address byte specify if this is a 10-bit address. Bit R/W (SSPSTAT<2>) must specify a write so the slave device will receive the second address byte.

For a 10-bit address, the first byte would equal

1111 0 A9 A8 0

’, where

A9

and

A8

are the two MSbs of the address. The sequence of events for a 10-bit address is as follows, with steps 7-9 for slave-transmitter:

1.

Receive first (high) byte of Address (bits SSPIF,

BF and UA (SSPSTAT<1>) are set).

2.

Update the SSPADD register with the second

(low) byte of Address (clears bit UA and releases the SCL line).

3.

Read the SSPBUF register (clears bit BF) and clear flag bit SSPIF.

4.

Receive second (low) byte of Address (bits

SSPIF, BF and UA are set).

5.

Update the SSPADD register with the first (high) byte of Address. This will clear bit UA and release the SCL line.

6.

Read the SSPBUF register (clears bit BF) and clear flag bit SSPIF.

7.

Receive Repeated Start condition.

8.

Receive first (high) byte of Address (bits SSPIF and BF are set).

9.

Read the SSPBUF register (clears bit BF) and clear flag bit SSPIF.

Note:

Following the Repeated START condition

(step 7) in 10-bit mode, the user only needs to match the first 7-bit address. The user does not update the SSPADD for the second half of the address.

9.2.1.2

Slave Reception

When the R/W bit of the address byte is clear and an address match occurs, the R/W bit of the SSPSTAT register is cleared. The received address is loaded into the SSPBUF register.

When the address byte overflow condition exists, then no Acknowledge (ACK) pulse is given. An overflow condition is defined as either bit BF (SSPSTAT<0>) is set, or bit SSPOV (SSPCON<6>) is set. This is an error condition due to user firmware.

An SSP interrupt is generated for each data transfer byte. Flag bit SSPIF (PIR1<3>) must be cleared in software. The SSPSTAT register is used to determine the status of the received byte.

Note:

The SSPBUF will be loaded if the SSPOV bit is set and the BF flag is cleared. If a read of the SSPBUF was performed, but the user did not clear the state of the

SSPOV bit before the next receive occurred, the ACK is not sent and the

SSPBUF is updated.

1998-2013 Microchip Technology Inc.

DS30292D-page 74

PIC16F87X

TABLE 9-2: DATA TRANSFER RECEIVED BYTE ACTIONS

Status Bits as Data

Transfer is Received

BF SSPOV

SSPSR



SSPBUF

Generate ACK

Pulse

Set bit SSPIF

(SSP Interrupt occurs if enabled)

1

0

0

1

0

0

1

1

Yes

No

No

Yes

Yes

No

No

No

Yes

Yes

Yes

Yes

Note:

Shaded cells show the conditions where the user software did not properly clear the overflow condition.

9.2.1.3

Slave Transmission

When the R/W bit of the incoming address byte is set and an address match occurs, the R/W bit of the

SSPSTAT register is set. The received address is loaded into the SSPBUF register. The ACK pulse will be sent on the ninth bit, and the SCL pin is held low.

The transmit data must be loaded into the SSPBUF register, which also loads the SSPSR register. Then, the SCL pin should be enabled by setting bit CKP

(SSPCON<4>). The master must monitor the SCL pin prior to asserting another clock pulse. The slave devices may be holding off the master by stretching the clock. The eight data bits are shifted out on the falling edge of the SCL input. This ensures that the SDA signal is valid during the SCL high time (Figure 9-7).

An SSP interrupt is generated for each data transfer byte. The SSPIF flag bit must be cleared in software and the SSPSTAT register is used to determine the status of the byte transfer. The SSPIF flag bit is set on the falling edge of the ninth clock pulse.

As a slave-transmitter, the ACK pulse from the master receiver is latched on the rising edge of the ninth SCL input pulse. If the SDA line is high (not ACK), then the data transfer is complete. When the not ACK is latched by the slave, the slave logic is reset and the slave then monitors for another occurrence of the START bit. If the

SDA line was low (ACK), the transmit data must be loaded into the SSPBUF register, which also loads the

SSPSR register. Then the SCL pin should be enabled by setting the CKP bit.

FIGURE 9-6:

SDA

I

2

C WAVEFORMS FOR RECEPTION (7-BIT ADDRESS)

Receiving Address

A7 A6 A5 A4 A3 A2 A1

R/W=0

ACK

D7 D6

Receiving Data

D5 D4 D3 D2

D1

D0

ACK

D7 D6

Receiving Data

D5 D4 D3 D2

D1

D0

Not

ACK

1 2

3

4 5

6 7

8

9 1 2

3

4 5 6

7

8 9 1 2 3

4

5

6 7

8 9

SCL S

SSPIF

P

Bus Master

Terminates

Transfer

BF (SSPSTAT<0>)

Cleared in software

SSPBUF register is read

SSPOV (SSPCON<6>)

Bit SSPOV is set because the SSPBUF register is still full.

ACK is not sent.

1998-2013 Microchip Technology Inc.

DS30292D-page 75

PIC16F87X

FIGURE 9-7:

SDA

I

2

C WAVEFORMS FOR TRANSMISSION (7-BIT ADDRESS)

Receiving Address

A7 A6 A5 A4 A3 A2 A1

R/W = 1

ACK

Transmitting Data

D7 D6 D5 D4 D3 D2 D1 D0

R/W = 0

Not ACK

SCL

S

SSPIF

BF (SSPSTAT<0>)

1 2

Data in sampled

3 4 5 6 7 8 9 1

SCL held low while CPU responds to SSPIF

2 3 4 5 6 7 8 9

Cleared in software

SSPBUF is written in software

From SSP Interrupt

Service Routine

P

CKP (SSPCON<4>)

Set bit after writing to SSPBUF

(the SSPBUF must be written to, before the CKP bit can be set)

9.2.2

GENERAL CALL ADDRESS

SUPPORT

The addressing procedure for the I

2

C bus is such that the first byte after the START condition usually determines which device will be the slave addressed by the master. The exception is the general call address, which can address all devices. When this address is used, all devices should, in theory, respond with an acknowledge.

The general call address is one of eight addresses reserved for specific purposes by the I

2

C protocol. It consists of all 0’s with R/W = 0.

The general call address is recognized when the General Call Enable bit (GCEN) is enabled (SSPCON2<7> is set). Following a START bit detect, 8 bits are shifted into SSPSR and the address is compared against

SSPADD. It is also compared to the general call address and fixed in hardware.

If the general call address matches, the SSPSR is transferred to the SSPBUF, the BF flag is set (eighth bit), and on the falling edge of the ninth bit (ACK bit), the SSPIF flag is set.

When the interrupt is serviced, the source for the interrupt can be checked by reading the contents of the

SSPBUF to determine if the address was device specific, or a general call address.

In 10-bit mode, the SSPADD is required to be updated for the second half of the address to match, and the UA bit is set (SSPSTAT<1>). If the general call address is sampled when GCEN is set, while the slave is configured in 10-bit address mode, then the second half of the address is not necessary, the UA bit will not be set, and the slave will begin receiving data after the

Acknowledge (Figure 9-8).

FIGURE 9-8:

SDA

SCL

SSPIF

BF

(SSPSTAT<0>)

S

SLAVE MODE GENERAL CALL ADDRESS SEQUENCE (7 OR 10-BIT MODE)

General Call Address

Address is compared to General Call Address after ACK, set interrupt flag

R/W = 0

ACK

Receiving data

D7 D6 D5 D4 D3 D2 D1 D0

ACK

1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9

Cleared in software

SSPBUF is read

'0'

SSPOV

(SSPCON<6>)

GCEN

(SSPCON2<7>)

'1'

1998-2013 Microchip Technology Inc.

DS30292D-page 76

PIC16F87X

9.2.3

SLEEP OPERATION

While in SLEEP mode, the I

2

C module can receive addresses or data. When an address match or complete byte transfer occurs, wake the processor from

SLEEP (if the SSP interrupt is enabled).

9.2.4

EFFECTS OF A RESET

A RESET disables the SSP module and terminates the current transfer.

TABLE 9-3: REGISTERS ASSOCIATED WITH I

2

C OPERATION

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR, BOR

Value on:

MCLR,

WDT

8Ch

0Dh

8Dh

13h

14h

91h

0Bh, 8Bh,

10Bh,18Bh

INTCON

0Ch

93h

GIE PEIE T0IE INTE RBIE T0IF INTF RBIF

0000 000x 0000 000u

PIR1

PIE1

PIR2

PIE2

PSPIF

(1)

PSPIE

(1)

ADIF

ADIE

(2)

(2)

RCIF

RCIE

TXIF

TXIE

EEIF

EEIE

SSPIF

SSPIE

BCLIF

BCLIE

CCP1IF TMR2IF TMR1IF

CCP1IE TMR2IE TMR1IE

SSPBUF Synchronous Serial Port Receive Buffer/Transmit Register

CCP2IF

0000 0000

0000 0000

-r-0 0--0

0000 0000

CCP2IE

-r-0 0--0 -r-0 0--0 xxxx xxxx

0000 0000

-r-0 0--0 uuuu uuuu

SSPCON WCOL SSPOV SSPEN CKP SSPM3 SSPM2 SSPM1 SSPM0

0000 0000 0000 0000

SSPCON2 GCEN ACKSTAT ACKDT ACKEN RCEN PEN RSEN SEN

0000 0000 0000 0000

SSPADD I

2

C Slave Address/Master Baud Rate Register

0000 0000 0000 0000

94h SSPSTAT SMP CKE D/A P S R/W UA BF

0000 0000 0000 0000

Legend: x

= unknown, u

= unchanged,

-

= unimplemented, read as '0'. Shaded cells are not used by the SSP in I

2

C mode.

Note 1:

These bits are reserved on PIC16F873/876 devices; always maintain these bits clear.

2:

These bits are reserved on these devices; always maintain these bits clear.

1998-2013 Microchip Technology Inc.

DS30292D-page 77

PIC16F87X

9.2.5

MASTER MODE

Master mode of operation is supported by interrupt generation on the detection of the START and STOP conditions. The STOP (P) and START (S) bits are cleared from a RESET, or when the MSSP module is disabled. Control of the I

2

C bus may be taken when the

P bit is set, or the bus is idle, with both the S and P bits clear.

In Master mode, the SCL and SDA lines are manipulated by the MSSP hardware.

FIGURE 9-9:

The following events will cause the SSP Interrupt Flag bit, SSPIF, to be set (an SSP interrupt will occur if enabled):

• START condition

• STOP condition

• Data transfer byte transmitted/received

• Acknowledge transmit

• Repeated START

SSP BLOCK DIAGRAM (I

2

C MASTER MODE)

Read

Internal

Data Bus

Write

SSPM3:SSPM0,

SSPADD<6:0>

SSPBUF

Baud

Rate

Generator

SDA

SDA in

MSb

SSPSR

LSb

Shift

Clock

START bit, STOP bit,

Acknowledge

Generate

SCL

SCL in

Bus Collision

START bit Detect,

STOP bit Detect

Write Collision Detect

Clock Arbitration

State Counter for end of XMIT/RCV

Set/Reset, S, P, WCOL (SSPSTAT)

Set SSPIF, BCLIF

Reset ACKSTAT, PEN (SSPCON2)

9.2.6

MULTI-MASTER MODE

In Multi-Master mode, the interrupt generation on the detection of the START and STOP conditions allows the determination of when the bus is free. The STOP

(P) and START (S) bits are cleared from a RESET or when the MSSP module is disabled. Control of the I

2

C bus may be taken when bit P (SSPSTAT<4>) is set, or the bus is idle with both the S and P bits clear. When the bus is busy, enabling the SSP Interrupt will generate the interrupt when the STOP condition occurs.

In Multi-Master operation, the SDA line must be monitored for arbitration to see if the signal level is the expected output level. This check is performed in hardware, with the result placed in the BCLIF bit.

The states where arbitration can be lost are:

• Address Transfer

• Data Transfer

• A START Condition

• A Repeated START Condition

• An Acknowledge Condition

1998-2013 Microchip Technology Inc.

DS30292D-page 78

9.2.7

I

2

C MASTER MODE SUPPORT

Master mode is enabled by setting and clearing the appropriate SSPM bits in SSPCON and by setting the

SSPEN bit. Once Master mode is enabled, the user has six options:

• Assert a START condition on SDA and SCL.

• Assert a Repeated START condition on SDA and

SCL.

• Write to the SSPBUF register initiating transmission of data/address.

• Generate a STOP condition on SDA and SCL.

• Configure the I

2

C port to receive data.

• Generate an Acknowledge condition at the end of a received byte of data.

Note:

The MSSP Module, when configured in I

2

C

Master mode, does not allow queueing of events. For instance, the user is not allowed to initiate a START condition and immediately write the SSPBUF register to initiate transmission before the START condition is complete. In this case, the

SSPBUF will not be written to and the

WCOL bit will be set, indicating that a write to the SSPBUF did not occur.

9.2.7.1

I

2

C Master Mode Operation

The master device generates all of the serial clock pulses and the START and STOP conditions. A transfer is ended with a STOP condition or with a Repeated

START condition. Since the Repeated START condition is also the beginning of the next serial transfer, the

I

2

C bus will not be released.

In Master Transmitter mode, serial data is output through

SDA, while SCL outputs the serial clock. The first byte transmitted contains the slave address of the receiving device (7 bits) and the Read/Write (R/W) bit. In this case, the R/W bit will be logic '0'. Serial data is transmitted 8 bits at a time. After each byte is transmitted, an Acknowledge bit is received. START and STOP conditions are output to indicate the beginning and the end of a serial transfer.

In Master Receive mode, the first byte transmitted contains the slave address of the transmitting device

(7 bits) and the R/W bit. In this case, the R/W bit will be logic '1'. Thus, the first byte transmitted is a 7-bit slave address followed by a '1' to indicate receive bit. Serial data is received via SDA, while SCL outputs the serial clock. Serial data is received 8 bits at a time. After each byte is received, an Acknowledge bit is transmitted.

START and STOP conditions indicate the beginning and end of transmission.

The baud rate generator used for SPI mode operation is now used to set the SCL clock frequency for either

100 kHz, 400 kHz, or 1 MHz I

2

C operation. The baud rate generator reload value is contained in the lower 7 bits of the SSPADD register. The baud rate generator will automatically begin counting on a write to the

1998-2013 Microchip Technology Inc.

PIC16F87X

SSPBUF. Once the given operation is complete (i.e., transmission of the last data bit is followed by ACK), the internal clock will automatically stop counting and the

SCL pin will remain in its last state.

A typical transmit sequence would go as follows: a) User generates a START condition by setting the START enable bit (SEN) in SSPCON2.

b) SSPIF is set. The module will wait the required start time before any other operation takes place.

c) User loads SSPBUF with address to transmit.

d) Address is shifted out the SDA pin until all 8 bits are transmitted.

e) MSSP module shifts in the ACK bit from the slave device and writes its value into the

SSPCON2 register (SSPCON2<6>).

f) MSSP module generates an interrupt at the end of the ninth clock cycle by setting SSPIF.

g) User loads SSPBUF with eight bits of data. h) DATA is shifted out the SDA pin until all 8 bits are transmitted.

i) MSSP module shifts in the ACK bit from the slave device, and writes its value into the

SSPCON2 register (SSPCON2<6>).

j) MSSP module generates an interrupt at the end of the ninth clock cycle by setting the SSPIF bit.

k) User generates a STOP condition by setting the

STOP enable bit, PEN, in SSPCON2.

l) Interrupt is generated once the STOP condition is complete.

9.2.8

BAUD RATE GENERATOR

In I

2

C Master mode, the reload value for the BRG is located in the lower 7 bits of the SSPADD register

(Figure 9-10). When the BRG is loaded with this value, the BRG counts down to 0 and stops until another reload has taken place. The BRG count is decremented twice per instruction cycle (T

CY

), on the Q2 and Q4 clock.

In I

2

C Master mode, the BRG is reloaded automatically. If clock arbitration is taking place, the BRG will be reloaded when the SCL pin is sampled high (Figure 9-11).

Note:

Baud Rate = F

OSC

/ (4 * (SSPADD + 1) )

FIGURE 9-10:

SSPM3:SSPM0

BAUD RATE GENERATOR

BLOCK DIAGRAM

SSPADD<6:0>

SSPM3:SSPM0

SCL

CLKOUT

Reload

Control

Reload

BRG Down Counter

F

OSC

/4

DS30292D-page 79

PIC16F87X

FIGURE 9-11:

SDA

BAUD RATE GENERATOR TIMING WITH CLOCK ARBITRATION

DX DX-1

SCL de-asserted but slave holds

SCL low (clock arbitration)

SCL allowed to transition high

SCL

BRG

Value

03h

BRG decrements

(on Q2 and Q4 cycles)

00h (hold off) 03h 02h 01h

SCL is sampled high, reload takes place, and BRG starts its count

02h

BRG

Reload

9.2.9

I

2

C MASTER MODE START

CONDITION TIMING

To initiate a START condition, the user sets the START condition enable bit, SEN (SSPCON2<0>). If the SDA and SCL pins are sampled high, the baud rate generator is reloaded with the contents of SSPADD<6:0> and starts its count. If SCL and SDA are both sampled high when the baud rate generator times out (T

BRG

), the

SDA pin is driven low. The action of the SDA being driven low while SCL is high is the START condition, and causes the S bit (SSPSTAT<3>) to be set. Following this, the baud rate generator is reloaded with the contents of SSPADD<6:0> and resumes its count.

When the baud rate generator times out (T

BRG

), the

SEN bit (SSPCON2<0>) will be automatically cleared by hardware. The baud rate generator is suspended, leaving the SDA line held low, and the START condition is complete.

Note:

If, at the beginning of START condition, the

SDA and SCL pins are already sampled low, or if during the START condition the

SCL line is sampled low before the SDA line is driven low, a bus collision occurs, the Bus Collision Interrupt Flag (BCLIF) is set, the START condition is aborted, and the I

2

C module is reset into its IDLE state.

9.2.9.1

WCOL Status Flag

If the user writes the SSPBUF when a START sequence is in progress, then WCOL is set and the contents of the buffer are unchanged (the write doesn’t occur).

Note:

Because queueing of events is not allowed, writing to the lower 5 bits of

SSPCON2 is disabled until the START condition is complete.

FIGURE 9-12: FIRST START BIT TIMING

Write to SEN bit occurs here

SDA = 1,

SCL = 1

Set S bit (SSPSTAT<3>)

At completion of START bit,

Hardware clears SEN bit

and sets SSPIF bit

T

BRG

T

BRG

Write to SSPBUF occurs here

SDA

1st Bit

T

BRG

2nd Bit

SCL

T

BRG

S

1998-2013 Microchip Technology Inc.

DS30292D-page 80

PIC16F87X

9.2.10

I

2

C MASTER MODE REPEATED

START CONDITION TIMING

A Repeated START condition occurs when the RSEN bit (SSPCON2<1>) is programmed high and the I

2

C module is in the IDLE state. When the RSEN bit is set, the SCL pin is asserted low. When the SCL pin is sampled low, the baud rate generator is loaded with the contents of SSPADD<6:0> and begins counting. The

SDA pin is released (brought high) for one baud rate generator count (T

BRG

). When the baud rate generator times out, if SDA is sampled high, the SCL pin will be de-asserted (brought high). When SCL is sampled high the baud rate generator is reloaded with the contents of

SSPADD<6:0> and begins counting. SDA and SCL must be sampled high for one T

BRG

. This action is then followed by assertion of the SDA pin (SDA is low) for one T

BRG

, while SCL is high. Following this, the RSEN bit in the SSPCON2 register will be automatically cleared and the baud rate generator will not be reloaded, leaving the SDA pin held low. As soon as a

START condition is detected on the SDA and SCL pins, the S bit (SSPSTAT<3>) will be set. The SSPIF bit will not be set until the baud rate generator has timed out.

Note 1:

If RSEN is programmed while any other event is in progress, it will not take effect.

2:

A bus collision during the Repeated

START condition occurs if:

• SDA is sampled low when SCL goes from low to high.

• SCL goes low before SDA is asserted low. This may indicate that another master is attempting to transmit a data "1".

Immediately following the SSPIF bit getting set, the user may write the SSPBUF with the 7-bit address in

7-bit mode, or the default first address in 10-bit mode.

After the first eight bits are transmitted and an ACK is received, the user may then transmit an additional eight bits of address (10-bit mode), or eight bits of data (7-bit mode).

9.2.10.1

WCOL Status Flag

If the user writes the SSPBUF when a Repeated

START sequence is in progress, then WCOL is set and the contents of the buffer are unchanged (the write doesn’t occur).

Note:

Because queueing of events is not allowed, writing of the lower 5 bits of

SSPCON2 is disabled until the Repeated

START condition is complete.

FIGURE 9-13: REPEAT START CONDITION WAVEFORM

SDA

Write to SSPCON2 occurs here

SDA = 1,

SCL (no change)

Falling edge of ninth clock

End of Xmit

SDA = 1,

SCL = 1

T

BRG

T

BRG

T

BRG

Set S (SSPSTAT<3>)

At completion of START bit, hardware clears RSEN bit

and sets SSPIF

1st bit

Write to SSPBUF occurs here

T

BRG

SCL

T

BRG

Sr = Repeated START

1998-2013 Microchip Technology Inc.

DS30292D-page 81

PIC16F87X

9.2.11

I

2

C MASTER MODE

TRANSMISSION

Transmission of a data byte, a 7-bit address, or either half of a 10-bit address, is accomplished by simply writing a value to SSPBUF register. This action will set the

Buffer Full flag (BF) and allow the baud rate generator to begin counting and start the next transmission. Each bit of address/data will be shifted out onto the SDA pin after the falling edge of SCL is asserted (see data hold time spec). SCL is held low for one baud rate generator rollover count (T

BRG

). Data should be valid before SCL is released high (see data setup time spec). When the

SCL pin is released high, it is held that way for T

BRG

.

The data on the SDA pin must remain stable for that duration and some hold time after the next falling edge of SCL. After the eighth bit is shifted out (the falling edge of the eighth clock), the BF flag is cleared and the master releases SDA allowing the slave device being addressed to respond with an ACK bit during the ninth bit time, if an address match occurs or if data was received properly. The status of ACK is read into the

ACKDT on the falling edge of the ninth clock. If the master receives an Acknowledge, the Acknowledge

Status bit (ACKSTAT) is cleared. If not, the bit is set.

After the ninth clock, the SSPIF is set and the master clock (baud rate generator) is suspended until the next data byte is loaded into the SSPBUF, leaving SCL low and SDA unchanged (Figure 9-14).

After the write to the SSPBUF, each bit of address will be shifted out on the falling edge of SCL, until all seven address bits and the R/W bit are completed. On the falling edge of the eighth clock, the master will de-assert the SDA pin, allowing the slave to respond with an

Acknowledge. On the falling edge of the ninth clock, the master will sample the SDA pin to see if the address was recognized by a slave. The status of the ACK bit is loaded into the ACKSTAT status bit (SSPCON2<6>).

Following the falling edge of the ninth clock transmission of the address, the SSPIF is set, the BF flag is cleared, and the baud rate generator is turned off until another write to the SSPBUF takes place, holding SCL low and allowing SDA to float.

9.2.11.1

BF Status Flag

In Transmit mode, the BF bit (SSPSTAT<0>) is set when the CPU writes to SSPBUF and is cleared when all 8 bits are shifted out.

9.2.11.2

WCOL Status Flag

If the user writes the SSPBUF when a transmit is already in progress (i.e., SSPSR is still shifting out a data byte), then WCOL is set and the contents of the buffer are unchanged (the write doesn’t occur).

WCOL must be cleared in software.

9.2.11.3

ACKSTAT Status Flag

In Transmit mode, the ACKSTAT bit (SSPCON2<6>) is cleared when the slave has sent an Acknowledge

(ACK = 0), and is set when the slave does not Acknowledge (ACK = 1). A slave sends an Acknowledge when it has recognized its address (including a general call), or when the slave has properly received its data.

1998-2013 Microchip Technology Inc.

DS30292D-page 82

FIGURE 9-14:

PIC16F87X

I

2

C MASTER MODE TIMING (TRANSMISSION, 7 OR 10-BIT ADDRESS)

1998-2013 Microchip Technology Inc.

DS30292D-page 83

PIC16F87X

9.2.12

I

2

C MASTER MODE RECEPTION

Master mode reception is enabled by programming the

Receive Enable bit, RCEN (SSPCON2<3>).

Note:

The SSP module must be in an IDLE state before the RCEN bit is set, or the RCEN bit will be disregarded.

The baud rate generator begins counting, and on each rollover, the state of the SCL pin changes (high to low/ low to high), and data is shifted into the SSPSR. After the falling edge of the eighth clock, the receive enable flag is automatically cleared, the contents of the

SSPSR are loaded into the SSPBUF, the BF flag is set, the SSPIF is set, and the baud rate generator is suspended from counting, holding SCL low. The SSP is now in IDLE state, awaiting the next command. When the buffer is read by the CPU, the BF flag is automatically cleared. The user can then send an Acknowledge bit at the end of reception, by setting the Acknowledge

Sequence Enable bit, ACKEN (SSPCON2<4>).

9.2.12.1

BF Status Flag

In receive operation, BF is set when an address or data byte is loaded into SSPBUF from SSPSR. It is cleared when SSPBUF is read.

9.2.12.2

SSPOV Status Flag

In receive operation, SSPOV is set when 8 bits are received into the SSPSR, and the BF flag is already set from a previous reception.

9.2.12.3

WCOL Status Flag

If the user writes the SSPBUF when a receive is already in progress (i.e., SSPSR is still shifting in a data byte), then WCOL is set and the contents of the buffer are unchanged (the write doesn’t occur).

DS30292D-page 84

1998-2013 Microchip Technology Inc.

FIGURE 9-15:

PIC16F87X

I

2

C MASTER MODE TIMING (RECEPTION, 7-BIT ADDRESS)

1998-2013 Microchip Technology Inc.

DS30292D-page 85

PIC16F87X

9.2.13

ACKNOWLEDGE SEQUENCE

TIMING

An Acknowledge sequence is enabled by setting the

Acknowledge Sequence Enable bit, ACKEN

(SSPCON2<4>). When this bit is set, the SCL pin is pulled low and the contents of the Acknowledge data bit is presented on the SDA pin. If the user wishes to generate an Acknowledge, the ACKDT bit should be cleared. If not, the user should set the ACKDT bit before starting an Acknowledge sequence. The baud rate generator then counts for one rollover period

(T

BRG

), and the SCL pin is de-asserted high. When the

SCL pin is sampled high (clock arbitration), the baud rate generator counts for T

BRG

. The SCL pin is then pulled low. Following this, the ACKEN bit is automatically cleared, the baud rate generator is turned off, and the SSP module then goes into IDLE mode

(Figure 9-16).

9.2.13.1

WCOL Status Flag

If the user writes the SSPBUF when an Acknowledge sequence is in progress, the WCOL is set and the contents of the buffer are unchanged (the write doesn’t occur).

FIGURE 9-16: ACKNOWLEDGE SEQUENCE WAVEFORM

Acknowledge sequence starts here,

Write to SSPCON2

ACKEN = 1, ACKDT = 0

ACKEN automatically cleared

SDA

D0

T

BRG

ACK

T

BRG

SCL

8 9

SSPIF

Set SSPIF at the end of receive

Cleared in software

Cleared in software

Set SSPIF at the end of Acknowledge sequence

Note:

T

BRG

= one baud rate generator period.

DS30292D-page 86

1998-2013 Microchip Technology Inc.

PIC16F87X

9.2.14

STOP CONDITION TIMING

A STOP bit is asserted on the SDA pin at the end of a receive/transmit by setting the Stop Sequence Enable bit, PEN (SSPCON2<2>). At the end of a receive/ transmit, the SCL line is held low after the falling edge of the ninth clock. When the PEN bit is set, the master will assert the SDA line low. When the SDA line is sampled low, the baud rate generator is reloaded and counts down to 0. When the baud rate generator times out, the SCL pin will be brought high, and one T

BRG

(baud rate generator rollover count) later, the SDA pin will be de-asserted. When the SDA pin is sampled high

FIGURE 9-17:

while SCL is high, the P bit (SSPSTAT<4>) is set. A

T

BRG

later, the PEN bit is cleared and the SSPIF bit is set (Figure 9-17).

Whenever the firmware decides to take control of the bus, it will first determine if the bus is busy by checking the S and P bits in the SSPSTAT register. If the bus is busy, then the CPU can be interrupted (notified) when a STOP bit is detected (i.e., bus is free).

9.2.14.1

WCOL Status Flag

If the user writes the SSPBUF when a STOP sequence is in progress, then WCOL is set and the contents of the buffer are unchanged (the write doesn’t occur).

STOP CONDITION RECEIVE OR TRANSMIT MODE

Write to SSPCON2

Set PEN

SCL

Falling edge of

9th clock

SDA ACK

T

BRG

SCL = 1 for T

BRG

, followed by SDA = 1 for T

BRG after SDA sampled high. P bit (SSPSTAT<4>) is set.

PEN bit (SSPCON2<2>) is cleared by

hardware and the SSPIF bit is set

T

BRG

P

T

BRG

T

BRG

SCL brought high after T

BRG

SDA asserted low before rising edge of clock to setup STOP condition

Note:

T

BRG

= one baud rate generator period.

1998-2013 Microchip Technology Inc.

DS30292D-page 87

PIC16F87X

9.2.15

CLOCK ARBITRATION

Clock arbitration occurs when the master, during any receive, transmit, or Repeated START/STOP condition, de-asserts the SCL pin (SCL allowed to float high).

When the SCL pin is allowed to float high, the baud rate generator (BRG) is suspended from counting until the

SCL pin is actually sampled high. When the SCL pin is sampled high, the baud rate generator is reloaded with the contents of SSPADD<6:0> and begins counting.

This ensures that the SCL high time will always be at least one BRG rollover count in the event that the clock is held low by an external device (Figure 9-18).

9.2.16

While in SLEEP mode, the I

2

C module can receive addresses or data, and when an address match or complete byte transfer occurs, wake the processor from SLEEP (if the SSP interrupt is enabled).

9.2.17

SLEEP OPERATION

EFFECTS OF A RESET

A RESET disables the SSP module and terminates the current transfer.

FIGURE 9-18: CLOCK ARBITRATION TIMING IN MASTER TRANSMIT MODE

BRG overflow,

Release SCL,

If SCL = 1, Load BRG with

SSPADD<6:0>, and start count to measure high time interval

BRG overflow occurs,

Release SCL, Slave device holds SCL low

SCL = 1, BRG starts counting clock high interval

SCL

SCL line sampled once every machine cycle (T

OSC

4).

Hold off BRG until SCL is sampled high.

SDA

T

BRG

T

BRG T

BRG

DS30292D-page 88

1998-2013 Microchip Technology Inc.

9.2.18

MULTI -MASTER

COMMUNICATION,

BUS COLLISION, AND

BUS ARBITRATION

Multi-Master mode support is achieved by bus arbitration. When the master outputs address/data bits onto the SDA pin, arbitration takes place when the master outputs a '1' on SDA, by letting SDA float high and another master asserts a '0'. When the SCL pin floats high, data should be stable. If the expected data on

SDA is a '1' and the data sampled on the SDA pin = '0', a bus collision has taken place. The master will set the

Bus Collision Interrupt Flag, BCLIF and reset the I

2

C port to its IDLE state (Figure 9-19).

If a transmit was in progress when the bus collision occurred, the transmission is halted, the BF flag is cleared, the SDA and SCL lines are de-asserted, and the SSPBUF can be written to. When the user services the bus collision Interrupt Service Routine, and if the

I

2

C bus is free, the user can resume communication by asserting a START condition.

PIC16F87X

If a START, Repeated START, STOP, or Acknowledge condition was in progress when the bus collision occurred, the condition is aborted, the SDA and SCL lines are de-asserted, and the respective control bits in the SSPCON2 register are cleared. When the user services the bus collision Interrupt Service Routine, and if the I

2

C bus is free, the user can resume communication by asserting a START condition.

The master will continue to monitor the SDA and SCL pins and if a STOP condition occurs, the SSPIF bit will be set.

A write to the SSPBUF will start the transmission of data at the first data bit, regardless of where the transmitter left off when the bus collision occurred.

In Multi-Master mode, the interrupt generation on the detection of START and STOP conditions allows the determination of when the bus is free. Control of the I

2

C bus can be taken when the P bit is set in the SSPSTAT register, or the bus is idle and the S and P bits are cleared.

FIGURE 9-19: BUS COLLISION TIMING FOR TRANSMIT AND ACKNOWLEDGE

Data changes while SCL = 0

SDA line pulled low by another source

SDA released by master

Sample SDA. While SCL is high, data doesn’t match what is driven by the master.

Bus collision has occurred.

SDA

SCL

BCLIF

Set bus collision interrupt

1998-2013 Microchip Technology Inc.

DS30292D-page 89

PIC16F87X

9.2.18.1

Bus Collision During a START

Condition

During a START condition, a bus collision occurs if: a) SDA or SCL are sampled low at the beginning of the START condition (Figure 9-20).

b) SCL is sampled low before SDA is asserted low

(Figure 9-21).

During a START condition, both the SDA and the SCL pins are monitored. If either the SDA pin or the SCL pin is already low, then these events all occur:

• the START condition is aborted,

• and the BCLIF flag is set,

• and the SSP module is reset to its IDLE state

(Figure 9-20).

The START condition begins with the SDA and SCL pins de-asserted. When the SDA pin is sampled high, the baud rate generator is loaded from SSPADD<6:0> and counts down to 0. If the SCL pin is sampled low while SDA is high, a bus collision occurs, because it is assumed that another master is attempting to drive a data '1' during the START condition.

FIGURE 9-20:

If the SDA pin is sampled low during this count, the

BRG is reset and the SDA line is asserted early

(Figure 9-22). If, however, a '1' is sampled on the SDA pin, the SDA pin is asserted low at the end of the BRG count. The baud rate generator is then reloaded and counts down to 0. During this time, if the SCL pins are sampled as '0', a bus collision does not occur. At the end of the BRG count, the SCL pin is asserted low.

Note:

The reason that bus collision is not a factor during a START condition is that no two bus masters can assert a START condition at the exact same time. Therefore, one master will always assert SDA before the other. This condition does not cause a bus collision, because the two masters must be allowed to arbitrate the first address following the START condition. If the address is the same, arbitration must be allowed to continue into the data portion, Repeated

START, or STOP conditions.

BUS COLLISION DURING START CONDITION (SDA ONLY)

SDA goes low before the SEN bit is set.

Set BCLIF,

S bit and SSPIF set because

SDA = 0, SCL = 1.

SDA

SCL

SEN

Set SEN, enable START condition if SDA = 1, SCL = 1

SDA sampled low before

START condition.

Set BCLIF.

S bit and SSPIF set because

SDA = 0, SCL = 1.

SEN cleared automatically because of bus collision.

SSP module reset into IDLE state.

BCLIF

SSPIF and BCLIF are cleared in software

S

SSPIF

SSPIF and BCLIF are cleared in software

1998-2013 Microchip Technology Inc.

DS30292D-page 90

PIC16F87X

FIGURE 9-21: BUS COLLISION DURING START CONDITION (SCL = 0)

SDA = 0, SCL = 1

T

BRG

T

BRG

SDA

SCL

Set SEN, enable START sequence if SDA = 1, SCL = 1

SEN

BCLIF

SCL = 0 before BRG time-out,

Bus collision occurs, Set BCLIF

SCL = 0 before SDA = 0,

Bus collision occurs, Set BCLIF

S '0'

SSPIF

'0'

Interrupts cleared in software

'0'

'0'

FIGURE 9-22: BRG RESET DUE TO SDA COLLISION DURING START CONDITION

SDA

SDA = 0, SCL = 1

Set S

Less than T

BRG

T

BRG

SDA pulled low by other master.

Reset BRG and assert SDA.

Set SSPIF

SCL

SEN s

SCL pulled low after BRG

Time-out

Set SEN, enable START sequence if SDA = 1, SCL = 1

BCLIF

'0'

S

SSPIF

SDA = 0, SCL = 1

Set SSPIF

Interrupts cleared in software

1998-2013 Microchip Technology Inc.

DS30292D-page 91

PIC16F87X

9.2.18.2

Bus Collision During a Repeated

START Condition

During a Repeated START condition, a bus collision occurs if: a) A low level is sampled on SDA when SCL goes from low level to high level.

b) SCL goes low before SDA is asserted low, indicating that another master is attempting to transmit a data ’1’.

When the user de-asserts SDA and the pin is allowed to float high, the BRG is loaded with SSPADD<6:0> and counts down to 0. The SCL pin is then de-asserted, and when sampled high, the SDA pin is sampled. If

SDA is low, a bus collision has occurred (i.e., another master is attempting to transmit a data’0’). If, however,

FIGURE 9-23:

SDA is sampled high, the BRG is reloaded and begins counting. If SDA goes from high to low before the BRG times out, no bus collision occurs, because no two masters can assert SDA at exactly the same time.

If, however, SCL goes from high to low before the BRG times out and SDA has not already been asserted, a bus collision occurs. In this case, another master is attempting to transmit a data’1’ during the Repeated

START condition.

If at the end of the BRG time-out, both SCL and SDA are still high, the SDA pin is driven low, the BRG is reloaded and begins counting. At the end of the count, regardless of the status of the SCL pin, the SCL pin is driven low and the Repeated START condition is complete (Figure 9-23).

BUS COLLISION DURING A REPEATED START CONDITION (CASE 1)

SDA

SCL

Sample SDA when SCL goes high.

If SDA = 0, set BCLIF and release SDA and SCL.

RSEN

BCLIF

S

SSPIF

'0'

'0'

Cleared in software

'0'

'0'

FIGURE 9-24: BUS COLLISION DURING REPEATED START CONDITION (CASE 2)

T

BRG

T

BRG

SDA

SCL

BCLIF

SCL goes low before SDA,

Set BCLIF. Release SDA and SCL.

Interrupt cleared in software

RSEN

S

SSPIF

'0'

'0'

'0'

'0'

1998-2013 Microchip Technology Inc.

DS30292D-page 92

PIC16F87X

9.2.18.3

Bus Collision During a STOP

Condition

Bus collision occurs during a STOP condition if: a) After the SDA pin has been de-asserted and allowed to float high, SDA is sampled low after the BRG has timed out.

b) After the SCL pin is de-asserted, SCL is sampled low before SDA goes high.

FIGURE 9-25:

The STOP condition begins with SDA asserted low.

When SDA is sampled low, the SCL pin is allowed to float. When the pin is sampled high (clock arbitration), the baud rate generator is loaded with SSPADD<6:0> and counts down to 0. After the BRG times out, SDA is sampled. If SDA is sampled low, a bus collision has occurred. This is due to another master attempting to drive a data '0'. If the SCL pin is sampled low before

SDA is allowed to float high, a bus collision occurs. This is a case of another master attempting to drive a data

'0' (Figure 9-25).

BUS COLLISION DURING A STOP CONDITION (CASE 1)

T

BRG

T

BRG

T

BRG

SDA sampled low after T

BRG

,

Set BCLIF

SDA

SDA asserted low

SCL

PEN

BCLIF

P

SSPIF

'0'

'0'

'0'

'0'

FIGURE 9-26: BUS COLLISION DURING A STOP CONDITION (CASE 2)

T

BRG

T

BRG

T

BRG

SDA

SCL

PEN

BCLIF

P

SSPIF

'0'

'0'

Assert SDA

SCL goes low before SDA goes high,

Set BCLIF

1998-2013 Microchip Technology Inc.

DS30292D-page 93

PIC16F87X

9.3

Connection Considerations for

I

2

C Bus

For standard-mode I

2

C bus devices, the values of resistors

R p

and

R s

lowing parameters:

in Figure 9-27 depend on the fol-

• Supply voltage

• Bus capacitance

• Number of connected devices

(input current + leakage current)

The supply voltage limits the minimum value of resistor

R p

, due to the specified minimum sink current of 3 mA at

V

OL

max = 0.4V, for the specified output stages.

For

FIGURE 9-27:

example, with a supply voltage of V

DD

= 5V±10% and

V

OL

max = 0.4V at 3 mA,

R p

min = (5.5-0.4)/0.003 = 1.7 k



V

DD

as a function of

R p

is shown in Figure 9-27. The

desired noise margin of 0.1V

DD

for the low level limits the maximum value of

R s

. Series resistors are optional and used to improve ESD susceptibility.

The bus capacitance is the total capacitance of wire, connections, and pins. This capacitance limits the maximum value of

R p

due to the specified rise time

(Figure 9-27).

The SMP bit is the slew rate control enabled bit. This bit is in the SSPSTAT register, and controls the slew rate of the I/O pins when in I

2

C mode (master or slave).

SAMPLE DEVICE CONFIGURATION FOR I

2

C BUS

V

DD

+ 10%

R p

R p

DEVICE

R s

R s

SDA

SCL

C b

=10 - 400 pF

Note:

I

2

C devices with input levels related to V

DD

must have one common supply line to which the pull-up resistor is also connected.

1998-2013 Microchip Technology Inc.

DS30292D-page 94

PIC16F87X

10.0

ADDRESSABLE UNIVERSAL

SYNCHRONOUS

ASYNCHRONOUS RECEIVER

TRANSMITTER (USART)

The Universal Synchronous Asynchronous Receiver

Transmitter (USART) module is one of the two serial

I/O modules. (USART is also known as a Serial Communications Interface or SCI.) The USART can be configured as a full duplex asynchronous system that can communicate with peripheral devices such as CRT terminals and personal computers, or it can be configured as a half duplex synchronous system that can communicate with peripheral devices such as A/D or D/A integrated circuits, serial EEPROMs etc.

The USART can be configured in the following modes:

• Asynchronous (full duplex)

• Synchronous - Master (half duplex)

• Synchronous - Slave (half duplex)

Bit SPEN (RCSTA<7>) and bits TRISC<7:6> have to be set in order to configure pins RC6/TX/CK and

RC7/RX/DT as the Universal Synchronous Asynchronous Receiver Transmitter.

The USART module also has a multi-processor communication capability using 9-bit address detection.

REGISTER 10-1: TXSTA: TRANSMIT STATUS AND CONTROL REGISTER (ADDRESS 98h)

R/W-0

CSRC bit 7

R/W-0

TX9

R/W-0

TXEN

R/W-0

SYNC

U-0

R/W-0

BRGH

R-1

TRMT

R/W-0

TX9D bit 0 bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0

CSRC:

Clock Source Select bit

Asynchronous mode:

Don’t care

Synchronous mode:

1

= Master mode (clock generated internally from BRG)

0

= Slave mode (clock from external source)

TX9

: 9-bit Transmit Enable bit

1

= Selects 9-bit transmission

0

= Selects 8-bit transmission

TXEN

: Transmit Enable bit

1

= Transmit enabled

0

= Transmit disabled

Note:

SREN/CREN overrides TXEN in SYNC mode.

SYNC

: USART Mode Select bit

1

= Synchronous mode

0

= Asynchronous mode

Unimplemented:

Read as '0'

BRGH

: High Baud Rate Select bit

Asynchronous mode:

1

= High speed

0

= Low speed

Synchronous mode:

Unused in this mode

TRMT

: Transmit Shift Register Status bit

1

= TSR empty

0

= TSR full

TX9D:

9th bit of Transmit Data, can be parity bit

Legend:

R = Readable bit

- n = Value at POR

W = Writable bit

’1’ = Bit is set

U = Unimplemented bit, read as ‘0’

’0’ = Bit is cleared x = Bit is unknown

1998-2013 Microchip Technology Inc.

DS30292D-page 95

PIC16F87X

REGISTER 10-2: RCSTA: RECEIVE STATUS AND CONTROL REGISTER (ADDRESS 18h)

R/W-0

SPEN bit 7

R/W-0

RX9

R/W-0

SREN

R/W-0

CREN

R/W-0

ADDEN

R-0

FERR

R-0

OERR

R-x

RX9D bit 0 bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0

SPEN:

Serial Port Enable bit

1

= Serial port enabled (configures RC7/RX/DT and RC6/TX/CK pins as serial port pins)

0

= Serial port disabled

RX9

: 9-bit Receive Enable bit

1

= Selects 9-bit reception

0

= Selects 8-bit reception

SREN

: Single Receive Enable bit

Asynchronous mode:

Don’t care

Synchronous mode - master:

1

= Enables single receive

0

= Disables single receive

This bit is cleared after reception is complete.

Synchronous mode - slave:

Don’t care

CREN

: Continuous Receive Enable bit

Asynchronous mode:

1

= Enables continuous receive

0

= Disables continuous receive

Synchronous mode:

1

= Enables continuous receive until enable bit CREN is cleared (CREN overrides SREN)

0

= Disables continuous receive

ADDEN:

Address Detect Enable bit

Asynchronous mode 9-bit (RX9 = 1):

1

= Enables address detection, enables interrupt and load of the receive buffer when

RSR<8> is set

0

= Disables address detection, all bytes are received, and ninth bit can be used as parity bit

FERR

: Framing Error bit

1

= Framing error (can be updated by reading RCREG register and receive next valid byte)

0

= No framing error

OERR

: Overrun Error bit

1

= Overrun error (can be cleared by clearing bit CREN)

0

= No overrun error

RX9D:

9th bit of Received Data (can be parity bit, but must be calculated by user firmware)

Legend:

R = Readable bit

- n = Value at POR

W = Writable bit

’1’ = Bit is set

U = Unimplemented bit, read as ‘0’

’0’ = Bit is cleared x = Bit is unknown

1998-2013 Microchip Technology Inc.

DS30292D-page 96

PIC16F87X

10.1

USART Baud Rate Generator

(BRG)

The BRG supports both the Asynchronous and Synchronous modes of the USART. It is a dedicated 8-bit baud rate generator. The SPBRG register controls the period of a free running 8-bit timer. In Asynchronous mode, bit BRGH (TXSTA<2>) also controls the baud rate. In Synchronous mode, bit BRGH is ignored.

Table 10-1 shows the formula for computation of the baud rate for different USART modes which only apply in Master mode (internal clock).

Given the desired baud rate and F

OSC

, the nearest integer value for the SPBRG register can be calculated using the formula in Table 10-1. From this, the error in baud rate can be determined.

TABLE 10-1: BAUD RATE FORMULA

SYNC BRGH = 0 (Low Speed)

0

1

(Asynchronous) Baud Rate = F

(Synchronous) Baud Rate = F

X = value in SPBRG (0 to 255)

OSC

OSC

/(64(X+1))

/(4(X+1))

It may be advantageous to use the high baud rate

(BRGH = 1), even for slower baud clocks. This is because the F

OSC

/(16(X + 1)) equation can reduce the baud rate error in some cases.

Writing a new value to the SPBRG register causes the

BRG timer to be reset (or cleared). This ensures the

BRG does not wait for a timer overflow before outputting the new baud rate.

10.1.1

SAMPLING

The data on the RC7/RX/DT pin is sampled three times by a majority detect circuit to determine if a high or a low level is present at the RX pin.

BRGH = 1 (High Speed)

Baud Rate = F

OSC

/(16(X+1))

N/A

TABLE 10-2: REGISTERS ASSOCIATED WITH BAUD RATE GENERATOR

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR,

BOR

Value on all other

RESETS

98h

18h

TXSTA

RCSTA

CSRC

SPEN

TX9

RX9

TXEN SYNC — BRGH TRMT TX9D

0000 -010 0000 -010

SREN CREN ADDEN FERR OERR RX9D

0000 000x 0000 000x

99h SPBRG Baud Rate Generator Register

Legend: x

= unknown,

-

= unimplemented, read as '0'. Shaded cells are not used by the BRG.

0000 0000 0000 0000

1998-2013 Microchip Technology Inc.

DS30292D-page 97

PIC16F87X

TABLE 10-3: BAUD RATES FOR ASYNCHRONOUS MODE (BRGH = 0)

BAUD

RATE

(K)

0.3

1.2

2.4

-

1.221

2.404

9.6 9.766

19.2

19.531

28.8

33.6

31.250

34.722

57.6

HIGH

62.500

1.221

LOW 312.500

KBAUD

-

1.75

0.17

1.73

1.72

8.51

3.34

8.51

-

-

F

OSC

= 20 MHz

%

ERROR

SPBRG value

(decimal)

-

255

129

31

15

9

8

4

255

0

KBAUD

-

1.202

2.404

9.615

19.231

27.778

35.714

62.500

0.977

250.000

-

0.17

0.17

0.16

0.16

3.55

6.29

8.51

-

-

F

OSC

= 16 MHz

%

ERROR

SPBRG value

(decimal)

-

207

103

25

12

8

6

3

255

0

-

1.202

2.404

9.766

19.531

31.250

31.250

52.083

0.610

156.250

KBAUD

%

ERROR

-

0.17

0.17

1.73

1.72

8.51

6.99

9.58

-

-

F

OSC

= 10 MHz

SPBRG value

(decimal)

-

129

64

15

7

4

4

2

255

0

BAUD

RATE

(K)

KBAUD

19.2

28.8

33.6

57.6

0.3

1.2

0.300

1.202

2.4

2.404

9.6 8.929

20.833

31.250

-

62.500

HIGH 0.244

LOW 62.500

F

OSC

= 4 MHz

%

ERROR

0

0.17

0.17

6.99

8.51

8.51

-

8.51

-

-

SPBRG value

(decimal) KBAUD

207

51

25

6

2

1

-

0

255

0

0.3

1.2

2.4

9.6

19.2

28.8

-

57.6

0.225

57.6

F

OSC

= 3.6864 MHz

%

ERROR

0

0

0

0

0

0

-

-

0

-

SPBRG value

(decimal)

-

0

2

1

191

47

23

5

255

0

TABLE 10-4: BAUD RATES FOR ASYNCHRONOUS MODE (BRGH = 1)

BAUD

RATE

(K)

KBAUD

19.2

28.8

33.6

57.6

0.3

1.2

-

-

2.4

-

9.6 9.615

19.231

29.070

33.784

59.524

HIGH 4.883

LOW 1250.000

F

OSC

= 20 MHz

%

ERROR

-

-

-

0.16

0.16

0.94

0.55

3.34

-

-

SPBRG value

(decimal)

64

42

36

20

-

-

-

129

255

0

KBAUD

-

-

-

9.615

19.231

29.412

33.333

58.824

3.906

1000.000

F

OSC

= 16 MHz

%

ERROR

-

-

-

0.16

0.16

2.13

0.79

2.13

-

SPBRG value

(decimal)

51

33

29

16

-

-

-

103

255

0

BAUD

RATE

(K)

KBAUD

0.3

1.2

2.4

-

1.202

2.404

9.6 9.615

19.2

19.231

28.8

33.6

27.798

35.714

57.6

HIGH

62.500

0.977

LOW 250.000

F

OSC

= 4 MHz

%

ERROR

-

0.17

0.17

0.16

0.16

3.55

6.29

8.51

-

-

SPBRG value

(decimal) KBAUD

-

207

103

25

12

8

6

3

255

0

-

1.2

2.4

9.6

19.2

28.8

32.9

57.6

0.9

F

230.4

OSC

= 3.6864 MHz

%

ERROR

-

0

0

0

0

0

2.04

0

-

-

SPBRG value

(decimal)

-

191

95

23

11

7

6

3

255

0

KBAUD

-

-

2.441

9.615

19.531

28.409

32.895

56.818

2.441

625.000

-

-

1.71

0.16

1.72

1.36

2.10

1.36

-

-

F

OSC

= 10 MHz

%

ERROR

SPBRG value

(decimal)

31

21

18

10

-

-

255

64

255

0

DS30292D-page 98

1998-2013 Microchip Technology Inc.

PIC16F87X

10.2

USART Asynchronous Mode

In this mode, the USART uses standard non-return-tozero (NRZ) format (one START bit, eight or nine data bits, and one STOP bit). The most common data format is 8-bits. An on-chip, dedicated, 8-bit baud rate generator can be used to derive standard baud rate frequencies from the oscillator. The USART transmits and receives the LSb first. The transmitter and receiver are functionally independent, but use the same data format and baud rate. The baud rate generator produces a clock, either x16 or x64 of the bit shift rate, depending on bit BRGH (TXSTA<2>). Parity is not supported by the hardware, but can be implemented in software (and stored as the ninth data bit). Asynchronous mode is stopped during SLEEP.

Asynchronous mode is selected by clearing bit SYNC

(TXSTA<4>).

The USART Asynchronous module consists of the following important elements:

• Baud Rate Generator

• Sampling Circuit

• Asynchronous Transmitter

• Asynchronous Receiver

10.2.1

USART ASYNCHRONOUS

TRANSMITTER

The USART transmitter block diagram is shown in

Figure 10-1. The heart of the transmitter is the transmit

(serial) shift register (TSR). The shift register obtains its data from the read/write transmit buffer, TXREG. The

TXREG register is loaded with data in software. The

TSR register is not loaded until the STOP bit has been transmitted from the previous load. As soon as the

STOP bit is transmitted, the TSR is loaded with new data from the TXREG register (if available). Once the

TXREG register transfers the data to the TSR register

(occurs in one T

CY

), the TXREG register is empty and flag bit TXIF (PIR1<4>) is set. This interrupt can be enabled/disabled by setting/clearing enable bit TXIE

( PIE1<4>). Flag bit TXIF will be set, regardless of the state of enable bit TXIE and cannot be cleared in software. It will reset only when new data is loaded into the

TXREG register. While flag bit TXIF indicates the status of the TXREG register, another bit TRMT (TXSTA<1>) shows the status of the TSR register. Status bit TRMT is a read only bit, which is set when the TSR register is empty. No interrupt logic is tied to this bit, so the user has to poll this bit in order to determine if the TSR register is empty.

Note 1:

The TSR register is not mapped in data memory, so it is not available to the user.

2:

Flag bit TXIF is set when enable bit TXEN is set. TXIF is cleared by loading TXREG.

Transmission is enabled by setting enable bit TXEN

(TXSTA<5>). The actual transmission will not occur until the TXREG register has been loaded with data and the baud rate generator (BRG) has produced a shift clock (Figure 10-2). The transmission can also be started by first loading the TXREG register and then setting enable bit TXEN. Normally, when transmission is first started, the TSR register is empty. At that point, transfer to the TXREG register will result in an immediate transfer to TSR, resulting in an empty TXREG. A back-to-back transfer is thus possible (Figure 10-3).

Clearing enable bit TXEN during a transmission will cause the transmission to be aborted and will reset the transmitter. As a result, the RC6/TX/CK pin will revert to hi-impedance.

In order to select 9-bit transmission, transmit bit TX9

(TXSTA<6>) should be set and the ninth bit should be written to TX9D (TXSTA<0>). The ninth bit must be written before writing the 8-bit data to the TXREG register. This is because a data write to the TXREG register can result in an immediate transfer of the data to the

TSR register (if the TSR is empty). In such a case, an incorrect ninth data bit may be loaded in the TSR register.

FIGURE 10-1:

TXIE

USART TRANSMIT BLOCK DIAGRAM

TXIF

Data Bus

TXREG Register

8

MSb

(8)



TSR Register

Interrupt

TXEN

Baud Rate CLK

LSb

0

TRMT

SPBRG

Baud Rate Generator

TX9

TX9D

Pin Buffer and Control

RC6/TX/CK pin

SPEN

1998-2013 Microchip Technology Inc.

DS30292D-page 99

PIC16F87X

When setting up an Asynchronous Transmission, follow these steps:

1.

Initialize the SPBRG register for the appropriate baud rate. If a high speed baud rate is desired,

set bit BRGH (Section 10.1).

2.

Enable the asynchronous serial port by clearing bit SYNC and setting bit SPEN.

3.

If interrupts are desired, then set enable bit

TXIE.

4.

If 9-bit transmission is desired, then set transmit bit TX9.

5.

Enable the transmission by setting bit TXEN, which will also set bit TXIF.

6.

If 9-bit transmission is selected, the ninth bit should be loaded in bit TX9D.

7.

Load data to the TXREG register (starts transmission).

8.

If using interrupts, ensure that GIE and PEIE

(bits 7 and 6) of the INTCON register are set.

FIGURE 10-2:

Write to TXREG

BRG Output

(Shift Clock)

RC6/TX/CK (pin)

TXIF bit

(Transmit Buffer

Reg. Empty Flag)

ASYNCHRONOUS MASTER TRANSMISSION

Word 1

START Bit Bit 0 Bit 1

Word 1

Bit 7/8

STOP Bit

TRMT bit

(Transmit Shift

Reg. Empty Flag)

Word 1

Transmit Shift Reg

FIGURE 10-3:

Write to TXREG

BRG Output

(Shift Clock)

RC6/TX/CK (pin)

TXIF bit

(Interrupt Reg. Flag)

ASYNCHRONOUS MASTER TRANSMISSION (BACK TO BACK)

Word 1 Word 2

START Bit

Bit 0 Bit 1

Word 1

Bit 7/8

STOP Bit START Bit

Word 2

TRMT bit

(Transmit Shift

Reg. Empty Flag)

Word 1

Transmit Shift Reg.

Word 2

Transmit Shift Reg.

Bit 0

Note:

This timing diagram shows two consecutive transmissions.

TABLE 10-5: REGISTERS ASSOCIATED WITH ASYNCHRONOUS TRANSMISSION

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR,

BOR

Value on all other

RESETS

0Bh, 8Bh,

10Bh,18Bh

0Ch

18h

INTCON

PIR1

RCSTA

GIE

PSPIF

(1)

SPEN

PEIE

ADIF

RX9

T0IE INTE RBIE T0IF INTF R0IF

0000 000x 0000 000u

RCIF TXIF SSPIF CCP1IF TMR2IF TMR1IF

0000 0000 0000 0000

SREN CREN — FERR OERR RX9D

0000 -00x 0000 -00x

19h

8Ch

TXREG USART Transmit Register

PIE1

TXSTA

PSPIE

(1)

CSRC

ADIE

TX9

RCIE

0000 0000 0000 0000

TXIE SSPIE CCP1IE TMR2IE TMR1IE

0000 0000 0000 0000

TXEN SYNC — BRGH TRMT TX9D

0000 -010 0000 -010

98h

99h SPBRG Baud Rate Generator Register

0000 0000 0000 0000

Legend: x

= unknown,

-

= unimplemented locations read as '0'. Shaded cells are not used for asynchronous transmission.

Note 1:

Bits PSPIE and PSPIF are reserved on the PIC16F873/876; always maintain these bits clear.

1998-2013 Microchip Technology Inc.

DS30292D-page 100

PIC16F87X

10.2.2

USART ASYNCHRONOUS

RECEIVER

The receiver block diagram is shown in Figure 10-4.

The data is received on the RC7/RX/DT pin and drives the data recovery block. The data recovery block is actually a high speed shifter, operating at x16 times the baud rate; whereas, the main receive serial shifter operates at the bit rate or at F

OSC

.

Once Asynchronous mode is selected, reception is enabled by setting bit CREN (RCSTA<4>).

The heart of the receiver is the receive (serial) shift register (RSR). After sampling the STOP bit, the received data in the RSR is transferred to the RCREG register (if it is empty). If the transfer is complete, flag bit RCIF

(PIR1<5>) is set. The actual interrupt can be enabled/ disabled by setting/clearing enable bit RCIE

(PIE1<5>). Flag bit RCIF is a read only bit, which is cleared by the hardware. It is cleared when the RCREG register has been read and is empty. The RCREG is a double buffered register (i.e., it is a two deep FIFO). It is possible for two bytes of data to be received and transferred to the RCREG FIFO and a third byte to begin shifting to the RSR register. On the detection of the STOP bit of the third byte, if the RCREG register is still full, the overrun error bit OERR (RCSTA<1>) will be set. The word in the RSR will be lost. The RCREG register can be read twice to retrieve the two bytes in the

FIFO. Overrun bit OERR has to be cleared in software.

This is done by resetting the receive logic (CREN is cleared and then set). If bit OERR is set, transfers from the RSR register to the RCREG register are inhibited, and no further data will be received. It is therefore, essential to clear error bit OERR if it is set. Framing error bit FERR (RCSTA<2>) is set if a STOP bit is detected as clear. Bit FERR and the 9th receive bit are buffered the same way as the receive data. Reading the RCREG will load bits RX9D and FERR with new values, therefore, it is essential for the user to read the

RCSTA register before reading the RCREG register in order not to lose the old FERR and RX9D information.

FIGURE 10-4:

F

OSC

USART RECEIVE BLOCK DIAGRAM

x64 Baud Rate CLK

CREN

SPBRG

64

 or

16

Baud Rate Generator

RC7/RX/DT

Pin Buffer and Control

Data

Recovery

OERR

FERR

MSb

STOP (8)

7

RSR Register



1

0

LSb

START

RX9

SPEN

Interrupt

RCIF

RCIE

RX9D RCREG Register

FIFO

8

Data Bus

1998-2013 Microchip Technology Inc.

DS30292D-page 101

PIC16F87X

FIGURE 10-5:

RX (pin)

Rcv Shift

Reg

Rcv Buffer Reg

Read Rcv

Buffer Reg

RCREG

RCIF

(Interrupt Flag)

OERR bit

CREN

ASYNCHRONOUS RECEPTION

START bit bit0 bit1 bit7/8 STOP bit

START bit bit0

Word 1

RCREG bit7/8

STOP bit

START bit

Word 2

RCREG bit7/8

STOP bit

Note:

This timing diagram shows three words appearing on the RX input. The RCREG (receive buffer) is read after the third word, causing the OERR (overrun) bit to be set.

When setting up an Asynchronous Reception, follow these steps:

1.

Initialize the SPBRG register for the appropriate baud rate. If a high speed baud rate is desired,

set bit BRGH (Section 10.1).

2.

Enable the asynchronous serial port by clearing bit SYNC and setting bit SPEN.

3.

If interrupts are desired, then set enable bit

RCIE.

4.

If 9-bit reception is desired, then set bit RX9.

5.

Enable the reception by setting bit CREN.

6.

Flag bit RCIF will be set when reception is complete and an interrupt will be generated if enable bit RCIE is set.

7.

Read the RCSTA register to get the ninth bit (if enabled) and determine if any error occurred during reception.

8.

Read the 8-bit received data by reading the

RCREG register.

9.

If any error occurred, clear the error by clearing enable bit CREN.

10. If using interrupts, ensure that GIE and PEIE

(bits 7 and 6) of the INTCON register are set.

TABLE 10-6: REGISTERS ASSOCIATED WITH ASYNCHRONOUS RECEPTION

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR,

BOR

Value on all other

RESETS

0Bh, 8Bh,

10Bh,18Bh

0Ch

INTCON

PIR1

GIE

PSPIF

(1)

18h

1Ah

8Ch

RCSTA SPEN

PEIE

ADIF

RX9

T0IE INTE RBIE T0IF INTF R0IF

0000 000x 0000 000u

RCIF

SREN

TXIF

CREN

SSPIF

CCP1IF

FERR

TMR2IF

OERR

TMR1IF

0000 0000 0000 0000

RX9D

0000 -00x 0000 -00x

RCREG USART Receive Register

PIE1 PSPIE

(1)

ADIE RCIE TXIE SSPIE CCP1IE TMR2IE TMR1IE

0000 0000

0000 0000

0000 0000

0000 0000

98h TXSTA CSRC TX9 TXEN SYNC — BRGH TRMT TX9D

0000 -010 0000 -010

99h SPBRG Baud Rate Generator Register

0000 0000 0000 0000

Legend: x

= unknown,

-

= unimplemented locations read as '0'. Shaded cells are not used for asynchronous reception.

Note 1:

Bits PSPIE and PSPIF are reserved on PIC16F873/876 devices; always maintain these bits clear.

1998-2013 Microchip Technology Inc.

DS30292D-page 102

PIC16F87X

10.2.3

SETTING UP 9-BIT MODE WITH

ADDRESS DETECT

When setting up an Asynchronous Reception with

Address Detect Enabled:

• Initialize the SPBRG register for the appropriate baud rate. If a high speed baud rate is desired, set bit BRGH.

• Enable the asynchronous serial port by clearing bit SYNC and setting bit SPEN.

• If interrupts are desired, then set enable bit RCIE.

• Set bit RX9 to enable 9-bit reception.

• Set ADDEN to enable address detect.

• Enable the reception by setting enable bit CREN.

• Flag bit RCIF will be set when reception is complete, and an interrupt will be generated if enable bit RCIE was set.

• Read the RCSTA register to get the ninth bit and determine if any error occurred during reception.

• Read the 8-bit received data by reading the

RCREG register, to determine if the device is being addressed.

• If any error occurred, clear the error by clearing enable bit CREN.

• If the device has been addressed, clear the

ADDEN bit to allow data bytes and address bytes to be read into the receive buffer, and interrupt the

CPU.

FIGURE 10-6:

F

OSC

RC7/RX/DT

USART RECEIVE BLOCK DIAGRAM

x64 Baud Rate CLK

CREN

SPBRG

Baud Rate Generator

64 or

16

OERR

FERR

MSb

STOP (8)

7

RSR Register



1 0

LSb

START

Pin Buffer and Control

Data

Recovery

RX9

8

SPEN

RX9

ADDEN

RX9

ADDEN

RSR<8>

Enable

Load of

Receive

Buffer

8

RX9D

RCREG Register

FIFO

Interrupt

RCIF

RCIE

8

Data Bus

1998-2013 Microchip Technology Inc.

DS30292D-page 103

PIC16F87X

FIGURE 10-7:

RC7/RX/DT (pin)

ASYNCHRONOUS RECEPTION WITH ADDRESS DETECT

START bit bit0 bit1 bit8 STOP bit

START bit bit0 bit8 STOP bit

Load RSR

Bit8 = 0, Data Byte Bit8 = 1, Address Byte

Word 1

RCREG

Read

RCIF

Note:

This timing diagram shows a data byte followed by an address byte. The data byte is not read into the RCREG (receive buffer) because ADDEN = 1.

FIGURE 10-8:

RC7/RX/DT (pin)

ASYNCHRONOUS RECEPTION WITH ADDRESS BYTE FIRST

START bit bit0 bit1 bit8 STOP bit

START bit bit0 bit8

STOP bit

Load RSR

Bit8 = 1, Address Byte Bit8 = 0, Data Byte

Word 1

RCREG

Read

RCIF

Note:

This timing diagram shows a data byte followed by an address byte. The data byte is not read into the RCREG (receive buffer) because ADDEN was not updated and still = 0.

TABLE 10-7: REGISTERS ASSOCIATED WITH ASYNCHRONOUS RECEPTION

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR,

BOR

Value on all other

RESETS

0Bh, 8Bh,

10Bh,18Bh

0Ch

18h

1Ah

8Ch

98h

99h

INTCON

PIR1

RCSTA

PIE1

TXSTA

SPBRG

GIE

PSPIF

(1)

SPEN

PSPIE

(1)

CSRC

PEIE

ADIF

RX9

ADIE

TX9

T0IE

RCIF

RCREG USART Receive Register

RCIE

TXEN

Baud Rate Generator Register

INTE RBIE T0IF INTF R0IF

0000 000x 0000 000u

TXIF SSPIF CCP1IF TMR2IF TMR1IF

0000 0000 0000 0000

SREN CREN ADDEN FERR

TXIE

SYNC

SSPIE

— BRGH

OERR

TRMT

RX9D

CCP1IE TMR2IE TMR1IE

TX9D

0000 000x

0000 0000

0000 0000

0000 -010

0000 0000

0000 000x

0000 0000

0000 0000

0000 -010

0000 0000

Legend: x

= unknown,

-

= unimplemented locations read as '0'. Shaded cells are not used for asynchronous reception.

Note 1:

Bits PSPIE and PSPIF are reserved on PIC16F873/876 devices; always maintain these bits clear.

1998-2013 Microchip Technology Inc.

DS30292D-page 104

10.3

USART Synchronous

Master Mode

In Synchronous Master mode, the data is transmitted in a half-duplex manner (i.e., transmission and reception do not occur at the same time). When transmitting data, the reception is inhibited and vice versa. Synchronous mode is entered by setting bit SYNC (TXSTA<4>). In addition, enable bit SPEN (RCSTA<7>) is set in order to configure the RC6/TX/CK and RC7/RX/DT I/O pins to CK (clock) and DT (data) lines, respectively. The

Master mode indicates that the processor transmits the master clock on the CK line. The Master mode is entered by setting bit CSRC (TXSTA<7>).

10.3.1

USART SYNCHRONOUS MASTER

TRANSMISSION

The USART transmitter block diagram is shown in

Figure 10-6. The heart of the transmitter is the transmit

(serial) shift register (TSR). The shift register obtains its data from the read/write transmit buffer register

TXREG. The TXREG register is loaded with data in software. The TSR register is not loaded until the last bit has been transmitted from the previous load. As soon as the last bit is transmitted, the TSR is loaded with new data from the TXREG (if available). Once the

TXREG register transfers the data to the TSR register

(occurs in one Tcycle), the TXREG is empty and interrupt bit TXIF (PIR1<4>) is set. The interrupt can be enabled/disabled by setting/clearing enable bit TXIE

(PIE1<4>). Flag bit TXIF will be set, regardless of the state of enable bit TXIE and cannot be cleared in software. It will reset only when new data is loaded into the

TXREG register. While flag bit TXIF indicates the status of the TXREG register, another bit TRMT (TXSTA<1>) shows the status of the TSR register. TRMT is a read only bit which is set when the TSR is empty. No interrupt logic is tied to this bit, so the user has to poll this bit in order to determine if the TSR register is empty.

The TSR is not mapped in data memory, so it is not available to the user.

Transmission is enabled by setting enable bit TXEN

(TXSTA<5>). The actual transmission will not occur until the TXREG register has been loaded with data.

The first data bit will be shifted out on the next available rising edge of the clock on the CK line. Data out is stable around the falling edge of the synchronous clock

(Figure 10-9). The transmission can also be started by first loading the TXREG register and then setting bit

TXEN (Figure 10-10). This is advantageous when slow baud rates are selected, since the BRG is kept in

RESET when bits TXEN, CREN and SREN are clear.

Setting enable bit TXEN will start the BRG, creating a shift clock immediately. Normally, when transmission is first started, the TSR register is empty, so a transfer to the TXREG register will result in an immediate transfer to TSR, resulting in an empty TXREG. Back-to-back transfers are possible.

PIC16F87X

Clearing enable bit TXEN during a transmission will cause the transmission to be aborted and will reset the transmitter. The DT and CK pins will revert to hiimpedance. If either bit CREN or bit SREN is set during a transmission, the transmission is aborted and the DT pin reverts to a hi-impedance state (for a reception).

The CK pin will remain an output if bit CSRC is set

(internal clock). The transmitter logic, however, is not reset, although it is disconnected from the pins. In order to reset the transmitter, the user has to clear bit TXEN.

If bit SREN is set (to interrupt an on-going transmission and receive a single word), then after the single word is received, bit SREN will be cleared and the serial port will revert back to transmitting, since bit TXEN is still set. The DT line will immediately switch from hiimpedance Receive mode to transmit and start driving.

To avoid this, bit TXEN should be cleared.

In order to select 9-bit transmission, the TX9

(TXSTA<6>) bit should be set and the ninth bit should be written to bit TX9D (TXSTA<0>). The ninth bit must be written before writing the 8-bit data to the TXREG register. This is because a data write to the TXREG can result in an immediate transfer of the data to the TSR register (if the TSR is empty). If the TSR was empty and the TXREG was written before writing the “new” TX9D, the “present” value of bit TX9D is loaded.

Steps to follow when setting up a Synchronous Master

Transmission:

1.

Initialize the SPBRG register for the appropriate

baud rate (Section 10.1).

2.

Enable the synchronous master serial port by setting bits SYNC, SPEN and CSRC.

3.

If interrupts are desired, set enable bit TXIE.

4.

If 9-bit transmission is desired, set bit TX9.

5.

Enable the transmission by setting bit TXEN.

6.

If 9-bit transmission is selected, the ninth bit should be loaded in bit TX9D.

7.

Start transmission by loading data to the TXREG register.

8.

If using interrupts, ensure that GIE and PEIE

(bits 7 and 6) of the INTCON register are set.

1998-2013 Microchip Technology Inc.

DS30292D-page 105

PIC16F87X

TABLE 10-8: REGISTERS ASSOCIATED WITH SYNCHRONOUS MASTER TRANSMISSION

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR,

BOR

Value on all other

RESETS

0Bh, 8Bh,

10Bh,18Bh

0Ch

18h

19h

8Ch

98h

INTCON

PIR1

RCSTA

GIE

PSPIF

(1)

SPEN

PEIE T0IE INTE RBIE T0IF INTF R0IF

0000 000x 0000 000u

ADIF

RX9

RCIF

SREN

TXIF

CREN

SSPIF

CCP1IF

FERR

TMR2IF

OERR

TMR1IF

0000 0000 0000 0000

RX9D

0000 -00x 0000 -00x

TXREG USART Transmit Register

PIE1 PSPIE

(1)

ADIE RCIE TXIE SSPIE CCP1IE TMR2IE TMR1IE

0000 0000

0000 0000

0000 0000

0000 0000

TXSTA CSRC TX9 TXEN SYNC — BRGH TRMT TX9D

0000 -010 0000 -010

99h SPBRG Baud Rate Generator Register

0000 0000 0000 0000

Legend: x

= unknown,

-

= unimplemented, read as '0'. Shaded cells are not used for synchronous master transmission.

Note 1:

Bits PSPIE and PSPIF are reserved on PIC16F873/876 devices; always maintain these bits clear.

FIGURE 10-9: SYNCHRONOUS TRANSMISSION

Q1Q2 Q3Q4 Q1 Q2Q3 Q4Q1 Q2Q3 Q4Q1 Q2Q3 Q4Q1 Q2 Q3Q4

RC7/RX/DT pin

RC6/TX/CK pin

Write to

TXREG reg

TXIF bit

(Interrupt Flag)

TRMT bit

Write Word1

bit 0 bit 1

Word 1

Write Word2

bit 2

Q3Q4 Q1Q2 Q3Q4 Q1Q2 Q3Q4 Q1Q2 Q3 Q4Q1 Q2Q3 Q4Q1 Q2Q3 Q4Q1 Q2Q3 Q4

bit 7

TXEN bit

'1'

Note:

Sync Master mode; SPBRG = '0'. Continuous transmission of two 8-bit words.

bit 0 bit 1

Word 2

bit 7

'1'

FIGURE 10-10:

RC7/RX/DT pin

SYNCHRONOUS TRANSMISSION (THROUGH TXEN)

bit0 bit1 bit2 bit6

RC6/TX/CK pin

Write to

TXREG Reg

TXIF bit

TRMT bit

TXEN bit bit7

1998-2013 Microchip Technology Inc.

DS30292D-page 106

PIC16F87X

10.3.2

USART SYNCHRONOUS MASTER

RECEPTION

Once synchronous mode is selected, reception is enabled by setting either enable bit SREN

(RCSTA<5>), or enable bit CREN (RCSTA<4>). Data is sampled on the RC7/RX/DT pin on the falling edge of the clock. If enable bit SREN is set, then only a single word is received. If enable bit CREN is set, the reception is continuous until CREN is cleared. If both bits are set, CREN takes precedence. After clocking the last bit, the received data in the Receive Shift Register (RSR) is transferred to the RCREG register (if it is empty).

When the transfer is complete, interrupt flag bit RCIF

(PIR1<5>) is set. The actual interrupt can be enabled/ disabled by setting/clearing enable bit RCIE

(PIE1<5>). Flag bit RCIF is a read only bit, which is reset by the hardware. In this case, it is reset when the

RCREG register has been read and is empty. The

RCREG is a double buffered register (i.e., it is a two deep FIFO). It is possible for two bytes of data to be received and transferred to the RCREG FIFO and a third byte to begin shifting into the RSR register. On the clocking of the last bit of the third byte, if the RCREG register is still full, then overrun error bit OERR

(RCSTA<1>) is set. The word in the RSR will be lost.

The RCREG register can be read twice to retrieve the two bytes in the FIFO. Bit OERR has to be cleared in software (by clearing bit CREN). If bit OERR is set, transfers from the RSR to the RCREG are inhibited, so it is essential to clear bit OERR if it is set. The ninth receive bit is buffered the same way as the receive data. Reading the RCREG register will load bit RX9D with a new value, therefore, it is essential for the user to read the RCSTA register before reading RCREG in order not to lose the old RX9D information.

When setting up a Synchronous Master Reception:

1.

Initialize the SPBRG register for the appropriate

baud rate (Section 10.1).

2.

Enable the synchronous master serial port by setting bits SYNC, SPEN and CSRC.

3.

Ensure bits CREN and SREN are clear.

4.

If interrupts are desired, then set enable bit

RCIE.

5.

If 9-bit reception is desired, then set bit RX9.

6.

If a single reception is required, set bit SREN.

For continuous reception, set bit CREN.

7.

Interrupt flag bit RCIF will be set when reception is complete and an interrupt will be generated if enable bit RCIE was set.

8.

Read the RCSTA register to get the ninth bit (if enabled) and determine if any error occurred during reception.

9.

Read the 8-bit received data by reading the

RCREG register.

10. If any error occurred, clear the error by clearing bit CREN.

11. If using interrupts, ensure that GIE and PEIE

(bits 7 and 6) of the INTCON register are set.

TABLE 10-9: REGISTERS ASSOCIATED WITH SYNCHRONOUS MASTER RECEPTION

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR,

BOR

Value on all other

RESETS

0Bh, 8Bh,

10Bh,18Bh

0Ch

18h

1Ah

8Ch

98h

INTCON GIE PEIE T0IE INTE RBIE T0IF INTF R0IF

0000 000x 0000 000u

PIR1

RCSTA

RCREG USART Receive Register

PIE1 PSPIE

(1)

ADIE RCIE TXIE SSPIE CCP1IE TMR2IE TMR1IE

0000 0000

0000 0000

0000 0000

0000 0000

TXSTA

PSPIF

(1)

SPEN

CSRC

ADIF

RX9

TX9

RCIF

SREN

TXEN

TXIF

CREN

SYNC

SPBRG Baud Rate Generator Register

SSPIF

CCP1IF

FERR

TMR2IF

OERR

BRGH TRMT

TMR1IF

0000 0000 0000 0000

RX9D

0000 -00x 0000 -00x

TX9D

0000 -010 0000 -010

0000 0000 0000 0000

99h

Legend: x

= unknown,

-

= unimplemented, read as '0'. Shaded cells are not used for synchronous master reception.

Note 1:

Bits PSPIE and PSPIF are reserved on PIC16F873/876 devices; always maintain these bits clear.

1998-2013 Microchip Technology Inc.

DS30292D-page 107

PIC16F87X

FIGURE 10-11: SYNCHRONOUS RECEPTION (MASTER MODE, SREN)

Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4

RC7/RX/DT pin bit0 bit1 bit2 bit3 bit4 bit5 bit6 bit7

RC6/TX/CK pin

Write to bit SREN

SREN bit

CREN bit

RCIF bit

(Interrupt)

Read

RXREG

'0'

Note:

Timing diagram demonstrates SYNC Master mode with bit SREN = '1' and bit BRG = '0'.

'0'

10.4

USART Synchronous Slave Mode

Synchronous Slave mode differs from the Master mode in the fact that the shift clock is supplied externally at the RC6/TX/CK pin (instead of being supplied internally in Master mode). This allows the device to transfer or receive data while in SLEEP mode. Slave mode is entered by clearing bit CSRC (TXSTA<7>).

10.4.1

USART SYNCHRONOUS SLAVE

TRANSMIT

The operation of the Synchronous Master and Slave modes is identical, except in the case of the SLEEP mode.

If two words are written to the TXREG and then the

SLEEP

instruction is executed, the following will occur: a) The first word will immediately transfer to the

TSR register and transmit. b) The second word will remain in TXREG register. c) Flag bit TXIF will not be set. d) When the first word has been shifted out of TSR, the TXREG register will transfer the second word to the TSR and flag bit TXIF will now be set. e) If enable bit TXIE is set, the interrupt will wake the chip from SLEEP and if the global interrupt is enabled, the program will branch to the interrupt vector (0004h).

When setting up a Synchronous Slave Transmission, follow these steps:

1.

Enable the synchronous slave serial port by setting bits SYNC and SPEN and clearing bit

CSRC.

2.

Clear bits CREN and SREN.

3.

If interrupts are desired, then set enable bit

TXIE.

4.

If 9-bit transmission is desired, then set bit TX9.

5.

Enable the transmission by setting enable bit

TXEN.

6.

If 9-bit transmission is selected, the ninth bit should be loaded in bit TX9D.

7.

Start transmission by loading data to the TXREG register.

8.

If using interrupts, ensure that GIE and PEIE

(bits 7 and 6) of the INTCON register are set.

TABLE 10-10: REGISTERS ASSOCIATED WITH SYNCHRONOUS SLAVE TRANSMISSION

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR, BOR

Value on all other

RESETS

0Bh, 8Bh,

10Bh,18Bh

0Ch

18h

INTCON

PIR1

RCSTA

GIE

PSPIF

(1)

SPEN

PEIE T0IE INTE RBIE T0IF INTF R0IF

0000 000x 0000 000u

ADIF RCIF TXIF SSPIF CCP1IF TMR2IF TMR1IF

0000 0000 0000 0000

RX9 SREN CREN ADDEN FERR OERR RX9D

0000 000x 0000 000x

19h

8Ch

98h

99h

TXREG USART Transmit Register

PIE1

TXSTA

PSPIE

(1)

CSRC

ADIE

TX9

RCIE

TXEN

TXIE

SYNC

SPBRG Baud Rate Generator Register

SSPIE

CCP1IE TMR2IE TMR1IE

BRGH TRMT TX9D

0000 0000

0000 0000

0000 -010

0000 0000

0000 0000

0000 0000

0000 -010

0000 0000

Legend: x

= unknown,

-

= unimplemented, read as '0'. Shaded cells are not used for synchronous slave transmission.

Note 1:

Bits PSPIE and PSPIF are reserved on PIC16F873/876 devices; always maintain these bits clear.

DS30292D-page 108

1998-2013 Microchip Technology Inc.

PIC16F87X

10.4.2

USART SYNCHRONOUS SLAVE

RECEPTION

The operation of the Synchronous Master and Slave modes is identical, except in the case of the SLEEP mode. Bit SREN is a “don't care” in Slave mode.

If receive is enabled by setting bit CREN prior to the

SLEEP

instruction, then a word may be received during

SLEEP. On completely receiving the word, the RSR register will transfer the data to the RCREG register and if enable bit RCIE bit is set, the interrupt generated will wake the chip from SLEEP. If the global interrupt is enabled, the program will branch to the interrupt vector

(0004h).

When setting up a Synchronous Slave Reception, follow these steps:

1.

Enable the synchronous master serial port by setting bits SYNC and SPEN and clearing bit

CSRC.

2.

If interrupts are desired, set enable bit RCIE.

3.

If 9-bit reception is desired, set bit RX9.

4.

To enable reception, set enable bit CREN.

5.

Flag bit RCIF will be set when reception is complete and an interrupt will be generated, if enable bit RCIE was set.

6.

Read the RCSTA register to get the ninth bit (if enabled) and determine if any error occurred during reception.

7.

Read the 8-bit received data by reading the

RCREG register.

8.

If any error occurred, clear the error by clearing bit CREN.

9.

If using interrupts, ensure that GIE and PEIE

(bits 7 and 6) of the INTCON register are set.

TABLE 10-11: REGISTERS ASSOCIATED WITH SYNCHRONOUS SLAVE RECEPTION

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on:

POR,

BOR

Value on all other

RESETS

0Bh, 8Bh,

10Bh,18Bh

INTCON

0Ch

18h

1Ah

8Ch

GIE PEIE T0IE INTE RBIE T0IF INTF R0IF

0000 000x 0000 000u

PIR1

RCSTA

PSPIF

(1)

SPEN

ADIF

RX9

RCIF

SREN

TXIF

CREN

SSPIF

ADDEN

CCP1IF

FERR

TMR2IF

OERR

TMR1IF

RX9D

0000 0000

0000 000x

0000 0000

0000 000x

RCREG USART Receive Register

PIE1 PSPIE

(1)

ADIE RCIE TXIE SSPIE CCP1IE TMR2IE TMR1IE

0000 0000

0000 0000

0000 0000

0000 0000

98h

99h

TXSTA

SPBRG

CSRC TX9 TXEN SYNC

Baud Rate Generator Register

— BRGH TRMT TX9D

0000 -010

0000 0000

Legend: x

= unknown,

-

= unimplemented, read as '0'. Shaded cells are not used for synchronous slave reception.

Note 1:

Bits PSPIE and PSPIF are reserved on PIC16F873/876 devices, always maintain these bits clear.

0000 -010

0000 0000

1998-2013 Microchip Technology Inc.

DS30292D-page 109

PIC16F87X

NOTES:

DS30292D-page 110

1998-2013 Microchip Technology Inc.

PIC16F87X

11.0

ANALOG-TO-DIGITAL

CONVERTER (A/D) MODULE

The Analog-to-Digital (A/D) Converter module has five inputs for the 28-pin devices and eight for the other devices.

The analog input charges a sample and hold capacitor.

The output of the sample and hold capacitor is the input into the converter. The converter then generates a digital result of this analog level via successive approximation. The A/D conversion of the analog input signal results in a corresponding 10-bit digital number. The

A/D module has high and low voltage reference input that is software selectable to some combination of V

DD

,

V

SS

, RA2, or RA3.

The A/D converter has a unique feature of being able to operate while the device is in SLEEP mode. To operate in SLEEP, the A/D clock must be derived from the

A/D’s internal RC oscillator.

The A/D module has four registers. These registers are:

• A/D Result High Register (ADRESH)

• A/D Result Low Register (ADRESL)

• A/D Control Register0 (ADCON0)

• A/D Control Register1 (ADCON1)

The ADCON0 register, shown in Register 11-1, controls the operation of the A/D module. The ADCON1

register, shown in Register 11-2, configures the func-

tions of the port pins. The port pins can be configured as analog inputs (RA3 can also be the voltage reference), or as digital I/O.

Additional information on using the A/D module can be found in the PIC

®

MCU Mid-Range Family Reference

Manual (DS33023).

REGISTER 11-1: ADCON0 REGISTER (ADDRESS: 1Fh)

R/W-0

ADCS1 bit 7

R/W-0

ADCS0

R/W-0

CHS2

R/W-0

CHS1

R/W-0

CHS0

R/W-0

GO/DONE

U-0

R/W-0

ADON bit 0 bit 7-6 bit 5-3 bit 2 bit 1 bit 0

ADCS1:ADCS0:

A/D Conversion Clock Select bits

00

= F

OSC

/2

01

= F

OSC

/8

10

= F

OSC

/32

11

= F

RC

(clock derived from the internal A/D module RC oscillator)

CHS2:CHS0

: Analog Channel Select bits

000

= channel 0, (RA0/AN0)

001

= channel 1, (RA1/AN1)

010

= channel 2, (RA2/AN2)

011

= channel 3, (RA3/AN3)

100

= channel 4, (RA5/AN4)

101

= channel 5, (RE0/AN5)

(1)

(1)

110

= channel 6, (RE1/AN6)

111

= channel 7, (RE2/AN7)

(1)

GO/DONE:

A/D Conversion Status bit

If ADON = 1:

1

= A/D conversion in progress (setting this bit starts the A/D conversion)

0

= A/D conversion not in progress (this bit is automatically cleared by hardware when the A/D

Unimplemented

: Read as '0'

ADON

: A/D On bit

1

= A/D converter module is operating

0

= A/D converter module is shut-off and consumes no operating current

Note 1:

These channels are not available on PIC16F873/876 devices.

Legend:

R = Readable bit

- n = Value at POR

W = Writable bit

’1’ = Bit is set

U = Unimplemented bit, read as ‘0’

’0’ = Bit is cleared x = Bit is unknown

1998-2013 Microchip Technology Inc.

DS30292D-page 111

PIC16F87X

REGISTER 11-2: ADCON1 REGISTER (ADDRESS 9Fh)

U-0

ADFM bit 7

U-0

R/W-0

U-0

R/W-0

PCFG3

R/W-0

PCFG2

R/W-0

PCFG1

R/W-0

PCFG0 bit 0 bit 7 bit 6-4 bit 3-0

ADFM:

A/D Result Format Select bit

1

= Right justified. 6 Most Significant bits of ADRESH are read as ‘0’.

0

= Left justified. 6 Least Significant bits of ADRESL are read as ‘0’.

Unimplemented:

Read as '0'

PCFG3:PCFG0

: A/D Port Configuration Control bits:

PCFG3:

PCFG0

AN7

(1)

RE2

AN6

(1)

RE1

AN5

(1)

RE0

0000

0001

0010

0011

0100

0101

011x

1000

1001

1010

1011

1100

1101

1110

1111

D

D

D

D

D

D

A

D

D

D

D

D

A

A

D

D

D

D

D

D

D

A

D

D

D

D

D

A

A

D

D

D

D

D

A

A

A

A

D

D

D

D

A

A

D

A = Analog input D = Digital I/O

AN4

RA5

D

D

A

D

A

A

A

A

D

D

A

D

A

A

A

AN3

RA3

AN2

RA2

A

V

REF

+

A

V

REF

+

A

V

REF

+

D

V

REF

+ V

REF

-

A A

V

REF

+ A

V

REF

+ V

REF

-

V

REF

+ V

REF

-

V

REF

+ V

REF

-

D D

V

REF

+ V

REF

-

D

D

A

D

A

A

A

AN1

RA1

D

D

A

A

A

A

A

A

A

D

A

A

A

A

A

AN0

RA0

A

A

A

A

A

A

A

A

A

D

A

A

A

A

A

RA3

V

DD

RA3

RA3

RA3

RA3

V

DD

RA3

V

DD

RA3

V

DD

RA3

V

DD

RA3

V

DD

V

REF

+ V

REF

-

C

HAN

/

Refs

(2)

3/2

2/2

1/0

1/2

6/2

6/0

5/1

4/2

8/0

7/1

5/0

4/1

3/0

2/1

0/0

RA2

V

SS

V

SS

RA2

RA2

RA2

V

SS

RA2

V

SS

V

SS

V

SS

V

SS

V

SS

V

SS

V

SS

Note 1:

These channels are not available on PIC16F873/876 devices.

2:

This column indicates the number of analog channels available as A/D inputs and the number of analog channels used as voltage reference inputs.

Legend:

R = Readable bit

- n = Value at POR

W = Writable bit

’1’ = Bit is set

U = Unimplemented bit, read as ‘0’

’0’ = Bit is cleared x = Bit is unknown

The ADRESH:ADRESL registers contain the 10-bit result of the A/D conversion. When the A/D conversion is complete, the result is loaded into this A/D result register pair, the GO/DONE bit (ADCON0<2>) is cleared and the A/D interrupt flag bit ADIF is set. The block dia-

gram of the A/D module is shown in Figure 11-1.

After the A/D module has been configured as desired, the selected channel must be acquired before the conversion is started. The analog input channels must have their corresponding TRIS bits selected as inputs.

To determine sample time, see Section 11.1. After this

acquisition time has elapsed, the A/D conversion can be started.

1998-2013 Microchip Technology Inc.

DS30292D-page 112

These steps should be followed for doing an A/D

Conversion:

1.

Configure the A/D module:

• Configure analog pins/voltage reference and digital I/O (ADCON1)

• Select A/D input channel (ADCON0)

• Select A/D conversion clock (ADCON0)

• Turn on A/D module (ADCON0)

2.

Configure A/D interrupt (if desired):

• Clear ADIF bit

• Set ADIE bit

• Set PEIE bit

• Set GIE bit

FIGURE 11-1: A/D BLOCK DIAGRAM

PIC16F87X

3.

Wait the required acquisition time.

4.

Start conversion:

• Set GO/DONE bit (ADCON0)

5.

Wait for A/D conversion to complete, by either:

• Polling for the GO/DONE bit to be cleared

(with interrupts enabled); OR

• Waiting for the A/D interrupt

6.

Read A/D result register pair

(ADRESH:ADRESL), clear bit ADIF if required.

7.

For the next conversion, go to step 1 or step 2, as required. The A/D conversion time per bit is defined as T

AD

. A minimum wait of 2T

AD

is required before the next acquisition starts.

A/D

Converter

V

AIN

(Input Voltage)

CHS2:CHS0

100

011

010

001

000

111

110

101

RE2/AN7

(1)

RE1/AN6

(1)

RE0/AN5

(1)

RA5/AN4

RA3/AN3/V

REF

+

RA2/AN2/V

REF

-

RA1/AN1

RA0/AN0

V

DD

V

REF

+

(Reference

Voltage)

PCFG3:PCFG0

V

REF

-

(Reference

Voltage)

V

SS

PCFG3:PCFG0

Note 1:

Not available on PIC16F873/876 devices.

1998-2013 Microchip Technology Inc.

DS30292D-page 113

PIC16F87X

11.1

A/D Acquisition Requirements

For the A/D converter to meet its specified accuracy, the charge holding capacitor (C

HOLD

) must be allowed to fully charge to the input channel voltage level. The analog input model is shown in Figure 11-2. The source impedance (R

S

) and the internal sampling switch (R

SS

) impedance directly affect the time required to charge the capacitor C

HOLD

. The sampling switch (R

SS

) impedance varies over the device voltage (V

DD

), see

Figure 11-2.

The maximum recommended impedance for analog sources is 10 k

.

As the impedance is decreased, the acquisition time may be decreased.

After the analog input channel is selected (changed), this acquisition must be done before the conversion can be started.

To calculate the minimum acquisition time,

Equation 11-1 may be used. This equation assumes

that 1/2 LSb error is used (1024 steps for the A/D). The

1/2 LSb error is the maximum error allowed for the A/D to meet its specified resolution.

To calculate the minimum acquisition time, T

ACQ

, see the PIC

®

MCU Mid-Range Reference Manual

(DS33023).

EQUATION 11-1: ACQUISITION TIME

T

ACQ

=

Amplifier Settling Time +

Hold Capacitor Charging Time +

Temperature Coefficient

T

T

C

ACQ

=

=

=

=

=

=

=

T

AMP

+ T

C

+ T

COFF

2

 s + T

C

+ [(Temperature -25 ° C)(0.05

 s/°C)]

C

HOLD

(R

IC

+ R

SS

+ R

S

) In(1/2047)

- 120pF (1k

+ 7k

+ 10k

) In(0.0004885)

16.47

 s

2

 s + 16.47

 s + [(50°C -25

C)(0.05

 s/

C)

19.72

 s

Note 1:

The reference voltage (V

REF

) has no effect on the equation, since it cancels itself out.

2:

The charge holding capacitor (C

HOLD

) is not discharged after each conversion.

3:

The maximum recommended impedance for analog sources is 10 k

. This is required to meet the pin leakage specification.

4:

After a conversion has completed, a 2.0T

AD

delay must complete before acquisition can begin again.

During this time, the holding capacitor is not connected to the selected A/D input channel.

FIGURE 11-2: ANALOG INPUT MODEL

V

DD

V

T

= 0.6V

R

S

ANx

R

IC

1k

Sampling

Switch

SS R

SS

VA

C

PIN

5 pF

V

T

= 0.6V

I

LEAKAGE

± 500 nA

C

HOLD

= DAC capacitance

= 120 pF

V

SS

Legend C

PIN

V

T

I

LEAKAGE

R

C

IC

SS

HOLD

= input capacitance

= threshold voltage

= leakage current at the pin due to various junctions

= interconnect resistance

= sampling switch

= sample/hold capacitance (from DAC)

V

DD

6V

5V

4V

3V

2V

5 6 7 8 9 10 11

Sampling Switch

(k

)

1998-2013 Microchip Technology Inc.

DS30292D-page 114

PIC16F87X

11.2

Selecting the A/D Conversion

Clock

The A/D conversion time per bit is defined as T

AD

. The

A/D conversion requires a minimum 12T

AD

per 10-bit conversion. The source of the A/D conversion clock is software selected. The four possible options for T

AD are:

• 2T

OSC

• 8T

OSC

• 32T

OSC

• Internal A/D module RC oscillator (2-6

 s)

For correct A/D conversions, the A/D conversion clock

(T

AD

) must be selected to ensure a minimum T

AD

time of 1.6

 s.

Table 11-1 shows the resultant T

AD

times derived from the device operating frequencies and the A/D clock source selected.

TABLE 11-1: T

AD

vs. MAXIMUM DEVICE OPERATING FREQUENCIES (STANDARD DEVICES (C))

AD Clock Source (T

AD

) Maximum Device Frequency

Operation ADCS1:ADCS0 Max.

2T

OSC

8T

OSC

00

01

1.25 MHz

5 MHz

32T

OSC

RC

(1, 2, 3)

10

11

20 MHz

(Note 1)

Note 1:

The RC source has a typical T

AD

time of 4

 s, but can vary between 2-6

 s.

2:

When the device frequencies are greater than 1 MHz, the RC A/D conversion clock source is only recommended for SLEEP operation.

3:

For extended voltage devices (LC), please refer to the

Electrical Characteristics (Sections 15.1 and 15.2).

11.3

Configuring Analog Port Pins

The ADCON1 and TRIS registers control the operation of the A/D port pins. The port pins that are desired as analog inputs must have their corresponding TRIS bits set (input). If the TRIS bit is cleared (output), the digital output level (V

OH

or V

OL

) will be converted.

The A/D operation is independent of the state of the

CHS2:CHS0 bits and the TRIS bits.

Note 1:

When reading the port register, any pin configured as an analog input channel will read as cleared (a low level). Pins configured as digital inputs will convert an analog input. Analog levels on a digitally configured input will not affect the conversion accuracy.

2:

Analog levels on any pin that is defined as a digital input (including the AN7:AN0 pins), may cause the input buffer to consume current that is out of the device specifications.

1998-2013 Microchip Technology Inc.

DS30292D-page 115

PIC16F87X

11.4

A/D Conversions

Clearing the GO/DONE bit during a conversion will abort the current conversion. The A/D result register pair will NOT be updated with the partially completed

A/D conversion sample. That is, the ADRESH:ADRESL registers will continue to contain the value of the last completed conversion (or the last value written to the

ADRESH:ADRESL registers). After the A/D conversion is aborted, a 2T

AD

wait is required before the next acquisition is started. After this 2T

AD

wait, acquisition on the selected channel is automatically started. The

GO/DONE bit can then be set to start the conversion.

In Figure 11-3, after the GO bit is set, the first time segment has a minimum of T

CY

and a maximum of T

AD

.

Note:

The GO/DONE bit should

NOT

be set in the same instruction that turns on the A/D.

FIGURE 11-3: A/D CONVERSION T

AD

CYCLES

T

CY

to T

AD

T

AD

1 T

AD

2 T

AD

3 b9 b8

Conversion starts

T

AD

4 T

AD

5 T

AD

6 T

AD

7 T

AD

8 T

AD

9

T

AD

10 T

AD

11 b7 b6 b5 b4 b3 b2 b1 b0

Holding capacitor is disconnected from analog input (typically 100 ns)

Set GO bit

ADRES is loaded

GO bit is cleared

ADIF bit is set

Holding capacitor is connected to analog input

11.4.1

A/D RESULT REGISTERS

The ADRESH:ADRESL register pair is the location where the 10-bit A/D result is loaded at the completion of the A/D conversion. This register pair is 16-bits wide.

The A/D module gives the flexibility to left or right justify the 10-bit result in the 16-bit result register. The A/D

FIGURE 11-4: A/D RESULT JUSTIFICATION

Format Select bit (ADFM) controls this justification.

Figure 11-4 shows the operation of the A/D result justification. The extra bits are loaded with ’0’s’. When an

A/D result will not overwrite these locations (A/D disable), these registers may be used as two general purpose 8-bit registers.

10-bit Result

ADFM = 1

ADFM = 0

7

0000 00

2 1 0 7

ADRESH ADRESL

0

10-bit Result

Right Justified

7

ADRESH

0 7 6 5

0000 00

0

ADRESL

10-bit Result

Left Justified

1998-2013 Microchip Technology Inc.

DS30292D-page 116

11.5

A/D Operation During SLEEP

The A/D module can operate during SLEEP mode. This requires that the A/D clock source be set to RC

(ADCS1:ADCS0 =

11

). When the RC clock source is selected, the A/D module waits one instruction cycle before starting the conversion. This allows the

SLEEP instruction to be executed, which eliminates all digital switching noise from the conversion. When the conversion is completed, the GO/DONE bit will be cleared and the result loaded into the ADRES register. If the A/D interrupt is enabled, the device will wake-up from

SLEEP. If the A/D interrupt is not enabled, the A/D module will then be turned off, although the ADON bit will remain set.

When the A/D clock source is another clock option (not

RC), a

SLEEP

instruction will cause the present conversion to be aborted and the A/D module to be turned off, though the ADON bit will remain set.

PIC16F87X

Turning off the A/D places the A/D module in its lowest current consumption state.

Note:

For the A/D module to operate in SLEEP, the A/D clock source must be set to RC

(ADCS1:ADCS0 =

11

). To allow the conversion to occur during SLEEP, ensure the

SLEEP

instruction immediately follows the instruction that sets the GO/DONE bit.

11.6

Effects of a RESET

A device RESET forces all registers to their RESET state. This forces the A/D module to be turned off, and any conversion is aborted. All A/D input pins are configured as analog inputs.

The value that is in the ADRESH:ADRESL registers is not modified for a Power-on Reset. The

ADRESH:ADRESL registers will contain unknown data after a Power-on Reset.

TABLE 11-2: REGISTERS/BITS ASSOCIATED WITH A/D

Address Name Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Value on

POR,

BOR

Value on

MCLR,

WDT

0Bh,8Bh,

10Bh,18Bh

0Ch

8Ch

1Eh

9Eh

1Fh

9Fh

85h

INTCON GIE PEIE

PIR1

PIE1

PSPIF

(1)

PSPIE

(1)

ADIF RCIF

ADIE RCIE

ADRESH A/D Result Register High Byte

ADRESL A/D Result Register Low Byte

ADCON0 ADCS1 ADCS0 CHS2

ADCON1 ADFM

TRISA —

T0IE

INTE

TXIF

TXIE

CHS1

RBIE

SSPIF

SSPIE

CHS0

PCFG3

PORTA Data Direction Register

T0IF

CCP1IF

CCP1IE

GO/DONE

PCFG2

INTF

TMR2IF

TMR2IE TMR1IE

PCFG1

RBIF

TMR1IF

ADON

PCFG0

0000 000x

0000 0000

0000 0000 xxxx xxxx

0000 00-0

0000 000u

0000 0000

0000 0000 uuuu uuuu xxxx xxxx uuuu uuuu

0000 00-0

--0- 0000 --0-

--11 1111 --11 1111

05h

89h

(1)

09h

(1)

PORTA

TRISE

PORTE

IBF

OBF

PORTA Data Latch when written: PORTA pins when read

IBOV PSPMODE

— —

PORTE Data Direction bits

RE2 RE1

--0x 0000

0000 -111

--0u 0000

0000 -111

RE0

---- -xxx ---- -uuu

Legend: x

= unknown, u

= unchanged,

-

= unimplemented, read as '0'. Shaded cells are not used for A/D conversion.

Note 1:

These registers/bits are not available on the 28-pin devices.

1998-2013 Microchip Technology Inc.

DS30292D-page 117

PIC16F87X

NOTES:

DS30292D-page 118

1998-2013 Microchip Technology Inc.

12.0

SPECIAL FEATURES OF THE

CPU

All PIC16F87X devices have a host of features intended to maximize system reliability, minimize cost through elimination of external components, provide power saving operating modes and offer code protection. These are:

• Oscillator Selection

• RESET

- Power-on Reset (POR)

- Power-up Timer (PWRT)

- Oscillator Start-up Timer (OST)

- Brown-out Reset (BOR)

• Interrupts

• Watchdog Timer (WDT)

• SLEEP

• Code Protection

• ID Locations

• In-Circuit Serial Programming

• Low Voltage In-Circuit Serial Programming

• In-Circuit Debugger

PIC16F87X devices have a Watchdog Timer, which can be shut-off only through configuration bits. It runs off its own RC oscillator for added reliability.

There are two timers that offer necessary delays on power-up. One is the Oscillator Start-up Timer (OST), intended to keep the chip in RESET until the crystal oscillator is stable. The other is the Power-up Timer

(PWRT), which provides a fixed delay of 72 ms (nominal) on power-up only. It is designed to keep the part in

RESET while the power supply stabilizes. With these two timers on-chip, most applications need no external

RESET circuitry.

PIC16F87X

SLEEP mode is designed to offer a very low current

Power-down mode. The user can wake-up from

SLEEP through external RESET, Watchdog Timer

Wake-up, or through an interrupt.

Several oscillator options are also made available to allow the part to fit the application. The RC oscillator option saves system cost while the LP crystal option saves power. A set of configuration bits is used to select various options.

Additional information on special features is available in the PIC

®

MCU Mid-Range Reference Manual,

(DS33023).

12.1

Configuration Bits

The configuration bits can be programmed (read as '0'), or left unprogrammed (read as '1'), to select various device configurations. The erased, or unprogrammed value of the configuration word is 3FFFh. These bits are mapped in program memory location 2007h.

It is important to note that address 2007h is beyond the user program memory space, which can be accessed only during programming.

1998-2013 Microchip Technology Inc.

DS30292D-page 119

PIC16F87X

REGISTER 12-1: CONFIGURATION WORD (ADDRESS 2007h)

(1)

CP1 bit13 bit 13-12, bit 5-4 bit 11

CP0 DEBUG — WRT CPD LVP BODEN CP1 CP0 PWRTE WDTE F0SC1 F0SC0 bit0

CP1:CP0:

FLASH Program Memory Code Protection bits

(2)

11

= Code protection off

10

= 1F00h to 1FFFh code protected (PIC16F877, 876)

10

= 0F00h to 0FFFh code protected (PIC16F874, 873)

01

= 1000h to 1FFFh code protected (PIC16F877, 876)

01

= 0800h to 0FFFh code protected (PIC16F874, 873)

00

= 0000h to 1FFFh code protected (PIC16F877, 876)

00

= 0000h to 0FFFh code protected (PIC16F874, 873)

DEBUG:

In-Circuit Debugger Mode

1

= In-Circuit Debugger disabled, RB6 and RB7 are general purpose I/O pins

0

= In-Circuit Debugger enabled, RB6 and RB7 are dedicated to the debugger.

bit 10 bit 9

Unimplemented:

Read as ‘1’

WRT:

FLASH Program Memory Write Enable

1

= Unprotected program memory may be written to by EECON control

0

= Unprotected program memory may not be written to by EECON control bit 8 bit 7 bit 6 bit 3 bit 2 bit 1-0

CPD:

Data EE Memory Code Protection

1

= Code protection off

0

= Data EEPROM memory code protected

LVP

: Low Voltage In-Circuit Serial Programming Enable bit

1

= RB3/PGM pin has PGM function, low voltage programming enabled

0

= RB3 is digital I/O, HV on MCLR must be used for programming

BODEN

: Brown-out Reset Enable bit

(3)

1

= BOR enabled

0

= BOR disabled

PWRTE

: Power-up Timer Enable bit

(3)

1

= PWRT disabled

0

= PWRT enabled

WDTE

: Watchdog Timer Enable bit

1

= WDT enabled

0

= WDT disabled

FOSC1:FOSC0

: Oscillator Selection bits

11

= RC oscillator

10

= HS oscillator

01

= XT oscillator

00

= LP oscillator

Note 1:

The erased (unprogrammed) value of the configuration word is 3FFFh.

2:

All of the CP1:CP0 pairs have to be given the same value to enable the code protection scheme listed.

3:

Enabling Brown-out Reset automatically enables Power-up Timer (PWRT), regardless of the value of bit PWRTE.

Ensure the Power-up Timer is enabled any time Brown-out Reset is enabled.

1998-2013 Microchip Technology Inc.

DS30292D-page 120

12.2

Oscillator Configurations

12.2.1

OSCILLATOR TYPES

The PIC16F87X can be operated in four different oscillator modes. The user can program two configuration bits (FOSC1 and FOSC0) to select one of these four modes:

• LP

• XT

• HS

• RC

Low Power Crystal

Crystal/Resonator

High Speed Crystal/Resonator

Resistor/Capacitor

12.2.2

CRYSTAL OSCILLATOR/CERAMIC

RESONATORS

In XT, LP or HS modes, a crystal or ceramic resonator is connected to the OSC1/CLKIN and OSC2/CLKOUT

pins to establish oscillation (Figure 12-1). The

PIC16F87X oscillator design requires the use of a parallel cut crystal. Use of a series cut crystal may give a frequency out of the crystal manufacturers specifications. When in XT, LP or HS modes, the device can have an external clock source to drive the OSC1/

CLKIN pin (Figure 12-2).

FIGURE 12-1:

C1

(1)

CRYSTAL/CERAMIC

RESONATOR OPERATION

(HS, XT OR LP

OSC CONFIGURATION)

OSC1

RF

(3)

To

Internal

Logic

XTAL

C2

(1)

R s

(2)

OSC2

SLEEP

PIC16F87X

Note 1:

See Table 12-1 and Table 12-2 for recom-

mended values of C1 and C2.

2:

A series resistor (

R s

) may be required for AT strip cut crystals.

3:

RF varies with the crystal chosen.

FIGURE 12-2:

Clock from

Ext. System

Open

PIC16F87X

EXTERNAL CLOCK INPUT

OPERATION (HS, XT OR

LP OSC

CONFIGURATION)

OSC1

OSC2

PIC16F87X

TABLE 12-1: CERAMIC RESONATORS

Ranges Tested:

Mode Freq.

OSC1 OSC2

XT 455 kHz

2.0 MHz

4.0 MHz

68 - 100 pF

15 - 68 pF

15 - 68 pF

68 - 100 pF

15 - 68 pF

15 - 68 pF

HS 8.0 MHz

16.0 MHz

10 - 68 pF

10 - 22 pF

10 - 68 pF

10 - 22 pF

These values are for design guidance only.

See notes following Table 12-2.

Resonators Used:

455 kHz

2.0 MHz

4.0 MHz

8.0 MHz

16.0 MHz

Panasonic EFO-A455K04B

Murata Erie CSA2.00MG

Murata Erie CSA4.00MG

Murata Erie CSA8.00MT

Murata Erie CSA16.00MX

0.3%

0.5%

0.5%

0.5%

0.5%

All resonators used did not have built-in capacitors.

1998-2013 Microchip Technology Inc.

DS30292D-page 121

PIC16F87X

TABLE 12-2: CAPACITOR SELECTION FOR

CRYSTAL OSCILLATOR

Osc Type

Crystal

Freq.

Cap. Range

C1

Cap. Range

C2

LP

XT

32 kHz

200 kHz

200 kHz

1 MHz

33 pF

15 pF

47-68 pF

15 pF

33 pF

15 pF

47-68 pF

15 pF

HS

4 MHz

4 MHz

8 MHz

20 MHz

15 pF

15 pF

15-33 pF

15-33 pF

15 pF

15 pF

15-33 pF

15-33 pF

These values are for design guidance only.

See notes following this table.

Crystals Used

32 kHz Epson C-001R32.768K-A ± 20 PPM

200 kHz STD XTL 200.000KHz

± 20 PPM

1 MHz

4 MHz

ECS ECS-10-13-1

ECS ECS-40-20-1

± 50 PPM

± 50 PPM

8 MHz EPSON CA-301 8.000M-C ± 30 PPM

20 MHz EPSON CA-301 20.000M-

C

± 30 PPM

Note 1:

Higher capacitance increases the stability of oscillator, but also increases the startup time.

2:

Since each resonator/crystal has its own characteristics, the user should consult the resonator/crystal manufacturer for appropriate values of external components.

3:

R s

may be required in HS mode, as well as XT mode, to avoid overdriving crystals with low drive level specification.

4:

When migrating from other PIC

®

MCU devices, oscillator performance should be verified.

12.2.3

RC OSCILLATOR

For timing insensitive applications, the “RC” device option offers additional cost savings. The RC oscillator frequency is a function of the supply voltage, the resistor (R

EXT

) and capacitor (C

EXT

) values, and the operating temperature. In addition to this, the oscillator frequency will vary from unit to unit due to normal process parameter variation. Furthermore, the difference in lead frame capacitance between package types will also affect the oscillation frequency, especially for low

C

EXT

values. The user also needs to take into account variation due to tolerance of external R and C compo-

nents used. Figure 12-3 shows how the R/C combina-

tion is connected to the PIC16F87X.

FIGURE 12-3:

V

DD

RC OSCILLATOR MODE

R

EXT

OSC1

Internal

Clock

C

EXT

PIC16F87X

V

SS

OSC2/CLKOUT

F

OSC

/4

Recommended values: 3 k

 

R

EXT

100 k

C

EXT

> 20pF

1998-2013 Microchip Technology Inc.

DS30292D-page 122

PIC16F87X

12.3

RESET

The PIC16F87X differentiates between various kinds of

RESET:

• Power-on Reset (POR)

• MCLR Reset during normal operation

• MCLR Reset during SLEEP

• WDT Reset (during normal operation)

• WDT Wake-up (during SLEEP)

• Brown-out Reset (BOR)

Some registers are not affected in any RESET condition. Their status is unknown on POR and unchanged in any other RESET. Most other registers are reset to a

“RESET state” on Power-on Reset (POR), on the

MCLR and WDT Reset, on MCLR Reset during

FIGURE 12-4:

SLEEP, and Brown-out Reset (BOR). They are not affected by a WDT Wake-up, which is viewed as the resumption of normal operation. The TO and PD bits are set or cleared differently in different RESET situations as indicated in Table 12-4. These bits are used in software to determine the nature of the RESET. See

Table 12-6 for a full description of RESET states of all

registers.

A simplified block diagram of the On-Chip Reset Circuit is shown in Figure 12-4.

These devices have a MCLR noise filter in the MCLR

Reset path. The filter will detect and ignore small pulses.

It should be noted that a WDT Reset does not drive

MCLR pin low.

SIMPLIFIED BLOCK DIAGRAM OF ON-CHIP RESET CIRCUIT

External

Reset

MCLR

V

DD

WDT

Module

V

DD

Rise

Detect

WDT

SLEEP

Time-out

Reset

Power-on Reset

Brown-out

Reset

BODEN

OST/PWRT

OST

10-bit Ripple Counter

S

R Q

Chip_Reset

OSC1

(1)

On-chip

RC OSC

PWRT

10-bit Ripple Counter

Enable PWRT

Enable OST

Note 1:

This is a separate oscillator from the RC oscillator of the CLKIN pin.

1998-2013 Microchip Technology Inc.

DS30292D-page 123

PIC16F87X

12.4

Power-On Reset (POR)

A Power-on Reset pulse is generated on-chip when

V

DD

rise is detected (in the range of 1.2V - 1.7V). To take advantage of the POR, tie the MCLR pin directly

(or through a resistor) to V

DD

. This will eliminate external RC components usually needed to create a

Power-on Reset. A maximum rise time for V

DD

is specified. See Electrical Specifications for details.

When the device starts normal operation (exits the

RESET condition), device operating parameters (voltage, frequency, temperature,...) must be met to ensure operation. If these conditions are not met, the device must be held in RESET until the operating conditions are met. Brown-out Reset may be used to meet the start-up conditions. For additional information, refer to

Application Note, AN007, “Power-up Trouble Shooting”, (DS00007).

12.5

Power-up Timer (PWRT)

The Power-up Timer provides a fixed 72 ms nominal time-out on power-up only from the POR. The Powerup Timer operates on an internal RC oscillator. The chip is kept in RESET as long as the PWRT is active.

The PWRT’s time delay allows V

DD

to rise to an acceptable level. A configuration bit is provided to enable/disable the PWRT.

The power-up time delay will vary from chip to chip due to V

DD

, temperature and process variation. See DC parameters for details (T

PWRT

, parameter #33).

12.6

Oscillator Start-up Timer (OST)

The Oscillator Start-up Timer (OST) provides a delay of

1024 oscillator cycles (from OSC1 input) after the

PWRT delay is over (if PWRT is enabled). This helps to ensure that the crystal oscillator or resonator has started and stabilized.

The OST time-out is invoked only for XT, LP and HS modes and only on Power-on Reset or Wake-up from

SLEEP.

12.7

Brown-out Reset (BOR)

The configuration bit, BODEN, can enable or disable the Brown-out Reset circuit. If V

DD

falls below V

BOR

(parameter D005, about 4V) for longer than T

BOR

(parameter #35, about 100

S), the brown-out situation will reset the device. If V

DD

falls below V

BOR

for less than T

BOR

, a RESET may not occur.

Once the brown-out occurs, the device will remain in

Brown-out Reset until V

DD

rises above V

BOR

. The

Power-up Timer then keeps the device in RESET for

T

PWRT

(parameter #33, about 72mS). If V

DD

should fall below V

BOR

during T

PWRT

, the Brown-out Reset process will restart when V

DD

rises above V

BOR

with the

Power-up Timer Reset. The Power-up Timer is always enabled when the Brown-out Reset circuit is enabled, regardless of the state of the PWRT configuration bit.

12.8

Time-out Sequence

On power-up, the time-out sequence is as follows: The

PWRT delay starts (if enabled) when a POR Reset occurs. Then OST starts counting 1024 oscillator cycles when PWRT ends (LP, XT, HS). When the OST ends, the device comes out of RESET.

If MCLR is kept low long enough, the time-outs will expire. Bringing MCLR high will begin execution immediately. This is useful for testing purposes or to synchronize more than one PIC16F87X device operating in parallel.

Table 12-5 shows the RESET conditions for the STA-

TUS, PCON and PC registers, while Table 12-6 shows

the RESET conditions for all the registers.

12.9

Power Control/Status Register

(PCON)

The Power Control/Status Register, PCON, has up to two bits depending upon the device.

Bit0 is Brown-out Reset Status bit, BOR. Bit BOR is unknown on a Power-on Reset. It must then be set by the user and checked on subsequent RESETS to see if bit BOR cleared, indicating a BOR occurred. When the

Brown-out Reset is disabled, the state of the BOR bit is unpredictable and is, therefore, not valid at any time.

Bit1 is POR (Power-on Reset Status bit). It is cleared on a Power-on Reset and unaffected otherwise. The user must set this bit following a Power-on Reset.

TABLE 12-3: TIME-OUT IN VARIOUS SITUATIONS

Oscillator Configuration

XT, HS, LP

RC

Power-up

PWRTE = 0

72 ms + 1024T

OSC

72 ms

PWRTE = 1

1024T

OSC

Brown-out

72 ms + 1024T

OSC

72 ms

Wake-up from

SLEEP

1024T

OSC

1998-2013 Microchip Technology Inc.

DS30292D-page 124

PIC16F87X

TABLE 12-4: STATUS BITS AND THEIR SIGNIFICANCE

POR BOR TO PD

0

0

0

1 x x x

0

1

0 x

1

1

Power-on Reset x

Illegal, TO is set on POR

0

Illegal, PD is set on POR

1

Brown-out Reset

1

1

1

1

0

0

1

WDT Reset

0

WDT Wake-up

1

1

1

1 u

1 u

MCLR Reset during normal operation

0

MCLR Reset during SLEEP or interrupt wake-up from SLEEP

Legend: x

= don’t care, u

= unchanged

TABLE 12-5: RESET CONDITION FOR SPECIAL REGISTERS

Condition

Program

Counter

STATUS

Register

PCON

Register

Power-on Reset 000h

0001 1xxx ---- --0x

MCLR Reset during normal operation 000h

000u uuuu ---- --uu

MCLR Reset during SLEEP 000h

0001 0uuu ---- --uu

WDT Reset 000h

0000 1uuu ---- --uu

WDT Wake-up PC + 1 uuu0 0uuu ---- --uu

Brown-out Reset

Interrupt wake-up from SLEEP

000h

PC + 1

(1)

0001 1uuu uuu1 0uuu

---- --u0

---- --uu

Legend: u

= unchanged, x

= unknown,

-

= unimplemented bit, read as '0'

Note 1:

When the wake-up is due to an interrupt and the GIE bit is set, the PC is loaded with the interrupt vector

(0004h).

1998-2013 Microchip Technology Inc.

DS30292D-page 125

PIC16F87X

TABLE 12-6: INITIALIZATION CONDITIONS FOR ALL REGISTERS

Register Devices

Power-on Reset,

Brown-out Reset

MCLR Resets,

WDT Reset

Wake-up via WDT or

Interrupt

W

INDF

TMR0

PCL

STATUS

FSR

PORTA

PORTB

PORTC

PORTD

PORTE

PCLATH

INTCON

PIR1

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877 xxxx xxxx

N/A xxxx xxxx

0000h

0001 1xxx xxxx xxxx

--0x 0000 xxxx xxxx xxxx xxxx xxxx xxxx

---- -xxx uuuu uuuu

N/A uuuu uuuu

0000h

000q quuu uuuu uuuu

--0u 0000 uuuu uuuu uuuu uuuu uuuu uuuu

---- -uuu

(3)

uuuu uuuu

N/A uuuu uuuu

PC + 1

(2)

uuuq quuu

(3)

uuuu uuuu

--uu uuuu uuuu uuuu uuuu uuuu uuuu uuuu

---- -uuu

---0 0000

0000 000x r000 0000

0000 0000

---0 0000

0000 000u r000 0000

0000 0000

---u uuuu uuuu uuuu

(1)

ruuu uuuu

(1)

uuuu uuuu

(1)

-r-u u--u

(1)

uuuu uuuu

PIR2

TMR1L

TMR1H

T1CON

TMR2

T2CON

SSPBUF

SSPCON

CCPR1L

CCPR1H

CCP1CON

RCSTA

TXREG

RCREG

CCPR2L

CCPR2H

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

-r-0 0--0 xxxx xxxx xxxx xxxx

--00 0000

0000 0000

-000 0000 xxxx xxxx

0000 0000 xxxx xxxx xxxx xxxx

--00 0000

0000 000x

0000 0000

0000 0000

-r-0 0--0 uuuu uuuu uuuu uuuu

--uu uuuu

0000 0000

-000 0000 uuuu uuuu

0000 0000 uuuu uuuu uuuu uuuu

--00 0000

0000 000x

0000 0000

0000 0000 uuuu uuuu

--uu uuuu uuuu uuuu

-uuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu

--uu uuuu uuuu uuuu uuuu uuuu uuuu uuuu xxxx xxxx xxxx xxxx uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu

CCP2CON

ADRESH

ADCON0

OPTION_REG

TRISA

TRISB

TRISC

TRISD

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

873 874 876 877

0000 0000 xxxx xxxx

0000 00-0

1111 1111

--11 1111

1111 1111

0000 0000 uuuu uuuu

0000 00-0

1111 1111

--11 1111

1111 1111 uuuu uuuu uuuu uuuu uuuu uu-u uuuu uuuu

--uu uuuu uuuu uuuu

1111 1111

1111 1111

1111 1111

1111 1111 uuuu uuuu uuuu uuuu

TRISE

PIE1

873 874 876 877

873 874 876 877

0000 -111 r000 0000

0000 -111 r000 0000 uuuu -uuu ruuu uuuu

873 874 876 877

0000 0000 0000 0000 uuuu uuuu

Legend: u

= unchanged, x

= unknown,

-

= unimplemented bit, read as '0', q

= value depends on condition, r

= reserved, maintain clear

Note 1:

One or more bits in INTCON, PIR1 and/or PIR2 will be affected (to cause wake-up).

2:

When the wake-up is due to an interrupt and the GIE bit is set, the PC is loaded with the interrupt vector

(0004h).

3:

See Table 12-5 for RESET value for specific condition.

DS30292D-page 126

1998-2013 Microchip Technology Inc.

PIC16F87X

TABLE 12-6: INITIALIZATION CONDITIONS FOR ALL REGISTERS (CONTINUED)

Register Devices

Power-on Reset,

Brown-out Reset

MCLR Resets,

WDT Reset

Wake-up via WDT or

Interrupt

PIE2 873 874 876 877

-r-0 0--0 -r-0 0--0 -r-u u--u

PCON

PR2

873

873

874

874

876

876

877

877

---- --qq

1111 1111

---- --uu

1111 1111

---- --uu

1111 1111

SSPADD

SSPSTAT

873

873

874

874

876

876

877

877

0000 0000

--00 0000

0000 0000

--00 0000 uuuu uuuu

--uu uuuu

TXSTA

SPBRG

873

873

874

874

876

876

877

877

0000 -010

0000 0000

0000 -010

0000 0000 uuuu -uuu uuuu uuuu

ADRESL

ADCON1

873

873

874

874

876

876

877

877 xxxx xxxx

0--- 0000 uuuu uuuu

0--- 0000 uuuu uuuu u--- uuuu

EEDATA

EEADR

873

873

874

874

876

876

877

877

0--- 0000 xxxx xxxx

0--- 0000 uuuu uuuu u--- uuuu uuuu uuuu

EEDATH

EEADRH

873

873

874

874

876

876

877

877 xxxx xxxx xxxx xxxx uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu

EECON1

EECON2

873

873

874

874

876

876

877

877 x--- x000

---- ---u--- u000

---- ---u--- uuuu

---- ----

Legend: u

= unchanged, x

= unknown,

-

= unimplemented bit, read as '0', q

= value depends on condition, r

= reserved, maintain clear

Note 1:

One or more bits in INTCON, PIR1 and/or PIR2 will be affected (to cause wake-up).

2:

When the wake-up is due to an interrupt and the GIE bit is set, the PC is loaded with the interrupt vector

(0004h).

3:

See Table 12-5 for RESET value for specific condition.

FIGURE 12-5:

V

DD

MCLR

INTERNAL POR

TIME-OUT SEQUENCE ON POWER-UP (MCLR TIED TO V

DD

)

T

PWRT

PWRT TIME-OUT

OST TIME-OUT

INTERNAL RESET

T

OST

1998-2013 Microchip Technology Inc.

DS30292D-page 127

PIC16F87X

FIGURE 12-6: TIME-OUT SEQUENCE ON POWER-UP (MCLR NOT TIED TO V

DD

): CASE 1

V

DD

MCLR

INTERNAL POR

T

PWRT

PWRT TIME-OUT

OST TIME-OUT

INTERNAL RESET

T

OST

FIGURE 12-7:

V

DD

MCLR

INTERNAL POR

TIME-OUT SEQUENCE ON POWER-UP (MCLR NOT TIED TO V

DD

): CASE 2

T

PWRT

PWRT TIME-OUT

OST TIME-OUT

INTERNAL RESET

T

OST

FIGURE 12-8:

V

DD

MCLR

SLOW RISE TIME (MCLR TIED TO V

DD

)

5V

0V

1V

INTERNAL POR

T

PWRT

PWRT TIME-OUT

T

OST

OST TIME-OUT

INTERNAL RESET

1998-2013 Microchip Technology Inc.

DS30292D-page 128

12.10 Interrupts

The PIC16F87X family has up to 14 sources of interrupt. The interrupt control register (INTCON) records individual interrupt requests in flag bits. It also has individual and global interrupt enable bits.

Note:

Individual interrupt flag bits are set, regardless of the status of their corresponding mask bit, or the GIE bit.

A global interrupt enable bit, GIE (INTCON<7>) enables (if set) all unmasked interrupts, or disables (if cleared) all interrupts. When bit GIE is enabled, and an interrupt’s flag bit and mask bit are set, the interrupt will vector immediately. Individual interrupts can be disabled through their corresponding enable bits in various registers. Individual interrupt bits are set, regardless of the status of the GIE bit. The GIE bit is cleared on RESET.

The “return from interrupt” instruction,

RETFIE

, exits the interrupt routine, as well as sets the GIE bit, which re-enables interrupts.

PIC16F87X

The RB0/INT pin interrupt, the RB port change interrupt, and the TMR0 overflow interrupt flags are contained in the INTCON register.

The peripheral interrupt flags are contained in the special function registers, PIR1 and PIR2. The corresponding interrupt enable bits are contained in special function registers, PIE1 and PIE2, and the peripheral interrupt enable bit is contained in special function register INTCON.

When an interrupt is responded to, the GIE bit is cleared to disable any further interrupt, the return address is pushed onto the stack and the PC is loaded with 0004h. Once in the Interrupt Service Routine, the source(s) of the interrupt can be determined by polling the interrupt flag bits. The interrupt flag bit(s) must be cleared in software before re-enabling interrupts to avoid recursive interrupts.

For external interrupt events, such as the INT pin or

PORTB change interrupt, the interrupt latency will be three or four instruction cycles. The exact latency depends when the interrupt event occurs. The latency is the same for one or two-cycle instructions. Individual interrupt flag bits are set, regardless of the status of their corresponding mask bit, PEIE bit, or GIE bit.

FIGURE 12-9: INTERRUPT LOGIC

EEIF

EEIE

PSPIF

PSPIE

ADIF

ADIE

CCP2IF

CCP2IE

TMR1IF

TMR1IE

RCIF

RCIE

TMR2IF

TMR2IE

TXIF

TXIE

SSPIF

SSPIE

CCP1IF

CCP1IE

BCLIF

BCLIE

T0IF

T0IE

INTF

INTE

RBIF

RBIE

PEIE

GIE

Wake-up (If in SLEEP mode)

Interrupt to CPU

The following table shows which devices have which interrupts.

Device T0IF INTF RBIF PSPIF ADIF RCIF TXIF SSPIF CCP1IF TMR2IF TMR1IF EEIF BCLIF CCP2IF

PIC16F876/873 Yes Yes Yes

PIC16F877/874 Yes Yes Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

1998-2013 Microchip Technology Inc.

DS30292D-page 129

PIC16F87X

12.10.1

INT INTERRUPT

External interrupt on the RB0/INT pin is edge triggered, either rising, if bit INTEDG (OPTION_REG<6>) is set, or falling, if the INTEDG bit is clear. When a valid edge appears on the RB0/INT pin, flag bit INTF

(INTCON<1>) is set. This interrupt can be disabled by clearing enable bit INTE (INTCON<4>). Flag bit INTF must be cleared in software in the Interrupt Service

Routine before re-enabling this interrupt. The INT interrupt can wake-up the processor from SLEEP, if bit INTE was set prior to going into SLEEP. The status of global interrupt enable bit, GIE, decides whether or not the processor branches to the interrupt vector following

wake-up. See Section 12.13 for details on SLEEP

mode.

12.10.2

TMR0 INTERRUPT

An overflow (FFh

00h) in the TMR0 register will set flag bit T0IF (INTCON<2>). The interrupt can be enabled/disabled by setting/clearing enable bit T0IE

(INTCON<5>) (Section 5.0).

12.10.3

PORTB INTCON CHANGE

An input change on PORTB<7:4> sets flag bit RBIF

(INTCON<0>). The interrupt can be enabled/disabled by setting/clearing enable bit RBIE (INTCON<4>)

(Section 3.2).

12.11 Context Saving During Interrupts

During an interrupt, only the return PC value is saved on the stack. Typically, users may wish to save key registers during an interrupt, (i.e., W register and STATUS register). This will have to be implemented in software.

For the PIC16F873/874 devices, the register W_TEMP must be defined in both banks 0 and 1 and must be defined at the same offset from the bank base address

(i.e., If W_TEMP is defined at 0x20 in bank 0, it must also be defined at 0xA0 in bank 1). The registers,

PCLATH_TEMP and STATUS_TEMP, are only defined in bank 0.

Since the upper 16 bytes of each bank are common in the PIC16F876/877 devices, temporary holding registers W_TEMP, STATUS_TEMP, and PCLATH_TEMP should be placed in here. These 16 locations don’t require banking and therefore, make it easier for context save and restore. The same code shown in

Example 12-1 can be used.

EXAMPLE 12-1: SAVING STATUS, W, AND PCLATH REGISTERS IN RAM

MOVWF W_TEMP ;Copy W to TEMP register

SWAPF STATUS,W ;Swap status to be saved into W

CLRF STATUS ;bank 0, regardless of current bank, Clears IRP,RP1,RP0

MOVWF STATUS_TEMP ;Save status to bank zero STATUS_TEMP register

MOVF PCLATH, W ;Only required if using pages 1, 2 and/or 3

MOVWF PCLATH_TEMP ;Save PCLATH into W

CLRF PCLATH ;Page zero, regardless of current page

:

:(ISR)

:

;(Insert user code here)

MOVF PCLATH_TEMP, W ;Restore PCLATH

MOVWF PCLATH ;Move W into PCLATH

SWAPF STATUS_TEMP,W ;Swap STATUS_TEMP register into W

;(sets bank to original state)

MOVWF STATUS

SWAPF W_TEMP,F

;Move W into STATUS register

;Swap W_TEMP

SWAPF W_TEMP,W ;Swap W_TEMP into W

1998-2013 Microchip Technology Inc.

DS30292D-page 130

PIC16F87X

12.12 Watchdog Timer (WDT)

The Watchdog Timer is a free running on-chip RC oscillator which does not require any external components.

This RC oscillator is separate from the RC oscillator of the OSC1/CLKIN pin. That means that the WDT will run, even if the clock on the OSC1/CLKIN and OSC2/

CLKOUT pins of the device has been stopped, for example, by execution of a

SLEEP

instruction.

During normal operation, a WDT time-out generates a device RESET (Watchdog Timer Reset). If the device is in SLEEP mode, a WDT time-out causes the device to wake-up and continue with normal operation (Watchdog Timer Wake-up). The TO bit in the STATUS register will be cleared upon a Watchdog Timer time-out.

The WDT can be permanently disabled by clearing

configuration bit WDTE (Section 12.1).

FIGURE 12-10:

WDT time-out period values may be found in the Electrical Specifications section under parameter #31. Values for the WDT prescaler (actually a postscaler, but shared with the Timer0 prescaler) may be assigned using the OPTION_REG register.

Note 1:

The

CLRWDT

and

SLEEP

instructions clear the WDT and the postscaler, if assigned to the WDT, and prevent it from timing out and generating a device

RESET condition.

2:

When a

CLRWDT

instruction is executed and the prescaler is assigned to the WDT, the prescaler count will be cleared, but the prescaler assignment is not changed.

WATCHDOG TIMER BLOCK DIAGRAM

From TMR0 Clock Source

(Figure 5-1)

WDT Timer

0

1

M

U

X

Postscaler

8

8 - to - 1 MUX PS2:PS0

PSA

WDT

Enable Bit

To TMR0 ( Figure 5-1 )

0 1

MUX PSA

WDT

Time-out

Note:

PSA and PS2:PS0 are bits in the OPTION_REG register.

TABLE 12-7: SUMMARY OF WATCHDOG TIMER REGISTERS

Address Name Bit 7 Bit 6 Bit 5 Bit 4

2007h Config. bits

(1)

81h,181h OPTION_REG RBPU

BODEN

(1)

CP1 CP0

INTEDG T0CS T0SE

Legend: Shaded cells are not used by the Watchdog Timer.

Note 1:

See Register 12-1 for operation of these bits.

Bit 3

PWRTE

(1)

PSA

Bit 2 Bit 1 Bit 0

WDTE FOSC1 FOSC0

PS2 PS1 PS0

1998-2013 Microchip Technology Inc.

DS30292D-page 131

PIC16F87X

12.13 Power-down Mode (SLEEP)

Power-down mode is entered by executing a

SLEEP instruction.

If enabled, the Watchdog Timer will be cleared but keeps running, the PD bit (STATUS<3>) is cleared, the

TO (STATUS<4>) bit is set, and the oscillator driver is turned off. The I/O ports maintain the status they had before the

SLEEP

instruction was executed (driving high, low, or hi-impedance).

For lowest current consumption in this mode, place all

I/O pins at either V

DD

or V

SS

, ensure no external circuitry is drawing current from the I/O pin, power-down the A/D and disable external clocks. Pull all I/O pins that are hi-impedance inputs, high or low externally, to avoid switching currents caused by floating inputs. The

T0CKI input should also be at V

DD

or V

SS

for lowest current consumption. The contribution from on-chip pull-ups on PORTB should also be considered.

The MCLR pin must be at a logic high level (V

IHMC

).

12.13.1

WAKE-UP FROM SLEEP

The device can wake-up from SLEEP through one of the following events:

1.

External RESET input on MCLR pin.

2.

Watchdog Timer Wake-up (if WDT was enabled).

3.

Interrupt from INT pin, RB port change or peripheral interrupt.

External MCLR Reset will cause a device RESET. All other events are considered a continuation of program execution and cause a “wake-up”. The TO and PD bits in the STATUS register can be used to determine the cause of device RESET. The PD bit, which is set on power-up, is cleared when

SLEEP

is invoked. The TO bit is cleared if a WDT time-out occurred and caused wake-up.

The following peripheral interrupts can wake the device from SLEEP:

1.

PSP read or write (PIC16F874/877 only).

2.

TMR1 interrupt. Timer1 must be operating as an asynchronous counter.

3.

CCP Capture mode interrupt.

4.

Special event trigger (Timer1 in Asynchronous mode using an external clock).

5.

SSP (START/STOP) bit detect interrupt.

6.

SSP transmit or receive in Slave mode

(SPI/I

2

C).

7.

USART RX or TX (Synchronous Slave mode).

8.

A/D conversion (when A/D clock source is RC).

9.

EEPROM write operation completion

Other peripherals cannot generate interrupts since during SLEEP, no on-chip clocks are present.

When the

SLEEP

instruction is being executed, the next instruction (PC + 1) is pre-fetched. For the device to wake-up through an interrupt event, the corresponding interrupt enable bit must be set (enabled). Wake-up is regardless of the state of the GIE bit. If the GIE bit is clear (disabled), the device continues execution at the instruction after the

SLEEP

instruction. If the GIE bit is set (enabled), the device executes the instruction after the

SLEEP

instruction and then branches to the interrupt address (0004h). In cases where the execution of the instruction following

SLEEP is not desirable, the user should have a

NOP

after the

SLEEP

instruction.

12.13.2

WAKE-UP USING INTERRUPTS

When global interrupts are disabled (GIE cleared) and any interrupt source has both its interrupt enable bit and interrupt flag bit set, one of the following will occur:

• If the interrupt occurs

before

the execution of a

SLEEP

instruction, the

SLEEP

instruction will complete as a

NOP

. Therefore, the WDT and WDT postscaler will not be cleared, the TO bit will not be set and PD bits will not be cleared.

• If the interrupt occurs

during or after

the execution of a

SLEEP

instruction, the device will immediately wake-up from SLEEP. The

SLEEP instruction will be completely executed before the wake-up. Therefore, the WDT and WDT postscaler will be cleared, the TO bit will be set and the PD bit will be cleared.

Even if the flag bits were checked before executing a

SLEEP

instruction, it may be possible for flag bits to become set before the

SLEEP

instruction completes. To determine whether a

SLEEP

instruction executed, test the PD bit. If the PD bit is set, the

SLEEP

instruction was executed as a

NOP

.

To ensure that the WDT is cleared, a

CLRWDT

instruction should be executed before a

SLEEP

instruction.

1998-2013 Microchip Technology Inc.

DS30292D-page 132

PIC16F87X

FIGURE 12-11: WAKE-UP FROM SLEEP THROUGH INTERRUPT

OSC1

CLKOUT

(4)

INT pin

INTF Flag

(INTCON<1>)

GIE bit

(INTCON<7>)

Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1

Processor in

SLEEP

T

OST

(2)

INSTRUCTION FLOW

PC

PC

Instruction

Fetched

Instruction

Executed

Inst(PC) = SLEEP

Inst(PC - 1)

PC+1

Inst(PC + 1)

SLEEP

PC+2

Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4

PC+2

Inst(PC + 2)

Inst(PC + 1)

Interrupt Latency

PC + 2

Dummy cycle

(2)

0004h

Inst(0004h)

Dummy cycle

0005h

Inst(0005h)

Inst(0004h)

Note 1:

XT, HS or LP oscillator mode assumed.

2:

T

OST

= 1024T

OSC

(drawing not to scale) This delay will not be there for RC osc mode.

3:

GIE = '1' assumed. In this case, after wake- up, the processor jumps to the interrupt routine.

If GIE = '0', execution will continue in-line.

4:

CLKOUT is not available in these osc modes, but shown here for timing reference.

12.14 In-Circuit Debugger

When the DEBUG bit in the configuration word is programmed to a '0', the In-Circuit Debugger functionality is enabled. This function allows simple debugging functions when used with MPLAB

®

ICD. When the microcontroller has this feature enabled, some of the resources are not available for general use. Table 12-8 shows which features are consumed by the background debugger.

TABLE 12-8: DEBUGGER RESOURCES

I/O pins

Stack

Program Memory

Data Memory

RB6, RB7

1 level

Address 0000h must be

NOP

Last 100h words

0x070 (0x0F0, 0x170, 0x1F0)

0x1EB - 0x1EF

To use the In-Circuit Debugger function of the microcontroller, the design must implement In-Circuit Serial

Programming connections to MCLR/V

PP

, V

DD

, GND,

RB7 and RB6. This will interface to the In-Circuit

Debugger module available from Microchip, or one of the third party development tool companies.

12.15 Program Verification/Code

Protection

If the code protection bit(s) have not been programmed, the on-chip program memory can be read out for verification purposes.

12.16 ID Locations

Four memory locations (2000h - 2003h) are designated as ID locations, where the user can store checksum or other code identification numbers. These locations are not accessible during normal execution, but are readable and writable during program/verify. It is recommended that only the 4 Least Significant bits of the ID location are used.

1998-2013 Microchip Technology Inc.

DS30292D-page 133

PIC16F87X

12.17 In-Circuit Serial Programming

PIC16F87X microcontrollers can be serially programmed while in the end application circuit. This is simply done with two lines for clock and data and three other lines for power, ground, and the programming voltage. This allows customers to manufacture boards with unprogrammed devices, and then program the microcontroller just before shipping the product. This also allows the most recent firmware, or a custom firmware to be programmed.

When using ICSP, the part must be supplied at 4.5V to

5.5V, if a bulk erase will be executed. This includes reprogramming of the code protect, both from an onstate to off-state. For all other cases of ICSP, the part may be programmed at the normal operating voltages.

This means calibration values, unique user IDs, or user code can be reprogrammed or added.

For complete details of serial programming, please refer to the EEPROM Memory Programming Specification for the PIC16F87X (DS39025).

12.18 Low Voltage ICSP Programming

The LVP bit of the configuration word enables low voltage ICSP programming. This mode allows the microcontroller to be programmed via ICSP using a V

DD source in the operating voltage range. This only means that V

PP

does not have to be brought to V

IHH

, but can instead be left at the normal operating voltage. In this mode, the RB3/PGM pin is dedicated to the programming function and ceases to be a general purpose I/O pin. During programming, V

DD

is applied to the MCLR pin. To enter Programming mode, V

DD

must be applied to the RB3/PGM, provided the LVP bit is set. The LVP bit defaults to on (‘1’) from the factory.

Note 1:

The High Voltage Programming mode is always available, regardless of the state of the LVP bit, by applying V

IHH

to the

MCLR pin.

2:

While in Low Voltage ICSP mode, the

RB3 pin can no longer be used as a general purpose I/O pin.

3:

When using low voltage ICSP programming (LVP) and the pull-ups on PORTB are enabled, bit 3 in the TRISB register must be cleared to disable the pull-up on

RB3 and ensure the proper operation of the device.

4:

RB3 should not be allowed to float if LVP is enabled. An external pull-down device should be used to default the device to normal operating mode. If RB3 floats high, the PIC16F87X device will enter

Programming mode.

5:

LVP mode is enabled by default on all devices shipped from Microchip. It can be disabled by clearing the LVP bit in the

CONFIG register.

6:

Disabling LVP will provide maximum compatibility to other PIC16CXXX devices.

If Low Voltage Programming mode is not used, the LVP bit can be programmed to a '0' and RB3/PGM becomes a digital I/O pin. However, the LVP bit may only be programmed when programming is entered with V

IHH

on

MCLR. The LVP bit can only be charged when using high voltage on MCLR.

It should be noted, that once the LVP bit is programmed to 0, only the High Voltage Programming mode is available and only High Voltage Programming mode can be used to program the device.

When using low voltage ICSP, the part must be supplied at 4.5V to 5.5V, if a bulk erase will be executed. This includes reprogramming of the code protect bits from an on-state to off-state. For all other cases of low voltage

ICSP, the part may be programmed at the normal operating voltage. This means calibration values, unique user IDs, or user code can be reprogrammed or added.

1998-2013 Microchip Technology Inc.

DS30292D-page 134

13.0

INSTRUCTION SET SUMMARY

Each PIC16F87X instruction is a 14-bit word, divided into an OPCODE which specifies the instruction type and one or more operands which further specify the operation of the instruction. The PIC16F87X instruction set summary in Table 13-2 lists

byte-oriented

,

bit-oriented

, and

literal and control

operations. Table 13-1 shows the opcode field descriptions.

For

byte-oriented

instructions, 'f' represents a file register designator and 'd' represents a destination designator. The file register designator specifies which file register is to be used by the instruction.

The destination designator specifies where the result of the operation is to be placed. If 'd' is zero, the result is placed in the W register. If 'd' is one, the result is placed in the file register specified in the instruction.

For

bit-oriented

instructions, 'b' represents a bit field designator which selects the number of the bit affected by the operation, while 'f' represents the address of the file in which the bit is located.

For

literal and control

operations, 'k' represents an eight or eleven bit constant or literal value.

TABLE 13-1: OPCODE FIELD

DESCRIPTIONS

b k f

W x

PC

TO

PD

Field

d

Description

Register file address (0x00 to 0x7F)

Working register (accumulator)

Bit address within an 8-bit file register

Literal field, constant data or label

Don't care location (=

0

or

1

).

The assembler will generate code with x =

0

.

It is the recommended form of use for compatibility with all Microchip software tools.

Destination select; d =

0

: store result in W, d = 1: store result in file register f.

Default is d =

1.

Program Counter

Time-out bit

Power-down bit

The instruction set is highly orthogonal and is grouped into three basic categories:

Byte-oriented

operations

Bit-oriented

operations

Literal and control

operations

PIC16F87X

All instructions are executed within one single instruction cycle, unless a conditional test is true or the program counter is changed as a result of an instruction.

In this case, the execution takes two instruction cycles with the second cycle executed as a

NOP

. One instruction cycle consists of four oscillator periods. Thus, for an oscillator frequency of 4 MHz, the normal instruction execution time is 1

 s. If a conditional test is true, or the program counter is changed as a result of an instruction, the instruction execution time is 2

 s.

Table 13-2 lists the instructions recognized by the

MPASM

TM

assembler.

Figure 13-1 shows the general formats that the instructions can have.

Note:

To maintain upward compatibility with future PIC16F87X products, do not use the

OPTION

and

TRIS

instructions.

All examples use the following format to represent a hexadecimal number:

0xhh where h signifies a hexadecimal digit.

FIGURE 13-1: GENERAL FORMAT FOR

INSTRUCTIONS

Byte-oriented file register operations

13 8 7 6 0

OPCODE d f (FILE #) d = 0 for destination W d = 1 for destination f f = 7-bit file register address

Bit-oriented file register operations

13 10 9 7 6 0

OPCODE b (BIT #) f (FILE #) b = 3-bit bit address f = 7-bit file register address

Literal and control operations

General

13 8 7 0

OPCODE k (literal) k = 8-bit immediate value

CALL

and

GOTO

instructions only

13 11 10 0

OPCODE k (literal) k = 11-bit immediate value

A description of each instruction is available in the PIC

®

MCU Mid-Range Reference Manual, (DS33023).

1998-2013 Microchip Technology Inc.

DS30292D-page 135

PIC16F87X

TABLE 13-2: PIC16F87X INSTRUCTION SET

Mnemonic,

Operands

Description Cycles

MSb

14-Bit Opcode

LSb

Status

Affected

Notes

ADDWF

ANDWF

CLRF

CLRW

COMF

DECF

DECFSZ

INCF

INCFSZ

IORWF

MOVF

MOVWF

NOP

RLF

RRF

SUBWF

SWAPF

XORWF f, d f, d f, d f

f, d f, d f, d f, d f, d f, d f, d f

f, d f, d f, d f, d

BYTE-ORIENTED FILE REGISTER OPERATIONS

Add W and f

AND W with f

Clear f

Clear W

Complement f

Decrement f

Decrement f, Skip if 0

Increment f

Increment f, Skip if 0

Inclusive OR W with f

Move f

Move W to f

No Operation

Rotate Left f through Carry

Rotate Right f through Carry

Subtract W from f

Swap nibbles in f

Exclusive OR W with f

1

1

1

1

1

1

1(2)

1

1(2)

1

1

1

1

1

1

1

1

1

00

00

00

00

00

00

00

00

00

00

00

00

00

00

00

00

00

00

1111

0100

1000

0000

0000

1101

1100

0010

1110

0110

0111

0101

0001

0001

1001

0011

1011

1010 dfff dfff dfff lfff

0xx0 dfff dfff dfff dfff dfff dfff dfff lfff

0xxx dfff dfff dfff dfff ffff ffff ffff ffff

0000 ffff ffff ffff ffff ffff ffff ffff ffff xxxx ffff ffff ffff ffff

C,DC,Z

Z

Z

Z

Z

Z

Z

Z

Z

C

C

C,DC,Z

Z

1,2

1,2

2

1,2

1,2

1,2,3

1,2

1,2,3

1,2

1,2

1,2

1,2

1,2

1,2

1,2

BIT-ORIENTED FILE REGISTER OPERATIONS

BCF

BSF

BTFSC

BTFSS f, b f, b f, b f, b

Bit Clear f

Bit Set f

Bit Test f, Skip if Clear

Bit Test f, Skip if Set

1

1

1 (2)

1 (2)

01

01

01

01

00bb

01bb

10bb

11bb bfff bfff bfff bfff ffff ffff ffff ffff

1,2

1,2

3

3

ADDLW

ANDLW

CALL

CLRWDT

GOTO

IORLW

MOVLW

RETFIE

RETLW

RETURN

SLEEP

SUBLW

XORLW k

k k k

k k

k k

k

Add literal and W

AND literal with W

Move literal to W

Return from interrupt

LITERAL AND CONTROL OPERATIONS

Call subroutine

Clear Watchdog Timer

Go to address

Inclusive OR literal with W

Return with literal in W

Return from Subroutine

Go into standby mode

Subtract W from literal

Exclusive OR literal with W

1

1

2

1

2

1

1

2

2

2

1

1

1

11

11

10

00

10

11

11

00

11

00

00

11

11

111x

1001

0kkk

0000

1kkk

1000

00xx

0000

01xx

0000

0000

110x

1010 kkkk kkkk kkkk

0110 kkkk kkkk kkkk

0000 kkkk

0000

0110 kkkk kkkk kkkk kkkk kkkk

0100 kkkk kkkk kkkk

1001 kkkk

1000

0011 kkkk kkkk

C,DC,Z

Z

TO,PD

Z

TO,PD

C,DC,Z

Z

Note 1:

When an I/O register is modified as a function of itself ( e.g.,

MOVF PORTB, 1

), the value used will be that value present on the pins themselves. For example, if the data latch is '1' for a pin configured as input and is driven low by an external device, the data will be written back with a '0'.

2:

If this instruction is executed on the TMR0 register (and, where applicable, d = 1), the prescaler will be cleared if assigned to the Timer0 module.

3:

If Program Counter (PC) is modified, or a conditional test is true, the instruction requires two cycles. The second cycle is executed as a

NOP

.

Note:

Additional information on the mid-range instruction set is available in the PIC

®

MCU Mid-Range Family Reference Manual (DS33023).

1998-2013 Microchip Technology Inc.

DS30292D-page 136

PIC16F87X

13.1

Instruction Descriptions

ADDLW Add Literal and W

Syntax:

Operands:

Operation:

[

label

] ADDLW k

0

k

255

(W) + k

(W)

Status Affected: C, DC, Z

Description: The contents of the W register are added to the eight bit literal 'k' and the result is placed in the W register.

ADDWF Add W and f

Syntax:

Operands:

Operation:

[

label

] ADDWF f,d

0

f

127 d



(W) + (f)

(destination)

Status Affected: C, DC, Z

Description: Add the contents of the W register with register 'f'. If 'd' is 0, the result is stored in the W register. If 'd' is

1, the result is stored back in register 'f'.

ANDLW AND Literal with W

Syntax:

Operands:

Operation:

[

label

] ANDLW k

0

k

255

(W) .AND. (k)

(W)

Status Affected: Z

Description: The contents of W register are

AND’ed with the eight bit literal

'k'. The result is placed in the W register.

ANDWF AND W with f

Syntax:

Operands:

Operation:

[

label

] ANDWF f,d

0

f

127 d



(W) .AND. (f)

(destination)

Status Affected: Z

Description: AND the W register with register

'f'. If 'd' is 0, the result is stored in the W register. If 'd' is 1, the result is stored back in register 'f'.

1998-2013 Microchip Technology Inc.

BCF Bit Clear f

Syntax:

Operands:

Operation:

[

label

] BCF f,b

0

f

127

0

b

7

0

(f<b>)

Status Affected: None

Description: Bit 'b' in register 'f' is cleared.

BSF Bit Set f

Syntax:

Operands:

Operation:

[

label

] BSF f,b

0

f

127

0

b

7

1

(f<b>)

Status Affected: None

Description: Bit 'b' in register 'f' is set.

BTFSS Bit Test f, Skip if Set

Syntax:

Operands:

Operation:

[

label

] BTFSS f,b

0

f

127

0

b < 7 skip if (f<b>) = 1

Status Affected: None

Description: If bit 'b' in register 'f' is '0', the next instruction is executed.

If bit 'b' is '1', then the next instruction is discarded and a

NOP

is executed instead, making this a

2T

CY

instruction.

BTFSC Bit Test, Skip if Clear

Syntax:

Operands:

Operation:

[

label

] BTFSC f,b

0

f

127

0

b

7 skip if (f<b>) = 0

Status Affected: None

Description: If bit 'b' in register 'f' is '1', the next instruction is executed.

If bit 'b', in register 'f', is '0', the next instruction is discarded, and a

NOP

is executed instead, making this a 2T

CY

instruction.

DS30292D-page 137

PIC16F87X

CALL Call Subroutine

Syntax:

Operands:

Operation:

[

label

] CALL k

0

k

2047

(PC)+ 1

TOS, k

PC<10:0>,

(PCLATH<4:3>)

PC<12:11>

Status Affected: None

Description: Call Subroutine. First, return address (PC+1) is pushed onto the stack. The eleven-bit immediate address is loaded into PC bits

<10:0>. The upper bits of the PC are loaded from PCLATH.

CALL

is a two-cycle instruction.

CLRF Clear f

Syntax:

Operands:

Operation:

[

label

] CLRF f

0

f

127

00h

(f)

1

Z

Status Affected: Z

Description: The contents of register 'f' are cleared and the Z bit is set.

CLRW

Syntax:

Clear W

[

label

] CLRW

Operands:

Operation:

None

00h

(W)

1

Z

Status Affected: Z

Description: W register is cleared. Zero bit (Z) is set.

CLRWDT Clear Watchdog Timer

Syntax: [

label

] CLRWDT

Operands:

Operation:

None

00h

WDT

0

WDT prescaler,

1

TO

1

PD

Status Affected: TO, PD

Description:

CLRWDT

instruction resets the

Watchdog Timer. It also resets the prescaler of the WDT. Status bits TO and PD are set.

COMF

Description:

Complement f

Syntax:

Operands:

Operation:

[

label

] COMF f,d

0

f

127 d

[0,1]

(f)

(destination)

Status Affected: Z

The contents of register 'f' are complemented. If 'd' is 0, the result is stored in W. If 'd' is 1, the result is stored back in register 'f'.

DECF Decrement f

Syntax:

Operands:

Operation:

[

label

] DECF f,d

0

f

127 d

[0,1]

(f) - 1

(destination)

Status Affected: Z

Description: Decrement register 'f'. If 'd' is 0, the result is stored in the W register. If 'd' is 1, the result is stored back in register 'f'.

1998-2013 Microchip Technology Inc.

DS30292D-page 138

PIC16F87X

DECFSZ Decrement f, Skip if 0

Syntax:

Operands:

Operation:

[

label

] DECFSZ f,d

0

f

127 d

[0,1]

(f) - 1

(destination); skip if result = 0

Status Affected: None

Description: The contents of register 'f' are decremented. If 'd' is 0, the result is placed in the W register. If 'd' is

1, the result is placed back in register 'f'.

If the result is 1, the next instruction is executed. If the result is 0, then a

NOP

is executed instead making it a 2T

CY

instruction.

GOTO Unconditional Branch

Syntax:

Operands:

Operation:

[

label

] GOTO k

0

k

2047 k

PC<10:0>

PCLATH<4:3>

PC<12:11>

Status Affected: None

Description:

GOTO

is an unconditional branch.

The eleven-bit immediate value is loaded into PC bits <10:0>. The upper bits of PC are loaded from

PCLATH<4:3>.

GOTO

is a twocycle instruction.

INCF Increment f

Syntax:

Operands:

Operation:

[

label

] INCF f,d

0

f

127 d

[0,1]

(f) + 1

(destination)

Status Affected: Z

Description: The contents of register 'f' are incremented. If 'd' is 0, the result is placed in the W register. If 'd' is

1, the result is placed back in register 'f'.

INCFSZ

Syntax:

Operands:

Operation:

Increment f, Skip if 0

[

label

] INCFSZ f,d

0

f

127 d

[0,1]

(f) + 1

(destination),

skip if result = 0

Status Affected: None

Description: The contents of register 'f' are incremented. If 'd' is 0, the result is placed in the W register. If 'd' is 1, the result is placed back in register 'f'.

If the result is 1, the next instruction is executed. If the result is 0, a

NOP

is executed instead, making it a 2T

CY

instruction.

IORLW Inclusive OR Literal with W

Syntax:

Operands:

Operation:

[

label

] IORLW k

0

k

255

(W) .OR. k

(W)

Status Affected: Z

Description: The contents of the W register are

OR’ed with the eight bit literal 'k'.

The result is placed in the W register.

IORWF Inclusive OR W with f

Syntax:

Operands:

Operation:

[

label

] IORWF f,d

0

f

127 d

[0,1]

(W) .OR. (f)

(destination)

Status Affected: Z

Description: Inclusive OR the W register with register 'f'. If 'd' is 0 the result is placed in the W register. If 'd' is 1 the result is placed back in register 'f'.

1998-2013 Microchip Technology Inc.

DS30292D-page 139

PIC16F87X

MOVF Move f

Syntax:

Operands:

Operation:

[

label

] MOVF f,d

0

f

127 d

[0,1]

(f)

(destination)

Status Affected: Z

Description: The contents of register f are moved to a destination dependant upon the status of d. If d = 0, destination is W register. If d = 1, the destination is file register f itself. d = 1 is useful to test a file register, since status flag Z is affected.

MOVLW Move Literal to W

Syntax:

Operands:

Operation:

[

label

] MOVLW k

0

k

255 k

(W)

Status Affected: None

Description: The eight bit literal 'k' is loaded into W register. The don’t cares will assemble as 0’s.

MOVWF Move W to f

Syntax:

Operands:

Operation:

[

label

] MOVWF f

0

f

127

(W)

(f)

Status Affected: None

Description: Move data from W register to register 'f'.

NOP No Operation

Syntax:

Operands:

Operation:

[

label

None

] NOP

No operation

Status Affected: None

Description: No operation.

RETFIE Return from Interrupt

Syntax:

Operands:

Operation:

[

label

] RETFIE

None

TOS

PC,

1

GIE

Status Affected: None

RETLW Return with Literal in W

Syntax:

Operands:

Operation:

[

label

] RETLW k

0

k

255 k

(W);

TOS

PC

Status Affected: None

Description: The W register is loaded with the eight bit literal 'k'. The program counter is loaded from the top of the stack (the return address).

This is a two-cycle instruction.

1998-2013 Microchip Technology Inc.

DS30292D-page 140

PIC16F87X

RLF Rotate Left f through Carry

Syntax:

Operands:

[

label

] RLF f,d

0

f

127 d

[0,1]

Operation: See description below

Status Affected: C

Description: The contents of register 'f' are rotated one bit to the left through the Carry

Flag. If 'd' is 0, the result is placed in the W register. If 'd' is 1, the result is stored back in register 'f'.

C Register f

RETURN

Description:

RRF

Description:

Return from Subroutine

Syntax: [

label

] RETURN

Operands:

Operation:

None

TOS

PC

Status Affected: None

Return from subroutine. The stack is POPed and the top of the stack

(TOS) is loaded into the program counter. This is a two-cycle instruction.

Rotate Right f through Carry

Syntax:

Operands:

[

label

] RRF f,d

0

f

127 d

[0,1]

Operation: See description below

Status Affected: C

The contents of register 'f' are rotated one bit to the right through the Carry Flag. If 'd' is 0, the result is placed in the W register. If 'd' is

1, the result is placed back in register 'f'.

C Register f

SLEEP

Syntax:

Operands:

Operation:

Status Affected:

Description:

[

label

] SLEEP

None

00h

WDT,

0

WDT prescaler,

1

TO,

0

PD

TO, PD

The power-down status bit, PD is cleared. Time-out status bit, TO is set. Watchdog Timer and its prescaler are cleared.

The processor is put into SLEEP mode with the oscillator stopped.

SUBLW Subtract W from Literal

Syntax:

Operands:

Operation:

[

label

] SUBLW k

0

 k



255 k - (W)



W)

Status Affected: C, DC, Z

Description: The W register is subtracted (2’s complement method) from the eight-bit literal 'k'. The result is placed in the W register.

SUBWF

Syntax:

Operands:

Operation:

Status

Affected:

Description:

Subtract W from f

[

label

] SUBWF f,d

0

 f



127 d

[0,1]

(f) - (W)

 destination)

C, DC, Z

Subtract (2’s complement method)

W register from register 'f'. If 'd' is 0, the result is stored in the W register. If 'd' is 1, the result is stored back in register 'f'.

1998-2013 Microchip Technology Inc.

DS30292D-page 141

PIC16F87X

SWAPF Swap Nibbles in f

Syntax:

Operands:

Operation:

[

label

] SWAPF

0

f

127 d

[0,1]

(f<3:0>)

(destination<7:4>),

(f<7:4>)

(destination<3:0>)

Status Affected: None

Description: The upper and lower nibbles of register 'f' are exchanged. If 'd' is

0, the result is placed in the W register. If 'd' is 1, the result is placed in register 'f'.

XORLW

Syntax:

Operands:

Operation:

Status Affected:

Description:

Exclusive OR Literal with W

[

label

] XORLW k

0

 k



255

(W) .XOR. k



W)

Z

The contents of the W register are XOR’ed with the eight-bit literal 'k'. The result is placed in the W register.

XORWF Exclusive OR W with f

Syntax:

Operands:

Operation:

[

label

] XORWF f,d

0

f

127 d

[0,1]

(W) .XOR. (f)

 destination)

Status Affected: Z

Description: Exclusive OR the contents of the

W register with register 'f'. If 'd' is

0, the result is stored in the W register. If 'd' is 1, the result is stored back in register 'f'.

DS30292D-page 142

1998-2013 Microchip Technology Inc.

14.0

DEVELOPMENT SUPPORT

The PIC

®

microcontrollers are supported with a full range of hardware and software development tools:

• Integrated Development Environment

- MPLAB

®

IDE Software

• Assemblers/Compilers/Linkers

- MPASM

TM

Assembler

- MPLAB C17 and MPLAB C18 C Compilers

- MPLINK

TM

Object Linker/

MPLIB TM Object Librarian

• Simulators

- MPLAB SIM Software Simulator

• Emulators

- MPLAB ICE 2000 In-Circuit Emulator

- ICEPIC™ In-Circuit Emulator

• In-Circuit Debugger

- MPLAB ICD for PIC16F87X

• Device Programmers

- PRO MATE

®

II Universal Device Programmer

- PICSTART

®

Plus Entry-Level Development

Programmer

• Low Cost Demonstration Boards

- PICDEM

TM

1 Demonstration Board

- PICDEM 2 Demonstration Board

- PICDEM 3 Demonstration Board

- PICDEM 17 Demonstration Board

- K

EE

L

OQ

®

Demonstration Board

14.1

MPLAB Integrated Development

Environment Software

The MPLAB IDE software brings an ease of software development previously unseen in the 8-bit microcontroller market. The MPLAB IDE is a Windows

®

-based application that contains:

• An interface to debugging tools

- simulator

- programmer (sold separately)

- emulator (sold separately)

- in-circuit debugger (sold separately)

• A full-featured editor

• A project manager

• Customizable toolbar and key mapping

• A status bar

• On-line help

PIC16F87X

The MPLAB IDE allows you to:

• Edit your source files (either assembly or ‘C’)

• One touch assemble (or compile) and download to PIC MCU emulator and simulator tools (automatically updates all project information)

• Debug using:

- source files

- absolute listing file

- machine code

The ability to use MPLAB IDE with multiple debugging tools allows users to easily switch from the costeffective simulator to a full-featured emulator with minimal retraining.

14.2

MPASM Assembler

The MPASM assembler is a full-featured universal macro assembler for all PIC

®

MCUs.

The MPASM assembler has a command line interface and a Windows shell. It can be used as a stand-alone application on a Windows 3.x or greater system, or it can be used through MPLAB IDE. The MPASM assembler generates relocatable object files for the MPLINK object linker, Intel

®

standard HEX files, MAP files to detail memory usage and symbol reference, an absolute LST file that contains source lines and generated machine code, and a COD file for debugging.

The MPASM assembler features include:

• Integration into MPLAB IDE projects.

• User-defined macros to streamline assembly code.

• Conditional assembly for multi-purpose source files.

• Directives that allow complete control over the assembly process.

14.3

MPLAB C17 and MPLAB C18

C Compilers

The MPLAB C17 and MPLAB C18 Code Development

Systems are complete ANSI ‘C’ compilers for

Microchip’s PIC17CXXX and PIC18CXXX family of microcontrollers, respectively. These compilers provide powerful integration capabilities and ease of use not found with other compilers.

For easier source level debugging, the compilers provide symbol information that is compatible with the

MPLAB IDE memory display.

1998-2013 Microchip Technology Inc.

DS30292D-page 143

PIC16F87X

14.4

MPLINK Object Linker/

MPLIB Object Librarian

The MPLINK object linker combines relocatable objects created by the MPASM assembler and the

MPLAB C17 and MPLAB C18 C compilers. It can also link relocatable objects from pre-compiled libraries, using directives from a linker script.

The MPLIB object librarian is a librarian for precompiled code to be used with the MPLINK object linker. When a routine from a library is called from another source file, only the modules that contain that routine will be linked in with the application. This allows large libraries to be used efficiently in many different applications. The MPLIB object librarian manages the creation and modification of library files.

The MPLINK object linker features include:

• Integration with MPASM assembler and MPLAB

C17 and MPLAB C18 C compilers.

• Allows all memory areas to be defined as sections to provide link-time flexibility.

The MPLIB object librarian features include:

• Easier linking because single libraries can be included instead of many smaller files.

• Helps keep code maintainable by grouping related modules together.

• Allows libraries to be created and modules to be added, listed, replaced, deleted or extracted.

14.5

MPLAB SIM Software Simulator

The MPLAB SIM software simulator allows code development in a PC-hosted environment by simulating the

PIC MCU series microcontrollers on an instruction level. On any given instruction, the data areas can be examined or modified and stimuli can be applied from a file, or user-defined key press, to any of the pins. The execution can be performed in single step, execute until break, or trace mode.

The MPLAB SIM simulator fully supports symbolic debugging using the MPLAB C17 and the MPLAB C18 C compilers and the MPASM assembler. The software simulator offers the flexibility to develop and debug code outside of the laboratory environment, making it an excellent multiproject software development tool.

14.6

MPLAB ICE High Performance

Universal In-Circuit Emulator with

MPLAB IDE

The MPLAB ICE universal in-circuit emulator is intended to provide the product development engineer with a complete microcontroller design tool set for PIC MCU microcontrollers (MCUs). Software control of the

MPLAB ICE in-circuit emulator is provided by the

MPLAB Integrated Development Environment (IDE), which allows editing, building, downloading and source debugging from a single environment.

The MPLAB ICE 2000 is a full-featured emulator system with enhanced trace, trigger and data monitoring features. Interchangeable processor modules allow the system to be easily reconfigured for emulation of different processors. The universal architecture of the

MPLAB ICE in-circuit emulator allows expansion to support new PIC microcontrollers.

The MPLAB ICE in-circuit emulator system has been designed as a real-time emulation system, with advanced features that are generally found on more expensive development tools. The PC platform and

Microsoft

®

Windows environment were chosen to best make these features available to you, the end user.

14.7

ICEPIC In-Circuit Emulator

The ICEPIC low cost, in-circuit emulator is a solution for the Microchip Technology PIC16C5X, PIC16C6X,

PIC16C7X and PIC16CXXX families of 8-bit One-

Time-Programmable (OTP) microcontrollers. The modular system can support different subsets of PIC16C5X or PIC16CXXX products through the use of interchangeable personality modules, or daughter boards.

The emulator is capable of emulating without target application circuitry being present.

1998-2013 Microchip Technology Inc.

DS30292D-page 144

14.8

MPLAB ICD In-Circuit Debugger

Microchip's In-Circuit Debugger, MPLAB ICD, is a powerful, low cost, run-time development tool. This tool is based on the FLASH PIC16F87X and can be used to develop for this and other PIC microcontrollers from the

PIC16CXXX family. The MPLAB ICD utilizes the in-circuit debugging capability built into the PIC16F87X. This feature, along with Microchip's In-Circuit Serial

Programming TM protocol, offers cost-effective in-circuit

FLASH debugging from the graphical user interface of the MPLAB Integrated Development Environment. This enables a designer to develop and debug source code by watching variables, single-stepping and setting break points. Running at full speed enables testing hardware in real-time.

14.9

PRO MATE II Universal Device

Programmer

The PRO MATE II universal device programmer is a full-featured programmer, capable of operating in stand-alone mode, as well as PC-hosted mode. The

PRO MATE II device programmer is CE compliant.

The PRO MATE II device programmer has programmable V

DD

and V

PP

supplies, which allow it to verify programmed memory at V

DD

min and V

DD

max for maximum reliability. It has an LCD display for instructions and error messages, keys to enter commands and a modular detachable socket assembly to support various package types. In stand-alone mode, the PRO MATE II device programmer can read, verify, or program PIC devices. It can also set code protection in this mode.

14.10

PICSTART Plus Entry Level

Development Programmer

The PICSTART Plus development programmer is an easy-to-use, low cost, prototype programmer. It connects to the PC via a COM (RS-232) port. MPLAB

Integrated Development Environment software makes using the programmer simple and efficient.

The PICSTART Plus development programmer supports all PIC devices with up to 40 pins. Larger pin count devices, such as the PIC16C92X and

PIC17C76X, may be supported with an adapter socket.

The PICSTART Plus development programmer is CE compliant.

PIC16F87X

14.11 PICDEM 1 Low Cost PIC MCU

Demonstration Board

The PICDEM 1 demonstration board is a simple board which demonstrates the capabilities of several of

Microchip’s microcontrollers. The microcontrollers supported are: PIC16C5X (PIC16C54 to PIC16C58A),

PIC16C61, PIC16C62X, PIC16C71, PIC16C8X,

PIC17C42, PIC17C43 and PIC17C44. All necessary hardware and software is included to run basic demo programs. The user can program the sample microcontrollers provided with the PICDEM 1 demonstration board on a PRO MATE II device programmer, or a

PICSTART Plus development programmer, and easily test firmware. The user can also connect the

PICDEM 1 demonstration board to the MPLAB ICE incircuit emulator and download the firmware to the emulator for testing. A prototype area is available for the user to build some additional hardware and connect it to the microcontroller socket(s). Some of the features include an RS-232 interface, a potentiometer for simulated analog input, push button switches and eight

LEDs connected to PORTB.

14.12 PICDEM 2 Low Cost PIC16CXX

Demonstration Board

The PICDEM 2 demonstration board is a simple demonstration board that supports the PIC16C62,

PIC16C64, PIC16C65, PIC16C73 and PIC16C74 microcontrollers. All the necessary hardware and software is included to run the basic demonstration programs. The user can program the sample microcontrollers provided with the PICDEM 2 demonstration board on a PRO MATE II device programmer, or a PICSTART Plus development programmer, and easily test firmware. The MPLAB ICE in-circuit emulator may also be used with the PICDEM 2 demonstration board to test firmware. A prototype area has been provided to the user for adding additional hardware and connecting it to the microcontroller socket(s). Some of the features include a RS-232 interface, push button switches, a potentiometer for simulated analog input, a serial EEPROM to demonstrate usage of the I

2

C

TM

bus and separate headers for connection to an LCD module and a keypad.

1998-2013 Microchip Technology Inc.

DS30292D-page 145

PIC16F87X

14.13 PICDEM 3 Low Cost PIC16CXXX

Demonstration Board

The PICDEM 3 demonstration board is a simple demonstration board that supports the PIC16C923 and

PIC16C924 in the PLCC package. It will also support future 44-pin PLCC microcontrollers with an LCD Module. All the necessary hardware and software is included to run the basic demonstration programs. The user can program the sample microcontrollers provided with the PICDEM 3 demonstration board on a

PRO MATE II device programmer, or a PICSTART Plus development programmer with an adapter socket, and easily test firmware. The MPLAB ICE in-circuit emulator may also be used with the PICDEM 3 demonstration board to test firmware. A prototype area has been provided to the user for adding hardware and connecting it to the microcontroller socket(s). Some of the features include a RS-232 interface, push button switches, a potentiometer for simulated analog input, a thermistor and separate headers for connection to an external

LCD module and a keypad. Also provided on the

PICDEM 3 demonstration board is a LCD panel, with 4 commons and 12 segments, that is capable of displaying time, temperature and day of the week. The

PICDEM 3 demonstration board provides an additional

RS-232 interface and Windows software for showing the demultiplexed LCD signals on a PC. A simple serial interface allows the user to construct a hardware demultiplexer for the LCD signals.

14.14 PICDEM 17 Demonstration Board

The PICDEM 17 demonstration board is an evaluation board that demonstrates the capabilities of several

Microchip microcontrollers, including PIC17C752,

PIC17C756A, PIC17C762 and PIC17C766. All necessary hardware is included to run basic demo programs, which are supplied on a 3.5-inch disk. A programmed sample is included and the user may erase it and program it with the other sample programs using the

PRO MATE II device programmer, or the PICSTART

Plus development programmer, and easily debug and test the sample code. In addition, the PICDEM 17 demonstration board supports downloading of programs to and executing out of external FLASH memory on board.

The PICDEM 17 demonstration board is also usable with the MPLAB ICE in-circuit emulator, or the

PICMASTER emulator and all of the sample programs can be run and modified using either emulator. Additionally, a generous prototype area is available for user hardware.

14.15 K

EE

L

OQ

Evaluation and

Programming Tools

K

EE

L

OQ

evaluation and programming tools support

Microchip’s HCS Secure Data Products. The HCS evaluation kit includes a LCD display to show changing codes, a decoder to decode transmissions and a programming interface to program test transmitters.

DS30292D-page 146

1998-2013 Microchip Technology Inc.

TABLE 14-1: DEVELOPMENT TOOLS FROM MICROCHIP

10 25 MCP

XXX MCRF

X 16C6

X 16C5

X 16C7

X 16F62

XXX 6C PIC1

PIC

PIC

PIC

PIC

14000 PIC

XXX 2C PIC1

XX2

/

/

XX

XX

XX

25C

24C

93C

8C PIC1

HCSXXX

7XX 17C PIC

X 17C4 PIC

9XX 16C PIC

8XX 16F PIC

X 16C8 PIC

7XX 16C PIC

PIC16F87X s Tool re wa Soft rs ato Emul r ge ug Deb rs me am Progr

1998-2013 Microchip Technology Inc.

ts l Ki Eva nd s a ard o Bo Dem

DS30292D-page 147

PIC16F87X

NOTES:

DS30292D-page 148

1998-2013 Microchip Technology Inc.

PIC16F87X

15.0

ELECTRICAL CHARACTERISTICS

Absolute Maximum Ratings †

Ambient temperature under bias................................................................................................................ .-55 to +125°C

Storage temperature .............................................................................................................................. -65°C to +150°C

Voltage on any pin with respect to V

SS

(except V

DD

, MCLR. and RA4) ....................................... -0.3 V to (V

DD

+ 0.3 V)

Voltage on V

DD

with respect to V

SS

........................................................................................................... -0.3 to +7.5 V

Voltage on MCLR with respect to V

SS

(Note 2)

................................................................................................0 to +14 V

Voltage on RA4 with respect to Vss .................................................................................................................0 to +8.5 V

Total power dissipation

(Note 1)

.............................................................................................................................. 1.0 W

Maximum current out of V

SS

pin ...........................................................................................................................300 mA

Maximum current into V

DD

pin .............................................................................................................................. 250 mA

Input clamp current, I

IK

(V

I

< 0 or V

I

> V

DD

)

 

20 mA

Output clamp current, I

OK

(V

O

< 0 or V

O

> V

DD

)

 

20 mA

Maximum output current sunk by any I/O pin..........................................................................................................25 mA

Maximum output current sourced by any I/O pin .................................................................................................... 25 mA

Maximum current sunk by

PORTA, PORTB, and PORTE (combined)

(Note 3)

................................................... 200 mA

Maximum current sourced by PORTA, PORTB, and PORTE (combined)

(Note 3)

.............................................. 200 mA

Maximum current sunk by PORTC and PORTD (combined)

(Note 3)

.................................................................200 mA

Maximum current sourced by PORTC and PORTD (combined)

(Note 3)

............................................................ 200 mA

Note 1:

Power dissipation is calculated as follows: Pdis = V

DD

x {I

DD

-

I

OH

} +

{(V

DD

- V

OH

) x I

OH

} +

(V

O l x I

OL

)

2:

Voltage spikes below V

SS

at the MCLR pin, inducing currents greater than 80 mA, may cause latch-up.

Thus, a series resistor of 50-100

should be used when applying a “low” level to the MCLR pin, rather than pulling this pin directly to V

SS

.

3:

PORTD and PORTE are not implemented on PIC16F873/876 devices.

† NOTICE: Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those indicated in the operation listings of this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.

1998-2013 Microchip Technology Inc.

DS30292D-page 149

PIC16F87X

FIGURE 15-1:

6.0 V

5.5 V

5.0 V

4.5 V

4.0 V

3.5 V

3.0 V

2.5 V

2.0 V

PIC16F87X-20 VOLTAGE-FREQUENCY GRAPH

(COMMERCIAL AND INDUSTRIAL TEMPERATURE RANGES ONLY)

16 MHz

Frequency

20 MHz

FIGURE 15-2: PIC16LF87X-04 VOLTAGE-FREQUENCY GRAPH

(COMMERCIAL AND INDUSTRIAL TEMPERATURE RANGES ONLY)

6.0 V

5.5 V

5.0 V

4.5 V

4.0 V

3.5 V

3.0 V

2.5 V

2.0 V

4 MHz 10 MHz

Frequency

F

MAX

= (6.0 MHz/V) (V

DDAPPMIN

- 2.0 V) + 4 MHz

Note 1:

V

DDAPPMIN

is the minimum voltage of the PIC

®

device in the application.

Note 2:

F

MAX

has a maximum frequency of 10MHz.

1998-2013 Microchip Technology Inc.

DS30292D-page 150

FIGURE 15-3:

PIC16F87X

PIC16F87X-04 VOLTAGE-FREQUENCY GRAPH (ALL TEMPERATURE RANGES)

6.0 V

5.5 V

5.0 V

4.5 V

4.0 V

3.5 V

3.0 V

2.5 V

2.0 V

PIC16F87X-04

4 MHz

Frequency

FIGURE 15-4: PIC16F87X-10 VOLTAGE-FREQUENCY GRAPH

(EXTENDED TEMPERATURE RANGE ONLY)

6.0 V

5.5 V

5.0 V

4.5 V

4.0 V

3.5 V

3.0 V

2.5 V

2.0 V

PIC16F87X-10

10 MHz

Frequency

1998-2013 Microchip Technology Inc.

DS30292D-page 151

PIC16F87X

15.1

DC Characteristics: PIC16F873/874/876/877-04 (Commercial, Industrial)

PIC16F873/874/876/877-20 (Commercial, Industrial)

PIC16LF873/874/876/877-04 (Commercial, Industrial)

PIC16LF873/874/876/877-04

(Commercial, Industrial)

PIC16F873/874/876/877-04

PIC16F873/874/876/877-20

(Commercial, Industrial)

Standard Operating Conditions (unless otherwise stated)

Operating temperature -40°C

T

A

+85°C for industrial

0°C

T

A

+70°C for commercial

Standard Operating Conditions (unless otherwise stated)

Operating temperature -40°C

0°C

T

T

A

A

+85°C for industrial

+70°C for commercial

Param

No.

D001

D001

D001A

D002

D003

Symbol Characteristic/

Device

Min

V

DD

Supply Voltage

16LF87X 2.0

Typ†

Max

5.5

Units

16F87X 4.0

4.5

— 5.5

5.5

Conditions

V LP, XT, RC osc configuration

(DC to 4 MHz)

V LP, XT, RC osc configuration

V

BOR

— 1.5

5.5

V HS osc configuration

V BOR enabled, F

MAX

= 14 MHz

(7)

V V

DR

RAM Data Retention

Voltage

(1)

V

POR

V

DD

Start Voltage

to ensure internal Power-on

Reset signal

— V

SS

— V See section on Power-on Reset for details

D004

D005

S

VDD

V

DD

Rise Rate

to ensure internal Power-on Reset signal

V

BOR

Brown-out Reset

Voltage

0.05

3.7

4.0

4.35

V/ms See section on Power-on Reset for details

V BODEN bit in configuration word enabled

Legend: Rows with standard voltage device data only are shaded for improved readability.

† Data in “Typ” column is at 5V, 25°C, unless otherwise stated. These parameters are for design guidance only, and are not tested.

Note 1:

This is the limit to which V

DD

can be lowered without losing RAM data.

2:

The supply current is mainly a function of the operating voltage and frequency. Other factors such as I/O pin loading, switching rate, oscillator type, internal code execution pattern and temperature also have an impact on the current consumption.

The test conditions for all I

DD

measurements in active operation mode are:

OSC1 = external square wave, from rail to rail; all I/O pins tri-stated, pulled to V

DD

;

MCLR = V

DD

; WDT enabled/disabled as specified.

3:

The power-down current in SLEEP mode does not depend on the oscillator type. Power-down current is measured with the part in SLEEP mode, with all I/O pins in hi-impedance state and tied to V

DD

and V

SS

.

4:

For RC osc configuration, current through R

EXT

is not included. The current through the resistor can be estimated by the formula Ir = V

DD

/2R

EXT

(mA) with R

EXT

in kOhm.

5:

Timer1 oscillator (when enabled) adds approximately 20

A to the specification. This value is from characterization and is for design guidance only. This is not tested.

6:

The

current is the additional current consumed when this peripheral is enabled. This current should be added to the base I

DD

or I

PD

measurement.

7:

When BOR is enabled, the device will operate correctly until the V

BOR

voltage trip point is reached.

1998-2013 Microchip Technology Inc.

DS30292D-page 152

PIC16F87X

15.1

DC Characteristics: PIC16F873/874/876/877-04 (Commercial, Industrial)

PIC16F873/874/876/877-20 (Commercial, Industrial)

PIC16LF873/874/876/877-04 (Commercial, Industrial)

(Continued)

PIC16LF873/874/876/877-04

(Commercial, Industrial)

PIC16F873/874/876/877-04

PIC16F873/874/876/877-20

(Commercial, Industrial)

Standard Operating Conditions (unless otherwise stated)

Operating temperature -40°C

T

A

+85°C for industrial

0°C

T

A

+70°C for commercial

Standard Operating Conditions (unless otherwise stated)

Operating temperature -40°C

T

A

+85°C for industrial

0°C

T

A

+70°C for commercial

Param

No.

Symbol Characteristic/

Device

I

DD

Supply Current

(2,5)

Min Typ† Max Units Conditions

D010

D010

D010A

D013

16LF87X

16F87X

16LF87X

16F87X

0.6

1.6

20

7

2.0

4

35

15 mA XT, RC osc configuration

F

OSC

= 4 MHz, V

DD

= 3.0V

mA RC osc configurations

F

OSC

= 4 MHz, V

DD

= 5.5V

A LP osc configuration

F

OSC

= 32 kHz, V

DD

= 3.0V,

WDT disabled mA HS osc configuration,

F

OSC

= 20 MHz, V

DD

= 5.5V

A BOR enabled, V

DD

= 5.0V

D015

I

BOR

Brown-out

Reset Current

(6)

— 85 200

Legend: Rows with standard voltage device data only are shaded for improved readability.

† Data in “Typ” column is at 5V, 25°C, unless otherwise stated. These parameters are for design guidance only, and are not tested.

Note 1:

This is the limit to which V

DD

can be lowered without losing RAM data.

2:

The supply current is mainly a function of the operating voltage and frequency. Other factors such as I/O pin loading, switching rate, oscillator type, internal code execution pattern and temperature also have an impact on the current consumption.

The test conditions for all I

DD

measurements in active operation mode are:

OSC1 = external square wave, from rail to rail; all I/O pins tri-stated, pulled to V

DD

;

MCLR = V

DD

; WDT enabled/disabled as specified.

3:

The power-down current in SLEEP mode does not depend on the oscillator type. Power-down current is measured with the part in SLEEP mode, with all I/O pins in hi-impedance state and tied to V

DD

and V

SS

.

4:

For RC osc configuration, current through R

EXT

is not included. The current through the resistor can be estimated by the formula Ir = V

DD

/2R

EXT

(mA) with R

EXT

in kOhm.

5:

Timer1 oscillator (when enabled) adds approximately 20

A to the specification. This value is from characterization and is for design guidance only. This is not tested.

6:

The

current is the additional current consumed when this peripheral is enabled. This current should be added to the base I

DD

or I

PD

measurement.

7:

When BOR is enabled, the device will operate correctly until the V

BOR

voltage trip point is reached.

1998-2013 Microchip Technology Inc.

DS30292D-page 153

PIC16F87X

15.1

DC Characteristics: PIC16F873/874/876/877-04 (Commercial, Industrial)

PIC16F873/874/876/877-20 (Commercial, Industrial)

PIC16LF873/874/876/877-04 (Commercial, Industrial)

(Continued)

PIC16LF873/874/876/877-04

(Commercial, Industrial)

PIC16F873/874/876/877-04

PIC16F873/874/876/877-20

(Commercial, Industrial)

Standard Operating Conditions (unless otherwise stated)

Operating temperature -40°C

T

A

+85°C for industrial

0°C

T

A

+70°C for commercial

Standard Operating Conditions (unless otherwise stated)

Operating temperature -40°C

T

A

+85°C for industrial

0°C

T

A

+70°C for commercial

Param

No.

Symbol

I

PD

Characteristic/

Device

Power-down Current

(3,5)

Min Typ† Max Units Conditions

D020

D020

D021

D021

D021A

D021A

16LF87X

16F87X

16LF87X

16F87X

16LF87X

16F87X

7.5

10.5

0.9

1.5

0.9

1.5

30

42

5

16

5

19

A V

DD

= 3.0V, WDT enabled,

-40

C to +85

C

A V

DD

= 4.0V, WDT enabled,

-40

C to +85

C

A V

DD

= 3.0V, WDT enabled,

0

C to +70

C

A V

DD

= 4.0V, WDT enabled,

-40

C to +85

C

A V

DD

= 3.0V, WDT enabled,

-40

C to +85

C

A V

DD

= 4.0V, WDT enabled,

-40

C to +85

C

A BOR enabled, V

DD

= 5.0V

D023

I

BOR

Brown-out

Reset Current

(6)

— 85 200

Legend: Rows with standard voltage device data only are shaded for improved readability.

† Data in “Typ” column is at 5V, 25°C, unless otherwise stated. These parameters are for design guidance only, and are not tested.

Note 1:

This is the limit to which V

DD

can be lowered without losing RAM data.

2:

The supply current is mainly a function of the operating voltage and frequency. Other factors such as I/O pin loading, switching rate, oscillator type, internal code execution pattern and temperature also have an impact on the current consumption.

The test conditions for all I

DD

measurements in active operation mode are:

OSC1 = external square wave, from rail to rail; all I/O pins tri-stated, pulled to V

DD

;

MCLR = V

DD

; WDT enabled/disabled as specified.

3:

The power-down current in SLEEP mode does not depend on the oscillator type. Power-down current is measured with the part in SLEEP mode, with all I/O pins in hi-impedance state and tied to V

DD

and V

SS

.

4:

For RC osc configuration, current through R

EXT

is not included. The current through the resistor can be estimated by the formula Ir = V

DD

/2R

EXT

(mA) with R

EXT

in kOhm.

5:

Timer1 oscillator (when enabled) adds approximately 20

A to the specification. This value is from characterization and is for design guidance only. This is not tested.

6:

The

current is the additional current consumed when this peripheral is enabled. This current should be added to the base I

DD

or I

PD

measurement.

7:

When BOR is enabled, the device will operate correctly until the V

BOR

voltage trip point is reached.

1998-2013 Microchip Technology Inc.

DS30292D-page 154

PIC16F87X

15.2

DC Characteristics: PIC16F873/874/876/877-04 (Commercial, Industrial)

PIC16F873/874/876/877-20 (Commercial, Industrial)

PIC16LF873/874/876/877-04 (Commercial, Industrial)

DC CHARACTERISTICS

Standard Operating Conditions (unless otherwise stated)

Operating temperature -40°C

T

A

+85°C for industrial

0°C

T

A

+70°C for commercial

Operating voltage V

DD

range as described in DC specification

(Section 15.1)

Param

No.

Sym Characteristic Min Typ† Max Units Conditions

D030

D030A

D031

D032

D033

D034

D034A

V

IL

Input Low Voltage

I/O ports with TTL buffer with Schmitt Trigger buffer

MCLR, OSC1 (in RC mode)

OSC1 (in XT, HS and LP)

Ports RC3 and RC4 with Schmitt Trigger buffer with SMBus

V

IH

Input High Voltage

I/O ports with TTL buffer

Vss

Vss

Vss

V

V

SS

SS

Vss

-0.5

— 0.15V

DD

V For entire V

DD

range

0.8V

0.2V

0.2V

0.3V

0.3V

0.6

DD

DD

DD

DD

V 4.5V

V

DD



5.5V

V

V

V

V

V

(Note 1)

For entire V for V

DD

DD

range

= 4.5 to 5.5V

D040

D040A

2.0

0.25V

DD

+ 0.8V

0.8V

DD

0.8V

DD

0.7V

DD

0.9V

DD

V

V

DD

DD

V

V

4.5V

V

DD

For entire V



5.5V

DD

range

D041

D042

D042A

D043 with Schmitt Trigger buffer

MCLR

OSC1 (XT, HS and LP)

OSC1 (in RC mode)

V

DD

V

DD

V

DD

V

DD

V For entire V

DD

range

V

V

(Note 1)

V

D044

D044A

D070 I

PURB

Ports RC3 and RC4 with Schmitt Trigger buffer with SMBus

PORTB Weak Pull-up Current

0.7V

DD

1.4

50

V

DD

5.5

250 400

V For entire V

DD

range

V for V

DD

= 4.5 to 5.5V

A V

DD

= 5V, V

PIN

= V

SS

,

-40°C

TO

+85°C

D060

D061

D063

I

IL

Input Leakage Current

(2, 3)

I/O ports

MCLR, RA4/T0CKI

OSC1

1

5

5

A Vss



V

PIN



V

DD

,

Pin at hi-impedance

A Vss



V

PIN



V

DD

A Vss



V

PIN



V

DD

, XT, HS and LP osc configuration

* These parameters are characterized but not tested.

† Data in "Typ" column is at 5V, 25°C unless otherwise stated. These parameters are for design guidance only and are not tested.

Note 1:

In RC oscillator configuration, the OSC1/CLKIN pin is a Schmitt Trigger input. It is not recommended that the

PIC16F87X be driven with external clock in RC mode.

2:

The leakage current on the MCLR pin is strongly dependent on the applied voltage level. The specified levels represent normal operating conditions. Higher leakage current may be measured at different input voltages.

3:

Negative current is defined as current sourced by the pin.

1998-2013 Microchip Technology Inc.

DS30292D-page 155

PIC16F87X

15.2

DC Characteristics: PIC16F873/874/876/877-04 (Commercial, Industrial)

PIC16F873/874/876/877-20 (Commercial, Industrial)

PIC16LF873/874/876/877-04 (Commercial, Industrial)

(Continued)

DC CHARACTERISTICS

Standard Operating Conditions (unless otherwise stated)

Operating temperature -40°C

T

A

+85°C for industrial

0°C

T

A

+70°C for commercial

Operating voltage V

DD

range as described in DC specification

(Section 15.1)

Param

No.

Sym Characteristic Min Typ† Max Units Conditions

D080

D083

V

OL

Output Low Voltage

I/O ports

OSC2/CLKOUT (RC osc config)

0.6

0.6

V I

OL

= 8.5 mA, V

DD

= 4.5V,

-40

C to +85

C

V I

OL

= 1.6 mA, V

DD

= 4.5V,

-40

C to +85

C

D090

D092

V

OH

Output High Voltage

I/O ports

(3)

OSC2/CLKOUT (RC osc config)

V

V

DD

DD

- 0.7

- 0.7

V I

OH

= -3.0 mA, V

DD

= 4.5V,

-40

C to +85

C

V I

OH

= -1.3 mA, V

DD

= 4.5V,

-40

C to +85

C

V RA4 pin D150* V

OD

Open-Drain High Voltage

Capacitive Loading Specs on

Output Pins

C

OSC

2 OSC2 pin

— — 8.5

D100

D101

D102

C

IO

C

B

All I/O pins and OSC2 (RC mode)

SCL, SDA (I

2

C mode)

15

50

400 pF In XT, HS and LP modes when external clock is used to drive

OSC1 pF pF

D120

D121 V

E

D

DRW

Data EEPROM Memory

Endurance

V

DD

for read/write

100K

V

MIN

5.5

E/W 25

C at 5V

V Using EECON to read/write

V

MIN

= min. operating voltage ms D122 T

DEW

Erase/write cycle time

Program FLASH Memory

— 4 8

D130

D131

D132A

E

V

P

PR

Endurance

V

V

DD

DD

for read

for erase/write

1000

V

V

MIN

MIN

5.5

5.5

E/W 25

C at 5V

V V

MIN

= min operating voltage

V Using EECON to read/write,

V

MIN

= min. operating voltage ms D133 T

PEW

Erase/Write cycle time — 4 8

* These parameters are characterized but not tested.

† Data in "Typ" column is at 5V, 25°C unless otherwise stated. These parameters are for design guidance only and are not tested.

Note 1:

In RC oscillator configuration, the OSC1/CLKIN pin is a Schmitt Trigger input. It is not recommended that the

PIC16F87X be driven with external clock in RC mode.

2:

The leakage current on the MCLR pin is strongly dependent on the applied voltage level. The specified levels represent normal operating conditions. Higher leakage current may be measured at different input voltages.

3:

Negative current is defined as current sourced by the pin.

1998-2013 Microchip Technology Inc.

DS30292D-page 156

PIC16F87X

15.3

DC Characteristics: PIC16F873/874/876/877-04 (Extended)

PIC16F873/874/876/877-10 (Extended)

PIC16F873/874/876/877-04

PIC16F873/874/876/877-20

(Extended)

Standard Operating Conditions (unless otherwise stated)

Operating temperature -40°C

T

A

+125°C

Param

No.

Symbol Characteristic/

Device

Min Typ† Max Units Conditions

V

DD

Supply Voltage

D001

D001A

D001A

4.0

4.5

V

BOR

— 5.5

5.5

5.5

V LP, XT, RC osc configuration

V HS osc configuration

V BOR enabled, F

MAX

= 10 MHz

(7)

D002

D003

V

DR

RAM Data Retention

Voltage

(1)

V

POR

V

DD

Start Voltage

to ensure internal Power-on

Reset signal

1.5

V

SS

V

V See section on Power-on Reset for details

D004

D005

S

VDD

V

DD

Rise Rate

to ensure internal Power-on Reset signal

V

BOR

Brown-out Reset

Voltage

0.05

3.7

4.0

4.35

V/ms See section on Power-on Reset for details

V BODEN bit in configuration word enabled

† Data is “Typ” column is at 5V, 25°C, unless otherwise stated. These parameters are for design guidance only, and are not tested.

Note 1:

This is the limit to which V

DD

can be lowered without losing RAM data.

2:

The supply current is mainly a function of the operating voltage and frequency. Other factors such as I/O pin loading, switching rate, oscillator type, internal code execution pattern and temperature also have an impact on the current consumption.

The test conditions for all I

DD

measurements in active operation mode are:

OSC1 = external square wave, from rail to rail; all I/O pins tri-stated, pulled to V

DD

;

MCLR = V

DD

; WDT enabled/disabled as specified.

3:

The power-down current in SLEEP mode does not depend on the oscillator type. Power-down current is measured with the part in SLEEP mode, with all I/O pins in hi-impedance state and tied to V

DD

and V

SS

.

4:

For RC osc configuration, current through R

EXT

is not included. The current through the resistor can be estimated by the formula Ir = V

DD

/2R

EXT

(mA) with R

EXT

in kOhm.

5:

Timer1 oscillator (when enabled) adds approximately 20

A to the specification. This value is from characterization and is for design guidance only. This is not tested.

6:

The

current is the additional current consumed when this peripheral is enabled. This current should be added to the base I

DD

or I

PD

measurement.

7:

When BOR is enabled, the device will operate correctly until the V

BOR

voltage trip point is reached.

1998-2013 Microchip Technology Inc.

DS30292D-page 157

PIC16F87X

15.3

DC Characteristics: PIC16F873/874/876/877-04 (Extended)

PIC16F873/874/876/877-10 (Extended) (Continued)

PIC16F873/874/876/877-04

PIC16F873/874/876/877-20

(Extended)

Standard Operating Conditions (unless otherwise stated)

Operating temperature -40°C

T

A

+125°C

Param

No.

Symbol Characteristic/

Device

I

DD

Supply Current

(2,5)

Min Typ† Max Units Conditions

D010

D013

1.6

7

4

15 mA RC osc configurations

F

OSC

= 4 MHz, V

DD

= 5.5V

mA HS osc configuration,

F

OSC

= 10 MHz, V

DD

= 5.5V

A BOR enabled, V

DD

= 5.0V

D015

I

BOR

Brown-out

Reset Current

(6)

I

PD

Power-down Current

(3,5)

— 85 200

D020A

D021B

10.5

1.5

60

30

A V

DD

= 4.0V, WDT enabled

A V

DD

= 4.0V, WDT disabled

A BOR enabled, V

DD

= 5.0V

D023

I

BOR

Brown-out

Reset Current

(6)

— 85 200

† Data is “Typ” column is at 5V, 25°C, unless otherwise stated. These parameters are for design guidance only, and are not tested.

Note 1:

This is the limit to which V

DD

can be lowered without losing RAM data.

2:

The supply current is mainly a function of the operating voltage and frequency. Other factors such as I/O pin loading, switching rate, oscillator type, internal code execution pattern and temperature also have an impact on the current consumption.

The test conditions for all I

DD

measurements in active operation mode are:

OSC1 = external square wave, from rail to rail; all I/O pins tri-stated, pulled to V

DD

;

MCLR = V

DD

; WDT enabled/disabled as specified.

3:

The power-down current in SLEEP mode does not depend on the oscillator type. Power-down current is measured with the part in SLEEP mode, with all I/O pins in hi-impedance state and tied to V

DD

and V

SS

.

4:

For RC osc configuration, current through R

EXT

is not included. The current through the resistor can be estimated by the formula Ir = V

DD

/2R

EXT

(mA) with R

EXT

in kOhm.

5:

Timer1 oscillator (when enabled) adds approximately 20

A to the specification. This value is from characterization and is for design guidance only. This is not tested.

6:

The

current is the additional current consumed when this peripheral is enabled. This current should be added to the base I

DD

or I

PD

measurement.

7:

When BOR is enabled, the device will operate correctly until the V

BOR

voltage trip point is reached.

1998-2013 Microchip Technology Inc.

DS30292D-page 158

PIC16F87X

15.4

DC Characteristics: PIC16F873/874/876/877-04 (Extended)

PIC16F873/874/876/877-10 (Extended)

DC CHARACTERISTICS

Standard Operating Conditions (unless otherwise stated)

Operating temperature -40°C

T

A

+125°C

Operating voltage V

DD

range as described in DC specification

(Section 15.1)

Param

No.

Sym Characteristic Min Typ† Max Units Conditions

D030

D030A

D031

D032

D033

D034

D034A

V

IL

Input Low Voltage

I/O ports with TTL buffer with Schmitt Trigger buffer

MCLR, OSC1 (in RC mode)

OSC1 (in XT, HS and LP)

Ports RC3 and RC4 with Schmitt Trigger buffer with SMBus

Vss

Vss

Vss

V

V

SS

SS

Vss

-0.5

— 0.15V

0.8V

0.2V

0.2V

0.3V

DD

DD

DD

DD

V For entire V

V 4.5V

V

DD



5.5V

V

V

V

(Note 1)

DD

range

— 0.3V

DD

V For entire V

DD

range

— 0.6

V for V

DD

= 4.5 to 5.5V

D040

D040A

V

IH

Input High Voltage

I/O ports with TTL buffer 2.0

0.25V

DD

+ 0.8V

V

V

DD

DD

V

V

4.5V

V

DD

For entire V



DD

5.5V

range

D041

D042

D042A

D043 with Schmitt Trigger buffer

MCLR

OSC1 (XT, HS and LP)

OSC1 (in RC mode)

0.8V

0.8V

0.7V

0.9V

DD

DD

DD

DD

V

V

V

V

DD

DD

DD

DD

V

V

V

V

For entire V

(Note 1)

DD

range

D044

D044A

Ports RC3 and RC4 with Schmitt Trigger buffer with SMBus

0.7V

1.4

DD

V

DD

5.5

V For entire V

DD

range

V for V

DD

= 4.5 to 5.5V

A V

DD

= 5V, V

PIN

= V

SS

, D070A I

PURB

PORTB Weak Pull-up Current

I

IL

Input Leakage Current

(2, 3)

50 250 400

D060

D061

D063

I/O ports

MCLR, RA4/T0CKI

OSC1

-

-

-

-

-

-

1

5

5

A Vss



V

PIN



V

DD

,

Pin at hi-impedance

A Vss



V

PIN



V

DD

A Vss



V

PIN



V

DD

, XT, HS and LP osc configuration

* These parameters are characterized but not tested.

† Data in "Typ" column is at 5V, 25°C unless otherwise stated. These parameters are for design guidance only and are not tested.

Note 1:

In RC oscillator configuration, the OSC1/CLKIN pin is a Schmitt Trigger input. It is not recommended that the

PIC16F87X be driven with external clock in RC mode.

2:

The leakage current on the MCLR pin is strongly dependent on the applied voltage level. The specified levels represent normal operating conditions. Higher leakage current may be measured at different input voltages.

3:

Negative current is defined as current sourced by the pin.

1998-2013 Microchip Technology Inc.

DS30292D-page 159

PIC16F87X

15.4

DC Characteristics: PIC16F873/874/876/877-04 (Extended)

PIC16F873/874/876/877-10 (Extended) (Continued)

DC CHARACTERISTICS

Standard Operating Conditions (unless otherwise stated)

Operating temperature -40°C

T

A

+125°C

Operating voltage V

DD

range as described in DC specification

(Section 15.1)

Param

No.

Sym Characteristic Min Typ† Max Units Conditions

D080A

D083A

D090A

D092A

D150*

V

OL

Output Low Voltage

I/O ports

OSC2/CLKOUT (RC osc config)

V

OH

Output High Voltage

V

OD

I/O ports

(3)

V

DD

- 0.7

OSC2/CLKOUT (RC osc config) V

DD

- 0.7

Open Drain High Voltage

Capacitive Loading Specs on Output Pins

0.6

0.6

8.5

V

V

V

V

V

I

I

I

I

OL

OL

OH

OH

= 7.0 mA, V

= 1.2 mA, V

DD

DD

= -2.5 mA, V

= -1.0 mA, V

RA4 pin

= 4.5V

= 4.5V

DD

DD

= 4.5V

= 4.5V

D100

D101

D102

C

OSC2

C

IO

C

B

OSC2 pin

All I/O pins and OSC2 (RC mode)

SCL, SDA (I

2

C mode)

15

50

400 pF In XT, HS and LP modes when external clock is used to drive

OSC1 pF pF

D120

D121 V

E

D

DRW

Data EEPROM Memory

Endurance

V

DD

for read/write

100K

V

MIN

5.5

E/W 25

C at 5V

V Using EECON to read/write

V

MIN

= min. operating voltage ms D122 T

DEW

Erase/write cycle time

Program FLASH Memory

— 4 8

D130

D131

D132A

E

V

P

PR

Endurance

V

V

DD

DD

for read

for erase/write

1000

V

V

MIN

MIN

5.5

5.5

E/W 25

C at 5V

V V

MIN

= min operating voltage

V Using EECON to read/write,

V

MIN

= min. operating voltage ms D133 T

PEW

Erase/Write cycle time — 4 8

* These parameters are characterized but not tested.

† Data in "Typ" column is at 5V, 25°C unless otherwise stated. These parameters are for design guidance only and are not tested.

Note 1:

In RC oscillator configuration, the OSC1/CLKIN pin is a Schmitt Trigger input. It is not recommended that the

PIC16F87X be driven with external clock in RC mode.

2:

The leakage current on the MCLR pin is strongly dependent on the applied voltage level. The specified levels represent normal operating conditions. Higher leakage current may be measured at different input voltages.

3:

Negative current is defined as current sourced by the pin.

1998-2013 Microchip Technology Inc.

DS30292D-page 160

PIC16F87X

15.5

Timing Parameter Symbology

The timing parameter symbols have been created following one of the following formats:

1. TppS2ppS

2. TppS

T

F Frequency

Lowercase letters (pp) and their meanings:

pp

cc CCP1 ck cs di do

CLKOUT

CS

SDI

SDO dt io

Data in

I/O port mc MCLR

Uppercase letters and their meanings:

S

F

I

H

L

Fall

High

Invalid (Hi-impedance)

Low

I

2

C only

AA

BUF output access

Bus free

T

CC

:

ST

(I

2

C specifications only)

CC

HD

ST

DAT

STA

Hold

DATA input hold

START condition

FIGURE 15-5: LOAD CONDITIONS

Load Condition 1

V

DD

/2

3. T

CC

:

ST

(I

2

C specifications only)

4. Ts (I

2

C specifications only)

T Time

P

R

V

Z

High

Low sc ss t0 t1 wr osc rd rw

SU

STO

OSC1

RD

RD or WR

SCK

SS

T0CKI

T1CKI

WR

Period

Rise

Valid

Hi-impedance

High

Low

Setup

STOP condition

Load Condition 2

R

L

Pin

C

L

Pin

C

V

SS

V

SS

R

L

= 464

C

L

= 50 pF for all pins except OSC2, but including PORTD and PORTE outputs as ports,

15 pF for OSC2 output

Note:

PORTD and PORTE are not implemented on PIC16F873/876 devices.

L

1998-2013 Microchip Technology Inc.

DS30292D-page 161

PIC16F87X

FIGURE 15-6: EXTERNAL CLOCK TIMING

Q4 Q1 Q2

OSC1

1

2

3

Q3

CLKOUT

3

Q4

4

4

Q1

TABLE 15-1: EXTERNAL CLOCK TIMING REQUIREMENTS

Parameter

No.

Sym Characteristic Min Typ† Max Units Conditions

F

OSC

External CLKIN Frequency

(Note 1)

Oscillator Frequency

(Note 1)

DC

DC

DC

DC

DC

DC

0.1

4

4

10

20

200

4

4

MHz XT and RC osc mode

MHz HS osc mode (-04)

MHz HS osc mode (-10)

MHz HS osc mode (-20) kHz LP osc mode

MHz RC osc mode

MHz XT osc mode

4

4

5

250

10

20

200

MHz HS osc mode (-10)

MHz kHz

HS osc mode (-20)

LP osc mode ns XT and RC osc mode 1 T

OSC

External CLKIN Period

(Note 1)

Oscillator Period

(Note 1)

250

100

50

5

250

250

250

100

50

5

200

T

CY

10,000

250

250

DC ns ns

HS osc mode (-04)

HS osc mode (-10) ns HS osc mode (-20)

 s LP osc mode ns ns ns ns

RC osc mode

XT osc mode

HS osc mode (-04)

HS osc mode (-10) ns HS osc mode (-20)

 s LP osc mode ns T

CY

= 4/F

OSC

2

3

T

CY

Instruction Cycle Time

(Note 1)

TosL,

TosH

External Clock in (OSC1) High or

Low Time

100 —

2.5

15 —

— —

25 ns XT

 s LP oscillator ns HS oscillator ns XT 4 TosR,

TosF

External Clock in (OSC1) Rise or

Fall Time

— —

— —

50

15 ns ns

LP

HS oscillator

† Data in "Typ" column is at 5V, 25°C unless otherwise stated. These parameters are for design guidance only and are not tested.

Note 1:

Instruction cycle period (T

CY

) equals four times the input oscillator time-base period. All specified values are based on characterization data for that particular oscillator type under standard operating conditions, with the device executing code. Exceeding these specified limits may result in an unstable oscillator operation and/or higher than expected current consumption. All devices are tested to operate at "min." values with an external clock applied to the OSC1/CLKIN pin. When an external clock input is used, the "max." cycle time limit is "DC" (no clock) for all devices.

DS30292D-page 162

1998-2013 Microchip Technology Inc.

PIC16F87X

FIGURE 15-7: CLKOUT AND I/O TIMING

Q4

Q1

OSC1

10

CLKOUT

13

14

I/O Pin

(Input)

17

I/O Pin

(Output)

Old Value

Note:

Refer to Figure 15-5 for load conditions.

20, 21

19

18

Q2

15

11

12

16

Q3

New Value

TABLE 15-2: CLKOUT AND I/O TIMING REQUIREMENTS

Param

No.

Symbol Characteristic Min Typ† Max Units Conditions

10*

11*

12*

13*

14*

15*

16*

17*

18*

19*

20*

21*

TosH2ckL OSC1

to CLKOUT

TosH2ck

H

OSC1

to CLKOUT

TckR CLKOUT rise time

TckF CLKOUT fall time

TckL2ioV CLKOUT

to Port out valid

TioV2ckH Port in valid before CLKOUT

TckH2ioI Port in hold after CLKOUT

TosH2ioV OSC1

(Q1 cycle) to

Port out valid

TosH2ioI OSC1

(Q2 cycle) to

Port input invalid (I/O in hold time)

Standard (

Extended (

F

)

LF

)

TioV2osH Port input valid to OSC1



(I/O in setup time)

TioR Port output rise time Standard (

F

)

Extended (

LF

)

T

OSC

+ 200

0

100

200

0

TioF Port output fall time Standard (

F

)

Extended (

LF

)

75

75

35

35

100

10

10

200

200

100

100

255

40

145

40

145 ns ns ns ns ns ns ns ns ns ns ns ns ns

(Note 1)

(Note 1)

(Note 1)

(Note 1)

0.5T

CY

+ 20 ns

(Note 1)

— ns

(Note 1)

(Note 1)

22††*

23††*

Tinp

Trbp

INT pin high or low time

RB7:RB4 change INT high or low time

T

T

CY

CY

— ns ns

* These parameters are characterized but not tested.

† Data in "Typ" column is at 5V, 25°C unless otherwise stated. These parameters are for design guidance only and are not tested.

†† These parameters are asynchronous events not related to any internal clock edges.

Note 1:

Measurements are taken in RC mode where CLKOUT output is 4 x T

OSC

.

1998-2013 Microchip Technology Inc.

DS30292D-page 163

PIC16F87X

FIGURE 15-8: RESET, WATCHDOG TIMER, OSCILLATOR START-UP TIMER AND POWER-UP

TIMER TIMING

V

DD

MCLR

Internal

POR

PWRT

Time-out

OSC

Time-out

Internal

Reset

Watchdog

Timer

Reset

33

32

30

31

34

34

I/O Pins

Note:

Refer to Figure 15-5 for load conditions.

FIGURE 15-9: BROWN-OUT RESET TIMING

V

DD

V

BOR

35

TABLE 15-3: RESET, WATCHDOG TIMER, OSCILLATOR START-UP TIMER, POWER-UP TIMER,

AND BROWN-OUT RESET REQUIREMENTS

Parameter

No.

Symbol Characteristic Min Typ† Max Units Conditions

30

31*

TmcL MCLR Pulse Width (low)

Twdt Watchdog Timer Time-out Period

(No Prescaler)

2

7

18

33

 s ms

V

V

DD

DD

= 5V, -40°C to +85°C

= 5V, -40°C to +85°C

32

33*

Tost

Tpwrt

Oscillation Start-up Timer Period

Power-up Timer Period

28

1024 T

72

OSC

132

— ms

T

V

OSC

DD

= OSC1 period

= 5V, -40°C to +85°C

34 T

IOZ

I/O Hi-impedance from MCLR Low or Watchdog Timer Reset

— — 2.1

 s

35 T

BOR

Brown-out Reset pulse width 100 — —

 s V

DD

V

BOR

(D005)

* These parameters are characterized but not tested.

† Data in "Typ" column is at 5V, 25°C unless otherwise stated. These parameters are for design guidance only and are not tested.

1998-2013 Microchip Technology Inc.

DS30292D-page 164

PIC16F87X

FIGURE 15-10: TIMER0 AND TIMER1 EXTERNAL CLOCK TIMINGS

RA4/T0CKI

40 41

42

RC0/T1OSO/T1CKI

45

46

47

TMR0 or

TMR1

Note:

Refer to Figure 15-5 for load conditions.

48

TABLE 15-4: TIMER0 AND TIMER1 EXTERNAL CLOCK REQUIREMENTS

Param

No.

Symbol Characteristic Min Typ† Max Units Conditions

40*

41*

42*

45*

46*

47*

Tt0H

Tt0L

Tt0P

Tt1H

Tt1L

Tt1P

Ft1

T0CKI High Pulse Width

T0CKI Low Pulse Width

T0CKI Period

T1CKI input period

Synchronous,

Prescaler = 2,4,8

Asynchronous

Synchronous

No Prescaler

With Prescaler

No Prescaler

With Prescaler

No Prescaler

With Prescaler

T1CKI High Time Synchronous, Prescaler = 1

Standard(

Extended(

Extended(

F

)

LF

LF

)

Standard(

F

)

Extended(

LF

)

T1CKI Low Time Synchronous, Prescaler = 1

Synchronous,

Prescaler = 2,4,8

Standard(

F

)

Extended(

LF

)

Asynchronous Standard(

F

)

Extended(

LF

)

Standard(

F

)

)

Asynchronous Standard(

F

)

Extended(

LF

)

Timer1 oscillator input frequency range

(oscillator enabled by setting bit T1OSCEN)

0.5T

0.5T

CY

+ 20

10

T

CY

+ 40

Greater of:

20 or T

CY

+ 40

N

0.5T

CY

+ 20

0.5T

CY

10

15

25

30

50

CY

15

25

30

+ 20

+ 20

50

Greater of:

30

OR

T

CY

+ 40

N

Greater of:

50

OR

T

CY

+ 40

N

60

100

DC

— ns Must also meet ns parameter 42 ns Must also meet ns ns ns parameter 42

N = prescale value

(2, 4,..., 256) ns Must also meet ns parameter 47 ns ns ns ns ns ns ns ns

Must also meet parameter 47 ns N = prescale value ns ns

— 200 kHz

(1, 2, 4, 8)

N = prescale value

(1, 2, 4, 8)

48 TCKEZtmr1 Delay from external clock edge to timer increment 2T

OSC

— 7T

OSC

* These parameters are characterized but not tested.

† Data in "Typ" column is at 5V, 25°C unless otherwise stated. These parameters are for design guidance only and are not tested.

1998-2013 Microchip Technology Inc.

DS30292D-page 165

PIC16F87X

FIGURE 15-11: CAPTURE/COMPARE/PWM TIMINGS (CCP1 AND CCP2)

RC1/T1OSI/CCP2

and RC2/CCP1

(Capture Mode)

50 51

52

RC1/T1OSI/CCP2

and RC2/CCP1

(Compare or PWM Mode)

53

Note:

Refer to Figure 15-5 for load conditions.

54

TABLE 15-5: CAPTURE/COMPARE/PWM REQUIREMENTS (CCP1 AND CCP2)

Param

No.

Sym Characteristic Min Typ† Max Units Conditions

50*

51*

52*

TccL CCP1 and CCP2 input low time

No Prescaler

With Prescaler

Standard(

F

)

Extended(

LF

)

No Prescaler TccH CCP1 and CCP2 input high time

With Prescaler

Standard(

F

)

Extended(

LF

)

TccP CCP1 and CCP2 input period

0.5T

CY

+ 20 —

10 —

20 —

0.5T

CY

+ 20 —

10

20

3T

CY

+ 40

N

— ns ns ns ns ns ns ns N = prescale value (1, 4 or 16)

53*

54*

TccR CCP1 and CCP2 output rise time Standard(

F

)

TccF CCP1 and CCP2 output fall time

Extended(

LF

)

Standard(

F

)

Extended(

LF

)

10

25

10

25

25

50

25

45 ns ns ns ns

* These parameters are characterized but not tested.

† Data in "Typ" column is at 5V, 25°C unless otherwise stated. These parameters are for design guidance only and are not tested.

1998-2013 Microchip Technology Inc.

DS30292D-page 166

FIGURE 15-12: PARALLEL SLAVE PORT TIMING (PIC16F874/877 ONLY)

RE2/CS

PIC16F87X

RE0/RD

RE1/WR

RD7:RD0

64

Note:

Refer to Figure 15-5 for load conditions.

65

62

63

TABLE 15-6: PARALLEL SLAVE PORT REQUIREMENTS (PIC16F874/877 ONLY)

Parameter

No.

Symbol Characteristic Min Typ† Max Units Conditions

62 TdtV2wrH Data in valid before WR

or CS

(setup time) 20

25

— ns ns Extended

Range Only

63* TwrH2dtI WR

or CS

to data–in invalid (hold time) Standard(

F

) 20 — — ns

64 TrdL2dtV RD

and CS

to data–out valid

Extended(

LF

) 35

80

90 ns ns ns Extended

Range Only

65 TrdH2dtI RD

or CS

to data–out invalid 10 — 30 ns

* These parameters are characterized but not tested.

† Data in "Typ" column is at 5V, 25°C unless otherwise stated. These parameters are for design guidance only and are not tested.

1998-2013 Microchip Technology Inc.

DS30292D-page 167

PIC16F87X

FIGURE 15-13: SPI MASTER MODE TIMING (CKE = 0, SMP = 0)

SS

70

SCK

(CKP = 0)

71 72

78

SCK

(CKP = 1)

80

BIT6 - - - - - -1

79

SDO

MSb

SDI

73

MSb IN

74

Note:

Refer to Figure 15-5 for load conditions.

75, 76

BIT6 - - - -1

79

78

LSb

LSb IN

FIGURE 15-14: SPI MASTER MODE TIMING (CKE = 1, SMP = 1)

SS

81

SCK

(CKP = 0)

73

71 72

79

SCK

(CKP = 1)

80

78

LSb

SDO MSb BIT6 - - - - - -1

75, 76

SDI

MSb IN

74

Note:

Refer to Figure 15-5 for load conditions.

BIT6 - - - -1

LSb IN

1998-2013 Microchip Technology Inc.

DS30292D-page 168

PIC16F87X

FIGURE 15-15: SPI SLAVE MODE TIMING (CKE = 0)

SS

70

SCK

(CKP = 0)

71 72

78

SCK

(CKP = 1)

80

79

SDO MSb BIT6 - - - - - -1

73

MSb IN

74

Note:

Refer to Figure 15-5 for load conditions.

75, 76

BIT6 - - - -1

79

83

78

LSb

LSb IN

77

FIGURE 15-16: SPI SLAVE MODE TIMING (CKE = 1)

82

SS

70

SCK

(CKP = 0)

71 72

SCK

(CKP = 1)

80

SDO

MSb BIT6 - - - - - -1

75, 76

MSb IN

74

Note:

Refer to Figure 15-5 for load conditions.

BIT6 - - - -1

LSb

LSb IN

83

77

1998-2013 Microchip Technology Inc.

DS30292D-page 169

PIC16F87X

TABLE 15-7: SPI MODE REQUIREMENTS

Param

No.

Symbol Characteristic Min Typ† Max Units Conditions

70*

71*

72*

73*

74*

75*

76*

77*

78*

TssL2scH,

TssL2scL

TscH

TscL

TdiV2scH,

TdiV2scL

TscH2diL,

TscL2diL

TdoR

SS

to SCK

or SCK

input

SCK input high time (Slave mode)

SCK input low time (Slave mode)

Setup time of SDI data input to SCK edge

Hold time of SDI data input to SCK edge

SDO data output rise time Standard(

F

)

Extended(

LF

)

TdoF SDO data output fall time

TssH2doZ SS

to SDO output hi-impedance

TscR SCK output rise time (Master mode) Standard(

F

)

Extended(

LF

)

T

T

Tcy

CY

CY

+ 20

+ 20

100

100

10

10

25

10

10

25

25

50

25

50

25

50 ns ns ns ns ns ns ns ns ns ns ns

79*

80*

81*

82*

83*

TscF

TscH2doV,

TscL2doV

SCK output fall time (Master mode)

SDO data output valid after SCK edge

TdoV2scH,

TdoV2scL

SDO data output setup to SCK edge

TssL2doV SDO data output valid after SS

edge

TscH2ssH, SS

 after SCK edge

TscL2ssH

Standard(

F

)

Extended(

LF

)

1.5T

Tcy

CY

+ 40

10

25

50

145

50

— ns ns ns ns ns

* These parameters are characterized but not tested.

† Data in "Typ" column is at 5V, 25°C unless otherwise stated. These parameters are for design guidance only and are not tested.

FIGURE 15-17: I

2

C BUS START/STOP BITS TIMING

SCL

91

93

90

92

SDA

START

Condition

Note:

Refer to Figure 15-5 for load conditions.

STOP

Condition

1998-2013 Microchip Technology Inc.

DS30292D-page 170

PIC16F87X

TABLE 15-8: I

2

C BUS START/STOP BITS REQUIREMENTS

Parameter

No.

90

Symbol Characteristic Min Typ Max Units

91

92

93

Tsu:sta START condition

Setup time

Thd:sta START condition

Hold time

Tsu:sto STOP condition

Setup time

Thd:sto STOP condition

Hold time

100 kHz mode

400 kHz mode

100 kHz mode

400 kHz mode

100 kHz mode

400 kHz mode

100 kHz mode

400 kHz mode

4700 —

600 —

4000 —

600 —

4700 —

600 —

4000 —

600 —

— ns

Conditions

ns Only relevant for Repeated

START condition ns After this period, the first clock pulse is generated ns

FIGURE 15-18: I

2

C BUS DATA TIMING

103

100

101

SCL

90

91

SDA

In

109

SDA

Out

Note:

Refer to Figure 15-5 for load conditions.

106

109

107

92

102

110

1998-2013 Microchip Technology Inc.

DS30292D-page 171

PIC16F87X

TABLE 15-9: I

2

C BUS DATA REQUIREMENTS

Param

No.

Sym Characteristic Min Max Units Conditions

100 Thigh Clock high time 100 kHz mode

400 kHz mode

4.0

0.6

 s s

Device must operate at a minimum of 1.5 MHz

Device must operate at a minimum of 10 MHz

101 Tlow Clock low time

SSP Module

100 kHz mode

400 kHz mode

0.5T

CY

4.7

1.3

 s s

Device must operate at a minimum of 1.5 MHz

Device must operate at a minimum of 10 MHz

102 Tr SDA and SCL rise time

SSP Module

100 kHz mode

400 kHz mode

0.5T

CY

1000

20 + 0.1Cb

300 ns ns Cb is specified to be from

10 to 400 pF

103

90

91

106

107

92

109

Tf

Tsu:sta

Thd:sta START condition hold time

Thd:dat Data input hold time 100 kHz mode

400 kHz mode

Tsu:dat Data input setup time 100 kHz mode

400 kHz mode

Tsu:sto STOP condition setup time

Taa

SDA and SCL fall time 100 kHz mode

START condition setup time

Output valid from clock

400 kHz mode

100 kHz mode

400 kHz mode

100 kHz mode

400 kHz mode

100 kHz mode

400 kHz mode

100 kHz mode

400 kHz mode

20 + 0.1Cb

4.7

0.6

4.0

0.6

0

0

250

100

4.7

0.6

300

300

0.9

3500

— ns ns

 s

 s

 s

 s ns

 s ns ns

 s

 s ns ns

 s

 s

Cb is specified to be from

10 to 400 pF

Only relevant for Repeated

START condition

After this period, the first clock pulse is generated

(Note 2)

(Note 1)

110 Tbuf Bus free time 100 kHz mode

400 kHz mode

4.7

1.3

Time the bus must be free before a new transmission can start

Cb Bus capacitive loading — 400 pF

Note 1:

As a transmitter, the device must provide this internal minimum delay time to bridge the undefined region (min. 300 ns) of the falling edge of SCL to avoid unintended generation of START or STOP conditions.

2:

A fast mode (400 kHz) I

2

C bus device can be used in a standard mode (100 kHz) I

2

C bus system, but the requirement that

Tsu:dat

250 ns must then be met. This will automatically be the case if the device does not stretch the LOW period of the

SCL signal. If such a device does stretch the LOW period of the SCL signal, it must output the next data bit to the SDA line

T

R

max.+ Tsu:dat = 1000 + 250 = 1250 ns (according to the standard mode I

2

C bus specification) before the SCL line is released.

1998-2013 Microchip Technology Inc.

DS30292D-page 172

PIC16F87X

FIGURE 15-19: USART SYNCHRONOUS TRANSMISSION (MASTER/SLAVE) TIMING

RC6/TX/CK

Pin

RC7/RX/DT

Pin

121

120

Note:

Refer to Figure 15-5 for load conditions.

121

122

TABLE 15-10: USART SYNCHRONOUS TRANSMISSION REQUIREMENTS

Param

No.

Sym Characteristic Min Typ† Max Units Conditions

120 TckH2dtV SYNC XMIT (MASTER &

SLAVE)

Clock high to data out valid

Standard(

F

)

Extended(

LF

)

80

100 ns ns

121 Tckrf Clock out rise time and fall time

(Master mode)

Standard(

F

)

Extended(

LF

)

Data out rise time and fall time Standard(

F

)

45

50

45 ns ns ns 122 Tdtrf

Extended(

LF

) — — 50 ns

† Data in “Typ” column is at 5V, 25

C unless otherwise stated. These parameters are for design guidance only and are not tested.

FIGURE 15-20: USART SYNCHRONOUS RECEIVE (MASTER/SLAVE) TIMING

RC6/TX/CK pin

RC7/RX/DT pin

125

126

Note:

Refer to Figure 15-5 for load conditions.

TABLE 15-11: USART SYNCHRONOUS RECEIVE REQUIREMENTS

Parameter

No.

Sym Characteristic Min Typ† Max Units Conditions

125 TdtV2ckL SYNC RCV (MASTER & SLAVE)

Data setup before CK

(DT setup time)

15 — — ns

126 TckL2dtl Data hold after CK

(DT hold time) 15 — — ns

† Data in “Typ” column is at 5V, 25

C unless otherwise stated. These parameters are for design guidance only and are not tested.

1998-2013 Microchip Technology Inc.

DS30292D-page 173

PIC16F87X

TABLE 15-12: PIC16F87X-04 (COMMERCIAL, INDUSTRIAL, EXTENDED)

PIC16F87X-10 (EXTENDED)

PIC16F87X-20 (COMMERCIAL, INDUSTRIAL)

PIC16LF87X-04 (COMMERCIAL, INDUSTRIAL)

Param

No.

Sym Characteristic Min Typ† Max Units Conditions

A01

A03

A04

A06

A07

A21

A25

A30

A40

A50

V

N

E

E

E

E

V

R

IL

DL

OFF

GN

REF

AIN

Resolution

Integral linearity error

Differential linearity error

Offset error

Gain error

A10 — Monotonicity

(3)

A20 V

REF

Reference voltage (V

REF

+ - V

REF

-)

+ Reference voltage High

A22 V

REF

- Reference voltage low

Analog input voltage

Z

AIN

Recommended impedance of analog voltage source

I

AD

A/D conversion current (V

DD

)

Standard

Extended

I

REF

V

REF

input current

(Note 2)

2.0

AV

DD

- 2.5V

AV

SS

- 0.3V

V

SS

- 0.3 V

— guaranteed

V

10-bits

< ± 1

< ± 1

< ± 2

< ± 1

DD

+ 0.3

AV

DD

+ 0.3V

V

REF

+ - 2.0V

V

REF

+ 0.3 V

10.0

V

V

V k

 bit V

REF

= V

DD

= 5.12V,

V

SS

V

AIN

V

REF

LSb V

REF

= V

DD

= 5.12V,

V

SS

V

AIN

V

REF

LSb V

REF

= V

DD

= 5.12V,

V

SS

V

AIN

V

REF

LSb V

REF

= V

DD

= 5.12V,

V

SS

V

AIN

V

REF

LSb V

REF

= V

DD

= 5.12V,

V

SS

V

AIN

V

REF

— V

SS

V

AIN

V

REF

V Absolute minimum electrical spec. To ensure 10-bit accuracy.

10

220

90

1000

A

A

A

Average current consumption when A/D is on

(Note 1)

During V

AIN

acquisition.

Based on differential of V

HOLD to V

AIN

to charge C

HOLD

, see

Section 11.1.

— — 10

A During A/D Conversion cycle

* These parameters are characterized but not tested.

† Data in "Typ" column is at 5V, 25°C unless otherwise stated. These parameters are for design guidance only and are not tested.

Note 1:

When A/D is off, it will not consume any current other than minor leakage current.

The power-down current spec includes any such leakage from the A/D module.

2:

V

REF

current is from RA3 pin or V

DD

pin, whichever is selected as reference input.

3:

The A/D conversion result never decreases with an increase in the input voltage, and has no missing codes.

1998-2013 Microchip Technology Inc.

DS30292D-page 174

PIC16F87X

FIGURE 15-21: A/D CONVERSION TIMING

BSF ADCON0, GO 1 T

CY

Q4

A/D CLK

132

A/D DATA

(T

OSC

/2)

(1)

9 8 7



131

130



2 1 0

ADRES

ADIF

GO

OLD_DATA

NEW_DATA

DONE

SAMPLE

SAMPLING STOPPED

Note:

If the A/D clock source is selected as RC, a time of T

CY

is added before the A/D clock starts. This allows the

SLEEP instruction to be executed.

TABLE 15-13: A/D CONVERSION REQUIREMENTS

Param

No.

Sym Characteristic

130 T

AD

A/D clock period Standard(

F

)

Extended(

LF

)

Standard(

F

)

131

Extended(

LF

)

T

CNV

Conversion time (not including S/H time)

(Note 1)

132 T

ACQ

Acquisition time

Min

1.6

3.0

2.0

3.0

Typ†

4.0

6.0

Max

6.0

9.0

12

Units

 s T

OSC

based, V

REF

3.0V

 s T

OSC

based, V

REF

2.0V

 s A/D RC mode

 s A/D RC mode

T

AD

Conditions

(Note 2)

40 —

 s

134 T

GO

Q4 to A/D clock start

10*

— T

OSC

/2 §

 s The minimum time is the amplifier settling time. This may be used if the "new" input voltage has not changed by more than 1 LSb (i.e., 20.0 mV @

5.12V) from the last sampled voltage (as stated on C

HOLD

).

— If the A/D clock source is selected as RC, a time of T

CY

is added before the A/D clock starts. This allows the

SLEEP instruction to be executed.

* These parameters are characterized but not tested.

† Data in "Typ" column is at 5V, 25°C unless otherwise stated. These parameters are for design guidance only and are not tested.

§ This specification ensured by design.

Note 1:

ADRES register may be read on the following T

CY

cycle.

2:

See Section 11.1 for minimum conditions.

1998-2013 Microchip Technology Inc.

DS30292D-page 175

PIC16F87X

NOTES:

DS30292D-page 176

1998-2013 Microchip Technology Inc.

PIC16F87X

16.0

DC AND AC CHARACTERISTICS GRAPHS AND TABLES

The graphs and tables provided in this section are for

design guidance

and are

not tested

.

In some graphs or tables, the data presented is

outside specified operating range

(i.e., outside specified V

DD

range).

This is for

information only

and devices are ensured to operate properly only within the specified range.

The data presented in this section is a

statistical summary

of data collected on units from different lots over a period of time and matrix samples. 'Typical' represents the mean of the distribution at 25

C. 'max' or 'min' represents

(mean + 3

) or (mean - 3

) respectively, where

is standard deviation, over the whole temperature range.

FIGURE 16-1: TYPICAL I

DD

vs. F

OSC

OVER V

DD

(HS MODE)

3

2

1

0

4

7

5

4

6

Typical: statistical mean @ 25°C

Maximum: mean + 3s (-40°C to 125°C)

Minimum: mean – 3s (-40°C to 125°C)

2 . 5 V

2 . 0 V

6 8 1 0

3 . 5 V

3 . 0 V

5 . 5 V

5 . 0 V

4 . 5 V

4 . 0 V

1 2

F

O S C

(M H z )

1 4 1 6 1 8 2 0

FIGURE 16-2: MAXIMUM I

DD

vs. F

OSC

OVER V

DD

(HS MODE)

8

7

6

5

4

3

2

1

0

4

Typical: statistical mean @ 25°C

Maximum: mean + 3s (-40°C to 125°C)

Minimum: mean – 3s (-40°C to 125°C)

2 . 5 V

2 . 0 V

6 8 1 0

3 . 5 V

3 . 0 V

5 . 5 V

5 . 0 V

4 . 5 V

4 . 0 V

1 2

F

O S C

(M H z )

1 4 1 6 1 8 2 0

1998-2013 Microchip Technology Inc.

DS30292D-page 177

PIC16F87X

FIGURE 16-3: TYPICAL I

DD

vs. F

OSC

OVER V

DD

(XT MODE)

1.6

1.4

1.2

1.0

0.8

0.6

0.4

0.2

0.0

0.0

Typical: statistical mean @ 25°C

Maximum: mean + 3s (-40°C to 125°C)

Minimum: mean – 3s (-40°C to 125°C)

0.5

1.0

1.5

2.0

F OSC

(MHz)

2.5

3.0

5.5V

5.0V

4.5V

4.0V

3.5V

3.0V

2.5V

2.0V

3.5

4.0

FIGURE 16-4: MAXIMUM I

DD

vs. F

OSC

OVER V

DD

(LP MODE)

2.0

1.8

1.6

1.4

1.2

1.0

0.8

0.6

0.4

0.2

0.0

0.0

Typical: statistical mean @ 25°C

Maximum: mean + 3s (-40°C to 125°C)

Minimum: mean – 3s (-40°C to 125°C)

0.5

1.0

1.5

2.0

F

OSC

(MHz)

2.5

3.0V

3.0

5.5V

5.0V

4.5V

4.0V

3.5V

2.5V

2.0V

3.5

DS30292D-page 178

4.0

© 1998-2013 Microchip Technology Inc.

PIC16F87X

FIGURE 16-5:

90

80

70

60

50

40

30

20

TYPICAL I

DD

vs. F

OSC

OVER V

Typical: statistical mean @ 25°C

Maximum: mean + 3s (-40°C to 125°C)

Minimum: mean – 3s (-40°C to 125°C)

DD

(LP MODE)

10

0

20 30 40 50 60

F

OS C

(kH z )

70 80 90

5.5V

5.0V

4.5V

4.0V

3.5V

3.0V

2.5V

2.0V

100

FIGURE 16-6:

120

110

100

90

80

70

60

50

40

30

20

10

0

20

MAXIMUM I

30

DD

40

vs. F

OSC

Typical: statistical mean @ 25°C

Maximum: mean + 3s (-40°C to 125°C)

Minimum: mean – 3s (-40°C to 125°C)

50

OVER V

DD

(XT MODE)

60

F

OS C

(kH z )

70

1998-2013 Microchip Technology Inc.

80 90 100

DS30292D-page 179

5.5V

5.0V

4.5V

4.0V

3.5V

3.0V

2.5V

2.0V

2.0

1.8

1.6

1.4

1.2

1.0

0.8

0.6

0.4

0.2

0.0

2.0

PIC16F87X

FIGURE 16-7: AVERAGE F

OSC

vs. V

DD

FOR VARIOUS VALUES OF R

(RC MODE, C = 20 pF, 25

C)

2.0

1.5

1.0

0.5

0.0

2.0

4.0

3.5

3.0

2.5

FIGURE 16-8:

3.3k

5.1k

10k

100k

2.5

3.0

3.5

V

DD

(V)

4.0

4.5

AVERAGE F

OSC

vs. V

DD

FOR VARIOUS VALUES OF R

(RC MODE, C = 100 pF, 25

C)

2.5

3.0

3.5

V

DD

(V)

4.0

4.5

5.0

3.3k

5.1k

10k

5.5

5.0

100k

5.5

DS30292D-page 180 © 1998-2013 Microchip Technology Inc.

PIC16F87X

FIGURE 16-9: AVERAGE F

OSC

vs. V

DD

FOR VARIOUS VALUES OF R

(RC MODE, C = 300 pF, 25

C)

0.5

0.4

0.3

0.2

0.1

0.0

2.0

1.0

0.9

0.8

0.7

0.6

2.5

3.0

3.5

V

DD

(V)

4.0

4.5

3.3k

5.1k

10k

5.0

100k

5.5

FIGURE 16-10:

100.00

I

PD

vs. V

DD

(SLEEP MODE, ALL PERIPHERALS DISABLED)

Typical: statistical mean @ 25°C

Maximum: mean + 3

(-40°C to 125°C)

Minimum: mean – 3

(-40°C to 125°C)

Max (125C)

10.00

Max (85C)

1.00

0.10

0.01

2.0

2.5

1998-2013 Microchip Technology Inc.

3.0

3.5

V

DD

(V)

4.0

Typ (25C)

4.5

5.0

5.5

DS30292D-page 181

PIC16F87X

FIGURE 16-11:

I

BOR

vs. V

DD

OVER TEMPERATURE

1.2

1.0

Note:

Device current in RESET depends on oscillator mode, frequency and circuit.

Typical: statistical mean @ 25°C

Maximum: mean + 3s (-40°C to 125°C)

Minimum: mean – 3s (-40°C to 125°C)

0.8

0.6

Max Reset

Typ Reset (25C)

0.4

Indeterminate

State

Device in Sleep

Device in Reset

0.2

0.0

2.5

3.0

3.5

4.0

V

DD

(V)

4.5

Max Sleep

Typ Sleep (25C)

5.0

5.5

FIGURE 16-12: TYPICAL AND MAXIMUM

(-10

C TO 70



I

TMR1

vs. V

DD

OVER TEMPERATURE

C, TIMER1 WITH OSCILLATOR, XTAL=32 kHZ, C1 AND C2=50 pF)

50

40

30

20

10

0

2.0

90

80

70

60

Typical: statistical mean @ 25°C

Maximum: mean + 3s (-40°C to 125°C)

Minimum: mean – 3s (-40°C to 125°C)

2.5

3.0

Max

Ty p (25C)

3.5

V DD (V )

4.0

4.5

5.0

5.5

DS30292D-page 182 © 1998-2013 Microchip Technology Inc.

PIC16F87X

FIGURE 16-13: TYPICAL AND MAXIMUM

I

WDT

vs. V

DD

OVER TEMPERATURE

8

6

4

2

0

2.0

14

12

10

Typical: statistical mean @ 25°C

Maximum: mean + 3s (-40°C to 125°C)

Minimum: mean – 3s (-40°C to 125°C)

2.5

3.0

3.5

V DD (V)

4.0

4.5

Max (85C)

Typ (25C)

5.0

5.5

FIGURE 16-14: TYPICAL, MINIMUM AND MAXIMUM WDT PERIOD vs. V

DD

(-40

C TO 125

C)

60

50

Typical: statistical mean @ 25°C

Maximum: mean + 3s (-40°C to 125°C)

Minimum: mean – 3s (-40°C to 125°C)

40

Max (125C)

30

20

Typ (25C)

Min (-40C)

10

0

2.0

2.5

3.0

3.5

V

DD

(V)

4.0

4.5

5.0

5.5

1998-2013 Microchip Technology Inc.

DS30292D-page 183

PIC16F87X

FIGURE 16-15: AVERAGE WDT PERIOD vs. V

DD

OVER TEMPERATURE (-40

C TO 125

C)

35

30

25

20

15

50

45

40

10

5

0

2.0

2.5

125C

85C

25C

-40C

3.0

3.5

V

DD

(V)

4.0

Typical: statistical mean @ 25°C

Maximum: mean + 3s (-40°C to 125°C)

Minimum: mean – 3s (-40°C to 125°C)

4.5

5.0

5.5

FIGURE 16-16: TYPICAL, MINIMUM AND MAXIMUM V

OH

vs. I

OH

(V

DD

=5V, -40

C TO 125

C)

5.0

4.5

4.0

Max (-40C)

Typ (25C)

3.5

Min (125C)

3.0

2.5

Typical: statistical mean @ 25°C

Maximum: mean + 3s (-40°C to 125°C)

Minimum: mean – 3s (-40°C to 125°C)

2.0

0 5 10

I

OH

(-mA)

15 20 25

DS30292D-page 184 © 1998-2013 Microchip Technology Inc.

PIC16F87X

FIGURE 16-17: TYPICAL, MINIMUM AND MAXIMUM V

OH

vs. I

OH

(V

DD

=3V, -40

C TO 125

C)

3.0

2.5

2.0

1.5

1.0

0.5

0.0

0 5

Max (-40C)

Typ (25C)

Min (125C)

10

I

OH

(-mA)

15

Typical: statistical mean @ 25°C

Maximum: mean + 3s (-40°C to 125°C)

Minimum: mean – 3s (-40°C to 125°C)

20 25

FIGURE 16-18: TYPICAL, MINIMUM AND MAXIMUM V

OL

vs. I

OL

(V

DD

=5V, -40

C TO 125

C)

2.0

1.8

1.6

1.4

1.2

1.0

0.8

0.6

0.4

0.2

0.0

0

Typical: statistical mean @ 25°C

Maximum: mean + 3s (-40°C to 125°C)

Minimum: mean – 3s (-40°C to 125°C)

5 10

Max (125C)

Typ (25C)

Min (-40C)

I

OL

(-mA)

15 20 25

1998-2013 Microchip Technology Inc.

DS30292D-page 185

PIC16F87X

FIGURE 16-19: TYPICAL, MINIMUM AND MAXIMUM V

OL

vs. I

OL

(V

DD

=3V, -40

C TO 125

C)

1.5

1.0

0.5

0.0

0

3.0

2.5

Typical: statistical mean @ 25°C

Maximum: mean + 3s (-40°C to 125°C)

Minimum: mean – 3s (-40°C to 125°C)

2.0

5

Max (125C)

Typ (25C)

Min (-40C)

10

I

OL

(-mA)

15 20 25

FIGURE 16-20: MINIMUM AND MAXIMUM V

IN

vs. V

DD

, (TTL INPUT, -40

C TO 125

C)

1.8

1.6

1.4

1.2

1.0

0.8

0.6

0.4

0.2

0.0

2.0

Typical: statistical mean @ 25°C

Maximum: mean + 3s (-40°C to 125°C)

Minimum: mean – 3s (-40°C to 125°C)

2.5

3.0

3.5

V

DD

(V)

4.0

Max (-40C)

Min (125C)

4.5

5.0

5.5

DS30292D-page 186 © 1998-2013 Microchip Technology Inc.

PIC16F87X

FIGURE 16-21: MINIMUM AND MAXIMUM V

IN

vs. V

DD

(ST INPUT, -40

C TO 125

C)

3.5

3.0

2.5

4.5

4.0

2.0

1.5

1.0

0.5

0.0

2.0

Typical: statistical mean @ 25°C

Maximum: mean + 3s (-40°C to 125°C)

Minimum: mean – 3s (-40°C to 125°C)

2.5

3.0

3.5

V

DD

(V)

4.0

Max High (125C)

Min High (-40C)

Max Low (125C)

Min Low (-40C)

4.5

5.0

5.5

FIGURE 16-22: MINIMUM AND MAXIMUM V

IN

vs. V

DD

(I

2

C INPUT, -40

C TO 125

C)

3.5

3.0

2.5

1.0

0.5

2.0

1.5

0.0

2.0

Typical: statistical mean @ 25°C

Maximum: mean + 3s (-40°C to 125°C)

Minimum: mean – 3s (-40°C to 125°C)

2.5

3.0

3.5

V

DD

(V)

4.0

4.5

Max High (125C)

Min High (-40C)

Max Low (125C)

Min Low (25C)

5.0

5.5

1998-2013 Microchip Technology Inc.

DS30292D-page 187

PIC16F87X

NOTES:

DS30292D-page 188 © 1998-2013 Microchip Technology Inc.

PIC16F87X

17.0

PACKAGING INFORMATION

17.1

Package Marking Information

28-Lead PDIP (Skinny DIP)

XXXXXXXXXXXXXXXXX

XXXXXXXXXXXXXXXXX

YYWWNNN

28-Lead SOIC

XXXXXXXXXXXXXXXXXXXX

XXXXXXXXXXXXXXXXXXXX

XXXXXXXXXXXXXXXXXXXX

YYWWNNN

Example

PIC16F876-20/SP

0117HAT

Example

PIC16F876-04/SO

0110SAA

Legend:

XX...X

Customer-specific information

Y Year code (last digit of calendar year)

YY

WW

Year code (last 2 digits of calendar year)

Week code (week of January 1 is week ‘01’)

NNN Alphanumeric traceability code e

3

Pb-free JEDEC designator for Matte Tin (Sn)

*

can be found on the outer packaging for this package.

e

Note

: In the event the full Microchip part number cannot be marked on one line, it will be carried over to the next line, thus limiting the number of available characters for customer-specific information.

1998-2013 Microchip Technology Inc.

DS30292D-page 189

PIC16F87X

Package Marking Information (Cont’d)

40-Lead PDIP

XXXXXXXXXXXXXXXXXX

XXXXXXXXXXXXXXXXXX

XXXXXXXXXXXXXXXXXX

YYWWNNN

44-Lead TQFP

XXXXXXXXXX

XXXXXXXXXX

XXXXXXXXXX

YYWWNNN

44-Lead MQFP

XXXXXXXXXX

XXXXXXXXXX

XXXXXXXXXX

YYWWNNN

44-Lead PLCC

XXXXXXXXXX

XXXXXXXXXX

XXXXXXXXXX

YYWWNNN

Example

PIC16F877-04/P

0112SAA

Example

PIC16F877

-04/PT

0111HAT

Example

PIC16F877

-20/PQ

0104SAT

Example

PIC16F877

-20/L

0103SAT

1998-2013 Microchip Technology Inc.

DS30292D-page 190

PIC16F87X

28-Lead Skinny Plastic Dual In-line (SP) – 300 mil (PDIP)

Note:

For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

E1

D n

2

1

E

A2

A

L c

 eB

A1

B

B1 p

Number of Pins

Pitch

Top to Seating Plane

Molded Package Thickness

Base to Seating Plane

Shoulder to Shoulder Width

Molded Package Width

Units

Dimension Limits n p

Overall Length

Tip to Seating Plane

Lead Thickness

Upper Lead Width

Lower Lead Width

Overall Row Spacing

Mold Draft Angle Top

Mold Draft Angle Bottom

§

A

A2

A1

E

E1

D

L c

B1

B eB

MIN

.140

.125

.015

.300

.275

1.345

.125

.008

.040

.016

.320

5

5

INCHES*

NOM

28

.100

.150

.130

.310

.285

1.365

.130

.012

.053

.019

.350

10

10

MAX

.160

.135

.325

.295

1.385

.135

.015

.065

.022

.430

15

15

MIN

3.56

3.18

0.38

7.62

6.99

MILLIMETERS

NOM

28

2.54

3.81

3.30

34.16

3.18

0.20

1.02

0.41

8.13

5

5

7.87

7.24

34.67

3.30

0.29

1.33

0.48

8.89

10

10

* Controlling Parameter

§ Significant Characteristic

Notes:

Dimension D and E1 do not include mold flash or protrusions. Mold flash or protrusions shall not exceed

.010” (0.254mm) per side.

JEDEC Equivalent: MO-095

Drawing No. C04-070

MAX

4.06

3.43

8.26

7.49

35.18

3.43

0.38

1.65

0.56

10.92

15

15

1998-2013 Microchip Technology Inc.

DS30292D-page 191

PIC16F87X

28-Lead Plastic Small Outline (SO) – Wide, 300 mil (SOIC)

Note:

For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

E

E1 p

D

B n

2

1 h

45

 c

A

A2

L A1

Number of Pins

Pitch

Overall Height

Molded Package Thickness

Standoff §

Units

Dimension Limits n p

A

A2

A1

Overall Width

Molded Package Width

Overall Length

Chamfer Distance

Foot Length

Foot Angle Top

Lead Thickness

Lead Width

Mold Draft Angle Top

Mold Draft Angle Bottom

E

E1

D h

L

 c

B

* Controlling Parameter

§ Significant Characteristic

MIN

.093

.088

.004

.394

.288

.695

.010

.016

0

.009

.014

0

0

INCHES*

NOM

28

.050

.099

.091

.008

.407

.295

.704

.020

.033

4

.011

.017

12

12

MAX

.104

.094

.012

.420

.299

.712

.029

.050

8

.013

.020

15

15

MIN

2.36

2.24

0.10

10.01

7.32

17.65

0.25

0.41

0

0.23

0.36

0

0

MILLIMETERS

NOM

28

1.27

2.50

2.31

0.20

10.34

7.49

17.87

Notes:

Dimensions D and E1 do not include mold flash or protrusions. Mold flash or protrusions shall not exceed

.010” (0.254mm) per side.

JEDEC Equivalent: MS-013

Drawing No. C04-052

0.50

0.84

4

0.28

0.42

12

12

MAX

2.64

2.39

0.30

10.67

7.59

18.08

0.74

1.27

8

0.33

0.51

15

15

1998-2013 Microchip Technology Inc.

DS30292D-page 192

PIC16F87X

40-Lead Plastic Dual In-line (P) – 600 mil (PDIP)

Note:

For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

E1

D n

2

1

E

A

A2 c

L

 eB

A1

B1

B p

Number of Pins

Pitch

Top to Seating Plane

Base to Seating Plane

Molded Package Width

Overall Length

Tip to Seating Plane

Lead Thickness

Upper Lead Width

Lower Lead Width

Overall Row Spacing

Units

Dimension Limits

Molded Package Thickness

Shoulder to Shoulder Width

Mold Draft Angle Top

Mold Draft Angle Bottom

* Controlling Parameter

§ Significant Characteristic

§ n p

A

A2

A1

E

E1

D

L c

B1

B eB

MIN

.160

.140

.015

.595

.530

2.045

.120

.008

.030

.014

.620

5

5

INCHES*

NOM

40

.100

.175

.150

.600

.545

2.058

.130

.012

.050

.018

.650

10

10

MAX

.190

.160

.625

.560

2.065

.135

.015

.070

.022

.680

15

15

MIN

4.06

3.56

0.38

15.11

13.46

51.94

3.05

0.20

0.76

0.36

15.75

5

5

MILLIMETERS

NOM

40

2.54

4.45

3.81

15.24

13.84

52.26

3.30

0.29

1.27

0.46

16.51

10

10

Notes:

Dimensions D and E1 do not include mold flash or protrusions. Mold flash or protrusions shall not exceed

.010” (0.254mm) per side.

JEDEC Equivalent: MO-011

Drawing No. C04-016

MAX

4.83

4.06

15.88

14.22

52.45

3.43

0.38

1.78

0.56

17.27

15

15

1998-2013 Microchip Technology Inc.

DS30292D-page 193

PIC16F87X

44-Lead Plastic Thin Quad Flatpack (PT) 10x10x1 mm Body, 1.0/0.10 mm Lead Form (TQFP)

Note:

For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

E

E1

#leads=n1 p

D1 D

2

1

B n

CH x 45

A c

L

A1 A2

(F)

Foot Length

Footprint (Reference)

Foot Angle

Dimension Limits

Number of Pins

Pitch

Pins per Side

Overall Height

Molded Package Thickness

Standoff §

Units n p n1

A

A2

A1

L

(F)

Overall Width

Overall Length

Molded Package Width

Molded Package Length

Lead Thickness

Lead Width

Pin 1 Corner Chamfer

Mold Draft Angle Top

Mold Draft Angle Bottom

* Controlling Parameter

§ Significant Characteristic

E

D

E1

D1 c

B

CH

MIN

.039

.037

.002

.018

0

.463

.463

.390

.390

.004

.012

.025

5

5

INCHES

NOM

44

.031

11

.043

.039

.004

.024

.039

3.5

.472

.472

.394

.394

.006

.015

.035

10

10

MAX

.047

.041

.006

.030

7

.482

.482

.398

.398

.008

.017

.045

15

15

MIN

1.00

0.95

0.05

0.45

1.00

0

11.75

11.75

MILLIMETERS*

NOM

44

0.80

11

1.10

1.00

0.10

0.60

9.90

9.90

0.09

0.30

0.64

5

5

3.5

12.00

12.00

10.00

10.00

0.15

0.38

0.89

10

10

Notes:

Dimensions D1 and E1 do not include mold flash or protrusions. Mold flash or protrusions shall not exceed

.010” (0.254mm) per side.

JEDEC Equivalent: MS-026

Drawing No. C04-076

MAX

1.20

1.05

0.15

0.75

7

12.25

12.25

10.10

10.10

0.20

0.44

1.14

15

15

1998-2013 Microchip Technology Inc.

DS30292D-page 194

PIC16F87X

44-Lead Plastic Metric Quad Flatpack (PQ) 10x10x2 mm Body, 1.6/0.15 mm Lead Form (MQFP)

Note:

For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

E

E1

#leads=n1 p

D1

D

2

1

B n

CH x 45

 c

A

A1

L

(F)

A2

Number of Pins

Pitch

Pins per Side

Overall Height

Molded Package Thickness

Standoff §

Foot Length

Units

Dimension Limits n p n1

A

A2

A1

L

(F)

Footprint (Reference)

Foot Angle

Overall Width

Overall Length

Molded Package Width

Molded Package Length

Lead Thickness

E

D

E1

D1 c

Lead Width

Pin 1 Corner Chamfer

Mold Draft Angle Top

Mold Draft Angle Bottom

* Controlling Parameter

§ Significant Characteristic

B

CH

MIN

.079

.077

.002

.029

0

.510

.510

.390

.390

.005

.012

.025

5

5

INCHES

NOM

44

.031

11

.086

.080

.006

.035

.063

3.5

.520

.520

.394

.394

.007

.015

.035

10

10

MAX

.093

.083

.010

.041

7

.530

.530

.398

.398

.009

.018

.045

15

15

MIN

2.00

1.95

MILLIMETERS*

NOM

44

0.80

11

2.18

0.05

0.73

0

12.95

12.95

9.90

9.90

0.13

0.30

0.64

5

5

2.03

0.15

0.88

1.60

3.5

13.20

13.20

10.00

10.00

0.18

0.38

0.89

10

10

Notes:

Dimensions D1 and E1 do not include mold flash or protrusions. Mold flash or protrusions shall not exceed

.010” (0.254mm) per side.

JEDEC Equivalent: MS-022

Drawing No. C04-071

MAX

2.35

2.10

0.25

1.03

7

13.45

13.45

10.10

10.10

0.23

0.45

1.14

15

15

1998-2013 Microchip Technology Inc.

DS30292D-page 195

PIC16F87X

44-Lead Plastic Leaded Chip Carrier (L) – Square (PLCC)

Note:

For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

E

E1

#leads=n1

D1

D

CH2 x 45

 n 1 2

CH1 x 45

A3

A2

35

A c

B1

B

 p

E2

D2

Dimension Limits

Number of Pins

Pitch

Pins per Side

Overall Height

Molded Package Thickness

Units n p n1

A

A2

Standoff §

Side 1 Chamfer Height

Corner Chamfer 1

Corner Chamfer (others)

Overall Width

Overall Length

A1

A3

CH1

Molded Package Width

Molded Package Length

Footprint Width

Footprint Length

Lead Thickness

CH2

E

D

E1

D1

E2

D2 c

MIN

.165

.145

.020

.024

.040

.000

.685

.685

.650

.650

.590

.590

.008

INCHES*

NOM

44

.050

11

.173

.153

.028

.029

.045

.005

.690

.690

.653

.653

.620

.620

.011

MAX

.180

.160

.035

.034

.050

.010

.695

.695

.656

.656

.630

.630

.013

MIN

4.19

3.68

0.51

0.61

1.02

0.00

17.40

17.40

14.99

14.99

0.20

MILLIMETERS

NOM

44

1.27

11

4.39

3.87

16.51

16.51

0.71

0.74

1.14

0.13

17.53

17.53

16.59

16.59

15.75

15.75

0.27

Upper Lead Width

Lower Lead Width

Mold Draft Angle Top

Mold Draft Angle Bottom

B1

B

.026

.013

0

0

.029

.020

5

5

.032

.021

10

10

0.66

0.33

0

0

0.74

0.51

* Controlling Parameter

§ Significant Characteristic

Notes:

Dimensions D and E1 do not include mold flash or protrusions. Mold flash or protrusions shall not exceed

.010” (0.254mm) per side.

JEDEC Equivalent: MO-047

Drawing No. C04-048

5

5

A1

MAX

16.66

16.66

16.00

16.00

0.33

0.81

0.53

10

10

4.57

4.06

0.89

0.86

1.27

0.25

17.65

17.65

1998-2013 Microchip Technology Inc.

DS30292D-page 196

PIC16F87X

APPENDIX A: REVISION HISTORY APPENDIX

DIFFERENCES

Version Date Revision Description

The differences between the devices in this data sheet

A 1998 This is a new data sheet.

However, these devices are are listed in Table B-1.

similar to the PIC16C7X devices found in the

PIC16C7X Data Sheet

(DS30390). Data Memory

Map for PIC16F873/874, moved ADFM bit from

ADCON1<5> to ADCON1<7>.

TABLE B-1: DEVICE DIFFERENCES

Difference PIC16F876/873

A/D 5 channels,

10-bits

PIC16F877/874

B 1999 FLASH EEPROM access information.

8 channels,

10-bits

C 2000 DC characteristics updated.

DC performance graphs added.

Parallel

Slave Port

Packages no yes

D 2013 Added a note to each package drawing.

28-pin PDIP,

28-pin windowed

CERDIP, 28-pin

SOIC

40-pin PDIP,

44-pin TQFP,

44-pin MQFP,

44-pin PLCC

1998-2013 Microchip Technology Inc.

DS30292D-page 197

PIC16F87X

APPENDIX C: CONVERSION

CONSIDERATIONS

Considerations for converting from previous versions of devices to the ones listed in this data sheet are listed in Table C-1.

TABLE C-1: CONVERSION

CONSIDERATIONS

Characteristic PIC16C7X

Pins

Timers

28/40

3

Interrupts 11 or 12

Communication PSP, USART,

SSP (SPI, I

2

C

Slave)

Frequency

Voltage

20 MHz

2.5V - 5.5V

A/D 8-bit

CCP 2

Program

Memory

RAM

EEPROM data

4K, 8K

EPROM

192, 368 bytes

None

Other

PIC16F87X

28/40

3

13 or 14

PSP, USART,

SSP (SPI, I

2

C

Master/Slave)

20 MHz

2.0V - 5.5V

10-bit

2

4K, 8K

FLASH

192, 368 bytes

128, 256 bytes

In-Circuit

Debugger,

Low Voltage

Programming

DS30292D-page 198

1998-2013 Microchip Technology Inc.

PIC16F87X

INDEX

A

A/D

................................................................................... 111

Acquisition Requirements

........................................ 114

ADCON0 Register

.................................................... 111

ADCON1 Register

.................................................... 112

ADIF bit

.................................................................... 112

Analog Input Model Block Diagram

.......................... 114

Analog Port Pins

....................................... 7

,

8

, 9 ,

36

, 38

Associated Registers and Bits

................................. 117

Block Diagram

.......................................................... 113

Calculating Acquisition Time

.................................... 114

Configuring Analog Port Pins

................................... 115

Configuring the Interrupt

.......................................... 113

Configuring the Module

............................................ 113

Conversion Clock

..................................................... 115

Conversions

............................................................. 116

Delays

...................................................................... 114

Effects of a RESET

.................................................. 117

GO/DONE bit

........................................................... 112

Internal Sampling Switch (Rss) Impedence

............. 114

Operation During SLEEP

......................................... 117

Result Registers

....................................................... 116

Sampling Requirements

........................................... 114

Source Impedence

................................................... 114

Time Delays

............................................................. 114

Absolute Maximum Ratings

............................................. 149

ACK

.................................................................................... 74

Acknowledge Data bit

........................................................ 68

Acknowledge Pulse

............................................................ 74

Acknowledge Sequence Enable bit

.................................... 68

Acknowledge Status bit

...................................................... 68

ADRES Register

........................................................ 15 ,

111

Analog Port Pins.

See

A/D

Analog-to-Digital Converter.

See

A/D

Application Notes

AN552 (Implementing Wake-up on Key Strokes

Using PIC16CXXX)

.................................... 31

AN556 (Implementing a Table Read)

........................ 26

AN578 (Use of the SSP Module in the I2C

Multi-Master Environment)

......................... 73

Architecture

PIC16F873/PIC16F876 Block Diagram

....................... 5

PIC16F874/PIC16F877 Block Diagram

....................... 6

Assembler

MPASM Assembler

.................................................. 143

B

Banking, Data Memory

................................................. 12

, 18

Baud Rate Generator

......................................................... 79

BCLIF

................................................................................. 24

BF

............................................................................74

,

82

, 84

Block Diagrams

A/D

........................................................................... 113

A/D Converter

.......................................................... 113

Analog Input Model

.................................................. 114

Baud Rate Generator

................................................. 79

Capture Mode

............................................................ 59

I

I

Compare Mode

.......................................................... 60

2

C Master Mode

........................................................ 78

2

C Module

................................................................. 73

I

2

C Slave Mode

.......................................................... 73

Interrupt Logic

.......................................................... 129

PIC16F873/PIC16F876

................................................ 5

1998-2013 Microchip Technology Inc.

PIC16F874/PIC16F877

............................................... 6

PORTA

RA3:RA0 and RA5 Pins

..................................... 29

RA4/T0CKI Pin

.................................................. 29

PORTB

RB3:RB0 Port Pins

............................................ 31

RB7:RB4 Port Pins

............................................ 31

PORTC

Peripheral Output Override (RC 0:2, 5:7)

.......... 33

Peripheral Output Override (RC 3:4)

................. 33

PORTD

...................................................................... 35

PORTD and PORTE (Parallel Slave Port)

................. 38

PORTE

...................................................................... 36

PWM Mode

................................................................ 61

RESET Circuit

.......................................................... 123

SSP (I

2

C Mode)

......................................................... 73

SSP (SPI Mode)

........................................................ 69

Timer0/WDT Prescaler

.............................................. 47

Timer1

....................................................................... 52

Timer2

....................................................................... 55

USART Asynchronous Receive

............................... 101

USART Asynchronous Receive (9-bit Mode)

.......... 103

USART Transmit

........................................................ 99

Watchdog Timer

...................................................... 131

BOR.

See

Brown-out Reset

BRG

................................................................................... 79

BRGH bit

............................................................................ 97

Brown-out Reset (BOR)

............................ 119 ,

123

, 125 ,

126

BOR Status (BOR Bit)

............................................... 25

Buffer Full bit, BF

............................................................... 74

Bus Arbitration

................................................................... 89

Bus Collision Section

......................................................... 89

Bus Collision During a Repeated START Condition

.......... 92

Bus Collision During a START Condition

.......................... 90

Bus Collision During a STOP Condition

............................ 93

Bus Collision Interrupt Flag bit, BCLIF

............................... 24

C

Capture/Compare/PWM (CCP)

......................................... 57

Associated Registers

Capture, Compare and Timer1

.......................... 62

PWM and Timer2

............................................... 63

Capture Mode

............................................................ 59

Block Diagram

................................................... 59

CCP1CON Register

........................................... 58

CCP1IF

.............................................................. 59

Prescaler

........................................................... 59

CCP Timer Resources

............................................... 57

CCP1

RC2/CCP1 Pin

..................................................7

,

9

CCP2

RC1/T1OSI/CCP2 Pin

......................................7

,

9

Compare

Special Trigger Output of CCP1

........................ 60

Special Trigger Output of CCP2

........................ 60

Compare Mode

.......................................................... 60

Block Diagram

................................................... 60

Software Interrupt Mode

.................................... 60

Special Event Trigger

........................................ 60

Interaction of Two CCP Modules (table)

.................... 57

DS30292D-page 199

PIC16F87X

PWM Mode

................................................................ 61

Block Diagram

.................................................... 61

Duty Cycle

.......................................................... 61

Example Frequencies/Resolutions (Table)

........ 62

PWM Period

....................................................... 61

Special Event Trigger and A/D Conversions

.............. 60

CCP.

See

Capture/Compare/PWM

CCP1CON

.......................................................................... 17

CCP2CON

.......................................................................... 17

CCPR1H Register

.................................................. 15

,

17

,

57

CCPR1L Register

......................................................... 17

, 57

CCPR2H Register

........................................................ 15

, 17

CCPR2L Register

......................................................... 15

,

17

CCPxM0 bit

........................................................................ 58

CCPxM1 bit

........................................................................ 58

CCPxM2 bit

........................................................................ 58

CCPxM3 bit

........................................................................ 58

CCPxX bit

........................................................................... 58

CCPxY bit

........................................................................... 58

CKE

.................................................................................... 66

CKP

.................................................................................... 67

Clock Polarity Select bit, CKP

............................................ 67

Code Examples

Call of a Subroutine in Page 1 from Page 0

............... 26

EEPROM Data Read

................................................. 43

EEPROM Data Write

.................................................. 43

FLASH Program Read

............................................... 44

FLASH Program Write

............................................... 45

Indirect Addressing

.................................................... 27

Initializing PORTA

...................................................... 29

Saving STATUS, W and PCLATH Registers

........... 130

Code Protected Operation

Data EEPROM and FLASH Program Memory

........... 45

Code Protection

....................................................... 119

,

133

Computed GOTO

............................................................... 26

Configuration Bits

............................................................. 119

Configuration Word

.......................................................... 120

Conversion Considerations

.............................................. 198

D

D/A

..................................................................................... 66

Data EEPROM

................................................................... 41

Associated Registers

................................................. 46

Code Protection

......................................................... 45

Reading

...................................................................... 43

Special Functions Registers

....................................... 41

Spurious Write Protection

.......................................... 45

Write Verify

................................................................. 45

Writing to

.................................................................... 43

Data Memory

...................................................................... 12

Bank Select (RP1:RP0 Bits)

................................. 12

, 18

General Purpose Registers

........................................ 12

Register File Map

................................................. 13

, 14

Special Function Registers

........................................ 15

Data/Address bit, D/A

......................................................... 66

DC and AC Characteristics Graphs and Tables

............... 177

DC Characteristics

Commercial and Industrial

............................... 152 –

156

Extended

.......................................................... 157

160

Development Support

...................................................... 143

Device Differences

........................................................... 197

Device Overview

.................................................................. 5

Direct Addressing

............................................................... 27

E

Electrical Characteristics

.................................................. 149

Errata

................................................................................... 4

External Clock Input (RA4/T0CKI).

See

Timer0

External Interrupt Input (RB0/INT).

See

Interrupt Sources

F

Firmware Instructions

....................................................... 135

FLASH Program Memory

................................................... 41

Associated Registers

................................................. 46

Code Protection

......................................................... 45

Configuration Bits and Read/Write State

................... 46

Reading

..................................................................... 44

Special Function Registers

........................................ 41

Spurious Write Protection

.......................................... 45

Write Protection

......................................................... 46

Write Verify

................................................................ 45

Writing to

.................................................................... 44

FSR Register

.................................................... 15 ,

16 ,

17

, 27

G

General Call Address Sequence

........................................ 76

General Call Address Support

........................................... 76

General Call Enable bit

...................................................... 68

I

I

I/O Ports

............................................................................. 29

2

C

...................................................................................... 73

I

2

C Bus

Connection Considerations

........................................ 94

I

Sample Device Configuration

.................................... 94

2

C Master Mode Reception

............................................... 84

I

2

C Master Mode Repeated START Condition

.................. 81

I

2

C Mode Selection

............................................................ 73

I

2

C Module

Acknowledge Sequence Timing

................................ 86

Addressing

................................................................. 74

Associated Registers

................................................. 77

Baud Rate Generator

................................................. 79

Block Diagram

........................................................... 78

BRG Block Diagram

................................................... 79

BRG Reset due to SDA Collision

............................... 91

BRG Timing

............................................................... 80

Bus Arbitration

........................................................... 89

Bus Collision

.............................................................. 89

Acknowledge

..................................................... 89

Repeated START Condition

.............................. 92

Repeated START Condition Timing

(Case1)

.............................................. 92

Repeated START Condition Timing

(Case2)

.............................................. 92

START Condition

............................................... 90

START Condition Timing

..............................90

, 91

STOP Condition

................................................. 93

STOP Condition Timing (Case1)

....................... 93

STOP Condition Timing (Case2)

....................... 93

Transmit Timing

................................................. 89

Bus Collision Timing

.................................................. 89

Clock Arbitration

........................................................ 88

Clock Arbitration Timing (Master Transmit)

............... 88

Conditions to not give ACK Pulse

.............................. 74

General Call Address Support

................................... 76

Master Mode

.............................................................. 78

Master Mode 7-bit Reception Timing

......................... 85

Master Mode Block Diagram

..................................... 78

1998-2013 Microchip Technology Inc.

DS30292D-page 200

Master Mode Operation

............................................. 79

Master Mode START Condition

................................. 80

Master Mode Transmission

........................................ 82

Master Mode Transmit Sequence

.............................. 79

Multi-Master Communication

..................................... 89

Multi-master Mode

..................................................... 78

Operation

................................................................... 73

Repeat START Condition Timing

............................... 81

Slave Mode

................................................................ 74

Block Diagram

.................................................... 73

Slave Reception

......................................................... 74

Slave Transmission

.................................................... 75

SSPBUF

..................................................................... 73

STOP Condition Receive or Transmit Timing

............ 87

STOP Condition Timing

............................................. 87

Waveforms for 7-bit Reception

.................................. 75

I

I

Waveforms for 7-bit Transmission

............................. 76

2

C Module Address Register, SSPADD

............................ 73

2

C Slave Mode

.................................................................. 74

ICEPIC In-Circuit Emulator

.............................................. 144

ID Locations

............................................................. 119 ,

133

In-Circuit Serial Programming (ICSP)

...................... 119

,

134

INDF

................................................................................... 17

INDF Register

.........................................................15

,

16

, 27

Indirect Addressing

............................................................ 27

FSR Register

............................................................. 12

Instruction Format

............................................................ 135

Instruction Set

.................................................................. 135

ADDLW

.................................................................... 137

ADDWF

.................................................................... 137

ANDLW

.................................................................... 137

ANDWF

.................................................................... 137

BCF

.......................................................................... 137

BSF

.......................................................................... 137

BTFSC

..................................................................... 137

BTFSS

..................................................................... 137

CALL

........................................................................ 138

CLRF

........................................................................ 138

CLRW

...................................................................... 138

CLRWDT

.................................................................. 138

COMF

...................................................................... 138

DECF

....................................................................... 138

DECFSZ

................................................................... 139

GOTO

...................................................................... 139

INCF

......................................................................... 139

INCFSZ

.................................................................... 139

IORLW

..................................................................... 139

IORWF

..................................................................... 139

MOVF

....................................................................... 140

MOVLW

................................................................... 140

MOVWF

................................................................... 140

NOP

......................................................................... 140

RETFIE

.................................................................... 140

RETLW

.................................................................... 140

RETURN

.................................................................. 141

RLF

.......................................................................... 141

RRF

.......................................................................... 141

SLEEP

..................................................................... 141

SUBLW

.................................................................... 141

SUBWF

.................................................................... 141

SWAPF

.................................................................... 142

XORLW

.................................................................... 142

XORWF

.................................................................... 142

Summary Table

........................................................ 136

PIC16F87X

INT Interrupt (RB0/INT).

See

Interrupt Sources

INTCON

............................................................................. 17

INTCON Register

............................................................... 20

GIE Bit

....................................................................... 20

INTE Bit

..................................................................... 20

INTF Bit

..................................................................... 20

PEIE Bit

..................................................................... 20

RBIE Bit

..................................................................... 20

RBIF Bit

................................................................20

, 31

T0IE Bit

...................................................................... 20

T0IF Bit

...................................................................... 20

Inter-Integrated Circuit (I

2

C)

.............................................. 65

Internal Sampling Switch (Rss) Impedence

..................... 114

Interrupt Sources

......................................................119

,

129

Block Diagram

......................................................... 129

Interrupt-on-Change (RB7:RB4 )

............................... 31

RB0/INT Pin, External

....................................... 7 ,

8 ,

130

TMR0 Overflow

........................................................ 130

USART Receive/Transmit Complete

......................... 95

Interrupts

Bus Collision Interrupt

................................................ 24

Synchronous Serial Port Interrupt

.............................. 22

Interrupts, Context Saving During

.................................... 130

Interrupts, Enable Bits

Global Interrupt Enable (GIE Bit)

........................20

,

129

Interrupt-on-Change (RB7:RB4) Enable

(RBIE Bit)

................................................. 130

Interrupt-on-Change (RB7:RB4) Enable

(RBIE Bit)

................................................... 20

Peripheral Interrupt Enable (PEIE Bit)

....................... 20

RB0/INT Enable (INTE Bit)

........................................ 20

TMR0 Overflow Enable (T0IE Bit)

............................. 20

Interrupts, Flag Bits

Interrupt-on-Change (RB7:RB4) Flag

(RBIF Bit)

................................................. 130

Interrupt-on-Change (RB7:RB4) Flag

(RBIF Bit)

..............................................20

,

31

RB0/INT Flag (INTF Bit)

............................................ 20

TMR0 Overflow Flag (T0IF Bit)

...........................20

,

130

K

K

EE

L

OQ

Evaluation and Programming Tools

................... 146

L

Loading of PC

.................................................................... 26

M

Master Clear (MCLR)

........................................................7

,

8

MCLR Reset, Normal Operation

............... 123

, 125 ,

126

MCLR Reset, SLEEP

................................ 123

, 125 ,

126

Memory Organization

Data Memory

............................................................. 12

Program Memory

....................................................... 11

MPLAB C17 and MPLAB C18 C Compilers

.................... 143

MPLAB ICD In-Circuit Debugger

..................................... 145

MPLAB ICE High Performance Universal In-Circuit

Emulator with MPLAB IDE

............................................... 144

MPLAB Integrated Development Environment Software

. 143

MPLINK Object Linker/MPLIB Object Librarian

............... 144

Multi-Master Communication

............................................. 89

Multi-Master Mode

............................................................. 78

1998-2013 Microchip Technology Inc.

DS30292D-page 201

PIC16F87X

O

On-Line Support

............................................................... 207

OPCODE Field Descriptions

............................................ 135

OPTION_REG Register

............................................... 19

, 48

INTEDG Bit

................................................................ 19

PS2:PS0 Bits

.............................................................. 19

PSA Bit

....................................................................... 19

T0CS Bit

..................................................................... 19

T0SE Bit

..................................................................... 19

OSC1/CLKIN Pin

.............................................................. 7 ,

8

OSC2/CLKOUT Pin

.......................................................... 7 ,

8

Oscillator Configuration

.................................................... 119

HS

.................................................................... 121 ,

124

LP

..................................................................... 121 ,

124

RC

............................................................ 121

,

122

,

124

XT

..................................................................... 121 ,

124

Oscillator, WDT

................................................................ 131

Oscillators

Capacitor Selection

.................................................. 122

Crystal and Ceramic Resonators

............................. 121

RC

............................................................................ 122

P

P (STOP bit)

....................................................................... 66

Package Marking Information

.......................................... 189

Packaging Information

..................................................... 189

Paging, Program Memory

............................................ 11

, 26

Parallel Slave Port (PSP)

......................................... 9 ,

35

, 38

Associated Registers

................................................. 39

Block Diagram

............................................................ 38

RE0/RD/AN5 Pin

.............................................. 9 ,

36

, 38

RE1/WR/AN6 Pin

............................................. 9 ,

36

, 38

RE2/CS/AN7 Pin

.............................................. 9 ,

36

, 38

Read Waveforms

....................................................... 39

Select (PSPMODE Bit)

..............................35

,

36 ,

37

, 38

Write Waveforms

........................................................ 39

PCL Register

.......................................................... 15 ,

16

, 26

PCLATH Register

..............................................15

,

16 ,

17

, 26

PCON Register

.......................................................... 25 ,

124

BOR Bit

...................................................................... 25

POR Bit

...................................................................... 25

PIC16F876 Pinout Description

............................................. 7

PIC16F87X Product Identification System

....................... 209

PICDEM 1 Low Cost PIC MCU

Demonstration Board

................................................... 145

PICDEM 17 Demonstration Board

................................... 146

PICDEM 2 Low Cost PIC16CXX

Demonstration Board

................................................... 145

PICDEM 3 Low Cost PIC16CXXX

Demonstration Board

................................................... 146

PICSTART Plus Entry Level

Development Programmer

........................................... 145

PIE1 Register

..................................................................... 21

PIE2 Register

..................................................................... 23

Pinout Descriptions

PIC16F873/PIC16F876

................................................ 7

PIC16F874/PIC16F877

................................................ 8

PIR1 Register

..................................................................... 22

PIR2 Register

..................................................................... 24

POP

.................................................................................... 26

POR.

See

Power-on Reset

PORTA

.......................................................................7

,

8

,

17

Analog Port Pins

.......................................................7

,

8

Associated Registers

................................................. 30

Block Diagram

RA3:RA0 and RA5 Pins

..................................... 29

RA4/T0CKI Pin

.................................................. 29

Initialization

................................................................ 29

PORTA Register

...................................................15

, 29

RA3

RA0 and RA5 Port Pins

..................................... 29

RA4/T0CKI Pin

.........................................................7

,

8

RA5/SS/AN4 Pin

.......................................................7

,

8

TRISA Register

.......................................................... 29

PORTB

.......................................................................7

,

8

, 17

Associated Registers

................................................. 32

Block Diagram

RB3:RB0 Port Pins

............................................ 31

RB7:RB4 Port Pins

............................................ 31

PORTB Register

...................................................15

,

31

RB0/INT Edge Select (INTEDG Bit)

.......................... 19

RB0/INT Pin, External

.......................................7

,

8 ,

130

RB7:RB4 Interrupt on Change

................................. 130

RB7:RB4 Interrupt on Change Enable

(RBIE Bit)

................................................. 130

RB7:RB4 Interrupt on Change Flag

(RBIF Bit)

................................................. 130

RB7:RB4 Interrupt-on-Change Enable

(RBIE Bit)

................................................... 20

RB7:RB4 Interrupt-on-Change Flag

(RBIF Bit)

..............................................20

, 31

TRISB Register

.....................................................17

,

31

PORTC

.......................................................................7

,

9

, 17

Associated Registers

................................................. 34

Block Diagrams

Peripheral Output Override

(RC 0:2, 5:7)

...................................... 33

Peripheral Output Override

(RC 3:4)

............................................. 33

PORTC Register

...................................................15

, 33

RC0/T1OSO/T1CKI Pin

............................................7

,

9

RC1/T1OSI/CCP2 Pin

..............................................7

,

9

RC2/CCP1 Pin

..........................................................7

,

9

RC3/SCK/SCL Pin

....................................................7

,

9

RC4/SDI/SDA Pin

.....................................................7

,

9

RC5/SDO Pin

............................................................7

,

9

RC6/TX/CK Pin

...................................................7

,

9

,

96

RC7/RX/DT Pin

............................................. 7

, 9 ,

96

, 97

TRISC Register

.....................................................33

, 95

PORTD

.....................................................................9

,

17

,

38

Associated Registers

................................................. 35

Block Diagram

........................................................... 35

Parallel Slave Port (PSP) Function

............................ 35

PORTD Register

...................................................15

, 35

TRISD Register

.......................................................... 35

1998-2013 Microchip Technology Inc.

DS30292D-page 202

PORTE

........................................................................... 9

,

17

Analog Port Pins

...............................................9

,

36

, 38

Associated Registers

................................................. 36

Block Diagram

............................................................ 36

Input Buffer Full Status (IBF Bit)

................................ 37

Input Buffer Overflow (IBOV Bit)

................................ 37

Output Buffer Full Status (OBF Bit)

............................ 37

PORTE Register

.................................................. 15

, 36

PSP Mode Select (PSPMODE Bit)

...........35

,

36 ,

37

, 38

RE0/RD/AN5 Pin

...............................................9

,

36

,

38

RE1/WR/AN6 Pin

..............................................9

,

36

, 38

RE2/CS/AN7 Pin

...............................................9

,

36

, 38

TRISE Register

.......................................................... 36

Postscaler, WDT

Assignment (PSA Bit)

................................................ 19

Rate Select (PS2:PS0 Bits)

....................................... 19

Power-down Mode.

See

SLEEP

Power-on Reset (POR)

..................... 119

, 123 ,

124

, 125 ,

126

Oscillator Start-up Timer (OST)

....................... 119

,

124

POR Status (POR Bit)

................................................ 25

Power Control (PCON) Register

.............................. 124

Power-down (PD Bit)

......................................... 18

,

123

Power-up Timer (PWRT)

................................. 119 ,

124

Time-out (TO Bit)

............................................... 18 ,

123

Time-out Sequence on Power-up

.................... 127

,

128

PR2 Register

................................................................ 16

, 55

Prescaler, Timer0

Assignment (PSA Bit)

................................................ 19

Rate Select (PS2:PS0 Bits)

....................................... 19

PRO MATE II Universal Device Programmer

.................. 145

Program Counter

RESET Conditions

................................................... 125

Program Memory

............................................................... 11

Interrupt Vector

.......................................................... 11

Paging

.................................................................. 11

, 26

Program Memory Map

............................................... 11

RESET Vector

............................................................ 11

Program Verification

......................................................... 133

Programming Pin (V

PP

)

.................................................... 7 ,

8

Programming, Device Instructions

................................... 135

PSP.

See

Parallel Slave Port.

............................................ 38

Pulse Width Modulation.

See

Capture/Compare/PWM,

PWM Mode.

PUSH

................................................................................. 26

R

R/W

.................................................................................... 66

R/W bit

............................................................................... 74

R/W bit

............................................................................... 74

RAM.

See

Data Memory

RCREG

.............................................................................. 17

RCSTA Register

........................................................... 17

, 96

ADDEN Bit

................................................................. 96

CREN Bit

.................................................................... 96

FERR Bit

.................................................................... 96

OERR Bit

................................................................... 96

RX9 Bit

....................................................................... 96

RX9D Bit

.................................................................... 96

SPEN Bit

.............................................................. 95

,

96

SREN Bit

.................................................................... 96

Read/Write bit, R/W

........................................................... 66

Reader Response

............................................................ 208

Receive Enable bit

............................................................. 68

Receive Overflow Indicator bit, SSPOV

............................. 67

Register File

....................................................................... 12

Register File Map

......................................................... 13

, 14

1998-2013 Microchip Technology Inc.

PIC16F87X

Registers

ADCON0 (A/D Control 0)

......................................... 111

ADCON1 (A/D Control 1)

......................................... 112

CCP1CON (CCP Control 1)

....................................... 58

EECON2

.................................................................... 41

FSR

........................................................................... 27

INTCON

..................................................................... 20

OPTION_REG

......................................................19

, 48

PCON (Power Control)

.............................................. 25

PIE1 (Peripheral Interrupt Enable 1)

.......................... 21

PIE2 (Peripheral Interrupt Enable 2)

.......................... 23

PIR1 (Peripheral Interrupt Request 1)

....................... 22

PIR2 (Peripheral Interrupt Request 2)

....................... 24

RCSTA (Receive Status and Control)

....................... 96

Special Function, Summary

....................................... 15

SSPCON2 (Sync Serial Port Control 2)

..................... 68

STATUS

.................................................................... 18

T1CON (Timer1 Control)

........................................... 51

T2CON (Timer 2 Control)

Timer2

T2CON Register

........................................ 55

TRISE

........................................................................ 37

TXSTA (Transmit Status and Control)

....................... 95

Repeated START Condition Enable bit

............................. 68

RESET

......................................................................119

,

123

Block Diagram

......................................................... 123

MCLR Reset.

See

MCLR

RESET

Brown-out Reset (BOR).

See

Brown-out Reset (BOR)

Power-on Reset (POR).

See

Power-on Reset (POR)

RESET Conditions for PCON Register

.................... 125

RESET Conditions for Program Counter

................. 125

RESET Conditions for STATUS Register

................ 125

WDT Reset.

See

Watchdog Timer (WDT)

Revision History

............................................................... 197

S

S (START bit)

.................................................................... 66

Sales and Support

........................................................... 209

SCI.

See

USART

SCK

................................................................................... 69

SCL

.................................................................................... 74

SDA

................................................................................... 74

SDI

..................................................................................... 69

SDO

................................................................................... 69

Serial Clock, SCK

.............................................................. 69

Serial Clock, SCL

............................................................... 74

Serial Communication Interface.

See

USART

Serial Data Address, SDA

................................................. 74

Serial Data In, SDI

............................................................. 69

Serial Data Out, SDO

........................................................ 69

Slave Select, SS

................................................................ 69

SLEEP

.............................................................. 119

, 123 ,

132

SMP

................................................................................... 66

Software Simulator (MPLAB SIM)

................................... 144

SPBRG Register

................................................................ 16

Special Features of the CPU

........................................... 119

Special Function Registers

................................................ 15

Special Function Registers (SFRs)

.................................... 15

Data EEPROM and FLASH Program Memory

.......... 41

Speed, Operating

................................................................. 1

DS30292D-page 203

PIC16F87X

SPI

Master Mode

.............................................................. 70

Master Mode Timing

.................................................. 70

Serial Clock

................................................................ 69

Serial Data In

............................................................. 69

Serial Data Out

........................................................... 69

Serial Peripheral Interface (SPI)

................................ 65

Slave Mode Timing

.................................................... 71

Slave Mode Timing Diagram

...................................... 71

Slave Select

............................................................... 69

SPI Clock

................................................................... 70

SPI Mode

................................................................... 69

SPI Clock Edge Select, CKE

.............................................. 66

SPI Data Input Sample Phase Select, SMP

....................... 66

SPI Mode

Associated Registers

................................................. 72

SPI Module

Slave Mode

................................................................ 71

SS

...................................................................................... 69

SSP

.................................................................................... 65

Block Diagram (SPI Mode)

......................................... 69

RA5/SS/AN4 Pin

...................................................... 7

,

8

RC3/SCK/SCL Pin

................................................... 7 ,

9

RC4/SDI/SDA Pin

.................................................... 7 ,

9

RC5/SDO Pin

........................................................... 7

,

9

SPI Mode

................................................................... 69

SSPADD

.............................................................. 73

, 74

SSPBUF

............................................................... 70

,

73

SSPCON2

.................................................................. 68

SSPSR

................................................................. 70

, 74

SSPSTAT

................................................................... 73

SSP I

2

C

SSP I

2

C Operation

..................................................... 73

SSP Module

SPI Master Mode

....................................................... 70

SPI Slave Mode

......................................................... 71

SSPCON1 Register

.................................................... 73

SSP Overflow Detect bit, SSPOV

...................................... 74

SSPADD Register

.............................................................. 16

SSPBUF

................................................................. 17

,

73

,

74

SSPBUF Register

.............................................................. 15

SSPCON Register

.............................................................. 15

SSPCON1

.......................................................................... 73

SSPCON2 Register

............................................................ 68

SSPEN

............................................................................... 67

SSPIF

........................................................................... 22

,

74

SSPM3:SSPM0

.................................................................. 67

SSPOV

................................................................... 67 ,

74

, 84

SSPSTAT

........................................................................... 73

SSPSTAT Register

............................................................ 16

Stack

.................................................................................. 26

Overflows

................................................................... 26

Underflow

................................................................... 26

START bit (S)

..................................................................... 66

START Condition Enable bit

.............................................. 68

STATUS Register

............................................................... 18

C Bit

........................................................................... 18

DC Bit

......................................................................... 18

IRP Bit

........................................................................ 18

PD Bit

................................................................. 18 ,

123

RP1:RP0 Bits

............................................................. 18

TO Bit

................................................................. 18 ,

123

Z Bit

............................................................................ 18

STOP bit (P)

....................................................................... 66

STOP Condition Enable bit

................................................ 68

DS30292D-page 204

Synchronous Serial Port

.................................................... 65

Synchronous Serial Port Enable bit, SSPEN

..................... 67

Synchronous Serial Port Interrupt

...................................... 22

Synchronous Serial Port Mode Select bits,

SSPM3:SSPM0

............................................................. 67

T

T1CKPS0 bit

...................................................................... 51

T1CKPS1 bit

...................................................................... 51

T1CON

............................................................................... 17

T1CON Register

................................................................ 17

T1OSCEN bit

..................................................................... 51

T1SYNC bit

........................................................................ 51

T2CKPS0 bit

...................................................................... 55

T2CKPS1 bit

...................................................................... 55

T2CON Register

...........................................................17

, 55

T

AD

................................................................................... 115

Time-out Sequence

......................................................... 124

Timer0

................................................................................ 47

Associated Registers

................................................. 49

Clock Source Edge Select (T0SE Bit)

....................... 19

Clock Source Select (T0CS Bit)

................................. 19

External Clock

............................................................ 48

Interrupt

..................................................................... 47

Overflow Enable (T0IE Bit)

........................................ 20

Overflow Flag (T0IF Bit)

......................................20

,

130

Overflow Interrupt

.................................................... 130

Prescaler

.................................................................... 48

RA4/T0CKI Pin, External Clock

................................7

,

8

T0CKI

......................................................................... 48

WDT Prescaler Block Diagram

.................................. 47

Timer1

................................................................................ 51

Associated Registers

................................................. 54

Asynchronous Counter Mode

.................................... 53

Reading and Writing to

...................................... 53

Block Diagram

........................................................... 52

Counter Operation

..................................................... 52

Operation in Timer Mode

........................................... 52

Oscillator

.................................................................... 53

Capacitor Selection

............................................ 53

Prescaler

.................................................................... 54

RC0/T1OSO/T1CKI Pin

............................................7

,

9

RC1/T1OSI/CCP2 Pin

..............................................7

,

9

Resetting of Timer1 Registers

................................... 54

Resetting Timer1 using a CCP Trigger Output

.......... 53

Synchronized Counter Mode

..................................... 52

T1CON

....................................................................... 51

T1CON Register

........................................................ 51

TMR1H

...................................................................... 53

TMR1L

....................................................................... 53

Timer2

................................................................................ 55

Associated Registers

................................................. 56

Block Diagram

........................................................... 55

Output

........................................................................ 56

Postscaler

.................................................................. 55

Prescaler

.................................................................... 55

T2CON

....................................................................... 55

Timing Diagrams

A/D Conversion

........................................................ 175

Acknowledge Sequence Timing

................................ 86

Baud Rate Generator with Clock Arbitration

.............. 80

BRG Reset Due to SDA Collision

.............................. 91

Brown-out Reset

...................................................... 164

Bus Collision

START Condition Timing

................................... 90

1998-2013 Microchip Technology Inc.

Bus Collision During a Repeated

START Condition (Case 1)

........................ 92

Bus Collision During a Repeated

START Condition (Case2)

......................... 92

Bus Collision During a START

Condition (SCL = 0)

................................... 91

Bus Collision During a STOP Condition

..................... 93

Bus Collision for Transmit and Acknowledge

............. 89

Capture/Compare/PWM

........................................... 166

I

I

I

I

I

CLKOUT and I/O

...................................................... 163

2

2

C Bus Data

............................................................ 171

2

C Bus START/STOP bits

...................................... 170

2

C Master Mode First START Bit Timing

.................. 80

2

C Master Mode Reception Timing

........................... 85

C Master Mode Transmission Timing

...................... 83

Master Mode Transmit Clock Arbitration

.................... 88

Power-up Timer

....................................................... 164

Repeat START Condition

.......................................... 81

RESET

..................................................................... 164

SPI Master Mode

....................................................... 70

SPI Slave Mode (CKE = 1)

........................................ 71

SPI Slave Mode Timing (CKE = 0)

............................. 71

Start-up Timer

.......................................................... 164

STOP Condition Receive or Transmit

........................ 87

Time-out Sequence on Power-up

.................... 127

,

128

Timer0

...................................................................... 165

Timer1

...................................................................... 165

USART Asynchronous Master Transmission

........... 100

USART Asynchronous Reception

............................ 102

USART Synchronous Receive

................................. 173

USART Synchronous Reception

.............................. 108

USART Synchronous Transmission

................ 106 ,

173

USART, Asynchronous Reception

........................... 104

Wake-up from SLEEP via Interrupt

.......................... 133

Watchdog Timer

....................................................... 164

TMR0

................................................................................. 17

TMR0 Register

................................................................... 15

TMR1CS bit

........................................................................ 51

TMR1H

............................................................................... 17

TMR1H Register

................................................................ 15

TMR1L

............................................................................... 17

TMR1L Register

................................................................. 15

TMR1ON bit

....................................................................... 51

TMR2

................................................................................. 17

TMR2 Register

................................................................... 15

TMR2ON bit

....................................................................... 55

TOUTPS0 bit

...................................................................... 55

TOUTPS1 bit

...................................................................... 55

TOUTPS2 bit

...................................................................... 55

TOUTPS3 bit

...................................................................... 55

TRISA Register

.................................................................. 16

TRISB Register

.................................................................. 16

TRISC Register

.................................................................. 16

TRISD Register

.................................................................. 16

TRISE Register

.......................................................16

,

36

, 37

IBF Bit

........................................................................ 37

IBOV Bit

..................................................................... 37

OBF Bit

...................................................................... 37

PSPMODE Bit

...........................................35

,

36 ,

37

, 38

TXREG

............................................................................... 17

PIC16F87X

TXSTA Register

................................................................. 95

BRGH Bit

................................................................... 95

CSRC Bit

................................................................... 95

SYNC Bit

................................................................... 95

TRMT Bit

.................................................................... 95

TX9 Bit

....................................................................... 95

TX9D Bit

.................................................................... 95

TXEN Bit

.................................................................... 95

U

UA

...................................................................................... 66

Universal Synchronous Asynchronous Receiver

Transmitter.

See

USART

Update Address, UA

.......................................................... 66

USART

............................................................................... 95

Address Detect Enable (ADDEN Bit)

......................... 96

Asynchronous Mode

.................................................. 99

Asynchronous Receive

............................................ 101

Associated Registers

....................................... 102

Block Diagram

................................................. 101

Asynchronous Receive (9-bit Mode)

........................ 103

Associated Registers

....................................... 104

Block Diagram

................................................. 103

Timing Diagram

............................................... 104

Asynchronous Receive with Address Detect.

See

Asynchronous Receive (9-bit Mode).

Asynchronous Reception

......................................... 102

Asynchronous Transmitter

......................................... 99

Baud Rate Generator (BRG)

..................................... 97

Baud Rate Formula

........................................... 97

Baud Rates, Asynchronous Mode (BRGH=0)

... 98

High Baud Rate Select (BRGH Bit)

................... 95

Sampling

............................................................ 97

Clock Source Select (CSRC Bit)

................................ 95

Continuous Receive Enable (CREN Bit)

.................... 96

Framing Error (FERR Bit)

.......................................... 96

Mode Select (SYNC Bit)

............................................ 95

Overrun Error (OERR Bit)

.......................................... 96

RC6/TX/CK Pin

.........................................................7

,

9

RC7/RX/DT Pin

.........................................................7

,

9

RCSTA Register

........................................................ 96

Receive Data, 9th bit (RX9D Bit)

............................... 96

Receive Enable, 9-bit (RX9 Bit)

................................. 96

Serial Port Enable (SPEN Bit)

..............................95

, 96

Single Receive Enable (SREN Bit)

............................ 96

Synchronous Master Mode

...................................... 105

Synchronous Master Reception

............................... 107

Associated Registers

....................................... 107

Synchronous Master Transmission

......................... 105

Associated Registers

....................................... 106

Synchronous Slave Mode

........................................ 108

Synchronous Slave Reception

................................. 109

Associated Registers

....................................... 109

Synchronous Slave Transmit

................................... 108

Associated Registers

....................................... 108

Transmit Block Diagram

............................................ 99

Transmit Data, 9th Bit (TX9D)

................................... 95

Transmit Enable (TXEN Bit)

...................................... 95

Transmit Enable, Nine-bit (TX9 Bit)

........................... 95

Transmit Shift Register Status (TRMT Bit)

................ 95

TXSTA Register

......................................................... 95

1998-2013 Microchip Technology Inc.

DS30292D-page 205

PIC16F87X

W

Wake-up from SLEEP

.............................................. 119 ,

132

Interrupts

.......................................................... 125

,

126

MCLR Reset

............................................................. 126

Timing Diagram

........................................................ 133

WDT Reset

............................................................... 126

Watchdog Timer (WDT)

........................................... 119 ,

131

Block Diagram

.......................................................... 131

Enable (WDTE Bit)

................................................... 131

Postscaler.

See

Postscaler, WDT

Programming Considerations

................................... 131

RC Oscillator

............................................................ 131

Time-out Period

........................................................ 131

WDT Reset, Normal Operation

................ 123

, 125 ,

126

WDT Reset, SLEEP

................................. 123

,

125

,

126

Waveform for General Call Address Sequence

................. 76

WCOL

................................................... 67 ,

80

, 82 ,

84 ,

86

, 87

WCOL Status Flag

............................................................. 80

Write Collision Detect bit, WCOL

....................................... 67

Write Verify

Data EEPROM and FLASH Program Memory

........... 45

WWW, On-Line Support

....................................................... 4

DS30292D-page 206

1998-2013 Microchip Technology Inc.

ON-LINE SUPPORT

Microchip provides on-line support on the Microchip

World Wide Web (WWW) site.

The web site is used by Microchip as a means to make files and information easily available to customers. To view the site, the user must have access to the Internet and a web browser, such as Netscape or Microsoft

Explorer. Files are also available for FTP download from our FTP site.

Connecting to the Microchip Internet Web Site

The Microchip web site is available by using your favorite Internet browser to attach to:

www.microchip.com

The file transfer site is available by using an FTP service to connect to:

ftp://ftp.microchip.com

The web site and file transfer site provide a variety of services. Users may download files for the latest

Development Tools, Data Sheets, Application Notes,

User's Guides, Articles and Sample Programs. A variety of Microchip specific business information is also available, including listings of Microchip sales offices, distributors and factory representatives. Other data available for consideration is:

• Latest Microchip Press Releases

• Technical Support Section with Frequently Asked

Questions

• Design Tips

• Device Errata

• Job Postings

• Microchip Consultant Program Member Listing

• Links to other useful web sites related to

Microchip Products

• Conferences for products, Development Systems, technical information and more

• Listing of seminars and events

PIC16F87X

1998-2013 Microchip Technology Inc.

DS30292D-page 207

PIC16F87X

READER RESPONSE

It is our intention to provide you with the best documentation possible to ensure successful use of your Microchip product. If you wish to provide your comments on organization, clarity, subject matter, and ways in which our documentation can better serve you, please FAX your comments to the Technical Publications Manager at (480) 792-4150.

Please list the following information, and use this outline to provide us with your comments about this Data Sheet.

To:

Technical Publications Manager

RE: Reader Response

From: Name

Company

Address

City / State / ZIP / Country

Telephone: (_______) _________ - _________

Application (optional):

Would you like a reply? Y N

Total Pages Sent

FAX: (______) _________ - _________

Literature Number:

DS30292D

Device:

PIC16F87X

Questions:

1.

What are the best features of this document?

2.

How does this document meet your hardware and software development needs?

3.

Do you find the organization of this data sheet easy to follow? If not, why?

4.

What additions to the data sheet do you think would enhance the structure and subject?

5.

What deletions from the data sheet could be made without affecting the overall usefulness?

6.

Is there any incorrect or misleading information (what and where)?

7.

How would you improve this document?

8.

How would you improve our software, systems, and silicon products?

1998-2013 Microchip Technology Inc.

DS30292D-page 208

PIC16F87X

PIC16F87X PRODUCT IDENTIFICATION SYSTEM

To order or obtain information, e.g., on pricing or delivery, refer to the factory or the listed sales office.

PART NO.

X /XX XXX

Device

Device

Temperature

Range

Package Pattern

PIC16F87X

(1)

, PIC16F87XT

(2)

PIC16LF87X

(1)

, PIC16LF87XT

; V

DD

range 4.0V to 5.5V

(2 )

; V

DD

range 2.0V to 5.5V

Examples:

a) b) c)

PIC16F877 - 20/P 301 = Commercial temp.,

PDIP package, 4 MHz, normal V

DD

limits, QTP pattern #301.

PIC16LF876 - 04I/SO = Industrial temp., SOIC package, 200 kHz, Extended V

DD

limits.

PIC16F877 - 10E/P = Extended temp., PDIP package, 10MHz, normal V

DD

limits.

Frequency Range 04 = 4 MHz

10 = 10 MHz

20 = 20

Temperature Range

I blank = 0

C to +70

C (Commercial)

= -40

C to +85

C (Industrial)

E = -40

C to +125

C (Extended)

Package PQ = MQFP (Metric PQFP)

PT = TQFP (Thin Quad Flatpack)

SO = SOIC

SP = Skinny plastic DIP

P = PDIP

L = PLCC

Note 1:

F = CMOS FLASH

LF = Low Power CMOS FLASH

2:

T = in tape and reel - SOIC, PLCC,

MQFP, TQFP packages only.

* JW Devices are UV erasable and can be programmed to any device configuration. JW Devices meet the electrical requirement of each oscillator type.

Sales and Support

Data Sheets

Products supported by a preliminary Data Sheet may have an errata sheet describing minor operational differences and recommended workarounds. To determine if an errata sheet exists for a particular device, please contact one of the following:

1.

Your local Microchip sales office

2.

The Microchip Worldwide Site (www.microchip.com)

Please specify which device, revision of silicon and Data Sheet (include Literature #) you are using.

New Customer Notification System

Register on our web site (www.microchip.com/cn) to receive the most current information on our products.

1998-2013 Microchip Technology Inc.

DS30292D-page 209

PIC16F87X

NOTES:

DS30292D-page 210

1998-2013 Microchip Technology Inc.

NOTES:

PIC16F87X

1998-2013 Microchip Technology Inc.

DS30292D-page 211

PIC16F87X

NOTES:

DS30292D-page 212

1998-2013 Microchip Technology Inc.

NOTES:

PIC16F87X

1998-2013 Microchip Technology Inc.

DS30292D-page 213

PIC16F87X

NOTES:

DS30292D-page 214

1998-2013 Microchip Technology Inc.

NOTES:

PIC16F87X

1998-2013 Microchip Technology Inc.

DS30292D-page 215

PIC16F87X

DS30292D-page 216

1998-2013 Microchip Technology Inc.

Note the following details of the code protection feature on Microchip devices:

• Microchip products meet the specification contained in their particular Microchip Data Sheet.

Microchip believes that its family of products is one of the most secure families of its kind on the market today, when used in the intended manner and under normal conditions.

There are dishonest and possibly illegal methods used to breach the code protection feature. All of these methods, to our knowledge, require using the Microchip products in a manner outside the operating specifications contained in Microchip’s Data

Sheets. Most likely, the person doing so is engaged in theft of intellectual property.

Microchip is willing to work with the customer who is concerned about the integrity of their code.

Neither Microchip nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not mean that we are guaranteeing the product as “unbreakable.”

Code protection is constantly evolving. We at Microchip are committed to continuously improving the code protection features of our products. Attempts to break Microchip’s code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act.

Information contained in this publication regarding device applications and the like is provided only for your convenience and may be superseded by updates. It is your responsibility to ensure that your application meets with your specifications.

MICROCHIP MAKES NO REPRESENTATIONS OR

WARRANTIES OF ANY KIND WHETHER EXPRESS OR

IMPLIED, WRITTEN OR ORAL, STATUTORY OR

OTHERWISE, RELATED TO THE INFORMATION,

INCLUDING BUT NOT LIMITED TO ITS CONDITION,

QUALITY, PERFORMANCE, MERCHANTABILITY OR

FITNESS FOR PURPOSE

.

Microchip disclaims all liability arising from this information and its use. Use of Microchip devices in life support and/or safety applications is entirely at the buyer’s risk, and the buyer agrees to defend, indemnify and hold harmless Microchip from any and all damages, claims, suits, or expenses resulting from such use. No licenses are conveyed, implicitly or otherwise, under any Microchip intellectual property rights.

QUALITY MANAGEMENT SYSTEM

==

CERTIFIED BY DNV

ISO/TS 16949

1998-2013 Microchip Technology Inc.

==

Trademarks

The Microchip name and logo, the Microchip logo, dsPIC,

FlashFlex, K

EE

L

OQ

, K

EE

L

OQ

logo, MPLAB, PIC, PICmicro,

PICSTART, PIC

32

logo, rfPIC, SST, SST Logo, SuperFlash and UNI/O are registered trademarks of Microchip Technology

Incorporated in the U.S.A. and other countries.

FilterLab, Hampshire, HI-TECH C, Linear Active Thermistor,

MTP, SEEVAL and The Embedded Control Solutions

Company are registered trademarks of Microchip Technology

Incorporated in the U.S.A.

Silicon Storage Technology is a registered trademark of

Microchip Technology Inc. in other countries.

Analog-for-the-Digital Age, Application Maestro, BodyCom, chipKIT, chipKIT logo, CodeGuard, dsPICDEM, dsPICDEM.net, dsPICworks, dsSPEAK, ECAN,

ECONOMONITOR, FanSense, HI-TIDE, In-Circuit Serial

Programming, ICSP, Mindi, MiWi, MPASM, MPF, MPLAB

Certified logo, MPLIB, MPLINK, mTouch, Omniscient Code

Generation, PICC, PICC-18, PICDEM, PICDEM.net, PICkit,

PICtail, REAL ICE, rfLAB, Select Mode, SQI, Serial Quad I/O,

Total Endurance, TSHARC, UniWinDriver, WiperLock, ZENA and Z-Scale are trademarks of Microchip Technology

Incorporated in the U.S.A. and other countries.

SQTP is a service mark of Microchip Technology Incorporated in the U.S.A.

GestIC and ULPP are registered trademarks of Microchip

Technology Germany II GmbH & Co. & KG, a subsidiary of

Microchip Technology Inc., in other countries.

All other trademarks mentioned herein are property of their respective companies.

© 1998-2013, Microchip Technology Incorporated, Printed in the U.S.A., All Rights Reserved.

Printed on recycled paper.

ISBN: 9781620769294

Microchip received ISO/TS-16949:2009 certification for its worldwide headquarters, design and wafer fabrication facilities in Chandler and

Tempe, Arizona; Gresham, Oregon and design centers in California and India. The Company’s quality system processes and procedures are for its PIC ® MCUs and dsPIC ® DSCs, K

EE

L

OQ

® code hopping devices, Serial EEPROMs, microperipherals, nonvolatile memory and analog products. In addition, Microchip’s quality system for the design and manufacture of development systems is ISO 9001:2000 certified.

DS30292D-page 217

AMERICAS

Corporate Office

2355 West Chandler Blvd.

Chandler, AZ 85224-6199

Tel: 480-792-7200

Fax: 480-792-7277

Technical Support: http://www.microchip.com/ support

Web Address: www.microchip.com

Atlanta

Duluth, GA

Tel: 678-957-9614

Fax: 678-957-1455

Boston

Westborough, MA

Tel: 774-760-0087

Fax: 774-760-0088

Chicago

Itasca, IL

Tel: 630-285-0071

Fax: 630-285-0075

Cleveland

Independence, OH

Tel: 216-447-0464

Fax: 216-447-0643

Dallas

Addison, TX

Tel: 972-818-7423

Fax: 972-818-2924

Detroit

Farmington Hills, MI

Tel: 248-538-2250

Fax: 248-538-2260

Indianapolis

Noblesville, IN

Tel: 317-773-8323

Fax: 317-773-5453

Los Angeles

Mission Viejo, CA

Tel: 949-462-9523

Fax: 949-462-9608

Santa Clara

Santa Clara, CA

Tel: 408-961-6444

Fax: 408-961-6445

Toronto

Mississauga, Ontario,

Canada

Tel: 905-673-0699

Fax: 905-673-6509

DS30292D-page 218

Worldwide Sales and Service

ASIA/PACIFIC

Asia Pacific Office

Suites 3707-14, 37th Floor

Tower 6, The Gateway

Harbour City, Kowloon

Hong Kong

Tel: 852-2401-1200

Fax: 852-2401-3431

Australia - Sydney

Tel: 61-2-9868-6733

Fax: 61-2-9868-6755

China - Beijing

Tel: 86-10-8569-7000

Fax: 86-10-8528-2104

China - Chengdu

Tel: 86-28-8665-5511

Fax: 86-28-8665-7889

China - Chongqing

Tel: 86-23-8980-9588

Fax: 86-23-8980-9500

China - Hangzhou

Tel: 86-571-2819-3187

Fax: 86-571-2819-3189

China - Hong Kong SAR

Tel: 852-2943-5100

Fax: 852-2401-3431

China - Nanjing

Tel: 86-25-8473-2460

Fax: 86-25-8473-2470

China - Qingdao

Tel: 86-532-8502-7355

Fax: 86-532-8502-7205

China - Shanghai

Tel: 86-21-5407-5533

Fax: 86-21-5407-5066

China - Shenyang

Tel: 86-24-2334-2829

Fax: 86-24-2334-2393

China - Shenzhen

Tel: 86-755-8864-2200

Fax: 86-755-8203-1760

China - Wuhan

Tel: 86-27-5980-5300

Fax: 86-27-5980-5118

China - Xian

Tel: 86-29-8833-7252

Fax: 86-29-8833-7256

China - Xiamen

Tel: 86-592-2388138

Fax: 86-592-2388130

China - Zhuhai

Tel: 86-756-3210040

Fax: 86-756-3210049

ASIA/PACIFIC

India - Bangalore

Tel: 91-80-3090-4444

Fax: 91-80-3090-4123

India - New Delhi

Tel: 91-11-4160-8631

Fax: 91-11-4160-8632

India - Pune

Tel: 91-20-2566-1512

Fax: 91-20-2566-1513

Japan - Osaka

Tel: 81-6-6152-7160

Fax: 81-6-6152-9310

Japan - Tokyo

Tel: 81-3-6880- 3770

Fax: 81-3-6880-3771

Korea - Daegu

Tel: 82-53-744-4301

Fax: 82-53-744-4302

Korea - Seoul

Tel: 82-2-554-7200

Fax: 82-2-558-5932 or

82-2-558-5934

Malaysia - Kuala Lumpur

Tel: 60-3-6201-9857

Fax: 60-3-6201-9859

Malaysia - Penang

Tel: 60-4-227-8870

Fax: 60-4-227-4068

Philippines - Manila

Tel: 63-2-634-9065

Fax: 63-2-634-9069

Singapore

Tel: 65-6334-8870

Fax: 65-6334-8850

Taiwan - Hsin Chu

Tel: 886-3-5778-366

Fax: 886-3-5770-955

Taiwan - Kaohsiung

Tel: 886-7-213-7828

Fax: 886-7-330-9305

Taiwan - Taipei

Tel: 886-2-2508-8600

Fax: 886-2-2508-0102

Thailand - Bangkok

Tel: 66-2-694-1351

Fax: 66-2-694-1350

EUROPE

Austria - Wels

Tel: 43-7242-2244-39

Fax: 43-7242-2244-393

Denmark - Copenhagen

Tel: 45-4450-2828

Fax: 45-4485-2829

France - Paris

Tel: 33-1-69-53-63-20

Fax: 33-1-69-30-90-79

Germany - Munich

Tel: 49-89-627-144-0

Fax: 49-89-627-144-44

Italy - Milan

Tel: 39-0331-742611

Fax: 39-0331-466781

Netherlands - Drunen

Tel: 31-416-690399

Fax: 31-416-690340

Spain - Madrid

Tel: 34-91-708-08-90

Fax: 34-91-708-08-91

UK - Wokingham

Tel: 44-118-921-5869

Fax: 44-118-921-5820

11/29/12

1998-2013 Microchip Technology Inc.
