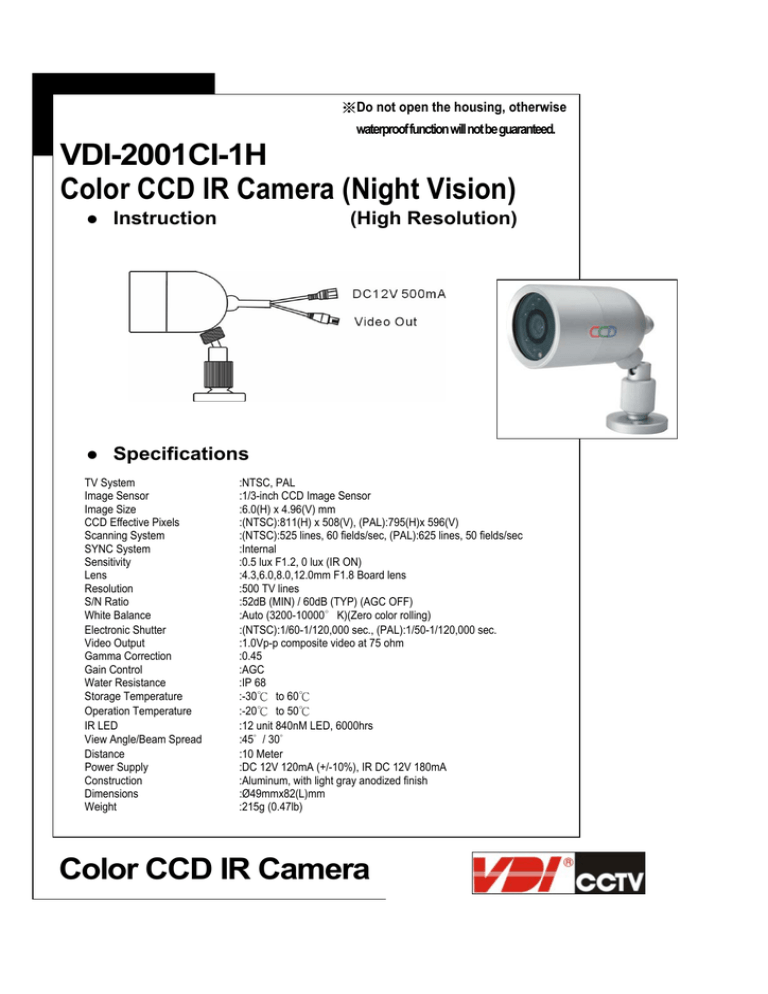

VDI-2001CI-1H Color CCD IR Camera (Night Vision) Instruction

VDI-2001CI-1H Color CCD IR Camera (Night Vision) Instruction
※Do not open the housing, otherwise
waterproof function will not be guaranteed.
VDI-2001CI-1H
Color CCD IR Camera (Night Vision)
z
Instruction
z
Specifications
TV System
Image Sensor
Image Size
CCD Effective Pixels
Scanning System
SYNC System
Sensitivity
Lens
Resolution
S/N Ratio
White Balance
Electronic Shutter
Video Output
Gamma Correction
Gain Control
Water Resistance
Storage Temperature
Operation Temperature
IR LED
View Angle/Beam Spread
Distance
Power Supply
Construction
Dimensions
Weight
(High Resolution)
:NTSC, PAL
:1/3-inch CCD Image Sensor
:6.0(H) x 4.96(V) mm
:(NTSC):811(H) x 508(V), (PAL):795(H)x 596(V)
:(NTSC):525 lines, 60 fields/sec, (PAL):625 lines, 50 fields/sec
:Internal
:0.5 lux F1.2, 0 lux (IR ON)
:4.3,6.0,8.0,12.0mm F1.8 Board lens
:500 TV lines
:52dB (MIN) / 60dB (TYP) (AGC OFF)
:Auto (3200-10000∘K)(Zero color rolling)
:(NTSC):1/60-1/120,000 sec., (PAL):1/50-1/120,000 sec.
:1.0Vp-p composite video at 75 ohm
:0.45
:AGC
:IP 68
:-30℃ to 60℃
:-20℃ to 50℃
:12 unit 840nM LED, 6000hrs
:45° / 30°
:10 Meter
:DC 12V 120mA (+/-10%), IR DC 12V 180mA
:Aluminum, with light gray anodized finish
:Ø49mmx82(L)mm
:215g (0.47lb)
Color CCD IR Camera
