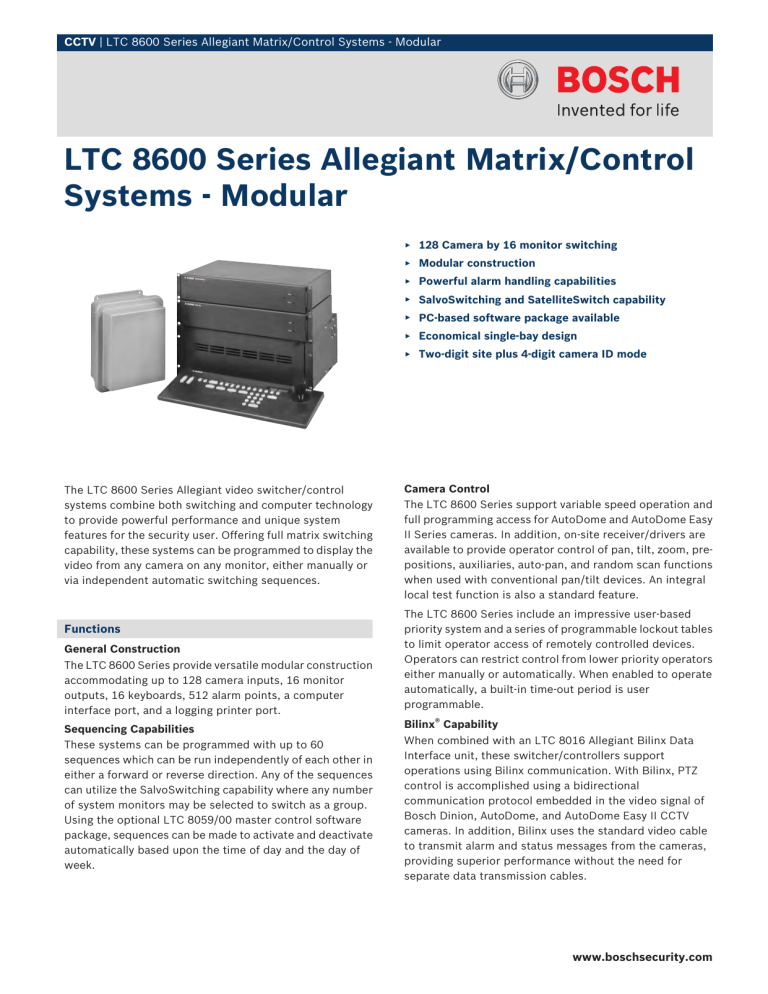

LTC 8600 Series Allegiant Matrix/Control Systems

CCTV | LTC 8600 Series Allegiant Matrix/Control Systems - Modular
LTC 8600 Series Allegiant Matrix/Control
Systems - Modular
▶ 128 Camera by 16 monitor switching
▶ Modular construction
▶ Powerful alarm handling capabilities
▶ SalvoSwitching and SatelliteSwitch capability
▶ PC-based software package available
▶ Economical single-bay design
▶ Two-digit site plus 4-digit camera ID mode
The LTC 8600 Series Allegiant video switcher/control
systems combine both switching and computer technology
to provide powerful performance and unique system
features for the security user. Offering full matrix switching
capability, these systems can be programmed to display the
video from any camera on any monitor, either manually or
via independent automatic switching sequences.
Functions
General Construction
The LTC 8600 Series provide versatile modular construction
accommodating up to 128 camera inputs, 16 monitor
outputs, 16 keyboards, 512 alarm points, a computer
interface port, and a logging printer port.
Sequencing Capabilities
These systems can be programmed with up to 60
sequences which can be run independently of each other in
either a forward or reverse direction. Any of the sequences
can utilize the SalvoSwitching capability where any number
of system monitors may be selected to switch as a group.
Using the optional LTC 8059/00 master control software
package, sequences can be made to activate and deactivate
automatically based upon the time of day and the day of
week.
Camera Control
The LTC 8600 Series support variable speed operation and
full programming access for AutoDome and AutoDome Easy
II Series cameras. In addition, on-site receiver/drivers are
available to provide operator control of pan, tilt, zoom, prepositions, auxiliaries, auto-pan, and random scan functions
when used with conventional pan/tilt devices. An integral
local test function is also a standard feature.
The LTC 8600 Series include an impressive user-based
priority system and a series of programmable lockout tables
to limit operator access of remotely controlled devices.
Operators can restrict control from lower priority operators
either manually or automatically. When enabled to operate
automatically, a built-in time-out period is user
programmable.
Bilinx® Capability
When combined with an LTC 8016 Allegiant Bilinx Data
Interface unit, these switcher/controllers support
operations using Bilinx communication. With Bilinx, PTZ
control is accomplished using a bidirectional
communication protocol embedded in the video signal of
Bosch Dinion, AutoDome, and AutoDome Easy II CCTV
cameras. In addition, Bilinx uses the standard video cable
to transmit alarm and status messages from the cameras,
providing superior performance without the need for
separate data transmission cables.
www.boschsecurity.com
2 | LTC 8600 Series Allegiant Matrix/Control Systems - Modular
Alarm Capabilities
With the addition of the LTC 8540/00 Series alarm interface
accessory units, an external contact closure or logic level
can be used to automatically activate any camera to be
displayed. Any monitor or group of monitors can be set to
display cameras under alarm conditions. The base system
contains three built in alarm response modes: basic, autobuild, and sequence and display. In addition to these three
modes, the PC based software packages now includes the
ability to combine any or all of the three standard modes
within the same system. Alarm video may be selected to
reset either manually or automatically. In addition, a 16character alarm title can be selected to appear instead of
the camera title during alarm conditions.
Programming/Software Capabilities
The LTC 8600 Series includes a black outlined 48-character
on-screen display for time-date, camera number, camera ID
(16-characters), an icon to identify controllable cameras,
and monitor (12-characters) or status information. A user
selectable option provides the ability to display a third line
of on-screen text. This third line can be configured to
display up to 24 additional camera title characters (40
characters total) or a 12-character monitor title.
The on-screen display is also user selectable to operate in
"6-digit Camera ID" mode. When enabled, 2-digit "site
numbers" are displayed in addition to the 4-digit camera
number. The 2-digit site number feature is especially useful
when groups of cameras are located in separate buildings,
floors, or other common areas. Over 1000 characters are
available when programming camera ID and monitor titles.
Utilizing a standard Windows®-based PC and the optional
LTC 8059/00 Master Control Software package, enhanced
programming and switching features can be obtained. A
user-friendly spreadsheet format provides the ability to
enter camera titles, operator names, 64 timed events,
change system parameters, program camera sequences,
install lockouts, and access the advanced alarm handling
screens with speed and efficiency. The programmed
information may then be transferred into the Allegiant
system, stored on disk, or printed out directly from a printer
connected to the PC.
The LTC 8600 Series contain a logging printer output port.
This RS-232 serial interface can be connected to the serial
port of a PC to provide a permanent record of system status
showing time and date of changes such as: incoming
alarms, acknowledgment of alarms, loading of sequences,
user log-on to keyboard, transfer of system tables and
sequences, video loss messages, and a power up reset
message. In addition, lists of the system's configuration
tables and sequences can be sent to the printer port. The
LTC 8600 system provides powerful macro capabilities. The
macros can be activated using Allegiant Series system
keyboards, system time event functions, and alarm
activations.
Expansion Capabilities
The LTC 8600 Series can serve as the Master Switcher in a
SatelliteSwitch® configuration. This innovative
SatelliteSwitch feature enables a single LTC 8600 Series
system to communicate with remotely located "Satellite"
systems. Any Allegiant system model can serve as a master
or remote Satellite switcher. This powerful feature permits
the design of a distributed matrix video switching system
with control at one central location and individual control
at the local sites. The main control site can view/control
local cameras plus cameras located at any of the remotely
distributed Satellite sites. The Satellite sites can view/
control only cameras associated with their own site. When
used in this type of configuration, the main LTC 8600 Series
system can access up to 1024 cameras located anywhere in
the system. By combining multiple Satellite systems of this
type, matrix sizes of 1024 cameras by 16 monitors can be
designed in an extremely reliable, "Distributed Processing"
configuration.
Certifications and Approvals
Electromagnetic
Compatibility
(EMC)
Complies with FCC Part 15, ICES-003, and CE regulations. This product also complies with EN 50121-4 railway application standards. Refer to www.boschsecurity.com website for link to applicable documents.
Product Safety
Complies with CE regulations, UL, CSA, EN, and IEC
Standards
LTC 8600 Series Allegiant Matrix/Control Systems - Modular | 3
Installation/Configuration Notes
1
2
1
7
3
8
2
3
4
5
6
BOSCH
Prod
Mon
Clr
9
LTC 4
8621/00
LTC 8601/00
5
LTC
8834/00
5
11
LTC
8610/00
LTC
8805
6
7
2
3
4
5
6
7
8
9
0
10
12
10
13
14
16
15
8
9
Shot
1
18
17
1
20
19
21
22
24
BOSCH
Prod
Mon
Clr
25
23
Shot
1
2
3
4
5
6
7
8
9
0
26
27
Allegiant Satellite Switching System
BOSCH
BOSCH
BOSCH
BOSCH
Prod
Prod
Mon
Prod
Mon
Shot
Clr
1
2
3
4
5
6
4
5
6
7
8
9
7
8
9
2
3
0
Mon
Mon
Shot
Clr
Shot
Clr
Shot
Clr
1
Prod
Mon
Prod
Shot
Clr
10
BOSCH
1
2
3
4
5
6
7
8
9
1
2
3
1
2
3
4
5
6
4
5
6
7
8
9
7
8
9
0
0
0
0
10
LTC 8600 Series Configuration Diagram
(128 Cameras by 16 Monitors)
1
Video Coax
2
Up to 64 Maximum Video Inputs
3
Additional System Cameras
4
Input Cards (max. 8)
5
Output Cards (max. 4)
6
CPU-Module
7
Power Supply Module
8
3 m (10 ft) Interconnect Cable Supplied with Keyboard
9
8 Monitor Output Capability
10 16 Full Matrix Monitor Outputs Maximum, 16 Full Function Keyboard
Maximum
11 Main CPU Bay
1
Monitor Outputs
14
Pan/Tilt/Zoom and Satellite
Control Data
2
Alarm Interface Unit
15
Monitor Outputs Used As Video
Trunk Lines to Main Control Site
3
Pan/Tilt/Zoom and Satellite
Control Data
16
Video Trunk Lines From Other
Satellite Locations
4
Allegiant Main CPU Bay
17
Any Model Allegiant Main Bay
5
Inputs Used for Both Local and 18
Trunk Lines
6
Local Camera Video Inputs
19
Satellite Data Line
7
Alarm Inputs May Activate Ei- 20
ther Local or Satellite Video on
Main Control Center's Monitor
Console Port Input
8
Signal Distribution Unit
Data Converter Units
9
To Any Local PTZ Camera Sites 22
21
Local Monitors
To Any Local PTZ Camera Sites
10 Up to 1.5 km (5000 ft) Using 23
1 mm2 (18 AWG) Shielded
Twisted Pair (Belden 8760 or
Equivalent)
Code Merger Unit
11 Allegiant Keyboard controls 24
any local or remote camera on
any local monitor (Video and
PTZ)
Alarm Interface Unit
12 Multiple Video Trunk Lines
From Each Remote Satellite
Location
Local PTZ Control Data Line
25
13 One Line to Each Remote Sat- 26
ellite System Location
Allegiant Keyboard controls any
local or remote camera on any
local monitor (Video and PTZ)
27
Alarm Inputs Activate Only Local
Video on Local Monitors
www.boschsecurity.com
4 | LTC 8600 Series Allegiant Matrix/Control Systems - Modular
Technical Specifications
Video Connections 97 to 128
Two (2), 34-pin ribbon connectors
used in conjunction with the
LTC 8808/00 video interconnect
panel
Looping Video Connections
1-128
Eight (8), 34-pin ribbon connectors
used in conjunction with the
LTC 8808/00 video interconnect
panel
LTC 8600 Series System Specifications
Capacities
Video Inputs
Standard: 128
Satellite configuration: 1024
Video Outputs
16
•
•
Keyboards
16
Alarm Inputs
512
Receiver/Drivers
External Accessory Interfaces
Standard: 128
Satellite configuration: 1024
Electrical
Video Bandwidth (-3 dB)
12 MHz typical
Differential Gain
1% maximum
Differential Phase
2° maximum
K Factor
0.5%
Connectors
CONSOLE
9-pin D-type RS-232 port for external PC or control interface (Default = 19.2 k baud)
ALARM
9-pin D-type RS-232 port for Allegiant alarm accessory
unit (Default = 19.2 k baud)
PRINTER
9-pin D-type RS-232 port for system logging printer
(Default = 19.2 k baud)
SDA
9-pin D-type, TTL level, hi-speed control data output (BiPhase) for interface to Allegiant series signal distribution
units (Data clock rate = 31.25 kHz)
Signal-to-Noise Ratio
70 dB minimum
Crosstalk
(Input to Input Isolation)
–50 dB typical
COM PORT 1
9-pin D-type RS-485 port for external Allegiant accessory use
Feedthrough
(Input to Output Isolation)
45 dB typical
COM PORT 2
9-pin D-type RS-485 port for external Allegiant accessory use
Gain
Unity ± 2% (into 75 Ohm termination)
KEYBOARDS
Eight (8), 6-pin RS-485 ports for Allegiant keyboard use
Tilt
1% typical
Equipment Rack
Transient Protection
(VIM Cards)
350 W Peak Pulse Power
(tp = 8/20 µs)
Size (W x D x H)
Environmental
Temperature
•
•
Operating
4°C to 50°C (40°F to 122°F)
Storage
–40°C to 60°C (–40°F to 140°F)
Altitude
4500 m (15,000 ft)
Humidity
0% to 95% relative, non-condensing
Vibration
3 g swept sine wave, 15 Hz to 2000 Hz
Shock
50 g, 11 ms, 1/2 sine wave
EIA 48 cm (19 in.) rack,
483 x 420 x 267 mm
(19 x 16.5 x 10.5 in.)
Weight
11.1 kg (24.5 lb)
Construction/Finish
Top and bottom: steel front and sides
back: aluminum
Finish
Charcoal
Microprocessor Module (LTC 8610/01)
Size (D x H)
300 x 250 mm (11.8 x 9.8 in.)
Weight
0.5 kg (1.1 lb)
Product Regulatory Compliance
Power Supply
LTC 8601 Series Equipment Bay
(LTC 8805/60–120 VAC, LTC 8805/50–220-240 VAC)
Includes equipment rack, LTC 8610/01 microprocessor module, and
LTC 8805 Series power supply.
Power
Model No.
Rated Voltage
Voltage Range
Nominal Power1
LTC 8601/60
120 VAC,
50/60 Hz
100 to 140
200 W
LTC 8601/50
220–240 VAC,
50/60 Hz
198 to 264
200 W
1. Power at rated voltage fully loaded.
Connectors
Video Inputs 1 to 96
One (1) sync input, and 16 monitor
outputs, BNC
Size (W x D x H)
67 x 360 x 247 mm
(2.63 x 14.2 x 9.7 in.)
Weight
5.2 kg (11.5 lb)
Indicators
One power On/Off, ten fuse alert, and one external
sync LED
LTC 8621/00 Camera Input Module
Use up to eight (8) per equipment bay.
Camera Inputs
16
Size (D x H)
300 x 250 mm (11.8 x 9.8 in.)
Weight
0.41 kg (0.9 lb)
LTC 8600 Series Allegiant Matrix/Control Systems - Modular | 5
LTC 8834/00 Monitor Output Module
Ordering Information
Use up to (4) four per equipment bay.
Accessories
Monitor Outputs
4
Size (D x H)
300 x 250 mm (11.8 x 9.8 in.)
Weight
0.41 kg (0.9 lb)
LTC 8808/00 Video Interconnect Panel
The LTC 8808/00 assembly contains an interconnect panel is used to convert 32 BNC connectors into two 16-channel ribbon cable connectors. The
two 16-conductor ribbon cables (LTC 8809/00), designed especially for
use with video signals, are used to interconnect the video between the panel
and the LTC 8600 Series system. One LTC 8808/00 assembly is included
at time of shipment and is required for system video inputs 97 to 128. In
addition to being used for video inputs 97 to 128, the LTC 8808/00 assembly can also be ordered as an option to provide looping capability. One
LTC 8808/00 (includes panel and two, ribbon cables) is required for each
group of 32 cameras.
Finish
Charcoal
Size (W x D x H)
EIA 48 cm (19 in.) rack,
483 x 42 x 44 mm
(19 x 1.65 x 1.75 in.)
LTC 8805/50 Spare Power Supply
for LTC 8601/50 bay, 220-240 VAC, 50 Hz
LTC 8805/50
LTC 8805/60 Spare Power Supply
for LTC 8601/60 bay, 120 VAC, 60 Hz
LTC 8805/60
LTC 8601/00 Equipment Rack
(included)
LTC 8601/00
LTC 8610/01 Spare CPU Module
for LTC 8601 bay
LTC 8610/01
Software Options
SFT-VASA Hybrid IP - Analog/Matrix Video
over IP Integration Software
SFT-VASA
LTC 8059/00 Allegiant Master Control
Software
LTC 8059/00
SFT‑INTSRV Integration Server Software
Allegiant integration software package
SFT-INTSRV
LTC 8850/00 GUI Allegiant Single User
Software Package
LTC 8850/00
Weight
•
•
Panel
0.54 kg (1.2 lb)
Ribbon Cables (2) 0.3 kg (0.7 lb)
Allegiant Accessories
The LTC 8600 Series accessory products provide many optional features
to the base Allegiant switching systems. Accessory products include keyboards, keyboard extension kits, receiver/driver units, switcher/followers,
code merger units, Allegiant Bilinx Data Interface unit, video ribbon cables,
and keyboard expansion units. All accessory products are designed to be
installer-friendly and compatible throughout the Allegiant series systems.
See the Allegiant Accessories datasheet.
Ordering Information
LTC 8601/50 Allegiant Matrix Switcher
up to 128 camera inputs, 16 monitor outputs,
incl. single bay, CPU and power supply,
230 VAC, 50 Hz
LTC 8601/50
LTC 8601/60 Allegiant Matrix Switcher
up to 128 camera inputs, 16 monitor outputs,
incl. single bay, CPU and power supply,
115 VAC, 60 Hz
LTC 8601/60
LTC 8621/00 Camera Input Module
for LTC 8601, 16 video inputs per card
LTC 8621/00
LTC 8834/00 Video Output Module
for LTC 8600 and LTC 8800, 4 video outputs
per card
LTC 8834/00
www.boschsecurity.com
6 | LTC 8600 Series Allegiant Matrix/Control Systems - Modular
Americas:
Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: +1 800 289 0096
Fax: +1 585 223 9180
security.sales@us.bosch.com
www.boschsecurity.us
Europe, Middle East, Africa:
Bosch Security Systems B.V.
P.O. Box 80002
5600 JB Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: +31 40 2577 330
emea.securitysystems@bosch.com
www.boschsecurity.com
© Bosch Security Systems Inc. 10 | Data subject to change without notice
T2525420427 | Cur: en-US, V13, 7 Jul 2010
Asia-Pacific:
Represented by
Robert Bosch (SEA) Pte Ltd, Security Systems
11 Bishan Street 21
Singapore 573943
Phone: +65 6258 5511
Fax: +65 6571 2698
apr.securitysystems@bosch.com
www.boschsecurity.com
