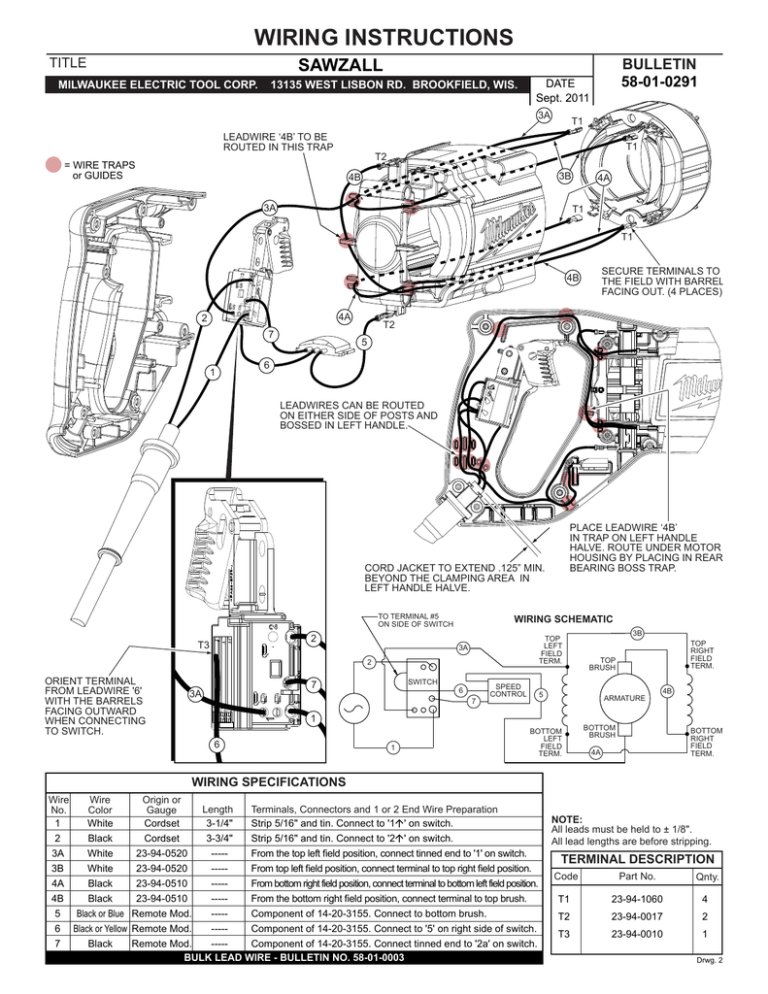

WIRING INSTRUCTIONS SAWZALL 58-01-0291 BULLETIN

WIRING INSTRUCTIONS SAWZALL 58-01-0291 BULLETIN
WIRING INSTRUCTIONS
TITLE
BULLETIN
58-01-0291
SAWZALL
MILWAUKEE ELECTRIC TOOL CORP.
13135 WEST LISBON RD. BROOKFIELD, WIS.
DATE
Sept. 2011
3A
T1
LEADWIRE ‘4B’ TO BE
ROUTED IN THIS TRAP
T1
T2
= WIRE TRAPS
or GUIDES
3B
4B
3A
4A
T1
T1
SECURE TERMINALS TO
THE FIELD WITH BARREL
FACING OUT. (4 PLACES)
4B
4A
2
7
1
T2
5
6
LEADWIRES CAN BE ROUTED
ON EITHER SIDE OF POSTS AND
BOSSED IN LEFT HANDLE.
PLACE LEADWIRE ‘4B’
IN TRAP ON LEFT HANDLE
HALVE. ROUTE UNDER MOTOR
HOUSING BY PLACING IN REAR
BEARING BOSS TRAP.
CORD JACKET TO EXTEND .125” MIN.
BEYOND THE CLAMPING AREA IN
LEFT HANDLE HALVE.
TO TERMINAL #5
ON SIDE OF SWITCH
WIRING SCHEMATIC
2
T3
TOP
LEFT
FIELD
TERM.
3A
2
ORIENT TERMINAL
FROM LEADWIRE '6'
WITH THE BARRELS
FACING OUTWARD
WHEN CONNECTING
TO SWITCH.
SWITCH
7
3A
6
7
SPEED
CONTROL
3B
TOP
RIGHT
FIELD
TERM.
TOP
BRUSH
4B
5
ARMATURE
1
6
1
BOTTOM
LEFT
FIELD
TERM.
BOTTOM
BRUSH
BOTTOM
RIGHT
FIELD
TERM.
4A
WIRING SPECIFICATIONS
Wire
Origin or
Wire
Terminals, Connectors and 1 or 2 End Wire Preparation
Length
Color
Gauge
No.
1
White
Cordset
3-1/4"
Strip 5/16" and tin. Connect to '1' on switch.
2
Black
Cordset
3-3/4"
Strip 5/16" and tin. Connect to '2' on switch.
3A
White
23-94-0520
----From the top left field position, connect tinned end to '1' on switch.
3B
White
23-94-0520
----From top left field position, connect terminal to top right field position.
4A
Black
23-94-0510
----From bottom right field position, connect terminal to bottom left field position.
4B
Black
23-94-0510
----From the bottom right field position, connect terminal to top brush.
5
Black or Blue Remote Mod.
----Component of 14-20-3155. Connect to bottom brush.
6 Black or Yellow Remote Mod.
----Component of 14-20-3155. Connect to '5' on right side of switch.
7
Black
Remote Mod.
----Component of 14-20-3155. Connect tinned end to '2a' on switch.
BULK LEAD WIRE - BULLETIN NO. 58-01-0003
NOTE:
All leads must be held to ± 1/8".
All lead lengths are before stripping.
TERMINAL DESCRIPTION
Code
Part No.
Qnty.
T1
23-94-1060
4
T2
23-94-0017
2
T3
23-94-0010
1
Drwg. 2
