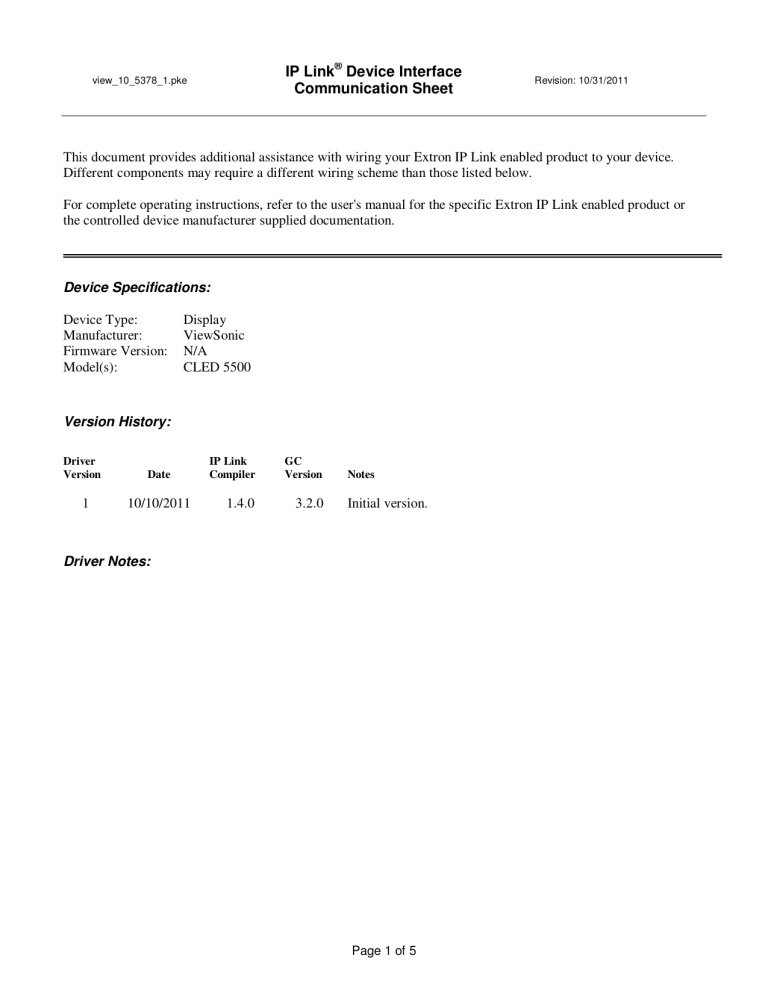

IP Link® Device Interface
Communication Sheet
view_10_5378_1.pke
Revision: 10/31/2011
This document provides additional assistance with wiring your Extron IP Link enabled product to your device.
Different components may require a different wiring scheme than those listed below.
For complete operating instructions, refer to the user's manual for the specific Extron IP Link enabled product or
the controlled device manufacturer supplied documentation.
Device Specifications:
Device Type:
Manufacturer:
Firmware Version:
Model(s):
Display
ViewSonic
N/A
CLED 5500
Version History:
Driver
Version
1
Date
10/10/2011
IP Link
Compiler
GC
Version
1.4.0
3.2.0
Notes
Initial version.
Driver Notes:
Page 1 of 5
IP Link® Device Interface
Communication Sheet
view_10_5378_1.pke
Revision: 10/31/2011
Control Commands & States:
Aspect Ratio
Smart
4:3
16:9
Zoom
Audio Mute
On
Off
Channel*
Up
Down
Executive Mode
On
Off
Input
HDMI
DVI
Component
VGA
S-Video
Video
IR Remote
On
Off
PassThrough
Keypad
0-9
Menu Navigation
Up
Down
Left
Right
Menu
Enter
HDMI
Component
S-Video
PIP Input
Video
PIP Mode
On
Off
PIP Position
Upper Left
Upper Right
Lower Left
Lower Right
Power Control
On
Off
Volume (Discrete)
0 to 100 in steps of 1
Volume (Step)*
Up
Down
*IR Remote needs to be set to Pass Through mode in order for these commands to work properly.
Page 2 of 5
IP Link® Device Interface
Communication Sheet
view_10_5378_1.pke
Revision: 10/31/2011
Status Available:
Audio Mute
On
Off
Connection Status
Connected
Disconnected
Executive Mode
On
Off
Input
HDMI
DVI
Component
VGA
S-Video
Video
IR Remote
On
Off
PassThrough
Operation Hours
Hours
Power Control
On
Volume (Discrete)
0 to 100 in steps of 1
Off
Page 3 of 5
IP Link® Device Interface
Communication Sheet
view_10_5378_1.pke
Revision: 10/31/2011
MLC62 Supported Commands:
Aspect Ratio
Smart
4:3
16:9
Zoom
Audio Mute
On
Off
Channel*
Up
Down
Executive Mode
On
Off
Input
HDMI
DVI
Component
VGA
S-Video
Video
IR Remote
On
Off
PassThrough
Keypad
0-9
Menu Navigation
Up
Down
Left
Right
Menu
Enter
HDMI
Component
S-Video
PIP Input
Video
PIP Mode
On
Off
PIP Position
Upper Left
Upper Right
Lower Left
Lower Right
Power Control
On
Off
Volume (Discrete)
0 to 100 in steps of 1
Volume (Step)*
Up
Down
*IR Remote needs to be set to Pass Through mode in order for these commands to work properly.
Page 4 of 5
view_10_5378_1.pke
IP Link® Device Interface
Communication Sheet
Revision: 10/31/2011
Cable and Adapter Requirements:
M/F RS-232 Null Modem Serial Cable
Notes for the Device:
Serial communication:
Port Type: RS232
Baud Rate: 9600
Data Bits: 8
Parity: None
Stop Bits: 1
Flow Control: None
Pin Assignments Diagram:
Note: Captive screw connector may also be used as a serial connection.
General Notes:
Page 5 of 5
