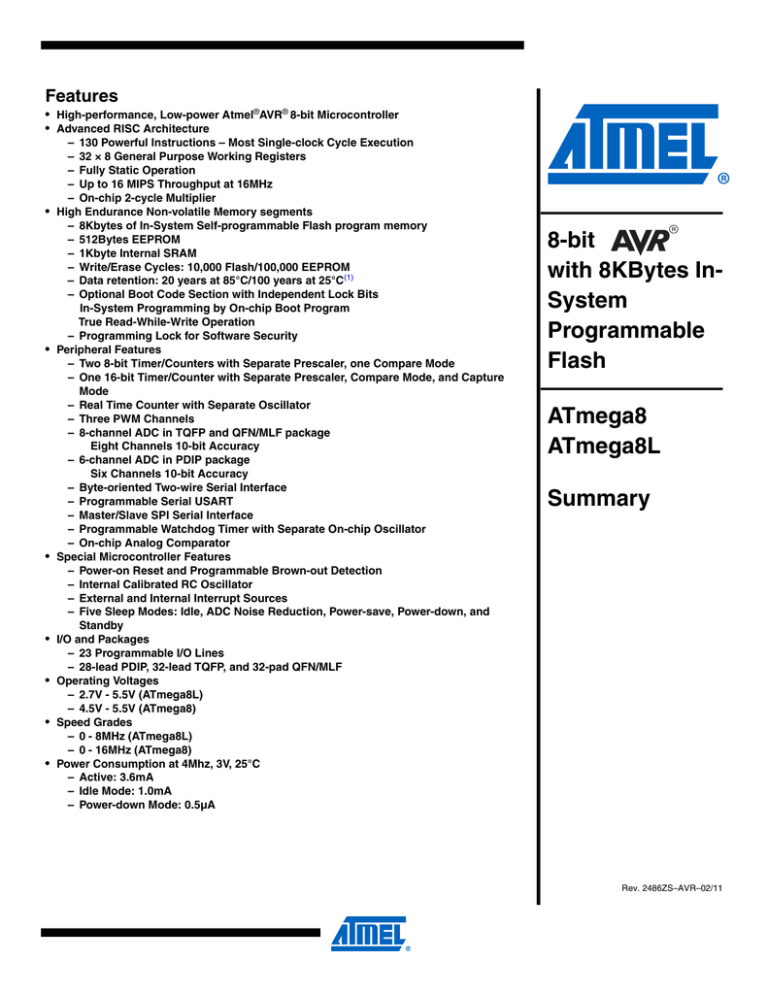

Features

High-performance, Low-power Atmel

®

AVR

®

8-bit Microcontroller

Advanced RISC Architecture

– 130 Powerful Instructions – Most Single-clock Cycle Execution

– 32 × 8 General Purpose Working Registers

– Fully Static Operation

– Up to 16 MIPS Throughput at 16MHz

– On-chip 2-cycle Multiplier

High Endurance Non-volatile Memory segments

– 8Kbytes of In-System Self-programmable Flash program memory

– 512Bytes EEPROM

– 1Kbyte Internal SRAM

– Write/Erase Cycles: 10,000 Flash/100,000 EEPROM

– Data retention: 20 years at 85°C/100 years at 25°C

(1)

– Optional Boot Code Section with Independent Lock Bits

In-System Programming by On-chip Boot Program

True Read-While-Write Operation

– Programming Lock for Software Security

Peripheral Features

– Two 8-bit Timer/Counters with Separate Prescaler, one Compare Mode

– One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture

Mode

– Real Time Counter with Separate Oscillator

– Three PWM Channels

– 8-channel ADC in TQFP and QFN/MLF package

Eight Channels 10-bit Accuracy

– 6-channel ADC in PDIP package

Six Channels 10-bit Accuracy

– Byte-oriented Two-wire Serial Interface

– Programmable Serial USART

– Master/Slave SPI Serial Interface

– Programmable Watchdog Timer with Separate On-chip Oscillator

– On-chip Analog Comparator

Special Microcontroller Features

– Power-on Reset and Programmable Brown-out Detection

– Internal Calibrated RC Oscillator

– External and Internal Interrupt Sources

– Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and

Standby

I/O and Packages

– 23 Programmable I/O Lines

– 28-lead PDIP, 32-lead TQFP, and 32-pad QFN/MLF

Operating Voltages

– 2.7V - 5.5V (ATmega8L)

– 4.5V - 5.5V (ATmega8)

Speed Grades

– 0 - 8MHz (ATmega8L)

– 0 - 16MHz (ATmega8)

Power Consumption at 4Mhz, 3V, 25°C

– Active: 3.6mA

– Idle Mode: 1.0mA

– Power-down Mode: 0.5µA

8-bit with 8KBytes In-

System

Programmable

Flash

ATmega8

ATmega8L

Summary

Rev. 2486ZS–AVR–02/11

Pin

Configurations

(RESET) PC6

(RXD) PD0

(TXD) PD1

(INT0) PD2

(INT1) PD3

(XCK/T0) PD4

VCC

GND

(XTAL1/TOSC1) PB6

(XTAL2/TOSC2) PB7

(T1) PD5

(AIN0) PD6

(AIN1) PD7

(ICP1) PB0

8

9

10

11

12

13

14

5

6

3

4

7

1

2

PDIP

21

20

19

18

17

16

15

28

27

26

25

24

23

22

PC5 (ADC5/SCL)

PC4 (ADC4/SDA)

PC3 (ADC3)

PC2 (ADC2)

PC1 (ADC1)

PC0 (ADC0)

GND

AREF

AVCC

PB5 (SCK)

PB4 (MISO)

PB3 (MOSI/OC2)

PB2 (SS/OC1B)

PB1 (OC1A)

TQFP Top View

(INT1) PD3

(XCK/T0) PD4

GND

VCC

GND

VCC

(XTAL1/TOSC1) PB6

(XTAL2/TOSC2) PB7

5

6

3

4

1

2

7

8

20

19

18

17

24

23

22

21

PC1 (ADC1)

PC0 (ADC0)

ADC7

GND

AREF

ADC6

AVCC

PB5 (SCK)

ATmega8(L)

MLF Top View

(INT1) PD3

(XCK/T0) PD4

GND

VCC

GND

VCC

(XTAL1/TOSC1) PB6

(XTAL2/TOSC2) PB7

5

6

3

4

1

2

7

8

20

19

18

17

24

23

22

21

PC1 (ADC1)

PC0 (ADC0)

ADC7

GND

AREF

ADC6

AVCC

PB5 (SCK)

NOTE:

The large center pad underneath the MLF packages is made of metal and internally connected to GND. It should be soldered or glued to the PCB to ensure good mechanical stability. If the center pad is left unconneted, the package might loosen from the PCB.

2

2486ZS–AVR–02/11

Overview

Block Diagram

ATmega8(L)

The ATmega8 is a low-power CMOS 8-bit microcontroller based on the AVR RISC architecture.

By executing powerful instructions in a single clock cycle, the ATmega8 achieves throughputs approaching 1 MIPS per MHz, allowing the system designer to optimize power consumption versus processing speed.

Figure 1. Block Diagram

XTAL1

RESET

VCC

PC0 - PC6 PB0 - PB7

XTAL2

PORTC DRIVERS/BUFFERS

PORTC DIGITAL INTERFACE

GND

PORTB DRIVERS/BUFFERS

PORTB DIGITAL INTERFACE

AGND

AREF

MUX &

ADC

ADC

INTERFACE

PROGRAM

COUNTER

PROGRAM

FLASH

INSTRUCTION

REGISTER

INSTRUCTION

DECODER

CONTROL

LINES

AVR CPU

STACK

POINTER

SRAM

GENERAL

PURPOSE

REGISTERS

X

Y

Z

ALU

STATUS

REGISTER

PROGRAMMING

LOGIC

+

-

SPI

COMP.

INTERFACE

TWI

TIMERS/

COUNTERS

OSCILLATOR

INTERNAL

OSCILLATOR

WATCHDOG

TIMER

MCU CTRL.

& TIMING

INTERRUPT

UNIT

OSCILLATOR

EEPROM

USART

PORTD DIGITAL INTERFACE

PORTD DRIVERS/BUFFERS

PD0 - PD7

3

2486ZS–AVR–02/11

Disclaimer

ATmega8(L)

The AVR core combines a rich instruction set with 32 general purpose working registers. All the

32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers.

The ATmega8 provides the following features: 8 Kbytes of In-System Programmable Flash with

Read-While-Write capabilities, 512 bytes of EEPROM, 1 Kbyte of SRAM, 23 general purpose

I/O lines, 32 general purpose working registers, three flexible Timer/Counters with compare modes, internal and external interrupts, a serial programmable USART, a byte oriented Twowire Serial Interface, a 6-channel ADC (eight channels in TQFP and QFN/MLF packages) with

10-bit accuracy, a programmable Watchdog Timer with Internal Oscillator, an SPI serial port, and five software selectable power saving modes. The Idle mode stops the CPU while allowing the SRAM, Timer/Counters, SPI port, and interrupt system to continue functioning. The Powerdown mode saves the register contents but freezes the Oscillator, disabling all other chip functions until the next Interrupt or Hardware Reset. In Power-save mode, the asynchronous timer continues to run, allowing the user to maintain a timer base while the rest of the device is sleeping. The ADC Noise Reduction mode stops the CPU and all I/O modules except asynchronous timer and ADC, to minimize switching noise during ADC conversions. In Standby mode, the crystal/resonator Oscillator is running while the rest of the device is sleeping. This allows very fast start-up combined with low-power consumption.

The device is manufactured using Atmel’s high density non-volatile memory technology. The

Flash Program memory can be reprogrammed In-System through an SPI serial interface, by a conventional non-volatile memory programmer, or by an On-chip boot program running on the

AVR core. The boot program can use any interface to download the application program in the

Application Flash memory. Software in the Boot Flash Section will continue to run while the

Application Flash Section is updated, providing true Read-While-Write operation. By combining an 8-bit RISC CPU with In-System Self-Programmable Flash on a monolithic chip, the Atmel

ATmega8 is a powerful microcontroller that provides a highly-flexible and cost-effective solution to many embedded control applications.

The ATmega8 AVR is supported with a full suite of program and system development tools, including C compilers, macro assemblers, program debugger/simulators, In-Circuit Emulators, and evaluation kits.

Typical values contained in this datasheet are based on simulations and characterization of other AVR microcontrollers manufactured on the same process technology. Minimum and Maximum values will be available after the device is characterized.

4

2486ZS–AVR–02/11

ATmega8(L)

Pin Descriptions

VCC

GND

Port B (PB7..PB0)

XTAL1/XTAL2/TOSC1/

TOSC2

Port B is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The

Port B output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port B pins that are externally pulled low will source current if the pull-up resistors are activated. The Port B pins are tri-stated when a reset condition becomes active, even if the clock is not running.

Depending on the clock selection fuse settings, PB6 can be used as input to the inverting Oscillator amplifier and input to the internal clock operating circuit.

Depending on the clock selection fuse settings, PB7 can be used as output from the inverting

Oscillator amplifier.

If the Internal Calibrated RC Oscillator is used as chip clock source, PB7..6 is used as TOSC2..1

input for the Asynchronous Timer/Counter2 if the AS2 bit in ASSR is set.

The various special features of Port B are elaborated in “Alternate Functions of Port B” on page

58 and “System Clock and Clock Options” on page 25 .

Port C (PC5..PC0)

Digital supply voltage.

Ground.

PC6/RESET

Port D (PD7..PD0)

RESET

Port C is an 7-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The

Port C output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port C pins that are externally pulled low will source current if the pull-up resistors are activated. The Port C pins are tri-stated when a reset condition becomes active, even if the clock is not running.

If the RSTDISBL Fuse is programmed, PC6 is used as an I/O pin. Note that the electrical characteristics of PC6 differ from those of the other pins of Port C.

If the RSTDISBL Fuse is unprogrammed, PC6 is used as a Reset input. A low level on this pin for longer than the minimum pulse length will generate a Reset, even if the clock is not running.

The minimum pulse length is given in Table 15 on page 38 . Shorter pulses are not guaranteed to generate a Reset.

The various special features of Port C are elaborated on page 61 .

Port D is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The

Port D output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port D pins that are externally pulled low will source current if the pull-up resistors are activated. The Port D pins are tri-stated when a reset condition becomes active, even if the clock is not running.

Port D also serves the functions of various special features of the ATmega8 as listed on page

63 .

Reset input. A low level on this pin for longer than the minimum pulse length will generate a reset, even if the clock is not running. The minimum pulse length is given in Table 15 on page

38 . Shorter pulses are not guaranteed to generate a reset.

5

2486ZS–AVR–02/11

ATmega8(L)

AV

CC

AREF

ADC7..6 (TQFP and

QFN/MLF Package

Only)

AV

CC

is the supply voltage pin for the A/D Converter, Port C (3..0), and ADC (7..6). It should be externally connected to V

CC

, even if the ADC is not used. If the ADC is used, it should be connected to V

CC

through a low-pass filter. Note that Port C (5..4) use digital supply voltage, V

CC

.

AREF is the analog reference pin for the A/D Converter.

In the TQFP and QFN/MLF package, ADC7..6 serve as analog inputs to the A/D converter.

These pins are powered from the analog supply and serve as 10-bit ADC channels.

2486ZS–AVR–02/11

6

ATmega8(L)

Resources

A comprehensive set of development tools, application notes and datasheets are available for download on http://www.atmel.com/avr .

Note: 1.

Data Retention

Reliability Qualification results show that the projected data retention failure rate is much less than 1 PPM over 20 years at 85°C or 100 years at 25°C.

2486ZS–AVR–02/11

7

ATmega8(L)

Register Summary
