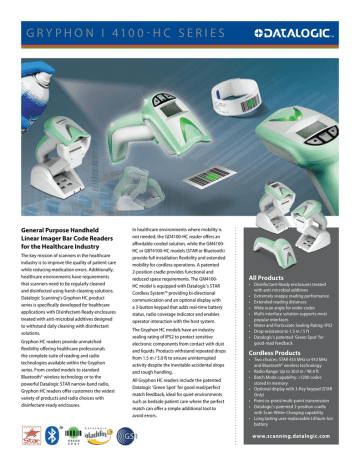

Gryphon Seria 4100-HC
G r y pho n I 4 1 0 0 - H C S eries
General Purpose Handheld
Linear Imager Bar Code Readers
for the Healthcare Industry
The key mission of scanners in the healthcare
industry is to improve the quality of patient care
while reducing medication errors. Additionally,
healthcare environments have requirements
that scanners need to be regularly cleaned
and disinfected using harsh cleaning solutions.
Datalogic Scanning’s Gryphon HC product
series is specifically developed for healthcare
applications with Disinfectant-Ready enclosures
treated with anti-microbial additives designed
to withstand daily cleaning with disinfectant
solutions.
Gryphon HC readers provide unmatched
flexibility offering healthcare professionals
the complete suite of reading and radio
technologies available within the Gryphon
series. From corded models to standard
Bluetooth® wireless technology or to the
powerful Datalogic STAR narrow-band radio,
Gryphon HC readers offer customers the widest
variety of products and radio choices with
disinfectant-ready enclosures.
GREEN
S P O T
In healthcare environments where mobility is
not needed, the GD4100-HC reader offers an
affordable corded solution, while the GM4100HC or GBT4100-HC models (STAR or Bluetooth)
provide full installation flexibility and extended
mobility for cordless operations. A patented
2-position cradle provides functional and
reduced space requirements. The GM4100HC model is equipped with Datalogic’s STAR
Cordless System™ providing bi-directional
communication and an optional display with
a 3-button keypad that adds real-time battery
status, radio coverage indicator and enables
operator interaction with the host system.
All Products
The Gryphon HC models have an industry
sealing rating of IP52 to protect sensitive
electronic components from contact with dust
and liquids. Products withstand repeated drops
from 1.5 m / 5.0 ft to ensure uninterrupted
activity despite the inevitable accidental drops
and rough handling.
Cordless Products
All Gryphon HC readers include the patented
Datalogic ‘Green Spot’ for good read/perfect
match feedback, ideal for quiet environments
such as bedside patient care where the perfect
match can offer a simple additional tool to
avoid errors.
• Disinfectant-Ready enclosures treated
with anti-microbial additives
• Extremely snappy reading performance
• Extended reading distances
• Wide scan angle for wider codes
• Multi-interface solution supports most
popular interfaces
• Water and Particulate Sealing Rating: IP52
• Drop resistance to 1.5 m / 5 ft
• Datalogic’s patented ‘Green Spot’ for
good-read feedback
• Two choices: STAR 433 MHz or 910 MHz
and Bluetooth® wireless technology
• Radio Range: Up to 30.0 m / 98.4 ft
• Batch Mode capability: >1200 codes
stored in memory
• Optional display with 3-Key keypad (STAR
Only)
• Point-to-point/multi-point transmission
• Datalogic’s patented 2-position cradle
with Scan-While-Charging capability
• Long lasting user-replaceable Lithium-Ion
battery
www.scanning.datalogic.com
G r y pho n I 4 1 0 0 - H C S eries
Specifications
Gryphon™ I GD4100-HC
Decoding Capability
1D / Linear Codes
postal codes
Stacked Codes
Autodiscriminates all standard 1D codes including GS1
DataBar™ linear codes
China Post
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;
GS1 DataBar Stacked Omnidirectional
Accessories
All Products
Electrical
Current
Input Voltage
Operating (Typical): 245 mA @ 5 VDC; Standby/Idle
(Typical): 120 mA @ 5 VDC
4.75 - 5.25 VDC
Environmental
Ambient Light
Drop Resistance
0 - 100,000 lux
Withstands repeated drops from 1.5 m / 5.0 ft onto a
concrete surface
16 kV
0 - 90%
IP52
Operating: 0 to 55 °C / 32 to 131 °F
Storage/Transport: -20 to 70 °C / -4 to 158 °F
ESD Protection (Air Discharge)
Humidity (Non-Condensing)
Particulate and Water Sealing
Temperature
Interfaces
RS-232 / USB / Keyboard Wedge / Wand MultiInterfaces
Colors Available
Dimensions
Enclosure
Weight
Light Green/Light Grey (Rubber/Plastic)
18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
Disinfectant-Ready Enclosure Treated with AntiMicrobial Additives
169.0 g / 6.0 oz
Physical Characteristics
Mounts/Stands
• 11-0362: Holder, Multi-Purpose, Grey
• HLD-G040-WH: Desk/Wall Holder, G040, White
• STD-AUTO-G040-WH: Smart Stand, G040,
White
• STD-G040-WH: Basic Stand, G040, White
Cordless Products
Batteries/Battery Chargers
• RBP-GM40 Removable Battery Pack
Reading Performance
Imager Sensor
Light Source
Print Contrast Ratio (Minimum)
Read Rate (Maximum)
Reading Angle
Reading Indicators
Resolution (Maximum)
CCD Solid-State
Illumination: Dual LED Array 630 - 670 nm
15%
325 reads/sec.
Pitch: 65°; Roll (Tilt): 35°; Skew (Yaw): 65°
Beeper (Adjustable Tone and Volume); Datalogic
‘Green Spot’ Good Read Feedback; Good Read LED
0.076 mm / 3 mils
Reading Ranges
Typical Depth of Field
Minimum distance determined by symbol length and
scan angle.
Printing resolution, contrast, and ambient light
dependent.
5 mils: 6.0 to 18.0 cm / 2.3 to 7.0 in
7.5 mils: 3.5 to 30.0 cm / 1.4 to 11.7 in
10 mils: 2.0 to 45.0 cm / 0.8 to 17.7 in
13 mils: 3.0 to 60.0 cm / 1.2 to 23.4 in
20 mils: 3.0 to 80.0 cm / 1.2 to 31.2 in
Safety & Regulatory
Agency Approvals
Environmental Compliance
LED Classification
The product meets necessary safety and regulatory
approvals for its intended use.
The Quick Reference Guide for this product can be
referred to for a complete list of certifications.
Complies to China RoHS; Complies to EU RoHS
IEC 60825-1 Class 1 LED Product
Utilities
Datalogic Aladdin™
Warranty
Datalogic Aladdin configuration program is available
for download at no charge
5-Year Factory Warranty
Base Stations/Chargers
• Gryphon™ I GM4100-HC
• BC4030: Base/Charger STD Multi-Interface
• CHR-GM40: Charging Only Base Station
• Gryphon™ I GBT4100-HC
• BC4030-WH-BT: Base/Charger, Standard MultiInterface, White
• CHR-GM40: Charging Only Base Station
Specifications
Cordless Communications 1D / Linear Codes
Postal Codes
Stacked Codes
Decoding Capability
Electrical
Battery
Cradle Indicator LEDs
Current
Input Voltage
Gryphon™ I GM4100-HC
Gryphon™ I GBT4100-HC
Datalogic STAR Cordless System™
Effective Radiated Power:
433.92 MHz: < 10 mW; 910 MHz: < 1 mW
Multi-Point Configuration: Max. Readers per Radio
Receiver: 16; Point-to-Point Configuration
Radio Frequency: 433.92 MHz; 910 MHz
Radio Range (Open Air):
433.92 MHz: 30.0 m / 98.4 ft; 910 MHz: 15.0 m / 49.2 ft
Two Way Communications
Bluetooth Wireless Technology
Protocol: Bluetooth 2.0 Certified Class 2
Radio Frequency: 2.4 GHz
Radio Range (Open Air): 30.0 m / 98.4 ft
Autodiscriminates all standard 1D codes including GS1
DataBar™ linear codes
China Post
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;
GS1 DataBar Stacked Omnidirectional
Autodiscriminates all standard 1D codes including GS1
DataBar™ linear codes
China Post
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;
GS1 DataBar Stacked Omnidirectional
Battery Type: Lithium-Ion, 2100 mAh
Charge Time: External Power: 4 Hours
Reads per Charge: 50,000
Battery Charging (Red); Charge Completed (Green);
Power/Data (Yellow)
Charging (Typical): < 8 W; Operating (Typical): < 2.5 W
@ 5 VDC; Standby/Idle (Typical): < 2.5 mA @ 5 VDC
4.75 - 14 VDC +/- 5%
Battery Type: Lithium-Ion, 2100 mAh
Charge Time: 4 Hours
Reads per Charge: 33,000
Battery Charging (Red); Charge Completed (Green)
Power/Data (Yellow)
Charging (Typical): < 8 W; Operating (Typical): < 2.5 W
@ 5 VDC; Standby/Idle (Typical): < 2.5 mA @ 5 VDC
4.5 - 14.0 VDC +/- 5%
100,000 lux
Withstands repeated drops from 1.5 m / 5.0 ft onto a
concrete surface
16 kV
5 - 95%
IP52
Operating: 0 to 50 °C / 32 to 122 °F
Storage/Transport: -20 to 70 °C / -4 to 158 °F
0 - 100,000 lux
Withstands repeated drops from 1.5 m / 5.0 ft onto a
concrete surface
16 kV
5 - 95%
IP52
Operating: 0 to 50 °C / 32 to 122 °F
Storage/Transport: -20 to 70 °C / -4 to 158 °F
Environmental
Ambient Light
Drop Resistance
ESD Protection (Air Discharge)
Humidity (Non-Condensing)
Particulate and Water Sealing
Temperature
Interfaces
RS-232 / USB / Keyboard Wedge / Wand MultiInterface
RS-232 / USB / Keyboard Wedge / Wand MultiInterface
Colors Available
Dimensions
Display
Light Green/Light Grey (Rubber/Plastic)
Cradle: 18.6 x 9.9 x 5.6 cm / 7.3 x 3.9 x 2.2 in
Reader: 18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
Enclosure
Keypad
Weight
Light Green/Light Grey (Rubber/Plastic)
Cradle: 18.6 x 9.9 x 5.6 cm / 7.3 x 3.9 x 2.2 in
Reader: 18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
Display Type: GM4100-HC-D Only: Graphic with
backlight; Font Dimensions: User selectable (4 lines x
16 columns default); Screen Dimensions: 32 x 96 pixels
Disinfectant-Ready Enclosure Treated with AntiMicrobial Additives
GM4100-HC-D Only: 3-Key Keypad
Cradle: 246.0 g / 8.7 oz
Reader: 225.0 g / 8.0 oz
Illumination: LED Array 630 - 670 nm
15%
325 reads/sec.
Pitch: +/- 65°; Roll (Tilt): +/- 35°; Skew (Yaw): +/- 65°
Beeper (Adjustable Tone and Volume); Datalogic
‘Green Spot’ Good Read Feedback; Good Read LED
0.076 mm / 3 mils
Physical Characteristics
Disinfectant-Ready Enclosure Treated with AntiMicrobial Additives
Cradle: 246.0 g / 8.7 oz
Reader: 225.0 g / 8.0 oz
Reading Performance
Light Source
Print Contrast Ratio (Minimum)
Read Rate (Maximum)
Reading Angle
Reading Indicators
Resolution (Maximum)
Illumination: LED Array 630 - 670 nm
15%
325 reads/sec.
Pitch: +/- 65°; Roll (Tilt): +/- 35°; Skew (Yaw): +/- 65°
Beeper (Adjustable Tone and Volume); Datalogic
‘Green Spot’ Good Read Feedback; Good Read LED
0.076 mm / 3 mils
See Chart for GD4100-HC
See Chart for GD4100-HC
Agency Approvals
Environmental Compliance
LED Classification
The product meets necessary safety and regulatory
approvals for its intended use.
The Quick Reference Guide for this product can be
referred to for a complete list of certifications.
Complies to China RoHS; Complies to EU RoHS
IEC 60825-1 Class 1 LED Product
The product meets necessary safety and regulatory
approvals for its intended use.
The Quick Reference Guide for this product can be
referred to for a complete list of certifications.
Complies to China RoHS; Complies to EU RoHS
IEC 60825-1 Class 1 LED Product
Reading Ranges
Typical Depth of Field
Safety & Regulatory
Utilities
Datalogic Aladdin™
Datalogic Aladdin configuration program is available
for download at no charge
Datalogic Aladdin configuration program is available
for download at no charge
Warranty
3-Year Factory Warranty
3-Year Factory Warranty
G r y pho n I 4 1 0 0 - H C S eries
Datalogic Scanning’s
Disinfectant-Ready Enclosures
for Healthcare
Datalogic Scanning offers bar code readers
designed specifically for the healthcare industry
with Disinfectant-Ready enclosures treated
with anti-microbial additives that can help
fight against the spreading of germs. This is
particularly important if the scanner is traveling
room-to-room on a medication cart with a
nurse. The Disinfectant-Ready enclosures can
withstand daily cleaning with harsh chemical
cleaning solutions commonly used in a
healthcare environment.
PRODUCT
CHEMICAL CONTENT
Sani-Cloth® HB, Sani-Cloth® Plus,
Super Sani-Cloth®
Quaternary Ammonium Chloride solution
Hepacide Quat II
Virucidal disinfectant cleaner
Alcohol Wipes
70% Isopropyl Alcohol
CaviWipes
Isopropanol 10-20%;
Ethylene Glycol Monobutyl Ether 1-5%
Virex® 256
n-Alkyl Dimethyl Benzyl Ammonium Chloride;
Didecyl Dimethyl Ammonium Chloride
409® Glass and Surface Cleaner
n-Alkyl Dimethyl Benzyl Ammonium Chloride;
n-Propoxypropanol
Windex® Blue
Isopropyl Alcohol
Clorox® Bleach
Sodium Hypochlorite;
Sodium Hydroxide
TM
100% Gentle dish soap and water
www.scanning.datalogic.com
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Datalogic Scanning Inc. is under license.
© 2010 Datalogic Scanning, Inc. • All rights reserved. • Protected to the fullest extent under U.S. and international laws. • Copying or altering of this document is prohibited
without express written consent from Datalogic Scanning, Inc.
Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries including the U.S.A. and the E.U. • Datalogic Aladdin and Datalogic STAR
Cordless System are trademarks of Datalogic Scanning Group S.r.l. • Gryphon is a trademark of Datalogic Scanning, Inc. • Other brand and product names may be trademarks of
their respective owners.
Product specifications are subject to change without notice. DS-GRYPHON4100-HC-EN REV A 20101123
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
