Home Network System
Video Door Phone
WONDERFUL VIDEO/AUDIO QUALITY OVER 40 YEARS

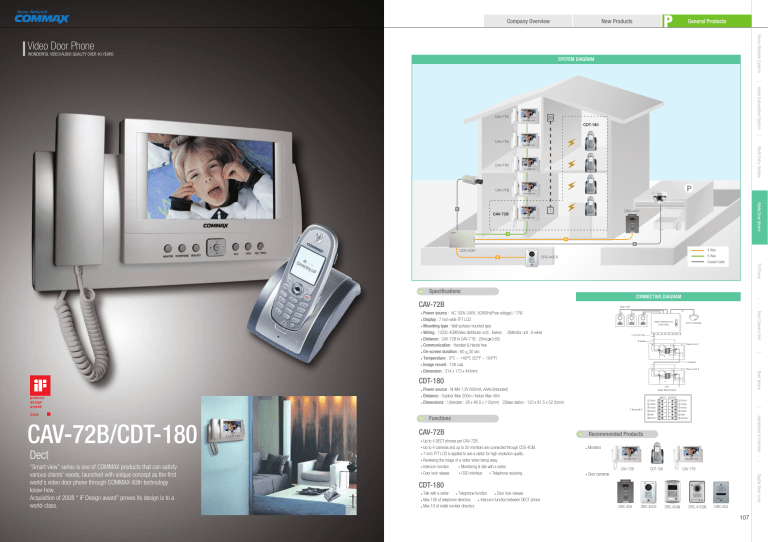

SYSTEM DIAGRAM
Home Automation System
Multi Entry System
Video Door phone
TV Phone
4 Wire
6 Wire
Coaxial Cable
Specifications
CONNECTING DIAGRAM
CAV-72B
Door Camera Unit
Door phone
Power source : AC 100V-240V, 50/60Hz(Free voltage) / 17W
Display : 7 inch wide TFT LCD
Mounting type : Wall surface mounted type
Wiring : 1)CDS-4CM(Video distributor unit) : 6wires 2)Monitor unit : 6 wires
Distance : CAV-72B to CAV-71B : 20m( 0.65)
Communication : Handset & Hands free
On-screen duration : 60 30 sec
Temperature : 0°C ~ +40°C (32°F ~ 104°F)
Image record : 128 cuts
Dimension : 314 x 173 x 44(mm)
CDT-180
Power source : Ni-MH 1.2V 600mA, AAAx3(Handset)
Distance : Outdoor Max 200m / Indoor Max 40m
Dimensions : 1)Handset : 28 x 46.5 x 115(mm) 2)Base station : 133 x 81.5 x 52.5(mm)
Interphone & Intercom
Functions
CAV-72B/CDT-180
Dect
Up to 4 DECT phones per CAV-72B.
Up to 4 cameras and up to 20 monitors are connected through CDS-4CM.
7 inch TFT LCD is applied to see a visitor for high resolution quality.
Reviewing the image of a visitor when being away
Intercom function
Monitoring & talk with a visitor
Door lock release
OSD interface
Telephone receiving.
Recommended Products
Monitors
CAV-72B
CDT-180
CAV-71B
Door cameras
Digital Door Lock
“Smart view” series is one of COMMAX products that can satisfy
various clients’ needs, launched with unique concept as the first
world’s video door phone through COMMAX 40th technology
know-how.
Acquisition of 2008 “ iF Design award” proves its design is to a
world-class.
CAV-72B
CDT-180
Talk with a visitor
Telephone function
Door lock release
Max 100 of telephone directory
Intercom function between DECT phone
Max 10 of redial number directory
DRC-4CH
DRC-40CS
DRC-4CAN
DRC-41CSN
DRC-4CG
