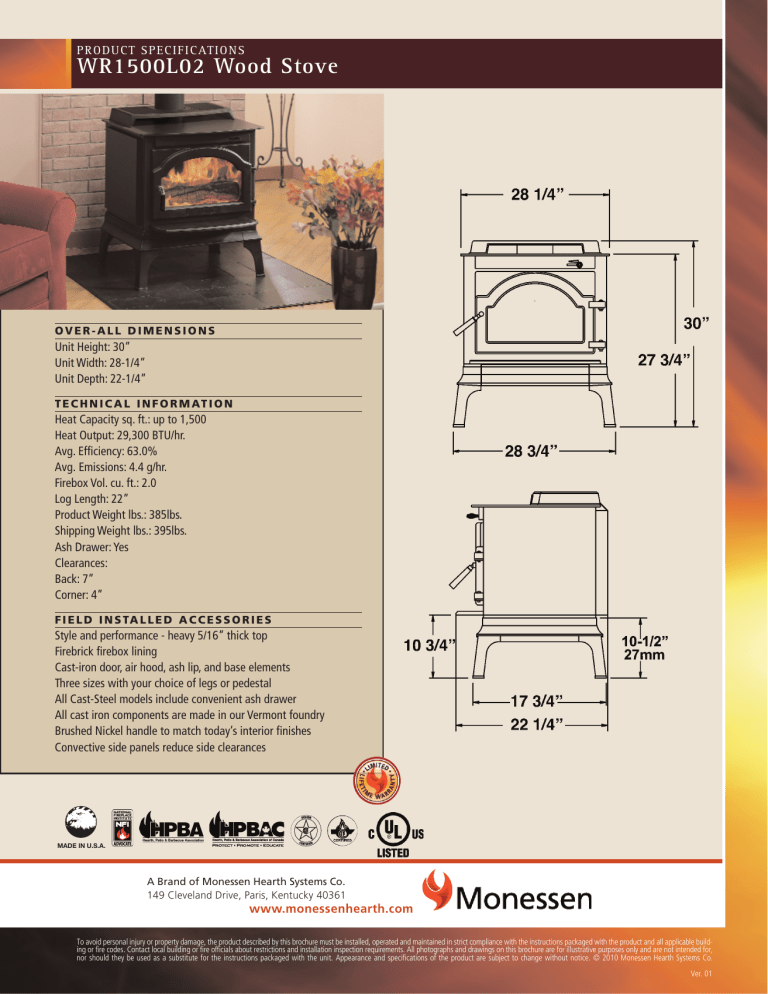

MHSC | WR1500L02 | WR1500L02 Wood Stove

P RODUCT SPECI FICATIONS
WR1500L02 Wood Stove
OVER-ALL DIMENSIONS
Unit Height: 30”
Unit Width: 28-1/4”
Unit Depth: 22-1/4”
T E C H N I C A L I N F O R M AT I O N
Heat Capacity sq. ft.: up to 1,500
Heat Output: 29,300 BTU/hr.
Avg. Efficiency: 63.0%
Avg. Emissions: 4.4 g/hr.
Firebox Vol. cu. ft.: 2.0
Log Length: 22”
Product Weight lbs.: 385lbs.
Shipping Weight lbs.: 395lbs.
Ash Drawer: Yes
Clearances:
Back: 7”
Corner: 4”
F I E L D I N S TA L L E D A C C E S S O R I E S
Style and performance - heavy 5/16” thick top
Firebrick firebox lining
Cast-iron door, air hood, ash lip, and base elements
Three sizes with your choice of legs or pedestal
All Cast-Steel models include convenient ash drawer
All cast iron components are made in our Vermont foundry
Brushed Nickel handle to match today’s interior finishes
Convective side panels reduce side clearances
MADE IN U.S.A.
A Brand of Monessen Hearth Systems Co.
149 Cleveland Drive, Paris, Kentucky 40361
www.monessenhearth.com
To avoid personal injury or property damage, the product described by this brochure must be installed, operated and maintained in strict compliance with the instructions packaged with the product and all applicable building or fire codes. Contact local building or fire officials about restrictions and installation inspection requirements. All photographs and drawings on this brochure are for illustrative purposes only and are not intended for,
nor should they be used as a substitute for the instructions packaged with the unit. Appearance and specifications of the product are subject to change without notice. © 2010 Monessen Hearth Systems Co.
