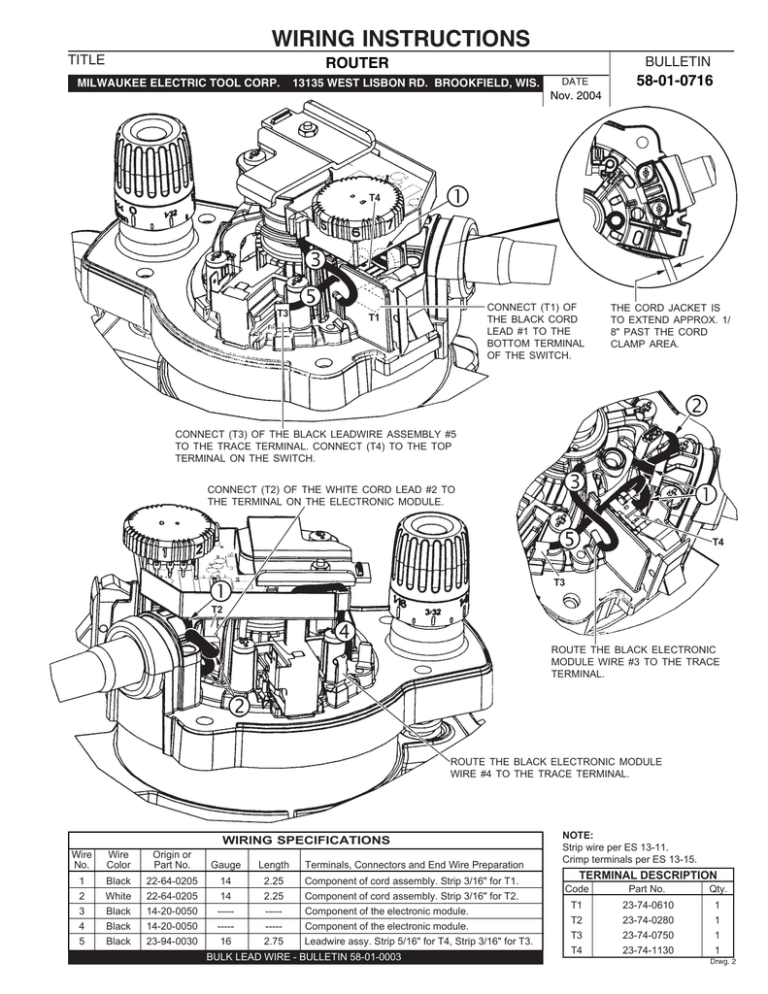

WIRING INSTRUCTIONS
TITLE
BULLETIN
ROUTER
MILWAUKEE ELECTRIC TOOL CORP.
13135 WEST LISBON RD. BROOKFIELD, WIS.
DATE
58-01-0716
Nov. 2004
T4
T3
CONNECT (T1) OF
THE BLACK CORD
LEAD #1 TO THE
BOTTOM TERMINAL
OF THE SWITCH.
T1
THE CORD JACKET IS
TO EXTEND APPROX. 1/
8" PAST THE CORD
CLAMP AREA.
CONNECT (T3) OF THE BLACK LEADWIRE ASSEMBLY #5
TO THE TRACE TERMINAL. CONNECT (T4) TO THE TOP
TERMINAL ON THE SWITCH.
CONNECT (T2) OF THE WHITE CORD LEAD #2 TO
THE TERMINAL ON THE ELECTRONIC MODULE.
T4
T3
T2
ROUTE THE BLACK ELECTRONIC
MODULE WIRE #3 TO THE TRACE
TERMINAL.
ROUTE THE BLACK ELECTRONIC MODULE
WIRE #4 TO THE TRACE TERMINAL.
WIRING SPECIFICATIONS
Wire
No.
Wire
Color
Origin or
Part No.
Gauge
Length
1
2
3
4
5
Black
White
Black
Black
Black
22-64-0205
22-64-0205
14-20-0050
14-20-0050
23-94-0030
14
14
--------16
2.25
2.25
--------2.75
Terminals, Connectors and End Wire Preparation
Component of cord assembly. Strip 3/16" for T1.
Component of cord assembly. Strip 3/16" for T2.
Component of the electronic module.
Component of the electronic module.
Leadwire assy. Strip 5/16" for T4, Strip 3/16" for T3.
BULK LEAD WIRE - BULLETIN 58-01-0003
NOTE:
Strip wire per ES 13-11.
Crimp terminals per ES 13-15.
TERMINAL DESCRIPTION
Code
Part No.
Qty.
T1
T2
T3
T4
23-74-0610
23-74-0280
23-74-0750
23-74-1130
1
1
1
1
Drwg. 2
