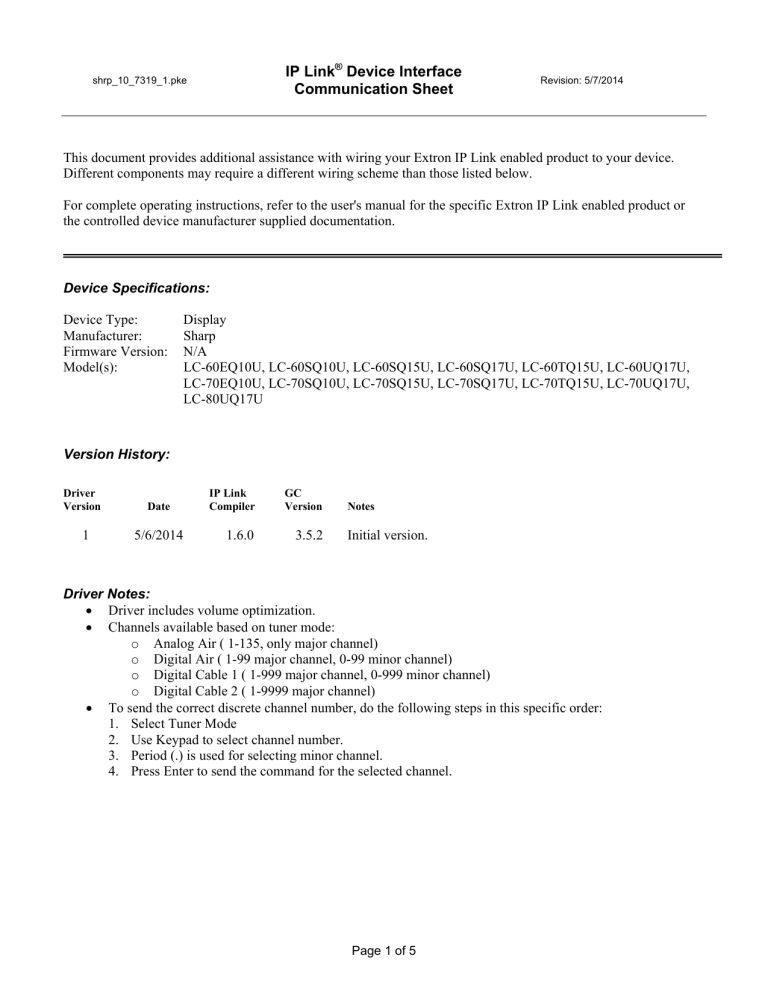

IP Link® Device Interface
Communication Sheet
shrp_10_7319_1.pke
Revision: 5/7/2014
This document provides additional assistance with wiring your Extron IP Link enabled product to your device.
Different components may require a different wiring scheme than those listed below.
For complete operating instructions, refer to the user's manual for the specific Extron IP Link enabled product or
the controlled device manufacturer supplied documentation.
Device Specifications:
Device Type:
Manufacturer:
Firmware Version:
Model(s):
Display
Sharp
N/A
LC-60EQ10U, LC-60SQ10U, LC-60SQ15U, LC-60SQ17U, LC-60TQ15U, LC-60UQ17U,
LC-70EQ10U, LC-70SQ10U, LC-70SQ15U, LC-70SQ17U, LC-70TQ15U, LC-70UQ17U,
LC-80UQ17U
Version History:
Driver
Version
1
Date
5/6/2014
IP Link
Compiler
GC
Version
1.6.0
3.5.2
Notes
Initial version.
Driver Notes:
 Driver includes volume optimization.
 Channels available based on tuner mode:
o Analog Air ( 1-135, only major channel)
o Digital Air ( 1-99 major channel, 0-99 minor channel)
o Digital Cable 1 ( 1-999 major channel, 0-999 minor channel)
o Digital Cable 2 ( 1-9999 major channel)
 To send the correct discrete channel number, do the following steps in this specific order:
1. Select Tuner Mode
2. Use Keypad to select channel number.
3. Period (.) is used for selecting minor channel.
4. Press Enter to send the command for the selected channel.
Page 1 of 5
IP Link® Device Interface
Communication Sheet
shrp_10_7319_1.pke
Revision: 5/7/2014
Control Commands & States:
Off
2D to 3D
SBS
TAB
2D (TAB)
2D (SBS)
3D Auto
2D Auto
Toggle
Side Bar
S. Stretch
Zoom [AV]
Stretch [AV]
Normal (PC)
Zoom [PC]
Stretch [PC]
Dot by Dot
Full Screen
Auto
Original
Audio Mute
On
Off
Toggle
Audio Selector
Toggle
Channel Number
1
2
3
4
5
6
7
8
9
0
.
Enter
3D Mode
Aspect Ratio
Clear
Channel TV (Step)
Up
Down
Closed Caption
Toggle
Input
TV
HDMI1
HDMI2
HDMI3
HDMI4
Component
Video 1
Video 2
PC
Up
Down
Left
Right
Enter
Menu
Toggle
Menu Navigation
Exit
Power Control
On
Off
RS232 Enable
Tuner Mode
Analog Air
Digital Air
Digital Cable 1
Digital Cable 2
Volume (Discrete)
0 to 100 in steps of 1
Volume (Step)
Up
Down
Page 2 of 5
IP Link® Device Interface
Communication Sheet
shrp_10_7319_1.pke
Revision: 5/7/2014
Status Available:
Off
2D to 3D
SBS
TAB
2D (TAB)
2D (SBS)
3D Auto
2D Auto
Side Bar
S. Stretch
Zoom [AV]
Stretch [AV]
Normal (PC)
Zoom [PC]
Stretch [PC]
Dot by Dot
Full Screen
Auto
Original
Audio Mute
On
Off
Connection Status
Connected
Disconnected
Input
TV
HDMI1
HDMI2
HDMI3
HDMI4
Component
Video 1
Video 2
PC
Power Control
On
Off
Volume (Discrete)
0 to 100 in steps of 1
3D Mode
Aspect Ratio
Page 3 of 5
IP Link® Device Interface
Communication Sheet
shrp_10_7319_1.pke
Revision: 5/7/2014
MLC60 Series Supported Commands:
Off
2D to 3D
SBS
TAB
2D (TAB)
2D (SBS)
3D Auto
2D Auto
Toggle
Side Bar
S. Stretch
Zoom [AV]
Stretch [AV]
Normal (PC)
Zoom [PC]
Stretch [PC]
Dot by Dot
Full Screen
Auto
Original
Audio Mute
On
Off
Toggle
Audio Selector
Toggle
Channel TV (Step)
Up
Closed Caption
Toggle
Input
TV
HDMI1
HDMI2
HDMI3
HDMI4
Component
Video 1
Video 2
PC
Up
Down
Left
Right
Enter
Menu
Off
RS232 Enable*
3D Mode
Aspect Ratio
Down
Toggle
Menu Navigation
Exit
Power Control
On
Volume (Discrete)
0 to 100 in steps of 1
Volume (Step)
Up
Down
*To keep RS232 port open during standby, the “RS232 Enable” needs to be configured on the “Power Off” button
on MLC 60 Series.
Page 4 of 5
shrp_10_7319_1.pke
IP Link® Device Interface
Communication Sheet
Cable and Adapter Requirements:
F/F RS232 DB9 Null Modem Serial Cable
Notes for the Device:
Serial communication:
Port Type: RS-232
Baud Rate: 9600
Data Bits: 8
Parity: None
Stop Bits: 1
Flow Control: None
Pin Assignments Diagram:
Note: Captive screw connector may also be used as a serial connection.
General Notes:
Page 5 of 5
