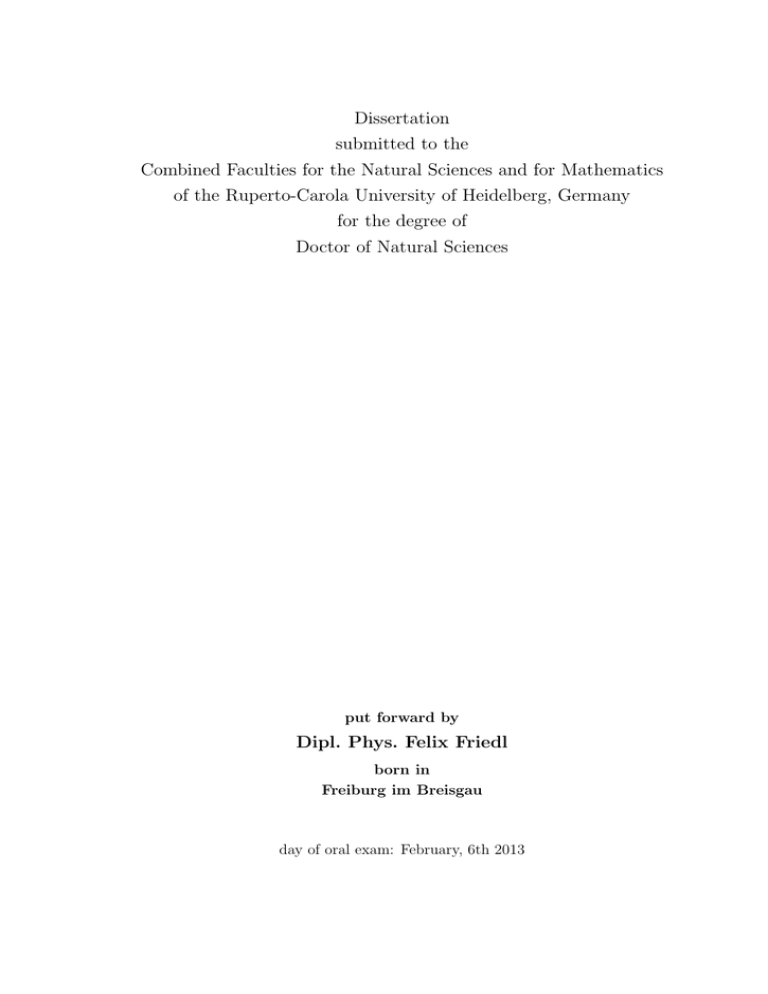

Friedl Diss
Dissertation
submitted to the
Combined Faculties for the Natural Sciences and for Mathematics
of the Ruperto-Carola University of Heidelberg, Germany
for the degree of
Doctor of Natural Sciences
put forward by
Dipl. Phys. Felix Friedl
born in
Freiburg im Breisgau
day of oral exam: February, 6th 2013
Investigating the Transfer of Oxygen
at the Wavy Air-Water Interface
under Wind-Induced Turbulence
Referees:
Prof. Dr. Bernd Jähne
Prof. Dr. Ulrich Platt
Abstract
Local oxygen (O2 ) transfer velocities measured in a linear wind-wave tunnel with respect to wind
speed and fetch are presented in this thesis. For this, a non-intrusive laser-induced fluorescence
(LIF) method was developed to measure vertical O2 concentration profiles in the water-sided
mass boundary layer. The fluorophore used is a water soluble ruthenium complex, which is
quenched according to the Stern-Volmer equation. This equation, which originally describes the
quenching only for a weak excitation, was generalized for arbitrary laser irradiance. Measurements confirm this generalization and yield a new value for the Stern-Volmer constant.
The LIF method was applied with high spatial and temporal resolution of 6.2 µm and 1.2 kHz,
respectively, in order to resolve the mass boundary layer and fast processes. To obtain mean O2
concentration profiles with high precision, an algorithm was developed to detect the water surface
in the recorded images. The measured mean concentration profiles show a transition in the selfsimilar shape with the onset of waves. The results for a flat water surface are in agreement with
the surface renewal model. For a wavy water surface, the small eddy model and the surface
renewal model both describe the data equally well. Vanishing O2 concentration fluctuations
at the flat water surface were measured, which is in agreement with existing models for a
rigid interface. The local transfer velocities obtained from mean concentration profiles are best
parametrized with the friction velocity. In this work, the great potential of LIF measurements
to probe transfer velocities locally is demonstrated.
Zusammenfassung
Lokale Transfergeschwindigkeiten von Sauerstoff (O2 ), die in Abhängigkeit von der Windgeschwindigkeit und der Windwirklänge in einem linearen Wind-Wellen Kanal gemessen wurden,
werden in dieser Arbeit präsentiert. Dazu wurde eine berührungsfreie laserinduzierte Fluoreszenz
(LIF) Methode entwickelt, um vertikale O2 Konzentrationsprofile in der wasserseitigen Massengrenzschicht zu messen. Der verwendete Farbstoff ist ein wasserlöslicher Ruthenium Komplex,
dessen Quenchverhalten durch die Stern-Volmer Gleichung beschrieben wird. Diese Gleichung,
die ursprünglich das Quenchen nur für eine schwache Anregung beschreibt, wurde für beliebige
Laser Bestrahlungsstärken verallgemeinert. Messungen bestätigen die Verallgemeinerung und
ergeben einen neuen Wert für die Stern-Volmer Konstante.
Die LIF Methode wurde mit einer hohen räumlichen und zeitlichen Auflösung von 6.2 µm und
1.2 kHz angewendet, um die Massengrenzschicht und schnelle Prozesse auflösen zu können. Um
mittlere Konzentrationsprofile mit einer hohen Präzision zu erhalten, wurde ein Algorithmus
entwickelt, der die Wasseroberfläche in den aufgenommenen Bildern detektiert. Die mittleren
Konzentrationsprofile weisen einen Übergang in ihrer selbstähnlichen Form mit dem Einsetzten
von Wellen auf. Die Ergebnisse für eine flache Wasseroberfläche stimmen mit dem Oberflächenerneuerungsmodell überein. Für eine wellige Wasseroberfläche werden die Daten von dem
Oberflächenerneuerungsmodell und dem Diffusionsmodell gleich gut beschrieben. An der flachen
Wasseroberfläche wurden verschwindend geringe Konzentrationsfluktuationen gemessen, was mit
gängigen Modellvorhersagen für eine starre Grenzfläche in Einklang ist. Die lokalen Transfergeschwindigkeiten, ermittelt durch mittlere Konzentrationsprofile, werden am besten durch die
Schubspannungsgeschwindigkeit parametrisiert. Diese Arbeit zeigt die großen Möglichkeiten von
lokalen LIF Messungen auf, um lokale Transfergeschwindigkeiten zu bestimmen.
Contents
1. Introduction
1
2. Theory
5
2.1. Theory of Gas and Momentum Transfer . . . . . . . . . . . . . . . . . . . . . . .
5
2.1.1. Molecular and Turbulent Diffusion . . . . . . . . . . . . . . . . . . . . . .
5
2.1.2. Gas Exchange Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
2.1.3. Wind Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10
2.2. Gas Exchange Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11
2.2.1. Film Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11
2.2.2. Small Eddy Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12
2.2.3. Surface Renewal Model . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14
2.2.4. Model for Fluctuation Concentration Profiles . . . . . . . . . . . . . . . .
16
2.2.5. The Deacon Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
2.3. Luminescence Theory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19
2.3.1. Introduction to Luminescence . . . . . . . . . . . . . . . . . . . . . . . . .
19
2.3.2. The MLCT Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21
2.3.3. Weak and Strong Excitation
. . . . . . . . . . . . . . . . . . . . . . . . .
23
2.3.4. Quenching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23
3. Methods
29
3.1. Oxygen Concentration Imaging . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29
3.1.1. Oxygen Quenching Method . . . . . . . . . . . . . . . . . . . . . . . . . .
29
3.1.2. Constraint for the Laser Operation Mode . . . . . . . . . . . . . . . . . .
30
3.1.3. Effects Influencing the Precision . . . . . . . . . . . . . . . . . . . . . . .
31
3.2. Calibration Method for the LIF Measurements . . . . . . . . . . . . . . . . . . .
32
3.2.1. Adjusting and Measuring the Oxygen Concentration . . . . . . . . . . . .
32
3.2.2. Determination of the Damping Factor . . . . . . . . . . . . . . . . . . . .
32
3.2.3. Determination of the Unquenched Photon Flux . . . . . . . . . . . . . . .
34
3.3. Mass Balance Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
35
3.4. Measuring Method for the Wind Profiles . . . . . . . . . . . . . . . . . . . . . . .
36
Contents
4. Setup
37
4.1. The Wind-Wave Tunnels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1.1. The Heidelberg Linear Wind-Wave Tunnel
37
. . . . . . . . . . . . . . . . .
37
4.1.2. The Test Wind-Wave Tunnel . . . . . . . . . . . . . . . . . . . . . . . . .
42
4.2. The LIF Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
43
4.2.1. General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
43
4.2.2. The Laser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
46
4.2.3. The Beam Expander . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
47
4.2.4. The Camera
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
48
4.2.5. The Camera Lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
49
5. Characterization of the Ruthenium Complex Indicator
51
5.1. General Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
51
5.2. Quenching Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
53
5.2.1. Measurement of the Damping Factor D . . . . . . . . . . . . . . . . . . .
53
5.2.2. Measurement of the Stern-Volmer Constant . . . . . . . . . . . . . . . . .
57
5.2.3. Measurement of the Temperature Dependence of the Stern-Volmer Constant 60
5.3. Photobleaching Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6. Calibration
67
6.1. Calibration of the Optical Setup . . . . . . . . . . . . . . . . . . . . . . . . . . .
67
6.1.1. Magnification of the Optical System . . . . . . . . . . . . . . . . . . . . .
67
6.1.2. Image Sharpness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
68
6.2. Calibration of the LIF Saturation . . . . . . . . . . . . . . . . . . . . . . . . . . .
70
6.3. Calibration of the LIF Signal in Absence of Oxygen . . . . . . . . . . . . . . . .
71
7. Experiments
73
7.1. Preparatory Experiments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
73
7.2. Measurement of Forcing Parameters . . . . . . . . . . . . . . . . . . . . . . . . .
74
7.2.1. Wind Speed and Friction Velocity . . . . . . . . . . . . . . . . . . . . . .
74
7.2.2. Wave Measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
76
7.3. Gas Exchange Experiments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
76
7.3.1. LIF Measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
77
7.3.2. Bulk Measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
78
8. Data Processing
ii
63
79
8.1. Processing of the Wind Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . .
79
8.1.1. Wind Profiles in Dimensionless Coordinates . . . . . . . . . . . . . . . . .
79
8.1.2. Determination of the Friction Velocity . . . . . . . . . . . . . . . . . . . .
80
Contents
8.2. Processing of the LIF Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
82
8.2.1. Calculation of the Oxygen Concentration . . . . . . . . . . . . . . . . . .
83
8.2.2. Detection of the Water Surface . . . . . . . . . . . . . . . . . . . . . . . .
86
8.2.3. Calculating Mean Concentration Profiles . . . . . . . . . . . . . . . . . . .
90
8.2.4. Determination of the Boundary Layer Thickness . . . . . . . . . . . . . .
91
8.3. Processing of the Bulk Measurements
. . . . . . . . . . . . . . . . . . . . . . . .
9. Results
93
95
9.1. Wind and Fetch Dependence of the Friction Velocity . . . . . . . . . . . . . . . .
95
9.2. Oxygen Concentration Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
97
9.3. Results of the Surface Detection Algorithm . . . . . . . . . . . . . . . . . . . . . 100
9.4. Mean Oxygen Concentration Profiles . . . . . . . . . . . . . . . . . . . . . . . . . 101
9.4.1. Fit of the Models to the Data . . . . . . . . . . . . . . . . . . . . . . . . . 102
9.4.2. Scaling with the Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
9.5. Fluctuation Concentration Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . 106
9.5.1. Additional Contributions to the Variance . . . . . . . . . . . . . . . . . . 108
9.5.2. Fluctuations at a Flat Water Surface . . . . . . . . . . . . . . . . . . . . . 108
9.5.3. Fluctuations at a Wavy Water Surface . . . . . . . . . . . . . . . . . . . . 109
9.6. Oxygen Transfer Rates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
9.6.1. Thickness of the Mass Boundary Layer . . . . . . . . . . . . . . . . . . . . 110
9.6.2. Comparison with Mass Balance Measurements . . . . . . . . . . . . . . . 110
9.6.3. Parametrizations of the Transfer Velocity . . . . . . . . . . . . . . . . . . 111
10.Conclusion and Outlook
115
10.1. Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
10.2. Outlook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Bibliography
118
A. Appendix
125
A.1. Synthesis of the Ru Complex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
A.2. The Damping Factor D - Alternative Notation . . . . . . . . . . . . . . . . . . . 126
A.3. Stern-Volmer Plot - Further Presentation . . . . . . . . . . . . . . . . . . . . . . 127
A.4. Unforeseen Effects of the Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
A.4.1. Two-Level Noise Effect
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
A.4.2. Sawtooth Effect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
A.5. Camera Response Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
iii
1. Introduction
Gas exchange between the ocean and the atmosphere is an essential component to understand
and predict climate on Earth. Constituting a huge reservoir, the ocean acts as a net sink for
carbon by taking up 30 % to 40 % of the fossil fuel-produced CO2 [Donelan and Wanninkhof,
2002]. For over thirty years of gas exchange research it is still unclear which physically-based
model gives the best description of the exchange process at the air-water interface for a smooth
and wavy water surface. One way to approach this question is to measure the vertical concentration profile in the tiny (smaller than 100 µm) mass boundary layer at the air-water interface.
The objective of this thesis is therefore to develop a method to visualize profiles of the oxygen
concentration within the top millimeter at the wavy water surface with high precision.
The exchange of gases at the ocean surface is influenced by the interaction of multiple factors.
Wind blowing over the water’s surface greatly enhances the air-water gas transfer velocity. This
growth is associated with shear stress that increases the near-surface turbulence and leads to a
decreasing mass boundary layer. The transfer velocity is further enhanced by the generation of
waves, leading to an enlarged water surface, breaking waves and bubble entrainment (see e.g.
[Wanninkhof et al., 2009]). Semi-empirical relations of the transfer velocity with wind speed
are still used as parametrizations in climate models [Ho et al., 2011]. Figure 1.1 shows results
from gas exchange experiments performed in the North Sea, the North Atlantic, the Equatorial
Pacific, and the Southern Ocean, to name just a few. In this figure, the parametrization with
wind speed shows significant variations of the measured transfer velocities. By plotting transfer
velocities against wind speed, effects such as surface films and fetch1 are not taken into account.
Additional forcing parameters aside from the wind speed that influence gas transfer include the
surface roughness and the friction velocity, which are both more closely related to the turbulence
in the water than to the wind speed.
Experiments on the ocean are demanding because of high temporal and spatial variability of
the wind speed and the wave field. Not all forcing parameters can be measured on the ocean
and the accessible parameters cannot all be measured instantaneously at the same location.
However, this is achievable in laboratories using wind-wave tunnels. At low wind speeds, the gas
exchange is controlled by effects on small scales that can be examined in a wind-wave tunnel.
Another method to approach the questions in air-sea gas exchange is by using physicallybased models describing the exchange mechanisms in the air-water boundary layer. Existing gas
1
fetch: distance over which the wind acts on the water surface
1. Introduction
Figure 1.1.: Transfer velocities k, normalized to a Schmidt number of 600, plotted against wind speed. The open
symbols are for the experiments in the coastal oceans, while the solid symbols depict the studies in the open ocean.
From Ho et al. [2011].
exchange models describe the gas exchange mechanisms for a flat and a wavy water surface. The
underlying assumptions on the physical mechanisms are contradictory. Local measurements of
vertical concentration profiles in the mass boundary layer can be used to test the models. The
first precise measurements of mean concentration profiles at a flat water surface were conducted
by Münsterer and Jähne [1998]. They found that the profiles are best described by the surface
renewal model for a rigid interface (see Figure 1.2).
The goal of this study is to develop and apply a method to perform measurements of vertical
concentration profiles of oxygen with an improved sensitivity and a higher temporal and spatial
resolution compared to previous studies. With the data obtained, gas transfer models are tested.
In addition, the local transfer velocity as well as forcing parameters such as friction velocity,
mean square slope, and wind speed are measured in a wind-wave tunnel for various fetch and
wind speed combinations.
Chapter 2 comprises the basic principles that are important in this work and makes a step
beyond current knowledge regarding the quenching mechanism. In Chapter 3, the technique to
visualize oxygen in water with a laser-induced fluorescence (LIF) method and a new calibration
method are presented. The third part of the chapter introduces the mass balance method,
needed for the validation of the oxygen quenching technique. The method to measure wind
profiles is shown in the last part of this chapter. Chapter 4 presents the experimental setup of
2
Figure 1.2.: Comparison of mean concentration profiles measured with fluorescein with the predictions by the small
eddy and the surface renewal model. From [Münsterer and Jähne, 1998].
two wind-wave tunnels and the optical setup. Measurements to confirm the generalization of
the Stern-Volmer equation are presented in Chapter 5. The calibration of the optical setup and
of laser saturation effects by applying the new calibration method is illustrated in Chapter 6.
Chapter 7 presents the experiments that were conducted in this study, including preparatory
experiments, measurements of the forcing parameters friction velocity and mean square slope,
and the main gas exchange experiments. The data processing for the wind measurements, the
LIF measurements, and the mass balance method is shown in Chapter 8. Finally, Chapter 9
presents the results of the oxygen visualization, tests of models, and parametrizations of the
local gas transfer velocities. Chapter 10 comprises the conclusion of the obtained results and
ends with a short outlook on future experiments.
3
2. Theory
The theory is divided into three parts. Section 2.1 gives an introduction into the theory of gas
and momentum exchange at the air-water interface. Section 2.2 presents model predictions for
gas concentration profiles. Additionally, a model developed in this thesis to calculate fluctuation concentration profiles is shown. Section 2.3 gives a summary of the basic processes of
luminescence theory. The generalization of the Stern-Volmer equation is shown in Section 2.3.4.
2.1. Theory of Gas and Momentum Transfer
To give an introduction into the theory of gas and momentum transfer, Section 2.1.1 gives a
mathematical description of molecular and turbulent transport. Section 2.1.2 introduces the gas
exchange parameters, that are needed in this study. In Section 2.1.3, wind profiles near a wall
in different regions are presented.
2.1.1. Molecular and Turbulent Diffusion
The gas exchange at the air-water interface is dominated by two transport mechanisms: molecular diffusion and turbulent transport. The molecular diffusion is due to the Brownian motion
of the molecules, while the turbulent transport is driven by statistical fluctuations of the velocity field. Far from the air-water interface, the transport processes are governed by turbulent
transport, because the length scale of the turbulent eddies is much larger than the mean free
path of the molecules. The length scale of the turbulent eddies scales with the distance to the
interface. Therefore, the eddy size decreases with decreasing distance to the air-water interface.
Close to the interface, the molecular diffusion exceeds the turbulent transport. This shows that
we have to consider both transport mechanisms to understand the gas exchange processes at an
interface. The macroscopic diffusive transport for an ensemble is described with Fick’s first law
j~c = −D∇c.
(2.1)
The proportionality constant D between the concentration gradient ∇c and the concentration
flux density jc is the Diffusion constant. In analogy to the transport of a concentration c,
momentum transport is described with a similar equation
j~m = −ν∇(ρ ~u),
(2.2)
2. Theory
with the momentum flux density jm , the kinematic viscosity ν, the density of the medium ρ,
and the velocity field ~u.
Using Fick’s second law and the material derivative, we obtain the transport equation for the
concentration c
∂c
+ ~u · ∇c = D ∆c.
∂t
(2.3)
The advective term ~u · ∇c includes the transport of the concentration by the velocity field ~u.
To solve equation (2.3), the velocity field ~u has to be know. The transport equation for the
momentum is given by the Navier-Stokes equation for incompressible media [Roedel, 2000]
∂~u
1
+ (~u · ∇)~u = − ∇p + f~ + ν∆~u.
∂t
ρ
(2.4)
An acceleration of the fluid is caused by pressure gradients ∇p, external forces (expressed by
the acceleration f~), and shear forces. Assuming no external forces and no pressure gradients
∂~u
+ (~u · ∇)~u = ν∆~u,
∂t
(2.5)
we obtain an analogue transport equation for momentum as equation (2.3) for the concentration.
Reynolds Decomposition
In the following, it will be shown that the turbulent transport can
be treated analogous to the diffusive transport. Using Reynolds decomposition, we split the
concentration c and the velocity ~u into an averaged and a fluctuating part:
c = c + c0
(2.6)
~u = ~u + ~u0
(2.7)
By inserting those expressions into the transport equations (2.3) and (2.5) for concentration and
momentum, and assuming a stationary, one-dimensional current in x−direction, we obtain the
following differential equations
∂
∂c
∂c
=
(D
− c0 w0 )
∂t
∂z
∂z
(2.8)
∂u
∂ ∂u
=
(ν
− u0 w0 )
∂t
∂z ∂z
(2.9)
with u and w denoting the velocity components in stream-wise (x−) direction and vertical (z−)
direction, respectively (see Figure 4.4). Equation (2.9) is called the Reynolds equation (for the
derivation see [Pope, 2009]). Using the equation of continuity and integrating equations (2.8) and
(2.9), we obtain a constant scalar flux density for the concentration jc and for the momentum
jm :
jc = −D
6
∂c
+ c0 w0
∂z
(2.10)
2.1. Theory of Gas and Momentum Transfer
jm = ρ (−ν
∂u
+ u0 w0 )
∂z
(2.11)
The term ρ u0 w0 in equation (2.11) is known as the Reynolds stress. A comparison of equations
(2.10) and (2.11) with the equations (2.1) and (2.2) for the flux density including only diffusive
transport implies that the terms c0 w0 and u0 w0 are a measure for the turbulent transport. This
gives rise to the definition of a turbulent diffusivity Kc and a turbulent viscosity Km :
c0 w0 = −Kc
∂c
∂z
(2.12)
∂u
∂z
(2.13)
u0 w0 = −Km
Inserting those expressions into equations (2.10) and (2.11), we obtain equations for the transport
mechanism of concentrations and momentum including a diffusive and a turbulent part:
jc = −(D + Kc (z))
∂c
∂z
(2.14)
∂u
∂z
(2.15)
jm = −(ν + Km (z))
2.1.2. Gas Exchange Parameters
Transfer Rate The flux density jc is proportional to the concentration difference ∆c. The
proportionality constant is the transfer velocity k.
jc = k · ∆c
(2.16)
Integrating equation (2.14) and assuming a constant flux density jc , we obtain
Zz2
c(z2 ) − c(z1 ) = −jc
z1
1
dz.
D + Kc (z)
(2.17)
By using equation (2.16), we get the following result for the transfer velocity for the range
between depth z1 and z2 :
k=
1
.
Rz2
(Kc (z) + D)−1 dz
(2.18)
z1
The only unknown variable for the determination of the transfer velocity k is the depth dependence of the turbulent diffusivity Kc (z). The inverse quantity of the transfer velocity is the
transfer resistance R.
R = k −1
(2.19)
7
2. Theory
gas flux
cws = cas
cbulk
ca
c
Kc < D
mass boundary layer
Kc >> D
z
Figure 2.1.: Sketch of a concentration profile near the air-water interface for a gas with a low solubility (α < 1) during
an invasion experiment.
It is often useful to use the transfer resistance R, because the resistances Ri of different depth
layers sum up to the total resistance, in analogy to the resistances in a serial circuit. The total
resistance R for the exchange process at the air-water interface is partitioned in an air-sided and
water-sided resistance (see Kräuter [2011] for more details).
Figure 2.1 shows a concentration profile for the case that the concentration in the air is higher
than in the water (an invasion experiment). The concentration at the air-water interface shows
a discontinuity and is in thermodynamic equilibrium. According to Henry’s law, the ratio of
the concentration cws and cas at the water-side and the air-side of the surface, respectively, is
specified with the dimensionless solubility α:
cws = α · cas
(2.20)
The solubility of oxygen, which is used as a trace gas in this study is about α = 0.03 [Sander,
1999]. This implies that the air-sided resistance of O2 can be neglected and the total resistance
is given by the water-sided resistance.
Mass Boundary Layer The thickness of the aqueous mass boundary layer is defined by the ratio
of the concentration difference between the water bulk and the water surface and the gradient
of the concentration at the water surface.
δmbl =
∆c
∂c − ∂z
z=0
(2.21)
A graphical description of the thickness δmbl is given in Figure 2.1. The turbulent diffusivity Kc
depends on the depth z and becomes zero at the interface due to the hydrodynamic boundary
8
2.1. Theory of Gas and Momentum Transfer
conditions (see [Coantic, 1986]). Using equation (2.14), we obtain for the flux density
∂c jc = −D .
∂z z=0
(2.22)
With that expression and equation (2.16), it follows that the thickness of the aqueous mass
boundary layer δmbl is proportional to the inverse transfer velocity.
D
k
δmbl =
(2.23)
The characteristic time t∗ that a molecule needs to traverse the mass boundary layer is defined
by
t∗ =
δmbl
.
k
(2.24)
Schmidt Number The Schmidt number Sc is a dimensionless quantity that relates gas transfer
to momentum transfer.
Sc =
ν
D
(2.25)
Schmidt numbers in the air are about 1. In the water, Schmidt numbers are much bigger and
cover a range from values below 100 to values higher than 2000 Jähne [1980]. The Schmidt
number of O2 at 20◦ C in clean water is about Sc = 481. This value was calculated with the
values for the diffusion constant and the viscosity from [Cussler, 2009] and [Yaws, 1999].
Momentum and concentrations are transported by the same fluctuations Jähne [1980]. As a
consequence, the turbulent Schmidt number, which is given by the ratio of the turbulent viscosity
Km and the turbulent diffusivity Kc
Sct =
Km
Kc
(2.26)
is on the order of 1.
Friction Velocity The shear stress τ is equal to the momentum flux density jm in equation
(2.11) and thus the friction velocity u∗ is defined by the following relation
s
u∗ =
|τ |
.
ρ
(2.27)
It is a measure for vertical momentum transfer, that is transported into the water due to windinduced shear stress τ . Assuming a continuous momentum flux at the air-water interface, which
implies no momentum loss due to the creation of waves, we obtain the following relation between
the water-sided and the air-sided friction velocity u∗w and u∗a :
ρw u2∗w = ρa u2∗a ,
(2.28)
9
2. Theory
with the density of water and air ρw and ρa , respectively. It follows that the water-sided friction
velocity u∗w is about a factor of 30 smaller than the air-sided friction velocity. In this text, the
notation u∗ is used for the air-sided friction velocity, as the fiction velocity was measured on the
air-side in this study.
2.1.3. Wind Profiles
The turbulent flow region near a wall is typically classified in three layers.
Viscous Sublayer
stress
ρ u0 w0
In the viscous sublayer or the buffer region next to the wall, the Reynolds
in equation (2.11) can be neglected.
τ = ρν
∂u
∂z
(2.29)
The right hand side is positive because the z−axis points upwards and is opposite to the definition
used in equation (2.11). This convention is used for the wind-profiles presented in this study.
Integrating equation (2.29) leads to a linear wind profile in the viscous sublayer:
u(z) ∝ z
Fully-Turbulent Flow Region
(2.30)
In the fully-turbulent flow region, the shear stress is equal the
to the Reynolds stress, as the viscous contribution to the shear stress can be neglected:
τ = ρ u0 w0
(2.31)
The friction velocity is accordingly given with the correlations of the velocity fluctuations.
u∗ =
p
u0 w0
(2.32)
The wind profile in the fully-turbulent region has a logarithmic form
u(z) =
u∗
z
· ln( ),
κ
z0
(2.33)
with the universal Von Kármán constant1 κ and the roughness parameter z0 . A derivation of
the logarithmic wind profile in the fully-turbulent region is given by dimensional considerations
in Roedel [2000].
1
10
Von Kármán constant: In this study, the value of 0.4 (according to Hinze [1975]) was used.
2.2. Gas Exchange Models
Outer Layer For the wind profile in the outer region or the wake part, no theory was developed.
Experiments show that wind profiles obey a self-similarity law [Hinze, 1975]
z
umax − u(z)
= f ( ),
u∗
δ
(2.34)
with the free-stream velocity umax and the thickness δ, which is the distance from the surface to
the position where the free-stream velocity umax is reached (also called the 99 % boundary layer
thickness). The self-similarity is useful for measuring the parameters of the turbulent region,
when measurements close to the water surface are not possible. The shape of the wind profiles
in the wake part is approximated with Hama’s empirical formula [Hinze, 1975]
z
umax − u(z) = β · u∗ · (1 − )2 .
δ
(2.35)
Different values were obtained for the parameter β. To determine self-similar wind profiles, it is
useful to use β as a fit parameter [Troitskaya et al., 2012].
2.2. Gas Exchange Models
Models for mean concentration profiles are introduced in this section. To model the transport
processes at the air-water interface, one has to regard the diffusive and turbulent transport
mechanisms. The simplest model is the film model (Section 2.2.1), that assumes a constant layer
with pure diffusive transport. In Sections 2.2.2 and 2.2.3, more elaborate models are discussed
that model the change from diffusive transport at the water surface to turbulent transport in
the water bulk. Section 2.2.4 presents a model for fluctuation concentration profiles, which was
developed in the framework of this thesis. In Section 2.2.5, the Deacon model [Deacon, 1977]
is presented. All considerations in this chapter are made for the water-side of the air-water
interface.
2.2.1. Film Model
The film model was first published by Lewis and Whitman [1924]. They proposed that the
transport of gases across the water surface is caused only by diffusion in a stagnant film at both
sides of the interface. Outside of this layer, the transport is dominated by turbulence and the
diffusion can be neglected. The concentration profile at the water side is obtained by setting
the turbulent diffusivity Kc to zero and integrating equation (2.14) from the depth z = 0 to the
thickness of the mass boundary layer δmbl . In dimensionless coordinates, with the dimensionless
concentration c+ and the dimensionless depth z+
c+ =
c − cb
cs − cb
and z+ =
z
δmbl
,
(2.36)
11
2. Theory
with the concentration cs at the surface and cb in the water bulk, we obtain a linear concentration
profile:
c+ (z+ ) = 1 − z+ ;
0 ≤ z+ ≤ 1
(2.37)
Below the film thickness δmbl , the concentration stays constant, due to the assumption of a
well-mixed water bulk for z+ > 1. The assumption of a layer with pure diffusion causing a linear
concentration profile is a simplification, as turbulence reaches close to the interface as we will
see in this study. The transfer velocity k predicted by the film model is given by integrating
equation (2.18) up to the film thickness δmbl :
k=
1
δR
mbl
=
D−1 dz
D
δmbl
.
(2.38)
0
The transfer velocity predicted by the film model is overestimated because the exponent of the
diffusivity is usually smaller than 1 [Jähne et al., 1987].
2.2.2. Small Eddy Model
In the small eddy model, a function for a mean concentration profile is derived by describing
the transport mechanism with a turbulent diffusivity Kc (z), which is assumed to be zero at the
water surface and grows with increasing depth. The derivation of the small eddy model is given
in [Coantic, 1986]. The essential parts are presented here to point out the basic assumptions for
this model. The concentration profile is obtained by solving the averaged transport equation for
the concentration (2.8) for a given turbulent diffusivity Kc (z):
∂c
∂ ∂c
=
(D + Kc (z))
∂t
∂z ∂z
(2.39)
We obtain an expression for the turbulent diffusivity Kc by rewriting equation (2.14)
jc
Kc (z) = − ∂c − D.
(2.40)
∂z
The turbulent diffusivity Kc (z) is approximated by inserting a Taylor expansion of the concentration profile at the water surface (z = 0) into equation (2.40).
∞
X
1 ∂ n c c(z) = c(0) +
zn
n! ∂z n z=0
(2.41)
n=1
The first derivative of the concentration profile
∂c
∂z
at z = 0 is described with pure diffusion
according to equation (2.22). The higher order terms are obtained by assuming a stationary
12
2.2. Gas Exchange Models
state and using successive derivatives of the averaged transport equation (2.8).
∂ 2 c ∂ 0 0 cw
D
.
=
∂z 2 z=0
∂z
z=0
(2.42)
To solve the right hand side and higher order derivatives, we have to make assumptions about
boundary conditions near the interface.
Turbulent Diffusivity for a Rigid Interface For the case of a rigid interface, all components of
the velocity fluctuations and the concentration fluctuation vanish at z = 0.
u0 = v 0 = w0 = 0z=0
and
c0 = 0z=0
(2.43)
It follows that the derivatives of the velocity fluctuations in x− and y− direction are zero.
The equation of continuity is also valid for the fluctuations
∇u~0 = 0.
(2.44)
Accordingly, the derivative of the velocity fluctuation in z− direction is also zero
∂w0 = 0.
∂z z=0
(2.45)
With these boundary conditions, it is shown in [Coantic, 1986] that the turbulent diffusivity
Kc grows cubically with the distance to the water surface.
Kc (z) ∝ z 3
(2.46)
Turbulent Diffusivity for a Free Interface For the case of a free interface, only the z− component of the velocity fluctuation and the concentration fluctuation at the interface are
zero.
w0 = 0z=0
and
c0 = 0z=0
(2.47)
Coantic [1986] shows that these boundary conditions lead to a quadratic relation of the
turbulent diffusivity Kc with depth z
Kc (z) ∝ z 2 .
(2.48)
With the results for the turbulent diffusivity in the general form Kc (z) = αm z m (m = 3 for
a rigid interface and m = 2 for a free interface), the averaged transport equation (2.39) can be
solved. In dimensionless coordinates, the transport equation has the following form [Jähne et al.,
1989]
∂c+
∂
m ∂c+
=
(1 + αm+ z+ )
,
∂t+
∂z+
∂z+
(2.49)
13
2. Theory
where t+ = t/t∗ denotes the normalized time. The differential equation (2.49) is solved for the
steady state with the boundary conditions
c+ (0) = 1
and
c+ (∞) = 0
∂c+ (z+ ) = −1,
∂z+ z+ =0
and
(2.50)
that originate from the definition of the normalized coordinates in equation (2.36) and the
assumption that the transport at z = 0 is only due to molecular diffusion. The solution for αm+
is
α m+ =
π
m sin(π/m)
m
.
(2.51)
Rigid Interface (m = 3) For a rigid interface we obtain the following concentration profile, by
solving the transport equation (2.39) with m = 3 for the steady state and the solution for α3+ .
3
1
4π
3
−1
√ −
tan
z+
c+ (z+ ) = +
4 2π
9
3
√
√
√
√
3
3 2
−
ln(9 + 2 3πz+ ) +
ln 3(27 − 6 3πz+ + 4π 2 z+
)
2π
4π
(2.52)
Free Interface (m = 2) For a free interface, the mean concentration profile is obtained by
solving the transport equation (2.39) with m = 2 for the steady state and the solution for α2+
[Jähne et al., 1989].
2
−1 π
c+ (z+ ) = · cot
z+
π
2
Schmidt Number Dependence
(2.53)
The transfer velocity k for the small eddy model is calculated
in Coantic [1986]. The result is a Schmidt number dependence of Sc−2/3 and Sc−1/2 for a rigid
(m = 3) and a free interface (m = 2), respectively.
1
k ∝ u∗ Sc−1+ m
(2.54)
This result is in agreement with experiments by Jähne et al. [1987] (see [Krall, 2013] for a recent
study in our group).
2.2.3. Surface Renewal Model
The surface renewal model assumes that the transport of gases is mainly due to statistical surface
renewal events, that transport water volumes from the surface to the bulk. After a renewal event,
the concentration at the water surface is the same as the concentration in the water bulk cb , as
Figure 2.2 shows. In the time between two surface renewal events, the gas transport is caused by
diffusion. A model with periodical renewal events was first proposed by Higbie [1935]. A more
realistic random renewal rate was later proposed by Danckwerts [1951] and Harriott [1962]. In
14
2.2. Gas Exchange Models
renewed surface with concentration cb
depth
non-renewed surface
with concentration cs
eddies
Figure 2.2.: Schematic drawing of surface renewal events (from Asher and Pankow [1991]).
the general form, the renewal rate λ is proportional to the depth z to the power of p [Jähne,
1985]
λ = γp z p .
(2.55)
For p = 0, the renewal rate shows no depth dependence, as assumed by Danckwerts [1951] and
Harriott [1962]. This is a contradiction to the hydrodynamical assumption that the fluctuations
w0 and c0 at wall are zero. For p = 1, the renewal rate grows linear with depth. A mathematical
description of the surface renewal model is obtained by expressing the turbulent term in the
averaged transport equation (2.8) with the product of renewal rate λ and concentration c:
∂c
∂2c
= D 2 − λ c.
∂t
∂z
(2.56)
∂c+
∂ 2 c+
p
=
2 − γp z+ c+ .
∂t+
∂z+
(2.57)
In dimensionless variables, we obtain
The Schmidt number dependence of the transfer velocity k was calculated with the surface
renewal model by Jähne [1985]. For p = 0 and p = 1, a dependence of Sc−1/2 and Sc−2/3 ,
respectively, was obtained:
− p+1
p+2
k ∝ u∗ Sc
(2.58)
The Schmidt number dependence suggests that the p = 0 and p = 1 case represents a free and
a rigid interface, respectively. To solve the differential equation (2.57), the same boundary
conditions (equation (2.50)) as for the small eddy model are used.
Rigid Interface (p = 1) For a rigid interface the mean concentration profile was first published
in [Jähne et al., 1989]:
1
Ai(0)
c+ (z+ ) =
Ai − 0 z+
Ai(0)
Ai (0)
(2.59)
15
2. Theory
Figure 2.3.: Mean concentration profiles from the model prediction with the small eddy model and the surface renewal
model for the boundary condition of a rigid interface (n = 2/3) and a free interface (n = 1/2).
Free Interface (p = 0) For a free interface we obtain the following mean concentration profile:
c+ (z+ ) = exp(−z+ )
(2.60)
Figure 2.3 shows the concentration profiles in dimensionless units c+ and z+ predicted by the
small eddy model and surface renewal model for a Schmidt number exponent of n of 2/3 and
1/2. The concentration c+ (z+ ) at the surface and in the water bulk, as well as the derivative
of the concentration profile at the surface are the same for all model functions according to the
boundary conditions of the models in equation (2.50). However, the model functions for n =
1/2 have a similar shape, as will be shown in Section 9.4.2.
2.2.4. Model for Fluctuation Concentration Profiles
Here, a model is presented that is able to predict fluctuation concentration profiles. It is based
on the assumption that the transport process of gas concentrations at an interface is controlled
by diffusion and periodical renewal events, such as the surface renewal model in the previous
section. The model is formulated in one dimension, as the transport process is assumed to be
homogeneous in the x− and y−direction. The transport equation for diffusion is described with
Fick’s second law:
∂c(z, t)
∂ 2 c(z, t)
=D
∂t
∂z 2
(2.61)
The boundary condition for the concentration at the water surface is a constant concentration
cs , which is always in equilibrium with the air concentration according to Henry’s law:
c(z = 0, t) = cs
(2.62)
The second boundary condition is that the concentration at time t = 0 has the constant value
cb in the water bulk. The concentration profile at time t = 0 is described with the Heaviside
16
2.2. Gas Exchange Models
(a) Concentration profiles from surface renewal predic- (b) Fluctuation concentration profiles with the model
tions and the model developed here.
developed here.
Figure 2.4.: Mean concentration profile and fluctuation concentration profile in normalized units that were calculated
with the model developed in this section.
step function Θ:
c(z, t = 0) = 2(cs − cb )Θ(−z) + cb
(2.63)
A solution for the transport equation (2.61) with the given boundary conditions is the complementary error function erfc:
c(z, t) = (cs − cb ) · erfc
z √
+ cb
2 Dt
(2.64)
In dimensionless coordinates, we obtain the solution:
z +
c+ (z+ , t+ ) = erfc √
2 t+
(2.65)
At time t+ = 0, the dimensionless concentration c+ in the water is zero for z+ > 0. For
t+ > 0, a concentration profile establishes that drops to zero for z+ → ∞. With increasing
time, the concentration gradient at the water surface decreases. After the time interval τ (the
dimensionless renewal time), a surface renewal event occurs and the concentration c+ for z+ > 0
is again zero. In the model presented here, it is assumed that those renewal events occur in
periodic time intervals τ . According to the boundary conditions of the surface renewal model in
equation (2.50), the renewal time τ is set to unity.
The mean concentration profile c+ (z+ ) is obtained by calculating the expectation value of
®
equation (2.65). The integral was solved with the program Mathematica .
Z1
c+ (z+ ) =
erfc
z +
√
dt+
2 t+
(2.66)
0
2
z+
z+
1
2
= − √ exp(− ) + (2 + z+
) · erfc
4
2
π
z +
2
The obtained function for the mean concentration profile is shown in Figure 2.4(a). For comparison, the predicted concentration profiles with the surface renewal model for a Schmidt number
17
2. Theory
exponent of 1/2 and 2/3 are plotted. The derivative of the concentration profile at the water
surface is the same for all three models according to the boundary conditions. The solution of
the calculated profile is between the two model predictions of the surface renewal model for a
rigid and a free interface. The benefit of the model developed here is that concentration fluctuations can also be calculated, as we developed a description for the temporal development of
the concentration. The rms fluctuation concentration is computed according to the definition of
the variance Var of a variable X
Var(X) = E(X 2 ) − E(X)2 ,
(2.67)
with the expectation value E(X). Accordingly, we obtain for the root mean concentration
fluctuation the expression
c02
+ (z+ )
Z1
=
Z1
2
z z +
+
√
erfc
dz+ −
erfc √
dz+ .
2 t+
2 t+
2
0
(2.68)
0
An analytic function was not found for the integrals. The numerical solution, calculated with
®
Mathematica , is shown in Figure 2.4(b). The peak position at about z+ = 0.557 and maximum
of about c0 = 0.183 will be used for a comparison to the measured fluctuation concentration
profiles in Section 9.5.
2.2.5. The Deacon Model
The Deacon model [Deacon, 1977] yields an expression for the gas transfer velocity with respect
to the friction velocity, valid for a smooth water surface. The model is based on the interpolation
formula of Reichardt [1951], that describes the transition of the turbulent diffusivity Km (z) from
the cubic to the linear region. This approximation is only applicable for a rigid interface (in
analogy to equation (2.42)) and accordingly a smooth water surface. For the derivation of the
transfer velocity, the turbulent Schmidt number Sct =
Km
Kc
is assumed to be unity. The transfer
velocity k is obtained by integration equation (2.18) numerically, yielding
k = 0.082
where
ρa
ρw
0.5
Sc−2/3 u∗ ,
(2.69)
denotes the ratio of the density of water and of air. The Deacon model is used as a
lower limit for the gas transfer velocity.
18
ρa
ρw
2.3. Luminescence Theory
2.3. Luminescence Theory
This section provides a summary of the basic processes of luminescence which are needed in this
study, following Lakowicz [2006]. Section 2.3.1 introduces luminescence. The difference between
a weak and a strong excitation is described in Section 2.3.3. Section 2.3.4 focuses on the effect of
quenching, which is crucial for this study’s measuring method. It also presents the generalized
Stern-Volmer equation2 which plays an important role in understanding the dynamic quenching
process. This knowledge is specifically needed in Chapter 5.
2.3.1. Introduction to Luminescence
Luminescence is the emission of light by an atom due to the transition of an electron from an
excited state into a state of lower energy. The luminescent process can be classified depending on
the process of excitation. This study deploys photoluminescence which is excitation caused by
light absorption. The terms chemo-, thermo-, and electroluminescence are used when the excited
state is reached by a chemical reaction, thermal energy, and a voltage difference, respectively.
Fluorescence and Phosphorescence
Luminescence is divided into two classes, depending on
the nature of the excited state: fluorescence and phosphorescence. The electron in the excited
energy state can either have its spin opposite or in the same direction as the other electron in
the ground state orbital. The excited state is called a singlet state or a triplet state, if the spins
are aligned in the same or opposite direction, respectively.
Fluorescence is a transition from a singlet state to the ground state, which is spin-allowed
according to the rules of quantum mechanics. This results quickened decay and an emission
of a photon. Phosphorescence occurs when a triplet state decays into the ground state. This
transition is quantum mechanically forbidden and results in a long lifetime.
Luminescent Processes The luminescence processes can be illustrated with a Jablonski diagram, named after A. Jablonski. A typical Jablonski diagram is shown in Figure 2.5. The
y-axis depicts energy states, singlet states (S) are on the left side, triplet states (T ) on the right.
In each state, the electron can exist in multiple vibrational levels shown as three levels in the
diagram.
The process of photoluminescence starts with the absorption of a photon that has sufficient
energy to reach one of the singlet states S1 or S2 . This absorption is quasi-instantaneous,
occurring in about 10−15 s. Three decay paths are illustrated in Figure 2.5: internal conversion
(IC), fluorescence, and intersystem crossing (ISC). The fastest decay in condensed matter is
usually IC, which has a lifetime of about 10−12 s. Because this lifetime is much shorter than
the lifetime of fluorescence, which is on the order of 10−8 s, the excited electron decays to the
2
The generalized Stern-Volmer equation was derived in the process of this study. It presents the generalization
of the known Stern-Volmer equation (see Stern and Volmer [1919]) for arbitrary laser irradiance.
19
2. Theory
S0
kr
non radiative decay
intersystem
crossing
phosphorescence
10-3 s
internal
conversion
fluorescence
10-8 s
2
1
0
absorption
10-15 s
energy
S1
2
1
0
10-12 s
S2
2
1
0
T1
knr
2
1
0
Figure 2.5.: Jablonski diagram: Singlet states (on the left) are depicted with an S, the first triplet state (on the right)
with a T1 . Each state splits into multiple vibrational energy levels, depicted here with 0, 1, 2. Fluorescence occurs
when a singlet state decays into the ground state, and phosphorescence describes the transition from a triplet state to
the ground state. The typical lifetimes of the processes are indicated. The decay rate of phosphorescence is denoted
with a kr , the non-radiative decay rate from the T1 state with a knr .
lowest vibrational energy level before the fluorescent decay occurs. In conclusion, the decay of
a fluorescent process starts at the lowest vibrational energy level of a singlet state and ends at
any vibrational level of the ground state S0 . In Figure 2.5, two possible fluorescence decay paths
are illustrated as an example.
In phosphorescent molecules, the decay path of ISC is faster than that of fluorescence. The
excited electron can undergo a spin conversion and decay into the triplet state T1 due to spinorbit coupling. As mentioned above, the transition from the triplet to a singlet state is forbidden.
This fact results in a typical phosphorescence lifetime of about 10−3 s.3
Aside from fluorescent and phosphorescent decay, there are non-radiative decay processes,
such as collisional quenching, that can cause an excited state to decay to the ground state S0 .
The phosphorescent decay rate kr and the decay rate of all the non-radiative processes knr , from
the triplet to the ground state, are illustrated in Figure 2.5.
Stokes Shift
The energy emitted from a luminescent species is typically lower than the ab-
sorbed energy. This Stokes shift was named after G. G. Stokes who first observed the effect in
the 19th century. The reasons for this effect become evident in the Jablonski diagram. Absorption usually starts at the lowest vibrational level of the ground state, as the electron population
3
20
In Section 2.3.2 it will be shown that there are also phosphorescent molecules with a much shorter lifetime on
the order of 10−6 s. This is the case for the metal-ligand complex (MLC) used in this study.
2.3. Luminescence Theory
density is highest in that state. After excitation, the excited state rapidly decays via IC into
the lowest vibrational level. The excited electron can decay into any vibrational level of the
ground state S0 . The lowest vibrational level of the ground state is reached by the IC process.
Due to the decay of the electron via IC processes in both, the ground and the excited state, the
energy of the emitted photon is lower than the energy of the absorbed photon. To visualize this
effect, Figure 2.5 shows that the possible energy gaps (length of arrows) for fluorescence and
phosphorescence are smaller or equal than the required absorption energies.
Solvent relaxation can lead to substantial Stokes shifts. This effect occurs in water through
interactions between the fluorophore4 and the dipole moment of water. The interactions between
the fluorophore and the water molecules are different in the ground and the excited state due
to different dipole moments of the fluorophore in the two states. After excitation, the water
molecules rearrange to minimize the energy of the excited state. This leads to a lowering of the
energy of the excited state and an elevation of the energy of the ground state. After the excited
electron decays to the lifted ground state, the water molecules must rearrange again to adapt to
the changed dipole moment of the fluorophore and to reach the initial ground state where the
process started. The two solvent relaxation processes in both, the excited and the ground state,
lead to a lower energy of the emitted photon than the absorbed photon.
Lifetime and Quantum Yield
The lifetime and quantum yield of a fluorophore are expressions
containing the radiative decay rate kr and the non-radiative decay rate knr . The quantum yield η
is the number of emitted photons relative to the number of absorbed photons. In equilibrium, the
absorption rate ka must be equal to the sum of the radiative decay rate kr and the non-radiative
decay rate knr .
η=
kr
kr
=
ka
kr + knr
(2.70)
Very high quantum yields that are close to unity can be observed when the non-radiative decay
rate is small. The quantum yield of phosphorescence is typically low because the decay rate kr
is small compared to the non-radiative decay rate knr (kr knr ).
The lifetime τ0 is defined as the average time the electron spends in the excited state. It is
given as the reciprocal of the total decay rate γ = kr + knr .
τ0 =
1
γ
(2.71)
2.3.2. The MLCT Process
This section introduces the effect of the metal-to-ligand charge transfer (MLCT), which is the
mechanism how the fluorophore used in this study, the Ru complex, is excited. The Ru complex,
which is characterized in Chapter 5, consists of a transition metal and a ligand. This group
4
A fluorescent molecule is also called fluorophore. In this text the word fluorophore will be used for fluorescent
as well as phosphorescent molecules.
21
2. Theory
of fluorophores is called metal-ligand complexes (MLCs), and it is typified by the expression
[metal(ligand)]. The metal is typically one of the elements rhenium (Re), ruthenium (Ru),
osmium (Os), and iridium (IR). Decay times of MLCs typically range from 10−7 s to 10−5 s.
The luminescent properties of MLC complexes are due to unique electronic states. The presence of the ligand splits the five d-orbital energy levels of the outermost shell of the metal into
three lower (dl ) and two higher (dh ) states with an energy gap ∆ (see Figure 2.6). Ru has six
dh
1
intersystem
crossing
MLCT
σa.E
Δ
emission
energy
absorption
3
kr
MLCT
knr kq . c
dl
Figure 2.6.: Jablonski diagram depicting the metal-to-ligand charge transfer (MLCT) in a Ru complex. The dl - and
dh - orbitals are indicated by the letters dl and dh , respectively. The six d-electrons of Ru are drawn in pairs as arrows
with an opposite spin direction. Due photon absorption, an electron is promoted from the metal to the ligand, into the
singlet MLCT state. Intersystem crossing to the triplet MLCT state occurs in less than 300 fs. The excited complex
in the triplet MLCT state decays by phosphorescent emission, non-radiative decay processes, and quenching with the
decay rates kr , knr , and kq · c, mentioned in Section 2.3.4. Modified from Lakowicz [2006].
d-electrons in the outer orbit, which is depicted in Figure 2.6 with three pairs of arrows in opposite spin direction. The transition from the dl -orbital to the dh -orbital is forbidden (Lakowicz
[2006]). Even if an absorption into the dh -orbital occurs, the emission is quenched with a high
probability, which is enabled by the long lifetime. The ligand offers another possibility for a
transition, the so called metal-to-ligand charge transfer (MLCT). By the absorption of light,
an electron can be promoted from the metal to the ligand. The reaction equation for the Ru
complex shows that the metal Ru is oxidized and the ligand dpp5 reduced:
hν
III
− 2+
RuII (dpp)2+
3 −→ Ru (dpp)2 (dpp )
(2.72)
After reaching the singlet MLCT state, intersystem crossing to the triplet MLCT state occurs in
less than 300 fs (see Figure 2.6). According to Demas and Taylor [1979], the quantum yield for
the formation of the triplet MLCT state is near unity. From the triplet MLCT state, the excited
complex decays by phosphorescent emission. Decay times are shorter than normal phosphorescence. In the book of Lakowicz [2006, Chapter “Long-Lifetime Metal-Ligand Complexes”], this
is attributed to be due to spin-orbit coupling of the ligand with the transition metal atom.
5
22
dpp is a short form for 4,7-diphenyl-1,10-phenantroline.
2.3. Luminescence Theory
2.3.3. Weak and Strong Excitation
Depending on the irradiance of the exciting laser, the excitation can be either weak or strong.
As the implications are important for this study, a short derivation is given here.
The fluorophore is regarded as a two-level system with concentration n (in m−3 ) in the ground
state and n∗ in the excited state. This simplification is reasonable here, because the result only
depends on the concentrations in the ground state and excited state, regardless of the vibrational
levels. In equilibrium, the number of decaying atoms per time and volume (n∗ · γ) equal the
number of excited atoms per time and volume (n · E · σa )
n · E · σ a = n∗ · γ
(2.73)
where σa is the absorption cross section, γ the total decay rate, and E the irradiance (in
photons s−1 m−2 ) of the exciting laser. Using the total concentration of the fluorophore N =
n + n∗ , it follows that
n∗
=
N
γ
σa
E
.
+E
(2.74)
γ
σa
(2.75)
Defining the saturation irradiance Esat
Esat :=
equation (2.74) becomes
E
n∗
=
.
N
Esat + E
(2.76)
For low laser irradiance (E Esat ), the excitation is called weak and the density n∗ is proportional to the laser irradiance.
n∗
E
=
N
Esat
(2.77)
This approximation will not be valid throughout this study. In the case of high laser irradiance
(E Esat ), the excitation is called strong and the concentration of fluorophore molecules in the
excited state n∗ no longer depends on laser irradiance.
n∗
=1
N
(2.78)
2.3.4. Quenching
The emission intensity of a fluorophore can decrease in the presence of other molecules. The
interaction that leads to a decrease in intensity is called quenching, which is divided into two
classes: static and dynamic quenching.
Static quenching occurs if the fluorophore in the ground state forms a non-fluorescent complex
with the quencher6 , leading to a decrease in the intensity of the emitted light. The lifetime of
6
A quencher is a molecule that leads to quenching effects.
23
2. Theory
the excited state remains unchanged as the decay rates kr and knr stay unaffected.
In the case of dynamic quenching, the quencher leads to a non-radiative decay of the fluorophore. Dynamic quenching is caused by different effects such as collisional quenching, energy
transfer (known as FRET7 ), and excited-state reactions. Common to all mechanisms is that energy is transferred from the excited fluorophore to the quencher. The most prominent collisional
quencher is oxygen, which is used in this study.
The quenching effect can be illustrated with the simple two-level system in Figure 2.7. The
possible absorption and decay paths can be seen without (Figure 2.7(a)) and with the quenching
term (Figure 2.7(b)). The ground and excited state concentrations are denoted with n and n∗ ,
respectively. The subscript 0 indicates that there is no quencher.
n0
kr
knr
collisional quenching
σa.E
non radiative decay
knr
emission
kr
non radiative decay
emission
absorption
σa.E
absorption
n*
n*0
kq . c
n
(a) no quenching term
(b) with quenching term kq
Figure 2.7.: Two-level system with ground and excited state concentrations of the fluorophore n and n∗ , respectively.
If there is no quencher, the states are denoted with the subscript 0. The terms kr and knr depict the decay rate of
phosphorescent emission and non-radiative decay processes. The expression σa ·E is the absorption rate. The decay rate
of phosphorescent quenching is the product of the bimolecular quenching constant kq and the quencher concentration c.
Figure 2.7(a) shows the absorption rate σa · E, the emission rate kr , and the non-radiative
decay rate knr including all non-radiative processes other than quenching. The absorption rate
is the product of the laser irradiance E and the absorption cross section σa . In Figure 2.7(b) the
collisional quenching rate is added which is the product of the bimolecular quenching constant
kq and the quencher concentration c. In conclusion, the concentration in the excited state with
quenching term n∗ is smaller than the concentration without quenching n∗0 . Therefore, the
emission intensity decreases with increasing quencher concentration c. This is expressed by the
Stern-Volmer equation [Stern and Volmer, 1919].
Derivation of the Generalized Stern-Volmer Equation for Dynamic Quenching This study
uses the effect of dynamic quenching. Therefore, only the derivation of the Stern-Volmer equation
for dynamic quenching is given.
The effect of a strong excitation of the fluorophore has not been regarded so far with the
7
24
FRET: Förster-resonance energy transfer or fluorescence-resonance energy transfer
2.3. Luminescence Theory
Stern-Volmer equation. The Stern-Volmer equation was first documented by Stern and Volmer
[1919]. They observed that the fluorescence of iodine vapour decreased with pressure. In the
original publication, the approximation of a weak excitation was made. This was valid because
sunlight was used to excite the iodine vapour, leading to a low excitation. With the invention
of the laser in the late fifties, a source with a high irradiance became available. When a focused
laser is used in fluorescence measurements, the approximation of a weak excitation is no more
valid because high laser irradiance values can be reached.
Standard works about fluorescence were written before fluorescence measurements with lasers
were conducted. None of them discusses the effect of a strong excitation on the Stern-Volmer
equation. The books of Förster [1951] and Pringsheim [1949] discuss fluorescence quenching
in detail, without mentioning the effect of a strong excitation on the Stern-Volmer equation.
Recent books dealing with fluorescence quenching, such as Lakowicz [2006] still kept using the
assumption of a weak excitation.
Here, I demonstrate that a high laser irradiance will have a significant impact on the SternVolmer constant. In the following, the general Stern-Volmer equation is derived for arbitrary
laser irradiance.
When the system is in equilibrium and the quencher is present, the concentration of the
excited state n∗ remains constant over time, and the number of excited atoms per time and
volume equal the number of decaying atoms per time and volume.
dn∗
= n · E · σa − (γ + kq · c) · n∗ = 0
dt
(2.79)
The relationship between the concentration n∗ and the incident laser irradiance E is calculated
analogous to equation (2.73). The result is similar to equation (2.74). The decay rate through
collisional quenching kq · c is added as a further decay channel to the total rate γ.
n∗
=
N
E
γ+kq ·c
σa
(2.80)
+E
Without the quencher, equation (2.74) applies for the concentration in the excited state n∗0 .
n∗0
=
N
γ
σa
E
.
+E
(2.81)
The ratio of n∗0 and n∗ is obtained by dividing equation (2.81) and (2.80).
kq · c
n∗0
=1+
·
∗
n
σa
γ
σa
1
+E
(2.82)
The photon flux Φ (in photons · s−1 ) and Φ0 of the emitted light for the quenched and the
unquenched fluorophore out of the volume element ∆V is proportional to the concentrations in
the excited state n∗ and n∗0 , respectively, the radiative decay rate kr and the size of the volume
25
2. Theory
element.
Φ = kr · n∗ · ∆V
(2.83)
Φ0 = kr · n∗0 · ∆V
In conclusion, the ratio between the photon flux Φ0 and Φ can be calculated from equation
(2.82):
kq · c
Φ0
n∗
·
= 0∗ = 1 +
Φ
n
σa
γ
σa
1
+E
(2.84)
This equation can be simplified by using equations (2.71) and (2.75) and the Stern-Volmer
constant
KSV := kq · τ0 ,
(2.85)
which is defined as the product of the bimolecular quenching constant kq and the lifetime τ0 of
the unquenched fluorophore. The resulting equation is the generalized Stern-Volmer equation
for arbitrary laser irradiance E.
Φ0
Esat
= 1 + KSV · c ·
Φ
E + Esat
(2.86)
For simplification, a new term, the damping factor D of the Stern-Volmer equation, is introduced:
D :=
Esat
E + Esat
(2.87)
By definition 0 < D ≤ 1 and:


1


Φ0
= 1 + KSV · c · 0.5

Φ


0
E Esat
E = Esat
(2.88)
E Esat
In case of a weak excitation (E Esat ), the generalized Stern-Volmer equation simplifies, and
the Stern-Volmer equation is obtained.
Φ0
= 1 + KSV · c
Φ
(2.89)
A comparison between the generalized (2.86) and weak excitation (2.89) Stern-Volmer equations shows that a strong excitation leads to a reduction of the quenching term. A descriptive
explanation of the effect is given here, by taking a closer look at the two limiting cases of a weak
and a strong excitation.
In the case of weak excitation (E Esat ) nearly all atoms of the fluorophore are in the ground
state (n ≈ N ). In conclusion, the rate of excitations per volume
rex := n · E · σa ≈ N · E · σa
26
2.3. Luminescence Theory
is a constant for constant laser power. In equilibrium, the decay rate per volume (n∗ ·γ +n∗ ·kq ·c),
including the collisional quenching process, must be equal to the excitation rate per volume.
Therefore, the decay rate per volume is also constant:
n∗ · (γ + kq · c) ≈ rex
(2.90)
A higher quencher concentration c enhances the collisional quenching rate (kq · c) and decreases
the concentration in the excited state n∗ . Using equations (2.83) and (2.90), we see that the
photon flux Φ decreases with increasing quencher concentration:
Φ ≈ kr · ∆V · rex ·
1
γ + kr · c
(2.91)
This term can be converted into the Stern-Volmer equation (2.89).
For the case of a strong excitation rate (E Esat ) we can assume that all atoms of the
fluorophore are in the excited state (n∗ ≈ N , see equation (2.78)). The photon flux Φ can be
calculated directly with equation (2.83):
Φ = kr · n∗ · ∆V ≈ kr · N · ∆V
(2.92)
This expression is independent of the quencher concentration, and the generalized Stern-Volmer
equation (2.86) with D ≈ 0 has to be used in this case. Figure 2.7(b) also visualizes this fact.
With increasing quencher concentration c, the number of fluorophores per time and volume
decaying by collisional quenching n∗ · kq · c grows. The absorption rate per volume increases with
the same amount, because every decaying atom is instantaneously excited again as a result of
the infinite high laser irradiance E Esat . Therefore, the number of fluorophores per time and
per volume taking the radiative decay path and hence the photon flux Φ stay unaffected.
When a calibration of the Stern-Volmer constant KSV is performed, the damping factor D
must be known. This term deviates from unity for a high laser irradiance E and a long lifetime
τ0 of the fluorophore. This fact has important implications on the measuring technique. If the
laser irradiance is too high, the damping factor D decreases, leading to a lower signal-to-noise
ratio (SNR) of the measured O2 concentrations. For the case of a low laser irradiance, the
damping factor D is close to unity, but the photon flux Φ decreases, leading also to a low SNR
ratio. The optimal laser irradiance lies between those limiting cases.
Differences between Static and Dynamic Quenching The Stern-Volmer equation describes
the quenching process for both static and dynamic quenching. Lifetime and temperature effects
distinguish between the two kinds.
For static quenching the lifetimes of the quenched and unquenched fluorophore are the same
because the decay rates kr and knr are unaffected. In the case of dynamic quenching, the lifetime
27
2. Theory
of the quenched fluorophore can be written as the reciprocal value of all decay rates.
τ=
1
kr + knr + kq · c
(2.93)
A division of equation (2.93) with the lifetime of the unquenched fluorophore (2.71) expresses
the change of the lifetime.
τ0
= 1 + KSV · c
τ
(2.94)
A comparison of the equations (2.94) and (2.89) shows that the effect of a quencher on the
lifetime τ and the photon flux Φ is the same for the case of e weak excitation:
τ0
Φ0
=
τ
Φ
(2.95)
Another difference between the two kinds of quenching is the temperature dependence of the
Stern-Volmer constant KSV (Figure 2.8). For static quenching the weakly bound non-fluorescing
complex dissociates under higher temperatures. In this case, the quenching effect is smaller for
high temperatures, resulting in a smaller Stern-Volmer constant KSV . In the case of dynamic
quenching, a higher temperature increases the diffusion rate. The enhanced collision rate results
in a higher Stern-Volmer constant KSV .
Ф0 / Ф and τ0/τ
higher
temperature
slope = KSV
1
Ф0 / Ф
slope = KSV
τ0/τ
1
c
(a) dynamic quenching
higher
temperature
c
(b) static quenching
Figure 2.8.: Schematic drawing of two Stern-Volmer plots for dynamic (a) and static (b) quenching. The x-axis
shows the quencher concentration c, the y-axis demonstrates the ratio of unquenched to quenched luminescence signal.
Modified from Lakowicz [2006].
28
3. Methods
The first section of this chapter gives a short overview of two methods to visualize gas concentrations in water, especially the method used in this study to visualize local oxygen (O2 )
concentrations. Section 3.2 deals with the calibration of this technique. A mass balance method
to measure the transfer velocity kb of oxygen is described in Section 3.3. The method to measure
the wind profiles is presented in Section 3.4.
3.1. Oxygen Concentration Imaging
There are two non-intrusive methods to visualize gas concentrations in the water-sided mass
boundary layer: the pH-indicator method and the quenching method. Both methods are laserinduced fluorescence (LIF) techniques, where a laser excites a fluorophore which is solved in
water. The excited molecules of the fluorophore emit luminescent light, which is observed with
a detector such as a camera. A precursor experiment to the LIF technique was conducted by
Hiby et al. [1967] to measure the distribution of gas concentrations in falling films.
The pH-indicator method finds its application in the detection of trace gases that react with
water or the pH-indicator itself, resulting in a change of the photon flux emitted by the fluorophore. First gas exchange experiments using the pH-indicator method were conducted by
Pankow et al. [1984]. Early visualizations in a wind-wave tank were presented by Jähne [1991]
at the Second International Symposium on Gas Transfer at Water Surfaces. More recent results
are documented in Münsterer and Jähne [1998], Asher and Litchendorf [2009], Herzog [2010],
and Asher et al. [2012].
In this study, the quenching (Section 2.3.4) method is used, which is applied to detect gases,
like O2 , that repress the phosphorescence of the excited fluorophore. This method is explained
in detail in the next section.
3.1.1. Oxygen Quenching Method
First measurements with the oxygen quenching method were presented by Wolff et al. [1991] and
Duke and Hanratty [1995] at the Second and Third International Symposium on Gas Transfer at
Water Surfaces, respectively. More recent measurements were conducted by Falkenroth [2007]
and Walker and Peirson [2008] in wind-wave tanks and by Herlina and Jirka [2008] in a gridstirred tank.
3. Methods
The O2 quenching method takes advantage of the fact that the photon flux Φ emitted by the
fluorophore decreases in the presence of O2 molecules. A description of the theoretical details
of the quenching process was given in Section 2.3.4. The fluorophore used in this study is a
Ruthenium (Ru) complex, described in Chapter 5.
The generalized Stern-Volmer equation (2.86) describes how the photon flux Φ decreases with
increasing O2 concentration. The local O2 concentration c is obtained from equation (2.86)
c=
Φ0
1
−1 ·
Φ
KSV · D
(3.1)
by measuring the photon flux Φ. The photon flux in absence of O2 is denoted with Φ0 and
KSV denotes the Stern-Volmer constant for the Ru complex and the quencher O2 , which was
measured in this study (Section 5.2.2). The damping factor D has to be determined by a
calibration procedure, given in Section 3.2.2.
Not the absolute value of the photon flux Φ but a value proportional to the photon flux Φ is
measured with the camera (Section 4.2.4). The proportionality factor is not determined as only
the quotient of the photon flux without quencher Φ0 and the photon flux Φ has to be known.
The term photon flux Φ is used for the measured difference of the gray value and the dark value
of the camera throughout this study.
An advantage of the quenching method over the pH-indicator method is that the absorbance
of the fluorophore stays unchanged regardless of the concentration of the tracer. This simplifies
the calculation of the local tracer concentration as the laser irradiance is independent of the
tracer concentration in the preceding light path. A further advantage is that the quenching
method constitutes a direct way to calculate the concentration of a tracer as no assumptions
about diffusion constants of combined complexes have to be made (see [Herzog, 2010]).
3.1.2. Constraint for the Laser Operation Mode
First experiments with the LIF technique were carried out with the laser in cw (continuous wave)
mode. At a high laser irradiance E, the photon flux Φ emitted by the fluorophore showed relative
root mean square (RMS) fluctuations Φ0RMS /Φ on the order of 10 %. This effect is presumably due
to a temperature effect (see next section) and is unacceptable for our experiments. Measurements
with a pulsed laser showed that the RMS fluctuations of the photon flux Φ can be decreased
to an acceptable level of Φ0RMS /Φ below 1 %. Figure 3.1 shows two time series of the photon
flux Φ for the laser in the cw and in the pulsed mode with a duty cycle of 0.4 % and a pulse
length of 2 ms. The RMS fluctuation Φ0RMS /Φ are around 7 % and 0.5 % for the laser in cw
mode and pulsed mode, respectively. This shows that pulsing the laser is a measure to avoid
the unwanted fluctuations of the photon flux Φ. This method was also used by Saylor [1995]
to avoid photobleaching effects for any non-zero fluid velocity. The time interval between two
30
3.1. Oxygen Concentration Imaging
Figure 3.1.: Time series of the photon flux Φ for the laser in the cw (continuous wave) mode and in the pulsed mode,
measured with the LIF setup. Both time series are normalized on the mean photon flux Φ of the cw signal. For both
measurements a non-zero fluid velocity was established in the water.
successive pulses τoff
τoff >
d
vl
(3.2)
should be greater than the time that a fluid particle spends in the laser region where d denotes
the laser beam diameter in flow direction and vl denotes the local fluid velocity. A small beam
diameter d is useful to keep the time interval τoff low. The appropriate time interval τoff depends
on the local flow velocity and thus on the wind speed which drives the flow of the water. The
higher the wind speed, the higher the flow velocity vl and accordingly the time τoff .
In conclusion, pulsing the laser is necessary to avoid fluctuations of the photon flux Φ. For a
given pulse length τon of the laser, the duty cycle of the laser has to be low enough to satisfy
equation (3.2). In some cases, especially at low wind conditions equation (3.2) may not be
satisfied locally. This leads to a lower photon flux Φ than one would measure at a high flow
velocity of the water, resulting in an overestimated O2 concentration, according to equation (3.1).
3.1.3. Effects Influencing the Precision
This section presents the effects that reduce the precision of the LIF method leading to errors
in the averaged O2 concentration profiles.
Temperature Effect The water absorbing the laser light is locally heated. This leads to a
change of the Stern-Volmer constant on the order of 3 % per Kelvin (see Section 5.2.3). As the
local temperature is not measured with the LIF method, the determined O2 concentration with
equation (3.1) is defective. The influence of this effect is reduced to a minimum by pulsing the
laser, as explained in the previous section.
31
3. Methods
Defective Surface Detection The surface position in every single LIF image is detected with
an algorithm described in Section 8.2.2. The algorithm is capable of determining the position of
the water surface with the precision of one pixel, corresponding to about 6.2 µm (Section 6.1.1).
This leads to an error in the averaged concentration profiles. This effect only plays a role close
to the water surface, when small-scale effects are being resolved. An example are the fluctuation
concentration profiles in Section 9.5.
Camera Noise The camera used (Section 4.2.4) showed noise effects, additional to the usual
camera SNR. Both effects are described in Section A.4.
3.2. Calibration Method for the LIF Measurements
The damping factor D and the photon flux Φ0 in absence of O2 are both measured through a
calibration procedure, which is explained in the Sections 3.2.2 and 3.2.3. For the calibration,
the O2 concentration in the whole measuring section has to be set to a constant value and has
to be determined with an established method (see Section 3.2.1).
3.2.1. Adjusting and Measuring the Oxygen Concentration
The O2 concentration in the water is changed directly with the equilibrator, described in Section
4.1.1. It is additionally changed indirectly by lowering the O2 concentration in the air. This
is done by adding nitrogen (N2 ) to the air-space to replace the O2 molecules. Consequently,
the O2 concentration in the water drops exponentially as it is proportional to the concentration
in the air according to Henry’s law (see equation (2.20)). The temporal and spatial mean O2
concentration in the water is measured using an oxygen probe, described in Section 4.1.1.
In the first step of every calibration, the equilibrator is switched on and N2 is added to the
air space of the closed wind-wave tank until the O2 concentration in the water is close to zero.
When the O2 concentration is low enough and stays constant, the first calibration measurement
is performed. At each calibration measurement, the photon flux Φ is observed with a camera
(see Section 4.2), and the O2 concentration measured by the oxygen probe is documented.
By flushing small amounts of ambient air with equilibrium O2 concentration through the
wind-wave tunnel, the concentration of O2 is stepwise increased. The time intervals between
the flushing events must be long enough so that the water reaches equilibrium with the air
concentration. Accordingly, the O2 concentration in the water also increases stepwise. Each
time the O2 concentration in the water reaches a constant value, a calibration measurement is
performed.
3.2.2. Determination of the Damping Factor
The maximum photon flux Φmax out of the volume element ∆V is reached, when all molecules
of the fluorophore are in the excited state (n∗ = N ) and can be calculated analogous to equation
32
3.2. Calibration Method for the LIF Measurements
(2.83).
Φmax = kr · N · ∆V
(3.3)
We obtain the photon flux Φ relative to the maximum photon flux Φmax by dividing the upper
part of the equations (2.83) and (3.3) and including equation (2.80):
Φ
Φmax
=
E
γ+kq ·c
σa
(3.4)
+E
For simplification, the term E qsat is introduced here as the saturation irradiance with a quencher.
E qsat :=
γ + kq · c
σa
(3.5)
The relation between the saturation irradiance E qsat , with a quencher, and Esat , without a
quencher, can be calculated using equation (2.75):
E qsat = Esat +
kq
·c
σa
(3.6)
Using equation (3.4) and definition (3.5), the photon flux Φ can be written as
Φ = Φmax ·
E
.
+E
E qsat
(3.7)
The laser power P of the laser diode is proportional to the laser irradiance E, with a proportionality factor of αP (in J m2 ).
P = αP · E
(3.8)
The laser power P is available from a calibration, see Section 4.2.2. In order to calculate the
laser irradiance E, the factor αP or rather the cross-sectional area of the laser power in the
measuring section has to be known with a high precision. Since the laser irradiance E can only
be calculated with a high uncertainty but the laser power data P is available, the equations (3.6)
and (3.7) are rewritten using the laser power P instead of the laser irradiance E. With equation
(3.8), we obtain out of equation (3.6) the O2 dependent saturation laser power P qsat
P qsat = Psat + αP ·
kq
·c
σa
(3.9)
and by rewriting (3.7) the photon flux Φ depending on the laser power P
Φ = Φmax ·
P
.
+P
P qsat
(3.10)
As a first step to determine the damping factor D , the saturation laser power with quencher
P qsat is measured for different O2 concentrations. This is done by applying different laser power
33
3. Methods
values P at every specific O2 concentration and measuring the photon flux Φ. The saturation
power P qsat and the maximum photon flux Φmax for each O2 concentration are obtained by
fitting equation (3.10) to the measured data. A plot to visualize this procedure for one specific
O2 concentration can be seen in Figure 5.3.
The next step in the calibration procedure of the damping factor D is the determination of
the laser saturation power Psat at a concentration of c = 0 mg L−1 . The concentration of O2
in the wind-wave tank cannot be set to a value of absolute zero. One reason is that the O2
concentration in the air drops exponentially while the wind-wave tunnel is flushed with N2 . To
reach a concentration of zero within the measurement precision, large quantities of N2 would be
necessary. Another reason is that O2 is transported through leaks of the wind-wave tunnel into
the air space (for the leakage rate refer to [Winter, 2011]). Therefore, the laser saturation power
with quencher P qsat is determined for different concentrations of O2 , as previously described,
and equation (3.9) is fitted to the data. The laser saturation power Psat without quencher is
gained as the offset of the linear fit function. The benefit of this method is that the value of the
Stern-Volmer constant KSV is not needed. To illustrate this step, a plot with the laser saturation
power with quencher P qsat versus the O2 concentration is depicted in Figure 5.4. It should be
noticed that the P qsat values are only needed to calculate the laser saturation power Psat without
O2 .
The damping factor D is obtained by rewriting equation (2.87) with laser power P instead of
laser irradiance E:
D =
Psat
P + Psat
(3.11)
3.2.3. Determination of the Unquenched Photon Flux
Since the O2 concentration can not be set to a value of c = 0 mg L−1 (see Section 3.2.2) another
calibration method has to be used to get the photon flux Φ0 in absence of O2 . The calibration
photon flux Φcal is measured at different O2 concentrations ccal . An expression for the photon flux
Φ0 is obtained using the generalized Stern-Volmer equation (2.86) and inserting the calibration
photon flux Φcal and the calibration O2 concentrations ccal :
1
1
=
· (1 + KSV · D · ccal )
Φcal
Φ0
(3.12)
Fitting this equation to the measured inverse calibration photon flux Φ−1
cal over the calibration
O2 concentration ccal yields the photon flux Φ0 as the inverse offset of the linear fit function.
This method is able to determine the photon flux Φ0 without knowing the Stern-Volmer
constant KSV and the damping factor D . This fact leads to a high precision of Φ0 as the errors
of KSV and D are not transmitted to the photon flux Φ0 .
34
3.3. Mass Balance Method
ca
Va
A·k·(α·ca-cw)
A
Vw
cw
Figure 3.2.: Box model for an invasion experiment for the gas exchange between the air space with volume Va and
O2 concentration ca and the water space with volume Vw and O2 concentration cw . The transport of O2 takes place
through the water surface area A. The amount of transported oxygen per time is indicated next to the arrow.
3.3. Mass Balance Method
The mass balance method to measure the transfer velocity kb , integrated over fetch, in the linear
wind-wave tunnel is presented in this section. We model the wind-wave tank with two boxes,
one box being the water space with volume Vw , and the other being the air space with volume
Va , separated by the water surface A, see Figure 3.2. The O2 concentrations cw and ca are
regarded being well mixed within the boxes. We assume a constant O2 concentration ca in the
air, because the amount of O2 molecules in the air space ca · Va is much bigger than the amount
cw · Vw in the water space. This is justified with the fact that the air volume is about a factor
of 30 bigger than the water space (see Section 4.1.1), and that the solubility α of O2 in water is
on the order of 3 % [Sander, 1999], leading to
Va
1.
Vw · α
(3.13)
Using this condition and the balance condition cw = α·ca (equation (2.20)), we obtain the stated
condition
ca · Va cw · Vw .
(3.14)
The box model is described in [Jähne, 1980] for the nonsteady case with two coupled differential
equations. Here, these equations can be uncoupled because of the condition ċa = 0 and we
obtain an ordinary linear first order differential equation for the mass balance
Vw · ċw = k · A · (α · ca − cw ).
(3.15)
With the initial condition that the concentration at time t = 0 is c0 , the solution to the mass
balance equation is
cw (t) = α · ca + (c0 − α · ca ) · exp(−
with the effective height heff =
Vw
A
k
· t),
heff
(3.16)
of the wind-wave tunnel.
35
3. Methods
3.4. Measuring Method for the Wind Profiles
Wind profiles were measured at the Heidelberg linear wind-wave tunnel (Section 4.1.1) by an
L-shaped Pitot tube with a differential pressure transducer1 . The Pitot tube was moved in the
vertical direction with a translation stage2 . The wind velocity u is determined by the differential
pressure of the Pitot tube ρdiff and the air density ρair with the equation
r
u=
2 · pdiff
.
ρair
(3.17)
During the measurements, the air temperature and pressure was measured to calculate the
precise air density ρair .
For the wind measurements, the top cover of the wind-wave tank was replaced by a cover
plate with a slit along the wind direction in the center where the Pitot tube was passed through,
allowing wind measurements at fetch positions between 40 cm and 240 cm. In order to have an
undisturbed wind field, the open parts of the slit were sealed with inlays.
1
differential pressure transducer: DIFF-CAP by Special Instruments with the specified measuring range of
0.5 mbar and accuracy of 0.25 % of full scale.
2
translation stage by Owis
36
4. Setup
A description of the wind-wave tunnels used in this study is given in Section 4.1. The setup to
measure oxygen (O2 ) concentrations in water is shown in Section 4.2.
4.1. The Wind-Wave Tunnels
Experiments presented in this study were performed in two different wind-wave tunnels at the
Institute of Environmental Physics at the University of Heidelberg. The Heidelberg linear windwave tunnel was used for the LIF measurements (Section 7.3.1). The linear visualization-test
wind-wave tunnel was used for the measurement of the Stern-Volmer constant KSV (Section
5.2.2).
4.1.1. The Heidelberg Linear Wind-Wave Tunnel
The Heidelberg linear wind-wave tunnel1 was built by Dr. Alexandra Herzog and is described
in detail in her thesis [Herzog, 2010]. This setup was further upgraded in the framework of
this thesis. Figure 4.1 shows a schematic drawing of the side view of the tunnel. The linear
tunnel satisfies experimental demands that none of the existing tunnels in the Heidelberg gas
exchange lab does. The linear shape of the water segment leads to a logarithmic wind profile,
which enables us to measure the friction velocity. The glass windows at the water segment allow
perfect access for optical measurements from the bottom, the top, or the side of the water basin.
The materials used at the inner side of the tunnel are all chemical resistant which allows for the
use of acid gases. The current instrumentation and the properties of the tunnel are presented
in this section.
General Properties
The tunnel has a length of 7.7 m and is 1.5 m high, including the air circulation system, as shown
in Figure 4.1. The closed system of the tunnel has an air volume of about 3.3 m3 and a water
volume of about 115 L including the water in the bypasses. The elements of the wind guiding
system are fabricated out of foamed PVC2 , covered with PTFE3 foil, leading to a light weight
and chemical resistant device.
1
The tunnel was formally known as LIZARD (linear strong acid resistant device).
PVC is the acronym for Polyvinylchlorid which is a widely used plastic. Here, the brand Kömacel by the
manufacturer Kömerling Plastics was used.
3
PTFE stands for Polytetrafluoroethylene and is best know for the brand name Teflon.
2
38
1.5 m
flow direction
wind engine
thermometer (air)
7.7 m
fetch = 0 cm
wind direction
P
P
P
honeycomb
injection
device
21 cm
bypass pumps
peltier elements 2
oxygen probe (water)
equilibrator with pump
spectrometer
8.8 cm
24.3 cm
fetch length: 3.66 m
thermometer (water)
peltier elements 1
peltier controller
wave breaker
oxygen probe (air)
length of water segment: 3.88 m
4. Setup
Figure 4.1.: Sketch of the side view of the Heidelberg linear wind-wave tunnel.
4.1. The Wind-Wave Tunnels
42.5 cm
12 cm
α = 16.5°
24.3 cm
α
9.2 cm
α
8.8 cm
22 cm
30 cm
Figure 4.2.: Cross section of the side view normal to the air flow of the water segment of the tank. The gray sidewalls
are out of glass, the black ones out of nontransparent foamed PVC material.
The Wind Engine and Wind Guidance
The wind engine is a seven-blade axial rotor HF A 400-D manufactured by Hürner Funken. The
parts having contact with the inner air space of the tunnel are made out of the chemical resistant
synthetic material PPS4 . An electronic frequency converter5 , adjusts the rotation frequency F
of the wind engine in a range from 0 Hz to 50 Hz. In the following text the term wind engine
frequency is used for the rotation frequency.
The air flow is guided to the water segment via the flow bending units. Unwanted fluctuations
normal to the mean air flow are reduced in the honeycomb, named for the inner cell-structure
of the element, with a cell size of 3 cm. After the honeycomb, the air flow is contracted in the
jet inlet leading to an acceleration of the flow, with a contraction ratio of 3.35. The purpose of
the jet inlet is to reduce inhomogeneities of the flow by contraction of the steam lines.
The Water Segment
The water segment without the bypasses contains 111.2 L of water6 with a surface area of about
1.28 m2 . The maximum fetch measures 3.66 m, but the glass windows allow optical measurements
only between 35 cm and 255 cm. The sidewalls of the water segment consist of transparent and
nontransparent sections, which are fabricated out of borosilicate glass7 with a thickness of 6.5 mm
and out of nontransparent foamed PVC material, covered with PTFE foliage, respectively. A
sketch of the cross section of the water segment is depicted in Figure 4.2. The sketch shows the
transparent (in gray) and the nontransparent (in black) parts of the walls. One of the sidewalls
is out of glass and tilted so that the optical axis of an oblique mounted camera is perpendicular
to the glass window. The reason for this setup becomes obvious in Section 4.2.1. A wave breaker
4
PPS is the acronym for Polyphenylene sulfide, a heat and chemical resistant plastic.
frequency converter: type Sinamics G110 by Siemens
6
The water volume given is for the standard fill depth of the tank, indicated with a mark and reproducible
through a level drain. This standard depth was used throughout this study, including the wind and the wave
measurements.
7
borosilicate glass: type Borofloat 33 by Schott
5
39
4. Setup
at the end of the water segment made out of PTFE tubes suppresses the reflection of waves.
The Bypasses
Three bypasses are depicted in Figure 4.1. The uppermost bypass is the mixing bypass with a
water volume of about 3.5 L. The purpose of this bypass is to generate a recirculation in the
channel so that tracers and the injected fluorophore (the Ru complex, see Section 5) get equally
distributed in the water. In the case of an operating Peltier temperature control, the circulation
of the water is important in order to equilibrate the temperature in the tunnel. Liquid tracers
and other substances can be injected by a dedicated device in the bypass right before the pump
to achieve a fast mixing with the water in the basin. To drive the flow in the mixing bypass a
centrifugal pump8 is used, having a discharge flow of 80 L min−1 . The same electronic frequency
converter as used for the wind engine adjusts the rotation frequency of the pump. Arrows in
the mixing bypasses in Figure 4.1 indicate the flow direction.
Each of the two smaller bypasses contains a water volume of about 350 mL. One of them
contains two important measuring devices, the oxygen probe and an absorption spectrometer,
the other one is the deoxygenation bypass containing an equilibrator with a pump. The purpose
of this bypass is to deoxygenate the water in the wind-wave tunnel. The three later devices
are described in the following paragraph. Both of the smaller bypasses contain a magnetically
coupled rotary pump9 with a discharge flow of 14 L min−1 .
Instrumentation on the Water Side
The four instruments installed on the water side of the tunnel are described in this section.
Except for the thermometer, all devices are installed in the bypasses.
Thermometer (water side) The temperature of the water is measured with two precision thermometers10 , one upstream and one downstream. The sensors used are PT100 diving
detectors with a tolerance of ±0.03 K at 0 ◦ C. The thermometers are connected with a
peripheral interface adapter11 , that can be read out via the serial interface.
Oxygen Probe (water side) The oxygen probe12 is integrated in the measuring bypass to measure the O2 concentration. The detection limit is 0.01 % O2 (volume percent) and the
range of the measurement varies from 0.05 % to 300 % air saturation. The temperature
in the probe is measured simultaneously to correct for the temperature dependence of the
solubility of O2 . Interestingly, the measurement principle of the probe relies on the same
method (the O2 quenching method (Section 3.1.1)) as used in this thesis to measure O2
concentrations. It should be noted here that the commercial oxygen probe only measures
8
centrifugal pump: type MPN 101 by Schweiker
rotary pump: RS-Components
10
precision thermometers: type GMH 3710 by Greisinger
11
peripheral interface adapter: type GRS 3105 by Greisinger
12
oxygen probe: type Visiferm DO 120 manufactured by Hamilton
9
40
4.1. The Wind-Wave Tunnels
the temporal and spatial mean O2 concentration, whereas the LIF method (see Section
3.1) is able to measure with a high temporal and spatial resolution. Nevertheless, the
commercial oxygen probe is essential for the calibration of the photon flux Φ0 in absence
of O2 in Section 6.3.
Spectrometer The absorption spectrometer is installed in the measuring bypass in order to
measure the absorption spectrum of the water. With this setup, the absorbance of the
fluorophore, the Ru complex (Section 5.1), is measured in order to adjust the optimal
concentration (see Section 4.2.1). The setup consists of a blue LED having a FWHM
(full width at half maximum) emission between 400 nm and 470 nm. The light is focused
and passes through a cuvette, which is flushed by the water stream in the bypass, with
an absorption path in the water of 5 cm. After passing through the cuvette, the light is
focused with a second lens on a spectrometer13 covering the visible region. The absorbance
is computed using the law of Lambert-Beer, see equation (4.2).
Equilibrator The original application of the equilibrator14 membrane oxygenator is in the medical field to enrich the blood with O2 and to extract carbon dioxide. Its function is based on
a hydrophobic membrane in the equilibrator with a surface area of 1.8 m2 that is permeable
for gases but not for liquids. By reducing the pressure in the gas phase of the equilibrator
with a membrane pump15 , the dissolved gases diffuse from the water-side to the air-side.
In the tunnel, the equilibrator is used to deoxygenate the water.
Instrumentation on the Air Side
The three sensors for the air-related analysis are described here. They are read out together
with two devices on the water side (the thermometer and the oxygen probe) using a peripheral
interface adapter16 with five channels.
Thermometer (air side) The temperature of the air space in the tunnel is measured with the
same precision thermometer that is used on the water-side. The sensor used is a PT100.
The air temperature is needed to calculate a precise air density for the measurement of
the wind speed in Section 7.2.1.
Oxygen Probe (air side) The oxygen probe17 installed on the air-side with an O2 sensor18 has
a range from 0 % to 100 % air-sided O2 partial pressure. The O2 concentration in the air
is needed for the calibration of the LIF method (see Section 3.2). To adjust different O2
values in the water, the air-sided O2 concentration has to be varied and monitored.
13
spectrometer: Ocean Optics USB4000
equilibrator: Jostra Quadrox, Maquet
15
membrane pump: type N 820.3, KNF Neuberger
16
peripheral interface adapter: type GRS3105, Greisinger
17
oxygen probe: GMH3690, Greisinger
18
oxygen sensor: type GGO370, Greisinger
14
41
4. Setup
Pressure Sensor The pressure sensor19 measures the static pressure inside the wind-wave tunnel with a resolution of 1 mbar. The static pressure inside the tunnel is crucial for the
calculation of the air density for the wind speed measurement in Section 7.2.1.
Peltier Temperature Control
On the bottom of the water segment, two Peltier temperature control units are attached to
control the water temperature, one at fetch = 0 cm and the other at the end of the water
segment (see Figure 4.1). The bottom of the tank at the positions where the cooling units are
mounted consists of aluminium to provide a sufficient thermal conduction. The peltier elements
are pressed against the aluminium with a cooling element (380 × 280 × 50 mm3 ). On both sides
of the peltier elements, heat conducting foils optimize the heat transport to the aluminium plate
on one side and to the cooling element on the other side. A tangential fan generates air flow
through the ribs of the cooling element to improve the heat exchange with the room temperature.
Each of the two Peltier temperature units contains 24 Peltier elements20 . Six Peltier elements
are connected in series forming one line. Four lines are parallel connected on both of the two
Peltier units. A Peltier controller21 supplies the 48 peltier elements on the two cooling units,
using a PID (proportional-integral-derivative) controller. Data sheets to the Peltier elements
can be found in the appendix of Winter [2011]. The Peltier temperature control is able to keep
the temperature of the water in the tank constant with a precision of ± 0.1 K.
4.1.2. The Test Wind-Wave Tunnel
The test wind-wave tunnel allows tests of new measurement techniques because of its good
optical access from each side of the water segment through the glass walls. It was used for
the measurement of the Stern-Volmer constant KSV (see Section 5.2.2), because of its small
water volume of 22 L and air volume of about 220 L. Those small volumes allow a faster mixing
of water and air space, the usage of smaller amounts of added gases, and the adjustment of
a wider temperature range compared to the Heidelberg linear wind-wave tunnel. A detailed
and complete description of the test wind-wave tunnel is given in Winter [2011] and a German
version in Warken [2010]. To provide an idea of the tunnel’s geometry, a technical drawing of
the tunnel and its water segment is given in Figure 4.3. The wind-wave tunnel has a length of
4 m, a width of 1 m, and a height of 1.5 m.
The temperature Peltier cooling of the test tunnel was built during the course of this study.
The cooling unit is able to adjust the temperature to a precision of ± 0.1 K and reach temperatures between 17 ◦ C and 27 ◦ C for a room temperature of about 22 ◦ C. The limits of the cooling
unit are important for the measurement of the temperature dependence of the Stern-Volmer
constant KSV (see Section 5.2.3).
19
pressure sensor: type GMSD 1.3 BA with GMH3110, Greisinger
Peltier elements: type QC-127-2.0-15.0M, Cooltronic
21
Peltier controller: type TC2812, Cooltronic
20
42
4.2. The LIF Setup
Figure 4.3.: 3-D sketch of the test wind-wave tunnel with the water segment depicted in blue, from Warken [2010].
4.2. The LIF Setup
The setup of the laser-induced fluorescence (LIF) method (see Chapter 3.1) is described in
this section. It was used at both wind-wave tunnels mentioned in Section 4.1. The most
important constituents in the LIF setup are the laser (see Section 4.2.2), the water with the
solved fluorophore (the Ru complex, see Section 5.1), and a camera (see Section 4.2.4).
4.2.1. General Description
Figure 4.4 shows a sketch of the LIF setup as it was mounted at the Heidelberg linear windwave tunnel during the measurements. The laser beam (blue line) is focused with a beam
expander (see Section 4.2.3), deflected with a mirror into the water segment, and absorbed
by the Ru complex, which is solved in the water. The excited molecules of the Ru complex
emit phosphorescence photons (red line in Figure 4.4) which are detected with a camera. The
presence of O2 molecules next to excited molecules of the fluorophore leads to a reduction of the
photon flux Φ due to collisional quenching (see Section 2.3.4). Employing this quenching effect,
local O2 concentrations along the laser beam are measured, using the general Stern-Volmer
equation (2.86) and the measured Stern-Volmer constant (see Section 5.2.2).
Laser from Below the Tank The laser beam enters the water segment from below the tank. An
illumination from below guarantees that the laser beam is always at the same position in
43
4. Setup
emission light
from the
fluorophore
tilted glass
window
α
x
α = 16.5°
camera
glass bottom
of the tank
mirror
laser beam
z
beam expander
y
diode laser
Figure 4.4.: Sketch of the LIF setup, showing a part of the water segment of the Heidelberg linear wind-wave tunnel,
the laser, and the camera. The coordinate system used in this study is shown. The x-, y-, and z-axes depict the
wind-direction, the horizontal cross-wind direction, and the depth, respectively. Parts of this figure are modified from
Warken [2010].
the water segment and in the depth of focus of the camera. The laser line in the water
is tilted about 16.5◦ in the y-direction so that it is parallel to the side window. This is
necessary as the laser line has to be in the focal plane of the camera which is also tilted.
The reason for the tilted camera becomes obvious in the next paragraph.
If the laser was mounted above the water surface, as realized in Herzog [2010], the laser
beam would be diffracted at the water surface due to waves. This would cause the laser
beam to be out of the camera focus and in cases of a high surface slope out of the camera’s
field of view.
Tilted Side Window The side window of the wind-wave tank with optical access to the camera
is tilted (see Figure 4.4). The reason for this setup is that the camera must observe the O2
concentration profile from a tilted angle in order to see the intersection point of the water
surface and the profile even at wavy conditions up to a maximum angle, described in the
next paragraph. The camera lens has to be parallel to the glass window of the wind-wave
tank in order to avoid optical aberrations.
Surface Slope Limit If the surface slope sy at the intersection point of the surface and the
illuminated concentration profile in the y-direction is too high, the upper part of the
concentration profile is not visible (see Figure 4.5). The camera is tilted by the angle δ.
The necessary condition that the concentration profile up to the surface can be seen is:
sy < δ
44
(4.1)
4.2. The LIF Setup
sy
δ
δ
emission light of the fluorophore
Figure 4.5.: Sketch of the limiting case where the surface is not visible. The surface is hidden if the slope sy of the
surface at the intersection point of the laser and the water surface is greater than the camera angle δ.
Even if this condition is fulfilled, the surface might not be visible, if the water surface
crosses the optical axis of the camera before the concentration profile. Regarding this
case, the sufficient condition to see the concentration profile up to the water surface is that
equation (4.1) is fulfilled for all points on the water surface.
Optimal Fluorophore Concentration As the laser beam enters the tank from below, the laser
irradiance E decreases due to absorption by the fluorophore along the beam path zb ,
starting with a maximum laser irradiance E0 at the exit of the laser diode. The exponential
decay of the laser irradiance is described by the law of Lambert-Beer with the exponential
extinction coefficient exp of the fluorophore and the concentration c of the fluorophore.
E(c, zb ) = E0 · exp−exp ·c·zb
(4.2)
In order to have a maximum signal at the water surface, the concentration c of the fluorophore has to be optimized. To derive the ideal concentration of the fluorophore, the
concentration dependence of the photon flux Φ is calculated. The photon flux Φ is proportional to the number of absorbed laser photons:
Φ(c, z) ∝
∂E(c, z)
= −exp · c · E0 · exp−exp ·c·z
∂z
(4.3)
The maximum photon flux Φ at the surface after distance z0 is reached when the partial
derivative of the photon flux by the concentration is zero:
∂Φ(c, z = z0 )
∝ 1 − exp · c · z0
∂c
(4.4)
The result for the optimal concentration copt to maximize the laser irradiance at the water
surface is
−1
copt = −1
exp · z0 .
(4.5)
This implies that the laser irradiance E(copt , z0 ) at the water surface has decreased to a
value of E0 · exp−1 .
45
4. Setup
(a) laser power calibration
(b) the NOVAPRO laser module
Figure 4.6.: (a) Laser power calibration measured with a laser power meter by NEWPORT. (b) Picture of the laser
head and the laser controller (from the laser data sheet).
The product of the concentration c and the exponential extinction coefficient exp is measured with the absorption spectrometer installed in the measuring bypass of the tunnel.
4.2.2. The Laser
The laser used in this study is a diode laser22 with a wavelength of 445 ± 5 nm, a maximum laser
power of about 79 mW, and a divergence angle smaller than 0.9 mrad. The laser output power
is regulated by a controller with an input control voltage between 0 V and 5 V.
Figure 4.6(a) shows the linear relation between the output power and the control voltage.
The laser head (60 × 31 × 31.5 mm3 ) and the controller (85 × 60 × 28 mm3 ) are shown in Figure
4.6(b). The compact design of the laser allows the usage of the laser at places which are difficult
to access. To ensure a stable output wavelength and beam shape, the laser is equipped with a
temperature control unit.
The control voltage at the input of the laser controller can be modulated with a frequency up
to 200 kHz. During the measurements, the laser was pulsed using a signal generator with pulse
rates between 0.5 kHz and 1.2 kHz to avoid unwanted signal variations (see Section 3.1.2).
Figure 4.7 shows the beam shape without any focusing element at a distance of 24 cm from the
beam exit. The beam profile was measured by positioning the laser in front of a CMOS camera23
without camera lens and mounting two mirrors, one reflecting mirror and one absorbing mirror,
in front of the camera detector. The beam has a Gaussian shape in the y-dimension and a
non-Gaussian shape in the x-dimension. The following section shows that the laser beam can
be well focused to a FWHM value below 70 µm and 31 µm in the two dimensions with a beam
expander.
22
23
46
diode laser: type NOVAPRO-450-75 by RGB Lasersysteme
camera: Basler acA2500-14gm; pixel size 2.2 µm
4.2. The LIF Setup
0.9 mm
y
3.1 mm
x
Figure 4.7.: Cross section of the laser beam measured with a self-build beam profiler.
37 cm
37.5 cm
38 cm
38.5 cm
39 cm
39.5 cm
40 cm
40.5 cm
y
330 µm
x
187 µm
Figure 4.8.: Cross sections of the laser beam collimated with the beam expander at different distances on the optical
axis. The distances measured from the exit of the beam expander are written above the images. The pictures shown
are all normalized to the value of the peak. The cross sections were recorded with the same beam profiler as described
in Section 4.2.2.
4.2.3. The Beam Expander
The purpose of the beam expander is to focus the laser in the measuring section between the
water surface and about 1 cm beneath the surface. This is important for three reasons: i) The
laser beam has to be focused to achieve a high depth resolution. For an unfocused beam, the
depth resolution is low because the signal in one camera pixel originates from different water
depths. ii) Focusing is important to reach a high laser irradiance leading to a good signal-tonoise ratio (SNR) of the measured photon flux Φ. iii) Further, the water surface is much easier
to detect with a focused beam in contrast to a wide beam (see Section 8.2.2).
The beam expander which is mounted on the laser exit consists of two achromatic lenses
in a Kepler telescope [Hecht, 2009] setup. The laser light first passes through a lens with a
focal distance of f = 30 mm. At a distance of 10.5 cm from the first lens, the second lens with
f = 60 mm is mounted. This setup enables to vary the position of the beam waist from infinity
down to 6 cm after the second lens by changing the distance between the two lenses. Figure 4.8
shows the cross section of the laser beam at different distances from the beam expander in steps
of 5 mm starting at 37 cm. Compared to Figure 4.7, the pictures in this figure are turned by 90
degrees. The figure shows that the x-dimension has a Gaussian shape with a nearly constant
47
4. Setup
Figure 4.9.: Plot of the standard deviation of the beam cross section measured at different distances to the beam
expander. The x-dimension is the Gaussian mode, the y-dimension the non-Gaussian mode. For the measurements,
the part from about 386 mm to about 396 mm was used.
width for the depicted pictures. The y-dimension shows a stripe structure at a distance of 37 cm,
which is focused on a single spot at a distance of 39 cm.
Cross sections as the ones shown in Figure 4.8 of the beam were recorded at 0.5 mm intervals.
This was performed by shifting the beam profiler described in Section 4.2.2 with a translation
stage over the specified range. The standard deviation σ of the two main axes was determined
®
using the image processing software Heurisko . The result of this measurement for distances
from 38 cm to 40 cm is shown in Figure 4.9. The standard deviations at the beam waist correspond to FWHM values of 70 µm and 31 µm for the x- and the y-dimension, respectively. The
section between 386 mm and 396 mm shows a standard deviation σy and σx below 20 µm and
25 µm, respectively. This range was used for the measurements, setting the beam waist to the
water surface. The laser was oriented so that the camera sees the Gaussian mode with a constant
width over the measuring volume. Measuring the laser beam width over the distance from the
beam expander was crucial for the optimization of the beam expander and to estimate the error
in the height of the concentration profiles.
4.2.4. The Camera
The acA2000-340km manufactured by Basler is a monochrome CMOS camera. It was chosen
for several reasons listed below.
Pixel Size The size of the camera’s pixels is 5.5 µm × 5.5 µm. Together with the camera macro
lens used (see Section 4.2.5), this leads to an optical pixel resolution of the same order.
Number of Pixels The camera’s progressive scan CMV2000 CMOS sensor features a resolution
of 1088 pixels × 2048 pixels. The full width of the 2048 pixels each line is used for the
48
4.2. The LIF Setup
measurements. Only 50 out of the 1088 lines are read out for the measurements, because
a region of this size is sufficient to image the laser line, which is used in this experiment.
Speed The refresh rate of the camera at full frame is 340 fps (frames per second). The rate
grows by decreasing the number of vertical rows to read out. Using 50 lines, a maximum
refresh rate of 1.9 kHz was achieved.
Global Shutter The global shutter of the camera guarantees that the exposure time for all pixels
is the same. In contrast to a rolling shutter, there is no time delay between the recorded
information of different pixels.
External Trigger Besides the free-run mode and a software-based trigger, the camera features
an external trigger input. This option was used for the measurements. The camera was
triggered with a signal generator that also triggered the laser so that the acquisition time
of the camera overlaps with the laser pulses.
Size The camera’s compact size of 43.5 × 29 × 29 × mm3 enables the user to install the camera
at sites that are difficult to access if the lens is small enough.
The pictures were saved with a pixel bit depth of 10 bits. The relation between the gray value
that the camera observes and the irradiation (in photons per pixel) shows a good linearity with
a deviation from the linear curve below 0.4 % (see A.5). Measurements of the linear response
were conducted at the HCI (Heidelberg Collaboratory for Image Processing) according to the
EMVA 1288 standard [Group, 2010].
4.2.5. The Camera Lens
The camera lens used for the measurements is a AF Micro-Nikkor 200 mm 1:4 D. It was chosen
because of its good resolution and a large working distance of 260 mm for a macro lens. The
measurements of the resolution are shown in Section 6.1.2. A working distance greater than
about 150 mm was necessary in order to be able to measure at the center of the water segment,
as Figure 4.2 visualizes.
49
5. Characterization of the Ruthenium Complex
Indicator
This chapter shows results of measurements to verify the influence of saturation effects of the
fluorophore used in this study on the quenching efficiency. Here, a ruthenium (Ru) complex
was used to measure water-sided oxygen (O2 ) concentrations. The general properties of the Ru
complex are presented in Section 5.1. To determine precise O2 concentrations, the quenching
characteristics of the Ru complex were measured (Section 5.2). The efficiency of the quenching
effect depends on the laser irradiance, as could be confirmed experimentally in Section 5.2.2. The
generalized Stern-Volmer equation (2.86), which describes the dependency of the photon flux Φ
of an excited fluorophore on the concentration c of a quencher, was tested with the measured
data, see Section 5.2.2. The Stern-Volmer constant KSV and its dependence on temperature was
measured, see Sections 5.2.2 and 5.2.3. Section 5.3 shows a measurement of the vulnerability of
the Ru complex to photobleaching effects.
5.1. General Properties
In this study, the complex [Ru(dpp(SO3 Na)2 )3 ]Cl2 , a water-soluble fluorophore, is used. Three
ligands dpp(SO3 Na)2 are attached to the metal Ru. The ligand dpp(SO3 Na)2 is a disulfonated
derivate of 4,7-diphenyl-1,10-phenantroline (dpp). A schematic drawing of the complex is shown
in Figure 5.1. The water soluble sulfonated derivate [Ru(dpp(SO3 Na)2 )3 ]Cl2 of the oxygen probe
[Ru(dpp3 )]Cl2 was first reported by Castellano and Lakowicz [1998], and is now widely used as
an oxygen indicator. They report a lifetime of the unquenched Ru complex of 3.7 µs. The
Stern-Volmer constant KSV = kq · τ0 depends on the lifetime of the unquenched fluorophore, as
described in equation (2.85). This intermediate lifetime between fluorescence and phosphorescence is long enough to have significant quenching effects and short enough to have significant
emission light. Hence, the Ru complex is an ideal O2 indicator in water.
The measured absorption and emission spectra of the Ru complex are shown in Figure 5.2.
During the measurement of the absorption spectrum1 , the O2 concentration in the solution was
in equilibrium with the room concentration. The existence of O2 in the water does not change
the absorption spectrum.
For the measurement of the emission spectrum2 , the Ru complex was excited by a laser with
1
2
used spectrometer for the absorption spectrum: HP 8453 E UV-visible
used spectrometer for the emission spectrum: Ocean Optics 2000+
5. Characterization of the Ruthenium Complex Indicator
2+
NaO3S
SO3Na
SO3Na
N
Ru
N
N
SO3Na
N
N
N
NaO3S
NaO3S
Figure 5.1.: Schematic drawing of the water soluble MLC [Ru(dpp(SO3 Na)2 )3 ]Cl2 used in this study. The metal
Ruthenium (Ru) is indicated in the centre. The ligand 4,7-diphenyl-1,10-phenantroline (dpp) is shown in red around
the centre. Water solubility is reached due to the SO3 Na groups. Modified from Lakowicz [2006].
Figure 5.2.: Emission and absorption spectra of the Ru complex. For the emission spectrum, the Ru complex was
excited by the laser described in Section 4.2.2 with a wavelength of 445 nm.
a wavelength of 445 nm (see Section 4.2.2), so that the emission light could be observed at a
90 degree angle with respect to the incident laser light. The maximum emission wavelength is at
about 616 nm, the maximum of the absorbance ranges from 440 nm to 465 nm. The Stokes shift
between the wavelength of the laser and the maximum emission wavelength is about 171 nm.
This large Stokes shift allows for a spectral separation of the laser light and the emission light
of the Ru complex and ensures that the self-absorption of the Ru complex can be neglected.
The synthesis of the water soluble Ru complex ([Ru(dpp(SO3 Na)2 )3 ]Cl2 ) was performed by a
student assistant as described in Appendix A.1.
52
5.2. Quenching Characteristics
5.2. Quenching Characteristics
In this section the general Stern-Volmer equation (2.86), derived in Section 2.3.4, is experimentally verified, and the Stern-Volmer constant KSV of the Ru complex is determined for different
temperatures.
For convenience, a new term, the effective Stern-Volmer constant Keff , is introduced here:
Keff := KSV · D .
(5.1)
Using the damping factor D (see equation (2.87)) the general Stern-Volmer equation (2.86) is
rewritten:
Φ0
= 1 + KSV · D · c
Φ
(5.2)
To show that equation (5.2) is correct, the photon flux Φ is measured with respect to the O2
concentration c for different damping factors D . The damping factor D is varied by using
different laser power values. With this set of data, equation (5.2) is tested in Section 5.2.2. The
photon flux Φ is measured with a camera. The method is described in Section 3.2.1.
The photon flux without quencher Φ0 and the effective Stern-Volmer constant Keff are determined by fitting equation (5.2) to the measured data presented in Section 5.2.2. The damping
factor D is determined independently in Section 5.2.1. The Stern-Volmer constant KSV is calculated for each damping factor, using the definition (5.1). It is shown that the measured values
of KSV are independent of the damping factor, as expected (see equation (2.85)).
The measurements presented in this section were performed in a linear visualization-test windwave tank described in Section 4.1.2. The small air and water volumes of this tank allow a fast
change of the O2 concentration in water and in air.
5.2.1. Measurement of the Damping Factor D
In this section, the damping factor D (3.11)
D =
Psat
P + Psat
(5.3)
is determined as a function of the laser power P and the saturation laser power Psat at the
oxygen concentration c of zero. In Section 3.2.2, a method to determine the damping factor
D was described. To calculate the damping factor D with equation (5.3), the saturation laser
power Psat at the O2 concentration c of zero has to be determined. As this is hard to realize,
q
the photon flux Psat
is measured at different O2 concentrations. The photon flux Psat at the O2
concentration of zero is obtained by an extrapolation of the data. As a result, we obtain the
damping factor D as a function of the laser power P . Knowing the damping factor for different
values of P was essential to confirm the generalized Stern-Volmer equation (2.86) and to make
an optimal choice for the laser power P for the systematic O2 profile measurements.
53
5. Characterization of the Ruthenium Complex Indicator
Figure 5.3.: Photon flux Φ with respect to the laser power P for five different O2 concentrations from c = 0.19 mg L−1
to c = 8.04 mg L−1 . Equation (3.10) is fitted to each data sets and yields the fit parameters maximum photon flux
Φmax and saturation laser power P qsat . The values of P qsat are needed to calculate the saturation laser power P sat and
are listed here: P qsat = [81.4; 185.2; 218.9; 239.6; 260.0] mW.
In the first step of the measurement of the damping factor D , the saturation laser power with
quencher P qsat is measured for five different O2 concentrations. Figure 5.3 shows the photon flux
Φ with respect to the laser power P for five different O2 concentrations from c = 0.19 mg L−1 to
c = 8.04 mg L−1 . The saturation irradiance P qsat is obtained by fitting equation (3.10)
Φ = Φmax ·
P
P qsat + P
(5.4)
to the data. Figure 5.3 shows that the photon flux Φ is non-linear with respect to the laser power
P . This means that the approximation of a weak excitation (see equation (2.77)) is not valid for
a laser power of 80 mW. The fit functions to the data at the five different O2 concentrations yield
five values of the saturation laser power with quencher P qsat , listed in the caption of Figure 5.3.
The bimolecular quenching constant kq and consequently also P qsat depend on the temperature
(see equation (3.9)). Here, all calibration measurements were performed at 20 ◦ C, which is
the same temperature as used for the measurements in the following section 5.2.2, where the
Stern-Volmer constant KSV is measured. The laser saturation power Psat for of c = 0 mg L−1 is
obtained by fitting equation (3.9)
P qsat = Psat + αP ·
kq
·c
σa
(5.5)
to the determined values of P qsat , see Figure 5.4. The offset of the linear fit function yields the
saturation laser power Psat = (77 ± 1) mW for c = 0 mg L−1 . The damping factor D can then
be calculated using equation (5.3). For the determination of the Stern-Volmer constant KSV in
54
5.2. Quenching Characteristics
Figure 5.4.: Laser saturation power with quencher P qsat with respect to the O2 concentration c. The five data points
are obtained from the fit functions, shown in Figure 5.3, at the given O2 concentrations. The linear correlation between
P qsat and c is shown in equation (3.9). From the offset of the linear fit to the data, the saturation laser power
P sat = (77 ± 1) mW at an O2 concentration of c = 0 mg L−1 is obtained.
Table 5.1.: Laser power modes and the corresponding damping factors D that are used for the measurement of the
Stern-Volmer constant KSV in Section 5.2.2.
laser control voltage [V]
0.6
2.6
5.0
laser power P [mW]
10.091 ± 0.004
41.590 ± 0.005
79.389 ± 0.007
damping factor D
0.884 ± 0.002
0.649 ± 0.005
0.492 ± 0.004
Section 5.2.2, three different values of the laser power were used. The corresponding values of
the damping factor D are given in Table 5.1.
Comparison of the Measured Laser Saturation Power with a Theoretical Value
A compar-
ison of the experimentally determined value of the laser saturation power Psat and a theoretical
value is shown in the following. The purpose is to check if the literature values for the lifetime
τ0 and the cross section σa of the Ru complex agree with the measured laser saturation power
Psat . To calculate the theoretical value of the laser saturation irradiance, equation (2.75)
Esat =
1
τ0 · σa
(5.6)
is used. Two values of the lifetime τ0 of the Ru complex were found, one in the literature (3.7 µs in
[Castellano and Lakowicz, 1998]), and one unpublished from previous lab studies (3.9 µs [Jähne,
2012, personal communication]). For both values, no error estimates are given. So we use the
mean value of τ0 = 3.8 µs with an error of 0.1 µs in the following. A value of = (35000 ±
L
1000) mol
1
cm
is used for the extinction coefficient, also unpublished and obtained from previous
lab studies [Jähne, 2012, personal communication]. The cross section σa can be calculated from
55
5. Characterization of the Ruthenium Complex Indicator
the extinction coefficient using Lambert-Beer’s law:
E = E0 · 10−·c·z = E0 · exp(−σa · ρ · z),
(5.7)
with the irradiance E0 at the entry of the medium, the concentration of the absorbing species
c, the path length z in the absorbing medium, and the density of the absorbing species ρ. The
cross section follows from equation (5.7) and :
σa = · ln 10 · NA−1 mol
(5.8)
With the extinction coefficient given above, the cross section is σa = (1.34 ± 0.04) · 10−16 cm2 .
Using equation (5.6), the corresponding laser saturation irradiance is
21 −1
E theo
cm−2 .
sat = (1.96 ± 0.08) · 10 s
Now, the experimentally determined value of the laser saturation power of Psat = (77 ± 1) mW
theo
is converted into a laser saturation irradiance E exp
sat , that can be compared with E sat . The
absorption of the laser light in the water volume due to absorption by the Ru complex has to be
taken into account, as the laser power used so far is the power at the exit of the laser diode. The
light path of the laser beam to the measuring section in the water body was about z = 6 cm. The
product of the extinction coefficient and the concentration was measured with a spectrometer3
to be · c = (6.80 ± 0.01) · 10−2 cm−1 . The remaining laser power after 6 cm absorption path is
then
P 6satcm = Psat · 10−0.068·6 = (30.1 ± 0.4) mW.
The photon flux Φphoton in the measuring section is obtained from the laser power P 6satcm by
Φphoton =
P 6satcm
= (6.79 ± 0.09) · 1016 s−1 ,
h · λc
(5.9)
where h is the Planck constant, c the speed of light, and λ = 445 nm the wavelength of the laser.
To convert the photon flux Φphoton into a photon irradiance E exp
sat , the area over which the laser
is distributed needs to be known. The laser cross section was measured for this purpose (see
Section 4.2.2). The distribution of the photon flux can be approximated with a two-dimensional
Gaussian beam with the standard deviation in x- and y-direction of σx = 20 µm and σy =
12 µm. As the photon flux is not evenly distributed, only an approximation of the average
exp av
photon irradiance E sat
is given here. The area A, over which the photon flux is distributed,
can be approximated as the two-dimensional ±2 σ region (A ≈ 80 µm · 48 µm). For the average
3
56
spectrometer: HP 8453 E UV-visible
5.2. Quenching Characteristics
av
follows
photon irradiance E exp
sat
av
E exp
=
sat
Φphoton
≈ 1.8 · 1021 s−1 cm−2 .
A
av
The experimentally determined saturation irradiance E exp
is about a factor of 0.9 lower
sat
than the theoretical saturation irradiance E theo
sat . The deviation is not surprising, as a simplistic
approximation of the average laser irradiance was used. However, we see that laser saturation
irradiance is compatible with the known cross section σa and the lifetime τ0 of the Ru complex.
5.2.2. Measurement of the Stern-Volmer Constant
A precise determination of the Stern-Volmer constant KSV is crucial for precise O2 concentration
measurements by the LIF method. In the literature, only one value for KSV could be found
[Castellano and Lakowicz, 1998], but the reduction of the effective Stern-Volmer constant Keff
due to high laser irradiance was not investigated by these authors. Here, the Stern-Volmer
constant KSV is determined for three laser power values considering the damping factors D
listed in Table 5.1. The resulting values of the Stern-Volmer constants KSV are independent of
the laser power. With these measurements the generalized Stern-Volmer equation (2.86) was
confirmed.
In order to measure the Stern-Volmer constant KSV , the photon flux Φ with respect to the
O2 concentration was measured, see Figure 5.5. The generalized Stern-Volmer equation (5.2)
Φ0
= 1 + KSV · D · c
Φ
is fitted to the data to obtain KSV . The parameters determined by the fit are the photon flux
Φ0 and the effective Stern-Volmer constant Keff = KSV · D . Figure 5.5 shows the Stern-Volmer
plot for the three laser power values. The results of the effective Stern-Volmer constants Keff are
listed in Table 5.2. As predicted with the generalized Stern-Volmer equation (2.86), the effective
Stern-Volmer constant Keff depends on the laser irradiance E and accordingly the laser power
P . The higher the laser power, the lower is the value of the effective Stern-Volmer constant Keff ,
and so is the slope of the fitted lines in Figure (5.5). This is an indication that the correction
term D , introduced in this thesis, has to be added to the known Stern-Volmer equation (2.89).
The data of the Stern-Volmer measurements is also presented in a different form in the Appendix
A.3 for direct comparison with former measurements by Falkenroth [2007] and Münsterer [1996].
Table 5.2.: Laser power modes, the determined effective Stern-Volmer constants Keff , and Stern-Volmer constants
KSV .
laser power P [mW]
10.091 ± 0.004
41.590 ± 0.005
79.389 ± 0.007
Keff [L mg−1 ]
0.3883 ± 0.0019
0.2837 ± 0.0009
0.2556 ± 0.0008
KSV [L mg−1 ]
0.439 ± 0.003
0.437 ± 0.005
0.458 ± 0.008
57
5. Characterization of the Ruthenium Complex Indicator
Figure 5.5.: Stern-Volmer plot for three different laser irradiance values. The photon flux Φ0 in absence of O2 divided
by the photon flux Φ is plotted with respect to the O2 concentration in the water phase. The temperature was 20 ◦ C.
Equation (5.2) is fitted to the three data sets. The fitting procedure yields three values for the effective Stern-Volmer
constant Keff , as indicated in Table 5.2.
The data for the Stern-Volmer plot, Figure 5.5, was measured by realizing multiple concentrations of O2 between 0.17 mg L−1 and 8.4 mg L−1 (equilibrium concentration with air) in the
water as described in Section 3.2.1. To obtain the data, the photon flux Φ was measured at
three laser power values (see Table 5.2) and the O2 concentration was documented. The whole
Stern-Volmer measurement took seven days. During the measurement, the temperature was kept
constant at 20 ◦ C in the wind-wave tank. This temperature was chosen for comparison because
the measured Stern-Volmer constant KSV of Castellano and Lakowicz [1998] of the Ru complex
was also measured at this temperature. The temperature regulation produced oscillations of ±
0.1 ◦ C. To minimize temperature effects during the measurement, data was only taken when the
temperature was within (20 ± 0.03) ◦ C.
To calculate the Stern-Volmer constant KSV for the Ru complex, the obtained effective SternVolmer constants Keff in Table 5.2 have to be divided by the corresponding damping factors D
according to equation (5.1). By representing the Stern-Volmer measurement in the form of the
rewritten equation (5.2)
Φ0
− 1 · −1
D = KSV · c,
Φ
(5.10)
the similarity of the three results for the Stern-Volmer constants KSV is visualized in Figure
5.6. To scale the data, the independently measured damping factors D from Table 5.1 were
used. The results for the Stern-Volmer constants KSV are listed in Table 5.2. The values of the
Stern-Volmer constants KSV all agree within the ±2 σ region. This shows that equation (2.89)
describes the dependence of the quenching mechanism with the laser irradiance E in the right
way. The small deviations of the three Stern-Volmer constants KSV can be explained with the
uncertainties of the damping factors D .
58
5.2. Quenching Characteristics
Figure 5.6.: Scaled Stern-Volmer plot according to equation (5.10). The data from the Stern-Volmer measurement is
scaled with the damping factors D (see Table 5.1).
The damping factor D
D =
n0
,
N
(equation (A.5)) specifies the fraction of the Ru complex molecules in the ground state. The
higher the laser irradiance E, the less molecules of the Ru complex are in the ground state. This
explains that the damping factor D decreases with increasing laser irradiance E. The SternVolmer constant KSV does not depend on the laser irradiance E according to the definition in
equation (2.85): KSV = kq · τ0 . The bimolecular quenching constant kq is determined by the
collision probability between the molecules of the fluorophore and the quencher, but independent
of the laser irradiance E.
The result for the Stern-Volmer constant of the Ru complex at a temperature of 20 ◦ C is
obtained by calculating the weighted mean KSV of the values from Table 5.2:
KSV = (0.444 ± 0.007) L mg−1
The value of the Stern-Volmer constant documented in the paper of Castellano and Lakowicz
[1998] is KSV = 0.354 L mg−1 . The difference can possibly be explained with the fact that
they measured at a high laser irradiance and the D value was consequently smaller than unity.
The value of KSV that Castellano and Lakowicz [1998] reported was supposedly the effective
Stern-Volmer constant Keff .
The Stern-Volmer constant KSV of the Ru complex is about 22 times higher than the SternVolmer constant of pyrenebutyric acid (PBA), which is commonly used for LIF experiments
[Walker and Peirson, 2008; Wolff and Hanratty, 1994].
To conclude, the generalized Stern-Volmer equation (2.86) describes the quenching effect at
different laser irradiance values sufficiently well. We have seen that introducing the damping
59
5. Characterization of the Ruthenium Complex Indicator
factor D in equation (2.86) helps to correctly model the experimental data. For the determination of the Stern-Volmer constant KSV of a fluorophore, the damping factor D has to be known.
Otherwise, only the effective Stern-Volmer constant Keff can be measured.
5.2.3. Measurement of the Temperature Dependence of the Stern-Volmer
Constant
The temperature dependence of the Stern-Volmer constant KSV of the Ru complex must be
known for two reasons. The Stern-Volmer constant KSV still has to be known if the experiments are performed at a water temperature differing from 20 ◦ C. Secondly, the precision of
the measurement depends on the variation of KSV with temperature. There are temperature
fluctuations in the tank induced by pumps and the wind turbine. A deviation in the measuring
section from the mean water temperature leads to a an error in the determination of the O2
concentration c.
To measure the temperature dependence of the Stern-Volmer constant KSV , the same measurement setup as in the previous two sections was used. During the measurement, the laser
was pulsed to minimize the warming of the measuring volume due to laser heating. The laser
was triggered to give a pulse of 0.3 ms for each camera exposure. With the camera frame rate
of 10 Hz the resulting duty cycle is 0.3 %. The pump of the bypass with a discharge flow of
14 L min−1 was switched on during the measurement. The resulting flow of the water leads to
a transport of the heat pulses in flow direction. When the laser is switched on, the heat pulse
of the preceding laser pulse is already transported out of the measuring volume due to the low
laser pulse rate.
The O2 concentration was kept constant at c = 7.57 mg L−1 and the water temperature T was
varied between 17 ◦ C and 27 ◦ C in steps of 0.5 ◦ C by a peltier temperature controller installed in
the linear visualization-test wind-wave tunnel, see Section 4.1.2. The result of the measurement
is shown in Figure 5.7, where the photon flux Φ is plotted with respect to the temperature of the
water. The measurement was performed at a high laser irradiance corresponding to a damping
factor of D = 0.492. A linear decrease of the photon flux Φ with rising temperature can be
observed in the figure. This effect is explained with a rise of the bimolecular quenching constant
kq with increasing temperature due to a higher collision probability between the molecules of
the quencher and the Ru complex.
To calculate the temperature dependence of the Stern-Volmer constant KSV from the data in
Figure 5.7, we start with
KSV (T ) =
Φ0
1
−1 ·
,
Φ(T )
D · c
(5.11)
see equation (5.2). We assume that Φ0 , the photon flux in absence of oxygen, and the damping
factor D do not depend on the temperature T . This was tested with two measurements. To
60
5.2. Quenching Characteristics
Figure 5.7.: Temperature dependence of the photon flux Φ, scaled to unity at a temperature of 20 ◦ C. The data was
taken at a high laser irradiance, corresponding to a damping factor of D = 0.492, and at an O2 concentration of the
water space of c = 7.57 mg L−1 . The photon flux Φ decreases linearly with temperature in the measured temperature
range at about 1.8 % per Kelvin at a temperature of 20 ◦ C, as the linear fit function shows.
check if the damping factor
D =
Esat
E(abs) + Esat
shows a temperature dependence, the absorbance abs of the Ru complex in water was measured
with a spectrometer4 for temperatures in the range between 25 ◦ C and 38 ◦ C. The absorbance
showed no significant change with temperature leading to the assumption of a temperature
independent damping factor D . To test if the photon flux Φ0 varies with temperature, the same
measurement as the one shown in Figure 5.7 was performed at c = 0.17 mg L−1 . The change
of the photon flux Φ with respect to the temperature T is in agreement with the measured
change of the Stern-Volmer constant KSV presented at the end of this section. This justifies the
assumption of negligible temperature changes of Φ0 and D .
The photon flux Φ0 in absence of O2 is obtained from equation (5.11)
Φ0 = Φ(20 ◦ C, c) · (1 + KSV (20 ◦ C) · D · c),
(5.12)
where c is the O2 concentration which was measured when Φ was recorded. The concentration
c was measured using an oxygen probe, described in Section 4.1.1.
The temperature dependence was measured at three different laser irradiance values to test if
the result for the temperature dependence is the same for different damping factors D . Moreover,
combining the measurements obtained for different laser irradiance values yields a more robust
estimate of the temperature dependence of the Stern Volmer constant KSV . The measured
temperature variation of the calculated Stern-Volmer constant KSV is shown in Figure 5.8. The
4
spectrometer: HP 8453 E UV-visible
61
5. Characterization of the Ruthenium Complex Indicator
Figure 5.8.: Temperature dependence of the Stern-Volmer constant KSV measured for the three different laser power
values listed in Table 5.1.
values were calculated using equations (5.11) and (5.12). A linear fit was performed with the
prior knowledge that the Stern-Volmer constant KSV at 20 ◦ C reaches the value of 0.444 mg L−1
presented in Section 5.2.2. This restriction can be made because the result of KSV in the last
section (5.2.2) was obtained with a higher precision than here. This is due to better statistics
of the measurement in the last section (see the amount of data points in Figure 5.5) and the
higher precision of each single value in Table 5.2 compared to values in Figure 5.8.
The values of the Stern-Volmer constant KSV measured at a high laser irradiance are systematically higher than the values measured at a lower laser irradiance. The errors of the KSV values
for low irradiance are greater compared to the two other data sets because the SNR (signal-tonoise ratio) of the photon flux Φ is bigger due to the lower signal. The data points agree well
within the ± 2 σ region, most within the ± σ region. This good agreement again confirms (as
Figure 5.6) that the damping factors D (see Table 5.1) for the three laser irradiance values were
well determined and that equation (2.86) correctly models the physics.
To conclude, the temperature dependence of the Stern-Volmer constant KSV (T ) can be expressed as
KSV (T ) = (1.39 ± 0.03) · 10−2 L mg−1 ◦ C−1 · T + (0.167 ± 0.006) L mg−1 ,
(5.13)
where T is the water temperature in ◦ C in the range between 17 ◦ C and 27 ◦ C. The temperature
of the water during the gas exchange experiments varied between 20 ◦ C and 23.5 ◦ C due to
seasonal changes of the room temperature. Hence, the measured temperature range between
17 ◦ C and 27 ◦ C fully covers the range of the water temperatures during the experiments. The
62
5.3. Photobleaching Test
temperature dependence corresponds to a relative change per Kelvin of
∂KSV
∂T
KSV (20◦ C)
= 3.1
%
.
K
(5.14)
From the generalized Stern-Volmer equation (5.2)
c=
Φ0
1
,
−1 ·
Φ
KSV · D
(5.15)
it follows that the relative error for the measured O2 concentration due to a change of the
temperature is
∂c
∂T
c
= −3.1
%
.
K
(5.16)
at a temperature of 20◦ C. Assuming the average temperature of the water is 19◦ C, but a local
fluctuation in the measuring region leads to a warming-up of 1 K. Hence, the Stern-Volmer
constant KSV for 19◦ C is used, which is 3.1 % too low, according to equation (5.14). The
calculated O2 concentration will be overestimated about 3.1 %. Errors in the determination of
the O2 concentration due to temperature fluctuations of the water are regarded in Section 3.1.3,
where all effects that influence the precision of the measuring method are considered.
5.3. Photobleaching Test
The photon flux Φ emitted by a fluorophore can be reduced by photobleaching [Crimaldi, 1997].
That means that some molecules of the fluorophore lose their ability to fluoresce after being
subjected to laser illumination. Strong excitation light leads to either permanent or temporarily
bleaching of the fluorophore molecules.
The effect of permanent photobleaching was tested for the Ru complex with a measurement
over 13 hours. The Ru complex was solved in deionized water (VE-water5 ) in a small cubic
cuvette (125 cm3 ) and excited with a focussed laser (Section 4.2.2) at the highest power available
in the continuous wave mode. The photon flux Φ and the temperature in the cuvette are shown
in Figure 5.9. In the first 20 minutes of the 13 hour measurement, the photon flux Φ decreased
about 2 %. For the rest of the measurement, the signal loss was on the order of the noise level
of about 0.5 %. In the case of permanent photobleaching, the photon flux Φ should have been
decaying exponentially over time (see [Crimaldi, 1997]) to a value of zero. As an exponential
decay could not be observed for the measurement even after 13 hours, there is no significant
permanent photobleaching. This finding is consistent with the statement in the book of Lakowicz
[2006], that the class of metal-ligand complexes (to which the Ru complex belongs to) displays
a high chemical and photochemical stability.
The decay within the first 20 minutes of the measurement can be explained by the rise of the
5
VE-water: from the German expression “vollentsalztes Wasser”
63
5. Characterization of the Ruthenium Complex Indicator
Figure 5.9.: Time series of the measured photon flux Φ emitted by the Ru complex and excited with a laser. The
cuvette was open to the air so that the O2 concentration of the water was in equilibrium with the O2 concentration in
the air at standard conditions.
water temperature within the small volume that is directly illuminated by the laser. An increase
of the temperature in the measuring section leads to a higher Stern-Volmer constant KSV (see
Section 5.2.3) and thus to a lower photon flux Φ. The measured change in the normalized photon
flux Φ is consistent with the change of the water temperature which was measured in the corner
of the cuvette. The relative change of the photon flux Φ within the first 20 minutes is about
dΦ
≈ −0.02.
Φ
From the generalized Stern-Volmer equation (5.2), we obtain the following equation for a change
of the Stern-Volmer constant dKSV
dKSV =
1
+ KSV
c · D
·
dΦ
.
Φ
(5.17)
At the beginning of the measurement, the temperature was around 22 ◦ C, which corresponds
to a Stern-Volmer constant of KSV = 0.473 L mg−1 . The O2 concentration was c = 8.4 mg L−1
and the damping factor D ≈ 0.7. In conclusion, the change of the Stern-Volmer constant KSV
within the first 20 minutes should be dKSV = 0.0129 L mg−1 . According to equation (5.13), this
change in the Stern-Volmer constant is caused by a temperature change dT of
dT ≈ 0.9 K.
This expected change of the temperature is on the order of magnitude of the measured temperature change (Figure 5.9). However, the measured temperature change is smaller than the
calculated temperature change. The reason might be that the measured equilibrium temper-
64
5.3. Photobleaching Test
ature in a corner of the cuvette is smaller than the temperature at the heat source (the laser
region), due to heat dissipation to the air and the sidewalls of the cuvette.
In conclusion, a significant permanent photobleaching effect was not observed. However, the
effect of temporarily bleaching as measured by Saylor [1995] was not ruled out with the test
presented in this section.
65
6. Calibration
The laser-induced fluorescence (LIF) method (Section 3.1.1) was applied at the Heidelberg linear
wind-wave tunnel (Section 4.1.1) for O2 invasion experiments (Section 7.3.1). The calibration
of the LIF setup is shown in this chapter including i) the optical calibration of the camera with
lens in Section 6.1, ii) the measurement of the damping factor D (equation (2.87)) in Section
6.2, and iii) the calibration of the photon flux Φ0 in absence of O2 , emitted by the fluorophore,
in Section 6.3.
6.1. Calibration of the Optical Setup
For a quantitative evaluation of the LIF images, the magnification of the optical system was
measured. The PSF1 was measured to determine the achievable resolution of the optical system.
6.1.1. Magnification of the Optical System
The reproduction scale was measured with a Ronchi ruling2 with a stripe density of 100 lines
per inch (or 3.937 line pairs per mm). For the calibration, the Ronchi ruling was positioned in
the water as the conditions have to be the same as for the measurements. The Ronchi ruling
was illuminated from the backside with a red LED. This was achieved by putting the LED
into a waterproof glass box. A diffusor plate was mounted in front of the LED to improve the
homogeneity of the light distribution. The Ronchi ruling was attached outside the glass box.
Prior to the calibration, the camera and the laser had to be set up in their final positions and
the camera lens was focused on the laser line. After that, the Ronchi ruling was put on the exact
position of the laser line in the water in the focal plane of the camera. A calibration picture of
the Ronchi ruling is shown in Figure 6.1.
The reproduction scale in horizontal direction of the image was calculated by detecting the
®
horizontal positions of the stripes. This was done with the image processing software Heurisko .
The pixel size in object coordinates was measured to be
(6.151 ± 0.001) µm pixel−1 .
1
(6.1)
PSF stands for point spread function. The PSF is the image of a point-shaped object. For more details refer
to the digital image processing book from Jähne [2005].
2
A Ronchi ruling is an optical target with alternating bars and intervals of constant width, named after Vasco
Ronchi. Figure 6.1 shows an image of a Ronchi ruling.
6. Calibration
Figure 6.1.: Full frame camera picture (1088 × 2048 pixels) of the Ronchi ruling in the tunnel, filled with water. The
camera was tilted 90 degrees to the left. The water surface is depicted with the red line.
With the pixel size of the camera (Section 4.2.4) of 5.5 µm, we obtain a magnification factor β
β = 0.894
(6.2)
and a reproduction scale of 1:1.118 of the optical system.
6.1.2. Image Sharpness
In this section it is shown, how the width of the point spread function (PSF) of the optical system
was measured. This was done under the same conditions as the measurements (same camera
position, orientation, magnification, and aperture) at the tunnel filled with water. As described
in the previous section, the Ronchi ruling was placed at the position of the laser line. The Ronchi
ruling was tilted, so that one image column sees a sharp image of the stripes. Figure 6.2 shows
a few lines over the full width of the camera picture of the tilted target.
Figure 6.2.: Part of a camera picture of the tilted Ronchi ruling. The red line indicates the water surface. The sharpest
horizontal profile is indicated with the green line.
The width of the PSF H(x) is determined here by taking the derivative of the Ronchi ruling
in the direction of the image columns. A profile of the Ronchi ruling along an image column is
described with the Heaviside step function Θ(x). The image g(x) of this profile is the convolution
of the PSF H(x) of the optical system with the Heaviside step function Θ(x).
Z∞
g(x) =
−∞
68
H(x0 ) · Θ(x − x0 ) dx0
(6.3)
6.1. Calibration of the Optical Setup
(a) profile of the Ronchi ruling
(b) absolute value of the derivative of the profile,
scaled to the maximum value
Figure 6.3.: Profile and derivative along an image column of the imaged Ronchi ruling (Figure 6.2).
The derivative of the profile g(x)
Z∞
∂
∂
g(x) =
∂x
∂x
H(x0 ) · Θ(x − x0 ) dx0
−∞
Z∞
=
H(x0 ) · δ(x − x0 ) dx0
(6.4)
−∞
= H(x)
is the point spread function H(x).
Figure 6.3(a) shows an imaged profile of the Ronchi ruling along an image column (the function
g(x)). The profile was evaluated by subtracting the dark image. We can see that the edges are
not sharp due to the blurring of the image with the PSF. The derivative of the profile was
calculated using a recursive lowpass correction filter with a weighted least-squares optimization.
The filter was taken from the book [Jähne, 2004, table 12.4, R=2]. Figure 6.3(b) shows the
absolute value of the derivative of the profile in Figure 6.3(a).
According to Pentland [1987], the point spread function is best approximated by a twodimensional Gaussian function. For our case of a one-dimensional profile, a one-dimensional
Gaussian function was used. The PSF of the optical system can be approximated with a Gaussian function with a standard deviation of
σobj = 8.3 µm
(6.5)
in object coordinates. This value was obtained by fitting a Gaussian function to each of the peaks
in Figure 6.3(b) and calculating the mean width of the Gaussian fit functions. This measure
was identified for every column of the image of the Ronchi ruling (Figure 6.2). The Gaussian
function with the smallest width was taken for the best approximation of the PSF of the optical
system.
69
6. Calibration
6.2. Calibration of the LIF Saturation
A precise determination of the damping factor D
D (~x) =
Esat
E(~x) + Esat
(6.6)
is crucial to calculate the O2 concentration from the LIF images with equation (3.1). The
damping factor D depends on laser irradiance E(~x) and saturation irradiance Esat =
γ
σa
(equa-
tion (2.75)). Each time the laser irradiance E(~x) changes due to a change of the laser collimation,
the damping factor D (~x) has to be determined new. For the measurement of the Stern-Volmer
constant KSV (Section 5.2.1) at the test wind-wave tunnel, the damping factor D was only
determined for a small region of the laser where the irradiance was constant. The systematic
LIF measurements were performed at the Heidelberg linear wind-wave tunnel. Therefore, the
laser collimation for the LIF measurements was changed compared to the Stern-Volmer measurements and had to be repeated. For the LIF measurements, the dependence of the position ~x
of the damping factor D (~x) had to be measured, because the laser irradiance changed within
the measuring section.
A method to determine the damping factor D is presented in Section 3.2.2. This method
was applied for 26 laser power values P between 0 mW and 80 mW and at five values of O2
concentrations between 0.6 mg L−1 and 8.7 mg L−1 . Figure 6.4 shows a typical calibration picture
of the laser line with a used sensor area of 50 × 2048 pixels, the same area as used during the LIF
measurements. For the calibration pictures, the water level in the tank was higher as during the
Figure 6.4.: Calibration picture of the laser line. As in the previous shown camera pictures, the camera is tilted 90
degrees to the left. The water surface is not visible as it is above the field of view of the camera.
LIF measurements, so that also the positions above the mean water level are calibrated. This is
important to calculate the concentration for the case of a wavy water surface.
The saturation laser power Psat was calculated pixelwise, as shown for the Stern-Volmer calibration in the Figures 5.3 and 5.4. The damping factor D (~x) was calculated using equation (3.11)
for a laser power P of 41.59 mW, that was used for the LIF measurements. Figure 6.5 shows
the damping factor D for the central line of the laser and for a line three pixels away from the
center. The figure shows that the damping factor D is lower for the central laser position. This
is expected from equation (6.6) as the laser irradiance E is highest in the center of the laser line.
The damping factor D (~x) drops towards the water surface as the laser is better focused near
70
6.3. Calibration of the LIF Signal in Absence of Oxygen
Figure 6.5.: Damping factor D with respect to the sensor position for i) the central laser line and ii) 3 pixels right of
the laser line.
Figure 6.6.: Colormap of the damping factor D (~
x) for all laser positions (7 × 2048 pixels) used in the further data
processing steps.
the surface (around vertical coordinate 100), leading to a higher laser irradiance E.
The value of the damping factor D was only determined in the region of the laser beam that
was used for the further data analysis in the seven central pixels of the laser beam. A colormap
of this region is shown in Figure 6.6.
6.3. Calibration of the LIF Signal in Absence of Oxygen
The determination of the photon flux Φ0 without O2 is essential in order to calculate O2 concentrations with the LIF measurements according to equation (3.1):
c=
Φ0
1
−1 ·
Φ
KSV · D
(6.7)
The procedure how to measure the photon flux Φ0 is given in Section 3.2.3.
The photon flux Φ depends on laser irradiance E and has to be calibrated independently
for every pixel. For the calibration, the calibration pictures were taken at a laser power P of
41.59 mW, that was used for the LIF measurements, and at five different O2 concentration values
in the water. The calibration data is part of the dataset used to calculate the damping factor
D (~x). Figure 6.7 shows the measurement of the photon flux Φ0 as an example for one pixel in
71
6. Calibration
Figure 6.7.: Oxygen concentration with respect to the inverse calibration photon flux Φ−1
cal . The offset of the linear fit
is the inverse photon flux Φ−1
0 .
Figure 6.8.: Colormap of the calibrated photon flux Φ0 without O2 at a laser power of 41.59 mW.
the center of the laser line. As explained in Section 3.2.3, equation (3.12)
1
1
=
· (1 + KSV · D · ccal )
Φcal
Φ0
(6.8)
is fitted to the data. The photon flux Φ0 is obtained as the offset of the linear fit.
Figure 6.8 shows a colormap of the photon flux Φ0 for the full width and 35 lines of the image
sensor. The signal Φ0 drops towards the water surface. The reason for this effect is that the
laser irradiance E near the surface (right side of the picture) is higher than in deeper regions
(left side of the picture). Therefore, less molecules of the Ru complex near the water surface
are excited than in the deeper regions on the left side of Figure 6.8. Accordingly, the photon
flux Φ0 near the water surface is lower compared to the water bulk. This fact is also shown
by the colormap of the damping factor D (~x) in Figure 6.6. To imagine the propagation of the
laser beam, a visualization of the cross section of the laser beam along the light path is shown
in Figure 4.8.
72
7. Experiments
The experiments conducted in the framework of this thesis are organized in three parts. Before the systematic LIF measurements were conducted, preparatory experiments were performed
to measure the Stern-Volmer constant KSV of the Ru complex and to optimize the LIF setup
(Section 7.1). Section 7.2 depicts the measurement of the forcing parameters, friction velocity
u∗ and mean square slope hs2 i, with respect to fetch X and wind engine frequency F 1 of the
Heidelberg linear wind-wave tunnel. In Section 7.3, the main gas exchange experiments are described. LIF measurements were conducted to study the temporal development of Oxygen (O2 )
concentration profiles, mean O2 concentration profiles, O2 concentration fluctuation profiles, and
the local transfer velocity kLIF . For comparison, the bulk transfer velocity kb was determined
with the mass balance method. In contrast to the local transfer velocity kLIF , the bulk transfer
velocity kb is an averaged value over the total water surface.
7.1. Preparatory Experiments
This section provides only an overview of the preparation steps with links to the corresponding
section with further information.
A calibration of the Stern-Volmer constant KSV of the Ru complex had to be performed in
order to measure O2 concentrations with the LIF method. Section 5.2 describes the measurement
of the Stern-Volmer constant KSV and its temperature dependence.
To optimize the LIF setup (Section 4.2), the laser beam collimation was measured. With a
beam expander, the laser beam was focused, so that the beam waist is located at the water
surface. This was important to achieve a high depth resolution and to optimize the SNR of
the measured photon flux Φ. The measurements of the laser beam collimation are described in
Section 4.2.3.
The LIF measurements (Section 7.3.1) were carried out with the laser in the pulsed mode
because it was found that using the laser in the cw (continuous wave) mode leads to large RMS
fluctuations Φ0RMS /Φ of the emitted photon flux Φ by the fluorophore on the order of 10 %. This
effect was examined and is described in Section 3.1.2. A low duty cycle of the laser helps to
minimize the RMS fluctuations. The higher the wind speed, the higher is the acceptable duty
cycle of the laser due to a faster local flow velocity of the water in the measuring volume. During
1
The wind engine frequency F given in this section and the following chapters is the frequency of the Sinamics
G110 frequency converter.
7. Experiments
the preparatory experiments, the lowest possible laser pulse rate was determined for which the
surface detection algorithm was still applicable.
For the LIF measurements, the laser power P was 41.6 mW, which corresponds to about 50 %
of the available power, because it was observed that a reduction of the laser irradiance lowers
the RMS fluctuation Φ0RMS /Φ of the photon flux Φ. The SNR at 50 % of the available power
was sufficient for the measurements.
7.2. Measurement of Forcing Parameters
Common parameters that are used for the parametrization of the gas transfer velocity are the
friction velocity u∗ , the wind speed 10 m above the water surface u10 , the mean square slope hs2 i,
and the kinetic energy flux TKE [Wanninkhof et al., 2009]. At the Heidelberg linear wind-wave
tunnel, where the gas exchange experiments were performed, the friction velocity u∗ and the
mean square slope hs2 i are accessible parameters. The adjustable parameters during the LIF
measurements are the fetch X and the wind engine frequency F . The parameters u∗ and hs2 i
were systematically measured as a function of the wind engine frequency F and the fetch X.
The measurements and the results for the friction velocity u∗ are described in Section 7.2.1. In
Section 7.2.2, the mean square slope hs2 i is presented as a result of the wave measurements.
7.2.1. Wind Speed and Friction Velocity
To obtain the friction velocity u∗ , wind profiles were measured for wind engine frequencies F
between 4 Hz and 26 Hz in steps of 1 Hz at a fetch X between 40 cm and 240 cm in steps of
20 cm2 . The wind profiles were measured with a Pitot tube, see Section 3.4. During the wind
profile measurements, the lower limit of the Pitot tube was at a distance z between 2 mm and
5 mm from the mean water surface, depending on the wave height. The height of the Pitot tube
was changed with increments of 0.5 mm, 1 mm, and 5 mm up to a height of about 20 mm, 55 mm,
and 160 mm, respectively. At each height, 20 values of the differential pressure were measured.
The data was processed as described in Section 8.1. The results of the friction velocity u∗ for
the measured fetch and wind conditions are shown in Section 9.1. An overview of the wind
speed umax and the friction velocity u∗ is given in Figures 7.1(a) and 7.1(b), respectively. The
reference wind speed u0 is determined from a linear fit to the wind speed umax at the maximum
measured fetch position of 240 cm:
u0 (F ) = −0.145
m
m 1
+ F · 0.2934
.
s
s Hz
(7.1)
The reference wind speed u0 is used in this study to specify the wind speed. The friction
velocities u∗ used for the parametrization of the transfer velocities kLIF in Section 9.6.3 are
shown in Figure 7.1(b).
2
74
The systematic measurements of wind profiles were conducted by Maximilian Bopp.
7.2. Measurement of Forcing Parameters
(a) Maximum wind speed umax with respect to the frequency F of the wind engine for the fetch X of 40 cm, 120 cm,
and 220 cm.
(b) Friction velocity u∗ with respect to the wind engine frequency F for fetch X between 100 cm and 220 cm.
(c) Mean square slope hs2 i with respect to the fetch X, measured at different wind speeds u0 as indicated in the
legend.
Figure 7.1.: Overview of the forcing parameters with respect to wind engine frequency F and fetch X.
75
7. Experiments
7.2.2. Wave Measurements
The distribution of the energy in the wave field in the linear tank was measured by Roland
Rocholz [Rocholz et al., 2012]. From these measurements only the mean square slope, mss,
is used in this thesis. Mean square slope mss is directly proportional to the energy density
of capillary waves, which mainly constitute the roughness of the water surface. Therefore,
mean square slope mss is a prominent parameter for a physically based parametrization of gas
exchange.
Mean square slope values mss were measured with a wave imaging technique which gives images of water surface slope in x− and y−direction, i.e. [∂x , ∂y ]T η(x, y, t) = [sx (x, y, t), sy (x, y, t)]T ,
where η is the water surface elevation. The mean square slope is the sum of the variances of the
x− and y−component of the surface slope:
mss ≡ hs2 i ≡ hs2x i + hs2y i.
(7.2)
Since the surface slope is imaged, the measurement technique is referred to as the imaging slope
gauge, or ISG for brevity. The setup at the Heidelberg linear wind-wave tank resembles very
much the classical setup of Jähne and Riemer [1990], but the modern setup was built with a
high speed camera and telecentric lens for observation, and a programmable LED array for
illumination. This setup and its calibration are described in Fahle [2012].
The mean square slope hs2 i was ensemble averaged for a fetch X between 80 cm and 220 cm
in steps of 20 cm and for wind engine frequencies F between 7.5 Hz and 25 Hz in steps of 2.5 Hz.
The water surface was kept clean from surfactants by allowing the water to escape via a level
drain at the downstream end of the wind tunnel. The water level was maintained constant by
refilling the wind tunnel to the level which adapted itself for zero wind via the level drain. The
measurements were reproducible and obtained separately from the gas exchange measurements.
The results of the mean square slope measurements are displayed in Figure 7.1(c) for reference.
7.3. Gas Exchange Experiments
The gas exchange measurements presented in this study were performed at the Heidelberg linear
wind-wave tunnel (Section 4.1.1). LIF measurements (Section 7.3.1) were performed at various
combinations of fetch X and wind engine frequencies F . The fetch X was varied using a
translation stage that can be shifted in wind direction, on which the LIF setup was mounted.
One result of the LIF measurements is the local transfer velocity kLIF (X, F ) with respect to
fetch X and wind engine frequency F . For comparison, the bulk transfer velocity kb (F ) was
determined with the mass balance method (Section 3.3) by measuring the temporal change of
the O2 concentration in the bulk during the invasion process of O2 for different wind engine
frequencies F (see Section 7.3.2). The LIF and the bulk measurements were not performed at
the same time. However, the results are comparable since the conditions of the friction velocity
76
7.3. Gas Exchange Experiments
Table 7.1.: Summary of the conditions of the wind engine frequency F and fetch X at which the LIF measurements
were performed. The letters A, B, and C indicate the set of data: A is the measurement at fetch 140 cm, B the fetch
dependent measurement, and C is the measurement with a low duty cycle of the laser.
X
X
X
X
X
X
=
=
=
=
=
=
F [Hz]
100 cm
120 cm
140 cm
160 cm
200 cm
220 cm
5
B
6
7
8
9
10
B
11
12
13
14
A
A
A
A
A
A
A
A
A
A
B/C
B
15
B
B
A
B
B
B
16
17
A
A
17.5
B
B
B
B
B
B
18 - 26
A
Table 7.2.: Laser pulse rates and corresponding camera frame rates and laser duty cycles depending on the wind engine
frequency F during the O2 invasion measurements (valid for data set A and B). The duty cycles were calculated based
on a pulse length of 0.45 ms.
wind engine frequency F [Hz]
laser pulse rate / camera frame rate [Hz]
duty cycle of laser [%]
5 - 14
500
22.5
15
750
33.75
16 - 17
1000
45
17.5 - 18
1200
54
u∗ and the mean square slope hs2 i in the wind-wave tunnel are reproducible.
7.3.1. LIF Measurements
Measured Conditions LIF measurements were performed at the Heidelberg linear wind-wave
tunnel (Section 4.1.1) with the setup described in Section 4.2 in three sets of data. The conditions
of fetch X and wind engine frequency F for data sets A, B, and C are listed in Table 7.1. All
data sets were obtained with a camera exposure time τexp of 0.45 s and an aperture nf of 4 in
sequences containing 104 images. The images have a pixel resolution of 50 pixels × 2048 pixels
and a bit depth of 10 bit. The number of sequences that was recorded at every condition of
fetch X and wind engine frequency F was 5, 15, and 1 for data set A, B, and C, respectively.
The camera frame rates and laser duty cycles for data set A and B are listed in Table 7.2. Data
set A was recorded in the period from August, 16th to 21st 2012. Data set B was taken to
measure O2 concentration profiles and transfer velocities kLIF at varying fetch. It was measured
in the period between October, third and fifth 2012. It turned out that the high laser pulse rate
at the wind engine frequencies F of 5 Hz and 6 Hz leaded to an overestimated O2 concentration,
as explained in Section 3.1.2. Therefore, the measurement at F = 5 Hz was repeated at a lower
laser pulse rate of 10 Hz with a corresponding duty cycle of 0.45 % at the fetch of 220 cm (data
set C). This data set was recorded on October, 29th 2012 to study the RMS O2 concentration
fluctuations (see Section 9.5). Unwanted fluctuations, as presented in Section 3.1.2, were avoided
due to the low duty cycle of 0.45 % of the laser. Such a low duty cycle could only be applied
at a flat water surface. In the presence of waves, a high camera frame rate is required for the
detection of the water surface (see Section 8.2.2).
77
7. Experiments
Measurement Procedure
To study the O2 transport from the air to the water, an invasion
experiment was performed. The O2 concentration in the water phase was lowered, while the
O2 concentration in the air remained constant. Before a LIF measurement was started, most
of the O2 solved in the water was pumped out with the equilibrator until the O2 concentration
reached a value of about 2 mg L−1 . The temperature of the water in the wind-wave tunnel
was adjusted to 23 ◦ C with the Peltier temperature control while the water was degassed. The
temperature was at a constant value during all gas exchange experiments, to have a constant
value for the diffusion constant D and for the Stern-Volmer constant KSV . Once the watersided O2 concentration reached the desired value of about 2 mg L−1 , the circulation pumps and
temperature control were switched off to observe no influence by convection processes and flow
due to pumps during the measurements. The desired wind engine frequency F and fetch X
were set. After waiting for several minutes, to be sure that equilibrium conditions of the wave
field were established, the LIF image sequences were taken with the LIF setup (Section 4.2).
The data processing of the LIF images is described in Section 8.2. The results of the LIF
measurements comprise O2 concentration images in Section 9.2, mean O2 concentration profiles
in Section 9.4, RMS O2 concentration fluctuation profiles in Section 9.5, and O2 transfer rates
kLIF in Section 9.6.
7.3.2. Bulk Measurements
Measured Conditions Oxygen transfer velocities kb averaged over the total water surface were
measured for wind engine frequencies F between 0 Hz and 26 Hz in steps of 1 Hz by measuring
the temporal change of the O2 concentration in the bulk during the O2 invasion process. The
measurements were conducted between August, 16th and September, first 2012.
Measurement Procedure Before the experiments were started, the same arrangements as for
the measurement of the O2 concentration profiles (Section 7.3.1) were made. The O2 concentration in the water was lowered and the temperature of the water was set to 23 ◦ C. After the
water-sided O2 concentration reached the desired value of about 2 mg L−1 , the temperature control and all circulation pumps except for the measuring bypass pump were switched off. The
wind engine frequency F was adjusted and the O2 concentration was measured every five seconds with the oxygen probe in the measuring bypass until the O2 concentration in the water
reached equilibrium. The data processing of the bulk measurements is described in Section 8.3.
In Section 9.6.2, the transfer velocities kLIF obtained with the LIF measurements are compared
to the bulk transfer velocities kb .
78
8. Data Processing
Section 8.1 describes how the friction velocity u∗ was obtained from the wind profile measurements. The data processing for the two methods used in this thesis to measure the local transfer
velocity kLIF and the bulk transfer velocity kb of oxygen (O2 ) are explained in Sections 8.2 and
8.3, respectively.
8.1. Processing of the Wind Profiles
The friction velocity u∗ was obtained by measurements of wind profiles at different wind speeds
and varying fetch X, following the procedure presented by Troitskaya et al. [2012]. The experimental method of wind profile measurements are described in Section 3.4. The fetch X and wind
engine frequencies F at which the wind profiles were measured are described in Section 7.2.1.
To determine the friction velocity u∗ for each condition, the product of u∗ and a fit parameter β
from the wake part of each profile is derived. In Section 8.1.1, it is shown that the wind profiles
all collapse on one curve when plotting them in dimensionless coordinates. The parameter β
is obtained by a simultaneous fit procedure in dimensionless coordinates to all measured wind
profiles in Section 8.1.2.
8.1.1. Wind Profiles in Dimensionless Coordinates
Figure 8.1 shows the measured wind profiles at fetch X of 140 cm. Errors are omitted for a
clearer presentation. A polynomial of second order (2.35)
z
u(z) = umax − β · u∗ · (1 − )2 ,
δ
(8.1)
is fitted to each of the wind profiles in the wake part (also referred to as outer layer in Section
2.1.3), indicated as red lines in Figure 8.1. Fitting was performed from 0.15 δ to δ, where δ
denotes the 99 % boundary layer thickness. The thickness δ was detected automatically by fitting
equation (8.1) iteratively to the data so that δ converges. With the obtained fit parameters, i.e.
maximum wind speed umax , the product β · u∗ , and boundary layer thickness δ, the profiles are
plotted with the dimensionless wind speed
umax − u(z)
u∗ · β
8. Data Processing
Figure 8.1.: Measured wind profiles at the Heidelberg linear wind-wave tunnel and at a fetch X of 140 cm for wind
engine frequencies F between 4 Hz and 26 Hz. The x-axis depicts the height above the water surface without wind.
The red lines are polynomials of second order fitted to each wind profile.
and the dimensionless height
η=
z
.
δ
From Figure 8.2 it is evident that all profiles at fetch 140 cm are self-similar and collapse on one
curve when plotted with dimensionless variables.
8.1.2. Determination of the Friction Velocity
To determine the friction velocity u∗ at various combinations of wind speed and fetch, the three
parameters umax , β · u∗ , and δ are retrieved from the quadratic fit function (8.1) in the wake
part for each profile. Once the value of β is known, the friction velocity u∗ can be calculated for
every profile from the previously determined product u∗ · β. The parameter β is obtained by a
fit in the fully-turbulent flow region to all measured wind profiles.
Figure 8.3 shows all measured wind profiles in dimensionless variables. Profiles of one run
all collapse on one curve, but profiles of different fetch and runs do not all collapse on one
curve. However, the wind profiles in Figure 8.3 show no trend with fetch. That leads to the
conclusion that the deviation of some profiles (namely at fetch 160 cm, run 2) is possibly due
to a systematic error in the measured height z on the order of 1 mm varying from one run to
80
8.1. Processing of the Wind Profiles
Figure 8.2.: Plot of the wind profiles shown in Figure 8.1 in dimensionless variables. For the legend see Figure 8.1.
another. It is assumed that all profiles have the same form in the fully-turbulent flow region
(η < 0.15) and that β is constant over the measured fetch conditions.
The shape of the wind profile in the logarithmic part is described by equation (2.33). In
dimensionless variables, the following equation is obtained:
umax − u(z)
η·δ
umax
1
· ln(
=
−
).
β · u∗
β · u∗ β · κ
z0
By substituting
z0 = δ · η0 · exp(−
umax
· κ)
u∗
(8.2)
(8.3)
for the roughness parameter z0 , a simplified equation for the wind profile in dimensionless
variables can be found:
umax − u(z)
1
η
=−
· ln( ).
β · u∗
β·κ
η0
(8.4)
Equation (8.4) was fitted to the total dataset (the data in Figure 8.3) from η = 0.08 to η = 0.15.
For von Kármán’s constant κ, the value of 0.4 (according to Hinze [1975]) was used. The
logarithmic fit function returned two parameters, the parameter η0
η0 = 1.11 ± 0.04
(8.5)
β = 6.6 ± 0.1.
(8.6)
and the parameter β
With the knowledge of the parameter β and the previously obtained product β · u∗ , the friction
velocity u∗ was obtained for each measured wind speed and fetch.
81
8. Data Processing
Figure 8.3.: Measured wind profiles at the tunnel measured for wind turbine frequencies F between 4 Hz and 26 Hz
and fetches between 40 cm and 240 cm in dimensionless variables. The black line is the logarithmic fit function. The
fit region is indicated by the red lines.
8.2. Processing of the LIF Data
Data taken during the LIF measurements is saved in digital image sequences. One sequence
contains 104 single frames of 50 × 2048 pixels. Every pixel represents a positive integer value
with a resolution of 10 bit. In other words, the image sequences contain gray values between 0
and 1023.
Figure 8.4 shows the steps of the data processing from raw image sequences to O2 concentration
images, mean concentration values, and local transfer velocities kLIF . After subtracting the
dark image, the one-dimensional O2 concentration profile (2048 pixels) along the laser beam
is calculated for all images (Section 8.2.1). The result is a two-dimensional dataset (called t-z
image) with one dimension corresponding to the time t and the other to the vertical coordinate z.
The entries of such a t-z image contain floating point numbers representing the O2 concentration
at a given depth and time. The t-z image allows a qualitative analysis of the O2 transport under
wind-induced turbulence. In the next step, the water surface in the t-z image is detected, in
order to determine the relative depth to the water surface (Section 8.2.2). To obtain a mean
concentration profile for one specific fetch X and wind engine frequency F , all t-z image recorded
at this condition are averaged over time in relative coordinates to the water surface, see Section
8.2.3. By the principle of ergodicity, RMS O2 concentration fluctuation profiles are obtained.
With the mean O2 concentration profiles, the thickness δmbl of the mass boundary layer is
calculated (see Section 8.2.4). From this data, the local transfer velocity kLIF is obtained.
82
8.2. Processing of the LIF Data
raw image sequence
10 000 x 2048 x 50 (10 bit)
dark correction
calculation of the
O2 concentration
dark image
Φ0 image
εD image
concentration t-z image
10 000 x 2048 (float)
surface detection
concentration z-t image
with identified surface
10 000 x 2048 (float)
calculation of depthdependent fluctuations
temporal averaging
mean concentration profile
fluctuation concentration profile
thickness of the mass
boundary layer δmbl
transfer velocity kLIF
Figure 8.4.: Flow chart for the data processing of the LIF images.
8.2.1. Calculation of the Oxygen Concentration
Calculation of the O2 concentration c starts with subtracting the mean dark image of the camera.
This was further complicated by the so called two-level noise effect of the camera. The error
could be eliminated and is described in Section A.4.1. In the next step, equation (3.1)
c=
Φ0
1
−1 ·
Φ
KSV · D
(8.7)
has to be applied to each pixel in the region of the laser beam.
An example of a single image is given in Figure 8.5. To see the FWHM region of the laser
beam, 20 lines would be enough. To ensure, however, that the beam is always in the imaged
area, 50 lines were chosen. The darker regions in the area of the laser beam in Figure 8.5 denote
higher concentrations of O2 . Above the water surface, we see a reflection of the luminescent light.
The reflection is tilted when the surface slope in x-direction (wind-direction) is different from
zero. The camera image is the projection of the 3-dimensional distribution of the luminescent
light on the 2-dimensional camera detector. Therefore, the 2-dimensional Gaussian profile of the
83
8. Data Processing
Figure 8.5.: Single LIF image of the laser-induced luminescent light. The camera is tilted 90 degree to the left. The
surface is visible as a dark vertical line around the vertical coordinate of 600.
(a) Profile in horizontal direction of the LIF image in (b) Profile in horizontal direction of a calibration imFigure 8.5. The Gaussian fit function has a standard age with seven interpolated grid points around the
deviation of 5.6 pixels.
maximum value of the Gaussian function.
Figure 8.6.: Profiles of LIF images in horizontal direction.
laser beam (see Figure 4.8) yields a 1-dimensional profile on the camera detector. An example
of such a profile of the laser beam is shown in Figure 8.6(a). The fitted Gaussian curve has a
standard deviation of 34 µm. The order of magnitude is in good agreement with the measured
beam profile in Figure 4.9 with a standard deviation around 25 µm.
Interpolation of the Centered Image
The recirculation pump causes the experimental setup
to vibrate slightly which leads to lateral oscillatory motion of the laser beam by a few pixels.
To correct for this effect, the beam center is determined from a Gaussian fit and the gray values
at equidistant grid points are obtained by interpolation (see Figure 8.6(b)).
Calculating the t-z Picture
For the calculation of the O2 concentration from a single LIF image
with equation (8.7), the photon flux Φ0 , the damping factor D , the Stern-Volmer constant KSV
at the measured temperature, and the photon flux Φ in the recorded LIF image are needed. The
calculation of the damping factor D and of the photon flux Φ0 was shown in Sections 6.2 and
6.3, respectively. Concentration values are calculated for all pixels of the vertical coordinate and
for the seven central pixels of the horizontal coordinate because the signal-to-noise ratio (SNR)
decreases towards the outer region of the Gaussian profile (see Figure 8.6). The obtained twodimensional concentration image is averaged in horizontal direction, to get a one-dimensional
concentration profile for each single LIF image. By calculating the O2 concentration for all
images of a recorded sequence, the so-called t-z image is obtained.
84
8.2. Processing of the LIF Data
(a) wind speed u0 = 2.8 m s−1 ; F = 10 Hz; fetch X = 220 cm
(b) wind speed u0 = 4.3 m s−1 ; F = 15 Hz; fetch X = 220 cm
Figure 8.7.: Two examples of t-z images for low and high surface slopes. The gray values in the images present O2
concentrations in units of mg L−1 .
Properties of t-z Images Figure 8.7 shows two examples of t-z images. For the case of low
surface slopes (see Figure 8.7(a)), a mirrored image of the structures in the water is visible above
the water surface. The mirror effect is a crucial feature used to detect the water surface as will
be explained in the next section. For higher surface slopes in x−direction (wind direction), the
laser line in the single LIF images is tilted at the water surface, such as the line depicted in
Figure 8.5. The angle of inclination is twice the surface slope in x−direction. The evaluation
routine regards only pixels around the center of the vertical laser line. In this strongly tilted
case, the image above the surface within this region basically appears dark which results in
exaggeratedly high concentration values after calibration with equation (8.7). In conclusion, t-z
images in the case of high surface slopes in x−direction show bright structures above the water
surface and only a mirror image for pixels close to the water surface (see Figure 8.7(b)). A
surface slope in y−direction (cross-wind direction) leads to a mirror image that is tilted out of
the focal plane of the camera (see Figure 4.5). For surface slopes in y−direction greater than
85
8. Data Processing
concentration t-z image
10 000 x 2048 (float);
N = 10 000
preselection of possible
positions for the water
surface of type A and B
i=i-1
selection of a start
position z0(tN+1);
i=N
search the surface position
of type A at time ti in
range [z0(ti+1) - δz, z0(ti+1) + δz]
yes
surface positions z0
for 10 000 time steps
no
i > 0?
successfull
save new surface
position z0(ti)
not successfull
search the surface position
of type B at time t in
range [z0(ti+1) - δz, z0(ti+1) + δz]
successfull
save new surface
position z0(ti)
not successfull
no position detectable
for time ti
Figure 8.8.: Flow chart showing the structure of the surface detection algorithm.
16.5◦ towards the camera, the water surface is hidden1 . The water surface in the t-z images is
visible as a continuous bright line because the concentration at the water surface is in equilibrium
with the concentration in the air.
8.2.2. Detection of the Water Surface
The detection of the water surface in the t-z images for each time step is crucial for the further
data analysis in order to determine the right distance from the water surface. The algorithm
requires a t-z image as input and returns the surface position z0 for each time step. It is based on
the idea that a mirrored image of the concentration profile is visible above the water surface. The
O2 concentration at the water surface is higher than in the water bulk, as invasion experiments
are performed in this study. This leads to a local maximum of the O2 concentration at the
water surface for each instantaneous concentration profile. Figure 8.9 shows one concentration
profile recorded with a low surface slope, and one recorded with a higher slope, both having a
local maximum at the water surface. The algorithm is further based on the criteria that the O2
concentration at the water surface is in equilibrium with the concentration in the air. The third
and crucial criteria used for the algorithm is that the water surface does not move more than a
specified number of pixels δz from one image to the next one, as the images were recorded with
a high frame rate (see Table 7.2). The criteria used to detect the water surface give rise to the
1
86
explanation for hidden surface see Section 4.2.1
8.2. Processing of the LIF Data
(a) low surface slope (type A structure existing)
(b) high surface slope (no type A structure)
Figure 8.9.: Oxygen concentration with respect to the vertical coordinate for two selected time steps. The detected
surface position is indicated with a green line. The preselected pixels of type A and B are indicated with blue crosses
and red circles, respectively.
limit of the algorithm. For a high surface slope, the instantaneous concentration profiles show
no mirrored image and conclusively no local maximum at the water surface. Another problem
arises when the surface position moves more pixels than the selected distance δz from one frame
to the next one. The wind speed and fetch conditions for which the surface detection algorithm
worked successfully, are listed in Table 9.1. The four principal steps of the surface detection
algorithm are described in this section and are illustrated with the flow chart in Figure 8.8.
Step 1: Preselection
Based on the t-z image and the first two criteria outlined above (local
maximum and surface concentration in equilibrium with air), a preselection of pixels is made
which constitute candidates for the surface position. Two kinds of preselections are performed:
type A which has to fulfill strong criteria that are only met for low surface slopes and type B
with weaker criteria that are also met for higher surface slopes. Figure 8.9 shows concentration
profiles for a low and a high surface slope with the indicated pixels for which preselections of
type A and type B are fulfilled. The decision for the right surface position is always based on
the preselections of type A, if any exists in the specified range. Otherwise, the preselections of
type B are used for the selection of the surface position.
The criteria for type A are a negative first derivative of the concentration profile below a
specified threshold and a concentration in a specified range around the expected surface concentration value. The range of successful positions is expanded by three pixels in each direction
of the vertical coordinate. The criteria for type B are a negative second derivative of the concentration profile and a concentration in the same range as selected for type A. The example in
Figure 8.9 illustrates that in the case of a low surface slope the surface position is detected by
the preselected pixels of type A. For higher surface slopes, the position of the surface is detected
by a preselection of type B.
The first and second derivative of the concentration profile for each time step are calculated
on a smoothed t-z image. The image is smoothed in the direction of the vertical coordinate
using a Sawitzki-Golay filter [Savitzky and Golay, 1964], which shows a better performance in
87
8. Data Processing
Figure 8.10.: Preselected pixels of type A and B for a section of a t-z picture at a fetch of 220 cm and a wind engine
frequency F of 15 Hz.
Figure 8.11.: Preselected pixels of type A for the case of a flow separation event.
preserving the amplitude of local maxima compared to other smoothing filters.
Figure 8.10 shows an example of preselected pixels of type A and B in a t-z image. It is more
likely to fulfill the requirements for type B than for type A. Preselected pixels of type B cover
regions that are obviously no option to be near the surface. Therefore, the type B preselections
are only taken into account if type A returns no option.
Step 2: Selection of a Start Position
The algorithm loops through the profiles backwards in
time to prevent the detection of wrong surface positions due to separation events such as the
one shown in Figure 8.11. A start position z0 (tN+1 ) has to be selected manually.
Step 3: Search the Surface Position of Type A The position of the water surface at time
step ti is searched in the range [z0 (ti+1 ) − δz , z0 (ti+1 ) + δz ]. This is done by selecting the pixel
with the highest O2 concentration out of all pixels in the range which were identified as the
surface position of type A. If there is at least one pixel of type A in the range, a surface position
is found and saved as the surface position z0 (ti ). The algorithm makes one step back in time
(i = i − 1) and proceeds at the beginning of step 3. If there was no pixel of type A in the
specified range, the routine passes on to step 4.
88
8.2. Processing of the LIF Data
Figure 8.12.: Detected surface positions drawn in the section of the t-z picture shown in Figure 8.10. The blue and
the red marker indicate the surface of type A and B, respectively.
Figure 8.13.: t-z image that was shown in Figure 8.7(b) with indicated water surface. The gray values for all positions
above the water surface are set to zero.
Step 4: Search the Surface Position of Type B The position of the water surface at time step
ti is searched now for all pixels of type B in the range [z0 (ti+1 ) − δz , z0 (ti+1 ) + δz ], by selecting
the position of the pixel with the highest O2 concentration. If there is at least one pixel of
type B in the range, the surface position is identified and saved as the surface position z0 (ti ).
The algorithm proceeds one step backwards in time (i = i − 1) and the routine passes on to the
beginning of step 3. If no surface can be identified, the profile index is tagged to be disregarded
in the later analysis. In the successive iteration step, the last successful detected surface position
is used.
Figure 8.12 shows the detected surface positions for the same t-z image as shown in Figure 8.10.
It is seen that the surface position of type B is only needed in the fastest moving section of the
water surface in vertical direction. Figure 8.13 shows the t-z image depicted in Figure 8.7(b)
with the water surface indicated, by setting the O2 concentration above the water surface to
zero.
89
8. Data Processing
8.2.3. Calculating Mean Concentration Profiles
All gas transfer models considered in this thesis and interesting quantities like the local transfer
velocity kLIF are based on mean concentration profiles. These are obtained by averaging the t-z
images along the time coordinate.
In the presence of waves, the scale of the wave amplitude is larger than the thickness δmbl of
the mass boundary layer, as will be shown in Section 9.2. Therefore, the surface elevation due
to waves has to be taken into account when concentration profiles are averaged. This is done by
transforming the vertical coordinate of the O2 concentration profiles to the relative depth to the
water surface. The correct coordinate system to measure the water depth under a wavy surface
would be a curvilinear coordinate system. The approximation of using the relative depth to the
water surface is justified here.
The curvilinear coordinate system follows the temporal and spatial development of the water
surface. The transformation of the coordinate system from the laboratory system to the wave
following system was proposed by Hsu et al. [1981]. They perform a vertical transformation of
the form
z = z ∗ + f (z ∗ ) · η(t),
(8.8)
where z ∗ is the depth in the transformed coordinate system (z ∗ = 0 at the water surface), η is
the surface elevation, and f (z ∗ ) is a function, which decreases monotonically from 1 at the water
surface (z ∗ = 0) to 0 at the boundary of the flow (the bottom of the water tank). A further
approximation is done, that the surface elevations are small compared to the water depth. This
leads to the simplified vertical transformation [Troitskaya et al., 2011]
z ∗ = z − η(t).
(8.9)
In this approximation, z ∗ is the relative depth to the water surface. Figure 8.14 shows a tz image in the transformed coordinate system, where the vertical coordinate is represented in
the relative depth to the water surface.
One has to account for the laser beam being tilted by an angle α = 16.5 degree (see Figure 4.4).
Therefore, a measured distance in the image is converted into a depth z by a factor of cos α.
Accordingly, the vertical transformation of the data used in this study is
z ∗ = (z − η(t)) · cos α.
(8.10)
In the following, z will be used for the relative depth to the water surface instead of z ∗ for
simplicity.
The mean concentration profile
N
1 X
c(z) =
·
c(z, ti )
N
i=1
90
(8.11)
8.2. Processing of the LIF Data
Figure 8.14.: Same t-z image as shown in Figure 8.13 in the transformed coordinate system. The gray values in the
image present O2 concentrations in units of mg L−1 .
is calculated from vertically transformed single profiles, where N is the number of frames recorded
at a given wind speed and fetch, namely 5 000 or 15 000, depending on the data set (see Section 7.3.1). Profiles for which the surface could not be detected are excluded from averaging.
8.2.4. Determination of the Boundary Layer Thickness
The thickness of the mass boundary layer δmbl is defined by equation (2.21)
δmbl =
∆c
− ∂c(z)
∂z z=0
,
(8.12)
with the concentration difference ∆c between the water surface and the water bulk. The deriva
tive of the mean concentration profile at the water surface ∂c(z)
and the concentration
∂z z=0
difference ∆c are determined from mean concentration profiles c(z). One has to distinguish
between two different approaches to determine the thickness δmbl of the mass boundary layer.
If the thickness of the mass boundary layer δmbl is significantly bigger than the optical resolution of the camera lens, the
direct application of definition (8.12) provides a good estimate
∂c(z) of δmbl . The derivative ∂z is obtained by a linear fit in the steepest region of the conz=0
centration profile c, depicted as a green line in Figure 8.15(a). The so-called tangent method is
reasonable in the shown example because the mass boundary layer is well resolved and the linear
fit is performed in a region containing more than 150 data points. A constant function is fitted
to the concentration profile in the bulk of the water below a depth, where the concentration
c(z) assumes a constant value (see the blue line in Figure 8.15(a)). The thickness of the mass
boundary layer δmbl is the depth where the two fit functions intersect. The tangent method
yields a boundary layer thickness δmbl for the case of a thickness δmbl much greater than the
resolution of the optical system without using a model prediction.
When the linear region of the concentration profile c(z) at the water surface comprises only a
91
8. Data Processing
(a) tangent method
(b) model fit method
Figure 8.15.: Two methods to calculate the thickness of the mass boundary layer δmbl at different wind speeds.
few data points, as shown in Figure 8.15(b), the determination of the derivative
∂c(z) ∂z z=0
from
a tangent fit is defective. Instead, a model function that describes the form of the concentration
profile is used. Possible functions are the four predicted functions by the small eddy model
and the surface renewal model for a rigid and a free interface (see Sections 2.2.2 and 2.2.3). A
benefit of the model fit method is that the data of the complete concentration profile c(z) is
used compared to using only the linear sections for the tangent method. Figure 8.15(b) shows
a concentration profile with an exponential fit function, which is the model prediction of the
surface renewal model for a Schmidt number exponent n of 0.5.
Both methods are needed for their individual range where they are most applicable. In Section
9.4.1, the predicted functions of the surface renewal model and the small eddy model will be
tested with the measured concentration profiles. The thickness of the mass boundary layer δmbl
in Section 9.6.1 is calculated by using the model that describes the data best.
Calculation of the Local Transfer Velocity The local transfer velocity kLIF is calculated from
the mass boundary layer thickness δmbl for a measured image sequence using equation (2.23)
k=
D
δmbl
,
(8.13)
where D is the diffusion constant of O2 . The value of D is 2.1 · 10−5 cm2 s−1 at a temperature of
25◦ C [Cussler, 2009]. To obtain the value of the diffusion constant D at 23◦ C (the temperature
of the water during the experiments), a proportionality of D to the temperature is assumed, as
suggested by the Stokes-Einstein equation [Cussler, 2009], yielding:
D(23◦ C) = 2.086 · 10−5 cm2 s−1 .
(8.14)
This value differs less than 0.7 % from the diffusion constant at 25◦ C. This deviation is certainly
below the uncertainty in D(25◦ C) itself, which justifies the approximation of a linear temperature
dependence.
92
8.3. Processing of the Bulk Measurements
8.3. Processing of the Bulk Measurements
The bulk measurements were performed in order to determine the transfer velocity kb integrated
over fetch using a mass balance method (see Section 3.3). The O2 concentration in the water
bulk was measured every 5 seconds, as described in Section 7.3.2. A typical dataset is shown in
Figure 8.16. By fitting equation (3.16)
c(t) = α · ca + (c0 − α · ca ) · exp(−
kb
· t)
heff
(8.15)
to the measured data, three parameters are obtained: the initial O2 concentration c0 , the O2
concentration in equilibrium with air α · ca , and the quotient of the transfer velocity and the
effective height
kb
heff .
The effective height heff =
V
A
of the water is calculated from the total water
volume and the water surface area A. The values given in Section 4.1.1 yield an effective height
heff of 8.71 cm. The result of the bulk transfer velocities kb is shown in Section 9.6.2.
Figure 8.16.: Temporal development of the O2 concentration in the water bulk during an invasion experiment at a
wind speed u0 of 2.8 m/s. The O2 concentration in the water was lowered to about 2.8 mg L−1 before the measurement
was started. The equilibrium with the O2 concentration in the air was reached after about 10 hours.
93
9. Results
This section presents the results regarding gas and momentum transfer at the wind-driven airwater interface. Results concerning the oxygen quenching effect were presented in Section 5.2.2.
Section 9.1 presents the results from the wind profile measurements and shows the wind
and fetch dependence of the friction velocity. In Section 8.2, the steps were presented that
lead from raw camera pictures to t-z images, showing the temporal development of oxygen
(O2 ) concentration profiles, and further to mean O2 concentration profiles, the aqueous mass
boundary layer thickness δmbl , and the local transfer velocity k. Here, the results of systematic
measurements performed at various fetch and wind speed combinations are presented in the
order introduced in the flowchart in Figure 8.4. Before going to the detailed data analysis, a few
exemplifying t-z images are shown in Section 9.2 to illustrate the transfer process of O2 below
the wind-driven water surface. Section 9.3 presents results of the surface detection algorithm.
Mean O2 concentration profiles for a flat and wavy interface are presented and compared to
models in Section 9.4. As a further result, depth-dependent fluctuations in the O2 concentration
c0 are presented in Section 9.5. From the mean O2 concentration profiles, transfer velocities at
various fetch and wind speed combinations are calculated in Section 9.6. These transfer velocities
are compared with results from mass balance measurements (Section 9.6.2). In Section 9.6.3,
parametrizations of the measured transfer velocities kLIF with the friction velocity u∗ , the mean
square slope hs2 i, and the wind speed u0 are presented.
9.1. Wind and Fetch Dependence of the Friction Velocity
The friction velocity u∗ is obtained from wind profiles, as presented in Section 8.1.2. The results
for the friction velocity u∗ with respect to wind engine frequency F and fetch X are shown in
Figure 9.1(a) and Figure 9.1(b), respectively. Figure 9.1(b) indicates a rising friction velocity
u∗ with fetch. A fetch dependent friction velocity u∗ was also observed by other authors (e.g.
[Caulliez et al., 2008]). This effect can be explained with increasing mean square slope with
fetch as the wave measurements in Section 7.2.2 show. Once the wave field is fully developed,
the friction velocity u∗ reaches an equilibrium value.
It is obvious that the determined values of the friction velocity u∗ are defective because the
values of u∗ show fluctuations. To parametrize the transfer velocities kLIF with the friction
velocity in Section 9.6.3, a function describing u∗ (F, X) is needed. To obtain a meaningful
relation between the friction velocity u∗ and the parameters X and F , the values have to be
9. Results
(a) Friction velocity u∗ with respect to wind engine frequency F for fetch X between 40 cm and 240 cm.
(b) Friction velocity u∗ with respect to fetch X for wind engine frequencies F between 5 Hz and 26 Hz.
(c) measured values of u∗
(d) fitted values of u∗
Figure 9.1.: Overview of the determined values of the friction velocity u∗ with respect to wind engine frequency F
and fetch X.
96
9.2. Oxygen Concentration Images
smoothed. To smooth the data, polynomials of second order were fitted to the data in both
dimensions of fetch X and wind engine frequency F . The fit is only performed in the range
5 Hz < F < 17.5 Hz and 100 cm < X < 220 cm, where local transfer velocities were obtained
(see Table 9.3). A comparison with the determined values for the friction velocity and the fitted
values is shown in Figures 9.1(c) and 9.1(d), respectively.
9.2. Oxygen Concentration Images
Examples of the temporal development of O2 concentration profiles for different wind speeds,
presented as images showing the O2 concentration with respect to depth and time (the so-called
t-z pictures), are shown in this section. Figure 9.3 displays the O2 concentrations in gray values
with a limited range from 0 mg L−1 to 10 mg L−1 , as indicated by the colorbar. The parts in
the images above the water surface are set to a gray value of zero for the images where the
water surface was detected automatically. For comparison, rendered images of the wave field1
at comparable conditions are shown in Figure 9.3. For the visualization of the wave field,
the WaveVis rendering software, described in [Wanner, 2010], was used. In the following five
paragraphs, a distinction is made for different wave field and wind speed conditions with focus
on the limits of the LIF measurement technique. Moreover, these examples already provide
insights into the processes which control the gas invasion for the different turbulence conditions.
Flat Water Surface
Figure 9.2(a) shows a t-z picture at a wind speed u0 of 1.3 m s−1 at a fetch
of 200 cm. An image of the wave field is not shown here because the surface is absolutely flat.
The thickness δmbl of the mass boundary layer is about 2 mm. No turbulent structures can be
observed in the aqueous mass boundary layer. At intervals of 500 ms, we see vertical stripes in
the t-z picture. This effect is due to a problem of the camera (see Section A.4.2).
First Undulation of the Water Surface Figure 9.2(b) shows a t-z picture at a wind speed u0 of
2.8 m s−1 and a fetch of 220 cm. Undulations of the water surface in the range of ± 0.2 mm can
be observed due to the high optical resolution of 6.2 µm, whereas in the images of the wave field
(Figure 9.3(a)) these small undulations are hardly observable. In comparison with the t-z image
at the wind speed of 1.3 m s−1 , turbulent structures are present, which lead to a high contrast in
the images. The invasion process of O2 is visible as zones with enriched O2 concentration being
transported into deeper zones of the water.
Capillary Waves with Small Amplitude The Figures 9.2(c) and 9.3(b) were taken at a wind
speed of 4.3 m s−1 and at a fetch of 220 cm. In the t-z image, capillary waves2 with a frequency
of about 50 Hz are visible. The algorithm to detect the water surface (Section 8.2.2) is still
1
2
The wave field was measured with the ISG, see Section 7.2.2.
Capillary waves are named after the restoring force to reestablish the equilibrium state [Kinsman, 1965].
97
9. Results
(a) wind speed u0 = 1.3 m s−1 ; u∗ = 7.3 cm s−1 ; F = 5 Hz; fetch X = 220 cm; frame rate 500 Hz
(b) wind speed u0 = 2.8 m s−1 ; u∗ = 12.5 cm s−1 ; F = 10 Hz; fetch X = 220 cm; frame rate 500 Hz
(c) wind speed u0 = 4.3 m s−1 ; u∗ = 22.2 cm s−1 ; F = 15 Hz; fetch X = 220 cm; frame rate 750 Hz
(d) wind speed u0 = 5.0 m s−1 ; u∗ = 28.2 cm s−1 ; F = 17.5 Hz; fetch X = 220 cm; frame rate 1200 Hz
(e) wind speed u0 = 7.5 m s−1 ; u∗ = 48.1 cm s−1 ; F = 26 Hz; fetch X = 140 cm; frame rate 1900 Hz
Figure 9.2.: Five t-z pictures showing the O2 concentration in gray values between 0 mg L−1 and 10 mg L−1 with
respect to time and water depth z at different wind speeds.
98
9.2. Oxygen Concentration Images
(a) u0 = 2.8 m s−1 ; u∗ = 12.5 cm s−1 ; X = 220 cm
(b) u0 = 4.3 m s−1 ; u∗ = 21.9 cm s−1 ; X = 220 cm
(c) u0 = 5.0 m s−1 ; u∗ = 28.2 cm s−1 ; X = 220 cm
(d) u0 = 7.2 m s−1 ; u∗ = 47.2 cm s−1 ; X = 140 cm
Figure 9.3.: Images of the wave field, measured with the ISG (Section 7.2.2) and visualized with the WaveVis
rendering software [Rocholz et al., 2011]. Wind direction from right to the left, as the arrow indicates. The field of
view is approximately 10.6 × 7.9 cm2 .
working for these conditions, since the maximum slope of the water surface is small enough to
see a mirror image in each single profile (Section 8.2.2). The layer close to the surface which is
enriched with O2 is visible as a bright line right beneath the water surface. Its thickness is much
smaller compared to the t-z pictures at lower wind speed, namely about 60 µm, as we will see
in Section 9.6.1. Oxygen is transported from the air into the water in jet-like events, emerging
at the water surface. The wave visualization picture shows the existence of capillary ripples, see
Figure 9.3(b).
Capillary Waves - No Surface Detection When the surface slope exceeds the limits of the
measuring setup (Section 4.2.1), no mirror image of the water-sided O2 image is seen for most
of the time steps and the algorithm to detect the surface position fails. Even a manual selection
of the surface position is not possible in the steep part of a wave. For t-z pictures of that kind,
no systematic data evaluation was performed, as the water surface has to be known to calculate
the water depth z ∗ in transformed coordinates relative to the water surface (Section 8.2.3). As
an example for this case, Figure 9.2(d) shows a t-z image taken at the wind speed of 5 m s−1 and
at a fetch of 220 cm. Above the water surface, we see mostly white regions, resulting from a low
luminescence signal that was converted with equation (8.7) to a overestimated O2 concentration.
Figure 9.3(c) shows the corresponding wave visualization.
99
9. Results
Table 9.1.: The check marks indicate the conditions of wind speed (in units of the wind engine frequency F ) and
fetch X, where data was taken and the surface detection algorithm worked successfully.
fetch
fetch
fetch
fetch
fetch
fetch
X
X
X
X
X
X
=
=
=
=
=
=
F [Hz]
100 cm
120 cm
140 cm
160 cm
200 cm
220 cm
5
X
6
7
8
9
10
X
11
12
13
14
X
X
X
X
X
X
X
X
X
X
X
X
15
X
X
X
X
X
X
16
17
X
X
17.5
X
Figure 9.4.: Mean squared wave height hη 2 i with respect to wind engine frequency F for different fetch X.
Gravity-Capillary Waves At a wind speed of 7.5 m s−1 and a fetch of 140 cm, the t-z image in
Figure 9.2(e) shows a wave amplitude of about 2 mm with a high range of surface slopes that
makes the detection of the water surface impossible. This case can not be used for the further
data analysis, as the previous example. We can see gravity-capillary waves with a frequency on
the order of 10 Hz in the transition region between gravity and capillary waves [Thorpe, 2009, p.
3-11]. Figure 9.3(d) shows a gravity-capillary wave with parasitic capillary waves on the forward
face of the wave.
9.3. Results of the Surface Detection Algorithm
The algorithm to detect the position of the water surface in the images obtained from the LIF
measurements is described in Section 8.2.2. As mentioned in that section, the algorithm works
only for moderately wave slopes. Table 9.1 shows all measured conditions of wind speed and
fetch, where measurements were performed and the surface detection algorithm was successful.
All the results from the LIF measurements that are shown in the following sections of this
chapter originate from data measured at the indicated conditions. For a fetch X of 100 cm, the
surface could be detected up to a wind engine frequency of 17.5 Hz. With increasing fetch, the
limit dropped down to a wind engine frequency F of 15 Hz, as the wave amplitude and mean
square slope hs2 i grow with fetch. The mean squared wave height hη 2 i was calculated out of
the detected surface positions for each condition that is marked in Table 9.1. Figure 9.4 shows
100
9.4. Mean Oxygen Concentration Profiles
Figure 9.5.: Measured mean oxygen concentration c with respect to water depth z. The values were obtained by
averaging 50000 single concentration profiles.
the results of the of the mean squared wave heights. The mean squared wave height hη 2 i rises
monotonically with wind speed, as the measurement at the fetch of 140 cm shows. The data at
the wind engine frequency of 15 Hz shows a rising mean squared wave height hη 2 i with fetch.
Based on the results in Figure 9.4 and on the results of the wave measurements in Section 7.2.2,
the transition from a completely smooth to a rough water surface at a fetch of 140 cm occurs for
wind engine frequencies in the region 10 Hz < F < 15 Hz. That statement is supported by the
t-z images in Figure 9.2. The classification of each measured condition to either a smooth or a
wavy water surface is important when the data is compared with the surface renewal model and
the small eddy model in the next section to distinguish between the hydrodynamic boundary
conditions of a rigid interface and a free interface.
9.4. Mean Oxygen Concentration Profiles
This section presents mean vertical profiles of the O2 concentration and compares the results
with the surface renewal model and the small eddy model. The used method to obtain mean O2
concentration profiles was presented in Section 8.2.3. Mean concentration profiles were calculated
for each condition of the systematic measurements, where the water surface could be detected
(see Table 9.1). The mean profiles shown in this section were all measured at a fetch of 140 cm,
as measurements with fine increments in the wind speed were only taken at this position.
Figure 9.5 shows mean O2 concentration profiles that were obtained from measurements at a
fetch of 140 cm, to present the impact of wind speed on concentration profiles. The resolution
in depth z is about 5.9 µm, resulting from the optical resolution of 6.2 µm (see equation (6.1))
and the angle α = 16.5◦ (see Figure 4.4) of the tilted laser beam. This resolution is a significant
improvement to previous studies of measurements of concentration profiles at a wavy water
surface. Münsterer and Jähne [1998] achieved a resolution of 18 µm. The resolution in the study
of Falkenroth [2007] was 25 µm. The concentration profiles show a decay from the value cs at
101
9. Results
the water surface to the value cb in higher water depths (the water bulk). The absolute value
of the derivative of the concentration at the water surface with respect to the depth z grows
with increasing wind speed. This observation is in agreement with expectations as the transfer
velocity k and thus the flux density j grows with wind speed, leading to an increased gradient
at the water surface due to equation (2.22)
∂c jc = −D .
∂z z=0
(9.1)
For a wind speed u0 of 1.6 m s−1 (red crosses), the O2 concentration at the water surface cs
is higher compared to the other presented profiles. The reason is that the flow velocity of the
water at this wind speed is so low that a fluid particle spends more time in the laser region
than the time interval τoff between two successive laser pulses, as described in Section 3.1.2. In
conclusion, equation (3.2)
τoff >
d
,
vl
(9.2)
with the laser beam diameter d and the local fluid velocity vl , is not satisfied locally. This leads
to a lower photon flux Φ compared to the case of higher flow velocity in which equation (9.2)
would be satisfied. According to equation (3.1)
c=
Φ0
1
−1 ·
,
Φ
KSV · D
(9.3)
the resulting O2 concentration is overestimated. All concentration profiles, measured at a wind
speed u0 between 1.9 m s−1 and 4.5 m s−1 including the ones not shown in the figure coincide at
the water surface. This indicates that the flow velocity of the water is large enough to satisfy
equation (9.2). The concentration cb in the water bulk differs for each profile as the water
was degassed before each measurement leading to a non-reproducible O2 concentration in the
water. For the concentration profile measured at a wind speed u0 of 4.8 m s−1 (red circles), the
concentration cs at the water surface is lower than for the other wind speeds. This is due to an
error in the surface detection that occurs at high wave slopes, as explained in Section 8.2.2.
9.4.1. Fit of the Models to the Data
A quantitative analysis of how well the surface renewal model and the small eddy model describe
the data is given in this paragraph. The test was done by fitting the four functions predicted
by the two models with boundary conditions of a rigid wall and a free interface (see equations
(2.53) to (2.59)) to the mean concentration profiles. The fit was performed with the unscaled
concentration profiles to make no a priory assumptions about the parameters δmbl , cs , and cb .
The model functions were converted from the dimensionless concentration c+ and depth z+ to
the dimensional quantities c and z. The free fit parameters were cs , cb , and δmbl . The range of
the fitting procedure was from depth z = 0 to z = 4 δmbl , using the value of δmbl determined
102
9.4. Mean Oxygen Concentration Profiles
Figure 9.6.: RMS values of the residuals from the four fit functions (see legend) with respect to the frequency of the
wind engine F at which the dataset was taken.
by the tangent method, as explained in Section 8.2.4. The root mean square (RMS) value of
the residuals was used to determine which model describes the data best. Figure 9.6 shows the
RMS of the residuals of the four functions and the concentration profiles measured at a fetch of
140 cm.
Up to a wind engine frequency F of 14 Hz, the surface renewal model for the Schmidt number
exponent n of 2/3 describes the data best, with one exception at 6 Hz. A transition happens
from 14 Hz to 15 Hz, above which the surface renewal model for n = 2/3 is the worst description
of the data compared to the other models. The data from 15 Hz to 17 Hz is best described with
the small eddy model for n = 1/2, followed by the surface renewal model for n = 1/2. However,
the result depends on the range of the performed fit. By not taking into account the uppermost
50 µm below the water surface, the surface renewal model for n = 1/2 describes the data better
than the small eddy model for n = 1/2. To interpret the data in Figure 9.6, the state of the wave
field at the given wind speeds is taken into account. The transition from a completely smooth to
a rough water surface at a fetch of 140 cm occurs for wind engine frequencies between 10 Hz < F
< 15 Hz, as shown in Section 9.3. Accordingly, the transition in the shape of the concentration
profiles that Figure 9.6 proposes coincides with the onset of waves, what is in agreement with
the predictions of the surface renewal as well as the small eddy model.
In conclusion, for a flat water surface, the measured averaged concentration profiles are best
described by the surface renewal model for a rigid interface. For a wavy water surface, a
determination between the surface renewal model and the small eddy model is not possible.
Table 9.2 shows the obtained mass boundary layer thickness δmbl and surface concentration cs
obtained from the fit procedures with the models. The obtained values cannot be used as a
criterion to rule out one of the models for a wavy water surface because both models achieve
reasonable values.
For the case of flat water surface, a similar result was achieved in the studies of Münsterer
and Jähne [1998] (see Figure 1.2) and Falkenroth [2007]. They showed that the surface renewal
model for n = 2/3 describes their data best. To the best of the author’s knowledge, only one
study by Münsterer [1996] examined concentration profiles at a wavy water surface under wind-
103
9. Results
Table 9.2.: Results of the mass boundary layer thickness δmbl and the surface concentration cs obtained from the fits
with the surface renewal model (SR) and the small eddy model (SE) to the mean concentration profiles. Up to wind
engine frequencies F = 14 Hz, the model functions for a Schmidt number exponent of n = 2/3 were used to perform
the fit. For F = 15 Hz to F = 17 Hz, the model functions for n = 1/2 were taken.
F [Hz]
δmbl (SE) [µm]
δmbl (SR) [µm]
cs (SE) [mg L−1 ]
cs (SR) [mg L−1 ]
6
1141
1123
8.8
8.7
7
238
248
7.7
7.7
8
224
231
7.7
7.6
9
198
207
7.7
7.7
10
191
200
7.8
7.7
11
196
197
7.6
7.6
12
184
186
7.4
7.3
13
182
178
7.5
7.5
14
156
156
7.4
7.3
15
124
103
7.1
7.1
16
105
82
7.1
7.1
17
69
56
6.7
6.7
induced turbulence. In that study, a transition in the concentration profile from the surface
renewal model for n = 2/3 at a flat water surface to the surface renewal model for n = 1/2 at
a wavy water surface was found. However, a fit with the function predicted by the small eddy
model was not performed in that study, as “this function is too complicated for a non-linear
fitting procedure”, as they wrote. In the present study, it could be shown that the small eddy
model for n = 1/2 describes the profiles at a wavy water surface well, resulting in a different, yet
reasonable, thickness δmbl of the mass boundary layer. The striking agreement with the surface
renewal model in the study of Münsterer [1996] is biased by the a priory scaling of the profiles
by the exponential fit method, as the author himself mentions.
Oxygen concentration profiles at the air-water interface have also been measured in gridstirred tanks in studies by Herlina and Jirka [2008] and Schulz and Janzen [2009]. A comparison
with the concentration profiles obtained in this thesis is difficult due to the different method to
generate the turbulence. In the study of Herlina and Jirka [2008], a good agreement with both
models for n = 1/2 was found, whereas Schulz and Janzen [2009] identified the best agreement
with the model prediction for n = 2/3.
Concentration profiles in earlier studies were measured in grid-stirred tanks with oxygen microprobes by Chu and Jirka [1992], Prinos et al. [1995], and Atmane and George [2002]. The spatial
resolution of the profiles obtained with this technique is about one order of magnitude lower
than the resolution obtained with the non-invasive LIF technique, that was used in this thesis.
Therefore, the profiles presented in this thesis are more applicable to test models by the shape
of the concentration profiles.
9.4.2. Scaling with the Models
This section presents the averaged concentration profiles in dimensionless units. The parameters
necessary for scaling (δmbl , cs , and cb ) are either obtained by fitting the surface renewal model or
the small eddy model to the profiles. Depending on the state of the water surface, the predicted
functions for n = 2/3 or n = 1/2 are fitted to the data in dimensionful units. As a result, the fit
routine returns the three fit parameters δmbl , cs , and cb . This technique is more stable than the
tangent method (see Section 8.2.4), as the total range of the concentration profile is considered
to determine the thickness δmbl in contrast to only a linear region near the water surface that has
104
9.4. Mean Oxygen Concentration Profiles
(a) fit with surface renewal model
(b) fit with small eddy model
Figure 9.7.: Normalized mean oxygen concentration c+ with respect to the normalized depth z+ = z/δmbl for three
wind speeds at a flat water surface and three wind speeds at a wavy water surface. The parameters for the normalization
(δmbl , cs , and cb ) were obtained by fitting the functions predicted by the surface renewal model and the small eddy
model to the data. The mean concentration profiles derived with the surface renewal model and the small eddy model
are indicated in the plot for the two boundary conditions of a rigid interface (n = 2/3) and a free interface (n = 1/2).
105
9. Results
to be selected individually for each fit. Figures 9.7(a) and 9.7(b) show mean O2 concentration
profiles, normalized with the parameters obtained from the fit with the surface renewal and the
small eddy model functions. Three measurements at a flat water surface and three measurements
at a wavy water surface are depicted. A transition in the shape of the concentration profiles
is observed when the water surface changes from smooth to wavy. This is in agreement with
both, the surface renewal model and the small eddy model. They both predict a change in the
shape of the concentration profiles when the Schmidt number exponent n changes from 2/3 for
a rigid interface to 1/2 for a free interface, as shown in Section 2.2. The figures indicate that
both models, the surface renewal model and the small eddy model describe the data equally well
at a wavy water surface, as long as the scaling parameters are chosen suitably.
9.5. Fluctuation Concentration Profiles
This section presents the depth dependent root mean square (RMS) O2 concentration fluctuations c0 for a smooth and a wavy water surface. The measurements give insights into interesting
quantities. It is still an unresolved question if the concentration fluctuations vanish at the water
surface. Figures 9.8(a) and 9.8(b) show measurements of RMS fluctuation profiles in a gridstirred tunnel and a wind-wave tank, respectively, from previous studies by Herlina and Jirka
[2008] and Münsterer [1996]. The results from the grid-stirred tank show vanishing concentration fluctuations at the water surface, whereas non-zero fluctuations were measured in the
wind-wave tunnel. For a rigid air-water interface, both, the surface renewal as well es the small
eddy model make the assumption of zero fluctuations at the water surface (see Sections 2.2.2
and 2.2.3). For a free interface, there are non-vanishing fluctuations at the surface according
to the surface renewal model, while the small eddy model still assumes vanishing fluctuations.
All recent measurements agree, that the RMS concentration fluctuations show a distinct peak.
Aspects to examine are the depth and the value of the peak. In Section 2.2.4, a model was
developed that predicts concentration fluctuations with respect the water depth based on the
assumptions of the surface renewal model for a rigid interface. The fluctuation concentration
profile is obtained by numerical integration of equation (2.68)
c02
+ (z+ )
Z1
=
0
Z1
2
z z +
+
√
erfc
dz+ −
erfc √
dz+ .
2 t+
2 t+
2
(9.4)
0
The obtained results in this section are compared with this model.
Figure 9.8(c) shows results of this thesis of the RMS O2 fluctuation concentration c0+ with
respect to the water depth. Two profiles were measured at a flat water surface (F = 5 Hz, red
and blue profiles), the other two at a wavy water surface (F = 15 Hz, green and black profiles).
To scale the data, the thickness δmbl of the mass boundary layer, the concentration at the water
surface cs , and the concentration in the water bulk cb were used. These were obtained from the
106
9.5. Fluctuation Concentration Profiles
(a) Profiles of oxygen concentration fluctuations measured in grid-stirred tanks.
From Herlina and Jirka [2008].
(b) Profiles of oxygen concentration fluctuation measured in a wind-wave tunnel
for a smooth water surface. From Münsterer [1996]
(c) This Figure shows own results: Profiles of oxygen concentration fluctuation measured in
the Heidelberg wind-wave tunnel for a flat (F = 5 Hz) and a wavy (F = 15 Hz) water surface.
Figure 9.8.: Measured concentration fluctuation profiles with respect to the normalized water depth. Figures (a) and
(b) show measurements performed in a grid-stirred tank and a wind-wave tunnel, respectively. Figure (c) presents
results of this thesis.
107
9. Results
Figure 9.9.: Normalized oxygen concentration fluctuation profiles with respect to the normalized depth z+ measured
at a flat water surface. The continuous red line shows the model for the RMS concentration fluctuation presented in
Section 2.2.4.
fit procedure with the surface renewal model, which has been explained in the previous section.
Profiles are expressed in terms of dimensionless depth z+ =
c0+ =
c0
cs −cb .
z
δmbl
and dimensionless concentration
9.5.1. Additional Contributions to the Variance
In Section 3.1.3, effects are outlined that add up to a bias to the fluctuations by increasing the
c0 value. If the additional variance has no depth dependence, its contribution can be subtracted
by determining the c0 value in the bulk. Two of the effects, the temperature effect and the
error due to a defective surface detection, show a depth dependence. The temperature effect
can be suppressed effectively by using a low duty cycle of the laser. The explanation for this
solution is given in Section 3.1.2. The error due to a wrong surface detection plays a role only
for high wind speeds, where the detection is complicated due to high surface slopes (Section
8.2.2). Conclusively, profiles of c0 with an additional variance that show no depth dependence
are obtained at low wind speeds and a low duty cycle of the laser. The profile in Figure 9.8(c),
recorded at a fetch of 120 cm (the blue line) is such a profile (dataset C in Table 7.1).
9.5.2. Fluctuations at a Flat Water Surface
For the concentration fluctuation profile recorded at a low wind speed of 1.3 m s−1 and a low
duty cycle of 0.45 % of the laser, the contribution to the variance due additional effects (Section
3.1.3) can be subtracted to obtain the actual concentration fluctuation. This was done by
determining the measured c0 value in the bulk. As the concentration in the well-mixed bulk has
a homogeneous concentration, the fluctuations have to vanish. Figure 9.9 shows the corrected
fluctuation profile after that subtraction. The model for c0 (equation (9.4)) is indicated in the
same plot. The plot shows that the RMS concentration fluctuations drop to zero at the water
108
9.6. Oxygen Transfer Rates
surface. This is in agreement with the model for c0 and with the assumptions of both, the
surface renewal and the small eddy model. In contradiction to the presented measurement at a
flat water surface and the model description, the measurements of Münsterer [1996] (see Figure
9.8(b)) suggested that the O2 concentration fluctuations do not vanish at the water surface.
The measurements of Herlina [2005] (Figure 9.8(a)) and Schulz and Janzen [2009] in grid-stirred
tanks showed an indication that the RMS concentration fluctuations vanish at the water surface.
The developed model for c0 underestimates the peak position of the measured profile by about
30 %. Nevertheless, the model represents the maximum value with a high precision (uncertainty
below 5 %). The c0 model also reflects the general shape of the profile well.
To conclude, measurements of the O2 concentration fluctuation indicate that the concentration
fluctuations vanish at the water surface. These are the first measurements in a wind-wave tunnel
that measured vanishing concentration fluctuations at the water surface.
9.5.3. Fluctuations at a Wavy Water Surface
For the concentration profiles recorded at a wavy water surface the additional effects adding up
to the variance cannot be subtracted, because of a depth dependence of the effects, as discussed
in Section 9.5.1. Figure 9.8(c) indicates that the c0 value at the surface is higher than in the
bulk. The origin of this effect can be due to actual surface renewal events, leading to non-zero
fluctuations at the surface for a wavy water surface. It is also possible that the fluctuation at
the surface is greater zero because of errors in the surface detection.
To the best of the author’s knowledge, these are the first measurements of concentration
fluctuations at a wavy water surface in a wind-wave tunnel. A peak in the RMS profile at about
z+ = 0.7 is observed.
9.6. Oxygen Transfer Rates
This section presents obtained transfer velocities kLIF and kb that were determined with the
LIF method and the mass balance method, respectively. The local transfer velocities kLIF are
derived from the boundary layer thickness δmbl with equation (2.23)
k=
D
δmbl
.
(9.5)
In Section 9.6.1, the obtained values of δmbl are presented. Section 9.6.2 shows a comparison
of the transfer velocities kLIF and kb . In Section 9.6.3, the parametrization of the measured
transfer velocities kLIF with friction velocity u∗ , mean square slope hs2 i, and u0 are presented
and compared.
109
9. Results
Table 9.3.: The checkmarks indicate the conditions of wind speed (in units of the wind engine frequency F ) and fetch X
where data was taken, the surface detection algorithm worked successfully, and the data did not show systematic errors.
fetch
fetch
fetch
fetch
fetch
fetch
X
X
X
X
X
X
=
=
=
=
=
=
F [Hz]
100 cm
120 cm
140 cm
160 cm
200 cm
220 cm
5
6
7
8
9
10
X
11
12
13
14
X
X
X
X
X
X
X
X
X
15
X
X
X
X
X
X
16
17
X
X
17.5
X
9.6.1. Thickness of the Mass Boundary Layer
The thickness of the mass boundary layer δmbl is calculated by fitting the predicted function by
the surface renewal model to the mean concentration profiles, as explained in Section 9.4.1. All
calculations in this section are based on the surface renewal model, as this model is the best
description for the concentration profiles according to Section 9.4.1. Only the data that did not
show systematic errors was used for the further analysis of the concentration profiles. Table 9.3
shows the conditions of fetch X and wind engine frequency F , where data without systematic
errors was measured. Systematic errors in the data occur at low wind speeds, as described in
Section 9.4.
Figure 9.10 shows the thickness of the mass boundary layer δmbl with respect to wind speed u0 .
The thickness δmbl decreases with increasing wind speed u0 . This is in agreement with the theory
in Section 2.1.2, as the turbulent diffusivity Kc increases with increasing shear stress, leading
to a decreasing boundary layer thickness δmbl . The fetch dependence of the boundary layer
thickness δmbl is also observed in Figure 9.10 at a wind speed of about 4.3 m s−1 , where data
from six values of fetch is shown. We see a decreasing trend of the boundary layer thickness δmbl
with increasing fetch X. This effect is due to a growing turbulent diffusivity Kc with increasing
fetch X. This is confirmed with Figure 7.1(c), that shows a growing mean square slope hs2 i with
increasing fetch X.
9.6.2. Comparison with Mass Balance Measurements
In this section, transfer velocities kLIF are compared with transfer velocities kb , that were measured with the LIF method and the mass balance method, respectively. Figure 9.11(a) shows LIF
transfer velocities kLIF , measured at different fetch X, and the bulk transfer velocities kb with
respect to wind speed u0 . The mass balance method yields the transfer velocity kb , integrated
over fetch. Only the LIF method is able to measure local transfer velocities. The bulk transfer
velocity kb is strictly increasing with the wind speed u0 , as expected. The values measured with
the LIF method are in the right order of magnitude compared with kb . This is a promising sign
that the LIF technique is able to measure correct local transfer velocities kLIF .
The fetch dependence of the local transfer velocity kLIF is shown in Figure 9.11(b). All
110
9.6. Oxygen Transfer Rates
Figure 9.10.: Thickness of the mass boundary layer δmbl with respect to wind speed u0 measured with the LIF method
for different fetch X.
data in this plot was measured at the same wind speed u0 . The red line depicts the bulk
transfer velocity for comparison. The fetch dependence of the transfer velocity kLIF is due to
the increasing turbulent diffusivity Kc with fetch, as discussed in the previous section. A strong
increment in the transfer velocity kLIF occurs between fetch X of 120 cm an 160 cm. The mean
square slope for the same wind speed shows a dominant increment between the fetch of 100 cm
and 160 cm, as depicted in Figure 7.1(c). This qualitative correlation shows that the gas transfer
in the wind-wave tunnel strongly depends on fetch.
By estimating the averaged transfer velocity kLIF from the local transfer velocities, the comparability of the two techniques is tested. With the total fetch of 3.66 m (see Figure 4.1), and the
assumption of a constant transfer velocity below 120 cm and above 160 cm, the average transfer velocity kLIF is about 9 cm h−1 . This is an overestimation of the bulk transfer velocity of
about 35 %. However, the method to compare kLIF with kb shows a promising potential for the
validation of the local gas transfer measurements by measuring with finer increments over the
total fetch. The comparison between kLIF and kb can also be used as a method to validate gas
transfer models (e.g. small eddy or surface renewal), by calculating the transfer velocity kLIF
with the fit functions of different models.
9.6.3. Parametrizations of the Transfer Velocity
In this section, parametrizations of the measured transfer velocities kLIF with the friction velocity
u∗ , the mean square slope hs2 i, and the wind speed u0 are presented and compared. As u∗ and
hs2 i are local phenomena, the parametrizations can only be performed for the locally measured
transfer velocities kLIF .
Figure 9.12 shows the local transfer velocities kLIF with respect to u∗ , hs2 i, and u0 . The plots
are all shown with a linear and semi logarithmic scale on the left side and on the right side,
respectively, to facilitate the comparison. In Figures 9.12(a) and 9.12(b), the Deacon model
111
9. Results
(a) kLIF and kb with respect to the wind speed u0
(b) kLIF with respect to the fetch X
Figure 9.11.: Transfer velocities kLIF and kb measured with the LIF method and the mass balance method, respectively.
(Section 2.2.5) is shown for comparison3 . The measured transfer velocities kLIF are all above
the prediction of the Deacon model, except for the value measured at the lowest wind speed.
The Deacon model is a lower limit for the gas exchange at the air-water interface, because of the
assumption of a rigid interface with a Schmidt number exponent of n = 2/3. The value of the
transfer velocity below the Deacon model is supposedly defective because it is about 42 % below
the measured transfer velocity kb with the mass balance method (see Figure 9.11(a)). Figures
9.12(c) and 9.12(d) show the local transfer velocity kLIF with respect to mean square slope hs2 i.
The mean square slope was proposed by Jähne et al. [1987] to be a suitable forcing parameter.
A linear correlation of the gas transfer velocity with mean square slope was suggested by Frew
et al. [2004]. The parametrization with the reference wind speed u0 in Figures 9.12(e) and 9.12(f)
clearly shows that the fetch has to be considered for the local transfer velocity.
The visual comparison of the three parametrizations indicates that the gas transfer in the
linear wind-wave tunnel is best described with friction velocity u∗ , followed by mean square
slope hs2 i, and wind speed u0 . The observed dataset indicates that the gas transfer is not fully
described with the three measured forcing parameters. At higher fetches, transfer velocities are
enhanced in all parametrizations. To be able to make a step beyond these statements, there
is need for more systematic measurements at various combinations of fetch X and wind engine
frequencies F .
To conclude, it was illustrated that the gas transfer is a local phenomenon that cannot be
explained by the wind speed u0 alone. The parametrizations with friction velocity and mean
square slope are better descriptions for the data than the wind speed u0 . The results presented
here are the first systematic measurements of local gas transfer velocities kLIF in a wind-wave
tunnel.
3
The Schmidt number of O2 (at a temperature of 23◦ C in clean water) of Sc = 445 was used for the calculation,
according to the values of the diffusion constant and the viscosity from [Cussler, 2009] and [Yaws, 1999].
112
9.6. Oxygen Transfer Rates
(a) parametrization with u∗
(b) parametrization with u∗ - semi logarithmic plot
(c) parametrization with hs2 i
(d) parametrization with hs2 i - semi logarithmic plot
(e) parametrization with u0
(f) parametrization with u0 - semi logarithmic plot
Figure 9.12.: Local transfer velocities kLIF with respect to the forcing parameters u∗ , hs2 i, and u0 . All plots contain
the same data. The plots on the left and on the right side are with a linear scale and with a semi logarithmic
scale, respectively. For the parametrization with friction velocity u∗ , the Deacon model (Section 2.2.5) is shown for
comparison.
113
10. Conclusion and Outlook
10.1. Conclusion
An improved non-intrusive laser-induced fluorescence (LIF) method (Section 3.1.1) to measure
vertical oxygen (O2 ) concentration profiles in the water-sided mass boundary layer has been
presented in this thesis. A spatial resolution of 6.2 µm (Section 6.1.1) and temporal resolution
of up to 1.2 kHz (Table 7.2) was achieved to be able to resolve the thin mass boundary layer
and fast processes. Using the Ru complex as an oxygen indicator allowed for the visualization
of O2 transport processes (Section 9.2) at the flat and wavy water surface in a linear wind-wave
tunnel with 22 times higher sensitivity as possible with the commonly used PBA indicator.
Noteworthy developments in the description of the quenching mechanism have been achieved
during the course of this thesis. The Stern-Volmer equation (2.89) has been generalized for
arbitrary laser irradiance on the basis of rate equations (Section 2.3.4). In the original study by
Stern and Volmer [1919], the approximation of a weak excitation was made. Here, it was shown
that an additional damping factor D , denoting the fraction of excited molecules, needs to be
included to yield the effective quenching constant, i.e. Keff = D · KSV . Measurements showed
that the generalized Stern-Volmer equation describes the quenching effect for different laser irradiance values very well (Section 5.2.2). With this new insight into the effective quenching
mechanism, the Stern-Volmer constant KSV of the Ru complex was measured with high precision better than 2 %. Additionally, the temperature dependence of the Stern-Volmer constant
KSV (T ) between 17◦ C and 27◦ C was measured (Section 5.2.3). The precise knowledge of the
Stern-Volmer constant KSV of the Ru complex allowed for the determination of absolute O2
concentrations with less systematic uncertainties than in previous studies.
A precise surface detection is crucial for the determination of averaged oxygen profiles, since
the depth coordinate is measured with respect to the water surface. For a wavy water surface,
the thickness of the mass boundary layer is much smaller than the root mean square surface
elevation. An algorithm (Section 8.2.2) was developed to detect the water surface in the LIF
image sequences for flat and wavy water conditions. This allows one to average over a large
number of single O2 concentration profiles even at a moderately wavy water surface to obtain
mean O2 concentration profiles with a high precision (Section 9.4).
10. Conclusion and Outlook
Systematic LIF measurements (Section 7.3.1) were performed at various fetch and wind speed
combinations to study the gas transfer across the air-water interface at the Heidelberg linear
wind-wave tunnel. From these measurements, the local transfer velocity kLIF of O2 was determined from the mean O2 concentration profiles (Section 8.2.4). The wind speed dependence of
the bulk transfer velocities kb was measured (Section 7.3.2) and compared to the transfer velocities kLIF . The measured transfer velocities kLIF are in good agreement with the bulk transfer
velocities kb (Section 9.6.2).
The small eddy model and the surface renewal model (Section 2.2) describe the gas exchange
mechanisms for a rigid and a free air-water interface. The measured mean O2 concentration
profiles were used to test these models. For a flat water surface, the measured mean O2 concentration profiles are best described by the surface renewal model for a Schmidt number exponent
n of 2/3 (Section 9.4.1). For a wavy water surface, both models for the Schmidt number exponent n of 1/2 are a good description for the concentration profiles and a distinction between
the small eddy model and the surface renewal model is not possible (Section 9.4.1). Further,
the measured mean O2 concentration profiles also show a transition in the shape with the onset
of waves. This transition is in agreement with predicted concentration profiles by the surface
renewal model when the air-water interface changes from a rigid to a free state. This transition
was observed with a higher precision than in previous studies due to the improvements discussed
in the measurement technique.
Vertical profiles of the O2 fluctuation were calculated in addition to profiles of the mean O2
concentration (Section 9.5). In the case of a flat water surface, the data shows evidence that the
O2 concentration fluctuations vanish at the water surface (Section 9.5.2). This is in agreement
with the small eddy model and the surface renewal model for a rigid air-water interface, as well
as with measurements in grid-stirred tanks. A model for the vertical profiles of concentration
fluctuations was developed, based on the assumptions of the surface renewal model for a rigid airwater interface (Section 2.2.4). According to this model, the peak position of the concentration
fluctuation profile is at a depth of about 56 % of the mass boundary layer thickness, which is
about 30 % below the measured peak position.
In the case of a wavy water surface, the determined concentration fluctuations did not vanish
at the water surface. Presumably this is due to the limited spatial resolution and additional error
sources at the water surface (Section 3.1.3), rather than O2 concentration fluctuations greater
than zero.
Gas exchange parametrizations based on data from linear tanks show the difficulty of integrating over inhomogeneous conditions. Therefore, systematic measurements of wind profiles at
various fetch and wind speed combinations (Section 7.2.1) in the Heidelberg linear wind-wave
tunnel were conducted, that enabled the determination of the total momentum flux (Section 9.1).
116
10.2. Outlook
These measurements and the wave measurements by a co-worker allowed for the parametrization
of gas transfer velocities kLIF with common forcing parameters: friction velocity, mean square
slope of the water surface, and wind speed. Section 9.6.3 shows that the measured local transfer
velocities are best described with the friction velocity. To the best of the author’s knowledge,
this thesis presents the first results from a systematic study of local gas transfer velocities with
respect to fetch and friction velocity in a wind-wave tunnel. The developed method shows a
promising potential to gain new insights about parameter dependencies of gas exchange.
10.2. Outlook
It is still an ongoing debate whether gas transfer velocities can be scaled to heat transfer velocities
[Asher et al., 2004; Atmane et al., 2004; Jähne et al., 1989]. The developed LIF method combined
with the active controlled flux technique (ACFT) [Schimpf et al., 2011], available in our group,
offers the possibility to compare local gas transfer velocities to local heat transfer velocities in
the Heidelberg linear wind-wave tunnel.
The extension of the developed one-dimensional LIF method to two dimensions and eventually
three dimensions is planned in upcoming projects [Kräuter, 2015; Trofimova, 2015]. These
methods will give new insights in the three dimensional structure of transport phenomena at
the air-water interface, such as second-order currents or small scale Langmuir circulations.
A simultaneous measurement with the LIF method and the imaging slope gauge (ISG) (Section
7.2.2) offers the possibility to study the influence of local phenomena related to small scale
breaking waves on the local gas transfer velocity.
117
Bibliography
W. Asher, H. Liang, C. Zappa, M. Loewen, M. Mukto, T. Litchendorf, and A. Jessup. Statistics of surface divergence and their relation to air-water gas transfer velocity. Journal of
Geophysical Research, 117(C5):C05035, 2012.
W. Asher and T. Litchendorf. Visualizing near-surface concentration fluctuations using laserinduced fluorescence. Experiments in Fluids, 46:243–253, 2009.
W. E. Asher, A. T. Jessup, and M. A. Atmane. Oceanic application of the active controlled flux
technique for measuring air-sea transfer velocities of heat and gases. J. Geophys. Res., 109:
C08S12, 2004.
W. E. Asher and J. F. Pankow. Prediction of gas/water mass transport coefficients by a surface
renewal model. Environmental Science & Technology, 25(7):1294–1300, 1991.
M. A. Atmane, W. Asher, and A. T. Jessup. On the use of the active infrared technique to infer
heat and gas transfer velocities at the air-water free surface. J. Geophys. Res., 109:C08S14,
2004.
M. A. Atmane and J. George. Gas transfer across a zero-shear surface: a local approach. In
E. Saltzman, M. Donelan, W. Drennan, and R. Wanninkhof, editors, Gas Transfer at Water
Surfaces, volume 127 of Geophysical Monograph. American Geophysical Union, 2002.
F. N. Castellano and J. R. Lakowicz. A water-soluble luminescence oxygen sensor. Photochemistry and Photobiology, 67(2):179–183, Feb 1998.
G. Caulliez, V. Makin, and V. Kudrayavtsev. Drag of the water surface at very short fetches:
observations and modelling. Journal of Physical Oceanography, 38:2038–2055, 2008.
C. R. Chu and G. H. Jirka. Turbulent gas flux measurements below the air-water interface of a
grid-stirred tank. Int. J. Heat Mass Transfer, 35(8):1957–1968, 1992.
M. Coantic. A model of gas transfer across air–water interfaces with capillary waves. Journal
of Geophysical Research, 91:3925–3943, 1986.
J. P. Crimaldi. The effect of photobleaching and velocity fluctuations on single-point lif measurements. Experiments in Fluids, 23:325–330, 1997. 10.1007/s003480050117.
Bibliography
E. L. Cussler. Diffusion - Mass Transfer in Fluid Systems. Cambridge University Press, Cambridge, 3 edition, 2009.
P. V. Danckwerts. Significance of a liquid-film coefficients in gas absorption. Ind. Eng. Chem.,
43:1460–1467, 1951.
E. L. Deacon. Gas transfer to and across an air-water interface. Tellus, 29:363–374, 1977.
J. Demas and D. Taylor. On the intersystem crossing yields in ruthenium (ii) and osmium (ii)
photosensitizers. Inorganic Chemistry, 18(11):3177–3179, 1979.
M. A. Donelan and R. Wanninkhof. Gas transfer at water surfaces - conepts and issues. In
M. A. Donelan, W. M. Drennan, E. S. Saltzman, and R. Wanninkhof, editors, Gas Transfer
at Water Surfaces. American Geophysical Union, 2002.
S. R. Duke and T. J. Hanratty. Measurements of the concentration field resulting from oxygen
absorption at a wavy air–water interface. In B. Jähne and E. C. Monahan, editors, Air-water
Gas Transfer, Selected Papers from the Third International Symposium on Air-Water Gas
Transfer, Hanau, 1995.
P. Fahle. Diplomarbeit, Institut für Umwelphysik, Univeristät Heidelberg, Germany, 2012.
started 10.10.2011.
A. Falkenroth. Visualisation of Oxygen Concentration Profiles in the Aqueous Boundary Layer.
Dissertation, Fakultät für Chemie und Geowissenschaften, Univ. Heidelberg, 2007.
N. M. Frew, E. J. Bock, U. Schimpf, T. Hara, H. Haußecker, J. B. Edson, W. R. McGillis, R. K.
Nelson, B. M. McKeanna, B. M. Uz, and B. Jähne. Air-sea gas transfer: Its dependence on
wind stress, small-scale roughness, and surface films. J. Geophys. Res., 109:C08S17, 2004.
T. Förster. Fluoreszenz Organischer Verbindungen. Vandenhoeck & Ruprecht, Göttingen, 1951.
E. . S. Group. Emva standard 1288 - standard for characterization of image sensors and cameras,
2010.
P. Harriott. A random eddy modification of the penetration theory. Chem. Eng. Sci., 17:149–154,
1962.
E. Hecht. Optik. Oldenbourg, München, 5 edition, 2009.
Herlina. Gas Transfer at the Air–Water Interface in a Turbulent Flow Environment. PhD thesis,
University of Karlsruhe, 2005.
I. Herlina and G. H. Jirka. Experiments on gas transfer at the air–water interface induced by
oscillating grid turbulence. J. Fluid. Mech., 594:183–208, 2008.
120
Bibliography
A. Herzog. Imaging of Water-sided Gas-Concentration Fields at a Wind-Driven, Wavy AirWater Interface.
Dissertation, Institut für Umweltphysik, Fakultät für Physik und As-
tronomie, Univ. Heidelberg, 2010.
J. W. Hiby, D. Braun, and K. H. Eickel. Eine Fluoreszenzmethode zur Untersuchung des Stoffübergangs bei der Gasabsorption im Rieselfilm. Chemie-Ing.-Techn., 39:297–301, 1967.
R. Higbie. The rate of absorption of a pure gas into a still liquid during short periods of exposure.
Trans. Am. Inst. Chem. Eng., 31:365–389, 1935.
J. O. Hinze. Turbulence. McGraw-Hill series in mechanical engineering. McGraw-Hill, New York,
2nd edition, 1975.
D. T. Ho, R. Wanninkhof, P. Schlosser, D. S. Ullman, D. Hebert, and K. F. Sullivan. Toward a
universal relationship between wind speed and gas exchange: Gas transfer velocities measured
with 3he/sf6 during the southern ocean gas exchange experiment. Journal of Geophysical
Research, 116, 2011.
C. T. Hsu, E. Y. Hsu, and R. L. Street. On the structure of turbulent flow over a progressive
water wave: theory and experiment in a transformed, wave-following co-ordinate system.
Journal of Fluid Mechanics, 105:87–117, 1981.
B. Jähne. Zur Parametrisierung des Gasaustauschs mit Hilfe von Laborexperimenten. Dissertation, Institut für Umweltphysik, Fakultät für Physik und Astronomie, Univ. Heidelberg, 1980.
IUP D-145.
B. Jähne. On the transfer processes at a free air-water interface. Habilitation thesis, Institut
für Umweltphysik, Fakultät für Physik und Astronomie, Univ. Heidelberg, 1985. IUP D-200.
B. Jähne. From mean fluxes to a detailed experimental investigation of the gas transfer process.
In S. C. Wilhelms and J. S. Gulliver, editors, 2nd International Symposium on Gas Transfer at
Water Surfaces - Air–Water Mass Transfer, Minneapolis 1990, pages 244–256. ASCE, 1991.
B. Jähne. Practical Handbook on Image Processing for Scientific and Technical Applications.
CRC Press, Boca Raton, FL, 2 edition, 2004.
B. Jähne. Digital Image Processing. Springer, Berlin, 6 edition, 2005.
B. Jähne. personal communication. 2012.
B. Jähne, P. Libner, R. Fischer, T. Billen, and E. J. Plate. Investigating the transfer process
across the free aqueous boundary layer by the controlled flux method. Tellus, 41B(2):177–195,
1989.
B. Jähne, K. O. Münnich, R. Bösinger, A. Dutzi, W. Huber, and P. Libner. On the parameters
influencing air-water gas exchange. J. Geophys. Res., 92:1937–1950, Feb. 1987.
121
Bibliography
B. Jähne and K. Riemer. Two-dimensional wave number spectra of small-scale water surface
waves. J. Geophys. Res., 95(C7):11531–11646, 1990.
B. Kinsman. Wind Waves: Their Generation and Propagation on the Ocean Surface. PrenticeHall, Englewood Cliffs, 1965.
K. E. Krall. Laboratory Investigations of Air-Sea Gas Transfer under a Wide Range of Water Surface Conditions. Dissertation, Institut für Umweltphysik, Fakultät für Physik und
Astronomie, Univ. Heidelberg, 2013.
C. Kräuter.
Aufteilung des transferwiderstands zwischen luft und wasser beim austausch
flüchtiger substanzen mittlerer löslichkeit zwischen ozean und atmosphäre. Diplomarbeit,
Institut für Umweltphysik, Fakultät für Physik und Astronomie, Univ. Heidelberg, 2011.
C. Kräuter. Dissertation, Institut für Umweltphysik, Fakultät für Physik und Astronomie, Univ.
Heidelberg, 2015. started 01.01.2012.
J. R. Lakowicz. Principles of Fluorescence Spectroscopy. Springer, 3. edition, 2006.
W. K. Lewis and W. G. Whitman. Principles of gas absorption. Industrial and Engineering
Chemistry, 16:1215–1220, 1924.
T. Münsterer. LIF Investigation of the Mechanisms Controlling Air–Water Mass Transfer at a
Free Interface. Dissertation, Institut für Umweltphysik, Fakultät für Physik und Astronomie,
Univ. Heidelberg, 1996.
T. Münsterer and B. Jähne. LIF measurements of concentration profiles in the aqueous mass
boundary layer. Exp Fluids, 25:190–196, 1998.
J. F. Pankow, W. E. Asher, and E. J. List. Carbon dioxide transfer at the gas-water interface
as a function of system turbulence, pages 101–111. Springer Netherlands, 1984.
A. P. Pentland. A new sense for depth of field. Pattern Analysis and Machine Intelligence,
IEEE Transactions on, PAMI-9(4):523 –531, july 1987.
S. B. Pope. Turbulent Flows. Cambridge University Press, 6 edition, 2009.
P. Pringsheim. Fluorescence and Phosphorescence. Interscience Publisher, 1949.
P. Prinos, M. Atmane, and J. George. Gas-flux measurements and modelling below an air-water
interface. In B. Jähne and E. C. Monahan, editors, Air-water Gas Transfer, Selected Papers
from the Third International Symposium on Air–Water Gas Transfer, pages 49–57, Hanau,
1995. Aeon.
H. Reichardt. Vollständige Darstellung der turbulenten Geschwindigkeitsverteilung in glatten
Leitungen. Zeitschrift für angewandte Mathematik und Mechanik, 31:208–219, 1951.
122
Bibliography
R. Rocholz, P. Fahle, and B. Jähne. High speed and high resolution wave imaging to investigate the initial generation of wind waves at very small fetch. WISE (Waves In Shallow
Environments) 2012, 19th International Conference, Barcelona, Spain, 16-20 April 2012.
R. Rocholz, S. Wanner, U. Schimpf, and B. Jähne. Combined visualization of wind waves and
water surface temperature. In S. Komori, W. McGillis, and R. Kurose, editors, Gas Transfer
at Water Surfaces 2010, pages 496–506, 2011.
W. Roedel. Physik unserer Umwelt: die Atmosphäre. Springer-Verlag, 3 edition, 2000.
R. Sander. Compilation of henry’s law constants for inorganic and organic species of potential
importance in environmental chemistry (version 3), 1999.
A. Savitzky and M. J. E. Golay. Smoothing and differentiation of data by simplified least squares
procedures. Analytical Chemistry, 36(8):1627–1639, 1964.
J. Saylor. Photobleaching of disodium fluorescein in water. Experiments in Fluids, 18:445–447,
1995. 10.1007/BF00208467.
U. Schimpf, L. Nagel, and B. Jähne. First results of the 2009 sopran active thermography pilot
experiment in the baltic sea. In S. Komori, W. McGillis, and R. Kurose, editors, Gas Transfer
at Water Surfaces 2010, pages 358–367, 2011.
H. E. Schulz and J. G. Janzen. Concentration fields near air-water interfaces during interfacial
mass transport: oxygen transport and random square wave analysis. Brazilian Journal of
Chemical Engineering, 26:527 – 536, 09 2009.
O. Stern and M. Volmer. über die Abklingungszeit der Fluoreszenz. Phys.Z, 20:183–188, 1919.
S. A. Thorpe, editor. Encyclopedia of Ocean Sciences: Elements of Physical Oceanography.
Elsevier, 2009.
D. Trofimova. Dissertation, Institut für Umweltphysik, Fakultät für Physik und Astronomie,
Univ. Heidelberg, 2015. started 15.01.2012.
Y. Troitskaya, D. Sergeev, O. Ermakova, and G. Balandina. Statistical parameters of the air
turbulent boundary layer over steep water waves measured by the piv technique. Journal of
Physical Oceanography, 41(8):1421–1454, 2011.
Y. Troitskaya, D. Sergeev, A. Kandaurov, G. Baidakov, M. Vdovin, and V. Kazakov. Laboratory
and theoretical modeling of air-sea momentum transfer under severe wind conditions. Journal
of Geophysical Research, 117:C00J21, 2012.
J. W. Walker and W. L. Peirson. Measurement of gas transfer across wind-forced wavy air–water
interfaces using laser-induced fluorescence. Exp Fluids, 2008.
123
Bibliography
S. Wanner.
Interaktives rendering von wellendaten windgetriebener wasseroberflächen und
ereignisklassifizierung. Diplomarbeit, Institut für Umweltphysik, Fakultät für Physik und
Astronomie, Univ. Heidelberg, 2010.
R. Wanninkhof, W. E. Asher, D. T. Ho, C. Sweeney, and W. R. McGillis. Advances in quantifying
air-sea gas exchange and environmental forcing. Annu. Rev. Mar. Sci., 1:213–244, 2009.
P. Warken. Hochauflösende lif-methode zur messung von sauerstoffkonzentrationsprofilen in der
wasserseitigen grenzschicht. Diplomarbeit, Institut für Umweltphysik, Fakultät für Physik
und Astronomie, Univ. Heidelberg, 2010.
R. Winter. Fluorescent Tracers for air-sided Concentration Profile Measurements at the AirWater Interface.
Dissertation, Institut für Umweltphysik, Fakultät für Physik und As-
tronomie, Univ. Heidelberg, 2011.
L. M. Wolff and T. J. Hanratty. Instantaneous concentration profiles of oxygen accompanying
absorption in a stratified flow. Experiments in Fluids, 16(6):385–392, 1994.
L. M. Wolff, Z. C. Liu, and T. J. Hanratty. A fluorescence technique to measure concentration
gradients near an interface. In S. C. Wilhelms and J. S. Gulliver, editors, Air-Water Mass
Transfer, selected papers from the 2nd Int. Symposium on Gas Transfer at Water Surfaces,
pages 210–218, Minneapolis, 1991. ASCE.
C. L. Yaws. Chemical Properties Handbook: physical, thermodynamic, environmental, transport,
safety, and health related properties for organic and inorganic chemicals. McGraw-Hill, 1999.
124
A. Appendix
A.1. Synthesis of the Ru Complex
The synthesis of the Ru complex (see Section 5.1) was accomplished in the course of this study
with the help of a chemistry student, Michael Kettner. To enable the reproduction of the
experiments presented in this study, the synthesis of the Ru complex is presented here. Table A.1
shows a summary of the reagents needed for the synthesis. The reaction equation for the synthesis
of the Ru complex is the following:
1
1
Ru(III)Cl3 + 3BPS + Asc2− −→ [Ru(II)BPS3 ]Cl2 + Cl− + DHA
2
2
(A.1)
where DHA stands for dehydroascorbic acid. The synthesis of the Ru complex is explained in
step-by-step instructions:
1. Organize the four substances listed in Table A.1 and find a magnetic mixer, a magnetic
stir bar and a 250 mL beaker glass.
2. Fill the 250 mL beaker glass with 200 mL deionized water and add 1.4 g (6.75 mmol) RuCl3
while stirring with the magnetic mixer.
3. Heat the dark-brown solution until it boils.
4. Add 12 g (22.55 mmol) BPS to the boiling solution and let it boil for further 30 minutes.
The evaporating water should be refilled so that the beaker glass always contains 200 mL.
The color of the solution changes to a greenish brown. Instead of using a beaker glass, a
Table A.1.: Summary of reagents
substance
Ruthenium (III) Chloride
Dinatrium
bathophenantrolindisulfonate
(BPS); Diniatrium-4,7-diphenyl1,10-phenantrolin-disulfonat
Ascorbic acid
NaOH-solution 2M
R/S statements
R:34;
S:2636/37/39-45
acid
-
acid
WGK
3
CAS
208523-10G
M [g/mol]
207.43
3
52746-49-3
560.53
1
1
50-81-7
1310-73-2
176.12
40
A. Appendix
round-bottomed flask with a reflux condenser can also be used. In that case, no refilling
to compensate for the evaporating water is necessary.
5. Add 7.5 g (42.61 mmol) ascorbic acid to the boiling solution. The color changes instantaneously to orange-brown. Cook the solution for another 20 minutes and always refill water
to keep the volume constant at 200 mL.
6. Let the solution cool down and perform a calibration of the pH meter (two-point calibration
at a pH value of 2 and 7).
7. In the last step, the cooled-down solution should be set to a pH value of 7 by adding NaOH
and using the pH meter.
If bigger or smaller amounts of the Ru complex are required, the quantities of the substances
should all be changed by the same factor. Less than 50 mL of water should not be used. At
higher quantities, the volume of the water can be kept smaller (there is no need to use 1 L of
water if all the substances are enlarged by a factor of 5 - 500 mL are sufficient).
A.2. The Damping Factor D - Alternative Notation
The damping factor D is formulated here in a different notation as in Section 2.3.4. Instead
of using the laser irradiance E, the ground and excited state concentrations of the fluorophore
without quencher n0 and n∗0 (see Figure 2.7), respectively, are used.
The damping factor D (equation (2.87))
Esat
E + Esat
E
=1−
E + Esat
D =
(A.2)
is written in a different notation, using equations (2.81) and (2.75).
n∗0
N
N − n∗0
=
N
D = 1 −
(A.3)
Using the fact that the total concentration N of the fluorophore
N = n0 + n∗0
(A.4)
is the sum of the ground state and excited state concentrations without quencher n0 and n∗0 ,
respectively, we obtain
D =
126
n0
.
N
(A.5)
A.3. Stern-Volmer Plot - Further Presentation
This equation shows, that the damping factor is the fraction of the concentration of Ru complex
molecules in the ground state n0 and the total concentration N of the Ru complex molecules.
A.3. Stern-Volmer Plot - Further Presentation
For direct comparison with former measurements by Falkenroth [2007] and Münsterer [1996],
the data of the Stern-Volmer plots for the Ru complex is presented in the form
Φ=
Φ0
,
1 + Keff · c
(A.6)
see equation (5.2). Figure A.1 shows the photon flux Φ with respect to the O2 concentration.
The data in this figure is the same as shown in Figures 5.5 and 5.6 in Section 5.2.2.
Figure A.1.: Photon Flux Φ with respect to the O2 concentration measured for three laser power values (see Table 5.1).
The photon flux Φ is scaled to unity at the O2 concentration of 0 mg L−1 . Equation (A.6) is fitted to each of the three
data sets, to obtain the effective Stern-Volmer constants Keff .
A.4. Unforeseen Effects of the Camera
After systematic measurements had been conducted, two error sources originating from the
camera (see Section 4.2.4) were discovered. Section A.4.1 presents one of the two effects, the
so-called two-level noise, that could be eliminated. The other effect, the sawtooth effect, is
described in Section A.4.2.
A.4.1. Two-Level Noise Effect
Figure A.2 shows the two-level noise effect by analyzing an image sequence containing 104 single
dark images. The mean gray value of each image can be assigned to one of two levels (see
127
A. Appendix
(a) Mean gray velues of 104 dark images with respect
to the frame number.
(b) Histogram of the mean gray values.
Figure A.2.: Analysis of the two-level noise effect with a sequence of 104 dark images.
(a) laser in the pulsed mode
(b) laser in the cw (constant wave) mode
Figure A.3.: Analysis of the sawtooth effect
Figure A.2(a)). The histogram in Figure A.2(b) shows that the brighter dark image appears
more often than the darker one. The same measurement with another camera of the same series
did not show the two-level noise effect. The effect was corrected for by calculating two dark
images, one for each noise level. To each recorded image, the corresponding dark image was
chosen according to the brightness in a dark area in each image.
A.4.2. Sawtooth Effect
Figure A.3(a) shows the mean gray value of 4000 images of an image sequence recorded with
the LIF setup (see Section 4.2). For the measurement, the laser was triggered to give a pulse of
0.45 ms for each camera exposure. The O2 concentration in the water was in equilibrium with
the air concentration during the measurement. The mean gray value seems to have periodic
variations with a sawtooth-like behaviour, additional to the two-level noise effect. The effect
is possibly due to a periodic shift of the camera exposure window relative to the laser pulse.
Figure A.3(b) shows a similar measurement as depicted in Figure A.3(a), with the difference
that the laser was in the continuous wave (cw) mode. In this mode, the sawtooth effect does
not occur.
To correct for the sawtooth effect, the phase of the sawtooth would need to be detected in
128
A.5. Camera Response Calibration
each image. This was not possible for the LIF measurements because variations of the intensity
due to changes in the O2 concentration are higher than the variations due to the sawtooth effect.
Even for LIF measurements recorded at a constant O2 concentration, the automatic detection
of the phase was not possible because the frequency of the sawtooth showed variations. This
effect can be eliminated in future measurements by using the camera in the “free run” mode and
pulsing the laser with the camera output signal.
A.5. Camera Response Calibration
Measurements of the linear response of the camera used in this study, a BASLER acA2000-340km
(see Section 4.2.4) were conducted at the HCI (Heidelberg Collaboratory for Image Processing)
by Prof. Bernd Jähne according to the EMVA 1288 standard [Group, 2010].
Figure A.4(a) shows a measurement of the camera’s gray value depending on the irradiation
(in photons per pixel). A significant deviation starts at an irradiation above 15000 photons per
pixel. This fact was considered during the experiments by using only up to 80 % of the camera’s
full range. Figure A.4(b) shows the deviation from the linearity response. The error in the range
specified in the figure up to an irradiation of 19500 photons per pixel stays below 0.4 %.
129
A. Appendix
Linearity m0108, 629nm, 25.09.2011
mono data
1.000
mono fit
gray value - dark value (DN)
800
600
400
200
0
0
5.000
10.000
15.000
20.000
25.000
irradiation (photons/pixel)
(a) camera signal with respect to the irradiation and a linear fit function
Deviation linearity m0108, 629nm, 25.09.2011
2
mono data
0
mono: LE = +-0.40%
Linearity error LE (%)
-2
-4
-6
-8
-10
0
5.000
10.000
15.000
20.000
irradiation (photons/pixel)
(b) deviation from the camera’s linearity with respect to the irradiation
Figure A.4.: camera calibration
130
25.000
Danksagung
An dieser Stelle möchte ich allen danken, die zum Gelingen dieser Arbeit beigetragen haben.
Mein besonderer Dank gilt Prof. Bernd Jähne für die Ermöglichung und Betreuung des interessanten Projektes in seiner Arbeitsgruppe. Danke für die vielen inspirierenden Anregungen,
für die gegeben Freiräume und die positive Arbeitsatmosphäre.
Ich bedanke mich ebenfalls herzlich bei Prof. Ulrich Platt für die Zweitkorrektur dieser Arbeit in der Weihnachtszeit. Bei Prof. Dirk Dubbers und Prof. Iring Bender danke ich, Teil des
Prüfungskomitees zu sein.
Bei der gesamten Windkanal Arbeitsgruppe bedanke ich mich für den hilfsbereiten Umgang
miteinander, die vielen fruchtbaren Diskussionen und die gute Stimmung. Danke an Günther
Balschbach, Paulus Bauer, Maximilian Bopp, Patrick Fahle, Jonas Gliß, Heiko Heck, Alexandra
Herzog, Daniel Kiefhaber, Nils Krah, Kerstin Krall, Christine Kräuter, Jakob Kunz, Wolfgang
Mischler, Leila Nagel, Daniel Niegel, Roland Rocholz, Uwe Schimpf, Julian Stapf, Darya Trofimova, Björn Voss, Pius Warken und René Winter.
Roland Rocholz danke ich für die vielen hilfreichen Diskussionen über Gasaustausch, Prismen
und Namensgebungen von Windkanälen und Konstanten. Danke auch für die Zusammenarbeit
am linearen Kanal und das kritische und sorgfältige Korrekturlesen von vielen Teilen der Arbeit.
Bei Nils Krah bedanke ich mich für viele interessante Diskussionen, die durch sein großes
physikalisches Interesse und seine schnelle Auffassungsgabe sehr wertvoll waren. Das genaue
Korrekturlesen einiger Kapitel war ebenfalls sehr viel wert.
Christine Kräuter und Daniel Kiefhaber danke ich für die Bereitschaft, viele Kapitel der Arbeit
Korrektur zu lesen. Daniel danke ich für viele kritische Kommentare, selbst in der Zeit während
der Messkampagne im Pazifik. Danke Christine für die Unterstützung in den arbeitsintensiven
Phasen mit ermunterndem Feedback.
Pius Warken danke ich für die gute Zusammenarbeit während seiner Diplomarbeit. In dieser
Zeit wurden die Grundbausteine für meine Dissertation gelegt.
Bei Wolfgang Mischler bedanke ich mich für viele Diskussionen zur Optik und für das Programmieren von zahlreichen Gerätetreibern.
Alexandra Herzog danke ich für den Bau des linearen Kanals und für die Weitergabe von ihren
Erfahrungen in der Anfangsphase meiner Dissertation.
Bei Cassandra Fallscheer bedanke ich mich für Sprachkorrekturen meiner denglischen Arbeit
von dem Schreiben der ersten Sätze an bis zu den letzten Abschnitten, die in verschlafenem
Zustand geschrieben wurden.
Sami Al Najem und Sönke Schäfer danke ich für das Korrekturlesen von Teilen der Arbeit
und die Aufmunterung zu Sport, auch in den arbeitsintensiven Phasen der Dissertation.
Allen nicht genannten Freunden danke ich für Ablenkung zu jeder Zeit, für unvergessliche
gemeinsame Erlebnisse und für das Verständnis für mein häufiges auf die Uhr schauen in den
letzten Monaten. Ganz besonderer Dank geht an meine Eltern für ihre Geduld, die mentale
Unterstützung in den intensiven Phasen der Arbeit und die Förderung meiner Ideen.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
