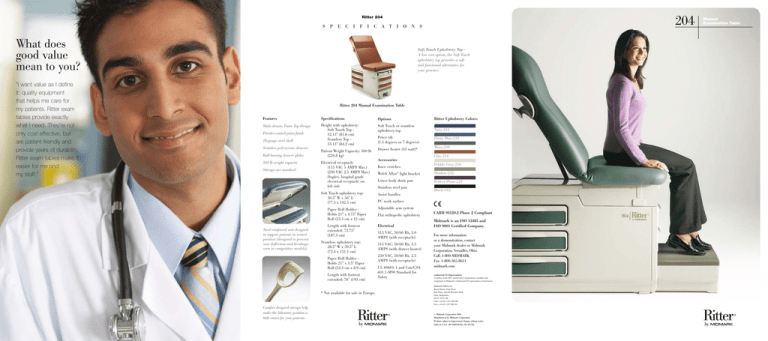

User manual | Brochure: 204 Manual Examination Table

204
Ritter 204
S
P
E
C
I
F
I
C
A T I
O
N
What does
good value
mean to you?
“I want value as I define
it: quality equipment
that helps me care for
my patients. Ritter exam
tables provide exactly
what I need. They’re not
only cost effective, but
are patient-friendly and
provide years of durability.
Ritter exam tables make it
easier for me and
my staff.”
S
Soft Touch Upholstery Top A low cost option, the Soft Touch
upholstery top provides a soft
and functional alternative for
your practice.
Ritter 204 Manual Examination Table
Features
Specifications
Options
Ritter Upholstery Colors:
Multi-density Foam Top Design
Height with upholstery:
Soft Touch Top - 32.13" (81.6 cm)
Seamless Top - 33.13" (84.2 cm)
Soft Touch or seamless
upholstery top
Navy-231
Pelvic tilt
(1.5 degrees or 7 degrees)
Dusty Blue-233
Patient Weight Capacity: 500 lb
(226.8 kg)
Drawer heater (45 watt)*
Powder-coated paint finish
18-gauge steel shell
Seamless polystyrene drawers
Ball-bearing drawer glides
500 lb weight capacity
Stirrups are standard
Steel reinforced seat designed
to support patients in seated
position (designed to prevent
seat deflection and breakage
seen in competitive models).
Accessories
Electrical receptacle
(115 VAC 5 AMPS Max.)
(230 VAC 2.5 AMPS Max.)
Duplex, hospital grade
electrical receptacle on
left side
Knee crutches
Perfect Plum-229
Stainless steel pan
Paper Roll Holder - Holds 21" x 4.75" Paper Roll (53.3 cm x 12 cm)
Adjustable arm system
Length with footrest extended: 73.75" (187.3 cm)
Seamless upholstery top:
28.5" W x 59.5" L (72.4 x 151.1 cm)
Length with footrest
extended: 76" (193 cm)
Black-312
PC work surface
* Not available for sale in Europe.
Comfort designed stirrups help
make the lithotomy position a
little easier for your patients.
Lower body drain pan
Pebble Grey-216
Shadow-232
Assist handles
Paper Roll Holder - Holds 21" x 3.5" Paper Roll (53.3 cm x 8.9 cm)
Clay-234
Welch Allyn® light bracket
Soft Touch upholstery top:
30.5" W x 56" L (77.5 x 142.5 cm)
Moss-230
Flat orthopedic upholstery
Electrical
115 VAC, 50/60 Hz, 5.0
AMPS (with receptacle)
115 VAC, 50/60 Hz, 5.5
AMPS (with drawer heater)
230 VAC, 50/60 Hz, 2.5
AMPS (with receptacle)
UL 60601-1 and Can/CSA
601.1-M90 Standard for
Safety
CARB 93120.2 Phase 2 Compliant
Midmark is an ISO 13485 and
ISO 9001 Certified Company.
For more information
or a demon­stration, contact
your Midmark dealer or Midmark
Corporation, Versailles, Ohio.
Call: 1-800-MIDMARK
Fax: 1-800-365-8631
midmark.com
Authorized CE Representative
Countries in the EEC should direct all questions, incidents and
complaints to Midmark’s Authorized CE representative listed below:
Midmark EMEA Ltd
Beech House, First Floor
East Wing, Ancells Business Park
Fleet, Hampshire,
GU51 2UN, UK
Call: + 44 (0) 1252 360 940
Fax: + 44 (0) 1252 360 941
© Midmark Corporation 2005
Manufactured by Midmark Corporation
Products subject to improvement changes without notice.
Litho in U.S.A. 007-0560-00 Rev. H1 (11/15)
Manual
Examination Table
204
Ritter 204
S
P
E
C
I
F
I
C
A T I
O
N
What does
good value
mean to you?
“I want value as I define
it: quality equipment
that helps me care for
my patients. Ritter exam
tables provide exactly
what I need. They’re not
only cost effective, but
are patient-friendly and
provide years of durability.
Ritter exam tables make it
easier for me and
my staff.”
S
Soft Touch Upholstery Top A low cost option, the Soft Touch
upholstery top provides a soft
and functional alternative for
your practice.
Ritter 204 Manual Examination Table
Features
Specifications
Options
Ritter Upholstery Colors:
Multi-density Foam Top Design
Height with upholstery:
Soft Touch Top - 32.13" (81.6 cm)
Seamless Top - 33.13" (84.2 cm)
Soft Touch or seamless
upholstery top
Navy-231
Pelvic tilt
(1.5 degrees or 7 degrees)
Dusty Blue-233
Patient Weight Capacity: 500 lb
(226.8 kg)
Drawer heater (45 watt)*
Powder-coated paint finish
18-gauge steel shell
Seamless polystyrene drawers
Ball-bearing drawer glides
500 lb weight capacity
Stirrups are standard
Steel reinforced seat designed
to support patients in seated
position (designed to prevent
seat deflection and breakage
seen in competitive models).
Accessories
Electrical receptacle
(115 VAC 5 AMPS Max.)
(230 VAC 2.5 AMPS Max.)
Duplex, hospital grade
electrical receptacle on
left side
Knee crutches
Perfect Plum-229
Stainless steel pan
Paper Roll Holder - Holds 21" x 4.75" Paper Roll (53.3 cm x 12 cm)
Adjustable arm system
Length with footrest extended: 73.75" (187.3 cm)
Seamless upholstery top:
28.5" W x 59.5" L (72.4 x 151.1 cm)
Length with footrest
extended: 76" (193 cm)
Black-312
PC work surface
* Not available for sale in Europe.
Comfort designed stirrups help
make the lithotomy position a
little easier for your patients.
Lower body drain pan
Pebble Grey-216
Shadow-232
Assist handles
Paper Roll Holder - Holds 21" x 3.5" Paper Roll (53.3 cm x 8.9 cm)
Clay-234
Welch Allyn® light bracket
Soft Touch upholstery top:
30.5" W x 56" L (77.5 x 142.5 cm)
Moss-230
Flat orthopedic upholstery
Electrical
115 VAC, 50/60 Hz, 5.0
AMPS (with receptacle)
115 VAC, 50/60 Hz, 5.5
AMPS (with drawer heater)
230 VAC, 50/60 Hz, 2.5
AMPS (with receptacle)
UL 60601-1 and Can/CSA
601.1-M90 Standard for
Safety
CARB 93120.2 Phase 2 Compliant
Midmark is an ISO 13485 and
ISO 9001 Certified Company.
For more information
or a demon­stration, contact
your Midmark dealer or Midmark
Corporation, Versailles, Ohio.
Call: 1-800-MIDMARK
Fax: 1-800-365-8631
midmark.com
Authorized CE Representative
Countries in the EEC should direct all questions, incidents and
complaints to Midmark’s Authorized CE representative listed below:
Midmark EMEA Ltd
Beech House, First Floor
East Wing, Ancells Business Park
Fleet, Hampshire,
GU51 2UN, UK
Call: + 44 (0) 1252 360 940
Fax: + 44 (0) 1252 360 941
© Midmark Corporation 2005
Manufactured by Midmark Corporation
Products subject to improvement changes without notice.
Litho in U.S.A. 007-0560-00 Rev. H1 (11/15)
Manual
Examination Table
204 Manual Examination Table
We asked the experts
What makes Ritter the most purchased brand of exam tables in the industry?
It’s our willingness to research, study and listen so we can meet your needs - and
the needs of your patients.
You need...
• an exam table with easy access for patients to make them feel secure
• three side drawers for optimal supply management
• modern styling to coordinate with your office
• an updated, ergonomic top design to help patients feel comfortable
• additional weight capacity up to 500 pounds
Stylish & Easy to Clean - The seamless design of the
upholstered top is as soft and comfortable as it looks,
leaving your patients feeling more relaxed. And, seamless
upholstery designed to eliminate areas where dirt and
bacteria can accumulate so clean-up is easier, faster and
more effective.
Removable Top System - The onepiece, upholstered top is designed to be
easily removed without tools, allowing for
thorough cleaning or a quick upholstery
color change.
So, what was our solution? The Ritter 204 Manual Exam Table - the latest in
design, comfort and functionality in a manual exam table.
Enlarged Footstep - We increased the size
of the footstep over 40 percent above the
industry standard, designed to allow patients
to feel more secure and get on the table
more confidently.
One-Piece Seamless Drawers
Designed with easy-to-clean rounded edges and
are seamless to contain spilled fluids, improving
infection control.
Spacious Side Drawers - Three spacious side
drawers provide plenty of storage volume for
gowns, drapes and other items, yet are made
to help organize your assortment of smaller
supplies and bulk supplies. In addition, there
are two front drawers for easy access to items
during pelvic exams.
Storage Access and Volume - Our
pass-through side drawers provide access
to supplies from either side of the table
and give you the ability to change your
room configuration.
Accessories that add convenience
Assist Handles
Designed to provide patients a
secure means of access to the
exam table or to reposition
themselves during an exam.
Easily removed without tools,
assist handles offer greater
patient access.
Flat Upholstery
Provides an excellent working
surface for orthopedic, chiropractic
or osteopathic uses.
Adjustable Arm System
Designed to offer patients stable
support for accessing the exam
table and a sense of security
during transfer. Arms rotate and
lock into one of three positions
and are easily removable.
Ritter 253 LED Exam Light*
Designed to be the perfect
complement to any procedure
room, the 253 is designed with
features like easy access controls,
high intensity light and an
adjustable focal spot. Available in
three mounting options.
PC Work Surface
Provides an adjustable height
workspace for a tablet PC, portfolio
or for exam instruments and
supplies. Dimensions: Surface area
16 1/2" W x 12 3/4" D and 10"
of height adjustment.
Lower Body Drain Pan
Ideal for lower body procedures
or other situations in which
removal of fluid and debris
is necessary.
Articulating Knee Crutches
A more ergonomic and
comfortable option compared
to standard stirrups. The ball
joint design offers ultimate
flexibility in patient positioning.
Standard Knee Crutches
Provide leg support for extended
procedures where fatigue is a
factor or when the patient lacks
sufficient leg strength or control.
Swivel to adjust for knee and leg
support.
IQvitals® Table Mount
Convenient table mount for the
Midmark IQvitals® vital signs
device, designed to fit all Midmark
and Ritter exam tables.
Everyone is entitled to equal access care.
To really care for people, you must understand the
patients you care for – today and tomorrow. With
an increasingly aging population, your patients may
need assistance accessing the exam table. With an
incredible 18-inch low height, the Ritter 222 and
223 Barrier-Free® Power Exam Tables are designed
to make it easy for you to accommodate all patients
regardless of mobility concerns with dignity. Help
them help themselves.
204 Manual Examination Table
We asked the experts
What makes Ritter the most purchased brand of exam tables in the industry?
It’s our willingness to research, study and listen so we can meet your needs - and
the needs of your patients.
You need...
• an exam table with easy access for patients to make them feel secure
• three side drawers for optimal supply management
• modern styling to coordinate with your office
• an updated, ergonomic top design to help patients feel comfortable
• additional weight capacity up to 500 pounds
Stylish & Easy to Clean - The seamless design of the
upholstered top is as soft and comfortable as it looks,
leaving your patients feeling more relaxed. And, seamless
upholstery designed to eliminate areas where dirt and
bacteria can accumulate so clean-up is easier, faster and
more effective.
Removable Top System - The onepiece, upholstered top is designed to be
easily removed without tools, allowing for
thorough cleaning or a quick upholstery
color change.
So, what was our solution? The Ritter 204 Manual Exam Table - the latest in
design, comfort and functionality in a manual exam table.
Enlarged Footstep - We increased the size
of the footstep over 40 percent above the
industry standard, designed to allow patients
to feel more secure and get on the table
more confidently.
One-Piece Seamless Drawers
Designed with easy-to-clean rounded edges and
are seamless to contain spilled fluids, improving
infection control.
Spacious Side Drawers - Three spacious side
drawers provide plenty of storage volume for
gowns, drapes and other items, yet are made
to help organize your assortment of smaller
supplies and bulk supplies. In addition, there
are two front drawers for easy access to items
during pelvic exams.
Storage Access and Volume - Our
pass-through side drawers provide access
to supplies from either side of the table
and give you the ability to change your
room configuration.
Accessories that add convenience
Assist Handles
Designed to provide patients a
secure means of access to the
exam table or to reposition
themselves during an exam.
Easily removed without tools,
assist handles offer greater
patient access.
Flat Upholstery
Provides an excellent working
surface for orthopedic, chiropractic
or osteopathic uses.
Adjustable Arm System
Designed to offer patients stable
support for accessing the exam
table and a sense of security
during transfer. Arms rotate and
lock into one of three positions
and are easily removable.
Ritter 253 LED Exam Light*
Designed to be the perfect
complement to any procedure
room, the 253 is designed with
features like easy access controls,
high intensity light and an
adjustable focal spot. Available in
three mounting options.
PC Work Surface
Provides an adjustable height
workspace for a tablet PC, portfolio
or for exam instruments and
supplies. Dimensions: Surface area
16 1/2" W x 12 3/4" D and 10"
of height adjustment.
Lower Body Drain Pan
Ideal for lower body procedures
or other situations in which
removal of fluid and debris
is necessary.
Articulating Knee Crutches
A more ergonomic and
comfortable option compared
to standard stirrups. The ball
joint design offers ultimate
flexibility in patient positioning.
Standard Knee Crutches
Provide leg support for extended
procedures where fatigue is a
factor or when the patient lacks
sufficient leg strength or control.
Swivel to adjust for knee and leg
support.
IQvitals® Table Mount
Convenient table mount for the
Midmark IQvitals® vital signs
device, designed to fit all Midmark
and Ritter exam tables.
Everyone is entitled to equal access care.
To really care for people, you must understand the
patients you care for – today and tomorrow. With
an increasingly aging population, your patients may
need assistance accessing the exam table. With an
incredible 18-inch low height, the Ritter 222 and
223 Barrier-Free® Power Exam Tables are designed
to make it easy for you to accommodate all patients
regardless of mobility concerns with dignity. Help
them help themselves.
204
Ritter 204
S
P
E
C
I
F
I
C
A T I
O
N
What does
good value
mean to you?
“I want value as I define
it: quality equipment
that helps me care for
my patients. Ritter exam
tables provide exactly
what I need. They’re not
only cost effective, but
are patient-friendly and
provide years of durability.
Ritter exam tables make it
easier for me and
my staff.”
S
Soft Touch Upholstery Top A low cost option, the Soft Touch
upholstery top provides a soft
and functional alternative for
your practice.
Ritter 204 Manual Examination Table
Features
Specifications
Options
Ritter Upholstery Colors:
Multi-density Foam Top Design
Height with upholstery:
Soft Touch Top - 32.13" (81.6 cm)
Seamless Top - 33.13" (84.2 cm)
Soft Touch or seamless
upholstery top
Navy-231
Pelvic tilt
(1.5 degrees or 7 degrees)
Dusty Blue-233
Patient Weight Capacity: 500 lb
(226.8 kg)
Drawer heater (45 watt)*
Powder-coated paint finish
18-gauge steel shell
Seamless polystyrene drawers
Ball-bearing drawer glides
500 lb weight capacity
Stirrups are standard
Steel reinforced seat designed
to support patients in seated
position (designed to prevent
seat deflection and breakage
seen in competitive models).
Accessories
Electrical receptacle
(115 VAC 5 AMPS Max.)
(230 VAC 2.5 AMPS Max.)
Duplex, hospital grade
electrical receptacle on
left side
Knee crutches
Perfect Plum-229
Stainless steel pan
Paper Roll Holder - Holds 21" x 4.75" Paper Roll (53.3 cm x 12 cm)
Adjustable arm system
Length with footrest extended: 73.75" (187.3 cm)
Seamless upholstery top:
28.5" W x 59.5" L (72.4 x 151.1 cm)
Length with footrest
extended: 76" (193 cm)
Black-312
PC work surface
* Not available for sale in Europe.
Comfort designed stirrups help
make the lithotomy position a
little easier for your patients.
Lower body drain pan
Pebble Grey-216
Shadow-232
Assist handles
Paper Roll Holder - Holds 21" x 3.5" Paper Roll (53.3 cm x 8.9 cm)
Clay-234
Welch Allyn® light bracket
Soft Touch upholstery top:
30.5" W x 56" L (77.5 x 142.5 cm)
Moss-230
Flat orthopedic upholstery
Electrical
115 VAC, 50/60 Hz, 5.0
AMPS (with receptacle)
115 VAC, 50/60 Hz, 5.5
AMPS (with drawer heater)
230 VAC, 50/60 Hz, 2.5
AMPS (with receptacle)
UL 60601-1 and Can/CSA
601.1-M90 Standard for
Safety
CARB 93120.2 Phase 2 Compliant
Midmark is an ISO 13485 and
ISO 9001 Certified Company.
For more information
or a demon­stration, contact
your Midmark dealer or Midmark
Corporation, Versailles, Ohio.
Call: 1-800-MIDMARK
Fax: 1-800-365-8631
midmark.com
Authorized CE Representative
Countries in the EEC should direct all questions, incidents and
complaints to Midmark’s Authorized CE representative listed below:
Midmark EMEA Ltd
Beech House, First Floor
East Wing, Ancells Business Park
Fleet, Hampshire,
GU51 2UN, UK
Call: + 44 (0) 1252 360 940
Fax: + 44 (0) 1252 360 941
© Midmark Corporation 2005
Manufactured by Midmark Corporation
Products subject to improvement changes without notice.
Litho in U.S.A. 007-0560-00 Rev. H1 (11/15)
Manual
Examination Table

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
