I 7532 spec eng
Two-channel CAN Bus Isolated Bridge
I-7532

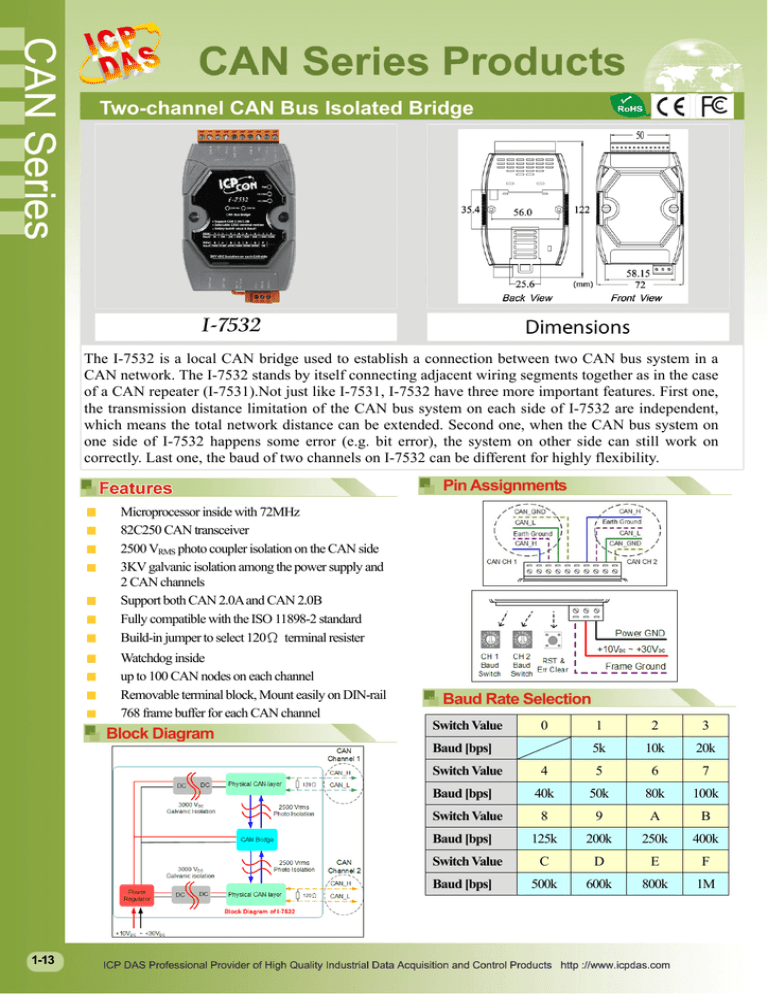

The I-7532 is a local CAN bridge used to establish a connection between two CAN bus system in a
CAN network. The I-7532 stands by itself connecting adjacent wiring segments together as in the case
of a CAN repeater (I-7531).Not just like I-7531, I-7532 have three more important features. First one,
the transmission distance limitation of the CAN bus system on each side of I-7532 are independent,
which means the total network distance can be extended. Second one, when the CAN bus system on
one side of I-7532 happens some error (e.g. bit error), the system on other side can still work on
correctly. Last one, the baud of two channels on I-7532 can be different for highly flexibility.
Pin Assignments
Microprocessor inside with 72MHz
82C250 CAN transceiver
2500 VRMS photo coupler isolation on the CAN side
3KV galvanic isolation among the power supply and
2 CAN channels
Support both CAN 2.0A and CAN 2.0B
Fully compatible with the ISO 11898-2 standard
Build-in jumper to select 120Ω terminal resister
Watchdog inside
up to 100 CAN nodes on each channel
Removable terminal block, Mount easily on DIN-rail
768 frame buffer for each CAN channel
Block Diagram
Baud Rate Selection
Switch Value
0
1
2
3
5k
10k
20k
4
5
6
7
40k
50k
80k
100k
8
9
A
B
125k
200k
250k
400k
C
D
E
F
500k
600k
800k
1M
Baud [bps]
Switch Value
Baud [bps]
Switch Value
Baud [bps]
Switch Value
Baud [bps]
1-13
Item
Micro Controller
CAN Port Channels
CAN Transceiver
CAN Connector
Buad Rate selection
by rotary switch
I-7532
Microprocessor inside with 72MHz
2
Philips 82C250
10-pin removable screw terminal
5K, 10K, 20K, 50K, 80K, 100K, 125K, 200K,
250K, 40K, 500K, 600K, 800K and 1Mbps
2500 VRMS photo couple isolation between 2 CAN channel
3000 VDC galvanic isolation among the power supply and 2 CAN channel
Selectable 120Ω terminator resistor by jumper
CAN 2.0A/2.0B
Isolation
Terminator Resistor
Support Protocol
General
Power Requirement
Power Consumption
Environment
Operating Temp.
Storage Temp.
Humidity
Dimensions
Unregulated +10VDC ~ +30 VDC Power reverse protection,
Over-Voltage brown-out protection
2W max
-25℃ to 75℃
-40℃ to 80℃
5~95% non-condensing
122mm × 72mm × 33mm (H x W x D)
LED Indication
PWR LED
ON
Power on
OFF
Power off
Rx LED
RST & Err Clear Button
ERR LED
Flashing
(100ms)
Transmission fail
Flashing
(1sec)
Buffer overflow
Flashing
Transmission
ON
Bus off
OFF
Bus idle
OFF
No error
Application
Reset & Error Clear button
Click
Error clear
Push
(3sec)
Module reset
Ordering Information
I-7532 CR
Two-channel CAN Bus Isolated Bridge (RoHS)
1-14
