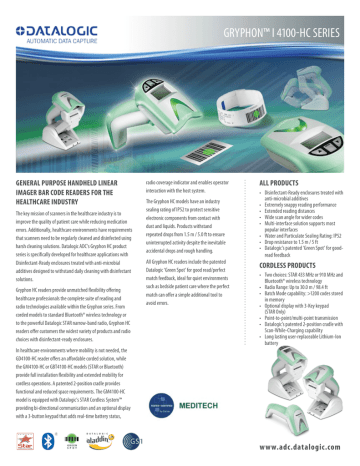

gryphon™ i 4100-hc series
General Purpose Handheld Linear
Imager Bar Code Readers for the
Healthcare Industry
The key mission of scanners in the healthcare industry is to
improve the quality of patient care while reducing medication
errors. Additionally, healthcare environments have requirements
that scanners need to be regularly cleaned and disinfected using
harsh cleaning solutions. Datalogic ADC’s Gryphon HC product
series is specifically developed for healthcare applications with
Disinfectant-Ready enclosures treated with anti-microbial
additives designed to withstand daily cleaning with disinfectant
solutions.
Gryphon HC readers provide unmatched flexibility offering
healthcare professionals the complete suite of reading and
radio technologies available within the Gryphon series. From
corded models to standard Bluetooth® wireless technology or
to the powerful Datalogic STAR narrow-band radio, Gryphon HC
readers offer customers the widest variety of products and radio
choices with disinfectant-ready enclosures.
radio coverage indicator and enables operator
interaction with the host system.
The Gryphon HC models have an industry
sealing rating of IP52 to protect sensitive
electronic components from contact with
dust and liquids. Products withstand
repeated drops from 1.5 m / 5.0 ft to ensure
uninterrupted activity despite the inevitable
accidental drops and rough handling.
All Gryphon HC readers include the patented
Datalogic ‘Green Spot’ for good read/perfect
match feedback, ideal for quiet environments
such as bedside patient care where the perfect
match can offer a simple additional tool to
avoid errors.
All Products
• Disinfectant-Ready enclosures treated with
anti-microbial additives
• Extremely snappy reading performance
• Extended reading distances
• Wide scan angle for wider codes
• Multi-interface solution supports most
popular interfaces
• Water and Particulate Sealing Rating: IP52
• Drop resistance to 1.5 m / 5 ft
• Datalogic’s patented ‘Green Spot’ for goodread feedback
Cordless Products
• Two choices: STAR 433 MHz or 910 MHz and
Bluetooth® wireless technology
• Radio Range: Up to 30.0 m / 98.4 ft
• Batch Mode capability: >1200 codes stored
in memory
• Optional display with 3-Key keypad
(STAR Only)
• Point-to-point/multi-point transmission
• Datalogic’s patented 2-position cradle with
Scan-While-Charging capability
• Long lasting user-replaceable Lithium-Ion
battery
In healthcare environments where mobility is not needed, the
GD4100-HC reader offers an affordable corded solution, while
the GM4100-HC or GBT4100-HC models (STAR or Bluetooth)
provide full installation flexibility and extended mobility for
cordless operations. A patented 2-position cradle provides
functional and reduced space requirements. The GM4100-HC
model is equipped with Datalogic’s STAR Cordless System™
providing bi-directional communication and an optional display
with a 3-button keypad that adds real-time battery status,
GREEN
S P O T
www.adc.datalogic.com
specifications
Decoding Capability
1D / Linear Codes
postal codes
Stacked Codes
Reading Performance
Autodiscriminates all standard 1D codes including GS1
DataBar™ linear codes.
China Post
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1
DataBar Stacked Omnidirectional
Electrical
Current
Input Voltage
Operating (Typical): 245 mA @ 5 VDC; Standby/Idle (Typical):
120 mA @ 5 VDC
4.75 - 5.25 VDC
Environmental
Ambient Light
Drop Resistance
ESD Protection (Air Discharge)
Humidity (Non-Condensing)
Particulate and Water Sealing
Temperature
0 - 100,000 lux
Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete
surface
16 kV
0 - 90%
IP52
Operating: 0 to 55 °C / 32 to 131 °F
Storage/Transport: -20 to 70 °C / -4 to 158 °F
Interfaces
Interfaces RS-232 / USB / Keyboard Wedge / Wand Multi-Interfaces
Physical Characteristics
Colors Available
Dimensions
Enclosure
Weight
gryphon™ i GD4100-hc
Light Green/Light Grey (Rubber/Plastic)
18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
Disinfectant-Ready Enclosure Treated with Anti-Microbial
Additives
169.0 g / 6.0 oz
Imager Sensor
Light Source
Print Contrast Ratio (Minimum)
Read Rate (Maximum)
Reading Angle
Reading Indicators
Resolution (Maximum)
Reading Ranges
Typical Depth of Field
Datalogic ADC offers bar code readers designed specifically for the healthcare
industry with Disinfectant-Ready enclosures treated with anti-microbial
additives that can help fight against the spreading of germs. This is particularly
important if the scanner is traveling room-to-room on a medication cart with
a nurse. The Disinfectant-Ready enclosures can withstand daily cleaning with
harsh chemical cleaning solutions commonly used in a healthcare environment.
Minimum distance determined by symbol length and scan
angle.
Printing resolution, contrast, and ambient light dependent.
5 mils: 6.0 to 18.0 cm / 2.3 to 7.0 in
7.5 mils: 3.5 to 30.0 cm / 1.4 to 11.7 in
10 mils: 2.0 to 45.0 cm / 0.8 to 17.7 in
13 mils: 3.0 to 60.0 cm / 1.2 to 23.4 in
20 mils: 3.0 to 80.0 cm / 1.2 to 31.2 in
Safety & Regulatory
Agency Approvals
Environmental Compliance
LED Classification
The product meets necessary safety and regulatory approvals
for its intended use.
The Quick Reference Guide for this product can be referred to
for a complete list of certifications.
Complies to China RoHS; Complies to EU RoHS
IEC 60825-1 Class 1 LED Product
Utilities
Datalogic Aladdin™
remote host download
Datalogic Aladdin configuration program is available for
download at no charge.
Lowers service costs and improves operations: GD4100
Warranty
Warranty Datalogic ADC’s Disinfectant-Ready Enclosures
for Healthcare
CCD Solid-State
Illumination: Dual LED Array 630 - 670 nm
15%
325 reads/sec.
Pitch: 65°; Roll (Tilt): 35°; Skew (Yaw): 65°
Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’
Good Read Feedback; Good Read LED
0.076 mm / 3 mils
5-Year Factory Warranty
PRODUCT
CHEMICAL CONTENT
Sani-Cloth® HB, Sani-Cloth® Plus,
Super Sani-Cloth®
Quaternary Ammonium Chloride solution
Hepacide Quat II
Virucidal disinfectant cleaner
Alcohol Wipes
70% Isopropyl Alcohol
CaviWipes
Isopropanol 10-20%;
Ethylene Glycol Monobutyl Ether 1-5%
Virex® 256
n-Alkyl Dimethyl Benzyl Ammonium
Chloride; Didecyl Dimethyl Ammonium
Chloride
409® Glass and Surface Cleaner
n-Alkyl Dimethyl Benzyl Ammonium
Chloride; n-Propoxypropanol
Windex® Blue
Isopropyl Alcohol
Clorox® Bleach
Sodium Hypochlorite;
Sodium Hydroxide
TM
100% Gentle dish soap and water
Refer to the device instruction manual for proper cleaning methods when
using these chemicals.
Disinfectants should not be sprayed or poured onto the scanner unit.
the scanners must always be wiped dry after disinfecting.
specifications
gryphon™ i GM4100-hc
Cordless Communications Reading Performance
Datalogic STAR Cordless System™ Effective Radiated Power: 433.92 MHz: < 10 mW;
910 MHz: < 1 mW
Multi-Point Configuration: Max. Readers per Radio Receiver:
16; Point-to-Point Configuration
Radio Frequency: 433.92 MHz; 910 MHz
Radio Range (Open Air):
433.92 MHz: 30.0 m / 98.4 ft; 910 MHz: 15.0 m / 49.2 ft
Two Way Communications
Light Source
Print Contrast Ratio (Minimum)
Read Rate (Maximum)
Reading Angle
Reading Indicators
Reading Ranges
Decoding Capability
1D / Linear Codes
Postal Codes
Stacked Codes
Autodiscriminates all standard 1D codes including GS1
DataBar™ linear codes.
China Post
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;
GS1 DataBar Stacked Omnidirectional
Electrical
Battery
Cradle Indicator LEDs
Current
Input Voltage
Battery Type: Lithium-Ion, 2100 mAh
Charge Time: External Power: 4 Hours @ 12 VDC
Reads per Charge: 50,000
Battery Charging (Red); Charge Completed (Green); Power/
Data (Yellow)
Charging (Typical): < 8 W; Operating (Typical): < 2.5 W @ 5
VDC; Standby/Idle (Typical): < 2.5 mA @ 5 VDC
4.75 - 14 VDC +/- 5%
Environmental
Ambient Light
Drop Resistance
ESD Protection (Air Discharge)
Humidity (Non-Condensing)
Particulate and Water Sealing
Temperature
RS-232 / USB / Keyboard Wedge / Wand Multi-Interface
Physical Characteristics
Colors Available
Dimensions
Display
Enclosure
Keypad
Weight
Typical Depth of Field
Minimum distance determined by symbol length and scan
angle.
Printing resolution, contrast, and ambient light dependent.
5 mils: 6.0 to 18.0 cm / 2.3 to 7.0 in
7.5 mils: 3.5 to 30.0 cm / 1.4 to 11.7 in
10 mils: 2.0 to 45.0 cm / 0.8 to 17.7 in
13 mils: 3.0 to 60.0 cm / 1.2 to 23.4 in
20 mils: 3.0 to 80.0 cm / 1.2 to 31.2 in
Safety & Regulatory
Agency Approvals
Environmental Compliance
LED Classification
The product meets necessary safety and regulatory approvals
for its intended use.
The Quick Reference Guide for this product can be referred to
for a complete list of certifications.
Complies to China RoHS; Complies to EU RoHS
IEC 60825-1 Class 1 LED Product
Utilities
100,000 lux
Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete
surface
16 kV
5 - 95%
IP52
Operating: 0 to 50 °C / 32 to 122 °F
Storage/Transport: -20 to 70 °C / -4 to 158 °F
Interfaces
Interfaces Resolution (Maximum)
Illumination: LED Array 630 - 670 nm
15%
325 reads/sec.
Pitch: +/- 65°; Roll (Tilt): +/- 35°; Skew (Yaw): +/- 65°
Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’
Good Read Feedback; Good Read LED
0.076 mm / 3 mils
Light Green/Light Grey (Rubber/Plastic)
Cradle: 18.6 x 9.9 x 5.6 cm / 7.3 x 3.9 x 2.2 in
Reader: 18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
Display Type: GM4100-HC-D Only: Graphic with backlight; Font
Dimensions: User selectable (4 lines x 16 columns default);
Screen Dimensions: 32 x 96 pixels
Disinfectant-Ready Enclosure Treated with Anti-Microbial
Additives
GM4100-HC-D Only: 3-Key Keypad
Cradle: 246.0 g / 8.7 oz
Reader: 225.0 g / 8.0 oz
Datalogic Aladdin™
opos / javapos
remote host download
Datalogic Aladdin configuration program is available for
download at no charge.
OPOS Utilities are available for download at no charge.
Lowers service costs and improves operations: BC4010
Warranty
Warranty 3-Year Factory Warranty
specifications
gryphon™ i GBT4100-hc
Cordless Communications Reading Performance
Bluetooth Wireless Technology Protocol: Bluetooth 2.0 Certified Class 2
Radio Frequency: 2.4 GHz
Radio Range (Open Air): 30.0 m / 98.4 ft
Light Source
Print Contrast Ratio (Minimum)
Read Rate (Maximum)
Reading Angle
Reading Indicators
Decoding Capability
1D / Linear Codes
Postal Codes
Stacked Codes
Autodiscriminates all standard 1D codes including GS1
DataBar™ linear codes.
China Post
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;
GS1 DataBar Stacked Omnidirectional
Electrical
Battery
Cradle Indicator LEDs
Current
Input Voltage
Battery Type: Lithium-Ion, 2100 mAh
Charge Time: 4 Hours @ 12 VDC
Reads per Charge: 33,000
Battery Charging (Red); Charge Completed (Green); Power/
Data (Yellow)
Charging (Typical): < 8 W; Operating (Typical): < 2.5 W @ 5
VDC; Standby/Idle (Typical): < 2.5 mA @ 5 VDC
4.5 - 14 VDC +/- 5%
ESD Protection (Air Discharge)
Humidity (Non-Condensing)
Particulate and Water Sealing
Temperature
100,000 lux
Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete
surface
16 kV
5 - 95%
IP52
Operating: 0 to 50 °C / 32 to 122 °F
Storage/Transport: -20 to 70 °C / -4 to 158 °F
Interfaces
Interfaces Reading Ranges
Typical Depth of Field
RS-232 / USB / Keyboard Wedge / Wand Multi-Interface
Minimum distance determined by symbol length and scan
angle.
Printing resolution, contrast, and ambient light dependent.
5 mils: 6.0 to 18.0 cm / 2.3 to 7.0 in
7.5 mils: 3.5 to 30.0 cm / 1.4 to 11.7 in
10 mils: 2.0 to 45.0 cm / 0.8 to 17.7 in
13 mils: 3.0 to 60.0 cm / 1.2 to 23.4 in
20 mils: 3.0 to 80.0 cm / 1.2 to 31.2 in
Safety & Regulatory
Agency Approvals
Environmental
Ambient Light
Drop Resistance
Resolution (Maximum)
Illumination: LED Array 630 - 670 nm
15%
325 reads/sec.
Pitch: +/- 65°; Roll (Tilt): +/- 35°; Skew (Yaw): +/- 65°
Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’
Good Read Feedback; Good Read LED
0.076 mm / 3 mils
Environmental Compliance
LED Classification
The product meets necessary safety and regulatory approvals
for its intended use.
The Quick Reference Guide for this product can be referred to
for a complete list of certifications.
Complies to China RoHS; Complies to EU RoHS
IEC 60825-1 Class 1 LED Product
Utilities
Datalogic Aladdin™
opos / javapos
remote host download
Datalogic Aladdin configuration program is available for
download at no charge.
OPOS Utilities are available for download at no charge.
Lowers service costs and improves operations: BC4010
Warranty
Warranty 3-Year Factory Warranty
Physical Characteristics
Colors Available
Dimensions
Enclosure
Weight
Light Green/Light Grey (Rubber/Plastic)
Cradle: 18.6 x 9.9 x 5.6 cm / 7.3 x 3.9 x 2.2 in
Reader: 18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
Disinfectant-Ready Enclosure Treated with Anti-Microbial
Additives
Cradle: 246.0 g / 8.7 oz
Reader: 225.0 g / 8.0 oz
Accessories
All Products
Cordless Products
Batteries/Battery Chargers
• RBP-GM40 Removable Battery Pack
Base Stations/Chargers
Mounts/Stands
• 11-0362: Holder, Multi-Purpose, Grey
• HLD-G040-WH: Desk/Wall Holder, G040, White
• STD-AUTO-G040-WH: Smart Stand, G040, White
• STD-G040-WH: Basic Stand, G040, White
Gryphon™ I GM4100-HC
• BC4030-HC (433 or 910 MHz): Base/Charger STD MultiInterface, Healthcare
• CHR-GM40-WH: Charging Only Base Station, White
Gryphon™ I GBT4100-HC
• BC4030-HC-BT: Base/Charger, Standard
Multi-Interface, Healthcare
• CHR-GM40-WH: Charging Only Base Station,
White
© 2010 - 2012 Datalogic ADC, Inc. • All rights reserved. • Protected to the fullest extent under U.S. and international laws. • Copying, or altering of this document is prohibited without express written consent from Datalogic ADC,
Inc. • Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S. and the E.U. and the Datalogic Automatic Data Capture logo is a trademark of Datalogic S.p.A. •Datalogic
Aladdin, Datalogic STAR and Datalogic STAR Cordless System are trademarks of Datalogic ADC Group S.r.l. • Gryphon is a trademark of Datalogic ADC, Inc. • The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc.
and any use of such marks by Datalogic ADC, Inc. is under license. • All other brand and product names are trademarks of their respective owners. • DS-GRYPHON4100-HC-EN 20120821
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
