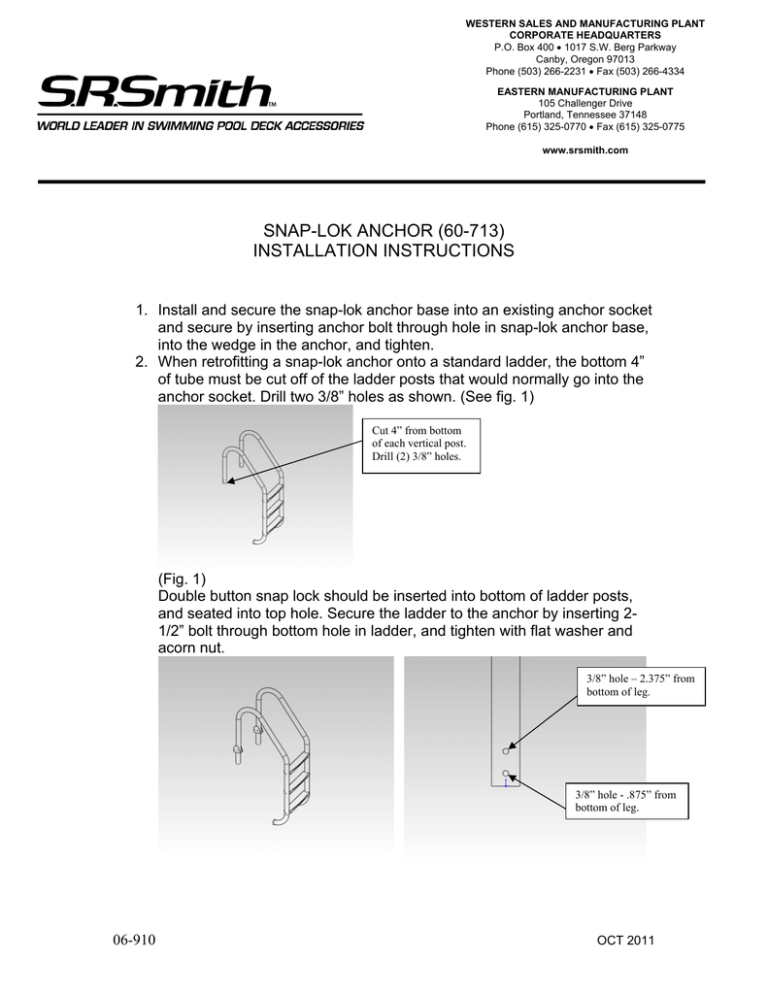

SNAP-LOK ANCHOR (60-713)
INSTALLATION INSTRUCTIONS
1. Install and secure the snap-lok anchor base into an existing anchor socket
and secure by inserting anchor bolt through hole in snap-lok anchor base,
into the wedge in the anchor, and tighten.
2. When retrofitting a snap-lok anchor onto a standard ladder, the bottom 4”
of tube must be cut off of the ladder posts that would normally go into the
anchor socket. Drill two 3/8” holes as shown. (See fig. 1)
Cut 4” from bottom
of each vertical post.
Drill (2) 3/8” holes.
(Fig. 1)
Double button snap lock should be inserted into bottom of ladder posts,
and seated into top hole. Secure the ladder to the anchor by inserting 21/2” bolt through bottom hole in ladder, and tighten with flat washer and
acorn nut.
3/8” hole – 2.375” from
bottom of leg.
3/8” hole - .875” from
bottom of leg.
06-910
OCT 2011
