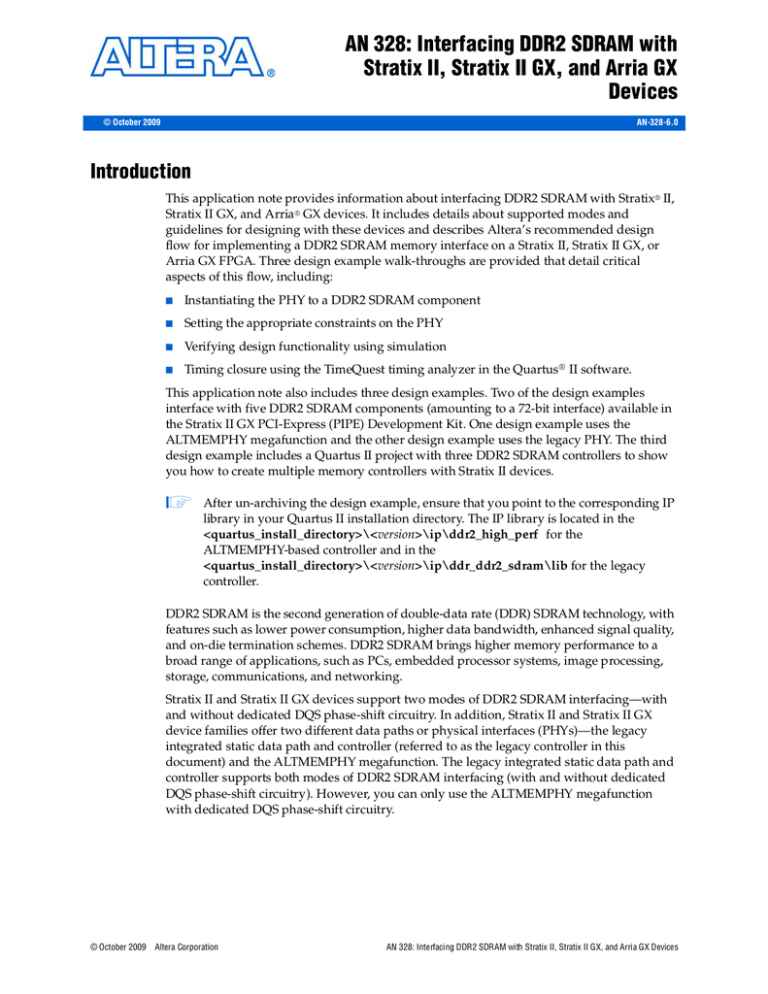

AN 328: Interfacing DDR2 SDRAM with

Stratix II, Stratix II GX, and Arria GX

Devices

AN-328-6.0

© October 2009

Introduction

This application note provides information about interfacing DDR2 SDRAM with Stratix

®

II,

Stratix II GX, and Arria

®

GX devices. It includes details about supported modes and guidelines for designing with these devices and describes Altera’s recommended design flow for implementing a DDR2 SDRAM memory interface on a Stratix II, Stratix II GX, or

Arria GX FPGA. Three design example walk-throughs are provided that detail critical aspects of this flow, including:

Instantiating the PHY to a DDR2 SDRAM component

Setting the appropriate constraints on the PHY

Verifying design functionality using simulation

Timing closure using the TimeQuest timing analyzer in the Quartus

®

II software.

This application note also includes three design examples. Two of the design examples interface with five DDR2 SDRAM components (amounting to a 72-bit interface) available in the Stratix II GX PCI-Express (PIPE) Development Kit. One design example uses the

ALTMEMPHY megafunction and the other design example uses the legacy PHY. The third design example includes a Quartus II project with three DDR2 SDRAM controllers to show you how to create multiple memory controllers with Stratix II devices.

1

After un-archiving the design example, ensure that you point to the corresponding IP library in your Quartus II installation directory. The IP library is located in the

<quartus_install_directory>\<

version>\ip\ddr2_high_perf for the

ALTMEMPHY-based controller and in the

<quartus_install_directory>\<

version>\ip\ddr_ddr2_sdram\lib for the legacy controller.

DDR2 SDRAM is the second generation of double-data rate (DDR) SDRAM technology, with features such as lower power consumption, higher data bandwidth, enhanced signal quality, and on-die termination schemes. DDR2 SDRAM brings higher memory performance to a broad range of applications, such as PCs, embedded processor systems, image processing, storage, communications, and networking.

Stratix II and Stratix II GX devices support two modes of DDR2 SDRAM interfacing—with and without dedicated DQS phase-shift circuitry. In addition, Stratix II and Stratix II GX device families offer two different data paths or physical interfaces (PHYs)—the legacy integrated static data path and controller (referred to as the legacy controller in this document) and the ALTMEMPHY megafunction. The legacy integrated static data path and controller supports both modes of DDR2 SDRAM interfacing (with and without dedicated

DQS phase-shift circuitry). However, you can only use the ALTMEMPHY megafunction with dedicated DQS phase-shift circuitry.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 2 Introduction

Table 1 lists the maximum clock frequency for DDR2 SDRAM interfaces in Stratix II and Stratix II GX devices with and without dedicated DQS phase-shift circuitry.

Table 1. DDR2 SDRAM Interface Maximum Clock Frequency Support in Stratix II and Stratix II GX

Devices

(Note 1)

,

(2)

,

(3)

Frequency (MHz)

With Dedicated DQS Circuitry

Without Dedicated DQS

Circuitry

ALTMEMPHY

Speed

Grade Half-Rate Mode Full-Rate Mode

-3 333 267

Legacy PHY

267

Legacy PHY

200

-4

-5

267

233

233

200

267

233

167

167

Notes to Table 1 :

(1) The supported operating frequencies listed here are memory interface maximums for the FPGA device family. Your design’s actual achievable performance is based on design- and system-specific factors, as well as static timing analysis of the completed design.

(2) These specifications apply to both commercial and industrial devices.

(3) These specifications are applicable for both interfacing with DDR2 SDRAM modules and discrete devices.

The Arria GX device family supports only ALTMEMPHY-based memory interfaces with dedicated DQS phase-shift circuitry. Memory interfaces with the ALTMEMPHY megafunction can use either half-rate mode in which the system clock for the controller is half the frequency of the memory interface frequency or full-rate mode in which the system clock and the memory interface frequencies are the same.

Table 2 lists the maximum clock frequency for DDR2 SDRAM interfaces in Arria GX devices.

Table 2. DDR2 SDRAM Interface Maximum Clock Frequency Support in Arria GX Devices

(Note 1)

,

(2)

,

(3)

,

(4)

Frequency (MHz)

Speed Grade Half-Rate Full-Rate

–6 233 167

Notes to Table 2 :

(1) The supported operating frequencies listed here are memory interface maximums for the FPGA device family. Your design’s actual achievable performance is based on design- and system-specific factors, as well as static timing analysis of the completed design.

(2) These specifications apply to both commercial and industrial devices.

(3) These specifications are applicable for both interfacing with DDR2 SDRAM modules and discrete devices.

(4) DDR2 SDRAM memory interface support in Arria GX devices is only available with ALTMEMPHY implementation.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

DDR2 SDRAM Overview Page 3

DDR2 SDRAM Overview

DDR2 SDRAM is the second generation of the DDR SDRAM memory standard. It is a

4n pre-fetch architecture with two data transfers per clock cycle. The memory uses a strobe (DQS) associated with a group of data pins (DQ) for read and write operations.

Both the DQ and DQS ports are bi-directional. Address ports are shared for write and read operations.

Although DDR2 SDRAM components can use the optional differential strobes (DQS and DQS#), Stratix II, Stratix II GX, and Arria GX devices do not support this functionality. These devices only use the DQS signal to read from and write to the

DDR2 SDRAM component. This is because DQS and DQS# pins are not differential

I/O pins in these device families.

DDR2 SDRAM write and read operations support burst lengths of four and eight.

Each read and write transaction transfers either four or eight groups of data. The latency between the time the read command is clocked into memory and the time data is presented at the memory pins is called the column address strobe (CAS) latency.

DDR2 SDRAM supports CAS latencies of two, three, four, and five. DDR2 SDRAM does not support half-clock latencies, unlike DDR SDRAM.

DDR2 SDRAM components use the SSTL-18 standard and can hold between

256 Mbytes to 4 Gbytes of data. Devices with capacities up to 512 Mbytes are divided into four banks and devices with capacities between one and four Gbytes are divided into eight banks. Only one row per bank can be accessed at one time. The

ACTIVE command opens a row; the

PRECHARGE

command closes a row.

1

The Altera DDR2 SDRAM memory controller keeps a row open in every bank of your memory system. If you have a small DDR2 SDRAM component with four banks, the controller keeps track of the four open rows, one per bank. If you have a dual-rank

DDR2 SDRAM DIMM made up of devices with eight banks each, the controller tracks

16 open rows.

DDR2 SDRAM uses a delay-locked loop (DLL) inside the device to edge-align the DQ and DQS signals with respect to the CK and CK# signals. DLL is turned on for normal operation and is turned off for debugging purposes. All timing analyses done in this application note assumes that the DLL inside the memory is on.

f

For more information about DDR2 SDRAM components, refer to the www.jedec.org

website.

DDR2 SDRAM components have adjustable data-output drive strength; therefore, for maximum performance Altera recommends you use the highest drive strength of the memory. DDR2 SDRAM components also offer on-die termination and output driver calibration. The on-die termination has an effective resistance of either 50,75, or

150

Ω. IBIS simulation can show the effects of different drive strengths, termination resistors, and capacitive loads on your system.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 4 Stratix II, Stratix II GX, and Arria GX Dedicated DQS Phase-Shift Circuitry

Stratix II, Stratix II GX, and Arria GX Dedicated DQS Phase-Shift

Circuitry

Dedicated phase-shift circuits are available at the top and bottom sides of the

Stratix II, Stratix II GX, and Arria GX devices. The circuit mainly consists of a DLL that generates the required phase shift setting for the incoming DQS read signal and

DQS delay chains controlled by this DLL setting.

Using dedicated phase shift circuitry allows you to capture data with the DQS sent by the memory device, which in turn results in higher performance than when not using dedicated phase shift circuitry. When using the DQS signals to capture data in the

FPGA, you can use the skew between the DQS and DQ signals to analyze read capture timing. When not using the DQS signals to capture data in the FPGA, you must use the skew between the CK/CK# and DQ signals to analyze read capture margin. Skew reduces the read margin. In addition, the skew between the CK/CK# and DQ signals is higher than the skew between the DQS and DQ signals. Therefore, memory interface performance, when not using the DQS signal to capture data, is lower than the performance when using the DQS signal to capture data.

To ensure that DQS mode can perform in challenging environments, system validation has been run to pinpoint the most critical factors affecting system functionality. The factors are the following:

■ drive strength termination scheme addressing scheme data pattern effects process voltage and temperature (PVT) effects memory devices

Various responses can be given by system validation, including eye quality, edge rates, voltage sag, ground bounce, and, of course, system functionality, on a pass or fail basis. f

For more information about Stratix II DDR2 system validation and results, refer to the

Stratix II DDR2 System Validation Summary

white paper.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Stratix II, Stratix II GX, and Arria GX On Chip Termination (OCT) Page 5

Stratix II, Stratix II GX, and Arria GX On Chip Termination (OCT)

The OCT technology is offered on Stratix II, Stratix II GX, and Arria GX devices.

Table 3 summarizes the extent of OCT support for DDR2 SDRAM interface.

Table 3. On-Chip Termination Schemes

FPGA Device

Termination Scheme SSTL-18

Stratix II

Stratix II GX

Column Row

On-Chip Series Termination without Calibration

Class I

Class II

Class I

50

25

50 On-Chip Series Termination with Calibration

On-Chip Parallel Termination with Calibration

Class II

Class I and

Class II

25

50

(1)

Note to

Table 3

:

(1) Non-dynamic on-chip parallel termination is only supported for input pins.

50

Arria GX

Column

50

25

Row

50

ALTMEMPHY and Legacy PHY Brief Overview

The legacy PHY uses a resynchronization clock with a static phase shift that is determined before design compilation, while the ALTMEMPHY megafunction implementation features a dynamic resynchronization clock that is calibrated for process (P) variations during initialization and tracks voltage and temperature (VT) variations.

The ALTMEMPHY megafunction is available as a stand-alone PHY for use with third-party memory controllers. The ALTMEMPHY megafunction is also instantiated by Altera’s DDR and DDR2 SDRAM High Performance Controller MegaCore

® function.

The legacy PHY is embedded in the DDR and DDR2 SDRAM Controller MegaCore function. Unlike the ALTMEMPHY megafunction, the legacy PHY must be extracted manually from the DDR and DDR2 SDRAM controller MegaCore function when using a third-party controller.

Use the ALTMEMPHY megafunction for all new designs to achieve high performance and optimal resynchronization phase shift. All new device families after Stratix II GX support the ALTMEMPHY megafunction and may not support legacy PHY. Use legacy PHY when you need a lower latency interface or when you are not using dedicated phase shift circuitry. f

For more information about whether to use the legacy PHY or the ALTMEMPHY megafunction, refer to:

TB 091: External Memory Interface Options for Stratix II Devices

“Appendix C: Legacy PHY Architecture Description” on page 101

DDR and DDR2 SDRAM Controller Compiler User Guide

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 6 DDR2 SDRAM Interfaces in HardCopy II Devices

DDR2 SDRAM Interfaces in HardCopy II Devices

Designs targeting the Stratix II device, up to 267 MHz, can be migrated to

HardCopy

®

II devices. For the purpose of this application note, any Altera FPGA description referring to a Stratix II device can also apply to a HardCopy II device.

HardCopy II device memory interfaces; however, have additional restrictions, such as the usage of the phase-locked loop (PLL) dedicated clock output pins for CK/CK# signals. f

Restrictions for HardCopy II device memory interfaces are described in

AN 463: Using the ALTMEMPHY Megafunction with HardCopy II Structured ASICs

if you are using

ALTMEMPHY, and in

AN 413: Using Legacy Integrated Static Data Path and Controller

Megafunction with HardCopy II Structured ASICs

if you are using the legacy PHY.

Memory Interface Design Flow

This section describes Altera’s recommended flow, shown in Figure 1 , for successful memory interface implementation in Stratix II, Stratix II GX, and Arria GX devices.

These guidelines provide the best experience with external memory interfaces in these device families. f

A detailed description of each step is available in

AN 449: Design Guidelines for

Implementing External Memory Interfaces in Stratix II and Stratix II GX Devices

.

The next sections include two design examples that describe the shaded design flow steps in Figure 1 .

f

For more information for the Quartus II version that you are using regarding possible issues with instantiation, simulation, and timing closure, refer to the Quartus II

Software Release Notes.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Memory Interface Design Flow Page 7

Figure 1. Design Flow for Implementing External Memory Interfaces in Stratix II, Stratix II GX, and

Arria GX Devices

Start Design

Change RTL or

IP Settings

Select Device

Instantiate PHY and

Controller in a Quartus II Project

No

Perform RTL /

Functional Simulation

Optional

(1)

Add Constraints and

Pin Assignments

Compile Design and

Generate Timing Report

Yes

Does Simulation

Give Expected

Result?

Adjust Constraints

Perform Gate-Level

Simulation

No

Does Simulation

Give Expected

Result?

Yes

No Does The Design

Have Positive Timing

Margin?

Optional (1), (2)

Yes

Perform Board Level

Simulations to Verify

Design Constraints

No

Do Signals

Meet Electrical

Requirements?

Yes

Verify FPGA

Functionality on Board

Debug Design

No

Is Design Working?

Yes

Design Done

Notes to Figure 1 :

(1) Though optional, Altera recommends that you perform this step to ensure design functionality.

(2) The ALTMEMPHY megafunction does not support gate-level simulation.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 8 Design Checklist

Design Checklist

Table 4 contains a design checklist that you can use when implementing DDR2

SDRAM memory interfaces in Stratix II, Stratix II GX, and Arria GX devices. f

For specific HardCopy II requirements if you are using the ALTMEMPHY megafunction, refer to

AN 463: Using the ALTMEMPHY Megafunction with HardCopy II

Structured ASICs.

f

For specific HardCopy II requirements if you are using the legacy PHY for any specific HardCopy II requirements, refer to

AN 413: Using Legacy Integrated Static Data

Path and Controller Megafunction with HardCopy II Structured ASICs

.

Table 4. Checklist for Implementing DDR2 SDRAM Memory Interfaces in Stratix II, Stratix II GX, and Arria GX Devices (Part

1 of 4)

Yes or No Item Description

Select Device

Have you selected the memory interface frequency of operation and bus width? And, have you selected the FPGA device density and package combination that you will be targeting?

1

Ensure that the target FPGA device supports the desired clock rate and memory bus width. For detailed device resource information, refer to the device handbook chapter on external memory interface support.

2

Have you selected your PHY implementation? Use the ALTMEMPHY megafunction whenever possible. For more information about selecting between the two PHYs, refer to

TB 091: External Memory Interface Options for Stratix II Devices

.

Instantiate PHY and Controller

Have you parameterized and instantiated the PHY and controller for your target memory interface?

3

When instantiating multiple controllers, ensure effective sharing of device resources and appropriate constraints by referring to

“Multiple Memory

Controllers Walkthrough” on page 86

when using the ALTMEMPHY-based interfaces or

AN 392: Implementing Multiple Legacy DDR/DDR2 SDRAM

Controller Interfaces

when using the legacy PHY.

If you are using your own controller, have you connected the PHY's local signals to your driver logic and the PHY's memory interface signals to the top-level pins?

4

Ensure that the local interface signals of the PHY are appropriately connected to your own logic. If the PHY is compiled without these local interface connections, you may encounter compilation problems when the number of signals exceeds the pins available on your target device.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Checklist Page 9

Table 4. Checklist for Implementing DDR2 SDRAM Memory Interfaces in Stratix II, Stratix II GX, and Arria GX Devices (Part

2 of 4)

Yes or No Item Description

Functional Simulation

Have you simulated your design using the register transfer level (RTL) functional model?

5

Timing Closure

When using Altera's memory controllers, use the design example, which instantiates the PHY and controller blocks, along with the example driver/testbench module, and the memory device model. When using a custom memory controller, use the PHY functional simulation model in conjunction with your own driver logic/testbench and the memory device model.

Have you added constraints to the PHY and the rest of your design?

6

The ALTMEMPHY megafunction is constrained when you use the generated

Synopsys design constraint (.sdc) file and .tcl files.

The legacy PHY is constrained with an .sdc file generated by the DTW and .tcl file generated by the MegaWizard

TM

Plug-In Manager.

Add pin assignment constraints and pin loading constraints to your design.

Ensure that generic pin names used in the constraint scripts are modified to match your top-level pin names. Note that the loading-on-memory interface pins are dependent on your board topology (memory components, single

DIMM, multiple DIMMs, and single rank DIMM).

7

Add pin location constraints to all memory interface signals. Note that you must place all the address and command pins on the same side of the device for optimal performance. The legacy PHY controller makes the pin location assignment for DQ and DQS.

Use board-level simulations to verify the default assignments created by the

MegaWizard Plug-In Manager.

Have you compiled your design and verified timing closure using all available models?

Run the Report DDR TimeQuest task or source the

<

variation_name

>

_report_timing.tcl file to generate a custom timing report for each of your ALTMEMPHY megafunction instances. Repeat this process using all device timing models (slow and fast).

Run the dtw_timing_analysis.tcl script for legacy PHY.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 10 Design Checklist

Table 4. Checklist for Implementing DDR2 SDRAM Memory Interfaces in Stratix II, Stratix II GX, and Arria GX Devices (Part

3 of 4)

Item Yes or No Description

If there are timing violations, have you adjusted your constraints to optimize timing?

8

Gate Level Simulation

Have you performed a timing simulation on your design?

9

Adjust the PLL clock phase shift settings or appropriate timing and location assignment to optimize margins for the various timing paths in the PHY. The

ALTMEMPHY timing analysis script creates a panel that shows the timing margins in the Quartus II software compilation report. The

dtw_timing_analysis.tcl script creates a clock phase shift recommendation panel in addition to the timing report panel in the Quartus II software compilation report.

Gate-level simulation is not applicable to the ALTMEMPHY design.

Board Level Considerations

Have you selected the termination scheme and drive strength settings for all the memory interface signals on the memory side and FPGA side?

10

Ensure that appropriate termination and drive strength settings are applied on all the memory interface signals and verified using board-level simulations.

Stratix II, Stratix II GX, and Arria GX devices support on-chip termination. On the memory side, Altera recommends using the DDR2 SDRAM on-die termination (ODT) feature whenever possible and using external parallel termination on memory input signals that do not support the ODT feature.

On the FPGA side, Altera recommends the Series 25

Ω without Calibration

OCT setting for bi-directional signals (such as DQ and DQS) and the Series

50

Ω without Calibration OCT setting for unidirectional output signals to the memory (such as DM and address/command). If there are multiple loads on certain FPGA output pins (for example, when the address bus is driven to multiple memory devices on a DIMM), you may prefer to use the maximum drive strength setting over the series OCT setting. Note that when using the

OCT feature on the FPGA, the programmable drive strength feature is unavailable.

Use board-level simulations to pick the optimal setting for the best signal integrity.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface Using the ALTMEMPHY Megafunction Page 11

Table 4. Checklist for Implementing DDR2 SDRAM Memory Interfaces in Stratix II, Stratix II GX, and Arria GX Devices (Part

4 of 4)

Item Yes or No Description

Have you performed board-level simulations to ensure electrical and timing margins for your memory interface?

11

Ensure you have a sufficient eye opening using simulations. Be sure to use the latest FPGA and memory IBIS models, board trace characteristics, drive strength, and termination settings in your simulation.

You must use any timing uncertainties at the board level that you calculate using such simulations to adjust the input timing constraints to ensure the accuracy of the Quartus II timing margin reports.

System Verification

12

Have you verified the functionality of your memory interface in system? You can use the SignalTap

®

Logic Analyzer to verify the interface signal behavior.

Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface

Using the ALTMEMPHY Megafunction

This walkthrough describes the steps necessary to create, constrain, and verify operation of a 72-bit wide, 333-MHz/667-Mbps DDR2 SDRAM memory interface targeted for the Stratix II GX PCI Express (PIPE) Development Board. This design example (an already completed version is available for download with this application note) uses the ALTMEMPHY megafunction-based DDR2 SDRAM High

Performance Controller MegaCore to interface memory on the Stratix II GX PCI

Express (PIPE) Development Board. This example walkthrough uses the MegaWizard

Plug-In Manager to instantiate the ALTMEMPHY megafunction. In addition, you can also use SOPC Builder to instantiate the ALTMEMPHY megafunction.

f

For more information about the ALTMEMPHY instantiation with SOPC Builder, refer to the

DDR and DDR2 SDRAM High-Performance Controller and ALTMEMPHY User

Guide

.

1

If you are using the legacy PHY, go to “Design Example Walkthrough for 267-MHz

DDR2 SDRAM Interface Using the Legacy PHY” on page 49 .

The ALTMEMPHY megafunction is a memory interface PHY that enables speeds of up to 333 MHz on Stratix II and Stratix II GX devices, 267 MHz on HardCopy II devices, and 200 MHz on Arria GX devices. This PHY uses dedicated DQS phase-shift circuitry for capturing data from memory and a dynamic clock calibration scheme to resynchronize memory read data to the system clock domain. This auto-calibrated solution tracks the changes in voltage and temperature, and simplifies timing closure and clock phase shift selection. The ALTMEMPHY megafunction is used to implement the datapath in the DDR2 SDRAM High Performance Controller

MegaCore.

f

For more information about the PHY and memory controller, refer to the

DDR and

DDR2 SDRAM High-Performance Controller and ALTMEMPHY User Guide

.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 12 Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface

The Stratix II GX edition of the Altera’s PCI Express Development Kit delivers a complete PCI Express (PIPE)-based development platform. This PCI Express (PIPE) solution, interoperable with industry-standard PCI Express (PIPE) platforms, facilitates the development of custom PCI Express (PIPE) applications.

f

For more information about PCI Express (PIPE) development, refer to the

Stratix II GX

PCI Express Development Kit web page.

This design example walks through the memory interface design flow steps, shown in

Figure 1 on page 7 .

f

For more information about the memory interface design flow, refer to

AN 449: Design

Guidelines for Implementing External Memory Interfaces in Stratix II and Stratix II GX

Devices

.

1

The design example was created using the Quartus II software version 9.0 and

MegaCore IP Library software version 9.0.

1

While this example focuses on the Stratix II GX device family, the information is also applicable to the ALTMEMPHY-based memory interface designs targeting Stratix II,

Arria GX, and HardCopy II devices. However, pay attention to the restrictions for

HardCopy II devices described in

AN 463: Using ALTMEMPHY Megafunction with

HardCopy II Structured ASICs.

Step 1: Select Device

This design example uses the EP2SGX90FF1508C3 device that comes with the

Stratix II GX PCI Express (PIPE) Development Board. The board is also equipped with five 333-MHz-capable DDR2 SDRAM components—four ×16 devices with part number—MT47H32M16CC-3 and one ×8 device with part number MT47H64M8CB-3.

f

For more information about all the features of the board, refer to the

Stratix II GX PCI

Express Development Board Reference Manual

.

The design example uses the five DDR2 memory devices to create a 72-bit interface running at 333 MHz using the ALTMEMPHY-based DDR2 SDRAM High

Performance Controller MegaCore function. This is considered a width-expansion interface because multiple memory devices are used to create one wide interface controlled by a single memory controller.

1

The maximum number of interfaces you can implement on any given device is limited by resource availability (the number of DQ groups of a desired width, user

I/O pins, PLLs, DLLs, clocks, and FPGA core resources). For example, the Stratix II

GX EP2SGX90FF1508C3 device supports nine ×8 DQ groups each on the top and bottom sides of the device. The DLL located on the top (or bottom) can be shared among nine DQ groups on that side of the device as long as they are implementing memory interfaces running at the same frequency. The example 72-bit interface uses

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface Using the ALTMEMPHY Megafunction Page 13

all nine of the groups available on the bottom side (I/O banks 7 and 8). You can use the remaining nine DQ groups located on the top side of the device for other memory interfaces. The PHY also uses one enhanced PLL to generate the six clock signals required for each memory interface. The remaining three enhanced PLLs are available for use by other memory interfaces and user logic.

f

To determine the number DQ groups of each width supported by the FPGA, refer to the External Memory Interfaces chapter of the appropriate device handbook (Stratix II,

Stratix II GX, or Arria GX).

Stratix II devices offer DQ/DQS pins on all sides of the device; however, the VIO banks support DLL-based higher performance interfaces. For high-performance interfaces, use all DQ groups on one VIO side of the device. When all DQ groups on that side are used up, use the DQ groups on the opposite VIO side. Note that the

DQS/DLL signals may not be shared between top and bottom. Therefore, each VIO side needs to have its own DLL instantiation.

For interfaces running at lower speeds, a PLL-based implementation is supported on all Stratix II I/O banks. The PLL-based implementation is interfaced by using DQ groups on one side of the device. When your interface width requirements exceed the number of groups supported on that side, allocate DQ groups on one of the remaining banks. Note that PLLs used for read capture must be placed on the same side as the

DQ input pins for best source-synchronous compensation and timing margins.

Expanding your memory interfaces for width or depth with the same memory controller (shared address and command bus) is supported natively by the

MegaWizard Plug-In Manager. Creating multiple memory controllers with independent memory transactions (independent address and command buses) requires you to create a unique megafunction variation for each interface. Sharing device resources between multiple memory interfaces may require RTL modifications.

For detailed recommendations, refer to “Multiple Memory Controllers Walkthrough” on page 86

.

1

Both the MT47H32M16CC-3 and MT47H64M8CB-3 devices have the same timing specifications and share the same data sheet. If you are using devices with different timing specifications, choose the worst specifications.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 14 Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface

Step 2: Instantiate the PHY and Controller in a Quartus II Project

Begin your memory interface design by instantiating the PHY and controller modules. Figure 2 shows a system-level diagram including the top-level design example that the DDR2 SDRAM High Performance Controller MegaCore function creates for you.

The design example is a fully functional design that can be simulated, synthesized, and used in hardware. It contains the PHY, controller, and an example driver. The example driver is a self-test module that issues read and write commands to the controller and checks the read data to produce the pass/fail and test-complete signals.

Figure 2. System-Level Diagram of DDR2 SDRAM Interface

Example Design

Control Logic

(Encrypted)

DDR SDRAM

Interface

DDR SDRAM Pass or Fail

Test Complete

Example Driver

Local Interface

ALTMEMPHY

Megafunction

(1)

DDR SDRAM

High Performance

Controller

Note to Figure 2 :

(1) The PLL and DLL modules are included in the ALTMEMPHY megafunction.

To instantiate the PHY and controller, follow these steps:

1. There are two options for step 1: a. Create a new Quartus II project or open an existing project where you would like to implement the DDR2 SDRAM memory interface. When creating a new project, specify the target FPGA device on the New Project Wizard: Family

and Device Settings [page 3 of 5]

. Set Stratix II GX as the Family and choose the EP2SGX90FF1508C3 device from the Available devices list.

or

b. When using an existing project, set the target FPGA device by going to the

Assignments menu and selecting Device.... In the dialog box, set Stratix II GX as the Family, and choose the EP2SGX90FF1508C3 device from the Available

devices

list, as shown in Figure 3 . Device listings displayed are filtered by the fastest speed grade and 1508-pin FPGA package. The Quartus II project name for this design example is Altmemphy. f

For step-by-step instructions for creating a Quartus II software project, refer to the

Tutorial in the Quartus II Online Help.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface Using the ALTMEMPHY Megafunction

Figure 3. Select the Target FPGA Device in the Quartus II Software

Page 15

2. In the Quartus II software, on the Tools menu, point to MegaWizard Plug-In

Manager

, select Create a new custom megafunction variation, and click Next

( Figure 4 ). MegaWizard Plug-In Manager [page 2a] displays ( Figure 5 ).

Figure 4. Launch the MegaWizard Plug-In Manager

3. Under Select a megafunction from the list below, click the “+” icon to expand

Interfaces.

Click the “+” icon to expand Memory Controllers and select the DDR2

SDRAM High Performance Controller v9.0

megafunction, as shown in Figure 5 .

1

If Memory Controllers is not listed under the Interfaces directory, ensure that you installed the IP Library and specified the installation directory location as a User Library if the default location (c:\altera\<version>\ip) was not used.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 16 Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface

1

If the controller megafunction is listed but grayed out, ensure that the correct device family is selected in the drop-down menu located in the top right-hand corner of the dialog box MegaWizard Plug-In Manager [page

2a]

.

Figure 5. Select the MegaCore Function

4. Select the type of output files you want the MegaWizard Plug-in Manager to create. For this design example, select Verilog HDL.

5. Specify the output file name for this megafunction variation. The MegaWizard

Plug-In Manager shows the project path that you specified when creating the project. Append a variation name for the MegaCore function output files <project

path>\<variation name>.

Enter ddr2_Altmemphy

as the variation name for this design example.

1

The variation name must be different from the project name, which is

Altmemphy

.

6. Click Next.

This launches the Memory Settings panel, located under the Parameter Settings tab in the MegaWizard Plug-in Manager ( Figure 6 ). In the Memory Settings panel, you can parameterize the DDR2 SDRAM High Performance Controller MegaCore function.

7. In the Parameter Settings tab of the MegaWizard Plug-In Manager, select the

Memory Settings

tab, as shown in Figure 6 . In the Parameter Settings tab of the

MegaWizard Plug-In Manager, there are three categories of parameters that you can set—Memory Settings, PHY Settings, and Controller Settings.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface Using the ALTMEMPHY Megafunction

Figure 6. Controller MegaWizard—Memory Settings

Page 17

8. Verify that the target Device family option is set to Stratix II GX.

9. Select the Speed Grade option for the target device. Because the PCI Express

(PIPE) Development Board includes a -3 speed grade FPGA device, select 3 from the drop-down list. The -3 speed grade supports the 333-MHz DDR2 SDRAM memory interface clock rate you intend to implement (based on the specifications listed in Table 1 on page 1 and the

Stratix II GX Device Handbook

).

10. Specify the PLL reference clock frequency option as 100 MHz. The PCI Express

(PIPE) Development Board includes a 100-MHz oscillator that feeds the clock input pins on the bottom I/O banks of the Stratix II GX device.

11. Specify the Memory clock frequency option as 333.333 MHz. Be sure to specify three decimal digits for non-integer frequencies to ensure that proper timing constraints and PLL settings are generated. Verify that the period reported in parentheses by the MegaWizard Plug-In Manager is accurate.

After you specify the PLL reference and memory clock frequencies, the

MegaWizard Plug-In Manager determines if valid PLL settings exists to perform the necessary frequency synthesis. When successful, an Info message is generated in the bottom pane of the MegaWizard Plug-In Manager ( Figure 6 ).

For example, in this design example, the MegaWizard Plug-In Manager reports

“Info: The PLL is generated with Memory clock frequency 333.3 MHz and 24 phase steps per cycle.” The “24 phase steps per cycle” refers to the resolution of the PLL phase shift stepping feature available for the calibration block to place the resynchronization clock in the data valid window.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 18 Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface

12. Select the Local interface clock frequency option. You can choose between Half and Full, which refers to the relationship between the clock rate at the local side when compared with the memory side. In half-rate mode, the local side operates at half the memory clock frequency. Because full-rate mode does not support the design example’s target memory clock rate of 333.333 MHz, select Half. The resulting local interface frequency is 166.667 MHz.

13. To specify external memory device specifications, select a Memory Preset option from the list of presets that matches your memory. You can use the filters provided in a list to the left of the panel to sort through the list of memory presets.

Select 333.333 from the Maximum memory frequency filter. Only memory presets that meet that clock rate are now displayed. Because a preset for the

MT47H32M16CC-3 or MT47H64M8CB-3 device is not available, select a preset that is most similar. Use this as a base preset and modify as necessary.

14. Select the JEDEC DDR2-667 256-Mb ×8 preset. Select Modify parameters..., this launches the Preset Editor, as shown in Figure 7 .

The All Parameters category is selected by default and the current list of settings are displayed in the Parameters section of the panel. The cells with white backgrounds are programmable features supported by the memory. The cells with gray background are defining characteristics of the memory device. Changing any of these settings creates a custom variation of the preset that you can use in current and future designs.

Figure 7. Preset Editor—JEDEC DDR2-667 256Mb ×8

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface Using the ALTMEMPHY Megafunction Page 19

15. Modify the parameters listed in the Preset Editor dialog box to match the specifications from the Micron MT47H32M16CC-3 and MT47H64M8CB-3 datasheet. a. Select the Memory Attributes category and make the modifications listed in

Table 5 .

Table 5. Memory Attributes Changes for the Example Design

Parameter

Memory vendor

Output clock pairs from FPGA

Value

Micron

3

72

Description

The PCI Express Development Board shares one pair of CK/CK# clock outputs for every two ×16 DDR2 SDRAM components and drives one pair of CK/CK# clock outputs to the ×8 DDR2 SDRAM component, so the 72-bit interface needs three pairs of CK/CK# outputs.

To implement a 72-bit DDR2 interface.

Total Memory interface DQ width

Maximum memory frequency for CAS latency 3.0

Maximum memory frequency for CAS latency 4.0

200.000 MHz

266.667 MHz

— b. Select the Memory Initialization Options category, and verify that the

Memory on-die termination (ODT)

setting is set to Disabled because the

Stratix II GX PCI Express (PIPE) Board features external termination on all memory interface signals.

c. Select the Memory Timing Parameters category and make the modifications

based on the Micron data sheet. See Table 6 .

Table 6. Memory Timing Parameters Changes for the Example Design

Parameter Value

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 20 Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface

1

The Stratix II GX device only supports single-ended.

DQS strobes and has typical edge rates of approximately 1 V/ns. The de-rated timing requirements for this edge rate and strobe type are 345 ps setup time and 285 ps hold time, as specified in the Micron data sheet. You must verify these typical edge rates for each system using board-level simulations.

Similarly, the derated address and command specifications based on the FPGA output edge rate is 200 ps for setup and 275 ps for hold time.

d. Click Save As... and save this custom memory preset as Custom-PCI_SIIGX

(JEDEC_DDR2-667_256Mb×8)

.

The presets are stored in the MegaCore \lib directory by default (for example,

<

quartus_installation_directory>\ip\ddr2_high_perf\lib

)

and are available for use in future projects. If you save your custom memory preset in a different directory, you can use the Load Preset... feature in the Memory Settings panel to target that memory device ( Figure 6 on page 17 ).

e. Click OK to return to the Memory Settings panel.

16. You have now specified all the memory settings. Click Next to specify the PHY settings (

Figure 8 on page 20 ).

Figure 8. Controller MegaWizard— PHY Settings

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface Using the ALTMEMPHY Megafunction Page 21

17. In the Advanced PHY Settings section of the PHY Settings panel, you can enable the following advanced features of the PHY.

a. For designs targeting HardCopy II devices, enable the Use dedicated PLL

outputs to drive memory clocks

and Enable external access to reconfigure

PLL prior to calibration

options. These options are not enabled for the

Stratix II GX design example presented in this application note.

b. For designs sharing DLLs across multiple memory interfaces, enable the

Instantiate DLL externally

option. This option is not enabled for the single-memory interface design example. c. Observe the Clock phase setting used to generate the address and command signals output to the memory. The choices available for Stratix II, Stratix II GX, and Arria GX devices are 0, 90, 180, and 270 degrees of offset from the

full-rate clock

( mem_clk_2x

) used to generate the CK/CK# signals. These clock phases are generated using the rising and falling edges of the mem_clk_2x

and write_clk_2x

clocks of the ALTMEMPHY megafunction.

You can alter the default clock phase of 90 degrees selection to optimize timing margins for the address/command timing path.

18. Specify the Board skew (in picoseconds) across all memory interface signals in your design, in the Board Timing Parameters region of the PHY Settings panel.

The specified skew is across all memory interface signal types including data, strobe, clock, address and command, and is used to generate the PHY timing constraints for all paths.

19. In the Auto-Calibration Simulation Options of the PHY Settings panel, the recommended setting is Quick Calibration. This setting is to reduce simulation time and only affects functional simulation.

20. You have now specified all the PHY settings. Click Next to specify the controller settings ( Figure 9 on page 22 ).

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 22 Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface

Figure 9. Controller MegaWizard—Controller Settings

21. In the Controller Settings panel, specify your preference in the Local Interface

Settings

.

1

The design example uses the default options; therefore, no changes are required on this panel.

a. Select the Enable error detection and correction logic option to enable error correction coding (ECC).

b. Turn on Enable user auto-refresh controls option to optimize latency by controlling when the controller issues refreshes to the memory.

c. Turn on Enable auto-precharge control to allow you access to the same bank quickly. This option is useful for applications that require fast random access.

d. Turn on Enable power down controls to allow you to place the external memory device in power-down mode.

e. Turn on Enable self-refresh controls to allow you to place the external memory device in self-refresh mode.

f. Select Local Interface Protocol for the memory interface. This allows you to easily connect to other Avalon

®

Memory-Mapped peripherals.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface Using the ALTMEMPHY Megafunction Page 23

f

For more information about the Avalon Memory-Mapped interface, refer to the

Avalon

Memory-Mapped Interface Specification.

22. In the Controller/PHY Interface Protocol, the recommended setting is AFI. This interface between DDR/DDR2/DDR3 Controllers and the ALTMEMPHY megafunction does not require the memory controller during calibration.

However, no AFI support is available for Arria GX devices.

f

For more information about the AFI, refer to the

DDR and DDR2 SDRAM High-

Performance Controller and ALTMEMPHY User Guide

.

23. You have now specified the Controller Settings. Click Next.

24. In the EDA tab of the MegaWizard Plug-In Manager, enable the Generate

Simulation Model

option. Choose between the Verilog HDL or VHDL language options and click Next.

25. You have now fully parameterized the PHY and memory controller. The Summary tab, shown in Figure 10 on page 23 , allows you to select optional files that the

MegaWizard Plug-in Manager can generate for you. Click Finish to generate the megafunction variation.

Figure 10. Controller MegaWizard—Summary Page

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 24 Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface

The MegaWizard Plug-in Manager generates all the files necessary to constrain, compile, simulate, and timing analyze your memory interface design. Figure 11 shows the messages printed by the MegaWizard Plug-in Manager while generating your megafunction variation. This dialog box also provides recommendations about applying constraints on your design. These messages are described in

“Step 3: Add

Constraints and Pin Assignments” on page 25 .

Figure 11. MegaWizard Messages and Constraint Recommendations

You have now successfully instantiated the PHY and controller in your design.

Table 7 is a partial list of the files generated by the DDR2 SDRAM high performance

controller MegaWizard and content descriptions.

Table 7. Files Generated by the Controller MegaWizard

File Name

<variation_name>.v(hd)

<variation_name>_example_top.v(hd)

<variation_name>_example_driver.v(hd)

<variation_name>_phy_ddr_timing.sdc

<variation_name>_pin_assignments.tcl

<variation_name>_phy_report_timing.tcl

<variation_name>_auk_ddr_hp_controller_wrapper.vo or .vho

Description

MegaCore variation file.

Example top-level design file that can be simulated, synthesized, and used in hardware. Instantiates the

PHY, controller, and a driver.

Example driver (self-test module) that issues reads and writes to the controller to check functionality.

Sets timing constraints for the ALTMEMPHY megafunction instance.

Adds I/O standard settings for all memory interface pins, and adds output enable group assignments to ensure VREF rules are met when the design contains input/bi-directional pins.

Generates a detailed timing report for all timing paths in the ALTMEMPHY instance.

Verilog HDL or VHDL functional simulation model of the memory controller.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface Using the ALTMEMPHY Megafunction Page 25

Table 7. Files Generated by the Controller MegaWizard

File Name

<variation_name>_phy_alt_mem_phy_seq_wrapper.vo or .vho testbench\<variation_name>_example_top_tb.v (hd)

Description

Verilog HDL or VHDL functional simulation model of the memory interface PHY.

Verilog HDL or VHDL testbench for functional simulation with memory controller, PHY, and memory model.

f

For the full list of the files generated by the DDR2 SDRAM High Performance

Controller MegaWizard Plug-In Manager, refer to the

DDR and DDR2 SDRAM High-

Performance Controller and ALTMEMPHY User Guide

.

Step 3: Add Constraints and Pin Assignments

All memory interface designs require timing constraints and I/O assignments

(including I/O standard, output pin loading, termination, drive strength, and pin location assignments). Most of these constraints are generated for you by the

MegaWizard Plug-In Manager. The MegaWizard Generation dialog box ( Figure 11 on page 24 ), provides instructions on how to apply these constraints to your design.

Apply these constraints to the design before compilation.

Set the Fitter Effort

To set the fitter effort to Standard Fit, follow these steps:

1. In the Quartus II software, on the Assignments menu, click Settings.

2. On the left side of the Settings dialog box, under the Category list, click Fitter

Settings

. The Fitter Settings panel appears.

3. In the Fitter Settings panel, turn on the Optimize hold timing and Optimize

multi-corner timing

options. On the pull-down menu next to the Optimize hold

timing

option you have just enabled, select All paths.

1

For ALTMEMPHY MegaWizard Plug-In Manager designs targeting memory clock frequencies of 267 MHz and above, select the Standard Fit option under the Fitter effort section of the Fitter Settings panel. This option optimizes placement of the resynchronization and postamble registers in such designs.

4. Click OK.

Add the Timing Constraints

To add timing constraints, follow these steps:

1. On the Assignments menu, click Settings. The Settings dialog box appears.

2. In the Settings dialog box, under the Category list, click Timing Analysis

Settings

.

3. In the Timing Analysis Settings panel, select Use TimeQuest Timing Analyzer

during compilation,

as shown in Figure 12 .

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 26 Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface

Figure 12. Enable TimeQuest Timing Analyzer

4. Under the list Category, click the “+” icon next to Timing Analysis Settings and select Time Quest Timing Analyzer.

5. Add the Synopsys design constraints (.sdc) file,

<variation_name>_phy_ddr_timing.sdc, to your project. This file contains all the timing constraints for the PHY. Browse to the .sdc file, select it and click Add. The file name appears in the .sdc file list.

6. Turn on the Enable multicorner timing analysis during compilation option. This enables the TimeQuest timing analyzer to perform multicorner timing analysis, which analyzes the design against best-case and worst-case operating conditions.

7. Click OK ( Figure 13 on page 27 ).

1

The .sdc timing constraints file is not added to the Quartus II software project automatically. You must manually include it in the project during compilation for successful timing closure and operation.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface Using the ALTMEMPHY Megafunction

Figure 13. Add Timing Constraints (SDC)

Page 27

Set the Top-Level Entity

To set the top-level entity for the example project follow these steps:

1. On the File menu, click Open.

2. Browse to <variation_name>_example_top.v(hd) and click Open.

3. On the Project menu, click Set as Top-Level Entity.

If you are not using the design example, but instead are implementing the DDR2

SDRAM interface in your own top-level Quartus II software project, instantiate the

<

variation_name>.v(hd) module in your design and continue with the design flow.

Add the I/O Assignments

The pin assignment script, <variation_name>_pin_assignments.tcl, sets up the I/O standards for the DDR2 SDRAM interface. To add the I/O assignment, follow these steps:

1. The I/O standard and output enable group assignments are specified in the

<

variation_name>_pin_assignments.tcl file.

If your design uses the default top-level pin names for memory interface signals as in this walkthrough design example (names that start with the

“ mem_

” prefix, for example, mem_dq and

mem_dqs

), select Tcl Scripts... from the Tools menu.

2. In the Tcl Scripts dialog box, select <variation_name>pin_assignments.tcl.

3. Click Run, as shown in Figure 14 .

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 28

Figure 14. Add I/O Assignments

Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface

4. On the Processing menu, point to Start and click Start Analysis & Synthesis. This step ensures your design files are in order and creates a list of nodes that can be accessed to create design constraints.

5. If you are not using the default pin names and want to add a unique prefix to memory interface pin names (this is recommended when implementing multiple controllers on the same device), use the Pin Planner file generated by the

MegaWizard Plug-In Manager to import pin assignments. a. In the Quartus II software, on the Assignments menu, click Pin Planner. In the

Pin Planner

, edit your top-level design to add a prefix to all DDR2 SDRAM interface signal names. For example, change mem_addr to core1_mem_addr.

b. On the Assignments menu, click Pins. Right-click in the page and click

Create/Import Megafunction

. Select Import an existing custom megafunction and navigate to <variation_name>.ppf.

c. Type the prefix that you added to your top-level DDR2 SDRAM interface signal names into the Instance name dialog box and click OK.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface Using the ALTMEMPHY Megafunction Page 29

Enter the Pin Location Assignments

Assign all of your pins so the Quartus II software fits your design correctly and gives correct timing analysis. To assign pin locations for the Stratix II development board, import the altmemphy.qsf file or manually assign pin locations by using the Pin

Planner or Assignment Editor.

To manually assign pin locations, follow these steps:

1. Open Pin Planner or Assignment Editor. On the Assignments menu, click Pin

Planner

or Assignment Editor.

2. Assign the pin location according the DDR2 SDRAM Stratix II device pin placements recommended by Altera. Recommendations for pin assignments are as follows: a. The DM pins must be placed in their respective DQ group.

b. To minimize skew, address and control command pins must be placed on any spare I/O pins ideally in the same bank or side of the device as the mem_clk pins.

c. Ensure the mem_clk

pins are placed on differential I/O pairs for the CK/CK# pin pair.

d. Place the clock_source

pin on a dedicated PLL clock input pin with a direct connection to the SDRAM controller PLL and DLL pair—usually on the same side of the device as your memory interface. This recommendation reduces

PLL jitter, saves a global clock resource, and eases timing and fitter effort.

e. For the single-ended clock sources, always use the p pin of the dedicated clock inputs.

f. Place the global_reset_n pin (such as any high fan-out signal) on a dedicated clock pin.

g. If all the top bank pins are used up, you can use the LVDS pin pairs on the side banks of the device as mem_clk

pins.

1

For DDR2 SDRAM Stratix II device pin placements recommended by Altera, refer to

“Appendix B: Interface Signal Description” on page 96 .

1

Create pin assignments for the PLL reference clock pin, clock_source

, and the reset pin, global_reset_n

. Also, when using this design example, create pin assignments for the test_complete

and pnf

(pass not fail) signals.

1

For the list of memory interface pin names and locations for the Stratix II GX PCI

Express (PIPE) Development Board, refer to

“Appendix A: Stratix II GX PCI-Express

Development Board Pin Assignments” on page 92

.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 30 Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface

To import the pin assignments, follow these steps:

1. In the Quartus II software, on the Assignments menu, click Import Assignments...

2. When the Import Assignments dialog box appears, click the ... button to browse for the file (located in the downloadable design example archive shown in

Figure 15

) Altmemphy.qsf and select it.

This file also includes pin assignments for the clock source, test complete, and pass/fail signals used by the top-level design example file, as well as assignments to reserve unused DDR2 memory pins (A13, A14, and BA2) as outputs driving ground.

Figure 15. Downloadable Design Example Archive

Add the Output Pin Load Assignments

Add the output pin load assignment as the output pin load value in “Appendix A:

Stratix II GX PCI-Express Development Board Pin Assignments” on page 92 . The

loading for the various output and bi-directional pins on the Stratix II GX board are as follows:

■ Two of the CK and CK# clock pairs have two loads = 2 × 2 pF = 4 pF. The third

CK/CK# clock output pair that drives the ×8 DDR2 SDRAM components has one load = 2 pF.

DQ and DQS pins (one load) = 4 pF

Addr/Cmd pins (five loads) = 5 × 2 pF = 10 pF

Add the Termination or Current Strength Assignments

The default Altera recommendations for termination settings are:

Series 25 Ohms without Calibration

for the bi-directional DQ and DQS signals.

Series 50 Ohms without Calibration

for all output pins including DM, address, command, and clock signals.

Altera recommends using the memory’s on-die termination (ODT) feature when it is suitable for your system; however, the Stratix II GX PCI board features external termination on the memory side for all memory interface signals. Therefore, this example does not use memory ODT or the FPGA on-chip termination features.

Instead, the design example uses the SSTL-18 Class I I/O standard along with the maximum current strength for all signals (including DQ and DQS).

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface Using the ALTMEMPHY Megafunction Page 31

After executing the <variation_name>_pin_assignments.tcl file, use the Assignment

Editor

to make the following changes:

1. Replace the SSTL-18 Class II I/O standard setting on all DQ and DQS pins (named mem_dq

and mem_dqs

) with the SSTL-18 Class I setting.

2. Delete the Termination setting of Series 50- or 25-Ohms without Calibration on all the DQ, DQS, DM, and CK/CK# pins (named mem_dq, mem_dqs, mem_dm, mem_clk,

and mem_clk_n

).

3. Add a Current Strength assignment set to Maximum Current for all DQ, DQS,

DM, and CK/CK# pins.

1

You must perform board simulations to validate if these recommendations are optimal for your system. For more information, refer to

““Step 7: Perform Board-Level

Simulations to Verify the Design Constraints” on page 42

.

1

The drive strength feature is unavailable on the FPGA device when the OCT feature is enabled. If board simulations indicate that the OCT setting is not appropriate for your system, use simulations to determine the optimal drive strength setting and add that constraint to your Quartus II project.

1

The termination and other I/O settings used in the design example are also listed in

“Appendix A: Stratix II GX PCI-Express Development Board Pin Assignments” on page 92

.

You have now applied all the required design constraints for this memory interface design.

Step 4: Perform RTL/Functional Simulation (Optional)

You can simulate the memory interface with the MegaWizard Plug-In

Manager-generated IP functional simulation model. You must use this model in conjunction with your own driver or the testbench generated by the MegaWizard

Plug-In Manager that issues read and write operations and a memory model.

Use the functional simulation model with any Altera-supported VHDL or Verilog

HDL simulator. This walkthrough design example uses the ModelSim

®

Altera edition software to perform the simulation.

To set up RTL simulation in the Quartus II software using NativeLink, follow these steps:

Get the Memory Simulation Model

1. Generate the IP functional simulation model.

You requested Verilog HDL models to be generated during the instantiate PHY and controller design flow step, described in

“Step 2: Instantiate the PHY and

Controller in a Quartus II Project” on page 14 .

Figure 11 on page 24 displays the results of your request.

The MegaWizard Plug-In Manager also generated a Verilog HDL testbench for the design example named ddr2_Altmemphy_example_top_tb.v, which is located in the testbench directory under the project directory.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 32 Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface

2. Obtain and copy the memory model to a suitable location; for example, the testbench directory.

The Altera DDR2 SDRAM High-Performance Controller MegaCore automatically creates a generic memory model called <variation_name>_mem_model.v

You can use Altera’s generic memory model for functional simulation, or use the memory model provided by your memory vendor. If you choose to use Altera’s generic model, directly proceed to step 10 in the

“Setup the Simulation Options in the Quartus II Software” on page 34

.

For this design example, obtain the ddr2.v and ddr2_parameters.vh memory model files from the Micron website and save them in the testbench directory.

Prepare the Simulation Model

1. Open the ddr2.v memory model file in a text editor and add the following define statements to the top of the file:

`define sg3

`define x8

The two define statements prepare the DDR2 SDRAM memory model. The first statement specifies the memory device speed grade as -3. The second statement specifies the memory device width per DQS. This simulation uses the memory in the ×8 mode (instead of the ×16 mode).

2. Save the ddr2.v file.

3. Open the ddr2_parameters.vh file and search for the

ADDR_BITS

parameter definition. You will find instances of this parameter, one for ×4, ×8, and ×16 bit wide interfaces. Change the ADDR_BITS parameter for the ×8 interface to 13, because the example memory controller only uses 13 address bits.

‘else ‘ifdef x8 parameter ADDR_BITS = 13; // MAX Address Bits

Instantiate the Memory Model in the Testbench

1. Open the ddr2_Altmemphy_example_top_tb.v testbench in a text editor.

The testbench instantiates the design example (ddr2_Altmemphy_example_top) and a generic DDR2 SDRAM memory (ddr2_Altmemphy_mem_model) module, and connects the memory interface signals appropriately. Before running the simulation, you need to edit the testbench to use the downloaded Micron memory model.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface Using the ALTMEMPHY Megafunction Page 33

2. Locate and delete the following instance of the generic memory model in the testbench. Note that the

START

and

END MEGAWIZARD

comments must also be deleted to ensure the MegaWizard Plug-in Manager does not overwrite the changes when the controller megafunction is regenerated.

// <<START MEGAWIZARD INSERT MEMORY_ARRAY

//This will need updating to match the memory models //you are using.

//Instantiate a generated DDR memory model to match the //datawidth and chipselect requirements ddr2_Altmemphy_mem_model mem (

.mem_dq (mem_dq),

.mem_dqs (mem_dqs),

.mem_addr (a_delayed),

.mem_ba (ba_delayed),

.mem_clk (clk_to_ram),

.mem_clk_n (clk_to_ram_n),

.mem_cke (cke_delayed),

.mem_ras_n (ras_n_delayed),

.mem_cas_n (cas_n_delayed),

.mem_we_n (we_n_delayed),

.mem_dm (dm_delayed),

.mem_odt (odt_delayed)

);

// <<END MEGAWIZARD INSERT MEMORY_ARRAY

3. Instantiate the first instance of the Micron ddr2 memory model as follows: ddr2 memory_0(

.ck (clk_to_ram),

.ck_n (clk_to_ram_n),

.cke (cke_delayed),

.cs_n (cs_n_delayed),

.ras_n (ras_n_delayed),

.cas_n (cas_n_delayed),

.we_n (we_n_delayed),

.dm_rdqs (dm_delayed[0]),

.ba (ba_delayed),

.addr (a_delayed),

.dq (mem_dq[7:0]),

.dqs (mem_dqs[0]),

.dqs_n (),

.rdqs_n (),

.odt (odt_delayed),

);

Note the ports of the ddr2 module are in lower-case. Because Verilog HDL is case sensitive, ensure that the port names use lower case. Also note that the ddr2 module uses port names that are different from the generic Altera DDR2 model.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 34 Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface

4. Similarly, create the other eight instances of the ddr2 module. Note that the DQ,

DQS, and DM bus indices are different for each instance. For example, the second

×8 memory instance must match the following: ddr2 memory_1 (

.ck (clk_to_ram),

.ck_n (clk_to_ram_n),

.cke (cke_delayed),

.cs_n (cs_n_delayed),

.ras_n (ras_n_delayed),

.cas_n (cas_n_delayed),

.we_n (we_n_delayed),

.dm_rdqs (dm_delayed[1]),

.ba (ba_delayed),

.addr (a_delayed),

.dq (mem_dq[15:8]),

.dqs (mem_dqs[1]),

.dqs_n (),

.rdqs_n (),

.odt (odt_delayed),

);

Setup the Simulation Options in the Quartus II Software

1. Save the modified testbench file. Check that the absolute path to your third-party simulator executable is set. On the Tools menu, click Options.

2. Under the Category list, select EDA Tools Options, as shown in Figure 16 on page 34 . The default path is C:\<version>\modelsim_ae\win32aloem.

3. Click OK.

Figure 16. Set Path to ModelSim Altera Edition Software

4. On the Assignments menu, point to EDA Tool Settings and select Simulation.

The EDA Tool Settings panel appears.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface Using the ALTMEMPHY Megafunction Page 35

5. Under the list Category (left-hand side of the panel) click the “+” icon next to EDA

Tool Settings.

6. Select Simulation.

7. From the Tool name menu in the Simulation panel, select the ModelSim-Altera simulator. Under the EDA Netlist Writer options section, on the pull-down menu beside Format for output netlist, select Verilog. In the NativeLink settings section of the Simulation panel, select Compile test bench and click Test Benches..., as shown in Figure 17 on page 35 .

Figure 17. EDA Simulation Settings

8. In the Test Benches dialog box, click New.

9. In the New Test Bench Settings dialog box, enter a name in the Test bench name field, as shown in Figure 18 . For this design example, enter ddr2_Altmemphy_rtl_sim

.

10. Enter a name in the Top level module in testbench field, for example, ddr2_Altmemphy_example_top_tb

.

11. Enter the Design instance name in test bench as dut

because that is the instance name used to instantiate ddr2_Altmemphy_example_top in the testbench.

12. Select the End simulation at option under the Simulation period section. In the first field enter

500.

Select

μs from the unit pull-down menu beside the first field.

13. Add the testbench files. a. In the File name field, browse to the location of the memory model and testbench and select it. b. In this design example, use the Micron memory model file named ddr2.v. c. If you are simulating with Altera’s generic memory model, select the

<

variation_name>_mem_model.v file instead of the Micron model.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 36 Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface

14. Click OK.

15. Click Add. Figure 18 on page 36 shows the fully populated New Test Bench

Settings

dialog box.

16. Click OK twice to save the EDA simulation settings for your project.

Figure 18. New Test Bench Settings

17. On the Processing menu, point to Start and click Start Analysis & Elaboration.

Performing Simulation in the ModelSim Software

On the Tools menu, point to the EDA Simulation Tool and click Run EDA RTL

Simulation

. This step creates the \simulation\modelsim directory under your project directory for use as the ModelSim working directory and creates a ModelSim script file, Altmemphy_run_msim_rtl_verilog.do, which compiles all the required design files and libraries and runs the RTL simulation. This .do file is regenerated every time you invoke the Run EDA RTL Simulation command.

1

In the ALTMEMPHY megafunction designs targeting DDR2/DDR SDRAM interfaces for Arria GX, HardCopy II, Stratix II, and Stratix II GX devices, you must add the following line in the project .qsf file to allow NativeLink simulation to find the correct memory initialization file (.mif) for the PLL reconfiguration module: set_global_assignment -name EDA_TEST_BENCH_FILE ddr2_Altmemphy_phy_alt_mem_phy_pll.mif -section_id ddr2_Altmemphy_rtl_sim

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface Using the ALTMEMPHY Megafunction Page 37

1

You can also type in the following in the ModelSim console: do Altmemphy_run_msim_rtl_verilog.do

Observe the simulation status on the Transcript page and the memory interface signals in the Wave page. When the functional simulation is successful, the testbench gives a "SIMULATION PASSED" message on the Transcript page.

You have now completed the functional simulation of the design example.

Step 5: Compile the Design and Generate the Timing Report

You are now ready to compile your design.

1. On the Processing menu, click Start Compilation to compile the design.

2. After compilation is successful, in the Quartus II software, on the Tools menu, select TimeQuest Timing Analyzer.

3. Generate the timing margin report for your memory interface design by executing the Report DDR function from the Tasks pane of the TimeQuest Timing

Analyzer

window, as shown in Figure 19 on page 38 . Executing the Report DDR task automatically runs the <variation_name>_report_timing.tcl timing margin report script generated by the MegaWizard Plug-In Manager when we created the megafunction variation.

f

For more information about the TimeQuest timing analyzer, refer to the

TimeQuest

Timing Analyzer

chapter in volume 3 of the

Quartus II Handbook

.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 38

Figure 19. TimeQuest Timing Analyzer

Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface

Figure 20 shows the output of the Report DDR task. The Report pane contains a new folder titled DDR with detailed timing information on the most critical paths and a timing margin summary similar to the one reported on the TimeQuest Console.

Figure 20. Report DDR Timing Margin Report from the TimeQuest Console

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface Using the ALTMEMPHY Megafunction Page 39

The report timing script provides timing margin information for the following paths:

Address and command setup and hold margin

Core setup and hold margin

Core reset and removal setup and hold margin

Strobe-to-clock setup and hold margin (DQS versus CK)

Half-rate address and command setup and hold margin

Mimic path setup margin

Read capture setup and hold margin

Read postamble setup and hold margin

Read resynchronization setup and hold margin

Write setup and hold margin

Note that this timing margin report was generated using the -3 speed grade slow timing model for the Stratix II GX device. In addition to this timing model, you must evaluate timing margins for your design using the fast timing model.

1. In the TimeQuest timing analyzer in the Task pane, double click on Set Operating

Conditions

.

2. In the dialog box that appears, select MIN_fast. Click OK.

3. Regenerate the timing margin report in the Task pane by double-clicking Report

DDR

.

1

Timing margin reports must be verified to be positive using all available device timing models to ensure design functionality.

You have now compiled the design and generated the timing margin report. For this design example, notice that all timing paths have positive margin.

Step 6: Adjust the Constraints

For all timing paths that have negative setup or hold margins, you must adjust the constraints on the design to improve margins for the failing path.

Generally, there are two methods to improve timing margins:

Adjust the PLL phase shift selection for I/O timing paths (write, address and command, DQS versus CK)

■ Optimize the register placement for internal timing paths (core, resync, postamble, mimic)

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 40 Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface

1

To avoid the core noise affect on the output jitter of the memory clock CK/CK#, follow these recommendations:

Cascaded PLLs are not recommended for ALTMEMPHY-based designs. You can only cascade PLLs between adjacent PLLs on the same side of the device by using the adjacent PLL (direct connection) method.

Any PLL on any side of a Stratix II device can support a single ALTMEMPHY interface. Ideally, you must pick a PLL and a PLL input clock pin located on the same side of the device as the memory interface pins.

Example 1: Postamble

You can improve the postamble timing path setup margin by placing the postamble enable register ( postamble_en_pos_2x[n]

) closer to the

DQS[n]

pin that it is driving.

For example,

DQS[5]

is driven by the following postamble enable register: ddr2_Altmemphy:ddr2_Altmemphy_inst|ddr2_Altmemphy_controller_ph y:ddr2_Altmemphy_controller_phy_inst|ddr2_Altmemphy_phy:alt_mem

_phy_inst|ddr2_Altmemphy_phy_alt_mem_phy_sii:ddr2_Altmemphy_phy

_alt_mem_phy_sii_inst|ddr2_Altmemphy_phy_alt_mem_phy_postamble_ sii:poa|postamble_en_pos_2x[5]

Because

DQS[5]

is assigned to pin location AU23, assign the postamble enable register to the LAB nearest to that I/O pin,

LAB_x33_Y1

. This improves the setup margin for that path.

Manually locating each of the nine DQS pins in the design example and creating postamble register location constraints to the nearest logic array block (LAB) is a tedious process. The relative_constraint.tcl utility is a handy tool that generates LAB location assignments for a bus of registers relative to the location of related pins.

Detailed descriptions of this script’s options and usage are available in “Appendix E:

The relative_constraint.tcl Script” on page 134 .

For this design example, the following three commands place the nine postamble registers (named “

*postamble_en_pos_2x[*]”

) near the corresponding DQS pin, and the 72 high and 72 low resynchronization registers (named “ rdata_p_ams[*]

” and “ rdata_n_ams[*]

”) near the corresponding DQ pin.

- quartus_sh -t relative_constraint.tcl -project Altmemphy -pin_name

“*mem_dqs[*]” -reg_name “*postamble_en_pos_2x[*]” -row_offset 1 -apply

- quartus_sh -t relative_constraint.tcl -project Altmemphy -pin_name

“*mem_dq[*]” -reg_name “*rdata_p_ams[*]” -row_offset 1 -apply

- quartus_sh -t relative_constraint.tcl -project Altmemphy -pin_name

“*mem_dq[*]” -reg_name “*rdata_n_ams[*]” -row_offset 1 -apply

Recompile the design and regenerate the timing margin report with these new location assignments. Figure 21 on page 41 shows the timing margin report with the postamble and resynchronization timing optimizations.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface Using the ALTMEMPHY Megafunction

Figure 21. Timing Report Example 1—Slow Timing Model

Page 41

Now that the slow timing model margins are all positive, verify timing margins using the fast timing model. Figure 22 shows the design example timing margins using the minimum timing model.

Figure 22. Timing Report Example 2—Fast Timing Model

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 42 Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface

Example 2: Address and Command

Suppose that the address and command timing path had a negative hold margin. You can adjust the PLL clock phase shift setting for the clock generating the address and command signals to improve the hold margin (by shifting the clock such that data is launched earlier). This clock setting is adjusted by changing the clock phase setting for the address and command clock in the PHY Settings page of the DDR2 SDRAM

High Performance Controller MegaWizard Plug-In Manager, as shown in Figure 8 on page 20

.

Step 7: Perform Board-Level Simulations to Verify the Design Constraints

For this design example, the board design constraints are already determined.

However, for your actual board, determine the optimal termination scheme, termination implementation (OCT versus external resistors), drive strength settings, and system loading.

Evaluate trade-offs posed by various board design choices using simulations.

Different factors contribute to signal integrity and affect the overall timing margin for the memory and FPGA. These include the termination scheme used, slew rate, and drive strength settings on the FPGA, and the loading seen by the driver. You must run board-level simulations to evaluate the trade-offs among the different types of termination schemes, the effects of output drive strengths, and loading, so that you can navigate through the various design choices and choose optimal settings for your design.

Table 8 lists the Altera-recommended board design constraints. However, ensure that the constraints below satisfy your application’s needs. For example, the Stratix II GX

PCI Express (PIPE) Development does not use ODT. Additionally, the board form factor only allows them to use single parallel termination for the bi-directional signals.

Table 8. Termination Recommendations (Part 1 of 2)

(Note 1)

Form Factor

DDR2

Signal Type

DQ/DQS

DM

Add/Cmd

Clock/Clock#

SSTL 18 I/O Standard

(2)

,

(3)

,

(4)

,

(5)

,

(6)

Class I R50 NO CAL

Class I R50 NO CAL

Class I MAX

Class I MAX

FPGA End Discrete

Termination

50

Ω Parallel to V tt discrete

N/A

N/A

N/A

Memory End

Termination 1

Rank/DIMM

ODT75

(8)

56

Ω Parallel to V tt discrete

N/A = on DIMM

Memory

I/O

Standard

FULL

(9)

N/A

N/A

N/A

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 333-MHz DDR2 SDRAM Interface Using the ALTMEMPHY Megafunction Page 43

Table 8. Termination Recommendations (Part 2 of 2)

(Note 1)

Form Factor Signal Type

DQ/DQS

SSTL 18 I/O Standard

(2)

,

(3)

,

(4)

,

(5)

,

(6)

Class II R25 NO CAL

FPGA End Discrete

Termination

50

Ω Parallel to V tt discrete

Memory End

Termination 1

Rank/DIMM

ODT75

(8)

Memory

I/O

Standard

HALF

DDR2 Discrete

DM

Add/Cmd

Clock/Clock#

Class I R50 NO CAL

Class I R50 NO CAL

Class I R50 NO CAL

N/A

N/A

N/A

ODT75

(8)

56

Ω Parallel to V tt discrete

×1 = 100

Ω differential

(10)

×2 = 200

Ω differential

(11)

N/A

N/A

N/A

Notes to Table 8 :

(1) N/A is not available.

(2) R is series resistor.

(3) P is parallel resistor.

(4) DYN is dynamic OCT.

(5) NO CAL is OCT without calibration.

(6) CAL is OCT with calibration.

(7) HALF is reduced drive strength.

(8) ODT75 verses ODT50 on the memory has the effect of opening the eye more, with a limited increase in overshoot, undershoot, or both.

(9) FULL is full drive strength.

(10) ×1 is a single device load.

(11) ×2 is two device loads.

(7)

To determine the correct board constraints, run board-level simulations to see if the settings provide the optimal signal quality. With many variables that can affect the signal integrity of the memory interface, simulating the memory interface provides an initial indication of how well the memory interface performs. There are various electronic design automation (EDA) simulation tools available to perform board-level simulations. Perform the simulations on the data, clock, control, command, and address signals. If the memory interface does not have good signal integrity, adjust the settings, for example, the drive strength setting, termination scheme, or termination values, to improve the signal integrity. Realize that changing these settings affects timing. It may be necessary to go back to the timing closure step if these settings change.

Step 8: Verify the Functionality on the Hardware

Perform system-level verification to correlate your system performance against your design targets. Use Altera’s SignalTap II logic analyzer to help in this effort. At this point, you are now ready to verify functionality on the hardware and implement memory interfaces such as this in your current and future designs.

f

For detailed information about using SignalTap II, refer to the

Design Debugging Using the SignalTap II Embedded Logic Analyzer

chapter in volume 3 of the

Quartus II

Handbook

.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 44 Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface

Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface

Using the Legacy PHY

This walkthrough describes the steps necessary to create, constrain, and verify the operation of a 267-MHz DDR2 SDRAM memory interface on a Stratix II GX device.

This design example uses the DDR2 SDRAM Controller MegaCore (with the legacy-integrated static data path and controller) to target the Stratix II GX PCI

Express (PIPE) Development Board. The design example created with this walkthrough is available for download along with this application note. Using the walkthrough, you will create a 72-bit wide, 267-MHz/533-Mbps DDR2 SDRAM memory interface targeted for the Stratix II GX PCI Express (PIPE) Development

Board. This walkthrough design example functions as a step-by-step guide to reproducing the design example.

If you are using ALTMEMPHY, go to “Design Example Walkthrough for a 333-MHz

DDR2 SDRAM Interface Using the ALTMEMPHY Megafunction” on page 11

. All memory interfaces using Arria GX devices must use ALTMEMPHY.

1

Legacy PHY is a memory interface PHY that enables speeds of up to 267 MHz on

Stratix II and Stratix II GX devices. The legacy PHY uses dedicated DQS phase-shift circuitry for capturing data from memory and a PLL phase shift determined during compilation to resynchronize memory read data to the system clock domain.

f

For more information about the legacy PHY architecture and memory controller, refer to

“Appendix C: Legacy PHY Architecture Description” on page 102 and the

DDR and

DDR2 SDRAM High-Performance Controller and ALTMEMPHY User Guide

, respectively.

The Stratix II GX edition of Altera’s PCI Express (PIPE) Development Board delivers a complete PCI Express-based (PIPE) development platform. This PCI Express (PIPE) solution, interoperable with industry-standard PCI Express (PIPE) platforms, facilitates the development of custom PCI Express (PIPE) applications. f

For more information about the PCI Express Development Board, refer to the

PCI

Express Development Kit, Stratix II GX Edition

.

This design example walks through the memory interface design flow steps shown in

Figure 1 on page 7 . f

For more details about this design flow, see

AN 449: Design Guidelines for Implementing

External Memory Interfaces in Stratix II and Stratix II GX Devices

.

1

The design example was created using the Quartus II software version 9.0 and

MegaCore IP Library software version 9.0.

1

This example focuses on the Stratix II GX device family. However, the information is also applicable to the memory interface designs using legacy PHY that target Stratix II and HardCopy II devices. Pay attention to the restrictions for HardCopy II devices, described in

AN 413: Using Legacy Integrated Static Data Path and Controller

Megafunction with HardCopy II Structured ASICs.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface Using the Legacy PHY Page 45

Step 1: Select the Device

This example uses the EP2SGX90FF1508C3 device that comes with the Stratix II GX

PCI Express (PIPE) Development Board. The board is also equipped with five

333-MHz capable DDR2 SDRAM components—four ×16 devices with part number

MT47H32M16CC-3 and one ×8 device with part number MT47H64M8CB-3. f

For more information about all the available features of the board, refer to the

Stratix II GX PCI Express Development Board Reference Manual

.

The design example uses five memory devices to create a 72-bit interface running at

267 MHz using the 2-PLL DQS mode, described in

“Appendix C: Legacy PHY

Architecture Description” on page 102 , with the DDR2 SDRAM Controller Compiler

MegaCore function. This is considered a width-expansion interface because multiple memory devices are used to create one wide interface using a single memory controller.

1

The maximum number of interfaces you can implement on any given device is limited by resource availability (number of DQ groups of desired width, user I/O pins, PLLs, DLLs, clocks, and FPGA core resources). Expanding your memory interfaces for width or depth with the same memory controller is supported by the

MegaWizard Plug-In Manager. Creating multiple memory controllers with independent memory transactions may require RTL modifications depending on whether you must share any device resources. f

To determine the number of DQ groups of each width that are supported by the

FPGA, refer to the External Memory Interfaces chapter of the

Stratix II Device

Handbook

or the

Stratix II GX Handbook

.

Expanding your memory interfaces for width or depth with the same memory controller (shared address/command bus) is supported natively by the MegaWizard

Plug-In Manager. Creating multiple memory controllers with independent memory transactions (independent address/command buses) requires you to create a unique megafunction variation for each interface. Sharing device resources between multiple memory interfaces may require RTL modifications. f

For more information about sharing device resources between multiple memory interfaces, refer to

AN 392: Implementing Multiple Legacy DDR/DDR2 SDRAM

Controller Interfaces

.

1

Both MT47H32M16CC-3 and MT47H64M8CB-3 devices have the same timing specifications because they share the same data sheet. If you are using devices with different data sheets, choose the worst-case specifications.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 46 Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface

Step 2: Instantiate the PHY and Controller in a Quartus II Project

Stratix II and Stratix II GX devices have a few legacy PHY implementations that you can choose from, listed in Table 9 .

Table 9. Available DDR2 SDRAM Legacy PHY Implementations for Stratix II and Stratix II GX Devices

Implementation

Variations When to Use

Non-DQS

One PLL

Two PLLs

When using the side I/O banks

When interfacing with more than 72-bit data per Stratix II device side

When not using the DLL for read capture

For interfaces that cannot use ALTMEMPHY megafunction (for example, when you need lower latency interfaces than offered by the ALTMEMPHY megafunction) and are running at or below 200 MHz.

(1)

When you cannot use the ALTMEMPHY megafunction (for example, when you need lower latency interfaces than offered by the ALTMEMPHY megafunction) and cannot achieve the required performance with the legacy PHY using one PLL. This implementation is limited to a maximum of up to

267 MHz.

(1)

Note to Table 9 :

(1) For legacy PHY, always perform timing analysis using the DDR Timing Wizard (DTW) with the targeted device to ensure you can run at your desired frequency.

Maximum performance for the legacy PHY implementations depend on:

FPGA density

Memory speed grade

Board trace length skew

PHY variation (non-DQS, 1-PLL, 2-PLL)

Figure 23 shows a system-level diagram for the legacy controllers. An example top-level design is created when you generate a DDR2 SDRAM Controller MegaCore function. This top-level design includes an example driver in addition to the memory controller, PLL, and DLL modules. The memory controller itself consists of a clear-text

PHY module and an encrypted control logic module. When using your own memory controller, you must manually extract the PHY from the encrypted controller, keeping the PLL and DLL connections to the PHY.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface Using the Legacy PHY Page 47

Figure 23. DDR2 SDRAM Legacy Controller System Level Diagram

Example Top-Level Design

Control

Logic

(Encrypted)

Example Driver

Local

Interface

DDR2 SDRAM

Interface

DDR2 SDRAM

Pass or Fail

Input

Clock

PLL

PHY

(Clear Text)

DLL or PLL

(1)

DDR2 SDRAM Controller

FPGA

Note to Figure 23 :

(1) When using dedicated DQS phase-shift circuitry, the DLL center-aligns the DQS strobe to the DQ data bus during read operations. The DLL input reference clock can come from either PLL5 or

CLK[15..12]p

for the DQS phase-shift circuitry on the top I/O banks and PLL6 or

CLK[7..4]p

for the DQS phase-shift circuitry on the bottom I/O banks. When not using the dedicated DQS phase-shift circuitry, a PLL implements this phase shift.

The legacy PHY requires a project, targeted to a specific device, to be open before you invoke the DDR2 SDRAM MegaWizard Plug-In Manager. Create a project in the

Quartus II design software or open a project if you already have one created.

You can either create a new Quartus II project or open an existing project where you would like to implement the DDR2 SDRAM memory interface. When creating a new project, specify the target FPGA device on page 3 of the New Project Wizard: Family

and Device Settings

. Set Stratix II GX as the Family and choose the

EP2SGX90FF1508C3 device

from the Available devices list.

When using an existing project, set the target FPGA device by opening the

Assignments menu and selecting Device... Set Stratix II GX as the Family and choose the EP2SGX90FF1508C3 device from the Available devices list, as shown in

Table 3 on page 5 . Device listings displayed are filtered by the fastest speed grade and the

1508-pin FPGA package. The Quartus II project name for this design example is

Legacy_PHY

. f

Refer to the tutorial in the Quartus II Help menu for step-by-step instructions for creating a Quartus II software project.

Figure 24 on page 48 shows a screenshot with the filter options on the top right side of the page to display the fastest speed grade devices available in a 1508-pin FBGA package. For this example, the project name is Legacy_PHY.qpf.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 48 Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface

Figure 24. Select the Target FPGA Device in Quartus II Software

Because the target frequency is 267 MHz, the design example uses the 2-PLL implementation of the legacy controller. Create this interface using the following steps:

1. Open the Tools menu in the Quartus II software and select MegaWizard Plug-In

Manager

.

2. In the MegaWizard Plug-In Manager [page 1] dialog box, select Create a new

custom megafunction variation

( Figure 25 ) and click Next.

Figure 25. Launching the MegaWizard Plug-In Manager

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface Using the Legacy PHY Page 49

3. On the MegaWizard Plug-In Manager [page 2a] dialog box, under the Select a

megafunction from the list below

list, click the “+” icon next to Interfaces. a. Click the “+” icon next to Memory Controllers and select the DDR2 SDRAM

Controller v9.0 megafunction

. b. Ensure the pull-down menu in the upper right-hand corner of the dialog box is set to Stratix II GX, as the project is targeted to the EP2SGX90FF1508C3. c. Select Verilog HDL as the output file type and enter an instance name of your choice (for example, legacy_core).

d. Click Next ( Figure 26 ).

Figure 26. Creating a Megafunction Variation

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 50 Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface

4. In the next dialog box ( Figure 27 ), select Parameterize to create the 267-MHz memory interface. Click Next.

Figure 27. DDR2 SDRAM Controller Window

5. The Parameterize dialog box appears, showing seven tabs representing different groups of settings for the memory interface. First, choose a memory device under the Presets list and a clock speed for the interface.

Because MT47H32M16CC-3 is not in the Presets list, choose MT47H64M16BT-

37E

. You can use this as a base before modifying the numbers to match the actual memory device specifications. This device has the closest timing specifications to the devices on the board because it is the fastest Micron device listed in the Presets list.

6. Set Clock Speed to 266.667 MHz. This is so that the PLL can get the accurate clock period for the interface. The PLL may not lock if the clock period is not exact.

Figure 28 through Figure 34 show screens from the DDR2 SDRAM MegaWizard

Plug-In Manager with all the changes that were made from the base settings highlighted in red boxes.

1

The parameters that you need to change vary with the memory device and the base settings that you chose in the MegaWizard Plug-in Manager. You must check that each parameter matches the memory device data sheet values.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface Using the Legacy PHY Page 51

7. In the Memory page, shown in Figure 28 , do the following: a. Set Data bus width to 72 to reflect the actual interface width.

b. Set Number of clock pairs from FPGA to memory to 3, because there are three pairs of clocks connected to the five memory devices. Two of the clock-pair signals go to two ×16 memory devices each, while one clock-pair signal goes to the ×8 memory device.

c. Set Bank address bits to 2, as the MT47H32M16CC-3 and MT47H64M8CB-3 devices only have four banks (instead of eight banks as in the base

MT47H64M16BT-37E device). The Presets dialog box automatically changes from MT47H64M16BT-37E to Custom. This occurs any time you change any

Memory Properties

item.

Figure 28. Memory Settings

1

The message window on the bottom of the screen gives you a warning to use fedback clock mode for interfaces greater than 200 MHz. You must always heed the warnings and follow the recommendations shown here.

8. In the Controller page, enable the Use fedback clock option because the design is running above 200 MHz and turn on the Insert extra pipeline registers in the

datapath

option to allow a dedicated PLL output to be connected to generate the address and command signals. Refer to Figure 29 to view the results of these changes.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 52

Figure 29. Controller Settings

Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface

1

Turning on the Insert extra pipeline registers in the datapath option propagates the address and command clock to the top-level design. This makes it easier to connect a different PLL output (other than the default negative edge of the system clock) if the timing results after compilation show that you need to shift this clock. However, there will be an additional clock cycle of latency, because a second pipeline register is inserted between the memory controller and the address and command outputs. This means that you cannot use this option if you use a registered DIMM, as address and command signals are registered on-board in registered DIMMs. Only use this option if you also turn on the Insert pipeline registers on address

and command outputs

option.

1

The previous warning, shown in Figure 28 on page 51 , disappears after choosing the Use fedback clock option. However, two new warnings show up at the bottom of the MegaWizard Plug-In Manager. Modify the Manual

Timings

page to heed these warnings.

1

You must use the memory’s on-die termination (ODT) option when it is suitable for your system. However, the Stratix II PCI-Express (PIPE)

Development Board uses an external resistor for termination on the memory side for all memory interface signals, so this design example does not use ODT.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface Using the Legacy PHY Page 53

9. In the Controller Timings and Memory Timings pages, modify the numbers based on the MT47H32M16CC-3 or MT47H64M8CB-3 data sheet, as shown in

Figure 30 and Figure 31 .

Figure 30. Controller Timings

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 54

Figure 31. Memory Timings

Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface

10. In the Board Timing page, ( Figure 32 ) do the following: a. Turn on the Manual pin load control box. b. Modify pin loading with the pin capacitance specification from the memory data sheet, as seen by the FPGA output pins.

The address and command pins are connected to five devices, so multiply the capacitance listed by five.

Multiply the capacitance on the clock pins by two, as the clock pins going to the

×16 devices are double-loaded. You can change the capacitance for the ×8 device in

“Step 3: Add the Constraints” on page 61

as that clock pin-pair only goes to one memory device. c. Modify the board timing information per the Stratix II GX PCI Express (PIPE)

Development Board specification, shown in Figure 32 .

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface Using the Legacy PHY

Figure 32. Board Timings

Page 55

11. In the Project Settings page, turn off the Automatically verify datapath-specific

timing in the Quartus II project

option, shown in Figure 33 on page 56 . This example uses the DDR Timing Wizard (DTW) to close timing.

12. In the Project Settings page, set Prefix all pins on the device with to mem_.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 56

Figure 33. Project Settings

Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface

Figure 34 shows the Manual Timings page, which displays resynchronization and postamble controls that you can change manually. The MegaWizard Plug-in

Manager calculates and implements the resynchronization and postamble clock phase shifts based on the information entered in previous pages for the 1-PLL implementation. However, you must turn on the Manual resynchronization

control

and Manual postamble control check boxes for the 2-PLL mode implementation.

13. In the Postamble clock setting pull-down list, select dedicated clock, which is another 2-PLL mode requirement.

1

These changes are necessary for correct RTL connection between the resynchronization and postamble paths and their respective clocks or else the design may not function properly.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface Using the Legacy PHY

Figure 34. Manual Timings

Page 57

14. Click Finish.

15. In the DDR2 SDRAM Controller MegaWizard page, click Constraints ( Figure 27 on page 50 ). Fix the location of the DQS and DQ pins per board specifications.

Figure 35

shows how the DQS groups are laid out on the board. The layout of the constraints window resembles Stratix II or Stratix II GX DQS and DQ grouping layout on the top and bottom of the device.

16. Click OK.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 58 Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface

Figure 35. Memory Interface Location for the Stratix II GX PCI Express Development Board

Numbers 0 through 8 that you select from the pull-down menu represent the

DQS[8..0]

pins in the design. You do not need to have the numbers in order from left to right, or right to left, as long as the user logic after the controller knows how to parse the data coming in. The DQS pins selected here are to match the

Stratix II GX PCI Express (PIPE) Development Board connection with the DDR2

SDRAM components.

1

You cannot select DQS pins from both the top and bottom side of the device. Each memory interface must reside in one side of the device.

c

The DQ pins associated with a DQS pin are fixed in the DDR2 SDRAM MegaWizard

Plug-in Manager database. If you need to swap the locations for any of the DQ pins, use the Assignment Editor or the Pin Planner. In addition, remember to turn off the

Automatically apply datapath-specific constraints to the Quartus II project

option in the Project Settings panel of the DDR2 SDRAM MegaWizard Plug-in Manager if you need to regenerate the controller at a later time.

17. In the DDR2 SDRAM controller MegaWizard page, click Set Up Simulation.

Turn on the Generate Simulation Model check box and choose either

Verilog HDL

or VHDL to generate a .vo (legacy_core.vo) file or a .vho

(legacy_core.vho)

file used to simulate the design. Click OK when you are done.

1

You can also turn on the Generate netlist check box in this page to generate a netlist for a third-party synthesis tool for resource usage and timing report estimation.

18. In the DDR2 SDRAM controller MegaWizard page, click Generate. ( Figure 27 on page 50 ) to generate all the files needed for this memory interface. This action generates a summary of the interface when the generation is successful, as shown in Figure 36 .

19. To close the DDR2 SDRAM controller MegaWizard page, click Exit.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface Using the Legacy PHY

Figure 36. DDR2 SDRAM MegaWizard Generation Report

Page 59

The DDR2 SDRAM MegaWizard Plug-In Manager also creates an example driver design with the same name as your project name (Legacy_PHY.v in the design example) such that you can compile and simulate the design to verify functionality before integrating it with the rest of your design.

20. Change the example driver to meet the requirements of your application.

21. Change the PLL input frequency if it is not of the same frequency of the interface.

The Stratix II GX PCI Express (PIPE) Development Board is equipped with a

100-MHz oscillator for the memory interface, so you must change the PLL input frequency by invoking the MegaWizard Plug-In Manager to edit the

ddr_pll_stratixii

module, as shown in Figure 37 .

22. Click Finish.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 60 Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface

Figure 37. Changing the PLL Input Clock Frequency

23. Because the fedback PLL inputs are generated by the system PLL, you must add some user logic that will toggle the areset pin of the fedback PLL after the system PLL is locked. This is to ensure that the fedback PLL gets a clean input clock signal when it is locked. However, the design example does not have this extra logic.

f

For more information about instantiating a memory controller using the legacy PHY, refer to the

DDR and DDR2 SDRAM High-Performance Controller and ALTMEMPHY

User Guide

.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface Using the Legacy PHY Page 61

Step 3: Add the Constraints

The IP Tool bench also creates a .tcl script called auto_add_ddr_constraints.tcl that constrains resynchronization register locations, DQS and DQ pin locations, I/O standards, output loads, and output enable groups. After sourcing the .tcl script, you also need to run DTW to time-constrain the design. You can choose either the Classic timing analyzer or TimeQuest timing analyzer when using DTW. However, DTW constraints using the TimeQuest timing analyzer give more accurate compilation results as the constraints apply for both timing models instead of just one corner (slow or fast timing model). This section describes how to add these constraints step-bystep.

1

The MegaWizard Plug-In Manager creates a verify_timing_for_<variation_name>.tcl file to report memory interface timing. However, Altera recommends you use DTW because it is more accurate and more flexible to use. The report_timing.tcl file makes certain assumptions that may not pertain to your design and does not support the

TimeQuest timing analyzer.

f

For more information about using DTW and its companion timing analysis script, refer to the

DDR Timing Wizard (DTW) Megafunction User Guide

.

You must add the appropriate pin location and pin loading assignments, termination, and drive strength to the memory interface signals in your design, in addition to timing and device constraints for the rest of your design.

To determine which drive strength and termination to use, refer to

“Stratix II,

Stratix II GX, and Arria GX On Chip Termination (OCT)” on page 5.

For more

information about memory interface signals, go to “Appendix D: Interface Timing

Analysis” on page 108 .

To have a reliable design running at the desired performance, you must constrain the design properly. The following steps guide you through all the constraints needed for the memory interface:

1. Open the Legacy_PHY.v file to ensure that the Quartus II software is pointing to the project directory.

1

If you previously opened a file from a different directory other than the project directory, the auto_add_ddr_constraints.tcl script might fail as the Quartus II software is not correctly pointing to the right directory. Opening the design top-level file ensures that the Quartus II software is pointing to the correct directory.

2. Source the auto_add_ddr_constraints.tcl script generated by the DDR2 SDRAM controller MegaWizard Plug-In Manager. To locate the file, open the Tools menu and select Tcl Scripts.

3. In the Tcl Scripts dialog box, highlight the auto_add_ddr_constraints.tcl file, as shown in Figure 38 .

4. Click Run to add constraints to the design. The script automatically performs analysis and elaboration before adding constraints to the design.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 62 Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface

Figure 38. Adding the IP Tool Bench Constraint c

The auto_add_ddr_constraints.tcl file contains the default I/O assignments including

I/O standard, pin location, and output loading settings. If your design is using non-default settings, source this .tcl file before applying your custom settings because this .tcl file overwrites pre-existing assignments in your Quartus II project. In addition, if you make a change to the settings set by this .tcl file, in the Project

Settings

page of the DDR2 SDRAM MegaWizard Plug-In Manager, turn off the

Automatically apply datapath specific constraints to the Quartus II project

option the next time you regenerate the controller.

1

The auto_add_ddr_constraints.tcl script file is the only .tcl file that you need from the

DDR2 SDRAM controller MegaWizard Plug-In Manager. However, the MegaWizard

Plug-in Manager creates the following .tcl files (in addition to

auto_add_ddr_constratints.tcl

) per variation:

add_constraints_for_legacy_core.tcl

—The auto_add_ddr_constraints.tcl calls this file which has the actual constraints for the controller.

auto_verify_ddr_timing.tcl

—This script calls

verify_timing_for_<

variation_name>.tcl.

ddr_lib_path.tcl

—This script contains the controller library path in the Quartus II installation directory.

remove_add_constraints_for_<

variation_name>.tcl—Run this script if you want to start the design with new assignments.

verify_timing_for_<

variation_name>.tcl—This is the MegaWizard-generated script for the memory interface timing report. Use DTW and its companion script

dtw_timing_analysis.tcl

instead.

If you get an error message similar to the one shown below, on the Processing Menu, point to Start and select Start Analysis & Elaboration to perform analysis and elaboration before sourcing the .tcl script.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface Using the Legacy PHY Page 63

Error: Cannot run Tcl Script File

"C:\AN328\Legacy_PHY\auto_add_ddr_constraints.tcl"

Error: ERROR: Project does not exist or has illegal name characters: Legacy_PHY. Specify a legal project name.

The auto_add_ddr_constraints.tcl script includes placement constraints for the resynchronization registers. It also contains the I/O standard, output loading, output enable grouping, and pin location assignments for the DQS and DQ I/O pins.

Run DTW to time-constrain the rest of the interface by following these steps:

1. On the Tools menu, select Tcl Scripts. In the Tcl Scripts dialog box, select DTW, as

shown in Figure 39

.

Figure 39. Invoking DTW

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 64 Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface

2. Pick a file name with a .dwz extension to store the settings and click Next. The default name for the file is ddr_settings.dwz, as shown in Figure 40 .

Figure 40. Creating a New DTW File

3. Ensure that the project and project revision names are correct on the next page, as shown in Figure 41 . Click Next.

Figure 41. Selecting Project and Project Revision Names

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface Using the Legacy PHY Page 65

4. Select whether you are going to import the MegaCore function settings using the

Classic timing analyzer or TimeQuest timing analyzer names, as shown in

Figure 42 . This design example uses the TimeQuest timing analyzer, which is the recommended timing analyzer, as the DTW-generated .sdc constraints apply for both fast and slow timing models.

Figure 42. Importing Settings from the IP Tool Bench

5. Click Import and select legacy_core_ddr_setting.txt, which contains all the information that was entered in the DDR2 SDRAM controller MegaWizard Plug-In

Manager.

6. Click Open to import the settings into DTW ( Figure 43 ).

Figure 43. Importing the DDR Settings to the DTW

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 66 Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface

7. After the import process is complete, click Next through each subsequent page, while confirming that all the information in the DTW is correct.

8. The last page of the DTW is shown in Figure 44 . Click Finish.

Figure 44. Last Page of the DTW

9. In the Assignment Editor, add other assignments to the design.

f

For more information about adding assignments to your design, and the DTW in general, refer to the

DDR Timing Wizard (DTW) User Guide

.

c

You must disable the MegaWizard Plug-in Manager from creating the constraints file if you make any changes to it, then regenerate the memory controller, otherwise these changes will get overwritten in the next compile.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface Using the Legacy PHY Page 67

10. Make these changes to the constraints file: a. Modify the I/O standard settings for the DQS and DQ pins from SSTL-18

Class II (this was set by the auto_add_ddr_constraints.tcl script) to SSTL-18

Class I, as the board uses Class I termination.

b. Change the Output Pin Load for the fedback_clk_out

pin to 6. This is necessary because this signal goes to the

CLK6p

pin of the FPGA which has

6 pF loading, instead of going to the memory clock pin which has 2 pF loading.

The constraints show 4 pF as set in the MegaWizard Plug-in Manager. c. Similarly, change the Output Pin Load for the clk_to_sdram[2]

and clk_to_sdram_n[2]

pins to 2. These pins are only connected to the single ×8 memory device instead of two, such as the clk_to_sdram[1:0]

and clk_to_sdram_n[1:0]

pins, which go to two ×16 memory devices each, as indicated during the PHY and controller instantiation step.

d. Change the I/O standard for the clock_source

pin to LVDS to match the settings on the board.

e. Set pin location assignments for the clock_source

, CK/CK#, fedback clock input, feedback clock output, address, and command pins. For the pin assignments for the Stratix II GX PCI Express Development Board, refer to

“Appendix A: Stratix II GX PCI-Express Development Board Pin Assignments” on page 92

.

1

You can set unused pins as inputs tri-stated with a weak pull-up resistor to ensure that those pins are not floating on the board. Set this assignment from the Assignment menu on the Device and Pin Options page in the Device window under Settings.

f. Change the DQ pin assignments to match the board. The DQ pin assignments generated by the MegaWizard Plug-In Manager does not match the pin assignment on the board, so you need to fix this manually. For the actual pin assignments for the Stratix II GX PCI Express (PIPE) Development Board, refer to

“Appendix A: Stratix II GX PCI-Express Development Board Pin

Assignments” on page 92 .

1

Changing the DQ pin locations mean that the resynchronization registers’ location assignments may not be valid any longer. You can fix this by running the relative_constraint.tcl script that is available with the design example, but to use it, you must compile the design first. For more information, refer to

“Step 6: Adjust the Constraints” on page 76 .

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 68 Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface

g. Add reserve pin assignments for the ddr2_a[13]

, ddr2_a[14]

, and ddr2_ba[2]

pins to the As output driving ground option. These pins are bonded on the board but are not used in the design.

h. Add I/O standard assignments for the pnf, reset_n, test_complete, ddr2_a[13]

, ddr2_a[14]

, and ddr2_ba[2]

pins to SSTL-18 Class I. You can also set the default voltage for the project to 1.8 V by opening the

Assignment menu, selecting the Settings page (Device and Pin Options in the

Device

folder) and making your changes there.

i. Set the termination and drive strength for the memory interface pins. The

auto_add_ddr_constraints.tcl

assigns all uni-directional pins to use the

Series 50

Ω without Calibration and the bi-directional pins to use the

Series 50

Ω without Calibration termination options. However, you can only use Series 50

Ω without Calibration for the memory interface pins (including the DQS and DQ pins) with this board.

For the design example, you must disable the Series 25

Ω without Calibration

termination

settings for the DQS and DQ pins because these pins are using

Class I termination on the board. Furthermore, you cannot set these pins to have the Series 50

Ω without Calibration termination setting as the resultant drive strength from this setting is not enough for 267-MHz operation. j.

In the Assignment Editor, set the Delay from Output Register to Output Pin option for the clk_to_sdram*

outputs and fedback clock outputs to 0. This is to disallow the Quartus II software from adding output delay chains to the pins. k. Save the Assignment Editor file.

11. On the Assignments menu, click Settings and complete the following: a. Under Fitter settings:

Under the Optimize hold timing option, choose All Paths because you are using the TimeQuest timing analyzer. Turn off the Optimize hold timing option if you are using the Classic timing analyzer because having this option turned on sometimes yields incorrect phase shift results when using

dtw_timing_analysis.tcl

.

Ensure that the Optimize fast corner timing option is unchecked, whether you are using the TimeQuest or Classic timing analyzer. The design example uses

.sdc

constraints that are already optimized for both ends of the timing model.

b. Under the Timing Analysis Settings section, choose Use TimeQuest Timing

Analyzer

during compilation.

c. Under Timing Analysis Settings in the TimeQuest timing analyzer sub-option, add the DTW-generated .sdc file ddr_settings.dwz.sdc. d. Click OK.

When your design is properly constrained, you are ready to compile the design.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface Using the Legacy PHY Page 69

Step 4: Perform the RTL/Functional Simulation (Optional)

For performing a functional simulation of your memory interface, use the functional models generated by the MegaWizard Plug-In Manager. You must use this model in conjunction with your own driver or the MegaWizard testbench that issues read and write operations, and a memory model.

The Verilog HDL or VHDL simulation model of the PHY is found in your project directory. For the design example, the file is named Legacy_PHY.vo. During controller generation, the DDR2 SDRAM controller also creates a subdirectory called testbench, which contains the testbench file (Legacy_PHY_tb.v) and a folder called ModelSim.

The ModelSim folder contains a .tcl file (legacy_core_ddr_sdram_vsim.tcl) and a

wave.do

file to run simulations in the ModelSim Altera software.

The design example here is unique in that it uses two different types of DQS modes.

The testbench assumes that nine ×8 memory devices are used as if you are interfacing with a 72-bit DIMM for all designs. Some modifications described below are needed to simulate the design example properly.

Get the Memory Simulation Model

1. Download the simulation model of the memory type that you selected from the memory vendor ’s website for the project into the <project_directory>\testbench directory. The model name for the MT47H32M16CC-3 and MT47H64M8CB-3

DDR2 SDRAM components is called ddr2.v.

2. Copy the parameter file ddr2_paremeters.vh into the

<

project_directory>\testbench\modelsim directory.

Prepare the Simulation Model

1. Open the ddr2.v file in a text editor and set the following define statements at the top of the file:

`define sg3

`define ×8

The first line defines the memory speed grade; the second line defines the memory device width. Even though four of the five devices used in the design are ×16

DDR2 SDRAM components, the steps below allude that nine ×8 DDR2 SDRAM components are used.

1

The design example downloadable with this application note offers both workarounds for the testbench file. The Legacy_PHY_tb.v testbench file in the design example uses nine ×8 DDR2 SDRAM models. You cannot perform the simulation with both ×16 and ×8 DDR2 SDRAM models. In addition, because 72 is not divisible by 16, you cannot use the ×16 DDR2 SDRAM models because the width interface does not match. If you use two ×8 DDR2 SDRAM components, you may use the ×16 DDR2

SDRAM models.

2. Save the ddr2.v file.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 70 Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface

Instantiate the Memory Model in the Testbench

1. From the \testbench directory, open Legacy_PHY_tb.v in a text editor.

2. Locate the line generic_ddr2_sdram_rtl #

, which is the first instantiation of the memory device, as shown below: generic_ddr2_sdram_rtl # (

.BANKBITS (2),

.ROWBITS (13),

.COLBITS (10),

.DATABITS (8)

) memory_0_0 (

.DQ (mem_dq[ 8* (0+1) - 1 : 8 * 0]),

.DQS (mem_dqs[0]),

.ADDR (a_delayed[13-1: 0]),

.BA (ba_delayed),

.CLK (clk_to_ram),

.CLK_N (clk_to_ram_n),

.CKE (cke_delayed[0]),

.CS_N (cs_n_delayed[0]),

.RAS_N (ras_n_delayed),

.CAS_N (cas_n_delayed),

.WE_N (we_n_delayed),

.DM_RDQS (dm_delayed[0]),

.ODT (odt_delayed),

.RDQS_N (),

.DQS_N ()

);

3. The testbench assumes that the memory model used is named

generic_ddr2_sdram_rtl.v

. For this design, replace generic_ddr2_sdram_rtl with the ddr2

for the nine memory device instantiations to match the memory model prepared in step 1 .

4. Ensure that the port names in the memory model match the memory device port names in the testbench.

1

In Verilog HDL, the names are case-sensitive, which is not the case in VHDL. The

ddr2.v

file uses lower-case signal names—change the signal names in the module instantiations in the testbench file that have upper-case names. For more information, refer to

“Modify the System PLL File” on page 71

.

1

The ddr2 module in the design example uses ck

and ck_n

ports instead of clk

and clk_n

ports. Change the signal names to match the port names in the ddr2 module.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface Using the Legacy PHY Page 71

1

If you are using a ×16 DDR2 SDRAM model for your actual design, change the DQ,

DQS, and DM indices in the module instantiation as shown in this example: ddr2 memory_0_0 (

.dq (mem_dq[mem_dq[8*(0+1)- 1: 8*0]]),

.dqs (mem_dqs[0]),

.addr (a_delayed[13-1: 0]),

.ba (ba_delayed),

.ck

.ck_n

(clk_to_ram),

(clk_to_ram_n),

.cke (cke_delayed[0]),

.cs_n (cs_n_delayed[0]),

.ras_n (ras_n_delayed),

.cas_n (cas_n_delayed),

.we_n (we_n_delayed),

.dm_rdqs (dm_delayed[0]),

.odt (odt_delayed),

.rdqs_n (),

.dqs_n ()

);

5. Look for the following line and change the period of the clock to 10000: parameter REF_CLOCK_TICK_IN_PS = 3750;

//edit if you change your PLL reference clock frequency

6. Save the testbench.

Modify the System PLL File

1. Open the ddr_pll_stratixii.v file located in the project directory.

2. Comment out output port c3 in the port list and the port declaration portion of the file. The changes are shown in this example: module ddr_pll_stratixii ( inclk0, c0, c1, c2,

//c3

); input inclk0; output c0; output c1; output c2;

//output c3;

This port is created by the DDR2 SDRAM controller MegaWizard Plug-in Manager for 1-PLL mode operation but is not used in this design example so it does not affect design compilation. You must comment out the code or the ModelSim software will give you a missing port error.

1

Use this PLL output for the address and command clock in

“Step 6: Adjust the

Constraints” on page 76

.

3. Save the file.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 72 Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface

Update the wave.do File

1. Open the wave.do file in the <project_directory>\testbench\modelsim directory.

2. Change the following code: add wave -noupdate -format Logic -radix hexadecimal

/${testbench_name}/dut/resynch_clk to add wave -noupdate -format Logic -radix hexadecimal

/${testbench_name}/dut/fedback_resynch_clk

The default wave.do file wrongly names the resynchronization clock. This is a generic file that is also used for 1-PLL mode simulation.

1

When using 1-PLL mode, the default resynch_clk

signal is called from the device under the test (DUT) module, when it is supposed to be called one level below that. In this implementation, change the line to: add wave -noupdate -format Logic -radix hexadecimal /${testbench_name}/dut/legacy_core_ddr_sdram/ resynch_clk

3. Save the wave.do file.

Perform the Simulation in the ModelSim Software

f

To use the NativeLink feature, follow the instructions in the

Using the NativeLink

Feature with ModelSim

section volume 3 of the Quartus II Handbook.

1. Ensure that ModelSim is installed on your system and invoke the ModelSim simulator.

1

You can use either the ModelSim-Altera edition or the full version of the ModelSim simulator.

2. Change the directory in the ModelSim Transcript window to

<

project_directory

>/testbench/modelsim,

as shown in Figure 45 .

Figure 45. Changing the Directory in ModelSim

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface Using the Legacy PHY Page 73

3. Set the memory model used for this simulation by entering the following: set memory_model ddr2

4. On the Tools menu, click Execute Macro and select

legacy_core_ddr_sdram_vsim.tcl

.

1

You can also type: do legacy_core_ddr _sdram_vsim.tcl

The simulator runs until the time elapsed is ~204 µs with the ModelSim Transcript window showing that simulation passed (

Figure 46

). The first 200 µs of the simulation initializes the memory.

Figure 46. End of Simulation in ModelSim Transcript Window

Figure 47 shows the last read and write transactions that occurred near the end of the simulation.

Figure 47. Read and Write Transactions in ModelSim

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 74 Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface

Step 5: Compile the Design and Generate the Timing Report

Compile the fully constrained design. After successfully compiling your design in the

Quartus II software, run the dtw_timing_analysis.tcl script from the command prompt to analyze interface timing ( Figure 48 ). This script is available in the

<

quartus_installation_directory>\quartus\common\tcl\apps\gui\dtw folder. You can either copy the script into your project directory or access the script from its default location. You must however, run the script from your project directory in the command prompt.

The command to call the dtw_timing_analysis.tcl script from the default Quartus II

9.0 installation directory is as follows (provided that you are using ddr_settings.dwz file for your design): quartus_sh -t c:\altera\90\quartus\common\tcl\apps\gui\dtw\ dtw_timing_analysis.tcl -dwz_file ddr_settings.dwz

1

The script must know which .dwz settings to analyze, so you must specify them manually using the command line. There are other optional arguments for the script, which are documented in the

DDR Timing Wizard (DTW) User Guide

.

Figure 48. Sourcing the dtw_timing_analysis.tcl Script c

You cannot run the dtw_timing_analysis.tcl script from the Tcl Scripts option under the Tools menu.

After the dtw_timing_analysis.tcl script has finished running, close the compilation report and reopen it to display the script results.

The dtw_timing_analysis.tcl script results are added at the bottom of the compilation report in the Memory Interface Timing folder ( Figure 49 ). This folder has a subfolder named legacy_core (ddr_settings.dwz), where legacy_core is the name of the

MegaCore controller and ddr_settings.dwz is the name of the .dwz file used for the analysis.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface Using the Legacy PHY

Figure 49. The dtw_timing_analysis.tcl Script Results

Page 75

There are three panels under the subfolders named Timing Summary, Recommended

Settings,

and What To Do Next, shown in Figure 50 through Figure 52 .

Figure 50. Design Example Timing Summary

As shown in the Timing Summary in Figure 50 , the slow setup margin for the fedback clock timing shows a violation of over one clock period. This indicates that the clock cycle selection for the resynchronization path is incorrect, as shown in the recommended settings in Figure 51 .

Remember also that the DQS/DQ pin assignments were changed, resulting in the resynchronization register locations not being optimally placed. These location assignments are fixed in

“Step 6: Adjust the Constraints” on page 76 .

Figure 51. Design Example Recommended Settings

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 76 Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface

The What To Do Next panel in Figure 52 provides high-level suggestions about what you must do to balance your timing margins.

Figure 52. What To Do Next f

For more information about how to change the phase shifts of the postamble,

CK/CK#, and address and command clocks, refer to the

DDR Timing Wizard (DTW)

User Guide.

1

You must not adjust the phase shift of the system clock or the write clock, which defaults to the pllclk[0]

and pllclk[1]

signals. Instead, if another path uses either of these clocks and requires phase-shift adjustment, change the connection and use dedicated PLL outputs.

Because the design does not meet timing, you must adjust the design constraints.

Step 6: Adjust the Constraints

Before using the dtw_timing_analysis.tcl recommendations, fix the resynchronization registers’ location assignments to ensure that these registers are optimally placed.

1. Run the resynch.bat batch file in the command editor pointing to your project directory ( Figure 53 ) to fix the resynchronization registers’ location assignments.

Figure 53. Running a Batch File to Fix the Resynchronization Registers’ Location Assignments

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface Using the Legacy PHY Page 77

The resynch.bat batch file runs relative_constraint.tcl in the background. The batch file groups the two groups of resynchronization registers with each DQ pin and places the registers one row above the pins. The following is an example of the code in the batch file for DQS/DQ group 0: quartus_sh -t relative_constraint.tcl -project Legacy_PHY pin_name *ddr2_dq[* -reg_name "*0:*|resynched_data[*]" show_regs -reg_range 7:0 -pin_range 7:0 -row_offset 1 -apply quartus_sh -t relative_constraint.tcl -project Legacy_PHY pin_name *ddr2_dq[* -reg_name "*0:*|resynched_data[*]" show_regs -reg_range 15:8 -pin_range 7:0 -row_offset 1 -apply f

For more information about relative_constraint.tcl, refer to “Appendix E: The relative_constraint.tcl Script” on page 134

.

2. After running the batch file, compile the design and rerun the

dtw_timing_analysis.tcl

script. Then, follow the recommended phase shift for the resynchronization, postamble, and write clocks from the dtw_timing_analysis.tcl script and recompile the design to close timing.

Figure 54 and Figure 55 show the new timing analysis results and recommendation after the resynchronization registers’ location assignments are fixed.

Figure 54. Timing Summary with Optimized Resynchronization Registers’ Locations

Figure 55. Recommended Settings with Optimized Resynchronization Registers Locations f

For more information about how to close timing with DTW, refer to the “Timing

Closure Process” section of the

DDR Timing Wizard (DTW) User Guide

.

3. On the Manual Timing page, change both the clock cycle and phase shift of the fedback resynchronization clock. Perform the changes in the DDR2 SDRAM controller MegaWizard Plug-In Manager.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 78 Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface

1

Changing the phase shift for the CK/CK# signals affects the read data path timing, rendering the timing analysis results shown in Figure 56 invalid.

Figure 56. Changing Clock Phase Shift Settings in the DDR2 SDRAM MegaWizard Plug-In Manager

4. On the Controller page, turn off the Clock address and command output

registers on the negative edge

option. The address and command clock also needs a dedicated PLL output, based on the dtw_timing_analysis.tcl script phase shift recommendation, shown in Figure 51 on page 75 . You can add 180 o

phase shift manually in the ALTPLL MegaWizard Plug-In Manager for easier tracking with this option turned off. This change is shown in Figure 57 .

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface Using the Legacy PHY

Figure 57. Changing the Address and Command Clock Edge

Page 79

5. In the Project Settings page, turn off the Automatically apply datapath-specific

constraints to the Quartus II project

option, as shown in Figure 58 . This prevents the DDR2 SDRAM MegaWizard Plug-In Manager from assigning the pin location and I/O standard assignments that have been changed before the previous compilation.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 80 Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface

Figure 58. Disabling the auto_add_ddr_constraints.tcl Script

1

Disable the simulation netlist generation or any changes you made for functional simulation will be overwritten.

6. Click Finish and regenerate the controller to apply these changes.

7. Click OK when the MegaWizard Plug-In Manager warns you about overwriting existing files. To use a dedicated PLL output for the address and command clock, enable the c3 output of the system PLL and connect this output to addrcmd_clk in the legacy_core

instantiation. The system PLL instantiation code in the

Legacy_PHY.v

file looks similar to the following example: ddr_pll_stratixii g_stratixpll_ddr_pll_inst

(

.areset (pll_reset),

.c0 (clk),

.c1 (write_clk),

.c2 (dedicated_resynch_or_capture_clk),

.c3 (dedicated_addrcmd_clk),

.inclk0 (clock_source),

.locked (pll_locked

);

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface Using the Legacy PHY Page 81

The MegaWizard Plug-In Manager uses an input PLL clock that is the same frequency as the memory interface. You must change the input clock frequency in the ALTPLL

MegaWizard Plug-In Manager for the ddr_pll_stratixii

module. Remember to change the input clock frequency in this module to 100 MHz for the design example.

The MegaWizard Plug-In Manager overwrites any changes that you made. To avoid this, on the Project Settings page, you can disable the Update the example design

PLLs

option, as shown in Figure 58 on page 80 . However, this means that you must manually update any changes in the PLL phase shifts.

In the legacy_core

instantiation in the Legacy_PHY.v file, change:

.addrcmd_clk (clk), to:

.addrcmd_clk (dedicated_addrcmd_clk),

1

The addrcmd_clk

signal is only available when the Insert extra pipeline registers in

the datapath

option is turned on in the Controller page of the DDR2 SDRAM

Controller Parameterization

window.

c

Because the design example was modified, on the Project Setting page shown in

Figure 62 on page 89 , make sure you turn off the Update the example design file that

instantiates the controller variation

option the next time you invoke the DDR2

SDRAM controller MegaWizard Plug-In Manager.

You must configure the phase shift for the output using the ALTPLL MegaWizard

Plug-In Manager, as shown in Figure 59 . The dtw_timing_analysis.tcl script recommends a phase shift of 22 o

for the address and command clock. However, in the previous compilation, the negative edge of the system clock was used for the address and command clock, which translates to 180 o

phase shift. Therefore, the address and command clock must have a 158 o (180 o – 22 o ) phase shift after the Clock address and

command output registers on the negative edge

option is turned off.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 82 Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface

Figure 59. Address and Command Clock Phase Shift Setting

After changing the postamble and address/command clocks (leaving the CK/CK# clocks alone) as recommended by the dtw_timing_analysis.tcl script, perform

Analysis and Elaboration to update the PLL settings and connections in the design netlist before running DTW again.

Run DTW and re-import the settings, then ensure that the updates you made to the design are reflected in the DTW pages.

1

You can also run the dtw_timing_analysis.tcl script with the

-after_iptb import_and_compile

switch to resynthesize the design, update DTW, recompile the design, and re-analyze the timing without having to perform each flow manually.

Compile the design and re-run the dtw_timing_analysis.tcl script in the command prompt after compilation is done. Figure 60 shows the timing results with all memory interface timings met. You can further fine-tune the phase shifts according the script result recommendation.

Figure 60. The Proper Timing Results After Compilation

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface Using the Legacy PHY Page 83

1

Some core timing paths are not met. You must close the core timing by moving registers closer together or by creating one or more LogicLock™ regions. f

For complete information about closing timing on this design example, refer to the

DDR Timing Wizard (DTW) User Guide

.

Step 7: Perform Gate-Level Simulation (Optional)

To perform gate-level simulation, follow these steps:

1. On the Assignment menu, click EDA Tool Settings. The EDA Tool Settings page appears.

2. In the EDA Tool Settings page, double-click on Simulation.

3. Set Tool name to ModelSim-Altera.

4. Choose Verilog for the output netlist. Figure 61 shows the changes to the

Simulation

page.

You don’t need to change the output directory because the MegaWizard-generated simulation script looks for the .vo and .sdo files in the default

<

project_directory>\simulation\modelsim directory.

Figure 61. Simulation Page

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 84 Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface

5. Click OK.

6. To generate the simulation netlist, open the Processing menu, point to Start and choose the Start EDA Netlist Writer option.

7. Follow the steps described in “Step 4: Perform the RTL/Functional Simulation

(Optional)” on page 69 . Before you execute the .tcl file, set the simulation mode to

gate level by typing: set use_gate_model 1

1

If you performed a functional simulation, you only need to set the gate model usage and execute the .tcl file.

f

To use the NativeLink feature, follow the instructions in the

Using the NativeLink

Feature with ModelSim

section of the Quartus II Handbook, volume 3.

Step 8: Perform Board-Level Simulations to Verify the Design Constraints

For this design example, the board design constraints are already determined.

However, for your actual board, determine the optimal termination scheme, termination implementation (OCT versus external resistors), drive strength settings, and system loading.

Table 10

shows the Altera-recommended board design constraints. However, ensure that the constraints in

Table 10

satisfy your application’s needs. The Stratix II GX PCI

Express (PIPE) Development; for example, does not use ODT. Additionally, the board form factor only allows you to use single parallel termination for the bi-directional signals.

Table 10. Termination Recommendations (Part 1 of 2)

(Note 1)

Form Factor

DDR2

DQ/DQS

DM

Signal Type

Add/Cmd

Clock/Clock#

SSTL 18 IO Standard

(2)

,

(3)

,

(4)

,

(5)

,

(6)

Class I R50 NO CAL

Class I R50 NO CAL

Class I MAX

Class I MAX

FPGA End Discrete

Termination

50

Ω Parallel to V tt discrete

N/A

N/A

N/A

Memory End

Termination 1

Rank/DIMM

ODT75

(8)

56

Ω Parallel to V tt discrete

N/A = on DIMM

Memory IO

Standard

FULL

N/A

N/A

N/A

(9)

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Design Example Walkthrough for a 267-MHz DDR2 SDRAM Interface Using the Legacy PHY Page 85

Table 10. Termination Recommendations (Part 2 of 2)

(Note 1)

Form Factor Signal Type

DQ/DQS

SSTL 18 IO Standard

(2)

,

(3)

,

(4)

,

(5)

,

(6)

Class II R25 NO CAL

FPGA End Discrete

Termination

50

Ω Parallel to V tt discrete

Memory End

Termination 1

Rank/DIMM

ODT75

(8)

Memory IO

Standard

HALF

DDR2 Discrete

DM

Add/Cmd

Clock/Clock#

Class I R50 NO CAL

Class I R50 NO CAL

Class I R50 NO CAL

N/A

N/A

N/A

ODT75

(8)

56

Ω Parallel to V tt discrete

×1 = 100

Ω differential

(10)

×2 = 200

Ω differential

(11)

N/A

N/A

N/A

Notes to Table 10

:

(1) N/A is not available.

(2) R is series resistor.

(3) P is parallel resistor.

(4) DYN is dynamic OCT.

(5) NO CAL is OCT without calibration.

(6) CAL is OCT with calibration.

(7) HALF is reduced drive strength.

(8) ODT75 verses ODT50 on the memory has the effect of opening the eye more, with a limited increase in overshoot, undershoot, or both.

(9) FULL is full drive strength.

(10) ×1 is a single device load.

(11) ×2 is two device loads.

(7)

Evaluate trade-offs posed by various board design choices using simulations.

Different factors contribute to signal integrity and affect the overall timing margin for the memory and FPGA. These include the termination scheme used, slew rate, and drive strength settings on the FPGA, and the loading seen by the driver. Evaluate the trade-offs between the different types of termination schemes, the effects of output drive strengths, and loading, so that you can navigate through the various design choices and choose optimal settings for your design.

To determine the correct board constraints, run board-level simulations to see if the settings provide the optimal signal quality. With many variables that can affect the signal integrity of the memory interface, simulating the memory interface provides an initial indication of how well the memory interface performs. There are various electronic design automation (EDA) simulation tools available to perform board-level simulations. You must perform the simulations on the data, clock, control, command, and address signals. If the memory interface does not have good signal integrity, adjust the settings, such as the drive strength setting, termination scheme, or termination values, to improve the signal integrity. (Changing these settings affects the timing.) It may be necessary to go back to the timing closure step if these change.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 86 Multiple Memory Controllers Walkthrough

Step 9: Verify the FPGA Functionality

To verify the functionality of the design example, download the design to the

Stratix II GX PCI-Express Development Board. The design example contains a pnf

(pass not fail) signal that indicates whether the memory interface is functioning correctly. You can also use the SignalTap Embedded Logic Analyzer for board testing to verify the interface signals. You can now download the design into the board to verify functionality or expand the design for your application.

1

When considering implementing multi-DIMM systems, refer to

AN 380: Test DDR or

DDR2 SDRAM Interfaces on Hardware Using the Example Driver.

Multiple Memory Controllers Walkthrough

This walkthrough describes the steps to implement multiple memory interfaces in which there are independent memory transactions, but the interfaces are operating at the same frequency. Such implementations require multiple instantiations of the PHY, which in turn may necessitate device resource sharing, such as the delay-locked loops

(DLLs), phase-locked loops (PLLs), and clock networks, and may require extra steps to create the interfaces in a Quartus II project.

A design example (top.qar) demonstrating multiple memory interfaces in a Stratix II device is downloadable along with this application note.

Getting to Know Your Altera Device

When creating multiple memory interfaces to be fitted in a single device, first ensure that there are enough device resources for the different interfaces. These device resources include the number of pins, DLLs and clock networks, where applicable.

The DLLs and clock network resources from the clock and reset management block are shared between multiple memory interfaces, but there are sharing limitations that you must pay close attention to.

Perform the following before actually creating the multiple memory interfaces in

Quartus II:

Compare the requirement for the multiple interface design with the resources available on the device.

Determine which resources limit multiple interfaces.

Decide which resources are shared in order to fit more memory interfaces in the device.

The following sections discuss the device resources to be considered for your multiple memory interface design:

“I/O Banks” on page 87

“I/O Pins” on page 87

“I/O DLLs” on page 87

“I/O PLLs and Clock Network Resources” on page 87

“Other Resources” on page 88

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Multiple Memory Controllers Walkthrough Page 87

After you have compared the required and available resources, you can start defining resources to be shared. This in turn determines the topology of your system. If no resources are to be shared, you can create the memory controllers as two different modules in the device. If you are sharing resources, the following sections offer guidance for sharing the DLL or PLL clock outputs, or both.

I/O Banks

You must determine the I/O bank placement of your memory interface. Arria GX,

Stratix II, and Stratix II GX devices only support ALTMEMPHY-based memory interfaces on the top and bottom I/O banks (I/O banks 3, 4, 7, and 8). You can have multiple memory interfaces in a Stratix II I/O bank, provided that you are able to share the DLL and you have enough pins and clock networks for those interfaces. If you do not have enough clock networks, you must be able to share some of the clocks between the interfaces.

After deciding which I/O banks to use, ensure that you have enough I/O pins in the chosen I/O banks for your memory interfaces.

I/O Pins

DQS and DQ pins are listed in the device pin-outs and fixed at specific locations in the device. These locations are optimized in routing to minimize skew and maximize margin. Altera recommends you to always check the pin table and the external memory interfaces chapters for the number of DQS/DQ groups supported in a particular device.

1

You cannot share any I/O pins for multiple memory interfaces described in this document.

To check if the memory interfaces fit in the FPGA, compare the number of pins available in the FPGA with the number of pins required for the memory interfaces.

I/O DLLs

A single DLL can support any number of interfaces (limited by pins, PLLs, clock networks, and logic element resources) running at the same frequency and using the same DLL frequency mode.

For Arria GX, HardCopy II, Stratix II, and Stratix II GX devices, there is one DLL on the top and one DLL on the bottom of each device. Each DLL can only shift the DQS pins located on the same side as the DLL. Since there are only two DLLs, the Stratix II device can have a maximum of two memory interfaces with unique frequencies.

I/O PLLs and Clock Network Resources

The ALTMEMPHY megafunction uses a PLL that is instantiated in the ALTMEMPHY

MegaWizard® Plug-In Manager. The PLL is responsible for generating the various clocks needed in the memory interface data path and controller.

1

You must decide whether you need to share clock networks, PLL clock outputs, or

PLLs for your multiple memory interfaces.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 88 Multiple Memory Controllers Walkthrough

Other Resources

You must pay attention to other device resources that are used in an external memory interface, for example the TriMatrix™ embedded memory blocks. If your design requires many TriMatrix embedded memory blocks for other modules in the design, ensure that there are enough for the memory interfaces as well.

Stratix II Design Example

Consider a Stratix II EP2S90F1508C3 device with the following memory requirements:

One controller interfacing with a ×72 DDR2 SDRAM DIMM device running at

267 MHz

Two controllers interfacing with ×8 DDR2 SDRAM components running at

267 MHz

All three controllers use the Altera DDR2 SDRAM High-Performance Controllers in half-rate mode.

1

Half-rate mode means that the clock frequency of the memory controller is half the frequency of the actual memory device's clock rate. In half-rate mode, ALTMEMPHY multiplexes and demultiplexes data between the memory controller and the memory devices to transfer data between the two frequencies.

Comparing I/O Pin Number Requirements

A DDR2 SDRAM DIMM interface requires about 124 pins, while a ×8 DDR2 SDRAM interface requires around 38 pins. As noted in the

Stratix II Device Handbook

, Stratix II has a maximum of 9 groups of ×8 DQS/DQ groups, such that the DIMM interface needs to take one side of the FPGA. Furthermore, the Quartus II Pin Planner indicates that there are 94 pins in I/O bank 3, and 102 pins in I/O bank 4, so the whole DIMM interface can fit in the top bank.

I/O banks 7 and 8 have 100 and 95 user I/O pins, respectively, so the two ×8 DDR2

SDRAM interfaces can share one I/O bank. However, for this exercise, the ×8 DDR2

SDRAM interfaces are placed in two different I/O banks so that the separation between the two interfaces are clearer.

To summarize, the DIMM interface is going to be located on the top of the device (I/O banks 3 and 4), while one ×8 DDR2 SDRAM controller is located on I/O bank 7, and the other on I/O bank 8.

Deciding DLL Requirements

Because there are two interfaces on the bottom side of the design, these interfaces must share a single DLL. This example uses two DLLs.

Creating PHY and Controller for the Design Example

You must create the DIMM interface as a single interface without any special handling

(called top.v in the design example) because it is not sharing any resources. The two memory interfaces at the bottom of the device are exactly the same. They both receive their static clocks from the top.v module. In this design example, because they are identical, you can create one variation and instantiate the same variation twice in the top-level file.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Multiple Memory Controllers Walkthrough Page 89

1

For easy organization of the files, Altera recommends that you create each controller as subfolders of the top project.

Sharing the DLLs Between the Two Bottom Controllers

The DLL is shared between the two bottom controllers in the example design. If the controllers are sharing a DLL, ensure that the Instantiate DLL externally option is turned on in the PHY Settings page of the DDR3/DDR2/DDR SDRAM High-

Performance Controller or the ALTMEMPHY MegaWizard Plug-In Manager, as shown in

Figure 62 on page 89

. This option must be checked for every interface that is sharing a DLL.

Figure 62. Allowing the DLL to be Instantiated Externally for Controllers Sharing DLLs

When the Instantiate DLL externally option is checked, the MegaWizard Plug-In

Manager generates a file called <variation_name>_phy_alt_mem_phy_dll_sii.v/.vhd.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 90 Multiple Memory Controllers Walkthrough

The example top design then instantiates the DLL in addition to instantiating the memory controller and the example driver. You can then instantiate the other memory controllers for the design and either modify the example driver to create the test pattern for all controllers or create another design example for each controller that is instantiated.

Sharing the PLL Clock Outputs

You can share the static clock networks in multiple memory controllers by setting the

Force Merging of PLL Clock Fanouts

assignment to On. You need to manually add the two PLL merging assignments using the Assignment Editor or directly update the

.qsf

file.

Figure 63 shows the snapshot of the assignment for Force Merge PLLs in .qsf file.

Figure 63. Assignments for Force Merge PLLs

Adding Constraints to the Design Example

To add constraints to the design example, you must enable TimeQuest timing analyzer and add all the .sdc files for the three controllers. Next, perform the following steps:

1. In the Quartus II software, open the Pin Planner.

2. Right-click Create/Import Megafunction.

3. Turn on the Import an existing custom megafunction radio button and choose the

<variation_name>.ppf file.

4. Type the prefix that you want to use under the Instance name. The design example uses prefixes top

, bot1

, and bot2.

1

Each controller comes with its own <variation_name>_pin_assignments.tcl file. The pin assignments contained in this script use default pin names that must be changed so that they are unique for each controller instance.

You can also use the Pin Planner to assign actual locations to the pins. You may also want to set the default I/O standard for your design in the Voltage section of the

Device and Pin

Options by navigating to the Assignment menu and click Setting.

Compiling the Design Example

Add the two .sdc files from the two controller variations to the design. You must also add another .sdc file to the list of TimeQuest timing analyzer .sdc files to describe the frequency of the input PLL reference clock pins of all the controllers in the design. The design example uses a file called top.sdc which has the following lines: create_clock -period 10 top_pll_ref_clk create_clock -period 10 bot1_pll_ref_clk create_clock -period 10 bot2_pll_ref_clk

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Multiple Memory Controllers Walkthrough Page 91

1

If you place the controllers in a different folder than the top-level project, you must add the directories of your controllers to the project library.

Compiling the Design Example to Verify Timing

You must compile the design and select the TimeQuest Timing Analyzer from the

Tools menu. Double-click on the Report DDR macro to check if the design meets all timing requirements. If not, you must fix the timing by either adding or removing delay chains, or by moving the registers closer using placement constraints.

1

To ensure faster timing closure, you can close timing on each controller and place the controller logic in a LogicLock

TM

block before creating the multiple interface top level design.

Figure 64 shows the initial timing analysis results for the three controllers in the design.

Figure 64. Initial Timing Analysis Result for the Design Example

If you look into the failing path, you can see that the failing path is on the mimic register. You must move this path closer to the IOE that is feeding the register in Chip

Planner

and recompile the design.

Figure 65 shows the final timing analysis result for the design.

Figure 65. Final Timing Analysis Result for the Design Example

After your design meets timing, you can continue your design flow by either performing a gate-level simulation or determining the board design constraints.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 92 Conclusion

Conclusion

The advanced clocking features available in Stratix II, Stratix II GX, and Arria GX devices allow for a high performance, versatile interface to DDR2 SDRAM. For applications requiring the greater memory bandwidth offered by DDR2 SDRAM,

Altera offers device families with complete, proven memory solutions for these devices.

Arria GX devices only support ALTMEMPHY implementations, but when targeting

Stratix II or Stratix II GX devices, you have the choice of either using ALTMEMPHY for high-performance memory interfaces up to 333 MHz or using the legacy PHY to interface with more than 72-bit wide memory per Stratix II or Stratix II GX device side. Altera recommends using the ALTMEMPHY implementation to get the optimal margin. Use the legacy PHY only if you need a non-DQS implementation or lower latency application.

Appendix A: Stratix II GX PCI-Express Development Board Pin

Assignments

Table 11 shows pin assignments used in Stratix II GX PCI Express (PIPE)

Development Board. The pin names shown here are based on the default pin names when using the ALTMEMPHY-based controllers. There are some pin names in the legacy PHY different from pin names in ALTMEMPHY such as the reset_n(global_reset_n)

, clk_to_sdram[0:2](mem_clk[0:2])

, clk_to_sdram_n[0:2](mem_clk_n[0:2])

, and mem_a[0:14](mem_addr[0:14])

.

Table 11. PCI Express (PIPE) Development Board, Stratix II GX Edition I/O and Pin Assignments (Part 1 of 4)

(Note 1)

,

(2)

Pin Name

mem_addr[0] mem_addr[1] mem_addr[10] mem_addr[11] mem_addr[12] mem_addr[13]

(3)

mem_addr[14]

(3)

mem_addr[2] mem_addr[3] mem_addr[4] mem_addr[5] mem_addr[6] mem_addr[7] mem_addr[8] mem_addr[9] mem_ba[0]

I/O Standard

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

Pin

Location

AP16

AH28

AT30

AN21

AP28

AL28

AP19

AP26

AP29

AL15

AK27

AK25

AU29

AH15

AH25

AN28

Output

Pin

Load (pF)

10

10

10

10

10

10

10

10

10

10

10

10

10

10

10

10

Termination

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

Current Strength

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Appendix A: Stratix II GX PCI-Express Development Board Pin Assignments Page 93

mem_dm[4] mem_dm[5] mem_dm[6] mem_dm[7] mem_dm[8] mem_dq[0] mem_dq[1] mem_dq[10] mem_dq[11] mem_dq[12] mem_dq[13] mem_dq[14] mem_dq[15] mem_dq[16] mem_dq[17] mem_dq[18] mem_ba[1] mem_ba[2]

(3)

mem_cas_n mem_cke[0] mem_clk[0] mem_clk[1] mem_clk[2] mem_clk_n[0] mem_clk_n[1] mem_clk_n[2] mem_cs_n[0] mem_dm[0] mem_dm[1] mem_dm[2] mem_dm[3] mem_dq[19] mem_dq[2] mem_dq[20] mem_dq[21] mem_dq[22] mem_dq[23] mem_dq[24]

Table 11. PCI Express (PIPE) Development Board, Stratix II GX Edition I/O and Pin Assignments (Part 2 of 4)

(Note 1)

,

(2)

Pin Name I/O Standard

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

Pin

Location

AG24

AH27

AG23

AF18

AW19

AU20

AP20

AV19

AT20

AN20

AJ25

AT11

AP12

AU15

AT17

AP18

AU24

AV27

AV30

AW36

AU9

AN10

AR12

AW12

AN13

AT13

AN12

AU13

AW13

AN14

AV13

AP14

AP10

AT15

AR15

AW14

AW15

AN16

4

4

4

4

4

4

4

4

4

4

4

4

4

4

10

4

Output

Pin

Load (pF)

10

10

4

2

2

4

4

4

10

10

4

4

4

4

4

4

4

4

4

4

4

4

Termination Current Strength

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 94 Appendix A: Stratix II GX PCI-Express Development Board Pin

mem_dq[39] mem_dq[4] mem_dq[40] mem_dq[41] mem_dq[42] mem_dq[43] mem_dq[44] mem_dq[45] mem_dq[46] mem_dq[47] mem_dq[48] mem_dq[49] mem_dq[5] mem_dq[50] mem_dq[51] mem_dq[52] mem_dq[25] mem_dq[26] mem_dq[27] mem_dq[28] mem_dq[29] mem_dq[3] mem_dq[30] mem_dq[31] mem_dq[32] mem_dq[33] mem_dq[34] mem_dq[35] mem_dq[36] mem_dq[37] mem_dq[38] mem_dq[53] mem_dq[54] mem_dq[55] mem_dq[56] mem_dq[57] mem_dq[58] mem_dq[59]

Table 11. PCI Express (PIPE) Development Board, Stratix II GX Edition I/O and Pin Assignments (Part 3 of 4)

(Note 1)

,

(2)

Pin Name I/O Standard

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

Pin

Location

AN15

AU16

AT16

AN17

AW16

AW9

AV16

AP17

AW18

AT18

AW17

AR18

AN18

AT19

AU19

AN19

AV10

AP23

AW23

AW24

AV24

AT24

AP24

AW25

AV25

AP25

AR25

AU10

AU26

AW26

AU27

AW27

AW28

AT27

AT28

AW29

AR28

AT29

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

Output

Pin

Load (pF)

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

Termination Current Strength

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Appendix A: Stratix II GX PCI-Express Development Board Pin Assignments Page 95

Table 11. PCI Express (PIPE) Development Board, Stratix II GX Edition I/O and Pin Assignments (Part 4 of 4)

(Note 1)

,

(2)

Pin Name I/O Standard

Pin

Location

Output

Pin

Load (pF)

Termination Current Strength

mem_dq[6] mem_dq[60] mem_dq[61] mem_dq[62] mem_dq[63] mem_dq[64] mem_dq[65] mem_dq[66] mem_dq[67] mem_dq[68] mem_dq[69] mem_dq[7] mem_dq[70] mem_dq[71]

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

AU32

AU33

AW34

AW35

AV34

AW10

AV37

AW37

AN11

AU30

AW30

AW31

AU31

AW32

4

4

4

4

4

4

4

4

4

4

4

4

4

4

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current mem_dq[8] mem_dq[9] mem_dqs[0] mem_dqs[1] mem_dqs[2] mem_dqs[3] mem_dqs[4] mem_dqs[5]

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

AT12

AW11

AT9

AU12

AT14

AP15

AV18

AU23

4

4

4

4

4

4

4

4

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current mem_dqs[6] mem_dqs[7] mem_dqs[8] mem_odt[0] mem_ras_n mem_we_n clock_source

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

SSTL-18 Class I

LVDS

1.8 V

AT25

AU28

AW33

AN25

AJ27

AL13

AW22

AM22

10

10

4

4

4

10

N/A

N/A

N/A

N/A

N/A

N/A

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

Maximum Current

— global_reset_n pnf test_complete

1.8 V

1.8 V

AN31

AT31

Notes to Table 11

(1) The pin names correspond to the pin names used in the ALTMEMPHY design example. The legacy PHY design example uses a ddr2_ prefix instead of a mem_ prefix.

(2) Address and command pins have more loads because they are connected to more than one device; therefore, they need the available maximum current from the FPGA.

(3) These pins are connected in the board but are not used in the design. Reserve these pins To be used as the output driving ground in the

Assignment Editor.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 96 Appendix B: Interface Signal Description

Appendix B: Interface Signal Description

The following section describes the interface signals between the FPGA and the DDR2

SDRAM components, how you need to configure the FPGA pins to meet the DDR2

SDRAM electrical and timing requirements, and lists the number of DQS and DQ pins available in the FPGA.

Interface Signals

Table 12 lists a summary of the DDR2 SDRAM interface pins and how to connect them to a Stratix II, Stratix II GX, or Arria GX device.

Table 12. DDR2 SDRAM Interface Pins

DQ

Pins

DQS

DQS#

(1)

CK, CK# fedback_clk_out

(2)

Description

Bi-directional read and write data bus

Stratix II, Stratix II GX, or Arria GX

DQ

Pin Utilization

Bi-directional read and write data strobe

Optional bi-directional differential write data strobe

DQS

N/A

System clock

Copy of CK output clock signal fedback to read the PLL for resynchronization in DLL-based implementation with two PLLs or for read capture in PLL-based implementation.

DQ, DQS, or DQSn

(3)

,

(4)

User I/O output pin feeding PLL clock input pin

Loopback signal from the fedback_clk_out

signal PLL clock input pin fedback_clk_in

(2)

DM Optional write data mask, edge-aligned to DQ during write

Address, command, and so on

DQ

(5)

All other User I/O pin

Notes to Table 12 :

(1) The DQS# signal in DDR2 SDRAM components is optional. Stratix II, Stratix II GX, and Arria GX devices do not use the DQS# pins when interfacing with DDR2 SDRAM, as they do not support differential DQS signaling.

(2) This signal is not applicable for the PLL–based implementation with one PLL or for the ALTMEMPHY implementation.

(3) Any unused DQ or DQS pins with DIFFIO_RX capability for mem_clk[0]

and mem_clk_n[0]

.

(4) Any unused DQ or DQS pins with DIFFOUT capability for mem_clk[n:1]

and mem_clk_n[n:1]

. Where n is greater than or equal to 1.

(5) The DM pins must be in the DQ group.

The following section describes the clock, strobe, data, address, and command signals on a DDR2 SDRAM component.

Clock Signals

The DDR2 SDRAM component uses CK and CK# signals to clock the address and command signals into the memory. Furthermore, the memory uses these clock signals to generate the DQS signal during a read through of the DLL inside the memory. The skew between the CK or CK# signals and the DDR2 SDRAM-generated DQS signal is specified as t

DQSCK

in the DDR2 SDRAM data sheet.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Appendix B: Interface Signal Description Page 97

The DDR2 SDRAM has a write requirement (t

DQSS

) that states the positive edge of the

DQS signal on writes must be within ± 25% (± 90°) of the positive edge of the DDR2

SDRAM clock input. Therefore, you must generate the CK and CK# signals using the

DDR registers in the IOE to match with the DQS signal and reduce any variations across process, voltage, and temperature. The positive edge of the DDR2 SDRAM clock, CK, is aligned with the DQS write to satisfy t

DQSS

.

f

HardCopy II structured ASICs require the use of the dedicated PLL clock outputs for

CK and CK# signals. For more information about interfacing with external memory devices using HardCopy II structured ASICs, refer to

AN 463: Using ALTMEMPHY

Megafunction with HardCopy II Structured ASICs

or

AN 413: Using Legacy Integrated

Static Data Path and Controller Megafunction with HardCopy II Structured ASICs

.

To improve resynchronization timing for DDR2 SDRAM interfaces running at or above 200 MHz, you can route a copy of the CK signal (called fedback_clk_out

) from the memory pin back to the Stratix II or Stratix II GX devices (called fedback_clk_in

). Arria GX devices do not support this implementation. For more information, refer to

“Round-Trip Delay Calculation” on page 121 .

Strobes, Data, DM, and Optional ECC Signals

The DQS is bi-directional. The DQS# pins in DDR2 SDRAM components and the

DQS# pins in Stratix II devices are not used in DDR2 SDRAM interfaces. Connect the memory’s DQS pins to the Stratix II, Stratix II GX, or Arria GX DQS pins. The DQ pins are also bi-directional. A group of DQ pins is associated with one DQS pin.

1

In ×8 and ×16 DDR2 SDRAM components, one DQS pin is always associated with eight DQ pins (×8/×9 mode in the Stratix II device).

Refer to Table 13 through Table 17 for the number of DQS and DQ groups supported in Stratix II, Stratix II GX, and Arria GX devices. Stratix II and Stratix II GX devices support both DLL- and PLL- based implementations, while Arria GX devices only support DLL based implementations with ALTMEMPHY. Each DQS pin can drive up to 4, 9, 18, or 36 DQ pins.

Table 13. DQS and DQ Bus Mode Support in Stratix II Devices for DLL-Based Implementations (Part

1 of 2)

484-pin FineLine BGA

672-pin FineLine BGA

484-pin FineLine BGA

672-pin FineLine BGA

484-pin FineLine BGA

Package

672-pin FineLine BGA

1,020-pin FineLine BGA

484-pin Hybrid FineLine BGA

780-pin FineLine BGA

1,020-pin FineLine BGA

Number of ×4

Groups

8

18

36

8

18

18

8

18

8

36

Number of ×8/×9

Groups

4

8

18

4

8

8

4

8

4

18

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 98 Appendix B: Interface Signal Description

Table 13. DQS and DQ Bus Mode Support in Stratix II Devices for DLL-Based Implementations (Part

2 of 2)

Package

1,508-pin FineLine BGA

780-pin FineLine BGA

1,020-pin FineLine BGA

1,508-pin FineLine BGA

1,020-pin FineLine BGA

1,508-pin FineLine BGA

Number of ×4

Groups

36

18

36

36

36

36

Number of ×8/×9

Groups

18

8

18

18

18

18

Table 14. Stratix II DQS and DQ Bus Mode Support for PLL-Based Implementaitons

(Note 1)

Device

EP2S15

EP2S30

EP2S60

EP2S90

EP2S130

EP2S180

Package

484-pin FineLine BGA

672-pin FineLine BGA

484-pin FineLine BGA

672-pin FineLine BGA

484-pin FineLine BGA

672-pin FineLine BGA

1,020-pin FineLine BGA

780-pin FineLine BGA

1,020-pin FineLine BGA

1,508-pin FineLine BGA

780-pin FineLine BGA

1,020-pin FineLine BGA

1,508-pin FineLine BGA

1,020-pin FineLine BGA

1,508-pin FineLine BGA

Number of

×4 Groups

Note to Table 14 :

(1) Check the pin table for each DQS and DQ group in the different modes.

51

51

51

51

40

51

51

40

36

13

36

51

13

24

13

Number of ×8/×9

Groups

25

25

25

25

24

25

25

24

15

7

15

26

7

9

7

Table 15. Stratix II GX DQS and DQ Bus Mode Support for DLL-Based Implementations

(Note 1)

780-pin FineLine BGA

780-pin FineLine BGA

1,152-pin FineLine BGA

1,152-pin FineLine BGA

Package

Number of

×4 Groups

1,508-pin FineLine BGA

1,508-pin FineLine BGA

Note to Table 15 :

(1) Check the pin table for each DQS and DQ group in the different modes.

36

36

18

18

36

36

Number of ×8/×9

Groups

18

18

8

8

18

18

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Appendix B: Interface Signal Description Page 99

Table 16. Stratix II GX DQS and DQ Bus Mode Support for PLL-Based Implementations

(Note 1)

Package

780-pin FineLine BGA

780-pin FineLine BGA

1,152-pin FineLine BGA

1,152-pin FineLine BGA

1,508-pin FineLine BGA

1,508-pin FineLine BGA

Note to Table 16 :

(1) Check the pin table for each DQS and DQ group in the different modes.

25

Number of

×4 Groups

18

18

25

25

25

Number of ×8/×9

Groups

8

8

13

13

12

12

Table 17. Arria GX DQS and DQ Bus Mode Support for DLL-Based Implementations

(Note 1)

,

(2)

484-pin FineLine BGA

780-pin FineLine BGA

1,152-pin FineLine BGA

Package

Number of ×4

Groups

2

18

36

Number of ×8/×9

Groups

0

8

18

Notes to Table 17 :

(1) Check the pin table for each DQS and DQ group in the different modes.

(2) Arria GX devices only support DLL-based implementation using the ALTMEMPHY MegaWizard Plug-In Manager.

The DQ signals are edge-aligned with the DQS signal during a read from the memory and are center-aligned with the DQS signal during a write to the memory. The memory controller shifts the DQ signals by –90° during a write operation to center align the DQ and DQS signals; the memory controller delays the DQS signal during a read so that the DQ and DQS signals are center aligned at the capture register.

Stratix II devices use a phase-locked loop (PLL) to center-align the DQS signal with respect to the DQ signals during writes and use dedicated DQS phase-shift circuitry or another PLL to shift the incoming DQS signal during reads.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 100 Appendix B: Interface Signal Description

Figure 66 shows an example where the DQS signal is shifted by 90° for a read from the

DDR2 SDRAM.

Figure 66. DQ and DQS Relationship During a DDR2 SDRAM Read in Burst-of-Four Mode

(Note 1)

DQS pin to register delay

(2)

DQS at

FPGA Pin

Preamble

Postamble

DQ at

FPGA Pin

DQS at DQ

IOE registers

DQ at DQ

IOE registers

90 degree shift DQ pin to register delay

(2)

Notes to Figure 66 :

(1) This is an example of a 90° shift. Base your timing analysis on the shift value read for your system. The shift may not be 90°.

(2) The delay from the DQS pin to the capture register and DQ pin to the capture register to minimize additional skew between these signals at the

IOE registers.

Figure 67 shows an example of the relationship between the data and data strobe during a burst-of-four write.

Figure 67. DQ and DQS Relationship During a DDR2 SDRAM Write in Burst-of-Four Mode

DQS at

FPGA Pin

DQ at

FPGA Pin

The memory device’s setup (t ds

) and hold times (tdh) for the write DQ and DM pins are relative to the edges of the DQS write signals and not the CK or CK# clock. These specifications are not necessarily symmetrical in DDR2 SDRAM, unlike in DDR

SDRAM components.

The DQS signal is generated on the positive edge of the system clock to meet the t

DQSS requirement. DQ and data mask (DM) signals use a clock shifted –90° from the system clock so that the DQS edges are centered on the DQ or DM signals when they arrive at the DDR2 SDRAM. The DQS, DQ, and DM board trace lengths need to be tightly matched.

The DDR2 SDRAM uses the DM pins during a write operation. Driving the DM pins low shows that the write is valid. The memory masks the DQ signals if the DM pins are driven high. You can use any of the I/O pins in the same bank as the associated

DQS and DQ pins to generate the DM signal.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Appendix B: Interface Signal Description Page 101

The DM signal’s timing requirements at the DDR2 SDRAM input are identical to those for DQ data. The Stratix II DDR registers, clocked by the –90° shifted clock, create the DM signals.

Some DDR2 SDRAM components support error correction coding (ECC) to detect and automatically correct an error in data transmission. The 72-bit DDR2 SDRAM modules contain eight ECC pins in addition to the 64 data pins. Connect the DDR2

SDRAM component ECC pins to a Stratix II device DQS/DQ group. You must create a 72-bit DDR2 SDRAM memory controller and add logic to decode and encode the

ECC bits on the local interface of the controller.

Address and Command Signals

Address and command signals in DDR2 SDRAM components are clocked into the memory using the CK or CK# signal. These pins operate at single data rate (SDR) using only one clock edge. The number of address pins depends on the DDR2

SDRAM component capacity. The address pins are multiplexed, so two clock cycles are required to send the row, column, and bank address. The

CS, RAS, CAS, WE,

CKE

, and

ODT

pins are DDR2 SDRAM command pins.

The DDR2 SDRAM address and command inputs do not have a symmetrical setup and hold time requirement with respect to the DDR2 SDRAM clocks, CK, and CK#

( Figure 68 ).

Figure 68. Address and Command Timing

(Note 1)

,

(2)

System Clock

CK at Stratix II

Device Pin

SDRAM Write Requirement

DQS Write (at FPGA Pin)

t

DQSS(max.) t

DQSS(min.)

SDRAM Address/Command

Input Timing to the DDR2

SDRAM Component

t

IS t

IH t

CO

Address/Command Pins

(positive edge)

Address/Command Pins

(negative edge)

t

CO

Notes to Figure 68 :

(1) The address and command timing shown in Figure 67 is applicable for both reads and writes.

(2) If the board trace lengths for the DQS, CK, address, and command pins are the same, the signal relationships at the Stratix II, Stratix II GX, or Arria GX device pins are maintained at the DDR2 SDRAM pins.

You must perform a separate timing analysis for addresses and commands to decide how to generate these signals (using the positive or negative edge of the system clock or a phase-shifted version of the system clock). This clock edge selection is made based on timing analysis with accurate pin loading information. The timing analysis methodology for address and command signals is very similar to the write timing

paths described in “Write Data Timing Analysis” on page 118 . You can use any of the

I/O pins for the commands and addresses.

The address and command pins at the Stratix II device nominally change at the same time as the DQS write signal because they are both generated from the system clock.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 102 Appendix C: Legacy PHY Architecture Description

Appendix C: Legacy PHY Architecture Description

There are two data paths or PHY available in Stratix II and Stratix II GX devices; the legacy PHY and the ALTMEMPHY megafunction. For highest performance, use the

ALTMEMPHY megafunction, which is the only data path supported in Arria GX devices. f

For more information about this implementation, refer to the

DDR and DDR2 SDRAM

High-Performance Controller and ALTMEMPHY User Guide

. f

If you are not sure which PHY to use, refer to

Technical Brief 091: External Memory

Interface Options for Stratix II Devices

.

In addition, the legacy PHY offers two read-side implementations:

■ DLL-based read implementation—This method uses the DLL to phase shift the

DQS strobe and center-align the read data DQ with respect to the DQS at the IOE registers. This implementation is limited to the top and bottom banks of the Stratix

II and Stratix II GX devices with a maximum clock rate of 267 MHz. This implementation is also offered with two modes:

One-PLL implementation with performance up to 200 MHz. This implementation uses one DLL and one PLL, whereby the PLL generates all the necessary clocks needed for the interface.

Fedback-clock mode with performance up to 267 MHz. This implementation uses one DLL and two PLLs. One PLL is used to generate the system and the write clocks, while the other PLL is used to generate resynchronization and postamble clocks.

PLL-based read implementation—This method uses a PLL to generate the phase-shifted clock to capture the read data DQ (instead of using the DQS strobe from the memory devices). You can use this implementation in any I/O banks of the Stratix II and Stratix II GX devices, but the performance is limited to 200 MHz.

The DLL-based mode implementation always gives a higher performance than the

PLL-based implementation. This is because the PLL-based implementation ignores the DQS strobes during reads. Timing analysis, when not using the DQS strobes during reads, uses the t

AC

specifications (which is ± 600 ps for a 200-MHz DDR2

SDRAM component) for skew between data signals. Timing analysis using DQS strobes uses the t

DQSQ

and t

QHS

specifications, which is 350 ps and 450 ps, respectively, for a 200-MHZ DDR2 SDRAM component. By using the DQS strobes during read, you save 400 ps of timing uncertainties at 200 MHz.

When using PLL-based implementation, the top and bottom I/O banks may also give better performance. This is because the side I/O pins support LVDS, which results in the buffer having higher capacitance and lower I/O performance.

Write-side implementation includes a PLL that outputs two clocks that generate the write data and center-aligned write clock using the DDR registers in the IOE. This implementation results in matched propagation delays for clock and data signals from the FPGA to the DDR2 SDRAM, minimizing skew.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Appendix C: Legacy PHY Architecture Description Page 103

Legacy Data Path Architecture Using Dedicated DQS Phase-Shift Circuitry

The DDR2 SDRAM interface legacy PHY implementation using dedicated DQS phase-shift circuitry uses the following:

A write-side PLL to generate CK and CK# system clocks and clock-out address, command, strobe, and data signals.

A read-side DLL-based phase circuitry to capture read data from the memory using strobe signals, DQS.

An optional PLL for the fedback clock mode to generate resynchronization and postamble clocks.

This implementation is also called the DQS mode or DLL-based implementation available with the DDR and DDR2 SDRAM Controller MegaCore function. The DDR2

SDRAM Controller initializes the memory devices, manages SDRAM banks, and keeps devices refreshed at the appropriate intervals. The MegaCore function translates read and write requests from the local interface into all the necessary

SDRAM command signals. The controller also contains encrypted control logic as well as a clear-text data path that you can use in your design without a license.

Download this MegaCore function whether you plan to use the Altera DDR2 SDRAM controller or not, to get the clear-text data path, clear-text DQS postamble logic, and placement constraints. The MegaCore function is accessible through the DDR2

SDRAM Controller MegaWizard Plug-In Manager. When you parameterize your custom DDR2 SDRAM interface, the DDR2 SDRAM Controller MegaWizard Plug-In

Manager automatically decides the best phase-shift and FPGA settings to give you the best margin for your DDR2 SDRAM interface. It then generates an example instance that instantiates a PLL, an example driver, and your DDR2 SDRAM controller custom variation, as shown in Figure 29 on page 52 .

f

For more information, refer to Altera’s memory controllers page and download the

DDR2 SDRAM Controller MegaCore MegaFunction.

The 1-PLL mode supports up to 200-MHz memory interface, while the fedback-clock mode supports up to 267-MHz memory interface. However, due to complex timing analysis with two PLLs, Altera recommends the ALTMEMPHY Megafunction for interfaces above 200 MHz.

This implementation is only supported on Stratix II and Stratix II GX top and bottom

I/O banks because the DLLs and dedicated DQS phase-shift circuitry are available on the top and bottom side only. Multiple controllers sharing the DLL must have the same frequency, but can have different implementations (that is, 1-PLL or 2-PLL implementation). You can implement multiple controllers with up to two different frequencies per device as each DLL can run at different frequencies.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 104 Appendix C: Legacy PHY Architecture Description

Figure 69 shows a summary of how Stratix II and Stratix II GX devices generate the

DQ, DQS, CK, and CK# signals. The write PLL generates the system clock and the –90× shifted clock (write clock). If the write PLL input clock and the DDR2

SDRAM frequencies are different, you must provide the input reference clock to the

DQS phase-shift circuitry either from another input clock pin or from PLL 5 or PLL 6.

f

For more information about the input clock, refer to the

External Memory Interfaces

chapter in volume 2 of the Stratix II Device Handbook.

The system clock and write clock are the same frequency as the DQS frequency. The write clock is shifted -90° from the system clock.

1

The areset

signal of the read PLL must be toggled after power up and the system

PLL is locked.

1

Reset the PLL if the input clock to the PLL is not stable during power up, after a clock switch over, or if the PLL loses lock after power up.

The example in Figure 69 uses a feedback clock and a second (read) PLL to ease resynchronization. The board trace length for the feedback clock must match closely with the board trace lengths for the CK, DQ, and DQS signals to compensate for off-chip voltage and temperature variation.

In Figure 69 , the fedback_clk_out

pin mirrors the DDR2 SDRAM CK pin with a board trace length of l

1 and is routed back to the Stratix II device with a board trace length of l

2

. The controller generates the

FB_CLK

output using the same circuit as the

CK output and constrains this pin to an adjacent location on the same I/O bank.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Appendix C: Legacy PHY Architecture Description Page 105

Figure 69. Stratix II Device and DDR2 SDRAM Interface Data Path for DLL-Based Read

Stratix II Device

IOE

DM length = l

2

DDR input_clk

Write PLL

(6)

Write

Clock

System

Clock

DDR

DDR

DDR

DQ Write

(1)

length = l

2

CK and CK# length = l

1

DQS Write

(1)

length = l

2

DDR2

SDRAM

Input

Reference

Clock

(3)

Read PLL

(6)

DQS Phase-

Shift Circuitry

DFF

(5)

DFF

(4)

DDR

FB_CLK

(2)

length = l

1+l2

DQS Logic

Block

DQS Read

(1)

length = l

2

DQ Read

(1)

length = l

2

DDR

Notes to Figure 69 :

(1) The DQ and DQS signals are bi-directional. One DQS signal is associated with a group of DQ signals.

(2) The feedback clock,

FB_CLK

, is to help ease resynchronization for interface speeds > 200 MHz.

(3) The input reference clock can either be from input_clk

, another clock pin, or a PLL 5 or PLL 6 output.

(4) The clock to the resychronization register is either from the system clock, write clock, and extra clock output from the write PLL, or from the read

PLL.

(5) The clock to this register is either from the system clock or another clock output of the write PLL. If another clock output of the write PLL is needed, another register is needed to transfer the data back to the system clock domain.

(6) The read and write PLLs are configured in normal mode.

(7) The average values of l

1 and l

2 must be used for

FB_CLK

trace length.

The Stratix II device also has another legacy DLL-based implementation where only one PLL is used. This PLL generates the resynchronization and post amble clocks, in addition to the system and write clocks. This implementation differs from Figure 69 in that the fedback_clk

trace and the read PLL module does not exist. In general, this implementation is limited to 200 MHz; however, this depends on the FPGA density and memory device speed grade used. Always perform timing analysis in the

Quartus II software for your design to ensure that performance can be met.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 106 Appendix C: Legacy PHY Architecture Description

Legacy Data Path Architecture Without Using Dedicated DQS Phase-Shift Circuitry

When using the PLL-based read implementation, Stratix II devices can support up to

200-MHz DDR2 SDRAM where each interface uses two PLLs for best performance

( Figure 69 on page 105 ).

This implementation is useful when interfacing with more than 72-bit wide memory interfaces per Stratix II device side or when interfacing with more than 144-bit data bus.

The DDR2 SDRAM interface implementation without using dedicated DQS phase-shift circuitry uses the following:

A write-side PLL to generate CK and CK# system clocks and clock out address, command, strobe, and data signals.

A read-side PLL-based phase-shift to register read data from the memory using a feedback clock,

FB_CLK.

This implementation is also called PLL-based read implementation (or non-DQS mode).

f

For the recommended DQS and DQ pins in this mode, refer to the Stratix II device pin-out table. The board trace lengths for the DQ, DQS, and DM pins must be tightly matched.

In this implementation, the write PLL generates the system clock, the -90° shifted clock, and the feedback clock (

FB_CLK

). The feedback clock is routed outside the

FPGA and back into the FPGA. This board trace length should equal the clock trace length from the FPGA to the memory plus the DQ trace length from the memory to the FPGA. In Figure 70 , assuming that the clock trace length equals l

1

and the DQ trace length equals l

2

,

FB_CLK

must have a trace length of l

3

= (l

1

+ l

2

). Use an average value of l

1

and l

2

when calculating l

3

.

The read PLL uses the feedback clock as the input clock and generates the clock needed to capture the DQ during reads. The Stratix II device ignores the DQS signal in this scheme. The read PLL is in source-synchronous mode, such that the clock propagation delay to the IOE register is matched to the data propagation. Because the trace length of the feedback clock is the same as the CK or CK# and DQS trace,

FB_CLK

coming into the FPGA resembles the DQS signal with a small amount of skew. The read PLL can then be shifted to compensate for the skew and to implement the 90° PLL phase shift required to capture the DQ signals during reads.

The Quartus II software associates a particular PLL with a particular I/O bank for source-synchronous operation, so you must ensure that the read PLL is on the same side of the device as the data pins. The clock delay to the worst case I/O registers in this I/O bank are fully compensated and result in closely matched data delays and clock delays from the pin to the I/O registers across PVT. When using I/O registers in the non-compensated I/O banks, clock delays and data delays are less closely matched. For best clock and data delay matching, use a fast PLL for implementing the interface on side I/O banks and use an enhanced PLL for implementing the interface on the top or bottom I/O banks. You must also set the input pin delay-to-register option to 0 in the Quartus II software.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Appendix C: Legacy PHY Architecture Description Page 107

The DQS signal is ignored during read, so the DQS-DQ relationship from the DDR

SDRAM component no longer applies. The skew and timing variations on the interface determine the maximum data rate you can achieve with this method.

Figure 70 shows a summary of how Stratix II devices generate the DQ, DQS, CK, and

CK# signals. The write PLL generates the system and write clocks. The read clock

(

FB_CLK

) from the DDR2 SDRAM component goes to a PLL input pin that generates the proper phase shift to capture read data.

Figure 70. Stratix II and DDR2 SDRAM Interface Data Path for PLL-Based Read

IOE

DM length = l

2

DDR input_clk

Write PLL

(5)

Write

Clock

System

Clock

DDR

DQ Write

(1)

length = l

2

DDR

DDR

CK and CK# length = l

1

DQS Write

(1)

length = l

2

DDR2

SDRAM

DDR

FB_CLK

(2)

length = l

1+l2

Read PLL

(5)

DDR

DQ Read

(1)

length = l

2

DFF

(4)

DFF

(3)

Notes to Figure 70 :

(1) The DQ and DQS signals are bi-directional. One DQS signal is associated with a group of DQ signals.

(2) The feedback clock

, FB_CLK , is to help ease resynchronization

.

(3) The clock to the resynchronization register is either from the system clock, write clock, or an extra clock output from the write PLL.

(4) The clock to this register is either from the system clock or another clock output of the write PLL. If another clock output of the write PLL is needed, another register is needed to transfer the data back to the system clock domain.

(5) The read PLL is configured in the source synchronous mode, while the write PLL is configured in the normal mode.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 108 Appendix D: Interface Timing Analysis

Appendix D: Interface Timing Analysis

When designing an external memory interface for your FPGA, you must analyze timing margins for several paths. All memory interfaces require analysis of the write and read capture timing paths. Additionally, some interfaces might require analysis of the resynchronization timing paths and other memory-specific paths (such as postamble timing).

This application note describes Altera’s recommended timing methodology using write and read capture timing paths as examples. You must use this methodology for analyzing timing for all applicable timing paths (including address and command, resynchronization, and postamble). To ensure successful operation, the Altera DDR2

SDRAM controller MegaCore performs timing analysis on the read capture, resynchronization, and postamble paths. While these analyses account for all FPGA related timing effects, you must design in adequate margin to account for board-level effects, such as crosstalk, inter-symbol interference, and other noise effects. These effects and their impact on timing margins are best analyzed by performing boardlevel simulations. You can use simulation results to adjust the board timing requirement parameter, t

EXT

, for use in margin calculations. Your overall system performance is determined by the slowest of all the timing paths.

This section analyzes the write and read capture timing margins for a DDR2 SDRAM interface with a Stratix II device. The timing analysis methodology is illustrated using the EP2S60F1020C3 FPGA interfacing with a Micron MT9HTF3272AY-53E DIMM.

However, you must use the same methodology to analyze timing for your preferred

FPGA and memory device.

Methodology Overview

Timing paths are analyzed by considering the data and clock arrival times at the destination register. In Figure 71 and Figure 72 , the setup margin is defined as the time between the “earliest clock arrival time” and the “latest valid data arrival time” at the register ports. Similarly, hold margin is defined as the time between the “earliest invalid data arrival time” and the “latest clock arrival time” at the register ports.

These arrival times are calculated based on propagation delay information with respect to a common reference point (such as a DQS edge or system clock edge).

Figure 71. Simplified Block Diagram for Timing Analysis

Data Delay

D

Q

CLK

Clock Delay

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Appendix D: Interface Timing Analysis Page 109

Figure 72. Data Valid Window Timing Waveform

Clock Arrival Time

Clock

Uncertainties

Earliest Data Invalid t

H t

SU

Latest Data Valid

Data Valid Window

FPGA Timing Information

Because you expect your design to work under all conditions, timing margins must be evaluated at all process, voltage, and temperature (PVT) conditions. To facilitate this,

Altera provides two device timing models in the Quartus II software—the slow corner model and the fast corner model.

■ Slow Corner Model—provides timing delays between two nodes in the FPGA with slow silicon, high temperature, and low voltage. In other words, the model provides the slowest possible delay for that timing path on any device for that particular speed grade.

■ Fast Corner Model—provides timing delays between two nodes in the FPGA with fast silicon, low temperature, and high voltage. In other words, the model provides the fastest possible delay for that timing path on any device.

Note that while almost all FPGA timing delays and uncertainties are modeled in the

Quartus II software, a limited number of uncertainties that cannot be modeled are published in the FPGA handbook for use in margin calculations. These data sheet specifications are based on device characterization and account for device-level effects such as on-chip variation, rise and fall mismatch, and noise. Some examples include clock jitter on PLL and DLL outputs. These timing uncertainties or adder terms, when used in conjunction with the Quartus II software reported timing data, provide the most accurate device timing information. The following read and write timing analyses sections describes the use of these timing adder terms.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 110 Appendix D: Interface Timing Analysis

Read Timing Margins for a DLL-Based Implementation

During read operations, the DDR2 SDRAM provides a clock strobe (DQS) that is edge-aligned with the data bus (DQ). The memory controller (in the FPGA) is required to shift the clock edge to the center of the data valid window and capture the

DQ input data. Figure 66 on page 100 shows the timing relationship between the DQS and DQ signals during a read operation.

Figure 73 shows the Stratix II device read data path for ×8 mode. The DQS signal goes to the DQS logic block and is shifted by 90°. The DQS local bus then inverts the shifted

DQS signal before it clocks the DQ at the input registers. The DQ input register outputs then go to the resynchronization register in the logic array. The resynch_clock

signal clocks the resynchronization register. The resynch_clock signal can come from the system clock, the write clock, the write PLL clock, or the second (read) PLL (if you use the feedback clock scheme).

Figure 73. DDR2 SDRAM Read Data Path in Stratix II Devices dq_oe

(1)

dq_out

LE IOE

DQ[7..0]

A

D Q

E

Q D

C resynch_clock

D Q

D latch

Q D ena

B

Q D dataout[15..0] dqs_oe

(1)

dqs_out

DQS

(2)

DQS

Local

Bus

DQS Logic

Block

Notes to Figure 73 :

(1) The output enable registers are not shown here, but dqs_oe

and dq_oe

are active low in silicon. However, the Quartus II software implements it as active high and adds the inverter automatically during compilation.

(2) Figure 75 does not show the DQS postamble circuitry.

f

For more information about the DQ and DQS paths, refer to the

External Memory

Interfaces

chapter in volume 2 of the Stratix II Device Handbook .

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Appendix D: Interface Timing Analysis Page 111

Memory Timing Parameters

You start the read timing analysis by obtaining the timing relationship between the

DQ and DQS outputs from the DDR2 SDRAM memory device. Because this example analyzes timing for 267 MHz clock speeds or 533 Mbps data rates, the half clock period is 1688 ps after accounting for duty cycle distortion on the DQS strobe. This is specified as t

HP

in the memory data sheet and is 45% of the 3750 ps clock period. Aside from t

HP

, the memory also specifies t

DQSQ

and t

QHS

. The former specifies the maximum time from a DQS edge to the last DQ bit valid and the latter specifies the data hold skew factor.

With these memory timing parameters, the data valid window at the memory can be calculated as t

HP

– t

QHS

– t

DQSQ

= 988 ps. Assuming the board trace length variations between all DQ and DQS traces are not more than ± 20 ps, the data valid window present at the FPGA input pins is 948 ps.

FPGA Timing Parameters

FPGA timing parameters are obtained from two sources— the Quartus II software timing analyzer and the Stratix II data sheet. The Quartus II software provides all clock and data propagation delays, and the data sheet specifies all clock uncertainties and skew adder terms.

Stratix II devices feature dedicated DQS phase-shift circuitry in the top and bottom

I/O banks of the device, which center-aligns the DQS edge with respect to the DQ input signals. This phase shift circuitry has a coarse and fine delay resolution. The coarse delay feature is self-compensating over PVT and has a resolution of 22.5°, 30°, or 36° of the reference clock frequency (based on the DLL mode of operation).

f

For more information about DLL operation, refer to the

External Memory Interfaces

chapter in volume 2 of the Stratix II Device Handbook .

The target memory speed is 267 MHz, so you can select between DLL modes 2 (high) and 3 (very high). DLL mode 2 provides a coarse phase resolution of 30°; mode 3 provides a 36° resolution. You can fine-tune this phase shift further with a DLL offset implemented using uncompensated delay chains.

This analysis assumes a 90° phase shift on the DQS strobe (DLL mode 2), knowing that the phase shift (and DLL mode) can always be adjusted at the end of this timing analysis for balanced setup and hold margins on the read capture register.

The DQS phase-shift circuitry uses a DLL to provide the self-compensating coarse delay shift. You must account for any jitter and phase-shift error on the DQS signal.

The data sheet specifies the t

DQS_PHASE_JITTER

(± 45 ps) and t

DQS_PSERR

(± 38 ps) timing parameters for DLL mode 2.

After encountering the phase-shift circuitry, the DQS signal travels on a dedicated local clock bus to the DQ capture registers. The fanout of this local clock bus could range from ×4 to ×36. While the Quartus II software provides clock propagation delays to each of these DQ register clock, un-modeled uncertainties are accounted for with the t

DQS_SKEW_ADDER

skew adder term listed in the data sheet. For the ×8 mode used in this example, the skew adder is ± 35 ps.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 112 Appendix D: Interface Timing Analysis

To obtain the Quartus II software timing data for the target device, you must instantiate and compile the DDR2 SDRAM Controller MegaCore. If you are using your own controller logic, you must instantiate the clear-text DDR2 SDRAM data path instead to obtain timing delays. For the read interface, the MegaCore function extracts and reports timing delays associated with each DQ and DQS pin in the

<

core_instance_name>_extraction_data.txt file located in your project directory. Using this data file and the extract.tcl utility, minimum and maximum propagation delays on the clock and data path are extracted and presented in Table 18 . This timing extraction is performed twice, once with each device model (fast corner and slow corner). Observe that the difference between the minimum and maximum delays is minimal because of the matched routing paths in the die and package.

Table 18. FPGA Timing Delays

(Note 1)

Fast Corner (ns)

Slow Corner (ns)

(-3 Speed Grade)

Data delay (minimum)

Data delay (maximum)

Clock delay (minimum)

Clock delay (maximum)

1.113

1.173

2.031

2.051

1.698

1.758

2.612

2.632

Micro setup

(2)

Micro hold

(2)

0.068

0.037

0.122

0.072

Notes to Table 18 :

(1) These delays are reported in the <core_instance_name>_extraction_data.txt file located in your project directory.

Data delay is the propagation delay from each DQ pin to the input DDR register and is reported as dq_2_ddio

.

Clock delay is the propagation delay to the DDR input registers from the corresponding DQS pin and is calculated as dqspin_2_dqsclk

+ dqsclk_2_ddio_resync

.

(2) The micro setup and micro hold times are specified in the

DC Switching Characteristics

chapter in volume 1 of the

Stratix II Device Handbook

.

Setup and Hold Margins Calculations

After obtaining all relevant timing information from the memory, FPGA, and board, you can calculate the setup and hold margins at the DQ capture register during read operations.

With extracted timing information from the FPGA slow corner model:

Earliest clock arrival time = minimum clock delay within

(t

EARLY_CLOCK

)FPGA – DQS uncertainties = clock delay (minimum) – t

DQS_PHASE_JITTER

– t

DQS_PSERR

– t

DQSQINT

= 2612 – 45 – 37.5 – 35= 2495 ps

Latest data valid time = memory DQS-to-DQ valid + maximum (t

LATE_DATA_VALID

)data delay in FPGA= t

DQSQ

+ data delay (maximum) = 300 + 1758 = 2058 ps

Setup margin = earliest clock arrival – latest data valid – micro setup – board uncertainty = t

EARLY_CLOCK

– t

LATE_DATA_VALID

μt

SU

– t

EXT

= 2495 – 2058 – 122 – 20 = 295 ps

Therefore, the setup margin with the slow corner timing model is 230 ps.

Repeating these calculations with the fast corner timing model, the setup margin is calculated to be 353 ps.

Latest clock arrival time = maximum clock delay within (t

LATE_CLOCK

)FPGA + DQS uncertainties = clock delay (maximum)+ t

DQS_PHASE_JITTER

+ t

DQS_PSERR

+t

DQSQINT

= 2632 +

45 + 37.5 + 35 = 2750 ps

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Appendix D: Interface Timing Analysis Page 113

■ Earliest data invalid time = memory DQS-to-DQ invalid +

(t

EARLY_DATA_INVALID

)minimum data delay in FPGA = (t

HP

– t

QHS

) + data delay

(minimum) = (1688 – 400) + 1698 = 2986 ps

■ Hold margin = latest clock arrival time – earliest data invalid time – micro hold – board uncertainty = t

EARLY_DATA_INVALID

– t

LATE_CLOCK

− μt

H

–t

EXT

= 2986 – 2750 – 72 – 20 =

144 ps

Therefore, the hold margin with the slow corner timing model is 144 ps. Repeating these calculations with the fast corner model, the hold margin is calculated to be

175 ps. The setup and hold margins can be balanced by using a 72° phase shift in DLL mode 3, or a 60° phase shift in DLL mode 2 along with a positive delay offset. Table 19 lists timing analysis for DLL-based read operations from a DDR2 SDRAM memory.

Table 19. Read Timing Analysis Example for 267-MHz DDR2 SDRAM Interface in EP2S60F1020C3 Using the Dedicated DQS

Phase-Shift Circuitry (Part 1 of 2)

Parameter

Memory specifications

(1)

FPGA specifications

(2)

,

(3)

Board

,

(4)

specifications t t t t t t t

HP

DQS Q

QHS

Maximum clock delay

(input)

Minimum data delay

(input)

Maximum data delay

(input)

µt

S U

µt

H

EX T

Specifications

DQS _PHA SE_JITTER

DQS _PS ERR

DQS _SK EW_ADDER

Minimum clock delay

(input)

Fast

Corner

Model

1.688

0.300

0.400

0.045

0.038

0.035

2.031

2.051

1.113

1.173

0.068

0.037

0.020

Slow

Corner

Model Description

1.688

Half period as specified by the memory data sheet

(including memory clock duty cycle distortion)

0.300

Skew between DQS and DQ from the memory

0.400

Data hold skew factor as specified by the memory data sheet

0.045

Phase jitter on DQS output delayed by DLL (three delay stages = ± 3 × 15)

0.038

Phase-shift error on DQS output delayed by DLL

(three delay stages)

0.035

Clock Delay Skew Adder for x8

2.612

Minimum DQS pin to IOE register delay from the

Quartus II software (with 90° DLL-based phase shift)

2.632

Maximum DQS pin to IOE register delay from the

Quartus II software (with 90° DLL-based phase shift)

1.698

Minimum DQ pin to IOE register delay from the

Quartus II software

1.758

Maximum DQ pin to IOE register delay from the

Quartus II software

0.122

Intrinsic setup time of the IOE register

0.072

Intrinsic hold time of the IOE register

0.020

Board trace variations on the DQ and DQS lines

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 114 Appendix D: Interface Timing Analysis

Table 19. Read Timing Analysis Example for 267-MHz DDR2 SDRAM Interface in EP2S60F1020C3 Using the Dedicated DQS

Phase-Shift Circuitry (Part 2 of 2)

Parameter Specifications

Fast

Corner

Model

Slow

Corner

Model Description

Timing calculations t t t t

EA RLY_C LOCK

LATE_CLOC K

EA RLY_DATA _INVALID

LATE_DATA _VALID

1.914

2.169

2.401

1.473

2.495

Earliest possible clock edge after DQS phase-shift circuitry and uncertainties (minimum clock delay – t

DQS_JITTER

– t

DQS_P SERR

– t

DQS _SK EW _ADDER

)

2.750

Latest possible clock edge after DQS phase-shift circuitry and uncertainties (maximum clock delay + t

DQS_JITTER

+ t

DQS_P SERR

+ t

DQS _SK EW _ADDER

)

2.986

Time for earliest data to become invalid for sampling at FPGA flop (t

HP

– t

QHS

+ minimum data delay)

2.058

Time for latest data to become valid for sampling at

FPGA flop (t

DQS Q

+ maximum data delay)

0.295

t

EARLY_C LOCK

– t

LATE_DATA_VALID

– µt

S U

– t

EXT

Results

Read setup timing margin

(3)

Read hold timing margin

(3)

0.353

0.175

0.144

t

EARLY_DATA_INVALID

– t

LATE_CLOCK

– µt

H

– t

EXT

Total margin 0.528

0.439

Setup margin + hold margin

Notes to Table 19 :

(1) The memory specifications are based on the Micron MT9HTF3272AY-53E DIMM data sheet.

(2) This analysis is performed with FPGA timing parameters for the EP2S60F1020C3 device. You must use this template to analyze timing for your preferred Stratix II density-package combination. For FPGA specifications, see the External Memory Interfaces section in the

DC Switching

Characteristics

chapter in volume 1 of the

Stratix II Device Handbook

.

(3) These numbers are from the Quartus II software, version 5.1 using the DDR2 SDRAM Controller MegaCore 3.3.0.

(4) Package trace skews are modeled by the Quartus II software.

Read Timing Margins for PLL-Based Implementation

Timing margin analysis for a PLL-based implementation is very similar to the previously described DLL-based implementation. The only differences are the capture clock used and related clock uncertainties. In this mode, a copy of the CK clock signal is fed back to a PLL inside the FPGA.

In this example, you analyze margins for a DDR2-400 memory device for a 200 MHz read operation using a PLL.

Figure 74 shows the PLL-based read data path in a Stratix II device. The

FB_CLK signal goes to the PLL and the PLL generates a phase-shifted read clock to capture the read data. The outputs of the DQ registers then go to the LE resynchronization registers. You may need multiple resynchronization registers before data is synchronized with the system clock.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Appendix D: Interface Timing Analysis Page 115

Figure 74. PLL-Based Read Data Path in a Stratix II Device

dq_oe

(1)

dq_out

LE IOE

B

D Q

E

C

Q D resynch_clk

D Q

D latch

Q D ena

A

Q D dataout[15..0]

PLL dq[7..0]

FB_CLK

Global Clock

Network

Note to Figure 74 :

(1) The dq_oe

signals are active-low in silicon. However, the Quartus II software adds the inverter automatically during compilation.

Memory Timing Parameters

The timing relationship of data (DQ) with respect to the CK clock is governed by the t

AC

parameter. For the DDR2-400 memory device under consideration, this timing parameter is ± 600 ps. This memory parameter replaces the t

DQSQ

and t

QHS

parameters used in the DLL-based implementation.

FPGA Timing Parameters

When the CK clock is fed back into the PLL for read capture, uncertainties introduced on this clock include jitter, phase-shift error, and compensation error. While jitter and phase-shift error parameters have been defined before, the compensation error is a measure of the PLL’s ability to regenerate a clock output that tracks the input reference. For the source-synchronous mode of the PLL, this parameter is typically t

PLL_COMP_ERROR

= ± 100 ps. f

For more information about PLL specifications, refer to the PLLs in Stratix II Devices chapter in volume 2 of the

Stratix II Handbook

.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 116 Appendix D: Interface Timing Analysis

PLL-based read implementation uses a single global clock network to distribute the phase shifted clock signal to DQ capture registers in the IOE. Differences in clock arrival times to these registers (clock skew) are modeled in the Quartus II software and is reflected in the minimum or maximum propagation delays for the clock.

Additionally, the Quartus II software models the package trace delays for every pin in the device. Therefore, this analysis does not account for such skews separately in the timing margin analysis. The extracted minimum or maximum clock and data delays account for these uncertainties.

To obtain the Quartus II software timing data for the target device, instantiate and compile the DDR2 SDRAM controller MegaCore function. If you are using your own controller logic, instantiate the clear text DDR2 data path instead to obtain timing delays. For the read interface, the Quartus II software reports individual setup and hold times for each DQ pin. In the timing report, select the List Paths option to get the data and clock propagation delays for that DQ pin. Select the worst-case setup and hold DQ registers to extract the minimum and maximum propagation delays.

For example, the list paths example shown in “List Paths Example” indicates the setup time for

DQ[9]

. This path shows propagation delays of 0.964 ns on the DQ pin to register path and 2.148 ns (-0.750 + 2.898) on the

FB_CLK

clock pin to the register path. Note that the clock path includes the PLL phase-shift delay of 75° or 1.042 ns.

Using this approach, minimum and maximum propagation delays on the clock and data path are extracted (refer to Table 20 ). This timing extraction is performed twice, once with each device model (fast model and slow model).

Example 1. List Paths Example

Info: tsu for register

"ddr2_nondqs:ddr2_nondqs_ddr_sdram|...|\g_dq_io:1:dq_io~ddio_out_reg"

(data pin = "ddr2_dq[9]", clock pin = "fedback_clk_in") is -1.062 ns

Info: + Longest pin to register delay is 0.964 ns

Info: + Micro setup delay of destination is 0.122 ns

Info: - Offset between input clock "fedback_clk_in" and output clock

"ddr_pll_fb_stratixii:g_stratixpll_ddr_fedback_pll_inst|altpll:altpll_ component|_clk0" is -0.750 ns

Info: - Shortest clock path from clock

"ddr_pll_fb_stratixii:g_stratixpll_ddr_fedback_pll_inst|altpll:altpll_ component|_clk0" to destination register is 2.898 ns

Table 20 shows the read capture margins for a PLL-based implementation of

200 MHz. The IP Toolbench utility performs a similar timing margin analysis for the read timing path of your DDR2 SDRAM Controller MegaCore instance.

Table 20. Read Timing Analysis Example for 200-MHz DDR2 SDRAM Interface in EP2S60F1020C3 (PLL Based Read) (Part 1 of 2)

Parameter

Memory specifications

(1)

t

HP t

AC

Specification

200-MHz

Fast

Model

2.250

0.600

200-MHz

Slow

Model Description

2.250

0.600

Half period as specified by the memory data sheet

Data (DQ) output access time from memory clock (CK) for DDR2 400 Mbps device

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Appendix D: Interface Timing Analysis Page 117

Table 20. Read Timing Analysis Example for 200-MHz DDR2 SDRAM Interface in EP2S60F1020C3 (PLL Based Read) (Part 2 of 2)

Parameter Specification

200-MHz

Fast

Model

200-MHz

Slow

Model Description

FPGA specifications

PLL phase shift

(3)

t

PLL_JITTER

(2)

t

PLL_COM P_ERROR t

PLL_PS ERR

(2)

t

CO_S KEW

(CK and

FB_CLK

)

Minimum clock delay

(4)

,

(6)

Maximum clock delay

(4)

,

(6)

Minimum data delay

(4)

,

(6)

Maximum data delay

(4)

,

(6)

µt

SU

1.042

0.125

0.100

0.015

0.025

0.840

0.861

0.611

0.705

1.042

0.125

0.100

0.015

0.025

1.063

1.106

0.964

1.060

PLL phase shift to capture data (this is using 75°)

Stratix II PLL jitter

PLL compensation error (high bandwidth)

PLL phase-shift error

Variations of the CK and feedback clock signals clock-toout times from the Quartus II software

(5)

Minimum feedback clock pin to IOE register delay from the Quartus II software

Maximum feedback clock pin to the IOE register delay from the Quartus II software

Minimum DQ pin to the IOE register delay from the

Quartus II software

Maximum DQ pin to the IOE register delay from the

Quartus II software

Intrinsic setup time of the IOE register 0.068

0.122

Board specifications t

µt

H

EXT_SK EW

0.037

0.020

0.072

0.020

Intrinsic hold time of the IOE register

Board trace variations on the DQ and DQS lines

Timing calculations t t t t

EARLY _C LOCK

LATE_C LOCK

EARLY _DATA_INVALID

LATE_DATA_VALID

1.642

2.143

2.236

1.330

1.865

2.388

2.589

1.685

Earliest possible clock edge after DQS phase-shift circuitry and uncertainties (minimum clock delay + PLL phase shift – t

P LL_PSERR

– t

PLL_JITTER

– t

PLL_COM P_ERROR

)

Latest possible clock edge after DQS phase-shift circuitry and uncertainties (maximum clock delay + PLL phase shift + t

P LL_PSERR

+ t

PLL_JITTER

+ t

PLL_COM P_ERROR

)

Time for earliest data to become invalid for sampling at

FPGA flop (t

HP

– t

AC

+ minimum data delay – t

CO_S KEW

)

Time for latest data to become valid for sampling at

FPGA flop (t

A C

+ maximum data delay + t

C O_SK EW

) t

EARLY _C LOCK

– t

LATE_DATA_VA LID

μt

SU

– t

EX T

Results

Read setup timing margin

Read hold timing margin

Total margin

0.224

0.036

0.038

0.109

t

EARLY _DATA_INVALID

– t

LATE_CLOCK

μt

H

– t

EX T

0.260

0.147

Setup + hold-time margin

Notes to Table 20 :

(1) Specifications are based on the 200 MHz Micron MT9HTF3272AG-40E data sheet.

(2) For FPGA PLL specifications, refer to the PLL Timing Specifications section of the

DC Switching Characteristics

chapter in volume 1 of the

Stratix II Device Handbook.

(3) PLL phase shift is adjustable if you must balance the setup and hold time margin.

(4) Package trace length skew is modeled in the Quartus II software version 5.0 and higher. No additional adder is required.

(5) This number represents the difference between the Quartus II software reported t

CO

for your CK and feedback clocks. The value used in your analysis can be minimized by choosing pins with closely matched t

CO

, such as adjacent pins.

(6) These numbers are from the Quartus II software, version 5.1 using the DDR2 SDRAM Controller MegaCore 3.3.0.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 118 Appendix D: Interface Timing Analysis

Write Data Timing Analysis

Whether you are using the DQS phase-shift circuitry or the PLL to capture the data during a read operation from the DDR2 SDRAM component, there is only one implementation for the write operation. Timing margin analysis for write data and address and command signals are very similar. This section analyzes timing for the write data signals. You must use the same approach to repeat this for the address and command signals.

For write operations, the DDR2 SDRAM memory requires the DQS to be center-aligned with the DQ. This is implemented in the Stratix II device using the PLL phase shift feature. Two output clocks are created from the PLL, with a relative 90° phase offset. The leading (–90°) clock edge clocks out the DQ write data output pins to the memory, while the lagging (0°) clock edge generates the DQS clock strobe and CK and CK# memory output clocks. Figure 66 on page 100 shows the timing relationship between the DQS and DQ inputs required by the memory during a read operation.

Figure 67 on page 100 shows the DQ, DQS timing relationship. The write side uses a

PLL to generate the clocks listed in Table 21 .

Table 21. PLL Clock Outputs

Clock

System clock

Write clock (–90° shifted from system clock)

Feedback clock

Resynchronization clock

Description

Used for the memory controller and to generate the DQS write, CK, and

CK# signals.

Used in the data path to generate the DQ write signals.

Optional clock used if you are not using the DQS phase-shift circuitry when reading from the DDR2 SDRAM component or if you are using the feedback clock scheme for resynchronization.

Optional clock only used if you are using the DQS phase-shift circuitry and need a different clock phase shift than available for resynchronization.

Memory Timing Parameters

When writing to a specific memory, the FPGA must ensure that setup and hold times are met. Obtain these specifications (t

DS

and t

DH

) from the data sheet (for the 267 MHz

DDR2 SDRAM example, 350 ps and 350 ps, respectively). Additionally, the FPGA must provide a memory clock (CK and CK#) that meets the clock high and low time specifications. And finally, the skew between the DQS output strobe and CK output clock cannot exceed limits set by the memory. While the last parameter does not directly affect timing margins, it must be met for successful memory operation.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Appendix D: Interface Timing Analysis

Figure 75 shows the DDR2 SDRAM write data path in Stratix II devices.

Figure 75. DDR2 SDRAM Write Data Path for Stratix II Devices

(Note 1)

,

(2)

doing_wr wdata

16 wdata_valid dq_oe

D

Q

8

D Q

EN

8

D Q

EN write_clk

8

D Q

D Q

D Q

0

1

8

DQ[7:0]

Page 119

doing_wr dqs_burst dqs_oe

D Q D Q

D Q

D Q

0

DQS

D Q

1 be

2

D Q

EN

0

DM doing_wr

D Q

EN

D Q

Bo write_clk system_clk

DQ IOEs

DQS IOEs

DM altddio Megafunction

Notes to Figure 75 :

(1) This figure shows the logic for one DQ output only. A complete byte group consists of four or eight instances of the DQ logic with the DQS and

DM logic.

(2) All clocks are system_clk

unless marked otherwise.

FPGA Timing Parameters

The timing paths in the FPGA for the DQ and DQS outputs to memory are matched by data path design. Dedicated clock networks drive double-data rate I/O structures to generate DQ and DQS. This results in minimal skew between these outputs. These skew parameters include phase-shift error, clock skew, and package skew.

The two clock networks used are driven by the same PLL, but with a 90° relative phase shift. The 0° clock generates DQS, while a – 90° clock generates DQ. Typical

PLL uncertainties, such as jitter and compensation error, affect both clock networks equally. Therefore, these timing parameters do not affect write timing margins. As the clock generating DQ is phase shifted, the PLL phase-shift uncertainty

(t

PLL_PSERR

= ± 15 ps, listed in the DC Switching Characteristics chapter in volume 1 of the

Stratix II Device Handbook

) affects DQ arrival times at the memory pins.

The Quartus II software models intra-clock skew; that is, skew between nodes driven by the same dedicated clock network. However, skew between two such clock networks is not modeled and specified in the data sheet as an adder term. You must add this skew component to the propagation delays extracted from the Quartus II software.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 120 Appendix D: Interface Timing Analysis

For a 72-bit DDR2 SDRAM interface that spans two I/O banks in the top or bottom of the device, the clock skew adder between two clock networks is specified as ± 50 ps

(t

CLOCK_SKEW_ADDER

). This uncertainty is used when calculating DQS arrival times at the memory pins.

The final skew component is package skew. As noted earlier, the Quartus II software models package trace delay for each pin on the device. Extracted propagation delays reflect any skew between output signals to the memory.

Table 22 shows the timing analysis for write operations to a DDR2 SDRAM memory device.

Table 22. Write Timing Analysis Example for 267-MHz DDR2 SDRAM Interface in EP2S60F1020C3 (Part 1 of 2)

(Note 1)

Parameter

Memory

specifications

(2)

FPGA

specifications

Board specifications

(1)

t t t t t t t

DS

DH

HP

Specification

P LL_J ITTER

P LL_P SERR

C LOCK_S KEW_A DDER

Minimum clock delay

(output)

EX T

(3)

,

(4)

Maximum clock delay

(output)

(3)

,

(4)

Minimum data delay

(output)

(3)

,

(4)

Maximum data delay

(output)

(3)

,

(4)

Fast

Corner

Model

0.395

0.335

1.487

0.000

0.015

0.050

0.925

0.960

-0.021

0.117

0.020

Slow

Corner

Model Description

0.395

Memory data setup requirement

0.335

Memory data hold requirement

1.487

Ideal half-period time minus 5% duty cycle distortion and half-period jitter

0.000

Does not affect margin as the same PLL generates both write clocks (0° and –90°)

0.015

PLL phase-shift error (on –90° clock output)

0.050

Clock skew between two dedicated clock networks feeding IO banks on the same side of the FPGA

1.864

Minimum DQS t

C O

from the Quartus II software

(0° PLL output clock)

1.909

Maximum DQS t

C O

from the Quartus II software

(0° PLL output clock)

0.918

Minimum DQ t

CO from the Quartus II software

(–90° PLL output clock)

1.226

Maximum DQ t

CO

from the Quartus II software

(–90° PLL output clock)

0.020

Board trace variations on the DQ and DQS lines

Timing calculations t t t t

EA RLY _CLOC K

LATE_CLOCK

EA RLY _DATA _INVA LID

LATE_DATA_VA LID

0.875

1.010

1.452

0.132

1.814

Earliest possible clock edge seen by the memory device (minimum clock delay – t

PLL_JITTER

– t

C LOCK _S KEW_A DDER

)

1.959

Latest possible clock edge seen by the memory device (maximum clock delay + t

P LL_J ITTER

+ t

C LOCK _S KEW_A DDER

)

2.391

Time for earliest data to become invalid for sampling at the memory input pins (t

HP

+ minimum data delay – t

PLL_PS ERR

)

1.241

Time for latest data to become valid for sampling at the memory input pins (maximum data delay + t

P LL_P SERR

)

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Appendix D: Interface Timing Analysis Page 121

Table 22. Write Timing Analysis Example for 267-MHz DDR2 SDRAM Interface in EP2S60F1020C3 (Part 2 of 2)

(Note 1)

Parameter Specification

Fast

Corner

Model

Slow

Corner

Model Description

Write setup timing margin

(3)

0.328

0.158

t

EA RLY_CLOC K

– t

LATE_DATA _VALID

– t

DS

– t

EXT

Results Write hold timing margin

(3)

Total margin

0.087

0.077

t

EA RLY_DATA _INVA LID

– t

LATE_C LOC K

– t

DH

– t

EXT

0.415

0.235

Setup margin + hold margin

Notes to Table 22 :

(1) This analysis is performed with FPGA timing parameters for an EP2S60F1020C3 device. You must use this template to analyze timing for your preferred Stratix II density-package combination. Refer to the “PLL Timing Specifications” and “Clock Network Skew Adders” sections of the

DC Switching Characteristics chapter volume 1 of the

Stratix II Device Handbook

, for FPGA specifications.

(2) The memory numbers used here come from the Micron MT47H64M8-37E component data sheet using DQ and DQS edge rates of 1 V/ns. To determine the edge rate for your design, you must perform a board level simulation as described in

Application Note 408: Stratix II FPGA DDR2

Memory Interface Termination, Drive Strength and Loading Design Guidelines.

(3) These numbers are from the Quartus II software, version 5.1 using the DDR2 SDRAM Controller MegaCore 3.3.0.

(4) Package trace skews are modeled by the Quartus II software.

Round-Trip Delay Calculation

Resynchronization involves transferring memory read data from the DQS clock domain to the FPGA system clock domain. Analyzing timing for the resynchronization path requires round-trip delay (RTD) calculation for clock and data signals across PVT. When calculating RTD using the fast and slow timing models, a safe resynchronization window might not exist at higher speeds when using the single-stage resynchronization implementation. Timing analysis for typical Stratix II

DDR2 interfaces has shown that single-stage resynchronization performance (without a fedback clock) is limited to approximately 200 MHz. A feedback clock implementation increases this performance limit using delay matching and multistage resynchronization.

A typical RTD path includes delay components such as t

CO

of the FPGA CK output pin, board trace delay for CK clock, memory propagation delay from CK to DQS, DQS phase-shift delay inside the FPGA, and DQ propagation delay from capture register to resynchronization register. Each of these delay components can vary significantly across PVT and result in a data valid window that is severely diminished or non-existent. A feedback clock architecture uses two register stages between the memory clock domain and the system clock to split uncertainties. Furthermore, the clock and data delay paths to the first stage register have matched delays through the

FPGA clock output pin, board trace, and FPGA input pin to register. The uncertainties from the first resynchronization register stage are moved to the second stage register.

In this mode, the feedback clock output uses the same I/O standard as the FPGA CK clock output. And a PLL-compensated clock network eliminates delay variation across PVT. Therefore, this 2-PLL fedback clock implementation is recommended for higher speeds. The DDR2 SDRAM MegaCore IP Toolbench provides timing margin analysis for resynchronization paths for both implementations. Review the timing analysis output from the Quartus II software or perform a similar paper analysis to select the best resynchronization implementation for your design.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 122 Appendix D: Interface Timing Analysis

Round-Trip Delay with the Optional Feedback Clock

The feedback clock and the read PLL shown in Figure 67 on page 100 improves resynchronization. This feedback clock follows the

FB_CLK

signal to memory and routed back to the Stratix II FPGA to feed a second PLL, called the read PLL. This read

PLL must be in normal mode so that the output is in phase with the input to the PLL

(if there is no phase-shifting). The input to the PLL is then skewed by ±t

DQSQ

from the

DDR2 SDRAM plus any board trace skew between DQS, CK, and the

FB_CLK

traces.

The PLL can then compensate for the delay between the clock input pin to the LE register and synchronize the data from the DQS clock domain to the feedback clock domain.

The feedback clock lags the system clock by the board trace lengths for the CK and

DQS signals (l

1

+ l

2

) delay. You can calculate whether outputs of the registers clocked by the feedback clock need another resynchronization stage before getting to the system clock domain. In this calculation, you need to have the maximum and minimum values for the following delays:

Clock-to-out delays for the CK signal from the Stratix II device

CK board trace lengths

DQS board trace lengths

Register-to-register delays between the registers in the feedback clock domain and the registers in the system clock domain

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Appendix D: Interface Timing Analysis Page 123

Figure 76 shows an example of a timing waveform when using the optional feedback clock for resynchronization.

Figure 76. Round-Trip Delay Example

System clock

t

CO

CK at FPGA pin

CK Board

Trace Length

CK at SDRAM pin

FB_CLK Board

Trace Length

FB_CLK at FPGA pin

(1)

±t

DQSCK

±t

EXT

DQS at FPGA pin

DQ at FPGA pin (max)

Shifted and inverted DQS (min)

DQ at IOE registers (min)

DQ to IOE

Register Delay (min)

Shifted and inverted DQS (max)

DQ at IOE registers (max)

DQ to IOE

Register Delay (max)

DQ at Resynchronization registers (min)

DQ at Resynchronization registers (max)

DQ IOE t

CO

(min) +

IOE to LE delay (min)

DQ IOE t

CO

(max) +

IOE to LE delay (max)

SRW (2)

FB_CLK edge is near to the middle of the SRW

Notes to Figure 76 :

(1) The

FB_CLK

input signal goes to a PLL in which the output can be shifted in such a way that it is centered in the safe resynchronization window

(SRW).

(2) SRW.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 124 Appendix D: Interface Timing Analysis

Round Trip Delay Calculation Without the Optional Feedback Clock

Figure 77 shows the timing analysis and the round trip delay when the feedback clock

is not used. The round trip delay is the delay from the FPGA clock to the DDR2

SDRAM and back to the FPGA (input to register B). This analysis is required to reliably transfer data from register A (in the IOE) to register B (in the LE).

Figure 77. Round Trip Delay Without a Feedback Clock dqs_ref_clk

(2)

FPGA

DQS Phase

Shift

Circuit

DDR2

SDRAM clock_source e1 resynch_clk

(3)

PLL c2 c1 write_clk

(4)

c0 clk

(5)

D Q

t

PD

(clk_ext to pin) t

PD

(Clock Trace)

(B) clk_to _sdram

FPGA CLK CLK

(C)

t

PD

(clk to pin) t

DQSS

(Write)

(A)

DQS Write

(6)

D Q

t

CQ

(DQS Write) t

DQSCK

(Read)

D Q

Address/

Command Pins

(7)

D Q

Q

B

D

(I)

(8)

(9)

DQ Read

DQ data_out

(H)

Q

A

D

(G)

t

PD

(Routing) t

CQ

(Capture)

(F)

DQS

Logic Block

DQS Read

(E)

t

PD

(DQS Trace) t

PD

(Capture)

(D)

t

SU

(Resynchronization) t

H

(Resynchronization)

Notes to Figure 77

:

(1) The nodes for the round trip delay (RTD) analysis are marked with letters (A) through (I).

(2) The dqs_ref_clk

input for Stratix II devices can be either from an output of the PLL or directly from an input clock pin.

(3) The resynch_clk

is optional based on the round trip delay of the system.

(4) The write_clk

signal is shown for completeness, but it is not needed in the timing analysis for round-trip delay or address/command timing.

(5) clk

is the system clock.

(6) The DQS signal is bidirectional. DQS write and DQS read are shown as two separate pins for this timing analysis.

(7) You can clock the address/command register with either a rising edge or falling edge of the clk

signal.

(8) Register B’s clock input can be clk

, write_clk

, or resynch_clk

. The clk

and write_clk

signals can also be inverted at Register B if needed.

(9) The DQS phase-shift reference circuit controls the 90° phase shift dynamically. The control path is not shown and its operation is user transparent.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Appendix D: Interface Timing Analysis Page 125

Register A in Figure 77

represents the DDR2 SDRAM capture logic. The Q output from register A represents the point at which the read data has been converted from

DDR2 SDRAM to single data rate (SDR). At the output of register A, the data is already at single data rate, but is still in the DQS clock domain. DQ

H

(DQ data during

DQS high) is sampled on the positive edge of the 90° phase-shifted DQS pulse, but re-sampled on the negative edge of the 90° phase-shifted DQS pulse, to align it with

DQ

L

(DQ data during DQS low).

After sampled by the negative edge of the 90° phase-shifted DQS pulse, DQ

L

and DQ

H are available for resynchronization.

To sample the Q output of register A into register B, you need the time relationship between register B’s clock input and the D input, which depends on the phase relationship between the DQS and clk

signals and involves the following steps:

1. Calculate the systems’ round trip delay.

2. Select a resynchronization phase of the system clock or other available clock that reliably samples the Q output of register A, based on the calculated safe resynchronization window (SRW).

3. Apply the correct clock edge for your resynchronization logic in your memory controller.

You can use the clk

, write_clk

, or resynch_clk

signals as the register B clock input. You can also invert clk

and write_clk

if needed. To determine the timing of data at the D input of register B relative to clk

, consider the following timing-path dependencies:

The DDR2 SDRAM clock input arrives (a delayed version of clk

).

DQS strobe from the DDR2 SDRAM arrives at the clock input of register A.

■ Data arrives at the Q output of register A.

■ Data arrives at the D input of register B.

There are three main parts to this path:

■ Clock delays—between the FPGA global clock net and the DDR2 SDRAM clock input.

DQS strobe delays—between the DDR2 SDRAM clock input and dqs’s arrival at the FPGA capture registers.

Read data delays—between the output of register A and the input of register B.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 126 Appendix D: Interface Timing Analysis

Figure 78 shows the timing relationship of the signals for the delays between points

(A) to (I) for a CAS latency of 2.5 clock cycles.

Figure 78. RTD Calculation without a Feedback Clock

Round-Trip Delay

Resynchronization

Phase clk (A)

t

PD

(clk to pin)

Clock

FPGA CLK Pin (B)

t

PD

(Clock Trace)

SDRAM CLK Pin (C)

t

DQSCK

SDRAM DQS Pin (D)

(during Read

CL = 2.5)

(2) t

PD

(DQS Trace)

FPGA DQS Pin (E)

DQS

Strobe

90°

90° DQS phase shift (F)

t

PD

(Capture)

Clock input at Register A (G)

(3) t

CQ

(Capture)

Q Output of Register A (H)

(4)

Captured

DQ Data t

PD

(Routing)

D Input of Register B (I)

Notes to Figure 78 :

(1) The letters in parenthesis refer to the letters in

Figure 77 .

(2) The DQS strobe edge can be anywhere within ±t diagram assumes the strobe occurs t

DQSCK

of the DDR2 SDRAM clock pin edge. For calculating the maximum round trip delay the

DQSCK

after the clock. For calculating the minimum it has to be assumed it occurs t

DQSCK

before.

(3) The delays in the DQS path from FPGA pin to capture register are matched to those for the DQ path with the exception of the DQS delay chain.

(4) Although data is initially sampled at a capture register on the positive edge of DQS, it is only on the negative edge that both DQ

H

and DQ available at the Q outputs of the DDR2 SDRAM capture logic. At this point they are then single data rate.

L

are

To determine the point at which the data can be reliably resynchronized, calculate the minimum and maximum round trip delay. You can then determine what resynchronization logic to use for your system. Remember to take into account PVT variations.

Delay (A) to (B) is the clock-to-out time to generate the clock signals to the

DDR2 SDRAM component.

Delay (B) to (C) is the trace delay for the clock. If there are multiple DIMMs or devices in the system, the one furthest away from the FPGA must be used for the maximum calculation; the closest for the minimum.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Appendix D: Interface Timing Analysis Page 127

Delay (C) to (D) is the relationship between the clock and the DQS strobe timing during reads. This is t

DQSCK

in DDR2 SDRAM specifications, nominally 0, but typically varies by ±0.75 ns depending on the DDR2 SDRAM component-speed grade. The

DQS output strobe is only guaranteed to be within ±t

DQSCK

of the clock input. So use t

DQSCK

(maximum), typically +0.75 ns, for calculating the maximum round trip delay; t

DQSCK

(minimum), typically –0.75 ns, for calculating the minimum delay.

Delay (D) to (E) is the trace delay for DQS, which typically matches the trace delay for the DQ signals in the same byte group. To calculate the maximum RTD, use the byte group with the longest trace lengths; for the minimum use the shortest. Similarly, if there are multiple DIMMs or devices in the system, use the one furthest from the

FPGA for the maximum calculation and the one closest to the FPGA for the minimum.

Trace lengths between different byte groups do not have to be tightly matched, but a difference between the longest and shortest decreases the safe resynchronization window. This increase reduces the window size in which the data can be reliably resynchronized.

PLL jitter and clock duty cycle also affect the RTD. Add each of these delays to the maximum value and subtract from the minimum. PLL jitter and clock duty cycle are

not shown in Figure 77 on page 124 , but are included in

Table 23 on page 130 which shows example RTD calculations.

Resynchronization Selections

When the DQS signal arrives at the Stratix II device, the dedicated phase-shift circuitry shifts the signal by 90° to capture the DQ signals. The DQ signals are then ready to be synchronized with the system clock. The round trip delay numbers vary depending on the board delay and the device internal delay. Complete a timing analysis to decide whether to use the falling edge or the rising edge of the system clock of the write clock for the synchronization registers. After calculating the maximum and minimum RTD, determine the equivalent number of system clock cycles at your operating frequency to find the point at which the data becomes valid relative to clk

. The example maximum delay in Table 23 on page 130 represents 1.8 cycles at 200 MHz; the minimum represents 0.9 cycles. If the CAS latency is included, which is equal to three in Figure 73 on page 110 , the example represents a minimum delay of 3.9 cycles and a maximum delay of 4.8 cycles.

The overlap of the minimum and maximum data valid windows defines the data valid window, which comprises the safe resynchronization window and t

SU

and t

H

of register B.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 128 Appendix D: Interface Timing Analysis

Figure 79 shows an example timing waveform of the RTD analysis in Table 23 on page 130 .

Figure 79. RTD Diagram without a Feedback Clock Example 1

(Note 1)

time = 0 s time = 3.9T

time = 4.8T

time = 4.9T

System clock

CK at the

FPGA

CK at the memory

DQS at the memory

DQS at the

FPGA

DQS at the

IOE input ports

DQ at the

IOE input ports

DQ at the IOE output ports (minimum)

DQ at the

IOE output ports

DQ after the resynchronization

Read Command

Latched Here

Minimum RTD + CAS Latency

Maximum RTD + CAS Latency

SRW

Note to Figure 79 :

(1) T refers to the clock period of the system, which is 5 ns in this example.

The RTD helps you determine the safe resynchronization window (SRW) and how you need to resynchronize the data. Because the shifted DQS signal can go into the

LEs, you can use the shifted DQS signal for resynchronization in the LE. This may mean that the DQS clock-domain to system clock-domain transfer happens between the two LE registers. The timing analysis in this section assumes that the clock domain transfer happens from the IOE register to the LE register.

Assume that time 0 is the time of the clock rising edge. After the DDR2 SDRAM component receives this rising edge from the Stratix II device, the read command is clocked into the SDRAM upon receiving this positive edge. You can calculate the SRW valid time as follows:

Equation 1.

Minimum SRW valid time = maximum RTD + CAS latency × clock period + µt

SU

Maximum SRW valid time = minimum RTD + (CAS latency + 1) × clock period – µt

H

From the example in Table 23 on page 130 , the minimum SRW valid time is 4.8 cycles and the maximum SRW valid time is 4.9 cycles (ignoring µt

SU

and µt

H

).

The size of the SRW in the example is then 0.1 cycles, as calculated in

Equation 2

:

Equation 2.

SRW size = maximum SRW valid time – minimum SRW valid time

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Appendix D: Interface Timing Analysis Page 129

The SRW size must be large enough to accommodate the worst-case clock skew between two PLL output clocks (150 ps).

Next, determine how many half clock cycles elapse from time 0 to the minimum SRW valid time ( numcycle

) by calculating the ceiling function of the minimum SRW valid time divided by half a clock cycle. To find out whether the SRW falls in a clock edge, multiply numcycle

by half a clock cycle. If the result is less than the maximum SRW valid time, then a system clock edge falls in the SRW. Otherwise, you need an extra

PLL output for your resynchronization clock.

The example in Table 23 on page 130 shows that numcycle

is equal to 10 and that the

SRW does not fall in a system clock edge.

If you do not need a resynchronization clock and numcycle

is an even number, the active system clock edge for resynchronization is the positive edge. If numcycle

is odd, the resynchronization system clock edge is the negative edge, and you must determine the resynchronization phase selection.

Figure 80 shows an example in which the SRW is in a system clock edge. In this example, numcycle

is equal to 9 (time = 4.5T) and the negative edge of the system clock is used for the resynchronization clock.

Figure 80. RTD Diagram without a Feedback Clock Example 2 time = 0 s time = 4.2T

time = 3.8T

time = 4.8T

time = 4.5T

System Clock Edge

Used for Resynchronization

System clock

CK at the

FPGA

CK at the memory

DQS at the memory

DQS at the

FPGA

DQS at the

IOE input ports

DQ at the

IOE input ports

DQ at the IOE output ports (minimum)

DQ at the

IOE output ports

DQ after the resynchronization

Read Command

Latched Here

Minimum RTD + CAS Latency

Maximum RTD + CAS Latency

SRW

Note to Figure 80 :

(1) T refers to the clock period of the system, which is 5 ns in this example.

If there is no clock edge available in the safe resynchronization window, you need an extra resynchronization clock, you can shift the system clock from either edge. If numcycle

is even in this case, the closest system clock edge to the SRW is negative and if numcycle

is odd, the closest clock edge is positive.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 130 Appendix D: Interface Timing Analysis

You can calculate the needed phase shift for the resynchronization clock by using the

Equation 3 and Equation 4 .

Equation 3.

Minimum phase shift = minimum SRW valid time + PLL clock skew (150 ps) – (numcycle – 1) × t

CK/

2

Equation 4.

Maximum phase shift = minimum SRW valid time – PLL clock skew (150 ps) – (numcycle – 1) × t

CK

/2

The phase-shift calculation example in Table 23 lists that the minimum phase shift is

1.61 ns and the maximum phase shift is 1.52 ps. This is because the SRW is less than

300 ps. You can still choose median (1.565 ns) for the phase shift of the resynchronization clock.

You then need to convert the results to the equivalent degree phase shifts. If the closest clock edge to the SRW is negative, add or subtract 180° after the conversion to shift the clock from the positive edge. For example, in Table 23 , the phase-shift range is between 1.52 to 1.61 ns based on the negative edge clock. The median of this number is 1.565 ns, which equates to ~113° (from the 200-MHz clock). If you want this clock to be shifted from the positive edge of system clock, you can either use 293°

(113° + 180°) or –67° (113° – 180°).

Table 23. Example RTD Calculation

(Note 1)

Delay

Numbers in

Figure 77

and Figure 78

Example Minimum

Values (ns)

Example Maximum

Values (ns) Comments

t t t t

PD

PD

(clk to pin)

(clock trace)

DQSC K

PD

(DQS trace)

90° phase-shift

(A) to (B)

(B) to (C)

(C) to (D)

(D) to (E)

(E) to (F)

2.00

0.33

–0.60

0.33

1.133

3.00

0.50

+ 0.60

0.50

1.333

Equal to t

CQ

(DQS write)

2 to 3 inches at 166 ps per inch

(2)

Refer to DDR2 SDRAM specifications

2 to 3 inches at 166 ps per inch

(2)

Includes Stratix II DLL jitter and phase-shift error t

PD

(capture) t

CQ

(capture) t

PD

(routing)

PLL jitter

Clock duty cycle

(F) to (G)

(G) to (H)

(H) to (I)

-

-

0.50

0

1.00

–0.10

–0.25

1.00

0.16

1.50

+ 0.10

+ 0.25

PLL jitter specification

45-55% duty at 200 MHz

Round-trip total (A) to (I) 4.343

8.943

Notes to Table 23 :

(1) Numbers quoted here are not taken from a specific system or a specific device.

(2) To know the exact delay for your system, perform a time domain reflectrometry (TDR) analysis on your system.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Appendix D: Interface Timing Analysis Page 131

DQS Postamble

The DQS postamble feature only applies to the DLL-based read implementation. The

DQS strobe is not used in the PLL-based implementation, so you do not have to consider DQS postamble.

The DDR2 SDRAM DQ and DQS pins use the SSTL-18 I/O standard. When neither the Stratix II nor DDR2 SDRAM component drive the DQ and DQS pins, the signals go to a high-impedance state. A pull-up resistor terminates both DQ and DQS to V

TT

(0.9 V), so the effective voltage on the high-impedance line is 0.9 V. According to the

JEDEC JESD 8-15A specification for the SSTL-18 I/O standard, this is an indeterminate logic level and the input buffer can interpret this as either a logic high or logic low. If there is any noise on the DQS line, the input buffer may interpret that noise as actual strobe edges. Therefore, when the DQS signal goes to tri-state after a read postamble, you must disable the clock to the input registers so erroneous data does not get latched in and all the data from the memory is resynchronized properly.

Figure 81 shows a read operation example in which the DQS postamble could be a problem. This figure shows definitions of waveforms A, B, C, D, and E.

Waveform A shows the output of the active high IOE input register.

Waveform B shows the active low register output of the Stratix II IOE input register.

The active low register output goes into the latch, whose output is shown in waveform C.

■ Waveforms D and E show the output signals after the resynchronization registers.

Figure 81. Read Example with a DQS Postamble Issue

0 ns 5 ns 10 ns

DQS at the pin

DQ at the pin

D0H D0L

DQS at the IOE

DQ at the IOE

D0H D0L

15 ns

D1H D1L

D1H D1L

20 ns 25 ns

A

D0L D1L

D0H D1H B

C

D0H D1H resynch_clock

D0H

D

E D0L

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 132 Appendix D: Interface Timing Analysis

The first falling edge of the DQS at the IOE register occurs at 10 ns. At this point, data

D0H is clocked in by the active low register (waveform B). At 12.5 ns, data D0L is sampled in by the active high register (waveform A) and data D0H passes through the latch (waveform C). In this example, the positive edge of the resynch_clock

occurs at 16.5 ns, in which both D0H and D0L are sampled by the logic element’s (LE’s) resynchronization registers. Similarly, data D1H is clocked in by the active low register at 15 ns, while data D1L is clocked in by the active high register and data D1H passes through the latch at 17.5 ns.

At 20 ns, assume that noise on the DQS line causes a valid clock edge at the IOE registers, such that it changes the value of waveforms A, B, and C. The next rising edge of the resynch_clock

signal does not occur until 21.5 ns, but data D1L and

D1H are not valid anymore at the output of the latch and the active-high input register, so the resynchronization registers do not sample D1L and D1H and may sample the wrong data instead.

Stratix II devices have circuitry to prevent a false edge trigger at the end of the DQS postamble. Each Stratix II DQS logic block is connected to a postamble circuitry that consists of AND, NAND, and NOT gates ( Figure 82 ). When you enable the gated_dqs

control (in the Quartus II software), you can AND the DQS signal with the output of the input register located inside the DQS IOE. The shifted DQS clock must clock the input register. Connect the register’s SCLR input to V

CC

. The controller must include extra logic to tell the reset signal to release the preset signal on the falling DQS edge at the start of the postamble. This disables any glitches that happen following the postamble.

Figure 82. Stratix II DQS Postamble Circuitry Connection dq_enable_reset

Postamble Circuitry

Enable

DFF

Q

PRN

D

GND

DQS'

CLRN

DQS

DQS bus

Figure 83 shows the timing waveform for Figure 82 .

Figure 83. Stratix II DQS Postamble Circuitry Control Timing Waveform

DQS

DQS'

Preset

Enable

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Appendix D: Interface Timing Analysis

Figure 84 shows the read timing waveform when you use the Stratix II DQS postamble circuitry.

Figure 84. Stratix II DQS Postamble Circuitry Read Timing Waveform

0 ns 5 ns 10 ns 15 ns

DQS at the pin

20 ns 25 ns

DQ at the pin

D0H D0L D1H D1L

DQS at the IOE

DQ at the IOE

A

D0H D0L D1H D1L

D0L D1L

B D0H D1H

D0H D1H C resynch_clock

D

E

Preset

Enable

D0H

D0L

D1H

D1L

Page 133

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 134 Appendix E: The relative_constraint.tcl Script

Appendix E: The relative_constraint.tcl Script

The relative_constraint.tcl script is used for making location constraints to registers in a DDR interface.

In some situations, the Quartus II software does not automatically place registers in the LAB adjacent to the I/O pin. This script creates LAB location constraints using offsets that you specify relative to the pin locations.

Table 24 lists the arguments that are available with the script.

Table 24. The relative_constraint.tcl Arguments

Arguments

-project value

-revision value

-pin_name value

-reg_name value

Value

Name of project

Name of revision

Name of items that are fixed

Name of floating items to position

Row offset relative to anchor location as an integer

-row_offset value

-column_offset value

-apply

(1)

-show_regs

-show_pins

-pin_range value

-reg_range value

-bidir

(2)

-input

(2)

Column offset relative to anchor location as an integer

Apply the actual constraints

Print out the matching register names

Print out the matching pin names

Pin bus slice to process, for example 71:0

Register bus slice to process, for example 71:0

Check bi-directional pins

Check input pins

-output

-help

(2)

Check output pins

Print this message

Print this message

-?

Notes to Table 24 :

(1) This is a required argument when you actually make the location assignment.

(2) If you do not specify bidir

, input

, or output

, the default is – bidir

.

Default value

<>

0

N/A

N/A

N/A

<>

<>

<>

0

<>

<>

N/A

N/A

N/A

N/A

N/A

Required

Yes

Yes

Yes

No

No

No

Yes

Yes

Yes

No

No

No

No

No

No

No

Usage

The relative_constraint.tcl script only works for pins and registers that are parts of a bus. It also requires that the number of pins match the numbers of registers. If not, you can bound it with the –pin_range or –reg_range argument.

1

The script issues the following warnings if the numbers of pins and registers do not match:

Warning: Unequal number of pins and registers. Ensure your patterns are correct.

Warning: Use the -show_regs and/or -show_pins options to show matching registers and pins.

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Appendix E: The relative_constraint.tcl Script Page 135

To use the script follow these steps:

1. Copy the script to your project directory.

2. Run the script with the following options to locate the specific pin and registers in your design: quartus_sh -t relative_constraint.tcl -project <project name> pin_name <wildcard to match IO pins> -reg_name <wildcard to match register names> <-bidir/-output/-input>

This finds all the registers and pins matching those names.

Figure 85 shows an example result of finding the address pins and registers in a

DDR2 SDRAM interface. The current pin locations, the would-be LAB locations for the registers, as well as the pin and register match-up are displayed in the result. Notice that the Y-coordinates of the LAB locations are Y0. This is because the default –row_offset and –column_offset values are 0 and because the address registers are located at the bottom of the device, the Y-coordinate is 0.

Figure 85. Finding Address Pins and Registers in a DDR2 SDRAM Interface

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 136 Appendix E: The relative_constraint.tcl Script

Figure 86 shows the result of the script when you use the –show_regs and the

–show_pins

arguments.

Figure 86. Output of the -show_regs and -show_pins Options on relative_constraint.tcl

3. You can bypass step 2 if you already know where you want to place the registers.

quartus_sh -t relative_constraint.tcl -project <project name> pin_name <wildcard to match IO pins> -reg_name <wildcard to match register names> <-bidir/-output/-input> -row_offset <+/- number of rows relative to the pin to make the LAB assignment> -column_offset

<number of columns relative to the pin to make the LAB assignment>

The script prints out information about the assignments it makes so you can verify the assignments.

4. To apply the assignment, repeat the command in step 3 with the –apply argument appended. In the address pins and registers example, the command: quartus_sh -t relative_constraint.tcl -project Legacy_PHY -pin_name

"*ddr2_a[*]” -reg_name "*|a2[*]" -output -row_offset 1 -apply

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Appendix E: The relative_constraint.tcl Script Page 137

The previous commands make location assignments to specified registers one LAB above the pin locations at the same column location. The result is shown in

Figure 87 .

Figure 87. Applying Location Assignment to the Address Registers

The script does not add the location of the assignments to your project until you use the -apply option so you do not have to worry about getting everything right the first time.

If you have a bus on the top side of the chip, specify a row offset of -1 to add LAB location constraints for the specified registers one row below the pins. Similarly, if you have a bus on the right side of the chip, specify a column offset of -1 to add LAB location constraints for the specified registers one column below the pins.

You have the option to create a batch file to execute the relative_constraint.tcl script multiple times to specify location constraints for different buses of pins and registers in your design.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Page 138 Referenced Documents

Referenced Documents

This application note references the following documents:

AN 380: Test DDR or DDR2 SDRAM Interfaces on Hardware Using the Example Driver

AN 392: Implementing Multiple Legacy DDR/DDR2 SDRAM Controller Interfaces

AN 408: DDR2 Memory Interface Termination, Drive Strength and Loading Design

Guidelines

AN 413: Using Legacy Integrated Static Data Path and Controller Megafunction with

HardCopy II Structured ASICs

AN 449: Design Guidelines for Implementing External Memory Interfaces in Stratix II

and Stratix II GX Devices

AN 462: Implementing Multiple Memory Interfaces Using the ALTMEMPHY

Megafunction

AN 463: Using the ALTMEMPHY Megafunction with HardCopy II Structured ASICs

Avalon Memory-Mapped Interface Specification

DDR and DDR2 SDRAM Controller Compiler User Guide

DDR and DDR2 SDRAM High Performance Controller MegaCore Function User Guide

DDR Timing Wizard (DTW) User Guide

External Memory Interfaces chapter of the Stratix II, Stratix II GX, or

Arria GX Device

Handbook

PCI Express Development Kit, Stratix II GX Edition Getting Started User Guide

Quartus II Handbook

Quartus II Online Help

Quartus II Software Release Notes

Stratix II DDR2 System Validation Summary

white paper

Stratix II GX PCI Express Development Board Reference Manual

TB 091: External Memory Interface Options for Stratix II Devices

www.jedec.org

website

AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices © October 2009 Altera Corporation

Document Revision History Page 139

Document Revision History

Table 23 shows the revision history for this document.

Table 25. Document Revision History

Date and Document

Version Changes Made Summary of Changes

October 2009 ver. 6.0

Added “Multiple Memory Controllers Walkthrough” on page 86

section

Added On-chip termination table: Table 3 on page 5

Updated two termination recommendations tables: Table 8 on page 42

and Table 10 on page 84

April 2009 ver. 5.0

Updated graphics with color

Updated Table 2.

Updated Figures 4-24, Figure 29 -51.

Updated sections “Stratix II, Stratix II GX, and Arria GX

Dedicated DQS Phase-Shift Circuitry”, “Step 1: Select Device”,

“Step 3: Add Constraints”, “Step 6: Adjust Constraints”

November 2007 ver. 4.0

Updated and added information for Stratix II GX, and Arria GX

Devices (througout the document).

Added Appendices: “Stratix II GX PCI-Express Development

Board Pin Assignments”, “Interface Signal Description”, “Legacy

PHY Architecture Description”, “Interface Timing Analysis”, and

“The relative_constraint.tcl Script”. Material regarding interface signals, architecture descriptions, and timing analysis was moved from the body of the document into appendices B and C.

Interface timing material was moved into appendix D.

Major update to sections, addition of new sections, and material for Arria GX.

May 2006 ver. 3.1

Added the sections “Design Example Walkthrough for a 333-MHz

DDR2 SDRAM Interface Using the ALTMEMPHY Megafunction”,

“Design Example Walkthrough for 267-MHz DDR2 SDRAM

Interface Using the Legacy PHY”, and “Design Checklist”.

Updated Figure 1, Figure 2, Figure 8, Figure 9, Figure 10,

Figure 15, Figure 18, Figure 41, Figure 62.

Added Figures 26, 27, 63, 73, 77, 78, and 79.

Updated Tables 1, 2, 5 -19.

Added Table 4.

Updated and added information for Quartus II software, version

7.2 (throughout the document).

Updated sections “DDR2 SDRAM Overview”, Interface

Description, “Interface Signals”, “Clock Signals”, “Strobes, Data,

DM, and Optional ECC Signals”, Command & Address Signals,

Data Path Architecture Without Using Dedicated DQS Circuitry,

Interface Timing Analysis, “FPGA Timing Information”, “Memory

Timing Parameters”, “FPGA Timing Parameters”, “Setup and

Hold Margins Calculations”, “Read Timing Margins for PLL-

Based Implementation”, “FPGA Timing Parameters”, “Write Data

Timing Analysis”, and “Round-Trip Delay Calculation”.

Updated Table 1-Table 10 and Figure 5.

Added Figure 4, Figure 10, Figure 14, Figure 15, and Figure 16.

Major update to multiple sections, tables, and figures.

© October 2009 Altera Corporation AN 328: Interfacing DDR2 SDRAM with Stratix II, Stratix II GX, and Arria GX Devices

Document Revision History

101 Innovation Drive

San Jose, CA 95134 www.altera.com

Technical Support www.altera.com/support

Copyright © 2009 Altera Corporation. All rights reserved. Altera, The Programmable Solutions Company, the stylized

Altera logo, specific device designations, and all other words and logos that are identified as trademarks and/or service marks are, unless noted otherwise, the trademarks and service marks of Altera Corporation in the U.S. and other countries. All other product or service names are the property of their respective holders. Altera products are protected under numerous U.S. and foreign patents and pending applications, maskwork rights, and copyrights. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera Corporation. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services

.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
