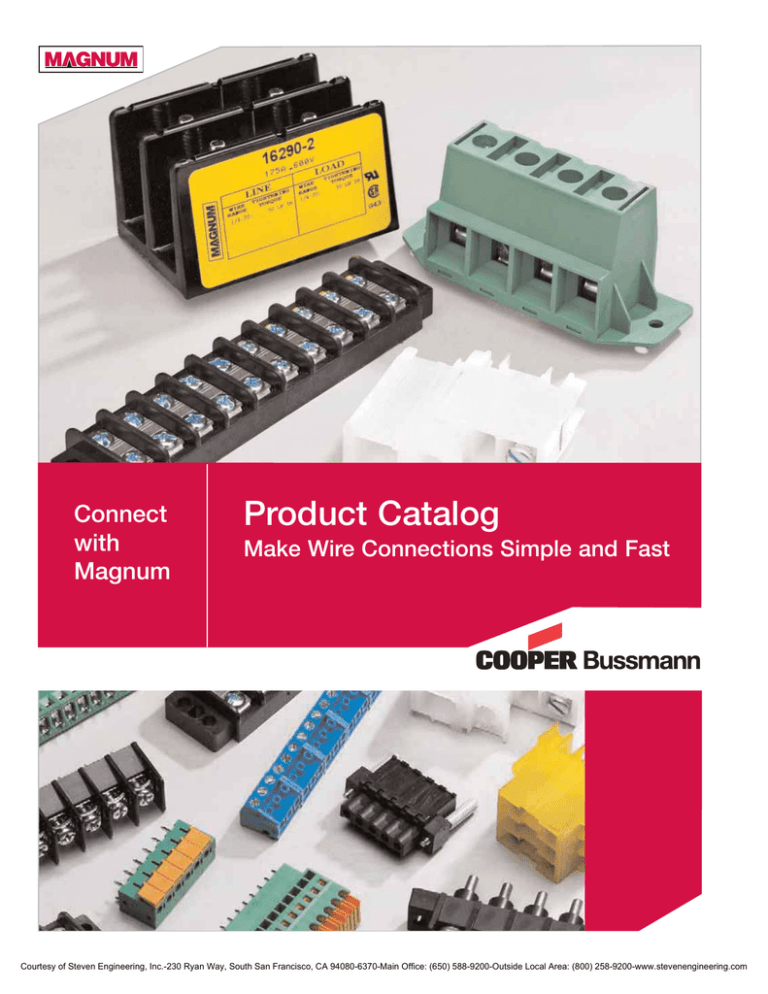

Magnum Connectors
Connect
with
Magnum
Product Catalog
Make Wire Connections Simple and Fast
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
MAGNUM
®
Connect with Magnum
Proven Products for Demanding
Applications
For over 50 years, the Magnum name has stood for proven
products, custom solutions, quality commitment and superior
service – core strengths that help build long-term relationships
with our customers.
Electronic: Our electronic products, including PCB mountable
North American and Euro-Mag® terminal blocks, are found in a
variety of demanding applications:
• Industrial and
• Telecom
• Process logic control (PLC)
environmental controls
• Instrumentation
• Test and measurement
• Security and alarm systems
• Power supplies
• Traffic signals and controls
• Elevators and conveyors
Magnum quality products support a broad range of electronic
and electrical OEM applications. Our product line offers the
most comprehensive selection of barrier-style terminal blocks
in the industry – as well as:
• North American-style terminal blocks — single row, double
row and tri-barrier
• European-style terminal blocks — PCB mount (spring, cage,
tiered, high current), screwless, and pluggable
• Power distribution blocks — barrier and dead front, splicer,
stud type, multi-line, and power blocks
• Rail and base mount terminal blocks
• DIN rail sectional blocks
• Junction blocks — stud type and feed through
• Edge connectors — vertical and right angle mount
European-Style PCB Terminal Blocks: Magnum Euro-Mag® blocks come come in a variety
of terminal options to make connections easy and in different wire-entry orientations to
solve wire routing issues. These high highcurrent terminal blocks handle up to 115
amps right on the circuit board and are
available in mold-to-length designs to
provide the exact number of poles for a
specific application.
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Table of Contents
Single Row
Series
A5000 and CB5000
A1000 and CB1000
A2000, LP2000 and CB2000
A3000, LP3000 and CB3000
A38/B38
A4000 and B4000
All Series Accessories
F38
Double Row
Series
TB100
TB200 and TB200HB
TB300 and TB345
TB400
Top and Bottom Marking Strips
TSXX01, TSXX02
Flat Base
Series
TSXX03, TSXX04
Raised Base
Series
Page
0.437”
24
Centers
Page
0.375”
0.437”
0.562”
0.687”
25-26
27-28
29-30
31-32
33
Centers
Page
8.00-13.50mm
34
Centers
Page
8.00 and 10.00mm
35
Centers
Page
8.00 and 10.00mm
36
EuroMag Series PCB Mount Terminal Blocks
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
Page
2.54mm
3.50mm, 45°
2.54mm, 30°
5.00mm, 45°
5.08mm
5.08mm
7.62mm
10.16mm
7.62mm, 60°
74
75
76
77
78
79
80
81
82
EuroMag Series PCB Mount Pluggable Terminal Blocks
Series
Centers/Type
Page
EM3533
EM2221
EM2413
EM2201
EM3553
EM3543
EM3583
EM3593
EM2423
EM2443
EM2211
EM2525
EM2485
EM3105
EM2535
EM2565
EM2488
EM3108
EM2575
EM2115
EM3115
EM2215
EM2118
EM3118
EM2218
EM3516
EM3526
EM2416
EM2426
EM5015
EM5025
EM5035
EM5045
3.50mm, Plug
3.50mm, Header
3.50mm, Plug
3.50mm, Header
3.81mm, Plug
3.81mm, Plug
3.81mm, IDC Plug
3.81mm, Header
3.81mm, Plug
3.81mm, Plug
3.81mm, Header
5.00mm, Plug
5.00mm, Plug
5.00mm, Plug
5.00mm, Header
5.08mm, Plug
5.08mm, Plug
5.08mm, Plug
5.08mm, Header
5.00mm, Plug
5.00mm, Plug
5.08mm, Plug
5.00mm, Header
5.08mm, Plug
5.08mm, Header
7.62mm, Plug
7.62mm, Header
7.62mm, Plug
7.62mm, Header
5.00mm, Plug
5.00mm, Header
5.00mm, Plug
5.00mm, Header
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
This catalog is intended to present product data and provide technical information that will help the end user with design application. Cooper Bussmann reserves the right, without notice, to change design or construction or any products
and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information contained in this catalog. Once a product has been selected, it should be
tested by the user in all possible applications. Further, Cooper Bussmann takes no responsibility for errors or omissions contained in this catalog, or for mis-application of any Cooper Bussmann product.
©2009 Cooper Bussmann
Compliance
References
Page
3.50mm
5.00mm
5.00mm
5.00mm
5.00mm
7.50mm
10.00mm
10.00mm
10.00mm
3.50mm
3.81mm
5.00mm
5.00mm, 35°
5.00mm, 45°
5.08mm
5.08mm, 35°
7.50mm
7.50mm, 35°
7.62mm
7.62mm, 35°
9.52mm
9.52mm, 35°
5.00mm
5.08mm
6.35mm
7.50mm
7.62mm
10.16mm
15.00mm
3.81mm, Two-Tier
Centers/Type
EM2742
EM2783
EM2802
EM2785
EM2778
EM2795
EM2796
EM2791
EM2816
Edge Connectors,
One-Sided Boards
Centers/Type
EM3123
EM2665
EM3660
EM3665
EM3675
EM3127
EM2661
EM3661
EM3671
EM3923
EM3503
EM2585
EM3225
EM2205
EM2505
EM3228
EM2507
EM3227
EM2506
EM3226
EM2403
EM2803
EM2445
EM2448
EM2855
EM2905
EM2908
EM9126
EM9127
EM9128
Series
Wire Management
Products
Series
EuroMag Series PCB Mount Screwless Terminal Blocks
Power Distribution
Blocks
TSXX05, TSXX06
Centers
68
69
70
71
72
73
Terminal Blocks:
Base & Rail Mount
Standard Base
Series
Page
1-2
3-5
6-11
12-17
18-19
20-22
23
3.81mm, Three-Tier
5.00mm, Two-Tier
5.08mm, Two-Tier
5.00mm, Three-Tier
5.00mm, Two-Tier
5.08mm, Three-Tier
EuroMag Series
Filtered
Series
Centers
0.250”
0.325”
0.375”
0.437”
0.437”
0.562”
EM2909
EM2919
EM2929
EM2939
EM3905
EM3908
Terminal Blocks:
Single & Double Row
Terminal Blocks
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series
Terminal Blocks:
Single & Double Row
Table of Contents - continued
Rail Mount Terminal Blocks and Accessories
116
Centers
Page
Series
Page
NDN63
NDN1
NDN11
NDNV4
NDN3
N512
NFT2
NFT3
NC3
NSE3
NSS3
0.375”
0.635”
0.635”
0.250”
0.300”
0.197”
0.281”
0.390”
1.06”
1.06”
0.385”
117
117
117
118
118
119
119
119
120
120
120
160, 162, 163 and 165
130
Terminal Blocks:
Base & Rail Mount
Power Distribution
Blocks
Power Distribution Blocks
Series
Page
Finger-Safe
160, 162, 163 and 16
131
132
Connector/Stud Power Distribution Blocks
Series
Page
162, 163 and 165
133
Power Blocks
Deplugable Rail Mount Terninal Blocks
Series
Centers
Page
PLU3
PLU1
PSU1
0.390”
0.625”
0.625”
121
121
121
Rail Mount Fuse Holding Terminal Blocks
Series
Page
NDNF1
NDND1 (Non Fused)
NDFD1 (Fuse)
NDNFLFD1 (Fused with Visual Indicator)
122
122
122
122
Series
Centers
Page
EN
1.78”
134
Wire Management Products
Series
Photo Control Receptacle
Stud Type Junction Blocks
Series/Type
C4559 and C6083
C5237 and JB1032
Page
135
Centers
Page
0.75”
0.625”
136
136-137
Power Feed Thru Terminal Blocks
Series
Centers
Quick Connect Terminal Blocks
Series
Centers
Page
NTQ23
BNQ21
BQQ41
0.390”
0.437”
0.437”
123
123
123
C7021
C7024
Base Mount Terminal Blocks
Series
Centers
Page
KT3
KT4
PLK3
0.390”
0.250”
0.390”
124
124
124
Centers
Page
15188
15288
0.375”
0.54”
125
126
0.375”
Vertical Mount
Series
Series
Centers
Page
KU
0.625”
127
138
139
Page
140
Right Angle Mount
Series
15104
Centers
Page
0.375”
141
Centers
Page
0.375”
142
Compliance References
Base Mount Double Row Terminal Blocks
Page
Edge Connectors - One-Sided Boards
1384X
Series
0.69”
0.750”
Depluggable PCB Mount Terminal Blocks
Series
Centers
15133
Disconnect Terminal Blocks
Wire Management
Products
Splicer Terminal Blocks
Series
143
Compliance
References
Edge Connectors,
One-Sided Boards
Quick-Connect Power Distribution Blocks
Series
Centers
Page
11675
11725
0.56”
0.68”
128
128
Barrier Terminal Blocks
Series
Page
14002
129
Dead Front Terminal Blocks
Series
Centers
Page
14004
0.50”
129
This catalog is intended to present product data and provide technical information that will help the end user with design application. Cooper Bussmann reserves the right, without notice, to change design or construction or any products
and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information contained in this catalog. Once a product has been selected, it should be
tested by the user in all possible applications. Further, Cooper Bussmann takes no responsibility for errors or omissions contained in this catalog, or for mis-application of any Cooper Bussmann product.
©2009 Cooper Bussmann
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks - Single Row
Terminal Blocks:
Single & Double Row
Series A5000 & Series CB5000
Single Row Terminal Blocks
A50110507
CB50220807
Dimensions - in (mm)
Terminal Blocks:
Base & Rail Mount
* Max. rating shown; some options may be rated lower – consult factory.
EuroMag Series
SPECIFICATIONS
Rating: 10A, 300V*
Center Spacing: 0.250” (6.35mm)
Wire Range: #18-30 AWG CU
Screw Size: #3-48 zinc-plated philslot SEMS screws, wireready standard
Torque Rating: 4 lb-in.
Distance Between Barriers: 0.20” (5.08mm)
Recommended PCB Hole Diameter: 0.062” (1.57mm)
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Molded Material: Black, UL Rated 94V0 Thermoplastic
Breakdown Voltage: 1600V rms
Agency Information: UL File E62622; CE Certified
A5000 Series
Poles
0.25
0.50
0.75
1.00
1.25
1.50
1.75
2.00
2.25
2.50
2.75
3.00
3.25
3.50
3.75
4.00
4.25
4.50
4.75
5.00
5.25
5.50
5.75
6.00
6.25
6.50
6.75
7.00
7.25
0.56
0.81
1.06
1.31
1.56
1.81
2.06
2.31
2.56
2.81
3.06
3.31
3.56
3.81
4.06
4.31
4.56
4.81
5.06
5.31
5.56
5.81
6.06
6.31
6.56
6.81
7.06
7.31
7.56
0.250
(6.35)
0.12
(3.0)
Ø
0.43
(10.9)
B
Mount End
Barrier End
0.50
(12.7)
0.25
(6.35)
0.025
(0.64)
A
Mount End
Barrier End
CB5000 Series
#3-48
screw
0.250
(6.35)
0.12
(3.0)
Ø
Edge Connectors,
One-Sided Boards
1.06
1.31
1.56
1.81
2.06
2.31
2.56
2.81
3.06
3.31
3.56
3.81
4.06
4.31
4.56
4.81
5.06
5.31
5.56
5.81
6.06
6.31
6.56
6.81
7.06
7.31
7.56
–
–
#3-48
screw
Wire Management
Products
0.75
1.00
1.25
1.50
1.75
2.00
2.25
2.50
2.75
3.00
3.25
3.50
3.75
4.00
4.25
4.50
4.75
5.00
5.25
5.50
5.75
6.00
6.25
6.50
6.75
7.00
7.25
–
–
BARRIER ENDS
A
B
Pole
Overall
Centers
Length
Power Distribution
Blocks
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
MOUNTING ENDS
A
B
Mount
Overall
Centers
Length
0.50
(12.7)
* Dimensions in inches. To convert to millimeters, multiply by 25.4.
B
Mount End
Barrier End
0.50
(12.7)
Compliance
References
0.025
(0.64)
Mount End
A
Barrier End
For additional product information, visit www.cooperbussmann.com/magnum
1
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series
Terminal Blocks:
Single & Double Row
Terminal Blocks - Single Row
Part Numbering System
Series
Terminal Style
Base/End
Poles
Screw Options
Options
A
5
C
B
5
01
02
03
04
1 - mount end
2 - barrier end
02 to 30
02 to 28 on mount
end base
07 - steel SEMS
std. wire ready
C1 to C8 - 0.110˝ QC
L1 to L6 marking options (pg 22)
LT1 to LT6 marking options (CB5 only-pg 22)
MP - mounting plate 0.120˝ dia
*OJ - over barrier jumper
S1 - single solder lug/flat
S2 - double solder lug/flat (A5 only)
*Contact factory for configuration
A5 - standard barrier
CB5 - closed back
- handwired
- printed circuit
- non feed-thru
- wire wrap tail
Terminal Blocks:
Base & Rail Mount
Terminal Styles
Inches (Millimeters)
0.16
(4.1)
0.40
(10.2)
0.10
(2.54)
0.055
(1.40)
0.025
(.64)
0.14
(3.6)
0.12
(3.0)
01
Handwired
Power Distribution
Blocks
0.50
(12.7)
0.032
(0.81)
02
Circuit Board
0.045
(1.14)
03
Non Feed-Thru
CB5 Terminal Exit Options
0.025
(0.64)
0.12
(3.0)
04
Wire Wrap Tail
Inches (Millimeters)
0.12
(3.0)
Wire Management
Products
Screw Options
Edge Connectors,
One-Sided Boards
Exit Rear (std.)
Hardware Options
Wire ready screws standard on all terminal styles
07
Steel SEMS
Zinc-Plated
(B001-7035-J)
Jumpers
(Bulk ordering part numbers are in parentheses.)
07
Standard
Wire Ready
(Bulk ordering part numbers are in parentheses.)
Inches (Millimeters)
Quick Connects Blade Width 0.110” (For other orientations, contact factory.)
Solder Lugs
0.56 (14.3)
Compliance
References
(OJ12-J)
(5C1-J)*
(5C2-J)*
(5C4-J)*
S1 (5S1-J)
1.12 (28.4)
C7 (5C7-J)
C8 (5C8-J)
* N/A on CB5 Series.
2
S2 (5S2-J)
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks - Single Row
A1000 Series
0.325
(8.26)
C
Mount End
Barrier End
0.50
(12.7)
0.25
(6.4)
A Mount Centers
B Pole Centers
Mount End
Barrier End
CB1000 Series
0.325
(8.26)
0.15
(3.8)
Ø
0.25
(6.4)
0.60
(15.2)
C
Mount End
Barrier End
0.52
(13.2)
0.27
(6.9)
0.025
(0.64)
A Mount Centers
B Pole Centers
Mount End
Compliance
References
0.72
1.04
1.37
1.69
2.02
2.34
2.67
2.99
3.32
3.64
3.97
4.29
4.62
4.94
5.27
5.59
5.92
6.24
6.57
6.89
7.22
7.54
7.87
8.19
8.52
8.84
9.17
9.49
9.82
10.14
10.47
10.79
11.12
11.44
11.77
0.50
(12.7)
Edge Connectors,
One-Sided Boards
0.33
0.65
0.98
1.30
1.63
1.95
2.28
2.60
2.93
3.25
3.58
3.90
4.23
4.55
4.88
5.20
5.53
5.85
6.18
6.50
6.83
7.15
7.48
7.80
8.13
8.45
8.78
9.10
9.43
9.75
10.08
10.40
10.73
11.05
11.38
BARRIER
ENDS
ONLY
C
Length
Wire Management
Products
1.37
1.69
2.02
2.34
2.67
2.99
3.32
3.64
3.97
4.29
4.62
4.94
5.27
5.59
5.92
6.24
6.57
6.89
7.22
7.54
7.87
8.19
8.52
8.84
9.17
9.49
9.82
10.14
10.47
10.79
11.12
11.44
11.77
–
–
BARRIER &
MOUNTING
ENDS
B
Pole Ctrs.
Power Distribution
Blocks
MOUNTING
ENDS
ONLY
A
C
Mount Ctrs.
Length
0.98
1.30
1.63
1.95
2.28
2.60
2.93
3.25
3.58
3.90
4.23
4.55
4.88
5.20
5.53
5.85
6.18
6.50
6.83
7.15
7.48
7.80
8.13
8.45
8.78
9.10
9.43
9.75
10.08
10.40
10.73
11.05
11.38
–
–
Dimensions - in (mm)
Terminal Blocks:
Base & Rail Mount
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
A102206
0.15
(3.8)
Ø
*General industrial applications
Poles
CB10210707
EuroMag Series
SPECIFICATIONS
Rating: 20A, 250V*
Center Spacing: 0.325” (8.26mm)
Wire Range: #14-22 AWG CU
Screw Size: #6-32 zinc-plated philslot wire-ready screws
with a #2 driving recess.
Torque Rating: 9 lb-in.
Base: Standoffs are standard on CB1000 Series
for easy flux washing.
Distance Between Barriers: 0.26” (6.6mm)
Recommended PCB Hole Diameter: 0.070” (1.78mm)
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Molded Material: Black, UL Rated 94V0 Thermoplastic
Breakdown Voltage: 1600V
Agency Information: UL/CSA; IEC Compliance;
CE Certified; UL File: E62622, CSA File: 15364
Terminal Blocks:
Single & Double Row
Series A1000 & Series CB1000
Single Row Terminal Blocks
Barrier End
* Dimensions in inches. To convert to millimeters, multiply by 25.4.
For additional product information, visit www.cooperbussmann.com/magnum
3
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks - Single Row
MAGNUM
®
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
Part Numbering System
Series
Terminal Style
A
1
C
B
1
A1 - standard barrier
CB1 - closed back
02
03
04
07
- printed circuit
- non feed-thru
- wire wrap tail
- extended pin
Base/End
Poles
1 - mount end
2 - barrier end
Screw Options
02 to 36
02 to 34 on mount
end base
Covers - (pg 23)
Options
Terminal Styles
0.35
(8.9)
0.14
(3.6)
03
Non Feed-Thru
Power Distribution
Blocks
Screw Options
Standard
Zinc-Plated Steel
0.54
(13.7)
0.032
(0.81)
0.055
(1.40)
0.032
(0.81
02
Printed Circuit
0.14
(3.6)
0.055
(1.40)
0.14
(3.6)
04
Wire Wrap Tail
0.032
(0.81)
07
Extended Pin
Wire ready screws standard on all terminal styles
04
Brass Nickel-Plated
03
Stainless Steel
09
Nickel-plated Brass Screws
07
Steel SEMS Zinc-Plated
CB1 Terminal Exit Options
Wire Management
Products
AB & DR - angle mts. (A1 only-pg 5)
B1 to B9 - 0.187” QC (all positions)
EB - exit back terminals on CB1 w/07 screw
option only
†JA, JB & JC - barrier jumpers
L1 to L6 marking options (pg 22)
LT1 to LT6 marking options (CB1 only-pg 22)
MP & MT - mounting plates 0.150 dia (pg 5)
R26 & R45 - right angle bends (A1 only-pg 5)
Inches (Millimeters)
0.16
(4.1)
0.055
(1.40)
Blank - std. screws
03 - stainless steel
04 - nickel brass
07 - steel SEMS &
washer (not
available with
hardware options)
09 - brass/nickel-plated SEMS
CA - standard captive screw
Inches (Millimeters)
0.275
(6.98)
0.12
(3.0)
EB
Exit Back
Exit Rear (std.)
Hardware Options
Edge Connectors,
One-Sided Boards
Jumpers
Inches (Millimeters)
(Bulk ordering part numbers are in parentheses.)
Quick Connects Blade Width B = 0.187”. (For other orientations, contact factory.)
0.33 (8.4)
3JA (JA1-XX)
B1 (1B1-J) *
B2 (1B2-J) *
B3 (1B3-J) *
B4 (1B4-J) *
B5 (1B5-J) *
B6 (1B6-J) *
B7 (1B7-J)
B8 (1B8-J)
0.33 (8.4)
Compliance
References
†JB (JB1-XX)
0.33 (8.4)
* N/A on CB1 Series.
†Contact factory for pole configuration..
†JC (JC1-XX)
4
.
B9 (1B9-J)
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks - Single Row
Mounting Options
Terminal Blocks:
Single & Double Row
Series A1000 & CB1000
Single Row Terminal Blocks Continued
Inches (Millimeters)
Right Angle Bends (A1 only)
EuroMag Series
Right angle terminals are offered on the A1000 Series. Configurations are
defined in these dimensions: X = pin extension beyond the block base;
Z = length from block base to centerline of the terminal tip. Standard bends
consist of the X and Z dimensions shown in the chart. Specify by adding the
selected Bend Option Code to the terminal part number.
Z
Terminal Blocks:
Base & Rail Mount
X
Bend
Option
Code
R26 (04 terminal only)
R45 (07 terminal only)
X
(minimum)
Z
0.14 (3.5)
0.33 (8.4)
0.09 (2.3)
0.09 (2.3)
Drilled Right Angle (A1 only)
Angle Brackets (A1 only)
5
0.32
0.12
Wire Management
Products
0
0.25
0.04
0.450
0.144 HOLE
w/0.312 C' BORE
0.320
0.150
Power Distribution
Blocks
Dimensions in inches. To convert to millimeters, multiply by 25.4.
Option AB
Angle brackets enable block to be fastened
at right angles to normal mount position.
Bulk part number 1AB-J.
Option DR
Counterbored holes across mount ends of
block enable fastening with two screws at
right angles to normal mount position.
Edge Connectors,
One-Sided Boards
Mounting Plates
MOUNTING
PLATE
MP
MT
For additional product information, visit www.cooperbussmann.com/magnum
Compliance
References
Options MP & MT
MP Metal inserts with 0.150” (3.8) dia. hole
accept
#6 screw. MT Metal inserts with tapped
hole accept #6-32 screw.
Bulk part numbers 1MP-J & 1MT-J.
5
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Series A2000, LP2000 & CB2000
Single Row Terminal Blocks
A20510807WR
SPECIFICATIONS
Rating: A2: 30A, 300V*
LP2: 30A, 150V*
CB2: 30A, 300V*
Center Spacing: 0.375” or 3/8” (9.52mm)
Wire Range: #12-22 AWG CU
Screw Size: #6-32 zinc-plated philslot
LP202110
Torque Rating: 9 lb-in.
Base: Standoffs standard for easy flux washing
Distance Between Barriers: 0.32” (8.1mm)
Recommended PCB Hole Diameter: 0.076” (1.93mm)
Operating Temperature: 105°C (221°F) max., -40°C (-40°F) min.
Molded Material: Black, UL Rated 94V0 Thermoplastic
Breakdown Voltage: 3400V (A2 & LP2); 4100V (CB2).
Agency Information: UL File E62622, CSA File 47235;
IEC Compliance; CE Certified
*30A Rating achieved with a #10 copper wire crimped to a ring terminal.;
20A Rating without ring terminal.
CB20210507
Dimensions - in (mm)
A2000 & LP2000 Series
Poles
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
Terminal Blocks - Single Row
Edge Connectors,
One-Sided Boards
Wire Management
Products
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
MOUNTING
ENDS
ONLY
A
C
Mount Ctrs.
Length
1.13
1.50
1.88
2.25
2.63
3.00
3.38
3.75
4.13
4.50
4.88
5.25
5.63
6.00
6.38
6.75
7.13
7.50
7.88
8.25
8.63
9.00
9.38
9.75
10.13
10.50
10.88
11.25
11.63
–
–
1.56
1.93
2.30
2.68
3.06
3.43
3.81
4.18
4.56
4.93
5.31
5.69
6.06
6.43
6.81
7.18
7.56
7.93
8.31
8.68
9.06
9.43
9.81
10.18
10.56
10.93
11.31
11.68
12.05
–
–
BARRIER &
MOUNTING
ENDS
B
Pole Ctrs.
BARRIER
ENDS
ONLY
C
Length
0.38
0.75
1.13
1.50
1.88
2.25
2.63
3.00
3.38
3.75
4.13
4.50
4.88
5.25
5.63
6.00
6.38
6.75
7.13
7.50
7.88
8.25
8.63
9.00
9.38
9.75
10.13
10.50
10.88
11.25
11.63
0.81
1.18
1.56
1.93
2.31
2.68
3.06
3.43
3.81
4.18
4.56
4.93
5.31
5.68
6.06
6.43
6.81
7.18
7.56
7.93
8.31
8.68
9.06
9.43
9.81
10.18
10.55
10.93
11.31
11.68
12.05
0.375
(9.53)
0.15
(3.8)
Ø
0.65
(16.5)
C
Mount End
Barrier End
0.76 (19.3)
0.565 (14.35)
on LP2000
0.40
(10.2)
0.02
(0.5)
A Mount Centers
B Pole Centers
Mount End
Barrier End
CB2000 Series
0.375
(9.53)
0.19
(4.8)
Ø
0.70
(17.8)
0.32
(8.1)
C
Mount End
Barrier End
* Dimensions in inches. To convert to millimeters, multiply by 25.4.
Compliance
References
0.60
(15.2)
0.02
(0.5)
A Mount Centers
B Pole Centers
Mount End
6
Barrier End
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks - Single Row
Terminal Blocks:
Single & Double Row
Series A2000 & LP2000
Single Row Terminal Blocks
Part Numbering System
Series
Terminal Style
Base/End
Poles
Screw Options
Options
0 - flat base/molded
02 to 32
Blank - std. screw
mount end
02 to 30 on mount 00 - screws shipped bulk
1 - flat base/mnt. end
end base 03 - stainless steel
2 - flat base/barrier end
04 - brass nickel-plated
3 - insulator base/mnt. end
07 - steel SEMS
4 - insulator base/
(not available
barrier end
with hardware options)
5 - closed base/
09 - brass SEMS
mount end
nickel-plated
6 - closed base/
(not available with
molded mount end
hardware options)
9 - insulator base/
CA - captive screw
molded mount end
WR - wire ready
(not available on LP2
Base/End Note: 0, 6,
series)
9 styles not available
AB - angle mnt. options (pg 9)
A1 to A9 - 0.250˝ QC
B1 to B9 - 0.187˝ QC
DR - drilled right angle (pg 9)
†JA, JB & JC - barrier jumpers
L1 to L6 marking options (pg 22)
MP, MP8 & MT mounting plates (pg 9)
†OJ2 & OJ4 - over barrier jumpers (not
available w/covers)
RC - retaining clips (pg 9)
R30 to R77 - right angle bends (pg 9)
SO - stand off insulators (pg 9)
S1 - solder lug/flat
Covers - (pg 23)
Power Distribution
Blocks
with covers. 5 & 6
Styles only available
with 03 terminals.
†Contact factory for configuration...
Terminal Styles
Inches (Millimeters)
0.031
(.79)
0.110
(2.79)
0.031
(0.79)
01
Handwired
0.062
(1.57)
03
Non Feed-Thru
04
Wire Wrap Tail
0.54
(13.7)
0.031
(0.79)
05
Extended Handwired
0.11
(2.79)
0.055
(1.40)
0.14
(3.6)
0.17
(4.3)
0.032
(0.81)
0.031
(0.79)
0.062
(1.57)
08
Printed Circuit
07
Extended Pin
06
Handwired
0.33
(8.4)
09
0.250˝ QC short
0.031
(0.79)
0.31
(7.9)
0.187
(4.75)
10
0.187˝ QC
0.41
(10.4)
Compliance
References
0.250
(6.35)
0.031
(0.79)
0.72
(18.3)
0.42
(10.7)
0.40
(10.2)
Edge Connectors,
One-Sided Boards
0.30
(7.6)
0.110
(2.79)
0.062
(1.57)
0.031
(0.79)
02
Printed Circuit
0.66
(16.8)
0.031
(0.79)
0.55
(14.0)
0.20
(5.1)
Wire Management
Products
0.55
(14.0)
0.031
(0.79)
0.125
(3.2)
0.062
(1.57)
14
Printed Circuit
For additional product information, visit www.cooperbussmann.com/magnum
0.031
(0.79)
Terminal Blocks:
Base & Rail Mount
A2 - standard barrier 01 - handwired
LP2 - low profile
02 - printed circuit
barrier
03 - non feed-thru
04 - wire wrap tail
05 - extended handwired
06 - handwired
07 - extended pin
08 - printed circuit
09 - 0.250˝ QC short
10 - 0.187˝ QC
14 - printed circuit
19 - 0.250˝ QC long
EuroMag Series
A
2
L
P 2
0.250
(6.35)
19
30.250˝ QC long
7
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Series A2000 & LP2000
Single Row Terminal Blocks Continued
Screw Options
EuroMag Series
Terminal Blocks:
Single & Double Row
Terminal Blocks - Single Row
Standard
zinc-plated Steel
Hardware Options
Terminal Blocks:
Base & Rail Mount
04
Brass
Nickel-Plated
03
Stainless Steel
WR
Wire Ready
09
Brass SEMS
Nickel-Plated
Inches (Millimeters)
(Bulk ordering part numbers are in parentheses.)
Jumpers
Solder Lugs
07
Steel SEMS
Quick Connects
Blade Width A = 0.250” Blade Width B = 0.187”
0.68 (17.3)
0.33 (8.4)
0.84 (21.2)
†JA
(JA2-XX-J)
Power Distribution
Blocks
S1
(2S1-J)
†OJ2
(OJ2-J)
A1 & B1
(2A1-J & 2B1-J)
A2 & B2
(2A2-J & 2B2-J)
A3 & B3
(2A3-J & 2B3-J)
†OJ4
(OJ4-J)
A4 & B4
(2A4-J & 2B4-J)
A5 & B5
(2A5-J & 2B5-J)
A6 & B6
(2A6-J & 2B6-J)
A7 & B7
(2A7-J & 2B7-J)
A8 & B8
(2A8-J & 2B8-J)
A9 & B9
(2A9-J & 2B9-J)
0.33 (8.4)
†JB
(JB2-XX-J)
Wire Management
Products
0.33 (8.4)
†Contact factory for configuration.
†JC
(JC2-XX-J)
Base/End Options
Inches (Millimeters)
B
Edge Connectors,
One-Sided Boards
B
B
B
0.180 (4.57)
0.150 Ø (3.8)
mounting holes (2)
0.218 (5.54)
0.40
(10.2)
0.40
(10.2)
0.095
(2.4)
Compliance
References
SECTION A–A
0, 6 & 9
Molded Mount End
8
SECTION B–B
1, 3 & 5
Mount End
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks - Single Row
Terminal Blocks:
Single & Double Row
Series A2000 & LP2000
Single Row Terminal Blocks Continued
Mounting Options
Right Angle Bends (A2, LP2 only)
07 Terminal Bend Configurations
EuroMag Series
Right angle terminals are offered on the A2000 & LP2000 Series.
Configurations are defined in these dimensions: X = pin extension beyond the
block base; Z = length from block base to centerline of the terminal tip.
Standard bends consist of the X and Z dimensions shown in the chart.
Specify by adding the selected Bend Option Code to the terminal part
number.
Z
04 Terminal Bend Configurations
0.82
X
Z
Bend
Option
Code
Bend
Option
Code
X
Available
w/insulator
base
R30
R35
R36
R39
R42
R46
R48
R50
0.04
0.01
0.02
0.05
0.08
0.12
0.14
0.16
0.28
0.23
0.22
0.19
0.16
0.12
0.10
0.08
No
No
No
No
No
No
No
No
R30
R35
R36
R42
R46
R50
R53
R66
R69
R75
R77
0.04
0.01
0.02
0.08
0.12
0.16
0.19
0.32
0.35
0.41
0.43
Z
Available
w/insulator
base
0.55
0.50
0.49
0.43
0.39
0.35
0.32
0.19
0.16
0.10
0.08
Yes
Yes
Yes
Yes
Yes
No
No
No
No
No
No
Power Distribution
Blocks
Z
X
(minimum)
X
(minimum)
Terminal Blocks:
Base & Rail Mount
0.55
Dimensions in inches. To convert to millimeters, multiply by 25.4.
Drilled Right Angle (A2, LP2 only)
Angle Brackets (A2, LP2 only)
Wire Management
Products
0.12
5
0.32
0.25
0.04
0.45
0.144 HOLE
w/0.312 C' BORE
0.32
0.15
Standoffs
Mounting Plates
MOUNTING
PLATE
Option DR
Counterbored holes across mount ends of
block enable fastening with two screws at
right angles to normal mount position.
Edge Connectors,
One-Sided Boards
Option AB
Angle brackets enable block to be fastened
at right angles to normal mount position.
Bulk part number 2AB-J.
Retaining Clip
MP
MP8
0.300
MT
RETAINING CLIP
Options MP, MP8 & MT
MP Metal inserts with 0.150” dia. hole
accept #6 screw. MP8 Metal inserts with
0.187” dia. hole accept #8-32 screw. MT
Metal inserts with tapped hole accept #6-32
screw.
Option SO
Standoff mounts are tubes molded to the
mounting positions. Available with insulator
bases only.
Option RC
Use on standoff tubes. Fit panels up to
0.125” thick. Two clips for every five
positions. Supplied unassembled. Bulk part
number H541-J.
For additional product information, visit www.cooperbussmann.com/magnum
Compliance
References
STANDOFF
9
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Series CB2000
Single Row Terminal Blocks
Part Numbering System
Series
Terminal Style
Base/End
Poles
Screws
Options
B
2
C CB2 - closed back
01
02
03
07
14
22
1 - mount end
2 - barrier end
02 to 32
02 to 30 on mount
end base
03 - stainless steel
04 - brass nickel-plated
07 - steel SEMS
standard
09 - brass SEMS
nickel-plated
CA - captive screw
07CA - SEMS captive
*AB - angle mounting brackets (pg 11)
A7 to A9 - 0.250” QC
B7 to B9 - 0.187” QC
EB - exit back terminals
EF - exit front terminals
†JA, JB & JC - barrier jumpers
L1 to L6 marking options (pg 22)
LT1 to LT6 marking options (pg 22)
†OJ2 & OJ4 - over barrier jumpers
MP, MP8, MT & MT8 mtg. plates (pg 11)
S1 - solder lug/flat
- handwired
- printed circuit
- non feed-thru
- extended pin
- printed circuit
- dual tail printed circuit
*Only available on 3-poles and up.
†Contact factory for configuration..
Terminal Styles
Inches (Millimeters)
0.19
(4.9)
0.40
(10.2)
0.18
(4.6)
0.045
(1.14)
01
Handwired
0.031
(0.79)
02
Printed Circuit
Screw Options
03
Stainless Steel
(F507-J)
0.18
(4.6)
0.062
(1.57)
03
Non Feed-Thru
Available on Mount
End (1) only.
0.18
(4.6)
0.81
(4.6)
0.125
(3.18)
0.70
(17.8)
0.19
(4.8 )
0.031
(0.79)
0.120
(3.05)
0.031
(0.79)
0.045
(1.14)
0.18
(4.6)
0.031
(0.79)
14
Printed Circuit
07
Extended Pin
0.045
(1.14)
0.03
(0.79)
0.40
(10.2)
0.43
(10.9)
22
Dual Tail
Printred Circuit
(Bulk ordering part numbers are in parentheses.)
04
Brass
nickel-plated
(F506-J)
07
Steel SEMS
zinc-plated
(BOO1-7084-J)
09
Brass SEMS
nickel-plated
(F524-J)
* NOTE: Wire ready screws standard on all terminal styles.
CB2 Terminal Exit Options
Inches (Millimeters)
0.255
(6.48)
Compliance
References
Edge Connectors,
One-Sided Boards
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
Terminal Blocks - Single Row
0.18
(4.6)
Exit Rear (std.)
10
0.18
(4.6)
EF Exit Front
X
EB Exit Back
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks - Single Row
Hardware Options
Solder Lugs
Inches (Millimeters)
(Bulk ordering part numbers are in parentheses.)
Jumpers
Terminal Blocks:
Single & Double Row
Series CB2000
Single Row Terminal Blocks
Quick Connects
Blade Width A = 0.250”. Blade Width B = 0.187”.
0.68 (17.3)
0.84 (21.2)
S1
(2S1-J)
†OJ2
(OJ2-J)
†JA
(JA2-XX-J)
A7 & B7
(2A7-J & 2B7-J)
A8 & B8
(2A8-J & 2B8-J)
A9 & B9
(2A9-J & 2B9-J)
EuroMag Series
0.33 (8.4)
0.33 (8.4)
Terminal Blocks:
Base & Rail Mount
†JB
(JB2-XX-J)
†OJ4
(OJ4-J)
0.33 (8.4)
†JC
(JC2-XX-J)
†Contact factory for configuration..
Power Distribution
Blocks
Mounting Options
Inches (Millimeters)
Right Angle Mounting Bracket
End Positions
usable
0.71
(18.0)
Snap-in Angle Bracket
Chassis
or PCB
A
0.79
(20.1)
1.02
(25.8)
Exit Back (EB)
Terminals
0.24
(6.1)
Wire Management
Products
#6 or #8
mounting
screw & nut
(Customer
supplied.)
0.45
(11.4)
A
0.42
(10.7)
Angle
Bracket
Option AB
Edge Connectors,
One-Sided Boards
Mounts blocks on PC boards at a right angle.
• Protects solder joints.
• Recommended for all EB (Exit Back) PCB terminal blocks.
• Bracket snaps securely on block (no hardware required).
• Minimum strip length (end positions are usable).
• Mount with #6-32 or #8-32 screws (not supplied).
Mounting Plates
MOUNTING
PLATE
Options MP, MP8, MT & MT8
MP Metal inserts with 0.150” dia. hole accept #6 screw.
MP8 Metal inserts with 0.187” dia. hole accept #8-32 screw.
MT Metal inserts with tapped hole accept #6-32 screw.
MT8 Metal inserts with tapped hole accept #8-32 screw.
Compliance
References
MP
MP8
MT
MT8
For additional product information, visit www.cooperbussmann.com/magnum
11
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Series A3000, LP3000 & CB3000
Single Row Terminal Blocks
A31940707WR
SPECIFICATIONS
Rating: A3:
30A, 600V* #12-22 AWG
LP3: 30A, 150V #12-22 AWG
CB3: 30A, 600V #12-22 AWG
Wire Range: #12-22 AWG CU
Center Spacing: 0.437” or 7/16” (11.10mm)
Screw Size: #6-32 zinc-plated philslot screws.
Torque Rating: 9 lb-in.
Base: Standoffs standard for easy flux washing.
Distance Between Barriers: 0.32” (8.1mm)
Recommended PCB Hole Diameter: 0.076” (1.93mm)
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Molded Material: Black, UL Rated 94V0 Thermoplastic
Breakdown Voltage: 3500V (A3 & LP3); 8200V (CB3)
Agency Information: UL File E62622, CSA 47235;
IEC Compliance, CE Certified
*30A Rating achieved with a #10 copper wire crimped to a ring terminal;
20 Rating without ring terminal.
Poles
MOUNTING
ENDS
ONLY
A
C
Mount Ctrs.
Length
BARRIER &
MOUNTING
ENDS
B
Pole Ctrs.
BARRIER
ENDS
ONLY
C
Length
LP301105
CB31420807
Dimesions - in (mm)
A3000 & LP3000 Series
0.437
(11.10)
0.15
(3.8)
Ø
0.65
(16.5)
C
Mount End
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
Edge Connectors,
One-Sided Boards
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
Terminal Blocks - Single Row
1.31
1.75
2.18
2.62
3.06
3.50
3.93
4.37
4.81
5.25
5.68
6.12
6.56
7.00
7.43
7.87
8.31
8.75
9.18
9.62
10.06
10.50
10.93
11.37
11.81
–
–
1.73
2.17
2.61
3.05
3.48
3.92
4.36
4.80
5.23
5.67
6.11
6.55
6.98
7.42
7.86
8.30
8.73
9.17
9.60
10.05
10.48
10.92
11.36
11.80
12.23
–
–
0.43
0.87
1.31
1.75
2.18
2.62
3.06
3.50
3.93
4.37
4.81
5.25
5.68
6.12
6.56
7.00
7.43
7.87
8.31
8.50
9.18
9.62
10.06
10.50
10.93
11.37
11.81
0.98
1.43
1.87
2.31
2.75
3.18
3.62
4.06
4.50
4.93
5.37
5.81
6.25
6.68
7.12
7.56
8.00
8.43
8.87
9.31
9.75
10.18
10.62
11.06
11.50
11.93
12.37
Barrier End
0.565
(19.3)
0.76
(14.35)
0.40
(10.2)
0.02
(0.5)
A Mount Centers
B Pole Centers
Mount End
Barrier End
CB3000 Series
0.437
(11.10)
0.19
(4.8)
Ø
0.70
(17.8)
0.32
(8.1)
C
Mount End
Barrier End
Dimensions in inches. To convert to millimeters, multiply by 25.4.
Compliance
References
0.61
(15.5)
0.02
(0.5)
A Mount Centers
B Pole Centers
Mount End
12
Barrier End
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks - Single Row
Terminal Blocks:
Single & Double Row
Series A3000 & LP3000
Single Row Terminal Blocks
Part Numbering System
Series
Terminal Style
A3 - standard barrier
LP3 - low profile
barrier
Poles
Screw Options
Options
(Views pg. 15)
01 - handwired
02 - printed circuit
03 - non feed-thru
04 - wire wrap tail
05 - extended
handwired
06 - handwired
07 - extended pin
08 - printed circuit
09 - 0.250 QC short
10 - 0.187 QC
14 - printed circuit
19 - 0.250 QC long
1 - flat base/mnt. end 02 to 28
2 - flat base/barrier end 02 to 26 on mount
3 - insulator base/
end base
mnt. end
4 - insulator base/
barrier end
*5 - closed base/
mount end
*Base/End Note: 5 Style only available
with 03 terminals.
Blank - std. screw
00 - screws shipped bulk
03 - stainless steel
04 - brass nickel-plated
07 - steel SEMS
zinc-plated
(not available with
hardware options)
09 - brass SEMS
nickel-plated
(not available with
hardware options)
07WR - steel SEMS wire
ready (A3 only)
CA - captive screw
AB - angle mnt. options (pg 15)
A1 to A9 - 0.250” QC
B1 to B9 - 0.187” QC
DR - drilled right angle (pg 15)
†J201 - flat slip-on jumper
L1 to L6 marking options (pg 22)
MP, MP8 & MT mounting plates (pg 15)
†OJ3, OJ5 & OJ7 - over barrier jumpers
RC - retaining clips (pg 15)
R30 to R77 - right angle bends (pg 15)
SO - stand off insulators (pg 15)
S1 - solder lug/flat
†Contact factory for configuration.
ready (A3 only)
Inches (Millimeters)
0.20
(5.1)
0.55
(14.0)
0.031
(0.79)
0.66
(16.8)
0.55
(14.0)
0.062
(1.57)
0.062
(1.57)
0.031
(0.79)
01
Handwired
02
Printed Circuit
03
Non Feed-Thru
04
Wire Wrap Tail
0.30
(7.6)
0.110
(2.79)
0.031
(0.79)
0.031
(0.79)
05
Extended Handwired
0.11
(2.79)
06
Handwired
0.33
(8.4)
0.17
(4.3)
0.062
(1.57 )
07
Extended Pin
0.031
(0.79)
0.40
(10.2)
0.062
(1.57)
08
Printed Circuit
0.250
(6.35)
0.031
(0.79)
09
0.250˝ QC Short
0.031
(0.79)
0.031
(0.79)
0.125
(3.2)
0.062
(1.57)
0.31
(7.9)
0.187
(4.75)
10
0.187˝ QC
0.41
(10.4)
0.031
(0.79)
0.250
(6.35)
19
0.250˝ QC Long
14
Printed Circuit
Screw Options
03
Stainless Steel
04
Brass
Nickel-Plated
07
Steel SEMS
Zinc-Plated
(F523-J)
09
Brass SEMS
Nickel-Plated
Compliance
References
Standard
Zinc-Plated Steel
07WR
Wire Ready
(A3 only)
For additional product information, visit www.cooperbussmann.com/magnum
Edge Connectors,
One-Sided Boards
0.82
(20.8)
0.72
(18.3)
0.42
(10.7)
Wire Management
Products
0.110
(2.79)
0.031
(0.79)
Power Distribution
Blocks
Terminal Styles
0.031
(.79)
Terminal Blocks:
Base & Rail Mount
EuroMag Series
3
A P
3
L Base/End
13
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks:
Single & Double Row
Terminal Blocks - Single Row
Series A3000 & LP3000
Single Row Terminal Blocks Continued
Hardware Options
(Bulk ordering part numbers are in parentheses.)
Jumpers
Solder Lugs
Inches (Millimeters)
Quick Connects
Blade Width A = 0.250” Blade Width B = 0.187”
EuroMag Series
0.68 (17.3)
0.84 (21.2)
S1
(2S1-J)
†J201
A1 & B1
(2A1-J & 2B1-J)
A2 & B2
(2A2-J & 2B2-J)
A3 & B3
(2A3-J & 2B3-J)
†OJ7
LP3 Only
(OJ7-J)
A4 & B4
(2A4-J & 2B4-J)
A5 & B5
(2A5-J & 2B5-J)
A6 & B6
(2A6-J & 2B6-J)
†OJ5
(OJ5-J)
A7 & B7
(2A7-J & 2B7-J)
A8 & B8
(2A8-J & 2B8-J)
A9 & B9
(2A9-J & 2B9-J)
Terminal Blocks:
Base & Rail Mount
Flat slip-on
(J201-J)
†Contact factory for pole configuration.
Power Distribution
Blocks
†OJ3
(OJ3-J)
Base/End Options
B
Inches (Millimeters)
B
Wire Management
Products
0.150 Ø (3.8)
mounting holes (2)
0.40
(10.2)
0.095
(2.4)
SECTION B–B
Compliance
References
Edge Connectors,
One-Sided Boards
1, 3 & 5 Mount End
14
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks - Single Row
Terminal Blocks:
Single & Double Row
Series A3000 & LP3000
Single Row Terminal Blocks
Continued
Mounting Options
Inches (Millimeters)
Right Angle Bends (A3, LP3 only)
EuroMag Series
Right angle terminals are offered on the A3000 & LP3000 Series.
Configurations are defined in these dimensions: X = pin extension beyond the
block base; Z = length from block base to centerline of the terminal tip.
Standard bends consist of the X and Z dimensions shown in the chart.
Specify by adding the selected Bend Option Code to the terminal part
number.
07 Terminal Bend Configurations
04 Terminal Bend Configurations
Z
Z
0.82
Bend
Option
Code
0.04
0.01
0.02
0.05
0.08
0.12
0.14
0.16
0.28
0.23
0.22
0.19
0.16
0.12
0.10
0.08
No
No
No
No
No
No
No
No
Bend
Option
Code
R30
R35
R36
R50
R53
R66
R69
R75
R77
X
(minimum)
0.04
0.01
0.02
0.16
0.19
0.32
0.35
0.41
0.43
Z
Available
w/insulator
base
0.55
0.50
0.49
0.35
0.32
0.19
0.16
0.10
0.08
Yes
Yes
Yes
No
No
No
No
No
No
Power Distribution
Blocks
Z
Available
w/insulator
base
X
(minimum)
R30
R35
R36
R39
R42
R46
R48
R50
X
X
Dimensions in inches. To convert to millimeters, multiply by 25.4.
Drilled Right Angle (A3, LP3 only)
Angle Brackets (A3, LP3 only)
Wire Management
Products
0.24
7
0.43
0.25
0.04
0.45
0.144 HOLE
w/0.312 C' BORE
0.32
0.15
Option DR
Counterbored holes across mount ends of
block enable fastening with two screws at
right angles to normal mount position.
Mounting Plates
Standoffs
MOUNTING
PLATE
Edge Connectors,
One-Sided Boards
Option AB
Angle brackets enable block to be fastened
at right angles to normal mount position.
Bulk part number 2AB-J.
Terminal Blocks:
Base & Rail Mount
0.55
Retaining Clip
MP
MP8
0.300
MT
Options MP, MP8 & MT
MP Metal inserts with 0.150” dia. hole
accept #6 screw. MP8 Metal inserts with
0.187” dia. hole accept #8-32 screw. MT
Metal inserts with tapped hole accept #6-32
screw.
Option SO
Standoff mounts are tubes molded to the
mounting positions. Available with insulator
bases only.
Option RC
Use on standoff tubes. Fit panels up to
0.125” thick. Two clips for every five
positions. Supplied unassembled. Bulk part
number H541-J.
For additional product information, visit www.cooperbussmann.com/magnum
Compliance
References
RETAINING CLIP
STANDOFF
15
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Series CB3000
Single Row Terminal Blocks
Part Numbering System
Series
Terminal Style
Base/End
Poles
Screws
Options
C
B3
CB3 - closed back
01 - handwired #6-32 screw
02 - printed circuit #6-32 screw
03 - non feed-thru #6-32 screw
07 - extended pin #6-32 screw
14 - printed circuit #6-32 screw
51 - handwired #8-32*
52 - printed circuit #8-32*
53 - non feed-thru #8-32*
57 - extended pin #8-32*
64 - printed circuit #8-32*
*Note: #8-32 screw is a special
with #6-32 head.
1 - mount end
2 - barrier end
5 - closed base/
mount end
02 to 28
02 to 26 on mount
end base
07 - steel SEMS
(standard)
09 - brass SEMS
nickel-plated
CA - SEMS captive
AB - angle mounting brackets (pg 17)
A7 to A9 - 0.250” QC
B7 to B9 - 0.187” QC
EB - exit back terminals
L1 to L6 marking options (pg 22)
LT1 to LT6 marking options (pg 22)
†OJ3 & OJ7 - over barrier jumpers
MP, MP8, MT & MT8 mtg. plates (pg 17)
S1 - solder lug/flat
Covers - (pg 23)
Base/End Note: 5 Style only available
with 03 terminals.
†Contact factory for configuration.
Terminal Styles
Inches (Millimeters)
0.40
(10.2)
0.045
(1.14)
0.18
(4.6)
01
Handwired #6-32 screw
51
#8-32 screw
0.125
(3.18)
0.70
(17.8)
0.19
(4.8 )
0.031
(0.79)
0.120
(3.05)
0.18
(4.6)
0.031
(0.79)
0.062
(1.57)
02
Printed Circuit #6-32 screw
52
#8-32 screw
03
Non Feed-Thru #6-32 screw
53
#8-32 screw
Available on Mount End (5) only.
0.18
(4.6)
0.031
(0.79)
07
Extended Pin #6-32 screw
57
#8-32 screw
0.045
(1.14)
0.18
(4.6)
0.031
(0.79)
14
Printed Circuit #6-32 screw
64
#8-32 screw
Screw Options
09
07
Brass SEMS
Steel SEMS
Nickel-Plated
Zinc-Plated
(standard)
* NOTE: Wire ready screws standard on all terminal styles.
CB3 Terminal Exit Options
Compliance
References
Edge Connectors,
One-Sided Boards
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
Terminal Blocks - Single Row
Inches (Millimeters)
0.255
(6.48)
0.18
(4.6)
Exit Rear (std.)
16
EB
Exit Back
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks - Single Row
Hardware Options
Solder Lugs
Inches (Millimeters)
(Bulk ordering part numbers are in parentheses.)
Jumpers
Terminal Blocks:
Single & Double Row
Series CB3000
Single Row Terminal Blocks Continued
Quick Connects
Blade Width A = 0.250”. Blade Width B = 0.187”.
0.68 (17.3)
S1
(2S1-J)
†J201
Flat slip-on
(J201-J)
†OJ3
(OJ3-J)
A7 & B7
(2A7-J & 2B7-J)
A8 & B8
(2A8-J & 2B8-J)
A9 & B9
(2A9-J & 2B9-J)
EuroMag Series
0.84 (21.2)
Terminal Blocks:
Base & Rail Mount
†OJ7
(OJ7-J)
†Contact factory for pole configuration.
Power Distribution
Blocks
Mounting Options
Inches (Millimeters)
Right Angle Mounting Bracket
End Positions
usable
0.71
(18.0)
Snap-in Angle Bracket
Chassis
or PCB
A
0.79
(20.1)
1.02
(25.8)
0.45
(11.4)
Exit Back (EB)
Terminals
0.24
(6.1)
Angle
Bracket
A
0.42
(10.7)
Option AB
Edge Connectors,
One-Sided Boards
Mounts blocks on PC boards at a right angle.
• Protects solder joints.
• Recommended for all EB (Exit Back) PCB terminal blocks.
• Bracket snaps securely on block (no hardware required).
• Minimum strip length (end positions are usable).
• Mount with #6-32 or #8-32 screws (not supplied).
Wire Management
Products
#6 or #8
mounting
screw & nut
(Customer
supplied.)
Mounting Plates
MP
MP8
MT
MT8
For additional product information, visit www.cooperbussmann.com/magnum
Compliance
References
MOUNTING
PLATE
Options MP, MP8, MT & MT8
MP Metal inserts with 0.150” dia. hole accept #6 screw.
MP8 Metal inserts with 0.187” dia. hole accept #8-32 screw.
MT Metal inserts with tapped hole accept #6-32 screw.
MT8 Metal inserts with tapped hole accept #8-32 screw.
17
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Series A38 / B38
Single Row Terminal Blocks
SPECIFICATIONS
Rating: A38: 30A, 600V
B38: 50A, 300V
Center Spacing: 0.437” (11.10mm)
Wire Range: A38: #10-22 AWG CU; B38: #8-16 AWG
Screw Size: #8-32 zinc-plated steel
Torque Rating: A38: 9 lb-in; B38: 15 lb-in for #8, 9 lb-in for #6
Base: A38 Only: Standoffs standard for easy flux washing
Distance Between Barriers: 0.378” (9.60mm)
Recommended PCB Hole Diameter (A38): 0.076” (1.93mm)
Operating Temperature: 221°F (105°C)
B384904
Molded Material: Black, UL Rated 94V0 Thermoplastic
Breakdown Voltage: 5000V
Agency Information: UL File E62622, CSA File 47235;
CE Certified
Dimensions - in (mm)
TABLE A
MOUNTING
ENDS ONLY
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
Terminal Blocks - Single Row
Poles
B
Mount Ctrs.
“A”
Dim. Length
BARRIER
ENDS ONLY
“A”
Dim. Length
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
1.31
1.75
2.19
2.62
3.06
3.50
3.93
4.37
4.81
5.24
5.68
6.12
6.56
6.99
7.43
1.67
2.10
2.54
2.98
3.41
3.85
4.29
4.72
5.16
5.60
6.04
6.47
6.91
7.35
7.78
0.93
1.37
1.81
2.25
2.68
3.12
3.56
3.99
4.43
4.87
5.30
5.74
6.18
6.61
7.05
* Dimensions in inches. To convert to millimeters, multiply by 25.4.
A382208
Series A38
A
Dim.
Length
B
Mount
Centers
9.0
[0.3]
HOLE
SIZE
Ø5.0 [Ø0.20]
11.10
[0.437]
21.5
[0.85]
7.0
[0.28]
20.4
[0.80]
6.3
[0.25]
Ø8.0
[0.31]
19.7
[0.78]
A
Dim.
Length
Series B38
Edge Connectors,
One-Sided Boards
B
Mount
Centers
13.0
[0.51]
HOLE
SIZE
Ø5.0 [Ø0.20]
16.5
[0.65]
11.10
[0.437]
7.0
[0.28]
Compliance
References
16.5
[0.65]
Ø8.0
[0.31]
15.0
[0.59]
18
6.8
[0.27]
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks - Single Row
Part Numbering System
Terminal Style
A
38
0
1
2
7
9
- 0.187˝ QC
- hand wired
- printed circuit
- extended wire wrap
- 0.250" QC
Screw Options
Options
1 - flat base,
mount end
2 - flat base,
barrier end
3 - insulator base*
mount end
4 - insulator base*
barrier end
02 to 16
Blank - standard screw
L1 to L6 marking options (pg 22)
(steel zinc-plated,
RC - retaining clips (pg 15)
philslot BHMS)
Covers - (pg 23)
04 - brass, nickel-plated,
philslot BHMS
07 - steel, SEMS zinc-plated
philslot screw
92 - steel, zinc-plated
slotted BHMS
94 - brass, nickel-plated
slotted BHMS (Binding Hard Machine Screw)
02 to 16
Blank - standard screw steel
zinc-plated philslot BHMS)
04 - brass, nickel-plated,
philslot BHMS #8-32
*34 - #6-32 nickel-plated brass
philslot BHMS
L1 to L6 marking options (pg 23)
RC - retaining clips (pg 16)
*N/A on 2 terminal style.
B
3
8
1 - long turret
0 - flat base,
2 - short turret
mount ends
3 - screw terminal
4 - insulator base,
#6-32 screw top
barrier ends
& bottom)
9 - insulator base
4 - stud (#8-32 screw
mount ends
top, #6-32 stud
bottom)
†5 - double stud (#6-32
stud top & bottom)
†C360 Copper alloy (bright tin plate)
*Note: 34 screws only
*available with 3 terminal style.
Wire ready screws standard
0.031
(0.79)
0.062
(1.58)
0.110
(2.80)
0.20
(5.1)
0.031
(0.79)
1
Handwired
2
Printed Circuit
0.062
(1.58)
0.67
(17.0)
0.031
(0.79)
7
Extended Pin
0.250
(6.35)
Wire Management
Products
0.031
(0.79)
Inches (Millimeters)
0.59
(15.1)
0.55
(14.0)
Power Distribution
Blocks
A38 Terminal Styles
Terminal Blocks:
Base & Rail Mount
# of Poles
EuroMag Series
Base/End
Terminal Blocks:
Single & Double Row
Series
9
0.250” QC
B38 Terminal Styles
#6 - 32 SCREW
#6 - 32 NUT
7.6
(0.30)
4.6
(0.18)
6.4
(0.25)
1
Long Turret
4.6
(0.18)
0.58
(4.8)
6.8
(0.27)
2
Short Turret
#6 - 32 SCREW
0.58
(4.8)
#6 - 32 NUT
#6 - 32 NUT
3
Screw Terminal
4
Stud
5
Double Stud
Edge Connectors,
One-Sided Boards
0.21
(5.3)
11.6
(0.46)
Screw Options
04
Brass
Nickel-Plated
07
Steel SEMS
Zinc-Plated
34
Nickel-Plated Brass
Philslot BHMS
92
Slotted,
Zinc-Plated Steel
Compliance
References
Standard
Zinc-Plated Steel
94
Slotted,
Nickel-Plated Brass
For additional product information, visit www.cooperbussmann.com/magnum
19
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks - Single Row
SPECIFICATIONS
Rating: See table.
Center Spacing: 0.562” or 9/16” (14.28mm)
Wire Range: See rating table.
Screw Size: #8-32 or #10-32 zinc-plated slotted
screws
Torque Rating: #8 screw size 16 lb-in.; #10 screw size
20 lb-in.
Distance Between Barriers: 0.47” (11.9mm)
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Molded Material: Black, UL Rated 94V0 Thermoplastic
Hardware: Bottom studs supplied with nuts assembled.
Cup washers are optional on bottom studs but are not
recommended with ring terminals.
Extended Hex Nuts: Optional extended, slotted hex nuts
enable easier installation and removal with hex wrench or
screwdriver. Available in bulk for the #10-32 studs on
Series A4953 blocks. Specify part number F582 and
quantity.
Breakdown Voltage: 6100V
Agency Information: UL File E62622, CSA File 47235;
CE Certified
B484304
A40110407
A4000 Series Dimensions - in (mm)
0.31
(7.9)
0.562
(14.27)
0.87
(22.1)
A
B
Part
Number
A4003XX
A4011XX
A4013XX
A4021XX
A4035XX
A4041XX
A4043XX
A4051XX
A4803XX
A4813XX
A4843XX
A4953XX
B4843XX
Terminal
Top
# 8 Screw
# 8 Screw
# 8 Screw
# 8 Screw
# 8 Screw
#10 Screw
#10 Screw
#10 Screw
#10 Screw
#10 Screw
#10 Screw
#10 Stud
#10 Screw
0.21
(5.3)
#8-32 or #10-32 THD’S
RATING TABLE
Terminal
Bottom
#8 Stud
Solder
Solder
0.250 QC
Closed
Solder
Solder
0.250 QC
#8 Stud
SolderTurret
#8 Screw
#10 Stud
#8 Screw
Wire*
Range CU
8-16 AWG
10-16 AWG
10-16 AWG
10-16 AWG
8-16 AWG
10-16 AWG
10-16 AWG
10-16 AWG
8-16 AWG
10-16 AWG
8-16 AWG
8-16 AWG
8-16 AWG
Ratings*
Volts/Amps
150V/50A
600V/35A
600V/35A
600V/35A
600V/50A
600V/35A
600V/35A
600V/35A
150V/50A
600V/35A
150V/50A
150V/50A
600V/50A
* All models 30A Max. with 10 AWG;
35-50A ratings with 8 AWG using ring or fork type terminals.
Note: 50A rating achieved with #8 copper wire crimped to ring terminal.
Poles
A (in.)
Mount Centers
B (in.)
Length
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1.69
2.25
2.81
3.37
3.93
4.50
5.06
5.62
6.18
6.74
7.31
7.87
8.43
8.99
9.55
10.12
10.68
2.12
2.68
3.24
3.80
4.36
4.93
5.34
6.05
6.61
7.17
7.74
8.30
8.86
9.44
9.98
10.55
11.11
Compliance
References
Edge Connectors,
One-Sided Boards
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
A481307
Series A4000 & Series B4000
Single Row Terminal Blocks
0.31
(7.9)
1.05
(26.7)
0.57
(14.5)
0.36 dia.
(9.1)
Note: Above unit supplied with nuts
assembled. Cup washers are optional.
Optional Cup Washers
Assembled
Available on A4003, A4803,
A4843, A4953 & B4843.
CUP
WASHERS
Reference Panel Cutout for 6 Position Block
0.20 DIA.
(5.1)
0.75
(19.1)
3.31
(84.1)
3.93
(99.8)
* Dimensions in inches. To convert to millimeters, multiply by 25.4.
20
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks - Single Row
Part Numbering System
A
4
B
4
Base/End
Poles
Screw Options
Options
00
01
02
03
04
05
80
*1 - flat base/
mount end
3 - insulator base(not available
in 03
terminal style)
/mount end
5 - closed base/
mount end
(available
in 03
terminal
only)
02 to 18
Blank - std. screw
00 - screws shipped bulk
04 - brass nickel-plated
07 - steel SEMS zinc
plated (not available
with hardware options;
not available on A4003,
A4803, A4813, A4843,
B4843)
A1 to A9 - 0.250” QC
†CW - cup washer (pg 20)
J301 - flat slip-on jumper
(2 position only)
L1 to L6 marking options (pg 22)
S1 & S2 - solder lugs/flat
A4 - standard
B4 - barrier
(only
available
in 84
terminal
style)
- screw top; stud bottom
- screw top; solder bottom
- #8 screw top; 0.250˝ QC bottom
- screw top only
- #10 screw top; solder term. b.
- #10 screw top; 0.250˝ QC bottom
- screw top; stud bottom
#10-32 top, #8-32 bottom
insulated base
81 - screw top; solder turret bottom
#10-32
84 - screw top; screw bottom #10-32
95 - stud top; stud bottom #10-32
† Available only on A4003, A4803,
A4843, A4953 & B4843.
*Available in 01, 02, 04 & 05 terminal style only.
Terminal Styles
Inches (Millimeters)
Terminal Blocks:
Base & Rail Mount
#8-32 SCREW
#8-32 or #10-32 SCREW
#8-32 or #10-32 SCREW
0.94
(23.9)
1.41
(35.8)
1.41
(35.8)
1.99
(50.6)
#8-32 HEX NUT
0.43
(10.9)
0.04
(1.0)
0.41
(10.4)
A4003XX
0.17
(4.3)
0.04
(1.0)
0.43
(10.9)
0.36
(9.1)
A4013XX (#8-32)
A4043XX (#10-32)
#10-32 SCREW
#10-32 SCREW
#8-32 SCREW
(TYP)
0.80
(20.3)
0.94
(23.9)
1.56
(39.6)
1.85
(47.0)
1.99
(50.6)
0.59
(15.0)
0.250
(6.35)
#8-32 HEX NUT
A4035XX
0.41
(10.4)
A4813XX
#10-32 STUD
#10-32 SCREW
#10-32 SCREW
1.05
(26.7)
1.55
(39.4)
0.49
(12.5)
#10-32 HEX NUT
#8-32 SCREW
A4843XX
0.41
(10.4)
1.99
(50.6)
0.79
(20.1)
0.30
(7.6)
0.94
(23.9)
1.84
(46.7)
0.09
(2.4)
A4953XX
Jumpers
#8-32 SCREW
0.41
(10.4)
B4843XX
Edge Connectors,
One-Sided Boards
Hardware Options
0.36
(9.1)
TURRET
A4803XX
Wire Management
Products
A4021XX (#8-32)
A4051XX (#10-32)
Solder Lugs
Power Distribution
Blocks
A4011XX (#8-32)
A4041XX (#10-32)
#8-32 or #10-32 SCREW
0.03
(0.8)
Inches (Millimeters)
(Bulk ordering part numbers are in parentheses.)
Quick Connects Blade Width A = 0.250”. (For other orientations, contact factory.)
1.12 (28.4)
*S1
(2S1-J)
J301
(J301-J)
A1
(4A1-J)
A2
(4A2-J)
A3
(4A3-J)
A6
(4A6-J)
A7
(4A7-J)
A8
(4A8-J)
A4
(4A4-J)
A5
(4A5-J)
*Not available for A4843
Compliance
References
0.56 (14.3)
*S2
(2S2-J)
EuroMag Series
Terminal Style
Terminal Blocks:
Single & Double Row
Series
A9
(4A9-J)
For additional product information, visit www.cooperbussmann.com/magnum
21
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks:
Single & Double Row
Terminal Blocks - Single Row
All Series Marking Options
Single Row Terminal Blocks
Marking Options & Accessories
1
2
3
L3
Left Lying Numerals
Left to Right
L5
Upside-Down Numerals
Right to Left
L4
Right Lying Numerals
Right to Left
L6
Upside-Down Numerals
Left to Right
Special Marking
Special markings are available for Series 1000, 2000, 3000, 4000 &
5000 at an additional charge for preparation. Production charges for
setup, handling and marking are the same as for standard marking
and the same quantity discounts apply. Consult factory for price and
delivery.
Z
A ☎
RE
BL D
BL K
U
❹
✙
Terminal Blocks:
Base & Rail Mount
Power Distribution
Blocks
Wire Management
Products
3
Edge Connectors,
One-Sided Boards
2
1
1
1
L2
Upright Numerals
Right to Left
L1
Upright Numerals
Left to Right
2
2
1
3
3
3
2
2
Standard
marking
this side
1
%
Ω
Options LT1 - LT6
Top Marking
For high visibility in tight packages.
Closed Barrier Terminal Block Marking Options
#
8
7
6
5
L1 & LT1 = Upright numerals, numbered from left to right
L2 & LT2 = Upright numerals, numbered from right to left
L3 = Left lying numerals, numbered from left to right
L4 = Right lying numerals, numbered from right to left
L5 & LT5 = Upside down numerals, numbered from right to left
L6 & LT6 = Upside down numerals, numbered from left to right
4
3
2
8
1
7
6
5
4
3
2
1
Options L1 - L6
Regular Marking
Marker Strips
Black marker strips with white numerals mount beneath the terminal
blocks to clearly identify terminal and wire positions. Available with
forward or reverse markings, top or bottom of strip. If special
markings are required, submit a drawing.
1
2
3
4
1
2
3
4
4
3
2
1
4
3
2
1
1
2
3
4
1
2
3
4
4
3
2
1
4
3
2
1
Top Forward - TF
Bottom Forward - BF
Compliance
References
Blocks to be marked on both sides require a different code for
each side. Example: “L1” on one side of the block requires “L2”
on the other side to ensure common terminal marking. Specify by
adding suffix to part number.
Markings are applied directly to the sides of Series 1000, 2000, 3000,
and 4000. Standard characters are white and 1/8” high. Factory may
substitute 3/32” high characters.
3
EuroMag Series
Standard Marking
Top Reverse - TR
Bottom Reverse - BR
Series
Base
Poles
Marking
M
S MS1 - 1000 Series
MS2 - 2000 Series
MS3 - 3000 Series
1
2
3
4
5
02 to 36
BF - bottom forward
TF - top forward
BR - bottom reverse
TR - top reverse
22
- mount end, feed thru
- barrier end, feed thru
- mount end, insulator tubes
- barrier end, insulator tubes
- mount end, non feed-thru
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks - Single Row
Terminal Blocks:
Single & Double Row
All Series Accessories
Single Row Terminal Blocks Continued
Cover Options - Single Row
Terminal Block Covers
Standard Cover Markings
Top Forward - TF
1
2
3
4
1
2
3
4
EuroMag Series
Available for Series A1000, A2000, A3000, A4000, CB2000, CB3000,
LP2000, & LP3000.
Three styles of UL 94V0 thermoplastic covers are offered in black. Covers
are ordered separately and supplied with two clips each, unless ordered
without clips. Optional markings may be specified (black on yellow; white
on black).
Bottom Forward - BF
Skirted Access Side
Notes: Covers can not be used with: • mounting plate options MP & MT.
• certain quick connect terminals.
• 0, 6, & 9 base/end styles on A2 or A3
4
3
2
1
Bulk Cover Clips: Series 1000 = CC1-J; Series 2000 & 3000 = CC2-J;
Series 4000 = CC4-J.
4
3
2
1
Top Reverse - TR
Terminal Blocks:
Base & Rail Mount
Bottom Reverse - BR
Skirted Access Side
Cover Options
BC & TC
Open access
on both sides.
Cover Options
BO & CO
Skirted access
on one side only.
Series
Poles
Markings
Options
BB - skirted access, both sides, black
BO - skirted access, one side, black
BC - open access, both sides, black*
1
2
3
4
02 to 36
BF - bottom forward
TF - top forward
BR - bottom reverse
TR - top reverse
00 - without clips
* Not available in 4000 Series
- 1000
- 2000
- 3000
- 4000
Wire Management
Products
Cover
Power Distribution
Blocks
Cover Options
BB & CB
Skirted access
on both sides.
Snap-On Covers for A38/B38/F38 Series & CB2/CB3 Series
-
CB2/CB3 Series
Poles
A38 Series
B38 Series
T
O
2
O
3
T -
Poles
Compliance
References
T
A
8
T
B
8
B8
F Edge Connectors,
One-Sided Boards
A38/B38 Series
CB2 Series
CB3 Series
F38 Series
For additional product information, visit www.cooperbussmann.com/magnum
23
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
Terminal Blocks - Filtered
F38 Series Filtered Terminal Blocks
SPECIFICATIONS
Ratings: 35A, 240Vac, 300Vdc.
Center Spacing: 0.437" or 7/16" (11.10mm)
Wire Size: # 10-22 AWG CU
Screw Size: # 8-32 (# 6-32 available, consult factory)
Torque Rating: 15 lb-in.
Operating Temperature: –55°C to +105°C.
Housing Material: 94V0 thermoplastic.
Molded Material: Black, UL rated 94V0 thermoplastic.
Terminal Material: Brass, tin-plated
Capacitance: 1000 pF to 5000 pF in either C or Pi Schematic
Dielectric Withstanding Voltage: 1000 Vac; 1700Vdc
DC Resistance: 0.01 ohms max.
Agency Information: UL File E62622, CE Certified
# of
Poles
A
A
Front Mount Rear Mount
2
3
4
5
6
7
8
1.67
2.10
2.54
2.98
3.41
3.85
4.29
1.88
2.32
2.76
3.19
3.63
4.07
4.51
B
C
D
1.31
1.75
2.19
2.63
3.06
3.50
3.94
0.93
1.37
1.81
2.25
2.68
3.12
3.56
0.44
0.88
1.31
1.75
2.19
2.62
3.06
FEATURES
• Rugged integrated construction of filtering elements
around a solid brass pin provides
excellent EMI/RFI filtering
• Filter element provides high insertion loss for EMI/RFI
filtering of AC and DC power and control lines
• 2 to 8 terminals standard – up to 16 poles available
• Cost-effective EMI solution for industrial
interconnection filtering
• Termination options are straight lead, male or female
quick connect
• Custom and special options available including:
– Different capacitance values on each position
– Wire assemblies added to pins
Insertion Loss for 2,500 pF Pi Schematic
Typical Insertion Loss (dB) in 50 Ohm Circuit
30MHz . . . . . . . . . . . .42 dB
50 MHz . . . . . . . . . . .45 dB
100 MHz . . . . . . . . . .50 dB
300 MHz . . . . . . . . . .68 dB
1000 MHz . . . . . . . . .70 dB
* Note: For other capacitance insertion loss, consult factory.
Dimensions - mm (in)
I - Rear Panel Mount
O - Front Panel Mount
Part Numbering System
Series
F
3
8
Terminal Style
Inches (Millimeters)
Mounting
# of Poles
Screw Options
0 - straight lead
0 - front panel mount
02 to 08*
1 - 0.187" quick
with mount ends
1 - rear panel mount
connect (male)
2 - 0.187" quick
with #4-40 threaded inserts
connect (male)
3 - 0.250" quick
connect (male)
4 - 0.250" quick
connect (female)
Compliance
References
Edge Connectors,
One-Sided Boards
Wire Management
Products
Power Distribution
Blocks
* Note: In inches. Available up to 16 poles. Consult factory.
Filter Options
Capacitance
.
Blank - #8-32, steel, zinc-plated
philslot BHMS (stnadard)
04 - #8-32, brass, nickel-plated
philslot BHMS
92 - #8-32, steel, zinc-plated
slotted BHMS
94 - #8-32, brass, nickel-plated
slotted BHMS
C - C Filter
P - Pi Filter
1.0 - 1000 pF + 100%-0%
2.5 - 2500 pF + 100%-0%
5.0 - 5000 pF + 100%-0%
* Note: Standard is 02-08 poles. Available up to 16 poles. Consult factory for availability.
Special electrical/mechanical configurations are available upon request from factory.
24
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks - Double Row
Terminal Blocks:
Single & Double Row
Series TB100
Double Row Terminal Blocks
EuroMag Series
SPECIFICATIONS
Rating: 30A, 300V*
Center Spacing: 0.375” or 3/8” (9.52mm)
Wire Range: #14 - 22 AWG CU
TB100-08
Screw Size: #6-32 philslot screws
Torque Rating: 9 lb-in.
Distance Between Barriers: 0.30” (7.62mm)
Mounting: #6 screws
Operating Temperature: 130°C (266°F) max., -40°C (-40°F) min.
Materials: Molded base: Black, UL rated 94V0 thermoplastic
Terminal plating: Tin over brass; Screws: Zinc-plated steel
Breakdown Voltage: 3600V
Agency Information: UL File E62622/CSA File 47235; IEC
TB100-04SP
Compliance; CE Certified
Dimensions - in (mm)
A
B
Poles
A
02
03
04
05
06
07
08
09
10
11
12
13
1.40
1.78
2.16
2.53
2.90
3.28
3.66
4.03
4.40
4.78
5.16
5.53
1.12
1.50
1.88
2.25
2.62
3.00
3.38
3.75
4.12
4.50
4.88
5.25
14
15
16
17
18
19
20
21
22
23
24
25
5.90
6.28
6.66
7.03
7.40
7.78
8.16
8.53
8.90
9.28
9.66
10.03
B
Poles
A
B
26
27
28
29
30
31
32
33
34
35
36
10.40
10.78
11.16
11.53
11.90
12.28
12.66
13.03
13.40
13.78
14.16
10.12
10.50
10.88
11.25
11.62
12.00
12.38
12.75
13.12
13.50
13.88
TB100
Inches (mm)
A
5.62
6.00
6.38
6.75
7.12
7.50
7.88
8.25
8.62
9.00
9.38
9.75
* Dimensions in inches. To convert to millimeters, multiply by 25.4.
0.14
(3.5)
0.14
(3.5)
B
0.88
(22.3)
0.31 (7.9)
0.17 dia.
(4.3)
0.375
(9.5)
Power Distribution
Blocks
Poles
0.30
(7.6)
0.41
(10.4)
0.25 (6.3)
Wire Management
Products
Part Numbering System
Series
T
B
1
0
0
-
Poles
Marking
02 to 36
Blank - steel philslot, zinc-plated
L1 to L6 - (pg 32)
00 - screws shipped bulk
Marker strips (pg 33)
B
- brass philslot, nickel-plated
Covers (pg 32)
BS - brass Sems philslot, nickel-plated
SP - steel Sems philslot, zinc-plated
P
- steel Sems (P-style)
ST - stainless steel, philslot
STR - stainless steel, phillips (recess)
Hardware Options
QC1 to QC20 - quick connects
†J101 - flat slip-on jumper
(2 position only)
†0J2 - over barrier jumpers
†0J4 - over barrier jumpers
Edge Connectors,
One-Sided Boards
Screw Options
Terminal Blocks:
Base & Rail Mount
* Max. rating shown; some options may be rated lower - consult factory.
Compliance
References
† Contact factory for pole configuration.
For additional product information, visit www.cooperbussmann.com/magnum
25
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series
Terminal Blocks:
Single & Double Row
Terminal Blocks - Double Row
Screw Options
B
Brass Philslot
Nickel-Plated
BS
Brass SEMS
Philslot Nickel-Plated
Hardware Options
ST
Stainless Steel
Philslot
SP
Steel SEMS
Philslot Zinc-Plated
P
Steel SEMS
(P-Style)
STR
Stainless Steel
Phillips (recess)
(Bulk ordering part numbers are in parentheses.)
QC1
QC2
QC3
QC4
QC5
QC6
QC8
QC9
QC10
QC11
QC12
QC13
QC14
QC15
QC16
QC17
QC18
QC107
QC 45° – QC 45°
QC108
QC 45° – QC 90°
QC19
QC7
QC20
Quick Connects – Bulk Min. order per part no. – 100 pieces.
Edge Connectors,
One-Sided Boards
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
Quick Connects – Assembled Terminal 0.187” x 0.020”. Max. current rating 13 Amps. For other orientations, contact factory.
QC101
Flat – none
QC102
QC 45° – none
QC103
QC 90° – none
QC104
Flat – Flat
QC105
Flat – QC 45°
QC106
Flat – QC 90°
Compliance
References
Jumpers – Bulk
QC109
QC 90° – QC 90°
Min. order per part no. – 100 pieces. Contact factory for jumper assembly.
†J101
Flat slip-on
(J101-J)
†OJ2
Slip-on over barrier
†OJ4
Closed over barrier
(0J2-J)
(0J4-J)
† Contact factory for pole configuration.
26
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks - Double Row
Terminal Blocks:
Single & Double Row
Series TB200 & TB200HB
Double Row Terminal Blocks
SPECIFICATIONS
Rating: TB200 - 30A, 300V*
TB200HB - 30A, 600V*
Center Spacing: 0.437” or 7/16” (11.10mm)
Wire Range: #12 - 22 AWG CU
Screw Size: #6-32 philslot screws
Torque Rating: 9 lb-in.
Distance Between Barriers: 0.353” (8.97mm)
Mounting: #6 screws
Operating Temperature: 130°C (266°F) max., -40°C (-40°F) min.
TB200HB-06
Materials: Molded base: Black, UL rated 94V0 thermoplastic
Terminal plating: Tin over brass; Screws: zinc-plated steel
Breakdown Voltage: 4800V
Agency Information: UL File E62622, CSA File 47235 & 15364;
Dimensions - in (mm)
IEC Compliance; CE Certified
TB200
* Max. rating shown; some options may be rated lower - consult factory.
TB200-10SP
EuroMag Series
A
B
Poles
A
B
Poles
A
B
02
03
04
05
06
07
08
09
10
11
1.63
2.07
2.51
2.94
3.38
3.82
4.25
4.69
5.13
5.57
1.31
1.75
2.18
2.62
3.06
3.50
3.93
4.37
4.81
5.25
12
13
14
15
16
17
18
19
20
21
6.00
6.44
6.87
7.31
7.75
8.19
8.62
9.06
9.50
9.94
5.68
6.12
6.56
7.00
7.43
7.87
8.31
8.75
9.18
9.62
22
23
24
25
26
27
28
29
30
10.37
10.81
11.25
11.68
12.12
12.56
13.00
13.44
13.87
10.06
10.50
10.93
11.37
11.81
12.25
12.68
13.12
13.56
* Dimensions in inches. To convert to millimeters, multiply by 25.4.
0.16
(4.0)
0.16
(4.0)
B
1.12
(28.4)
0.44 (11.2)
0.437
(11.1)
0.17 dia.
(4.3)
0.353
(8.9)
Power Distribution
Blocks
Poles
0.56
(14.2)
0.31 (7.8)
Terminal Blocks:
Base & Rail Mount
Inches (mm)
A
TB200HB
A
0.16
(4.0)
B
0.90
1.37
(22.8) (34.8)
0.44 (11.2)
0.17 dia.
(4.3)
0.437
(11.1)
0.353
(8.9)
0.17 x 0.22 slots
(4.3 x 5.6)
0.75
(19.0)
0.33 (8.4)
Edge Connectors,
One-Sided Boards
Part Numbering System
Series
-
Poles
B
2
0
0 T 200 - Standard
200HB - High barrier
02 to 30
Wire Management
Products
0.16
(4.0)
Screw Options
Marking
Hardware Options
For additional product information, visit www.cooperbussmann.com/magnum
Compliance
References
Blank - steel philslot, zinc-plated
L1 to L6 - (pg 32)
QC1 to QC20 - quick connects
†J201 - flat slip-on jumper
00 - screws shipped bulk
Marker strips (pg 32)
B
- brass philslot, nickel-plated
Covers (pg 32)
(2 position only)
†0J3 - over barrier jumpers
BS - brass Sems philslot, nickel-plated
†0J5 - over barrier jumpers
SP - steel Sems philslot, zinc-plated
†0J7 - over barrier jumpers
P
- steel Sems (P-style)
ST - stainless steel, philslot
SS - stainless steel Sems, philslot
STR - stainless steel, phillips (recess)
† Contact factory for pole configuration
27
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series
Terminal Blocks:
Single & Double Row
Terminal Blocks - Double Row
Screw Options
B
Brass Philslot
Nickel-Plated
BS
Brass SEMS
Philslot Nickel-Plated
Hardware Options
SP
Steel SEMS
Philslot Zinc-Plated
ST
Stainless Steel
Philslot
P
Steel SEMS
(P-Style)
SS
Stainless Steel
SEMS Philslot
STR
Stainless Steel
Phillips (recess)
(Bulk ordering part numbers are in parentheses.)
QC1
QC2
QC3
QC4
QC5
QC6
QC8
QC9
QC10
QC11
QC12
QC13
QC14
QC15
QC16
QC17
QC18
QC207
QC 45° – QC 45°
QC208
QC 45° – QC 90°
QC19
QC7
QC20
Quick Connects – Bulk Min. order per part no. – 100 pieces.
Edge Connectors,
One-Sided Boards
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
Quick Connects – Assembled Terminal 0.250” x 0.031”. Max. current rating 20 Amps. For other orientations, contact facto-
QC201
Flat – none
QC202
QC 45° – none
QC203
QC 90° – none
QC204
Flat – Flat
QC205
Flat – QC 45°
QC206
Flat – QC 90°
Compliance
References
Jumpers – Bulk
QC209
QC 90° – QC 90°
Min. order per part no. – 100 pieces. Contact factory for jumper assembly.
†J201
Flat slip-on
(not available on
TB200HB)
(J201-J)
†OJ3
Slip-on over barrier
for TB200HB
(0J3-J)
†OJ5
Closed over barrier
for TB200HB
(0J5-J)
†OJ7
Closed over barrier
for TB200
(0J7-J)
† Contact factory for pole configuration.
28
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks - Double Row
Terminal Blocks:
Single & Double Row
Series TB300 & TB345
Double Row Terminal Blocks
Poles
02
03
04
05
06
07
08
09
2.13
2.69
3.25
3.81
4.37
4.94
5.50
6.06
1.69
2.25
2.81
3.37
3.94
4.50
5.06
5.62
10
11
12
13
14
15
16
17
A
B
6.62 6.19
7.18 6.75
7.75 7.31
8.31 7.87
8.87 8.44
9.43 9.00
9.99 9.56
10.56 10.12
Poles
A
B
18
19
20
21
22
23
24
11.12
11.68
12.24
12.80
13.37
13.93
14.49
10.68
11.25
11.81
12.37
12.93
13.50
14.06
* Dimensions in inches. To convert to millimeters, multiply by 25.4.
TB300 & TB345
8-32 binding head screw - TB 300
10-32 binding head screw - TB 345
A
0.22
(5.6)
B
0.90
1.33
(22.8) (33.8)
0.50 (12.7)
0.56
(14.2)
0.21dia.
(5.3)
0.56
(14.2)
0.412
(10.4)
0.21 x 0.25 slots
(5.3 x 6.3)
Wire Management
Products
0.81
(20.5)
0.33 (8.4)
T
B
3 300 - 8-32 screw
345 - 10-32 screw
-
Poles
Screw Options
Marking
Hardware Options
02 to 24
Blank - steel philslot, zinc-plated
00 - screws shipped bulk
B
- brass philslot, nickel-plated
BS - brass Sems philslot, nickel-plated
(TB300 only)
SP - steel Sems philslot, zinc-plated
P
- steel Sems (P-style)
(TB300 Series only)
ST - stainless steel, philslot
STR - stainless steel, phillips (recess)
L1 to L6 - (pg 32)
Marker strips (pg 33)
Covers (pg 32)
QC1 to QC20 - quick connects
(TB300 only)
†J301 - flat slip-on jumper
†0J6 - over barrier jumper
†0J11 - over barrier jumper
Compliance
References
Edge Connectors,
One-Sided Boards
Part Numbering System
Series
Power Distribution
Blocks
B
TB345-06SP
Terminal Blocks:
Base & Rail Mount
A
TB300-08
Dimensions - in (mm)
* Max. rating shown; some options may be rated lower - consult factory.
Poles
EuroMag Series
SPECIFICATIONS
Rating: TB300 – 30A, 600V*
TB345 – 45A, 600V*
Center Spacing: 0.562” or 9/16” (14.28mm)
Wire Range: #8 - 22 AWG CU
Screw Size: TB300 – #8-32 philslot screws
TB345 – #10-32 philslot screws
Torque Rating: #8 screws - 16 lb-in.;
#10 screws - 20 lb-in.
Distance Between Barriers: 0.41” (10.5mm)
Mounting: TB300 – #8 screws; TB345 – #10 screws
Operating Temperature: 130°C (266°F) max., -40°C (-40°F) min.
Material: Molded base: Black, UL rated 94V0 thermoplastic
Terminal plating: Tin over brass; Screws: zinc-plated steel
Breakdown Voltage: 7500V
Agency Information: UL File E62622, CSA File 47235; IEC
Compliance; CE Certified
†Contact factory for pole configuration.
For additional product information, visit www.cooperbussmann.com/magnum
29
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series
Terminal Blocks:
Single & Double Row
Terminal Blocks - Double Row
Screw Options
B
Brass Philslot
Nickel-Plated
BS
Brass SEMS
Philslot Nickel-Plated
SP
Steel SEMS
Philslot Zinc-Plated
ST
Stainless Steel
Philslot
P
Steel SEMS
(P-Style)
STR
Stainless Steel
Phillips (recess)
Hardware Options
QC1
QC2
QC3
QC4
QC5
QC6
QC8
QC9
QC10
QC11
QC12
QC13
QC14
QC15
QC16
QC18
QC17
QC19
QC7
QC20
Quick Connects – Bulk *TB300 only. Min. order per part no. – 100 pieces.
Edge Connectors,
One-Sided Boards
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
Quick Connects – Assembled TB300 only. Terminals 0.250” x 0.031”. Max. current rating 20 Amps. For other orientations, contact factory.
QC201
Flat – none
QC202
QC 45° – none
QC203
QC 90° – none
QC204
Flat – Flat
QC205
Flat – QC 45°
QC206
Flat – QC 90°
Compliance
References
Jumpers – Bulk
QC207
QC 45° – QC 45°
QC208
QC 45° – QC 90°
QC209
QC 90° – QC 90°
Min. order per part no. – 100 pieces. Contact factory for jumper assembly.
†J301
Flat slip-on
(TB300 only)
(J301-J)
†OJ6
Closed over barrier
(OJ6-J)
†OJ11
Slip-on over barrier
(OJ11-J)
†Contact factory for pole configuration.
30
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks - Double Row
Terminal Blocks:
Single & Double Row
Series TB400
Double Row Terminal Blocks
SPECIFICATIONS
Rating: 75A, 600V
Center Spacing: 0.687” or 11/16” (17.45mm)
Wire Range: #6-14 AWG CU
Screw Size: #10-32 philslot screws
Torque Rating: 20 lb-in.
Distance Between Barriers: 0.56” (14.3mm)
Mounting: #10 screws
Operating Temperature: 130°C (266°F) max., -40°C (-40°F) min.
Material: Molded base: Black, UL rated 94V0 thermoplastic
Terminal plating: Tin over brass; Screws: zinc-plated steel
Breakdown Voltage: 7500V
Agency Information: UL File E62622, CSA File 47235; IEC
Compliance; CE Certified
TB400-05
EuroMag Series
Terminal Blocks:
Base & Rail Mount
Dimensions - in (mm)
TB400
A
Poles
A
B
Poles
A
02
03
04
05
2.51
3.20
3.89
4.58
2.06
2.75
3.44
4.13
06
07
08
09
5.26
5.95
6.64
7.33
B
4.81
5.50
6.19
6.88
Poles
A
B
10
11
12
8.01
8.70
9.39
7.56
8.25
8.94
B
0.22
(5.6)
0.15 dia.
(3.8)
0.625
(15.9)
Power Distribution
Blocks
* Dimensions in inches. To convert to millimeters, multiply by 25.4.
1.12
(28.4)
0.22 dia. (5.6)
0.687
(17.4)
0.687
(17.4)
0.562
(14.3)
1.81
(46.0)
0.76
(19.3)
0.46 (11.7)
1.34
(34.0)
ST
Stainless Steel
Philslot
STR
Stainless Steel
Phillips (recess)
OJ14
Closed over barrier
Part Numbering System
Series
– 02 to 12
Screw Options
Marking
Hardware Options
Not available
†0J14
Blank - steel philslot, zinc-plated
00 - screws shipped bulk
B - brass philslot, nickel-plated
ST - stainless steel, philslot
STR - stainless steel, phillips (recess)
Compliance
References
T
B
4
0
0
Poles
Edge Connectors,
One-Sided Boards
B
Brass Philslot
Nickel-Plated
Hardware Options
Wire Management
Products
Screw Options
- Jumper over
barrier
†Contact factory for pole configuration.
For additional product information, visit www.cooperbussmann.com/magnum
31
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks:
Single & Double Row
Terminal Blocks - Double Row
All Series Marking Options & Accessories
Double Row Terminal Blocks
Marking Options
1
2
3
L2
L3
L4
L5
L6
134
G
RED
BLK
BLU
3
4
OUT
PUT
3AC
134
MAS
TER
20A
K
GND
M
300V
MAX
A
Special markings are available at an additional charge for
preparation. Production charges for setup, handling and
marking are the same as for standard marking. Drawing(s)
must be submitted to ensure accuracy of part required.
Consult factory for price and delivery.
INPUT
Special Marking
5
Terminal Blocks:
Base & Rail Mount
L1
MB
Power Distribution
Blocks
3 2 1
1 2 3
Note: Blocks marked on both sides require a different
code for each side. Example Style L1 on one side of the
block requires Style L2 on the other side to ensure
common terminal marking. To order, add appropriate
suffix (L1, L2, L3, L4, L5 and/or L6) to block part number
in the proper sequence.
1 2 3
1
2
3
Wire Management
Products
Standard markings are applied directly to the side(s) of a
block. Standard color is white. Standard height is 0.125”.
3 2 1
EuroMag Series
Standard Marking
Note: Marking is not available on TB400 Series
Covers
Covers prevent personnel, screws and foreign items from
contacting live terminals. Available in white or clear
plastic. Two cover clips supplied with each cover. Cover
width is 1.31 inches.
All covers must be ordered separately. Consult factory for
special legends.
Compliance
References
Edge Connectors,
One-Sided Boards
Example: 10 position cover, white, TB100 Series, no
legends . . . Part number is X12010.
Part Numbering System
Series
Cover Strip
Poles
High Barrier Option Only
X
120
119
220
219
320
319
02 to 36 (TB100)
02 to 30 (TB200/TB200HB)
02 to 24 (TB300/TB345)
HB = High Barrier
-
TB100/white
TB100/clear
TB200/TB200HB - white
TB200/TB200HB - clear
TB300 & TB345 - white
TB300 & TB345 - clear
Example: 10 position cover, white,
TB100 Series, no legends . . .
Part number is X12010.
Cover Clips – Bulk
Part Number
DD1-J – TB100 Series
DD2-J – TB200 Series
DD2HB-J–TB200HB Series
DD3-J – TB300 Series
Note: Covers are not available on TB400 Series.
32
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks - Double Row
Terminal Blocks:
Single & Double Row
Top & Bottom Marking Strips
Double Row Terminal Blocks
Top Marker Strips
Top mounting marker strips are available in white (opaque)
plastic. Two cover clips are supplied with each marker
strip.
All top marker strips must be ordered separately. Consult
factory for special legends.
EuroMag Series
Example: 12 position cover, TB200, 0.032” x 0.312”, with
no legends . . . Part No. is X20312.
Example: 12 position cover, TB200HB, 0.060” x 0.500”,
with no legends . . . Part No. is X23312HB.
Part Numbering System
X
Top Marker Strip
Poles
133
103
233
203
333
303
02 to 36 (TB100)
02 to 30 (TB200/TB200HB)
02 to 24 (TB300/TB345)
HB = High Barrier
TB100 (0.060 thk x 0.500w)
TB100 (0.032 thk x 0.312w)
TB200/TB200HB (0.060 thk x 0.500w)
TB200/TB200HB (0.032 thk x 0.312w)
TB300 & TB345 (0.060 thk x 0.500w)
TB300 & TB345 (0.032 thk x 0.380w)
High Barrier Option Only
Example: 12 position cover, TB200HB,
0.060” x 0.500”, with no legends . . .
Part No. is X23312HB.
Note: Marking Strips are not
available on TB400 Series.
Space for marking
two sides
Space for marking
one side
Bottom Marker Strips
Power Distribution
Blocks
-
Terminal Blocks:
Base & Rail Mount
Series
Bottom mounting marker strips are made of black PVC,
0.030” thick. Space is available to handle most marking
situations. All marker strips must be ordered separately.
Wire Management
Products
To order, specify part number, required legends and (BF)
bottom forward, (BR) bottom reverse, (TF) top forward, or
(TR) top reverse. Consult factory for specials.
Example: 13 position strip, TB100 with no legends, space
for marking one side . . . Part number is X10513.
Dim. A
Dim. B
TB100
TB200
TB200HB
TB300
TB345
TB400
1.13”
1.38”
1.37”
1.62”
1.62”
1.81”
1.58”
1.81”
1.58”
1.81”
N/A
N/A
Edge Connectors,
One-Sided Boards
Position for legends (one side, two sides) can be specified
standard. Standard legend height is 0.125”. Standard
legends are 0-99 and A-Z. Special legends are available
on special order. Drawing(s) must be submitted to ensure
accuracy of part required.
Part Numbering System
Bottom Marker Strip
Poles
X
105
101
205
201
295
291
305
301
-
TB100 – marking one side
TB100 – marking both sides
TB200 – marking one side
TB200 – marking both sides
TB200HB – marking one side
TB200HB – marking both sides
TB300 & TB345 – marking one side
TB300 & TB345 – marking both sides
High Barrier Option Only
Orientation
02 to 36 (TB100)
02 to 30 (TB200/TB200HB)
02 to 24 (TB300/TB345)
HB = High Barrier
BF – bottom forward
BR – bottom reverse
TF – top forward
TR – top reverse
Note: Marking Strips are not available on TB400 Series.
For additional product information, visit www.cooperbussmann.com/magnum
Compliance
References
Series
33
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Edge Connectors,
One-Sided Boards
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
Terminal Blocks - Standard Base
Series TS - Standard Base
Terminal Blocks; 8.00, 10.00,
12.00, 13.50mm Centers
SPECIFICATIONS
Rating: TS08 – 20A, 600V
TS10 – 30A, 600V
TS12 – 35A, 600V
TS14 – 50A, 600V
Wire Range: See Table
Housing Material: Polyamide Type 6/6, 94V2 (white)
Contact Material: Nickel-Plated Brass
Wire Protector: Stainless Steel
Screw Size: See Table
Operating Temperature: 105°C (221°F) max., -30°C (-22°F) min.
Torque Rating: See Table
Construction: Mold-to-Length
Agency Information: UL File E62622; CE Certified
Dimensions
E
C
A Dimensions
TS08
# of
Poles
mm
2
3
4
5
6
7
8
9
10
11
12
15.80
23.80
31.80
39.80
47.80
55.80
63.80
71.80
79.80
87.80
95.80
TS10
in
mm
TS12
in
0.622 17.50 0.689
0.937 27.50 1.083
1.252 37.50 1.476
1.567 47.50 1.870
1.882 57.50 2.264
2.232 67.50 2.657
2.512 77.50 3.051
2.827 87.50 3.445
3.142 97.50 3.839
3.457 107.50 4.232
3.772 117.50 4.626
TS14
mm
in
mm
in
20.70
32.70
44.70
56.70
68.70
80.70
92.70
104.70
116.70
128.70
140.70
0.815
1.287
1.760
2.232
2.705
3.177
3.650
4.122
4.594
5.067
5.539
23.00
36.50
50.00
63.50
77.00
90.50
104.00
117.50
131.00
144.50
158.00
0.906
1.437
1.969
2.500
3.031
3.563
4.094
4.626
5.157
5.689
6.220
Position
Torque
lb-in
Clamping
Area
TS0801
3.5
4.0mm2
TS0802
3.5
1.5mm2
TS1001
4.4
6.0mm2
TS1002
4.4
2.5mm2
TS1201
7.0
10.0mm2
TS1202
7.0
6.0mm
TS1401
12.0
16.0mm2
TS1402
12.0
10.0mm2
2
Wire Range
AWG (Cu)
22-12
Sol./Str.
22-12
Sol./Str
22-10 Sol.
14-10 Str.
22-12 Sol./Str.
10 Sol.
22-10
Sol./Str.
22-10
Sol./Str.
20-8
Sol./Str.
20-8
Sol./Str.
B
D
A
D
D
1.2mm
STANDOFF
F
F
WIRE PROTECTOR
Dimensions mm (in)
Screw
M2.6x5
M2.6x5
M3.0x6
M3.0x6
M3.5x7
M3.5x7
M4.0x9
M4.0x9
B
C
D
E
F
17.00
(0.67)
17.00
(0.67)
20.20
(0.80)
20.20
(0.80)
23.80
(0.94)
23.80
(0.94)
25.60
(1.01)
25.60
(1.01)
14.50
(0.57)
14.50
(0.57)
17.00
(0.67)
17.00
(0.67)
19.00
(0.75)
19.00
(0.75)
25.20
(0.99)
25.20
(0.99)
8.00
(0.32)
8.00
(0.32)
10.00
(0.39)
10.00
(0.39)
12.00
(0.47)
12.00
(0.47)
13.50
(0.53)
13.50
(0.53)
2.90
(0.11)
2.90
(0.11)
3.60
(0.14)
3.60
(0.14)
3.90
(0.14)
3.90
(0.15)
4.40
(0.17)
4.40
(0.17)
2.8±0.1
(0.11)
2.8±0.1
(0.11)
3.4±0.1
(0.13)
3.4±0.1
(0.13)
4.2±0.1
(0.15)
4.2±0.1
(0.15)
5.0±0.1
(0.19)
5.0±0.1
(0.19)
Compliance
References
Part Numbering System
Spacing
T
S 08
10
12
14
34
-
Base
Positions
01 - std
02 - std w/
wire protector
02 to 12
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks - Flat Base
Dimensions
EuroMag Series
SPECIFICATIONS
Rating: TS08 – 20A, 600V
TS10 – 30A, 600V
Wire Range: See Table
Housing Material: Polyamide Type 6/6, 94V2 (white)
Contact Material: Nickel-Plated Brass
Wire Protector: Stainless Steel
Screw Size: See Table
Operating Temperature: 105°C (221°F) max., -30°C (-22°F) min.
Torque Rating: See Table
Construction: Mold-to-Length
Agency Information: UL File E62622; CE Certified
Terminal Blocks:
Single & Double Row
Series TS - Flat Base
Terminal Blocks; 8.00, 10.00mm Centers
E
C
Terminal Blocks:
Base & Rail Mount
A Dimensions
TS08
B
TS10
mm
in
mm
in
2
3
4
5
6
7
8
9
10
11
12
15.80
23.80
31.80
39.80
47.80
55.80
63.80
71.80
79.80
87.80
95.80
0.622
0.937
1.252
1.567
1.882
2.232
2.512
2.827
3.142
3.457
3.772
17.50
27.50
37.50
47.50
57.50
67.50
77.50
87.50
97.50
107.50
117.50
0.689
1.083
1.476
1.870
2.264
2.657
3.051
3.445
3.839
4.232
4.626
Torque
lb-in
Clamping
Area
TS0803
3.5
4.0mm2
TS0804
3.5
1.5mm2
TS1003
4.4
6.0mm2
TS1004
4.4
2.5mm
2
Wire Range
AWG (Cu)
22-12
Sol./Str.
22-12
Sol./Str
22-10 Sol.
14-10 Str.
22-12 Sol./Str.
10 Sol.
D
D
F
F
WIRE PROTECTOR
Dimensions mm (in)
Screw
M2.6x5
M2.6x5
M3.0x6
M3.0x6
B
C
D
E
F
16.30
(0.64)
16.30
(0.64)
20.20
(0.80)
20.20
(0.80)
13.30
(0.53)
13.30
(0.52)
15.80
(0.62)
15.80
(0.62)
8.00
(0.32)
8.00
(0.32)
10.00
(0.39)
10.00
(0.39)
2.90
(0.11)
2.90
(0.11)
3.60
(0.14)
3.60
(0.14)
2.8±0.1
(0.11)
2.8±0.1
(0.11)
3.2±0.1
(0.13)
3.2±0.1
(0.13)
Edge Connectors,
One-Sided Boards
Part Numbering System
Spacing
T
S 08
10
-
Base
Positions
03 - flat
04 - flat w/
wire protector
02 to 12
Wire Management
Products
Position
D
A
Power Distribution
Blocks
# of
Poles
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
35
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series
Terminal Blocks:
Single & Double Row
Terminal Blocks - Raised Base
Series TS - Raised Base
Terminal Blocks; 8.00, 10.00mm Centers
SPECIFICATIONS
Rating: TS08 – 20A, 600V
TS10 – 30A, 600V
Wire Range: See Table
Housing Material: Polyamide Type 6/6, 94V2 (white)
Contact Material: nickel-plated Brass
Wire Protector: Stainless Steel
Screw Size: See Table
Operating Temperature: 105°C (221°F) max., -30°C (-22°F) min.
Torque Rating: See Table
Construction: Mold to Length
Agency Information: UL File E62622; CE Certified
Note: TS Series
standard base
pictured above
Dimensions
E
Terminal Blocks:
Base & Rail Mount
C
Edge Connectors,
One-Sided Boards
Wire Management
Products
Power Distribution
Blocks
A Dimensions
TS08
TS10
# of
Poles
mm
in
mm
in
2
3
4
5
6
7
8
9
10
11
12
15.80
23.80
31.80
39.80
47.80
55.80
63.80
71.80
79.80
87.80
95.80
0.622
0.937
1.252
1.567
1.882
2.232
2.512
2.827
3.142
3.457
3.772
17.50
27.50
37.50
47.50
57.50
67.50
77.50
87.50
97.50
107.50
117.50
0.689
1.083
1.476
1.870
2.264
2.657
3.051
3.445
3.839
4.232
4.626
Position
Torque
lb-in
Clamping
Area
TS0805
3.5
4.0mm2
TS0806
3.5
1.5mm2
TS1005
4.4
6.0mm2
TS1006
4.4
2.5mm2
Wire Range
AWG (Cu)
22-12
Sol./Str.
22-12
Sol./Str
22-10 Sol.
14-10 Str.
22-12 Sol./Str.
10 Sol.
B
D
A
D
D
4.3mm
F
F
WIRE PROTECTOR
Dimensions mm (in)
Screw
M2.6x5
M2.6x5
M3.0x6
M3.0x6
B
C
D
E
F
16.30
(0.64)
16.30
(0.64)
20.20
(0.80)
20.20
(0.80)
16.90
(0.67)
16.90
(0.67)
20.10
(0.79)
20.10
(0.79)
8.00
(0.32)
8.00
(0.32)
10.00
(0.39)
10.00
(0.39)
2.90
(0.11)
2.90
(0.11)
3.60
(0.14)
3.60
(0.14)
2.8±0.1
(0.11)
2.8±0.1
(0.11)
3.2±0.1
(0.13)
3.2±0.1
(0.13)
Part Numbering System
Spacing
T
S Compliance
References
08
10
36
-
Base
Positions
05 - stand offs
06 - stand offs w/
wire protector
02 to 12
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series
Log onto our website at
www.cooperbussmann.com/magnum
to see all of MAGNUM’s product offerings.
PCB Mount:
• Spring Clamp Design
p38-46
• Cage Clamp Design
p47-57
• Two & Three Tier
p58-62
• High Current (28A-115A)
p63-73
Screwless
p74-82
Pluggable
p83-115
EuroMag Series
Aside from the collection covered in the next section, MAGNUM also
offers a variety of other standard European style PCB terminal blocks.
Configurations include straight to board, plug and header, screwless,
insulation displacement connectors (IDC), 2-tiered, 3-tiered, mold-tolength, modular (stackable) design, and terminal blocks with horizontal,
vertical, 35 and 45 degree wire entry orientations. Available center
spacings range from 2.54 mm to 15.00 mm.
Terminal Blocks:
Single & Double Row
EUROMAG (EM) SERIES
Terminal Blocks:
Base & Rail Mount
Power Distribution
Blocks
Wire Management
Products
Edge Connectors,
One-Sided Boards
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
37
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM3123 Series
Euro-Mag Terminal Blocks
3.50 Centers; Modular
SPECIFICATIONS
Rating: 6A, 300V
Center Spacing: 0.138” (3.50mm)
Wire Range: #16-26 AWG
Housing Material: Black Polyamide Type 6/6, 94V0
Contact Material: Tin-Plated Brass
Wire Protector: Stainless Steel
Screw Size: M2.0 Chromate Steel
Operating Temperature: 105°C (221°F) max., -33°C
(-27°F) min.
Torque Rating: 2.5 lb-in.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
Poles
L (mm)
Poles
L (mm)
2
3
4
5
6
7
8
9
10
11
12
13
7.0
10.5
14.0
17.5
21.0
24.5
28.0
31.5
35.0
38.5
42.0
45.5
14
15
16
17
18
19
20
21
22
23
24
49.5
52.5
56.0
59.5
63.0
66.5
70.0
73.5
77.0
80.5
84.0
Edge Connectors,
One-Sided Boards
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Terminal Blocks
EM312305
Dimensions - mm (in)
PCB Hole Layout
To convert to inches, divide by 25.4
Part Numbering System
Series
# of Poles
E
M
3
1
2
3 Compliance
References
02 to 24
38
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Terminal Blocks
Terminal Blocks:
Single & Double Row
EM2665 Series
Euro-Mag Terminal Blocks
5.00 Centers
Position
L (mm)
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
14
15
16
17
18
19
20
21
22
23
24
70.0
75.0
80.0
85.0
90.0
95.0
100.0
105.0
110.0
115.0
120.0
Power Distribution
Blocks
02
03
04
05
06
07
08
09
10
11
12
13
L (mm)
EM266512
Terminal Blocks:
Base & Rail Mount
Position
EuroMag Series
SPECIFICATIONS
Rating: 10A, 300V
Center Spacing: 0.197” (5.00mm)
Consult factory for 0.394” (10.00mm)
Wire Range: #14-22 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Screw Size: M3x5 Zinc-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 7 lb-in.
Recommended PCB Hole Diameters: 0.055” (1.40mm)
Construction: Mold to Length
Connector Style: Spring Clamp
Agency Information:
File E62622; CE Certified
0.15
(3.7)
"L"
To convert to inches, divide by 25.4
0.50
(12.8)
0.197
(5.00)
Wire Management
Products
0.16
(4.0)
0.13
(3.43)
0.33
(8.4)
0.31
(7.8)
0.16
(4.0)
0.028
(0.70)
Edge Connectors,
One-Sided Boards
0.047
(1.20)
Also available in 10.00mm (EM2661XX).
Part Numbering System
Series
# of Positions
Compliance
References
E
M
2
6
6
5 02 to 24
For additional product information, visit www.cooperbussmann.com/magnum
39
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Terminal Blocks
MAGNUM
EM3660 Series
Euro-Mag Terminal Blocks
5.00 Centers; Modular
Poles
L (mm)
2
3
4
5
6
7
8
9
10
11
12
13
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
14
15
16
17
18
19
20
21
22
23
24
70.0
75.0
80.0
85.0
90.0
95.0
100.0
105.0
110.0
115.0
120.0
L+
_0.5
ø1+
_0.1
(ø0.039")
3.3+
_0.3
(0.130")
PCB Hole Layout
2.5+
_0.3
(0.098")
5+
_0.1
(0.197")
ø1.4
(ø0.055")
3.3+
_0.3
(0.130")
Wire Management
Products
Edge Connectors,
One-Sided Boards
To convert to inches, divide by 25.4
7.5+
_0.3
(0.295")
4.2+
_0.3
(0.165")
L (mm)
Dimensions - mm (in)
7.5+
_0.3
(0.295")
Poles
EM366005
10+
_0.3
(0.394")
SPECIFICATIONS
Rating: 16A, 250V
Center Spacing: 0.197” (5.00mm)
Wire Range: #16-24 AWG
Housing Material: Blue Polyamide Type 6/6, 94V0
Contact Material: Tin-Plated Brass
Wire Protector: Stainless Steel
Screw Size: M3 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -33°C
(-27°F) min.
Torque Rating: 4.0 lb-in.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
®
5+
_0.1
(0.197")
Part Numbering System
Series
# of Poles
E
M
3
6
6
0 Compliance
References
02 to 24
40
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Terminal Blocks
Poles
L (mm)
2
3
4
5
6
7
8
9
10
11
12
13
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
14
15
16
17
18
19
20
21
22
23
24
70.0
75.0
80.0
85.0
90.0
95.0
100.0
105.0
110.0
115.0
120.0
PCB Hole Layout
Wire Management
Products
To convert to inches, divide by 25.4
Power Distribution
Blocks
L (mm)
Dimensions - mm (in)
Terminal Blocks:
Base & Rail Mount
Poles
EM366512
EuroMag Series
SPECIFICATIONS
Rating: 10A, 300V
Center Spacing: 0.197” (5.00mm)
Wire Range: #16-22 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Tin-Plated Brass
Screw Size: M2.5x5 Zinc-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 2.5 lb-in.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Connector Style: Spring Clamp
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single & Double Row
EM3665 Series
Euro-Mag Terminal Blocks
5.00 Centers; Modular
Series
Edge Connectors,
One-Sided Boards
Part Numbering System
# of Poles
E
M
3
6
6
5 02 to 24
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
41
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM3675 Series
Euro-Mag Terminal Blocks
5.00 Centers
SPECIFICATIONS
Rating: 10A, 300V
Center Spacing: 0.197” (5.00mm)
Wire Range: #14-26 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Tin-Plated Brass
Screw Size: M2x6, Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 4.0 lb-in.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Mold to Length
Connector Style: Spring Clamp
Agency Information:
File E62622; CE Certified
Wire Management
Products
Edge Connectors,
One-Sided Boards
EM367512
Dimensions - mm (in)
0.32
(8.0)
Poles
2
3
4
5
6
7
8
9
10
11
12
13
14
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Terminal Blocks
L (mm)
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
Poles
15
16
17
18
19
20
21
22
23
24
25
26
27
L
L (mm)
75.0
80.0
85.0
90.0
95.0
100.0
105.0
110.0
115.0
120.0
125.0
130.0
135.0
0.39
(10.0)
0.039
(1.00)
0.15
(3.7)
0.10
(2.5)
0.19
(4.8)
0.197
(5.00)
0.024
(0.60)
To convert to inches, divide by 25.4
Part Numbering System
Series
# of Poles
E
M
3
6
7
5 Compliance
References
02 to 27
42
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Terminal Blocks
EM312705
Dimensions - mm (in)
15.0
22.5
33.0
37.5
45.0
52.5
60.0
67.5
75.0
82.5
90.0
97.5
14
15
16
17
18
19
20
21
22
23
24
105.0
112.5
120.0
127.5
133.0
142.5
150.0
157.5
165.0
172.5
180.0
4.2+
_0.3
(0.165")
7.5+
_0.1
(0.295")
3.8+
_0.3
(0.150")
ø1.4
(ø0.055")
4.6+
_0.3
(0.181")
PCB Hole Layout
Wire Management
Products
To convert to inches, divide by 25.4
ø1+
_0.1
(ø0.039")
9.5+
_0.3
(0.374")
2
3
4
5
6
7
8
9
10
11
12
13
4.5+
_0.3
(0.177")
L (mm)
13+
_0.3
(0.512")
Poles
L+
_0.5
Power Distribution
Blocks
L (mm)
Terminal Blocks:
Base & Rail Mount
9.5+
_0.3
(0.374")
Poles
EuroMag Series
SPECIFICATIONS
Rating: 10A, 300V
Center Spacing: 0.295” (7.50mm)
Wire Range: #14-22 AWG
Housing Material: Black Polyamide Type 6/6, 94V0
Contact Material: Tin-Plated Brass
Wire Protector: Stainless Steel
Screw Size: M3.0 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -33°C
(-27°F) min.
Torque Rating: 3.5 lb-in.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single & Double Row
EM3127 Series
Euro-Mag Terminal Blocks
7.50 Centers; Modular
7.5+
_0.1
(0.295")
Series
Edge Connectors,
One-Sided Boards
Part Numbering System
# of Poles
E
M
3
1
2
7 02 to 24
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
43
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM2661 Series
Euro-Mag Terminal Blocks
10.00 Centers
Edge Connectors,
One-Sided Boards
EM266106
Dimensions - mm (in)
8.0
(0.315")
L
Poles
2
3
4
5
6
7
L (mm)
15.0
25.0
35.0
45.0
55.0
65.0
Poles
8
9
10
11
12
13
3.8
(0.156")
10.0
(0.394")
SPECIFICATIONS
Rating: 10A, 300V
Center Spacing: 0.394” (10.00mm)
Wire Range: #14-26 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Tin-Plated Brass
Wire Protector: Stainless Steel
Screw Size: M2.6 Chromate Steel
Operating Temperature: 105°C (221°F) max., -55°C
(-40°F) min.
Torque Rating: 4.0 lb-in.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
L (mm)
75.0
85.0
95.0
105.0
115.0
125.0
0.6
(0.024")
0.9
(0.035")
4.8
(0.189")
2.5
(0.098")
10.0
(0.394")
Ø 1.4
( Ø 0.005"0
4.8
(0.189")
PCB Hole Layout
8.0
(0.315")
To convert to inches, divide by 25.4
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Terminal Blocks
10.0
(0.394")
Part Numbering System
Series
# of Poles
E
M
2
6
6
1 Compliance
References
02 to 13
44
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Terminal Blocks
Poles
L (mm)
8.0
(0.315")
9
10
11
12
13
14
50.0
55.0
60.0
65.0
70.0
75.0
10.0
(0.394")
Ø 1.4
( Ø 0.005"0
PCB Hole Layout
4.8
(0.189")
To convert to inches, divide by 25.4
2.5
(0.098")
Power Distribution
Blocks
15.0
20.0
25.0
30.0
35.0
40.0
45.0
0.6
(0.024")
0.9
(0.035")
4.8
(0.189")
2
3
4
5
6
7
8
3.8
(0.156")
10.0
(0.394")
L
8.0
(0.315")
L (mm)
Dimensions - mm (in)
Terminal Blocks:
Base & Rail Mount
Poles
EM366102
EuroMag Series
SPECIFICATIONS
Rating: 10A, 300V
Center Spacing: 0.394” (10.00mm)
Wire Range: #14-26 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Tin-Plated Brass
Wire Protector: Stainless Steel
Screw Size: M2.6 Chromate Steel
Operating Temperature: 105°C (221°F) max., -55°C
(-40°F) min.
Torque Rating: 4.0 lb-in.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single & Double Row
EM3661 Series
Euro-Mag Terminal Blocks
10.00 Centers; Modular
10.0
(0.394")
Wire Management
Products
Edge Connectors,
One-Sided Boards
Part Numbering System
Series
# of Poles
E
M
3
6
6
1 02 to 14
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
45
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM3671 Series
Euro-Mag Terminal Blocks
10.00 Centers
Poles
L (mm)
Poles
L (mm)
EM367106
Dimensions - mm (in)
8.0
(0.315")
L
15.0
25.0
35.0
45.0
55.0
65.0
8
9
10
11
12
13
Edge Connectors,
One-Sided Boards
75.0
85.0
95.0
105.0
115.0
125.0
3.8
(0.156")
2.5
(0.098")
10.0
(0.394")
Ø 1.4
( Ø 0.005"0
PCB Hole Layout
4.8
(0.189")
To convert to inches, divide by 25.4
Wire Management
Products
Power Distribution
Blocks
4.8
(0.189")
2
3
4
5
6
7
0.6
(0.024")
0.9
(0.035")
8.0
(0.315")
SPECIFICATIONS
Rating: 10A, 300V
Center Spacing: 0.394” (10.00mm)
Wire Range: #14-26 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Tin-Plated Brass
Wire Protector: Stainless Steel
Screw Size: M2.6 Chromate Steel
Operating Temperature: 105°C (221°F) max., -55°C
(-40°F) min.
Torque Rating: 4.0 lb-in.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
10.0
(0.394")
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Terminal Blocks
10.0
(0.394")
Part Numbering System
Series
# of Poles
E
M
3
6
7
1 Compliance
References
02 to 13
46
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Terminal Blocks
EM392305
Dimensions - mm (in)
L (mm)
2
3
4
5
6
7
8
9
10
11
12
13
7.0
10.5
14.0
17.5
21.0
24.5
28.0
31.5
35.0
38.5
42.0
45.5
14
15
16
17
18
19
20
21
22
23
24
49.5
52.5
56.0
59.5
63.0
66.5
70.0
73.5
77.0
80.5
84.0
3.7+
_0.3
(0.146")
1.75+
_0.3
(0.069")
0.9+
_0.1
(0.035")
3.5+
_0.1
(0.137")
ø1.3
(ø0.051")
3.7+
_0.3
(0.146")
PCB Hole Layout
3.5+
_0.1
(0.137")
Series
Edge Connectors,
One-Sided Boards
Part Numbering System
Wire Management
Products
To convert to inches, divide by 25.4
0.5+
_0.1
(0.020")
7.2+
_0.3
(0.283")
Poles
Power Distribution
Blocks
L (mm)
L+
_0.5
3.5+
_0.3
(0.138")
8.5+
_0.3
(0.335")
7.2+
_0.3
(0.283")
Terminal Blocks:
Base & Rail Mount
Poles
EuroMag Series
SPECIFICATIONS
Rating: 8A, 300V
Center Spacing: 0.138” (3.50mm)
Wire Range: #16-26 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Cage Clamp: Brass, Nickel-Plated
Screw Size: M2.0 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-67°F) min.
Torque Rating: 2.5 lb-in.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single & Double Row
EM3923 Series
Euro-Mag Terminal Blocks
3.50 Centers; Modular
# of Poles
E
M
3
9
2
3 02 to 24
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
47
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM3503 Series
Euro-Mag Terminal Blocks
3.81 Centers; Modular
SPECIFICATIONS
Rating: 8A, 300V
Center Spacing: 0.150” (3.81mm)
Wire Size: #16-26 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Screw Size: M 2x3 Zinc-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 4.5 lb-in.
Recommended PCB Hole Diameters: 0.055” (1.40mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
Poles
L (mm)
Poles
L (mm)
2
3
4
5
6
7
8
9
10
11
12
13
7.62
11.43
15.24
19.05
22.86
26.67
30.48
34.29
38.10
41.91
45.72
49.53
14
15
16
17
18
19
20
21
22
23
24
53.34
57.15
60.96
64.77
68.58
72.39
76.20
80.01
83.82
87.63
91.44
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Terminal Blocks
To convert to inches, divide by 25.4
Dimensions - mm (in)
L
0.29
(7.3)
0.150
(3.81)
Wire Management
Products
Edge Connectors,
One-Sided Boards
0.075
(1.90)
0.09
(2.3)
0.33
(8.5)
0.14
(3.6)
0.02
(.50)
0.031
(0.79)
Part Numbering System
Series
Compliance
References
EM350305
# of Positions
E
M
3
5
0
3 02 to 24
48
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Terminal Blocks
EM258505V
Dimensions - mm (in)
EuroMag Series
HORIZONTAL
0.035
(0.90)
0.19
(4.9)
0.40
(10.2)
0.197
(5.00)
0.10
(2.50)
L
0.12
(3.1)
0.10
(2.5)
Position
Position
L (mm)
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
14
15
16
17
18
19
20
21
22
23
24
70.0
75.0
80.0
85.0
90.0
95.0
100.0
105.0
110.0
115.0
120.0
0.10
(2.6)
0.57
(14.5)
0.33
(8.5)
0.07
(1.8)
Power Distribution
Blocks
02
03
04
05
06
07
08
09
10
11
12
13
L (mm)
Terminal Blocks:
Base & Rail Mount
SPECIFICATIONS
Rating: 16A, 300V
Center Spacing: 0.197” (5.00mm)
Consult factory for 0.394” (10.00mm)
Wire Range: #12-26 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Screw Size: M3x5 Zinc-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 7 lb-in.
Recommended PCB Hole Diameters: 0.055” (1.40mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Connector Style: Rising Cage Clamp
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single & Double Row
EM2585 Series
Euro-Mag Terminal Blocks
5.00 Centers; Modular
0.03
(0.8)
VERTICAL
0.197
(5.00)
0.40
(10.2)
Wire Management
Products
To convert to inches, divide by 25.4
0.10
(2.5)
L
0.12
(3.1)
0.10
(2.5)
0.10
(2.5)
0.57
(14.5)
Edge Connectors,
One-Sided Boards
0.34
(8.5)
0.18
(4.7)
Part Numbering System
Series
# of Positions
02 to 24
0.031
(0.79)
Orientation
Compliance
References
E
M
2
5
8
5 0.035
(0.90)
H - horizontal
V - vertical
For additional product information, visit www.cooperbussmann.com/magnum
49
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM3225 Series
Euro-Mag Terminal Blocks
35° Angle; 5.00 Centers; Modular
Poles
L (mm)
2
3
4
5
6
7
8
9
10
11
12
13
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
14
15
16
17
18
19
20
21
22
23
24
70.0
75.0
80.0
85.0
90.0
95.0
100.0
105.0
110.0
115.0
120.0
L+
_0.5
0.9+
_0.1
(0.035")
0.8+
_0.1
(0.031")
2.5+
_0.3
(0.098")
7+
_0.3
(0.276")
5+
_0.1
(0.197")
5+
_0.1
(0.197")
PCB Hole Layout
To convert to inches, divide by 25.4
7+
_0.3
(0.276")
Wire Management
Products
Edge Connectors,
One-Sided Boards
13.3+
_0.3
(0.524")
13.3+
_0.3
(0.524")
L (mm)
Dimensions - mm (in)
3.5+
_0.3
(0.138")
Poles
EM322505
15.3+
_0.3
(0.602")
SPECIFICATIONS
Rating: 16A, 300V
Center Spacing: 0.197” (5.00mm)
Consult factory for 0.393" (10.00mm)
Wire Range: #14-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Cage Clamp: Brass, Nickel-Plated
Screw Size: M2.6 nickel-plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 5 lb-in.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Terminal Blocks
ø1.4~1.5
(ø0.055"~0.059")
Part Numbering System
Series
# of Poles
E
M
3
2
2
5 Compliance
References
02 to 24
50
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Terminal Blocks
L (mm)
2
3
4
5
6
7
8
9
10
11
12
13
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
14
15
16
17
18
19
20
21
22
23
24
70.0
75.0
80.0
85.0
90.0
95.0
100.0
105.0
110.0
115.0
120.0
PCB Hole Layout
Wire Management
Products
Poles
Dimensions - mm (in)
Power Distribution
Blocks
L (mm)
EM220505
Terminal Blocks:
Base & Rail Mount
Poles
EuroMag Series
SPECIFICATIONS
Rating: 10A, 300V
Center Spacing: 0.197” (5.00mm)
Consult factory for 0.393" (10.00mm)
Wire Range: #12-24 AWG
Housing Material: Grey Polyamide Type 6/6, 94V0
Contact Material: Brass Tin-Plated
Cage Clamp: Brass, Tin-Plated
Screw Size: M2.6 Chromate Steel
Operating Temperature: 105°C (221°F) max., -33°C
(-27°F) min.
Torque Rating: 3.5 lb-in.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single & Double Row
EM2205 Series
Euro-Mag Terminal Blocks
45° Angle, 5.00 Centers, Modular
To convert to inches, divide by 25.4
Series
Edge Connectors,
One-Sided Boards
Part Numbering System
# of Poles
E
M
22
0
5 02 to 24
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
51
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Terminal Blocks
EM2505 Series
Euro-Mag Terminal Blocks
5.08 Centers; Modular
SPECIFICATIONS
Rating: 16A, 300V
Center Spacing: 0.20” (5.08mm)
Consult factory for 0.40” (10.16mm)
Wire Range: #12-26 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Screw Size: M3x5 Zinc-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 7 lb-in.
Recommended PCB Hole Diameters: 0.055” (1.40mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Connector Style: Rising Cage Clamp
Agency Information:
File E62622; CE Certified
Position
L (mm)
Position
EM250505V
Dimensions - mm (in)
0.24
(6.1)
0.44
(11.2)
0.13
(3.3)
L (mm)
0.10
(2.54)
0.20
(5.08)
L
14
15
16
17
18
19
20
21
22
23
24
71.12
76.20
81.28
86.36
91.44
96.52
101.60
106.68
111.76
116.84
121.92
0.59
(15.0)
0.35
(9.0)
0.031
(0.8)
0.17
(4.2)
0.035
(0.9)
Part Numbering System
Series
Compliance
References
10.16
15.24
20.32
25.40
30.48
35.56
40.64
45.72
50.80
55.88
60.96
66.04
To convert to inches, divide by 25.4
Edge Connectors,
One-Sided Boards
Wire Management
Products
Power Distribution
Blocks
02
03
04
05
06
07
08
09
10
11
12
13
# of Positions
E
M
2
5
0
5 02 to 24
52
Orientation
V - vertical
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Terminal Blocks
EM322805
Dimensions - mm (in)
13.3±0.3
(0.524")
2
3
4
5
6
7
8
9
10
11
12
13
10.16
15.24
20.32
25.40
30.48
35.56
40.64
45.72
50.80
55.88
60.96
66.04
14
15
16
17
18
19
20
21
22
23
24
72.12
76.20
81.28
86.36
91.44
96.52
101.60
106.68
111.76
116.84
121.92
0.8±0.1
(0.031")
7±0.3
(0.276")
0.9±0.1
(0.035")
2.54±0.3
(0.100")
5.08±0.1
(0.200")
ø1.4~1.5
(ø0.055"~0.059")
9.9±0.3
(0.390")
L (mm)
PCB Hole Layout
To convert to inches, divide by 25.4
5.08±0.1
(0.200")
Wire Management
Products
5.+
_0.3
(0.213")
Poles
Power Distribution
Blocks
L (mm)
L±0.5
3.5±0.3
(0.138")
15.3±0.3
(0.602")
L±0.5
Terminal Blocks:
Base & Rail Mount
Poles
EuroMag Series
SPECIFICATIONS
Rating: 16A, 300V
Center Spacing: 0.20” (5.08mm)
Consult factory for 0.40" (10.16mm)
Wire Range: #14-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Cage Clamp: Brass, Nickel-Plated
Screw Size: M2.6 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 5 lb-in.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single & Double Row
EM3228 Series
Euro-Mag Terminal Blocks
35° Angle; 5.08 Centers; Modular
Series
Edge Connectors,
One-Sided Boards
Part Numbering System
# of Poles
E
M
3
2
2
8 02 to 24
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
53
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM2507 Series
Euro-Mag Terminal Blocks
7.50 Centers; Modular
Dimensions - mm (in)
10.+
_0.3
(0.402")
L+
_0.5
15.0
22.5
33.0
37.5
45.0
52.5
60.0
67.5
75.0
82.5
90.0
97.5
Poles
14
15
16
17
18
19
20
21
22
23
24
To convert to inches, divide by 25.4
L (mm)
105.0
112.5
120.0
127.5
133.0
142.5
150.0
157.5
165.0
172.5
180.0
0.8+
_0.1
(0.031")
1+
_0.1
(0.039")
5.4+
_0.3
(0.213")
7.5+
_0.1
(0.295")
2.5+
_0.3
(0.098")
7.5+
_0.1
(0.295")
10.2+
_0.3
(0.402")
2
3
4
5
6
7
8
9
10
11
12
13
L (mm)
PCB Hole Layout
5.4+
_0.3
(0.213")
Wire Management
Products
Power Distribution
Blocks
Poles
Edge Connectors,
One-Sided Boards
EM250705
3.5+
_0.3
(0.138")
SPECIFICATIONS
Rating: 16A, 300V
Center Spacing: 0.295” (7.50mm)
Wire Range: #14-22 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Cage Clamp: Brass, Nickel-Plated
Screw Size: M2.6 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 5.0 lb-in.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
14+
_0.3
(0.551")
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Terminal Blocks
ø1.4~1.5
(ø0.055"~0.059")
Part Numbering System
Series
# of Poles
E
M2
5
0
7 Compliance
References
02 to 24
54
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Terminal Blocks
EM322705
EuroMag Series
Dimensions - mm (in)
10.+
_0.3
(0.402")
3.5+
_0.3
(0.138")
L+
_0.5
14+
_0.3
(0.551")
15.0
22.5
33.0
37.5
45.0
52.5
60.0
67.5
75.0
82.5
90.0
97.5
Poles
14
15
16
17
18
19
20
21
22
23
24
0.8+
_0.1
(0.031")
5.4+
_0.3
(0.213")
7.5+
_0.1
(0.295")
2.5+
_0.3
(0.098")
7.5+
_0.1
(0.295")
PCB Hole Layout
5.4+
_0.3
(0.213")
105.0
112.5
120.0
127.5
133.0
142.5
150.0
157.5
165.0
172.5
180.0
1+
_0.1
(0.039")
Wire Management
Products
To convert to inches, divide by 25.4
L (mm)
Power Distribution
Blocks
2
3
4
5
6
7
8
9
10
11
12
13
L (mm)
10.2+
_0.3
(0.402")
Poles
Terminal Blocks:
Base & Rail Mount
SPECIFICATIONS
Rating: 16A, 300V
Center Spacing: 0.295” (7.50mm)
Consult factory for 0.40" (10.16mm)
Wire Range: #14-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Cage Clamp: Brass, Nickel-Plated
Screw Size: M2.6 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 5.0 lb-in.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single & Double Row
EM3227 Series
Euro-Mag Terminal Blocks
35° Angle, 7.50 Centers; Modular
ø1.4~1.5
(ø0.055"~0.059")
Series
Edge Connectors,
One-Sided Boards
Part Numbering System
# of Poles
E
M
3
2
2
7 02 to 24
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
55
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM2506 Series
Euro-Mag Terminal Blocks
7.62 Centers; Modular
SPECIFICATIONS
Rating: 16A, 300V
Center Spacing: 0.30” (7.62mm)
Wire Range: #14-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Cage Clamp: Brass, Nickel-Plated
Screw Size: M2.6 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 5.0 lb-in.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
Poles
L (mm)
Poles
L (mm)
2
3
4
5
6
7
8
9
10
11
12
13
15.24
22.86
30.48
38.10
45.72
53.34
60.96
68.58
76.20
83.82
91.44
99.07
14
15
16
17
18
19
20
21
22
23
24
106.69
114.31
121.93
129.55
137.17
144.79
152.41
160.03
167.65
175.27
182.89
Edge Connectors,
One-Sided Boards
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Terminal Blocks
EM250605
Dimensions - mm (in)
Ø
Ø
PCB Hole Layout
To convert to inches, divide by 25.4
Part Numbering System
Series
# of Poles
E
M
2
5
0
6 Compliance
References
02 to 24
56
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Terminal Blocks
15.24
22.86
30.48
38.10
45.72
53.34
60.96
68.58
76.20
83.82
91.44
99.07
14
15
16
17
18
19
20
21
22
23
24
106.69
114.31
121.93
129.55
137.17
144.79
152.41
160.03
167.65
175.27
182.89
0.8+
_0.1
(0.031")
3.81+
_0.3
(0.150")
7+
_0.3
(0.276")
7.62+
_0.1
(0.300")
0.9+
_0.1
(0.035")
7.62+
_0.1
(0.300")
13.3+
_0.3
(0.524")
2*
3*
4
5
6
7
8
9
10
11
12
13
3.5+
_0.3
(0.138")
L (mm)
L+
_0.5
15.3+
_0.3
(0.602")
Poles
13.3+
_0.3
(0.524")
Power Distribution
Blocks
L (mm)
Dimensions - mm (in)
Terminal Blocks:
Base & Rail Mount
Poles
EM322605
EuroMag Series
SPECIFICATIONS
Rating: 16A, 300V
Center Spacing: 0.30” (7.62mm)
Wire Range: #14-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Cage Clamp: Brass, Nickel-Plated
Screw Size: M2.6 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 5.0 lb-in.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single & Double Row
EM3226 Series
Euro-Mag Terminal Blocks
35° Angle, 7.62 Centers; Modular
PCB Hole Layout
7+
_0.3
(0.276")
Wire Management
Products
* Mold To Length
To convert to inches, divide by 25.4
ø1.4~1.5
(ø0.055"~0.059")
Series
Edge Connectors,
One-Sided Boards
Part Numbering System
# of Poles
E
M
3
2
2
6 02 to 24
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
57
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM2403 Series
Euro-Mag Terminal Blocks
Two Tier; 3.81 Centers; Modular
2
3
4
5
6
7
9.53
13.34
17.15
20.96
24.77
28.58
8
9
10
11
12
32.39
36.20
40.00
43.80
47.60
To convert to inches, divide by 25.4
L+
_0.5
L+
_0.5
1.9+
_0.3
(0.075")
1.9+
_0.3
(0.075")
0.9+
_0.1
(0.035")
0.5+
_0.1
(0.197")
3.55+
_0.3
(0.140")
11.6+
_0.2
(0.457")
3.81+
_0.1
(0.150")
PCB Hole Layout
11.6+
_0.3
(0.457")
1.91+
_0.3
(0.075")
3.81+
_0.2
(0.150")
Edge Connectors,
One-Sided Boards
16.2+
_0.3
(0.638")
16.2+
_0.3
(0.638")
L (mm)
1.9+
_0.3
(0.075")
3.81+
_0.1
(0.150")
ø1.3
(ø0.051")
16.2+
_0.3
(0.638")
Poles
Dimensions - mm (in)
3.55+
_0.3
(0.140")
L (mm)
EM240304
3.5+
_0.3
(0.138")
Poles
EM240308
8.5+
_0.3
(0.335")
SPECIFICATIONS
Rating: 10A, 300V
Center Spacing: 0.150” (3.81mm)
Wire Range: #16-26 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Cage Clamp: Brass, Nickel-Plated
Screw Size: M2.0 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 2.5 lb-in.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Modular design features dovetails for interlocking
to achieve longer lengths
Agency Information:
File E62622; CE Certified
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Terminal Blocks
3.81+
_0.1
(0.150")
Part Numbering System
Series
# of Poles
E
M
2
4
0
3 Compliance
References
02 - 12
58
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Terminal Blocks
34.29
38.10
41.90
45.70
49.50
To convert to inches, divide by 25.4
1.91+
_0.3
(0.075")
23.9+
_0.5
(0.941")
8
9
10
11
12
3.55+
_0.3
0.90+
_0.1 (0.140")
(0.035")
3.81+
_0.1
(0.150")
11.6+
_0.3
(0.457")
7.62+
_0.3
(0.300")
3.81+
_0.1
(0.150")
11.6+
_0.3
7.62+
_0.3
(0.457")
(0.300")
25+
_0.3
(0.985")
3.81+
_0.3
(0.150")
PCB Hole Layout
3.81+
_0.1
(0.150")
3.81+
_0.1
(0.150")
Edge Connectors,
One-Sided Boards
5.72+
_0.3
(0.225")
Part Numbering System
Series
Wire Management
Products
1.91+
_0.3
(0.075")
3.55+
_0.3
(0.140")
11.43
15.24
19.05
22.86
26.67
30.48
1.91+
_0.3
(0.075")
1.91+
_0.3
(0.075")
8.5+
_0.5
(0.335")
2
3
4
5
6
7
L+
_0.5
16.2+
_0.5
(0.638")
L (mm)
3.5+
_0.3
(0.138")
Poles
Dimensions - mm (in)
Power Distribution
Blocks
L (mm)
EM280302
Terminal Blocks:
Base & Rail Mount
Poles
EuroMag Series
SPECIFICATIONS
Rating: 10A, 300V
Center Spacing: 0.150” (3.81mm)
Wire Range: #16-26 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Cage Clamp: Brass, Nickel-Plated
Screw Size: M2.0 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 2.5 lb-in.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Modular design features dovetails for interlocking
to achieve longer lengths
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single & Double Row
EM2803 Series
Euro-Mag Terminal Blocks
Three Tier; 3.81 Centers; Modular
# of Poles
Compliance
References
E
M
2
8
0
3 02 - 12
For additional product information, visit www.cooperbussmann.com/magnum
59
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM2445 Series
Euro-Mag Terminal Blocks
Two Tier; 5.00 Centers; Modular
SPECIFICATIONS
Rating: 16A, 300V
Center Spacing: 0.197” (5.00mm)
Wire Range: #14-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Tin Plated Brass
Screw Size: M2x6 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 5.0 lb-in.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Connector Style: Rising Cage Clamp
Agency Information:
File E62622; CE Certified
Poles
2
3
4
5
6
7
8
9
10
11
12
Edge Connectors,
One-Sided Boards
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Terminal Blocks
L (mm)
12.5
17.5
22.5
27.5
32.5
37.5
42.5
47.5
52.5
57.5
62.5
Poles
13
14
15
16
17
18
19
20
21
22
23
24
EM244508
EM244504
Dimensions - mm (in)
L (mm)
67.5
72.5
77.5
82.5
87.5
92.5
97.5
102.5
107.5
112.5
117.5
122.5
0.84
(21.40)
L
0.10
(2.5)
L
0.10
(2.5)
0.99
(25.1)
0.15
(3.7)
0.54
(13.8)
0.031
(0.79)
0.10
(2.5)
0.598
(15.20)
0.18
(4.6)
0.10
(2.5)
0.031
(0.79)
0.197
(5.00)
To convert to inches, divide by 25.4
Part Numbering System
Series
# of Poles
E
M
2
4
4
5 Compliance
References
02 to 24
60
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Terminal Blocks
EM244808
EM244804
10.16
15.24
20.32
25.40
30.48
35.56
40.64
45.72
50.80
55.88
60.96
66.04
14
15
16
17
18
19
20
21
22
23
24
71.12
76.20
81.28
86.36
91.44
96.52
101.60
106.68
111.76
116.84
121.92
0.8+
_0.1
(0.031")
15.5+
_0.2
(0.610")
13.8+
_0.3
(0.543")
3.7+
_0.3
(0.146")
2
3
4
5
6
7
8
9
10
11
12
13
2.54+
_0.3
(0.100")
25.1+
_0.3
(0.988")
L (mm)
0.8+
_0.1
(0.031")
5.08+
_0.1
(0.200")
0.8+
_0.1
(0.031")
2.54+
_0.2
(0.100")
2.54+
_0.3
(0.100")
4.6+
_0.3
(0.181")
ø1.4~1.5
(ø0.055"~0.059")
5.08+
_0.1
(0.200")
PCB Hole Layout
15.5+
_0.2
(0.610")
21.4+
_0.3
(0.843")
To convert to inches, divide by 25.4
2.54+
_0.2
(0.100")
Wire Management
Products
Poles
L+
_0.5
Power Distribution
Blocks
L (mm)
L+
_0.5
Terminal Blocks:
Base & Rail Mount
Dimensions - mm (in)
21.4+
_0.3
(0.843")
Poles
EuroMag Series
SPECIFICATIONS
Rating: 16A, 300V
Center Spacing: 0.20” (5.08mm)
Wire Range: #14-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Cage Clamp: Brass, Nickel-Plated
Screw Size: M2.6 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 4.5 lb-in.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single & Double Row
EM2448 Series
Euro-Mag Terminal Blocks
Two Tier; 5.08 Centers; Modular
4.6+
_0.3
(0.181")
5.08+
_0.1
(0.200")
Edge Connectors,
One-Sided Boards
Part Numbering System
Series
# of Poles
E
M
2
4
4
8 02 to 24
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
61
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM2855 Series
Euro-Mag Terminal Blocks
Three Tier; 5.00 Centers
EM285510
Dimensions - mm (in)
L±0.5
2
3
4
5
6
12.5
17.5
22.5
27.5
32.5
To convert to inches, divide by 25.4
4.1±0.3
(0.161")
5.08±0.1
(0.200")
0.5±0.1
(0.019")
10.1±0.2
(0.397")
4.1±0.3
(0.161")
10.16±0.3
(0.400")
Wire Management
Products
PCB Hole Layout
10.1±0.3
(0.397")
Edge Connectors,
One-Sided Boards
19.1±0.3
(0.751")
0.9±0.1
(0.035")
2.54±0.3
(0.100")
28.1±0.3
(1.107")
28.2±0.5
(1.111")
L (mm)
10±0.3
(0.393")
Poles
2.54±0.3
(0.100")
3.5±0.3
(0.137")
Power Distribution
Blocks
2.54±0.3
(0.100")
2.54±0.2
(0.100")
10.16±0.2
(0.400")
2.54±0.3
(0.100")
3 )
1. 1"
Ø .05
0
(Ø
28.1±0.3
(1.107")
SPECIFICATIONS
Rating: 10A, 300V
Center Spacing: 0.197" (5.00mm)
Wire Range: #14-26 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Cage Clamp: Brass Nickel-Plated
Screw Size: M26 Steel Chromatized
Operating Temperature: 105°C max., -55°C min.
Torque Rating: 4.5 lb-in
Recommended PCB Hole Diameters: 1.30mm (0.051")
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Terminal Blocks
5.08±}0.1
(0.200")
Part Numbering System
Series
# of Poles
E
M
2
8
5
5 Compliance
References
02 to 06
Note: Longer positions, please consult factory.
62
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Terminal Blocks
EM290508
EuroMag Series
Dimensions - mm (in)
11.2+
_0.3
(0.441")
3.5+
_0.3
(0.138")
18+
_0.3
(0.709")
L+
_0.5
2
3
4
5
6
7
8
9
10
11
12
13
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
14
15
16
17
18
19
20
21
22
23
24
70.0
75.0
80.0
85.0
90.0
95.0
100.0
105.0
110.0
115.0
120.0
1+
_0.1
(0.039")
0.8+
_0.1
(0.031")
5+
_0.1
(0.197")
5.6+
_0.3
(0.220")
To convert to inches, divide by 25.4
ø1.5
(ø0.059")
11.2+
_0.3
(0.441")
L (mm)
5.6+
_0.3
(0.220")
Poles
PCB Hole Layout
2.5+
_0.3
(0.098")
Wire Management
Products
L (mm)
Power Distribution
Blocks
Poles
Terminal Blocks:
Base & Rail Mount
SPECIFICATIONS
Rating: 28A, 250V
Center Spacing: 0.197” (5.00mm)
Wire Range: #12-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Cage Clamp: Brass, Nickel-Plated
Screw Size: M2.6 nickel-plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 4.5 lb-in.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single & Double Row
EM2905 Series
Euro-Mag Terminal Blocks
High Current; 5.00 Centers; Modular
5+
_0.1
(0.197")
Series
Edge Connectors,
One-Sided Boards
Part Numbering System
# of Poles
E
M
2
9
0
5 02 to 24
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
63
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM2908 Series
Euro-Mag Terminal Blocks
High Current; 5.08 Centers; Modular
Dimensions - mm (in)
L+
_0.5
18+
_0.3
(0.709")
L+
_0.5
11.2+
_0.3
(0.441")
L (mm)
Poles
L (mm)
2
3
4
5
6
7
8
9
10
11
12
13
10.16
15.24
20.32
25.40
30.48
35.56
40.64
45.72
50.80
55.88
60.96
66.04
14
15
16
17
18
19
20
21
22
23
24
71.12
76.20
81.28
86.36
91.44
96.52
101.60
106.68
111.76
116.84
121.92
0.8+
_0.1
(0.031")
_0.1
5.08+
_0.1 1.0+
(0.200") (0.039")
5.6+
_0.3
(0.220")
Poles
5.6+
_0.3
(0.220")
5.08+
_0.1
(0.200")
11.2±0.3
(0.441")
Wire Management
Products
Edge Connectors,
One-Sided Boards
EM290808
3.5+
_0.3
(0.138")
SPECIFICATIONS
Rating: 28A, 250V
Center Spacing: 0.20” (5.08mm)
Wire Range: #12-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Cage Clamp: Brass, Nickel-Plated
Screw Size: M2.6 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 4.5 lb-in.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Terminal Blocks
PCB Hole Layout
To convert to inches, divide by 25.4
2.54+
_0.3
(0.100")
ø1.5
(0.059")
Part Numbering System
Series
# of Poles
E
M
2
9
0
8 Compliance
References
02 to 24
64
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Terminal Blocks
Poles
L (mm)
2
3
4
5
6
7
8
9
10
11
12
13
12.70
19.05
25.40
31.75
38.10
44.45
50.80
57.15
63.50
69.85
76.20
82.55
14
15
16
17
18
19
20
21
22
23
24
88.90
95.25
101.60
107.95
114.30
120.65
127.00
133.35
139.70
146.05
152.40
Dimensions - mm (in)
Power Distribution
Blocks
L (mm)
EM912605
Terminal Blocks:
Base & Rail Mount
Poles
EuroMag Series
SPECIFICATIONS
Rating: 30A, 300V
Center Spacing: 0.250” (6.35mm)
Wire Range: #10-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Cage Clamp: Brass, Nickel-Plated
Screw Size: M3.0 Steel Nickel-Plated
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 5.5 lb-in.
Recommended PCB Hole Diameters: 0.071" (1.80mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single & Double Row
EM9126 Series
Euro-Mag Terminal Blocks
6.35 Centers; Modular
Ø
Ø
PCB Hole Layout
Wire Management
Products
To convert to inches, divide by 25.4
Edge Connectors,
One-Sided Boards
Part Numbering System
Series
# of Poles
E
M
9
1
2
6 02 to 24
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
65
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM9127 Series
Euro-Mag Terminal Blocks
7.50 Centers; Modular
SPECIFICATIONS
Rating: 30A, 300V
Center Spacing: 0.29” (7.50mm)
Wire Range: #10-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Cage Clamp: Brass, Nickel-Plated
Screw Size: M3.5 Steel Nickel-Plated
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 5.5 lb-in.
Recommended PCB Hole Diameters: 0.071" (1.80mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
Poles
L (mm)
Poles
L (mm)
2
3
4
5
6
7
8
9
10
11
12
13
15.0
22.5
30.0
37.5
45.0
52.5
60.0
67.5
75.0
82.5
90.0
97.5
14
15
16
17
18
19
20
21
22
23
24
105.0
112.5
120.0
127.5
135.0
142.5
150.0
157.5
165.0
172.5
180.0
Edge Connectors,
One-Sided Boards
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Terminal Blocks
To convert to inches, divide by 25.4
EM912705
Dimensions - mm (in)
Ø
Ø
PCB Hole Layout
Part Numbering System
Series
# of Poles
E
M
9
1
2
7 Compliance
References
02 to 24
66
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Terminal Blocks
14
15
16
17
18
19
20
21
22
23
24
106.68
114.30
121.92
129.54
137.16
144.78
152.40
160.02
167.64
175.26
182.88
3.8+
_0.2
(0.150")
1+
_0.1
(0.039")
7.9+
_0.2
(0.311")
1+
_0.1
(0.039")
PCB Hole Layout
ø1.8
(ø0.071")
Wire Management
Products
To convert to inches, divide by 25.4
7.62+
_0.1
(0.300")
12.5+
_0.3
(0.492")
15.24
22.86
30.48
38.10
45.72
53.34
60.96
68.58
76.20
83.82
91.44
99.06
7.9+
_0.1
(0.311")
2
3
4
5
6
7
8
9
10
11
12
13
L+
_0.5
5+
_0.3
(0.197")
L (mm)
21.7+
_0.3
(0.854")
Poles
12.5+
_0.3
(0.492")
7.62+
_0.1
(0.300")
Edge Connectors,
One-Sided Boards
Part Numbering System
Series
Power Distribution
Blocks
L (mm)
Dimensions - mm (in)
Terminal Blocks:
Base & Rail Mount
Poles
EM912805
EuroMag Series
SPECIFICATIONS
Rating: 30A, 300V
Center Spacing: 0.30˝ (7.62mm)
Wire Range: #10-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Cage Clamp: Brass, Nickel-Plated
Screw Size: M3.0 Steel Nickel-Plated
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 5.5 lb-in.
Recommended PCB Hole Diameters: 0.071" (1.80mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single & Double Row
EM9128 Series
Euro-Mag Terminal Blocks
7.62 Centers; Modular
# of Poles
E
M
9
1
2
7 02 to 24
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
67
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM2909 Series
Euro-Mag Terminal Blocks
35° Angle; 9.52 Centers; Modular
SPECIFICATIONS
Rating: 30A, 600V
Center Spacing: 0.375” (9.52mm)
Wire Range: #10-20 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Cage Clamp: Steel, Nickel-Plated
Screw Size: M3.0 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 5.5 lb-in.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
Poles
L (mm)
Poles
L (mm)
2
3
4
5
6
7
8
9
10
11
12
13
19.04
28.56
38.08
47.60
57.12
66.64
76.16
85.68
95.20
104.72
114.24
123.76
14
15
16
17
18
19
20
21
22
23
24
133.28
142.80
152.32
161.84
171.36
180.88
190.40
199.92
209.44
218.96
228.48
Edge Connectors,
One-Sided Boards
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Terminal Blocks
EM290905
Dimensions - mm (in)
Ø
Ø
PCB Hole Layout
To convert to inches, divide by 25.4
Part Numbering System
Series
# of Poles
E
M
2
9
09
Compliance
References
02 to 24
68
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Terminal Blocks
L (mm)
2
3
4
5
6
7
8
9
10
11
12
13
19.04
28.56
38.08
47.60
57.12
66.64
76.16
85.68
95.20
104.72
114.24
123.76
14
15
16
17
18
19
20
21
22
23
24
133.28
142.80
152.32
161.84
171.36
180.88
190.40
199.92
209.44
218.96
228.48
ø
ø
PCB Hole Layout
Wire Management
Products
Poles
Dimensions - mm (in)
Power Distribution
Blocks
L (mm)
EM291905
Terminal Blocks:
Base & Rail Mount
Poles
EuroMag Series
SPECIFICATIONS
Rating: 30A, 600V
Center Spacing: 0.375” (9.52mm)
Wire Range: #10-20 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Cage Clamp: Steel, Nickel-Plated
Screw Size: M3.0 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 5.5 lb-in.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single & Double Row
EM2919 Series
Euro-Mag Terminal Blocks
9.52 Centers; Modular
To convert to inches, divide by 25.4
Series
Edge Connectors,
One-Sided Boards
Part Numbering System
# of Poles
E
M
2
9
1
9 02 to 24
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
69
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM2929 Series
Euro-Mag Terminal Blocks
Hi-Current; 10.16 Centers
SPECIFICATIONS
Rating: 65A, 600V
Center Spacing: 0.40” (10.16mm)
Wire Range: #6-20 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Tin-Plated Copper
Cage Clamp: Steel, Chromate Plated
Screw Size: M4 Stainless Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 15 lb-in.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Mold to length
Agency Information:
File E62622; CE Certified
EM292908
Dimensions - mm (in)
Poles
L (mm)
2
3
4
5
6
7
8
20.34
30.50
40.66
50.82
60.98
71.14
81.30
Test Points
20.0
L
To convert to inches, divide by 25.4
Edge Connectors,
One-Sided Boards
0.50
1.3
10.16
0.8
10.16
4.5
Wire Management
Products
29.5
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Terminal Blocks
2.5
Part Numbering System
Series
# of Poles
E
M
2
9
2
9 Compliance
References
02 to 08
70
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Terminal Blocks
Terminal Blocks:
Single & Double Row
EM2939 Series
Euro-Mag Terminal Blocks
Hi-Current, 15.00 Centers
EuroMag Series
SPECIFICATIONS
Rating: 115A, 600V with No Bottom Cover (NC) Option.
Center Spacing: 0.591” (15.00mm)
Wire Range: #2-20 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Tin-Plated Copper
Cage Clamp: Steel, Chromate-Plated
Screw Size: M5 Stainless Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 15 lb-in.
Recommended PCB Hole Diameters: 0.063" (1.60mm)
Construction: Mold to length
Agency Information:
File E62622; CE Certified
EM293908
Terminal Blocks:
Base & Rail Mount
Dimensions - mm (in)
L (mm)
2
3
4
5
6
7
8
30.0
45.0
60.0
75.0
90.0
105.0
120.0
Test Points
To convert to inches, divide by 25.4
L
Power Distribution
Blocks
Poles
15.0
3.8 1.2
12.5
4.5
0.5
1.3
Wire Management
Products
39.0
31.0
3.0
Series
# of Poles
E
M
2
9
3
9 02 to 08
Edge Connectors,
One-Sided Boards
Part Numbering System
Bottom Cover Option
( )
N
C
*NC = No Bottom Cover
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
71
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM3905 Series
Euro-Mag Terminal Blocks
High Current; Two Tier; 5.00 Centers; Modular
SPECIFICATIONS
Rating: 28A, 250V
Center Spacing: 0.197” (5.00mm)
Wire Range: #12-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Tin-Plated Brass
Cage Clamp: Brass, Nickel-Plated
Screw Size: M2.6 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 4.5 lb-in.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
L (mm)
2
3
4
5
6
7
8
9
10
11
12
13
12.5
17.5
22.5
27.5
32.5
37.5
42.5
47.5
52.5
57.5
62.5
67.5
14
15
16
17
18
19
20
21
22
23
24
72.5
77.5
82.5
87.5
92.5
97.5
102.5
107.5
112.4
117.5
122.5
Wire Management
Products
To convert to inches, divide by 25.4
22.3+
_0.3
(0.878")
2.5+
_0.3
(0.098")
31.4+
_0.1
(1.237")
18+
_0.3
(0.709")
Power Distribution
Blocks
L+
_0.5
1+
_0.1
(0.039")
2.5+
_0.3
(0.098")
3.6+
_0.3
(0.142")
Poles
Dimensions - mm (in)
0.8+
_0.1
(0.032")
2.5+
_0.3
(0.098")
5+
_0.1
(0.197")
5.6+
_0.3
(0.221")
15+
_0.3
(0.591")
2.5+
_0.2
(0.098")
5+
_0.1
(0.197")
Edge Connectors,
One-Sided Boards
PCB Hole Layout
ø1.5
(ø0.059")
5+
_0.1
(0.197")
22.3+
_0.3
(0.878")
L (mm)
EM390504
5.6+
_0.3
(0.221")
Poles
EM390508
15+
_0.3
(0.591")
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Terminal Blocks
2.5+
_0.3
(0.098")
Part Numbering System
Compliance
References
Series
# of Poles
E
M
3
9
0
5 02 to 24
72
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Terminal Blocks
71.12
76.20
81.28
86.36
91.44
96.52
101.60
106.68
111.76
116.84
121.92
To convert to inches, divide by 25.4
1±0.1
(0.039")
2.54±0.3
(0.100")
0.8±0.1
(0.032")
2.54±0.3
(0.100")
5.08±0.1
(0.200")
3.6±0.3
(0.142")
14
15
16
17
18
19
20
21
22
23
24
5.6±0.3
(0.221")
15±0.3
(0.591")
2.54±0.2
(0.100")
PCB Hole Layout
15±0.3
(0.591")
5.08±0.1
(0.200")
Ø1.5
(Ø0.059")
Edge Connectors,
One-Sided Boards
5.08±0.1
(0.200")
22.3±0.3
(0.878")
10.16
15.24
20.32
25.40
30.48
35.56
40.64
45.72
50.80
55.88
60.96
66.04
22.3±0.3
(0.878")
2.54±0.3
(0.100")
5.6±0.3
(0.221")
2
3
4
5
6
7
8
9
10
11
12
13
A±0.5
31.4±0.1
(1.237")
18±0.3
(0.709")
L (mm)
Wire Management
Products
Poles
Dimensions - mm (in)
Power Distribution
Blocks
L (mm)
EM390804
Terminal Blocks:
Base & Rail Mount
Poles
EM390808
EuroMag Series
SPECIFICATIONS
Rating: 28A, 250V
Center Spacing: 0.20” (5.08mm)
Wire Range: #12-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Cage Clamp: Brass, Nickel-Plated
Screw Size: M2.6 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 4.5 lb-in.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single & Double Row
EM3908 Series
Euro-Mag Terminal Blocks
High Current; Two-Tier; 5.08 Centers; Modular
2.54±0.3
(0.100")
Part Numbering System
Series
# of Poles
Compliance
References
E
M
3
9
0
8 02 to 24
For additional product information, visit www.cooperbussmann.com/magnum
73
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM2742 Series
Euro-Mag Terminal Blocks
Screwless; 2.54 Centers
2.6
(0.102")
L (mm)
2
3
4
5
6
7
8
9
8.08
10.62
13.16
15.70
18.24
33.48
30.94
28.40
10
11
12
13
14
15
16
30.94
33.48
36.02
38.56
41.10
43.64
46.18
0.8
(0.032")
Ø1.5
(Ø0.059")
2.54
(0.100")
0.5
(0.020")
5.08
(0.200")
2.54
(0.100")
5.5
(0.217")
Poles
10
(0.394")
L (mm)
3.5
(0.138")
Poles
L
5.08
(0.200")
Power Distribution
Blocks
14
(0.551")
SPECIFICATIONS
Rating: 6A, 63V
EM274210H
Center Spacing: 0.10” (25.4mm)
Wire Range: #20-26 AWG
EM274206V
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Tin-Plated Brass
Spring Material: Stainless Steel
Dimensions - mm (in)
Operating Temperature: 105°C (221°F) max., -40°C
VERTICAL
(-40°F) min.
Recommended PCB Hole Diameters: 0.051" (1.30mm)
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Screwless Terminal Blocks
To convert to inches, divide by 25.4
PCB Hole Layout
Ø1.2
(Ø0.04")
Wire Management
Products
Ø1.5
(Ø0.06")
10
(0.394")
2.6
(0.102")
# of Poles
Compliance
References
E
M
2
7
4
2 02 to 16
Orientation
H - horizontal
V - vertical
5.8
(0.200")
0.8
(0.03")
2.54
(0.100")
2.54
(0.100")
PCB Hole Layout
5.08
(0.200")
Series
0.5
(0.020")
4.7
(0.85")
Part Numbering System
L
14
(0.55")
3.5
(0.138")
Edge Connectors,
One-Sided Boards
2.54
(0.100")
HORIZONTAL
Ø1.2
(Ø0.047")
74
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Screwless Terminal Blocks
2
4
6
8
10
12
14
16
18
20
22
24
8.5
15.5
22.5
29.5
36.5
43.5
50.5
57.5
64.5
71.5
78.5
92.5
Power Distribution
Blocks
L (mm)
Dimensions - mm (in)
Terminal Blocks:
Base & Rail Mount
Poles
EM278305
EuroMag Series
SPECIFICATIONS
Rating: 2A, 300V
Center Spacing: 0.136” (3.50mm)
Wire Range: #16-20 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Tin Plated Phos Bronze
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Recommended PCB Hole Diameters: 0.051" (1.30mm)
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single & Double Row
EM2783 Series
Euro-Mag Terminal Blocks
45° Entry; Screwless; 3.50 Centers
Wire Management
Products
To convert to inches, divide by 25.4
PCB Hole Layout
Ø1.3
(Ø0.051)
Series
Edge Connectors,
One-Sided Boards
Part Numbering System
# of Poles
E
M
2
7
8
3 02 to 24
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
75
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM2802 Series
Euro-Mag Terminal Blocks
30° Entry; Screwless; 2.54 Centers
SPECIFICATIONS
Rating: 4A, 125V
Center Spacing: 0.10” (2.54mm)
Wire Range: #20-24 AWG
Housing Material: Gray Polyamide Type 6/6, 94V0
Contact Material: Tin-Plated Brass
Spring Material: Stainless Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Recommended PCB Hole Diameters: 0.051" (1.30mm)
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
2
3
4
5
6
7
8
9
10
11
12
7.08
9.62
12.16
14.70
17.24
19.78
22.32
24.86
27.40
29.94
32.48
To convert to inches, divide by 25.4
Edge Connectors,
One-Sided Boards
Dimensions - mm (in)
L+
_0.5
12.1+
_0.3
(0.477")
11.6+
_0.3
(0.457")
L (mm)
EM280207
4+
_0.5
(0.158")
Poles
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Screwless Terminal Blocks
2.6+
_0.3
(0.102")
0.5+
_0.1
(0.020")
2.7+
_0.3
(0.106")
5+
_0.2
(0.197")
0.8+
_0.1
(0.032")
2.54+
_0.1
(1.00")
Part Numbering System
Series
# of Poles
E
M
2
8
0
2 Compliance
References
02 to 12
76
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Screwless Terminal Blocks
Poles
L (mm)
2
3
4
5
6
7
8
9
10
11
12
13
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
14
15
16
17
18
19
20
21
22
23
24
70.0
75.0
80.0
85.0
90.0
95.0
100.0
105.0
110.0
115.0
120.0
Power Distribution
Blocks
L (mm)
Dimensions - mm (in)
Terminal Blocks:
Base & Rail Mount
Poles
EM278505
EuroMag Series
SPECIFICATIONS
Rating: 7A, 300V
Center Spacing: 0.197” (5.00mm)
Wire Range: #16-22 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Tin-Plated Brass
Spring Material: Stainless Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Recommended PCB Hole Diameters: 0.051" (1.30mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single & Double Row
EM2785 Series
Euro-Mag Terminal Blocks
45° Entry; Screwless; Modular; 5.00 Centers
PCB Hole Layout
ø
ø
Wire Management
Products
To convert to inches, divide by 25.4
Edge Connectors,
One-Sided Boards
Part Numbering System
Series
# of Poles
E
M
2
7
8
5 02 to 24
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
77
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM2778 Series
Euro-Mag Terminal Blocks
Screwless, Modular, 5.08 Centers
SPECIFICATIONS
Rating: 10A, 250V
Center Spacing: 0.20” (5.08mm)
Wire Size: #14-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Tin-Plated Brass
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Recommended PCB Hole Diameters: 0.051" (1.30mm)
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
Poles
L (mm)
Poles
L (mm)
2
3
4
5
6
7
8
9
10
11
12
13
10.16
15.24
20.32
25.40
30.48
35.56
40.64
45.72
50.80
55.88
60.96
66.04
14
15
16
17
18
19
20
21
22
23
24
71.12
76.20
81.28
86.36
91.44
96.52
101.16
106.68
111.76
116.84
121.92
Edge Connectors,
One-Sided Boards
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Screwless Terminal Blocks
EM277805
Dimensions - mm (in)
PCB Hole Layout
To convert to inches, divide by 25.4
Part Numbering System
Series
# of Poles
E
M
2
7
7
8 Compliance
References
02 to 24
78
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Screwless Terminal Blocks
SPECIFICATIONS
Rating: 10A, 300V
Center Spacing: 0.20” (5.08mm)
Wire Range: #14-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Tin-Plated Brass
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Recommended PCB Hole Diameters: 0.051" (1.30mm)
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single & Double Row
EM2795 Series
Euro-Mag Terminal Blocks
Screwless; 5.08 Centers
EM279507H
EuroMag Series
EM279502V
Dimensions - mm (in)
VERTICAL
0.20
(5.08)
Poles
L (mm)
2
3
4
5
6
7
8
9
12.70
17.78
22.86
27.94
33.02
38.10
43.18
48.26
10
11
12
13
14
15
16
68.58
73.66
78.74
83.82
53.34
58.42
63.50
L
0.55
(14.0)
0.094 DIA.
(2.4)
0.51
(13.0)
0.41
(10.3)
0.024
(0.6)
To convert to inches, divide by 25.4
0.039
(1.0)
0.12
(3.0)
0.30
(7.62)
0.10
(2.5)
0.20
(5.08)
0.200
(5.08)
0.51
(13.00)
L
0.094 DIA.
(2.40)
Edge Connectors,
One-Sided Boards
Part Numbering System
0.12
(3.0)
Series
# of Positions
E
M
2
7
9
5 02 to 16
0.55
(14.0)
Orientation
H - horizontal
V - vertical
0.02
(0.50)
1.00
(0.039)
0.30
(7.6)
0.20
(5.80)
Wire Management
Products
HORIZONTAL
Power Distribution
Blocks
L (mm)
Terminal Blocks:
Base & Rail Mount
Poles
0.10
(2.54)
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
79
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM2796 Series
Euro-Mag Terminal Blocks
Screwless; 7.62 Centers
SPECIFICATIONS
Rating: 10A, 300V
Center Spacing: 0.30” (7.62mm)
Wire Range: #14-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Tin-Plated Brass
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Recommended PCB Hole Diameters: 0.051" (1.30mm)
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
EM279606V
EM279603H
Dimensions - mm (in)
7.62+
_0.2
(0.300")
Poles
L (mm)
2
3
4
5
6
7
8
9
15.24
22.56
30.48
37,19
45.72
53.34
60.96
68.58
10
11
12
13
14
15
16
76.20
83.82
91.44
99.07
106.69
114.31
121.93
0.5+
_0.1
(0.020")
1+
_0.1
(0.039")
7.62+
_0.1
(0.300")
7.62+
_0.1
(0.300")
2.54+
_0.3
(0.100")
ø1.3~1.4
(ø0.051"~0.055")
To convert to inches, divide by 25.4
7.62+
_0.1
(0.300")
4.2+
_0.3
(0.165")
PCB Hole Layout
13+
_0.5
(0.512")
HORIZONTAL
ø2.4
(ø0.094")
02 to 16
Orientation
H - horizontal
V - vertical
0.6+
_0.1
(0.024")
2.54+
_0.3
(0.100")
7.62+
_0.1
(0.300")
4.65+
_0.3
(0.183")
E
M
2
7
9
6 7.62+
_0.1
(0.300")
14+
_0.5
(0.551")
# of Poles
1+
_0.1
(0.039")
L+
_0.5
7.62+
_0.1
(0.300")
Part Numbering System
3.3+
_0.5
(0.130")
10.3+
_0.5
(0.406")
14+
_0.5
(0.551")
13+
_0.5
(0.512")
Edge Connectors,
One-Sided Boards
7.62+
_0.2
(0.300")
Series
Compliance
References
14+
_0.5
(0.551")
L (mm)
13+
_0.5
(0.512")
Poles
3.3+
_0.5
(0.130")
L+
_0.5
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
VERTICAL
7.62+
_0.1
(0.300")
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Screwless Terminal Blocks
PCB Hole Layout
7.62+
_0.1
(0.300")
ø1.3~1.4
(ø0.051"~0.055")
80
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Screwless Terminal Blocks
EM279104V
EuroMag Series
SPECIFICATIONS
Rating: 10A, 300V
Center Spacing: 0.40” (10.16mm)
Wire Range: #14-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Tin-Plated Brass
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Recommended PCB Hole Diameters: 0.051" (1.30mm)
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single & Double Row
EM2791 Series
Euro-Mag Terminal Blocks
Screwless; 10.16 Centers
Dimensions - mm (in)
7.62+
_0.2
(0.300")
VERTICAL
14+
_0.5
(0.551")
0.5+
_0.1
(0.020")
2
3
4
5
6
7
8
9
17.78
27.94
38.10
48.26
58.42
68.58
78.74
88.90
10
11
12
13
14
15
16
99.06
109.22
119.38
129.54
139.70
149.86
160.02
ø1.3~1.4
(ø0.051"~0.055")
PCB Hole Layout
7.62+
_0.1
(0.300")
13+
_0.5
(0.512")
HORIZONTAL
To convert to inches, divide by 25.4
10.16+
_0.2
(0.400")
L+
_0.5
13+
_0.5
(0.512")
3.3+
_0.5
(0.130")
10.3+
_0.5
(0.406")
Wire Management
Products
ø2.4
(ø0.094")
14+
_0.5
(0.551")
1+
_0.1
(0.039")
7.62+
_0.1
(0.300")
L (mm)
4.2+
_0.3
(0.165")
Poles
2.54+
_0.3
(0.100")
7.62+
_0.1
(0.300")
13+
_0.5
(0.512")
L (mm)
1+
_0.1
(0.039")
7.62+
_0.1
(0.300")
Power Distribution
Blocks
Poles
Terminal Blocks:
Base & Rail Mount
3.3+
_0.5
(0.130")
L+
_0.5
0.6+
_0.1
(0.024")
7.62+
_0.1
(0.300")
2.54+
_0.3
(0.100")
10.16+
_0.1
(0.400")
14+
_0.5
(0.551")
Edge Connectors,
One-Sided Boards
4.65+
_0.3
(0.183")
7.62+
_0.1
(0.300")
PCB Hole Layout
10.16+
_0.1
(0.400")
ø1.3~1.4
(ø0.051"~0.055")
Part Numbering System
# of Poles
E
M
2
7
9
1 02 to 16
Orientation
Compliance
References
Series
H - horizontal
V - vertical
For additional product information, visit www.cooperbussmann.com/magnum
81
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM2816 Series
Euro-Mag Terminal Blocks
60° Entry; Screwless; 7.62 Centers
15.24
22.86
30.48
38.10
45.72
53.34
60,96
68.58
76.20
83.82
91.44
0.8+
_0.3
(0.032")
0.5+
_0.1
(0.020")
5.1+
_0.3
(0.201")
1+
_0.1
(0.039")
10.2+
_0.2
(0.402")
7.62+
_0.1
(0.300")
18.7+
_0.3
(0.736")
Ø1.3
(Ø0.051")
18.7+
_0.3
(0.736")
2.4+
_0.3
(0.095")
To convert to inches, divide by 25.4
25.9+
_0.5
(1.020")
3+
_0.3
(0.118")
2
3
4
5
6
7
8
9
10
11
12
Dimensions - mm (in)
10.2+
_0.1
(0.402")
L (mm)
Wire Management
Products
Power Distribution
Blocks
Poles
EM281606
23.5+
_0.3
(0.926")
SPECIFICATIONS
Rating: 10A, 300V
Center Spacing: 0.30” (7.62mm)
Wire Range: #16-22 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Tin-Plated Brass
Spring Material: Stainless Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Recommended PCB Hole Diameters: 0.051" (1.30mm)
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Screwless Terminal Blocks
PCB Hole Layout
6.8+
_0.3
(0.268")
7.62+
_0.1
(0.300")
Edge Connectors,
One-Sided Boards
L+
_0.5
Part Numbering System
Series
# of Poles
E
M
2
8
1
6 Compliance
References
02 to 12
82
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Pluggable Terminal Blocks
SPECIFICATIONS
Rating: 8A, 300V
Center Spacing: 0.138” (3.50mm)
Wire Range: #16-26 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Cage Clamp: Brass, Nickel-Plated
Screw Size: M2.0 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 2.5 lb-in.
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
7.8
11.3
14.8
18.3
21.8
25.3
28.8
32.3
35.8
33.3
42.8
46.3
49.8
15.6+
_0.3
(0.614")
11.2+
_0.3
(0.441")
L+
_0.5
Power Distribution
Blocks
2
3
4
5
6
7
8
9
10
11
12
13
14
Dimensions - mm (in)
Terminal Blocks:
Base & Rail Mount
L (mm)
EM353308
EuroMag Series
Poles
Terminal Blocks:
Single & Double Row
EM3533 Series
Euro-Mag Terminal Blocks
Pluggable Block (Mates with EM2221 Series);
3.50 Centers
3.5+
_0.1
(0.138")
2.15+
_0.3
(0.084")
To convert to inches, divide by 25.4
6.6+
_0.3
(0.260")
Wire Management
Products
Edge Connectors,
One-Sided Boards
Part Numbering System
Series
# of Poles
E
M
3
5
3
3 02 to 14
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
83
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM2221 Series
Euro-Mag Terminal Blocks
Closed Header; (Mates with EM3553 Series);
3.50 Centers
SPECIFICATIONS
Rating: 8A, 300V
Center Spacing: 0.138” (3.50mm)
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
Poles
L (mm)
2
3
4
5
6
7
8
9
10
11
12
13
14
7.6
11.1
14.6
18.1
21.6
25.1
28.6
32.1
35.6
39.1
42.6
42.1
49.6
EM222112H
EM222108V
Dimensions - mm (in)
HORIZONTAL
3.5+
_0.3
(0.138")
9.2+
_0.3
(0.362")
6.9+
_0.3
(0.272")
0.8
(0.031")
2.06+
_0.3
(0.081")
1.2+
_0.3
(0.047")
3.5+
_0.1
(0.138")
ø1.3
(ø0.051")
9.2+
_0.3
(0.362")
To convert to inches, divide by 25.4
PCB Hole Layout
3.5+
_0.1
(0.138")
Wire Management
Products
Edge Connectors,
One-Sided Boards
L+
_0.5
1.2+
_0.3
(0.047")
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Pluggable Terminal Blocks
VERTICAL
3.5+
_0.1
(0.138")
2.06+
_0.3
(0.081")
Part Numbering System
Series
# of Poles
E
M
2
2
2
1 02 to 14
Orientation
H - horizontal
V - vertical
0.80+
_0.1
(0.031")
9.2+
_0.3
(0.362")
L+
_0.5
2.9+
_0.3
(0.114")
6.9+
_0.3
(0.272")
3.4+
_0.3
(0.134")
Compliance
References
ø1.3
(ø0.051")
6.9+
_0.3
(0.272")
PCB Hole Layout
2.9+
_0.3
(0.114")
84
3.5+
_0.1
(0.138")
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Pluggable Terminal Blocks
2
3
4
5
6
7
8
9
10
11
12
17.4
20.9
24.4
27.9
31.4
34.9
38.4
41.9
45.4
48.9
52.4
15.6
(0.614")
L
11.2
(0.441")
Power Distribution
Blocks
L (mm)
Dimensions - mm (in)
Terminal Blocks:
Base & Rail Mount
Poles
EM241307
EuroMag Series
SPECIFICATIONS
Rating: 8A, 300V
Center Spacing: 0.138” (3.50mm)
Wire Range: #16-26 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Cage Clamp: Brass, Nickel-Plated
Screw Size: M2.0 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 2.5 lb-in.
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single & Double Row
EM2413 Series
Euro-Mag Terminal Blocks
Pluggable Block with Flanges (Mates with
EM2201 Series); 3.50 Centers
6.6
(0.60")
2.15
(0.084")
3.5–.1
(0.138")
To convert to inches, divide by 25.4
Wire Management
Products
Series
Edge Connectors,
One-Sided Boards
Part Numbering System
# of Poles
E
M
2
4
1
3 02 to 12
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
85
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM2201 Series
Euro-Mag Terminal Blocks
Header with Flanges (Mates with EM2413
Series); 3.50 Centers
EM220110H
SPECIFICATIONS
Rating: 8A, 300V
Center Spacing: 0.138” (3.50mm)
Housing Material: Green Polyamide Type 6/6, 94V0
Contact Material: Brass Tin-Plated
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Mold to Length
Agency Information:
File E62622; CE Certified
Power Distribution
Blocks
Poles
L (mm)
2
3
4
5
6
7
8
9
10
11
12
17.4
20.9
24.4
27.9
31.4
34.9
38.4
41.3
45.4
48.9
52.4
HORIZONTAL
To convert to inches, divide by 25.4
Ø
Ø
PCB Hole Layout
Wire Management
Products
Edge Connectors,
One-Sided Boards
EM220109V
Dimensions - mm (in)
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Pluggable Terminal Blocks
HORIZONTAL
Part Numbering System
Series
# of Poles
E
M
2
2
0
1 Compliance
References
02 to 12
Orientation
H - horizontal
V - vertical
Ø
Ø
PCB Hole Layout
86
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Pluggable Terminal Blocks
L (mm)
15.6+
_0.3
(0.614")
L+
_0.5
11.2+
_0.3
(0.441")
7.90
11.71
15.52
19.33
23.14
26.95
30.76
34.57
38.38
42.19
46.00
Power Distribution
Blocks
02
03
04
05
06
07
08
09
10
11
12
Dimensions - mm (in)
Terminal Blocks:
Base & Rail Mount
Position
EM355308
EuroMag Series
SPECIFICATIONS
Rating: 8A, 300V
Center Spacing: 0.15” (3.81mm)
Consult factory for 0.30” (7.62mm)
Wire Range: #18-20 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Screw Size: M2x3 Zinc-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 3.0 lb-in.
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single & Double Row
EM3553 Series
Euro-Mag Terminal Blocks
(Mates with EM3593 Series);
3.81 Centers
3.5+
_0.1
(0.138")
2.15+
_0.3
(0.084")
6.6+
_0.3
(0.260")
To convert to inches, divide by 25.4
Wire Management
Products
Edge Connectors,
One-Sided Boards
Part Numbering System
Series
# of Positions
Mating Header: EM3593 pg. 90
Compliance
References
E
M
3
5
5
3 02 to 12
For additional product information, visit www.cooperbussmann.com/magnum
87
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM3543 Series
Euro-Mag Terminal Blocks
Pluggable Block (Mates with EM3593 Series);
3.81 Centers
SPECIFICATIONS
Rating: 8A, 300V
Center Spacing: 0.15” (3.81mm)
Consult factory for 0.30" (7.62mm)
Wire Range: #16-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Cage Clamp: Brass, Nickel-Plated
Screw Size: M2.0 Zinc-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 2.5 lb-in.
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
Poles
L (mm)
2
3
4
5
6
7
8
9
10
11
12
8.41
12.22
16.03
19.84
23.65
27.46
31.27
35.08
38.89
42.70
46.51
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Pluggable Terminal Blocks
EM354309
Dimensions - mm (in)
Edge Connectors,
One-Sided Boards
Wire Management
Products
To convert to inches, divide by 25.4
Part Numbering System
Series
# of Poles
E
M
3
5
4
3 Mating Header: EM3593 pg. 90
Compliance
References
02 to 12
88
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Pluggable Terminal Blocks
Terminal Blocks:
Single & Double Row
Series EM3583
Euro-Mag Terminal Blocks
IDC Pluggable Block
(Mates with EM3593 Series); 3.81 Centers
EuroMag Series
SPECIFICATIONS
Ratings: 6A, 160V
Center Spacing: 0.15" (3.81mm)
Wire Range: #22-20 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass, Tin-Plated
Operating Temperature: 105°C (221°F) max., –49°C (–40°F) min.
Construction: Mold-to-length.
Agency Information:
File E62622; CE Certified
EM358307
Dimensions - mm (in)
L1
(mm)
L2
(mm)
Poles
L1
(mm)
L2
(mm)
02
03
04
05
06
07
3.81
7.62
11.43
15.24
19.05
22.86
8.40
12.21
16.02
19.83
23.64
27.45
08
09
10
11
12
26.67
30.48
34.29
38.10
41.91
31.26
35.07
38.88
42.69
46.50
Terminal Blocks:
Base & Rail Mount
Poles
3.8 (0.15) REF.
(IN OPEN POSITION)
12.9
(0.51)
3.8
(0.15)
4.0
(0.16)
EM3583
6.6
(0.26)
Wire Management
Products
15.7
(0.62)
L1
L2
Series
E
M
3
5
8
3
Edge Connectors,
One-Sided Boards
Part Numbering System
Power Distribution
Blocks
2.9
(0.11)
Inches (Millimeters)
# of Positions
Mating Header: EM3593 pg. 90
Compliance
References
02 to 12
For additional product information, visit www.cooperbussmann.com/magnum
89
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Pluggable Terminal Blocks
Series EM3593
Euro-Mag Terminal Blocks
Header (Mates with EM3553 Series); 3.81 Centers
EM359312HC
SPECIFICATIONS
Ratings: 6A, 160V
Center Spacing: 0.15" (3.81mm)
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass, Tin-Plated
Operating Temperature: 105°C (221°F) max., –40°C (–40°F) min.
Recommended PCB Hole Diameters: 0.51" (1.30mm)
Construction: Mold-to-length.
Agency Information:
File E62622; CE Certified
EM359308VC
Dimensions - mm (in)
Terminal Blocks:
Base & Rail Mount
Poles
L (mm)
Poles
L (mm)
Horizontal
02
03
04
05
06
07
8.23
12.04
15.85
19.66
23.47
27.28
08
09
10
11
12
31.09
34.90
38.71
42.52
46.33
L
9.20
(0.062)
* Dimensions in inches. To convert to millimeters, multiply by 25.4.
Power Distribution
Blocks
6.90
(0.272)
3.00
(0.100)
1.21
(0.062)
2.21
(0.087)
3.81
(0.150)
3.81
(0.150)
Wire Management
Products
1.80
(0.031)
Vertical
3.60
(0.198)
Edge Connectors,
One-Sided Boards
2.93
(0.110)
3.81
(0.150)
2.2
(0.087)
Compliance
References
Part Numbering System
EM
3
5
9
3
90
# of Positions
Ø1.30
(Ø 0.051)
1.20
(0.047)
6.90
(0.272)
Series
1.20
(0.047)
L
9.20
(0.062)
PCB Hole Layout
3.81
(0.150)
Inches (Millimeters)
Orientation
Side Base
C
02 to 12
H - Horizontal
V - Vertical
C - Closed
Mating Plugs: EM3553 pg. 87
EM3543 pg. 88
EM3583 pg. 89
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Pluggable Terminal Blocks
2
3
4
5
6
7
8
9
10
11
12
17.91
21.72
25.53
29.34
33.15
36.96
40.77
44.58
48.39
52.20
56.01
3
Power Distribution
Blocks
L (mm)
Dimensions - mm (in)
Terminal Blocks:
Base & Rail Mount
Poles
EM242307
EuroMag Series
SPECIFICATIONS
Rating: 8A, 300V
Center Spacing: 0.15” (3.81mm)
Wire Range: #16-26 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Cage Clamp: Brass, Nickel-Plated
Screw Size: M2.0 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 2.5 lb-in.
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single & Double Row
EM2423 Series
Euro-Mag Terminal Blocks
Pluggable Block with Flanges (Mates with
EM2211 Series); 3.81 Centers
To convert to inches, divide by 25.4
Wire Management
Products
Edge Connectors,
One-Sided Boards
Part Numbering System
Series
# of Poles
E
M
2
4
2
3 Mating Header: EM2211 pg. 93
02 to 12
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
91
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM2443 Series
Euro-Mag Terminal Blocks
Pluggable Block with Flanges (Mates with
EM2211 Series); 3.81 Centers
SPECIFICATIONS
Rating: 10A, 300V
Center Spacing: 0.15” (3.81mm)
Consult factory for 0.30" (7.62mm)
Wire Range: #16-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Cage Clamp: Brass, Nickel-Plated
Screw Size: M2.0 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 2.5 lb-in.
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
Poles
L (mm)
2
3
4
5
6
7
8
9
10
11
12
7.90
11.71
15.52
19.33
23.14
26.95
30.76
34.57
38.38
42.19
46.00
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Pluggable Terminal Blocks
EM2443
Dimensions - mm (in)
L
Edge Connectors,
One-Sided Boards
Wire Management
Products
To convert to inches, divide by 25.4
Part Numbering System
Series
# of Poles
E
M
2
4
4
3 Mating Header: EM2211 pg. 93
Compliance
References
02 to 12
92
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Pluggable Terminal Blocks
Terminal Blocks:
Single & Double Row
EM2211 Series
Euro-Mag Terminal Blocks
Header with Flanges (Mates with EM2423,
EM2443 Series); 3.81 Centers
EM221106H
EuroMag Series
SPECIFICATIONS
Rating: 8A, 300V
Center Spacing: 0.15” (3.81mm)
Consult factory for 0.30" (7.62mm)
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Mold to Length
Agency Information:
File E62622; CE Certified
EM221109V
Dimensions - mm (in)
HORIZONTAL
2
3
4
5
6
7
8
9
10
11
12
14
18.02
21.83
25.64
29.45
33.26
37.07
40.88
44.69
48.50
52.31
56.12
63.74
L
9.20
[.362]
2.60
[.102]
2.60
[.102]
6.90
[.272]
(2) M2.6
0.80
[.031]
7.10
[.280]
3.50
[.138]
Power Distribution
Blocks
L (mm)
Terminal Blocks:
Base & Rail Mount
Poles
3.81
[.150]
1.20
[.047]
Ø1.30
[Ø.051]
1.20
[.047]
To convert to inches, divide by 25.4
PCB Hole Layout
9.20
[.362]
Wire Management
Products
3.81
[.150]
VERTICAL
Edge Connectors,
One-Sided Boards
L
Ø
Ø
Part Numbering System
PCB Hole Layout
# of Poles
E
M
2
2
1
1 02 to 14
Orientation
Compliance
References
Series
H - horizontal
V - vertical
Mating Plugs: EM2423 pg. 91
EM2443 pg. 92
For additional product information, visit www.cooperbussmann.com/magnum
93
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM2525 Series
Euro-Mag Terminal Blocks
Pluggable Block (Mates with EM2535
Series); 5.00 Centers
SPECIFICATIONS
Rating: 16A, 300V
Center Spacing: 0.197” (5.00mm)
Consult factory for 0.394” (10.00mm)
Wire Range: #12-26 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Screw Size: M3x5 Zinc-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 7 lb-in.
Construction: Mold-to-Length
Connector Style: Rising Cage Clamp
Agency Information:
File E62622; CE Certified
EM252503
Dimensions - mm (in)
0.197
(5.00)
0.197
(5.00)
0.10
(2.5)
Poles
L (mm)
Poles
L (mm)
0.72
(18.3)
02
03
04
05
06
07
08
09
10
11
12
13
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Pluggable Terminal Blocks
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
14
15
16
17
18
19
20
21
22
23
24
0.39
(10.0)
L
0.13
(3.3)
0.095
(2.4)
0.57
(14.5)
Wire Management
Products
To convert to inches, divide by 25.4
70.0
75.0
80.0
85.0
90.0
95.0
100.0
105.0
110.0
115.0
120.0
Edge Connectors,
One-Sided Boards
0.11
(2.8)
Part Numbering System
Compliance
References
Series
# of Positions
E
M
2
5
2
5 Mating Header: EM2535 pg. 97
02 to 24
94
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Pluggable Terminal Blocks
Terminal Blocks:
Single & Double Row
EM2485 Series
Euro-Mag Terminal Blocks
Pluggable Block with Cover
(Mates with EM2535 Series); 5.00 Centers
Dimensions - mm (in)
L
13+
_0.3
(0.512")
L (mm)
To convert to inches, divide by 25.4
2.5+
_0.3
(0.098")
8.2+
_0.3
(0.323")
25.8+
_0.3
(1.016")
10.0
15.0
20.0
25.0
30.0
35.0
40.0
29.1+
_0.3
(1.146")
5+
_0.1
(0.197")
Power Distribution
Blocks
2
3
4
5
6
7
8
EM248506
Terminal Blocks:
Base & Rail Mount
Poles
EuroMag Series
SPECIFICATIONS
Rating: 16A, 300V
Center Spacing: 0.197” (5.00mm)
Wire Range: #14-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Tin-Plated Phos Bronze
Cage Clamp: Brass, Nickel-Plated
Screw Size: M2.6 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 4.5 lb-in.
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
Wire Management
Products
Edge Connectors,
One-Sided Boards
Part Numbering System
Series
# of Poles
E
M
2
4
8
5 Mating Header: EM2535 pg. 97
02 - 08
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
95
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM3105 Series
Euro-Mag Terminal Blocks
Pluggable Block; Top Entry
(Mates with EM2535 Series); 5.00 Centers
SPECIFICATIONS
Rating: 16A, 300V
Center Spacing: 0.197” (5.00mm)
Wire Range: #14-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Tin-Plated Phos Bronze
Cage Clamp: Brass, Nickel-Plated
Screw Size: M2.6 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 4.5 lb-in.
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
L (mm)
Poles
L (mm)
2
3
4
5
6
7
10.0
15.0
20.0
25.0
30.0
35.0
8
9
10
11
12
40.0
45.0
50.0
55.0
60.0
Edge Connectors,
One-Sided Boards
EM310508
Dimensions - mm (in)
L+
_0.5
14.9+
_0.3
Poles
5+
_0.1
2.5+
_0.2
27.1+
_0.3
To convert to inches, divide by 25.4
8.2+
_0.3
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Pluggable Terminal Blocks
Part Numbering System
Series
# of Poles
E
M
3
1
0
5 Compliance
References
02 to 12
Mating Plugs: EM2525 pg. 94
EM2485 pg. 95
EM3105 pg. 96
96
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Pluggable Terminal Blocks
Terminal Blocks:
Single & Double Row
EM2535 Series
Euro-Mag Terminal Blocks
Header (Mates with EM2525, EM2485 &
EM3105 Series); 5.00 Centers
EM253505VC
SPECIFICATIONS
Rating: 16A, 300V
Center Spacing: 0.197” (5.00mm)
Consult factory for 0.394” (10.00mm)
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Recommended PCB Hole Diameters: 0.055” (1.40mm)
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
EM253508HO
EuroMag Series
Dimensions - mm (in)
VERTICAL - CLOSED
L
0.47
(12.0)
0.039
(1.00)
Position
Closed
L (mm)
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
12.0
17.0
22.0
27.0
32.0
37.0
42.0
47.0
52.0
57.0
62.0
67.0
Position
Open
L (mm)
Closed
L (mm)
14
15
16
17
18
19
20
21
22
23
24
70.0
75.0
80.0
85.0
90.0
95.0
100.0
105.0
110.0
115.0
120.0
72.0
77.0
82.0
87.0
92.0
97.0
102.0
107.0
112.0
117.0
122.0
0.197
(5.00)
0.14
(3.5)
0.11
(2.7)
9.1
(0.36)
0.15
(3.8)
HORIZONTAL - OPEN
0.039
(1.0)
L
Power Distribution
Blocks
02
03
04
05
06
07
08
09
10
11
12
13
Open
L (mm)
0.039
(1.00)
Terminal Blocks:
Base & Rail Mount
0.17
(4.2)
To convert to inches, divide by 25.4
0.47
(12.0)
Wire Management
Products
0.197
(5.00)
0.10
(2.5)
0.08
(2.0)
0.17
(4.2)
0.039
(1.0)
Edge Connectors,
One-Sided Boards
0.36
(9.1)
Part Numbering System
Series
# of Positions
02 to 24
Side Base
H - horizontal
V - vertical
O - open
C - closed
Mating Plugs: EM2525 pg. 94
EM2485 pg. 95
EM3105 pg. 96
For additional product information, visit www.cooperbussmann.com/magnum
Compliance
E
M
2
5
3
5 Orientations
97
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM2565 Series
Euro-Mag Terminal Blocks
Pluggable Block (Mates with EM2575
Series); 5.08 Centers
SPECIFICATIONS
Rating: 16A, 300V
Center Spacing: 0.20” (5.08mm)
Consult factory for 0.40” (10.16mm)
Wire Range: #12-26 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Screw Size: M3x5 Zinc-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 7 lb-in.
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
EM25603VR
Dimensions - mm (in)
HORIZONTAL
0.197
(5.00)
0.200
(5.08)
0.10
(2.54)
0.72
(18.3)
0.39
(10.0)
Position
02
03
04
05
06
07
08
09
10
11
12
13
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Pluggable Terminal Blocks
L (mm)
Position
L (mm)
10.16
15.24
20.32
25.40
30.48
35.56
40.64
45.72
50.80
55.88
60.96
66.04
14
15
16
17
18
19
20
21
22
23
24
71.12
76.20
81.28
86.36
91.44
96.52
101.60
106.68
111.76
116.84
121.92
0.39
(10.0)
0.13
(3.3)
L
0.57
(14.5)
0.11
(2.8)
0.08
(2.1)
VERTICAL
To convert to inches, divide by 25.4
L
Wire Management
Products
0.47
(12.0)
0.47
(12.0)
WIRE
WIRE
ENTRY
ENTRY
0.11
(2.8)
0.13
(3.3)
0.13
(3.3)
1.02
(26.0)
0.09
(2.4)
Edge Connectors,
One-Sided Boards
0.33
(8.3)
RIGHT
LEFT
1.0
(2.54)
0.200
(5.08)
0.200
(5.08)
Compliance
References
Part Numbering System
Series
# of Positions
E
M
2
5
6
5 02 to 24
98
Orientation
Wire Entry
(Vertical Orientation Only)
H - horizontal
V - vertical
L - left
R - right
Mating Header: EM2575 pg. 101
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Pluggable Terminal Blocks
Terminal Blocks:
Single & Double Row
EM2488 Series
Euro-Mag Terminal Blocks
Pluggable Block (Mates with EM2575
Series); 5.08 Centers with Cover
EuroMag Series
SPECIFICATIONS
Rating: 16A, 300V
Center Spacing: 0.20” (5.08mm)
Wire Range: #14-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Cage Clamp: Brass, Nickel-Plated
Screw Size: M2.6 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 4.5 lb-in.
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
EM248806
Dimensions - mm (in)
13+
_0.3
(0.512")
Terminal Blocks:
Base & Rail Mount
L
To convert to inches, divide by 25.4
5.08+
_0.1
(0.200")
2.54+
_0.3
(0.100")
8.2+
_0.3
(0.323")
10.16
15.24
20.32
25.40
30.48
35.56
40.64
25.8+
_0.3
(1.016")
2
3
4
5
6
7
8
29.1+
_0.3
(1.146")
L (mm)
Power Distribution
Blocks
Poles
Wire Management
Products
Edge Connectors,
One-Sided Boards
Part Numbering System
Series
# of Poles
E
M
2
4
88
Mating Header: EM2575 pg. 101
02 to 08
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
99
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM3108 Series
Euro-Mag Terminal Blocks
Pluggable Block; Front Entry (Mates with
EM2575 Series); 5.08 Centers
SPECIFICATIONS
Rating: 16A, 300V
Center Spacing: 0.20” (5.08mm)
Wire Range: #14-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Cage Clamp: Brass, Nickel-Plated
Screw Size: M2.6 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 4.5 lb-in.
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
Poles
L (mm)
2
3
4
5
6
7
8
9
10
11
12
13
10.16
15.24
20.32
25.40
30.48
35.45
40.64
45.72
50.80
55.88
60.96
66.04
14
15
16
17
18
19
20
21
22
23
24
71.12
76.20
81.28
86.36
91.44
96.52
101.60
106.68
111.76
116.84
121.92
Edge Connectors,
One-Sided Boards
L+
_0.5
5.08+
_0.1
2.54+
_0.2
8.2+
_0.3
Wire Management
Products
To convert to inches, divide by 25.4
Dimensions - mm (in)
14.9+
_0.3
L (mm)
EM310808
27.1+
_0.3
Poles
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Pluggable Terminal Blocks
Part Numbering System
Series
# of Poles
E
M
3
1
0
8 Mating Header: EM2575 pg. 101
Compliance
References
02 to 24
100
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Pluggable Terminal Blocks
EM257512HC
SPECIFICATIONS
Rating: 16A, 300V
Center Spacing: 0.20” (5.08mm)
Consult factory for 0.40” (10.16mm)
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
14
15
16
17
18
19
20
21
22
23
24
71.12
76.20
81.28
86.36
91.44
96.52
101.60
106.68
111.76
116.84
121.92
73.04
78.12
83.20
88.28
93.36
98.44
103.52
105.60
113.68
118.76
123.84
Dimensions - mm (in)
HORIZONTAL OPEN
HORIZONTAL CLOSED
L+
_0.5
L+
_0.5
12+
_0.3
(0.472")
8.3+
_0.3
(0.327")
1.8+
_0.3
(0.071")
To convert to inches, divide by 25.4
1+
_0.1
(0.039")
1.00+
_0.1
(0.039")
5.08+
_0.1
(0.200")
5.08+
_0.1
(0.200")
Ø1.5
(Ø 0.059")
12+
_0.3
(0.472")
12.08
17.16
22.24
27.32
32.40
37.48
42.66
47.64
62.72
67.80
62.88
67.96
EM257506VO
4.5+
_0.3
(0.177")
10.16
15.24
20.32
25.40
30.48
35.56
40.64
45.72
50.80
55.88
60.96
66.04
Closed
L (mm)
Power Distribution
Blocks
2
3
4
5
6
7
8
9
10
11
12
13
Poles
Open
L (mm)
EM257512VC
Terminal Blocks:
Base & Rail Mount
Closed
L (mm)
EM257506HO
EuroMag Series
Poles
Open
L (mm)
Terminal Blocks:
Single & Double Row
EM2575 Series
Euro-Mag Terminal Blocks
Header (Mates with EM2565, EM2488,
EM3108 Series); 5.08 Centers
1.8+
_0.3
(0.071")
PCB Hole Layout
5.08+
_0.1
(0.200")
12±0.3
(0.472")
5.08±0.1
(0.200")
L±0.5
L±0.5
4.5±0.3
(0.177")
Edge Connectors,
One-Sided Boards
8.3±0.3
(0.327")
1±0.1
(0.039")
3.8±0.3
(0.150")
1.00±0.1
[0.039]
Wire Management
Products
VERTICAL CLOSED
VERTICAL OPEN
Ø1.5
(Ø 0.059")
5.08±0.1
(0.200")
8.3±0.3
(0.327")
3.8±0.3
(0.150")
PCB Hole Layout
Part Numbering System
# of Poles
E
M
2
5
7
5 02 to 24
Orientation
Side Base
H - horizontal
V - vertical
O - open
C - closed
Compliance
References
Series
Mating Plugs: EM2565 pg. 98
EM2488 pg. 99
EM3108 pg. 100
For additional product information, visit www.cooperbussmann.com/magnum
101
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Pluggable Terminal Blocks
Series EM2115 Series
Pluggable Terminal Block with Flanges;
(Mates with EM2215 Series);5.00 Centers
SPECIFICATIONS:
Rating: 16A, 300V
Center Spacing: 0.197" (5.00mm)
Wire Range: #14-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Tin-Plated Phosphor Bronze
Screw Size: M2x6 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -55°C (-67°F) min.
Torque Rating: 4.5 lb-in.
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
EM211514VL
Dimensions - mm (in)
Vertical
Ø.11"
(2.70)
Poles
A (mm)
A (Inch)
Poles
A (mm)
A (Inch)
2
3
4
5
6
7
8
9
10
11
12
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
0.787
0.984
1.181
1.378
1.575
1.772
1.969
2.165
2.362
2.559
2.756
13
14
15
16
17
18
19
20
21
22
75.0
80.0
85.0
90.0
95.0
100.0
105.0
110.0
115.0
120.0
2.952
3.149
3.346
3.543
3.740
3.937
4.133
4.330
4.527
4.724
L
0.197"
(5.00)
Edge Connectors,
One-Sided Boards
0.10"
(2.50)
1.02"
(25.8) WIRE
ENTRY
WIRE
ENTRY
1.02"
(25.8)
0.32"
(8.20)
0.32"
(8.20)
LEFT
RIGHT
Horizontal
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
0.49"
(12.5)
0.71"
(18.00)
L
0.32"
(8.20)
0.59"
(15.0)
Ø.11"
(2.70)
Part Numbering System
Series
Compliance
References
E
M
2
1
1
5
102
# of Poles
0.197"
(5.00)
0.10"
(2.50)
0.39"
(9.80)
Inches (Millimeters)
Orientation
Wire Entry
02 to 22
V - Vertical
H - Horizontal
L - Left wire entry
R - Right wire entry
(specify for V orientation)
Mating Header: EM2215 pg. 104
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Pluggable Terminal Blocks
EuroMag Series
EM311503
Dimensions - mm (in)
L
14.9+
_0.3
Terminal Blocks:
Base & Rail Mount
SPECIFICATIONS
Rating: 16A, 300V
Center Spacing: 0.197” (5.00mm)
Wire Range: #14-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Cage Clamp: Brass, Nickel-Plated
Screw Size: M2.6 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 4.5 lb-in.
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single & Double Row
EM3115 Series
Euro-Mag Terminal Blocks
Pluggable Block; Top Entry (Mates with
EM2215 Series); 5.00 Centers
2
3
4
5
6
7
8
9
10
11
12
13
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
75.0
14
15
16
17
18
19
20
21
22
23
24
80.0
85.0
90.0
95.0
100.0
105.0
110.0
115.0
120.0
125.0
130.0
5+
_0.1
2.5+
_0.2
8.2+
_0.3
L (mm)
6.5+
_0.3
Poles
27.1+
_0.3
L (mm)
Power Distribution
Blocks
Poles
To convert to inches, divide by 25.4
Wire Management
Products
Edge Connectors,
One-Sided Boards
Part Numbering System
Series
# of Poles
E
M
3
1
1
5 Mating Header: EM2215 pg. 104
02 to 22
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
103
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Series EM2215
Header with Flanges; (Mates with EM2115,
EM3115 Series); 5.00 Centers
SPECIFICATIONS:
Rating: 16A, 300V
Center Spacing: 0.197" (5.00mm)
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Tin-Plated Brass
Operating Temperature: 105°C (221°F) max., -55°C (-67°F) min.
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
EM221503V
Dimensions - mm (in)
Horizontal
Poles
A (mm)
A (Inch)
Poles
A (mm)
A (Inch)
2
3
4
5
6
7
8
9
10
11
12
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
0.393
0.590
0.787
0.984
1.181
1.378
1.575
1.772
1.969
2.165
2.362
13
14
15
16
17
18
19
20
21
22
65.0
75.0
80.0
85.0
90.0
95.0
100.0
105.0
110.0
115.0
2.559
2.953
3.150
3.346
3.543
3.740
3.937
4.133
4.331
4.528
L
0.10"
(2.50)
0.47"
(12.00)
0.33"
(8.30)
0.18"
(4.50)
M2.6
0.04"
(1.00)
0.07"
(1.80)
0.47"
(12.00)
PCB Hole Layout
0.07"
(1.80)
0.197"
(5.00)
Wire Management
Products
Vertical
0.15" 0.04"
(3.80) (1.00)
0.47"
(12.00)
L
0.10"
(2.50)
0.33"
(8.30)
0.197"
(5.00)
0.18"
(4.50)
Edge Connectors,
One-Sided Boards
M2.6
Ø.06"
(1.50)
0.15"
(3.80)
0.33"
(8.30)
PCB Hole Layout
0.197"
(5.00)
Part Numbering System
Compliance
References
0.197"
(5.00)
Ø.06"
(1.50)
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Pluggable Terminal Blocks
Series
EM
2
2
1
5
104
# of Poles
Inches (Millimeters)
Orientation
02 to 22
H - Horizontal
V - Vertical
Mating Plugs: EM2115 pg. 102
EM3115 pg. 103
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Pluggable Terminal Blocks
Terminal Blocks:
Single & Double Row
Series EM2118 Series
Pluggable Terminal Block with Flanges;
(Mates with EM2218 Series); 5.08 Centers
Poles
A (mm)
A (Inch)
2
3
4
5
6
7
8
9
10
11
12
20.32
25.40
30.48
35.56
40.64
45.72
50.80
55.88
60.96
66.04
71.12
0.8
1.0
1.2
1.4
1.6
1.8
2.0
2.2
2.4
2.6
2.8
13
14
15
16
17
18
19
20
21
22
76.20
81.28
86.36
91.44
96.52
101.60
106.68
111.76
116.84
121.92
3.0
3.2
3.4
3.6
3.8
4.0
4.2
4.4
4.6
4.8
0.49"
(12.5)
L
0.20"
(5.08)
0.10"
(2.54)
1.02"
(25.8) WIRE
ENTRY
WIRE
ENTRY
1.02"
(25.8)
0.32"
(8.20)
0.32"
(8.20)
LEFT
RIGHT
Power Distribution
Blocks
A (Inch)
Terminal Blocks:
Base & Rail Mount
A (mm)
EM211814VL
Ø.11"
(2.70)
VERTICAL
Poles
EuroMag Series
SPECIFICATIONS:
Rating: 16A, 300V
EM211803H
Center Spacing: 0.20" (5.08mm)
Wire Range: #14-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Tin-Plated Phosphor Bronze
Screw Size: M 3x0 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -55°C (-67°F) min.
Torque Rating: 4.5 lb-in.
Construction: Mold-to-Length
Dimensions - mm (in)
Agency Information:
File E62622; CE Certified
HORIZONTAL
Wire Management
Products
0.71"
(18.00)
L
0.32"
(8.20)
Ø.11"
(2.70)
Part Numbering System
EM
2
1
1
8
# of Positions
0.10"
(2.54)
0.39"
(9.80)
Inches (Millimeters)
Orientation
02 to 22
V - Vertical
H - Horizontal
Compliance
References
Series
0.20"
(5.08)
Edge Connectors,
One-Sided Boards
0.59"
(15.0)
Mating Header: EM2218 pg. 107
For additional product information, visit www.cooperbussmann.com/magnum
105
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM3118 Series
Euro-Mag Terminal Blocks
Pluggable Block, Top Entry (Mates with
EM2218 Series); 5.08 Centers
Poles
L (mm)
2
3
4
5
6
7
8
9
10
11
12
20.32
25.40
30.48
35.45
40.64
45.72
50.80
55.88
60.96
66.04
71.12
13
14
15
16
17
18
19
20
21
22
76.20
81.28
86.36
91.44
96.52
101.60
106.68
111.76
116.84
121.92
L
14.9±0.3
L (mm)
Dimensions - mm (in)
5.08+
_0.1
2.54+
_0.2
27.1+
_0.3
Poles
EM311803
6.5+
_0.3
SPECIFICATIONS
Rating: 16A, 300V
Center Spacing: 0.20” (5.08mm)
Wire Range: #14-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Cage Clamp: Brass, Nickel-Plated
Screw Size: M2.6 Nickel-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 4.5 lb-in.
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Pluggable Terminal Blocks
Edge Connectors,
One-Sided Boards
Wire Management
Products
8.2+
_0.3
To convert to inches, divide by 25.4
Part Numbering System
Series
# of Poles
E
M
3
1
1
8 Mating Header: EM2218 pg. 107
Compliance
References
02 to 22
106
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Pluggable Terminal Blocks
EM221804H
EuroMag Series
SPECIFICATIONS:
Rating: 12A, 300V
Center Spacing: 0.20" (5.08mm)
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Tin-Plated Brass
Operating Temperature: 105°C (221°F) max., -55°C (-67°F) min.
Recommended PCB Hole Diameters: 0.059" (1.50mm)
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single & Double Row
Series EM2218
Header with Flanges; (Mates with EM2118,
EM3118 Series); 5.08 Centers
EM221804V
Dimensions - mm (in)
Horizontal
L (Inch)
Poles
L (mm)
L (Inch)
2
3
4
5
6
7
8
9
10
11
20.32
25.40
30.48
35.56
40.64
45.72
50.80
55.88
60.95
66.04
0.8
1.0
1.2
1.4
1.6
1.8
2.0
2.2
2.4
2.6
12
13
14
15
16
17
18
19
20
71.12
76.20
81.28
86.36
91.44
96.52
101.60
106.68
111.76
2.8
3.0
3.2
3.4
3.6
3.8
4.0
4.2
4.4
L
0.47"
(12.00)
0.18"
(4.50)
0.10"
(2.54)
0.33"
(8.30)
M2.6
0.20"
(5.08)
0.04"
(1.00)
0.07"
(1.80)
Power Distribution
Blocks
L (mm)
Terminal Blocks:
Base & Rail Mount
Poles
Ø.06"
(1.50)
PCB Hole Layout
0.47"
(12.00)
0.07"
(1.80)
0.20"
(5.08)
Vertical
L
0.47"
(12.00)
Wire Management
Products
0.15" 0.04"
(3.80) (1.00)
0.10"
(2.54)
0.33"
(8.30)
0.20"
(5.08)
0.18"
(4.50)
Ø.06"
(1.50)
Edge Connectors,
One-Sided Boards
0.15"
(3.80)
M2.6
0.33"
(8.30)
PCB Hole Layout
0.20"
(5.08)
Part Numbering System
Series
E
M
2
2
1
8
# of Poles
Inches (Millimeters)
Orientation
02 to 22
H - Horizontal
V - Vertical
Mating Plugs: EM2118 pg. 105
EM3118 pg. 106
For additional product information, visit www.cooperbussmann.com/magnum
Compliance
References
107
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM3516 Series
Euro-Mag Terminal Blocks
Pluggable Block (Mates with EM3526 Series);
7.62 Centers
SPECIFICATIONS
Rating: 16A, 300V
Center Spacing: 0.30” (7.62mm)
Wire Range: #14-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Tin-Plated Brass
Cage Clamp: Brass, Nickel-Plated
Screw Size: M3.0 Zinc-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 5.0 lb-in.
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
Dimensions - mm (in)
L (mm)
2
3
4
5
6
7
8
9
10
11
12
8.41
12.22
16.03
19.84
23.65
27.46
31.27
35.08
38.89
42.70
46.51
Wire Management
Products
18+
_0.3
8.2+
_0.3
15+
_0.3
Poles
To convert to inches, divide by 25.4
Edge Connectors,
One-Sided Boards
EM351603
L
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Pluggable Terminal Blocks
2.8+
_0.3
9.8+
_0.3
7.62+
_0.1
Part Numbering System
Series
# of Poles
Mating Header: EM3526 pg. 109
E
M
3
5
1
6 Compliance
References
02 to 12
108
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Pluggable Terminal Blocks
Terminal Blocks:
Single & Double Row
EM3526 Series
Euro-Mag Terminal Blocks
Closed and Open Header (Mates with
EM3516 Series); 7.62 Centers
EM352610HO
EuroMag Series
SPECIFICATIONS
Rating: 16A, 300V
Center Spacing: 0.30” (7.62mm)
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Brass Tin-Plated
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Recommended PCB Hole Diameters: 0.055" (1.40mm)
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
EM352604VC
Dimensions - mm (in)
HORIZONAL CLOSED
L+
_0.5
L±0.5
12+
_0.3
(0.472")
15.24
22.86
30.48
38.10
45.72
53.34
60.96
68.58
76.20
83.82
91.44
HORIZONTAL OPEN
7.62+
_0.1
(0.300")
12+
_0.3
(0.472")
8.3+
_0.3
(0.327")
13.44
21.06
28.68
36.60
43.92
51.54
59.16
66.78
74.40
82.02
89.64
1.8+
_0.3
(0.071")
2
3
4
5
6
7
8
9
10
11
12
PCB Hole Layout
Ø1.5
(Ø 0.059")
4.5+
_0.3
(0.177")
Closed
L (mm)
To convert to inches, divide by 25.4
7.62+
_0.1
(0.300")
1+
_0.1
( 0.039")
1.8+
_0.3
(0.071")
8.3+
_0.3
(0.327")
7.62+
_0.1
(0.300")
12+
_0.3
(0.472")
L+
_0.5
7.62±0.1
(0.300")
1±0.1
( 0.039")
L±0.5
8.3+
_0.3
(0.327")
1+
_0.1
( 0.039")
1+
_0.1
( 0.039")
Edge Connectors,
One-Sided Boards
3.8+
_0.3
(0.150")
3.8+
_0.3
(0.150")
Ø1.5
(Ø 0.059")
VERTICAL CLOSED
7.62+
_0.1
(0.300")
Wire Management
Products
VERTICAL OPEN
PCB Hole Layout
7.62±0.1
(0.300")
1±0.1
( 0.039")
Power Distribution
Blocks
Open
L (mm)
Terminal Blocks:
Base & Rail Mount
Poles
4.5+
_0.3
(0.177")
Part Numbering System
# of Poles
E
M
3
5
2
6 02 to 24
Orientation
Side Base
H - horizontal
V - vertical
O - open
C - closed
Mating Plug: EM3516 pg. 108
For additional product information, visit www.cooperbussmann.com/magnum
Compliance
References
Series
109
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM2416 Series
Euro-Mag Terminal Blocks
Pluggable Block with Flanges (Mates with
EM2426 Series); 7.62 Centers
SPECIFICATIONS
Rating: 16A, 300V
Center Spacing: 0.30” (7.62mm)
Wire Range: #14-24 AWG
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Tin-Plated Brass
Cage Clamp: Brass, Nickel-Plated
Screw Size: M3.0 Zinc-Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 5.0 lb-in.
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
EM241602
Dimensions - mm (in)
L
L (mm)
2
3
4
5
6
7
8
9
10
11
12
24.90
32.50
40.10
47.80
55.40
63.00
70.60
78.20
89.90
93.50
101.10
18+
_0.3
8.2+
_0.3
15+
_0.3
Poles
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Pluggable Terminal Blocks
Ø2
To convert to inches, divide by 25.4
Edge Connectors,
One-Sided Boards
Wire Management
Products
2.8+
_0.3
9.8+
_0.3
7.62+
_0.1
Part Numbering System
Series
# of Poles
Mating Header: EM2426 pg. 111
E
M
2
4
1
6 Compliance
References
02 to 12
110
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Pluggable Terminal Blocks
Terminal Blocks:
Single & Double Row
EM2426 Series
Euro-Mag Terminal Blocks
Header with Flanges (Mates with EM2416
Series); 7.62 Centers
EM242603V
EuroMag Series
SPECIFICATIONS
Rating: 16A, 300V
Center Spacing: 0.30” (7.62mm)
Housing Material: UL rated 94V0 Thermoplastic
Contact Material: Tin-Plated Brass
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Recommended PCB Hole Diameters: 0.059" (1.50mm)
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
EM242606H
Dimensions - mm (in)
HORIZONTAL
Terminal Blocks:
Base & Rail Mount
L+
_0.5
2
3
4
5
6
7
25.62
33.24
40.86
48.48
56.10
63.72
8
9
10
11
12
71.34
78.96
86.58
94.20
101.80
7.62+
_0.1
(0.300")
1+
_0.1
( 0.039")
1.8+
_0.3
(0.071")
Ø1.5
(Ø 0.059")
12±0.3
(0.472")
L (mm)
2.9+
_0.2
(0.114")
8.3+
_0.3
(0.327")
Poles
PCB Hole Layout
1.8+
_0.3
(0.071")
L (mm)
2.9+
_0.2
(0.114")
To convert to inches, divide by 25.4
7.62+
_0.1
(0.300")
7.62+
_0.1
(0.300")
1±.1
( 0.039")
VERTICAL
Power Distribution
Blocks
Poles
4.5+
_0.3
(0.177")
12+
_0.3
(0.472")
Wire Management
Products
2.9+
_0.2
(0.114")
2.9+
_0.2
(0.114")
8.3+
_0.3
(0.327")
1+
_0.1
( 0.039")
3.8+
_0.3
(0.150")
L+
_0.5
12+
_0.3
(0.472")
Ø1.5
(Ø 0.059")
12+
_0.3
(0.472")
3.8+
_0.3
(0.150")
Edge Connectors,
One-Sided Boards
M2.6
4.5+
_0.3
(0.177")
PCB Hole Layout
7.62+
_0.1
(0.300")
Part Numbering System
# of Poles
E
M
2
4
2
6 02 to 12
Orientation
Mating Plug: EM2416 pg. 110
Compliance
References
Series
H - horizontal
V - vertical
For additional product information, visit www.cooperbussmann.com/magnum
111
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM5015 Series
Euro-Mag Terminal Blocks
Pluggable Block
(Mates with EM5025 Series); 5.00 Centers
EM501508
SPECIFICATIONS
Rating: 15A, 300V
Center Spacing: 0.197” (5.00mm)
Wire Range: #16-24 AWG
Housing Material: Blue UL 94V0 Thermoplastic
Contact Material: Tin-Plated Brass
Screw Size: M2x6 Chromatized Steel
Operating Temperature: 120°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 3.0 lb-in.
Construction: Modular design features dovetails for
interlocking to achieve longer lengths
Connector Style: Spring Clamp
Agency Information:
File E62622; CE Certified
Poles
L (mm)
Poles
L (mm)
2*
3*
4
5
6
7
8
9
10
11
12
13
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
14
15
16
17
18
19
20
21
22
23
24
70.0
75.0
80.0
85.0
90.0
95.0
100.0
105.0
110.0
115.0
120.0
Wire Management
Products
Edge Connectors,
One-Sided Boards
Dimensions - mm (in)
0.197
(5.00)
0.10
(2.5)
0.37
(9.3)
0.53
(13.5)
L
0.43
(11.0)
To convert to inches, divide by 25.4
*Mold-to-Length
WIRE
ENTRY
WIRE
ENTRY
Mating orientations
Part Numbering System
Series
Compliance
References
EM501504
TEST
POINT
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Pluggable Terminal Blocks
# of Poles
Mating Header: EM5025 pg. 113
E
M
5
0
1
5 02 to 24
112
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Pluggable Terminal Blocks
Terminal Blocks:
Single & Double Row
EM5025 Series
Euro-Mag Terminal Blocks
Header (Mates with EM5015 Series);
5.00 Centers
EM502512
SPECIFICATIONS
Rating: 15A, 300V
Center Spacing: 0.197” (5.00mm)
Housing Material: Black UL 94V0 Thermoplastic
Contact Material: Tin-Plated Brass
Operating Temperature: 120°C (221°F) max., -40°C
(-40°F) min.
Recommended PCB Hole Diameters: 0.059" (1.50mm)
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
EM502506
EuroMag Series
Terminal Blocks:
Base & Rail Mount
Dimensions - mm (in)
L (mm)
Poles
L (mm)
2
3
4
5
6
7
8
9
10
11
12
13
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
14
15
16
17
18
19
20
21
22
23
24
70.0
75.0
80.0
85.0
90.0
95.0
100.0
105.0
110.0
115.0
120.0
0.05 DIA.
(1.3)
0.197
(5.00)
0.49
(12.5)
0.08
(2.0)
0.11
(2.8)
L
0.18
(4.5)
Power Distribution
Blocks
Poles
To convert to inches, divide by 25.4
WIRE
ENTRY
Wire Management
Products
ø1.50
(ø0.059")
WIRE
ENTRY
PCB Hole Layout
Mating orientations
580
(0.197")
Edge Connectors,
One-Sided Boards
Part Numbering System
Series
# of Poles
Mating Plug: EM5015 pg. 112
E
M
5
0
2
5 02 to 24
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
113
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EM5035 Series
Euro-Mag Terminal Blocks
Pluggable Block, Stackable
(Mates with EM5045 Series) 5.00 Centers
SPECIFICATIONS
Rating: 10A, 300V
Center Spacing: 0.197” (5.00mm)
Wire Range: #16-24 AWG
Housing Material: Black UL 94V0 Thermoplastic
Contact Material: Tin-Plated Brass
Wire Protector: Phosphor Bronze, Tin-Plated
Screw Size: M2.6 Chromatized Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 3.0 lb-in.
Construction: Modular design features doveails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
Wire Management
Products
Edge Connectors,
One-Sided Boards
EM503503
EM503502
Shown with EM5045series header - order seperately
Dimensions - mm (in)
2.5±0.3
[0.098]
5.0±0.1
[0.197]
6.2±0.3
[0.244]
Poles
L (mm)
Poles
L (mm)
2
3
4
5
6
7
8
9
10
11
12
13
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
14
15
16
17
18
19
20
21
22
23
24
70.0
75.0
80.0
85.0
90.0
95.0
100.0
105.0
110.0
115.0
120.0
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
EuroMag Series PCB Mount Pluggable Terminal Blocks
5.00
[0.197]
12.5±0.3
[0.492]
L ±0.5
3.50
[0.138]
4.40
[0.173]
10.5±0.3
[0.413]
12.5±0.3
[0.492]
1.30
[0.051]
3.0
[0.118]
2.20
[0.087]
14.8±0.3
[0.583]
3.50
[0.138]
To convert to inches, divide by 25.4
Part Numbering System
Series
# of Poles
Mating Plug: EM5045 pg. 115
E
M
5
03
5 Compliance
References
02 to 24
114
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series PCB Mount Pluggable Terminal Blocks
EM504513
EuroMag Series
Dimensions - mm (in)
L ±0.5
Ø1.12
[Ø0.044]
16.5±0.3
[0.650]
Poles
L (mm)
Poles
L (mm)
2.5±0.3
[0.098]
5.0
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
14
15
16
17
18
19
20
21
22
23
24
65.0
70.0
75.0
80.0
85.0
90.0
95.0
100.0
105.0
110.0
115.0
2.7±0.3
[0.106]
5.0±0.1
[0.197]
PCB Hole Layout
5.0±0.1
[0.197]
Ø1.20
[Ø0.047]
Wire Management
Products
To convert to inches, divide by 25.4
Edge Connectors,
One-Sided Boards
Part Numbering System
Series
Power Distribution
Blocks
2
3
4
5
6
7
8
9
10
11
12
13
Ø1.0±0.1
[Ø0.039]
Terminal Blocks:
Base & Rail Mount
1.7±0.2
[0.067]
SPECIFICATIONS
Rating: 10A, 300V
Center Spacing: 0.197” (5.00mm)
Housing Material: Black UL 94V0 Thermoplastic
Contact Material: Tin-Plated Brass
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Recommended PCB Hole Diameters: 0.059" (1.50mm)
Construction: Mold-to-Length
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single & Double Row
EM5045 Series
Euro-Mag Terminal Blocks
Header (Mates with EM5035 Series);
5.00 Centers
# of Poles
E
M
5
0
4
5 02 to 24
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
115
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Series NDN Rail Mount Terminal Blocks
35mm DIN Rail Compatible
SPECIFICATIONS
High Density Design: Up to 48 circuits per foot
Clamping Collar: Secures wires
Large, Captive, Wire-Ready Screws: Speeds assembly
Snap-on Installation to DIN Rail: Fast, easy assembly
Fully Shielded Construction: 600V spacings
Unique One-Piece Construction: Increases reliability
Thermoplastic Moldings: Strong and impact resistant
Material: UL Recognized 94V2 thermoplastic
Collars: Heat treated stainless steel
Terminals: Tin plated copper alloy
Screws: zinc-plated steel
Agency Information: UL/CSA; CE Certified
NDNF1
Single pole
fuse holding rail mount
terminal block accepts
13/32" x 1-1/2"
fuses
Compliance
References
Edge Connectors,
One-Sided Boards
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
Rail Mount Terminal Blocks and Accessories
NDN1/NDN111
Heavy-duty
90 Amp block
NDN63
Accepts wires larger
than standard
control circuits
NDN3
Space saving
3-pole unit
NDNA200
Universal aluminum
35mm DIN mounting rail
NDNV4
High Density
48 circuits per foot
Series NDN Terminal Block Accessories
NDNA
35mm DIN Rail
Aluminum
NDNA 100 1 meter
NDNA 200 2 meters
116
NDNAS
35mm DIN Rail
End Stop
NFTA
C-Rail
Aluminum
Lengths to 72"
NRA
C-Rail
Low Profile
No Flange
Aluminum
Lengths to 37-1/2"
SOA72
72" Long
Stand-Off Channel
For C-Rail
MARKING
TAPE
See Series
Specifications
JUMPERS
See Series
Specifications
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Rail Mount Terminal Blocks and Accessories
Terminal Blocks:
Single & Double Row
Rail Mount Terminal Blocks
NDN63
Dimensions - in (mm)
1.50
(38.10)
EuroMag Series
SPECIFICATIONS:
Rating: 65A, 600V
Center Spacing: 0.375" (9.52mm)
Number of Poles: 3
Circuits Per Foot: 30
Circuit Jumper: JN3, 2 circuits
Wire Range: AWG #6-18 CU
Screw Size: #10-32
Mounting Options: 35mm DIN rail, C-rail
Marking Tape: MT12-1-2
Torque Rating: 35 lb-in
Operating Temperature: 105°C
Agency Information: UL File E62622, CSA File 15364
1.67
(42.41)
1.45
(36.83)
1.17
(29.71)
Terminal Blocks:
Base & Rail Mount
NDN1
Dimensions - in (mm)
1.32
(33.68)
1.71
(43.48)
0.59
(14.99)
1.43
(36.31)
Wire Management
Products
Dovetail
Option
Power Distribution
Blocks
SPECIFICATIONS:
Rating: 90A, 600V
Center Spacing: 0.635" (16.13mm)
Number of Poles: 1
Circuits Per Foot: 18
Wire Range: AWG #2-18 CU
Screw Size: #1/4-28
Mounting Options: 35mm DIN rail, C-rail
* Dove-tail option is available for mounting side-by-side.
Order part no. NDN1A-WH
Marking Tape: MT12-1-2
Torque Rating: 32 lb-in
Operating Temperature: 105°C
Agency Information: UL File E62622, CSA File 47235
NDN111
Dimensions - in (mm)
Mtg. holes
0.18 (4.57) dia.
0.28 (7.11) c'bores
1.46
(37.13)
1.71
(43.48)
Dovetail
Option
0.62
(15.75)
1.87
(47.50)
1.44
(36.57)
Compliance
References
For additional product information, visit www.cooperbussmann.com/magnum
Edge Connectors,
One-Sided Boards
SPECIFICATIONS:
Rating: 90A, 600V
Center Spacing: 0.635" (16.13mm)
Number of Poles: 3
Circuits Per Foot: 18
Circuit Jumper: JN1, 2 circuits
Wire Range: AWG #2-18 CU
Screw Size: #1/4-28
Mounting Options: 35mm DIN rail, C-rail, Base Mount
* Dove-tail option is available for mounting side-by-side.
Order part no. NDN111-A
Marking Tape: MT12-1-2
Torque Rating: 32 lb-in
Operating Temperature: 105°C
Agency Information: UL File E62622, CSA File 47235
117
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Rail Mount Terminal Blocks
NDNV4
SPECIFICATIONS:
Rating: NDNV4 30A, 600V
Center Spacing: 0.25" (6.35mm)
Number of Poles: 4
Circuits Per Foot: 48
Circuit Jumper: JN4, 4 circuits
Wire Range: AWG #10-22 CU
Screw Size: #6-32
Mounting Options: 35mm DIN rail, C-rail
Marking Tape: MTC6
Torque Rating: 18 lb-in
Operating Temperature: 105°C
Agency Information: UL File E62622, CSA File 15364
Edge Connectors,
One-Sided Boards
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
Rail Mount Terminal Blocks and Accessories
Dimensions - in (mm)
1.00
(25.40)
Marking
Tape
1.34
(34.04)
1.67
1.47
1.23
(42.41) (37.33) (31.24)
NDN3
SPECIFICATIONS:
Rating: 30A - field wiring: 40A - factory wiring
600V
Center Spacing: 0.300" (7.62mm)
Number of Poles: 3
Circuits Per Foot: 38
Circuit Jumper: JNDN3, 2 circuits
Wire Range: AWG #10-22 CU
Screw Size: #6-32
Mounting Options: 35mm DIN rail, C-rail
Marking Tape: MT12-1-2
Torque Rating: 18 lb-in
Operating Temperature: 105°C
Agency Information: UL File E62622, CSA File 15364
Dimensions - in (mm)
Compliance
References
1.47
(37.33)
1.67
(42.41)
0.94
(23.87)
118
1.31
(33.27)
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Rail Mount Terminal Blocks and Accessories
Rail Mount Terminal Blocks
Terminal Blocks:
Single & Double Row
N512
Dimensions - in (mm)
2.40
(60.96)
1.09
(27.68)
0.88
(22.35)
Terminal Blocks:
Base & Rail Mount
NFT2
Dimensions - in (mm)
0.07
(1.78)
0.60
(15.44)
1.29
(32.94)
0.93
(23.80)
0.36
(9.14)
1.68
(42.82)
1.23
(31.34)
Wire Management
Products
0.65
(16.51)
NFT3
Edge Connectors,
One-Sided Boards
Dimensions - in (mm)
1.18
(29.97)
1.29
(32.94)
1.23
(31.37)
For additional product information, visit www.cooperbussmann.com/magnum
Compliance
References
SPECIFICATIONS:
Rating: 40A, 600V
55A Factory Wired
Center Spacing: 0.390" (9.91 mm)
Number of Poles: 3
Circuits Per Foot: 28
Circuit Jumper: JN3, 2 circuits
Wire Range: AWG #8-22 CU
Screw Size: #8-32
Mounting Options: C-rail
Marking Tape: MT12-1-2
Torque Rating: 18 lb-in
Operating Temperature: 105°C
Agency Information: UL File E62622, CSA File 47235
Power Distribution
Blocks
SPECIFICATIONS:
Rating: 40A, 600V;
55A Factory Wired
Center Spacing: 0.281" (7.13mm)
Number of Poles: 2
Circuits Per Foot: 38
Circuit Jumper: JN2, 2 circuits
Wire Range: AWG #8-22 CU
Screw Size: #8-32
Mounting Options: C-rail
Marking Tape: MT12-1-2
Torque Rating: 18 lb-in
Operating Temperature: 105°C
Agency Information: UL File E62622, CSA File 15364
EuroMag Series
SPECIFICATIONS:
Rating: 5A, 600V; 20A, 300V
Center Spacing: 0.197" (5.00mm)
Number of Poles: 12
Circuits Per Foot: 60
Circuit Jumper: JN512, 12 circuits
Wire Range: AWG #12-22 CU
Screw Size: #4-48
Mounting Options: C-rail, 15mm DIN rail
Marking Tape: AT512
Torque Rating: 12 lb-in
Operating Temperature: 105°C
Agency Information: CSA File 15364
119
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Compliance
References
Edge Connectors,
One-Sided Boards
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
Rail Mount Terminal Blocks and Accessories
Rail & Base Mount Terminal Blocks
NC3
SPECIFICATIONS:
Rating: 175A, 600V
Center Spacing: 1.06" (26.92mm)
Number of Poles: 3
Circuits Per Foot: 11
Wire Range: 2/0-#14 CU/AL
Screw Size: 5/16-24
Mounting Options: C-rail, Base Mount
Marking Tape: MT12-1-2
Torque Rating: 45 lb-in
Operating Temperature: 105°C
Agency Information: UL File E62622, CSA File 15364
Dimensions - in (mm)
3.12
(79.38)
1.75
(44.45)
1.75
(44.45)
1.25
(31.75)
0.250 x 0.190"
mtg. slots
NSE3
SPECIFICATIONS:
Rating: 115A, 600V
Center Spacing: 1.06" (26.92mm)
Number of Poles: 3
Circuits Per Foot: 11
Circuit Jumper: JNSE3, 2 circuits
Wire Range: For use with wire crimped to ring terminal
Screw Size: #1/4-28
Mounting Options: C-rail, Base Mount
Marking Tape: MT12-1-2
Torque Rating: 32 lb-in
Operating Temperature: 105°C
Agency Information: UL File E62622, CSA File 15364
Dimensions - in (mm)
1.25
(31.75)
0.250 x 0.190
mtg. slots
1.75
(44.45)
1.53
(38.86)
3.12
(79.24)
NSS3
SPECIFICATIONS:
Rating: 30A, 600V
Center Spacing: 0.385" (9.77mm)
Number of Poles: 3
Circuits Per Foot: 28
Circuit Jumper: JNSS3, 2 circuits
Wire Range: For use with wire crimped to ring terminal
Screw Size: #6-32
Mounting Options: C-rail
Marking Tape: MT12-1-2
Torque Rating: 12 lb-in
Operating Temperature: 105°C
Agency Information: UL File E62622, CSA File 15364
120
1.24
(31.50)
1.25
(31.75)
1.32
(33.73)
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Deplugable Rail Mount Terminal Blocks
Terminal Blocks:
Single & Double Row
Depluggable Rail Mount Terminal Blocks
PLU3
Dimensions - in (mm)
1.25
(31.75)
0.59
(14.98)
1.25
(31.75)
1.79
(45.64)
1.25
(31.75)
1.85
(46.99)
Terminal Blocks:
Base & Rail Mount
PLU1 Series
Dimensions - in (mm)
1.85
(46.99)
1.48
(37.59)
1.87
(47.49)
Power Distribution
Blocks
1.25
(31.75)
PSU1 Series
Dimensions - in (mm)
1.93
(49.12)
1.48
(37.64)
0.625
(15.88)
0.43
(11.10)
For additional product information, visit www.cooperbussmann.com/magnum
1.30
(33.00)
Compliance
References
2.44
(62.10)
Edge Connectors,
One-Sided Boards
SPECIFICATIONS:
Rating: 45A*, 600V
*45A rating achieved with ring terminal crimped to wire.
Center Spacing: 0.625" (15.88 mm)
Number of Poles: 1-3
Part Number:
• PSU1 (1-pole)
• PSU11 (2-pole)
• PSU111 (3-pole)
Circuits Per Foot: 19
Wire Range: For use with crimp on connectors only.
Screw Size: #10-32
Mounting Options: C-rail, Stackable
Marking Tape: MT12-1-2
Torque Rating: 24 lb-in
Operating Temperature: 105°C
Agency Information: UL File E62622, CSA File 15364
Wire Management
Products
SPECIFICATIONS:
Rating: 70A, 600V
Center Spacing: 0.625" (15.88mm)
Number of Poles: 1-3
Part Numbers:
• PLU1 (1-pole)
• PLU11 (2-pole)
• PLU111 (3-pole)
Circuits Per Foot: 19
Circuit Jumper: JN1, 2 circuits
Wire Range: AWG #4-18 CU
Screw Size: #1/4-28
Mounting Options: C-rail, Stackable
Marking Tape: MT12-1-2
Torque Rating: 32 lb-in
Operating Temperature: 105°C
Agency Information: UL File E62622, CSA File 15364
EuroMag Series
SPECIFICATIONS:
Rating: 40A, 600V
Center Spacing: 0.390" (9.91mm)
Number of Poles: 3
Circuits Per Foot: 28
Circuit Jumper: JN3, 2 circuits
Wire Range: AWG #8-22 CU
Screw Size: #8-32
Mounting Options: C-rail, Stackable
Marking Tape: MT12-1-2
Torque Rating: 18 lb-in
Operating Temperature: 105°C
Agency Information: UL File E62622, CSA File 15364
121
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Fuse Holding Rail Mount Terminal Blocks
NDNF1
SPECIFICATIONS:
Rating: 30A, 600V; UL/CSA
Number Of Poles: 1
Fuse Size: 13/32" x 1-1/2"
Circuit Jumper: JF1, 2 Circuits
Wire Range: AWG #8-22 CU
Mounting Options: 35mm DIN rail, C-rail
Fuse Pullers: • PF1 (standard)
• neon or incandescent bulb
*LPF1 (lighted neon or incandescent bulb).
Torque Rating: 18 lb-in
Operating Temperature: 105°C
Agency Information: CSA File 15364
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
Rail Mount Fuse Holding Terminal Blocks
PF1
Fuse Puller
Dimensions - in (mm)
1.93
(49.02)
0.62
(15.74)
0.46
(11.68)
2.00
(50.80)
1.25
(31.75)
LPF1
Lighted Fuse Puller
*Visual indicator for open fuse is neon or incandescent bulb, depending on voltage. Specify voltage required.
NDND1 non-fused terminal block enables isolation of individual circuits for testing
NDNLFD1 fused terminal block with visual indicator* for open fuse
SPECIFICATIONS:
Ratings: NDND1: 30A, 600V
NDNFD1: 15A, 600V
NDNLFD1: 15A, 600V
Number of Poles: 1
Fuse size: 1/4" x 1-1/4"
Circuit Jumper: JF1, 2 circuits
Wire Range: AWG #8-22 CU
Mounting Options: 35mm DIN rail, C-rail
Marking Tape: MT12-1-2
Torque Rating: 18 lb-in
Operating Temperature: 105°C
Agency Information: CSA File 15364
Dimensions - in (mm)
2.31
(58.67)
1.25
(31.75)
2.06
(52.32)
Compliance
References
Edge Connectors,
One-Sided Boards
Wire Management
Products
NDNFD1 fused terminal block
0.62
(15.74)
2.68
(68.07)
*Visual indicator for open fuse is neon or incandescent bulb, depending on voltage. Specify voltage required.
122
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Quick Connect Terminal Blocks
Terminal Blocks:
Single & Double Row
Quick Connect Terminal Blocks
NTQ23
Dimensions - in (mm)
1.31
(33.32)
1.25
(31.75)
1.25
(31.75)
1.25
(31.75)
Terminal Blocks:
Base & Rail Mount
BNQ21
Dimensions - in (mm)
#BQE
(end mtg. adaptor)
#8 mtg.
screw
0.56
(14.28)
1.47
(37.33)
1.41
(35.81)
B
A
B
Wire Management
Products
A
BQE
End Mounting
Adapter Required
(N+2) x 0.437
(N+1) x 0.437
N = Number of circuits
BQQ41
Dimensions - in (mm)
#BQE
(end mtg. adaptor)
#8 mtg.
screw
0.56
(14.28)
1.47
(37.33)
B
A
BQE
End Mounting Adapter Required
Compliance
References
1.41
(35.81)
A
B
(N+2) x 0.437
(N+1) x 0.437
N = Number of circuits
For additional product information, visit www.cooperbussmann.com/magnum
Edge Connectors,
One-Sided Boards
SPECIFICATIONS:
Rating: 30A, 600V
Center Spacing: 0.437" (11.10mm)
Number of Poles: 1
Circuits Per Foot: 24
Wire Range: For use with quick
connect terminals only.
Quick Connects: 0.250" x 0.031"
Mounting Options: Base Mount,
Stackable; End Piece (Part No. BQE)
is required for mounting. Mounting
screws recommended every 8 circuits.
Operating Temperature: 105°C
Agency Information: UL File E62622,
CSA File 15364
Power Distribution
Blocks
SPECIFICATIONS:
Rating: 40A, 600V
Center Spacing: 0.437" (11.10mm)
Number of Poles: 1
Circuits Per Foot: 24
Wire Range: AWG #8-22 CU
Screw Size: #8-32
Quick Connects: 0.250" x 0.031"
Mounting Options: Base Mount
Stackable; End Piece (Part No. BQE)
is required for mounting. Mounting
screws recommended every 8 circuits.
Torque Rating: 18 lb-in
Operating Temperature: 105°C
Screw Size: #8-32
Agency Information: UL File E62622,
CSA File 15364
EuroMag Series
SPECIFICATIONS:
Rating: 40A, 600V
Center Spacing: 0.390" (9.91mm)
Number of Poles: 3
Circuits Per Foot: 28
Wire Range: AWG #8-22 CU
Screw Size: #8-32
Quick Connects: 0.250” x 0.031”
Mounting Options: C-rail
Marking Tape: MT12-1-2
Torque Rating: 18 lb-in
Operating Temperature: 105°C
123
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Base Mount Terminal Blocks
EuroMag Series
Terminal Blocks:
Single & Double Row
Base Mount Terminal Blocks
KT3
SPECIFICATIONS:
Rating: 40A, 600V
Center Spacing: 0.390" (9.91mm)
Number of Poles: 3
Circuits Per Foot: 28
Circuit Jumper: JN3, 2 circuits
Wire Range: AWG #8-22 CU
Screw Size: #8-32
Mounting Options: Base Mount, Stackable
Marking Tape: MT12-1-2
Torque Rating: 18 lb-in
Operating Temperature: 105°C
Agency Information: UL File
KAD
End Mount Adapter Required
E62622, CSA File 15364
Compliance
References
Edge Connectors,
One-Sided Boards
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
KT3-A01 includes KAD
Dimensions - in (mm)
1.87
(47.63)
1.25
(31.75)
0.25
(6.35)
1.22
(31.04)
#8 screw clearance
KAD
end mtg.
adapter
1.25
(31.75)
1.25
(31.75)
2.34
(59.51)
KT4
SPECIFICATIONS:
Rating: 30A, 600V
Center Spacing: 0.25" (6.35mm)
Number of Poles: 4
Part Number:
•KT4-WH-A
•KT4-WH-B
Dimensions - in (mm)
0.98
(24.99)
0.62
(15.88)
0.37
(9.40)
1.26
(32.23)
Note: When used in series must order A and B
Circuits Per Foot: 48
Circuit Jumper: JN4, 4 circuits
Wire Range: AWG #10-22 CU
Screw Size: #6-32
Mounting Options: Base Mount
Mounting screws recommended every 12 circuits
Marking Tape: MTC6
Torque Rating: 18 lb-in
Operating Temperature: 105°C
Agency Information: UL File E62622, CSA File 15364
1.34
(34.04)
PLK3
SPECIFICATIONS:
Rating: 40A, 600V
Center Spacing: 0.39" (9.91mm)
Number of Poles: 3
Circuits Per Foot: 28
Circuit Jumper: JN3, 2 circuits
Wire Range: AWG #8-22 CU
Screw Size: #8-32
Mounting Options: Base Mount,
Stackable; End Piece (Part No. KAD)
is required for mounting. Mounting
screws recommended every 15 circuits.
Marking Tape: MT12-1-2
Torque Rating: 18 lb-in
Operating Temperature: 105°C
Agency Information: UL File E62622
124
Dimensions - in (mm)
1.46
(37.22)
0.56
(14.22)
1.79
(45.52)
1.84
(46.86)
KAD
End Mount Adapter Required
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Disconnect Terminal Blocks
Terminal Blocks:
Single & Double Row
Series 15188
Disconnect Terminal Blocks for 35mm DIN Rail Mount
EuroMag Series
SPECIFICATIONS
Rating: 30A, 600V*
Center Spacing: 0.375” (9.52mm)
Wire Range: #12-16 AGW CU
Screw Size: #6-32 zinc-plated philslot
Number of Poles: 3- and 4-pole only
Mounting: 35mm DIN Rail
Optional End Stop NDNAS
Jumpers: 2- through 4-pole available
Materials: Molded Base: UL rated 94V-2 thermoplastic.
Tin plated copper alloy contacts.
Torque Rating: 12 lb-in
Operating Temperature: 105°C
Agency Information: UL File E62622, CSA File 47235
Terminal Blocks:
Base & Rail Mount
* 30A rating achieved with #10AWG wire crimped to ring terminal; 25A without.
REVERSE WIRING DIRECTION
3 Pole = 1.19 (30.22)
4 Pole = 1.56 (39.62)
IN-LINE WIRING DIRECTION
3 Pole = 1.19 (30.22)
4 Pole = 1.56 (39.62)
0.375
(9.52)
1.94
(49.27)
Edge Connectors,
One-Sided Boards
Part Numbering System
Series
–
Poles
Wiring
3 to 4
blank - inline
R - reverse
S - locking snap
For additional product information, visit www.cooperbussmann.com/magnum
Compliance
References
1
5
1
8
8
Wire Management
Products
1.94
(49.27)
0.22
(5.58)
Power Distribution
Blocks
Dimensions - in (mm)
125
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
Disconnect Terminal Blocks
15288 Series
Disconnect Terminal Blocks
for DIN Rail Mount
15288-R-STSS
SPECIFICATIONS
Rating: 65A, 600V*
Center Spacing: 0.54” (13.7mm)
Wire Range: #6-16 AWG
Screw Size: #8-32 zinc-plated philslot
Number of Poles: 3-pole only
Mounting: 35mm DIN Rail
Optional Accessories: Optional End Stop NDNAS
(order optional accessories seperately)
Materials: Molded Base: UL rated 94V2 thermoplastic.
Tin-plated copper alloy contacts.
Torque Rating: 20 lb-in (30 lb-in for 8AWG bare wire)
Operating Temperature: 105°C (221°F)
Agency Information: UL File E62622
*CSA rating achieved with #6AWG wire crimped to ring terminal 50A without.
15288-S
Dimensions - in (mm)
1.70
(43.2)
2.30
(58.4)
for ST option
0.54
(13.7)
REVERSE WIRING DIRECTION
Power Distribution
Blocks
1.94
(49.27)
Compliance
References
Edge Connectors,
One-Sided Boards
Wire Management
Products
1.70
(43.2)
INLINE WIRING DIRECTION
1.94
(49.27)
Part Numbering System
Series
Wiring
Options
1
5
2
8
8
blank - inline
R - reverse
S - snap
ST - screw together
SS - solid DIN rail snap
126
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Base Mount Double Row Terminal Blocks
Series KU
Base Mount Double Row Terminal Blocks
Terminal Blocks:
Single & Double Row
SPECIFICATIONS
Rating: 60A, 600V*
Center Spacing: 0.625” (15.88mm)
Number of Poles: 2- to 12-poles
Wire Range: #6-22 AWG CU
Screw Size: #10-32
Torque Rating: 20 lb-in.
Distance Between Barriers: 0.437” (11.09mm)
Mounting: Base mount
Material: Molded base: Black, UL rated 94V1 Nuclear Grade
Noryl
Terminal plating: Nickel over brass
Operating Temperature: 105°C max.
Agency Information: UL File E62622, CSA File 47235
KUXSC Series
EuroMag Series
KUX Series
Dimensions - in (mm)
* 60A rating achieved with #6 copper wire crimped to ring terminal.
B
Poles
A
B
KUX only
A
02
03
04
05
06
07
08
09
10
11
12
2.50
3.12
3.75
4.37
5.00
5.62
6.25
6.87
7.50
8.12
8.75
1.62
2.25
2.87
3.50
4.12
4.75
5.37
6.00
6.62
7.25
7.87
2.00
2.62
3.25
3.87
4.50
5.12
5.75
6.37
7.00
7.62
8.25
0.62
(15.9)
1.50
(38.1)
2.00
(50.8)
#10 screw
clearance
1.25
(31.8)
0.43
(11.1)
Power Distribution
Blocks
0.50
(12.7)
* Dimensions in inches. To convert to millimeters, multiply by 25.4.
A
Part Numbering System
Series
Poles
KU
KUX
KURL
KUXRL
-
standard block
02 to 12
short block
standard w/removable link
short block w/removable link
Covers
Marking Strip
WC - top cover &
2 end plates
MT
NU
WC - top cover &
2 end plates
PT
- screws shipped bulk
- brass washer head,
nickel-plated
P
- steel screw w/pressure plate
zinc-plated
B - brass washer head, no plating
BP - brass philslot, nickel-plated
- matte finish - white
- numbered 1 to 12,
horizontal
NUV - numbered 1 to 12,
vertical
PT - marker strip for cover
Part Numbering System - SC Series
KUSC
- standard w/shortring strap
& 4 shorting screws
KUXSC - short block w/shorting strap
& 4 shorting screws
02 to 12
00
W
- screws shipped bulk
- brass washer head,
nickel-plated
P
- steel screw w/pressure plate
zinc-plated
B - brass washer head, no plating
BP - brass philslot, nickel-plated
- marker strip for cover
Edge Connectors,
One-Sided Boards
00
W
Wire Management
Products
K
U Screw Options
Terminal Blocks:
Base & Rail Mount
KU
Accessories
Compliance
References
MTMU##
Molded Marking Tape - Matte Finish
NUM##
Molded Marking Tape
JU12
Jumper - 12 Circuits
NUE
End Piece for NUC
For additional product information, visit www.cooperbussmann.com/magnum
NUC##
Cover
127
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
EuroMag Series
Terminal Blocks:
Single & Double Row
Quick-Connect Power Distribution Blocks
Series 11675
Quick-Connect Power Distribution Blocks
SPECIFICATIONS
Rating: 40A, 250V
Poles: 2- to 6-poles with (3) 0.25" quick-connect terminals
per pole
Wire Range: #8-14 AWG CU
Torque Rating: 18 lb-in.
Operating Temperature: 150°C
Design: Screw connections for field wiring. Quick connects
reduce cost of internal wiring.
Agency Information: UL File E62622, CSA File 47235
Edge Connectors,
One-Sided Boards
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
Part
Number
11675-2
11675-3
11675-4
11675-5
11675-6
Dimensions - in (mm)
0.20
(5.1)
0.56
(14.2)
B
0.20 (5.08) I.D.
eyelets
0.50
(12.7)
0.20 (5.1)
dia. holes
A
2.09
2.66
3.22
3.78
4.34
B
1.68
2.25
2.81
3.37
3.93
C
0.56
1.12
1.68
2.25
2.81
1.37
(34.79)
D
1.15
1.71
2.28
2.84
3.40
0.76
(19.3)
C
0.46
(11.7)
A
D
0.37
(9.4)
0.43
(11.0)
1.03
(26.1)
* Dimensions in inches. To convert to millimeters, multiply by 25.4.
Series 11725
Quick-Connect Power Distribution Blocks
SPECIFICATIONS
Rating: 70A, 600V
Poles: 2-, 3- or 4-poles with (4) 0.25" quick-connect
terminals per pole
Wire Range: #2-14 AWG CU / #2-8 AWG AL
Torque Rating: 45 lb-in.
Operating Temperature: 150°C
Design: Screw connections for field wiring. Quick connects
reduce cost of internal wiring.
Agency Information: UL File E62622, CSA File 47235
Part
Number
A
B
C
D
11725-2
11725-3
11725-4
2.50
3.18
3.87
2.06
2.75
3.43
0.68
1.37
2.06
1.37
2.06
2.75
Dimensions - in (mm)
0.21
(5.3)
0.68
(17.3)
Compliance
References
0.19 (5.0) I.D.
eyelets
0.62
(15.7)
0.19 (5.0)
dia. holes
1.84
(46.7)
0.90
(22.9)
C
0.56
(14.2)
A
D
* Dimensions in inches. To convert to millimeters, multiply by 25.4.
128
B
0.59
(15.0)
0.43
(10.9)
1.12
(28.4)
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Barrier Terminal Blocks
Dead Front Terminal Blocks
Terminal Blocks:
Single & Double Row
Series 14002
Barrier Terminal Blocks
A
B
14002-2
14002-3
14002-4
14002-5
14002-6
1.75
2.37
3.34
3.96
4.59
–
–
1.59
2.21
2.84
1.25
(31.8)
1.50
(38.1)
0.96
(24.38)
Terminal Blocks:
Base & Rail Mount
Part
Number
0.75
(19.1)
EuroMag Series
SPECIFICATIONS
Rating: 115A, 600V
Poles: 2- to 6-poles
Wire Range: #2-14 AWG CU / #2-8 AWG AL
Torque Rating: 2-3, 50 lb-in; 4-6, 45 lb-in; 8, 40 lb-in; 10-14,
35 lb-in.
Operating Temperature: 150°C
Dimensions - in (mm)
Marking: Marking strip optional, consult factory.
Options: CP = pressure plate, rated 60A, 600V
A
0.87
Q = quick-connect, rated 50A, 600V
B
(22.1)
To order enter letter code in front of part number: ie;
CP14002-2
Agency Information: UL File E62622, CSA File 47235
0.37
(9.4)
0.62
(15.74)
0.39
(9.90)
A*
0.17 (4.3) dia. holes
with .34 (8.6) dia. x
0.75 (19.1) deep c'bore
Power Distribution
Blocks
* Dimensions in inches. To convert to millimeters, multiply by 25.4.
Note: “A” dimension for 14002-2 & 14002-3 only. (14002-2 &
14002-3 have only two mounting holes.)
Series 14004
Dead Front Terminal Blocks
B
14004-2
14004-3
14004-4
14004-5
14004-6
14004-7
14004-8
14004-9
14004-10
14004-11
14004-12
1.81
2.31
2.81
3.31
3.81
4.31
4.81
5.31
5.81
6.31
6.81
1.43
1.93
2.43
2.93
3.43
3.93
4.43
4.93
5.43
5.93
6.43
Dimensions - in (mm)
0.65
(16.5)
0.50
(12.7)
0.21 (5.3)
dia. holes
1.50
(38.1)
0.50
(12.7)
0.18
(4.8)
B
0.75
(19.1)
Compliance
References
A
Edge Connectors,
One-Sided Boards
Part
Number
Wire Management
Products
SPECIFICATIONS
Rating: 90A, 600V
Poles: 2- to 12-poles
Wire Range: #4-14 AWG CU / #4-8 AWG AL
Torque Rating: Cu AWG AL AWG Lb-in
4-6
4-6
35
8
8
25
10-14
10-12
20
16-18*
–
20
*Solid conductor only
Operating Temperature: 75°C
Marking: Marking strip optional, consult factory.
Agency Information: UL File E62622, CSA File 47235
1.12
(28.4)
A
* Dimensions in inches. To convert to millimeters, multiply by 25.4.
For additional product information, visit www.cooperbussmann.com/magnum
129
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
Splicer Terminal Blocks
Series 160, 162, 163 & 165
Splicer Terminal Blocks
SPECIFICATIONS
Rating: To 620A, 600V; UL/CSA. See table.
Materials: Molded material: Black,
UL rated 94V0 thermoplastic
Operating Temperature: 150°C
Marking: Marker strip is optional, consult factory.
Agency Information: UL 221592; General Industrial Class
per UL 1059; CSA LR053787; CE Certified
Covers: See page 134
Connector
Material &
Agency
Ampacity Approvals
Part
Number
Line
Connection
Load
Connection
*16000
*16003
*16005
16200
16201
16204
16301
16303
16306
16500
16504
2/0-#8CU-AL
250k cmil-#6CU only
350k cmil-#6CU/AL
#2-#14CU, #2-#8AL
1/0-#14CU Only
2/0-#8CU-AL
250cmil-#6CU Only
350cmil-#6CU/AL
500cmil-#6CU/AL
(2)
350cmil-#4CU/AL
(2)
500Mcmil-#6CU/AL
2/0-#8CU-AL
250k cmil-#6CU only
350k cmil-#6CU/AL
#2-#14CU, #2-#8AL
1/0-#14CU Only
2/0-#8CU-AL
250cmil-#6CU Only
350cmil-#6CU/AL
500cmil-#6CU/AL
((2)
350cmil-#4CU/AL
(2)
500Mcmil-#6CU/AL
AL-175A
CU-255A
AL-310A
AL-115A
CU-150A
AL-175A
CU-255A
AL-310A
AL-380A
AL-620A
AL-760A
UL
–
–
UL
UL
–
UL/CSA
UL/CSA
UL/CSA
UL/CSA
UL/CSA
UL/CSA
UL/CSA
UL/CSA
* 160 Series Bases have mounting holes outside the barriers. Other bases (162 through 165)
have mounting holes within barriers. See dimensional drawings.
(2)
Openings per pole.
No. of
Poles
A
B
2
3
4
4.12
5.37
6.62
3.62
4.87
6.12
Dimensions - in
A
0.37
2.00
1.00
2.75
1.37
B
0.50
2.06
0.68
Series
A
B
C
1-pole
C
2-pole
C
3-pole
162
163
165
2.87
4.00
5.50
2.25
3.37
4.75
1.06
1.98
3.12
1.87
3.60
5.81
2.68
5.21
8.50
G
Series
D
E
F
G
H
J
162
163
165
1.75
3.32
3.12
0.81
1.62
2.68
0.53
0.97
1.56
0.31
0.31
0.37
0.84
0.87
1.37
0.31
0.35
0.62
Dimensions - in
A
B
D
A
H
G
D
B
H
F
F
E
E
C
C
E
Compliance
References
0.21 x 0.37 slots
0.26 dia.
holes
Dimensions - in
Edge Connectors,
One-Sided Boards
160 Series only
0.20 dia. hole w/ 0.40 dia. c'bore
162 Series
130
E
J
J
MTG. HOLES 0.21 x 0.41
C'BORE 0.42 x 0.62 x 0.12 DEEP
163 Series
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Power Distribution Blocks- Series PDBFS
Mechanical
• DIN rail or panel mount; PDBFS330 & PDBFS504 panel
mount only
• Captive termination screws; screws do not get misplaced
• Wire ready: captive termination screws shipped backed out
to save time on conductor installations
• Sliding DIN rail latch for easy mounting
• Single pole, gang mountable for multiple pole applications
with interlocking dovetail accessory (optional)
• Flammability, UL 94V0
• Tin-plated AL connectors suitable for CU conductors
• Elongated hole for panel mounting; easier mounting with
greater flexibility in matching up with drilled panel holes
• Part 2A1279: Interlocking dovetail pin accessory
One pin interlocks two units, two pins to interlock three units
• DIN rail end anchors required to prevent damage to block
when torquing
Terminal Copper Conductor Capability
Line
Load
Configuration
Catalog
Number
(All Single
Pole)
Openings per Pole
Amps
Wire Range
Wire Range
Line
Load
Short-Circuit Current Rating Data
Conductors
Max Fuse Class & Amp**
T
RK1
RK5
AWG or
kcmil
AWG or
kcmil
LPJ
JJS
JJN
LPS-RK
LPN-RK
FRS-R
FRN-R
2/0 - 8
200
200
100
60
200kA
4 - 12
200 200
175† 175†
200† 200†
100†
100†
100†
60†
60†
60†
200kA
100kA
50kA
350 - 6
400
400
200
100
200kA
2-6
4-8
4
4 - 14
400
200†
175†
600
600†
200†
400
200†
175†
600
600†
200†
200†
100†
100†
400†
400†
100†
100†
30†
30†
200†
200†
30†
200kA
50kA
100kA
200kA
50kA
50kA
350
350
600
600
400
200
200kA
350 - 4
350 - 4
600
800
600
200
100kA
500
500
500 - 6
500 - 6
600
600
600
800*
800*
600
600
600
400
400
600
200
200kA
100kA
100kA
PDBFS204
175A
2/0 - 8 AWG
70 - 10 mm2
2/0 - 8 AWG
70 - 10 mm2
2/0 - 8
PDBFS220
175A
2/0 - 8 AWG
70 - 10 mm2
4 - 14 AWG
25 - 2.5 mm2
2/0 - 8
PDBFS303
310A
350kcmil - 6 AWG 350kcmil - 6 AWG
150 - 16 mm2
150 - 16 mm2
350 - 6
PDBFS330
380A
500kcmil - 6 AWG
240 - 16 mm2
2 - 14 AWG
35 - 2.5 mm2
500 - 6
PDBFS377
570A
300kcmil - 4 AWG
150 - 12 mm2
4 - 14 AWG
25 - 2.5 mm2
PDBFS500
620A
350kcmil - 4 AWG 350kcmil - 4 AWG
185 - 12 mm2
185 - 12 mm2
PDBFS504
760A 500kcmil - 6 AWG 500kcmil - 6 AWG
240 - 16 mm2
240 - 16 mm2
300
300 - 4
4 - 14
2 - 14
SCCR
Ampacities 75C per NEC® Table 310.16 and UL508A Table 28.1
*Class L 800A (KRP-C 800_SP) or less fuses suitable for this particular SCCR case.
** Class G 60A (SC-60) or less or Class CC 30A (LP-CC-30, FNQ-R-30, KTK-R-30) or less are suitable for all these SCCRs in this table.
† Higher SCCR may be available, check latest datasheet 1149.
For additional product information, visit www.cooperbussmann.com/magnum
Compliance
References
J
Edge Connectors,
One-Sided Boards
Load
Wire Management
Products
Line
Power Distribution
Blocks
Series PDBFS
Terminal Blocks:
Base & Rail Mount
Agency/Standards
• UL Listed 1953, Guide QPQS, File E256146
• CSA Certified, Class 6228-01, File 15364
• CE component IEC 60947-7-1
• IEC 60529, IP-20 (Finger Safe) under specific wiring
conditions
Electrical
• 600Vac or dc (UL 1953), 690Vac or dc (IEC)
• IP-20 Finger Safe under specific conditions
• Short-Circuit Current Ratings up to 200,000kA, see table
• Ampacities up to 760 Amps
• CU Wire range 14 AWG to 500 kcmil or 2.5 to 240 mm2
EuroMag Series
Feature/Benefits
• Enclosed, safer
installation; IP-20
finger-safe under specific
conditions
• High Short-Circuit Current
Ratings up to 200,000A:
PDBs do not have to be
the weak link in achieving
high SCCR for an
industrial control panel
• Small footprint saves
panel space
• Listed to UL1953 which has minimum spacing
requirements at 600V of at least 1” through air and 2” over
surface required for feeders in UL UL508A Industrial
Control Panels
• For 2D CAD drawings visit www.cooperbussmann.com
Terminal Blocks:
Single & Double Row
Series PDBFS
Power Distribution Blocks
131
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Edge Connectors,
One-Sided Boards
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
Power Distribution Blocks
Series 160, 162, 163 & 165
Power Distribution Blocks
SPECIFICATIONS
Rating: To 840A, 600V; UL/CSA. See table.
Materials: Molded material: Black,
UL rated 94V0 thermoplastic
Operating Temperature: 150°C
Marking: Marker strip is optional, consult factory.
Agency Information: UL 221592; General Industrial Class per
UL 1059; CSA LR053787; CE Certified
Covers: See page 134
Part
Number
Line
Connection
*16021
*16023
16220
16321
16323
16325
16330
16332
2/0-#14CU,2/0-#8AL
350kcmil-#6CU/AL
2/0-#14CU, 2/0-#8AL
2/0-#14CU, 2/0-#8AL
350kcmil-#6CU/AL
(2)
2/0-#14CU, 2/0-#8AL
500kcmil-#6CU/AL
350kcmil-#6CU/AL
16335 500kcmil-#6CU/AL
16370 350kcmil-#6CU/AL
16371 350kcmil-#6CU/AL
16372 350kcmil-#6CU/AL
16373 350kcmil-#6CU/AL
16375 600kcmil-#2CU/AL
16376 600cmil-#2CU/AL
16377
16528
(2)
16530
(2)
(2)
Connector
Agency
Material &
Ampacity Approvals
Load
Connection
300kcmil-#4CU/AL
600kcmil-#2CU/AL
500kcmil-#6CU/AL
#4-14CU, #4-#8AL
(6)
#4-14CU, #4-#12AL
(4)
#4-14CU, #4-#8AL
(6)
#4-14CU, #4-#8AL
(6)
#4-14CU, #4-#12AL
(6)
#4-14CU, #4-#8AL
(6)
#2-#14CU, #2-#12AL
(3)
#2-#14CU,#2-#8AL
(2)
1/0-#14CU, 1/0-#8AL
(3)
#2-#14CU, #2-#8AL
(2)
1/0-#14CU, 1/0-#8AL
(12)
#4-#14CU, #4-#12AL
(6)
#2-#14CU, #2-#8AL
(3)
1/0-#14CU, 1/0-#8AL
(21)
#10-#14CU, #10AL
(3)
1/0-#14CU/AL
(14)
#10-#14CU, #10AL
(12)
#4-#14CU, #4-#12AL
(6)
#2-#14CU, #2-8AL
(3)
#1/0-#14CU, 1/0-#8AL
(12)
#4-#14CU, #4-#12AL
(4)
3/0-#6CU/AL
(4)
#4-#14CU/AL
(12)
#4-#14CU/AL
(6)
AL-175A
AL-310A
AL-175A
AL-175A
AL-310A
AL-350A
AL-380A
AL-310A
UL/CSA
UL/CSA
UL/CSA
UL/CSA
UL/CSA
UL/CSA
UL/CSA
UL/CSA
AL-380A
AL-310A
AL-310A
UL/CSA
UL/CSA
UL/CSA
UL/CSA
AL-310A
AL-310A
UL/CSA
UL/CSA
AL-420A
AL-420A
UL/CSA
UL/CSA
AL-570A
AL-840A
UL/CSA
UL/CSA
AL-760A
UL/CSA
160 Series only
No. of
Poles
A
B
2
3
4
4.12
5.37
6.62
3.62
4.87
6.12
A
0.21 x 0.37
slots
0.37
2.00
1.00
2.75
1.37
B
0.26 dia.
holes
0.50
2.06
* 160 Series Bases have mounting holes outside the barriers. Other bases (162 through 165)
have mounting holes within barriers. See dimensional drawings.
()
Openings per pole.
Series
A
B
C
1-pole
C
2-pole
C
3-pole
162
163
165
2.87
4.00
5.50
2.25
3.37
4.75
1.06
1.98
3.12
1.87
3.60
5.81
2.68
5.21
8.50
0.68
Series
D
E
F
G
H
J
162
163
165
1.75
3.32
3.12
0.81
1.62
2.68
0.53
0.97
1.56
0.31
0.31
0.37
0.84
0.87
1.37
0.31
0.35
0.62
A
G
A
B
D
B
G
D
H
F
F
E
E
C
Compliance
References
C
E
E
J
0.20 dia. hole w/ 0.40 dia. c'bore J
132
MTG. HOLES 0.21 x 0.41
C'BORE 0.42 x 0.62 x 0.12 DEEP
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Connector/Stud Power Distribution Blocks
Terminal Blocks:
Single & Double Row
Series 162, 163 & 165
Connector/Stud Power Distribution Blocks
Part
Number
Connector
Material &
Ampacity
1/4-20x3/4 Stud
1/4-20 Tapped hole
(2)
1/4-20x1 Stud
(1)
3/8-16x1 Stud
(2)
3/8-16x15/8 Stud
AL-175A
AL-175A
AL-380A
AL-380A
AL-760A
UL
UL
UL/CSA
UL/CSA
UL/CSA
1/4-20x3⁄4 Stud
3/8-16x11/8 Stud
1/2-13x11/16 Stud
(2)
1/4-20x 9/16 Stud
(2)
3/8-16x17/16 Stud
1/2-13x1 Stud
Cu-175A
CU-250A
CU-400A
CU-310A
CU-400A
CU-600A
UL
UL/CSA
UL/CSA
UL/CSA
UL/CSA
UL/CSA
Agency
Approvals
Terminal Blocks:
Base & Rail Mount
Connector to Stud
16280
2/0-#14CU/AL
16281
2/0-#14CU/AL
16378
500kcmil-#6CU/AL
16383
500kcmil-#6CU/AL
(2)
500lcmil-#6CU/AL
16582
Stud to Stud
1/4-20x3⁄4 Stud
16290
3/8-16x11/8 Stud
16390
1/2-13x11/16 Stud
16394
3/8-16x17/16 Stud
16395
3/8-16x17/16 Stud
16591
1/2-13x1 Stud
16593
()
Load
Connection
Line
Connection
EuroMag Series
SPECIFICATIONS
Rating: To 760A, 600V; UL/CSA. See table.
Materials: Molded material: Black, UL rated 94V0 thermoplastic
Operating Temperature: 150°C
Marking: Marker strip is optional, consult factory.
Agency Information: UL 221592; General Industrial Class per UL
1059; CSA LR053787; CE Certified
Covers: See page 134
A
Openings per pole.
D
Power Distribution
Blocks
B
G
H
F
Series
A
B
C
1-pole
C
2-pole
C
3-pole
E
162
163
165
2.87
4.00
5.50
2.25
3.37
4.75
1.06
1.98
3.10
1.87
3.60
5.79
2.68
5.21
8.48
Series
D
E
F
G
H
J
162
163
165
1.75
3.32
2.93
0.81
1.62
2.68
0.53
0.97
1.55
0.31
0.31
0.37
0.84
0.87
1.19
0.31
0.35
0.44
C
E
G
Wire Management
Products
J
MTG. HOLES 0.21 x 0.41
C'BORE 0.42 x 0.62 x 0.12 DEEP
A
B
D
H
Edge Connectors,
One-Sided Boards
F
E
C
E
For additional product information, visit www.cooperbussmann.com/magnum
J
Compliance
References
0.20 dia. hole w/ 0.40 dia. c'bore
133
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
Power Blocks
Series EN
Power Blocks
1.78" Centers
SPECIFICATIONS
Rating: 285A, 600V; UL/CSA
Wire Range: Line Connection: #300MCM-#4 CU/AL
Load Connection: (6) #6-14AWG CU
(6) #8-14 AWG AL
Material: Molded material; Black, UL rated
94V2 thermoplastic
Poles: 1-3
Operating Temperature: 125°C
Torque Rating: 200 lb-in. line terminal, 20 lb-in. load terminal
Agency Information: UL File E62622, CSA File 47235
Covers: Not available
Series
A
B
EN61- (1-pole)
EN62- (2-pole)
EN63- (3-pole)
1.38
3.15
4.93
1.78
3.62
5.37
Dimensions - in (mm)
1.68
(42.67)
A
0.50
(12.70)
0.20 x 0.37
mtg. slot
Power Distribution
Blocks
2.12
(53.84)
B
Part Numbering System
Series
C
P
B 160
162
165
1
2
3
4
-
One Pole Block (162, 165 Series only)
Two Pole Block
Three Pole Block
Four Pole Block (160 Series only)
SUPPLIED WITH
(4) #4 THREAD-CUTTING SCREWS
ASSEMBLED AS SHOWN
Covers (163 Series)
Part Numbering System
Series
Compliance
References
-
C
P
D
B
-
1 - One Pole Block
2 - Two Pole Block
3 - Three Pole Block
4.14
TEXTURED
SURFACE
Edge Connectors,
One-Sided Boards
Wire Management
Products
Covers (160, 162, 165 Series)
®
BUSS
CPDB
CPDB-1=2.10"
CPDB-2=3.72"
CPDB-3=5.34"
Clear with write on surface
134
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Wire Management Products
Terminal Blocks:
Single & Double Row
Photo Control Receptacle Series
Wire Management Products
EuroMag Series
3-pole, 3-wire receptacles for plug-in, locking type photo controls
used in outdoor areas and roadway lighting.
Receptacle configuration, terminals and limiting dimensions are in
accordance with Figure 3 of EE Pub. No. TDJ-146, NEMA Pub. No.
SH 16-1962 and UL 773.
Wire types and sizes ranging from #12 AWG through 16 AWG rated
at 600V with temperature ratings from 105° to 200°C.
Consult factory for other wire colors.
Hook-up wires are an integral part of the assembly with lengths
furnished to customer specification.
UL Recognized under file E65288 for a rating of 1kW or 1800VA for
potentials up to 480V.
CSA certified under file LR21295 for 15 amps at 125V.
CE Certified.
Terminal Blocks:
Base & Rail Mount
Dimensions - in
1.45
2.56 DIA.
0.55
A
0.08
BLACK (B)
B
Power Distribution
Blocks
1.37 DIA.
R
RED (R)
1.93
1.37 DIA.
0.96
COM
WHITE (COM)
Wire Management
Products
"Z" (WIRE
LENGTH
IN INCHES)
A
Part Numbering System
Series
-
Wire Type
Wire Gauge
Wire Length
W
W - wire
See Table I
See Table II
Dimension “Z”*
* Min 4"
TABLE I (Wire Type)
Ass’y No.
13661-W3XX
13661-W4XX
13661-W5XX
Min. of 26 Strands, Copper Conductor, 125°C-600V Crosslinked Polyethylene.
Min. of 26 Strands, Copper Conductor, Silicone Rubber Insulation and Fiber
Glass Braid Jacket, Nec. Type SFF-2(150°C)
Min. of 26 Strands, Copper Conductor, Type TW, 105°C-600V Insulation
(16 gauge only)
Min. of 7 Strands, Copper Conductor of 0.0192 Silicone Rubber Insulation and
Fiber Glass Braid Jacket, Nec. Type SF-2 (200°C)
Min of 19 Strands, Copper Conductor, Type AWM. 105°C-600V Insulation
Ass’y No.
Wire Gauge
13661-W2XX
13661-W4XX
13661-W6XX
12 Gauge
14 Gauge
16 Gauge
For additional product information, visit www.cooperbussmann.com/magnum
Compliance
References
13661-W1XX
13661-W2XX
Wire Description
TABLE II (Wire Gauge)
Edge Connectors,
One-Sided Boards
1
3
6
6
1
Terminal Type
135
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Stud Type Junction Blocks
Stud Type Junction Blocks
(Non-Feed Thru)
EuroMag Series
Terminal Blocks:
Single & Double Row
Series C4559 & C6083
SPECIFICATIONS
Rating: 30A, 600V
Operating Temperature: 250°F (120°C)
Standards: 2 to 16 steel studs with #10-24
threads on 0.750" centers and a “dog point”
to guide nut onto thread.
Torque Rating: 20 lb-in (25 lb-in).
Marking: Numbers and arrows molded on
top of barriers indicate terminals.
Agency Information: CSA File 15364
0.84"
(21.34)
Dimensions - in (mm)
1.05"
(26.67)
Terminal Blocks:
Base & Rail Mount
A
0.75"
(19.05)
1.12"
(28.45)
C
C4559
0.31"
(7.87)
Mtg. holes 9/32"x 3/8" slot
0.375"
(9.53)
0.375"
(9.53)
0.75"
(19.05)
B
0.84"
(21.34)
#10-32 zinc plated
steel studs
1.09"
(27.69)
0ther series available with 0.750" centers:
C6083
Power Distribution
Blocks
0.31"
(7.87)
(A,B,C Dimensions are the same as C4559)
B
2.25 (57.1)
3.00 (76.2)
3.75 (95.2)
4.50 (114.3)
5.25 (133.3)
6.00 (152.4)
6.75 (171.4)
7.50 (190.5)
8.25 (209.5)
9.00 (228.6)
9.75 (247.6)
10.50 (266.7)
11.25 (285.7)
12.00 (308.4)
12.75 (323.8)
C
0.75 (19.0)
1.50 (38.1)
2.25 (57.1)
3.00 (76.2)
3.75 (95.2)
4.50 (114.3)
5.25 (133.3)
6.00 (152.4)
6.75 (171.4)
7.50 (190.5)
8.25 (209.5)
9.00 (288.6)
9.75 (247.6)
10.50 (266.7)
11.25 (285.7)
Series C5237 & JB1032
SPECIFICATIONS
Rating: UL: 30A, 300V; CSA: 30A, 600V.
Operating Temperature: 250°F (120°C)
Standards: 1 to 15 brass studs on 0.625"
centers with #10-32 thread and a “dog
point” to guide nut onto thread.
Torque Rating: 20 lb-in (25 lb-in).
Marking: Numbers and arrows molded on
top of barriers indicate terminals.
Agency Information: CSA File 15364
Wire Management
Products
Edge Connectors,
One-Sided Boards
Part No.-Poles
A
C4559-2
3.00 (76.2)
C4559-3
3.75 (95.2)
C4559-4
4.50 (114.3)
C4559-5
5.25 (133.3)
C4559-6
6.00 (152.4)
C4559-7
6.75 (171.4)
C4559-8
7.50 (190.5)
C4559-9
8.25 (209.5)
C4559-10
9.00 (228.6)
C4559-11
9.75 (247.6)
C4559-12
10.50 (266.7)
C4559-13
11.25 (285.7)
C4559-14
12.00 (308.4)
C4559-15
12.75 (323.8)
C4559-16
13.50 (342.9)
0.81"
Dimensions - in (mm)
1.16"
A
1.0"
C
0.75"
0.375"
0.5"
0.625"
0.375"
B
Compliance
References
C5237
0.31"
Mtg. holes 9/32"X3/8" slot
1.16"
0.31"
JB1032-120-XX
(No bosses between studs)
(A,B,C Dimensions ars the same as C5237)
136
Part No.-Poles
A
C5237-1
2.00 (50.8)
C5237-2
2.62 (66.7)
C5237-3
3.25 (82.5)
C5237-4
3.87 (98.4)
C5237-5
4.50 (114.3)
C5237-6
5.12 (130.8)
C5237-7
5.75 (146.0)
C5237-8
6.37 (161.9)
C5237-9
7.00 (177.8)
C5237-10
7.62 (193.7)
C5237-11
8.25 (209.5)
C5237-12
8.87 (225.4)
C5237-13
9.50 (241.3)
C5237-14
10.12 (257.2)
C5237-15
10.75 (273.0)
B
1.25 (31.7)
1.87 (47.5)
2.50 (63.4)
3.12 (79.4)
3.75 (95.2)
4.37 (111.1)
5.00 (127.0)
5.62 (142.9)
6.25 (158.7)
6.87 (174.6)
7.50 (190.5)
8.12 (206.4)
8.75 (222.2)
9.37 (238.1)
10.00 (254.0)
C
–
0.625 (15.9)
1.25 (31.7)
1.87 (47.5)
2.50 (63.4)
3.12 (79.4)
3.75 (95.2)
4.37 (111.1)
5.00 (127.0)
5.62 (142.9)
6.25 (158.7)
6.87 (174.6)
7.50 (190.5)
8.12 (206.4)
8.75 (222.2)
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Stud Type Junction Blocks
Stud Type Junction Blocks
Terminal Blocks:
Single & Double Row
SPECIFICATIONS
Material: Studs on non-feed-thrus are steel
plated; feed-thrus are copper alloy.
Applications: Heavy-duty ground or power
connection points in AC or DC circuits.
Feed-thru or stand alone mount options
available for transformers, communication and
computer power sections along with various
vehicle electrical systems.
Benefits: Modular design offers design and
manufacturing flexibility.
Dimensions - in (mm)
F
H
J
0.75"
(19.1)
0.75"
(19.1)
EuroMag Series
Suggested Max. Termination Ratings:
1.87"
(47.6)
1.12"
(28.6)
M (thread size)
Thread/Stud Sz.
Max. Amps
#10
#1/4 & M6
#5/16
#3/8
#1/2
50
100
200
250
400
C B
1
C1925-1B*
1
C1925-2*
1
C1925-2B*
1
C1933
1
C1933-1
1
C1938*
2
C1938R*
2
C1938-1*
2
C1938-1R*
2
C2791*
3
C2791-R*
3
C2909*
3
C2909-1*
3
C4044*
2
C4044-1*
2
C4044-1R*
2
C5898*
2
C6344-2
2
C7018*
3
C7020*
2
JB3816-2
2
JB3816-3
2
*Feed-thru
D
1.25
(31.7)
1.25
(31.7)
1.25
(31.7)
1.25
(31.7)
1.25
(31.7)
1.25
(31.7)
1.5
(38.1)
1.5
(38.1)
.87
(22.2)
.87
(22.2)
.87
(22.2)
.87
(22.2)
.62
(15.9)
.62
(15.9)
.62
(15.9)
.62
(15.9)
.62
(15.9)
.62
(15.9)
.62
(15.9)
.87
(22.2)
.62
(15.9)
.47
(11.9)
.88
(22.2)
.87
(22.2)
.87
(22.2)
E
1.12
(28.6)
1.12
(28.6)
1.12
(28.6)
1.12
(28.6)
1.12
(28.6)
1.12
(28.6)
1.12
(28.6)
1.12
(28.6)
.69
(17.5)
.69
(17.5)
.69
(17.5)
.69
(17.5)
.69
(17.5)
.69
(17.5)
1.0
(25.4)
1.0
(25.4)
1.12
(28.6)
1.12
(15.9)
1.12
(15.9)
.69
(17.5)
1.12
(15.9)
.69
(17.5)
.69
(17.5)
.69
(17.5)
.69
(17.5)
F
.37
(9.5)
.37
(9.5)
.37
(9.5)
.37
(9.5)
.37
(9.5)
.37
(9.5)
.37
(9.5)
.37
(9.5)
.31
(7.9)
.31
(7.9)
.31
(7.9)
.31
(7.9)
.31
(7.9)
.31
(7.9)
.31
(7.9)
.31
(7.9)
.31
(7.9)
.31
(7.9)
.31
(7.9)
.31
(7.9)
.31
(7.9)
.31
(7.9)
.31
(8.0)
.31
(7.9)
.31
(7.9)
G
1.12
(28.6)
1.12
(28.6)
1.12
(28.6)
1.12
(28.6)
1.12
(28.6)
1.12
(28.6)
None
None
.94
(23.8)
.94
(23.8)
.94
(23.8)
.94
(23.8)
.69
(17.5)
.69
(17.5)
.69
(17.5)
.69
(17.5)
.94
(23.8)
.94
(23.8)
.94
(23.8)
.94
(23.8)
None
.53
(13.5)
1.25
(31.8)
None
None
H
.19
(4.8)
.19
(4.8)
.19
(4.8)
.19
(4.8)
.19
(4.8)
.19
(4.8)
.19
(4.8)
.19
(4.8)
.06
(1.6)
.06
(1.6)
.06
(1.6)
.06
(1.6)
.06
(1.6)
.06
(1.6)
.06
(1.6)
.06
(1.6)
.06
(1.6)
.06
(1.6)
.06
(1.6)
.06
(1.6)
.06
(1.6)
.06
(1.6)
.06
(1.6)
.06
(1.6)
.06
(1.6)
J
.19
(4.8)
.19
(4.8)
.19
(4.8)
.19
(4.8)
.19
(4.8)
.19
(4.8)
None
None
.06
(1.6)
.06
(1.6)
.06
(1.6)
.06
(1.6)
.06
(1.6)
.06
(1.6)
.06
(1.6)
.06
(1.6)
.06
(1.6)
.06
(1.6)
.06
(1.6)
.06
(1.6)
None
.06
(1.6)
.06
(1.6)
None
None
K
2.0
(50.8)
2.0
(50.8)
2.0
(50.8)
2.0
(50.8)
2.0
(50.8)
2.0
(50.8)
2.0
(50.8)
2.0
(50.8)
1.31
(33.3)
1.31
(33.3)
1.31
(33.3)
1.31
(33.3)
1.31
(33.3)
1.31
(33.3)
1.31
(33.3)
1.31
(33.3)
1.31
(33.3)
1.31
(33.3)
1.31
(33.3)
1.31
(33.3)
1.31
(33.3)
1.31
(33.3)
1.31
(33.3)
1.37
(34.9)
1.37
(34.9)
L
.22 dia. w/.44 dia.
C’bore x .16 deep
.22 dia. w/.44 dia.
C’bore x .16 deep
.22 dia. w/.44 dia.
C’bore x .16 deep
.22 dia. w/.44 dia.
C’bore x .16 deep
.22 dia. w/.44 dia.
C’bore x .16 deep
.22 dia. w/.44 dia.
C’bore x .16 deep
.22 dia.
.22 dia.
L(2 MTG.
HOLES)
L(2 MTG.
HOLES)
Fig. 2
M
Max. Torque (in-lb)
1/2-13
300
1/2-13
300
1/2-13
300
1/2-13
300
3/8-16
150
3/8-16
150
1/2-13
300
5/16-18
75
.22 dia. w/.41 dia. 3/8-16
C’bore x 14 deep
.22 dia. w/.41 dia. 3/8-16
C’bore x 14 deep
.22 dia. w/.41 dia. 5/16-18
C’bore x 14 deep
.22 dia. w/.41 dia. 5/16-18
C’bore x 14 deep
.22 dia. w/.41 dia. 1/4-20
C’bore x .14 deep
.22 dia. w/.41 dia. 1/4-20
C’bore x .14 deep
.22 dia. w/.41 dia. 10-32
C’bore x 14 deep
.22 dia. w/.41 dia. 1/4-20
C’bore x 14 deep
.22 dia. w/.41 dia. 3/8-16
C’bore x .14 deep
.22 dia. w/.41 dia. 3/8-16
C’bore x .14 deep
.22 dia. w/.41 dia. 3/8-16
C’bore x .14 deep
.22 dia. w/.41 dia. 3/8-16
C’bore x .14 deep
.22 dia. w/.41 dia. 1/2-20
C’bore x .14 deep
.22 dia. w/.41 dia.
M6
C’bore x 14 deep
.22 dia. w/.41 dia. 3/8-16
C’bore x 14 deep
.22 dia. w/.37 dia. 3/8-16
C’bore x .14 deep
.22 dia. w/.37 dia. 3/8-16
C’bore x .14 deep
150
150
75
75
30
30
24
30
150
150
150
150
150
55
150
150
150
Fig. 3
Material
Thermoplastic /
Zinc-plated Brass
Thermoplastic /
Zinc-plated Brass
Thermoplastic /
Tin-plated Brass
Thermoplastic /
Tin-plated Brass
Thermoplastic /
Tin-plated Brass
Thermoplastic /
Tin-plated Brass
Thermoplastic /
Zinc-plated Brass
Thermoplastic /
Zinc-plated Brass
Thermoplastic /
Zinc-plated Brass
Thermoplastic /
Zinc-plated Brass
Thermoplastic /
Tin-plated Brass
Thermoplastic /
Tin-plated Brass
Thermoplastic /
Zinc-plated Brass
Thermoplastic /
Zinc-plated Brass
Thermoplastic /
Zinc-plated Brass
Thermoplastic /
Zinc-plated Brass
Thermoplastic /
Zinc-plated Brass
Thermoplastic /
Tin-plated Brass
Thermoplastic /
Tin-plated Brass
Thermoplastic /
Zinc-plated Brass
Thermoplastic /
Zinc-plated Steel
Thermoplastic /
Zinc-plated Steel
Thermoplastic /
Zinc-plated Brass
Thermoplastic /
Zinc-plated Sleel
Thermoplastic /
Zinc-plated Sleel
Color
Red
Black
Red
Black
Red
Black
Black
Black
Black
Red
Black
Red
Black
Red
Black
Black
Black
Black
Red
Red
Black
Black
Red
Black
Red
Compliance
References
C1925-1*
C
1.25
(31.7)
1.25
(31.7)
1.25
(31.7)
1.25
(31.7)
1.25
(31.7)
1.25
(31.7)
1.25
(31.7)
1.25
(31.7)
.69
(17.5)
.69
(17.5)
.69
(17.5)
.69
(17.5)
.44
(11.2)
.44
(11.2)
.44
(11.2)
.44
(11.2)
.62
(15.9)
.62
(15.9)
.62
(15.9)
.69
(17.5)
.62
(15.9)
.44
(11.2)
.69
(17.5)
.62
(15.9)
.62
(15.9)
Fig. 1
Edge Connectors,
One-Sided Boards
1
B
1.5
(38.1)
1.5
(38.1)
1.5
(38.1)
1.5
(38.1)
1.5
(38.1)
1.5
(38.1)
1.44
(36.6)
1.44
(36.3)
.94
(23.8)
.94
(23.8)
.94
(23.8)
.94
(23.8)
.69
(17.5)
.69
(17.5)
.69
(17.5)
.69
(17.5)
.87
(22.2)
.87
(22.2)
.87
(22.2)
.94
(23.8)
.87
(22.2)
.69
(17.5)
.94
(23.8)
.98
(24.9)
.98
(24.9)
L (4 MTG. HOLES)
Wire Management
Products
C1925B*
A
2.75
(69.8)
2.75
(69.8)
2.75
(69.8)
2.75
(69.8)
2.75
(69.8)
2.75
(69.8)
2.75
(69.8)
2.75
(69.8)
2.06
(52.4)
2.06
(52.4)
2.06
(52.4)
2.06
(52.4)
2.06
(52.4)
2.06
(52.4)
2.06
(52.4)
2.06
(52.4)
2.06
(52.4)
2.06
(52.4)
2.06
(52.4)
2.06
(52.4)
2.06
(52.4)
2.06
(52.4)
2.06
(52.4)
2.12
(54.0)
2.12
(54.0)
D
Power Distribution
Blocks
Fig.
1
E
K A
K A
A
Terminal Blocks:
Base & Rail Mount
Part
C1925*
G
K
Options – Nuts & washers; consult factory.
For additional product information, visit www.cooperbussmann.com/magnum
137
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
Power Feed Thru Terminal Blocks
Series C7021
Power Feed Thru Terminal Block
APPLICATIONS
The C7021 terminal block is intended for use in applications
requiring up to 175A utilizing a 2-hole compression lug on
5/8" centers. It is ideal for use as an input/output block for
telecommunications power panels, or anywhere in which
eliminating busbars would be an advantage.
SPECIFICATIONS
Ratings: 175A* per pole, 300V.
Center Spacing: 0.690" (17.5mm)
Wire Range: AWG #2/0-8
Material: UL 94V0 Thermoplastic
Number of Poles: 2- to 6-pole
Bolt Hole Spacing: 0.625" (15.88mm)
Stud: Standard 1/4-20 stud or optional M6 stud.
Mounting: Optional mounting ears.
Stud Material: Brass, Tin-Plated.
Torque Rating: 36 lb-in
Operating Temperature: 130°C
Accessories: Dead-Front covers (CSB7021-XX)
Agency Information: UL File E62622
Dimensions - mm (in)
Part
No.
Power Distribution
Blocks
*175 achieved using both studs in parallel, 115A using a single stud per line.
C7021-01-X
C7021-02-X
C7021-03-X
C7021-04-X
C7021-05-X
C7021-06-X
C7021-01N-X
C7021-02N-X
C7021-03N-X
C7021-04N-X
C7021-05N-X
C7021-06N-X
A
B
C
D
E
17.5 (0.69)
34.9 (1.37)
52.3 (2.06)
69.8 (2.75)
87.2 (3.44)
-
37 (1.45)
54.4 (2.14)
70.9 (2.83)
89.3 (3.52)
106.8 (4.20)
124.2 (4.89)
49.5 (1.95)
67.3 (2.65)
84.8 (3.34)
102.2 (4.02)
119.7 (4.71)
134.1 (5.40)
15 (0.6)
31.8 (1.25)
49.2 (1.94)
66.7 (2.63)
84.2 (3.31)
101.7 (4.00)
17.5 (0.69)
34.9 (0.69)
52.3 (2.06)
69.8 (2.75)
87.2 (3.44)
36.1 (1.42)
53.5 (2.11)
71.0 (2.80)
88.4 (3.48)
105.9 (4.17)
-
-
31.8 (1.25)
49.2 (1.94)
66.7 (2.63)
84.2 (3.31)
101.7 (4.00)
D
C
9.6
28.0 (0.38)
(1.10)
15.8
(0.62)
5.4
(0.21)
Wire Management
Products
15.8
(0.62)
7.9
(0.31)
Edge Connectors,
One-Sided Boards
12.5
(0.49)
Ø 9.0 TYP
(0.35)
1/4-20 UNC-2A
Thread TYP
A
ø12.2 TYP
(0.48)
B
17.5 TYP
(0.69)
24.0
(0.94)
12.7
(0.50)
33.0
(1.30)
14.5 TYP
(0.57)
Poles
C
7
0
2
1 – 01 – 1 pole (2 studs)
02 – 2 pole (4 studs)
03 – 3 pole (6 studs)
04 – 4 pole (8 studs)
05 – 5 pole (10 studs)
06 – 6 pole (12 studs)
138
1.6
(R.06)
30.0
(1.18)
Blind Hole for #6
Thread Cutting
Screw
OPTION 2
POTION 1
14.5 TYP
(0.57)
OPTION 1
Part Numbering System
Series
E
14.2
( ø.56)
A
15.0 TYP
(0.59)
Compliance
References
55.7
(2.19)
PANEL CUTOUTS
Inches (Millimeters)
Mount Ends
Studs
Hardware
– Blank – Mount ends
N – No mount ends
Blank – Standard
M6 – M6 studs
Blank – No hardware
0 – Bulk pack, one set
1 – Bulk pack, two sets
2 – Assembled, bottom
3 – Assembled, top
4 – Assembled, both sets
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Power Feed Thru Terminal Blocks
Terminal Blocks:
Single & Double Row
Series C7024
Power Feed Thru Terminal Block
APPLICATIONS
The C7024 terminal block is intended for use in applications
requiring up to 115A utilizing a 2-hole compression lug on
3/4" centers. It is ideal for use as an input/output block for
telecommunications power panels, or anywhere in which
eliminating busbars would be an advantage.
EuroMag Series
SPECIFICATIONS
Ratings: 115A per pole, 600V.
Center Spacing: 0.75" (19.1mm)
Material: UL 94V0 Thermoplastic
Wire Range: AWG #28
Number of Poles: 1- to 12-poles
Bolt Hole Spacing: 0.75" (19.1mm)
Stud: Standard 1/4-28 stud
Stud Material: Tin-Plated Bronze.
Torque Rating: 36 lb-in
Operating Temperature: 130°C
Agency Information: UL File E62622
Dimensions - mm (in)
Terminal Blocks:
Base & Rail Mount
Ø17.780 TYP
[0.700]
MIN. AT STUD PAD
13.2TYP
[0.52]
Power Distribution
Blocks
0.5 TYP
[0.02 ]
Part Number
“A” Dimension
±0.4(±0.02)
“B” Dimension
C7024-01
21.6(0.85)
-
40.6(1.60)
C7024-03
59.7(2.35)
38.10(1.500)
C7024-04
78.7(3.10)
57.15±0.26(2.250±0.010)
19.05±0.08(0.750±0.003)
97.8(3.85)
76.2(3.00)
C7024-06
116.8(4.60)
95.25±0.26(3.750±0.010)
C7024-07
135.9(5.35)
114.30±0.38(5.250±0/015)
C7024-08
154.9(6.10)
133.35±0.38(5.25±0.015)
C7024-09
174.0(6.85)
152.40±0.38(6.00±0.015)
C7024-10
193.0(7.60)
171.45±0.38(6.750±0.015)
C7024-11
212.1(8.35)
190.50±0.38(7.500±0.015)
C7024-12
231.1(9.10)
209.55±0.38(8.250±0.015)
28.0
[1.10]
17.8TYP
[0.70]
2.70TYP
[ 0.106 ]
3.16TYP
[0.124]
Ø14.4
[0.57]
19.06 ±0.08
[ 0.750 0.003]
Edge Connectors,
One-Sided Boards
C7024-05
16.53TYP
[0.651]
Wire Management
Products
C7024-02
B
A
40.6
[1.60]
Part Numbering System
Series
Inches (Millimeters)
Poles
Compliance
References
C
7
0
2
4 – 01 – 12
For additional product information, visit www.cooperbussmann.com/magnum
139
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Wire Management
Products
Power Distribution
Blocks
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
Depluggable PCB Mount Terminal Blocks
Series 15133
Depluggable PCB Mount
Terminal Blocks
SPECIFICATIONS
Rating: 20A, 300V
Center Spacing: 0.375” or 3/8” (9.52mm)
Wire Range: #12-22 AWG
Number of Poles: 7- to 10-poles
PC Board: For soldering to PCB (.00015” tin over
copper flash)
Material: Black, UL Rated 94V0 Thermoplastic
Screws: #6-32 zinc-plated steel SEMS
Torque Rating: 12 lb-in
Terminals: 15133-XX-10-X – Tin or gold plated brass
15133-XX-20-X – Nickel-or gold-plated copper
alloy plug terminal, tin-or
gold-plated female terminal
Operating Temperature: 221°F (105°C)
Agency Information: UL File E62622
15133-06-20-T
Dimensions - in (mm)
15133-XX-10-X
6
0.19
(4.8)
APPLICATIONS
The 15133 is a series of input/output circuit board
connectors. Available in a 1-piece or 2-piece design, they
stack side-by-side with self-aligning housings to prevent
incorrect mating. Both designs feature an integral, living
hinge cover that saves the labor of attaching a separate
cover. The cover provides a dead front for prevention of
electrical contact, yet it also has test probe holes for easy
circuit testing.
0.25
(6.3)
0.37
(9.4)
0.81
(20.6)
0.83
(21.0)
0.875
(22.2)
0.03
(0.8)
0.06
(1.6)
0.04
(1.0)
0.16
(3.9)
0.44
(11.1)
0.70
(17.8)
15133-XX-20-X
The 1-piece design is for applications not requiring
deplugging the connector. It solders to the printed circuit
board. Molded stand-offs ensure good solderability.
0.12 DIA.
(3.17)
6
The 2-piece design enables quick connect and disconnect
of several circuits at once. It allows fast board changing in
the field without shutting down the entire system. The
bottom section of the connector solders to the board. Male
contacts are shrouded while the female has stand-offs; both
are molded into the block. The top section of the connector
plugs into the bottom section.
0.19
(4.8)
6
0.25
(6.4)
0.828
(21.0)
0.81
(20.6)
Edge Connectors,
One-Sided Boards
0.97
(24.6)
0.04
(1.0)
0.156
(3.96)
0.375
(9.52)
Compliance
References
Part Numbering System
Series
1
5
1
3
3
0.02
(0.5)
0.52
(13.2)
0.70
(17.8)
Inches (Millimeters)
Poles
–
0.062
(1.57)
02 to 10
Style
–
1 - One piece
2 - Two piece
Mounting
Terminal Plating
–
0 - No mtg. holes
T - Tin
G - Gold*
* Consult Factory
140
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Edge Connectors 1 Sided Boards/Vertical Mount
Terminal Blocks:
Single & Double Row
Series 1384X
Edge Connectors –
1 Sided Boards/Vertical Mount
13848-08G02B
EuroMag Series
SPECIFICATIONS
Rating: 10A, 250V
Center Spacing: 0.375” or 3/8” (9.52mm)
Wire Range: #14-22 AWG CU; entry to PC board at 90° angle.
Number of Poles: 4- to 16-poles
PC Board: Edge contact accepts standard 1/16” (0.0625) PCB.
Contacts: Cantilever design 0.02” thick phosphorus bronze
with mating surface tin-plated (0.0002) over copper (0.00005).
Terminals: Pressure plate terminals.
Material: Black, UL Rated 94V0 Thermoplastic (125°C)
Operating Temperature: -55°C to 105°C (212°F)
Agency Information: CSA File 47235
13847-08TO2B
Dimensions - in (mm)
A
B
C
Terminal Blocks:
Base & Rail Mount
Poles
13847 Series
D
A
2.25
2.62
3.00
3.37
3.75
4.12
4.50
4.87
5.25
5.62
6.00
6.37
6.75
1.87
2.25
2.62
3.00
3.37
3.75
4.12
4.50
4.87
5.25
5.62
6.00
6.37
1.12
1.50
1.87
2.25
2.62
3.00
3.37
3.75
4.12
4.50
4.87
5.25
5.62
1.53
1.90
2.28
2.65
3.03
3.40
3.78
4.15
4.53
4.90
5.28
5.65
6.03
C
0.89
(22.6)
0.15
(3.9)
D
Power Distribution
Blocks
04
05
06
07
08
09
10
11
12
13
14
15
16
B
1.03
(26.2)
13848 Series
* Dimensions in inches. To convert to millimeters, multiply by 25.4.
Optional polarizing key (Part No. C5971) consult with factory.
A
B
C
Wire Management
Products
0.15
(3.9)
1
1.03
(26.2)
2
3
4
5
6
11
12
13
14
15
D
Ø.06
(Ø1.5)
Part Numbering System
Series
Block Style
1
3
8
4
Inches (Millimeters)
Poles
–
Screw Style
Block Color
Special Options
0
2
B
T - Tin over copper
G - Gold*
02 - #6-32 pan head.
w/ SEMS wire
clamp
B - Black
M - Marking strip
Compliance
References
7 - Flat mtg. ears
04 to 16
w/ 2 slots
8 - Mtg. ears w/2 standoffs
with hole for mounting strip
Terminal Plating
* Consult Factory
For additional product information, visit www.cooperbussmann.com/magnum
Edge Connectors,
One-Sided Boards
Ø.09
(Ø 2.3)
141
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Terminal Blocks:
Base & Rail Mount
EuroMag Series
Terminal Blocks:
Single & Double Row
Edge Connectors 1 Sided Boards/Right Angle Mount
Series 15104
Edge Connectors – 1 Sided Boards / Right Angle Mount
15104-082T2
SPECIFICATIONS
Rating: 10A, 300V
Center Spacing: 0.375” or 3/8” (9.52mm)
Wire Range: #12-22 AWG CU
Number of Poles: 6- to 28-poles
Screw Size: #6-32
Torque Rating: 12 lb-in
Terminals: Pressure plate terminals with screws set
at 45° or 90° angle
PC Board: Edge contact accepts standard 1/16” (0.0625) PCB
Contacts: Tuning fork design of 0.021” thick phosphorus
bronze with 0.0001” bright tin-plating
Material: Black, UL Rated 94V0 Thermoplastic
Operating Temperature: 95°C max.
Agency Information: UL File E62622, CSA File 47235
15104-061T1
Poles
A
B
C
D
E
Board
Width
06
08
10
12
14
16
18
20
22
24
26
28
3.00
3.75
4.50
5.25
6.00
6.75
7.50
8.25
9.00
9.75
10.50
11.25
2.62
3.37
4.12
4.87
5.62
6.37
7.12
7.87
8.62
9.37
10.12
10.87
2.00
2.75
3.50
4.25
5.00
5.75
6.50
7.25
8.00
8.75
9.50
10.25
2.16
2.91
3.66
4.41
5.16
5.91
6.66
7.41
8.16
8.91
9.66
10.41
2.36
3.11
3.86
4.61
5.36
6.11
6.86
7.61
8.36
9.11
9.86
10.61
1.99
2.74
3.49
4.24
4.99
5.74
6.49
7.23
7.98
8.73
9.48
10.23
Dimensions - in (mm)
Wire Management
Products
Power Distribution
Blocks
15104 Series
A
B
0.62
(15.7)
0.17 0.34
(4.3) (8.6)
C
D
0.56
(14.2)
1.31
(33.3)
* Dimensions in inches. To convert to millimeters, multiply by 25.4.
Integral standoffs for mounting marker strips - consult factory.
0.32
(8.1)
0.375
(9.53)
E
0.17
(4.3)
0.15 (3.8)
dia. hole
Edge Connectors,
One-Sided Boards
Tolerance plus or minus 1/64 (0.4)
6-32 x 3/8 long
terminal screw/pressure plate
45∞ Style
Compliance
References
Part Numbering System
Series
1
5
1
0
4
Poles
–
06 to 28 (Increments of 2)
Terminal
Plating
Screw
1 - 90° angle
2 - 45° angle
T - Tin
G - Gold*
1 - #6-32 pan head. w/wire clamp
* Consult Factory
142
For additional product information, visit www.cooperbussmann.com/magnum
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Compliance References
CLASS B
Commercial appliances, including business equipment,
electronic data processing equipment, etc.
CLASS C
General industrial, including machine tool controls, which
can further be defined as equipment governed by UL508.
Magnum
Series
CLASS A
151-300
Volts
301-600
Volts
51-150
Volts
CLASS B
151-300
Volts
Spacing
Over Surface
51 - 150
151 - 300
301 - 600
0.50
0.75
1.00
0.75
1.25
2.00
51 - 150
151 - 300
301 - 600
0.06
0.09
0.38
0.06
0.09
0.50
51 - 150
151 - 300
301 - 600
0.13
0.25
0.38
0.25
0.38
0.50
51 - 300
301 - 600
0.06
0.19
0.13
0.38
301-600
Volts
X
X
X
51-150
Volts
CLASS C
151-300
Volts
X
CLASS D
51-300
301-600
Volts
Volts
X
X
X
X
X
X
X
X
X
301-600
Volts
Edge Connectors,
One-Sided Boards
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
For additional product information, visit www.cooperbussmann.com/magnum
X
X
X
Compliance
References
A/CB1000
A/CB2000
LP2000
A/CB3000
LP3000
A/B4000
A/CB5000
7000
TB100
TB200
TB200HB
TB300
TB400
51-150
Volts
Spacing
Through Air
Wire Management
Products
CLASS D
Industrial devices having limited ratings.
Voltage
Rating
Power Distribution
Blocks
CLASS A
Service equpment, including dead-front switchboards,
panelboards, service entrance devices, etc.
CE
In 1998, Cooper Bussmann received CE certification on
all Magnum products. For terminal blocks, CE is a
self-certification mark applied to products that have met
safety and performance requirements set forth by the
European Union (EU). This mark is required for free
movement of product in the European market.
Terminal Blocks:
Base & Rail Mount
Application
IEC Compliance
Some Magnum Terminal Blocks comply with the
requirements in IEC Publication 60947-7-1 Terminal Blocks
for Copper Conductors. these blocks are concurrently
recognized and certified under the UL Classification
Program. Ratings, except where indicated, are concurrent
with UL 1059.
EuroMag Series
UL1059 & CSA 22.2 No. 158 Voltage Rating
Voltage ratings of terminal blocks are based on the
minimum spacing between electrically conductive parts
and a minimum withstand voltage. The spacings are
measured under two conditions: 1) through air, defined as
the shortest distance an arc must travel through an air
path from one electrically conductive part to another at
opposite polarity or from an electrically conductive part to
a grounded surface; and 2) over surface, defined as the
shortest distance an arc must travel as it tracks along the
surface of an insulating material from one electrically
conductive part to another at opposite polarity or from an
electrically conductive part to a grounded surface. The
withstand voltage, termed dielectric withstand, is
dependent on the voltage rating. The value is 1000V plus
twice the rated voltage for one minute. this is tested under
both conditions listed above. The following chart shows
the UL 1059 and CSA 22.2 No. 158 spacing requirements,
in inches.
Terminal Blocks:
Single & Double Row
Cooper Bussmann Compliance References
143
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Customer Satisfaction Team
Available to answer questions regarding Magnum
products Monday-Friday, 8:00 a.m. – 6:00 p.m. Central
Time for all US time zones. Contact:
• Phone: 636-527-3877
• Toll-free fax: 800-544-2570
• E-mail: [email protected]
C3 – the Enhanced, Online Cooper Customer Center
Provides real time product availability, net pricing, order
status & shipment tracking across six Cooper divisions:
B-line, Bussmann, Crouse-hinds, Lighting, Power
Systems & Wiring Devices. Call 877-995-5955 for
log-in assistance. Available at:
• www.cooperc3.com
Application Engineering
Technical assistance is available to all customers.
Staffed by degreed electrical engineers, this
application support is available Monday-Friday,
8:00 a.m. – 5:00 p.m. Central Time. Contact:
•
•
•
•
Phone: 636-527-1270
Fax: 636-527-1607
E-mail: [email protected]
Live Chat: www.cooperbussmann.com
Online Resources
Visit www.cooperbussmann.com for the following
resources:
• Product search & cross-reference
• Product & technical materials
• Solutions centers for information on topical
issues including arc-flash, selective coordination
& short-circuit current rating
• Technical tools, like our arc-flash calculator
© 2009 Cooper Bussmann
St. Louis, MO 63178
636-394-2877
www.cooperbussmann.com
Your Authorized Magnum Distributor is:
Cooper Industries, Ltd.
600 Tra vis, Ste. 5800
Houston, TX 77002-1001
P: 713-209-8400
www.cooperindustries.com
Reorder # 7001
0809
PDF Only
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
