Revision: 1.1

Date: 2013-12-16

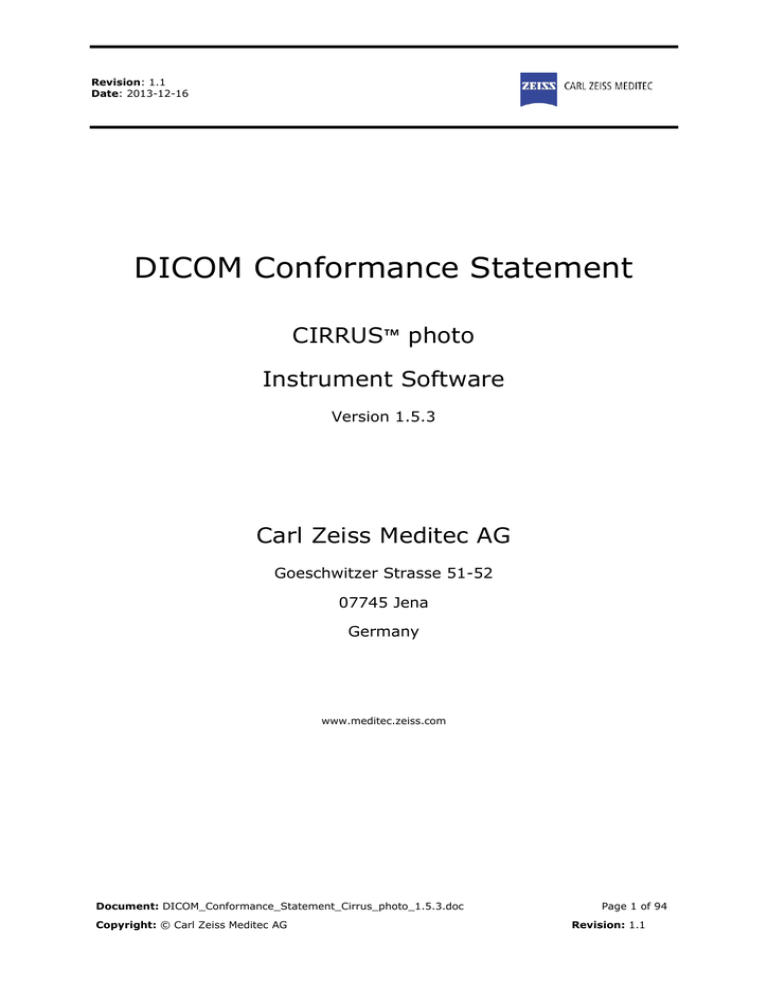

DICOM Conformance Statement

CIRRUS™ photo

Instrument Software

Version 1.5.3

Carl Zeiss Meditec AG

Goeschwitzer Strasse 51-52

07745 Jena

Germany

www.meditec.zeiss.com

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 1 of 94

Revision: 1.1

1 Conformance Statement Overview

The Carl Zeiss Meditec CIRRUS photo is an image acquisition modality with review capabilities. The acquisition modality enables examination of patient’s eye while it’s review features enables to view, analyze and manage acquired data.

It implements one single DICOM Application Entity which allows to:

 query modality worklist

 query for patients and data

 archive images, scan data and analysis data

 archive evidence reports

 retrieve images, scan data and analysis data

This document is structured as suggested in the DICOM Standard (PS 3.2 Conformance).

Provider of

Service (SCP)

SOP Classes

Transfer

Encapsulated PDF Storage

Raw Data Storage

Multi-frame True Color Secondary Capture Image Storage

Ophthalmic Photography 8 Bit Image Storage

Workflow Management

Modality Worklist Information Model - FIND

User of Service

(SCU)

Yes

Yes

Yes

Yes

Yes

Storage Commitment Push Model

Query / Retrieve

Study Root Query/Retrieve Information Model – FIND

Study Root Query/Retrieve Information Model – MOVE

Patient Root Query/Retrieve Information Model – FIND

Patient Root Query/Retrieve Information Model – MOVE

The CIRRUS photo does not support Media Interchange.

Yes

Yes

Yes

Yes

Yes

No

No

No

No

No

Yes

Yes

Yes

No

No

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 2 of 94

Revision: 1.1

2 Table of Contents

1 Conformance Statement Overview ........................................................................................................ 2

2 Table of Contents ................................................................................................................................ 3

3 Introduction ....................................................................................................................................... 5

3.1 Revision History ........................................................................................................................... 5

3.2 Audience ..................................................................................................................................... 5

3.3 Remarks ..................................................................................................................................... 5

3.4 Definitions and Terms ................................................................................................................... 5

3.5 Abbreviations .............................................................................................................................. 7

3.6 References .................................................................................................................................. 7

4 Networking ........................................................................................................................................ 8

4.1 Implementation Model .................................................................................................................. 8

4.1.1 Application Data Flow ............................................................................................................ 8

4.1.2 Functional Definition of AEs .................................................................................................... 9

4.1.2.1 Functional Definition of CIRRUS photo .............................................................................. 9

4.1.3 Sequencing of Real-World Activities ......................................................................................... 9

4.1.3.1 CIRRUS photo activities ................................................................................................ 10

4.1.3.2 Scheduled case ............................................................................................................ 12

4.1.3.3 Unscheduled case ........................................................................................................ 12

4.2 AE Specifications........................................................................................................................ 14

4.2.1 CIRRUS photo Acquisition Modality AE Specification ................................................................ 14

4.2.1.1 SOP Classes ................................................................................................................ 14

4.2.1.2 Associations Policies ..................................................................................................... 14

4.2.1.2.1 General ................................................................................................................ 14

4.2.1.2.2 Number of Associations .......................................................................................... 14

4.2.1.2.3 Asynchronous Nature............................................................................................. 15

4.2.1.2.4 Implementation Identifying Information ................................................................... 15

4.2.1.3 Association Initiation Policy ........................................................................................... 15

4.2.1.3.1 Activity – Verify DICOM Communication ................................................................... 15

4.2.1.3.2 Activity – Query Modality Worklist ........................................................................... 16

4.2.1.3.3 Activity - Query remote AE for patients and data ....................................................... 22

4.2.1.3.4 Activity – Retrieve scans, images and analyses from remote AE .................................. 29

4.2.1.3.5 Activity – Acquire scans and images ........................................................................ 31

4.2.1.3.6 Activity – Analyze scans and images ........................................................................ 31

4.2.1.3.7 Activity – Create reports ........................................................................................ 32

4.2.1.3.8 Activity – Store scans, images, analyses and reports to remote AE .............................. 32

4.2.1.4 Association Acceptance Policy ........................................................................................ 35

4.2.1.4.1 Activity – Verify Communication .............................................................................. 35

4.2.1.4.2 Activity - Retrieve scans, images and analyses from remote AE .................................. 36

4.2.1.4.3 Activity – Store scans, images, analyses and reports to remote AE .............................. 36

4.3 Network Interfaces ..................................................................................................................... 39

4.3.1 Physical Network Interface ................................................................................................... 39

4.3.2 Additional Protocols ............................................................................................................. 39

4.3.3 IPv4 and IPv6 Support ......................................................................................................... 39

4.4 Configuration ............................................................................................................................ 40

4.4.1 AE Title/Presentation Address Mapping .................................................................................. 40

4.4.1.1 Local AE Titles ............................................................................................................. 40

4.4.1.2 Remote AE Titles .......................................................................................................... 40

4.4.2 Parameters ........................................................................................................................ 40

4.4.2.1 General Parameters ...................................................................................................... 40

4.4.2.2 AE Specific Parameters ................................................................................................. 41

5 Media Interchange ............................................................................................................................ 43

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 3 of 94

Revision: 1.1

6 Support Of Character Sets ................................................................................................................. 44

7 Security ........................................................................................................................................... 45

8 Annexes .......................................................................................................................................... 46

8.1 IOD Contents ............................................................................................................................ 46

8.1.1 Created SOP Instance(s) ...................................................................................................... 46

8.1.1.1 Encapsulated PDF IOD .................................................................................................. 47

8.1.1.2 Ophthalmic Photography 8 Bit Information Object Definition .............................................. 54

8.1.1.3 Multi-frame True Color Secondary Capture Information Object Defintion ............................. 70

8.1.1.4 Raw Data Information Object Definition .......................................................................... 79

8.1.2 Usage of Attributes from Received IOD’s ................................................................................ 87

8.1.3 Attribute Mapping ............................................................................................................... 87

8.1.4 Coerced/Modified Files ......................................................................................................... 89

8.2 Data Dictionary of Private Attributes ............................................................................................. 90

8.3 Coded Terminology and Templates ............................................................................................... 91

8.4 Greyscale Image Consistency ...................................................................................................... 94

8.5 Standard Extended / Specialized/ Private SOP Classes .................................................................... 94

8.6 Private Transfer Syntaxes ........................................................................................................... 94

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 4 of 94

Revision: 1.1

3 Introduction

3.1 Revision History

Document

Version

1.0

1.1

Author

Patrick A. Nast

Patrick A. Nast

Date

2013-03-21

2013-12-16

Changes

Initial document

Product version 1.5.3

-

Query Keys for 4.2.1.3.3

Activity - Query remote AE for patients and data

changed

- DICOM UID root changed

- New software version info

3.2 Audience

This document is intended for hospital staff, health system integrators, software designers or implementers.

The reader should have a basic understanding of DICOM.

3.3 Remarks

If another device matches this conformance statement based on the comparison with its own conformance statement, there is a chance, but no guarantee, that they interoperate. DICOM deals only with communication; it does not specify what is needed for certain applications to run on a device.

3.4 Definitions and Terms

Informal definitions are provided for the following terms used in this Conformance Statement.

The DICOM Standard is the authoritative source for formal definitions of these terms.

Abstract Syntax

the information agreed to be exchanged between applications, generally equivalent to a

Service/Object Pair (SOP) Class.

Examples: Verification SOP Class, Modality Worklist Information Model Find SOP Class,

Computed Radiography Image Storage SOP Class.

Application Entity (AE)

an end point of a DICOM information exchange, including the DICOM network or media interface software; i.e., the software that sends or receives DICOM information objects or messages. A single device may have multiple Application Entities.

Application Entity Title

the externally known name of an Application Entity, used to identify a DICOM application to other DICOM applications on the network.

Application Context

the specification of the type of communication used between Application Entities.

Example: DICOM network protocol.

Association

a network communication channel set up between Application Entities.

Attribute

a unit of information in an object definition; a data element identified by a tag. The information may be a complex data structure (Sequence), itself composed of lower level data elements.

Examples: Patient ID (0010,0020), Accession Number (0008,0050), Photometric

Interpretation (0028,0004), Procedure Code Sequence (0008,1032).

Information Object Definition (IOD)

the specified set of Attributes that comprise a type of data object; does not represent a specific instance of the data object, but rather a class of similar data objects that have the same properties. The Attributes may be specified as Mandatory (Type 1), Required but

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 5 of 94

Revision: 1.1

possibly unknown (Type 2), or Optional (Type 3), and there may be conditions associated with the use of an Attribute (Types 1C and 2C).

Examples: MR Image IOD, CT Image IOD, Print Job IOD.

Joint Photographic Experts Group (JPEG)

a set of standardized image compression techniques, available for use by DICOM applications.

Media Application Profile

the specification of DICOM information objects and encoding exchanged on removable media

(e.g., CDs)

Module

a set of Attributes within an Information Object Definition that are logically related to each other.

Example: Patient Module includes Patient Name, Patient ID, Patient Birth Date, and Patient

Sex.

Negotiation

first phase of Association establishment that allows Application Entities to agree on the types of data to be exchanged and how that data will be encoded.

Presentation Context

the set of DICOM network services used over an Association, as negotiated between

Application Entities; includes Abstract Syntaxes and Transfer Syntaxes.

Protocol Data Unit (PDU)

a packet (piece) of a DICOM message sent across the network. Devices must specify the maximum size packet they can receive for DICOM messages.

Query Key

A input value for a query process. Query Keys denote the set of DICOM tags that are sent from the SCU to SCP and thus control the query result.

Security Profile

a set of mechanisms, such as encryption, user authentication, or digital signatures, used by an Application Entity to ensure confidentiality, integrity, and/or availability of exchanged

DICOM data

Service Class Provider (SCP)

role of an Application Entity that provides a DICOM network service; typically, a server that performs operations requested by another Application Entity (Service Class User).

Examples: Picture Archiving and Communication System (image storage SCP, and image query/retrieve SCP), Radiology Information System (modality worklist SCP).

Service Class User (SCU)

role of an Application Entity that uses a DICOM network service; typically, a client.

Examples: imaging modality (image storage SCU, and modality worklist SCU), imaging workstation (image query/retrieve SCU)

Service/Object Pair (SOP) Class

the specification of the network or media transfer (service) of a particular type of data

(object); the fundamental unit of DICOM interoperability specification.

Examples: Ultrasound Image Storage Service, Basic Grayscale Print Management.

Service/Object Pair (SOP) Instance

an information object; a specific occurrence of information exchanged in a SOP Class.

Examples: a specific x-ray image.

Tag

a 32-bit identifier for a data element, represented as a pair of four digit hexadecimal numbers, the “group” and the “element”. If the “group” number is odd, the tag is for a private

(manufacturer-specific) data element.

Examples: (0010,0020) [Patient ID], (07FE,0010) [Pixel Data], (0019,0210) [private data element]

Transfer Syntax

the encoding used for exchange of DICOM information objects and messages.

Examples: JPEG compressed (images), little endian explicit value representation.

Unique Identifier (UID)

a globally unique “dotted decimal” string that identifies a specific object or a class of objects; an ISO-8824 Object Identifier.

Examples: Study Instance UID, SOP Class UID, SOP Instance UID.

Value Representation (VR)

the format type of an individual DICOM data element, such as text, an integer, a person’s name, or a code. DICOM information objects can be transmitted with either explicit

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 6 of 94

Revision: 1.1

identification of the type of each data element (Explicit VR), or without explicit identification

(Implicit VR); with Implicit VR, the receiving application must use a DICOM data dictionary to look up the format of each data element.

3.5 Abbreviations

Table 3-1 Abbreviations used in this document

Abbreviation

AE

AET

DICOM

OD

OP

OPT

OS

OU

SCP

SCU

SOP

ILE

ELE

IM

IOD

JPG-1

J2K

J2K-LL

MWL

MPG2

TCP/IP

UID

UI

Definition

Application Entity

Application Entity Title

Digital Imaging and Communications in

Medicine

Implicit Little Endian

Explicit Little Endian

Information Model

Information Object Definition

JPEG Coding Process 1 transfer syntax; JPEG

Baseline; ISO 10918-1

JPEG 2000 Image Compression

JPEG 2000 Image Compression

(Lossless Only)

Modality Worklist

Motion Picture Expert Group 2; Abbreviation and synonym for video encoding and compression transfer syntax.

Oculus Dexter, the right eye

Ophthalmic Photography

Ophthalmic Tomography

Oculus Sinister, the left eye

Oculus Uterque, both eyes

Service Class Provider

Service Class User

Service Object Pair, union of a specific DICOM service and related IOD.

Transmission Control Protocol / Internet

Protocol

Unique Identifier

User Interface

3.6 References

NEMA PS3 / ISO 12052, Digital Imaging and Communications in Medicine (DICOM) Standard, National Electrical

Manufacturers Association, Rosslyn, VA, USA (available free at http://medical.nema.org/)

Integrating the Healthcare Enterprise (IHE) EYECARE Technical Framework, rev 3.7, 2010 (available free at

http://www.ihe.net/Technical_Framework/index.cfm

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 7 of 94

Revision: 1.1

4 Networking

4.1 Implementation Model

4.1.1 Application Data Flow

Verify DICOM communication

Remote AE verifies communication

Query Modality Worklist

Query remote AE for patients and data

Acquire scans and images

Analyze scans and images

Create reports

CIRRUS photo

Application Entity

Store scans, images, analyses and reports to remote AE

Retrieve scans, images and analyses from remote AE

Figure 4-1 CIRRUS photo Application Software as Acquisition Modality

Remote AE provides

Modality Worklist

Remote AE provides

Patient Root Query IM

Remote AE provides

Study Root Query IM

Remote AE provides storage of scans, images, analyses and reports

Remote AE provides retrieval of scans, images and analyses

Remote AE provides

Storage Commitment Push Model

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 8 of 94

Revision: 1.1

4.1.2 Functional Definition of AEs

4.1.2.1 Functional Definition of CIRRUS photo

The Carl Zeiss Meditec CIRRUS photo is an image acquisition modality with review capabilities. The acquisition modality enables examination of patient’s eye while it’s review features enables to view, analyze and manage acquired data.

The CIRRUS photo application’s DICOM functionality allows to:

 query modality worklist

 query for patients and data

 archive images, scan data and analysis data

 archive evidence reports

 retrieve images, scan data and analysis data

CIRRUS photo AE implements a Service Class User (SCU) for the following DICOM Services:

 Verification

 Modality Worklist Information Model – FIND

 Study Root Query/Retrieve Information Model – FIND

 Study Root Query/Retrieve Information Model – MOVE

 Patient Root Query/Retrieve Information Model – FIND

 Patient Root Query/Retrieve Information Model – MOVE

 Encapsulated PDF Storage

 Raw Data Storage

 Multi-frame True Color Secondary Capture Image Storage

 Ophthalmic Photography 8 Bit Image Storage

 Storage Commitment Push Model

CIRRUS photo AE implements a Service Class Provider (SCP) for the following DICOM Services:

 Verification

 Raw Data Storage

 Multi-frame True Color Secondary Capture Image Storage

 Ophthalmic Photography 8 Bit Image Storage

All DICOM functionalities have been integrated into the application user interface and will not require any manual invoking of DICOM specific user interface.

The CIRRUS photo software allows performing a verification of the configured AEs. The result of this verification contains information about the supported SOP Classes and Transfer Syntaxes of the remote AEs.

The CIRRUS photo Software logs extensive information about the DICOM operations to its log file.

4.1.3 Sequencing of Real-World Activities

To realize the real world activities, the different entities work together. The sequence diagrams shall depict the intended workflow.

The diagrams use slightly modified UML symbols. The asynchronous call is not depicted as suggested in UML.

Some objects do have more than one dashed line. It symbolizes more than one thread.

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 9 of 94

Revision: 1.1

4.1.3.1 CIRRUS photo activities

Query Modality Worklist

When the patient arrives at the CIRRUS photo, the operator queries the worklist. This can be done by simply opening the "Today's Patients" screen which lists all worklist items scheduled for today’s date and the current CIRRUS photo (identified by the instrument’s AE Title) or by using the “Search worklist” dialog which allows to enter search criteria to get matching items back from modality worklist.

In either way the operator can select the correct item from the result list to proceed with data acquisition. According to the transferred data CIRRUS photo creates an entry in the local database.

Note: “Today’s Patients” screen also lists non-scheduled patients, which already have a performed series for today and match any additionally entered search criteria. These patients are received by querying a remote AE.

Query remote AE for patients and data

With this activity the operator can search patients and data stored at a remote AE. This can be done by opening the “Find Patient” screen and entering search criteria for either patient demographics or stored data specifics. Any matching results will be listed in patient list, visit list and exam list accordingly. Only data supported by CIRRUS photo will be listed.

This activity can be used to get patient demographics in cases when Modality Worklist service provider is not available or can’t be reached.

This activity generates an unscheduled case.

The operator can then select the patient for data acquisition or analysis.

Note: Also “Today’s Patients” screen lists patients received by querying a remote AE. See

‘Query Modality Worklist’ for details.

Acquire scans and images

The operator selects a patient from either “Today’s Patients” or “Find Patient” screen and switches to “Acquire Data” screen. There he/she can select an appropriate acquisition protocol and performs then the scan/image capture on patient’s eye. The Application Software allows the user to review the acquired data before permanently saving.

This activity creates scan data, images and machine generated analysis data. This data is pushed to archive automatically whenever “Acquire Data” screen is left and the user is not in the “Review Image” mode.

Analyze scans and images

The operator can trigger this activity from either “Review Image” or “Analyze” screen by selecting a specific image manipulation or analysis protocol. Applicable analyses depend on the available and selected scan data and images. The user can adjust parameters to optimize the analysis result.

The operator can invoke the creation of an evidence report by using the “Electronic report” feature (see Activity “Create reports”) at any time within the analysis activity.

Any analysis data or manipulated image created within the analysis activity is pushed to archive automatically.

Create reports

The operator can invoke the creation of an evidence report by using the “Electronic report” feature at any time within the activity “Analyze scans and images”. Thus he or she can export several evidence reports during the analysis activity.

Any evidence reports created within this activity is pushed to archive automatically.

Store scans, images, analyses and reports to remote AE

This activity is a background activity which cannot be triggered manually by the operator but will always be triggered automatically by the application in case of new data has been created by other activities. During this activity acquired data, analysis data and evidence reports are transferred to the configured Storage Provider.

This activity will pause for benefit of high priority activities (e.g. “Acquire scans and images”) and resume after such activities has been finished.

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 10 of 94

Revision: 1.1

After a configurable amount of time, the Application Software asks the configured Storage

Commitment Provider to take over responsibility on data persistence for the data previously transferred by the “Archive data” activity. When storage is committed the operator is allowed to enable removal of this data from the modality. This will typically be done in the shutdown routine.

Retrieve scans, images and analyses from remote AE

With this activity the operator can retrieve data from the remote AE. Retrieval can be triggered by selecting an item from either “Today’s Patients” or “Find Patient” result list for which data is available at the remote AE. Only data supported by the Application Software will be retrieved, which includes data generated by “CIRRUS photo” Application Software itself and data generated by the Carl Zeiss Meditec VISUCAM family (when available as Ophthalmic

Photography IOD).

Evidence reports cannot be retrieved.

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 11 of 94

Revision: 1.1

4.1.3.2 Scheduled case

The normal case is that the patient arrives at the front desk. There could be two possibilities at this point:

 The examination can be scheduled for the instrument.

 The examination was scheduled in advance.

In either case all patient and study related information is available at the day the examination takes place This information can then be used to take the examination. The operator can trigger all activities listed below. An activity can be triggered if no other activity is currently active. The shown order of the activities is the recommended order. Details on DIMSE level will be explained in chapters after this.

CIRRUS photo AE Modality Worklist

AE

Query AE Retrieve AE Storage AE Storage

Commitment AE

Query Modality Worklist

opt Query for patients

[Query Provider is available]

Query for patients (Patient Root – Series Level [Series Date = Today])

Select Patient

opt Get data for patient

[Query Provider is available]

Query for patient data (Study Root – Image Level)

Retrieve data

Acquire scans and images

Store scans and images

opt Perform analysis / rev iew images

Analyze scans

Store analyses

Review images

Store review results

Create reports

Store reports

Request for commitment of data persistence

Figure 4-2 Scheduled case

4.1.3.3 Unscheduled case

In the unscheduled case the patient arrives immediately at the instrument, so that the patient was not registered at the front desk and examination is not scheduled in the Modality Worklist. Patient demographics, study information and scheduling information has to be generated at the point of origin or can be queried from the remote Query AE.

The situation is akin to the case if the Modality Worklist AE could not be reached due to network issues.

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 12 of 94

Revision: 1.1

CIRRUS photo AE Query AE Retrieve AE Storage AE Storage

Commitment AE

alt Add new patient

Create new patient

alt Query patients

Query for patients (Patient Root - Series Level [Series Date = Today])

Select Patient

opt Get data for patient

[Query Provider is available]

Query for data (Study Root - Image level)

Retrieve data

Acquire scans and images

Store scans and images

opt Perform analysis / rev iew images

Analyze scans and images

Store analyses

Review images

Store review results

Create reports

Store reports

Request for commitment of data persistence

Figure 4-3 Unscheduled case

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 13 of 94

Revision: 1.1

4.2 AE Specifications

4.2.1 CIRRUS photo Acquisition Modality AE Specification

4.2.1.1 SOP Classes

SOP Class Name

Verification

Storage Commitment

Push Model SOP Class

Encapsulated PDF Storage

Raw Data Storage

SOP Class UID

1.2.840.10008.1.1

1.2.840.10008.1.20.1

1.2.840.10008.5.1.4.1.1.104.1

1.2.840.10008.5.1.4.1.1.66

1.2.840.10008.5.1.4.1.2.2.1

SCU

Yes

Yes

Yes

Yes

Yes

SCP

Yes

No

No

Yes

No Study Root Query/Retrieve

Information Model – FIND

Patient Root Query/Retrieve

Information Model - FIND

Modality Worklist

Information Model - FIND

Study Root Query/Retrieve

Information Model – MOVE

1.2.840.10008.5.1.4.1.2.1.1

1.2.840.10008.5.1.4.31

1.2.840.10008.5.1.4.1.2.2.2

Yes

Yes

Yes

No

No

No

Ophthalmic Photography 8 Bit Image

Storage

Multi-frame True Color Secondary

Capture Image Storage

1.2.840.10008.5.1.4.1.1.77.1.5.1

1.2.840.10008.5.1.4.1.1.7.4

Yes

Yes

Yes

Yes

Note 1: The networking interface proposes more presentation contexts than actually supported by the application. All lines in grey are not supported by Cirrus Photo.

4.2.1.2 Associations Policies

4.2.1.2.1 General

The DICOM standard Application Context Name for DICOM 3.0 is always proposed:

Application Context Name 1.2.840.10008.3.1.1.1

4.2.1.2.2 Number of Associations

The number of simultaneous associations depends on the usage profile. At a certain point of time there might be active simultaneously:

 1 association for Verification

 1 association for Storage

 1 association for Storage Commitment

 1 association for Query/Retrieve - MOVE

 n associations for Modality Worklist - FIND, depending on whether search criteria are changed while a previous query is still active (no response yet)

 n associations for Query/Retrieve - FIND, depending on whether search criteria are changed while a previous query is still active (no response yet)

The maximum number of simultaneous associations is limited:

Maximum number of simultaneous associations 50

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 14 of 94

Revision: 1.1

4.2.1.2.3 Asynchronous Nature

CIRRUS photo Application Software does not support asynchronous communication (multiple outstanding transactions over a single Association).

4.2.1.2.4 Implementation Identifying Information

Implementation Class UID

Implementation Version Name

1.2.276.0.75.2.5.20

NIM-2.2.3

4.2.1.3 Association Initiation Policy

4.2.1.3.1 Activity – Verify DICOM Communication

4.2.1.3.1.1 Description and Sequencing of Activities

This activity is available during the configuration phase. It facilitates the setup and management of the DICOM

Application Entities. Furthermore this activity is triggered automatically in a configurable interval to reexamine all configured connections. This automatic verification does not need any user interaction and comes without any graphical UI features.

The user can test the application level communication between instrument’s software Application Entity and its peer DICOM Application Entities. During one test call, all peer DICOM Application Entities are contacted.

In the association request CIRRUS photo Application Software proposes not only Verification SOP Class, but also all other SOP Classes as supported by CIRRUS photo Application Software.

The association is established when the peer DICOM entity accepts the verification related presentation context.

In a sub-sequent step a C-ECHO message is exchanged.

The results of the “Verify DICOM Communication” activity are shown to the user as success or failure. For e. g. a Storage Provider not only the Verification information is evaluated, but also the acceptance of the proposed presentation context comprising the respective Storage SOP Classes.

4.2.1.3.1.2 Proposed Presentation Contexts

Following presentation contexts are offered for each initiated association. During this activity the Application

Software uses only

 "Verification" with Transfer Syntax ILE as SCU

Presentation Context Table

Abstract Syntax Transfer Syntax

Name

UID

1.2.840.10008. ...

1.1 ILE 1.2

Role

Ext.

Neg.

BOTH No Verification

Modality Worklist Information

Model - FIND

Study Root Query/Retrieve

Information Model - FIND

Study Root Query/Retrieve

Information Model - MOVE

Patient Root Query/Retrieve

Information Model – FIND

Modality Performed Procedure

Step

Modality Performed Procedure

Step Notification

5.1.4.31

5.1.4.1.2.2.1

5.1.4.1.2.2.2

5.1.4.1.2.1.1

3.1.2.3.3

3.1.2.3.5

ILE

ILE

ILE

ILE

ILE

ILE

1.2

1.2

1.2

1.2

1.2

1.2

SCU

SCU

SCU

SCU

Yes

1

Yes

1

SCU No

SCU

No

No

No

ILE 1.2 BOTH No

Encapsulated PDF Storage 5.1.4.1.1.104.1

ELE 1.2.1 BOTH No

Raw Data Storage 5.1.4.1.1.66 ILE 1.2 BOTH No

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 15 of 94

Revision: 1.1

OP 8 Bit Image Storage 5.1.4.1.1.77.1.5.1

ELE

JPG-1

MPEG-2

J2K

J2K-LL

JPG-1

1.2.1

1.2.4.50

1.2.4.100

1.2.4.91

1.2.4.90

1.2.4.50

BOTH No

BOTH No

BOTH No

BOTH No

BOTH No

BOTH No

Multi-frame True Color Secondary

Capture Image Storage

5.1.4.1.1.7.4

RLE 1.2.5 BOTH No

Storage Commitment Push Model 1.20.1 ILE 1.2

1 C-FIND extended negotiation is offered. Relational-query support is required by the SCP.

4.2.1.3.1.3 SOP Specific Conformance for Verification SOP Class

The CIRRUS photo Application Software provides standard conformance.

4.2.1.3.2 Activity – Query Modality Worklist

An operator has two options to perform this activity.

SCU No

4.2.1.3.2.1 Description and Sequencing of Activities

Option “Today’s Patients - One-click query”

In this case, the Application Software performs a query with predefined query keys. The operator cannot change the query key values. The applied query keys are:

Tag Attribute Name Description

(0040,0100) Scheduled Procedure Step Sequence

>(0040,0001) Scheduled Station Application Entity Title Uses the value as configured for the instrument.

>(0040,0002) Scheduled procedure Step Start Date Uses the date of today.

All matching worklist items are subject to be displayed in the GUI and - once selected by the operator - to be imported into the local database.

This default query can be manually triggered by simply opening the applications "Today's Patients" screen or by pressing the “Refresh” button therein. This default query is also triggered automatically in a configurable interval to keep the list of "Today's Patients" up to date.

To prevent the Application Software from triggering a request too often, a caching time can be configured. If so, the application won’t issue new requests even if manually triggered but presents the cached results to the operator.

The “Today’s Patients” screen also offers a ‘Quick search’ field, which allows to enter filter criteria for the presented list. This does not trigger a new query request.

Note: “Today’s Patients” screen also lists non-scheduled patients, which already have a performed series for today and match any additionally entered search criteria. These patients are received by

querying a remote AE. See chapter 4.2.1.3.3 Activity - Query remote AE for patients and data for

details.

Option “Search in Worklist - Interactive query”

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 16 of 94

Revision: 1.1

CIRRUS photo AE

Operator

Trigger "Query Modality Worklist"

Edit or modify query keys

loop in a configurable interv al

Trigger query

C-FIND

Response

Update pick-list

Modality Worklist

AE

opt

Select item from pick-list

Activate detailed view

Save selected item

Figure 4-4 Option "Search in Worklist - Interactive query"

Trigger “Query Modality Worklist”

The activity “Query Modality Worklist” can be triggered by the operator at any time by pressing the “Search in Worklist” button. It is meaningful to perform the query when the patient arrives at the modality. Then the worklist contains latest information.

Edit or modify query keys

The Modality Worklist query offers a GUI for interactive query. The operator can change or fill in search criteria in the shown dialog. For instance, the patient name or the patient ID can be

used. For more details on supported query keys see Table 4-3 Modality Worklist query key details.

Trigger query

The operator triggers the search after he or she filled in search criteria by either pressing the

“Enter” key or by not typing any key for 3 seconds. The Application Software sends a DICOM

C-FIND request, which contains the search criteria. The Application Software waits for the response from the partner Application Entity. Application Software will accept up to a configurable number of matches. If the number of matches oversteps this limit, the

Application Software shows an information about truncated search results and a request to apply more specific query keys. Despite this warning, the operator gets results in the pick-list.

After receiving the response, the pick-list is updated. The pick-list provides the most

important information for a quick overview (see Table 4-2 Attributes involved in Modality

Worklist C-FIND request and response).

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 17 of 94

Revision: 1.1

The operator can start over, redefine query keys and trigger the query again. This can be performed as often as required, until he or she finds the correct worklist item.

Select item in pick-list

The operator can select one worklist item in the pick-list. The selected item becomes subject for a detailed view or it can be imported into the Application Software.

Activate detailed view

The detailed view allows a closer look to the currently selected worklist item. Thus the operator can see more information about patient information and schedule information. This can be triggered by pressing the “Show worklist details” button in the dialog.

Save selected item

The operator can take over the selected item at any time by pressing the “Plan For Today” button. The data is stored in the list of today’s patients.

After saving the selected item, the operator can start over. By repeating this process the operator can take over several worklist items into the local database.

After all that, the operator can start the examination of the patient and acquire scan data.

Leave dialog

The operator finally finishes the worklist query by leaving the dialog.

4.2.1.3.2.2 Proposed Presentation Contexts

Following presentation contexts are offered for each initiated association. During this activity the Application

Software uses only

 "Modality Worklist IM - FIND" with Transfer Syntax ILE as SCU

Presentation Context Table

Transfer Syntax Abstract Syntax

Name

Verification

Modality Worklist Information

Model - FIND

Study Root Query/Retrieve

Information Model - FIND

Study Root Query/Retrieve

Information Model - MOVE

Patient Root Query/Retrieve

Information Model – FIND

Modality Performed Procedure

Step

Modality Performed Procedure

Step Notification

UID

1.2.840.10008. ...

1.1

5.1.4.31

5.1.4.1.2.2.1

5.1.4.1.2.2.2

5.1.4.1.2.1.1

3.1.2.3.3

3.1.2.3.5

ILE

ILE

ILE

ILE

ILE

ILE

ILE

1.2

1.2

1.2

1.2

1.2

1.2

1.2

Role

BOTH No

SCU

SCU

SCU

SCU

Ext.

Neg.

Yes 1

Yes

1

SCU No

SCU

No

No

No

Encapsulated PDF Storage

Raw Data Storage

OP 8 Bit Image Storage

5.1.4.1.1.104.1

5.1.4.1.1.66

5.1.4.1.1.77.1.5.1

ILE

ELE

ILE

ELE

JPG-1

MPEG-2

J2K

J2K-LL

1.2

1.2.1

1.2

1.2.1

1.2.4.50

1.2.4.100

1.2.4.91

1.2.4.90

BOTH No

BOTH No

BOTH No

BOTH No

BOTH No

BOTH No

BOTH No

BOTH No

Multi-frame True Color Secondary

Capture Image Storage

5.1.4.1.1.7.4 JPG-1 1.2.4.50 BOTH No

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 18 of 94

Revision: 1.1

RLE 1.2.5 BOTH No

Storage Commitment Push Model 1.20.1 ILE 1.2

1

C-FIND extended negotiation is offered. Relational-query support is required by the SCP.

SCU No

4.2.1.3.2.3 SOP Specific Conformance for Modality Worklist SOP Class

Table 4-1 Modality Worklist C-FIND Response Status Handling Behavior

Service Status

Success

Pending

Failure

*

Further

Meaning

Matching is complete

Matches are continuing

Too Many

Results

*

Error Code

0000

FF00, FF01

C001

Any other status code

Behavior

The Software Application stops receiving worklist items. It finally updates the pick list.

The Application Software checks whether the number of received worklist items overstepped the configurable limit. If the number of received worklist items overstepped the limit, then the Application Software sends an A-

RELEASE-RQ to the service provider.

If there more results than the configured limit the application software throws an error message to the user.

The user gets an error message.

Table 4-2 Attributes involved in Modality Worklist C-FIND request and response

Tag Tag Name

(0040,0100)

>(0040,0001)

>(0040,0003)

>(0040,0002)

>(0008,0060)

>(0040,0006)

>(0040,0007)

>(0040,0010)

>(0040,0011)

>(0040,0008)

Scheduled Procedure Step (SPS)

Scheduled Procedure Step Sequence

Scheduled Station Application Entity Title OQ, IQ,

DEF

Scheduled Procedure Step Start Time

Scheduled Procedure Step Start Date

Modality

Scheduled Performing Physicians Name

Scheduled Procedure Step Description

Scheduled Station Name

Scheduled Procedure Step Location

Scheduled Protocol Code Sequence

>>(0008,0100) Code Value

>>(0008,0102) Coding Scheme Designator

>>(0008,0103) Coding Scheme Version

>>(0008,0104) Code Meaning

OQ, IQ,

DEF

IQ, DEF

>(0040,0012)

>(0040,0009)

>(0032,1070)

(0040,1001)

Pre-Medication

Scheduled Procedure Step ID

Requested Contrast Agent

Requested Procedure

Requested Procedure ID IQ

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

X

X

X

X

X

V

X

V

V

V

V

X

X

X

X

X

V

V

PLD

PLD

PL, PLD

PLD

PLD

PL, PLD

PL, PLD

Page 19 of 94

Revision: 1.1

X

X

X

X

X

X

X

X

(0032,1060)

(0032,1064)

>(0008,0100)

>(0008,0102)

>(0008,0103)

>(0008,0104)

(0020,000D)

(0008,1110)

>(0008,1150)

>(0008,1155)

(0040,1003)

(0040,1004)

(0040,1400)

(0008,0050)

(0032,1032)

(0008,0090)

(0038,0010)

(0038,0300)

(0008,1120)

>(0008,1150)

>(0008,1155)

Requested Procedure Description

Requested Procedure Code Sequence

Code Value

Coding Scheme Designator

Coding Scheme Version

Code Meaning

Study Instance UID

Referenced Study Sequence

Referenced SOP Class UID

Referenced SOP Instance UID

Requested Procedure Priority

Patient Transport Arrangements

Requested Procedure Comments

Accession Number

Requesting Physician

Referring Physicians Name

Visit Identification

Admission ID

Visit Status

Current Patient Location

Visit Relationship

Referenced Patient Sequence

IQ

Referenced SOP Class UID

Referenced SOP Instance UID

Patient Identification

Patient’s Name IQ

V

X

V

V

V

V

V

X

V

V

X

X

V

V

1

X

V

X

X

X

X

X

PLD

PLD

PLD

PL, PLD

PLD

(0010,0010)

(0010,0020) Patient ID IQ

V

V

PL, PLD,

APP

PL, PLD,

APP

(0010,0021)

(0010,1000)

(0010,0030)

(0010,0040)

(0010,1030)

(0040,3001)

(0010,2160)

(0010,4000)

(0038,0500)

(0010,21C0)

(0010,2000)

(0038,0050)

Issuer of Patient ID

Other Patient IDs

Patient Demographic

Patient’s Birth Date

Patient’s Sex

Patient’s Weight

Confidentiality Constraint on Patient

Data Description

Ethnic Group

Patient’s Comments

Patient State

Pregnancy Status

Medical Alerts

Special Needs

Patient Medical

V

V

V

V

X

X

X

V

X

X

X

X

PLD, APP

PLD, APP

PL

Values of column “Query Key”:

OQ

A tag that is marked with OQ is used as query key in the “One-click Query” mode as provided by “Today’s Patients” screen.

IQ

A tag that is marked with IQ is used as query key in the “Interactive Query” mode as provided by the “Search in Worklist” dialog.

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 20 of 94

Revision: 1.1

DEF

A tag that is marked with DEF has a value assigned when the interactive Modality Worklist

Query Dialog is shown the first time or when the Reset button is pushed.

Default value for Scheduled Station AET equals to Local Application Entity Title as set in instrument’s DICOM configuration

Values of column “Imported”:

X

The value gets imported in the application. Thus this value may have influence in Information

Objects which will be created as a result of the performed examination.

V

The value is validated according to DICOM VR definition before getting imported. In case of validation fails the application software does not import the respective worklist record.

1 Note:

Values for (0008,0050) Accession Number will only pass validation if containing characters of

ASCII character set. Otherwise application software does not import the respective worklist record.

Values of column “Displayed”:

PL

Values of this tag are instantly visible in the pick list.

PLD

Values of this tag are visible in the details dialog of the current selected pick list item.

APP

Values of this tag are visible in the other portions of main application, e.g. in the patient information banner.

Values of column “Modifiable”:

X

A value which has been imported to the application might be modified inside the application.

Values of column SOP Instance:

X

Values of marked tags will be stored in created SOP Instances. See also table “mapping of

attributes” in 8.1.3 Attribute Mapping.

Following set of tags can be used as query key in the “Search in worklist” dialog.

Table 4-3 Modality Worklist query key details

Tag

(0010,0010)

Tag Name

Patient’s Name

(0010,0020)

(0008,0050)

(0040,1001)

(0040,0100) Scheduled

Procedure Step

Sequence

>(0040,0002) Scheduled

Procedure Step

Start Date

>(0008,0060)

Patient ID

Accession

Number

Requested

Procedure ID

Modality

Description

The CIRRUS photo Application Software supports family name only.

The operator can use ‘*’ or ‘?’ as wild cards.

The operator can enter a string which conforms to the

Value Representation LO.

The operator can enter a string which conforms to the

Value Representation SH.

The operator can enter a string which conforms to the

Value Representation SH.

This attribute is the container for the tags as listed below. The sequence contains one item.

The default value is “All dates”.

The operator can change the value and can even enter date ranges.

The default value is “OP”.

The operator can change the value and select one value

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 21 of 94

Revision: 1.1

>(0040,0001) Scheduled

Station AE Title of a predefined set of values including an empty string.

Possible values are “OAM”, “OP”, “OPM”, “OPR”, “OPT”,

“OPV”, and “All”.

The default value is set by configuration.

The operator can enter the AE Title of another device or leave the field empty.

4.2.1.3.3 Activity - Query remote AE for patients and data

4.2.1.3.3.1 Description and Sequencing of Activities

Option “Today’s Patients - One-click query”

In this case, the Application Software performs a relational Patient Root based DICOM C-FIND request with predefined query keys at Series Level. The operator cannot change the query key values. The applied query keys are:

Tag Attribute Name

(0008,0021) Series Date

Description

Uses the date of today.

All matching query response items are subject to be displayed in the GUI along with the results from 4.2.1.3.2

Activity – Query Modality Worklist and - once selected by the operator - to be imported into the local database.

This default query can be manually triggered by simply opening the applications "Today's Patients" screen or by pressing the “Refresh” button therein. This default query is also triggered automatically in a configurable interval to keep the list of "Today's Patients" up to date.

To prevent the Application Software from triggering a request too often, a caching time can be configured. If so, the application won’t issue new requests even if manually triggered but presents the cached results to the operator.

The “Today’s Patients” screen also offers a ‘Quick search’ field, which allows to enter filter criteria for the presented list. This does not trigger a new query request.

Option “Find Patient - Interactive query”

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 22 of 94

Revision: 1.1

CIRRUS photo AE

Operator

Trigger "Query remote AE for patients and data"

Edit or modify query keys

Trigger query

C-FIND (Patient Root, Search criteria)

Query AE

Response

Update patient list

Select patient from patient list

C-FIND (Study Root, Patient

ID, Issuer Of PatientID,

Patient's Name, Patient's

Birth Date, Patient's Sex)

Response

Update visit list

Update instance list (placeholder thumbnails)

Figure 4-5 Option “Find Patient - Interactive query”

Trigger “Query remote AE for patients and data”

The activity “Query remote AE for patients and data” can be triggered by the operator at any time by activating the “Find Patient” screen.

Edit or modify query keys

The “Find Patient” screen offers a GUI for interactive query. The operator can change or fill in search criteria in the shown search fields.

The top-most search field in the “Find Patient” screen acts as a Quick Search field. Any value entered herein is applied to

 (0010,0010)

 (0010,0010)

Patient’s Name – Family Name

Patient’s Name – Given Name

 (0010,0020) Patient ID and issued as three separate requests. The entered value is automatically wild carded to fulfill the ‘contains’ condition.

For more details on supported query keys see Table 4-6 Query key details.

Trigger query

The operator triggers the search after he or she filled in search criteria by either pressing the

“Enter” key or by not typing any key for 3 seconds. The Application Software sends a Patient

Root based DICOM C-FIND request which contains the entered search criteria. The Application

Software waits for the response from the Query AE and accepts up to a configurable number of matches. If the number of matches exceeds this limit, the Application Software shows an information about truncated search results and a request to apply more specific query keys.

Despite this warning, the operator gets results in the pick-list.

After receiving the response, the patient pick-list is updated. The patient pick-list provides the

most important information for a quick overview (see Table 4-5 Attributes involved in Query

C-FIND request and response).

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 23 of 94

Revision: 1.1

The operator can start over, redefine query keys and trigger the query again. This can be performed as often as required, until he or she finds the correct patient entry.

Important note: For this activity it is required that the SCP supports the Relational query model since Application Software does not use the Hierarchical model.

Select patient from patient list

The operator can select one patient entry from the patient list. Once the item is selected the

Application Software sends a DICOM C-FIND request on Instance Level using Study Root

Query SOP Class with the following query keys

 (0010,0020)

 (0010,0021)

Patient ID

Issuer of Patient ID

 (0010,0010)

 (0010,0030)

 (0010,0040)

Patient’s Name

Patient’s Birth Date

Patient’s Sex

The Application Software filters the response from the Query AE for supported instances and uses the data gathered by these filters to update a “Visit list” and an “Exam list”. The "Visit list" shows a list of dates for which instances were provided in the Query response while the

"Exam list" shows thumbnails for any instances available for a selected visit. In the first place these thumbnails are placeholders indicating that the actual instance is not retrieved yet to the CIRRUS photo Application Entity.

The operator can select another entry from the patient list even when an active request is still in progress. In this case another request will be started in parallel and the results from the previous request will get finished.

Important note: For this activity it is required that the SCP supports the Relational query model since Application Software does not use the Hierarchical model.

Immediately after updating both lists the Application Software automatically starts the activity

“Retrieve scans, images and analyses from remote AE”.

4.2.1.3.3.2 Proposed Presentation Contexts

Following presentation contexts are offered for each initiated association. During this activity the Application

Software uses only

 "Patient Root Query/Retrieve Information Model - FIND" with Transfer Syntax ILE as SCU

 "Study Root Query/Retrieve Information Model - FIND" with Transfer Syntax ILE as SCU

Important note: For this activity it is required that the SCP supports the Relational query model since Application Software does not use the Hierarchical model.

Presentation Context Table

Abstract Syntax

Name

UID

1.2.840.10008. ...

1.1

Transfer Syntax

Name List

UID List

1.2.840.10008. ...

ILE 1.2

Role

Ext.

Neg.

BOTH No Verification

Modality Worklist Information

Model - FIND

Study Root Query/Retrieve

Information Model - FIND

Study Root Query/Retrieve

Information Model - MOVE

Patient Root Query/Retrieve

Information Model – FIND

Modality Performed Procedure

Step

Modality Performed Procedure

5.1.4.31

5.1.4.1.2.2.1

5.1.4.1.2.2.2

5.1.4.1.2.1.1

3.1.2.3.3

3.1.2.3.5

ILE

ILE

ILE

ILE

ILE

ILE

1.2

1.2

1.2

1.2

1.2

1.2

SCU

SCU

SCU

SCU

Yes 1

Yes

1

SCU No

SCU

No

No

No

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 24 of 94

Revision: 1.1

Step Notification

Encapsulated PDF Storage

Raw Data Storage

OP 8 Bit Image Storage

5.1.4.1.1.104.1

5.1.4.1.1.66

5.1.4.1.1.77.1.5.1

ILE

ELE

ILE

ELE

JPG-1

MPEG-2

J2K

J2K-LL

JPG-1

1.2

1.2.1

1.2

1.2.1

1.2.4.50

1.2.4.100

1.2.4.91

1.2.4.90

1.2.4.50

Multi-frame True Color Secondary

Capture Image Storage

5.1.4.1.1.7.4

RLE 1.2.5 BOTH No

Storage Commitment Push Model 1.20.1 ILE 1.2

1 C-FIND extended negotiation is offered. Relational-query support is required by the SCP.

SCU No

4.2.1.3.3.3 SOP Specific Conformance for Patient Root and Study Root Query/Retrieve

SOP Class as SCU

Table 4-4 Query C-FIND Response Status Handling Behavior

Service Status

Success

Pending

Further

Meaning

Matching is complete

No final

Identifier is supplied.

Matches are continuing

Error Code

0000

FF00, FF01

Behavior

The Application Software finishes receiving query results. It finally updates the pick list.

Refused

Failure

The Application Software checks whether the number of received responses overstepped the configurable limit. If the number of received responses overstepped the limit, then the

Application Software sends an A-RELEASE-RQ to the service provider.

An error message is shown to the operator.

The Application Software logs this event and gives up. The pick-list is then empty.

Failure

Cancel

*

Out of Resources A700

Identifier does not match SOP

Class

A900

Unable to process

C000 - CFFF

Matching terminated due to Cancel request

*

FE00

Any other status code

BOTH No

BOTH No

BOTH No

BOTH No

BOTH No

BOTH No

BOTH No

BOTH No

BOTH No

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 25 of 94

Revision: 1.1

The following table lists attributes, which are in use during this activity. The table also explains how the attributes are involved.

Table 4-5 Attributes involved in Query C-FIND request and response

Tag Tag Name

Study

(0010,0010) Patient’s Name

(0010,0020) Patient ID

(0010,0021) Issuer of Patient ID

(0010,0030) Patient’s Birth Date

X, AUTO X

X, AUTO

AUTO

X

X

X, RNG, AUTO X

(0010,0040) Patient’s Sex

(0008,0020) Study Date

(0008,0050) Accession Number

(0020,0010) Study ID

(0008,0090) Referring Physician’s Name

Series

(0008,0060) Modality

(0020,0011) Series Number

(0040,1001) Requested Procedure ID

X, SEL, AUTO X

X, RNG

X

X

X

X, SEL

X

X

(0040,0009) Scheduled Procedure Step ID X

(0040,0244) Performed Procedure Step Start Date X, RNG

X

X

X

X

(0008,0021) Series Date X, RNG

Instance

(0020,0013) Instance Number X X

Values for column “Query key”:

X

The attribute is used as query key. The operator can assign values to that attribute. When the operator triggers the query, the values of the query keys are transferred to the Query Service

Provider. How the Query Service Provider interprets the given value is out of scope of this document.

AUTO

The CIRRUS photo application assigns automatically values to that attribute according to the current operator selection.

RNG

The operator can apply a range as value for the query key.

SEL

The operator can select a value from a given list of values.

Values for column “Displayed in pick-list”:

X

After receiving query results, the value of this attribute is shown in the pick-list.

Values for column “Displayed in detail dialog”:

X

The value of this attribute becomes visible in the detail dialog. The detail dialog shows attributes of the current selected item in the pick-list.

X

X

X

X

X

X

X

X

X

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 26 of 94

Revision: 1.1

Table 4-6 Query key details

Tag Tag Name

(0010,0010) Patient’s Name

(0010,0020) Patient ID

(0010,0021) Issuer of Patient ID

(0010,0030) Patient’s Birth Date

(0010,0040) Patient’s Sex

(0008,0050) Accession Number

(0008,0020) Study Date

(0020,0010) Study ID

Description

Patient

The default value is empty string.

Only family name, middle name and given name can be used as query keys. The operator can use '*' or '?' as wild cards.

This is a DICOM Standard query key on

Patient level.

The default value is empty string.

The operator can enter each value that conforms to the Value Representation LO.

This is a DICOM Standard query key on

Patient level.

This attribute is used as query key automatically when the operator selects a patient from the patient list and the application starts querying the remote AE for

“Visits” and “Exams”.

The value assigned conforms to the value gathered from the previous Patient root

Query.

This is a DICOM Optional query key on Patient level, thus the effect of this query key on the query depends on Service Provider implementation.

The default value is empty date.

The operator can enter a specific value that conforms to the Value Representation DA. The operator can also select from a range of dates that might represent either a range of ages

(“Age”) or a range of years of birth (“Year”).

This is a DICOM Optional query key on Patient level, thus the effect of this query key on the query depends on Service Provider implementation.

The default value is empty string.

The operator can select from a list of predefined values and the application software will convert the selection to a value that conforms to the Value Representation CS.

This is a DICOM Optional query key on Patient level, thus the effect of this query key on the query depends on Service Provider implementation.

Study

The default value is empty string.

The operator can enter each value that conforms to the Value Representation SH.

This is a DICOM Standard query key on Study level.

The default value is empty date.

The operator can select from a range of dates.

This is a DICOM Standard query key on Study level.

The default value is empty string.

The operator can enter each value that conforms to the Value Representation SH.

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 27 of 94

Revision: 1.1

(0008,0090) Referring Physician’s Name

This is a DICOM Standard query key on Study level.

The default value is empty string.

Only family name can be used as query key.

This is a DICOM Optional query key on Study level, thus the effect of this query key on the query depends on Service Provider implementation.

Series

(0008,0060) Modality

(0020,0011) Series Number

(0040,1001) Requested Procedure ID

(0040,0009) Scheduled Procedure Step ID

(0040,0244) Performed Procedure Step Start Date

(0008,0021) Series Date

(0020,0013) Instance Number

The default value is empty string.

The operator can select from a list of predefined values and the application software will convert the selection to a value that conforms to the Value Representation CS.

This is a DICOM Standard query key on Series level.

The default value is empty string.

The operator can enter each value that conforms to the Value Representation IS.

This is a DICOM Standard query key on Series level.

The default value is empty string.

The operator can enter each value that conforms to the Value Representation SH.

This is a DICOM Optional query key on Series level, thus the effect of this query key on the query depends on Service Provider implementation.

The default value is empty string.

The operator can enter each value that conforms to the Value Representation SH.

This is a DICOM Optional query key on Series level, thus the effect of this query key on the query depends on Service Provider implementation.

The default value is empty date.

The operator can select from a range of dates.

This is a DICOM Optional query key on Series level, thus the effect of this query key on the query depends on Service Provider implementation.

This attribute is denoted as “Visit Date” in the application software’s UI.

The default value is empty date.

The operator can select from a range of dates.

This is a DICOM Optional query key on Series level, thus the effect of this query key on the query depends on Service Provider implementation.

Instance

The default value is empty string.

The operator can enter each value that conforms to the Value Representation IS.

This is a DICOM Standard query key on

Instance level.

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 28 of 94

Revision: 1.1

4.2.1.3.4 Activity – Retrieve scans, images and analyses from remote AE

4.2.1.3.4.1 Description and Sequencing of Activities

This activity is indirectly triggered whenever the operator selects one item from the patient pick-list presented within either activity “Query Modality Worklist” (“Today’s Patients” screen) or activity “Query remote AE for patients and data” (“Find Patient” screen).

CIRRUS photo AE Query AE Retrieve AE

Operator

Select patient from patient list

C-FIND (Study Root, Patient ID, Issuer Of PatientID,

Patient's Name, Patient's Birth Date, Patient's Sex)

Response

Update visit list

Update instance list (placeholder thumbnails)

loop For each instance passing internal filtering

C-MOVE (Study Instance UID, Series Instance UID,

SOP Instance UID

C-STORE

Update instance list (real thumbnails)

Select patient from patient list

The operator can select one patient entry from the patient pick-list list. Once the item is selected the Application Software sends a DICOM C-FIND request on Instance Level using

Study Root Query SOP Class with the following query keys

 (0010,0020)

 (0010,0021)

Patient ID

Issuer of Patient ID

 (0010,0010)

 (0010,0030)

 (0010,0040)

Patient’s Name

Patient’s Birth Date

Patient’s Sex

The Application Software filters the response from the Query AE for supported instances. The following elements of a response item are evaluated and filtered:

 (0008,0060) Modality

 (0008,1090) Manufacturer's Model Name

 (0008,0008) Image Type

 (0008,0016) SOP Class UID

 (0405,xx01) Pattern Type

Only instances fulfilling the following conditions will be accepted:

 Manufacturers Model Name must always contain either ‘CIRRUS photo’ or ‘VISUCAM’

 Raw Data instances must be of Modality ‘OPT’ and must contain supported scan or analysis data

 Multi-Frame True Color Secondary Capture instances must contain the Image Type ‘B

SCAN’

 Ophthalmic Photography 8 Bit instances must be of Modality ‘OP’

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 29 of 94

Revision: 1.1

All instances passing the applied filters are presented to the user in a “Visit list” and an “Exam list”. The "Visit list" shows a list of dates for which instances were provided in the Query response while the "Exam list" shows thumbnails for any instances available for a selected visit. In the first place these thumbnails are placeholders indicating that the actual instance is not retrieved yet to the CIRRUS photo Application Entity.

Immediately after updating both lists the Application Software automatically starts to initiate a C-MOVE request for each instance that passed the filtering. The retrieval of instances is ordered by series date and starts with most recent instances.

4.2.1.3.4.2 Proposed Presentation Contexts

Following presentation contexts are offered for each initiated association. During this activity the Application

Software uses only

 "Study Root Query/Retrieve Information Model - MOVE" with Transfer Syntax ILE as SCU

 “Raw Data Storage” with Transfer Syntax ELE or ILE as SCP

 “OP 8 Bit Image Storage” with Transfer Syntax JPG-1 as SCP

 “Multi-frame True Color Secondary Capture Image Storage” with Transfer Syntax JPG-1 as SCP

Presentation Context Table

Abstract Syntax Transfer Syntax

Name

UID

1.2.840.10008. ...

1.1 ILE 1.2

Role

Ext.

Neg.

BOTH No Verification

Modality Worklist Information

Model - FIND

Study Root Query/Retrieve

Information Model - FIND

Study Root Query/Retrieve

Information Model - MOVE

Patient Root Query/Retrieve

Information Model – FIND

Modality Performed Procedure

Step

Modality Performed Procedure

Step Notification

5.1.4.31

5.1.4.1.2.2.1

5.1.4.1.2.2.2

5.1.4.1.2.1.1

3.1.2.3.3

3.1.2.3.5

ILE

ILE

ILE

ILE

ILE

ILE

1.2

1.2

1.2

1.2

1.2

1.2

SCU

SCU

SCU

SCU

Yes

1

Yes

1

SCU No

SCU

No

No

No

ILE 1.2 BOTH No

Encapsulated PDF Storage 5.1.4.1.1.104.1

ELE 1.2.1 BOTH No

Raw Data Storage

OP 8 Bit Image Storage

5.1.4.1.1.66

5.1.4.1.1.77.1.5.1

ILE

ELE

JPG-1

MPEG-2

J2K

J2K-LL

1.2

1.2.1

1.2.4.50

1.2.4.100

1.2.4.91

1.2.4.90

BOTH No

BOTH No

BOTH No

BOTH No

BOTH No

BOTH No

JPG-1 1.2.4.50 BOTH No

Multi-frame True Color Secondary

Capture Image Storage

5.1.4.1.1.7.4

RLE 1.2.5 BOTH No

Storage Commitment Push Model 1.20.1 ILE 1.2 SCU No

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 30 of 94

Revision: 1.1

1

C-FIND extended negotiation is offered. Relational-query support is required by the SCP.

4.2.1.3.4.3 SOP Specific Conformance for Study Root Query/Retrieve SOP Class as SCU

Table 4-7 Retrieve C-MOVE Response Status Handling Behavior

Service Status

Further

Meaning

Error Code

Success

Pending

Refused

Refused

Refused

Failure

Failure

Success

Sub-operations

Complete

No Failures

Move Destination unknown

Identifier does not match SOP

Class

Unable to process

Sub-operations

Complete

One or more

Failures

0000

Sub-operations are continuing

Out of Resources

Unable to calculate number of matches

FF00

A701

Out of Resources

Unable to perform suboperations

A702

A801

A900

C000 - CFFF

B000

This is not expected since the Application

Software calls C-MOVE instance by instance.

An error message is shown to the operator.

The Application Software logs this event and continues with processing next C-MOVE operation.

Behavior

The Application Software returns from this activity.

Cancel

*

Sub-operations terminated due to Cancel

Indication

*

FE00

Any other status code

4.2.1.3.5 Activity – Acquire scans and images

Operator can trigger “Acquire scans and images” at any time if no other activity is in progress.

This activity has no direct relation to DICOM messaging.

During this activity, the Application Software creates scan and image data. It also creates default parameters for an analysis.

The created data is subject to be archived within next “Store scans, images, analyses and reports to remote

AE”-activity call.

During this activity the activities

 “Query Modality Worklist”

 “Query remote AE for patients and data”

 “Retrieve scans and images”

 “Store scan, images, analyses and reports” will be paused.

4.2.1.3.6 Activity – Analyze scans and images

Operator can trigger “Analyze scans and images” at any time if no other activity is in progress.

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 31 of 94

Revision: 1.1

This activity has no direct relation to DICOM messaging.

During this activity, the Application Software creates new parameter data sets for an analysis and/or new images.

The created data is subject to be archived within next “Store scans, images, analyses and reports to remote

AE”-activity call.

During this activity the “Store scan, images, analyses and reports” activity will be paused.

4.2.1.3.7 Activity – Create reports

Operator can trigger “Create reports” within either “Review Image” or “Analyze OCT” screen.

This activity has no direct relation to DICOM messaging.

During this activity, the Application Software creates new parameter data sets for an analysis and/or new images.

The created data is subject to be archived within next “Store scans, images, analyses and reports to remote

AE”-activity call.

4.2.1.3.8 Activity – Store scans, images, analyses and reports to remote AE

This activity cannot be triggered manually by the operator but is triggered automatically in the background whenever new data has been created and neither “Acquire scans and images” nor “Analyze scans and images” is active.

This activity will pause for benefit of high priority activities (e.g. “Acquire scans and images”) and resume after such activities has been finished.

After a configurable amount of time, the Application Software asks the configured Storage Commitment

Provider to take over responsibility on data persistence for the data previously transferred by the “Archive data” activity. When storage is committed the operator is allowed to enable removal of this data from the modality.

This will typically done in the shutdown routine.

4.2.1.3.8.1 Description and Sequencing of Activities

CIRRUS photo AE Storage AE Storage

Commitment AE

Operator

Trigger creation of new data

Add new data to list of storage candidate

Trigger "Store scans, images, analyses and reports to remote AE"

loop For each item in list of storage candidates

C-STORE (SOP instance)

[System has been idle for configurable time]:

StorageCommitment interval elapsed

Request commitment for stored but uncommitted instances

N-ACTION (SOP Instance UIDs)

N-EVENT-REPORT

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 32 of 94

Revision: 1.1

Trigger “Store scans, images, analyses and reports to remote AE”

This activity cannot be triggered manually by the operator but is triggered automatically in the background whenever new data has been created and neither “Acquire scans and images” nor “Analyze scans and images” is active.

Furthermore the application software triggers this activity automatically after a configurable interval has been elapsed and there’s new data available that has not been stored.

Once triggered, the application software transfers all data that has been stored locally but has not yet transferred to the configured Storage AE . It also re-transfers data for which archiving has failed in a previous attempt or where the storage commitment has not been negotiated successfully.

The operator can pause this activity when triggering either “Acquire scans and images” or

“Analyze scans and images”. Once these activities are finished, storing is resumed.

To verify that the data has been archived, the Application Software can be set up to ask the configured Storage Commitment AE in a configurable interval to commit storage of instances.

Data that has been successfully archived (stored and commitment of storage) is subject to be deleted at shutdown.

4.2.1.3.8.2 Proposed Presentation Contexts

Following presentation contexts are offered for each initiated association. During this activity the Application

Software uses only

 Encapsulated PDF with Transfer Syntax ELE (Transfer Syntax ILE as fallback) as SCU

 Raw Data Storage with Transfer Syntax ELE (Transfer Syntax ILE as fallback) as SCU

 OP 8Bit Image Storage with Transfer Syntax JPG-1 as SCU

 Multi-frame True Color SC Image Storage with Transfer Syntax JPG-1 as SCU

 Storage Commitment Push Model with Transfer Syntax ILE as SCU

Presentation Context Table

Abstract Syntax

Name

UID

1.2.840.10008. ...

1.1

Transfer Syntax

Name List

ILE

UID List

1.2.840.10008. ...

1.2

Role

Ext.

Neg.

BOTH No Verification

Modality Worklist Information

Model - FIND

Study Root Query/Retrieve

Information Model - FIND

Study Root Query/Retrieve

Information Model - MOVE

Patient Root Query/Retrieve

Information Model – FIND

Modality Performed Procedure

Step

Modality Performed Procedure

Step Notification

5.1.4.31

5.1.4.1.2.2.1

5.1.4.1.2.2.2

5.1.4.1.2.1.1

3.1.2.3.3

3.1.2.3.5

ILE

ILE

ILE

ILE

ILE

ILE

1.2

1.2

1.2

1.2

1.2

1.2

SCU

SCU

SCU

SCU

Yes

1

Yes

1

SCU No

SCU

No

No

No

ILE 1.2 BOTH No

Encapsulated PDF Storage 5.1.4.1.1.104.1

ELE 1.2.1 BOTH No

Raw Data Storage

OP 8 Bit Image Storage

5.1.4.1.1.66

5.1.4.1.1.77.1.5.1

ILE

ELE

JPG-1

MPEG-2

J2K

1.2

1.2.1

1.2.4.50

1.2.4.100

1.2.4.91

BOTH No

BOTH No

BOTH No

BOTH No

BOTH No

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 33 of 94

Revision: 1.1

J2K-LL

JPG-1

1.2.4.90

1.2.4.50

BOTH No

BOTH No

Multi-frame True Color Secondary

Capture Image Storage

5.1.4.1.1.7.4

RLE 1.2.5 BOTH No

Storage Commitment Push Model 1.20.1 ILE 1.2

1

C-FIND extended negotiation is offered. Relational-query support is required by the SCP.

SCU No

4.2.1.3.8.3 SOP Specific Conformance for Storage SOP Classes

Table 4-8 Storage C-STORE Response Status Handling Behavior

Service Status

Success

Further

Meaning

Success

Status Code

0000

Warning

Warning

Warning

Refused

Coercion of Data

Elements

B000

Data Set does not match SOP

Class

B007

Elements

Discarded

B006

Out of Resources A700 – A7FF

Behavior

The Application Software continues storing next instance if there is at least one instance left in the set of instances.

The Application Software logs this event and continues storing next instance if there is at least one instance left in the set of instances.

Error

Error

*

Data Set does not match SOP

Class

Cannot

Understand

*

A900 – A9FF

C000 – CFFF

Any other status value

The Application Software continues storing next instance if there is at least one instance left in the set of instances.

Afterwards application software performs a configurable number of retrials to store the failed instance.

If all retrials fail, an error message is shown to the operator, the Application Software logs this event and gives up for this instance.

An error message is shown to the operator.

The Application Software logs this event and gives up for this instance. Application software continues storing next instance if there is at least one instance left in the set of instances.

4.2.1.3.8.4 SOP Specific Conformance for Storage Commitment SOP Class

4.2.1.3.8.4.1 Storage Commitment Operations (N-ACTION)

The Application Software will request storage commitment for instances of the Raw Data (scan and analysis data), Ophthalmic Photography, Multi-frame True Color Secondary Capture and Encapsulated PDF Image

Storage if the Remote AE is configured as Storage Commitment Provider and a presentation context for the

Storage Commitment Push Model has been accepted.

The Storage Commitment Request addresses at least one SOP Instance and at maximum 500 SOP instances.

The behavior of the Application Software when encountering status codes in a N-ACTION response is summarized in the table below:

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 34 of 94

Revision: 1.1

Table 4-9 Storage Commitment N-ACTION Response Status Handling Behavior

Service Status

Failure

Failure

Failure

Failure

Failure

Failure

Refused

Failure

Failure

Failure

Success

Further

Meaning

Processing failure

Resource limitation

No such argument

Invalid argument value

Invalid object instance

No such SOP class

SOP class not supported

No such action type

Unrecognized operation

Mistyped argument

Success

Status Code

0110

0213

0114

0115

0117

0118

0122

0123

0211

0212

0000

Behavior

The SOP Instance is considered as not being committed. For a configurable amount of retrials the SOP Instance is subject of a future

Storage Commitment service request. It will be included again within next call of these activities.

In case of failure occurs repeatedly a warning message is shown to the operator.

The SOP Instance is considered as not being committed. For a configurable amount of retrials the SOP Instance is subject of a future

Storage Commitment service request. It will be included again within next call of these activities.

An error message is shown to the operator.

* * Any other status value

The Application Software will wait for an incoming N-EVENT-REPORT within a configurable time.

The SOP Instance is considered as not being committed. For a configurable amount of retrials the SOP Instance is subject of a future

Storage Commitment service request. It will be included again within next call of these activities.

4.2.1.3.8.4.2 Storage Commitment Communication Failure Behavior

If the Application Software runs in a timeout or if the association is aborted by the provider or network layer, or if waiting duration for Storage Commitment N-EVENT-REPORT oversteps a configurable time limit then the related SOP Instance is considered as not being committed. Then the SOP Instance is subject of a future

Storage Commitment service call. It will be included again within next call of this activity.

In addition to that, the Application Software writes the SOP Instance UID to the log file, together with the failure reason.

4.2.1.4 Association Acceptance Policy

4.2.1.4.1 Activity – Verify Communication

The activity can be performed at any time. The service is available as soon as the Application Software has been started.

4.2.1.4.1.1 Description and Sequencing of Activities

The Software AE responds to verification requests made by remote AEs.

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 35 of 94

Revision: 1.1

4.2.1.4.1.2 Accepted Presentation Contexts

Presentation Context Table

Abstract Syntax

Name

Verification

UID

1.2.840.10008. ...

1.1

Transfer Syntax

ILE 1.2

Role

Ext.

Neg.

BOTH No

4.2.1.4.1.3 SOP Specific Conformance for Verification SOP Class as SCP

The Application Software AE provides standard conformance.

4.2.1.4.2 Activity - Retrieve scans, images and analyses from remote AE

This chapter describes the aspect of association acceptance of the activity “Retrieve scans, images and analyses from remote AE”. The activity retrieves images, scan data and analysis data belonging to a selected patient.

4.2.1.4.2.1 Description and Sequencing of Activities

The description and sequencing of activities is covered by chapter “4.2.1.3.4 Activity – Retrieve scans, images and analyses from remote AE”.

4.2.1.4.2.2 Accepted Presentation Contexts

Presentation Context Table

Abstract Syntax

Name

Verification

UID

1.2.840.10008. ...

1.1

Transfer Syntax

Role

Ext.

Neg.

Encapsulated PDF Storage

Raw Data Storage

OP 8 Bit Image Storage

5.1.4.1.1.104.1

5.1.4.1.1.66

5.1.4.1.1.77.1.5.1

Multi-frame True Color Secondary

Capture Image Storage

5.1.4.1.1.7.4

ILE

ILE

ELE

ILE

ELE

JPG-1

MPEG-2

J2K

J2K-LL

JPG-1

RLE

1.2

1.2

1.2.1

1.2

1.2.1

1.2.4.50

1.2.4.100

1.2.4.91

1.2.4.90

1.2.4.50

1.2.5

BOTH No

BOTH No

BOTH No

BOTH No

BOTH No

BOTH No

BOTH No

BOTH No

BOTH No

BOTH No

BOTH No

4.2.1.4.2.3 SOP Specific Conformance for Storage SOP Class as SCP

The Application Software AE provides standard conformance.

4.2.1.4.3 Activity – Store scans, images, analyses and reports to remote AE

This chapter describes the aspect of association acceptance of the activity “Store scans, images, analyses and reports to remote AE”. The activity stores images, reports, scan data and analysis data created at the modality and requests a storage commitment afterwards.

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 36 of 94

Revision: 1.1

4.2.1.4.3.1 Description and Sequencing of Activities

The description and sequencing of activities is covered by chapter “4.2.1.3.8 Activity – Store scans, images, analyses and reports to remote AE”.

4.2.1.4.3.2 Accepted Presentation Contexts

Presentation Context Table

Abstract Syntax

Name

Verification

UID

1.2.840.10008. ...

1.1

Transfer Syntax

Role

Ext.

Neg.

Encapsulated PDF Storage

Raw Data Storage

OP 8 Bit Image Storage

5.1.4.1.1.104.1

5.1.4.1.1.66

5.1.4.1.1.77.1.5.1

Multi-frame True Color Secondary

Capture Image Storage

5.1.4.1.1.7.4

Storage Commitment Push Model 1.20.1

ILE

ILE

ELE

ILE

ELE

JPG-1

MPEG-2

J2K

J2K-LL

JPG-1

RLE

ILE

1.2

1.2

1.2.1

1.2

1.2.1

1.2.4.50

1.2.4.100

1.2.4.91

1.2.4.90

1.2.4.50

1.2.5

1.2

BOTH No

BOTH No

BOTH No

BOTH No

BOTH No

BOTH No

BOTH No

BOTH No

BOTH No

BOTH No

BOTH No

SCU No

4.2.1.4.3.3 SOP Specific Conformance for Storage SOP Class as SCP

The Application Software AE provides standard conformance.

4.2.1.4.3.4 SOP Specific Conformance for Storage Commitment SOP Class

4.2.1.4.3.4.1 Storage Commitment Operations (N-EVENT-REPORT)

The Application Software is capable of receiving an N-EVENT-REPORT notification if it has successfully negotiated a Presentation Context for the Storage Commitment Push

The behavior of Application Software when receiving Event Types within the N-EVENT-REPORT is summarized in the table below.

Table 4-10 Storage Commitment N-EVENT-REPORT Request Failure Reasons

Meaning

Processing failure

No such object instance

Resource limitation

Failure

Reason

0110

0112

0213

Behavior

The SOP Instance is considered as not being archived and will be subject of a future Storage activity.

The SOP Instance is also considered as not being committed. For a configurable amount of re-trials the SOP Instance is subject of a future

Storage Commitment service request. It will be included again within next call of these activities.

In addition, the application software writes the

SOP Instance UID to the log file with the failure reason.

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 37 of 94

Revision: 1.1

Referenced SOP Class not supported

Class / Instance conflict

Duplicate transaction UID

0122

0119

0131

The SOP Instance is considered as not being committed. No additional re-trials will be performed.

The application software writes the SOP

Instance UID to the log file with the failure reason.

The SOP Instance is considered as not being committed. For a configurable amount of retrials the SOP Instance is subject of a future

Storage Commitment service request. It will be included again within next call of these activities.

In addition, the application software writes the

SOP Instance UID to the log file with the failure reason.

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 38 of 94

Revision: 1.1

4.3 Network Interfaces

4.3.1 Physical Network Interface

The physical network interface is not visible for the instrument application. The instrument application uses the communication stack as offered by the Operating System.

4.3.2 Additional Protocols

No additional protocols are supported.

4.3.3 IPv4 and IPv6 Support

Application software does only support IPv4 and does not support any IPv6 features.

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 39 of 94

Revision: 1.1

4.4 Configuration

Local application entity and remote application entity information can be configured with the DICOM

Configuration Tool accessible through the menu “Tools/Settings/Network/DICOM”. There is only one single

Application Entity Title used for the instrument Software Application.

It is also possible to configure intervals, timeouts, institution settings, and worklist item limit parameters via

Application Software, configuration tool and configuration file.

4.4.1 AE Title/Presentation Address Mapping

The mapping from AE Title to TCP/IP addresses and ports is configurable and set at the time of installation by

Installation Personnel.

4.4.1.1 Local AE Titles

The IP is not configurable by the Configuration Tool. The IP is administrated by the Operating System. If the

Application Software is running on a host with more than one network connection, the user should select the loopback adapter from the list of IP addresses. The Application Entity Title as well as the port number is configurable. The default port number is 11112.

4.4.1.2 Remote AE Titles

The mapping of external AE Titles to TCP/IP addresses and ports is configurable. The CIRRUS photo Application

Software allows setting up a remote Application Entity for each service. For all Application Entities, the host name or IP, the Port and the Application Entity Title must be known.

The DICOM Configuration tool allows to deactivate connection to a certain Application Entity by leaving its configuration fields for host name or IP, the Port and the Application Entity Title blank.

4.4.2 Parameters

4.4.2.1 General Parameters

The general parameters are shared for associations to any of the configured AE.

Table 4-11 Configuration General Parameters Table

Parameter Configurable (Yes/No)

General Parameters

DIMSE RSP Timeout Yes (10 – 60 sec.)

 Tools/Settings/Network/DICOM

Network Timeout

Max. Association Idle Time

(0008,0080) Institution Name

(0008,1040) Institutional Department Name

(0008,0081) Institution Address

(0008,1010) Station Name

(0008,1070) Operator’s Name

Yes (5-20 sec.)

 Tools/Settings/Network/DICOM

Yes (10 – 60 sec.)

 Tools/Settings/Network/DICOM

Yes

 Tools/Settings/Device

Yes

 Tools/Settings/Device

Yes

 Tools/Settings/Device

Yes

 Tools/Settings/Device

Yes

 Tools/Settings/User

Management

Default Value

20 sec.

20 sec.

30 sec

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 40 of 94

Revision: 1.1

4.4.2.2 AE Specific Parameters

The AE specific parameters are only used for associations to the named AE.

Parameter Configurable (Yes/No)

Verification SCU Parameters

Verification Refresh (C-ECHO) Interval Yes (0 [=off] – 720 min.)

 userconfig.xml

Modality Worklist SCU Parameters

Today’s Patient List Refresh Rate (Modality

Worklist Polling Interval)

Yes (1 min. – 60 min.)

 Tools/Settings/Patient

Management

Maximum Query Responses (Modality

Worklist Information Model)

Yes (10 – 999)

 Tools/Settings/Network/DICOM

Patient Root Q/R and Study Root Q/R SCU Parameters

Maximum Query Responses (Patient Root

Query/Retrieve Information Model and

Study Root Query/Retrieve Information

Model)

Yes (10 – 999)

 Tools/Settings/Network/DICOM

Allow unconstraint query

Extended Negotiation – relational query support negotiation

(Patient Root Query/Retrieve Information

Model and Study Root Query/Retrieve

Information Model)

Yes (On/Off)

 userconfig.xml

Yes (On/Off)

 Tools/Settings/Network/DICOM

Query Response Caching Time (Today’s

Patients)

(Patient Root Query/Retrieve Information

Model)

Yes (1 min. – 60 min.)

 userconfig.xml

Query Response Caching Time (Find

Patients)

(Patient Root Query/Retrieve Information

Model)

Number of retrials on error

Yes (1 min. – 60 min.)

 userconfig.xml

Storage SCU Parameters

Yes (0 – 10)

 userconfig.xml

Interval of automatic storage of nonarchived instances

Yes (1 min. – 720 min.)

 userconfig.xml

Required idle time before automatic storage of non-archived instances

Yes (1 min. – 720 min.)

 userconfig.xml

Storage Commitment SCU Parameters

Storage Commitment enable/disable Yes (On/Off)

 userconfig.xml

Number of retrials on error

Interval of storage commitment requests for non-committed instances

Required idle time before storage

Yes (0 – 10)

 userconfig.xml

Yes (1 min. – 720 min.)

 userconfig.xml

Yes (1 min. – 720 min.)

Default Value

60 min.

10 min.

100

100

On

On

3 min.

5 min.

2

10 min.

5 min.

On

2

15 min.

5 min.

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 41 of 94

Revision: 1.1

commitment requested for non-committed instances

 userconfig.xml

Storage SCP Parameters

No specific configuration required

The configuration of port number and Application Entity Title are part of the Local Application Entity

setup (see 4.4.1.1 Local AE Titles).

Verification SCP Parameters

No specific configuration required

The configuration of port number and Application Entity Title are part of the Local Application Entity

setup (see 4.4.1.1 Local AE Titles).

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 42 of 94

Revision: 1.1

5 Media Interchange

Media Interchange is not scope of this document since Media Interchange is not supported by CIRRUS photo

Application Software.

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 43 of 94

Revision: 1.1

6 Support Of Character Sets

All application entities described in the previous chapters support UTF-8 character set.

Supported Specific Character Set

Character Set Description Defined Term

UTF-8 encoded Unicode ISO_IR 192

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 44 of 94

Revision: 1.1

7 Security

The DICOM capabilities of the CIRRUS photo Application Software do not support any specific security measures.

It is assumed that CIRRUS photo Application Software is used within a secured environment. It is assumed that a secured environment includes at a minimum:

 Firewall or router protections to ensure that only approved external hosts have network access to

CIRRUS photo Application Software.

 Firewall or router protections to ensure that CIRRUS photo Application Software only has network access to approved external hosts and services.

 Any communication with external hosts and services outside the locally secured environment use appropriate secure network channels (e.g. such as a Virtual Private Network (VPN))

Other network security procedures such as automated intrusion detection may be appropriate in some environments. Additional security features may be established by the local security policy and are beyond the scope of this conformance statement.

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 45 of 94

Revision: 1.1

8 Annexes

8.1 IOD Contents

8.1.1 Created SOP Instance(s)

Abbreviations used for presence of values (PoV):

VNAP

Value Not Always Present (attribute sent zero length if no value is present) – Applicable for Type 2, 2C.

ANAP

Attribute is not always present – Applicable for Type 3

ALWAYS

Attribute is always present with a value – Applicable for Type 1

EMPTY

Attribute is sent without a value – Applicable for Type 2

Abbreviations used for sources of data:

USER

Attribute value is generated from user input.

AUTO

Attribute value is generated automatically.

MWL, MPPS, etc.

Attribute value is the same as the value received using a DICOM service such as Modality Worklist,

Modality Performed Procedure Step, etc.

SRQ

CONFIG

Attribute value is the same as the value received using a DICOM service such as Study Root Query.

Attribute value is a configurable parameter.

ACQUISITION

Attribute value is generated by data acquisition process. Includes image and data related to image.

ANALYSIS

Attribute value is generated by application or by user when images are reviewed or OCT scans are analysed.

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 46 of 94

Revision: 1.1

8.1.1.1 Encapsulated PDF IOD

IE

Patient

Study

Patient

Module Usage

ALWAYS

General Study

Series

Encapsulated Document Series

Equipment

General Equipment

SC Equipment

ALWAYS

ALWAYS

ALWAYS

ALWAYS

Czm Encapsulated Pdf Series

Extension

Encapsulated Document

ALWAYS

Encapsulated Document ALWAYS

Table 8-1 Encapsulated PDF IOD - Module “Patient”

Tag Type VR Name Description

(0010,0010) 2

SOP Common

PN Patient's Name Patient's full name.

ALWAYS

PoV

ALWAYS

(0010,0020) 2

(0010,0021) 3

LO Patient ID

Primary hospital identification number or code for the patient.

Identifier of the Assigning Authority that issued the Patient ID.

ANAP

(0010,0030) 2 DA

Patient's Birth

Date

Birth date of the patient. ALWAYS

(0010,0040) 2 CS Patient's Sex

Sex of the named patient.

Enumerated Values: M = male F = female O = other

ALWAYS

(0010,1000) 3

Other identification numbers or codes used to identify the patient.

Ethnic group or race of the patient. (0010,2160) 3

(0010,4000) 3

SH Ethnic Group

LT

Patient

Comments

User-defined additional information about the patient.

Table 8-2 Encapsulated PDF IOD - Module “General Study”

Tag Type VR Name Description PoV

ANAP

ANAP

ANAP

(0020,000D) 1 UI

Study Instance

UID

Unique identifier for the Study ALWAYS

MWL, SRQ,

AUTO

MWL, SRQ,

USER

MWL, SRQ,

USER

MWL, SRQ

SRQ

MWL, SRQ,

USER

Source

MWL,

SRQ,

AUTO

(0008,0020) 2 DA Study Date

Date the Study started.

Date, when procedure step was started.

ALWAYS

Source

MWL, SRQ,

USER

AUTO

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 47 of 94

Revision: 1.1

(0008,0030)

(0008,0090)

(0020,0010)

(0008,0050)

(0008,1030)

(0008,1110)

>(0008,1150) 1

>(0008,1155) 1

(0008,1032)

2

2

2

2

3

3

3

TM Study Time

Time the Study started.

Time, when procedure step was started.

PN

Referring

Physician's

Name

Name of the patient's referring physician.

SH Study ID

SH

LO

SQ

UI

UI

Accession

Number

Study

Description

Referenced

Study

Sequence

Referenced SOP

Class UID

Referenced SOP

Instance UID

SH Code Value

User or equipment generated

Study identifier.

In scheduled case the source attribute for this value is

Requested Procedure ID

In unscheduled case the value is a Equipment generated

Study identifier

A RIS generated number that identifies the order for the

Study.

Value does not exist in unscheduled case.

Institution-generated description or classification of the Study (component) performed.

In scheduled case the source attribute for this value is

Requested Procedure

Description.

Value does not exist in

unscheduled case.

A sequence that provides reference to a Study SOP

Class/Instance pair. The sequence may have zero or more Items.

Uniquely identifies the referenced SOP Class.

Uniquely identifies the referenced SOP Instance.

A Sequence that conveys the type of procedure performed.

One or more Items may be included in this Sequence.

Attribute does not exist in unscheduled case.

See NEMA PS3.3 Section 8.1.

See NEMA PS3.3 Section 8.2.

ALWAYS

VNAP

ALWAYS

VNAP

VNAP

ANAP

ALWAYS

ALWAYS

ANAP

ALWAYS

ALWAYS

>(0008,0100) 1

>(0008,0102) 1

>(0008,0103) 1C SH

Coding Scheme

Version

Required if the value of Coding

Scheme Designator

(0008,0102) is not sufficient to identify the Code Value

(0008,0100) unambiguously.

See chapter “8.3 Coded

Terminology and Templates

See NEMA PS3.3 Section 8.3.

VNAP

>(0008,0104) 1 LO Code Meaning ALWAYS

Table 8-3 Encapsulated PDF IOD - Module “Encapsulated Document Series”

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

AUTO

MWL

MWL,

SRQ,

AUTO

MWL

MWL,

SRQ

MWL

MWL

MWL

MWL

MWL

MWL

MWL

MWL

Page 48 of 94

Revision: 1.1

Tag

(0008,0060)

(0020,000E)

(0020,0011)

(0040,0275)

>(0040,1001)

>(0032,1060)

>(0040,0009)

>(0040,0007)

>(0040,0008)

>>(0008,0100)

>>(0008,0102)

Type VR

1

1

Name

CS Modality

Description

The modality appropriate for the encapsulated document. This Type definition shall override the definition in the SC Equipment Module.

Value can be OP or OPT:

OCT Analysis report = OPT

Image Review report = OP

PoV Source

ALWAYS AUTO

UI

Series Instance

UID

Unique identifier of the Series.

“1.2.276.0.75.2.1.51.2.2” extended by machine identifier and time information

ALWAYS AUTO

1

3

IS Series Number A number that identifies the Series.

SQ

Request

Attributes

Sequence

ALWAYS AUTO

Sequence that contains attributes from the Imaging Service Request. The sequence may have one or more Items.

The Request Attributes Sequence is only included in Scheduled Case. In unscheduled case it will not be included.

ANAP MWL

1C SH Requested

Identifier that identifies the Requested

Procedure in the Imaging Service

Request. Required if procedure was scheduled. May be present otherwise.

Note: The condition is to allow the contents of this macro to be present

(e.g., to convey the reason for the procedure, such as whether a mammogram is for screening or diagnostic purposes) even when the procedure was not formally scheduled and a value for this identifier is unknown, rather than making up a dummy value.

Institution-generated administrative description or classification of

Requested Procedure.

ALWAYS MWL

3

1C SH

Scheduled

Procedure Step

ID

Identifier that identifies the Scheduled

Procedure Step. Required if procedure was scheduled. Note: The condition is to allow the contents of this macro to be present (e.g., to convey the reason for the procedure, such as whether a mammogram is for screening or diagnostic purposes) even when the procedure step was not formally scheduled and a value for this identifier is unknown, rather than making up a dummy value.

ALWAYS MWL

3

LO

Requested

Procedure

Description

LO

Scheduled

Procedure Step

Description

Institution-generated description or classification of the Scheduled

Procedure Step to be performed.

VNAP

VNAP

MWL

MWL

3

1

SQ

Scheduled

Protocol Code

Sequence

SH Code Value

Sequence describing the Scheduled

Protocol following a specific coding scheme. This sequence contains one or more Items.

ANAP

See NEMA PS3.3 Section 8.1.

MWL

ALWAYS MWL

1 See NEMA PS3.3 Section 8.2.

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

ALWAYS MWL

Page 49 of 94

Revision: 1.1

>>(0008,0103)

>>(0008,0104)

(0040,0253)

1C SH

Coding Scheme

Version

See NEMA PS3.3 Section 8.2. Required if the value of Coding Scheme

Designator (0008,0102) is not sufficient to identify the Code Value (0008,0100) unambiguously. May be present otherwise.

VNAP

1

MWL

ALWAYS MWL

3

LO Code Meaning See NEMA PS3.3 Section 8.3.

SH

Performed

Procedure Step

ID

User or equipment generated identifier of that part of a Procedure that has been carried out within this step.

ALWAYS AUTO

(0040,0244)

(0040,0245)

3

3

DA

Performed

Procedure Step

Start Date

Date on which the Performed Procedure

Step started.

ALWAYS AUTO

TM

Performed

Procedure Step

Start Time

Time on which the Performed Procedure

Step started.

ALWAYS AUTO

(0040,0254) 3 LO

Performed

Procedure Step

Description

Institution-generated description or classification of the Procedure Step that was performed.

In unscheduled case the attribute value

= “Report”.

In scheduled case the attribute has the same value as for Requested Procedure

Description (0032,1060)

ANAP

Table 8-4 Encapsulated PDF IOD - Module “General Equipment”

Tag Type VR Name Description

(0008,0070) 2 LO Manufacturer

Manufacturer of the equipment that produced the composite instances

“Carl Zeiss Meditec”

(0008,0080) 3

Institution where the equipment that produced the composite instances is located.

(0008,0081) 3

(0008,1010) 3

(0008,1040) 3

(0008,1090) 3

(0018,1000) 3

ST

LO

Institution

Address

SH Station Name

Institutional

Department

Name

Mailing address of the institution where the equipment that produced the composite instances is located.

User defined name identifying the machine that produced the composite instances.

Department in the institution where the equipment that produced the composite instances is located.

Manufacturer’s model name of the equipment that produced the composite instances.

“CIRRUS photo 600” or

“CIRRUS photo 800”

Manufacturer’s serial number of the equipment that produced the composite instances. Note: This identifier corresponds to the device that actually created the images, such as a CR plate reader or a CT console, and may not be sufficient to identify all of the equipment in the imaging chain, such as the generator or gantry or plate.

PoV

ALWAYS AUTO

VNAP

ANAP

VNAP

ANAP

AUTO

Source

CONFIG

CONFIG

CONFIG

CONFIG

ALWAYS AUTO

ALWAYS AUTO

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 50 of 94

Revision: 1.1

(0018,1020) 3

Manufacturer’s designation of software version of the equipment that produced the composite instances.

Always "1.5.3.23749"

Table 8-5 Encapsulated PDF IOD - Module “SC Equipment”

Tag Type VR Name

(0008,0064) 1 CS

Conversion

Type

Description

Describes the kind of image conversion.

Defined Terms : DV = Digitized Video DI =

Digital Interface DF = Digitized Film WSD =

Workstation SD = Scanned Document SI =

Scanned Image DRW = Drawing SYN =

Synthetic Image

Always “SYN” for Synthetic Image

ALWAYS AUTO

PoV Source

ALWAYS AUTO

Table 8-6 Encapsulated PDF IOD - Module “Czm Encapsulated Pdf Series Extension”

Tag Type VR Name Description PoV

(0020,0060) 3 CS Laterality

Laterality of (paired) body part examined. Enumerated Values: R = right, L = left, B = both

ALWAYS

Source

ACQUSITION,

ANALYSIS

Table 8-7 Encapsulated PDF IOD - Module “Encapsulated Document”

Tag Type VR Name

(0020,0013) 1 IS

Instance

Number

Description

A number that identifies this SOP

Instance. The value shall be unique within a series.

Always “1” since there is always only one instance per series.

(0008,0023)

(0008,0033)

(0008,002A)

2

2

2

The date the document content creation was started.

The time the document content creation was started.

The date and time that the original generation of the data in the document started.

(0028,0301)

(0042,0013)

1

1C SQ

Source

Instance

Sequence

Indicates whether or not the encapsulated document contains sufficient burned in annotation to identify the patient and date the data was acquired. Enumerated

Values: YES NO Identification of patient and date as text in an encapsulated document (e.g., in an XML attribute or element) is equivalent to “burned in annotation”. A de-identified document may use the value NO.

Always “YES” (since there is enough information to identify the patient)

A sequence that identifies the set of Instances that were used to derive the encapsulated document. One or more Items may be included in this Sequence.

Required if derived from one or more DICOM Instances. May be present otherwise.

PoV Source

ALWAYS AUTO

ALWAYS AUTO

ALWAYS AUTO

ALWAYS AUTO

ALWAYS AUTO

ALWAYS ANALYSIS

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 51 of 94

Revision: 1.1

>(0008,1150) 1

>(0008,1155) 1

(0042,0010)

(0040,A043)

(0042,0012)

2

2

1

UI

UI

ST

SQ

Referenced

SOP Class

UID

Referenced

SOP

Instance UID

Uniquely identifies the referenced

SOP Class.

Uniquely identifies the referenced

SOP Instance.

Document

Title

Concept

Name Code

Sequence

ALWAYS ANALYSIS

ALWAYS ANALYSIS

The title of the document. Note:

In the case of a PDF encapsulated document, this may be the value of the “Title” entry in the

“Document Information Directory” as encoded in the PDF data.

1.) For OCT analysis reports of type

ANALYSIS_OU_ONH_AND_RNFL or

ANALYSIS_OU_RNFL_THICKNESS:

“Cirrus_” + <eye site> + ”_”

+ <analysis name> where

- <eye site> = “OD”, “OS”, or

“OU”

- <analysis name> = “RFNL

Thickness OU Analysis” or

“ONH and RNFL OU Analysis”

2.) For all other OCT analysis reports:

<eye site>+ “ “ + <analysis name> where

- <eye site> = “OD”, “OS”, or

“OU”

- <analysis name> =

“Advanced Visualization” ,

“Anterior Segment Analysis”,

“High Definition Images”,

“Macular Thickness Analysis”,

“Guided Progression Analysis”,

“Macular Change Analysis”,

“3D Visualization”, “Single Eye

Summary”, “Ganglion Cell OU

Analysis”, “Advanced RPE

Analysis”

3.) For Image Review reports:

<eye site>+ “ “ + <review name> where

- <eye site> = “OD”, “OS”, or

“OU”

- <analysis name> =

“Magnify”, “Compare”, “Grid”,

“MultiMode Navigator”

A coded representation of the document title. Zero or one item may be present.

Always zero items

The type of the encapsulated document stream described using

ALWAYS AUTO

EMPTY AUTO

ALWAYS AUTO

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 52 of 94

Revision: 1.1

(0042,0011) 1

Encapsulated

Document the MIME Media Type (see RFC

2046).

Always “application/pdf”

Encapsulated Document stream, containing a document encoded according to the MIME Type.

ALWAYS AUTO

Table 8-8 Encapsulated PDF IOD - Module “SOP Common”

Tag Type VR Name

(0008,0016) 1 UI

SOP Class

UID

Description

Uniquely identifies the SOP Class. See

C.12.1.1.1 for further explanation. See also PS 3.4.

“1.2.840.10008.5.1.4.1.1.104.1”

(0008,0018) 1 UI

SOP

Instance

UID

Uniquely identifies the SOP Instance. See

C.12.1.1.1 for further explanation. See also PS 3.4.

“1.2.276.0.75.2.1.51.2.” constant prefix for generated UIDs

(0008,0005) 1C CS

Specific

Character

Set

Character Set that expands or replaces the Basic Graphic Set. Required if an expanded or replacement character set is used. See C.12.1.1.2 for Defined Terms.

Always “ISO_IR 192” for UTF-8 encoded

Unicode

(0008,0012)

(0008,0013)

3

3

DA

TM

Instance

Creation

Date

Instance

Creation

Time

Date the SOP Instance was created.

Time the SOP Instance was created.

PoV Source

ALWAYS AUTO

ALWAYS AUTO

ALWAYS AUTO

ALWAYS AUTO

ALWAYS AUTO

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 53 of 94

Revision: 1.1

8.1.1.2 Ophthalmic Photography 8 Bit Information Object Definition

IE

Patient

Module Usage

Study

Patient ALWAYS

ALWAYS

Series

General Study

General Series

Ophthalmic Photography Series

Frame Of Reference

Synchronization

Equipment

General Equipment


General Image

Image Pixel

Enhanced Contrast Bolus

Cine

Multi Frame

Acquisition Context

Ophthalmic Photography Image

Ocular Region Imaged

Ophthalmic Photography Acquisition

Parameters

Ophthalmic Photographic Parameters

SOP Common

Frame Extraction

Czm Ophthalmic Photography Image

Extension

Table 8-9 Ophthalmic Photography IOD - Module “Patient”

Tag Type VR Name Description

(0010,0010) 2 PN Patient's Name Patient's full name.

ALWAYS

ALWAYS

ALWAYS

ALWAYS

ALWAYS

ALWAYS

CONDITIONAL

CONDITIONAL

ALWAYS

ALWAYS

ALWAYS

ALWAYS

ALWAYS

ALWAYS

ALWAYS

CONDITIONAL

CONDITIONAL

PoV

(0010,0020) 2

(0010,0021) 3

(0010,0030) 2

LO Patient ID

LO

DA

Issuer of

Patient ID

Patient's Birth

Date

Primary hospital identification number or code for the patient.

Identifier of the Assigning Authority that issued the Patient ID.

Birth date of the patient.

Source

ANAP

ALWAYS

MWL, SRQ,

AUTO

MWL, SRQ,

USER

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 54 of 94

Revision: 1.1

(0010,0040) 2

(0010,1000) 3

CS Patient's Sex

LO

Other Patient

IDs

Sex of the named patient.

Enumerated Values: M = male F = female O = other

Other identification numbers or codes used to identify the patient.

(0010,2160) 3

(0010,4000) 3

SH Ethnic Group

LT

Patient

Comments

Ethnic group or race of the patient.

User-defined additional information about the patient.

Table 8-10 Ophthalmic Photography IOD - Module “General Study”

Tag Type VR Name Description

(0020,000D) 1 UI

Study

Instance UID

Unique identifier for the Study

(0008,0020)

(0008,0030)

(0008,0090)

(0020,0010)

(0008,0050)

(0008,1030)

(0008,1110)

>(0008,1150)

>(0008,1155)

(0008,1032)

>(0008,0100)

>(0008,0102)

2

2

2

2

2

3

3

1

1

3

1

1

ALWAYS

ANAP

ANAP

ANAP

MWL, SRQ,

USER

MWL, SRQ

SRQ

MWL, SRQ,

USER

PoV

ALWAYS

Source

MWL,

SRQ,

AUTO

DA Study Date

TM Study Time

Date the Study started.

Date, when procedure step was started.

Time the Study started.

Time, when procedure step was started.

PN

Referring

Physician's

Name

Name of the patient's referring physician.

SH Study ID

SH

SQ

UI

UI

Accession

Number

Referenced

Study

Sequence

Referenced

SOP Class UID

Referenced

SOP Instance

UID

User or equipment generated Study identifier.

In scheduled case the source attribute for this value is Requested

Procedure ID

In unscheduled case the value is an

Equipment generated Study identifier

A RIS generated number that identifies the order for the Study.

Value does not exist in unscheduled case.

Institution-generated description or classification of the Study

(component) performed.

A sequence that provides reference to a Study SOP Class/Instance pair. The sequence may have zero or more

Items.

Uniquely identifies the referenced

SOP Class.

Uniquely identifies the referenced

SOP Instance.

SQ

Procedure

Code

Sequence

SH Code Value

A Sequence that conveys the type of procedure performed. One or more

Items may be included in this

Sequence.

See chapter “8.3 Coded Terminology

and Templates

SH

Coding

Scheme

Designator

See chapter “8.3 Coded Terminology

and Templates

ALWAYS AUTO

ALWAYS AUTO

VNAP

ALWAYS

MWL,

SRQ,

AUTO

VNAP

VNAP

ANAP

ANAP

MWL

MWL

MWL,

SRQ

MWL

ALWAYS MWL

ALWAYS MWL

MWL

ALWAYS MWL

ALWAYS MWL

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 55 of 94

Revision: 1.1

>(0008,0103)

>(0008,0104)

1C

1

SH

Coding

Scheme

Version

LO Code Meaning

Required if the value of Coding

Scheme Designator (0008,0102) is not sufficient to identify the Code

Value (0008,0100) unambiguously.

See chapter “8.3 Coded Terminology

and Templates

See chapter “8.3 Coded Terminology

and Templates

Table 8-11 Ophthalmic Photography IOD - Module “General Series”

Tag Type VR Name Description

(0020,000E) 1 UI

Series Instance

UID

Unique identifier of the Series.

“1.2.276.0.75.2.1.51.2.2” extended by machine identifier and time information

(0020,0011)

(0020,0060)

VNAP MWL

ALWAYS MWL

PoV

ALWAYS

Source

AUTO

2

2C

IS Series Number A number that identifies this Series.

CS Laterality

ALWAYS AUTO

Laterality of (paired) body part examined. Required if the body part examined is a paired structure and

Image Laterality (0020,0062) or

Frame Laterality (0020,9072) are not sent. Enumerated Values: R = right L

= left Note: Some IODs support

Image Laterality (0020,0062) at the

Image level or Frame

Laterality(0020,9072) at the Frame level in the Frame Anatomy functional group macro, which can provide a more comprehensive mechanism for specifying the laterality of the body part(s) being examined.

ALWAYS

ACQUISIT

ION,

ANALYSIS

(0008,0021)

(0008,0031)

3

3

DA Series Date

TM Series Time

Date the Series started.

Time the Series started.

ALWAYS AUTO

ALWAYS AUTO

(0018,1030)

(0008,1070)

(0018,0015)

3

3

3

LO Protocol Name

PN

Operators'

Name

User-defined description of the conditions under which the Series was performed. Note: This attribute conveys series-specific protocol identification and may or may not be identical to the one presented in the

Performed Protocol Code Sequence

(0040,0260).

In scheduled case: Same value as for

Requested Procedure Description

(0032,1060).

In unscheduled case: Always

“FundusImage”

ANAP

MWL,

AUTO

Name(s) of the operator(s) supporting the Series.

ANAP CONFIG

Text description of the part of the body examined. See PS 3.16 Annexes on Correspondence of Anatomic

Region Codes and Body Part Examined for Humans and for Animals for

Defined Terms Note: Some IODs support the Anatomic Region

Sequence (0008,2218), which can provide a more comprehensive mechanism for specifying the body

ALWAYS AUTO

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 56 of 94

Revision: 1.1

(0040,0275)

>(0040,1001)

>(0032,1060)

>(0040,0009)

3

1C

SQ

SH

Request

Attributes

Sequence

Requested

Procedure ID

Sequence that contains attributes from the Imaging Service Request.

The sequence may have one or more

Items.

The Request Attributes Sequence is only included in Scheduled Case. In unscheduled case it will not be included.

Institution-generated administrative description or classification of

Requested Procedure.

ANAP

Identifier that identifies the Requested

Procedure in the Imaging Service

Request. Required if procedure was scheduled. May be present otherwise.

Note: The condition is to allow the contents of this macro to be present

(e.g., to convey the reason for the procedure, such as whether a mammogram is for screening or diagnostic purposes) even when the procedure was not formally scheduled and a value for this identifier is unknown, rather than making up a dummy value.

ALWAYS MWL

VNAP

MWL

MWL 3 LO

Requested

Procedure

Description

1C SH

Scheduled

Procedure Step

ID

Identifier that identifies the Scheduled

Procedure Step. Required if procedure was scheduled. Note: The condition is to allow the contents of this macro to be present (e.g., to convey the reason for the procedure, such as whether a mammogram is for screening or diagnostic purposes) even when the procedure step was not formally scheduled and a value for this identifier is unknown, rather than making up a dummy value.

ALWAYS MWL

>(0040,0007) 3 LO

Scheduled

Procedure Step

Description

Institution-generated description or classification of the Scheduled

Procedure Step to be performed.

>(0040,0008) 3 SQ

Scheduled

Protocol Code

Sequence

Sequence describing the Scheduled

Protocol following a specific coding scheme. This sequence contains one or more Items.

See NEMA PS3.3 Section 8.1. >>(0008,0100)

>>(0008,0102)

1

1

SH Code Value

SH

Coding Scheme

Designator

See NEMA PS3.3 Section 8.2.

>>(0008,0103) 1C SH Coding Scheme

See NEMA PS3.3 Section 8.2.

Required if the value of Coding

Scheme Designator (0008,0102) is not sufficient to identify the Code

Value (0008,0100) unambiguously.

May be present otherwise.

VNAP

ANAP

ALWAYS

ALWAYS

VNAP

MWL

MWL

MWL

MWL

MWL

>>(0008,0104) 1

(0040,0253) 3 part being examined.

Always “HEAD”

LO Code Meaning See NEMA PS3.3 Section 8.3. ALWAYS MWL

User or equipment generated identifier of that part of a Procedure that has

ALWAYS AUTO

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 57 of 94

Revision: 1.1

(0040,0244) 3

ID been carried out within this step.

DA

Performed

Procedure Step

Start Date

Date on which the Performed

Procedure Step started.

ALWAYS AUTO

(0040,0245) 3 TM

Performed

Procedure Step

Start Time

Time on which the Performed

Procedure Step started.

ALWAYS AUTO

(0040,0254) 3 LO

Performed

Procedure Step

Description

Institution-generated description or classification of the Procedure Step that was performed.

In unscheduled case the attribute value = "FundusImage".

In scheduled case the attribute has the same value as for Requested

Procedure Description (0032,1060)

ALWAYS AUTO

Table 8-12 Ophthalmic Photography IOD - Module “Ophthalmic Photography Series”

Tag Type VR Name Description

(0008,0060) 1 CS Modality

Source equipment that produced the Ophthalmic

Photography Series. Enumerated Value: OP

Always “OP”

PoV Source

ALWAYS AUTO

Table 8-13 Ophthalmic Photography IOD - Module “Synchronization”

Tag Type VR Name Description

(0020,0200) 1 UI

Synchronization

Frame of

Reference UID

UID of common synchronization environment.

See C.7.4.2.1.1.

PoV Source

ALWAYS AUTO

(0018,106A) 1 CS Synchronization

Data acquisition synchronization with external equipment Enumerated Values: SOURCE - this equipment provides synchronization channel or trigger to other equipment EXTERNAL - this equipment receives synchronization channel or trigger from other equipment PASSTHRU - this equipment receives synchronization channel or trigger and forwards it NO TRIGGER - data acquisition not synchronized by common channel or trigger

Always “NO TRIGGER”

ALWAYS AUTO

(0018,1800) 1 CS Acquisition Time

Acquisition DateTime (0008,002A) synchronized with external time reference. Enumerated

Values: Y, N See C.7.4.2.1.4

Always “N”

Table 8-14 Ophthalmic Photography IOD - Module “General Equipment”

Tag Type VR Name

(0008,0070) 2 LO Manufacturer

Description

Manufacturer of the equipment that produced the composite instances

“Carl Zeiss Meditec”

(0008,0080) 3

(0008,0081) 3 ST

Institution

Address

Institution where the equipment that produced the composite instances is located.

Mailing address of the institution where the equipment that produced the composite instances is located.

ALWAYS AUTO

PoV

ALWAYS AUTO

VNAP

ANAP

Source

CONFIG

CONFIG

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 58 of 94

Revision: 1.1

(0008,1010) 3

(0008,1040) 3

(0008,1090) 3

SH Station Name

LO

LO

Institutional

Department

Name

Manufacturer's

Model Name

User defined name identifying the machine that produced the composite instances.

Department in the institution where the equipment that produced the composite instances is located.

Manufacturer’s model name of the equipment that produced the composite instances.

“CIRRUS photo 600” or

“CIRRUS photo 800”

VNAP

ANAP

CONFIG

CONFIG

ALWAYS AUTO

(0018,1000) 3 LO

Device Serial

Number

Manufacturer’s serial number of the equipment that produced the composite instances. Note: This identifier corresponds to the device that actually created the images, such as a CR plate reader or a CT console, and may not be sufficient to identify all of the equipment in the imaging chain, such as the generator or gantry or plate.

ALWAYS AUTO

(0018,1020) 3

Manufacturer’s designation of software version of the equipment that produced the composite instances.

Always "1.5.3.23749"

ALWAYS AUTO

Table 8-15 Ophthalmic Photography IOD - Module “General Image"

Tag Type VR Name Description

(0020,0020) 2C CS

Patient

Orientation

PoV Source

Patient direction of the rows and columns of the image. Required if image does not require Image

Orientation (Patient) (0020,0037) and Image

Position (Patient) (0020,0032). May be present otherwise. See C.7.6.1.1.1 for further explanation.

Note: IOD’s may have attributes other than

Patient Orientation, Image Orientation, or Image

Position (Patient) to describe orientation in which case this attribute will be zero length.

Always “L\F”

ALWAYS AUTO

(0008,0022)

(0008,0032)

3 DA

Acquisition

Date

3 TM

Acquisition

Time

The date the acquisition of data that resulted in this image started

The time the acquisition of data that resulted in this image started

ALWAYS AUTO

ALWAYS AUTO

(0008,9215) 3 SQ

Derivation

Code

Sequence

>(0008,0100) 1 SH Code Value

A coded description of how this image was derived. See C.7.6.1.1.3 for further explanation.

One or more Items may be included in this

Sequence. More than one Item indicates that successive derivation steps have been applied.

See chapter “8.3 Coded Terminology and

Templates

See chapter “8.3 Coded Terminology and

Templates

ANAP AUTO

ALWAYS AUTO

>(0008,0102) 1 SH

Coding

Scheme

Designator

>(0008,0103) 1C SH

Coding

Scheme

Version

See chapter “8.3 Coded Terminology and

Templates

ALWAYS AUTO

See NEMA PS3.3 Section 8.2. Required if the value of Coding Scheme Designator (0008,0102) is not sufficient to identify the Code Value (0008,0100)

ALWAYS AUTO

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 59 of 94

Revision: 1.1

>(0008,0104) 1 LO Code unambiguously. May be present otherwise.

See chapter “8.3 Coded Terminology and

Templates

See chapter “8.3 Coded Terminology and

Templates

ALWAYS AUTO

(0008,114A) 3 SQ

Referenced

Instance

Sequence

>(0040,A170) 1 SQ

Purpose of

Reference

Code

Sequence

Non-image composite SOP Instances that are significantly related to this Image, including waveforms that may or may not be temporally synchronized with this image. One or more Items may be included in this sequence.

Included for referenced instances which are

- simultaneously acquired

- source images for image processing operation

- source images for montage

ANAP

Code describing the purpose of the reference to the Instance(s). Only a single Item shall be permitted in this sequence.

AUTO

>(0008,1150) 1 UI

Referenced

SOP Class

UID

Uniquely identifies the referenced SOP Class. ALWAYS AUTO

>(0008,1155) 1 UI

Referenced

SOP Instance

UID

Uniquely identifies the referenced SOP Instance. ALWAYS AUTO

ALWAYS AUTO

>>(0008,0100) 1 SH Code Value

See NEMA PS3.3 Section 8.1.

"121329" for sources of image montage

"121322" for sources of image processing

"122400" for instances simultaneously acquired

ALWAYS AUTO

>>(0008,0102) 1 SH

Coding

Scheme

Designator

See NEMA PS3.3 Section 8.2.

Always "DCM"

ALWAYS AUTO

>>(0008,0103) 1C SH

>>(0008,0104) 1 LO

Coding

Scheme

Version

Code

Meaning

See NEMA PS3.3 Section 8.2. Required if the value of Coding Scheme Designator (0008,0102) is not sufficient to identify the Code Value (0008,0100) unambiguously. May be present otherwise.

ALWAYS AUTO

See NEMA PS3.3 Section 8.3.

"Source image for montage", "Source image for image processing operation", “Simultaneously

Acquired”

ALWAYS AUTO

(0020,4000) 3 LT Image User-defined comments about the image

Table 8-16 Ophthalmic Photography IOD - Module “Image Pixel”

Tag Type VR Name Description

(0028,0010) 1 US Rows Number of rows in the image.

ANAP USER

PoV Source

ALWAYS AUTO

(0028,0011) 1 US Columns Number of columns in the image ALWAYS AUTO

(0028,0100) 1 US

Bits

Allocated

Number of bits allocated for each pixel sample. Each sample shall have the same number of bits allocated. See PS 3.5 for further explanation.

Always “8”

ALWAYS AUTO

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 60 of 94

Revision: 1.1

(0028,0101) 1 US

Bits

Stored

Number of bits stored for each pixel sample. Each sample shall have the same number of bits stored. See PS 3.5 for further explanation.

Always “8”

ALWAYS AUTO

(0028,0102) 1 US High Bit

Most significant bit for pixel sample data.

Each sample shall have the same high bit.

See PS 3.5 for further explanation.

Always “7”

ALWAYS AUTO

A data stream of the pixel samples that comprise the Image. See C.7.6.3.1.4 for further explanation. Required if Pixel Data

Provider URL (0028,7FE0) is not present.

Table 8-17 Ophthalmic Photography IOD - Module “Enhanced Contrast Bolus"

Tag Type VR Name Description

(0018,0012) 1 SQ

Contrast/Bolus

Agent Sequence

Sequence that identifies one or more contrast agents administered prior to or during the acquisition. Shall contain one or more Items.

Included for angiographic images (capture modes FA and ICGA)

PoV

ANAP

Source

AUTO

>(0008,0100)

>(0008,0102)

>(0008,0103)

>(0008,0104)

>(0018,9337)

>(0018,0014)

1

1

SH Code Value

SH Coding Scheme

1C SH

1

1

1

>>(0008,0100) 1

>>(0008,0102) 1

LO Code Meaning

US

SQ

Contrast/Bolus

Agent Number

Contrast/Bolus

Administration

Route Sequence

SH Code Value

SH Coding Scheme

>>(0008,0103) 1C SH

Coding Scheme

Version

Coding Scheme

Version

See NEMA PS3.3 Section 8.1.

“C-B02CC” for FA images

“C-B0156” for ICGA images

See NEMA PS3.3 Section 8.2.

Always “SRT”

ALWAYS AUTO

ALWAYS AUTO

See NEMA PS3.3 Section 8.2. Required if the value of Coding Scheme Designator

(0008,0102) is not sufficient to identify the

Code Value (0008,0100) unambiguously.

May be present otherwise.

Always “20040921”

ALWAYS AUTO

See NEMA PS3.3 Section 8.3.

For FA images: “Fluorescein”

For ICGA images: “Indocyanine green”

ALWAYS AUTO

Identifying number, unique within this SOP

Instance, of the agent administered. Used to reference this particular agent from the

Contrast/Bolus Functional Group Macro. The number shall be 1 for the first Item and increase by 1 for each subsequent Item.

ALWAYS AUTO

Sequence that identifies the route of administration of contrast agent. Shall contain exactly one Item.

See NEMA PS3.3 Section 8.1.

Always “G-D101”

See NEMA PS3.3 Section 8.2.

Always “SRT”

ALWAYS AUTO

ALWAYS AUTO

ALWAYS AUTO

See NEMA PS3.3 Section 8.2. Required if the value of Coding Scheme Designator

(0008,0102) is not sufficient to identify the

ALWAYS AUTO

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 61 of 94

Revision: 1.1

>>(0008,0104) 1

>(0018,9338) 2

LO Code Meaning

SQ

Contrast/Bolus

Ingredient Code

Sequence

Code Value (0008,0100) unambiguously.

May be present otherwise.

Always “20020904”

See NEMA PS3.3 Section 8.3.

Always “Intravenous route”

Active ingredient of agent. Zero or more

Items may be included in the Sequence.

Always zero items

Total volume administered in milliliters of diluted contrast agent.

ALWAYS AUTO

EMPTY AUTO

>(0018,1041) 2 DS

Contrast/Bolus

Volume

>(0018,1049) 2 DS

Contrast/Bolus

Ingredient

Concentration

Milligrams of active ingredient per milliliter of agent.

EMPTY

EMPTY

AUTO

AUTO

>(0018,9340) 3 SQ

Contrast

Administration

Profile Sequence

>>(0018,1041) 2 DS

Contrast/Bolus

Volume

Sequence that describes one or more phases of contrast administered. If present, shall contain one or more Items.

Volume administered during this phase in milliliters of diluted contrast agent.

>>(0018,1042) 3 TM

Contrast/Bolus

Start Time

Time of start of administration.

Table 8-18 Ophthalmic Photography IOD - Module “Cine”

Tag Type VR Name Description

(0018,1063) 1C DS

Frame

Time

Nominal time (in msec) per individual frame. See

C.7.6.5.1.1 for further explanation. Required if Frame

Increment Pointer (0028,0009) points to Frame Time.

Always “0”

Table 8-19 Ophthalmic Photography IOD - Module “Multiframe”

Tag Type VR Name Description

(0028,0008) 1 IS

Number of

Frames

Number of frames in a Multi-frame Image. See

C.7.6.6.1.1 for further explanation.

Always “1”

ALWAYS AUTO

EMPTY

ALWAYS

AUTO

USER,

AUTO

PoV Source

ALWAYS AUTO

PoV Source

ALWAYS AUTO

(0028,0009) 1 AT

Frame

Increment

Pointer

Contains the Data Element Tag of the attribute that is used as the frame increment in Multi-frame pixel data. See C.7.6.6.1.1 for further explanation.

Always “00000018\00001063” for Frame Time

ALWAYS AUTO

Table 8-20 Ophthalmic Photography IOD - Module “Acquisition Context”

Tag Type VR Name Description

(0040,0555) 2 SQ

Acquisition

Context

Sequence

PoV Source

A sequence of Items that describes the conditions present during the acquisition of the data of the SOP Instance. Zero or more items may be included in this sequence.

See chapter “8.3 Coded Terminology

and Templates”

ALWAYS AUTO

>(0040,A043) 1 SQ

Concept Name

Code

Sequence

A concept that constrains the meaning of (i.e. defines the role of) the

Observation Value. The "Name"

ALWAYS AUTO

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 62 of 94

Revision: 1.1

>>(0008,0100) 1 SH Code Value component of a Name/Value pair. This sequence shall contain exactly one item.

See chapter “8.3 Coded Terminology and

Templates

ALWAYS AUTO

>>(0008,0102) 1 SH

Coding

Scheme

Designator

See chapter “8.3 Coded Terminology and

Templates

ALWAYS AUTO

>>(0008,0103) 1C SH

Coding

Scheme

Version

See NEMA PS3.3 Section 8.2. Required if the value of Coding Scheme

Designator (0008,0102) is not sufficient to identify the Code Value (0008,0100) unambiguously. May be present otherwise.

See chapter “8.3 Coded Terminology and

Templates

ANAP AUTO

>>(0008,0104) 1 LO Code Meaning

See chapter “8.3 Coded Terminology and

Templates

ALWAYS AUTO

>(0040,A30A) 1C DS Numeric Value

This is the Value component of a

Name/Value pair when the Concept implied by Concept Name Code

Sequence (0040,A043) is a set of one or more numeric values. Required if the value that Concept Name Code

Sequence (0040,A043) requires

(implies) is a set of one or more integers or real numbers. Shall not be present otherwise.

ANAP

>(0040,08EA) 1C SQ

Measurement

Units Code

Sequence

Units of measurement. Only a single

Item shall be permitted in this

Sequence. Required if Numeric Value

(0040,A30A) is sent. Shall not be present otherwise.

ANAP

ACQUISITION,

USER, AUTO

AUTO

>>(0008,0100) 1 SH Code Value

See chapter “8.3 Coded Terminology and

Templates

ALWAYS AUTO

>>(0008,0102) 1 SH

Coding

Scheme

Designator

See chapter “8.3 Coded Terminology and

Templates

ALWAYS AUTO

>>(0008,0103) 1C SH

Coding

Scheme

Version

See NEMA PS3.3 Section 8.2. Required if the value of Coding Scheme

Designator (0008,0102) is not sufficient to identify the Code Value (0008,0100) unambiguously. May be present otherwise.

See chapter “8.3 Coded Terminology and

Templates

ANAP AUTO

>>(0008,0104) 1 LO Code Meaning

See chapter “8.3 Coded Terminology and

Templates

ALWAYS AUTO

>(0040,A168) 1C SQ

Concept Code

Sequence

This is the Value component of a

Name/Value pair when the Concept implied by Concept Name Code

Sequence (0040,A043) is a Coded

Value. This sequence shall contain exactly one item. Required if Date

(0040,A121), Time (0040,A122), Person

Name (0040,A123), Text Value

(0040,A160), and the pair of Numeric

Value (0040,A30A) and Measurement

ANAP AUTO

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 63 of 94

Revision: 1.1

>>(0008,0100) 1 SH Code Value

Units Code Sequence (0040,08EA) are not present.

See chapter “8.3 Coded Terminology and

Templates

ALWAYS AUTO

>>(0008,0102) 1 SH

Coding

Scheme

Designator

See chapter “8.3 Coded Terminology and

Templates

ALWAYS AUTO

>>(0008,0103) 1C SH

Coding

Scheme

Version

1 CS

Photometric

Interpretation

1 US

Pixel

Representation

See NEMA PS3.3 Section 8.2. Required if the value of Coding Scheme

Designator (0008,0102) is not sufficient to identify the Code Value (0008,0100) unambiguously. May be present otherwise.

See chapter “8.3 Coded Terminology and

Templates

ANAP AUTO

>>(0008,0104) 1 LO Code Meaning

See chapter “8.3 Coded Terminology and

Templates

ALWAYS AUTO

Table 8-21 Ophthalmic Photography IOD - Module “Ophthalmic Photography Image”

Tag Type VR Name Description PoV Source

(0008,0008) 1 CS Image Type

Image identification characteristics. See

C.8.17.2.1.4 for specialization.

Multi-value attribute containing 4 values:

1) Pixel Data Characteristics

“ORIGINAL” for original acquired images

“DERIVED” for any derived image

2) Patient Examination Characteristics

always “PRIMARY”

3) Modality Specific Characteristics

“MONTAGE” for panorama images

empty otherwise

4) Implementation specific identifiers

“COLOR”, “REDFREE”, “RED”, “BLUE”,

“FA”, “AF” or “ICG” according to selected

capture mode

ALWAYS AUTO

(0020,0013) 1 IS

Instance

Number

A number that identifies this image. ALWAYS AUTO

(0028,0002) 1 US Samples per

Number of samples (planes) in this image.

Enumerated values: 1 or 3. See C.8.17.2.1.2 for further explanation.

“1” for greyscale images

“3” for color images

ALWAYS AUTO

(0028,0004)

(0028,0103)

Specifies the intended interpretation of the pixel data. See NEMA PS3.3 Section

C.8.17.2.1.3

“MONOCHROME2” for greyscale images

“YBR_FULL_422” for color images

Data representation of the pixel samples.

Each sample shall have the same pixel representation. Enumerated Values:0000 = unsigned integer.0001 = 2's complement

Always “0”

ALWAYS AUTO

ALWAYS AUTO

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 64 of 94

Revision: 1.1

(0028,0006)

(0028,0030)

(0008,0033)

(0008,0023)

(0008,002A)

(0008,2112)

1C DS Pixel Spacing

1

1

TM Content Time

DA Content Date

1C DT

Acquisition

Datetime

2C SQ

Source Image

Sequence

Indicates whether the pixel data are sent color-by-plane or color-by-pixel. Required if

Samples per Pixel (0028,0002) has a value greater than 1. Enumerated value shall be 0

(color-by-pixel).

Always “0”

ALWAYS AUTO

Nominal physical distance at the focal plane

(in the retina) between the center of each pixel, specified by a numeric pair - adjacent row spacing (delimiter) adjacent column spacing in mm. See 10.7.1.3 for further explanation of the value order. Note: These values are specified as nominal because the physical distance may vary across the field of the images and the lens correction is likely to be imperfect. Required when Acquisition

Device Type Code Sequence (0022,0015) contains an item with the value (SRT, R-

1021A,"Fundus Camera"). May be present otherwise.

Multi-value attribute containing 2 values:

1) adjacent row spacing in mm

2) adjacent column spacing in mm

ALWAYS AUTO

The time the image pixel data creation started.

The date the image pixel data creation started.

ALWAYS AUTO

ALWAYS AUTO

The date and time that the acquisition of data started. Note: The synchronization of this time with an external clock is specified in the synchronization Module in Acquisition Time

Synchronized (0018,1800). Required if Image

Type (0008,0008) Value 1 is ORIGINAL. May be present otherwise.

ALWAYS AUTO

A Sequence that identifies the Images that were used to derive this Image. Required if

Image Type Value 1 is DERIVED. Zero or more items may be present in the sequence.

See C.7.6.1.1.4 for further explanation.

Included for derived images which are result images of

- a montage from source images

- a image processing operation

ANAP AUTO

>(0008,1150) 1 UI Referenced SOP Uniquely identifies the referenced SOP Class. ALWAYS AUTO

>(0008,1155) 1 UI Referenced SOP

Uniquely identifies the referenced SOP

Instance.

>(0040,A170) 1 SQ

Purpose of

Reference Code

Sequence

Describes the purpose for which the reference is made, that is what role the source image or frame(s) played in the derivation of this image. Only a single Item shall be permitted in this sequence.

ALWAYS AUTO

>>(0008,0100) 1 SH Code Value

See NEMA PS3.3 Section 8.1.

“121329” for sources of image montage

“121322” for sources of image processing

ALWAYS AUTO

ALWAYS AUTO

>>(0008,0102) 1 SH Coding Scheme See NEMA PS3.3 Section 8.2. ALWAYS AUTO

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 65 of 94

Revision: 1.1

Designator

Always “DCM”

>>(0008,0103) 1C SH

Coding Scheme

Version

See NEMA PS3.3 Section 8.2. Required if the value of Coding Scheme Designator

(0008,0102) is not sufficient to identify the

Code Value (0008,0100) unambiguously. May be present otherwise.

Always “20051101”

ALWAYS AUTO

>>(0008,0104) 1

(0028,2110)

(0028,2112)

(0028,2114)

(2050,0020)

1

LO Code Meaning

CS Lossy Image

1C DS

1C CS

Lossy Image

Compression

Ratio

Lossy Image

Compression

Method

See NEMA PS3.3 Section 8.3.

“Source image for montage” or

“Source image for image processing

operation”

ALWAYS AUTO

Specifies whether an Image has undergone lossy compression. Enumerated Values: 00 =

Image has NOT been subjected to lossy compression. 01 = Image has been subjected to lossy compression. See C.7.6.1.1.5

“01” if image is compressed

“00” otherwise

ALWAYS AUTO

Describes the approximate lossy compression ratio(s) that have been applied to this image.

See C.7.6.1.1.5 for further explanation. May be multivalued if successive lossy compression steps have been applied. Notes:

1. For example, a compression ratio of 30:1 would be described in this Attribute with a single value of 30. 2. For historical reasons, the lossy compression ratio should also be described in Derivation Description

(0008,2111) Required if Lossy Image

Compression (0028,2110) has a value of

"01".

ANAP AUTO

A label for the lossy compression method(s) that have been applied to this image. See

C.7.6.1.1.5 for further explanation. May be multivalued if successive lossy compression steps have been applied; the value order shall correspond to the values of Lossy Image

Compression Ratio (0028,2112). Required if

Lossy Image Compression (0028,2110) has a value of "01". Note: For historical reasons, the lossy compression method should also be described in Derivation Description

(0008,2111).

“ISO_10918_1” if image is compressed

ANAP AUTO

Specifies an identity transformation for the

Presentation LUT, such that the output of all grayscale transformations defined in the IOD containing this Module are defined to be P-

Values. Enumerated Values: IDENTITY - output is in P-Values. Required if Photometric

Interpretation (0028,0004) is

MONOCHROME2

“IDENTITY” for grayscale images

ANAP AUTO

(0028,0301) 1 CS

Burned In

Annotation

Indicates whether or not image contains sufficient burned in annotation to identify the patient and date the image was acquired.

Enumerated Value: YES NO

“YES” if any identification info is burned in

“NO” otherwise

ALWAYS CONFIG

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 66 of 94

Revision: 1.1

Table 8-22 Ophthalmic Photography IOD - Module “Ocular Region Imaged”

Tag Type VR Name Description

(0020,0062) 1 CS Image

PoV Source

Laterality of object imaged (as described in Anatomic

Region Sequence (0008,2218)) examined.

Enumerated Values: R = right eye L = left eye B = both left and right eye Shall be consistent with any laterality information contained in Primary Anatomic

Structure Modifier Sequence (0008,2230), if present.

Note: Laterality (0020,0060) is a Series level

Attribute and must be the same for all Images in the

Series. Since most Ophthalmic Photographic Image studies contain images of both eyes, the series level attribute will rarely be present.

ALWAYS AUTO

(0008,2218) 1 SQ

Anatomic

Region

Sequence

Sequence that identifies the anatomic region of interest in this Instance (i.e. external anatomy, surface anatomy, or general region of the body).

Only a single Item shall be permitted in this sequence.

ALWAYS AUTO

>(0008,0100) 1 SH Code Value

See NEMA PS3.3 Section 8.1.

Always “T-AA000”

ALWAYS AUTO

>(0008,0102) 1 SH

Coding

Scheme

Designator

(0022,001B) 2 SQ

Refractive State

Sequence

See NEMA PS3.3 Section 8.2.

Always “SRT”

ALWAYS AUTO

>(0008,0104) 1 LO

Code

Meaning

See NEMA PS3.3 Section 8.3.

Always “Eye”

ALWAYS AUTO

Table 8-23 Ophthalmic Photography IOD - Module “Ophthalmic Photography Acquisition

Parameters”

Tag Type VR Name Description PoV Source

(0022,0005) 2 CS

Patient Eye

Movement

Commanded

Enumerated Values: YES NO EMPTY AUTO

The refractive state of the imaged eye at the time of acquisition. Zero or one Item shall be present.

Zero length means the refractive state was not measured.

Always zero items

EMPTY AUTO

(0022,000A) 2 FL

Emmetropic

Magnification

(0022,000B) 2 FL

Intra Ocular

Pressure

Emmetropic magnification value (dimensionless).

Zero length means the emmetropic magnification was not measured.

Value of intraocular pressure in mmHg. Zero length means the pressure was not measured

EMPTY AUTO

EMPTY AUTO

(0022,000D) 2 CS Pupil Dilated

Enumerated Values: YES NO If this tag is empty, no information is available.

EMPTY AUTO

Table 8-24 Ophthalmic Photography IOD - Module “Ophthalmic Photographic Parameters”

Tag Type VR Name Description PoV Source

(0022,0015) 1 SQ

Acquisition Device

Type Code

Sequence

Describes the type of acquisition device. A single item shall be present in the sequence.

ALWAYS AUTO

>(0008,0100) 1 SH Code Value

See NEMA PS3.3 Section 8.1.

Always “R-1021A”

ALWAYS AUTO

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 67 of 94

Revision: 1.1

>(0008,0102) 1

>(0008,0104) 1

(0022,0016)

(0022,0017)

(0022,0018)

(0022,0019)

2

2

2

2

SH Coding Scheme

LO Code Meaning

SQ Illumination Type

SQ

SQ

SQ

Light Path Filter

Type Stack Code

Sequence

Image Path Filter

Type Stack Code

Sequence

Lenses Code

Sequence

See NEMA PS3.3 Section 8.2.

Always “SRT”

See NEMA PS3.3 Section 8.3.

Always “Fundus Camera”

ALWAYS AUTO

ALWAYS AUTO

Coded value for illumination. Zero or one item shall be present in the sequence.

Always zero items

EMPTY AUTO

Filters used in the light source path. Zero or more items may be present in the sequence.

Always zero items

Describes stack of filters used in image path.

Zero or more items may be present in the sequence.

Always zero items

Lenses that were used during the image acquisition. Zero or more items may be present in the sequence.

Always zero items

EMPTY

EMPTY AUTO

EMPTY

AUTO

AUTO

(0018,7004) 2 CS Detector Type

Type of detector used for creating this image.

Defined terms: CCD = Charge Coupled

Devices CMOS = Complementary Metal Oxide

Semiconductor

“CCD” if image is acquired with CIRRUS photo

Empty otherwise

VNAP

Table 8-25 Ophthalmic Photography IOD - Module “SOP Common”

Tag Type VR Name Description

(0008,0016) 1

Uniquely identifies the SOP Class. See C.12.1.1.1 for further explanation. See also PS 3.4.

“1.2.840.10008.5.1.4.1.1.77.1.5.1”

PoV

AUTO

Source

ALWAYS AUTO

(0008,0018) 1 UI

SOP

Instance

UID

Uniquely identifies the SOP Instance. See C.12.1.1.1 for further explanation. See also PS 3.4.

“1.2.276.0.75.2.1.51.2.” constant prefix for generated

UIDs

ALWAYS AUTO

(0008,0005) 1C CS

Specific

Character

Set

Character Set that expands or replaces the Basic

Graphic Set. Required if an expanded or replacement character set is used. See C.12.1.1.2 for Defined

Terms.

Always “ISO_IR 192” for UTF-8 encoded Unicode

ALWAYS AUTO

(0008,0012) 3 DA

Instance

Creation

Date

Date the SOP Instance was created. ALWAYS AUTO

(0008,0013) 3 TM

Instance

Creation

Time

Time the SOP Instance was created. ALWAYS AUTO

Table 8-26 Ophthalmic Photography IOD - Module “Czm Ophthalmic Photography Image Extension”

Tag Type VR Name Description PoV Source

(0022,000C) 3 FL Horizontal Field

Horizontal field of view in degrees of the

Fundus Camera.

ANAP ACQUISITION

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 68 of 94

Revision: 1.1

Attribute not present for derived montage images and imported images

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 69 of 94

Revision: 1.1

8.1.1.3 Multi-frame True Color Secondary Capture Information Object Defintion

IE

Patient

Module Usage

Study

Patient ALWAYS

Series

Equipment

General Study

General Series

General Equipment

SC Equipment

ALWAYS

ALWAYS

ALWAYS

ALWAYS


General Image

Image Pixel

ALWAYS

ALWAYS

Multi Frame Functional Groups ALWAYS

SC Multi Frame Image ALWAYS

(0010,0010) 2

(0010,0020) 2

(0010,0021) 3

PN Patient's Name Patient's full name.

LO Patient ID

LO

Issuer of

Patient ID

SOP Common

Primary hospital identification number or code for the patient.

Identifier of the Assigning Authority that issued the Patient ID.

ALWAYS

Table 8-27 Multi-frame True Color Secondary Capture IOD - Module “Patient”

Tag Type VR Name Description PoV

ALWAYS

ALWAYS

ANAP

Source

MWL, SRQ,

USER

MWL, SRQ,

USER

MWL, SRQ,

AUTO

(0010,0030) 2 Birth date of the patient.

(0010,0040) 2

(0010,1000) 3

(0010,2160) 3

CS Patient's Sex

LO

Other Patient

IDs

SH Ethnic Group

Sex of the named patient.

Enumerated Values: M = male F = female O = other

Other identification numbers or codes used to identify the patient.

Ethnic group or race of the patient.

ANAP

ANAP

(0010,4000) 3 LT

Patient

Comments

User-defined additional information about the patient.

ANAP

Table 8-28 Multi-frame True Color Secondary Capture IOD - Module “General Study”

Tag Type VR Name Description PoV

(0020,000D) 1 UI

Study

Instance UID

Unique identifier for the Study

MWL, SRQ

SRQ

MWL, SRQ,

USER

ALWAYS

Source

MWL,

SRQ,

AUTO

(0008,0020) 2 DA Study Date

Date the Study started.

Date, when procedure step was started.

ALWAYS AUTO

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 70 of 94

Revision: 1.1

(0008,0030) 2 TM Study Time

Time the Study started.

Time, when procedure step was started.

ALWAYS AUTO

(0008,0090) 2 PN

Referring

Physician's

Name

Name of the patient's referring physician. VNAP MWL

(0020,0010)

(0008,0050)

(0008,1030)

2

2

3

SH Study ID

SH

Accession

Number

User or equipment generated Study identifier.

In scheduled case the source attribute for this value is Requested Procedure ID

In unscheduled case the value is a

Equipment generated Study identifier

A RIS generated number that identifies the order for the Study.

Value does not exist in unscheduled case.

Institution-generated description or classification of the Study (component) performed.

A sequence that provides reference to a

Study SOP Class/Instance pair. The sequence may have zero or more Items.

ALWAYS

VNAP

VNAP

MWL,

SRQ,

AUTO

MWL

MWL,

SRQ

(0008,1110) 3

>(0008,1150) 1

>(0008,1155) 1

SQ

UI

UI

Referenced

Study

Sequence

Referenced

SOP Class

UID

Referenced

SOP Instance

UID

Uniquely identifies the referenced SOP

Class.

Uniquely identifies the referenced SOP

Instance.

ANAP MWL

ALWAYS MWL

ALWAYS MWL

(0008,1032) 3

>(0008,0100) 1

>(0008,0102) 1

SQ

Procedure

Code

Sequence

SH Code Value

SH

Coding

Scheme

Designator

A Sequence that conveys the type of procedure performed. One or more

Items may be included in this Sequence.

See NEMA PS3.3 Section 8.1.

See NEMA PS3.3 Section 8.2.

ANAP MWL

ALWAYS MWL

ALWAYS MWL

>(0008,0103) 1C SH

Coding

Scheme

Version

See NEMA PS3.3 Section 8.2. Required if the value of Coding Scheme Designator

(0008,0102) is not sufficient to identify the Code Value (0008,0100) unambiguously.

VNAP MWL

>(0008,0104) 1 LO Code Meaning See NEMA PS3.3 Section 8.3. ALWAYS MWL

Table 8-29 Multi-frame True Color Secondary Capture IOD - Module “General Series”

Tag Type VR Name Description PoV Source

(0020,000E) 1 UI

Series

Instance

UID

Unique identifier of the Series.

"1.2.276.0.75.2.1.51.2.2" extended by machine

identifier and time information

ALWAYS AUTO

(0020,0011) 2 IS Series A number that identifies this Series. ALWAYS AUTO

(0020,0060) 2C CS Laterality

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Laterality of (paired) body part examined.

Required if the body part examined is a paired structure and Image Laterality (0020,0062) or

Frame Laterality (0020,9072) are not sent.

Enumerated Values: R = right L = left Note:

Some IODs support Image Laterality (0020,0062) at the Image level or Frame

ALWAYS AUTO

Page 71 of 94

Revision: 1.1

(0008,0021)

(0008,0031)

(0018,1030)

Laterality(0020,9072) at the Frame level in the

Frame Anatomy functional group macro, which can provide a more comprehensive mechanism for specifying the laterality of the body part(s) being examined.

3 DA Series Date Date the Series started.

3 TM Series Time Time the Series started.

3 LO Protocol

ALWAYS AUTO

ALWAYS AUTO

User-defined description of the conditions under which the Series was performed. Note: This attribute conveys series-specific protocol identification and may or may not be identical to the one presented in the Performed Protocol Code

Sequence (0040,0260).

In scheduled case: Same value as for Requested

Procedure Description (0032,1060).

In unscheduled case: Always "CPImage"

ANAP

MWL,

AUTO

(0008,1070) 3 PN Operators' Name(s) of the operator(s) supporting the Series. ANAP CONFIG

(0018,0015)

(0040,0275)

>(0040,1001)

3

3

CS Body Part

SQ

1C SH

Request

Attributes

Sequence

Requested

Procedure

ID

Text description of the part of the body examined.

See PS 3.16 Annexes on Correspondence of

Anatomic Region Codes and Body Part Examined for Humans and for Animals for Defined Terms

Note: Some IODs support the Anatomic Region

Sequence (0008,2218), which can provide a more comprehensive mechanism for specifying the body part being examined.

Always “HEAD”

ALWAYS AUTO

Sequence that contains attributes from the

Imaging Service Request. The sequence may have one or more Items.

The Request Attributes Sequence is only included in Scheduled Case. In unscheduled case it will not

be included.

ANAP MWL

Identifier that identifies the Requested Procedure in the Imaging Service Request. Required if procedure was scheduled. May be present otherwise. Note: The condition is to allow the contents of this macro to be present (e.g., to convey the reason for the procedure, such as whether a mammogram is for screening or diagnostic purposes) even when the procedure was not formally scheduled and a value for this identifier is unknown, rather than making up a dummy value.

ALWAYS MWL

>(0032,1060) 3 LO

Requested

Procedure

Description

Institution-generated administrative description or classification of Requested Procedure.

VNAP MWL

>(0040,0009) 1C SH

Scheduled

Procedure

Step ID

Identifier that identifies the Scheduled Procedure

Step. Required if procedure was scheduled. Note:

The condition is to allow the contents of this macro to be present (e.g., to convey the reason for the procedure, such as whether a mammogram is for screening or diagnostic purposes) even when the procedure step was not formally scheduled and a value for this identifier is unknown, rather than making up a dummy value.

ALWAYS MWL

>(0040,0007) 3 LO Scheduled

Institution-generated description or classification VNAP

MWL

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 72 of 94

Revision: 1.1

Procedure

Step

Description

>(0040,0008) 3 SQ

Scheduled

Protocol

Code

Sequence of the Scheduled Procedure Step to be performed.

Sequence describing the Scheduled Protocol following a specific coding scheme. This sequence contains one or more Items.

ANAP MWL

>>(0008,0100) 1 SH Code Value See NEMA PS3.3 Section 8.1.

>>(0008,0102) 1 SH

Coding

Scheme

Designator

See NEMA PS3.3 Section 8.2.

>>(0008,0103) 1C SH

Coding

Scheme

Version

See NEMA PS3.3 Section 8.2. Required if the value of Coding Scheme Designator (0008,0102) is not sufficient to identify the Code Value

(0008,0100) unambiguously. May be present otherwise.

ALWAYS MWL

ALWAYS MWL

VNAP MWL

>>(0008,0104) 1 LO Code

(0040,0253) 3 SH

Performed

Procedure

Step ID

(0040,0244) 3 DA

Performed

Procedure

Step Start

Date

See NEMA PS3.3 Section 8.3.

User or equipment generated identifier of that part of a Procedure that has been carried out within this step.

Date on which the Performed Procedure Step started.

ALWAYS MWL

ALWAYS AUTO

ALWAYS AUTO

(0040,0245) 3 TM

Performed

Procedure

Step Start

Time

Time on which the Performed Procedure Step started.

ALWAYS AUTO

(0040,0254) 3 LO

Performed

Procedure

Step

Description

Institution-generated description or classification of the Procedure Step that was performed.

In unscheduled case the attribute value =

"CPImage".

In scheduled case the attribute has the same value as for Requested Procedure Description

(0032,1060)

ALWAYS AUTO

Table 8-30 Multi-frame True Color Secondary Capture IOD - Module “General Equipment”

Tag Type VR Name PoV

(0008,0070) 2 LO Manufacturer

Description

Manufacturer of the equipment that produced the composite instances

“Carl Zeiss Meditec”

Source

ALWAYS AUTO

(0008,0080) 3

(0008,0081) 3

(0008,1010) 3

ST

Institution

Address

SH Station Name

Institution where the equipment that produced the composite instances is located.

Mailing address of the institution where the equipment that produced the composite instances is located.

User defined name identifying the machine that produced the composite instances.

VNAP

ANAP

VNAP

CONFIG

CONFIG

CONFIG

(0008,1040) 3 LO Institutional

Department in the institution where the

ANAP CONFIG

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 73 of 94

Revision: 1.1

(0008,1090) 3

(0018,1000) 3

(0018,1020) 3

LO

LO

Department

Name

Device Serial

Number

Software

Version(s) equipment that produced the composite instances is located.

Manufacturer’s model name of the equipment that produced the composite instances.

“CIRRUS photo 600” or

“CIRRUS photo 800”

Manufacturer’s serial number of the equipment that produced the composite instances. Note: This identifier corresponds to the device that actually created the images, such as a CR plate reader or a CT console, and may not be sufficient to identify all of the equipment in the imaging chain, such as the generator or gantry or plate.

Manufacturer’s designation of software version of the equipment that produced the composite instances.

Always "1.5.3.23749"

ALWAYS AUTO

ALWAYS AUTO

ALWAYS AUTO

Table 8-31 Multi-frame True Color Secondary Capture IOD - Module “SC Equipment”

Tag Type VR Name Description

(0008,0064) 1

PoV Source

Describes the kind of image conversion. Defined Terms

: DV = Digitized Video DI = Digital Interface DF =

Digitized Film WSD = Workstation SD = Scanned

Document SI = Scanned Image DRW = Drawing SYN =

Synthetic Image

Always “SYN” for Synthetic Image

ALWAYS AUTO

(0008,0060) 3 CS Modality

Source equipment for the image. This type definition shall override the definition in the General Series

Module. See C.7.3.1.1.1 for Defined Terms.

Always “OPT”

ALWAYS AUTO

Table 8-32 Multi-frame True Color Secondary Capture IOD - Module "General Image"

Tag Type VR Name Description

(0020,0020)

PoV Source

Patient direction of the rows and columns of the image. Required if image does not require Image

Orientation (Patient) (0020,0037) and Image

Position (Patient) (0020,0032). May be present otherwise. See C.7.6.1.1.1 for further explanation.

Note: IOD’s may have attributes other than Patient

Orientation, Image Orientation, or Image Position

(Patient) to describe orientation in which case this attribute will be zero length.

Always “L\F”

ALWAYS AUTO

(0008,0008) 3 CS Image Type

Image identification characteristics. See

C.7.6.1.1.2 for Defined Terms and further explanation.

Multi-value attribute containing 4 values:

1) Pixel Data Characteristics

always “DERIVED”

2) Patient Examination Characteristics

always “PRIMARY”

3) Modality Specific Characteristics

always empty

ALWAYS AUTO

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 74 of 94

Revision: 1.1

(0008,0022)

(0008,0032)

3 DA Acquisition

3 TM Acquisition

>(0008,0102) 1 SH

Coding

Scheme

Designator

4) Implementation specific identifiers

“ANTERIOR B SCAN” for anterior B-scan images

“POSTERIOR B SCAN” for posterior B-scan images

“OCT B SCAN” for any other B-scan images

The date the acquisition of data that resulted in this image started

The time the acquisition of data that resulted in this image started

See chapter “8.3 Coded Terminology and

Templates

ALWAYS AUTO

ALWAYS AUTO

(0008,002A)

(0008,9215)

3 DT Acquisition

3 SQ

Derivation

Code

Sequence

>(0008,0100) 1 SH Code Value

The date and time that the acquisition of data that resulted in this image started. Note: The synchronization of this time with an external clock is specified in the Synchronization Module in

Acquisition Time Synchronized (0018,1800).

ALWAYS AUTO

A coded description of how this image was derived.

See C.7.6.1.1.3 for further explanation. One or more Items may be included in this Sequence.

More than one Item indicates that successive derivation steps have been applied.

See chapter “8.3 Coded Terminology and

Templates

ANAP

See chapter “8.3 Coded Terminology and

Templates

AUTO

ALWAYS AUTO

ALWAYS AUTO

>(0008,0103) 1C SH

Coding

Scheme

Version

See NEMA PS3.3 Section 8.2. Required if the value of Coding Scheme Designator (0008,0102) is not sufficient to identify the Code Value (0008,0100) unambiguously. May be present otherwise.

See chapter “8.3 Coded Terminology and

Templates

ALWAYS AUTO

>(0008,0104) 1 LO

Code

Meaning

(0008,114A)

See chapter “8.3 Coded Terminology and

Templates

3 SQ

Referenced

Instance

Sequence

Non-image composite SOP Instances that are significantly related to this Image, including waveforms that may or may not be temporally synchronized with this image. One or more Items may be included in this sequence.

Included for referenced instances which are

- source instances for the secondary capture

ALWAYS AUTO

ALWAYS AUTO

>(0008,1150) 1 UI

Referenced

SOP Class

UID

>(0008,1155) 1 UI

Referenced

SOP

Instance

UID

>(0040,A170) 1 SQ

Purpose of

Reference

Code

Sequence

Uniquely identifies the referenced SOP Class.

Always "1.2.840.10008.5.1.4.1.1.66"

Uniquely identifies the referenced SOP Instance.

References the Instance_UID of the RAW acquisition data

ALWAYS AUTO

ALWAYS AUTO

Code describing the purpose of the reference to the

Instance(s). Only a single Item shall be permitted in this sequence.

ALWAYS AUTO

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 75 of 94

Revision: 1.1

>>(0008,0100) 1 SH Code Value

See NEMA PS3.3 Section 8.1.

Always “SRC_INSTANCE”

>>(0008,0102) 1 SH

Coding

Scheme

Designator

See NEMA PS3.3 Section 8.2.

Always “99CZM”

>>(0008,0103) 1C SH

Coding

Scheme

Version

ALWAYS AUTO

ALWAYS AUTO

See NEMA PS3.3 Section 8.2. Required if the value of Coding Scheme Designator (0008,0102) is not sufficient to identify the Code Value (0008,0100) unambiguously. May be present otherwise.

Always “20120401”

ALWAYS AUTO

>>(0008,0104) 1 LO

Code

Meaning

See NEMA PS3.3 Section 8.3.

Always “Source instance used to create this instance”

ALWAYS AUTO

(0020,4000) 3 LT Image User-defined comments about the image

Table 8-33 Multi-frame True Color Secondary Capture IOD - Module “Image Pixel”

Tag Type VR Name Description

(0028,0002) 1 US

Samples per

Pixel

Number of samples (planes) in this image.

See C.7.6.3.1.1 for further explanation.

Always “3”

(0028,0004) 1 CS

Photometric

Interpretation

Specifies the intended interpretation of the pixel data. See C.7.6.3.1.2 for further explanation.

Always “YBR_FULL_422”

(0028,0010) 1

(0028,0011) 1

US

US

Rows

Columns

(0028,0100) 1

(0028,0101) 1

US

US

Bits Allocated

Bits Stored

Number of rows in the image.

Number of columns in the image

Number of bits allocated for each pixel sample. Each sample shall have the same number of bits allocated. See PS 3.5 for further explanation.

Always “8”

Number of bits stored for each pixel sample.

Each sample shall have the same number of bits stored. See PS 3.5 for further explanation.

Always “8”

(0028,0102) 1

(0028,0103) 1

US

US

High Bit

Pixel

Representation

(7FE0,0010) 1C OB|OW Pixel Data

Most significant bit for pixel sample data.

Each sample shall have the same high bit.

See PS 3.5 for further explanation.

Always “7”

Data representation of the pixel samples.

Each sample shall have the same pixel representation. Enumerated Values:0000 = unsigned integer.0001 = 2's complement

Always “0”

A data stream of the pixel samples that comprise the Image. See C.7.6.3.1.4 for further explanation. Required if Pixel Data

Provider URL (0028,7FE0) is not present.

(0028,0006) 1C US

Planar Indicates whether the pixel data are sent

ANAP USER

PoV Source

ALWAYS AUTO

ALWAYS AUTO

ALWAYS AUTO

ALWAYS AUTO

ALWAYS AUTO

ALWAYS AUTO

ALWAYS AUTO

ALWAYS AUTO

ALWAYS AUTO

ALWAYS AUTO

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 76 of 94

Revision: 1.1

Configuration color-by-plane or color-by-pixel. Required if

Samples per Pixel (0028,0002) has a value greater than 1. See C.7.6.3.1.3 for further explanation.

Always “0”

Table 8-34 Multi-frame True Color Secondary Capture IOD - Module “Multi Frame Functional

Groups”

Tag Type VR Name Description PoV Source

(5200,9229) 2 SQ

Shared

Functional

Groups

Sequence

Sequence that contains the Functional Group Macros that are shared for all frames in this SOP Instance and Concatenation. Note: The contents of this sequence are the same in all SOP Instances that comprise a Concatenation. Zero or one Item may be included in this sequence. See NEMA PS3.3 Section

C.7.6.16.1.1 for further explanation.

Always zero items

EMPTY AUTO

(5200,9230) 1

(0020,0013) 1

SQ

IS

Per-frame

Functional

Groups

Sequence

Instance

Number

Sequence that contains the Functional Group Macros corresponding to each frame of the Multi-frame

Image. The first Item corresponds with the first frame, and so on. Each Item shall contain the same set of Functional Group Macros. This Sequence shall contain the same number of Items as the number of frames in the Multi-frame image. See NEMA PS3.3

Section C.7.6.16.1.2 for further explanation.

Always with one empty item

ALWAYS AUTO

A number that identifies this instance. The value shall be the same for all SOP Instances of a Concatenation, and different for each separate Concatenation and for each SOP Instance not within a Concatenation in a series.

ALWAYS AUTO

(0008,0023) 1

(0008,0033) 1

DA Content Date

The date the data creation was started. Note: For instance, this is the date the pixel data is created, not the date the data is acquired.

ALWAYS AUTO

The time the data creation was started. Note: For instance, this is the time the pixel data is created, not the time the data is acquired.

ALWAYS AUTO

(0028,0008) 1

Number of frames in a multi-frame image. See

C.7.6.6.1.1 for further explanation.

Always “1”

ALWAYS AUTO

Table 8-35 Multi-frame True Color Secondary Capture IOD - Module “SC Multi Frame Image"

Tag Type VR Name Description PoV Source

(0028,0301) 1

Indicates whether or not image contains sufficient burned in annotation to identify the patient and date the image was acquired. Enumerated Value: YES NO

“YES” if any identification info is burned in

“NO” otherwise

ALWAYS CONFIG

(0028,0030) 1C DS

Pixel

Spacing

Physical distance in the patient between the center of each pixel, specified by a numeric pair - adjacent row spacing (delimiter) adjacent column spacing in mm.

See 10.7.1.1 and 10.7.1.3. Required if the image has been calibrated. May be present otherwise.

Multi-value attribute containing 2 values:

ALWAYS AUTO

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 77 of 94

Revision: 1.1

1) adjacent row spacing in mm

2) adjacent column spacing in mm

Table 8-36 Multi-frame True Color Secondary Capture IOD - Module “SOP Common”

Tag Type VR Name Description PoV

(0008,0016) 1

Uniquely identifies the SOP Class. See C.12.1.1.1 for further explanation. See also PS 3.4.

“1.2.840.10008.5.1.4.1.1.7.4”

Source

ALWAYS AUTO

(0008,0018) 1 UI

(0008,0005) 1C CS

SOP

Instance

UID

Specific

Character

Set

Uniquely identifies the SOP Instance. See C.12.1.1.1 for further explanation. See also PS 3.4.

“1.2.276.0.75.2.1.51.2.” constant prefix for generated

UIDs

ALWAYS AUTO

Character Set that expands or replaces the Basic

Graphic Set. Required if an expanded or replacement character set is used. See C.12.1.1.2 for Defined

Terms.

Always “ISO_IR 192” for UTF-8 encoded Unicode

ALWAYS AUTO

(0008,0012) 3

(0008,0013) 3

DA

Instance

Creation

Date

TM

Instance

Creation

Time

Date the SOP Instance was created.

Time the SOP Instance was created.

ALWAYS AUTO

ALWAYS AUTO

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 78 of 94

Revision: 1.1

8.1.1.4 Raw Data Information Object Definition

IE Module

Patient

Patient

Study

Czm Patient Extended Data

General Study

Series

Patient Study

General Series

Equipment

General Equipment

Czm Equipment Extended Data

Raw Data

Acquisition Context

Raw Data

SOP Common

Raw Data (Acquisition)

OCT Common Settings

HiDef Scan

Cube Scan

Motion Scan

Noise Scan

Raster Scan

Enhanced Raster Scan

OCT Fundus Image

OCT Enface Image

OCT Patient Alignment

OCT Iris

Raw Data (Analysis)

Segmentation

Fovea Location

Optic Nerve Head

Measurement

Registration

ALWAYS

ALWAYS

ALWAYS

NEVER

ALWAYS

ALWAYS

ALWAYS

ALWAYS

ALWAYS

ALWAYS

ALWAYS

Usage

CONDITIONAL

CONDITIONAL

CONDITIONAL

CONDITIONAL

CONDITIONAL

CONDITIONAL

CONDITIONAL

CONDITIONAL

CONDITIONAL

CONDITIONAL

CONDITIONAL

CONDITIONAL

CONDITIONAL

CONDITIONAL

CONDITIONAL

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 79 of 94

Revision: 1.1

3D Volume CONDITIONAL

Common Data

Table 8-37 Raw Data IOD - Module “Patient”

Tag Type VR Name Description

(0010,0010) 2 PN Patient's Name Patient's full name.

CONDITIONAL

PoV

ALWAYS

Source

MWL, SRQ,

USER

(0010,0020) 2

(0010,0021) 3

LO Patient ID

Primary hospital identification number or code for the patient.

Identifier of the Assigning Authority that issued the Patient ID.

Birth date of the patient.

ANAP

MWL, SRQ,

AUTO

(0010,0030) 2

(0010,0040) 2

(0010,1000) 3

(0010,2160) 3

(0010,4000) 3

CS Patient's Sex

LO

LT

Other Patient

IDs

SH Ethnic Group

Patient

Comments

Sex of the named patient.

Enumerated Values: M = male F = female O = other

Other identification numbers or codes used to identify the patient.

ALWAYS

ANAP

MWL, SRQ,

USER

MWL, SRQ

Table 8-38 Raw Data IOD - Module “Czm Patient Extended Data”

Tag

(0405,xx52)

Tag

Type VR

3 CS

Type VR

Name

Normative

Database

Description

Ethnically diverse normative data tables associated with patient. Defined terms:

NONE

DEFAULT

ASIAN

CHINESE

JAPANESE

Table 8-39 Raw Data IOD - Module “General Study”

Name Description

PoV Source

ANAP

PoV

AUTO

(0020,000D) 1 UI

Study

Instance UID Unique identifier for the Study

ALWAYS

Source

MWL,

SRQ,

AUTO

(0008,0020)

(0008,0030)

2

2

DA Study Date

TM Study Time

Date the Study started.

Date, when procedure step was started.

Time the Study started.

Time, when procedure step was started.

ALWAYS AUTO

ALWAYS AUTO

(0008,0090) 2 PN

Referring

Physician's

Name

Name of the patient's referring physician. VNAP MWL

(0020,0010)

(0008,0050)

2

2

SH Study ID

Ethnic group or race of the patient.

User-defined additional information about the patient.

User or equipment generated Study identifier.

In scheduled case the source attribute for this value is Requested Procedure ID

In unscheduled case the value is a

Equipment generated Study identifier

A RIS generated number that identifies the order for the Study.

ANAP

ANAP

VNAP

SRQ

MWL, SRQ,

USER

ALWAYS

MWL,

SRQ,

AUTO

MWL

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 80 of 94

Revision: 1.1

(0008,1030)

(0008,1110)

3

3

>(0008,1150) 1

>(0008,1155) 1

SQ

UI

UI

Referenced

Study

Sequence

Referenced

SOP Class

UID

Referenced

SOP Instance

UID

Value does not exist in unscheduled case.

Institution-generated description or classification of the Study (component) performed.

A sequence that provides reference to a

Study SOP Class/Instance pair. The sequence may have zero or more Items.

Uniquely identifies the referenced SOP

Class.

Uniquely identifies the referenced SOP

Instance.

(0008,1032) 3

>(0008,0100) 1

SQ

Procedure

Code

Sequence

SH Code Value

A Sequence that conveys the type of procedure performed. One or more Items may be included in this Sequence.

This sequence always contains an equipment generated item (see chapter

“8.3 Coded Terminology and Templates)

and, if available, any MWL provided item of the Requested Procedure Code

Sequence.

See chapter “8.3 Coded Terminology and

Templates

>(0008,0102) 1 SH

Coding

Scheme

Designator

See chapter “8.3 Coded Terminology and

Templates

>(0008,0103) 1C

>(0008,0104) 1

SH

LO

Coding

Scheme

Version

Code

Meaning

See chapter “8.3 Coded Terminology and

Templates

See chapter “8.3 Coded Terminology and

Templates

Table 8-40 Raw Data IOD - Module “General Series”

Tag Type VR Name

(0008,0060) 1 CS Modality

Description

Type of equipment that originally acquired the data used to create the images in this Series. See C.7.3.1.1.1 for Defined Terms.

Always “OPT”

VNAP

ANAP

ALWAYS

MWL,

SRQ

MWL

ALWAYS MWL

ALWAYS MWL

MWL,

AUTO

ALWAYS MWL

ALWAYS MWL

ALWAYS MWL

ALWAYS MWL

PoV Source

ALWAYS AUTO

(0020,000E)

(0020,0011)

(0020,0060)

1

2

2C

UI

IS

CS

Series

Instance UID

Unique identifier of the Series.

"1.2.276.0.75.2.1.51.2.2" extended by machine identifier and time information

ALWAYS AUTO

Series

Number

A number that identifies this Series. ALWAYS AUTO

Laterality

Laterality of (paired) body part examined. Required if the body part examined is a paired structure and

Image Laterality (0020,0062) or Frame

Laterality (0020,9072) are not sent.

Enumerated Values: R = right L = left

Note: Some IODs support Image

Laterality (0020,0062) at the Image level or Frame Laterality(0020,9072) at the Frame level in the Frame Anatomy functional group macro, which can provide a more comprehensive

ALWAYS AUTO

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 81 of 94

Revision: 1.1

(0008,0021)

(0008,0031)

(0018,1030)

(0008,103E)

(0008,1070)

(0018,0015)

(0040,0275)

>(0040,1001)

>(0032,1060)

3

3

3

3

3

3

3

DA

TM

1C SH

3

LO

LO

PN

CS

SQ

LO mechanism for specifying the laterality of the body part(s) being examined.

Series Date Date the Series started.

Series Time Time the Series started.

ALWAYS AUTO

ALWAYS AUTO

Protocol

Name

Series

Description

Operators'

Name

User-defined description of the conditions under which the Series was performed. Note: This attribute conveys series-specific protocol identification and may or may not be identical to the one presented in the Performed

Protocol Code Sequence (0040,0260).

In scheduled case: Same value as for

Requested Procedure Description

(0032,1060).

In unscheduled case: Always "OCT" for

OCT Scan Data, “OctAnalysis” for OCT

Analysis Data

ANAP

Description of the Series.

Same value as for Performed Protocol

Code Sequence – Code Meaning.

Name(s) of the operator(s) supporting the Series.

MWL,

AUTO

ALWAYS AUTO

ANAP CONFIG

Body Part

Examined

Request

Attributes

Sequence

Text description of the part of the body examined. See PS 3.16 Annexes on

Correspondence of Anatomic Region

Codes and Body Part Examined for

Humans and for Animals for Defined

Terms Note: Some IODs support the

Anatomic Region Sequence

(0008,2218), which can provide a more comprehensive mechanism for specifying the body part being examined.

Always “HEAD”

ALWAYS AUTO

Sequence that contains attributes from the Imaging Service Request. The sequence may have one or more Items.

The Request Attributes Sequence is only included in Scheduled Case. In unscheduled case it will not be included.

ANAP MWL

Requested

Procedure ID

Identifier that identifies the Requested

Procedure in the Imaging Service

Request. Required if procedure was scheduled. May be present otherwise.

Note: The condition is to allow the contents of this macro to be present

(e.g., to convey the reason for the procedure, such as whether a mammogram is for screening or diagnostic purposes) even when the procedure was not formally scheduled and a value for this identifier is unknown, rather than making up a dummy value.

Requested

Procedure

Description

Institution-generated administrative description or classification of

Requested Procedure.

ALWAYS MWL

VNAP MWL

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 82 of 94

Revision: 1.1

>(0040,0009)

>(0040,0007)

>(0040,0008)

>>(0008,0100)

>>(0008,0102)

>>(0008,0103)

>>(0008,0104)

(0040,0253)

(0040,0244)

(0040,0245)

(0040,0254)

(0040,0260)

1C

3

3

1

1

1C

1

3

3

3

3

3

SH

LO

SQ

SH

SH

SH

LO

SH

DA

TM

LO

SQ

Scheduled

Procedure

Step ID

Identifier that identifies the Scheduled

Procedure Step. Required if procedure was scheduled. Note: The condition is to allow the contents of this macro to be present (e.g., to convey the reason for the procedure, such as whether a mammogram is for screening or diagnostic purposes) even when the procedure step was not formally scheduled and a value for this identifier is unknown, rather than making up a dummy value.

ALWAYS MWL

Scheduled

Procedure

Step

Description

Institution-generated description or classification of the Scheduled

Procedure Step to be performed.

VNAP MWL

Scheduled

Protocol Code

Sequence

Sequence describing the Scheduled

Protocol following a specific coding scheme. This sequence contains one or more Items.

ANAP MWL

Code Value See NEMA PS3.3 Section 8.1. ALWAYS MWL

Coding

Scheme

Designator

See NEMA PS3.3 Section 8.2. ALWAYS MWL

Coding

Scheme

Version

See NEMA PS3.3 Section 8.2. Required if the value of Coding Scheme

Designator (0008,0102) is not sufficient to identify the Code Value (0008,0100) unambiguously. May be present otherwise.

VNAP MWL

Code

Meaning

Performed

Procedure

Step ID

Performed

Procedure

Step Start

Date

Performed

Procedure

Step Start

Time

See NEMA PS3.3 Section 8.3.

User or equipment generated identifier of that part of a Procedure that has been carried out within this step.

Date on which the Performed Procedure

Step started.

Time on which the Performed Procedure

Step started.

ALWAYS MWL

ALWAYS AUTO

ALWAYS AUTO

ALWAYS AUTO

Performed

Procedure

Step

Description

Institution-generated description or classification of the Procedure Step that was performed.

In unscheduled case the attribute value

= "OCT" for OCT Scan Data and

“OctAnalysis” for OCT Analysis Data.

In scheduled case the attribute has the same value as for Requested Procedure

Description (0032,1060)

ALWAYS AUTO

Performed

Protocol Code

Sequence

Sequence describing the Protocol performed for this Procedure Step. One or more Items may be included in this

Sequence.

Contains information on the scan

ALWAYS AUTO

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 83 of 94

Revision: 1.1

>(0008,0100) 1 SH Code Value

protocols used during acquisition resp. analysis protocol used during analysis.

See chapter “8.3 Coded Terminology and

Templates

See chapter “8.3 Coded Terminology and

Templates

ALWAYS AUTO

>(0008,0102) 1 SH

Coding

Scheme

Designator

See chapter “8.3 Coded Terminology and

Templates

ALWAYS AUTO

>(0008,0103) 1C SH

Coding

Scheme

Version

See chapter “8.3 Coded Terminology and

Templates

ALWAYS AUTO

>(0008,0104) 1 LO

Code

Meaning

See chapter “8.3 Coded Terminology and

Templates

Table 8-41 Raw Data IOD – Module “General Equipment”

Tag Type VR Name

(0008,0070) 2 LO Manufacturer

Description

Manufacturer of the equipment that produced the composite instances

“Carl Zeiss Meditec”

(0008,0080) 3

(0008,0081) 3

(0008,1010) 3

ST

Institution

Address

SH Station Name

Institution where the equipment that produced the composite instances is located.

Mailing address of the institution where the equipment that produced the composite instances is located.

User defined name identifying the machine that produced the composite instances.

(0008,1040) 3 LO

Institutional

Department

Name

(0008,1090) 3

(0018,1000) 3

Department in the institution where the equipment that produced the composite instances is located.

Manufacturer’s model name of the equipment that produced the composite instances.

“CIRRUS photo 600” or

“CIRRUS photo 800”

Manufacturer’s serial number of the equipment that produced the composite instances. Note: This identifier corresponds to the device that actually created the images, such as a CR plate reader or a CT console, and may not be sufficient to identify all of the equipment in the imaging chain, such as the generator or gantry or plate.

(0018,1020) 3 LO

Software

Version(s)

Manufacturer’s designation of software version of the equipment that produced the composite instances.

Always "1.5.3.23749"

Table 8-42 Raw Data IOD – Module “Czm Equipment Extended Data”

Tag

(0405, xx44)

Type VR

1 LO

Name

Hardware ID

Description

Instrument’s ID, Max 32 char

ALWAYS AUTO

PoV Source

ALWAYS AUTO

VNAP

ANAP

VNAP

ANAP

CONFIG

CONFIG

CONFIG

CONFIG

ALWAYS AUTO

ALWAYS AUTO

ALWAYS AUTO

PoV Source

ALWAYS AUTO

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 84 of 94

Revision: 1.1

(0405, xx45) 1 LO

Hardware

Version

Instrument’s version, Max 32 char ALWAYS AUTO

Table 8-43 Raw Data IOD – Module “Acquisition Context”

Tag Type VR Name Description

(0040,0555) 2 SQ

Acquisition

Context

Sequence

PoV Source

A sequence of Items that describes the conditions present during the acquisition of the data of the

SOP Instance. Zero or more items may be included in this sequence.

Used to identify several software versions/algorithm versions in use when creating the Raw Data instance

See chapter “8.3 Coded Terminology and

Templates”

ALWAYS AUTO

>(0040,A043) 1 SQ

Concept

Name Code

Sequence

A concept that constrains the meaning of (i.e. defines the role of) the Observation Value. The

"Name" component of a Name/Value pair. This sequence shall contain exactly one item.

>>(0008,0100) 1 SH Code Value

ALWAYS AUTO

See chapter “8.3 Coded Terminology and

Templates”

“APPLICATION”, “NIM” code items are stored for any Raw Data instance

“ACQUISITION”, “NOISE” code items are stored for any Acquisition Raw Data instance

“MOTION” code item is stored for any Cube

Acquisition Raw Data instance

“AVERAGING” code item is stored for any HD raster Acquisition Raw Data instance

“RNFLTT”, “ONH” code items are stored for any

Optic Disc Analysis Raw Data instance

ALWAYS AUTO

>>(0008,0102) 1 SH

Coding

Scheme

Designator

See chapter “8.3 Coded Terminology and

Templates”.

Always “99CZM_OCTVER”

ALWAYS AUTO

>>(0008,0103) 1C SH

Coding

Scheme

Version

See NEMA PS3.3 Section 8.2. Required if the value of Coding Scheme Designator (0008,0102) is not sufficient to identify the Code Value (0008,0100) unambiguously. May be present otherwise.

See chapter “8.3 Coded Terminology and

Templates”

Always “20120419”

ALWAYS AUTO

See chapter “8.3 Coded Terminology and

Templates”

ALWAYS AUTO >>(0008,0104) 1 LO Code

>(0040,A160) 1C UT Text Value

This is the Value component of a Name/Value pair when the Concept implied by Concept Name Code

Sequence (0040,A043) is a Text Observation

Value. Required if Date (0040,A121), Time

(0040,A122), and Person Name (0040,A123) do not fully describe the concept specified by Concept

Name Code Sequence (0040,A043). Shall not be present otherwise.

The software/algorithm version

ALWAYS AUTO

Table 8-44 Raw Data IOD – Module “Raw Data”

Tag

(0020,0013)

Type VR

2

Name Description PoV Source

IS Instance

A number that identifies this raw data. The value ALWAYS AUTO

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 85 of 94

Revision: 1.1

Number shall be unique within a series.

Always “1” since there is always only one instance per series.

(0008,0023) 1 The date the raw data creation was started. ALWAYS AUTO

(0008,0033)

(0008,002A)

(0008,9123)

(0008,114A)

1

3

1

3

>(0008,1150) 1

>(0008,1155) 1

TM

Content

Time

UI

Creator-

Version

UID

The time the raw data creation was started.

DT

Acquisition

Datetime

The date and time that the acquisition of data started. Note: The synchronization of this time with an external clock is specified in the synchronization Module in Acquisition Time synchronized (0018,1800).

ALWAYS AUTO

ALWAYS AUTO

Unique identification of the equipment and version of the software that has created the Raw

Data information. The UID allows one to avoid attempting to interpret raw data with an unknown format.

Always

“1.2.276.0.75.2.1.51.2.6.1.5.<patch>.<build>” where

<patch> is the software version patch number

<build> is the software version build number

of the Application Software

ALWAYS AUTO

SQ

Referenced

Instance

Sequence

Other Instances significantly related to this

Instance. One or more Items may be included in this Sequence.

Analysis Raw Data instances refer to the according Acquisition Raw Data instance

ANAP AUTO

UI

Referenced

SOP Class

UID

Uniquely identifies the referenced SOP Class.

Always “1.2.840.10008.5.1.4.1.1.66”

ALWAYS AUTO

UI

Referenced

SOP

Instance

UID

Uniquely identifies the referenced SOP Instance. ALWAYS AUTO

>(0040,A170) 1

>>(0008,0100) 1

SQ

Purpose of

Reference

Code

Sequence

Describes the purpose for which the reference is made. Only a single Item shall be permitted in this sequence. See C.7.6.16.2.5.1.

The scan protocol used during acquisition. See

chapter “8.3 Coded Terminology and

Templates

ALWAYS AUTO

SH Code Value

See chapter “8.3 Coded Terminology and

Templates

ALWAYS AUTO

>>(0008,0102) 1 SH

Coding

Scheme

Designator

See chapter “8.3 Coded Terminology and

Templates

>>(0008,0103) 1C SH

Coding

Scheme

Version

ALWAYS AUTO

See NEMA PS3.3 Section 8.2. Required if the value of Coding Scheme Designator (0008,0102) is not sufficient to identify the Code Value

(0008,0100) unambiguously. May be present otherwise.

See chapter “8.3 Coded Terminology and

Templates

ALWAYS AUTO

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 86 of 94

Revision: 1.1

>>(0008,0104) 1 LO

Code

Meaning

See chapter “8.3 Coded Terminology and

Templates

Table 8-45 Raw Data IOD - Module “Sop Common”

Tag Type VR Name

(0008,0016) 1 UI

SOP Class

UID

Description

Uniquely identifies the SOP Class. See C.12.1.1.1 for further explanation. See also PS 3.4.

“1.2.840.10008.5.1.4.1.1.66”

ALWAYS AUTO

PoV Source

ALWAYS AUTO

(0008,0018) 1 UI

SOP

Instance

UID

(0008,0005) 1C CS

Specific

Character

Set

Uniquely identifies the SOP Instance. See C.12.1.1.1 for further explanation. See also PS 3.4.

“1.2.276.0.75.2.1.51.2.” constant prefix for generated

UIDs

ALWAYS AUTO

Character Set that expands or replaces the Basic

Graphic Set. Required if an expanded or replacement character set is used. See C.12.1.1.2 for Defined

Terms.

Always “ISO_IR 192” for UTF-8 encoded Unicode

ALWAYS AUTO

(0008,0012) 3

(0008,0013) 3

DA

Instance

Creation

Date

TM

Instance

Creation

Time

Date the SOP Instance was created.

Time the SOP Instance was created.

ALWAYS AUTO

ALWAYS AUTO

8.1.2 Usage of Attributes from Received IOD’s

The usage of attributes of Modality Worklist IODs is described in chapter 4.2.1.3.2 Activity – Query Modality

Worklist.

The case of patient data collision is outlined in chapter of Study Root Query/Retrieve SOP Class.

8.1.3 Attribute Mapping

In scheduled case, the following attributes are mapped from Modality Worklist to instances of

 Encapsulated PDF IOD

 Raw Data IOD

 Multi-frame True Color Secondary Capture Image IOD

 Ophthalmic Photography 8 Bit Image IOD

Modality Worklist Instance IOD

(0010,0010)

(0010,0020)

(0010,0021)

(0010,1000)

(0010,0030)

(0010,0040)

(0010,2160)

Patient's Name

Patient ID

Issuer of Patient ID

Other Patient IDs

Patient's Birth Date

Patient's Sex

Ethnic Group

(0010,0010)

(0010,0020)

(0010,0021)

(0010,1000)

(0010,0030)

(0010,0040)

(0010,2160)

Patient's Name

Patient ID

Issuer of Patient ID

Other Patient IDs

Patient's Birth Date

Patient's Sex

Ethnic Group

Editable

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 87 of 94

Revision: 1.1

(0010,4000)

(0008,0050)

(0008,0090)

(0040,1001)

Patient Comments

Accession Number

Referring Physicians Name

Requested Procedure ID

(0010,4000)

(0008,0050)

(0008,0090)

(0020,0010)

(0040,1001)

(0008,1030)

(0032,1060)

(0032,1060)

Requested Procedure

Description

(0018,1030)

(0040,0254)

(0032,1064)

Requested Procedure Code

Sequence

>(0008,0100) Code Value

(0008,1032)

>(0008,0102) Coding Scheme Designator

>(0008,0103) Coding Scheme Version

>(0008,0104)

(0020,000D)

Code Meaning

Study Instance UID

>(0008,0100)

>(0008,0102)

>(0008,0103)

>(0008,0104)

(0020,000D)

(0008,1110) Referenced Study Sequence (0008,1110)

>(0008,1150) Referenced Sop Class UID >(0008,1150)

>(0008,1155) Referenced Sop Instance UID >(0008,1155)

(0040,1400)

(0040,0100)

Requested Procedure

Comments

Scheduled Procedure Step

Sequence

>(0040,0007)

Scheduled Procedure Step

Description

(0040,1400)

(0040,0007)

>(0040,0008)

>(0040,0009)

Scheduled Protocol Code

Sequence

>>(0008,0100) Code Value

>>(0008,0102) Coding Scheme Designator

>>(0008,0103) Coding Scheme Version

>>(0008,0104) Code Meaning

(0040,0008)

>(0008,0100)

>(0008,0102)

>(0008,0103)

>(0008,0104)

Scheduled Procedure Step ID (0040,0009)

Patient Comments

Accession Number

Referring Physicians Name

Study ID

Request Attributes Sequence

> Requested Procedure ID

Study Description

Request Attributes Sequence

> Requested Procedure

Description

Protocol Name

Performed Procedure Step

Description

Procedure Code Sequence

Code Value

Coding Scheme Designator

Coding Scheme Version

Code Meaning

Study Instance UID

Referenced Study Sequence

Referenced Sop Class UID

Referenced Sop Instance UID

Request Attributes Sequence

> Requested Procedure

Comments

Request Attributes Sequence

> Scheduled Procedure Step

Description

Request Attributes Sequence

> Scheduled Protocol Code

Sequence

Code Value

Coding Scheme Designator

Coding Scheme Version

Code Meaning

Request Attributes Sequence

> Scheduled Procedure Step

ID

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 88 of 94

Revision: 1.1

8.1.4 Coerced/Modified Files

Those tags are listed in chapter 4.2.1.3.2 Activity – Query Modality Worklist.

Other attributes get lost and are not available in the CIRRUS photo Application Software.

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 89 of 94

Revision: 1.1

8.2 Data Dictionary of Private Attributes

The Application Software AE does not define Private Attributes of interest.

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 90 of 94

Revision: 1.1

8.3 Coded Terminology and Templates

The application software uses (0008,9215) Derivation Code Sequence with following codes to specify how an image was derived from an original image.

Occurs in: Ophthalmic Photography 8 Bit SOP Instance, Multi-frame True Color Secondary Capture SOP

Instance

Code Value

Coding Scheme

Designator

Coding Scheme

Version

Code Meaning / Comments

PLAIN_COPY 99CZM_ DERIVATION 20120628

Image is a plain copy of an original image

BURNT_IN_OVERLAY

CROPPED

99CZM_ DERIVATION

99CZM_ DERIVATION

20120628

20120628

Image has burnt in annotations and overlays

Image has been cropped

The application software uses (0008,114A) Referenced Instance Sequence with following codes to specify the source image of a secondary capture B-scan.

Occurs in: Multi-frame True Color Secondary Capture SOP Instance

Code Value

Coding Scheme

Designator

Coding Scheme

Version

Code Meaning / Comments

SRC_INSTANCE 99CZM 20120401

Source instance used to create this instance

For more detailed information on fundus image acquisition conditions, a few additional parameters, not defined in the Ophthalmic Photography IOD, are used. These parameters are stored in the Acquisition Context

Sequence as defined below.

Coding Scheme Designator: “99CZM”

Coding Scheme Version: n/a

Occurs in: Ophthalmic Photography 8 Bit SOP Instance

Coding

Name

Sensor

Coding Type

Coded Concept

Values

“AVT F504C”

Measurement Units

Code (and meaning)

n/a

Code Meaning /

Comments

Type of sensor

Aperture

AutoFocus

Numeric Value

Numeric Value

Always “1”

[0..1] none

(Value 1 means:

Aperture was used) none

(Value 1 means: Auto focus was active)

Mechanical aperture was used

Auto focus active or inactive

Coding Scheme Designator: “99HIKO”

Coding Scheme Version: “VP4.0“

Occurs in: Ophthalmic Photography 8 Bit SOP Instance

Coding

Name

Flash

Coding Type

Numeric Value

Values

[1..16] for color images

[1..24] otherwise

Measurement Units

Code (and meaning)

Flash units

(Flash of the funduscamera)

Code Meaning /

Comments

Flash level of the funduscamera

Sensor Gain

Gamma

Numeric Value

Numeric Value

[n] as selected in

Acquisition settings

[n] as selected in

Acquisition settings

Sensor Gain Unit

(Gain of digital

Camera) none

(Gamma value of the image)

Total gain of the sensor funduscamera system

Gamma value of the image

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 91 of 94

Revision: 1.1

Fixation point

Numeric Value

[1..max number of fixation points] none

(none)

Number of fixation point within a field method

Fixation point X

Fixation point Y

Numeric Value

Numeric Value

[0..186]

[0..110] none

(in display coordinates) none

(in display coordinates)

X-Coordinate of the fix point

Y-Coordinate of the fix point

Max fix points

Protocol

Name

Numeric Value

Coded Concept according to selected

Fixation protocol

(Position)

[1] for “Single field”

[n] for “n fields”

[9] for “Custom”

[name] where [name] is one of

"Standard",

"Center",

"OpticDisc",

"Mouse",

"TwoFields",

"ThreeFields",

"FiveFields",

"SevenField",

"SevenETDRS",

"Custom" none

(none) n/a

Maximum number of fixation point within a field method

Name of fixation points protocol

Focus aid

Focus position

Eye section

Numeric Value

Numeric Value

Numeric Value

[0..1]

[0..700]

[0..1] none

(Value 1 means:

Focussing aid was

ON) none

(Position value of the focus) none

(0: Anterior, 1:

Posterior)

Focus aid on or off

Focus position

Eye section

For exact information on algorithm versions, a few additional parameters, not defined in the Raw Data IOD, are used. These parameters are stored in the Acquisition Context Sequence as defined below.

Coding Scheme Designator: “99CZM_OCTVER”

Coding Scheme Version: “20120419”

Occurs in: Raw Data SOP Instance

Coding Name Coding Type

Meas. Units Code

/ Values

Code Meaning / Comments

APPLICATION Text Value <version string>

Application version for IOD creation.

ACQUISITION

DATASET

NIM

Text Value

Text Value

Text Value

<version string>

<version string>

<version string>

Application version for acquisition of instance.

Dataset configuration schema version.

NIM version at time of creation.

MOTION Text Value <version string> Motion correction algorithm.

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 92 of 94

Revision: 1.1

AVERAGING

NOISE

RECONSTRUCTION

ENFACE

ND

MACSEG

RNFLTT

ONH

GANGLION

DRUSEN

ILMRPE

RPEFIT

ETDRS

RPE

FOVEA

ONHCONTOUR

Text Value

Text Value

Text Value

Text Value

Text Value

Text Value

Text Value

Text Value

Text Value

Text Value

Text Value

Text Value

Text Value

Text Value

Text Value

Text Value

<version string>

<version string>

<version string>

<version string>

<version string>

<version string>

<version string>

<version string>

<version string>

<version string>

<version string>

<version string>

<version string>

<version string>

<version string>

<version string>

Line averaging algorithm.

Noise reduction algorithm.

Reconstruction algorithm.

Enface algorithm.

Normative database supported by this dataset.

Macular segmentation algorithm for ILM, RPE and RPEFit.

Tomtec segmentation for RNFL and ILM.

Optic Nerve Head segmentation for

ILM, RPE and RPEFit.

Ganglion Cell segmentation for

GCL and IPL.

Drusen analysis algorithm.

ILM / RPE segmentation algorithm for macular scans.

RPEFit segmentation algorithm for macular scans.

ETDRS wagon wheel algorithm.

Advanced RPE algorithm.

Fovea detection algorithm.

Optic Nerve Head contour algorithm.

Registration for Macular Change.

Registration for GPA.

MACREG

GPAREG

Text Value

Text Value

<version string>

<version string>

FUNDUSREG Text Value <version string>

Registration for external fundus image to dataset.

The Application Software AE uses custom coded terminology to describe the procedure and protocol used during acquisition.

Occurs in: Raw Data SOP Instance

Code Value

SD-E1

Coding Scheme

Designator

99CZM

Coding Scheme

Version

1.0

Code Meaning / Comments

ALL SCANS

SD-S1

SD-S2

99CZM

99CZM

1.0

1.0

Macular Cube 200X200

Macular Cube 512x128

SD-S3

SD-S10

SD-S21

SD-S22

SD-S51

SD-AIA

SD-MTA

SD-HDIA

SD-ACHDIA

99CZM

99CZM

99CZM

99CZM

99CZM

99CZM

99CZM

99CZM

99CZM

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

5 Line Raster

Optic Disc Cube 200x200

Anterior Segment 5 Line Raster

Anterior Segment Cube 512x128

HD 5 Line Raster

Advanced Visualization

Macular Thickness

High Definition Images

Anterior Segment High Definition

Images

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 93 of 94

Revision: 1.1

SD-ACA

SD-MCA

SD-GPA

SD-ONH

SD-3D

SD-GOUA

SD-SES

99CZM

99CZM

99CZM

99CZM

99CZM

99CZM

99CZM

1.0

1.0

1.0

1.0

1.0

1.0

1.0

Anterior Segment Analysis

Macular Change Analysis

Guided Progression Analysis

ONH and RNFL OU Analysis

Single Eye Summary

Glaucoma OU Analysis

Single Eye Summary

8.4 Greyscale Image Consistency

Not applicable.

8.5 Standard Extended / Specialized/ Private SOP

Classes

The following standard extensions are used in the IODs described in chapter 8.1.1 Created SOP Instance(s).

Table 8-6 Encapsulated PDF IOD - Module “Czm Encapsulated Pdf Series Extension”

Table 8-26 Ophthalmic Photography IOD - Module “Czm Ophthalmic Photography Image Extension”

Table 8-38 Raw Data IOD - Module “Czm Patient Extended Data”

Table 8-42 Raw Data IOD – Module “Czm Equipment Extended Data”

8.6 Private Transfer Syntaxes

No Private Transfer Syntax is supported.

Carl Zeiss Meditec AG

Goeschwitzer Strasse 51-52

07745 Jena

Germany www.meditec.zeiss.com/

www.meditec.zeiss.com/dicom

Document: DICOM_Conformance_Statement_Cirrus_photo_1.5.3.doc

Copyright: © Carl Zeiss Meditec AG

Page 94 of 94

Revision: 1.1

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
