AN 265: Using Altera MAX Series as Microcontroller I/O Expanders

AN 265: Using Altera MAX Series as Microcontroller I/O Expanders

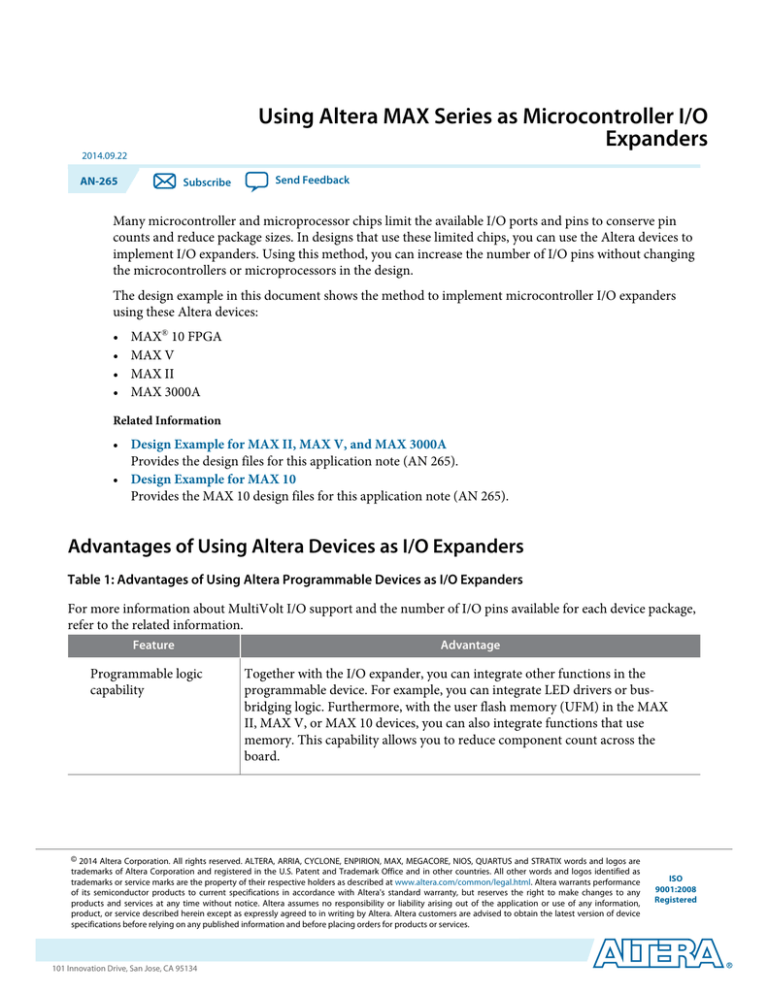

Using Altera MAX Series as Microcontroller I/O

Expanders

2014.09.22

AN-265

Subscribe

Send Feedback

Many microcontroller and microprocessor chips limit the available I/O ports and pins to conserve pin counts and reduce package sizes. In designs that use these limited chips, you can use the Altera devices to implement I/O expanders. Using this method, you can increase the number of I/O pins without changing the microcontrollers or microprocessors in the design.

The design example in this document shows the method to implement microcontroller I/O expanders using these Altera devices:

• MAX

®

10 FPGA

• MAX V

• MAX II

• MAX 3000A

Related Information

Design Example for MAX II, MAX V, and MAX 3000A

Provides the design files for this application note (AN 265).

Design Example for MAX 10

Provides the MAX 10 design files for this application note (AN 265).

Advantages of Using Altera Devices as I/O Expanders

Table 1: Advantages of Using Altera Programmable Devices as I/O Expanders

For more information about MultiVolt I/O support and the number of I/O pins available for each device package, refer to the related information.

Feature Advantage

Programmable logic capability

Together with the I/O expander, you can integrate other functions in the programmable device. For example, you can integrate LED drivers or busbridging logic. Furthermore, with the user flash memory (UFM) in the MAX

II, MAX V, or MAX 10 devices, you can also integrate functions that use memory. This capability allows you to reduce component count across the board.

©

2014 Altera Corporation. All rights reserved. ALTERA, ARRIA, CYCLONE, ENPIRION, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S. Patent and Trademark Office and in other countries. All other words and logos identified as trademarks or service marks are the property of their respective holders as described at www.altera.com/common/legal.html

. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services.

www.altera.com

101 Innovation Drive, San Jose, CA 95134

ISO

9001:2008

Registered

2

Microcontroller I/O Expander Implementation

Feature

MultiVolt I/O support

AN-265

2014.09.22

Advantage

The Altera programmable devices support MultiVolt I/O capability. You can use this capability to interface with I/O pins with voltages of 3.3 V, 3.0 V,

2.5 V, 1.8 V, 1.5 V, and 1.2 V. Using this capability, you can implement voltage-level shifting to interface your newer 2.5 V, 1.8 V, 1.5 V, or 1.2 V with older 3.3 V devices.

Large number of I/O pins The large number of I/O pins available in the Altera programmable devices make them ideal for implementing microcontroller I/O expansion. For example, with 500 I/O pins, you can implement 62 units of 8 bit ports.

In-system programma‐ bility

With in-system programmability (ISP), you have the added flexibility of reprogrammability on the board.

Related Information

MAX 10 FPGA Device Overview

Provides the number of maximum GPIO resources available for each device in the MAX 10 FPGA device family.

MAX 10 General Purpose I/O User Guide

Lists the I/O standards voltage and pin support information for each I/O standard supported by the

MAX 10 FPGA device family.

Introduction, MAX II Device Handbook

Provides the number of maximum user I/O pins for each device in the MAX II device family

MAX II Architecture, MAX II Device Handbook

Lists the MultiVolt I/O support for MAX II devices.

MAX 3000A Programmable Logic Device Family Data Sheet

Provides the number of maximum user I/O pins for each device and lists the MultiVolt I/O support for

MAX 3000A devices.

MAX V Device Family Overview

Provides the number of maximum GPIO resources available for each device in the MAX V device family.

MAX V Architecture

Lists the MultiVolt I/O support for MAX V devices.

Microcontroller I/O Expander Implementation

The I/O expander in this design example includes four ports—A, B, C, and D:

• You can program each port independently as I/O ports.

• Each port is 8 bits wide.

• Each port is bidirectional and acts as input port if tri-stated.

• To perform read and write operations, connect any of these ports with the microcontroller unit

(MCU) port.

Altera Corporation

Using Altera MAX Series as Microcontroller I/O Expanders

Send Feedback

AN-265

2014.09.22

Pin Functions in the Microcontroller I/O Expander

Figure 1: Block Diagram of Microcontroller I/O Expander Design Example

3

MCU Port

8

I/O Ports

8

Input

Data

Registers

4 2

I/O Setting

Data Register

2

8

8

Output

Data

Registers

8

8

8

8

8

Port A

8

Port B

8

8

8

8

4

I/O Ports

8

Port C

8

Port D

CLK CS RST CONF LOAD WR RD

Pin Functions in the Microcontroller I/O Expander

Table 2: Input and Output Pins in Microcontroller I/O Expander Design Example

I/O Name

CLK

Type

Input

Description

Input clock signal to trigger the input data registers, output data registers, and I/O setting data registers.

MODE

Active

Positive Edge

Using Altera MAX Series as Microcontroller I/O Expanders

Send Feedback

Altera Corporation

4

Pin Functions in the Microcontroller I/O Expander

I/O Name

MCU port

CS

RST

CONF

LOAD

WR

RD

MODE

Port A

Type

Bidirectional 8 bit bidirectional data lines that interface with the

MCU data bus and transmit configuration data.

• To write or read the 8-bit data to or from the I/O expander, use

WR

or

RD

signals with positive edge trigger.

• To set the MCU port as data or address bus, use the

MODE

signal.

Input

Input

Input

Description

Input signal to select the device.

Input signal to reset the device and all internal registers asynchronously.

• Stores the address[5..0]

from the MCU port on the rising edge of

CLK

into the configuration registers.

• Enables the clock signal to the configuration registers.

• Ignores data on address[7..6]

.

Input

• Stores the address[1..0]

from the MCU port on the rising edge of

CLK

into the configuration registers.

• Enables the clock signal to the configuration registers.

• Ignores data on address[7..2]

.

Input

• Causes the data on the MCU port to be written to the enabled port (A, B, C, or D) on the rising edge of

CLK

.

• Enables the clock signal to the output data registers

Input

• Enables the data bus transfer to the MCU port from the enabled port (A, B, C, or D) on the rising edge of

CLK

.

• Enables the clock signal to the input data registers.

Input

• When high, tri-states the MCU port.

• When low, sets the MCU port as input or output based on the configuration registers.

Bidirectional 8-bit, general-purpose I/O port that can be programmed to either output or input mode.

Active

AN-265

2014.09.22

Low

Low

Low

Low

Low

Low

Altera Corporation

Using Altera MAX Series as Microcontroller I/O Expanders

Send Feedback

AN-265

2014.09.22

I/O Name

Port B

Port C

Port D

Type

Functional Description of the Microcontroller I/O Expander

Description

Bidirectional 8-bit, general-purpose I/O port that can be programmed to either output or input mode.

Bidirectional 8-bit, general-purpose I/O port that can be programmed to either output or input mode.

Bidirectional 8-bit, general-purpose I/O port that can be programmed to either output or input mode.

Active

5

Related Information

Microcontroller I/O Expander Configuration

on page 6

Functional Description of the Microcontroller I/O Expander

The I/O expander operates as a slave that sends and receives data from and to the microcontroller through the MCU port.

Table 3: Operation Modes of the Microcontroller I/O Expander

During read and write operations, set the

MODE

signal control pin to low.

Mode Description

Read In read mode, the microcontroller receives the incoming data through the I/O expander.

• The selected port (A, B, C, or D) becomes an input port and the MCU port becomes an output port.

• When the

RD

and

CS

signals are low, the application enables the clock through the input data registers. On the rising edge of

CLK

, the I/O expander writes the data from the selected port to the input data registers.

Write

Disabled

In write mode, the microcontroller transmits data out through the I/O expander.

• The selected port (A, B, C, or D) becomes an output port and the MCU port becomes an input port.

• When the

WR

and signals are low, the application enables the clock through the output registers. On the rising edge of the

CLK

signal, the I/O expander writes the data received at the MCU port to the output data register of the selected port.

In this mode, the microcontroller cannot receive or transmit data through the

I/O expander.

When

WR

or

RD

signal is high, the application disables the

CLK

through the I/O data registers.

Using Altera MAX Series as Microcontroller I/O Expanders

Send Feedback

Altera Corporation

6

Microcontroller I/O Expander Configuration

Related Information

Microcontroller I/O Expander Design Verification

on page 7

Provides example of read and write operation.

AN-265

2014.09.22

Microcontroller I/O Expander Configuration

To set the port as input, output, or disabled, you must configure the I/O expander.

The I/O expander configuration data is a set of six bit registers:

• Four bits of I/O ports configuration (bits 5, 4, 3, and 2)

• Two bits of enabled port address (bits 1 and 0)

Table 4: I/O Expander Address Bus Configuration Function

Address

A7:A6

A5

A4

A3

A2

A1:A0

Bit

7–6

5

4

3

2

1–0

Function Configuration

No function —

Configuration bit for Port D •

0

= configured as input

1

= configured as output

Configuration bit for Port C •

0

= configured as input

1

= configured as output

Configuration bit for Port B •

0

= configured as input

1

= configured as output

Configuration bit for Port A •

0

= configured as input

1

= configured as output

Port address

00

= enables port A

01

= enables port B

10

= enables port C

11

= enables port D

When the

MODE

signal is high and

CS

signal is low, the design places the configuration data on the input address bus (MCU port).

To activate the new configuration, send a single pulse of the

CONF

signal for one clock period. When the

CONF

signal and

CS

signals are low, the clock is enabled through the configuration registers. As a result, the

I/O expander writes the configuration data in the configuration registers. This transition sets selected configuration as the state of the I/O expander.

If you want to select which of the four ports (A, B, C, or D) to use without configuring the ports, assert the

LOAD

signal low while

CS

signal is low. At the rising edge of the

CLK

signal, only the enabled port address data bits are written to the configuration registers.

The configuration of the selected port (input or output) also configures the MCU port direction. For example, if you configure port A as input and enable it, the direction of the MCU port becomes output.

Altera Corporation

Using Altera MAX Series as Microcontroller I/O Expanders

Send Feedback

AN-265

2014.09.22

Resource Usage in Microcontroller I/O Expander Target Devices

7

You cannot directly configure the input or output direction of the MCU port. However, if you need to access the configuration registers, use the

MODE

signal control pin to tri-state the MCU port and turn it into an input port.

The I/O expander design supports reset mode. When you assert the

RST

signal while the

CS

signal is low, all register contents are reset to zero asynchronously. All I/O expander including the MCU port are set to input mode, which is the initial state of the I/O expander.

Related Information

Pin Functions in the Microcontroller I/O Expander

on page 3

Resource Usage in Microcontroller I/O Expander Target Devices

There are sufficient resources in the target devices to implement the design example and other logic.

Table 5: Device Targets to Implement the Microcontroller I/O Expander Design Example

This table lists the devices that you can target with the design example using the Quartus

® resource utilization.

II software and their

Resource Utilization

Family Device

Resource Availability Usage Utilization (%)

MAX 3000A

MAX II

MAX 10 FPGA

EPM3128ATC100

EPM240T100C3

10M08SAE144C8G

Macrocells

Flipflops

I/O pins

Shareable expanders

Logic elements

Flipflops

I/O pins

Logic elements

Flipflops

I/O pins

128

128

80

128

240

240

80

8064

8064

103

51

50

48

2

67

50

48

75

59

48

39

39

60

1

27

20

60

0.9

0.7

47

Microcontroller I/O Expander Design Verification

You can verify the functional and timing simulation of the example design on the target devices using the

Quartus II software.

Related Information

Functional Description of the Microcontroller I/O Expander

on page 5

Using Altera MAX Series as Microcontroller I/O Expanders

Send Feedback

Altera Corporation

8

Simulating Microcontroller I/O Expander Write Mode Timing

Simulating Microcontroller I/O Expander Write Mode Timing

Figure 2: Write Mode Timing Simulation of the Microcontroller I/O Expander

Configure the microcontroller I/O expander

Low signal of WR enables the clock through the output data registers to create new output values

AN-265

2014.09.22

Change the enabled port

WR signal creates new output values

1. With all the I/O pins in tri-state mode, initialize each port.

2. After initialization, configure port A and port B as output, and port C and port D as input.

3. Enable port B for write operation.

When

WR

asserts a low signal, the clock through the output data registers is enabled and creates a new output value (146) at the output port B from the MCU port.

4. Once the

LOAD

signal asserts low, enable port A.

When the

WR

signal is low to enable the clock through the output data registers, the MCU port data

(108) is created at the output port A.

Altera Corporation

Using Altera MAX Series as Microcontroller I/O Expanders

Send Feedback

AN-265

2014.09.22

Simulating Microcontroller I/O Expander Read Mode Timing

Simulating Microcontroller I/O Expander Read Mode Timing

Figure 3: Read Mode Timing Simulation of the Microcontroller I/O Expander

Configure the microcontroller I/O expander

Low signal of RD enables the clock through the input data registers to create new output values

9

Change the enabled port RD signal creates new output values

1. With all the I/O pins in tri-state mode, initialize each port.

2. After initialization, configure ports A, B, C, D as input.

3. Enable port C for read operation.

When

RD

asserts a low signal, the clock through the input data registers is enabled and creates a new output value (214) at the MCU port from port C.

4. Once the

LOAD

signal asserts low, enable port D.

When the

RD

signal is low to enable the clock through the input data registers, port D data (146) is created at the MCU port.

Microcontroller I/O Expander Application

You can modify the example design to target any 8-bit microcontroller such as the PIC and 8051 microcontrollers.

Using Altera MAX Series as Microcontroller I/O Expanders

Send Feedback

Altera Corporation

10

Microcontroller I/O Expander Application

Figure 4: Increasing Microcontroller I/O Ports Using the Microcontroller I/O Expander

AN-265

2014.09.22

This figure shows the I/O expander applied to a microcontroller system to increase the number of I/O ports of the microcontroller.

CLK

Microcontroller

RD output

WR output

CS output

LOAD output

CONF output

MODE output

RST output

Microcontroller I/O Port

8

RD

WR

CS

LOAD

CONF

I/O Expander

MODE

RST

MCU Port

CLK

Port A

Port B

Port C

Port D

8

8

8

8

System Clock

Altera Corporation

Using Altera MAX Series as Microcontroller I/O Expanders

Send Feedback

AN-265

2014.09.22

Document Revision History

Document Revision History

Date

September 2014

March 2004

Version Changes

2014.09.22 • Added information for MAX 10 devices.

• Added support for MAX V devices.

• Added missing link to download the design example file for MAX

V, MAX II, and MAX 3000A device families.

• Added link to download the design example file for MAX 10 devices.

• Removed tables that list the MultiVolt I/O support and number of maximum user I/O pins for the MAX II and MAX 3000A devices, and added links to related device-specific documents that list the information. The linked documents provide more details and contain the latest information for each device family.

• Changed the figure that shows the I/O expander address bus configuration into a table for easier reference.

• Removed the table that lists the port addresses configuration values and combined the information in the table that lists the I/O expander address bus configuration details.

• Added a table that lists the design example target devices and combined the resource utilization information into this table for easy reference.

• Updated the microcontroller I/O expander read and write timing simulation figures.

• Restructured and rewrote all sections for clarity and style update.

• Updated template.

2.0

1.0

Revision history information not available.

Initial release.

11

Using Altera MAX Series as Microcontroller I/O Expanders

Send Feedback

Altera Corporation

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
