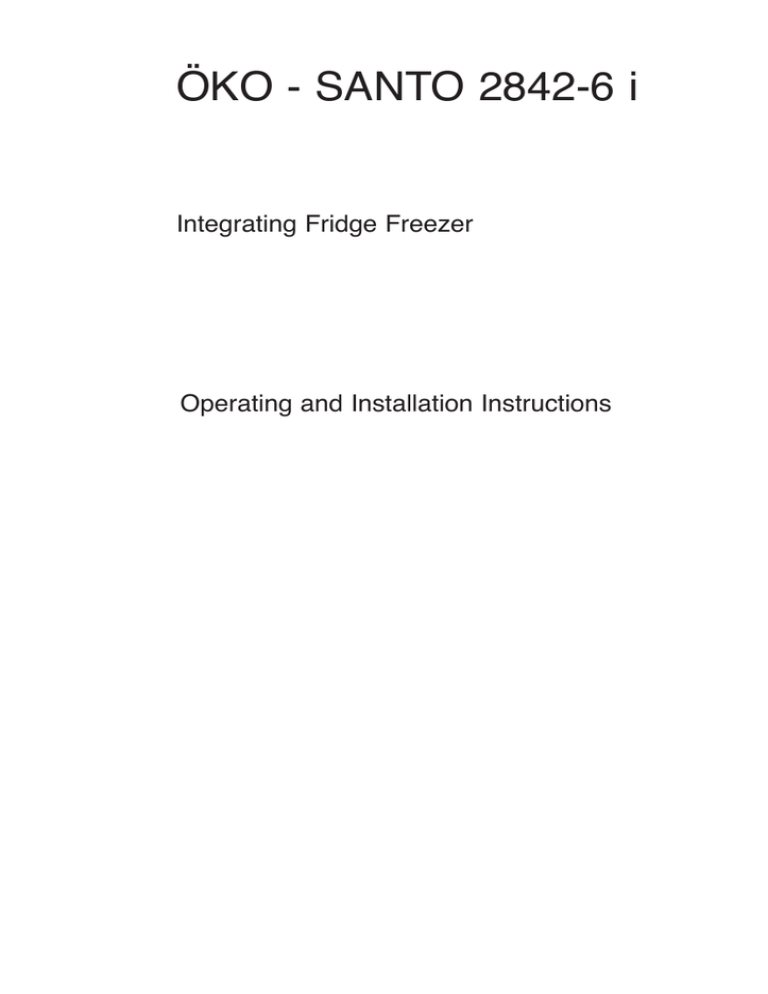

…KO - SANTO 2842-6 i
Integrating Fridge Freezer
Operating and Installation Instructions
Dear customer,
Before placing your new refrigerator/freezer into operation please
read these operating instructions carefully. They contain important
information for safe use, for installation and for care of the appliance.
Please keep these operating instructions for future reference. Pass
them on to possible new owners of the appliance.
Notes which are important for your safety or for the proper functioning
of the appliance are stressed with a warning triangle and/or words
(Warning!, Important!, Caution!). Please observe the following instructions carefully.
Additional information regarding operation and practical applications
of the appliance appear after this symbol.
Tips and notes concerning economical and environmentally sound
use of the appliance are marked with the cloverleaf.
In the event of a malfunction, these operating instructions contain
information on how to rectify faults yourself, see the ÒSomething Not
WorkingÓ section.
For futher assistance contact your local AEG Service Force Centre,
see the chapter "Service and Spare PartsÓ.
Printed on paper manufactured with environmentally sound processes.
who thinks ecologically acts accordingly ...
2
Contents
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Appliance Packaging Information . . . . . . . . . . . . . . . . . . . . . . . 5
Disposal of old Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Remove transport safeguard . . . . . . . . . . . . . . . . . . . . . . . . . 6
Starting up and temperature regulation . . . . . . . . . . . . . . . . . 7
Ambient temperature switch . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Interior Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Storage shelves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Door rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Fresh food refrigeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Freezing and storing frozen food . . . . . . . . . . . . . . . . . . . . . . 9
Ice pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Preparation of Ice Cubes . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Storage goods Symbols/ Freezing calendar . . . . . . . . . . . . .11
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Switching off the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Energy Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Something Not Working. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Changing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Service and Spare Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Guarantee Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Installation Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Your appliance needs air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Reversing the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Housing dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Instructions for building in . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Regulations, Standards, Guidelines. . . . . . . . . . . . . . . . . . . . 25
2222 020-53
3
Safety
Please read this instruction book before using the appliance and retain
for future reference. These warnings are provided in the interests of your
safety, ensure you understand them fully before using the appliance.
Intended use
¥ The appliance is intended for use in the home. It is suitable for the
cooling, freezing and storing of frozen food, as well as for making
ice. If the appliance is used for purposes other than those intended
or used incorrectly, no liability can be accepted by the manufacturer
for any damage that may be caused.
¥ Alterations or changes to the appliance are not permitted for reasons
of safety.
Prior to initial startÐup
¥ Check the appliance for transport damage. Under no circumstance
should a damaged appliance be plugged in! In the event of damage,
please contact your retailer.
Refrigerant
The refrigerant isobutane (R600a) is contained within the refrigerant
circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
¥ During transportation and installation of the appliance, be certain that
none of the components of the refrigerant circuit become damaged.
¥ If the refrigerant circuit should become damaged:
Ð avoid open flames and sources of ignition;
Ð thoroughly ventilate the room in which the appliance is situated.
Safety of children
¥ Keep packaging material away from children.
¥ Please make old appliances unusable prior to disposal. Pull out the
mains plug, cut off the mains cable and remove any locks or catches, to prevent young children being trapped inside.
¥ Do not allow children to tamper with the controls or play with the product.
Daily Operation
¥ Containers with flammable gases or liquids can leak at low temperatures. There is a risk of an explosion! Do not store any containers
with flammable materials such as, for example, spray cans, fire
4
extinguisher refill cartridges etc in the refrigerator/freezer.
¥ Bottles and cans must not be placed in the freezer compartment.
They can burst when the contents freeze, high carbonate content
drinks can even explode! Never store lemonade, juices, beer, wine,
sparkling wine etc. in the freezer compartment.
¥ Ice cream or ice cubes can cause Òfrost/freezerÓ burns if consumed
straight from the freezer.
¥ Do not touch frozen food with wet hands. Your hands could freeze
to the food.
¥ Do not operate any electrical appliances in the refrigerator/freezer
(e.g. electric ice cream makers, mixers etc.).
¥ Before cleaning the appliance, always switch off the appliance and
disconnect from the electricity supply.
¥ When unplugging always pull the plug from the mains socket, do not
pull on the cable.
Service
¥ Under no circumstances should you attempt to repair the appliance
yourself. Repairs carried out by inexperienced persons may cause
injury or serious malfunctioning. Contact your local AEG Service
Force Centre.
Disposal
Appliance Packaging Information
All materials are environmentally sound.
The plastics can be recycled and are identified as follows:
>PE< for polyethylene, e.g. the outer covering and the bags in the
interior.
>PS< for polystyrene foam, e.g. the pads, which are all free of chlorofluorocarbon.
The carton parts are made from recycled paper and should be disposed of at a waste-paper recycling collection location.
Disposal of old Appliances
For environmental reasons, refrigeration appliances must be disposed of properly. This applies to your old appliance, and - at the end of
its service life - to your new appliance as well.
5
Warning! Before disposing of old appliances make them inoperable.
Remove plug from mains, sever the power cable, remove or destroy any
snap or latch closures, to prevent small children being trapped inside.
¥ Use an authorised disposal site.
Remove transport safeguard
The appliance and the interior fittings are protected for transport.
¥ Remove all adhesive tape and packing pieces from the interior of the
appliance.
You can remove any remnants of adhesive using white spirit.
6
Starting up and temperature regulation
Wash the inside of the appliance with lukewarm water with a little
bicarbonate of soda added (5ml to 0,5 litre of water). Do not use soap
or detergent as the smell may linger. Dry the appliance thoroughly.
¥ When the refrigerator compartment door is opened, the internal lighting is switched on. The temperature selector knob is located on the
RH side of the refrigerator compartment.
Setting Ò0Ó: Off.
Setting Ò1Ó: Hightest temperature, (warmest setting).
Setting Ò6Ó (end-stop) : Lowest temperature, (coldest setting).
The exact setting should be chosen keeping in mind that the temperature inside the refrigerator depends on:
-the quantity of food stored
-how often the door is opened
The temperatures in the refrigerator compartment and freezer compartment cannot be independently regulated.
If you want to freeze fresh food rapidly, select setting Ò6Ó, ensuring that
the temperature in the refrigerator compartment does not drop below
0¡C. You should also promptly reset the temperature regulator to setting Ò3Ó or Ò4Ó, if this occurs.
Important!
High ambient temperatures (e.g. on hot summer days) and a cold setting on the temperature regulator (position"5" to "6") can cause the
compressor to run continuously.
If this happens, turn the temperature regulator back to a warmer setting (position "3" to "4"). At this setting the compressor will be switched
on and off as usual and automatic defrosting recommenced.
Ambient Temperature switch
With a room temperature
below +16¡C the Fridge freezer may not function correctly.
If the room temperature is
lower than +16¡C it will be
necessary to depress switch
(A). The relevant pilot light
comes on.
A
D710
7
Interior Accessories
Storage shelves
¥ You should always slide one
of the full size glass storage
shelves into the lowest set of
guides, above the fruit and
vegetable containers, and
keep it in this position.
¥ The height of the storage
shelves can be adjusted:
¥ To do this pull the storage
shelf forward until it can be
swivelled upwards or downwards and removed.
D338
¥ Please do the same in reverse to insert the shelf at a different height. Slide the front half of the Vario storage shelf in another level to
the rear. This will enable you to place tall items on the storage shelf
below.
Adjusting the upper door rack
¥ Depending on the food stored, the upper door racks
can be changed to other holders or removed. Take out
the refrigerators food, press
the door racks diagonally
upwards at their edges,
reposition them, and press
them back into place.
PR270/1
8
Fresh food refrigeration
To obtain the best performance:
¥ do not store warm food or evaporating liquid in the refrigeator
¥ do cover or wrap the food, particularly if it has a strong flavour.
¥ Position food so that air can circuiate freely round it.
Useful hints:
Meat (all types): wrap in polythene bags and place on the glass shelf
above the vegetable drawer(s)
For safety, store in this way only one or two days at the most.
Cooked foods, cold dishes, etc: these should be covered and may
be placed on any shelf.
Fruit and vegetables: these should be thoroughly cleaned and
placed in the special drawer(s) provided.
Butter and cheese: these should be placed in special airtight containers or wapped in aluminium foil or polythene bags to exclude as
much air as possible.
Milk bottles: these should have a cap and should be stored in the
bottle rack on the door.
Bananas, potatoes, onions and garlic, if not packed, must not be
kept in the refrigerator.
Freezing and storing frozen food
You can use your freezer for freezing fresh food yourself.
Important!
¥ The temperature in the freezer compartment must be Ð18 ¡C or colder before freezing food.
¥ Please observe the freezing capacity given on the rating plate. The
freezing capacity is the maximum quantity of fresh food that can be
frozen within a period of 24 hours. If you wish to freeze food several days in a row, please observe a maximum capacity of only 2/3 to
3/4 of that on the rating plate. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.
9
¥ Allow warm food to cool down before freezing. The warmth will cause increased ice formation and increase the power consumption.
¥ Please note the maximum storage times specified by the manufacturer.
¥ Thawed foods which have not been processed further (cooked into
meals) may not under any circumstances be frozen a second time.
¥ Containers with flammable gases or liquids can leak at low temperatures. There is a risk of an explosion! Do not store any containers
with flammable materials such as, for example, spray cans, fire
extinguisher refill cartridges etc in the refrigerator/freezer.
¥ Bottles and cans must not be placed in the freezer. They can burst
when the contents freeze, high carbonate content drinks can even
explode! Never store lemonade, juices, beer, wine, sparkling wine
etc. in the freezer.
¥ All foods must be packed air tight prior to freezing, so that they do
not dry out or lose their flavour, and so that no flavour contamination of other frozen goods occurs.
Important! Do not touch frozen food with wet hands. Your hands
could freeze to the food.
10
1.
Place the packed food in the drawers. Place food to be frozen in the
upper drawer. Unfrozen food must not touch items already frozen,
otherwise the frozen food could begin to defrost.
2.
When freezing fresh food, depress the ambient temperature switch
(A) 12 hours before loading the food without modifying the thermostat
setting. The pilot light will come on. At the end of the freezing process,
do not forget to depress again the ambient switch in order to avoid an
increase of the power consumption.
3.
Place frozen foods in the drawers sorted by type, as far as possible.
Riders are supplied for placing on drawers. To mark the contents of
the individual drawers, press the index tab over the corresponding
symbol (see "Frozen Food Symbols/Freezer Calendar" section). This
will give you a better overview of the contents, avoid extended door
opening and therefore save electricity.
4.
If large quantities of food are to be stored, remove all drawers and
baskets from appliance and place food on cooling shelves. Pay careful attention not to exceed load limit
stated on the side of the
upper section
Ice pack
There is an ice pack in one drawer of the freezer.
In the event of a power failure or malfunction, the ice pack will
lengthen the amount of time it takes for the frozen food to become too
warm by several hours. The ice pack can only fulfil this task optimally if it is placed in the uppermost drawer, at the front, above the frozen
food. You can use the ice pack for cooling cold bags.
Preparation of Ice Cubes
1.
Fill the ice cube tray 3/4 full with cold water, place it in the freezer
compartment and leave to freeze.
2.
To loosen the frozen cubes, either bend the ice cube tray or hold it
under running water for a few seconds.
Important! Never try to free an ice tray that is frozen to the freezer
compartment using pointed or sharp edged objects. Use the ice scraper supplied.
Storage Goods Symbols/Freezing Calendar
¥ The symbols on the drawers show different types of frozen goods.
¥ The numbers indicate storage times in months for the appropriate
types of frozen goods. Whether the upper or lower value of the indicated storage time is valid depends on the quality of the foods and
pre-treating before freezing. The lower value applies to foods with
high fat content.
¥ By attaching the included index-tabs to the drawers, they can be
marked according to which type of foods the individual compartments contain.
Defrosting
Refrigerator
Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special
container at the back of the appliance, over the motor compressor,
where it evaporates.
11
Freezer
The freezer compartment, however, will become progressively covered with frost. This should be removed with the special plastic scraper
provided, whenever the thickness of the frost exceeds 4 mm. During
this operation it is not necessary to switch off the power supply or to
remove the foodstuffs.
However when the ice becomes very thick on the inner liner, complete defrosting should be carried out as follows:
1.
Remove the frozen food from
the freezer, wrap it in several
layers of newspaper and put it
in a very cool place.
2.
Switch off the appliance and
pull out the plug.
3.
Leave the freezer compartment door open.
4.
Insert the plastic scraper into
the recess provided under the
defrost water channel and place a collecting basin under it.
5.
Once defrosting is completed keep the scraper for future use;
6.
Turn the thermostat knob to the required setting or replace the plug in
the power socket.
Warning!
Never use metal tools to scrape off the frost
Do not use a mechanical device or any artificial means to speed up
the thawing process other than those recommended by the manufacturer.
A temperature rise of the frozen food packs, during defrosting , may
shorten their safe storage life.
Switching off the appliance
1.
2.
12
To switch off the appliance, turn the temperature regulator to position
"0" or disconnect from the electricity supply.
If the appliance is not going to be used for an extended period:
Remove all refrigerated and frozen packages as well as ice trays.
Remove the mains plug or switch off or turn out the circuit breaker or
fuse.
3.
4.
Defrost freezer compartment and clean thoroughly (see section:
ÒCleaning and CareÓ).
Leave the door open to avoid the build up of odours.
Cleaning and Care
For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.
Warning!
Before carrying out any cleaning or maintenance, disconnect the
appliance from the electricity supply.
¥ Never clean the appliance with a steam cleaner. Moisture could
accumulate in electrical components, danger of electrical shock!
Hot vapours can lead to the damage of plastic parts.
¥ The appliance must be dry before it is placed back into service.
Warning!
¥ Ethereal oils and organic solvents can attack plastic parts, e.g.
Ð lemon juice or the juice from orange peel,
Ð butyric acid;
Ð cleansers which contain acetic acid.
Do not allow such substances to come into contact with appliance parts.
¥ Do not use any abrasive cleansers.
1.
Remove frozen food and the food from the refrigerator. Wrap frozen food
in several layers of newspaper. Store it in a cool place, well covered.
2.
Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse.
3.
Clean the appliance and the interior accessories with lukewarm water
with a little bicarbonate of soda added (5ml to 0,5 litre of water). Commercially available dish washing detergents may also be used.
4.
Dry the appliance thoroughly.
13
5.
Check the water drain hole on
the rear wall of the fridge. Clear
a blocked drain hole with the
aid of the drain cleaning tool
included with the appliance.
6.
When everything is dry place
appliance back into service.
Energy Saving Tips
¥ Do not install the appliance near cookers, radiators or other sources
of warmth. High ambient temperatures cause longer, more frequent
operation of the compressor.
¥ Ensure sufficient air circulation and exhaust at the appliance base
and at the back wall of the appliance. Never cover air vent openings.
¥ Do not place warm foods into the appliance. Allow warm foods to
cool first.
¥ Only leave door open as long as necessary.
¥ Do not set temperature any colder than necessary.
¥ Put frozen food in the fridge to defrost. The cold in the frozen food
will then be used to cool the fridge.
Accumulation of dust at the condenser increases energy consumption. For this reason carefully clean the condenser at the back of the
appliance once a year with a soft brush or a vacuum cleaner. Ensure
the appliance is switched off.
14
Something Not Working
If the appliance is not functioning correctly, please carry out the following checks before contacting your local AEG Service Force Centre.
Warning!
Repairs should only be carried out by qualified service engineers.
Repairs carried out by inexperienced persons may cause injury or
serious malfunctioning.
Malfunction
Possible Cause
Remedy
Appliance is not switched on Switch on the appliance.
Mains plug is not plugged in Insert mains plug.
or is loose.
Appliance does not work.
Fuse has blown or is defec- Check fuse, replace if
tive.
necessary.
Socket is defective.
Appliance cools too much.
Mains malfunctions are to be
corrected by an electrician.
Temperature is set too cold. Turn the temperature regulator to a warmer setting
temporarily..
Temperature is not properly Please look in the "Initial
adjusted.
Start Up" section.
Door was open for an exten- Open the door only as long
ded period.
as necessary.
The food is too warm.
A large quantity of warm food Turn the temperature reguwas placed in the appliance lator to a colder setting temwithin the last 24 hours.
porarily.
The appliance is near a heat Please see "Installation
source.
location" section.
Interior lighting does not
work.
Light bulb is defective.
Heavy build up of frost, pos- Door seal is not air tight
sibly also on the door seal. (possibly after changing
over the hinges).
Please see "Changing the
Light Bulb" section.
Carefully warm the leaking
sections of the door seal
with a hair dryer (not hotter
than approx. 50 ¡C). At the
same time shape the warmed door seal by hand such
that it sits correctly.
15
Malfunction
Possible Cause
Remedy
The compressor does not
This is normal, no error has The compressor starts after
start immediately after chan- occurred.
a period of time.
ging the temperature setting.
Water on the floor or on sto- Water drain hole is blocked. See the "Cleaning and
rage shelves.
Care" section.
If, after carrying out the necessary checks there is still a fault with
your appliance please contact your local AEG Service Force Centre.
In guarantee customers should ensure that the suggested checks
have been made as the engineer will make a charge if the fault is not
a mechanical or electrical breakdown.
Please note that proof of purchase is required for any in-guarantee
service calls.
Changing the light bulb
Warning! There is a risk of electric shocks! Before changing the
light bulb, switch off the appliance and unplug it, or pull the fuse.
Light bulb data: 220-240 V, max. 15 W
16
1.
To switch off the appliance, turn
the temperature regulator to position "0".
2.
Unplug the mains plug.
3.
To change the light bulb, unscrew
the light cover.
4.
Unhook the light bulb cover as
shown.
5.
Change the defective light bulb.
6.
Refit the light bulb cover and the
screw.
7.
Put the refrigerator back into operation.
AEG65
Service and Spare Parts
If you require a service engineer or wish to purchase spare parts,
contact your local AEG Service Force Centre by telephoning:
0870 5 929929
Help us to help you
Please determine your type of enquiry before telephoning. When you
contact us we need to know:
1.Your name, address and post code
2.Your telephone number
3.Clear and concise details of the fault
- What is the fault?
- When does the fault occur?
4.The model, production number and product identification number.
5.Date of purchase
This information can be found on the serial plate in the interior at the
left of the appliance.
¥ Model Name
¥ Model Number (PNC)
¥ Serial Number (S-No.)
Customer Care Department
For general enquiries regarding your AEG appliance, or futher information on AEG products please contact our customer care department.
Customer Care Department
AEG Domestic Appliances
55-77 High Street, Slough, Berkshire SL1 1DZ
Tel: 08705 350 350
17
Guarantee Conditions
Guarantee Conditions
AEG offer the following guarantee to the first purchaser of this appliance.
1. The guarantee is valid for 12 months commencing when the appliance is
handed over to the first retail purchaser, which must be verified by purchase invoice or similar documentation.
The guarantee does not cover commercial use.
2. The guarantee covers all parts or components which fail due to faulty workmanship or faulty materials. The guarantee does not cover appliances where defects or poor performance are due to misuse, accidental damage,
neglect, faulty .installation, unauthorised modification or attempted repair,
commercial use or failure to observe requirements and recommendations
set out in the instruction book.
This guarantee does not cover such parts as light bulbs, removable glassware, or plastic
3. Should guarantee repairs be necessary the purchaser must inform the
nearest customer service office (manufacturerÕs service or authorised
agent). AEG reserves the right to stipulate the place of the repair (i.e. the
customerÕs home, place of installation or AEG workshop).
4. The guarantee or free replacement includes both labour and materials.
5. Repairs carried out under guarantee do not extend the guarantee period for
the appliance. Parts removed during guarantee repairs become the property of AEG.
6. The purchaserÕs statutory rights are not affected by this guarantee.
European Guarantee
If you should move to another country within Europe then your guarantee
moves with you to your new home subject to the following qualifications:
- The guarantee starts from the date you first purchased your product.
- The guarantee is for the same period and to the same extent for labour and
parts as exist in the new country of use for this brand or range of products.
- This guarantee relates to you and cannot be transferred to another user.
- Your new home is within the European Community (EC) or European Free
Trade Area.
- The product is installed and used in accordance with our instructions and is
only used domestically, i.e. a normal household.
- The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care Centre, listed
below, to give them details of your new home. They will then ensure that the
local Service Organisation is aware of your move and able to look after you
and your appliances.
France
Senlis
+33 (0)3 44 62 29 29
Germany
NŸrnberg
+49 (0) 911 323 2600
Italy
Pordenone
+39 (0) 1678 47053
Sweden
Stockholm
+46 (0) 8 738 7910
UK
Slough
+44 (0) 1753 219899
18
Installation
Electrical Connection
Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
WARNING Ð THIS APPLIANCE MUST BE EARTHED
The manufacturer declines any liability should these safety measures not be observed.
Before switching on, make sure the electricity supply voltage is the
same as that indicated on the appliance rating plate. The rating plate
is inside, on the left.
The appliance is supplied with a 13 amp plug fitted. In the event of
having to change the fuse in the plug supplied, a 13 amp ASTA approved (BS 1362) fuse must be used.
Important!
The wires in the mains lead are coloured in accordance with the following code:
Green and Yellow Earth
Blue Neutral
Brown Live
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings identifying the terminals in
your plug, proceed as follows:
1.
The wire coloured green and yellow must be connected to the terminal marked with the letter ÒEÓ or by the earth symbol or coloured green
and yellow.
2.
The wire coloured blue must be connected to the terminal ÒNÓ or
coloured black.
3.
The wire coloured brown must be connected to the terminal marked
ÒLÓ or coloured red.
4.
Upon completion there must be no cut, or stray strands of wire present and the cord clamp must be secure over the outer sheath.
Warning! A cut-off plug inserted into a 13 amp socket is a serious
safety (shock) hazard. Ensure that the cut-off plug is disposed of
safely.
19
Installation Location
The appliance should be set up in a well ventilated, dry room.
Energy use is affected by the ambient temperature. The appliance
should therefore
Ð not be exposed to direct sunlight;
Ð not be installed next to radiators, or other sources of continuous heat;
Ð only be installed at a location whose ambient temperature corresponds to the climate classification, for which the appliance is designed.
The climate classification can be found on the serial plate, which is
located at the left on the inside of the appliance.
The following table shows which ambient temperature is correct for
each climate classification:
Climate classification
for an ambient temperature of
SN
+10 to +32 ¡C
N
+16 to +32 ¡C
50 mm
For safety reasons, minimum ventilation must be as shown Fig.
Attention: keep ventilation openings clear of obstruction;
min.
200 cm
2
Your appliance needs air
min.
cm 200
2
D567
Reversing the door
The side at which the door opens can be changed from the right side
(factory adjustment) to the left side, if the installation site requires.
Warning! When changing the side at which the door opens, the
appliance may not be connected to the mains. Remove plug from the
mains beforehand.
20
P
P
A
P1
P1
D114
Right opening
Remove the pins ÒPÓ and ÒP1Ó.
Left opening
1.
Remove ÒPÓ from both sides and the door.
2.
Remove middle hinge (A) from the left side refit it on the right side.
4.
Refit door and ÒPÓ on the left side.
5.
Remove ÒP1Ó from the right side.
Housing dimensions
Height
Depth
Width
1780 mm
550 mm
560 mm
Instructions for building-in
Apply joint the sealing strip as
shown in figure.
D765
21
Push appliance into the housing until stop strip (A) touches
the kitchen unit.
A
D023
Open the door and push the
appliance against the side of
the kitchen unit opposite to that
of appliance hinges.
Fasten the appliance with 4
screws provided in the kit
included with the appliance.
Snap vent grille (C) and hinge
cover (D) into position.
D
D723
C
Apply covers (B) on joint cover
lugs and into hinge holes.
B
D726
22
Separate parts A, B, C, D as
shown in the figure
B
A
C
D
PR266
50mm
Place guide (A) on the inside part
of the furniture door, up and down
as shown in the figure and mark
the position of external holes.
After having drilled holes, fix the
guide with the screws supplied.
A
20 m
m
PR166
Fix cover (C) on guide (A) until it
clips into place.
A
C
PR33
23
Open the appliance door and the
furniture door at 90¡. Insert the
small square (B) into guide (A).
Put together the appliance door
and the furniture door and mark
the holes as indicated in the figure. Remove the squares and drill
holes with ¿ 2 mm at 8 mm from
the outer edge of the door. Place
the small square on the guide
again and fix it with the screws
supplied.
8mm
A
PR167
B
Should the lining up of the furniture door be necessary, use the
clearance of slots.
At the end of operations, it is
necessary to check if the door of
the furniture closes properly.
PR168
Fix cover (D) on guide (B) until it
clips into place.
B
D
PR167/1
24
Regulations, Standards, Guidelines
This appliance was designed for household use and was manufactured in accordance with the appropriate standards. The necessary
measures in accordance with appliance safety legislation regulations
(GSG), accident prevention regulations for refrigeration appliances
(VBG 20) and the regulations of the German Society of Electrical
Engineers (VDE) were observed in the manufacture of this appliance.
The refrigerant circuit has been checked for leaks.
This appliance is in accordance with the following EU guidelines:
Ð 73/23/EWG dated 19 February 1973 - low voltage guidelines.
Ð 89/336/EWG dated 3 May 1989
(including guideline change notice 92/31/EWG) - EMV guideline
25
AEG HausgerŠte GmbH
Postfach 1036
D-90327 NŸrnberg
http://www.aeg.hausgeraete.de
2222 020-53
Download PDF

advertising
