Rate Meters
Bulletin No. DT8-B
Drawing No. LP0555
Released 8/06
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net

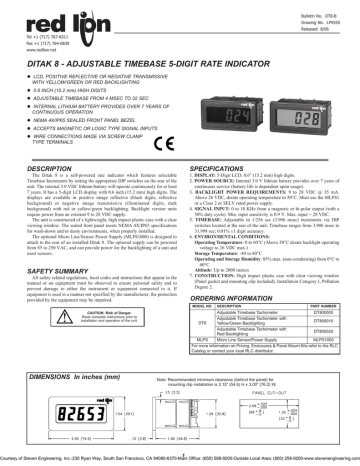

DITAK 8 - ADJUSTABLE TIMEBASE 5-DIGIT RATE INDICATOR
z LCD, POSITIVE REFLECTIVE OR NEGATIVE TRANSMISSIVE
WITH YELLOW/GREEN OR RED BACKLIGHTING
z 0.6 INCH (15.2 mm) HIGH DIGITS
z ADJUSTABLE TIMEBASE FROM 4 MSEC TO 32 SEC
z INTERNAL LITHIUM BATTERY PROVIDES OVER 7 YEARS OF
CONTINUOUS OPERATION
z NEMA 4X/IP65 SEALED FRONT PANEL BEZEL
z ACCEPTS MAGNETIC OR LOGIC TYPE SIGNAL INPUTS
z WIRE CONNECTIONS MADE VIA SCREW CLAMP
TYPE TERMINALS
DESCRIPTION
SPECIFICATIONS
The Ditak 8 is a self-powered rate indicator which features selectable
Timebase Increments by setting the appropriate DIP switches on the rear of the
unit. The internal 3.0 VDC lithium battery will operate continuously for at least
7 years. It has a 5-digit LCD display with 0.6 inch (15.2 mm) high digits. The
displays are available in positive image reflective (black digits, reflective
background) or negative image transmissive (illuminated digits, dark
background) with red or yellow/green backlighting. Backlight version units
require power from an external 9 to 28 VDC supply.
The unit is constructed of a lightweight, high impact plastic case with a clear
viewing window. The sealed front panel meets NEMA 4X/IP65 specifications
for wash-down and/or dusty environments, when properly installed.
The optional Micro Line/Sensor Power Supply (MLPS1000) is designed to
attach to the rear of an installed Ditak 8. The optional supply can be powered
from 85 to 250 VAC, and can provide power for the backlighting of a unit and
most sensors.
1. DISPLAY: 5-Digit LCD, 0.6" (15.2 mm) high digits.
2. POWER SOURCE: Internal 3.0 V lithium battery provides over 7 years of
continuous service (battery life is dependent upon usage).
3. BACKLIGHT POWER REQUIREMENTS: 9 to 28 VDC @ 35 mA.
Above 26 VDC, derate operating temperature to 50°C. Must use the MLPS1
or a Class 2 or SELV rated power supply.
4. SIGNAL INPUT: 0 to 10 KHz from a magnetic or bi-polar output (with a
50% duty cycle). Min. input sensitivity is 0.9 V. Max. input = 28 VDC.
5. TIMEBASE: Adjustable in 1/256 sec (3.906 msec) increments via DIP
switches located at the rear of the unit. Timebase ranges from 3.906 msec to
31.998 sec; 0.01% ±1 digit accuracy.
6. ENVIRONMENTAL CONDITIONS:
Operating Temperature: 0 to 60°C (Above 50°C derate backlight operating
voltage to 26 VDC max.)
Storage Temperature: -40 to 80°C
Operating and Storage Humidity: 85% max. (non-condensing) from 0°C to
60°C.
Altitude: Up to 2000 meters
7. CONSTRUCTION: High impact plastic case with clear viewing window
(Panel gasket and mounting clip included). Installation Category I, Pollution
Degree 2.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
ORDERING INFORMATION
MODEL NO.
DIMENSIONS In inches (mm)
DESCRIPTION
PART NUMBER
Adjustable Timebase Tachometer
DT800000
Adjustable Timebase Tachometer with
DT800010
DT8
Yellow/Green Backlighting
Adjustable Timebase Tachometer with
DT800020
Red Backlighting
MLPS
Micro Line Sensor/Power Supply
MLPS1000
For more information on Pricing, Enclosures & Panel Mount Kits refer to the RLC
Catalog or contact your local RLC distributor.
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
Note: Recommended minimum clearance (behind the panel) for
mounting clip installation is 2.15" (54.6) H x 3.00" (76.2) W.
1
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
SPECIFICATIONS (Cont’d)
Ferrite Suppression Cores for signal and control cables:
Fair-Rite # 0443167251 (RLC #FCOR0000)
TDK # ZCAT3035-1330A
Steward #28B2029-0A0
Line Filters for input power cables:
Schaffner # FN610-1/07 (RLC #LFIL0000)
Schaffner # FN670-1.8/07
Corcom #1VR3
Note: Reference manufacturer’s instructions when installing a line filter.
5. Long cable runs are more susceptible to EMI pickup than short cable runs.
Therefore, keep cable runs as short as possible.
8. CERTIFICATIONS AND COMPLIANCES:
SAFETY
IEC 1010-1, EN 61010-1: Safety requirements for electrical equipment
for measurement, control, and laboratory use, Part 1.
IP65 Enclosure rating (Face only), IEC 529
Type 4X Enclosure rating (Face only), UL50
ELECTROMAGNETIC COMPATIBILITY
Emissions and Immunity to EN 61326
Immunity:
Electrostatic discharge
EN 61000-4-2 Criterion B
4 kV contact discharge
8 kV air discharge
Electromagnetic RF fields EN 61000-4-3 Criterion A
10 V/m
Fast transients (burst)
EN 61000-4-4 Criterion B
2 kV power
2 kV signal
Surge
EN 61000-4-5 Criterion A
1 kV L-L, 2 kV
L&N-E power
1 kV signal
RF conducted interference EN 61000-4-6 Criterion A
3 V/rms
Voltage dip/interruptions EN 61000-4-11 Criterion A
0.5 cycle
Emissions:
Emissions
EN 55011
Class B
Notes:
1. Criterion A: Normal operation within specified limits.
2. Criterion B: Temporary loss of performance from which the unit selfrecovers.
BLOCK DIAGRAM
WIRING CONNECTIONS
The electrical connections are made via rear screw-clamp terminals
located on the back of the unit. All conductors should meet voltage and
current ratings for each terminal. Also cabling should conform to
appropriate standards of good installation, local codes and regulations. It is
recommended that power supplied to the unit (AC or DC) be protected by a
fuse or circuit breaker. When wiring the unit, use the label to identify the
wire position with the proper function. Strip the wire, leaving
approximately 1/4" bare wire exposed (stranded wires should be tinned with
solder). Insert the wire into the screw-clamp terminal and tighten the screw
until the wire is clamped tightly. Each terminal can accept up to two #14
AWG wires.
The backlighting for a backlight version unit is powered between
Terminal 2 (V+) and Terminal 1 (GND).
Refer to the EMC Installation Guidelines section of this bulletin for
additional information.
9. WEIGHT: 3.4 oz (96.4 g)
EMC INSTALLATION GUIDELINES
Although this unit is designed with a high degree of immunity to
ElectroMagnetic Interference (EMI), proper installation and wiring methods
must be followed to ensure compatibility in each application. The type of the
electrical noise, source or coupling method into the unit may be different for
various installations. In extremely high EMI environments, additional measures
may be needed. Cable length, routing and shield termination are very important
and can mean the difference between a successful or a troublesome installation.
Listed below are some EMC guidelines for successful installation in an
industrial environment.
1. Use shielded (screened) cables for all Signal and Control inputs. The shield
(screen) pigtail connection should be made as short as possible. The
connection point for the shield depends somewhat upon the application.
Listed below are the recommended methods of connecting the shield, in
order of their effectiveness.
a. Connect the shield only at the panel where the unit is mounted to earth
ground (protective earth).
b. Connect the shield to earth ground at both ends of the cable, usually when
the noise source frequency is above 1 MHz.
c. Connect the shield to common of the unit and leave the other end of the
shield unconnected and insulated from earth ground.
2. Never run Signal or Control cables in the same conduit or raceway with AC
power lines, conductors feeding motors, solenoids, SCR controls, and
heaters, etc. The cables should be run in metal conduit that is properly
grounded. This is especially useful in applications where cable runs are long
and portable two-way radios are used in close proximity or if the installation
is near a commercial radio transmitter.
3. Signal or Control cables within an enclosure should be routed as far away as
possible from contactors, control relays, transformers, and other noisy
components.
4. In extremely high EMI environments, the use of external EMI suppression
devices, such as ferrite suppression cores, is effective. Install them on Signal
and Control cables as close to the unit as possible. Loop the cable through the
core several times or use multiple cores on each cable for additional protection.
Install line filters on the power input cable to the unit to suppress power line
interference. Install them near the power entry point of the enclosure. The
following EMI suppression devices (or equivalent) are recommended:
Variable Frequency AC Inputs, Signal Source Powered
Variable Frequency AC Inputs, Signal Source Powered
Minimum VAC for operation is 0.9 V peak.
Logic Pulse Inputs From Other Circuits & Sensors
2
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
REAR PANEL DIP SWITCHES
The Timebase increment total is computed according to the following formula:
When viewing the Ditak 8 from the rear, there are two banks of DIP switches
located along the top edge of the PC board. The bank of eight switches to the left
is labeled SWA and the bank of six switches to the right is labeled SWB. All of
the SWA switches and five of the SWB switches are used to select the desired
Timebase. The remaining switch of SWB is used to select Frequency Doubling.
TIMEBASE INCREMENT TOTAL (TBIT) =
WHERE:
DR
RPM
PPR
FQ.DBL.
=
=
=
=
DR x 15,361
RPM x PPR x FQ.DBL.
Desired Reading
Revolutions Per Minute
Pulses Per Revolution
Frequency Doubling disable (times 1 switch on,
times 2 switch off)
Example: Find the appropriate Timebase DIP switch setting for desired
parameters.
Desired Readout (DR)
= 2500
Revolutions Per Minute (RPM) = 1250
Pulses Per Revolution (PPR)
= 50
FQ.DBL. = ON (times 1 switch on)
TIMEBASE INCREMENT TOTAL (TBIT) =
WARNING: Lithium battery may explode if incinerated.
TBIT = 614.44
FREQUENCY DOUBLING
DIP switch SWB 6 is the “Frequency Doubling” switch. When it is in the
“ON” position, frequency doubling is disabled. When set to the “OFF” position,
it is enabled and twice the number of input pulses are registered in the unit. This
doubling of the input rate allows the Timebase Increment Total to be halved,
thus allowing a faster update time for a given display value.
TBIT = 614 {round to the nearest whole number}
TBIT = 614
TIMEBASE SELECTION
The Ditak 8 has a Timebase selection range from 3.906 msec to 31.998 sec.
SWA 1 is set to the “ON” position for the minimum Timebase setting. SWA 1
through SWB 5 are set to the “ON” position for the maximum Timebase setting.
A specific Timebase setting is achieved by adding the appropriate individual
Timebase increments.
SWITCH
TIMEBASE
INCREMENTS
SWA 1
SWA 2
SWA 3
SWA 4
SWA 5
SWA 6
SWA 7
SWA 8
1
2
4
8
16
32
64
128
2500 x 15,361
1250 x 50 x 1
DIP SWB 2
-
DIP SWA 7
-
DIP SWA 6
-
DIP SWA 3
-
DIP SWA 2
-
512
102
64
38
32
6
4
2
2
0
-
Needed
-
Needed
-
Needed
-
Needed
-
Needed
SWITCH
TIMEBASE
INCREMENTS
Note: If no timebase switches are turned on, the Ditak 8 will default to 3.906
msec timebase.
SWB
SWB
SWB
SWB
SWB
SWB
256
512
1024
2048
4096
FREQ. DBL.
DIP switches SWA 2, 3, 6, 7, and SWB 2 are all set to the “ON” position for
a Timebase Increment Total of 614. If it is desired to know what the
approximate Timebase is in seconds, use the following formula:
1
2
3
4
5
6
TBIT x 0.003906
614 x 0.003906
=
=
Time in seconds
2.398 sec.
TYPICAL APPLICATION
CONVEYOR BELT SPEED INDICATOR
It is desired to display the rate of a conveyor belt used to carry PC Boards through an infrared soldering chamber that is variable from 0 to 10 feet per minute.
The rate must be adjusted depending on the size of the boards being soldered. The display of the rate indicator must read in feet per minute. The shaft of the variable
speed motor contains a keyway. A speed of 100 RPM will produce a belt speed of 10 ft/min. A proximity sensor is used to monitor the speed of the shaft. The Ditak
8 can be used to display the belt speed in this application. The output signal of the sensor is connected to the Ditak 8 Terminal 3 (INP). The sensor common and
shield are connected to the Ditak 8 Terminal 1 (GND). The Timebase setting is to be determined by using the formula.
TIMEBASE INCREMENT TOTAL (TBIT) =
DR x 15,361
=
RPM x PPR x FQ.DBL.
Desired Reading
MAX RPM Of Shaft
Pulses Per Revolution
FQ.DBL.
With these DIP switch settings, the Timebase would be approximately 5.99 sec
(1536 x 0.003906 = 5.995). To reduce the display update time, the “Frequency
Doubling” switch can be enabled (set to the “OFF” position). Therefore, only half
the Timebase will be necessary (768 x 0.003906 = 2.99 sec.).
10 x 15,361
100 x 1 x 1
= 10
= 100
= 1
= ON (times 1 switch on)
TBIT = 768
TBIT = 1536.1
TBIT = 1536 {round to the nearest whole number}
TBIT = 1536
DIP SWB 3
DIP SWB 2
- 1024
512
512
0
-
Needed
-
Needed
3
DIP SWB 2
-
DIP SWB 1
-
DIP SWB 6
-
512
256
256
0
OFF
-
Needed
-
Needed
Frequency Doubling Enabled
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
INSTALLATION ENVIRONMENT
The unit should be installed in a location that does
not exceed the maximum operating temperature
and provides good air circulation. Placing the
unit near devices that generate excessive
heat should be avoided.
The bezel should be cleaned only
with a soft cloth and neutral soap
product. Do NOT use solvents.
Continuous exposure to direct
sunlight may accelerate the aging
process of the bezel.
INSTALLATION
The Ditak 8 meets NEMA 4X/IP65 requirements for
indoor use, when properly installed. The units are
intended to be mounted into an enclosed panel. A sponge
rubber gasket, mounting clip, two screws, and nut
fasteners are provided to install and seal the unit in the
panel cut-out.
The following procedure assures proper installation:
1. Cut panel opening to specified dimensions. Remove burrs
and clean panel opening.
2. Slide the panel gasket over the rear of the unit to the back of
the bezel.
3. Slide nut fastener into slot on mounting clip and then insert mounting
screw through nut on both sides of mounting clip. Tip of mounting screw
should NOT project through hole on clip.
4. Install Ditak unit through panel cut-out.
5. Slide mounting clip over rear of unit until clip is against back of panel. The
mounting clip and Ditak housing have a latching feature to hold the unit in
place until tightened.
Note: Hold the Ditak front bezel in place when sliding the mounting clip
into position.
6. Alternately tighten each mounting screw to ensure uniform gasket pressure.
Visually inspect the gasket for proper seal. The gasket should be
compressed approximately 75 to 80% of its original thickness.
7. If the gasket is not adequately compressed and the mounting screws cannot
be tightened any further, loosen mounting screws and insure that the clip is
latched as close as possible to the panel.
8. Repeat step #6 for tightening the mounting screws.
TROUBLESHOOTING
For further technical assistance, contact technical support at the appropriate company numbers listed.
LIMITED WARRANTY
The Company warrants the products it manufactures against defects in materials and workmanship
for a period limited to two years from the date of shipment, provided the products have been stored,
handled, installed, and used under proper conditions. The Company’s liability under this limited
warranty shall extend only to the repair or replacement of a defective product, at The Company’s
option. The Company disclaims all liability for any affirmation, promise or representation with
respect to the products.
The customer agrees to hold Red Lion Controls harmless from, defend, and indemnify RLC against
damages, claims, and expenses arising out of subsequent sales of RLC products or products
containing components manufactured by RLC and based upon personal injuries, deaths, property
damage, lost profits, and other matters which Buyer, its employees, or sub-contractors are or may be
to any extent liable, including without limitation penalties imposed by the Consumer Product Safety
Act (P.L. 92-573) and liability imposed upon any person pursuant to the Magnuson-Moss Warranty
Act (P.L. 93-637), as now in effect or as amended hereafter.
No warranties expressed or implied are created with respect to The Company’s products except those
expressly contained herein. The Customer acknowledges the disclaimers and limitations contained
herein and relies on no other warranties or affirmations.
Red Lion Controls AP
Red Lion Controls
20 Willow Springs Circle
Red Lion Controls BV
Basicweg 11b
31, Kaki Bukit Road 3,
#06-04/05 TechLink
York PA 17406
NL - 3821 BR Amersfoort
Singapore 417818
Tel +1 (717) 767-6511
Tel +31 (0) 334 723 225
Tel +65 6744-6613
Fax +1 (717) 764-0839
Fax +31 (0) 334 893 793
Fax +65 6743-3360
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Bulletin No. DT9-C
Drawing No. LP0534
Released 4/07
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net
DITAK 9 - ADJUSTABLE TIMEBASE 5-DIGIT RATE INDICATOR
z DESIGNED FOR MEDIUM/HIGH SPEED APPLICATIONS
z LCD, POSITIVE REFLECTIVE OR NEGATIVE TRANSMISSIVE
WITH YELLOW/GREEN OR RED BACKLIGHTING
z 0.46 INCH (11.68 mm) HIGH DIGITS
z ADJUSTABLE TIMEBASE FROM 1 TO 7 SECONDS
z RATE MULTIPLIER FROM 0.0001 TO 1.9999
z SELECTABLE DECIMAL POINTS
z LITHIUM BATTERY PROVIDES OVER 7 YEARS OF
CONTINUOUS OPERATION (Battery included)
z NEMA 4X/IP65 SEALED FRONT PANEL BEZEL
z ACCEPTS MAGNETIC OR LOGIC TYPE SIGNAL INPUTS
DESCRIPTION
SPECIFICATIONS
The DITAK 9 is a self-powered rate indicator designed to operate in
medium/high speed applications. It is ideal for use with magnetic pick-ups or
other bi-polar sensors operating at a minimum of 30 Hz*. The unit features
selectable timebase, rate multiplier, and decimal points via two front panel
pushbuttons. It has a 5-digit LCD Display with 0.46" high digits that are available
in positive image reflective (black digits, reflective background) or negative
image transmissive red or yellow/green (illuminated digits, dark background).
Backlight version units require power from an external 9 to 28 VDC supply.
The unit is constructed of a lightweight, high impact plastic case with a clear
viewing window. The sealed front panel meets NEMA 4X/IP65 specifications
for wash-down and/or dusty environments, when properly installed. A Ditak 9
unit can be mounted in the same panel cut-out as the earlier Ditak 7 units.
The optional Micro Line/Sensor Power Supply (MLPS1000) is designed to
attach to the rear of an installed backlight version Ditak 9. The optional supply
can be powered from an 85 to 250 VAC source, and can provide power for the
backlighting of a unit and a sensor. The maximum current draw for the sensor
is 45 mA.
1. DISPLAY: 5-Digit LCD, 0.46" (11.68 mm) high digits.
2. POWER SOURCE: Internal 3.0 V lithium battery provides over 7 years of
continuous service (battery life is dependent upon usage).
3. BACKLIGHT POWER REQUIREMENTS: 9 to 28 VDC @ 35 mA.
Above 26 VDC, derate operating temperature to 50°C.
Must use the MLPS or a Class 2 or SELV rated power supply.
4. SIGNAL INPUT: 0 to 10 KHz from a magnetic or bi-polar output (with a
50% duty cycle). Min. input sensitivity is 0.9 V. Max. input = 28 V.
5. TIMEBASE: Adjustable in 1 sec increments via front panel. Timebase
ranges from 1 second to 7 seconds; 0.05% accuracy.
6. CONSTRUCTION: High impact plastic case with clear viewing window
(Panel gasket and mounting clip included). Installation Category I, Pollution
Degree 2.
7. CERTIFICATIONS AND COMPLIANCES:
SAFETY
IEC 1010-1, EN 61010-1: Safety requirements for electrical equipment for
measurement, control, and laboratory use, Part 1.
IP65 Enclosure rating (Face only), IEC 529
Type 4X Enclosure rating (Face only), UL50
ELECTROMAGNETIC COMPATIBILITY
Emissions and Immunity to EN 61326
Electrostatic discharge
EN 61000-4-2 Criterion A
4 kV contact discharge
8 kV air discharge
Electromagnetic RF fields
EN 61000-4-3 Criterion A
10 V/m
Fast transients (burst)
EN 61000-4-4 Criterion A
2 kV power
2 kV signal
Surge
EN 61000-4-5 Criterion A
2 kV power
1 kV signal
RF conducted interference
EN 61000-4-6 Criterion A
10 V/rms
* - For slow speed applications with low pulse rates, it is recommended to use
the CUB5 Counter/Rate Indicator.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
DIMENSIONS In inches (mm)
Note: Recommended minimum clearance (behind the panel) for
mounting clip installation is 2.15" (54.6) H x 3.00" (76.2) W.
1
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
SPECIFICATIONS (Cont’d)
BLOCK DIAGRAM
Power Frequency magnetic fields EN 61000-4-8
Voltage dip/interruptions
Emissions
Criterion A
30 A/m
EN 61000-4-11 Criterion A
0.5 cycle
EN 55022
Class B
Notes:
1. Criterion A: Normal operation within specified limits.
Refer to the EMC Installation Guidelines section of this bulletin for
additional information.
8. ENVIRONMENTAL CONDITIONS:
Operating Temperature: 0 to 75°C (Above 50°C derate backlight
operating voltage to 26 VDC max.)
Storage Temperature: -30 to 80°C
Operating and Storage Humidity: 85% max. relative humidity (noncondensing) from 0°C to 75°C.
Altitude: Up to 2000 meters
9. WEIGHT: 3.3 oz (93.5 g)
EMC INSTALLATION GUIDELINES
Although this unit is designed with a high degree of immunity to
ElectroMagnetic Interference (EMI), proper installation and wiring methods
must be followed to ensure compatibility in each application. The type of the
electrical noise, source or coupling method into the unit may be different for
various installations. In extremely high EMI environments, additional measures
may be needed. Cable length, routing and shield termination are very important
and can mean the difference between a successful or a troublesome installation.
Listed below are some EMC guidelines for successful installation in an
industrial environment.
1. Use shielded (screened) cables for all Signal and Control inputs. The shield
(screen) pigtail connection should be made as short as possible. The
connection point for the shield depends somewhat upon the application.
Listed below are the recommended methods of connecting the shield, in order
of their effectiveness.
a. Connect the shield only at the panel where the unit is mounted to earth
ground (protective earth).
b. Connect the shield to earth ground at both ends of the cable, usually when
the noise source frequency is above 1 MHz.
c. Connect the shield to common of the unit and leave the other end of the
shield unconnected and insulated from earth ground.
2. Never run Signal or Control cables in the same conduit or raceway with AC
power lines, conductors feeding motors, solenoids, SCR controls, and
heaters, etc. The cables should be run in metal conduit that is properly
grounded. This is especially useful in applications where cable runs are long
and portable two-way radios are used in close proximity or if the installation
is near a commercial radio transmitter.
3. Signal or Control cables within an enclosure should be routed as far away as
possible from contactors, control relays, transformers, and other noisy
components.
4. In extremely high EMI environments, the use of external EMI suppression
devices, such as ferrite suppression cores, is effective. Install them on Signal
and Control cables as close to the unit as possible. Loop the cable through the
core several times or use multiple cores on each cable for additional protection.
Install line filters on the power input cable to the unit to suppress power line
interference. Install them near the power entry point of the enclosure. The
following EMI suppression devices (or equivalent) are recommended:
Ferrite Suppression Cores for signal and control cables:
Fair-Rite # 0443167251 (RLC #FCOR0000)
TDK # ZCAT3035-1330A
Steward #28B2029-0A0
Line Filters for input power cables:
Schaffner # FN610-1/07 (RLC #LFIL0000)
Schaffner # FN670-1.8/07
Corcom #1VR3
Note: Reference manufacturer’s instructions when installing a line filter.
5. Long cable runs are more susceptible to EMI pickup than short cable runs.
Therefore, keep cable runs as short as possible.
WIRING CONNECTIONS
Variable Frequency AC Inputs, Signal Source Powered
The electrical connections are made via rear screw-clamp terminals located
on the back of the unit. All conductors should meet voltage and current ratings
for each terminal. Also cabling should conform to appropriate standards of good
installation, local codes and regulations. It is recommended that power supplied
to the unit (AC or DC) be protected by a fuse or circuit breaker. When wiring
the unit, use the label to identify the wire position with the proper function.
Strip the wire, leaving approximately 1/4" bare wire exposed (stranded wires
should be tinned with solder). Insert the wire into the screw-clamp terminal and
tighten the screw until the wire is clamped tightly. Each terminal can accept up
to two #14 AWG wires.
The backlighting for a backlight version unit is powered between the V+
Terminal and the Common Terminal.
Variable Frequency AC Inputs, Signal Source Powered
Minimum VAC for operation is 0.9 V peak.
Logic Pulse Inputs From Other Circuits & Sensors
2
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
INSTALLATION ENVIRONMENT
The unit should be installed in a location that does not exceed the maximum
operating temperature and provides good air circulation. Placing the unit near
devices that generate excessive heat should be avoided.
The bezel should be cleaned only with a soft cloth and neutral soap product.
Do NOT use solvents. Continuous exposure to direct sunlight may accelerate
the aging process of the bezel.
INSTALLATION
The Ditak 9 meets NEMA 4X/IP65 requirements for indoor use, when
properly installed. The units are intended to be mounted into an enclosed
panel. A sponge rubber gasket, mounting clip, two screws, and nut fasteners
are provided to install and seal the unit in the panel cut-out.
The following procedure assures proper installation:
1. Cut panel opening to specified dimensions. Remove burrs and clean panel
opening.
2. Slide the panel gasket over the rear of the unit to the back of the bezel.
3. Slide nut fastener into slot on mounting clip and then insert mounting screw
through nut on both sides of mounting clip. Tip of mounting screw should
NOT project through hole on clip.
4. Install Ditak unit through panel cut-out.
5. Slide mounting clip over rear of unit until clip is against back of panel. The
mounting clip and Ditak housing have a latching feature to hold the unit in
place until tightened.
Note: Hold the Ditak front bezel in place when sliding the mounting clip
into position.
6. Alternately tighten each mounting screw to ensure uniform gasket pressure.
Visually inspect the gasket for proper seal. The gasket should be
compressed approximately 75 to 80% of its original thickness.
7. If the gasket is not adequately compressed and the mounting screws cannot
be tightened any further, loosen mounting screws and insure that the clip is
latched as close as possible to the panel.
8. Repeat step #6 for tightening the mounting screws.
PROGRAMMING MENU
RATE MULTIPLIER
The Ditak 9 has a Rate Multiplier (RM) selection range from 0.0001 to
1.9999. See Programming Calculations to determine the calculated value. After
entering the programming mode, the least significant digit will be flashing. To
increment this digit, press the SEL button. After the value 9, the digit will start
over at 0. To move to the next digit press PAR and then that digit can be changed
by pressing SEL. When reaching the most significant digit, pressing PAR will
advance the meter to the Decimal Point selection.
DECIMAL POINT SELECTION
The selection of the decimal point position for the display (DDP) is
accomplished by repeatedly pressing SEL. This selection will always default to
0.0000 when advancing to it from the Rate Multiplier selection. By pressing
PAR, the shown decimal point selection is entered and the Time base selection
is shown.
Note: The display changes on “PAR” or “SEL” push button release.
PROGRAMMING
TIMEBASE SELECTION
From the factory, the Ditak 9 is programmed with a fixed 1 second timebase
to read directly in HZ or RPM with a 60 tooth gear To enter the programming
mode, place a jumper between the Push Button Enable (P. B. En.) Terminal and
the Common Terminal. Once the jumper is connected the programming buttons
are now activated. The Programming Mode consists of three selections; Rate
Multiplier, Decimal Point, and Timebase. There is a fourth display which is the
main display or run mode. Once programming is complete, the unit must be
returned to the main display before exiting the programming mode to obtain
normal operation.
The Ditak 9 has a Time Base selection range from 1 second to 7 seconds. See
Programming Calculations to determine the calculated Rounded Time Base
(RTB) value. The value is changed by pressing SEL. The value is entered by
pressing PAR and the Main Display/Run Mode is shown.
Note: The position of the decimal point has no effect on this selection.
MAIN DISPLAY/RUN MODE
This display follows the Timebase Selection. The unit must be in this mode to
exit the Programming Mode and have the unit display properly. The push button
enable jumper can be removed after the Ditak 9 is returned to the main display.
3
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
PROGRAMMING CALCULATIONS (Select one of the following)
USING KNOWN RPM
USING KNOWN PULSES PER UNIT
An amusement park director wants his parking tram operators to keep their
speed under a certain limit. He has a magnetic sensor looking at a shaft on the
tram with 30 pulses per revolution. When the shaft is turning at 50 RPM he
wants the meter to show 15.5. The Ditak 9 is programmed as follows:
A newspaper company wants to know the line speed of their press to tenths
of feet per minute. They have an encoder that gives 125 pulses per foot. The
Ditak 9 is programmed as follows:
DR = Desired Reading
DDP = Display Decimal Point
RPM = Revolutions Per Minute
PPR = Pulses Per Revolution
DDP: Use the following corresponding numbers in the formula for the Display
Decimal Point:
0=1
0.0 = 10
0.00 = 100
0.000 = 1000
RPM = 50
PPR = 30
DR = 15.5
DDP = 10
HERTZ (HZ) = RPM x PPR = 50 x 30 = 25
60
60
TF = Time Factor
DDP = Display Decimal Point
PPU = Pulses Per (Single) Unit
TF: = Use one of the following numbers in the formula for the Time Factor:
Per second = 1
Per minute = 60
Per hour = 3600
DDP: Use the following corresponding numbers in the formula for the Display
Decimal Point:
0=1
0.0 = 10
0.00 = 100
0.000 = 1000
Required minimum pulses per (single) unit:
Per second = 0.07 
Per minute = 4.4
 (multiply this value by DDP)
Per hour = 259.0 
PPU = 125 (pulses per foot)
DDP = 10 (for tenths of a foot)
TF = 60 (for per minute)
CALCULATED TIME BASE = DR x DDP = 15.5 x 10 = 6.2
HZ
25
CALCULATED TIME BASE = TF x DDP = 60 x 10 = 4.8
PPU
125
ROUNDED TIME BASE (RTB) = 6
REMAINDER MULTIPLIER (RM) = DR x DDP = 15.5 x 10 = 1.0333
RTB x HZ
6 x 25
RM = 1.0333
Decimal = 0.0
RTB = 6
ROUNDED TIME BASE (RTB) = Round Calculated Time Base to nearest
whole number between 1-7.
If RM is greater than 1.9999, then remove a decimal location or add more
pulses per revolution.
ROUNDED TIME BASE (RTB)= 5
REMAINDER MULTIPLIER (RM) = TF x DDP = 60 x 10 = 0.9600
RTB x PPU
5 x 125
RM = 0.9600
Decimal = 0.0
RTB = 5
ROUNDED TIME BASE (RTB)= Round Calculated Time Base to nearest
whole number between 1-7.
If RM is greater than 1.9999, then remove a decimal location or add more
pulses per unit.
ORDERING INFORMATION
MODEL NO.
DT9
MLPS
DESCRIPTION
PART NUMBER
Adjustable Timebase Tachometer
DT900000
Adjustable Timebase Tachometer
with Yellow/Green Backlighting
DT900010
TROUBLESHOOTING
Adjustable Timebase Tachometer
with Red Backlighting
DT900020
For further technical assistance, contact Technical
Support at the appropriate company numbers listed.
MLPS Micro Line Sensor/Power Supply
MLPS1000
For more information on Pricing, Enclosures & Panel Mount Kits refer to the
RLC Catalog or contact your local RLC distributor.
Red Lion Controls AP
Red Lion Controls
20 Willow Springs Circle
Red Lion Controls BV
Printerweg 10
31, Kaki Bukit Road 3,
#06-04/05 TechLink
York PA 17406
NL - 3821 AD Amersfoort
Singapore 417818
Tel +1 (717) 767-6511
Tel +31 (0) 334 723 225
Tel +65 6744-6613
Fax +1 (717) 764-0839
Fax +31 (0) 334 893 793
Fax +65 6743-3360
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
BULLETIN NO. GEM5-B (1)
DRAWING NO. LP0321
REVISED 12/99
GEMINI 5200 - PRESETTABLE DUAL RATE INDICATOR WITH RATIO (A/B)
l
DIFFERENCE (A-B), OR DRAW [(A-B)/B] INDICATION
l
6-DIGIT, 0.56” (14.2 mm) HIGH LED DISPLAY WITH NEGATIVE
SIGN, OVERFLOW & DISPLAYED VALUE INDICATORS
l
THREE SEPARATELY DISPLAYABLE VALUES: A, B, & C
l
TWO PRESETS ASSIGNABLE TO A, B, OR C
l
SEPARATE INPUT SCALING FOR BOTH RATE A & B CHANNELS
l
ACCEPTS COUNT RATES TO 10 KHz
l
SOLID-STATE CURRENT SINK OUTPUTS
l
OPTIONAL 20 mA CURRENT LOOP FOR SERIAL DATA
COMMUNICATION
l
OPTIONAL RELAY OUTPUTS (Field Replaceable)
l
PROGRAMMABILITY OF DECIMAL POINT LOCATION & LEADING
ZERO BLANKING
l
PROGRAMMABLE TIMED OUTPUTS (0.01 TO 599.99 sec.)
DESCRIPTION
The Gemini 5200 is a multifunction Dual Rate Indicator which can fulfill
almost any rate indication application. The unit can operate as two independent
rate indicators, with scaling, decimal point placement, and update times
separately programmable for each channel. The Gemini 5200 also has three
other unit personalities. These personalities feature a third display Channel C,
which can indicate the ratio, difference or draw between the A and B rate
channels.
The programming of the rate channels and the calculated display is a very
straightforward task. Setting up Channel C only requires programming the
desired amount of resolution (for ratio and draw) and the appropriate decimal
point location. The Gemini 5200 simply takes the two rate values and
mathematically calculates display “C” accordingly.
The rate indicators use a time interval method (1/tau) to calculate the rate
value. This method enables high resolution at all input rates. The unit counts
input pulses and after a programmable minimum update time has occurred, it
waits until the next count edge occurs, then takes the elapsed time and number
of edges and calculates the rate value. At slower rates, averaging can be
accomplished by programming the “Rate Minimum Update Time” (0.5 sec. to
16 sec.) for the desired response. The minimum input frequency is 0.03
counts/sec. or one pulse every 32 sec. Extensive scaling capabilities allow
practically any desired reading at very slow input rates.
The 20mA Current Loop Communications Option provides the capability of
two-way serial communications between the Gemini and other equipment such
as a printer, programmable controller, or host computer. The baud rate can be
set to 300, 600, 1200, or 2400 baud. The format for transmitted and received
data is 1 start bit, 7 data bits, 1 parity bit (odd), and a stop bit. When utilizing
an external power supply (30 VDC max.), up to sixteen units can be installed in
the loop, each with an individual address. When utilizing the Gemini’s 20 mA
current source, up to seven units can be installed in a loop. The Rate values,
Presets, and Scale Factors can all be interrogated, while the Presets and Scale
Factors can also be changed by sending the proper command codes and
DIMENSIONS “In inches (mm)”
l
ABILITY TO LOCK OUT FRONT PANEL FUNCTIONS
l
SEALED FRONT PANEL CONSTRUCTION (NEMA 4/IP65)
l
NON-VOLATILE MEMORY (E2PROM)
numerical data. Various “Print Options” can be selected to automatically
interrogate the Rate values, Presets, or Scale Factors by activating the “Print
Request” terminal when a printer is being used.
The construction of the Gemini 5200 features a metal die-cast bezel, offering
maximum durability with a high quality appearance. The sealed front panel
meets NEMA 4/IP65 specifications for wash-down and/or dust when properly
installed. Electrical connections are made via plug-in terminal strips. Clamptype pressure plate terminals accept stripped #14 AWG wire without lugs.
SPECIFICATIONS
1. DISPLAY: 6-digit 0.56” (14.2 mm) High LED display.
2. POWER REQUIREMENTS:
AC Operation: Switch selectable 115/230 VAC (±10%), 50/60 Hz, 20 VA
DC Operation: 11 to 14 VDC @ 0.7 A max.
3. SENSOR POWER: +12 VDC (±25%) @ 100 mA.
4. MEMORY: Non-volative E2PROM memory retains all programming
information when power is removed or interrupted.
Power Cycles (ON/OFF): 100,000 min.
Data Retention: 10 years min.
5. INPUTS A AND B: Switch selectable to accept pulses from a variety of
sources including switch contacts, outputs from CMOS or TTL circuits, and
all standard RLC sensors.
Current Sourcing: Unit provides 3.9 KW pull-down resistor for sensors with
current sourcing outputs. (Max. input voltage = 28 VDC @ 7 mA.)
Current Sinking: Unit provides 7.8 KW pull-up resistor for sensors with
current sinking outputs. (Max. sensor current = 1.6 mA.)
Debounce: Damping capacitor provided for switch contact debounce. Limits
rate to 100 Hz max. with 50% duty cycle.
Lo Bias: Input trigger levels VIL = 1.5 V max., VIH = 3.75 V min.
Hi Bias: Input trigger levels VIL = 5.5 V max., VIH = 7.5 V min.
Note: Bias levels given are ±10% @ 12 VDC. These levels vary
proportionally with sensor supply voltage at “DC OUT” terminal.
Note: Recommended minimum clearance (behind the panel) for mounting clip installation is 6.8” (173) W.
253
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
SPECIFICATIONS (Cont’d)
6. MAGNETIC PICKUP INPUTS A & B:
Sensitivity: 150 mV peak (typical @ 12 VDC)
Hysteresis: 100 mV
Input Impedance: 26.5 KW @ 60 Hz
Maximum Input Voltage: ±50 Vp
7. RATE ACCURACY AND REPEATABILITY: +0.025%
8. RATE MINIMUM INPUT FREQUENCY: 0.03 Hz
Note: At frequencies below 0.03 Hz (1 pulse every 32 sec.) the rate indicator
will display a zero.
9. RATE MAXIMUM INPUT FREQUENCY: 10 KHz
10. CONTROL INPUTS:
Reset: Active Low (VIL = 1.5 V max.) internally pulled up to +12 VDC (ISNK
= 3 mA), Activation and De-activation response time = 10 msec.
Program Disable: Active Low (VIL = 1.5 V max.), internally pulled up to +5
VDC (ISNK = 1 mA).
Print Request: (GEM521xx only) Active Low (VIL = 1.5 V max.), internally
pulled up to +5 VDC (ISNK = 1 mA).
11. SERIAL COMMUNICATIONS (Optional):
Type: Bi-directional 20 mA current loop, 20 mA source provided. (Powers
up to seven units in a loop with internal current source.)
Baud Rate: Programmable 300 to 2400.
Maximum Address: 16 units. (Actual number in a single loop is limited by
serial hardware specifications.)
Data Format: 10 bit frame, Odd parity (one start bit, 7 data bits, one odd
parity bit, and one stop bit.)
Serial Hardware Specifications:
SO - Output Transistor Rating: VMAX = 30 VDC, VSAT = 1 VMAX @ 20
mA.
SI - Input Diode Rating: VF = 1.25 VTYP; 1.5 VMAX
Note: The compliance voltage rating of the source must be greater than the
sum of the voltage drops around the loop.
12. OUTPUTS:
Solid-State: Current sinking NPN Open Collector Transistors. ISNK = 100
mA max. @ VCE = 1 V. VOH = 30 VDC max. (Internal Zener Diode
Protection).
Relays (Optional): Mounted on a field-replaceable P.C. board. Form C
contacts rated 5 A @ 120/240 VAC or 28 VDC (resistive load), 1/8 H.P.
@120 VAC (inductive load). The operate time is 5 msec nominal and the
release time is 3 msec nominal.
Relay Life Expectancy: 100,000 cycles at Max. Rating. (As load level
decreases, life expectancy increases.)
Programmed Timed Outputs: The timed outputs can be set from 0.01 to
599.99 seconds, ±(0.01% + 10 msec).
13. CERTIFICATIONS AND COMPLIANCES:
EMC EMISSIONS:
Meets EN 50081-2: Industrial Environment.
CISPR 11 Radiated and conducted emissions
EMC IMMUNITY:
Meets EN 50082-2: Industrial Environment.
ENV 50140 - Radio-frequency radiated electromagnetic field 1
ENV 50141 - Radio-frequency conducted electromagnetic field 2
EN 61000-4-2 - Electrostatic discharge (ESD)3
EN 61000-4-4 - Electrical fast transient/burst (EFT)
EN 61000-4-8 - Power Frequency Magnetic Field
Notes:
1. Unit mounted in a metal panel connected to earth ground (protective
earth) with rear cover providing at least 6 dB of shielding effectiveness.
2. Two Ferrite suppression Cores (Fair-Rite #0443167251 [RLC
#FCOR0000]) placed on DC mains cable for EMI frequencies above 40
MHz when using optional DC power supply.
3. Metal bezel of unit connected with ground lead from rear bezel screw to
metal mounting panel.
Refer to the EMC Compliance Installation section of the manual for
additional information.
14. ENVIRONMENTAL CONDITIONS:
Operating Temperature: 0 to 50°C
Storage Temperature: -40 to 70°C
Operating and Storage Humidity: 85% max. (non-condensing) from 0°C to
50°C.
Altitude: Up to 2000 meters
15. CONSTRUCTION:
Metal die-cast bezel, plastic case. This unit is rated for NEMA 4/IP65 indoor
use. Installation Category II, Pollution Degree 2.
16. WEIGHT: 2.1 lbs. (0.9 kg)
PROGRAMMABLE FUNCTIONS
UNIT PERSONALITY
DECIMAL POINT & LEADING ZERO BLANKING
Functions as a programmable Dual Rate Indicator, with or without speed
ratio, speed difference or draw indication.
Decimal point programmable to desired location. Leading zero blanking,
when selected, begins with second digit to the left of the decimal point.
PRESETS
OUTPUT TERMINATION MODES
Range 0 to ±999999
Terminate at Manual Reset
Terminate at Manual Reset End
Terminate after Time Delay
Boundary
For positive preset value: Output terminates when Display is less than
Preset.
For negative preset value: Output terminates when Display is greater
than Preset, (i.e. more positive).
Note: In any of the above modes, the unit may be programmed for “Reverse
Phase” operation which complements the logic state of the output.
SCALE FACTORS
Separate 5-digit input scaling for both rate channels. Range 0.0001 to
5.9999.
SCALE MULTIPLIER
Multiplies the actual rate input by 1000, 100, 10, 1, 0.1, or 0.01 to view the
desired number of significant digits on the 6-digit display.
RESET OPERATION
Manual reset via front panel pushbutton or remote “RST” terminal can be
programmed to act on one or both outputs. A separate”RST. A” terminal is
available to provide independent reset of each channel. Front panel
pushbutton reset may be disabled by a switch at the rear of the unit. Reset only
applies to the outputs and has no effect on the sample time or the displayed
value.
RIGHT-HAND DUMMY ZEROS
Up to three non-functional zeros may be placed on the least significant end
of the display when the unit is programmed in the dual rate only mode.
UPDATE TIME
The Rate Minimum Update Time is programmable from 0.5 to 16 seconds.
Provides averaging capability for non-consistent pulse spacing. Rate
Maximum Update Time will vary with the minimum time selected.
RATE CONVERSION FACTOR
Provides easy display conversion for readout in Rate Per Second, Rate Per
Minute, or Rate Per Hour.
TIMED OUTPUTS
Programmable from 0.01 to 599.99 seconds. Accurate to ±(0.01% + 10
msec.).
FRONT PANEL LOCKOUT MODES
When the “Program Disable” control input is activated, the ability to
change front panel programmed functions will be prevented as per the
following modes:
Complete Front Panel Disabled
Presets Enabled Only
Scale Factors Enabled Only
Presets and Scale Factors Enabled
Note: Manual Reset may be independently enabled or disabled in any of the
above modes.
SELF-TEST
Performs a complete check on the display and output circuitry along with a
functional check on the CPU.
254
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
PROGRAMMING
GEMINI 5200 APPLICATIONS
The Gemini 5200 input circuit set-up is programmed using DIP switches on
the rear of the unit. All other functions are programmed through the front panel
pushbuttons.
To program or interrogate a function, the user first enters a two-digit function
code. The unit will then display that function code along with a single-digit
mode identifier.
EXAMPLE: The function code representing “Output 1 Termination Modes” is
52. The mode identifiers for this function are:
3. Terminate at Manual Reset
4. Terminate at Manual Reset End
5. Terminate after Timed Output 1
6. Boundary
To interrogate the output termination mode, Press “5”,
then “2”:
Unit displays the function code along with mode
identifier 3 (Terminate at Manual Reset).
To change this mode to “Terminate After Timed
Output”, Press “5”:
To enter and save the new mode, Press “E”:
Unit enters new mode and returns display to the present
selected display value.
The most commonly used functions, Presets and Scale Factors, are initialized
through single front panel pushbuttons rather than a two-digit function code.
Pressing the “P” or “SF” pushbuttons will immediately display the current
Preset or Scale Factor value for the selected display. To change any digit, the
user presses the pushbutton directly below that particular digit, which is then
scrolled until the desired value is obtained. Each digit is changed, if necessary,
in the same manner until the complete Preset or Scale Factor value is registered
on the display. Pressing the “E” pushbutton completes the entry sequence.
MONITORING TWO SEPARATE RATES IN ONE
PROCESS
Many applications require more than one rate to be monitored for a given
process. The Gemini 5200 allows the monitoring of two independent rates
with one instrument and provides separate scaling for each channel when
required.
In this example, an industrial saw blade is used to cut timbers to length.
The application requires monitoring both saw blade speed in RPM and feed
rate in tenths of inches per minute. The blade is moved into the material
with a lead screw which makes 12 revolutions per inch of travel. The lead
screw is driven by a 1750 RPM motor through a 2:1 gear reducer which
yields a speed of 875 RPM. Since the blade moves 1 inch in 12 revolutions,
the feed rate of the blade will be 72.9 inches per minute. (875 RPM/12
revolutions per in. = 72.9 in./min.)
A Model LMPC sensor is used to sense a raised target on the lead screw
which delivers 1 pulse per revolution to Rate Channel A of the Gemini
5200. In terms of travel, one pulse represents 0.0833” (1/12”). However,
since the desired readout is in tenth inches, the input must be multiplied by
10. Therefore, a scale factor of 0.8333 is programmed into Channel A. A
decimal point is programmed to the left of digit 1 and the Rate A conversion
factor is programmed for Rate per Minute (x60) which automatically
multiplies the input pulses by 60 to yield a direct readout in inches per
minute.
Measuring saw blade speed is a simple matter of using an LMPC sensor
to detect a keyway in the blade drive shaft which delivers one pulse per
shaft revolution to Channel B of the Gemini 5200. Programming the Rate
B scaler for rate per minute (x60) yields a direct reading of blade speed in
RPM.
To interrogate the Preset value, Press “P”:
Unit displays current Preset value.
To change the Preset value:
Any digit may be changed by pressing the pushbutton
directly below it. Release the pushbutton when the digit
reaches the desired value.
Press “E”:
Unit enters new Preset value and returns display to the
present selected display value.
The Gemini 5200 Series can display any of three
selected display values as indicated by LED’s along the
left side of the display.
To display a different value:
Press the “DISP” pushbutton repeatedly until the
indicator corresponding to the desired value turns on.
255
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
GEMINI 5200 APPLICATIONIS (Cont’d)
CONTROLLING THE RELATIONSHIP BETWEEN SPECIFIED AMOUNTS OF MATERIAL
gallons per foot, but rather gallons per 100 feet which requires the display to
be multiplied by another factor of 100. Therefore, the Channel C scale
multiplier is programmed for x10,000 (i.e. 100 x 100) which provides the
desired Channel C reading of gallons per 100 feet to the nearest hundredth
gallon.
The relay outputs of the Gemini 5200 are connected to a speed control
mechanism on the glue pump which increases or decreases the glue flow rate
while the appropriate relay contacts are closed. Both preset outputs are
assigned to Channel C in the boundary mode of operation and are
programmed for the upper and lower acceptable limits of the glue flow rate.
In this case, the pump initially increases the output flow until a rate of 2.00
gallons per 100 feet is reached, at which time Output 1 toggles to prevent
further increase in speed.
If the flow rate reaches or exceeds 2.50 gallons per 100 feet, Output 2 will
toggle and send a correction signal to the pump until the speed slows to
acceptable limits. If the rate falls back below the lower limit, Output 1 again
toggles to speed-up the glue pump.
The Gemini 5200 can be used in this type of application to indicate and
control virtually any process that requires the distribution of a specified
amount of material in relation to another specified amount of material.
This application involves the monitoring and control of a glue allocation
process on a continuous web of industrial grade paper. In this case, the desired
results are to maintain a flow of glue between 2.00 and 2.50 gallons per 100
feet of web. To accomplish this, a Gemini 5200 is used in the A/B ratio
indicator mode, which will yield a direct readout in gallons per 100 feet to the
nearest hundredth gallon.
Channel A is connected to a 100 PPR RPGC pulse generator which is
mounted to the shaft of the glue pump. The pump delivers 0.38 gallons per
shaft revolution. Therefore, a scale factor of 0.3800 is programmed into
Channel A of the Gemini 5200 to yield 38 pulses per revolution. This
effectively multiplies the glue flow rate by 100 which allows a decimal point
to be programmed to the left of digit 2, producing a display of gallons per
second to the nearest hundredth gallon on Channel A.
A length sensor providing one pulse per foot of web material is fed into
Channel B of the Gemini. The Channel B scale multiplier is programmed for
x100 to produce a display reading of feet per second to the nearest hundredth
on Channel B.
The Gemini 5200 performs the A/B calculation and displays the ratio in
gallons per feet on Channel C. Since the application requires resolution in
hundredths of gallons, the Channel C display must be multiplied by 100 to
provide such resolution. However, the desired readout is not in terms of
ORDERING INFORMATION
OPTIONS
MODEL NO.
GEM52
_
DESCRIPTION
PART NUMBERS
W/RELAY
BOARD
W/20 mA
CURRENT LOOP
115/230 VAC
Yes
No
GEM52060
No
No
GEM52061
Yes
Yes
GEM52160
No
Yes
GEM52161
N/A
N/A
RLYBD002
Gemini 5200
Gemini 5200 Relay Board
For more information on Pricing, Enclosures & Panel Mount Kits refer to the RLC Catalog or contact your
local RLC distributor.
256
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
257
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
258
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
259
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
260
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Bulletin No. PAXLR-A
Drawing No. LP0564
Released 10/03
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion-controls.com
MODEL PAXLR - PAX LITE RATE METER
C
UL
R
!
RATE INDICATION
!
6-DIGIT, 0.56" (14.2 mm) HIGH LED DISPLAYS
!
INPUT RATES UP TO 25 KHZ
!
ACCEPTS A WIDE VARIETY OF SENSORS
!
PROGRAMMABLE SCALING
!
PROGRAMMABLE UPDATE TIME
!
PROGRAMMABLE DECIMAL POINTS
!
NEMA 4X/IP65 SEALED FRONT BEZEL
US LISTED
IND. CONT. EQ.
51EB
GENERAL DESCRIPTION
SAFETY SUMMARY
The PAX Lite Rate Meter, Model PAXLR, provides the versatility and
flexibility needed to accommodate virtually any rate measuring application. The
meter has the ability to scale for direct readout in terms of the units being
measured. Whether a machine produces bottles, cloth, wire, or beverage mix,
operation is enhanced when the rate readout is expressed directly in bottles/min.,
feet/min., gallons/min., or whatever units are needed in plant applications.
The PAXLR can accommodate magnetic pickups, logic sensors, and NPN
open collector sensors. The pulses are received and scaled, so the desired
display can be achieved. The meter is programmed through both the front panel
buttons and DIP switches. Once the programming is complete, the front panel
buttons can be disabled by a DIP switch setting.
The meter has been specifically designed for harsh industrial environments.
With NEMA 4X/IP65 sealed bezel and extensive testing to meet CE
requirements, the meter provides a tough, yet reliable application solution.
All safety related regulations, local codes and instructions that appear in the
literature or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
DIMENSIONS In inches (mm)
CAUTION: Read complete
instructions prior to installation
and operation of the unit.
CAUTION: Risk of electric shock.
Note: Recommended minimum clearance (behind the panel) for mounting clip installation is
2.1" (53.4) H x 5" (127) W.
1
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
TABLE OF CONTENTS
Ordering Information . . . . . . .
General Meter Specifications
Installing the Meter . . . . . . . .
Setting the Switches . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
2
3
3
4
Wiring the Meter . . . . . . . . . . . . . . . . . . .
Reviewing the Front Buttons and Display
Scaling the Meter . . . . . . . . . . . . . . . . . .
Programming the Meter . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
4
6
6
7
ORDERING INFORMATION
Meter Part Numbers
PAXL
R0
0
0
R0 - 6 Digit Rate Meter
2
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
GENERAL METER SPECIFICATIONS
IECEE CB Scheme Test Certificate # UL/7470/UL
CB Scheme Test Report # 03ME09282-08292003
Issued by Underwriters Laboratories, Inc.
IEC 1010-1, EN 61010-1: Safety requirements for electrical equipment
for measurement, control, and laboratory use, Part 1.
IP65 Enclosure rating (Face only), IEC 529
IP20 Enclosure rating (Rear of unit), IEC 529
ELECTROMAGNETIC COMPATIBILITY
Emissions and Immunity to EN 61326: Electrical Equipment for
Measurement, Control and Laboratory use.
1. DISPLAY: 6-digit, 0.56" (14.2 mm), 7-segment LED.
Decimal points are programmed by front panel keys.
2. POWER:
AC Power: 115/230 VAC, switch selectable. Allowable power line variation
±10%, 50/60 Hz, 6 VA. @ 100 mA max.
Isolation: 2300 Vrms for 1 min. to input and DC Out/In.
DC Power: 10 to 16 VDC @ 0.1 A max.
3. SENSOR POWER: 9 to 17.5 VDC @ 100 mA max.
4. KEYPAD: 3 programming keys, the ! (Down Arrow) key can also function
as the front panel reset button.
5. INPUT: (DIP switch selectable)
Accepts pulses from a variety of sources including NPN-OC, PNP-OC, TTL
Outputs, Magnetic Pickups and all standard Red Lion sensors.
Logic: Input trigger levels VIL = 1.5 V max.; VIH = 3.75 V min.
Current Sinking: Internal 7.8 KΩ pull-up to +12 VDC, IMAX = 1.9 mA
Current Sourcing: Internal 3.9 KΩ pull-down, 8 mA max. @ 30 VDC max.
MAGNETIC PICK-UP:
Sensitivity: 200 mV peak
Hysteresis: 100 mV
Input impedance: 3.9KΩ @ 60 Hz
Maximum input voltage: ±40 V peak, 30 Vrms
6. INPUT FREQUENCY RANGE:
Max Frequency: 25 KHz
Min Frequency: 0.01 Hz
Accuracy: ±0.01%
7. MEMORY: Nonvolatile E2PROM retains all programmable parameters and
display values.
8. ENVIRONMENTAL CONDITIONS:
Operating Temperature: 0° to 60°C
Storage Temperature: -40° to 60°C
Operating and Storage Humidity: 0 to 85% max. relative humidity (noncondensing)
Altitude: Up to 2000 meters
9. CERTIFICATIONS AND COMPLIANCES:
SAFETY
UL Recognized Component, File # E179259, UL3101-1, CSA C22.2 No.
1010-1
Recognized to U.S. and Canadian requirements under the Component
Recognition Program of Underwriters Laboratories, Inc.
UL Listed, File # E137808, UL508, CSA C22.2 No. 14-M95
LISTED by Und. Lab. Inc. to U.S. and Canadian safety standards
Type 4X Enclosure rating (Face only), UL50
1.0 INSTALLING
THE
Immunity to Industrial Locations:
Electrostatic discharge
EN 61000-4-2
Electromagnetic RF fields
EN 61000-4-3
Fast transients (burst)
EN 61000-4-4
Surge
EN 61000-4-5
RF conducted interference
EN 61000-4-6
Power frequency magnetic fields EN 61000-4-8
Voltage dip/interruptions
EN 61000-4-11
Criterion A
4 kV contact discharge
8 kV air discharge
Criterion A
10 V/m
Criterion A 2
2 kV power
2 kV signal
Criterion A 2
1 kV L-L,
2 kV L&N-E power
1 kV signal
Criterion A
3 V/rms
Criterion A
30 A/m
Criterion A
0.5 cycle
Emissions:
Emissions
EN 55011
Class B
Notes:
1. Criterion A: Normal operation within specified limits.
2. EMI filter placed on the DC power supply, when DC powered: Corcom
#1VB3 or Schaffner #FN610-1/07 (RLC #LFIL0000).
10. CONNECTIONS: High compression cage-clamp terminal block
Wire Strip Length: 0.3" (7.5 mm)
Wire Gage Capacity: 30-14 AWG copper wire.
Torque: 4.5 inch-lbs (0.51 N-m) max.
11. CONSTRUCTION: This unit is rated for NEMA 4X/IP65 outdoor use.
IP20 Touch safe. Installation Category II, Pollution Degree 2. One piece
bezel/case. Flame resistant. Synthetic rubber keypad. Panel gasket and
mounting clip included.
12. WEIGHT: 12 oz (340 g)
METER
While holding the unit in place, push the panel latch over the rear of the unit
so that the tabs of the panel latch engage in the slots on the case. The panel latch
should be engaged in the farthest forward slot possible. To achieve a proper seal,
tighten the latch screws evenly until the unit is snug in the panel (Torque to
approximately 7 in-lbs [79N-cm]). Do not over-tighten the screws.
Installation
The PAX meets NEMA 4X/IP65 requirements when properly installed. The
unit is intended to be mounted into an enclosed panel. Prepare the panel cutout
to the dimensions shown. Remove the panel latch from the unit. Slide the panel
gasket over the rear of the unit to the back of
the bezel. The unit should be installed
fully assembled. Insert the unit into
the panel cutout.
Installation Environment
The unit should be installed in a location that does not exceed the maximum
operating temperature and provides good air circulation. Placing the unit near
devices that generate excessive heat should be avoided.
The bezel should be cleaned only with a soft cloth and neutral soap product.
Do NOT use solvents. Continuous exposure to direct sunlight may accelerate the
aging process of the bezel.
Do not use tools of any kind (screwdrivers, pens, pencils, etc.) to operate the
keypad of the unit.
PANEL CUT-OUT
3
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
2.0 SETTING
THE
SWITCHES
SWITCH 3
HI Frequency: Removes damping capacitor and allows max. frequency.
LO Frequency: Limits input frequency to 50 Hz and input pulse widths
to 10 msec.
SWITCH 4
LOGIC: Input trigger levels VIL = 1.5 V max.; VIH = 3.75 V max.
MAG: 200 mV peak input (must have SRC on).
SWITCH 5
Enable Programming: Enables programming through the front panel buttons.
Disables Programming: Disables the front panel buttons from any
programming changes.
SWITCH 6
Not Active for the Rate Meter
The meter has switches that must be checked and/or changed prior to
applying power. To access the power switch, remove the meter base from the
case by firmly squeezing and pulling back on the side rear finger tabs. This
should lower the latch below the case slot (which is located just in front of the
finger tabs). It is recommended to release the latch on one side, then start the
other side latch.
Power Selection Switch
Caution: Insure the AC power selection switch is set for the
proper voltage before powering-up the meter. The meter is shipped
from the factory in the 230 VAC position.
Set-Up DIP Switches
FRONT DISPLAY
A DIP switch is located at the rear of the meter, and is fully accessible when
the unit is in the case. It is used for the selection of the input parameters and
program disable.
SWITCH
FUNCTION
1
SNK.
2
SRC.
3
HI/LO FREQ.
4
LOGIC/MAG
5
EN/DIS PGM
6
Not Active
POWER
SELECTION
SWITCH
230
115
SWITCH 1
SNK.: Adds internal 7.8 KΩ pull-up resistor to + 12 VDC, IMAX = 1.9 mA.
SWITCH 2
SRC.: Adds internal 3.9 KΩ pull-down resistor, 8 mA max. @ 30 VDC max.
REAR TERMINALS
3.0 WIRING
THE
INPUT SET-UP
DIP SWITCHES
METER
c. Connect the shield to common of the meter and leave the other end of the
shield unconnected and insulated from earth ground.
3. Never run Signal or Control cables in the same conduit or raceway with AC
power lines, conductors feeding motors, solenoids, SCR controls, and
heaters, etc. The cables should be ran in metal conduit that is properly
grounded. This is especially useful in applications where cable runs are long
and portable two-way radios are used in close proximity or if the installation
is near a commercial radio transmitter.
4. Signal or Control cables within an enclosure should be routed as far as possible
from contactors, control relays, transformers, and other noisy components.
5. In extremely high EMI environments, the use of external EMI suppression
devices, such as ferrite suppression cores, is effective. Install them on Signal
and Control cables as close to the unit as possible. Loop the cable through the
core several times or use multiple cores on each cable for additional protection.
Install line filters on the power input cable to the unit to suppress power line
interference. Install them near the power entry point of the enclosure. The
following EMI suppression devices (or equivalent) are recommended:
Ferrite Suppression Cores for signal and control cables:
Fair-Rite # 0443167251 (RLC# FCOR0000)
TDK # ZCAT3035-1330A
Steward # 28B2029-0A0
Line Filters for input power cables:
Schaffner # FN610-1/07 (RLC# LFIL0000)
Schaffner # FN670-1.8/07
Corcom # 1 VR3
Note: Reference manufacturer’s instructions when installing a line filter.
6. Long cable runs are more susceptible to EMI pickup than short cable runs.
Therefore, keep cable runs as short as possible.
7. Switching of inductive loads produces high EMI. Use of snubbers across
inductive loads suppresses EMI.
Snubber: RLC# SNUB0000.
WIRING OVERVIEW
Electrical connections are made via screw-clamp terminals located on the
back of the meter. All conductors should conform to the meter’s voltage and
current ratings. All cabling should conform to appropriate standards of good
installation, local codes and regulations. It is recommended that the power
supplied to the meter (DC or AC) be protected by a fuse or circuit breaker.
When wiring the meter, compare the numbers embossed on the back of the
meter case against those shown in wiring drawings for proper wire position. Strip
the wire, leaving approximately 0.3" (7.5 mm) bare lead exposed (stranded wires
should be tinned with solder.) Insert the lead under the correct screw-clamp
terminal and tighten until the wire is secure. (Pull wire to verify tightness.)
EMC INSTALLATION GUIDELINES
Although this meter is designed with a high degree of immunity to ElectroMagnetic Interference (EMI), proper installation and wiring methods must be
followed to ensure compatibility in each application. The type of the electrical
noise, source or coupling method into the meter may be different for various
installations. The meter becomes more immune to EMI with fewer I/O
connections. Cable length, routing, and shield termination are very important
and can mean the difference between a successful or troublesome installation.
Listed below are some EMC guidelines for successful installation in an
industrial environment.
1. The meter should be mounted in a metal enclosure, which is properly
connected to protective earth.
2. Use shielded (screened) cables for all Signal and Control inputs. The shield
(screen) pigtail connection should be made as short as possible. The
connection point for the shield depends somewhat upon the application.
Listed below are the recommended methods of connecting the shield, in order
of their effectiveness.
a. Connect the shield only at the panel where the unit is mounted to earth
ground (protective earth).
b. Connect the shield to earth ground at both ends of the cable, usually when
the noise source frequency is above 1 MHz.
4
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
3.1 POWER WIRING
AC Power
DC Power
Terminal 1: VAC
Terminal 2: VAC
Terminal 3: +VDC
Terminal 4: COMM
3.2 INPUT WIRING
Magnetic Pickup
Current Sinking Output
AC Inputs From Tach Generators, Etc.
Two Wire Proximity, Current Source
Current Sourcing Output
Interfacing With TTL
Emitter Follower; Current Source
*Switch position is application dependent.
5
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
4.0 REVIEWING
THE
FRONT BUTTONS
AND
KEY
DISPLAY MODE OPERATION
PROGRAMMING MODE OPERATION
PAR
Access Programming Mode
Store selected parameter and index to next parameter
"
No Function
Increment selected digit of parameter value
!
No Function
Select digit position in parameter value
5.0 SCALING
THE
DISPLAY
METER
RATE SCALING
NOTES:
1. If # of pulses per unit is less than 10, then multiply both Input and Display
values by 10.
2. If # of pulses per unit is less than 1, then multiply both Input and Display
values by 100.
3. If the Display value is raised or lowered, then Input value must be raised
or lowered by the same proportion (i.e. Display value for per hour is
entered by a third less (1200) then Input value is a third less of # of pulses
per unit). The same is true if the Input value is raised or lowered, then
Display value must be raised or lowered by the same proportion.
4. Both values must be greater than 0.0.
To scale the Rate, enter a Scaling Display value with a corresponding Scaling
Input value. These values are internally plotted to a Display value of 0 and Input
value of 0 Hz. A linear relationship is formed between these points to yield a
rate display value that corresponds to the incoming input signal rate. The
location of the scaling point should be near the process end limit for the best
possible accuracy. The PAXLR is capable of showing a rate display value for
any linear process.
SCALING CALCULATION
If a display value versus input signal (in pulses per second) is known, then
those values can be entered into Scaling Display (!"#$%&) and Scaling Input
(!"#'(&). No further calculations are needed.
If only the number of pulses per ‘single’ unit (i.e. # of pulses per foot) is
known, then it can be entered as the Scaling Input value and the Scaling Display
value will be entered as the following:
EXAMPLE:
1. With 15.1 pulses per foot, show feet per minute in tenths.
Scaling Display = 60.0 Scaling Input = 15.1
2. With 0.25 pulses per gallon, show whole gallons per hour. (To have greater
accuracy, multiply both Input and Display values by 10.)
Scaling Display = 36000 Scaling Input = 2.5
RATE PER
DISPLAY (!"#$%&)
INPUT (!"#'(&)
Second
1
# of pulses per unit
Minute
60
# of pulses per unit
RATE DISPLAY OVERFLOW
Hour
3600
# of pulses per unit
The rate of the input signal along with the programmed scaling values can
cause the calculated rate display to exceed the meter’s 6-digit capacity. If this
occurs, the display will show “!"!"!"” to indicate an overflow condition.
INPUT FREQUENCY CALCULATION
The meter determines the input frequency by summing the number of falling
edges received during a sample period of time. The sample period begins on the
first falling edge. At this falling edge, the meter starts accumulating time
towards Low Update and High Update values. Also, the meter starts
accumulating the number of falling edges. When the time reaches the Low
Update Time value, the meter looks for one more falling edge to end the sample
period. If a falling edge occurs (before the High Update Time value is reached),
the Rate display will update to the new value and the next sample period will
start on the same edge. If the High Update Time value is reached (without
receiving a falling edge after reaching Low Update Time), then the sample
period will end but the Rate display will be forced to zero. The High Update
Time value must be greater than the Low Update Time value. Both values must
be greater than 0.0. The input frequency calculated during the sample period, is
then shown as a Rate value determined by either scaling method.
6
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
6.0 PROGRAMMING
THE
METER
PROGRAMMING SEQUENCE
The Rate Indicator has five programmable parameters which are entered in
the sequence shown above, using the front panel push buttons.
Before programming, refer to the section on Scaling the Meter to determine
the Rate Scaling Display Value and Rate Scaling Input Value to use for the
specific application.
Note: Programming mode can be locked out with the Program Disable DIP
switch. With the switch in the Disabled (up) position the meter will not enter
programming mode. Refer to the section on DIP switch setup.
HIGH UPDATE TIME (DISPLAY ZERO)
2'#.$" "
!
1+)
Press the PAR key to enter Programming Mode. The meter briefly displays
#$% followed by the first programming parameter described below.
PROGRAMMING PARAMETERS
RATE SCALING DISPLAY VALUE
In programming mode, the display alternates between the parameter and the
current selection or value for that parameter. The dual display with arrows is
used below to illustrate the alternating display. The selection choices or value
range for each parameter is shown to the right of the alternating display.
!"#$%& "
! *)))
)+)
)+))))
)+))
)+)))))
RATE SCALING INPUT VALUE
!"#'(& "
! *)))+)
This parameter selects the decimal point position on the display. The
selection does not affect scaling calculations.
Press the arrow keys (" or !) to sequence through the selection list until the
desired selection is shown. Press the PAR key to save the displayed selection
and advance to the next parameter.
The parameters which follow are displayed as a multi-digit numerical values
with one selected digit flashing (initially the far left digit). Press the " (up
arrow) key to increment the value of the selected (flashing) digit. Holding the
" key automatically scrolls the value of the selected digit.
Press the ! (down arrow) key to select the next digit position to the right.
Use the " key to increment the value of this digit to the desired number. Press
the ! key again to select the next digit to be changed. Holding the ! key
automatically scrolls through each digit position.
Repeat the “select and set” sequence until all digits are displaying the desired
numerical value. Press the PAR key to save the displayed value and advance to
the next parameter.
PROGRAMMING MODE EXIT
The meter exits Programming Mode when the PAR key is pressed to save the
Rate Scaling Input Value. The meter briefly displays '+& upon exiting
Programming Mode. All programmed selections are now transferred to the nonvolatile memory and the meter returns to the Rate display.
(If power loss occurs during programming mode, verify parameter changes
and reprogram, if necessary, when power is restored.)
PROGRAMMING MODE TIME OUT
The Programming Mode has an automatic time out feature. If no keypad
activity is detected for approximately 60 seconds, the meter automatically exits
Programming Mode. The meter briefly displays '+& and returns to the Rate
display. When automatic timeout occurs, any changes that were made to the
parameter currently being programmed, will not be saved.
LOW UPDATE TIME (DISPLAY UPDATE)
)+* to 00+0
) to 00000+0
Enter the Rate Input value that corresponds to the Rate Display value entered
above. This value is always in pulses per second (Hz). For more explanation,
refer to Rate Scaling.
ENTERING NUMERICAL VALUES
,-#.$" "
!
*+)
) to 000000
Enter the desired Rate Display value to be shown for the corresponding Rate
Input value entered below. For more explanation, refer to Rate Scaling.
If a decimal point was selected in the Decimal Position (&'( #*) parameter,
it will be displayed at the same position for this parameter value.
DECIMAL POSITION
)
)+)))
seconds
The High Update Time is the maximum amount of time before the display is
forced to zero. The High Update Time must be higher than the Low Update
Time and also higher than the desired slowest readable speed (one divided by
pulses per second). The factory setting of 2.0 will force the display to zero for
speeds below 0.5 Hz or one pulse every 2 seconds.
For more details on display updating, refer to Input Frequency Calculation.
PROGRAMMING MODE ENTRY
&'( #* "
!
)
)+1 to 00+0
seconds
FACTORY SETTINGS
The factory settings for the programming parameters are shown above in the
alternating display illustrations. The factory settings can be easily restored by
removing power from the meter, and then pressing and holding the PAR key
while power is reapplied. The meter displays $','* until the PAR key is
released. The normal power-up sequence then resumes, with the factory settings
loaded and saved in non-volatile memory.
Note: The Program Disable DIP switch must be in the Enabled (down)
position to allow loading factory settings. See section on DIP switch setup.
The Low Update Time is the minimum amount of time between display
updates. The factory setting of 1.0 allows a minimum of one second between
updates. Low values below 0.3 seconds will update the display correctly, but
may cause the display to appear unsteady.
For more details on display updating, refer to Input Frequency Calculation.
7
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
LIMITED WARRANTY
The Company warrants the products it manufactures against defects in materials and workmanship
for a period limited to one year from the date of shipment, provided the products have been stored,
handled, installed, and used under proper conditions. The Company’s liability under this limited
warranty shall extend only to the repair or replacement of a defective product, at The Company’s
option. The Company disclaims all liability for any affirmation, promise or representation with
respect to the products.
The customer agrees to hold Red Lion Controls harmless from, defend, and indemnify RLC against
damages, claims, and expenses arising out of subsequent sales of RLC products or products
containing components manufactured by RLC and based upon personal injuries, deaths, property
damage, lost profits, and other matters which Buyer, its employees, or sub-contractors are or may be
to any extent liable, including without limitation penalties imposed by the Consumer Product Safety
Act (P.L. 92-573) and liability imposed upon any person pursuant to the Magnuson-Moss Warranty
Act (P.L. 93-637), as now in effect or as amended hereafter.
No warranties expressed or implied are created with respect to The Company’s products except those
expressly contained herein. The Customer acknowledges the disclaimers and limitations contained
herein and relies on no other warranties or affirmations.
Red Lion Controls Asia
Red Lion Controls
20 Willow Springs Circle
Red Lion Controls BV
Basicweg 11b
31, Kaki Bukit Road 3,
#06-04/05 TechLink
York PA 17402
NL - 3821 BR Amersfoort
Singapore 417818
Tel +1 (717) 767-6511
Tel +31 (0) 334 723 225
Tel +65 6744-6613
Fax +1 (717) 764-0839
Fax +31 (0) 334 893 793
Fax +65 6743-3360
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Bulletin No. APLRI-I
Drawing No. LP0119
Revised 8/00
Tel +1 (717) 767-6511
Fax +1 (717) 764-6587
www.redlion-controls.com
MODELS APLRI - APOLLO TIME INTERVAL RATE INDICATOR AND
PBLRI - 4/6 DIGIT MODULE FOR USE WITH THE LARGE DIGIT DISPLAY (LDD)
!
OPERATES ON LOW INPUT RATES
!
6-DIGIT, 0.56" (14.2 mm) HIGH LED DISPLAY (APLRI)
!
COUNT RATES UP TO 10 KHz
!
EASY SELECTION OF RATE MULTIPLIER
!
PROGRAMMABLE INPUT CIRCUIT, ACCEPTS OUTPUTS FROM A
WIDE VARIETY OF SENSORS
!
LEADING ZERO BLANKING
!
PROGRAMMABLE DECIMAL POINTS
!
0.02% ACCURACY
!
EIGHT PULSE MOVING WINDOW AVERAGE
!
NEMA 4/IP65 SEALED FRONT PANEL METAL BEZEL
DESCRIPTION
SPECIFICATIONS
The Apollo Time Interval Rate Indicator (Model APLRI) and Module
(Model PBLRI), provide the capability of measuring very slow input rates and
scaling these low rates in terms of a readily usable and recognizable engineering
unit (i.e. bottles/min., rolls/hr., cases/shift, barrels/day, etc.). The
APLRI/PBLRI measures the time (with crystal controlled accuracy) between
input pulses, inverting this measured time, then multiplying it by the
programmed scale multipliers set by the rear panel DIP switches.
The units can also accommodate magnetic pickups, logic sensors, and NPN
open collector sensors, as well as switch contact closure sensors.
These units have a self-test feature, which checks all the microprocessor and
display driver circuitry after power-up, if enabled. This self-test can also be used
to test the multiplier select DIP switches and decimal point select DIP switches,
to make certain all switches are functioning properly.
Power and input connections are made via a removable terminal block,
located at the rear of the unit. Each terminal can accept one #14 AWG wire. DIP
switches at the side of the unit are used to program the input configuration.
The Model APLRI has a sealed metal die-cast bezel which meets NEMA
4/IP65 specifications for wash-down and/or dust, when properly installed. The
Model APLRI has a 6-digit, 0.56" high LED display, which is readable to 23
feet (7M).
1. DISPLAY: 6-Digit, 0.56" (14.2 mm) High Red LED’s (APLRI).
2. POWER REQUIREMENTS:
APLRI
AC Operation: Available in three voltages.
115 VAC, ±10%, 50/60 Hz, 14 VA or
230 VAC, ±10%, 50/60 Hz, 14 VA
DC Operation:
24 VDC, 10% @ 0.6 A max.
Note: All available units can be powered at Terminal #3 from a 11 to 14
VDC, 0.6 A max. power supply.
PBLRI
AC Operation: Switch selected via the LDD power supply board,
115/230 (+/-10%), 50/60 Hz, 10 VA for 4-digit, 15 VA for 6 digit
(including LDD).
3. SENSOR POWER: +12 VDC, ±25% @ 100 mA max.
4. OPERATING FREQUENCY RANGE: 0.1 pulse/sec. to 10,000 pulses/
sec. in the rate per second mode. 0.36 pulses/min. to 600,000 pulses/min. in
the rate per minute mode.
Note: When the value to be displayed exceeds the full scale display capacity,
six dashes are displayed. Also if the display input is too low, the unit will
display a zero.
5. ACCURACY AND REPEATABILITY: 0.02%
6. RATE MULTIPLIER INCREMENT TOTAL, SELECTION RANGE:
From 1 to 8191.
7. DISPLAY UPDATE TIME: The display will update every 0.65 sec. plus
one input pulse when the input pulse rate is 1.54 pulses/sec. or higher. When
the input pulse rate is below 1.54 pulses/sec. the display will update on every
input pulse.
Note: When the input pulse rate is 3 pulses/sec. or lower, the unit will utilize,
if selected, a technique known as a “moving window average”. (This
continually averages the last eight input pulses.)
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
CAUTION: Read complete
instructions prior to installation
and operation of the unit.
CAUTION: Risk of electric shock.
DIMENSIONS “In inches (mm)”
Note: Recommended minimum clearance (behind the panel) for
mounting clip installation is 2.1" (53.4) H x 5.5" (140) W.
1
PANEL CUT-OUT
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
and serves to filter out high frequency noise. It can also be used to filter
switch contact closures.
Note: If excessive contact “bounce” is encountered, an additional external
filter capacitor may be necessary. Reed switches, mercury wetted
contacts, snap action limit switches, and silver alloy relay contacts with
wiping action are usually satisfactory for generating count input signals.
Motor starter contacts, tungsten contacts, and brush-type contacts
should not be used.
S2 - ON [LOGIC]: Sets the bias reference so that input logic signals trigger
count pulses as they cross a level of approximately +2.5 V.
OFF: Sets the bias reference so that a signal of 150 millivolts or more will
trigger count pulses. This provides the sensitivity required for low speed
magnetic pickup sensors.
Note: Hysteresis for both S2 “ON” and “OFF” conditions is about 25
millivolts. This means the difference between VIL and VIH with logic
inputs (S2) is almost insignificant and only a very small swing about the
2.5V bias level will trigger the input.
S3 - ON [NPN O.C.]: Connects a 3.9 KΩ pull-up load resistor for sensors or
circuits with current sink outputs. Sensor output must sink 4 mA @ VOL
of 1 V or less. Unlike the time base rate indicator, the APLRI/PBLRI can
work with switch contact closures because of the low count rate
capability. S1 should be closed when switch contact closures are used as
inputs to the unit.
SPECIFICATIONS (Con’t)
8. MAXIMUM INPUT VOLTAGE AND CURRENT: When the “SIG. IN”
(Terminal 5) is driven from external signal voltages, maximum voltage swing
is ±50 V peak. Input voltage can be dropped by an external series resistance
that limits input current to ±5 mA. (These ratings are for S3 “OFF”.)
9. INPUT IMPEDANCE: With S1 and S3 “OFF”, the resistive input
impedance exceeds 1megohm as long as the “SIG. IN” (Terminal 5) input
voltage is between zero and +12 VDC. Beyond these levels, the high and low
clamping diode will start to conduct, thus decreasing the input impedance.
With S3 “ON” the maximum input voltage to Terminal 5 must be limited to
28 VDC.
10. PARALLELING WITH APOLLO TOTALIZER (RLC standard count
input) INPUTS: Apollo Rate Indicators may be parallel connected with
counters having the RLC standard count input circuitry. These can operate
from a common current sink or source sensor, by connecting the appropriate
terminals in common. S3 on the Rate Indicator should be turned “OFF” since
pull-up or pull-down resistors are already present in the counter. The Rate
Indicator will not add appreciable sensor load with this arrangement.
Note: Rate Indicators cannot be operated in parallel with standard input
counters when 2-wire proximity sensors are used.
11. INPUT AND POWER CONNECTIONS: There is a plug-in,
compression-type, terminal block located at the rear of the unit. This block
can be removed from the rear of the unit for ease of wiring. After wiring is
complete, the connector can be plugged back onto the unit.
12. CERTIFICATIONS AND COMPLIANCES:
ELECTROMAGNETIC COMPATIBILITY
Immunity to EN 50082-2
Electrostatic discharge
EN 61000-4-2 Level 2; 4 Kv contact 1
Level 3; 8 Kv air
Electromagnetic RF fields
EN 61000-4-3 Level 3; 10 V/m
80 MHz - 1 GHz
Fast transients (burst)
EN 61000-4-4 Level 4; 2 Kv I/O 2
Level 3; 2 Kv power
RF conducted interference
EN 61000-4-6 Level 3; 10 V/rms
150 KHz - 80 MHz
Simulation of cordless telephone ENV 50204 Level 3; 10 V/m
900 MHz ± 5 MHz
200 Hz, 50% duty cycle
Emissions to EN 50081-2
RF interference
EN 55011
Enclosure class A
Power mains class A
DECIMAL POINT SELECTION
The selection of Decimal Point is
accomplished by DIP switches 4 and 5. The table
at the right shows what combination of switches
is needed to obtain the desired decimal point
location. The unit always has leading zero
blanking. Note: D.P. will change only at the
normal display update time of the unit.
Notes for APLRI only:
1. Metal bezel of unit connected to earth ground (protective earth) at the
mounting panel.
2. EMI filter placed on the DC power supply, when DC powered: Corcom
#1VB3 or Schaffner #FN610-1/07 (RLC #LFIL0000).
Refer to the EMC Installation Guidelines section of this bulletin for
additional information
13. ENVIRONMENTAL CONDITIONS:
Operating Temperature: 0 to 50°C
Storage Temperature: -40 to 70°C
Operating and Storage Humidity: 85% max. relative humidity (noncondensing) from 0°C to 50°C.
Altitude: Up to 2000 meters
14. CONSTRUCTION: Die-cast metal front bezel with black, high impact
plastic insert. Front panel meets NEMA 4/IP65 requirements for indoor use
when properly installed. Installation Category II, Pollution Degree 2. (Panel
gasket and mounting clip included with unit.)
15. WEIGHT:
APLRI: 1.5 lbs. (0.8 Kgs)
PBLRI: 0.4 lbs. (0.18 Kgs)
SW 4
SW 5
↓ (0)
↑ (1)
↓ (0)
↑ (1)
↓ (0)
↓ (0)
↑ (1)
↑ (1)
D.P.
LOCATION
0
0.0
0.00
0.000
MOVING WINDOW AVERAGING & SELF-TEST
DIP switch 6, the S.T./AVG. switch, serves a dual function of disabling or
enabling the “MOVING WINDOW AVERAGE” (MWA) function and the selftest function. When the switch is “UP”, MWA and the self-test are both
disabled. When the switch is “DOWN”, MWA and self-test are both enabled.
MOVING WINDOW AVERAGING
This allows the unit to “collect” and average the last eight input pulses which
is continually updated whenever a new pulse occurs. The oldest input data is
discarded and replaced with the newest data.
SELF-TEST
This unit has a built-in self-test feature which can only be activated
immediately after power-up (the unit will not count while in self-test). To
activate self-test, set the S.T./AVG. DIP switch (D.S. 6) to the enable position.
Then power the unit up. With this test, all digits are cycled through starting with
a string of six zeros. This will be shown for about half a second, then a string
of ones will appear for about the same time duration. Following these, a string
of twos and so on, up to nines will be displayed. After this portion, an interlace
pattern of 1, 0, 1, 0, 1, 0, then 1, 2, 1, 2, 1, 2, and so on, until all digits from zero
to nine have been displayed.
The next portion of self-test will display four groups of zeros and/or ones.
(The first two digits from the left, in each group, will always show a zero.) In
the first group, the third digit represents the 13th (x4096) DIP switch setting.
INPUT SET-UP
The selection of input set-up is accomplished by the first three of six DIP
switches, located along the side of the unit. DIP switches 1-3 are used to
configure the input. Each of these switches are discussed below.
Note: Rate indicators frequently use magnetic pickups for input devices.
Consequently, there are basic differences between counter and rate-indicator
input circuits. In the APLRI/PBLRI input circuit, the hysteresis level is quite
small and the bias levels are significantly different to accommodate both
magnetic pickup inputs, as well as the +5 V and higher logic levels.
S1 - ON [MAG.PKUP.]: Connects a 0.1 µf damping input capacitor from input
to common. This capacitor is used mostly with magnetic pickup inputs
2
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
The fourth and fifth digits show the setting for the Decimal Point select DIP
switches. (The fourth position digit represents DIP switch 4 and the fifth
position digit represents DIP switch 5.) The state of these digits coincides with
the table listed under the “Decimal Point Selection” section.
The last digit will always show a
9 10 11 12 (DIP SWITCH)
one. The next three groups are Group 2: 0 0 X X X X
shown on the right, and correspond
5 6 7 8 (DIP SWITCH)
to the DIP switch shown directly Group 3: 0 0 X X X X
1 2 3 4 (DIP SWITCH)
above it. (Note: The first two digits
in each group are always shown as Group 4: 0 0 X X X X
zeros.)
The X’s represent a zero or one (depending on the setting of the DIP switch)
in the display. Self-test is automatically exited 8 seconds after the last DIP
switch is changed.
EMC INSTALLATION GUIDELINES
Although this unit is designed with a high degree of immunity to
ElectroMagnetic Interference (EMI), proper installation and wiring methods
must be followed to ensure compatibility in each application. The type of the
electrical noise, source or coupling method into the unit may be different for
various installations. In extremely high EMI environments, additional measures
may be needed. Cable length, routing and shield termination are very important
and can mean the difference between a successful or a troublesome installation.
Listed below are some EMC guidelines for successful installation in an
industrial environment.
1. The unit should be mounted in a metal enclosure, that is properly connected
to protective earth.
a. If the bezel is exposed to high Electro-Static Discharge (ESD) levels,
above 4 Kv, it should be connected to protective earth. This can be done
by making sure the metal bezel makes proper contact to the panel cut-out
or connecting the bezel screw with a spade terminal and wire to protective
earth.
2. Use shielded (screened) cables for all Signal and Control inputs. The shield
(screen) pigtail connection should be made as short as possible. The
connection point for the shield depends somewhat upon the application.
Listed below are the recommended methods of connecting the shield, in
order of their effectiveness.
a. Connect the shield only at the panel where the unit is mounted to earth
ground (protective earth).
b. Connect the shield to earth ground at both ends of the cable, usually when
the noise source frequency is above 1 MHz.
c. Connect the shield to common of the unit and leave the other end of the
shield unconnected and insulated from earth ground.
3. Never run Signal or Control cables in the same conduit or raceway with AC
power lines, conductors feeding motors, solenoids, SCR controls, and
heaters, etc. The cables should be run in metal conduit that is properly
grounded. This is especially useful in applications where cable runs are long
and portable two-way radios are used in close proximity or if the installation
is near a commercial radio transmitter.
4. Signal or Control cables within an enclosure should be routed as far away as
possible from contactors, control relays, transformers, and other noisy
components.
5. In extremely high EMI environments, the use of external EMI suppression
devices, such as ferrite suppression cores, is effective. Install them on Signal
and Control cables as close to the unit as possible.
Loop the cable through the core several times or use multiple cores on each
cable for additional protection. Install line filters on the power input cable to
the unit to suppress power line interference. Install them near the power entry
point of the enclosure. The following EMI suppression devices (or
equivalent) are recommended:
Ferrite Suppression Cores for signal and control cables:
Fair-Rite # 0443167251 (RLC #FCOR0000)
TDK # ZCAT3035-1330A
Steward #28B2029-0A0
Line Filters for input power cables:
Schaffner # FN610-1/07 (RLC #LFIL0000)
Schaffner # FN670-1.8/07
Corcom #1VB3
Corcom #1VR3
Note: Reference manufacturer’s instructions when installing a line filter.
6. Long cable runs are more susceptible to EMI pickup than short cable runs.
Therefore, keep cable runs as short as possible.
WIRING CONNECTIONS
As depicted in the drawing showing the rear view of the Apollo Time
Interval Rate Indicator, there is a terminal block where all wiring connections
are made. All conductors should meet voltage and current ratings for each
terminal. Also cabling should conform to appropriate standards of good
installation, local codes and regulations. It is recommended that power supplied
to the unit (AC or DC) be protected by a fuse or circuit breaker. Remove the
block for easy access to the terminal screws. To remove the block, pull from the
back of the block until it slides clear of the terminal block shroud.
Enclosed with the PBLRI module is an adhesive backed label(s) showing the
terminal block pin-out. This label is for wiring reference only, do not use for
specifications. This label should be applied to the appropriate location by the
user.
CAUTION: The terminal block should NOT be removed with
power applied to the unit. The module should not be removed from
the LDD with power applied to the LDD or the module.
Terminal 3 is the “DC” (+12 V) terminal. This terminal is for sensor supply
and can provide up to 100 mA of current. An external +11 V to +14 VDC can
also be applied to this terminal to power the unit in the absence of A.C. power.
Terminal 4 is the “COMM.” (common) terminal, which is the common line
to which the sensor and other input commons are connected.
Terminal 5 is the “SIG. IN” (signal in) terminal. When the signal at this
terminal goes low, a count will be registered in the unit. (See “Input Ratings”
under “Specifications” section.)
POWER WIRING (A.C. Version)
Primary AC power is connected to Terminals 1 and 2 (marked VAC 50/60
Hz, located on the left-hand side of the block). For best results, the AC power
should be relatively “clean” and within the specified ±10% variation limit.
Drawing power from heavily loaded circuits or from circuits that also power
loads that cycle on and off, should be avoided.
POWER WIRING (APLRI D.C. Version only)
The DC Version unit will operate from a 24 VDC power supply. The positive
wire of the DC power source connects to Terminal #1 and the minus “-” to
Terminal #2.
3
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
INSTALLATION ENVIRONMENT
RATE MULTIPLIER SELECTION PROCEDURE
The unit should be installed in a location that does not exceed the maximum
operating temperature and provides good air circulation. Placing the unit near
devices that generate excessive heat should be avoided.
The bezel should be cleaned only with a soft cloth and neutral soap product.
Do NOT use solvents. Continuous exposure to direct sunlight may accelerate
the aging process of the bezel.
The APLRI/PBLRI has a rate multiplier selection range from 1 to 8191. For
the minimum scaled reading (direct readout of the input rate), the x1 DIP
switch would be set to “ON”. For the maximum scaled reading (8191 times the
input rate), all of the rear panel RMIT DIP switches would be turned “ON”.
Therefore, a specific Rate Multiplier Increment Total is achieved by adding up
the appropriate individual rate multiplier values.
The rate multiplier increment total is computed according to the following
formula:
RATE MULTIPLIER INCREMENT = Display Readout Desired
TOTAL (RMIT)
(Known Input Pulse Rate)*
* - Input Pulse Rate Per Second (set RPS/RPM switch to RPS) or Input Pulse
Rate Per Minute (set RPS/RPM switch to RPM).
EXAMPLE 1:
DISPLAY READOUT DESIRED = 4700
KNOWN INPUT PULSE RATE = 3PPS
RPS/RPM set to RPS
4700
round to the nearest
RMIT =  = 1566.66
= 1567
whole number
3
The appropriate rate multiplier switches, which together add up to 1,567 are
then set “ON”.
Start by selecting the first increment which is greater than half the desired
RMIT, and add subsequent increments that are more than half the difference
needed.
RMIT = 1,567
DIP switch 11 . . . . . - 1024
Needed =
543
DIP switch 10 . . . . . 512
Needed =
31
DIP switch 5 . . . . . 16
Needed =
15
DIP switch 4 . . . . . 8
Needed =
7
DIP switch 3 . . . . . 4
Needed =
3
DIP switch 2 . . . . . 2
Needed =
1
DIP switch 1 . . . . . 1
[
INSTALLATION
PBLRI installation information is contained in the LDD bulletin. Refer to
that bulletin for instructions on installing the module.
The unit meets NEMA 4/IP65 requirements for indoor use when properly
installed. The units are intended to be mounted into an enclosed panel. Two
mounting clips and screws are provided for easy installation. Consideration
should be given to the thickness of the panel. A panel which is too thin may
distort and not provide a water-tight seal. (Recommended minimum panel
thickness is 1/8".)
Cut the panel opening to the specified dimensions. Remove burrs and clean
around the panel opening. Slide the panel gasket over the rear of the unit to the
back of the bezel. Insert the unit into the panel cutout.
As depicted in the drawing, install the screws into the narrow end of the
mounting clips. Thread the screws into the clips until the pointed end just
protrudes through the other side. Install each of
the mounting clips by inserting the wide lip of
the clips into the wide end of the hole,
located on either side of the case. Then
snap the clip onto the case.
Tighten the screws evenly to apply
uniform compression, thus providing a
water-tight seal. CAUTION: Only
minimum pressure is required to seal
panel. Do NOT overtighten screws.
]
If the input pulse rate was known in Rate Per Minute (60 x RPS), the
RPS/RPM switch would be set to RPM and the calculations would be as
follows.
4700
round to the nearest
RMIT =  = 26.11
= 26
whole number
180
DIP switch 5 . . . . . 16
Needed =
10
DIP switch 4 . . . . . 8
Needed =
2
DIP switch 2 . . . . . 2
[
]
Therefore, DIP switches 2, 4, and 5, would be set to “ON”, and the RPS/RPM
DIP switch would be switched to “RPM”.
EXAMPLE 2:
DISPLAY READOUT DESIRED = 432,000 bolts per day
INPUT PULSE RATE PER SECOND = 5 bolts (pulses) per sec.
Since the value to be displayed in this example is so large, the input rate was
converted to rate per minute (5 x 60 = 300 BPM) and the RPS/RPM switch was
set to RPM. The following calculations were performed:
432,000
RMIT =  = 1440
300
REAR PANEL DIP SWITCHES
As can be seen from the rear panel of the unit, there is a row of 14 DIP
switches located beside the input and power terminal block. DIP switches 1
through 13 are Rate Multiplier Increment Total (RMIT) switches. When the
switch is “ON”, it will multiply the input rate by the rate multiplier value it
represents.
DIP switch 14 is the Rate Per Second (RPS)/Rate Per Minute (RPM) DIP
switch. When the switch is “OFF”, the unit is set up for input pulse rate in RPS.
When the switch is “ON”, the unit is set up for input pulse rate in RPM. In
actuality, the RPS/RPM switch is a x 60 multiplier (It will multiply the input rate
by a value of 60). In other words, if the input pulse rate is known per second,
and the rate lies between .1 pulses/sec. and 10,000 pulses/sec., set DIP switch
14 to RPS. If the input pulse rate is known per minute, and the rate lies between
0.36 pulses/min. and 600,000 pulses/min., set DIP switch 14 to RPM.
DIP switch 11
DIP switch 9
DIP switch 8
DIP switch 6
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
-
1024
256
128
32
Needed =
Needed =
Needed =
416
160
32
Therefore, DIP switches 6, 8, 9, 11, and 14 (RPS/RPM DIP switch) would be
turned “ON”.
4
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
CONNECTIONS & CONFIGURATION SWITCH SET-UP FOR VARIOUS SENSOR OUTPUTS
COUNT SWITCH OR ISOLATED TRANSISTOR OUTPUTS
SENSORS WITH CURRENT SINK OUTPUT (NPN O.C.)
[Includes ASTC, LMPC, PSAC, RPGC, (RPGB, RPGH) * , LSC]
Use 2-wire shielded cable for magnetic pickup signal leads.
INPUT FROM CONTACT CLOSURES
TWO WIRE PROXIMITY SENSORS
SENSORS WITH CURRENT SOURCE OUTPUT (PNP O.C.)
OLDER STYLE, SENSORS WITH
-EF OUTPUT
A.C. INPUTS FROM TACH.
GENERATORS, INVERTERS,
ETC.
INPUT FROM CMOS & OTHER
BI-POLAR OUTPUTS
INPUT FROM TTL
FLOW RATE INDICATION APPLICATION
An oil well can be pumped at a rate of one barrel of oil every 5 sec. The
supervisor wants to know the rate in barrels per day (using the 1 barrel per 5
sec. as a consistent average), that the well is producing. Some calculations
can determine what the display would read, in barrels/day.
1 barrel
60 sec.
60 min.
24 hr.
 x   x  x  = 17,280 barrels/day
5 sec.
1 min.
1 hr.
1 day
Because of the large value to be displayed, the input rate was converted to
Rate per minute (1/barrel x 60 sec./1 min. = 12 barrels/min.) and the
RPS/RPM switch was set to RPM.
Display Readout Desired
RMIT = 
(Known Input Pulse Rate)
17,280
RMIT =  = 1440
12 barrels/min.
DIP switch 11
DIP switch 9
DIP switch 8
DIP switch 6
. . . . .
. . . . .
. . . . .
. . . . .
-
1024
256
128
32
Needed =
Needed =
Needed =
416
160
32
Therefore, DIP switch 6, 8, 9, 11, and 14 are all turned “ON”.
5
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
SLOW TURNING SHAFT APPLICATION
The drawing shows one of the most common uses for the Model APLRI
Time Interval Rate Indicator. This is a slow turning shaft without the capability
of placing a gear on the end of the shaft (due to space limitations, size of shaft,
etc.). A PSAC is used to sense the keyway which is the only means of picking
up a signal from the shaft. The shaft turns at speeds from 0.5 RPM to 10 RPM
with an average speed of 5 RPM. The foreman wants to know the rate, in cases
of motor parts per shift, in which the assembly line is moving. At the average
speed of the shaft, the display reading would be 1918 cases/shift. The formula
is then used to figure out the required multiplier:
RMIT =
Display Readout Desired × D.P.

(Known Input Pulse Rate)
D.P. : Decimal Point
Use one of the following numbers in the above formula for the decimal point
position.
X1 = 0
X10 = 0.0
X100 = 0.00
DISPLAY READOUT DESIRED = 1918 cases/shift
INPUT PULSE RATE = 5 PPM*
* Note: Since the input rate is in RPM, set the RPS/RPM switch to RPM. Also,
since the input pulse rate could go below and usually is below 0.1 pulses/sec.,
the RPS/RPM switch must be set to RPM. Therefore,
1918
RMIT =  = 383.6
5
to the nearest
[ round
whole number ] = 384
RMIT = 384
DIP switch 9 . . . . . 256
DIP switch 8 . . . . . 128
Needed =
128
DIP switches 8,9, and 14 are turned “ON”.
If the rounding error introduced above is unacceptable, a decimal point and
a times 10 multiplier value can be used to give a more exact reading.
RMIT = 383.6 x 10 = 3836
RMIT = 3836
DIP switch 12 . . . . . - 2048
DIP switch 11 . . . . . - 1024
Needed =
Needed =
DIP switch 10
DIP switch 8
DIP switch 7
DIP switch 6
DIP switch 5
DIP switch 4
DIP switch 3
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
-
512
128
64
32
16
8
4
Needed
Needed
Needed
Needed
Needed
Needed
=
=
=
=
=
=
252
124
60
28
12
4
Dip switches 3-8, 10-12, and 14 would be set to “ON”. Also, the side panel
DIP switch 4 would be set to “ON” to turn on the tenths position D.P. (Note:
D.P. will only change at normal display update times.)
1788
764
TROUBLESHOOTING
For further technical assistance, contact technical support at the appropriate company numbers listed.
ORDERING INFORMATION
MODEL NO.
APLRI
PART NUMBERS FOR AVAILABLE SUPPLY
VOLTAGES
DESCRIPTION
Apollo Time Interval Rate Indicator
230 VAC
115 VAC
24 VDC
APLRI610
APLRI600
APLRI630
For more information on Pricing, Enclosures & Panel Mount Kits refer to the RLC Catalog or contact your local RLC distributor.
PERSONALITY MODULE
MODEL NO.
PBLRI *
DESCRIPTION
PART NUMBERS
Time Interval Rate Module for use with
the 4 or 6 digit Large Digit Display
115/230 VAC
PBLRI600
* Requires an LDD for use.
Red Lion Controls Inc
20 Willow Springs Circle
York PA 17402
Red Lion Controls France
56 Boulevard du Courcerin, Batiment 21,
ZI Pariest F-77183 Croissy Beaubourg
Red Lion UK Ltd
Tapton Park
Chesterfield S41 OTZ
Tel +1 (717) 767-6511
Tel +33 (64) 80 12 12
Tel +44 (1246) 22 21 22
Fax +1 (717) 764-6587
Fax +33 (64) 80 12 13
Fax +44 (1246) 22 12 22
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
BULLETIN NO. HHT/P-C
DRAWING NO. LP0016
REVISED 11/98
MODELS HHT & HHTP -
ACCURATE 5-DIGIT PRECISION MEASURING HAND HELD TACHOMETERS
MICRO-COMPUTER CIRCUITRY
The exclusive one chip Micro-computer LSI-circuit and crystal time base is
used to accurately provide a wide measurement range.
l
Model HHT
Contact Type
MEMORY
The last maximum/minimum reading will be automatically stored in memory
and can be displayed by pressing the “MEMORY” switch.
l
ERROR-FREE READING
Highly visible LCD display, with Leading Zero Blanking gives exact RPM
with no guessing or errors and saves battery energy.
l
RUGGED AND LIGHTWEIGHT CONSTRUCTION
The use of durable, long-lasting components, including a strong, lightweight
ABS-plastic housing assures maintenance-free performance for many years.
The housing has been carefully shaped to fit comfortably in either hand.
l
l
Model HHTP
Photo Type
BATTERIES INCLUDED
DESCRIPTION
CONTACT TACHOMETER SPECIFICATIONS
The CONTACT TACHOMETER (Model HHT) incorporates precision
bearings instead of gears to ensure long life while providing minimal loading to
the rotating shaft. A built-in photo-sensor and slotted disc detect the number of
revolutions for a high degree of accuracy. By simply pressing the “MEASURE”
button and lightly contacting the conical tip against the center hole of a rotating
shaft, the RPM will be displayed and updated every second. By attaching the
circumferential speed wheel (included), the Model HHT can measure surface
speed in “Switch Selectable” units of either feet per minute (FT/MIN) or meters
per minute (M/MIN).
The PHOTO TACHOMETER (Model HHTP) provides for non-contact RPM
measurements which enhances operator safety when measuring high speed
shafts. By pressing the “MEASURE” button and aiming the Visible Light Beam
at a piece of reflective tape (included) on the rotating shaft, RPM will be
displayed and updated every second. A display indicator blinks once each
revolution to ensure that the reflecting mark is within the 2” to 12” sensing
distance of the Model HHTP.
Both units can display Memory values which are obtained immediately
before turning off the “MEASURE” button. The last value, Maximum value
and Minimum value can be displayed by pushing the “MEMORY” button as
follows:
1. MEASUREMENT RANGE:
0.5 to 8,000 RPM
0.05 to 1999.9 m/min.
0.2 to 6560 ft/min.
2. RESOLUTION:
0.1 RPM (0.5 to 999.9 RPM)
1 RPM (over 1000 RPM)
0.01 m/min. (0.05 to 99.99 m/min.)
0.1 m/min. (over 1000 m/min.)
0.1 ft/min. (0.1 to 999.9 ft/min.)
1 ft/min. (over 1000 ft/min.)
3. ACCURACY: ±(0.05% full scale + 1 digit)
4. SAMPLE TIME: 1 sec. (over 6 RPM)
5. POWER CONSUMPTION: Approximately 10 mA.
6. ACCESSORIES INCLUDED: RPM adapters (1 cone, 1 funnel), Surface
speed test wheel, Carrying Case, Instruction Manual.
7. WEIGHT: 0.58 lb. (260 g) including battery
PHOTO TACHOMETER SPECIFICATIONS
1. MEASUREMENT RANGE: 5 to 99,999 RPM (one reflecting mark)
2. RESOLUTION: 0.1 RPM (0.5 to 999.9 RPM)
1 RPM (over 1000 RPM)
3. ACCURACY: ±(0.05% full scale + 1 digit)
4. SAMPLING TIME: 1 sec. (over 60 RPM)
5. DETECTING DISTANCE: (2-6 inches) (50 to 150 mm) Typical max. 12
inches (300 mm) depending upon ambient light.
6. POWER CONSUMPTION: Approximately 150 mA (Operation).
Approximately 20 mA (Memory Recall)
7. ACCESSORIES INCLUDED: Carrying Case, 23.6 inches (600 mm)
Reflective tape, Instruction Manual.
8. WEIGHT: 0.55 lb. (250 g) including battery
1. First Push and Hold = Last value displayed:
“LA” and last value alternately displayed.
2. Second Push and Hold = Maximum value displayed:
“UP” and maximum value alternately displayed.
3. Third Push and Hold = Minimum value displayed:
“DN” and minimum value alternately displayed.
These memory features are useful when the measurement to be made is in a
“hard-to-access” area where the display is not visible to the operator.
A “LO” (low battery) display is incorporated in both units and is a visible
reminder when batteries are to be replaced.
COMMON SPECIFICATIONS
BATTERY REPLACEMENT
1. DISPLAY: 5-digit, 0.4” high LCD.
2. MEMORY TIME: 10 sec. nominal.
3. TIME BASE: Quartz crystal.
4. BATTERY: 4 x 1.5 V AA size.
5. OPERATING TEMPERATURE: 32°F to 120°F (0°C to 50°C).
6. SIZE: 6.7² x 2.8² x 1.5² (170 mm x 72 mm x 37 mm)
A) When it is necessary to replace the batteries (battery voltage less than
approx. 4.5 V), “LO” will appear in the display.
B) Slide the battery cover away from the instrument and remove the batteries.
C) Install new batteries correctly into the case. Permanent damage to the
tachometer circuit may result from incorrect installation.
ORDERING INFORMATION
MODEL NO. DESCRIPTION
HHT
HHTP
-
PART NUMBER
LCD Hand Held Contact Tachometer
LCD Hand Held Photo Tachometer
Replacement 1/2² x 2¢ Reflective Tape For HHTP
HHT Rubber Wheel
HHT Cone Point Disc With Shaft
HHT Concave Disc
286
HHT00000
HHTP0000
HHTRT000
HHTWHL00
HHTCONE0
HHTCONC0
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
BULLETIN NO. MDC-B
DRAWING NO. LP0306
REVISED 3/97
MOTOR DRIVE CONTROLLER
l
l
l
FOUR PROGRAMMABLE INDICATION DISPLAYS
l
ON LINE SETPOINT INCREMENT/DECREMENT
l
SELECTABLE DISPLAY SCROLLING
l
ABILITY TO LIMIT OPERATOR ACCESS TO PROGRAMMING
PARAMETERS
l
ENGLISH PROGRAMMING MENUS
l
FREQUENCY INPUTS ARE SWITCH SELECTABLE FOR
AVARIETY OF SOURCES
l
PROGRAMMABLE CONTROL INPUTS
l
THREE SOLID STATE OUTPUTS
l
VARIABLE SPAN (5 TO 15VDC) ISOLATED DRIVE OUTPUT
MASTER AND FOLLOWER MODES OF OPERATION
l
FEEDBACK LOSS DETECTION
PROGRAMMABLE SETPOINTS:
l
PROGRAMMABLE ALARM TYPES
l
INTERNAL OR EXTERNAL DRIVE OUTPUT REFERENCE
l
DIAGNOSTICS MODE
l
115/230VAC SWITCH SELECTABLE
l
NON-VOLATILE MEMORY
l
NEMA 4X/IP65 SEALED FRONT PANEL BEZEL
TWO SPEED (Master)
TWO RAMP RATE (Master)
TWO RATIO (Follower)
TWO RATIO RAMP RATE (Follower)
ONE JOG SPEED
ONE JOG RAMP RATE
l
8 CHARACTER BY 2 LINE ALPHANUMERIC DISPLAY
There are five dedicated control inputs on the MDC:
DESCRIPTION
RUN
RAMP STOP
FAST STOP
JOG
OPEN LOOP
The Motor Drive Controller (MDC) regulates motor speed by varying an
isolated DC control signal to the motor drive system. There are two modes of
operation, Master and Follower.
Master Mode provides control of a motor’s speed directly via programmed
speed setpoints in the MDC. Regulation is maintained by a feedback frequency
to the MDC taken from the motor shaft or a downstream shaft pulse encoder.
Follower Mode controls a motor’s speed as a ratio to a second motor’s speed or
outside frequency source. Ratio setpoints are programmed into the MDC
causing the motor to “follow” the lead motor or frequency at a fixed speed ratio.
Master Mode has two speed setpoints and two ramp setpoints. Follower
Mode has two ratio setpoints and two ratio ramp setpoints. Both modes share a
jog speed setpoint, a jog ramp setpoint, two alarm values and a gain value. All
setpoints are retained in non-volatile memory when the unit is powered down.
The Motor Drive Controller has the added feature of allowing real time
adjustment of the Speed (Master Mode) or Ratio (Follower Mode) setpoint
while the unit is operating a motor drive system. The setpoint may be adjusted
via the front panel keypad using the “Up” or “Down” arrow keys, or via 2 User
Inputs programmed for increment setpoint and decrement setpoint.
User flexibility is provided through the two-line by eight-character
alphanumeric display. The display features English language menus for easy
viewing and simplified programming. The four scroll-through indication
displays can be programmed to show various parameters and to automatically
scroll, if desired. A program disable DIP switch used with an external User
Input can be utilized to protect the settings and guarantee that no unwanted
changes occur during operation.
DIMENSIONS “In inches (mm)”
There are six programmable control inputs: two front panel function keys and
four remote user inputs. The F1 and F2 keys are factory programmed for RUN
and R-STOP respectively. This eliminates the need for external switches in
some applications.
There are three solid state outputs, two are programmable alarms and one is
a dedicated Drive Enable output. Programmable alarm functions include:
High Alarm
Low Alarm
Deviation Alarm
Zero Speed
Disabled
These may be programmed for boundary or latching operation, high or low
acting.
Changing speed setpoints and programming information is easily
accomplished by scrolling through menus and selecting the correct parameter.
There are three main modules or menu loops:
Display Module
User Setpoint Module
Programming Module
Scaling is accomplished by entering the desired values for feedback pulses
per revolution (PPR), the maximum RPM, and the maximum display value.
Note: Recommended minimum clearance (behind the panel) for
mounting clip installation is 3.0” (76.2) H x 4.0” (101.6) W.
282
PANEL CUT-OUT
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
13. CERTIFICATIONS AND COMPLIANCES:
EMC EMISSIONS:
Meets EN 50081-2: Industrial Environment.
CISPR 11 Radiated and conducted emissions
EMC IMMUNITY:
Meets EN 50082-2: Industrial Environment.
ENV 50140 - Radio-frequency radiated electromagnetic field
ENV 50141 - Radio-frequency conducted electromagnetic field
EN 61000-4-2 - Electrostatic discharge (ESD)
EN 61000-4-4 - Electrical fast transient/burst (EFT)
EN 61000-4-8 - Power frequency magnetic field
Note: Refer to the EMC Installation Guidelines for additional information.
14. ENVIRONMENTAL CONDITIONS:
Operating Temperature: 0 to 50°C
Storage Temperature: -40 to 70°C
Operating and Storage Humidity: 85% max. (non-condensing) from 0°C to
50°C.
Altitude: Up to 2000 meters
15. CONSTRUCTION: High impact plastic case with clear viewing window.
The front panel meets NEMA4X/IP65 requirements for indoor use when
properly installed. Installation Category II, Pollution Degree 2. Panel gasket
and mounting clips included.
16. WEIGHT: 1.5 lbs. (0.68 Kg).
DESCRIPTION (Cont’d)
The unit is factory configured for an isolated 0 to 10 VDC drive output
signal. The output drive signal can be adjusted to span from 0 to 15 VDC via
an accessible potentiometer. The drive output is jumper selectable for an
external reference. To use the external reference, the MDC is connected to the
drive in place of an external potentiometer.
The Motor Drive Controller has a light weight, high impact plastic case with
a clear viewing window. The sealed front panel meets NEMA4X/IP65
specifications for wash-down and/or dusty environments, when properly
installed. Plug-in style terminal blocks simplify installation and wiring changeouts.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use this unit to directly command motors, valves, or other actuators
not equipped with safeguards. To do so, can be potentially harmful to persons
or equipment in the event of a fault to the unit.
SPECIFICATIONS:
PROGRAMMING
1. DISPLAY: 2x8, 0.3” (7mm) high characters, negative image transmissive
LCD, with red LED backlighting.
2. POWER: 115/230 VAC ±10%, 50/60 Hz, 10 VA, switch selectable.
3. MEMORY: Non-volatile E2Prom retains all programming information and
values when power is removed or interrupted.
Power Cycles(ON/OFF): 100,000 min.
Data Retention: 10 years min.
4. SENSOR POWER: +12 VDC ±25% @ 100 mA.
5. INPUTS (LEAD AND FEEDBACK): DIP Switch selectable to accept input
pulses from a variety of sources including outputs from CMOS or TTL
circuits and all standard RLC sensors.
Input Freq:
1 Hz to 20 KHz (Master Mode), 1 Hz to 12 KHz (Follower Mode).
Logic: Input trigger levels VIL= 1.5 VMAX; VIH= 3.75 VMIN.
Current Sinking: Internal 7.8 KW pull-up to +12 VDC, IMAX= 1.6 mA.
Current Sourcing: Internal 3.9 KW pull-down, 7.3 mA @ 28 VDCMAX.
Magnetic Pickup:
Sensitivity: 200 mV PEAK.
Hysteresis: 100 mV.
Input impedance: 3.9 KW @ 60 Hz.
Maximum input voltage: ±50 V PEAK.
Note: For magnetic pickup input, the Sink/Source DIP switch must be in the
SRC position.
6. CONTROL LOOP RESPONSE: 10 msec (Master Mode), 20 msec
(Follower Mode).
7. CONTROL ACCURACY:
0.01% of Speed Setpoint (Master Mode)
0.02% of Ratio Setpoint (Follower Mode)
Minimum Frequency Resolution: 0.00125 Hz
8. ERROR TRIM: ±4095 BITS.
9. ERROR GAIN: 0 to 99%.
10. RAMP RATE: (Ramp 1, Ramp 2, and Jog Ramp)
1 to 20 KHz/sec, set in user units/sec.
0.0001 to 1.9999 ratio units/sec (Ramp 1 & 2 in Follower Mode).
11. CONTROL INPUTS:
Internal 10 KW pull-up to +5 VDC. VIL = 1.0 VMAX, VIH = 4.0 VMIN.
Response time = 10 msec nominal, 30 msec max.
INPUTS
SWITCH CONNECTIONS
RUN
FAST STOP
RAMP STOP
JOG
OPEN LOOP
USER INPUTS(4)
Momentary N.O.
Momentary N.C.
Momentary N.C.
Sustained N.O.
Maintained
Function Specific
Programming the MDC unit is accomplished through the front panel keypad,
which allows the user to enter into Main Menus, Sub-Menus, and Edit Menus.
The English language prompts, the flashing parameter values, and the front
panel keypad aid the operator during programming. In the normal run mode, the
main display loop allows the
user to scroll through the four
programmable
indication
displays, using the direction
keys. From the main loop,
setpoints, alarm values and a
gain value may be accessed
directly for changes, without
entering the programming loop.
All other parameters are
accessed through the programming loop, which can be
set to require an access code
number for loop entry. In the
programming loop, parameters
can be viewed or changed and
the operator can exit anywhere
in the loop.
12. OUTPUTS:
Drive Enable, Alarm 1, and Alarm 2:
Solid state, current sinking NPN Open collector transistor.
VCE = 1.1 VSAT @ 100 mA max., VOH= 30 VDC max.
(Internal zener diode protection.)
Response Time:
Drive Enable: 10 msec nominal; 30 msec max.
Alarm 1&2: Programmable
Normal: 1 sec nominal, 2 sec max.
Fast: 20 msec nominal, 40 msec max.
Isolated Drive Output: Jumper selectable internal/external reference 5 mA
max.
Internal Reference: Pot adjustable from 0 to 5 VDC min. through 0 to 15
VDC max. span.
External Reference: 0 to 15 VDC max. (positive polarity only).
283
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
R-Stop(F1 or F2 only):
PROGRAMMABLE FUNCTIONS
Pressing the function key programmed for R-Stop causes the unit to
decelerate the motor from its active speed to Stop mode using the active ramp
rate.
MODES
Master
Follower
F-Stop(F1 or F2 only):
Pressing the function key programmed for F-Stop causes the unit to execute
a fast stop, taking the motor from its current speed immediately to the stop
mode. The deceleration is limited only by the motor and drive.
SCALING
Pulses per Revolution Feedback (PPR FB) ranges from 1 to 59999
Maximum RPM Feedback (MAX RPM FB) ranges from 1 to 59999
Display Decimal Point (DSP DP) ranges from 0 to 0.00000
Maximum Display Units (DSP UNIT) ranges from 1 to 99999
*Pulses per Revolution Lead (PPR LD) ranges from 1 to 59999
*Maximum RPM Lead (MAX RPM LD) ranges from 1 to 59999
*These parameters are available in Follower Mode only.
Note: Values may be programmed in the range listed, provided that the
maximum equivalent frequency does not exceed 20971 Hz. If this occurs,
“OVFLW” will flash and a new entry will be required.
Jog(F1 or F2 only):
This function is only available from the Stop mode. Pressing and holding the
function key programmed for Jog causes the unit to accelerate the motor to
the jog speed setpoint using the jog ramp rate.
ALARMS
Type Of Alarm:
High Alarm: Alarm output activates when the feedback input is greater than
or equal to the alarm value.
Low Alarm: Alarm output activates when the feedback input is less than or
equal to the alarm value.
Deviation Alarm: The alarm output activates when the feedback input is
outside a ± band.
Zero Speed Alarm: Alarm output activates when the feedback input receives
no input pulse for at least one second.
Disabled: The alarm output is inactive when disabled.
SETPOINTS
2 SPEED (Master Mode) - ranges from 0 to 99999 (or Display Unit Max.).
2 RAMP RATE (Master Mode) - ranges from 1 to 99999.
2 RATIO (Follower Mode) - ranges from 0.0001 to 1.9999.
2 RAMP RATE (Follower Mode) - ranges from 0.0001 to 1.9999 ratio units.
1 JOG SPEED - ranges from 0 to 99999 (or Display Unit Maximum).
1 JOG RAMP RATE - ranges from 1 to 99999.
2 ALARM - ranges from 0 to 99999.
1 GAIN - ranges from 0 to 99.
Note: Values may be programmed in the ranges listed, provided that the
maximum equivalent frequency does not exceed 20,971 Hz ( 20 KHz/sec for
Ramp Rate). If this occurs, a message will flash and the maximum is
automatically entered by the unit.
Phase:
Each output can have its active logic state set for Positive phase (ON) or
Negative phase (OFF).
Latched Or Boundary:
An alarm programmed for a latched output stays active until it is manually
reset by a User Input. An alarm programmed for boundary output stays active
as long as the alarm condition exists, after which the output returns to its
inactive state.
Fast Or Normal Update:
USER INPUTS
The normal update rate for the alarm outputs is once each second. The fast
update rate occurs at an interval less than or equal to 40 msec.
There are four programmable external user inputs and two programmable
front panel function keys. The options for each user input are the same, except
for the two function keys (F1/RUN & F2/STP), which have additional options.
INDICATION DISPLAYS
No Mode:
If an indication display is to show two different numeric values, one for each
line, there will be a single or dual character mnemonic to the left of the numeric
value. Each line of each indication display can be programmed to show
mnemonics or a numeric value. The following list shows the single or dual
character mnemonics that will be displayed when value is selected and the
mnemonics for each programmable option.
If a user input terminal or a function key is activated, it will be ignored.
View Display 1-4:
Causes the selected indication display (1, 2, 3, or 4) to be displayed and held
from anywhere in the main display loop.
Change Display:
Causes the indication display to toggle to the next indication display.
VAL
Reset Alarm(s) Output:
S1 99999
S2 99999
Sp 99999
R 1.999
%D 100.0
%O 100.0
FB 20972
LD 12000
A1 99999
A2 99999
Tr 4095
Places the alarm(s) output(s) in its inactive state.
Setpoint Select/Toggle:
Selects Setpoint 1 or Setpoint 2 for the active speed (or ratio) setpoint. This
is a maintained select action for User Inputs 1 to 4, and a momentary toggle
action for F1 or F2.
Ramp Select/Toggle:
Selects Ramp 1 or Ramp 2 for the active acceleration and deceleration ramp
rate. This is a maintained select action for User Inputs 1 to 4, and a
momentary toggle action for F1 or F2.
Ramp Override:
MNE
DESCRIPTION
SETPT. 1
SETPT. 2
SPEED
RATIO
% DEV.
% OUTPUT
FB. FREQ
LD. FREQ
ALARM 1
ALARM 2
TRIM
Speed or ratio setpoint 1
Speed or ratio setpoint 2
Actual speed in user display units (feedback)
Actual ratio (follower mode)
% deviation of actual speed from target speed
Analog drive output- % of full scale voltage
Feedback frequency in pulses/sec (Hz.)
Lead frequency in pulses/sec (Hz.)
Alarm 1 setpoint
Alarm 2 setpoint
Error correction in bits (-4095 to +4095)
STATUS DISPLAYS
Operating Status:
Overrides the acceleration/deceleration ramp routine causing the unit to jump
to the ramp endpoint.
Setpoint 1, ramp rate 1, Stop mode
Setpoint Increment:
Alarm Output Status:
Only an external User Input can be used for this option. The currently active
speed or ratio setpoint is incremented when the User Input is made active. If
the input remains active for more than 5 display unit increments, the scroll
rate will progressively increase.
Alarm 1 active, alarm 2 inactive
Operating Status:
The operating status display indicates the currently active speed or ratio
setpoint (S1 or S2), the currently active ramp rate (R1 or R2), and the mode
of operation (RUN, STP, or JOG). An arrow will replace the “R” for the
currently active ramp rate indication when an actual ramp up or down is in
progress.
Setpoint Decrement:
Only an external User Input can be used for this option. The currently active
speed or ratio setpoint is decremented when the User Input is made active. If
the input remains active for more than 5 display unit increments, the scroll
rate will progressively increase.
Alarm Status:
The alarm status display indicates that an alarm output is active when the
corresponding output number (1 or 2) is displayed. When an alarm output is
inactive, a dash is displayed.
Program Disable:
Only an external user input can be used for this option. When used with the
program disable DIP switch, this option can limit operator access to
programmable parameters.
Run (F1 only):
Pressing the F1 button causes the MDC to accelerate the motor from Stop
mode to the active speed setpoint using the active ramp rate.
284
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
OPERATOR ACCESS
FOLLOWER MODE APPLICATION
This is used with the program disable DIP switch or an external user input
that is selected for the program disable function. When a setpoint is selected as
NO, it can be viewed, but NOT changed from the front panel keypad. The
following setpoint values can be disabled from front panel access
programming:
Speed/Ratio Setpoint 1 and 2
Ramp Rate 1 and 2
Alarm Setpoint 1 and 2
Setpoint Scroll Menu
A fertilizer production facility is mixing pellets containing Nitrogen with
pellets that contain Phosphorus. A chemical ratio of 1:1 is determined by the
speed of two different conveyors. Because of differences in the gearing of
the conveyor and concentration of the pellets, the Nitrogen conveyor motor
must run at 3 times the speed of the Phosphorus conveyor motor in order to
produce a 1:1 mixture. The maximum speed of both motors is 2000 RPM.
Set the follower MDC scaling to produce a 1:1 mixture of Nitrogen and
Phosphorus when a setpoint of 1.0000 is entered. Display speed units are in
RPM’s. Both the lead and feedback frequency are taken from 60 tooth gears
on each motor shaft.
Jog Speed
Jog Ramp
Gain
USER SETTINGS
The operator can reset ALL parameters to the factory settings if desired.
1) Choose the Phosphorus conveyor motor for the follower MDC. It runs
slower than the Nitrogen conveyor motor.
2) Set the Pulses per revolution feedback to 60.
3) Set the MAX RPM feedback to 2000. This is the conveyor motor’s
maximum operating speed.
4) Set display decimal point to 0.
5) Set display unit to 2000. The display speed unit maximum is 2000 at a
MAX RPM FB of 2000. If the display units wanted were conveyor
feet/minute or Phosphorus pellets in lbs/sec, the equivalent display value
for 2000 RPM would be entered.
6) Set the pulses per revolution lead to 60.
7) Setting the MAX RPM Lead:
PROGRAM DIAGNOSTICS
This allows testing of the various MDC inputs and outputs. It is especially
useful after unit installation to independently test the operation of external
switches, relays, the feedback transducer, and the motor drive system.
Inputs - The MDC displays an alphanumeric character to indicate a Dedicated
Function Input or a User Input is active. This allows the user to check switch
operation and wiring connections to the Inputs.
Alarm Outputs - The up and down arrow keys are used to select an alarm
output and set it to the active or inactive state. This allows the user to check
the operation of devices wired to the alarm outputs and the wiring
connections.
Drive Output - This function allows the user to test the Drive System. A %
Output value is entered through the front panel keypad causing the motor to
run at the corresponding open loop speed. The display indicates the motor’s
feedback frequency.
This is the Lead RPM that would be necessary to have a 1:1 mixture if
the Follower Speed was MAX RPM FB (2000 RPM). Since the Nitrogen
conveyor motor must run 3 times as fast as the Phosphorus motor, MAX
RPM LD = 3 * 2000 = 6000 RPM. Set MAX RPM LD = 6000 RPM. This
is the correct value, even though the Nitrogen conveyor motor would never
actually run at 6000 RPM. A ratio setpoint of 1.0000 on the MDC is now
equal to a 1:1 mixture of Phosphorus and Nitrogen.
PROGRAM SECURITY
The programmable code number is used in conjunction with the program
disable DIP switch and/or a user input programmed for the program disable
function to limit operator access to programming.
MASTER MODE APPLICATION
A pump delivers a maximum of 30.0 gallons per minute with a shaft speed of
1750 RPM. A shaft pulse encoder generates 60 pulses/revolution. Set the MDC
scaling to control and display pumping speed in tenths of a gallon/minute. In the
Program Scaling Module:
1) Set the pulses per revolution feedback to 60.
2) Set the maximum RPM feedback to 1750. This is the pump shaft’s maximum
operating speed.
3) Set display decimal point to 0.0. Display units are in 0.1 gpm.
4) Set max display units to 30.0. The display speed unit maximum is 30.0 at a MAX
RPM FB of 1750.
ORDERING INFORMATION
MODEL NO.
MDC
PART NUMBERS
115/230VAC
DESCRIPTION
Motor Drive Controller with Red Backlighting
285
MDC00100
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Bulletin No. PAXICR-F
Drawing No. LP0548
Released 9/06
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net
MODEL PAX - 1/8 DIN DIGITAL INPUT PANEL METERS
z COUNT, DUAL COUNTER, RATE AND SLAVE DISPLAY
z 0.56" RED SUNLIGHT READABLE DISPLAY
z VARIABLE INTENSITY DISPLAY
z 10 POINT SCALING FOR NON-LINEAR PROCESSES (PAXI)
z FOUR SETPOINT ALARM OUTPUTS (W/Option Card)
z RETRANSMITTED ANALOG OUTPUT (W/Option Card) (PAXI)
z COMMUNICATION AND BUS CAPABILITIES (W/Option Card) (PAXI)
z BUS CAPABILITIES; DEVICENET, MODBUS, AND PROFIBUS-DP
z CRIMSON PROGRAMMING SOFTWARE (PAXI)
z ETHERNET(W/ External Gateway) (PAXI)
C
U
L
R
z NEMA 4X/IP65 SEALED FRONT BEZEL
US LISTED
IND. CONT. EQ.
51EB
GENERAL DESCRIPTION
through the bus. Additionally, the meters have a feature that allows a remote
computer to directly control the outputs of the meter. With an RS232 or RS485
card installed, it is possible to configure the meter using Red Lion’s Crimson
software. The configuration data can be saved to a file for later recall.
A linear DC output signal is available as an optional Plug-in card for the PAXI
only. The card provides either 20 mA or 10 V signals. The output can be scaled
independent of the input range and can track any of the counter or rate displays.
Once the meters have been initially configured, the parameter list may be
locked out from further modification in its entirety or only the setpoint values
can be made accessible.
The meters have been specifically designed for harsh industrial environments.
With NEMA 4X/IP65 sealed bezel and extensive testing of noise effects to CE
requirements, the meter provides a tough yet reliable application solution.
The PAX Digital Input Panel Meters offer many features and performance
capabilities to suit a wide range of industrial applications. Available in three
different models, PAXC Counter/Dual Counter, PAXR Rate Meter and the PAXI
which offers both counting and rate in the same package. Refer to pages 4 - 5 for
the details on the specific models. The PAXC and PAXR offer only the Setpoint
Option, while the PAXI is the fully featured version offering all the capabilities
as outlined in this bulletin as well as a slave display feature. The optional plugin output cards allow the opportunity to configure the meter for present
applications, while providing easy upgrades for future needs.
The meters employ a bright 0.56" LED display. The meters are available with
a red sunlight readable or standard green LED display. The intensity of the
display can be adjusted from dark room applications up to sunlight readable,
making it ideal for viewing in bright light applications.
The meters accept digital inputs from a variety of sources including switch
contacts, outputs from CMOS or TTL circuits, magnetic pickups and all
standard RLC sensors. The meter can accept directional, uni-directional or
Quadrature signals simultaneously. The maximum input signal varies up to 34
KHz depending on the count mode and function configurations programmed.
Each input signal can be independently scaled to various process values.
The Rate Meters provide a MAX and MIN reading memory with
programmable capture time. The capture time is used to prevent detection of false
max or min readings which may occur during start-up or unusual process events.
The meters have four setpoint outputs, implemented on Plug-in option cards.
The Plug-in cards provide dual FORM-C relays (5A), quad FORM-A (3A), or
either quad sinking or quad sourcing open collector logic outputs. The setpoint
alarms can be configured to suit a variety of control and alarm requirements.
Communication and Bus Capabilities are also available as option cards for
the PAXI only. These include RS232, RS485, Modbus, DeviceNet, and
Profibus-DP. Readout values and setpoint alarm values can be controlled
DIMENSIONS In inches (mm)
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in this
literature or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use this meter to directly command motors, valves, or other actuators
not equipped with safeguards. To do so can be potentially harmful to persons or
equipment in the event of a fault to the meter.
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
CAUTION: Risk of electric shock.
Note: Recommended minimum clearance (behind the panel) for
mounting clip installation is 2.1" (53.4) H x 5" (127) W.
1
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
TABLE OF CONTENTS
Ordering Information . . . . . . . . . . . . . .
General Meter Specifications. . . . . . . .
PAXC Counter . . . . . . . . . . . . . . . . . .
PAXR Rate Meter . . . . . . . . . . . . . . . .
PAXI Counter/Rate Meter . . . . . . . . . .
Optional Plug-In Output Cards . . . . . .
Installing the Meter . . . . . . . . . . . . . . .
Setting the Jumper and DIP Switches .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
2
3
4
4
5
6
7
7
Installing Plug-In Cards . . . . . . . . . . . . . . . . . 8
Wiring the Meter . . . . . . . . . . . . . . . . . . . . . . 9
Reviewing the Front Buttons and Display. . . 11
Programming the Meter . . . . . . . . . . . . . . . 12
Factory Service Operations . . . . . . . . . . . . . 28
Troubleshooting . . . . . . . . . . . . . . . . . . . . . 29
Parameter Value Chart . . . . . . . . . . . . . . . . 30
Programming Overview. . . . . . . . . . . . . . . . 32
ORDERING INFORMATION
Meter Part Numbers
0
PAX
0
C - Counter/Dual Counter
R - Rate Meter
I - Counter/Dual Counter/
Rate Meter/Slave Display
0 - Red, Sunlight Readable Display
1 - Green Display
0 - 85 to 250 VAC
1 - 11 to 36 VDC, 24 VAC
Option Card and Accessories Part Numbers
TYPE
MODEL NO.
PAXCDS
Optional
Plug-In
Cards
PAXCDC
Accessories
Accessories
SFCRD*
ICM8
DESCRIPTION
PART NUMBERS
Dual Setpoint Relay Output Card
PAXCDS10
Quad Setpoint Relay Output Card
PAXCDS20
Quad Setpoint Sinking Open Collector Output Card
PAXCDS30
Quad Setpoint Sourcing Open Collector Output Card
PAXCDS40
RS485 Serial Communications Card with Terminal Block
PAXCDC10
Extended RS485 Serial Communications Card with Dual RJ11 Connector
PAXCDC1C
RS232 Serial Communications Card with Terminal Block
PAXCDC20
Extended RS232 Serial Communications Card with 9 Pin D Connector
PAXCDC2C
DeviceNet Communications Card
PAXCDC30
Modbus Communications Card
PAXCDC40
Extended Modbus Communications Card with Dual RJ11 Connector
PAXCDC4C
Profibus-DP Communications Card
PAXCDC50
Analog Output Card
PAXCDL10
Crimson 2 PC Configuration Software for Windows 98, ME, 2000 and XP
SFCRD200
Communication Gateway
ICM80000
*Crimson software is available for free download from http://www.redlion.net/
Shaded areas are only available for the PAXI
2
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
GENERAL METER SPECIFICATIONS
ELECTROMAGNETIC COMPATIBILITY
Immunity to EN 50082-2
Electrostatic discharge
EN 61000-4-2 Level 2; 4 Kv contact
Level 3; 8 Kv air
Electromagnetic RF fields
EN 61000-4-3 Level 3; 10 V/m
80 MHz - 1 GHz
Fast transients (burst)
EN 61000-4-4 Level 4; 2 Kv I/O
Level 3; 2 Kv power
RF conducted interference
EN 61000-4-6 Level 3; 10 V/rms
150 KHz - 80 MHz
Simulation of cordless telephones ENV 50204 Level 3; 10 V/m
900 MHz ±5 MHz
200 Hz, 50% duty cycle
Emissions to EN 50081-2
RF interference
EN 55011
Enclosure class A
Power mains class A
1. DISPLAY: 6 digit, 0.56" (14.2 mm) red sunlight readable or standard green
LED
2. POWER:
AC Versions:
AC Power: 85 to 250 VAC, 50/60 Hz, 18 VA
Isolation: 2300 Vrms for 1 min. to all inputs and outputs. (300 V working)
DC Versions:
DC Power: 11 to 36 VDC, 14 W
(derate operating temperature to 40° C if operating <15 VDC and three
plug-in option cards are installed)
AC Power: 24 VAC, ± 10%, 50/60 Hz, 15 VA
Isolation: 500 Vrms for 1 min. to all inputs and outputs (50 V working).
3. SENSOR POWER: 12 VDC, ±10%, 100 mA max. Short circuit protected
4. KEYPAD: 3 programmable function keys, 5 keys total
5. USER INPUTS: Three programmable user inputs
Max. Continuous Input: 30 VDC
Isolation To Sensor Input Commons: Not isolated
Logic State: Jumper selectable for sink/source logic
INPUT STATE
SINKING INPUTS
Ω pull-up to +12 V
5.1 KΩ
SOURCING INPUTS
Ω pull-down
5.1 KΩ
Active
VIN < 0.9 VDC
VIN > 3.6 VDC
Inactive
VIN > 3.6 VDC
VIN < 0.9 VDC
Note:
Refer to EMC Installation Guidelines section of the bulletin for additional
information.
8. ENVIRONMENTAL CONDITIONS:
Operating Temperature Range: 0 to 50°C (0 to 45°C with all three plug-in
cards installed)
Storage Temperature Range: -40 to 60°C
Operating and Storage Humidity: 0 to 85% max. relative humidity noncondensing
Altitude: Up to 2000 meters
9. CONNECTIONS: High compression cage-clamp terminal block
Wire Strip Length: 0.3" (7.5 mm)
Wire Gage: 30-14 AWG copper wire
Torque: 4.5 inch-lbs (0.51 N-m) max.
10. CONSTRUCTION: This unit is rated for NEMA 4X/IP65 outdoor use.
IP20 Touch safe. Installation Category II, Pollution Degree 2. One piece
bezel/case. Flame resistant. Synthetic rubber keypad. Panel gasket and
mounting clip included.
11. WEIGHT: 10.1 oz. (286 g)
Response Time: 6 msec. typical; function dependent. Certain resets, stores
and inhibits respond within 25 µsec if an edge occurs with the associated
counter or within 6 msec if no count edge occurs with the associated
counter. These functions include
,
,
,
,
,
, and
. Once activated, all functions are latched for
50 msec min. to 100 msec max. After that period, another edge/level may
be recognized.
6. MEMORY: Nonvolatile E2PROM retains all programmable parameters and
display values.
7. CERTIFICATIONS AND COMPLIANCES:
SAFETY
UL Recognized Component, File #E179259, UL61010A-1, CSA C22.2
No. 1010-1
Recognized to U.S. and Canadian requirements under the Component
Recognition Program of Underwriters Laboratories, Inc.
UL Listed, File #E137808, UL508, CSA C22.2 No. 14-M95
LISTED by Und. Lab. Inc. to U.S. and Canadian safety standards
Type 4X Enclosure rating (Face only), UL50
IECEE CB Scheme Test Certificate #US/8843/UL
CB Scheme Test Report #04ME11209-20041018
Issued by Underwriters Laboratories, Inc.
IEC 61010-1, EN 61010-1: Safety requirements for electrical
equipment for measurement, control, and laboratory use, Part 1.
IP65 Enclosure rating (Face only), IEC 529
IP20 Enclosure rating (Rear of unit), IEC 529
3
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
MODEL PAXC - 1/8 DIN COUNTER
z 6-DIGIT LED DISPLAY (Alternating 8 digits for counting)
z DUAL COUNT QUAD INPUTS
z UP TO 3 COUNT DISPLAYS
z SETPOINT ALARM OUTPUTS (W/Plug-in card)
PAXC SPECIFICATIONS
ANNUNCIATORS:
A - Counter A
B - Counter B
C - Counter C
- Upper significant digit display of counter
SP1 - setpoint 1 output state
SP2 - setpoint 2 output state
SP3 - setpoint 3 output state
SP4 - setpoint 4 output state
MAXIMUM SIGNAL FREQUENCIES:
To determine the maximum frequency for the input(s), first answer the
questions with a yes (Y) or no (N). Next determine the Count Mode to be
used for the counter(s). If dual counters are used with different Count Modes,
then the lowest frequency applies to both counters.
FUNCTION QUESTIONS Single: Counter A or B Dual: Counter A & B
Are any setpoints used?
N
Is Counter C used?
N
COUNT MODE
(Values are in KHz)
(Values are in KHz)
Count x1
34
25
15
13
12
9
Count x2
17
13
9
7
9
7
5
4
Quadrature x1
22
19
12
10
7
6
4
3.5
Quadrature x2
Quadrature x4
17
8
13
6
9
4
7
3
7
6
4
3.5
N
Y
Y
N
18
Y
N
Y
N
N
Y
Y
N
Y
Y
COUNTER DISPLAYS:
Maximum display: 8 digits: ± 99999999 (greater than 6 digits display
Alternates between high order and low order.)
INPUTS A and B:
DIP switch selectable to accept pulses from a variety of sources including
switch contacts, TTL outputs, magnetic pickups and all standard RLC
sensors.
LOGIC: Input trigger levels VIL = 1.5 V max.; VIH = 3.75 V min.
Current sinking: Internal 7.8 KΩ pull-up to +12 VDC, IMAX = 1.9 mA.
Current sourcing: Internal 3.9 KΩ pull-down, 7.3 mA max. @ 28 VDC,
VMAX = 30 VDC.
Filter: Damping capacitor provided for switch contact bounce. Limits
input frequency to 50 Hz and input pulse widths to 10 msec. minimum.
DUAL COUNT MODES:
When any dual count mode is used, then User Inputs 1 and/or 2 will
accept the second signal of each signal pair. The user inputs do not have
the Logic/Mag, HI/LO Freq, and Sink/Source input setup switches. The
user inputs are inherently a logic input with no low frequency filtering.
Any mechanical contacts used for these inputs in a dual count mode
must be debounced externally. The user input may only be selected for
sink/source by the User Jumper placement.
7.5
Notes:
1. Counter Modes are explained in the Module 1 programming section.
2. Listed values are with frequency DIP switch set on HI frequency.
MODEL PAXR - 1/8 DIN RATE METER
z 5-DIGIT LED DISPLAY
z RATE INDICATION
z MINIMUM/MAXIMUM RATE DISPLAYS
z SETPOINT ALARM OUTPUTS (W/Plug-in card)
PAXR SPECIFICATIONS
INPUT A:
DIP switch selectable to accept pulses from a variety of sources including
TTL outputs, magnetic pickups and all standard RLC sensors.
LOGIC: Input trigger levels VIL = 1.5 V max.; VIH = 3.75 V min.
Current sinking: Internal 7.8 KΩ pull-up to +12 VDC, IMAX = 1.9 mA.
Current sourcing: Internal 3.9 KΩ pull-down, 7.3 mA max. @ 28 VDC,
VMAX = 30 VDC.
MAGNETIC PICKUP:
Sensitivity: 200 mV peak
Hysteresis: 100 mV
Input impedance: 3.9 KΩ @ 60 Hz
Maximum input voltage: ±40 V peak, 30 Vrms
ANNUNCIATORS:
- Rate
- Maximum (High) Rate
- Minimum (Low) Rate
SP1 - setpoint 1 output state
SP2 - setpoint 2 output state
SP3 - setpoint 3 output state
SP4 - setpoint 4 output state
RATE DISPLAY:
Accuracy: ±0.01%
Minimum Frequency: 0.01 Hz
Maximum Frequency: 34 KHz
Maximum Display: 5 Digits: 99999
Adjustable Display (low) Update: 0.1 to 99.9 seconds
Over Range Display: “
”
4
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
MODEL PAXI - 1/8 DIN COUNTER/RATE METER
z COUNT, RATE AND SLAVE DISPLAY
z 6-DIGIT 0.56" RED SUNLIGHT READABLE DISPLAY
z VARIABLE INTENSITY DISPLAY
z 10 POINT SCALING (FOR NON-LINEAR PROCESSES)
z FOUR SETPOINT ALARM OUTPUTS (W/OPTION CARD)
z RETRANSMITTED ANALOG OUTPUT (W/OPTION CARD)
z COMMUNICATION AND BUS CAPABILITIES (W/OPTION CARD)
z BUS CAPABILITIES; DEVICENET, MODBUS, AND PROFIBUS-DP
z CRIMSON PROGRAMMING SOFTWARE
PAXI SPECIFICATIONS
MAXIMUM SIGNAL FREQUENCIES TABLE
To determine the maximum frequency for the input(s), first answer the
questions with a yes (Y) or no (N). Next determine the Count Mode to be used
for the counter(s). If dual counters are used with different Count Modes, then
the lowest frequency applies to both counters.
FUNCTION QUESTIONS Single: Counter A or B (with/without rate) or Rate only Dual: Counter A & B or Rate not assigned to active single counter
Are any setpoints used?
N
N
N
N
Y
Y
Y
Y
N
N
N
N
Y
Y
Y
Y
Is Prescaler Output used?
N
N
Y
Y
N
N
Y
Y
N
N
Y
Y
N
N
Y
Y
Is Counter C used?
N
Y
N
Y
N
Y
N
Y
N
Y
N
Y
N
Y
N
Y
COUNT MODE
(Values are in KHz)
(Values are in KHz)
Count x1
34
25
21
17
18
15
13
Count x2
17
13
16
12
9
7
Quadrature x1
22
19
20
17
12
10
Quadrature x2
17
13
16
12
9
7
8
(Values are in KHz)
(Values are in KHz)
11
13
12
13
11
9
8
7
9*
7*
9*
7*
5*
11
10
7*
6*
6*
5*
4*
6
7*
6*
6*
5*
4*
3.5 *
Quadrature x4
8
6
8
6
4
3
4
3
Rate Only
34
N/A
21
N/A
34
N/A
21
N/A
7.5
9
7
4*
5*
4*
3.5 *
3.5 *
3*
3.5 *
3*
Notes:
1.
2.
3.
4.
5.
Counter Modes are explained in the Module 1 programming section.
If using Rate with single counter with direction or quadrature, assign it to Input A for the listed frequency.
* Double the listed value for Rate frequency.
Listed values are with frequency DIP switch set on HI frequency.
Derate listed frequencies by 20% during serial communications. (Placing a 5 msec. delay between serial characters will eliminate the derating.)
INPUTS A and B:
DIP switch selectable to accept pulses from a variety of sources
including switch contacts, TTL outputs, magnetic pickups and all
standard RLC sensors.
LOGIC: Input trigger levels VIL = 1.5 V max.; VIH = 3.75 V min.
Current sinking: Internal 7.8 KΩ pull-up to +12 VDC, IMAX = 1.9 mA.
Current sourcing: Internal 3.9 KΩ pull-down, 7.3 mA max. @ 28 VDC,
VMAX = 30 VDC.
Filter: Damping capacitor provided for switch contact bounce. Limits
input frequency to 50 Hz and input pulse widths to 10 msec. minimum.
MAGNETIC PICKUP:
Sensitivity: 200 mV peak
Hysteresis: 100 mV
Input impedance: 3.9 KΩ @ 60 Hz
Maximum input voltage: ±40 V peak, 30 Vrms
DUAL COUNT MODES:
When any dual count mode is used, then User Inputs 1 and/or 2 will
accept the second signal of each signal pair. The user inputs do not have
the Logic/Mag, HI/LO Freq, and Sink/Source input setup switches. The
user inputs are inherently a logic input with no low frequency filtering.
Any mechanical contacts used for these inputs in a dual count mode
must be debounced externally. The user input may only be selected for
sink/source by the User Jumper placement.
PRESCALER OUTPUT:
NPN Open Collector: ISNK = 100 mA max. @ VOL = 1 VDC max. VOH = 30
VDC max. With duty cycle of 25% min. and 50 % max.
ANNUNCIATORS:
A - Counter A
B - Counter B
C - Counter C
- Rate
- Maximum (High) Rate
- Minimum (Low) Rate
- Upper significant digit display of counter
SP1 - setpoint 1 output state
SP2 - setpoint 2 output state
SP3 - setpoint 3 output state
SP4 - setpoint 4 output state
RATE DISPLAY:
Accuracy: ±0.01%
Minimum Frequency: 0.01 Hz
Maximum Frequency: see Max Signal Frequencies Table.
Maximum Display: 5 Digits: 99999
Adjustable Display (low) Update: 0.1 to 99.9 seconds
Over Range Display: “
”
COUNTER DISPLAYS:
Maximum display: 8 digits: ± 99999999 (greater than 6 digits display
Alternates between high order and low order.)
5
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
OPTIONAL PLUG-IN OUTPUT CARDS
SETPOINT CARDS (PAXCDS)
WARNING: Disconnect all power to the unit before
installing Plug-in cards.
The PAX and MPAX series has 4 available setpoint alarm output plug-in
cards. Only one of these cards can be installed at a time. (Logic state of the
outputs can be reversed in the programming.) These plug-in cards include:
PAXCDS10 - Dual Relay, FORM-C, Normally open & closed
PAXCDS20 - Quad Relay, FORM-A, Normally open only
PAXCDS30 - Isolated quad sinking NPN open collector
PAXCDS40 - Isolated quad sourcing PNP open collector
Adding Option Cards
The PAX and MPAX series meters can be fitted with up to three optional plugin cards. The details for each plug-in card can be reviewed in the specification
section below. Only one card from each function type can be installed at one time.
The function types include Setpoint Alarms (PAXCDS), Communications
(PAXCDC), and Analog Output (PAXCDL). The plug-in cards can be installed
initially or at a later date.
DUAL RELAY CARD
Type: Two FORM-C relays
Isolation To Sensor & User Input Commons: 2000 Vrms for 1 min.
Working Voltage: 240 Vrms
Contact Rating:
One Relay Energized: 5 amps @ 120/240 VAC or 28 VDC (resistive load),
1/8 HP @120 VAC, inductive load
Total current with both relays energized not to exceed 5 amps
Life Expectancy: 100 K cycles min. at full load rating. External RC snubber
extends relay life for operation with inductive loads
Response Time: 5 msec. nominal with 3 msec. nominal release
Time Accuracy: Counter = ± 0.01% + 10 msec.
Rate = ± 0.01% + 20 msec.
PAXI COMMUNICATION CARDS (PAXCDC)
A variety of communication protocols are available for the PAX and MPAX
series. Only one of these cards can be installed at a time. When programming
the unit via Crimson, a Windows® based program, the RS232 or RS485 Cards
must be used.
PAXCDC10 - RS485 Serial (Terminal)
PAXCDC1C - RS485 Serial (Connector)
PAXCDC20 - RS232 Serial (Terminal)
PAXCDC2C - RS232 Serial (Connector)
PAXCDC30 - DeviceNet
PAXCDC40 - Modbus (Terminal)
PAXCDC4C - Modbus (Connector)
PAXCDC50 - Profibus-DP
QUAD RELAY CARD
Type: Four FORM-A relays
Isolation To Sensor & User Input Commons: 2300 Vrms for 1 min.
Working Voltage: 250 Vrms
Contact Rating:
One Relay Energized: 3 amps @ 250 VAC or 30 VDC (resistive load), 1/10
HP @120 VAC, inductive load
Total current with all four relays energized not to exceed 4 amps
Life Expectancy: 100K cycles min. at full load rating. External RC snubber
extends relay life for operation with inductive loads
Response Time: 5 msec. nominal with 3 msec. nominal release
Time Accuracy: Counter = ± 0.01% + 10 msec.
Rate = ± 0.01% + 20 msec.
SERIAL COMMUNICATIONS CARD
Type: RS485 or RS232
Isolation To Sensor & User Input Commons: 500 Vrms for 1 min.
Working Voltage: 50 V. Not Isolated from all other commons.
Data: 7/8 bits
Baud: 300 to 19,200
Parity: no, odd or even
Bus Address: Selectable 0 to 99, Max. 32 meters per line (RS485)
Transmit Delay: Selectable for 2 to 50 msec or 50 to 100 msec (RS485)
DEVICENET™ CARD
Compatibility: Group 2 Server Only, not UCMM capable
Baud Rates: 12 5Kbaud, 250 Kbaud, and 500 Kbaud
Bus Interface: Phillips 82C250 or equivalent with MIS wiring protection per
DeviceNet™ Volume I Section 10.2.2.
Node Isolation: Bus powered, isolated node
Host Isolation: 500 Vrms for 1 minute (50 V working) between DeviceNet™
and meter input common.
QUAD SINKING OPEN COLLECTOR CARD
Type: Four isolated sinking NPN transistors.
Isolation To Sensor & User Input Commons: 500 Vrms for 1 min.
Working Voltage: 50 V. Not Isolated from all other commons.
Rating: 100 mA max @ VSAT = 0.7 V max. VMAX = 30 V
Response Time: Counter = 25 µsec; Rate = Low Update time
Time Accuracy: Counter = ± 0.01% + 10 msec.
Rate = ± 0.01% + 20 msec.
MODBUS CARD
Type: RS485; RTU and ASCII MODBUS modes
Isolation To Sensor & User Input Commons: 500 Vrms for 1 minute.
Working Voltage: 50 V. Not isolated from all other commons.
Baud Rates: 300 to 38400.
Data: 7/8 bits
Parity: No, Odd, or Even
Addresses: 1 to 247.
Transmit Delay: Programmable; See Transmit Delay explanation.
QUAD SOURCING OPEN COLLECTOR CARD
Type: Four isolated sourcing PNP transistors.
Isolation To Sensor & User Input Commons: 500 Vrms for 1 min.
Working Voltage: 50 V. Not Isolated from all other commons.
Rating: Internal supply: 24 VDC ± 10% , 30 mA max. total
External supply: 30 VDC max., 100 mA max. each output
Response Time: Counter = 25 µsec; Rate = Low Update time
Time Accuracy: Counter = ± 0.01% + 10 msec.
Rate = ± 0.01% + 20 msec.
PROFIBUS-DP CARD
Fieldbus Type: Profibus-DP as per EN 50170, implemented with Siemens
SPC3 ASIC
Conformance: PNO Certified Profibus-DP Slave Device
Baud Rates: Automatic baud rate detection in the range 9.6 Kbaud to 12 Mbaud
Station Address: 0 to 126, set by the master over the network. Address stored
in non-volatile memory.
Connection: 9-pin Female D-Sub connector
Network Isolation: 500 Vrms for 1 minute (50 V working) between Profibus
network and sensor and user input commons. Not isolated from all other
commons.
PAXI LINEAR DC OUTPUT (PAXCDL)
Either a 0(4)-20 mA or 0-10 V retransmitted linear DC output is available
from the analog output plug-in card. The programmable output low and high
scaling can be based on various display values. Reverse slope output is possible
by reversing the scaling point positions.
PAXCDL10 - Retransmitted Analog Output Card
ANALOG OUTPUT CARD
Types: 0 to 20 mA, 4 to 20 mA or 0 to 10 VDC
Isolation To Sensor & User Input Commons: 500 Vrms for 1 min.
Working Voltage: 50 V. Not Isolated from all other commons.
Accuracy: 0.17% of FS (18 to 28°C); 0.4% of FS (0 to 50°C)
Resolution: 1/3500
Compliance: 10 VDC: 10 KΩ load min., 20 mA: 500 Ω load max.
Response Time: 50 msec. max., 10 msec. typ.
PROGRAMMING SOFTWARE
Crimson is a Windows® based program that allows configuration of the PAX
meter from a PC. Crimson offers standard drop-down menu commands, that
make it easy to program the PAX meter. The PAX program can then be saved in
a PC file for future use. A PAX serial plug-in card is required to program the
meter using the software.
6
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
1.0 INSTALLING
METER
THE
Installation
While holding the unit in place, push the panel latch over the rear of the unit
so that the tabs of the panel latch engage in the slots on the case. The panel
latch should be engaged in the farthest forward slot possible. To achieve a
proper seal, tighten the latch screws evenly until the unit is snug in the panel
(Torque to approximately 7 in-lbs [79N-cm]). Do not over-tighten the screws.
The PAX meets NEMA 4X/IP65 requirements when properly installed. The
unit is intended to be mounted into an enclosed panel. Prepare the panel cutout
to the dimensions shown. Remove the panel latch from the unit. Slide the panel
gasket over the rear of the unit to the back of the bezel. The unit should be
installed fully assembled. Insert
the unit into the panel cutout.
Installation Environment
The unit should be installed in a location that does not exceed the operating
temperature and provides good air circulation. Placing the unit near devices
that generate excessive heat should be avoided.
The bezel should only be cleaned with a soft cloth and neutral soap product.
Do NOT use solvents. Continuous exposure to direct sunlight may accelerate
the aging process of the bezel.
Do not use tools of any kind (screwdrivers, pens, pencils, etc.) to operate the
keypad of the unit.
PANEL CUT-OUT
2.0 SETTING
THE
JUMPER
AND
DIP SWITCHES
Warning: Exposed line voltage exists on the circuit boards. Remove
all power to the meter and load circuits before accessing inside of
the meter.
To access the jumper and switches, remove the meter base from the meter
case by firmly squeezing and pulling back on the side rear finger tabs. This
should lower the latch below the case slot (which is located just in front of the
finger tabs). It is recommended to release the latch on one side, then start the
other side latch.
2.1 SETTING THE JUMPER
2.2 SETTING THE INPUT DIP SWITCHES
The meter has one jumper for user input logic. When using the user inputs
this jumper must be set before applying power. The Main Circuit Board figure
shows the location of the jumper and DIP switch.
The user input jumper determines signal logic for the user inputs, when they
are used with user functions or for input signal direction. All user inputs are set
by this jumper.
The meter has six DIP switches for Input A and Input B terminal set-up that
must be set before applying power. NOTE: The PAXR only uses switches 1-3.
6
5
4
3
Input B LO Freq.
Input B SRC.
Input B MAG.
Input A LO Freq.
Main
Circuit
Board
Input A SRC.
Input A MAG.
ON
2
1
HI Freq.
SNK.
Logic
HI Freq.
SNK.
Logic
Factory Setting
SWITCHES 3 and 6
INPUT SET-UP
DIP SWITCHES
1 2 3 4 5 6
HI Frequency: Removes damping capacitor and allows max. frequency.
LO Frequency: Adds a damping capacitor for switch contact bounce. Also
limits input frequency to 50 Hz and input pulse widths to 10 msec.
USER
INPUT
JUMPER
SWITCHES 2 and 5
SRC.: Adds internal 3.9 KΩ pull-down resistor, 7.3 mA max. @ 28 VDC,
VMAX = 30 VDC.
SNK.: Adds internal 7.8 KΩ pull-up resistor to +12 VDC, IMAX = 1.9 mA.
SRC
SNK
SWITCHES 1 and 4
LOGIC: Input trigger levels VIL = 1.5 V max.; VIH = 3.75 V min.
MAG: 200 mV peak input (must also have SRC on). Not recommended with
counting applications.
7
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
3.0 INSTALLING PLUG-IN CARDS
To Install:
The Plug-in cards are separately purchased optional cards that perform
specific functions. These cards plug into the main circuit board of the meter. The
Plug-in cards have many unique functions when used with the PAX. The
literature that comes with these cards should be discarded, unless it specifically
states in the Plug-in Card literature that the information applies to the PAX.
Note: The PAXC and PAXR only use the setpoint option card.
1. With the case open, locate the Plug-in card connector for the card type to be
installed. The types are keyed by position with different main circuit board
connector locations. When installing the card, hold the meter by the rear
terminals and not by the front display board.*
2. Install the Plug-in card by aligning the card terminals with the slot bay in the
rear cover. Be sure the connector is fully engaged and the tab on the Plug-in
card rests in the alignment slot on the display board.
3. Slide the meter base back into the case. Be sure the rear cover latches fully
into the case.
4. Apply the Plug-in card label to the bottom side of the meter in the designated
area. Do Not Cover the vents on the top surface of the meter. The surface of
the case must be clean for the label to adhere properly.
CAUTION: The Plug-in card and main circuit board contain
static sensitive components. Before handling the cards, discharge
static charges from your body by touching a grounded bare metal
object. Ideally, handle the cards at a static controlled clean
workstation. Also, only handle the cards by the edges. Dirt, oil or
other contaminants that may contact the cards can adversely
affect circuit operation.
TOP VIEW
Quad Sourcing Open Collector Output Card Supply Select
* If installing the Quad sourcing Plug-in Card (PAXCDS40), set the
jumper for internal or external supply operation before continuing.
8
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
4.0 WIRING
THE
METER
WIRING OVERVIEW
b. Connect the shield to earth ground at both ends of the cable, usually when
the noise source frequency is above 1 MHz.
c. Connect the shield to common of the meter and leave the other end of the
shield unconnected and insulated from earth ground.
3. Never run Signal or Control cables in the same conduit or raceway with AC
power lines, conductors feeding motors, solenoids, SCR controls, and
heaters, etc. The cables should be ran in metal conduit that is properly
grounded. This is especially useful in applications where cable runs are long
and portable two-way radios are used in close proximity or if the installation
is near a commercial radio transmitter.
4. Signal or Control cables within an enclosure should be routed as far as possible
from contactors, control relays, transformers, and other noisy components.
5. In extremely high EMI environments, the use of external EMI suppression
devices, such as ferrite suppression cores, is effective. Install them on Signal
and Control cables as close to the unit as possible. Loop the cable through the
core several times or use multiple cores on each cable for additional
protection. Install line filters on the power input cable to the unit to suppress
power line interference. Install them near the power entry point of the
enclosure. The following EMI suppression devices (or equivalent) are
recommended:
Ferrite Suppression Cores for signal and control cables:
Fair-Rite # 0443167251 (RLC# FCOR0000)
TDK # ZCAT3035-1330A
Steward # 28B2029-0A0
Line Filters for input power cables:
Schaffner # FN610-1/07 (RLC# LFIL0000)
Schaffner # FN670-1.8/07
Corcom # 1 VR3
Note: Reference manufacturer’s instructions when installing a line filter.
6. Long cable runs are more susceptible to EMI pickup than short cable runs.
Therefore, keep cable runs as short as possible.
7. Switching of inductive loads produces high EMI. Use of snubbers across
inductive loads suppresses EMI.
Snubber: RLC# SNUB0000.
Electrical connections are made via screw-clamp terminals located on the
back of the meter. All conductors should conform to the meter’s voltage and
current ratings. All cabling should conform to appropriate standards of good
installation, local codes and regulations. It is recommended that the power
supplied to the meter (DC or AC) be protected by a fuse or circuit breaker.
When wiring the meter, compare the numbers embossed on the back of the
meter case against those shown in wiring drawings for proper wire position.
Strip the wire, leaving approximately 0.3" (7.5 mm) bare lead exposed (stranded
wires should be tinned with solder.) Insert the lead under the correct screwclamp terminal and tighten until the wire is secure. (Pull wire to verify
tightness.) Each terminal can accept up to one #14 AWG (2.55 mm) wire, two
#18 AWG (1.02 mm), or four #20 AWG (0.61 mm).
EMC INSTALLATION GUIDELINES
Although this meter is designed with a high degree of immunity to ElectroMagnetic Interference (EMI), proper installation and wiring methods must be
followed to ensure compatibility in each application. The type of the electrical
noise, source or coupling method into the meter may be different for various
installations. The meter becomes more immune to EMI with fewer I/O
connections. Cable length, routing, and shield termination are very important
and can mean the difference between a successful or troublesome installation.
Listed below are some EMC guidelines for successful installation in an
industrial environment.
1. The meter should be mounted in a metal enclosure, which is properly
connected to protective earth.
2. Use shielded (screened) cables for all Signal and Control inputs. The shield
(screen) pigtail connection should be made as short as possible. The
connection point for the shield depends somewhat upon the application.
Listed below are the recommended methods of connecting the shield, in order
of their effectiveness.
a. Connect the shield only at the panel where the unit is mounted to earth
ground (protective earth).
4.1 POWER WIRING
AC Power
DC Power
Terminal 1: VAC
Terminal 2: VAC
Terminal 1: +VDC
Terminal 2: -VDC
4.2 USER INPUT WIRING
Before connecting the wires, the User Input Logic Jumper should be verified for proper position. If User Input 1
and/or 2 are wired for quadrature or directional counting, an additional switching device should not be connected to that
User Input terminal. Only the appropriate User Input terminal has to be wired.
Sinking Logic
Terminals 7-9
Terminal 10
}
Connect external switching device between the
appropriate User Input terminal and User Comm.
The user inputs of the meter are
internally pulled up to +12 V with 5.1 K
resistance. The input is active when it is
pulled low (<0 .9 V).
Sourcing Logic
Terminals 7-9:
+ VDC through external switching device
Terminal 10:
-VDC through external switching device
The user inputs of the meter are internally
pulled down to 0 V with 5.1 K resistance.
The input is active when a voltage greater
than 3.6 VDC is applied.
9
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
4.3 INPUT WIRING
CAUTION: Sensor input common is NOT isolated from user input common. In order to preserve the safety of the meter application, the sensor input
common must be suitably isolated from hazardous live earth referenced voltage; or input common must be at protective earth ground potential. If not,
hazardous voltage may be present at the User Inputs and User Input Common terminals. Appropriate considerations must then be given to the potential
of the user input common with respect to earth ground; and the common of the isolated plug-in cards with respect to input common.
If you are wiring Input B, connect signal to Terminal 6 instead of 5, and set DIP switches 4, 5, and 6 to the positions shown for 1, 2, and 3.
Magnetic Pickup
Input A
AC Inputs From Tach Generators, Etc.
Two Wire Proximity, Current Source
Input A
Input A
Current Sinking Output
Input A
Switch or Isolated Transistor; Current Sink
Interfacing With TTL
Current Sourcing Output
Input A
Switch or Isolated Transistor; Current Source
Input A
Current Sink Output; Quad/Direction
Single Counter A
If using single Counter B, then wire signal to 6,
and Quad/Direction to 8. Set switch positions
4, 5, and 6 as shown for 1, 2, and 3.
Emitter Follower; Current Source
Input A
Input A
Current Sink Output; Quad/Direction
Input A
Current Sink Output; Quad/Direction
Counter A
& Rate B
User Input Jumper
in Sink Position
Counter A &
Counter B
User Input Jumper
in Sink Position
Switch position is application dependent.
Shaded areas not recommended for counting applications.
4.4 SETPOINT (ALARMS) WIRING
SOURCING OUTPUT LOGIC CARD
SETPOINT PLUG-IN CARD TERMINALS
SINKING OUTPUT LOGIC CARD
10
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
4.5 PAXI SERIAL COMMUNICATION WIRING
RS232 Communications
RS485 Communications
The RS485 communication standard allows the connection of up to 32
devices on a single pair of wires, distances up to 4,000 ft. and data rates as high
as 10M baud (the PAX is limited to 19.2k baud). The same pair of wires is used
to both transmit and receive data. RS485 is therefore always half-duplex, that is,
data cannot be received and transmitted simultaneously.
RECEIVING DEVICE
PAX METER
+5V
Transmit
Enable
Terminal Block Connection Figure
33K
12
13
B(-)
A(+)
33K
14
COMM. *
15 NC
* OPTIONAL
Extended Comms Connection Figure
Terminal Block Connection Figure
RS232 is intended to allow two devices to communicate over distances up to
50 feet. Data Terminal Equipment (DTE) transmits data on the Transmitted Data
(TXD) line and receives data on the Received Data (RXD) line. Data Computer
Equipment (DCE) receives data on the TXD line and transmits data on the RXD
line. The PAX emulates a DTE. If the other device connected to the meter also
emulates a DTE, the TXD and RXD lines must be interchanged for
communications to take place. This is known as a null modem connection. Most
printers emulate a DCE device while most computers emulate a DTE device.
Some devices cannot accept more than two or three characters in succession
without a pause in between. In these cases, the meter employs a busy function.
As the meter begins to transmit data, the RXD line (RS232) is monitored to
determine if the receiving device is “busy”. The receiving device asserts that it
is busy by setting the RXD line to a space condition (logic 0). The meter then
suspends transmission until the RXD line is released by the receiving device.
Extended Comms Connection Figure
4.7 PAXI PRESCALER OUTPUT WIRING
4.6 PAXI ANALOG OUTPUT WIRING
ANALOG OPTION CARD FIELD TERMINALS
5.0 REVIEWING
THE
FRONT BUTTONS
AND
DISPLAY
KEY
DISPLAY MODE OPERATION
PROGRAMMING MODE OPERATION
DSP
Index display through the selected displays.
Quit programming and return to Display Mode
PAR
Access Programming Mode
Store selected parameter and index to next parameter
F1
Function key 1; hold for 3 seconds for Second Function 1 **
Increment selected parameter value or selections
F2
Function key 2; hold for 3 seconds for Second Function 2 **
Decrement selected parameter value or selections
RST
Reset (Function key) ***
Advances digit location in parameter values
* Counters B, and C are locked out in Factory Settings (PAXC and PAXI only).
** Factory setting for the F1, and F2 keys is NO mode.
(Reset Display).
*** Factory setting for the RST key is
11
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
6.0 PROGRAMMING
THE
METER
OVERVIEW
PROGRAMMING MENU
Shaded areas represent program access that is model dependent.
PROGRAMMING MODE ENTRY (PAR KEY)
PROGRAMMING MODE EXIT (DSP KEY or at
The meter normally operates in the Display Mode. No parameters can be
programmed in this mode. The Programming Mode is entered by pressing the
PAR key. If it is not accessible then it is locked by either a security code, or a
hardware lock.
Two types of programming modes are available. Quick Programming Mode
permits only certain parameters to be viewed and/or modified. All meter
functions continue to operate except the front panel keys change to
Programming Mode Operations. Quick Programming Mode is configured in
Module 3. Full Programming Mode permits all parameters to be viewed and
modified. In this mode, incoming counts may not be recognized correctly, the
front panel keys change to Programming Mode Operations and certain user
input functions are disabled. Throughout this document, Programming Mode
(without Quick in front) always refers to “Full” Programming.
The Programming Mode is exited by pressing the DSP key (from anywhere
in the Programming Mode) or the PAR key (with
displayed). This will
commit any stored parameter changes to memory and return the meter to the
Display Mode. If a parameter was just changed, the PAR key should be pressed
to store the change before pressing the DSP key. (If power loss occurs before
returning to the Display Mode, verify recent parameter changes.)
PAR KEY)
MODULE ENTRY (ARROW & PAR KEYS)
FACTORY SETTINGS
PROGRAMMING TIPS
It is recommended to start with Module 1 for counting and Module 4 for rate.
If lost or confused while programming, press the DSP key and start over. When
programming is complete, it is recommended to record the parameter
programming on the Parameter User Chart and lock out parameter
programming with a user input or lock-out code.
The Programming Menu is organized into nine modules. These modules group
together parameters that are related in function. The display will alternate between
and the present module. The arrow keys (F1S and F2T) are used to select
the desired module. The displayed module is entered by pressing the PAR key.
Factory Settings may be completely restored in Module 9. This is a good
starting point for programming problems. Most parameters can be left at their
Factory Settings without affecting basic start-up. These parameters are
identified throughout the module explanations.
MODULE MENU (PAR KEY)
ALTERNATING SELECTION DISPLAY
In the explanation of the modules, the following dual display with arrows will
appear. This is used to illustrate the display alternating between the parameter
on top and the parameter’s Factory Setting on the bottom. In most cases,
selections and values for the parameter will be listed on the right.
Each module has a separate module menu (which is shown at the start of each
module discussion). The PAR key is pressed to advance to a particular parameter
to be changed, without changing the programming of preceding parameters.
After completing a module, the display will return to
. Programming may
continue by accessing additional modules.
Indicates Program Mode Alternating Display
SELECTION / VALUE ENTRY (ARROW & PAR KEYS)
For each parameter, the display alternates between the present parameter and
the selections/value for that parameter. The arrow keys (F1S and F2T) are used
to move through the selections/values for that parameter. Pressing the PAR key,
stores and activates the displayed selection/value. This also advances the meter
to the next parameter.
For numeric values, the RST key may be used to select a specific digit to be
changed. Once a digit is selected, the arrow keys are used to increment or
decrement that digit to the desired number.
«
Parameter
ª
Selection/Value
Factory Settings are shown.
6.1 MODULE 1 - COUNT A & B INPUT PARAMETERS (
PAXC & I
)
PARAMETER MENU
x = Counter A or Counter B
Module 1 is the programming for Counter A, Counter B and the Prescaler Output. Counter B parameters follow the Prescaler parameters. For
maximum input frequency, the counters should be set to mode NONE and the Prescaler to NO when they are not in use. When set to NONE
or NO, the remaining related parameters are not accessible. A corresponding annunciator indicates the counter being shown in the Display
Mode. An Exchange Parameter Lists feature for scale factors and count load values is explained in Module 2.
12
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
COUNTER A OPERATING MODE
«
NONE
ª
cnt
COUNTER A SCALE MULTIPLIER *
«
cntud dcntud quAd1 quAd2
ª
quAd4 dquAd1 dquAd2 cnt2 cntud2 dctud2
The number of input counts is multiplied by the scale multiplier and the scale
factor to obtain the desired process value. A scale multiplier of 1 will result in
only the scale factor affecting the display. (Details on scaling calculations are
explained at the end of this section.)
Select the operating mode for Counter A.
SELECTION
MODE
DESCRIPTION
Does not count.
NONE
cnt
cntud
Count X1
Adds Input A falling edge.
Count X1
w/direction
Adds Input A falling edge if Input B is high.
Subtracts Input A falling edge if Input B is low.
dcntud
Count X1
w/direction
Adds Input A falling edge if User 1 is high. Subtracts
Input A falling edge if User 1 is low.
quAd1
Quad X1
Adds Input A rising edge when Input B is high.
Subtracts Input A falling edge when Input B is high.
quAd2
Quad X2
Adds Input A rising edge when Input B is high and
Input A falling edge when Input B is low. Subtracts
Input A falling edge when Input B is high and Input A
rising edge when Input B is low.
quAd4
Quad X4
COUNTER A COUNT LOAD VALUE *
«
ª
When reset to count load action is selected, Counter A will reset to this value.
COUNTER A RESET POWER-UP *
«
Adds Input A rising edge when Input B is high, Input
A falling edge when Input B is low, Input B rising
edge when Input A is low, and Input B falling edge
when Input A is high. Subtracts Input A falling edge
when Input B is high, Input A rising edge when Input
B is low, Input B rising edge when Input A is high,
and Input B falling edge when Input A is low.
dquAd1
Quad X1
Adds Input A rising edge when User 1 is high.
Subtracts Input A falling edge when User 1 is high.
dquAd2
Quad X2
Adds Input A rising edge when User 1 is high and
Input A falling edge when User 1 is low. Subtracts
Input A falling edge when User 1 is high and Input A
rising edge when User 1 is low.
cnt2
cntud2
Count X2
Adds Input A rising and falling edges.
Count X2
w/direction
Adds Input A rising and falling edges if Input B is
high. Subtracts Input A rising and falling edge if
Input B is low.
dctud2
Count X2
w/direction
Adds Input A rising and falling edges if User 1 is
high. Subtracts Input A rising and falling edge if
User 1 is low.
to
ª
Counter A may be programmed to reset at each meter power-up.
PAXI: PRESCALER OUTPUT ENABLE *
«
ª
This enables the prescaler output. The prescaler output is useful for providing
a lower frequency scaled pulse train to a PLC or another external counter. On
each falling edge of Input A, the prescaler output register increments by the
prescaler scale value (
). When the register equals or exceeds 1.0000, a
pulse is output and the register is lowered by 1.0000. The prescaler register is
reset to zero whenever Counter A is reset (except for Setpoint Counter Auto
Reset). (See Prescaler Output Figure.)
PAXI: PRESCALER SCALE VALUE *
COUNTER A RESET ACTION
«
«
to
ª
ª
When Counter A is reset, it returns to zero or Counter A count load value.
This reset action affects all Counter A resets, except the Setpoint Counter Auto
Reset in Module 6.
The prescaler output frequency is the Input A frequency times the prescaler
scale value.
COUNTER A DECIMAL POSITION
«
ª
This selects the decimal point position for Counter A and any setpoint value
assigned to Counter A. The selection will also affect Counter A scale factor
calculations.
COUNTER A SCALE FACTOR
«
to
* Factory Setting can be used without affecting basic start-up.
ª
The number of input counts is multiplied by the scale factor and the scale
multiplier to obtain the desired process value. A scale factor of 1.00000 will
result in the display of the actual number of input counts. (Details on scaling
calculations are explained at the end of this section.)
13
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
COUNTER B OPERATING MODE
«
NONE
ª
cnt
COUNTER B RESET POWER-UP *
«
dcntud dquAd1
ª
dquAd2 cnt2 dctud2
Counter B may be programmed to reset at each meter power-up.
Select the operating mode for Counter B.
SELECTION
MODE
DESCRIPTION
* Factory Setting can be used without affecting basic start-up.
Does not count.
NONE
cnt
dcntud
Count X1
Adds Input B falling edge.
Count X1
w/direction
Adds Input B falling edge if User 2 is high. Subtracts
Input B falling edge if User 2 is low.
dquAd1
Quad X1
Adds Input B rising edge when User 2 is high.
Subtracts Input B falling edge when User 2 is high.
dquAd2
Quad X2
Adds Input B rising edge when User 2 is high and
Input B falling edge when User 2 is low. Subtracts
Input B falling edge when User 2 is high and Input B
rising edge when User 2 is low.
cnt2
dctud2
Count X2
Adds Input B rising and falling edges.
Count X2
w/direction
Adds Input B rising and falling edges if User 2 is
high. Subtracts Input B rising and falling edge if
User 2 is low.
8 DIGIT COUNT VALUES
Any counter display value below -99999 or above 999999 (less decimal
point) will consist of a two part display. This display alternates between the
least 6 significant digits and the remaining most significant digits beginning
with “ ” in the display. If the display exceeds ± 99999999 the display will roll
to zero and continue counting. Outputs cannot be set to counter values above 6
digits. The annunciator, indicating the counter being displayed, will flash when
the value is above 6 digits.
SCALING CALCULATIONS
Each counter has the ability to scale an input signal to a desired display
value. This is accomplished by the counter mode (x- ), scale factor (x
),
scale multiplier (x
) and decimal point (x
). The scale factor is
calculated using:
COUNTER B RESET ACTION
SF (x
«
ª
Where:
When Counter B is reset, it returns to zero or Counter B count load value.
This reset action affects all Counter B resets, except the Setpoint Counter Auto
Reset Action in Module 6.
Desired
Display
Decimal DDD
COUNTER B DECIMAL POSITION
«
ª
This selects the decimal point position for Counter B and any setpoint value
assigned to Counter B. The selection will also affect Counter B scale factor
calculations.
Counter Decimal Selection
1
0
None
10
0.0
Tenths
100
0.00
Hundredths
1000
0.000
Thousandths
10000
0.0000
Ten Thousandths
100000
0.00000
Hundred Thousandths
1. Show feet to the hundredths (0.00) with 100 pulses per foot:
Scale Factor would be 100 / (100 x 1 x 1) = 1
(In this case, the scale multiplier and counter mode factor are 1)
2. Show feet with 120 pulses per foot: Scale Factor would be 1 / (120 x 1 x 1)
= 0.0083333. (In this case, the scale multiplier of 0.01 could be used: 1 / (120
x 1 x 0.01) = 0.83333 or show to hundredths (0.00): 100 / (120 x 1 x 1) =
0.8333.)
The number of input counts is multiplied by the scale factor and the scale
multiplier to obtain the desired process value. A scale factor of 1.00000 will
result in the display of the actual number of input counts. (Details on scaling
calculations are explained at the end of this section.)
General Rules on Scaling
COUNTER B SCALE MULTIPLIER *
1. It is recommended that, the scale factor be as close as possible to, but not
exceeding 1.00000. This can be accomplished by increasing or decreasing
the counter decimal point position, using the scale multiplier, or selecting a
different count mode.
2. To double the number of pulses per unit, use counter modes direction X2 or
quad X2. To increase it by four times, use counter mode quad X4. Using
these modes will decrease the maximum input frequency.
3. A scale factor greater than 1.00000 will cause Counter display rounding. In
this case, digit jumps could be caused by the internal count register rounding
the display. The precision of a counter application cannot be improved by
using a scale factor greater than 1. 00000.
4. The number of pulses per single unit must be greater than or equal to the
DDD value for the scale factor to be less than or equal to one.
5. Lowering the scale factor can be accomplished by lowering the counter
decimal position. (Example: 100 (Hundredths)/10 pulses = 10.000 lowering
to 10 (Tenths)/10 = 1.000.)
«
ª
The number of input counts is multiplied by the scale multiplier and the scale
factor to obtain the desired process value. A scale multiplier of 1 will result in
only the scale factor affecting the display. (Details on scaling calculations are
explained at the end of this section.)
COUNTER B COUNT LOAD VALUE *
ª
x
Example:
to
ª
«
Desired Display Decimal DDD
(Number of pulses per ‘single’ unit x CM x SM)
Number of pulses per ‘single’ unit: pulses per unit generated by the
process (i.e. # of pulses per foot)
CM: Counter Mode(x- ) times factor of the mode 1,2 or 4.
SM: Scale Multiplier (x
) selection of 1, 0.1 or 0.01.
COUNTER B SCALE FACTOR
«
)=
to
When reset to count load action is selected, Counter B will reset to this value.
14
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
6.2 MODULE 2 - USER INPUT AND FRONT PANEL FUNCTION KEY
PARAMETERS (
)
PARAMETER MENU
EXCHANGE PARAMETER LISTS
Module 2 is the programming for rear terminal user inputs and front panel
function keys.
Three rear terminal user inputs are individually programmable to perform
specific meter control functions. While in the Display Mode, the function is
executed when the user input transitions to the active state. (Refer to the user
input specifications for active state response times.) Certain user input functions
are disabled in “full” Programming Mode.
Three front panel function F1, F2 and RST keys are also individually
programmable to perform specific meter control functions. While in the Display
Mode, the primary function is executed when the key is pressed. Holding the
F1 and F2 function keys for three seconds executes a secondary function. It is
possible to program a secondary function without a primary function. The front
panel key functions are disabled in both Programming Modes.
In most cases, if more than one user input and/or function key is programmed
for the same function, the maintained (level trigger) actions will be performed
while at least one of those user inputs or function keys are activated. The
momentary (edge trigger) actions are performed every time any of those user
inputs or function keys transition to the active state. All functions are available
to both user inputs and function keys.
Some of the user functions have a sublist of parameters. The sublist is
accessed when PAR is pressed at the listed function. The function will only be
performed for the parameters entered as
. If a user input or function key is
configured for a function with a sublist, then that sublist will need to be scrolled
through each time to access the following user inputs or function keys
parameters.
«
ª
Shaded parameters do not apply to the PAXR.
PAXI: PRINT REQUEST
PAXI: PRINT REQUEST AND RESET DISPLAYS
«
Programming Mode is locked-out, as long as activated
(maintained action). In Module 3, certain parameters can
be setup where they are still accessible during
Programming Mode Lockout. A security code can be configured to allow
complete programming access during user input lockout. Function keys should
not be programmed for
.
«
ª
DISPLAY
A CNt
b CNt
C CNt
HI
LO
When activated (momentary action), the display advances to the next display
that is not locked out from the Display Mode.
ª
ª
The meter issues a block print through the serial port when activated just like
the Print Request function. In addition, when activated (momentary action), the
meter performs a reset of the displays configured as
. The print aspect of this
action only functions when a serial communication plug-in card is installed.
The reset action functions regardless.
ª
«
«
ª
«
RESET DISPLAY
ª
The meter issues a block print through the serial port when activated. The
data transmitted during the print request is configured in Module 7. If the user
input is still active after the transmission is complete (about 100 msec.), an
additional transmission will occur. Only one transmission will take place with
each function key depression. This selection will only function when a serial
communications Plug-in card is installed in the meter.
PROGRAMMING MODE LOCK-OUT
ADVANCE DISPLAY
«
ª
«
ª
ª
ª
Two lists of values are available for
,
,
,
,
,
,
,
,
,
. The two lists are named
and
.
If a user input is used to select the list then
is selected when the user
input is not active and and
is selected when the user input is active,
(maintained action). If a front panel key is used to select the list then the list will
toggle for each key press, (momentary action). The meter will suspend ALL
operations for approximately 1 msec. while the new values are loaded. The
display will only indicate which list is active when the list is changed or when
entering any Programming Mode.
To program the values for
and
, first complete the
programming of all the parameters. Exit programming and switch to the other
list. Re-enter programming and enter the values for
,
,
,
,
,
,
,
,
,
. If any other parameters are
changed then the other list values must be reprogrammed.
With this selection, NO function is performed. This is the factory setting for
all user inputs and function keys except the Reset (RST) Key.
NOTE: When a user input is used to accept a quad or directional input
signal, then that user input should be programmed for NO function.
«
«
«
NO FUNCTION
ª
«
DESCRIPTION
Counter A
Counter B
Counter C
Maximum
Minimum
FACTORY
NO
NO
NO
NO
NO
«
ª
When activated (momentary action), the shown display is reset. This is the
factory setting for the Reset (RST) Key.
15
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
MAINTAINED (LEVEL) RESET AND INHIBIT
«
DEACTIVATE SETPOINT MAINTAINED (LEVEL)
«
«
ª
ª
ª
The meter performs a reset and inhibits the displays configured as
long as activated (maintained action).
DISPLAY
DESCRIPTION
DISPLAY
NO
NO
NO
NO
NO
SP-1
SP-2
SP-3
SP-4
«
DESCRIPTION
, as
ª
DISPLAY
NO
NO
MOMENTARY (EDGE) RESET
DESCRIPTION
NO
NO
NO
NO
NO
SP-1
SP-2
SP-3
SP-4
ª
DISPLAY
NO
NO
SP-1
SP-2
SP-3
SP-4
INHIBIT
«
ª
A CNt
b CNt
C CNt
HI
LO
«
SP-1
SP-2
SP-3
SP-4
STORE DISPLAY
DESCRIPTION
Counter A
Counter B
Counter C
Maximum
Minimum
«
ª
DISPLAY
DESCRIPTION
Setpoint
Setpoint
Setpoint
Setpoint
1
2
3
4
FACTORY
NO
NO
NO
NO
CHANGE DISPLAY INTENSITY LEVEL
«
«
ª
The meter holds (freeze) the displays configured as
, as long as activated
(maintained action). Internally the counters and max. and min. values continue to
update.
A CNt
b CNt
C CNt
HI
LO
NO
NO
NO
NO
When activated (momentary action), the meter activates the setpoints
configured as
. This action only functions with a Setpoint card installed.
ª
DISPLAY
FACTORY
ª
NO
NO
NO
NO
NO
ª
1
2
3
4
«
, as long as activated
FACTORY
Counter A
Counter B
Counter C
Maximum
Minimum
DESCRIPTION
Setpoint
Setpoint
Setpoint
Setpoint
ACTIVATE SETPOINT MOMENTARY (EDGE)
ª
The meter inhibits the displays configured as
(maintained action).
«
ª
FACTORY
Maximum
Minimum
DESCRIPTION
NO
NO
NO
NO
The meter activates the setpoints configured as
, as long as activated
(maintained action). This action only functions with a Setpoint card installed.
When activated (momentary action), the meter resets the displays configured as
. (Momentary resets improve max. input frequencies over maintained resets.)
DISPLAY
FACTORY
ª
ª
«
1
2
3
4
«
«
DESCRIPTION
DESCRIPTION
Setpoint
Setpoint
Setpoint
Setpoint
ACTIVATE SETPOINT MAINTAINED (LEVEL)
«
DISPLAY
«
ª
DISPLAY
PAXR: MOMENTARY (EDGE) RESET
HI
LO
NO
NO
NO
NO
The meter holds the state of the setpoints configured as
, as long as
activated (maintained action). This action only functions with a Setpoint plug-in
card installed.
FACTORY
Counter A
Counter B
Counter C
Maximum
Minimum
FACTORY
ª
When activated (momentary action), the meter resets the displays configured as
. (Momentary resets improve max. input frequencies over maintained resets.)
A CNt
b CNt
C CNt
HI
LO
1
2
3
4
«
ª
DISPLAY
DESCRIPTION
Setpoint
Setpoint
Setpoint
Setpoint
HOLD SETPOINT STATE
«
ª
«
SP-1
SP-2
SP-3
SP-4
«
NO
NO
NO
NO
When activated (momentary action), the meter deactivates the setpoints
configured as
. This action only functions with a Setpoint card installed.
FACTORY
Maximum
Minimum
HI
LO
FACTORY
ª
ª
The meter performs a reset and inhibits the displays configured as
long as activated (maintained action).
1
2
3
4
«
«
ª
DESCRIPTION
Setpoint
Setpoint
Setpoint
Setpoint
DEACTIVATE SETPOINT MOMENTARY (EDGE)
PAXR: MAINTAINED (LEVEL) RESET AND INHIBIT
DISPLAY
ª
The meter deactivates the setpoints configured as
, as long as activated
(maintained action). This action only functions with a Setpoint card installed.
, as
FACTORY
Counter A
Counter B
Counter C
Maximum
Minimum
A CNt
b CNt
C CNt
HI
LO
«
«
ª
When activated (momentary action), the display intensity changes to the next
intensity level (of 4). The four levels correspond to Display Intensity Level
(
) settings of 0, 3, 8 & 15. The intensity level, when changed via the User
Input/ Function Key, is not retained at power-down, unless Quick Programming
or Full Programming mode is entered and exited. The meter will power-up at the
last saved intensity level.
FACTORY
NO
NO
NO
NO
NO
16
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
6.3 MODULE 3 - DISPLAY
AND PROGRAM
PARAMETERS
LOCK-OUT
(
)
PARAMETER MENU
x = Counter A , Counter B, and then Counter C
n = Setpoints 1 to 4
Shaded areas represent program access that is model dependent.
Module 3 is the programming for Display lock-out and “Full” and “Quick”
Program lock-out.
When in the Display Mode, the available displays can be read consecutively
by repeatedly pressing the DSP key. An annunciator indicates the display being
shown. These displays can be locked from being visible. It is recommended that
the display be set to
when the corresponding function is not used.
SELECTION
SETPOINT 1 to 4 ACCESS LOCK-OUT *
«
ª
«
ª
«
ª
«
ª
The setpoint displays can be programmed for
,
, or
(See the
following table). Accessible only with the Setpoint Plug-in card installed.
DESCRIPTION
Visible in Display Mode
COUNT LOAD A B C ACCESS LOCK-OUT *
Not visible in Display Mode
“Full” Programming Mode permits all parameters to be viewed and
modified. This Programming Mode can be locked with a security code and/or
user input. When locked and the PAR key is pressed, the meter enters a Quick
Programming Mode. In this mode, setpoint, count load and scale factor values
can still be read and/or changed per the selections below. The Display Intensity
Level (
) parameter also appears whenever Quick Programming Mode is
enabled, and the security code is greater than zero.
SELECTION
«
ª
«
ª
Visible and changeable in Quick Programming Mode
Not visible in Quick Programming Mode
ª
«
«
ª
,
, or
.
to
Entry of a non-zero value will cause the prompt
to appear when trying to
access the “Full” Programming Mode. Access will only be allowed after entering
a matching security code or universal code of
. With this lock-out, a user input
would not have to be configured for Program Lock-out. However, this lock-out is
overridden by an inactive user input configured for Program Lock-out.
«
ª
.
ª
«
ª
«
ª
, or
SECURITY CODE *
«
«
«
,
The Scale Factor values can be programmed for
COUNTER A B C DISPLAY LOCK-OUT *
RATE DISPLAY LOCK-OUT *
MAX. MIN. DISPLAY LOCK-OUT *
ª
ª
SCALE FACTOR A B C ACCESS LOCK-OUT *
Visible but not changeable in Quick Programming Mode
ª
ª
These displays can be programmed for
DESCRIPTION
«
«
«
ª
These displays can be programmed for
or
* Factory Setting can be used without affecting basic start-up.
.
Shaded areas are model dependent.
PROGRAMMING MODE ACCESS
SECURITY
CODE
USER INPUT
CONFIGURED
USER INPUT
STATE
WHEN PAR KEY IS
PRESSED
0
not
————
“Full” Programming
>0
not
“FULL” PROGRAMMING MODE ACCESS
Immediate access.
————
Quick Programming w/Display Intensity
After Quick Programming with correct code # at
prompt.
>0
Active
Quick Programming w/Display Intensity
After Quick Programming with correct code # at
prompt.
>0
Not Active
“Full” Programming
Immediate access.
0
Active
Quick Programming
No access
0
Not Active
“Full” Programming
Immediate access.
Throughout this document, Programming Mode (without Quick in front) always refers to “Full” Programming (all meter parameters are accessible).
17
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
6.4 MODULE 4 - RATE INPUT PARAMETERS (
) - PAXR & I
PARAMETER MENU
Non-linear Application – Up to 10 Scaling Points
Module 4 is the programming for the Rate parameters. For maximum input
frequency, Rate assignment should be set to
when not in use. When set to
, the remaining related parameters are not accessible. The Rate value is
shown with an annunciator of ‘ ’ in the Display Mode.
Note: For PAXR,
is actually
on the unit’s display and
is
actually
on the unit’s display.
Non-linear processes may utilize up to nine segments (ten scaling points) to
provide a piece-wise linear approximation representing the non-linear function.
The Rate display will be linear throughout each individual segment (i.e.
between sequential scaling points). Thus, the greater the number of segments,
the greater the conformity accuracy. Several linearization equations are
available in the SFPAX software.
PAXI: RATE ASSIGNMENT
About Scaling Points
«
Each Scaling Point is specified by two programmable parameters: A desired
Rate Display Value (
) and a corresponding Rate Input Value (
).
Scaling points are entered sequentially in ascending order of Rate Input Value.
Two scaling points must be programmed to define the upper and lower
endpoints of the first linear segment. Setting
, automatically factory sets
the first scaling point to 0.0 for typical single segment, zero based applications.
When multiple segments are used, the upper scaling point for a given segment
becomes the lower scaling point for the next sequential segment. Thus, for each
additional segment used, only one additional scaling point must be programmed.
The following chart shows the Scaling Points, the corresponding Parameter
mnemonics, and the Factory Default Settings for each point.
ª
For measuring the rate (speed) of pulses on Input A, select
. For Input
B select
. This assignment is independent of the counting modes.
LOW UPDATE TIME (DISPLAY UPDATE) *
«
ª
to
seconds
The Low Update Time is the minimum amount of time between display
updates for the Rate display. Values of 0.1 and 0.2 seconds will update the
display correctly but may cause the display to appear unsteady. The factory
setting of 1.0 will update the display every second minimum.
SEGMENT
HIGH UPDATE TIME (DISPLAY ZERO) *
«
ª
to
seconds
The High Update Time is the maximum amount of time before the Rate
display is forced to zero. (For more explanation, refer to Input Frequency
Calculation.) The High Update Time must be higher than the Low Update Time
and higher than the desired slowest readable speed (one divided by pulses per
second). The factory setting of 2.0, will force the display to zero for speeds
below 0.5 Hz or a pulse every 2 seconds.
DISPLAY
DEFAULT
INPUT
PARAMETER
INPUT
DEFAULT
1
000000
00000.0
1
2
001000
01000.0
2
3
002000
02000.0
3
4
003000
03000.0
4
5
004000
04000.0
5
6
005000
05000.0
6
7
006000
06000.0
7
8
007000
07000.0
8
9
008000
08000.0
9
10
009000
09000.0
«
ª
to
Confirm the Rate Display Value for the first Scaling Point is 0. This parameter
is automatically set to 0 and does not appear when
. (See Note)
«
ª
This selects the decimal point position for Rate, Minimum and Maximum
rate displays and any setpoint value assigned to these displays. This parameter
does not affect rate scaling calculations.
PAXI: RATE INPUT VALUE FOR SCALING POINT 1
«
ª
PAXI: LINEARIZER SEGMENTS
ª
DISPLAY
PARAMETER
PAXI: RATE DISPLAY VALUE FOR SCALING POINT 1
RATE DECIMAL POSITION
«
SCALING
POINT
to
Confirm the Rate Input Value for the first Scaling Point is 0.0. (See Note)
Note: For all linear and most non-linear applications, the Scaling Point 1
parameters (
and
) should be set to 0 and 0.0 respectively.
Consult the factory before using any non-zero values for Scaling Point 1. These
parameters are automatically set to 0 and do not appear when
.
to
This parameter specifies the number of linear segments used for the Rate
Scaling function. Each linear segment has two scaling points which define the
upper and lower endpoints of the segment. The number of segments used
depends on the linearity of the process and the display accuracy required as
described below.
RATE DISPLAY VALUE FOR SCALING POINT 2
«
Linear Application – 2 Scaling Points
ª
Linear processes use a single segment (two scaling points) to provide a linear
Rate display from 0 up to the maximum input frequency. For typical zero based
frequency measurements (0 Hz = 0 on display), leave
(factory setting).
For non-zero based 2 scaling point applications, set
, to enter both the
zero segment (
&
) and segment 1 (
&
).
to
Enter the desired Rate Display Value for the second Scaling Point by using
the arrow keys.
* Factory Setting can be used without affecting basic start-up.
18
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
RATE INPUT VALUE FOR SCALING POINT 2
«
RATE SCALING
To scale the Rate, enter a Scaling Display value with a corresponding Scaling
Input value. (The Display and Input values can be entered by Key-in or Applied
Methods.) These values are internally plotted to a Display value of 0 and Input
value of 0 Hz. A linear relationship is formed between these points to yield a
rate display value that corresponds to the incoming input signal rate. The PAXI
and PAXR are capable of showing a rate display value for any linear process.
to
ª
Enter the corresponding Rate Input Value for the second Scaling Point by
using the arrow keys. Rate Input values for scaling points can be entered by
using the Key-in or the Applied method described below.
KEY-IN SCALING METHOD CALCULATION
Key-in Method:
If a display value versus input signal (in pulses per second) is known, then
those values can be entered into Scaling Display (
x) and Scaling Input
(
x). No further calculations are needed.
If only the number of pulses per ‘single’ unit (i.e. # of pulses per foot) is
known, then it can be entered as the Scaling Input value and the Scaling Display
value will be entered as the following:
Enter the Rate Input value (
) that corresponds to the entered Rate
Display value (
) by pressing the F1 or F2 keys. This value is always in
pulses per second (Hz).
Applied Method:
Apply an external rate signal to the appropriate input terminals. At the Rate
Input Value (
) press and hold the F1 and F2 keys at the same time. The
applied input frequency (in Hz) will appear on the display. (To verify correct
reading wait for at least the length of the Low Update Time. Then press and
hold the F1 and F2 keys at the same time again. The new value should be ±
0.1% of the previous entered value.) Press PAR to enter the displayed
frequency as the Rate Input value. To prevent the displayed value from being
entered, press DSP. This will take the meter out of Programming Mode and the
previous Rate Input value will remain.
RATE PER
Second
«
ª
Rounding values other than one round the Rate display to the nearest
increment selected (e.g. rounding of ‘5’ causes 122 to round to 120 and 123 to
round to 125). Rounding starts at the least significant digit of the Rate display.
to
ª
Minute
60
# of pulses per unit
Hour
3600
# of pulses per unit
The meter determines the input frequency by summing the number of falling
edges received during a sample period of time. The sample period begins on the
first falling edge. At this falling edge, the meter starts accumulating time
towards Low Update and High Update values. Also, the meter starts
accumulating the number of falling edges. When the time reaches the Low
Update Time value, the meter looks for one more falling edge to end the sample
period. If a falling edge occurs (before the High Update Time value is reached),
the Rate display will update to the new value and the next sample period will
start on the same edge. If the High Update Time value is reached (without
receiving a falling edge after reaching Low Update Time), then the sample
period will end but the Rate display will be forced to zero. The High Update
Time value must be greater than the Low Update Time value. Both values must
be greater than 0.0. The input frequency calculated during the sample period, is
then shown as a Rate value determined by either scaling method.
MAXIMUM CAPTURE DELAY TIME *
to
x)
INPUT FREQUENCY CALCULATION
The Low Cut Out value forces the Rate display to zero when the Rate display
falls below the value entered.
«
INPUT (
# of pulses per unit
EXAMPLE:
1. With 15.1 pulses per foot, show feet per minute in tenths. Scaling Display
= 60.0 Scaling Input = 15.1.
2. With 0.25 pulses per gallon, show whole gallons per hour. (To have greater
accuracy, multiply both Input and Display values by 10.) Scaling Display
= 36000 Scaling Input = 2.5.
LOW CUT OUT *
ª
x)
1
NOTES:
1. If # of pulse per unit is less than 10, then multiply both Input and Display
values by 10.
2. If # of pulse per unit is less than 1, then multiply both Input and Display
values by 100.
3. If the Display value is raised or lowered, then Input value must be raised
or lowered by the same proportion (i.e. Display value for per hour is
entered by a third less (1200) then Input value is a third less of # of pulses
per unit). The same is true if the Input value is raised or lowered, then
Display value must be raised or lowered by the same proportion.
4. Both values must be greater than 0.0.
RATE DISPLAY ROUND *
«
DISPLAY (
seconds
When the Rate value is above the present Maximum rate value for the
entered amount of time, the meter will capture that Rate value as the new
Maximum value. A delay time helps to avoid false captures of sudden short
spikes. Maximum detection will only function if Rate is assigned to Input A or
B. The Maximum rate value is shown with an annunciator of ‘ ’ in the display
and will continue to function independent of being displayed.
MINIMUM CAPTURE DELAY TIME *
«
ª
to
seconds
When the Rate value is below the present Minimum rate value for the entered
amount of time, the meter will capture that Rate value as the new Minimum
value. A delay time helps to avoid false captures of sudden short spikes.
Minimum detection will only function if Rate is assigned to Input A or B. The
Minimum rate value is shown with an annunciator of ‘ ’ in the display and will
continue to function independent of being displayed.
RATE DISPLAY EXCEEDED
If the rate of the input signal causes a display that exceeds the capacity of the
Rate display (5 digits, 99999), then the display will indicate an overflow
condition by showing “
”. During this overflow condition, the Minimum
and Maximum rate values will stay at their values even during resets.
* Factory Setting can be used without affecting basic start-up.
19
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
6.5 MODULE 5 - COUNTER C INPUT PARAMETERS (
PAXC & I
PARAMETER MENU
Module 5 is the programming for Counter C. For maximum input frequency,
the counter operating mode should be set to
when not in use. When set to
the remaining related parameters are not accessible. The C annunciator
indicates that Counter C is being shown in the Display Mode. An Exchange
Parameter List feature for scale factor and count load values is explained in
Module 2.
COUNTER C SCALE FACTOR
«
The number of input counts is multiplied by the scale factor and the scale
multiplier to obtain the desired process value. A scale factor of 1.00000 will
result in the display of the actual number of input counts. For (Numeric
transmissions) modes of operation, the input signal is scaled directly. For
and
modes of operation, the math is performed on the input signals
and then the result is scaled. To achieve correct results, both Input A and Input
B must provide the same amount of pulses per unit of measurement. (Details on
scaling calculations are explained at the end of Module 1 section.)
«
ª
Select the operating mode for Counter C.
Add Ab
Sub Ab
Does not count.
COUNTER C SCALE MULTIPLIER
Counter C counts the incoming pulses from Counter A input
as per Counter A mode of operation. The signal is scaled only
according to Counter C parameters.
«
Counter C counts the incoming pulses from Counter A and B
inputs as per Counter A and B modes of operation. The result
is scaled only according to Counter C parameters. (Example:
If Counter A is set for Count X1 mode and Counter B is set
for Count X2 mode, then Counter C will increment by 1 for
each pulse received on Input A and increment by 2 for each
pulse received on Input B less any effects of scaling.)
ª
The number of input counts is multiplied by the scale multiplier and the scale
factor to obtain the desired process value. A scale multiplier of 1 will result in
only the scale factor affecting the display. (Details on scaling calculations are
explained at the end of Module 1 section.)
Counter C counts the incoming pulses from Counter A and B
inputs as per Counter A and B modes of operation and
subtracts the B counts from the A counts. The result is scaled
only according to Counter C parameters. (Example: If
Counter A is set for Count X1 mode and Counter B is set for
Count X2 mode, then Counter C will increment by 1 for each
pulse received on Input A and decrement by 2 for each pulse
received on Input B less any effects of scaling.)
COUNTER C COUNT LOAD VALUE
«
ª
Note: When using Add Ab or Sub Ab, Counter A, B and C must all be reset
at the same time for the math to be performed on the display values.
SLAVE
to
ª
COUNTER C OPERATING MODE *
NONE
A
)
to
When reset to count load action is selected, Counter C will reset to this value.
See Serial Communications for details.
(PAXI only)
COUNTER C RESET POWER-UP *
«
ª
COUNTER C RESET ACTION
Counter C may be programmed to reset at each meter power-up.
«
ª
When Counter C is reset, it returns to zero or Counter C count load value.
This reset action affects all Counter C resets, except the Setpoint Counter Auto
Reset Action in Module 6.
* Factory Setting can be used without affecting basic start-up.
COUNTER C DECIMAL POSITION
«
ª
This selects the decimal point position for Counter C and any setpoint value
assigned to Counter C. The selection will also affect Counter C scale factor
calculations.
20
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
6.6 MODULE 6 - SETPOINT (ALARM) PARAMETERS (
)
PARAMETER MENU
Module 6 is the programming for the setpoint (alarms) output parameters. To have setpoint outputs, a setpoint Plug-in card needs to
be installed into the PAX (see Ordering Information). Depending on the card installed, there will be two or four setpoint outputs
available. This section replaces the bulletin that comes with the setpoint plug-in card. Please discard the separate literature when using
the Plug-in card with the Digital PAX. For maximum input frequency, unused Setpoints should be configured for
action.
The setpoint assignment and the setpoint action determine certain setpoint feature availability. The chart below illustrates this.
SETPOINT PARAMETER AVAILABILITY
RATE
PARAMETER
LIt-n
OUt-n
SUP-n
SP-n
trC-n
tyP-n
Stb-n
HyS-n
tOFF-n
tON-n
tOUt-n
AUtO-n
rSd-n
rSAS-n
rSAE-n
DESCRIPTION
COUNTER
TIMED OUT
BOUNDARY
LATCH
TIMED OUT
BOUNDARY
LATCH
Annunciators
Yes
Yes
Yes
Yes
Yes
Yes
Output Logic
Yes
Yes
Yes
Yes
Yes
Yes
Power Up State
Yes
Yes
Yes
Yes
Yes
Yes
Setpoint Value
Yes
Yes
Yes
Yes
Yes
Yes
Setpoint Tracking
Yes
Yes
Yes
Yes
Yes
Yes
Boundary Type
Yes
Yes
Yes
No
Yes
No
Standby Operation
Yes
Yes
Yes
No
Yes
No
Setpoint Hysteresis
No
Yes
No
No
No
No
Setpoint Off Delay
No
Yes
No
No
No
No
Setpoint On Delay
Yes
Yes
Yes
No
No
No
Setpoint Time Out
Yes
No
No
Yes
No
No
Counter Auto Reset
No
No
No
Yes
No
Yes
Reset With Display Reset
No
No
No
Yes
No
Yes
Reset When SPn+1 Activates
No
No
No
Yes
No
Yes
Reset When SPn+1 Deactivates
No
No
No
Yes
No
Yes
SETPOINT OUTPUT LOGIC *
SETPOINT SELECT
«
«
ª
ª
Select a setpoint (alarm output) to open the remaining module menu. (The
“ ” in the following parameters will reflect the chosen setpoint number.) After
the chosen setpoint is programmed, the display will default to
. Select
the next setpoint to be programmed and continue the sequence for each setpoint.
Pressing PAR at
will exit Module 6.
Normal ( ) turns the output “on” when activated and “off” when
deactivated. Reverse ( ) turns the output “off” when activated and “on” when
deactivated.
SETPOINT POWER UP STATE *
«
SETPOINT ANNUNCIATORS*
«
ª
ª
will restore the output to the same state it was at before the meter was
powered down.
will activate the output at power up.
will deactivate the
output at power up.
disables the display of the setpoint annunciator. Normal ( ) displays
the corresponding setpoint annunciator of an “on” alarm output. Reverse ( )
displays the corresponding setpoint annunciator of an “off” alarm output.
flashes the display and the corresponding setpoint annunciator of an
“on” alarm output.
* Factory Setting can be used without affecting basic start-up.
21
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
SETPOINT ACTION
SETPOINT STANDBY OPERATION *
«
«
ª
ª
: When not using a setpoint, it should be set to
Selecting
will disable low acting setpoints at a power up until the display
value crosses into the alarm “off” area. Once in the alarm “off” area, the
setpoint will function according to the configured setpoint parameters.
(no action).
For Counter Assignments:
LAtCH
bOUNd
tOUt
With Latch action, the setpoint output activates when the count
value equals the setpoint value. The output remains active until
reset. This action is not associated with Boundary types.
With boundary action, the setpoint output activates when the
= ) or less than
count value is greater than or equal to (for
= ) the setpoint value. The setpoint output
or equal to (for
= )
will deactivate when the count value is less than (for
= ) the setpoint value.
or greater than (for
With Timed Out action, the setpoint output activates when the
count value equals the setpoint value and deactivates after the
Time Out value. This action is not associated with Boundary
types.
PAXI & R: SETPOINT HYSTERESIS *
«
ª
The hysteresis value is added to (for
= ), or subtracted from (for
=
), the setpoint value to determine at what value to deactivate the associated
setpoint output. Hysteresis is only available for setpoints assigned to the Rate
with boundary action.
For Rate Assignments:
LAtCH
bOUNd
tOUt
to
With Latch action, the setpoint output activates when the rate
value is equal to the setpoint value. The setpoint output remains
active until reset. If after reset, the rate value is greater than or
= ) or less than or equal to (for
= ) the
equal to (for
setpoint value, the output will reactivate.
With Boundary action, the setpoint output activates when the
= ) or less than
rate value is greater than or equal to (for
= ) the setpoint value. The setpoint output
or equal to (for
will deactivate (Auto reset) as determined by the hysteresis
value.
With Timed Out action, the setpoint output cycles when the rate
= ) or less than or
value is greater than or equal to (for
= ) the setpoint value. The Setpoint Time Out
equal to (for
) and Setpoint On Delay (
) values determine the
(
cycling times.
PAXI & R: SETPOINT OFF DELAY *
«
to
ª
This is the amount of time the Rate display must meet the setpoint
deactivation requirements (below hysteresis for high acting and above
hysteresis for low acting) before the setpoint’s output deactivates.
PAXI & R: SETPOINT ON DELAY *
«
«
seconds
This is the amount of time the Rate display must meet the setpoint activation
requirements (below setpoint for
= and above setpoint for
= ) before
the setpoint’s output activates. If the Rate Setpoint Action is Timed Out, this is
the amount of time the output is off during the on / off output cycling.
ª
Select the display that the setpoint is to be assigned.
SETPOINT TIME OUT *
SETPOINT VALUE
ª
to
ª
PAXC & I: SETPOINT ASSIGNMENT
«
seconds
«
to
to
ª
seconds
If the setpoint action is Timed Out and the setpoint is assigned to Rate, then
this is the amount of time the output is on during the on / off output cycling. If
the setpoint action is Timed Out and the setpoint is assigned to Count, then this
is the amount of time the output will activate once the count value equals the
setpoint value.
Enter the desired setpoint value. Setpoint values can also be entered in the
Quick Programming Mode when the setpoint is configured as
in Module 3.
(See Module 2 for Exchange Parameter Lists explanation.)
SETPOINT TRACKING *
«
PAXC & I: COUNTER AUTO RESET *
ª
«
ª
If a selection other than NO is chosen, then the value of the setpoint being
programmed (“n”) will track the entered selection’s value. Tracking means that
when the selection’s value is changed (in the Quick Programming Mode), the
“n” setpoint value will also change (or follow) by the same amount.
ZErOAS CLdAS
ZErOAE CLdAE
This automatically resets the display value of the Setpoint Assignment (
) counter each time the setpoint value is reached. This reset may be different
than the Counter’s Reset Action (x
) in Module 1 or 5.
SELECTION
SETPOINT BOUNDARY TYPE
NO
ZErOAS
CLdAS
ZErOAE
CLdAE
«
ª
activates the output when the assigned display value (
) equals or
exceeds the setpoint value.
activates the setpoint when the assigned display
value is less than or equal to the setpoint.
ACTION
No auto reset.
Reset to zero at the start of output activation.
Reset to count load value at the start of output activation.
Reset to zero at the end of output activation. (
action only).
Reset to count load value at the end of output activation. (
action only).
* Factory Setting can be used without affecting basic start-up.
22
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
PAXC & I: SETPOINT RESET WITH DISPLAY RESET *
PAXC & I: SETPOINT RESET WHEN SPn+1 DEACTIVATES *
«
«
ª
ª
Select
, so the setpoint output will deactivate (reset) when the Setpoint
Assignment (
) counter display resets. The only exception is if the
assigned counter is reset by a Counter Auto reset generated by another setpoint.
Select
, so the setpoint output will deactivate (reset) when SPn +1
activates and then times out (deactivates). This function may only be used if the
SPn+1 is programmed for Setpoint Action of
. (Example SP1 deactivates
when SP2 is activated and then times out.) The last setpoint will wrap around
to the first.
PAXC & I: SETPOINT RESET WHEN SPn+1 ACTIVATES *
«
ª
* Factory Setting can be used without affecting basic start-up.
Select
, so the setpoint output will deactivate (reset) when SPn +1
activates. (Example: SP1 deactivates when SP2 activates and SP4 when SP1
activates.) The last setpoint will wrap around to the first.
PAXR & I: SETPOINT (ALARM) FIGURES FOR RATE
(For Reverse Action, The Alarm state is opposite.)
LOW ACTING WITH NO DELAY
LOW ACTING WITH DELAY
HIGH ACTING WITH NO DELAY
HIGH ACTING WITH DELAY
HIGH ACTING WITH TIMEOUT
LOW ACTING WITH TIMEOUT
23
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
6.7 MODULE 7 - SERIAL COMMUNICATIONS PARAMETERS (
PAXI ONLY
)
PARAMETER MENU
METER UNIT ADDRESS
Module 7 is the programming module for the Serial Communications
Parameters. These parameters are used to match the serial settings of the PAXI
with those of the host computer or other serial device, such as a terminal or
printer. This programming module can only be accessed if an RS232 or RS485
Serial Communications card is installed.
This section also includes an explanation of the commands and formatting
required for communicating with the PAXI. In order to establish serial
communications, the user must have host software that can send and receive
ASCII characters. Red Lion's SFPAX software can be used for configuring the
PAXI (See Ordering Information). For serial hardware and wiring details, refer
to section 4.5 Serial Communication Wiring.
«
to
ª
Enter the serial meter (node) address. With a single unit, an address is not
needed and a value of zero can be used. With multiple units (RS485
applications), a unique 2 digit address number must be assigned to each meter.
ABBREVIATED PRINTING
This section replaces the bulletin shipped with the RS232 and RS485 serial
communications plug-in cards. Discard the separate bulletin when using those
serial plug-in cards with the PAXI. Also, this section does NOT apply to the
DeviceNet, Modbus, or Profibus-DP communication cards. For details on the
operation of the Fieldbus cards, refer to the bulletin shipped with each card.
«
ª
Select
for full print or Command T transmissions (meter address,
parameter data and mnemonics) or
for abbreviated print transmissions
(parameter data only). This will affect all the parameters selected in the print
options. (If the meter address is 00, it will not be sent during a full
transmission.)
BAUD RATE
«
ª
PRINT OPTIONS
Set the baud rate to match the other serial communications equipment on the
serial link. Normally, the baud rate is set to the highest value that all the serial
equipment are capable of transmitting and receiving.
«
ª
- Enters the sub-menu to select the meter parameters to appear during a
print request. For each parameter in the sub-menu, select
for that parameter
information to be sent during a print request or
for that parameter
information not to be sent. A print request is sometimes referred to as a block
print because more than one parameter information (meter address, parameter
data and mnemonics) can be sent to a printer or computer as a block.
DATA BIT
«
ª
Select either 7 or 8 bit data word lengths. Set the word length to match the
other serial communications equipment on the serial link.
PARAMETER
A CNt
b CNt
C CNt
rAtE
HILO
SCFAC
CNtLd
SPNt
PARITY BIT
«
ª
Set the parity bit to match that of the other serial communications equipment
on the serial link. The meter ignores the parity when receiving data and sets the
parity bit for outgoing data. If no parity is selected with 7 bit word length, an
additional stop bit is used to force the frame size to 10 bits.
DESCRIPTION
Counter A
Counter B
Counter C
Rate
Max. & Min.
A B C Scale Factors
A B C Count Load
1 2 3 4 Setpoints *
FACTORY
yES
NO
NO
NO
NO
NO
NO
NO
MNEMONIC
CTA
CTB
CTC
RTE
MIN MAX
SFA SFB SFC
LDA LDB LDC
SP1 SP2 SP3 SP4
*Setpoints are plug-in card dependent.
24
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
SENDING SERIAL COMMANDS AND DATA
Command String Examples:
1. Address = 17, Write 350 to Setpoint 1
String: N17VM350$
2. Address = 5, Read Count A value, response time of 50 - 100 msec. min.
String: N05TA*
3. Address = 0, Reset Setpoint 4 output
String: RS*
When sending commands to the meter, a string containing at least one
command character must be constructed. A command string consists of a
command character, a value identifier, numerical data (if writing data to the
meter) followed by a the command terminator character * or $. The <CR> is
also available as a terminator when Counter C is in the SLAVE mode.
Command Chart
Command Description
Notes
Transmitting Data To the Meter
Address a specific meter. Must be followed by
Node (Meter) Address
two digit node address. Not required when
Specifier
address = 00.
Read a register from the meter. Must be
Transmit Value (read)
followed by register ID character.
Write to register of the meter. Must be
Value change (write) followed by register ID character and numeric
data.
Reset a register or output. Must be followed
Reset
by register ID character
Block Print Request
Initiates a block print output. Registers are
(read)
defined in programming.
N
T
V
R
P
Numeric data sent to the meter must be limited to Transmit Details listed in
the Register Identification Chart. Leading zeros are ignored. Negative numbers
must have a minus sign. The meter ignores any decimal point and conforms the
number to the scaled resolution. (ie. The meter’s scaled decimal point position
is set for 0.0 and 25 is written to a register. The value of the register is now 2.5.
In this case, write a value of 250 to equal 25.0).
Note: Since the meter does not issue a reply to value change commands, follow
with a transmit value command for readback verification.
Transmitting Data From the Meter
Data is transmitted from the meter in response to either a transmit command
(T), a print block command (P) or User Function print request. The response
from the meter is either a full field transmission or an abbreviated transmission.
The meter response is established in Module 7.
Command String Construction
The command string must be constructed in a specific sequence. The meter
does not respond with an error message to invalid commands. The following
procedure details construction of a command string:
Full Transmission
1. The first characters consist of the Node Address Specifier (N) followed by a
2 character address number. The address number of the meter is
programmable. If the node address is 0, this command and the node address
itself may be omitted. This is the only command that may be used in
conjunction with other commands.
2. After the optional address specifier, the next character is the command
character.
3. The next character is the Register ID. This identifies the register that the
command affects. The P command does not require a Register ID character.
It prints according to the selections made in print options.
4. If constructing a value change command (writing data), the numeric data is
sent next.
5. All command strings must be terminated with the string termination
characters *, $ or when Counter C is set for slave mode <CR>. The meter
does not begin processing the command string until this character is received.
See Timing Diagram figure for differences between terminating characters.
Byte
Description
1, 2
2 byte Node (Meter) Address field [00-99]
3
✰
<SP> (Space)
4-6
3 byte Register Mnemonic field
7-18
12 byte numeric data field: 10 bytes for number, one byte for sign, one
byte for decimal point
19
<CR> (Carriage return)
20
<LF> (Line feed)
21
<SP> (Space)✰
22
<CR> (Carriage return)✰
23
<LF> (Line feed)✰
These characters only appear in the last line of a block print.
F
Max
MAX
T, V, R
5 digit, positive only
G
Scale Factor A
SFA
T, V
6 digit, positive only
The first two characters transmitted (bytes 1 and 2) are the unit address. If the
address assigned is 00, two spaces are substituted. A space (byte 3) follows the
unit address field. The next three characters (bytes 4 to 6) are the register
mnemonic. The numeric data is transmitted next.
The numeric field (bytes 7 to 18) is 12 characters long. When the requested
value exceeds eight digits for count values or five digits for rate values, an *
(used as an overflow character) replaces the space in byte 7. Byte 8 is always a
space. The remaining ten positions of this field (bytes 9 to 18) consist of a minus
sign (for negative values), a floating decimal point (if applicable), and eight
positions for the requested value. The data within bytes 9 to 18 is right-aligned
with leading spaces for any unfilled positions.
The end of the response string is terminated with <CR> (byte 19), and <LF>
(byte 20). When a block print is finished, an extra <SP> (byte 21), <CR> (byte
22), and <LF> (byte 23) are used to provide separation between the
transmissions.
H
Scale Factor B
SFB
T, V
6 digit, positive only
Abbreviated Transmission
I
Scale Factor C
SFC
T, V
6 digit, positive only
Byte
J
Count Load A
LDA
T, V
5 negative / 6 positive
1-12
K
Count Load B
LDB
T, V
5 negative / 6 positive
L
Count Load C
LDC
T, V
5 negative / 6 positive
M
Setpoint 1
SP1
T, V, R
5 negative / 6 positive
O
Setpoint 2
SP2
T, V, R
5 negative / 6 positive
13
14
15
16
17
Q
Setpoint 3
SP3
T, V, R
5 negative / 6 positive
S
Setpoint 4
SP4
T, V, R
5 negative / 6 positive
U
Auto/Manual Register
MMR
T, V
0 - auto, 1 - manual
W
Analog Output Register
AOR
T, V
0 - 4095 normalized
X
Setpoint Register
SOR
T, V
0 - not active, 1 - active
Register Identification Chart
ID
VALUE DESCRIPTION
REGISTER
COMMAND
NAME 1
2
TRANSMIT DETAILS
3
A
Count A
CTA
T, V, R
6 digit (V), 8 digit (T)
B
Count B
CTB
T, V, R
6 digit (V), 8 digit (T)
C
Count C
CTC
T, V, R
6 digit (V), 8 digit (T)
D
Rate
RTE
T, V
5 digit, positive only
E
Min
MIN
T, V, R
5 digit, positive only
Description
12 byte data field, 10 bytes for number, one byte for sign, one byte
for decimal point
<CR> (Carriage return)
<LF> (Line feed)
<SP> (Space)✰
<CR> (Carriage return)✰
<LF> (Line feed)✰
These characters only appear in the last line of a block print.
The abbreviated response suppresses the address and register mnemonics,
leaving only the numeric part of the response.
✰
Meter Response Examples:
1. Address = 17, full field response, Count A = 875
17 CTA
875 <CR><LF>
2. Address = 0, full field response, Setpoint 2 = -250.5
SP2
-250.5<CR><LF>
3. Address = 0, abbreviated response, Setpoint 2 = 250, last line of block print
250<CR><LF><SP><CR><LF>
1. Register Names are also used as Register Mnemonics during full transmission.
2. The registers associated with the P command are set up in Print Options (Module 7).
3. Unless otherwise specified, the Transmit Details apply to both T and V
Commands.
25
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Writing to this register (VW) while the analog output is in the Manual Mode
causes the output signal level to update immediately to the value sent. While in
the Automatic Mode, this register may be written to, but it has no effect until the
analog output is placed in the manual mode. When in the Automatic Mode, the
meter controls the analog output signal level. Reading from this register (TW)
will show the present value of the analog output signal.
Example: VW2047 will result in an output of 10.000 mA, 12.000 mA or
5.000V depending on the range selected.
Auto/Manual Mode Register (MMR) ID: U
This register sets the controlling mode for the outputs. In Auto Mode (0) the
meter controls the setpoint and analog output. In Manual Mode (1) the outputs
are defined by the registers SOR and AOR. When transferring from auto mode
to manual mode, the meter holds the last output value (until the register is
changed by a write). Each output may be independently changed to auto or
manual. In a write command string (VU), any character besides 0 or 1 in a field
will not change the corresponding output mode.
U abcde
Setpoint Output Register (SOR) ID: X
e = Analog Output
d = SP4
c = SP3
b = SP2
a = SP1
This register stores the states of the setpoint outputs. Reading from this
register (TX) will show the present state of all the setpoint outputs. A “0” in the
setpoint location means the output is off and a “1” means the output is on.
X abcd
d = SP4
c = SP3
b = SP2
a = SP1
Example: VU00011 places SP4 and Analog in manual.
Analog Output Register (AOR) ID: W
This register stores the present signal value of the analog output. The range
of values of this register is 0 to 4095, which corresponds to the analog output
range per the following chart:
*Due to the absolute
Output Signal*
accuracy rating and
Register Value
0-20 mA
4-20 mA
0-10V
resolution of the output
0
0.000
4.000
0.000
card, the actual output
1
0.005
4.004
0.0025
signal may differ 0.15% FS
from the table values. The
2047
10.000
12.000
5.000
output signal corresponds
4094
19.995
19.996
9.9975
to the range selected (0-20
4095
20.000
20.000
10.000
mA, 4-20 mA or 0-10 V).
In Automatic Mode, the meter controls the setpoint output state. In Manual
Mode, writing to this register (VX) will change the output state. Sending any
character besides 0 or 1 in a field or if the corresponding output was not first in
manual mode, the corresponding output value will not change. (It is not
necessary to send least significant 0s.)
Example: VX10 will result in output 1 on and output 2 off.
COUNTER C SLAVE COMMUNICATIONS
Counter C may be programmed for
, to act as a serial slave display. By doing this, the carriage return <CR>
is added as a valid command terminator character for all serial command strings. The <CR> as a terminator may be
very useful for standard serial commands, even if Counter C is never displayed or sent a slave message. The $
terminator should not be used in the slave mode. If numeric values are not to be saved to EPROM then send the value
as a literal transmission with <CR> terminator.
The Counter C slave display is right aligned. It has a capacity of displaying six characters. When less than six
characters are received, blank spaces will be placed in front of the characters. If more than six characters are sent,
then only the last six are displayed. The meter has a 192 character buffer for the slave display. If more than 192
characters are sent, the additional characters are discarded until a terminator is received. Counter C processes
numeric and literal transmissions differently.
Numeric Transmissions
Literal Transmissions
When a string that does not begin with #, T, V, P or R is received, the meter
processes it as a Numeric transmission. In this case, only the recognized numbers
and punctuation are displayed. All other characters in the string are discarded. If
a negative sign appears anywhere in the string the resulting number will be
negative. Only the most significant decimal point is retained. If no numerical
characters are received, then the numeric value will be zero. The numeric display
can be used for setpoint (boundary action only) and analog output functions.
When using this display for setpoint and analog output values, the decimal point
position must match the programming entered through the front panel. The
numeric value is retained in Counter C memory until another Numeric
transmission is received.
When a string that begins with # is received, the meter processes it as a Literal
transmission. In this case, any unrecognized characters will be replaced with a
space. A Literal display will replace a Numeric value in the Counter C display.
However, it will not remove a previous Numeric value from Counter C memory
or prevent the Counter C outputs from functioning with the Numeric value.
Literal transmissions are only possible when using RS232 or RS485 cards.
Recognized Characters = a, b, c, d, e, f, g, h, i, j, l, n, o, p, q, r, s, t, u,
y, z (in upper or lower case)
Recognized Numbers = 0, 1, 2, 3, 4, 5, 6, 7, 8, 9
Recognized Punctuation = period, comma, minus, blank
Recognized Numbers = 0, 1, 2, 3, 4, 5, 6, 7, 8, 9
Recognized Punctuation = period, comma, minus
26
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
COMMAND RESPONSE TIME
SERIAL TIMING
The meter can only receive data or transmit data at any one time (half-duplex
operation). During RS232 transmissions, the meter ignores commands while
transmitting data, but instead uses RXD as a busy signal. When sending
commands and data to the meter, a delay must be imposed before sending
another command. This allows enough time for the meter to process the
command and prepare for the next command.
At the start of the time interval t1, the computer program prints or writes the
string to the com port, thus initiating a transmission. During t1, the command
characters are under transmission and at the end of this period, the command
terminating character (*, $ or slave only <CR>) is received by the meter. The
time duration of t1 is dependent on the number of characters and baud rate of
the channel.
COMMENT
PROCESS TIME (t2)
Numeric Slave
2-50 msec.
R
Reset
2-50 msec.
#
Literal
2-50 msec.
V
Write
100-200 msec.
T
Transmit
2-50 msec. for $
P
Print
COMMAND
50-100 msec. for * and <CR>
2-50 msec. for $
50-100 msec. for * and <CR>
Timing Diagrams
t1 = (10 times the # of characters) / baud rate
At the start of time interval t2, the meter starts the interpretation of the
command and when complete, performs the command function. This time
interval t2 varies (See Timing Diagrams). If no response from the meter is
expected, the meter is ready to accept another command.
If the meter is to reply with data, the time interval t2 is controlled by the use
of the command terminating character. The ‘*’ or ‘<CR>’ terminating character
results in a response time window of 50 msec. minimum and 100 msec.
maximum. This allows sufficient time for the release of the sending driver on
the RS485 bus. Terminating the command line with ‘$’ results in a response
time window (t2) of 2 msec. minimum and 50 msec. maximum. The faster
response time of this terminating character requires that sending drivers release
within 2 msec. after the terminating character is received.
At the beginning of time interval t3, the meter responds with the first
character of the reply. As with t1, the time duration of t3 is dependent on the
number of characters and baud rate of the channel. At the end of t3, the meter is
ready to receive the next command.
NO REPLY FROM METER
RESPONSE FROM METER
t3 = (10 times the # of characters) / baud rate
The maximum serial throughput of the meter is limited to the sum of the
times t1, t2 and t3.
COMMUNICATION FORMAT
Data is transferred from the meter through a serial communication channel.
In serial communications, the voltage is switched between a high and low level
at a predetermined rate (baud rate) using ASCII encoding. The receiving device
reads the voltage levels at the same intervals and then translates the switched
levels back to a character.
The voltage level conventions depend on the interface standard. The table
lists the voltage levels for each standard.
LOGIC
INTERFACE STATE
RS232*
RS485*
1
mark (idle)
TXD,RXD; -3 to -15 V
a-b < -200 mV
0
space (active)
TXD,RXD; +3 to +15 V
a-b > +200 mV
* Voltage levels at the Receiver
Data is transmitted one byte at a time with a variable idle period between
characters (0 to ∞). Each ASCII character is “framed” with a beginning start bit,
an optional parity bit and one or more ending stop bits. The data format and
baud rate must match that of other equipment in order for communication to
take place. The figures list the data formats employed by the meter.
Character Frame Figure
Parity bit
After the data bits, the parity bit is sent. The transmitter sets the parity bit to
a zero or a one, so that the total number of ones contained in the transmission
(including the parity bit) is either even or odd. This bit is used by the receiver
to detect errors that may occur to an odd number of bits in the transmission.
However, a single parity bit cannot detect errors that may occur to an even
number of bits. Given this limitation, the parity bit is often ignored by the
receiving device. The PAX meter ignores the parity bit of incoming data and
sets the parity bit to odd, even or none (mark parity) for outgoing data.
Start bit and Data bits
Data transmission always begins with the start bit. The start bit signals the
receiving device to prepare for reception of data. One bit period later, the least
significant bit of the ASCII encoded character is transmitted, followed by the
remaining data bits. The receiving device then reads each bit position as they are
transmitted.
Stop bit
The last character transmitted is the stop bit. The stop bit provides a single bit
period pause to allow the receiver to prepare to re-synchronize to the start of a
new transmission (start bit of next byte). The receiver then continuously looks
for the occurrence of the start bit. If 7 data bits and no parity is selected, then 2
stop bits are sent from the PAXI.
27
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
6.8 MODULE 8 - ANALOG OUTPUT PARAMETERS (
PAXI ONLY
PARAMETER MENU
Module 8 is the programming for the analog output parameters. To have an
analog output signal, an analog output plug-in card needs to be installed (See
Ordering Information). This section replaces the bulletin that comes with the
analog plug-in card. Please discard the separate literature when using the plugin card with the PAXI.
ANALOG LOW SCALE VALUE
«
ª
«
ª
0-20
4-20
0-10
RANGE
0 to 20 mA
ANALOG HIGH SCALE VALUE
«
ª
A CNt b CNt C CNt
rAtE
LO
HI
= Counter A Value
= Counter B Value
= Counter C Value
rAtE
LO
HI
-99999
to
999999
Enter the display value within the selected Analog Assignment that
corresponds to the high limit of the type selected.
The decimal point is determined by the decimal point setting of the assigned
counter or rate. The scale value can not be set to read values with more than 6
digits. Reverse acting output is possible by reversing the scaling values.
Select the display that the analog output is to follow:
A CNt
b CNt
C CNt
999999
0 to 10 V
ANALOG ASSIGNMENT
ª
to
4 to 20 mA
Enter the analog output type. For voltage output use terminals 16 and 17. For
current output use terminals 18 and 19. Only one range can be used at a time.
«
-99999
Enter the display value within the selected Analog Assignment that
corresponds to the low limit of the type selected.
The decimal point is determined by the decimal point setting of the assigned
counter or rate. The scale value can not be set to read values with more than 6
digits. Reverse acting output is possible by reversing the scaling values.
ANALOG TYPE
SELECTION
)
= Rate Value
= Minimum Value
= Maximum Value
6.9 MODULE 9 - FACTORY SERVICE OPERATIONS (
)
PARAMETER MENU
DISPLAY INTENSITY LEVEL
«
ª
RESTORE FACTORY DEFAULTS
Enter the desired Display Intensity Level (0-15) by
using the arrow keys. The display will actively dim or
brighten as the levels are changed. This parameter also
appears in Quick Programming Mode when enabled.
«
Use the arrow keys to display
and press PAR.
The meter will display
and then returns to
.
Press DSP key to return to the Display Mode. This will
overwrite all user settings with the factory settings.
Pressing the PAR and DSP keys at the same time on power-up will load the
factory settings and display
. This allows operation in the event of a
memory failure or corrupted data. Immediately press RST key and reprogram
the meter. If the meter is powered down again before pressing the RST key, the
existing dynamic data will not be overwritten.
ª
28
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Analog Output Card Calibration
PAXI: CALIBRATION
Before starting, verify that a precision meter with an accuracy of 0.05% or
better (voltmeter for voltage output and/or current meter for current output) is
connected and ready. Then perform the following procedure:
1. Use the arrow keys to display
and press PAR.
2.
is displayed. Use the arrow keys to select
and press PAR.
3. Using the chart below, step through the five selections to be calibrated. At
each prompt, use the PAXI arrow keys to adjust the output so that the
external meter display matches the selection being calibrated. When the
external reading matches, or if the range is not being calibrated, press PAR.
«
The only item in the PAXI meter that can be calibrated
is the Analog Output. The Count A and B values are scaled
using the parameters in Module 1, Counter C value is scaled
using Module 5 and the Rate value is scaled using Module 4. If the meter appears
to be indicating incorrectly or inaccurately, refer to the Troubleshooting section.
When Analog Out recalibration is required (generally every 2 years), it
should be performed by qualified technicians using appropriate equipment.
Calibration does not change any user programmed parameters.
Calibration may be aborted by disconnecting power to the meter before
exiting Module 9. In this case, the existing calibration settings remain in effect.
ª
SELECTION
EXTERNAL METER
0.0-A
4.0-A
20.0-A
0.0u
10.0u
Note: Allow a 30 minute warm-up period before staring calibration.
4. When
ACTION
0.00
Adjust if necessary, press PAR
4.00
Adjust if necessary, press PAR
20.00
Adjust if necessary, press PAR
0.00
Adjust if necessary, press PAR
10.00
Adjust if necessary, press PAR
appears, press PAR twice and remove the external meters .
TROUBLESHOOTING
For further assistance, contact technical support at the appropriate company numbers listed.
PROBLEM
REMEDIES
NO DISPLAY
CHECK: Power level, power connections
PROGRAM LOCKED-OUT
CHECK: Active (lock-out) user input
ENTER: Security code requested
CERTAIN DISPLAYS ARE LOCKED OUT
CHECK: Module 3 programming
INCORRECT DISPLAY VALUE or NOT
COUNTING
CHECK: Input wiring, DIP switch setting, input programming, scale factor calculation,
input signal level, user input jumper, lower input signal frequency
USER INPUT NOT WORKING CORRECTLY
CHECK: User input wiring, user input jumper, user input being used for signal, Module 2
OUTPUT DOES NOT WORK
CHECK: Corresponding plug-in card installation, output configuration, output wiring
JITTERY DISPLAY
CHECK: Wiring is per EMC installation guidelines, input signal frequency, signal quality,
scaling, update time, DIP switch setting
“
CHECK: Lower input signal frequency, reduce rate scaling
” RATE
MODULES or PARAMETERS NOT ACCESSIBLE
CHECK: Corresponding plug-in card installation, related controlling parameter selected
ERROR CODE (
PRESS: Reset key (if unable to clear contact factory.)
)
SERIAL COMMUNICATIONS
CHECK: Wiring, connections, meter and host settings
Shaded areas are model dependent.
29
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
PARAMETER VALUE CHART
PAX Model Number _________
Programmer ________________ Date ________
Meter# _____________ Security Code __________
4-rtE Rate Input Parameters - PAXI & R only
1-INP Counter A & B Input Parameters - PAXC & I only
FACTORY
SETTING
DISPLAY
PARAMETER
A CNt
ArESEt
AdECPt
ASCFAC
COUNTER A OPERATING MODE
COUNTER A RESET ACTION
COUNTER A DECIMAL POSITION
COUNTER A SCALE FACTOR (A)
COUNTER A SCALE FACTOR (B) *
COUNTER A SCALE MULTIPLIER
COUNTER A COUNT LOAD VALUE (A)
COUNTER A COUNT LOAD VALUE (B)*
COUNTER A RESET POWER-UP
PRESCALER OUTPUT ENABLE
PRESCALER SCALE VALUE
COUNTER B OPERATING MODE
COUNTER B RESET ACTION
COUNTER B DECIMAL POSITION
COUNTER B SCALE FACTOR (A)
COUNTER B SCALE FACTOR (B)*
COUNTER B SCALE MULTIPLIER
COUNTER B COUNT LOAD VALUE (A)
COUNTER B COUNT LOAD VALUE (B)*
COUNTER B RESET POWER-UP
ASCALr
ACNtLd
A P-UP
PrSEN
PrVAL
b CNt
brESEt
bdECPt
bSCFAC
bSCALr
bCNtLd
b P-UP
USER SETTING
DISPLAY
cnt
ZErO
rAtEEN
LO-Udt
HI-Udt
rtE dP
SE6S
rdSP 0
rINP 0
rdSP 1
rINP 1
rdSP 2
rINP 2
rdSP 3
rINP 3
rdSP 4
rINP 4
rdSP 5
rINP 5
rdSP 6
rINP 6
rdSP 7
rINP 7
rdSP 8
rINP 8
rdSP 9
rINP 9
rOUNd
LOCUt
HI-t
LO-t
500
* See Module 2, Exchanging Parameter Lists, for details on programming this value.
Shaded areas are model dependent.
2-FNC User Input and Function Key Parameters
DISPLAY
USr-1
USr-2
USr-3
F1
F2
rSt
Sc-F1
Sc-F2
PARAMETER
USER INPUT 1
USER INPUT 2
USER INPUT 3
FUNCTION KEY 1
FUNCTION KEY 2
RESET KEY
2nd FUNCTION KEY 1
2nd FUNCTION KEY 2
FACTORY
SETTING
USER SETTING
NO
NO
NO
NO
NO
dSPrSt
NO
NO
A CNt
b CNt
C CNt
rAtE
HI
LO
SP-1
SP-2
SP-3
SP-4
ACNtLd
bCNtLd
CCNtLd
ASCFAC
bSCFAC
CSCFAC
COdE
PARAMETER
COUNTER A DISPLAY LOCK-OUT
COUNTER B DISPLAY LOCK-OUT
COUNTER C DISPLAY LOCK-OUT
RATE DISPLAY LOCK-OUT
MAX DISPLAY LOCK-OUT
MIN DISPLAY LOCK-OUT
SETPOINT 1 ACCESS LOCK-OUT
SETPOINT 2 ACCESS LOCK-OUT
SETPOINT 3 ACCESS LOCK-OUT
SETPOINT 4 ACCESS LOCK-OUT
COUNT LOAD A ACCESS
COUNT LOAD B ACCESS
COUNT LOAD C ACCESS
SCALE FACTOR A ACCESS
SCALE FACTOR B ACCESS
SCALE FACTOR C ACCESS
SECURITY CODE
FACTORY
SETTING
FACTORY
SETTING
RATE ASSIGNMENT
LOW UPDATE TIME
HIGH UPDATE TIME
RATE DECIMAL POINT
LINEARIZER SEGMENTS
SCALING PT. 1 - DISPLAY VALUE
SCALING PT. 1 - INPUT VALUE
SCALING PT. 2 - DISPLAY VALUE
SCALING PT. 2 - INPUT VALUE
SCALING PT. 3 - DISPLAY VALUE
SCALING PT. 3 - INPUT VALUE
SCALING PT. 4 - DISPLAY VALUE
SCALING PT. 4 - INPUT VALUE
SCALING PT. 5 - DISPLAY VALUE
SCALING PT. 5 - INPUT VALUE
SCALING PT. 6 - DISPLAY VALUE
SCALING PT. 6 - INPUT VALUE
SCALING PT. 7 - DISPLAY VALUE
SCALING PT. 7 - INPUT VALUE
SCALING PT. 8 - DISPLAY VALUE
SCALING PT. 8 - INPUT VALUE
SCALING PT. 9 - DISPLAY VALUE
SCALING PT. 9 - INPUT VALUE
SCALING PT. 10 - DISPLAY VALUE
SCALING PT. 10 - INPUT VALUE
RATE DISPLAY ROUNDING
MINIMUM LOW CUT OUT
MAX CAPTURE DELAY TIME
MIN CAPTURE DELAY TIME
rAtE-a
1.0
2.0
0
0
0
0.0
1000
1000.0
2000
2000.0
3000
3000.0
4000
4000.0
5000
5000.0
6000
6000.0
7000
7000.0
8000
8000.0
9000
9000.0
1
0
2.0
2.0
USER SETTING
Shaded areas are model dependent.
5-CtrC Counter C Input Parameters - PAXC & I only
3-LOC Display and Program Lockout Parameters
DISPLAY
PARAMETER
USER SETTING
DISPLAY
PARAMETER
C CNt
CrESEt
CdECPt
CSCFAC
COUNTER C OPERATING MODE
COUNTER C RESET ACTION
COUNTER C DECIMAL POSITION
COUNTER C SCALE FACTOR (A)
COUNTER C SCALE FACTOR (B)*
COUNTER C SCALE MULTIPLIER
COUNTER C COUNT LOAD VALUE (A)
COUNTER C COUNT LOAD VALUE (B)*
COUNTER C RESET POWER-UP
CSCALr
CCNtLd
rEd
LOC
LOC
rEd
LOC
LOC
LOC
LOC
LOC
LOC
LOC
LOC
LOC
ENt
LOC
LOC
0
C P-UP
FACTORY
SETTING
USER SETTING
NONE
ZErO
500
* See Module 2, Exchanging Parameter Lists, for details on programming this value.
Shaded areas are model dependent.
30
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
6-SPt
DISPLAY
LIt-n
OUt-n
SUP-n
ACt-n
ASN-n
SP-n
trC-n
tYP-n
Stb-n
HYS-n
tOFF-n
tON-n
tOUt-n
AUtO-n
rSd-n
rSAS-n
rSAE-n
Setpoint (Alarm) Parameters
SP-1
PARAMETER
FACTORY
SETTING
SETPOINT ANNUNCIATORS
SETPOINT OUTPUT LOGIC
SETPOINT POWER UP STATE
SETPOINT ACTION
SETPOINT ASSIGNMENT
SETPOINT VALUE (A)
SETPOINT VALUE (B)*
SETPOINT TRACKING
SETPOINT BOUNDARY TYPE
STANDBY OPERATION
SETPOINT HYSTERESIS (rate)
SETPOINT OFF DELAY
SETPOINT ON DELAY
SETPOINT TIME OUT
COUNTER AUTO RESET ACTION
SETPOINT RESET WITH DISPLAY
RESET WHEN SPn+1 ACTIVATES
RESET WHEN SPn+1 DEACTIVATES
NOr
NOr
OFF
OFF
A CNt
100
100
NO
HI
NO
0
0.00
0.00
1.00
NO
NO
NO
NO
SP-2
USER SETTING
FACTORY
SETTING
SP-3
USER SETTING
NOr
NOr
OFF
OFF
A CNt
100
100
NO
HI
NO
0
0.00
0.00
1.00
NO
NO
NO
NO
FACTORY
SETTING
SP-4
USER SETTING
NOr
NOr
OFF
OFF
A CNt
100
100
NO
HI
NO
0
0.00
0.00
1.00
NO
NO
NO
NO
FACTORY
SETTING
USER SETTING
NOr
NOr
OFF
OFF
A CNt
100
100
NO
HI
NO
0
0.00
0.00
1.00
NO
NO
NO
NO
* See Module 2, Exchanging Parameter Lists, for details on programming this value.
Shaded areas are model dependent.
7-SrL Serial Communication Parameters - PAXI only
DISPLAY
bAUd
dAtA
PAr
Addr
AbrV
A CNt
b CNt
C CNt
rAtE
HILO
SCFAC
CNtLd
SPNt
FACTORY
SETTING
PARAMETER
BAUD RATE
DATA BIT
PARITY BIT
METER ADDRESS
ABBREVIATED PRINTING
PRINT COUNTER A
PRINT COUNTER B
PRINT COUNTER C
PRINT RATE
PRINT MAX & MIN
PRINT SCALE FACTORS
PRINT COUNT LOAD VALUES
PRINT SETPOINT VALUES
8-AnA Analog Output Parameters - PAXI only
PARAMETER
FACTORY
SETTING
ANALOG TYPE
ANALOG ASSIGNMENT
ANALOG LOW SCALE VALUE
ANALOG HIGH SCALE VALUE
4-20
rAtE
0
1000
DISPLAY
USER SETTING
tYPE
ASIN
AN-LO
AN-HI
9600
7
Odd
00
NO
YES
NO
NO
NO
NO
NO
NO
NO
USER SETTING
9-fCS Factory Service Parameters
DISPLAY
d-LEV
PARAMETER
DISPLAY INTENSITY LEVEL
FACTORY
SETTING
USER SETTING
3
LIMITED WARRANTY
The Company warrants the products it manufactures against defects in materials and workmanship
for a period limited to two years from the date of shipment, provided the products have been stored,
handled, installed, and used under proper conditions. The Company’s liability under this limited
warranty shall extend only to the repair or replacement of a defective product, at The Company’s
option. The Company disclaims all liability for any affirmation, promise or representation with
respect to the products.
The customer agrees to hold Red Lion Controls harmless from, defend, and indemnify RLC against
damages, claims, and expenses arising out of subsequent sales of RLC products or products
containing components manufactured by RLC and based upon personal injuries, deaths, property
damage, lost profits, and other matters which Buyer, its employees, or sub-contractors are or may be
to any extent liable, including without limitation penalties imposed by the Consumer Product Safety
Act (P.L. 92-573) and liability imposed upon any person pursuant to the Magnuson-Moss Warranty
Act (P.L. 93-637), as now in effect or as amended hereafter.
No warranties expressed or implied are created with respect to The Company’s products except those
expressly contained herein. The Customer acknowledges the disclaimers and limitations contained
herein and relies on no other warranties or affirmations.
31
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Counter C
Reset
Action
Counter C
Operating
Mode
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
32
Factory
Service Code
Display
Intensity Level
x
Off Time
Delay
Meter
Address
Analog Low
Scale Value
Print Scale
Factors
Print Setpoint
Values
Print
Counter A
Print Count
Load Values
Print
Options
Reset
w/SPn+1
Activates
Boundary
Type
Min. Capture
Delay Time
Reset
w/SPn+1
Deactivates
Max. Capture
Delay Time
Prescaler
Scale
Value
x = Counter A, B, or C
= Setpoint number
# = Scaling Points (0-9)
Setpoint
Tracking
Reset
w/Display
Reset
Setpoint
Value
Min. Low
Cut-out
Security
Code
Prescaler
Output
Enable
Rate Display
Rounding
Counter C
Reset at
Power-up
Counter
Auto Reset
Setpoint
Assignment
Counter C
Count Load
Value
Time-out
Value
Abbreviated
Printing
Setpoint
Action
#
Rate Scaling
Input
Scale
Factor x
Access
Counter x
Count Load
Access
#
x
x
FUNCTION KEYS
x
Counter x
Reset at
Power-up
x
Counter x
Count Load
Value
Rate Scaling
Display
Counter C
Scale
Multiplier
Linearizer
Segments
Print
Max/Min
Analog High
Scale Value
x
Counter x
Scale
Multiplier
Setpoint 1-4
Access
On Time
Delay
Power-up
State
Counter C
Scale
Factor
Rate Decimal
Position
Min
Display
Lock-out
Counter x
Scale
Factor
Print Rate
Parity Bit
Print
Counter C
Analog
Assignment
Print
Counter B
Data Bit
Output
Logic
Counter C
Decimal
Position
High Update
Time
Max
Display
Lock-out
Setpoint
Hysteresis
Analog
Type
Baud
Rate
Standby
Operation
Setpoint
Annunciators
Low Update
Time
Rate
Assignment
Setpoint
Select
Rate
Display
Lock-out
Counter x
Display
Lock-out
x
USER INPUTS
x
Counter x
Decimal
Position
x
Counter x
Reset
Action
x
Counter x
Operating
Mode
F1/F2 Keys
Counter parameters apply to the PAXC and PAXI, while the rate
parameters apply to the PAXR and PAXI.
PROGRAMMING QUICK OVERVIEW
BULLETIN NO. DT3A-D
DRAWING NO. LP0031
REVISED 3/97
RED LION CONTROLS
INTERNATIONAL HEADQUARTERS
EUROPEAN HEADQUARTERS
20 Willow Springs Circle, York, Pa. 17402, (717) 767-6511 FAX: (717) 764-0839
Web site- http://www.redlion-controls.com
E-mail- [email protected]
892 Plymouth Road, Slough, Berkshire SL1 4LP
ENGLAND +44 1753 696888 FAX: +44 1753 696339
DITAK 3A - THE COST-EFFECTIVE WAY TO GET DIGITAL ACCURACY FOR
MACHINE SPEED & PRODUCTION RATE INDICATION
l
4-DIGIT, 0.43” (11 mm) LED DISPLAY
l
0.1% ACCURACY
l
1-SECOND TIME-BASE
l
PROGRAMMABLE INPUT CIRCUIT ACCEPTS OUTPUTS FROM A
WIDE VARIETY OF SENSORS
DESCRIPTION
3. ENVIRONMENTAL CONDITIONS:
Operating Temperature: -20 to 50°C
Storage Temperature: -40 to 80°C
Operating and Storage Humidity: 85% max. (non-condensing) from 0°C
to 50°C.
Altitude: Up to 2000 meters
4. INPUT SENSITIVITY & RATINGS: *
5. CONSTRUCTION: Steel Case, Aluminum Bezel, Aluminum Front Panel
with Polycarbonate Overlay, Black Epoxy Paint Finish. Connections on rear
via screw terminal strips with clamp-type pressure plates that accept stripped
wires without lugs.
6.WEIGHT: 1.2 lbs (0.54 Kg)
The DITAK 3A provides a very economical means for obtaining high
performance speed or rate readout on any machine or process. It is a natural
choice for O.E.M. applications as well as for equipping existing machines or
retrofitting older equipment in the users plant. The DITAK 3A uses circuit
technology proven in tens of thousands of successful field applications. It’s
programmable input circuit allows it to be used with a wide variety of inputs
and its simplicity of design makes it very easy to install and use.
The unit has a fixed 1-second time-base that is derived from the A.C. powerline and provides readings accurate to ±0.1% (A program switch on the rear
selects 50/60 Hz operation). A 1-second display update time provides optimum
readability.
The fixed, 1-second time-base requires that input pulse rates be properly
scaled to produce a direct readout. If the rate measurement is on a 1-second
basis, such as strokes-per-second or inches-per-second, then one input pulse per
stroke or per inch will result in direct readout. If the rate measurement is on a
minute basis (ft/min, gallons/min, revolutions/min), then 60 pulses per unit-ofmeasurement are required for direct readout.
* - See Ditak 3A & 3D Sensor Input Connections & Input Configuration
Switch Set-up section.
DITAK 3A CONNECTIONS AND INPUT SET-UP
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
SPECIFICATIONS
1. PRIMARY SUPPLY VOLTAGE: Available in two voltage ratings, 50/60
Hz (See Ordering Information). Allowable supply voltage variation ±10%.
Input power 5 VA.
Note: These units cannot be operated from +12 VDC.
2. SENSOR OUTPUT POWER: +12 VDC ±15%, 120 mA max.
DIMENSIONS “In inches (mm)”
PANEL CUT-OUT
1
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
DITAK 3A TYPICAL APPLICATIONS
1. MOTOR RPM READOUT USING ARCJ NEMA C-FLANGE ADAPTER KIT
Readout of motor or shaft RPM is one of the most popular applications of
the DITAK 3A, since it is usually quite simple to locate a 60-tooth sensing
gear on the shaft to be monitored.
In this example, an ARCJ adapter ring kit is used to develop the input
signal. The ARCJ kit includes the adapter ring, magnetic pickup, and a 60-
tooth sensing gear. It can be mounted directly on a NEMA-C flange motor
face or between the motor and a mating flange on a gear reducer. (For more
information, see Sensor Section of the Catalog.)
Signal connection between the DITAK 3A and the magnetic pickup of the
ARCJ ring is via a 2-wire shielded cable.
2. READING LINEAR SPEED IN FEET/MIN, INCHES/MIN, METERS/MIN, ETC.
Rate measurement of units having a time based in minutes (gallons/ min,
feet/min, etc.) is easily accomplished, with the fixed, 1-second, up-date time
of the DITAK 3A, if the sensor arrangement yields 60 pulses/ unit-ofmeasure. Shown above is a typical application involving material length
measurement. LSC Length Sensors are available with outputs of 60 pulses/ft,
60 pulses/yard, and 60 pulses/ meter, specifically for this type of application.
As an alternate, an RPG can be belt driven from an idler roll shaft to provide
the same information rate. (See Sensor Section of the Catalog for more
information on LSC, RPG, and other sensors.)
3. OBTAINING 60 PULSES/UNIT INFORMATION RATE FROM LINE SHAFT
DITAK 3A with its 1-second time base, an information rate of 60 pulses/book
is required. As shown above, this is easily accomplished by sensing a 30tooth gear mounted on the line shaft with an LMPC sensor.
Many machines have a line shaft or an intermediate drive member that runs
at some integral speed related to the product being produced. In this example,
a book-binding machine is driven by a line shaft that makes 2 revolutions for
each book produced. The desired rate readout is in Books/Min. To use the
TROUBLESHOOTING
For further technical assistance, contact technical support at the appropriate
company numbers listed.
ORDERING INFORMATION
MODEL NO.
PART NUMBERS FOR
AVAILABLE SUPPLY VOLTAGES
230 VAC
115 VAC
DESCRIPTION
DT3A
4-Digit Tach. 1-Sec. T.B.
DT3A0410
DT3A0400
For more information on Pricing, Enclosures & Panel Mount Kits refer to the RLC Catalog or
contact your local RLC distributor.
2
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
BULLETIN NO. DT3D-E
DRAWING NO. LP0032
REVISED 8/97
RED LION CONTROLS
INTERNATIONAL HEADQUARTERS
EUROPEAN HEADQUARTERS
20 Willow Springs Circle, York, Pa. 17402, (717) 767-6511 FAX: (717) 764-0839
Web site- http://www.redlion-controls.com
E-mail- [email protected]
892 Plymouth Road, Slough, Berkshire SL1 4LP
ENGLAND +44 1753 696888 FAX: +44 1753 696339
DITAK 3D - 5-DIGIT RATE INDICATION, PROGRAMMABLE ADAPTABILITY
TO ACCOMMODATE VIRTUALLY ANY RATE MEASURING NEED
l
5-DIGIT, 0.43” (11 mm) LED DISPLAY
l
CRYSTAL-CONTROLLED TIME-BASE PROGRAMMABLE UP TO
32 SECONDS, PROVIDES DIRECT-READING FOR ANY RATE
UNITS
l
0.01% ACCURACY
l
PROGRAMMABLE DECIMAL POINTS
l
SELECTABLE FREQUENCY DOUBLING
l
PROGRAMMABLE INPUT CIRCUIT ACCEPTS OUTPUTS FROM A
WIDE VARIETY OF SENSORS
via screw terminal strips with clamp-type pressure plates that accept stripped
wires without lugs.
6. WEIGHT: 1.5 lbs. (0.68 Kg)
DESCRIPTION
The DITAK 3D provides versatility and flexibility. Based on circuit designs
and technology, this unit is field-proven for reliability in tens of thousands of
actual in-plant installations.
The key to adaptability in rate measurement, lies in the ability to scale for
direct readout in terms of the units being measured. Whether a machine
produces bottles, cloth, wire, or beverage mix, operation is enhanced when the
rate readout is expressed directly in bottles/min, feet/min, gallons/hour, or
whatever units are customarily used in plant operation. The DITAK 3D
provides this capabilty through its settable time base, programmable decimal
points and frequency doubling function.
DITAK 3D CONNECTIONS & PROGRAMMING SWITCHES
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
SPECIFICATIONS
1. PRIMARY SUPPLY VOLTAGE: Available in two voltage ratings, 50/60
Hz (See Ordering Information). Allowable supply voltage variation ±10%.
Input power 5 VA.
Note: These units can also be operated from +12 VDC ±15% power supplies
or batteries, (+) connected to Term. “A” and (-) to “B”. Max. current
drain from +12 VDC supply is 350 mA.
2. SENSOR OUTPUT POWER: +12 VDC ±15%, 75 mA max.
3. ENVIRONMENTAL CONDITIONS:
Operating Temperature: -20 to 50°C
Storage Temperature: -40 to 80°C
Operating and Storage Humidity: 85% max. (non-condensing) from 0°C
to 50°C.
Altitude: Up to 2000 meters
4. INPUT SENSITIVITY & RATINGS: (*)
5. CONSTRUCTION: Steel Case, Aluminum Bezel, Aluminum Front Panel
with Polycarbonate Overlay, Black Epoxy Paint Finish. Connections on rear
* - See Ditak 3A & 3D Sensor Input Connections & Input Configuration Switch
Set-up section.
DIMENSIONS “In inches (mm)”
PANEL CUT-OUT
1
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
DITAK 3D TIME BASE SETTING PROCEDURE
The Time Base is set by adding 12 binary increments from 0.001 second to
2.048 seconds. This is done by setting the switch for each increment to be added
to the “ON” (UP) position. To determine the increments required, use the
folowing procedure.
Start by selecting the first increment which is greater than half the desired
time base and add subsequent increments that are more than half the difference
needed.
EXAMPLE: A Time Base of 1.745 seconds is set as follows.
Start with
Add
Add
Add
Add
Add
1.024
0.512
Total
0.128
Total
0.064
Total
0.016
Total
0.001
Total
Switches set-up for a 1.745
sec. time-base per example
For Time Bases, greater than 4.095 seconds but less than 8.190 seconds, set
up ½ the required Time Base as above and set the X2 multiplier to on. For Time
Bases greater than 8.190 seconds but less than 16.380 seconds, set up ¼ the
required Time Base and set the X4 multiplier switch on. Use the same
procedure to multiply X8 for Time Bases up to 32.76 seconds.
At least one of the four Time Base Multiplier Switches must be “ON” (UP)
for operation. If more than one is “ON”, the unit will not function properly.
When the Time Base is less than 4.095 seconds, X1 multiplier switch must be
turned “ON”.
Note: Turning “ON” the FREQUENCY DOUBLING FUNCTION will decrease
the required Time Base to ½ the time normally required.
Turning “ON” the Decimal Point switches will increase the required time
base by multiples of ten.
(1.745 - 1.024 = 0.721 sec needed)
1.536
(1.745 - 1.536 = 0.209 sec needed)
1.664
(1.745 - 1.664 = 0.081 sec needed)
1.728
(1.745 - 1.728 = 0.017 sec needed)
1.744
(1.745 - 1.744 = 0.001 sec needed)
1.745
seconds, Desired Time Base
DITAK 3D TYPICAL APPLICATIONS
1. USING EXISTING MACHINE GEAR OR SPROCKET FOR SIGNAL GENERATION & CALCULATING TIME BASE FOR DIRECT READOUT
DDP
0
0.0
0.00
= Display Decimal Point
=
1
=
10
=
D.P.1 “ON” up
=
100
=
D.P.2 “ON” up
60
x
723
ft/min
x
1
= ¾¾¾
14 PPR x 1625 RPM = 1.907 sec.
The procedure for setting the additive time increments to obtain this time
base is shown above. Note: The time base can be halved if FREQUENCY
DOUBLING is used.
In this example an existing timing belt pulley, in the drive train of a set of
nip-rolls, is used to excite an inexpensive magnetic pickup. Direct readout is
obtained by setting the time base to a period in which the number of teeth
passing the pickup is numerically equal to the desired readout number. This
can be worked out in logical steps as shown in the example below, but in this
case the formula at right can also be used:
60 x (Numerical Readout Desired) x DDP
Time Base (seconds) = -¾-¾¾¾(Pulses per rev.) x (RPM of gear)
2. DETERMINING TIME BASE IN A FLOW RATE APPLICATION
A turbine type flow meter uses a magnetic pickup to sense passing turbine
blades, and has a calibration factor of 677.8 pulses/gallon of fluid passing
through. It is to be used with a DITAK 3D to read directly in gallons/min in
1/100ths at flow rates to 50 GPM. The following logical steps can be used to
determine the time base setting required for direct reading:
At 50 GPM, output pulses will be 50 GPM x 677.8 pulses/gallon = 33890 pulses/min.
60
x 50.00 GPM x 100 (DDP)
¾¾¾¾
33,890 pulses per minute
= 8.852 sec.
If frequency doubling is used, this time base can be further divided by 2, or
8.852/2 = 4.426 seconds.
Since this is a longer time than can be achieved by adding binary
increments alone (with X1 multiplier) it will be necessary to set the time base
at ½ the desired value and then turn “ON” the X2 multiplier switch.
4.426 = 2.213 (Binary Setting) x 2 (multiplier setting)
Time Base (seconds) =
At this flow rate the desired reading is 50.00 GPM. Set D.P.2 switch “ON”
and use Display Decimal Point value of 100.
ORDERING INFORMATION
MODEL NO.
DESCRIPTION
PART NUMBERS FOR AVAILABLE
SUPPLY VOLTAGES
230 VAC
115 VAC
TROUBLESHOOTING
For further technical assistance, contact technical support at the appropriate
company numbers listed.
DT3D
5-Digit Programmable Tach.
DT3D0510
DT3D0500
For more information on Pricing, Enclosures & Panel Mount Kits refer to the
RLC Catalog or contact your local RLC distributor.
2
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
DITAK 3A & 3D - DIGITAL RATE INDICATORS FOR ACCURATE,
CONVENIENT & ECONOMICAL SPEED READOUT IN
PRODUCTION,
LABORATORY,
MAINTENANCE,
& FIELD APPLICATIONS
Speed is one of the most fundamental measurement parameters in industry
today. It is important not only for measuring production rate, but also for
optimizing operations, improving efficiency, problem diagnosis, and
performance measurement.
RLC’s new DITAK 3A and 3D are easily adaptable to virtually any industrial
speed measuring application. They provide superior accuracy, direct reading
flexibility, and trouble-free reliability at a super-competitive price.
Whether you need rate indication for your own in-plant equipment, or you
manufacture equipment that requires rate measuring instrumentation, check out
the benefits of the new DITAK 3A and 3D.
RPM
GALLONS/HR
FEET/MIN
STROKES/MIN
HOW DIGITAL RATE MEASUREMENT WORKS!
A DITAK Rate Indicator (Tachometer) includes an electronic counter, a
precision time-reference circuit, a readout display, a power supply and the
necessary coordination circuitry for proper operation. It measures speed by
following the same procedure that would be used manually, i.e. it accumulates
a count of events for a specified time period. Unlike manual speed
measurement however, it is capable of very high speed operation, it
automatically takes care of the mathematics, and it operates on a continuous
recycle basis, displaying the count it received during the last measuring time
interval while it is internally accumulating new counts for the preset interval.
At the end of each interval the display is instantly updated with the latest timeinterval-count for fast, easy readout.
IMPRESSIONS/HR
CFM
BOTTLES/MIN
KHZ
SCALING FOR DIRECT READING
At first glance, the process of scaling to get direct readout on a rate indicator,
may seem a bit involved. But, from the DITAK 3A and 3D examples given on
the following pages it is obvious that scaling is nothing more than a simple
exercise in elementary logic. With the DITAK 3A, scaling is simply a matter of
determining a sensor arrangement to generate the number of counts in one
second that is equal to the desired readout.
The DITAK 3D offers another degree of scaling freedom via its precision,
adjustable, time-base and by the frequency doubling function. These features
facilitate sensing from existing gear or sprocket teeth that move in a fixed but
arbitrary relationship to the desired readout.
Ideal measuring time intervals (time-base, or up-date times) for the human
observer may vary depending on the application. Where the operator is using
the rate indicator to set machine speed, the ideal time base is between one and
five seconds. Shorter time base can be annoying to the human operator due to
the rapid update. Longer time base periods can make it awkward to set machine
speed since it takes too long to observe the effect of each new speed-change
input. However, for simple monitoring applications a time-base of 20 or 30
seconds may be entirely adequate and in some cases even desirable.
LITRES/MIN
LBS/MIN
INCHES/SEC
MPH
CC/SEC
GPM
CUSTOMIZED UNITS LABELS
All DITAKS are shipped with a metalized mylar label, containing legends for
20 different rate units. Simply cut-out the desired units legend, remove the
backing, and stick over the RPM legend on the DITAK front panel.
3
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
DITAK 3A & DITAK 3D
SENSOR INPUT CONNECTIONS & INPUT CONFIGURATION SWITCH SET-UP
Rate indicators frequently use magnetic pickups for input devices, while
contact input is never used due to speed and contact bounce limitations.
Consequently there are basic differences between counter and rate-indicator
input circuits.
DITAK 3A and 3D both use the input circuit shown on the right. Like the SC
Counter input circuit, a Schmidt trigger amplifier is also used here. However, in
this circuit, the hysteresis level is quite small and the bias levels are significantly
different to accomodate both magnetic pickup input as well as the +5 V and
higher logic levels.
The individual functions of the input configuration switches are:
S1 - ON [MAG.PKUP.]: Connects a 0.1 µfd damping input capacitor from input
to common. This capacitor is used only with magnetic pickup inputs and
serves to filter out high-frequency noise. S1 should be set in the OFF
position when using inputs other than magnetic pickups.
S2 - ON [LOGIC]: Sets the bias reference so that input logic signals trigger
count pulses as they cross a level of approximately +1.3 V.
OFF: Sets the bias reference so that a signal of 150 mV or more will trigger
count pulses. This provides the sensitivity required for low speed
magnetic pickup inputs.
Note: Hysteresis for both S2 “ON” and “OFF” conditions is about 25 mV.
This means the difference between VIL and VIH with logic inputs (S2) is
almost insignificant and only a very small signal swing about the 1.3 V
bias level will trigger the input.
S3 - ON [NPN O.C.]: Connects a 3.9 KW pull-up load resistor for sensors or
circuits with current sink output. Sensor output must sink 4 mA @ VOL of
1 V or less.
Maximum Operating Freq.: 10 KHz, with minimum pulse width “ON” and
“OFF” times of 50 µsec.
Input Impedance: With S1 and S3 “OFF”, the resistive input impedance
exceeds 1 Megohm, as long as Terminal “C” input voltage is between zero and
+12 VDC. Beyond these levels the high and low clamping diodes come into
play.
Paralleling With SC Counter Inputs: DITAKS may be parallel connected with
SC Counters to operate from a common Current Sink or Source Sensor, by
connecting “A”, “B” and “C” terminals in common. S3 (NPN O.C.) on the
DITAK should be turned “OFF” since pull-up or pull-down resistors are
already present in the counter. The DITAK will not add appreciable sensor
loads with this arrangement.
Note: DITAKS cannot be operated in parallel with SC Counters when countswitch or 2-wire proximity sensors are used.
OTHER CHARACTERISTICS & SPECIFICATIONS
Maximum Input Voltage & Current: When the input (Term. “C”) is driven
from external signal voltages, maximum voltage swing is ±50 V peak. Input
voltage can be dropped by an external series resistance that limits input current
to ±5 mA. (These ratings for S1 & S2 ON/OFF, S3 OFF.)
CONNECTIONS & CONFIGURATION SWITCH SET-UPS FOR VARIOUS SENSOR OUTPUTS
SENSORS WITH CURRENT SINK OUTPUT (NPN O.C.)
(INCLUDES ASTC, LMPC, PSAC,*RPGB,*RPGH, LSC)
MAGNETIC PICKUPS
RECOMMENDED RULES FOR MAGNETIC PICKUP CONNECTIONS
SENSORS WITH CURRENT SOURCE OUTPUT (PNP O.C.)
1. Use 2-wire shielded cable for magnetic pickup signal leads.
2. Never run signal cable in conduit, troughs, or cable bundles with power
carrying conductors.
3. Connect the shield to the common terminal “B” at the input of the
instrument. DO NOT connect the shield at the pickup end, leave it “open”
and insulate the exposed shield to prevent electrical contact with the
frame or case.
4. The DITAK 3A should be mounted in a panel that is electrically grounded
through the machine frame to the magnetic pickup housing.
2-WIRE PROXIMITY
SENSORS
OLDER STYLE SENSORS
WITH-EF OUTPUT
A.C. INPUTS FROM TACH.
GENERATORS, INVERTERS,
ETC.
4
INPUT FROM CMOS &
OTER BI-POLAR
OUTPUTS
INPUT FROM TTL
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Bulletin No. DT5-E
Drawing No. LP0003
Released 9/01
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion-controls.com
DITAK 5 - THE ACCURATE, ECONOMIC & EASY WAY TO MEASURE RPM, GPM, FPM . . .
INDICATE PRODUCTION RATE & DISPLAY FREQUENCY
SELF POWERED SIMPLICITY
The ultra-low power consumption of the Ditak 5 (60 microwatts) opens up
vast new application possibilities. In a great many cases the pulse signal source
itself has sufficient power content to operate the unit. Alternatively, the Ditak
5 can be equipped with batteries, or power can be supplied from an external
source.
ACCURACY
0.1% crystal controlled accuracy with digital readout provides speed
measuring precision at a low cost.
SEALED FRONT, RUGGED CONSTRUCTION
Housed in a die-cast metal case, designed for NEMA 4/IP65, the unit can be
mounted in tough, industrial environments and withstand oil or water spray.
Micro-assembly construction provides high shock and vibration resistance.
VERSATILITY
Ideal for portable and/or fixed in-plant use. Operates with +5 Volt CMOS and
TTL circuit outputs and is adaptable to electronic sensor outputs.
ADVANTAGES OF MICRO-ELECTRONICS
DESCRIPTION OF OPERATION
The Ditak 5 is a state-of the art rate measuring instrument. Its superior
performance/cost ratio sets a new benchmark for the industry. This is made
possible by the technology of micro-electronics.
Micro-electronics concentrates as much circuitry as possible into a few
monolithic LSI chips. The Ditak 5 utilizes two of these custom chips to
encompass more than 99.9% of the required circuit components. These chips
are bonded to a substrate carrier and the microscopic electrical connections are
made by ultrasonically wire-bonding the chip pads to the gold plated conductors
on the substrate. Inter-connections of separate assemblies and components such
as the LCD and batteries are accomplished by elastomeric connectors.
The Ditak 5 is a combination of a precision counter and a crystal controlled
1-second time base, with liquid crystal display. In operation, the electronic
counter accumulates incoming pulses for a period of exactly one second. At the
end of this period, the count is transferred and latched on the display.
Immediately after transferring the count to the display, the internal counter is
reset to zero and begins accumulating a new count. Consequently, the display is
updated once a second, and the readout at any one time is the numerical value
of the number of counts received in the previous 1-second interval.
The Ditak 5 is basically a frequency measuring device and can be used for
direct Hz readout. Many industrial rate parameters, however, are expressed in
terms of minutes (gallons/min., feet/min., revolutions/min., etc.) Counting these
units for a full minute before presenting a readout takes too much time and is
therefore impractical. By using a sensor arrangement that delivers 60 pulses/unit
of measure (such as a 60 tooth gear to generate 60 PPR for RPM indication), the
Ditak 5 will read out directly in the desired units with a convenient 1-second
update time.
RELIABILITY
Large scale integration achieves the ultimate in circuit reliability. The Ditak
5’s miniature size provides high immunity to shock and vibration damage.
Elastomeric (internal and battery) connections provide gas-tight, corrosionproof, sealed contacts for trouble free operation.
SMALL SIZE
Micro-electronics allows the display to become the primary determinator of
size which means cost savings in panel-shape, weight, power consumption, and
functional simplicity.
BEST PERFORMANCE/COST RATIO
Micro-electronics is inherently a highly automated technique which provides
the quality, performance, and features needed at a very low cost.
1
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
APPLICATION FLEXIBILITY VIA RECONNECT OPTIONS
Selection of desired inputs and external power is easily
done by adding or moving terminal leads in the Input
Connector Body. The connector body is polarized
to prevent incorrect insertion, and locked in
place by the battery cover to avoid
accidental disengagement. Connectors
are supplied with the 2 leads installed as
shown below. A spare blue lead is
supplied in the hardware pack.
WHEN INSERTING TERMINAL into connector body, make sure the lock
pawl is toward the slot in the body. Push terminal in until lock pawl snaps
into slot.
TO REMOVE TERMINAL, insert blade of
a small screwdriver into slot of connector
body, and gently push in to disengage lock
pawl. Pull terminal out.
Connector Body, MOLEX P/N 2201-2051
Connector Term, MOLEX P/N 08-50-0114
TYPICAL APPLICATIONS
SELF-POWERED FROM MAGNETIC PICKUP SIGNAL (Using MP62TA magnetic pickup, or ARCJ ring pickup kits)
With an MP62TA Magnetic Pickup, a 60-tooth 20 D.P. Gear, and an air gap
of 0.005", the pickup will begin to develop sufficient voltage to power the
Ditak 5 (about 3.5 V peak) at a speed of 175 to 200 RPM. See Magnetic
Pickup and ARCJ Ring Kit tables for typical minimum speed parameters of
various sizes of Magnetic Pickups and ARCJ Rings.
In this application the Magnetic Pickup supplies both the signal and
operating power for the unit. A diode bridge in the Ditak 5 rectifies the A.C.
waveform generated by the magnetic pickup to develop the +V operating
voltage. The half wave component of this A.C. is applied to the base of the
input transistor to generate count pulses. The Zener Diode (ZD) clamps +V to
6.2 V maximum.
MAGNETIC PICKUP SIGNAL INPUT WITH BATTERY OR EXTERNAL POWER (For extended low speed performance)
and ARCJ Ring tables).
When batteries are used, current is drawn from the battery only during low
speed operation. At high speeds the half-wave rectified magnetic pickup
voltage exceeds the battery voltage and the unit again becomes self-powered,
to extend battery life. (Nominal battery life, without the high speed power
contribution of the magnetic pickup is 3 to 3.5 years).
Using batteries or an external source to supply power to the Ditak 5, allows
the magnetic pickup to be used only as a signal source at low speed. By
relocating the connector terminal wires as shown above, the magnetic pickup
voltage is applied directly to the transistor input and a signal level of only 0.7
Volts peak is needed for operation. This reduces minimum operating speed to
about 25% of the level required for self-powered operation (See Mag. Pkup.
Note: Connector wire colors shown are arranged
arbitrarily - User can select any color code
scheme desired.
cable, open at the pickup end). The Ditak 5 case should be mounted in a
panel which is electrically grounded through the machine frame to the
pickup housing of the ARCJ Ring motor.
4. Magnetic Pickups have a highly inductive output impedance which limits
output voltage and current to a safe level when clamped by the internal
zener diode in the Ditak 5. Signal sources with peak voltage in excess of 6
Volts, and having low output impedance, may develop sufficient power to
damage the internal zener diode if connected directly. With this type of
signal source, use a current limiting resistor as shown in the following
application.
NOTES ON MAGNETIC PICKUPS
1. Magnetic Pickups generate voltage proportional to the size and speed of
passing gear teeth, and inversely proportional to air-gap.
2. Sensing gears used with Magnetic Pickups should run as true as possible.
Eccentricity and wobble causes voltage fluctuations that can produce
observable display “flicker” at low speeds when pickup power is being
used to operate the Ditak 5.
3. Shielded cable is recommended when using magnetic pickups. Connect the
shield to the COMMON input pin of the Ditak 5 (A spare BLUE terminal
wire in the hardware package may be used to bring out COMMON). Leave
the shield unconnected at the sensor end (MP62TA is supplied with shielded
2
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
TYPICAL APPLICATIONS (Cont’d)
VARIABLE FREQUENCY A.C. INPUTS, SIGNAL SOURCE POWERED
Capacitors shown connected to COMMON by dotted lines may be required
when A.C. voltage supply is “noisy”. Capacitor values depend on existing
conditions but values from 0.01 to 0.1 µfd are usually effective. An isolation
step-down transformer should always be used when power line or high
voltage inverter lines and being monitored.
A.C. Signal Sources can be used to operate the Ditak 5 via the Magnetic
Pickup Input without batteries or external D.C. power, down to 7 or 8 Hz
signal frequency. However, unlike magnetic pickups most A.C. signal sources
have low output impedance and require a current limiting resistor if the peak
voltage exceeds 6 volts.
Minimum VAC for operation is 3.2 V peak
Select R to limit input current to 10 mA max. at max. VAC.
LOGIC PULSE INPUTS FROM OTHER CIRCUITS & SENSORS
operate directly from the power delivered by the signal itself without batteries
or external power applied. If the signal is a narrow positive going pulse, or if
operation below 15 Hz is required, either external power should be connected
as shown, or batteries should be installed.
The Ditak 5 easily adapts to a wide variety of pulse signal inputs. The only
restriction that must be kept in mind is that a current limiting resistor must be
used in series with the input applied to “PSM IN” if the input signal voltage
exceeds +6 Volts peak (Limit input current to 10 mA peak). With square wave
inputs (50% duty cycle), at frequencies of 15 Hz and above, the Ditak 5 will
4.7K resistor required only
when +V is over +6VDC
+V = +5 to +24VDC max.
USE THE DITAK 5 WITH THE MODEL PSMA POWER SUPPLY & INTERFACE MODULE, OR WITH CONVENIENT
ELECTRONIC SENSORS FOR EASY APPLICATION TO YOUR SPECIAL RATE MEASURING PROBLEM.
SPECIFICATIONS
DIMENSIONS & INSTALLATION
1. DISPLAY: 4-digit LCD, 0.35" (9 mm) high
After cutting the opening in panel, slide the panel gasket over the rear of the
case to the back of the bezel. Then slide the case through the panel cut-out.
Install mounting clips on each side of counter body with mounting screws.
Make sure the side rails of the clips fit into the recesses in the side of the case
so that the “Tang Ends” wedge between the panel opening and body as the
screws are tightened.
2. POWER SOURCE: Operates from any one of the following:
Signal Source Powered: A.C. or square wave signal inputs with min. peak
voltage of 3.5 V @ 150 µA and min. frequency of 15 Hz will operate the
DITAK 5 without batteries or external power.
Battery Powered: 2, 1.5 V N-type Alkaline Cells can be inserted if
conditions for signal source power cannot be met. Nominal battery life is
3 to 5 years depending on operating conditions.
External Power Input: Operates from external power sources ranging from
+5 VDC @ 35 µA to +24 VDC @ 1.8 mA.
3. TIME BASE: 1-second measuring and display up-date interval. Crystal
controlled to +0.1%, +1 digit accuracy.
4. INPUTS: Accepts A.C. (± polarity swing) signals, or logic pulse inputs. Min.
sensitivity when using batteries or external power is 0.7 V peak. Min.
sensitivity when self-powered is 3.5 V peak. (See POWER SOURCE,
above). Input signal voltages over 6 V peak, require external series resistor to
limit input current to 10 mA max.
5. MAXIMUM INPUT FREQUENCY: 10 KHz, 50 µsec min. pulse width.
6. OPERATING TEMPERATURE RANGE: 0° to 50°C (32° to 122°F)
7. STORAGE TEMPERATURE RANGE: 20° to 60°C (-4° to +140°F)
8. WEIGHT: 5.1 oz. (146 g)
DIMENSIONS In inches (mm)
3
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
BATTERY COVER REMOVAL & BATTERY INSERTION
Slide battery cover to the left until the right hand lip disengages and pops
out. To reinstall cover, insert left hand lips into case first, push cover to the left
until right hand lip drops down and cover snaps back into place. Install batteries
as shown at right observing proper polarity.
Note: Push battery spring clips to the left (toward connector) to completely free
the batteries when removing or installing batteries. Conductive rubber
battery contacts can be torn from their retaining pins if batteries are forced
in.
ORDERING INFORMATION
MODEL NO.
Note: Use only Alkaline “N” cells.
NOTES
DESCRIPTION
PART NUMBER
DT5
Ditak 5 Electronic Tachometer
DT500000
BNA
“N” Type Alkaline Batteries (Note 1)
BNA00000
HWK2
Spare Hardware Kit (Note 2)
HWK20000
ICA
Spare Input Connector & Terminal Wires (Note 3)
ICA00000
For more information on Pricing, Enclosures & Panel Mount Kits refer to the RLC
Catalog or contact your local RLC distributor.
1. Batteries NOT supplied with Ditak 5, order separately, 2 required per unit.
2. Ditak 5 supplied with one hardware kit, includes 2 mounting clips and screws,
panel gasket, 2 wire nuts and blue terminal wire.
3. Ditak 5 supplied with connector body and black and white terminal wires. Kit
ICA includes connector body and one each of black, white, blue, and yellow
terminal wires.
ACCESSORY MAG. PICKUPS & NEMA “C” FLANGE ADAPTER KITS FOR USE WITH DITAK 5
ORDERING INFORMATION FOR MAGNETIC PICKUPS
MODEL
NO.
TYPICAL MINIMUM SPEEDS
FOR OPERATION WITH DITAK 5
SELF POWERED
BAT. OR EXT. PWR.
(See Note 1 & 3)
(See Note 2 & 3)
DIMENSIONS
PART
NUMBER
MP-25TA
NOT Recommended
500 RPM
MP25TA00
MP-37TA
800 RPM
240 RPM
MP37TA00
MP-37CA
800 RPM
240 RPM
MP37CA00
MP-62TA
200 RPM
60 RPM
MP62TA00
MP-62TB
450 RPM
150 RPM
MP62TB00
N/A
N/A
0970375
SENSING GEAR, 60-TOOTH, 20 D.P. 3.1" DIA., 0.375" BORE, 0.875" WIDE WITH HUB
MODEL ARCJ - NEMA “C” FLANGE MOUNTED MAGNETIC PICKUP KITS
(Kits include Adapter Ring, Mag. Pickup, Gear, & Mounting Bolts)
ORDERING INFORMATION
MODEL
NO.
ARCJ-1A
ARCJ-1B
ARCJ-2A
ARCJ-2B
ARCJ-2C
MOTOR FRAME SIZE
56C
143TC,
182TC,
213TC,
254TC,
145TC, 182C, 184C
184TC, 213C, 215C, 245C
215TC, 254UC, 256UC
256TC
TYPICAL MINIMUM SPEEDS FOR
OPERATION WITH DITAK 5
SELF POWERED
BAT. OR EXT. PWR.
(See Note 1 & 3)
(See Note 2 & 3)
700
700
400
400
400
RPM
RPM
RPM
RPM
RPM
240
240
120
120
120
RPM
RPM
RPM
RPM
RPM
PART
NUMBER
ARCJ1A00
ARCJ1B00
ARCJ2A00
ARCJ2B00
ARCJ2C00
NOTES
1. Pickup connected to Magnetic pickup input terminals of Ditak 5 for self-powered operation. (See applications, previous
page)
2. Pickup connected to PSM-IN and COMMON terminals for battery or EXT POWER operation. (See applications, previous
page)
3. All pickups tested with 60 tooth 20 D.P. gear, 0.005" air gap.
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Bulletin No. DT6-D
Drawing No. LP0131
Released 10/01
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion-controls.com
DITAK 6 - ADJUSTABLE TIMEBASE 4-DIGIT TACHOMETER
!
ADJUSTABLE TIMEBASE FROM 4 MSEC TO 32 SEC
!
SELECTABLE DECIMAL POINTS
!
!
DESCRIPTION
The DT6 is a self-powered tachometer which features the ability to select the
desired Timebase by simply setting the appropriate DIP switches on the rear of
the unit. It also features a 4-digit LCD display with selectable decimal points.
The DT6 is powered by an internal 3.0 V lithium battery which is field
replaceable.
Like other Micro-Line products, the DT6 combines the use of a custom
CMOS LSI counter chip and custom Timebase gate array. These chips are
mounted on a gold-plated substrate and electrically connected by ultrasonic
wirebonding. Internal electrical interface connections use elastomeric contacts
to provide a gas-tight, corrosion resistant connection. Using the latest in MicroElectronic assembly and manufacturing techniques provides units with
reliability and dependability required for industrial service. The DT6 has a
metal die-cast front bezel that is sealed and meets NEMA 4 specifications for
wash-down and/or dusty environments, when properly installed.
SPECIFICATIONS
1. DISPLAY: 4-Digit LCD, 0.35" (9mm) high digits.
2. POWER SOURCE: Internal 3.0 V lithium battery to provide up to 5 years
of continuous service. For replacement procedure, refer to the illustration.
The DT6 also receives power from a logic or magnetic input signal with a
min. peak voltage of 4.0 V, which will serve to extend the battery life.
3. SIGNAL INPUT: * 0-10 KHz from a magnetic or bi-polar output (with a
50% duty cycle). Min. input sensitivity is 0.7 V. Input signal voltages over
6 V peak require an external series resistor to limit the input current to 10 mA
max.
4. TIMEBASE: Adjustable in 1/256 sec. (3.906 msec) increments via DIP
switches located under the rear cover. Timebase ranges from 3.906 msec to
31.996 sec; 0.05% accuracy.
BATTERY INSTALLATION
REPLACEABLE LITHIUM BATTERY PROVIDES UP TO 5 YEARS
OF CONTINUOUS OPERATION (Battery included)
RUGGED, SEALED FRONT PANEL CONSTRUCTION (NEMA
4/IP65)
!
ACCEPTS MAGNETIC OR LOGIC TYPE INPUTS
!
WIDE TEMPERATURE RANGE [ -30° to +75°C]
5. OPERATING TEMPERATURE RANGE: -30° to +75°C
6. WEIGHT: 5.1 oz (146 g)
* Caution: The case of the DT6 is electrically connected to signal common.
ELECTRICAL CONNECTIONS
Since the DT6 is self powered, only two electrical connections are required.
These connections are made utilizing a 2 position terminal block, located at the
rear of the unit. Refer to the procedures below when connecting the DT6 to the
signal source.
1. Use 2-wire shielded cable for sensor signal leads.
2. Never run signal cable in conduit, troughs, or cable bundles with power
carrying conductors.
3. Connect the shield to the “COMM.” terminal at the input of the instrument.
Do NOT connect the shield at the pickup end, leave it “open” and insulate
the exposed shield to prevent electrical contact with the frame or case.
(Shielded cable, supplied on some RLC magnetic pickups, has open shield
on pickup end.)
4. The DT6 should be mounted in a panel that is electrically grounded through
the machine frame to the magnetic pickup housing.
DIMENSIONS & INSTALLATION
The Model DT6 should be mounted in a panel grounded to the machine
frame. After cutting the opening in the panel, slide the panel gasket over the
rear of the tachometer body to the back of the bezel. Then slide the
tachometer through the panel cut-out. Install mounting clips on each side of
the tachometer body with mounting screws. Make sure the side rails of the
clips fit into the recesses in the side of the tachometer body so that the “tang
ends” wedge between the panel opening and the body as the screws are
tightened.
DIMENSIONS: In inches (mm)
1. Remove rear cover by placing screwdriver in the slot and gently pushing
downward (See drawing below).
2. When replacing battery, observe proper polarity as shown in the
Application drawing.
3. Allow 32 seconds for the first update to occur after battery replacement.
Warning: Lithium battery may explode if incinerated.
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
REAR PANEL DIP SWITCHES
TYPICAL APPLICATION
When viewing the DT6 from the rear of the unit, there are two banks of 8
DIP switches located along the top edge of the PC board. The bank to the left
is labeled “SWA” and the bank to the right is labeled “SWB”. All of the “SWA”
switches and 5 of the “SWB” switches are used to select the desired Timebase.
The remaining switches of “SWB” are used to select “FREQUENCY
DOUBLING” and “DECIMAL POINT”.
CONVEYOR BELT SPEED INDICATOR
TIMEBASE SELECTION
The DT6 has a Timebase selection range of approximately 4 msec to 32 sec.
For the minimum Timebase setting, SWA 1 is set in the “ON” position. For the
maximum Timebase setting, all the Timebase switches are set to the “ON”
position. Therefore, a specific Timebase setting is achieved by adding the
appropriate individual Timebase increments.
The Timebase increment total is computed according to the following
formula:
TIMEBASE INCREMENT
D.R. x D.D.P. x 15,360
= 
RPM x PPR
TOTAL (TBIT)
D.R.
D.D.P.
RPM
PPR
D.D.P.:
0
0.0
0.00
=
=
=
1
10
100
Desired Reading
Display Decimal Point
Revolutions Per Minute
Pulses Per Revolution
The Display Decimal Point (D.D.P.) is
determined by the desired decimal
point placement in the readout.
SWITCH
SWA
SWA
SWA
SWA
SWA
SWA
SWA
SWA
WHERE:
=
=
=
=
TIMEBASE
INCREMENTS
1
2
3
4
5
6
7
8
TIMEBASE
INCREMENTS
SWITCH
1
2
4
8
16
32
64
128
SWB
SWB
SWB
SWB
SWB
1
2
3
4
5
256
512
1024
2048
4096
The rate of a conveyor belt used to carry PC Boards through an Infra-Red
soldering chamber is variable from 0 to 10 feet per minute. The rate must
be adjusted depending on the size of the boards being soldered. The display
of the rate indicator must read in hundredths of a foot per minute.
The belt is driven by a chain and sprocket. A 26-tooth sprocket is
mounted onto the shaft of a variable speed motor. A speed of 1800 RPM
will produce a belt speed of 10 ft/min. A magnetic sensor is used to monitor
the speed of this sprocket.
The DT6 can be used to display the belt speed in this application. The
signal input of the sensor is connected to the DT6 “INPUT” terminal.
Common and the shield of the sensor are connected to the DT6 “COMM.”
terminal. The Timebase setting can be determined by using the formula.
DESIRED READING, = 10.00
MAX RPM OF SHAFT, = 1800
PULSES PER REVOLUTION, = 26
DISPLAY DECIMAL POINT, = 100
D.R. x D.D.P. x 15,360
TBIT = 
RPM x PPR
15,360,000
10.00 x 100 x 15,360
TBIT = 
= 
1800 x 26
46,800
Example: Find the appropriate DIP switch setting for a desired display
reading with a fixed shaft speed.
DESIRED READOUT (D.R.)
=
REVOLUTIONS PER MINUTE (RPM) =
PULSES PER REVOLUTION (PPR) =
TBIT =
250.0 x 10 x 15,360

1250 RPM x 50 PPR
250.0
1250
50
DIP SWB 1
DIP SWA 7
DIP SWA 4
38,400,000

62,500
=
= 614.4
TBIT = 614 (round off to the nearest whole number)
DIP
DIP
DIP
DIP
DIP
SWB 2
SWA 7
SWA 6
SWA 3
SWA 2
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
TBIT = 614
-
512
64
32
4
2
Needed
Needed
Needed
Needed
Needed
= 328.2 = 328
=
=
=
=
=
102
38
6
2
0
As shown above, DIP switches SWA 2, 3, 6, 7, and SWB 2 are all set to
“ON”. If it is desired to know what the approximate Timebase is in seconds,
multiply:
614 x 0.004 = 2.456 sec.
FREQUENCY DOUBLING
.....
.....
.....
TBIT = 328
-
256
64
8
Needed
Needed
Needed
=
=
=
72
8
0
With the above DIP switch settings, the Timebase would be
approximately 1.3 sec (328 x 0.004 = 1.312). To reduce the update time, the
“Frequency Doubling Disable” switch can be set to the “OFF” position.
Then only half the Timebase will be necessary.
328
2
TBIT =  = 164
DIP
DIP
DIP
DIP
DIP
SWA 8 .
SWA 6 .
SWA 3 .
SWB 6 .
SWB 7,8 .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
- 128
32
4
- OFF
- OFF
Needed
= 36
Needed
=
4
Needed
=
0
Frequency Doubling
0.00 Decimal Point Position
SIMPLIFIED SCHEMATIC OF DT6 INPUT CIRCUIT
DIP switch SWB-6 is the “Frequency Doubling Disable” switch. When it is
in the “ON” position, frequency doubling is disabled. When it is in the “OFF”
position, twice the number of input pulses are registered in the unit. This
doubling of the input rate allows the Timebase Increment Total to be halved,
thus allowing a faster update time for a given display value.
SWB-6 ON “↑”

FRQ. DBL. DIS. (X1)
DECIMAL POINT SELECTION
SWB-6 OFF “↓”

FRQ. DBL. (X2)
SWB 7 SWB 8
D.P. LOCATION
The selection of Decimal Point is
↑
↑
factory test mode
↑
↓
0
accomplished by DIP switches SWB 7 and
↓
↑
0.0
SWB 8. The table at right shows what
↓
↓
0.00
combinations of switches is needed to obtain
the desired decimal point location. The DT6 always has leading zero blanking.
Note: D.P. will change only at the normal display update times.
ORDERING INFORMATION
MODEL NO.
DESCRIPTION
*Battery Included
PART NUMBER
*DT6
Adjustable Timebase Tachometer
DT600000
BNL
3V Lithium Battery
BNL00000
For more information on Pricing, Enclosures & Panel Mount Kits refer to the
RLC Catalog or contact your local RLC distributor.
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
BULLETIN NO. DT7-F
DRAWING NO. LP0237
REVISED 8/97
DITAK 7 - ADJUSTABLE TIMEBASE 5-DIGIT RATE INDICATOR
l
LCD, POSITIVE REFLECTIVE OR NEGATIVE TRANSMISSIVE
WITH YELLOW/GREEN OR RED BACKLIGHTING
l
0.6 INCH (15.2mm) HIGH DIGITS
l
ADJUSTABLE TIMEBASE FROM 4 MSEC TO 32 SEC
l
SELECTABLE DECIMAL POINTS
l
REPLACEABLE LITHIUM BATTERY PROVIDES UP TO 5 YEARS
OF CONTINUOUS OPERATION (Battery included)
l
NEMA 4X/IP65 SEALED FRONT PANEL BEZEL
l
ACCEPTS MAGNETIC OR LOGIC TYPE SIGNAL INPUTS
l
WIRE CONNECTIONS MADE VIA SCREW CLAMP TYPE
TERMINALS
DESCRIPTION
SAFETY SUMMARY
The Ditak 7 is a self-powered rate indicator which features selectable
Timebase Increments by setting the appropriate DIP switches on the rear of the
unit. The internal plug-in 3.0 VDC lithium battery, requires NO soldering,
making it easily replaceable in the field. It has a 5-digit LCD display with 0.6
inch (15.2 mm) high digits and a DIP switch selectable decimal point. The
displays are available in positive image reflective (black digits, reflective
background) or negative image transmissive (illuminated digits, dark
background) with red or yellow/green backlighting. Backlight version units
require power from an external 9 to 28 VDC supply.
Like other Micro-Line products, the Ditak 7 combines the use of a custom
CMOS LSI counter chip and custom timebase gate array. These chips are
mounted on a gold-plated substrate and electrically connected by ultrasonic
wire-bonding. Internal electrical interface connections use elastomeric contacts
to provide a gas-tight, corrosion resistant connection. Use of the latest in MicroElectronic assembly and manufacturing techniques provides units with
reliability and dependability required for industrial applications.
The unit is constructed of a lightweight, high impact plastic case with a clear
viewing window. The sealed front panel meets NEMA 4X/IP65 specifications
for wash-down and/or dusty environments, when properly installed. A Ditak 7
unit can be mounted in the same panel cut-out as the earlier Ditak 5 & 6 series
units.
The optional Micro Line/Sensor Power Supply (MLPS0000) is designed to
attach to the rear of an installed Ditak 7. The optional supply can be powered
from either a 115 or 230 VAC source, and can provide power for the
backlighting of a unit and a sensor.
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
SPECIFICATIONS
1. DISPLAY: 5-Digit LCD, 0.6” (15.2 mm) high digits.
2. POWER SOURCE: Internal 3.0 V lithium battery provides up to 5 years of
continuous service (battery life is dependent upon usage). For replacement
procedure, refer to battery installation figure. The Ditak 7 can also receive
power at Terminal 3 (INP) from a logic or magnetic signal with a minimum
peak voltage of 4.0 V, which will serve to extend the battery life. Must use
the MLPS or a Class 2 or SELV rated power supply.
3. BACKLIGHT POWER REQUIREMENTS: 9 to 28 VDC @ 35 mA.
Above 26 VDC, derate operating temperature to 50oC.
4. SIGNAL INPUT: 0 to 10 KHz from a magnetic or bi-polar output (with a
50% duty cycle). Min. input sensitivity is 0.9 V. Max. input = 28 VDC.
5. TIMEBASE: Adjustable in 1/256 sec (3.906 msec) increments via DIP
switches located at the rear of the unit. Timebase ranges from 3.906 msec to
31.996 sec; 0.05% accuracy.
6. ENVIRONMENTAL CONDITIONS:
Operating Temperature: 0 to 60°C (Above 50°C derate backlight operating
voltage to 26 VDC max.)
Storage Temperature: -40 to 80°C
Operating and Storage Humidity: 85% max. (non-condensing) from 0°C to
60°C.
Altitude: Up to 2000 meters
7. CONSTRUCTION: High impact plastic case with clear viewing window
(Panel gasket and mounting clip included). Installation Category I, Pollution
Degree 2.
CAUTION:
Read complete instructions prior to
installation and operation of the unit.
DIMENSIONS “In inches (mm)”
Note: Recommended minimum clearance (behind the panel) for
mounting clip installation is 2.15” (54.6) H x 3.00” (76.2) W.
273
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
SPECIFICATIONS (Cont’d)
BLOCK DIAGRAM
8. CERTIFICATIONS AND COMPLIANCES:
EMC EMISSIONS:
Meets EN 50081-1: Residential, Commercial, and Light Industry
CISPR 11 Radiated and conducted emissions
EMC IMMUNITY:
Meets EN 50082-2: Industrial Environment.
ENV 50140 - Radio-frequency radiated electromagnetic field
ENV 50141 - Radio-frequency conducted electromagnetic field 1 & 2
EN 61000-4-2 - Electrostatic discharge (ESD)
EN 61000-4-4 - Electrical fast transient/burst (EFT)
EN 61000-4-8 - Power frequency magnetic field
Notes:
1. RF Conducted Immunity I/O lines
Cable shield connected to earth ground at both ends.
2. RF Conducted Power lines
At 10 V rms, from 24 to 65 MHz, rate display value varies.
a. At 8 V rms unit operates normally.
b. At 10 V rms, use of a line filter (LFIL0000) or one ferrite suppression
core on power lines enables normal unit operation.
Refer to the EMC Installation Guidelines section of this bulletin for
additional information.
9. WEIGHT: 3.3 oz (93.5 g)
WIRING CONNECTIONS
The electrical connections are made via rear screw-clamp terminals located
on the back of the unit. All conductors should meet voltage and current ratings
for each terminal. Also cabling should conform to appropriate standards of
good installation, local codes and regulations. It is recommended that power
supplied to the unit (AC or DC) be protected by a fuse or circuit breaker. When
wiring the unit, use the label to identify the wire position with the proper
function. Strip the wire, leaving approximately 1/4” bare wire exposed
(stranded wires should be tinned with solder). Insert the wire into the screwclamp terminal and tighten the screw until the wire is clamped tightly. Each
terminal can accept up to two #14 AWG wires.
The backlighting for a backlight version unit is powered between Terminal 2
(V+) and Terminal 1 (GND).
EMC INSTALLATION GUIDELINES
Although this unit is designed with a high degree of immunity to
ElectroMagnetic Interference (EMI), proper installation and wiring methods
must be followed to ensure compatibility in each application. The type of the
electrical noise, source or coupling method into the unit may be different for
various installations. In extremely high EMI environments, additional measures
may be needed. Cable length, routing and shield termination are very important
and can mean the difference between a successful or a troublesome installation.
Listed below are some EMC guidelines for successful installation in an
industrial environment.
REAR PANEL DIP SWITCHES
When viewing the Ditak 7 from the rear, there are two banks of DIP
switches, with eight switches per bank, located along the top edge of the PC
board. The bank to the left is labeled SWA and the bank to the right is labeled
SWB. All of the SWA switches and five of the SWB switches are used to select
the desired Timebase. The remaining switches of SWB are used to select
Frequency Doubling and the Decimal Point position.
1. Use shielded (screened) cables for all Signal and Control inputs. The shield
(screen) pigtail connection should be made as short as possible. The
connection point for the shield depends somewhat upon the application.
Listed below are the recommended methods of connecting the shield, in
order of their effectiveness.
a. Connect the shield only at the panel where the unit is mounted to earth
ground (protective earth).
b. Connect the shield to earth ground at both ends of the cable, usually when
the noise source frequency is above 1 MHz.
c. Connect the shield to common of the unit and leave the other end of the
shield unconnected and insulated from earth ground.
2. Never run Signal or Control cables in the same conduit or raceway with AC
power lines, conductors feeding motors, solenoids, SCR controls, and
heaters, etc. The cables should be run in metal conduit that is properly
grounded. This is especially useful in applications where cable runs are long
and portable two-way radios are used in close proximity or if the installation
is near a commercial radio transmitter.
3. Signal or Control cables within an enclosure should be routed as far away as
possible from contactors, control relays, transformers, and other noisy
components.
4. In extremely high EMI environments, the use of external EMI suppression
devices, such as ferrite suppression cores, is effective. Install them on Signal
and Control cables as close to the unit as possible. Loop the cable through
the core several times or use multiple cores on each cable for additional
protection. Install line filters on the power input cable to the unit to suppress
power line interference. Install them near the power entry point of the
enclosure. The following EMI suppression devices (or equivalent) are
recommended:
Ferrite Suppression Cores for signal and control cables:
Fair-Rite # 0443167251 (RLC #FCOR0000)
TDK # ZCAT3035-1330A
Steward #28B2029-0A0
Line Filters for input power cables:
Schaffner # FN610-1/07 (RLC #LFIL0000)
Schaffner # FN670-1.8/07
Corcom #1VR3
Note: Reference manufacturer’s instructions when installing a line filter.
5. Long cable runs are more susceptible to EMI pickup than short cable runs.
Therefore, keep cable runs as short as possible.
Note: The model DT700000 will NOT have a screw terminal installed at Terminal
2 (V+), since it is NOT required for operation, and is not internally connected.
The DT700M00 uses the V+ screw terminal to mount the MLPS power supply.
It is not internally connected to the unit.
WARNING: Lithium battery may explode if incinerated.
274
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
TIMEBASE SELECTION
FREQUENCY DOUBLING
The Ditak 7 has a Timebase selection range from 4 msec to 32 sec. SWA 1
is set to the “ON” position for the minimum Timebase setting. SWA 1 through
SWB 5 are set to the “ON” position for the maximum Timebase setting. A
specific Timebase setting is achieved by adding the appropriate individual
Timebase increments. The Timebase increment total is computed according to
the following formula:
DR x DDP x 15,360
TIMEBASE INCREMENT TOTAL (TBIT) = ¾¾¾
RPM x PPR
DIP switch SWB 6 is the “Frequency Doubling” switch. When it is in the
“ON” position, frequency doubling is disabled. When set to the “OFF” position,
it is enabled and twice the number of input pulses are registered in the unit. This
doubling of the input rate allows the Timebase Increment Total to be halved,
thus allowing a faster update time for a given display value.
WHERE:
DR
DDP
RPM
PPR
=
=
=
=
SWB 6 ON
¾¾
FRQ. DBL. DIS. (X1)
Desired Reading
Display Decimal Point
Revolutions Per Minute
Pulses Per Revolution
BATTERY INSTALLATION
1. To remove battery cover, unsnap at either of the lower rear corners and
pull cover straight out (refer to drawing below).
2. Remove the plug-in battery and replace with an RLC battery
(BNL00000). Observe proper polarity when replacing battery as shown
in the drawing.
3. Allow 32 seconds for the first update to occur after battery is replaced.
DDP: Use one of the following numbers in the above formula for the display
decimal point (DDP) position.
0
0.0
0.00
SWITCH
SWA
SWA
SWA
SWA
SWA
SWA
SWA
SWA
=
=
=
1
10
100
TIMEBASE
INCREMENTS
1
2
3
4
5
6
7
8
SWITCH
1
2
4
8
16
32
64
128
SWB 6 OFF
¾¾
FRQ. DBL. (X2)
SWB
SWB
SWB
SWB
SWB
1
2
3
4
5
TIMEBASE
INCREMENTS
256
512
1024
2048
4096
Example: Find the appropriate Timebase DIP switch setting for a desired
display decimal point position of 0.0 reading with a fixed shaft speed.
DR x DDP x 15,360
TIMEBASE INCREMENT TOTAL (TBIT) = ¾¾¾
RPM x PPR
Desired Readout (DR)
= 250.0
Revolutions Per Minute (RPM) = 1250
Pulses Per Revolution (PPR)
= 50
250.0 x 10 x 15,360
38,400,000
TBIT = ¾ ¾ = ¾¾ = 614.4
12 50 x 50
62,500
TBIT = 614 {round to the nearest whole number}
TBIT = 614
DIP SWB 2
-
DIP SWA 7
-
DIP SWA 6
-
DIP SWA 3
-
DIP SWA 2
-
512
102
64
38
32
6
4
2
2
0
-
Needed
-
Needed
DECIMAL POINT SELECTION
-
Needed
-
Needed
-
Needed
The selection of Decimal Point is accomplished by DIP switches SWB 7 and
SWB 8. The table shows what combinations of switches are needed to obtain
the desired decimal point location. The Ditak 7 always has leading zero
blanking.
SWB 7
SWB 8
ON
ON
OFF
OFF
ON
OFF
ON
OFF
DIP switches SWA 2, 3, 6, 7, and SWB 2 are all set to the “ON” position for
a Timebase Increment Total of 614. If it is desired to know what the
approximate Timebase is in seconds, use the following formula:
TBIT x 0.004
614 x 0.004
=
=
D.P. LOCATION
Factory test mode
0
0.0
0.00
Note: The Decimal Point position will take effect when the display updates.
Time in seconds
2.456 sec.
TROUBLESHOOTING
For further technical assistance, contact technical
support at the appropriate company numbers listed.
275
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
INSTALLATION ENVIRONMENT
The unit should be installed in a
location that does not exceed the
maximum operating temperature
and provides good air circulation.
Placing the unit near devices that
generate excessive heat should be
avoided.
The bezel should be cleaned only
with a soft cloth and neutral soap
product. Do NOT use solvents.
Continuous exposure to direct
sunlight may accelerate the aging
process of the bezel.
INSTALLATION
The Ditak 7 meets NEMA
4X/IP65 requirements for indoor
use, when properly installed. The
units are intended to be mounted
into an enclosed panel. A sponge
rubber gasket, mounting clip, two
screws, and nut fasteners are
provided to install and seal the unit
in the panel cut-out.
The following procedure assures proper installation:
1. Cut panel opening to specified dimensions. Remove
burrs and clean panel opening.
2. Slide the panel gasket over the rear of the unit to the
back of the bezel.
3. Slide nut fastener into slot on mounting clip and then
insert mounting screw through nut on both sides of
mounting clip. Tip of mounting screw should NOT
project through hole on clip.
4. Install Ditak unit through panel cut-out.
5. Slide mounting clip over rear of unit until clip is
against back of panel. The mounting clip and Ditak
housing have a latching feature to hold the unit in
place until tightened.
Note: Hold the Ditak front bezel in place when
sliding the mounting clip into position.
6. Alternately tighten each mounting screw to ensure
uniform gasket pressure. Visually inspect the gasket
for proper seal. The gasket should be compressed
approximately 75 to 80% of its original thickness.
7. If the gasket is not adequately compressed and the
mounting screws cannot be tightened any further,
loosen mounting screws and insure that the clip is
latched as close as possible to the panel.
8. Repeat step #6 for tightening the mounting screws.
TYPICAL APPLICATION
With these DIP switch settings, the Timebase would be approximately 1.3 sec
(328 x 0.004 = 1.312). To reduce the display update time, the “Frequency
Doubling” switch can be enabled (set to the “OFF” position). Therefore, only
half the Timebase will be necessary (164 x 0.004 = 0.656 sec.).
CONVEYOR BELT SPEED INDICATOR
It is desired to display the rate of a conveyor belt used to carry PC Boards
through an Infared soldering chamber that is variable from 0 to 10 feet per
minute. The rate must be adjusted depending on the size of the boards being
soldered. The display of the rate indicator must read in hundredths of a foot per
minute. The belt is driven by a chain and sprocket. A 26-tooth sprocket is
mounted onto the shaft of a variable speed motor. A speed of 1800 RPM will
produce a belt speed of 10 ft/min. A magnetic sensor is used to monitor the
speed of this sprocket. The Ditak 7 can be used to display the belt speed in this
application. The signal input of the sensor is connected to the Ditak 7 Terminal
3 (INP). The sensor common and shield are connected to the Ditak 7 Terminal
1 (GND). The Timebase setting is to be determined by using the formula.
328
TBIT = ¾¾ = 164
2
TBIT = 164
DR x DDP x 15,360
TIMEBASE INCREMENT TOTAL (TBIT) = ¾¾¾
RPM x PPR
Desired Reading
= 10.00
MAX RPM Of Shaft
= 1800
Pulses Per Revolution = 26
Display Decimal Point = 100
15,360,000
10.00 x 100 x 15,360
TBIT = ¾¾¾
= ¾¾
= 328.2
1800 x 26
46,800
-
DIP SWA 7
-
DIP SWA 4
-
256
72
64
8
8
0
-
Needed
-
Needed
-
Needed
-
DIP SWA 6
-
DIP SWA 3
-
DIP SWB 6
DIP SWB 7,8
-
128
36
32
4
4
0
OFF
OFF
ORDERING INFORMATION
MODEL NO.
TBIT = 328 {round to the nearest whole number}
TBIT = 328
DIP SWB 1
DIP SWA 8
DT7
BNL
MLPS
-
Needed
-
Needed
-
Needed
Frequency Doubling Enabled
0.00 Decimal Point Position
Note: Unit shipped with battery installed.
DESCRIPTION
Adjustable Timebase Tachometer
Adjustable Timebase Tachometer with Yellow/Green
Backlighting
Adjustable Timebase Tachometer with Red
Backlighting
Adjustable Timebase Tachometer with V+ Terminal
3V Lithium Battery
Micro Line Sensor/Power Supply
PART NUMBER
DT700000
DT700010
DT700020
DT700M00
BNL00000
MLPS0000
For more information on Pricing, Enclosures & Panel Mount Kits refer to the
RLC Catalog or contact your local RLC distributor.
276
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
