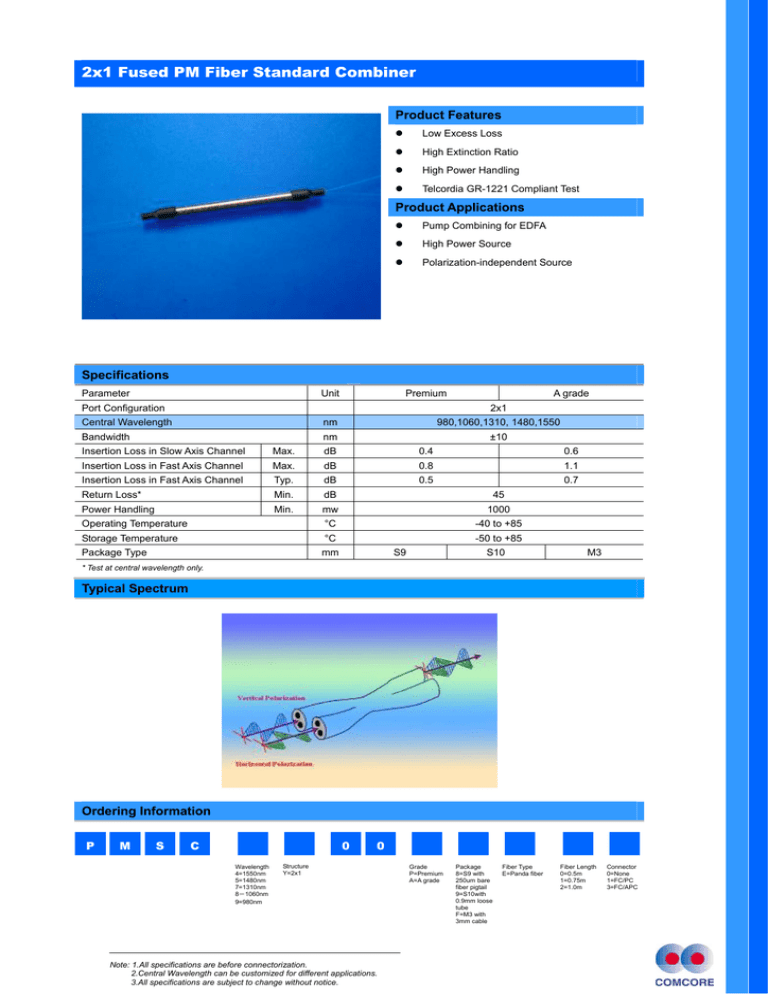

2x1 Fused PM Fiber Standard Combiner
Product Features
z
Low Excess Loss
z
High Extinction Ratio
z
High Power Handling
z
Telcordia GR-1221 Compliant Test
Product Applications
z
Pump Combining for EDFA
z
High Power Source
z
Polarization-independent Source
Specifications
Parameter
Unit
Premium
Port Configuration
A grade
2x1
Central Wavelength
nm
Bandwidth
nm
980,1060,1310, 1480,1550
±10
Insertion Loss in Slow Axis Channel
Max.
dB
0.4
0.6
Insertion Loss in Fast Axis Channel
Max.
dB
0.8
1.1
Insertion Loss in Fast Axis Channel
Typ.
dB
0.5
Return Loss*
Min.
dB
Power Handling
Min.
mw
1000
°C
-40 to +85
Operating Temperature
Storage Temperature
°C
Package Type
mm
0.7
45
-50 to +85
S9
S10
M3
* Test at central wavelength only.
Typical Spectrum
Ordering Information
P
M
S
C
0
Wavelength
4=1550nm
5=1480nm
7=1310nm
8=1060nm
9=980nm
0
Structure
Y=2x1
Note: 1.All specifications are before connectorization.
2.Central Wavelength can be customized for different applications.
3.All specifications are subject to change without notice.
Grade
P=Premium
A=A grade
Package
8=S9 with
250um bare
fiber pigtail
9=S10with
0.9mm loose
tube
F=M3 with
3mm cable
Fiber Type
E=Panda fiber
Fiber Length
0=0.5m
1=0.75m
2=1.0m
Connector
0=None
1=FC/PC
3=FC/APC
