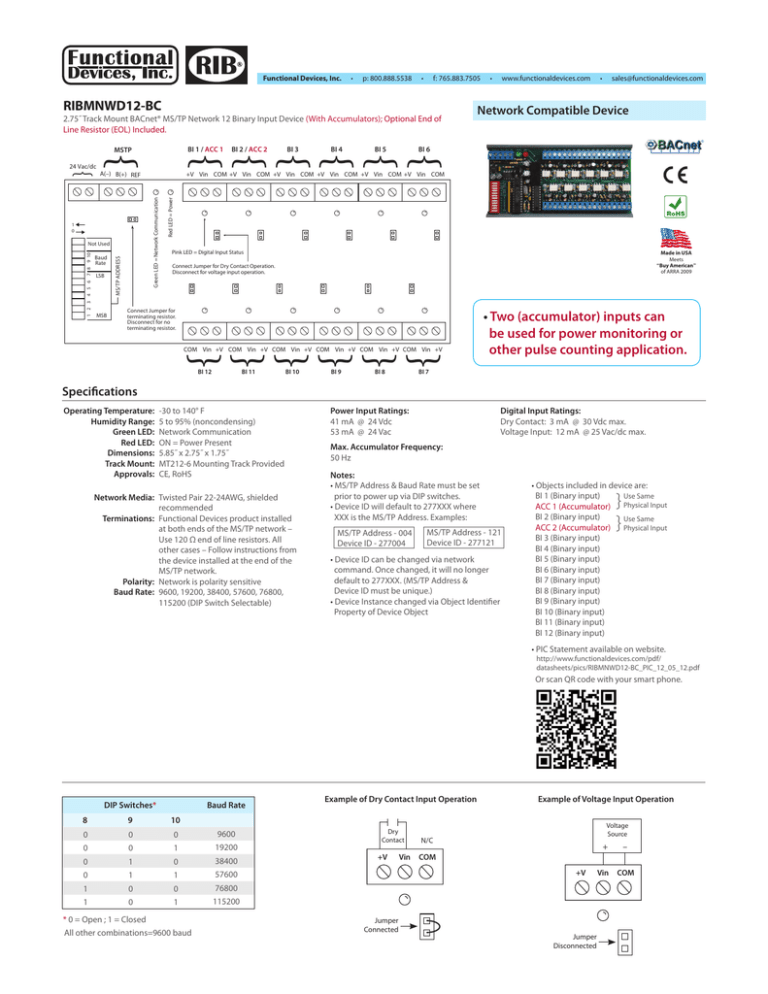

RIBMNWD12-BC

2.75˝ Track Mount BACnet® MS/TP Network 12 Binary Input Device (With Accumulators); Optional End of

Line Resistor (EOL) Included.

BI 1 / ACC 1 BI 2 / ACC 2 BI 3 BI 4 BI 5 BI 6

MSTP

24 Vac/dc

A(–) B(+)

REF

+V Vin COM +V Vin COM +V Vin COM +V Vin COM +V Vin COM +V Vin COM

Network Compatible Device

1

0

Not Used

Baud

Rate

LSB

Pink LED = Digital Input Status

Connect Jumper for Dry Contact Operation.

Disconnect for voltage input operation.

Made in USA

Meets

“Buy American”

of ARRA 2009

MSB

Connect Jumper for terminating resistor.

Disconnect for no terminating resistor.

Two (accumulator) inputs can

be used for power monitoring or

other pulse counting application.

COM Vin +V COM Vin +V COM Vin +V COM Vin +V COM Vin +V COM Vin +V

BI 9 BI 8 BI 7 BI 12 BI 11

Specifications

Operating Temperature:

Humidity Range:

Green LED:

Red LED:

Dimensions:

Track Mount:

Approvals:

-30 to 140° F

5 to 95% (noncondensing)

Network Communication

ON = Power Present

5.85˝ x 2.75˝ x 1.75˝

MT212-6 Mounting Track Provided

CE, RoHS

BI 10

Network Media:

Terminations:

Polarity:

Baud Rate:

Twisted Pair 22-24AWG, shielded recommended

Functional Devices product installed at both ends of the MS/TP network –

Use 120 Ω end of line resistors. All other cases – Follow instructions from the device installed at the end of the

MS/TP network.

Network is polarity sensitive

9600, 19200, 38400, 57600, 76800,

115200 (DIP Switch Selectable)

Power Input Ratings:

41 mA @ 24 Vdc

53 mA @ 24 Vac

Max. Accumulator Frequency:

50 Hz

Notes:

• MS/TP Address & Baud Rate must be set

prior to power up via DIP switches.

• Device ID will default to 277XXX where

XXX is the MS/TP Address. Examples:

MS/TP Address - 004

Device ID - 277004

MS/TP Address - 121

Device ID - 277121

• Device ID can be changed via network

command. Once changed, it will no longer

default to 277XXX. (MS/TP Address &

Device ID must be unique.)

• Device Instance changed via Object Identifier

Property of Device Object

Digital Input Ratings:

Dry Contact: 3 mA @ 30 Vdc max.

Voltage Input: 12 mA @ 25 Vac/dc max.

• Objects included in device are:

BI 1 (Binary input)

ACC 1 (Accumulator)

BI 2 (Binary input)

ACC 2 (Accumulator)

BI 3 (Binary input)

BI 4 (Binary input)

BI 5 (Binary input)

BI 6 (Binary input)

BI 7 (Binary input)

BI 8 (Binary input)

BI 9 (Binary input)

BI 10 (Binary input)

BI 11 (Binary input)

BI 12 (Binary input)

}

}

Use Same

Physical Input

Use Same

Physical Input

• PIC Statement available on website.

http://www.functionaldevices.com/pdf/

datasheets/pics/RIBMNWD12-BC_PIC_12_05_12.pdf

Or scan QR code with your smart phone.

8

0

0

0

0

1

1

DIP Switches *

9

1

1

0

0

0

0

10

0

1

0

1

0

1

* 0 = Open ; 1 = Closed

All other combinations=9600 baud

Baud Rate

9600

19200

38400

57600

76800

115200

Example of Dry Contact Input Operation

Dry

Contact N/C

+V Vin COM

Jumper

Connected

Example of Voltage Input Operation

Voltage

Source

+ –

+V Vin COM

Jumper

Disconnected

Functional Devices, Inc. • p: 800.888.5538 • f: 765.883.7505 • www.functionaldevices.com • [email protected]

RIBMNWD12-BCDI

2.75˝ Track Mount BACnet

(EOL) Included.

® MS/TP Network 12 Binary Input Device; Optional End of Line Resistor

BI 1 BI 2 BI 3 BI 4 BI 5 BI 6 MSTP

24 Vac/dc

A(–) B(+)

REF +V Vin COM +V Vin COM +V Vin COM +V Vin COM +V Vin COM +V Vin COM

Network Compatible Device

1

0

Not Used

Baud

Rate

LSB

Pink LED = Digital Input Status

Connect Jumper for Dry Contact Operation.

Disconnect for voltage input operation.

Made in USA

Meets

“Buy American”

of ARRA 2009

MSB

Connect Jumper for terminating resistor.

Disconnect for no terminating resistor.

COM Vin +V COM Vin +V COM Vin +V COM Vin +V COM Vin +V COM Vin +V

BI 9 BI 8 BI 7 BI 12 BI 11

Specifications

Operating Temperature:

Humidity Range:

Green LED:

Red LED:

Dimensions:

Track Mount:

Approvals:

-30 to 140° F

5 to 95% (noncondensing)

Network Communication

ON = Power Present

5.85˝ x 2.75˝ x 1.75˝

MT212-6 Mounting Track Provided

CE, RoHS

BI 10

Network Media:

Terminations:

Polarity:

Band Rate:

Twisted Pair 22-24AWG, shielded recommended

Functional Devices product installed at both ends of the MS/TP network –

Use 120 Ω end of line resistors. All other cases – Follow instructions from the device installed at the end of the

MS/TP network.

Network is polarity sensitive

9600, 19200, 38400, 57600, 76800,

115200 (DIP Switch Selectable)

Power Input Ratings:

41 mA @ 24 Vdc

53 mA @ 24 Vac

Digital Input Ratings:

Dry Contact: 3 mA @ 30 Vdc max.

Voltage Input: 12 mA @ 25 Vac/dc max.

Notes:

• MS/TP Address & Baud Rate must be set prior to

power up via DIP switches.

• Device ID will default to 277XXX where XXX is the

MS/TP Address. Examples:

MS/TP Address - 004

Device ID - 277004

MS/TP Address - 121

Device ID - 277121

• Device ID can be changed via network command.

Once changed, it will no longer default to 277XXX.

(MS/TP Address & Device ID must be unique.)

• Device Instance changed via Object Identifier

Property of Device Object

• Full wave rectified

• Objects included in device are:

BI 1 (Binary input)

BI 2 (Binary input)

BI 3 (Binary input)

BI 4 (Binary input)

BI 5 (Binary input)

BI 6 (Binary input)

BI 7 (Binary input)

BI 8 (Binary input)

BI 9 (Binary input)

BI 10 (Binary input)

BI 11 (Binary input)

BI 12 (Binary input)

• PIC Statement available on website.

http://www.functionaldevices.com/pdf/

datasheets/pics/RIBMNWD12-BCDI_PIC_12_05_12.pdf

Or scan QR code with your smart phone.

8

0

0

1

0

0

1

DIP Switches *

9

0

0

1

1

0

0

10

0

1

0

1

0

1

* 0 = Open ; 1 = Closed

All other combinations=9600 baud

Baud Rate

9600

19200

38400

57600

76800

115200

Example of Dry Contact Input Operation

Dry

Contact

N/C

+V Vin COM

Example of Voltage Input Operation

Voltage

Source

+ –

+V Vin COM

Jumper

Connected

Jumper

Disconnected

RIBMNW24B-BCAI

2.75" Track Mount BACnet® MS/TP Network Relay

Device; One Binary Output (20 Amp Relay SPDT +

Override); Two Binary Inputs (Dry Contact, Class 2);

One Analog Input (T2/T3 Thermistor /

0-5 Vdc / 0-10 Vdc); 24 Vac/dc Power Input;

Optional End of Line Resistor (EOL) Included.

Functional Devices, Inc. • p: 800.888.5538 • f: 765.883.7505 • www.functionaldevices.com • [email protected]

RIBTW24B-BCAI

Enclosed BACnet® MS/TP Network Relay Device;

One Binary Output (20 Amp Relay SPDT

+ Override); Two Binary Inputs (Dry Contact, Class

2); One Analog Input (T2/T3 Thermistor /

0-5 Vdc / 0-10 Vdc); 24 Vac/dc Power Input;

Optional End of Line Resistor (EOL) Included.

Network Compatible Relays

1

0

MS/TP

^*

See EOL resistor jumper.

OPEN

AI

Voltage

Select

Switch

^

To select AI for Thermistor

T2 or T3 input, install jumper.

^*

EOL termination resistor jumper.

Connect jumper for terminating resistor.

Relay

Control

5 V 10 V

1 2

Baud

Rate

LSB

Both jumpers installed from factory. Move one to Thermistor-Input-Select

^

for T2 or T3

Thermistor Input, otherwise leave both on for

5V or 10V Analog In. Connect Analog In between AI and AI common. Connect

Thermistor between AI and Thermistor +5V.

MS/TP

ADDRESS

MSB

Off Off Not defined

Off On T2 Thermistor

On Off T3 Thermistor

On On Analog In 5V or 10V

Type

Analog

Analog In

(Close only one)

5 V

SW1 Closed

SW2 Open

10 V

SW1 Open

SW2 Closed

Thermistor T2 or

T3 input, use 5 V selection

Made in USA

Meets

“Buy American”

of ARRA 2009

Specifications

# Relays & Contact Type:

Expected Relay Life:

Operating Temperature:

Humidity Range:

Operate Time:

Green LED:

Red LED:

Pink LED:

Pink LED:

Dimensions:

Track Mount:

Approvals:

Housing Rating:

Gold Flash:

Relay Override Switch:

One (1) SPDT Continuous Duty Coil

10 million cycles minimum mechanical

-30 to 140° F

5 to 95% (noncondensing)

18mS

Network Communication

Relay Status

BI 1

BI 2

6.25˝ x 2.75˝ x 1.75˝ (RIBMNW24B-BCAI)

4.28˝ x 7.00˝ x 2.00˝ with .75˝ NPT Nipple (RIBTW24B-BCAI)

MT212-6 Mounting Track Provided

CE, UL Listed, UL916, C-UL, RoHS

UL Listed, NEMA 1, C-UL, CE Approved,

UL Accepted for Use in Plenum,

Also available NEMA 4 / 4X

No

DIP Switch Control

Network Media:

Terminations:

Polarity:

Baud Rate:

Twisted Pair 22-24AWG, shielded recommended

Functional Devices product installed at both ends of the MS/TP network – Use

Ω end of line resistors. All other cases 120

– Follow instructions from the device installed at the end of the

MS/TP network.

Network is polarity sensitive

9600, 19200, 38400, 57600, 76800,

115200 (DIP Switch Selectable)

Contact Ratings:

20 Amp Resistive @ 277 Vac

20 Amp Ballast @ 120/277 Vac (N/O)

10 Amp Ballast @ 120/277 Vac (N/C)

Not rated for Electronic Ballast

10 Amp Tungsten @ 120 Vac (N/O)

1110 VA Pilot Duty @ 277 Vac

770 VA Pilot Duty @ 120 Vac

2 HP @ 277 Vac

1 HP @ 120 Vac

Power Input Ratings:

81 mA @ 24 Vdc

111 mA @ 24 Vac

8

0

0

1

1

0

0

DIP Switches *

9

0

0

1

1

0

0

10

0

1

0

1

0

1

All other combinations=9600 baud

Baud Rate

9600

19200

38400

57600

76800

115200

DIP Switches *

11

1

X

0

12

0

1

0

Relay State

Auto

**

Override on

Override off

* 0 = Open ; 1 = Closed

** Device must be powered for override

• Dry contact binary input is a general purpose input that is not tied to the relay internally. Can be used

with any dry contact switching device, such as a current sensor, to feed back to the network.

Notes:

• MS/TP Address & Baud Rate must be set prior to power

up via DIP switches.

• Device ID will default to 277XXX where XXX is the

MS/TP Address.

Examples:

MS/TP Address - 004

Device ID - 277004

MS/TP Address - 121

Device ID - 277121

• Device ID can be changed via network command.

Once changed, it will no longer default to 277XXX.

(MS/TP Address & Device ID must be unique.)

• Order NEMA 4 housing by adding “-N4” to end of model

number. (RIBTW24B-BCAI)

• This model utilizes: BO 1 (Relay output), BI 1 (Dry

contact binary input), BI 2 (Dry contact binary input),

AI 1 (Analog input)

• Device Instance changed via Object Identifier Property

of Device Object

• Thermistor Type 2 (T2) Precon 10 K @ 77°F (25°C)

PN ST-R24, Model 24, (or equivalent.) Thermistor Type 3

(T3) Precon 10 K @ 77°F (25°C) Model 3, (or equivalent.)

Thermistor not included.

• If date code is prior to 083012, Version 1.03 or earlier:

• For both T2 and T3, MIN_PRES_VAL must be set to

-36 (real value) and MAX_PRES_VAL must be set

to 987 (real value).

• -35 to 100°C

range in 1° steps.

• If date code is 083012 or later, Version 1.05:

• For both T2 and T3, MIN_PRES_VAL must be set to

-36 (real value) and MAX_PRES_VAL must be set

to 66.3 (real value) for Celcius. For Fahrenheit,

MIN_PRES_VAL must be set to -32.8 (real value) and

MAX_PRES_VAL must be set to 151.34 (real value).

-35 to 10°C range in 1° steps / -31 to 50°F range in 1.8° steps

10 to 32°C

range in 0.1° steps / 50 to 90°F range in 0.18° steps

32 to 100°C

range in 1° steps / 90 to 212°F range in 1.8° steps

• For all versions, raw analog default settings are 0 and

1023 (real), respectively. Units default to 95 (no units).

• When connecting 24 Vac to both this device and a

half-wave device, damage to device can occur.

Option 1: Use separate transformers for each device.

Option 2: Add diode between devices, see Option 2

note below.^^

• PIC Statement available on website.

http://www.functionaldevices.com/pdf/datasheets/

pics/BACnet-BCAI_PICS.pdf

Or scan QR code with your smart phone.

24 Vac

RIBMNW24B-BCAI or RIBTW24B-BCAI

24 Vac/dc

Com

IN4004

Half-Wave Device

24 Vac

Com

^^ Option 2:

Add diode on 24 Vac power (Com) interconnection between devices.

Band on diode faces towards -BCAI.

RIBMW24SB-LNAI

4.00˝ Track Mount LonWorks® Twisted-Pair FT-10

Network Three I/O Device; One Discrete Output (20

Amp Relay SPST + Override), One Discrete Input (Dry

Contact, Class 2); One Analog Input (0-5Vdc / 0-10

Vdc); 24 Vac/dc Power Input

Functional Devices, Inc. • p: 800.888.5538 • f: 765.883.7505 • www.functionaldevices.com • [email protected]

RIBTW24SB-LNAI

Enclosed LonWorks® Twisted-Pair FT-10 Network

Enclosed Three I/O Device; One Discrete Output (20

Amp Relay SPST + Override), One Discrete

Input (Dry Contact, Class 2); One Analog Input

(0-5Vdc / 0-10 Vdc); 24 Vac/dc Power Input. Kit

Consisting of Enclosure Model PE6010 and RIB®

Model RIBMW24SB-LNAI.

Network Compatible Relays

Class 2 Dry Contact

Digital Input

YELLOW LED = Service

RED LED = Relay Activated

GREEN LED = Network Status

5 V 10 V

1 2

OPEN

Selectable

Jumper Wire

CLOSED

OPEN

AUTO

Class 2 Dry Contact

Digital Input

YELLOW LED = Service

RED LED = Relay Activated

GREEN LED = Network Status

5 V 10 V

1 2

OPEN

Selectable

Jumper Wire

CLOSED

OPEN

AUTO

Made in USA

Meets

“Buy American”

of ARRA 2009

Node Object

NV1 nvi Request

NV2 nvo Status

Node Object

NV1 nvi Request

NV2 nvo Status

NV1 nvi Value

NV1 nvi Request nci Default

NV2 nvo Value Fb nvo Status nci Max Receive T

NV2

Specifications

# Relays & Contact Type:

Expected Relay Life:

Operating Temperature:

Humidity Range:

Operate Time:

Green LED:

Red LED:

Yellow LED:

Dimensions:

Track Mount:

Approvals:

Housing Rating:

Gold Flash:

Override Switch:

One (1) SPST Continuous Duty Coil

10 million cycles minimum mechanical

-30 to 140° F

5 to 95% (noncondensing)

18mS

Network Status

Relay Status

Service Status

4.00˝ x 4.00˝ x 2.30˝ (RIBMW24SB-LNAI)

4.28˝ x 7.00˝ x 2.00˝ with .75˝ NPT Nipple

(RIBTW24SB-LNAI)

MT4-4 Mounting Track Provided

FCC, LonMark®, CE, RoHS

UL Listed, UL916, C-UL

UL Listed, NEMA 1, C-UL, CE Approved,

UL Accepted for Use in Plenum,

Also available NEMA 4 / 4X

No

Yes

Channel:

Transceiver Type:

Functional Blocks:

Downloadable Files:

TP/FT-10

FTT-10A with blocking capacitors for compatibility with link power channel

0000 Node Object

0004 Closed Loop Actuator Object

0001 Open Loop Sensor Object

0520 Analog Input

PDF, XIF, APB, VSS and NXE

NV1 nvi Value

NV1 nvi Request nci Default

NV2 nvo Value Fb nvo Status nci Max Receive T

NV2

NV1 nvi Value nci Invert

0-5Vdc or 0-10 Vdc

Temperature,

Humidity, Pressure

Transducer

AI

AI Com

NV1 nvi Value nci Invert

NV1

NV1 nci Invert nci Max Send T

10K

Analog

Input

Contact Ratings:

20 Amp Resistive @ 277 Vac

20 Amp Ballast @ 120/277 Vac (N/O)

10 Amp Ballast @ 120/277 Vac (N/C)

Not rated for Electronic Ballast

10 Amp Tungsten @ 120 Vac (N/O)

1110 VA Pilot Duty @ 277 Vac

770 VA Pilot Duty @ 120 Vac

2 HP @ 277 Vac

1 HP @ 120 Vac

Power Input Ratings:

111 mA @ 24 Vac

81 mA @ 24 Vdc

Power Input:

24 Vac/dc ; 50-60 Hz

*

Notes:

• Order with P1 option by adding “-P1” to end of model

number. The P1 option is pre-programmed to allow dry

contact input to command the relay. Contact closure on the

DI will activate relay.

• Normally Open or Normally Closed selected by yellow

jumper wire.

• Order with Momentary Override Switch by adding “-MNO”

to end of model number.

• Order NEMA 4 housing by adding “-N4” to end of model

number. (RIBTW24SB-LNAI-N4)

• Close DIP switch 1 for 0-5 Vdc Analog Input.

Close DIP switch 2 for 0-10 Vdc Analog Input.

• When connecting 24 Vac to both the -LNAI and a half-wave

device, damage to device can occur. Option 1: Use separate

transformers for each device. Option 2: Add diode between

devices, see Option 2 note below. *

Description SNVT Name SNVT Type

Command to open/close relay

Command status of relay

Default state of relay on/off

Communication timer

Status of Digital-In nvi Value nvo Value Fb nci Default nci Max Receive T nvo Value nci Invert

SNVT_switch

SNVT_switch

SNVT_switch

SNVT_elapsed_tm

SNVT_switch

Invert status of Digital-In

Min time between updates

Value of Analog-In

Max time between Analog updates

NV1 nci Min Send T nci Min Send T1 nci Min Delta nci Max Send T1

SNVT_lev_disc

SNVT_elapsed_tm

SNVT_elapsed_tm

SNVT_lev_percent

SNVT_elapsed_tm

Min change in Analog before updates nci Min Send T1 nci Min Delta

SNVT_elapsed_tm

SNVT_lev_percent

NV1 nci Max SendT1 nci Min Send T1 nvo Analog

The relay will go to the default state when the communication timer times out. Setting the timer value to zero will cause the communication to never time out.

It is recommended to put a value in nci Max Send T to ensure the RIB re-synchronizes itself on the network after power loss. It is the responsibility of the user to ensure this value does not cause conflicts in network traffic. (No value = No “heartbeat” updates / no re-sychronization; Low Value = Many updates but may cause many traffic collisions; High value = Few updates but many less collisions.)

RIBMW24SB-LNAI or RIBTW24SB-LNAI

Half-Wave Device

24 Vac

24 Vac/dc

Com

24 Vac

Com

IN4004

* Option 2: Add diode on 24 Vac power (Com) interconnection between devices.

Band on diode faces towards -LNAI.

RIBMW24SB-LNT2

4.00˝ Track Mount LonWorks® Twisted-Pair FT-10

Network Three I/O Device; One Discrete

Output (20 Amp Relay SPST + Override), One

Discrete Input (Dry Contact, Class 2); Precon®

Type 2 Thermistor Input; 24 Vac/dc Power Input

Connect Precon® 10K

@ 77 F (25 C), Type 2,

Model 24 (or equivalent) to Thermistor terminals.

5 V 10 V

1 2

OPEN

SW1 Closed

SW2 Open

Selectable

Jumper Wire

Class 2 Dry Contact

Digital Input

YELLOW LED = Service

RED LED = Relay Activated

GREEN LED = Network Status

CLOSED

OPEN

AUTO

Functional Devices, Inc. • p: 800.888.5538 • f: 765.883.7505 • www.functionaldevices.com • [email protected]unctionaldevices.com

RIBTW24SB-LNT2

Enclosed LonWorks® Twisted-Pair FT-10 Network

Three I/O Device; One Discrete Output (20 Amp

Relay SPST + Override), One Discrete Input (Dry

Contact, Class 2); Precon® Type 2 Thermistor

Input; 24 Vac/dc Power Input

Network Compatible Relays

Connect Precon® 10K

@ 77 F (25 C), Type 2,

Model 24 (or equivalent) to Thermistor terminals.

5 V 10 V

1 2

OPEN

SW1 Closed

SW2 Open

Selectable

Jumper Wire

Class 2 Dry Contact

Digital Input

YELLOW LED = Service

RED LED = Relay Activated

GREEN LED = Network Status

CLOSED

OPEN

AUTO

Made in USA

Meets

“Buy American”

of ARRA 2009

• Thermistor Input

Node Object

NV1 nvi Request

NV2 nvo Status

Node Object

NV1 nvi Request

NV2 nvo Status

NV1 nvi Value

NV1 nvi Request

NV2 nvo Value Fb nvo Status nci Default nci Max Receive T

NV2

Specifications

# Relays & Contact Type:

Expected Relay Life:

Operating Temperature:

Humidity Range:

Operate Time:

Green LED:

Red LED:

Yellow LED:

Dimensions:

Track Mount:

Approvals:

Housing Rating:

Gold Flash:

Override Switch:

One (1) SPST Continuous Duty Coil

10 million cycles minimum mechanical

-30 to 140° F

5 to 95% (noncondensing)

18mS

Network Status

Relay Status

Service Status

4.00˝ x 4.00˝ x 2.30˝ (RIBMW24SB-LNT2)

4.28˝ x 7.00˝ x 2.00˝ with .75˝ NPT Nipple

(RIBTW24SB-LNT2)

MT4-4 Mounting Track Provided

FCC, CE, UL Listed, UL916, C-UL, RoHS

UL Listed, NEMA 1, C-UL, CE Approved,

UL Accepted for Use in Plenum,

Also available NEMA 4 / 4X

No

Yes

Channel:

Transceiver Type:

Functional Blocks:

Downloadable Files:

TP/FT-10

FTT-10A with blocking capacitors for compatibility with link power channel

0000 Node Object

0004 Closed Loop Actuator Object

0001 Open Loop Sensor Object

1040 Temperature Sensor

PDF, XIF, APB, VSS and NXE

NV1 nvi Value

NV1 nvi Request

NV2 nvo Value Fb nvo Status nci Default nci Max Receive T

NV2

NV1 nvi Value nci Invert nci Default nci Min Send T

NV1 nvi Value nci Invert nci Default nci Min Send T

* Open Loop Sensor Object

NV1

NV1

Contact Ratings:

20 Amp Resistive @ 277 Vac

20 Amp Ballast @ 120/277 Vac (N/O)

10 Amp Ballast @ 120/277 Vac (N/C)

Not rated for Electronic Ballast

10 Amp Tungsten @ 120 Vac (N/O)

1110 VA Pilot Duty @ 277 Vac

770 VA Pilot Duty @ 120 Vac

2 HP @ 277 Vac

1 HP @ 120 Vac

Power Input Ratings:

111 mA @ 24 Vac

81 mA @ 24 Vdc

Power Input:

24 Vac/dc ; 50/60 Hz

^

Notes:

• Order with P1 option by adding “-P1” to end of model

number. The P1 option is pre-programmed to allow dry

contact input to command the relay. Contact closure on the

DI will activate relay.

• Normally Open or Normally Closed selected by yellow

jumper wire.

• Order with Momentary Override Switch by adding “-MNO”

to end of model number.

• Order NEMA 4 housing by adding “-N4” to end of model

number. (RIBTW24SB-LNT2-N4)

• -35 to 100°C

range in one degree steps. -36°C indicates

below range, 101°C indicates above range.

• When connecting 24 Vac to both the -LNT2 and a half-wave

device, damage to device can occur. Option 1: Use separate

transformers for each device. Option 2: Add diode between

devices, see Option 2 note below.

^

• Can be used with Precon® Type 3 Thermistor Input. Use

suffix “-LNT3” when ordering. Thermistor not included.

Order NEMA 4 housing by adding “-N4” to end of model

number. (RIBTW24SB-LNT3-N4)

Description

Command to open/close relay

Command status of relay

Default state of relay on/off

Communication timer

Status of Digital-In

Max time between updates

NV1

Max time between Temperature updates

Min time between Temperature updates

Min change in Temperature before updates

SNVT Name

nvi Value nvo Value Fb nci Default nci Max Receive T nvo Value

*

nci Invert nci Max Send T

NV1 nci Min Send T1 nci Min Send T1 nci Min Delta

SNVT Type

SNVT_switch

SNVT_switch

SNVT_switch

SNVT_elapsed_tm

SNVT_switch

SNVT_lev_disc

SNVT_elapsed_tm

SNVT_elapsed_tm

SNVT_temp_p

SNVT_elapsed_tm

SNVT_elapsed_tm

SNVT_temp_p

The relay will go to the default state when the communication timer times out. Setting the timer value to zero will cause the communication to never time out.

It is recommended to put a value in nci Max Send T to ensure the RIB re-synchronizes itself on the network after power loss. It is the responsibility of the user to ensure this value does not cause conflicts in network traffic. (No value = No “heartbeat” updates / no re-sychronization; Low Value = Many updates but may cause many traffic collisions; High value = Few updates but many less collisions.)

24 Vac

RIBMW24SB-LNT2, RIBTW24SB-LNT2,

RIBMW24SB-LNT3 or RIBTW24SB-LNT3

24 Vac/dc

Com

Half-Wave Device

24 Vac

Com

IN4004

^

Option 2: Add diode on 24 Vac power (Com) interconnection between devices.

Band on diode faces towards -LNT2.

RIBTW2401B-BC

Enclosed BACnet® MS/TP Network Relay Device;

One Binary Output (20 Amp Relay SPDT + Override); One Binary Input (Dry Contact, Class 2);

24 Vac/dc or 120 Vac Power Input, Optional End of Line Resistor (EOL) Included.

Functional Devices, Inc. • p: 800.888.5538 • f: 765.883.7505 • www.functionaldevices.com • [email protected]

RIBTW2402B-BC

Enclosed BACnet® MS/TP Network Relay Device;

One Binary Output (20 Amp Relay SPDT + Override); One Binary Input (Dry Contact, Class 2);

24 Vac/dc or 208-277 Vac Power Input, Optional

End of Line Resistor (EOL) Included.

Network Compatible Relays

0 1 1 2 3 4 5 6 7 8 9 10 11 12

MSTP

24 Vac/dc

Common

Connect Jumper for EOL.

Disconnect for no terminating resistor.

MS/TP ADDRESS

0 1 1 2 3 4 5 6 7 8 9 10 11 12

MSTP

24 Vac/dc

Common

Connect Jumper for EOL.

Disconnect for no terminating resistor.

MS/TP ADDRESS

Made in USA

Meets

“Buy American”

of ARRA 2009

Wht/Yel

Neutral

Wht/Blk

120 Vac

Blu

N/C

Yel

Comm

Org

N/O

Wht/Yel

Neutral

Wht/Brn

208-277 Vac

Blu

N/C

Yel

Comm

Org

N/O

Specifications

# Relays & Contact Type:

Expected Relay Life:

Operating Temperature:

Humidity Range:

Operate Time:

Green LED:

Red LED:

Dimensions:

Wires:

Approvals:

Housing Rating:

Gold Flash:

Relay Override Switch:

One (1) SPDT Continuous Duty Coil

10 million cycles minimum mechanical

-30 to 140° F

5 to 95% (noncondensing)

18mS

Network Communication

Relay Status

4.00˝ x 4.00˝ x 1.80˝ with .50˝ NPT Nipple

16˝, 600V Rated

CE, UL Listed, UL916, C-UL, RoHS

UL Accepted for Use in Plenum, NEMA 1

No

DIP Switch Control

Contact Ratings:

20 Amp Resistive @ 277 Vac

20 Amp Ballast @ 120/277 Vac (N/O)

10 Amp Ballast @ 120/277 Vac (N/C)

Not rated for Electronic Ballast

10 Amp Tungsten @ 120 Vac (N/O)

1110 VA Pilot Duty @ 277 Vac

770 VA Pilot Duty @ 120 Vac

2 HP @ 277 Vac

1 HP @ 120 Vac

Network Media:

Terminations:

Polarity:

Baud Rate:

Twisted Pair 22-24AWG, shielded recommended

Functional Devices product installed at both ends of the MS/TP network – Use

120

Ω end of line resistors. All other cases

– Follow instructions from the device installed at the end of the

MS/TP network.

Network is polarity sensitive

9600, 19200, 38400, 57600, 76800,

115200 (DIP Switch Selectable)

Power Input Ratings:

81 mA @ 24 Vdc

111 mA @ 24 Vac

96 mA @ 120 Vac (RIBTW2401B-BC)

121 mA @ 208-277 Vac (RIBTW2402B-BC)

Power Input:

24 Vac/dc ; 120 Vac ; 50/60 Hz (RIBTW2401B-BC)

24 Vac/dc ; 208-277 Vac ; 50/60 Hz (RIBTW2402B-BC)

Notes:

• MS/TP Address & Baud Rate must be set

prior to power up via DIP switches.

• Device ID will default to 277XXX where

XXX is the MS/TP Address.

Examples:

MS/TP Address - 004

Device ID - 277004

MS/TP Address - 121

Device ID - 277121

• Device ID can be changed via network

command. Once changed, it will no longer

default to 277XXX. (MS/TP Address &

Device ID must be unique.)

• This model utilizes: BO 1 (Relay output),

BI 1: (Dry contact binary input)

• Software objects also included but not

utilized: BI 2 (Binary input), AI 1 (Analog

input)

• Device Instance changed via Object

Identifier Property of Device Object

• Each unit is 1/8 unit load if date code 041510

or later. (One full load prior to 041510)

• PIC Statement available on website.

http://www.functionaldevices.com/pdf/

datasheets/pics/BACnetRIB_PICS_V103.pdf

Or scan QR code with your smart phone.

8

0

0

1

1

0

0

DIP Switches *

9

0

0

1

1

0

0

10

0

1

0

1

0

1

All other combinations=9600 baud

Baud Rate

9600

19200

38400

57600

76800

115200

DIP Switches *

11

1

X

0

12

0

1

0

Relay State

Auto

**

Override on

Override off

* 0 = Open ; 1 = Closed

** Device must be powered for override

• Dry contact binary input is a general purpose input that is not tied to the relay internally. Can be used

with any dry contact switching device, such as a current sensor, to feed back to the network.

Functional Devices, Inc. • p: 800.888.5538 • f: 765.883.7505 • www.functionaldevices.com • [email protected]ices.com

RIBTW-ET Series

Ethernet Network Enclosed Dual I/O Device: One Discrete Output (20 Amp Relay SPDT + Override),

One Discrete Input (Dry Contact, Class 2); 24 Vac/dc; 120 Vac, 208 Vac, 240 Vac, or 277 Vac Power

RJ-45

Ethernet

Connector

GREEN LED = Ethernet Link Status

YELLOW LED = Ethernet Data Status

PINK LED = Digital Input Status

RED LED = Relay Status

GREEN LED =

Device Status LED

Network Compatible Relays

24 Vac/dc

Common

Class 2

Dry Contacts

Digital Input

RESET to

Factory Defaults

Pushbutton

(Activate with insulated tool.)

Specifications

# Relays & Contact Type:

Expected Relay Life:

Operating Temperature:

Operate Time:

Green LED:

Green LED:

Yellow LED:

Pink LED:

Red LED:

Dimensions:

Weight:

Wires:

Approvals:

Housing Rating:

Gold Flash:

Relay Override Switch:

IEEE 802.3™:

One (1) SPDT Continuous Duty Coil

10 million cycles minimum mechanical

-30 to 140° F

18mS

Device Status

Ethernet Link Status

Ethernet Data Status

Digital Input Status

Relay Status

4.00˝ x 4.00˝ x 1.80˝ with .50˝ NPT Nipple

0.83 lbs.

16˝, 600V Rated

UL Listed, UL916, C-UL, FCC, CE, RoHS

UL Accepted for Use in Plenum, NEMA 1

No

DIP Switch Control

TCP/IP

Mac and 10-Base-T

Fully Compatible 10/100/1000 Base-T

Half-duplex

CRC and Collision Retransmission

Automatic Bad Packet Elimination

Supports Ping and ARP

Wht/Yel Wht/Blk or

Wht/Brn

Blu

N/C

Yel

COM

Org

N/O

Contact Ratings:

20 Amp Resistive @ 277 Vac

20 Amp Ballast @ 120/277 Vac (N/O)

10 Amp Ballast @ 120/277 Vac (N/C)

Not rated for Electronic Ballast

10 Amp Tungsten @ 120 Vac (N/O)

2 HP @ 277 Vac

1 HP @ 120 Vac

Power Input Ratings:

114 mA Max @ 24 Vac

72 mA Max @ 24 Vdc

100 mA Max @ 120 Vac

120 mA Max @ 208 Vac

115 mA Max @ 240 Vac

110 mA Max @ 277 Vac

Available TCP/IP Settings:

IP Address (Static)

Port Number

• Subnet Mask

• Gateway

Made in USA

Meets

“Buy American”

of ARRA 2009

Code Version 3.0.5

For older versions, see Product

Revision Page on our website.

Device Settings:

• Local Override

• Reset to Network Defaults Pushbutton

Power Input:

24 Vac/dc = Terminal Strip

120 Vac = Wht/Blk Wire

208 Vac, 240 Vac, 277 Vac = Wht/Brn Wire

Neutral or Other Phase = Wht/Yel Wire

Device Settings by Network:

Power up default relay state

Host name and location labels

• Relay bound to digital input

Relay Control

DIP Switches *

1

1

X

0

2

0

1

0

* 0 = Open ; 1 = Closed

Relay State

Auto

Override ON

Override OFF

RIBTW-ET Series Selection Guide

Model#

RIBTW2401B-ET

RIBTW24208B-ET

RIBTW24240B-ET

RIBTW24277B-ET

24 Vac/dc

120 Vac

208 Vac

240 Vac

277 Vac

Setup Instructions available on website.

http://www.functionaldevices.com/pdf/bulletins/B1416_393163.pdf

Or scan QR code with your smart phone.

RIBTW2401B-LN

LonWorks® Twisted-Pair FT-10 Network Enclosed

Dual I/O Device: One Discrete Output (20 Amp

Relay SPDT), One Discrete Input (Dry Contact

Class 2); 24 Vac/dc or 120 Vac Power Input

Service Button

LON

LON

24 Vac/dc

Comm

Class 2 Dry Contact Digital Input

Functional Devices, Inc. • p: 800.888.5538 • f: 765.883.7505 • www.functionaldevices.com • [email protected]

RIBTW2402B-LN

LonWorks® Twisted-Pair FT-10 Network Enclosed

Dual I/O Device: One Discrete Output (20 Amp

Relay SPDT), One Discrete Input (Dry Contact

Class 2); 24 Vac/dc or 208-277 Vac Power Input

Network Compatible Relays

Service Button

LON

LON

24 Vac/dc

Comm

Class 2 Dry Contact Digital Input

Wht/Yel

Neutral

Wht/Blk

120 Vac

Blu

N/C

Specifications

# Relays & Contact Type:

Expected Relay Life:

Operating Temperature:

Humidity Range:

Operate Time:

Green LED:

Red LED:

Yellow LED:

Dimensions:

Wires:

Approvals:

Housing Rating:

Gold Flash:

Override Switch:

One (1) SPDT Continuous Duty Coil

10 million cycles minimum mechanical

-30 to 140° F

5 to 95% (noncondensing)

18mS

Network Status

Relay Status

Service Status

4.00˝ x 4.00˝ x 1.80˝ with .50˝ NPT Nipple

16˝, 600V Rated

FCC, LonMark®, CE, RoHS

UL Listed, UL916, C-UL

UL Accepted for Use in Plenum, NEMA 1

No

No

Channel:

Transceiver Type:

Functional Blocks:

Downloadable Files:

TP/FT-10

FTT-10A with blocking capacitors for compatibility with link power channel

0000 Node Object

0004 Closed Loop Actuator Object

0001 Open Loop Sensor Object

PDF, XIF, APB, VSS and NXE

Node Object

NV1 nvi Request

Yel

Comm

Org

N/O

NV2 nvo Status

Wht/Yel

Neutral or

Other Phase

Wht/Brn

208-277 Vac

Blu

N/C

Yel

Comm

Org

N/O

Contact Ratings:

20 Amp Resistive @ 277 Vac

20 Amp Ballast @ 120/277 Vac (N/O)

10 Amp Ballast @ 120/277 Vac (N/C)

Not rated for Electronic Ballast

10 Amp Tungsten @ 120 Vac (N/O)

1110 VA Pilot Duty @ 277 Vac

770 VA Pilot Duty @ 120 Vac

2 HP @ 277 Vac

1 HP @ 120 Vac

Power Input Ratings:

111 mA @ 24 Vac

96 mA @ 120 Vac (RIBTW2401B-LN)

105 mA @ 208-277 Vac (RIBTW2402B-LN)

81 mA @ 24 Vdc

Description

Command to open/close relay

Command status of relay

Default state of relay on/off

Communication timer

Status of Digital-In

Invert status of Digital-In

Max time between updates

Min time between updates

Closed Loop Actuator

NV1 nvi Value

NV2 nvo Value Fb nci Default nci Max Receive T

Power Input:

24 Vac/dc ; 120 Vac ; 50-60 Hz (RIBTW2401B-LN)

24 Vac/dc ; 208-277 Vac ; 50-60 Hz (RIBTW2402B-LN)

Notes:

• Order with P1 option by adding “-P1” to end of

model number. The P1 option is pre-programmed to

allow dry contact input to command the relay.

Contact closure on the DI will activate relay.

SNVT Name

nvi Value nvo Value Fb nci Default nci Max Receive T nvo Value nci Invert nci Max Send T nci Min Send T

Made in USA

Meets

“Buy American”

of ARRA 2009

SNVT Type

SNVT_switch

SNVT_switch

SNVT_switch

SNVT_elapsed_tm

SNVT_switch

SNVT_lev_disc

SNVT_elapsed_tm

SNVT_elapsed_tm

The relay will go to the default state when the communication timer times out. Setting the timer value to zero will cause the communication to never time out.

It is recommended to put a value in nci Max Send T to ensure the RIB re-synchronizes itself on the network after power loss. It is the responsibility of the user to ensure this value does not cause conflicts in network traffic. (No value = No “heartbeat” updates / no re-sychronization; Low Value = Many updates but may cause many traffic collisions; High value = Few updates but many less collisions.)

Open Loop Sensor Object

NV1 nci Invert nci Max Send T nci Min Send T nvo Value

RIBTW2401SB-LN

LonWorks® Twisted-Pair FT-10 Network Enclosed

Dual I/O Device: One Discrete Output (20 Amp

Relay SPST-N/O + Override), One Discrete Input

(Dry Contact, Class 2); 24 Vac/dc or 120 Vac

Power Input

Service Button

LON

LON

24 Vac/dc

Comm

Class 2 Dry Contact Digital Input

Functional Devices, Inc. • p: 800.888.5538 • f: 765.883.7505 • www.functionaldevices.com • [email protected]

RIBTW2402SB-LN

LonWorks® Twisted-Pair FT-10 Network Enclosed

Dual I/O Device: One Discrete Output (20 Amp

Relay SPST-N/O + Override), One Discrete Input

(Dry Contact, Class 2); 24 Vac/dc or 208-277 Vac

Power Input

LON

LON

24 Vac/dc

Comm

Class 2 Dry Contact Digital Input

Service Button

Network Compatible Relays

CLOSED OPEN AUTO

CLOSED OPEN AUTO

Made in USA

Meets

“Buy American”

of ARRA 2009

Wht/Yel

Neutral

Wht/Blk

120 Vac

Org Org

Wht/Yel

Neutral or

Other Phase

Wht/Brn

208-277 Vac

Org

Specifications

# Relays & Contact Type:

Expected Relay Life:

Operating Temperature:

Humidity Range:

Operate Time:

Green LED:

Red LED:

Yellow LED:

Dimensions:

Wires:

Approvals:

Housing Rating:

Gold Flash:

Override Switch:

One (1) SPST Continuous Duty Coil

10 million cycles minimum mechanical

-30 to 140° F

5 to 95% (noncondensing)

18mS

Network Status

Relay Status

Service Status

4.00˝ x 4.00˝ x 1.80˝ with .50˝ NPT Nipple

16˝, 600V Rated

FCC, LonMark®, CE, RoHS

UL Listed, UL916, C-UL

UL Accepted for Use in Plenum, NEMA 1

No

Yes

Channel:

Transceiver Type:

Functional Blocks:

Downloadable Files:

TP/FT-10

FTT-10A with blocking capacitors for compatibility with link power channel

0000 Node Object

0004 Closed Loop Actuator Object

0001 Open Loop Sensor Object

PDF, XIF, APB, VSS and NXE

Org

Contact Ratings:

20 Amp Resistive @ 277 Vac

20 Amp Ballast @ 120/277 Vac (N/O)

10 Amp Ballast @ 120/277 Vac (N/C)

Not rated for Electronic Ballast

10 Amp Tungsten @ 120 Vac (N/O)

1110 VA Pilot Duty @ 277 Vac

770 VA Pilot Duty @ 120 Vac

2 HP @ 277 Vac

1 HP @ 120 Vac

Power Input Ratings:

111 mA @ 24 Vac

96 mA @ 120 Vac (RIBTW2401SB-LN)

105 mA @ 208-277 Vac (RIBTW2402SB-LN)

81 mA @ 24 Vdc

Node Object

NV1 nvi Request

NV2 nvo Status

Closed Loop Actuator

NV1 nvi Value

NV2 nvo Value Fb nci Default nci Max Receive T

Power Input:

24 Vac/dc ; 120 Vac ; 50-60 Hz (RIBTW2401SB-LN)

24 Vac/dc ; 208-277 Vac ; 50-60 Hz (RIBTW2402SB-LN)

Notes:

• Order with P1 option by adding “-P1” to end of

model number. The P1 option is pre-programmed to

allow dry contact input to command the relay.

Contact closure on the DI will activate relay.

• Order Normally Closed by adding “-NC” to end of

model number.

• Order with Momentary Override Switch by adding

“-MNO” to end of model number.

Description

Command to open/close relay

Command status of relay

Default state of relay on/off

Communication timer

Status of Digital-In

Invert status of Digital-In

Max time between updates

Min time between updates

SNVT Name

nvi Value nvo Value Fb nci Default nci Max Receive T nvo Value nci Invert nci Max Send T nci Min Send T

SNVT Type

SNVT_switch

SNVT_switch

SNVT_switch

SNVT_elapsed_tm

SNVT_switch

SNVT_lev_disc

SNVT_elapsed_tm

SNVT_elapsed_tm

The relay will go to the default state when the communication timer times out. Setting the timer value to zero will cause the communication to never time out.

It is recommended to put a value in nci Max Send T to ensure the RIB re-synchronizes itself on the network after power loss. It is the responsibility of the user to ensure this value does not cause conflicts in network traffic. (No value = No “heartbeat” updates / no re-sychronization; Low Value = Many updates but may cause many traffic collisions; High value = Few updates but many less collisions.)

Open Loop Sensor Object

NV1 nci Invert nci Max Send T nci Min Send T nvo Value

1

0

RIBMNWX2401B-BC

2.75˝ Track Mount BACnet® MS/TP Network Relay

Device; One Binary Output (20 Amp Relay SPDT

+ Override); Two Binary Inputs (One Current

Sensor 0.25 - 20 Amp, Relay Load Sensing & One

Dry Contact Binary Input), 24 Vac/dc or 120 Vac

Power Input, Optional End of Line Resistor (EOL)

Included.

Functional Devices, Inc. • p: 800.888.5538 • f: 765.883.7505 • www.functionaldevices.com • [email protected]

RIBTWX2401B-BC

Enclosed BACnet® MS/TP Network Relay Device;

One Binary Output (20 Amp Relay SPDT + Override); Two Binary Inputs (One Current Sensor

0.25 - 20 Amp, Relay Load Sensing & One Dry

Contact Binary Input), 24 Vac/dc or 120 Vac

Power Input, Optional End of Line Resistor (EOL)

Included.

}

Contacts

COM

N/O

N/C

Internal

Current

Sensor

Network Compatible Relay / Current Sensor Combos

Relay

Override

Baud

Rate

LSB

Made in USA

Meets

“Buy American”

of ARRA 2009

Low Voltage Power Input High Voltage Power Input

Connect Jumper for terminating resistor.

Disconnect for no terminating resistor.

MSB

Specifications

# Relays & Contact Type:

Expected Relay Life:

Operating Temperature:

Humidity Range:

Operate Time:

Network Communication:

Relay Status:

Current Sensor Status:

Binary Input Status:

Dimensions:

Track Mount:

Approvals:

Housing Rating:

Gold Flash:

Relay Override Switch:

One (1) SPDT Continuous Duty Coil

10 million cycles minimum mechanical

-30 to 140° F

5 to 95% (noncondensing)

18mS

Green LED

Red LED On = Activated

Pink LED On = Activated

Pink LED On = Activated

6.00˝ x 2.75˝ x 1.75˝ (RIBMNWX2401B-BC)

4.28˝ x 7.00˝ x 2.00˝ with .75˝ NPT Nipple (RIBTWX2401B-BC)

MT212-6 Mounting Track Provided

CE, UL Listed, UL916, C-UL, RoHS

UL Listed, NEMA 1, C-UL, CE Approved,

UL Accepted for Use in Plenum,

Also available NEMA 4 / 4X

No

DIP Switch Control

Network Media:

Terminations:

Polarity:

Baud Rate:

Twisted Pair 22-24AWG, shielded recommended

Functional Devices product installed at both ends of the MS/TP network – Use

Ω end of line resistors. All other cases 120

– Follow instructions from the device installed at the end of the

MS/TP network.

Network is polarity sensitive

9600, 19200, 38400, 57600, 76800,

115200 (DIP Switch Selectable)

Contact Ratings:

20 Amp Resistive @ 277 Vac

20 Amp Ballast @ 120/277 Vac (N/O)

10 Amp Ballast @ 120/277 Vac (N/C)

Not rated for Electronic Ballast

10 Amp Tungsten @ 120 Vac (N/O)

1110 VA Pilot Duty @ 277 Vac

770 VA Pilot Duty @ 120 Vac

2 HP @ 277 Vac

1 HP @ 120 Vac

Power Input:

24 Vac/dc ; 120 Vac ; 50/60 Hz

Power Input Ratings:

105 mA @ 24 Vac

78 mA @ 24 Vdc

105 mA @ 120 Vac

Current Sensor Range:

0.25 - 20 Amps

Threshold fixed at .25 Amps.

Notes:

• Device can be powered by either 24 Vac/dc or

120 Vac, but not both.

• MS/TP Address & Baud Rate must be set prior to

power up via DIP switches.

• Device ID will default to 277XXX where XXX is

the MS/TP Address.

Examples:

MS/TP Address - 004

Device ID - 277004

MS/TP Address - 121

Device ID - 277121

• Device ID can be changed via network

command. Once changed, it will no longer

default to 277XXX. (MS/TP Address & Device ID

must be unique.)

• Order NEMA 4 housing by adding “-N4” to end

of model number. (RIBTWX2401B-BC)

• This model utilizes: BO 1 (Relay output),

BI 1 (Dry contact binary input), BI 2 (Internal

current sensor input)

• Software objects also included but not

utilized: AI 1 (Analog input)

• Device Instance changed via Object Identifier

Property of Device Object

• Each unit is 1/8 unit load if date code 041510 or

later. (One full load prior to 041510)

• PIC Statement available on website.

http://www.functionaldevices.com/pdf/

datasheets/pics/BACnetRIB_PICS_V105.pdf

Or scan QR code with your smart phone.

DIP Switches * Baud Rate

DIP Switches * Relay State **

8

0

0

0

0

1

1

9

1

1

0

0

0

0

10

0

1

0

1

0

1

9600

19200

38400

57600

76800

115200

*

11

1

X

0

12

0

1

0

0 = Open ; 1 = Closed

**

Auto

Override on

Override off

Device must be powered for override

All other combinations=9600 baud

• Dry contact binary input is a general purpose input that is not tied to the relay internally. Can be used

with any dry contact switching device, such as a current sensor, to feed back to the network.

RIBMNWX2401SB-LN

2.75˝ Track Mount LonWorks® Twisted-Pair FT-10

Network Dual I/O Device; One Discrete Output

(20 Amp Relay SPST + Override); One Discrete

Input (Current Sensor 0.25 - 20 Amp, Relay Load

Sensing), 24 Vac/dc or 120 Vac Power Input

LON

LON

Functional Devices, Inc. • p: 800.888.5538 • f: 765.883.7505 • www.functionaldevices.com • [email protected]

RIBTWX2401SB-LN

Enclosed LonWorks® Twisted-Pair FT-10 Network

Dual I/O Device; One Discrete Output

(20 Amp Relay SPST + Override); One Discrete

Input (Current Sensor 0.25 - 20 Amp, Relay Load

Sensing), 24 Vac/dc or 120 Vac Power Input

Network Compatible Relay / Current Sensor Combos

Service Button

Selectable Jumper Wire

Open Loop

Sensor Object

*

Internal

Current

Sensor

Comm 24 Vac/dc 120 Vac

CLOSED

OPEN

AUTO

Not used

Made in USA

Meets

“Buy American”

of ARRA 2009

Specifications

# Relays & Contact Type:

Expected Relay Life:

Operating Temperature:

Humidity Range:

Operate Time:

Green LED:

Red LED:

Yellow LED:

Dimensions:

Track Mount:

Approvals:

Housing Rating:

Gold Flash:

Override Switch:

One (1) SPST Continuous Duty Coil

10 million cycles minimum mechanical

-30 to 140° F

5 to 95% (noncondensing)

18mS

Network Status

Relay Status

Service Status

5.50˝ x 2.75˝ x 1.75˝ (RIBMNWX2401SB-LN)

7.00˝ x 4.28˝ x 2.00˝ with .75˝ NPT Nipple

(RIBTWX2401SB-LN)

MT212-6 Mounting Track Provided

FCC, LonMark®, CE, RoHS

UL Listed, UL916, C-UL

UL Listed, NEMA 1, C-UL, CE Approved,

UL Accepted for Use in Plenum,

Also available NEMA 4 / 4X

No

Yes

Channel:

Transceiver Type:

Functional Blocks:

Downloadable Files:

TP/FT-10

FTT-10A with blocking capacitors for compatibility with link power channel

0000 Node Object

0004 Closed Loop Actuator Object

0001 Open Loop Sensor Object

PDF, XIF, APB, VSS and NXE

Node Object

NV1 nvi Request

NV2 nvo Status

Closed Loop Actuator

NV1 nvi Value

NV2 nvo Value Fb nci Default nci Max Receive T

Contact Ratings:

20 Amp Resistive @ 277 Vac

20 Amp Ballast @ 120/277 Vac (N/O)

10 Amp Ballast @ 120/277 Vac (N/C)

Not rated for Electronic Ballast

10 Amp Tungsten @ 120 Vac (N/O)

1110 VA Pilot Duty @ 277 Vac

770 VA Pilot Duty @ 120 Vac

2 HP @ 277 Vac

1 HP @ 120 Vac

Power Input Ratings:

105 mA @ 24 Vac

78 mA @ 24 Vdc

105 mA @ 120 Vac

Current Sensor Range:

0.25 - 20 Amps

Threshold fixed at .25 Amps.

Notes:

• Normally Open or Normally Closed selected by yellow

jumper wire.

• Order with Momentary Override Switch by adding

“-MNO” to end of model number.

• Order NEMA 4 housing by adding “-N4” to end of model

number. (RIBTWX2401SB-LN-N4)

Description

Command to open/close relay

Command status of relay

Default state of relay on/off

Communication timer

Status of Digital-In

Invert status of Digital-In

Max time between updates

Min time between updates

SNVT Name

nvi Value nvo Value Fb nci Default nci Max Receive T nvo Value nci Invert nci Max Send T nci Min Send T

SNVT Type

SNVT_switch

SNVT_switch

SNVT_switch

SNVT_elapsed_tm

SNVT_switch

SNVT_lev_disc

SNVT_elapsed_tm

SNVT_elapsed_tm

The relay will go to the default state when the communication timer times out. Setting the timer value to zero will cause the communication to never time out.

It is recommended to put a value in nci Max Send T to ensure the RIB re-synchronizes itself on the network after power loss. It is the responsibility of the user to ensure this value does not cause conflicts in network traffic. (No value = No “heartbeat” updates / no re-sychronization; Low Value = Many updates but may cause many traffic collisions; High value = Few updates but many less collisions.)

* Open Loop Sensor Object

NV1 nci Invert nci Max Send T nci Min Send T nvo Value

1

0

RIBMNWX2402B-BC

2.75˝ Track Mount BACnet® MS/TP Network Relay

Device; One Binary Output (20 Amp Relay SPDT +

Override); Two Binary Inputs (One Current Sensor

0.25 - 20 Amp, Relay Load Sensing & One Dry

Contact Binary Input), 24 Vac/dc or

208-277 Vac Power Input, Optional End of Line

Resistor (EOL) Included.

Functional Devices, Inc. • p: 800.888.5538 • f: 765.883.7505 • www.functionaldevices.com • [email protected]

RIBTWX2402B-BC

Enclosed BACnet® MS/TP Network Relay

Device; One Binary Output (20 Amp Relay SPDT +

Override); Two Binary Inputs (One Current Sensor

0.25 - 20 Amp, Relay Load Sensing & One Dry

Contact Binary Input), 24 Vac/dc or

208-277 Vac Power Input, Optional End of Line

Resistor (EOL) Included.

}

Contacts

COM

N/O

N/C

Internal

Current

Sensor

Network Compatible Relay / Current Sensor Combos

Relay

Override

Baud

Rate

LSB

Low Voltage Power Input High Voltage Power Input

Made in USA

Meets

“Buy American”

of ARRA 2009

Connect Jumper for terminating resistor.

Disconnect for no terminating resistor.

MSB

Specifications

# Relays & Contact Type:

Expected Relay Life:

Operating Temperature:

Humidity Range:

Operate Time:

Network Communication:

Relay Status:

Current Sensor Status:

Binary Input Status:

Dimensions:

Track Mount:

Approvals:

Housing Rating:

Gold Flash:

Relay Override Switch:

One (1) SPDT Continuous Duty Coil

10 million cycles minimum mechanical

-30 to 140° F

5 to 95% (noncondensing)

18mS

Green LED

Red LED On = Activated

Pink LED On = Activated

Pink LED On = Activated

6.00˝ x 2.75˝ x 1.75˝ (RIBMNWX2402B-BC)

4.28˝ x 7.00˝ x 2.00˝ with .75˝ NPT Nipple (RIBTWX2402B-BC)

MT212-6 Mounting Track Provided

CE, UL Listed, UL916, C-UL, RoHS

UL Listed, NEMA 1, C-UL, CE Approved,

UL Accepted for Use in Plenum,

Also available NEMA 4 / 4X

No

DIP Switch Control

Network Media:

Terminations:

Polarity:

Baud Rate:

Twisted Pair 22-24AWG, shielded recommended

Functional Devices product installed at both ends of the MS/TP network – Use

Ω end of line resistors. All other cases 120

– Follow instructions from the device installed at the end of the

MS/TP network.

Network is polarity sensitive

9600, 19200, 38400, 57600, 76800,

115200 (DIP Switch Selectable)

Contact Ratings:

20 Amp Resistive @ 277 Vac

20 Amp Ballast @ 120/277 Vac (N/O)

10 Amp Ballast @ 120/277 Vac (N/C)

Not rated for Electronic Ballast

10 Amp Tungsten @ 120 Vac (N/O)

1110 VA Pilot Duty @ 277 Vac

770 VA Pilot Duty @ 120 Vac

2 HP @ 277 Vac

1 HP @ 120 Vac

Power Input:

24 Vac/dc ; 208-277 Vac ; 50/60 Hz

Power Input Ratings:

105 mA @ 24 Vac

78 mA @ 24 Vdc

120 mA @ 208-277 Vac

Current Sensor Range:

0.25 - 20 Amps

Threshold fixed at .25 Amps.

Notes:

• Device can be powered by either 24 Vac/dc or

208-277 Vac, but not both.

• MS/TP Address & Baud Rate must be set prior to

power up via DIP switches.

• Device ID will default to 277XXX where XXX is

the MS/TP Address.

Examples:

MS/TP Address - 004

Device ID - 277004

MS/TP Address - 121

Device ID - 277121

• Device ID can be changed via network

command. Once changed, it will no longer

default to 277XXX. (MS/TP Address & Device ID

must be unique.)

• Order NEMA 4 housing by adding “-N4” to end

of model number. (RIBTWX2402B-BC)

• This model utilizes: BO 1 (Relay output),

BI 1 (Dry contact binary input), BI 2 (Internal

current sensor input)

• Software objects also included but not

utilized: AI 1 (Analog input)

• Device Instance changed via Object Identifier

Property of Device Object

• Each unit is 1/8 unit load if date code 041510 or

later. (One full load prior to 041510)

• PIC Statement available on website.

http://www.functionaldevices.com/pdf/

datasheets/pics/BACnetRIB_PICS_V105.pdf

Or scan QR code with your smart phone.

8

0

0

1

1

0

0

DIP Switches *

9

0

0

1

1

0

0

10

0

1

0

1

0

1

Baud Rate

9600

19200

38400

57600

76800

115200

*

DIP Switches

11

1

X

0

1

0

*

12

0

0 = Open ; 1 = Closed

**

Relay State

Auto

**

Override on

Override off

Device must be powered for override

All other combinations=9600 baud

• Dry contact binary input is a general purpose input that is not tied to the relay internally. Can be used

with any dry contact switching device, such as a current sensor, to feed back to the network.

RIBMNWX2402SB-LN

2.75˝ Track Mount LonWorks® Twisted-Pair FT-10

Network Dual I/O Device; One Discrete Output

(20 Amp Relay SPST + Override); One Discrete

Input (Current Sensor 0.25 - 20 Amp, Relay Load

Sensing), 24 Vac/dc or 208-277 Vac Power Input

LON

LON

Functional Devices, Inc. • p: 800.888.5538 • f: 765.883.7505 • www.functionaldevices.com • [email protected]

RIBTWX2402SB-LN

Enclosed LonWorks® Twisted-Pair FT-10 Network

Dual I/O Device; One Discrete Output

(20 Amp Relay SPST + Override); One Discrete

Input (Current Sensor 0.25 - 20 Amp, Relay Load

Sensing), 24 Vac/dc or 208-277 Vac Power Input

Service Button

Network Compatible Relay / Current Sensor Combos

Selectable Jumper Wire

Open Loop

Sensor Object

*

Internal

Current

Sensor

Comm

24 Vac/dc 208-277 Vac

CLOSED

OPEN

AUTO

Not used

Made in USA

Meets

“Buy American”

of ARRA 2009

Specifications

# Relays & Contact Type:

Expected Relay Life:

Operating Temperature:

Humidity Range:

Operate Time:

Green LED:

Red LED:

Yellow LED:

Dimensions:

Track Mount:

Approvals:

Housing Rating:

Gold Flash:

Override Switch:

One (1) SPST Continuous Duty Coil

10 million cycles minimum mechanical

-30 to 140° F

5 to 95% (noncondensing)

18mS

Network Status

Relay Status

Service Status

5.50˝ x 2.75˝ x 1.75˝ (RIBMNWX2402SB-LN)

7.00˝ x 4.28˝ x 2.00˝ with .75˝ NPT Nipple

(RIBTWX2402SB-LN)

MT212-6 Mounting Track Provided

FCC, LonMark®, CE, RoHS

UL Listed, UL916, C-UL

UL Listed, NEMA 1, C-UL, CE Approved,

UL Accepted for Use in Plenum,

Also available NEMA 4 / 4X

No

Yes

Channel:

Transceiver Type:

Functional Blocks:

Downloadable Files:

TP/FT-10

FTT-10A with blocking capacitors for compatibility with link power channel

0000 Node Object

0004 Closed Loop Actuator Object

0001 Open Loop Sensor Object

PDF, XIF, APB, VSS and NXE

Node Object

NV1 nvi Request

NV2 nvo Status

Closed Loop Actuator

NV1 nvi Value

NV2 nvo Value Fb nci Default nci Max Receive T

Contact Ratings:

20 Amp Resistive @ 277 Vac

20 Amp Ballast @ 120/277 Vac (N/O)

10 Amp Ballast @ 120/277 Vac (N/C)

Not rated for Electronic Ballast

10 Amp Tungsten @ 120 Vac (N/O)

1110 VA Pilot Duty @ 277 Vac

770 VA Pilot Duty @ 120 Vac

2 HP @ 277 Vac

1 HP @ 120 Vac

Power Input Ratings:

105 mA @ 24 Vac

78 mA @ 24 Vdc

120 mA @ 208-277 Vac

Current Sensor Range:

0.25 - 20 Amps

Threshold fixed at .25 Amps.

Notes:

• Normally Open or Normally Closed selected by yellow

jumper wire.

• Order with Momentary Override Switch by adding

“-MNO” to end of model number.

• Order NEMA 4 housing by adding “-N4” to end of model

number. (RIBTWX2402SB-LN-N4)

Description

Command to open/close relay

Command status of relay

Default state of relay on/off

Communication timer

Status of Digital-In

Invert status of Digital-In

Max time between updates

Min time between updates

SNVT Name

nvi Value nvo Value Fb nci Default nci Max Receive T nvo Value nci Invert nci Max Send T nci Min Send T

SNVT Type

SNVT_switch

SNVT_switch

SNVT_switch

SNVT_elapsed_tm

SNVT_switch

SNVT_lev_disc

SNVT_elapsed_tm

SNVT_elapsed_tm

The relay will go to the default state when the communication timer times out. Setting the timer value to zero will cause the communication to never time out.

It is recommended to put a value in nci Max Send T to ensure the RIB re-synchronizes itself on the network after power loss. It is the responsibility of the user to ensure this value does not cause conflicts in network traffic. (No value = No “heartbeat” updates / no re-sychronization; Low Value = Many updates but may cause many traffic collisions; High value = Few updates but many less collisions.)

* Open Loop Sensor Object

NV1 nci Invert nci Max Send T nci Min Send T nvo Value

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
