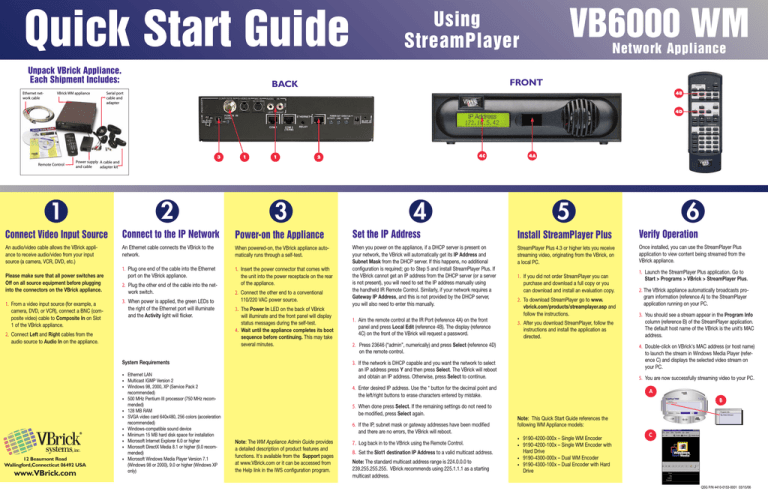

Quick Start Guide
Unpack VBrick Appliance.
Each Shipment Includes:
Ethernet network cable
VBrick WM appliance
VB6000 WM
Using
StreamPlayer
Network Appliance
FRONT
BACK
4B
Serial port
cable and
adapter
4D
Remote Control
3
Power supply A cable and
and cable
adapter kit
2
1
1
1
4C
2
3
4A
4
6
5
Connect Video Input Source
Connect to the IP Network
Power-on the Appliance
Set the IP Address
Install StreamPlayer Plus
Verify Operation
An audio/video cable allows the VBrick appliance to receive audio/video from your input
source (a camera, VCR, DVD, etc.)
An Ethernet cable connects the VBrick to the
network.
When powered-on, the VBrick appliance automatically runs through a self-test.
treamPlayer Plus 4.3 or higher lets you receive
S
streaming video, originating from the VBrick, on
a local PC.
Once installed, you can use the StreamPlayer Plus
application to view content being streamed from the
VBrick appliance.
1. Plug one end of the cable into the Ethernet
port on the VBrick appliance.
1. Insert the power connector that comes with
the unit into the power receptacle on the rear
of the appliance.
When you power on the appliance, if a DHCP server is present on
your network, the VBrick will automatically get its IP Address and
Subnet Mask from the DHCP server. If this happens, no additional
configuration is required; go to Step 5 and install StreamPlayer Plus. If
the VBrick cannot get an IP address from the DHCP server (or a server
is not present), you will need to set the IP address manually using
the handheld IR Remote Control. Similarly, if your network requires a
Gateway IP Address, and this is not provided by the DHCP server,
you will also need to enter this manually.
1. A
im the remote control at the IR Port (reference 4A) on the front
panel and press Local Edit (reference 4B). The display (reference
4C) on the front of the VBrick will request a password.
3. After you download StreamPlayer, follow the
instructions and install the application as
directed.
Please make sure that all power switches are
Off on all source equipment before plugging
into the connectors on the VBrick appliance.
1. F rom a video input source (for example, a
camera, DVD, or VCR), connect a BNC (composite video) cable to Composite In on Slot
1 of the VBrick appliance.
2. P
lug the other end of the cable into the network switch.
3. When power is applied, the green LEDs to
the right of the Ethernet port will illuminate
and the Activity light will flicker.
2. C
onnect Left and Right cables from the
audio source to Audio In on the appliance.
2. C
onnect the other end to a conventional
110/220 VAC power source.
3. T he Power In LED on the back of VBrick
will illuminate and the front panel will display
status messages during the self-test.
4. W
ait until the appliance completes its boot
sequence before continuing. This may take
several minutes.
System Requirements
•
•
•
•
•
•
•
•
•
•
12 Beaumont Road
Wallingford,Connecticut 06492 USA
www.VBrick.com
•
Ethernet LAN
Multicast IGMP Version 2
Windows 98, 2000, XP (Service Pack 2
recommended)
500 MHz Pentium III processor (750 MHz recommended)
128 MB RAM
SVGA video card 640x480, 256 colors (acceleration
recommended)
Windows-compatible sound device
Minimum 15 MB hard disk space for installation
Microsoft Internet Explorer 6.0 or higher
Microsoft DirectX Media 8.1 or higher (9.0 recommended)
Microsoft Windows Media Player Version 7.1
(Windows 98 or 2000), 9.0 or higher (Windows XP
only)
1. If you did not order StreamPlayer you can
purchase and download a full copy or you
can download and install an evaluation copy.
2. T o download StreamPlayer go to www.
vbrick.com/products/streamplayer.asp and
follow the instructions.
2. P
ress 23646 (“admin”, numerically) and press Select (reference 4D)
on the remote control.
Note: The WM Appliance Admin Guide provides
a detailed description of product features and
functions. It's available from the Support pages
at www.VBrick.com or it can be accessed from
the Help link in the IWS configuration program.
7. Log back in to the VBrick using the Remote Control.
A
B
Note: This Quick Start Guide references the
following WM Appliance models:
•
•
8. S
et the Slot1 destination IP Address to a valid multicast address.
Note: The standard multicast address range is 224.0.0.0 to
239.255.255.255. VBrick recommends using 225.1.1.1 as a starting
multicast address.
3. Y
ou should see a stream appear in the Program Info
column (reference B) of the StreamPlayer application.
The default host name of the VBrick is the unit’s MAC
address.
5. You are now successfully streaming video to your PC.
4. Enter desired IP address. Use the * button for the decimal point and
the left/right buttons to erase characters entered by mistake.
6. If the IP, subnet mask or gateway addresses have been modified
and there are no errors, the VBrick will reboot.
2. The VBrick appliance automatically broadcasts program information (reference A) to the StreamPlayer
application running on your PC.
4. D
ouble-click on VBrick's MAC address (or host name)
to launch the stream in Windows Media Player (reference C) and displays the selected video stream on
your PC.
3. If the network is DHCP capable and you want the network to select
an IP address press Y and then press Select. The VBrick will reboot
and obtain an IP address. Otherwise, press Select to continue.
5. When done press Select. If the remaining settings do not need to
be modified, press Select again.
1. L aunch the StreamPlayer Plus application. Go to
Start > Programs > VBrick > StreamPlayer Plus.
•
•
9190-4200-000x – Single WM Encoder
9190-4200-100x – Single WM Encoder with
Hard Drive
9190-4300-000x – Dual WM Encoder
9190-4300-100x – Dual Encoder with Hard
Drive
C
QSG P/N 4410-0153-0001 03/15/06
Quick Start Guide
Unpack VBrick Appliance.
Each Shipment Includes:
Ethernet network cable
VBrick WM appliance
Using Windows
Media Player
VB6000 WM
Network Appliance
FRONT
BACK
4B
Serial port
cable and
adapter
4D
3
Remote Control
1
1
4C
2
4A
Power supply A cable and
and cable
adapter kit
2
1
3
4
Connect Video Input Source
Connect to the IP Network
Power-on the Appliance
An audio/video cable allows the VBrick appliance to receive
audio/video from your input source (a camera, VCR, DVD,
etc.)
An Ethernet cable connects the VBrick to the network.
Set the IP Address
When powered-on, the VBrick appliance automatically runs
through a self-test.
When you power on the appliance, if a DHCP server is present on your network, the VBrick will automatically get its IP
Address and Subnet Mask from the DHCP server. If this
happens, no additional configuration is required; go to Step
5 and verify operation. If the VBrick cannot get an IP address
from the DHCP server (or a server is not present), you will
need to set the IP address manually using the handheld IR
Remote Control. Similarly, if your network requires a Gateway
IP Address, and this is not provided by the DHCP server, you
will also need to enter this manually.
Please make sure that all power switches are Off on all
source equipment before plugging into the connectors on
the VBrick appliance.
1. F rom a video input source (for example, a camera, DVD,
or VCR), connect a BNC (composite video) cable to
Composite In on Slot 1 of the VBrick appliance.
1. Plug one end of the cable into the Ethernet port on the
VBrick appliance.
2. Plug the other end of the cable into the network switch.
3. When power is applied, the green LEDs to the right of
the Ethernet port will illuminate and the Activity light will
flicker.
2. C
onnect Left and Right cables from the audio source to
Audio In on the appliance.
1. Insert the power connector that comes with the unit into
the power receptacle on the rear of the appliance.
2. C
onnect the other end to a conventional 110/220 VAC
power source.
3. T he Power In LED on the back of VBrick will illuminate
and the front panel will display status messages during the
self-test.
4. W
ait until the appliance completes its boot sequence
before continuing. This may take several minutes.
1. A
im the remote control at the IR Port (reference 4A) on the
front panel and press Local Edit (reference 4B). The display (reference 4C) on the front of the VBrick will request
a password.
5
Verify Operation (HTTP/Unicast)
Windows Media Player lets you receive streaming video
originating from the VBrick appliance on a PC.
1. Login to the VBrick IWS configuration utility (e.g.
http://ipaddressofvbrick) using the default user name
and password (admin/admin).
2. Go to Configuration: Encoder > Server.
3. Press the Begin Edit button to become the active editor.
4. Press Click here to play HTTP to launch a stream in
Windows Media Player (assuming you connected to a
video source in Step 1).
5. If the stream runs in Windows Media Player you are successfully streaming HTTP/Unicast audio and video to the
PC.
2. P
ress 23646 (“admin”, numerically) and press Select (reference 4D) on the remote control.
3. If the network is DHCP capable and you want the network to select an IP address press Y and then press
Select. The VBrick will reboot and obtain an IP address.
Otherwise, press Select to continue.
System Requirements
•
•
•
•
•
•
•
12 Beaumont Road
Wallingford,Connecticut 06492 USA
www.VBrick.com
•
•
•
Ethernet LAN
Windows 98, 2000, XP (Service Pack 2 recommended)
500 MHz Pentium III processor (750 MHz recommended)
128 MB RAM
SVGA video card 640x480, 256 colors (acceleration
recommended)
Windows-compatible sound device
Minimum 15 MB hard disk space for installation
Microsoft Internet Explorer 6.0 or higher
Microsoft DirectX Media 8.1 or higher (9.0 recommended)
Microsoft Windows Media Player Version 7.1 (Windows 98
or 2000 only), 9.0 or higher (Windows XP only)
4. Enter desired IP address. Use the * button for the decimal
point and the left/right buttons to erase characters entered
by mistake.
Note: The WM Appliance Admin Guide provides a detailed
description of product features and functions. It's available
from the Support pages at www.VBrick.com or it can be
accessed from the Help link in the IWS configuration program.
5. When done press Select. If the remaining settings do not
need to be modified, press Select again.
6. If the IP, subnet mask or gateway addresses have been
modified and there are no errors, the VBrick will reboot.
Note: This Quick Start Guide references the following WM
Appliance models:
•
•
•
•
9190-4200-000x – Single WM Encoder
9190-4200-100x – Single WM Encoder with Hard Drive
9190-4300-000x – Dual WM Encoder
9190-4300-100x – Dual Encoder with Hard Drive
QSG P/N 4410-0153-0001 03/15/06
