HP Compaq dx2250 Specifications

HP Compaq dx2250 Specifications

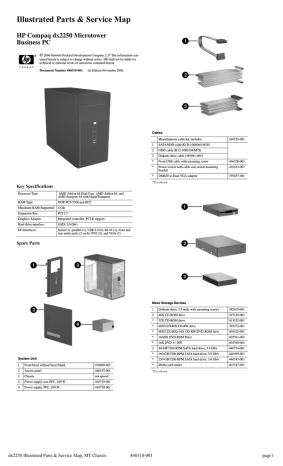

Illustrated Parts & Service Map
HP Compaq dx2250 Microtower
Business PC
© 2006 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. HP shall not be liable for
technical or editorial errors or omissions contained herein.
Document Number 440318-001.
1st Edition November 2006.
Cables
Miscellaneous cable kit, includes:
1
410725-001
SATA HDD cable(K1D-1008060-M78)
2
ODD cable (K12-1080104-M78)
3
Diskette drive cable (385981-002)
*
Front USB cable with mounting screw
436328-001
*
Power switch with cable and switch mounting
bracket
416163-001
*
DMS50 to Dual VGA adapter
339257-001
*Not shown
Key Specifications
Processor Type:
AMD Athlon 64 Dual Core, AMD Athlon 64, and
AMD Sempron 64 with HyperTransport
RAM Type:
DDR PC2-5300 non-ECC
Maximum RAM Supported:
4 GB
Expansion Bus:
PCI 2.3
Graphics Adapter
Integrated controller. PCI-E support.
Hard drive interface:
SATA 3.0 Gb/s
I/O Interfaces:
Serial (1), parallel (1), USB 2.0 (6), RJ-45 (1), front and
rear audio jacks (2 each), P/S2 (2), and VGA (1)
Spare Parts
Mass Storage Devices
1
Diskette drive, 3.5-inch, with mounting screws
392415-001
2
48X CD-ROM drive
397130-001
*
52X CD-ROM drive
413522-001
*
48X/32/X48X CD-RW drive
395272-001
*
48X/32X/48X+16X CD-RW/DVD-ROM drive
405425-001
*
16/48X DVD ROM Drive
405761-001
*
16X DVD +/- RW
405760-001
3
80-GB\7200 RPM SATA hard drive, 3.0 Gb/s
440754-001
440499-001
*
160-GB\7200 RPM SATA hard drive, 3.0 Gb/s
System Unit
*
250-GB\7200 RPM SATA hard drive, 3.0 Gb/s
440747-001
1
Front bezel without bezel blank
438609-001
*
Media card reader
407187-001
2
Access panel
440197-001
*Not shown
3
Chassis
not spared
4
Power supply, non-PFC, 250 W
410719-001
4
Power supply, PFC, 250 W
410720-001
dx2250 Illustrated Parts & Service Map, MT Chassis
440318-001
page 1
Keyboards (not illustrated)
PS/2, Basic
USB, Basic
382925-xxx
382926-xxx
French Canadian
-121
PRC
-AA1
International
-B31
Taiwanese
-AB1
Korean (Hanguel)
-AD1
Thai
-281
LA Spanish
-161
U.S.
-001
Miscellaneous Parts
Miscellaneous parts kit, includes:
*
Standard and Optional Boards
*
3.5” Bezel blank (414219-001)
Memory modules, non-ECC, DDR2
*
5.25” Bezel blank (166775-004)
*
#6-32 x .187 Taptite, hitop screw with serrations (6
ea) (192308-003)
*
#6-32 x .187 Taptite, hitop screw with serrations (6
ea) (192308-001)
*
#6-32 x .250 Taptite, hitop screw with captive flat
washer (2 ea) (114399-067-001)
*
M3 x 5 mm Taptite hitop screw with serrations (4
ea) (247348-001)
1
256 MB, PC2-5300, CL5
396519-001
*
512 MB, PC2-5300, CL5
396520-001
*
1 GB, PC2-5300, CL5
398038-001
System Boards with thermal grease, alcohol pad, and CPU socket cover
2
Standard board
438601-001
AMD Sempron64 processor with 800 MHz HyperTransport
410717-001
3.5” Diskette drive bezel (414218-001)
*
3000+, 1.6 GHz, 256K cache, 1.6 GHz FSB
441230-001
*
3200+, 1.8 GHz, 128K cache, 1.6 GHz FSB
441229-001
*
3400+, 1.8 GHz, 256K cache, 1.6 GHz FSB
433506-001
*
EMI shield
*
3600+, 2.0 GHz, 256K cache, 1.6 GHz FSB
435919-001
1
Chassis fan with mounting screws
438741-001
2
Heatsink with alcohol pad and factory-applied thermal grease
438602-001
3
Internal speaker
438607-001
*
Mouse, PS2, optical
417966-001
*
Mouse, PS2, scroll type
390937-001
*
Mouse, optical
390938-001
*
Battery, real-time clock
153099-001
*
Foot (4 ea)
370708-001
*
DVI-I to VGA adapter
202997-001
AMD Athlon64 processor with 1.0 GHz HyperTransport,
*
3500+, 2.2 GHz, 512 KB cache, 2.0 GHz FSB
435911-001
*
3800+, 2.4 GHz, 512 KB cache, 2.0 GHz FSB
435912-001
AMD Athlon 64 Dual Core processor with 1.0 GHz HyperTransport
*
3800+, 2.0 GHz, 1.0 MB cache, 2.0 GHz FSB
435913-001
*
4200+, 2.2 GHz, 1.0 MB cache, 2.0 GHz FSB
435914-001
*
4600+, 2.4 GHz, 1.0 MB cache, 2.0 GHz FSB
435915-001
Other boards
*
ATI Radeon X1300Pro, 256 MB, PCIe, with DVI-I
and S-Video output
413023-001
*
Dual head graphics, 256 MB, PCI-E
432747-001
*
802.11 Wireless LAN adapter
391866-001
*
802.11 Wireless LAN adapter, NA
391866-002
*
Standard 1394 PCI card with 2 external and 1
internal ports
393308-001
*
Gigabit NIC, PCI-E card
398754-001
*
Agere International 56K Modem, FH
398661-001
*
DVI-I to VGA graphics adapter
202997-005
M5 x 12mm Plastite screw with flat, countersunk
head (247481-002)
419986-001
*Not shown
* Not shown
LP = Low profile
FH = Full height
dx2250 Illustrated Parts & Service Map, MT Chassis
440318-001
page 2
System Board
Heading
Option / Description
Advanced
BIOS features (continued)
Network Boot
Seq.
Allows you to specify the order in which network
devices (including UP NIC cards) are checked for a
bootable operating system image.
First, Second,
Third, and
Fourth Boot
Device
Allows you to specify which devices will boot in which
sequence or to disable any of the four: removable, hard
disk, CDROM, network, or disabled.
Boot Up
NumLock
Status
Allows you to set default to off or on.
Security
Option
Allows you to set option to Setup or System.
BIOS Write
Protection
Disable/enable
AMD NX
Function
Disable/enable
UMA Frame
Buffer
Select the UMA frame buffer size to: 32MB, 64MB, or
Recommended (system automatically allocates memory)
Init Display
First (VGA)
Allows you to select the primary display device: PCI
slot, OnChip VGA, or PCIEx
Advanced
Chipset Features
SURROUND- Disable/enable SURROUNDVIEW (when an ATI
VIEW
PCIEx video card is installed) (VGA setting)
System Board Connectors and Jumpers (position of some untitled components may
vary in location)
Integrated
Peripherals
Auto Detect
PCI Clk
Disable/enable (VGA setting)
Spread Spectrum
Disable/enable (VGA setting)
Onboard HD
Audio
Disable/enable
ATX
Main 24-pin power
JUSB1
Front USB
AUD1
Front audio
JUSB2
Media Card Reader
OnChip USB
Controller
Disable/enable
USB Legacy
Support
Disable/enable (USM mouse, keyboard, and flash
media)
CPUFAN Heatsink fan
PCI1
PCI card
DIMM1
Memory module
PCI2
PCI card
DIMM2
Memory module
PCIEX1
PCI-E x1
FDD1
Diskette drive
PCIEX2
PCI-E x16
Onboard LAN Disable/enable
Onboard LAN
Boot ROM
Disable/enable
Onboard
Serial Port
Select a setting: Disabled, 3F8/IRQ4, 2F8/IRQ3, 3E8/
IRQ4, or 2E8/IRQ3
IDE1
IDE drive
SATA1
Serial ATA
JBAT1
CMOS
SATA2
Serial ATA
JCD1
CD Audio (not used)
SYSFAN Chassis fan
Onboard Parallel Port
Select a setting: Disabled, 378/IRQ7, 278/IRQ5, or
3BC/IRQ7
JPW1
Aux power (4-pin)
PROC
Power switch/LED
Parallel Port
Mode
Select a mode: SPP, EPP, ECP, ECP+EPP, or Normal
JFP1
After AC
Power Loss
Select system power loss behavior: On, Off, Last State
External
Modem S5
Wake-up
Disable/enable
Wake on PCI
Device from
S5
Disable/enable
AMD
Cool’n’Quiet
Disable/enable
RTC Alarm
Resume
Disable/enable
Date (of
Month)
If RTC Alarm Resume is enabled, allows you to select
any day of the month to resume RTC alarm.
Resume Time
(hh:mm:ss)
If RTC Alarm Resume is enabled, allows you to select
what time the RTC alarm will resume.
System Fan
Fail Check
Disable/enable
Smart Fan
Function
Disable/enable
System Date (mm/dd/yyyy) - Allows you to set system date.
Current CPU
Temperature
View only
System Time (hh/mm/ss) - Allows you to set system time.
Current System Temp
View only
Current CPU
Fan Speed
View only
Current System Fan
Speed
View only
SATA Controller - Disable/enable
SATA Mode - Allows you to set mode to Native/Legacy IDE
Vcore
View only
SATA Channel 1 Master and Channel 2 Master - Allows you to run HDD
self-tests, set device details, set access mode, and view information about
the device(s)
+12V
View only
VCC5
View only
Floppy Controller - Disable/enable
+3.3V
View only
Drive A - Allows you to set to None or 1.4M, 3.5 in.
VBAT (V)
View only
Halt On - Allows you to set POST error behavior to: all errors, no errors,
all but keyboard, all but diskette, or all but diskette/keyboard.
3VSB (V)
View only
Load Optimized
Defaults
Reset Computer Setup to factory defaults.
Microprocessor
Power Management
Setup
System Setup and Boot
Basic system information regarding system information, setup, power management, hardware,
and passwords is maintained in the Setup Utility held in the system ROM. The Setup Utility is
accessed by pressing the F10 key when prompted (on screen) to do so during the boot sequence.
If the screen prompt opportunity is missed, a restart will be necessary.
Computer Setup Menu
Heading
Option / Description
System
Information
Lists the following main system specifications:
Standard
CMOS Features
•
•
•
•
•
•
Product Name
SKU Number
Processor Type
Processor Speed
Cache Size
Memory Size
•
•
•
•
•
•
System ROM
Integrated MAC
UUID
System Serial #
Asset Tracking Number
Enter Asset Tag Number
PC Health
Status
Floppy Drive A - Calculates size and capacity of diskette drive.
PATA Controller - Disable/enable.
PATA Channel 0 Master/PATA Channel 0 Slave - Allows you to run HDD
self-tests, set device details, set access mode, and view information about
the device(s)
POST Delay - Allows you to set POST delay to 0, 5, 10, 15, or 30 seconds
Advanced
BIOS features
Device Boot
Disabling
Action
Choices
Allows you to restrict a device from booting the unit.
May disable: none, USB, Internal ODD, Internal FDD,
or USB+ODD+FDD
F9 Boot Menu Disable/enable
Removable
device Boot
Seq.
Allows you to specify the order of attached removable
devices. The first drive in the order has priority and is
recognized as drive A.
Hard Disk
Boot Seq.
Allows you to specify the order of attached hard drive
devices (USB HDD, USB2 Drive Key, or USB flash
media). The first attached drive in the order has priority
and is recognized as drive C.
Hard Disk
Boot Seq.
Allows you to specify the order of attached hard drive
devices (USB HDD, USB2 Drive Key, or USB flash
media). The first drive in the order has priority and is
recognized as drive C (if attached).
Optical Drive
Boot Seq.
Allows you to specify the order in which attached optical drives (including USB ODD) are checked for a bootable operating system image.
dx2250 Illustrated Parts & Service Map, MT Chassis
440318-001
Set Supervisor Allows you to establish a password to enter Computer
Password
Setup
Set User Pass- Allows you to establish a password to enter the comword
puter (must have Supervisor password established)
Exit & Save
Setup
Save current settings and exit Computer Setup.
Exit Without
Saving
Exit Computer Setup without saving changes.
page 3
4. Select the specific product.
5. Select the OS.
System Hardware Interrupts
6. Click the Diagnostics link.
IRQ
System Function
IRQ
System Function
0
Timer Interrupt
8
Real-Time Clock
1
Keyboard
9
Unused
2
Interrupt Controller Cascade
10
Unused, available for PCI
3
Serial Port (COM B)
11
Unused, available for PCI
4
Serial Port (COM A)
12
Mouse
5
Unused, available for PCI
13
Coprocessor
6
Diskette Drive
14
Primary ATA (IDE) Controller
7
Parallel Port (LPT 1)
15
Secondary ATA (IDE) Controller
7. Select HP Insight Diagnostics Offline Edition.
8. Select the proper language and click Download.
Error Conditions and Messages
Purpose
Floppy drive controller
Prevents the transfer of data to or from the
floppy drive.
Setup Utilities
Device Boot Disabling
Prevents booting from and or all of these
devices: Internal or external USB, Internal
ODD, or Internal FDD
Setup Utilities
Security Option
Prevents use of computer until password is
entered. Can apply to both initial startup and
restart.
Setup Utilities
BIOS Write Protect
Restricts ability to change ROM BIOS without approval.
Setup Utilities.
USB Controller
Allows you to disable or enable all USB
devices.
Setup Utilities
Failsafe Boot Block ROM
The computer comes with a reprogrammable flash system ROM (read only memory). To
upgrade the ROM, download the latest ROM BIOS image from the HP Web site (www.hp.com)
and follow the online GUI/instructions.
Your system ROM includes a Failsafe Boot Block that is protected during the flash process and
allows the computer to be restarted in the unlikely event of an unsuccessful ROM flash.
If the system detects an invalid system ROM during the boot sequence, the Failsafe Boot Block
attempts to locate a valid BIOS image on removable media. To recover from the Boot Block
recovery mode complete the following steps:
How It Is
Established
Feature
Diagnostic LEDs
LED
Color
LED Activity
State/Message
Power
Green
On
Computer on
Power
Green
1 blink every 2 seconds
Suspend to RAM (some Models)
Power
Red
1 blink every second followed
by a 2 second pause
CPU thermal shutdown
Power
Red
5 blinks, 1 blink every second
followed by a 2 second pause
Pre-video memory error
Power
Red
6 blinks, 1 blink every second
followed by a 2 second pause
Pre-video graphics error
Password Security
Power
Red
8 blinks, 1 blink every second
followed by a 2 second pause
Invalid ROM based on Checksum
Establishing a Setup password:
none
none
1 blink then power shut down
Cannot detect CPU
1. Turn on or restart the computer. If you are in Windows, click Start > Shut Down >
Restart.
none
none
System does not power on and
LEDs are not flashing
System unable to power on
Boot Block Recovery
1. Remove any bootable media from the computer and turn off power.
2. Insert a flash drive or CD containing the ROM BIOS.
3. Turn on power to the system.
4. The system will automatically flash the ROM. After a successful flash, the system will either
automatically restart or prompt the user to unplug the unit, wait 5 seconds, reattach the power
cord, and then press the power button.
2. As soon as the computer is turned on, press F10 when the monitor light turns green to enter
Computer Setup. Press Enter to bypass the title screen, if necessary. If you do not press F10
when prompted, a restart will be necessary.
3. Select Security > Setup Password and follow the instructions on the screen.
4. Before exiting, click File > Save Changes and Exit.
Establishing a Setup password:
Common POST Error Messages
Screen
Message
Beeps
Probable Cause
103-System
Board
Failure
none
DMA, timers
Recommended Action
214-DIMM
Configuration
Warning
none
Populated DIMM configura- Rearrange the DIMMs so that
tion is not optimized
each channel has the same amount
of memory.
301-, 304-Keyboard error
none
Keyboard failure.
Check keyboard connection or
keys. Replace keyboard. If 304,
possible system board problem.
501-Display
1L, 2S
Adapter Failure
Graphics controller.
1. Reseat graphics card.
1720-SMART
Hard Drive
Detects Imminent Failure
none
Hard drive is about to fail.
Run drive protection system test if
available. Check for firmware
patch for erroneous error message.
1796-SATA
Cabling Error
none
One or more SATA devices
are improperly attached.
Ensure SATA0 and SATA1 are
used before any other SATA connectors.
1801-Microcode Patch
Error
none
Processor not supported by
ROM BIOS.
1. Upgrade BIOS to proper
version.
1. Clear CMOS memory.
2. Remove expansion board.
3. Replace system board.
1. Turn on or restart the computer. If you are in Windows, click Start > Shut Down >
Restart.
2. As soon as the computer is turned on, press F10 when the monitor light turns green to enter
Computer Setup. Press Enter to bypass the title screen, if necessary. If you do not press F10
when prompted, a restart will be necessary.
3. Select Security > Power-On Password and follow the instructions on the screen.
Before exiting, click File > Save Changes and Exit.
2. Check monitor connection.
Changing a password:
3. Replace graphics card.
1. Turn on or restart the computer. If you are in Windows, click Start> Shut Down > Restart.
To change the Setup password, go to step 2.
To change the Power-on password, go to step 3.
2. To change the Setup password, as soon as the computer is turned on, press F10 when the
monitor light turns green to enter Computer Setup. Press Enter to bypass the title screen, if
necessary.
3. When the key icon appears, type your current password, a slash (/) or alternate de-limiter
character, your new password, another slash (/) or alternate delimiter character, and your new
password again as shown:
current password/new password/new password.
2. Change the processor.
NOTES: L = long, S = short
NOTE: Type the new password carefully since the actual characters do not appear on the
screen.
4. Press ENTER.
Clearing CMOS
1.
The new password will take effect the next time the computer is restarted.
Deleting a password
1. Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart.
To delete the Setup password, go to step 2.
To delete the Power-On password, go to step 3.
2.
3.
4.
5.
Turn off the computer and any external devices, disconnect the power cord from the
power outlet, and remove the access panel.
Locate jumper JBAT1 and move the jumper from pins 2-3 to pins 1-2.
Leave the jumper on pins 1-2 for 5 seconds then, move the jumper back to pins 2-3.
Replace the access panel and connect the power cord to the power outlet.
Turn on the computer, allow it to start.
2. To change the Setup password, as soon as the computer is turned on, press F10 when the
monitor light turns green to enter Computer Setup. Press Enter to bypass the title screen, if
necessary.
3. When the key icon appears, type your current password followed by a slash (/) or alternate
delimiter character as shown. Example: currentpassword/
4. Press Enter.
Diagnostic Functions
Diagnostic functions are provided by the Setup Utility (in system ROM) and by Insight Diagnostics. Insight Diagnostics provides detailed system information including:
•
•
•
•
•
Processor type and speed
Memory amount, mapping, and integrity
Hardware peripheral availability/settings
Hard drive type, space used/available
System identification, asset tracking
Insight Diagnostics may be found on the Documentation and Diagnostics CD that shipped with
the computer. The tool may also be downloaded from the hp Web site using the following procedure:
1. Go to www.hp.com
2. Click the Software and Download driver link.
3. Enter the product number (for example, dx2250) in the text box and press the Enter key.
dx2250 Illustrated Parts & Service Map, MT Chassis
440318-001
page 4
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
