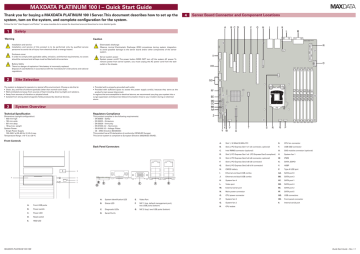

MAXDATA PLATINUM 100 I – Quick Start Guide
Thank you for buying a MAXDATA PLATINUM 100 I Server. This document describes how to set up the
system, turn on the system, and complete configuration for the system.
Server Board Connector and Component Locations
Follow the link “User-Support und Treiber” on www.maxdata.de to access the download area and download a more detailed guide.
A
B C D
E
F
G
H
J
I
K
Safety
L
Warning
M
Caution
Installation and service
Installation and service of this product is to be performed only by qualified service
personnel to avoid risk of injury from electrical shock or energy hazard.
Enclosure cover
In order to comply with applicable safety, emission, and thermal requirements, no covers
should be removed and all bays must be fitted with drive carriers.
Server system power
System power on/off: The power button DOES NOT turn off the system AC power. To
remove power from server system, you must unplug the AC power cord from the wall
outlet or the chassis.
Battery Safety
There is a danger of explosion if the battery is incorrectly replaced.
Dispose of used batteries in accordance with the manufacturer’s instructions and national
regulations.
Site Selection
O
HH
Technical Specification
Regulatory Compliance
Dimensions (upright configuration):
- 450 mm high
- 195 mm wide
- 501 mm deep
- 18 kg max. weight
System Power:
- Single Power Supply
100–240 V at 50–60 Hz; 2–3.5 A max.
Temperature Range: +10 °C to +30 °C
This product complies to the following requirements:
- EN 60950 – Safety
- EN 55022 – Emissions
- EN 55024 – Immunity
- EN 61000-3-2 – Harmonics
- EN 61000-3-3 – Voltage Flicker
- CE – EMC Directive 89/336/EEC
This product has a CE declaration of conformity (CENELEC Europe).
This server system is compliant to European Directive 2002/95/EC (RoHS).
B
C
C
A
E
D
F
DD
CC
BB
AA
X V
Y W
Back Panel Connectors
B
EE
Z
Front Controls
D
E
FF
DIMM_A3
DIMM_A2
DIMM_A1
DIMM_B3
DIMM_B2
DIMM_B1
• Provided with a properly grounded wall outlet.
• Provided with sufficient space to access the power supply cord(s), because they serve as the
product’s main power disconnect.
In regions that are susceptible to electrical storms, we recommend you plug your system into a
surge suppresser and disconnect telecommunication lines to your modem during an electrical
storm.
System Overview
G
U
T
S
R
Q
P
A.
Slot 1, 32 Mbit/33 MHz PCI
S.
CPU fan connector
B.
Slot 2, PCI Express Gen1 x1 (x4 connector, optional)
T.
USB SSD connector
C.
Intel RMM3 connector (optional)
U.
SAS module connector (optional)
D.
Slot 3, PCI Express Gen1 x4 (PCI Express Gen2 compliant)
V.
System fan 1
E.
Slot 4, PCI Express Gen2 x4 (x8 connector, optional)
W.
IPMB
F.
Slot 5, PCI Express Gen2 x8 (x8 connector)
X.
SATA_SGPIO
G.
Slot 6, PCI Express Gen2 x8 (x16 connector)
Y.
HSBP
H.
CMOS battery
Z.
Type A USB port
I.
Ethernet and dual USB combo
AA.
SATA port 0
J.
Ethernet and dual USB combo
BB.
SATA port 3
K.
System fan 4
CC.
SATA port 1
L.
Video port
DD.
SATA port 4
M.
External serial port
EE.
SATA port 2
N.
Main power connector
FF.
SATA port 5
O.
CPU power connector
GG.
USB connectors
A.
System Identification LED
E.
Video Port
P.
System fan 3
HH.
Front panel connector
B.
Status LED
F.
NIC 1 (top, default management port),
two USB ports (bottom)
Q.
System fan 2
II.
Internal serial port
R.
CPU socket
A.
Front USB ports
B.
Power switch
C.
Diagnostic LEDs
C.
Power LED
D.
Serial Port A
D.
Reset switch
E.
HDD LED
MAXDATA PLATINUM 100 I M9
II
GG
The system is designed to operate in a typical office environment. Choose a site that is:
• Clean, dry, and free of airborne particles (other than normal room dust).
• Well-ventilated and away from sources of heat including direct sunlight and radiators.
• Away from sources of vibration or physical shock.
• Isolated from strong electromagnetic fields produced by electrical devices.
A
N
Electrostatic discharge
Observe normal Electrostatic Discharge (ESD) procedures during system integration
to avoid possible damage to the server board and/or other components of the server
system.
G.
NIC 2 (top), two USB ports (bottom)
