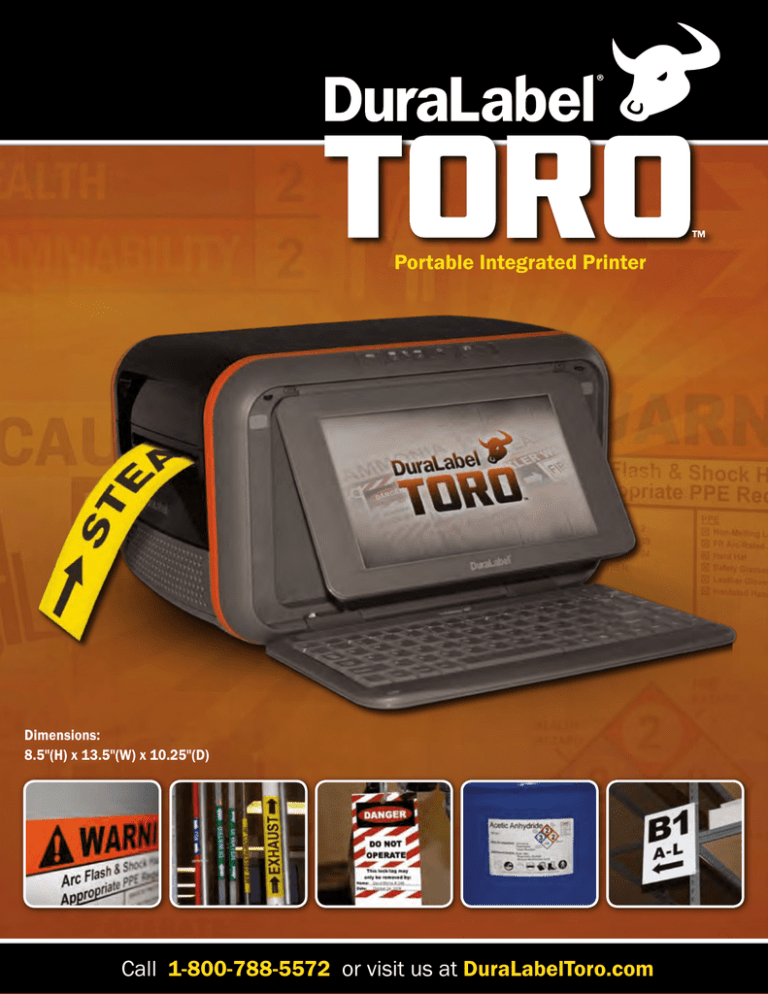

toro brochure

toro brochure
Portable Integrated Printer
Dimensions:
8.5"(H) x 13.5"(W) x 10.25"(D)
Call 1-800-788-5572 or visit us at DuraLabelToro.com
Toro is DuraLabel’s newest, most advanced label printer. Toro comes
complete in one lightweight unit. With optional battery power, Toro
can make labels on the spot when and where you need them.
Standalone Capability
Network Independence
Mobility
Toro is a completely independent
printing system including builtin keyboard, touch screen, and
software.
Toro does not require IT support
or network connectivity. Toro’s
embedded software gives you
independence.
Take Toro anywhere in your
facility or to a remote site.
Toro weighs in at 13.8 lbs.
(without supply).
Toro Supplies
Industrial Strength Vinyl
Supplies are industrial-grade, UV and chemical
resistant, durable vinyl which will last for years indoors and out. This continuous vinyl is available
in widths from 1/2" to 4" in 17 standard colors.
Ribbon
Premium quality thermal transfer ribbons
are UV and chemical resistant, engineered
to withstand harsh environments. Available
in 7 colors. Specialty ribbons also available.
WHITE
YELLOW
ORANGE
RED
RED
GREEN
YELLOW
GREEN
BLUE
CLEAR
SILVER
GRAY
DARK BLUE
BLACK
WHITE
ORANGE
View additional and specialty colors at www.DuraLabel.com
Let Toro do the work.
Smart Chip automatically
recognizes supply types in
your printer. See backside
for additional benefits.
Applications
• OSHA Compliance
• Arc Flash
• NFPA & RTK
• Equipment
• Pipe Markers
• ANSI Compliance
• Lean Manufacturing
• Maintenance
• Electrical Panels
• 5S
• Kanban
• Racks, Shelves & Bins
• Valve Tags
• Barcode
• Kaizen
• Safety
• Lockout/Tagout
• Wire Marking
• Name Tents
• Bilingual
• Aisle Markers
and more...
Software Included!
DuraSuite™ Labeling Software
Pre-installed software integrates both industrial and safety
labeling templates with popular symbols for effortless printing.
DuraSuite Includes:
DuraSuite makes creating
labels fast and easy.
Order your Portable Integrated Printer Today!
Visit DuraLabelToro.com or
Call 1-800-788-5572.
• RTK/NFPA labeling
• Arc Flash templates
• ASME/ANSI, IIAR and general
pipe marking templates
• Custom labels
Extras:
• OpenOffice.org
• Q-Label
• 1300+ Symbol Library
Save Money with Kits
Many kits are available, including OSHA,
Pipe Marking and 5S, or you can customize
your own kit. Call 1-800-788-5572 today.
We can
customiz
your kit. e
Arc Flash Kit
Comes complete with warning and danger arc flash
die-cut labels. Use Toro’s built-in arc flash templates to
make sure you’re compliant.
NO POWER
NO PROBLEM.
Toro offers an optional battery and charger
giving you freedom to print anytime and
anywhere without an external power source.
Mobile Kit
Take Toro on the go with the Mobile
Kit. Includes carrying case for Toro
and supplies, and a battery good for
three hours of printing in the field.
Specialty Supplies
High-Tack
Adheres to difficult-to-label surfaces
- an extremely durable & permanent
solution!
High-Temp
Designed to withstand extreme
temperatures from -40º F to 300º F.
Reflective
Comes in a variety of colors reflective signs and labels are
great in low-light environments.
DuraTag™
Print directly on this tear-resistant
tag stock. Create custom designs!
The Toro battery is a Lithium-ion battery that mounts
into the back of the Toro. The battery is good for
more than 300 lifetime charges and is warranted for
9 months from the date of purchase.
• 3 hour average continuous print time
• 30 hour battery life with printer in sleep mode
• 3 hour charge time when battery is < 10% power
No power? No network?
No problem with Toro.
Toro is a complete printing system in one mobile unit.
Specifications
Printer
• Type: thermal transfer
• Maximum print width: 4.0"
• Unlimited print length with
DuraSuite Labeling Software
Touch Screen
9" diameter landscape touch screen
Label Stock
• Type: continuous, die-cut
and custom printed rolls
• Capacity: 140 ft.
Interface
• Full-sized flip down keyboard
• Memory: 4GB flash, 1GB SDRAM
• Communication interface: USB-A, USB-B, optional print server port
Keyboard
Full-size QWERTY keyboard with
wireless mouse
Power Requirements
• Input Voltage: 24V DC, 5A
- DuraLabel labelers have worldwide voltage capability
DuraLabel Toro Specifications subject to change
Toro delivers trouble-free printing
Getting started with the DuraLabel Toro is effortless. Built-in
Smart Chip technology makes changing supplies and using
Toro fast and easy. The Smart Chip:
Mobility
No plug/outlet required with battery;
print indoors and out
• Identifies and auto selects the correct printer driver and supply type
• Shows remaining available supply
• Prompts for calibration and ribbon changes
• Indicates supply and ribbon incompatible combinations
See more
Toro Benefits!
Easy Access
Quick and simple supply loading
and changing
08/11
DuraLabelToro.com
•
1-800-788-5572
