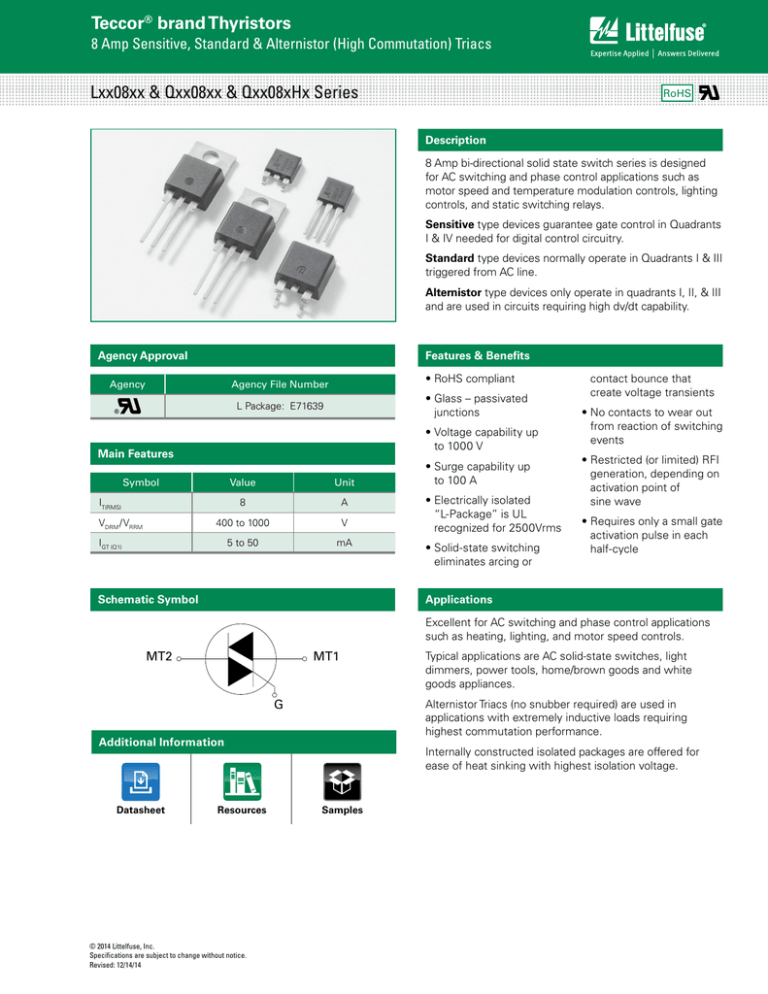

Switching Thyristors Lxx08xx/Qxx08xx/Qxx08xHx Series Datasheet

Switching Thyristors Lxx08xx/Qxx08xx/Qxx08xHx Series Datasheet

Teccor

®

brand Thyristors

8 Amp Sensitive, Standard & Alternistor (High Commutation) Triacs

Lxx08xx & Qxx08xx & Qxx08xHx Series

RoHS

®

Description

8 Amp bi-directional solid state switch series is designed for AC switching and phase control applications such as motor speed and temperature modulation controls, lighting controls, and static switching relays.

Sensitive type devices guarantee gate control in Quadrants

I & IV needed for digital control circuitry.

Standard type devices normally operate in Quadrants I & III triggered from AC line.

Alternistor type devices only operate in quadrants I, II, & III and are used in circuits requiring high dv/dt capability.

Agency Approval

Agency

®

Main Features

Symbol

I

T(RMS)

V

DRM

/V

RRM

I

GT (Q1)

Agency File Number

L Package: E71639

Value

8

400 to 1000

5 to 50

Unit

A

V mA

Schematic Symbol

MT2

Additional Information

G

MT1

Features & Benefits

• RoHS compliant

• Glass – passivated junctions

• Voltage capability up to 1000 V

• Surge capability up to 100 A

• Electrically isolated

“L-Package” is UL recognized for 2500Vrms

• Solid-state switching eliminates arcing or contact bounce that create voltage transients

• No contacts to wear out from reaction of switching events

• Restricted (or limited) RFI generation, depending on activation point of sine wave

• Requires only a small gate activation pulse in each half-cycle

Applications

Excellent for AC switching and phase control applications such as heating, lighting, and motor speed controls.

Typical applications are AC solid-state switches, light dimmers, power tools, home/brown goods and white goods appliances.

Alternistor Triacs (no snubber required) are used in applications with extremely inductive loads requiring highest commutation performance.

Internally constructed isolated packages are offered for ease of heat sinking with highest isolation voltage.

Datasheet Resources Samples

© 2014 Littelfuse, Inc.

Specifications are subject to change without notice.

Revised: 12/14/14

Teccor

®

brand Thyristors

8 Amp Sensitive, Standard & Alternistor (High Commutation) Triacs

Absolute Maximum Ratings — Sensitive Triac

(4 Quadrants)

I

I

I

T(RMS)

TSM

2 t

Symbol di/dt

I

GTM

P

G(AV)

RMS on-state current (full sine wave)

Non repetitive surge peak on-state current

(full cycle, T

J

initial = 25°C)

I

2 t Value for fusing

Parameter

Lxx08Ly

Lxx08Ry / Lxx08Vy / Lxx08Dy f = 50 Hz f = 60 Hz t p

= 8.3 ms

Critical rate of rise of on-state current

I

G

= 50mA with 0.1µs rise time

Peak gate trigger current f = 120 Hz t p

≤ 10 μs

Average gate power dissipation

T stg

T

J

Storage temperature range

Operating junction temperature range

Note: xx = voltage, y = sensitivity

T

C

= 80°C

T

C

= 85°C t = 20 ms t = 16.7 ms

T

J

= 110°C

T

J

= 110°C

T

J

= 110°C

Absolute Maximum Ratings — Standard Triac

I

I

I

I

2 t

Symbol

T(RMS)

TSM di/dt

GTM

Parameter

RMS on-state current (full sine wave)

Qxx08Ry / Qxx08Ny

Qxx08Ly f = 50 Hz

Non repetitive surge peak on-state current

(full cycle, T

J

initial = 25°C) f = 60 Hz

I

2 t Value for fusing

Critical rate of rise of on-state current

I

G

= 200mA with ≤ 0.1µs rise time t p

= 8.3 ms f = 120 Hz

T

C

= 95°C

T

C

= 90°C t = 20 ms t = 16.7 ms

T

J

= 125°C

Peak gate trigger current t p

≤ 10 μs;

I

GT

≤ T

GTM

T

J

= 125°C

P

G(AV)

Average gate power dissipation

T stg

T

J

Storage temperature range

Operating junction temperature range

Note: xx = voltage, y = sensitivity

T

J

= 125°C

Value

8

83

100

41

70

1.8

0.5

-40 to 150

-40 to 125

Value

8

65

85

26.5

70

1.6

0.4

-40 to 150

-40 to 110

Unit

A

A

A

2 s

A/μs

A

W

°C

°C

Unit

A

A

W

°C

°C

A

A

2 s

A/μs

© 2014 Littelfuse, Inc.

Specifications are subject to change without notice.

Revised: 12/14/14

Teccor

®

brand Thyristors

8 Amp Sensitive, Standard & Alternistor (High Commutation) Triacs

Absolute Maximum Ratings — Alternistor

(3 Quadrants)

Symbol

I

T(RMS)

RMS on-state current (full sine wave)

Parameter

Qxx08LHy

Qxx08RHy / Qxx08NHy

Qxx08VHy / Qxx08DHy

T

C

= 90°C

T

C

= 95°C

I

TSM

I

2 t di/dt

I

GTM

P

G(AV)

Non repetitive surge peak on-state current

(full cycle, T

J

initial = 25°C)

I

2 t Value for fusing

Critical rate of rise of on-state current

Peak gate trigger current

Average gate power dissipation f = 50 Hz f = 60 Hz t

P

≤ 10 μs;

I

GT

≤ I

GTM

T

J

= 125°C t = 20 ms t = 16.7 ms t p

= 8.3 ms f = 120 Hz

T

J

= 125°C

I

GT

= 10mA

I

GT

= 35mA

T stg

T

J

Storage temperature range

Operating junction temperature range

Note: xx = voltage, y = sensitivity

Electrical Characteristics

(T

J

= 25°C, unless otherwise specified)

— Sensitive Triac

(4 Quadrants)

Qxx08VHy /

Qxx08DHy

Qxx08LHy /

Qxx08RHy /

Qxx08NHy

Qxx08VHy /

Qxx08DHy

Qxx08LHy /

Qxx08RHy /

Qxx08NHy

Qxx08VHy /

Qxx08DHy

Qxx08LHy /

Qxx08RHy /

Qxx08NHy

T

J

= 125°C

Qxx08VHy /

Qxx08DHy

Qxx08LHy /

Qxx08RHy /

Qxx08NHy

Qxx08VHy /

Qxx08DHy

Qxx08LHy /

Qxx08RHy /

Qxx08NHy

Lxx08x6

5

10

Value

-40 to 150

-40 to 125

Lxx08x8

10

20

8

80

83

85

100

30

41

70

1.6

2.0

0.4

0.5

Symbol

I

GT

V

GT

V

GD

I

H dv/dt

V

D

= 12V R

Test Conditions

L

= 60 Ω

V

D

= V

DRM

R

L

= 3.3 kΩ T

J

= 110°C

I

T

= 100mA

V

D

= V

DRM

Gate Open T

J

= 100°C

(dv/dt)c (di/dt)c = 4.3 A/ms T

J

= 110°C t gt

I

G

= 100mA PW = 15µs I

Note: xx = voltage, x = package, y = sensitivity

T

= 11.3 A(pk)

© 2014 Littelfuse, Inc.

Specifications are subject to change without notice.

Revised: 12/14/14

I – II – III

IV

ALL

Quadrant

MAX.

MAX.

ALL MIN.

MAX.

400V

600V

TYP.

TYP.

TYP.

10

30

20

2

3.0

1.3

0.2

20

40

30

2

3.2

Unit

A

A

A

2 s

A/μs

A

W

Unit mA

V

V mA

V/μs

V/μs

μs

°C

°C

Teccor

®

brand Thyristors

8 Amp Sensitive, Standard & Alternistor (High Commutation) Triacs

Electrical Characteristics

(T

J

= 25°C, unless otherwise specified)

— Standard Triac

Symbol Test Conditions

I

GT

V

GT

V

GD

I

H dv/dt

(dv/dt)c t gt

V

D

= 12V R

L

= 60 Ω

V

D

= V

DRM

R

L

= 3.3 kΩ T

J

= 125°C

I

T

= 200mA

V

D

= V

DRM

Gate Open T

J

= 125°C

(di/dt)c = 4.3 A/ms T

J

= 125°C

I

G

= 100mA PW = 15µs I

T

= 11.3 A(pk)

I – II – III

IV

Quadrant

MAX.

TYP.

I – II – III

ALL

MAX.

MIN.

MAX.

400V

600V

800V

1000V

MIN.

TYP.

TYP.

Qxx08x4

25

50

50

150

4

3.0

1.3

0.2

Qxx08x5

50

75

50

125

100

80

4

3.0

V/μs

V/μs

μs

I

GT

V

GT

V

GD

I

H

Electrical Characteristics

(T

J

= 25°C, unless otherwise specified)

— Alternistor Triac

(3 Quadrants)

Symbol Test Conditions Quadrant Qxx08xH3 Qxx08xH4

10 35

V

D

= 12V R

L

= 60 Ω

V

D

= V

DRM

R

L

= 3.3 kΩ T

J

= 125°C

I

T

= 100mA

I – II – III

I – II – III

I – II – III

MAX.

MAX.

MIN.

MAX.

1.3

0.2

dv/dt V

D

= V

DRM

Gate Open T

J

= 125°C

(dv/dt)c (di/dt)c = 4.3 A/ms T

J

= 125°C t gt

I

G

= 100mA PW = 15µs I

Note : xx = voltage, x = package, y = sensitivity

T

= 11.3 A(pk)

Qxx08LHy /

Qxx08RHy /

Qxx08NHy

Qxx08VHy /

Qxx08DHy

MIN.

MIN.

TYP.

400V

600V

800V

1000V

400V

600V

800V

1000V

15

75

50

75

50

20

4.0

100

450

350

250

35

400

300

200

150

25

4.0

Unit mA

V

V mA

V/μs

V/μs

μs

Unit mA

V

V mA

© 2014 Littelfuse, Inc.

Specifications are subject to change without notice.

Revised: 12/14/14

Teccor

®

brand Thyristors

8 Amp Sensitive, Standard & Alternistor (High Commutation) Triacs

Static Characteristics

V

TM

Symbol

I

DRM

I

RRM

V

DRM

= V

RRM

Test Conditions

I

TM

= 11.3A t p

= 380 µs

Lxx08xy

T

J

= 25°C

T

J

= 110°C

Qxx08xy

T

J

= 25°C

T

J

= 125°C

T

J

= 100°C

400 - 600V

400 - 600V

400 - 1000V

400 - 800V

1000V

400 - 800V

T

J

= 25°C

Qxx08xHy

T

J

= 125°C

T

J

= 100°C

1000V

400 - 800V

1000V

Thermal Resistances

Symbol Parameter

R

θ(J-C)

Junction to case (AC)

R

θ(J-A)

Junction to ambient

Note: xx = voltage, x = package, y = sensitivity, yy = type & sensitivity

L/Qxx08Ryy /

L/Qxx08Nyy

L/Qxx08Lyy

L/Qxx08Vyy

L/Qxx08Ryy

L/Qxx08Lyy

L/Qxx08Vyy

MAX.

MAX.

Value

1.5

2.8

2.1

45

50

64

Figure 1: Definition of Quadrants

ALL POLARITIES ARE REFERENCED TO MT1

MT2

MT2 POSITIVE

+

MT2

(

-

)

I

GT

GATE

(+)

I

GT

GATE

I

GT

-

REF

MT1

MT2

QII

QIII

QI

QIV

REF

MT1

+

I

GT

MT2

(

-

) I

GT

GATE

(+) I

GT

GATE

REF

MT1

-

MT2 NEGATIVE

(Negative Half Cycle)

REF

MT1

NOTE: Alternistors will not operate in QIV

Note: Alternistors will not operate in QIV

20

2

3

10

Value

1.60

10

0.5

20

2

3

Unit

°C/W

°C/W

Figure 2: Normalized DC Gate Trigger Current for

All Quadrants vs. Junction Temperature

3.5

3.0

2.5

2.0

1.5

1.0

0.5

0.0

-65 -40 -15 10 35 60 85

Junction Temperature (T

J

)- ºC

110 125

Unit

V

μA mA

μA mA

μA mA

© 2014 Littelfuse, Inc.

Specifications are subject to change without notice.

Revised: 12/14/14

Teccor

®

brand Thyristors

8 Amp Sensitive, Standard & Alternistor (High Commutation) Triacs

Figure 3: Normalized DC Holding Current vs. Junction Temperature

3.5

3.0

2.5

2.0

1.5

1.0

0.5

0.0

-65 -40 -15 10 35 60

Junction Temperature (T

J

)- ºC

85 110 125

Figure 4: Normalized DC Gate Trigger Voltage for

All Quadrants vs. Junction Temperature

2.0

1.5

1.0

0.5

0.0

-65 -40 -15 10 35 60

Junction Temperature (T

J

)- ºC

85 110 125

Figure 5: Power Dissipation (Typical) vs. RMS On-State Current

18

16

14

12

10

8

6

4

2

0

0 2 4 6

RMS On-State Current (I

T(RMS)

) - Amps

8 10

Figure 6: Maximum Allowable Case Temperature vs. On-State Current (Sensitive Triac)

110

105

100

95

90

85

80

75

70

65

60

0

CURRENT WAVEFORM: Sinusoidal

LOAD: Resistive or Inductive

CONDUCTION ANGLE: 360

CASE TEMPERATURE: Measured as shown on

Dimensional Drawings

1 2 3

Lxx08Ly

4 5 6

RMS On-State Current (I

T(RMS)

) - Amps

Lxx08Vy

Lxx08Dy

Lxx08Ry

7 8

Figure 7: Maximum Allowable Case Temperature vs. On-State Current (Standard / Alternistor Triac)

130

120

110

100

90

80

Qxx08Lyy

70

60

0 1 2 3 4 5 6

RMS On-State Current (I

T(RMS)

) - Amps

Note: xx = voltage, x = package, y = sensitivity, yy = type & sensitivity

Qxx08Ryy

Qxx08Nyy

Qxx08Vyy

Qxx08Dyy

7 8

Figure 8: On-State Current vs. On-State Voltage

(Typical)

20

T

C

= 25°C

16

12

8

4

0

0.6

0.8

1.0

1.2

Postitive or Negative Instantaneous

On-State Voltage (v

T

) - Volts

1.4

1.6

© 2014 Littelfuse, Inc.

Specifications are subject to change without notice.

Revised: 12/14/14

Teccor

®

brand Thyristors

8 Amp Sensitive, Standard & Alternistor (High Commutation) Triacs

Figure 9: Maximum Allowable Ambient Temperature vs. On-State Current

120

100

80

60

40

CURRENT WAVEFORM: Sinusoidal

LOAD: Resistive or Inductive CONDUCTION

ANGLE: 360

FREE AIR RATING - NO HEATSINK

L/Qxx08Vyy

L/Qxx08Lyy

L/Qxx08Ryy

20

0.0

0.2

0.4

0.6

0.8

1.0

1.2

1.4

RMS On-State Current (I

T(RMS)

) - Amps

1.6

1.8

Figure 10: Surge Peak On-State Current vs. Number of Cycles

100

L/Qxx08Ryy

L/Qxx08Lyy

L/Qxx08Nyy

L/Qxx08Vyy

L/Qxx08Dyy

10

SUPPLY FREQUENCY: 60 Hz Sinusoidal

LOAD: Resistive

RMS On-State Current: [I

T(RMS)

]: Maximum Rated

Value at Specified Case Temperature

Notes:

1. Gate control may be lost during and immediately following surge current interval.

2. Overload may not be repeated until junction temperature has returned to steady-state rated value.

1

1 10 100

Surge Current Duration- Full Cycles

Note: xx = voltage, x = package, y = sensitivity, yy = type & sensitivity

1000

© 2014 Littelfuse, Inc.

Specifications are subject to change without notice.

Revised: 12/14/14

Teccor

®

brand Thyristors

8 Amp Sensitive, Standard & Alternistor (High Commutation) Triacs

Soldering Parameters

Reflow Condition Pb – Free assembly

Pre Heat

- Temperature Min (T s(min)

)

- Temperature Max (T s(max)

)

- Time (min to max) (t s

)

Average ramp up rate (Liquidus Temp)

(T

L

) to peak

150°C

200°C

60 – 180 secs

5°C/second max

T

S(max)

to T

L

- Ramp-up Rate

Reflow

- Temperature (t

L

)

5°C/second max

- Temperature (T

L

) (Liquidus) 217°C

60 – 150 seconds

Peak Temperature (T

P

) 260 +0/-5 °C

Time within 5°C of actual peak

Temperature (t p

)

Ramp-down Rate

20 – 40 seconds

5°C/second max

Time 25°C to peak Temperature (T

P

)

Do not exceed

8 minutes Max.

280°C

T

P

T

L

T

S(max)

T

S(min)

25 t

S

time to peak temperature t

P

t

L

Time

Physical Specifications

Terminal Finish

Body Material

100% Matte Tin-plated

UL recognized epoxy meeting flammability classification 94V-0

Terminal Material

Copper Alloy

Design Considerations

Careful selection of the correct device for the application’s operating parameters and environment will go a long way toward extending the operating life of the Thyristor. Good design practice should limit the maximum continuous current through the main terminals to 75% of the device rating. Other ways to ensure long life for a power discrete semiconductor are proper heat sinking and selection of voltage ratings for worst case conditions. Overheating, overvoltage (including dv/dt), and surge currents are the main killers of semiconductors. Correct mounting, soldering, and forming of the leads also help protect against component damage.

Environmental Specifications

Test

AC Blocking (V

DRM

)

Temperature Cycling

Temperature/

Humidity

High Temp Storage

Low-Temp Storage

Thermal Shock

Autoclave

Resistance to

Solder Heat

Solderability

Lead Bend

Specifications and Conditions

MIL-STD-750, M-1040, Cond A Applied

Peak AC voltage @ 125°C for 1008 hours

MIL-STD-750, M-1051,

100 cycles; -40°C to +150°C; 15-min dwell-time

EIA / JEDEC, JESD22-A101

1008 hours; 320V - DC: 85°C; 85% rel humidity

MIL-STD-750, M-1031,

1008 hours; 150°C

1008 hours; -40°C

MIL-STD-750, M-1056

10 cycles; 0°C to 100°C; 5-min dwelltime at each temperature; 10 sec (max) transfer time between temperature

EIA / JEDEC, JESD22-A102

168 hours (121°C at 2 ATMs) and

100% R/H

MIL-STD-750 Method 2031

ANSI/J-STD-002, category 3, Test A

MIL-STD-750, M-2036 Cond E

© 2014 Littelfuse, Inc.

Specifications are subject to change without notice.

Revised: 12/14/14

Teccor

®

brand Thyristors

8 Amp Sensitive, Standard & Alternistor (High Commutation) Triacs

Dimensions — TO-220AB (R-Package) — Non-Isolated Mounting Tab Common with Center Lead

E

D

C

B

F

G

L

H

A

MT2

K

MT1

J

MT2 GATE

R

N

T

C

MEASURING POINT

O

P

M

NOTCH IN

GATE LEAD

TO ID.

NON-ISOLATED

TAB

8.13

.320

AREA (REF.) 0.17 IN 2

7.01

.276

13.36

.526

Note: Maximum torque to be applied to mounting tab is 8 in-lbs. (0.904 Nm).

Dimension

P

R

N

O

L

M

J

K

G

H

E

F

C

D

A

B

Min

0.195

0.095

0.060

0.085

0.018

0.178

0.045

0.038

0.380

0.105

0.230

0.590

0.142

0.110

0.540

0.025

Inches

Max

0.205

0.105

0.075

0.095

0.024

0.188

0.060

0.048

0.420

0.115

0.250

0.620

0.147

0.130

0.575

0.035

Millimeters

Min Max

0.46

4.52

1.14

0.97

4.95

2.41

1.52

2.16

9.65

2.67

5.84

14.99

3.61

2.79

13.72

0.64

0.61

4.78

1.52

1.22

5.21

2.67

1.91

2.41

10.67

2.92

6.35

15.75

3.73

3.30

14.61

0.89

E

Dimensions — TO-220AB (L-Package) — Isolated Mounting Tab

AREA (REF.) 0.17 IN

2

A

T

C

MEASURING POINT

O

P

8.13

.320

Dimension

D

C

B

F

G

L

H

K

MT1

J

MT2 GATE

R

N

M

7.01

.276

Note: Maximum torque to be applied to mounting tab is 8 in-lbs. (0.904 Nm).

13.36

.526

P

R

N

O

L

M

J

K

G

H

E

F

C

D

A

B

0.025

0.195

0.095

0.060

0.085

0.018

0.178

0.045

0.038

Min

0.380

0.105

0.230

0.590

0.142

0.110

0.540

Inches

0.035

0.205

0.105

0.075

0.095

0.024

0.188

0.060

0.048

Max

0.420

0.115

0.250

0.620

0.147

0.130

0.575

Millimeters

2.16

0.46

4.52

1.14

0.97

0.64

4.95

2.41

1.52

Min

9.65

2.67

5.84

14.99

3.61

2.79

13.72

2.41

0.61

4.78

1.52

1.22

0.89

5.21

2.67

1.91

Max

10.67

2.92

6.35

15.75

3.73

3.30

14.61

© 2014 Littelfuse, Inc.

Specifications are subject to change without notice.

Revised: 12/14/14

Teccor

®

brand Thyristors

8 Amp Sensitive, Standard & Alternistor (High Commutation) Triacs

Dimensions — TO-263AB (N-Package) — D

2

-PAK Surface Mount

B

MT2

V

T

C

MEASURING POINT

C

E

AREA: 0.11 IN

2

Dimension

W

16.89

.665

7.01

.276

3.81

.150

MT1

G

11.68

.460

8.89

.350

GATE

D

F

A

7.01

.276

1.40

.055

S

K

2.16

.085

H

U

J

8.13

.320

7.01

.276

8.41

.331

S

V

J

K

U

W

G

H

E

F

C

D

A

B

2.03

.080

6.60

.260

Min

0.360

Inches

Max

0.370

0.380

0.178

0.025

0.045

0.060

0.095

0.092

0.018

0.090

0.590

0.035

0.002

0.040

0.420

0.188

0.035

0.060

0.075

0.105

0.102

0.024

0.110

0.625

0.045

0.010

0.070

Millimeters

Min Max

9.14

1.52

2.41

2.34

0.46

9.65

4.52

0.64

1.14

2.29

14.99

0.89

0.05

1.02

9.40

Dimensions — TO-251AA (V-Package) — V-PAK Through Hole

AREA: 0.040 IN

2

MT2

E

D

T

C

MEASURING POINT

H

J

5.28

.208

Dimension

A

B

C

P

Q

MT1

MT2

GATE

I

G

R

S

F

K

L

5.34

.210

L

P

J

K

H

I

F

G

Q

R

S

C

D

A

B

E

Inches

Min Typ Max Min

0.037

0.040

0.043

0.94

0.235

0.242

0.245

5.97

0.350

0.361

0.375

8.89

0.205

0.208

0.213

5.21

0.255

0.262

0.265

6.48

Millimeters

Typ

1.01

6.15

9.18

5.29

6.66

Max

1.09

6.22

9.53

5.41

6.73

0.027

0.031

0.033

0.69

0.087

0.090

0.093

2.21

0.085

0.092

0.095

2.16

0.176

0.180

0.184

4.47

0.018

0.020

0.023

0.46

0.035

0.037

0.039

0.90

0.018

0.020

0.023

0.46

0.042

0.047

0.052

1.06

0.034

0.039

0.044

0.86

0.034

0.039

0.044

0.86

0.074

0.079

0.084

1.86

0.51

0.95

0.52

1.20

0.80

2.28

2.34

4.57

1.00

1.00

2.00

0.58

1.00

0.58

1.32

0.84

2.36

2.41

4.67

1.11

1.11

2.11

10.67

4.78

0.89

1.52

1.91

2.67

2.59

0.61

2.79

15.88

1.14

0.25

1.78

© 2014 Littelfuse, Inc.

Specifications are subject to change without notice.

Revised: 12/14/14

Teccor

®

brand Thyristors

8 Amp Sensitive, Standard & Alternistor (High Commutation) Triacs

C

MT1

MT2

A

B

Dimensions — TO-252AA (D-Package) — D-PAK Surface Mount

MT2

D

E

I

G

Q

P

GATE

F

T

C

MEASURING POINT

5.28

.208

O

L

AREA : 0.040 IN 2

N

M

K

5.34

.210

J

H

1.60

.063

3

.118

6.71

.264

4.60

.181

6.71

.264

1.80

.071

O

P

M

N

Q

K

L

I

J

G

H

E

F

C

D

A

B

Dimension

Min

Inches

Typ Max Min

Millimeters

Typ Max

0.037

0.040

0.043

0.94

0.235

0.243

0.245

5.97

0.106

0.108

0.113

0.205

0.208

0.213

2.69

5.21

0.255

0.262

0.265

6.48

0.027

0.031

0.033

0.69

0.087

0.090

0.093

2.21

0.085

0.092

0.095

2.16

0.176

0.179

0.184

4.47

0.018

0.020

0.023

0.46

1.01

6.16

2.74

5.29

6.65

0.80

2.28

2.33

4.55

0.51

1.09

6.22

2.87

5.41

6.73

0.84

2.36

2.41

4.67

0.58

0.035

0.037

0.039

0.90

0.018

0.020

0.023

0.46

0.000

0.000

0.004

0.00

0.021

0.026

0.027

0.53

0° 0° 5°

0.042

0.047

0.052

1.06

0.034

0.039

0.044

0.86

0.95

0.51

0.00

0.67

1.20

1.00

1.00

0.58

0.10

0.69

1.32

1.11

© 2014 Littelfuse, Inc.

Specifications are subject to change without notice.

Revised: 12/14/14

Teccor

®

brand Thyristors

8 Amp Sensitive, Standard & Alternistor (High Commutation) Triacs

Part Number

Lxx08L6

Lxx08D6

Lxx08R6

Lxx08V6

Lxx08L8

Lxx08D8

Lxx08R8

Lxx08V8

Qxx08NH3

Qxx08RH3

Qxx08VH3

Qxx08DH3

Qxx08L4

Qxx08R4

Qxx08N4

Qxx08LH4

Qxx08RH4

Qxx08VH4

Qxx08DH4

Qxx08NH4

Qxx08L5

Qxx08R5

Qxx08N5

Product Selector

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

Voltage (xx)

400V 600V 800V 1000V

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

25 mA

35 mA

35 mA

35 mA

35 mA

35 mA

50 mA

50 mA

50 mA

10mA

10 mA

10mA

10 mA

10 mA

10 mA

25 mA

25 mA

Gate Sensitivity Quadrants

I – II – III IV

5 mA

5 mA

10 mA

10 mA

5mA

5 mA

10 mA

10 mA

10mA

10 mA

20 mA

20 mA

20mA

20 mA

Packing Options

Part Number

L/Qxx08L/Ryy

L/Qxx08L/RyyTP

Qxx08NyyTP

Qxx08NyyRP

L/Qxx08DyyTP

L/Qxx08DyyRP

L/Qxx08VyyTP

Marking

L/Qxx08L/Ryy

L/Qxx08L/Ryy

Qxx08Nyy

Qxx08Nyy

L/Qxx08Dyy

L/Qxx08Dyy

L/Qxx08Vyy

Note: xx = voltage, x = package, y = sensitivity, yy = type & sensitivity

Weight

2.2 g

2.2 g

1.6 g

1.6 g

0.3 g

0.3 g

0.4 g

Packing Mode

Bulk

Tube Pack

Tube

Embossed Carrier

Tube

Embossed Carrier

Tube

Base Quantity

500

500 (50 per tube)

500 (50 per tube)

500

750 (75 per tube)

2500

750 (75 per tube)

Type

Sensitive Triac

Sensitive Triac

Sensitive Triac

Sensitive Triac

Sensitive Triac

Sensitive Triac

Sensitive Triac

Sensitive Triac

Alternistor Triac

Alternistor Triac

Alternistor Triac

Alternistor Triac

Triac

Triac

Triac

Alternistor Triac

Alternistor Triac

Alternistor Triac

Alternistor Triac

Alternistor Triac

Triac

Triac

Triac

Package

TO-220L

TO-252 D-PAK

TO-220R

TO-251 V-PAK

TO-220L

TO-252 D-PAK

TO-220R

TO-251 V-PAK

TO-263 D²-PAK

TO-220R

TO-251 V-PAK

TO-252 D-PAK

TO-220L

TO-220R

TO-263 D²-PAK

TO-220L

TO-220R

TO-251 V-PAK

TO-252 D-PAK

TO-263 D²-PAK

TO-220L

TO-220R

TO-263 D²-PAK

© 2014 Littelfuse, Inc.

Specifications are subject to change without notice.

Revised: 12/14/14

Teccor

®

brand Thyristors

8 Amp Sensitive, Standard & Alternistor (High Commutation) Triacs

TO-252 Embossed Carrier Reel Pack (RP) Specifications

Meets all EIA-481-2 Standards

0.157

(4.0)

Gate

0.63

(16.0)

0.524

(13.3)

*

*

Cover tape

0.512 (13.0) Arbor

Hole Dia.

0.315

(8.0)

12.99

(330.0)

MT2

MT1

Dimensions are in inches

(and millimeters).

0.64

(16.3)

Direction of Feed

TO-263 Embossed Carrier Reel Pack (RP) Specifications

Meets all EIA-481-2 Standards

0.63

(16.0)

0.157

(4.0)

Gate

MT1

0.945

(24.0)

0.827

(21.0)

*

*

Cover tape

0.512 (13.0) Arbor

Hole Dia.

1.01

(25.7)

12.99

(330.0)

MT2

Direction of Feed

Dimensions are in inches

(and millimeters).

© 2014 Littelfuse, Inc.

Specifications are subject to change without notice.

Revised: 12/14/14

Teccor

®

brand Thyristors

8 Amp Sensitive, Standard & Alternistor (High Commutation) Triacs

Part Numbering System

Q 60 08 L 5 56

DEVICE TYPE

L : Sensitive Triac

Q : Triac or Alternistor

VOLTAGE RATING

40 : 400V

60 : 600V

80 : 800V

K0 : 1000V

CURRENT

08: 8A

LEAD FORM DIMENSIONS

xx : Lead Form Option

SENSITIVITY & TYPE

Sensitive Triac:

6 : 5 mA (QI, II, III)

10 mA (QIV)

8 : 10 mA (QI, II, III)

20 mA (QIV)

Standard Triac:

4 : 25 mA (QI, II, III)

5 : 50 mA (QI, II, III)

Alternistor Triac:

H3 : 10 mA (QI, II, III)

H4 : 35 mA (QI, II, III)

PACKAGE TYPE

L : TO-220 Isolated

R : TO-220 Non-Isolated

N : TO-263 (D 2 PAK)

V : TO-251 (VPAK)

D : TO-252 (DPAK)

Part Marking System

TO-251AA – (V Package)

TO-252AA – (D Package)

L6008V5

L6008V5

YMLDD

®

YMLDD

Date Code Marking

Y:Year Code

M: Month Code

L: Location Code

DD: Calendar Code

TO-220 AB - (L and R Package)

TO-263 AB - (N Package)

®

Q6008R5

YMXXX

®

Date Code Marking

Y:Year Code

M: Month Code

XXX: Lot Trace Code

© 2014 Littelfuse, Inc.

Specifications are subject to change without notice.

Revised: 12/14/14

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
