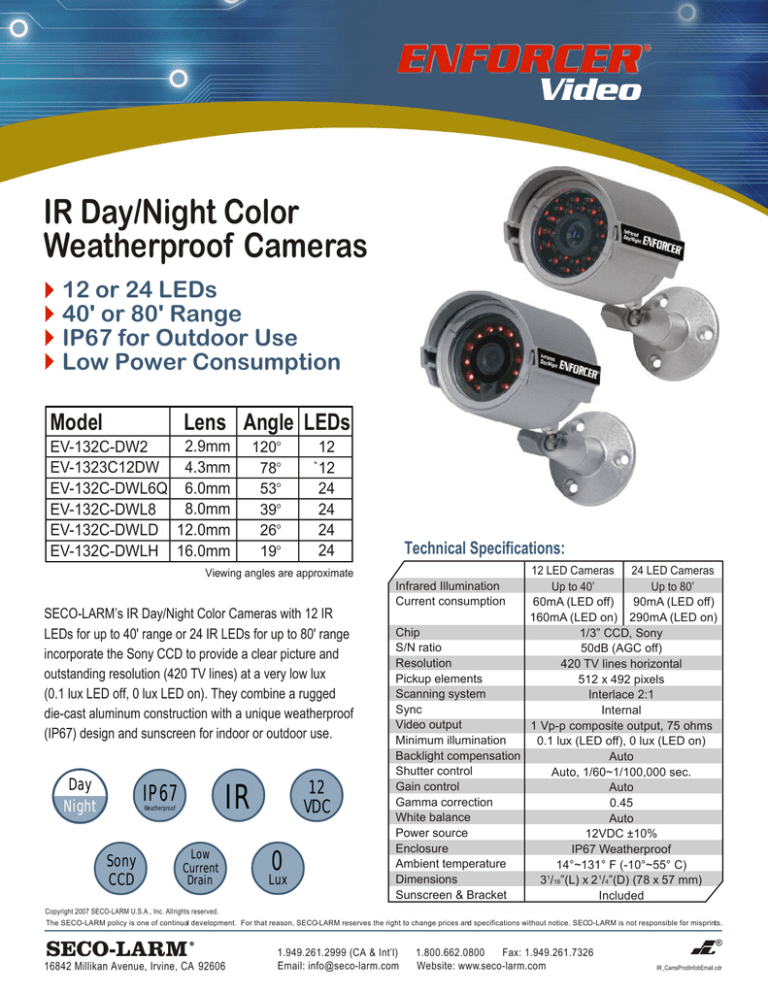

IR Day/Night Color
Weatherproof Cameras
12 or 24 LEDs
40' or 80' Range
IP67 for Outdoor Use
Low Power Consumption
Lens Angle LEDs
Model
2.9mm
EV-132C-DW2
4.3mm
EV-1323C12DW
EV-132C-DWL6Q 6.0mm
8.0mm
EV-132C-DWL8
EV-132C-DWLD 12.0mm
EV-132C-DWLH 16.0mm
120o
78o
53o
39o
26o
19o
12
`12
24
24
24
24
Viewing angles are approximate
Technical Specifications:
12 LED Cameras 24 LED Cameras
Up to 40’
Up to 80’
60mA (LED off)
90mA (LED off)
160mA (LED on) 290mA (LED on)
Chip
1/3” CCD, Sony
S/N ratio
50dB (AGC off)
Resolution
420 TV lines horizontal
Pickup elements
512 x 492 pixels
Scanning system
Interlace 2:1
Sync
Internal
Video output
1 Vp-p composite output, 75 ohms
Minimum illumination
0.1 lux (LED off), 0 lux (LED on)
Backlight compensation
Auto
Shutter control
Auto, 1/60~1/100,000 sec.
Gain control
Auto
Gamma correction
0.45
White balance
Auto
Power source
12VDC ±10%
Enclosure
IP67 Weatherproof
Ambient temperature
14°~131° F (-10°~55° C)
Dimensions
31/16”(L) x 2 1/4”(D) (78 x 57 mm)
Sunscreen & Bracket
Included
Infrared Illumination
Current consumption
SECO-LARM’s IR Day/Night Color Cameras with 12 IR
LEDs for up to 40' range or 24 IR LEDs for up to 80' range
incorporate the Sony CCD to provide a clear picture and
outstanding resolution (420 TV lines) at a very low lux
(0.1 lux LED off, 0 lux LED on). They combine a rugged
die-cast aluminum construction with a unique weatherproof
(IP67) design and sunscreen for indoor or outdoor use.
Day
Night
Weatherproof
Sony
CCD
12
VDC
IR
IP67
Low
Current
Drain
0
Lux
