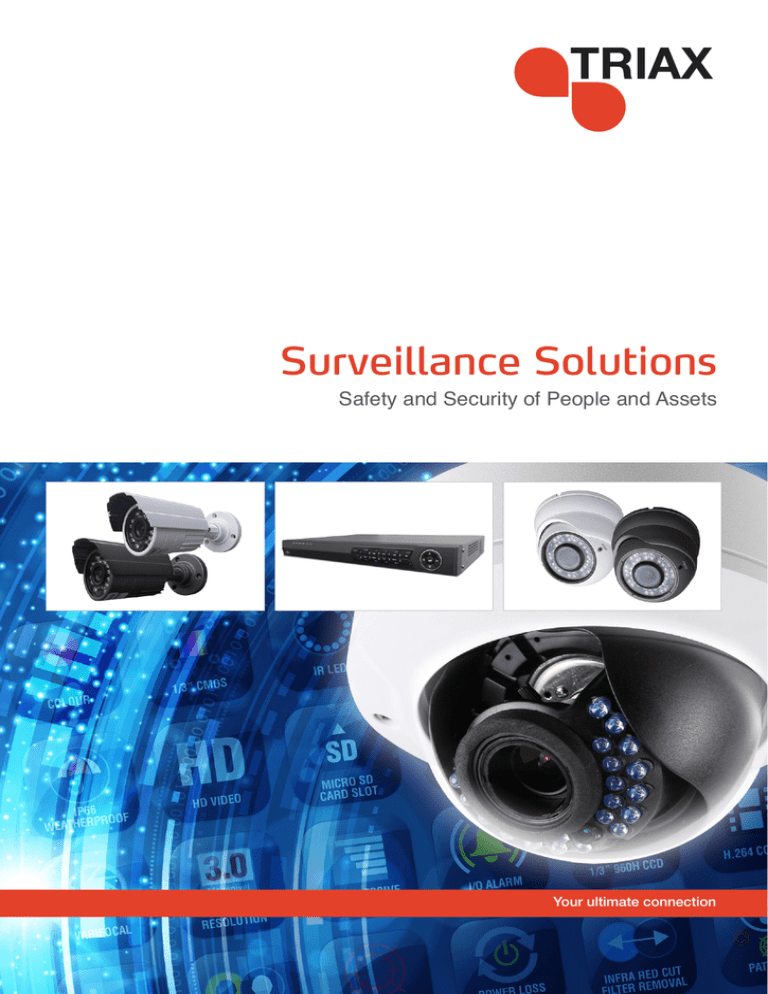

Surveillance Solutions

Safety and Security of People and Assets

Your ultimate connection

Contents

Analogue Cameras and Digital Video Recorders

Analogue Cameras

-

-

TDF 796W / TDF 796G

TDV 796W / TDV 796G

- TDV

-

- TBV 796W / TBV 796G

796W

- TPTZ

6

TBF 796W / TBF 796G 7

8

4

5

Digital Video Recorder

- 960H DVR - 4,8,16 Channel 11

IP Cameras and Network Video Recorders

IP Cameras

- TDF (Matrix

15

IP

14

17

IP 18

Network Video Recorder

- IP NVR - 4, 8 Channel 19

Accessories

- Surveillance

-

Controller

Power Extension DC Cable

- RG59 + 12VDC Cable

- Power

Tools

- Converters

/

- Miscellaneous

23

23

Supplies 25

- CCTV

25

we

27

Surveillance Solutions

Triax is a leading, international provider of innovative, high-tech solutions for the reception, processing and distribution of video, audio and data signals.

Our leading position in the multimedia sector is built upon our philosophy of:

• High product quality

• Innovation within our core market segments

• Providing concepts and solutions

• Delivery of high quality pre and after

sales service

Triax surveillance encompasses these values to provide a range of user friendly solutions to help ensure the safety and security of both people and assets.

As well as an extensive selection of cameras, we also provide a comprehensive range of accessories plus Digital and

Network Video Recorders.

Technology

Triax surveillance solutions utilise the latest technology across the entire range.

Our entry level analogue solutions with 700TVL and 960H

CCD image sensors, when combined with the 960H DVR series, offer the best resolutions currently available over a coaxial infrastructure.

All 960H cameras are available with fixed or varifocal lenses in dome or bullet housings which meet IP66 rating and comply to EN 62262 Impact Vandal Proof requirements.

IP 3MP Cameras and NVR’s offer the highest possible quality within our range. The cameras can be installed on existing networks and offer PoE which eliminates the need for local power.

High in quality but not price, we understand that cost of ownership is paramount for all business sectors. Our range has been designed to suit all budgets while utilising the latest technology to create reliable solutions with minimal installation and maintenance.

Where to use

Many sectors can benefit from using Triax surveillance systems, for example, housing associations, care homes, hotels, hospitality, healthcare and educational facilities.

Fixed / Varifocal Dome

Public Areas - Reception, Corridors,

Offices, Retail, Schools and

Colleges, Home, Banks, Cash Point

Surveillance, Pubs, Clubs

Fixed / Varifocal Bullet

Entry doors, Emergency Exits,

Ambulance A&E Entrances,

Schools and Colleges

IP Cameras

Public areas where HD images and recording are required -

Warehouses, Offices, Colleges,

Retail Centres, Airports, Football

Stadia, Concert Halls

PTZ

Car parks and Grounds, Perimeter

Detection, Retail Shopping Centres,

Colleges, Universities, Local

Authorities, Industry

TRIAX | 1

Healthcare

Video surveillance can play a key role in today’s healthcare environment, ensuring the protection and wellbeing of staff and patients alike.

Installing a high quality surveillance system can give peace of mind by creating reliable, cost effective solutions requiring minimal maintenance and the ability to utilise existing cable infrastructures.

For this sector we offer complete end to end video surveillance solutions ranging from Analogue 960H to 3MP

IP cameras - all with real-time monitoring via the latest DVR’s and NVR’s at a price to meet all budgets.

Housing Associations, Care homes, Residential homes, Local Authority sheltered accommodation

Triax high quality CCTV surveillance cameras can help protect staff, tenants and property. With robust IP66 housings that comply to EN 62262 Impact Vandal Proof requirements - PTZ,

Fixed and Varifocal Cameras can securely monitor activity, property, entrances and public places to help create a safe and secure living environment.

Hotels and Hospitality

With the latest innovative Triax technology, the next generation of surveillance equipment creates a relaxed and secure environment for staff and guest wellbeing.

Our solutions can be installed using existing infrastructure, minimising disruption and maintaining occupancy rates.

We offer three solutions depending on requirements.

• The latest 960H Analogue 700TVL Cameras are well

suited to low light levels where a wide angle of view is

required, eg, Receptions and Restaurants.

• Varifocal Cameras allow focus / zoom on specific areas,

eg, Emergency Exits, Entrances.

• 3MP IP Cameras offer outstanding image quality and

recordings.

2 | TRIAX

Analogue Cameras and

Digital Video Recorders

TDF 796W

TDF 796G

700 TVL 960H CCD

Fixed Dome Camera

Part No. 301000 - White

Part No. 301001 - Grey

• 700 TVL

• 1/3” 960H CCD

• IP66 Weather Proof

• 3.6mm Lens

• 24 IR LED’s 21m (70ft)

• Aluminium Housing

• DC 12V (Not Supplied)

Features

• High Resolution

700 TVL horizontal resolution, 960H CCD

Technology.

• Long Life IR LED Design

Enhanced High performance IR LED’s with brightness

several times higher and a greater life expectancy than

standard IR LED’s.

• Auto D/N Switchover Operating Mode

When there is sufficient daylight the 700 TVL, 960H

High performance camera operates in colour mode. At low

light levels the camera automatically switches using the

Smart IR functionality to black and white ensuring high

quality images over 21m (70ft).

• Product Protection

IP66 weather proof with vandal resistant aluminium

housing.

Specifications

Camera

Image Sensor

Signal System

Effective Pixels

Min. Illumination

Shutter Speed

Lens

Day & Night

White Balance

BLC

Auto Gain Control

Synchronization

Horizontal Resolution

S/N Ratio

Video Output

Smart IR

General

Working Temperature /

Humidity

Power Supply

IR LEDs

IR Distance

Weather Proof Rating

Dimensions

Weight

1/3” Sony 960H CCD

PAL

PAL: 976 (H) x 582 (V)

Colour:> 0.3 Lux, B&W: 0 Lux

PAL: 1/50s ~ 1/100,000s

3.6mm

Auto

Auto Tracking White Balance

Auto

Auto

Internal Synchronization

Used with Triax Compatible 960H DVR’s

700 TVL 960H WDI Compatible

52dB (AGC off)

1 BNC, 1.0 Vp-p, 75Ohm Composite

Yes

-10°C ~ 50°C / 14°F ~ 122°F

Humidity 90% or less (non-condensing)

DC 12V (Not Supplied)

24 pcs

21m (70ft)

IP66

Φ94mm x 80mm (Φ3.7” x 3.1”)

330g (0.73lb)

COLOUR

4 | TRIAX

960H CCD IR LED DAY & NIGHT

AUTO WHITE

BALANCE

BACK LIGHT

COMPENSATION

IP66

WEATHERPROOF

TDV 796W

TDV 796G

700 TVL 960H CCD

Varifocal Dome Camera

Part No. 301002 - White

Part No. 301003 - Grey

• 700 TVL

• 1/3” 960H CCD

• IP66 Weather Proof

• 2.8 - 12mm Lens

• 36 IR LED’s 30m (100ft)

• Aluminium Housing

• DC 12V (Not Supplied)

Features

• High Resolution

700 TVL horizontal resolution, 960H CCD

Technology.

• Long Life IR LED Design

Enhanced High performance IR LED’s with brightness

several times higher and a greater life expectancy than

standard IR LED’s.

• Auto D/N Switchover Operating Mode

When there is sufficient daylight the 700 TVL, 960H

High performance camera operates in colour mode. At low

light levels the camera automatically switches using the

Smart IR functionality to black and white ensuring high

quality images over 30m (100ft).

• Product Protection

IP66 weather proof with vandal resistant aluminium

housing.

Specifications

Camera

Image Sensor

Signal System

Effective Pixels

Min. Illumination

Shutter Speed

Lens

Day & Night

White Balance

BLC

Auto Gain Control

Synchronization

Horizontal Resolution

1/3” Sony 960H CCD

PAL

PAL: 976 (H) x 582 (V)

Colour:> 0.3 Lux, B&W: 0 Lux

PAL: 1/50s ~ 1/100,000s

2.8 ~ 12mm

Auto

Auto Tracking White Balance

Auto

Auto

Internal Synchronization

Used with Triax Compatible 960H DVR’s

700 TVL 960H WDI Compatible

S/N Ratio

Video Output

Smart IR

General

Working Temperature /

Humidity

Power Supply

IR LEDs

IR Distance

52dB (AGC off)

1 BNC, 1.0 Vp-p, 75Ohm Composite

Yes

-10°C ~ 50°C / 14°F ~ 122°F

Humidity 90% or less (non-condensing)

DC 12V (Not Supplied)

36 pcs

30m (100ft)

Weather Proof Rating IP66

Dimensions Φ120mm x 100mm (Φ4.7” x 3.9”)

Weight 730g (1.6lb)

COLOUR 960H CCD IR LED DAY & NIGHT

AUTO WHITE

BALANCE

BACK LIGHT

COMPENSATION

IP66

WEATHERPROOF

VARIFOCAL

TRIAX | 5

TDV 796SSW

700 TVL 960H CCD

Varifocal Starlight Sensing Dome Camera

Part No. 301013 - White

• 700 TVL

• 1/3” 960H CCD

• IP66 Weather Proof

• 2.8 - 12mm Lens

• 3D DNR, Starlight Sensing

• 3-Axis, OSD Menu

• Aluminium Housing

• DC 12V (Not Supplied)

Starlight with Sens-up

Technology provides clear images in low light environments

Starlight Camera with Sens-up

Great for pubs and clubs

Standard IR Camera

Specifications

Camera

Image Sensor

Signal System

Effective Pixels

Min. Illumination

Shutter Speed

Lens

Day & Night

White Balance

1/3” Sony 960H CCD

PAL

PAL: 976 (H) x 582 (V)

0.001 Lux

PAL: 1/50s ~ 1/100,000s

2.8 ~ 12mm

Auto

Auto Tracking White Balance

BLC

Auto Gain Control

Synchronization Internal Synchronization

Digital Noise Reduction 3D DNR

General

Auto

Auto

Working Temperature /

Humidity

-10°C ~ 50°C / 14°F ~ 122°F

Humidity 85% or less (non-condensing)

Power Supply DC 12V (Not Supplied)

Weather Proof Rating IP66

Dimensions

Weight

Φ140mm x 140mm x 107mm

(Φ5.5” x 5.5” x 4.2”)

840g (1.9lb)

COLOUR

6 | TRIAX

960H CCD

DIGITAL NOISE

REDUCTION

DAY & NIGHT

AUTO WHITE

BALANCE

BACK LIGHT

COMPENSATION

IP66

WEATHERPROOF

VARIFOCAL

TBF 796W

TBF 796G

700 TVL 960H CCD

IR Fixed Bullet Camera

Part No. 301004 - White

Part No. 301005 - Grey

• 700 TVL

• 1/3” 960H CCD

• IP66 Weather Proof

• 3.6mm Lens

• 24 IR LED’s 15m (50ft)

• Aluminium Housing

• DC 12V (Not Supplied)

Features

THIS CCTV COLOUR SENSOR CAMERA Introduces advanced sensor and digital technology, enabling a high quality image.

Hi-Resolution colour sensor image resolution.

High image quality and ultra low light performance.

Plug the Video signal into any DVR, VCR, TV or

security monitor.

The high performance digital-processing chip greatly

improves the signal-to-noise ratio and distortion.

Automatic white balance enables the camera to

produce correct and natural colours in any light

conditions, indoor or outdoor, by automatically

adjusting the white balance point.

The illumination distance referred to in this manual is

indoor night view distance. The infrared transmission

will be affected if there is high humidity or smoke in

the air. In this situation the viewable distance will be

shortened and the night view will be reduced when

the objects are lawn, trees or anything without

reflecting ability.

This chip features a field period readout system and

an electronic shutter with variable charge-storage

time.

Specifications

Camera

Image Sensor

Signal System

Effective Pixels

Min. Illumination

Shutter Speed

Lens

Day & Night

White Balance

BLC

Auto Gain Control

Synchronization

Horizontal Resolution

S/N Ratio

Video Output

General

Working Temperature /

Humidity

Power Supply

Power Consumption

IR LEDs

IR Distance

Weather Proof Rating

Dimensions

Weight

1/3” CCD

PAL

PAL: 976 (H) x 582 (V)

Colour:> 0.3 Lux, B&W: 0 Lux (IR LED

On)

PAL: 1/50s ~ 1/100,000s

3.6mm

Auto

Auto Tracking White Balance

Auto

Auto

Internal Synchronization

700 TVL, 960H Resolution

More than 50dB (AGC off)

1 BNC, 1.0 Vp-p, 75 Ohm Composite

-10°C ~ 50°C / 14°F ~ 122°F

Humidity 85% or less (non-condensing)

DC 12V (Not Supplied)

< 2W (LED Off) / < 6W (LED On)

24 pcs

15m (50ft)

IP66

60 x 150 x 80mm (2.7 x 5.9 x 3.1”)

300g (0.66lb)

COLOUR 960H CCD IR LED DAY & NIGHT

AUTO WHITE

BALANCE

BACK LIGHT

COMPENSATION

IP66

WEATHERPROOF

TRIAX | 7

TBV 796W

TBV 796G

700 TVL 960H CCD

IR Varifocal Bullet Camera

Part No. 301006 - White

Part No. 301007 - Grey

• 700 TVL

• 1/3” 960H CCD

• IP66 Weather Proof

• 2.8-12mm Lens

• 42 IR LED’s 36m (120ft)

• Aluminium Housing

• DC 12V (Not Supplied)

Features

THIS CCTV COLOUR SENSOR CAMERA Introduces advanced sensor and digital technology, enabling a high quality image.

Hi-Resolution colour sensor image resolution.

High image quality and ultra low light performance.

Plug the Video signal into any DVR, VCR, TV or

security monitor.

The high performance digital-processing chip greatly

improves the signal-to-noise ratio and distortion.

Automatic white balance enables the camera to

produce correct and natural colours in any light

conditions, indoor or outdoor, by automatically

adjusting the white balance point.

The illumination distance referred to in this manual is

indoor night view distance. The infrared transmission

will be affected if there is high humidity or smoke in

the air. In this situation the viewable distance will be

shortened and the night view will be reduced when

the objects are lawn, trees or anything without

reflecting ability.

This chip features a field period readout system and

an electronic shutter with variable charge-storage

time.

Specifications

Camera

Image Sensor

Signal System

Effective Pixels

Min. Illumination

Shutter Speed

Lens

Day & Night

White Balance

BLC

Auto Gain Control

Synchronization

Horizontal Resolution

S/N Ratio

Video Output

General

Working Temperature /

Humidity

Power Supply

IR LEDs

IR Distance

Weather Proof Rating

Dimensions

Weight

1/3” CCD

PAL

PAL: 976 (H) x 582 (V)

Colour:> 0.3 Lux,

B&W: 0 Lux

PAL: 1/50s ~ 1/100,000s

2.8 - 12mm

Auto

ATW

Auto

Auto

Internal Synchronization

700 TVL 960H Resolution

52dB (AGC off)

1 BNC, 1.0 Vp-p, 75 Ohm Composite

-10°C ~ 50°C /

14°F ~ 122°F

Humidity 90% or less

(non-condensing)

DC 12V (Not Supplied)

42 pcs

36m (120ft)

IP66

256 x 94 x150mm

(10.1 x 3.7 x 5.9”)

1000g (2.2lb)

COLOUR

8 | TRIAX

960H CCD IR LED DAY & NIGHT

AUTO WHITE

BALANCE

BACK LIGHT

COMPENSATION

IP66

WEATHERPROOF

VARIFOCAL

TPTZ 796W

700 TVL Analog PTZ Dome Camera

Part No. 301008

• 700 TVL Horizontal Resolution

• 1/3” 960H CCD Sensor

• IP66 Weather Proof

• DWDR & 3D DNR & BLC

• 3.8 - 45.6mm Lens, 12 x Optical Zoom

• 3D Intelligent Positioning

• Alarm I/O

Specifications

Camera

Image Sensor

Effective Pixel

Horizontal Resolution

Min. Illumination

White Balance

AGC

S/N Ratio

Dig. Noise Reduction

Backlight Comp.

Wide Dynamic Range

Shutter Speed

Day & Night

Digital Zoom

Privacy Mask

Focus Model

Lens

Focal Length

Zoom Speed

Angle of View

Min. Working Dist.

Aperture Range

Pan and Tilt

Pan / Tilt Range

Pan / Tilt Speed

Proportional Zoom

Number of Preset

Patrol

1/3” CCD Sensor

NTSC: 976(H) x 494(V)

PAL: 976(H)x582(V)

Colour: 700TVL / B/W: 750TVL

Colour: 0.1 [email protected] (AGC On)

B/W 0.01 Lux with IR (AGC On)

Auto/ATW/Indoor/Outdoor/One Push

Auto / Manual

≥ 50dB

3D DNR

Yes

Digital WDR

NTSC: 1/60s ~ 1/10,000s

PAL: 1/50s ~ 1/10,000s

IR Cut Filter

16X

8 Programmable Masks

Optional Multiple Colours and Mosaics

Auto / Semiautomatic / Manual

3.8 ~ 45.6mm 12X

Approx .2s (Optical Wide-Tele)

50.69 ~ 4.5 Degree (Wide-Tele

10 ~ 1500mm (Wide-Tele)

F1.6 ~ F2.7

Pan range: 360° endless; Tilt range: -2°-90°(Auto

Flip)

Pan Manual Speed: 0.1° -200°/s, Pan Preset

Speed: 200°/s

Tilt Manual Speed: 0.1°-120°/s, Tilt Preset Speed:

120°/s

Rotation speed can be adjusted automatically according to zoom multiples

256

8 patrols, up to 32 presets per patrol

Pattern

Power Off Memory

Park Action

PTZ Position Display

Zone Scanning /Display

Camera Title

Compass

Scheduled Task

RS-485 Communication

Diagnosis

Manchester Code Communication Diagnosis

Alarm Input / Output

Alarm Input

Alarm Output

Alarm Action

4 patterns, with the total recording time not less than 10 minutes

Support

Preset / Patrol / Pattern / Pan scan / Tilt scan /

Random scan / Frame scan / Panorama scan

Support

Scanning within programmed zone, display zone title

Programmable title display

Support , the north can be set

Preset / Patrol / Pattern / Pan scan / Tilt scan /

Random scan / Frame scan / Panorama scan

Including failure information, e.g., wrong address, baud rate errors, et., displayed on the video screen in text

Including failure information, e.g., wrong address, baud rate errors s displayed on the video screen in special characters

2

1 Relay output, alarm response configurable

Preset / Patrol / Pattern / Pan scan / Tilt scan /

Random scan / Frame scan / Panorama scan /

Relay output

Local Output

Video Output

General

Working Temperature /

Humidity

Power Supply

RS-485 Protocols

Humidity

Protection LEvel

Dimensions

Weight

1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC

-30°C ~ 65°C / -22°F ~ 149°F

Humidity 95% or less (non-condensing)

24 VAC, Max 18W

HIKIVISION, Pelco-P, Pelco-D, Self Adaptive

90% or less

IP66, TVS 4,000V Lightning protection, surge protection and voltage transient protection ɸ180 x 239.5mm (7.08 x 9.43 w/o Bracket”)

Approx. 2000g (4.4lb w/o Bracket)

COLOUR 1/3” 960H CCD IR LED DAY & NIGHT

AUTO WHITE

BALANCE

BACK LIGHT

COMPENSATION

IP66

WEATHERPROOF

WIDE DYNAMIC

RANGE

DIGITAL NOISE

REDUCTION

I/O ALARM

3D INTELLIGENT

POSITIONING

INFRA RED CUT

FILTER REMOVAL

PATTERNS

TRIAX | 9

TPTZ 79627W

700TVL 27xOptical Zoom Analogue PTZ

Dome Camera

Part No. 301009

• 700TVL Horizontal Resolution

• 1/3” 960H CCD Sensor

• IP66 Weather Proof

• True Day/Night DWDR & DNR

• 27 x Optical Zoom, 16 x Digital Zoom

• 3D Intelligent Positioning

• 6 IR LED’s 100m (330ft)

• 24VAC Power Supply

Specifications

Camera

Image Sensor

Effective Pixel

Min. Illumination

White Balance

AGC

S/N Ratio

Dig. Noise Reduction

Wide Dynamic Range

Shutter Speed

Day & Night

Digital Zoom

Privacy Mask

Focus Mode

Lens

Focal Length

Zoom Speed

Angle of View

Min. Working Dist.

Aperture Range

Pan and Tilt

Pan / Tilt Range

Pan / Tilt Speed

1/3” CCD

976 (H) x 494 (V)

Colour: 0.02 [email protected] (AGC On)

B/W 0.001 [email protected] with IR (AGC On)

0 Lux with IR

Auto/Manual/ATW/Indoor/Outdoor

Auto / Manual

≥ 50dB

DNR

128X Digital WDR

1 ~ 1/10,000s

IR Cut Filter

16x

Up to 8 zones, max 8 zones on same image, multiple colours and mosaics optional

Auto / Semiautomatic / Manual

4 ~ 108mm 27X

Approx 4s (Optical Wide-Tele)

57.58 ~ 3.12 Degree (Wide-Tele)

10 ~ 1000mm (Wide-Tele)

F1.6 ~ F3.7

Pan range: 360° endless; Tilt range: -15°-90°

(Auto Flip)

Pan Manual Speed: 0.1°-160°/s, Pan Preset

Speed: 240°/s

Tilt Manual Speed: 0.1°-120°/s, Tilt Preset

Speed: 200°/s

Proportional Zoom

Number of Preset

Patrol

Pattern

Power Off Memory

Park Action

PTZ Position Display

Compass

Schedule Task

Infrared

IR Distance

IR Intensity

Input / Output

Video Output

General

Working Temperature

Power Supply

RS-485 Protocols

Humidity

Protection Level

Dimensions

Weight

Rotation speed can be adjusted automatically according to zoom multiples

256

8 patrols, up to 32 presets per patrol

4 Patterns with total recording time not less than

10 minutes

Support

Preset / Patrol / Pattern / Pan / Tilt / Auto

Random / Frame / Panorama

On / Off

Support, North can be set

Preset / Patrol / Pattern / Pan / Tilt / Auto

Random / Frame / Panorama

Up to 100m (330ft)

Automatically adjust depending on the zoom ratio

1.0V (P-P) / 75Ω, BNC

-30°C ~ 65°C / -22°F ~ 149°F

24 VAC, Max 30W (IR On, Heater On), Max 24W

(IR On), Max 15W (IR Off, Heater Off)

HIKIVISION, Pelco-P, Pelco-D, Self Adaptive

90% or less

IP66, TVS 4,000V Lightning protection, surge protection and voltage transient protection ɸ245 x 399mm (9.65” x 15.71” w/o Bracket)

Approx. 5.5kg (12.13lb w/o Bracket)

COLOUR 1/3” 960H CCD IR LED DAY & NIGHT

AUTO WHITE

BALANCE

IP66

WEATHERPROOF

H.264 CODEC

WIDE DYNAMIC

RANGE

DIGITAL NOISE

REDUCTION

3D INTELLIGENT

POSITIONING

INFRA RED CUT

FILTER REMOVAL

PATTERNS

10 | TRIAX

PRIVACY

MASKING

PROTOCOLS

SELF ADAPTIVE

960H DVR

4 / 8 / 16 Channel CCTV WD1

Digital Video Recorder

TR 496

TR 896

TR 1696

Part No. 301010

Part No. 301011

Part No. 301012

Smart Search

Never again have to fast forward to find a single incident. Select an area and smart search will only show related footage. Narrow things down to just when the event occurred and eliminate excess searching.

Motion Detection

Mark a specific area that needs extra protection. Any activity in that area can trigger alarm and analytic algorithims to prevent false positives. A simple line can also be drawn and set up as the alarm trigger.

• Real-Time High Resolution Recording

Supports WD1 Recording

Synchronous Playback

H.264 Compression Technology

Mobile Surveillance via downloadable app

Audio Input / Output

Remote Monitoring / Control via CMS or

Web Browsers

HDD Quota and Group Management

HDMI Output

Alarm on all Inputs & 1 CH Alarm Output

Featuring P2P Technology

• Easily setup remote viewing via QR code

• Eliminates complicated setup via router

Download the mobile surveillance app

TRIAX | 11

Specifications

System

Compression Format

OS

Video

Input

Standard Output

Advanced Output

Audio

Audio Input

Audio Output

Bidirectional Talk

Alarm

Alarm In / Out

Recording

960H

D1

CIF

Recording Mode

Playback

Max Playback Channel

Search Mode

Backup

USB Disk

Remote Application

Dual Stream

Browser

CMS

Mobile Phone

User Access

Storage

HDD

PTZ

PTZ

PTZ Control

PTZ Protocol

Network

Ethernet

Protocol

General

Power Supply

Consumption

Operating Temperature

Humidity

Dimensions (W x H x D)

12 | TRIAX

4 Channel 8 Channel

Standard H.264 Height Profile

Embedded Linux

16 Channel

4CH, BNC (1.0Vp-p, 75Ω) 8CH, BNC (1.0Vp-p, 75Ω) 16CH, BNC (1.0Vp-p, 75Ω)

1 VGA; 1920x1080, 1280x1024, 800x600, 1 BNC+1 Spot Out

1 HDMI: 1080P: 1920x1080/60Hz

4CH, RCA (2.0Vp-p, 75Ω)

1CH, RCA (Linear, 1kΩ)

1-CH, RCA (2.0Vp-p, 1kΩ)(using 1ch Audio Input)

4CH / 1CH 8CH / 1CH

25 fps

25 fps

25 fps

Schedule, Manual, Motion, Sensor

16CH / 1CH

4CH 8CH

Time, Event, File

16CH

1 x SATA, up to 3TB

USB 2.0 or SATA

Support; Master Stream, [email protected] WD1/D1/CIF

IE (Windows), Safari (Mac OS), Chrome, Firefox

Yes

Broview App for Apple / Android OS

10 Users Online with professional authority management

2 x SATA, up to 6TB 2 x SATA, up to 6TB

1 RS-485 Interface, Half-Duplex

Pan, Tilt, Zoom, Preset, Cruise, Trace

Multiple PTZ Protocols supported

1 RJ45 10M / 100M Ethernet Interface

TCP/IP, UDP, DHCP, DNS, PPPoE, DDNS, Email

DC12V 2A

10W (without hard disk or DVD-R/W)

0°C ~ 50°C

10% - 90% Humidity

300 x 278 x 58mm

IP Cameras and

Network Video Recorders

TDF IP

1.3MP Matrix IR Fixed Turret Camera

Part No. 301039

• 1.3MP Resolution

• 2.8mm Lens

• HD Real-Time Video

• IP66 Weather Proof

• DWDR & 3D DNR

• Matrix IR Illuminator 30m (100ft)

• Day / Night Auto Switch

Specifications

Camera

Image Sensor

Min. Illumination

Shutter Speed

Lens

1/3” Sensor

0.0028 [email protected] (AGC On) 0 Lux with IR

1/25s ~ 1/100,000s

[email protected], 1280x960:

Angle of View 92.5°

Lens Mount

Day & Night

M12

ICR

Dig. Noise Reduction 3D DNR

Wide Dynamic Range Digital WDR

Angle Adjustment

Horizontal 0°~360°, Vertical: 0°~75°,

Rotation: 0°~360°

Compression Standard

Video Compression H.264 / MJPEG

Bit Rate 32 Kbps ~ 16 Mbps

Dual Stream


Max. Image Res

Yes

Frame Rate

Image Settings

1280 x 960

60Hz: 30fps (1280 x 960), 30fps (1280 x

720)

50Hz: 25fps (1280 x 960), 25fps (1280 x

720)

Saturation, brightness, contrast adjustable through client software or web browser

Network

Network Storage

Alarm Trigger

NAS (iSCSI Optional)

Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception

Protocols

System Capability

TCP/IP, HTTP, DHCP, DNS, DDNS, RTP,

RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS,

FTP, 802.1x, Qos, (SIP, SRTP, IPv6 optional)

ONVIF, PSIA, CGI

Flickerless, Heartbeat, Mirror, User Authentication, Video Mask, Watermark, Reset

General

Functionalities

Interface

Communication

Interface

General

Working Temperature

/ Humidity

1 RJ45 10M / 100M Ethernet Port and 1

RS-485 Interface

-25°C ~ 60°C / -13°F ~ 140°F

Humidity 95% or less (non-condensing)

Power Supply

DC 12V ±10%, PoE (802.3af)

(Not Supplied)

Power Consumption Max. 7W

IR Distance 30m (100ft)

Weather Proof Rating IP66

Dimensions

Weight ɸ127 x 97.5mm (5 x 3.8”)

670g (1.5lb)

Regular IR - Halo Effect

Matrix IR - No Halo Effect,

Longer Distance, Longer Life

COLOUR 1/3” CMOS MATRIX LED DAY & NIGHT

BACK LIGHT

COMPENSATION

IP66

WEATHERPROOF

HD VIDEO

CAMERA

RESOLUTION

DUAL STREAM

POWER OVER

ETHERNET

H.264 CODEC

WIDE DYNAMIC

RANGE

DIGITAL NOISE

REDUCTION

PROGRESSIVE

SCAN

14 | TRIAX

TDV IP

3.0MP IR Varifocal Dome Camera

Part No. 301040

• 3.0MP (2048 x 1536) High Resolution

• 2.8 - 12mm Lens

• Full HD 1080p Real-Time Video

• IP66 Weather Proof

• DWDR & 3D DNR & BLC

• IR LED’s 20m (66ft)

• Onboard Storage (up to 32GB)

• Vandal Proof

• Audio I/O, Alarm I/O

Specifications

Camera

Image Sensor

Min. Illumination

Shutter Speed

Lens

Lens Mount

1/3” Sensor

0.07 [email protected] (AGC On) 0 Lux with IR

1/25s ~ 1/100,000s

2.8 - [email protected], Angle of View 80°~28.7° ɸ14

Auto Iris

Day & Night

DC Drive

ICR

Dig. Noise Reduction 3D DNR

Wide Dynamic Range Digital WDR

Backlight Comp.

Yes, Zone configurable

Angle Adjustment

Pan 0°~360°, Tile: 0°~75°, Rotation:

0°~360°

Compression Standard

Video Compression H.264 / MJPEG

H.264 Compression

Profile

Bit Rate

Audio Compression

Audio Bit Rate


Max. Image Res

Frame Rate

Image Settings

Main Profile

32 Kbps ~ 16 Mbps

G.711 / G.726

64Kbps (G.711) / 16Kbps (G.726)

2048 x 1536

60Hz: 15fps (2048 x 1536), 30fps (1920 ×

1080), 30fps (1280 x 720)

50Hz: 12.5fps (2048 x 1536), 25fps (1920 ×

1080), 25fps (1280 x 720)

Saturation, brightness, contrast adjustable through client software or web browser

Network

Network Storage

Alarm Trigger

Protocols

System Capability

General

Functionalities

Interface

Communication

Interface

On-Board Storage

NAS (iSCSI Optional)

Motion detection, tampering alarm

TCP/IP, HTTP, DHCP, DNS, DDNS, RTP,

RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS,

FTP, 802.1x, Qos, UPnP (SIP, SRTP, IPv6 optional)

ONVIF, PSIA, CGI

Dual Stream, User Authentication, Watermark

1 RJ45 10M / 100M Ethernet Port

Built in Micro SD Card Slot, upto 32GB

General

Working Temperature

/ Humidity

Power Supply

-30°C ~ 60°C / -22°F ~ 140°F

Humidity 95% or less (non-condensing)

DC 12V ±10%, PoE (802.3af)

(Not Supplied)

Power Consumption Max. 5.5W

Impact Protection

IR Distance

IEC60068-2-75Eh, 50J; EN50102, up to

IK10

20m (66ft)

Weather Proof Rating IP66

Dimensions ɸ140 x 99.9mm (5.5 x 3.9”)

Weight 750g (1.7lb)

COLOUR 1/2.8” CMOS IR LED DAY & NIGHT

AUTO WHITE

BALANCE

BACK LIGHT

COMPENSATION

IP66

WEATHERPROOF

HD VIDEO

CAMERA

RESOLUTION

VARIFOCAL DUAL STREAM

POWER OVER

ETHERNET

H.264 CODEC

WIDE DYNAMIC

RANGE

DIGITAL NOISE

REDUCTION

I/O ALARM

PROGRESSIVE

SCAN

MICRO SD

CARD SLOT

TRIAX | 15

TBF IP

1.3MP IR Fixed Mini Bullet Camera

Part No. 301038

• 1.3MP Resolution

• HD Real-Time Video

• 4mm Lens

• IP66 Weather Proof

• DWDR & 3D DNR & BLC

• Low Illumination

• 30 IR LED’s 30m (100ft)

• True Day / Night

Specifications

Camera

Image Sensor

Min. Illumination

Shutter Speed

Lens

Lens Mount

1/3” Sensor

0.01 [email protected] (AGC On) 0 Lux with IR

0.028 [email protected] (AGC On) 0 Lux with IR

1/25s ~ 1/100,000s

[email protected], Angle of View 45.3°

M12

Day & Night ICR with Auto Switch

Dig. Noise Reduction 3D DNR

Compression Standard

Video Compression H.264 / MJPEG

H.264 Compression

Profile

Main Profile

Bit Rate


Max. Image Res

32 Kbps ~ 16 Mbps

1280 x 960

Frame Rate

Image Settings

BLC

60Hz: 30fps (1280 x 960), 30fps (1280 x

720)

50Hz: 25fps (1280 x 960), 25fps (1280 x

720)

Saturation, brightness, contrast, sharpness adjustable through client software or web browser

Yes, Zone configurable

Network

Network Storage

Alarm Trigger

Protocols

NAS (iSCSI Optional)

Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception.

TCP/IP, HTTP, DHCP, DNS, DDNS, RTP,

RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS,

FTP, 802.1x, Qos, (SIP, SRTP, IPv6 optional)

ONVIF, PSIA, CGI System Capability

Security

User Authentication, Watermark, Flickerless, Heartbeat, Dual Stream, Mirror

Interface

Communication

Interface

General

Working Temperature

/ Humidity

Power Supply

1 RJ45 10M / 100M Ethernet Port

-25°C ~ 60°C / -13°F ~ 140°F

Humidity 95% or less (non-condensing)

DC 12V ±10%, PoE (802.3af)

(Not Supplied)

Power Consumption Max. 5W

IR Distance 30m (100ft)

Weather Proof Rating IP66

Dimensions

Weight ɸ60.4 x 76.5mm x 138.1mm

(2.4” x 3” x 5.4”)

300g (0.66lb)

COLOUR

1/3” CMOS

IR LED DAY & NIGHT

BACK LIGHT

COMPENSATION

IP66

WEATHERPROOF

HD VIDEO

CAMERA

RESOLUTION

DUAL STREAM

POWER OVER

ETHERNET

H.264 CODEC

WIDE DYNAMIC

RANGE

DIGITAL NOISE

REDUCTION

PROGRESSIVE

SCAN

16 | TRIAX

TBV IP

3.0MP IR Varifocal Bullet Camera

Part No. 301041

• 3.0MP (2048 x 1536) High Resolution

• Full HD 1080p Real-Time Video

• 2.8 - 12mm Lens

• IP66 Weather Proof

• DWDR & 3D DNR & BLC

• 42 IR LED’s 30m (100ft)

• Onboard Storage (up to 32GB)

• Vandal Proof

• Audio I/O, Alarm I/O

Specifications

Camera

Image Sensor

Min. Illumination

Shutter Speed

Lens

Auto Iris

Day & Night

1/3” Sensor

0.07 [email protected] (AGC On) 0 Lux with IR

1/25s ~ 1/100,000s

2.8 - [email protected], Angle of View 98°~30.5°

DC Drive

ICR

Dig. Noise Reduction 3D DNR

Wide Dynamic Range Digital WDR

Backlight Comp.

Yes, Zone configurable

Compression Standard

Video Compression H.264 / MJPEG

H.264 Compression

Profile

Bit Rate

Audio Compression

Audio Bit Rate


Max. Image Res

Main Profile

32 Kbps ~ 16 Mbps

G.711 / G.726

64Kbps (G.711) / 16Kbps (G.726)

Frame Rate

Image Settings

2048 x 1536

60Hz: 15fps (2048 x 1536), 30fps (1920 ×

1080), 30fps (1280 x 720)

50Hz: 12.5fps (2048 x 1536), 25fps (1920 ×

1080), 25fps (1280 x 720)

Saturation, brightness, contrast adjustable through client software or web browser

Network

Network Storage

Alarm Trigger

Protocols

System Capability

General

Functionalities

Interface

Communication

Interface

On-Board Storage

General

NAS (iSCSI Optional)

Motion detection, tampering alarm

TCP/IP, HTTP, DHCP, DNS, DDNS, RTP,

RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS,

FTP, 802.1x, Qos, UPnP (SIP, SRTP, IPv6 optional)

ONVIF, PSIA, CGI

Dual Stream, User Authentication, Watermark

1 RJ45 10M / 100M Ethernet Port

Built in Micro SD Card SLot, upto 32GB

Working Temperature

/ Humidity

Power Supply

-30°C ~ 60°C / -22°F ~ 140°F

Humidity 95% or less (non-condensing)

DC 12V ±10%, PoE (802.3af)

(Not Supplied)

Power Consumption Max. 5.5W (7.5W with ICR On)

IR Distance 30m (100ft)

Weather Proof Rating IP66

Dimensions ɸ105 x 295.6mm (4.13 x 11.64”)

Weight 1200g (2.65lb)

COLOUR 1/2.8” CMOS IR LED DAY & NIGHT

AUTO WHITE

BALANCE

BACK LIGHT

COMPENSATION

IP66

WEATHERPROOF

HD VIDEO

CAMERA

RESOLUTION

VARIFOCAL DUAL STREAM

POWER OVER

ETHERNET

H.264 CODEC

WIDE DYNAMIC

RANGE

DIGITAL NOISE

REDUCTION

I/O ALARM

PROGRESSIVE

SCAN

MICRO SD

CARD SLOT

TRIAX | 17

TPTZ IP

2.23MP Network IR PTZ Dome Camera

Part No. 301042

• 1080P Full HD Resolution

• 1/2.8” CMOS Sensor

• IP66 Weather Proof

• True Day/Night DWDR & 3D DNR & BLC

• 4.7 - 94mm Lens, 20 x Optical Zoom

• 3D Intelligent Positioning

• 6 IR LED’s 100m (330ft)

• 24VAC / High-PoE Power Supply

Specifications

Camera

Image Sensor

Effective Pixel

Min. Illumination

White Balance

AGC

S/N Ratio

Dig. Noise Reduction

Backlight Comp.

Wide Dynamic Range

Shutter Speed

Day & Night

Focus Mode

Lens

Focal Length

Zoom Speed

Angle of View

Min. Working Dist.

Aperture Range

Pan and Tilt

Pan / Tilt Range

Pan / Tilt Speed

Proportional Zoom

Number of Preset

Patrol

Power Off Memory

Park Action

1/2.8” Sensor

2230K Pixels

Colour: 0.05 [email protected] (AGC On)

B/W 0.01 [email protected] with IR (AGC On)

0 Lux with IR

Auto/Manual/ATW/Indoor/Outdoor/Daylight Lamp/

Sodium Lamp

Auto / Manual

≥ 50dB

3D DNR

Yes

128X Digital WDR

1 ~ 1/10,000s

IR Cut Filter

Auto / Semiautomatic / Manual

4.7 ~ 94mm 20X

Approx 3s (Wide-Tele)

58.3 ~ 3.2 Degree (Wide-Tele)

10 ~ 1000mm (Wide-Tele)

F1.6 ~ F3.5

Pan range: 360° endless; Tilt range: -15°-90°

(Auto Flip)

Pan Manual Speed: 0.1°-160°/s, Pan Preset

Speed: 240°/s

Tilt Manual Speed: 0.1°-120°/s, Tilt Preset

Speed: 200°/s

Rotation speed can be adjusted automatically according to zoom multiples

256

8 patrols, up to 32 presets per patrol

Support

Preset / Patrol / Pattern / Pan scan / Tilt scan /

Random scan / Frame scan / Panorama scan

Infrared

IR Distance

IR Intensity

Input / Output

Up to 100m (330ft)

Automatically adjust depending on the zoom ratio

Audio Input

Audio Output


Max. Image Resolution

Frame Rate

Audio input (LINE input), 2 ~ 2.4V[p-p]; Output impedance: 1KΩ, ±10%

Line level impedance 600Ω

1920 x 1080

60Hz: 30fps (1920 x 1080), 30fps (1920 × 1080),

30fps (1280 x 720)

50Hz: 12.5fps (2048 x 1536), 25fps (1920 ×

1080), 25fps (1280 x 720)

H.264/MPEG4 Image Compression

Network

Ethernet

Audio Compression

Protocols

10Base-T / 100Base-TX, RJ45 Connector

G.711u / G.711a / G.726

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP,

SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,

RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

Simultaneous Live View Up to 6

Streams Dual Streams

Mini SD Memory Card

User / Host Level

Security Measures

Micro SD Slot up to 32GB

Up to 32 users, 3 levels: Administrator, Camera

Control, Live View Only

User authentication (ID and PW), Host authentication (MAC address), IP address filtering

Integration

Application Programming Open-ended API, support Onvif, PSIA and CGI

Web Browser

General

IE7, IE8, IE9, Chrome8+, Firefox 3.5+, Safari5+

Working Temperature

Power Supply

RS-485 Protocols

Humidity

Protection Level

Dimensions

Weight

-30°C ~ 65°C / -22°F ~ 149°F

24 VAC, High PoE; Max 30W/21W (IR On/Off)

HIKIVISION, Pelco-P, Pelco-D, Self Adaptive

90% or less

IP66, TVS 4,000V Lightning protection, surge protection and voltage transient protection ɸ220 x 353.4mm (8.66” x 13.91” w/o Bracket)

Approx. 5.5kg (12.13lb w/o Bracket)

COLOUR 1/2.8” CMOS IR LED DAY & NIGHT

AUTO WHITE

BALANCE

BACK LIGHT

COMPENSATION

IP66

WEATHERPROOF

HD VIDEO

CAMERA

RESOLUTION

MICRO SD

CARD SLOT

DUAL STREAM

POWER OVER

ETHERNET

H.264 CODEC

WIDE DYNAMIC

RANGE

DIGITAL NOISE

REDUCTION

I/O ALARM

3D INTELLIGENT

POSITIONING

POWER LOSS

RECOVERY

INFRA RED CUT

FILTER REMOVAL

PATTERNS

18 | TRIAX

IP NVR

4 / 8 Channel Network Digital Video Recorder

TNR 4

TNR 8

Part No. 301050

Part No. 301051

Smart Search

Never again have to fast forward to find a single incident. Select an area and smart search will only show related footage. Narrow things down to just when the event occurred and eliminate excess searching.

• Simultaneous HDMI and VGA output

H.264 Compression Technology

Intuitive Graphic User Interface

Quick Search, Easy Backup

Remote Monitoring / Control via NVMS or

Web Browsers

Multi-User Management

Live View on Smart Phones and Playback

on iPhones

Motion Detection

Mark a specific area that needs extra protection. Any activity in that area can trigger alarm and analytic algorithims to prevent false positives. A simple line can also be drawn and set up as the alarm trigger.

1-Click camera adding

Even cameras on an external PoE switch are easy to install. 1-Click will automatically add new cameras to the NVR. Let the NVR figure out what addresses are free and take care of the IP camera configuration

Featuring P2P Technology

• Easily setup remote viewing via QR code

• Eliminates complicated setup via router

Download the mobile surveillance app

TRIAX | 19

Playback

Interface Introduction

Camera List: Displays the list of cameras and the playing status of each camera.

Playback Window: Displays the video of camera.

Play Control Bar: Play control operations are supported.

Time Line: Displays the time bar and the records marked with different colors.

Playback Status: Displays the playback status, including camera No. and playback speed.

Calendar: You can select the date to play.

Start Playback

Steps:

TNR 4





Playback  Interface

Just check the channel or channels if you want to switch playback to another channel or execute simultaneous playback of multiple channels.

Export

Recorded files can be backed up to various devices, such as USB flash drives, USB HDDs or a DVD writer.

Steps:

1. Enter Video Export interface.

3. Select the date from the calendar and click Search.

Video / Audio Input

IP Video Input

.

4 Channel 8 Channel

1CH, RCA (2.0 Vp-p, 1kΩ)

Bandwidth

Incoming Bandwidth

/

Video / Audio Output

Decoding Resolution

HDMI / VGA Output

Description

Play/Pause

Slow down

Play by single frame

Stop All Playback

Button Description

Stop

4CH / 1CH

Speed up

Capture

Download

Open/Close audio





40Mbps

2. Check Search result.

1CH, BNC (1.0 Vp-p, 75Ω)

40Mbps

Quick  Export  Interface

8CH / 1CH

Resolution: 704 x 576 (PAL); 704 x 480 (NTSC) optional

CVBS

/

Audio Output

Video Clip

/

Playback Resolution

Synchronous Playback

Full-screen

1CH, RCA (Linear, 1kΩ)

5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

4 CH, 720P / 2CH, 1080P / 1CH, 5MP 8 CH, 4CIF / 4 CH 720P / 2CH, 1080P / 1CH, 5MP

Hard Disk

SATA

Capacity

External Interface

Network Interface

and click button to locate the playback point.

2 SATA Interfaces for 2 HDD’s

Up to 4TB for each disk

3. Enter Export interface, choose backup device and press Export button to start exporting.

1 RJ-45 10/100 / 1000 Mbps Self-adaptive Ethernet Interface

4 Independent 10/100 Mbps PoE Ethernet Interfaces

Serial Interface 1 RS-485 Half Duplex Interface

USB Interface

Alarm In / Out

Others

Power Supply

2 x USB 2.0

4/1 (Optional)

100~240VAC, 47~63Hz, 3A

Consumption

≤15W (without hard disk)

Working Temperature

Working Humidity

Chassis

Dimensions (W x D x H)

Weight

-10°C ~ 55°C, 14°F ~ 131°F

10% ~ 90%

19 Inch Rack-Mounted 1U Chassis

445 x 290 x 45mm (175.2 x 114.2 x 17.7 inch)

≤ 2 Kg (without hard disk)

20 | TRIAX

Accessories

WD Purple™ Surveillance Hard Drives (use with DVR / NVR)

WD10PURX

WD Purple™ 1TB

Part No. 301057

WD20PURX

WD Purple™ 2TB

Part No. 301058

WD40PURX

WD Purple™ 4TB

Part No. 301059

Peace of mind

Built for 24/7 always-on, high temperature surveillance systems ensuring reliability and quality video playback when you need it most.

Desktop vs Surveillance storage

WD Purple™ drives are designed to replace standard desktop drives that were not designed for 24/7 always-on surveillance.

Desktop drives are built to run for short intervals only and are not engineered to withstand high-temperature fluctuations and equipment vibrations found in typical surveillance applications.

Improve performance

Allframe™ technology works with ATA streaming to reduce error pixilation and video interruptions that occur when desktop hard drives are incorrectly used in storage systems.

Compatibility

Built for compatibility with industry leading chassis and chip set manufacturers for seamless integration.

Supports up to 32 cameras

Optimised to support up to 32 high definition surveillance cameras, providing flexibility to upgrade in the future.

Lower power consumption

Crucial in high temperature, always-on surveillance environments. With IntelliSeek™ technology, WD Purple™ drives calculate the optimum seek speeds which lowers power consumption, noise and vibration that can damage and cause drives to wear out sooner.

Interface: SATA 6 Gb/s

Form Factor: 3.5 inch

Western Digital, WD and the WD logo are registered trademarks in the U.S and other countries. WD Purple, AllFrame and IntelliSeek are trademarks of

Western Digital Technologies Inc. in the U.S and other countries.

22 | TRIAX

3D Controller

PTZ C

3D (Pan / Tilt / Zoom) Controller

Part No. 301060

Power Extension DC Cable

DC 1x4 Split

Power Extension DC Cable 1 x Male - 4 x Female

Part No. 301071

DC 1x8 Split

Power Extension DC Cable 1 x Male - 8 x Female

Part No. 301072

RG59 + 12VDC Cable

TX5912

RG59 + 12VDC Cable - Black 100m

Part No. 301783

TX5912

RG59 + 12VDC Cable - Black 200m

Part No. 301784

Connectors + Tools

MPP 1

Male Power Plug Screw Terminal

Part No. 301073

TRIAX | 23

FPP 1

Female Power Plug Screw Terminal

Part No. 301074

BNC C1

BNC Compression Connector

Part No. 301075

BNC C2

BNC Crimp Connector

Part No. 301076

CBT 2

BNC Crimp Ratchet Tool

Part No. 301084

CBT 1

BNC Compression Tool

Part No. 301086

Converters

VTC C1

CCTV Video RG59 CAT5 Converter Pair

Part No. 301077

VAP B1

CCTV Video Audio Power RG59 CAT5 Balun Pair

Part No. 301078

24 | TRIAX

Power Supplies

PSU 129/9

12VDC 9 Port, 9 AMP PTC Protection

Part No. 301080

PSU 1218/12

12VDC 18 Port, 12 AMP PTC Protection

Part No. 301081

PSU 249/8

24VAC 9 Port, 8 AMP

Part No. 301082

CCTV Tester / Analyser

T1

Professional CCTV Tester / Analyser (includes carry case)

Part No. 301083

Miscellaneous

CCTV Warning Sign

457 x 279mm

Part No. 301085

TRIAX | 25

What we mean by...

700 TVL

The number of analogue TV lines you will see on your TV screen (in theory, for PAL systems you will only ever see 576

TV Lines on your TV). The Triax range of analogue CCTV cameras feature 700 TVL.

960 H

Represents the number of horizontal pixels in the CCD image sensor and is the highest resolution available for analogue

CCTV. It provides a 30% increase in resolution compared to

D1, enabling cameras to obtain resolutions up to 700 TVL and

DVRs to capture the images.

960H creates a wide-screen picture by default so the image does not need to be stretched to fit wide-screen TVs and monitors. Since 960H’s horizontal resolution is 960 x 480, you’re going to get the best results from a 700 TVL camera

(a 700 TVL camera has an effective resolution of 976 x 582).

The Triax range of analogue CCTV cameras feature 960H sensors.

Addressing

Addressing provides a means of identifying individual items that are located on a network.

AGC

Automatic Gain Control. A circuit that provides a method of keeping a signal at a constant level. Cameras use AGC to keep the video signal level high under low light conditions.

ALC

Automatic Level Control. This is found on auto iris lenses and is a means of ‘fine tuning’the sensitivity of the lens. If set to

‘peak’, bright areas can show more detail and if set to

‘average’dark areas will show more detail. The default setting is halfway on most lenses and will suit the majority of installations.

Angle of View

The maximum width of view available from a CCD imager, regardless of the lens fitted. The bigger the CCD imager format, the wider the angle of view.

Aperture

A means of adjusting the amount of light passing through a lens. In the CCTV environment the lens iris is the aperture control method.

Auto Iris

A facility built into lenses to control the amount of light allowed through the lens. The auto iris compensates for differing light levels, allowing the camera picture to be consistent under varying light conditions.

Auto White Balance

This is a facility provided on most colour cameras to adjust while levels relative to other colours.

Back Focus

The position of the imaging device in relation to the focal point of the lens, it is sometimes referred to a “rack focus”. When setting up a zoom lens the back focus must be set to allow correct tracking of focus throughout the zoom range.

Bandwidth

The frequency response capability of a device or communications medium. The greater the bandwidth, the larger the capacity of the system i.e. the more information carrying ability the CCTV or network system has.

BLC

Back Light Compensation. A feature found on some cameras that allows it to deal with different lighting levels in the scene of view, such as looking from a dark room into a doorway.

BLC enables detail to be seen in otherwise dark or shadowed areas where silhouetting would otherwise occur.

BNC

Used for terminating coaxial cables, the main connector in the

CCTV industry.

CCD

Charge Coupled Device. A light sensitive imaging device for almost all cameras. Typical sizes for CCTV cameras: 1/2”,

1/3”& 1/4”

CCTV

Closed Circuit Television

Composite Video

A complete video signal, in which the Luminance (brightness) and Chrominance (colour)

Compression

Compression techniques are used in digital CCTV to reduce the file sizes of recorded video images. Typical compression formats used for video are: MJPEG, MPEG-4 & H.264.

Day/Night Camera

A type of camera that can capture video during the day or night. In low light conditions, the sensor may switch from colour to black & white in order to enhance the picture quality.

Digital Noise Reduction

The chip inside your camera is constantly picking up noise from interference and by-products produced by other circuits and electronic components within it. These noise artefacts can translate into images and video as fine static, snow or fuzzy images.

Digital Noise Reduction (DNR) is a method by which the camera’s imager digitally removes noise from the image. 3D

DNR is an advancement of this technology which enables noise to be filtered even more effectively from the image, even in low light conditions.

Digital Zoom

A facility provided on some video multiplexers and CCTV cameras, which allows the image to be ‘zoomed into’, the higher the zoom ration the more ‘blocky’the image can become.

TRIAX | 27

DSP

Digital Signal Processing. A system supported by some

CCTV cameras, which allows intelligent manipulation of the video signal in the camera for features such as backlight compensation.

Dwell

The time period in which a switcher will remain on one camera input before switching to the next in the sequence. It can also refer to the time spent by a device at a preset position when in tour mode.

EI

Electronic Iris. This is a system within CCTV cameras where an electronic shutter is built into the camera. It allows a normal fixed iris lens to be fitted in a wider range of applications. It should not be assumed that EI would negate the need for an auto iris lens.

Ethernet

Ethernet is the most widely utilised network technology.

Specified in a standard, IEE 802.3, Ethernet was originally developed by Xerox and then developed further by Xerox,

DEC, and Intel. It is now a popular means of distributing data and / or video.

Sony EXwave/EXview

Are terms relating to an enhanced CCD imager that features improved light gathering techniques, which give improved low light sensitivity, particularly near the IR end of the spectrum.

Field

A field is one half of a complete TV picture and can comprise of all odd lines or all even lines.

Focal Length

This is a distance from the centre of the lens to a point at which images come into focus. The CCD imager is usually set at this point to ensure image clarity. This value is what denotes the angle of view and size of the target image.

Frame

A complete TV picture comprising of two fields, one odd and one even.

H.264

A video codec standard which can achieve high quality video in relatively low bitrates. The Triax Range of DVR’s and

NVR’s use the latest H.264 Compression technology saving valuable space on your HDD during Recording.

Infrared

Frequency range within the spectrum of light that is invisible to the human eye. CCTV Illumination is usually designed around the infrared range of 730 – 815 nanometres.

IP rating

A system of rating a piece of equipment against dust and water ingress.

IR LED

Infra-red light emitting diode. Emits infra-red light not visible to the naked eye to provide illumination in low light.

LAN

Local area network, usually within the same building or series of buildings.

Luminance

The brightness element of a video signal.

LUX

Measurement used to express light intensity.

Motion Detection

Recording method for digital surveillance systems. When a subject walks in front of a camera, the pixels change and the DVR defines this as motion. The surveillance system will record these images to the hard disk. This is a popular recording setup since motion recording reduces or eliminates unnecessary recording of unoccupied spaces

MPEG

Motion Picture Experts Group. Standard user for conditional refresh capture and transition of digital video images.

PAL

Phase Alternating Line. The colour TV system used in the UK,

Europe and some other parts Of the world, 625 lines, 50 fields per sec.

Pan

Camera movement on the horizontal plane.

Frame Rate

The quality of a Digital Surveillance Systems is often determined by the Total Frame Rate it can record at. The higher the Frame Rate, the higher the quality of recording and the more Real Time your CCTV recording will be - Real Time recording for 1 camera is 25 Frames Per Second (PAL)

F-Stop

In photography, this is a term used to indicate the speed of a lens in terms of exposure. It directly relates to the iris setting of the lens and thus the amount of light allowed through. The smaller the f-stop setting, the more light is allowed through.

Pixel

Term used for a single picture element. A monitor or TV has a display That comprises millions of pixels; each pixel is illuminated with varying intensity to create the picture display.

28 | TRIAX

Presets

Functionally that is supported by some telemetry equipment.

Position related feedback is provided by the zoom lens and pan/tilt head. Either the telemetry receiver or matrix stores this feedback whenever a position is stored as a preset. The system operator can recall preset positions very quickly with the minimum of key presses.

Privacy zone

A feature present on some CCTV equipment to comply with the data protection act. The feature allows sensitive areas of a PTZ cameras view to be blanked out so that they cannot be viewed.

Protocol

A set of rules that govern how elements of a system intercommunicate.

Quad

Either a 4 way video processing unit or the 4 way screen generated by a video multiplexer.

Resolution

A measurement of the ability of a piece of CCTV equipment or system to display Detail. Measured in TV lines.

RS485

2 wire balanced, party line multi-drop data transmission presentation, used in many telemetry and matrix switcher networks. Can run in simplex or half-duplex mode.

Shutter Speed

Electronic circuit found in many CCD cameras which allows the light gathering period of the camera to manually altered.

Surveillance

The object must fill at least 5% of the frame in order to be distinguishable from other objects. One must be able to distinguish between a person or an object/ overview image of what is happening in an area.

TCP/IP

Transmission control protocol/Internet protocol. Title given to suite of protocols that are used on computer networks, without which the Internet signal would be not possible.

Telemetry

A system that provides camera control via coding. The coding is either sent with the video signal or is transmitted as data via a network.

Terabyte

1024 Gigabytes = 1 Terabyte.

Termination

A method of matching electrical signals to the transmission medium. In the CCTV environment termination is important for the video signals and also any data networks using RS485 or RS422.

Tour / Cruise

Facility provided by some CCTV control systems where a

PTZ camera or dome can be programmed to tour between a specified series of presets. It is usually possible to program a dwell time to stay at each preset and also a speed value at which the camera will travel between presents.

Twisted pair

Refers to a generic cable type, originally from the telecommunications industry where internal cable pairs are twisted together equally for the entire cable length. This type of cable is ideal for balanced data transmission.

Varifocal lens

A CCTV camera lens whose focal length / viewing angle can be manually adjusted to suit the camera view required. Typical

Vari-Focal lens lengths are: 2.5mm-10mm, 2.8mm- 12mm,

3.5mm-8mm, 5mm-50mm.

WD1 Resolution

The recording quality from CCTV cameras. CCTV resolution is measured in vertical and horizontal pixel dimensions and is typically limited by the capabilities of both the camera and the recorder. Until recently the best resolution for recording an analogue camera using a DVR was D1 resolution (720x576).

However, the highest analogue resolution now available is referred to as WD1 (Wide D1), which has a resolution of

(960x576). WD1 resolution offers a high quality analogue recording using a 16:9 ratio image size. Triax DVR’s record in WD1 resolution when used with Triax 960H analogue cameras. The DVR records larger images, providing a greater amount of image detail.

WDR

Wide Dynamic Range allows Analogue Security Cameras to treat different areas in the image individually and apply separate brightness modifications within the same view giving a more balanced lighting effect.

Without WDR With WDR

White Balance

White balance basically means colour balance. It is a function which gives the camera a reference to "true white" — it tells the camera what the colour white looks like, so the camera will record it correctly. Since white light is the sum of all other colours, the camera will then display all colours correctly.

TRIAX | 29

TRIAX UK

Abergorki Industrial Estate, Treorchy

RCT. CF42 6DL

Tel: 0845 601 0578 e-mail: [email protected]

Your ultimate connection

All specification in this catalogue subject to change without notice Triax Marketing • © 2014

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
