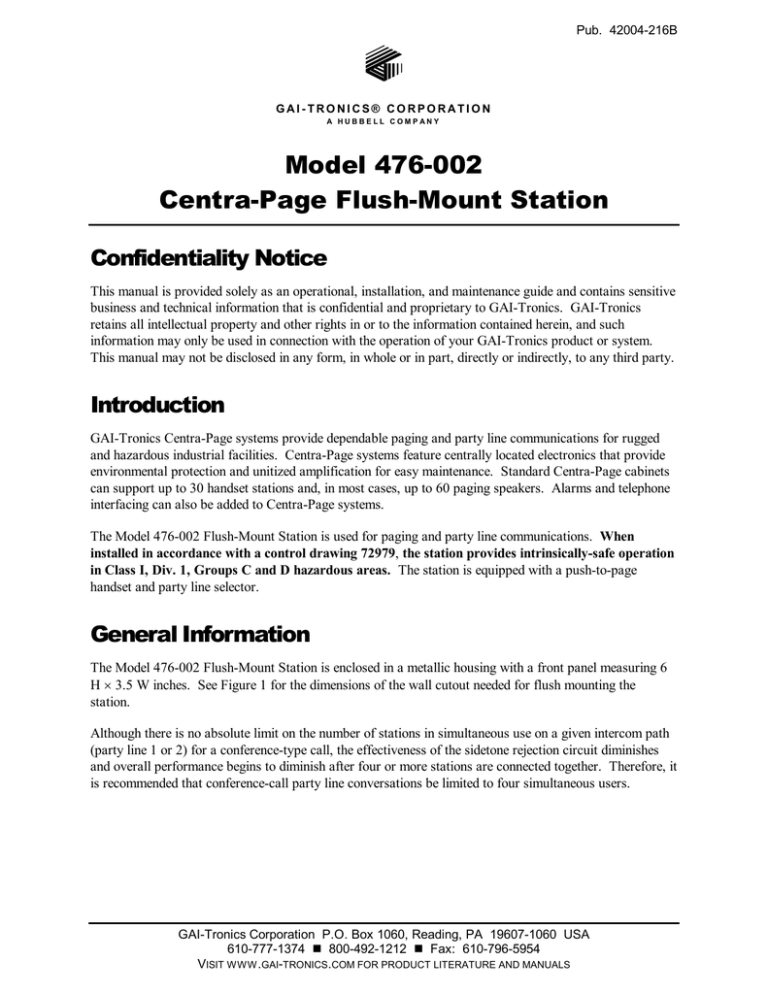

42004-216B
Pub. 42004-216B
GAI-TRONICS® CORPORATION
A HUBBELL COMPANY
Model 476-002
Centra-Page Flush-Mount Station
Confidentiality Notice
This manual is provided solely as an operational, installation, and maintenance guide and contains sensitive
business and technical information that is confidential and proprietary to GAI-Tronics. GAI-Tronics
retains all intellectual property and other rights in or to the information contained herein, and such
information may only be used in connection with the operation of your GAI-Tronics product or system.
This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any third party.
Introduction
GAI-Tronics Centra-Page systems provide dependable paging and party line communications for rugged
and hazardous industrial facilities. Centra-Page systems feature centrally located electronics that provide
environmental protection and unitized amplification for easy maintenance. Standard Centra-Page cabinets
can support up to 30 handset stations and, in most cases, up to 60 paging speakers. Alarms and telephone
interfacing can also be added to Centra-Page systems.
The Model 476-002 Flush-Mount Station is used for paging and party line communications. When
installed in accordance with a control drawing 72979, the station provides intrinsically-safe operation
in Class I, Div. 1, Groups C and D hazardous areas. The station is equipped with a push-to-page
handset and party line selector.
General Information
The Model 476-002 Flush-Mount Station is enclosed in a metallic housing with a front panel measuring 6
H × 3.5 W inches. See Figure 1 for the dimensions of the wall cutout needed for flush mounting the
station.
Although there is no absolute limit on the number of stations in simultaneous use on a given intercom path
(party line 1 or 2) for a conference-type call, the effectiveness of the sidetone rejection circuit diminishes
and overall performance begins to diminish after four or more stations are connected together. Therefore, it
is recommended that conference-call party line conversations be limited to four simultaneous users.
GAI-Tronics Corporation P.O. Box 1060, Reading, PA 19607-1060 USA
610-777-1374 „ 800-492-1212 „ Fax: 610-796-5954
VISIT WWW .GAI-TRONICS.COM FOR PRODUCT LITERATURE AND MANUALS
Pub. 42004-216B
Page: 2 of 7
Model 476-002 Centra-Page Flush-Mount Station
The Model 476-002 Station, like other Centra-Page stations, operates in conjunction with a plug-in Line
Card PCBA housed in the central cabinet card rack assembly. The line cards are sold separately. The card
contains the handset dc power source, dual-switching relays, and a 16-watt speaker amplifier with 8-ohm
and 70-volt line outputs.
If installing this station as an add-on, please consult the following chart to ensure proper power is supplied.
Power Supply Current Requirements in Amps
Mode
10 Cards
20 Cards
30 Cards
Standby
0.8
1.5
2.3
Page (Full load)
5.7
11.4
17.1
Alarm (Typical)
3.8
7.5
11.3
12.5
25.0
37.5
Alarm (Max. Level)
NOTES:
1. Ratings at 27.0 V dc at central cabinet. Add 8% for page and alarm at 28.8 V dc.
2. Full load is defined as 15-watt load on all cards with levels as adjusted at factory; 2-watt alarm output.
3. Typical load is defined as 7.5-watt load (such as 16-ohm loudspeaker connected to 8-ohm output).
4. Maximum level is defined as 15-watt loads and level control adjusted for 15-watt alarm level on all
cards.
5. Ratings for alarm based on continuous tones. Pulse tone reduces current to about 60%.
\\s_eng\gtcproddocs\standard ioms - current release\42004 instr. manuals\42004-216b.doc
08/05
Pub. 42004-216B
Page: 3 of 7
Model 476-002 Centra-Page Flush-Mount Station
Installation
Mounting
Please refer to Figure 1 and Figure 2 for mounting details. The station has four mounting holes on the
front panel, and is supplied with an opening for cable. Figure 1 shows the required dimensions for the wall
cutout, and Figure 2 shows how to fit the flush-mount station into the cutout. When mounting the station,
use caution to avoid damaging the components inside.
Figure 1. Cutout Dimensions
Figure 2. Mounting of Model 476-002 Station
\\s_eng\gtcproddocs\standard ioms - current release\42004 instr. manuals\42004-216b.doc
08/05
Model 476-002 Centra-Page Flush-Mount Station
Pub. 42004-216B
Page: 4 of 7
Wiring
The configuration of the cable coming into the Model 476-002 depends on the chosen wiring method. For
additional information, refer to Pub. 42004-356, Centra-Page Control Drawing 72979, and Pub 42004222, Model 10468-002 Centra-Page Central Cabinet. Figure 3 below illustrates the wiring terminations
inside the Model 476-002 Station.
Terminations L1, L2, P, and A correspond to identical terminations at the card rack assembly. These four
connections must be complete as two pair. The first pair, L1 and L2, serves as both the communications
path and the power supply. The second (control) pair provides party line selection or page line activation.
Terminations M1 and M2 are not used in typical installation.
The speaker conductors are connected directly to the associated speaker or driver.
Installing a Model 476-002 in a Division 1 area requires that the four station conductors terminate in a
safety barrier (10439-102) prior to entering the Division 1 area. This configuration creates intrinsically
safe wiring to the station. Speaker wiring may not pass through the station. Refer to Pub. 42004-356
Control Drawing 72979 for proper installation.
The wiring distance limitation for a handset station is specified as 10,000 feet without a hazardous area
safety barrier, and 3,000 feet with a barrier. This distance is determined by degradation from cable
capacitance more than cable resistance: the use of heavier wire will not fully compensate for a greater
distance.
Figure 3. Station Wiring Details
\\s_eng\gtcproddocs\standard ioms - current release\42004 instr. manuals\42004-216b.doc
08/05
Pub. 42004-216B
Page: 5 of 7
Model 476-002 Centra-Page Flush-Mount Station
Adjustments
After the station is installed and wired, the page speaker volume may require adjustment. This adjustment
cannot be made at the station, but rather at the central cabinet/card rack. The page speaker volume control,
R1 through R10, is accessible on the rear of the Model 10461-002 Station Card Rack Assembly. Making
the adjustment requires one person near the speaker and one at the card rack in party line communication.
1. Identify the number of the station card connected to be adjusted.
2. Lift the handset connected to any station card except the one that is to be adjusted. This step is
required only if that station is muted.
3. Adjust the control for the desired level while speaking into the handset with the handset pressbar
depressed.
NOTES:
•
•
For alarm tone generation only: If the station speaker is to broadcast only alarms, (remains silent
during routine paging) rotate this control to the fully counterclockwise position.
For telephone interface only: This control affects the level of the telephone interface call “birdie” but
does NOT affect alarm signal levels.
If you are assembling the Centra-Page system in the field, refer to the specific instruction manuals for
individual components, if used. These manuals explain in detail how to install and connect the various
components of a Centra-Page system. The manuals for these components are listed below:
Pub. Number
Component/Title
42004-214
Model 476-002 Centra-Page Outdoor Wall Station
42004-215
Model 472-002 Centra-Page Permanent Indoor 2-Party Station
42004-220
Model 10461-002 Centra-Page Card Rack
42004-221
Model 69037-101 Centra-Page Station Card
42004-227
Model C83018 Centra-Page Station Crew’s Quarters Muting Card
42004-222
Model 10468-002 Centra-Page Central Cabinet
42004-345
Model 10959-006 Rack-Mount Audio Messenger Interface
42004-371
Model 10961-001 AMI Centra-Page Interface
\\s_eng\gtcproddocs\standard ioms - current release\42004 instr. manuals\42004-216b.doc
08/05
Model 476-002 Centra-Page Flush-Mount Station
Pub. 42004-216B
Page: 6 of 7
Operation
1. To generate a page, lift the handset, and check for an available party line.
2. Press the handset pressbar, and announce the page indicating which page line to use. The page is heard
over the system speakers.
3. Release the pressbar and wait for a reply.
4. The paged individual goes to a handset station, uses the page line selector to select the specified party
line, and lifts the handset to reply. Full-duplex communication can then take place.
Specifications
Electrical
Handset:
Microphone.................................................... 10 ohms; pressure differential, noise-canceling dynamic
Receiver .................................................... 150 ohms; high efficiency dynamic, hearing aid compatible
Cable ................................................................................... Retractile, 6 feet (1.82 m) extended PVC
Material ..................................................................................................................... Light gray ABS
Controls ................................................................................................................... Handset pressbar
Frequency response................................................................................................ 200-2,000 Hz, +/-3 dB
Distortion .......................................... Microphone input to receiver output 2% (nominal line level at 1 kHz
Sidetone rejection................................................................................. 14 dB (nominal line level at 1 kHz)
DC line current ............................................................................................... Each handset: 8 mA typical
Mechanical
Construction/finish............................................................................. Cold-rolled steel/ gray baked enamel
External controls...................................................................................... Rotary party line selector switch
Mounting.................................................................................................................... Flush-mount in wall
Connections .............................................................................. Internal screw-type barrier terminal blocks
Operating temperature range ................................................................ -22º F to +140º F (-30º C to 60º C)
Dimensions:
Front panel.............................................................................. 6 H × 3.5 W inches (152.4 × 88.9 mm)
Behind panel..................................................................................................... 3.75 inches (95.2 mm)
Cutout........................................................ 2.5 W × 4.86 H × 2.5 D inches (63.6 × 123.6 × 63.5 mm)
Shipping weight ................................................................................................................. 6.8 lbs (3.1 kg)
Approvals
NRTL approved for use in US and Canada for the following hazardous locations:
Intrinsically safe for............................................. Class I, Div. 1, Groups C and D hazardous locations
when installed in accordance with Control Drawing No. 72979. Exia
Listed for use in................................................... Class I, Div. 2, Groups C and D hazardous locations
when installed in accordance with Control Drawing No. 72979
\\s_eng\gtcproddocs\standard ioms - current release\42004 instr. manuals\42004-216b.doc
08/05
Pub. 42004-216B
Page: 7 of 7
Model 476-002 Centra-Page Flush-Mount Station
Replacement Parts
Part Number
Description
10450-004
Handset Assembly
13201-010
Handset Handle
13203-004
Transmitter Cap
13204-002
Receiver Cap
\\s_eng\gtcproddocs\standard ioms - current release\42004 instr. manuals\42004-216b.doc
08/05
Warranty
Equipment.
GAI-Tronics warrants for a period of one (1) year from the date of shipment, that any
GAI-Tronics equipment supplied hereunder shall be free of defects in material and workmanship, shall
comply with the then-current product specifications and product literature, and if applicable, shall be fit
for the purpose specified in the agreed-upon quotation or proposal document. If (a) Seller’s goods prove
to be defective in workmanship and/or material under normal and proper usage, or unfit for the purpose
specified and agreed upon, and (b) Buyer’s claim is made within the warranty period set forth above,
Buyer may return such goods to GAI-Tronics’ nearest depot repair facility, freight prepaid, at which time
they will be repaired or replaced, at Seller’s option, without charge to Buyer. Repair or replacement shall
be Buyer’s sole and exclusive remedy. The warranty period on any repaired or replacement equipment
shall be the greater of the ninety (90) day repair warranty or one (1) year from the date the original
equipment was shipped. In no event shall GAI-Tronics warranty obligations with respect to equipment
exceed 100% of the total cost of the equipment supplied hereunder. Buyer may also be entitled to the
manufacturer’s warranty on any third-party goods supplied by GAI-Tronics hereunder. The applicability
of any such third-party warranty will be determined by GAI-Tronics.
Services.
Any services GAI-Tronics provides hereunder, whether directly or through subcontractors,
shall be performed in accordance with the standard of care with which such services are normally
provided in the industry. If the services fail to meet the applicable industry standard, GAI-Tronics will
re-perform such services at no cost to buyer to correct said deficiency to Company's satisfaction provided
any and all issues are identified prior to the demobilization of the Contractor’s personnel from the work
site. Re-performance of services shall be Buyer’s sole and exclusive remedy, and in no event shall GAITronics warranty obligations with respect to services exceed 100% of the total cost of the services
provided hereunder.
Warranty Periods.
Every claim by Buyer alleging a defect in the goods and/or services provided
hereunder shall be deemed waived unless such claim is made in writing within the applicable warranty
periods as set forth above. Provided, however, that if the defect complained of is latent and not
discoverable within the above warranty periods, every claim arising on account of such latent defect shall
be deemed waived unless it is made in writing within a reasonable time after such latent defect is or
should have been discovered by Buyer.
Limitations / Exclusions.
The warranties herein shall not apply to, and GAI-Tronics shall not be
responsible for, any damage to the goods or failure of the services supplied hereunder, to the extent
caused by Buyer’s neglect, failure to follow operational and maintenance procedures provided with the
equipment, or the use of technicians not specifically authorized by GAI-Tronics to maintain or service the
equipment. THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE IN LIEU OF AND
EXCLUDE ALL OTHER WARRANTIES AND REMEDIES, WHETHER EXPRESS OR IMPLIED BY
OPERATION OF LAW OR OTHERWISE, INCLUDING ANY WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
Return Policy
If the equipment requires service, contact your Regional Service Center for a return authorization number
(RA#). Equipment should be shipped prepaid to GAI-Tronics with a return authorization number and a
purchase order number. If the equipment is under warranty, repairs or a replacement will be made in
accordance with the warranty policy set forth above. Please include a written explanation of all defects to
assist our technicians in their troubleshooting efforts.
Call 800-492-1212 (inside the USA) or 610-777-1374 (outside the USA) for help identifying the
Regional Service Center closest to you.
(Rev. 10/06)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
