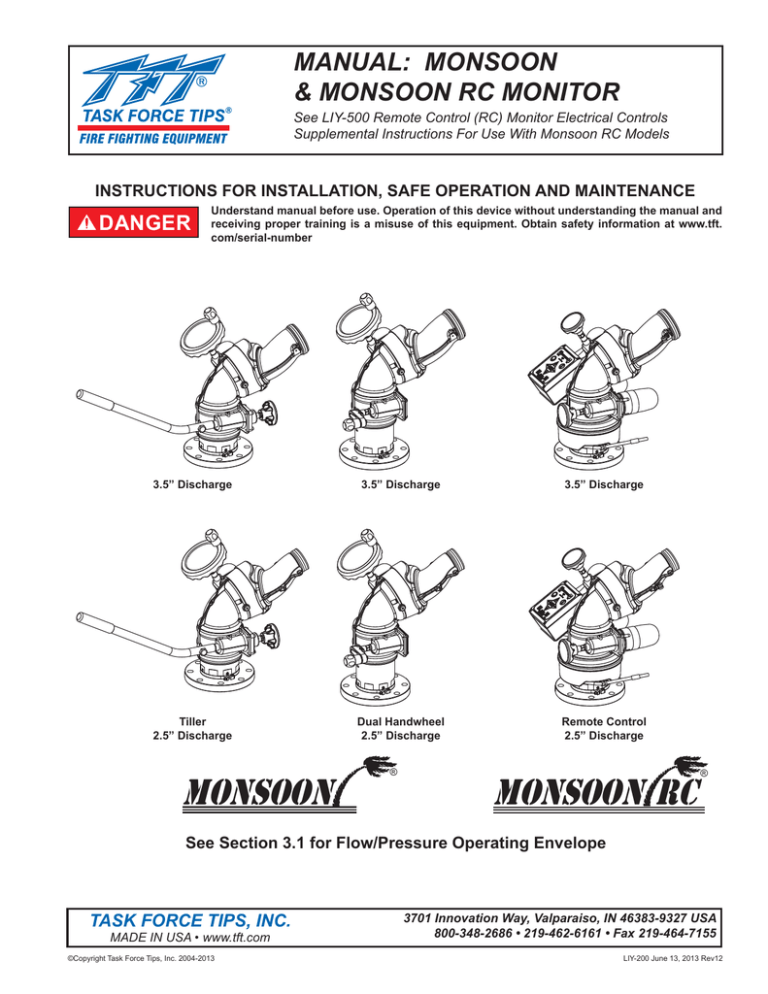

MANUAL: MONSOON
& MONSOON RC MONITOR
See LIY-500 Remote Control (RC) Monitor Electrical Controls
Supplemental Instructions For Use With Monsoon RC Models
INSTRUCTIONS FOR INSTALLATION, SAFE OPERATION AND MAINTENANCE
DANGER
Understand manual before use. Operation of this device without understanding the manual and
receiving proper training is a misuse of this equipment. Obtain safety information at www.tft.
com/serial-number
3.5” Discharge
3.5” Discharge
3.5” Discharge
Tiller
2.5” Discharge
Dual Handwheel
2.5” Discharge
Remote Control
2.5” Discharge
®
®
See Section 3.1 for Flow/Pressure Operating Envelope
TASK FORCE TIPS, INC.
MADE IN USA • www.tft.com
©Copyright Task Force Tips, Inc. 2004-2013
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 • 219-462-6161 • Fax 219-464-7155
LIY-200 June 13, 2013 Rev12
DANGER
PERSONAL RESPONSIBILITY CODE
The member companies of FEMSA that provide emergency response
equipment and services want responders to know and understand the
following:
1. Firefighting and Emergency Response are inherently dangerous activities
requiring proper training in their hazards and the use of extreme caution
at all times.
2. It is your responsibility to read and understand any user’s instructions,
including purpose and limitations, provided with any piece of equipment
you may be called upon to use.
3. It is your responsibility to know that you have been properly trained in
Firefighting and /or Emergency Response and in the use, precautions, and
care of any equipment you may be called upon to use.
4. It is your responsibility to be in proper physical condition and to maintain
the personal skill level required to operate any equipment you may be
called upon to use.
5. It is your responsibility to know that your equipment is in operable
condition and has been maintained in accordance with the manufacturer’s
instructions.
6. Failure to follow these guidelines may result in death, burns or other
severe injury.
FEMSA
©Copyright Task Force Tips, Inc. 2004-2013
Fire and Emergency Manufacturers and Service Association
P.O. Box 147, Lynnfield, MA 01940 • www.FEMSA.org
2
LIY-200 June 13, 2013 Rev12
Table Of Contents
1.0 Meaning of Safety Signal Words ............................................. 4
2.0 Safety
.............................................................................. 4
3.0 General Information ........................................................... 5-11
3.1 Mechanical Specifications
3.2 Part Identification and Models
3.3 Inlets and Outlets
3.3.1 Inlet Options and Additional Height
3.3.1.1 Flanges
3.3.1.2 NPT Female
3.3.1.3 BSP Male
3.3.1.4 Mating Products
3.3.2 Outlet Options
3.4 Overall Dimensions
4.0 Installation .......................................................................12-17
4.1 Structural Requirements for Monitor Mounting
4.2 Inlet Mounting and Travel Ranges
4.2.1 Two Piece Clamp Rotational Lock Installation Instructions
4.2.2 Extend-a-Gun RC Installation
4.2.3 Horizontal Rotation Travel Stops
4.2.4 Elevation Travel Stops
4.3 Nozzle Installation
4.4 Pressure Gage Port
4.5 Handle Installation Instructions
4.6 Drain
5.0 Operation .......................................................................17-18
5.1 Horizontal Rotation Control
5.2 Elevation Control
5.3 Tiller Bar Model
5.4 Recommended Park Position
5.5 Override Knobs
6.0 Flows and Pressures........................................................18-21
6.1 Stacked Tips Flow and Reach
6.1.1 YST-4NM Flow and Reach
6.1.2 MST-4NJ Flow and Reach
6.2 Automatic Masterstream Nozzles
6.3 Monsoon Monitor Friction Loss
6.4 Stream Straighteners
6.4.1 Stream Straighteners with Stacked Tips
6.4.2 Stream Straighteners with Fog Nozzles
7.0 Maintenance and Inspection ................................................. 22
7.1 Lubrication
8.0 Troubleshooting .................................................................... 22
9.0 Monsoon Drawings Parts List ..........................................23-27
9.1 Monitor Control Box
9.2 Manual Monsoon Drawing & Parts List
9.3 Monsoon RC Drawing & Parts List
10.0 Warranty ............................................................. Back Cover
©Copyright Task Force Tips, Inc. 2004-2013
3
LIY-200 June 13, 2013 Rev12
1.0 MEANING OF SAFETY SIGNAL WORDS
A safety related message is identified by a safety alert symbol and a signal word to indicate the level of risk involved with a particular
hazard. Per ANSI standard Z535.6-2006, the definitions of the four signal words are as follows:
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious
injury.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious
injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor
or moderate injury.
NOTICE
NOTICE is used to address practices not related to personal injury.
2.0 SAFETY
The operation of this monitor can be dangerous. The following must be observed at all times.
WARNING
WARNING
WARNING
WARNING
CAUTION
Injury or death may occur by attempting to use a damaged monitor. Before using the monitor
inspect it for damage resulting from:
• Failure to drain monitor followed by exposure to freezing conditions
• Exposure of monitor to temperatures in excess of 160 degrees F
• Structural damage caused by over-pressurization
• Missing parts, physical abuse, exposure to severe chemicals
• Deformed or cracked flanges damaged as a result of improper installation
- Excessive bolt torque
- Wrong tightening sequence
Injury can result from an inadequately supported monitor. The monitor mount must be capable of
supporting 1200 lbs (550 kg) of nozzle reaction force.
The stream exiting a monitor is very powerful and capable of causing injury and property damage.
Make sure the monitor is securely attached to the base and pointing in a safe direction before
water to the monitor is turned on. Use care in directing the stream.
The monitor may be damaged if frozen while containing sufficient amounts of water. Such damage
may be difficult to detect visually and can lead to possible injury or death. Any time the monitor is
subject to possible damage from freezing, it must be hydrostatically tested by qualified personnel
before being considered safe for use.
The electric Monsoon RC may be remotely operated. The electric drives are current limited but
may still produce enough force to cause injury. Keep hands and fingers away from pinch points
on the monitor.
CAUTION
Do not use the manual override knobs while the electric controls are in operation. The electric
drives produce enough torque to cause injury.
CAUTION
Maximum flow and pressure is shown in Figure 3.1.1 Operating Envelope. Damage or injury may
result if the monitor is operated beyond these limits.
CAUTION
On many vehicle installations, the monitor is the highest point on the apparatus. Be sure there
is sufficient clearance to safely pass under any doors or overhead obstructions. Always check
parked position of the monitor before moving.
CAUTION
Use with salt water is permissible provided the monitor is thoroughly cleaned with fresh water
after each use. The service life of the monitor may be shortened due to the effects of corrosion
and is not covered under warranty.
©Copyright Task Force Tips, Inc. 2004-2013
4
LIY-200 June 13, 2013 Rev12
3.0 GENERAL INFORMATION
The Monsoon Monitor is a manually operated monitor designed for master stream flows. Maximum operating pressure is 200 psi
(14 bar). Unique patented segmented waterway allows water to make very few turns as it travels through the monitor resulting in
low friction loss and a far reaching effective stream. Elevation range is 90 degrees above horizontal to 45 degrees below. Field
changeable elevation travel stops at 45 degrees above, 30 degrees above, and 30 degrees below horizontal. The manual model has
360 degree continuous horizontal rotation with field changeable stops at 45, 90, and 135 degrees either side of a center position.
Available with various inlet flanges and threaded fittings. Inlet also made for direct connection to TFT’s electric Extend-A-Gun RC3 or
RC4. Main waterway made from hardcoat anodized ANSI 356.0-T6 aluminum. Silver powder coat finish inside and out.
The Monsoon RC is an electric remote controlled monitor that has all the benefits of the Monsoon monitor with the addition of
powered operation. Designed for auto sensing 12 VDC or 24 VDC operation. The Monsoon RC comes with a factory installed control
panel mounted on the monitor for controlling horizontal rotation, elevation, and nozzle pattern. The motor control circuits are factory
installed on the monitor and use position encoders and current limiting to protect the drive train at the ends of travel. Unit comes with
ultra-flexing robotics cable already wired to the monitor so installation effort is minimized. Power wire has only four conductors (two
for power and two for communications) further easing installation effort. Power wire is enclosed in a unique wire guide that allows
450 degrees of horizontal travel (225 degrees either side of a center position) which is far more reliable than slip rings or coil cords.
Knobs for manual override are provided on the horizontal rotation and elevation drive. TFT’s nozzles plug into the factory installed
nozzle power wire. Electric drives and control box are waterproof.
3.1 MECHANICAL SPECIFICATIONS
Manual
Electric
US
METRIC
US
METRIC
Weight
25 lbs
11.4 kg
37 lbs
16.8 kg
Min. Flow Area 4” Inlet
8.3 in2
24.5 cm2
8.3 in2
24.5 cm2
Min. Flow Area 3” Inlet
7.07 in2
45.6 cm2
7.07 in2
45.6 cm2
Max Flow
See Figures 3.1.1 and 3.1.2
Max Operating Pressure
200 psi
14 bar
200 psi
14 bar
Materials Used
ANSI A356.0-T6 Aluminum, Stainless, Nylon
Maximum Torque Elevation
80 ft•lbs
110 n•m
Maximum Torque Horizontal
60 ft•lbs
80 n•m
Speed Elevation
6 deg/sec
Speed Horizontal
12 deg/sec
*See LIY-500 Remote Control (RC) Monitor Supplemental Instructions for
electrical specifications.
