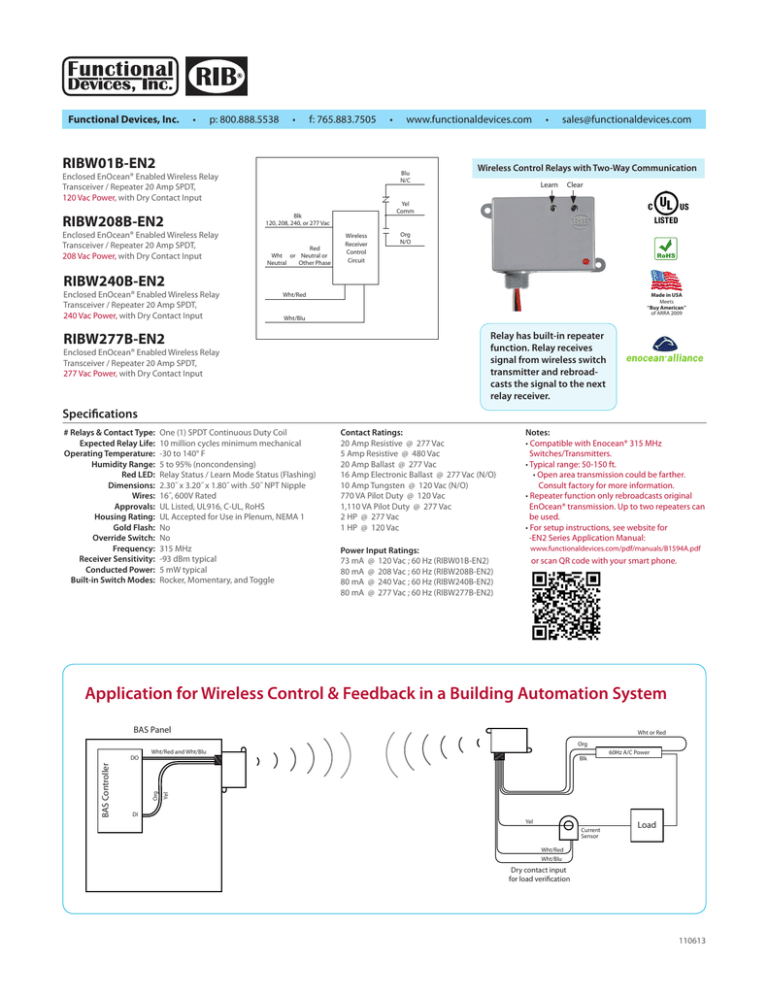

RIBW240B-EN2 Datasheet

RIBW240B-EN2 Datasheet
Functional Devices, Inc.
•
p: 800.888.5538
•
f: 765.883.7505
RIBW01B-EN2
Enclosed EnOcean® Enabled Wireless Relay
Transceiver / Repeater 20 Amp SPDT,
208 Vac Power, with Dry Contact Input
www.functionaldevices.com
Blu
N/C
Enclosed EnOcean® Enabled Wireless Relay
Transceiver / Repeater 20 Amp SPDT,
120 Vac Power, with Dry Contact Input
RIBW208B-EN2
•
[email protected]
Wireless Control Relays with Two-Way Communication
Learn
Clear
Yel
Comm
Blk
120, 208, 240, or 277 Vac
Red
Wht or Neutral or
Neutral
Other Phase
•
Wireless
Receiver
Control
Circuit
Org
N/O
RIBW240B-EN2
Enclosed EnOcean® Enabled Wireless Relay
Transceiver / Repeater 20 Amp SPDT,
240 Vac Power, with Dry Contact Input
Wht/Red
Made in USA
Meets
“Buy American”
of ARRA 2009
Wht/Blu
RIBW277B-EN2
Enclosed EnOcean® Enabled Wireless Relay
Transceiver / Repeater 20 Amp SPDT,
277 Vac Power, with Dry Contact Input
Relay has built-in repeater
function. Relay receives
signal from wireless switch
transmitter and rebroadcasts the signal to the next
relay receiver.
Specifications
# Relays & Contact Type:
Expected Relay Life:
Operating Temperature:
Humidity Range:
Red LED:
Dimensions:
Wires:
Approvals:
Housing Rating:
Gold Flash:
Override Switch:
Frequency:
Receiver Sensitivity:
Conducted Power:
Built-in Switch Modes:
One (1) SPDT Continuous Duty Coil
10 million cycles minimum mechanical
-30 to 140° F
5 to 95% (noncondensing)
Relay Status / Learn Mode Status (Flashing)
2.30˝ x 3.20˝ x 1.80˝ with .50˝ NPT Nipple
16˝, 600V Rated
UL Listed, UL916, C-UL, RoHS
UL Accepted for Use in Plenum, NEMA 1
No
No
315 MHz
-93 dBm typical
5 mW typical
Rocker, Momentary, and Toggle
Contact Ratings:
20 Amp Resistive @ 277 Vac
5 Amp Resistive @ 480 Vac
20 Amp Ballast @ 277 Vac
16 Amp Electronic Ballast @ 277 Vac (N/O)
10 Amp Tungsten @ 120 Vac (N/O)
770 VA Pilot Duty @ 120 Vac
1,110 VA Pilot Duty @ 277 Vac
2 HP @ 277 Vac
1 HP @ 120 Vac
Notes:
• Compatible with Enocean® 315 MHz
Switches/Transmitters.
• Typical range: 50-150 ft.
• Open area transmission could be farther.
Consult factory for more information.
• Repeater function only rebroadcasts original
EnOcean® transmission. Up to two repeaters can
be used.
• For setup instructions, see website for
-EN2 Series Application Manual:
Power Input Ratings:
73 mA @ 120 Vac ; 60 Hz (RIBW01B-EN2)
80 mA @ 208 Vac ; 60 Hz (RIBW208B-EN2)
80 mA @ 240 Vac ; 60 Hz (RIBW240B-EN2)
80 mA @ 277 Vac ; 60 Hz (RIBW277B-EN2)
www.functionaldevices.com/pdf/manuals/B1594A.pdf
or scan QR code with your smart phone.
Application for Wireless Control & Feedback in a Building Automation System
BAS Panel
Wht or Red
Org
Wht/Red and Wht/Blu
Blk
60Hz A/C Power
Yel
Org
BAS Controller
DO
DI
Yel
Current
Sensor
Load
Wht/Red
Wht/Blu
Dry contact input
for load verification
110613
