DELTA SCIENTIFIC CORPORATION
PALMDALE, CALIFORNIA 93551-U.S.A.
WWW.DELTASCIENTIFIC.COM

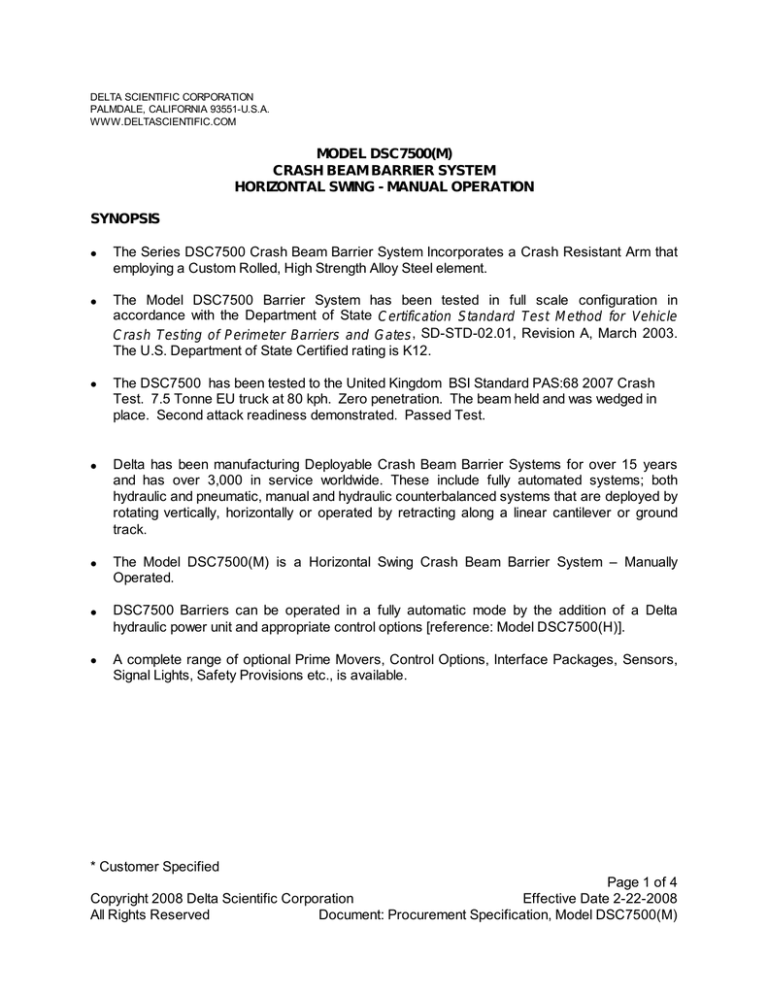

MODEL DSC7500(M)
CRASH BEAM BARRIER SYSTEM
HORIZONTAL SWING - MANUAL OPERATION
SYNOPSIS

The Series DSC7500 Crash Beam Barrier System Incorporates a Crash Resistant Arm that
employing a Custom Rolled, High Strength Alloy Steel element.

The Model DSC7500 Barrier System has been tested in full scale configuration in
accordance with the Department of State Certification Standard Test Method for Vehicle
Crash Testing of Perimeter Barriers and Gates, SD-STD-02.01, Revision A, March 2003.
The U.S. Department of State Certified rating is K12.

The DSC7500 has been tested to the United Kingdom BSI Standard PAS:68 2007 Crash
Test. 7.5 Tonne EU truck at 80 kph. Zero penetration. The beam held and was wedged in
place. Second attack readiness demonstrated. Passed Test.

Delta has been manufacturing Deployable Crash Beam Barrier Systems for over 15 years
and has over 3,000 in service worldwide. These include fully automated systems; both
hydraulic and pneumatic, manual and hydraulic counterbalanced systems that are deployed by
rotating vertically, horizontally or operated by retracting along a linear cantilever or ground
track.

The Model DSC7500(M) is a Horizontal Swing Crash Beam Barrier System – Manually
Operated.

DSC7500 Barriers can be operated in a fully automatic mode by the addition of a Delta
hydraulic power unit and appropriate control options [reference: Model DSC7500(H)].

A complete range of optional Prime Movers, Control Options, Interface Packages, Sensors,
Signal Lights, Safety Provisions etc., is available.
* Customer Specified
Page 1 of 4
Copyright 2008 Delta Scientific Corporation
Effective Date 2-22-2008
All Rights Reserved
Document: Procurement Specification, Model DSC7500(M)
DELTA SCIENTIFIC CORPORATION
PALMDALE, CALIFORNIA 93551-U.S.A.
WWW.DELTASCIENTIFIC.COM
1.0
SCOPE This specification defines the procurement of a CRASH CERTIFIED
HORIZONTAL SWING CRASH BEAM BARRIER SYSTEM, Model DSC7500(M), consisting of a
crash beam, bearing assembly, hinge end support column locking end support column with
provisions for a locking pin with padlock provision, mounting hardware, with other options as
defined herein.
1.1
U.S. PATENT LICENSE. The CRASH CERTIFIED DROP ARM BEAM BARRIER
SYSTEM shall be fully licensed for manufacture under U.S. Patent Number 4,844,653
dated July 4, 1989.
2.0
SYSTEM CONFIGURATION
2.1
Barrier Construction. Barrier shall be an above grade assembly containing a crash beam
hinged at one end, which can be rotated manually. When in the closed position the beam
shall present a formidable obstacle to approaching vehicles.
2.2
Barrier Height. Height of the Barrier shall nominally be 33 inches (0,93 M) as measured
from the roadway surface to the centerline of the crash beam. Height can be varied during
installation to suit local security requirements.
2.3
Barrier Clear Opening. The standard clear opening shall be 144 inches (3,66 M) as
measured inside to inside of the buttress supports. The Barrier can be specified with a
clear opening up to 360 inches [9,14 M].*
2.4
Finish. The foundation base of the Barrier shall be asphalt emulsion coated for corrosion
protection. Exposed barrier surfaces shall be painted with a gloss white, two-part epoxy
high weather resistant paint (or optional galvanized finish). The drop arm beam shall be
finished with reflective tape (red and white diagonal stripes) across the front and back
faces of the crash beam.
3.0
PERFORMANCE
3.1
Experience. Barrier and auxiliary equipment shall be of a proven design. Manufacturer
shall have 15 years documented experience with similar vehicle Barriers.
3.2
Qualification Tests. The Model DS7000 Barrier System has been tested in full scale
configuration in accordance with the Department of State Certification Standard Test
Method for Vehicle Crash Testing of Perimeter Barriers and Gates, SD-STD-02.01,
Revision A, March 2003. The Department of State certified rating is K12.
* Customer Specified
Page 1 of 4
Copyright 2008 Delta Scientific Corporation
Effective Date 2-22-2008
All Rights Reserved
Document: Procurement Specification, Model DSC7500(M)
DELTA SCIENTIFIC CORPORATION
PALMDALE, CALIFORNIA 93551-U.S.A.
WWW.DELTASCIENTIFIC.COM
4.0
The Horizontal Swing Barricade shall be configured so that it can
OPERATION.
be easily rotated between the guard and the free passage position by a single attendant.
5.0
Manual Locking Pin. The Barrier shall be provided
BEAM LOCKING METHOD.
with a locking pin with padlock locking point to secure the Barrier in the guard position.
Padlock (7/16 inch [11mm] or smaller shackle) to be furnished by others. (Note: When not
attended, locking pins provide resistance to opening of the barrier by unauthorized
personnel. The Crash Rating of the Barrier System (3.1.2) is without locking pins).
6.0
QUALITY ASSURANCE PROVISIONS Testing. Upon completion, the Barrier system will
be fully tested in the manufacturer's shop. The following checks shall be made:
6.1
Identification. A nameplate with manufacturer's name, model number, serial number and
year built shall be located at the hinged end structure.
6.2
Workmanship. The Barrier shall have a neat and workmanlike appearance.
6.3
Dimensions. Principle dimensions shall be checked against drawings and ordering
information.
6.4
Finish. Coatings shall be checked against ordering information and shall be workmanlike in
appearance.
7.0
PREPARATION FOR SHIPMENT
7.1
The Barrier system shall be crated or mounted on skids as necessary to prevent damage
from handling. The shipping container(s) shall be of sufficient structural integrity to enable
the assembly to be lifted and transported by overhead crane or forklift without failure.
8.0
DISCLAIMER
8.1
Please note - careful consideration must be devoted to the selection, placement and
design of a Drop Arm Barrier System installation. Just as in the case of any Barricade
system, perimeter security device or security gate those blocks a roadway or drive, care
must be taken to ensure that approaching vehicle as well as pedestrians are fully aware of
the Barriers and their operation. Proper illumination, clearly worded warning signs,
auxiliary devices such as semaphore gates, stop-go signal lights, audible warning devices,
speed bumps, flashing lights, beacons, etc. should be considered. Delta has information
available on many such auxiliary safety equipment not specifically listed herein. It is
strongly recommended that an architect and or a traffic and or safety engineer be
consulted prior to installation of a Barricade system. Delta will offer all possible assistance
in designing the operating equipment, controls and the overall system but we are not
qualified nor do we purport to offer either traffic or safety engineering information.
* Customer Specified
Page 1 of 4
Copyright 2008 Delta Scientific Corporation
Effective Date 2-22-2008
All Rights Reserved
Document: Procurement Specification, Model DSC7500(M)
DELTA SCIENTIFIC CORPORATION
PALMDALE, CALIFORNIA 93551-U.S.A.
WWW.DELTASCIENTIFIC.COM
9.0
PROCUREMENT SOURCE. The Model DSC7500(M) Drop Arm Barrier System shall be
purchased from:
DELTA SCIENTIFIC CORPORATION
40355 Delta Lane
Palmdale, California, 93551, USA
Phone (661) 575-1100
Email [email protected]
www.deltascientific.com
* Customer Specified
Page 1 of 4
Copyright 2008 Delta Scientific Corporation
Effective Date 2-22-2008
All Rights Reserved
Document: Procurement Specification, Model DSC7500(M)
