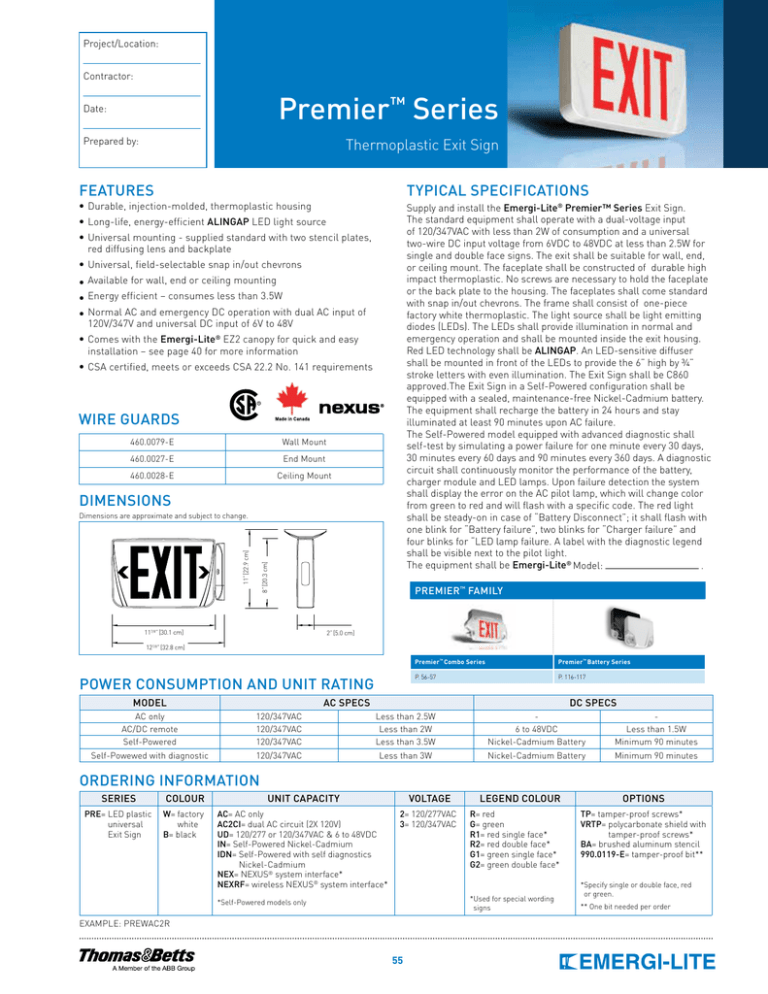

Catalogue Sheet: Premier™ Series

Catalogue Sheet: Premier™ Series
Project/Location:
Contractor:
Premier™ Series
Date:
Thermoplastic Exit Sign
Prepared by:
Typical specifications
Features
• Durable, injection-molded, thermoplastic housing
Supply and install the Emergi-Lite® Premier™ Series Exit Sign.
The standard equipment shall operate with a dual-voltage input
of 120/347VAC with less than 2W of consumption and a universal
two-wire DC input voltage from 6VDC to 48VDC at less than 2.5W for
single and double face signs. The exit shall be suitable for wall, end,
or ceiling mount. The faceplate shall be constructed of durable high
impact thermoplastic. No screws are necessary to hold the faceplate
or the back plate to the housing. The faceplates shall come standard
with snap in/out chevrons. The frame shall consist of one-piece
factory white thermoplastic. The light source shall be light emitting
diodes (LEDs). The LEDs shall provide illumination in normal and
emergency operation and shall be mounted inside the exit housing.
Red LED technology shall be ALINGAP. An LED-sensitive diffuser
shall be mounted in front of the LEDs to provide the 6” high by ¾”
stroke letters with even illumination. The Exit Sign shall be C860
approved.The Exit Sign in a Self-Powered configuration shall be
equipped with a sealed, maintenance-free Nickel-Cadmium battery.
The equipment shall recharge the battery in 24 hours and stay
illuminated at least 90 minutes upon AC failure.
The Self-Powered model equipped with advanced diagnostic shall
self-test by simulating a power failure for one minute every 30 days,
30 minutes every 60 days and 90 minutes every 360 days. A diagnostic
circuit shall continuously monitor the performance of the battery,
charger module and LED lamps. Upon failure detection the system
shall display the error on the AC pilot lamp, which will change color
from green to red and will flash with a specific code. The red light
shall be steady-on in case of “Battery Disconnect”; it shall flash with
one blink for “Battery failure”, two blinks for “Charger failure” and
four blinks for “LED lamp failure. A label with the diagnostic legend
shall be visible next to the pilot light.
The equipment shall be Emergi-Lite® Model:
.
• Long-life, energy-efficient ALINGAP LED light source
• Universal mounting - supplied standard with two stencil plates,
red diffusing lens and backplate
• Universal, field-selectable snap in/out chevrons
• A
vailable for wall, end or ceiling mounting
• E
nergy efficient – consumes less than 3.5W
• N
ormal AC and emergency DC operation with dual AC input of
120V/347V and universal DC input of 6V to 48V
• Comes with the Emergi-Lite® EZ2 canopy for quick and easy
installation – see page 40 for more information
• CSA certified, meets or exceeds CSA 22.2 No. 141 requirements
Wire guards
460.0079-E
Wall Mount
460.0027-E
End Mount
460.0028-E
Ceiling Mount
Dimensions
8” [20.3 cm]
11” [22.9 cm]
Dimensions are approximate and subject to change.
117/8” [30.1 cm]
Premier™ family
2” [5.0 cm]
127/8” [32.8 cm]
POwer consumption and unit rating
Model
Premier™ Combo Series
Premier™ Battery Series
P. 56-57
P. 116-117
AC Specs
DC SPECS
AC only
AC/DC remote
Self-Powered
120/347VAC
120/347VAC
120/347VAC
Less than 2.5W
Less than 2W
Less than 3.5W
6 to 48VDC
Nickel-Cadmium Battery
Less than 1.5W
Minimum 90 minutes
Self-Powewed with diagnostic
120/347VAC
Less than 3W
Nickel-Cadmium Battery
Minimum 90 minutes
ordering information
Series
Colour
Unit capacity
voltage
PRE= LED plastic
universal
Exit Sign
W= factory
white
B= black
AC= AC only
AC2CI= dual AC circuit (2X 120V)
UD= 120/277 or 120/347Vac & 6 to 48Vdc
IN= Self-Powered Nickel-Cadmium
IDN= Self-Powered with self diagnostics
Nickel-Cadmium
NEX= NEXUS® system interface*
NEXRF= wireless NEXUS® system interface*
2= 120/277VAC
3= 120/347VAC
Legend colour
R= red
G= green
R1= red single face*
R2= red double face*
G1= g
reen single face*
G2= g
reen double face*
*Used for special wording
signs
*Self-Powered models only
EXAMPLE: PREWAc2R
55
options
TP= t amper-proof screws*
VRTP= polycarbonate shield with
tamper-proof screws*
BA= b
rushed aluminum stencil
990.0119-E= t amper-proof bit**
*Specify single or double face, red
or green.
** One bit needed per order
