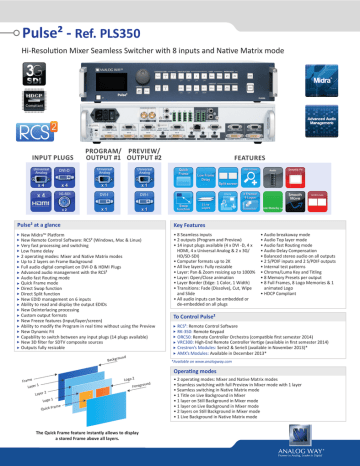

Pulse² - Ref. PLS350
Hi-Resolution Mixer Seamless Switcher with 8 inputs and Native Matrix mode
INPUT PLUGS
PROGRAM/ PREVIEW/
OUTPUT #1 OUTPUT #2
Pulse² at a glance
FEATURES
Key Features
New Midra™ Platform
New Remote Control Software: RCS² (Windows, Mac & Linux)
Very fast processing and switching
Low frame delay
2 operating modes: Mixer and Native Matrix modes
Up to 2 layers on Frame Background
Full audio digital compliant on DVI-D & HDMI Plugs
Advanced audio management with the RCS²
Audio fast Routing mode
Quick Frame mode
Direct Swap function
Direct Split function
New EDID management on 6 inputs
Ability to read and display the output EDIDs
New Deinterlacing processing
Custom output formats
New Freeze features (Input/layer/screen)
Ability to modify the Program in real time without using the Preview
New Dynamic Fit
Capability to switch between any input plugs (14 plugs available)
New 3D filter for SDTV composite sources
Outputs fully resizable
und
Backgro
• 8 Seamless inputs
• 2 outputs (Program and Preview)
• 14 input plugs available (4 x DVI -D, 4 x
HDMI, 4 x Universal Analog & 2 x 3G/
HD/SD-SDI)
• Computer formats up to 2K
• All live layers: Fully resizable
• Layer: Pan & Zoom resizing up to 1000%
• Layer: Open/Close animation
• Layer Border (Edge: 1 Color, 1 Width)
• Transitions: Fade (Dissolve), Cut, Wipe
and Slide
• All audio inputs can be embedded or
de-embedded on all plugs
• Audio breakaway mode
• Audio Top layer mode
• Audio fast Routing mode
• Audio Delay Compensation
• Balanced stereo audio on all outputs
• 2 S/PDIF inputs and 2 S/PDIF outputs
• Internal test patterns
• Chroma/Luma Key and Titling
• 8 Memory Presets per output
• 8 Full Frames, 8 Logo Memories & 1
animated Logo
• HDCP Compliant
To Control Pulse²
RCS²: Remote Control Software
RK-350: Remote Keypad
ORC50: Remote Controller Orchestra (compatible first semester 2014)
VRC300: High-End Remote Controller Vertige (available in first semester 2014)
Crestron’s Modules: Serie2 & Serie3 (available in November 2013)*
AMX’s Modules: Available in December 2013*
*Available on www.analogway.com
Operating modes
Logo 2
Frame
und
Foregro
Layer 1
Layer 2
Logo 1
rame
Quick F
The Quick Frame feature instantly allows to display
a stored Frame above all layers.
• 2 operating modes: Mixer and Native Matrix modes
• Seamless switching with full Preview in Mixer mode with 1 layer
• Seamless switching in Native Matrix mode
• 1 Title on Live Background in Mixer
• 1 layer on Still Background in Mixer mode
• 1 layer on Live Background in Mixer mode
• 2 layers on Still Background in Mixer mode
• 1 Live Background in Native Matrix mode
Mixer configuration
• The RCS² offers a user-friendly graphic interface consisting of 3 independent sections: Setup, Edit and Live. A Preconfig. mode indicates how to easily
configure the device step by step. Compatible with recent versions of Windows™ and Apple OS™ (Adobe Air™).
• With customizable snapshots, the intuitive dashboard allows operators to fully prepare their shows and control them live during their events.
• An innovative Sequences mode allows easy organization of presets through drag and drop operation.
Dimensions:
 D 15.75''x W 17.3'' x H 3.46''
 D 400 mm x W 440 mm x H 88 mm
Weight:
 6,3 Kgs
 13.9 lbs
Power Supply:
100-240 VAC ; 2.5A ; 50/60Hz ; 110W
Supplied with:
 1 x Power Supply Cord
 1 x Ethernet crossover cable
 1 x Remote Control Software (RCS²)*
 1 x Set of 6 audio 5-pin screw terminals
 1 x Front Rack Ears
 1 x User Manual (PDF)*
 1 x Quick Start Guide
Warranty:
3-year warranty on parts and labor back to factory.
* User Manuals, Quick Start Guides and
the RCS² are also available on
www.analogway.com
Specifications subject to change without prior notice
All technical specifications are available on our website
