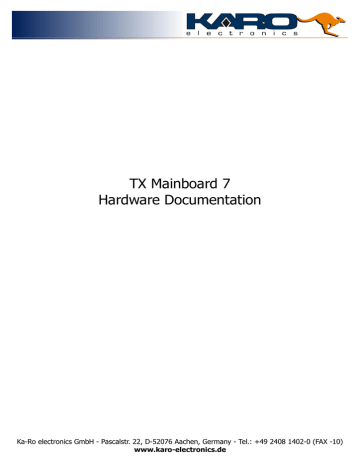

TX Mainboard 7

Hardware Documentation

Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)

www.karo-electronics.de

TX Mainboard 7

Table of contents

1 Introduction...................................................................................................................................3

2 Hardware.......................................................................................................................................5

2.1 Blockdiagram...........................................................................................................................5

2.2 Jumper....................................................................................................................................6

2.2.1 JP2-BOOTMODE................................................................................................................6

2.2.2 JP5-JTAGMODE................................................................................................................6

2.2.3 JP3/4 RGB Display disable and channel select....................................................................7

2.2.4 JP7 – TX RGB/LVDS...........................................................................................................7

2.3 Pin Description.........................................................................................................................8

2.3.1 ST6 JTAG ICE Interface....................................................................................................8

2.3.2 ST5 CAN..........................................................................................................................9

2.3.3 ST8 Family Concept RGB LCD...........................................................................................10

2.3.4 ST12 RS232 (UART-A).....................................................................................................11

2.3.5 ST9 RS485 (UART-C), ST11 RS232 (UART-B)....................................................................12

2.3.6 ST4 Ethernet..................................................................................................................13

2.3.7 ST3 USB Host Interface..................................................................................................14

2.3.8 ST2 USB OTG.................................................................................................................15

2.3.9 ST1 Power Supply...........................................................................................................16

2.3.10 ST8 Headphone.............................................................................................................17

2.4 Display configuration..............................................................................................................18

2.4.1 Standard TX module – Family Concept Display .................................................................18

2.4.2 Standard TX module – LVDS Display ................................................................................18

2.4.3 LVDS TX module – Family Concept Display........................................................................19

2.4.4 LVDS TX module – LVDS Display (Dual Channel or Dual Display)........................................19

2.4.5 LVDS TX module – Dual Display – LVDS & Family Concept Display......................................20

2.5 24 Bit LVDS remark................................................................................................................20

2.6 Component Locations.............................................................................................................21

3 Document revision history.............................................................................................................22

2/22 2015-04-29 Hardware Documentation

TX Mainboard 7

1 Introduction

The Ka-Ro TX Mainboard 7 is an advanced development system, especially designed for building applications based on Ka-Ro’s family of TX Computer on Modules.

In addition to the comprehensive array of connectivity options which Ka-Ro has offered in the past in its development systems, the new TX Mainboard

7 now also comes with CAN, RS485 and SATA. Apart from the JTAG connector, one of the main advantages for developments is a grid of test points which can also be used for standard 0.1" pin headers.

The signals of the TX6 PCIe interface are routed as differential pairs, thus allowing connection of peripherals for testing.

The TX Mainboard 7 serves as a perfect match for Glyn’s

TFT Family Concept display series from 3.5" up to 7". It can be screwed onto the mounting lugs of the 5.7" display, thus forming a panel display unit. Further to this, a standard DF13 Hirose connector provides an LVDS interface for connecting one or two larger, higher resolution displays, e.g. full HD panels.

Connectivity

Ethernet

USB

CAN

RS485

RS232

Audio

SATA

SD-Card

Dual LVDS Display

RGB Display

Development

JTAG

Test Pads

Schematics included

Size and supply

5V DC Power supply

148mm x 100mm

Hardware Documentation 2015-04-29 3/22

TX Mainboard 7

15

16

7

1 2 3

8

10

9

4

11

5

17

6

12

13

14

4/22

18

19

3

4

1

2

7

8

5

6

9

10

11

CAN

JTAG ICE connector

BOOTMODE jumper

RGB Display

RS485 - 3 rd UART

RS232 - 2 nd

UART

Power supply input

RGB Display config jumper

JTAG mode jumper

RESET button

LVDS Display

20

12

13

14

15

16

17

18

19

20

21

22

SATA

TX RGB/LVDS jumper

RS232 - 1 st

UART

Mini A/B USB-Device

USB-Host

SD-Card

Ethernet

User button debug headers

Status LEDs

Audio

21

22

2015-04-29 Hardware Documentation

USBOTG

USBHOST

Ethernet

UART1

UART2

UART3

SSI1

SSI2

I2C

PWM

LCD

CAMERA

SD1

SD2

KEYPAD

TX

Module

TX Mainboard 7

2 Hardware

2.1 Blockdiagram

Power

Supply

JTAG

20-pin ICE connector

VIN

3V3

GOLDCAP bootmode

VBACKUP

1 st

UART

2 nd UART

3 rd

UART

CAN

I2S

I2C

USB HOST/DEVICE

USB HOST

ETHERNET

MAX3243

MAX3485 & direction control

SN65HVD230

SGTL5000

RS232

RS232

RS485

CAN

AUDIO

DC-Jack

Mini USB type A/B

USB type A

RJ45 with magnetics

SUB-D9 flat cable header flat cable header flat cable header

3.5mm headphone

PWM/CTRL/I2C(TOUCH)

RGB → LVDS

LVDS → RGB

RGB power supply

LVDS CHANNEL 0

LVDS CHANNEL 1

RGB display

FFC connector

LVDS display

Hirose DF13

SATA

SATA

KEYPAD button power on reset

RESET button

Hardware Documentation 2015-04-29 5/22

TX Mainboard 7

2.2 Jumper

JP2-BOOTMODE

JP5-JTAGMODE

GND

2.2.1 JP2-BOOTMODE

closed open

Boot from USB/UART

Boot from NAND (default)

2.2.2 JP5-JTAGMODE

Default

TX28

TX53,TX6

TX53,TX6

– DEBUG = H

– JTAG_MOD = L

– JTAG_MOD = H

6/22

TX28 – DEBUG = L

2015-04-29 Hardware Documentation

TX Mainboard 7

JP3/4-RGB Display on/off channel 0/1

JP7-TX RGB/LVDS

2.2.3 JP3/4 RGB Display disable and channel select

Channel 0

LVDS RGB display enabled

(Default) connected to LVDS channel 0

100 Ohms termination on LVDS channel 0

Disable

No termination

Channel 1

→ connected to LVDS channel 1

100 Ohms termination on LVDS channel 1

2.2.4 JP7 – TX RGB/LVDS

RGB

(Default)

LVDS

Standard TX module

LVDS TX module

Hardware Documentation 2015-04-29 7/22

TX Mainboard 7

2.3 Pin Description

For information about the DIMM pinout, please refer to the TX module datasheet.

2.3.1 ST6 JTAG ICE Interface

20

19

2

1

8/22

Name

3V3 1

Pin # Name

2 3V3

TRST# 3

TDI 5

4

6

GND

GND

TMS 7 8 GND

TCK 9 10 GND

RTCK 11 12 GND

TDO 13 14 GND

SRESET# 15 16 GND not connected 17 18 GND not connected 19 20 GND

2015-04-29 Hardware Documentation

TX Mainboard 7

2.3.2 ST5 CAN

9

10

ST5/CAN

1

2

Name not connected 1

Pin # Name

2 GND

CAN_L 3

GND 5

4 CAN_H

6 not connected not connected 7 not connected 9

8 not connected

10 not connected

Hardware Documentation 2015-04-29 9/22

TX Mainboard 7

2.3.3 ST8 Family Concept RGB LCD

1

40

10/22

Pin # Name

1 #LCD_RESET/P150

2 #RST/P149

3 LDD[7]

4 LDD[6]

5 LDD[5]

6 LDD[4]

7 LDD[3]

8 LDD[2]

9 GND

10 LDD[15]

11 LDD[14]

12 LDD[13]

13 LDD[12]

14 LDD[11]

15 LDD[10]

16 GND

17 LDD[23]

18 LDD[22]

19 LDD[21]

20 LDD[20]

Pin # Name

21 LDD[19]

22 LDD[18]

23 GND

24 LSCLK/P146

25 WAKE/P152

26 HSYNC/P143

27 VSYNC/P144

28 OE_ACD/P145

29 LCD_ENABLE/P151

30 3V3

31 GND

32 GND

33 3V3

34 3V3

35 #INT/P148

36 PWM0/P42

37 SCL

38 not connected

39 SDA

40 not connected

2015-04-29 Hardware Documentation

TX Mainboard 7

2.3.4 ST12 RS232 (UART-A)

Pin # Name

1 1-4-6 connected onboard

2 TxD

3 RxD

4 1-4-6 connected onboard

5 GND

6 1-4-6 connected onboard

7 not connected

8 not connected

9 not connected

Hardware Documentation 2015-04-29 11/22

TX Mainboard 7

2.3.5 ST9 RS485 (UART-C), ST11 RS232 (UART-B)

9

10

ST9/UART-C

1

ST11/UART-B

2

12/22

ST11 RS232 (UART-B)

Name

1-2-7 connected onboard 1

TxD 3

Pin # Name

2

4

1-2-7 connected onboard

CTS

RxD 5

1-2-7 connected onboard 7

GND 9

6 RTS

8 not connected

10 not connected

ST9 RS485 (UART-C)

Name not connected 1

Pin # Name

2 +5V not connected 3

B 5 not connected 7

GND 9

4

6

8

10 not connected

A not connected not connected

2015-04-29 Hardware Documentation

TX Mainboard 7

2.3.6 ST4 Ethernet

6

7

4

5

8

2

3

Pin # Name

1 TX+

TX-

RX+ not used not used

RXnot used not used

Hardware Documentation 2015-04-29 13/22

TX Mainboard 7

2.3.7 ST3 USB Host Interface

2

3

Pin # Name

1 5V

4

DATA-

DATA+

GND

14/22 2015-04-29 Hardware Documentation

TX Mainboard 7

2.3.8 ST2 USB OTG

Pin # Name

1 5V

2 DATA-

3 DATA+

4 ID

5 GND

Hardware Documentation 2015-04-29 15/22

TX Mainboard 7

2.3.9 ST1 Power Supply

Pin Name

Inner 3-5VDC

Outer GND

16/22 2015-04-29 Hardware Documentation

TX Mainboard 7

2.3.10

ST8 Headphone

2

3

4

Pin

1

Function

MIC

GND

Line out right channel

Line out left channel

Hardware Documentation 2015-04-29 17/22

TX Mainboard 7

2.4 Display configuration

2.4.1 Standard TX module – Family Concept Display

Configuration: RGB:ON

JP3 – open

CHANNEL:0

JP4 – open

TX:RGB

JP7 – open

18 Bit RGB

RGB Display

Family Concept

2.4.2 Standard TX module – LVDS Display

Configuration: RGB:OFF

JP3 – closed

CHANNEL:0

JP4 – open

TX:RGB

JP7 – open

18 Bit LVDS LVDS Display

18/22 2015-04-29 Hardware Documentation

TX Mainboard 7

2.4.3 LVDS TX module – Family Concept Display

Configuration: RGB:ON

JP3 – open

CHANNEL:0

JP4 – open

TX:LVDS

JP7 – closed

18 Bit RGB

RGB Display

Family Concept

2.4.4 LVDS TX module – LVDS Display (Dual Channel or Dual Display)

Configuration: RGB:OFF

JP3 – closed

CHANNEL:0

JP4 – open

TX:LVDS

JP7 – closed

24 Bit LVDS

Channel 0

24 Bit LVDS

Channel 1

*)

LVDS Display

LVDS Display

*) A disconnected trace of channel 1 has to be joined on TX Mainboard version 7a if needed.

Refer to the latest schematics for details.

Hardware Documentation 2015-04-29 19/22

TX Mainboard 7

2.4.5 LVDS TX module – Dual Display – LVDS & Family Concept Display

Configuration: RGB:ON

JP3 – open

CHANNEL:1

JP4 – closed

TX:LVDS

JP7 – closed

LVDS Display

24 Bit LVDS

Channel 0

18 Bit RGB

Channel 1

RGB Display

Family Concept

2.5 24 Bit LVDS remark

There is an issue on TX Mainboard version 7a. LCD[0] (LSB Blue) is missing on a 24-bit LVDS display if a standard RGB TX module is used and the 2nd channel of LVDS TX modules cannot be used because a trace has been disconnected. Refer to the latest schematics for details.

20/22 2015-04-29 Hardware Documentation

TX Mainboard 7

2.6 Component Locations

Hardware Documentation 2015-04-29 21/22

TX Mainboard 7

3 Document revision history

Revision Changes

2015-04-14 Initial release

2015-04-29 Remarks for TX Mainboard 7a 24 Bit LVDS issue added

22/22 2015-04-29 Hardware Documentation
