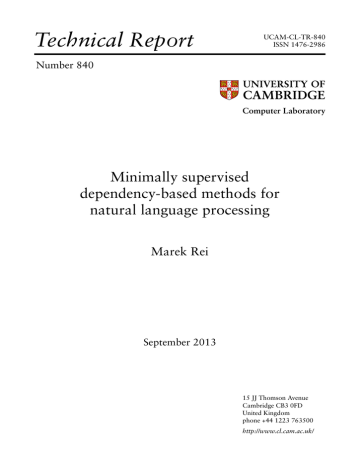

Technical Report
UCAM-CL-TR-840
ISSN 1476-2986
Number 840
Computer Laboratory
Minimally supervised
dependency-based methods for
natural language processing
Marek Rei
September 2013
15 JJ Thomson Avenue
Cambridge CB3 0FD
United Kingdom
phone +44 1223 763500
http://www.cl.cam.ac.uk/
c 2013 Marek Rei
This technical report is based on a dissertation submitted
December 2012 by the author for the degree of Doctor of
Philosophy to the University of Cambridge, Churchill
College.
Technical reports published by the University of Cambridge
Computer Laboratory are freely available via the Internet:
http://www.cl.cam.ac.uk/techreports/
ISSN 1476-2986
Abstract
This work investigates minimally-supervised methods for solving NLP tasks,
without requiring explicit annotation or training data. Our motivation is to create systems that require substantially reduced effort from domain and/or NLP
experts, compared to annotating a corresponding dataset, and also offer easier
domain adaptation and better generalisation properties.
We apply these principles to four separate language processing tasks and analyse
their performance compared to supervised alternatives. First, we investigate the
task of detecting the scope of speculative language, and develop a system that
applies manually-defined rules over dependency graphs. Next, we experiment
with distributional similarity measures for detecting and generating hyponyms,
and describe a new measure that achieves the highest performance on hyponym
generation. We also extend the distributional hypothesis to larger structures and
propose the task of detecting entailment relations between dependency graph
fragments of various types and sizes. Our system achieves relatively high accuracy
by combining distributional and lexical similarity scores. Finally, we describe a
self-learning framework for improving the accuracy of an unlexicalised parser, by
calculating relation probabilities using its own dependency output. The method
requires only a large in-domain text corpus and can therefore be easily applied
to different domains and genres.
While fully supervised approaches generally achieve the highest results, our experiments found minimally supervised methods to be remarkably competitive.
By moving away from explicit supervision, we aim to better understand the underlying patterns in the data, and to create systems that are not tied to any
specific domains, tasks or resources.
3
Acknowledgements
Writing a dissertation is a tremendous task, and it would not have been possible
without the help of others. I would first like to thank my supervisor, Professor
Ted Briscoe, for invaluable guidance and advice throughout the completion of
this doctorate. He was able to give me great freedom for pursuing interesting
research directions, while our regular meetings and discussions provided excellent
insight and kept me firmly on track.
Being part of the Natural Language and Information Processing research group
has been an important influence, and I am grateful to all the people I had the
chance to collaborate with. I would like to thank Stephen Clark and Anna Korhonen for giving early feedback on my work in progress, Andreas Vlachos for
very interesting discussions, and Diarmuid Ó Séaghdha for reading my thesis
and providing valuable suggestions. I am very thankful to my examiners, Ann
Copestake and Rob Gaizauskas, who helped me with knowledgeable comments
and feedback.
I am also very grateful to the Computer Laboratory, Churchill College and EPSRC for funding my studies, making it possible for me to pursue a degree in
Cambridge.
I would especially like to thank Helen Yannakoudakis, who has given me constant advice and encouragement. Her invaluable support, both intellectual and
personal, has helped me in so many different ways.
Finally, I am thankful to my family – my mother Sirje, father Karl, and sister
Merlyn – who have always been there for me. Completing this work would not
have been possible without their love and support.
4
Contents
Contents
5
1 Introduction
1.1 Research goals . . . . . . . . . . . . . . . .
1.2 Project overview . . . . . . . . . . . . . .
1.2.1 Detection of speculative language .
1.2.2 Hyponym detection and generation
1.2.3 Fragment entailment detection . . .
1.2.4 Parser lexicalisation . . . . . . . . .
2 Resources
2.1 Tools . . . . . . . . . . . . . . . . .
2.1.1 The RASP System . . . . .
2.1.2 C&C Tools . . . . . . . . .
2.1.3 Support Vector Machines . .
2.1.4 Conditional Random Fields
2.2 Developed libraries . . . . . . . . .
2.2.1 SemGraph . . . . . . . . . .
2.2.2 SemSim . . . . . . . . . . .
2.3 Datasets . . . . . . . . . . . . . . .
2.3.1 British National Corpus . .
2.3.2 BLLIP WSJ Corpus . . . .
2.3.3 Brown Corpus . . . . . . . .
2.3.4 SUSANNE Corpus . . . . .
2.3.5 Penn Treebank . . . . . . .
5
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
10
14
15
15
15
16
17
.
.
.
.
.
.
.
.
.
.
.
.
.
.
18
18
18
20
20
22
22
22
25
27
27
27
28
28
29
CONTENTS
2.3.6
2.3.7
2.3.8
2.3.9
2.3.10
2.3.11
2.3.12
2.3.13
2.3.14
2.3.15
PARC 700 Dependency
DepBank/GR . . . . .
WordNet . . . . . . . .
MEDLINE . . . . . . .
PubMed . . . . . . . .
PubMed Central . . .
BioMed Central . . . .
GENIA . . . . . . . .
GENIA-GR . . . . . .
BioScope . . . . . . . .
Bank
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
. . . .
3 Detection of speculative language
3.1 Introduction . . . . . . . . . . . .
3.2 Research goals . . . . . . . . . . .
3.3 Background . . . . . . . . . . . .
3.4 Rule-based methods . . . . . . .
3.4.1 Speculation cues . . . . .
3.4.2 Speculation scopes . . . .
3.5 Supervised methods . . . . . . . .
3.5.1 Speculation cues . . . . .
3.5.2 Speculation scopes . . . .
3.6 Post-processing . . . . . . . . . .
3.7 Experiments . . . . . . . . . . . .
3.7.1 Dataset . . . . . . . . . .
3.7.2 Cue detection . . . . . . .
3.7.3 Scope detection . . . . . .
3.8 Conclusion . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
4 Hyponym detection and generation
4.1 Introduction . . . . . . . . . . . . .
4.2 Research goals . . . . . . . . . . . .
4.3 Background . . . . . . . . . . . . .
4.4 Similarity measures . . . . . . . . .
6
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
29
29
30
30
31
31
31
32
32
32
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
34
34
35
36
38
38
39
42
42
44
47
48
48
51
53
56
.
.
.
.
58
58
60
61
63
CONTENTS
4.5
4.6
4.7
4.4.1 Cosine . . . . . . . . . . . . . . . . . . . . . . .
4.4.2 Pearson product-moment correlation coefficient
4.4.3 Spearman’s rank correlation coefficient . . . . .
4.4.4 Jaccard index (Set) . . . . . . . . . . . . . . . .
4.4.5 Dice (Set) . . . . . . . . . . . . . . . . . . . . .
4.4.6 Overlap coefficient . . . . . . . . . . . . . . . .
4.4.7 Cosine (Set) . . . . . . . . . . . . . . . . . . . .
4.4.8 Jaccard (Generalisation) . . . . . . . . . . . . .
4.4.9 Dice (Generalisation) . . . . . . . . . . . . . . .
4.4.10 Dice (Generalisation 2) . . . . . . . . . . . . . .
4.4.11 Kendall’s tau coefficient . . . . . . . . . . . . .
4.4.12 Lin similarity . . . . . . . . . . . . . . . . . . .
4.4.13 Weeds’ Precision ? . . . . . . . . . . . . . . . .
4.4.14 Weeds’ Recall ? . . . . . . . . . . . . . . . . . .
4.4.15 Weeds’ F-score . . . . . . . . . . . . . . . . . .
4.4.16 Clarke’s degree of entailment ? . . . . . . . . .
4.4.17 Average precision ? . . . . . . . . . . . . . . . .
4.4.18 Average precision (inclusion) ? . . . . . . . . . .
4.4.19 Average precision (balanced inclusion) ? . . . .
4.4.20 Directional Lin ? . . . . . . . . . . . . . . . . .
4.4.21 Balanced precision ? . . . . . . . . . . . . . . .
4.4.22 Kullback-Leibler divergence ? . . . . . . . . .
4.4.23 Jensen-Shannon divergence . . . . . . . . . .
4.4.24 α-skew divergence ? . . . . . . . . . . . . . .
4.4.25 Manhattan distance . . . . . . . . . . . . . .
4.4.26 Euclidean distance . . . . . . . . . . . . . . .
4.4.27 Chebyshev distance . . . . . . . . . . . . . . .
Proposed measure: Weighted Cosine . . . . . . . . . .
Datasets . . . . . . . . . . . . . . . . . . . . . . . . . .
Experiments . . . . . . . . . . . . . . . . . . . . . . . .
4.7.1 Hyponym detection . . . . . . . . . . . . . . . .
4.7.2 Hyponym generation . . . . . . . . . . . . . . .
4.7.3 Supervised learning . . . . . . . . . . . . . . . .
7
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
64
64
65
66
66
66
66
67
67
67
68
69
69
69
70
70
70
71
71
72
72
72
73
74
75
75
75
75
78
81
81
84
87
CONTENTS
4.8
Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Entailment Detection
5.1 Introduction . . . . . . . . . . . . . . . . . . .
5.2 Research goals . . . . . . . . . . . . . . . . . .
5.3 Background . . . . . . . . . . . . . . . . . . .
5.4 Applications . . . . . . . . . . . . . . . . . . .
5.5 Modelling entailment between graph fragments
5.5.1 Intrinsic similarity . . . . . . . . . . .
5.5.2 Extrinsic similarity . . . . . . . . . . .
5.5.3 Hedging and negation . . . . . . . . .
5.6 Dataset . . . . . . . . . . . . . . . . . . . . .
5.7 Experiments . . . . . . . . . . . . . . . . . . .
5.8 Conclusion . . . . . . . . . . . . . . . . . . . .
6 Parser Lexicalisation
6.1 Introduction . . . . . . . . . .
6.2 Research Goals . . . . . . . .
6.3 Background . . . . . . . . . .
6.4 Reordering dependency graphs
6.4.1 Graph modifications .
6.4.2 Edge scoring methods
6.4.3 Smoothing edge scores
6.4.4 Combining edge scores
6.4.5 Graph scoring . . . . .
6.5 Evaluation methods . . . . . .
6.6 Experiments . . . . . . . . . .
6.6.1 DepBank . . . . . . .
6.6.2 Genia . . . . . . . . .
6.6.3 Error analysis . . . . .
6.7 Conclusion . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
7 Conclusion
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
89
.
.
.
.
.
.
.
.
.
.
.
92
92
93
94
97
98
101
102
104
106
108
112
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
114
114
115
116
118
118
120
122
124
124
125
127
127
130
133
135
137
8
CONTENTS
Appendix A: Hedge cues
140
Appendix B: Hyponym generation examples
142
Appendix C: Similarity measures for entailment detection
152
References
154
9
Chapter 1
Introduction
Natural Language Processing (NLP) is a general term for a wide range of tasks
and methods related to automated understanding of human languages. In recent years, the amount of available diverse textual information has been growing
rapidly, and specialised computer systems can offer ways of managing, sorting,
filtering and processing this data more efficiently. As a larger goal, research in
NLP aims to create systems that can also ‘understand’ the meaning behind the
text, extract relevant knowledge, organise it into easily accessible formats, and
even discover latent or previously unknown information using inference. For example, the field of biomedical research can benefit from various text mining and
information extraction techniques, as the number of published papers is increasing exponentially every year, yet it is vital to stay up to date with all the latest
advancements.
Research in Machine Learning (ML) focuses on the development of algorithms
for automatically learning patterns and making predictions based on empirical
data, and it offers useful approaches to many NLP problems. Machine learning
techniques are commonly divided into three categories:
1. Supervised learning methods make use of labelled training data to build
models that can generalise to unseen examples. These include many wellknown learning algorithms, such as support vector machines (Cortes & Vapnik, 1995; Joachims, 1998), conditional random fields (Lafferty et al., 2001),
probabilistic neural networks (Specht, 1990) and random forests (Breiman,
10
2001).
2. Semi-supervised systems normally require smaller amounts of labelled
data, and also make use of some unlabelled corpora. This can be achieved
by bootstrapping the system with a small set of annotated examples and
iteratively finding more from the unlabelled data (Agichtein & Gravano,
2000; Thelen & Riloff, 2002), or by propagating the labels of known examples to unseen instances using some similarity metric (Zhu & Ghahramani,
2002; Chen et al., 2006).
3. Unsupervised learning methods aim to find a hidden structure in the
provided dataset, without using any explicit labelling information. Due
to the restrictions of the problem, this usually reduces to some form of
clustering, such as k-means (Lloyd, 1982), hierarchical clustering (Johnson,
1967), or self-organising maps (Kohonen, 1990).
Supervised systems have been shown to deliver state-of-the-art performance
on a variety of tasks. They are able to automatically learn complicated patterns
from the data, and if a suitable collection of annotated examples is available,
supervised techniques can offer very competitive results for most NLP challenges.
However, obtaining this annotation can be a very costly and time-consuming
process. Manual annotation is often a slow and laborious task, and the datasets
need to be large enough to allow for sufficient generalisation by the algorithms,
usually thousands or tens of thousands of examples. NLP tasks are often domainspecific, and therefore the annotation should be performed by domain experts,
who can sometimes be reluctant to donate their time. Furthermore, in order to
minimise bias and error, the data should be cross-annotated by more than one
expert. Finally, when the dataset is created, it can be utilised to train a model
for a specific task, but it is usually unable to generalise to different tasks, or even
different domains of the same problem.
In this work we investigate minimally-supervised methods for solving NLP
tasks, and we define them as requiring no explicit training data. Since completely
unsupervised systems are usually only applicable to tasks that can be formulated
as clustering problems, we expand this definition by also allowing:
11
a) existing NLP tools (e.g., tokenisers, POS taggers, parsers) that are not
specific to our task or domain, and/or
b) domain-specific resources, other than annotated training data, which could
be produced by a domain-expert in a relatively short time.
While the amount of required supervision depends on the specific task, we
aim to develop approaches that are expected to require only a fraction of work
from domain experts, compared to manually annotating a dataset for supervised
learning. Semi-supervised systems approach similar problems by making use of
some unlabelled data, but they still require varying amounts of annotation. These
methods have been more thoroughly investigated by other researchers (Zhu, 2005;
Chapelle et al., 2006; Vlachos, 2010), and they will not be the focus in this work.
For developing minimally-supervised systems, we make use of automatically
generated dependency graphs, allowing us to find the binary semantic relations
between individual words. In contrast to parse trees that show the syntactic
construction and grammatical rules in a sentence, dependency relations provide
a more intuitive representation of the meaning behind sentences. For example, the
edge labels in Figure 1.1 indicate that design is the core of the sentence (missing
head relation), engineers are the people doing the designing (non-clausal subject
relation), and engines are being designed (direct object relation). Dependency
graphs are also better suited for representing discontinuous constructions, such
as long-distance dependencies, or grammatical relations that are signalled by
morphology instead of word order (McDonald & Nivre, 2011). By recursively
traversing the directed graph, a system can automatically find how individual
words relate to each other, and reconstruct the semantics of the whole sentence.
dobj
ncmod
ncmod
ncsubj
det
The
AT
engineer
NN2
aux
be
VBR
design
VVG
new
JJ
jet
NN1
engine
NN2
.
.
Figure 1.1: Example dependency graph for the sentence: The engineers are designing new jet engines.
12
Dependency parsers are available for many different languages and domains,
and they are being utilised to solve various tasks with increasing frequency, making them one of the most commonly used tools in natural language processing.
Our work and methods focus on novel uses of dependency graphs, as they provide
valuable information about the semantics of the text, even without any available
task-specific annotation. We experiment with defining heuristic rules over the
graph structure (Chapter 3), use dependency graphs to extract features for a
supervised classifier (Chapter 3), collect distributional features from dependency
graphs (Chapter 4), extend the distributional hypothesis to dependency graph
fragments (Chapter 5), and improve the accuracy of a parser by having it learn
from its own dependency output (Chapter 6).
The goal of this work is to create systems that require substantially reduced
effort from domain experts, compared to annotating a corresponding dataset.
Our research is largely motivated by potential applications in the biomedical domain, where expertly annotated data is difficult to obtain and does not exist for
many NLP tasks. However, lack of annotated data also prevents us from performing conclusive evaluation and comparison of all our methods in this domain.
Therefore, we conduct experiments on biomedical data whenever possible, but
also make use of other domains and datasets, where annotation is more readily
available.
Although many problems can be represented as sets of feature vectors in a
very straightforward way, we believe it is important not to get overly reliant on
using only supervised classifiers. A famous quote by Abraham Maslow says ”I
suppose it is tempting, if the only tool you have is a hammer, to treat everything
as if it were a nail.” (Maslow, 1968). By moving away from explicit supervision,
we aim to better understand the underlying patterns in the data, and to create
systems that are not tied to a specific domain or dataset. In addition, the output
of such methods is likely to have good discriminative properties, and can therefore
be used to directly benefit fully supervised systems.
13
1.1
Research goals
In this work, we investigate four different NLP tasks and approach them using
minimally supervised dependency-based methods. Each of these tasks contains a
unique set of challenges and goals that need to be met, and these are described
in detail in their corresponding chapters. However, we also have a set of common
goals that we follow throughout this thesis:
1. Investigate minimally supervised methods and how they can be
applied to different tasks in natural language processing. We aim
to determine whether minimal supervision is a viable approach to NLP, and
whether it can deliver competitive performance even without training data.
2. Compare the performance of minimally supervised systems to
fully supervised systems. We contrast systems with different levels of
supervision in order to measure the decrease in performance when labelled
data is not available, thereby quantifying the actual benefit of manual annotation.
3. Examine new and innovative applications for dependency graphs.
We experiment with various ways of using dependency graphs, illustrating
their usefulness as a general-purpose resource for natural language processing, and examining how they can help solve specific language processing
tasks.
4. Find ways of integrating minimally supervised and fully supervised systems. We determine whether minimally supervised methods can
be successfully used as discriminative features in a supervised classifier, and
how this affects performance.
5. Create accurate practical systems for solving each of the tasks. We
analyse every individual challenge in detail and look for underlying patterns.
Our focus is on developing solutions that require no training data, thereby
making them more robust, more easily adapted to different domains, and
also more suitable to be deployed in practical applications.
14
1.2
Project overview
We investigate the effect of minimally supervised methods by applying them to
four separate language processing tasks. In each of these case studies, our goal is
to develop a competitive working system for solving the task without requiring
training data. This allows us to study the performance of different systems, in
order to find common properties and approaches that are capable of generalising
across different problem sets and domains. Whenever possible, results are also
presented using a supervised system, allowing us to analyse and compare the two
alternative methodologies.
The tasks we investigate are as follows:
1.2.1
Detection of speculative language
Speculative language is an important tool in scientific literature, allowing scientists to guide research beyond the evidence without overstating what follows
from their work. Vincze et al. (2008) show that 19.44% of all sentences in the
full papers of the BioScope corpus contain speculation cues. Detecting the scope
of uncertainty in text can be important for tasks such as scientific information
extraction or literature curation, as typically only definite information should be
extracted and curated.
We develop and compare three different approaches to the scope detection
task: the baseline system assigns scopes only based on surface text and requires
barely any processing; the heuristic system uses a small number of linguistic rules
defined over dependency graphs, but requires no annotated data; the supervised
system builds on the previous approaches and employs a classifier trained on
human-annotated data. Most of this work has been published in the proceedings
of the Conference on Natural Language Learning 2010 (Rei & Briscoe, 2010).
1.2.2
Hyponym detection and generation
Automatic detection and generation of hyponyms has many practical applications
in nearly all natural language processing tasks. Information retrieval, information
15
extraction and question answering can be improved by performing appropriate
query expansion. Summarisation systems can increase coherence and reduce repetition by correctly handling hyponymous words in the input text. Entailment
and inference systems can improve sentence-level entailment resolution by detecting the presence and direction of word-level hyponymy relations. Hyponyms are
also useful for smoothing language models and word co-occurrence probabilities.
We investigate how hyponyms can be detected and generated based on their
distributional similarity, using dependency relations as context features and requiring only a large corpus of plain text for collecting co-occurrence statistics.
While most common similarity measures are symmetric, recent work on directional distributional similarity measures has been trying to model asymmetric
relations as well. We present a comprehensive comparison of all prominent similarity measures, create several new datasets to evaluate this task, and also propose
a novel measure based on our observations.
1.2.3
Fragment entailment detection
By generalising the hyponym relation to larger text units such as phrases, predicates and full sentences, we can derive the relation of entailment. For example,
the phrase argues against also entails does not support. While there exist numerous sentence-level entailment detection systems, a broader approach would allow
for entailment discovery among a wider range of fragment types for which no
specialised systems exist. In addition, entailment detection between fragments is
a vital step towards being able to generate entailing sentences for a given input
text.
We present a unified framework that can be used to detect entailment relations
between fragments of various types and sizes. The system is designed to work
with anything that can be represented as a dependency graph, including single
words, constituents of various sizes, text adjuncts, predicates, relations and full
sentences. The approach is unsupervised and uses intrinsic similarity, multi-level
extrinsic similarity and the detection of negation and hedged language to assign a
confidence score to entailment relations between two fragments. Most of this work
has been published in the Workshop on Biomedical Natural Language Processing
16
2011 (Rei & Briscoe, 2011).
1.2.4
Parser lexicalisation
Lexical features are important when choosing the correct derivation in ambiguous
contexts, but they have been shown not to transfer well between different domains
and genres (Sekine, 1997; Gildea, 2001). At the same time, unlexicalised parsers
are surprisingly competitive with their lexicalised counterparts (Klein & Manning,
2004; Petrov et al., 2006). Instead of trying to adapt a lexicalised parser to a new
domain, we explore how lexical features can be integrated with an unlexicalised
parser.
We use the unlexicalised RASP parser to process a large corpus of in-domain
text. Next, we create an augmented version of the dependency graphs by applying a series of linguistically-motivated modifications. Finally, we use scores
derived from the corpus statistics to rerank the alternative parses created by
RASP, thereby improving the parsing accuracy. The system also makes use of
automatically generated hyponyms to smooth the probabilities and improve the
modelling of rare relations. This framework allows the unlexicalised parser to
learn from its own output and significantly increase accuracy without requiring
any additional annotated data. Most of this work has been published in the 2013
Conference of the North American Chapter of the Association for Computational
Linguistics: Human Language Technologies (NAACL-HLT 2013) (Rei & Briscoe,
2013).
17
Chapter 2
Resources
In this chapter we provide a description of various tools and datasets which we
utilise or reference in our research.
2.1
2.1.1
Tools
The RASP System
The Robust Accurate Statistical Parsing (RASP) System1 (Briscoe et al., 2006;
Watson et al., 2005; Watson, 2006, 2007; Andersen et al., 2012) contains modules
for a series of language processing tasks, such as finding sentence boundaries,
analysing words to identify their root and any suffixes, assigning part-of-speech
labels, and analysing the grammatical relations between words within sentences.
We employ this toolkit in all of our experiments, as it utilises an unlexicalised
statistical parser, thus reducing the required manual annotation and making it
less domain-dependent.
The structural parse ranking model is trained (in a semi-supervised fashion)
on partially-bracketed sentences from the SUSANNE corpus, itself a subset of
the Brown corpus. The RASP system also utilises a part-of-speech (POS) tagger
which provides tag sequences to the parser, but this too has been trained on
non-WSJ (Wall Street Journal) text drawn from balanced corpora. Although the
tagger does make use of lexical statistics to assign POS tags, no further lexical
1
ilexir.co.uk/applications/rasp/download
18
information is exploited in the default parse selection model, which we deploy
in our experiments. Finally, the parser outputs ranked dependency graphs using
the same grammatical relation (GR) scheme (Briscoe & Carroll, 2006) used to
annotate the DepBank/GR subset of WSJ section 23 from the Penn Treebank.
The dependency graphs are directed, connected (except in the event of parse
failures), but not projective or acyclic. For example, with ‘control’ relations,
such as those governing the implicit subject of an infinitive verbal complement, a
dependent of the main verb may also be a dependent of the embedded infinitive,
violating the single-head constraint of dependency tree representations. In nonsubject relative clauses without an overt relative pronoun, the modified head
governs the embedded verb of the relative clause but, in turn, depends on this
verb as its object, introducing a cycle in the dependency graph.
The RASP parser is a generalised LR (GLR) parser which builds a nondeterministic LALR(1) parse table from the grammar (Tomita, 1987). A contextfree backbone is automatically derived from a unification grammar. The residue
of features not incorporated into the backbone are unified on each reduce action
and if unification fails the associated derivation paths also fail. The parser creates
a packed parse forest represented as a graph-structured stack.
Inui et al. (1997) describe the probabilistic GLR (PGLR) model utilised in the
RASP system where a transition is represented by the probability of moving from
one stack state, σi−1 , (an instance of the graph structured stack) to another, σi .
They estimate this probability using the stack-top state si−1 , next input symbol
li and next action ai . This probability is conditioned on the type of state si−1 . Ss
and Sr are mutually exclusive sets of states which represent those states reached
after shift or reduce actions, respectively.
Watson et al. (2007) utilised about 4,000 unlabelled partially-bracketed training sentences from the SUSANNE corpus to train the PGLR model in a semisupervised two-step process. An initial model was trained from the subset of
about 1,000 bracketed sentences for which there was a single derivation consistent
with the bracketing. This initial model was used to rank derivations consistent
with the bracketing from the remaining ambiguous portion of the training data.
Then the final model was trained using rank-weighted counts from the entire
training corpus.
19
It is difficult to accurately quantify the amount of work required to construct
the grammar rules and partial bracketing necessary for training the models in
RASP. However, it is definitely less compared to the construction of the Penn
Treebank, which is utilised for training most other supervised parsing models. In
our experiments we treat RASP as an external tool and employ it on text from
different domains, such as biomedical papers and WSJ articles. It is clear that
RASP is in no way tuned to perform well in the biomedical domain, as it was
developed using the Brown corpus. This might be more debatable for the WSJ
experiments, as the Brown corpus covers a wide selection of texts, including news
articles from the financial domain. However, financial texts are a relatively small
portion of the dataset (only 4 out of 500 samples), and Gildea (2001) also treats
the Brown corpus as out of domain with respect to the WSJ.
2.1.2
C&C Tools
The C&C Tools1 (Clark & Curran, 2004; Curran et al., 2007) consist of the C&C
Combinatory Categorial Grammar (CCG) parser, the computational semantics
tool Boxer, and the C&C taggers. The grammar used for the parser, consisting of
425 lexical categories expressing subcategorisation information and a small number of combinatory rules, was extracted from CCGBank (Hockenmaier, 2003), a
CCG version of the Penn Treebank. A supertagger is first used to assign lexical
categories to each word in the sentence, and these are then combined by the parser
using the combinatory rules and the CKY algorithm. A log-linear model is used
to score alternative parses, with features defined over local parts of the derivation, including word-word dependencies. The parser outputs predicate-argument
dependencies defined in terms of CCG lexical categories. In Chapter 6 we compare the performance of the unlexicalised RASP parser, the fully-lexicalised C&C
parser, and our self-learning lexicalisation method on the DepBank/GR dataset.
2.1.3
Support Vector Machines
Support Vector Machines (SVM) (Vapnik, 1982; Cortes & Vapnik, 1995) are a
type of supervised large-margin discriminative classifier. A binary SVM takes
1
svn.ask.it.usyd.edu.au/trac/candc
20
Figure 2.1: Illustration of Support Vector Machines. The circles and crosses
represent different classes, the grey squares represent support vectors on the edge
of the separation margin. Image by Cortes & Vapnik (1995).
as input a labelled dataset with two classes and learns a model for predicting
the class of unseen examples. More specifically, the algorithm finds the hyperplane between two classes which, in addition to separating them, also has the
largest distance from either class. The decision function is based on the subset of
training examples that lie closest to the separation plane, referred to as support
vectors. This strategy allows the model to achieve better performance on unseen
data, as the maximum margin hyperplane is expected to correspond to a natural
separation between the classes.
While the original algorithm assumes that a clean separation of the two classes
is possible, Cortes & Vapnik (1995) introduced soft-margin SVMs that try to find
the best possible hyperplane but also allow for misclassified examples. SVMs can
also make use of the kernel trick which allows solving non-linear problems through
linear optimisation techniques.
We utilise SVMLight (Joachims, 1999),1 a well-known efficient implementation
of SVMs, in Chapter 4 to perform supervised learning experiments for hyponym
detection and generation.
1
www.cs.cornell.edu/People/tj/svm light/
21
2.1.4
Conditional Random Fields
Conditional Random Fields (CRF) (Lafferty et al., 2001) are a class of probabilistic models for segmenting and labelling sequence data. A CRF can be thought
of as an undirected graphical model, globally conditioned on the sequence of observations. This makes them well-suited for classification tasks where labels are
highly dependent on sequence and context, such as POS tagging.
Assuming that the graphical model has a simple first-order chain structure,
the overall probability of the label sequence can be calculated using a set of
transition and state feature functions (Wallach, 2004). We make use of CRF++,1
an implementation of CRFs, to identify speculation cues and scopes in Chapter
3.
2.2
Developed libraries
In order to perform all the experiments necessary for this research, we created
two new software libraries which we are releasing as open-source projects:
2.2.1
SemGraph
SemGraph is a Java library for reading, writing and visualising dependency graphs
in different formats.
Numerous alternative dependency parsers have been developed, and most of
them specify a unique format for their output. Applications that need to iterate
through large collections of parsed data often employ an integrated approach, and
the modules for processing parser output are mixed together with system logic.
This results in complex systems that are highly parser-dependent, and modifying
them to work with different parser formats requires expensive large-scale changes.
With SemGraph we have aimed to develop a library that allows for easy separation of system logic from any specific parser format. In addition, we wish to provide well-tested collaboratively developed methods for reading various formats,
instead of every developer re-implementing a personal version of this common
1
code.google.com/p/crfpp/
22
1 GraphReader r e a d e r = new RaspXmlGraphReader (
” examples / raspxml / f i l e 1 . xml” ,
RaspXmlGraphReader .NODES TOKENS, f a l s e , f a l s e ) ;
2 while ( r e a d e r . hasNext ( ) ) {
3
Graph graph = r e a d e r . next ( ) ;
4
f o r ( Node node : graph . getNodes ( ) )
5
System . out . p r i n t l n ( node . getLemma ( ) +
node . getPos ( ) ) ;
6 }
Figure 2.2: Example Java code for iterating through a corpus in RASP XML
format and printing out information about each node.
code. The library can be easily included in any Java project, and the system will
be able to use generic functions for accessing dependency graphs, without explicit
knowledge of the underlying input format.
For example, a common scenario for an NLP system is to iterate through a
large corpus of parsed text in order to collect distributional features or look for
specific patterns in dependency graphs. Using SemGraph, the same system can
utilise corpora parsed with both RASP and C&C parsers without any modifications, by only specifying the appropriate input location. This enables researchers
and developers to easily switch between alternative parsers and corpora, in order
to use the most appropriate parser for a specific domain or task. In addition, it
reduces the amount of code required for each system, and allows for easy comparison of different parsers.
Figure 2.2 contains an example of working code for reading and processing
a corpus of dependency graphs. In line 1 the GraphReader object is initialised
with the input path; the program then loops through all the dependency graphs
(line 2) and every node in every graph (line 4), printing out the lemma and POS
tag (line 5). Currently, the following input formats are supported:
• rasp – The default output format of the RASP parser.
• raspxml – The xml output format of the RASP parser.
• cnc - The default output format of the C&C parser.
23
ncmod
ncmod
Natural
JJ
language
NN1
ncsubj
processing
NN1
dobj
ncmod
xcomp
det
be
VBZ
a
AT1
iobj
field
NN1
of
IO
conj
computer
NN1
science
NN1
conj
and
CC
linguistics
NN1
Figure 2.3: The LaTeX version of a dependency graph from RASP.
• parseval - The format used by the Depbank/GR dataset and one of the
output formats of the RASP parser.
• tsv - A simple tab-separated format for representing graphs and sentences.
The input can be a single file or a whole directory, containing plain text or gzipped
files. We plan to extend the library with support for several other well-known
dependency parsers, and we also welcome contributions from other developers.
While the dependency graphs are read into a common data structure, they
are not modified in any way; combining output from different parsers can lead to
unexpected results, since various sources may use different dependency labels or
even have different attachment preferences. Therefore, the library is best used for
switching between alternative input types, or combining them only in cases where
the differences are less important (e.g., when collecting distributional features).
The SemGraph library also provides methods for writing dependency graphs
in different formats. Performing a full conversion from one parser output specification to another would be a useful feature, but this is currently not possible
– most parsers include unique fields in their output that are not available from
other parsers, and we do not attempt to capture or replicate this highly specific
information. However, we are able to offer two output formats:
• tsv - A simple tab-separated format.
• tikzdependency - A LaTeX representation of the graph.
The tsv format is supported for both reading and writing, allowing users to
modify, save and reload any dependency graphs. The tikzdependency format
contains LaTeX code which can be compiled into a pdf image of a dependency
24
Figure 2.4: The GraphVisualiser tool displaying a dependency graph from RASP.
graph, as shown in Figure 2.3. This allows users to automatically convert parser
output into images suitable for research papers or technical reports, without
having to handle graphics or layout.
The library also includes a tool for visualising dependency graphs, in order to
provide researchers with an intuitive method for navigating parsed corpora and
finding patterns in graphs. The GraphVisualiser tool, shown in Figure 2.4, creates
a dynamic view of dependency graphs by displaying labelled nodes and edges
using a force-directed algorithm. The original sequence of lemmas is provided
under the graph, and the user can iterate forward and backward through a large
corpus. It also includes support for alternative parses – while keys X and Z step
through sentences, keys A and S switch between different parses of the same
sentence.
The SemGraph library is an open-source project and available for download.1
2.2.2
SemSim
SemSim is a Java library for building distributional models from large corpora
of parsed text, and for using these models in various tasks. It is built using the
SemGraph library and can therefore use any input format described in Section
1
github.com/marekrei/semgraph
25
2.2.1. Current functionality of the library includes:
• Building a three-dimensional co-occurrence tensor from all dependency relations in the corpora, which allows for fast access to various statistics
regarding the dataset. For example, we can find how many times does
the relation triple (play, dobj, guitar) appear in the corpus, or what is the
probability of guitar being a dependent in a relation.
• Constructing distributional context vectors for each word. Application of
various weighting schemes, such as mutual information, is also supported.
• Applying automatic modifications to dependency graphs. The pipeline includes modules for adding graph editors to perform tasks such as text normalisation or adding new edges to the graph using linguistic rules. These
modifications can decrease noise and increase the number of available binary relations, leading to more accurate systems. Several graph editors
have already been implemented, described in Chapter 6, and new ones can
be easily added.
• Calculating distributional similarity between words using a wide range of
similarity measures. We have implemented 30 different well-established
measures from previous research, and we provide the code for performing experiments with hyponym detection and generation, as described in
Chapter 4. The implementation uses caching and a thread pool to evenly
distribute tasks between available processors while using the same distributional model, greatly reducing the running time for experiments.
• Reranking dependency parses based on corpus statistics, as described in
Chapter 6. We use a distributional model to calculate probabilities for every
dependency relation, combine them together into parse scores for reranking,
and find distributionally similar words to smooth the calculations. The
implementation has also been optimised to make use of multi-core systems
for faster processing.
26
The SemSim library is an open-source project and publically available for download.1
2.3
2.3.1
Datasets
British National Corpus
The British National Corpus (BNC) (Burnard, 2007) is a corpus containing 100
million words of written and spoken language from a wide range of sources. It is
designed to represent a wide selection of British English from the later part of the
20th century. 90% of the corpus consists of written text, such as extracts from
newspapers, specialist periodicals and journals, academic books and popular fiction, published and unpublished letters, school and university essays, and many
other kinds of text. The remaining 10% contains orthographic transcriptions of
unscripted informal conversations and spoken language collected in different contexts. The corpus encoding also contains automatically added part-of-speech tags
and various structural information about the text, such as headings, paragraphs
and lists.
Work on the BNC started in 1991, and the first version was completed in
1994, followed by the revised second edition (BNC World) in 2001, and the third
edition (BNC XML) in 2007. In our experiments we make use of the third edition
of the BNC parsed with RASP4UIMA (Andersen et al., 2008).
2.3.2
BLLIP WSJ Corpus
The Brown Laboratory for Linguistic Information Processing (BLLIP) 1987-89
WSJ Corpus Release 1 (Charniak et al., 2000) contains approximately 30 million
words of text extracted from the Wall Street Journal (WSJ) over a three-year
period (1987 – 1989). The entire archive has been automatically parsed and
part-of-speech (POS) tagged using statistical methods, but the annotation has
not been manually checked. This corpus is a superset of the million-word Penn
Treebank (PTB) collection of parsed and POS-tagged WSJ texts. However, our
1
github.com/marekrei/semsim
27
version of the BLLIP WSJ corpus excludes any texts found in PTB, as they are
used to evaluate our parse reranking framework.
2.3.3
Brown Corpus
The Brown University Standard Corpus of Present-Day American English (Brown
Corpus) (Francis & Kučera, 1979) contains 1,014,312 words of edited Englishlanguage prose. The texts come from a variety of sources, all published in 1961
in the United States and written by native speakers, as far as could be determined.
The Corpus is divided into 500 samples of at least 2000 words each, with every
sample beginning at the start of a new sentence, but not necessarily of a paragraph
or other larger division. The samples are distributed across 15 genres (e.g., Press
Reportage, Press Editorial, and Science Fiction), roughly in the same proportions
as the amount published in 1961. A later version of the corpus also contains POS
tags, which were added automatically by a tagger, but have also been manually
checked over the course of several years.
2.3.4
SUSANNE Corpus
The Surface and Underlying Structural Analysis of Naturalistic English (SUSANNE) Corpus (Sampson, 1995) is an annotated sample comprising approximately 130,000 words of written American English text. It was created as part of
an effort towards developing a comprehensive annotation scheme for the logical
and surface grammar of English. SUSANNE guidelines aim to specify an explicit
notation for all aspects of English grammar in sufficient detail, such that independent analysts working on the same text would produce identical annotations.
The texts included in the corpus are a subset of 64 sample texts from the Brown
Corpus, covering 4 different genres: Press Reportage, Belles Lettres (biographies
and memoirs), Learned (scientific and technical writing), Adventure and Western
Fiction.
28
2.3.5
Penn Treebank
The Penn Treebank (PTB) (Marcus et al., 1993, 1994; Taylor et al., 2003), also
known as UPenn Wall Street Journal (WSJ) Treebank, contains approximately
50,000 sentences (1 million words) manually annotated with part-of-speech tags
and phrase-structure trees. The texts originate from 1989 Wall Street Journal
Articles (Dow Jones Newswire stories). The initial release was created over a
period of three years and contains annotation of only skeletal trees with syntactic structure. The annotation scheme was later updated (Treebank-2) to allow
for extraction of simple predicate-argument structure and include POS-tags. In
the later stages, the Treebank project also produced a tagged and parsed version of the Switchboard corpus of transcribed telephone conversations, including
annotation for common disfluencies in speech (Treebank-3).
2.3.6
PARC 700 Dependency Bank
The PARC 700 Dependency Bank (DepBank) (King et al., 2003) contains 700
sentences randomly selected from section 23 of the WSJ Penn Treebank. They
were parsed with a broad coverage LFG grammar of English using the XLE system
(Maxwell III & Kaplan, 1993), automatically converted to DepBank format, and
then manually corrected and extended by human validators. The final annotation
contains syntactic features and bilexical head-dependent relations derived from
the F-structure representation of LFG.
2.3.7
DepBank/GR
DepBank/GR (Briscoe & Carroll, 2006) is a reannotated version of the PARC
700 Dependency Bank (DepBank), with the labelling matching the GR output
format of the RASP parser (Briscoe et al., 2006). The GR scheme includes one
matching feature from DepBank (passive); several DepBank relations have been
split into separate relations for the GR scheme (e.g., adjunct); some relations
from DepBank are merged together (e.g., oblique and iobj); the GR scheme also
includes some additional featural and subtype information. DepBank/GR is the
main evaluation dataset for RASP and is distributed together with the parser.
29
The corpus is split into 560 sentences for testing and 140 sentences of heldout/development data.
2.3.8
WordNet
WordNet (Miller, 1995) is a large lexical database of the English language. Nouns,
verbs and adjectives are grouped into 117,000 cognitive synonym sets (synsets),
and short definitions for each of the synsets are provided. The database also
contains annotation for a range of semantic relations between these synsets, for
example hyponymy, meronymy, antonymy, and entailment. It is designed for use
both as a dictionary/thesaurus, and to be accessed automatically by artificial
intelligence or text analysis systems. WordNet has been successfully used as a
resource for many NLP tasks, such as topic classification, summarisation, information retrieval, information extraction, machine translation and word sense
disambiguation. It contains a sufficiently wide range of commonly used words,
but does not include vocabulary for more specific domains, such as the life sciences. We make use of the annotation in WordNet 3.0 to evaluate methods for
hyponym detection and generation in Chapter 4.
2.3.9
MEDLINE
MEDLINE (Medical Literature Analysis and Retrieval System Online)1 is a bibliographic database of journal articles in life sciences with a focus on biomedicine.
It contains over 21 million citations from approximately 5,600 worldwide journals, covering the period from 1950 to the present. Among the citations added
between 2005 and 2009, roughly 91% are published in English, and 83% have
English abstracts written by authors of the articles. The records in MEDLINE
are indexed with U.S. National Library of Medicine’s (NLM) Medical Subject
Headings (MeSH).
1
www.nlm.nih.gov/pubs/factsheets/medline.html
30
2.3.10
PubMed
PubMed1 is a citation database containing over 22 million citations for biomedical and health literature, also covering fields of medicine, behavioural sciences,
chemical sciences, preclinical sciences and bioengineering. It contains the records
from MEDLINE, and additional articles from selected life science journals. As of
September 2012, over 12 million of these articles are listed with their abstracts,
and approximately 500,000 new records are added to the database every year.
PubMed is also the main method for accessing the records in MEDLINE.
2.3.11
PubMed Central
PubMed Central (PMC)2 is a free archive of biomedical and life sciences journal
literature. As of September 2012, it contains over 2.5 million items, including
articles, editorials and letters. Where available, the records in PubMed are crosslinked to their corresponding entries in PubMed Central. The PMC Open Access
Subset is a relatively small part of the total collection of articles in PMC, currently
containing 497,820 records made available under a Creative Commons or similar
licence. The full text of these PubMed Central articles is freely available for
bulk downloading and processing, making it a valuable resource for various text
mining applications.
2.3.12
BioMed Central
BioMed Central (BMC)3 is an open-access publisher that publishes a range of
journals across different biomedical fields, from basic life sciences to clinical
medicine. As of September 2012, BMC has published 133,566 articles of peerreviewed research, all of which are covered by an open access licence agreement,
allowing free distribution and re-use of the full-text articles. All the articles
are available for download in structured XML format, and also included in the
PubMed Central open access dataset. In our experiments we use an earlier version
of the corpus from 2010, containing 71,821 full papers.
1
www.ncbi.nlm.nih.gov/pubmed
www.ncbi.nlm.nih.gov/pmc/
3
www.biomedcentral.com
2
31
2.3.13
GENIA
The GENIA corpus (Kim et al., 2003) is a collection of 1,999 MEDLINE abstracts annotated with various levels of linguistic and semantic information. The
corpus was created to support the development and evaluation of text mining
and information extraction systems in the domain of molecular biology. The articles in GENIA were selected using a PubMed query for the three MeSH terms
‘human’, ‘blood cells’, and ‘transcription factors’. Based on the categories of
annotation, GENIA is divided into the following subcorpora: part-of-speech annotation, constituency (phrase structure) syntactic annotation, term annotation,
event annotation, relation annotation, and coreference annotation.
2.3.14
GENIA-GR
The GENIA-GR dataset (Tateisi et al., 2008) is a corpus created for parser evaluation in the biomedical domain. It is a subset of the GENIA corpus, containing
50 abstracts (492 sentences). The abstracts were chosen to satisfy the following
conditions:
1. The abstract is indexed with the MeSH term ‘NF-Kappa B’.
2. The full text of the article is freely available from PubMed Central.
3. The abstract does not belong to the set used for training parsers by Hara
et al. (2007).
The dataset is annotated using the grammatical relations scheme proposed
by Carroll et al. (1998) and revised by Briscoe et al. (2006), also matching the
DepBank/GR dataset described in Section 2.3.7. Sentences were first parsed by
the RASP parser and then manually corrected.
2.3.15
BioScope
The BioScope corpus (Vincze et al., 2008) consists of biological and medical texts
annotated for negation and speculation, including their linguistic scope. It is designed to allow for comparison of different systems on the tasks of negation/hedge
32
detection and scope resolution. The corpus is divided into three sections based
on the text sources:
• 1,273 abstracts from the GENIA corpus, containing 11,871 sentences.
• 9 full papers, containing 2,670 sentences. 5 of these papers were previously
annotated by Medlock & Briscoe (2007), the remaining 4 were selected from
the BioMed Central repository.
• 1,954 clinical free texts from the radiology report corpus, used for the CMC
clinical coding challenge (Pestian et al., 2007), containing 6,383 sentences.
The CoNLL-2010 shared task on identifying hedges and their scope (Farkas
et al., 2010) also incorporated the BioScope corpus, and 15 additional full papers
were annotated for evaluation.
33
Chapter 3
Detection of speculative language
3.1
Introduction
Speculative or “hedged” language is a way of weakening the strength of a statement. It is usually signalled by a word or phrase, called a hedge cue, which
weakens some clauses or propositions. These weakened portions of a sentence
form the scope of the hedge cues. In the following examples, cues are marked
with angle brackets and scopes with round brackets:1
(1) These findings (<might> be chronic) and (<may> represent reactive
airways disease).
(2) (This subdomain, corresponding to the first exon in the genes split by two
introns, <appears> to be missing in the sea urchin).
Hedging is an important tool in scientific language allowing scientists to guide
research beyond the evidence without overstating what follows from their work.
Vincze et al. (2008) show that 19.44% of all sentences in the full papers of the
BioScope corpus contain hedge cues. Detecting these cues is potentially valuable
for tasks such as scientific information extraction or literature curation, as typically only definite information should be extracted and curated. Most work so far
1
The difference in annotated scopes for these two examples is somewhat controversial, but it
follows the established guidelines of the CoNLL 2010 Shared Task; more information is available
in Section 3.7.1
34
has been done on classifying entire sentences as hedged or not, but this risks losing valuable information in (semi-)automated systems. More recent approaches
attempt to find the specific parts of a sentence that are hedged.
The detection of hedge scopes is usually done in two stages – the hedge cues
are detected first, and a separate system is then utilised to find the scope of each
cue. Both of these tasks can be formulated as a supervised learning problem (e.g.,
token classification), or by manually constructing linguistically-motivated rules
that correctly resolve the scope. In this chapter we describe our implementations
of both approaches, and compare the performance of a fully-supervised system to
a minimally supervised framework utilising a small number of heuristic rules. We
also developed a combination of both methods for the CoNLL 2010 Shared Task:
Learning to Detect Hedges and their Scope in Natural Language Text (Farkas
et al., 2010). The system is designed to find hedge cues and scopes in biomedical
research papers and works in three stages:
1. Detecting the cues using a token-level supervised classifier.
2. Finding the scopes by combining manual rules and a second supervised
token-level classifier.
3. Applying postprocessing rules to convert the token-level annotation into
predictions about scope.
Our final system achieves 55.9% F-measure on the task of detecting both cues
and scopes in the biomedical papers, ranking second in the shared task results.
The experiments in this chapter make use of the dataset and evaluation metrics
from the shared task, and the results are therefore comparable to all the other
submissions.
3.2
Research goals
Our work on detection of speculative language has the following research goals:
• Investigate the relationship between the scopes of speculation cues and the
paths in dependency graphs.
35
• Create a set of heuristic rules for resolving speculation scopes.
• Develop an effective minimally supervised system for detecting speculation
cues and scopes.
• Compare the performance of minimally supervised systems to fully-supervised
systems on the tasks of detecting speculation cues and scopes.
• Experiment with combining heuristic methods and machine learning for
speculation scope detection.
3.3
Background
Hedge cues typically fall into one of the following categories (Farkas et al., 2010):
• auxiliaries: may, might, can, would, should, could, etc.
• verbs of hedging or verbs with speculative content: suggest, question, presume, suspect, indicate, suppose, seem, appear, favour, etc.
• adjectives or adverbs: probable, likely, possible, unsure, etc.
• conjunctions: or, and/or, either . . . or, etc.
However, some complex phrases can also function as hedge cues – for example,
cannot exclude the possibility, raises the question of.
The first linguistically and computationally motivated study of hedging in
biomedical texts was done by Light et al. (2004). They presented an analysis of
the problem based on Medline abstracts and constructed an initial experiment
for automated classification of speculative text.
Following their work, most research has focused on classifying sentences as
hedged or not, rather than finding the scope of the speculation. Medlock &
Briscoe (2007) proposed a weakly supervised machine learning approach to the
hedge classification problem. Their system utilised a supervised classifier with
single words as features and a small amount of seed data for bootstrapping the
system. This work was extended by experimenting with a wider range of features
36
such as part-of-speech tags, lemmas, bigrams, trigrams, and external data sources
(Medlock, 2008; Szarvas, 2008). Kilicoglu & Bergler (2008) applied a combination
of lexical and syntactic methods, improving on previous results and showing that
quantifying the strength of a hedge can be beneficial for classification of speculative sentences. Some of the most recent approaches include using meta-classifiers
(Tang et al., 2010), Bayesian logistic regression (Vlachos & Craven, 2010), and
high-quality lexical feature selection (Georgescul, 2010).
With the creation of the BioScope corpus (Vincze et al., 2008), an annotated
dataset of biomedical papers, abstracts and clinical texts, research focus has
begun to shift more towards detecting the individual cues and scopes in sentences.
The corpus, described in more detail in Section 2.3.15, was built by extending
the dataset and annotation scheme used by Medlock & Briscoe (2007), and was
also used as training data for the CoNLL-10 Shared Task.
Morante & Daelemans (2009) were one of the first to approach the problem
of identifying cues and scopes in the BioScope corpus using supervised machine
learning. They trained a selection of classifiers to tag each word and combined
the results with a final classifier, identifying 65.6% of the scopes in abstracts and
35.9% of the scopes in papers. Özgür & Radev (2009) developed a system that
detects hedge cues using a supervised token-labelling approach and then resolves
the scope by applying manually-constructed rules defined over the parse tree.
One of the CoNLL-10 shared tasks involved the detection of individual hedge
cues and scopes in each sentence, and it led to the development of a wide variety
of different systems. As one of the best-performing submissions, Morante et al.
(2010) utilised a range of lexical, context and dependency features together with
a memory-based classifier to label each token, and performed post-processing
steps to construct speculation scopes. Their classification algorithm is based on
the k-nearest neighbour rule and uses a weighted class vote to find the label.
In contrast, Velldal et al. (2010) deployed a maximum entropy classifier for cue
detection and manual rules over dependency representations for scope resolution.
Their system was later improved by incorporating additional syntactic features
(Øvrelid et al., 2010).
In the most recent work, Apostolova et al. (2011) presented a system that
automatically learns syntactic patterns over a parse tree for resolving the scope
37
of both speculation and negation. Read et al. (2011) reformulated the problem
of scope detection as that of selecting the correct subtree from a parse tree,
given a list of candidates; they then rank these candidates using a linear SVMbased scoring function. Velldal et al. (2012) describe a method for automatically
learning a discriminative ranking function over nodes in constituent trees, and
currently achieve the highest reported results on the CoNLL-10 Shared Task
dataset.
3.4
3.4.1
Rule-based methods
Speculation cues
The detection of hedge cues can be done by creating a fixed list of word sequences
and matching them to the sentences, labelling every occurrence as a cue. This
approach is quite straightforward as the number of unique cues is relatively small
– our training set contains 3,376 cues but only 142 unique examples.1 However,
a word that acts as a cue is not necessarily a cue in every context. For example,
the word or occurs 1,215 times and only 146 of them are annotated as hedge
cues. Selecting all such words as cues will create a system with high recall but
very low precision. Therefore, a more reliable approach would need to select only
instances that have a high probability of being cue words.
We first extracted all word sequences that were tagged as cues in the training
data. Next, we removed any words that occurred more often as a regular word
than a cue. Finally, the list was narrowed down further by removing any cues
that occurred only once in the data. The final set of 42 cue words is shown
in Table 3.1. While our selection was done using annotated data, a similar list
could be manually constructed by a language expert, for example by observing
system output and iteratively improving the selection. Omitting some of the less
frequent cues would not have substantial impact on the performance – while this
set covers 79.98% of all occurrences of speculation cues in the training data, using
only half of them would still include 76.39% the cues.
This rule-based system compares each of the word sequences to the input
1
See Appendix A for a complete list of speculation cues in the training data
38
appear, assume, believe, cannot be exclude, hope, hypothesise, hypothesize,
hypothetically, if not, imply, indicate that, indication, likely, may, might, not
clear, not know, perhaps, possible, possibly, potentially, presumably, probable,
probably, propose, putative, raise the possibility, remain to be elucidate, seem,
should, speculate, suggest, suggestion, suggestive, suppose, suspect, think,
unclear, unlikely, whether, whether or not, would
Table 3.1: List of lemmatised hedge cues selected for string matching.
sentences and labels every match as a hedge cue. The method is extremely fast
and scalable, as it does not require any POS-tagging, parsing or classification.
Experiments in Section 3.7.2 show that it performs surprisingly well compared to
much more complex systems.
3.4.2
Speculation scopes
The scope of each cue can also be detected using a set of manual rules. The
simplest solution to this task is to tag everything between the cue word and the
end of the sentence as belonging to the scope. However, we can do better by
observing that the speculation scopes are usually connected subgraphs of dependency graphs. Also, the pattern of the scope often depends on the type of the
cue – for example, while the scopes normally start with the cue word, they also
include the preceeding subject if the cue verb is passive.
To exploit the information in dependency graphs, we parse the sentences using the RASP parser and develop rules that mark certain words in the directed
dependency graph as belonging to the scope, depending on the position and POS
tag of the cue node. The terminology we use in the following rules and examples:
• “below” refers to nodes that are in the subgraph of dependencies rooted in
the current node.
• “parent” refers to the node that is the head of the current node in the
directed, connected dependency graph.
• “before” and “after” refer to word positions in the text, centred on the
current node.
39
• “mark everything below” means mark all nodes in the subgraph as being
in the scope. However, the traversal of the graph is terminated when a
text adjunct (TA) dependency boundary or a word POS-tagged as a clause
separator is found, since they often indicate the end of the scope.
• All the conditions have to be met together. For example “below the parent
and after the cue” refers to words that are simultaneously below the parent
in the dependency graph and after the cue in the sentence.
The rules for finding the scope of a cue are triggered based on the generalised
POS tag of the cue:
• Auxiliary — VM
Mark everything that is below the parent and after the cue.
If the parent verb is passive, mark everything below its subject (i.e., the
dependent of the subj dependency) before the cue.
• Verb — VV
Mark everything that is below the cue and after the cue.
If the cue is appear or seem, mark everything below subject before the cue.
If the cue is passive, mark everything below subject before the cue.
• Adjective — JJ
Find the parent of the cue. If there is no parent, the cue is used instead.
Mark everything that is below the parent and after the cue.
If the parent is passive, mark everything below subject before the cue.
If the cue is (un)likely and the next word is to, mark everything below
subject before the cue.
• Adverb — RR
Mark everything that is below the parent and after the cue.
• Noun — NN
Find the parent of the cue. If there is no parent, the cue is used instead.
Mark everything that is below the parent and after the cue.
If the parent is passive, mark everything below subject before the cue.
40
• Conjunction — CC
Mark everything below the conjunction.
If the cue is or and there is another cue either before, combine them together. Either . . . or . . . is a frequent exception containing two separate
cues that form a single scope.
• “Whether” as a conjunction — CSW
Mark everything that is below the cue and after the cue.
• Default — anything else
Mark everything that is below the parent and after the cue.
If the parent verb is passive, mark everything below the subject before the
cue.
It is worth noting that these rules are designed to match the annotation guidelines of the shared task, and might not therefore match alternative definitions of
speculation scope.
A partial dependency graph for Sentence 3 is shown in Figure 3.1 (with positional numbering suppressed for readability).
(3) Lobanov et al. thus developed a sensitive search method to deal with this
problem, but they also admitted that it (<would> fail to identify highly
unusual tRNAs).
ccomp that
ncsubj
aux
admitted
NNV
it
PPH1
would
VM
xcomp to
fail
VV0
identify
VV0
dobj
ncmod
highly
RR
ncmod
unusual
JJ
tRNAs
NP2
Figure 3.1: Partial dependency graph for sample sentence (3)
Following the rules, would is identified as a cue word with the part-of-speech VM,
which triggers the first rule in the list. The parent of would is fail since they are
connected with a dependency where fail is the head. Everything that is below
41
fail in the dependency graph and positioned after would is marked as being in the
scope. Since fail is not passive, the subject it is left out. The final scope returned
by the rule is then would fail to identify highly unusual tRNAs.
This method does not require any manually annotated data and only relies on
8 linguistically-motivated rules. Similar approaches could be used for other languages and tasks, such as detecting the scope of negation words. The application
of the rules described in this section requires the sentences to be parsed – this
means the process is not as fast as the rule-based cue detection step. However,
it avoids an additional classification step and is therefore faster than most other
scope detection methods.
3.5
3.5.1
Supervised methods
Speculation cues
One of the most common approaches to detecting speculation cues and scopes
in natural language texts is to formulate the task as a token-level classification
problem. Every word is labelled separately, making use of a wide range of features,
such as POS tags, context in the sentence, paths in the dependency graphs, and
features extracted from parse trees.
For our supervised system of detecting hedge cues we made use of a Conditional Random Field (CRF) (Lafferty et al., 2001) classifier, implemented as
CRF++1 . The CRF model was chosen because it is known to achieve state-ofthe-art performance on related sequence-classification tasks. Each word token is
assigned one of the following tags: F (first word of a cue), I (inside a cue), L (last
word of a cue), O (outside, not a cue), hereafter referred to as the FILO scheme.
Minimally two classes (IO) are required for this task, while three classes (FIO)
are also commonly used. We chose to add a fourth class for the last word of the
cue, to allow the system to learn more accurate conditions for ending long cue
phrases.
The feature types used for classification are defined in terms of the dependency
relations output provided by the RASP system. We use binary features that
1
crfpp.sourceforge.net
42
indicate whether a word token is a head or a dependent in specific types of
relations. This distinguishes between different functions of the same word (when
used as a subject, object, modifier, etc.). These features are combined with the
POS and lemma of the word to distinguish between uses of different cues and cue
types. We also utilise features for the lemma and POS of the 3 words before and
after the current word.
The feature types for training the supervised classifier are as follows:
•
•
•
•
•
•
•
•
•
•
•
•
words (in their inflected forms)
lemma
part-of-speech
broad part-of-speech
incoming dependencies + POS
outgoing dependencies + POS
incoming dependencies + POS + lemma
outgoing dependencies + POS + lemma
lemma + POS + POS of next word
lemma + POS + POS of previous word
3 previous lemma + POS combinations
3 following lemma + POS combinations.
Outgoing dependencies are relations where the current word is the head, incoming
dependencies where it is the dependent.
The predictions from the classifier are compared to the list of known cues
extracted from the training data, and the longest possible match is marked as a
cue. For example, the classifier could output the following tag sequence:
(4) This[O] indicates[F] that[O] these[O] two[O] lethal[O] mutations[O] . . .
indicates is classified as a cue but that is not. The list of known cues contains
‘indicates that’ which matches this sentence, therefore the system prediction will
be:
(5) This <indicates that> these two lethal mutations . . .
43
Our experiments showed that the supervised system is unable to correctly detect previously unseen cues, and instead creates some unnecessary false positives.
Lemma is the most important feature type for cue detection and when it is not
available, there is not enough evidence to make good predictions. Therefore, we
compare all system predictions to the list of known cues and if there is no match,
they are removed. The detection of unseen hedge cues is a potential topic for
future research.
3.5.2
Speculation scopes
The next step of our supervised approach also utilises the CRF classifier to find
the scope for each predicted cue. Every word token in the sentence is tagged with
either F (first word of a scope), I (inside a scope), L (last word of a scope) or O
(outside, not in a scope). The correct tagging for a sample sentence is shown in
Table 3.2.
We
expect
that
this
cluster
may
represent
a
novel
selenoprotein
family
.
expect
O
F
I
I
I
I
I
I
I
I
L
O
may
O
O
O
O
O
F
I
I
I
I
L
O
Table 3.2: Example of scope tagging.
If a cue contains multiple words, they are each processed separately and the
predictions are later combined by postprocessing rules, as described in Section
3.6.
44
The list of features for each token, used both alone and as sequences of 5-grams
before and after the token, is:
•
•
•
•
•
•
•
•
•
•
•
•
•
token-level prediction derived from the rule-based scope detection system
lemma
POS
is the token also the cue
distance from the cue
absolute distance from the cue
relative position to the cue
are there brackets between the word and the cue
is there any other punctuation between the word and the cue
are there any special (clause separating) words between the word and cue
is the word in the dependency subtree of the cue
is the word in the dependency subtree of the main verb
is the word in the dependency subject subtree of the main verb
We also include the following features of the current word in combination with
the POS sequence of the cue:
•
•
•
•
•
•
•
POS
distance from the cue
absolute distance from the cue
relative position to the cue
is the word in the dependency subtree of the cue
is the word in the dependency subtree of the main verb
is the word in the dependency subject subtree of the main verb
Additional features include:
• dependency paths between the word and the cue (full path plus subpaths
with up to 5 nodes)
• dependency paths in combination with the lemma sequence of the cue
These feature sets were found by experimenting on the development data and
choosing the best configuration, optimised for the F-score of the shared task
evaluation.
45
The scope of the hedge cue can often be found by tracking the sequence of
grammatical relations in the dependency graph of a sentence, as described by
the manual rules. To allow the classifier to learn such regularities, we include
features based on the dependency path between the cue word and the word being
classified. Given that the sentence has a full parse and a connected dependency
graph, we can find the shortest connected path between any two words. The
path between the word and the cue is converted into a string representation, to
be used as a feature value in the classifier. Path sections of different lengths allow
the system to find both general and more specific patterns. POS tags are used
as node values to abstract away from word tokens.
An example for the word unusual, using the graph from Figure 3.1, is given
below. Five features representing paths with increasing lengths plus one feature
containing the full path are extracted:
(6) 1:
2:
3:
4:
5:
6:
VM
VM<–aux–VV0
VM<–aux–VV0–xcomp–>VV0
VM<–aux–VV0–xcomp–>VV0–dobj–>NP2
VM<–aux–VV0–xcomp–>VV0–dobj–>NP2–ncmod–>JJ
VM<–aux–VV0–xcomp–>VV0–dobj–>NP2–ncmod–>JJ
Line 1 shows the POS of the cue would (VM). On line 2, this node is connected
to fail (VV0) by an auxiliary dependency relation. More links are added until we
reach unusual (JJ).
The presence of words that often indicate the beginning of a new clause,
used by Morante & Daelemans (2009), is included as a feature type with values: whereas, but, although, nevertheless, notwithstanding, however, consequently,
hence, therefore, thus, instead, otherwise, alternatively, furthermore, moreover,
since.
Finally, we also experiment with combining the manual rules together with the
supervised approach. First, the text is parsed and the rules from Section 3.4.2 are
applied to sentences. The resulting tagging sequence is then incorporated into the
CRF classifier as additional features. This method uses information from both the
46
manually-developed rules and automatically-extracted features, and experiments
in Section 3.7 show that it achieves the highest precision and recall.
3.6
Post-processing
All of our scope prediction systems perform labelling on the token level and this
does not always result in a continuous scope over the surface form of the text.
Therefore, we can further increase accuracy by performing some simple heuristic
post-processing steps.
First, if the cue contains multiple words, the scope predictions for each word
have to be combined. This is done by overlapping the sequences and choosing
the preferred tag for each word, according to the hierarchy F > L > I > O. Next,
scopes are constructed from tag sequences using the following rules:
• Scope starting point is the first token tagged as F before the cue. If none
are found, the first word of the cue is used instead.
• Scope end point is the last token tagged as L after the cue. If none are
found, search for tags I and F. If none are found, the last word of the cue
is used as end point.
The scopes are further modified until none of the rules below return any updates:
• If the last token of the scope is punctuation, move the end point before the
token.
• If the last token is a closing bracket, move the scope end point before the
opening bracket.
• If the last token is a number and it is not preceded by a capitalised word,
move the scope end point before the token. This is a heuristic rule to
handle trailing citations which are frequent in the training data and often
misattached by the parser.
Finally, scopes are checked for partial overlap and any such instances are
corrected. For example, the system might return a faulty version (7) of a sentence
in which one scope is only partially contained within the other.
47
(7) We [<expect> that this cluster (<may> represent a novel] selenoprotein
family).
This prediction cannot be represented using the current established format for
representing hedge scopes and we were unable to find cases where such annotation
would be needed. Therefore, these scopes are modified by moving the end of the
first scope to the end of the second scope. The example above would become:
(8) We [<expect> that this cluster (<may> represent a novel selenoprotein
family)].
3.7
3.7.1
Experiments
Dataset
Our experiments make use of the CoNLL 2010 Shared Task dataset (Farkas et al.,
2010), annotated for hedge cues and scopes. The training set is a revised version
of the Bioscope corpus (Vincze et al., 2008), which includes 9 full papers and
1,273 abstracts from biomedical research fields. A separate new set of full papers
was released for evaluation as part of the shared task. Table 3.3 contains an
overview of the training data statistics.
Documents
Sentences
Cues
Scopes
Unique cues
Cues with multiple words
Scopes start with cue
Scopes with multiple cues
Papers
9
2,670
682
668
100
10.70%
72.00%
2.10%
Abstracts
1,273
11,871
2,694
2,659
112
12.25%
80.59%
1.28%
Table 3.3: Training data statistics.
Sentence (9) provides an example from the corpus illustrating the annotation
scheme. Sentence (10) shows the same example, representing cues with angle
brackets and scopes with round brackets.
48
(9) <sentence id=“S1.166”>We <xcope id=“X1.166.2”><cue
ref=“X1.166.2” type=“speculation”>expect</cue> that this cluster
<xcope id=“X1.166.1”><cue ref=“X1.166.1”
type=“speculation”>may</cue> represent a novel selenoprotein
family</xcope></xcope>.</sentence>
(10) We (<expect> that this cluster (<may> represent a novel selenoprotein
family)).
The annotation guidelines (Farkas et al., 2010) specify that hedge cues should
be marked using the minimal strategy, where only the shortest possible unit that
expresses and determines the strength of speculation should be marked as the cue.
In contrast, hedge scopes should be extended to the largest syntactic unit possible.
The scope of verbs, auxiliaries, adjectives and adverbs usually starts with the cue
word. In the case of verbs or auxiliaries the scope includes all complements
and adjuncts, ending with the clause or the sentence. The scope of predicative
adjectives and sentential adverbs commonly includes the whole sentence. Other
adverbs extend to the end of the clause, and attributive adjectives end with the
following noun phrase. There are different exceptions to these guidelines, and
linguistic phenomena, such as passive voice, can change the scope boundaries in
the sentence.
There are a number of restrictions that are imposed on the annotation:
• Every cue has one scope.
• Every scope has one or more cues.
• The cue must be contained within its scope.
• Cues and scopes have to be continuous.
These limitations simplify the annotation process and the representation format,
but can lead to cases where some more complex hedge scope constructions cannot
be accurately annotated. Most importantly, the requirement for the hedge scope
to be continuous over the surface form of a sentence does not work for some
examples drawn from the training data. In (11) below it is uncertain whether
49
fat body disintegration is independent of the AdoR. In contrast, it is stated with
certainty that fat body disintegration is promoted by action of the hemocytes, yet
the latter assertion is included in the scope to keep it continuous.
(11) (The block of pupariation <appears> to involve signaling through the
adenosine receptor ( AdoR )) , but (fat body disintegration , which is
promoted by action of the hemocytes , <seems> to be independent of the
AdoR) .
Similarly, according to the annotation guidelines, the subject of be likely
should be included in its scope, as shown in example (12). In sentence (13),
however, the subject protein pairs is separated by two non-speculative clauses
and is therefore excluded from the scope.
(12) Some predictors make use of the observation that (neighboring genes
whose relative location is conserved across several prokaryotic organisms
are <likely> to interact).
(13) Protein pairs predicted to have a posterior odds ratio below 1.0 have an
estimated true positive rate below 50% and thus (are more <likely> not
to interact than to interact).
In (14), arguably, there is no hedging as the sentence precisely describes a
statistical technique for predicting interaction given an assumption.
(14) More recently, other groups have come up with sophisticated statistical
methods to estimate (<putatively> interacting domain pairs), based on
the (<assumption> of domain reusability).
These examples illustrate several cases where the current guidelines produce
controversial or unintuitive annotation, which in turn can lead to low agreement
of human annotators and low upper bounds for automated systems.1 Ultimately,
dealing effectively with such examples would involve representing hedge scopes
1
We are unable to report annotator agreement on the dataset, as it has not been crossannotated.
50
in terms of sets of semantic propositions recovered from a logical semantic representation of the text, in which anaphora, word sense, and entailments had been
resolved. However, the currently established format can correctly represent a
large majority of scopes and reasonably approximate the remaining cases. It is
part of future work to investigate whether a more accurate annotation scheme
can be created for the representation of hedge scopes.
All of the training and test sentences were tokenised and parsed using the
RASP system (Briscoe et al., 2006). Multiple part-of-speech (POS) tag outputs
were passed to the parser (to compensate for the high number of unseen words in
biomedical text), retaining just the highest ranked directed graph of dependency
relations. Each node in the graph represents a word token annotated with POS,
lemma, and positional order information. In the case of parse failure the set
of unconnected graphs returned by the highest-ranked spanning subanalyses for
each sentence was retained.
3.7.2
Cue detection
We make use of the evaluation scripts provided by the organisers of the shared
task. In cue-level evaluation a predicted cue is counted as correct if it contains
the correct substring of the sentence. Token-level evaluation would not give accurate results because of varying tokenisation rules. The sentence-level evaluation
regards a sentence as being speculative if it contains one or more cues. We report precision, recall and F-measure of different system configurations using both
evaluation methods.
As the baseline system for cue detection we use simple string matching. The
list of known cues is collected from the training data and compared to the test
sentences. The longest possible match is always marked as a cue.
The rule-based system uses a limited list of 42 word sequences that predict
speculation with higher precision. The supervised system uses a fully-supervised
classification system to predict a cue label for each token. During the development
process we separated the training set into two sections and used 60% for training
and 40% for development. The results below measure the system performance on
the evaluation dataset while using all of the training data to build the supervised
51
classifier.
Predicted cues
Correct cues
Cue precision
Cue recall
Cue F-measure
Sentence precision
Sentence recall
Sentence F-measure
Baseline
3062
1018
33.25
97.23
49.55
41.32
99.49
58.40
Rule-based
889
737
82.90
70.39
76.14
85.81
79.62
82.60
Supervised
991
808
81.53
77.17
79.29
83.82
83.92
83.87
Table 3.4: Cue detection results on the evaluation dataset.
The baseline system returns nearly all cues but since it matches every string,
it also returns many false positives, resulting in low precision and only 49.55%
F-measure. The rule-based system uses a carefully selected list of cue words and
increases F-measure to 76.14%. The supervised system further improves recall
while sacrificing some precision and manages to achieve the highest F-measure
of 79.29%. It is worth noting that the difference between the last two systems
is only 3.15%, despite of the vast differences in complexity. The difference in
sentence-level performance is even smaller – 82.60% F-measure from the rulebased system, compared to 83.87% from the supervised system. Based on these
experiments we believe that a minimally-supervised method could be a practical choice for production-level deployment, achieving comparable results with
virtually no complexity or extra resources. However, when trying to achieve the
best possible performance, supervised classifiers can be used to model much more
complicated patterns and reach the highest F-measure.
In the context of the shared task, our supervised system ranked fourth in
the cue-level evaluation, with the top system achieving 81.3% F-measure. If
the rule-based method had also taken part, it would have ranked 9th out of 16
participating systems.
For further analysis of the cue detection task, Table 3.5 lists the ten most
common cues in the test data and the number of cues found by the supervised
system. In the cases of may and suggest, which are also the most common cues
52
may
suggest
can
or
indicate that
whether
might
could
would
appear
TP
161
124
2
9
49
42
42
30
37
31
FP
5
0
1
12
2
6
1
17
14
14
Gold
161
124
61
52
50
42
42
41
37
31
Table 3.5: True and false positives of the ten most common cues in the evaluation
data, using the best supervised system.
in the development data, the system finds all the correct instances. Can and
or are not detected as accurately because they are both common words that in
most cases are not functioning as speculation cues. For example, there are 1,215
occurrences of or in the training data and only 146 of them are hedge cues; can
is a cue in 64 out of 506 instances. We have not found any extractable features
that reliably distinguish between the different uses of these words.
3.7.3
Scope detection
A scope is counted as correct if it has the correct beginning and end locations in
the sentence, and is associated with the correct cues. Scope prediction systems
require detected cues as input, therefore we present three separate evaluations
– using correct cues from the gold standard, using cues predicted by the rulebased system (Section 3.4.1), and using cues predicted by the supervised system
(Section 3.5.1).
The baseline method looks at each cue and marks a scope from the beginning
of the cue to the end of the sentence, excluding the ending punctuation. The
system using manual rules applies the appropriate rule, based on the POS tag of
the cue, and selects words that belong to the scope, as described in Section 3.4.2.
The supervised system uses a CRF classifier to label tokens based on a range of
53
features, such as the lemma, part-of-speech, surrounding words, relative position
to the cue, and dependency path to the cue. The combined system takes the
labels from the rule-based predictions and uses them as additional features in the
supervised system. Post-processing rules are applied equally to the output of all
methods.
Baseline
Rule-based
Supervised
Combined
# correct
596
661
633
683
Precision
56.92
63.86
60.46
65.99
Recall
57.70
63.99
61.28
66.12
F-measure
57.31
63.93
60.87
66.05
Table 3.6: Scope detection results using the gold standard cues.
Baseline
Rule-based
Supervised
Combined
# correct
470
493
498
526
Precision
52.87
55.46
56.02
59.17
Recall
45.50
47.73
48.21
50.92
F-measure
48.91
51.30
51.82
54.73
Table 3.7: Scope detection results using cues found by the rule-based system.
Baseline
Rule-based
Supervised
Combined
# correct
506
532
537
565
Precision
51.06
53.74
54.19
57.07
Recall
48.98
51.50
51.98
54.70
F-measure
50.00
52.60
53.06
55.86
Table 3.8: Scope detection results using cues found by the supervised system.
Tables 3.6, 3.7 and 3.8 present the experimental results using different methods
for cue detection. The baseline system performs remarkably well compared to
other approaches. It does not use any grammatical or lexical knowledge apart
from the location of the cue and yet it delivers an F-score of 50.00% with predicted
and 57.31% with gold standard cues.
54
Manual rules are essentially a more fine-grained version of the baseline. Instead of a single rule, one of 8 possible rules is selected, based on the POS tag
of the cue. This improves the results, increasing the F-score to 52.60% with predicted and 63.93% with gold standard cues. The improvement suggests that the
POS tag of a cue is a useful indicator of how it behaves in a sentence.
The supervised system gives a small additional improvement when using predicted cues, but it is outperformed by the rule-based system if gold-standard
cues are provided as input. This can be explained by the classifier learning correct patterns for common cues that are also frequent in the training data, but
performing poorly on rare or unseen cues. Since the cue prediction systems are
also better at predicting common cues, the supervised classifier has an advantage
given this specific input. However, when dealing with cues of lower frequency, the
linguistically-engineered scope detection rules perform better. A possible avenue
for future work is to investigate if using a different scope prediction system based
on the frequency of the cue could further improve accuracy.
Finally, the combination system uses information from both sources and achieves
the best overall results, with 66.05% F-measure using gold-standard cues and
55.86% using predicted cues. This configuration ranked second in the scope-level
evaluation of the CoNLL-10 Shared Task; in comparison, the best-performing
system by Morante et al. (2010) achieved 57.3% F-measure with predicted cues.
The system using only heuristic rules for both cue and scope detection would
have ranked 6th out of 15 participants with 51.30% F-measure. Furthermore, the
simple method of detecting cues using a list of 42 phrases and always constructing
the scope from the cue to the end of the sentence achieves 48.91% F-measure and
would have also ranked in the 6th place.
Error analysis on the output of the rule-based system showed that 35% of
faulty scopes were due to incorrect or unconnected dependency graphs output by
the parser, and 65% due to exceptions that the manual rules do not cover. An
example of an exception is given by Sentence 15, with the braces { } showing the
scopes predicted by the rules.
(15) Contamination is {(<probably> below 1%)}, which is {(<likely> lower
than the contamination rate of the positive dataset) as discussed in 47}.
55
In this sentence, as discussed in 47 is a modifier of the clause which is usually
included in the scope, but in this case should be left out.
3.8
Conclusion
This chapter investigated the task of detecting speculation cues and scopes using
systems with varying levels of supervision. We found that the dependency output
from the RASP system can be effectively used as features in a supervised classifier for detecting cues, and also as the basis for manual rules and features for
scope detection. We demonstrated that a small number of manual rules can provide competitive results, and that these can be further improved using machine
learning techniques and post-processing rules. The generally low results for the
scope detection task demonstrate the difficulty of both annotating and detecting
the hedge scopes in terms of surface sentential forms. A revised definition of
the overall task could lead to better systems, as the current guidelines can seem
unintuitive in certain cases.
We compared the performance of a minimally supervised rule-based system to
a fully supervised system and found that the small number of manual rules were
able to offer competitive results without requiring any annotation. Furthermore,
this requires much less resources and can therefore be more suitable for practical
deployment. However, for maximum performance, fully supervised methods offer
the way to learn more complicated patterns in the data and achieve the highest
accuracy. Combining the alternative methods together improves the results even
further.
There are several interesting directions for further investigating the problem of
speculation detection. We would encourage further development of manual rules
for scope resolution, as more fine-grained approaches could potentially lead to
performance comparable to supervised systems. Also, Morante et al. (2010), who
ranked first in the task of scope detection, used a k-nearest neighbour algorithm
instead of a probabilistic approach. Using the features developed for our classifier
together with a k-NN approach could give interesting results.
The CoNLL-10 Shared Task triggered the creation of dozens of hedge detection
systems. While their evaluation scores are comparable on the shared dataset, it
56
is currently unclear which components contribute most to achieving the best
results. Different implementations of cue and scope detection systems make use
of a wide range of manual rules, classifiers, parsers, features, post-processing
steps and external resources. Removing some of these variables and conducting
experiments on specific components could also lead to the development of better
systems.
Haghighi et al. (2005) point out three types of language constructions that
make the task of textual entailment recognition more difficult – hedging, negation
and superlative adjectives. These language constructions can change the direction
of an entailment relation, yet they often go unnoticed by simple graph matching
techniques. Our experiments in Chapter 5 also demonstrate that detection of
speculative and negated language can directly improve the performance of entailment detection systems. Negation and superlative adjectives behave similarly to
speculation – there exist certain cue words that have influence over specific parts
of the sentence. As we have a working system for speculation scope detection, an
interesting future extension would be to adapt this technique to also work with
cases involving negation and superlative adjectives.
57
Chapter 4
Hyponym detection and
generation
4.1
Introduction
Hyponymy is a relation between two word senses, indicating that the meaning
of one word is also contained in the other. It can be thought of as a typeof relation; for example car, ship and train are all hyponyms of vehicle. We
indicate a hyponymy relation between words a and b as (a → b), showing that
a is a hyponym of b, and b is a hypernym of a. For example, (ship → vehicle)
and (villa → house). Hyponymy relations are closely related to the concept
of entailment, and this notation is consistent with indicating the direction of
inference – if a is true, b must be true as well.
Automatic detection and generation of hyponyms has many practical applications in nearly all natural language processing tasks. Information retrieval,
information extraction and question answering can be improved by performing
appropriate query expansion. For example, a user searching for arthritis treatment is most likely also interested in results containing the hyponyms of treatment, such as arthritis therapy, arthritis medication, and arthritis rehabilitation.
Summarisation systems can increase coherence and reduce repetition by correctly
handling hyponymous words in the input text. Entailment and inference systems
can improve sentence-level entailment resolution by detecting the presence and
58
direction of word-level hyponymy relations. Distributionally similar words have
been used for smoothing language models and word co-occurrence probabilities
(Dagan et al., 1999; Weeds & Weir, 2005), and hyponyms are potentially more
suitable for this task. For example, we may wish to estimate the probability of
publication being the object of read, but due to sparsity this combination never
appears in our corpus. By finding that book is a hyponym of publication, and
that book occurs with read quite frequently, we can infer that publications are
also likely to be read.
Most previous work has been using the general notion of distributional or semantic similarity between two words. Systems often employ symmetric similarity
scores, potentially leading to incorrect behaviour. For example, vehicle can be
replaced by train in a query expansion setting, since every train is also a vehicle
and therefore matches the original query. However, replacing train with vehicle
would likely return incorrect results, as it would also refer to many other types
of vehicles. In addition, different definitions of semantic similarity or relatedness
cover a wide range of relations, some of which are not suitable for word substitution. For example, window is a meronym of house, but although brick house is a
likely co-occurrence, brick window is an unlikely word pair and does not semantically match the original phrase. Therefore, we focus on hyponymy relations, as
they are asymmetrical and better suited for the applications of query expansion
and lexical substitution.
The task of hyponym detection is to determine whether one word is a
hyponym of the other. Given a directional word pair (a, b), the system needs to
classify it as a valid hyponym relation (a → b) or not. This can be useful when the
application has a list of candidate pairs, or when looking for similarities between
two sentences. In contrast, hyponym acquisition is the task of extracting all
possible hyponym relations from a given resource or text corpus. Such systems
often make use of heuristic rules and patterns for extracting relations from surface text, and populate a database with hyponymous word pairs. Finally, the
task of hyponym generation is to return a list of all possible hyponyms, given
only a single word as input. This is most relevant to practical applications, as
many systems require a set of appropriate substitutes for a specific term, yet
barely any research has been done in this area. The problem of generation can be
59
reformulated as a hyponym detection task by using a very large set of candidate
hyponyms, or as a hyponym acquisition task by utilising a large corpus containing all the required word pairs. However, all successful methods for hyponym
detection or acquisition are not necessarily well-suited for hyponym generation,
as it involves a different range of challenges.
Our work focuses on the task of hyponym generation and approaches it
through hyponym detection. We are especially interested in methods using distributional similarity, as they can be easily deployed on different domains and
genres without requiring annotated training data. First, we created several new
datasets that help us evaluate the performance of different measures on these
tasks. Then, we performed systematic assessment of a wide range of distributional similarity measures, which are prominent in existing research, on the tasks
of hyponym detection and generation. A novel measure is proposed that builds
on previous work and delivers significantly better results on our dataset of noun
hyponym generation. Finally, we examine how good is the performance of unsupervised similarity measures when compared to a fully supervised approach using
annotated data. A discriminative SVM classifier was trained using additional labelled examples and used to run comparative experiments on the same problem
sets.
4.2
Research goals
Our work on hyponym detection and generation has the following goals:
• Construct appropriate datasets for evaluating hyponym detection and generation.
• Compare the performance of well-known similarity measures on the tasks
of hyponym detection and generation.
• Investigate the properties of a successful directional similarity measure.
• Specify a new similarity measure for hyponym generation.
• Compare the performance of minimally supervised distributional similarity
measures to a fully supervised machine learning algorithm.
60
4.3
Background
Hearst (1992) described one of the earliest methods for automated hyponym
acquisition from corpora. Several lexico-syntactic patterns were manually defined
to model common contexts in which hyponyms appear. For example, pattern (16)
matches sentence (17):
(16) such NP as {NP,}* {(or |and)} NP
(17) . . . works by such authors as Herrick, Goldsmith and Shakespeare.
Their system is low-cost and applicable even to very small text corpora, but it
relies heavily on very specific lexical patterns matching the input text, and is
unable to offer sufficiently wide coverage. Snow et al. (2005) extend this idea by
having the system automatically learn useful lexico-syntactic patterns using an
annotated dataset.
Various alternative approaches have been developed and applied to the related
task of automated ontology creation. Distributional similarity measures have received wide attention as well, but mostly as methods for hierarchical clustering
when building prototype-based ontologies (Ushioda, 1996; Bisson et al., 2000;
Wagner, 2000; Paaß et al., 2004). In a prototypical ontology, every node contains
a set of terms that are found to be sufficiently similar, but the structure does not
contain the labels necessary for performing lexical substitution or inducing hyponym relations. Manually constructed patterns, based on the method proposed
by Hearst (1992), can be used to assign suitable labels to each of the clusters in
a post-processing stage (Caraballo, 1999; Cimiano & Staab, 2005).
Discovering a hierarchy between concepts can also be formulated as a supervised classification task, given appropriate training data. In such a setting, an
existing ontology can be used for feature extraction and evaluation, and new relations returned by the system can be suggested as potential additions (Alfonseca
& Manandhar, 2002; Witschel, 2005; Snow et al., 2006). Recently, more advanced
methods using Markov Logic have been deployed to jointly induce a probabilistic
ontology and perform knowledge extraction (Poon & Domingos, 2009, 2010).
61
Biemann (2005) offers an overview of different tasks and methods related
to automated ontology creation. However, very limited work has been directed
towards using distributional methods for hyponym detection, and to the best
of our knowledge there has been no previous work attempting to evaluate these
methods for hyponym generation.
Zhitomirsky-Geffet & Dagan (2009) focus on improving feature vector quality
through bootstrapping, and apply it to the task of detecting meaning-preserving
words for lexical substitution. They define the relation of substitutable lexical
entailment (or lexical entailment for brevity). Given a directional pair of
terms (w, v), the term w is said to entail v if the following two conditions are
fulfilled:
1. Word meaning entailment: the meaning of a possible sense of w implies a
possible sense of v.
2. Substitutability: w can substitute for v in some naturally occurring sentence, such that the meaning of the modified sentence would entail the
meaning of the original.
As an example, government entails minister, since The government voted for the
new law entails A minister in the government voted for the new law.
The substitutability criterion requires there to be one context where v can
be substituted by w for there to exist a valid entailment relation. However,
the simple notion of substitutability can in some cases be too general, leading
to ambiguous results. From the previous example, minister should also entail
government, as Ministers passed a new law entails The government passed a
new law. Similarly, He likes fruit entails He likes apples, but He eats apples for
breakfast entails He eats fruit for breakfast. This example seems to indicate that
apple and fruit are interchangeable and essentially synonymous. Other linguistic
phenomena such as negation, hedging and quantifiers can further modify the
direction of the entailment relation, and without additional criteria it can be
difficult to unambiguously determine lexical entailment. In this chapter, we have
chosen to focus on detecting only hyponymy relations, as they are defined between
specific concepts, regardless of the context where they appear, and still cover
62
the majority of word pairs that are suitable for lexical substitution in practical
applications.
Our work follows Kotlerman et al. (2010), who offer one of the most recent
comparisons of different distributional similarity measures for detecting lexical
entailment. They describe the theoretical criteria of a good directional similarity measure, and also propose a new measure based on average precision. We
apply similar methodology to hyponym detection and generation, further extend
their work by suggesting additional desired properties of a directional similarity
measure, and describe a new measure which delivers significant improvements in
our evaluation. As hyponymy is dependent on word senses, we also follow their
approach and define a relation to be valid between two terms if it is valid between
any senses of those terms.
Recently, Baroni & Lenci (2011) created the BLESS data set for evaluation
of distributional semantic models. It contains annotated tuples with various
relations, including hypernyms, but it is designed for the task of distinguishing
different types of alternative relations, as opposed to generating hyponyms from
an open candidate set.
4.4
Similarity measures
In this section we present an overview of prominent distributional similarity measures which have been used to detect semantic similarity and which could also be
used for hyponymy detection. Fa is used to denote the set of weighted features
for word a, f ∈ Fa indicates one feature instance present in that set, and wa (f )
is the weight of feature f for word a. Examples of possible feature types include
words that occur in a limited context window, connected words and relations
from dependency graphs, or document-level co-occurrences. Since the possible
feature space can be infinite, we say that f belongs to the feature set Fa if it has
a non-zero weight. Some measures require only positive feature weights to return
reasonable similarity scores, and we use Fa+ to indicate the subset of features with
strictly positive values. Our implementations always return the similarity value
of 0 if they cannot be calculated – for example, when the input of empty vectors
would lead to division by zero.
63
Most of these measures are true similarities, assigning higher score values to
more similar word pairs, usually in the range of [0,1] or [-1,1]. However, there are
also some distance measures, with higher values showing higher dissimilarity, and
they are indicated by a diamond () as their output needs to be reverse-ordered.
Similarly, we also use a star (?) to indicate measures that are asymmetric – the
similarity score for (a, b) will not necessarily have the same value as for (b, a).
4.4.1
Cosine
Cosine similarity calculates the angle between two feature vectors and has become
the standard measure for similarity between weighted vectors in information retrieval (IR). Using the inner product between two vectors as a similarity score
developed naturally by generalising coordinate-wise matching. However, inner
product by itself does not take vector length into account and will assign higher
values to longer vectors. In contrast, simply finding the Euclidean distance between two vectors strongly discriminates against vectors with different lengths.
The cosine measure overcomes both of these problems by considering the direction of the two vectors, as opposed to their length or distance (Witten et al.,
1999; Curran, 2003):
P
Cosine(Fa , Fb ) = qP
4.4.2
wa (f ) × wb (f )
qP
2×
2
w
(f
)
f ∈Fa a
f ∈Fb wb (f )
f ∈Fa ∩Fb
(4.1)
Pearson product-moment correlation coefficient
The Pearson product-moment correlation coefficient, typically denoted by r, was
defined by Karl Pearson in 1895 (Pearson, 1895; Rodgers & Nicewander, 1988)
and it measures correlation between two variables. The value is in the range of
[-1,1], with 0 denoting no correlation and -1 meaning negative correlation. The
formula is presented below:
P
r(Fa , Fb ) = qP
− µa ) × (wb (f ) − µb )]
qP
2×
2
(w
(f
)
−
µ
)
a
a
f ∈Fa ∪Fb
f ∈Fa ∪Fb (wb (f ) − µb )
f ∈Fa ∪Fb [(wa (f )
64
(4.2)
where µa is the mean of feature weights for vector Fa :
µa =
X
1
wa (f )
|Fa ∪ Fb | f ∈F ∪F
a
(4.3)
b
where |Fa ∪ Fb | is the number of unique elements in both vectors combined.
When calculating Pearson’s or Spearman’s correlation, it is important to note
that zero values cannot be simply ignored, as in cosine similarity. Here, the mean
of feature weights is subtracted from each weight, giving these elements a nonzero value. Therefore, the calculation has to be done over the union of both sets
of features.
One interpretation of this measure is that both feature vectors are modified by
subtracting the corresponding mean of the weights. The cosine similarity between
these modified vectors is also equal to Pearson’s coefficient.
4.4.3
Spearman’s rank correlation coefficient
Spearman’s correlation coefficient (Spearman, 1904), denoted by ρ, is defined as
the Pearson product-moment correlation coefficient between the ranks of feature
weights:
− µ0a ) × (rb (f ) − µ0b )]
qP
ρ(Fa , Fb ) = qP
0 2
0 )2 ×
(r
(f
)
−
µ
a
a
f ∈Fa ∪Fb
f ∈Fa ∪Fb (rb (f ) − µb )
P
f ∈Fa ∪Fb [(ra (f )
(4.4)
where ra (f ) is the rank of feature f in the sorted order of vector Fa , and µ0a is
the mean of rank values. In case of tied values in the feature vector, the rank
is calculated as the average of the ranks. For example, if identical values are
positioned in ranks 2 and 3, they are both assigned the rank value of 2.5. As
with Pearson’s correlation, Spearman’s correlation is also symmetrical and with
values in the range of -1 to 1. However, unlike Pearson’s, this measure is less
sensitive to outliers, as the specific weights are reduced to only relative positions.
65
4.4.4
Jaccard index (Set)
Jaccard index (Jaccard, 1901) is a statistic used for comparing the similarity
between two sets. It is calculated as the size of the intersection of these sets,
divided by the size of the set union. Jaccard index can be used for measuring
the similarity of two feature vectors by applying it to the sets of non-zero feature
types. This method ignores the specific feature weights and treats them as binary
values:
JaccardSet(Fa , Fb ) =
4.4.5
|Fa ∩ Fb |
|Fa ∪ Fb |
(4.5)
Dice (Set)
Dice’s coefficient, created by Dice (1945), is similar to the Jaccard index and
operates over sets. It compares the size of the intersection to the sum of individual
set sizes. As before, we can apply this to feature vectors by operating over sets
of feature types with non-zero weights:
DiceSet(Fa , Fb ) =
4.4.6
2 × |Fa ∩ Fb |
|Fa | + |Fb |
(4.6)
Overlap coefficient
The overlap coefficient (Manning & Schütze, 1999) is similar to the set similarity
measures of Jaccard and Dice. However, it compares the size of the intersection
only to the smaller of the two sets:
OverlapSet(Fa , Fb ) =
4.4.7
|Fa ∩ Fb |
min(|Fa |, |Fb |)
(4.7)
Cosine (Set)
This early set-theoretic version of cosine is similar to DiceSet, except the denominator uses a geometric mean instead of an arithmetic mean. They are identical
when both vectors contain the same number of non-zero elements. However, the
CosineSet measure gives a smaller penalty to cases where the number of nonzero elements is very different. For example, when comparing vectors of length 1
66
√
and length 1000, with one shared entry, then CosineSet = 1/ 1000 × 1 ≈ 0.03,
whereas DiceSet = 2 × 1/(1 + 1000) ≈ 0.0002. This is a useful property for
statistical NLP, since we often compare words with varying amounts of features
or evidence, but that does not necessarily mean they are not similar in semantics
(Manning & Schütze, 1999).
|Fa ∩ Fb |
CosineSet(Fa , Fb ) = p
|Fa | × |Fb |
4.4.8
(4.8)
Jaccard (Generalisation)
Grefenstette (1994) generalised the Jaccard similarity measure to non-binary
value (fuzzy sets) semantics. In this framework, the intersection operation is
replaced with the sum of minimum pairwise feature weights, and the union is
replaced with the sum of maximum pairwise feature weights. If the weights are
constrained to binary values, this measure reduces to the original Jaccard index
performed on sets.
P
f ∈F ∩F min(wa (f ), wb (f ))
JaccardGen(Fa , Fb ) = P a b
f ∈Fa ∪Fb max(wa (f ), wb (f ))
4.4.9
(4.9)
Dice (Generalisation)
Using a similar approach, the Dice similarity measure can also be generalised to
weighted feature vectors (Grefenstette, 1994; Curran, 2003):
P
2 × f ∈Fa ∩Fb min(wa (f ), wb (f ))
P
DiceGen(Fa , Fb ) = P
f ∈Fa wa (f ) +
f ∈Fb wb (f )
4.4.10
(4.10)
Dice (Generalisation 2)
Curran (2003) describes an alternative way of generalising the Dice measure to
real-valued weights, based on Grefenstette (1994). Instead of finding the minimum of two weights, the values are multiplied together. It is pointed out that
the same formula can also be considered as an alternative generalisation for the
67
Jaccard measure:
P
f ∈Fa ∩Fb wa (f ) × wb (f )
P
DiceGen2(Fa , Fb ) = P
f ∈Fa wa (f ) +
f ∈Fb wb (f )
4.4.11
(4.11)
Kendall’s tau coefficient
Kendall’s tau, denoted by τ , is a non-parametric statistic used to measure the
rank correlation between random variables (Kendall, 1938; Kruskal, 1958). It
counts the number of pairwise items that are in the same relative position in
both distributions. The Tau-b variation of the measure also takes into account
the number of possible tied values:
P
τ (Fa , Fb ) =
f,g∈Fa ∪Fb
sign((wa (f ) − wa (g)) × (wb (f ) − wb (g)))
p
(n0 − na ) × (n0 − nb )
(4.12)
where n0 is the total number of pairs:
n0 = |Fa ∪ Fb | × (|Fa ∪ Fb | − 1)
(4.13)
and na is the total number of tied pairwise values in set a:
na =
X
tai (tai − 1)/2
(4.14)
i
where tai is the number of tied values in the ith group of ties for set a.
While both Spearman’s ρ and Kendall’s τ measure correlation between rankings, Kendall’s τ penalises dislocations based on the linear distance of the dislocation, whereas Spearman’s ρ uses the square of the distance.
68
4.4.12
Lin similarity
Lin similarity was created by Lin (1998), and uses the ratio of shared feature
weights compared to all feature weights.
P
Lin(Fa , Fb ) = P
f ∈Fa+ ∩Fb+ [wa (f )
f ∈Fa+
wa (f ) +
P
+ wb (f )]
f ∈Fb+
wb (f )
(4.15)
where Fa+ denotes the subset of features in Fa that have positive weights. This
measure finds a weighted proportion of features that are shared by both words.
The calculation is done only over positive values, as including negative weights
would return an incorrect ratio.
4.4.13
Weeds’ Precision ?
Weeds et al. (2004) proposed using precision and recall as a measure of similarity.
In this framework, the features are treated similarly to retrieved documents in
information retrieval – the vector of the broader term is used as the gold standard,
and the vector of the narrower term is in the role of retrieval results. Precision
is then calculated by comparing the intersection (items correctly returned ) to the
values of the narrower term only (all items returned ).
P
W eedsP rec(Fa , Fb ) =
f ∈Fa+ ∩Fb+
P
f ∈Fa+
wa (f )
wa (f )
(4.16)
where Fa+ refers to the subset of features in Fa that have positive non-zero weights.
4.4.14
Weeds’ Recall ?
Similar to precision, recall can also be formulated as a similarity measure (Weeds
et al., 2004). In this case the calculation is done over the weights in the broader
term, quantifying how well the narrower term encompasses the broader one:
P
W eedsRec(Fa , Fb ) =
69
f ∈Fa+ ∩Fb+
P
f ∈Fb+
wb (f )
wb (f )
(4.17)
4.4.15
Weeds’ F-score
Following IR evaluation methods, the scores for precision and recall can be combined into a single measure by finding their harmonic mean (Weeds et al., 2004):
W eedsF (Fa , Fb ) =
4.4.16
2 × W eedsP rec(Fa , Fb ) × W eedsRec(Fa , Fb )
W eedsP rec(Fa , Fb ) + W eedsRec(Fa , Fb )
(4.18)
Clarke’s degree of entailment ?
Clarke (2009) proposed the asymmetric degree of entailment measure, based on
the concept of distributional generality (Weeds et al., 2004). It quantifies the
weighted coverage of the features of the narrower term a by the features of the
broader term b:
P
4.4.17
min(wa (f ), wb (f ))
P
f ∈Fa wa (f )
f ∈Fa ∩Fb
ClarkeDE(Fa , Fb ) =
(4.19)
Average precision ?
Kotlerman et al. (2010) proposed using a modified version of average precision
(AP), often used as an IR evaluation metric, as a directional similarity measure
instead. In this framework, the features of the broader term are analogous to
the set of all relevant documents, whereas the features of the narrower term
correspond to retrieved documents. The similarity score will be greater if a large
number of features occur in both vectors. However, it also takes into account the
ranking of these features, and gives greater importance to highly ranked features
from the narrower term a:
P|Fa |
AP (Fa , Fb ) =
× rel(fr )]
|Fb |
r=1 [P (r)
(4.20)
where
P (r) =
|f ∈ Fa (r) ∩ Fb |
r
70
(4.21)
(
rel(f ) =
if f ∈ Fb
if f ∈
/ Fb
1
0
(4.22)
Fa (r) is used to denote the subset of features from Fa that are ranked 1 to r after
sorting in descending order, placing the highest-weighted feature at rank 1. P (r)
calculates precision at rank r – the number of features that are in ranks 1 to r
in Fa and also present in Fb , normalised by the rank r. rel(fr ) takes the feature
that is ranked r in Fa , returning 1 if it is also present in Fb , and 0 otherwise.
4.4.18
Average precision (inclusion) ?
Kotlerman et al. (2010) also further modify the Average Precision measure to
better model directional similarity between words. First, they use the number
of features in Fa for normalisation, instead of Fb . This finds the proportion of
shared features relative to the features for the narrower term, better capturing
their desired property of feature inclusion. In addition, they redefine the relevance
function to give more fine-grained values depending on where the shared feature
ranks in the list of ordered features for Fb , assigning higher weights to higher
ranks:
P|Fa |
AP Inc(Fa , Fb ) =
(
0
rel (f ) =
1−
× rel0 (fr )]
|Fa |
r=1 [P (r)
rb (f )
|Fb |+1
if f ∈ Fb
if f ∈
/ Fb
0
(4.23)
(4.24)
where rb (f ) is used to denote the rank of feature f in the list of features in Fb ,
ranked by weight in descending order. The maximum value of this measure is
0.5, as the rel0 (f ) function penalises lower ranks, even when in perfect order.
4.4.19
Average precision (balanced inclusion) ?
Finally, Kotlerman et al. (2010) combine the APInc measure with the Lin similarity (Lin, 1998) by taking their geometric average. Since APInc models the
similarity using the features of the narrower term Fa , it can give unreliable re-
71
sults when the number of features |Fa | is very small. The motivation behind
combining these measures is that the symmetric Lin measure will decrease the
final score for such word pairs, thereby balancing the results:
BalAP Inc(Fa , Fb ) =
4.4.20
p
Lin(Fa , Fb ) × AP Inc(Fa , Fb )
(4.25)
Directional Lin ?
We proposed an asymmetric version of the Lin measure, and used it for entailment
detection between text fragments (Rei & Briscoe, 2011). Features of word b which
are not found in word a are excluded from the calculation:
P
LinD(Fa , Fb ) = P
f ∈Fa+ ∩Fb+ [wa (f )
wa (f ) +
f ∈Fa+
4.4.21
+ wb (f )]
P
f ∈Fa+ ∩Fb+
wb (f )
(4.26)
Balanced precision ?
Szpektor & Dagan (2008) proposed combining WeedsPrec together with the Lin
measure by taking their geometric average. This aims to balance the WeedsPrec
score, as the Lin measure will penalise cases where one vector contains very few
features:
BalP rec(Fa , Fb ) =
4.4.22
p
Lin(Fa , Fb ) × W eedsP rec(Fa , Fb )
(4.27)
Kullback-Leibler divergence ?
The relative entropy of two probability mass functions p(x) and q(x) is given by:
D(p||q) =
X
i
pi log
pi
qi
(4.28)
where we define 0×log( 0q ) = 0. It is also known as the Kullback-Leibler divergence
(Kullback & Leibler, 1951; Kullback, 1959) and measures the difference of two
probability distributions over the same space. Intuitively it measures how well
the true distribution p is modelled by the approximation q. This quantity is
non-symmetric (P (p||q) 6= P (q||p)) and equals 0 iff p = q.
72
It is originally defined only over valid probability distributions, but we redefine it as a measure between feature vectors. Given that the feature weights
correspond to the values in the probability distribution, the final score will be
the same. Since the result is ∞ whenever there is at least one dimension where
qi = 0 and pi 6= 0, we define the Kullback-Leibler divergence only over features
that have positive weights in both vectors:
X
KLDivergence(Fa , Fb ) =
wb (f )loge (
f ∈Fa+ ∩Fb+
wb (f )
)
wa (f )
(4.29)
As Weeds (2003) point out when discussing the highly-related α-skew measure
(see Section 4.4.24), it can be non-trivial to choose the direction when applying
these measures. While the formula above matches the original description and
is more theoretically-justified, reversing the arguments can lead to better performance for the α-skew. Therefore, we also report the reversed version of KLDivergence, calculating how well the narrower term is modelled by the broader
term:
X
KLDivergenceR(Fa , Fb ) =
wa (f )loge (
f ∈Fa+ ∩Fb+
4.4.23
wa (f )
)
wb (f )
(4.30)
Jensen-Shannon divergence Jensen-Shannon divergence, also known as ‘information radius’ (IRad) (Manning
& Schütze, 1999) or ‘total divergence to the average’ (Dagan et al., 1997), is a
way of overcoming the division-by-zero issue in KL-Divergence and also making
it into a symmetric measure. It is defined through KL-Divergence and intuitively
answers the question of how much information is lost if we describe the two words
using only their average distribution:
A(p, q) = D(p||
p+q
p+q
) + D(q||
)
2
2
73
(4.31)
wa (f )
[[wa (f ) × loge wa (f )+w (f ) ]+
X
JSDivergence(Fa , Fb ) =
b
f ∈Fa+ ∪Fb+
2
(4.32)
wb (f )
[wb (f ) × loge wa (f )+w
b (f )
]]
2
4.4.24
α-skew divergence ?
Lee (1999) observed that symmetric measures were unable to model substitutability of words in context, and created an alternative directional measure based on
KL-divergence. Since KL-Divergence will return infinity whenever qi = 0 and
pi 6= 0, it was proposed to smooth the distribution of q using the distribution
of p, therefore making sure that the reference distribution has always non-zero
values:
Sα (p, q) = D(q||αp + (1 − α)q)
(4.33)
The measure includes parameter α to control the degree to which the distribution
of q is used to smooth p. α-skew can be viewed as an approximation of KLdivergence and the two measures are equal if α = 1. We set α = 0.99, as is most
commonly done – this allows the reference distribution to closely model p while
still including the desired smoothing property:
X
AlphaSkew(Fa , Fb ) =
[[wb (f ) × loge
f ∈Fb+
wb (f )
]
(1 − α)wb (f ) + αwa (f )
(4.34)
As with KL-Divergence (Section 4.4.22), we also present the alternative version of calculating α-skew in the opposite direction:
AlphaSkewR(Fa , Fb ) =
X
[[wa (f ) × loge
f ∈Fa+
74
wa (f )
]
(1 − α)wa (f ) + αwb (f )
(4.35)
4.4.25
Manhattan distance Manhattan distance, also known as the L1-norm, measures the element-wise absolute difference between two vectors:
X
M anhattan(Fa , Fb ) =
|wa (f ) − wb (f )|
(4.36)
f ∈Fa ∪Fb
4.4.26
Euclidean distance Euclidean distance, also known as the L2-norm, is calculated as the length of the
difference between the two input vectors:
Eculidean(Fa , Fb ) =
s X
(wa (f ) − wb (f ))2
(4.37)
f ∈Fa ∪Fb
4.4.27
Chebyshev distance Chebyshev distance, also known as L∞ -norm, is a measure where the distance
between two vectors is the maximum of their absolute differences along any coordinate dimension:
Chebyshev(Fa , Fb ) = max (|wa (f ) − wb (f )|)
f ∈Fa ∪Fb
4.5
(4.38)
Proposed measure: Weighted Cosine
Given a term pair (a → b), Kotlerman et al. (2010) refer to the set of features
of the narrower term a as tested features, since they are tested for inclusion.
Amongst these features, those found in the feature vector of the broader term b
are denoted included features. They hypothesise that a directional distributional
similarity should capture the following desirable properties:
1. The relevance of the included features to the narrower term.
2. The relevance of the included features to the broader term.
75
3. That inclusion detection is less reliable if the number of features of either
the narrower or the broader term is small.
They show that existing measures which correspond to these criteria perform
better and suggest a new directional similarity measure (BalAPInc) based on
these principles. However, it is interesting to note that these properties do not
explicitly mention any directional aspects of the measure, and symmetric similarity scores can also fulfil the requirements. We suggest two additions to this list
of properties, one of which specifically targets the asymmetric properties of the
desired similarity measures:
4. The included features are more important to the directional score calculation, compared to non-included features.
5. Highly weighted features of the broader term are more important to the
score calculation, compared to features of the narrower term.
Most existing directional similarity scores measure how well the features of the
narrower term are modelled by the broader term. If a entails b, then it is assumed
that the possible contexts of a are also included by b, but b occurs in a wider
range of contexts compared to a. This intuition is used by directional measures
such as ClarkeDE, W eedsP rec, AP Inc and BalAP Inc.
In contrast, we found that many features for the narrower term are often highly
specific to that term and do not generalise even to hypernyms. For example, the
top three features for cheese in our dataset were grana, feta and parmesan. These
features are unlikely to be found together with any other word or phrase, even
with the hypernyms of cheese, such as dairy product and food. Since these features
have a very high weight for the narrower term, their absence with the broader
term will have a big negative impact on the similarity score.
We hypothesise that many terms have certain individual features that are
common to them but not to other related words. Since most weighting schemes
reward high relative co-occurrence, these features are also likely to receive high
weights. Therefore, we suggest that features which are not found for both terms
should have a decreased impact on the score calculation, as many of them are not
expected to be shared between hyponyms and hypernyms. However, removing
76
them completely is also not advisable, as they allow the measure to estimate the
overall relative importance of the included features to the specific term.
In addition, we believe that among the included features, those ranked higher
for the broader term are more important to the directional measure. In the
hyponymy relation (a → b), the term b is more general and covers a wider range
of semantic concepts. This also means it is more likely to be used in contexts that
apply to different hyponyms of b. For example, some of the high-ranking features
for food are blandly-flavoured, high-calorie and uneaten. These are properties that
co-occur often with the term f ood, but can also be applied to most hyponyms
of food, such as cheese, meat, omelette or burger. Therefore, we hypothesise
that the presence of these features for the narrower term is a good indication
of a hyponymy relation. This is somewhat in contrast to most previous work,
where the weights of the narrower terms have been used as the main guideline
for similarity calculation. However, our experiments with the new similarity
measure, based on this hypothesis, manage to deliver improved performance on
the hyponym generation task.
Cosine similarity is one of the symmetric similarity measures which corresponds to the first three desired properties. Our experiments also showed that
it performs remarkably well at the tasks of hyponym detection and generation.
Therefore, we decided to modify cosine similarity to also reflect the final two
properties and produce an asymmetric similarity score. The standard feature
vectors for each word contain weights indicating how important this feature is to
the word. In addition, we can also specify weights for every feature that measure how important the feature is to that specific directional relation between the
two terms. Weighted cosine similarity can then be used to calculate a modified
similarity score:
P
W Cos(Fa , Fb ) = qP
× wa (f )) × (z(f ) × wb (f ))
qP
2×
2
(z(f
)
×
w
(f
))
a
f ∈Fa
f ∈Fb (z(f ) × wb (f ))
f ∈Fa ∩Fb (z(f )
(4.39)
where z(f ) is an additional weight for feature f , given the directional word pair
(a, b).
77
Based on the new desired properties we want to downweight the importance
of features that are not present for both terms. For this, we choose the simple
solution of scaling them with a small constant C ∈ [0, 1]. Next, we also want
to assign higher z(f ) values to the shared features that have high weights for
the broader term b. We use the relative rank of feature f in Fb , rb (f ), as the
indicator of its importance and scale this value to the range from C to 1. This
results in the importance function decreasing linearly as the rank number increases, but the weights for the included features always remain higher compared
to the non-included features. Tied feature values are handled by assigning them
the average rank value, following Spearman’s rank correlation coefficient (Section
4.4.3). Adding 1 to the denominator of the relative rank calculation avoids exceptions with empty vectors, and also ensures that the value will always be strictly
greater than C. The resulting function is as follows:
(
z(f ) =
(1 −
rb (f )
)
|Fb |+1
× (1 − C) + C
C
if f ∈ Fa ∩ Fb
otherwise
(4.40)
The parameter C shows the relative importance of the ‘unimportant’ features
to the directional relation. Setting it to 0 will ignore these features completely,
while setting it to 1 will result in the traditional cosine measure. Experiments
on the development data showed that the exact value of this parameter is not
very important, as long as it is not too close to the extreme values of 0 or 1. We
use the value C = 0.5 for reporting our results, meaning that the non-included
features are half as important, compared to the included features.
4.6
Datasets
Zhitomirsky-Geffet & Dagan (2009) created a manually-annotated dataset for
evaluating detection of lexical entailment. They randomly selected a set of 30
nouns and found 40 most similar words for each of them, according to two versions
of the Lin measure. Every unique word pair was duplicated in both directions and
manually annotated for lexical entailment. While the definition of entailment is
broader than hyponymy, their end-goal of finding substitutable word pairs is very
similar to ours. However, the Minipar (Lin, 1993) parser was used to construct the
78
dataset, generating some multi-word expressions which are not easily reproduced
when finding distributional features with other parsers. We also report results on
their dataset, but run our experiments on the subset of word pairs that contain
only single terms (886 positive and 2,154 negative word pairs). We are thankful
to Zhitomirsky-Geffet & Dagan for generously providing us with their dataset.
As WordNet (Miller, 1995) contains numerous manually annotated hyponymy
relations, we can use it to construct suitable datasets for evaluating both hyponym
detection and generation. While WordNet terms are annotated with only the closest hyponyms, we are considering all indirect/inherited hyponyms to be relevant
– for example, given relations (dog → mammal) and (mammal → animal), then
dog is also counted as a hyponym of animal. In addition, since synonymy can be
thought of as a symmetric is-a relation, synonyms are counted as hyponyms in
both directions.
For evaluating hyponym detection, we created a balanced dataset of positive
and negative word pairs. As WordNet contains annotation for numerous words
that rarely occur in practical datasets, we filtered out any terms that occurred less
than 10 times in the British National Corpus (BNC), also considering the general
part-of-speech tag (noun or verb) as tagged by RASP (Briscoe et al., 2006).
For every word we extract sets of positive and negative hyponym examples. The
positive examples for a term consist of all its annotated synonyms and hyponyms.
WordNet relations exist between synsets, but we refrain from the task of word
sense disambiguation and count a candidate as a positive example if it is valid
for any synset that contains the term.
There exists no explicit annotation for absence of hyponymy, and using random words would risk accidentally choosing correct examples that have not yet
been annotated. However, we can make use of existing relations that directly
contradict the possibility of hyponymy. As negative instances we use antonyms,
together with hyponyms of hypernyms – for example, if (mammal → cat) is
added to the previous example, then cat can be used as a negative hyponymy
instance for dog. Any terms that were present in the positive, as well as the negative set, were removed from both. We then randomly selected 10 positive and 10
negative examples for the final dataset, given that enough terms were available
in both sets.
79
Zhitomirsky-Geffet & Dagan (2009) extracted only terms with the highest
distributional similarity to annotate for the dataset. This somewhat changes the
task, as all the candidates are distributionally very similar, and the goal is then
to distinguish between the possible directions of the entailment relation. In contrast, we would like to evaluate how well similarity measures perform at finding
hyponyms in general, not only the ones that have a high symmetric similarity.
Our hyponym detection dataset does not make use of any initial similarity measure to filter terms, and allows us to evaluate the performance of each measure
more directly. However, the dataset is still indirectly influenced by distributional
similarity, as the methods for finding both positive and negative examples are
likely to return terms that occur in similar contexts. Of course, this can be
considered the hardest possible scenario for hyponym classification, but systems
optimised only for this task can perform worse when applied to real data and
practical applications.
To better model the scenario of hyponym generation, we create a second
dataset suitable for a more open-ended task. The system will be given a single
word as input and it will have to return all its hyponyms. This can be addressed
as a classification task, returning the putatively correct set, or as a ranking task,
returning a scored list of words with the correct hyponyms ranked highest. In
contrast to the balanced detection dataset, all correct hyponyms are retained in
the generation dataset, but all negative examples are discarded. We only included
hypernyms that have at least 10 hyponyms, such that each of the hyponyms occurs
at least 10 times in the BNC; this was done to limit the ratio of very rare words.
The hypernym itself also needed to pass the frequency criteria. However, given
that the hypernym matches the conditions, then the dataset contains all its direct
and indirect hyponyms present in WordNet, including terms that were not found
in the BNC.
While nearly all work on lexical entailment and hyponymy detection has been
done on nouns, WordNet also includes annotation for verbs. Therefore, we created corresponding datasets for both nouns and verbs. In order to better facilitate future research and experiments, we randomly separated them into training
(40%), development (30%), and test (30%) sets. The final size of all datasets
is shown in Table 4.1. We make all the datasets available for download online,
80
along with descriptions of additional similarity measures, the complete table of
results, the code used to perform the experiments, and the implementations of
all the similarity measures (see Sections 2.2.1 and 2.2.2 for more information).1
Noun detection
Verb detection
Noun generation
Verb generation
Train
23120
10920
1230
594
Dev
17300
8160
922
444
Test
17300
8160
922
444
Table 4.1: Dataset sizes for hyponym detection and generation. The detection
datasets are measured in word pairs; the generation datasets are measured in the
number of hypernyms, regardless of their hyponyms.
4.7
4.7.1
Experiments
Hyponym detection
In order to evaluate hyponym detection and generation, we first built distributional feature vectors for every word. The BNC was used as the background
corpus and parsed by the RASP parser (Briscoe et al., 2006). All the terms were
lowercased; numbers were grouped and substituted by more generic tokens: currency (30 ), enumeration (1st), number (one), and other numerical (14.57 ). We
also use the assigned part-of-speech tag, convert it to a more general form (noun,
verb, etc.) (Petrov et al., 2011), and append it to the lemma. This is done to
provide a basic level of word-sense disambiguation, but still avoid the sparsity
problems related to more specific tags.
As context features for a term, we use every incoming and outgoing dependency relation, together with the connected term. For example, given the dependency relation (play V, dobj, guitar N), the tuple (>dobj, guitar N) was extracted
as a feature for play V, and (<dobj, play V) as a feature for guitar N. We use
only features that occur more than once in the whole dataset, and weight them
using pointwise mutual information to construct feature vectors for every term.
1
www.cl.cam.ac.uk/∼mr472/hyponyms/
81
Features with negative weights were retained, as they proved to be beneficial for
some similarity measures; the formulas in Section 4.4 specify which measures are
defined using only positive features.
The first experiments evaluate how well the distributional similarity measures
perform at the task of hyponym detection. Given a collection of term pairs, the
system needs to assign higher scores to the pairs that show a correct hyponymy
example. Following the evaluation by Kotlerman et al. (2010), we measure performance by sorting all the pairs in descending order of scores, and calculating
average precision (AP) over the whole dataset. A system that ranks all correct
pairs higher than any of the incorrect ones would receive an AP of 1.0. As the
distributional similarity measures require no training or development, we report
all results on both of these datasets for better comparison. In addition, LexEnt
is the lexical entailment dataset created by Zhitomirsky-Geffet & Dagan (2009).
Table 4.2 contains the results, with the best measure for each dataset marked in
bold.
We can observe that Cosine and DiceGen2, both symmetric similarity measures, deliver relatively high performance even though the task is to detect asymmetric relationships. They do not use any notion of directionality, yet these
measures perform well simply by assigning a higher score to pairs that are more
distributionally similar. DiceGen2 also gives consistently better results on the
verb datasets. BalAPInc and BalPrec are some of the best-performing directional measures, with BalAPInc achieving the highest performance on the NounDev dataset.1 Measures based on correlation (Spearman, Pearson, KendallsTau)
do not appear to be well-suited for this task and give some of the lowest results
on all datasets. Finally, the new WeightedCosine measure gives the highest performance on two different datasets, Noun-Train and LexEnt, and it is the second
best-performing measure on both verb datasets.
Cosine, DiceGen2, BalAPInc and WeightedCosine were selected as the highest
performing measures, and we also report their results on the designated test set
in Table 4.3. The performances are similar to the previous results, with some
1
Performance of BalAPInc on the lexical entailment dataset is not directly comparable to
the results reported by Kotlerman et al. (2010). We only evaluate on single terms, whereas
they include some multi-word expressions. In addition, our feature vectors are built from BNC
parsed with the RASP parser, whereas they used the Reuters RCV1 corpus with Minipar.
82
Cosine
Pearson
Spearman
JaccardSet
Lin
DiceSet
OverlapSet
CosineSet
JaccardGen
DiceGen
DiceGen2
KendallsTau
ClarkeDE ?
WeedsPrec ?
WeedsRec ?
WeedsF
AP ?
APInc ?
BalAPInc ?
LinD ?
BalPrec ?
KLDivergence ?
KLDivergenceR ?
JSDivergence AlphaSkew ?
AlphaSkewR ?
Manhattan Euclidean Chebyshev WeightedCosine ?
Noun
Train Dev
58.76 57.23
49.10 50.15
48.74 49.70
55.11 53.02
56.44 54.23
55.11 53.02
50.84 51.77
56.03 54.13
56.88 54.79
56.88 54.79
58.89 56.93
48.76 49.71
57.40 58.04
54.45 55.06
48.74 48.00
56.25 54.03
56.66 54.89
55.10 55.75
58.80 58.81
55.11 55.68
58.49 57.89
52.57 53.09
47.99 47.27
52.89 53.21
49.72 49.76
52.15 53.05
52.88 53.19
52.77 53.13
49.81 48.63
59.09 57.55
Verb
Train Dev
57.50 57.33
48.95 48.63
48.80 48.48
54.69 54.58
55.63 55.47
54.69 54.58
50.52 50.25
55.49 55.44
56.08 55.82
56.08 55.82
58.53 58.07
48.85 48.51
55.74 56.24
52.84 52.89
49.77 49.49
55.50 55.34
55.94 55.87
53.29 53.50
56.83 56.82
53.37 53.49
57.16 56.96
52.19 51.79
48.66 48.79
51.73 51.94
49.89 49.97
50.74 51.23
51.71 51.92
51.67 51.83
50.61 51.04
57.90 57.73
LexEnt
47.56
28.42
27.93
41.59
44.77
41.59
31.76
43.30
45.02
45.02
46.66
27.98
41.96
37.76
29.52
44.05
44.18
39.82
45.04
38.96
45.61
33.62
28.78
25.19
23.21
28.36
25.13
25.22
34.51
47.62
Table 4.2: Average precision of different similarity measures when performing
hyponym detection, reported on the training, development, and lexical entailment
datasets.
83
Cosine
DiceGen2
BalAPInc ?
WeightedCosine ?
Noun
58.65
58.60
58.65
59.08
Verb
56.36
57.26
56.79
56.57
Table 4.3: Average precision of selected measures on the hyponym detection test
datasets.
measures performing slightly better on nouns and others on verbs. WeightedCosine achieves the highest average precision on nouns (59.08%), while DiceGen2
performs best on verbs (57.26%).
4.7.2
Hyponym generation
Next, we evaluate how well these similarity measures perform at the task of
hyponym generation. Given one input word at a time, the system needs to return
a scored list of terms, such that the correct hyponyms of the original word are
ranked higher. Average Precision is calculated for each returned list, and then
averaged over all lists, resulting in Mean Average Precision (MAP). The MAP
measure is typically used for evaluating the ranking of a fixed set, not in tasks
where the set of returned items can vary. However, by penalising the system for
any unseen correct hyponyms, we are able to report results that are comparable to
other systems using different background corpora, filtering methods, and ranking
measures.
The set of returned terms needs to be chosen by the system, and MAP assigns
a higher penalty when a correct hyponym is not returned at all, compared to
assigning it a low rank. We select as candidates all terms that have the correct
part-of-speech (noun or verb), and occur at least 10 times in the corpus. This
results in 45,986 terms for nouns and 6,011 terms for verbs; the input term itself
is removed from the list before evaluation. The similarity measures are then used
to assign scores to each candidate term, indicating the confidence that it is a
valid hyponym of the input word. Table 4.4 shows results on the training and
development sets.
The results show that WeightedCosine outperforms all other measures on
84
Cosine
Pearson
Spearman
JaccardSet
Lin
DiceSet
OverlapSet
CosineSet
JaccardGen
DiceGen
DiceGen2
KendallsTau
ClarkeDE ?
WeedsPrec ?
WeedsRec ?
WeedsF
AP ?
APInc ?
BalAPInc ?
LinD ?
BalPrec ?
KLDivergence ?
KLDivergenceR ?
JSDivergence AlphaSkew ?
AlphaSkewR ?
Manhattan Euclidean Chebyshev WeightedCosine ?
Noun
Train Dev
2.63
2.62
0.13
0.14
0.12
0.14
1.37
1.47
1.99
2.03
1.37
1.47
0.18
0.19
1.61
1.64
2.01
2.05
2.01
2.05
2.48
2.50
0.12
0.14
0.24
0.26
0.15
0.17
0.79
0.80
1.87
1.93
1.66
1.67
0.18
0.20
1.50
1.51
0.16
0.18
1.73
1.74
0.56
0.60
0.39
0.38
0.13
0.16
0.81
0.83
0.08
0.10
0.09
0.11
0.09
0.11
0.23
0.27
2.73 2.72
Verb
Train Dev
4.75
5.15
0.71
0.69
0.70
0.67
3.01
3.02
3.81
3.95
3.01
3.02
0.98
0.97
3.60
3.61
3.77
3.93
3.77
3.93
4.45
4.64
0.70
0.67
1.14
1.14
0.67
0.68
2.25
2.08
3.61
3.76
3.71
3.70
0.79
0.78
3.08
2.84
0.72
0.73
3.29
2.99
1.43
1.31
1.48
1.38
0.52
0.53
2.30
2.11
0.46
0.46
0.47
0.47
0.47
0.47
1.34
1.27
4.80 5.18
Table 4.4: Mean average precision of different similarity measures when performing hyponym generation, reported on the training and development datasets.
85
all datasets. Cosine and DiceGen2 also give high results, whereas the other
measures have considerably lower MAP scores. BalPrec and AP are some of
the highest among directional similarity measures, but are still outperformed
by several symmetric measures. It is interesting to note that AP consistently
outperforms APInc and BalAPInc, which are designed to be improvements of the
original measure. This is likely caused by APInc assigning high similarity scores
to pairs where the narrower term has a much lower frequency compared to the
broader term. Measures such as ClarkeDE and WeedsPrec are also vulnerable
to the same problem, as they quantify the total similarity relative to the sum of
feature weights for the narrower term.
In Table 4.5 we present results of the same high-performing measures on the
test sets. WeightedCosine achieves the highest performance on the nouns (2.88%),
and shares the highest rank with Cosine on the verbs (5.52%).
Cosine
DiceGen2
BalAPInc
WeightedCosine
Noun
2.80
2.63
1.58
2.88
Verb
5.52
4.83
2.84
5.52
Table 4.5: Mean average precision of selected measures on the test datasets.
We measure the statistical significance of the change in MAP by using the
Approximate Randomisation Test (Noreen, 1989; Cohen, 1995) with 106 iterations. This method is a computer-intensive statistical hypothesis test, and is the
recommended significance test for measuring MAP differences in the Information
Retrieval task (Smucker et al., 2007). It is designed to assess result differences
with respect to a test statistic in cases where the sampling distribution of the
test statistic is unknown. The performance of WeightedCosine was found to be
significantly better (p < 0.05) on all noun datasets (train, dev and test) in the
generation task, when compared to the second ranking measure (Cosine). The
differences on the verb datasets were not significant.
The numerical values of the MAP scores are noticeably low for all measures on
the hyponym generation task due to a number of reasons. First, the task is rather
difficult for an unsupervised similarity measure, and the MAP score is calculated
86
over a very large number of candidates (45,985 in the case of nouns). Second, as
WordNet is a manually annotated resource, there are presumably many correct
hyponym relations that have not been added yet, and the system will always be
penalised for giving these terms a high score. In addition, there are many words
present in WordNet that do not occur in our corpus, and are therefore not even
considered as potential hyponyms. Finally, the similarity measures assign scores
based on how well one term can be substituted for another, by comparing their
context vectors, and these terms might not always be strictly hyponyms. However, we assume that distributional similarity measures which assign valid scores
to WordNet-annotated hyponym relations, are more likely to also provide better
scores to other term pairs that may be lexically substitutable. By normalising
MAP over the total number of correct hyponyms in the dataset, we are able to
report results that are comparable even to very different systems using alternative background corpora and filtering methods. While ontology creation systems
are commonly evaluated only using precision, this approach also takes recall and
ranking into account.
Table 4.6 contains some examples of hyponym generation, ordered by their
score, illustrating the properties of each similarity measure. A larger set of examples can be found in Appendix B. Cosine and DiceGen2 return both wide
(food ) and more specific concepts (garlic), whereas BalAPInc clearly prefers narrow and rare terms. WeightedCosine closely follows Cosine, but also includes a
more subtle preference towards narrow concepts.
4.7.3
Supervised learning
Previous sections investigated hyponym detection and generation using distributional similarity measures. All of these measures use only a large unannotated
corpus for collecting distributional features, and require no labelled data. In order to see how these unsupervised methods compare to fully-supervised learning,
we also constructed experiments with Support Vector Machines (SVM) (Vapnik,
1982; Cortes & Vapnik, 1995).
We utilise SVMLight (Joachims, 1999) and train separate models for hyponym
detection and generation, using a linear kernel and the designated training set.
87
Cosine
DiceGen2
BalAPInc ?
WeightedCosine ?
vegetable (noun)
fruit, salad, potato, food,
lettuce, herb, ingredient,
meal, meat, dish
salad, fruit, potato, lettuce, herb, ingredient, meat,
mushroom, tomato, garlic
veg, caulerpa, worm-cake,
cryptocorynes,
roughage,
parmesan, caviare, lectin,
crudit, owenites
fruit, salad, lettuce, potato,
food, herb, prawn, meat, ingredient, meal
travel (verb)
move, walk, go, work, pass,
run, return, live, drive, fly
walk, fly, arrive, move, attend, drive, ride, stay, pass,
cross
journey, trudge, stray,
tramp,
queue,
urinate,
stroll, wander, taxi, cooperate
move, walk, pass, work,
drive, fly, go, return, live,
run
Table 4.6: Examples of hyponym generation for the noun vegetable and the verb
travel. Correct hyponyms, according to WordNet, are marked in bold.
Each item being classified corresponds to one directional word pair. As features
for every word pair, we used all the similarity measures described in the previous
sections. This method is based on Berant et al. (2010) who also calculate a wide
selection of different similarity measures and use them as features for an SVM
classifier. In addition, we included the following features for both individual
words and multiplied for the paired words:
• Frequency
• Number of features
• Number of features relative to frequency
• Number of shared features relative to number of total features
All feature values were normalised by subtracting the mean and dividing by
the range. As the generation dataset does not contain any negative examples, we
created a balanced dataset for training by randomly sampling words that were
not annotated as hyponyms. We also experimented with alternative methods for
choosing negative examples, based on the selection method for hyponym detection, but found random sampling to give the best performance. The results are
presented in Table 4.7.
88
Detection
Generation
Train
63.73
1.88
Noun
Dev Test
63.46 64.00
1.89 1.97
Train
64.44
4.64
Verb
Dev
63.03
4.78
Test
62.68
4.97
Table 4.7: Experiments on hyponym detection and generation using Support
Vector Machines.
The experiments show that a supervised learning method gives the best results for the hyponym detection task, achieving 64.00% on the noun-test dataset
compared to 59.08% by WeightedCosine. However, it does not perform as well on
the generation task, giving only 1.97% compared to 2.88% by WeightedCosine.
Running generation experiments with SVMs is also rather time-consuming, as the
system needs to classify all possible word pairs, therefore we find distributional
similarity measures to be a better choice for the task of hyponym generation.
Finally, we also experimented with switching the models, e.g. training a model
on the detection data and testing on generation, but this delivered lower results
for both cases.
4.8
Conclusion
Given only a single term as input, hyponym generation is the task of finding
correct hyponyms for that term. It has practical applications for a wide variety
of NLP tasks. For example, information retrieval and information extraction can
directly benefit from being able to find lexical substitutes and construct more
specific versions of a query, while retaining the original semantics. Ontology
creation, summarisation, question answering, entailment detection and language
modelling can also use hyponyms to increase both accuracy and coverage.
In order to investigate the performance of various distributional similarity
measures on the tasks of hyponym detection and generation, we created four new
datasets using WordNet. They cover hyponym relations between both nouns and
verbs, and are split into training, development and test sets. The hyponym detection datasets contain a balanced selection of correct and incorrect hyponymous
word pairs. The hyponym generation datasets contain selected terms together
89
with all their hyponyms, leaving it up to the system to find the correct hyponym
instances using unrestricted knowledge sources.
Hyponym generation can be performed by applying hyponym detection on a
large number of candidate pairs. We evaluated and compared the performance
of different distributional similarity measures at both hyponym detection and
generation. Cosine and DiceGen2 similarity measures were found to perform
remarkably well, considering that they are symmetric measures and the task
assumes modelling of a directional relation. This implies that existing directional
similarity measures are not able to capture hyponymy very well, and there is
plenty of room for improvement. The directional measures of AP, BalAPInc and
BalPrec performed well on the hyponym detection task, but were outranked by
several other symmetric measures when doing hyponym generation.
We also proposed a novel similarity measure, based on cosine similarity, by
applying additional directional weights to each feature. We hypothesised that the
feature weights of the broader term are more indicative of the hyponymy relation,
compared to the narrower term. In addition, we assigned lower importance to
features that are not shared between the two terms, since many high-weighted
features are often too specific to contribute to hyponymy detection. Our measure
delivers significantly better results when doing hyponym generation on nouns,
and gives comparable performance on verbs.
Finally, in order to compare these methods to a fully-supervised system, we
trained an SVM classifier for solving the same tasks. All of the unsupervised
similarity measures were included as features in the supervised model, and this
configuration gave the highest performance for hyponym detection. However,
the classifier was outperformed by the best individual similarity measures on hyponym generation. This result demonstrates that a theoretically-motivated approach without any supervision or annotated data can, in some cases, outperform
a fully supervised method.
There is much room for additional improvement in both hyponym detection
and generation. In addition to potential new similarity measures, the problems
could also be approached through different methods, such as hyponym acquisition or more focussed supervised learning algorithms. It is also worth exploring
whether nouns and verbs could benefit from different configurations, as they have
90
somewhat different distributions of context features. The task of hyponym generation is not yet sufficiently researched, and many existing NLP applications can
directly benefit from more accurate solutions.
91
Chapter 5
Entailment Detection
5.1
Introduction
Understanding that two different texts are semantically similar has benefits for
nearly all NLP tasks, including information retrieval, information extraction,
question answering and summarisation. Similarity detection is usually performed
either on single words (synonymy) or full sentences and paragraphs (paraphrasing). A symmetric similarity relation implies that both elements can be interchanged (synonymy and paraphrasing), while directional similarity suggests that
one fragment can be substituted for the other but not the opposite (hyponymy
and entailment).
All of these language phenomena can be expressed using a single entailment
relation. For paraphrases and synonyms the relation holds in both directions
(observe ↔ notice), whereas entailment and hyponymy are modelled as a unidirectional relation (overexpress → express). In addition, such relations can be
defined between text fragments of any size and shape, ranging from a single word
to a complete text segment. For example (argues against → does not support),
and (the protein has been implicated ↔ the protein has been shown to be involved ).
In this chapter we propose a new task – detecting entailment relations between
any kinds of text fragments. A unified approach is not expected to perform better
when compared to systems optimised only for a specific task (e.g., recognising entailment between sentences), but constructing a common theory to cover all text
92
fragments has important benefits. A broader approach will allow for entailment
discovery among a much wider range of fragment types for which no specialised
systems currently exist. In addition, entailment relations can be found between
different types of fragments (e.g., a predicate entailing an adjunct). Finally, a
common system is much easier to develop and integrate with potential applications compared to having a separate system for each type of fragment.
In Chapter 4 we investigated minimally supervised methods for detecting
hyponym relations between single words. The current chapter extends this task to
include larger dependency graph fragments, and we present a unified framework
that can be used to detect entailment relations between sentence fragments of
various types and sizes.
The final system is designed to work with anything that can be represented
as a connected subgraph of dependency relations, including single words, constituents of various sizes, text adjuncts, predicates, relations and full sentences.
The approach is completely unsupervised and requires only a large plain text
corpus to gather statistics for calculating distributional similarity. This makes it
ideal for the biomedical domain where the availability of annotated training data
is limited. We apply these methods by using a large corpus of biomedical papers
for feature collection and evaluate on a manually constructed dataset of entailing
fragment pairs, extracted from biomedical texts.
5.2
Research goals
In order to analyse the task of entailment detection, and to build a working
system, we have set the following research goals:
• Determine whether dependency graphs are suitable for extracting meaningful connected structures for entailment detection.
• Investigate whether the distributional hypothesis can be extended from single words to larger text fragments and, more specifically, to larger dependency graph fragments.
93
• Examine how different types of similarity measures perform with larger
connected subgraphs, compared to single words.
• Find methods of integrating both distributional and lexical similarity when
calculating the similarity between graph fragments.
• Determine whether the detection of sentence-level negation and hedging has
a practical impact to the task of entailment detection.
• Develop and evaluate a unified minimally supervised approach for entailment detection.
5.3
Background
The entailment relation between two sentences or paragraphs is commonly defined
following the guidelines in the Recognizing Textual Entailment (RTE) Challenge
(Bar-Haim et al., 2006):
(18) Text T entails hypothesis H if, typically, a human reading T would infer
that H is most likely true.
For example, the following text (T) entails the hypothesis (H):
(19) T: Francis Crick, James D. Watson and Maurice Wilkins were awarded
the Nobel Prize in 1962.
H: Francis Crick received an award.
When there is no valid entailment relation between sentences, it is due to one
of two reasons: either there is not enough evidence to establish the relation, or
one text contradicts the other. H1 and H2 in the example below illustrate both
of these cases, respectively.
(20) T: Glutamine is the most abundant free amino acid in human blood.
H1: Glutamine is one of the most important sources of energy in cells.
H2: Glutamine is not found in human blood.
94
Over time, additional guidelines have been specified for the entailment detection challenge:
• Entailment is a directional relation. The hypothesis must be entailed from
the text but the text does not need to be entailed from the hypothesis.
• The hypothesis must be fully entailed by the text and must not contain
parts that cannot be entailed.
• Entailment allows presupposition of common world knowledge.
• If the inference is very probable but not certain, the hypothesis is still
judged as being entailed from the text.
• Given the text and hypotheses might originate from documents at different
points in time, tense aspects should be ignored.
This definition is somewhat subjective, as it assumes certain background
knowledge and a shared understanding of language. However, human judges
have shown very good agreement on the task of entailment recognition – 3 judges
reached 91-96% agreement when independently annotating the dataset of RTE-1
(Dagan et al., 2006). This indicates that humans have a good natural understanding of the concept of entailment, and automated systems are not yet close
to that level.
Most existing work on entailment detection has focused on comparing full sentences or larger text units, and various methods have been developed to calculate
their semantic similarity. For example, Haghighi et al. (2005) represent sentences
as directed dependency graphs and use graph matching to measure semantic
overlap. Their method also compares the dependency relations present in both
sentences, thereby incorporating extra syntactic information in the similarity calculation. Hickl et al. (2006) combine lexico-syntactic features and automatically
acquired paraphrases to classify entailing sentences. Lintean & Rus (2009) make
use of weighted dependencies and word semantics to detect paraphrases. In addition to similarity, they look at dissimilarity between two sentences and use their
ratio as the confidence score for paraphrasing.
95
To a lesser extent, the detection and extraction of entailment examples between relations has also been investigated. Lin & Pantel (2001) were one of
the first to extend the distributional hypothesis to dependency paths, and they
construct an unsupervised algorithm for Discovering Inference Rules from Text
(often referred to as the DIRT algorithm). Szpektor et al. (2004) further extend
this work and describe the TE/ASE method for extracting entailing relation templates from the Web. The distributional similarity of argument terms has also
been used for other related tasks, such as detecting entailment between unary
templates (Szpektor & Dagan, 2008), and to learn a transitive entailment graph
of binary relations (Berant et al., 2010).
Finally, there has also been some work on detecting directional similarity
relations between single words. Most methods involve syntactic pattern matching
to automatically discover word-level hypernym pairs (e.g., Snow et al., 2005).
More recently, distributional similarity methods have also been used to detect
directional inference relations between single words (Kotlerman et al., 2010). We
explored the tasks of hyponym detection and generation in more detail in Chapter
4, and additional related research is presented in Section 4.3.
In contrast to our approach, each of the approaches described above only
focuses on detecting entailment between specific subtypes of fragments (either
sentences, relations or words) and optimising the system for a single scenario.
This means only limited types of entailment relations are found and they cannot be used for entailment generation or compositional entailment detection, as
described in Section 5.4.
MacCartney & Manning (2008) approach sentence-level entailment detection
by breaking the problem into a sequence of atomic edits linking the premise to the
hypothesis. Entailment relations are then predicted for each edit, propagated up
through a syntax tree and then used to compose the resulting entailment decision.
However, their system focuses more on natural logic and uses a predefined set of
compositional rules to capture a subset of valid inferences with high precision but
low recall. It also relies on a supervised classifier and information from WordNet
to reach the final entailment decision.
Androutsopoulos & Malakasiotis (2010) have assembled a survey of different
tasks and approaches related to paraphrasing and entailment. They describe three
96
different goals (paraphrase recognition, generation and extraction) and analyse
various methods for solving them.
5.4
Applications
Entailment detection between fragments is a vital step towards entailment generation – given text T, the system will have to generate all texts that either entail
T or are entailed by T. This is motivated by applications in information retrieval
(IR) and information extraction (IE). For example, if we wish to find all genes
that are synthesised in the larval tissue, the following IE query can be constructed
(with x and y marking unknown variables):
(21) x is synthesised in the larval tissue
Known entailment relations can be used to modify the query:
• overexpression → synthesis
• larval fat body → larval tissue
• the synthesis of x in y ↔ x is synthesised in y
Pattern (22) entails pattern (21) and would also return results matching the
information need.
(22) the overexpression of x in the larval fat body
A system for entailment detection can automatically extract a database of
entailing fragments from a large corpus and use them to modify any query given
by the user. Recent studies have also investigated how complex sentence-level
entailment relations can be broken down into smaller consecutive steps involving
fragment-level entailment (Sammons et al., 2010; Bentivogli et al., 2010). For
example:
(23) T: The mitogenic effects of the B beta chain of fibrinogen are mediated
through cell surface calreticulin.
H: Fibrinogen beta chain interacts with CRP55.
97
To recognise that the hypothesis is entailed by the text, it can be decomposed
into five separate steps involving text fragments:
1. B beta chain of fibrinogen → Fibrinogen beta chain
2. calreticulin → CRP55
3. the mitogenic effects of x are mediated through y → y mediates the mitogenic
effects of x
4. y mediates the mitogenic effects of x → y interacts with x
5. y interacts with x → x interacts with y
This illustrates how entailment detection between various smaller fragments can
be used to construct an entailment decision between more complicated sentences.
However, only the presence of these constructions has been investigated and, to
the best of our knowledge, no models currently exist for automated detection and
composition of such entailment relations.
5.5
Modelling entailment between graph fragments
In order to cover a wide variety of language phenomena, a fragment is defined as
follows:
Definition 1 A fragment is any connected subgraph of a directed dependency
graph containing one or more words and the grammatical relations between them.
This definition is intended to allow extraction of a wide variety of fragments
from a dependency tree or graph representation of sentences found using any
appropriate parser capable of returning such output (e.g., Kübler et al., 2009;
Briscoe et al., 2006; Curran et al., 2007; Nivre et al., 2007). The definition covers
single- or multi-word constituents functioning as dependents (e.g., sites, putative
binding sites), text adjuncts (in the cell wall ), single- or multi-word predicates
(* binds to receptors in the airways) and relations (* binds and activates * ),
98
subj
mod
recombinant
B61
dobj
autophosphorylation
iobj
dobj
of
ECK
induce
iobj
dobj
in
cell
mod
intact
Figure 5.1: Dependency graph for the sentence: Recombinant B61 induces autophosphorylation of ECK in intact cells. Some interesting fragments are marked
by dotted lines.
including ones with ‘internal’ dependent slots (* inhibits * at * ), some of which
may be fixed in the fragment (* induces autophosphorylation of * in * cells), and
also full sentences.1
Dependency graphs are naturally well-suited for the extraction of smaller subfragments, as can be seen from the example in Figure 5.1. The structure is centred
at the main verb, and each outgoing edge adds more specific information, usually
in the order of decreasing importance (modifiers are positioned further compared
to the main verbs and nouns). Splitting any of the dependency relations automatically creates two smaller structures that are still semantically coherent, even
though the textual representation may be broken. For example, removing the
central dobj relation creates two fragments: a noun phrase (autophosphorylation
of ECK ), and a verb phrase with an unspecified object (Recombinant B61 induces * in intact cells). This property also applies when futher separating the
fragments recursively. Similar splits of the textual representation would easily
create numerous incoherent sequences, such as ‘of ECK in intact’.
Our aim is to detect semantically similar fragments which can be substituted
for each other in text, resulting in more general or more specific versions of the
same proposition. This kind of similarity can be thought of as an entailment
relation and we define entailment between two fragments as follows:
1
The asterisks (*) are used to indicate missing dependents in order to increase the readability
of the fragment when represented textually. The actual fragments are kept in graph form and
have no need for them.
99
Definition 2 Fragment A entails fragment B (A → B) if A can be replaced by
B in a sentence S and the resulting sentence S’ can be entailed from the original
one (S → S’).
This also requires estimating entailment relations between sentences, for which
we use the definition established by Bar-Haim et al. (2006):
Definition 3 Text T entails hypothesis H (T → H) if, typically, a human reading
T would infer that H is most likely true.
It is important to note that the sentence S must not contain hedging, negation,
quantifiers, or other constructions that can modify the properties of the entailment relation.
We model the semantic similarity of fragments as a combination of two separate directional similarity scores:
1. Intrinsic similarity: how similar are the components of the fragments.
2. Extrinsic similarity: how similar are the contexts of the fragments.
To find the overall score, these two similarity measures are combined linearly
using a weighting parameter α:
Score(A → B) = α × IntSim(A → B) + (1 − α) × ExtSim(A → B)
We use the notation f (A → B) to indicate an asymmetric function between
A and B. When referring only to single words, lowercase letters (a,b) are used;
when referring to fragments of any size, including single words, then uppercase
letters are used (A,B).
Score(A → B) is the confidence score that fragment A entails fragment B –
higher score indicates higher confidence and 0 means no entailment. IntSim(A →
B) is the intrinsic similarity between two fragments. It can be any function that
compares them internally, for example by matching the structure of one fragment
to another, and outputs a similarity score in the range of [0, 1]. ExtSim(A →
B) is a measure of extrinsic similarity that compares the contexts of the two
100
fragments. α is set to 0.5 for an unsupervised approach, but the effects of tuning
this parameter are further analysed in Section 5.7.
The directional similarity score is first found between words in each fragment,
which are then used to calculate the overall score between the two fragments.
5.5.1
Intrinsic similarity
IntSim(A → B) is defined as the intrinsic similarity between the two words or
fragments. In order to best capture entailment, this measure should be asymmetrical. We use the following simple formula for word-level score calculation:
IntSim(a → b) =
length(c)
length(b)
where c is the longest common substring for a and b. This measure will show the
ratio of b that is also contained in a. For example:
IntSim(overexpress → expression) = 0.70
IntSim(expression → overexpress) = 0.64
We found that measuring the length of the longest shared substring worked
better, compared to the more widely used Levenshtein distance measure (Levenshtein, 1966), also known as string edit distance. For example, Levenshtein distance will assign a high similarity to the word pair (overexpress, overcompress),
even though they have different lexical stems and very different meaning. In
contrast, our IntSim measure will return a relatively low similarity, as it matches
only on the common suffix.
The intrinsic similarity function for fragments is defined using an injective
function between components of A and components of B:
IntSim(A → B) =
M apping(A → B)
|B|
where M apping(A → B) is a function that goes through all the possible word
pairs {(a, b)|a ∈ A, b ∈ B} and at each iteration connects the one with the
101
while unused elements in A and B do
bestScore = 0
for a ∈ A, b ∈ B, a and b are unused do
if Score(a → b) > bestScore then
bestScore = Score(a → b)
end if
end for
total+ = bestScore
end while
return total
Figure 5.2: Pseudocode for mapping between two fragments.
highest entailment score, returning the sum of those scores. Figure 5.2 contains
pseudocode for the mapping process. Dividing the value of M apping(A → B)
by the number of components in B gives an asymmetric score that indicates how
well B is covered by A. It returns a lower score if B contains more elements than
A, as some words cannot be matched to anything. While there are exceptions,
it is common that if B is larger than A, then it cannot be entailed by A as it
contains more information.
The word-level entailment score Score(a → b) is directly used to estimate
the entailment score between fragments, Score(A → B). In this case we are
working with two levels – fragments which in turn consist of words. However,
this can be extended to a truly recursive method where fragments consist of
smaller fragments.
5.5.2
Extrinsic similarity
The extrinsic similarity between two fragments or words is modelled using measures of directional distributional similarity. We define a context relation as a
tuple (a, d, r, a0 ) where a is the main word, a0 is a word connected to it through
a dependency relation, r is the label of that relation and d shows the direction of
the relation. The tuple f : (d, r, a0 ) is referred to as a feature of a.
To calculate the distributional similarity between two fragments, we adopt an
approach similar to Weeds et al. (2005). Using the previous notation, (d, r, a0 ) is
a feature of fragment A if (d, r, a0 ) is a feature for a word which is contained in
102
A. The general algorithm for feature collection is as follows:
1. Find the next instance of a fragment in the background corpus.
2. For each word in the fragment, find dependency relations which connect to
words not contained in the fragment.
3. Count these dependency relations as distributional features for the fragment.
For example, in Figure 5.1 the fragment (* induces * in *) has three features:
(1, subj, B61), (1, dobj, autophosphorylation) and (1, dobj, cell). The value 1
indicates an outward-directed relation.
The BioMed Central corpus of full papers was used to collect distributional
similarity features for each fragment. 1,000 papers were randomly selected and
separated for constructing the test set, leaving 70,821 biomedical full papers.
These were tokenised and parsed using the RASP system (Briscoe et al., 2006)
in order to extract dependency relations.
We experimented with different schemes for feature weighting and found the
best one for this task to be a variation of Dice’s coefficient (Dice, 1945), described
by Curran (2003):
wA (f ) =
2P (A, f )
P (A, ∗) + P (∗, f )
(5.1)
where wA (f ) is the weight of feature f for fragment A, P (∗, f ) is the probability of
the feature appearing in the corpus with any fragment, P (A, ∗) is the probability
of the fragment appearing with any feature, and P (A, f ) is the probability of the
fragment and the feature appearing together.
We evaluated 15 best-performing similarity measures from Chapter 4 for modelling extrinsic similarity, and found that words and fragments benefitted from different types of measures. ClarkeDE (Clarke, 2009), described in Section 4.4.16,
was used for fragment-level ExtSim in the final system as it achieved the highest
performance:
P
ClarkeDE(A → B) =
min(wA (f ), wB (f ))
P
f ∈FA wA (f )
f ∈FA ∩FB
103
(5.2)
where FA is the set of features for fragment A and wA (f ) is the weight of feature
f for fragment A. It quantifies the weighted coverage of the features of A by the
features of B by finding the sum of minimum weights.
The ClarkeDE similarity measure is designed to detect whether the features
of A are a proper subset of the features of B. This works well for finding more
general versions of relatively sparse fragments, but not when comparing words or
fragments which are roughly equal paraphrases. As a solution we constructed a
new measure based on the symmetrical Lin measure (Lin, 1998).
P
LinD(A → B) = P
f ∈FA ∩FB [wA (f )
f ∈FA
wA (f ) +
P
+ wB (f )]
f ∈FA ∩FB wB (f )
(5.3)
In the LinD measure, described in Section 4.4.20, the features of B which
are not found in A are excluded from the score calculation, making the score
non-symmetrical but more balanced compared to ClarkeDE. We applied this
for word-level distributional similarity and achieved better results compared to
other common similarity measures.
Finally, we also use the LinD similarity to better detect possible paraphrases
between fragments. If this similarity is very high (greater than 85%), then a
symmetric relationship between the fragments is assumed and the value of LinD
is used as ExtSim. Otherwise, the system reverts to the ClarkeDE measure for
handling unidirectional relations.
The system does not explicitly restrict two entailing fragments to have the
same syntactic type or internal structures. However, the incorporation of the
distributional similarity score will lead the system towards fragments that occur
in similar contexts and have similar valency.
5.5.3
Hedging and negation
In general, adding more information to a text will produce a new proposition
that still entails the original hypothesis. However, as Haghighi et al. (2005) point
out, there are some important exceptions. Speculative language, also known as
hedging, is a way of weakening the strength of a statement and can be one source
of such exceptions.
104
In the following example, we have only added a modifier to the original term,
but this is enough to invert the direction of the entailment relation:
(24) is repressed by → is affected by
may be repressed by ← is affected by
The same applies to negation cues, which are also capable of reversing the
relation:
(25) biological discovery → discovery
no biological discovery ← no discovery
Such cases are handled in our system by inverting the direction of the score
calculation if a fragment is found to contain a special cue word that commonly
indicates hedged language or negation. In order to find the list of indicative hedge
cues, we analysed the training corpus of CoNLL 2010 Shared Task (Farkas et al.,
2010), also used in Chapter 3, which is annotated for speculation cues and scopes.
Any cues that occurred less than 5 times or occurred more often as normal text
than as cue words were filtered out, resulting in the following list:
(26) suggest, may, might, indicate that, appear, likely, could, possible, whether,
would, think, seem, probably, assume, putative, unclear, propose, imply,
possibly
For negation cues we used the list collected by Morante (2009):
(27) absence, absent, cannot, could not, either, except, exclude, fail, failure,
favor over, impossible, instead of, lack, loss, miss, negative, neither, nor,
never, no, no longer, none, not, rather than, rule out, unable, with the
exception of, without
This is a fast and basic method for estimating the presence of hedging and
negation in a fragment. In Chapter 3 we described a more sophisticated system
which could deliver more accurate results, especially when extended to negation
scopes. However, in this experiment we wish to test whether the detection of
hedging and negation in general will have any direct practical effect on entailment
105
detection. In addition, the exact scope detection is most beneficial for longer
texts, whereas the presence of a keyword acts as a good indication of hedging
and negation for relatively short fragments. Therefore, we leave the integration
of these systems for future work, and present here the preliminary experiments
with a simplified approach.
5.6
Dataset
We created a “pilot” dataset for evaluating different entailment detection methods
between fragments, and it is publically available for download.1 In order to look
for valid entailment examples, 1,000 biomedical papers from the BioMed Central
full-text corpus were randomly chosen and analysed. We hypothesised that two
very similar sentences extracted from the same paper are likely to be more and less
general versions of the same proposition. For example, the author may write the
same statement in three separate locations: the introduction, the main article
body, and the conclusion. Some of these statements tend to be more specific
than others, or modified paraphrases of each other, providing a natural source of
fragment-level entailment examples. To find these instances, we first use a bagof-words approach to calculate the similarities between all sentences in a single
paper. Next, ten of the most similar but non-identical sentence pairs from every
paper were presented for manual review and 150 fragment pairs were created
based on these sentences, 100 of which were selected for the final set. Negative
instances were found using the same process, selecting fragment pairs in similar
contexts that do not entail each other, but some fragments were slightly modified
to make them substitutable in the same sentence.
The Microsoft Research (MSR) Paraphrase Corpus (Dolan & Brockett, 2005)
is a similar dataset containing a collection of sentence pairs that have been manually annotated for paraphrases. The corpus was created by automatically extracting sentences based on high word similarity, and then suggesting them for
manual labelling. It was found that on average 70% of the words in these sentence
pairs are identical (Weeds et al., 2005). Such a dataset will not contain a wide
range of paraphrase types, since only sentences with high lexical overlap can pass
1
www.cl.cam.ac.uk/∼mr472/entailment/
106
1: These findings suggest that spinal AMPARs might participate in
the central spinal mechanism of persistent inflammatory pain.
2:
3: might participate in
4: <5: are involved in
Figure 5.3: Example sentence pair from the dataset
the initial automatic filter. We employ a similar method to construct our dataset,
but as our work involves smaller graph fragments compared to full sentences, the
overlap problem is somewhat reduced. While all words in the sentence are used
to perform the initial matching, most of them are discarded and only the nonidentical fragments are retained. Experiments in Section 5.7 demonstrate that
a simple bag-of-words approach performs rather poorly on the task, confirming
that the extraction method produces a diverse selection of fragments.
Two annotators assigned one of four relation types to every candidate pair
based on how well one fragment can be substituted for the other in text while
preserving meaning (A ↔ B, A → B, A ← B or A 6= B). Cohen’s Kappa
between the annotators was 0.88, indicating very high agreement. Instances with
disagreement were then reviewed and replaced for the final dataset.
Each fragment pair has two binary entailment decisions (one in either direction) and the set is evenly balanced, containing 100 entailment and 100 nonentailment relations. An example sentence with the first fragment is also included
in the dataset. Fragment sizes range from 1 to 20 words, with the average of 2.86
words.
Figure 5.3 shows one example from the dataset. The first line contains the
sample sentence, followed by the first fragment, the direction of the relation, and
the second fragment. The fragments are not stored in their final graph form in
order to enable the use of different dependency parsers, but they are chosen to
produce connected dependency graphs.
107
5.7
Experiments
The system assigns a score to each entailment relation, with higher values indicating higher confidence in entailment. All the relations are ranked based on
their score, and Average Precision (AP) is used to evaluate the performance:
N
1 X E(i) × CorrectU pT o(i)
AP =
R i=1
i
(5.4)
where R is the total number of correct entailment relations, N is the number of
possible relations in the test set, E(i) is 1 if the i-th relation is entailment in the
gold standard and 0 otherwise, and CorrectU pT o(i) is the number of correctly
returned entailment relations up to rank i. Average precision assigns a higher
score to systems which rank correct entailment examples higher in the list.
As a secondary measure, we also report the Break-Even Point (BEP), which
is defined as precision at the rank where precision is equal to recall. Using the
previous annotation, this can also be calculated as precision at rank R:
CorrectU pT o(R)
(5.5)
R
BEP is a much more strict measure, treating the task as binary classification and
ignoring changes to the ranks within the classes.
The test set is balanced, therefore random guessing is expected to achieve an
AP and BEP of 50.0% which can be regarded as the simplest (random) baseline.
Table 5.1 contains results for two more basic approaches to the task. For the bagof-words (BOW) system, the score of A entailing B is found as the proportion of
lemmatised words in B that are also contained in A:
BEP =
Scorebow (A → B) =
|{b|b ∈ A, B}|
|{b|b ∈ B}|
(5.6)
We also tested entailment detection when using only the directional distributional similarity between fragments, as is commonly done for calculating similarity
between single words. While both of the systems perform better than random,
the results are much lower than those for more informed methods. This also
indicates that even though there is some lexical overlap between the fragments,
108
it is not enough to make accurate decisions about the entailment relations.
System type
Random baseline
BOW
Distributional similarity (ClarkeDE )
AP
50.00
65.66
64.49
BEP
50.0
61.0
48.0
Table 5.1: Results for the basic approaches on fragment entailment detection.
We were interested in seeing what types of similarity measures perform well
for entailment detection between larger fragments, compared to single words. For
this experiment, the system was set up to use intrinsic and extrinsic similarity, as
described in Section 5.5, but without the additional modifications of paraphrase
checking and hedge/negation detection. We utilised the top similarity measures
from the hyponym detection task in Chapter 4, and evaluated them as predictors of extrinsic similarity (ExtSim) in the fragment entailment detection task.
Different measures were allowed for word-level and fragment-level similarity calculation. Table 5.2 shows a subset of our results, and the full matrix can be found
in Appendix C.
The results show that fragment-level entailment detection requires somewhat
different measures compared to word-level hyponym detection and generation.
Similarity measures such as WeightedCosine and DiceGen2, which were most accurate in previous tasks, do not perform as well here. In contrast, the best results
are achieved with ClarkeDE and WeedsPrec, both of which focus even more on
the directional nature of the relation, and directly model the subsumption ratio
of features. This can be explained by larger text fragments being less ambiguous
and occurring in fewer contexts, therefore more closely matching the underlying
inclusion hypothesis of these measures. The best performing combination is using ClarkeDE for fragments and LinD for words, and we employ these settings in
further experiments.
In order to investigate the contribution of each component to the final system,
we conducted an experiment where the components are added incrementally.
Table 5.3 shows the results, starting only with the intrinsic similarity between
words and fragments.
Using only the intrinsic similarity, the system performs better than any of the
109
Cosine
Lin
JaccardGen
DiceGen
DiceGen2
ClarkeDE
WeedsPrec
WeedsRec
WeedsF
AP
APInc
BalAPInc
LinD
BalPrec
WeightedCosine
Cosine
73.21
72.72
72.64
73.59
71.63
77.45
75.82
66.52
72.93
71.71
73.89
74.54
74.37
72.84
72.79
Lin
74.40
72.67
74.34
74.74
72.92
79.17
75.00
66.20
72.62
72.97
75.00
75.76
73.54
71.70
73.68
DiceGen2
73.11
70.69
74.20
74.08
70.66
79.06
72.76
62.65
70.85
71.42
74.90
76.24
70.92
71.38
71.58
ClarkeDE
73.31
72.84
72.35
73.24
71.17
77.28
75.97
66.54
72.86
71.42
73.62
74.33
74.04
72.87
72.99
LinD
75.43
73.94
75.72
75.89
73.98
80.08
75.36
66.84
73.94
73.99
76.00
76.75
73.42
73.76
74.32
Table 5.2: Average Precision of the entailment detection system using different
distributional similarity measures. Rows correspond to the ExtSim measures
between fragments, columns represent measures between words.
basic approaches, delivering 70.98% AP. Next, the extrinsic similarity between
words is included, raising the AP to 75.43%. When the string-level similarity
fails, the added directional distributional similarity helps in mapping semantically
equivalent words to each other.
The inclusion of extrinsic similarity between fragments gives a further increase,
with AP of 80.08%. The 4.6% increase shows that while fragments are larger and
occur less often in a corpus, their distributional similarity can still be used as a
valuable component to detect semantic similarity and entailment.
Checking for negation and hedge cues raises the AP to 83.09%. The performance is already high and a 3% improvement shows that hedging and negation
affect fragment-level entailment, and other components do not manage to successfully capture this information.
Finally, applying the fragment-level check for paraphrases with a more appropriate distributional similarity measure, as described in Section 5.5.2, returns an
AP of 84.14%. The results of this final configuration are significantly different
compared to the initial system using only intrinsic similarity, according to the
110
System type
Intrinsic similarity only
+ Word ExtSim
+ Fragment ExtSim
+ Negation & hedging
+ Paraphrase check
AP
70.98
75.43
80.08
83.09
84.14
BEP
68.0
71.0
71.0
72.0
72.0
Table 5.3: Results for the system described in Section 5.5. Components are added
incrementally.
Wilcoxon signed rank test at the level of 0.05.
The formula in Section 5.5 contains parameter α which can be tuned to adjust
the balance of intrinsic and extrinsic similarity. This can be done heuristically or
through machine learning methods, and different values can be used for fragments
and words. In order to investigate the effects of tuning on the system, we tried
all possible combinations of αword and αf ragment with values between 0.0 and 1.0
at increments of 0.05. Table 5.4 contains results for some of these experiments.1
αword
0.5
*
0.0
1.0
0.45
αf ragment
0.5
0.0
1.0
1.0
0.65
AP
84.14
65.61
81.30
76.59
84.75
BEP
72.0
48.0
72.0
69.0
74.0
Table 5.4: Results of tuning the weights for intrinsic and distributional similarity.
The best results were obtained with αword = 0.45 and αf ragment = 0.65, resulting in 84.75% AP and 74.0% BEP. This shows that parameter tuning can
improve the results, but the 0.6% increase is modest, and a completely unsupervised approach can provide competitive results. In addition, the optimal values of
α are close to 0.5, indicating that all four components (intrinsic and distributional
similarities for words and fragments) are all contributing to the performance of
the final system.
1
The system presented in Table 5.4 uses all the components (checking for negation, hedging
and paraphrasing), and therefore only matches Table 5.3 at parameter values 0.5.
111
5.8
Conclusion
Entailment detection systems are generally developed to work on specific text
units – either single words, relations, or full sentences. This reduces the complexity of the problem, but can also lead to important information being disregarded.
In this work we proposed a new task – detecting entailment relations between
any kind of dependency graph fragments. Dependency graphs provide a natural
way of separating complete sentences into smaller units, and our definition of
a fragment covers the language structures mentioned above, while also extending to others that have not been fully investigated in the context of entailment
recognition (such as multi-word constituents, predicates and adjuncts).
To perform entailment detection between various types of graph fragments, a
new system was built that combines the directional intrinsic and extrinsic similarities of two fragments to reach a final score. Fragments which contain hedging
or negation are identified and their score calculation is inverted to better model
the effect on entailment. The extrinsic similarity is found with two different distributional similarity measures, first checking for symmetric similarity and then
for directional containment of distributional features. The system was evaluated
on a manually constructed dataset of fragment-level entailment relations from
the biomedical domain and each of the added components improved the results.
Traditionally, the method for entailment recognition is chosen based on what
appears optimal for the task – either structure matching or distributional similarity. Our experiments showed that the combination of both gives the best
performance for all fragment types. It is to be expected that single words will
benefit more from distributional measures while full sentences get matched by
their components. However, this separation is not strict and evidence from both
methods can be used to strengthen the decision.
Our experiments also demonstrate that the distributional hypothesis can be
successfully applied to larger graph fragments, but optimal performance is achieved
with different measures, compared to working only with single words. As larger
fragments are less ambiguous but more sparse, they are more suitable for measures that emphasise the subsumption ratio of context features.
As this is a new task with only a small annotated dataset, we were unable
112
to run comparative experiments using a supervised learning approach. However,
using an unsupervised approach based only on intrinsic and extrinsic similarity,
the system was able to achieve 84.14% average precision. The experiments confirmed that entailment between dependency graph fragments of various types can
be detected in a completely unsupervised setting, without the need for specific resources or annotated training data. As this method can be applied equally to any
domain and requires only a large plain text corpus, we believe it is a promising
direction for future research in entailment detection. This can lead to useful solutions in biomedical information extraction where manually annotated datasets
are in short supply. The framework for fragment-level entailment detection can
be integrated into various applications that require identifying and rewriting semantically equivalent phrases – for example, query expansion in IE and IR, text
mining, sentence-level entailment composition, and relation extraction.
113
Chapter 6
Parser Lexicalisation
6.1
Introduction
In recent years, dependency parsers have become increasingly important tools
in the field of natural language processing. They are often used to provide a
syntactic and semantic analysis of the input text for tasks such as information
extraction, text mining, machine translation, word sense disambiguation, named
entity recognition, and coreference resolution. In previous chapters we described
some additional innovative ways of utilising automatically generated dependency
graphs for language processing. It is necessary to develop robust and accurate
parsing methods, as any parser errors are likely to be propagated to other components, impacting the overall performance.
Most parsers make use of machine learning and a syntactically annotated
dataset (e.g., treebank), incorporating a wide range of features in the training
process to deliver a competitive performance. The use of lexical features, such as
lemma or word forms, is very important when choosing the correct derivation in
ambiguous contexts. However, this also leads the parser to learn rules that are
highly specific to the domain of the training data, and lexical features have been
shown to not transfer well between different domains and genres (Sekine, 1997;
Gildea, 2001). Furthermore, manual creation of treebanks is an expensive and
time-consuming process, which can only be performed by experts with sufficient
linguistic and domain knowledge.
114
In contrast, unlexicalised parsers avoid the use of specific lexical information
and aim to provide a syntactic analysis using only more general features, such
as POS tags. While they are not expected to achieve the highest accuracy on
most well-known treebanked datasets, unlexicalised parsers can be surprisingly
competitive with their lexicalised counterparts (Klein & Manning, 2004; Petrov
et al., 2006). In this work, instead of trying to adapt a lexicalised parser to other
domains, we explore how bilexical features can be integrated with an unlexicalised
parser. As our method requires only a large unannotated corpus, lexical features
can be easily tuned to a specific domain or genre by selecting a suitable dataset.
In addition, our graph expansion process allows the system to capture selected
bilexical relations that improve performance but would require sparse higherorder feature types in most dependency parsers. As any bilexical features can
still be sparse, we also develop a novel approach to estimating confidence scores
for dependency relations using directional distributional similarity measures. The
final framework integrates easily with any unlexicalised (and therefore potentially
less domain/genre-biased) parser capable of returning ranked dependency analyses.
6.2
Research Goals
Our work on parser lexicalisation has the following research goals:
• Test the hypothesis that lexical features can increase the accuracy of an
unlexicalised parser using a self-learning process.
• Investigate methods for automatically extending and modifying dependency
graphs, thereby increasing the number of binary relations available for feature extraction.
• Develop novel methods for assigning confidence scores to bilexical relations,
using unsupervised corpus-based methods.
• Investigate possible methods for smoothing the relation scores using distributionally similar words.
115
• Create a working system for improving the performance of an unlexicalised
parser by reranking the derivations in a post-processing stage, using only
an unannotated text corpus.
6.3
Background
We hypothesise that a large corpus will often contain examples of dependency
relations in non-ambiguous contexts, and these will mostly be correctly parsed
by an unlexicalised parser. Lexical statistics derived from the corpus can then be
used to select the correct parse in a more difficult context. For example, consider
the following sentences:
(28) a. Government projects interest researchers.
b. Government raises interest rates.
c. Government projects receive additional funding.
d. Interest rates are increasing.
Noun-verb ambiguities over projects and interest might erroneously result in
the unlexicalised parser returning similar dependency graphs for both a and b.
However, sentences c and d contain less ambiguous instances of the same phrases
and can provide clues to correctly parsing the first two examples. In a large
corpus we are likely to find more cases of researchers being the object for interest
and fewer cases where it is the object of project. In contrast, rates is more likely
to have interest as a modifier than as a head in an object relation. Exploiting
this lexical information, we can assign the correct derivation to each of the more
ambiguous sentences.
Similar intuitions have been used to motivate the acquisition of corpus-based
bilexical features for improving parser accuracy. However, previous work has
only focused on including these statistics as auxiliary features during supervised
training of lexicalised parsers. van Noord (2007) incorporates bilexical preferences as features via self-training to improve the Alpino parser for Dutch. The
bilexical frequencies are collected from parsed versions of Dutch Wikipedia and
116
Europarl, mapped to more general feature types using POS tags, converted to
pointwise mutual information scores, and then integrated into the parser’s maximum entropy parse ranking model. Similarly, Zhou et al. (2011) extract n-gram
counts from Google queries and a large corpus to improve the MSTParser. They
construct a range of features based on lexical co-occurrence and weight them
using pointwise mutual information. Plank & van Noord (2008) investigate the
application of auxiliary distributions for domain adaptation. They incorporate
information from both in-domain and out-of-domain sources into their maximum
entropy model and find that the out-of-domain auxiliary distributions do not
contribute to parsing accuracy in the target domain.
We formulate our self-learning framework as a reranking process that assigns
new scores to top derivations found by the original parser. Parse reranking has
been successfully used in previous work as a method of including a wider range of
features to rescore a smaller selection of highly-ranked candidate parses. Collins
(2000) was one of the first to propose supervised reranking as an additional step to
increase parser accuracy and achieved a 1.55% accuracy improvement. Charniak
& Johnson (2005) utilise a discriminative reranker and show a 1.3% improvement
for the Charniak parser. McClosky et al. (2006) extend their work by adding
new features and further increase the performance by 0.3%. Ng et al. (2010)
implemented a discriminative maximum entropy reranker for the C&C parser
and showed a 0.23% improvement over the baseline. All of them treat reranking
as a supervised task and train a discriminative classifier using parse tree features
and annotated in-domain data. In contrast, our reranker uses statistics from an
unlabelled source and requires no manual annotation. However, we utilise an
unlexicalised parser, therefore, the baseline performance on WSJ text is lower
compared to most fully-lexicalised parsers (Briscoe & Carroll, 2006).
Our experiments in Section 6.6 demonstrate that parsing accuracy can be
significantly improved by acquiring all bilexical features through a self-learning
process and utilising them only in an unsupervised reranking component. Therefore, the system starts from a simpler unlexicalised parser, less likely to be biased
to domains or genres manifested in the training data. The reranker then has the
advantage of being able to utilise open-ended amounts of text for lexicalising the
parser and tuning it to a required domain and/or genre.
117
6.4
Reordering dependency graphs
For every sentence s the parser returns a list of dependency graphs Gs , ranked
by the log probability of the associated derivation in the structural PGLR model.
Our goal is to reorder this list to improve ranking accuracy and, most importantly,
to improve the quality of the highest-ranked dependency graph. This is done by
assigning a confidence score to every graph gs,r ∈ Gs where r is the rank of gs
for sentence s. The system treats each sentence independently, therefore we can
omit the sentence identifiers and refer to gs,r as gr .
Our framework first calculates confidence scores for all the individual edges
and then combines them into an overall score for the dependency graph. In
the following sections we start by describing a series of graph modifications that
allows the system to incorporate selected higher-order relations, without introducing unwanted noise or complexity into the reranker. Next, we outline different
approaches for calculating and smoothing the confidence score of a bilexical relation. Finally, we describe methods for combining together alternative scores and
calculating an overall confidence score for a dependency graph.
6.4.1
Graph modifications
For every dependency graph gr the system creates a modified representation gr0
which contains a wider range of bilexical relations. The motivation for this graph
expansion step is similar to that motivating the move from first-order to higherorder dependency path features (e.g., Carreras, 2007). However, compared to
using all second-order paths, these rules are chosen to maximise the utility and
minimise the sparsity of the resulting bilexical features. In addition, the cascading
nature of the rules means in some cases the expansion can even produce useful
3rd and 4th order dependencies. Similar approaches to graph modifications have
been successfully used for several NLP tasks (van Noord, 2007; Arora et al., 2010).
For any edge e we also use notation (rel, w1 , w2 ), referring to an edge from
w1 to w2 with the label rel. Our system performs the following modifications on
every dependency graph:
1. Normalising lemmas. All lemmas are converted to lowercase. Numerical
118
lemmas are replaced with more generic tags to reduce sparsity: numbers
(e.g., 1, 104 ), lexical representations of numbers (one, eighty), currency
values ($10,000, £20 ), enumerative lemmas (1st, 2nd ).
2. Bypassing conjunctions. For every edge pair (rel1 , w1 , w2 ) and (rel2 , w2 , w3 )
where w2 is tagged as a conjunction, we create an additional edge (rel1 , w1 , w3 ).
This bypasses the conjunction node and creates direct edges between the
head and dependents of the conjunctive lemma.
3. Bypassing prepositions. For every edge pair (rel1 , w1 , w2 ) and (rel2 , w2 , w3 )
where w2 is tagged as a preposition, we create an additional edge (rel3 , w1 , w3 ).
rel3 = rel1 + ‘ prep’, where ‘ prep’ is added as a marker to indicate that
the relation originally contained a preposition.
4. Bypassing verbs. For every edge pair (rel1 , w1 , w2 ) and (rel2 , w1 , w3 )
where w1 is tagged as a verb, w2 and w3 are both tagged as open-class
words, rel1 starts with a subject relation (subj, ncsubj, xsubj, csubj), rel2
starts with an object relation (obj, dobj, iobj, obj2), we create an additional
edge (rel3 , w2 , w3 ) where rel3 = rel1 + ‘-’ + rel2 . This creates an additional
edge between the subject and the object, with the new edge label containing
both of the original labels.
5. Duplicating nodes. For every existing node in the graph, containing
the lemma and POS for each token (lemma pos), we create a parallel
node without the POS information (lemma). Next, for each edge (rel,
lemma1 pos1, lemma2 pos2) we create three additional edges using these
new nodes: (rel, lemma1 pos1, lemma2), (rel, lemma1, lemma2 pos2), (rel,
lemma1, lemma2). This quadruples the number of edges in each graph and
allows the system to use both specific and more generic instantiations of
each lemma.
Figure 6.1 illustrates the graph modification process. It is important to note
that each of these modifications gets applied in the order that they are described
here. For example, when creating edges for bypassing verbs, the new edges for
prepositions and conjunctions have already been created and also participate in
119
ncmod
italian
JJ
ncsubj
pm
NP1
dobj
ncmod
iobj
meet
VVZ
with
IW
cabinet
NN1
conj
ncmod
conj
member
NN2
and
CC
dobj
senior
JJ
official
NN2
dobj
iobj prep
iobj prep
ncsubj-iobj prep
iobj prep
ncsubj-iobj prep
Figure 6.1: Modified graph for the sentence ‘Italian PM meets with Cabinet members and senior officials’ after steps 1-4. Edges above the text are created by the
parser, edges below the text are automatically created using the operations described in Section 6.4.1. The 5th step will create 9 new nodes and 45 additional
edges (not shown).
this operation. We performed ablation tests on the development data and verified
that each of these modifications positively contributes to the final performance.
6.4.2
Edge scoring methods
We start the scoring process by assigning individual confidence scores to every
bilexical relation in the modified graph. In this section we present some possible
strategies for performing this task.
The parser returns a ranked list of graphs and this can be used to derive
an edge score without requiring any additional information. We estimate that
the likelihood of a parse being the best possible parse for a given sentence is
roughly inversely proportional to the rank that it is assigned by the parser. These
values can be summed for all graphs that contain a specific edge and normalised
to approximate a probability. We then calculate the score for edge e as the
Reciprocal Edge Score (RES) – the probability of e belonging to the best possible
parse:
PR
RES(e) =
1
r=1 [ r
× contains(gr0 , e)]
PR 1
(6.1)
r=1 r
where R is the total number of parses for a sentence, and contains(gr0 , e) returns
1 if graph gr0 contains edge e, and 0 otherwise. The value is normalised, so that
120
an edge which is found in all parses will have a score of 1.0, but occurrences at
higher ranks will have a considerably larger contribution.
The score of an edge can also be assigned by estimating the probability of that
edge using a parsed reference corpus. van Noord (2007) improved overall parsing
performance in a supervised self-training framework using feature weights based
on pointwise mutual information:
I(e) = log
P (rel, w1 , w2 )
P (rel, w1 , ∗) × P (∗, ∗, w2 )
(6.2)
where P (rel, w1 , w2 ) is the probability of seeing an edge from w1 to w2 with label
rel, P (rel, w1 , ∗) is the probability of seeing an edge from w1 to any node with
label rel, and P (∗, ∗, w2 ) is the probability of seeing any type of edge linking
to w2 . Plank & van Noord (2008) used the same approach for semi-supervised
domain adaptation but were not able to achieve similar performance benefits.
In our implementation we omit the logarithm in the equation, as this improves
performance and avoids problems with log(0) for unseen edges.
I(e) compares the probability of the complete edge to the probabilities of
partially specified edges, but it assumes that w2 will have an incoming relation,
and that w1 will have an outgoing relation of type rel to some unknown node.
These assumptions may or may not be true – given the input sentence, the system
has observed w1 and w2 but does not know about possible relations they are
involved in. Therefore, we create a more general version of this measure that
compares the probability of the complete edge to the individual probabilities of
the two words – the Conditional Edge Score (CES1 ):
CES1 (e) =
P (rel, w1 , w2 )
P (w1 ) × P (w2 )
(6.3)
where P (w1 ) is the probability of seeing w1 in text, estimated from a background
corpus using maximum likelihood.
Finally, we know that w1 and w2 are in a sentence together but cannot assume
that there is a dependency relation between them. However, we can choose to
think of each sentence as a fully connected graph, with an edge going from every
word to every other word in the same sentence. If there exists no genuine relation
between the words, the edge is simply considered a null edge. We can then find
121
the conditional probability of the relation type given the two words:
CES2 (e) =
P (rel, w1 , w2 )
P (∗, w1 , w2 )
(6.4)
where P (rel, w1 , w2 ) is the probability of the fully-specified relation, and P (∗, w1 , w2 )
is the probability of there being an edge of any type from w1 to w2 , including a
null edge. Using fully connected graphs, the latter is equivalent to the probability of w1 and w2 appearing in a sentence together, which again can be calculated
from the background corpus.
6.4.3
Smoothing edge scores
Apart from RES, all the scoring methods from the previous section rely on
correctly estimating the probability of the fully-specified edge, P (rel, w1 , w2 ).
Even in a large background corpus these triples will be very sparse, and it can be
useful to find approximate methods for estimating the edge scores.
Based on common smoothing techniques applied to language modelling, the
system could back-off to a more general version of the relation. For example, if
(dobj, read, publication) is not frequent enough, the score could be approximated
using the probabilities of (dobj, read, *) and (dobj, *, publication). However, this
can lead to unexpected results due to compositionality – while (dobj, read, *) and
(dobj, *, rugby) can be fairly common, (dobj, read, rugby) is an unlikely relation.
Instead, we can consider looking at other words which are similar to the rare
words in the relation. If (dobj, read, publication) is infrequent in the data, the
system might predict that book is a reasonable substitute for publication and use
(dobj, read, book) to estimate the original probability.
Given that the system has a reliable way of finding likely substitutes for a
given word, we can create expanded versions of CES1 and CES2 , as shown in
Equations 6.5 and 6.6. C1 is the list of substitute words for w1 , and sim(c1 , w1 )
is a measure showing how similar c1 is to w1 . The methods iterate over the list
of substitutes and calculate the CES score for each of the modified relations.
The values are then combined by using the similarity score as a weight – more
similar words will have a higher contribution to the final result. This is done for
both the head and the dependent in the original relation, and the scores are then
122
normalised and averaged.
P
P (rel,c1 ,w2 )
1
c1 ∈C1 sim(c1 , w1 ) × P (c1 )×P (w2 )
P
ECES1 (rel, w1 , w2 ) = × (
2
c1 ∈C1 sim(c1 , w1 )
P
P (rel,w1 ,c2 )
c2 ∈C2 sim(c2 , w2 ) × P (w1 )×P (c2 )
P
+
)
c2 ∈C2 sim(c2 , w2 )
(6.5)
P
P (rel,c1 ,w2 )
1
c1 ∈C1 sim(c1 , w1 ) × P (∗,c1 ,w2 )
P
ECES2 (rel, w1 , w2 ) = × (
2
c1 ∈C1 sim(c1 , w1 )
P
P (rel,w1 ,c2 )
c2 ∈C2 sim(c2 , w2 ) × P (∗,w1 ,c2 )
P
+
)
c2 ∈C2 sim(c2 , w2 )
(6.6)
We use WeightedCosine, the best-performing directional distributional similarity measure from Chapter 4, to generate a list of hyponyms for substituting
each word in the relation. Hyponyms are well-suited for lexical expansion, as
the properties of a hypernym (e.g., publication) are also expected to apply to its
hyponyms (book, magazine, catalogue). In addition, by utilising a distributional
similarity measure we are able to directly use the real-valued similarity score in
the equations and avoid the use of any domain-specific or manually annotated
resources.
In order to calculate word similarity scores, the feature vectors for each word
are built from the same vector space model that is used for calculating edge probabilities, which includes all the graph modifications described in Section 6.4.1.
Features are either (rel, head) or (rel, dependent) tuples, corresponding to the
directed relations that the word is involved in, weighted by mutual information.
The system calculates the similarity between a word and all other words in the
corpus, retaining the top 10 highest ranking substitutes. We also include the
original word in this list with similarity 1.0, thereby assigning the highest weight
to the original relation.
123
6.4.4
Combining edge scores
While the CES and ECES measures calculate confidence scores for bilexical
relations using statistics from a large background corpus, they do not include
any knowledge about grammar, syntax, or the context in a specific sentence.
In contrast, the RES score implicitly includes some of this information, as it
is calculated based on the original parser ranking. We wish to combine these
scores, in order to take advantage of both information sources. Since the means
and variances of alternative scoring methods can be rather different, we found
that taking the geometric mean gives the best performance. In Section 6.6 we
evaluate the following two combination scores:
CM B1 (e) =
CM B2 (e) =
6.4.5
p
3
RES(e) ∗ CES1 (e) ∗ CES2 (e)
p
3
RES(e) ∗ ECES1 (e) ∗ ECES2 (e)
(6.7)
(6.8)
Graph scoring
Every edge in graph gr0 is assigned a score indicating the reranker’s confidence
in that edge belonging to the best parse. We investigated different strategies for
combining these values together into a confidence score for the whole graph. The
simplest solution is to sum together individual edge scores, but this would lead the
system to always prefer graphs that have a larger number of edges. Interestingly,
averaging the edge scores does not produce good results either – the system will be
biased towards smaller graph fragments containing only highly-confident edges.
We created a new scoring method which prefers graphs that connect all the
nodes, yet does not explicitly bias towards a higher number of edges. For every
node in the graph, it finds the average score of all edges which have that node as
a dependent. These scores are then averaged again over all nodes:
P
N odeScore(n) =
e∈Eg
EdgeScore(e) × isDep(e, n)
P
e∈Eg isDep(e, n)
124
(6.9)
P
GraphScore(g) =
n∈Ng
N odeScore(n)
|Ng |
(6.10)
where g is the graph being scored, Ng is the set of nodes in g, Eg is the set of
edges in g, n ∈ Ng is a node in graph g, e ∈ Eg is an edge in graph g, isDep(e, n)
is a function returning 1.0 if n is the dependent in edge e, and 0.0 otherwise.
N odeScore(n) is set to 0 if the node does not appear as a dependent in any edges.
We found this method to perform well, as it prefers graphs that connect together
many nodes without simply rewarding a larger number of edges. However, future
research could be directed towards integrating the edge scores more closely with
the underlying parsing algorithm, potentially leading to improved accuracy.
It is important to note that while the score calculation is done using the modified graph, the resulting score is directly assigned to the corresponding original
graph, and the reordering of the original dependency graphs is used for evaluation.
6.5
Evaluation methods
In order to evaluate how much the reranker improves the highest-ranked dependency graph, we calculate the microaveraged precision, recall and F-score over
all dependencies from the test and gold standard parses. Following the official
RASP evaluation (Briscoe et al., 2006) we employ the hierarchical edge matching scheme which aggregates counts up the GR subsumption hierarchy and thus
rewards the parser for making more fine-grained distinctions.1
Statistical significance of the change in F-score is calculated using the Approximate Randomisation Test (Noreen, 1989; Cohen, 1995) with 106 iterations.
This method is a computer-intensive statistical hypothesis test which can be used
for many NLP tasks (Yeh, 2000), including parsing (Cahill et al., 2008). It is designed to assess result differences with respect to a test statistic in cases where
the sampling distribution of the test statistic is unknown.
Under the null hypothesis, the new system is not different from the baseline,
1
Slight changes in the performance of the baseline parser compared to previous publications
are due to using a more recent version of the parser and minor corrections to the gold standard
annotation.
125
therefore any analysis produced by one of these systems is just as likely to have
been produced by the other. This is tested by switching dependency graphs
between the two systems and recomputing the difference between the evaluation
metrics. For n sentences there are 2n different ways of shuffling the graphs,
which can get computationally intractable for even a relatively small n. Instead
of generating every possible combination, the test can be performed using an
approximate randomisation over many iterations, where each shuffle is performed
with random assignments – for every sentence, there is a 50% probability of
switching the corresponding dependency graphs from both systems. We count
the number of times c when the difference between the F-scores of two randomly
shuffled outputs is greater or equal than the difference between our system and
the baseline. The probability of obtaining a difference in the evaluation metric
at least as extreme as the one that was actually observed, assuming that the null
hypothesis is true, is then calculated as:
p=
c+1
R+1
(6.11)
where R is the number of trials performed (Noreen, 1989). If the value is smaller
than 0.05, the null hypothesis is rejected and the systems are considered significantly different. For experiments in Section 6.6 we use R = 106 .
We also wish to measure how well the reranker does at the overall task of
ordering dependency graphs. For this we make use of an oracle that creates the
perfect ranking for a set of graphs by calculating their individual F-scores; this
ideal ranking is then compared to the output of our system. Spearman’s rank
correlation coefficient between the two rankings is calculated for each sentence
and then averaged over all sentences. If the scores for all of the returned analyses
are equal, this coefficient cannot be calculated and is set to 0.
Finally, we also report the number of times the system assigns the highest
score to the best available dependency graph.
126
6.6
6.6.1
Experiments
DepBank
The system was evaluated using the DepBank/GR reannotation (Briscoe & Carroll, 2006) of the PARC 700 Dependency Bank (King et al., 2003), described in
Section 2.3.7. The dataset is provided with the open-source RASP distribution
and has been used for evaluating different parsers, including RASP (Briscoe &
Carroll, 2006; Watson et al., 2007) and C&C (Clark & Curran, 2007). It contains 700 sentences, randomly chosen from section 23 of the WSJ Penn Treebank
(Marcus et al., 1993), divided into development (140 sentences) and test data
(560 sentences).
We made use of the development data to experiment with a wider selection
of edge and graph scoring methods. However, we found that the results between
different configurations became more stable after removing the 10 longest sentences in the development set. Long and convoluted sentences are most difficult
for the parser and reranker to handle correctly. At the same time, they contribute
a large proportion of the final results, as the dataset is very small and the F-score
is averaged over individual dependencies, not sentences. Therefore, we used 130
sentences to perform experiments during the development process.
For reranking we collect up to 1,000 top-ranked parses for each sentence. The
actual number of parses that RASP outputs depends on the sentence and can be
smaller. As RASP first constructs parse trees and converts them to dependency
graphs, different parses of the same sentence may result in identical graphs; we
remove any duplicates to obtain a ranking of unique dependency graphs.
The reranking framework relies on a large unannotated corpus of in-domain
text, and for this we used the BLLIP corpus containing 50M words of in-domain
WSJ articles. Our version of the corpus excludes texts that are found in the Penn
Treebank, thereby also excluding the section that we use for evaluation. All the
data was reparsed with RASP, the resulting highest-ranked dependency graphs
were modified using the process described in Section 6.4.1, and the required occurrence counts for words and relations were automatically collected.
The baseline system is the unlexicalised RASP parser with default settings. In
127
DepBank/GR Development Set (130)
Prec
Rec
F
ρ
77.90
74.43
76.13
33.81
Baseline
83.09
85.14
76.15
Upper Bound 87.29
76.93
73.80
75.33
31.25
I
77.23
73.77
75.46
39.26
RES
78.34
74.90
76.58
35.48
CES1
79.61
76.06
77.79
43.72
CES2
78.50
75.10
76.77
38.23
ECES1
80.06
76.73
78.36
44.49
ECES2
79.67
76.04
77.81
43.95
CMB1
80.24 76.66 78.41 45.95
CMB2
Best
49
130
54
47
56
54
55
57
57
55
Table 6.1: Performance of different edge scoring methods on the development
data. For each measure we report precision, recall, F-score, average Spearman’s
correlation (ρ), and the number of times the system assigns the highest rank to
the best available dependency graph (Best). The highest results for each measure
are marked in bold. The underlined F-scores are significantly better compared to
the baseline.
order to identify an upper bound, we use an oracle to calculate the F-score for each
dependency graph individually, and then create the best possible ranking using
these scores. The upper bound for precision, recall and F-measure is less than
100%, as the parser does not always return a perfect derivation as one of the top
1000 candidates. Average Spearman’s correlation for the upper bound is expected
to be 1.0, as it is compared to itself. However, when all the dependency graphs
have the same score according to the gold standard (including when the parser
returns only 1 analysis), then the correlation coefficient cannot be calculated and
is, therefore, set to 0.
Tables 6.1 and 6.2 contain evaluation results on the development and test
sets. The baseline system achieves 76.41% F-score on the test data, with 32.70%
average correlation, and returns the best possible parse as the top parse 231 times
out of possible 560. I and RES scoring methods give results comparable to the
baseline, with RES improving correlation by 9.56%. The CES scores make use
of corpus-based statistics and significantly improve over the baseline system. The
F-score is increased to 78.85% and additional 39 sentences are correctly ranked as
the top parses. The ECES scores utilise similarity-based smoothing and improve
128
DepBank/GR Test
Prec
Rec
77.91
74.97
Baseline
82.82
Upper Bound 86.74
77.77
75.00
I
78.13
74.94
RES
79.68
76.40
CES1
80.48
77.28
CES2
79.96
76.68
ECES1
80.71
77.52
ECES2
80.64
77.31
CMB1
80.88 77.60
CMB2
Set (560)
F
ρ
76.41
32.70
84.73
75.36
76.36
33.32
76.50
42.26
78.01
41.95
78.85
48.43
78.29
42.41
79.08 49.05
78.94
48.25
79.21 49.02
Best
231
560
238
228
262
270
266
272
263
273
Table 6.2: Performance of different edge scoring methods on the test data.
the results even further, giving the F-score of 79.08%.
Finally, we combine the RES score with the corpus-based methods by finding
their geometric mean, and the CM B2 measure delivers the best overall results.
The final F-score is 79.21%, an improvement of 2.8%, corresponding to 33.65%
relative error reduction with respect to the upper bound. Correlation is increased
by 16.32% and 273 sentences get assigned the correct top analysis. This means
the methods not only manage to create a better overall ranking, but also improve
the chances of differentiating between the best dependency graph and all the
others. The F-scores for all the corpus-based scoring methods are statistically
significant compared to the baseline (p < 0.05).
By using only a plain-text corpus and a self-learning framework, the system
was able to significantly improve the original unlexicalised parser. To put the
overall result in wider perspective, Clark & Curran (2007) achieve an F-score
of 81.86% on the DepBank/GR test sentences using the C&C lexicalised parser,
trained on 40,000 manually-treebanked sentences from the WSJ. The RASP unlexicalised parser, using a manually-developed grammar and a parse ranking
component trained on 4,000 partially-bracketed unlabelled sentences from a domain/genre balanced subset of Brown (Watson et al., 2007), achieves an F-score
of 76.41% on the same test set. The method introduced here improves this to
79.21% F-score without using any further manually-annotated data, closing more
than half of the gap between the performance of a fully-supervised in-domain
129
Genia-GR Dataset (492)
Prec
Rec
F
79.91
78.86
79.38
Baseline
84.71
85.51
Upper Bound 86.33
77.18
76.21
76.69
I
80.06
78.89
79.47
RES
78.64
77.50
78.07
CES1
79.92
78.92
79.42
CES2
79.09
78.11
78.60
ECES1
79.84
78.95
79.39
ECES2
80.60
79.51
80.05
CMB1
80.69 79.64 80.16
CMB2
ρ
36.54
78.66
30.23
47.52
36.06
43.09
38.02
43.64
44.96
46.24
Best
229
492
175
228
192
194
194
195
204
206
Table 6.3: Performance of different edge scoring methods on the GENIA-GR
dataset.
parser and a semi-supervised more domain-neutral one.
6.6.2
Genia
The strength of our reranking framework is that it does not require any domaindependent resources or manually annotated training data. Therefore, we are
interested in seeing how it performs on a dataset from a completely different
domain.
We evaluate this system on the GENIA-GR dataset (Tateisi et al., 2008),
a collection of 492 sentences from biomedical research papers in GENIA (Kim
et al., 2003). The sentences have been manually annotated with dependencybased grammatical relations that correspond to the same scheme used by RASP.
However, it does not contain dependencies for all tokens and many multi-word
phrases are treated as single units. For example, the tokens ‘intracellular redox
status’ are annotated as one node with label intracellular redox status. When
parsing, we retain this annotation and allow RASP to treat these nodes as unseen
words; however, we use the last lemma in each multi-word phrase to calculate the
edge scoring statistics. The dataset is described in more detail in Section 2.3.14.
In order to initialise our parse reranking framework, we also need a background
corpus that closely matches the evaluation domain. The annotated sentences in
130
GENIA-GR were chosen from abstracts that are labelled with the MeSH term
‘NF-kappa B’.1 Following this method, we created our background corpus by
extracting 7,100 full-text articles (1.6M sentences) from PubMed Central Open
Access collection, containing any of the following terms with any capitalisation:
‘nf-kappa b’, ‘nf-kappab’, ‘nf kappa b’, ‘nf-kappa b’, ‘nf-kb’, ‘nf-κb’. Since we
retain all texts from matching documents, this keyword search acts as a broad
indicator that the sentences contain topics which correspond to the evaluation
dataset. This focussed corpus was then parsed with RASP and used to create a
statistical model for the reranking system, following the same methodologies as
described in Sections 6.4 and 6.6.1.
Table 6.3 contains the results for experiments in the biomedical domain. The
first thing to notice is that while the upper bound for RASP is similar to the DepBank experiments in Section 6.6.1, the baseline results are considerably higher.
This is largely due to the nature of the dataset – since many complicated multiword phrases are treated as single nodes, the parser is not evaluated on edges
within these nodes. In addition, treating these nodes as unseen words eliminates
many incorrect derivations that would otherwise split the phrases. This results in
a naturally higher baseline of 79.38%, and also makes it more difficult to further
improve the performance.
The edge scoring methods I, CES1 and ECES1 deliver F-scores lower than
the baseline in this experiment. RES, CES2 and ECES2 manage to give a
modest improvement in both F-score and Spearman’s correlation. Finally, the
combination methods again give the best performance, with CM B2 delivering
an F-score of 80.16%. This is an absolute increase of 0.78% on an already high
baseline, and the result is also statistically significant (p < 0.05). The experiments
show that our self-learning framework works on very different domains, and it can
be used to significantly increase the accuracy of an unlexicalised parser without
requiring any annotated data.
131
Label
dependent
aux
conj
ta
det
arg mod
mod
ncmod
xmod
cmod
pmod
arg
subj dobj
subj
ncsubj
xsubj
csubj
comp
obj
dobj
obj2
iobj
clausal
xcomp
ccomp
pcomp
#GRs
10682
400
595
291
1114
8282
3906
3548
178
168
12
4376
3120
1359
1350
7
2
3017
2325
1761
20
544
668
380
288
24
Baseline
Prec Rec
F
80.01 77.29 78.62
93.40 92.00 92.70
74.74 71.60 73.13
41.25 47.77 44.27
87.95 90.39 89.15
79.22 75.31 77.21
74.50 67.54 70.85
75.84 69.73 72.66
50.89 48.31 49.57
52.58 30.36 38.49
30.77 33.33 32.00
77.94 76.76 77.34
82.73 75.22 78.80
81.36 67.77 73.95
81.95 67.93 74.28
33.33 28.57 30.77
14.29 50.00 22.22
75.47 79.45 77.41
78.27 79.96 79.11
81.99 79.39 80.67
20.69 30.00 24.49
71.09 77.76 74.28
62.37 72.46 67.04
77.08 77.89 77.49
47.45 64.58 54.71
66.67 66.67 66.67
Prec
82.48
91.21
76.47
42.49
89.26
82.36
77.35
78.57
56.80
56.52
33.33
81.42
85.30
84.44
85.05
33.33
25.00
79.30
80.47
84.52
27.78
71.91
70.25
80.16
58.56
77.27
CMB2
Rec
79.70
90.75
74.29
50.52
91.74
78.11
70.92
73.25
53.93
30.95
33.33
79.09
77.53
69.46
69.56
28.57
100.00
82.27
83.14
82.45
25.00
82.35
74.25
78.68
67.71
70.83
F
81.07
90.98
75.36
46.15
90.48
80.18
73.99
75.82
55.33
40.00
33.33
80.24
81.23
76.22
76.53
30.77
40.00
80.75
81.79
83.47
26.32
76.78
72.20
79.42
62.80
73.91
∆F
2.45
-1.72
2.23
1.89
1.33
2.96
3.15
3.16
5.76
1.51
1.33
2.89
2.43
2.28
2.25
0.00
17.78
3.34
2.68
2.80
1.83
2.50
5.16
1.93
8.10
7.25
Table 6.4: System results on the test data, separated for each label in the GR
type hierarchy. The table shows the number of times the label occurs in the gold
standard, Precision/Recall/F-score of both the baseline and the best reranking
method, and the difference in F-scores between the two systems.
132
dobj
ncmod
dobj
as
CSA
ncmod
companies
NNJ2
with
IW
ccomp
ncsubj
ncmod
newer
JJR
,
,
big-selling
JJ
prescription
NN1
drugs
NN2
ncmod
ncmod
fared
VVD
especially
RR
well
RP
ccomp
ncsubj
dobj
ncmod
ncmod
ncmod
as
CSA
companies
NNJ2
with
IW
ncmod
ncmod
ncmod
newer
JJR
,
,
big-selling
JJ
prescription
NN1
drugs
NN2
fared
VVD
especially
RR
well
RP
Figure 6.2: Subset of dependency relations for the sentence ‘Earnings for most of
the nation’s major pharmaceutical makers are believed to have moved ahead briskly
in the third quarter, as companies with newer, big-selling prescription drugs fared
especially well’. The top graph is ranked highest by the baseline parser; the
bottom graph is chosen by the reranker.
6.6.3
Error analysis
Following Briscoe et al. (2006) and Clark & Curran (2007), we also present a
more fine-grained analysis of the system performance on the DepBank/GR test
dataset. Table 6.4 contains the results separated for each label in the GR type
hierarchy. The auxiliary dependency is the only relation for which the reranking
process reduces both precision and recall in this dataset; all other dependency
types show improved results. Complements and modifiers are attached with much
higher accuracy, resulting in 3.34% and 3.15% increase in corresponding F-scores.
The system has also given an increase of 3.16% for the non-clausal modifier relation (ncmod ), which is the most frequent label in the dataset. subj and obj
relations show a slightly lower increase, mostly because the baseline system already attaches them with higher accuracy. In contrast, the obj2 relation retains
a rather low accuracy, and this is due to errors in the top 1,000 derivations – the
upper bound for the F-score of obj2 was found to be only 36.84%.
1
NF-κB is a protein complex found in many mammals, including humans.
133
ncsubj
aux
ncmod
We
PPIS2
’re
VBR
not
XX
making
VVG
ccomp
det
a
AT1
conj
killing
NN1
,
,
dobj
det
ncmod
ncsubj
conj
but
CCB
we
PPIS2
had
VHD
a
AT1
good
JJ
day
NNT1
ccomp
xmod
ncsubj
We
PPIS2
’re
VBR
ncmod
not
XX
making
VVG
det
a
AT1
conj
killing
NN1
,
,
dobj
det
ncmod
ncsubj
conj
but
CCB
we
PPIS2
had
VHD
a
AT1
good
JJ
day
NNT1
Figure 6.3: Subset of dependency relations for the sentence ‘We’re not making a
killing, but we had a good day.’. The top graph is ranked highest by the baseline
parser; the bottom graph is chosen by the reranker.
We also performed a manual analysis of how the introduction of lexical features has changed the results of the unlexicalised parser. Sentences from the development data were ranked by the unlexicalised parser and by the best reranker
configuration, and the output was compared in order to better understand the
system differences. Lexicalisation was found to have the most noticeable effect
on correctly attaching modifiers, especially in ambiguous contexts. Figure 6.2
contains example graphs from the two systems, demonstrating the improved accuracy of the reranker. Among other things, the system has successfully learned
that companies are more likely to be the subject of fare, and that especially is
more likely to modify well.
In contrast, Figure 6.3 shows an example where the reranking process decreased the accuracy of the top parse. While RASP had correctly attached are as
an auxiliary verb to making, the reranker incorrectly preferred we as the subject
for are. This also illustrates the overall decrease in accuracy for the auxiliary
dependency relations. Neither system correctly captured the phrase making a
killing.
134
6.7
Conclusion
The use of lexical features, such as lemmas or word forms, is very important
for accuracte parsing and can help the system choose the correct derivation in
ambiguous contexts. However, it also leads parsers to learn rules that are highly
specific to the domain of the training data, and lexical features have been shown
to not transfer well between different domains and genres. Furthermore, manual
creation of annotated treebanks is an expensive and time-consuming process,
which can only be performed by experts with sufficient linguistic and domain
knowledge.
Instead of trying to adapt a lexicalised parser to other domains, we explored
how bilexical features can be integrated with an unlexicalised parser, without
requiring training data. We hypothesised that a large corpus will often contain examples of dependency relations in non-ambiguous contexts, and these will
mostly be correctly parsed by an unlexicalised parser. Lexical statistics derived
from the corpus can then be used to select the correct parse in a more difficult
context.
In this chapter we developed a self-learning framework for dependency graph
reranking that requires only a plain-text corpus of in-domain text. We automatically parse this corpus with RASP and use it to estimate maximum likelihood
probabilities for bilexical relations. Every dependency graph is first modified to
incorporate additional edges that model selected higher-order relationships. Each
edge in the graph is then assigned a confidence score based on statistics from the
background corpus and preferences from the parser. We also described a novel
method for smoothing these scores using directional distributional similarity measures. Finally, the edge scores were combined into an overall graph score by first
averaging them over individual nodes.
We performed evaluation on data from two different domains: the DepBank/GR dataset of WSJ text, and the GENIA-GR dataset of biomedical abstracts. On DepBank/GR the reranking process was able to increase the F-score
from 76.41% to 79.21%. The improvement was consistent on nearly all individual
dependency types, with important benefits for correctly attaching complements
and modifiers. On GENIA-GR the corresponding F-score was increased from
135
79.38% to 80.16%. The lower relative improvement can be partly attributed to
an overall higher baseline performance, due to the nature of the dataset. In both
experiments the results were found to be statistically significant.
While fully-supervised parsers, such as the C&C parser, still return higher
performance on WSJ text, our self-learning framework successfully improved the
performance of the unlexicalised RASP parser and reduced the relative difference
by 51.4%. As it requires no annotated data, it can be easily adapted to different
domains and genres, and this was demonstrated by experiments using biomedical
texts. It remains as part of future work to evaluate the performance of WSJspecific supervised parsers on the GENIA-GR dataset.
136
Chapter 7
Conclusion
The amount of available textual resources is constantly growing with a remarkable speed, and the field of Natural Language Processing (NLP) offers methods
for efficiently organising, analysing and summarising large amounts of information. Many systems with state-of-the-art performance employ supervised machine
learning techniques, using a manually labelled dataset to optimise model parameters. This allows them to learn complex patterns from the data, but also makes
them highly reliant on manually annotated corpora, which are time-consuming
and costly to create. Furthermore, systems trained on domain-specific datasets
often do not generalise well to other genres and domains.
In this work we investigated minimally-supervised methods for solving NLP
tasks, and we defined them as requiring no explicit training data. However, since
completely unsupervised systems are usually only applicable to tasks that can be
formulated as clustering problems, we expand this definition by allowing minimal
external information to be incorporated. For example, this can be in the form
of selected heuristic rules, linguistic knowledge encoded into the system, or by
utilising some task-independent tools (e.g., an existing dependency parser). The
motivation for our work is to create systems that require substantially reduced
effort from domain and/or NLP experts, compared to annotating a corresponding dataset, and also offer easier domain adaptation and better generalisation
properties.
We applied the principles of minimal supervision to four NLP tasks and compared their performance to alternative methods:
137
In Chapter 3 we described a system for detecting the scope of speculation in
sentences, by using only 8 manually-defined rules over dependency graphs. We
found that the small number of manual rules were able to offer competitive results
without requiring any annotation. In addition, the best performance was achieved
when the rule-based output was included as an extra feature in a supervised
classifier.
Chapter 4 presented experiments for detecting and generating hyponyms using a wide range of distributional similarity measures. We also proposed a new
similarity measure which delivered the best performance for hyponym generation,
even outperforming a supervised alternative. In contrast, the best results for the
hyponym detection task were achieved by including all the similarity measures
as features in a classifier.
In Chapter 5 we proposed a new task of detecting entailment relations between
dependency graph fragments of various types and sizes. Our system made use
of the lexical and distributional similarity of graph fragments and was able to
perform entailment detection in a completely unsupervised setting, without the
need for specific resources or annotated training data. We were also able to
demonstrate that the distributional hypothesis can be applied to larger graph
fragments for unsupervised similarity detection.
Finally, in Chapter 6 we described a self-learning framework for improving
the accuracy of an unlexicalised parser, by calculating relation probabilities from
its own dependency output. The method requires only a large in-domain text
corpus and can therefore be easily applied to different domains and genres. Our
experiments showed significant improvements on both WSJ and biomedical text,
and the system greatly decreased the performance gap between the unlexicalised
RASP parser and the lexicalised C&C parser.
While fully supervised approaches generally achieve the highest results, our
experiments found minimally supervised methods to be remarkably competitive.
For example, by utilising a minimally-supervised system for detecting speculation
cues and scopes, the relative F-score was only 3.32% lower, compared to using
fully supervised classifiers. At the task of parse reranking, the relative F-score
for our self-learning framework was lower by only 3.24%, when compared to the
supervised C&C parser. Furthermore, the best distributional similarity measures
138
were able to outperform a supervised classifier on the task of hyponym generation.
In order to further improve the performance of supervised systems, a common
strategy is to provide more data. This also applies for minimally-supervised
methods that rely on similarity scores or corpus statistics, and obtaining plain
text is considerably easier compared to annotating new examples. In both cases,
however, the improvements are expected to reach a plateau as even more data
is added. In contrast, rule-based systems can be further improved by examining
samples from the system output and iteratively adjusting the rules.
The results presented here are the outcome of four case studies and are unlikely to generalise to every NLP problem. In most tasks, supervised systems
consistently deliver the highest performance, and it remains to be seen whether
minimally-supervised methods can achieve a similar level. However, by developing unsupervised and minimally-supervised systems, we aim to create solutions
that are more likely to generalise across domains and genres. As part of future
work, we would encourage development of systems that are capable of taking full
advantage of the large amounts of unannotated text available from various sources
on the Web. In addition, as dependency graphs can offer an automated method
for resolving the structure and semantics in unlabelled text, it is important to
further improve the accuracy and versatility of existing parsing methods.
Supervised classifiers can offer out-of-the-box approaches for solving many
NLP challenges with relatively high accuracy, but the cost of manually labelling
a separate dataset for each different task and domain is likely to be high. By
moving away from explicit supervision, we aim to better understand the underlying patterns in the data, and to create systems that are not tied to any specific
domains. We described different methods for applying minimal supervision, and
showed that these systems are able to deliver competitive performance without
any annotation costs. In addition, when manually labelled data is available, these
techniques can be used as discriminative features in a combined system to further improve the accuracy. We conclude that minimally supervised methods are
viable solutions to many different natural language processing tasks, offering low
costs, fast performance, and competitive results.
139
Appendix A: Hedge cues
Lemma
suggest
may
indicate that
appear
or
whether
might
likely
could
possible
can
potential
think
putative
seem
propose
either
would
possibly
unknown
probably
should
imply
indicate
potentially
hypothesis
unclear
hypothesize
believe
if
Cue
683
583
316
182
146
122
112
96
95
79
64
51
49
47
45
44
36
31
30
29
28
27
26
25
25
22
20
18
16
16
Total
685
587
319
217
1215
129
112
101
196
97
506
136
52
69
45
64
206
37
30
74
29
37
27
421
28
50
23
20
18
114
Lemma
possibility
assume
not know
perhaps
presumably
expect
predict
apparently
speculate
and/or
estimate
not clear
raise the possibility
apparent
assumption
consider
not
suspect
whether or not
suggestion
support
unlikely
idea
notion
cannot be exclude
clear
indication
infer
must
consistent with
Cue
15
14
13
13
12
10
10
9
9
8
8
8
8
7
7
7
6
6
6
5
5
5
4
4
3
3
3
3
3
2
Total
40
25
18
15
12
34
137
22
10
60
58
8
8
33
14
93
1409
7
6
5
90
5
11
9
3
39
5
8
25
76
Table 1: Part 1/2 of all lemmatised speculation cues in the CoNLL-10 training
data, including counts of how many times they occurred as cues and in total.
140
Lemma
elucidate
favor
hope
hypothesise
hypothetically
if not
implicate
no evidence
postulate
prediction
probable
remain to be elucidate
suggestive
suppose
tend
address a number of question
address the question of
advance the hypothesis
argue
can be deduce
cannot
cannot assign
cannot be
cannot exclude
cannot exclude the possibility
cannot rule out the possibility
compel evidence
conceivable
conclusion
elusive
evaluate for
examine for
feasible
feel
happen
hypothetical
increase evidence
investigate
issue be raise
know
lend strong support
Cue
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Total
24
8
2
2
2
2
73
7
11
101
3
3
2
3
8
1
1
1
5
1
47
1
25
2
1
1
2
1
60
3
2
10
4
1
1
8
5
237
1
252
1
Lemma
likelihood
look as
look like
may , or may not
must be leave open
no clear evidence
no evidence of
no guarantee
no proof
not be clearly elucidate
not clearly delineate
not evident
not exclude
not fully understand
not possible to ascertain
obscure
plausible
potent
preferentially
presume
prone to
proposal
putatively
question
raise an interest question
raise question
raise the hypothesis
raise the intrigue possibility
raise the question
reason
refer to
remain to be determine
remain to be investigate
speculation
test
to confirm
uncertain
unproven
viable
with certainty
yet to be understand
Cue
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Total
105
1
1
1
1
1
2
1
2
1
1
3
2
4
1
5
1
96
36
3
2
1
1
17
1
1
1
1
1
5
39
1
1
1
154
7
3
1
9
1
1
Table 2: Part 2/2 of all lemmatised speculation cues in the CoNLL-10 training
data, including counts of how many times they occurred as cues and in total.
141
Appendix B: Hyponym
generation examples
We present here some examples of hyponym generation, using a model trained on
BNC and the best-performing distributional similarity measures from Chapter 4.
Correct hyponyms, according to WordNet, are marked in bold.
Cosine
DiceGen2
BalAPInc
ClarkeDE
BalPrec
WeightedCosine
scientist (noun)
researcher, psychologist, expert, writer, chemist, biologist, official, teacher, professional, sociologist, practitioner, student, economist, journalist, politician
researcher, expert, psychologist, writer, official,
economist, journalist, historian, chemist, scholar, analyst, politician, professional, practitioner, engineer
biologist, sociologist, researcher, geologist, astronomer, psychologist, clinician, linguist, archaeologist, chemist, hydrogeologist, academic, geneticist, investigator, anthropologist
medicinal, g.d, ying, endocytosis, battison, chouilly, oakbrook, wissenland, assyria, saurischian, nation-building,
thuringia, tidesman, mordor, lawren
researcher, sociologist, biologist, psychologist, investigator, practitioner, astronomer, chemist, professional, academic, archaeologist, geologist, counsellor,
commentator, planner
researcher, expert, chemist, psychologist, writer, biologist, official, economist, science, teacher, student, journalist, professional, scholar, historian
142
Cosine
DiceGen2
BalAPInc
ClarkeDE
BalPrec
WeightedCosine
Cosine
DiceGen2
BalAPInc
ClarkeDE
BalPrec
WeightedCosine
politician (noun)
government, official, leader, people, party, scientist, journalist, critic, member, candidate, writer, voter, teacher,
unionist, businessman
official, journalist, critic, leader, businessman, scientist,
candidate, voter, government, activist, writer, lawyer,
politics, minister, democrat
unionist, educationalist, proponent, sociologist, protestant,
clinician, republicanism, nationalist, diplomat, yorkshiremen, environmentalist, assemblyman, intellectual, legislator, backbencher
medicinal, ying, chouilly, g.d, oakbrook, sidmouth, wissenland, zelan, macbryde, blacksell, ibaez, to-ing, endocytosis, phinehas, evangelicals
unionist, sociologist, participant, delegate, voter, protestant, professional, academic, reformer, commentator,
catholic, nationalist, diplomat, activist, researcher
government, official, leader, party, critic, people, journalist, member, politics, candidate, scientist, businessman,
writer, minister, voter
sport (noun)
game, football, club, tennis, news, rugby, cricket, race,
racing, athletics, baseball, event, television, golf, newspaper
game, football, tennis, news, race, racing, cricket,
rugby, tournament, club, golf, championship, newspaper,
television, competition
baseball, archery, athletics, canoeing, curtain-raiser,
specialty, boxing, tennis, troon, all-rounders, soldiering,
dramatics, story-telling, adida, g-mex
medicinal, oakbrook, thuringia, mordor, orkneys, chouilly,
zenda, window-seat, cygnus, sidmouth, richmondshire,
kesteven, polyunsaturate, evangelisation, lancome
athletics, athlete, tennis, football, rugby, baseball,
hobby, racing, specialty, boxing, cricket, entertainment,
tournament, venue, golf
game, football, club, news, tennis, race, racing, rugby,
cricket, golf, event, television, art, championship, baseball
143
Cosine
DiceGen2
BalAPInc
ClarkeDE
BalPrec
WeightedCosine
Cosine
DiceGen2
BalAPInc
ClarkeDE
BalPrec
WeightedCosine
weapon (noun)
gun, missile, bomb, weaponry, force, item, vehicle, warhead, tool, device, goods, instrument, equipment, measure,
material
missile, gun, bomb, device, tool, vehicle, item, instrument, goods, equipment, ingredient, threat, troops, measure, remedy
weaponry, warhead, mycotoxin, valuable, gadget, missile, armament, yardstick, deterrent, safeguard, precaution, binoculars, power-up, explosive, breadwinner
medicinal, oakbrook, uim, chouilly, yore, introjection, endocytosis, glander, saurischian, amniocentesis, transsexualism, tidesman, mordor, guppies, sidmouth
missile, weaponry, safeguard, precaution, warhead, sanction, deterrent, ingredient, remedy, yardstick, gadget, artefact, valuable, bomb, aeroplane
gun, missile, bomb, weaponry, warhead, force, device, vehicle, tool, item, equipment, threat, sword, goods, instrument
support (noun)
assistance, commitment, help, resource, service, interest,
benefit, control, protection, demand, strength, involvement, policy, responsibility, approval
commitment, resource, assistance, interest, help, service,
benefit, control, application, demand, strength, contribution, capability, opposition, influence
assistance, funding, encouragement, co-operation, backing, approval, impetus, cooperation, help, endorsement, involvement, subsidy, leverage, foothold, participation
medicinal, thuringia, mordor, oakbrook, caulerpa, chouilly,
egress, lebensraum, self-worth, biosynthesis, outworking,
orkneys, buchlyvie, age-, yore
assistance, funding, commitment, involvement, help, protection, recognition, co-operation, resource, approval,
expertise, encouragement, subsidy, benefit, responsibility
assistance, commitment, help, service, interest, resource,
control, benefit, backing, application, demand, strength,
protection, approval, policy
144
Cosine
DiceGen2
BalAPInc
ClarkeDE
BalPrec
WeightedCosine
Cosine
DiceGen2
BalAPInc
ClarkeDE
BalPrec
WeightedCosine
linguist (noun)
sociologist, linguistics, archaeologist, anthropologist, researcher, psychologist, marxists, mathematician, scholar,
commentator, educationist, taxonomist, historian, theorist, scientist
sociologist, linguistics, archaeologist, anthropologist,
mathematician, marxists, biologist, botanist, psychologist,
physicist, commentator, pianist, proponent, theorist, educationist
aglietta, demographer, taxonomist, tumin, liberalhistorian, counterlife, hydrogeologist, vaill, gerontology,
sexologist, centenarian, qalys, grave-goods, mafart, bailee
medicinal, ying, g.d, endocytosis, battison, saurischian,
chouilly, zelan, macbryde, blacksell, ibaez, to-ing, wissenland, aggi, oakbrook
aglietta, taxonomist, educationist, grave-goods, sociologist,
tumin, occultist, bailee, demographer, attitudinist, linguistics, vaill, pharmacologist, embryologist, bacteriologist
linguistics, sociologist, archaeologist, anthropologist, psychologist, mathematician, researcher, scholar, marxists,
historian, commentator, theorist, educationist, grammarian, hydrogeologist
fabric (noun)
cloth, yarn, curtain, garment, carpet, material, jacket,
skirt, dress, stitch, pattern, rug, sweater, thread, finish
cloth, yarn, curtain, garment, carpet, jacket, skirt,
sweater, finish, dress, rug, trousers, thread, layer, stitch
wall-hanging, bollworm, yarn, bedspread, outworking,
buzz-word, cloth, jacquard, garment, coat-hanger, microfibre, counterpane, cladding, swatch, sheeting
medicinal, chouilly, orkneys, thuringia, mordor, introjection, wissenland, bollworm, oakbrook, m42, sidmouth,
yore, outworking, ecms, aggi
yarn, garment, cloth, curtain, rug, carpet, stripe, stitch,
tights, furnishings, canvas, skirt, sweater, thread, decor
cloth, yarn, curtain, garment, carpet, jacket, material,
sweater, skirt, stitch, dress, trousers, lace, finish, thread
145
Cosine
DiceGen2
BalAPInc
ClarkeDE
BalPrec
WeightedCosine
Cosine
DiceGen2
BalAPInc
ClarkeDE
BalPrec
WeightedCosine
vegetable (noun)
fruit, salad, potato, food, lettuce, herb, ingredient, meal,
meat, dish, prawn, garlic, fish, cabbage, tomato
salad, fruit, potato, lettuce, herb, ingredient, meat,
mushroom, tomato, garlic, prawn, onion, cabbage,
dish, steak
veg, caulerpa, worm-cake, cryptocorynes, roughage,
parmesan, caviare, lectin, crudit, owenites, gherkin, rennet, endive, d.i.y, mollies
medicinal, zelan, macbryde, blacksell, ibaez, to-ing, aggi,
caulerpa, acquisitiveness, chouilly, oakbrook, polyunsaturate, thuringia, sidmouth, guppies
veg, lettuce, foodstuff, roughage, time-cue, herb, wormcake, salad, cabbage, spice, prawn, spinach, parmesan,
produce, ingredient
fruit, salad, lettuce, potato, food, herb, prawn, meat,
ingredient, meal, garlic, tomato, dish, onion, apple
fruit (noun)
apple, vegetable, tomato, grape, meat, food, potato,
pear, herb, melon, leaf, strawberry, mushroom, plum,
cheese
apple, tomato, vegetable, grape, meat, potato, cheese,
herb, leaf, mushroom, chocolate, food, strawberry, onion,
orange
chillus, pear, melon, grape, kumquat, vegetable, plum,
rhubarb, yam, tomato, citrus, daphnium, raisin, grapefruit, strawberry
medicinal, aggi, zelan, macbryde, blacksell, ibaez, to-ing,
polyunsaturate, thuringia, oakbrook, caulerpa, chouilly,
nissel, ying, orkneys
vegetable, grape, melon, herb, pear, tomato, apple,
banana, strawberry, potato, plum, mushroom, meat,
chillus, chocolate
apple, tomato, grape, vegetable, meat, potato, pear,
food, melon, leaf, strawberry, herb, mushroom, plum,
cheese
146
Cosine
DiceGen2
BalAPInc
ClarkeDE
BalPrec
WeightedCosine
Cosine
DiceGen2
BalAPInc
ClarkeDE
BalPrec
WeightedCosine
treatment (noun)
therapy, measure, care, procedure, use, method, remedy, practice, action, assessment, approach, investigation,
change, condition, intervention
therapy, measure, procedure, method, care, use, remedy, approach, assessment, technique, investigation, action,
practice, solution, condition
therapy, medication, remedy, chemotherapy, antibiotic, disclosure, intervention, investigation, evaluation,
reconsideration, cure, assessment, referral, modification,
monitoring
medicinal, mordor, chouilly, thuringia, oakbrook, egress,
introjection, christianization, perdition, marksmanship,
criterion-referencing, spiritualism, yore, g.d, orkneys
therapy, remedy, intervention, investigation, assessment, evaluation, consideration, measure, medication,
dose, care, modification, improvement, procedure, disclosure
therapy, care, procedure, measure, method, use, action, remedy, approach, practice, investigation, assessment,
change, programme, condition
travel (verb)
move, walk, go, work, pass, run, return, live, drive,
fly, arrive, carry, stay, take, come
walk, fly, arrive, move, attend, drive, ride, stay, pass,
cross, wander, return, visit, head, enter
journey, trudge, stray, tramp, queue, urinate, stroll,
wander, taxi, co-operate, paddle, sail, venture, clamber,
ski
-drop, jive, foal, traipse, busk, urinate, loaf, taxi, defecate, doss, hassle, fund-raise, bunk, liaise, empathize
wander, behave, sail, queue, progress, participate, venture, march, swim, stray, book, retreat, dance, communicate, stroll
move, walk, pass, work, drive, fly, go, return, live,
run, arrive, carry, stay, talk, visit
147
Cosine
DiceGen2
BalAPInc
ClarkeDE
BalPrec
WeightedCosine
Cosine
DiceGen2
BalAPInc
ClarkeDE
BalPrec
WeightedCosine
take (verb)
make, give, go, use, put, bring, come, find, see, get,
hold, leave, provide, offer, show
give, make, use, go, bring, find, put, come, hold, see,
get, leave, offer, call, show
put, carry, bring, hold, change, move, offer, receive,
decide, allow, start, work, draw, set, return
jive, over-indulge, doss, disbar, urinate, comply, traipse,
foal, action, defecate, card, accede, liaise, empathize, masturbate
put, bring, hold, carry, allow, offer, go, move, set, help,
give, require, begin, need, provide
make, give, go, use, get, find, come, put, bring, see,
hold, leave, show, provide, offer
distribute (verb)
integrate, develop, allocate, provide, market, operate, produce, implement, expand, support, supply, obtain, sell,
base, print
integrate, market, allocate, print, implement, expand,
supply, generate, ship, deliver, operate, circulate, purchase, handle, store
reseller, redistribute, unbundle, resell, computerise, channel, export, process, interface, ship, circulate, redeploy,
recompile, source, network
unbundle, videoconference, recompile, reseller, action, reallocate, deprave, multiprocess, reroute, coldwater, reallocate, vend, busk, jive, discomfort
allocate, export, process, integrate, circulate, ship,
channel, implement, redistribute, disperse, deploy,
computerise, market, invest, trade
integrate, develop, market, base, provide, operate, expand,
allocate, sell, supply, support, print, produce, circulate,
introduce
148
Cosine
DiceGen2
BalAPInc
ClarkeDE
BalPrec
WeightedCosine
Cosine
DiceGen2
BalAPInc
ClarkeDE
BalPrec
WeightedCosine
guarantee (verb)
ensure, require, provide, limit, improve, reduce, achieve,
restrict, pay, increase, allow, offer, affect, accept, maintain
ensure, restrict, limit, grant, improve, secure, permit,
enhance, earn, achieve, reduce, afford, define, assess, affect
refund, accrue, backdate, jeopardize, deduct, stipulate,
exempt, infringe, allocate, confer, repay, insure, imperil,
compromise, recalculate
disbar, backdate, no-win, recalculate, fand, overcompensate, preselect, mishear, jive, turbocharge, clown, action,
imperil, hunger, closet
allocate, assess, confer, repay, accrue, amount, restrict,
preclude, compromise, benefit, attain, deduct, insure, exempt, dictate
ensure, limit, require, provide, reduce, improve, achieve,
pay, grant, increase, offer, restrict, allow, secure, affect
address (verb)
discuss, concern, deal, consider, examine, present,
identify, regard, relate, tackle, understand, focus, reflect,
recognise, refer
discuss, deal, examine, tackle, concern, present, identify, confront, direct, relate, focus, investigate, inform, explore, pursue
debate, action, clarify, analyze, evaluate, substantiate,
comply, redress, familiarize, communicate, tackle, explicate, conceptualize, articulate, assimilate
action, jive, re-express, explicate, not, familiarize, foal,
schoon, empathize, demean, lame, hospitalize, misspell,
slight, redress
debate, evaluate, tackle, clarify, communicate, resolve,
solve, implement, fulfil, focus, comply, confront, initiate,
articulate, criticize
discuss, concern, deal, consider, present, examine, regard, relate, identify, refer, tackle, express, direct, raise,
reflect
149
Cosine
DiceGen2
BalAPInc
ClarkeDE
BalPrec
WeightedCosine
Cosine
DiceGen2
BalAPInc
ClarkeDE
BalPrec
WeightedCosine
meet (verb)
take, see, tell, make, ask, find, give, bring, know, work,
put, help, hold, come, go
tell, ask, bring, join, help, work, hold, send, receive, face,
put, set, visit, allow, pay
fulfil, interview, attend, benefit, satisfy, cope, invite, engage, persuade, implement, comply, compete, contact, assist, deal
empathize, preselect, foal, -drop, liaise, microprogram,
martin, over-indulge, economise, fand, oversleep, intercede,
jive, re-offend, best
satisfy, attend, invite, fulfil, benefit, deal, act, persuade,
recognise, engage, agree, discuss, treat, travel, address
tell, take, see, ask, make, give, find, bring, know, work,
hold, put, come, go, help
display (verb)
show, reveal, develop, produce, reflect, demonstrate, represent, exhibit, require, contain, express, present, place,
change, provide
exhibit, reveal, demonstrate, reflect, possess, express,
store, acquire, represent, develop, present, lack, combine,
illustrate, retain
exhibit, store, reproduce, communicate, convey, interface,
conform, utilize, stock, evaluate, capitalise, manifest, optimize, utilise, classify
actualize, vandalize, empathize, foal, actualise, discomfort,
hillwalk, jive, excerpt, child-rear, turbocharge, socrate, represent, optimize, serialise
exhibit, store, communicate, reproduce, convey, assess,
evaluate, possess, function, appreciate, evolve, classify, exploit, interpret, view
show, develop, reveal, produce, reflect, demonstrate, represent, contain, require, exhibit, express, place, provide,
present, describe
150
Cosine
DiceGen2
BalAPInc
ClarkeDE
BalPrec
WeightedCosine
Cosine
DiceGen2
BalAPInc
ClarkeDE
BalPrec
WeightedCosine
sneak (verb)
tiptoe, busk, clamber, stroll, bluff, taxi, crawl, slink, dart,
nip, swan, bump, tramp, rope, wander
tiptoe, clamber, stroll, dart, amble, nip, peep, tramp,
scamper, crawl, sprint, rope, bluff, bump, grope
busk, queer, tiptoe, taxi, waylay, chug, traipse, swagger,
swan, slink, standin’, tip-toe, bluff, plop, scoot
busk, queer, coddle, chicken, traipse, tip-toe, bunk, not,
swagger, economise, re-invest, clown, deprave, swan, skive
busk, tiptoe, taxi, queer, waylay, bluff, chug, swan, traipse,
rope, swagger, rough, barge, standin’, whack
tiptoe, clamber, stroll, slink, dart, crawl, bluff, creep, taxi,
sprint, wander, slip, swan, tramp, bump
confirm (verb)
indicate, reveal, suggest, accept, demonstrate, state, explain, show, report, reflect, express, consider, concern,
agree, announce
indicate, demonstrate, reveal, state, accept, report, explain, announce, suggest, express, acknowledge, reflect,
deny, assume, imply
substantiate, corroborate, contradict, verify, reiterate, disclose, underline, summarize, infer, disprove, endorse, dispel, ascertain, reconsider, refute
not, action, corroborate, socrate, fand, re-affirm, preselect, substantiate, mishear, vandalize, demob, deprave,
countermand, explicate, even
disclose, demonstrate, acknowledge, underline, endorse,
state, contradict, interpret, review, emphasise, indicate,
infer, question, submit, document
indicate, reveal, suggest, accept, demonstrate, report,
explain, state, show, express, announce, agree, concern,
reflect, consider
151
Appendix C: Similarity measures
for entailment detection
We present here the full set of results for entailment detection. Word-level similarity measures are in columns, fragment-level similarity measures are in rows.
The result of the best combination is marked in bold.
Cosine
Lin
JaccardGen
DiceGen
DiceGen2
ClarkeDE
WeedsPrec
WeedsRec
WeedsF
AP
APInc
BalAPInc
LinD
BalPrec
WeightedCosine
Cosine
73.21
72.72
72.64
73.59
71.63
77.45
75.82
66.52
72.93
71.71
73.89
74.54
74.37
72.84
72.79
Lin
74.40
72.67
74.34
74.74
72.92
79.17
75.00
66.20
72.62
72.97
75.00
75.76
73.54
71.70
73.68
JaccardGen
72.42
72.12
71.13
72.25
70.13
76.39
75.77
66.13
72.34
70.40
72.72
73.59
74.07
72.67
72.23
152
DiceGen
72.74
72.32
71.73
72.64
70.58
76.83
75.77
65.85
72.51
70.87
73.09
73.87
74.08
72.34
72.34
DiceGen2
73.11
70.69
74.20
74.08
70.66
79.06
72.76
62.65
70.85
71.42
74.90
76.24
70.92
71.38
71.58
Cosine
Lin
JaccardGen
DiceGen
DiceGen2
ClarkeDE
WeedsPrec
WeedsRec
WeedsF
AP
APInc
BalAPInc
LinD
BalPrec
WeightedCosine
Cosine
Lin
JaccardGen
DiceGen
DiceGen2
ClarkeDE
WeedsPrec
WeedsRec
WeedsF
AP
APInc
BalAPInc
LinD
BalPrec
WeightedCosine
ClarkeDE
73.31
72.84
72.35
73.24
71.17
77.28
75.97
66.54
72.86
71.42
73.62
74.33
74.04
72.87
72.99
APInc
74.19
71.72
73.30
74.30
71.21
78.70
75.14
64.94
71.91
72.16
74.18
75.71
72.65
72.03
72.96
WeedsPrec
75.25
73.54
75.15
75.66
73.69
79.94
75.89
67.00
73.65
73.86
75.78
76.60
74.02
73.24
74.56
WeedsRec
73.62
71.64
73.75
73.91
72.13
78.37
73.96
64.97
71.64
72.13
74.16
75.03
72.53
70.80
72.68
BalAPInc LinD
74.40
75.43
72.83
73.94
73.66
75.72
74.66
75.89
71.99
73.98
78.91
80.08
75.21
75.36
65.83
66.84
72.75
73.94
72.54
73.99
74.86
76.00
75.52
76.75
73.48
73.42
72.75
73.76
73.44
74.32
153
WeedsF
74.35
72.52
74.25
74.72
72.90
79.10
74.95
66.13
72.52
72.87
75.00
75.81
73.49
71.66
73.73
BalPrec
74.79
72.69
74.72
75.15
73.23
79.55
75.38
66.49
72.54
73.39
75.24
76.11
73.81
72.84
74.11
AP
71.90
71.33
70.73
71.51
69.46
75.93
75.20
64.88
71.12
69.72
72.26
72.94
73.83
72.04
71.67
W-Cosine
73.33
72.73
72.82
73.70
71.83
77.63
75.77
66.39
72.87
71.90
74.09
74.77
74.33
72.73
72.80
References
Agichtein, E. & Gravano, L. (2000). Snowball: Extracting relations from
large plain-text collections. In Proceedings of the fifth ACM conference on Digital libraries, 85–94, ACM New York, NY, USA. 11
Alfonseca, E. & Manandhar, S. (2002). Extending a lexical ontology by a
combination of distributional semantics signatures. EKAW ’02 Proceedings of
the 13th International Conference on Knowledge Engineering and Knowledge
Management. Ontologies and the Semantic Web., 1–7. 61
Andersen, Ø., Briscoe, T., Buttery, P., Carroll, J., Medlock, B.,
Parish, T. & Watson, R. (2012). Text Processing Tools and Services from
iLexIR Ltd. Tech. rep. 18
Andersen, Ø. E., Nioche, J., Briscoe, E. J. & Carroll, J. (2008). The
BNC parsed with RASP4UIMA. In Proceedings of the Sixth International Language Resources and Evaluation Conference (LREC08), Marrakech, Morocco.
27
Androutsopoulos, I. & Malakasiotis, P. (2010). A survey of paraphrasing
and textual entailment methods. Journal of Artificial Intelligence Research, 38,
135–187. 96
Apostolova, E., Tomuro, N. & Demner-Fushman, D. (2011). Automatic
extraction of lexicosyntactic patterns for detection of negation and speculation
scopes. In Proceedings of the 49th Annual Meeting of the Association for Computational Linguistics: Human Language Technologies: short papers, 283–287.
37
154
REFERENCES
Arora, S., Mayfield, E., Penstein-Rosé, C. & Nyberg, E. (2010). Sentiment Classification using Automatically Extracted Subgraph Features. In Proceedings of the NAACL HLT 2010 Workshop on Computational Approaches to
Analysis and Generation of Emotion in Text. 118
Bar-Haim, R., Dagan, I., Dolan, B., Ferro, L., Giampiccolo, D.,
Magnini, B. & Szpektor, I. (2006). The Second PASCAL Recognising Textual Entailment Challenge. In Proceedings of the Second PASCAL Challenges
Workshop on Recognising Textual Entailment, 1–9, Citeseer. 94, 100
Baroni, M. & Lenci, A. (2011). How we BLESSed distributional semantic
evaluation. In Proceedings of the GEMS 2011 Workshop on GEometrical Models
of Natural Language Semantics, Edinburgh. 63
Bentivogli, L., Cabrio, E., Dagan, I., Giampiccolo, D., Leggio, M. L.
& Magnini, B. (2010). Building Textual Entailment Specialized Data Sets:
a Methodology for Isolating Linguistic Phenomena Relevant to Inference. In
Proceedings of the Seventh conference on International Language Resources
and Evaluation (LREC’10). 97
Berant, J., Dagan, I. & Goldberger, J. (2010). Global learning of focused
entailment graphs. In Proceedings of the 48th Annual Meeting of the Association for Computational Linguistics, Section 6, 1220–1229, Association for
Computational Linguistics. 88, 96
Biemann, C. (2005). Ontology learning from text: A survey of methods. LDV
Forum, 20, 75–93. 61
Bisson, G., Nédellec, C. & Cañamero, D. (2000). Designing clustering
methods for ontology building-The Mo’K workbench. In ECAI Ontology Learning Workshop. 61
Breiman, L. (2001). Random forests. Machine learning, 5–32. 10
Briscoe, T. & Carroll, J. (2006). Evaluating the accuracy of an unlexicalized
statistical parser on the PARC DepBank. In Proceedings of the COLING/ACL
155
REFERENCES
on Main conference poster sessions, July, 41–48, Association for Computational
Linguistics, Morristown, NJ, USA. 19, 29, 117, 127
Briscoe, T., Carroll, J. & Watson, R. (2006). The second release of the
RASP system. In Proceedings of the COLING/ACL 2006 Interactive Presentation Sessions, July, 77–80, Association for Computational Linguistics, Sydney,
Australia. 18, 29, 32, 51, 79, 81, 98, 103, 125, 133
Burnard, L. (2007). Reference Guide for the British National Corpus (XML
Edition). Tech. rep. 27
Cahill, A., Burke, M., O’Donovan, R., Riezler, S., van Genabith, J.
& Way, A. (2008). Wide-Coverage Deep Statistical Parsing Using Automatic
Dependency Structure Annotation. Computational Linguistics, 34, 81–124. 125
Caraballo, S. A. (1999). Automatic construction of a hypernym-labeled noun
hierarchy from text. In Proceedings of the 37th annual meeting of the Association for Computational Linguistics on Computational Linguistics, 120–126.
61
Carreras, X. (2007). Experiments with a higher-order projective dependency
parser. In Proceedings of the CoNLL Shared Task Session of EMNLP-CoNLL,
vol. 7, 957–961. 118
Carroll, J., Briscoe, T. & Sanfilippo, A. (1998). Parser evaluation: a
survey and a new proposal. In Proceedings of the 1st International Conference
on Language Resources and Evaluation. 32
Chapelle, O., Scholkopf, B. & Zien, A. (2006). Semi-Supervised Learning.
12
Charniak, E. & Johnson, M. (2005). Coarse-to-fine n-best parsing and MaxEnt discriminative reranking. Proceedings of the 43rd Annual Meeting on Association for Computational Linguistics - ACL ’05 , 1, 173–180. 117
Charniak, E., Blaheta, D., Ge, N., Hall, K., Hale, J. & Johnson, M.
(2000). BLLIP 1987-89 WSJ Corpus Release 1. Tech. rep. 27
156
REFERENCES
Chen, J., Ji, D., Tan, C. L. & Niu, Z. (2006). Relation extraction using
label propagation based semi-supervised learning. In Proceedings of the 21st
International Conference on Computational Linguistics and the 44th annual
meeting of the ACL - ACL ’06 , July, 129–136, Association for Computational
Linguistics, Morristown, NJ, USA. 11
Cimiano, P. & Staab, S. (2005). Learning concept hierarchies from text with a
guided hierarchical clustering algorithm. In ICML-Workshop on Learning and
Extending Lexical Ontologies by using Machine Learning Methods. 61
Clark, S. & Curran, J. R. (2004). Parsing the WSJ using CCG and loglinear models. In Proceedings of the 42nd Annual Meeting on Association for
Computational Linguistics. 20
Clark, S. & Curran, J. R. (2007). Formalism-independent parser evaluation
with CCG and DepBank. In Proceedings of the 45th Annual Meeting of the
Association of Computational Linguistics, vol. 45, 248–255. 127, 129, 133
Clarke, D. (2009). Context-theoretic semantics for natural language: an
overview. In Proceedings of the Workshop on Geometrical Models of Natural
Language Semantics, March, 112–119, Association for Computational Linguistics. 70, 103
Cohen, P. R. (1995). Empirical Methods for Artificial Intelligence. The MIT
Press, Cambridge, MA. 86, 125
Collins, M. (2000). Discriminative reranking for natural language parsing. In
The 17th International Conference on Machine Learning (ICML). 117
Cortes, C. & Vapnik, V. (1995). Support-vector networks. Machine learning.
10, 20, 21, 87
Curran, J. R. (2003). From distributional to semantic similarity. Ph.D. thesis,
University of Edinburgh. 64, 67, 103
Curran, J. R., Clark, S. & Bos, J. (2007). Linguistically motivated largescale NLP with C&C and Boxer. Proceedings of the ACL 2007 Demonstrations
Session (ACL-07 demo), 33–36. 20, 98
157
REFERENCES
Dagan, I., Lee, L. & Pereira, F. (1997). Similarity-based methods for word
sense disambiguation. Proceedings of the 35th Annual Meeting of the Association for Computational Linguistics and Eighth Conference of the European
Chapter of the Association for Computational Linguistics, 56–63. 73
Dagan, I., Lee, L. & Pereira, F. C. N. (1999). Similarity-based models of
word cooccurrence probabilities. Machine Learning, 31, 1–31. 59
Dagan, I., Glickman, O. & Magnini, B. (2006). The PASCAL Recognising
Textual Entailment Challenge. Machine Learning Challenges, 177–190. 95
Dice, L. R. (1945). Measures of the amount of ecologic association between
species. Ecology, 26, 297–302. 66, 103
Dolan, W. & Brockett, C. (2005). Automatically constructing a corpus of
sentential paraphrases. Proc. of IWP , 9–16. 106
Farkas, R., Vincze, V., Móra, G., Csirik, J. & Szarvas, G. (2010).
The CoNLL-2010 Shared Task: Learning to Detect Hedges and their Scope
in Natural Language Text. In Proceedings of the Fourteenth Conference on
Computational Natural Language Learning — Shared Task , 1–12, Association
for Computational Linguistics. 33, 35, 36, 48, 49, 105
Francis, W. N. & Kučera, H. (1979). Brown corpus manual. Tech. rep. 28
Georgescul, M. (2010). A Hedgehop over a Max-Margin Framework Using
Hedge Cues. In Proceedings of the Fourteenth Conference on Computational
Natural Language Learning—Shared Task , July, 26–31. 37
Gildea, D. (2001). Corpus variation and parser performance. In Proceedings of
the 2001 Conference on Empirical Methods in Natural Language Processing,
167–202. 17, 20, 114
Grefenstette, G. (1994). Explorations in Automatic Thesaurus Discovery.
Kluwer Academic Publishers, Norwell, MA, USA. 67
Haghighi, A. D., Ng, A. Y. & Manning, C. D. (2005). Robust textual inference via graph matching. In Proceedings of the conference on Human Language
158
REFERENCES
Technology and Empirical Methods in Natural Language Processing, Association for Computational Linguistics, Morristown, NJ, USA. 57, 95, 104
Hara, T., Miyao, Y. & Tsujii, J. (2007). Evaluating the Impact of Retraining a Lexical Disambiguation Model on Domain Adaptation of an HPSG
Parser. In Proceedings of the 10th Conference on Parsing Technologies, June,
11–22. 32
Hearst, M. A. (1992). Automatic acquisition of hyponyms from large text corpora. In Proceedings of the 14th conference on Computational linguistics (COLING ’92), July, 539, Association for Computational Linguistics, Morristown,
NJ, USA. 61
Hickl, A., Bensley, J., Williams, J., Roberts, K., Rink, B. & Shi, Y.
(2006). Recognizing textual entailment with LCC’s GROUNDHOG system. In
Proceedings of the Second PASCAL Challenges Workshop. 95
Hockenmaier, J. (2003). Data and models for statistical parsing with Combinatory Categorial Grammar . Ph.D. thesis. 20
Inui, K., Sornlertlamvanich, V., Tanaka, H. & Tokunaga, T. (1997).
A new formalization of probabilistic GLR parsing. In Proceedings of the 5th
International Workshop on Parsing Technologies. 19
Jaccard, P. (1901). Étude comparative de la distribution florale dans une portion des Alpes et des Jura. Bulletin de la Société Vaudoise des Sciences Naturelles, 547–579. 66
Joachims, T. (1998). Text categorization with support vector machines: learning with many relevant features. In 10th European Conference on Machine
Learning (ECML-98), 137–142, Springer, Chemnitz, Germany. 10
Joachims, T. (1999). Making large scale SVM learning practical. Tech. rep. 21,
87
Johnson, S. C. (1967). Hierarchical clustering schemes. Psychometrika, 32. 11
159
REFERENCES
Kendall, M. G. (1938). A new measure of rank correlation. Biometrika, 30,
81–93. 68
Kilicoglu, H. & Bergler, S. (2008). Recognizing speculative language in
biomedical research articles: a linguistically motivated perspective. BMC bioinformatics, 9 Suppl 11, S10. 37
Kim, J. D., Ohta, T., Tateisi, Y. & Tsujii, J. (2003). GENIA corpus a semantically annotated corpus for bio-textmining. Bioinformatics, 19, 180–
182. 32, 130
King, T. H., Crouch, R., Riezler, S., Dalrymple, M. & Kaplan, R.
M. (2003). The PARC 700 dependency bank. In Proceedings of the EACL03:
4th International Workshop on Linguistically Interpreted Corpora (LINC-03),
1–8. 29, 127
Klein, D. & Manning, C. D. (2004). Corpus-based induction of syntactic
structure: Models of dependency and constituency. In Proceedings of the 42nd
Annual Meeting on Association for Computational Linguistics, 478, Association for Computational Linguistics. 17, 115
Kohonen, T. (1990). The Self-Organizing Map. Proceedings of the IEEE . 11
Kotlerman, L., Dagan, I., Szpektor, I. & Zhitomirsky-Geffet, M.
(2010). Directional distributional similarity for lexical inference. Natural Language Engineering, 16, 359–389. 63, 70, 71, 75, 82, 96
Kruskal, W. H. (1958). Ordinal measures of association. Journal of the American Statistical Association, 53, 814–861. 68
Kübler, S., McDonald, R. & Nivre, J. (2009). Dependency Parsing. In
Synthesis Lectures on Human Language Technologies, vol. 2, 1–127. 98
Kullback, S. (1959). Information Theory and Statistics. John Wiley and Sons,
New York. 72
Kullback, S. & Leibler, R. A. (1951). On information and sufficiency. The
Annals of Mathematical Statistics, 22, 79–86. 72
160
REFERENCES
Lafferty, J., McCallum, A. & Pereira, F. (2001). Conditional random
fields: Probabilistic models for segmenting and labeling sequence data. In Proceedings of the Eighteenth International Conference on Machine Learning, 282–
289, Citeseer. 10, 22, 42
Lee, L. (1999). Measures of distributional similarity. In Proceedings of the 37th
annual meeting of the Association for Computational Linguistics on Computational Linguistics, 25–32, Association for Computational Linguistics. 74
Levenshtein, V. I. (1966). Binary codes capable of correcting deletions, insertions, and reversals. In Soviet Physics Doklady, vol. 10, 707–710. 101
Light, M., Qiu, X. Y. & Srinivasan, P. (2004). The language of bioscience:
Facts, speculations, and statements in between. Proceedings of BioLink 2004
Workshop on Linking Biological Literature, Ontologies and Databases: Tools
for Users, 17–24. 36
Lin, D. (1993). Principle-based parsing without overgeneration. In Proceedings
of the 31st annual meeting on Association for Computational Linguistics (ACL
’93), 112–120. 78
Lin, D. (1998). Automatic retrieval and clustering of similar words. In Proceedings of the 17th international conference on Computational linguistics-Volume
2 , 768–774, Association for Computational Linguistics. 69, 71, 104
Lin, D. & Pantel, P. (2001). Discovery of inference rules for questionanswering. Natural Language Engineering, 7, 343–360. 96
Lintean, M. C. & Rus, V. (2009). Paraphrase Identification Using Weighted
Dependencies and Word Semantics. In Proceedings of the FLAIRS-22 , vol. 22,
19–28. 95
Lloyd, S. P. (1982). Least squares quantization in PCM. IEEE Transactions
on Information Theory, 28, 129–137. 11
MacCartney, B. & Manning, C. D. (2008). Modeling semantic containment
and exclusion in natural language inference. In Proceedings of the 22nd Inter-
161
REFERENCES
national Conference on Computational Linguistics, 521–528, Association for
Computational Linguistics. 96
Manning, C. D. & Schütze, H. (1999). Foundations of statistical natural
language processing. MIT Press, Cambridge, MA, USA. 66, 67, 73
Marcus, M., Kim, G., Marcinkiewicz, M. A., MacIntyre, R., Bies,
A., Ferguson, M., Katz, K. & Schasberger, B. (1994). The Penn Treebank: annotating predicate argument structure. In ARPA Human Language
Technology Workshop, 114–119. 29
Marcus, M. P., Santorini, B. & Marcinkiewicz, M. A. (1993). Building a large annotated corpus of English: The Penn Treebank. Computational
linguistics, 1–22. 29, 127
Maslow, A. (1968). Toward a Psychology of Being. 13
Maxwell III, J. T. & Kaplan, R. M. (1993). The interface between phrasal
and functional constraints. Computational Linguistics. 29
McClosky, D., Charniak, E. & Johnson, M. (2006). Effective self-training
for parsing. In Proceedings of the Human Language Technology Conference of
the North American Chapter of the Association of Computational Linguistics,
June, 152–159, Association for Computational Linguistics, Morristown, NJ,
USA. 117
McDonald, R. & Nivre, J. (2011). Analyzing and integrating dependency
parsers. Computational Linguistics. 12
Medlock, B. (2008). Exploring hedge identification in biomedical literature.
Journal of Biomedical Informatics, 41, 636–54. 37
Medlock, B. & Briscoe, T. (2007). Weakly supervised learning for hedge
classification in scientific literature. In Proceedings of the 45th Annual Meeting of the Association of Computational Linguistics, vol. 45, 992–999, Prague,
Czech Republic. 33, 36, 37
162
REFERENCES
Miller, G. A. (1995). WordNet: a lexical database for English. Communications of the ACM , 38, 39–41. 30, 79
Morante, R. (2009). Descriptive analysis of negation cues in biomedical texts.
In Proceedings of the Seventh International Conference on Language Resources
and Evaluation (LREC10), 1429–1436. 105
Morante, R. & Daelemans, W. (2009). Learning the scope of hedge cues
in biomedical texts. In Proceedings of the Workshop on BioNLP , June, 28–36,
Association for Computational Linguistics. 37, 46
Morante, R., Asch, V. V. & Daelemans, W. (2010). Memory-based resolution of in-sentence scopes of hedge cues. In CoNLL-2010: Shared Task , July,
40. 37, 55, 56
Ng, D., Honnibal, M. & Curran, J. R. (2010). Reranking a wide-coverage
CCG parser. In Proceedings of the Australasian Language Technology Association Workshop 2010 , 90. 117
Nivre, J., Hall, J., Nilsson, J., Chanev, A., Eryigit, G., Kübler,
S., Marinov, S. & Marsi, E. (2007). MaltParser: A language-independent
system for data-driven dependency parsing. Natural Language Engineering, 13,
1. 98
Noreen, E. W. (1989). Computer Intensive Methods for Testing Hypotheses:
An Introduction. Wiley, New York. 86, 125, 126
Øvrelid, L., Velldal, E. & Oepen, S. (2010). Syntactic scope resolution
in uncertainty analysis. In Proceedings of the 23rd international conference on
computational linguistics, August, 1379–1387. 37
Özgür, A. & Radev, D. R. (2009). Detecting speculations and their scopes
in scientific text. Proceedings of the 2009 Conference on Empirical Methods in
Natural Language Processing, 1398–1407. 37
Paaß, G., Kindermann, J. & Leopold, E. (2004). Learning prototype ontologies by hierachical latent semantic analysis. 61
163
REFERENCES
Pearson, K. (1895). Note on regression and inheritance in the case of two
parents. Royal Society Proceedings, 58, 241. 64
Pestian, J. P., Brew, C., Matykiewicz, P., Hovermale, D. J., Johnson, N., Cohen, K. B. & Duch, W. (2007). A shared task involving
multi-label classification of clinical free text. In Proceedings of the Workshop
on BioNLP 2007 Biological, Translational, and Clinical Language Processing
(BioNLP ’07), Association for Computational Linguistics, Morristown, NJ,
USA. 33
Petrov, S., Barrett, L., Thibaux, R. & Klein, D. (2006). Learning accurate, compact, and interpretable tree annotation. In Proceedings of the 21st
International Conference on Computational Linguistics and the 44th annual
meeting of the ACL (ACL ’06), 433–440, Association for Computational Linguistics, Morristown, NJ, USA. 17, 115
Petrov, S., Das, D. & McDonald, R. (2011). A universal part-of-speech
tagset. ArXiv:1104.2086 . 81
Plank, B. & van Noord, G. (2008). Exploring an auxiliary distribution based
approach to domain adaptation of a syntactic disambiguation model. In Coling
2008: Proceedings of the Workshop on Cross-Framework and Cross-Domain
Parser Evaluation, 9–16, Association for Computational Linguistics, Manchester, UK. 117, 121
Poon, H. & Domingos, P. (2009). Unsupervised Semantic Parsing. In Proceedings of the Conference on Empirical Methods in Natural Language Processing.
61
Poon, H. & Domingos, P. (2010). Unsupervised ontology induction from text.
In Proceedings of the 48th Annual Meeting of the Association for Computational
Linguistics (ACL ’10). 61
Read, J., Velldal, E., Oepen, S. & Øvrelid, L. (2011). Resolving Speculation and Negation Scope in Biomedical Articles with a Syntactic Constituent
Ranker. In Proceedings of the Fourth International Symposium on Languages
in Biology and Medicine (LBM 2011). 38
164
REFERENCES
Rei, M. & Briscoe, T. (2010). Combining manual rules and supervised learning
for hedge cue and scope detection. In Proceedings of the 14th Conference on
Natural Language Learning, July, 56. 15
Rei, M. & Briscoe, T. (2011). Unsupervised Entailment Detection between Dependency Graph Fragments. In Proceedings of the 2011 Workshop
on Biomedical Natural Language Processing, ACL-HLT 2011 , 10. 17, 72
Rei, M. & Briscoe, T. (2013). Parser lexicalisation through self-learning.
In In Proceedings of the 2013 Conference of the North American Chapter of
the Association for Computational Linguistics: Human Language Technologies
(NAACL-HLT 2013). 17
Rodgers, J. L. & Nicewander, W. A. (1988). Thirteen ways to look at the
correlation coefficient. American Statistician, 42, 59–66. 64
Sammons, M., Vydiswaran, V. V. & Roth, D. (2010). ”Ask not what
textual entailment can do for you...”. In Proceedings of the Annual Meeting of
the Association for Computational Linguistics (ACL), 1199–1208, Association
for Computational Linguistics. 97
Sampson, G. R. (1995). English for the Computer: The SUSANNE Corpus and
Analytic Scheme. Clarendon Press (Oxford University Press). 28
Sekine, S. (1997). The domain dependence of parsing. In Proceedings of the fifth
conference on Applied natural language processing, vol. 1, 96–102, Association
for Computational Linguistics, Morristown, NJ, USA. 17, 114
Smucker, M. D., Allan, J. & Carterette, B. (2007). A comparison of
statistical significance tests for information retrieval evaluation. Proceedings
of the sixteenth ACM conference on information and knowledge management
(CIKM ’07), 623. 86
Snow, R., Jurafsky, D. & Ng, A. Y. (2005). Learning syntactic patterns for
automatic hypernym discovery. In Advances in Neural Information Processing
Systems. 61, 96
165
REFERENCES
Snow, R., Jurafsky, D. & Ng, A. Y. (2006). Semantic taxonomy induction
from heterogenous evidence. In Proceedings of the 21st International Conference on Computational Linguistics and the 44th annual meeting of the ACL
(ACL ’06), July, 801–808, Association for Computational Linguistics, Morristown, NJ, USA. 61
Spearman, C. (1904). The proof and measurement of association between two
things. The American journal of psychology, 15, 72–101. 65
Specht, D. F. (1990). Probabilistic neural networks. Neural networks, 3. 10
Szarvas, G. (2008). Hedge classification in biomedical texts with a weakly supervised selection of keywords. In Proceedings of 46th Meeting of the Association
for Computational Linguistics, June, 281–289. 37
Szpektor, I. & Dagan, I. (2008). Learning entailment rules for unary templates. In Proceedings of the 22nd International Conference on Computational
Linguistics (COLING ’08), 849–856, Association for Computational Linguistics, Morristown, NJ, USA. 72, 96
Szpektor, I., Tanev, H., Dagan, I. & Coppola, B. (2004). Scaling webbased acquisition of entailment relations. In Proceedings of EMNLP , vol. 4,
41–48. 96
Tang, B., Wang, X., Wang, X., Yuan, B. & Fan, S. (2010). A Cascade
Method for Detecting Hedges and their Scope in Natural Language Text. In
Proceedings of the Fourteenth Conference on Computational Natural Language
Learning - Shared Task , July, 13–17. 37
Tateisi, Y., Miyao, Y., Sagae, K. & Tsujii, J. (2008). GENIA-GR: a
Grammatical Relation Corpus for Parser Evaluation in the Biomedical Domain.
In Proceedings of LREC , 1942–1948. 32, 130
Taylor, A., Marcus, M. & Santorini, B. (2003). The Penn treebank: an
overview. Treebanks. 29
166
REFERENCES
Thelen, M. & Riloff, E. (2002). A bootstrapping method for learning semantic lexicons using extraction pattern contexts. Proceedings of the Conference on
Empirical methods in Natural Language Processing - (EMNLP ’02), 214–221.
11
Tomita, M. (1987). An efficient augmented-context-free parsing algorithm.
Computational Linguistics, 13. 19
Ushioda, A. (1996). Hierarchical clustering of words and application to NLP
tasks. In Proceedings of the Fourth Workshop on Very Large Corpora, 28–41.
61
van Noord, G. (2007). Using self-trained bilexical preferences to improve disambiguation accuracy. In Proceedings of the 10th International Conference on
Parsing Technologies, June, 1–10, Association for Computational Linguistics,
Morristown, NJ, USA. 116, 118, 121
Vapnik, V. (1982). Estimation of dependences based on empirical data. SpringerVerlag, New York. 20, 87
Velldal, E., Øvrelid, L. & Oepen, S. (2010). Resolving Speculation: MaxEnt Cue Classification and Dependency-Based Scope Rules. In CoNLL-2010:
Shared Task , July, 48. 37
Velldal, E., Øvrelid, L., Read, J. & Oepen, S. (2012). Speculation and
negation: Rules, rankers, and the role of syntax. Computational Linguistics.
38
Vincze, V., Szarvas, G., Farkas, R., Móra, G. & Csirik, J. (2008). The
BioScope corpus: biomedical texts annotated for uncertainty, negation and
their scopes. BMC Bioinformatics, 9 Suppl 11, S9. 15, 32, 34, 37, 48
Vlachos, A. (2010). Semi-supervised learning for biomedical information extraction. Tech. Rep. 791. 12
Vlachos, A. & Craven, M. (2010). Detecting Speculative Language Using
Syntactic Dependencies and Logistic Regression. In Proceedings of the Four-
167
REFERENCES
teenth Conference on Computational Natural Language Learning - Shared Task ,
July, 18–25. 37
Wagner, A. (2000). Enriching a lexical semantic net with selectional preferences by means of statistical corpus analysis. In ECAI Workshop on Ontology
Learning. 61
Wallach, H. M. (2004). Conditional random fields: An introduction. Tech. rep.
22
Watson, R. (2006). RASP Evaluation Schemes. Tech. rep. 18
Watson, R. (2007). Optimising the speed and accuracy of a Statistical GLR
Parser . Ph.D. thesis. 18
Watson, R., Carroll, J. & Briscoe, T. (2005). Efficient extraction of grammatical relations. In Proceedings of 9th Int. Workshop on Parsing Technologies (IWPT05), October, 160–170, Association for Computational Linguistics,
Morristown, NJ, USA. 18
Watson, R., Briscoe, T. & Carroll, J. (2007). Semi-supervised training
of a statistical parser from unlabeled partially-bracketed data. Proceedings of
the 10th International Conference on Parsing Technologies - IWPT ’07 , 23–32.
19, 127, 129
Weeds, J. & Weir, D. (2005). Co-occurrence retrieval: A flexible framework
for lexical distributional similarity. Computational Linguistics. 59
Weeds, J., Weir, D. & McCarthy, D. (2004). Characterising measures of
lexical distributional similarity. Proceedings of the 20th international conference
on Computational Linguistics - COLING ’04 . 69, 70
Weeds, J., Weir, D. & Keller, B. (2005). The distributional similarity
of sub-parses. In Proceedings of the ACL Workshop on Empirical Modeling of
Semantic Equivalence and Entailment, 7–12, Association for Computational
Linguistics, Morristown, NJ, USA. 102, 106
168
REFERENCES
Weeds, J. E. (2003). Measures and applications of lexical distributional similarity. Ph.D. thesis, University of Sussex. 73
Witschel, H. F. (2005). Using decision trees and text mining techniques for
extending taxonomies. In Proceedings of the Workshop on Learning and Extending Lexical Ontologies by using Machine Learning. 61
Witten, I. H., Moffat, A. & Bell, T. C. (1999). Managing Gigabytes.
Compressing and Indexing Documents and Images. Academic Press, San Diago,
CA USA, 2nd edn. 64
Yeh, A. (2000). More accurate tests for the statistical significance of result
differences. In Proceedings of the 18th conference on Computational Linguistics,
vol. 2, 947, Association for Computational Linguistics, Morristown, NJ, USA.
125
Zhitomirsky-Geffet, M. & Dagan, I. (2009). Bootstrapping Distributional
Feature Vector Quality. Computational Linguistics, 35, 435–461. 62, 78, 79,
82
Zhou, G., Zhao, J., Liu, K. & Cai, L. (2011). Exploiting Web-Derived Selectional Preference to Improve Statistical Dependency Parsing. In 49th Annual
Meeting of the Association for Computational Linguistics, 1556–1565. 117
Zhu, X. (2005). Semi-supervised learning literature survey. Tech. rep. 12
Zhu, X. & Ghahramani, Z. (2002). Learning from labeled and unlabeled data
with label propagation. Tech. rep. 11
169
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
