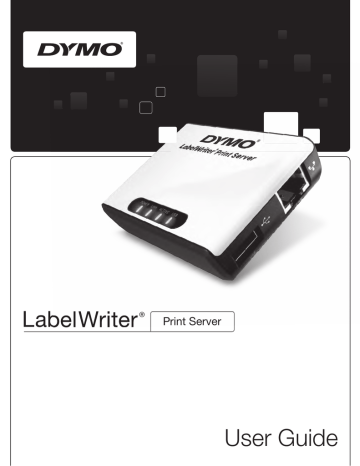

LabelWriter

User Guide

Copyright

© 2011 Sanford, L.P. All rights reserved. 04/11

No part of this document or the software may be reproduced or transmitted in any form or by any means or translated into another language without the prior written consent of Sanford, L.P.

Trademarks

DYMO and LabelWriter are registered trademarks of Sanford, L.P. All other trademarks are the property of their respective holders.

Contents

About the LabelWriter Print Server

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Print Server Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

System Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Using this Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Installing the LabelWriter Print Server

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Connecting the Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Installing the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Installing the Software in Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Installing the Software in Mac OS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Configuring the Print Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Adding a Printer

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Adding a Printer in Windows XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Adding a Printer in Windows Vista . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Adding a Printer in Mac OS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Adding a Printer in Linux . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Printing a Test Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Managing the LabelWriter Print Server

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

About the Control Center. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Viewing the Print Server Information (Windows only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Changing the Control Center Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

About the Print Server Web Pages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Viewing the Print Server Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Configuring the Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Changing the Server Name and Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Changing the TCP/IP Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Changing the Administrator Name and Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Upgrading the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Getting Help

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Status Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Restoring the Print Server to the Factory Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Obtaining Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

iii

Technical and Certification Information

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Device Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Documentation Feedback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

iv

Chapter 1

About the LabelWriter Print Server

Congratulations on purchasing a DYMO LabelWriter print server. Your print server will give you years of reliable service. We encourage you to take a few minutes to review how to use and care for your print server.

Using the print server, you can connect your LabelWriter 400 or later series printer directly to your network, without dedicating a computer to printer sharing. Now everyone connected to your network can print to a single LabelWriter printer. We have no doubt that the LabelWriter print server will make your job easier and more efficient.

Print Server Features

Your LabelWriter print server can be used to share any LabelWriter 400 or later series printer, including the LabelWriter Twin Turbo and LabelWriter Duo.

The print server connects to your network using a standard Ethernet connection.

Become familiar with the major components of the print server.

DC-IN

Power connector

Init/Reset button

Init.

USB

LAN

USB connector

(to printer)

Ethernet connector

(to network)

POWER LINK ACTIVE USB

Status lights

The status lights visually show the current state of the print server. See "Status Lights" on page 25

for a description of the status lights.

1

2

About the LabelWriter Print Server

System Requirements

The print server requires a standard Ethernet connection and one of the following:

Windows

®

XP 32-bit

Windows Vista

®

32 or 64-bit

Windows

®

7

Mac OS

®

X v10.3.9 or later (LabelWriter Duo requires Mac OS X v10.5 or later)

Linux (Linux is not officially supported. See "Adding a Printer in Linux" on page 16 for

more information)

Using this Guide

This User Guide provides instructions for the DYMO LabelWriter print server on the Windows,

Macintosh, and Linux platforms. For the most part, the software operates in the same way on all platforms. Any differences in features, procedures, or commands are noted within the text.

This User Guide includes information for installing and using the print server with a DYMO

LabelWriter printer. Depending on the model of DYMO printer you are using, some sections of this

User Guide may not apply to you. The following table provides a summary of the contents.

User Guide Chapter

About the LabelWriter

Print Server

Description

This chapter gives an overview of the print server.

Installing the

LabelWriter Print

Server

Managing the

LabelWriter Print

Server

Getting Help

Technical and

Certification

Information

This chapter describes how to install and configure the print server, install the Print Server Control Center software, and add a LabelWriter printer to your computer.

This chapter includes information about the Print Server Control Center software. This includes information on changing the server configuration and upgrading the firmware.

This chapter offers suggestions for resolving problems that can occur when using the print server. If you are unable to solve a problem, this chapter also describes how to contact DYMO Technical Support.

This chapter contains technical and certification information for the print server.

Chapter 2

Installing the LabelWriter Print Server

This chapter describes how to install and configure the print server.

To install the print server

1

2

3

4

5

Make sure that you have everything you need to get started.

Connect the cables.

Install the LabelWriter Control Center software.

Configure the print server.

Add the printer to your computer.

See Chapter 3, Adding a Printer for instructions on adding a printer on your specific

operating system.

Getting Started

Once you have unpacked your print server, make sure that you have all of the items shown here.

Power adapter

CD-ROM

LabelWriter Print Server

POWER LINK ACTIVE USB

In addition to the items that come with the print server, you will need the following:

A LabelWriter 400 or later series printer, with power adapter and USB cable

Installed LabelWriter printer drivers (included in the DYMO Label Software installation)

A standard Ethernet cable (available from your local office supply and other retailers)

A working Ethernet connection to your Local Area Network

3

4

Installing the LabelWriter Print Server

Connecting the Cables

The print server connects directly to your network using a standard Ethernet connection.

To connect the cables

1

2

3

4

5

Plug the Ethernet cable into the right side of the print server.

Plug the other end of the Ethernet cable into an available Ethernet connection on your network.

Plug the USB cable from your

LabelWriter printer into the right side of the print server.

Make sure that the USB cable is connected to your printer and that your printer is plugged in.

Plug the print server power adapter into the left side of the print server.

Plug the other end of the power adapter into a power outlet.

POWER LINK ACTIVE USB

Installing the Software

The Control Center software included with your print server gives you quick access to everything that you need to configure and manage your print server. You can install the software on any computer that is connected to your network.

Installing the Software in Windows

You can install the Control Center software in Windows.

To install the software in Windows

1

Insert the LabelWriter Print Server CD into your CD-ROM drive. After a few seconds, the installation screen appears.

If the installation screen does not appear:

2

3 a.

Click Start, then Run on the Windows taskbar. The Run dialog box appears.

b.

Enter D:\install.exe (where D is the letter assigned to the CD-ROM drive) and click OK.

Click Install Application and follow the instructions in the installer.

On the final page of the installer, make sure that the Launch LabelWriter Print Server

Control Center check box is selected, and then click Finish.

The LabelWriter Control Center starts.

Configuring the Print Server

Installing the Software in Mac OS

To install the software in Mac OS

1

Insert the LabelWriter Print Server CD into your CD-ROM drive.

The CD icon appears on your desktop.

2

3

4

Double-click the CD icon, and then double-click the Mac folder.

Double-click Dymo LabelWriter Print Server Control Center.dmg.

The DYMO LabelWriter Print Server Control Center folder opens.

Drag the DYMO LabelWriter Print Server Control Center icon into the Applications folder on your computer.

5

folder to open the Print Server Control Center.

Configuring the Print Server

When you first install the print server, the server is automatically assigned an IP address. Every time the software is launched, the IP address is displayed next to the server name in the Control

Center window.

By default, the server is configured to automatically get an IP address. If you are using the print server on a small office or home network, we recommend that you configure the server to use a static IP address. This will ensure that the computers connected to your network will always be able to locate the print server.

By default, the static IP address for the print server is 192.168.1.100. You only need to change the last three numbers. When assigning a static IP address, check your router to be sure that the IP address you choose is not already in use. Refer to your router documentation for information on how to do this. A good practice when adding a print server or other shared network device to a network is to start with a number toward the top of the range, for example 192.168.1.250, and work down from there.

Note

If you do not set a static IP address, write down the IP address that appears next to the server name in the Control Center window. You will need this IP address to add the printer to your computer.

5

Installing the LabelWriter Print Server

To set a static IP address

1

2

If the Control Center is not already open, double-click the Applications folder (Mac OS).

on your desktop (Windows) or in

Select a print server from the list, and click

Configure Server on the toolbar.

The Login to LW Print Server dialog box appears.

3

Enter the following in the Administrator and Password fields.

Administrator: admin

Password: admin

Note

These are the default settings. See "Changing the Administrator Name and Password" on page 23 for information on how to change the administrator name and password.

4

Click Login.

The Set TCP/IP Configuration dialog box appears.

6

7

8

5

6

Select Static IP.

Enter the IP address you want to use in the IP Address field, and then click Apply.

Click Yes when prompted to save the TCP/IP configuration

After the server restarts, click Close to close the TCP/IP Configuration dialog box.

The IP address is now displayed next to the server name in the Control Center window.

Note

Write down this IP address; you will need this IP address to add the printer to your computer.

Next, you need to add the printer to your computer. See Chapter 3, Adding a Printer for

information on adding the printer in your specific operating system.

Chapter 3

Adding a Printer

In order to print to the LabelWriter printer that is connected to the print server, you must first add the printer to your computer. You can add the printer to any or all of the computers connected to your network.

You must have the LabelWriter printer drivers installed on your local computer to add a printer. The printer drivers are included in the DYMO Label Software installation.

Note

Because the LabelWriter Duo printer is actually two printers in one, you need to add both the label printer and the tape printer to your computer. These two printers show up separately in the printer list.

This chapter describes how to add a printer in Windows XP, Windows Vista, Mac, and Linux.

Adding a Printer in Windows XP

This section describes how to add a LabelWriter printer in Windows XP.

When adding a LabelWriter Duo printer, you will need to create separate ports for the Label printer and the Tape printer. Each port must have a unique name.

To add a LabelWriter printer

1

2

3

4

Click Start, and then click Printers and Faxes.

Click Add a Printer.

The Add Printer Wizard starts.

Click Next.

On the Local or Network Printer page, do the following:

a.

Select Local printer attached

to this computer.

b.

c.

Make sure the Automatically

detect and install my Plug

and Play printer check box

is cleared.

Click Next.

7

Adding a Printer

5

6

On the Select a Printer Port page, do the following:

a.

Select Create a new port.

b.

Choose Standard TCP/IP

Port from the Type of

port list.

c.

Click Next.

The Add Standard TCP/IP Printer

Port Wizard starts.

Click Next.

7

8

On the Add Port page, do the following:

a.

In the Printer Name or IP

Address field, enter the IP

address that you wrote down when configuring the print server.

The port name is filled in automatically.

b.

(Optional) Enter a new name for the port in the Port

Name field.

When adding a LabelWriter

Duo printer, you must give the

Label printer port and the Tape printer port different names.

c.

Click Next.

On the Additional Port

Information Required page, select

Custom, and then click Settings.

8

Adding a Printer in Windows XP

9

In the Configure Standard TCP/IP Port

Monitor dialog box, do the following:

a.

Under Protocol, select Raw.

b.

c.

Under Raw Settings, make sure the Port

Number is 9100.

This is the default value.

Click OK.

10

On the Additional Port Information

Required page, click Next.

11

On the last page of the Add Standard TCP/

IP Printer Port Wizard, click Finish.

12

On the Install Printer Software page of the Add Printer Wizard, do the following:

a.

b.

c.

Choose DYMO from the

Manufacturer list.

Choose the LabelWriter printer that you are adding from the

Printers list.

To add the LabelWriter Duo, choose DYMO LabelWriter

DUO Label.

Click Next.

13

On the Name Your Printer page, do the following:

a.

b.

c.

Enter a name for your printer in the Printer name field.

Select whether or not you want to use this printer as the default printer.

Click Next.

14

On the Printer Sharing page, select Do not share this printer, and then click Next.

15

To print a test label, select Yes, and then click Next.

16

Click Finish.

The printer is now available in the printer list. For the LabelWriter Duo, you now need to add the tape portion of the printer.

9

Adding a Printer

To add the Tape printer portion of the

LabelWriter Duo printer

1

Repeat steps 1-8 in "To add a LabelWriter printer" on page 7.

2

In the Configure Standard TCP/IP Port

Monitor dialog box, do the following:

a.

Under Protocol, select Raw.

b.

Under Raw Settings, enter 9102 in the

Port Number field.

3

4 c.

Click OK.

On the Additional Port Information

Required page, click Next.

On the last page of the Add Standard TCP/

IP Printer Port Wizard, click Finish.

5

On the Install Printer Software page of the Add Printer Wizard, do the following:

a.

Choose DYMO from the

Manufacturer list.

b.

c.

Choose DYMO LabelWriter

Duo Tape from the

Printers list.

Click Next.

8

9

6

7

On the Name Your Printer page, do the following:

a.

Enter a name for your printer in the Printer name field.

This name must be different than the LabelWriter Duo

Label printer name.

b.

c.

Select whether or not you want to use this printer as the default printer.

Click Next.

On the Printer Sharing page, select Do not share this printer, and then click Next.

To print a test label, select Yes, and then click Next.

Click Finish.

The LabelWriter Duo Tape printer is now available in the printer list along with the Label printer.

10

Adding a Printer in Windows Vista

Adding a Printer in Windows Vista

This section describes how to add a LabelWriter printer in Windows Vista.

When adding a LabelWriter Duo printer, you will need to create separate ports for the Label printer and the Tape printer. Each port must have a unique name.

To add a LabelWriter printer

1

Click Start, and then click Control Panel.

2

3

4

5

Under Hardware and Sound, click Printer.

Click Add a Printer.

The Add Printer dialog box appears.

Click Add a local printer.

On the Choose a printer port page, do the following:

a.

Select Create a new port.

b.

c.

Choose Standard TCP/

IP Port from the Type of

port list.

Click Next.

6

On the Type a printer

hostname or IP address page,

do the following:

a.

Enter the IP address that you obtained when configuring the print server in the Hostname or

IP Address field.

The port name is filled in automatically.

b.

c.

(Optional) Enter a new name for the port in the

Port name field.

When adding a

LabelWriter Duo printer, you must give the Label printer port and the Tape printer port different names.

Click Next.

11

Adding a Printer

7

On the Additional Port

Information Required page,

select Custom, and then click Settings.

8

9

In the Configure Standard

TCP/IP Port Monitor dialog box, do

the following:

a.

Under Protocol, select Raw.

b.

Under Raw Settings, make sure the

Port Number is 9100.

This is the default value.

c.

Click OK.

On the Additional Port Information

Required page, click Next.

10

On the Install the printer

driver page, do the following:

a.

b.

c.

Choose DYMO from the

Manufacturer list.

Choose the LabelWriter printer that you are adding from the Printers list.

To add the LabelWriter

Duo, choose DYMO

LabelWriter DUO

Label.

Click Next.

12

Adding a Printer in Windows Vista

11

On the Type a printer name page, do the following:

a.

b.

c.

Enter a name for your printer in the Printer

name field.

Select whether or not you want to use this printer as the default printer.

Click Next.

12

To print a test label, click

Print a test page.

13

Click Finish.

The printer is now available in the printer list. For the

LabelWriter Duo, you now need to add the tape portion of the printer.

To add the Tape printer portion of the LabelWriter Duo printer

1

2

3

Repeat steps 1-7 in "To add a LabelWriter printer" on page 11.

In the Configure Standard TCP/IP Port

Monitor dialog box, do the following:

a.

b.

c.

Under Protocol, select Raw.

Under Raw Settings, enter 9102 in the

Port Number field.

Click OK.

On the Additional Port Information

Required page, click Next.

4

On the Install the printer

driver page, do the following:

a.

Choose DYMO from the

Manufacturer list.

b.

c.

Choose DYMO

LabelWriter Duo Tape

from the Printers list.

Click Next.

13

Adding a Printer

5

6

7

On the Type a printer name page, do the following:

a.

b.

Enter a name for your printer in the Printer

name field.

This name must be different than the

LabelWriter Duo Label printer name.

Select whether or not you want to use this printer as the default printer.

c.

Click Next.

To print a test label, click

Print a test page.

Click Finish.

The LabelWriter Duo Tape printer is now available in the printer list along with the Label printer.

14

Adding a Printer in Mac OS

Adding a Printer in Mac OS

When adding a printer in Mac OS, the printer appears in the Printer Name list as lw print servernnn-usb1, where nnn represents the last three numbers of the IP address assigned to the print server.

Note

You must be running Mac OS 10.5 or later to add a LabelWriter Duo printer connected to the print server.

To add a LabelWriter printer

1

2

3

4

5

Choose System Preferences from the

Apple menu.

Click Print & Fax.

Click at the bottom of the

Printers list.

Click Default on the toolbar.

Select lw print server-nnn-usb1 from the Printer Name list.

Note

If you are adding a LabelWriter

Duo printer, you will also see lw print server-nnn-usb1-2 in the list. You will add this printer later.

6

The Print Using field is filled in automatically.

(Optional) Enter a name for the printer.

7

Click Add.

The printer is now available in the Printers list. For the LabelWriter Duo, you now need to add the tape portion of the printer.

To add the Tape printer portion of the LabelWriter Duo printer

1

2

3

4

5

Click at the bottom of the

Printers list.

Click Default on the toolbar.

Select lw print server-nnn-usb1-2 from the Printer Name list.

The Print Using field is filled in automatically.

(Optional) Enter a name for the printer.

Click Add.

The LabelWriter Tape printer is now available in the Printers list along with the Label printer.

15

Adding a Printer

Adding a Printer in Linux

DYMO does not officially support installing the print server on a Linux system. However, the steps in this section describe how to add a printer on Ubuntu 8.04 (CUPS version 1.3.7).

Note

DYMO LabelWriter drivers for CUPS must be installed prior to installing the print server.

To add a LabelWriter printer

1

2

Open any Web browser and go to the CUPS

Home Page, http://localhost:631.

Select the Administration tab, and then click Find New Printers.

3

Locate the DYMO LabelWriter printer that is connected to the print server in the

Available Printers list and click Add

This Printer.

Note

If you are adding the DYMO LabelWriter Duo printer, make sure that you select

DYMO LabelWriter Duo Label from the list. If you see the Tape printer and not the Label printer in the Available Printers list, click Reload until the Label printer is displayed in the list.

4

Make any changes you want to the name, location, or description of the printer and then click Continue.

5

6

Choose the DYMO

LabelWriter printer that you are adding from the Model list, and then click Add Printer.

The printer is now available.

Print a test label.

See "Printing a Test Label" on page 18 for information on how

to print a test label.

For the LabelWriter Duo, you now need to add the tape portion of the printer.

16

To add the Tape printer portion of the LabelWriter Duo printer

1

2

Select the Printers tab.

Write down the Device URI for the

LabelWriter Duo Label printer.

3

Select the Administration tab, and then click Add Printer.

Adding a Printer in Linux

4

On the Add New Printer page, do the following:

a.

Enter a name for the printer, such as

Duo Tape, in the Name field.

b.

c.

(Optional) Enter a location and description for the printer.

Click Continue.

5

Choose AppSocket/HP Jetdirect from the

Device list, and then click Continue.

6

On the Device URI page, do the following:

a.

Enter the Label printer

Device URI in the Device

URI field.

b.

c.

Enter :9102 at the end of the Label printer

Device URI.

Click Continue.

17

Adding a Printer

7

Select DYMO from the Make list, and then click Continue.

8

Select the DYMO LabelWriter

DUO Tape printer that you are adding from the Model list, and then click Add Printer.

The printer is now available.

Printing a Test Label

Make sure that the printer is connected and working properly by printing a test label after you have added a printer.

To print a test label

1

2

Select the Printers tab on the CUPS Home Page.

Locate the printer that you want to use to print the test label and click Print Test Page.

18

Chapter 4

Managing the LabelWriter Print Server

With the Print Server Control Center software, you can quickly view server information and configure the IP address. The print server also has an internal set of web pages that can be accessed from the Control Center for even more management options.

About the Control Center

From the Print Server Control Center you can:

View server information. (Windows only)

Access the server home page.

Configure the server.

Change the Control Center language.

If you have more than one LabelWriter Print Server connected to your network, you can access all of the print servers from the Control Center.

Viewing the Print Server Information (Windows only)

On Windows systems, you can display all of the information for a print server.

To view print server information

1

Double-click on your desktop.

2

Select the server you want to view information for from the servers list.

19

Managing the LabelWriter Print Server

3

Choose Configuration from the Tools menu.

4

Select the show server information check box, and then click OK.

The server information is now displayed in a separate pane under the servers list.

Changing the Control Center Language

You can change the language for the Control Center. When you change the language setting, it will take effect the next time you open the Control Center.

20

To change the language

1

Double-click on your desktop.

About the Print Server Web Pages

2

Choose Configuration from the Tools menu.

3

4

Select your desired language, and then click OK.

Close and restart the Control Center.

About the Print Server Web Pages

From the Print Server Web pages, you can:

View server status.

Change the configuration.

Change the administrator name and password.

Upgrade the firmware.

Restart the server.

Reset the server to factory default settings.

Note

The Print Server Web pages are only available in English.

To access the Print Server Home Page

1

2

Open the Print Server Control Center.

Select the print server you want to access from the servers list.

21

Managing the LabelWriter Print Server

3

Click

Open Print Server Home Page (Windows) or

Go to Home Page (Mac OS) on the toolbar.

Note

You can also access the print server home page by entering the IP address for the print server in the address bar of your Web browser.

Viewing the Print Server Status

The print server status page displays the print server status and TCP/IP configuration.

To view print server status

 Click Status at the top of the Print Server home page.

Configuring the Server

From the Print Server Configuration page, you can change the server name and description, configure the IP address, change the administrator name and password, and perform maintenance on the print server.

To access the print server Configuration page

1

2

Click Config at the top of the Print Server home page.

Enter the following in the Administrator and Password fields, and then click Login.

Administrator: admin

Password: admin

Note

These are the default settings. See "Changing the Administrator Name and Password" on page 23 for information on how to change the administrator name and password.

Changing the Server Name and Description

You can change the name and description of the print server. If you have more that one print server connected to your network, giving each server a distinct name or description makes it easy to distinguish between servers.

To change the server name and description

1

2

3

4

Click General Configuration on the left side of the Configuration page.

Enter a new name for the server in the Server Name field.

Enter a new description for the server in the Server Description field.

Click Submit.

The print server name and description are updated.

22

Configuring the Server

Changing the TCP/IP Configuration

You can configure the print server to obtain an IP address automatically or assign a static IP address that you choose.

If you are using the print server on a small office or home network, we recommend that you configure the server to use a static IP address. This will ensure that the computers connected to your network will always be able to locate the print server.

By default, the static IP address for the print server is 192.168.1.100. You only need to change the last three numbers. When assigning a static IP address, check your router to be sure that the IP address you choose is not already in use. Refer to your router documentation for information on how to do this. A good practice when adding a print server or other shared network device to a network is to start with a number toward the top of the range, for example 192.168.1.250, and work down from there.

To obtain an IP address automatically

1

Click General Configuration on the left side of the Configuration page.

2

3

Select Automatically get IP by DHCP.

Click Submit.

To assign a static IP address

1

Click General Configuration on the Configuration page.

2

3

4

Select Static IP.

Enter the IP address you want to use in the IP Address field.

Click Submit.

Changing the Administrator Name and Password

You can change the administrator name or password at any time. The administrator name and password are set to the following by default.

Administrator: admin

Password: admin

To change the administrator name and password

1

2

3

4

Click User Accounts on the left side of the Configuration page.

Enter a new administrator name in the New Administrator field.

Enter a new password in the New Password field.

Enter the password again in the Retype Password field, and then click Submit.

The administrator name and password are now updated.

23

Managing the LabelWriter Print Server

Upgrading the Firmware

You can upgrade your print server whenever new firmware becomes available.

We recommend that you only upgrade the firmware if you are instructed to do so by a DYMO

Technical Support representative or if you are experiencing a problem that has been identified as a firmware issue.

This section describes how to upgrade the firmware for your print server.

To upgrade the server firmware

1

2

3

4

5

6

Click Maintenance on the left side of the Configuration page.

Click Download New Firmware.

The Support page of the DYMO Web site opens in your default Web browser.

Locate the print server firmware upgrade on the downloads page and follow the on-screen instructions to download the new firmware to your computer.

On the Maintenance page, click Upgrade Firmware, and then click Browse.

Navigate to and select the firmware file that you downloaded, and then click Open.

Click Upload.

When the Print Server home page appears, the print server has been restarted and is upgraded with the new firmware.

24

Chapter 5

Getting Help

Your LabelWriter Print Server should offer years of trouble-free service with very little maintenance. However, in the event that you encounter a problem, this chapter offers suggestions for resolving problems that can occur when using the print server. If you are unable to solve a problem, this chapter also describes how to contact DYMO Technical Support.

Troubleshooting

This section provides information on how to detect and correct problems you might encounter while using your print server.

Status Lights

The status lights visually show the current state of the print server.

POWER LINK ACTIVE USB

Power

Link

Active

USB

Solid - power is connected.

Off - no power is connected.

Solid - server is connected to the network.

Off - no Ethernet connection.

Flashing - the network is active.

Solid- printer is connected to the server.

Flashing - USB error.

Off - printer is not connected.

Restoring the Print Server to the Factory Default Settings

You can restore the print server to the factory default settings either from the Print Server Web pages or manually from the print server.

To restore the print server from the Web pages

1

2

3

4

5

6

Click

Open Print Server Home Page (Windows) or

Go to Home Page (Mac OS) on the Control Center toolbar.

Click Configuration at the top of the page.

Enter your administrator name and password, and then click Login.

Click Maintenance on the left side of the page.

Click Reset to Factory Default.

Click Yes when prompted to load the factory default settings.

25

Getting Help

When the Print Server home page appears, the print server has been restored to the factory default settings.

To restore the print server manually

1

2

3

4

Unplug the print server power adapter.

Press and hold the Init/Reset button on the side of the print server and plug in the print server power adapter.

Continue to hold the Init/Reset button until the Power and USB status lights flash.

Unplug the print server power adapter, and then plug the print server power adapter in again.

The print server is now restored to the factory default settings.

Limited Warranty

TWO-YEAR LIMITED WARRANTY

Dymo scales are sold with a two-year warranty from the date of purchase against defects in design, materials and workmanship. If this product is found to be defective within that time, we will promptly repair or replace it at our cost. This warranty does not cover accidental damage, wear and tear or consequential or incidental loss.

WHAT IS COVERED

This warranty covers this product only and only against defects in design, materials or workmanship. If, after inspection of your returned product, we find that the product is defective in design, materials or workmanship, we shall at no charge to you repair or replace the product at our discretion, and return the product to you. You are responsible for the full cost of shipping the product to Dymo, but there is no charge for the inspection or the return postage.

WHAT IS NOT COVERED

This warranty does not cover loss of or damage to a computer or other devices connected directly or indirectly to this Dymo product. This warranty also does not cover any loss of or damage to data, programs, records or other information.

This warranty does not cover any defect or loss which would not have occurred if instructions in the owner's manual had been followed. This warranty does not cover other incidental or consequential damages even if Dymo has been informed of the possibility of such damages. This warranty is in lieu of all other warranties, express or implied. This warranty gives you specific rights and you may also have other rights, which may vary from state to state or country to country.

HOW TO MAKE A WARRANTY CLAIM

To make a warranty claim, please contact customer support: www.dymo.com

26

Obtaining Technical Support

Obtaining Technical Support

If you experience problems with the setup or use of your print server, carefully read this manual to make sure you have not missed something that is covered in the documentation.

If you cannot resolve your problem by consulting the documentation, you can obtain additional information and assistance from DYMO.

DYMO maintains an Internet Web site at www.dymo.com

that includes the latest support information for your LabelWriter Print Server.

Visit the Support area of our Web site at www.dymo.com

to contact us by email.

27

Getting Help

28

Chapter 6

Technical and

Certification Information

This chapter contains technical and certification information for the LabelWriter Print Server.

Technical Specifications

Dimensions (WHD)

Weight

Power

Interface

Device Certification

LabelWriter Print Server

3.07 in (78 mm) by 2.31 in (59 mm) by 0.88 in (22 mm)

2.1 ounces (58 g)

DC IN 5V/2A adaptor

USB 1.1/2.0 Low, Full, and Hi-Speed compliant

This product is CE compliant and has an NRTL certificate (cTUVus : US and Canada) and a GS certification.

This product is RoHS compliant.

Declaration of Conformity

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

29

Technical and Certification Information

Documentation Feedback

We are constantly working to produce the highest quality documentation for our products. We welcome your feedback. Send us your comments or suggestions about our online Help, printed, or

PDF manuals.

Please include the following information with your feedback:

Product name and version number

Type of document: printed manual, PDF, or online Help

Topic title (for online Help) or page number (for printed or PDF manuals)

Brief description of content (for example, step-by-step instructions that are inaccurate, information that requires clarification, areas where more detail is needed, and so on)

Suggestions for how to correct or improve the documentation

We also welcome your suggestions for additional topics you would like to see covered in the documentation.

Send email feedback to:

[email protected]

Please keep in mind that this email address is only for documentation feedback. If you have a technical question, please contact Customer Service.

30

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
