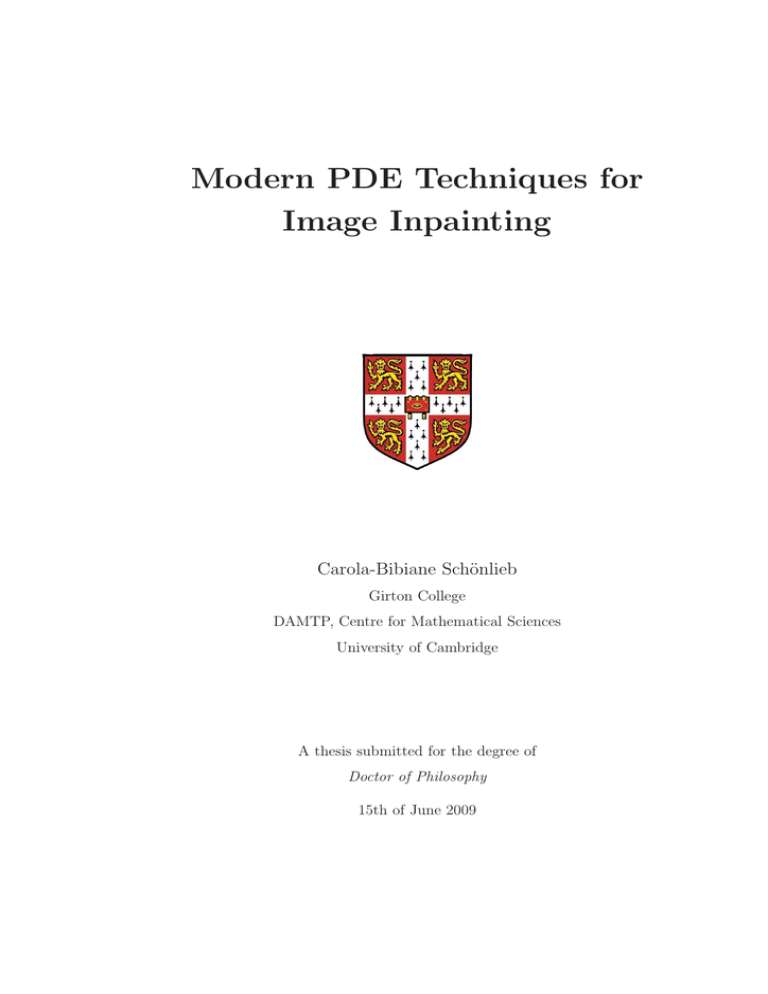

Modern PDE Techniques for
Image Inpainting
Carola-Bibiane Schönlieb
Girton College
DAMTP, Centre for Mathematical Sciences
University of Cambridge
A thesis submitted for the degree of
Doctor of Philosophy
15th of June 2009
I would like to dedicate this thesis to my mother, who gave me the will to
be independent and always believed in me.
Declaration
This dissertation is the result of my own work and includes nothing which
is the outcome of work done in collaboration except where specifically indicated in the text.
Carola-Bibiane Schönlieb
Acknowledgements
First I would like to thank my supervisor Peter A. Markowich for his support, his mentorship, his belief in me, and his friendship. Moreover, I owe
thanks to my two co-supervisors, Martin Burger and Massimo Fornasier.
They were always there for me, introduced me to interesting and challenging problems, and motivated me in my own creative thinking.
Further, I would like to thank all my collaborators, for numerous discussions, for our fruitful work together, and for all they have taught me (alphabetically ordered): Andrea Bertozzi, Julian Fernandez Bonder, Martin
Burger, Shun-Yin Chu, Massimo Fornasier, Marzena Franek, Lin He, Andreas Langer, Peter A. Markowich and Julio D. Rossi.
Also, I would like to emphasize that I really enjoyed working alongside everyone in the Applied PDE (APDE) group of my supervisor. In particular, I
would like to point out Marcus Wunsch, who welcomed me at the institute
in Vienna and always believed in my academical excellence, Rada-Maria
Weishäupl for preparing the way for other female PhD students in Peter’s
group to follow her, Alexander Lorz for his humanity and common love of
dogs, Marie-Therese Wolfram for her friendship and her sympathy during
the last six months of my PhD studies, and Klemens Fellner and Christof
Sparber for playing the ”older brothers“ role. The other members of the
APDE group (alphabetically ordered) - Gonca Aki, Paolo Antonelli, Marco
DiFrancesco, Guillaume Dujardin, Norayr Matevosyan and Jan-Frederik
Pietschmann - have also been very helpful, supportive, and reliable mates.
Leaving this group now, I know that I will miss you all very much!
Moreover, I would like to thank the assistant of my supervisor, and very
good friend of mine, Renate Feikes, for her honest and critical personality,
her caring and friendship (no matter on which part of the globe I was), and
for her very efficient and reliable management of projects and paperwork.
There are also a couple of people outside of the APDE group, I owe thanks
to. Practically, all the academic people in Vienna, Linz and Cambridge
with whom I shared some time together. Among them, I especially would
like to thank Carlota Cuesta and Vera Miljanovic, who showed me how
women are able to make an excellent career, while still preserving their
female qualities and their happiness, Helen Lei, who taught me that life
barely stays between the lines, and Massimo Fornasier, for always believing
in me and my qualities, for his coaching, his friendship, and his wonderful
pasta al ragù. Many thanks as well to the whole Numerical Analysis group
in Cambridge, in particular Tanya Shingel, with whom I shared the last
steps of the PhD course, and Arieh Iserles for the warm and caring welcome
he showed to our whole group when arriving at DAMTP.
During my research stays in Buenos Aires and Los Angeles, I received great
hospitality. For someone who is used to a protected nest at home, it is not
always easy to overcome one’s inhibitions and leave for the unknown. I am
glad I did it though, and I want to thank the following people for making
these stays one of the most enjoyful times in my present life (in alphabetical order): Andrea Bertozzi, Julián Fernández Bonder, Lincoln Chayes,
Irene Drelichman, Ricardo Durán, Dimitris Giannakis, Fredrik Johansson,
Helen Lei, Sandra Martinez, Pierre Nolin, Jan-Frederik Pietschmann, Mariana Prieto, Jesus Rosado, Julio D. Rossi, Noemi Wolanski, Marie-Therese
Wolfram and Marcus Wunsch.
For carefully proofreading parts of this thesis, I would like to thank (alphabetically ordered): Bertram Düring, Renate Feikes, Helen Lei and MarieTherese Wolfram.
My whole family has been very supportive, especially my mother Karin
Schönlieb. In my lows she encouraged me to look on the bright side of
life and helped me to get up again. In my highs she was so proud of me
and motivated me to keep it up. In addition, she made all my research
stays abroad possible by taking care of my beloved dog Eureka-Carissima
von Salmannsdorf, short Reka. Mama, I love you very much! I also would
like to thank a couple of important other people in my life in particular.
My sister Charlotte Schönlieb for always keeping a place for me in her infinitely big heart. My nephew Manuel Michl for always viewing me as a
mathematical genius. My best friend Isabella Wirth, who accompanied me
from the beginnig of my mathematical studies, and always reminded me
that there is something beyond work. My boyfriend and ”father“ of Reka,
Herwig Rittsteiger, who always tried to give Reka additional love and care
during my absence. My dear friend and breeder of Reka, Elfriede Wilfinger,
who gave me a warm home in Vienna, and the best dog in the world. My
current landlady Dorothea Heller, and her son Nicholas Heller, for making
it possible for Reka and myself to be together in Cambridge, and for accepting me as a member of their family. And last but by no means least
within this list, I thank Hannelore and Hans Liszt, Elisabeth Beranek, and
Ingeborg Schön, for their company and support during the whole time since
my birth. In the end, I would like to address Reka separately: Without her,
my PhD time would have been half as much fun as it has been.
I also acknowledge the financial support provided by the following institutions and funds: the Wissenschaftskolleg (Graduiertenkolleg, Ph.D. program) of the Faculty for Mathematics at the University of Vienna (funded
by the Austrian Science Fund FWF), the project WWTF Five senses-Call
2006, Mathematical Methods for Image Analysis and Processing in the Visual Arts, the FFG project no. 813610 Erarbeitung neuer Algorithmen zum
Image Inpainting. Further, this publication is based on work supported by
Award No. KUK-I1-007-43 , made by King Abdullah University of Science
and Technology (KAUST). For the hospitality and the financial support
during parts of the preparation of this work, I thank the Institute for Pure
and Applied Mathematics (IPAM), UCLA. I also acknowledge the financial
support of the US Office of Naval Research grant N000140810363, and the
Department of Defense, National Science Foundation Grant ACI-0321917,
during my visits to UCLA. Further the author would like to thank the UCLA
Mathematics Department, and Alan Van Nevel and Gary Hewer from the
Naval Air Weapons Station in China Lake, CA for providing the road data
in Section 5.2.
Abstract
Partial differential equations (PDEs) are expressions involving an unknown
function in many independent variables and their partial derivatives up to
a certain order (which is then called the order of the PDE). Since PDEs
express continuous change, they have long been used to formulate a myriad
of dynamical physical and biological phenomena: heat flow, optics, electrostatics and -dynamics, elasticity, fluid flow and much more. In this globalized and technologically advanced age, PDEs are also extensively used for
modeling social situations (e.g., models for opinion formation) and tasks
in engineering (like models for semiconductors, networks, and signal and
image processing tasks). In my Ph.D. thesis I study nonlinear PDEs of
higher-order appearing in image processing with specialization to inpainting (i.e., image interpolation). Digital image interpolation is an important
challenge in our modern computerized society: From the reconstruction of
crucial information in satellite images of our earth, restoration of CT- or
PET images in molecular imaging to the renovation of digital photographs
and ancient artwork, digital image interpolation is ubiquitous. Motivated
by these applications, I investigate certain PDEs used for these tasks. I
am concerned with the mathematical analysis and the efficient numerical
solution of these equations as well as the concrete real world applications
(like the restoration of ancient Viennese frescoes).
Keywords: Partial Differential Equations, Variational Calculus, Image
Processing, Numerical Analysis.
Contents
Notation and Symbols
xi
1 Introduction
1
1.1
The Role of Image Processing in our Modern Society . . . . . . . . . . .
3
1.2
What is a Digital Image? . . . . . . . . . . . . . . . . . . . . . . . . . .
4
1.3
Image Inpainting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
1.3.1
Energy-Based and PDE Methods for Image Inpainting . . . . . .
7
1.3.2
Second- Versus Higher-Order Approaches . . . . . . . . . . . . .
16
1.3.3
Numerical Solution of Higher-Order Inpainting Approaches . . .
19
2 Image Inpainting With Higher-Order Equations
2.1
Cahn-Hilliard Inpainting . . . . . . . . . . . . . . . . . . . . . . . . . . .
24
2.1.1
Existence of a Stationary Solution . . . . . . . . . . . . . . . . .
26
2.1.2
Numerical Results . . . . . . . . . . . . . . . . . . . . . . . . . .
37
2.1.3
2.2
Neumann Boundary Conditions and the Space
38
TV-H−1 Inpainting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
41
2.2.1
Γ-Convergence of the Cahn-Hilliard Energy . . . . . . . . . . . .
46
2.2.2
Existence of a Stationary Solution . . . . . . . . . . . . . . . . .
48
2.2.3
Characterization of Solutions . . . . . . . . . . . . . . . . . . . .
51
2.2.4
Error Estimation and Stability Analysis With the Bregman Dis. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
54
Numerical Results . . . . . . . . . . . . . . . . . . . . . . . . . .
58
Inpainting with LCIS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
60
2.3.1
Numerical Results . . . . . . . . . . . . . . . . . . . . . . . . . .
61
The Inpainting Mechanisms of Transport and Diffusion - A Comparison
62
2.2.5
2.4
H∂−1 (Ω)
. . . . .
tance
2.3
24
viii
CONTENTS
3 Analysis of Higher-Order Equations
3.1
3.2
Instabilities in the Cahn-Hilliard Equation . . . . . . . . . . . . . . . . .
70
3.1.1
Asymptotic Behavior . . . . . . . . . . . . . . . . . . . . . . . . .
77
3.1.2
Linear Stability / Instability . . . . . . . . . . . . . . . . . . . .
81
3.1.3
Nonlinear Stability / Instability . . . . . . . . . . . . . . . . . . .
85
3.1.4
Consequences . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
92
Nonlocal Higher-Order Evolution Equations . . . . . . . . . . . . . . . .
93
3.2.1
Existence and Uniqueness . . . . . . . . . . . . . . . . . . . . . .
97
3.2.2
Asymptotic Behavior . . . . . . . . . . . . . . . . . . . . . . . . .
98
3.2.3
Scaling the Kernel . . . . . . . . . . . . . . . . . . . . . . . . . . 103
4 Numerical Solution of Higher-Order Inpainting Approaches
4.1
4.2
4.3
70
104
Unconditionally Stable Solvers . . . . . . . . . . . . . . . . . . . . . . . 105
4.1.1
The Convexity Splitting Idea . . . . . . . . . . . . . . . . . . . . 106
4.1.2
Cahn-Hilliard Inpainting . . . . . . . . . . . . . . . . . . . . . . . 109
4.1.3
TV-H−1 Inpainting . . . . . . . . . . . . . . . . . . . . . . . . . . 120
4.1.4
LCIS Inpainting . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
4.1.5
Numerical Discussion . . . . . . . . . . . . . . . . . . . . . . . . 133
A Dual Solver for TV-H−1 Minimization . . . . . . . . . . . . . . . . . . 135
4.2.1
Introduction and Motivation . . . . . . . . . . . . . . . . . . . . 135
4.2.2
The Algorithm . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
4.2.3
Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Domain Decomposition for TV Minimization . . . . . . . . . . . . . . . 153
4.3.1
Preliminary Assumptions . . . . . . . . . . . . . . . . . . . . . . 159
4.3.2
A Convex Variational Problem and Subspace Splitting . . . . . . 162
4.3.3
Local Minimization by Lagrange Multipliers . . . . . . . . . . . . 165
4.3.4
Convergence of the Sequential Alternating Subspace Minimization 174
4.3.5
A Parallel Alternating Subspace Minimization and its Convergence180
4.3.6
Domain Decomposition for TV-L2 Minimization . . . . . . . . . . 182
4.3.7
Domain Decomposition for TV-H−1 Minimization . . . . . . . . . 197
ix
CONTENTS
5 Applications
5.1
5.2
202
Restoration of Medieval Frescoes . . . . . . . . . . . . . . . . . . . . . . 202
5.1.1
Neidhart Frescoes . . . . . . . . . . . . . . . . . . . . . . . . . . 203
5.1.2
Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Road Reconstruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
5.2.1
Bitwise Cahn-Hilliard Inpainting . . . . . . . . . . . . . . . . . . 212
6 Conclusion
214
A Mathematical Preliminaries
217
A.1 Distributional Derivatives . . . . . . . . . . . . . . . . . . . . . . . . . . 217
A.2 Subgradients and Subdifferentials . . . . . . . . . . . . . . . . . . . . . . 217
A.3 Functional Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
A.4 The Space H −1 and the Inverse Laplacian ∆−1 . . . . . . . . . . . . . . 218
A.5 Functions of Bounded Variation . . . . . . . . . . . . . . . . . . . . . . . 219
References
241
x
Notation and Symbols
Function Spaces and Norms
For Ω an open and bounded subset of Rd we define the following real-valued function
spaces.
Rd
R+
BV (Ω)
BV − w∗
C m (Ω)
Lp (Ω)
h·, ·i2
k·k2
L∞ (Ω)
Lploc (Ω)
W p,q (Ω)
W0p,q (Ω)
The Euclidean space of dimension d with the Euclidean norm
| · |.
the non-negative real numbers.
Space of functions of bounded variation with seminorm
|Df | (Ω), the total variation of f in Ω.
The weak∗ topology of BV (Ω).
The space of functions on Ω, which are m−times continuously differentiable.
With 1 ≤ p <
functions
R ∞: p Space of Lebesque measurable
p
f such that Ω |f | dx < ∞. The space L (Ω) is a Banach
1/p
R
space with corresponding norm kf kLp (Ω) = Ω |f |p dx
.
In the case p = 2 it is a Hilbert
space
with
corresponding
R
inner product hf, giL2 (Ω) = Ω f · g dx.
:= h·, ·iL2 (Ω)
:= k·kL2 (Ω) for the norm in L2 (Ω)
Space of Lebesque measurable functions f such that there
exists a constant C with |f (x)| ≤ C, a.e. x ∈ Ω. The
space L∞ (Ω) is a Banach space with corresponding norm
kf kL∞ (Ω) = supx∈Ω {|f (x)|}.
Lploc (Ω) = {f : Ω → R : f ∈ Lp (D) for each D ⋐ Ω}.
With 1 ≤ p, q ≤ ∞: Sobolev space of functions f ∈ Lq (Ω)
such that all derivatives up to order p belong to Lq (Ω). The
space W p,q (Ω) is a Banach space with norm kf kW p,q (Ω) =
1/q
Pp R k q
dx
, where Dk f denotes the k−th disk=1 Ω D f
tributional derivative of f , cf. Appendix A.1
{f ∈ W p,q (Ω) : f |∂Ω = 0}.
xi
H p (Ω)
k·k1
H0p (Ω)
H −1 (Ω)
k·k−1
h·, ·i−1
H∂−1 (Ω)
W p,2 (Ω). This is a Hilbert
with corresponding inner
R
Pp space
k
product hf, giH p (Ω) = k=1 Ω D f · Dk g dx. For this special Sobolev space we write k·kH p (Ω) := k·kW p,2 (Ω) for its
corresponding norm.
:= k·kH 1 (Ω)
W0p,2 (Ω).
∗
1
H01 (Ω) , i.e., the dual space
H
0 (Ω) with correspond of
ing norm k·kH − 1(Ω) = ∇∆−1 ·2 and inner product
h·, ·iH −1 (Ω) = ∇∆−1 ·, ∇∆−1 · 2 . Thereby ∆−1 is the inverse
of the negative Laplacian −∆ with zero Dirichlet boundary
conditions, cf. Appendix A.4.
:= k·kH − 1(Ω)
:= h·, ·iH −1 (Ω)
−1
This is a nonstandard
space,
i.e., H∂
(Ω) is a subspace of
R
∗
1
the space ψ ∈ H (Ω) : Ω ψ dx = 0 . The norm and the
inner product are defined as for H −1 (Ω) above, with the only
difference, that ∆−1 is the inverse of the negative Laplacian
−∆ with zero Neumann boundary conditions, cf. Section
2.1.3 for details.
For X a Banach space with a norm k·kX and v : (0, T ) → X we denote
C m (0, T ; X)
Lp (0, T ; X)
With m ≥ 0, 0 < T < ∞: Space of functions from
[0, T ] to X, which are m−times continuously differentiable. It is a Banach space with the norm kvkC m (0,T ;X) =
l
∂ v max0≤l≤m sup0≤t≤T ∂tl (t) .
X
With 1 ≤ p < ∞: Space of functions v → v(t) measurable on
(0, T ) for the measure dt (i.e., the scalar functions t → kvkX
are dt-measurable). It is a Banach space with the norm
1/p
R
T
< +∞.
kvkLp (0,T ;X) = 0 kvkpX dt
For a functional J : X → (−∞, +∞] where X is a Banach space we write
argmin {J}
:= {u ∈ X : J(u) = inf X J}
l.s.c.
(sequen- Lower semicontinuous: J is called l.s.c. if for every sequence
tially)
(un ) converging to u we have lim inf n→∞ J(un ) ≥ J(u).
xii
About Functions
For a function f : Ω ⊂ Rd → R and a sequence of functions (f n )n∈N belonging to a
Banach space X we have
f n → f in X
The sequence (f n ) converges strongly to f in X.
f n ⇀ f in X
The sequence (f n ) converges weakly to f in X.
∗
The sequence (f n ) converges to f in the weak∗ topology of
f n ⇀ f in X
X.
kf kX
The norm of f in X; for specific norm definitions compare
the notations in “Function Spaces and Norms”.
supp {f }
For a measurable function f : Ω ⊂ Rd → R, let (wi )i∈I be
the family of all open subsets such that wi ⊆ Ω and for each
i ∈ I, f = 0 a.e. on wi . Then
supp (the support of f ) is
S
defined by supp {f } = Ω \ i wi .
Df
Distributional derivative of f , cf. Appendix A.1.
∇f
Gradient of f .
P
∂f
.
∇·f
Divergence of f , i.e., ∇ · f = di=1 ∂x
Pd ∂i2 f
∆f
Laplacian operator, i.e., ∆f = i=1 ∂x2 .
vt
fΩ
i
Time derivative of a function v : (0, T )R → X for t > 0.
1
Mean value of f over Ω, i.e., fΩ = |Ω|
Ω f dx.
Let H be a real separable Hilbert space. For a function ψ : H → R ∪ {+∞} we
write
ψ ∗ (·)
The Legendre-Fenchel transform, i.e., convex conjugate ψ ∗ :
H∗ → R ∪ {+∞} is defined by ψ ∗ (u) = supv∈H{hv, ui −
ψ(v)}.
Miscellaneous Notation
Let A, B and R be bounded and open sets in Rd .
Ω ⊂ Rd
An open and bounded set with Lipschitz boundary.
A ֒→ B
A is continuously embedded into B.
A ֒→֒→ B
A is compactly embedded into B.
T ∈ L(H)
T is a bounded linear operator in a Hilbert space H.
T∗
The adjoint operator of T in H, i.e., hT ∗ u, vi = hu, T vi,
where h·, ·i denotes the inner product in H.
kT k
The operator norm of T .
|·|
Euclidean norm in Rd .
V∗
The topological dual for a topological vector space V .
Hd
d-dimensional Hausdorff measure.
xiii


s>0
1
sign(s)
Sign function, i.e., sign(s) = 0
s=0


−1 s < 0.
χR
Characteristic
function of a bounded and open set R, i.e.,
(
1
x∈R
χR (x) =
+∞ otherwise.
1R
Indicator(function of a bounded and open set R, i.e.,
1 x∈R
1R (x) =
0 otherwise.
Where needed, notations and definitions might be extended in the introductory part
of a new chapter or section.
xiv
Chapter 1
Introduction
My Ph.D. thesis is concerned with modern techniques which use partial differential
equations (PDEs) for image processing. I am especially interested in the analysis
and numerical solution of higher-order flows such as the Cahn-Hilliard equation, and
singular flows such as total variation minimizations, appearing in image inpainting
(interpolation) tasks as well as concrete real world applications.
Now, inpainting is an artistic word for virtual image restoration or image interpolation, whereby missing parts of damaged images are filled in, based on the information obtained from the surrounding areas. Virtual image restoration is an important
challenge in our modern computerized society: From the reconstruction of crucial information in satellite images of our earth to the renovation of digital photographs and
ancient artwork, virtual image restoration is ubiquitous.
Inpainting methods based on higher-order flows, i.e., PDEs of third-or fourth differential order, stirred growing interest in the image processing community in recent
years. This is because of the high-quality visual results produced by these methods,
which are superior to the ones produced via second-order PDEs. Current research in
this area mainly concentrates on three issues.
The first one, being the development of simple but effective higher-order inpainting
models, is also the first big topic of this thesis. Therein I aim to replace curvature
driven models, like Euler’s elastica inpainting, by higher-order, diffusion-like models
such as Cahn-Hilliard- and TV-H−1 inpainting. The diffusion-like inpainting approaches
have the advantage that their numerical solution is in general easier and faster, while
preserving the good visual results produced by the curvature driven approaches.
1
The second issue is a derivation of rigorous analytic properties and geometric interpretation of these equations. This is a challenging task in its own right, since higher-order
equations are very new and little is known about them. Often higher-order equations do
not possess a maximum or comparison principle, hence their analysis, like proofs of existence, uniqueness and convergence of solutions to these equations, is very involved and
has not been established yet for all cases. A large part of my thesis provides answers to
some of these open questions. In particular I shall present results for the Cahn-Hilliard
equation, for a fourth-order total variation flow, and for a nonlocal higher-order diffusion equation.
The third issue is the effective and fast numerical solution of inpainting approaches,
and constitutes the third main topic of this work. Although higher-order inpainting
approaches produce very good visual results, in general they suffer from high computational complexity. This means that the computational effort for producing an inpainted
image from one of these methods can be big. This high complexity makes such inpainting approaches less attractive for interactive image manipulation and thus less popular
in real-world applications. Hence the focus is on the development of fast and efficient
numerical algorithms for their solution.
Finally, I am also interested in applications of these inpainting methods in real life.
A particular example for this is the recently found Neidhart frescoes in Vienna: Advanced mathematical inpainting tools can restorate the frescoes digitally. The virtually
restored frescoes then serve as a virtual template for museums artists who work on the
physical restoration of the frescoes. Another real world application is the restoration
of satellite images of roads in urban areas in the United States: Here the problem is
that the roads are partly covered by trees or buildings and the goal is to remove these
obstacles and receive a picture of just the road. For this task PDEs turned out to
be the method of choice, not only due to the high quality visual results but also due
to the fact that this enables automated restoration of whole databases of roads. In
other words, combined with a-priori segmentation algorithms for the trees (providing
an initial condition), PDEs inpaint the road images unsupervised, i.e., no user action
is required.
In the present chapter, in Section 1.1, I start the discussion with some general
remarks about the importance of digital image processing methods. Section 1.2 shall
explain the term digital image for a general audience. Then in Section 1.3 the task
2
1.1 The Role of Image Processing in our Modern Society
of image inpainting is explained in more detail and an overview of existing work in
this area is given, in particular in the range of PDE- and energy-based approaches in
Section 1.3.1. Further the use of third- and fourth-order partial differential equations
instead of second-order flows in image inpainting is motivated in Section 1.3.2, and an
overview of existing numerical methods for higher-order inpainting approaches is given
in Section 1.3.3.
1.1
The Role of Image Processing in our Modern Society
In our modern society we encounter digital images in a lot of different situations: from
everyday life, where analogue cameras have long been replaced by digital ones, to their
professional use in medicine, earth sciences, arts, and security applications. The images
produced in these situations usually have to be organized and possibly postprocessed.
The organization and processing of digital images is known under the name of image
processing or computer vision.
We often have to deal with the processing of images, e.g., the restoration of images
corrupted by noise, blur, or intentional scratching. The idea behind image processing is to provide methods that improve the quality of these images by postprocessing
them. Examples of damaged images come from medical imaging tools such as brain
imaging with MRI (Magnetic Resonance Imaging), PET (Positron Emission Tomography) imaging of inner organs like the human heart, and X-ray imaging of our skeleton.
These imaging tools usually produce noisy or incomplete image data. Other examples
include satellite images of our earth, which are often blurred. Further, digital image
restoration is used in art preservation and restoration, where digital photographs are
taken from ancient artwork and are digitally restorated and stored. As such they can
serve as templates for restorators and can be kept in a databank for preservation. In
sum, digital image restoration provides effective tools to recover or complete lost image
information. Keywords in this context are image denoising, image deblurring, image
decomposition, image inpainting, and image synthesizing.
Another branch of image processing is object recognition and tracking. In these
applications one is interested in certain objects in an image that one wants to extract
and/or follow, e.g., in a video stream. Keywords here are image segmentation, object
recognition, object tracking, and remote sensing.
3
1.2 What is a Digital Image?
Finally, there is also the important issue of organizing image data in an efficient
way. To do so we have to think about the classification of images, e.g., depending on
their contents, and an optimal way of storing them in terms of minimizing the storage
place.
For a more complete introduction to digital image processing we refer to [AK06].
Considering this huge – but by no means complete – amount of image processing
applications listed above and the fact that there are still problems in this area which
have not been completely and satisfactorily solved, it is not surprising that this is a
very active and broad field of research. From engineers to computer scientists and
mathematicians, a large group of people have been and are still working in this area.
In the following we focus on the first branch of applications, namely image restoration
and in particular on so-called image inpainting techniques, cf. Section 1.3.
1.2
What is a Digital Image?
In order to appreciate the following theory and the image inpainting applications, we
first need to understand what a digital image really is. Roughly speaking a digital image
is obtained from an analogue image (representing the continuous world) by sampling
and quantization. Basically this means that the digital camera superimposes a regular
grid on an analogue image and assigns a value, e.g., the mean brightness in this field, to
each grid element, cf. [AK06]. In the terminology of digital images these grid elements
are called pixels. The image content is then described by grayvalues or colour values
prescribed in each pixel. The grayvalues are scalar values ranging between 0 (black)
and 255 (white). The colour values are vector values, e.g., (r, g, b), where each channel
r, g and b represents the red, green, and blue component of the colour and ranges, as
the grayvalues, from 0 to 255. The mathematical representation of a digital image is a
so-called image function u defined on a two dimensional (in general rectangular) image
domain, the grid. This function is either scalar valued in the case of a grayvalue image,
or vector valued in the case of a colour image. Here the function value u(x, y) denotes
the grayvalue, i.e., colourvalue, of the image in the pixel (x, y) of the image domain.
Figure 1.1 visualizes the connection between the digital image and its image function
for the case of a grayvalue image.
4
1.3 Image Inpainting
Figure 1.1: Digital image versus image function: On the very left a zoom into a digital
photograph where the image pixels (small squares) are clearly visible is shown; in the
middle the grayvalues of the red selection in the digital photograph are displayed in
matrix form; on the very right the image function of the digital photograph is shown
where the grayvalue u(x, y) is plotted as the height over the x, y− plane.
Typical sizes of digital images range from 2000 × 2000 pixels in images taken with
a simple digital camera, to 10000 × 10000 pixels in images taken with high-resolution
cameras used by professional photographers. The size of images in medical imaging
applications depends on the task at hand. PET for example produces three dimensional
image data, where a full-length body scan has a typical size of 175 × 175 × 500 pixels.
Now, since the image function is a mathematical object we can treat it as such and
apply mathematical operations to it. These mathematical operations are summarized
by the term image processing techniques, and range from statistical methods, morphological operations, to solving a partial differential equation for the image function, cf.
Section 1.1. We are especially interested in the last, i.e., PDE- and variational methods
used in imaging and in image inpainting in particular.
1.3
Image Inpainting
An important task in image processing is the process of filling in missing parts of
damaged images based on the information obtained from the surrounding areas. It is
essentially a type of interpolation and is called inpainting.
Let f represent some given image defined on an image domain Ω. Loosely speaking,
the problem is to reconstruct the original image u in the (damaged) domain D ⊂ Ω,
called inpainting domain or a hole/gap (cf. Figure 1.2).
5
1.3 Image Inpainting
Figure 1.2: The inpainting task. Figure from [CS05]
The term inpainting was invented by art restoration workers, cf. [Em76, Wa85],
and first appeared in the framework of digital restoration in the work of Bertalmio
et al. [BSCB00]. Therein the authors design a discrete partial differential equation,
which intends to imitate the restoration work of museum artists. Their method shall
be explained in more detail in the subsequent section.
Applications
Applications of digital image inpainting are automatic scratch removal in old photographs and films [BSCB00, CS01a, KMFR95b], digital restoration of ancient paintings for conservation purposes [BFMS08], text erasing, like the removal of dates, subtitles, or publicity from a photograph [BSCB00, BBCSV01, CS01a, CS01c], special
effects like object disappearance [BSCB00, CS01c], disocclusion [NMS93, MM98], spatial/temporal zooming and super-resolution [BBCSV01, CS01a, Ma00, MG01, TYW01],
error concealment [WZ98], lossy perceptual image coding [CS01a], removal of the laser
dazzling effect [CCB03], and sinogram inpainting in X-ray imaging [GZYXC06], only
to name a few.
The beginnings of digital image inpainting
The history of digital image inpainting has its beginning in the works of engineers
and computer scientists. Their methods were based on statistical and algorithmic
6
1.3 Image Inpainting
approaches in the context of image interpolation [AKR97, KMFR95a, KMFR95b], image replacement [IP97, WL00], error concealment [JCL94, KS93], and image coding
[Ca96, FL96, RF95]. In [KMFR95b], for example, the authors present a method for
video restoration. Their algorithm uses intact information from earlier and later frames
to restore the current one and is therefore not applicable to still images. In interpolation approaches for “perceptually motivated” image coding [Ca96, FL96, RF95] the
underlying image model is based on the concept of “raw primal sketch” [Ma82]. More
precisely this method assumes that the image consists of mainly homogeneous regions,
separated by discontinuities, i.e., edges. The coded information then just consists of
the geometric structure of the discontinuities and the amplitudes at the edges. Some of
these coding techniques already used PDEs for this task, see e.g., [Ca88, Ca96, CT94].
Initiated by the pioneering works of [NMS93, MM98, CMS98, BSCB00], and [CS01a]
also the mathematics community got involved in image restoration, using partial differential equations and variational methods for this task. Their approach and some of
their methods shall be presented in the following section.
1.3.1
Energy-Based and PDE Methods for Image Inpainting
In this section I present the general energy-based, and PDE approach used in image
inpainting. After a derivation of both methods in the context of inverse problems and
prior image models, I give an overview of the most important contributions within this
area. To keep to chronological order, I start with the energy-based approach, also called
variational approach, or image prior model.
Energy-based methods
Energy-based methods can be best explained from the point of view of inverse problems.
In a wide range of image processing tasks one encounters the situation that the observed
image f is corrupted, e.g., by noise or blur. The goal is to recover the original image u
from the observed datum f . In mathematical terms this means that one has to solve an
inverse problem T u = f , where T models the process through which the image u went
before observation. In the case of an operator T with unbounded inverse, this problem
is ill-posed. In such cases one modifies the problem by introducing some additional
a-priori information on u, usually in terms of a regularizing term involving, e.g., the
total variation of u. This results in a minimization problem for the fidelity T u − f plus
7
1.3 Image Inpainting
the a-priori information modeled by the regularizing term R(u). In the terminology of
prior image models, the regularizing term is the so-called prior image model, and the
fidelity term is the data model. The concept of image prior models has been introduced
by Mumford, cf. [Mu94]. For a general overview on this topic see also [AK06].
Inpainting approaches can also be formulated within this framework. More precisely
let Ω ⊂ R2 be an open and bounded domain with Lipschitz boundary, and let B1 , B2
be two Banach spaces with B2 ⊆ B1 , f ∈ B1 denoting the given image, and D ⊂ Ω
the missing domain. A general variational approach in image inpainting is formulated
mathematically as a minimization problem for a regularized cost functional J : B2 → R,
J(u) = R(u) +
1
kλ(f − u)k2B1 → min ,
u∈B2
2
where R : B2 → R and
λ(x) =
(
λ0
0
Ω\D
D,
(1.1)
(1.2)
is the indicator function of Ω \ D multiplied by a constant λ0 ≫ 1. This constant is the
tuning parameter of the approach. As before R(u) denotes the regularizing term and
represents a certain a-priori information from the image u, i.e., it determines in which
space the restored image lies in. In the context of image inpainting, i.e., in the setting
of (1.1)-(1.2), it plays the main role of filling in the image content into the missing
domain D, e.g., by diffusion and/or transport. The fidelity term kλ(f − u)k2B1 of the
inpainting approach forces the minimizer u to stay close to the given image f outside
of the inpainting domain (how close is dependent on the size of λ0 ). In this case the
operator T from the general approach equals the indicator function of Ω \ D. In general
we have B2 ⊂ B1 , which signifies the smoothing effect of the regularizing term on the
minimizer u ∈ B2 (Ω).
Note that the variational approach (1.1)-(1.2) acts on the whole image domain Ω
(global inpainting model), instead of posing the problem on the missing domain D only.
This has the advantage of simultaneous noise removal in the whole image and makes
the approach independent of the number and shape of the holes in the image. In this
global model the boundary condition for D is superimposed by the fidelity term.
Before the development of inpainting algorithms one has to understand what an
image really is. In the framework of image prior models this knowledge is encoded in the
regularizing term R(u). As a consequence different image prior models result in different
8
1.3 Image Inpainting
inpainting methods. As pointed out in [CS01a], the challenge of inpainting lies in the
fact that image functions are complex and mostly lie outside of usual Sobolev spaces.
Natural images for example are modeled by Mumford as distributions, cf. [Mu94].
Texture images contain oscillations and are modeled by Markov random fields, see e.g.,
[GG84, Br98], or by functions in negative Sobolev spaces, see e.g., [OSV03, LV08].
Most nontexture images are modeled in the space of functions of bounded variation
([ROF92, CL97]), and in the Mumford-Shah object-boundary model, cf. [MS89].
Note also that despite its similarity to usual image enhancement methods such as
denoising or deblurring, inpainting is very different from these approaches. This is
because the missing regions are usually large, i.e., larger than the type of noise treated
by common image enhancement algorithms. Additionally, in image enhancement the
pixels contain both noise and original image information whereas in inpainting there is
no significant information inside the missing domain. Hence reasonable energy-based
approaches in denoising do not necessarily make sense for inpainting. An example
for this discrepancy between inpainting approaches and existing image enhancement
methods is given in the work of Chan and Shen [CS05]. Therein the authors pointed
out that the extension of existing texture modeling approaches in denoising, deblurring
and decomposition to inpainting, is not straightforward. In fact the authors showed
that the Meyer model [Me01] modified for inpainting, where the fidelity term modeled
in Meyer’s norm only acts outside of the missing domain, is not able to reconstruct
interesting texture information inside of the gap: For every minimizer pair (u, g) (where
g represents the texture in the image) of the modified Meyer model, it follows that g
is identically zero inside the gap D.
PDE methods
To segue into the PDE-based approach for image inpainting, we first go back to the
general variational model in (1.1)-(1.2). Under certain regularity assumptions on a
minimizer u of the functional J, the minimizer fulfills a so-called optimality condition on
(1.1), i.e., the corresponding Euler-Lagrange equation. In other words, for a minimizer
u the first variation, i.e., the Fréchet derivative of J, has to be zero. In the case
B1 = L2 (Ω), in mathematical terms this reads
− ∇R(u) + λ(f − u) = 0 in Ω,
9
(1.3)
1.3 Image Inpainting
which is a partial differential equation with certain boundary conditions on ∂Ω. Here
∇R denotes the Fréchet derivative of R over B1 = L2 (Ω), or more general an element
from the subdifferential of R(u). The dynamic version of (1.3) is the so-called steepest-
descent or gradient flow approach. More precisely, a minimizer u of (1.1) is embedded
in an evolution process. We denote it by u(·, t). At time t = 0, u(·, t = 0) = f ∈ B1 is
the original image. It is then transformed through a process that is characterized by
ut = −∇R(u) + λ(f − u) in Ω.
(1.4)
Given a variational formulation (1.1)-(1.2), the steepest-descent approach is used to
numerically compute a minimizer of J, whereby (1.4) is iteratively solved until one is
close enough to a minimizer of J.
In other situations we will encounter equations that do not come from variational
principles, such as CDD inpainting [CS01c], Cahn-Hilliard-, and TV-H−1 inpainting in
Section 2.1 and 2.2. Then the inpainting approach is directly given as an evolutionary
PDE, i.e.,
ut = F (x, u, Du, D2 u, . . .) + λ(f − u),
(1.5)
where F : Ω × R × R2 × R4 × . . . → R, and belongs to the class of PDE-based inpainting
approaches.
State of the art
Depending on the choice of the regularizing term R and the Banach spaces B1 , B2 , i.e.,
the flow F (x, u, Du, . . .), various inpainting approaches have been developed. These
methods can be divided into two categories: texture inpainting that is mainly based
on synthesizing the texture and filling it in, and nontexture (or geometric/structure)
inpainting that concentrates on the recovery of the geometric part of the image inside
the missing domain. In the following we shall only concentrate on nontexture images.
In fact the usual variational/PDE approach in inpainting uses local PDEs (in contrast
to nonlocal PDEs cf. Section 3.2), which smooth out every statistical fluctuation, i.e.,
do not see a global pattern such as texture in an image. In [CS01a] the authors call
this kind of image restoration low-level inpainting since it does not take into account
global features, like patterns and textures. For now, let us start with the presentation
of existing nontexture inpainting models.
10
1.3 Image Inpainting
Pioneering works The terminology of digital inpainting first appeared in the work
of Bertalmio et al. [BSCB00]. Their model is based on observations about the work
of museum artists, who restorate old paintings. Their approach follows the principle
of prolongating the image intensity in the direction of the level lines (sets of image
points with constant grayvalue) arriving at the hole. This results in solving a discrete
approximation of the PDE
ut = ∇⊥ u · ∇∆u,
(1.6)
solved within the hole D extended by a small strip around its boundary. This extension
of the computational domain about the strip serves as the intact source of the image.
It is implemented in order to fetch the image intensity and the direction of the level
lines which are to be continued. Equation (1.6) is a transport equation for the image
smoothness modeled by ∆u along the level lines of the image. Here ∇⊥ u is the per-
pendicular gradient of the image function u, i.e., it is equal to (−uy , ux ). To avoid the
crossing of level lines, the authors additionally apply intermediate steps of anisotropic
diffusion, which may result in the solution of a PDE like
ut = ∇⊥ u · ∇∆u + ν∇ · (g(|∇u|)∇u),
where g(s) defines the diffusivity coefficient and ν > 0 a small parameter. In [BBS01]
the authors interpret a solution of the latter equation as a direct solution of the NavierStokes equation for an incompressible fluid, where the image intensity function plays
the role of the stream function whose level lines define the stream lines of the flow. Note
that the advantage of this viewpoint is that one can exploit a rich and well-developed
history of fluid problems, both analytically and numerically. Also note that Bertalmio
et al.’s model actually is a third-order nonlinear partial differential equation. In the
next section we shall see why higher-order PDEs are needed to solve the inpainting
task satisfactorily.
In a subsequent work of Ballester et al. [BBCSV01] the authors adapt the ideas
of [BSCB00] about the simultaneous graylevel- and gradient-continuation to define a
formal variational approach to the inpainting problem. Their variational approach is
solved via its steepest descent, which leads to a set of two coupled second-order PDEs,
one for the graylevels and one for the gradient orientations.
11
1.3 Image Inpainting
An axiomatic approach and elastica curves
Chronologically earlier Caselles,
Morel and Sbert in [CMS98] and Masnou and Morel in [MM98] initiated the variational/PDE approach for image interpolation. In [CMS98] the authors show that any
operator that interpolates continuous data given on a set of curves can be computed
as a viscosity solution (cf. [Ev98]) of a degenerate elliptic PDE. This equation is derived via an axiomatic approach, in which the basic interpolation model, i.e., the PDE,
results from a series of assumptions about the image function and the interpolation
process. We note that this inpainting approach is only able to continue smooth image
contents and cannot be used for the continuation of edges.
The approach of Masnou and Morel [MM98] belongs to the class of variational approaches and is based on Nitzberg et al.’s work on segmentation [NMS93]. In [NMS93]
Nitzberg et al. presented a variational technique for removing occlusions of objects with
the goal of image segmentation. Therein the basic idea is to connect T-junctions at the
occluding boundaries of objects with Euler elastica minimizing curves. A curve is said
to be Eulers elastica if it is the equilibrium curve of the Euler elastica energy
Z
E(γ) = (a + bκ2 ) ds,
γ
where ds denotes the arc length element, κ(s) the scalar curvature, and a, b two positive
constants. These curves have been originally obtained by Euler in 1744, cf. [Lo27], and
were first introduced in computer vision by Mumford in [Mu94]. The basic principle of
the elastica curves approach is to prolongate edges by minimizing their length and curvature, In [Mu94, NMS93] it is based on a-priori edge detection. Hence, this approach
is only applicable to highly segmented images with few T-junctions and is not applicable to natural images. Moreover, edges alone are not reliable information since they are
sensitive to noise. In [MM98] Masnou and Morel extend Mumford’s idea of length and
curvature minimization from edges to all the level lines of the image function. Their
approach is based on the global minimization of a discrete version of a constrained Euler
elastica energy for all level lines. This level line approach has the additional advantage
that it is contrast invariant; this is different from the edge-approach of Nitzberg et al.
[NMS93] which depends on the difference of grayvalues. The discrete version of the
Euler elastica energy is connected to the human vision approach of Gestalt theory, in
particular Kanizsa’s amodal completion theory [Ka96]. Gestalt theory tries to explain
how the human visual system understands partially occluded objects. This gave the
12
1.3 Image Inpainting
approach in [MM98] its name disocclusion instead of image inpainting. Details of the
theoretical justification of the model in [MM98] and the algorithm itself were much
later published by Masnou [Ma02]. Note that the Euler elastica energy was used for
inpainting later by Chan and Shen in a functionalized form, cf. [CKS02] and later
remarks within this section.
Anisotropic diffusion: total variation inpainting and CDD
Another varia-
tional inpainting approach constitutes the work of Chan and Shen in [CS01a]. Their
approach is chronologically in between the two works of Bertalmio et al. i.e., [BSCB00,
BBCSV01]. The motivation was to create a scheme which is motivated by existing denoising/segmentation methods and is mathematically easier to understand and to analyze. Their approach is based on the most famous model in image processing, the total
R
variation (TV) model, where R(u) = |Du| (Ω) ≈ Ω |∇u| dx denotes the total variation
of u, B1 = L2 (Ω) and B2 = BV (Ω) the space of functions of bounded variation, cf.
also [CS01d, CS01a, RO94, ROF92]. It results in the action of anisotropic diffusion
inside the inpainting domain, which preserves edges and diffuses homogeneous regions
and small oscillations like noise. More precisely the corresponding steepest descent
equation reads
ut = ∇ ·
∇u
|∇u|
+ λ(f − u).
The disadvantage of the total variation approach in inpainting is that the level lines are
interpolated linearly, cf. Section 1.3.2. This means that the direction of the level lines
is not preserved, since they are connected by a straight line across the missing domain.
A straight line connection might still be pleasant for small holes, but very unpleasant
in the presence of larger gaps, even for simple images. Another consequence of the
linear interpolation is that level lines might not be connected across large distances, cf.
Section 1.3.2. A solution for this is the use of higher-order PDEs such as the first works
of Bertalmio et al. [BSCB00], Ballester et al. [BBCSV01], and the elastica approach of
Masnou and Morel [MM98], and also some PDE/variational approaches proposed later
on.
Within this context, the authors in [CS01c] proposed a new TV-based inpainting
method. In their model the conductivity coefficient of the anisotropic diffusion depends
on the curvature of level lines and it is possible to connect the level lines across large
13
1.3 Image Inpainting
distances. This new approach is a third-order diffusion equation and is called inpainting
with Curvature Driven Diffusions (CDD). The CDD equation reads
g(κ)
ut = ∇ ·
∇u + λ(f − u),
|∇u|
where g : B → [0, +∞) is a continuous function, which penalizes large curvatures,
and encourages diffusion when the curvature is small. Here B is an admissible class of
functions for which the curvature κ is well defined, e.g., B = C 2 (Ω). It is of similar
type as other diffusion driven models in imaging such as the Perona-Malik equation
[PM90, MS95], and like the latter does not (in general) follow a variational principle.
To give a more precise motivation for the CDD inpainting model, let us recall that a
problem of the usual total variation model is that the diffusion strength only depends
on the contrast or strength of the level lines. In other words the anisotropic diffusion
of the total variation model diffuses with conductivity coefficient 1/|∇u|. Hence the
diffusion strength does not depend on geometric properties of the level line, given by
its curvature. In the CDD model the conductivity coefficient is therefore changed to
g(|κ|)/|∇u|, where g annihilates large curvatures and stabilizes small ones. Interestingly
enough CDD performs completely orthogonally to the transport equation of Bertalmio
et al. [BSCB00]. Bertalmio et al.’s equation transports the smoothness along the level
lines, whereas the CDD equation diffuses image pixel information perpendicularly to
the level lines.
Euler’s elastica inpainting
This observation gave Chan, Kang, and Shen the idea
to combine both methods, which resulted in the Euler’s elastica inpainting model, cf.
[CKS02, CS01b]. Their approach is based on the earlier work of Masnou and Morel
[MM98], with the difference that the new approach poses a functionalized model. This
means that instead of an elastica curve model for the level lines of the image, they
rewrote the elastica energy in terms of the image function u. Then the regularizing term
R
∇u
reads R(u) = Ω (a + b(∇ · ( |∇u|
))2 )|∇u| dx with positive weights a and b, B1 = L2 (Ω),
and B2 = BV (Ω). In fact in [CKS02] the authors verified that the Euler elastica
inpainting model combines both transportation processes [BSCB00] and [CS01c]. They
also presented a very useful geometric interpretation for all three models. We shall
discuss this issue in a little more detail in Section 2.4, where I compare this geometric
14
1.3 Image Inpainting
interpretation with the newly proposed higher-order inpainting schemes from Section
2.1-2.3.
Active contour models
Other examples to be mentioned for (1.1) are the active
contour model based on Mumford and Shah’s segmentation [MS89, CS01a, TYW01,
ES02], and its high-order correction the Mumford-Shah-Euler image model [ES02]. The
latter improves the former by replacing the straight-line curve model by the elastica
energy. The Mumford and Shah image model reads
Z
γ
|∇u|2 dx + αH1 (Γ),
R(u, Γ) =
2 Ω\Γ
(1.7)
where Γ denotes the edge collection and H1 the one dimensional Hausdorff measure
(generalization of the length for regular curves). The corresponding inpainting approach
minimizes the Mumford Shah image model plus the usual L2 fidelity on Ω \ D. The
idea to consider this model for inpainting goes back to Chan and Shen [CS01a] as an
alternative to TV inpainting, and to Tsai et al. [TYW01]. The Mumford-Shah-Euler
image model differs from (1.7) in the replacement of the straight line model by Euler’s
elastica curve model
γ
R(u, Γ) =
2
Z
Ω\Γ
2
|∇u| dx +
Z
(a + bκ2 ) ds,
Γ
where κ denotes the curvature of a level line inside the edge collection Γ, and a and b
are positive constants as before.
. . . and more
More recently Bertozzi, Esedoglu, and Gillette [BEG07a, BEG07b]
proposed a modified Cahn-Hilliard equation for the inpainting of binary images (also cf.
Section 2.1), and in a separate work Grossauer and Scherzer [GS03] proposed a model
based on the complex Ginzburg-Landau energy. A generalization of Cahn-Hilliard
inpainting for grayvalue images, called TV-H−1 inpainting was proposed in [BHS08],
also cf. Section 2.2.
To finish this overview let us just list some more inpainting approaches in the literature: total variation wavelet inpainting [CSZ06], fast image inpainting based on
coherence transport [BM07], landmark based inpainting [KCS02], inpainting via correspondence map [DSC03], texture inpainting with nonlocal PDEs [GO07], simultaneous
15
1.3 Image Inpainting
structure and texture inpainting [BVSO03], cartoon and texture inpainting via morphological component analysis [ESQD05]. For a very good introduction to image inpainting
I also refer to [CS05].
The scope of the present work are inpainting methods, which use third- and fourthorder PDEs to fill in missing image contents into gaps in the image domain. In the
following section I shall, once again, motivate the choice of higher-order flows for image
inpainting.
1.3.2
Second- Versus Higher-Order Approaches
In this section I want to emphasize the difference between second- and higher-order
models in inpainting. Now, second-order variational inpainting methods (where the order of the method is determined by the derivatives of highest order in the corresponding
Euler-Lagrange equation), like TV inpainting, have drawbacks when it comes to the
connection of edges over large distances (Connectivity Principle, cf. Figure 1.3) and the
smooth propagation of level lines into the damaged domain (Curvature Preservation,
cf. Figure 1.4). This is due to the penalization of the length of the level lines within
the minimizing process with a second-order regularizer, thus connecting level lines from
the boundary of the inpainting domain via the shortest distance (linear interpolation).
R
The regularizing term R(u) ≈ Ω |∇u| dx in the TV inpainting approach for example
can be interpreted via the coarea formula which gives
Z ∞
Z
length(Γλ ) dλ,
min |∇u| dx ⇐⇒ min
u
Γλ
Ω
−∞
where Γλ = {x ∈ Ω : u(x) = λ} is the level line for the grayvalue λ. If we consider
on the other hand the regularizing term in the Euler elastica inpainting approach the
coarea formula reads
2 !
∇u
a+b ∇·
min
) |∇u| dx
u
|∇u|
Ω
Z ∞
a length(Γλ ) + b curvature2 (Γλ ) dλ.
⇐⇒ min
Z
Γλ
(1.8)
−∞
Hence, not only the length of the level lines but also their curvature is penalized (the
penalization of each depends on the ratio b/a). This results in a smooth continuation
of level lines over the inpainting domain also over large distances, compare Figure 1.3
and 1.4.
16
1.3 Image Inpainting
The performance of higher-order inpainting methods, such as Euler elastica inpainting, can also be interpreted via the second boundary condition, necessary for the
well-posedness of the corresponding Euler-Lagrange equation of fourth order. As an
example, Bertozzi et al. showed in [BEG07b] that the Cahn-Hilliard inpainting model
in fact favors the continuation of the image gradient into the inpainting domain. More
precisely, the authors proved that in the limit λ0 → ∞ a stationary solution of the
Cahn-Hilliard inpainting equation fulfills
u=f
on ∂D
∇u = ∇f
on ∂D,
for a given image f regular enough (f ∈ C 2 ). This means that not only the grayvalues of
the image are specified on the boundary of the inpainting domain but also the gradient
of the image function, namely the direction of the level lines are given.
Figure 1.3: Two examples of Euler elastica inpainting compared with TV inpainting. In
the case of large aspect ratios the TV inpainting fails to comply with the Connectivity
Principle. Figure from [CS05].
In an attempt to fulfill both the connectivity principle and the curvature preservation a number of third and fourth-order diffusions has been suggested for image
inpainting, most of which have already been discussed in the previous section. Let
us recall the main higher-order approaches within this group in the following short
summary. The first work connecting image inpainting to a third-order PDE (partial
17
1.3 Image Inpainting
Figure 1.4: An example of Euler elastica inpainting compared with TV inpainting.
Despite the presence of high curvature TV inpainting truncates the circle inside the
inpainting domain (linear interpolation of level lines). Depending on the weights a and
b Eulers elastica inpainting returns a smoothly restored object, taking the curvature of
the circle into account (Curvature Preservation). Figure from [CKS02].
differential equation) is the transport process of Bertalmio et al. [BSCB00]. A variational third-order approach to image inpainting is CDD (Curvature Driven Diffusion)
[CS01c]. Although solving the problem of connecting level lines over large distances
(connectivity principle), the level lines are still interpolated linearly and thus curvature
is not preserved. The drawbacks of the third-order inpainting models [BSCB00, CS01c]
have driven Chan, Kang and Shen [CKS02] to a reinvestigation of the earlier proposal
of Masnou and Morel [MM98] on image interpolation based on the Euler elastica energy, compare (1.8). The fourth-order elastica inpainting PDE combines CDD [CS01c]
and the transport process of Bertalmio et al. [BSCB00] and is as such able to fulfill
both the connectivity principle and curvature preservation. Other recently proposed
higher-order inpainting algorithms are inpainting with the Cahn-Hilliard equation (cf.
[BEG07a, BEG07b] and Section 2.1), TV-H−1 inpainting (cf. [BHS08] and Section 2.2),
inpainting with LCIS (cf. [SB09] and Section 2.3), and combinations of second and
higher-order methods, e.g. [LT06].
18
1.3 Image Inpainting
1.3.3
Numerical Solution of Higher-Order Inpainting Approaches
As correctly remarked in [CS05], the main challenge in digital inpainting is the fast and
efficient numerical solution of energy- and PDE-based approaches. Especially highquality, and thus higher-order, approaches, such as Bertalmio’s inpainting approach
[BSCB00], inpainting with CDD [CS01c], Euler’s elastica inpainting [CKS02], and the
recently proposed Cahn-Hilliard inpainting - and TV-H−1 inpainting - model [BEG07a,
BEG07b, BHS08], despite their superior visual results, demand sophisticated numerical
algorithms in order to provide acceptable computation times for large images. In this
presentation I will concentrate on numerical methods for higher-order approaches only,
since they are the ones we are particularly interested in within this work.
Numerical methods for higher-order equations
The numerical solution of higher-
order equations, like thin films, phase field models, surface diffusion equations, and
much more, occupied a big part of research in numerical analysis in the last decades.
In [DD71] the authors propose a semi-implicit finite difference scheme for the solution of
second-order parabolic equations. In order to suppress unstable modes a diffusion term
was added and subtracted to the numerical scheme, i.e., added implicitly and subtracted
explicitly in time. Smereka picked up their idea and used it to solve the fourth-order
surface diffusion equation, cf. [Sm03]. The same idea was rediscovered by Glasner and
applied to a phase field approach for the Hele-Shaw interface model, cf. [Gl03]. Besides
the finite difference approximations, there also exist a lot of finite element algorithms
for fourth-order equations. Barrett, Blowey, and Garcke published a series of papers
on the solution of various Cahn-Hilliard equations, cf. [BB98, BB99a, BB99b]. For
the sharp interface limit of Cahn-Hilliard, i.e., the Hele-Shaw model, Feng and Prohl
analyzed finite element methods in [FP04, FP05]. Finite element methods for thin film
equations have been studied, for instance, in [GR00, BGLR02].
In inpainting, efficient numerical schemes for higher-order approaches are still a
mostly open issue. Most existing numerical schemes for their solution are iterative
by nature. PDE based approaches are approximately solved via fixed-point or timestepping schemes. For energy-based methods the minimizer is usually computed iteratively via the corresponding steepest descent equation.
19
1.3 Image Inpainting
Iterative methods for curvature driven approaches For curvature driven inpainting approaches, such as [CS01c] and [CKS02], explicit time stepping schemes have
been used until recently. Solving a fourth-order nonlinear evolution equation explicitly in time may restrict the time steps to an order (∆x)4 of the spatial grid size ∆x.
Hence this may result in the need of a huge amount of iterations until the inpainted
image is obtained. The performance of these schemes could be accelerated by, e.g.,
the method of Marquina and Osher [MO00]. But still the CPU time required is not
appropriate for large images. This computational complexity makes such inpainting
approaches less attractive for interactive image manipulation and thus less popular in
real-life applications.
A very recent advance in the design of fast numerical solvers for these inpainting
approaches was made in [BC08], where the authors propose a nonlinear multigrid approach for inpainting with CDD [CS01c]. In order to get a non-singular smoother,
i.e., fixed-point algorithm, for the multigrid approach, the authors modify the CDD
equation by changing the definition of the curvature-dependent diffusivity coefficient
g. Numerical results confirm that the modified method retains the desirable properties of the original CDD inpainting model while accelerating its numerical computation
tremendously. In comparison with the explicit time marching of [CS01c] the multigrid
method in [BC08] is four orders of magnitude faster. A matter of future research will be
the construction of multigrid solvers for other higher-order inpainting approaches, such
as Euler’s elastica inpainting [CKS02], and the recently proposed inpainting methods
[BEG07b, BEG07a, GS03, BHS08]. In this regard, the crucial point will be to construct
an appropriate non-singular smoother for the respective multigrid algorithm.
Numerical methods for diffusion-like inpainting models
A fast noniterative
method for image inpainting was proposed by Bornemann and März in [BM07]. Their
method aims to preserve the visually qualitative results of Bertalmio et al. while performing its numerical solution with a computational speed comparable with the one of
Telea’s method [Te04]. In their numerical experiments Bornemann and März showed
that their method is in fact at least one order of magnitude faster than Bertalmio’s
method.
One motivation for the proposal of the Cahn-Hilliard equation for inpainting was
its superior computational performance in comparison with curvature driven methods.
20
1.3 Image Inpainting
As pointed out in [BEG07a, BEG07b] Cahn-Hilliard inpainting beats Euler’s elastica
inpainting by one order of magnitude in its computational complexity. Therein the
authors use a certain kind of semi-implicit solver, called convexity splitting, for its
numerical solution. The same method was used for TV-H−1 inpainting [BHS08, SB09]
and for inpainting with LCIS [SB09]. In [SB09] the authors prove rigorous estimates for
their numerical scheme, among them the unconditional stability of the scheme, cf. also
Section 4.1. Despite this unconditional stability, these numerical schemes still converge
slowly due to a damping on the iterates resulting from the method. For more details on
convexity splitting and its application to higher-order inpainting methods, cf. [SB09]
and Section 4.1.
Further, for TV-H−1 minimization in the case of denoising and cartoon/texture decomposition, Elliott and Smitheman proposed a finite element method for its numerical
solution, cf. [ES07, ES08]. Their scheme is inspired by a work of Feng and Prohl [FP03],
who proposed a finite element method for the ROF model, i.e., the TV-L2 minimization
problem. Therein the authors also proved rigorous mathematical results about the
approximation and convergence properties of their scheme. An extension of their approach to TV-H−1 inpainting would be interesting. Note that, however, the difference of
the inpainting approach from denoising and decomposition is that the former does not
follow a variational principle and the fidelity term is locally dependent on the spatial
position.
A dual approach for TV-H−1 minimization was proposed by the author in [Sc09], also
compare Section 4.2 of this work. This work generalizes the algorithm of Chambolle
[Ch04] and Bect et al. [BBAC04] from an L2 fidelity term to an H −1 fidelity. The
main motivation for the work in [Sc09] is that with the proposed algorithm the domain
decomposition approach developed in [FS07], also cf. Section 4.3, can be applied to the
higher-order total variation case. Being able to apply domain decomposition methods to
TV-H−1 minimization can result in a tremendous acceleration of computational speed
due to the ability to parallelize the computation, cf. Section 4.3, and in particular
Subsection 4.3.7.
Another promising approach within the design of fast numerical solvers in image
processing is the Bregman split method proposed by Goldstein and Osher in 2008,
[GO08]. In [GBO09] the authors consider the application of this method to image
21
1.3 Image Inpainting
segmentation and surface reconstruction. The latter application is about the reconstruction of surfaces from unorganized data points, which is used for constructing level
set representations in three dimensions. The Bregman split method, originally designed
to accelerate the computation of ℓ1 regularized minimization problems in general, is
thereby used to solve a minimization problem regularized with total variation, i.e., the
ℓ1 norm of the gradient of the image function. The computational speed of the Bregman
split method in this case is comparable with the one using graph cuts [CD08, DS05],
with the additional advantage that it is also able to compute the isotropic total variation. The nature of this application, i.e., surface reconstruction interpreted as an
interpolation problem for the given data points, already suggests its possible effectiveness for image inpainting. This is certainly something worthwhile to be considered in
a future project.
In the following chapters I will summarize my main research directions and present
applications of the methods we have developed.
Organization of the Thesis
Chapter 2 is concerned with mathematical models consisting of (higher-order) partial
differential equations used for the task of image inpainting. In Section 2.1 a binary
inpainting approach based on a modified Cahn-Hilliard equation is presented. This
inpainting method has been proposed by Bertozzi et al. in [BEG07a, BEG07b], where
the latter paper contains a rigorous analysis of the modified Cahn-Hilliard equation.
We extend this analysis by providing the proof of existence of a stationary solution
for the equation. A generalization of this approach for grayvalue images is proposed
in Section 2.2. This new inpainting approach is called TV-H−1 inpainting. I state
analytical results and present numerical examples. Both sections, i.e., Section 2.1 and
Section 2.2, have been obtained in a joint work with Martin Burger and Lin He, cf.
[BHS08]. In Section 2.3 I present a new inpainting approach based on Low Curvature
Image Simplifiers (LCIS), first proposed in a joint work with Andrea Bertozzi in [SB09].
Finally, Section 2.4 contains an interpretation of TV-H−1 inpainting and inpainting
with LCIS in terms of transport and diffusion of grayvalues into the missing domain.
This interpretation was inspired by [CKS02], where the authors discuss this issue for
Euler’s elastica inpainting, and by discussions with Massimo Fornasier. The results
22
1.3 Image Inpainting
from [CKS02] are also briefly presented in this section, and are further used as a basis
for comparison with our two inpainting models.
Chapter 3 is dedicated to theoretical results about higher-order flows arising in image inpainting. In Section 3.1 I discuss the Cahn-Hilliard equation as a model for phase
separation and coarsening of binary alloys – the original motivation for the equation. In
particular, I present the results we achieved in [BCMS08], in collaboration with Martin
Burger, Shun-Jin Chu, and Peter A. Markowich, about finite-time instabilities of the
Cahn-Hilliard equation and their connection to the Willmore functional. Additionally,
in Section 3.2 I present asymptotic results for nonlocal higher-order evolution equations.
The latter section is joint work with Julio D. Rossi and is contained in [RS09].
In Chapter 4, numerical methods, which have been especially designed for higherorder inpainting approaches, are presented. In Section 4.1 I start with the discussion of
unconditionally stable numerical schemes for higher-order inpainting approaches proposed together with Andrea Bertozzi in [SB09]. Then, in Section 4.2 I present a dual
solver for TV-H−1 minimization problems, cf. [Sc09]. In particular, I show that this
dual solver can be applied to solve the TV-H−1 inpainting approach from Section 2.2.
Finally, in Section 4.3 a domain decomposition method, which is applicable for minimizing functionals with total variation constraints, is presented. This is joint work
with Massimo Fornasier and is contained in [FS07]. The main motivations for such an
approach are given, and the results achieved in [FS07] are discussed. With the help
of the dual solver proposed in Section 4.2, I further show how the theory developed in
[FS07] can be applied to solve TV-H−1 inpainting in a computationally efficient way.
Finally, in Chapter 5 I present two applications of the higher-order inpainting methods discussed in Chapter 2. The first is the restoration of ancient frescoes in Section 5.1,
which evolved from an ongoing project at the University of Vienna in joint work with
Wolfgang Baatz, Massimo Fornasier, and Peter Markowich (cf. also [BFMS08]). The
second is the reconstruction of roads in satellite images in Section 5.2 and is based on
joint work with Andrea Bertozzi.
The Appendix contains mathematical preliminaries necessary for the understanding
of the presented work.
23
Chapter 2
Image Inpainting With
Higher-Order Equations
This chapter is dedicated to the presentation and the analysis of three fourth-order
PDEs used for image inpainting. Thereby Section 2.1 and Section 2.2 about CahnHilliard- and TV-H−1 inpainting have been mainly developed in collaboration with Martin Burger and Lin He and appeared in [BHS08]. The idea of inpainting with LCIS in
Section 2.3 arose in a joint work with Andrea Bertozzi [SB09]. The last section, Section
2.4, about the inpainting mechanism of transport and diffusion is inspired by the work
of Chan, Kang and Shen [CKS02] and discussions with Massimo Fornasier.
2.1
Cahn-Hilliard Inpainting
The Cahn-Hilliard equation is a nonlinear fourth-order diffusion equation originating in
material science for modeling phase separation and phase coarsening in binary alloys. A
new approach in the class of fourth-order inpainting algorithms is inpainting of binary
images using a modified Cahn-Hilliard equation, as proposed in [BEG07a] by Bertozzi,
Esedoglu and Gillette. The inpainted version u of f ∈ L2 (Ω) assumed with any (trivial)
extension to the inpainting domain is constructed by following the evolution of
1 ′
ut = ∆ −ǫ∆u + F (u) + λ(f − u) in Ω,
ǫ
(2.1)
where F (u) is a so-called double-well potential, e.g., F (u) = u2 (u − 1)2 , and as before
(
λ0 Ω \ D
λ(x) =
0
D
24
2.1 Cahn-Hilliard Inpainting
is the indicator function of Ω \ D multiplied by a constant λ0 ≫ 1. The two wells of F
correspond to values of u that are taken by most of the grayscale values. Choosing a
potential with wells at the values 0 (black) and 1 (white), equation (2.1) therefore provides a simple model for the inpainting of binary images. The parameter ǫ determines
the steepness of the transition between 0 and 1.
The Cahn-Hilliard equation is a relatively simple fourth-order PDE used for this
task rather than more complex models involving curvature terms, cf. also Section 3.1
for more details on the equation. In fact the numerical solution of (2.1) was shown
to be of at least an order of magnitude faster than competing inpainting models, cf.
[BEG07a]. Still the Cahn-Hilliard inpainting model has many of the desirable properties
of curvature based inpainting models such as the smooth continuation of level lines into
the missing domain. In fact the mainly numerical paper [BEG07a] was followed by a
very careful analysis of (2.1) in [BEG07b]. Therein the authors prove that in the limit
λ0 → ∞ a stationary solution of (2.1) solves
1 ′
∆ ǫ∆u − F (u) = 0
ǫ
u=f
∇u = ∇f
in D
on ∂D
(2.2)
on ∂D,
for f regular enough (f ∈ C 2 ). This, once more, supports the claim, that fourth-order
methods are superior over second-order methods with respect to a smooth continuation
of the image contents into the missing domain.
In [BEG07b] the authors further proved global existence of a unique weak solution
of the evolution equation (2.1). More precisely the solution u was proven to be an
element in C([0, T ]; L2 (Ω)) ∩ L2 (0, T ; V ), where V = φ ∈ H 2 (Ω) | ∂φ/∂ν = 0 on ∂Ω ,
and ν is the outward pointing normal on ∂Ω. Nevertheless the existence of a solution
of the stationary equation
1 ′
∆ −ǫ∆u + F (u) + λ(f − u) = 0 in Ω,
ǫ
(2.3)
remains unaddressed. The difficulty in dealing with the stationary equation is the lack
of an energy functional for (2.1), i.e., the modified Cahn-Hilliard equation (2.1) cannot
be represented by a gradient flow of an energy functional over a certain Banach space.
This is because the fidelity term λ(f − u) is not symmetric with respect to the H −1
25
2.1 Cahn-Hilliard Inpainting
inner product, whereby H −1 is defined in the prefix of the thesis. In fact the most
evident variational approach would be to minimize the functional
Z 1
1
ǫ
2
|∇u| + F (u) dx + kλ(u − f )k2−1 .
ǫ
2
Ω 2
(2.4)
This minimization problem exhibits the optimality condition
1
0 = −ǫ∆u + F ′ (u) + λ∆−1 (λ(u − f )) ,
ǫ
which splits into
1
0 = −ǫ∆u + F ′ (u)
ǫ
1 ′
0 = −ǫ∆u + F (u) + λ20 ∆−1 (u − f )
ǫ
in D
in Ω \ D.
Hence the minimization of (1.4) translates into a second-order diffusion inside the inpainting domain D, whereas a stationary solution of (1.1) fulfills
1 ′
0 = ∆ −ǫ∆u + F (u)
in D
ǫ
1
0 = ∆ −ǫ∆u + F ′ (u) + λ0 (f − u)
in Ω \ D.
ǫ
One challenge of our work in [BHS08] is to extend the analysis from [BEG07b] by
partial answers to questions concerning the stationary equation (2.3) using alternative
methods, namely by fixed point arguments. In [BHS08] we prove
Theorem 2.1.1. Equation (2.3) admits a weak solution in H 1 (Ω) provided λ0 ≥
for a positive constant C depending on |Ω|, |D|, and F only.
C
ǫ3
C
ǫ3
in
In our numerical examples in [BHS08] we can see that the condition λ0 ≥
Theorem 2.1.1 is naturally fulfilled, since in order to obtain good visual results in
inpainting approaches λ0 has to be chosen rather large in general, cf. Figure 2.2. Note
that the same condition also appears in [BEG07b] where it is needed to prove the global
existence of solutions of (2.1).
2.1.1
Existence of a Stationary Solution
In this section we prove the existence of a weak solution of the stationary equation (2.3),
i.e., we shall verify Theorem 2.1.1. Let Ω ⊂ R2 be a bounded Lipschitz domain and
26
2.1 Cahn-Hilliard Inpainting
f ∈ L2 (Ω) given. In order to be able to impose boundary conditions in the equation,
we assume f to be constant in a small neighborhood of ∂Ω. This assumption is for
technical purposes only and does not influence the inpainting process as long as the
inpainting domain D does not touch the boundary of the image domain Ω. Instead
of Neumann boundary data as in the original Cahn-Hilliard inpainting approach (cf.
[BEG07b]) we use Dirichlet boundary conditions for our analysis, i.e., we consider

1 ′


 ut = ∆ −ǫ∆u + F (u) + λ(f − u) in Ω
ǫ
(2.5)

1

′
 u = f, −ǫ∆u + F (u) = 0
on ∂Ω.
ǫ
This change from a Neumann- to a Dirichlet problem makes it easier to deal with
the boundary conditions in our proofs but does not have a significant impact on the
inpainting process as long as we assume that D̄ ⊂ Ω. In Appendix 2.1.3 we nevertheless
propose a setting to extend the presented analysis for (2.1) to the originally proposed
model with Neumann boundary data. In our new setting we define a weak solution of
equation (2.3) as a function u ∈ H = u ∈ H 1 (Ω), u|∂Ω = f |∂Ω that fulfills
1 ′
hǫ∇u, ∇φi2 +
(2.6)
F (u), φ − hλ(f − u), φi−1 = 0, ∀φ ∈ H01 (Ω).
ǫ
2
Remark 2.1.2. With u ∈ H 1 (Ω) and the compact embedding H 1 (Ω) ֒→֒→ Lq (Ω) for
every 1 ≤ q < ∞ and Ω ⊂ R2 the weak formulation is well defined.
To see that (2.6) defines a weak formulation for (2.3) with Dirichlet boundary
conditions we integrate by parts in (2.6) and get
Z 1 ′
−1
−ǫ∆u + F (u) − ∆ (λ(f − u)) φ dx
ǫ
Ω
Z
∆−1 (λ(f − u)) ∇∆−1 φ · ν dH1 = 0,
−
∂Ω
∀φ ∈ H01 (Ω),
where H1 denotes the one dimensional Hausdorff measure. Since the above equality holds for all φ ∈ H01 (Ω) it holds in particular for all φ in the subset H01 (Ω) ∩
∇∆−1 φ · ν = 0 on ∂Ω . This yields

 ǫ∆u − 1 F ′ (u) + ∆−1 (λ(f − u)) = 0 in Ω
ǫ
(2.7)
 −1
∆ (λ(f − u)) = 0
on ∂Ω.
27
2.1 Cahn-Hilliard Inpainting
Assuming sufficient regularity on u we can use the definition of ∆−1 to see that u solves

1

 − ǫ∆∆u + ∆F ′ (u) + λ(f − u) = 0
in Ω
ǫ

 ∆−1 (λ(f − u)) = −ǫ∆u + 1 F ′ (u) = 0 on ∂Ω,
ǫ
Since additionally u|∂Ω = f |∂Ω , the function u solves (2.3) with Dirichlet boundary
conditions.
For the proof of existence of a solution to (2.6) we follow the following strategy. We
consider the fixed point operator A : L2 (Ω) → L2 (Ω) where A(v) = u fulfills for a given
v ∈ L2 (Ω) the equation

1 ′
1 −1

−1

 ∆ (u − v) = ǫ∆u − F (u) + ∆ [λ(f − u) + (λ0 − λ)(v − u)] in Ω,
τ
ǫ
(2.8)

−1 1

(u − v) − λ(f − u) − (λ0 − λ)(v − u) = 0
on ∂Ω,
 u = f, ∆
τ
where τ > 0 is a parameter. The boundary conditions of A are given by the second
equation in (2.8). Note that actually the solution u will be in H 1 (Ω) and hence the
boundary condition is well-defined in the trace sense, the operator A into L2 (Ω) is then
obtained with further embedding. We define a weak solution of (2.8) as before by a
function u ∈ H = u ∈ H 1 (Ω), u|∂Ω = f |∂Ω that fulfills
1
1 ′
+ hǫ∇u, ∇φi2 +
(u − v), φ
F (u), φ
τ
ǫ
(2.9)
−1
2
1
− hλ(f − u) + (λ0 − λ)(v − u), φi−1 = 0
∀φ ∈ H0 (Ω).
A fixed point of the operator A, provided it exists, then solves the stationary equation
with Dirichlet boundary conditions as in (2.7).
Note that in (2.8) the indicator function λ in the fitting term λ(f − u) + (λ0 − λ)(v −
u) = λ0 (v − u) + λ(f − v) only appears in combination with given functions f, v and
is not combined with the solution u of the equation. For equation (2.8), i.e., (2.9), we
can therefore state a variational formulation. This is, for a given v ∈ L2 (Ω) equation
(2.8) is the Euler-Lagrange equation of the minimization problem
u∗ = argminu∈H 1 (Ω),u|∂Ω =f |∂Ω Jǫ (u, v)
with
ǫ
J (u, v) =
Z Ω
1
1
λ0
ǫ
2
|∇u| + F (u) dx+ ku − vk2−1 +
2
ǫ
2τ
2
28
(2.10)
2
u − λ f − 1 − λ v .
λ0
λ0
−1
(2.11)
2.1 Cahn-Hilliard Inpainting
We are going to use the variational formulation (2.11) to prove that (2.8) admits a
weak solution in H 1 (Ω). This solution is unique under additional conditions.
Proposition 2.1.3. Equation (2.8) admits a weak solution in H 1 (Ω) in the sense of
(2.9). For τ ≤ Cǫ3 , where C is a positive constant depending on |Ω|, |D|, and F only,
the weak solution of (2.8) is unique.
Further we prove that the operator A admits a fixed point under certain conditions.
Proposition 2.1.4. Set A : L2 (Ω) → L2 (Ω), A(v) = u, where u ∈ H 1 (Ω) is the unique
weak solution of (2.8). Then A admits a fixed point û ∈ H 1 (Ω) if τ ≤ Cǫ3 and λ0 ≥ ǫC3
for a positive constant C depending on |Ω|, |D|, and F only.
Hence the existence of a stationary solution of (2.1) follows under the condition
λ0 ≥ C/ǫ3 .
We begin with considering the fixed point equation (2.8), i.e., the minimization
problem (2.10). In the following we prove the existence of a unique weak solution of
(2.8) by showing the existence of a unique minimizer for (2.11).
Proof of Proposition 2.1.3. We want to show that Jǫ (u, v) has a minimizer in H =
u ∈ H 1 (Ω), u|∂Ω = f |∂Ω . For this we consider a minimizing sequence un ∈ H of
Jǫ (u, v). To see that un is uniformly bounded in H 1 (Ω) we show that Jǫ (u, v) is coercive
in H 1 (Ω). With F (u) ≥ C1 u2 − C2 for two positive constants C1 , C2 > 0 and the
triangular inequality in the H −1 (Ω) space, we obtain
1 1
C1
C2
ǫ
2
2
2
2
ǫ
kuk2 −
+
kuk−1 − kvk−1
J (u, v) ≥ k∇uk2 +
2
ǫ
ǫ
2τ 2
2 !
λ
λ0 1
λ
2
+
kuk−1 − f + 1−
v
2 2
λ0
λ0
−1
λ0
C1
1
ǫ
kuk22 +
+
kuk2−1 − C3 (v, f, λ0 , ǫ, Ω, D).
≥ k∇uk22 +
2
ǫ
4
4τ
Therefore a minimizing sequence un is bounded in H 1 (Ω) and it follows that un ⇀
u∗ in H 1 (Ω). To finish the proof of existence for (2.8) we have to show that Jǫ (u, v)
is weakly lower semicontinuous in H 1 (Ω). For this we divide the sequence Jǫ (un , v) of
(2.11) in two parts. We denote the first term by
Z ǫ
1
n
n 2
n
a =
|∇u | + F (u ) dx
ǫ
Ω 2
|
{z
}
CH(un )
29
2.1 Cahn-Hilliard Inpainting
and the second term by
1
λ0
kun − vk2−1 +
b =
|2τ
{z
} |2
n
D(un ,v)
2
n
u − λ f − 1 − λ v .
λ0
λ0
−1
{z
}
F IT (un ,v)
Since H 1 ֒→֒→ L2 it follows un → u∗ in L2 (Ω). Further we know that if bn converges
strongly, then
lim inf (an + bn ) = lim inf an + lim bn .
(2.12)
We begin with the consideration of the last term in (2.11). We denote f˜ :=
(1 − λλ0 )v. We want to show
λ
λ0 f
2
n ˜2
u − f −→ u∗ − f˜ ,
−1
−1
or equivalently
h∆−1 (un − f˜), un − f˜i2 −→ h∆−1 (u∗ − f˜), u∗ − f˜i2 .
For this we consider the absolute difference of the two terms,
|h∆−1 (un − f˜), un − f˜i2 − h∆−1 (u∗ − f˜), u∗ − f˜i2 |
= |h∆−1 (un − u∗ ), un − f˜i2 − h∆−1 (u∗ − f˜), un − u∗ i2 |
≤ |hun − u∗ , ∆−1 (un − f˜)i2 | + |h∆−1 (u∗ − f˜), u∗ − un i2 |
≤ kun − u∗ k2 · ∆−1 (un − f˜) + kun − u∗ k2 · ∆−1 (u∗ − f˜)
| {z }
| {z }
2
2
→0
→0
Since the operator ∆−1 : H −1 (Ω) → H01 (Ω) is linear and continuous it follows that
Thus
−1 ∆ F ≤ ∆−1 · kF k
2
2
for all F ∈ H −1 (Ω).
|h∆−1 (un − f˜), un − f˜i2 − h∆−1 (u∗ − f˜), u∗ − f˜i2 |
≤ kun − u∗ k2 ∆−1 un − f˜ + kun − u∗ k2 ∆−1 u∗ − f˜
| {z } | {z } | {z }2 | {z } | {z } | {z }2
→0
const
→0
bounded
−→ 0 as n → ∞,
30
const
const
+
2.1 Cahn-Hilliard Inpainting
and we conclude that F IT (un , v) converges strongly to F IT (u∗ , v). With the same
argument it follows that D(un , v) converges strongly and consequently that the sequence
bn converges strongly in L2 (Ω). Further CH(.) is weakly lower semicontinuous, which
follows from the lower semicontinuity of the Dirichlet integral and from the continuity
of F by applying Fatou’s Lemma. Hence we obtain
Jǫ (u∗ , v) ≤ lim inf Jǫ (un , v).
Therefore Jǫ has a minimizer in H 1 , i.e.,
∃u∗ with u∗ = argminu∈H 1 (Ω) Jǫ (u, v).
We next assert that u∗ fulfills the boundary condition u∗ |∂Ω = f |∂Ω . To see this, note
that for an admissible function w ∈ H, un − w ∈ H01 (Ω). Now H01 (Ω) is a closed, linear
subspace of H 1 (Ω), and so, by Mazur’s theorem (cf. [Ev98] D.4 for example), is weakly
closed. Hence u∗ − w ∈ H01 (Ω) and consequently the trace of u∗ on ∂Ω is equal to f .
For simplicity let in the following u = u∗ . To see that the minimizer u is a weak
solution of (2.8) we compute the corresponding Euler-Lagrange equation to the minimization problem. For this sake we choose any test function φ ∈ H01 (Ω) and compute
the first variation of Jǫ , i.e.,
d ǫ
,
J (u + δφ, v)
dδ
δ=0
which has to be zero for a minimizer u. Thus we have
1
′
λ
λ
1
ǫ h∇u, ∇φi2 +
v ,φ
= 0.
F (u), φ 2 +
(u − v) + λ0 u − f − 1 −
ǫ
τ
λ0
λ0
−1
Integrating by parts in both terms we get
1 ′
λ
λ
−1 1
−ǫ∆u + F (u) − ∆
(u − v) + λ0 u − f − 1 −
v ,φ
ǫ
τ
λ0
λ0
2
Z
Z
λ
λ
1
(u − v) + λ0 u − f − 1 −
v ∇∆−1 φ·ν ds = 0.
∆−1
∇u·νφ ds+
+
τ
λ0
λ0
∂Ω
∂Ω
Since φ is an element in H01 (Ω), the first boundary integral vanishes. Further, a minimizer u fulfills the boundary condition u = f on the boundary ∂Ω. Hence, we obtain
that u fulfills the weak formulation (2.9) of (2.8).
For the uniqueness of the minimizer, we need to prove that Jǫ is strictly convex. To
do so, we prove that for any u1 , u2 ∈ H 1 (Ω),
ǫ
ǫ
ǫ u1 + u2
J (u1 , v) + J (u2 , v) − 2J
, v > 0,
(2.13)
2
31
2.1 Cahn-Hilliard Inpainting
2
2
based on an assumption that F (.) satisfies F (u1 ) + F (u2 ) − 2F ( u1 +u
2 ) > −C(u1 − u2 ) ,
for a constant C > 0. An example is when F (u) = 18 (u2 − 1)2 , C = 81 . Denoting
u = u1 − u2 , we have
u1 + u2
1
ǫ
λ0
C
Jǫ (u1 , v) + Jǫ (u2 , v) − 2Jǫ
, v > kuk21 +
+
kuk2−1 − kuk22 .
2
4
4τ
4
ǫ
By using the inequality
kuk22 ≤ kuk1 kuk−1
(2.14)
and the Cauchy-Schwarz inequality, for (2.13) to be fulfilled, we need
s ǫ 1
λ0
C
+
≥ ,
2
4 4τ
4
ǫ
i.e.,
1
ǫ λ0 +
≥ C 2.
τ
3
Therefore Jǫ (u, v) is strictly convex in u and our minimization problem has a unique
minimizer if τ is chosen smaller than Cǫ3 for a constant C depending on |Ω|, |D|, and
F only. Because of the convexity of Jǫ in ∇u and u, every weak solution of the EulerLagrange equation (2.8) is in fact a minimizer of Jǫ . This proves the uniqueness of a
weak solution of (2.8) provided τ < Cǫ3 .
Next we want to prove Proposition 2.1.4, i.e., the existence of a fixed point of (2.8)
and with this the existence of a stationary solution of (2.1). To do so we are going to
apply Schauder’s fixed point theorem.
Proof of Proposition 2.1.4. We consider a solution A(v) = u of (2.8) with v ∈ L2 (Ω)
given. In the following we will prove the existence of a fixed point by using Schauder’s
fixed point theorem. We start with proving that
kA(v)k22 = kuk22 ≤ β kvk22 + α
(2.15)
for constants β < 1 and α > 0. Having this, we have shown that A is a map from
the closed ball K = B(0, M ) = u ∈ L2 (Ω) : kuk2 ≤ M into itself for an appropriate
constant M > 0. We conclude the proof with showing the compactness of K and the
continuity of the fixed point operator A. From Schauder’s theorem the existence of a
fixed point follows.
32
2.1 Cahn-Hilliard Inpainting
Let us, for the time being, additionally assume that ∇u and ∆u are bounded in
Hence we can multiply (2.8) with −∆u and integrate over Ω to obtain
L2 (Ω).
−
Z
∆u∆
−1
Ω
1
(u − v) − λ(f − u) − (λ0 − λ)(v − u) dx
τ
1
= −ǫ h∆u, ∆ui2 +
ǫ
Z
F ′ (u)∆u dx
Ω
After integration by parts we find with the short-hand notation
w :=
that
Z
1
(u − v) − λ(f − u) − (λ0 − λ)(v − u)
τ
1 ′
−1
−1
uw dx −
∇u · ν(∆ w + F (u)) − u∇(∆ w) · ν dH1
ǫ
∂Ω
Ω
Z
1
2
F ′′ (u) |∇u|2 dx.
= −ǫ k∆uk2 −
ǫ Ω
Z
Now we insert the boundary conditions ∆−1 w = 0, u = f =: f1 and F ′ (u) = F ′ (f ) = f2
on ∂Ω with constants f1 and f2 on the left-hand side, i.e.
Z
Z Z
f2
1
−1
uw dx −
F ′′ (u) |∇u|2 dx.
∇u · ν − f1 ∇(∆ w) · ν dH1 = −ǫ k∆uk22 −
ǫ
ǫ
Ω
∂Ω
Ω
An application of Gauss’ Theorem to the boundary integral implies
Z
Z
Z f2
f2
−1
w dx,
∆u dx + f1
∇u · ν − f1 ∇(∆ w) · ν dH1 =
ǫ
ǫ Ω
Ω
∂Ω
and we get
Z
Z
Z
Z
1
f2
2
2
′′
uw dx = −ǫ k∆uk2 −
w dx.
F (u) |∇u| dx +
∆u dx + f1
ǫ Ω
ǫ Ω
Ω
Ω
By further applying Young’s inequality to the last two terms we get
Z
Z
f2 δ
f1 δ
1
2
uw dx ≤
F ′′ (u) |∇u|2 dx +
− ǫ k∆uk2 −
kwk22 + C(f1 , f2 , |Ω|, ǫ, δ).
2ǫ
ǫ
2
Ω
Ω
Using the identity λ(f − u) + (λ0 − λ)(v − u) = λ(f − v) + λ0 (v − u) in the definition
of w yields
Z
Z
f2 δ
f1 δ
1
1
2
F ′′ (u) |∇u|2 dx +
− ǫ k∆uk2 −
kwk22
u · (u − v) dx ≤
τ
2ǫ
ǫ Ω
2
Ω
!
Z
Z
u(v − u) dx + C(f1 , f2 , |Ω|, ǫ, δ).
+ λ0
u(f − u) dx +
D
Ω\D
33
2.1 Cahn-Hilliard Inpainting
By applying the standard inequality (a + b)2 ≤ 2(a2 + b2 ) to the L2 norm of w =
( τ1 + λ0 )u − ( τ1 + λ0 − λ)v − λf and by using (1 − λ/λ0 ) ≤ 1 in the resulting L2 norm
of v we get
2
Z
Z
1
1
f2 δ
1
2
2
′′
u · (u − v) dx ≤
F (u) |∇u| dx + f1 δ
− ǫ k∆uk2 −
+ λ0 kuk22
τ
2ǫ
ǫ Ω
τ
Ω
!
2
Z
Z
1
+ λ0 kvk22 + λ0
u(v − u) dx
u(f − u) dx +
+ 2f1 δ
τ
D
Ω\D
+ C(f, f1 , f2 , |Ω|, ǫ, δ, λ0 ).
With F ′′ (u) ≥ C1 u2 − C2 for some constants C1 , C2 > 0 and for all u ∈ R, and by
further applying the Cauchy-Schwarz inequality to the last two integrals we obtain
f2 δ
C1
C2
1
− ǫ k∆uk22 −
ku |∇u|k22 +
k∇uk22
u · (u − v) dx ≤
τ
2ǫ
ǫ
ǫ
Ω
" 2
2
Z
1
δ2
1
2
2
+ f1 δ
+ λ0 kuk2 + 2f1 δ
+ λ0 kvk2 + λ0 − 1 −
u2 dx
τ
τ
2
Ω\D
Z
Z
1
δ1
u2 dx +
v 2 dx + C(f, f1 , f2 , |Ω|, |D|, ǫ, λ0 , δ, δ2 ).
−1
+
2
2δ1 D
D
Z
Setting δ2 = 1 and δ1 = 2 we see that
f2 δ
C1
C2
1
− ǫ k∆uk22 −
ku |∇u|k22 +
k∇uk22
u · (u − v) dx ≤
τ
2ǫ
ǫ
ǫ
Ω
"
#
2
2
Z
Z
1
1
1
1
+ f1 δ
u2 dx +
v 2 dx
+ λ0 kuk22 + 2f1 δ
+ λ0 kvk22 + λ0 −
τ
τ
2 Ω\D
4 D
Z
+ C(f, f1 , f2 , |Ω|, |D|, ǫ, δ, λ0 ).
We follow the argument used in the proof of existence for (2.1) in [BEG07b] by observing
the following property: A standard interpolation inequality for ∇u reads
k∇uk22 ≤ δ3 k∆uk22 +
C3
kuk22 .
δ3
(2.16)
The domain of integration in the second integral of the equation above can be taken
to be smaller than Ω by taking a larger constant C3 . Further we use the L1 version
of Poincare’s inequality applied to the function u2 . We recall this inequality in the
following theorem.
Theorem 2.1.5. (Poincare’s inequality in L1 ). Assume that Ω is a precompact open
subset of the n-dimensional Euclidean space Rn having Lipschitz boundary (i.e., Ω is
34
2.1 Cahn-Hilliard Inpainting
an open, bounded Lipschitz domain). Then there exists a constant C, depending only
on Ω, such that, for every function u in the Sobolev space W 1,1 (Ω),
ku − uΩ kL1 (Ω) ≤ Ck∇ukL1 (Ω) ,
R
1
where uΩ = |Ω|
Ω u(y) dy is the average value of u over Ω, with |Ω| denoting the
Lebesgue measure of the domain Ω.
Then, assuming that u 6= 0 in Ω \ D, we choose the constant
the size of D compared to Ω) large enough such that
Z
Z
Z
Z
2
2
2
2
u − uΩ dx ≤ C4
u dx ≤
u dx − C4
Ω
Ω\D
or in other words
kuk22
Ω
Ω
≤ C4 ∇u2 L1 (Ω) + C4
Z
C4 (which depends on
2
∇u dx,
u2 dx.
(2.17)
Ω\D
By Hölder’s inequality we also have
2
C5
α
∇u 1
.
≤ ku |∇u|k22 +
L (Ω)
2
2α
Putting the last three inequalities (2.16)-(2.18) together we obtain
Z
C3 C4 C5
C3 C4
C3 C4 α
u2 dx +
ku |∇u|k22 +
.
k∇uk22 ≤ δ3 k∆uk22 +
2δ3
δ3
2αδ3
Ω\D
(2.18)
We now use the last inequality to bound the gradient term in our estimates from
above to get
Z
1
f2 δ + 2C2 δ3
C2 C3 C4 α C1
u · (u − v) dx ≤ (
− ǫ) k∆uk22 + (
−
) ku |∇u|k22
τ
2ǫ
2δ3 ǫ
ǫ
Ω
2
1
C2 C3 C4 C4 λ0
+ λ0 +
−
) kuk22
+ (f1 δ
τ
δ3 ǫ
2
2 !
λ0
1
+
kvk22 + C(f, f1 , f2 , |Ω|, |D|, ǫ, δ, λ0 ).
+ 2f2 δ
+ λ0
4
τ
(2.19)
2ǫ2 −f2 δ
With δ3 < 2C2 and α, δ small enough, the first two terms can be estimated from
above by zero. Applying the Cauchy-Schwarz inequality on the left-hand side and
rearranging the terms on both sides of the inequality we conclude that
!
2
1
C4 λ0
C2 C3 C4
1
+
− f1 δ
− λ0 −
kuk22
2τ
2
τ
δ3 ǫ
2 !
1
1
λ0
kvk22 + C(f, f1 , f2 , |Ω|, |D|, ǫ, δ, λ0 ).
≤
+
+ λ0
+ 2f2 δ
4
2τ
τ
35
2.1 Cahn-Hilliard Inpainting
Choosing δ small enough, C4 large enough, and λ0 ≥ CC4 ǫ13 , the solutions u and v
fulfill
kuk22 ≤ β kvk22 + C,
(2.20)
with β < 1 and a constant C independent of v. Hence u is bounded in L2 (Ω).
To see that our regularity assumptions on u from the beginning of the proof are
automatically fulfilled we consider (2.19) with appropriate constants δ3 , δ, and α as
specified in the paragraph below (2.19). But now we only estimate the second term
on the right side by zero and keep the first term. By applying the Cauchy-Schwarz
inequality and rearranging the terms as before we obtain
!
2
1
C2 C3 C4
1
f2 δ + 2C2 δ3
C4 λ0
kuk22 + (ǫ −
+
− f1 δ
− λ0 −
) k∆uk22
2τ
2
τ
δ3 ǫ
2ǫ
2 !
1
1
λ0
kvk22 + C(f, f1 , f2 , |Ω|, |D|, ǫ, δ, λ0 ),
+
+ λ0
+ 2f2 δ
≤
4
2τ
τ
2 δ3
with the coefficient ǫ − f2 δ+2C
> 0 due to our choice of δ3 . Therefore not only the
2ǫ
L2 - norm of u is uniformly bounded but also the L2 - norm of ∆u. By the standard
interpolation inequality (2.16) the boundedness of u in H 1 (Ω) follows. From the last
result we additionally get that the operator A is a compact map since A : L2 (Ω) →
H 1 (Ω) ֒→֒→ L2 (Ω). Therefore K is a compact and convex subset of L2 (Ω).
It remains to show that the operator A is continuous. Indeed if vk → v in L2 (Ω)
then A(vk ) = uk is bounded in H 1 (Ω) for all k = 0, 1, 2, . . .. Thus, we can consider
a weakly convergent subsequence ukj ⇀ u in H 1 (Ω). Because H 1 (Ω) ֒→֒→ Lq (Ω),
1 ≤ q < ∞ the sequence ukj converges also strongly to u in Lq (Ω). Hence, a weak
solution A(vk ) = uk of (2.8) weakly converges to a weak solution u of
1
1
(−∆−1 )(u − v) = ǫ∆u − F ′ (u) − ∆−1 [λ(f − u) + (λ0 − λ)(v − u)] ,
τ
ǫ
where u is the weak limit of A(vk ) as k → ∞. Because the solution of (2.8) is unique
provided τ ≤ Cǫ3 (cf. Proposition 2.1.3), u = A(v), and therefore A is continuous.
Applying Schauder’s Theorem we have shown that the fixed point operator A admits
a fixed point û in L2 (Ω) which fulfills
Z
1 ′
∆−1 (λ(f − û)) ∇∆−1 φ · ν dH1 = 0
F (û), φ − hλ(f − û), φi−1 +
hǫ∇û, ∇φi2 +
ǫ
∂Ω
2
for all φ ∈ H01 (Ω). Because the solution of (2.8) is an element of H also the fixed point
û belongs to H.
36
2.1 Cahn-Hilliard Inpainting
Following the arguments from the beginning of this section we conclude with the
existence of a stationary solution for (2.1).
By modifying the setting and the above proof in an appropriate way one can prove
the existence of a stationary solution for (2.1) also under Neumann boundary conditions, i.e.,
∇u · ν = ∇∆u · ν = 0,
on ∂Ω.
A corresponding reformulation of the problem is given in Subsection 2.1.3.
2.1.2
Numerical Results
In this section numerical results for the Cahn-Hilliard inpainting approach (2.1) are
presented. The numerical scheme used is discussed in detail in Section 4.1, and in
particular in Section 4.1.2 (cf. also [SB09, BHS08]).
In Figures 2.1-2.2 Cahn-Hilliard inpainting was applied to two different binary images. In all of the examples we follow the procedure of [BEG07a], i.e., the inpainted
image is computed in a twostep process. In the first step Cahn-Hilliard inpainting is
solved with a rather large value of ǫ, e.g., ǫ = 0.1, until the numerical scheme is close
to steady state. In this step the level lines are continued into the missing domain. In a
second step the result of the first step is put as an initial condition into the scheme for
a small ǫ, e.g., ǫ = 0.01, in order to sharpen the contours of the image contents. The
reason for this two step procedure is twofold. First of all in [BEG07b] the authors give
numerical evidence that the steady state of the modified Cahn-Hilliard equation (2.1)
is not unique, i.e., it is dependent on the initial condition for the equation. As a consequence, computing the inpainted image by the application of Cahn-Hilliard inpainting
with a small ǫ only, might not prolongate the level lines into the missing domain as
desired. See also [BEG07b] for a bifurcation diagram based on the numerical computations of the authors. The second reason for solving Cahn-Hilliard inpainting in two
steps is that it is computationally less expensive. Solving the above time-marching
scheme for, e.g., ǫ = 0.1 is faster than solving it for ǫ = 0.01. This is because of a
damping introduced by ǫ into the scheme, cf. Section 4.1.2 for details.
37
2.1 Cahn-Hilliard Inpainting
Figure 2.1: Destroyed binary image and the solution of Cahn-Hilliard inpainting with
switching ǫ value: u(1200) with ǫ = 0.1, u(2400) with ǫ = 0.01
Figure 2.2: Destroyed binary image and the solution of Cahn-Hilliard inpainting with
λ0 = 109 and switching ǫ value: u(800) with ǫ = 0.8, u(1600) with ǫ = 0.01
2.1.3
Neumann Boundary Conditions and the Space H∂−1 (Ω)
In this section we want to pose the Cahn-Hilliard inpainting problem with Neumann
boundary conditions in a way such that the analysis from Section 2.1.1 can be carried
out in a similar way. Namely we consider

1

 ut = ∆(−ǫ∆u + F ′ (u)) + λ(f − u) in Ω,
ǫ
∂∆u
∂u


=
=0
on ∂Ω,
∂ν
∂ν
For the existence of a stationary solution of this equation we consider again a fixed
point approach similar to (2.8) in the case of Dirichlet boundary conditions, i.e.,

u−v
1


= ∆(−ǫ∆u + F ′ (u)) + λ(f − u) + (λ0 − λ)(v − u) in Ω,

τ
ǫ (2.21)
1 ′
 ∂u
∂ ǫ∆u − ǫ F (u)


=
=0
on ∂Ω.
∂ν
∂ν
To reformulate the above equation in terms of the operator ∆−1 with Neumann boundary conditions we first have to introduce the space H∂−1 (Ω) in which the operator ∆−1
is now the inverse of −∆ with Neumann boundary conditions.
38
2.1 Cahn-Hilliard Inpainting
Thus we define the non-standard Hilbert space
n
o
H∂−1 (Ω) = F ∈ H 1 (Ω)∗ | hF, 1i(H 1 )∗ ,H 1 = 0 .
Since Ω is bounded we know that 1 ∈ H 1 (Ω), hence H∂−1 (Ω) is well defined. Before we
define a norm and an inner product on H∂−1 (Ω) we have to define more spaces. Let
Z
1
1
ψ dx = 0 ,
Hφ (Ω) = ψ ∈ H (Ω) :
Ω
with norm kukH 1 := k∇uk2 and inner product hu, viH 1 := h∇u, ∇vi2 . This is a Hilbert
φ
φ
space and the norms k.k1 and k.kH 1 are equivalent (up to constants) on Hφ1 (Ω). Let
φ
(Hφ1 (Ω))∗ denote the dual of Hφ1 (Ω). We will use (Hφ1 (Ω))∗ to induce an inner product on
H∂−1 (Ω). Given F ∈ (Hφ1 (Ω))∗ with associate u ∈ Hφ1 (Ω) (from the Riesz representation
theorem) we have by definition
hF, ψi(H 1 )∗ ,H 1 = hu, ψiH 1 = h∇u, ∇ψi2
φ
φ
φ
∀ψ ∈ Hφ1 (Ω).
Let us now define a norm and an inner product on H∂−1 (Ω).
Definition 2.1.6.
o
n
H∂−1 (Ω) := F ∈ H 1 (Ω)∗ | hF, 1i(H 1 )∗ ,H 1 = 0
kF kH −1 := F | Hφ1 (H 1 )∗
∂
φ
hF1 , F2 iH −1 := h∇u1 , ∇u2 i2 ,
∂
where F1 , F2 ∈ H∂−1 (Ω) and where u1 , u2 ∈ Hφ1 (Ω) are the associates of F1 | Hφ1 ,
F2 | Hφ1 ∈ (Hφ1 (Ω))∗ .
At this point it is not entirely obvious that H∂−1 (Ω) is a Hilbert space. That this is
the case though is verified in the following theorem.
Theorem 2.1.7.
1. H∂−1 (Ω) is closed in (H 1 (Ω))∗ .
2. The norms k.kH −1 and k.k(H 1 )∗ are equivalent on H∂−1 (Ω).
∂
Theorem 2.1.7 can be easily checked just by the application of the definitions and
the fact that the norms k.k1 and k.kH 1 are equivalent on Hφ1 (Ω). From point 1. of
φ
Theorem 2.1.7 we have that H∂−1 (Ω) is a Hilbert space w.r.t. the (H 1 (Ω))∗ norm
and point 2. tells us that the norms k.kH −1 and k.k(H 1 )∗ are equivalent on H∂−1 (Ω).
∂
39
2.1 Cahn-Hilliard Inpainting
Therefore the norm in Definition 2.1.6 is well defined and H∂−1 (Ω) is a Hilbert space
w.r.t. k.kH −1 .
∂
In the following we want to characterize elements F ∈ H∂−1 (Ω). By the above
definition we have for each F ∈ H∂−1 (Ω) that there exists a unique element u ∈ Hφ1 (Ω)
such that
hF, ψi(H 1 )∗ ,H 1 =
We define
Z
Ω
∇u · ∇ψ dx,
∀ψ ∈ Hφ1 (Ω).
(2.22)
∆−1 F := u
(2.23)
the unique solution to (2.22).
Now let F ∈ L2 (Ω) and assume u ∈ H 2 (Ω). Set hF, ψi(H 1 )∗ ,H 1 :=
R
Ω Fψ
dx.
Because L2 (Ω) ⊂ H∂−1 (Ω) an element F is also an element in H∂−1 (Ω). Thus there
exists a unique element u ∈ Hφ1 (Ω) such that
Z
Ω
(−∆u − F )ψ dx +
Z
∂Ω
∇u · νψ dH1 = 0,
∀ψ ∈ Hφ1 (Ω).
Since hF, 1i(H 1 )∗ ,H 1 = 0, we see that hF, ψ + Ki(H 1 )∗ ,H 1 = hF, ψi(H 1 )∗ ,H 1 for all con-
stants K ∈ R and therefore (2.22) extends to all ψ ∈ H 1 (Ω). Therefore u ∈ Hφ1 (Ω) is
the unique weak solution of the following problem:
(
− ∆u − F = 0 in Ω
∇u · ν = 0
on ∂Ω.
(2.24)
Remark 2.1.8. With the above characterization of elements F ∈ H∂−1 (Ω) and the
notation (2.23) for its associates the inner product and the norm in H∂−1 can be written
as
Z
∇∆−1 F1 · ∇∆−1 F2 dx, ∀F1 , F2 ∈ H∂−1 (Ω),
hF1 , F2 iH −1 :=
∂
Ω
and norm
kF kH −1 :=
∂
sZ
Ω
(∇∆−1 F )2 dx.
Throughout the rest of this section we will write the short forms h., .i−1 and k.k−1 for
the inner product and the norm in H∂−1 (Ω) respectively. Note that this notation is only
valid within this section.
It is important to notice that in order to rewrite (2.21) in terms of ∆−1 we require
the ”right hand side” of the equation, i.e.,
u−v
τ
40
+ λ(u − f ) + (λ0 − λ)(u − v) to be an
2.2 TV-H−1 Inpainting
element of our new space H∂−1 (Ω) (cf. Definition 2.1.6). In other words the ”right hand
side” has to have zero mean over Ω. Because we cannot guarantee this property for
solutions of the fixed point equation (2.21) we are going to modify the right hand side
by subtracting its mean. Let
1 1
F + λ0 FΩ2
τ ΩZ
1
(u − v) dx
FΩ1 =
|Ω| Ω
Z
λ
λ
1
2
(u − f ) + 1 −
(u − v) dx,
FΩ =
|Ω| Ω λ0
λ0
FΩ =
and consider instead of (2.21) the equation

1
u
−
v

′
−1

− λ(f − u) − (λ0 − λ)(v − u) − FΩ
in Ω,
 ǫ∆u − F (u) = ∆
ǫ
τ


 ∂u = 0
on ∂Ω,
∂ν
where the second Neumann boundary condition
∂ (ǫ∆u− 1ǫ F ′ (u))
∂ν
= 0 on ∂Ω is included
in the definition of ∆−1 . The functional of the corresponding variational formulation
then reads
ǫ
J (u, v) =
Z Ω
1
1 ǫ
2
(u − v) − FΩ1 2
|∇u| + F (u) dx +
−1
2
ǫ
2τ
2
λ
λ
λ0 2
u− f − 1−
+
v − FΩ .
2
λ0
λ0
−1
With these definitions the proof for the existence of a stationary solution for the
modified Cahn-Hilliard equation with Neumann boundary conditions can be carried
out similarly to the proof in Section 2.1.1. Note that every solution of (2.1) fulfills
R
R
d
u
dx
=
dt Ω
Ω λ(f − u) dx. This means that for a stationary solution û the integral
R
C Ω λ(f − u) dx = 0 for every constant C ∈ R (i.e., the “right hand side” has zero
mean and therefore FΩ1 = FΩ2 = 0).
2.2
TV-H−1 Inpainting
Let Ω ⊂ Rd , for d = 1, 2 be a bounded open set with Lipschitz boundary, and H =
L2 (Ω). We recall that for u ∈ L1loc (Ω)
Z
1
d
u∇ · ϕ dx : ϕ ∈ Cc (Ω) , kϕk∞ ≤ 1
V (u, Ω) := sup
Ω
41
(2.25)
2.2 TV-H−1 Inpainting
is the variation of u and that u ∈ BV (Ω) (the space of functions of bounded variation,
[AFP00, EG92]) if and only if V (u, Ω) < ∞, see [AFP00, Proposition 3.6]. In such
a case, |D(u)|(Ω) = V (u, Ω), where |D(u)|(Ω) is the total variation (TV) of the finite
Radon measure Du, the derivative of u in the sense of distributions. For more details
about the total variation and the space of functions of bounded variation we refer to
Appendix A.5.
The minimization of energies with total variation constraints, i.e.,
n
o
min
kT u − f k2H + 2α|D(u)|(Ω) ,
u∈BV (Ω)
(2.26)
for a given f ∈ H, where H is a suitable Hilbert space, e.g., H = L2 (Ω), and T ∈ L(H)
is a linear bounded operator in H, traces back to the first uses of such a functional model
in noise removal in digital images as proposed by Rudin, Osher, and Fatemi [ROF92].
There the operator T is just the identity. Extensions to more general operators T
and numerical methods for the minimization of the functional appeared later in several
important contributions [CL97, DV97, AV97, Ve01, Ch04]. From these pioneering and
very successful results, the scientific output related to total variation minimization and
its applications in signal and image processing increased dramatically in the last decade.
For brevity we do not list here all the possible directions and contributions.
Now, after the result about a stationary solution for the Cahn-Hilliard inpainting
approach (2.1) presented in Section 2.1, the second contribution of [BHS08] is to generalize the latter approach to grayvalue images. This is realized by using subgradients
of the TV functional within the flow, which leads to structure inpainting with smooth
curvature of level sets. In the present section the results about this new inpainting
approach shall be reported.
We motivate this new approach by a Γ-convergence result for the Cahn-Hilliard
energy. In fact we prove that the sequence of functionals for an appropriate timediscrete Cahn-Hilliard inpainting approach Γ-converges to a functional regularized with
the total variation for binary arguments u = 1E , where E is some Borel measurable
subset of Ω. This is stated in more detail in the following Theorem.
Throughout this section we keep to the notation, and the definitions from Section
2.1, i.e., Ω ⊂ R2 is a bounded open set with Lipschitz boundary, D ⊂ Ω denotes the
inpainting domain, and λ is the indicator function of Ω \ D multiplied by a constant
λ0 ≫ 1 as defined in (1.2).
42
2.2 TV-H−1 Inpainting
Theorem 2.2.1. Let f, v ∈ L2 (Ω) be two given functions, and τ > 0 a positive parameter. Let further k·k−1 be the norm in H −1 (Ω), defined in more detail in the Appendix
A.4, and ǫ > 0 a parameter. Then the sequence of functionals
2
Z λ
1
1
λ0 λ
ǫ
2
2
ǫ
u− f − 1−
|∇u| + F (u) dx +
ku − vk−1 +
v
J (u, v) =
ǫ
2τ
2
λ0
λ0
Ω 2
−1
Γ-converges for ǫ → 0 in the topology of L1 (Ω) to
where
2
λ
λ
λ0 1
2
u− f − 1−
ku − vk−1 +
J(u, v) = T V (u) +
v
,
2τ
2
λ0
λ0
−1

C |Du| (Ω)
0
T V (u) =
+∞
if u = 1E for some Borel measurable subset E ⊂ Ω
otherwise,
1E denoting the indicator function of E and C0 = 2
R1p
0
F (s) ds.
Remark 2.2.2. Setting v = uk and a minimizer u of the functional Jǫ (u, v) to be
u = uk+1 , the minimization of Jǫ can be seen as an iterative approach with stepsize τ
to solve (2.1).
R
Remark 2.2.3. The Γ-convergence of the Ginzburg-Landau energy Ω (ǫ/2 |∇u|2 +
1/ǫF (u)) dx to the total variation of an indicator function for a subset of Ω goes back
to Modica and Mortola [MM77a, MM77b]. Their result can also be understood in terms
of a sharp interface limit. In other words, the limit of the energy of a phase field model
(the Ginzburg-Landau energy), where black (0) and white (1) regions are separated by
a transition layer of order ǫ, was shown to be a model that describes the motion of the
sharp interface between these regions without transition layer, i.e., ǫ = 0. Similar results have been shown for the Cahn-Hilliard equation directly. Here, the corresponding
sharp interface limit is known as the Mullins-Sekerka problem or Hele-Shaw problem,
cf. [MS63, Pe89, ABC94, St96].
Now, by extending the validity of the total variation functional T V (u) from functions u = 0 or 1 to functions |u| ≤ 1 we receive an inpainting approach for grayvalue
images rather than binary images. We shall call this new inpainting approach TVH−1 inpainting and define it in the following way: The inpainted image u of f ∈ L2 (Ω),
shall evolve via
ut = ∆p + λ(f − u),
43
p ∈ ∂T V (u),
(2.27)
2.2 TV-H−1 Inpainting
with
T V (u) =
(
|Du| (Ω)
+∞
if |u(x)| ≤ 1 a.e. in Ω
otherwise.
(2.28)
Here, ∂T V (u) denotes the subdifferential of the functional T V (u) (cf. Appendix A.2
for the definition). The L∞ bound in the definition of the TV functional (2.28) is quite
natural as we are only considering digital images u whose grayvalue can be scaled to
[−1, 1]. It is further motivated by the Γ-convergence result of Theorem 2.2.1.
Remark 2.2.4. Similar to the use of the functional Jǫ from Theorem 2.2.1 as an
iterative approach to solve (2.1) (cf. Remark 2.2.2), the functional J from Theorem
2.2.1 might serve as an iterative process to solve (2.27).
A similar form of the TV-H−1 inpainting approach already appeared in the context of decomposition and restoration of grayvalue images, see for example [VO03,
OSV03, LV08]. Different to the situation of TV-H−1 denoising / decomposition the
TV-H−1 inpainting approach does not exhibit a variational formulation and hence, its
analytical and numerical treatment is different. Further, in Bertalmio at al. [BVSO03]
an application of the model from [VO03] to image inpainting has been proposed. In
contrast to the inpainting approach (2.27) the authors in [BVSO03] only use a different
form of the TV-H−1 approach for a decomposition of the image into cartoon and texture
prior to the inpainting process, which is accomplished with the method presented in
[BSCB00].
Using the same methodology as in the proof of Theorem 2.1.1 we obtain the following
existence theorem,
Theorem 2.2.5. Let f ∈ L2 (Ω). The stationary equation
∆p + λ(f − u) = 0,
p ∈ ∂T V (u)
(2.29)
admits a solution u ∈ BV (Ω).
We shall also give a characterization of elements in the subdifferential ∂T V (u) for
T V (u) defined as in (2.28), i.e., T V (u) = |Du| (Ω) + χ1 (u), where
(
0
if |u| ≤ 1 a.e. in Ω
χ1 (u) =
+∞ otherwise.
Namely, we shall prove the following theorem.
44
2.2 TV-H−1 Inpainting
Theorem 2.2.6. Let p̃ ∈ ∂χ1 (u). An element p ∈ ∂T V (u) with |u(x)| ≤ 1 in Ω, fulfills
the following set of equations
∇u
p = −∇ ·
a.e. on supp ({|u| < 1})
|∇u|
∇u
p = −∇ ·
+ p̃, p̃ ≤ 0
a.e. on supp ({u = −1})
|∇u|
∇u
+ p̃, p̃ ≥ 0
a.e. on supp ({u = 1}) .
p = −∇ ·
|∇u|
For (2.27) we additionally give error estimates for the inpainting error and stability
information in terms of the Bregman distance. Let ftrue be the original image and û
a stationary solution of (2.27). In our considerations we use the symmetric Bregman
distance defined as
(û, ftrue ) = hû − ftrue , p̂ − ξi2 ,
DTsymm
V
p̂ ∈ ∂T V (û), ξ ∈ ∂T V (ftrue ).
We prove the following result
Theorem 2.2.7. Let ftrue fulfill the so-called source condition, namely that
there exists ξ ∈ ∂T V (ftrue ) such that ξ = ∆−1 q for a source element q ∈ H −1 (Ω),
and û ∈ BV (Ω) be a stationary solution of (2.27) given by û = us + ud , where us is
a smooth function and ud is a piecewise constant function. Then the inpainting error
reads
(û, ftrue ) +
DTsymm
V
λ0
1
kû − ftrue k2−1 ≤
kξk21 + Cλ0 |D|(r−2)/r errinpaint ,
2
λ0
with 2 < r < ∞, constant C > 0 and
errinpaint := K1 + K2 |D| C (M (us ), β) + 2 R(ud ) ,
where K1 and K2 are appropriate positive constants, and C is a constant depending on
the smoothness bound M (us ) for us and β that is determined from the shape of D. The
error region R(ud ) is determined by the level lines of ud .
Finally we present numerical results for the proposed TV-H−1 inpainting approach
and briefly explain the numerical implementation. Let us continue with the verification
of the stated results in Theorems 2.2.1-2.2.7.
45
2.2 TV-H−1 Inpainting
2.2.1
Γ-Convergence of the Cahn-Hilliard Energy
In the following we want to motivate our new inpainting approach (2.27) by considering the Γ-limit for ǫ → 0 of an appropriate time-discrete Cahn-Hilliard inpainting
approach, i.e., the Γ-limit of the functionals from our fixed point approach in (2.11).
More precisely we want to prove Theorem 2.2.1. Before starting our discussion let us
recall the definition of Γ-convergence and its impact within the study of optimization
problems. For more details on Γ-convergence we refer to [Ma93].
Definition 2.2.8. Let X = (X, d) be a metric space and (Fh ), h ∈ N be family of
functions Fh : X → [0, +∞]. We say that (Fh ) Γ-converges to a function F : X →
[0, +∞] on X as h → ∞ if ∀x ∈ X we have
(i) for every sequence xh with d(xh , x) → 0 we have
F (x) ≤ lim inf Fh (xh );
h
(ii) there exists a sequence x¯h such that d(x¯h , x) → 0 and
F (x) = lim Fh (x¯h )
h
(or, equivalently, F (x) ≥ lim suph Fh (x¯h )).
Then F is the Γ-limit of (Fh ) in X and we write: F (x) = Γ − limh Fh (x), x ∈ X.
The formulation of the Γ-limit for ǫ → 0 is analogous by defining a sequence ǫh with
ǫh → 0 as h → ∞.
The important property of Γ-convergent sequences of functions Fh is that their
minima converge to minima of the Γ-limit F . In fact we have the following theorem
Theorem 2.2.9. Let (Fh ) be like in Definition 2.2.8 and additionally equicoercive, that
is there exists a compact set K ⊂ X (independent of h) such that
inf {Fh (x)} = inf {Fh (x)}.
x∈X
x∈K
If Fh Γ-converges on X to a function F we have
min {F (x)} = lim inf {Fh (x)} .
x∈X
h x∈X
After recalling these facts about Γ-convergence we continue this section with the
proof of Theorem 2.2.1.
46
2.2 TV-H−1 Inpainting
Proof of Theorem 2.2.1. Modica and Mortola have shown in [MM77a, MM77b] that
the sequence of Cahn-Hilliard functionals
Z ǫ
1
2
CH(u) =
|∇u| + F (u) dx
ǫ
Ω 2
Γ-converges in the topology L1 (Ω) to

C |Du| (Ω) if u = 1 for some Borel measurable subset E ⊂ Ω
0
E
T V (u) =
+∞
otherwise
R1p
as ǫ → 0, where C0 = 2 0 F (s) ds. (The space BV (Ω) and the total variation
|Du| (Ω) are defined in the Appendix in Section A.5.)
Now, for a given function v ∈ L2 (Ω) the functional Jǫ from our fixed point approach
(2.8), i.e.,
2
Z ǫ
1
λ
1
λ
λ0 2
2
ǫ
u − f − (1 − )v ,
J (u, v) =
|∇u| + F (u) dx +
ku − vk−1 +
2
ǫ
2τ {z
λ0
λ0 −1
} |2
|Ω
{z
} |
{z
}
:=CH(u)
:=D(u,v)
:=F IT (u,v)
is the sum of the regularizing term CH(u), the damping term D(u, v) and the fitting
term F IT (u, v). We recall the following fact,
Theorem 2.2.10. [Ma93, Dal Maso, Proposition 6.21.] Let G : X → R be a continuous function and (Fh ) Γ-converges to F in X, then (Fh + G) Γ-converges to F + G in
X.
Since the H −1 -norm is continuous in H −1 (Ω) and hence in particular in L1 (Ω), the
two terms in Jǫ that are independent from ǫ, i.e., D(u, v) and F IT (u, v), are continuous
in L1 (Ω). Together with the Γ-convergence result of Modica and Mortola for the CahnHilliard energy, we have proven that the modified Cahn-Hilliard functional Jǫ can be
seen as a regularized approximation in the sense of Γ-convergence of the TV-functional
J(u, v) = T V (u) + D(u, v) + F IT (u, v),
for functions u ∈ BV (Ω) with u(x) = 1E for a Borel measurable subset E ⊂ Ω. In
fact we have gone from a smooth transition layer between 0 and 1 in the Cahn-Hilliard
inpainting approach (depending on the size of ǫ) to a sharp interface limit in which the
image function now jumps from 0 to 1.
This sharp interface limit motivates the extension of J(u, v) to grayvalue functions
such that |u| ≤ 1 on Ω and hence leads us from the Cahn-Hilliard inpainting approach
for binary images to a generalization for grayvalue images, namely our so-called TVH−1 inpainting method (2.27)-(2.28).
47
2.2 TV-H−1 Inpainting
2.2.2
Existence of a Stationary Solution
Our strategy for proving the existence of a stationary solution for TV-H−1 inpainting
(2.27) is similar to our existence proof for a stationary solution of the modified CahnHilliard equation (2.1) in Section 2.1.1. Similarly as in our analysis for (2.1) in Section
2.1.1, we consider equation (2.27) with Dirichlet boundary conditions, namely
ut = ∆p + λ(f − u)
in Ω
u=f
on ∂Ω,
for p ∈ ∂T V (u).
Now let f ∈ L2 (Ω), |f | ≤ 1 be the given grayvalue image. For v ∈ Lr (Ω), 1 < r < 2,
we consider the minimization problem
u∗ = arg
min
u∈BV (Ω)
J(u, v),
with functionals
J(u, v) := T V (u) +
1
λ0
λ
λ
||u − v||2−1 + ||u − f − (1 − )v||2−1 ,
λ0
λ0
|2τ {z
} |2
{z
}
D(u,v)
(2.30)
F IT (u,v)
with T V (u) defined as in (2.28). Note that Lr (Ω) can be continuously embedded in
H −1 (Ω). Hence the functionals in (2.30) are well defined.
First we will show that for a given v ∈ Lr (Ω) the functional J(., v) attains a unique
minimizer u∗ ∈ BV (Ω) with |u∗ (x)| ≤ 1 a.e. in Ω.
Proposition 2.2.11. Let f ∈ L2 (Ω) be given with |f (x)| ≤ 1 a.e. in Ω and v ∈ Lr (Ω).
Then the functional J(., v) has a unique minimizer u∗ ∈ BV (Ω) with |u∗ (x)| ≤ 1 a.e.
in Ω.
Proof. Let (un )n∈N be a minimizing sequence for J(u, v), i.e.,
n→∞
J(un , v) →
inf
u∈BV (Ω)
J(u, v).
Then un ∈ BV (Ω) and |un (x)| ≤ 1 in Ω (because otherwise T V (un ) would not be
finite). Therefore
|Dun | (Ω) ≤ M,
for an M ≥ 0 and for all n ≥ 1,
48
2.2 TV-H−1 Inpainting
and, because of the uniform boundedness of |u(x)| for every point x ∈ Ω,
kun kLp (Ω) ≤ M̃ , for an M̃ ≥ 0, ∀n ≥ 1, and 1 ≤ p ≤ ∞.
Thus un is uniformly bounded in Lp (Ω) and in particular in L1 (Ω). Together with the
boundedness of |Dun | (Ω), the sequence un is also bounded in BV (Ω) and there exists
a subsequence, still denoted un , and a u ∈ BV (Ω) such that un ⇀ u weakly in Lp (Ω),
1 ≤ p ≤ ∞ and weakly∗ in BV (Ω). Because L2 (Ω) ⊂ L2 (R2 ) ⊂ H −1 (Ω) (by zero
extensions of functions on Ω to R2 ) un ⇀ u also weakly in H −1 (Ω). Because |Du| (Ω)
is lower semicontinuous in BV (Ω) and by the lower semicontinuity of the H −1 norm
we get
J(u, v) = T V (u) + D(u, v) + F IT (u, v)
≤ lim inf n→∞ (T V (un ) + D(un , v) + F IT (un , v))
= lim inf n→∞ J(un , v).
So u is a minimizer of J(u, v) over BV (Ω).
To prove the uniqueness of the minimizer we (similarly as in the proof of Theorem
2.1.3) show that J is strictly convex. Namely we prove that for all u1 , u2 ∈ BV (Ω),
u1 6= u2
u1 + u2
, v > 0.
J(u1 , v) + J(u2 , v) − 2J
2
We have
J(u1 , v) + J(u2 , v) − 2J
u1 + u2
,v
2
2 !
u
+
u
1
2
ku1 k2−1 + ku2 k2−1 − 2 =
2 −1
u1 + u2
+T V (u1 ) + T V (u2 ) − 2T V
2
1
λ0
+
≥
ku1 − u2 k2−1 > 0.
4τ
4
λ0
1
+
2τ
2
This finishes the proof.
Next we shall prove the existence of stationary solution for (2.27). For this end we
consider the corresponding Euler-Lagrange equation to (2.30), i.e.,
−1 u − v
+ p − ∆−1 (λ(f − u) + (λ0 − λ)(v − u)) = 0,
∆
τ
49
2.2 TV-H−1 Inpainting
with weak formulation
1
+ hp, φi2 − hλ(f − u) + (λ0 − λ)(v − u), φi−1 = 0 ∀φ ∈ H01 (Ω).
(u − v), φ
τ
−1
A fixed point of the above equation, i.e., a solution u = v, is then a stationary solution
for (2.27). Thus, to prove the existence of a stationary solution of (2.27), i.e., to prove
Theorem 2.2.5, as before we are going to use a fixed point argument. Let A : Lr (Ω) →
Lr (Ω), 1 < r < 2, be the operator which maps a given v ∈ Lr (Ω) to A(v) = u under
the condition that A(v) = u is the minimizer of the functional J(., v) defined in (2.30).
The choice of the fixed point operator A over Lr (Ω) was made in order to obtain
the necessary compactness and continuity properties for the application of Schauder’s
theorem.
Since here the treatment of the boundary conditions is similar to that in Section
2.1.1, we will leave this part of the analysis in the upcoming proof to the reader and
just carry out the proof without explicitly taking care of the boundary.
Proof of Theorem 2.2.5. Let A : Lr (Ω) → Lr (Ω), 1 < r < 2, be the operator that
maps a given v ∈ Lr (Ω) to A(v) = u, where u is the unique minimizer of the functional
J(., v) defined in (2.30). Existence and uniqueness u follow from Proposition 2.2.11.
Since u minimizes J(., v) we have u ∈ L∞ (Ω) hence u ∈ Lr (Ω). Additionally we have
J(u, v) ≤ J(0, v), i.e.,
1
λ0
λ
λ
||u − v||2−1 + ||u − f − (1 − )v||2−1 + T V (u)
2τ
2
λ0
λ0
1
λ0 λ
λ
|Ω|
≤
||v||2−1 + || f + (1 − )v||2−1 ≤
+ λ0 (|Ω| + |D|).
2τ
2 λ0
λ0
2τ
Here the last inequality was obtained since Lr (Ω) ֒→ H −1 (Ω) and hence ||v||−1 ≤ C
′
and ||λv||−1 ≤ C for a C > 0. (In fact, since H 1 (Ω) ֒→ Lr (Ω) for all 1 ≤ r′ < ∞
it follows from duality that Lr (Ω) ֒→ H −1 (Ω) for, 1 < r < ∞.) By the last estimate
we obtain u ∈ BV (Ω). Since BV (Ω) ֒→֒→ Lr (Ω) compactly for 1 ≤ r < 2 and
Ω ⊂ R2 (cf. Theorem A.5.7), the operator A maps Lr (Ω) → BV (Ω) ֒→֒→ Lr (Ω),
i.e., A : Lr (Ω) → K, where K is a compact subset of Lr (Ω). Thus, for v ∈ B(0, 1)
(where B(0, 1) denotes the ball in L∞ (Ω) with center 0 and radius 1), the operator
A : B(0, 1) → B(0, 1) ∩ K = K̃, where K̃ is a compact and convex subset of Lr (Ω).
Next we have to show that A is continuous in Lr (Ω). Let (vk )k≥0 be a sequence
which converges to v in Lr (Ω). Then uk = A(vk ) solves
∆pk =
u k − vk
− (λ(f − uk ) + (λ0 − λ)(vk − uk )) ,
τ
50
2.2 TV-H−1 Inpainting
where pk ∈ ∂T V (uk ). Thus uk is uniformly bounded in BV (Ω) ∩ L∞ (Ω) (and hence
in Lr (Ω)) and, since the right-hand side of the above equation is uniformly bounded
in Lr (Ω), also ∆pk is bounded in Lr (Ω). Thus there exists a subsequence pkl such
that ∆pkl ⇀ ∆p in Lr (Ω) and a subsequence ukl that converges weakly ∗ to a u
in BV (Ω) ∩ L∞ (Ω). Since BV (Ω) ֒→֒→ Lr (Ω) we have ukl → u strongly in Lr (Ω).
Therefore the limit u solves
∆p =
u−v
− (λ(f − u) + (λ0 − λ)(v − u)) .
τ
(2.31)
If we additionally apply Poincare’s inequality to ∆pk we conclude that
k∇pk − (∇pk )Ω kLr (Ω) ≤ C k∇ · (∇pk − (∇pk )Ω )kLr (Ω) ,
R
1
where (∇pk )Ω = |Ω|
Ω ∇pk dx. In addition, since pk ∈ ∂T V (uk ), it follows that
(pk )Ω = 0 and kpk kBV ∗ (Ω) ≤ 1. Thus (∇pk )Ω < ∞ and pk is uniformly bounded
in W 1,r (Ω). Thus there exists a subsequence pkl such that pkl ⇀ p in W 1,r (Ω). In
′
addition Lr (Ω) ֒→ BV ∗ (Ω) for 2 < r′ < ∞ (this follows again from Theorem A.5.7
2r
(Rellich-Kondrachov
by a duality argument) and W 1,r (Ω) ֒→֒→ Lq (Ω) for 1 ≤ q < 2−r
2r
Compactness Theorem, cf. Theorem A.3.1 in Appendix A.3). By choosing 2 < q < 2−r
we therefore have W 1,r (Ω) ֒→֒→ BV ∗ (Ω). Thus pkl → p strongly in BV ∗ (Ω). Hence
the element p in (2.31) is an element in ∂T V (u).
Because the minimizer of (2.30) is unique, u = A(v), and therefore A is continuous
in Lr (Ω). The existence of a stationary solution follows from Schauder’s fixed point
theorem.
2.2.3
Characterization of Solutions
Finally we want to compute elements p ∈ ∂T V (u). In particular we shall prove Theorem
2.2.6. Like in [BRH07] the model for the regularizing functional is the sum of a standard
regularizer plus the indicator function of the L∞ constraint. In particular, we have
T V (u) = |Du| (Ω) + χ1 (u), where |Du| (Ω) is the total variation of Du and
(
0
if |u| ≤ 1 a.e. in Ω
χ1 (u) =
+∞ otherwise.
(2.32)
We want to compute the subgradients of T V by assuming ∂T V (u) = ∂ |Du| (Ω) +
∂χ1 (u). This means that we can separately compute the subgradients of χ1 . To guar-
antee that the splitting above is allowed we have to consider a regularized functional of
51
2.2 TV-H−1 Inpainting
R q
the total variation, like Ω |∇u|2 + δ dx. This is sufficient because both |D.| (Ω) and
χ1 are convex and |D.| (Ω) is continuous (compare [ET76, Proposition 5.6., pp. 26]).
The subgradient ∂ |Du| (Ω) is already well described, as, for instance, in [AK06,
Ve01]. We will just briefly recall its characterization. Thereby we do not insist on the
details of the rigorous derivation of these conditions, and we limit ourself to mentioning
the main facts.
It is well known [Ve01, Proposition 4.1] that p ∈ ∂|Du|(Ω) implies

∇u


in Ω
 p = −∇ ·
|∇u|
 ∇u


·ν =0
on ∂Ω.
|∇u|
The previous conditions do not fully characterize p ∈ ∂|Du|(Ω), additional conditions
would be required [AK06, Ve01], but the latter are, unfortunately, hardly numerically
implementable. Since we anyway consider a regularized version of |Du| (Ω), the subdifferential becomes a gradient which reads




 p = −∇ ·
∇u
p
|∇u|2 + δ
!

∇u


·ν =0
p
|∇u|2 + δ
in Ω
on ∂Ω.
The subgradient of χ1 is computed like in the following Lemma.
Lemma 2.2.12. Let χ1 : Lr (Ω) → R ∪ {∞} be defined by (2.32), and let 1 ≤ r ≤ ∞.
∗
r
, is a subgradient p ∈ ∂χ1 (u) for u ∈ Lr (Ω) with
Then p ∈ Lr (Ω), for r∗ = r−1
χ1 (u) = 0, if and only if
p=0
a.e. on supp({|u| < 1})
p≤0
a.e. on supp({u = −1})
p≥0
a.e. on supp({u = 1}).
Proof. Let p ∈ ∂χ1 (u). Then we can choose v = u + ǫw for w being any bounded
function supported in {|u| < 1 − α} for arbitrary 0 < α < 1. If ǫ is sufficiently small
we have |v| ≤ 1. Hence
Z
wp dx.
0 ≥ hv − u, pi2 = ǫ
{|u|<1−α}
52
2.2 TV-H−1 Inpainting
Since we can choose ǫ either positive or negative, we obtain
Z
wp dx = 0.
{|u|<1−α}
Because 0 < α < 1 and w are arbitrary we conclude that p = 0 on the support of
{|u| < 1}. If we choose v = u + w with w an arbitrary bounded function with

0 ≤ w ≤ 1 on supp({−1 ≤ u ≤ 0})
w = 0
on supp({0 < u ≤ 1}),
then v is still between −1 and 1 and
Z
Z
wp dx +
0 ≥ hv − u, pi2 =
{u=−1}
wp dx =
Z
wp dx.
{u=−1}
{u=1}
Because w is arbitrary and positive on {u = −1} it follows that p ≤ 0 a.e. on {u = −1}.
If we choose now v = u + w with w is an arbitrary bounded function with

w = 0
on supp({−1 ≤ u ≤ 0})
−1 ≤ w ≤ 0 on supp({0 < u ≤ 1}),
then v is still between −1 and 1 and
Z
Z
wp dx +
0 ≥ hv − u, pi2 =
{u=−1}
wp dx =
Z
wp dx.
{u=1}
{u=1}
Analogously to before, since w is arbitrary and negative on {u = 1} it follows that p ≥ 0
a.e. on {u = 1}.
On the other hand assume that
p=0
a.e. on supp({|u| < 1})
p≤0
a.e. on supp({u = −1})
p≥0
a.e. on supp({u = 1}).
We need to verify the subgradient property
hv − u, pi2 ≤ χ1 (v) − χ1 (u) = χ1 (v) for all v ∈ Lr (Ω)
only for χ1 (v) = 0, since it is trivial for χ1 (v) = ∞. So let v ∈ Lr (Ω) be a function
between −1 and 1 almost everywhere on Ω. Then with p as above we obtain
Z
Z
p(v − u) dx
p(v − u) dx +
hv − u, pi2 =
{u=1}
{u=−1}
Z
Z
p(v − 1) dx.
p(v + 1) dx +
=
{u=1}
{u=−1}
Since −1 ≤ v ≤ 1 the first and the second term are always ≤ 0 since p ≤ 0 for {u = −1}
and p ≥ 0 for {u = 1} respectively. Therefore hv − u, pi2 ≤ 0 and we are done.
53
2.2 TV-H−1 Inpainting
2.2.4
Error Estimation and Stability Analysis With the Bregman Distance
In the following analysis we want to present estimates for both the error we actually
make in inpainting an image with our TV-H−1 approach (2.27) (see (2.40)) and for the
stability of solutions for this problem (see (2.41)) in terms of the Bregman distance.
This section is motivated by the error analysis for variational models in image restoration with Bregman iterations in [BRH07], and the error estimates for inpainting models
developed in [CK06]. In [BRH07] the authors consider among other things the general
optimality condition
p + λ0 A∗ (Au − fdam ) = 0,
(2.33)
where p ∈ ∂R(u) for a regularizing term R, A is a bounded linear operator and A∗ its
adjoint. Now the error that is to be estimated depends on the form of smoothing of
the image contained in (2.33). Considering this equation one realizes that smoothing
consists of two steps. The first is created by the operator A which depends on the
image restoration task at hand, and actually smooths the subgradient p. The second
smoothing step is the one which is directly implied by the regularizing term, i.e., its
subgradient p, and depends on the relationship between the primal variable u and the
dual variable p. A condition that represents this dual smoothing property of functions,
i.e., subgradients, is the so-called source condition. Letting ftrue be the original image,
the source condition for ftrue reads
There exists ξ ∈ ∂R(ftrue ) such that ξ = A∗ q for a source element q ∈ D(A∗ ), (2.34)
where D(A∗ ) is the domain of the operator A∗ . It can be shown (cf. [BO05]) that this
is equivalent to requiring from ftrue to be a minimizer of
R(u) +
λ0
kAu − fdam k22
2
for arbitrary fdam ∈ D(A∗ ) and λ0 ∈ R. Now, the source condition has a direct
consequence for the Bregman distance, which gives rise to its use for subsequent error
analysis. To be more precise, the Bregman distance is defined as
p
(v, u) = R(v) − R(u) − hv − u, pi2 ,
DR
p ∈ ∂R(u).
Then, if ftrue fulfills the source condition with a particular subgradient ξ, we obtain
ξ
DR
(u, ftrue ) = R(u) − R(ftrue ) − hu − ftrue , ξi2 = R(u) − R(ftrue ) − hq, Au − Aftrue i2 ,
54
2.2 TV-H−1 Inpainting
and thus the Bregman distance can be related to both the error in the regularization
functional (R(u) − R(ftrue )) and the output error (Au − Aftrue ). For the sake of
symmetry properties in the sequel we shall consider the symmetric Bregman distance,
which is defined as
p2
p1
symm
(u1 , u2 ) = hu1 − u2 , p1 − p2 i2 ,
(u2 , u1 ) + DR
(u1 , u2 ) = DR
DR
pi ∈ ∂R(ui ).
Additionally to this error analysis we shall get a control on the inpainting error |u − ftrue |
inside the inpainting domain D by means of estimates from [CK06]. Therein the authors analyzed the inpainting process by understanding how the regularizer continues
level lines into the missing domain. The inpainting error was then determined by means
of the definition of an error region, smoothness bounds on the level lines, and quantities
taking into the account the shape of the inpainting domain. In the following we are
going to implement both strategies, i.e., [BRH07, CK06], in order to prove Theorem
2.2.7.
Proof of Theorem 2.2.7. Let fdam ∈ L2 (Ω) be the given damaged image with inpainting
domain D ⊂ Ω and ftrue the original image. We consider the stationary equation to
(2.27), i.e.,
− ∆p + λ(u − fdam ) = 0, p ∈ ∂T V (u),
(2.35)
where T V (u) is defined as in (2.28). More precisely T V (u) is interpreted as a functional
over L2 (Ω),

|Du| (Ω) if u ∈ BV (Ω), kuk ∞ ≤ 1
L
T V (u) =
+∞
otherwise.
In the subsequent we want to characterize the error we make by solving (2.35) for u,
i.e., how large do we expect the distance between the restored image u and the original
image ftrue to be.
Now, let ∆−1 be the inverse operator to −∆ with zero Dirichlet boundary conditions
as before. In our case the operator A in (2.33) is the embedding operator from H01 (Ω)
into H −1 (Ω) and stands in front of the whole term A(u − fdam ), cf. (2.35). The adjoint
operator is A∗ = ∆−1 which maps H −1 (Ω) into H01 (Ω). We assume that the given
image fdam coincides with ftrue outside of the inpainting domain, i.e.,
fdam = ftrue in Ω \ D
fdam = 0
in D.
55
(2.36)
2.2 TV-H−1 Inpainting
Further we assume that ftrue satisfies the source condition (2.34), i.e.,
There exists ξ ∈ ∂T V (ftrue ) such that ξ = ∆−1 q for a source element q ∈ H −1 (Ω).
(2.37)
For the following analysis we first rewrite (2.35). For û, a solution of (2.35), we get
p̂ + λ0 ∆−1 (û − ftrue ) = ∆−1 [(λ0 − λ)(û − ftrue )] ,
p̂ ∈ ∂T V (û).
Here we replaced fdam by ftrue using assumption (2.36). By adding a ξ ∈ ∂T V (ftrue )
from (2.37) to the above equation we obtain
λ
−1
−1
(û − ftrue )
p̂ − ξ + λ0 ∆ (û − ftrue ) = −ξ + λ0 ∆
1−
λ0
Taking the duality product with û − ftrue (which is just the inner product in L2 (Ω) in
our case) we get
(û, ftrue ) + λ0 kû − ftrue k2−1 = ∇ξ, ∇∆−1 (û − ftrue ) 2
DTsymm
V
λ
,
(û − ftrue ), û − ftrue
1−
+ λ0
λ0
−1
where
DTsymm
(û, ftrue ) = hû − ftrue , p̂ − ξi2 ,
V
p̂ ∈ ∂T V (û), ξ ∈ ∂T V (ftrue ).
An application of Young’s inequality yields
DTsymm
(û, ftrue )
V
2
λ
1
λ0
2
2
kû − ftrue k−1 ≤
kξk1 + λ0 1 −
+
(2.38)
(û − ftrue )
2
λ0
λ0
−1
For the last term we obtain
λ
1 − λ v = sup
v
φ, 1 −
λ0
λ0
φ,kφk−1 =1
−1
−1
λ
−1
= sup − ∆ φ, 1 −
v
λ0
φ,kφk−1 =1
2
λ
= sup −
1−
∆−1 φ, v
λ0
φ,kφk−1 =1
2
λ
−1
≤Hölder kvk2 · sup 1 − λ0 ∆ φ .
φ,kφk−1 =1
2
56
2.2 TV-H−1 Inpainting
With ∆−1 : H −1 → H 1 ֒→ Lr , 2 < r < ∞ we get
Z Ω
λ
1−
λ0
∆
−1
2
Z
dx =
φ
D
=choose
i.e.
q= 2r
|D|
r−2
r
∆
−1
1
2
φ dx ≤Hölder |D| q′ ·
Z
∆
−1
Ω
2q
φ
1
q
2
r−2
r−2
· ∆−1 φr ≤H 1 ֒→Lr C|D| r kφk2−1 = C|D| r ,
2
2
1 − λ v ≤ C|D| r−2
r kvk .
2
λ0
−1
(2.39)
Applying (2.39) to (2.38) we see that
(û, ftrue ) +
DTsymm
V
λ0
1
kû − ftrue k2−1 ≤
kξk21 + Cλ0 |D|(r−2)/r kû − ftrue k22 .
2
λ0
To estimate the last term we use some error estimates for TV inpainting computed in
[CK06]. First we have
Z
Z
2
2
(û − ftrue ) dx + (û − ftrue )2 dx.
kû − ftrue k2 =
D
Ω\D
Since û − ftrue is uniformly bounded in Ω (this follows from the L∞ bound in the
definition of T V (u)) we estimate the first term by a positive constant K1 and the
second term by the L1 norm over D. We obtain
Z
|û − ftrue | dx.
kû − ftrue k22 ≤ K1 + K2
D
Now let û ∈ BV (Ω) be given by û = us + ud , where us is a smooth function and ud is
a piecewise constant function. Following the error analysis in [CK06, Theorem 8.] for
functions û ∈ BV (Ω) we have
kû − ftrue k22 ≤ K1 + K2 err(D)
≤ K1 + K2 |D| C (M (us ), β) + 2 R(ud ) ,
where M (us ) is the smoothness bound for us , β is determined from the shape of D,
and the error region R(ud ) is defined from the level lines of ud . Note that in general the
error region from higher-order inpainting models including the TV seminorm is smaller
than that from TV-L2 inpainting (cf. [CK06, Section 3.2.]).
Finally we end up with
DTsymm
(û, ftrue ) +
V
1
λ0
kû − ftrue k2−1 ≤
kξk21 + Cλ0 |D|(r−2)/r errinpaint ,
2
λ0
57
(2.40)
2.2 TV-H−1 Inpainting
with
errinpaint := K1 + K2 |D| C (M (us ), β) + 2 R(ud ) .
The first term in (2.40) depends on the regularizer T V , and the second term on the
size of the inpainting domain D.
Remark 2.2.13. From inequality (2.40) we derive an optimal scaling for λ0 , i.e., a
scaling which minimizes the inpainting error. It reads
λ20 |D|
r−2
r
∼1
and therefore
λ0 ∼ |D|−
r−2
2r
.
p
In two space dimensions r can be chosen arbitrarily big, which gives λ0 ∼ 1/ |D| as
the optimal order for λ0 .
Stability estimates for (2.35) can also be derived with an analogous technique. For
ui being the solution of (2.35) with fdam = fi (again assuming that fi = ftrue in Ω \ D),
the estimate
DJsymm (u1 , u2 )
λ0
λ0
ku1 − u2 k2−1 ≤
+
2
2
Z
D
(f1 − f2 )2 dx
(2.41)
holds.
2.2.5
Numerical Results
In this section numerical results for the TV-H−1 inpainting approach (2.27) are presented. The numerical scheme used is discussed in detail in Section 4.1, and in particular in Section 4.1.3 (see also [SB09, BHS08]).
In Figures 2.3–2.6 examples for the application of TV-H−1 inpainting to grayvalue
images are shown. q
In all examples the total variation |∇u| is approximated by its
regularized version |∇u|2 + δ with δ = 0.01 and the time stepsize τ is chosen to be
equal to 1. In Figure 2.4 a comparison of the TV-H−1 inpainting result with the re-
sult obtained by the second-order TV-L2 inpainting model for a crop of the image in
Figure 2.3 is presented. The superiority of the fourth-order TV-H−1 inpainting model
to the second-order model with respect to the desired continuation of edges into the
missing domain is clearly visible. Other examples which support this claim are presented in Figures 2.5 and 2.6 where the line is connected by the TV-H−1 inpainting
58
2.2 TV-H−1 Inpainting
model but clearly split by the second-order TV-L2 model. It would be interesting to
strengthen this numerical observation with a rigorous result as it was done in [BEG07b]
for Cahn-Hilliard inpainting, cf. (2.2). The author considers this as another important
contribution of future research.
Figure 2.3: TV-H−1 inpainting: u(1000) with λ0 = 103
Figure 2.4: (l.) u(1000) with TV-H−1 inpainting, (r.) u(5000) with TV-L2 inpainting
Figure 2.5: TV-H−1 inpainting compared to TV-L2 inpainting: u(5000) with λ0 = 10
59
2.3 Inpainting with LCIS
Figure 2.6: TV-H−1 inpainting compared to TV-L2 inpainting: u(5000) with λ0 = 10
2.3
Inpainting with LCIS
Another higher-order inpainting model proposed in [SB09] is inpainting with LCIS (low
curvature image simplifiers). This approach is motivated by two famous second-order
nonlinear PDEs in image processing, the work of Rudin, Osher and Fatemi [ROF92]
and Perona & Malik [PM90]. These methods are based on a nonlinear version of the
heat equation
ut = ∇ · (g(|∇u|)∇u),
in which g is small in regions of sharp gradients. LCIS represent a fourth-order relative
of these nonlinear second-order approaches. They have been proposed in [TT99] and
later used by Bertozzi and Greer in [BG04] for the denoising of piecewise linear signals.
Related fourth-order equations, combining diffusion and convection, have been studied by the latter authors in [GB04a, GB04b]. In [SB09] we consider LCIS for image
inpainting. With f ∈ L2 (Ω) our inpainted image u evolves in time as
ut = −∇ · (g(∆u)∇∆u) + λ(f − u),
with thresholding function g(s) =
1
1+s2
and λ is defined as the indicator function of
Ω \ D multiplied by a constant λ0 ≫ 1, as in the previous two sections. Note that with
60
2.3 Inpainting with LCIS
g(∆u)∇∆u = ∇(arctan(∆u)) the above equation can be rewritten as
ut = −∆(arctan(∆u)) + λ(f − u).
(2.42)
Using the second derivative of the arctangent as a regularizing term, spikes in the
initial signal are preserved versus step functions are diffused (cf. [BG04]). This means
that solutions of this equation are piecewise linear functions and not piecewise constant
functions as the ones produced by the TV model [ROF92]. Introducing a regularizing
parameter 0 < δ ≤ 1 in G′ (y) = arctan(y/δ) we are able to control the smoothing
effect. Namely, the smaller δ the less diffusive the equation will be.
In [BG04] the authors prove regularity of solutions of (2.42) for the case λ(x) ≡ λ0
in all of Ω. Namely they show that for smooth initial data u(., t = 0) = u0 and smooth
data f a unique smooth solution exists, globally in time in one space dimension and
locally in time in two dimensions. For numerical purposes it is sufficient to have wellposedness and certain regularity properties of (2.42) on a finite time interval. Although
the difference between the equation in [BG04] and our inpainting equation (2.42) is that
the fidelity term is discontinuous, the results in [BG04] suggest its validity also in this
case. Nevertheless a rigorous analysis of the LCIS inpainting equation is still open for
future research.
2.3.1
Numerical Results
In this section numerical results for the LCIS inpainting approach (2.42) are presented.
The numerical scheme used is discussed in detail in Section 4.1, and in particular in
Section 4.1.4 (cf. also [SB09]).
For the comparison with TV-H−1 inpainting we apply (2.42) to the same image as
in Section 2.2.5. This example is presented in Figure 2.7. In Figure 2.8 the LCIS
inpainting result is compared with TV-H−1 - and TV-L2 inpainting, for a small part in
the given image. Again the result of this comparison indicates the continuation of the
gradient of the image function into the inpainting domain. A rigorous proof of this
observation is a matter of future research.
61
2.4 The Inpainting Mechanisms of Transport and Diffusion - A Comparison
Figure 2.7: LCIS inpainting u(500) with δ = 0.1 and λ0 = 102 .
Figure 2.8: (l.) u(1000) with LCIS inpainting, (m.) u(1000) with TV-H−1 inpainting,
(r.) u(5000) with TV-L2 inpainting
2.4
The Inpainting Mechanisms of Transport and Diffusion - A Comparison
In [CKS02] the authors gave an interpretation of Euler’s elastica inpainting in terms of
the mechanisms of transport and diffusion. More precisely, they derived the optimality
condition for elastica minimizing curves, and compared it with the transport equation
of Bertalmio et al. [BSCB00] and the CDD inpainting approach of Chan and Shen
[CS01c]. Thereby the optimality condition for elastica minimizing curves, or preferably
the corresponding flux field, shows a natural decomposition into its normal and tangent
field, cf. Theorem 2.4.1.
In this section we want to make a similar analysis for TV-H−1 inpainting and inpainting with LCIS, presented in Section 2.2 and Section 2.3 respectively. To do so, let
us briefly recall the results from [CKS02].
62
2.4 The Inpainting Mechanisms of Transport and Diffusion - A Comparison
Euler’s Elastica Inpainting
For the following statement we assume that the image u is smooth enough and that
the curvature κ is well defined as
κ=∇·
∇u
|∇u|
.
Then the authors of [CKS02] proved the following theorem.
Theorem 2.4.1. [CKS02, Theorem 5.1.] Let φ ∈ C 1 (R, (0, ∞)) be given and
Z
φ(κ)|∇u| dx.
R(u) =
Ω
Then the gradient descent time marching is given by
∂u(x, t)
~ (x, t),
=∇·V
∂t
x ∈ Ω, t > 0,
with the boundary conditions along ∂Ω
∂u
= 0,
∂ν
∂(φ′ (κ)|∇u|)
= 0,
∂ν
~ is given by
where ν denotes the outward pointing normal on ∂Ω. The flux field V
~ = φ(κ)~n −
V
~t ∂(φ′ (κ)|∇u|)
.
|∇u|
∂~t
Here ~n is the ascending normal field ∇u/|∇u|, and ~t is the tangent field (whose exact
orientation does not matter due to the parity of ~t in the expression).
In particular, for the elastica inpainting model with
Z
R(u) = (a + bκ2 )|∇u| dx
Ω
Theorem 2.4.1 gives the following.
Corollary 2.4.2. [CKS02, Corollary 5.3.] For the elastica inpainting model, the gradient descent is given by
∂u(x, t)
~ (x, t) − λ(u(x) − u0 (x)),
=∇·V
∂t
x ∈ Ω, t > 0,
with the boundary conditions as in Theorem 2.4.1 and
~ = (a + bκ2 )~n − 2b ∂(κ|∇u|) ~t.
V
|∇u|
∂~t
63
2.4 The Inpainting Mechanisms of Transport and Diffusion - A Comparison
To see the connection to the inpainting models of Bertalmio et al. [BSCB00]
and Chan and Shen [CS01c], let us recall them briefly. These two inpainting models have been already presented in the introduction of this work, i.e., in Section 1.3.1.
Bertalmio’s approach is based on solving the following transport equation inside of the
inpainting domain D,
∂u
= ∇⊥ u · ∇L(u),
∂t
where ∇⊥ = (−uy , ux ) = |∇u|~t, and L(u) can be any smoothness measure of the image
u. For their numerical experiments the authors in [BSCB00] chose L(u) = ∆u, the
Laplacian of u. For the equilibrium state the equation reads
~t · ∇L(u) = 0,
i.e.,
∂L(u)
= 0,
∂~t
which means that the smoothness measure remains constant along any completed level
line. In other words, assuming available boundary data, boundary smoothness gets
transported along the level lines into the missing domain.
Orthogonal to this idea of smoothness transport along level lines, Chan and Shen
proposed the CDD inpainting model in [CS01c], i.e.,
∂u
g(κ)
=∇·(
∇u),
∂t
|∇u|
where g : B → [0, +∞) is a continuous function with g(0) = 0 and g(±∞) = +∞,
and B equals, e.g., C 2 (Ω). The function g penalizes large curvatures, and encourages
diffusion when the curvature is small. This model diffuses the image contents across the
level lines (since ∇u/|∇u| is the normal vector to the level lines!), which is completely
orthogonal to the behavior of the Bertalmio et al. approach.
Now, in [CKS02] the authors showed that the Euler elastica inpainting model unifies
~ for the inpainting energy
these two mechanisms. Theorem 2.4.1 says that the flux V
consists of two components, the normal part
~nEuler = φ(κ) · ~n,
V
and the tangential part
′
~tEuler = − 1 ∂(φ (κ)|∇u|) · ~t.
V
|∇u|
∂~t
We immediately see that the normal flux corresponds to the flux of the CDD inpainting
equation with g(κ) = φ(κ). By rewriting the tangential component, we see that this
64
2.4 The Inpainting Mechanisms of Transport and Diffusion - A Comparison
corresponds to the Bertalmio flux with a special smoothness measure. In fact it turns
out that the tangential component of the Euler’s elastica flux corresponds to the scheme
of Bertalmio with smoothness measure
LEuler
=
φ
−1 ∂(φ′ (κ)|∇u|)
.
|∇u|2
∂~t
This measure can be further rewritten in a way which makes its connection to the
Laplacian visible. In the case φ(s) = |s| we get
LEuler
=
φ
±1
[∇ × ∇u](~n, ~t),
|∇u|2
which closely resembles Bertalmio’s choice of the Laplacian, which can written as
LBertalmio (u) = ∆u = tr(∇ × ∇u) = [∇ × ∇u](~n, ~n) + [∇ × ∇u](~t, ~t).
TV-H−1 Inpainting
Now we want to do a similar analysis for TV-H−1 inpainting. The gradient descent of
the TV-H−1 inpainting regularizer is given by
∇u
∇u
∂u(x, t)
= −∆ ∇ ·
= ∇ · −∇ ∇ ·
,
∂t
|∇u|
|∇u|
with flux field
∇u
T V −H −1
~
.
V
= −∇ ∇ ·
|∇u|
Now to write this flux as the sum of its normal and tangential component we project
it both onto the normal and the tangential direction and use the fact that the sum of
these projections gives the identity, i.e.,
~n ⊗ ~n + ~t ⊗ ~t = Id,
where ⊗ denotes the tensor product. With this the steepest descent for TV-H−1 inpainting
reads
∂u(x, t)
∂t
= ∇ · (−∇κ)
= ∇ · −∇κ(~t ⊗ ~t + ~n ⊗ ~n)
∂κ ~ ∂κ
~n
.
= ∇· −
t+
∂~n
∂~t
65
2.4 The Inpainting Mechanisms of Transport and Diffusion - A Comparison
Now we want to compare the normal and the tangential component with the components of the Euler’s elastica inpainting approach and with the approaches of CDD and
Bertalmio et al respectively. Let us start with the normal part of the TV-H−1 flow,
which reads
∂κ
T V −H −1
~
∇ · Vn
= ∇ · − ~n .
∂~n
At the same time the normal part in Euler’s elastica is
~nEuler = ∇ · (φ(κ)~n),
∇·V
or more specifically
~nEuler = ∇ · ((a + bκ2 )~n),
∇·V
and the CDD flux reads
~ CDD = ∇ · (g(κ)~n).
∇·V
Note that the strength of the diffusion in all three approaches depends on the size of
the diffusivity constant. This is, in the case of TV-H−1 inpainting D =
−∂κ/∂~
n
|∇u| ,
the
diffusion depends on the change of the curvature across the level lines. The larger the
curvature changes across the level lines, the more diffusive this approach is. Thereby
the sign of the diffusion depends on the sign of the covariant derivative (forward or
backward diffusion!). In particular this means that there is no diffusion in areas of the
image with homogeneous grayvalue and strong diffusion of edge information into the
missing domain.
~ . For TV-H−1 inpainting
Next we do the same for the tangential component in V
this reads
~ T V −H −1
∇·V
t
∂κ ~
= ∇· − t
∂~t
∂κ −1
⊥
= ∇·
·∇ u
∂~t |∇u|
−1 ∂κ
⊥
= ∇ u·∇
,
|∇u| ∂~t
since ∇⊥ u is divergence-free. This corresponds to the scheme of Bertalmio with smoothness measure
−1 ∂κ
,
|∇u| ∂~t
whereas Euler’s elastica tangent component has the smoothness measure
−2b ∂(κ|∇u|)
LEuler (u) =
.
|∇u|2
∂~t
LT V −H
−1
(u) =
66
2.4 The Inpainting Mechanisms of Transport and Diffusion - A Comparison
LCIS Inpainting
The steepest descent for the LCIS regularizer reads
∂u(x, t)
~ LCIS = ∇ · (−g(∆u)∇∆u).
=∇·V
∂t
Taking g(s) = 1/(1 + s2 ), the divergence of the flux changes to
~ LCIS = ∇ · (∇(arctan(∆u))).
∇·V
Similarly as for Euler’s elastica inpainting and the TV-H−1 approach, we split the flux
of LCIS into its normal and tangential component and compare it with CDD and
Bertalmio et al.’s approach respectively. For the normal component we get
~nLCIS = ∇ · − ∂arctan(∆u) ~n ,
∇·V
∂~n
i.e., the normal flux diffuses the grayvalues with diffusivity constant
D=−
∂arctan(∆u) 1
.
∂~n
|∇u|
Next we compare the tangential component of LCIS with Bertalmio’s approach. The
divergence of the tangential flux of LCIS reads
∂arctan(∆u)
LCIS
~t
~t
∇·V
= ∇· −
∂~t
∂arctan(∆u) 1
⊥
= ∇· −
∇ u
|∇u|
∂~t
∂arctan(∆u) 1
= ∇⊥ u · ∇ −
.
|∇u|
∂~t
This reassembles Bertalmio’s smoothness transport along the level lines with smoothness measure
∂arctan(∆u) 1
|∇u|
∂~t
1
∂(∆u)
1
= −
2
|∇u| 1 + (∆u)
∂~t
LLCIS (u) = −
67
2.4 The Inpainting Mechanisms of Transport and Diffusion - A Comparison
Bertalmio et al.’s transport
Cahn and Shen’s CDD
Euler’s elastica
TV-H−1
LCIS
~n
∇·V
L(u)
∂κ
∇ · (− ∂~
n)
n~
−2b ∂(κ|∇u|)
|∇u|2
∂~t
−1 ∂κ
|∇u| ∂~t
∂(∆u)
1
1
− |∇u|
.
1+(∆u)2 ∂~t
0
∇ · (g(κ)~n)
∇ · ((a + bκ2 )~n)
∇ · (− ∂arctan(∆u)
~n)
∂~
n
∆u
0
~n (which represents the diffusive
Table 2.1: A comparison of the normal flux field V
part of the flux), and the smoothness measure L(u), which is transported along the
tangential flux, for all discussed inpainting approaches
Summary and Numerical Results
In Tabular 2.1 we summarize the comparison of the flux field of the discussed inpainting
approaches.
For a better understanding of the derived geometric properties of TV-H−1 inpainting
and inpainting with LCIS we present a comparison of those with Euler’s elastica inpainting for the inpainting of a straight line in Figure 2.9. For all three inpainting
approaches several intermediate steps of the iteration (evolution) are shown. The processes seem quite similar. First the inpainting domain is filled in where homogeneous
boundary condition are given, i.e., the intensity values are transported into the inpainting domain very fast. At the edges (black/white boundary) the evolution takes a longer
time until the edge is continued. Note that at the edge the change of the curvature in
normal direction is equal to 0. It becomes nonzero when approaching the boundary of
the inpainting domain in between the two edges.
68
2.4 The Inpainting Mechanisms of Transport and Diffusion - A Comparison
Solution of TV−H−1 inpainting at iteration=100
Solution of LCIS inpainting at iteration=6
Solution of TV−H−1 inpainting at iteration=900
Solution of LCIS inpainting at iteration=120
Solution of TV−H−1 inpainting at iteration=3000
Solution of LCIS inpainting at iteration=1200
Figure 2.9: A comparison of the evolution of TV-H−1 inpainting, inpainting with LCIS,
and Euler’s elastica inpainting at three different time steps: (l.) the evolution of TVH−1 inpainting at time steps t = 100, 900, and 3000; (m.) the evolution of LCIS
inpainting at time steps t = 6, 120, and 1200; (r.) the evolution of Euler’s elastica
inpainting at time steps t = 1200, 3000, and 30000.
69
Chapter 3
Analysis of Higher-Order
Equations
The study of higher-order PDEs is still very young and therefore their theoretical
analysis poses challenging problems. In this chapter we are especially interested in
analytic properties of higher-order flows, i.e., PDEs of fourth differential order, that
arise in image inpainting. In Section 3.1 we study the Cahn-Hilliard equation, which
we already have discussed in the context of its inpainting application in Section 2.1. In
particular we study instabilities of the Cahn-Hilliard equation and their connection to
the Willmore functional. This work has been developed in collaboration with Martin
Burger, Shun-Yin Chu, and Peter Markowich, and has been published in [BCMS08].
Section 3.2 is dedicated to the analysis of higher-order nonlocal evolution equations.
This is based on joint work with Julio Rossi, cf. [RS09]. Nonlocal flows have been
recently proposed for inpainting of texture images in [GO07] and are therefore within
the scope of the present work.
3.1
Instabilities of the Cahn-Hilliard Equation and the
Willmore Functional
In this section we are interested in the finite-time stability of transition solutions of
the Cahn-Hilliard equation and its connection to the Willmore functional. We shall
present the results from [BCMS08]. Therein we show that the Willmore functional
locally decreases or increases in time in the linearly stable or unstable case respectively.
70
3.1 Instabilities in the Cahn-Hilliard Equation
This linear analysis explains the behavior near stationary solutions of the Cahn-Hilliard
equation. We perform numerical examples in one and two dimensions and show that in
the neighborhood of transition solutions local instabilities occur in finite time. Beside
that we show convergence of solutions of the Cahn-Hilliard equation for arbitrary dimension to a stationary state by proving asymptotic decay of the Willmore functional
in time.
We consider the Neumann problem for the Cahn-Hilliard equation,

x ∈ Ω,
 ut = ∆ −ǫ2 ∆u + F ′ (u)
 ∂u = ∂ (−ǫ2 ∆u + F ′ (u)) = 0, x ∈ ∂Ω,
∂n
∂n
(3.1)
with Ω ⊆ Rd a bounded domain and d ≥ 1, though we shall focus primarily on the
cases d = 1 and 2. F is a double-well potential with F ′ (u) = 12 (u3 − u) and 0 < ǫ ≪ 1
is a small parameter. Note that the function F ′ is of bistable type. Considering
only constant solutions u = c of (3.1), these are classified in the following way. If
F ′′ (u) < 0 then u corresponds to the so-called spinodal interval (|u| <
√1 )
3
and it is
an unstable stationary state. Otherwise u corresponds to the metastable intervals (i.e.
u ∈ (−1, − √13 ) or u ∈ ( √13 , 1)) and is asymptotically stable, see [Fi00] for a detailed
description.
The Cahn-Hilliard equation
The Cahn-Hilliard equation is a classic model for phase separation and subsequent phase
coarsening of binary alloys. There the solution u(x, t) represents the concentration of
one of the two metallic components of the alloy. For further information about the
physical background of the Cahn-Hilliard equation we refer, for instance, to [CH58,
Pe89, PF90, Gu88]. Numerical studies about the behavior of solutions of (3.1) can be
found, e.g., in [EF87, FP05, MF05].
Solutions of (3.1) have a time-conserved mean value
Z
Z
u(x, t = 0)dx, for all t > 0.
u(x, t)dx =
(3.2)
Ω
Ω
A way of deriving equation (3.1) has been suggested by Fife in [Fi00]. One takes the
Ginzburg-Landau free energy
E[u](t) =
Z Ω
ǫ2
2
|∇u(x, t)| + F (u(x, t)) dx
2
71
(3.3)
3.1 Instabilities in the Cahn-Hilliard Equation
and looks for constrained (mass-conserving) gradient flows of this functional. The
Cahn-Hilliard equation (3.1) is obtained by taking the gradient flow of (3.3) in the sense
of the H −1 (Ω) inner product, cf. Section 2.1.3. The mass constraint is a consequence
of the natural boundary conditions for (3.1).
Using the ideas of [Ha88] it is not hard to see that the Cahn-Hilliard equation
possesses a global attractor. Zheng proved in [Zh86] convergence to equilibria for
solutions of (3.1) in two and three dimensions. In [RH99] the authors proved that
solutions of the Cahn-Hilliard equation converge to equilibria in dimensions d = 1, 2 and
3. In one space dimension the equilibria are isolated [NST89] and the global attractor
is finite-dimensional. Further Grinfeld and Novick-Cohen give a full description of
the stationary solutions of the viscous Cahn-Hilliard equation in one space dimension,
compare [GN95, GN99]. So far equilibria have been determined and their properties
studied only in the one dimensional case. It is a major problem characterizing the
equilibria in more than one dimension. The reason is that the limit set of the solutions
can be large. However, some papers as [WW98a, WW98b, WW98c, FKMW97, CK96]
still provide certain special types of equilibrium solutions.
A special type of stationary solutions of (3.1) are so-called transition solutions,
which continuously connect the two stable equilibria -1 and 1. In one dimension the
x
so-called kink solution u0 = tanh 2ǫ
is such a stationary solution of the Cahn-Hilliard
equation. The radially-symmetric analogue in two dimensions are the so-called bubble
solutions. In [BK90] asymptotic stability was shown for the kink solution for fixed
ǫ = 1, i.e. small perturbations of u0 in some suitable norm will decay to zero in time.
Further studies for the one-dimensional case describe the motion of transition layers,
compare [ABF91, BH92, BX94, Gr95]. In [AF94] Alikakos and Fusco proved spectral
estimates of the linearized fourth-order Cahn-Hilliard operator in two dimensions near
bubble solutions. Some of their results are discussed later in Section 3.1.2.
In this section we investigate the stability of transition solutions of the Cahn-Hilliard
equation in finite time and its connection to the Willmore functional.
The backward second-order diffusion (for |u| <
√1 )
3
in the equation gradually ef-
fects the solution, which can result in phenomena like local instabilities or oscillating
patterns, controlled by the fourth-order term on scales of order ǫ. We are going to show
that in the neighborhood of transition solutions small instabilities occur in finite time.
72
3.1 Instabilities in the Cahn-Hilliard Equation
In general it is natural to study stationary solutions of the Cahn-Hilliard equation by
analyzing the energy functional (3.3). The energy functional decreases in time since
Z
d
|∇(−ǫ2 ∆u(x, t) + F ′ (u(x, t)))|2 dx = 0.
(3.4)
E[u](t) +
dt
Ω
Because of this monotonicity the energy functional is not suitable for the study of local
(in space and time) behavior of the Cahn-Hilliard equation. Instead we present analytical and numerical evidence that the numerically observed instabilities are connected
with the evolution of the Willmore functional.
The Willmore functional
The Willmore functional of the Cahn-Hilliard equation (3.1) is given by
Z
1
1
W [u](t) =
(ǫ∆u(x, t) − F ′ (u(x, t)))2 dx,
4ǫ Ω
ǫ
(3.5)
and is used to describe the geometric boundary of two different stable states and the
movement of curves under anisotropic flows. It has its origin in differential geometry,
where it appears as a phase field approximation for solutions of the so-called Willmore
problem [Wi93]. The Willmore problem is to find a surface Γ in an admissible class
R
embedded in R3 which minimizes the mean curvature energy Γ H 2 dS under certain
constraints on the surface, where H = (κ1 + κ2 )/2 is the mean curvature and κ1 , κ2
are the principal curvatures of Γ. For the analytical and computational modeling of
a minimizing surface of the Willmore problem the phase field method is considered
among other approaches. In [DLRW05] the authors consider solutions of a constrained
√ + ǫh with fixed mass and
minimization problem for (3.5) of the form uǫ (x) = tanh d(x)
2ǫ
fixed energy (3.3) where d is the signed distance function to the zero level set of uǫ
and h is an arbitrary function in C 2 (Ω) independent of ǫ. They show that the level
sets {uǫ = 0} converge uniformly to a critical point of the Willmore problem as ǫ → 0.
Furthermore, the authors of [RS06] considered a modified De Giorgi conjecture, i.e.,
they considered functionals Fǫ : L1 (Ω) → R for domains Ω ∈ R2 and R3 with
Fǫ [u](t) = E[u](t) + 4W [u](t)
if u ∈ L1 (Ω) ∩ W 2,2 (Ω) and Fǫ [u](t) = ∞ if u ∈ L1 (Ω) \ W 2,2 (Ω). They showed that
this sequence of functionals applied to characteristic functions χ = 2χE − 1 with E ⊂ Ω
73
3.1 Instabilities in the Cahn-Hilliard Equation
Γ− converges in L1 (Ω) as ǫ → 0 to a functional F [χ] given by
Z
n−1
|H∂E |2 dHn−1 .
F [χ](t) = σH
(∂E ∩ Ω) + σ
∂E∩Ω
Here σ =
R1 √
−1
2F (where F is the double well potential), H∂E denotes the mean
curvature vector of ∂E and Hn−1 is the n − 1 dimensional Hausdorff measure. This
result indicates that possible instabilities of (3.1) disappear for the limit ǫ → 0. We will
encounter this observation again in our numerical examples for small values of ǫ. For
additional considerations of Γ− limits of this type see [RT07], and especially [Ch96].
In [BCMS08] we use the Willmore functional to detect local instabilities in finite
time of transition solutions of (3.1) for small values of ǫ ≪ 1. As said above, in one
√ . In two
space dimension they are given by the kink solutions of the form tanh d(x)
2ǫ
dimensions we consider their radially-symmetric analogues called bubble solutions.
To get an insight into the behavior of the Willmore functional for solutions of (3.1)
we study the asymptotic limit of solutions of the Cahn-Hilliard equation for arbitrary
space dimension d ≥ 1 by showing asymptotic decay of the Willmore functional in time.
Asymptotic behavior
In Section 3.1.1 we study the asymptotic limit of solutions of the Cahn-Hilliard equation
for arbitrary space dimension d ≥ 1 by showing asymptotic decay of the Willmore
functional in time. The main challenge of our proof of convergence is that we avoid
the use of the Lojasiewicz inequality as say, in [RH99]. It was shown in [Lo93] that
gradient flows in Rd (and even in L2 , compare [Si83]) fulfill the Lojasiewicz inequality
which implies convergence to equilibrium of solutions of the gradient system. For the
application to the Cahn-Hilliard equation it takes a serious effort to prove validity of the
Lojasiewicz inequality for gradient flows in H −1 , as proved in [RH99]. We circumvent
this difficulty and prove the following Theorem.
Theorem 3.1.1. Let u be the solution of the Cahn-Hilliard equation with initial data
u0 = u0 (x), posed either as a Cauchy problem in Ω = Rd , d ≥ 1, or in a bounded
domain Ω with Neumann boundary conditions. We assume that
Z
F ′ (u)dx = 0 for all t > 0.
(3.6)
Ω
74
3.1 Instabilities in the Cahn-Hilliard Equation
For Ω = Rn further suppose that
( 2 0
ǫ ∆u − F ′ (u0 ) and ∇(ǫ2 ∆u0 − F ′ (u0 )) are
spatially exponentially decaying as |x| → ∞.
(3.7)
Then it follows that
lim W [u](t) = 0.
t→∞
Remark 3.1.2.
• Note that the assumption (3.6) in Theorem 3.1.1 is no restricR
tion on F. Since Ω F ′ (u)dx is a constant, we can rewrite the equation as
Z
1
2
′
F ′ (u)dx)
ut = ∆(−ǫ ∆u + F (u) −
|Ω| Ω
= ∆(−ǫ2 ∆u + f˜(u)),
with
R
1
|Ω|
R
Ω
˜
Ω f (u)dx
F ′ (u)dx.
= 0 where f˜(u) is equal to F ′ (u) shifted by the constant
In the case of Neumann boundary conditions it further follows
from (3.1) that
∂(−ǫ2 ∆u + f˜(u))
∂u
=
= 0.
∂n
∂n
Thus shifting F ′ (u) by a constant does not change the equation and the assumption
(3.6) is reasonable.
• Note further that condition (3.7) extends the exponential decay of the quantities
therein to solutions u(., t) for arbitrary times t > 0 due to the mass conservation
(3.2) of solutions of (3.1).
The challenge of proving convergence of the Willmore functional is that it is generally not monotone in time. To overcome this we construct a nonnegative functional
balancing the Willmore functional with the energy functional so that the strong decay
property of the energy plays the main role in controlling increasing parts appearing in
the Willmore functional.
Finite-time behavior
The next step is to analyze the behavior of the Willmore functional and its connection
to the behavior of solutions of (3.1) in finite time. For this sake we consider the
linearized Cahn-Hilliard equation. In fact the behavior of solutions of the nonlinear
equation is similar in the neighborhood of stationary solutions to that of the linear
equation. Sander and Wanner discussed in [SW00] that solutions of (3.1) which start
75
3.1 Instabilities in the Cahn-Hilliard Equation
near a homogeneous equilibrium and within the spinodal interval remain close to the
corresponding solution of the linearized equation with high probability (depending on
how likely it is to find an appropriate initial condition) for an unexpectedly long time.
In particular we are interested in instabilities that appear locally in both time
and space. To motivate this better let us consider the Cahn-Hilliard equation near a
constant equilibrium state ũ on the whole space Ω = Rd . Set u = ũ + δv, δ ∈ R small,
then the perturbation v fulfills in first approximation
vt = −ǫ2 ∆2 v + a∆v
in Rd , t > 0
in Rd ,
v(t = 0) = v0 (x)
with a = F ′′ (ũ) = 21 (3ũ2 − 1). The above equation reads after a Fourier transform
vˆt (ξ, t) = (−ǫ2 |ξ|4 − a |ξ|2 )v̂,
v̂(t = 0) = vˆ0 (ξ),
ξ ∈ Rd , t > 0
ξ ∈ Rd .
This equation can be explicitly solved:
v̂(ξ, t) = exp (− |ξ|2 (ǫ2 |ξ|2 + a)t)vˆ0 (ξ).
√
√
If a = F ′′ (ũ) < 0 (this means that ũ lies in the spinodal interval (−1/ 3, 1/ 3))
o
n
p
p
then v̂(ξ, t) → ∞ for ξ ∈ |ξ| < |a|/ǫ ∩ supp v̂0 , i.e. frequencies < |a|/ǫ become
amplified if they are present in the initial data. In our case we consider solutions
in the neighborhood of transition solutions, i.e. transition solutions perturbed where
they assume values from the spinodal interval. Referring again to [SW00] the linear
instability explained above is also valid for the nonlinear Cahn-Hilliard equation for a
finite time until the effect of the nonlinearity becomes strong enough to stabilize the
solution again. This results in instabilities local in space and time.
In Section 3.1.2 spectral estimates for transition solutions tracing back to Alikakos,
Bates and Fusco [ABF91, AF94] are presented for one and two dimensions. Further, the
important role of the Willmore functional for finite-time stability/instability analysis
for the Cahn-Hilliard equation is motivated. For ǫ fixed we linearize the Willmore
functional at a stationary solution of the Cahn-Hilliard equation (3.1) perturbed by
an eigenvector of the linearized Cahn-Hilliard operator. We show that the Willmore
76
3.1 Instabilities in the Cahn-Hilliard Equation
functional decreases in time for eigenvectors corresponding to a negative eigenvalue and
increases in the case of a positive eigenvalue. In other words
d
W [v](t) ≤ 0
dt
d
W [v](t) ≥ 0
dt
⇐⇒
λ < 0 ⇐⇒ linearly stable
⇐⇒
λ > 0 ⇐⇒ linearly unstable,
where v = ũ + δv0 , with ũ a stationary solution of (3.1) and v0 the eigenvector to
the eigenvalue λ of the linearized equation. Roughly speaking this means that linear
instabilities – which correspond to positive eigenvalues of the Cahn-Hilliard equation –
can be detected by considering the evolution of the Willmore functional.
In Section 3.1.3 we perform numerical computations for (3.1) near transition solutions in one and two dimensions. We remark that in the past 20 years numerical
approximations of the solutions of the Cahn-Hilliard equation – for purposes different
from ours – have been studied by many authors, see [FP04, FP05] for further references. We use a semi-implicit approximation in time and finite elements for the space
discretization. We start the computation at t = 0 with a transition solution perturbed
within its transition area with values from the spinodal interval of the equation. Motivated by the linear stability analysis of subsection 3.1.2, we discuss stability in terms
of the Willmore functional. We say a function u(x, t) shows an unstable behavior at
time 0 < t0 < ∞ if
d
W [u](t0 ) > 0.
dt
Conversely, we say the function u(x, t) is stable for all times 0 < t < t0 if
d
W [u](t) ≤ 0.
dt
3.1.1
Asymptotic Behavior
In this section we present the proof of Theorem 3.1.1 which will be split into several
lemmas and propositions.
In the following the long-time asymptotic behavior of solutions of the Cahn-Hilliard
equation is studied by exploring the Willmore functional. We consider the d-dimensional
case of the Cahn-Hilliard equation. All following arguments hold true both for the Neumann boundary problem and the Cauchy problem in Rd with certain conditions on the
spatial decay of the solutions. We start by introducing some useful properties of the
functionals in our setting of the stationary profile.
77
3.1 Instabilities in the Cahn-Hilliard Equation
Lemma 3.1.3. Let u be the solution of the Cahn-Hilliard equation as posed in Theorem
3.1.1. Then for any test function φ = φ(x, t) ∈ C0∞ (Ω × (0, ∞)) we have
d
dt
Z
φ(
Ω
Z
ǫ2
|∇u|2 + F (u)) dx +
φ|∇(ǫ2 ∆u − F ′ (u))|2 dx
2
Ω
Z
Z
ǫ2
1
2
∆φ(F ′ (u) − ǫ2 ∆u)2 dx
φt ( |∇u| + F (u)) dx +
=
2
2
Ω
ZΩ
2
−ǫ
∇(∇φ · ∇u) · ∇(ǫ2 ∆u − F ′ (u)) dx.
Ω
Lemma 3.1.4. Let u be the solution of the Cahn-Hilliard equation as posed in Theorem
3.1.1 then we have
Z
Z
1
1
d
(ǫ∆u − F ′ (u))2 dx + 2ǫ2
|∆(ǫ∆u − F ′ (u))|2 dx
dt Ω
ǫ
ǫ
Ω
Z
1
1
= 2 F ′′ (u)(ǫ∆u − F ′ (u))∆(ǫ∆u − F ′ (u))dx,
ǫ
ǫ
Ω
and
d
dt
Z
Z
1
1
(∆(ǫ∆u − F ′ (u)))2 dx + 2ǫ2 (∆2 (ǫ∆u − F ′ (u)))2 dx
ǫ
ǫ
Ω
Z Ω
1
1
= 2 F ′′ (u)∆(ǫ∆u − F ′ (u))∆2 (ǫ∆u − F ′ (u))dx.
ǫ
ǫ
Ω
The proofs of Lemma 3.1.3 and 3.1.4 are straightforward. Note that both lemmas
hold when Ω is a bounded domain as well as when Ω is unbounded, provided that
condition (3.7) from Theorem 3.1.1 holds.
Proposition 3.1.5. Let f, g ∈ C 1 ([0, ∞)) be nonnegative functions with g ′ (t) ≤ 0 ev′ +
erywhere, supp f ⊂ supp g, supt∈supp g fg and supt∈supp g (f g) bounded, where (f ′ )+ (t) =
max{f ′ (t), 0}. Under the same assumptions as in Theorem 3.1.1 and for a sufficiently
large constant C we have
Z
Z
i
1 ′
ǫ2
C
dh
2
f (t)(ǫ∆u − F (u)) dx + 2
g(t)( |∇u|2 + F (u))dx ≤ 0.
dt Ω
ǫ
ǫ Ω
2
In particular, ǫ3 W [u](t) + CE[u](t) ≤ ǫ3 W [u0 ] + CE[u0 ].
Proof. Consider the functional
Z
Z
1
ǫ2
C
f (t)(ǫ∆u − F ′ (u))2 dx + 2
U [u](t) =
g(t)( |∇u|2 + F (u))dx.
ǫ
ǫ Ω
2
Ω
78
3.1 Instabilities in the Cahn-Hilliard Equation
R
R
In the following we use the short form := Ω . By using the identity in Lemma 3.1.4
for the first term in U [u](t) and 3.1.3 for the second term we derive
Z
Z 2
1 ′
C ′
ǫ
d
′
2
U [u](t) = f (t) (ǫ∆u − F (u)) dx + 2 g (t)
|∇u|2 + F (u)dx
dt
ǫ
ǫ
2
h Z
1
1
+ f (t) 2 F ′′ (u)(ǫ∆u − F ′ (u))∆(ǫ∆u − F ′ (u))dx
ǫ
ǫ
Z
Z
i
C
1
− 2ǫ2 |∆(ǫ∆u − F ′ (u))|2 dx − 2 g(t) |∇(−ǫ2 ∆u + F ′ (u))|2 dx. (3.1)
ǫ
ǫ
For the case Ω = Rd we need the following Lemma to deal with the last term in (3.1).
Lemma 3.1.6 (modified Poincare inequality on Rd ). Let a > 0, C1 > 0, C2 > 0 be fixed
constants. Then there exists a positive constant C0 = C0 (a, C1 , C2 ) such that for any
functions f in
Z
1
d
f dx = 0, |f (x)| ≤ C1 e−a|x| |f |L2 ,
Va,C1 ,C2 = {f ∈ H (R ) :
Rd
′
|f (x)| ≤ C2 e−a|x| |f |L2 for x ∈ Rd },
we have
|f |L2 (Rd ) ≤ C0 |∇f |L2 (Rd ) .
Taking into account condition (3.7) for the spatial decay of the involved quantities
and by using Lemma 3.1.6 for Ω = Rd , the right side of (3.1) can be bounded by
Z
Cg(t) 1
′
+
(f (t)) −
(ǫ∆u − F ′ (u))2 dx
C0
ǫ
Z
1
1
′′
+ 2f (t) sup |F (u)| |ǫ∆u − F ′ (u)| · |∆(ǫ∆u − F ′ (u))|dx
ǫ
ǫ
|u|≤2
Z
1
C
− 2f (t)ǫ2 |∆(ǫ∆u − F ′ (u))|2 dx + 2 g ′ (t)E[u](t).
ǫ
ǫ
This term is non-positive when C is chosen to be large enough such that
Cg(t) (−2f (t)ǫ2 ) ≤ 0,
f (t)2 sup |F ′′ (u)|2 − (f ′ (t))+ −
C
0
|u|≤2
that is, choosing C >
C0 f (t)(sup|u|≤2 |F ′′ (u)|)2
2ǫ2 g(t)
+
C0 (f ′ (t))+
g(t)
for t ∈ supp g.
Remark 3.1.7. Note that the Poincare inequality on Rd is not valid in general. Conn+2
b
sider for example the function ha (x) = a 2b xe−a|x| with a > 0 and some fixed b > 0.
R 2
R ′2
2
Then ha dx = O(1) and ha dx = O(a b ) as a → 0+. Therefore
1
|h′a |L2
= O(a b ) → 0
|ha |L2
79
3.1 Instabilities in the Cahn-Hilliard Equation
as a tends to zero, which contradicts the Poincare inequality.
Finally we arrive at the proof of the main result of this section, Theorem 3.1.1.
Proof of Theorem 3.1.1. Step 1: Let

1+t

0 ≤ t ≤ 1,
 2 ,
f (t) =
2 − t, 1 ≤ t ≤ 2,


0,
t≥2
and
g(t) =
(
1, t ≤ 2,
.
0, t ≥ 3
Let C be a fixed constant chosen as in Proposition 3.1.5. The functional
C
g(t)E[u](t)
ǫ2
is decreasing in time and U [u](t = 1) ≤ U [u](t = 0). That is,
U [u](t) ≡ 4ǫf (t)W [u](t) +
C
1
C
E[u](t = 1) ≤ W [u](t = 0) + 3 E[u](t = 0).
3
4ǫ
2
4ǫ
Step 2: For each n ∈ N, setting f (t − n + 1) and g(t − n + 1) as in Proposition 3.1.5,
we can write down the same inequality as in the previous step but for n − 1 ≤ t ≤ n
and obtain
C
1
C
W [u](t = n) + 3 E[u](t = n) ≤ W [u](t = n − 1) + 3 E[u](t = n − 1).
(3.2)
4ǫ
2
4ǫ
Set αn = W [u](t = n). Then (3.2) can be rewritten as
Z n Z
1
C
αn ≤ αn−1 + 3
|∇(−ǫ2 ∆u + F ′ (u))|2 dxdt
2
4ǫ n−1 Ω
W [u](t = 1) +
where we used the decay property (3.4) of the energy functional.
Step 3: We want to show that αn tends to zero as n tends to infinity. By an iterative
argument we get
n
1
αn ≤
α0
2
Z Z
C 1 n−1 1
|∇(−ǫ2 ∆u + F ′ (u))|2 dxdt+
+ 3
4ǫ
2
0
Ω
n−2 Z 2 Z
1
|∇(−ǫ2 ∆u + F ′ (u))|2 dxdt
2
1
Ω
Z
Z
1 n−1
|∇(−ǫ2 ∆u + F ′ (u))|2 dxdt
+ ··· +
2 n−2 Ω
Z n Z
|∇(−ǫ2 ∆u + F ′ (u))|2 dxdt .
+
n−1
Ω
80
3.1 Instabilities in the Cahn-Hilliard Equation
Using a standard fact from calculus formulated in the following Lemma 3.1.8, it follows
that αn converges to 0 for n → ∞.
P
Lemma 3.1.8. Let (an ), (bn ) are two nonnegative sequences such that their sums n an
P
and n bn are convergent. Then
lim
n→∞
n
X
ai bn−i = 0.
i=0
We conclude our proof in step 4.
Step 4: It remains to prove that for any sequence (tn ) tending to infinity, W [u](tn )
converges to zero. To do so it suffices to prove that for any fixed integer q > 0,
(W [u](t = nq ))n converges to zero. Repeating the computations of Step 3 for the
inequality (3.2) for all rational values of t in between n − 1 and n the proof is similar
and we omit the details here.
Remark 3.1.9. Note that the proof of Theorem 3.1.1 also provides trivially for a decay
of ut in H −2 , namely
kut kH −2
=
≤
∆(−ǫ2 ∆u + F ′ (u)) −2
H
2
′
C −ǫ ∆u + F (u) L2
→ 0 as t → ∞.
So we have shown that the Willmore functional asymptotically decreases to zero
under the assumptions of Theorem 3.1.1. This additionally proves that ut → 0 for
t → ∞ in H −2 (Ω) for every ǫ > 0 and arbitrary dimension d.
3.1.2
Linear Stability / Instability
In this section we consider the short-time behavior of solutions of the Cahn-Hilliard
equation. We relate local-in-time instabilities of solutions with the Willmore functional
by comparing the eigenvalues of the linearized operator of the equation with the evolution of the Willmore functional. We begin with a short discussion of spectral estimates
and conclude with presenting the new result.
For the one dimensional case Alikakos, Bates and Fusco showed in [ABF91] that
there is exactly one unstable eigenvalue of the linearized Cahn-Hilliard eigenvalue problem. For simplicity let D = [0, 1]. They consider the problem linearized at an invariant
81
3.1 Instabilities in the Cahn-Hilliard Equation
manifold M formed by the translation of a self-similar solution uξǫ (x) = uǫ (x − ξ) ∈ M
with parameter ξ:
(
− ǫ2 H ′′′′ + (F ′′ (uξǫ )H ′ )′ = λ(ǫ)H, 0 < x < 1,
H = H ′′ = 0
x = 0, 1.
(3.1)
The first eigenvalue is simple and exponentially small for small ǫ > 0
0<
λξ1 (ǫ)
e− 2νδǫ ξ (uξ (0))2 xx
=O
,
=O
ǫ3
ǫ7
(3.2)
where δξ is a small positive constant given in the proof of (3.2) in [ABF91] and ν is a
generic constant, see [CGS84]. The remaining spectrum is bounded from above by
λξi (ǫ) ≤ −C < 0, i = 2, 3, · · ·
with C is positive and independent of ǫ, ξ. Both results are contained in [ABF91].
In two dimensions Alikakos and Fusco [AF94] proved that there is a two-dimensional
invariant manifold with exponentially small eigenvalues where the solutions asymptotically develop droplets on the boundary with a speed which is exponentially small.
These superslow solutions are called bubble solutions and correspond to an approximate spherical interface drifting slowly towards the boundary, without changing its
shape. Solutions like that are typical in the final stages of evolution of (3.1) for general
initial conditions. Further they showed that the dimension of eigenspaces of superslow eigenvalues of the linearized Cahn-Hilliard equation on D ⊆ Rd is at most d
for d ≥ 2. For simplicity of explanation we consider the eigenvalue problem of the
linearized fourth-order Cahn-Hilliard operator in D ⊆ R2 . The results in higher dimen-
sions are analogous to this case. Let U (η) be the unique increasing bounded solution
of U ′′ − F (U ) = 0 on R, and V (η) a bounded function that satisfies the orthogonality
condition
Z
∞
f ′′ (U (η))U̇ 2 (η)V (η)dη = 0,
−∞
where f (u) =
F ′ (u).
We consider a one-parameter family of functions uξǫ (x) represented
by
uξǫ (x)
=
x−ρ
2
U ( x−ρ
ǫ ) + ǫV ( ǫ ) + O(ǫ ), |y − ρ| ≤ λ,
qǫ (x),
|y − ρ| > λ
where y = |x − ξ|, ρ > 0 and qǫ (x) is an arbitrary function with f ′ (qǫ (x)) ≥ c > 0. The
function uξǫ (x) represents a bubble with center ξ ∈ D and radius ρ.
82
3.1 Instabilities in the Cahn-Hilliard Equation
The eigenvalue problem for the Cahn-Hilliard operator linearized in uξǫ (x), i.e.,
Lξ = ∆(−ǫ2 ∆ + F ′′ (uξǫ )), is given by
Lξ (φ) = λφ,
x ∈ D ⊆ R2
(3.3)
with Neumann boundary conditions
∂φ
∂
=
(−ǫ2 ∆φ + F ′′ (uξǫ )φ) = 0,
∂n
∂n
x ∈ ∂D.
In [AF94] Alikakos and Fusco stated the following result.
Theorem 3.1.10. Let λǫ1 ≥ λǫ2 ≥ λǫ3 ≥ · · · be the eigenvalues of (3.3). Let ρ > 0, δ > 0
be fixed. Then there exists an ǫ0 > 0 and constants c, C, C ′ > 0, independent of ǫ, such
that for 0 < ǫ < ǫ0 and ξ ∈ D with d(ξ, ∂D) > δ, the following estimates hold true:
c
c
Ce− ǫ ≥ λǫ1 ≥ λǫ2 ≥ −Ce− ǫ ,
λǫ3 ≤ −C ′ ǫ.
The first two eigenvalues λǫ1 , λǫ2 are superslow and the others are negative.
Now we present the connection between linear stability properties of the CahnHilliard equation and the Willmore functional. In the following we provide a linear
stability analysis around an equilibrium state u0 satisfying
−ǫ2 ∆u0 + F ′ (u0 ) = 0.
More precisely, we look for a solution of the form
u(x, t) = u0 (x) + δv(x, t) + O(δ 2 )
for sufficiently small 0 < δ ≪ 1 and some perturbation v(x, t). Due to mass conservation
we assume that v has mean zero for all times
Z
v(x, t)dx = 0 ∀t > 0.
Ω
We obtain the first-order evolution with respect to δ via the linearized equation
vt = ∆(−ǫ2 ∆v + F ′′ (u0 )v) := ∆L0 v.
(3.4)
We now compute the asymptotic expansion of the Willmore functional as δ → 0. It
can be expanded as
W [u] = W [u0 ] + δW ′ [u0 ]v +
83
δ 2 ′′
W [u0 ](v, v) + O(δ 3 ),
2
(3.5)
3.1 Instabilities in the Cahn-Hilliard Equation
where the first and second-order derivatives are taken as variations
Z
′
W [u0 ]v = (−ǫ2 ∆u0 + F ′ (u0 ))(−ǫ2 ∆v + F ′′ (u0 )v)dx
and
′′
W [u0 ](v, w) =
Z
(L0 v)(L0 w)dx +
Since u0 is a stationary solution, we have
′
Z
(−ǫ2 ∆u0 + F ′ (u0 ))F ′′′ (u0 )vwdx.
′′
W [u0 ]v = 0 and W [u0 ](v, v) =
Z
(L0 v)2 dx.
Now let v0 be an eigenfunction of the linearized fourth-order Cahn-Hilliard operator,
i.e. there is λ 6= 0 such that
with Neumann boundary condition
∆(L0 v0 ) = λv0 ,
∂v0
∂n |∂Ω
= 0 and
R
Ω v0
= 0. Note that λ is real, since
v0 solves a symmetric eigenvalue problem in the scalar product of H −1 , defined here as
R
the dual of H 1 (Ω) ∩ u : Ω u dx = 0 , cf. also Section 2.1.3.
The standard linear stability analysis yields that the perturbation of u0 by δv0 is
linearly stable for λ < 0 and unstable for λ > 0. These two cases can be translated directly into the local-in-time behavior of the Willmore functional, whose time derivative
at time t = 0 is given by
d
W [u(t)]|t=0 = δW ′ [u0 ]vt |t=0 + δ 2 W ′′ [u0 ](v, vt )|t=0 + O(δ 3 )
dt
Z
2
= δ
(L0 v0 )(L0 vt )dx + O(δ 3 )
Z
2
= δ
(L0 v0 )(L0 ∆L0 v0 )dx + O(δ 3 )
Z
2
= δ
(L0 v0 )(L0 (λv0 ))dx + O(δ 3 )
Z
= λδ 2 (L0 v0 )2 dx + O(δ 3 ).
This means that to leading order, the time derivative of W [u] has the same sign as
λ, i.e., the Willmore functional is locally increasing in time in the unstable case, and
locally decreasing in the stable case.
84
3.1 Instabilities in the Cahn-Hilliard Equation
3.1.3
Nonlinear Stability / Instability
We expect the behavior of solutions of the nonlinear equation (3.1) to be dominated
by that of the linear equation in the neighborhood of stationary solutions. Therefore
numerical examples may very well give us a good idea about the behavior of solutions
and their connection to the Willmore functional even for the nonlinear case. In the
following a semi-implicit finite element discretization for the Cahn-Hilliard equation is
briefly described and numerical examples are discussed.
Numerical Discretization
To discretize a fourth-order equation with boundary conditions as above it is often
convenient to write it as a system of two differential algebraic equations of second
order. In our case of the Cahn-Hilliard equation this results in the following system
ut = ∆v
v = −ǫ2 ∆u + F ′ (u),
with Neumann boundary conditions
∂u
∂v
=
= 0,
∂n
∂n
x ∈ ∂Ω.
The following issues have to be taken into consideration.
• Explicit schemes for fourth-order equations restrict time steps to be of order
O((∆x)4 ), where ∆x is the spatial grid size.
• Fully implicit schemes can be unconditionally stable. The disadvantage is the
high computational effort for solving nonlinear equations.
• Semi-implicit schemes are a compromise between explicit and implicit discretiza-
tion. Briefly, semi-implicit means that the equation is split into a convex and
a concave part and discretized implicitly and explicitly respectively, see ([BE92,
Ey98]). Therefore the restriction on the step sizes is less severe and we do not
have to solve nonlinear equations.
85
3.1 Instabilities in the Cahn-Hilliard Equation
For these reasons we use the following semi-implicit approximation
u(t, x) − u(t − ∆t, x)
= ∆v(t, x)
∆t
v(t, x) = −ǫ2 ∆u(t, x) + F ′ (u(t − ∆t, x)) + F ′′ (u(t − ∆t, x)) · (u(t, x) − u(t − ∆t, x)).
Note that F ′ is Taylor-expanded at the solution of the previous time step u(t − ∆t).
For the space discretization we use linear finite elements on an equidistant grid in one
dimension and on a rectangular grid in two dimensions.
Numerical Examples
In the following examples we consider the solution of the Cahn-Hilliard equation in
one and two dimensions for different initial states in a neighborhood of a transition
solution. In the one dimensional case the so-called kink solution is given by u0 (x) =
x
tanh ( 2ǫ
). As a first approach in the one dimensional analysis we take as initial value
u(x, t = 0) = u0 (x) + p(x). The function p denotes a particular kind of zero-mean
perturbation, namely
(
x
)
a · sin (f π Cǫ
p(x) =
0
x ∈ (−C · ǫ, C · ǫ)
otherwise,
with amplitude a > 0, frequency f > 0 and support (−C · ǫ, C · ǫ) with C > 0. The
amplitude a is chosen so that the values of u within the support of the perturbation lie
in the spinodal interval of the equation (which is the back diffusion interval).
Varying the parameter ǫ and the support, the amplitude and the frequency of p,
we want to observe how the solutions evolve in time. The behavior of the solutions is
further compared with the evolution of the corresponding energy functional and the
Willmore functional.
We begin with a fixed ǫ = 0.1. For the first two examples in Figure 3.1 and 3.2 a
fixed step size in space and time discretization was used. As spatial step size we took
∆x = 0.05 · ǫ and for the time steps ∆t = 103 · ǫ. The amplitude and the frequency of
the perturbation are also fixed to 1. The difference between the two examples is the
support of the perturbation and dependent on this is the convergence process.
In the first example an unstable state occurs. This means that over a certain time
interval the perturbation locally grows. The second example is stable in the numerical
computations.
86
3.1 Instabilities in the Cahn-Hilliard Equation
(a) t=1
(b) t=500
(c) t=1000
(d) t=1999
(e) Energy functional
(f) Willmore functional
Figure 3.1: (a)-(d): Evolution of the solution in time for ǫ = 0.1 and a zero-mean
perturbation supported on (−15ǫ, 15ǫ) with a = 1, f = 1 and with corresponding
energy functional (e) and Willmore functional (f)
In the first case the supporting interval for the perturbation is (−15ǫ, 15ǫ) (Figure 3.1)
and we begin with an initial state having two peaks on both sides of zero. When time
proceeds the peaks grow in the beginning, resulting in an unstable transient state.
After this unstable state the solution converges to the kink solution. In the case of the
87
3.1 Instabilities in the Cahn-Hilliard Equation
(a) t=1
(b) t=50
(c) t=100
(d) t=499
(e) Energy functional
(f) Willmore functional
Figure 3.2: (a)-(d): Evolution of the solution in time for ǫ = 0.1 and a zero-mean
perturbation supported on (−3ǫ, 3ǫ) with a = 1, f = 1 and with corresponding energy
functional (e) and Willmore functional (f)
supporting interval (−3ǫ, 3ǫ) in Figure 3.2 the solution converges uniformly to the kink
solution without transitional state.
Comparing the time evolution of our first two examples with the corresponding energy
functionals and Willmore functionals, we can easily see differences in the graphs of
functionals. We can see that in the unstable case the energy functional almost has
88
3.1 Instabilities in the Cahn-Hilliard Equation
a saddle point, in the stable case it is rapidly decreasing. Also instabilities seem to
correspond to peaks in the graph of the Willmore functional over time. The Willmore
functional increases over a finite time interval in contrast to the stable case where it
decreases for all times t.
(a) t=1
(b) t=30
(c) t=130
(d) t=1999
(e) Energy functional
(f) Willmore functional
Figure 3.3: (a)-(d): Evolution of the shifted solution in time for ǫ = 0.1 and a zeromean perturbation supported on (−15ǫ, 15ǫ) with a = 1, f = 1 and with corresponding
energy functional (e) and Willmore functional (f)
Another interesting phenomenon can be seen by starting with modified versions of
89
3.1 Instabilities in the Cahn-Hilliard Equation
the perturbation p. For example we could shift the sinusoidal perturbation to the left
or to the right of zero to start with an asymmetric initial state. The example in Figure
3.3 is a result of a shift of the perturbation used in the example of Figure 3.1. The
shift of the perturbation leads to a shift of the kink solution asymptotically in time as
a consequence of conservation of mass. Considering again the Willmore functional, an
increase in time, visibly caused by a transitional instability, occurs.
−0.5
time of instability
amplitude of instability
−1
log(time)/log(amplitude)
−1.5
−2
−2.5
−3
−3.5
−4
−4.5
−5
1.2
(a)
1.25
1.3
1.35
1.4
1.45
1.5
range of perturbation
1.55
1.6
1.65
1.7
(b)
Figure 3.4: Length of time interval and maximal amplitude of the instability for different amplitudes of the perturbation (a) and different supporting intervals of the perturbation (b). ǫ = 0.1 fixed.
Considering the behavior of the perturbed solution in several numerical tests we
can further make claims on how the perturbation has to look like so that an unstable
state occurs. For a fixed ǫ ≪ 1 we can see that the length of the supporting interval
is most relevant. Extending the supporting interval of the perturbation brings with
it an extension of the time interval and the size of the instability as a consequence,
compare Figure 3.4 right diagram. If the supporting interval is too small, no unstable
state can be seen, compare Figure 3.2. Also the amplitude and the frequency of the
perturbation have an influence on the occurrence and size of the instability. With
growing amplitude of the perturbation, the time interval and the size of the instability
change, compare Figure 3.4, left diagram. If the amplitude exceeds a certain threshold
the solution will not converge to the kink solution anymore. Furthermore the higher
the frequency of the perturbation, the faster the solution converges to the kink solution.
Therefore the higher the frequency of the perturbation, the smaller the time interval
90
3.1 Instabilities in the Cahn-Hilliard Equation
of the instability. Because of the important role of the support of the perturbation, it
seems that perturbations with high frequency bring no additional information for the
study of the time-local instability.
Point in time of maximal amplitude of the instability
4
2
0
log(time)
−2
−4
−6
−8
−10
−12
0
0.1
0.2
0.3
0.4
0.5
ε
0.6
0.7
0.8
0.9
1
Figure 3.5: Length of the time interval of the instability for different values of ǫ for a
perturbation supported on (−15ǫ, 15ǫ) with a = 1, f = 1.
By changing the parameter ǫ one can see that with decreasing ǫ the time interval of
the instability decreases. In Figure 3.5 the point in time of the maximal amplitude of
the instability is shown for different ǫ. The maximal amplitude of the instability stays
approximately the same.
In the two-dimensional case the analogue of the kink solutions are the so-called
bubble solutions. In Figure 3.6 the evolution of a solution of the two dimensional CahnHilliard equation near a bubble solution over a finite time interval is shown. In this
example we used equidistant space and time discretization ∆x = ∆y = ǫ and ∆t = ǫ4 .
Here the time stepsize is chosen rather small in order not to miss the instability which
appears for a very short time period only. As initial value we take a radial-symmetric
bubble solution perturbed by a sine wave in x1 –direction. For a better comparison
with the one-dimensional case a vertical cut in x2 = 0.5 of the solution is shown. Again
the solution exhibits a local growth of amplitude before converging uniformly to the
stationary solution. Especially near x1 = 0.5 the solution initially tends away from the
bubble solution. As predicted, this phenomenon causes an increase of the Willmore
functional in a short time interval before it decays to 0.
91
3.1 Instabilities in the Cahn-Hilliard Equation
(a) t=21
(b) t=600
(c) t=21
(d) t=600
(e) Bubble solution
(f) Willmore functional
Figure 3.6: Surface plot (a)-(b) and vertical cut (c)-(d) of the solution for ǫ = 0.1
perturbed with a sinusoidal wave in x–direction. (e) shows the bubble solution and (f)
the Willmore functional
3.1.4
Consequences
We considered local instability and asymptotic behavior of the Cahn-Hilliard equation
in the neighborhood of certain transition solutions. We found that studying instabilities of the Cahn-Hilliard equation in finite time is closely connected to studying
the monotonicity behavior of the Willmore functional. We found that the Willmore
92
3.2 Nonlocal Higher-Order Evolution Equations
functional is a good monitoring quantity to study structures of instability patterns of
the solutions. We found the Willmore functional to be monotonically decreasing if the
solution converges to the equilibrium state without transitional instability and having
maxima when local-time instabilities occur.
Therefore the Willmore functional could be used for the mathematical and numerical analysis of the Cahn-Hilliard equation, e.g., by providing a more efficient tool for
determining stability/instability of solutions. Further it can be useful in applications
of the Cahn-Hilliard equation as in its inpainting application presented in Section 2.1.
The Willmore functional could thereby serve as an indicator reporting how far away
from the steady state the solution is.
3.2
Nonlocal Higher-Order Evolution Equations
In this section we study the asymptotic behavior of solutions to the nonlocal operator
ut (x, t) = (−1)n−1 (J ∗ Id − 1)n (u(x, t)), x ∈ Rd which is the nonlocal analogue to the
higher-order local evolution equation vt = (−1)n−1 (∆)n v. We prove that the solutions
of the nonlocal problem converge to the solution of the higher-order problem with
right hand side given by powers of the Laplacian when the kernel J is rescaled in an
appropriate way. Moreover, we prove that solutions to both equations have the same
asymptotic decay rate as t goes to infinity. This section traces the contents of [RS09].
Our main concern in the present section is the asymptotic behavior of solutions of
a nonlocal diffusion operator of higher order in the whole Rd , d ≥ 1.
We consider the following nonlocal evolution problem:

ut (x, t) =(−1)n−1 (J ∗ Id − 1)n (u(x, t))



!


n 
X
n

=(−1)n−1
(−1)n−k (J∗)k (u) (x, t),
k

k=0






u(x, 0) =u0 (x),
for x ∈ Rd , t > 0 and arbitrary n ≥ 1. Here (J ∗ u)(x, t) =
the usual convolution of J and u and
(J∗)k (u)
R
Rd
(3.1)
J(x − y)u(y, t) dy is
denotes the convolution with J iterated
k times. Further, let J ∈ C(Rd , R) be a nonnegative, radially invariant function with
R
1
d
Rd J(x) dx = 1 and u0 ∈ L (R ) denote the initial condition for (3.1).
93
3.2 Nonlocal Higher-Order Evolution Equations
Nonlocal problems like (3.1) have been recently widely used to model diffusion
processes, see [Fi03]. The solution u(x, t) of (3.1) is thereby interpreted as the density
of a single population at the point x at time t and J(x − y) is the probability of
“jumping” from location y to location x. The convolution (J ∗ u)(x) is then the rate
at which individuals arrive to position x from all other positions, while −u(x, t) =
R
− Rd J(y − x)u(x, t) dy is the rate at which they leave position x to reach any other
position. Their evolution is described by (3.1) for the case n = 1. For more references
concerning the use of nonlocal evolution problems and their stationary counterparts
for modeling diffusion processes we quote for instance [BCC05, BFRW97, Co06, Co07,
CDM08, CD05, CD07, Zh04], devoted to traveling front type solutions.
Further nonlocal equations like (3.1) also found applications in image processing.
The main advantage of nonlocal operators in image processing is the ability to process
structures like edges (local image features), but also textures (nonlocal image features),
within the same framework. In [BCM05] a nonlocal filter, referred to as nonlocal
means, was suggested for image denoising. A variational understanding of this filter
was first presented in [KOJ05] as a nonconvex functional and later in [GO07] as a convex
quadratic functional. In the latter reference the authors investigated the functional
Z
1
|u(x) − u(y)|2 w(x, y) dxdy,
E(u) =
2 Ω×Ω
where the weight function w(x, y) ∈ Ω × Ω, Ω ⊂ R2 open and bounded, is positive and
symmetric, i.e. w(x, y) = w(y, x). The proposed flow for minimizing the energy E(u)
was then defined as
Z

 ut (x) = (u(y) − u(x)) w(x, y) dy,
Ω

u(x, 0) = u0 (x),
x ∈ Ω,
(3.2)
taking the given (noisy) image u0 as the initial condition. With w(x, y) = J(x − y)
equation (3.2) has the same structure as the nonlocal equation (3.1) for n = 1.
We call equation (3.1) a nonlocal diffusion equation of order n. Thereby the diffusion
of the density u at a point x and time t does not only depend on u and its derivatives
at the point (x, t) (local behavior), but on all the values of u in a fixed neighborhood
of x through the convolution term J ∗ u (nonlocal behavior). In our problem (3.1) the
application of the nonlocal operator J ∗ Id − 1 on the density u is iterated n times.
94
3.2 Nonlocal Higher-Order Evolution Equations
This can be seen as a nonlocal generalization of higher-order equations of the form
vt (x, t) = −An (−∆)
αn
2
v(x, t),
(3.3)
with A and α are positive constants specified later in this section. Note that when α = 2
(3.3) is just vt (x, t) = −An (−∆)n v(x, t). Higher-order diffusions of this type appear
in various applications. The Cahn-Hilliard equation, for instance, is a fourth-order
reaction diffusion equation which models phase separation and coarsening of binary
alloys, see [Fi00] for more details and references. A modified Cahn-Hilliard equation
was further proposed in [BEG07a, BEG07b] for inpainting, i.e., image interpolation of
binary images. Another fourth-order example is the Kuramoto-Sivashinsky equation
(cf. e.g. [Mi86]), used in the study of spatiotemporal chaos (cf. [CH93]). In both
equations a linear fourth-order diffusion as in (3.3) for n = α = 2 is involved. Nonlocal
higher-order problems have been, for instance, proposed as models for periodic phase
separation. Here the nonlocal character of the problem is associated with long-range
interactions of “particles” in the system. An example is the nonlocal Cahn-Hilliard
equation (cf. e.g. [Ha04, NO95, OK86]).
Problem (3.1) was studied in great detail for the case n = 1 only. In fact the Cauchy
problem is considered in [CCR06, IR08], while the “Neumann” boundary condition for
the same problem is treated in [AMRT08, CERW07, CERW08]. See also [IR07] for the
appearance of convective terms and [CCEM07, CER05] for other interesting features
in related nonlocal problems.
In this section we consider (3.1) as a model for higher-order nonlocal evolution for
arbitrary n ≥ 1 and extend the existing analysis for the Cauchy problem within this
general setting. For this model, we first prove existence and uniqueness of a solution,
but our main aim is to study the asymptotic behavior as t → ∞ of solutions to (3.1).
Moreover, we prove that solutions to (3.1) converge to the solution to (3.3) when the
problem is rescaled in an appropriate way.
Now, let us proceed with the precise description of our main results.
Statement of the results. For a function f we denote by fˆ the Fourier transform
of f and by fˇ the inverse Fourier transform of f . Our hypotheses on the convolution
kernel J that we will assume throughout the paper are:
95
3.2 Nonlocal Higher-Order Evolution Equations
The kernel J ∈ C(Rd , R) is a nonnegative, radial function with total mass equalling
R
one, Rd J(x) dx = 1. This means that J is a radial density probability, which implies
ˆ
ˆ = 1. Moreover, we assume that
that its Fourier transform satisfies |J(ξ)|
≤ 1 with J(0)
ˆ = 1 − A |ξ|α + o(|ξ|α )
J(ξ)
for ξ → 0,
(3.4)
for some A > 0 and α > 0.
Remark 3.2.1. Note that assumption (3.4) on the behaviour of Jˆ near the origin plays
a central role in the following analysis of the nonlocal problem. In fact, the decay rate
as t goes to infinity of solutions of this nonlocal problem is determined by (3.4).
Under these conditions on J we have the following results. First, we show existence
and uniqueness of a solution
Theorem 3.2.2. Let u0 ∈ L1 (Rd ) such that uˆ0 ∈ L1 (Rd ). There exists a unique
solution u ∈ C 0 ([0, ∞); L1 (R)d ) of (3.1) that, in Fourier variables, is given by the
n−1 ˆ
n
explicit formula, û(ξ, t) = e(−1) (J(ξ)−1) t uˆ0 (ξ).
Next, we deal with the asymptotic behavior as t → ∞.
Theorem 3.2.3. Let u be a solution of (3.1) with u0 , uˆ0 ∈ L1 (Rd ). Then the asymptotic behavior of u(x, t) is given by
d
lim t αn max |u(x, t) − v(x, t)| = 0,
t→+∞
x
αn
where v is the solution of vt (x, t) = −An (−∆) 2 v(x, t) with the initial condition v(x, 0) =
u0 (x) and A and α as in (3.4). Moreover, we have that there exists a constant C > 0
such that
d
ku(., t)kL∞ (Rd ) ≤ C t− αn
and the asymptotic profile is given by
d
1
lim max t αn u(yt αn , t) − ku0 kL1 (Rd ) GA (y) = 0,
t→+∞
y
αn
n
where GA (y) satisfies GˆA (ξ) = e−A |ξ| .
To prove this result we use ideas from [CCR06] using Fourier variables, but with a
nontrivial extra refinement that is due to the fact that we are dealing with higher-order
problems. In fact, we have to take extra care and distinguish between even and odd n.
Next, we show that solutions to nonlocal problems like (3.1), rescaled in an appropriate way, converge to a solution to the problem (3.3) as the scaling parameter tends
to zero.
96
3.2 Nonlocal Higher-Order Evolution Equations
Theorem 3.2.4. Let uε be the unique solution to

n
 (u ) (x, t) = (−1)n−1 (Jε ∗ Id − 1)) (u (x, t)),
ε t
ε
εαn

u(x, 0) = u0 (x),
(3.5)
where Jε (s) = ε−d J( sε ). Then, for every T > 0, we have
lim kuε − vkL∞ (Rd ×(0,T )) = 0,
ε→0
where v is the solution to the local problem vt (x, t) = −An (−∆)
initial condition v(x, 0) = u0 (x).
αn
2
v(x, t) with the same
The previous proofs of convergence of nonlocal problems to their local counterparts
were performed in physical space with subtle arguments, see [CERW08, IR07]. For our
proof of this result, we just look at Fourier variables, simplifying the previous analysis.
Note that this approach is valid only when linear problems in the whole space are
considered.
The verification of our results is organized as follows: in Section 3.2.1 we prove
existence and uniqueness of a solution; in Section 3.2.2 we deal with the asymptotic
behavior and, finally, in Section 3.2.3 we approximate the local higher-order problem
by nonlocal ones.
3.2.1
Existence and Uniqueness
To prove existence and uniqueness of solutions we make use of the Fourier transform.
Proof of Theorem 3.2.2. We have
ut (x, t) = (−1)n−1
!
n X
n
(−1)n−k (J∗)k (u) (x, t).
k
k=0
Applying the Fourier transform to this equation we obtain
n X
n
n−1
k
ˆ
ût (ξ, t) = (−1)
(−1)n−k (J(ξ))
û(ξ, t)
k
k=0
n−1
= (−1)
ˆ − 1)n û(ξ, t).
(J(ξ)
Hence
û(ξ, t) = e(−1)
n−1 (J(ξ)−1)
nt
ˆ
nt
ˆ
(−1)n−1 (J(ξ)−1)
uˆ0 (ξ).
Since uˆ0 (ξ) ∈ L1 (Rd ) and e
is continuous and bounded, û(·, t) ∈ L1 (Rd )
and the result follows by taking the inverse Fourier transform.
97
3.2 Nonlocal Higher-Order Evolution Equations
Now we prove a lemma concerning the fundamental solution of (3.1).
Lemma 3.2.5. The fundamental solution w of (3.1), that is the solution of the equation
with initial condition u0 = δ0 , can be decomposed as
w(x, t) = e−t δ0 (x) + v(x, t),
(3.6)
with v(x, t) smooth. Moreover, if u is a solution of (3.1) it can be written as
Z
w(x − z, t)u0 (z) dz.
u(x, t) = (w ∗ u0 )(x, t) =
Rd
Proof. By the previous result we have
ˆ − 1)n ŵ(ξ, t).
ŵt (ξ, t) = (−1)n−1 (J(ξ)
Hence, as the initial data verifies wˆ0 = δˆ0 = 1, we get
n
n−1 ˆ
n−1 ˆ
n
ŵ(ξ, t) = e(−1) (J(ξ)−1) t = e−t + e−t e[(−1) (J(ξ)−1) +1]t − 1 .
The first part of the lemma follows applying the inverse Fourier transform.
To finish the proof we just observe that w ∗ u0 is a solution of (3.1) with (w ∗
u0 )(x, 0) = u0 (x).
3.2.2
Asymptotic Behavior
Next we prove the first part of Theorem 3.2.3.
Theorem 3.2.6. Let u be a solution of (3.1) with u0 , uˆ0 ∈ L1 (Rd ). Then, the asymptotic behavior of u(x, t) is given by
d
lim t αn max |u(x, t) − v(x, t)| = 0,
t→+∞
x
where v is the solution of vt (x, t) = −An (−∆)
u0 (x).
αn
2
v(x, t), with initial condition v(x, 0) =
Proof. As in the previous section, we have, using Fourier variables,
ˆ − 1)n û(ξ, t).
ût (ξ, t) = (−1)n−1 (J(ξ)
Hence
û(ξ, t) = e(−1)
n−1 (J(ξ)−1)
nt
ˆ
98
uˆ0 (ξ).
3.2 Nonlocal Higher-Order Evolution Equations
αn
On the other hand, let v(x, t) be a solution of vt (x, t) = −An (−∆) 2 v(x, t), with the
same initial data v(x, 0) = u0 (x). Solutions of this equation are understood in the sense
that
αn
n
v̂(ξ, t) = e−A |ξ| t uˆ0 (ξ).
Hence in Fourier variables
Z Z
nt
ˆ
(−1)n−1 (J(ξ)−1)
−An |ξ|αn t
|û − v̂| (ξ, t) dξ =
−e
)uˆ0 (ξ) dξ
(e
d
d
R
R
Z
αn
nt
n
ˆ
(−1)n−1 (J(ξ)−1)
≤
− e−A |ξ| t uˆ0 (ξ) dξ
e
|ξ|≥r(t)
Z
nt
ˆ
(−1)n−1 (J(ξ)−1)
−An |ξ|αn t
+
e
−
e
u
ˆ
(ξ)
dξ
0
|ξ|<r(t)
= I + II,
where I and II denote the first and the second integral respectively, and r(t) a nonnegative function in t. To get a bound for I we decompose it in two parts,
Z
Z
nt
ˆ
−An |ξ|αn t
(−1)n−1 (J(ξ)−1)
I≤
uˆ0 (ξ) dξ +
uˆ0 (ξ) dξ
e
e
|ξ|≥r(t)
|ξ|≥r(t)
= I1 + I2 .
First we consider I1 . Setting η = ξt1/(αn) and writing I1 in the new variable η we get,
Z
αn
d
n
I1 ≤ kuˆ0 kL∞ (Rd )
e−A |η| t− αn dη,
1
|η|≥r(t)t αn
and hence
t
d
αn
I1 ≤ kuˆ0 kL∞ (Rd )
Z
1
|η|≥r(t)t αn
e−A
n |η|αn
t→∞
dη −→ 0
provided that we impose
1
t→∞
r(t)t αn −→ ∞.
(3.7)
To deal with I2 we have to use different arguments for n even and n odd. Let us begin
with the easier case of an even n.
- n even - Using our hypotheses on J we get
I2 ≤ Ce−t ,
t→∞
with r(t) −→ 0 and therefore
d
d
t→∞
t αn I2 ≤ Ce−t t αn −→ 0.
99
3.2 Nonlocal Higher-Order Evolution Equations
Now consider the case when n is odd.
- n odd - From our hypotheses on J we have that Jˆ satisfies
ˆ ≤ 1 − A |ξ|α + |ξ|α h(ξ),
J(ξ)
where h is bounded and h(ξ) → 0 as ξ → 0. Hence there exists D > 0 and a constant
a such that
ˆ ≤ 1 − D |ξ|α , for |ξ| ≤ a.
J(ξ)
ˆ Moreover, because J(ξ)
≤ 1 and J is a radial function, there exists a δ > 0 such that
ˆ ≤ 1 − δ,
J(ξ)
for |ξ| ≥ a.
Therefore I2 can be bounded by
Z
Z
nt
nt
ˆ
ˆ
(−1)n−1 (J(ξ)−1)
(−1)n−1 (J(ξ)−1)
I2 ≤
uˆ0 (ξ) dξ +
uˆ0 (ξ) dξ
e
e
a≥|ξ|≥r(t)
|ξ|≥a
Z
αn
n
n
e−D |ξ| t dξ + Ce−δ t .
≤ kuˆ0 kL∞ (Rd )
a≥|ξ|≥r(t)
Changing variables as before, η = ξt1/(αn) , we get
Z
αn
d
d
n
n
αn
e−D |η| dη + Ct αn e−δ t
t I2 ≤ kuˆ0 kL∞ (Rd )
1
1
at αn ≥|η|≥r(t)t αn
Z
αn
d
n
n
e−D |η| dη + Ct αn e−δ t → 0,
≤ kuˆ0 kL∞ (Rd )
1
|η|≥r(t)t αn
as t → ∞ if (3.7) holds.
It remains only to estimate II. We proceed as follows
Z
n +An |ξ|αn ]
ˆ
−An |ξ|αn t t[(−1)n−1 (J(ξ)−1)
II =
e
− 1 |uˆ0 (ξ)| dξ.
e
|ξ|<r(t)
Applying the binomial formula and taking into account the two different cases when n
is even and odd we can conclude that
Z
αn
d
d
n
e−A |ξ| t t(|ξ|αn h(ξ) + K(|ξ|αk h(ξ)k )) dξ,
t αn II ≤ Ct αn
|ξ|<r(t)
where K(|ξ|αk h(ξ)k ) is a polynomial in |ξ|α and h(ξ) with 0 < k ≤ n and provided
that we impose
t(r(t))αn h(r(t)) → 0 as t → ∞.
(3.8)
100
3.2 Nonlocal Higher-Order Evolution Equations
In this case we have
Z
d
t αn II ≤ C
1
|η|<r(t)t αn
e−A
n |η|αn
(|η|αn h(η/t1/(αn) )
+ K(|η|αk h(η/t1/(αn) )k )
1
t(αk)/(αn)
) dη.
To show the convergence of II to zero we use dominated convergence. Because of our
assumption on h we know that h(η/t1/(αn) ) → 0 as t → ∞ (note that clearly also
h(η/t1/(αn) )k converges to zero for every k > 0). Further the integrand is dominated
αn
n
by khkL∞ (Rd ) e−A |η| |η|αn , which belongs to L1 (Rd ).
Combining this with our previous results we have that
Z
d
d
|û − v̂| (ξ, t) dξ ≤ t αn (I + II) → 0 as t → ∞,
(3.9)
t αn
Rd
provided we can find a r(t) → 0 as t → ∞ which fulfills both conditions (3.7) and (3.8).
This is done in Lemma 3.2.7, which is postponed to just after the present proof. To
conclude we only have to observe that the convergence of u − v in L∞ follows from the
convergence of the Fourier transforms û(·, t) − v̂(·, t) → 0 in L1 . Indeed, from (3.9) we
obtain
Z
d
d
|û − v̂| (ξ, t) dξ → 0, t → ∞,
t αn max |u(x, t) − v(x, t)| ≤ t αn
x
Rd
which completes the proof of the theorem.
The following Lemma shows that there exists a function r(t) satisfying (3.7) and
(3.8), as required in the proof of the previous theorem.
Lemma 3.2.7. Given a real valued function h ∈ C(R) such that h(ρ) → 0 as ρ → 0
with h(ρ) > 0 for small ρ, there exists a function r with r(t) → 0 as t → ∞ which for
α > 0 satisfies
1
lim r(t)t αn = ∞
t→∞
and
lim t(r(t))αn h(r(t)) = 0.
t→∞
Proof. For fixed t large enough, we choose r(t) as a solution of
1
1
r(h(r)) 2αn = t− αn .
(3.10)
This equation defines a function r = r(t) which, by continuity arguments goes to zero
as t tends to infinity, satisfying also the additional asymptotic conditions in the lemma.
Indeed, if there exists tn → ∞ with no solution of (3.10) for r ∈ (0, δ) then h(r) ≡ 0 in
(0, δ), which is a contradiction to our assumption that h(r) > 0 for r small.
101
3.2 Nonlocal Higher-Order Evolution Equations
As a consequence of Theorem 3.2.6, we obtain the following corollary which completes the results gathered in Theorem 3.2.3.
Corollary 3.2.8. The asymptotic behavior of solutions of (3.1) is given by
ku(., t)kL∞ (Rd ) ≤
C
d
t αn
.
Moreover, the asymptotic profile is given by
d
1
lim max t αn u(yt αn , t) − ku0 kL1 (Rd ) GA (y) = 0,
t→+∞
y
αn
n
where GA (y) satisfies GˆA (ξ) = e−A |ξ| .
Proof. From Theorem 3.2.6 we obtain that the asymptotic behavior is the same as the
one for solutions of the evolution given by a power n of the fractional Laplacian. It is
easy to check that the asymptotic behavior is in fact the one described in the statement
of the corollary. In Fourier variables we have
1
lim v̂(ηt− αn , t) = lim e−A
n |η|αn
t→∞
−An |η|αn
t→∞
=e
−An |η|αn
=e
Therefore
1
uˆ0 (ηt− αn )
uˆ0 (0)
ku0 kL1 (Rd ) .
d
1
lim max t αn v(yt αn , t) − ku0 kL1 (Rd ) GA (y) = 0,
t→+∞
y
αn
n
where GA (y) satisfies GˆA (ξ) = e−A |ξ| .
With similar arguments as in the proof of Theorem 3.2.6 one can prove that also
the asymptotic behavior of the derivatives of solutions u of (3.1) is the same as the one
for derivatives of solutions v of the evolution of a power n of the fractional Laplacian,
assuming sufficient regularity of the solutions u of (3.1).
Theorem 3.2.9. Let u be a solution of (3.1) with u0 ∈ W k,1 (Rd ), k ≤ αn and uˆ0 ∈
L1 (Rd ). Then, the asymptotic behavior of Dk u(x, t) is given by
d+k
lim t αn max Dk u(x, t) − Dk v(x, t) = 0,
t→+∞
x
where v is the solution of vt (x, t) = −An (−∆)
u0 (x).
102
αn
2
v(x, t) with initial condition v(x, 0) =
3.2 Nonlocal Higher-Order Evolution Equations
Proof. We begin again by transforming our problem for u and v into a problem for the
corresponding Fourier transforms û and v̂. For this we consider
k
k v(ξ, t))∨ max Dk u(x, t) − Dk v(x, t) = max (D\
u(ξ, t))∨ − (D\
x
ξ
Z Z
\
\
k
k
≤
|ξ|k |û(ξ, t) − v̂(ξ, t)| dξ.
D u(ξ, t) − D v(ξ, t) dξ =
Rd
Rd
R
Showing Rd |ξ|k |û(ξ, t) − v̂(ξ, t)| dξ → 0 as t → ∞ works analogue to the proof of
Theorem 3.2.6. The additional term |ξ|k is always dominated by the exponential terms.
3.2.3
Scaling the Kernel
In this section we show that the problem vt (x, t) = −An (−∆)
αn
2
v(x, t) can be approx-
imated by nonlocal problems like (3.1) when rescaled in an appropriate way.
Proof of Theorem 3.2.4. The proof uses once more the explicit formula for the solutions
in Fourier variables. We have, arguing exactly as before,
uˆε (ξ, t) = e(−1)
c
ε (ξ)−1)
n−1 (J
εαn
n
t
uˆ0 (ξ).
and
v̂(ξ, t) = e−A
n |ξ|αn t
uˆ0 (ξ).
ˆ
Now, we just observe that Jbε (ξ) = J(εξ)
and therefore we obtain
n
ˆ
(−1)n−1 (J(εξ)−1)
n |ξ|αn t
t
−A
αn
ε
|uˆε − v̂| (ξ, t) dξ =
(e
−e
)uˆ0 (ξ) dξ
Rd
Rd
Z
n
ˆ
(−1)n−1 (J(εξ)−1)
n |ξ|αn t t
−A
dξ
e
εαn
−e
≤ kuˆ0 kL∞ (Rd )
Z
Z
|ξ|≥r(ε)
+
Z
|ξ|<r(ε)
!
n
ˆ
(−1)n−1 (J(εξ)−1)
n |ξ|αn t t
−A
e
dξ .
εαn
−e
For t ∈ [0, T ] we can proceed as in the proof of Theorem 3.2.3 (Section 3.2.2) to obtain
that
Z
|uˆε − v̂| (ξ, t) dξ → 0, ε → 0.
max |uε (x, t) − v(x, t)| ≤
x
Rd
I leave the details to the reader.
103
Chapter 4
Numerical Solution of
Higher-Order Inpainting
Approaches
One main challenge in inpainting with higher-order flows is their effective numerical
implementation. For example the straightforward discretization of a fourth-order evolution equation may result in a strong restriction on the time step ∆t, i.e., ∆t ≤ O(∆x)4
where ∆x denotes the mesh size. Therefore high-order equations and possible nonconvex flows require elaborate discretization schemes to guarantee stability and a fast
convergence of the algorithm. For an overview of numerical methods for higher-order
inpainting approaches see Section 1.3.3.
In this chapter we present numerical algorithms that approximate solutions of the
three inpainting approaches presented in Sections 2.1-2.3. Our first approach are semiimplicit solvers, presented in Section 4.1. This section mainly follows the lines of [SB09]
and is joint work with Andrea Bertozzi. We show the application of these schemes to
Cahn-Hilliard inpainting (2.1), TV-H−1 inpainting (2.27), and inpainting with LCIS
(2.42), and present rigorous estimates verifying, e.g., their unconditional stability in
the sense that the numerical solution is uniformly bounded on a finite time interval. In
Section 4.2 we present an alternative method to solve TV-H−1 inpainting. This method
is based on a dual solver for TV minimization, introduced by Chambolle in [Ch04] for
an L2 constraint, and generalized by the author in [Sc09] for an H −1 constraint. Section
4.2 is based on ideas of [Sc09] with emphasis on the inpainting application. In the last
104
4.1 Unconditionally Stable Solvers
section we present a domain decomposition approach for TV minimization. This work
is mainly based on results obtained in joint work with Massimo Fornasier in [FS07].
Domain decomposition methods are able to decrease the computational complexity of a
numerical scheme by means of parallel computation. In particular for the higher-order
TV-H−1 inpainting approach, the potential consequences with respect to computation
time are of major interest. Numerical results for both TV-L2 - and TV-H−1 minimization
are presented.
4.1
Unconditionally Stable Solvers
In this section we discuss an efficient semi-implicit approach presented in Eyre [Ey98]
(also cf.
citeVLR) called convexity splitting for its application to higher-order inpainting approaches. We consider the following problem: Let J ∈ C 2 (RN , R) be a smooth func-
tional from RN into R, where N is the dimension of the data space. Let Ω be the
spatial domain of the data space. Find u ∈ RN such that
(
ut = −∇J(u)
in Ω,
u(., t = 0) = u0 in Ω,
(4.1)
with initial condition u0 ∈ RN . The basic idea of convexity splitting is to split the
functional J into a convex and a concave part. In the semi implicit scheme the convex
part is treated implicitly and the concave one explicitly in time. Under additional
assumptions on (4.1) this discretization approach is unconditionally stable, of order 2
in time, and relatively easy to apply to a large range of variational problems. Moreover
we shall see that the idea of convexity splitting can be applied to more general evolution
equations, and in particular to those that do not follow a variational principle. The main
focus of this section is to illustrate the application of the convexity splitting idea to the
three fourth-order inpainting approaches (2.1), (2.27) and (2.42) presented in Sections
2.1-2.3. We show that this idea results in an unconditionally stable finite difference
scheme and allows us to (approximately) compute strong solutions of the continuous
problem. Moreover, we prove consistency of these schemes, and convergence to the
exact solution under possible additional restrictions on the latter. For Cahn-Hilliard
inpainting and TV-H−1 inpainting the developed convexity splitting schemes can be
105
4.1 Unconditionally Stable Solvers
proven to be of order 1 in time. For inpainting with LCIS the numerical scheme is of
order 2 in time.
Notation
In this section we discuss the numerical solution of evolutionary differential equations.
Therefore we have to distinguish between the exact solution u of the continuous equation and the approximate solution U of the corresponding time-discrete numerical
scheme. We write capital Uk for the solution of the time-discrete equation at time k∆t
and small uk = u(k∆t) for a solution of the continuous inpainting equation at time k∆t
with time step size ∆t. Let ek denote the discretization error given by ek = uk − Uk .
In Subsection 4.1.1 u and Uk are vectors in RN , where N denotes the dimension of
the data. In all other parts of this section u and Uk are assumed to be elements in
L2 (Ω). Let J ∈ C 2 (H, R) denote a functional from a suitable Hilbert space H to R, and
∇J(u) its first variation with respect to u. In the discrete setting H = RN . Finally,
in the discrete setting, h., .i denotes the inner product on R with corresponding norm
kuk2 = hu, ui. In the continuous setting we stick to the notation specified in the prefix
of the thesis.
4.1.1
The Convexity Splitting Idea
Convexity splitting was originally proposed to solve energy minimizing equations. Nevertheless we will see that it can also be applied to more general PDEs, such as (2.1)
and (2.27), which do not fulfill a variational principle. Convexity splitting methods,
although known under different names, have a long tradition in several parts of numerical analysis. For example Barrett, Blowley, and Garcke used the idea of convexity
splitting in [BB97, Equation (3.42)] to approximate the solution of a phase separation
model with finite elements. In [ES02, Equation (5.4)] a finite difference scheme for
second-order parabolic equations is presented which also uses the convexity splitting
idea. A discussion on convexity splitting in the context of more general optimization
problems can be found in [YR03, Chapter 2.].
First we would like to introduce the notion of gradient flows and the application
of convexity splitting methods in this context. To do so we follow the work of Eyre
106
4.1 Unconditionally Stable Solvers
[Ey98]. We consider equation (4.1). If J satisfies
(i)
J(u) ≥ 0, ∀u ∈ RN
(4.2)
(ii)
J(u) → ∞ as kuk → ∞
(4.3)
(iii)
hJ(∇J)(u)u, ui ≥ λ ∈ R, ∀u ∈ RN
(4.4)
then we refer to (4.1) as a gradient system and to its solutions as gradient flows. Here
J(∇J)(u) denotes the Jacobian of ∇J in u. All gradient systems fulfill the dissipation
property, i.e.,
dJ(u)
= − k∇J(u)k2
dt
and therefore J(u(t)) ≤ J(u0 ) for all t ≥ 0.
If J(u) is convex, i.e., λ > 0 in (4.2), then the system has a single equilibrium.
In this case unconditionally stable and uniquely solvable numerical schemes exist (cf.
[SH94]). If J(u) is not convex, i.e., λ < 0, multiple minimizers may exist and the
gradient flow can possibly expand in u(t). The stability of an explicit gradient descent
algorithm, i.e., Uk+1 = Uk − ∆t∇J(Uk ), in this case may require extremely small time
steps, depending of course on the functional J. Therefore the development of stable
and efficient discretizations for non-convex functionals J is highly desirable.
The basic idea of convexity splitting is to write the functional J as
J(u) = Jc (u) − Je (u),
(4.5)
where
Jo ∈ C 2 (RN , R) and Jo (u) is strictly convex for all u ∈ RN , o ∈ {c, e}.
(4.6)
The semi-implicit discretization of (4.1) is then given by
Uk+1 − Uk = −∆t (∇Jc (Uk+1 ) − ∇Je (Uk )) ,
(4.7)
where U0 = u0 .
Remark 4.1.1. We want to anticipate that the setting of Eyre, and hence the subsequent presentation of convexity splitting, is a purely discrete one. Nevertheless it
actually holds in a more general framework, i.e., for more general gradient flows. In
the case of an L2 gradient flow for example, the Jacobian J of the discrete functional J
just has to be replaced by the second variation of the continuous functional J in L2 (Ω).
107
4.1 Unconditionally Stable Solvers
In the following we will show that convexity splitting can be applied to the inpainting
approaches (2.1), (2.27), and (2.42) and produces unconditionally gradient stable or
unconditionally stable numerical schemes. Let us first define what unconditionally
gradient stable and unconditionally stable schemes are.
Definition 4.1.2. [Ey98] A one-step numerical integration scheme is unconditionally gradient stable if there exists a function J(.) : RN → R such that, for all ∆t > 0
and for all initial data:
(i) J(U ) ≥ 0 for all U ∈ RN
(ii) J(U ) → ∞ as kU k → ∞
(iii) J(Uk+1 ) ≤ J(Uk ) for all Uk ∈ RN
(iv) If J(Uk ) = J(U0 ) for all k ≥ 0 then U0 is a zero of ∇J for (4.1) and (4.2).
Now, Cahn-Hilliard inpainting (2.1) and TV-H−1 inpainting (2.27), are not given
by gradient flows. Hence, in the context of these inpainting models the meaning of
unconditional stability has to be redefined. Namely, in the case of an evolution equation
which does not follow a gradient flow, a corresponding discrete time stepping scheme
is said to be unconditionally stable if solutions of the difference equation are bounded
within a finite time interval, independently from the step size ∆t.
Definition 4.1.3. Let u be an element of a suitable function space defined on Ω×[0, T ],
with Ω ⊂ R2 open and bounded, and T > 0. Let further F be a real valued function
and ut = F (u, Dα u) be a partial differential equation with space derivatives Dα u, α =
1, . . . , 4. A corresponding discrete time stepping method
Uk+1 = Uk + ∆tFk ,
(4.8)
where Fk is a suitable approximation of F in Uk and Uk+1 , is unconditionally stable,
if all solutions of (4.8) are bounded for all ∆t > 0 and all k such that k∆t ≤ T .
We start with a theorem proved by Eyre in [Ey98].
Theorem 4.1.4. [Ey98, Theorem 1] Let J satisfy (4.2), and Jc and Je satisfy (4.5)(4.6). If Je (u) additionally satisfies
hJ(∇Je )(u)u, ui ≥ −λ
108
(4.9)
4.1 Unconditionally Stable Solvers
when λ < 0 in (4.2)(iii), then for any initial condition, the numerical scheme (4.7) is
consistent with (4.1), gradient stable for all ∆t > 0, and possesses a unique solution
for each time step. The local truncation error for each step is
τk =
(∆t)2
(J(∇Jc (û)) + J(∇Je (û))) ∇J(u(ξ)),
2
for some ξ ∈ (k∆t, (k +1)∆t) and for some û in the parallelopiped with opposite vertices
at Uk and Uk+1 .
Remark 4.1.5. Condition (4.9) in Theorem 4.1.4 is equivalent to the requirement that
all the eigenvalues of J(∇Je ) dominate the largest eigenvalue −λ of −J(∇J), i.e.,
(4.9)
(4.2)
hJ(∇Je )(u)u, ui ≥ −λ ≥ h−J(∇J)(u)u, ui
for all u ∈ RN , i.e.,
λ̂ ≥ |λ| ,
for all eigenvalues λ̂ > 0 of Je .
(4.10)
In the following we apply the idea of convexity splitting to our three inpainting
models (2.1), (2.27), and (2.42). For this we change from the discrete setting to the
continuous setting, i.e., considering functions u in a suitable Hilbert space instead of
vectors u in RN . Although the first two of these inpainting approaches, i.e., CahnHilliard inpainting and TV-H−1 inpainting, are not given by gradient flows, we shall
see that the resulting numerical schemes are still unconditionally stable (in the sense
of Definition 4.1.3) and therefore suitable to solve them accurately and reasonably
fast. For inpainting with LCIS (2.42) the results of Eyre can be directly applied,
even in the continuous setting, cf. Remark 4.1.1. Nevertheless, also for this case, we
additionally present a rigorous analysis, similar to the one done for Cahn-Hilliard- and
TV-H−1 inpainting.
4.1.2
Cahn-Hilliard Inpainting
In this section we show that the application of convexity splitting to Cahn-Hilliard
inpainting (2.1) yields a consistent, unconditionally stable and convergent numerical
scheme. Recall that the inpainted version u(x) of f (x) is constructed by following the
evolution equation
1 ′
ut = ∆ −ǫ∆u + F (u) + λ(f − u).
ǫ
109
4.1 Unconditionally Stable Solvers
The application of convexity splitting to Cahn-Hilliard inpainting (2.1) was originally introduced in [BEG07a]. The numerical results presented there already suggested
the usefulness of this scheme. Although the authors did not analyze the scheme rigorously, they concluded that based on their numerical results, the scheme is unconditionally stable. In the following we will present this numerical scheme and derive some
additional properties based on its rigorous analysis.
The original Cahn-Hilliard equation is a gradient flow in H −1 for the energy
Z ǫ
1
2
J1 (u) =
|∇u| + F (u) dx,
ǫ
Ω 2
while the fitting term in (2.1) can be derived from a gradient flow in L2 for the energy
Z
1
λ(f − u)2 dx.
J2 (u) =
2 Ω
Note that equation (2.1) as a whole does not result in a gradient system anymore.
Hence, we apply the convexity splitting discussed in Section 4.1.1 to both functionals
J1 and J2 separately. Namely we split J1 in J1 = J1c − J1e with
Z
Z
ǫ
1
C1 2
C1 2
2
J1c (u) =
− F (u) +
|∇u| +
|u| dx, J1e (u) =
|u| dx.
2
ǫ
2
Ω 2
Ω
A possible splitting for J2 is J2 = J2c − J2e with
Z
Z
C2 2
C2 2
1
1
−λ(f − u)2 +
|u| dx, J2e (u) =
|u| dx.
J2c (u) =
2 Ω 2
2 Ω
2
To make sure that J1c , J1e and J2c , J2e are strictly convex the constants C1 and C2 have
to be chosen such that C1 > 1ǫ , C2 > λ0 , compare [BEG07b].
Then the resulting discrete time-stepping scheme for an initial condition U0 = u0
is given by
Uk+1 − Uk
= −∇H −1 (J1c (Uk+1 ) − J1e (Uk )) − ∇L2 (J2c (Uk+1 ) − J2e (Uk )),
∆t
where ∇H −1 and ∇L2 represent gradient descent with respect to the H −1 and the L2
inner product respectively. This translates to a numerical scheme of the form
Uk+1 − Uk
1
+ ǫ∆∆Uk+1 − C1 ∆Uk+1 + C2 Uk+1 = ∆F ′ (Uk ) − C1 ∆Uk
∆t
ǫ
+ λ(f − Uk ) + C2 Uk , in Ω. (4.11)
110
4.1 Unconditionally Stable Solvers
We imply Neumann boundary conditions on ∂Ω, i.e.,
∂∆Uk+1
∂Uk+1
=
= 0,
∂ν
∂ν
on ∂Ω,
and intend to compute Uk+1 in (4.11) in the spectral domain using the discrete cosine
transform (DCT).
Note that in order to derive Neumann boundary conditions for (4.11) the standard
space H −1 as defined in Appendix A.4 has to be replaced by H∂−1 as defined in Section
2.1.3.
Spectral methods, like the DCT, are a classical tool for the discretization of Laplacian operators. In the case of a Laplacian operator, their main advantage is that the
resulting matrix is of diagonal type, which allows fast computations. In addition, fast
numerical methods for the Fourier transform exist. Let Û be the DCT of U and λi
the eigenvalues of the discrete Laplacian with Neumann boundary conditions. Then
equation (4.11) in Û reads
Ûk+1 (i, j) =
1
(1 − C1 ∆t( ∆x
2 λi +
1
λ )
∆y 2 j
+ C2 ∆t)Ûk (i, j)
ci,j
+
∆t \
′
ǫ ∆F (Uk )(i, j)
+ ∆tλ(f\
− Uk )
ci,j
,
where ci,j is defined as
ci,j = 1 + C2 ∆t + ǫ∆t
1
1
λj
2 λi +
∆x
∆y 2
2
− C1 ∆t
1
1
λi +
λj .
∆x2
∆y 2
Rigorous Estimates for the Scheme
From Theorem 4.1.4 we know that (at least in the spatially discrete framework) the
convexity splitting scheme (4.5)-(4.7) is unconditionally stable, i.e., separate numerical
schemes for the gradient flows of the energies J1 (u) and J2 (u) are not increasing for all
∆t > 0. But this does not guarantee that our numerical scheme (4.11) is unconditionally
stable, since it combines the flows of two energies. In this section we shall analyze the
scheme in more detail and derive some rigorous estimates for its solutions. In particular
we will show that the scheme (4.11) is unconditionally stable in the sense of Definition
4.1.3. Our results are summarized in the following theorem.
111
4.1 Unconditionally Stable Solvers
Theorem 4.1.6. Let u be the exact solution of (2.1) and uk = u(k∆t) the exact
solution at time k∆t, for a time step ∆t > 0 and k ∈ N. Let further Uk be the kth
iterate of (4.11) with constants C1 > 1/ǫ, C2 > λ0 . Then the following statements are
true:
(i) Under the assumption that kutt k−1 , k∇∆ut k2 and kut k2 are bounded, the numerical scheme (4.11) is consistent with the continuous equation (2.1) and of order
1 in time.
Under the additional assumption that
F ′′ (Uk−1 ) ≤ K
(4.12)
for a nonnegative constant K, we further have
(ii) The solution sequence Uk is bounded on a finite time interval [0, T ], for all ∆t > 0.
(iii) The discretization error ek , given by ek = uk − Uk , converges to zero as ∆t → 0.
Remark 4.1.7. Note that our assumptions for the consistency of the numerical scheme,
only hold if the time derivative of the solution of the continuous equation (2.1) is uniformly bounded. This is true, for smooth and bounded solutions of the equation.
Further, since we are interested in bounded solutions Uk of the discrete equation
(4.11), it is natural to assume (4.12), i.e., that the nonlinearity F ′′ in the previous time
step ∆(k − 1) is bounded.
The proof of Theorem 4.1.6 is organized in the following three Propositions 4.1.84.1.10.
Proposition 4.1.8. (Consistency (i)) Under the same assumptions as in Theorem
4.1.6 and in particular under the assumption that kutt k−1 , k∇∆ut k2 and kut k2 are
bounded, the numerical scheme (4.11) is consistent with the continuous equation (2.1)
with local truncation error kτk k−1 = O(∆t).
Proof. Let Fk (U ) = 0 represent the difference equation approximating the PDE at time
k∆t. If the discrete solution U is replaced by the exact solution u of (2.1), the value
τk = Fk (u) is the local truncation error defined over a time step. Then
τk = τk1 + τk2 ,
112
4.1 Unconditionally Stable Solvers
with
uk+1 − uk
− ut (k∆t)
∆t
τk2 = ǫ∆∆(uk+1 − uk ) − C1 ∆(uk+1 − uk ) + C2 (uk+1 − uk )
uk+1 − uk
uk+1 − uk
uk+1 − uk
= ǫ∆t∆2
− C1 ∆t∆2
+ C2 ∆t
,
∆t
∆t
∆t
τk1 =
i.e.,
1
uk+1 − uk
+ ǫ∆2 uk+1 − ∆F ′ (uk ) − λ(f − uk ) − C1 ∆(uk+1 − uk ) + C2 (uk+1 − uk ).
∆t
ǫ
(4.13)
Using standard Taylor series arguments and assuming that kutt k−1 , k∇∆ut k2 and kut k2
are bounded we deduce that
kτk k−1 = O(∆t).
(4.14)
τk =
Proposition 4.1.9. (Unconditional stability (ii)) Under the same assumptions as
in Theorem 4.1.6 and in particular assuming that (4.12) holds, the solution sequence
Uk with k∆t ≤ T for T > 0 fixed, fulfills for every ∆t > 0
k∇Uk k22 + ∆tK1 k∆Uk k22 ≤ eK2 T k∇U0 k22 + ∆tC1 k∆U0 k22 + ∆t T C(Ω, D, λ0 , f ) ,
(4.15)
for suitable constants K1 and K2 , and constant C depending on Ω, D, λ0 , f only. This
gives boundedness of the solution sequence on [0, T ].
Proof. We consider our discrete model
Uk+1 − Uk
1
+ǫ∆∆Uk+1 −C1 ∆Uk+1 +C2 Uk+1 = ∆F ′ (Uk )−C1 ∆Uk +λ(f −Uk )+C2 Uk ,
∆t
ǫ
multiply the equation with −∆Uk+1 and integrate over Ω. We obtain
1 k∇Uk+1 k22 − h∇Uk , ∇Uk+1 i2 + ǫ k∇∆Uk+1 k22 + C1 k∆Uk+1 k22 + C2 k∇Uk+1 k22
∆t
1 ′′
F (Uk )∇Uk , ∇∆Uk+1 2 + C1 h∆Uk , ∆Uk+1 i2
=
ǫ
+ h∇λ(f − Uk ), ∇Uk+1 i2 + C2 h∇Uk , ∇Uk+1 i2 .
Using Cauchy’s inequality we obtain
1 k∇Uk+1 k22 − k∇Uk k22 + ǫ k∇∆Uk+1 k22 + C1 k∆Uk+1 k22 + C2 k∇Uk+1 k22
2∆t
1 F ′′ (Uk )∇Uk 2 + δ k∇∆Uk+1 k2 + C1 k∆Uk k2 + C1 k∆Uk+1 k2
≤
2
2
2
2
2ǫδ
2ǫ
2
2
C2
1
1
C2
k∇Uk k22 +
k∇Uk+1 k22 + k∇λ(f − Uk )k22 + k∇Uk+1 k22 .
+
2
2
2
2
113
4.1 Unconditionally Stable Solvers
Using the estimate
k∇λ(f − Uk )k22 ≤ 2λ20 k∇Uk k22 + C(Ω, D, λ0 , f )
and reordering the terms we obtain
1
C2 1
δ
C1
2
2
+
−
k∆Uk+1 k2 + ǫ −
k∇Uk+1 k2 +
k∇∆Uk+1 k22
2∆t
2
2
2
2ǫ
C
C2
1
1
F ′′ (Uk )∇Uk 2 + 1 k∆Uk k2 + C(Ω, D, λ0 , f ).
+
+ λ20 k∇Uk k22 +
≤
2
2
2∆t
2
2ǫδ
2
By choosing δ = 2ǫ2 , the third term on the left side of the inequality is zero. Because
of assumption (4.12) we obtain the following bound on the right side of the inequality
′′
F (Uk )∇Uk 2 ≤ K 2 k∇Uk k2
2
2
and we have
1
C2 1
C1
+
−
k∆Uk+1 k22
k∇Uk+1 k22 +
2∆t
2
2
2
1
C2
K2
C1
2
≤
+
+ λ0 + 3 k∇Uk k22 +
k∆Uk k22 + C(Ω, D, λ0 , f ).
2∆t
2
4ǫ
2
Now we multiply the above inequality by 2∆t and define
C̃ = 1 + ∆t(C2 − 1),
K2
C̃˜ = 1 + ∆t(C2 + 2λ20 + 3 ).
2ǫ
Since C2 is chosen greater than λ0 > 1, the first coefficient C̃ is positive and we can
divide the inequality by it. We obtain
k∇Uk+1 k22
C1
C̃˜
C1
2
+ ∆t
k∆Uk+1 k2 ≤ k∇Uk k22 + ∆t
k∆Uk k22 + ∆tC(Ω, D, λ0 , f ),
C̃
C̃
C̃
where we updated the constant C(Ω, D, λ0 , f ) by C(Ω, D, λ0 , f )/C̃.
˜
≥ 1, we can multiply the second term on the right side of the inequality by
Since C̃
C̃
this quotient to obtain
k∇Uk+1 k22
C1
C̃˜
C1
2
2
2
+ ∆t
k∆Uk+1 k2 ≤
k∆Uk k2 + ∆tC(Ω, D, λ0 , f ).
k∇Uk k2 + ∆t
C̃
C̃
C̃
114
4.1 Unconditionally Stable Solvers
We deduce by induction that
C1
k∇Uk k22 + ∆t
k∆Uk k22 ≤
C̃
C̃˜
C̃
!k k∇U0 k22
+∆t
C̃˜
C̃
k−1
X
i=0
=
(1 + K2 ∆t)k
(1 + K1 ∆t)k
+∆t
!i
C1
k∆U0 k22
+ ∆t
C̃
C(Ω, D, λ0 , f )
C1
2
2
k∇U0 k2 + ∆t
k∆U0 k2
C̃
k−1
X
(1 + K2 ∆t)i
i=0
(1 + K1 ∆t)i
C(Ω, D, λ0 , f ).
For k∆t ≤ T we have
k∇Uk k22
C1
C1
2
2
2
(K2 −K1 )T
k∆Uk k2 ≤ e
k∇U0 k2 + ∆t
k∆U0 k2
+ ∆t
C̃
C̃
+∆tT e(K2 −K1 )T C(Ω, D, λ0 , f )
C1
(K2 −K1 )T
= e
k∇U0 k22 + ∆t
k∆U0 k22
C̃
+∆t T C(Ω, D, λ0 , f )) ,
which gives boundedness of the solution sequence on [0, T ] for any T > 0 assuming that
(4.12) holds.
The convergence of the discrete solution to the continuous one as the time step
∆t → 0 is verified in the following proposition.
Proposition 4.1.10. (Convergence (iii)) Under the same assumptions as in Theorem 4.1.6 and in particular under assumption (4.12) the discretization error ek fulfills,
for suitable constants C, C1 , K1 , K2 ,
k∇ek k22 + ∆t
C1
k∆ek k22 ≤ T ∆te4(K1 +K2 )T · C,
C̃
(4.16)
for k∆t ≤ T and a fixed T > 0.
Proof. Let us follow the lines of the consistency proof in (4.13). Then the discretization
115
4.1 Unconditionally Stable Solvers
error ek satisfies
ek+1 − ek
+ ǫ∆2 ek+1 − C1 ∆ek+1 + C2 ek+1
∆t
1
1
=
(uk+1 − uk ) −
(Uk+1 − Uk ) + ǫ∆2 uk+1 − ǫ∆2 Uk+1
∆t
∆t
−C1 ∆uk+1 + C1 ∆Uk+1 + C2 uk+1 − C2 Uk+1
1
′
= −
∆F (Uk ) − C1 ∆Uk + λ(f − Uk ) + C2 Uk
ǫ
1
′
+
∆F (uk ) + λ(f − uk ) − C1 ∆uk + C2 uk + τk
ǫ
1
′
′
= −
∆(F (Uk ) − F (uk )) − C1 ∆(Uk − uk ) + C2 (Uk − uk ) − λ(Uk − uk ) + τk .
ǫ
Multiplication with −∆ek+1 leads to
1
h∇(ek+1 − ek ), ∇ek+1 i2 + ǫ k∇∆ek+1 k22 + C1 k∆ek+1 k22 + C2 k∇ek+1 k22
∆t
1
=
∆(F ′ (Uk ) − F ′ (uk )), ∆ek+1 2 − C1 h∆(Uk − uk ), ∆ek+1 i2
ǫ
+ h∇λ(Uk − uk ), ∇ek+1 i2 − C2 h∇(Uk − uk ), ∇ek+1 i2 + ∇∆−1 τk , ∇∆ek+1 2 .
Further, because
we obtain
1 1
(k∇ek+1 k22 − k∇ek k22 ),
k∇ek+1 k22 − h∇ek , ∇ek+1 i2 ≥
∆t
2∆t
1
(k∇ek+1 k22 − k∇ek k22 ) + ǫ k∇∆ek+1 k22 + C1 k∆ek+1 k22 + C2 k∇ek+1 k22
2∆t
1
∆(F ′ (Uk ) − F ′ (uk )), ∆ek+1 2 + C1 h∆ek , ∆ek+1 i2 − h∇λek , ∇ek+1 i2
≤
ǫ
+ C2 h∇ek , ∇ek+1 i2 + ∇∆−1 τk , ∇∆ek+1 2 .
Applying Cauchy’s inequality leads to
1
(k∇ek+1 k22 − k∇ek k22 ) + ǫ k∇∆ek+1 k22 + C1 k∆ek+1 k22 + C2 k∇ek+1 k22
2∆t
C1
1
k∆ek k22 + C1 δ1 k∆ek+1 k22
≤ − (F ′′ (Uk )∇Uk − F ′′ (uk )∇uk ), ∇∆ek+1 2 +
ǫ
δ1
λ2
C2
+ 0 k∇ek k22 + δ3 k∇ek+1 k22 +
k∇ek k22 + C2 δ2 k∇ek+1 k22
δ3
δ2
1
+ kτk k2−1 + δ4 k∇∆ek+1 k22 .
δ4
116
4.1 Unconditionally Stable Solvers
Since (4.12) holds, we obtain
1 ′′
(F (Uk )∇Uk − F ′′ (uk )∇uk ), ∇∆ek+1 2
ǫ
1 F ′′ (Uk )∇Uk − F ′′ (uk )∇uk )2 + δ5 k∇∆ek+1 k2
2
2
2ǫδ5
2ǫ
K
δ5
K
k∇Uk k22 +
k∇uk k22 +
k∇∆ek+1 k22 ,
ǫδ5
ǫδ5
2ǫ
−
≤
≤
and therefore
1
+ C2 (1 − δ2 ) − δ3 k∇ek+1 k22 + C1 (1 − δ1 ) k∆ek+1 k22
2∆t
δ5
k∇∆ek+1 k22
+ ǫ − δ4 −
2ǫ
1
λ20 C2
1
K C1
≤
k∇Uk k22 + k∇uk k22 .
+
+
k∆ek k22 + kτk k2−1 +
k∇ek k22 +
2∆t
δ3
δ2
δ1
δ4
ǫδ5
Next we choose δ1 = 1/2 and multiply the inequality with 2∆t
(1 + 2∆t(C2 (1 − δ2 ) − δ3 )) k∇ek+1 k22 + ∆tC1 k∆ek+1 k22
δ5
+ 2∆t ǫ − δ4 −
k∇∆ek+1 k22
ǫ
2∆t
λ20 C2
) k∇ek k22 + 4∆tC1 k∆ek k22 +
kτk k2−1
≤ 1 + 2∆t( +
δ3
δ2
δ4
2K 2
2
k∇Uk k2 + k∇uk k2 .
+ ∆t
ǫ
Now choosing all δs such that the coefficients of all terms in the inequality are nonnegative and estimating the last term on the left side from below by zero we get
k∇ek+1 k22 + ∆t
where
C̃˜
C1
2∆t
C1
k∆ek+1 k22 ≤ k∇ek k22 + 4∆t
k∆ek k22 +
kτk k2−1
C̃
C̃
C̃
δ4 C̃
2K + ∆t
k∇Uk k22 + k∇uk k22 ,
ǫC̃
C̃ = 1 + 2∆t(C2 (1 − δ2 ) − δ3 ),
λ2 C2
).
C̃˜ = 1 + 2∆t( 0 +
δ3
δ2
Further,
k∇ek+1 k22
C1
C̃˜
C1
2
2
2
+ ∆t
k∇ek k2 + ∆t
k∆ek+1 k2 ≤ 4
k∆ek k2
C̃
C̃
C̃
2
2K 2
2
2
+ ∆t
k∇Uk k2 + k∇uk k2
kτk k−1 +
.
δ4 C̃
ǫC̃
117
4.1 Unconditionally Stable Solvers
In addition we apply the consistency result (4.14) and the uniform bound (4.15) to the
above inequality and obtain
k∇ek+1 k22
C̃˜
C1
C1
2
2
2
+ ∆t
k∆ek+1 k2 ≤ 4
k∆ek k2
k∇ek k2 + ∆t
C̃
C̃
C̃
2
2K 2
2
+ ∆t
C2 + k∇uk k2
(∆t) +
.
δ4 C̃
ǫC̃
To proceed we assume for now that the exact solution is uniformly bounded in H 1 (Ω),
i.e.,
∃C3 > 0 such that k∇uk k2 ≤ C3 for all k∆t < T.
(4.17)
This assumption will be proven in Lemma 4.1.11 just after the end of this proof. Now,
implementing (4.17) in our computation we have
k∇ek+1 k22
C1
C̃˜
C1
2
2
2
+ ∆t
k∆ek+1 k2 ≤ 4
k∆ek k2
k∇ek k2 + ∆t
C̃
C̃
C̃
2K
2
(∆t)2 +
(C2 + C3 ) .
+ ∆t
δ4 C̃
ǫC̃
By induction we deduce that
C1
k∇ek k22 + ∆t
k∆ek k22 ≤
C̃
!k C1
2
k∆e0 k2
+ ∆t
C̃
!i k−1
X
C̃˜
2
2K
2
4
(∆t) +
(C2 + C3 ) . (4.18)
+ ∆t
C̃
δ4 C̃
ǫC̃
i=0
C̃˜
4
C̃
k∇e0 k22
Since e0 = U0 − u0 = 0, the first term on the right-hand side of the above inequality
vanishes. For k∆t ≤ T we finally have
k∇ek k22 + ∆t
C1
k∆ek k22 ≤ T ∆te4(K1 +K2 )T · C.
C̃
From [BEG07a, BEG07b] we know that the solution uk to the continuous equation
globally exists and is uniformly bounded in L2 (Ω). Next we show that assumption
(4.17) holds.
Lemma 4.1.11. Let uk be the exact solution of (2.1) at time t = k∆t and let T > 0.
Then there exists a constant C > 0 such that k∇uk k2 ≤ C for all k∆t < T .
118
4.1 Unconditionally Stable Solvers
Proof. Let K(u) = −ǫ∆u + 1ǫ F ′ (u). We multiply the continuous evolution equation
(2.1) with K(u) and obtain
hut , K(u)i2 = h∆K(u), K(u)i2 + hλ(f − u), K(u)i2 .
Let us further define
ǫ
J(u) :=
2
Z
1
|∇u| dx +
ǫ
Ω
2
Z
F (u) dx.
Ω
Then we have
1 ′
hut , K(u)i2 = ut , −ǫ∆u + F (u)
ǫ
2
1 ′
= h∇ut , ǫ∇ui2 + ut , F (u)
ǫ
2
d
= J(u),
dt
since u satisfies Neumann boundary conditions. Therefore we get
Z
d
1 ′
2
J(u) = − |∇K(u)| dx + hλ(f − u), −ǫ∆ui2 + λ(f − u), F (u) .
dt
ǫ
Ω
2
(4.19)
Since F (u) is bounded from below, we only have to show that J(u) is uniformly bounded
on [0, T ], and we automatically have that |∇u| is uniformly bounded on [0, T ]. We start
with the last term, and recall the following bounds on F ′ (u) (cf. [Te88]): There exist
positive constants C1 , C2 such that
F ′ (s)s ≥ C1 s2 − C2 ,
∀s ∈ R
and, for every δ > 0, there exists a constant C3 such that
|F ′ (s)| ≤ δC1 s2 + C3 (δ),
∀s ∈ R.
Use the last two estimates to obtain the following
Z
Z
1 ′
λ0
λ0
′
λ(f − u), F (u) =
F (u)f dx −
F ′ (u)u dx
ǫ
ǫ
ǫ
Ω\D
Ω\D
2
Z
Z
λ0
λ0 C1
λ0 C2 |Ω \ D|
≤
|F ′ (u)| dx · kf kL∞ (Ω) −
u2 dx +
ǫ Ω\D
ǫ
ǫ
Ω\D
!
Z
Z
C3 (δ) |Ω \ D|
λ0 C1
C1
u2 dx +
u2 dx
−
≤ λ0 C(f, Ω) δ
ǫ Ω\D
ǫ
ǫ
Ω\D
λ0 C2 |Ω \ D|
ǫ
Z
λ0 C1
u2 dx + C(λ0 , ǫ, δ, Ω, D, f ),
(1 − δC(f, Ω))
≤−
ǫ
Ω\D
+
119
4.1 Unconditionally Stable Solvers
where we choose δ < 1/C(f, Ω). Therefore integrating (4.19) over the time interval
[0, T ] results in
Z
T
0
d
J(u(t)) dt ≤
dt
Z
T
Z
Z
2
T
hλ(f − u), −ǫ∆ui2 dt
|∇K(u)| dx dt +
0
Ω
0
Z TZ
λ0 C1
−
u2 dx dt + T · C(λ0 , ǫ, δ, Ω, D, f ).
(1 − δC(f, Ω))
ǫ
0
Ω\D
−
Next we consider the second term on the right side of the last inequality. From Theorem
4.1 in [BEG07a] we know that a solution u of (2.1) is an element in L2 (0, T ; H 2 (Ω)) for
all T > 0. Hence ∆u ∈ L2 (0, T ; L2 (Ω)) and the second term is bounded by a constant
depending on T . Consequently for each 0 ≤ t ≤ T we get,
J(u(t)) ≤ J(u(0)) + C(T ) + T · C(λ0 , ǫ, δ, Ω, D, f )
#
Z
Z T "Z
λ0 C1
2
2
(1 − δC(f, Ω))
u dx dt,
−
|∇K(u)| dx +
ǫ
Ω\D
0
Ω
and with this, for a fixed T > 0, that |∇u| is uniformly bounded in [0, T ].
4.1.3
TV-H−1 Inpainting
In this section we discuss convexity splitting for TV-H−1 inpainting (2.27). To avoid
numerical difficulties we approximate an element p in the subdifferential of the total
∇u
), the square root reguvariation functional T V (u) by a smoothed version of ∇ · ( |∇u|
larization for instance. With the latter regularization the smoothed version of (2.27)
reads
ut = −∆∇ ·
∇u
p
|∇u|2 + δ 2
!
+ λ(f − u),
(4.20)
with 0 < δ ≪ 1. In contrast to its second-order analogue, the well-posedness of (2.27)
∇u
strongly depends on the smoothing used for ∇ · ( |∇u|
). In fact there are smoothing
functions for which (2.27) produces singularities in finite time. This is caused by the
lack of maximum principles which in the second-order case guarantee the well-posedness
for all smooth monotone regularizations. In [BGOV05] the authors considered (2.27)
with λ = λ0 in all of Ω, i.e., the fourth-order analogue to TV-L2 denoising, which was
originally introduced in [OSV03]. They proved well-posedness in one space dimension
for a set of smooth monotone regularizations which include the square root smoothing
!
ux
p
(4.21)
|ux |2 + δ 2 x
120
4.1 Unconditionally Stable Solvers
and, the arctan regularization
2
arctan(ux /δ) ,
π
x
(4.22)
for 0 < δ ≪ 1. The behavior of the fourth-order PDE in one dimension is also rel-
evant for two-dimensional images since a lot of structure involves edges which are
one-dimensional objects. In two dimensions similar results are much more difficult to
obtain, since energy estimates and the Sobolev lemma involved in its proof might not
hold in higher dimensions anymore.
In the following we will present the convexity splitting method applied to (2.27)
for both the square root and the arctan regularization. Similarly to the convexity
splitting for Cahn-Hilliard inpainting, we propose the following splitting for the TVH−1 inpainting equation. The regularizing term in (2.27) can be modeled by a gradient
flow in H −1 of the energy
J1 (u) =
Z
Ω
|∇u| dx,
where |∇u| is replaced by its regularized version, e.g.,
in J1c − J1e with
J1c (u) =
Z
Ω
C1
|∇u|2 dx, and J1e (u) =
2
Z
Ω
q
|∇u|2 + δ 2 , δ > 0. We split J1
−|∇u| +
C1
|∇u|2 dx.
2
The fitting term is split into J2 = J2c − J2e analogous to the Cahn-Hilliard inpainting.
The resulting time-stepping scheme is given by
∇Uk
Uk+1 − Uk
+ C1 ∆∆Uk+1 + C2 Uk+1 = C1 ∆∆Uk − ∆ ∇ · (
) + C2 Uk + λ(f − Uk ).
∆t
|∇Uk |
(4.23)
We assume that Uk+1 satisfies zero Neumann boundary conditions and use the DCT to
solve (4.23). Note again that in the case of Neumann boundary conditions the standard
space H −1 as defined in Appendix A.4 has to be replaced by H∂−1 as defined in Section
2.1.3.
The constants C1 and C2 have to be chosen such that J1c , J1e , J2c , J2e are all strictly
convex. In the following we will demonstrate how to compute the appropriate constants.
Let us consider C1 first. The functional J1c is strictly convex for all C1 > 0. The choice
of C1 for the convexity of J1e depends on the regularization of the total variation we
are using. We use the square regularization (4.21), i.e., instead of |∇u| we have
Z
p
G(|∇u|) dx, with G(s) = s2 + δ 2 .
121
4.1 Unconditionally Stable Solvers
Setting y = |∇u| we have to choose C1 such that
condition for the second derivative gives us that
δ2
(δ 2 +y 2 )3/2
is convex. The convexity
δ2
1
⇐⇒ C1 > ,
3/2
2
2
δ
(δ + y )
C1 > G′′ (y) ⇐⇒ C1 >
is sufficient as
C1 2
2 y − G(y)
has its maximum value at y = 0. Next we would like to
compare this with the arctan regularization (4.22), i.e., replacing
∇u
|∇u|
by π2 arctan( ∇u
δ ),
as proposed in [BGOV05]. Here the convexity condition for the second derivative reads
s
d 2
arctan( ) > 0.
C1 ±
ds π
δ
The ± sign results from the absent absolute value in the regularization definition. We
obtain
2
1
> 0.
π δ(1 + s2 /δ 2 )
C1 ±
The inequality with a plus sign instead of ± is true for all constants C1 > 0. In the
other case we obtain
C1 >
which is fulfilled for all s ∈ R if C1 >
δ
2
,
π δ 2 + s2
2
δπ .
Note that this condition is almost the same
as in the case of the square regularization.
Now we consider J2 = J2c − J2e . The functional J2c is strictly convex if C2 > 0. For
the convexity of J2e we rewrite
Z
1
J2e (u) =
−λ(f − u)2 + C2 |u|2 dx
2 Ω
Z
Z
C2 2
λ0
C2 2
=
|u| dx +
− (f − u)2 +
|u| dx
2
2
2
D
Ω\D
Z
Z
C2 2
C2 λ0
λ0 2
|u| dx +
(
− ) |u|2 + λ0 f u −
|f | .
=
2
2
Ω\D 2
D 2
This is convex for C2 > λ0 , e.g., with C2 = λ0 + 1 we can write
J2e (u) =
Z
D
C2 2
|u| dx +
2
Z
Ω\D
1
u + λ0 f
2
122
2
λ0
2
− λ0 +
|f |2 dx.
2
4.1 Unconditionally Stable Solvers
Rigorous Estimates for the Scheme
As in Section 4.1.2 for Cahn-Hilliard inpainting, we proceed with a more detailed analysis of (4.23). Throughout this section we consider the square-root regularization of the
total variation both in our numerical scheme and in the continuous evolution equation
(2.27). Note that similar results are true for other monotone regularizers such as the
arctan smoothing. Our results are summarized in the following theorem.
Theorem 4.1.12. Let u be the exact solution of (4.20) and uk = u(k∆t) be the exact
solution at time k∆t for a time step ∆t > 0 and k ∈ N. Let further Uk be the kth
iterate of (4.23) with constants C1 > 1/δ, C2 > λ0 . Then the following statements are
true:
(i) Under the assumption that kutt k−1 , k∇∆ut k2 and kut k2 are bounded, the numerical scheme (4.23) is consistent with the continuous equation (2.27) and of order
1 in time.
(ii) The solution sequence Uk is bounded on a finite time interval [0, T ], for all ∆t > 0.
(iii) Let further ek = uk − Uk . If
k∇uk k22 + k∇∆uk k22 ≤ K for a constant K > 0, and for all k∆t < T,
(4.24)
then the error ek converges to zero as ∆t → 0.
Remark 4.1.13. Note that assumption (4.24) in Theorem 4.1.12 (iii) does not hold in
general. Given the results in [BGOV05] for the one dimensional equation with λ(x) =
λ0 on all of Ω, which guarantee the existence of a unique smooth solution for both
the square root and the arctan regularization, this assumption nevertheless seem to be
reasonable in an heuristic sense. Heuristically speaking, this assumption holds for one
dimensional structures, like edges, in the two dimensional image. Rigorously, the wellposedness and regularity of solutions in the two dimensional case with non constant λ
is still a matter for further research.
The proof of Theorem 4.1.12 is split into three separate Propositions 4.1.14-4.1.16.
Proposition 4.1.14. (Consistency (i)) Under the same assumptions as in Theorem
4.1.12 and in particular under the assumption that kutt k−1 , k∇∆ut k2 and kut k2 are
bounded, the numerical scheme (4.23) is consistent with the continuous equation (4.20)
with local truncation error kτk k−1 = O(∆t).
123
4.1 Unconditionally Stable Solvers
Proof. The local truncation error is defined over a time step as satisfying
τk = τk1 + τk2 ,
where
τk1 =
uk+1 − uk
− ut (k∆t),
∆t
τk2 = C1 ∆2 (uk+1 − uk ) + C2 (uk+1 − uk ),
i.e.,
uk+1 − uk
+∆ ∇·
τk =
∆t
∇uk
p
|∇uk |2 + δ 2
!!
− λ(f − uk )
+ C1 ∆2 (uk+1 − uk ) + C2 (uk+1 − uk ). (4.25)
Using standard Taylor series arguments and assuming that kutt k−1 , k∇∆ut k2 and kut k2
are bounded we deduce that
kτk k−1 = O(∆t).
(4.26)
Proposition 4.1.15. (Unconditional stability (ii)) Under the same assumptions
as in Theorem 4.1.12 the solution sequence Uk with k∆t ≤ T for T > 0 fixed, fulfills
for every ∆t > 0
k∇Uk k22 + ∆tK1 k∇∆Uk k22 ≤ eK2 T k∇U0 k22 + ∆tK1 k∇∆U0 k22 + ∆tT C(Ω, D, λ0 , f ) ,
(4.27)
for suitable constants K1 , K2 , and a constant C, which depends on Ω, D, λ0 , f only.
This gives boundedness of the solution sequence on [0, T ].
Proof. If we multiply (4.23) with −∆Uk+1 and integrate over Ω we obtain
1 k∇Uk+1 k22 − h∇Uk , ∇Uk+1 i2 + C2 k∇Uk+1 k22 + C1 k∇∆Uk+1 k22
∆t


*
+
∇U
k
 , ∆Uk+1
= ∆∇ ·  q
+ C1 h∇∆Uk , ∇∆Uk+1 i2
2
2
|∇Uk | + δ
2
+ h∇ (λ(f − Uk )) , ∇Uk+1 i2 + C2 h∇Uk , ∇Uk+1 i2 .
Applying Cauchy’s inequality to the inner products on the right and estimating
k∇λ(f − Uk )k22 ≤ 2λ20 k∇Uk k22 + C(Ω, D, λ0 , f )
124
4.1 Unconditionally Stable Solvers
results in
1 k∇Uk+1 k22 − k∇Uk k22 + C2 k∇Uk+1 k22 + C1 k∇∆Uk+1 k22
2∆t


*
+
∇U
C1
k
 , ∆Uk+1
k∇∆Uk k22 + C1 δ1 k∇∆Uk+1 k22
≤ ∆∇ ·  q
+
δ
2
1
|∇Uk | + δ 2
2
2λ2
C2
+ 0 k∇Uk k22 + δ2 k∇Uk+1 k22 +
k∇Uk k22 + C2 δ3 k∇Uk+1 k22 + C(Ω, D, λ0 , f ).
δ2
δ3
Now, the first term on the right side of the inequality can be estimated as follows




*
+
*
+
∇U
∇U
k
k
 , ∆Uk+1
 , ∇∆Uk+1
∆∇ ·  q
= − ∇∇ ·  q
2
2
2
2
|∇Uk | + δ
|∇Uk | + δ
2
2
2

1 ∇∇ ·  q ∇Uk
 + δ4 k∇∆Uk+1 k2 .
≤
2
δ4 |∇Uk |2 + δ 2 2
Applying Poincaré’s and Cauchy’s inequality to the first term leads to
2

∇∇ ·  q ∇Uk
 ≤ O(1/δ)(k∇Uk k2 + k∆Uk k2 + k∇∆Uk k2 ).
2
2
2
|∇Uk |2 + δ 2 2
Interpolating the L2 norm of ∆u by the L2 norms of ∇u and ∇∆u, we obtain
1
+ C2 (1 − δ3 ) − δ2 k∇Uk+1 k22 + (C1 (1 − δ1 ) − δ4 ) k∇∆Uk+1 k22
2∆t
1
2λ2 C2 C(1/δ, Ω)
C1 C(1/δ, Ω)
≤
+ 0+
+
+
k∇Uk k22 +
k∇∆Uk k22
2∆t
δ2
δ3
δ4
δ1
δ4
+ C(Ω, D, λ0 , f ).
For δi = 1/2, i = 1, . . . , 4 we obtain
C2 − 1
C1 − 1
1
+
k∇∆Uk+1 k22
k∇Uk+1 k22 +
2∆t
2
2
1
≤
+ 4λ20 + 2(C2 + C) k∇Uk k22 + 2 (C1 + C) k∇∆Uk k22 + C(Ω, D, λ0 , f ).
2∆t
Since C1 and C2 are chosen such that C1 > 1/δ > 1 and C2 > λ0 > 1, the coefficients
in the inequality above are positive. The rest of the proof is similar to the proof of
Proposition 4.1.9. We multiply the inequality by 2∆t and set
Ca = 1+∆t(C2 −1),
Cb = C1 −1,
Cc = 1+2∆t(4λ20 +2(C2 +C)),
125
Cd = 4(C1 +C).
4.1 Unconditionally Stable Solvers
We obtain
Ca k∇Uk+1 k22 + ∆tCb k∇∆Uk+1 k22 ≤ Cc k∇Uk k22 + ∆tCd k∇∆Uk k22
+ 2∆tC(Ω, D, λ0 , f ).
Dividing by Ca and multiplying the first and the second term on the right side of the
inequality by Cd and Cc Cb respectively we have
k∇Uk+1 k22
Cb
Cc Cd
+ ∆t
k∇∆Uk+1 k22 ≤
Ca
Ca
Cb
2
2
k∇∆Uk k2
k∇Uk k2 + ∆t
Ca
2
∆tC(Ω, D, λ0 , f ).
+
Ca
By induction it follows that
k∇Uk+1 k22 + ∆t
Cb
k∇∆Uk+1 k22 ≤
Ca
Cc Cd
Ca
Cb
k∇∆U0 k22
Ca
k−1
X
Cc Cd i 2
C(Ω, D, λ0 , f ).
+ ∆t
Ca
Ca
k k∇U0 k22 + ∆t
i=0
Therefore we obtain for k∆t ≤ T
k∇Uk k22
Cb
+ ∆t
k∇∆Uk k22 ≤ eKT
Ca
Cb
k∇U0 k22 + ∆t
k∇∆U0 k22
Ca
2
+∆tT
C(Ω, D, λ0 , f ) .
Ca
Finally we show that the discrete solution converges to the continuous one as ∆t
tends to zero.
Proposition 4.1.16. (Convergence (iii)) Under the same assumptions as in Theorem 4.1.12 and in particular under assumption (4.24) the error ek fulfills, for suitable
nonnegative constants M1 , M2 and M3 ,
k∇ek k22 + ∆tM1 k∇∆ek k22 ≤ T ∆teM2 T · M3 ,
(4.28)
for k∆t ≤ T and a fixed T > 0.
Proof. By our discrete approximation (4.23) and the consistency computation (4.25),
126
4.1 Unconditionally Stable Solvers
we have for ek = uk − Uk
=
ek+1 − ek
+ C1 ∆2 ek+1 + C2 ek+1
∆t
1
1
(uk+1 − uk ) −
(Uk+1 − Uk ) + C1 ∆2 uk+1 − C1 ∆2 Uk+1 + C2 uk+1 − C2 Uk+1
∆t
∆t




∇Uk
 + λ(f − Uk ) + C2 Uk 
= − C1 ∆2 Uk − ∆ ∇ ·  q
2
2
|∇Uk | + δ
 



∇uk
 − λ(f − uk ) − C1 ∆2 uk − C2 uk  + τk
− ∆ ∇ ·  q
2
2
|∇uk | + δ





∇u
∇U
k
k
 − ∇ · q

= −[−∆ ∇ ·  q
2
2
|∇Uk | + δ 2
|∇uk | + δ 2
+C1 ∆2 (Uk − uk ) + C2 (Uk − uk ) − λ(Uk − uk )] + τk .
Taking the inner product with −∆ek+1 , we have
1
h∇(ek+1 − ek ), ∇ek+1 i2 + C1 k∇∆ek+1 k22 + C2 k∇ek+1 k22
∆t





*
+
∇U
∇u
k
k
 − ∇ · q
 , ∆ek+1
= −∆ ∇ ·  q
2
2
2
2
|∇Uk | + δ
|∇uk | + δ
2
2
+ C1 ∆ (Uk − uk ), ∆ek+1 2 + h∇λ(Uk − uk ), ∇ek+1 i2
− C2 h∇(Uk − uk ), ∇ek+1 i2 + ∇∆−1 τk , ∇∆ek+1 2
Using the same arguments as in the proof of Proposition 4.1.10 we obtain
1
(k∇ek+1 k22 − k∇ek k22 ) + C1 k∇∆ek+1 k22 + C2 k∇ek+1 k22
2∆t





*
+
∇U
∇u
k
k
 − ∇ · q
 , ∆ek+1
≤ −∆ ∇ ·  q
|∇Uk |2 + δ 2
|∇uk |2 + δ 2
2
C1
λ2
+
k∇∆ek k22 + C1 δ1 k∇∆ek+1 k22 + 0 k∇ek k22 + δ3 k∇ek+1 k22
δ1
δ3
1
C2
k∇ek k22 + C2 δ2 k∇ek+1 k22 + kτk k2−1 + δ4 k∇∆ek+1 k22 .
+
δ2
δ4
127
4.1 Unconditionally Stable Solvers
We consider the first term on the right side of the above inequality in detail,





*
+
∇U
∇u
k
k
 − ∇ · q
 , ∆ek+1
−∆ ∇ ·  q
2
2
2
2
|∇Uk | + δ
|∇uk | + δ
2




+
* 
∇Uk
 , ∇∆ek+1
 − ∇ ·  q ∇uk
=
∇ ∇ ·  q
2
2
|∇Uk | + δ 2
|∇uk | + δ 2
2




2
1
∇ ∇ ·  q ∇Uk
 − ∇ ·  q ∇uk
 + 1 k∇∆ek+1 k2
≤
2
2
2
|∇Uk |2 + δ 2
|∇uk |2 + δ 2
2



2 
2
∇uk
∇Uk








+ ∇ ∇ · q
≤ ∇ ∇ · q
2
2
2
2
|∇Uk | + δ
|∇uk | + δ
2
2
1
+ k∇∆ek+1 k22
2
≤ C(1/δ, Ω) k∇Uk k22 + k∇∆Uk k22 + k∇uk k22 + k∇∆uk k22
1
+ k∇∆ek+1 k22 ,
2
for a constant C > 0 (cf. the estimate for the regularizer in the proof of Proposition
4.1.15). Therefore we obtain
1
1
2
+ C2 (1 − δ2 ) − δ3 k∇ek+1 k2 + C1 (1 − δ1 ) − δ4 −
k∇∆ek+1 k22
2∆t
2
1
C2 λ20
1
C1
≤
+
+
k∇∆ek k22 + kτk k2−1
k∇ek k22 +
2∆t
δ2
δ3
δ1
δ4
2
2
+ C(1/δ, Ω) k∇Uk k2 + k∇∆Uk k2 + k∇uk k22 + k∇∆uk k22 .
Proposition 4.1.15 guarantees that Uk is bounded by a constant, and assumption (4.24)
that the exact solution uk is bounded. Therefore by following the lines of the proof of
Proposition 4.1.10 we finally have for k∆t ≤ T
k∇ek k22 + ∆tM1 k∇∆ek k22 ≤ T ∆teM2 T · M3 ,
for suitable positive constants M1 , M2 and M3 .
4.1.4
LCIS Inpainting
Our last example for the applicability of the convexity splitting method to higher-order
inpainting approaches is inpainting with LCIS (2.42). With f ∈ L2 (Ω) our inpainted
128
4.1 Unconditionally Stable Solvers
image u evolves in time as
ut = −∆(arctan(∆u)) + λ(f − u).
In contrast to the other two inpainting methods that we discussed, this inpainting
equation is a gradient flow in L2 for the energy
Z
Z
1
G(∆u) dx +
J(u) =
λ(f − u)2 ,
2 Ω
Ω
with G′ (y) = arctan(y). Therefore Eyre’s result in Theorem 4.1.4 can be applied
directly. The functional J(u) is split into J1 − J2 with
Z
Z
C1
C2 2
1
2
J1 (u) =
(∆u) dx +
|u| dx,
2
2 Ω 2
Z
ZΩ
C2 2
1
C1
2
−λ(f − u)2 +
(∆u) dx +
|u| dx.
−G(∆u) +
J2 (u) =
2
2 Ω
2
Ω
The resulting time-stepping scheme is
Uk+1 − Uk
+ C1 ∆2 Uk+1 + C2 Uk+1 = −∆(arctan(∆Uk )) + C1 ∆2 Uk + λ(f − Uk ) + C2 Uk .
∆t
(4.29)
Again we impose homogeneous Neumann boundary conditions, use DCT to solve (4.29)
and we choose the constants C1 and C2 such that J1 and J2 are all strictly convex and
condition (4.9) is satisfied. The functional J1 is convex for all C1 , C2 > 0. The first
term in J2 is convex if C1 > 1. This follows from its second variation, namely
Z
d
2
(C1 ∆(u + sw) − arctan(∆(u + sw)))∆v dx
∇ J1e (u)(v, w) =
ds
s=0
Z 1
=
C1 −
∆v∆w dx.
1 + (∆u)2
For J1e being convex ∇2 J1e (u)(v, w) has to be > 0 for all v, w ∈ C ∞ and therefore
C1 −
1
> 0.
1 + (∆u)2
C1 >
1
∀s ∈ R.
1 + s2
Substituting s = ∆u we obtain
This inequality is fulfilled for all s ∈ R if C1 > 1. We obtain the same condition
on C1 for G′ (s) = arctan( δs ). For the convexity of the second term of J2 , the second
constant has to fulfill C2 > λ0 , cf. the computation for the fitting term in Section 4.1.3.
With these choices of C1 and C2 also condition (4.9) of Theorem 4.1.4 is automatically
satisfied.
129
4.1 Unconditionally Stable Solvers
Rigorous Estimates for the Scheme
Finally we present rigorous results for (4.29). In contrast to the inpainting equations
(2.1) and (2.27), inpainting with LCIS follows a variational principle. Hence, by choosing the constants C1 and C2 appropriately, i.e., C1 > 1, C2 > λ0 (cf. the computations
above), Theorem 4.1.4 ensures that the iterative scheme (4.29) is unconditionally gradient stable. Additionally to this property, we present similar results as before for
Cahn-Hilliard- and TV-H−1 inpainting.
Theorem 4.1.17. Let u be the exact solution of (2.42) and uk = u(k∆t) the exact
solution at time k∆t, for a time step ∆t > 0 and k ∈ N. Let further Uk be the kth
iterate of (4.29) with constants C1 > 1, C2 > λ0 . Then the following statements are
true:
(i) Under the assumption that kutt k−1 , k∇∆ut k2 and kut k2 are bounded, the numerical scheme (4.29) is consistent with the continuous equation (2.42) and of order
1 in time.
(ii) The solution sequence Uk is bounded on a finite time interval [0, T ], for all ∆t > 0.
(iii) Let further ek = uk − Uk . If
k∇∆uk k22 ≤ K, for a constant K > 0, and for all k∆t < T,
(4.30)
then the error ek converges to zero as ∆t → 0.
Remark 4.1.18. Note that the consistency result of Theorem 4.1.17 is weaker than
than the one following from Theorem 4.1.4. In fact Eyre’s theorem shows that the
scheme is of order 2, which is a stronger result than Theorem 4.1.17 (i).
Note that assumption (4.30) does not hold in general. Given the results of [BG04]
for the denoising case λ(x) = λ0 in all of Ω and for smooth initial data and smooth f ,
this assumption nevertheless seems to be reasonable in an heuristic sense. Rigorously,
the well-posedness and regularity of solutions in the two-dimensional case with non
constant λ is a matter for future research.
The proof of Theorem 4.1.17 is organized in the following three Propositions 4.1.194.1.21. Since the proof of consistency follows the lines of Proposition 4.1.8 and Proposition 4.1.14, we just state the result.
130
4.1 Unconditionally Stable Solvers
Proposition 4.1.19. (Consistency (i)) Under the same assumptions as in Theorem
4.1.17 and in particular assuming that kutt k−1 , k∇∆ut k2 and kut k2 are bounded, we
have
kτk k−1 = O(∆t).
Next we would like to show the boundedness of a solution of (4.29) in the following
proposition.
Proposition 4.1.20. (Unconditional stability (ii)) Under the same assumptions
as in Theorem 4.1.17 the solution sequence Uk fulfills, for k∆t < T
k∇Uk k22 + ∆tK1 k∇∆Uk k22 ≤ eK2 T k∇U0 k22 + ∆tK1 k∇∆U0 k22
+∆tT C(Ω, D, λ0 , f ))
for suitable constants K1 , K2 , and constant C depending on Ω, D, λ0 , f only.
Proof. If we multiply (4.29) with −∆Uk+1 and integrate over Ω we obtain
1 k∇Uk+1 k22 − h∇Uk , ∇Uk+1 i2 + C2 k∇Uk+1 k22 + C1 k∇∆Uk+1 k22
∆t
= h∆arctan(∆Uk ), ∆Uk+1 i2 + C1 h∇∆Uk , ∇∆Uk+1 i2
+ h∇ (λ(f − Uk )) , ∇Uk+1 i2 + C2 h∇Uk , ∇Uk+1 i2 .
Using the same arguments as in the proofs of Proposition 4.1.9 and 4.1.15 we obtain
1 k∇Uk+1 k22 − k∇Uk k22 + C2 k∇Uk+1 k22 + C1 k∇∆Uk+1 k22
2∆t
λ2
C1
k∇∆Uk k22 + C1 δ1 k∇∆Uk+1 k22 + 0 k∇Uk k22
≤ h∆arctan(∆Uk ), ∆Uk+1 i2 +
δ1
2δ2
C
2
k∇Uk k22 + C2 δ3 k∇Uk+1 k22 + C(Ω, D, λ0 , f ).
+ δ2 k∇Uk+1 k22 +
δ3
Now, the first term on the right side of the inequality can be estimated as follows
h∆arctan(∆Uk ), ∆Uk+1 i2 = − h∇arctan(∆Uk ), ∇∆Uk+1 i2
1
=−
∇∆Uk , ∇∆Uk+1
1 + (∆Uk )2
2
2
1 1
2
≤
∇∆Uk + δ4 k∇∆Uk+1 k2
2
δ4 1 + (∆Uk )
2
1
k∇∆Uk k22 + δ4 k∇∆Uk+1 k22 .
≤
δ4
131
(4.31)
4.1 Unconditionally Stable Solvers
From this we get
1
+ C2 (1 − δ3 ) − δ2 k∇Uk+1 k22 + (C1 (1 − δ1 ) − δ4 ) k∇∆Uk+1 k22
2∆t
1
λ20
C2
1
C1
2
≤
+
+
+
k∇Uk k2 +
k∇∆Uk k22 + C(Ω, D, λ0 , f ).
2∆t 2δ2
δ3
δ1
δ4
Analogously to Section 4.1.3, with
Ca = 1 + ∆t(C2 − 1),
Cb = C1 − 1,
Cc = 1 + 2∆t(λ20 + 2C2 ),
Cd = 4(C1 + 1),
we obtain
k∇Uk k22 + ∆t
Cb
k∇∆Uk k22 ≤ eKT
Ca
Cb
k∇U0 k22 + ∆t
k∇∆U0 k22
Ca
2
+∆tT
C(Ω, D, λ0 , f ) ,
Ca
which gives boundedness of the solution sequence on [0, T ] for any T > 0 and any
∆t > 0.
The convergence of the discrete solution to the continuous one as ∆t → 0 is verified
in the following proposition.
Proposition 4.1.21. (Convergence (iii)) Under the same assumptions as in Theorem 4.1.17 and in particular under assumption (4.30), the error ek fulfills, for suitable
nonnegative constants M1 , M2 and M3 ,
k∇ek k22 + ∆tM1 k∇∆ek k22 ≤ T ∆teM2 T · M3 ,
(4.32)
for k∆t ≤ T and a fixed T > 0.
Proof. Since all the computations in the convergence proof for (4.29) are the same as
in Section 4.1.3 for (4.23) except of the estimate for the regularizer ∆ (arctan(∆u)), we
only give the details for the latter and leave the rest to the reader. Thus for the inner
product involving the regularizer of (4.29) within the convergence proof we apply the
arguments from (4.31) and obtain
h−∆ (arctan(∆Uk ) − arctan(∆uk )) , ∆ek+1 i2
= h∇ (arctan(∆Uk ) − arctan(∆uk )) , ∇∆ek+1 i2
1
≤ k∇∆Uk k22 + k∇∆uk k22 + k∇∆ek+1 k22 .
2
132
4.1 Unconditionally Stable Solvers
By assumption (4.30) and by following the same steps as in the proof of Proposition
4.1.16 we finally have for k∆t ≤ T
k∇ek k22 + ∆tM1 k∇∆ek k22 ≤ T ∆teM2 T · M3 ,
for suitable positive constants M1 , M2 and M3 .
4.1.5
Numerical Discussion
Numerical results for all three inpainting schemes have already been presented in Sections 2.1.2, 2.2.5, and 2.3.1. In Figures 4.1, 4.2, and 4.3 one additional numerical result
for each approach is presented.
In all three inpainting schemes, for the discretization in space we used finite differences and spectral methods, i.e., the discrete cosine transform or the fast Fourier
transform, to simplify the inversion of the Laplacian ∆ for the computation of Uk+1 .
Note that in the case of Cahn-Hilliard inpainting (2.1) special attention has to be paid
to the correct choice of the mesh size ∆x, which has to be of the order ǫ, also cf. the numerical examples in Section 3.1.3 and [Gl03, VR03]. Further, recall that Cahn-Hilliard
inpainting is applied in a two-step procedure with changing ǫ value, cf. Section 3.1.3 for
details. For Cahn-Hilliard- and TV-H−1 inpainting the optimal time step size ∆t turned
out to be ∆t = 1 or 10 (depending also on the size of ǫ and λ0 ). For the numerical
computation of inpainting with LCIS the time step size ∆t was chosen to be equal to
0.01.
Figure 4.1: Destroyed binary image and the solution of Cahn-Hilliard inpainting with
λ0 = 109 and switching ǫ value: u(200) with ǫ = 0.8, u(500) with ǫ = 0.01
Although the proposed discrete schemes in this paper are unconditionally stable,
their numerical performance is still far of being in real-time. The reason is the damping
133
4.1 Unconditionally Stable Solvers
Figure 4.2: TV-H−1 inpainting: u(1000) with a regularization parameter ǫ = 0.01 and
λ0 = 102
Figure 4.3: LCIS inpainting result u(1000) with δ = 0.1 and λ0 = 103 .
introduced by the conditions on the constants C1 , and C2 in all three schemes (4.11),
(4.23), and (4.29). In Figure 4.2 for instance, we need around 1000 iterations to receive
the restored image. If now additionally the data dimension is large, e.g., when we have
to process 2D images of high resolution, of sizes 3000 × 3000 pixels for instance, or
even 3D image data, each iteration step itself is computationally expensive and we are
far from real-time computations. As already discussed in Section 1.3.3 in more detail,
the field of research on fast numerical solvers for higher-order inpainting models is still
in its infancy. The construction of such solvers is very favorable though, in particular
for the use of these inpainting models in practice. TV approaches for example already
turned out to be an effective tool for the reconstruction of medical images as the
134
4.2 A Dual Solver for TV-H−1 Minimization
ones gained from PET (Positron Emission Tomography) measurements (cf. [JHC98],
for instance). These imaging approaches need to deal with 3D or even 4D image
date (including time dependence) in a fast and robust way. Motivated by this we are
thinking about alternative ways to reduce the dimensionality of the data and hence
speed up the reconstruction process. This will be the interest of Section 4.3 where
we present a domain decomposition approach to be applied, among others, to TV
inpainting models.
4.2
A Dual Solver for TV-H−1 Minimization
In this section we are concerned with the numerical minimization of total variation
functionals with an H −1 constraint. We present an algorithm for its solution, which is
based on the dual formulation of total variation and show its application in several areas
of image processing, among them also TV-H−1 inpainting. In fact a major motivation
for this algorithm is the creation of a fast numerical method to solve TV-H−1 inpainting.
Namely, we shall see in Section 4.3 that this dual solver enables us to apply a domain
decomposition algorithm to TV-H−1 inpainting.
4.2.1
Introduction and Motivation
Let Ω ⊂ R2 be a bounded and open domain with Lipschitz boundary. For a given
function f ∈ L2 (Ω) we are interested in the numerical realization of the following
minimization problem
min
u∈BV (Ω)
J(u), where J(u) = kT u − f k2−1 + 2α |Du| (Ω),
(4.33)
where T ∈ L(L2 (Ω)) is a bounded linear operator and α > 0 is a tuning parameter.
The function |Du| (Ω) is the total variation of u and k.k−1 is the norm in H −1 (Ω), the
dual of H01 (Ω). Please compare the Appendix for the definition of these terms.
Problem (4.33) is a model for minimizing the total variation of a function u which
obeys an H −1 constraint, i.e., kT u − f k−1 is small, for a given function f ∈ L2 (Ω). In
the terminology of inverse problems this means that from an observed datum f one
wants to determine the original function u, from which a priori we know that T u = f
and u has some regularity properties modeled by the total variation and the H −1 norm.
135
4.2 A Dual Solver for TV-H−1 Minimization
Minimization problems like this have important applications in a wide range of image
processing tasks. We give their overview in the following subsections.
The main interest of this section is the numerical solution of (4.33). In [Ch04]
Chambolle proposes an algorithm to solve total variation minimization with an L2
constraint and T = Id. This approach was extended to more general operators T
in a subsequent work [BBAC04]. In the following we shall introduce a generalization
of Chambolle’s algorithm for the case of an H −1 norm in the problem. Moreover,
we present strategies to extend the use of this algorithm from problems with T =
Id to problems (4.33) with an arbitrary linear operator T . Additional to the theory
of this algorithm we present its applications in image processing, in particular for
image denoising, image decomposition and inpainting. Finally we show how to speed
up numerical computations by considering a domain decomposition approach for our
problem.
Note that the existence and uniqueness of minimizers for (4.33) is guaranteed. In
fact the existence of a unique solution of (4.33) follows as a special case from the
following theorem.
Theorem 4.2.1. [LV08, Theorem 3.1] Given Ω ⊂ R2 , open, bounded and connected,
with Lipschitz boundary, f ∈ H −s (R2 ) (s > 0), f = 0 outside of Ω̄, α > 0, and
T ∈ L(L2 (Ω)) an injective continuous linear operator such that T 1Ω 6= 0, then the
minimization problem
min
u∈BV (Ω)
kT u − f k2−s + 2α |Du| (Ω),
s > 0,
where k·k−s denotes the norm in H −s (R2 ), has a unique solution in BV (Ω).
Proof. The proof is a standard application of methods from variational calculus and
can be found, e.g., in [LV08]. The main ingredients in the proof, in order to guarantee
compactness, are the Poincaré-Wirtinger inequality (cf. [AV94] for instance) which
bounds the L2 - and the L1 - norm by the total variation, and the fact that L2 (Ω) can
be embedded in H −1 (Ω).
In the subsequent two subsections we shall present two main applications of TVH−1 minimization
(4.33) for image denoising / decomposition, and image inpainting.
136
4.2 A Dual Solver for TV-H−1 Minimization
TV-H−1 Minimization for Image Denoising and Image Decomposition
In taking T = Id in (4.33), we encounter two interesting areas in image processing,
namely image denoising and image decomposition. In many image denoising models a
given noisy image f is decomposed into its piecewise smooth part u and its oscillatory,
noisy part v, i.e., f = u + v. Similarly, in image decomposition the piecewise smooth
part u represents the structure/cartoon part of the image, and the oscillatory part v the
texture part of the image. We call the latter task also cartoon-texture decomposition.
The most famous model within this range is the TV-L2 denoising model proposed by
Rudin, Osher and Fatemi [ROF92]
J(u) = ku − f k22 + 2α |Du| (Ω) →
min
u∈BV (Ω)
.
(4.34)
This model produces very good results for removing noise and preserving edges in structured images, meaning images without texture-like components, i.e., high oscillatory
edges. Unfortunately it fails in the presence of the latter. Namely it cannot separate
pure noise from high oscillatory edges but removes both equally.
To overcome this situation, Y. Meyer [Me01] suggested to replace the L2 −fidelity
term by a weaker norm. Namely he proposes the following model:
J(u) = ku − f k∗ + 2α |Du| (Ω) →
min ,
u∈BV (Ω)
where the k·k∗ is defined as follows.
Definition 4.2.2. Let G denote the Banach space consisting of all generalized functions
f (x, y) which can be written as
f (x, y) = ∇ · (~g (x, y)),
~g = (g1 , g2 ),
g1 , g2 ∈ L∞ (Ω),
~g · ~n = 0 on ∂Ω,
where ~n is the unit normal on ∂Ω. Then kf k∗ is the induced norm of G defined as
p
kf k∗ = inf g1 (x, y)2 + g2 (x, y)2 ∞ .
f =∇·~g
L (Ω)
In fact, the space G is the dual space of W01,1 (Ω). In [Me01] Meyer further introduces
two other spaces with similar properties to G but we are not going into detail here.
We only mention that these spaces are intrinsically appropriate for modeling textured
or oscillatory patterns and in fact they provide for them norms which are smaller than
the L2 norm.
137
4.2 A Dual Solver for TV-H−1 Minimization
The drawback of Y. Meyer’s model is that it can not be solved directly with respect
to the minimizer u and therefore has to be approximated, cf. [VO04]. Thereby the
∗−norm is replaced by
q
1
2
2
2
g1 + g2 ,
k(u + ∇ · ~g ) − f k2 + 2µ
Lp (Ω)
with µ > 0 and p ≥ 1. In the case p = 2 the second term in the above expression
is equivalent to the H −1 norm. In particular v = ∇ · ~g corresponds to v ∈ H −1 (Ω).
Indeed, for v ∈ H −1 (Ω), there is a unique v ∗ ∈ H01 (Ω) such that
kvk2−1
=
k∇v ∗ k22
q
2
−1 2
2
2
= ∇∆ v 2 = g1 + g2 .
2
Limiting to the case p = 2 and the limit µ → 0 the TV-H−1 denoising model was
created, cf. [OSV03, MG01, LV08], i.e.,
ku − f k2−1 + 2α |Du| (Ω) →
min
u∈BV (Ω)
.
(4.35)
Numerical experiments showed that (4.35) gives much better results than (4.34) under
the presence of oscillatory data, cf. [OSV03, LV08]. In Section 4.2.3 we will present
some numerical results that support this claim.
TV-H−1 Inpainting
The second application we are interested in is TV-H−1 inpainting (2.27). This inpainting
approach was already discussed in Section 2.2 in great detail. Let us recall the basic
setup of this inpainting approach: the inpainted image u of f ∈ L2 (Ω), shall evolve via
(2.27), i.e.,
ut = ∆p + λ(f − u),
p ∈ ∂ |Du| (Ω),
where ∂ |Du| (Ω) denotes the subdifferential of the total variation, cf. Appendix A.5, and
λ is the indicator function of the domain outside of the missing domain D multiplied by
a constant λ0 ≫ 1. As Cahn-Hilliard inpainting in Section 2.1, also TV-H−1 inpainting
does not follow a variational principle. In fact the most natural formulation of (4.33)
in terms of inpainting would be in the setting T = 1Ω\D and α = 1/λ0 . Similarly to the
Cahn-Hilliard case, cf. (2.4), this only results in an optimality condition which describes
a second-order anisotropic diffusion inside of the inpainting domain D, i.e., p = 0 in
138
4.2 A Dual Solver for TV-H−1 Minimization
D. Hence it is not immediately clear how a numerical method for the minimization
problem (4.33) is applicable to solve the inpainting equation (2.27). How this is possible
though, will be explained in the following sections, cf. especially (4.47) and (4.48).
Numerical Solution for TV-H−1 Minimization
The numerical solution of TV-H−1 minimization depends on the specific problem at
hand. In [LV08] Lieu and Vese proposed a numerical method to solve TV-H−1 denoising
/ decomposition (4.35) by using the Fourier representation of the H −1 norm on the
whole Rd , d ≥ 1. Therein the space H −1 (Rd ) is defined to be the Hilbert space equipped
with the inner product
hf, gi−1 =
and associated norm kf k−1 =
transform of g in L2 (Rd ), i.e.,
ĝ(ξ) :=
q
Z 1 + |ξ|2
−1
fˆĝ¯ dξ
hf, f i−1 , cf. also [DL88]. Here ĝ denotes the Fourier
1
(2π)2d
Z
e−ixξ g(x) dx,
Rd
ξ ∈ Rd ,
(4.36)
and ḡ the complex conjugate of g. Equivalently to this definition H −1 (Rd ) is the
dual space of H 1 (Rd ). Note that we consider functions g defined in Rd rather than
on a bounded domain which can be done by considering zero extensions of the image
function. With this definition of the H −1 norm the corresponding optimality condition
for total variation denoising/decomposition (4.35) reads




^




¯ ¯





fˆ − û




αp
+
2
Re


−1  = 0 in Ω



2

 1 + |ξ|



∇u


· ~n = 0



|∇u|



u=0
(4.37)
on ∂Ω
outside Ω̄,
g} denotes the inverse Fourier transform of f , defined in analogy to (4.36), Re
where {f
denotes the real part of a complex number, and ~n is the outward-pointing unit normal
vector on ∂Ω. For the numerical computation of a solution of (4.37), we approximate
an element p of the subdifferential of |Du| (Ω), by its relaxed version
p ≈ ∇ · (∇u/|∇u|ǫ ),
139
(4.38)
4.2 A Dual Solver for TV-H−1 Minimization
where |∇u|ǫ =
p
|∇u|2 + ǫ.
Equation (4.37) leads to solve a second-order PDE rather than a fourth-order PDE,
resulting in a better CFL condition for the numerical scheme, cf. [LV08].
In the case of TV-H−1 inpainting (2.27) the situation is completely different since
(2.27) does not fulfill a variational principle, cf. Section 4.2.1. In Section 4.1.3 we
proposed the semi-implicit scheme (4.23) for the solution of (2.27). Let Uk denote the
approximate solution to the exact solution u(kτ ) (where τ denotes the time step). Then
this scheme reads
Uk+1 − Uk
∇Uk
))
+ C1 ∆2 Uk+1 + C2 Uk+1 = C1 ∆2 Uk − ∆(∇ · (
τ
|∇Uk |ǫ
+ C2 Uk + λ(f − Uk ),
where ∆2 = ∆∆ and with constants C1 >
1
ǫ
and C2 > λ0 . Since usually in inpainting
tasks λ0 is chosen comparatively large, e.g., λ0 = 103 , the condition on C2 makes the
numerical scheme, although unconditionally stable, quite slow. To our knowledge this
is the only existing numerical method proposed for TV-H−1 inpainting, except for the
one presented in this section.
In the following we are going to present a method introduced by Chambolle [Ch04]
for TV-L2 minimization (4.34) and its generalization for the TV-H−1 case (4.33). This
algorithm will give us the opportunity to address TV-H−1 minimization in a general
way.
4.2.2
The Algorithm
Preliminaries
Throughout this section k·k denotes the norm in X = L2 (Ω) in the continuous setting
and the Euclidean norm in X = RN ×M in the discrete setting. In the discrete setting
the continuous image domain Ω = [a, b] × [c, d] ⊂ R2 is approximated by a finite
grid {a = x1 < . . . < xN = b} × {c = y1 < . . . < yM = d} with equidistant step-size h =
xi+1 − xi =
b−a
N
=
d−c
M
= yj+1 − yj equal to 1 (one pixel). The digital image u is an
element in X. We denote u(xi , yj ) = ui,j for i = 1, . . . , N and j = 1, . . . , M .
Further we define Y = X × X with Euclidean norm k·kY and inner product h·, ·iY .
Moreover the operators gradient ∇, divergence ∇· and Laplacian ∆ in the discrete
setting are defined as follows:
140
4.2 A Dual Solver for TV-H−1 Minimization
The gradient ∇u is a vector in Y given by forward differences
(∇u)i,j = ((∇x u)i,j , (∇y u)i,j ),
with
(∇x u)i,j
(
ui+1,j − ui,j
=
0
if i < N
if i = N,
(∇y u)i,j =
(
ui,j+1 − ui,j
0
if j < M
if j = M,
for i = 1, . . . , N , j = 1, . . . , M .
We further introduce a discrete divergence ∇· : Y → X defined, by analogy with
the continuous setting, by ∇· = −∇∗ (∇∗ is the adjoint of the gradient ∇). That is,
the discrete divergence operator

x
x

pi,j − pi−1,j
(∇ · p)ij = pxi,j

 x
−pi−1,j
for every p = (px , py ) ∈ Y .
is given by backward differences
 y
y

if 1 < i < N
pi,j − pi,j−1
+ pyi,j
if i = 1

 y
−pi,j−1
if i = N
like
if 1 < j < M
if j = 1
if j = M,
Finally we define the discrete Laplacian as ∆ = ∇ · ∇, i.e.,


ui+1,j − 2ui,j + ui−1,j if 1 < i < N
(∆u)i,j =
ui+1,j − ui,j
if i = 1


ui−1,j − ui,j
if i = N


ui,j+1 − 2ui,j + ui,j−1 if 1 < j < M
+ ui,j+1 − ui,j
if j = 1


ui,j−1 − ui,j
if j = M,
and its inverse operator ∆−1 , as in the continuous setting (cf. Appendix A.4), i.e.,
u = ∆−1 f is the unique solution of
(
− (∆u)i,j = fi,j
ui,j = 0
1 < i < N, 1 < j < M
i = 1, N ; j = 1, M.
Moreover, without always indicating it, when in the discrete setting, instead of
minimizing
J(u) = kT u − f k2−1 + 2α |Du| (Ω),
we consider the discretized functional
X
2
∇∆−1 ((T u)i,j − fi,j ) + 2α (∇u)i,j ,
Jδ (u) :=
1≤i≤N
1≤j≤M
with |y| =
p
y12 + y22 for every y = (y1 , y2 ) ∈ R2 . To give a meaning to (T u)i,j we
assume that T is applied to the piecewise interpolant û of the matrix (ui,j ).
141
4.2 A Dual Solver for TV-H−1 Minimization
Chambolle’s Algorithm for Total Variation Minimization
In [Ch04] Chambolle proposes an algorithm to compute numerically a minimizer of
J(u) = ku − f k22 + 2α |Du| (Ω).
His algorithm is based on considerations of the convex conjugate of the total variation
and on exploiting the corresponding optimality condition. It amounts to computing
the minimizer u of J as
u = f − PαK (f ),
where PK denotes the orthogonal projection over L2 (Ω) on the convex set K which is
the closure of the set
∇ · ξ : ξ ∈ Cc1 (Ω; R2 ), |ξ(x)|∞ ≤ 1 ∀x ∈ R2 .
To compute numerically the projection PαK (f ) Chambolle uses a fixed point algorithm.
More precisely, in two dimensions the following semi-implicit gradient descent algorithm
is given to approximate PαK (f ):
Choose τ > 0, let p(0) = 0 and, for any n ≥ 0, iterate
(n+1)
(n+1)
(n)
,
pi,j
= pi,j + τ (∇(∇ · p(n) − f /α))i,j − (∇(∇ · p(n) − f /α))i,j pi,j
so that
(n)
(n+1)
pi,j
pi,j + τ (∇(∇ · p(n) − f /α))i,j
.
=
1 + τ (∇(∇ · p(n) − f /α))i,j (4.39)
For τ ≤ 1/8 the iteration α∇ · p(n) converges to PαK (f ) as n → ∞ (compare
[Ch04, Theorem 3.1]). All this will be explained in more detail in the context of TVH−1 minimization in the following subsection.
A Generalization of Chambolle’s Algorithm for TV-H−1 Minimization
The main contribution of this section is to generalize Chambolle’s algorithm to the case
of an H −1 constrained minimization of the total variation and to the case where T is
an arbitrary linear and bounded operator. In short we shall see how to solve (4.33)
using a similar strategy as in [Ch04]. We start with solving the simplified problem
when T = Id and as a second step present a method how to use this solution in order
142
4.2 A Dual Solver for TV-H−1 Minimization
to solve the general case (4.33). Hence for the time being we consider the minimization
problem
min{J(u) = ku − f k2−1 + 2α |Du| (Ω)}.
(4.40)
u
We proceed by exploiting the optimality condition of (4.40), i.e.,
1
0 ∈ ∂ |Du| (Ω) + ∆−1 (u − f ) .
α
This can be rewritten as
∆−1 (f − u)
∈ ∂ |Du| (Ω).
α
(4.41)
Since
s ∈ ∂f (x) ⇐⇒ x ∈ ∂f ∗ (s),
where f ∗ is the convex conjugate (or Fenchel transform) of f , it follows that
−1
∗ ∆ (f − u)
.
u ∈ ∂ |D·| (Ω)
α
Here
(
0
|D·| (Ω) (v) = χK (v) =
+∞
∗
if v ∈ K
otherwise,
where, as before, K is the closure of the set
∇ · ξ : ξ ∈ Cc1 (Ω; R2 ), |ξ(x)|∞ ≤ 1 ∀x ∈ R2 .
Rewriting the above inclusion again we have
f
f −u
1
∈
+ ∂ |D·| (Ω)∗
α
α
α
∆−1 (f − u)
α
,
i.e., with w = ∆−1 (f − u)/α it reads

 0 ∈ (−∆w − f /α) + 1 ∂ |D·| (Ω)∗ (w) in Ω
α

w=0
on ∂Ω.
In other words, w is a minimizer of
w − ∆−1 f /α2 1
H (Ω)
0
2
143
+
1
|D·| (Ω)∗ (w),
α
(4.42)
4.2 A Dual Solver for TV-H−1 Minimization
where H01 (Ω) = v ∈ H 1 (Ω) : v = 0 on ∂Ω and kvkH 1 (Ω) = k∇vk. Because of (4.42),
0
for w to be a minimizer of the above functional it is necessary that |D·| (Ω)∗ (w) = 0,
i.e., w ∈ K. Hence a minimizer w fulfills
w = P1K (∆−1 f /α),
where P1K is the orthogonal projection on K over H01 (Ω), i.e.,
P1K (u) = argminv∈K ku − vkH 1 (Ω) .
0
Hence the solution u of problem (4.40) is given by
u = f + ∆ P1αK (∆−1 f ) ,
where −∆ denotes the Laplacian with zero Dirichlet boundary conditions as before.
Computing the nonlinear projection P1αK (∆−1 f ) in the discrete setting amounts to
solving the following problem:
2
−1
min ∇ α∇ · p − ∆ f i,j : p ∈ Y, |pi,j | ≤ 1 ∀i = 1, . . . , N ; j = 1, . . . , M .
(4.43)
Analogously to [Ch04] we use the Karush-Kuhn-Tucker conditions for the above constrained minimization. Then there exist βi,j ≥ 0 such that the corresponding Euler-
Lagrange equation reads
∇ ∆ α∇ · p − ∆−1 f i,j + βi,j pi,j = 0,
∀i = 1, . . . , N ; j = 1, . . . , M.
Since βi,j (|pi,j |2 − 1) = 0, either βi,j > 0 and |pi,j | = 1 or |pi,j | < 1 and βi,j = 0. Now,
following the arguments in [Ch04], in both cases this yields
βi,j = ∇∆ ∇ · pn − ∆−1 f /α i,j , ∀i = 1, . . . , N ; j = 1, . . . , M.
Then the gradient descent algorithm for solving (4.43) reads: for an initial p0 = 0,
iterate for n ≥ 0
pn+1
i,j
pni,j − τ ∇∆ ∇ · pn − ∆−1 f /α i,j
.
=
1 + τ (∇∆ (∇ · pn − ∆−1 f /α))i,j (4.44)
Redoing the convergence proof in [Ch04] we end up with a similar result:
Theorem 4.2.3. Let τ ≤ 1/64. Then, α∇ · pn converges to P1αK (∆−1 f ) as n → ∞.
144
4.2 A Dual Solver for TV-H−1 Minimization
Proof. The proof proceeds similarly to the proof in [Ch04]. For the sake of completeness
and clarity we still present the detailed proof here, keeping
close to the notation in
[Ch04]. By induction we easily see that for every n ≥ 0, pni,j ≤ 1 for all i, j. Indeed,
starting with pn , with |pni,j | ≤ 1 for all i = 1, . . . , N ; j = 1, . . . , M , we have
pni,j + τ ∇(−∆) ∇ · pn − ∆−1 f /α
i,j n+1 ≤ 1.
pi,j ≤
1 + τ (∇(−∆) (∇ · pn − ∆−1 f /α))i,j Now, let us fix an n ≥ 0 and consider ∇ ∇ · pn+1 − ∆−1 (f /α) Y . We want to show
that this norm is decreasing with n. In what follows we will abbreviate k·kY by k·k.
We have
∇ ∇ · pn+1 − ∆−1 (f /α) 2 = ∇∇ · (pn+1 − pn ) + ∇ ∇ · pn − ∆−1 (f /α) 2
2
= ∇ ∇ · pn − ∆−1 (f /α) +2 ∇∇ · (pn+1 − pn ), ∇ ∇ · pn − ∆−1 (f /α) 2
2
+ ∇∇ · (pn+1 − pn ) .
Inserting η = (pn+1 − pn )/τ in the above equation and integrating by parts in the
second term we get
∇ ∇ · pn+1 − ∆−1 (f /α) 2 = ∇ ∇ · pn − ∆−1 (f /α) 2
+2τ η, ∇∆ ∇ · pn − ∆−1 (f /α) 2 + τ 2 k∇∇ · ηk2 .
By further estimating k∇∇ · ηk ≤ κ kηk, where κ = k|∇∇ · k| = supkpk≤1 k∇∇ · pk the
norm of the operator ∇∇· : Y → Y , we deduce
∇ ∇ · pn+1 − ∆−1 (f /α) 2 ≤ ∇ ∇ · pn − ∆−1 (f /α) 2
h i
+τ 2 η, ∇∆ ∇ · pn − ∆−1 (f /α) 2 + κ2 τ kηk2 .
The operator norm κ will be bounded by the end of the proof. For now we are going
to show that the term multiplied by τ is always negative as long as pn+1 6= pn and
2
τ ≤ 1/κ2 , and hence that ∇ ∇ · pn − ∆−1 (f /α) is decreasing. To do so we consider
2 η, ∇∆ ∇ · pn − ∆−1 (f /α) 2 + κ2 τ kηk2
X
2ηi,j ∇∆ ∇ · pn − ∆−1 (f /α) i,j + κ2 τ |ηi,j |2 . (4.45)
=
1≤i≤N
1≤j≤M
Now, from the fixed point equation we have
h
i
ηi,j = − ∇∆ ∇ · pn − ∆−1 (f /α) i,j + ∇∆ ∇ · pn − ∆−1 (f /α) i,j · pn+1
.
i,j
145
4.2 A Dual Solver for TV-H−1 Minimization
Setting ρi,j = ∇∆ ∇ · pn − ∆−1 (f /α) i,j · pn+1
i,j and inserting the above expression
for ηi,j into (4.45) we have for every i, j
2ηi,j ∇∆ ∇ · pn − ∆−1 (f /α) i,j + κ2 τ |ηi,j |2
2
= (κ2 τ − 1) |ηi,j |2 − ∇∆ ∇ · pn − ∆−1 (f /α) i,j + |ρi,j |2 .
n
−1
Since pn+1
i,j ≤ 1 it follows that |ρi,j | ≤ ∇∆ ∇ · p − ∆ (f /α) i,j , and hence
2ηi,j ∇∆ ∇ · pn − ∆−1 (f /α) i,j + κ2 τ |ηi,j |2 ≤ (κ2 τ − 1) |ηi,j |2 .
The last term is negative or zero if and only if κ2 τ − 1 ≤ 0. Hence, if
τ ≤ 1/κ2 ,
we see that ∇ ∇ · pn − ∆−1 (f /α) is nonincreasing with n. For τ < 1/κ2 it is
immediately clear that the norm is even decreasing, unless η = 0, that is, pn+1 = pn .
2
The same holds for κ2 τ = 1. Indeed, in this case, if ∇ ∇ · pn+1 − ∆−1 (f /α) =
∇ ∇ · pn − ∆−1 (f /α) 2 it follows that
0 = 2 η, ∇∆ ∇ · pn − ∆−1 (f /α) 2 + τ k∇∇ · ηk2
≤ 2 η, ∇∆ ∇ · pn − ∆−1 (f /α) 2 + κ2 τ kηk2
X
2
n
−1
− ∇∆ ∇ · p − ∆ (f /α) i,j + |ρi,j |2 ,
=
1≤i≤N
1≤j≤M
and therefore ∇∆ ∇ · pn − ∆−1 (f /α) i,j ≤ |ρi,j |. Since in turn
|ρi,j | ≤ ∇∆ ∇ · pn − ∆−1 (f /α) i,j n
−1
we deduce |ρi,j | = ∇∆ ∇ · p − ∆ (f /α) i,j for each i, j. But this can only be if
either ∇∆ ∇ · pn − ∆−1 (f /α) i,j = 0 or pn+1
i,j = 1. In both cases, the fixed point
n
iteration (4.44) yields pn+1
i,j = pi,j for all i, j.
Now, since ∇ ∇ · pn − ∆−1 (f /α) is decreasing with n, the norm is uniformly
bounded and hence there exists an m ≥ 0 such that
m = lim ∇ ∇ · pn − ∆−1 (f /α) .
n→∞
Moreover the sequence pn has converging subsequences. Let p̄ be the limit of a subsequence (pnk ) and p̄′ be the limit of (pnk +1 ). Inserting pnk +1 and pnk into the fixed
146
4.2 A Dual Solver for TV-H−1 Minimization
point equation (4.44) and passing to the limit we have
p̄′i,j
p̄i,j − τ ∇∆ ∇ · p̄ − ∆−1 f /α i,j
.
=
1 + τ (∇∆ (∇ · p̄ − ∆−1 f /α))i,j Repeating the previous calculations we see that since
m = ∇ ∇ · p̄ − ∆−1 (f /α) = ∇ ∇ · p̄′ − ∆−1 (f /α) ,
it is true that η̄i,j = (p̄′i,j − p̄i,j )/τ = 0 for every i, j, that is, p̄ = p̄′ . Hence p̄ is a fixed
point of (4.44), i.e.,
(
i = 1, . . . , N
−1
−1
∇∆ ∇ · p̄ − ∆ f /α i,j + ∇∆ ∇ · p̄ − ∆ f /α i,j p̄i,j = 0, ∀
j = 1, . . . , M
which is the Euler equation for a solution of (4.43). One can deduce that p̄ solves (4.43)
and that α∇ · p̄ is the projection P1K (∆−1 f ). Since this projection is unique, we deduce
that all the sequence α∇ · pn converges to P1K (∆−1 f ). The theorem is proved if we can
show that κ2 ≤ 64. By definition
κ = k|∇∇ · k| = sup k∇∇ · pk .
kpk≤1
Then for every i, j, we have
k∇∇ · pk2 =
2
X (∇∇ · p)i,j .
1≤i≤N
1≤j≤M
For more clarity let us set u := ∇ · p ∈ X for now. With the convention that p0,j =
pN,j = pi,0 = pi,M = 0 we get
k∇∇ · pk2 =
=
X
1≤i<N
1≤j≤M
=
X
1≤i<N
1≤j≤M
=
1≤i≤N
1≤j≤M
(ui+1,j − ui,j )2 +
X
1≤i≤N
1≤j<M
1≤i≤N
1≤j≤M
(ui,j+1 − ui,j )2
((∇ · p)i+1,j − (∇ · p)i,j )2 +
X h
1≤i<N
1≤j≤M
+
2 2
2
X X (∇
u)
(∇u)
(∇
u)
+
=
x i,j y i,j i,j 1≤i≤N
1≤j<M
((∇ · p)i,j+1 − (∇ · p)i,j )2
i2
pxi+1,j − pxi,j + pyi+1,j − pyi+1,j−1 − pxi,j − pxi−1,j + pyi,j − pyi,j−1
X h
1≤i≤N
1≤j<M
X
i2
,
pxi,j+1 − pxi−1,j+1 + pyi,j+1 − pyi,j − pxi,j − pxi−1,j + pyi,j − pyi,j−1
147
4.2 A Dual Solver for TV-H−1 Minimization
and further
k∇∇ · pk2 ≤ 8 ·
X pxi+1,j 2 + pxi,j 2 + py
2 2
y
+
p
i+1,j
i+1,j−1 1≤i<N
1≤j≤M
2
2 2 2 + pxi,j + pxi−1,j + pyi,j + pyi,j−1 X 2 x
2 y 2 y 2
x
pi,j+1 + pi−1,j+1 + pi,j+1 + pi,j +8·
1≤i≤N
1≤j<M
x 2 x 2 y 2 y 2
+ pi,j + pi−1,j + pi,j + pi,j−1 ≤ 64 · kpk2 ≤ 64.
Remark 4.2.4. In our numerical computations we stop the fixed point iteration (4.44)
as soon as the distance between the iterates is small enough, i.e.,
n+1
p
− pn ≤ e · pn+1 ,
(4.46)
where e is a chosen error bound.
Then, in summary, to minimize (4.40) we apply the following algorithm
Algorithm (P)
• For an initial p0 = 0, iterate (4.44) until (4.46);
• Set P1αK (∆−1 f ) = α∇ · pn̂ , where n̂ is the first iterate of (4.44) which fulfills (4.46);
• Compute a minimizer u of (4.40) by
u = f + ∆ P1αK (∆−1 f ) = f + ∆ α∇ · pn̂ .
The second step is to use the presented algorithm for (4.40) in order to solve (4.33),
i.e.,
min{J(u) = kT u − f k2−1 + 2α |Du| (Ω)},
u
for an arbitrary bounded linear operator T . To do so we first approximate a minimizer
of (4.33) iteratively by a sequence of minimizers of “surrogate” functionals Js . This
approach is inspired by similar methods used, e.g., in [BBAC04, DTV07].
Let τ > 0 be a fixed stepsize. Starting with an initial condition u0 = f , we solve
for k ≥ 0
uk+1 = argminu Js (u, uk ),
148
(4.47)
4.2 A Dual Solver for TV-H−1 Minimization
where
Js (u, uk ) =
2
2
1 1 u − u k +
u − f + (Id − T )uk + |Du| (Ω).
2τ
2α
−1
−1
Note that a fixed point of Js is a potential minimizer for J. In the case of TVH−1 inpainting (4.47) was actually used as a fixed point approach in the proof of a
stationary solution of (2.27), cf. Section 2.2. A rigorous proof of convergence properties is still missing and is a matter for future investigation. Note however that in the
case of image inpainting, i.e., T = 1Ω\D and f is replaced by 1Ω\D f , the optimality
condition of (4.47) indeed describes a fourth-order diffusion inside of the inpainting
domain D. Hence, in this case, minimizing (4.47) rather describes the behavior of
solutions of the inpainting approach (2.27) than directly minimizing (4.33), cf. also
Subsection 4.2.1. Despite the missing theory, the numerical results obtained by using
this scheme for inpainting issues indicate its correct asymptotic behavior, see Section
4.2.3.
Now, the corresponding optimality condition to (4.47) reads
1
1
0 ∈ ∂ |Du| (Ω) + ∆−1 (u − uk ) + ∆−1 u − f + (Id − T )uk ,
τ
α
which can be rewritten as
∆
−1
f1 − u f2 − u
+
τ
α
∈ ∂ |Du| (Ω),
where f1 = uk , f2 = f + (Id − T )uk . Setting
f1 α + f2 τ
α+τ
ατ
µ=
,
α+τ
f=
we end up with the same inclusion as (4.41), i.e.,
∆−1 (f − u)
∈ ∂ |Du| (Ω),
µ
and Algorithm (P) for solving (4.40) can be directly applied.
149
4.2 A Dual Solver for TV-H−1 Minimization
Algorithm TV-H−1 :
• In the case T = Id directly apply Algorithm (P) to compute a minimizer of (4.33).
• In the case T 6= Id iterate (4.47) by solving Algorithm (P) in every iteration step until
the two subsequent iterates uk and uk+1 are sufficiently close.
4.2.3
Applications
In this section we present applications of our new algorithm for solving (4.33) for
image denoising, decomposition and inpainting, and present numerical results. For
comparison, we also present results for the TV-L2 model in [ROF92] on the same images.
Now, in order to compute the minimizer u of (4.33), we have the following algorithm.
Note that in our numerical examples e in (4.46) is chosen to be 10−4 .
Image Denoising and Decomposition
In the case of image denoising and image decomposition the operator T = Id and thus
Algorithm (P) can be directly applied. For image denoising the signal to noise ratio
(SNR) is computed as
SN R = 20 log
hf i2
σ
,
with hf i2 the average value of the pixels fi,j and σ the standard deviation of the
noise. For our numerical results the parameter α in (4.33) was chosen so that the best
residual-mean-squared-error (RMSE) is obtained. We define the RMSE as
v X
1 u
u
RM SE =
(ui,j − ûi,j )2 ,
N M t 1≤i≤N
1≤j≤M
where û is the original image without noise, cf. [LV08]. Numerical examples for image
denoising with TV-H−1 minimization and their comparison with the results obtained by
the TV-L2 approach are presented in Figures 4.4-4.7. In both examples the superiority
of the TV-H−1 minimization approach with respect to the separation of noise and edges
is clearly visible.
We also apply (4.33) for texture removal in images, i.e., image decomposition,
and compare the numerical results with those of the TV-L2 approach, cf. Figure 4.8.
150
4.2 A Dual Solver for TV-H−1 Minimization
(a) original
(b) noisy, SN R = 25.2
Figure 4.4: Image of a horse and its noisy version with additive white noise
The cartoon-texture decomposition in this example works better in the case of TVH−1 minimization, since this approach differentiates between small oscillations and
strong edges, better than the TV-L2 approach.
Image Inpainting
In order to apply our algorithm to TV-H−1 inpainting we follow the method of surrogate functionals from Section 4.2.2. In fact it turns out that a fixed point of the
corresponding optimality condition of (4.47) with T = 1Ω\D and f replaced by 1Ω\D f
is indeed a stationary solution of (2.27). This approach is also motivated by the fixed
point approach used in [BHS08] in order to prove existence of a stationary solution
of (2.27). Hence a stationary solution to (2.27) can be computed iteratively by the
following algorithm: Take u0 = f , with any trivial (zero) expansion to the inpainting
domain, and solve for k ≥ 0
1
1
k 2
k 2
||u − 1Ω\D f − (1 − 1Ω\D )u ||−1 → uk+1 ,
min
|Du| (Ω) + ||u − u ||−1 +
2τ
2α
u∈BV (Ω)
(4.48)
for positive iterationsteps τ > 0, and α = 1/λ0 . Now, as before, let f1 = uk , f2 =
1Ω\D f + (1 − 1Ω\D )uk and
f1 α + f2 τ
α+τ
ατ
,
µ=
α+τ
f=
151
4.2 A Dual Solver for TV-H−1 Minimization
(a) f = u + v
(b) TV-L2 : u
(c) TV-L2 : v
(d) TV-H−1 : u
(e) TV-H−1 : v
Figure 4.5: Denoising results for the image of a horse in Figure 4.4. Results from the
TV-L2 denoising model compared with TV-H−1 denoising with α = 0.05 for both.
152
4.3 Domain Decomposition for TV Minimization
(a) original
(b) noisy, SN R = 29.4
Figure 4.6: Image of the roof of a house in Scotland and its noisy version with additive
white noise
then we end up with the same inclusion as (4.41), i.e.,
∆−1 (f − u)
∈ ∂ |Du| (Ω),
µ
and Algorithm (P) can be directly applied. Compare Figure 4.9 for a numerical
example.
In the following section we shall see how the dual algorithm of the present section can
be used in order to formulate a domain decomposition approach for TV-H−1 inpainting.
4.3
Domain Decomposition for TV Minimization
Domain decomposition methods are a special instance of subspace splitting methods
and were introduced as techniques for solving partial differential equations based on
a decomposition of the spatial domain of the problem into several subdomains [Li88,
BPWX91, Xu92, CM94, QV99, XZ02, LXZ03, BDHP03, NS05]. The initial equation
restricted to the subdomains defines a sequence of new local problems. The main goal
is to solve the initial equation via the solution of the local problems. This procedure
induces a dimension reduction which is the major aspect responsible for the success of
such a method. Indeed, one of the principal motivations is the formulation of solvers
which can be easily parallelized.
The current section is mainly based on a joint work with Massimo Fornasier developed in [FS07]. Therein we are concerned with the numerical minimization by means of
153
4.3 Domain Decomposition for TV Minimization
(a) f = u + v
(b) TV-L2 : u
(c) TV-L2 : v
(d) TV-H−1 : u
(e) TV-H−1 : v
Figure 4.7: Denoising results for the image of the roof in Figure 4.6. Results from the
TV-L2 denoising model with α = 0.05 compared with TV-H−1 denoising with α = 0.01
subspace splittings of energy functionals in Hilbert spaces involving convex constraints
coinciding with a semi-norm for a subspace. In more detail: Let H be a real separable
Hilbert space. We are interested in the numerical minimization in H of the general
form of functionals
J(u) := kT u − f k2H + 2αψ(u),
154
(4.49)
4.3 Domain Decomposition for TV Minimization
(a) f = u + v
(b) TV-L2 : u
(c) TV-L2 : v
(d) TV-H−1 : u
(e) TV-H−1 : v
Figure 4.8: Decomposition into cartoon and texture of a synthetic image. Results from
the TV-L2 model with α = 1 and TV-H−1 minimization with α = 0.1.
155
4.3 Domain Decomposition for TV Minimization
Figure 4.9: TV-H−1 inpainting result for the image of the two statues with α = 1/λ0 =
0.005.
where T ∈ L(H) is a bounded linear operator, f ∈ H is a datum, and α > 0 is a fixed
constant. The function ψ : H → R+ ∪ {+∞} is a semi-norm for a suitable subspace
Hψ of H.
The optimization is realized by alternating minimizations of the functional on a
sequence of orthogonal subspaces. In particular, we investigate splittings into arbitrary
orthogonal subspaces H = V1 ⊕ V2 for which we may have
ψ(πV1 (u) + πV2 (v)) 6= ψ(πV1 (u)) + ψ(πV2 (v)),
u, v ∈ H,
(4.50)
where πVi is the orthogonal projection onto Vi . With this splitting we want to minimize
J by suitable instances of the following alternating algorithm: Pick an initial V1 ⊕ V2 ∋
(0)
(0)
u1 + u2 := u(0) ∈ HΨ , for example u(0) = 0, and iterate

(n+1)
(n)

u
≈ argminv1 ∈V1 J(v1 + u2 )


 1
(n+1)
(n+1)
u2
≈ argminv2 ∈V2 J(u1



 u(n+1) := u(n+1) + u(n+1) .
1
2
+ v2 )
(4.51)
Different to situations already encountered in the literature we shall propose a
domain decomposition algorithm for the minimization of functionals for which we neither can guarantee smoothness nor additivity with respect to its local problems. In
[TT98, TX02], for instance, the authors consider the minimization of a convex function F which is assumed to be Gateaux differentiable in a real reflexive Banach space
and prove convergence for an asynchronous space decomposition method applied to this
156
4.3 Domain Decomposition for TV Minimization
general problem. In contrast to this work our functional J consists of a non-smooth part
which is not Gateaux-differentiable and hence the analysis carried out in [TT98, TX02]
is not directly applicable to our problem. Further domain decomposition methods have
been proposed for the case when ψ is not a smooth function, but it is additive, i.e.,
ψ(πV1 (u) + πV2 (v)) = ψ(πV1 (u)) + ψ(πV2 (v)),
u, v ∈ H,
see [Ca97] for instance. The additivity of ψ is crucial for the proof of convergence of
the algorithm and cannot be directly generalized for functions ψ without this property.
To our knowledge no results and methods are presented in the literature related to
the situation described by our fundamental assumptions, where ψ is not smooth (in
particular is not differentiable) and is not additive (only subadditive), cf. (4.50).
In [FS07] we present a subspace minimization algorithm (4.51) for the general problem in (4.49) with (4.50). On each subspace an iterative proximity-map algorithm is
implemented via oblique thresholding (cf. Section 4.3.3), which is the main new tool
introduced in [FS07]. We provide convergence conditions for the algorithm in order to
compute minimizers of the target energy. Analogous results are derived for a parallel
variant of the algorithm.
In particular we apply the theory and the algorithms developed in [FS07] to adapt
domain decompositions to the minimization of functionals with total variation constraints. Therefore interesting solutions may be discontinuous, e.g., along curves in 2D.
These discontinuities may cross the interfaces of the domain decomposition patches.
Hence, the crucial difficulty is the correct treatment of interfaces, with the preservation
of crossing discontinuities and the correct matching where the solution is continuous
instead. We consider the minimization of the functional J in the following setting: Let
Ω ⊂ Rd , for d = 1, 2, be a bounded open set with Lipschitz boundary. We are interested
in the case when H = L2 (Ω), Hψ = BV (Ω) and ψ(u) = |Du|(Ω), the variation of u.
Then a domain decomposition Ω1 ∪ Ω2 ⊂ Ω ⊂ Ω̄1 ∪ Ω̄2 induces the space splitting into
Vi := {u ∈ L2 (Ω) : supp(u) ⊂ Ωi }, i = 1, 2. This means we shall solve (2.26), i.e., we
will minimize the functional
J(u) := kT u − f k2L2 (Ω) + 2α|Du|(Ω)
157
4.3 Domain Decomposition for TV Minimization
by means of the alternating subspace minimizations (4.51). Moreover, we shall see that
also the TV-H−1 minimization problem (4.33) from Section 4.2, i.e.,
J(u) := kT u − f k2H −1 (Ω) + 2α|Du|(Ω),
can be treated within this framework, cf. Section 4.3.7. In contrast to [Ca97], in the
case of total variation minimization (2.26) and (4.33) in general we have
|D(uΩ1 + uΩ2 )|(Ω) 6= |DuΩ1 |(Ω1 ) + |DuΩ2 |(Ω2 ),
compare (4.55) for a more detailed presentation. We limit ourself to mentioning that, to
our knowledge, the work contained in this section is the first in presenting a successful
domain decomposition approach to total variation minimization. The motivation is
that several approaches are directed to the solution of the Euler-Lagrange equations
associated to the functional J, which determine a singular elliptic PDE involving the 1Laplace operator. Due to the fact that |Du|(Ω) is not differentiable, one has to discretize
its subdifferential, and its characterization is indeed hard to implement numerically in
a correct way. The lack of a simple characterization of the subdifferential of the total
variation especially raises significant difficulties in dealing with discontinuous interfaces
between patches of a domain decomposition.
There is another and partially independent attempt of addressing domain decomposition methods for total variation minimization within the group of Martin Burger
at the University of Münster (Germany)1 , in particular the diploma thesis of Jahn
Müller [Mu08]2 , in cooperation with Sergej Gorlatch. Their approach differs from ours
in the sense that their domain decomposition is based on computing a minimizer of the
functional J by a primal-dual Newton method for the function u and its dual variable
p. There, the function u and its dual p are defined in alternating grid points, i.e., the
degrees of freedom of the dual variable are placed in the center between the pixels of
u. Their numerical results are very satisfactory, but their theory is still not conclusive.
Our current approach overcomes the difficulties, which may arise when attempting
the direct solution of the Euler-Lagrange equations, by minimizing the functional via
an iterative proximity map algorithm, as proposed, e.g., in [Ch04, CW05, DDD04,
1
http://wwwmath.uni-muenster.de/u/burger/index/ en.html
available online under http://wwwmath.uni-muenster.de/num/Arbeitsgruppen/ag burger/
organization/burger/pictures/DA%20Mueller.pdf
2
158
4.3 Domain Decomposition for TV Minimization
DFL08, DTV07, Fo07]. Using this algorithm for the solution of the subproblems has
additionally the advantage that its numerical solution is already quite established in
the literature, e.g., in [Ch04], and that is is very simple to implement and very flexible
with respect to acceleration for instance. Further this algorithm is perfectly designed
to provide us with desirable convergence properties, as the monotonicity of the energy
J, which decreases at each iteration, cf. Sections 4.3.4 and 4.3.5 for details.
Note that another specific example for the minimization problem (4.49) is that of
ℓ1 minimization, which found growing interest in recent years in the context of sparse
recovery and compressed sensing (cf.
e.g., the review papers [Ba07, Ca06]). The
application of the following domain decomposition method, i.e., subspace correction
algorithm, to ℓ1 minimization is presented in [FS07] as a second example for the use
of such a method. We shall not present this part of our work here, since it is clearly
beyond the scope of this thesis.
It is also worth mentioning that, due to the generality of our setting, our approach
can be extended to more general subspace decompositions, not only those arising from
a domain splitting. This can open room to more sophisticated multiscale algorithms
where Vi are multilevel spaces, e.g., originating in a wavelet decomposition.
In what follows we trace the results developed in [FS07, Sc09].
4.3.1
Preliminary Assumptions
We begin this section with a short description of the generic notation used in this
section.
In the following H is a real separable Hilbert space endowed with the norm k·kH, and
Ω ⊂ Rd denotes an open bounded set with Lipschitz boundary. For some countable
index set Λ we denote by ℓp = ℓp (Λ), 1 ≤ p ≤ ∞, the space of real sequences u =
(uλ )λ∈Λ with norm
kukp = kukℓp :=
X
λ∈Λ
|uλ |p
!1/p
,
1≤p<∞
and kuk∞ := supλ∈Λ |uλ | as usual. If (vλ ) is a sequence of positive weights then we
define the weighted spaces ℓp,v = ℓp,v (Λ) = {u, (uλ vλ ) ∈ ℓp (Λ)} with norm
!1/p
X p
p
kukp,v = kukℓp,v = k(uλ vλ )kp =
vλ |uλ |
λ∈Λ
159
4.3 Domain Decomposition for TV Minimization
(with the standard modification for p = ∞).
Depending on the context, the symbol ≃ may define an equivalence of norms or an
isomorphism of spaces or sets.
More specific notation will be defined, where they turn out to be useful. Remaining
notation follows the prefix of the thesis.
The convex constraint function ψ
We are given a function ψ : H → R+ ∪ {+∞} with the following properties:
(Ψ1) ψ is sublinear, i.e., ψ(u + v) ≤ ψ(u) + ψ(v) for all u, v ∈ H;
(Ψ2) ψ is 1-homogeneous, i.e., ψ(λu) = |λ|ψ(u) for all λ ∈ R.
(Ψ3) ψ is lower-semicontinuous in H, i.e., for any converging sequence un → u in H
ψ(u) ≤ lim inf ψ(un ).
n∈N
Associated with ψ we assume that there exists a dense subspace Hψ ⊂ H for which
ψ|Hψ is a seminorm and Hψ endowed with the norm
kukHψ := kukH + ψ(u),
is a Banach space. We do not assume instead that Hψ is reflexive in general; note that
due to the dense embedding Hψ ⊂ H we have
Hψ ⊂ H ≃ H∗ ⊂ (Hψ )∗ ,
and the duality h·, ·i(Hψ )∗ ×Hψ extends the scalar product on H. In particular, H is
weakly-∗-dense in (Hψ )∗ . In the following we require
(H1) bounded subsets in Hψ are sequentially bounded in some other topology τ ψ of
Hψ ;
(H2) ψ is lower-semicontinuous with respect to the topology τ ψ , i.e., for any sequence
un in Hψ which converges to u ∈ Hψ with the τ ψ −topology satisfies ψ(u) ≤
lim inf n∈N ψ(un );
In practice, we will always require also that
160
4.3 Domain Decomposition for TV Minimization
(H3) Hψ = {u ∈ H : ψ(u) < ∞}.
We list in the following the specific examples we consider in this section.
Examples 4.3.1. 1. Let Ω ⊂ Rd , for d = 1, 2 be a bounded open set with Lipschitz
boundary, and H = L2 (Ω). Let V (u, Ω) be defined as in (2.25) and for u ∈ BV (Ω)
let |D(u)|(Ω) = V (u, Ω) total variation of the finite Radon measure Du, cf. Appendix
A.5. We define ψ(u) = V (u, Ω) and it is immediate to see that Hψ must coincide with
BV (Ω). Due to the embedding L2 (Ω) ⊂ L1 (Ω) and the Sobolev embedding [AFP00,
Theorem 3.47] we have
kukHψ = kuk2 + V (u, Ω) ≃ kuk1 + |Du|(Ω) = kukBV .
Hence (Hψ , k · kHψ ) is indeed a Banach space. It is known that V (·, Ω) is lowersemicontinuous with respect to L2 (Ω) [AFP00, Proposition 3.6]. We say that a sequence (un )n in BV (Ω) converges to u ∈ BV (Ω) with the weak-∗-topology if (un )n
converges to u in L1 (Ω) and Dun converges to Du with the weak-∗-topology in the
sense of finite Radon measures. Bounded sets in BV (Ω) are sequentially weakly-∗compact [AFP00, Proposition 3.13], and V (·, Ω) is lower-semicontinuous with respect
to the weak-∗-topology.
2. Let H = RN endowed with the Euclidean norm, and Q : RN → Rn , for n ≤ N ,
is a fixed linear operator. We define ψ(u) = kQukℓn1 . Clearly Hψ = RN and all
the requested properties are trivially fulfilled. One particular example of this finite
dimensional situation is associated with the choice of Q : RN → RN −1 given by Q(u)i :=
N (ui+1 − ui ), i = 0, . . . , N − 2. In this case ψ(u) = kQukℓ1 is the discrete variation of
the vector u and the model can be seen as an approximation to the situation encountered
in the first example, by discrete sampling and finite differences, i.e., setting ui := u( Ni )
and u ∈ BV (0, 1).
Bounded subspace decompositions
In the following we will consider orthogonal decompositions of H into closed subspaces.
We will also require that such a splitting is bounded in Hψ .
Assume that V1 , V2 are two mutually orthogonal, and complementary subspaces of H,
i.e., H = V1 ⊕ V2 , and πVi are the corresponding orthogonal projections, for i = 1, 2.
Moreover we require the mapping property
πVi |Hψ : Hψ → Viψ := Hψ ∩ Vi ,
161
i = 1, 2,
4.3 Domain Decomposition for TV Minimization
continuously in the norm of Hψ , and that Range(πVi |Hψ ) = Viψ is closed. This implies
that Hψ splits into the direct sum Hψ = V1ψ ⊕ V2ψ .
Example 4.3.2. Let Ω1 ⊂ Ω ⊂ Rd , for d = 1, 2, be two bounded open sets with
Lipschitz boundaries, and Ω2 = Ω \ Ω1 . We define
Vi := {u ∈ L2 (Ω) : supp(u) ⊂ Ωi },
i = 1, 2.
Then πVi (u) = u1Ωi . For ψ(u) = V (u, Ω), by [AFP00, Corollary 3.89], Viψ = BV (Ω) ∩
Vi is a closed subspace of BV (Ω) and πVi (u) = u1Ωi ∈ Viψ , i = 1, 2, for all u ∈ BV (Ω).
4.3.2
A Convex Variational Problem and Subspace Splitting
We are interested in the minimization in H (actually in Hψ ) of the functional
J(u) := kT u − f k2H + 2αψ(u),
where T ∈ L(H) is a bounded linear operator, f ∈ H is a datum, and α > 0 is a fixed
constant. In order to guarantee the existence of its minimizers we assume that:
(C) J is coercive in H, i.e., {J ≤ C} := {u ∈ H : J(u) ≤ C} is bounded in H for all
constants C > 0.
Example 4.3.3. Assume Ω ⊂ Rd , for d = 1, 2 be a bounded open set with Lipschitz
boundary, H = L2 (Ω) and ψ(u) = V (u, Ω) (compare Examples 4.3.1.1). In this case we
deal with total variation minimization. It is well-known that if T 1Ω 6= 0 then condition
(C) is indeed satisfied, see [Ve01, Proposition 3.1] and [CL97].
Lemma 4.3.4. Under the assumptions above, J has minimizers in Hψ .
Proof. The proof is a standard application of the direct method of calculus of variations
and can be found for example in [CW05].
Let (un )n ⊂ H, a minimizing sequence. By assumption (C) we have kun kH +
ψ(un ) ≤ C for all n ∈ N. Therefore by (H1) we can extract a subsequence in Hψ
converging in the topology τ ψ . Possibly passing to a further subsequence we can assume
that it also converges weakly in H. By lower-semicontinuity of kT u − f k2H with respect
to the weak topology of H and the lower-semicontinuity of ψ with respect to the
topology τ ψ , ensured by assumption (H2), we have the desired existence of minimizers.
162
4.3 Domain Decomposition for TV Minimization
The minimization of J is a classical problem [ET76] which was recently reconsidered
by several authors, [Ch04, CW05, DDD04, DTV07, SCD02, Ti96], with emphasis on
the computability of minimizers in particular cases. They studied essentially the same
algorithm for the minimization.
For ψ with properties (Ψ1 − Ψ3), there exists a closed convex set Kψ ⊂ H such that
ψ ∗ (u) = sup {hv, ui − ψ(v)}
v∈H
0
if u ∈ Kψ
= χKψ (u) =
+∞ otherwise.
See also Examples 4.3.6.2 below. In the following we assume furthermore that Kψ =
−Kψ . For any closed convex set K ⊂ H we denote PK (u) = argminv∈K ku − vkH the
orthogonal projection onto K. For Sψ
α := I − PαKψ , called the generalized thresholding
map in the signal processing literature, the iteration
(n)
u(n+1) = Sψ
+ T ∗ (f − T u(n) ))
α (u
(4.52)
converges weakly to a minimizer u ∈ Hψ of J, for any initial choice u(0) ∈ Hψ ,
provided that T and f are suitably rescaled so that kT k < 1. For particular situa-
tions, e.g., H = ℓ2 (Λ) and ψ(u) = kukℓ1,w , one can prove the convergence in norm
[DDD04, DTV07].
As it is pointed out, for example in [DFL08, Fo07], this algorithm converges at a
poor rate, unless T is non-singular or has additional special spectral properties. For
this reason acceleration by means of projected steepest descent iterations [DFL08] and
domain decomposition methods [Fo07] were proposed.
The particular situation considered in [Fo07] is H = ℓ2 (Λ) and ψ(u) = kukℓ1 (Λ) .
In this case one takes advantage of the fact that for a disjoint partition of the index
set Λ = Λ1 ∪ Λ2 we have the splitting ψ(uΛ1 + uΛ2 ) = ψ(uΛ1 ) + ψ(uΛ2 ) for any vector
uΛi supported on Λi , i = 1, 2. Thus, a decomposition into column subspaces (i.e.,
componentwise) of the operator T (if identified with a suitable matrix) is realized, and
alternating minimizations on these subspaces are performed by means of iterations of
the type (4.52). This leads, e.g., to the following sequential algorithm: Pick an initial
163
4.3 Domain Decomposition for TV Minimization
(0,L)
u Λ1
(0,M )
+ u Λ2
:= u(0) ∈ ℓ1 (Λ), for example u(0) = 0, and iterate
 ( (n+1,0)
(n,L)

u Λ1
= u Λ1 


(n+1,ℓ)
(n+1,ℓ+1)

∗ ((f − T u(n,M ) ) − T u(n+1,ℓ) )

u
+
T
ℓ = 0, . . . , L − 1
u
=
S
α
Λ2 Λ2
Λ1 Λ1

Λ1
Λ1
 ( Λ1
(n+1,0)
(n,M )
u Λ2
= u Λ2 

(n+1,ℓ)
(n+1,ℓ+1)

∗ ((f − T u(n+1,L) ) − T u(n+1,ℓ) )

ℓ = 0, . . . , M − 1
u
+
T
u
=
S
α
Λ1 Λ1
Λ2 Λ2

Λ2
Λ2
Λ2


 (n+1)
(n+1,L)
(n+1,M )
u
:= uΛ1
+ u Λ2
.
(4.53)
Here the operator Sα is the soft-thresholding operator which acts componentwise Sα v =
(Sα vλ )λ∈Λ and defined by
Sα (x) =
x − sgn(x)α, |x| > α
0,
otherwise.
(4.54)
The expected benefit from this approach is twofold:
1. Instead of solving one large problem with many iteration steps, we can solve
approximatively several smaller subproblems, which might lead to an acceleration
of convergence and a reduction of the overall computational effort, due to possible
conditioning improvements;
2. The subproblems do not need more sophisticated algorithms, simply reproduce
at smaller dimension the original problem, and they can be solved in parallel.
The nice splitting of ψ as a sum of evaluations on subspaces does not occur, for
instance, when H = L2 (Ω), ψ(u) = V (u, Ω) = |Du|(Ω), and Ω1 ∪ Ω2 ⊂ Ω ⊂ Ω̄1 ∪ Ω̄2 is
a disjoint decomposition of Ω. Indeed, cf. [AFP00, Theorem 3.84], we have
Z
−
|D(uΩ1 + uΩ2 )|(Ω) = |DuΩ1 |(Ω1 ) + |DuΩ2 |(Ω2 ) +
|u+
Ω1 (x) − uΩ2 (x)|dH1 (x) .
| ∂Ω1 ∩∂Ω2
{z
}
additional interface term
(4.55)
Here one should not confuse Hd with any Hψ since the former indicates the Hausdorff
measure of dimension d. The symbols v + and v − denote the left and right approximated limits at jump points [AFP00, Proposition 3.69]. The presence of the additional
R
−
boundary interface term ∂Ω1 ∩∂Ω2 |u+
Ω1 (x) − uΩ2 (x)|dH1 (x) does not allow to use in a
straightforward way iterations as in (4.52) to minimize the local problems on Ωi .
164
4.3 Domain Decomposition for TV Minimization
Moreover, also in the sequence space setting mentioned above, the hope for a better
conditioning by column subspace splitting as in [Fo07] might be ill-posed, no such splitting needs to be well conditioned in general (good cases are provided in [Tr08] instead).
Therefore, one may want to consider arbitrary subspace decompositions and, in
order to deal with these more general situations, we investigate splittings into arbitrary
orthogonal subspaces H = V1 ⊕ V2 for which we may have
ψ(πV1 (u) + πV2 (v)) 6= ψ(πV1 (u)) + ψ(πV2 (v)).
In principle, in this work we limit ourself to consider the detailed analysis for two
subspaces V1 , V2 . Nevertheless, the arguments can be easily generalized to multiple
subspaces V1 , . . . , VN, see, e.g., [Fo07], and in the numerical experiments we will also
test this more general situation.
With this splitting we want to minimize J by suitable instances of the following
(0)
(0)
alternating algorithm: Pick an initial V1 ⊕ V2 ∋ u1 + u2 := u(0) ∈ HΨ , for example
u(0) = 0, and iterate

(n+1)
(n)

≈ argminv1 ∈V1 J(v1 + u2 )
u


 1
(n+1)
(n+1)
u2
≈ argminv2 ∈V2 J(u1
+ v2 )



 u(n+1) := u(n+1) + u(n+1) .
1
2
(4.56)
We use “≈” (the approximation symbol) because in practice we never perform the
exact minimization, as in (4.53). In the following section we discuss how to realize the
approximation to the individual subspace minimizations. As pointed out above, this
cannot just reduce to a simple iteration of the type (4.52).
4.3.3
Local Minimization by Lagrange Multipliers
Let us consider, for example,
argminv1 ∈V1 J(v1 + u2 ) = argminv1 ∈V1 kT v1 − (f − T u2 )k2H + 2αψ(v1 + u2 ).
(4.57)
First of all, observe that {u ∈ H : πV2 u = u2 , J(u) ≤ C} ⊂ {J ≤ C}, hence the former
set is also bounded by assumption (C). By the same argument as in Lemma 4.3.4, the
minimization (4.57) has a solution. It is useful to introduce an auxiliary functional
165
4.3 Domain Decomposition for TV Minimization
Js1 , called the surrogate functional of J (cf. also (4.47) in Section 4.2.2 for a similar
approach): Assume a, u1 ∈ V1 and u2 ∈ V2 and define
Js1 (u1 + u2 , a) := J(u1 + u2 ) + ku1 − ak2H − kT (u1 − a)k2H.
(4.58)
A straightforward computation shows that
Js1 (u1 + u2 , a) = ku1 − (a + πV1 T ∗ (f − T u2 − T a))k2H + 2αψ(u1 + u2 ) + ϕ(a, f, u2 ),
where ϕ is a function of a, f, u2 only. We want to realize an approximate solution to
(0)
(4.57) by using the following algorithm: For u1 ∈ V1ψ ,
(ℓ+1)
u1
(ℓ)
= argminu1 ∈V1 Js1 (u1 + u2 , u1 ),
ℓ ≥ 0.
(4.59)
Before proving the convergence of this algorithm, we need to investigate first how to
(n+1)
compute practically u1
(n)
for given u1 . To this end we need to introduce further
concepts and to recall some useful results.
Generalized Lagrange multipliers for nonsmooth objective functions
Let us begin this subsection with recalling the concept of a subdifferential, cf. also
Appendix A.2.
Definition 4.3.5. For a locally convex space V and for a convex function F : V →
R∪{−∞, +∞}, we define the subdifferential of F at x ∈ V , as ∂F (x) = ∅ if F (x) = ∞,
otherwise
∂F (x) := ∂FV (x) := {x∗ ∈ V ∗ : hx∗ , y − xi + F (x) ≤ F (y)
∀y ∈ V },
where V ∗ denotes the dual space of V . It is obvious from this definition that 0 ∈
∂F (x) if and only if x is a minimizer of F . Since we deal with several spaces, namely,
H, Hψ , Vi , Viψ , it will turn out to be useful to distinguish sometimes in which space (and
associated topology) the subdifferential is defined by imposing a subscript ∂V F for the
subdifferential considered on the space V .
Examples 4.3.6. 1. Let V = ℓ1 (Λ) and let F (x) := kxk1 be the ℓ1 −norm. We have
∂k · k1 (x) = {ξ ∈ ℓ∞ (Λ) : ξλ ∈ ∂| · |(xλ ), λ ∈ Λ}
where ∂| · |(z) = {sgn(z)} if z 6= 0 and ∂| · |(0) = [−1, 1].
166
(4.60)
4.3 Domain Decomposition for TV Minimization
2. Assume, V = H and ϕ ≥ 0 is a proper lower-semicontinuous convex function.
For F (u; z) = ku − zk2H + 2ϕ(u), we define the function
proxϕ (z) := argminu∈V F (u; z),
which is called the proximity map in the convex analysis literature, e.g., [ET76, CW05],
and generalized thresholding in the signal processing literature, e.g., [DDD04, DFL08,
DTV07, Fo07]. Observe that by ϕ ≥ 0 the function F is coercive in H and by lowersemicontinuity and strict convexity of the term ku − zk2H this definition is well-posed.
In particular, proxϕ (z) is the unique solution of the following differential inclusion
0 ∈ (u − z) + ∂ϕ(u).
It is well known [ET76, RW98] that the proximity map is nonexpansive, i.e.,
kproxϕ (z1 ) − proxϕ (z2 )kH ≤ kz1 − z2 kH.
In particular, if ϕ is a 1-homogeneous function then
proxϕ (z) = (I − PKϕ )(z),
where Kϕ is a suitable closed convex set associated to ϕ, see for instance [CW05].
Under the notations of Definition 4.3.5, we consider the following constrained minimization problem
argminx∈V {F (x) : G(x) = 0},
(4.61)
where G : V → R is a bounded linear operator on V . We have the following useful
result.
Theorem 4.3.7. (Generalized Lagrange multipliers for nonsmooth objective functions,
Theorem 1.8, [BP96])
If F is continuous at a point of ker G and G∗ has closed range in V then a point
x0 ∈ ker G is an optimal solution of (4.61) if and only if
∂F (x0 ) ∩ RangeG∗ 6= ∅.
Oblique thresholding
We want to exploit Theorem 4.3.7 in order to produce an algorithmic solution to each
iteration step (4.59).
167
4.3 Domain Decomposition for TV Minimization
Theorem 4.3.8 (Oblique thresholding). For u2 ∈ V2ψ and for z ∈ V1 the following
statements are equivalent:
(i) u∗1 = argminu∈V1 ku − zk2H + 2αψ(u + u2 );
(ii) there exists η ∈ Range(πV2 |Hψ )∗ ≃ (V2ψ )∗ such that 0 ∈ u∗1 − (z − η) + α∂Hψ ψ(u∗1 +
u2 ).
Moreover, the following statements are equivalent and imply (i) and (ii).
(iii) there exists η ∈ V2 such that u∗1 = (I −PαKψ )(z+u2 −η)−u2 = Sψ
α (z+u2 −η)−u2 ∈
V1 ;
(iv) there exists η ∈ V2 such that η = πV2 PαKψ (η − (z + u2 )).
Proof. Let us show the equivalence between (i) and (ii). The problem in (i) can be
reformulated as
u∗1 = argminu∈Hψ {F (u) := ku − zk2H + 2αψ(u + u2 ), πV2 (u) = 0}.
The latter is a special instance of (4.61). Moreover, F is continuous in V1ψ ⊂ V1 =
ker πV2 in the norm-topology of Hψ (while in general it is not in V1 with the norm
topology of H). Recall now that πV2 |Hψ is assumed to be a bounded and surjective
map with closed range in the norm topology of Hψ (see Section 4.3.1). This means
that (πV2 |Hψ )∗ is injective and that Range(πV2 |Hψ )∗ ≃ (V2ψ )∗ is closed. Therefore, by
an application of Theorem 4.3.7, the optimality of u∗1 is equivalent to the existence of
η ∈ Range(πV2 |Hψ )∗ ≃ (V2ψ )∗ such that
−η ∈ ∂Hψ F (u∗1 ).
Due to the continuity of ku − zk2H in Hψ , we have, by [ET76, Proposition 5.6], that
∂Hψ F (u∗1 ) = 2(u∗1 − z) + 2α∂Hψ ψ(u∗1 + u2 ).
Thus, the optimality of u∗1 is equivalent to
0 ∈ u∗1 − (z − η) + α∂Hψ ψ(u∗1 + u2 ).
This concludes the equivalence of (i) and (ii). Let us show now that (iii) implies (ii).
The condition in (iii) can be rewritten as
ξ = (I − PαKψ )(z + u2 − η),
168
ξ = u∗1 + u2 .
4.3 Domain Decomposition for TV Minimization
Since ψ ≥ 0 is 1-homogeneous and lower-semicontinuous, by Examples 4.3.6.2, the
latter is equivalent to
0 ∈ ξ − (z + u2 − η) + α∂Hψ(ξ)
or, by (H3),
ξ = argminu∈Hku − (z + u2 − η)k2H + 2αψ(u)
= argminu∈Hψ ku − (z + u2 − η)k2H + 2αψ(u).
The latter optimal problem is equivalent to
0 ∈ ξ − (z + u2 − η) + α∂Hψ ψ(ξ) or 0 ∈ u∗1 − (z − η) + α∂Hψ ψ(u∗1 + u2 ).
Since V2 ⊂ (V2ψ )∗ ≃ Range(πV2 |Hψ )∗ we deduce that (iii) implies (ii). We prove now
the equivalence between (iii) and (iv). We have
u∗1 = (I − PαKψ )(z + u2 − η) − u2 ∈ V1
= z − η − PαKψ (z + u2 − η).
By applying πV2 to both sides of the latter equality we get
0 = −η − πV2 PαKψ (z + u2 − η).
By recalling that Kψ = −Kψ , we obtain the fixed point equation
η = πV2 PαKψ (η − (z + u2 )).
(4.62)
Conversely, assume η = πV2 PαKψ (η − (z + u2 )) for some η ∈ V2 . Then
(I − PαKψ )(z + u2 − η) − u2 = z − η − PαKψ (z + u2 − η)
= z − πV2 PαKψ (η − (z + u2 )) − PαKψ (z + u2 − η)
= z − (I − πV2 )PαKψ (z + u2 − η)
= z − πV1 PαKψ (z + u2 − η) = u∗1 ∈ V1 .
Remark 4.3.9. 1. Unfortunately in general we have V2 ( (V2ψ )∗ which excludes the
complete equivalence of the previous conditions (i)-(iv). For example, in the case H =
i
ℓ2 (Λ) and ψ(u) = kukℓ1 , Λ = Λ1 ∪ Λ2 , Vi = ℓΛ
2 (Λ) := {u ∈ ℓ2 (Λ) : supp(u) ⊂ Λi },
ψ
Λ2
i = 1, 2, we have V2 = ℓ1 (Λ) = {u ∈ ℓ1 (Λ) : supp(u) ⊂ Λ2 }, hence, V2 ( (V2ψ )∗ ≃
Λ2
Λ2
2
ℓΛ
∞ (Λ) = {u ∈ ℓ∞ (Λ) : supp(u) ⊂ Λi }. It might well be that η ∈ ℓ∞ (Λ) \ ℓ2 (Λ).
However, since ψ(uΛ1 + uΛ2 ) = ψ(uΛ1 ) + ψ(uΛ2 ) in this case, we have 0 ∈ u∗1 − z + α∂k ·
k1 (u∗1 ) and therefore may choose any η in ∂k · k1 (u2 ). Following [Fo07], u2 is assumed
169
4.3 Domain Decomposition for TV Minimization
to be the result of soft-thresholding iterations, hence u2 is a finitely supported vector.
Therefore, by Examples 4.3.6.1, we can choose η to be also a finitely supported vector,
2
hence η ∈ ℓΛ
2 (Λ) = V2 . This means that the existence of η ∈ V2 as in (iii) or (iv) of
the previous theorem may occur also in those cases for which V2 ( (V2ψ )∗ . In general,
we can only observe that V2 is weakly-∗-dense in (V2ψ )∗ .
2. For H of finite dimension – which is the relevant case in numerical applications
– all the spaces are independent of the particular attached norm and coincide with their
duals, hence all the statements (i)-(iv) of the previous theorem are equivalent in this
case.
A simple constructive test for the existence of η ∈ V2 as in (iii) or (iv) of the previous
theorem is provided by the following iterative algorithm:
η (0) ∈ V2 ,
η (m+1) = πV2 PαKψ (η (m) − (z + u2 )),
m ≥ 0.
(4.63)
Proposition 4.3.10. The following statements are equivalent:
(i) there exists η ∈ V2 such that η = πV2 PαKψ (η − (z + u2 )) (which is in turn the
condition (iv) of Theorem 4.3.8)
(ii) the iteration (4.63) converges weakly to any η ∈ V2 that satisfies (4.62).
In particular, there are no fixed points of (4.62) if and only if kη (m) kH → ∞, for
m → ∞.
For the proof of this Proposition we need to recall some classical concepts and
results.
Definition 4.3.11. A nonexpansive map T : H → H is strongly nonexpansive if for
(un − vn )n bounded and kT (un ) − T (vn )kH − kun − vn kH → 0 we have
un − vn − (T (un ) − T (vn )) → 0,
n → ∞.
Proposition 4.3.12. [BR77, Corollaries 1.3, 1.4, and 1.5] Let T : H → H be a
strongly nonexpansive map. Then fixT = {u ∈ H : T (u) = u} =
6 ∅ if and only if (T n u)n
converges weakly to a fixed point u0 ∈ fixT for any choice of u ∈ H.
Proof of Proposition 4.3.10. Orthogonal projections onto convex sets are strongly nonexpansive [BBL97, Corollary 4.2.3]. Moreover, composition of strongly nonexpansive
maps are strongly nonexpansive [BR77, Lemma 2.1]. By an application of Proposition
4.3.12 we immediately have the result, since any map of the type T (ξ) = Q(ξ) + ξ0
170
4.3 Domain Decomposition for TV Minimization
is strongly nonexpansive whenever Q is, (this is a simple observation from the definition of strongly nonexpansive map). Indeed, we are looking for fixed points of
η = πV2 PαKψ (η − (z + u2 )) or, equivalently, of ξ = πV2 PαKψ (ξ) − (z + u2 ).
| {z }
| {z }
:=ξ0
:=Q
In Examples 4.3.6, we have already observed that
u∗1 = proxαψ(·+u2 ) (z).
For consistency with the terminology of generalized thresholding in signal processing,
we call the map proxαψ(·+u2 ) an oblique thresholding and denote it by
Sαψ,V1 ,V2 (z; u2 ) := proxαψ(·+u2 ) (z).
The attribute “oblique” emphasizes the presence of an additional subspace which contributes to the computation of the solution. By using results in [CW05, Subsection 2.3]
(see also [ET76, II.2-3]) we can already infer that
kSαψ,V1 ,V2 (z1 ; u2 ) − Sαψ,V1 ,V2 (z2 ; u2 )kH ≤ kz1 − z2 kH,
for all z1 , z2 ∈ V1 .
For a finite dimensional H (and, more generally, for any situation where for any choice
of u2 ∈ V2ψ and z ∈ V1 there exists η ∈ V2 which solves (4.62)) we can show the
nonexpansiveness of Sαψ,V1 ,V2 (·; u2 ) by a simple direct argument which exploits the or-
thogonality of V1 and V2 and the relationships revealed by Theorem 4.3.8. For the sake
of completeness, we would like to report this short argument.
Lemma 4.3.13. Assume that dim(H) < ∞. The oblique thresholding Sαψ,V1 ,V2 (·; u2 ) is
a nonexpansive map for any choice of u2 ∈ V2 .
Proof. Let us denote ξ = z + u2 − η, where η = η(z, u2 ) = πV2 PαKψ (η − (z + u2 )). We
have ξ = πV2 PαKψ (ξ) + (z + u2 ), and, by using the latter equivalence,
Sαψ,V1 ,V2 (z; u2 ) = ξ − PαKψ (ξ) − u2
= πV2 PαKψ (ξ) − PαKψ (ξ) + z
= z − πV1 PαKψ (ξ).
Then Sαψ,V1 ,V2 (z; u2 ) + u2 − η = ξ − πV1 PαKψ (ξ) = (I − πV1 PαKψ )(ξ). Let us denote
ξi = zi +u2 −ηi , where ηi = η(zi , u2 ) = πV2 PαKψ (ηi −(zi +u2 )). We have the equivalence
S ψ,V1 ,V2 (z1 ; u2 ) − Sαψ,V1 ,V2 (z2 ; u2 ) + η2 − η1 = (I − πV1 PαKψ )(ξ1 ) − (I − πV1 PαKψ )(ξ2 )
{z
} | {z }
|α
∈V1
∈V2
171
4.3 Domain Decomposition for TV Minimization
which implies, by orthogonality of V1 and V2 ,
kSαψ,V1 ,V2 (z1 ; u2 ) − Sαψ,V1 ,V2 (z2 ; u2 )k2H + kη2 − η1 k2H ≤ kz1 − z2 k2H + kη2 − η1 k2H.
In the latter inequality we also used the nonexpansiveness of I − πV1 PαKψ . This concludes the proof:
kSαψ,V1 ,V2 (z1 ; u2 ) − Sαψ,V1 ,V2 (z2 ; u2 )kH ≤ kz1 − z2 kH.
Convergence of the subspace minimization
In light of the results of the previous subsection, the iterative algorithm (4.59) can be
equivalently rewritten as
(ℓ+1)
u1
(ℓ)
(ℓ)
= Sαψ,V1 ,V2 (u1 + πV1 T ∗ (f − T u2 − T u1 ); u2 ).
(4.64)
In certain cases, e.g., in finite dimensions, the iteration can be explicitly computed by
Oblique Thresholding:
(ℓ+1)
u1
(ℓ)
(ℓ)
= Sαψ (u1 + πV1 T ∗ (f − T u2 − T u1 ) + u2 − η (ℓ) ) − u2 ,
where η (ℓ) ∈ V2 is any solution of the fixed point equation
(ℓ)
(ℓ)
η = πV2 PαKψ (η − (u1 + πV1 T ∗ (f − T u2 − T u1 ) + u2 )).
The computation of η (ℓ) can be (approximately) implemented by the algorithm (4.63).
Theorem 4.3.14. Assume that u2 ∈ V2ψ and kT k < 1. Then the iteration (4.64)
(0)
converges weakly to a solution u∗1 ∈ V1ψ of (4.57) for any initial choice of u1 ∈ V1ψ .
Proof. For the sake of completeness, we report the proof of this theorem, which follows the same strategy already proposed in [DDD04], compare also similar results in
[CW05]. In particular we want to apply Opial’s fixed point theorem:
Theorem 4.3.15. [Op67] Let the mapping A from H to H satisfy the following conditions:
(i) A is nonexpansive: for all z, z ′ ∈ H, kAz − Az ′ kH ≤ kz − z ′ kH;
(ii) A is asymptotically regular: for all z ∈ H, kAn+1 z − An zkH → 0, for n → ∞;
172
4.3 Domain Decomposition for TV Minimization
(iii) the set F = fixA of fixed points of A in H is not empty.
Then for all z ∈ H, the sequence (An z)n∈N converges weakly to a fixed point in F.
A simple proof of this theorem can be found in the appendix of [DDD04].
We need to prove that A(u1 ) := Sαψ,V1 ,V2 (u1 + πV1 T ∗ (f − T u2 − T u1 ); u2 ) fulfills the
assumptions of the Opial’s theorem on V1 .
Step 1. As stated at the beginning of this section, there exist solutions u∗1 ∈ V1ψ to
(4.57). With similar argument to the one used to prove the equivalence of (i) and (ii)
in Theorem 4.3.8, the optimality of u∗1 can be readily proved as equivalent to
0 ∈ −πV1 T ∗ (f − T u2 − T u∗1 ) + η + α∂Hψ ψ(u∗1 + u2 ),
for some η ∈ (V2ψ )∗ . By adding and subtracting u∗1 we obtain
0 ∈ u∗1 − ((u∗1 + πV1 T ∗ (f − T u2 − T u∗1 )) −η) + α∂Hψ ψ(u∗1 + u2 ),
{z
}
|
:=z
Applying the equivalence of (i) and (ii) in Theorem 4.3.8, we deduce that u∗1 is a fixed
point of the following equation
u∗1 = Sαψ,V1 ,V2 (u∗1 + πV1 T ∗ (f − T u2 − T u∗1 ); u2 ),
hence fixA 6= ∅.
Step 2. The algorithm produces iterations which are asymptotically regular, i.e.,
(ℓ)
(ℓ+1)
ku1
− u1 kH → 0. Indeed, by using kT k < 1 and C := 1 − kT k2 > 0, we have the
following estimates
(ℓ)
(ℓ)
(ℓ)
J(u1 + u2 ) = Js1 (u1 + u2 , u1 )
(ℓ+1)
+ u 2 , u1 )
(ℓ+1)
+ u 2 , u1
≥ Js1 (u1
≥ Js1 (u1
(ℓ)
(ℓ+1)
(ℓ+1)
) = J(u1
+ u2 ),
(ℓ)
See also (4.67) and (4.68) below. Since (J(u1 + u2 ))ℓ is monotonically decreasing and
bounded from below by 0, it is necessarily a convergent sequence. Moreover,
(ℓ)
(ℓ+1)
J(u1 + u2 ) − J(u1
(ℓ+1)
+ u2 ) ≥ Cku1
(ℓ+1)
and the latter convergence implies ku1
(ℓ)
− u1 kH → 0.
173
(ℓ)
− u1 k2H,
4.3 Domain Decomposition for TV Minimization
Step 3. We are left with showing the nonexpansiveness of A. By nonexpansiveness
of Sαψ,V1 ,V2 (·; u2 ) we obtain
kSαψ,V1 ,V2 (u11 + πV1 T ∗ (f − T u2 − T u11 ; u2 )
− Sαψ,V1 ,V2 (u21 + πV1 T ∗ (f − T u2 − T u21 ; u2 )kH
≤ ku11 + πV1 T ∗ (f − T u2 − T u11 ) − (u21 + πV1 T ∗ (f − T u2 − T u21 )kH
= k(I − πV1 T ∗ T πV1 )(u11 − u21 )kH
≤ ku11 − u21 kH
In the latter inequality we used once more the fact that kT k < 1.
We do not insist on conditions for strong convergence of the iteration (4.64), which
is not a relevant issue, see, e.g., [CW05, DTV07] for a further discussion of this issue.
Indeed, the practical realization of (4.56) will never solve completely the subspace
minimizations.
Let us conclude this section mentioning that all the results presented here hold symmetrically for the minimization on V2 , provided that the notation is suitably adjusted.
4.3.4
Convergence of the Sequential Alternating Subspace Minimization
We return to the algorithm (4.56). In the following we denote ui = πVi u for i = 1, 2. Let
(0,L)
us express explicitly the algorithm as follows: Pick an initial V1 ⊕V2 ∋ u1
u(0)
Hψ ,
(0,M )
+u2
:=
u(0)
∈
for example
= 0, and iterate
 ( (n+1,0)
(n,L)

u1
= u1



(n+1,ℓ+1)
(n,M ) (n+1,ℓ)


= argminu1 ∈V1 Js1 (u1 + u2
, u1
) ℓ = 0, . . . , L − 1
 ( u1
(n+1,0)
(n,M )
u2
= u2


(n+1,m)
(n+1,L)
(n+1,m+1)


+ u 2 , u2
) m = 0, . . . , M − 1
u2
= argminu2 ∈V2 Js2 (u1


 (n+1)
(n+1,M )
(n+1,L)
+ u2
.
u
:= u1
(4.65)
Note that we do prescribe a finite number, L and M respectively, of inner iterations
for each subspace. In this section we want to prove convergence of the algorithm for
any choice of L and M .
Observe that, for a ∈ Vi and kT k < 1,
kui − ak2H − kT ui − T ak2H ≥ Ckui − ak2H,
174
(4.66)
4.3 Domain Decomposition for TV Minimization
for C = (1 − kT k2 ) > 0. Hence
J(u) = Jsi (u, ui ) ≤ Jsi (u, a),
(4.67)
Jsi (u, a) − Jsi (u, ui ) ≥ Ckui − ak2H.
(4.68)
and
Theorem 4.3.16 (Convergence properties). The algorithm in (4.65) produces a sequence (u(n) )n∈N in Hψ with the following properties:
(i) J(u(n) ) > J(u(n+1) ) for all n ∈ N (unless u(n) = u(n+1) );
(ii) limn→∞ ku(n+1) − u(n) kH = 0;
(iii) the sequence (u(n) )n∈N has subsequences which converge weakly in H and in Hψ ,
both endowed with the topology τ ψ ;
(iv) if we additionally assume, for simplicity, that dim H < ∞, (u(nk ) )k∈N is a strongly
converging subsequence, and u(∞) is its limit, then u(∞) is a minimizer of J
whenever one of the following conditions holds
(∞)
(∞)
(a) ψ(u1 + η2 ) + ψ(u2
i = 1, 2;
(∞)
(∞)
+ η1 ) − ψ(u1
+ u2
) ≤ ψ(η1 + η2 ) for all ηi ∈ Vi ,
(b) ψ is differentiable at u(∞) with respect to Vi for one i ∈ {1, 2}, i.e., there
∂
ψ(u(∞) ) := ζi ∈ (Vi )∗ such that
exists ∂V
i
(∞)
hζi , vi i = lim
ψ(u1
(∞)
+ u2
t→0
(∞)
+ tvi ) − ψ(u1
t
(∞)
+ u2
)
, for all vi ∈ Vi .
Proof. Let us first observe that
(n)
(n)
(n)
(n,L)
(n)
J(u(n) ) = Js1 (u1 + u2 , u1 ) = Js1 (u1
(n+1,1)
By definition of u1
(n,L)
Js1 (u1
(n+1,1)
and the minimal properties of u1
(n)
(n+1,0)
+ u 2 , u1
(n+1,1)
) ≥ Js (u1
(n+1,0)
+ u 2 , u1
(n)
).
in (4.65) we have
(n+1,0)
+ u 2 , u1
).
From (4.67) we have
(n+1,1)
Js1 (u1
(n)
(n+1,0)
+ u 2 , u1
(n+1,1)
) ≥ Js1 (u1
Putting together these inequalities we obtain
(n+1,1)
J(u(n) ) ≥ J(u1
175
(n)
(n+1,1)
+ u 2 , u1
(n)
+ u2 )
).
4.3 Domain Decomposition for TV Minimization
In particular, from (4.68) we have
(n+1,1)
J(u(n) ) − J(u1
(n)
(n+1,1)
+ u2 ) ≥ Cku1
(n+1,0) 2
kH.
− u1
After L steps we conclude with the estimate
(n+1,L)
J(u(n) ) ≥ J(u1
and
(n+1,L)
J(u(n) ) − J(u1
By definition of
(n+1,1)
u2
(n)
+ u2 ) ≥ C
L−1
X
(n)
+ u2 ),
(n+1,ℓ+1)
ku1
ℓ=0
(n+1,ℓ) 2
kH.
− u1
and its minimal properties we have
(n+1,L)
J(u1
(n)
(n+1,L)
(n+1,1)
+ u2 ) ≥ Js2 (u1
+ u2
(n+1,0)
, u2
).
By similar arguments as above we finally find the decreasing estimate
(n+1,L)
J(u(n) ) ≥ Js2 (u1
(n+1,M )
+ u2
) = J(u(n+1) ),
(4.69)
and
≥C
L−1
X
ℓ=0
J(u(n) ) − J(u(n+1) )
(n+1,ℓ+1)
ku1
(n+1,ℓ) 2
kH +
− u1
M
−1
X
m=0
(n+1,m+1)
ku2
!
(n+1,m) 2
kH
− u2
.
(4.70)
From (4.69) we have J(u(0) ) ≥ J(u(n) ). By the coerciveness condition (C) (u(n) )n∈N
is uniformly bounded in Hψ , hence there exists a H-weakly- and τ ψ -convergent subsequence (u(nj ) )j∈N . Let us denote by u(∞) the weak limit of this subsequence. For
simplicity, we rename such a subsequence as (u(n) )n∈N . Moreover, since the sequence
(J(u(n) ))n∈N is monotonically decreasing and bounded from below by 0, it is also convergent. From (4.70) and the latter convergence we deduce that
!
M
−1
L−1
X
X (n+1,ℓ+1)
(n+1,ℓ) 2
(n+1,m+1)
(n+1,m) 2
ku1
− u1
kH +
ku2
− u2
kH → 0, n → ∞.
ℓ=0
m=0
In particular, by the standard inequality
triangle inequality, we have also
(a2
+
b2 )
ku(n) − u(n+1) kH → 0,
≥
1
2 (a
+
b)2
(4.71)
for a, b > 0 and the
n → ∞.
We would like now to show that the following outer lower semicontinuity holds,
0 ∈ lim ∂J(u(n) ) ⊂ ∂J(u(∞) ).
n→∞
176
(4.72)
4.3 Domain Decomposition for TV Minimization
For this we need to assume that H-weakly-convergence and τ ψ −convergence do imply
strong convergence in H. This is the case, e.g., when dim(H) < ∞. The optimality
(n+1,L)
condition for u1
is equivalent to
(n+1,L)
(n+1)
0 ∈ u1
− z1
(n,M )
+ α∂V1 ψ(· + u2
(n+1,L)
)(u1
),
(4.73)
where
(n+1)
z1
(n+1,L−1)
:= u1
(n,M )
+ πV1 T ∗ (f − T u2
(n+1,L−1)
− T u1
).
Analogously we have
(n+1,M )
0 ∈ u2
(n+1)
− z2
(n+1,L)
+ α∂V2 ψ(· + u1
(n+1,M )
)(u2
),
(4.74)
where
(n+1)
z2
(n+1,M −1)
:= u2
(n+1,L)
+ πV2 T ∗ (f − T u1
(n+1,M −1)
− T u2
).
Due to the strong convergence of the sequence u(n) and by (4.71) we have the following
limits for n → ∞
(n+1)
:= u1
(n+1)
:= u2
ξ1
ξ2
(n+1,L)
− z1
(n+1)
→ ξ1 := −πV1 T ∗ (f − T u2
(n+1,M )
− z2
(∞)
− T u1
(n+1)
→ ξ2 := −πV2 T ∗ (f − T u2
(∞)
(∞)
− T u1
) ∈ V1 ,
(∞)
) ∈ V2 ,
and
(n+1)
ξ1
Moreover, we have
(n+1)
+ ξ2
→ ξ := T ∗ (T u(∞) − f ).
1 (n+1)
(n,M )
(n+1,L)
∈ ∂V1 ψ(· + u2
)(u1
),
− ξ1
α
meaning that
1 (n+1)
(n+1,L)
(n+1,L)
(n,M )
(n,M )
h− ξ1
, η1 − u1
i + ψ(u1
+ u2
) ≤ ψ(η1 + u2
),
α
for all η1 ∈ V1 .
Analogously we have
1 (n+1)
(n+1,M )
(n+1,L)
(n+1,M )
(n+1,L)
, η2 − u2
i + ψ(u1
+ u2
) ≤ ψ(η2 + u1
),
h− ξ2
α
for all η2 ∈ V2 .
By taking the limits for n → ∞ and by (4.71) we obtain
1
(∞)
(∞)
h− ξ1 , η1 − u1 i + ψ(u(∞) ) ≤ ψ(η1 + u2 ),
α
for all η1 ∈ V1 .
(4.75)
1
(∞)
(∞)
(∞)
h− ξ2 , η2 − u2 i + ψ(u1 ) ≤ ψ(η2 + u1 ),
α
for all η2 ∈ V2 .
(4.76)
177
4.3 Domain Decomposition for TV Minimization
These latter conditions are rewritten in vector form as
!
ξ1
(∞)
(∞)
(∞)
(∞)
+ α ∂V1 ψ(· + u2 )(u1 ) × ∂V2 ψ(· + u1 )(u2 ) .
0∈
ξ2
(4.77)
Observe now that
2ξ + 2α∂Hψ(u(∞) ) = 2T ∗ (T u(∞) − f ) + 2α∂Hψ(u(∞) ) = ∂J(u(∞) ).
If 0 ∈ ξ + α∂Hψ(u(∞) ) then we would have the required minimality condition. While
the inclusion
(∞)
∂Hψ(u(∞) ) ⊂ ∂V1 ψ(· + u2
(∞
(∞)
)(u1 ) × ∂V2 ψ(· + u1
(∞)
)(u2
),
easily follows from the definition of a subdifferential, the converse inclusion, which
would imply from (4.77) the desired minimality condition, does not hold in general.
Thus, we show the converse inclusion under one of the following two conditions:
(∞)
(a) ψ(u1
(∞)
+ η2 ) + ψ(u2
(∞)
+ η1 ) − ψ(u1
(∞)
+ u2
) ≤ ψ(η1 + η2 ) for all ηi ∈ Vi , i = 1, 2;
(b) ψ is differentiable at u(∞) with respect to Vi for a single i ∈ {1, 2}, i.e., there
∂
ψ(u(∞) ) := ζi ∈ (Vi )∗ such that
exists ∂V
i
(∞)
hζi , vi i = lim
t→0
ψ(u1
(∞)
+ u2
(∞)
+ tvi ) − ψ(u1
t
(∞)
+ u2
)
, for all vi ∈ Vi .
Let us start with condition (a). We want to show that
1
h− ξ, η − u(∞) i + ψ(u(∞) ) ≤ ψ(η),
α
for all η ∈ H,
or, equivalently, that
1
1
(∞)
(∞)
(∞)
(∞)
h− ξ1 , η1 − u1 i + h− ξ2 , η2 − u2 i + ψ(u1 + u2 ) ≤ ψ(η1 + η2 ),
α
α
for all ηi ∈ Vi ,
By the differential inclusions (4.75) and (4.76) we have
1
1
(∞)
(∞)
(∞)
(∞)
(∞)
(∞)
h− ξ1 , η1 − u1 i + h− ξ2 , η2 − u2 i + 2ψ(u1 + u2 ) ≤ ψ(u1 + η2 ) + ψ(u2 + η1 ),
α
α
for all ηi ∈ Vi , hence
1
1
(∞)
(∞)
(∞)
(∞)
h− ξ1 , η1 − u1 i + h− ξ2 , η2 − u2 i + ψ(u1 + u2 )
α
α
(∞)
(∞)
(∞)
(∞)
≤ ψ(u1 + η2 ) + ψ(u2 + η1 ) − ψ(u1 + u2 ),
178
for all ηi ∈ Vi .
4.3 Domain Decomposition for TV Minimization
An application of condition (a) concludes the proof of the required differential inclusion.
Let us now show the inclusion under the assumption of condition (b). Without loss
of generality, we assume that ψ is differentiable at u(∞) with respect to V2 . First of
all we define ψ̃(u1 , u2 ) := ψ(u1 + u2 ). Since ψ is convex, by an application of [RW98,
Corollary 10.11] we have
∂V1 ψ(· + u2 )(u1 ) ≃ ∂u1 ψ̃(u1 , u2 )
= {ζ1 ∈ V1∗ : ∃ζ2 ∈ V2∗ : (ζ1 , ζ2 )T ∈ ∂ ψ̃(u1 , u2 ) ≃ ∂Hψ(u1 + u2 )}.
Since ψ is differentiable at u(∞) with respect to V2 , for any (ζ1 , ζ2 )T ∈ ∂ ψ̃(u1 , u2 ) ≃
∂Hψ(u1 + u2 ) we have necessarily ζ2 = ∂V∂ 2 ψ(u(∞) ) as the unique member of ∂V2 ψ(· +
(∞)
u1
(∞)
)(u2
). Hence, the following inclusion must also hold
!
ξ1
(∞)
(∞
(∞)
(∞)
+ α ∂V1 ψ(· + u2 )(u1 ) × ∂V2 ψ(· + u1 )(u2 )
0∈
ξ2
!
ξ1
⊂
+ α∂V1 ×V2 ψ̃(u1 , u2 )
ξ2
≃ ξ + α∂Hψ(u(∞) ).
Remark 4.3.17. Observe that, by choosing η1 = η2 = 0, condition (a) and (Ψ2) for
the case λ = 0 imply that
(∞)
ψ(u1
(∞)
) + ψ(u2
(∞)
+ u2
(∞)
+ u2
) ≤ ψ(u1
(∞)
)
(∞)
)
The sublinearity (Ψ1) finally implies the splitting
(∞)
ψ(u1
(∞)
) + ψ(u2
) = ψ(u1
Conversely, if ψ(v1 ) + ψ(v2 ) = ψ(v1 + v2 ) for all vi ∈ Vi , i = 1, 2, then condition
(a) easily follows. As previously discussed, this latter splitting condition holds only in
special cases. Also condition (b) is not in practice always verified, cf. the numerical
examples for ℓ1 minimization in [FS07]. Hence, we can affirm that in general we cannot
expect convergence of the algorithm to minimizers of J, although it certainly converges
to points for which J is smaller than the starting choice J(u(0) ). However, as we will
show in the numerical experiments related to total variation minimization (Sections
4.3.6 and 4.3.7), the computed limit can be very close to the expected minimizer.
179
4.3 Domain Decomposition for TV Minimization
4.3.5
A Parallel Alternating Subspace Minimization and its Convergence
(n,L)
The most immediate modification to (4.65) is provided by substituting u1
of
instead
(n+1,L)
u1
in the second iteration, producing the following parallel algorithm:
 ( (n+1,0)
(n,L)

u1
= u1



(n,M ) (n+1,ℓ)
(n+1,ℓ+1)


, u1
) ℓ = 0, . . . , L − 1
= argminu1 ∈V1 Js1 (u1 + u2
 ( u1
(n+1,0)
(n,M )
u2
= u2


(n+1,m+1)
(n,L)
(n+1,m)


) m = 0, . . . , M − 1
u2
= argminu2 ∈V2 Js2 (u1
+ u 2 , u2


 (n+1)
(n+1,L)
(n+1,M )
u
:= u1
+ u2
.
Unfortunately, this modification violates the monotonicity property
J(u(n) )
(4.78)
≥ J(u(n+1) )
and the overall algorithm does not converge in general. In order to preserve the mono-
tonicity of the iteration with respect to J a simple trick can be applied, i.e., modifying
(n+1,L)
u(n+1) := u1
(n+1,M )
+ u2
by the average of the current iteration and the previous
one. This leads to the following parallel algorithm:
 (
(n+1,0)
(n,L)

u1
= u1



(n+1,ℓ+1)
(n,M ) (n+1,ℓ)


= argminu1 ∈V1 Js1 (u1 + u2
, u1
) ℓ = 0, . . . , L − 1

 ( u1
(n+1,0)
(n,M )
u2
= u2

(n+1,m+1)
(n,L)
(n+1,m)


u2
= argminu2 ∈V2 Js2 (u1
+ u 2 , u2
) m = 0, . . . , M − 1



(n+1,L)
(n+1,M )
(n)

+u2
+u
 u(n+1) := u1
.
2
(4.79)
In this section we prove similar convergence properties of this algorithm to that of
(4.65).
Theorem 4.3.18 (Convergence properties). The algorithm in (4.79) produces a sequence (u(n) )n∈N in Hψ with the following properties:
(i) J(u(n) ) > J(u(n+1) ) for all n ∈ N (unless u(n) = u(n+1) );
(ii) limn→∞ ku(n+1) − u(n) kH = 0;
(iii) the sequence (u(n) )n∈N has subsequences which converge weakly in H and in Hψ ,
both endowed with the topology τ ψ ;
(iv) if we additionally assume that dim H < ∞, (u(nk ) )k∈N is a strongly converging
subsequence, and u(∞) is its limit, then u(∞) is a minimizer of J whenever one of
the following conditions holds
180
4.3 Domain Decomposition for TV Minimization
(∞)
(∞)
(a) ψ(u1 + η2 ) + ψ(u2
i = 1, 2;
(∞)
+ η1 ) − ψ(u1
(∞)
+ u2
) ≤ ψ(η1 + η2 ) for all ηi ∈ Vi ,
(b) ψ is differentiable at u(∞) with respect to Vi for one i ∈ {1, 2}, i.e., there
∂
ψ(u(∞) ) := ζi ∈ (Vi )∗ such that
exists ∂V
i
(∞)
hζi , vi i = lim
ψ(u1
(∞)
+ u2
t→0
(∞)
(∞)
+ tvi ) − ψ(u1
t
+ u2
)
, for all vi ∈ Vi .
Proof. With the same argument as in the proof of Theorem 4.3.16, we obtain
J(u
(n)
)−
(n+1,L)
J(u1
+
(n)
u2 )
(n)
(n+1,M )
ku1
M
−1
X
ku2
≥C
and
J(u(n) ) − J(u1 + u2
L−1
X
)≥C
Hence, by summing and halving
ℓ=0
m=0
(n+1,ℓ+1)
(n+1,ℓ) 2
kH.
− u1
(n+1,m+1)
(n+1,m) 2
kH.
− u2
1
(n+1,L)
(n)
(n)
(n+1,M )
+ u2 ) + J(u1 + u2
))
J(u(n) ) − (J(u1
2
!
M
−1
L−1
X
C X (n+1,ℓ+1)
(n+1,m+1)
(n+1,m) 2
(n+1,ℓ) 2
ku2
− u2
kH .
ku1
− u1
kH +
≥
2
m=0
ℓ=0
By convexity we have
2
(n+1)
− f = T
T u
H
(n+1,L)
(u1
(n+1,M )
+ u2
2
) + u(n)
!
2
− f
H
1
1
(n+1,L)
(n)
(n)
(n+1,M )
+ u2 ) − f k2H + kT (u1 + u2
) − f k2H.
≤ kT (u1
2
2
Moreover, by sublinearity (Ψ1) and 1-homogeneity (Ψ2) we have
1
(n+1,L)
(n)
(n)
(n+1,M )
ψ(u1
+ u2 ) + ψ(u1 + u2
)
ψ(u(n+1) ) ≤
2
By the last two inequalities we immediately show that
1 (n+1,L)
(n)
(n)
(n+1,M )
J(u(n+1) ) ≤
J(u1
+ u2 ) + J(u1 + u2
) ,
2
hence
J(u(n) ) − J(u(n+1) )
C
≥
2
L−1
X
ℓ=0
(n+1,ℓ+1)
ku1
(n+1,ℓ) 2
kH +
− u1
M
−1
X
ℓ=0
181
(n+1,ℓ+1)
ku2
!
(n+1,ℓ) 2
kH
− u2
≥ 0. (4.80)
4.3 Domain Decomposition for TV Minimization
Since the sequence (J(u(n) ))n∈N is monotonically decreasing and bounded from below
by 0, it is also convergent. From (4.80) and the latter convergence we deduce
!
M
−1
L−1
X
X (n+1,ℓ+1)
(n+1,m+1)
(n+1,m) 2
(n+1,ℓ) 2
ku2
− u2
kH → 0, n → ∞.
ku1
− u1
kH +
m=0
ℓ=0
In particular, by the standard inequality
triangle inequality, we have also
L−1
X
ℓ=0
(n+1,ℓ+1)
ku1
−
(n+1,ℓ) 2
u1
kH
(a2
≥ C ′′
≥
=
+
b2 )
L−1
X
≥
1
2 (a
+
(n+1,ℓ+1)
ku1
ℓ=0
(n+1,L)
′′
C ku1
(n+1,L)
C ′′ ku1
b)2
−
(4.81)
for a, b > 0 and the
!2
(n+1,ℓ)
u1
kH
(n)
− u1 k2H
(n)
(n)
+ u1 − 2u1 k2H.
Analogously we have
M
−1
X
ℓ=0
(n+1,ℓ+1)
ku2
(n+1,ℓ) 2
kH
− u2
(n+1,M )
≥ C ′′ ku2
(n)
(n)
+ u2 − 2u2 k2H.
By denoting C ′′ = 21 C ′′′ we obtain
C
2
≥
L−1
X
ℓ=0
CC ′′′
(n+1,ℓ+1)
ku1
(n+1,L)
−
(n+1,ℓ) 2
u1
kH +
(n+1,M )
ku1
+ u2
4
≥ CC ′′′ ku(n+1) − u(n) k2H.
M
−1
X
ℓ=0
(n+1,ℓ+1)
ku2
−
!
(n+1,ℓ) 2
u2
kH
+ u(n) − 2u(n) k2H
Therefore, we finally have
ku(n) − u(n+1) kH → 0,
n → ∞.
(4.82)
The rest of the proof follows by analogous arguments to that of Theorem 4.3.16.
4.3.6
Domain Decomposition for TV-L2 Minimization
In this section we present the application of the illustrated theory and algorithms to the
domain decomposition for total variation minimization. In the following we consider
the minimization of the functional J in the setting of Example 4.3.1.1. Specifically,
let Ω ⊂ Rd , for d = 1, 2, be a bounded open set with Lipschitz boundary. We are
182
4.3 Domain Decomposition for TV Minimization
interested in the case when H = L2 (Ω), Hψ = BV (Ω) and ψ(u) = V (u, Ω). Then the
domain decomposition Ω = Ω1 ∪Ω2 , as described in Examples 4.3.2.1, induces the space
splitting into Vi := {u ∈ L2 (Ω) : supp(u) ⊂ Ωi }, and Viψ = BV (Ω) ∩ Vi ,
i = 1, 2. In
particular, we can consider multiple subspaces, since the algorithms and their analysis
presented in the previous sections can be easily generalized to these cases, see [Fo07,
Section 6]. As before uΩi = πVi (u) = 1Ωi u is the orthogonal projection onto Vi .
To exemplify the kind of difficulties one may encounter in the numerical treatment of
the interfaces ∂Ωi ∩ ∂Ωj , we present first an approach based on the direct discretization
of the subdifferential of J in this setting. We show that this method can work properly in
many cases, but it fails in others, even for simple 1D examples, due to the occurrance
of exceptions which cannot be captured by this formulation. Instead of insisting on
dealing with these exceptions and strengthening the formulation, we show that the
general theory and algorithms presented previously work properly and deal well with
interfaces for both d = 1, 2.
The “Naive” Direct Approach
In light of (4.55), the first subiteration in (4.56) is given by
(n+1)
u1
(n)
≈ argminv1 ∈V1 kT (v1 + u2 ) − f k2L2 (Ω) + 2α (|D(v1 )|(Ω1 )
Z
+
(n)− +
v
−
u
dH
1
d−1 .
2
∂Ω1 ∩∂Ω2
We would like to describe the conditions that characterize subdifferentials of functionals
of the type
Z
+
u − z dHd−1 ,
|θ
{z
}
interface condition
where θ ⊂ ∂Ω, in order to handle the boundary conditions that are imposed at the
Γ(u) = |D(u)| (Ω) +
interface. Since we are interested in emphasizing the difficulties of this approach, we
do not insist on the details of a rigorous derivation of these conditions, and we limit
ourself to mentioning the main facts.
It is well known [Ve01, Proposition 4.1] that, if no interface condition is present, ξ ∈
183
4.3 Domain Decomposition for TV Minimization
∂|D(·)|(Ω)(u) implies that

∇u


in Ω
ξ
=
−∇
·

|∇u|

∇u


·ν =0
on ∂Ω.
|∇u|
The previous conditions fall short of fully characterizing ξ ∈ ∂|D(·)|(Ω)(u), additional
conditions would be required [AK06, Ve01], but the latter are, unfortunately, hard
to implement numerically. This is the source of the failures of this direct method.
The presence of the interface further modifies and aggreviates this situation and for
∂Γ(u) 6= ∅ we need to enforce
Z
Z
∇u
|(u + ws)+ − z| − |u+ − z|
· νw dHd−1 + lim
dHd−1 ≥ 0,
s→0
s
∂Ω |∇u|
θ
∀w ∈ C ∞ (Ω̄). The latter condition is implied by the following natural boundary condi-
tions:

∇u


 |∇u| · ν = 0
on ∂Ω \ θ,
∇u


−
· ν ∈ ∂| · |(u+ − z) on θ.
|∇u|
(4.83)
Note that the conditions above are again not sufficient to characterize elements in
the subdifferential of Γ.
Implementation of the subdifferential approach in TV-L2 interpolation
Let
D ⊂ Ω ⊂ Rd be open and bounded domains with Lipschitz boundaries. We assume
that a function f ∈ L2 (Ω) is given only on Ω \ D, possibly with noise disturbance. The
problem is to reconstruct a function u in the damaged domain D ⊂ Ω which nearly
coincides with f on Ω \ D. In 1D this is a classical interpolation problem, while in 2D it
has assumed the name of “inpainting” due to its applications in image restoration. TV-
interpolation/inpainting with L2 fidelity is solved by the minimization of the functional
2
J(u) = 1Ω\D (u − f )L2 (Ω) + 2α|D(u)|(Ω),
(4.84)
where 1Ω\D denotes the indicator function of Ω \ D. Hence, in this case T is the
multiplier operator T u = 1Ω\D u. We consider in the sequel the problem for d = 1,
184
4.3 Domain Decomposition for TV Minimization
so that Ω = (a, b) is an interval. We may want to minimize (4.84) iteratively by a
subgradient descent method,
u(n+1) − u(n)
∇u(n+1)
= −∇ · (
) + 2λ(u(n) − f ) in Ω
(n)
τ
|∇u |
∂u(n+1)
1
=0
|∇u(n) | ∂n
where
(4.85)
on ∂Ω,
(
λ0 =
λ(x) =
0
1
4α
Ω\D
D.
We can also attempt the minimization by the following domain decomposition algorithm: We split Ω into two intervals Ω = Ω1 ∪ Ω2 and define two alternating minimiza-
tions on Ω1 and Ω2 with the interface θ = ∂Ω1 ∩ ∂Ω2
(n+1)
(n+1)
(n)
− u1
τ
u1
= −∇ · (
(n+1)
∂u1
(n)
|∇u | ∂n
1
∇u1
(n)
|∇u1 |
(n)
) + 2λ1 (u1 − f )
on ∂Ω1 \ θ
=0
1
−
(n+1)
∂u1
(n)
|∇u | ∂n
1
(n+1)+
∈ ∂ |·| (u1
1
in Ω1
(n)−
− u2
)
on θ,
(n)
in Ω2
and
(n+1)
(n)
− u2
τ
u2
1
(n+1)
= −∇ · (
(n+1)
∇u2
(n)
|∇u2 |
∂u2
(n)
|∇u | ∂n
=0
∂u2
(n)
|∇u | ∂n
∈ ∂ |·| (u2
) + 2λ2 (u2 − f )
on ∂Ω2 \ θ
2
1
2
(n+1)
(n+1)+
(n+1)−
− u1
)
on θ.
In this setting ui denotes the restriction of u ∈ BV (Ω) to Ωi . The fitting parameter
λ is also split accordingly into λ1 and λ2 on Ω1 and Ω2 respectively. Note that we
enforced the interface conditions (4.83), with the hope to match correctly the solution
at the internal boundaries.
The discretization in space is done by finite differences. We only explain the details
for the first subproblem on Ω1 because the procedure is analogous for the second one.
185
4.3 Domain Decomposition for TV Minimization
Let i = 1, . . . , N denote the space nodes supported in Ω1 . We let h =
b−a
N
and u(i) :=
u(ih). The gradient and the divergence operator are discretized by backward differences
and forward differences respectively,
1
(u(i) − u(i − 1))
h
1
∇ · u(i) = (u(i + 1) − u(i))
h
r
1
|∇u|(i) = ǫ2 + 2 (u(i) − u(i − 1))2 ,
h
∇u(i) =
for i = 2, . . . , N − 1 and ǫ > 0. Note that we have replaced the total variation |∇u|
p
here by its regularized form ǫ2 + |∇u|2 . The discretized equation on Ω1 turns out to
be
(n+1)
u1
(i)
=
(n)
u1 (i)
+
(n)
2τ λ(i)(u1 (i)
τ
− f (i)) + 2
h
(n+1)
u1
(n+1)
−
with
cn1 (i)
=
q
(n)
(n+1)
(i + 1) − u1
cn1 (i + 1)
u1
(i)
(n+1)
(i) − u1
cn1 (i)
(i − 1)
!
,
(n)
ǫ2 + (u1 (i) − u1 (i − 1))2 /h2 and i = 2, . . . , N − 1. The Neumann
boundary conditions on the external portion of the boundary are enforced by
1
u1 (1)
cn1 (1)
=
1
u1 (2).
cn2 (2)
The interface conditions on the internal boundaries are computed by solving the following subdifferential inclusion
(n+1)
−(u1
(n+1)
(N ) − u1
(n)
(n+1)
(N − 1)) ∈ cn1 (N ) h · ∂| · |(u2 (N ) − u1
(N )).
For the solution of this subdifferential inclusion we recall that the soft-thresholding
operator u = Sα (x) that has been defined in (4.54) provides the unique solution of the
subdifferential inclusion 0 ∈ (u − x) + α∂| · |(u). We reformulate our subdifferential
inclusion as
(n)
h
i
(n)
(n+1)
0 ∈ v − (u2 (N ) − u1
(N − 1)) + cn1 (N )h · ∂| · |(v),
(n+1)
with v := u2 (N ) − u1
(N ) and get
(n)
(n+1)
v = Scn1 (N )h (u2 (N ) − u1
186
(N − 1)).
4.3 Domain Decomposition for TV Minimization
(n+1)
Therefore the interface condition on θ reads u1
(n)
(N ) = u2 (N ) − v.
In the left column of Figure 4.10 three one dimensional signals are considered. The
right column shows the result of the application of the domain decomposition method
for total variation minimization described above. The support of the signals is split
into two intervals. The interface developed by the two intervals is marked by a red dot.
In all three examples we fixed λ0 = 1 and τ = 1/2. The first example 4.10(a)-4.10(b)
shows a step function which has its step directly at the interface of the two intervals.
The total variation minimization (4.85) is applied with D = ∅. This example confirms
that jumps are preserved at the interface of the two domains. The second and third
example 4.10(c)-4.10(f) present the behavior of the algorithm when interpolation across
the interface is performed, i.e., D 6= ∅. In the example 4.10(c)-4.10(d) the computation
at the interface is correctly performed. But the computation at the interface clearly
fails in the last example 4.10(e)-4.10(f), compare the following remark.
(n)
(n+1)
Remark 4.3.19. Evaluating the soft thresholding operator at u2 (N ) − u1
(N −
(n+1)
1) implies that we are treating implicitly the computation of u1
at the interface.
Namely, the interface condition can be read as
(n+1)
u1
(n)
(n)
(n+1)
(N ) = u2 (N ) − Θ(n+1) · [u2 (N ) − u1
(n)
(N − 1)
(n+1)
− sgn(u2 (N ) − u1
where
Θ(n+1) =
(
(n)
(n+1)
1, |u2 (N ) − u1
0, otherwise .
(n)
(N − 1)) · c1 (N )h],
(n)
(N − 1)| − c1 (N )h > 0
The solution of the implicit problem is not immediate and one may prefer to modify
(n)
the situation in order to obtain an explicit formulation by computing Scn1 (N )h (u2 (N ) −
(n)
(n)
(n+1)
(N − 1)). The problem here is that,
u1 (N − 1)) instead of Scn1 (N )h (u2 (N ) − u1
with this discretization, we cannot capture differences in the steepness of u1 and u2
(n)
(n)
(n)
at the interface because u1 (N ) = u2 (N ) for all n. Indeed the condition |u2 (N ) −
(n)
(n)
u1 (N − 1)| − c1 (N )h > 0 is never satisfied and the interface becomes always a
(n)
Dirichlet boundary condition. Even if we change the computation of c1 (N ) from
q
(n)
(n)
ǫ2 + (u1 (N ) − u1 (N − 1))2 /h2
to a forward difference
q
(n)
(n)
ǫ2 + (u1 (N + 1) − u1 (N ))2 /h2
187
4.3 Domain Decomposition for TV Minimization
Initial Condition
500 iterations
1.5
1.5
1
1
0.5
0.5
0
0
−0.5
−0.5
−1
−1
Initial Condition
Interface
Inpainting Region
−1.5
10
20
Reconstruction
Interface
Inpainting Region
30
40
50
60
70
80
90
100
−1.5
10
20
30
40
(a)
Initial Condition
70
80
90
100
60
70
80
90
100
60
70
80
90
100
500 iterations
1.5
1
1
0.5
0.5
0
0
−0.5
−0.5
−1
−1
Initial Condition
Interface
Inpainting Region
10
20
Reconstruction
Interface
Inpainting Region
30
40
50
60
70
80
90
100
−1.5
10
20
30
40
(c)
50
(d)
Initial Condition
500 iterations
1.5
1.5
1
1
0.5
0.5
0
0
−0.5
−0.5
−1
−1
Initial Condition
Interface
Inpainting Region
−1.5
60
(b)
1.5
−1.5
50
10
20
Reconstruction
Interface
Inpainting Region
30
40
50
60
70
80
90
100
−1.5
(e)
10
20
30
40
50
(f)
Figure 4.10: Examples of TV-L2 inpainting in 1D where the domain was split in two.
(a)-(f): λ = 1 and τ = 1/2
(as it is indeed done in the numerical examples presented in Figure (4.10)) the method
fails when the gradients are equal in absolute value on the left and the right side of the
188
4.3 Domain Decomposition for TV Minimization
interface.
We do not insist on trying to capture heuristically all the possible exceptions. We
can expect that this approach to the problem may become even more deficient and
more complicated to handle in 2D. Instead, we want to develop an algorithm in the
spirit of (4.53) which allows to deal with the problem in a transparent way.
The Novel Approach Based on Subspace Corrections and Oblique Thresholding
We want to implement algorithm (4.65) for the minimization of J. To solve its subitera(n,M )
tions we compute the minimizer by means of oblique thresholding. Denote u2 = u2
(n+1,ℓ+1)
u1 = u1
(n+1,ℓ)
, and z = u1
pute the minimizer
(n+1,ℓ)
+ πV1 T ∗ (f − T u2 − T u1
,
). We would like to com-
u1 = argminu∈V1 ku − zk2L2 (Ω) + 2α|D(u + u2 )|(Ω)
by
(z + u2 − η) − u2 ,
u1 = (I − PαK|D(·)|(Ω) )(z + u2 − η) − u2 = S|D(·)|(Ω)
α
for any η ∈ V2 . It is known [Ch04] that K|D(·)|(Ω) is the closure of the set
n
o
d
div ξ : ξ ∈ Cc1 (Ω) , |ξ(x)| ≤ 1 ∀x ∈ Ω .
The element η ∈ V2 is a limit of the corresponding fixed point iteration (4.63).
In order to guarantee concrete computability and the correctness of this procedure,
we need to discretize the problem and approximate it in finite dimensions, compare
Examples 4.3.1.2 and Remark 4.3.9.2.
In contrast to the approach of the previous subsection, where we used the discretization of the subdifferential to solve the subiterations, in the following we directly
work with discrete approximations of the functional J. In dimension d = 1 we consider
vectors u ∈ H := RN , u = (u1 , u2 , . . . , uN ) with gradient ux ∈ RN given by
(
ui+1 − ui if i < N
(ux )i =
0
if i = N,
for i = 1, . . . , N . In this setting, instead of minimizing
J(u) := kT u − f k2L2 Ω + 2α|D(u)|(Ω),
189
4.3 Domain Decomposition for TV Minimization
we consider the discretized functional
X
Jδ (u) :=
1≤i≤N
((T u)i − gi )2 + 2α|(ux )i | .
As in Section 4.2.2, we assume that T is applied on the piecewise linear interpolant û
of the vector (ui )N
i=1 (we make a similar assumption for d = 2).
To highlight the relationship between continuous and discrete setting we introduce
a step-size h ∼ min{1/N, 1/M } in the discrete definition of J by defining a new functional Jδh equal to h times the expression Jδ above. One can show that as h → 0, Jδh
Γ− converges to the continuous functional J, see [Ch04, Br02]. In particular, piecewise linear interpolants ûh of the minimizers of the discrete functional Jδh converge to
minimizers of J. This observation clearly justifies our discretization approach.
For the definition of the set K|D(·)|(Ω) in finite dimensions we further introduce
discrete divergence in one dimension ∇· : H → H (resp. ∇· : H × H → H in two
dimensions), defined, by analogy with the continuous setting, by ∇· = −∇∗ (∇∗ is
the adjoint of the gradient ∇). That is, the discrete divergence operator is given by
backward differences, in one dimension by


pi − pi−1
(∇ · p)i = pi


−pi−1
if 1 < i < N
if i = 1
if i = N,
The discrete setting in dimension d = 2 is analogous to the one specified at the
beginning of Section 4.2.2, with the only difference being that we have the L2 norm in
the definition of Jδ instead of the H −1 norm.
With these definitions the set Kk(·)x k N in one dimension is given by
ℓ1
{∇ · p : p ∈ H, |pi | ≤ 1 ∀i = 1, . . . , N } .
and in two dimensions Kk∇(·)k N ×M is given by
ℓ1
{∇ · p : p ∈ H × H, |pi,j | ≤ 1 ∀i = 1, . . . , N and j = 1, . . . , M } .
For the computation of the projection in oblique thresholding we use the dual algorithm
of Chambolle, which has been presented in Section 4.2.2 for dimension d = 2. For d = 1
a similar algorithm for the computation of PαKk(·)x k N (f )is given:
ℓ1
190
4.3 Domain Decomposition for TV Minimization
We choose τ > 0, let p(0) = 0 and for any n ≥ 0,
(n+1)
pi
(n)
=
for i = 1, . . . , N .
pi + τ ((∇ · p(n) − f /α)x )i
,
1 + τ ((∇ · p(n) − f /α)x )i (4.86)
In this case the convergence of α∇ · p(n) to the corresponding projection as n → ∞
is guaranteed for τ ≤ 1/4. In this special setting the oblique thresholding algorithm
reads
Oblique Thresholding for TV-L2 Minimization
Start with an initial condition u0 = 0, z given as above, and uj the respective
projection of the most recent iterate on L2 (Ωj ). Then iterate
= Id − PαK|D(·)|(Ω) ((z + uj ) − η) − uj ,
uk+1
i
i = 1, 2, i 6= j,
where η is computed via the fixed point iteration
Let η 0 = 0 ∈ V2 and iterate
η m+1 = πV2 PαK|D(·)|(Ω) (η m − (uj + z)) ,
m ≥ 0.
Domain decomposition In one dimension the domain Ω = [a, b] is split into two
intervals Ω1 = [a, N2 ] and Ω2 = [ N2 + 1, b]. The interface ∂Ω1 ∩ ∂Ω2 is located
between i = ⌈N/2⌉ in Ω1 and i = ⌈N/2⌉ + 1 in Ω2 . In two dimensions the domain
Ω = [a, b] × [c, d] is split in an analogous way with respect to its rows. In particular
we have Ω1 = [a, N2 ] × [c, d] and Ω2 = [ N2 + 1, b] × [c, d], compare Figure 4.11. The
splitting in more than two domains is done similarly:
Set Ω = Ω1 ∪ . . . ∪ ΩN, the domain Ω decomposed into N disjoint domains
Ωi , i = 1, . . . , N. Set s = ⌈N/N⌉. Then
Ω1 = [1, s] × [c, d]
for i = 2 : N − 1
Ωi = [(i − 1)s + 1, is] × [c, d]
end
ΩN = [(N − 1)s + 1, N ] × [c, d].
191
4.3 Domain Decomposition for TV Minimization
a = x1
Ω1
x⌈N/2⌉
x⌈N/2⌉+1
——-
——-
∂Ω1 ∩ ∂Ω2
——-
——-
Ω2
b = xN
Figure 4.11: Decomposition of the discrete image in two domains Ω1 and Ω2 with
interface ∂Ω1 ∩ ∂Ω2
To compute the fixed point η of (4.62) in an efficient way we make the following
considerations, which allow to restrict the computation to a relatively small strip around
the interface. For u2 ∈ V2ψ and z ∈ V1 a minimizer u1 is given by
u1 = argminu∈V1 ku − zk2L2 (Ω) + 2α|D(u + u2 )|(Ω).
We further decompose Ω2 = Ω̂2 ∪(Ω2 \ Ω̂2 ) with ∂ Ω̂2 ∩∂Ω1 = ∂Ω2 ∩∂Ω1 , where Ω̂2 ⊂ Ω2
is a strip around the interface ∂Ω2 ∩ ∂Ω1 , as illustrated in Figure 4.12. By using the
splitting of the total variation (4.55) we can restrict the problem to an equivalent
minimization where the total variation is only computed in Ω1 ∪ Ω̂2 . In other words,
we have
u1 = argminu∈V1 ku − zk2L2 (Ω) + 2α|D(u + u2 )|(Ω1 ∪ Ω̂2 ).
Hence, for the computation of the fixed point η ∈ V2 , we need to carry out the
iteration η (m+1) = πV2 PαK|D(·)|(Ω) (η (m) − z + u2 ) only in Ω1 ∪ Ω̂2 . By further observing
that η will be supported only in Ω2 , i.e. η(x) = 0 in Ω1 , we may additionally restrict
the fixed point iteration on the relatively small strip Ω̂1 ∪ Ω̂2 , where Ω̂1 ⊂ Ω1 is an
neighborhood around the interface from the side of Ω1 . Although the computation
of η restricted to Ω̂1 ∪ Ω̂2 is not equivalent to the computation of η on whole Ω1 ∪
Ω̂2 , the produced errors are practically negligible, because of the Neumann boundary
192
4.3 Domain Decomposition for TV Minimization
Ω1 \ Ω̂1
——-
——-
——-
Ω̂1
∂Ω1 ∩ ∂Ω2
Ω̂2
——-
——-
——-
Ω2 \ Ω̂2
Figure 4.12: Computation of η only in the strip Ω̂1 ∪ Ω̂2 .
conditions involved in the computation of PαK|∇(·)|(Ω
1 ∪Ω̂2 )
. Analogously, one operates
for the minimization on Ω2 .
Numerical experiments in one and two dimensions
We shall present numerical
results in one and two dimensions for the algorithm in (4.65), and discuss them with
respect to the choice of parameters.
In one dimension we consider the same three signals already discussed for the
“naive” approach in Figure 4.10. In the left column of Figure 4.13 we report again
the one dimensional signals. The right column shows the result of the application of
the domain decomposition method (4.65) for total variation minimization. The support
of the signals is split in two intervals. The interface developed by the two intervals is
marked by a red dot. In all three examples we fixed α = 1 and τ = 1/4. The first
example 4.57-4.59 shows a step function, which has its step directly at the interface of
the two intervals. The total variation minimization (4.65) is applied with T = I. This
example confirms that jumps are preserved at the interface of the two domains. The
second and third example 4.13(c)-4.13(f) present the behavior of the algorithm when
interpolation across the interface is performed. In this case the operator T is given
193
4.3 Domain Decomposition for TV Minimization
(a)
(b)
(c)
(d)
(e)
(f)
Figure 4.13: (a)-(f): Examples of the domain decomposition method for TVL2 denoising/inpainting in 1D where the domain was split in two domains with α = 1
and τ = 1/4
194
4.3 Domain Decomposition for TV Minimization
by the multiplier T = 1Ω\D , where D is an interval containing the interface point. In
contrast to the performance of the interpolation of the “naive” approach for the third
example, Figure 4.10(e)-4.10(f), the new approach solves the interpolation across the
interface correctly, see Figure 4.13(e)-4.13(f).
Figure 4.14: An example of TV-L2 inpainting in where the domain was split in two with
α = 10−2 and τ = 1/4
Figure 4.15: An example of TV-L2 inpainting in where the domain was split in five with
α = 10−2 and τ = 1/4
Inpainting results for the two dimensional case are shown in Figures 4.14-4.15. The
interface is here marked by a red line in the given image. In the first example in Figure
195
4.3 Domain Decomposition for TV Minimization
4.14 the domain is split in two subdomains, in the second example in Figure 4.15 the
domain is split in five subdomains. The Lagrange multiplier α > 0 is chosen equal
to 10−2 . The time-step for the computation of PαK|∇(·)|(Ω) is chosen as τ = 1/4. The
examples confirm the correct reconstruction of the image at the interface, preserving
both continuities and discontinuities as desired. Despite the fact that Theorem 4.3.16
does not guarantee that the algorithm in (4.65) can converge to a minimizer of J (unless
one of the conditions in (iv) holds), it seems that for total variation minimization the
result is always rather close to the expected minimizer.
Let us now discuss the choice of the different parameters. As a crucial issue in order
to compute the solution at the interface ∂Ω1 ∩∂Ω2 correctly, one has to pay attention to
the accuracy up to which the projection PαK|∇(·)|(Ω) is approximated and to the width
of the strip Ω̂1 ∪ Ω̂2 for the computation of η. The alternating iterations (4.65) in
practice are carried out with L = M = 5 inner iterations. The outer iterations are
carried out until the error J(u(n+1) ) − J(u(n) ) is of order O(10−10 ). The fixed point
(0)
η is computed by iteration (4.63) in at most 10 iterations with initialization ηn = 0
(0)
when n = 1 and ηn+1 = ηn , the η computed in the previous iteration, for n > 1. For the
computation of the projection PαK|∇(·)|(Ω) by Chambolle’s algorithm (4.39) we choose
τ = 1/4. Indeed Chambolle points out in [Ch04] that, in practice, the optimal constant
for the stability and convergence of the algorithm is not 1/8 but 1/4. Moreover, if
the derivative along the interface is high, i.e., if there is a step along the interface,
one has to be careful concerning the accuracy of the computation for the projection.
The stopping criterion for the iteration (4.39) consists in checking that the maximum
variation between pni,j and pn+1
is less than 10−3 . With less accuracy, artifacts on
i,j
the interface can appear. This error tolerance may need to be further decreased for
very large α > 0. Furthermore, the size of the strip varies between 6 and 20 pixels,
also depending on the size of α > 0, and on whether inpainting is carried out via the
interface or not (e.g., the second and third example in Figure 4.13 failed in reproducing
the interface correctly with a strip of size 6 but computed it correctly with a strip of
size 20).
Parallel Implementation
The principal reasons to develop domain decomposition
algorithms is the formulation of solvers which can be easily parallelized. In Section 4.3.5,
equation (4.79), we also propose a parallelized version for the subspace minimization
196
4.3 Domain Decomposition for TV Minimization
using oblique thresholding. As for the alternating algorithm, we provide a detailed
analysis of the convergence properties of its modification for parallel computation, cf.
Theorem 4.3.18.
Based on this, I developed a parallel implementation of the domain decomposition
algorithm for total variation minimization in Matlab (using MatlabMPI1 provided by
MIT2 ). Both the parallel code and the sequential code are available online3 . Numerical
tests exploring the computational performance of the parallel algorithm are a matter
of future research.
4.3.7
Domain Decomposition for TV-H−1 Minimization
As already pointed out earlier in this chapter, one of the drawbacks of using TVH−1 minimization in applications is its slow numerical performance. The semi-implicit
scheme for TV-H−1 inpainting in Section 4.1.3 suffers from a damping of the iterates
dependent on the choice of the fidelity parameter; and the new dual algorithm for TVH−1 minimization from Section 4.2.1 , i.e., Algorithm (P), is conditioned to time steps
τ ≤ 1/64 in order to guarantee convergence. If now, additionally, the data dimension is
large, e.g., when we have to process 2D images of high resolution, of sizes 3000 × 3000
pixels for instance, or even 3D image data, each iteration step itself is computationally
expensive and we are far away from real-time computations.
Motivated by this, we wish to apply the theory developed in the previous subsections
for the solution of the TV-H−1 minimization problem (4.33), i.e., the minimization of
J(u) := kT u − f k2H −1 (Ω) + 2α|Du|(Ω).
To do so, we shall use the algorithm developed in Section 4.2.2 for the computation of
the oblique thresholding operator. This part of the present work is contained in [Sc09].
We follow the notation from the previous sections and from Section 4.2.2. We are
in the same setting as for TV-L2 minimization, with the only difference being that the
fidelity term in (4.33) is minimized in the weaker H −1 norm instead of the norm in
L2 (Ω). However, as it turns out later, we fulfill all the necessary properties, assumed in
1
The author thanks Jahn Müller from the University of Münster for his help with the implementation in MatlabMPI
2
see http://www.ll.mit.edu/mission/isr/matlabmpi/matlabmpi.html
3
http://homepage.univie.ac.at/carola.schoenlieb/webpage_tvdode/tv_dode_numerics.htm
197
4.3 Domain Decomposition for TV Minimization
Section 4.3.1, in order to apply the general theory to the case of TV-H−1 minimization.
Then we want to minimize J in (4.33) by the alternating algorithm (4.65). As in Section
4.3.3, the subproblem on Ω1 reads
n
o
argminu1 ∈V1 J(u1 + u2 ) = 2α |D(u1 + u2 )| (Ω) + kT u1 − (f − T u2 )k2−1 .
(4.87)
Differently to the surrogate functionals suggested in Section 4.3.3, we follow the approach presented in Section 4.2.2, i.e., Algorithm (P) and use the slightly different
surrogate functionals (4.47). This means that we introduce the following sequence of
functionals for this subminimization problem, i.e., let u0 = 0, for k ≥ 0 let
2
2
1 1 Js1 (u1 +u2 , uk1 ) = |D(u1 + u2 )| (Ω)+ u1 − uk1 +
u1 − (f − T u2 + (Id − T )uk1 ) .
2τ
−1 2α
−1
and realize an approximate solution to (4.87) by using the following algorithm: For
u01 ∈ BV (Ω1 ),
uk+1
= argminu1 ∈V1 Js1 (u1 + u2 , uk1 ),
1
k ≥ 0.
(4.88)
As in the general theory in Section 4.3.3, we are going to use Theorem 4.3.7 to solve
the subminimization problem (4.88) via its reformulation on Ω, i.e.,
uk+1
= argminu∈BV (Ω) {F (u), πV2 (u) = 0} ,
1
with F (u) = J1s (u + u2 , uk1 ). Now, since L2 (Ω) ⊂ L2 (R2 ) ⊂ H −1 (Ω) (by zero extensions
of functions on Ω to R2 ), our functional F is continuous on V1ψ ⊂ V1 = ker πV2 in
the norm topology of BV (Ω). Further πV2 |BV (Ω) is a bounded and surjective map
∗
with closed range in the norm topology of BV (Ω), i.e., πV2 |BV (Ω) is injective and
∗
ψ
Range πV |BV (Ω) ∼
= (V )∗ is closed. By applying Theorem 4.3.7, we know that
2
2
the optimality of
uk+1
1
(BV (Ω2 ))∗ such that
is equivalent to the existence of an η ∈ Range(πV2 |BV (Ω) )∗ ∼
=
−η ∈ ∂BV (Ω) F (uk+1
1 ).
Now
∂BV (Ω) F (uk+1
1 )=
where
1 −1 k+1
+
u
)
∆ (u1 − z) + ∂BV (Ω) D(uk+1
2 (Ω)
1
µ
z=
z1 α + z2 τ
ατ
, µ=
,
α+τ
α+τ
198
(4.89)
4.3 Domain Decomposition for TV Minimization
with z1 = uk1 , z2 = f − T u2 + (Id − T )uk1 . Then the optimality of uk+1
is equivalent to
1
1
k+1
−
z)
+
η
+
∂
D(u
+
u
)
0 ∈ ∆−1 (uk+1
(Ω).
2
BV (Ω)
1
1
µ
The latter is equivalent to
1
uk+1
+ u2 ∈ ∂BV (Ω) |D.| (Ω)∗ ( ∆−1 (z − uk+1
1
1 ) − η),
µ
i.e,
u2 + z z − uk+1
1
1
1
∈
+ ∂BV (Ω) |D.| (Ω)∗ ( ∆−1 (z − uk+1
1 ) − η).
µ
µ
µ
µ
By letting w = ∆−1 (z − uk+1 )/µ − η we have
0 ∈ (−∆(w + η) − (u2 + z)/µ) +
1
∂
|D.| (Ω)∗ (w),
µ BV (Ω)
or, in other words, w is a minimizer of
w − (∆−1 (u2 + z)/µ − η)2 1
H (Ω)
0
2
+
1
|D·| (Ω)∗ (w).
µ
Following the same procedure as in Section 4.2.2 we deduce that
w = P1K (∆−1 (u2 + z)/µ − η),
where P1K denotes the orthogonal projection on K over H01 (Ω) like in Section 4.2.2.
Then a minimizer uk+1
of (4.88) can be computed as
1
uk+1
= −∆ Id − P1µK
1
∆−1 (z + u2 ) − µη − u2 .
By applying πV2 to both sides of the latter equality we get
0 = µ∆η + πV2 ∆P1µK ∆−1 (u2 + z) − µη .
Assuming necessary zero boundary conditions on ∂Ω, the resulting fixed point equation
for η reads
η=
1
πV2 P1µK µη − ∆−1 (u2 + z) .
µ
As before for the general theory, the fixed point can be computed via the iteration
η 0 ∈ V2 ,
η m+1 =
1
πV2 P1µK µη m − ∆−1 (u2 + z) ,
µ
199
m ≥ 0.
4.3 Domain Decomposition for TV Minimization
Oblique Thresholding for TV-H−1 Minimization
Start with an initial condition u0 = 0, z as in (4.89) and uj the respective projection
of the most recent iterate on L2 (Ωj ). Then iterate
uk+1
= −∆ Id − P1µK
i
∆−1 (z + uj ) − µη − uj ,
i = 1, 2, i 6= j,
(4.90)
where η in (4.90) is computed via the fixed point iteration
Let η 0 = 0 ∈ V2 and iterate
η m+1 =
1
πV P1 µη m − ∆−1 (uj + z) ,
µ 2 µK
m ≥ 0.
(4.91)
In sum we solve (4.33) by the alternating subspace minimizations where each subminimization problem is computed by the oblique thresholding algorithm for TVH−1 minimization:
As before the projection P1µK is computed by Algorithm (P).
Unsurprisingly, we are especially interested in the inpainting setting T = 1Ω\D ,
compare also with (4.48) in Section 4.2.3. In Figures 4.16 and 4.17 the given images
have been divided in four subdomains, marked by red lines, and the image is inpainted
by TV-H−1 inpainting computed by the sequential algorithm (4.65) by means of oblique
thresholding. Note that for these examples we used a different decomposition of the
spatial domain Ω, where the four interfaces form a cross and meet in the middle of the
domain. Special care has to be taken about this meeting point in the middle, i.e., the
solution has to be averaged over the subdomains there.
200
4.3 Domain Decomposition for TV Minimization
(a) Given image
(b) Intermediate inpainting iterate
(c) Inpainting result
Figure 4.16: TV-H−1 inpainting computation for a model example on four domains with
α = 0.01.
Figure 4.17: TV-H−1 inpainting computation on four domains with α = 0.005.
201
Chapter 5
Applications
Digital inpainting methods provide an important tool in the restoration of images in
a wide range of applications. In my Ph.D. thesis I focus on two special applications.
The first is the inpainting of ancient frescoes. In particular we discuss the CahnHilliard equation for the inpainting of binary structure and TV-H−1 inpainting for the
reconstruction of the grayvalues in the recently discovered Neidhart frescoes in Vienna,
cf Section 5.1. The second application has originated in a project of Andrea Bertozzi
taking place at UCLA (University of California Los Angeles) and is about the inpainting
of roads in satellite images. It is presented in Section 5.2.
5.1
Restoration of Medieval Frescoes
In the course of an ongoing interdisciplinary project1 we aim to use digital inpainting
algorithms for the restoration of frescoes. Most of the results presented within this
section can be found in [BFMS08].
Particular consideration has been extended to the newly found Neidhart frescoes
(Tuchlauben 19, 1010 Vienna). These medieval frescoes from the 14th Century are
depicting a cycle of songs of the 13th Century minnesinger Neidhart von Reuental.
Hidden behind a wall over years, the frescoes have been damaged during exposure.
Advanced mathematical tools were developed specifically for so-called ”mathematical
inpainting/retouching” of digital images. To this end, variational methods and third
1
WWTF Five senses-Call 2006, Mathematical Methods for Image Analysis and Processing in the
Visual Arts
202
5.1 Restoration of Medieval Frescoes
and fourth-order partial differential equations have been investigated. Efficient numerical methods for the solution of the devised partial differential equations have been
designed.
In the following we discuss our mathematical inpainting methods and present numerical results from their application to the Neidhart frescoes.
5.1.1
Neidhart Frescoes
Fragments of 14th century wall frescoes found beneath the crumbling plaster of an old
apartment in the heart of Vienna depict a popular medieval cycle of songs of the 13th
century minnesinger, Neidhart von Reuental. In the very late 14th century, Michel
Menschein, a wealthy Viennese council member and cloth merchant, commissioned
local artists to paint the stories in Neidhart’s songs on the walls of his Festsaal (banquet
hall). The Neidhart frescoes provide a unique peek into medieval humor, and at the
same time, a peek into the taste of a medieval man.
Figure 5.1: Part of the Neidhart frescoes. Image courtesy Andrea Baczynski.
In Figure 5.1 a part of the Neidhart frescoes is shown1 . The white holes in the
fresco are due to the wall which covered the fresco until a few years ago. They occurred
1
The author thanks Andrea Baczynski for providing the fresco data.
203
5.1 Restoration of Medieval Frescoes
when the wall was removed. In the following we want to apply digital restoration methods to these frescoes. Thereby the main challenge is to capture the structures in the
preserved parts of the fresco and transport them into the damaged parts continuously.
Due to their great age and almost 600 years of living by owners and tenants in the
apartment, saturation, hue and contrast quality of the colours in the frescoes suffered.
Digital grayvalue, i.e., colour interpolation, in the damaged parts of the fresco therefore
demands sophisticated algorithms taking these detrimental factors into account.
5.1.2
Methods
In the following we present the mathematical methods we used in order to reconstruct
the damaged parts in the fresco. In particular, two inpainting methods based on higherorder partial differential equations, i.e., Cahn-Hilliard- (2.1) and TV-H−1 inpainting
(2.27), are to be presented. We finalize this section by proposing a possible strategy to
adapt these two inpainting approaches to the requirements of the Neidhart frescoes.
Let us start with briefly recalling the Cahn-Hilliard inpainting approach (2.1). The
inpainted version u(x) of f (x) ∈ L2 (Ω) is constructed by following the evolution equa-
tion

1

 ut = ∆(−ǫ∆u + F ′ (u)) + λ(f − u) in Ω,
ǫ
∂u
∂∆u


=
=0
on ∂Ω,
∂ν
∂ν
with F (u) a so-called double-well potential, e.g., F (u) = u2 (u − 1)2 , while
(
λ0 Ω \ D
λ(x) =
0
D
is the characteristic function of Ω \ D multiplied by a constant λ0 ≫ 1.
A generalization of the Cahn-Hilliard inpainting approach to an approach for gray-
value images was already presented in Section 2.2 (also cf. [BHS08]). Namely we consider TV-H−1 inpainting (2.27): Let f ∈ L2 (Ω), |f | ≤ 1 be the given grayvalue image.
The inpainted version u(x) of f (x) evolves in time like
∇u
ut = −∆ ∇ ·
+ λ(f − u),
|∇u|
where p ∈ ∂T V (u) was replaced by a relaxed version
!
∇u
∇u
=∇· p
,
p≈∇·
|∇u|
|∇u|2 + ǫ
204
(5.1)
5.1 Restoration of Medieval Frescoes
for an 0 < ǫ ≪ 1.
As mentioned in Section 5.1.1, the Neidhart frescoes pose a special challenge con-
cerning their digital restoration. We summarize the main issues in the following list:
1. Lack of grayvalue contrast
2. Low colour saturation and hue
3. Damaged parts can be rather large, i.e., the diameter of the damaged domain can
be larger than the width of lines which are to be continued into the damaged part
Hence we need an inpainting approach which takes into account these possible difficulties and solves (or circumvents) them. As we have pointed out earlier in this section,
the third issue can be solved by using a higher-order inpainting method such as (2.1)
and (2.27). Unfortunately difficulties two and three prevent the effective application
of these methods. As the contrast between grayvalues is low, the edges (which identify
the main structure of an image) are not clearly defined. As inpainting lives and dies
with uniqueness of edge continuation (cf. Figure 5.2) we may run into trouble if we do
not preprocess the digital images of the fresco in an adequate manner.
Figure 5.2: (l.) What is the right solution? (r.) Part of the Neidhart fresco: How
should the inpainting algorithm decide in this case?
Specifically we follow two strategies:
• Strategy 1: Structure inpainting on binary images with the Cahn-Hilliard equa-
tion. Based on the recovered binary structure, the fresco is colourized. We
discuss the recolourization, i.e., the filling in of grayvalues based on the given binary structure, in more detail in Section 5.1.2. Also compare [Fo06] for a similar
approach.
205
5.1 Restoration of Medieval Frescoes
• Strategy 2: Apply TV-H−1 inpainting in two steps. First with a small λ0 , e.g.,
λ0 = 1, to merge together fine artifacts in the fresco by diffusion. In the second
step we choose a large λ0 ≫ 1, e.g., λ0 = 103 , to reconstruct the fresco inside the
damaged parts.
Figure 5.3: Part of the Neidhart frescoes
In the following we present first numerical results following these two strategies. For
both inpainting methods (2.1) and (2.27) we used the convexity splitting algorithms
presented in Section 4.1 for their discretization in time.
Strategy 1 - Binary based fresco inpainting
We begin with the inpainting of the binary structure of the frescoes by means of (2.1), cf.
Figure 5.4-5.5. In our numerical examples we applied (2.1) in two steps (cf. [BEG07b]).
In the first few time steps we solve (2.1) with a rather big ǫ, e.g., ǫ = 3. We stop when
we are sufficiently close to a steady state. Then we switch the ǫ value to a smaller one,
e.g., ǫ = 0.01. Using the steady state from the first few time steps of (2.1) with a large
ǫ as an initial condition, we apply the iteration now for the switched ǫ. Again we stop
when we are sufficiently close to the steady state.
The next step is to recolourize the damaged parts by using the recovered binary
structure as underlying information. This can be done in the following way.
Motivated by previous work, Fornasier [Fo06], and Fornasier and March [FM07],
we propose an inpainting model for grayvalue images which uses a given (or previously
obtained) binary structure inside the missing domain D. Thereby the binary structure
of the image is usually obtained by a preprocessing step with Cahn-Hilliard inpainting
[BEG07a, BEG07b]. Let us describe this method in more detail.
206
5.1 Restoration of Medieval Frescoes
Figure 5.4: Cahn-Hilliard inpainting with λ0 = 107 f.l.t.r.: Part of the fresco; binary
selection in red; binary selection in black and white; initial condition for the inpainting
algorithm where the inpainting region is marked with a gray rectangle; inpainting result
after 200 time steps with ǫ = 3; inpainting result after additional 800 time steps with
ǫ = 0.01.
Let f ∈ L2 (Ω) be a given image which grayvalue in Ω \ D and binary in D. We
wish to recover the grayvalue information in D based on the binary structure given by
f by means of the following minimization problem:
Z
µ
∗
|u(x) − f (x)|2 dx
u = argmin {
2 Ω\D
Z
λ
+
|Lbin (u(x)) − f (x)|2 dx
2 D
+ |Du| (Ω), u ∈ L2 (Ω)(Ω, R+ ) .
(5.2)
In our case Lbin is a transformation which projects the grayvalue range of u, e.g., [0, 1],
on the binary range {0, 1}.
The corresponding Euler-Lagrange equation of (5.2) then reads
0 = p + µ · χΩ\D (u − f ) + λ · χD (Lbin (u) − f )
∂Lbin
(u),
∂u
p ∈ ∂ |Du| (Ω),
(5.3)
where χΩ\D and χD are the characteristic functions of Ω \ D and D respectively. In
(5.3) we approximate the subgradient of the total variation by a relaxed version p ≈
p
−∇ · (∇u/|∇u|ǫ ), where |∇u|ǫ := |∇u|2 + ǫ. The relaxed version of (5.3) then reads
∇u
∂Lbin
0 = −∇ ·
(u).
+ µ · χΩ\D (u − f ) + λ · χD (Lbin (u) − f )
|∇u|ǫ
∂u
207
5.1 Restoration of Medieval Frescoes
Figure 5.5: Cahn-Hilliard inpainting with λ0 = 106 f.l.t.r.: Part of the fresco; binary
selection in red; binary selection in black and white; initial condition for the inpainting
algorithm where the inpainting region is marked with a gray rectangle; inpainting result
after 200 time steps with ǫ = 4; inpainting result after additional 800 time steps with
ǫ = 0.01.
For our purpose Lbin is modeled by a relaxed version of the Heaviside function depending on a (presumably) given threshold τ . Recall that the Heaviside function is given
by
(
1
H(x) =
0
x ≥ 0,
x < 0.
In order to have a differentiable transformation, we approximate H by H δ with
x 2
1
δ
1 + arctan
, 0 < δ ≪ 1.
H (x) =
2
π
δ
Let us assume now that the binary part of f in D was obtained such that it is 1 where
the lost grayvalue information fg ≥ τ and 0 otherwise, i.e., for x ∈ D we assume
(
1 fg (x) ≥ τ,
f (x) =
0 fg (x) < τ.
Then we want the binarization Lbin of u to be modeled subject to the same assumption
and we finally define
(
1 u ≥ τ,
Lbin (u) := H (u − τ ) ≈
0 u < τ.
δ
(5.4)
The derivative of Lbin is then a smooth approximation of the Dirac δ-function in u = τ ,
i.e.,
dH δ
1
1
(x) = δ δ (x) =
,
dx
πδ 1 + (x/δ)2
208
0 < δ ≪ 1,
5.1 Restoration of Medieval Frescoes
and
∂Lbin
(u) = δ δ (u − τ ).
∂x
(5.5)
In Figure 5.1.2 two numerical examples for the binary based grayvalue inpainting are
shown.
(a) Initial condition from the example in Figure
5.4
(b) Inpainting result for 5.6(a)
(c) Initial condition
from the example in
Figure 5.5
(d) Inpainting result for 5.6(c)
Figure 5.6: Two examples for binary based grayvalue inpainting with µ = λ = 102 and
5000 time steps. The grayvalues inside of the inpainting domain are initialized with the
results from Cahn-Hilliard inpainting in Figure 5.4-5.5, cf. 5.6(a) and 5.6(c). Solving
(5.2) via a steepest descent approach constitutes 5.6(b) and 5.6(d)
Strategy 2 - Grayvalue fresco inpainting
We consider (5.1) and apply it for the grayvalue inpainting of the Neidhart frescoes.
In Figure 5.7 the algorithm (5.1) has been applied to a small part of the Neidhart
frescoes. In this particular case we did not even have to preprocess the image because only plain grayvalue information was to be imported into the inpainting domain,
whereas in Figure 5.8 we acted on strategy 2. Namely, we primarily denoised the image
by (5.1) with λ(x) = λ0 on the whole image domain and applied the inpainting algorithm ((5.1) with λ(x) = 0 inside the inpainting domain D) on the ”cleaned” image in
209
5.1 Restoration of Medieval Frescoes
a second step. Clearly our binary based approach in Figure 5.1.2-5.8 produces superior
visual results in the presence of edges.
Figure 5.7: TV-H−1 inpainting applied to a part of the Neidhart fresco
Figure 5.8: TV-H−1 inpainting following strategy 2. f.l.t.r. part of the Neidhart fresco;
preprocessed image; initial condition for the inpainting algorithm where the inpainting
domain is marked as a gray rectangle; preliminary inpainting result (algorithm carried
out until err ≈ 10−4 ). Inpainting difficulties due to the reasons indicated in Figure 5.2
are clearly visible.
Conclusion
We succeeded in developing methods for the restoration of digital images using mathematical concepts of partial differential equations. We showed the reconstruction of
the grayvalue information in the Neidhart frescoes using basically two strategies. In
the first strategy Cahn-Hilliard inpainting was used to reconstruct the binary structure
in the frescoes. Then the grayvalues were filled into the missing parts based on the
binary information available from the Cahn-Hilliard reconstruction. The main idea of
this strategy is to exploit the good reconstruction qualities of Cahn-Hilliard inpainting
210
5.2 Road Reconstruction
(smooth connection of edges even across large distances) as much as possible. This
approach turned out to be the method of choice in the presence of edges in the neighborhood of the missing parts and when the gaps in the frescoes are large. The second
strategy uses TV-H−1 inpainting for the reconstruction of the grayvalue information in
the frescoes. This approach produced fairly good results for the inpainting of homogeneous areas in the frescoes. As one immediately observes, parts of the surface of the
Neidhart frescoes are more texture-like. Since the inpainting methods we used cannot
reproduce texture, they can only deliver visually good results to a limited extent.
In Figure 5.9 a part of the fully restorated frescoes is shown1 . A direct comparison
between the restorated frescoes and our digital results defines the next step within this
project.
Figure 5.9: The restored fresco. Image courtesy Wolfgang Baatz.
5.2
Road Reconstruction
This project is about the continuation of roads in aerial images and takes place in
Andrea Bertozzi’s group at UCLA2 (cf. also [DB08]). The roads are partially occluded
,e.g., by trees, cf. Figure 5.10, and now the challenge is to reconstruct the roads such
that one is able to follow them in aerial images.
1
The author thanks Wolfgang Baatz for providing this data.
I would like to thank the UCLA Mathematics Department, and Alan Van Nevel and Gary Hewer
from the Naval Air Weapons Station in China Lake, CA for providing the data.
2
211
5.2 Road Reconstruction
Figure 5.10: Road data from Los Angeles
Our first approach is to binarize the road data and apply Cahn-Hilliard inpainting
(cf. (2.1) in Section 2.1) to the binary roads 1 . In Figure 5.11 two examples for CahnHilliard inpainting of binary roads are shown. Note that the Cahn-Hilliard inpainting
approach is applied to the corrupted road images in two steps. First the large gap(s)
in the road are filled by choosing rather large parameter ǫ in (2.1) and letting the
inpainting algorithm run until it reaches a steady state. Using the result from this first
step, Cahn-Hilliard inpainting is applied again with a small ǫ in order to sharpen the
edges in the image.
Figure 5.11: Cahn-Hilliard inpainting in two steps, namely with ǫ = 0.1 and ǫ = 0.01
in the first row, and ǫ = 1.6 and ǫ = 0.01 in the second row of the Figure
5.2.1
Bitwise Cahn-Hilliard Inpainting
In a second approach we shall reconstruct the roads with a bitwise Cahn-Hilliard inpainting approach. Specifically, one possible generalization of Cahn-Hilliard inpainting
1
Thanks to Shao-Ching Huang (UCLA) for the preparation of the data
212
5.2 Road Reconstruction
for grayscale images is to split the grayscale image bit-wise into channels
u(x) ;
K
X
uk (x)2−(k−1) ,
k=1
where K > 0. The Cahn-Hilliard inpainting approach is then applied to each binary
channel uk separately, compare Figure 5.12. At the end of the inpainting process the
channels are assembled again and the result is the inpainted grayvalue image in lower
grayvalue resolution, cf. Figure 5.13. In Figure 5.12 and 5.13 the application of bitwise
Cahn-Hilliard inpainting for the restoration of satellite images of roads is demonstrated.
One can imagine that the black dots in the first picture in Figure 5.13 represent trees
that cover parts of the road. The idea of bitwise Cahn-Hilliard inpainting was proposed
in [DB08] for inpainting with wavelets based on Allen-Cahn energy.
Figure 5.12: What is going on in the channels? The given image (first row) and the
Cahn-Hilliard inpainting result (second row) for the 1st, 3rd, 4th, and 5th channel
Figure 5.13: Bitwise Cahn-Hilliard inpainting with K = 8 binary channels applied to
road restoration: (l.) given distorted aerial image of a road; (r.) result of the inpainting
process with the assembled binary channels of Figure 5.12.
213
Chapter 6
Conclusion
My PhD thesis is mainly concerned with higher-order partial differential equations in
image inpainting. The analysis and numerical realization of Cahn-Hilliard inpainting
and TV-H−1 inpainting have been of particular interest. I could extend the understanding of these inpainting approaches by, among other things, giving answers about
stationary solutions of the underlying equations, by an analysis for the inpainting error,
and by giving an interpretation of these inpainting approaches in terms of a mechanism
based on transport and diffusion. Moreover, I presented reliable and efficient numerical
solvers for higher-order inpainting approaches concluding with a domain decomposition approach for TV-based inpainting methods. In addition, the applicability of the
discussed inpainting approaches was brought to the test for the restoration of ancient
frescoes and the inpainting of satellite images of roads.
In the following I would like to address some open problems that I consider to be
interesting for the understanding of higher-order inpainting schemes:
• The advantage of fourth-order inpainting models over models of second differential
order is in the smooth continuation of image contents even across large gaps in
the image. A motivation for the reasonability of this claim was already given
in the Introduction of this thesis. Briefly we can imagine that a fourth-order
partial differential equation requires one boundary condition more than a secondorder equation. In [BEG07b] the authors showed that, in the limit λ0 → ∞, a
stationary solution u of the Cahn-Hilliard equation fulfills two conditions on the
boundary of the inpainting domain, i.e., u = f and ∇u = ∇f on ∂D, cf. also
(2.2) in Section 2.1. Hence during the inpainting process, in addition, to the value
214
of the image function, its gradient is continued into the missing domain. This
is also true for our other two inpainting approaches, i.e., TV-H−1 inpainting and
inpainting with LCIS, and is motivated by the numerical results in Figures 2.8
and 2.4. A rigorous derivation of this phenomenon, as the one for Cahn-Hilliard
inpainting in [BEG07b], is a matter for future research.
• Besides the fact that rigorous results for fourth-order partial differential equa-
tions are rare in general, an asymptotic analysis of our three inpainting models
would be of high (even practical) interest. More precisely the convergence of a
solution of the evolution equations (2.1), (2.27), and (2.42), to a stationary state
is still open. Since the inpainted image is the stationary solution of those evolution equations, the asymptotic behavior is of course an issue. Also in practice,
the numerical schemes are solved to steady state (up to an approximational error). Note that additionally to the fourth differential order, a difficulty in the
convergence analysis of (2.1) and (2.27) is that they do not follow a variational
principle.
Moreover, regularity results for solutions of higher-order inpainting approaches
are mostly missing. For the proofs of Theorem 4.1.16 and Theorem 4.1.21, for
instance, we had to assume that the exact solution is bounded on a finite time
interval in a certain Sobolev norm. As we already argued in the remarks after
the statement of the theorems, these assumptions seem to be heuristically reasonable, considering earlier results in [BGOV05, BG04]. Nevertheless, a rigorous
derivation of such bounds is still missing.
• Fast numerical solvers for inpainting with higher-order equations is still a mostly
open issue, cf. the introductory Section 1.3.3 and Chapter 4. Let me list two
promising approaches, whose applicability for inpainting has to be tested still.
– As already pointed out in Section 1.3.3, the work in [GBO09], i.e., the socalled Bregman split method, promises very small computation times for
ℓ1 regularized optimization problems in the context of surface reconstruction with missing data points. A future project could be to check the possible effectiveness of the algorithm in [GBO09] for the higher-order TVH−1 inpainting approach and inpainting with LCIS.
215
– In [WAB] Weiss et al. propose an efficient numerical algorithm for constrained total variation minimization, which is based on a recent advance
in convex optimization proposed by Nesterov [Ne05]. They show that their
scheme allows to obtain a solution of precision ǫ in O(1/ǫ) iterations, i.e.,
√
in the case of a strongly convex constraint even in only O(1/ ǫ) iterations.
An idea, is to speed up the computation for TV-H−1 inpainting, combining this new method from [WAB] with my approach in Section 4.2, where
TV-H−1 inpainting is computed iteratively via the minimization of surrogate
functionals (4.47).
216
Appendix A
Mathematical Preliminaries
A.1
Distributional Derivatives
Take Ω ⊂ Rd , d ≥ 1, to be an open set. We define D(Ω) := Cc∞ (Ω), where Cc∞ (Ω) is
the set of C ∞ functions with compact support in Ω. Then D′ (Ω) denotes the set of
real continuous linear functionals on D(Ω) which we call the space of distributions
on Ω. We will denote the pairing of D′ (Ω) and D(Ω) by h., .iD′ ,D. In the following we
define partial derivatives of a distribution.
Definition A.1.1. (∂ α u) For u ∈ D′ (Ω) and for any multi-index α we define ∂ α u by
h∂ α u, φiD′ ,D := (−1)|α| hu, ∂ α φiD′ ,D
for all φ ∈ D(Ω).
Compare [Fo99] for more details on distribution theory.
A.2
Subgradients and Subdifferentials
Let H be a real Hilbert space with norm k.k and inner product (., .). Given J : H → R
and u ∈ H we say that J is Fréchet-differentiable at u ∈ H if
∇J(u) = lim
t=0
d
J(u + tv) < ∞.
dt
Then ∇J(u) is called the Fréchet derivative (or first variation) of J.
In some cases the above limit does not exist, i.e., the function J is not differentiable.
Then we introduce the notion of the subdifferential of a function (cf. [Ev98]).
217
A.3 Functional Analysis
Definition A.2.1. Let X be a locally convex space, X ′ its dual, h., .i the bilinear pairing
over X × X ′ and J a mapping of X into R. The subdifferential of J at u ∈ X is
defined as
∂J(u) = p ∈ X ′ | hv − u, pi ≤ J(v) − J(u), ∀v ∈ X .
A.3
Functional Analysis
Theorem A.3.1. (Rellich-Kondrachov Compactness Theorem) cf. [Al92], Theorem
8.7, p. 243
Assume that Ω is a bounded and open subset of Rd with Lipschitz boundary. Suppose
that 1 ≤ r < d. Then
W 1,r (Ω) ֒→֒→ Lq (Ω),
for each 1 ≤ q <
dr
d−r .
Theorem A.3.2. (Fatou’s Lemma) If f1 , f2 , . . . is a sequence of non-negative measurable functions defined on a measure space (S, Σ, µ), then
Z
Z
fn dµ .
lim inf fn dµ ≤ lim inf
S n→∞
n→∞
S
Let X denote a real Banach space.
Definition A.3.3. A set K ⊂ X is convex if for all u, v ∈ K and constants 0 ≤ λ ≤ 1,
λu + (1 − λ)v ∈ K.
Theorem A.3.4. (Characterization of compact sets) A closed subset K of a Banach
space X is compact if and only if there is a sequence (xn ) in X such that ||xn || → 0
and K is a subset of the closed convex hull of (xn ).
Theorem A.3.5. (Schauder’s fixed point theorem). Suppose that K ⊂ X is compact
and convex, and assume also A : K → K is continuous. Then A has a fixed point.
Proof. cf. [Ev98] Section 9.2.2. page 502-507.
A.4
The Space H −1 and the Inverse Laplacian ∆−1
We denote by H −1 (Ω) the dual space of H01 (Ω) with corresponding norm k.k−1 . For a
function f ∈ H −1 (Ω) the norm is defined as
kf k2−1
2
= ∇∆−1 f 2 =
218
Z
Ω
∇∆−1 f
2
dx.
A.5 Functions of Bounded Variation
Thereafter the operator ∆−1 denotes the inverse to the negative Dirichlet Laplacian,
i.e., u = ∆−1 f is the unique solution to
A.5
− ∆u = f
in Ω
u=0
on ∂Ω.
Functions of Bounded Variation
The following results can be found in [AFP00], see also [Gi84], and [EG92]. Let Ω ⊂ R2
be an open and bounded Lipschitz domain. As in [AFP00] the space of functions of
bounded variation BV (Ω) in two space dimensions is defined as follows:
Definition A.5.1. (BV (Ω)) Let u ∈ L1 (Ω). We say that u is a function of bounded
variation in Ω if the distributional derivative of u is representable by a finite Radon
measure in Ω, i.e., if
Z
Z
∂φ
dx = − φdDi u ∀φ ∈ Cc∞ (Ω), i = 1, 2,
u
∂x
i
Ω
Ω
for some R2 - valued measure Du = (D1 u, D2 u) in Ω. The vector space of all functions
of bounded variation in Ω is denoted by BV (Ω).
Further, the space BV (Ω) can be characterized by the total variation of Du. For
this we first define the so-called variation V (u, Ω) of a function u ∈ L1loc (Ω).
Definition A.5.2. (Variation) Let u ∈ L1loc (Ω). The variation V (u, Ω) of u in Ω is
defined by
Z
2
1
V (u, Ω) := sup
u divφ dx : φ ∈ Cc (Ω) , kφkL∞ (Ω) ≤ 1 .
Ω
A simple integration by parts proves that
Z
V (u, Ω) =
|∇u| dx
Ω
if u ∈ C 1 (Ω). By a standard density argument this is also true for functions u ∈
W 1,1 (Ω). Before we proceed with the characterization of BV (Ω) let us recall the definition of the total variation of a measure:
219
A.5 Functions of Bounded Variation
Definition A.5.3. (Total variation of a measure) Let (X, E) be a measure space. If µ
is a measure, we define its total variation |µ| as follows:
)
(∞
∞
[
X
Eh , ∀E ⊂ E.
|µ(Eh )| : Eh ∈ E pairwise disjoint , E =
|µ| (E) := sup
h=0
h=0
With Definition A.5.2 the space BV (Ω) can be characterized as follows
Theorem A.5.4. Let u ∈ L1 (Ω). Then u belongs to BV (Ω) if and only if V (u, Ω) <
∞. In addition, V (u, Ω) coincides with |Du| (Ω), the total variation of Du, for any
u ∈ BV (Ω) and u 7→ |Du| (Ω) is lower semicontinuous in BV (Ω) with respect to the
L1loc (Ω) topology.
Note that BV (Ω) is a Banach space with respect to the norm
kukBV (Ω) = kukL1 (Ω) + |Du| (Ω).
Now we introduce so-called weak∗ convergence in BV (Ω) which is useful for its
compactness properties. Note that this convergence is much weaker than the norm
convergence.
Definition A.5.5. (Weak∗ convergence) Let u, uh ∈ BV (Ω). We say that (uh ) weakly∗
∗
converges in BV (Ω) to u (denoted by uh ⇀ u) if (uh ) converges to u in L1 (Ω) and
(Duh ) weakly∗ converges to Du in all (Ω), i.e.,
Z
Z
φ dDu ∀φ ∈ C0 (Ω).
lim
φ dDuh =
h→∞ Ω
A simple criterion for
weak∗
Ω
convergence is the following:
Theorem A.5.6. Let (uh ) ⊂ BV (Ω). Then (uh ) weakly∗ converges to u in BV (Ω) if
and only if (uh ) is bounded in BV (Ω) and converges to u in L1 (Ω).
Further we have the following compactness theorem:
Theorem A.5.7. (Compactness for BV (Ω))
• Let Ω be a bounded domain with compact Lipschitz boundary. Every sequence
(uh ) ⊂ BVloc (Ω) satisfying
Z
|uh | dx + |Duh | (A) : h ∈ N < ∞ ∀A ⊂⊂ Ω open,
sup
A
admits a subsequence (uhk ) converging in L1loc (Ω) to u ∈ BVloc (Ω). If the sequence is further bounded in BV (Ω) then u ∈ BV (Ω) and a subsequence converges
weakly∗ to u.
220
A.5 Functions of Bounded Variation
• Let Ω be a bounded domain in Rd with Lipschitz boundary. Then every uniformly
bounded sequence (uk )k≥0 in BV (Ω) is relatively compact in Lr (Ω) for 1 ≤ r <
d
d−1 , d ≥ 1. Moreover, there exists a subsequence ukj and u in BV (Ω) such that
ukj ⇀ u weakly∗ in BV (Ω). In particular for d = 2 this compact embedding holds
for 1 ≤ r < 2.
Let u ∈ L1 (Ω). We introduce the mean value uΩ of u as
Z
1
u(x) dx.
uΩ :=
|Ω| Ω
A generalization of the Poincare inequality gives the so-called Poincare-Wirtinger inequality for functions in BV (Ω).
Theorem A.5.8. (Poincare-Wirtinger inequality) If Ω ⊂ R2 is a bounded, open and
connected domain with compact Lipschitz boundary, we have
ku − uΩ kLp (Ω) ≤ C |Du| (Ω)
∀u ∈ BV (Ω),
1≤p≤2
for some constant C depending only on Ω.
Finally, since every normed vector space is a locally convex space, the theory of
subdifferentials from Section A.2 applies to the framework where X = BV (Ω). For
a characterization of elements in the subdifferential ∂ |Du| (Ω) we refer to the very
detailed analysis of L. Vese in [Ve01].
221
References
[AV94] R. Acar, and C.R. Vogel, Analysis of bounded variation penalty method for
ill-posed problems, Inverse Problems, Vol. 10, No. 6, pp.1217-1229, 1994. 136
[ABC94] N. Alikakos, P.W. Bates, and X. Chen, Convergence of the Cahn-Hilliard
equation to the Hele-Shaw model, Arch. Rat. Mech. Anal. 128, No. 2, pp. 165-205,
1994. 43
[ABF91] N. Alikakos, P.W. Bates, and G. Fusco, Slow motion for the Cahn-Hilliard
equation in one space dimension, J. Differ. Equations, 90, 1, 81-135, 1991. 72, 76,
81, 82
[AF94] N. Alikakos, and G. Fusco, Slow dynamics for the Cahn-Hilliard equation in
higher space dimensions. I: Spectral estimates, Commun. Partial Differ. Equations,
19, 9-10, 1397-1447, 1994. 72, 76, 82, 83
[Al92] H.W. Alt, Linear Funktionalanalysis, Springer Verlag, 1992. 218
[AFP00] L. Ambrosio, N. Fusco, and D. Pallara, Functions of bounded variation and
free discontinuity problems., Oxford Mathematical Monographs. Oxford: Clarendon Press. xviii, 2000. 42, 161, 162, 164, 219
[AMRT08] F. Andreu, J. M. Mazon, J.D. Rossi, J. Toledo, The Neumann problem for
nonlocal nonlinear diffusion equations. J. Evol. Eqns., 8(1), pp. 189–215, 2008. 95
[AKR97] S. Armstrong, A. Kokaram, P. J. W. Rayner, Nonlinear interpolation of missing data using min-max functions, IEEE Int. Conf. Nonlinear Signal and Image
Processings, 1997. 7
222
REFERENCES
[AK06] G. Aubert, and P. Kornprobst, Mathematical Problems in Image Processing.
Partial Differential Equations and the Calculus of Variations, Springer, Applied
Mathematical Sciences, Vol 147, 2006. 4, 8, 52, 184
[AV97] G. Aubert and L. Vese, A variational method in image recovery., SIAM J.
Numer. Anal. 34, no. 5, pp. 1948–1979, 1997. 42
[BFMS08] W. Baatz, M. Fornasier, P. Markowich, C.-B. Schönlieb, Inpainting of ancient Austrian frescoes, Conference proceedings of Bridges 2008, Leeuwarden,
pp.150-156, 2008. 6, 23, 202
[BBCSV01] C. Ballester, M. Bertalmio, V. Caselles, G. Sapiro, and J. Verdera, Fillingin by joint interpolation of vector fields and grey levels, IEEE Transactions on
Image Processing, vol. 10, no. 8, pp. 1200-1211, 2001. 6, 11, 13
[Ba07] R. Baraniuk, Compressive sensing, Lecture Notes in IEEE Signal Processing
Magazine, Vol. 24, July 2007. 159
[BP96] V. Barbu and T. Precupanu, Convexity and Optimization in Banach Spaces,
1996. 167
[BB97] J. W. Barrett, and J. F. Blowey, Finite element approximation of a model for
phase separation of a multi-component alloy with non-smooth free energy, Numer.
Math. 77, Nr. 1, pp.1-34, 1997. 106
[BB98] J. W. Barrett, and J. F. Blowey, Finite element approximation of a model
for phase separation of a multi-component alloy with a concentration-dependent
mobility matrix, IMA J. Numer. Anal. 18, Nr. 2, pp. 287-328, 1998. 19
[BB99a] J. W. Barrett, and J. F. Blowey, Finite element approximation of a model
for phase separation of a multi-component alloy with nonsmooth free energy and a
concentration dependent mobility matrix, Math. Models Methods Appl. Sci. 9, Nr.
5, pp. 627-663, 1999. 19
[BB99b] J. W. Barrett, and J. F. Blowey, Finite element approximation of the CahnHilliard equation with concentration dependent mobility, Math. Comp. 68, Nr. 226,
pp. 487-517, 1999. 19
223
REFERENCES
[BCC05] P. Bates, X. Chen, A. Chmaj, Heteroclinic solutions of a van der Waals model
with indefinite nonlocal interactions, Calc. Var. 24, 261–281, (2005). 94
[BFRW97] P. Bates, P. Fife, X. Ren and X. Wang, Travelling waves in a convolution
model for phase transitions. Arch. Rat. Mech. Anal., 138, 105–136, (1997). 94
[BX94] P.W. Bates, and J. Xun, Metastable patterns for the Cahn-Hilliard equation.
I., J. Differ. Equations, 111, 2, 421-457, 1994. 72
[BDHP03] H. H. Bauschke, F. Deutsch, H. Hundal, and S-H. Park, Accelerating the
convergence of the method of alternating projections, Trans. Americ. Math. Soc.
355, no. 9, pp. 3433–3461, 2003. 153
[BBL97] H. H. Bauschke, J. M Borwein, and A. S. Lewis, The method of cyclic projections for closed convex sets in Hilbert space. Recent developments in optimization
theory and nonlinear analysis, (Jerusalem, 1995), 1–38, Contemp. Math., 204,
Amer. Math. Soc., Providence, RI, 1997 170
[BGLR02] J. Becker, G. Grün, M. Lenz, and M. Rumpf, Numerical methods for fourth
order nonlinear diffusion problems, Applications of Mathematics, Vol. 47, pp. 517543, 2002. 19
[BBAC04] J. Bect, L. Blanc-Féraud, G. Aubert, and A. Chambolle, A ℓ1 -unified variational framework for image restoration. In T. Pajdla and J. Matas, editors, Proceedings of the 8th European Conference o Computer Vision, vol. IV, Prague,
Czech Republic, 2004. Spinger Verlag. 21, 136, 148
[BBS01] M. Bertalmio, A.L. Bertozzi, and G. Sapiro, Navier-Stokes, fluid dynamics,
and image and video inpainting, Proceedings of the 2001 IEEE Computer Society
Conference on Computer Vision and Pattern Recognition, 1, pp. 355-362, 2001.
11
[BSCB00] M. Bertalmio, G. Sapiro, V. Caselles, and C. Ballester, Image Inpainting,
Siggraph 2000, Computer Graphics Proceedings, pp.417–424, 2000. 6, 7, 11, 13,
14, 18, 19, 44, 62, 64
224
REFERENCES
[BVSO03] M. Bertalmio, L. Vese, G. Sapiro, and S. Osher, Simultaneous structure and
texture image inpainting, IEEE Trans. Image Process., Vol. 12, Nr. 8, pp. 882-889,
2003. 16, 44
[BEG07a] A. Bertozzi, S. Esedoglu, and A. Gillette, Inpainting of Binary Images Using
the Cahn-Hilliard Equation. IEEE Trans. Image Proc. 16(1) pp. 285-291, 2007. 15,
18, 19, 20, 21, 22, 24, 25, 37, 95, 110, 118, 120, 206
[BEG07b] A. Bertozzi, S. Esedoglu, and A. Gillette, Analysis of a two-scale CahnHilliard model for image inpainting, Multiscale Modeling and Simulation, vol. 6,
no. 3, pages 913-936, 2007. 15, 17, 18, 19, 20, 21, 22, 25, 26, 27, 34, 37, 59, 95,
110, 118, 206, 214, 215
[BG04] A. Bertozzi, J.B. Greer, Low-Curvature Image Simplifiers: Global Regularity
of Smooth Solutions and Laplacian Limiting Schemes, Communications on Pure
and Applied Mathematics, Vol.LVII, p. 764-790, 2004. 60, 61, 130, 215
[BGOV05] A. Bertozzi, J. Greer, S. Osher, and K. Vixie, Nonlinear regularizations of
TV based PDEs for image processing , AMS Series of Contemporary Mathematics,
vol. 371, pages 29-40, Gui-Qiang Chen, George Gasper, and Joseph Jerome eds,
2005. 120, 122, 123, 215
[BE92] J.F. Blowey, and C.M. Elliott, The Cahn-Hilliard gradient theory for phase separation with non-smooth free energy. II: Numerical analysis, Eur. J. Appl. Math.,
3, 2, 147-179, 1992. 85
[BM07] F. Bornemann and T. März, Fast Image Inpainting Based on Coherence Transport, J. Math. Imaging Vis. 28, pp.259-278, 2007. 15, 20
[Br02] A. Braides, Gamma-Convergence for Beginners. Nr. 22 in Oxford Lecture Series
in Mathematics and its Applications. Oxford University Press, 2002. 190
[BPWX91] J. H. Bramble, J. E. Pasciak, J. Wang, and J. Xu, Convergence estimates
for product iterative methods with applications to domain decomposition, Math.
Comp. 57, no. 195, pp.1–21, 1991. 153
[Br98] P. Bremaud, Markov Chains: Gibbs Fields, Monte Carlo Simulation, and
Queues, Springer-Verlag, New York, 1998. 9
225
REFERENCES
[BC08] C. Brito-Loeza, and K. Chen, Multigrid method for a modified curvature driven
diffusion model for image inpainting, Journal of Computational Mathematics,
Vol.26, No.6, pp. 856875, 2008. 20
[BH92] L. Bronsard, and D. Hilhorst, On the slow dynamics for the Cahn-Hilliard
equation in one space dimension, Proc. R. Soc. Lond., Ser. A, 439, 1907, 669-682,
1992. 72
[BK90] L. Bronsard, and R.V. Kohn, On the slowness of phase boundary motion in
one space dimension, Commun. Pure Appl. Math., 43, 8, 983-997, 1990. 72
[BR77] R. E. Bruck and S. Reich, Nonexpansive projections and resolvents of accretive
operators in Banach spaces. Houston J. Math. 3, no. 4, pp. 459–470, 1977. 170
[BCM05] A. Buades, B. Coll, and J-M. Morel, On image denoising methods. SIAM
Multiscale Modeling and Simulation, 4(2), 490-530, (2005). 94
[BCMS08] M.Burger, S.-Y.Chu, P.Markowich, C.-B. Schönlieb, The Willmore Functional and Instabilities in the Cahn-Hilliard equation, Communications in Mathematical Sciences, Volume 6, Issue 2 (June 2008), pp 309-329, 2008. 23, 70, 74
[BHS08] M. Burger, L. He, C. Schönlieb, Cahn-Hilliard inpainting and a generalization
for grayvalue images, UCLA CAM report 08-41, June 2008. 15, 18, 19, 20, 21, 22,
24, 26, 37, 42, 58, 151, 204
[BO05] M. Burger, and S. Osher, Convergence rates of convex variational regularization, Inverse Problems, Vol. 20, Nr. 5, pp. 1411-1421(11), 2005. 54
[BRH07] M. Burger, E. Resmerita, L. He, Error Estimation for Bregman Iterations
and Inverse Scale Space Methods in Image Restoration, Computing, Vol. 81, pp.
109-135, 2007. 51, 54, 55
[CH58] J.W. Cahn, and J.E. Hilliard, Free energy of a non-uniform system. I. Interfacial free energy, J. Chem. Phys., 28, 258-267, 1958. 71
[Ca06] E. J. Candès, Compressive sampling, Int. Congress of Mathematics, 3, pp. 14331452, Madrid, Spain, 2006 159
226
REFERENCES
[Ca88] S.Carlsson, Sketch Based Coding of Grey Level Images, Signal Processing, 15,
57- 83, 1988. 7
[CGS84] J. Carr, M.E. Gurtin, and M. Slemrod, Structured phase transitions on a finite
interval, Archive for Rational Mechanics and Analysis, 86, 317-351, 1984. 82
[Ca97] C. Carstensen, Domain decomposition for a non-smooth convex minimalization
problems and its application to plasticity, Numerical Linear Algebra with Applications, 4, 177–190, 1997. 157, 158
[Ca96] J. R. Casas, Image Compression based on Perceptual Coding Techniques, PhD
Thesis, Dept. Signal Theory Commun., UPC, Barcelona, Spain, March 1996. 7
[CT94] J. R. Casas and L. Torres, Coding of Details in Very Low Bit-rate Video Systems, IEEE Trans. CSVT, vo1.4, pp. 317-327, June, 1994. 7
[CMS98] V. Caselles, J.-M. Morel, and C. Sbert, An axiomatic approach to image
interpolation, IEEE Trans. Image Processing, 7(3):376386, 1998. 7, 12
[Ch04] A. Chambolle, An Algorithm for Total Variation Minimization and Applications, J. Math. Imaging Vis. 20, 1-2, pp. 89-97, 2004. 21, 42, 104, 136, 140, 142,
144, 145, 158, 159, 163, 189, 190, 196
[CD08] A. Chambolle, J. Darbon, On total variation minimization and surface evolution using parametric maximum flows, UCLA CAM report 08-19, 2008. 22
[CL97] A. Chambolle and P.-L. Lions, Image recovery via total variation minimization
and related problems., Numer. Math. 76, no. 2, pp. 167–188, 1997. 9, 42, 162
[CK06] T.F. Chan, and S.H. Kang, Error Analysis for Image Inpainting, J. Math.
Imaging Vis. 26, 1-2, 85-103, 2006. 54, 55, 57
[CKS02] T.F. Chan, S.H. Kang, and J. Shen, Euler’s elastica and curvature-based inpainting, SIAM J. Appl. Math., Vol. 63, Nr.2, pp.564–592, 2002. 13, 14, 18, 19,
20, 22, 23, 24, 62, 63, 64
[CM94] T. F. Chan and T. P. Mathew, Domain decomposition algorithms, Acta Numerica, pp. 61–143, 1994. 153
227
REFERENCES
[CS05] T.F. Chan and J. Shen, Variational Image Inpainting, Comm. Pure Applied
Math, Vol. 58, pp. 579-619, 2005. 6, 9, 16, 17, 19
[CS01a] T. F. Chan and J. Shen, Mathematical models for local non-texture inpaintings,
SIAM J. Appl. Math., 62(3):10191043, 2001. 6, 7, 9, 10, 13, 15
[CS01b] T.F. Chan, and J. Shen, Morphologically invariant PDE inpaintings, CAM
report 01-15. 14
[CS01c] T. F. Chan and J. Shen, Non-texture inpainting by curvature driven diffusions
(CDD), J. Visual Comm. Image Rep., 12(4):436449, 2001. 6, 10, 13, 14, 18, 19,
20, 62, 64
[CS01d] T. F. Chan and J. Shen, Variational restoration of non-flat image features:
models and algorithms, SIAM J. Appl. Math., 61(4):13381361, 2001. 13
[CSZ06] T.F. Chan, J.-H. Shen, and H.-M. Zhou, Total variation wavelet inpainting,
J. Math. Imaging Vis., 25:1, pp. 107-125, 2006. 15
[CCB03] L. Chanas, J. P. Cocquerez, and J. Blanc-Talon, Simultaneous inpainting and
motion estimation of highly degraded video-sequences, Lecture Notes in Computer
Science, Vol 2749, pp. 11-23, 2003. 6
[CCR06] E. Chasseigne, M. Chaves and J. D. Rossi, Asymptotic behaviour for nonlocal
diffusion equations. J. Math. Pures Appl., 86, 271–291, (2006). 95, 96
[Ch96] X. Chen, Global asymptotic limit of solutions of the Cahn-Hilliard equation, J.
Differ. Geom., 44, 2, 262-311, 1996. 74
[CK96] X. Chen, and M. Kowalczyk, Existence of equilibria for the Cahn-Hilliard equation via local minimizers of the perimeter, Commun. Partial Differ. Equations, 21,
7-8, 1207-1233, 1996. 72
[CW05] P. L. Combettes and V. R. Wajs, Signal recovery by proximal forward-backward
splitting, Multiscale Model. Simul., 4, no. 4, pp. 1168–1200, 2005. 158, 162, 163,
167, 171, 172, 174
228
REFERENCES
[CCEM07] C. Cortázar, J. Coville, M. Elgueta, S. Martı́nez, A non local inhomogeneous
dispersal process, Journal of Differential Equations Vol. 241, Iss. 2, pp. 332-358,
2007. 95
[CER05] C. Cortázar, M. Elgueta and J. D. Rossi, A non-local diffusion equation whose
solutions develop a free boundary. Annales Henri Poincaré, 6(2), 269–281, 2005.
95
[CERW07] C. Cortazar, M. Elgueta, J.D. Rossi and N. Wolanski, Boundary fluxes for
non-local diffusion. J. Differential Equations, 234, 360–390, 2007. 95
[CERW08] C. Cortazar, M. Elgueta, J.D. Rossi and N. Wolanski, How to approximate the heat equation with Neumann boundary conditions by nonlocal diffusion
problems. Arch. Rat. Mech. Anal., 187(1), 137–156, 2008. 95, 97
[Co06] J. Coville, On uniqueness and monotonicity of solutions on non-local reaction
diffusion equations. Ann. Mat. Pura Appl. 185, 461–485, 2006. 94
[Co07] J. Coville, Maximum principles, sliding techniques and applications to nonlocal
equations. Electron. J. Diff. Eqns. 2007, no. 68, 1–23, 2007. 94
[CDM08] J. Coville, J. Dávila, S. Martı́nez, Existence and uniqueness of solutions to
a nonlocal equation with monostable nonlinearity, Siam Journal on Mathematical
Analysis, 39 (5), pp. 1693-1709, 2008. 94
[CD05] J. Coville, L. Dupaigne, Propagation speed of travelling fronts in nonlocal reaction diffusion equations. Nonl. Anal. 60, 797–819, 2005. 94
[CD07] J. Coville, L. Dupaigne, On a nonlocal equation arising in population dynamics.
Proc. Roy. Soc. Edinburgh 137, 1–29, 2007. 94
[CH93] M.C. Cross, and P.C. Hohenberg, Pattern formation outside of equilibrium.
Rev. Mod. Phys., Vol. 65(3), 1993. 95
[DS05] J. Darbon, and M. Sigelle, A fast and exact algorithm for total variation minimization, IbPRIA 2005, 3522(1), pp. 351-359, 2005. 22
229
REFERENCES
[DDD04] I. Daubechies, M. Defrise, and C. DeMol, An iterative thresholding algorithm
for linear inverse problems, Comm. Pure Appl. Math. 57, no. 11, pp. 1413–1457,
2004. 158, 163, 167, 172, 173
[DFL08] I. Daubechies, M. Fornasier, and I. Loris, Acceleration of the projected gradient
method for linear inverse problems with sparsity constraints, J. Fourier Anal. Appl.,
Vol. 14, No. 5-6, pp. 764-792, 2008. 159, 163, 167
[DTV07] I. Daubechies, G. Teschke, and L. Vese, Iteratively solving linear inverse problems under general convex constraints, Inverse Probl. Imaging 1, no. 1, pp.29–46,
2007. 148, 159, 163, 167, 174
[DL88] R. Dautray, and J.L. Lions, Mathematical Analysis and Numerical Methods for
Science and Technology. Vol.2, Springer-Verlag, 1988. 139
[DSC03] L. Demanet, B. Song, T. Chan, Image inpainting by correspondance maps: a
deterministic approach, Proc. VLSM Conf., Nice, October 2003. 15
[DB08] J. A. Dobrosotskaya, and A. L. Bertozzi, A Wavelet-Laplace Variational Technique for Image Deconvolution and Inpainting, IEEE Trans. Imag. Proc., 17(5),
pp. 657-663, 2008. 211, 213
[DV97] D. C. Dobson and C. R. Vogel, Convergence of an iterative method for total
variation denoising, SIAM J. Numer. Anal. 34, no. 5, 1779–1791, 1997. 42
[DD71] J. Jr. Douglas, and T. Dupont T, Alternating-direction Galerkin methods on
rectangles Numerical Solution of Partial Differential Equations, II (SYNSPADE
1970) (Proc. Symp., University of Maryland, College Park, Md. 1970) (New York:
Academic) pp. 133214, 1971. 19
[DLRW05] Q. Du, C. Liu, R. Ryham, and X. Wang, A phase field formulation of the
Willmore problem, Nonlinearity, 18, 3, pp. 1249-1267, 2005. 73
[ET76] I. Ekeland and R. Temam, Convex analysis and variational problems. Translated by Minerva Translations, Ltd., London., Studies in Mathematics and its
Applications. Vol. 1. Amsterdam - Oxford: North-Holland Publishing Company;
New York: American Elsevier Publishing Company, Inc., 1976. 52, 163, 167, 168,
171
230
REFERENCES
[ESQD05] M. Elad, J.-L. Starck, P. Querre, and D. Donoho, Simultaneous cartoon and
texture image inpainting using morphological component analysis, Applied and
Computational Harmonic Analysis, Vol. 19, No. 3, pp. 340-358, November 2005.
16
[EF87] C.M. Elliott, and D.A. French, Numerical Studies of the Cahn-Hilliard Equation
for Phase Separation, IMA J Appl Math, 38, 97-128, 1987. 71
[ES07] C. M. Elliott, and S. A. Smitheman, Analysis of the TV regularization and H −1
fidelity model for decomposing an image into cartoon plus texture, Communications
on Pure and Applied Analysis, Vol. 6, Nr. 4, pp. 917-936, 2007. 21
[ES08] C. M. Elliott, and S. A. Smitheman, Numerical analysis of the TV regularization
and H −1 fidelity model for decomposing an image into cartoon plus texture, IMA
Journal of Numerical Analysis, pp. 1-39, 2008. 21
[Em76] G. Emile-Male, The Restorer’s Handbook for Easel Painting, Van Nostrand
Reinhold, New York, 1976. 6
[ES02] S. Esedoglu, and J.-H. Shen, Digital inpainting based on the Mumford-ShahEuler image model, Eur. J. Appl. Math., 13:4, pp. 353-370, 2002. 15, 106
[Ev98] L.C. Evans, Partial differential equations, Graduate Studies in Mathematics 19,
American Mathematical Society, Providence, RI, 1998. 12, 31, 217, 218
[EG92] L. C. Evans and R. F. Gariepy, Measure Theory and Fine Properties of Functions., CRC Press, 1992. 42, 219
[Ey98] D. Eyre, An Unconditionally Stable One-Step Scheme for Gradient Systems,
Jun. 1998, unpublished. 85, 105, 107, 108
[FP03] X. Feng, and A. Prohl, Analysis of total variation flow and its finite element
approximations, M2AN, 37, pp. 533-556, 2003. 21
[FP04] X. Feng, and A. Prohl, Error analysis of a mixed finite element method for the
Cahn-Hilliard equation, Numer. Math., 99, 1, 47-84, 2004. 19, 77
231
REFERENCES
[FP05] X. Feng, and A. Prohl, Numerical analysis of the Cahn-Hilliard equation and
approximation for the Hele-Shaw problem, Interfaces Free Bound., 7, 1, 1-28, 2005.
19, 71, 77
[Fi00] P.C. Fife, Models for phase separation and their mathematics, Electronic Journal
of Differential Equations, 2000, 48, 1-26, 2000. 71, 95
[Fi03] P. Fife, Some nonclassical trends in parabolic and parabolic-like evolutions.
Trends in nonlinear analysis, pp. 153–191, Springer, Berlin, (2003). 94
[FKMW97] P.C. Fife, H. Kielhoefer, S. Maier-Paape, and T. Wanner, Perturbation of
doubly periodic solution branches with applications to the Cahn-Hilliard equation,
Physica D, 100, 1-4, 257-278, 1997. 72
[FL96] H. Le Floch, and C. Labit, Irregular image sub-sampling and reconstruction
by adaptive sampling, in Proc. Int. Conf. Image Processing ICIP-96, Sept. 1996,
Lausanne, Switzerland, vol. III, pp. 379-382, 1996. 7
[Fo99] G. B. Folland, Real Analysis: Modern Techniques and Their Applications, Wiley,
New York, 1999. 217
[Fo07] M. Fornasier, Domain decomposition methods for linear inverse problems with
sparsity constraints, Inverse Problems 23 (2007), 2505–2526. 159, 163, 165, 167,
169, 183
[Fo06] M. Fornasier, Nonlinear projection recovery in digital inpainting for color image
restoration, J. Math. Imaging Vis. Vol. 24, No. 3, pp. 359-373, 2006. 205, 206
[FM07] M. Fornasier, and R. March, Restoration of color images by vector valued BV
functions and variational calculus, SIAM J. Appl. Math., Vol. 68 No. 2, pp. 437460, 2007. 206
[FS07] M. Fornasier, C.-B. Schönlieb, Subspace correction methods for total variation
and l1 - minimization, submitted to SIAM J. Numer. Anal., December 2007, 33
pp. 21, 23, 105, 153, 157, 159, 179
[GG84] S. Geman, and D. Geman, Stochastic relaxation, Gibbs distributions, and the
Bayesian restoration of images, IEEE Trans. Pattern Anal. Machine Intell. 6
(1984), pp. 721-741. 9
232
REFERENCES
[GO07] G. Gilboa and S. Osher, Nonlocal linear image regularization and supervised
segmentation, SIAM Multiscale Modeling and Simulation (MMS), Vol. 6, No. 2,
pp. 595-630, 2007. 15, 70, 94
[Gi84] E. Giusti, Minimal Surfaces and Functions of Bounded Variation, Birkhäuser
Boston 1984. 219
[Gl03] K. Glasner, A Diffuse Interface Approach to Hele-Shaw Flow , Nonlinearity ,
Vol. 16, pp. 1-18, 2003. 19, 133
[GBO09] T. Goldstein, X. Bresson, S. Osher, Geometric Applications of the Split Bregman Method: Segmentation and Surface Reconstruction, UCLA CAM Report 0906, 2009. 21, 215
[GO08] T. Goldstein, S. Osher, The Split Bregman Method for L1 Regularized Problems,
UCLA CAM Report 08-29, 2008. 21
[Gr95] C.P. Grant, Slow motion in one-dimensional Cahn-Morral systems, SIAM J.
Math. Anal., 26, 1, 21-34, 1995. 72
[GB04a] J.B. Greer, and A. Bertozzi, H 1 solutions of a class of fourth order nonlinear
equations for image processing, Discrete Contin. Dyn. Syst., Vol.10, Nr.1-2, pp.349366, 2004. 60
[GB04b] J.B. Greer, and A. Bertozzi, Traveling wave solutions of fourth order PDEs
for image processing, SIAM J. Math. Anal., Vol.36, Nr.1, pp.38-68, 2004. 60
[GN95] M. Grinfeld, and A. Novick-Cohen, Counting stationary solutions of the CahnHilliard equation by transversality arguments, Proc. R. Soc. Edinb., Sect. A, 125,
2, 351-370, 1995. 72
[GN99] M. Grinfeld, and A. Novick-Cohen, The viscous Cahn-Hilliard equation: Morse
decomposition and structure of the global attractor, Trans. Am. Math. Soc., 351,
6, 2375-2406, 1999. 72
[GS03] H. Grossauer, and O. Scherzer, Using the complex Ginzburg-Landau equation
for digital inpainting in 2D and 3D, Scale Space Methods in Computer Vision,
2695, pp. 225-236, 2003. 15, 20
233
REFERENCES
[GR00] G. Grün, and M. Rumpf, Nonnegativity preserving convergent schemes for the
thin film equation, Num. Math., Vol. 87, pp. 113-152, 2000. 19
[GZYXC06] J.-W. Gu, L. Zhang, G.-Q. Yu, Y.-X. Xing, and Z.-Q. Chen, X-ray CT
metal artifacts reduction through curvature based sinogram inpainting, Journal of
X-Ray Science and Technology, 14:2, pp. 73-82, 2006. 6
[Gu88] M.E. Gurtin, Toward a nonequilibrium thermodynamics of two-phase materials,
Archive for Rational Mechanics and Analysis, 100, 3, 275-312, 1988. 71
[Ha88] J.K. Hale, Asymptotic behavior of dissipative systems, Mathematical Surveys
and Monographs, A.M.S., 25, 1988. 72
[Ha04] J. Han, The Cauchy problem and steady state solutions for a nonlocal CahnHilliard equation. Electronic J. Differential Equations, Vol. 2004 (113), 1-9, (2004).
95
[IP97] H. Igehy, and L. Pereira, Image replacement through texture synthesis, in Proceedings of the 1997 IEEE International Conference on Image Processing. 7
[IR07] L. I. Ignat, J. D. Rossi, A nonlocal convection-diffusion equation. J. Funct. Anal.
251, 399–437, (2007). 95, 97
[IR08] L. I. Ignat, J. D. Rossi, Refined asymptotic expansions for nonlocal evolution
equations, Journal of Evolution Equations. Vol. 8, pp. 617–629, 2008. 95
[JHC98] E. Jonsson, S.-C. Huang, and T. Chan, Total Variation Regularization in
Positron Emission Tomography, CAM report 98-58, UCLA, November 1998. 135
[JCL94] K.-H. Jung, J.-H. Chang, and C. W. Lee, Error concealment technique using
data for block-based image coding, SPIE, 2308, pp. 1466-1477, 1994. 7
[KCS02] S. H. Kang, T. F. Chan, and S. Soatto, Inpainting from multiple views, IEEE
Proceedings of First International Symposium on 3D Data Processing Visualization Transmission, pp. 622-625, 2002. 15
[Ka96] G. Kanizsa, Grammaire du Voir, Diderot, 1996 12
234
REFERENCES
[KOJ05] S. Kindermann, S. Osher, and P. Jones, Deblurring and denoising of images
by nonlocal func- tionals. SIAM Multiscale Modeling and Simulation, 4(4), 10911115, 2005. 94
[KMFR95a] A. C. Kokaram, R. D. Morris, W. J. Fitzgerald, and P. J. W. Rayner,
Detection of missing data in sequences I, IEEE Transactions on Image Processing,
vo. 11, no. 4, pp. 1496-1508, 1995. 7
[KMFR95b] A. C. Kokaram, R. D. Morris, W. J. Fitzgerald, and P. J. W. Rayner,
Interpolation of missing data in image sequences II, IEEE Trans. Image Process.,
11, no.4, pp. 1509-1519, 1995. 6, 7
[KS93] W. Kwok, and H. Sun, Multidirectional interpolation for spatial error concealment, IEEE Trans. Consumer Electronics, 39, 1993. 7
[LXZ03] Y-J. Lee, J. Xu, and L. Zikatanov, Successive subspace correction method
for singular system of equations, Fourteenth International Conference on Domain
Decomposition Methods (I. Herrera, D. E. Keyes, O. B. Widlund, and R. Yates,
eds.), UNAM, pp. 315–321, 2003. 153
[LV08] L. Lieu and L. Vese, Image restoration and decompostion via bounded total variation and negative Hilbert-Sobolev spaces, Applied Mathematics & Optimization,
Vol. 58, pp. 167-193, 2008. 9, 44, 136, 138, 139, 140, 150
[Li88] P. L. Lions, On the Schwarz alternating method, Proc. First Internat. Sympos. on
Domain Decomposition Methods for Partial Differential Equations (R. Glowinski,
G. H. Golub, G. A. Meurant, and J. Périaux, eds.), SIAM, Philadelphia, PA, 1988.
153
[Lo93] S. Lojasiewicz, On semi- and subanalytic geometry. (Sur la géométrie semi- et
sous-analytique), Ann. Inst. Fourier, 43, 5, 1575-1595, 1993. 74
[Lo27] A. E. H. Love, A Treatise on the Mathematical Theory of Elasticity, 4th ed.,
Dover, New York, 1927. 12
[LT06] O. M. Lysaker and Xue-C. Tai, Iterative image restoration combining total variation minimization and a second-order functional, International Journal of Computer Vision, Vol.66, Nr.1, pp.5-18, 2006. 18
235
REFERENCES
[Ma00] F. Malgouyres, Increase in the resolution of digital images: variational theory
and applications, PhD Thesis, Ecole Normale Supérieure de Cachan, France, 2000.
6
[MG01] F. Malgouyres, and F. Guichard, Edge direction preserving image zooming: a
mathematical and numerical analysis, SIAM J. Num. Anal., Vol. 39, No.1, pp.1-37,
2001. 6
[MO00] A. Marquina, and S. Osher, Explicit algorithms for a new time dependent model
based on level set motion for nonlinear deblurring and noise removal, SIAM J. Sci.
Comput. Vol. 22, Nr. 2, pp. 387-405, 2000. 20
[Ma82] D. Marr, Vision, New York: Freeman, 1982. 7
[MM98] S. Masnou and J. Morel, Level Lines based Disocclusion, 5th IEEE Int’l Conf.
on Image Processing, Chicago, IL, Oct. 4-7, 1998, pp.259–263, 1998. 6, 7, 12, 13,
14, 18
[Ma02] S. Masnou, Disocclusion: a variational approach using level lines, IEEE Trans.
Image Process. 11(2), pp. 68-76, 2002. 13
[Ma93] G. Dal Maso, An introduction to Gamma-convergence, Birkhäuser, Boston,
1993. 46, 47
[MF05] E.V.L. de Mello, and O.T. da Silveira Filho, Numerical study of the CahnHilliard equation in one, two and three dimensions, Physica A, 347, 429-443, 2005.
71
[Me01] Y. Meyer, Oscillating Patterns in Image Processing and Nonlinear Evolution
Equations, The Fifteenth Dean Jacqueline B. Lewis Memorial Lectures. American
Mathematical Society, Boston, MA, USA, 2001. 9, 137
[Mi86] D. Michelson, Steady Solutions of the Kuramoto-Sivashinsky Equation. Physica
D 19, 89–111, (1986). 95
[MM77a] L. Modica and S. Mortola, Il limite nella Γ-convergenza di una famiglia di
funzionali ellittici, Boll. Unione Mat. Ital., V. Ser., A 14, pp.526-529, 1977. 43, 47
236
REFERENCES
[MM77b] L. Modica, S. Mortola, Un esempio di Γ− -convergenza, Boll. Unione Mat.
Ital., V. Ser., B 14, pp.285-299, 1977. 43, 47
[MS95] J.-M. Morel, and S. Solimini, Variational methods in image segmentation.
Porgress in Nonlinear Differential Equations and Their Applications, Vol. 14,
Birkhäuser, Boston, 1995. 14
[Mu08] J. Müller, Parallel Total Variation Minimization, Diploma thesis, WWU
Münster, 2008. 158
[MS63] W. W. Mullins, R. F. Sekerka, Morphological Stability of a Particle Growing
by Diffusion or Heat Flow, J. Appl. Phys. 34, 323, 1963. 43
[Mu94] D. Mumford, Elastica and computer vision, in Algebraic Geometry and Its
Applications, C. L. Bajaj, ed., Springer-Verlag, New York, pp. 491-506, 1994. 8,
9, 12
[MG01] D. Mumford, and B. Gidas, Stochastic models for generic images, Quart. Appl.
Math., 59, pp. 85-111, 2001. 138
[MS89] D. Mumford, and J. Shah, Optimal approximations by piecewise smooth functions and associated variational problems, Comm. Pure Applied Math. 42, pp.
577-685, 1989. 9, 15
[NS05] R. Nabben and D.B. Szyld, Schwarz iterations for symmetric positive semidefinite problems, Research Report 05-11-03, Department of Mathematics, Temple
University, 2005. 153
[Ne05] Y. Nesterov, Smooth minimization of non-smooth functions, Math. Program.
103, 1, pp. 127-152, 2005. 216
[NST89] B. Nicolaenko, B. Scheurer, and R. Temam, Some global dynamical properties
of a class of pattern formation equations, Commun. Partial Differ. Equations, 14,
2, pp. 245-297, 1989. 72
[NMS93] M. Nitzberg, D. Mumford, and T. Shiota, Filtering, Segmentation, and Depth,
Springer-Verlag, Lecture Notes in Computer Science, 662, 1993. 6, 7, 12
237
REFERENCES
[NO95] Y. Nishiura, and I. Ohnishi, Some Mathematical Aspects of the Micro-phase
Separation in Diblock Copolymers. Physica D 84, pp. 31–39, 1995. 95
[OK86] T. Ohta, and K. Kawasaki, Equilibrium Morphology of Block Copolymer Melts.
Macromolecules 19, 2621–2632, 1986. 95
[Op67] Z. Opial, Weak convergence of the sequence of successive approximations for
nonexpansive mappings, Bull. Amer. Math. Soc. 73 (1967), 591–597. 172
[OSV03] S. Osher, A. Sole, and L. Vese. Image decomposition and restoration using
total variation minimization and the H -1 norm, Multiscale Modeling and Simulation: A SIAM Interdisciplinary Journal, Vol. 1, Nr. 3, pp. 349-370, 2003. 9, 44,
120, 138
[Pe89] R.L. Pego, Front migration in the nonlinear Cahn-Hilliard equation, Proc. Roy.
Soc. London Ser. A, 422, 261-278, 1989. 43, 71
[PF90] O. Penrose, and P.C. Fife, Thermodynamically consistent models of phase-field
type for the kinetics of phase transitions, Physica D, 43, 44-62, 1990. 71
[PM90] P. Perona, and J. Malik, Scale-space and Edge Detection Using Anisotropic
Diffusion, IEEE Transactions on Pattern Analysis and Machine Intelligence, 12(7),
pp.629-639, July 1990. 14, 60
[QV99] A. Quarteroni and A. Valli, Domain decomposition methods for partial differential equations, Numerical Mathematics and Scientific Computation, The Clarendon
Press Oxford University Press, New York, 1999, Oxford Science Publications. 153
[RF95] X. Ran, and N. Favardin, A Perceptually Motivated Three-Component Image
Model. Part II: Applications to image compression, IEEE Trans. Image Processing,
vol. 4, pp. 430-447, 1995. 7
[RW98] R.T. Rockafellar and R.J.B. Wets, Variational analysis, Grundlehren der
Mathematischen Wissenschaften, vol. 317, Springer-Verlag, Berlin, 1998. 167,
179
[RS06] M. Röger, and R. Schätzle, On a modified conjecture of De Giorgi, Math. Z.,
254, 4, 675-714, 2006. 73
238
REFERENCES
[RT07] M. Röger, and M.Y. Tonegawa, Convergence of phase-field approximations to
the Gibbs-Thomson law, Calc. Var. Partial Differ. Equat., 2007. 74
[RS09] J.-D. Rossi, C.-B. Schönlieb, Nonlocal higher order evolution equations, 12p.,
submitted. 23, 70, 93
[RO94] L. Rudin and S. Osher, Total variation based image restoration with free local
constraints, Proc. 1st IEEE ICIP, 1, pp. 3135, 1994. 13
[ROF92] L. I. Rudin, S. Osher, and E. Fatemi, Nonlinear total variation based noise
removal algorithms, Physica D 60, pp. 259-268, 1992. 9, 13, 42, 60, 61, 137, 150
[RH99] P. Rybka, and K.H. Hoffmann, Convergence of solutions to Cahn-Hilliard equation, Commun. Partial Differ. Equations, 24, 5-6, pp. 1055-1077, 1999. 72, 74
[SW00] E. Sander, and T. Wanner, Unexpectedly linear behavior for the Cahn-Hilliard
equation, SIAM J. Appl. Math., 60, 6, 2182-2202, 2000. 75, 76
[Sc09] C.-B. Schönlieb, Total variation minimization with an H −1 constraint, CRM
Series 9, Singularities in Nonlinear Evolution Phenomena and Applications proceedings, Scuola Normale Superiore Pisa, pp. 201-232, 2009. 21, 23, 104, 159,
197
[SB09] C.-B. Schönlieb, and A. Bertozzi, Unconditionally stable schemes for higher
order inpainting, in preparation. 18, 21, 22, 23, 24, 37, 58, 60, 61, 104
[Si83] L. Simon, Asymptotics for a class of non-linear evolution equations, with applications to geometric problems, Ann. of Math., 118, 525-571, 1983. 74
[Sm03] P. Smereka, Semi-implicit level set methods for curvature and surface diffusion
motion, Special issue in honor of the sixtieth birthday of Stanley Osher, J. Sci.
Comput. 19, no. 1-3, pp. 439-456, 2003. 19
[SCD02] J.-L. Starck, E. J. Candès, D. L. Donoho, The curvelet transform for image
denoising, IEEE Trans. Image Process. 11, no. 6, pp. 670–684, 2002. 163
[St96] B. E. Stoth, Convergence of the Cahn-Hilliard Equation to the Mullins-Sekerka
Problem in Spherical Symmetry, J. Diff. Equ. 125, pp. 154-183, 1996. 43
239
REFERENCES
[SH94] A.M. Stuart, and A.R. Humphries, Model problems in numerical stability theory
for initial value problems, SIAM Rev. 36, 2, pp. 226-257, 1994. 107
[TT98] X.-C. Tai and P. Tseng, Convergence rate analysis of an asynchronous space
decomposition method for convex minimization, Math. Comp. 1998. 156, 157
[TX02] X.-C. Tai and J. Xu, Global convergence of subspace correction methods for
convex optimization problems, Mathematics of Computation, 71(237), 105–124,
2002 156, 157
[Te04] A. Telea, An image inpainting technique based on the fast marching method, J.
Graph. Tools, 9(1), pp. 23-34, 2004. 20
[Te88] R. Temam, Infinite-Dimensional Dynamical Systems in Mechanics and Physics,
Applied Mathematical Sciences, Vol. 68, Springer, New York, 1988. 119
[Ti96] R. Tibshirani, Regression shrinkage and selection via the lasso, J. Roy. Statist.
Soc. Ser. B 58, no. 1, pp. 267–288, 1996. 163
[Tr08] J. A. Tropp, On the conditioning of random subdictionaries, Appl. Comput.
Harmonic Anal., vol. 25, pp. 1–24, 2008. 165
[TT99] J. Tumblin, and G. Turk, LCIS: A Boundary Hierarchy for Detail-Preserving
Contrast Reduction, Siggraph 1999, Computer Graphics Proceedings, pp.83-90,
1999. 60
[TYW01] A. Tsai, Jr. A. Yezzi, and A. S. Willsky, Curve evolution implementation
of the Mumford-Shah functional for image segmentation, denoising, interpolation
and magnification, IEEE Trans. Image Process., 10(8), pp. 11691186, 2001. 6, 15
[Ve01] L. Vese, A study in the BV space of a denoising-deblurring variational problem,
Applied Mathematics and Optimization, 44 (2), pp. 131-161, 2001. 42, 52, 162,
183, 184, 221
[VO03] L. Vese, and S. Osher, Modeling textures with total variation minimization and
oscillating patterns in image processing, J. Sci. Comput., Vol. 19, Nr. 1-3, pp.
553-572, 2003. 44
240
REFERENCES
[VO04] L. Vese, S. Osher, Image Denoising and Decomposition with Total Variation
Minimization and Oscillatory Functions, J. Math. Imaging Vision, 20 (2004), pp.718. 138
[VR03] B. P.Vollmayr-Lee and A. D. Rutenberg, Fast and accurate coarsening simulation with an unconditionally stable time step, Phys. Rev. E, vol. 68, no. 0066703,
pp. 113, 2003. 133
[Wa85] S. Walden, The Ravished Image, St. Martin’s Press, New York, 1985. 6
[WZ98] Y. Wang, and Q. F. Zhu, Error control and concealment for video communication: A review, Proc. IEEE, Vol. 86, No. 5, pp. 974-997, 1998. 6
[WL00] L.-Y. Wei, and M. Levoy, Fast texture synthesis using tree-structured vector
quantization, in Proceedings of SIGGRAPH 2000. 7
[WW98a] J. Wei, and M. Winter, On the stationary Cahn-Hilliard equation: Interior
spike solutions, J. Differ. Equations, 148, 2, 231-267, 1998. 72
[WW98b] J. Wei, and M. Winter, On the stationary Cahn-Hilliard equation: bubble
solutions, SIAM J. Math. Anal., 29, 6, 1492-1518, 1998. 72
[WW98c] J. Wei, and M. Winter, Stationary solutions for the Cahn-Hilliard equation,
Annales de l’institut Henri Poincar (C) Analyse non linaire, 15, 4, 459-492, 1998.
72
[WAB] P. Weiss, L. Blanc-Féraud, and G. Aubert, Efficient schemes for total variation
minimization under constraints in image processing, Rapport de recherche 6260,
July 2007. 216
[Wi93] T.J. Willmore, Riemannian geometry, Oxford Science Publications, Oxford:
Clarendon Press. xi, 1993. 73
[Xu92] J. Xu, Iterative methods by space decomposition and subspace correction, SIAM
Rev. 34, no. 4, pp. 581–613, 1992. 153
[XZ02] J. Xu and L. Zikatanov, The method of alternating projections and the method
of subspace corrections in Hilbert space, Journal of The American Mathematical
Society 15, 573–597, 2002. 153
241
REFERENCES
[YR03] A.L. Yuille, and A. Rangarajan, The Concave-Convex Procedure (CCCP), Neural Computation, Vol. 15, No. 4, pp. 915-936, April 2003. 106
[Zh04] L. Zhang, Existence, uniqueness and exponential stability of traveling wave solutions of some integral differential equations arising from neuronal networks. J.
Differential Equations 197(1), 162–196, (2004). 94
[Zh86] S. Zheng, Asymptotic behavior of solution to the Cahn-Hilliard equation, Appl.
Anal., 23, 165-184, 1986. 72
242
