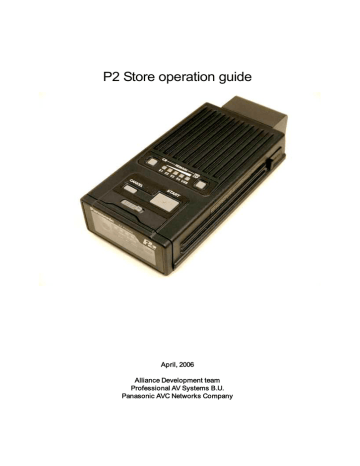

P2 Store operation guide
April, 2006
Alliance Development team
Professional AV Systems B.U.
Panasonic AVC Networks Company
P 2-S t o r e G u i d e
1. Power On
1) After supply AC power or Battery, slide knob to open panel
2) Press Power key to boot up.
All LED flash two times, then power LED
brink 10 seconds during boot up hard disk.
After hard disk is ready, Power LED turns to
ON.
2. Copy material from P2card to HDD (Hard Disk Drive)
1) Check remaining HDD capacity.
Five LEDs indicate remaining disk
capacity when press !HDD CAP." key.
P a g e 2 of 14
P 2-S t o r e G u i d e
2) Check remaining battery power
By pressing left side key, LEDs indicate
remaining power of battery. We
recommend full charges before use.
When battery power is low, Red
Blinking is started on E2 LED, also Red
light is on at the front panel. In this case,
power off and change battery, or supply
AC power.
3) Insert P2card into the slot.
4) Copy P2card material into HDD.
Press START key more than two
seconds.
P a g e 3 of 14
P 2-S t o r e G u i d e
Orange lights is ON at !P2C > HDD"
and copy progress is indicated by five
green LED from 20% to 100%.
If shock is detected during copy
process, hold writing in order to avoid
disk corruption.
During protect disk, LED !E4" is turned
to Orange. When shock or vibration is
stopped, orange light is turned off, and
start writing again in a few seconds.
P a g e 4 of 14
P 2-S t o r e G u i d e
Copy process is finished when copy
status LEDs are all ON.
Press Power Key to end process.
* No Key is functioned before pressing
Power key.
Copy is done when COPY STATUS
LEDs are all off.
P a g e 5 of 14
P 2-S t o r e G u i d e
3. HDD storage space segmentation
Area 01
4 GB
Area 02
4 GB
Area 03
4 GB
Area 04
4 GB
Area 05
4 GB
Area 06
4 GB
Area 07
4 GB
Area 08
4 GB
Area 09
4 GB
Area 10
4 GB
Area 11
4 GB
Area 12
4 GB
Area 13
4 GB
Area 14
4 GB
Area 15
4 GB
Hard disk is partitioned 15 areas in
order to get faster transfer.
Each partition is reserved 4GB space,
so it is always consumed 4GB space
even very small amount of data is
copied.
When 8GB P2card is inserted, two
partitioned areas are reserved, so it is
always consumed 8GB space even
very small amount data is copied.
Note: After copy is done, P2 store is
not able to delete specific partitioned
area.
4. Remove P2card
Press Eject button once. The knob is
come out, then press Eject button
again, P2card is ejected.
P a g e 6 of 14
P 2-S t o r e G u i d e
5. Formatting P2card
1) Press !P2C" key more than two seconds.
Format P2card for erase all material.
COPY STATUS LED is blinking at
orange by pressing !P2C" key more
than two seconds.
2) Hit START key during Orange LED is blinking
P2card formatting is started when hit
START key during orange LEDs are
blinking. Format is finished when LEDs
turn off.
6. Formatting HDD
1.) Insert sharp object into hall indicated #HDD$
Formatting disk is required in order to
erase data in HDD.
Orange LEDs at COPY STATUS start
blinking when insert sharp object,
such as ball point pen, into hall more
than two seconds.
P a g e 7 of 14
P 2-S t o r e G u i d e
2) Hit START key during orange LEDs , COPY STATUS, are blinking.
Formatting HDD is started by hitting
START key during orange LEDs ,
COPY STATUS,
are
blinking.
Formatting is finished when LEDs are
turned off.
7. Connecting with Windows PC
1) USB cable
A
Use typical USB cable which has A and
B connectors such as left picture.
B
2.) Insert Connector B into right hand side of P2-Store.
P a g e 8 of 14
P 2-S t o r e G u i d e
AC adaptor is recommended when
operating with PC in order to avoid
accidental shut down.
3.) Insert Connector A into USB port in PC
After connecting to PC, USB LED is
turned ON at green when press power
key in the P2-Store.
* If color is orange, it required change
mode. Please refer section 9,
Connecting with Mac.
When P2-Store is mounted by PC, device window is
appeared. Click cancel to close.
P a g e 9 of 14
P 2-S t o r e G u i d e
Drive Icon is displayed when P2 Store
is mounted successfully.
After mounded, it can access material
with P2viewer software.
Or it can access material with Avid or
Canopus Editing software.
Note: It cannot copy material from
P2card to P2-Store$s HDD during
connecting
with
PC.
Please
disconnect P2-store from PC.
Note: P2-Store is designed for copy data from P2card, not able to copy data from PC or Mac.
Note; P2-Store does not have capability of stream data out.
8. P2-Store Manager ( There is no Mac version at this moment. )
1) Connect P2-Store and PC with USB cable
P2-Store Manager is application
software for status display of
P2-Store.
Select P2 Store Manager from
Windows Start >> All Program >>
Panasonic P2 >> P2 Store Manager.
P a g e 10 of 14
P 2-S t o r e G u i d e
2.) Launch P2 Store Manager
HDD page shows copied data
information for each partition
area.
Status shows #OK$ when copy is
finished correctly. #ERROR$ when
accident is happened during the
copy.
Quick Format button in Erase
Data area, all data in P2-store is
erased.
Accumulated
time
in
Maintenance area is showed total
hours
of
P2-Store.
We
recommend maintenance service
every 2000 hours.
To make sure hard disk
conditions, S.M.A.R.T. ( Self
Monitoring
Analysis
and
Reporting
Technology
)
information is useful.
If NG is displayed in Status, it is
required to service maintenance.
Pre-Failure / Advisory is
indicated priority of each item. !1"
means priority high. If you find
NG and priority high, hard disk
has serious problem. We strongly
recommend to check service
maintenance immediately.
P a g e 11 of 14
P 2-S t o r e G u i d e
Setting can change each items.
We recommend to use default
setting. It is user responsibility
to change setting other than
default.
This page shows firmware
version and handle upgrade.
P a g e 12 of 14
P 2-S t o r e G u i d e
9. Connecting with Mac
To recognize P2 Store into Mac,
Boot up Mac and P2-Store and
connect with USB cable.
Press continuously both side of keys in
STATUS area and Cancel key
simultaneously until USB LED is
turned to Orange. Set up is done
when USB LED is turned to orange.
After P2-Store is mounted with Mac,
Icons #No Name$ are appeared.
Note: It cannot copy P2card to
internal Hard disk during connected
with PC.
Please disconnect
P2-store from Mac.
Mac mode is memorized even if power is off.
To make Windows mode, press same three keys until USB
LED is turned to Green.
P a g e 13 of 14
P 2-S t o r e G u i d e
Reference data of transfer speed.
* Example 4GB P2card.
4 GB P2 Card
6# 03 !
2$ 38 !
1080i 60i
14 Clip
4$ 10"
at Verify ON
at Verify OFF
P2 Store internal Disk
* Example 8GB P2 card.
8 GB P2 Card
12$ 12"
5$ 30"
1080i 60i
20 Clip
8$ 38"
at Verify ON
at Verify OFF
P2 Store internal Disk
What is VERIFY ON
During copy process all data which
has stored in hard disk has read and
verify with original data in P2card.
To get further reliability, we
recommend #Verify ON$. However it
takes more than double duration
compared to #Verify OFF$.
P a g e 14 of 14
