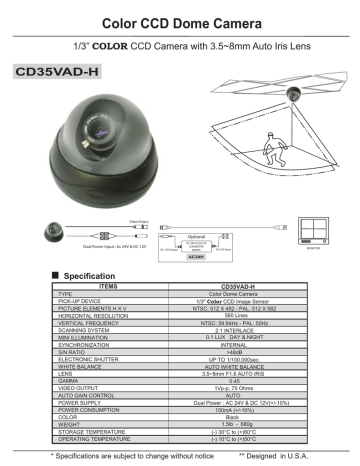

Color CCD Dome Camera CD35VAD-H  Specification
Color CCD Dome Camera
1/3” COLOR CCD Camera with 3.5~8mm Auto Iris Lens
CD35VAD-H
Video Output
Optional
Dual Power Input : Ac 24V & DC 12V
DC 12V Output
AC 24V to DC12V
CONVERTER
800MA
MONITOR
AC 24V Input
AC24H
Specification
ITEMS
TYPE
PICK-UP DEVICE
PICTURE ELEMENTS H X V
HORIZONTAL RESOLUTION
VERTICAL FREQUENCY
SCANNING SYSTEM
MINI ILLUMINATION
SYNCHRONIZATION
S/N RATIO
ELECTRONIC SHUTTER
WHITE BALANCE
LENS
GAMMA
VIDEO OUTPUT
AUTO GAIN CONTROL
POWER SUPPLY
POWER CONSUMPTION
COLOR
WEIGHT
STORAGE TEMPERATURE
OPERATING TEMPERATURE
CD35VAD-H
Color Dome Camera
1/3" Color CCD Image Sensor
NTSC: 512 X 492 - PAL: 512 X 582
560 Lines
NTSC: 59.94Hz - PAL: 50Hz
2:1 INTERLACE
0.1 LUX DAY & NIGHT
INTERNAL
>48dB
UP TO 1/100.000sec.
AUTO WHITE BALANCE
3.5~8mm F1.6 AUTO IRIS
0.45
1Vp-p, 75 Ohms
AUTO
Dual Power : AC 24V & DC 12V(+/-10%)
150mA (+/-10%)
Black
1.5lb - 680g
(-) 30°C to (+)60°C
(-) 10°C to (+)50°C
* Specifications are subject to change without notice
** Designed in U.S.A.
